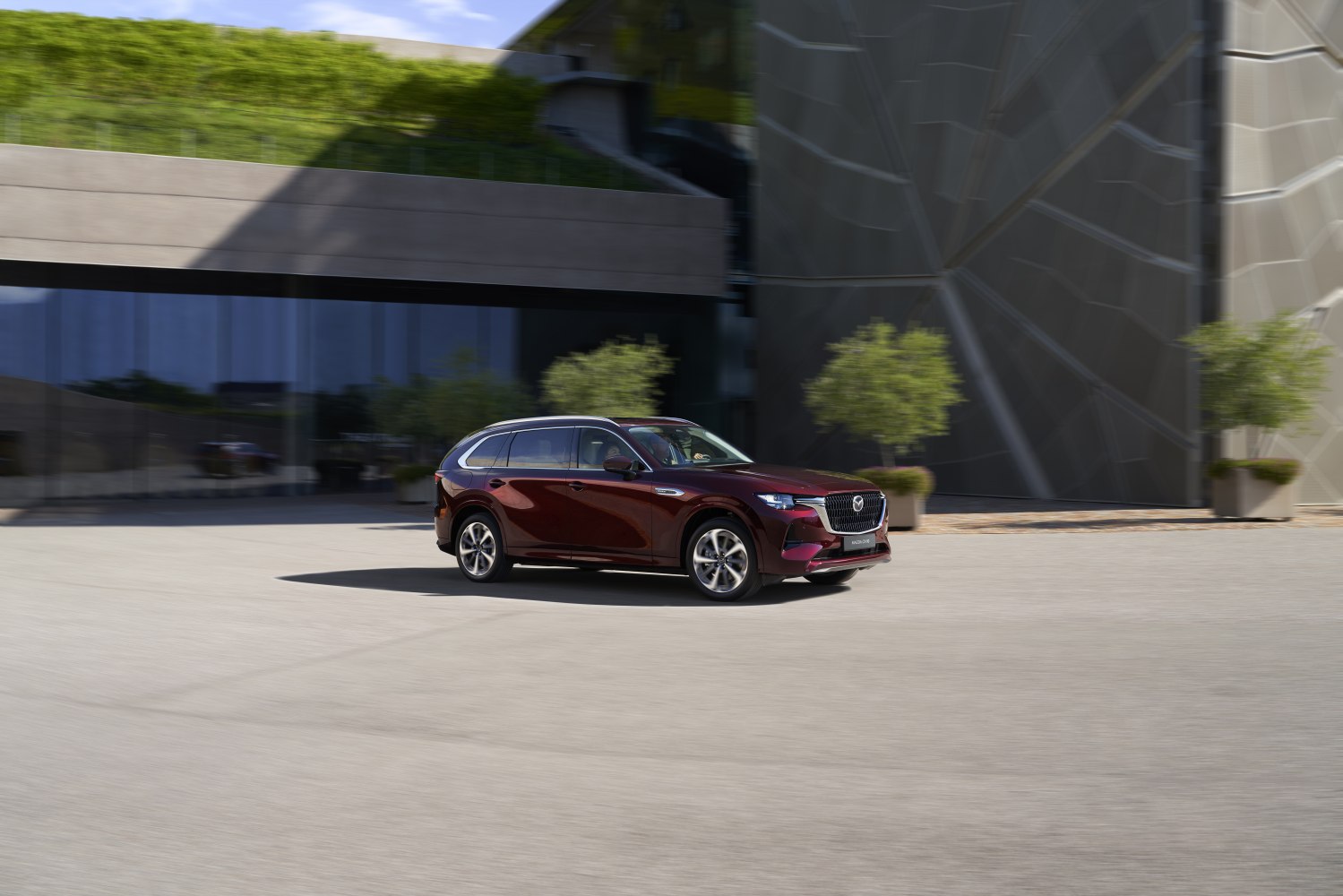

Mazda CX-80 2024 3.3 e-Skyactiv D (254 Hp) Mild Hybrid i-ACTIV AWD Automatic

Mazda CX-80 2024 3.3 e-Skyactiv D (254 Hp) Mild Hybrid i-ACTIV AWD Automatic
Brand : Mazda
Model : CX-80
Generation : CX-80
Body Type : SUV
Fuel Type : Diesel
Engine Type : Hybrid
Battery Capacity : 0.33 KW
Doors : 5
Start Year : 2024

Technical Sheet Mazda CX-80 2024

Acceleration 0 - 100 Km/h
: 8.4 sec
Acceleration 0 - 62 Mph
: 8.4 sec
Battery Voltage
: 44.4 V
Body Type
: SUV
Doors
: 5
Drive Wheel
: All wheel drive (4x4)
Engine Aspiration
: Turbocharger, Intercooler
Engine Systems
: Start & Stop SystemParticulate filter
Fuel Type
: Diesel
Fuel Tank Capacity
: 74 l
Generation
: CX-80
Gross Battery Capacity
: 0.33 kWh
Kerb Weight
: 2056-2136 kg
Maximum Speed
: 219 km/h, Electronically limited
Modification (Engine)
: 3.3 e-Skyactiv D (254 Hp) Mild Hybrid i-ACTIV AWD Automatic
Number Of Cylinders
: 6
Power
: 254 Hp @ 3750 rpm.
Power Steering
: Electric Steering
Powertrain Architecture
: MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
: 6-7
Start Of Production
: 2024
Wheel Rims Size
: 7.5J x 20

General Mazda CX-80 2024

General
Body type SUV
Brand Mazda
Doors 5
Generation CX-80
Model CX-80
Modification (Engine) 3.3 e-Skyactiv D (254 Hp) Mild Hybrid i-ACTIV AWD Automatic
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats 6-7
Start of production 2024

Performance Mazda CX-80 2024

Performance
Acceleration 0 - 100 km/h 8.4 sec
Acceleration 0 - 60 mph 8 sec
Acceleration 0 - 62 mph 8.4 sec
CO2 emissions (WLTP) 148-151 g/km
Combined fuel consumption (WLTP) 5.7-5.8 l/100 km
Emission standard Euro 6e
Fuel Type Diesel
Maximum speed 219 km/h, Electronically limited

Electric Mazda CX-80 2024

Electric
Gross battery capacity 0.33 kWh
Battery voltage 44.4 V
Battery weight 15 kg
Electric motor power number 1 17 Hp @ 900 rpm.
Electric motor Torque number 1 153 Nm @ 200 rpm.
Electric motor location number 1 Between the combustion engine and the transmission

Internal Engine Mazda CX-80 2024

Internal Engine
Compression ratio 15.2
Cylinder Bore 86 mm
Engine aspiration Turbocharger, Intercooler
Engine configuration Inline
Engine displacement 3283 cm
Engine layout Front, Longitudinal
Engine systems Start & Stop SystemParticulate filter
Fuel injection system Diesel Commonrail
Number of cylinders 6
Number of valves per cylinder 4
Piston Stroke 94.2 mm
Power 254 Hp @ 3750 rpm.
Power per litre 77.4 Hp/l
Torque 550 Nm @ 1500-2400 rpm.
Valvetrain DOHC

Dimensions Mazda CX-80 2024

Dimensions
Approach angle 18.1°
Departure angle 19.7°
Front overhang 850 mm
Front track 1640 mm
Height 1710 mm
Length 4995 mm
Minimum turning circle (turning diameter) 11.6 m
Ramp-over (brakeover) angle 14°
Rear (Back) track 1645 mm
Rear overhang 1020 mm
Ride height (ground clearance) 165-170 mm
Wheelbase 3120 mm
Width 1890 mm

Drivetrain Mazda CX-80 2024

Drivetrain
Drive wheel All wheel drive (4x4)
Front brakes Ventilated discs, 347 mm
Front suspension Double wishbone
Number of gears and type of gearbox 8 gears, automatic transmission
Power steering Electric Steering
Rear brakes Ventilated discs, 328 mm
Rear suspension Independent multi-link spring suspension with stabilizer
Steering type Steering rack and pinion
Tires size 235/50 R20
Wheel rims size 7.5J x 20

Space Mazda CX-80 2024

Space
Fuel tank capacity 74 l
Kerb Weight 2056-2136 kg
Max load 645-725 kg
Max. roof load 100 kg
Max. weight 2781 kg
