Ford Transit Connect 3 Panel Van L1 2024
2.0 EcoBlue (122 Hp) DSG
Generation Transit Connect 3 Panel Van L1
Body Type Minivan
Seats 2
184 km/h
Maximum Speed
4
Doors
Ford Transit Connect 3 Panel Van L1 2024 Key Specs
Acceleration 0 - 100 Km/h
11.4 sec
Acceleration 0 - 62 Mph
11.4 sec
Body Type
Minivan
Doors
4-5
Drive Wheel
Front wheel drive
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
5.5 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
50 l
Generation
Transit Connect III Panel Van L1
Kerb Weight
1513-1530 kg
Maximum Speed
184 km/h
Modification (Engine)
2.0 EcoBlue (122 Hp) DSG
Number Of Cylinders
4
Power
122 Hp
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
2
Start Of Production
2024
Wheel Rims Size
6.5J x 17; 7J x 17

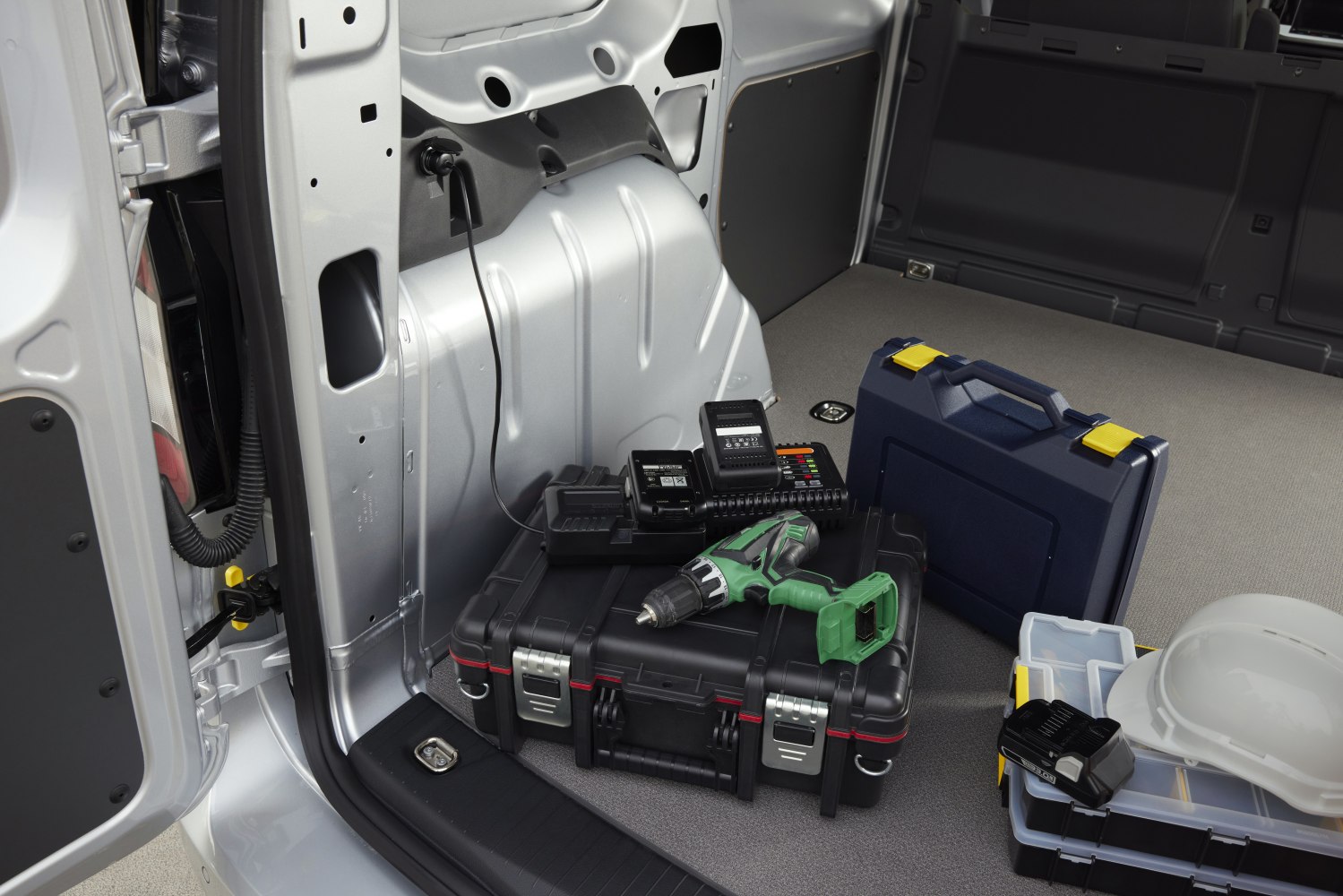

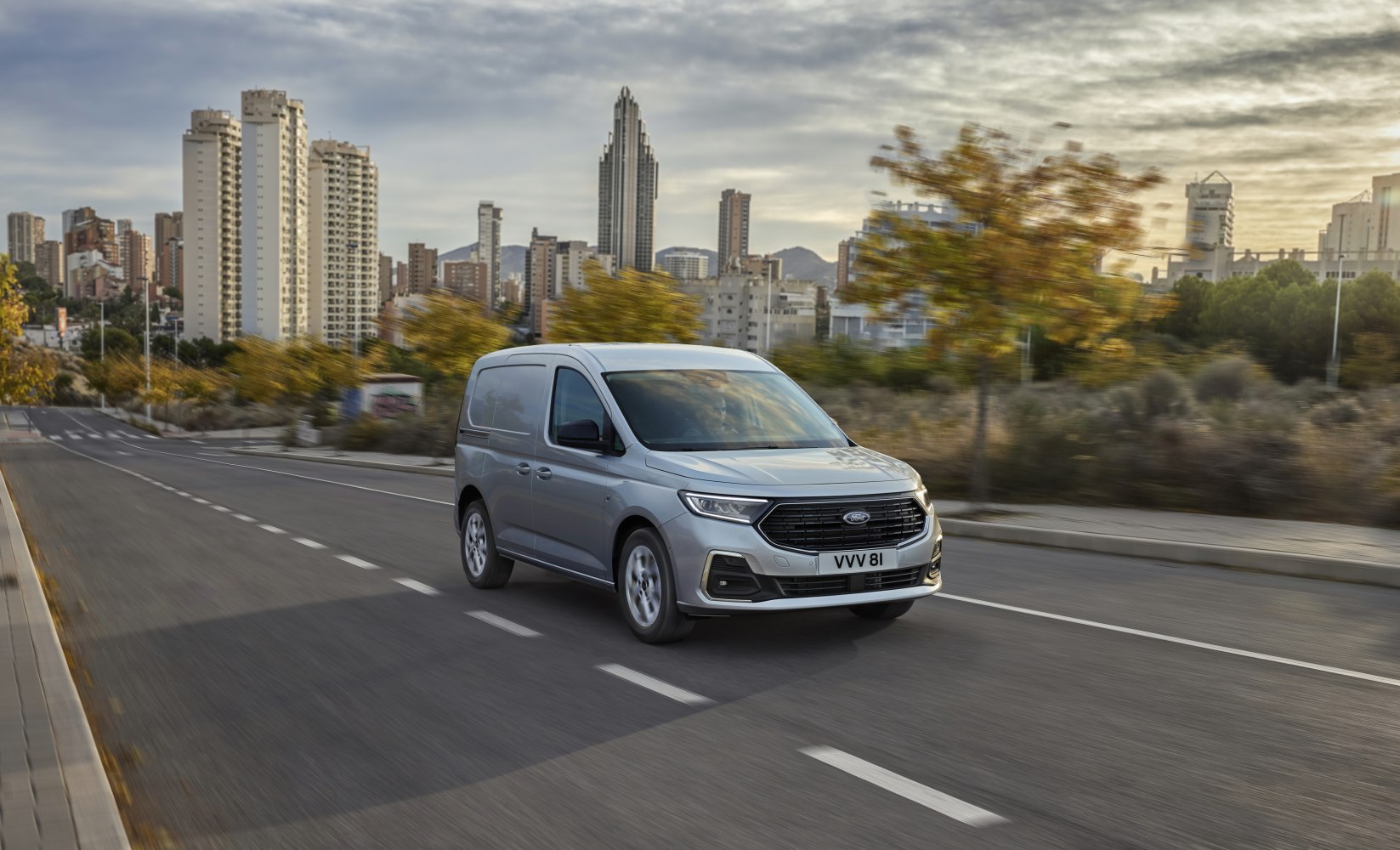

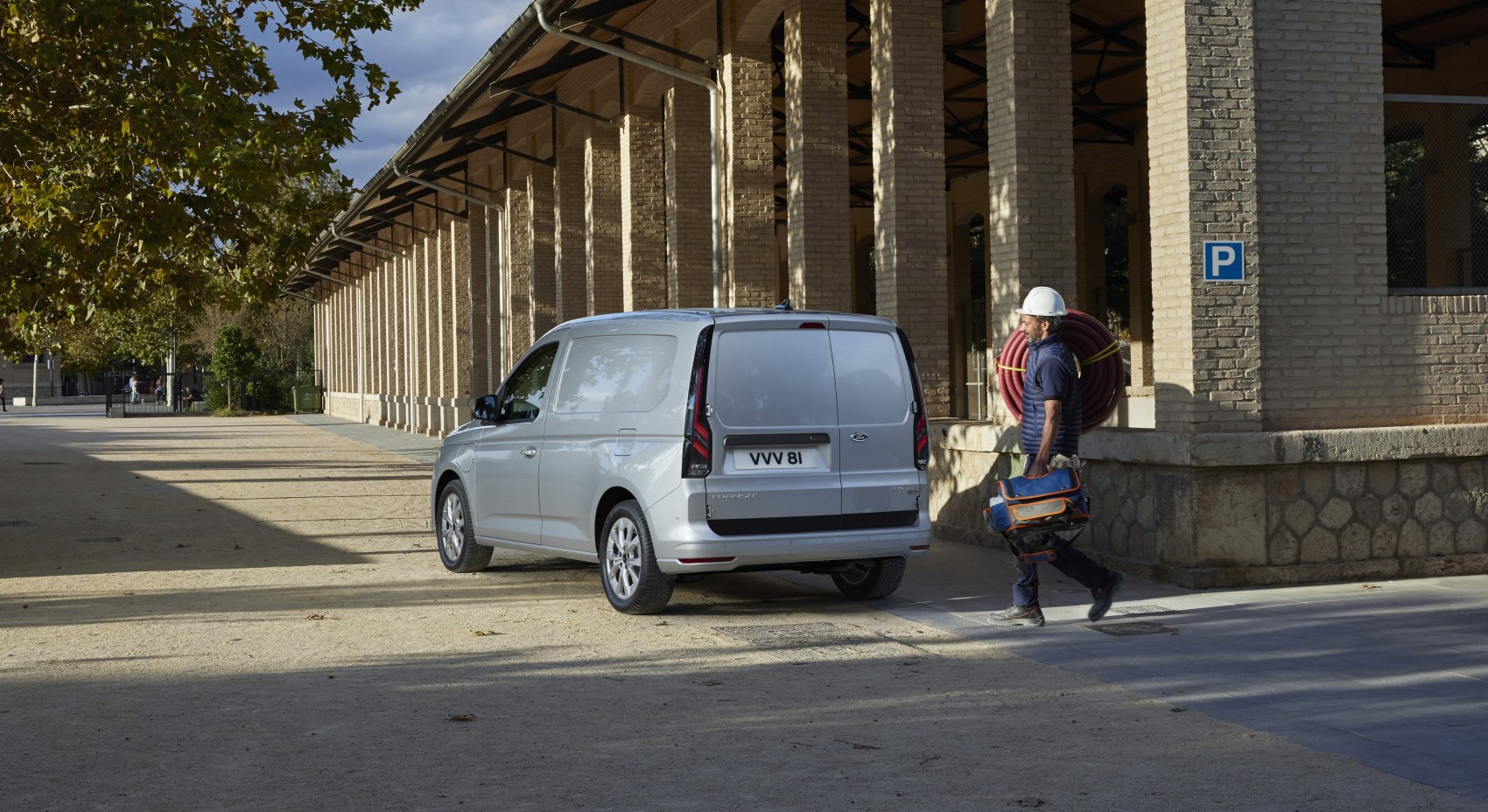

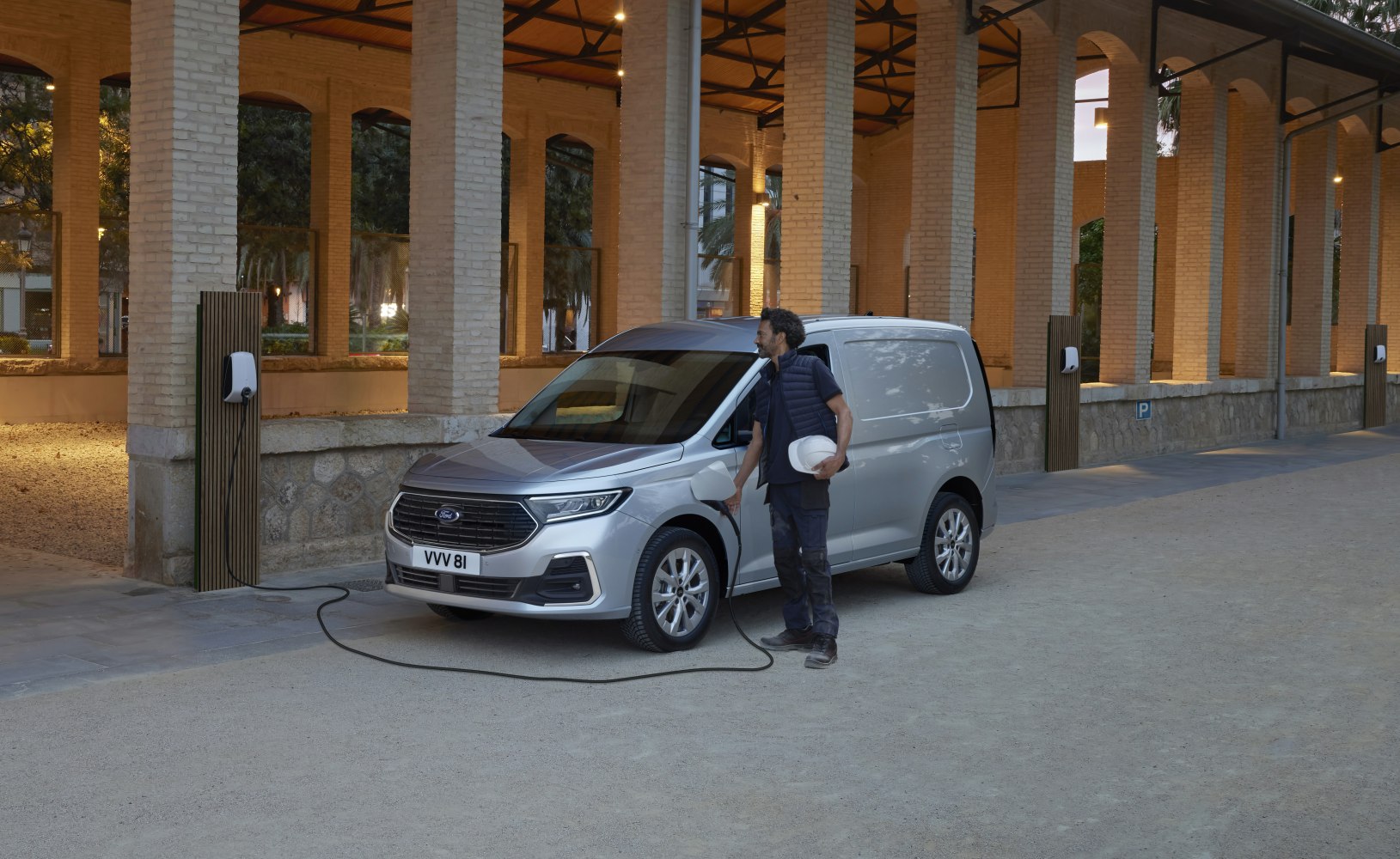

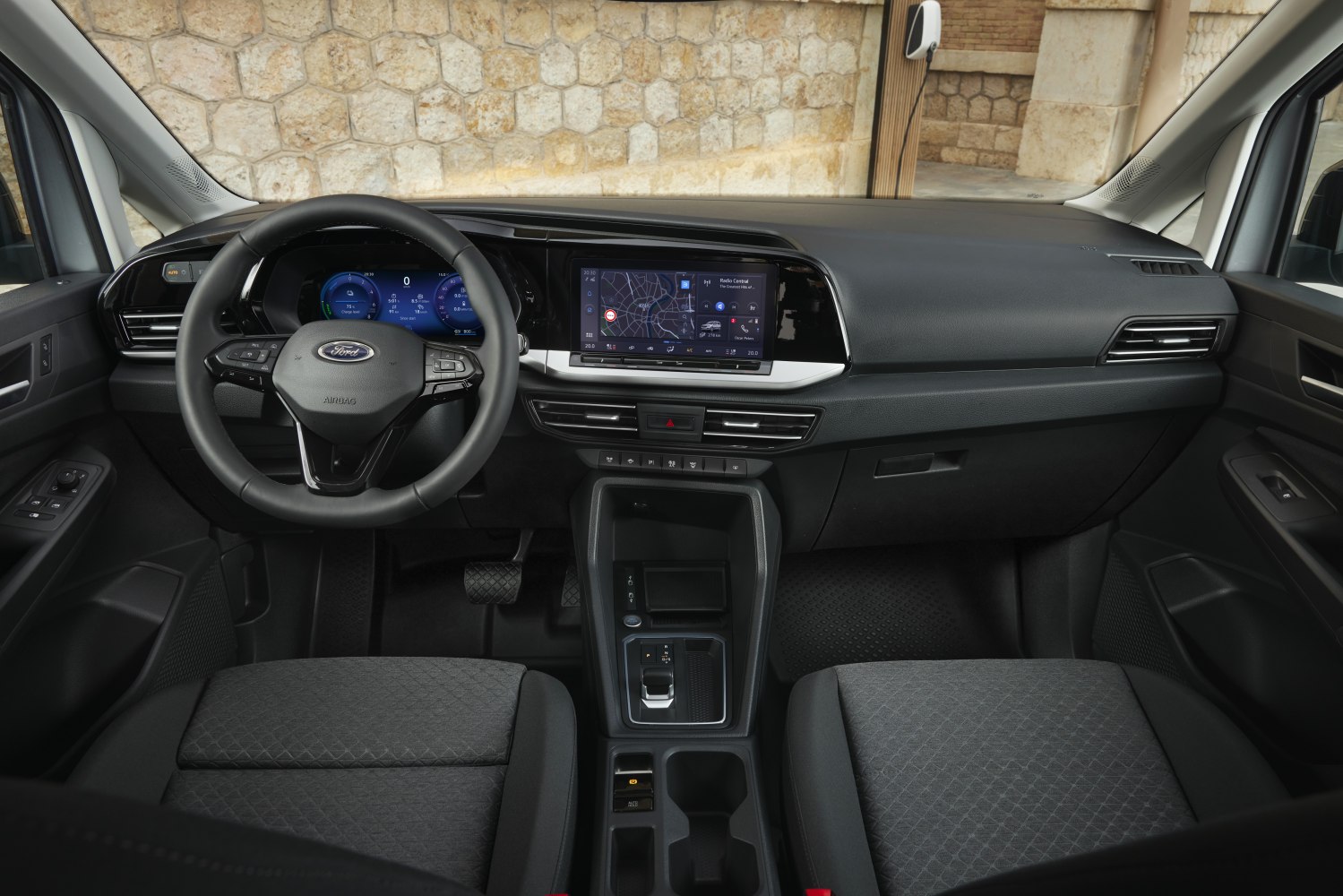

Ford Transit Connect 3 Panel Van L1 2024 Gallery
Ford Transit Connect 3 Panel Van L1 2024 Pros and Cons
Pros
- Excellent fuel efficiency for a diesel engine
- Spacious cargo area with up to 3100 liters of storage
- Compact size ideal for city driving
- Reliable 122 HP engine with 320 Nm torque
- Advanced safety features like ABS and electric steering
- Versatile towing capacity for a compact van
Cons
- Limited seating capacity with only 2 seats
- Higher CO2 emissions compared to electric alternatives
- Small fuel tank capacity of 50 liters
- Acceleration from 0-100 km/h takes 11.4 seconds
Ford Transit Connect 3 Panel Van L1 2024 FAQs
What is the fuel efficiency of this vehicle?
This model offers a combined fuel consumption of 5.6 l/100 km, making it an efficient choice for urban and long-distance driving.
How much cargo space does it provide?
The minivan boasts a maximum trunk space of 3100 liters, ideal for transporting goods or equipment.
What type of engine does it have?
It is equipped with a 2.0 EcoBlue diesel engine, delivering 122 HP and 320 Nm of torque for reliable performance.
Is this vehicle suitable for city driving?
Yes, its compact dimensions and efficient fuel consumption make it well-suited for navigating urban environments.
What safety features are included?
This automobile comes with ABS, electric power steering, and a start-stop system for enhanced safety and efficiency.
Can it tow a trailer?
Yes, it can tow up to 1500 kg with brakes and 750 kg without brakes, making it versatile for various hauling needs.
What is the maximum speed of this van?
The vehicle has a top speed of 184 km/h, ensuring smooth and efficient highway driving.
How many seats does it have?
This model is designed with 2 seats, prioritizing cargo space over passenger capacity.
Ford Transit Connect 3 Panel Van L1 2024 Technical Specifications
General
Body type
Minivan
Brand
Ford
Doors
4-5
Generation
Transit Connect III Panel Van L1
Model
Transit Connect
Modification (Engine)
2.0 EcoBlue (122 Hp) DSG
Powertrain Architecture
Internal Combustion engine
Seats
2
Start of production
2024
Performance
Acceleration 0 - 100 km/h
11.4 sec
Acceleration 0 - 60 mph
10.8 sec
Acceleration 0 - 62 mph
11.4 sec
CO2 emissions (WLTP)
147 g/km
Combined fuel consumption (WLTP)
5.6 l/100 km
Emission standard
Euro 6e
Fuel Type
Diesel
Maximum speed
184 km/h
Dimensions
Approach angle
14°
Departure angle
19.3°
Front overhang
890 mm
Front track
1565-1572 mm
Height
1856 mm
Length
4500 mm
Minimum turning circle (turning diameter)
11.4 m
Rear (Back) track
1603-1606 mm
Rear overhang
855 mm
Ride height (ground clearance)
160 mm
Wheelbase
2755 mm
Width
1855 mm
Engine
Cylinder Bore
81 mm
Engine Model/Code
EA288 evo
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1968 cm
Engine layout
Front, Transverse
Engine oil capacity
5.5 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
4
Power
122 Hp
Torque
320 Nm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
7 gears, automatic transmission DSG
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Rigid axle suspension, Trailing arm, Coil spring
Steering type
Steering rack and pinion
Tires size
215/55 R17
Wheel rims size
6.5J x 17; 7J x 17
Space
AdBlue tank
15 l
Fuel tank capacity
50 l
Kerb Weight
1513-1530 kg
Max load
720-737 kg
Max. weight
2250 kg
Permitted towbar download
75 kg
