Volkswagen Caravelle T4 1996
2.5 TDI (102 Hp)
Generation Caravelle T4 1996
Body Type Van
Seats 6
2003
End Year
157 km/h
Maximum Speed
4
Doors
Volkswagen Caravelle T4 1996 Key Specs
Body Type
Van
Doors
4-5
Drive Wheel
Front wheel drive
End Of Production
2003
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
5.5 l
Fuel Type
Diesel
Fuel Tank Capacity
80 l
Generation
Caravelle (T4, 1996)
Kerb Weight
1730 kg
Maximum Speed
157 km/h
Modification (Engine)
2.5 TDI (102 Hp)
Number Of Cylinders
5
Power
102 Hp @ 3500 rpm.
Power Steering
Hydraulic Steering
Powertrain Architecture
Internal Combustion engine
Seats
6-9
Start Of Production
1996

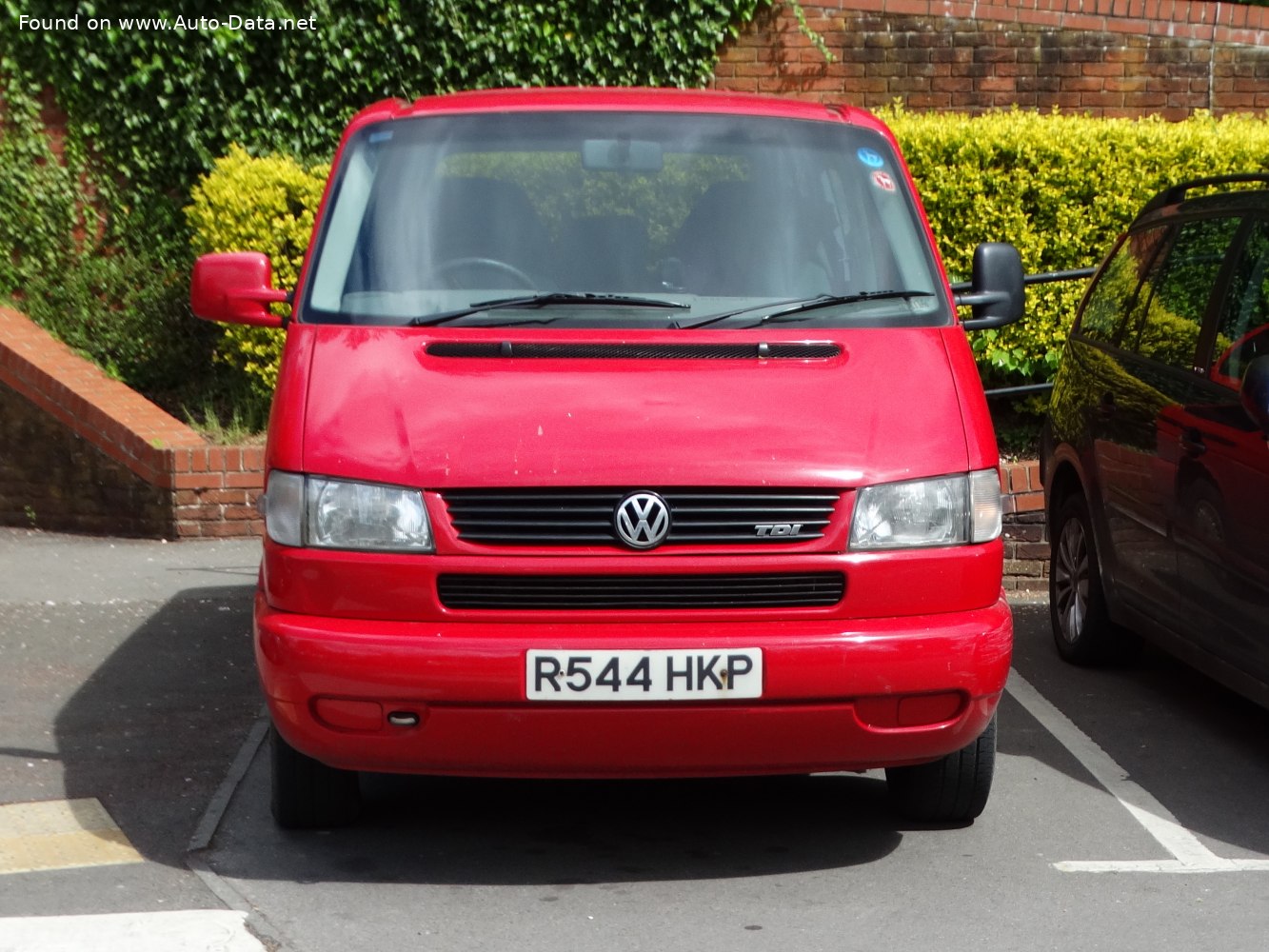

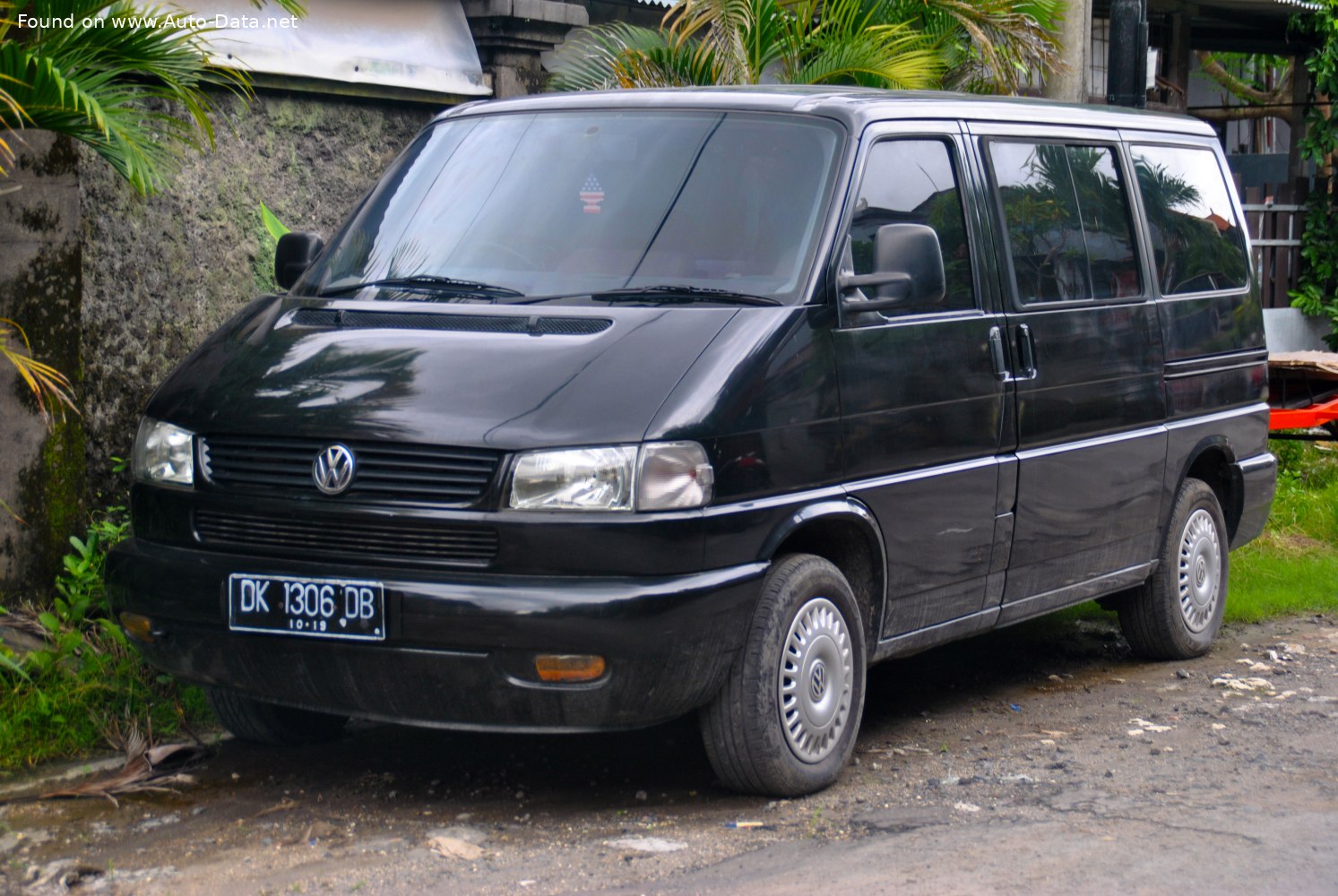

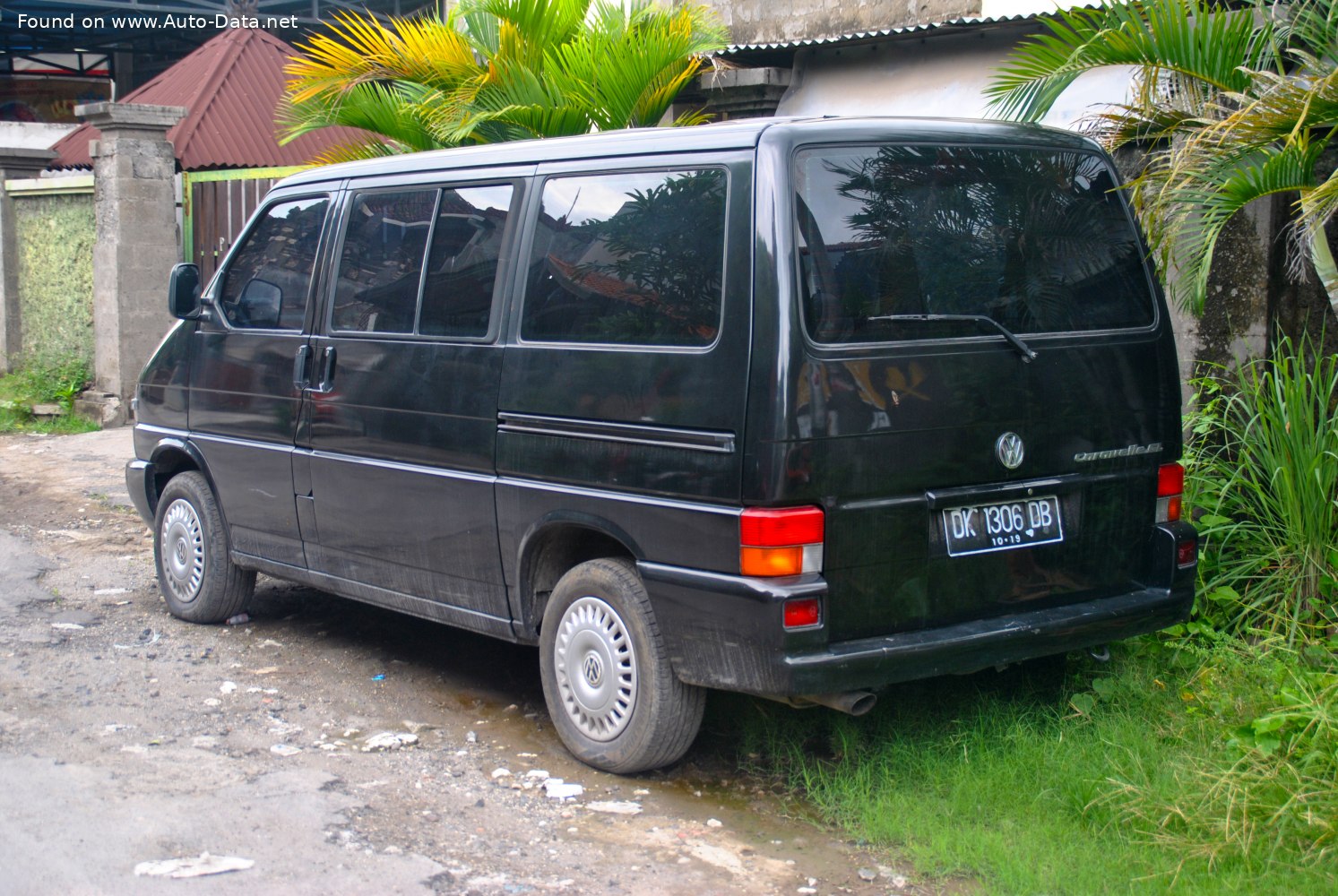

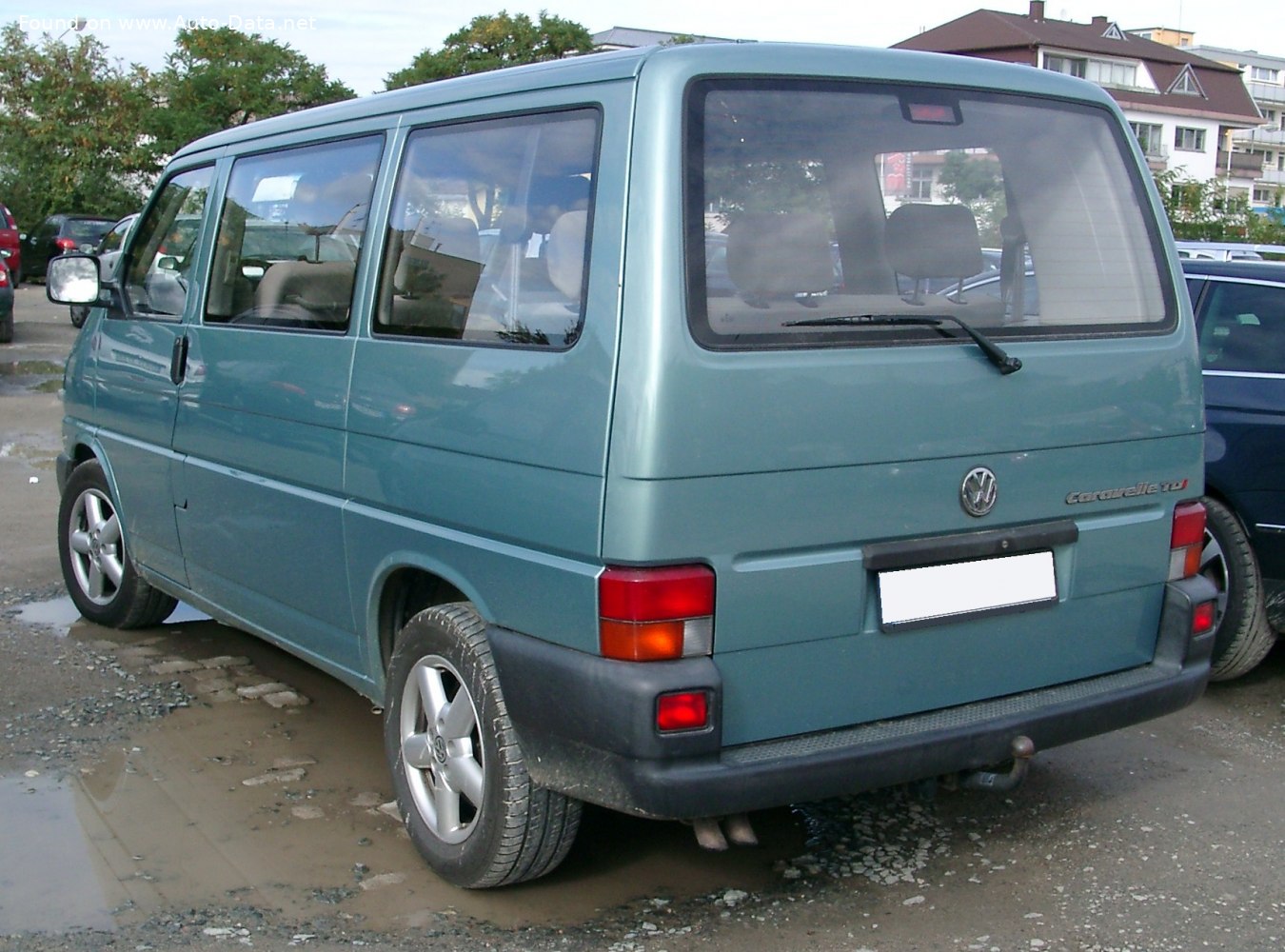

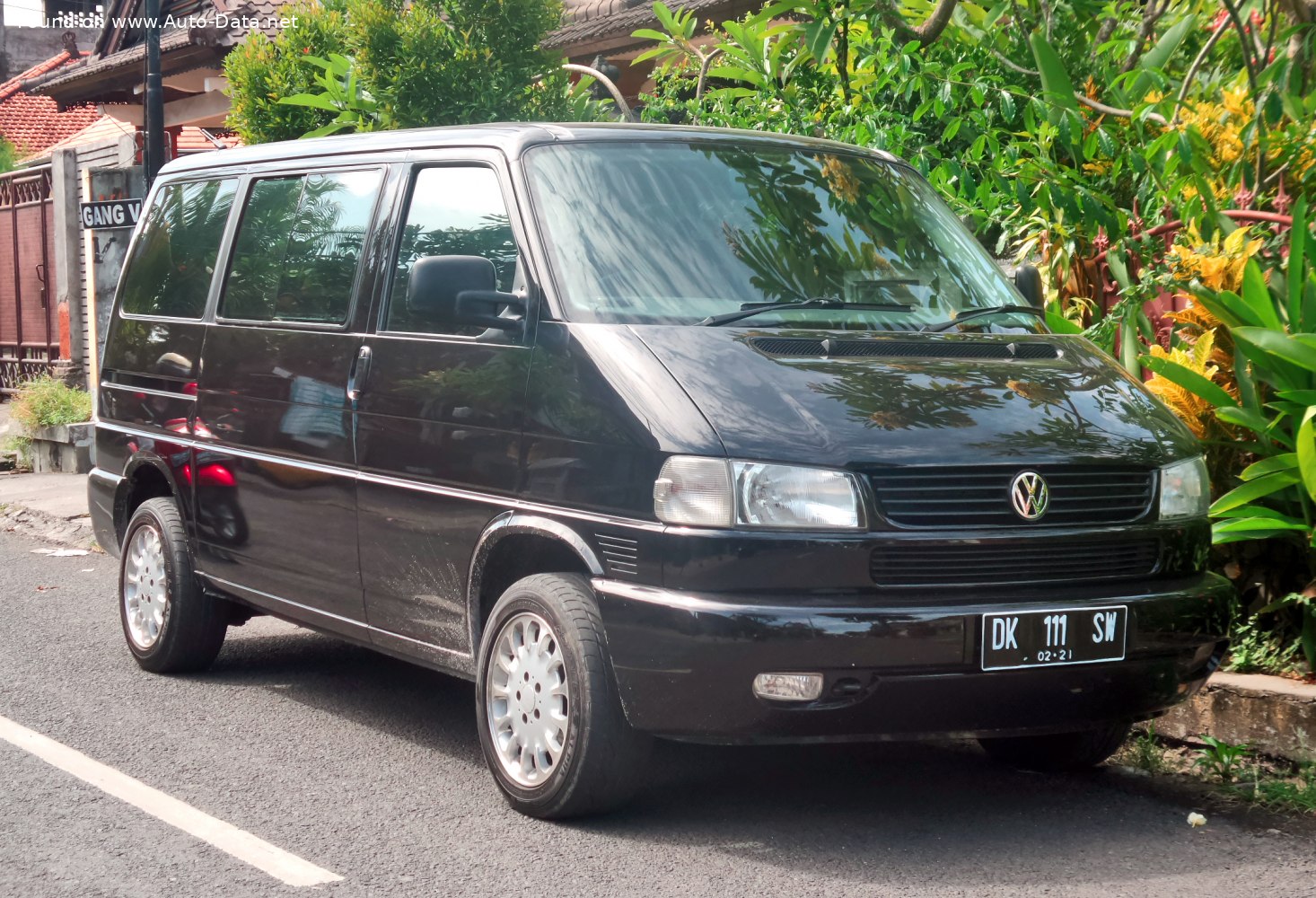

Volkswagen Caravelle T4 1996 Gallery
Volkswagen Caravelle T4 1996 Technical Specifications
General
Body type
Van
Brand
Volkswagen
Doors
4-5
End of production
2003
Generation
Caravelle (T4, 1996)
Model
Caravelle
Modification (Engine)
2.5 TDI (102 Hp)
Powertrain Architecture
Internal Combustion engine
Seats
6-9
Start of production
1996
Performance
CO2 emissions (NEDC)
213 g/km
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC)
7.9 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
6.8 l/100 km
Fuel consumption (economy) - urban (NEDC)
9.9 l/100 km
Maximum speed
157 km/h
Dimensions
Front overhang
968 mm
Front track
1589 mm
Height
1940 mm
Length
4789 mm
Minimum turning circle (turning diameter)
11.7 m
Rear (Back) track
1554 mm
Rear overhang
901 mm
Ride height (ground clearance)
180 mm
Wading depth
350 mm
Wheelbase
2920 mm
Width
1840 mm
Engine
Compression ratio
19.5
Coolant
9 l
Cylinder Bore
81 mm
Engine Model/Code
ACV
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
2459 cm
Engine layout
Front, Transverse
Engine oil capacity
5.5 l
Engine oil specification
Log in to see.
Fuel injection system
Direct injection
Number of cylinders
5
Number of valves per cylinder
2
Power
102 Hp @ 3500 rpm.
Torque
250 Nm @ 1900-2300 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Disc
Front suspension
Independent torsion bar, double wishbone, Transverse stabilizer
Number of gears and type of gearbox
5 gears, manual transmission
Power steering
Hydraulic Steering
Rear brakes
Disc
Rear suspension
Independent coil spring, Trailing arm
Steering type
Steering rack and pinion
Tires size
205/65 R15
Wheel rims size
6J x 15
Space
Fuel tank capacity
80 l
Kerb Weight
1730 kg
Max load
950-1070 kg
Max. roof load
100 kg
Max. weight
2680-2800 kg
Permitted towbar download
100 kg
