Volkswagen Passat Variant B9 2023
1.5 eTSI (150 Hp) Mild Hybrid DSG
Hybrid Car
Body Type Station wagon (estate)
Seats 5
222 km/h
Maximum Speed
5
Doors
Volkswagen Passat Variant B9 2023 Key Specs
Acceleration 0 - 100 Km/h
9.2 sec
Acceleration 0 - 62 Mph
9.2 sec
Body Type
Station wagon (estate)
Doors
5
Drive Wheel
Front wheel drive
Engine Aspiration
Turbocharger, Intercooler
Engine Systems
Start & Stop SystemCylinder deactivation systemParticulate filter
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
66 l
Generation
Passat Variant (B9)
Kerb Weight
1572 kg
Maximum Speed
222 km/h
Modification (Engine)
1.5 eTSI (150 Hp) Mild Hybrid DSG
Number Of Cylinders
4
Power
150 Hp
Power Steering
Electric Steering
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start Of Production
2023

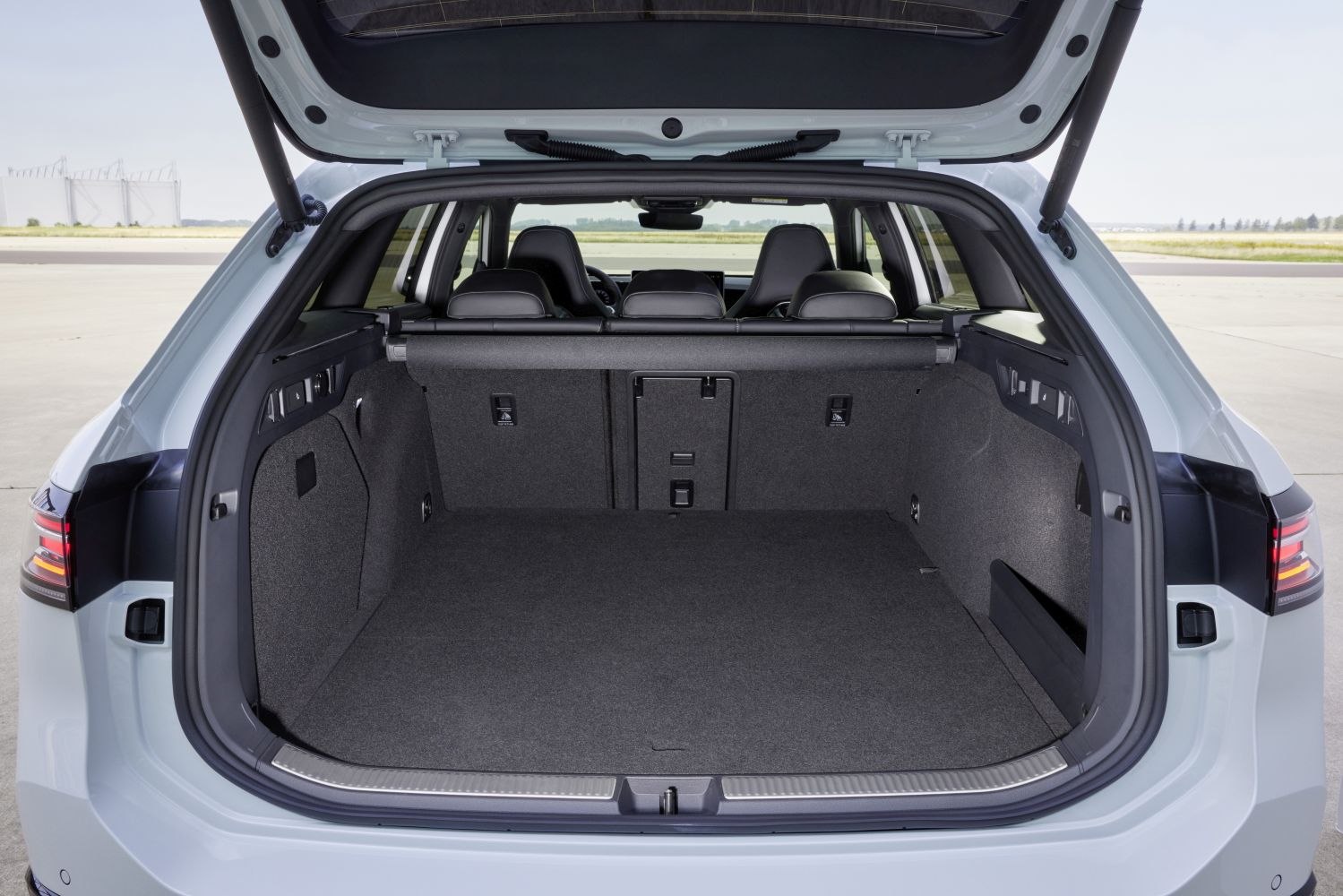

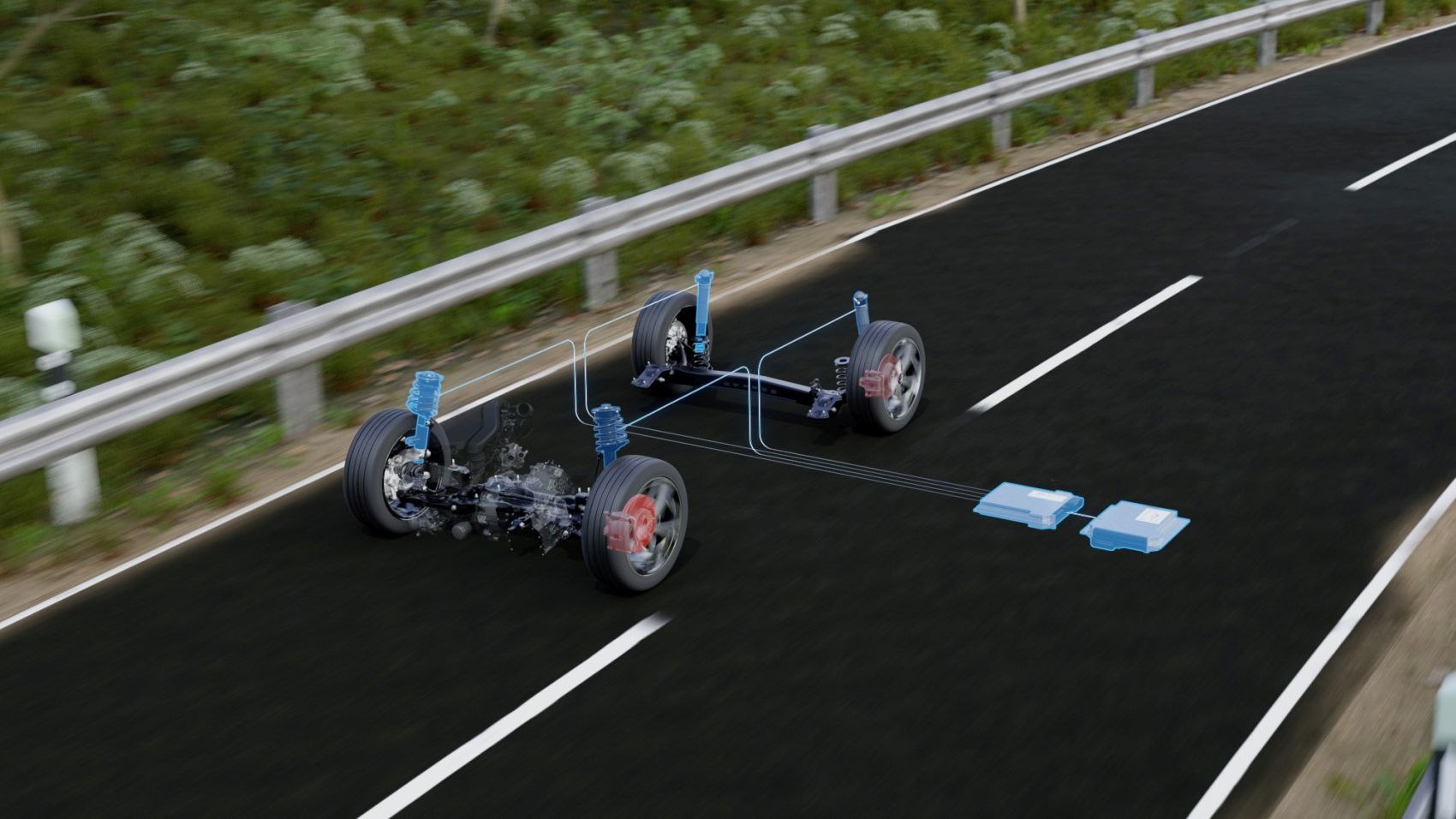

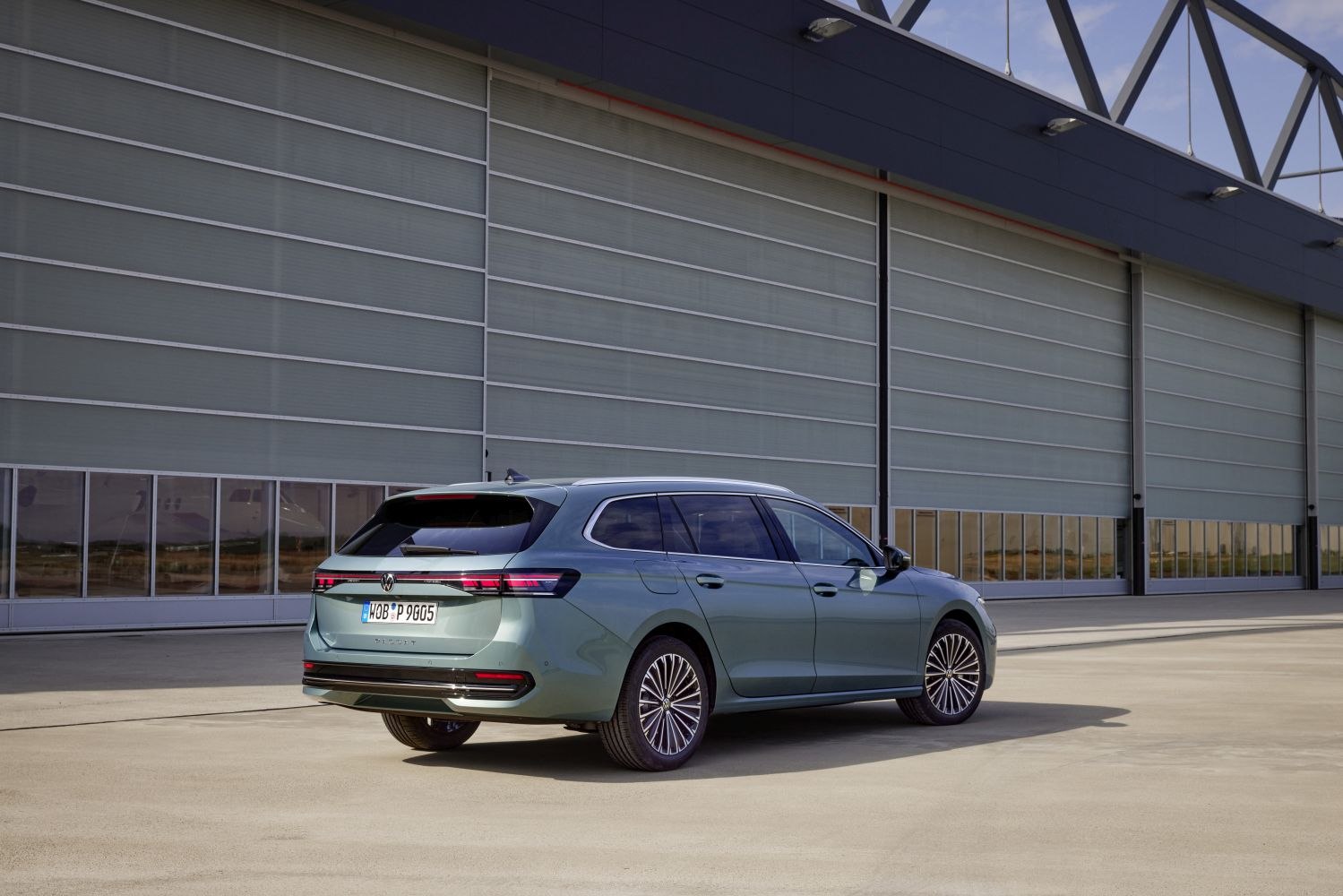

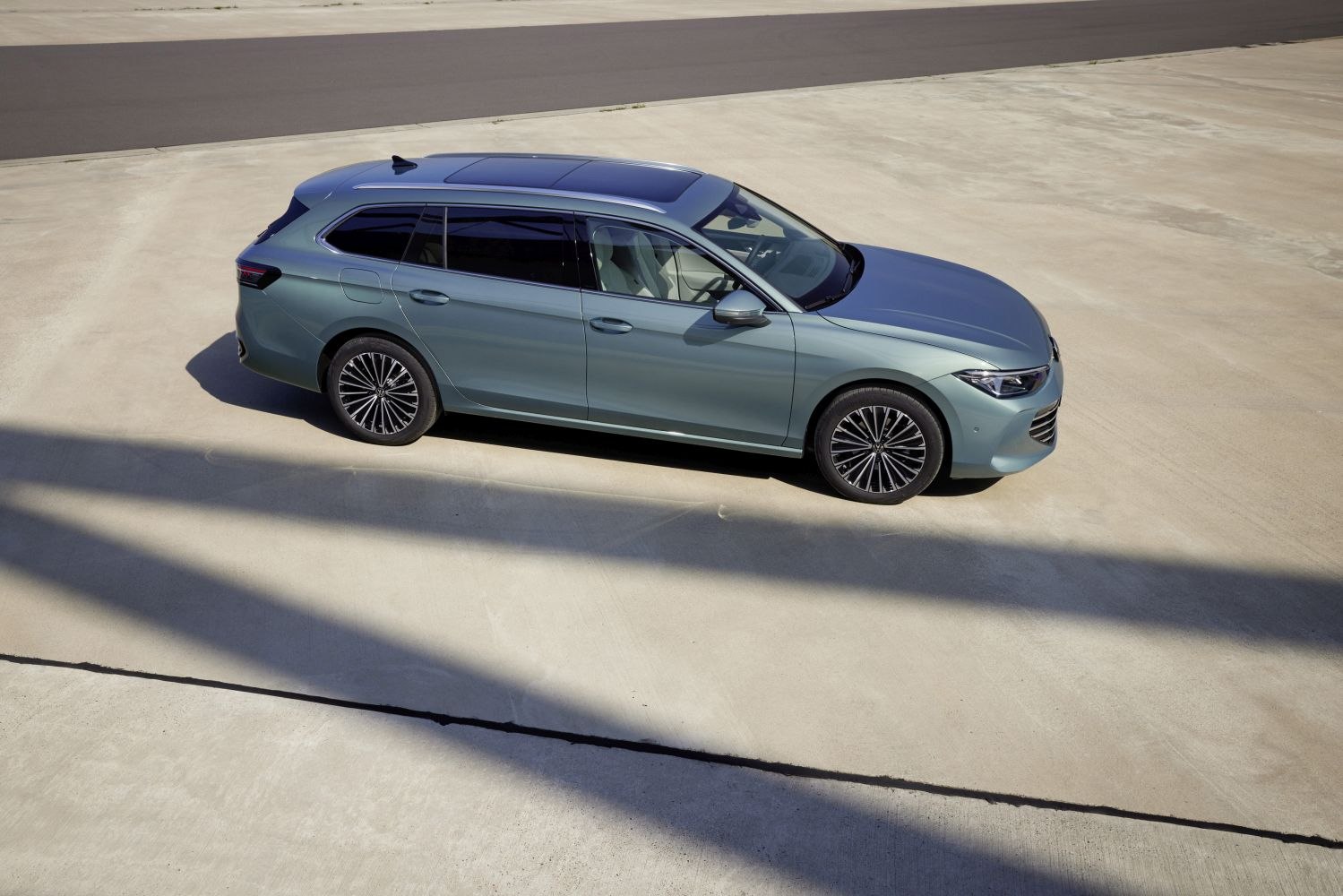

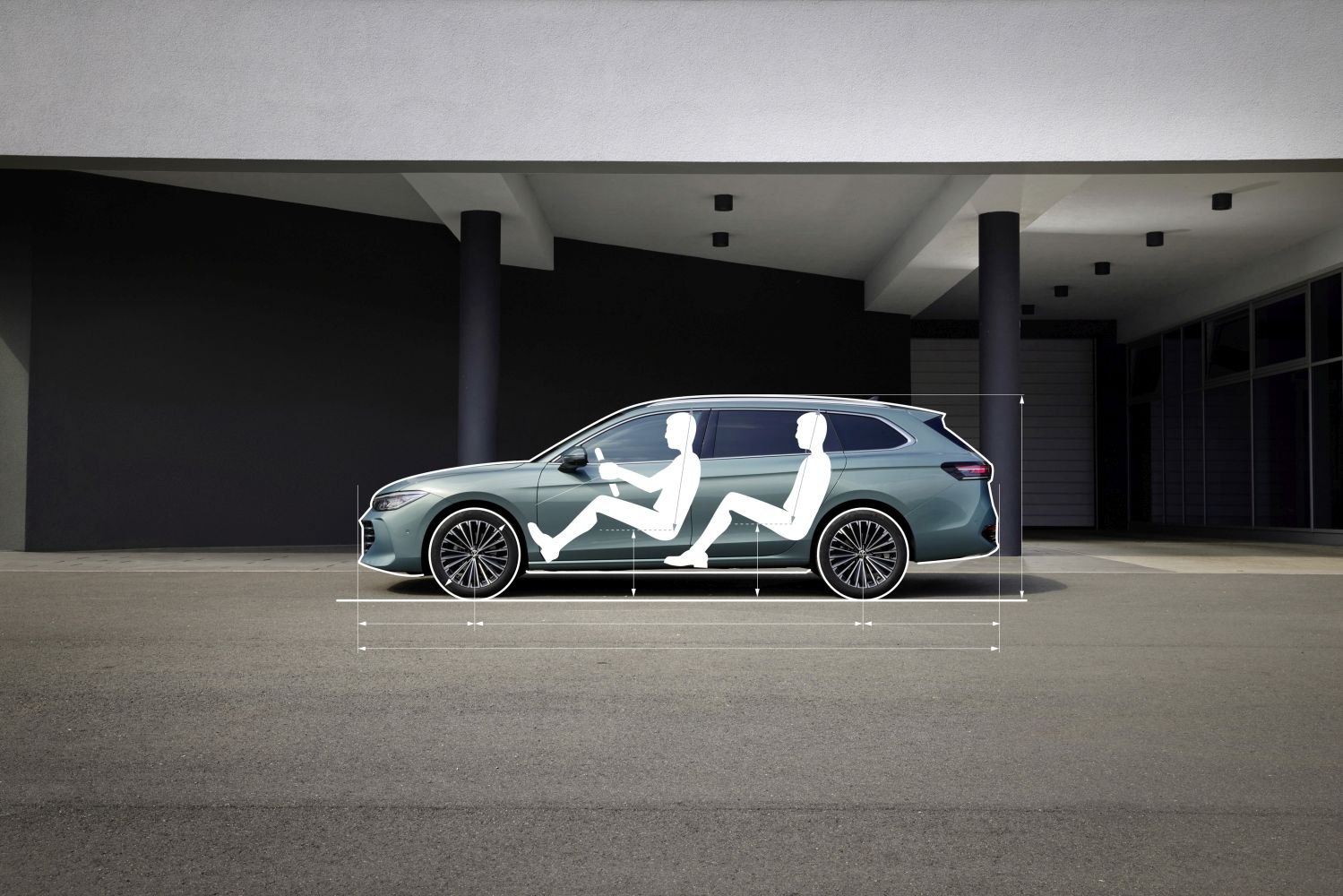

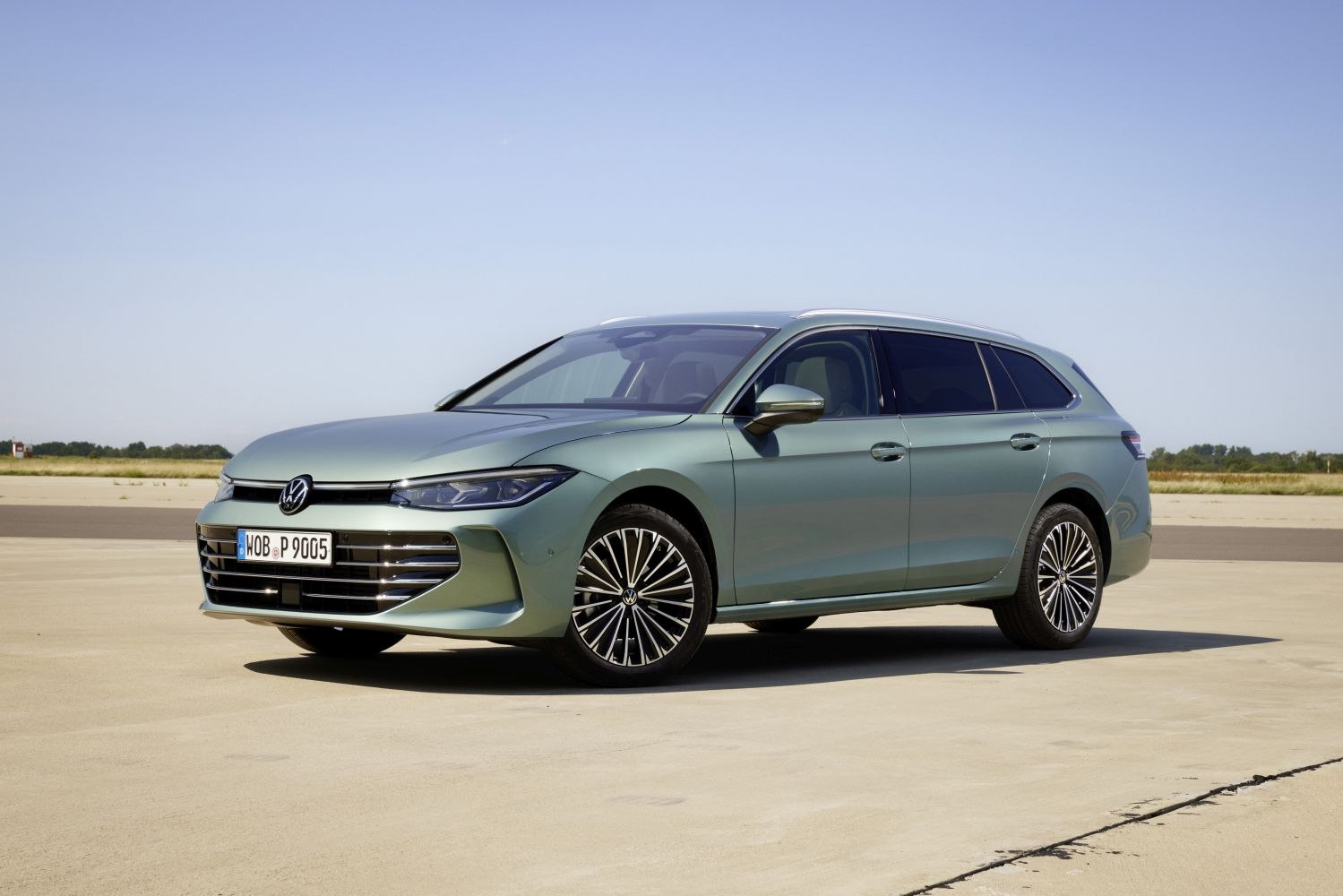

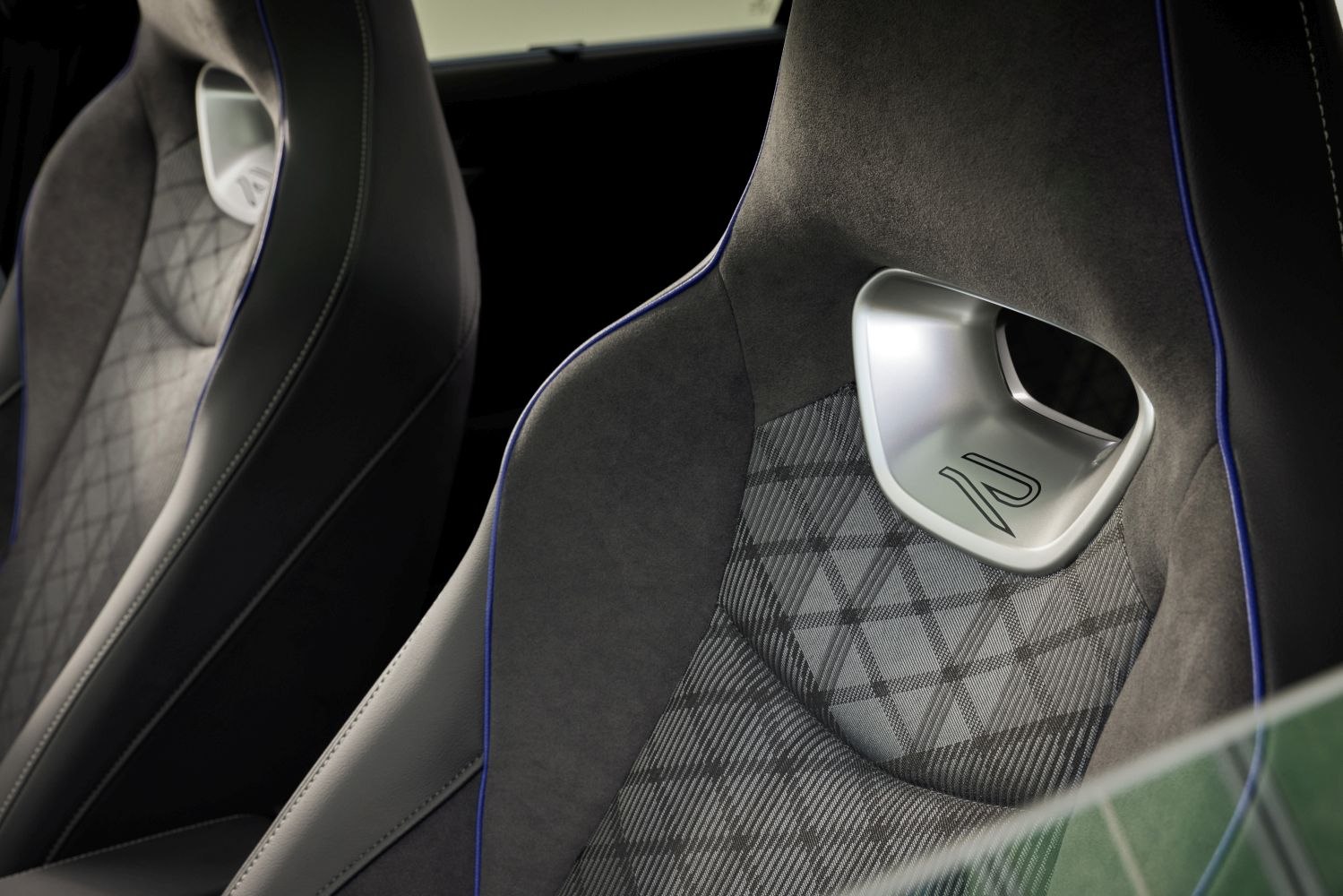

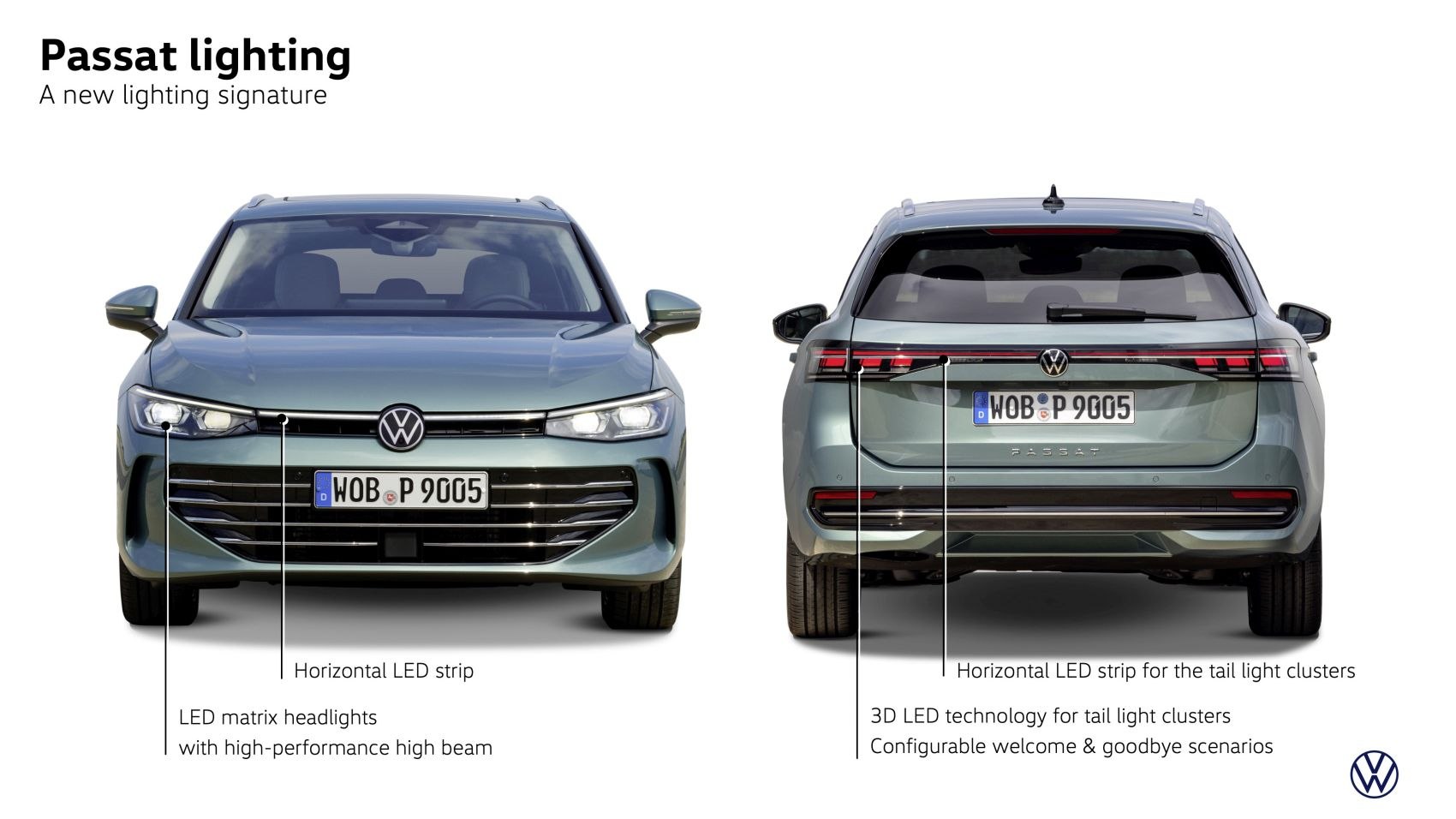

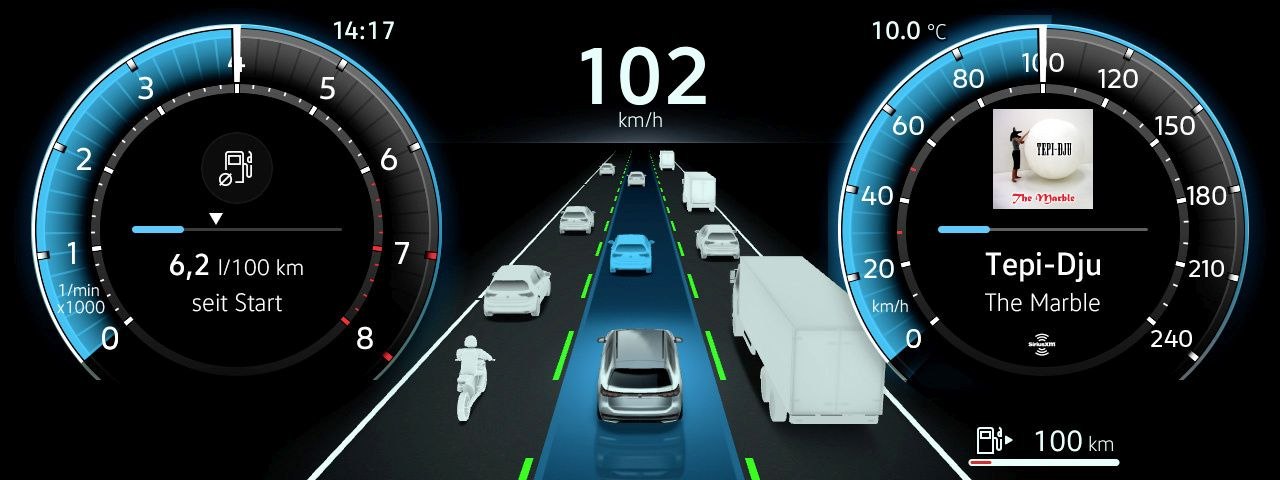

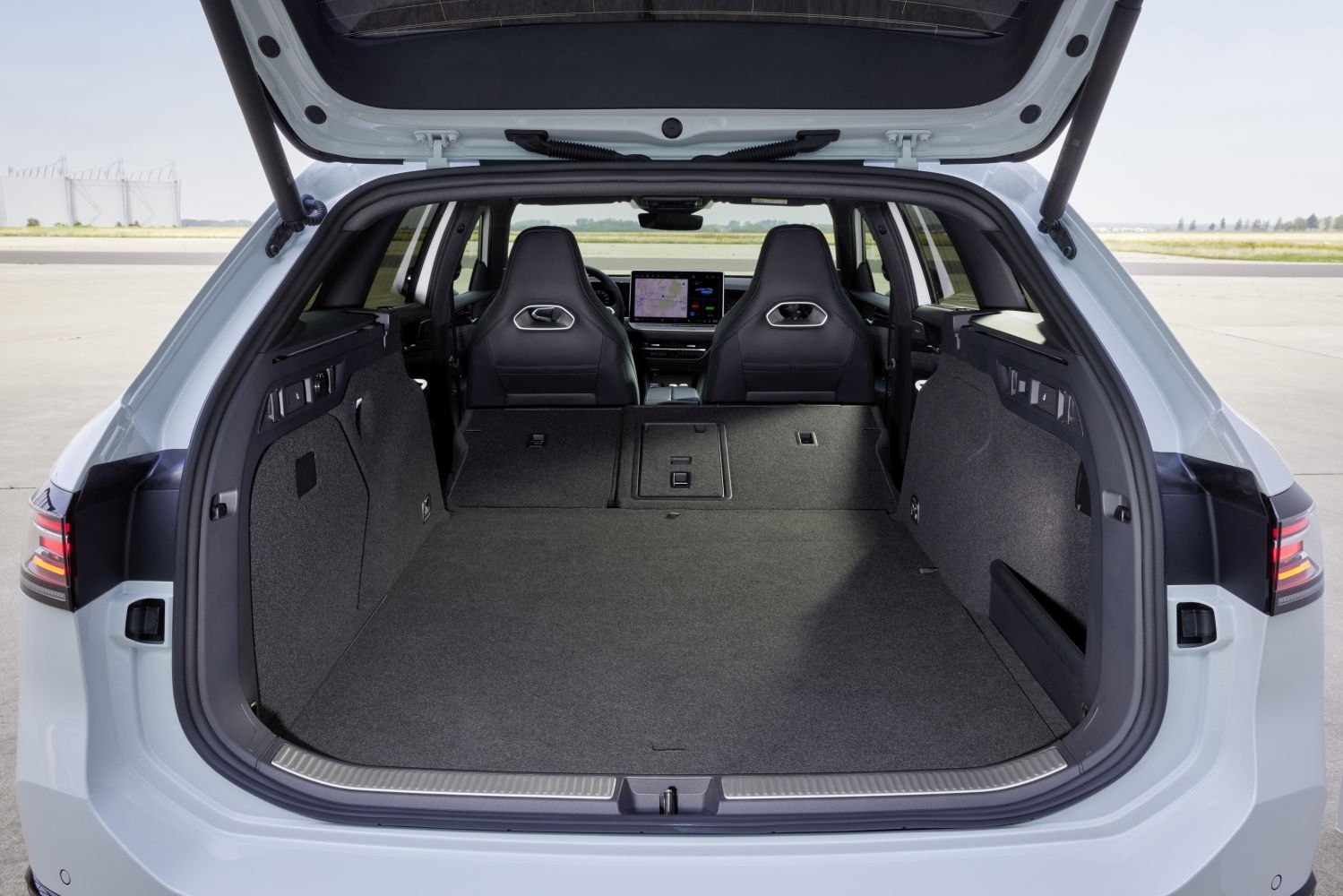

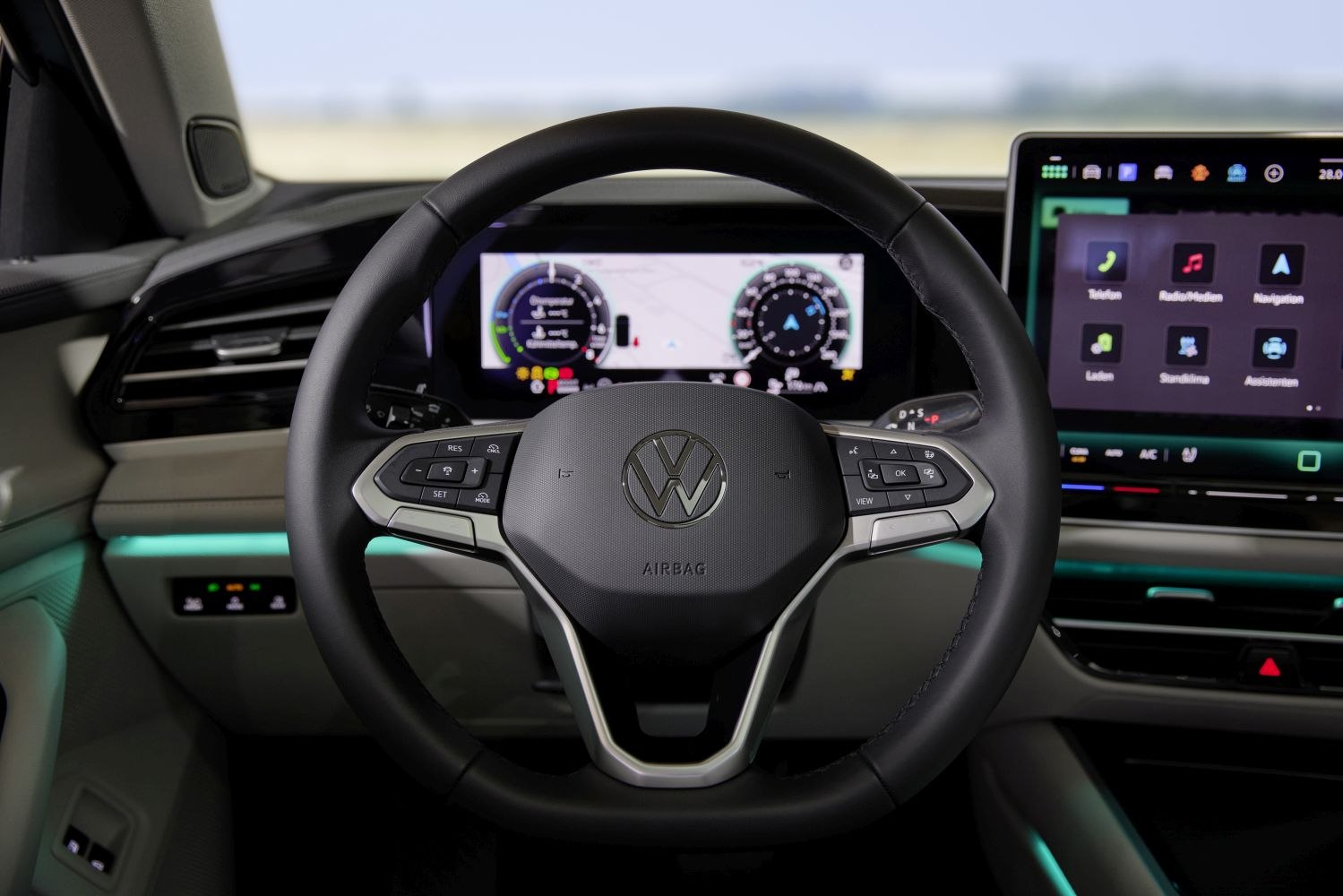

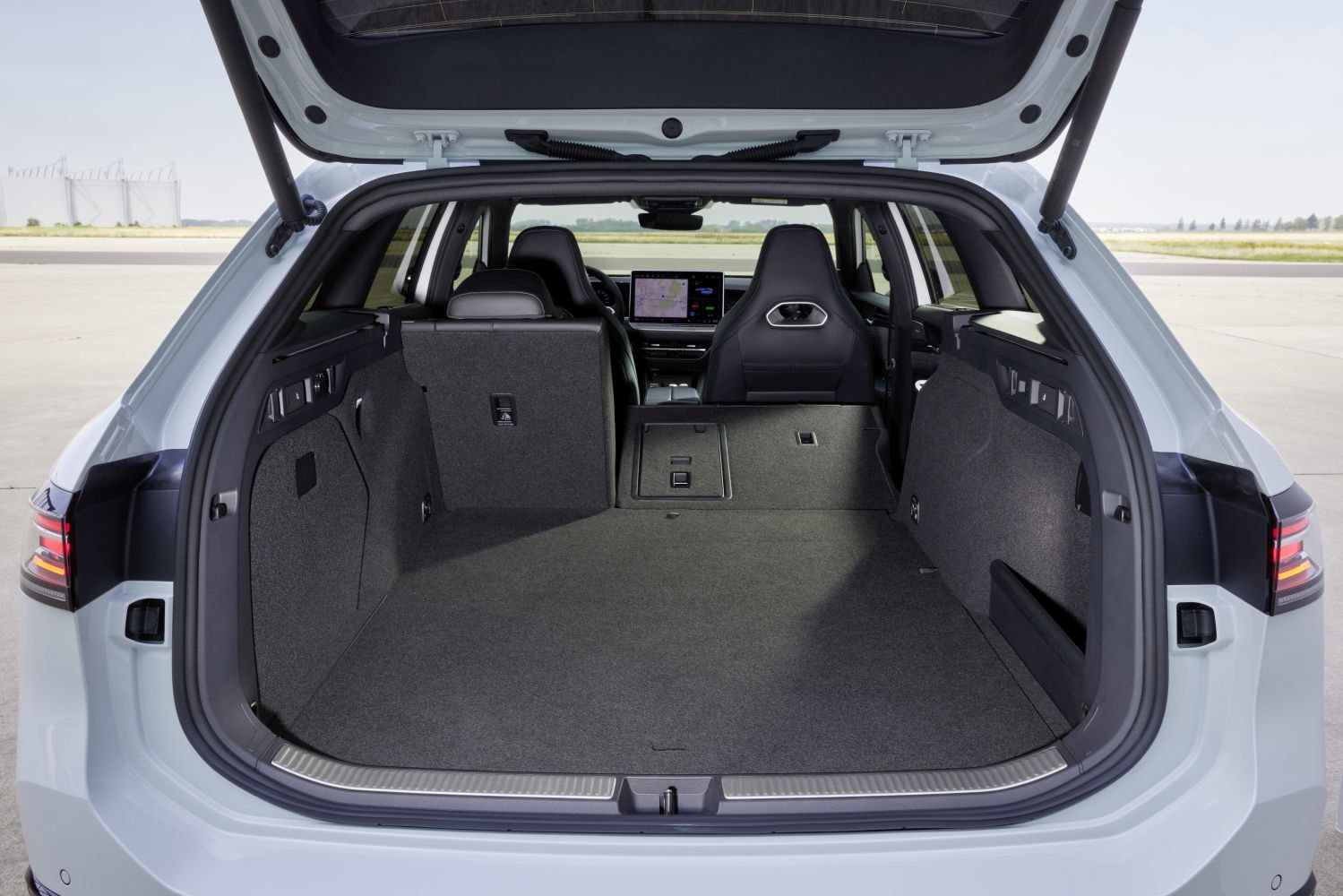

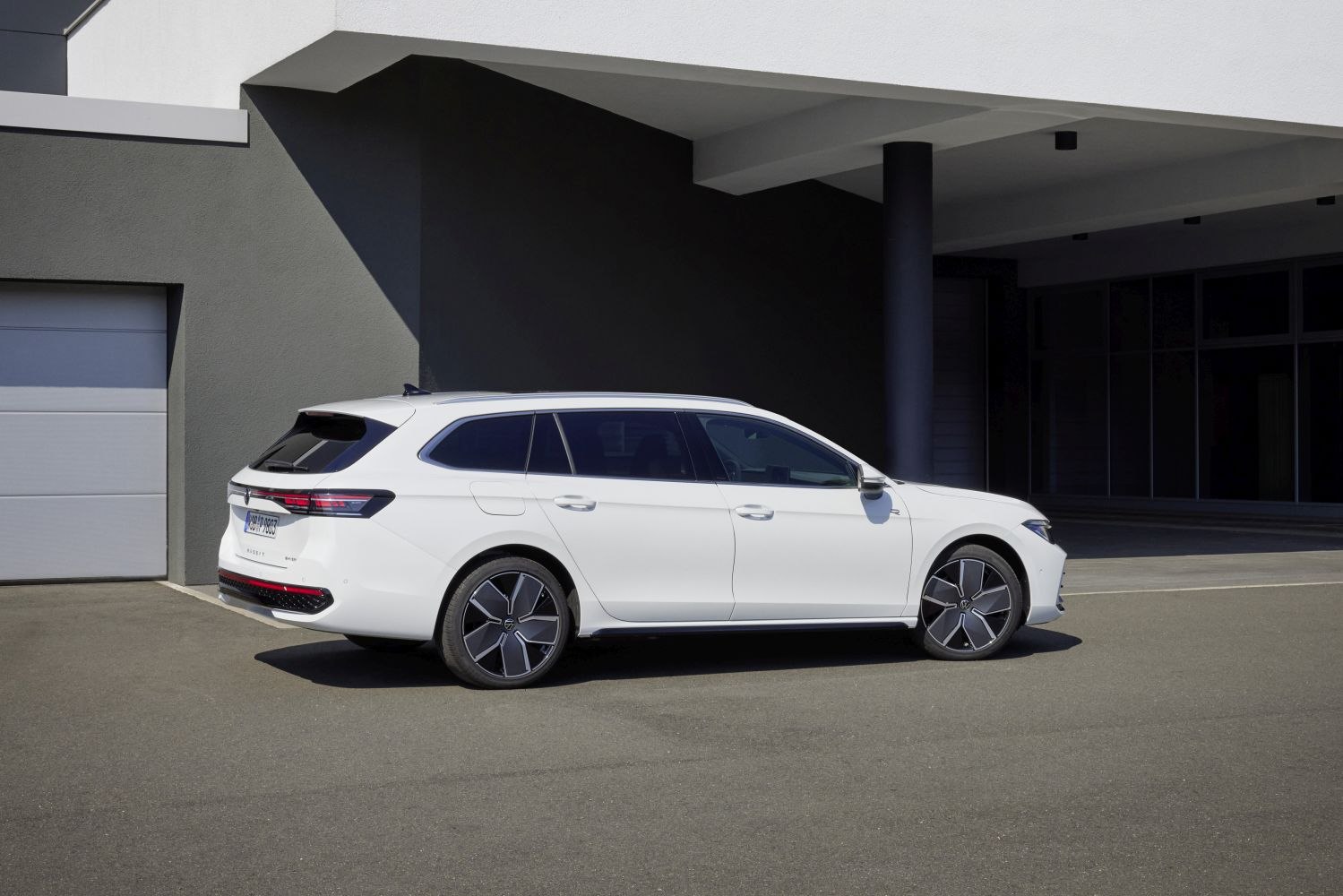

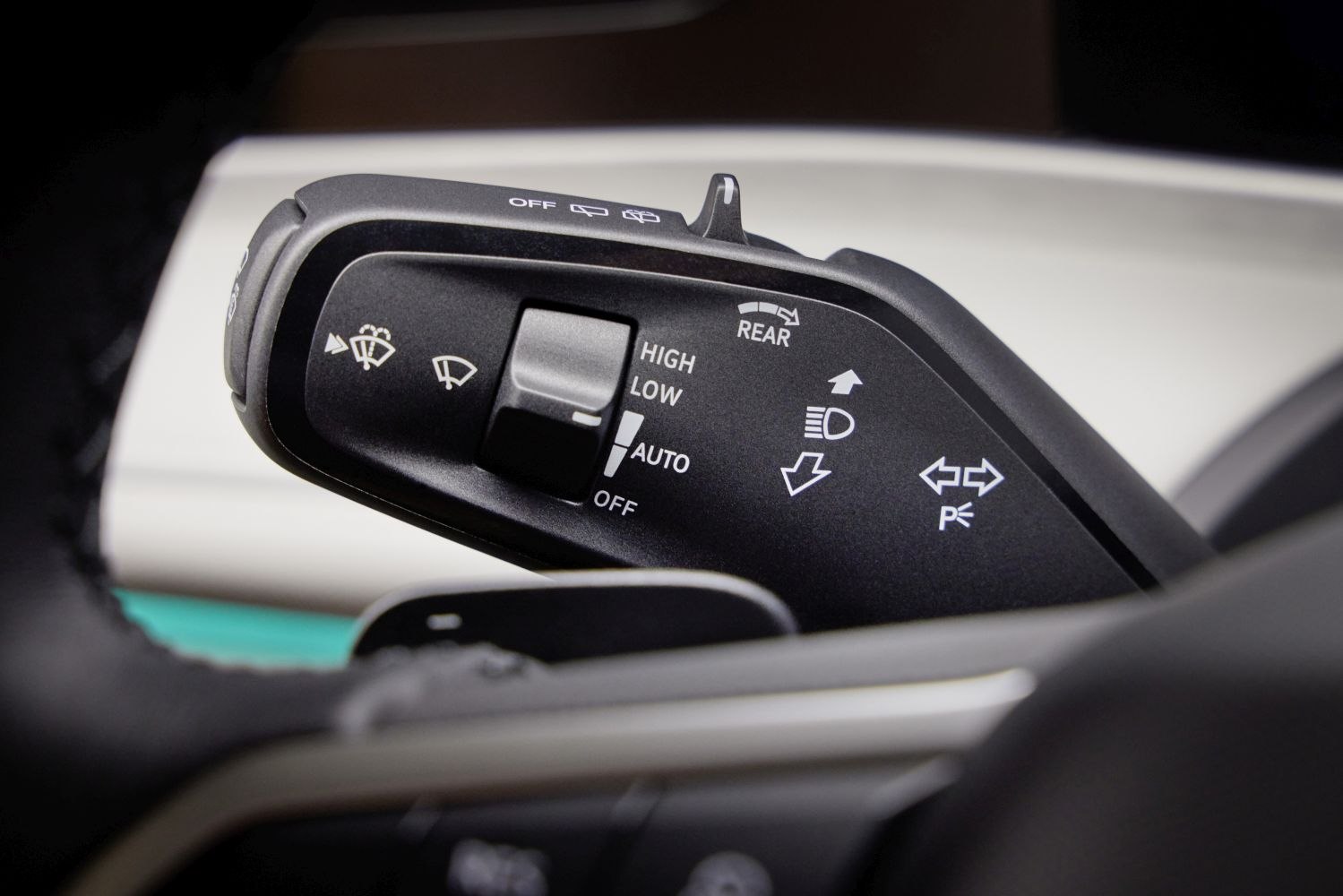

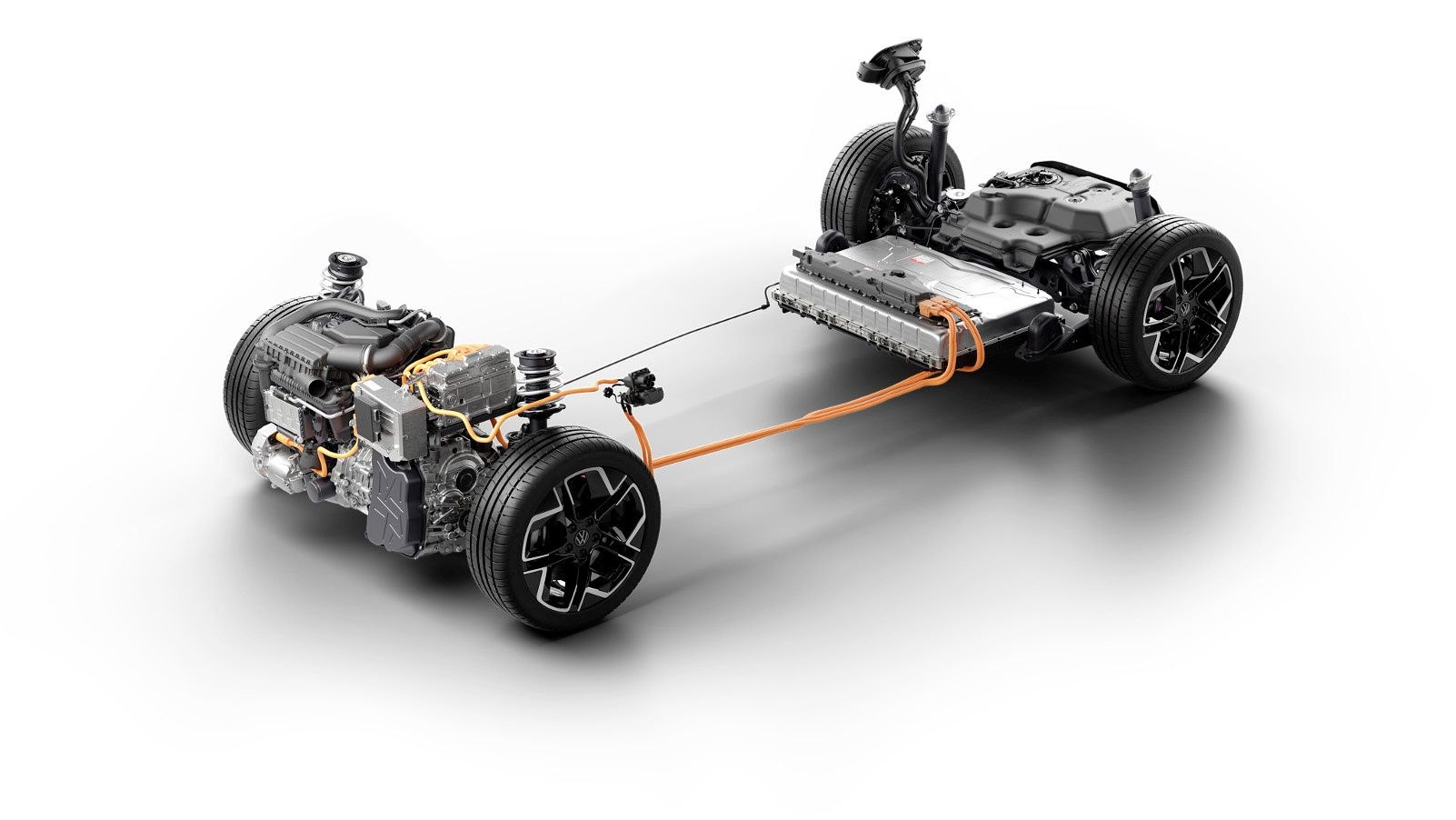

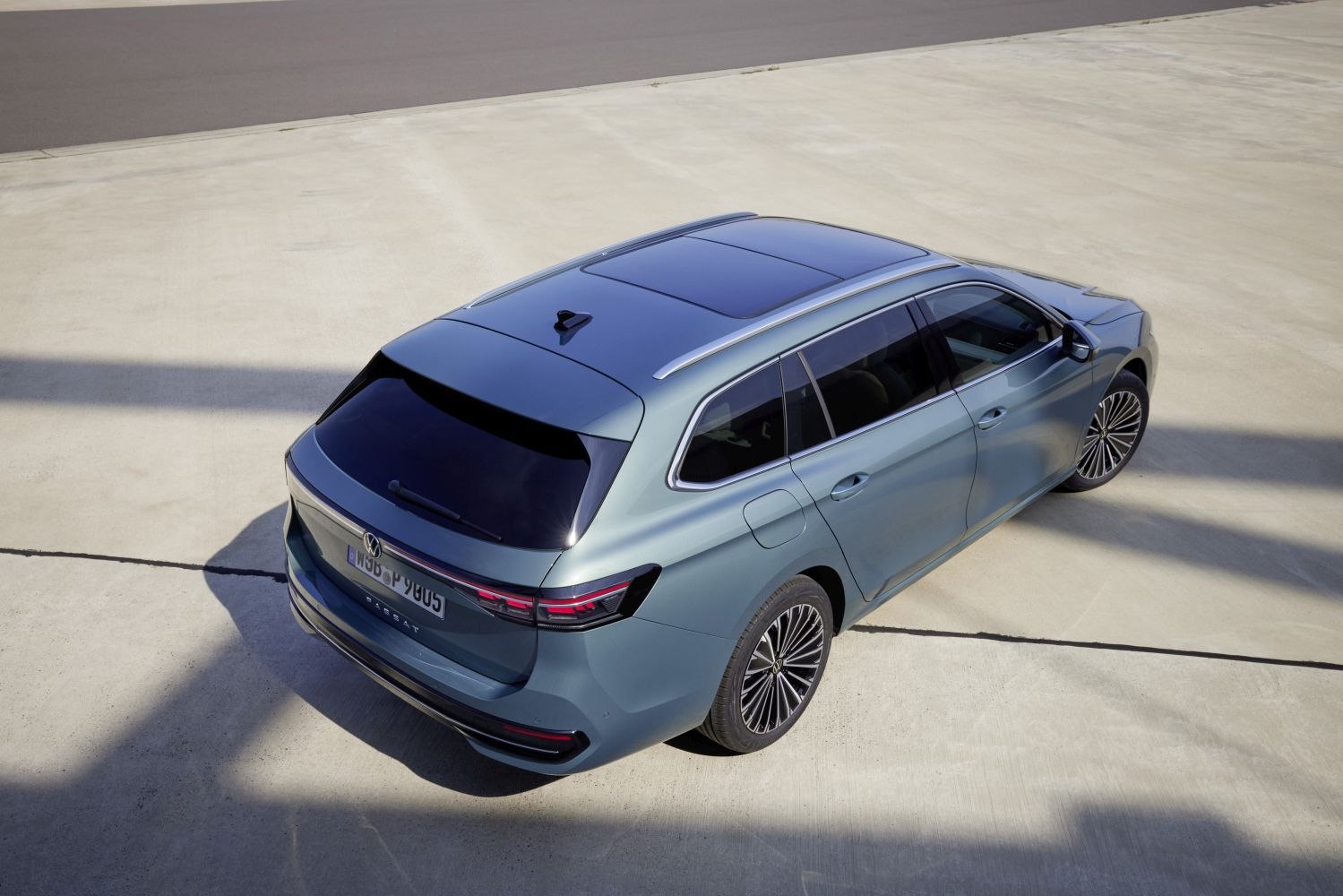

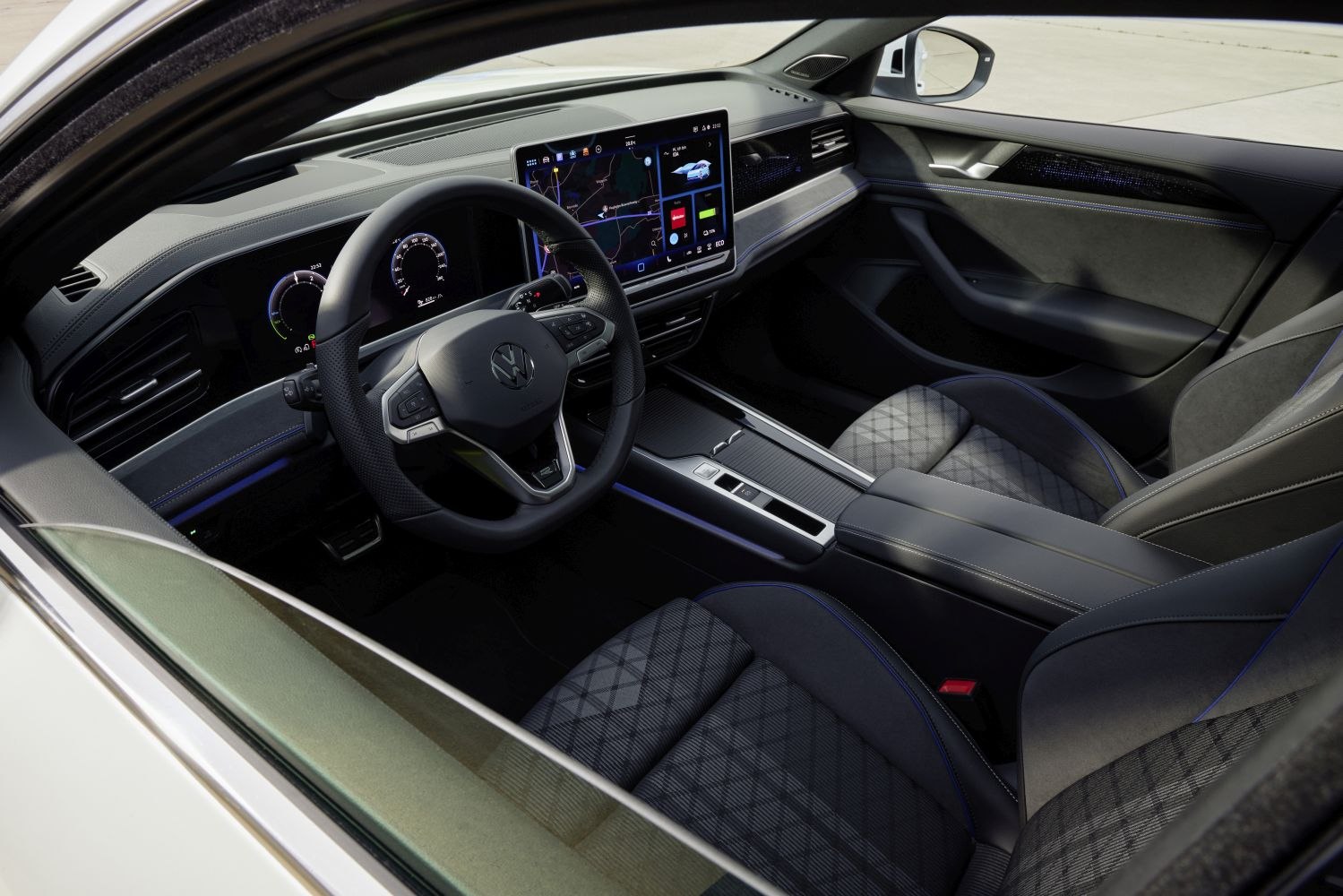

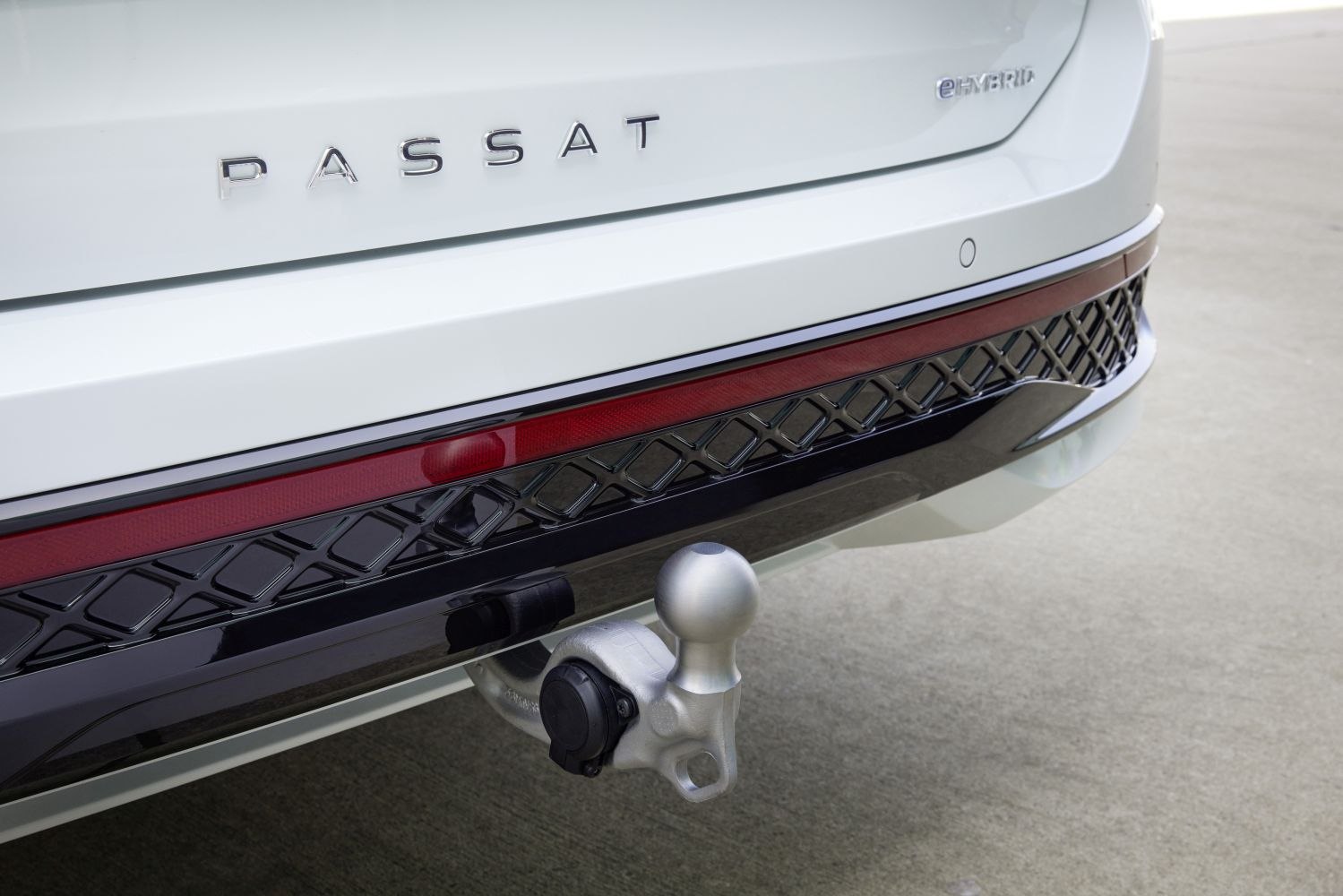

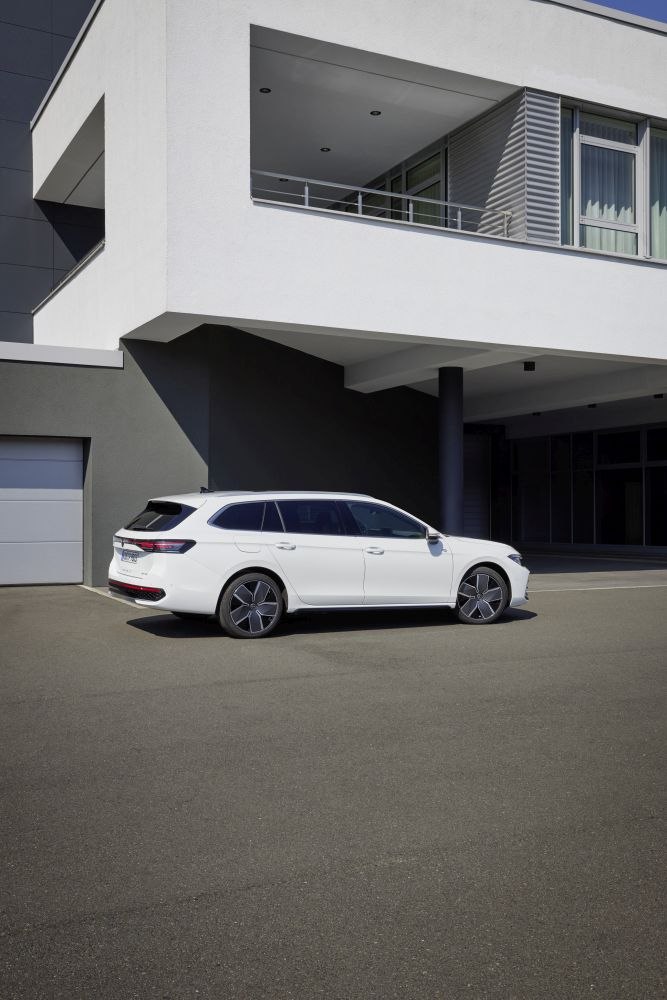

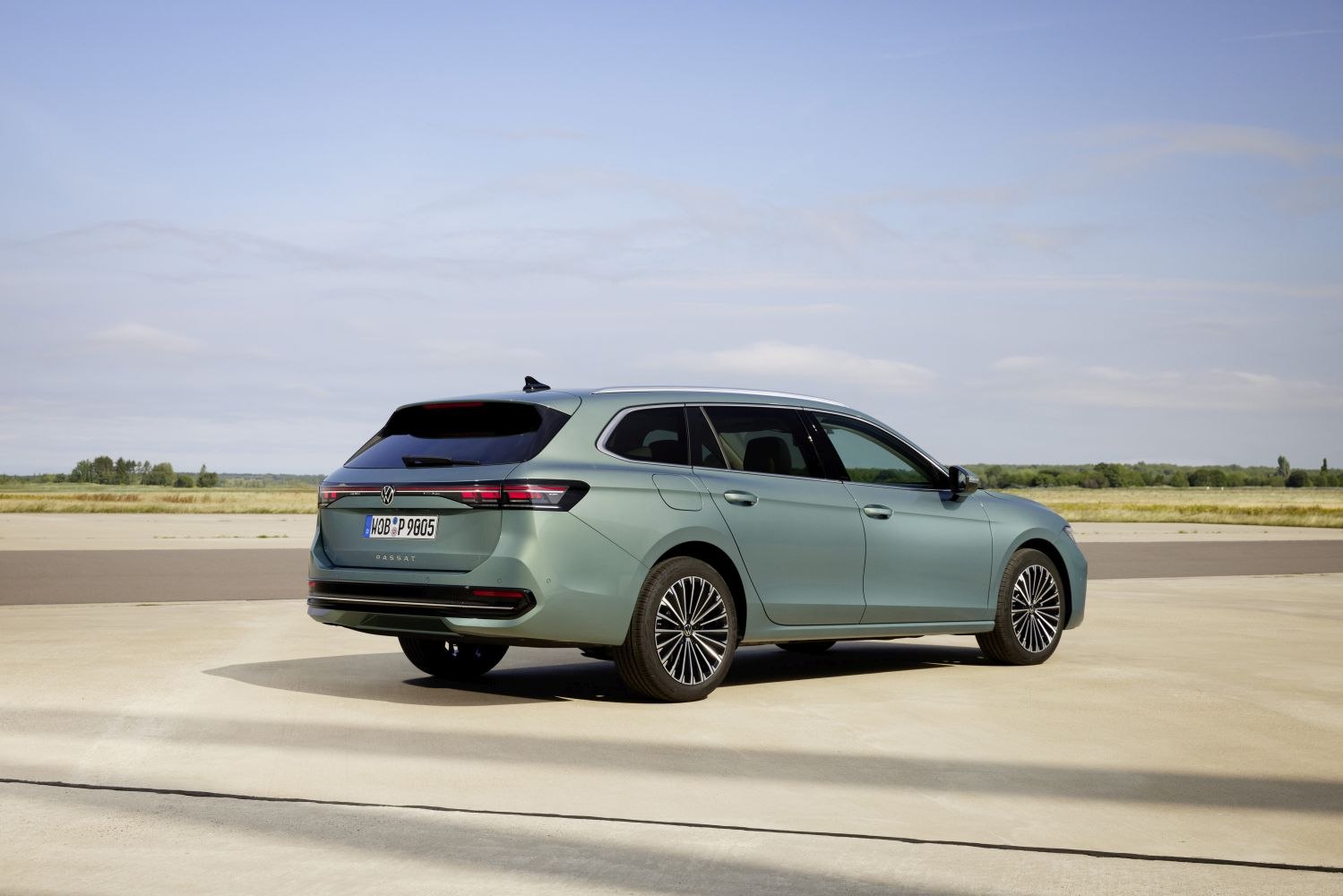

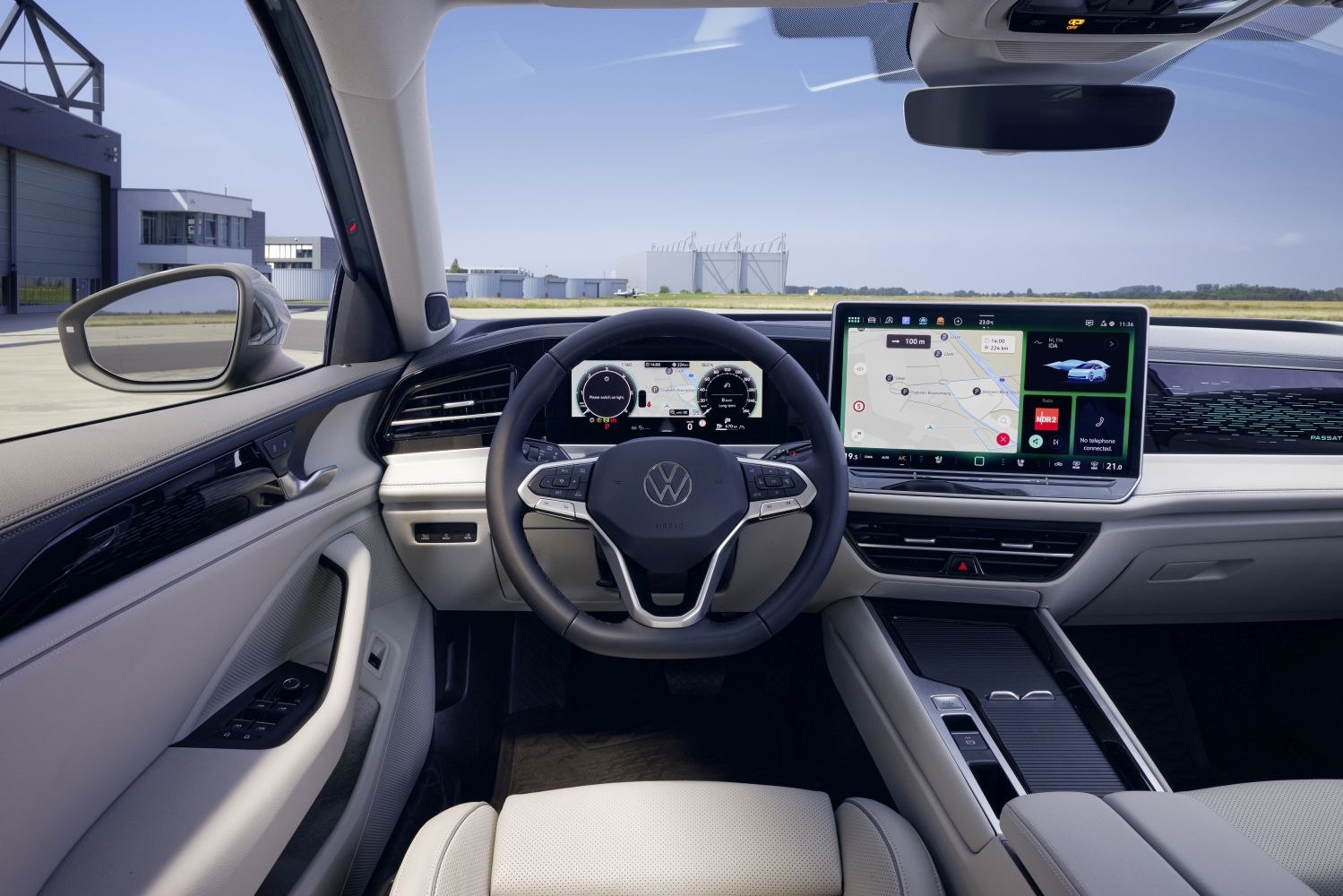

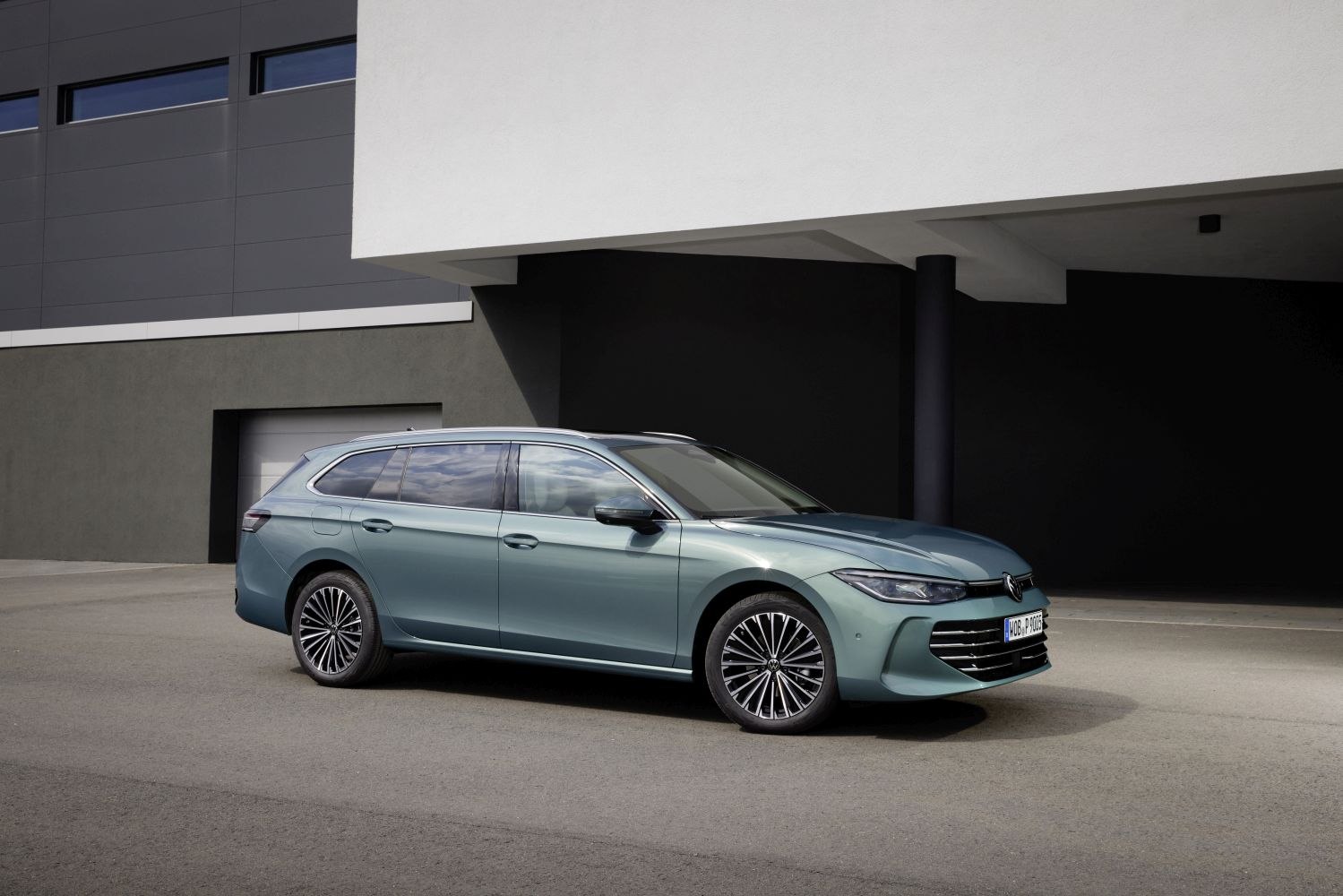

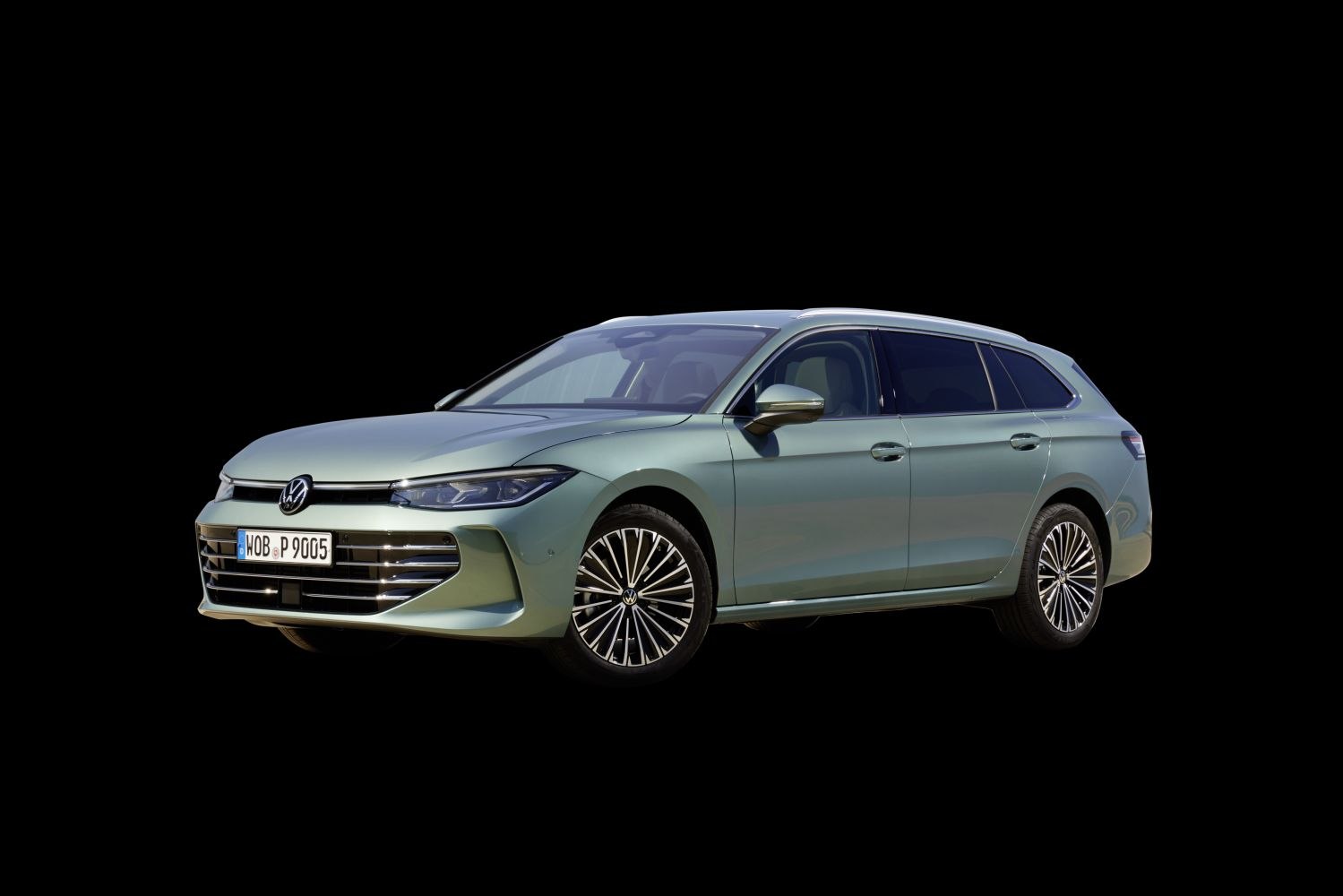

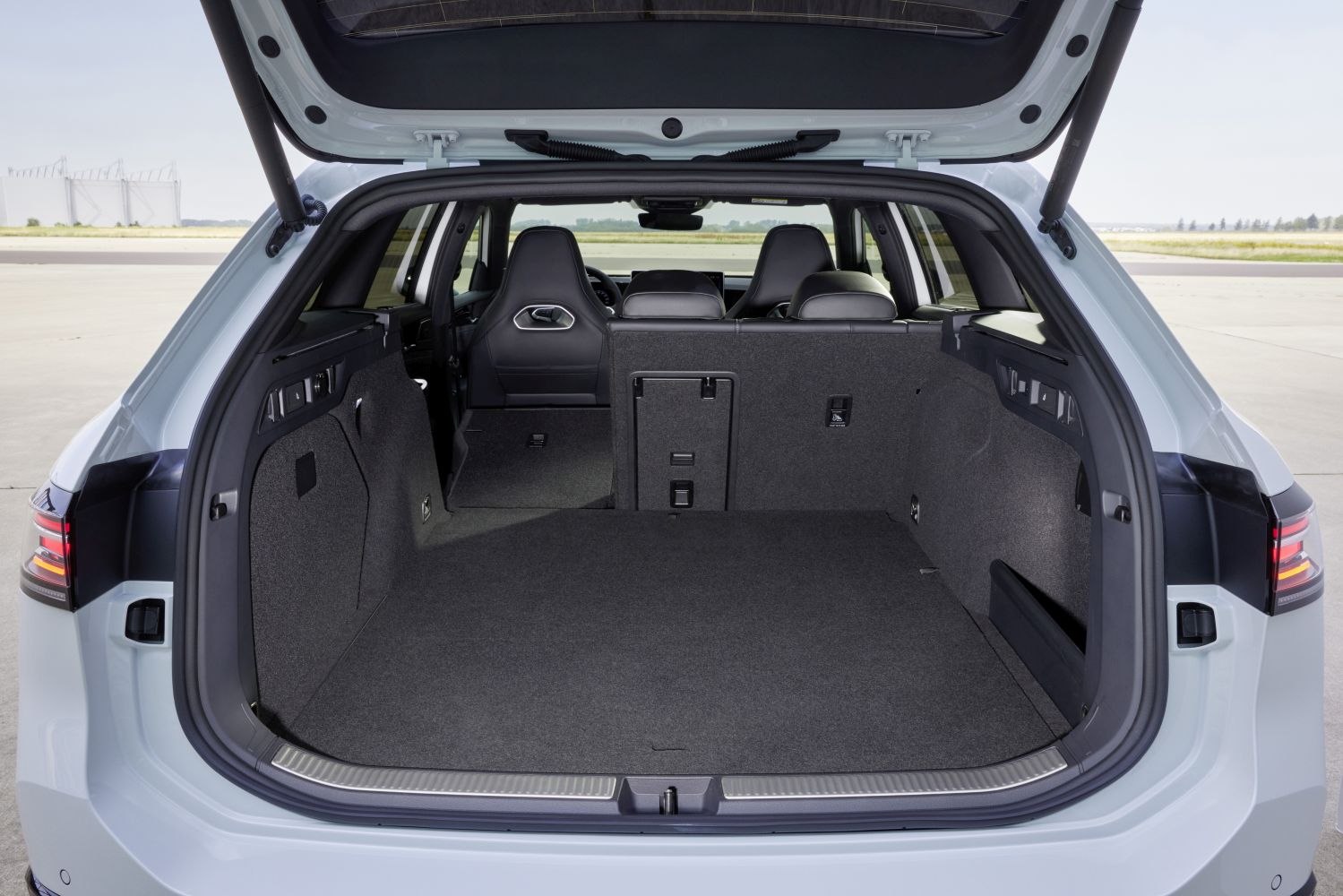

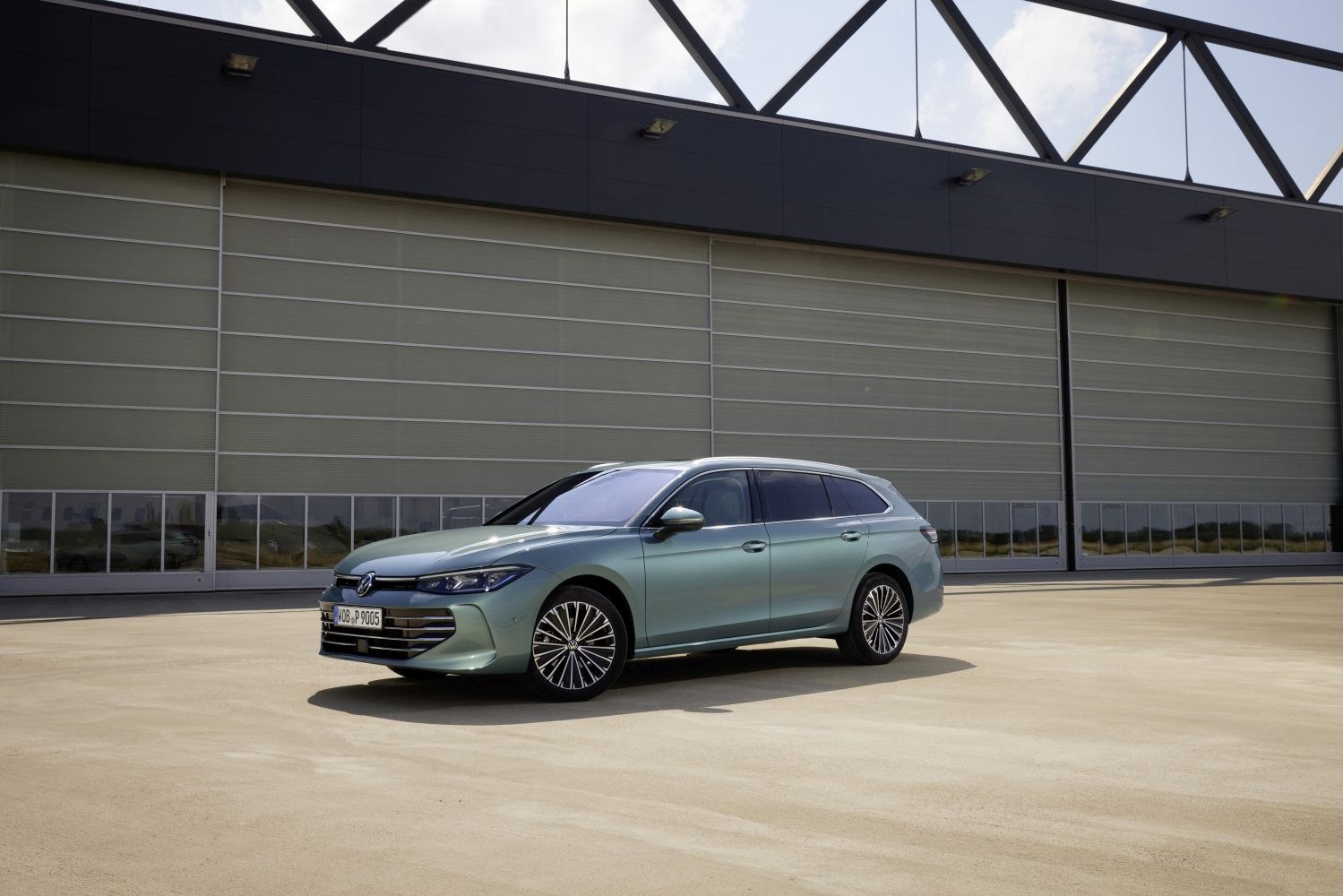

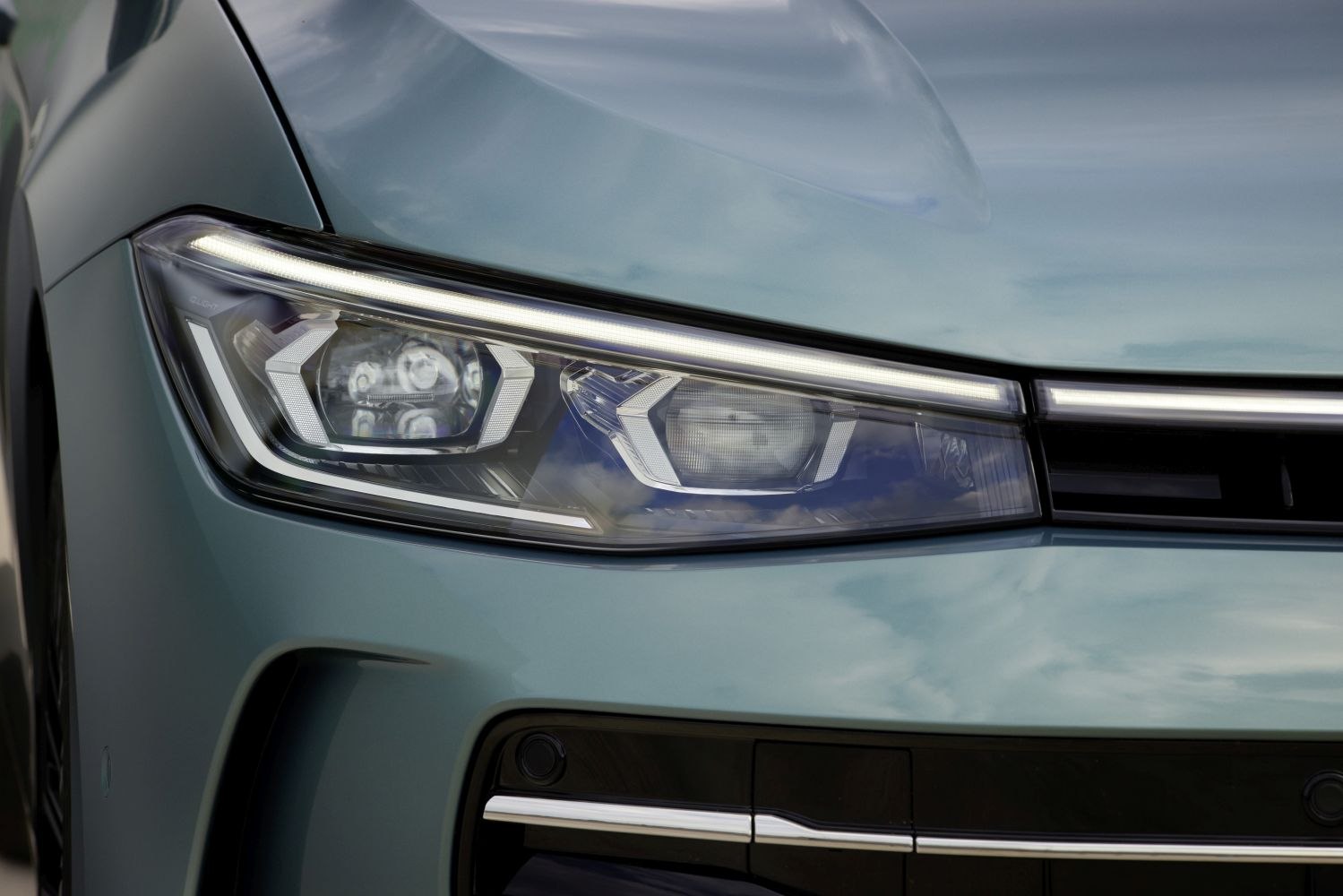

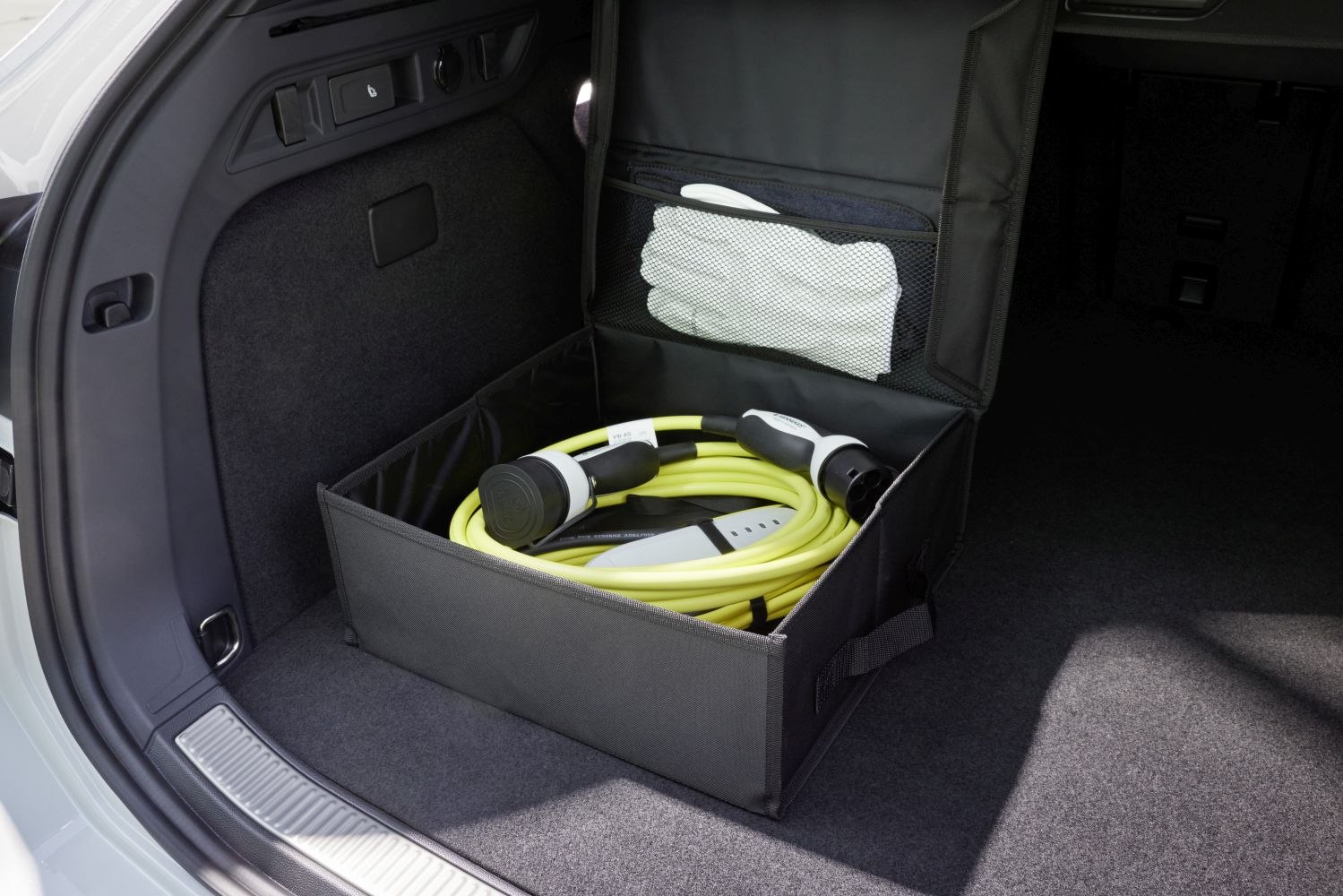

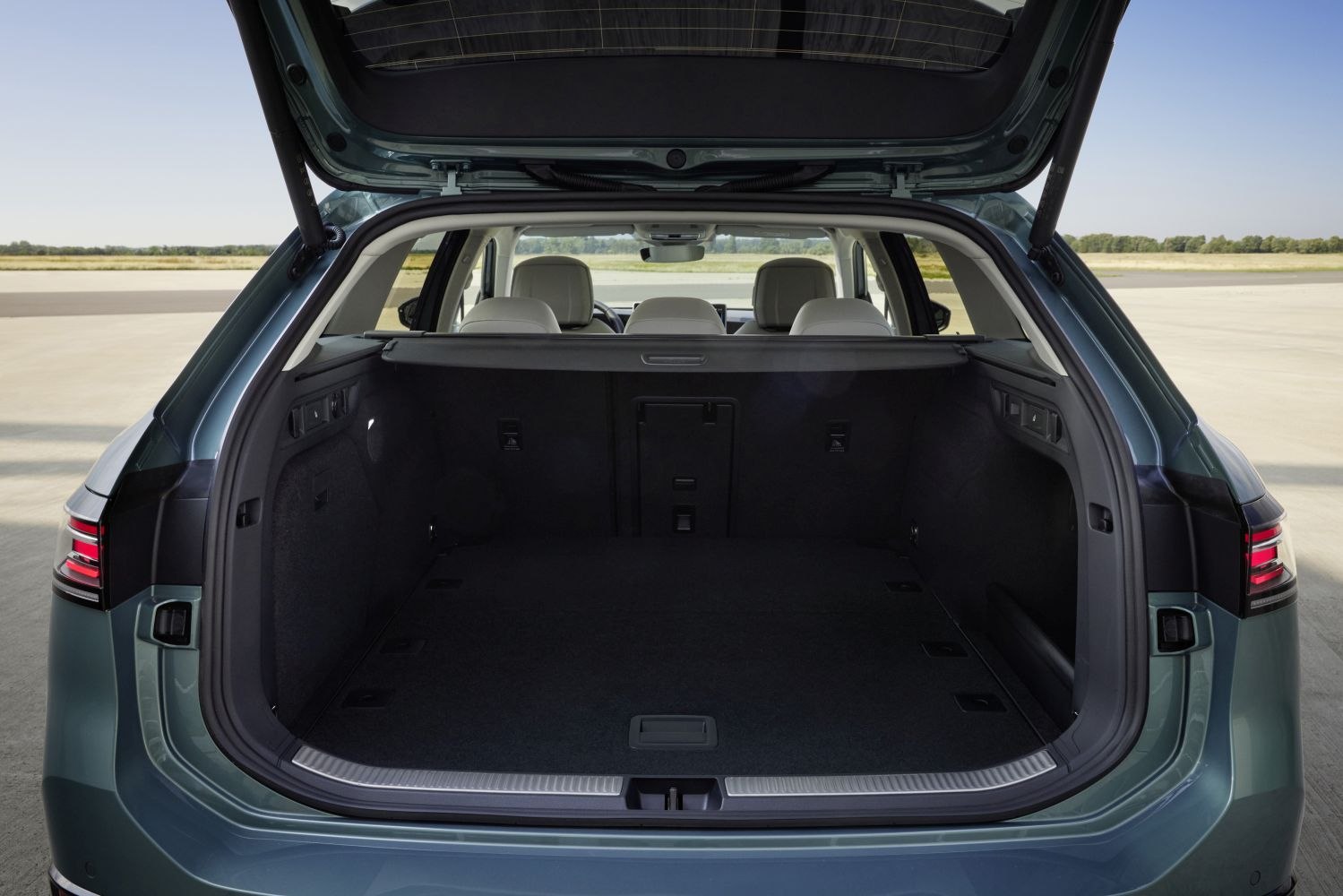

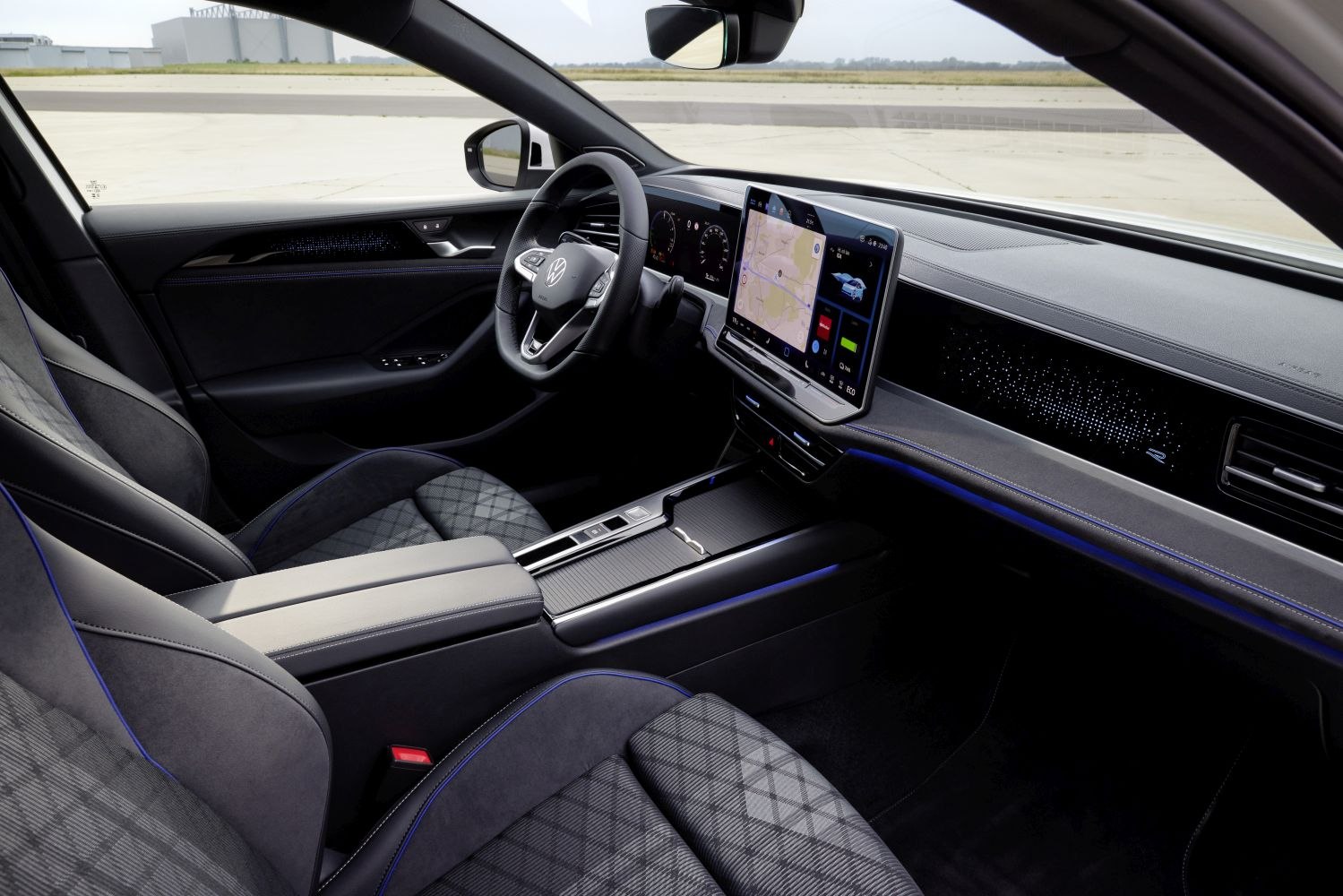

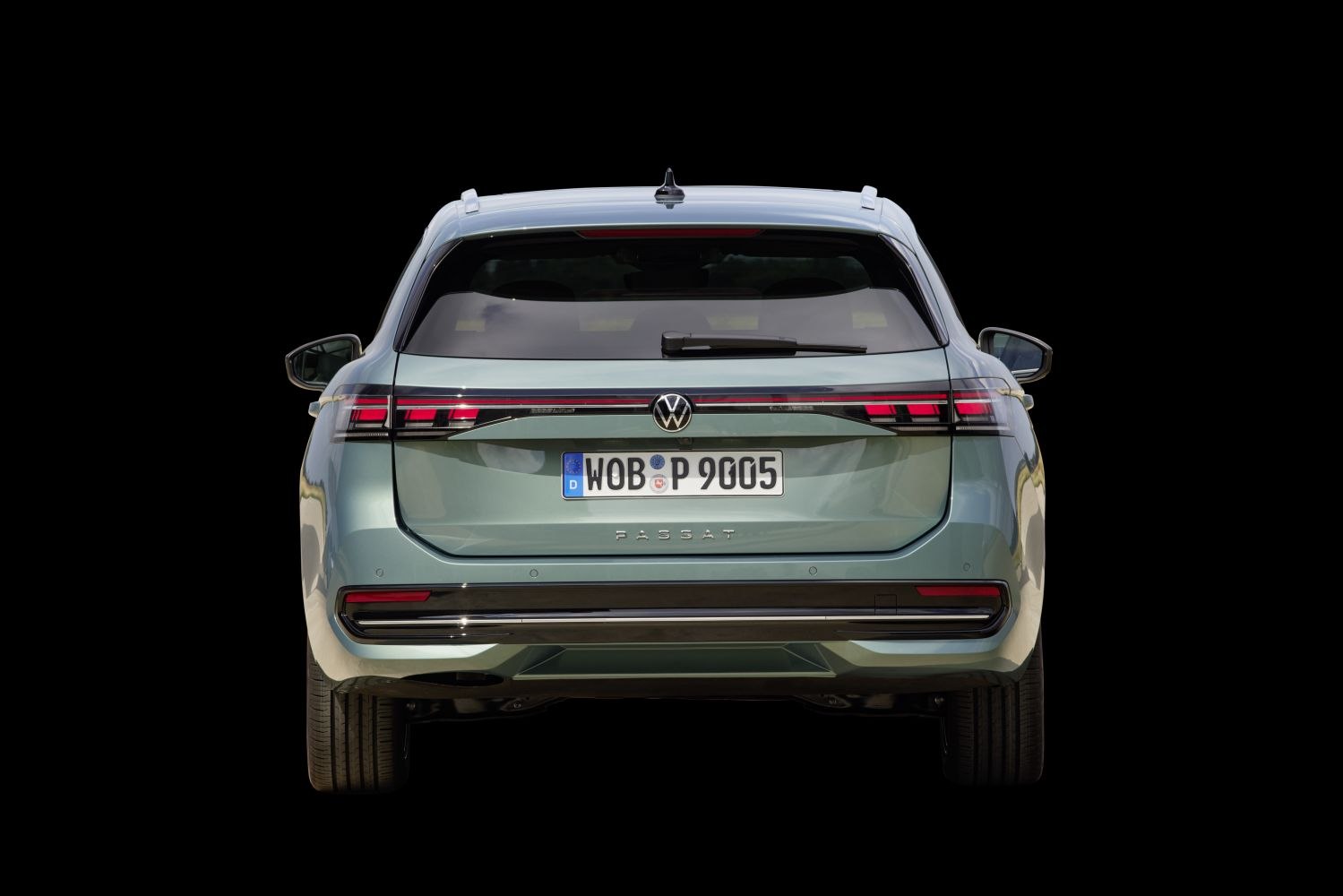

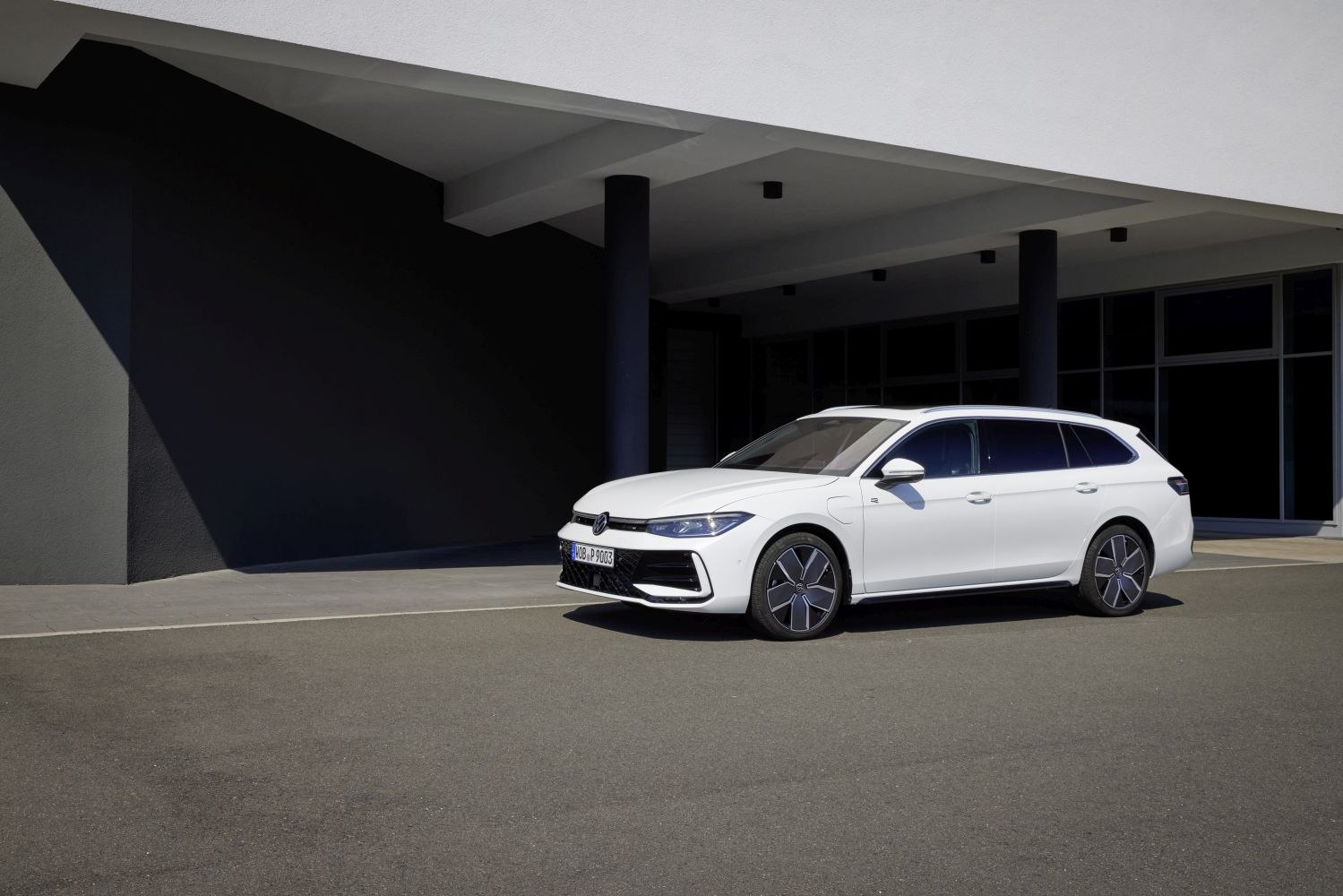

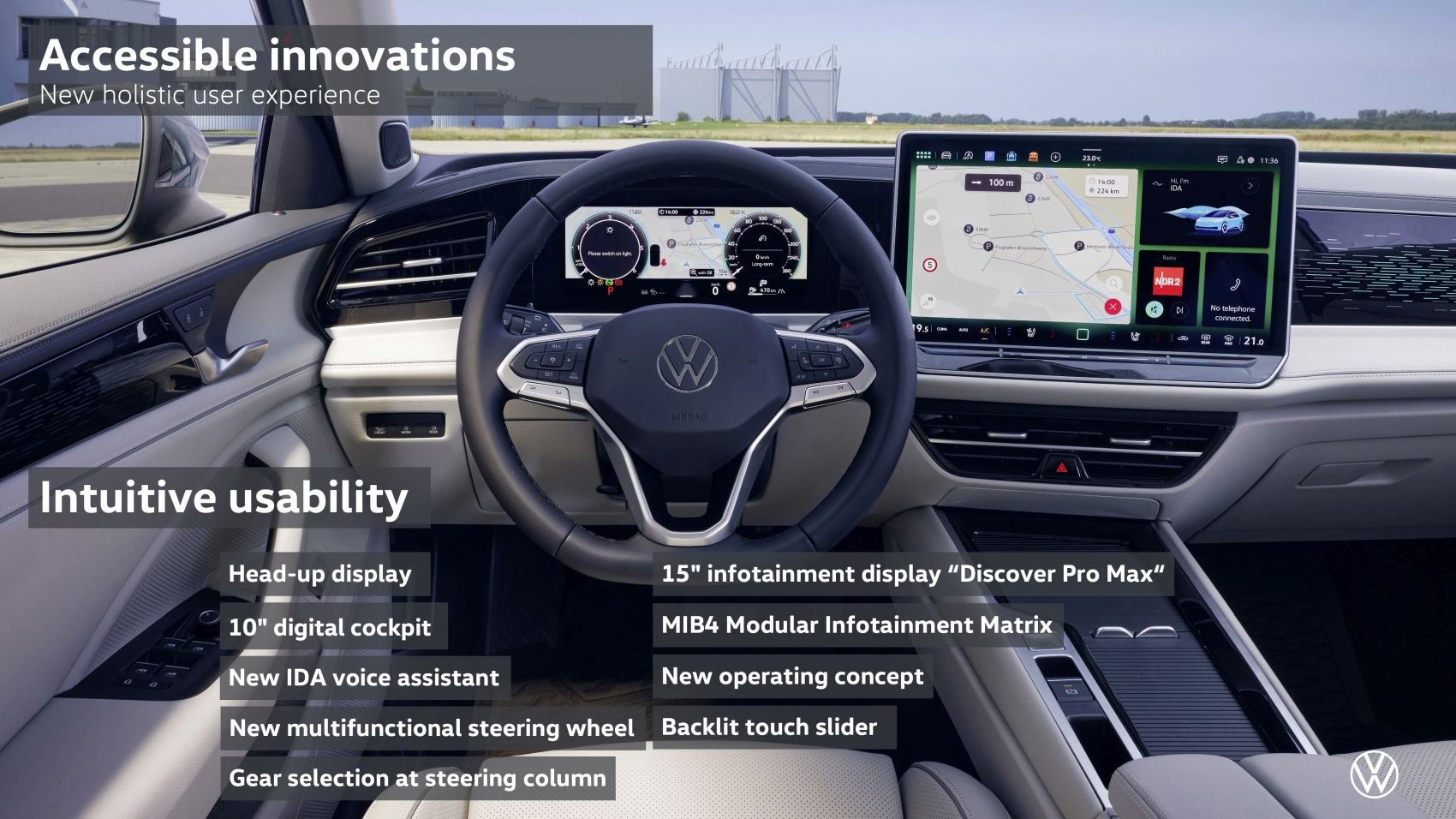

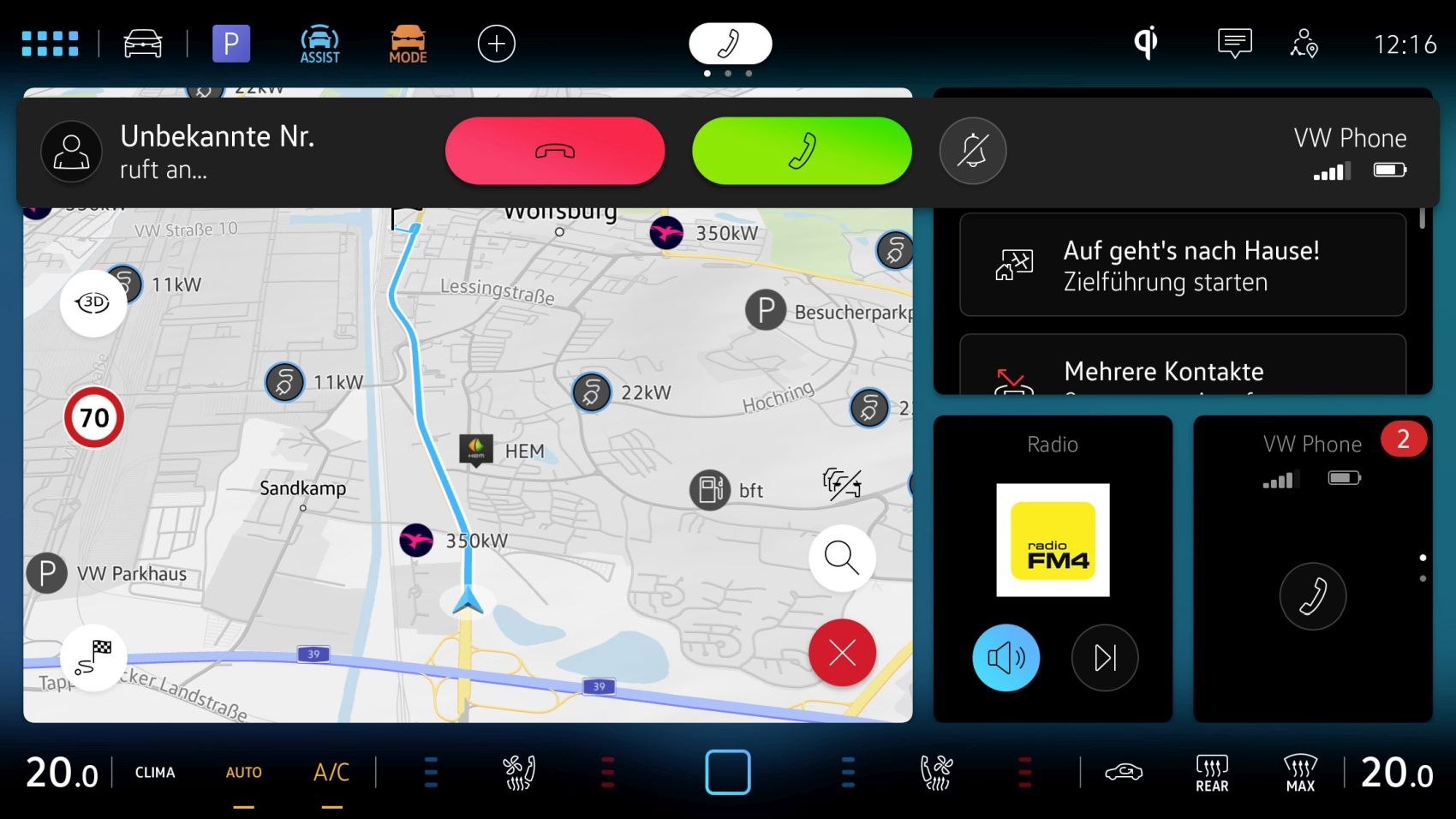

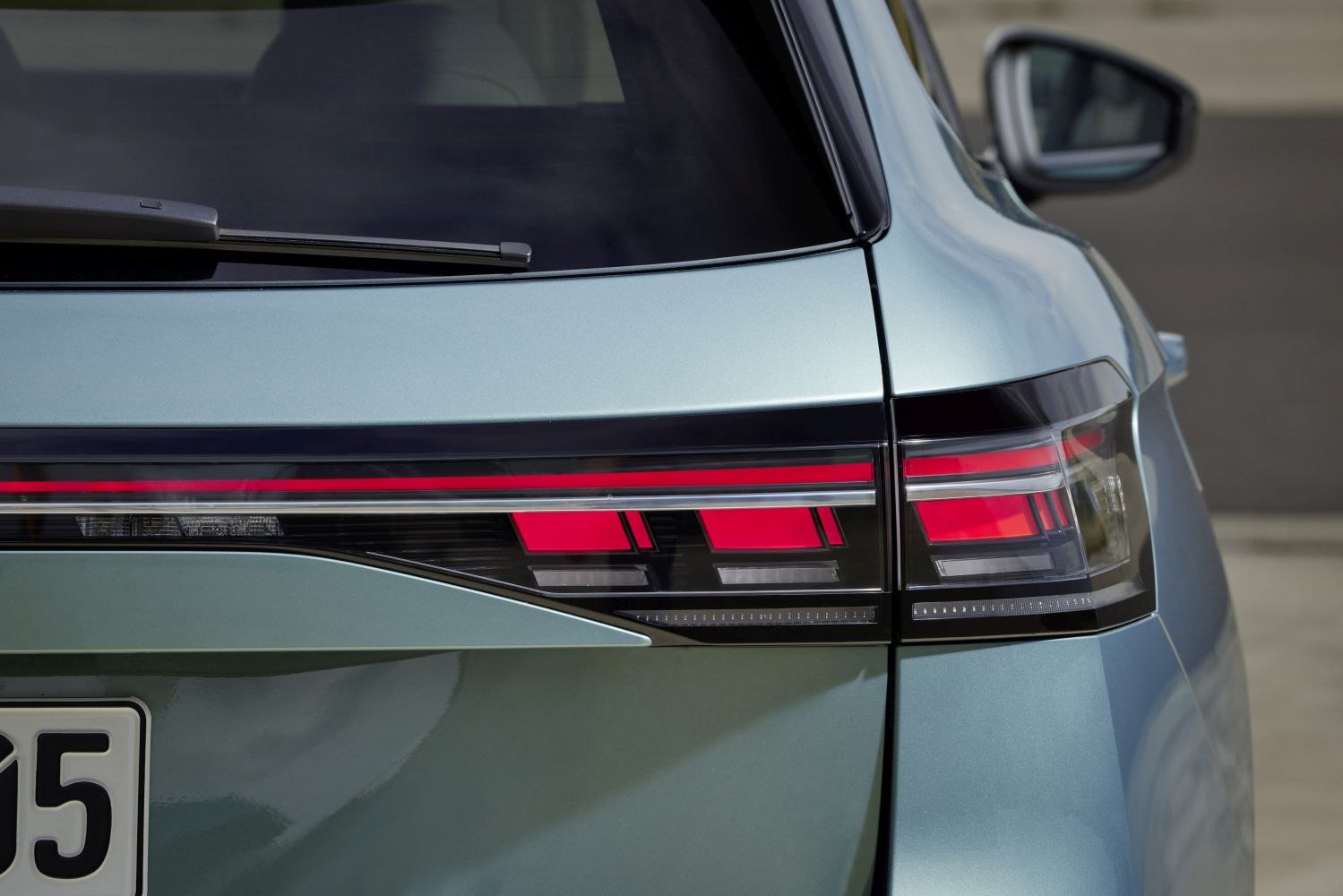

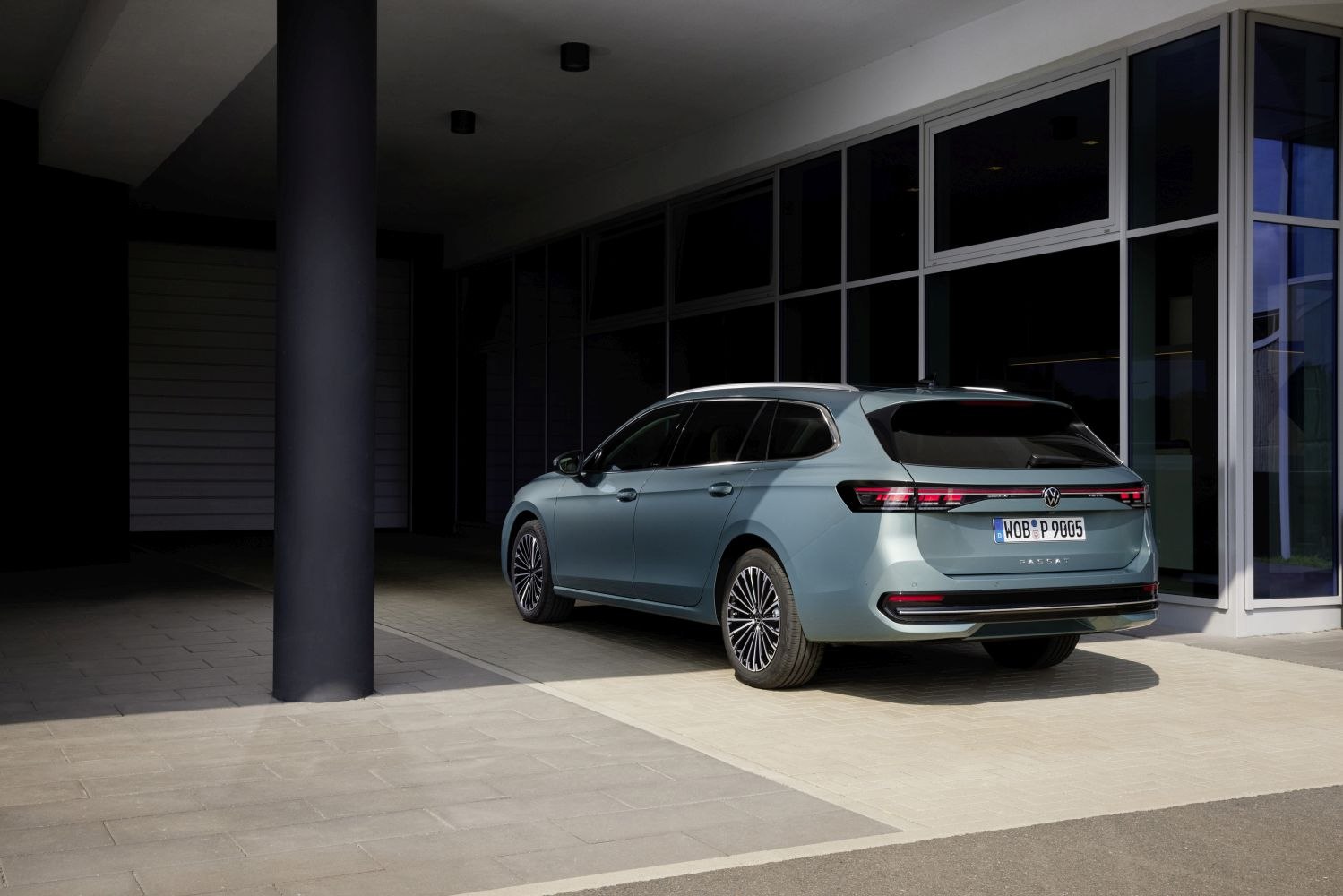

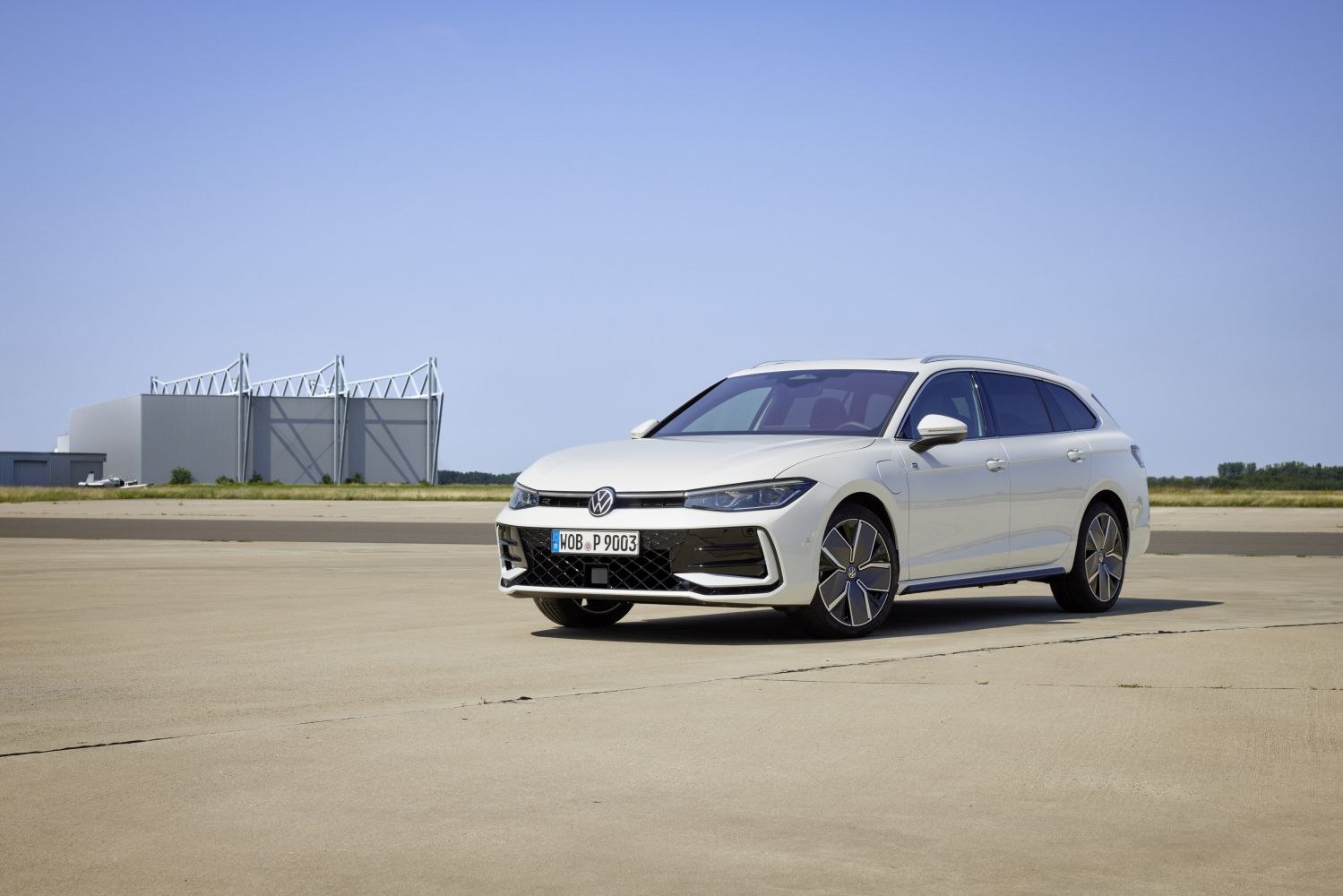

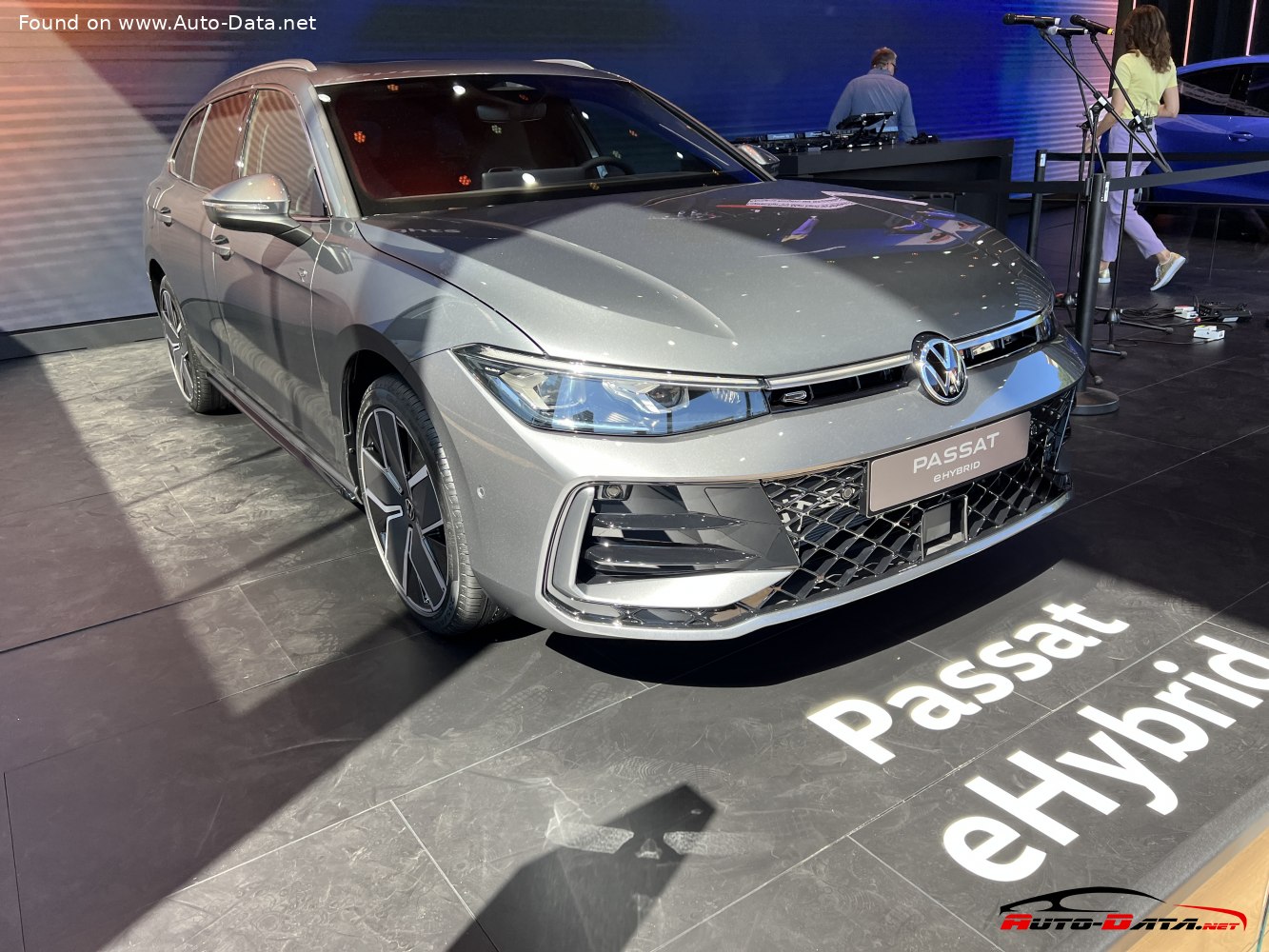

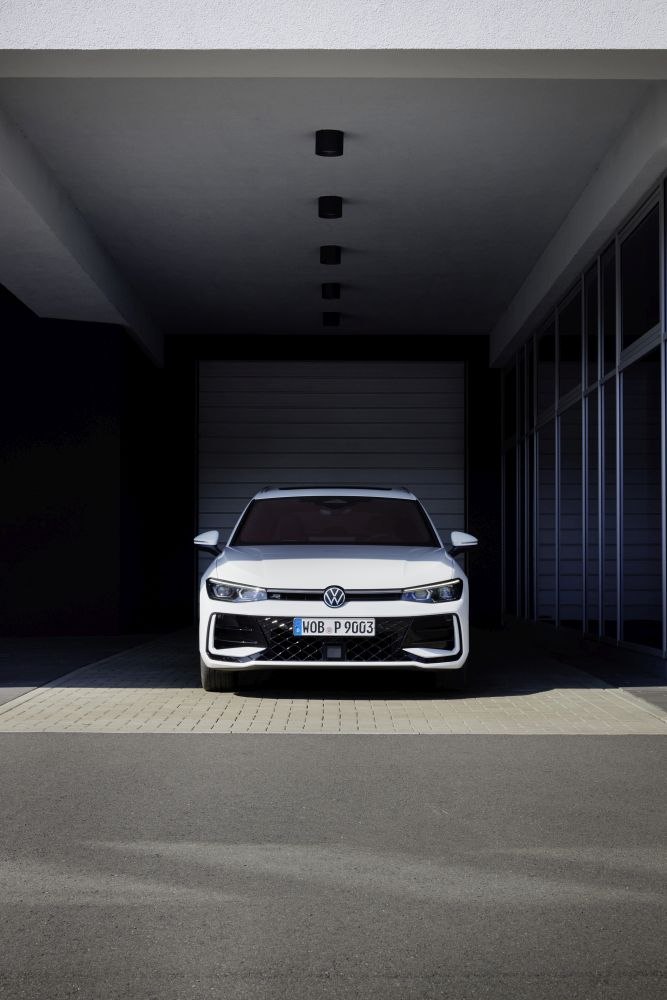

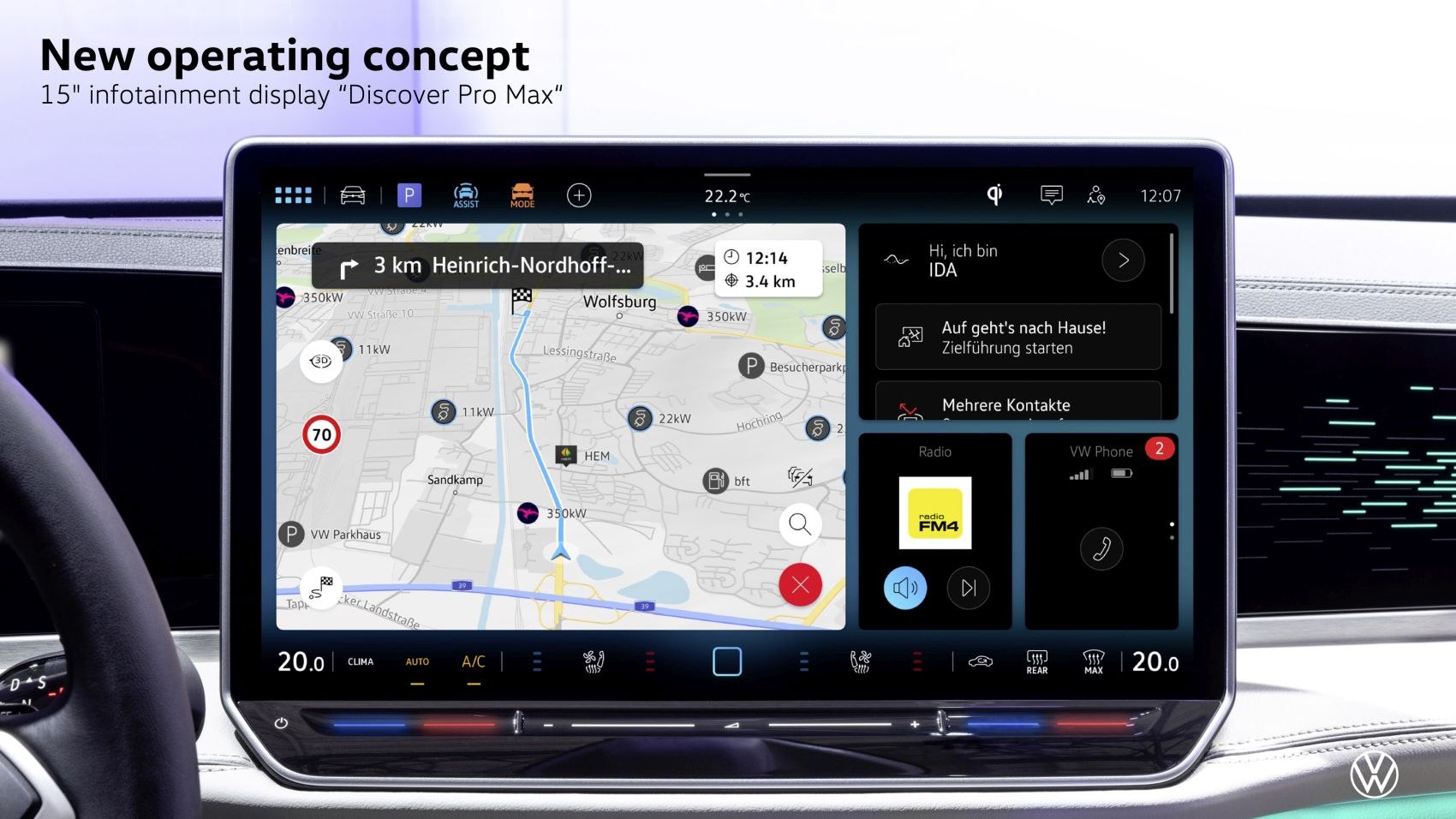

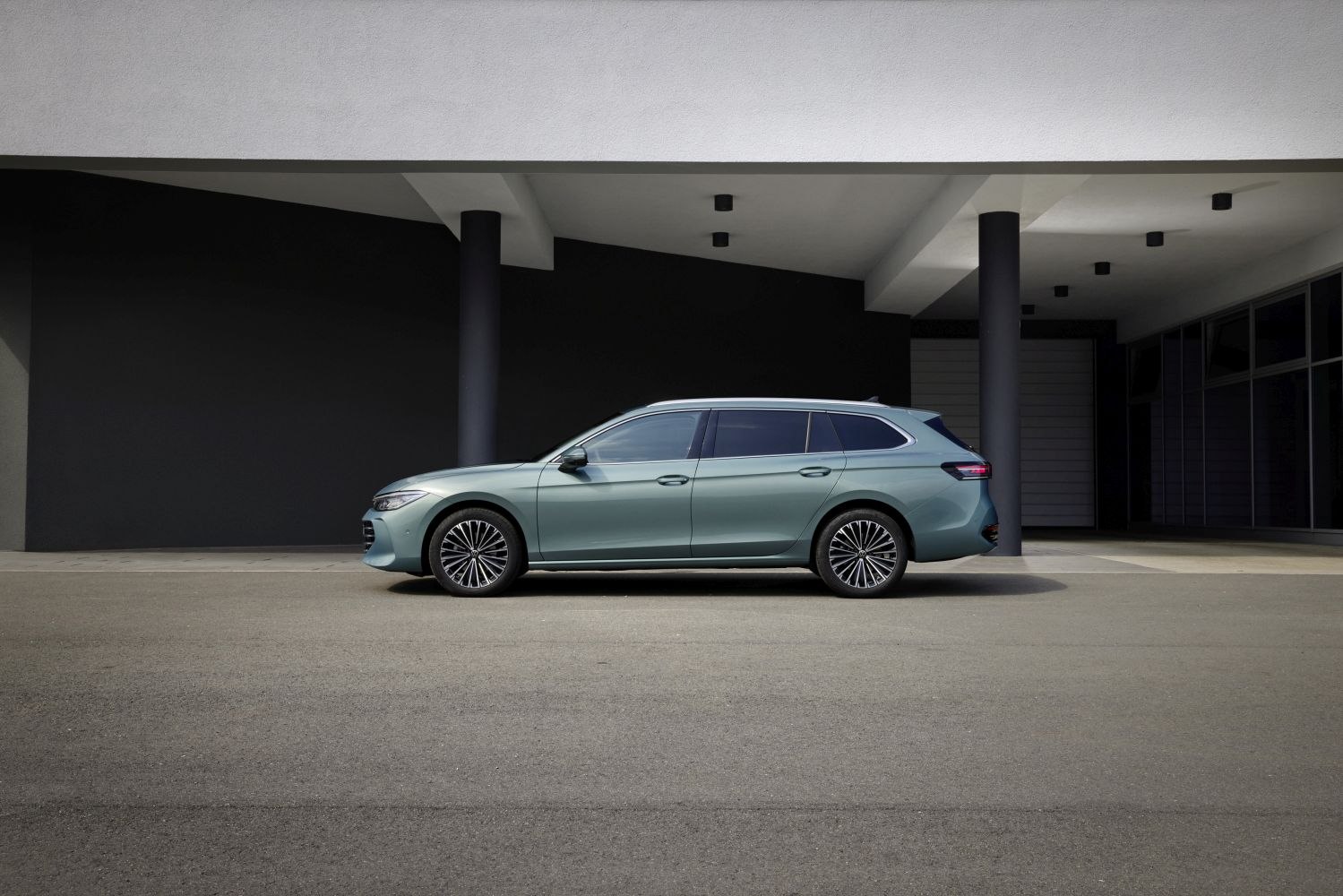

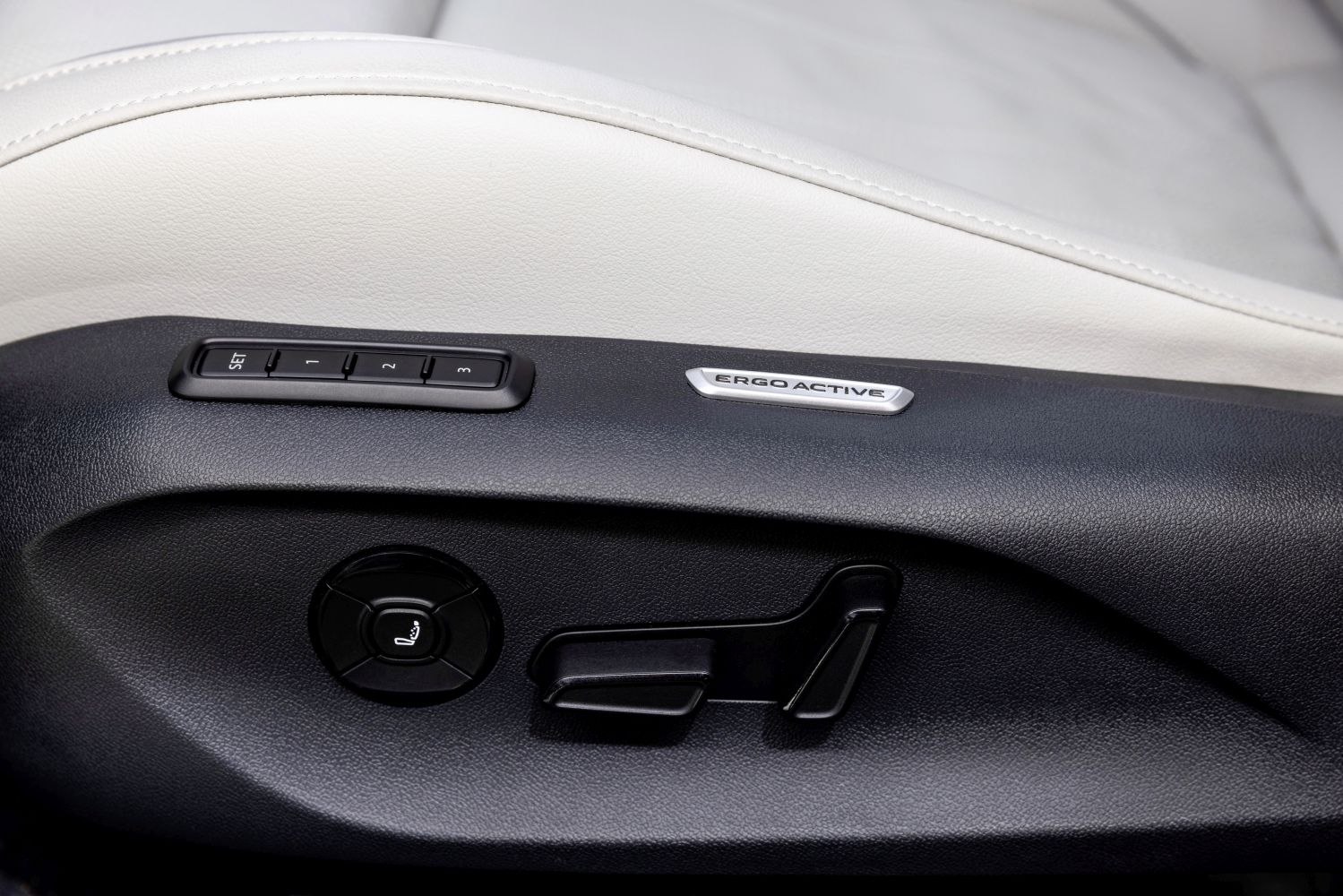

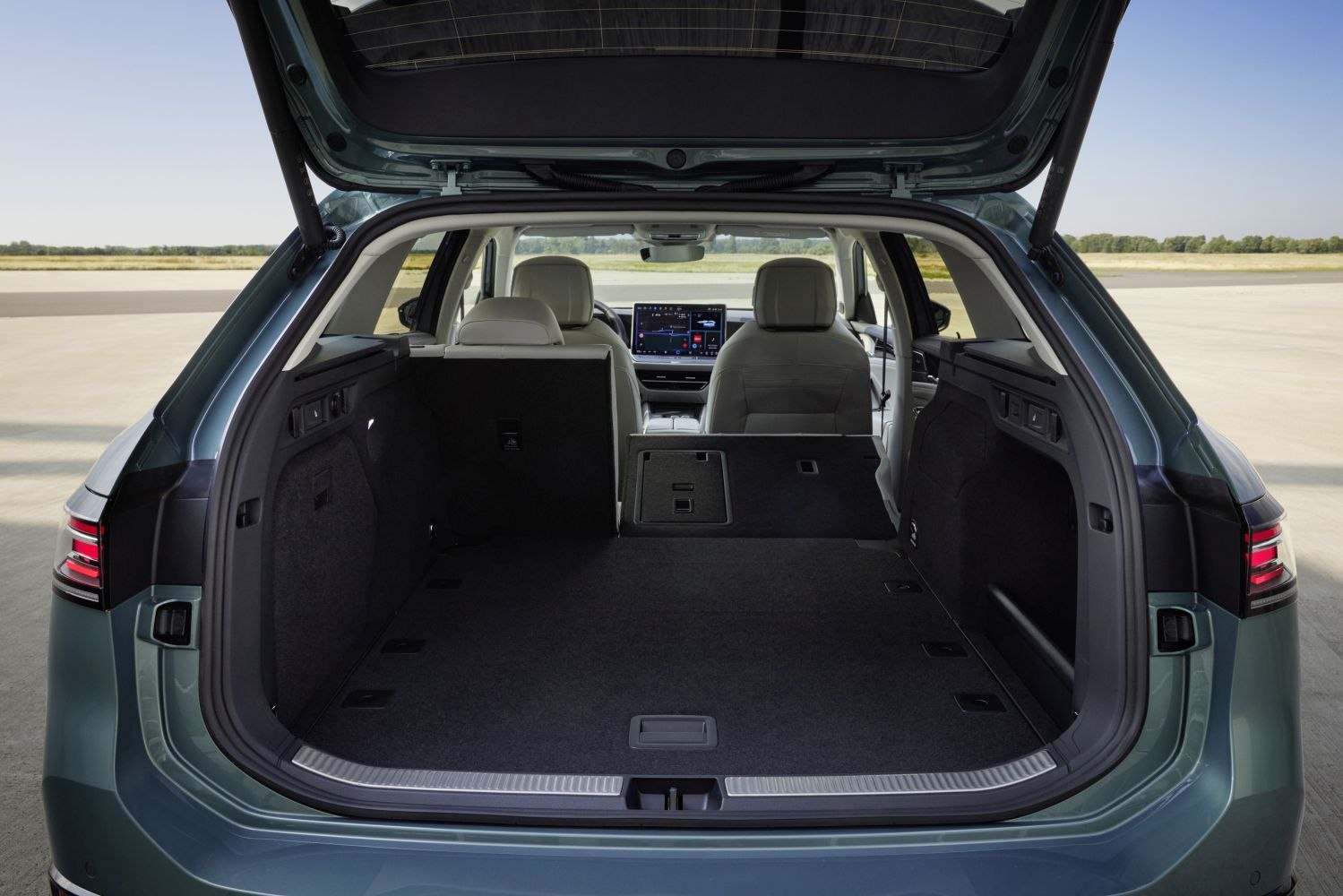

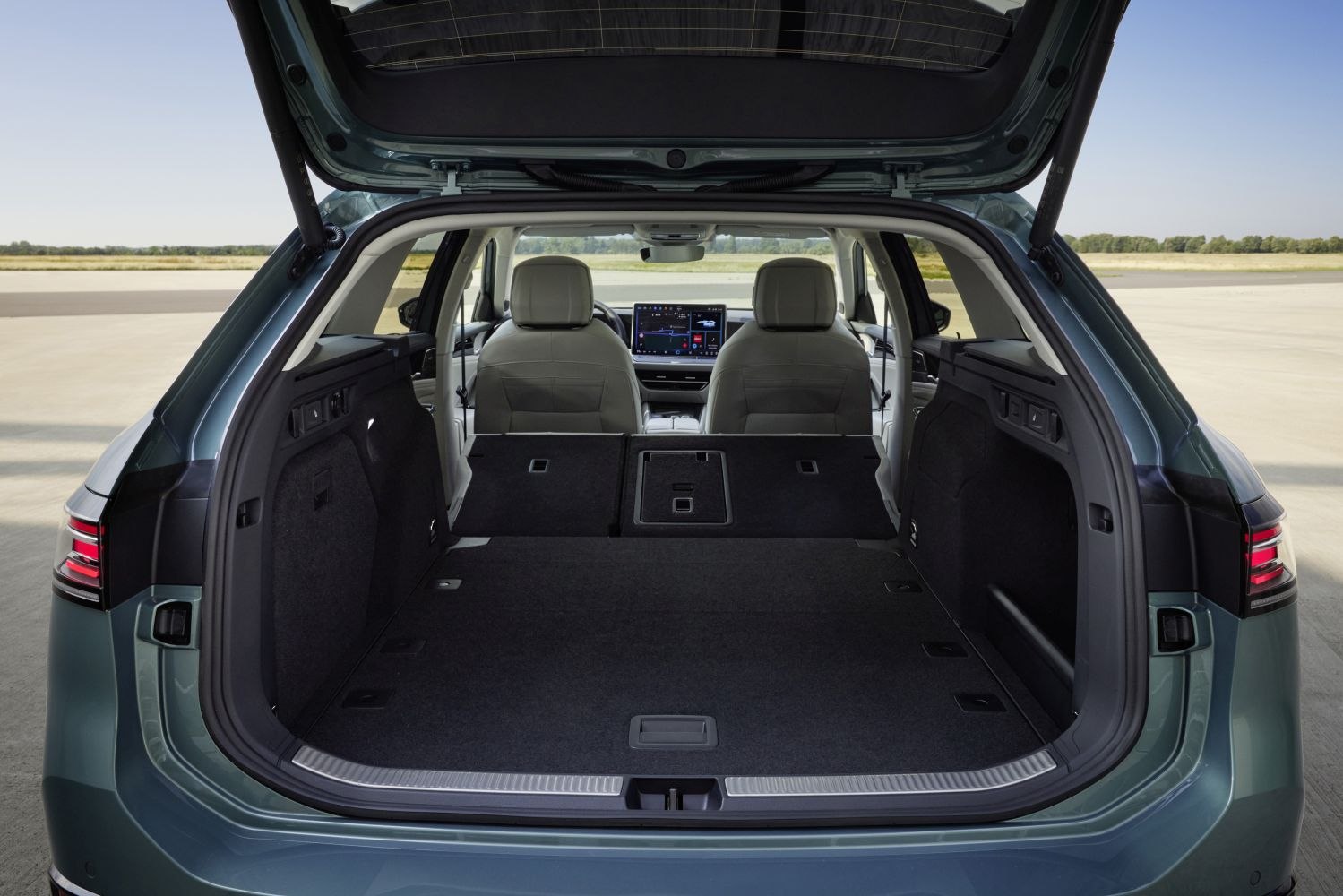

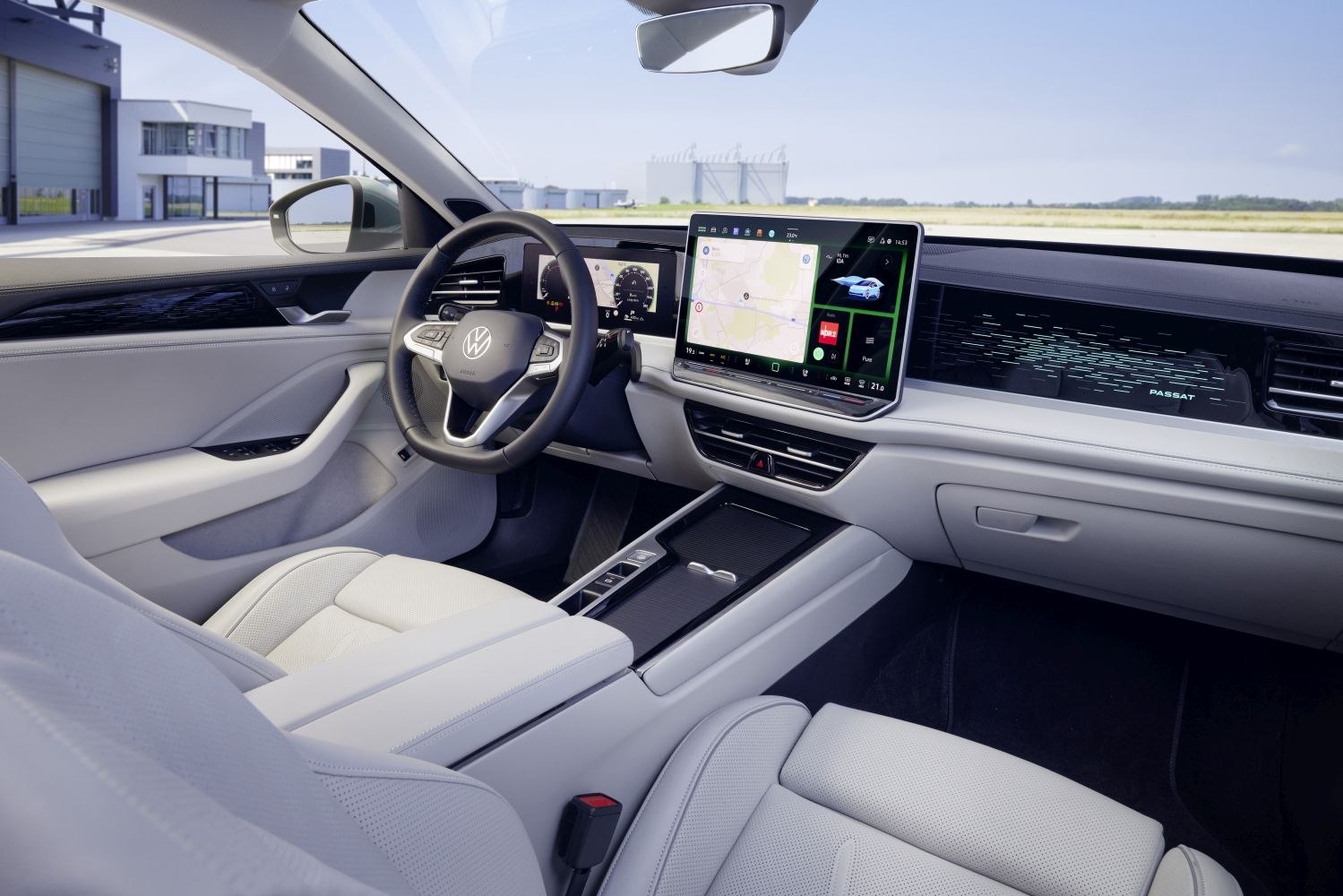

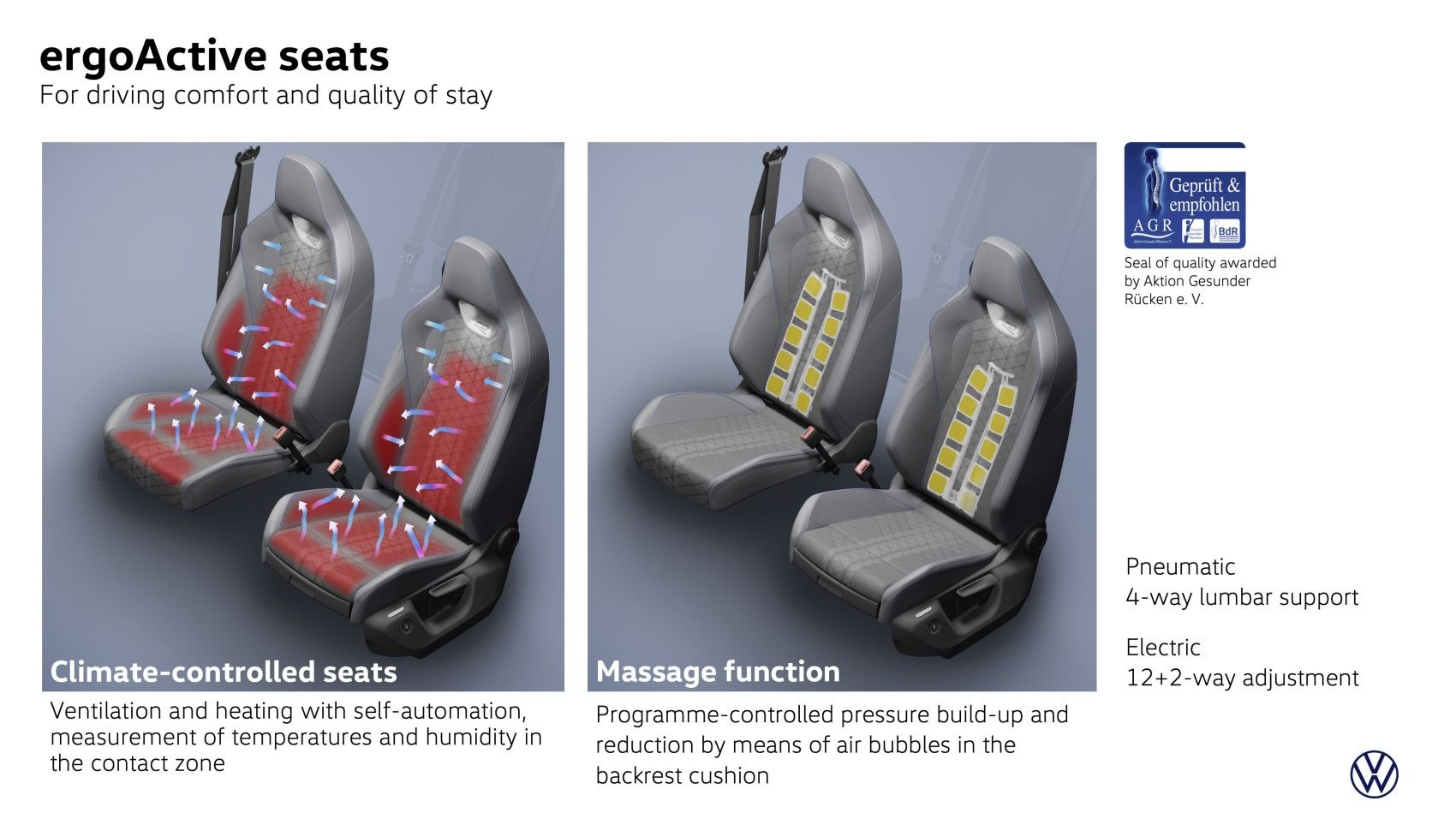

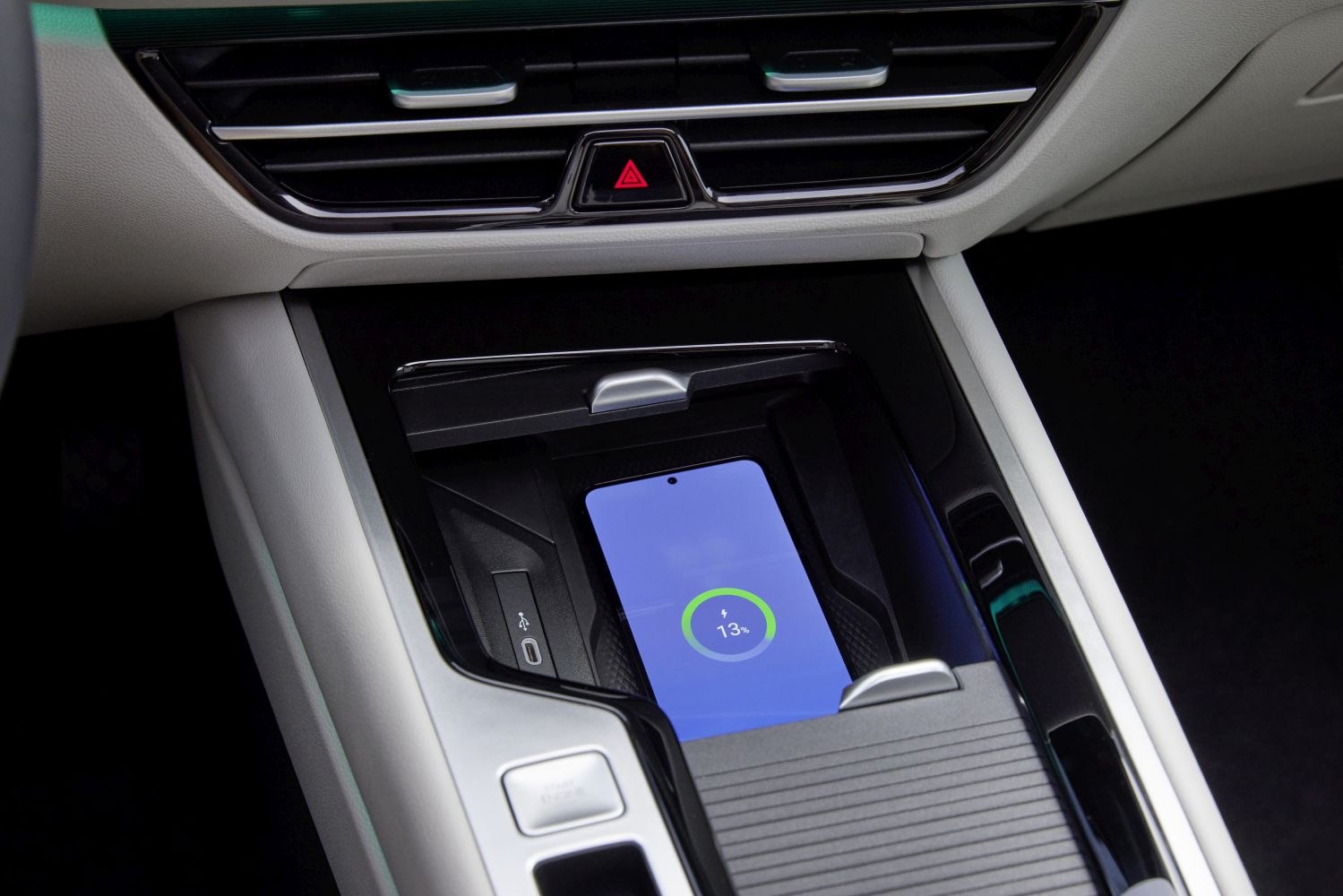

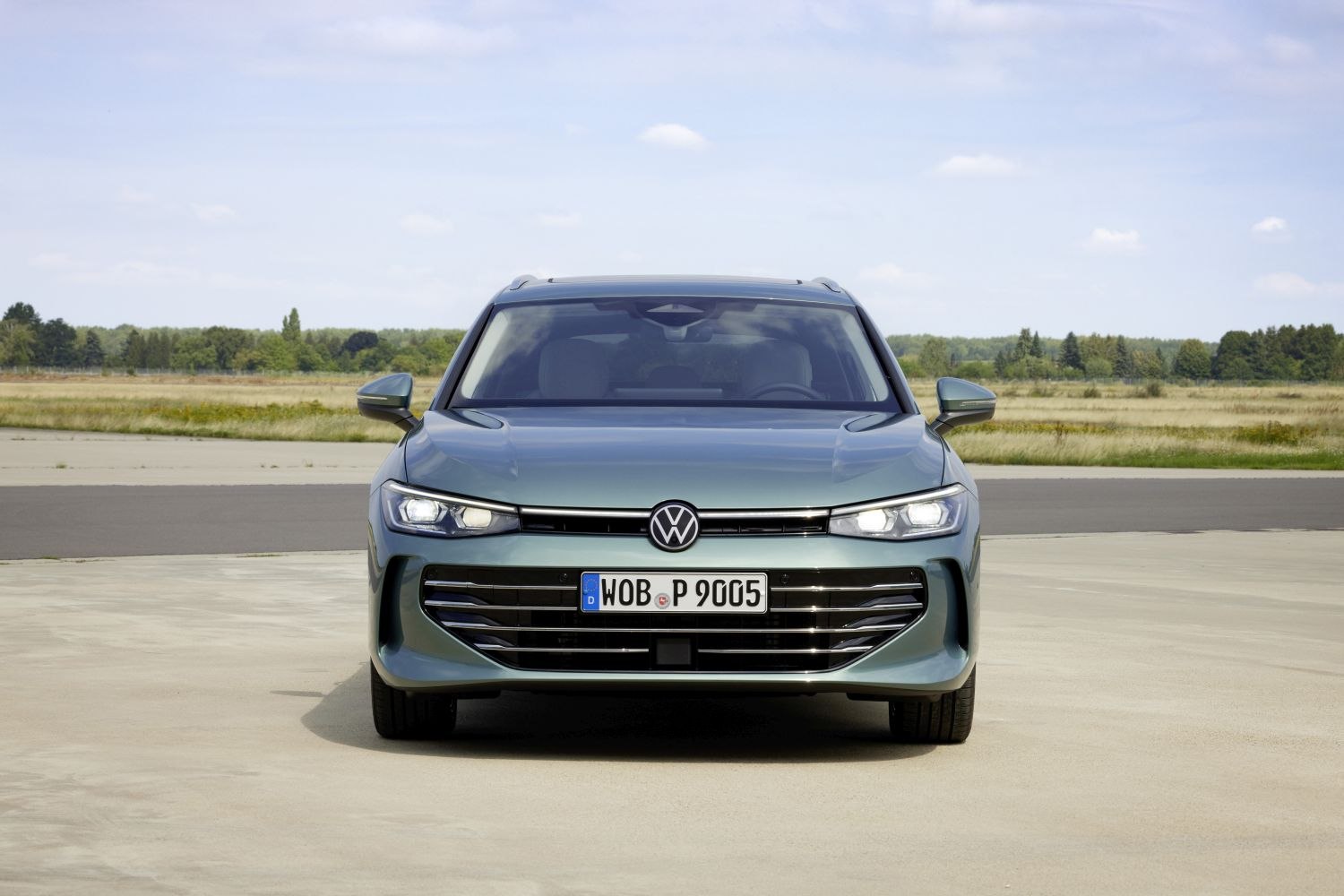

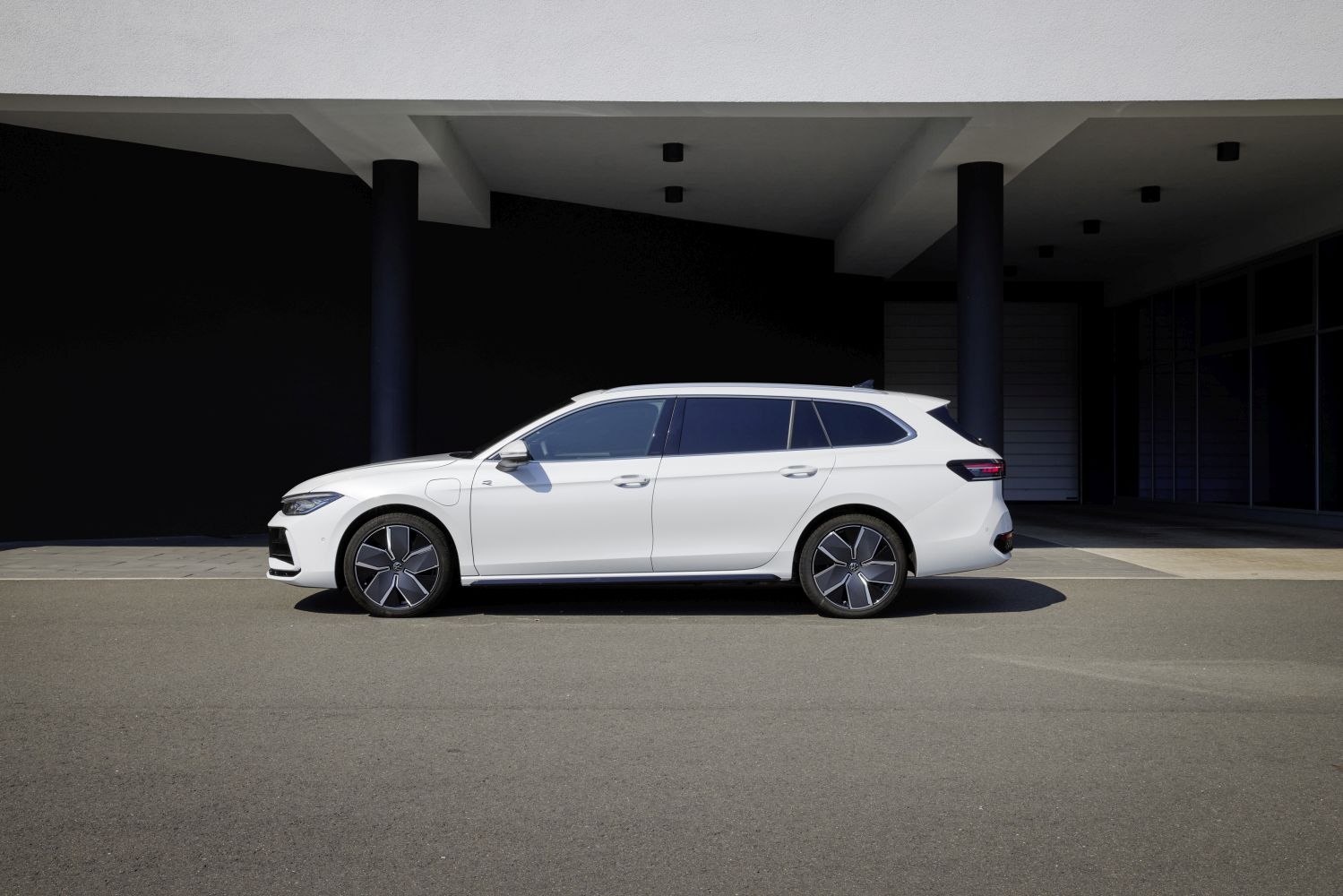

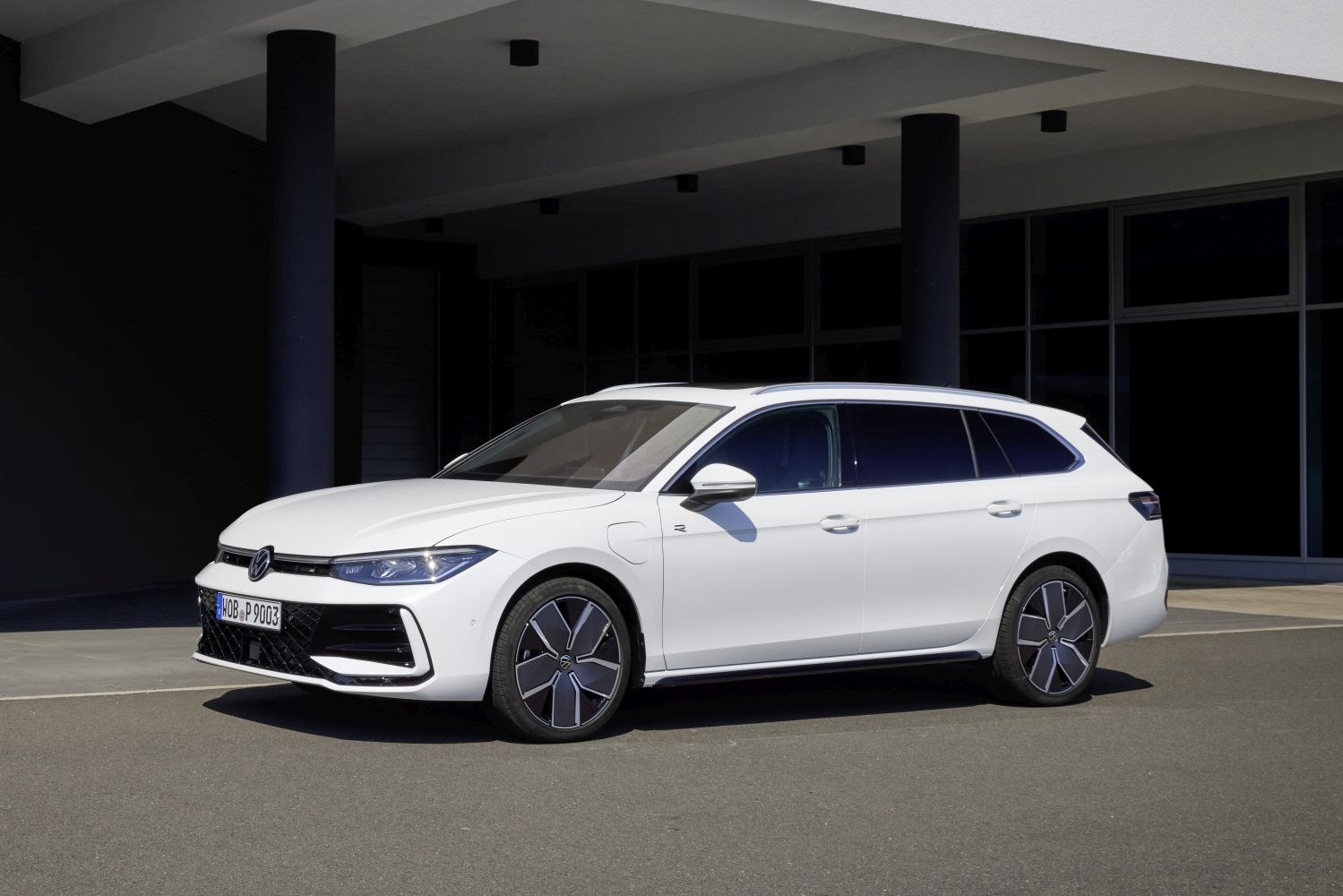

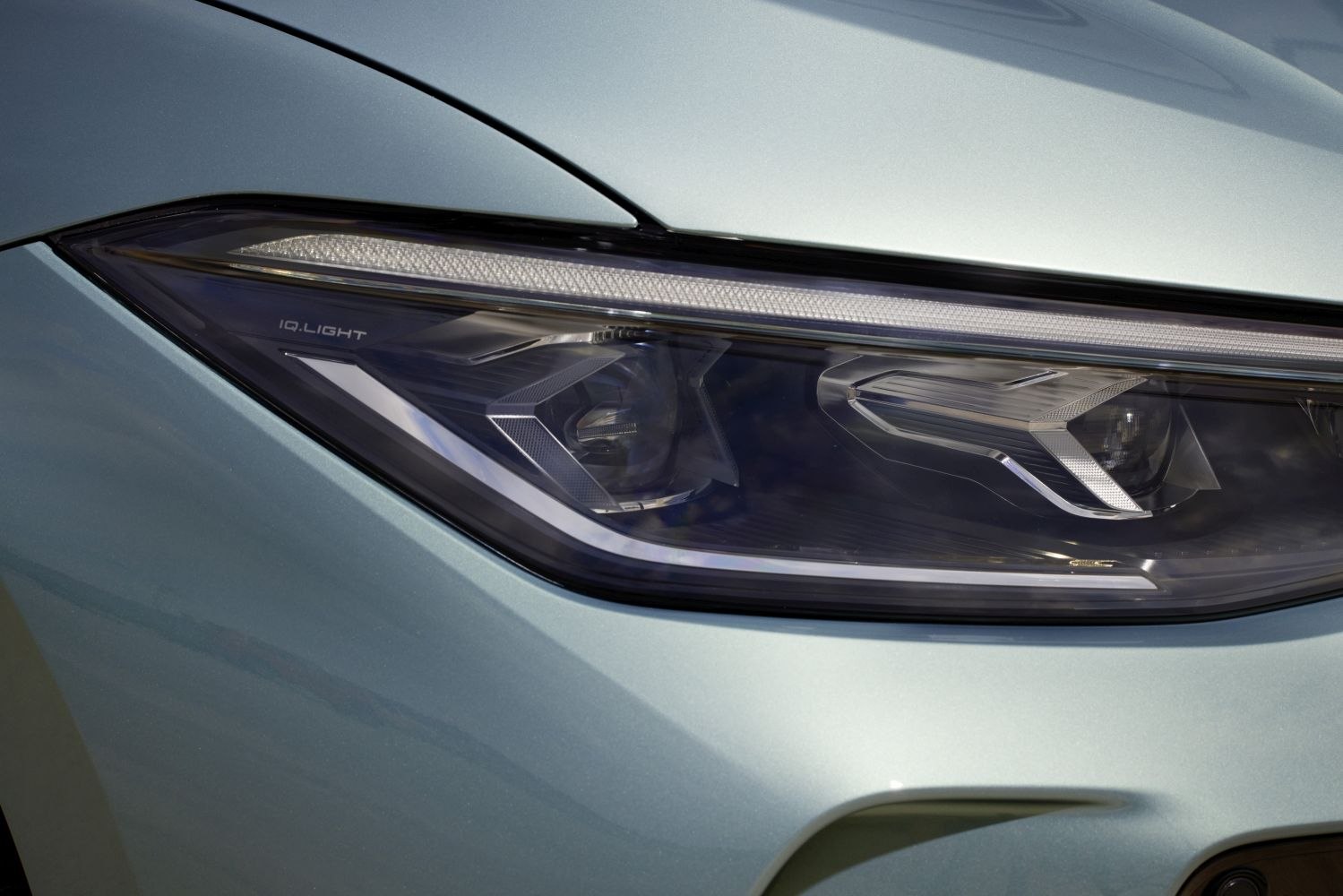

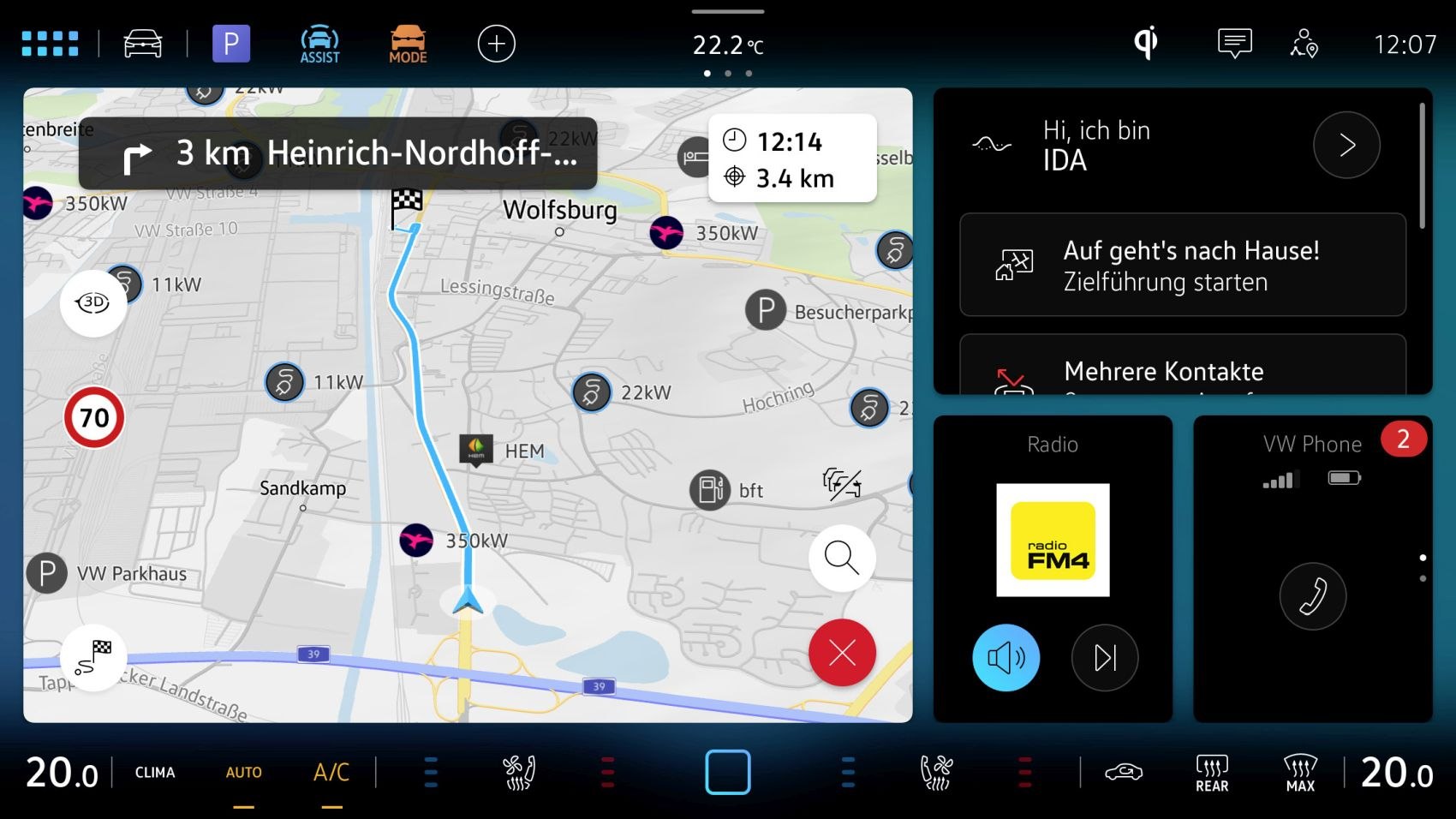

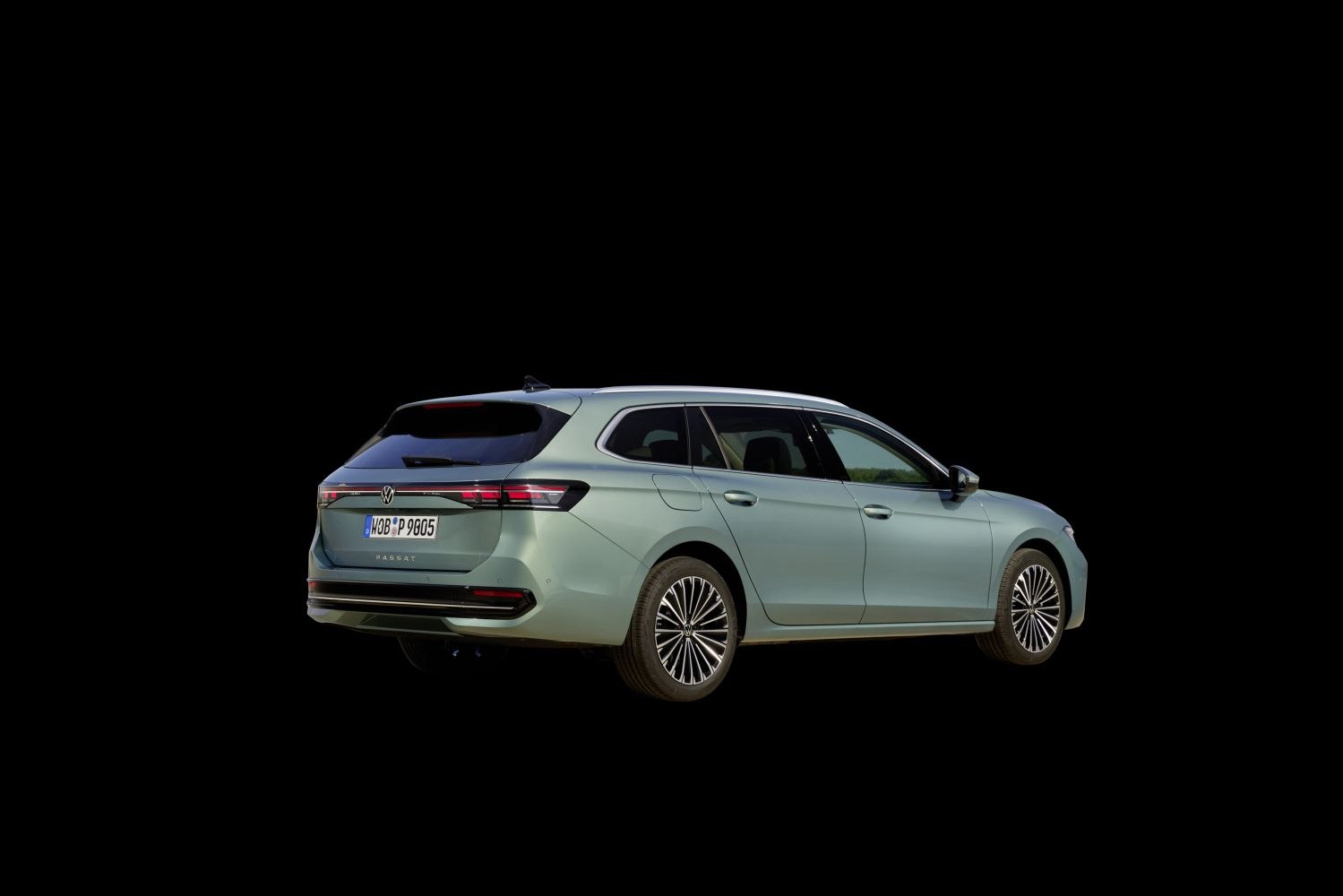

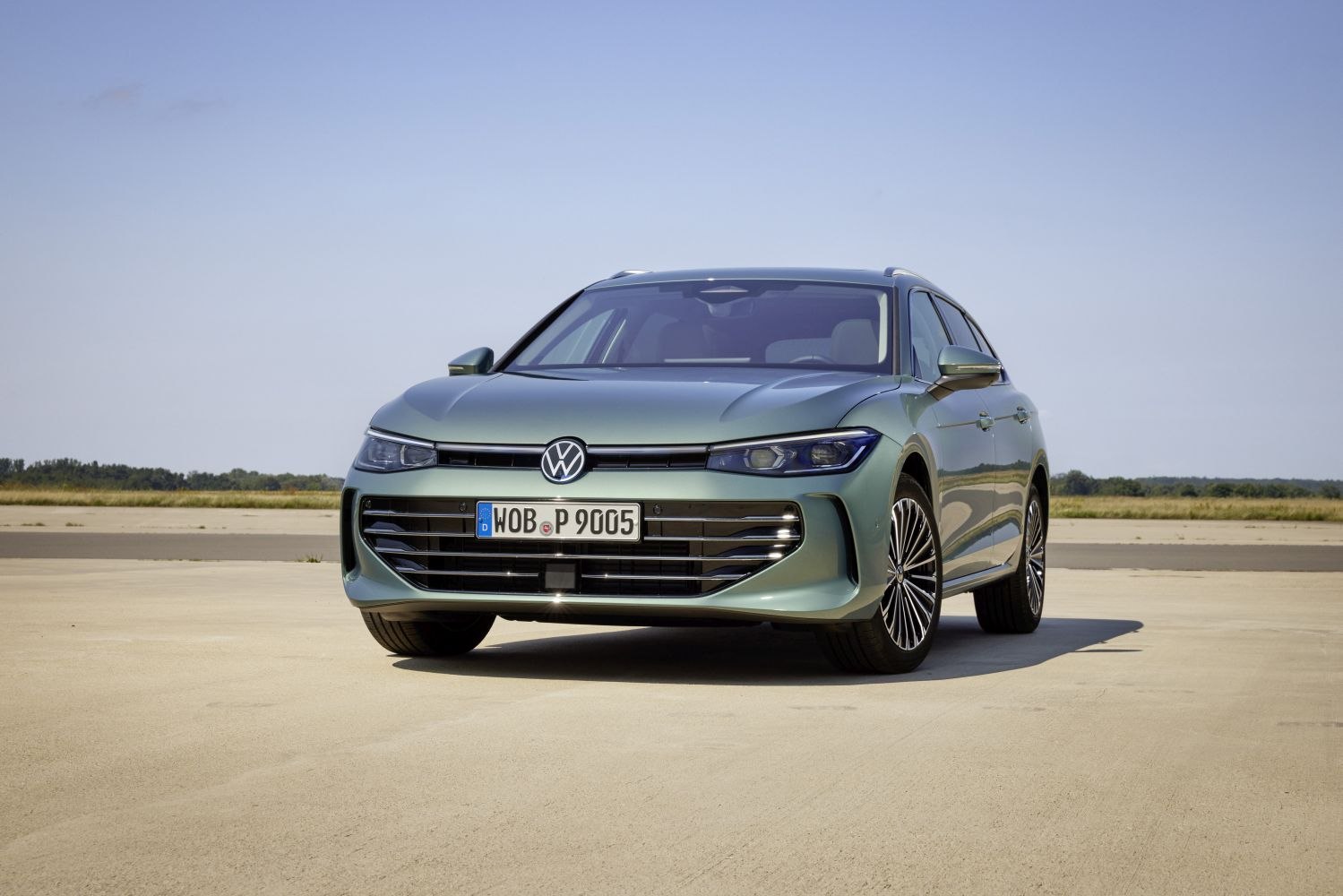

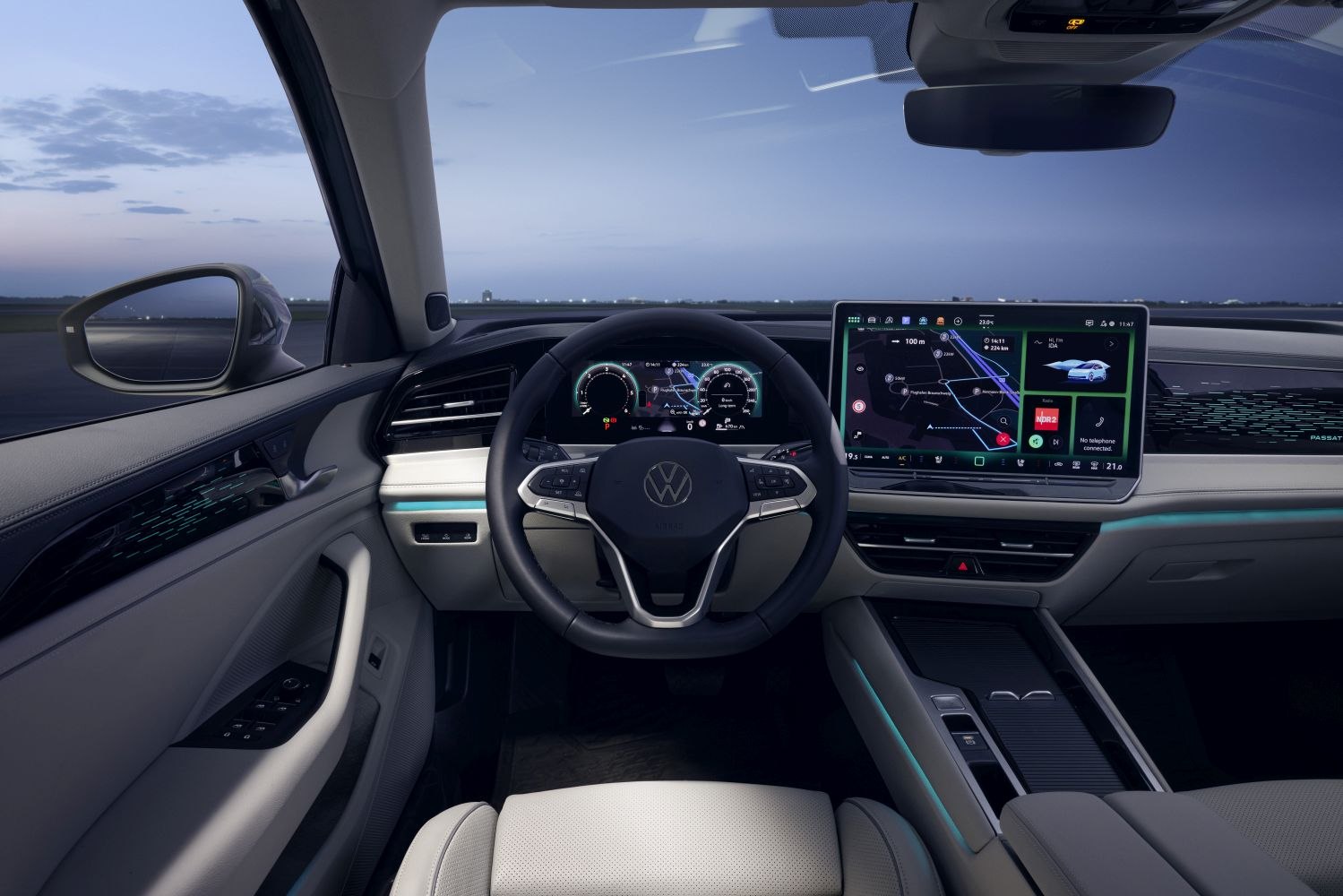

Volkswagen Passat Variant B9 2023 Gallery
Volkswagen Passat Variant B9 2023 Technical Specifications
General
Body type
Station wagon (estate)
Brand
Volkswagen
Doors
5
Generation
Passat Variant (B9)
Model
Passat
Modification (Engine)
1.5 eTSI (150 Hp) Mild Hybrid DSG
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start of production
2023
Performance
Acceleration 0 - 100 km/h
9.2 sec
Acceleration 0 - 60 mph
8.7 sec
Acceleration 0 - 62 mph
9.2 sec
CO2 emissions (WLTP)
123 g/km
Combined fuel consumption (WLTP)
5.4 l/100 km
Emission standard
Euro 6 EA
Fuel Type
Petrol (Gasoline)
Maximum speed
222 km/h
Electric
Battery location
Under the front seats
Battery voltage
48 V
Electric motor location number 1
Front, Transverse
Internal Engine
Cylinder Bore
74.5 mm
Engine Model/Code
EA211 evo2
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1498 cm
Engine layout
Front, Transverse
Engine systems
Start & Stop SystemCylinder deactivation systemParticulate filter
Fuel injection system
Direct injection
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
85.9 mm
Power
150 Hp
Power per litre
100.1 Hp/l
Torque
250 Nm @ 1500-3500 rpm.
Valvetrain
DOHC
Dimensions
Approach angle
12.8°
Departure angle
11.7°

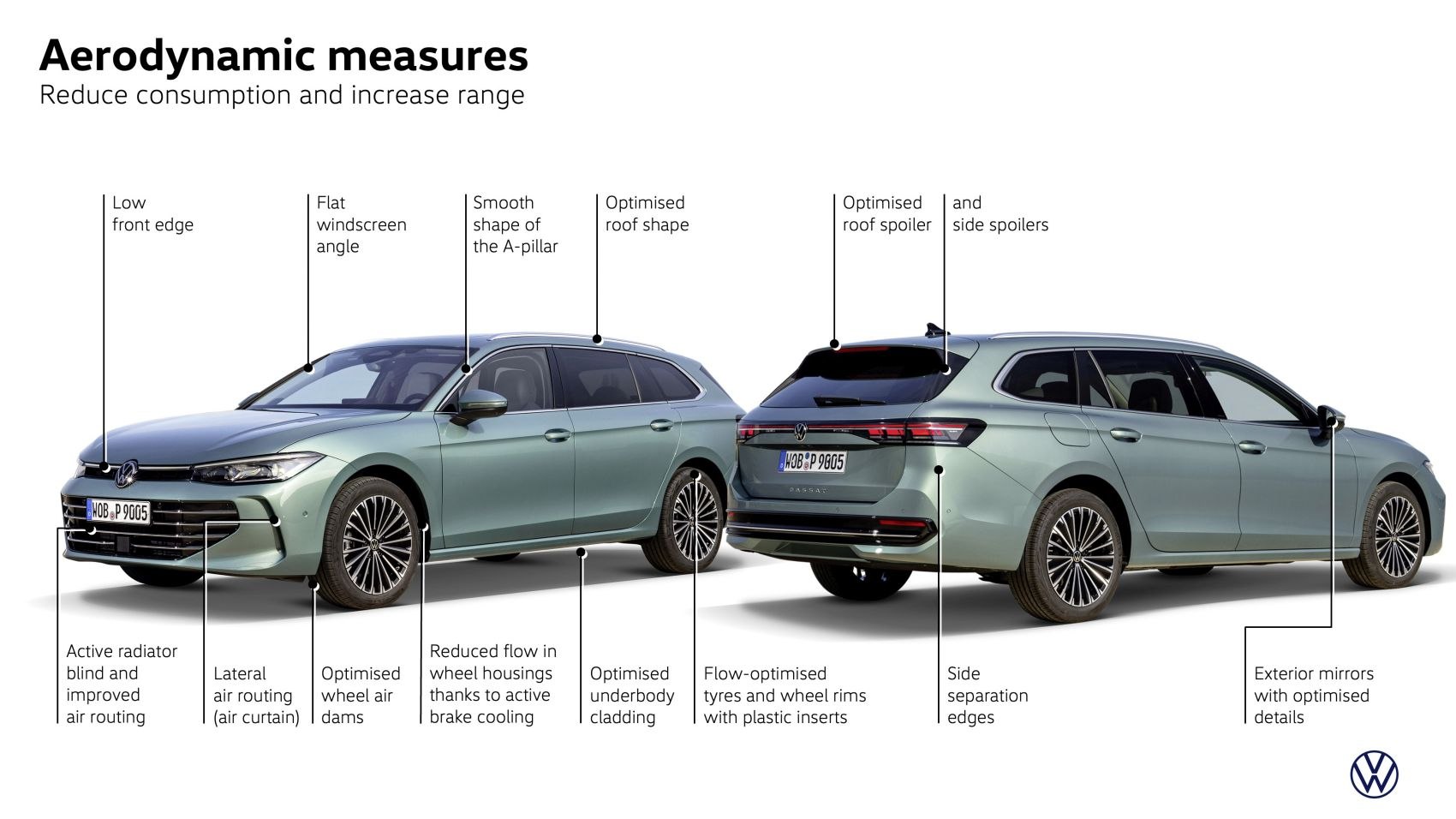

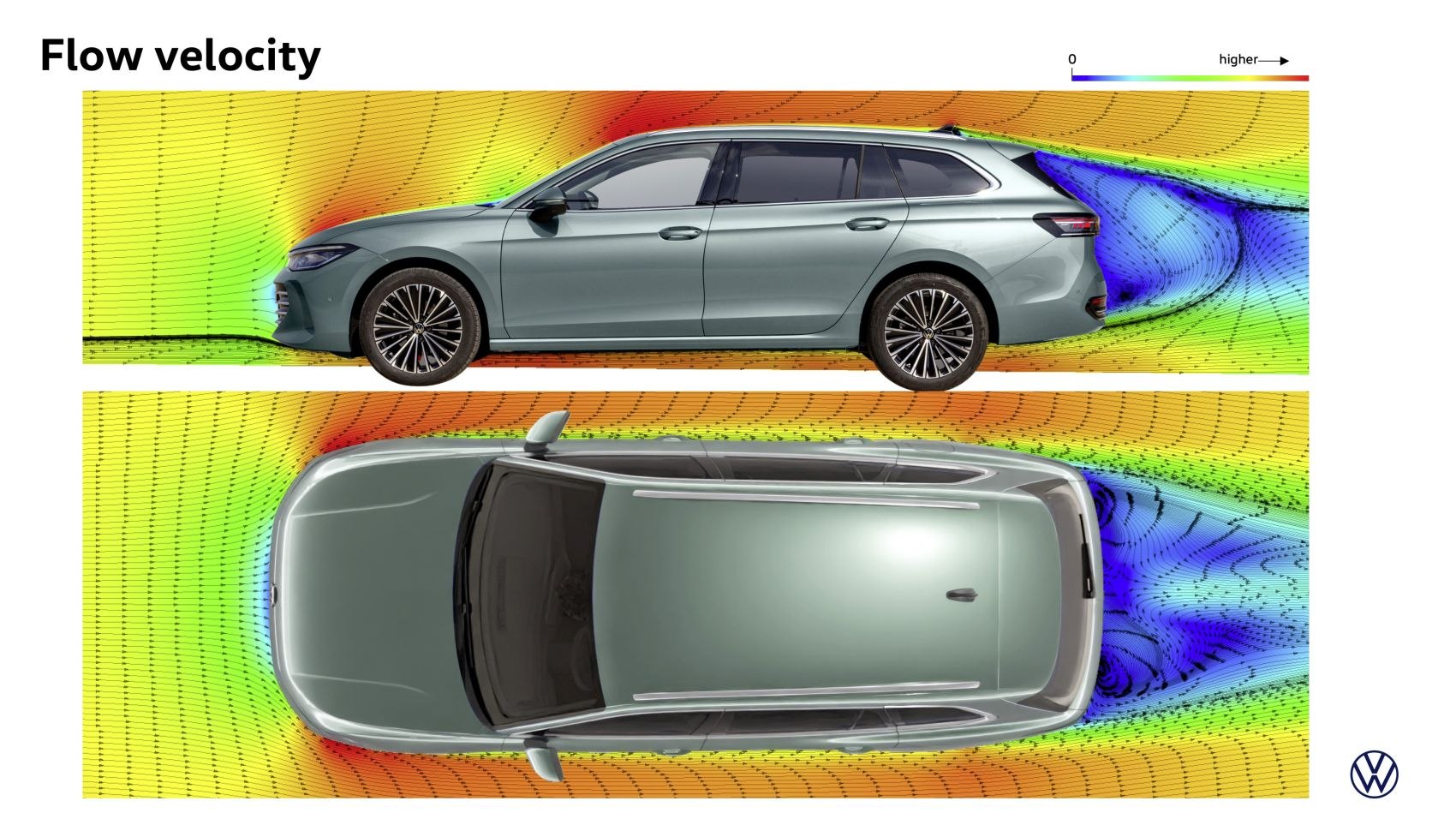

Drag coefficient (Cd)
0.25
Front overhang
957 mm
Front track
1577-1585 mm
Height
1497 mm
Length
4917 mm
Minimum turning circle (turning diameter)
12 m
Ramp-over (brakeover) angle
10.5°
Rear (Back) track
1560-1574 mm
Rear overhang
1119 mm
Wheelbase
2841 mm
Width
1849 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar

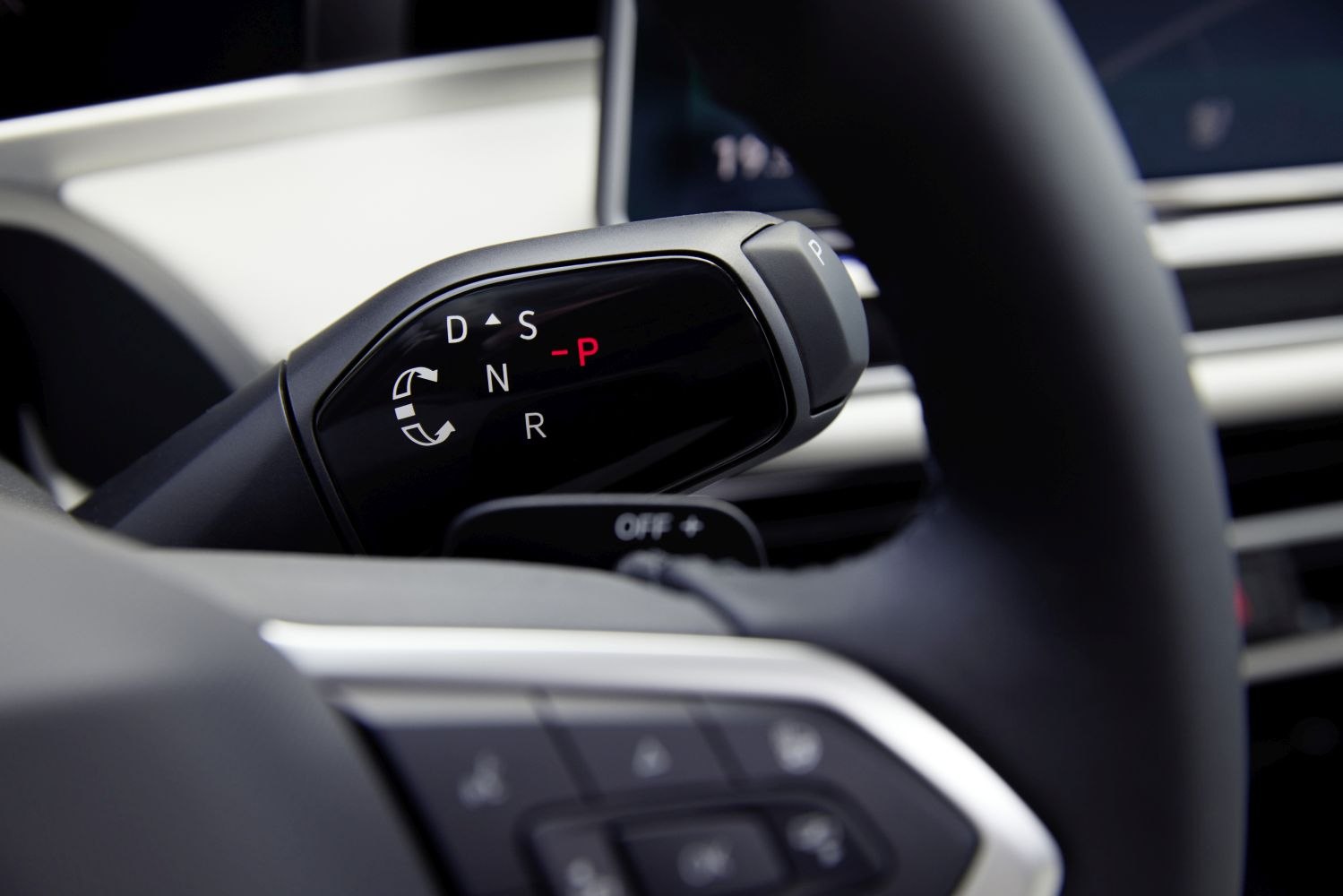

Number of gears and type of gearbox
7 gears, automatic transmission DSG
Power steering
Electric Steering
Steering type
Steering rack and pinion
Tires size
215/60 R16; 215/55 R17; 235/45 R18
Wheel rims size
7J x 16; 7.5J x 17; 8J x 18
Space
Fuel tank capacity
66 l
Kerb Weight
1572 kg
Max load
558 kg
Max. roof load
100 kg
Max. weight
2130 kg
Permitted towbar download
90 kg
