Volkswagen Caddy 3 2006
1.9 TDI (105 Hp) DPF DSG
Generation Caddy 3
Body Type Minivan
Seats 5
2010
End Year
166 km/h
Maximum Speed
4
Doors
Volkswagen Caddy 3 2006 Key Specs
Acceleration 0 - 100 Km/h
13.3 sec
Acceleration 0 - 62 Mph
13.3 sec
Body Type
Minivan
Doors
4-5
Drive Wheel
Front wheel drive
End Of Production
2010
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
4.3 l
Engine Systems
Particulate filter
Fuel Type
Diesel
Fuel Consumption (economy) - Combined
6.9 l/100 km
Fuel Consumption (economy) - Extra Urban
6 l/100 km
Fuel Tank Capacity
60 l
Generation
Caddy III
Kerb Weight
1511-1677 kg
Maximum Speed
166 km/h
Modification (Engine)
1.9 TDI (105 Hp) DPF DSG
Number Of Cylinders
4
Power
105 Hp @ 4000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
5-7
Start Of Production
2006
Wheel Rims Size
6J x 15

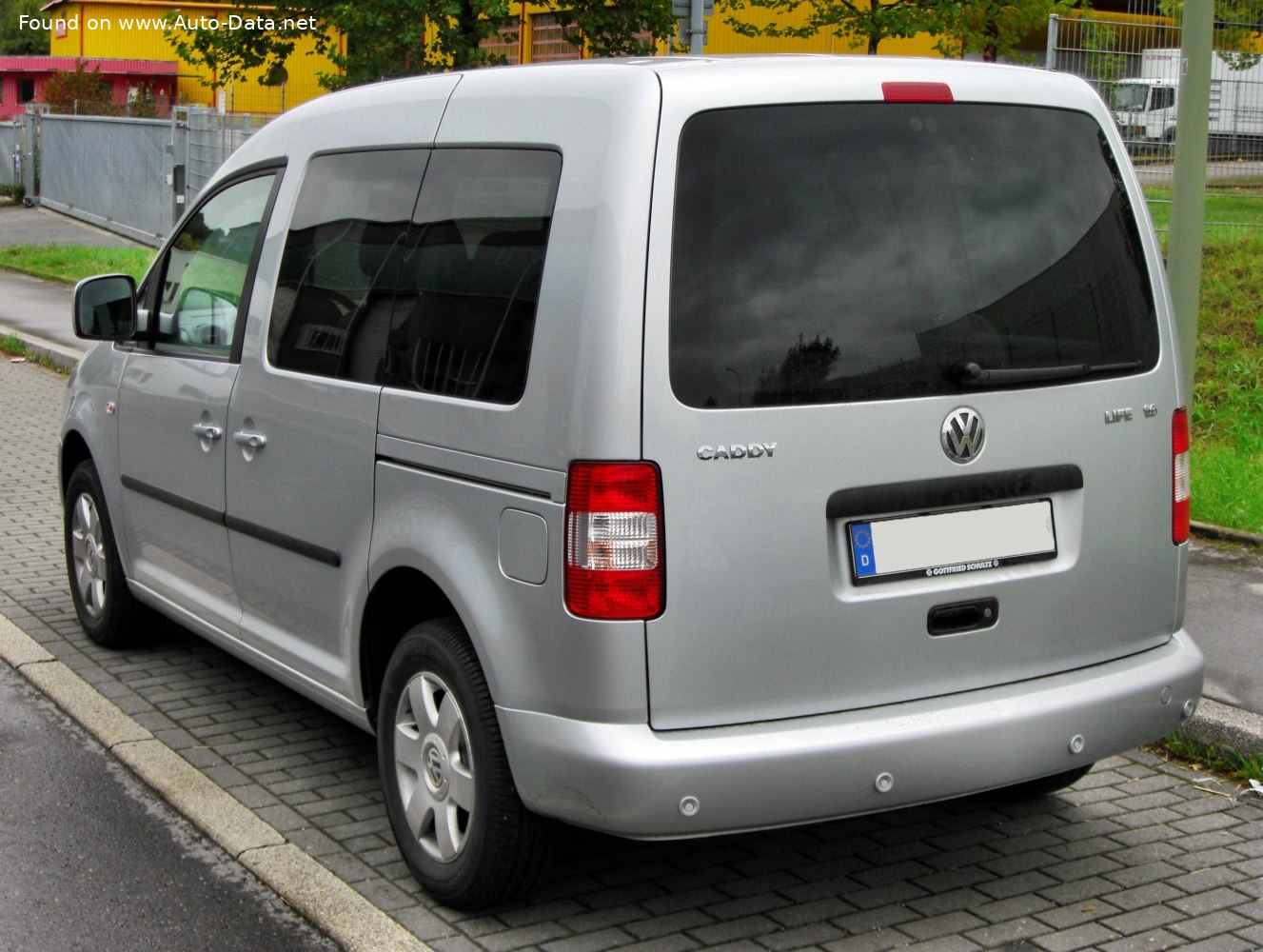

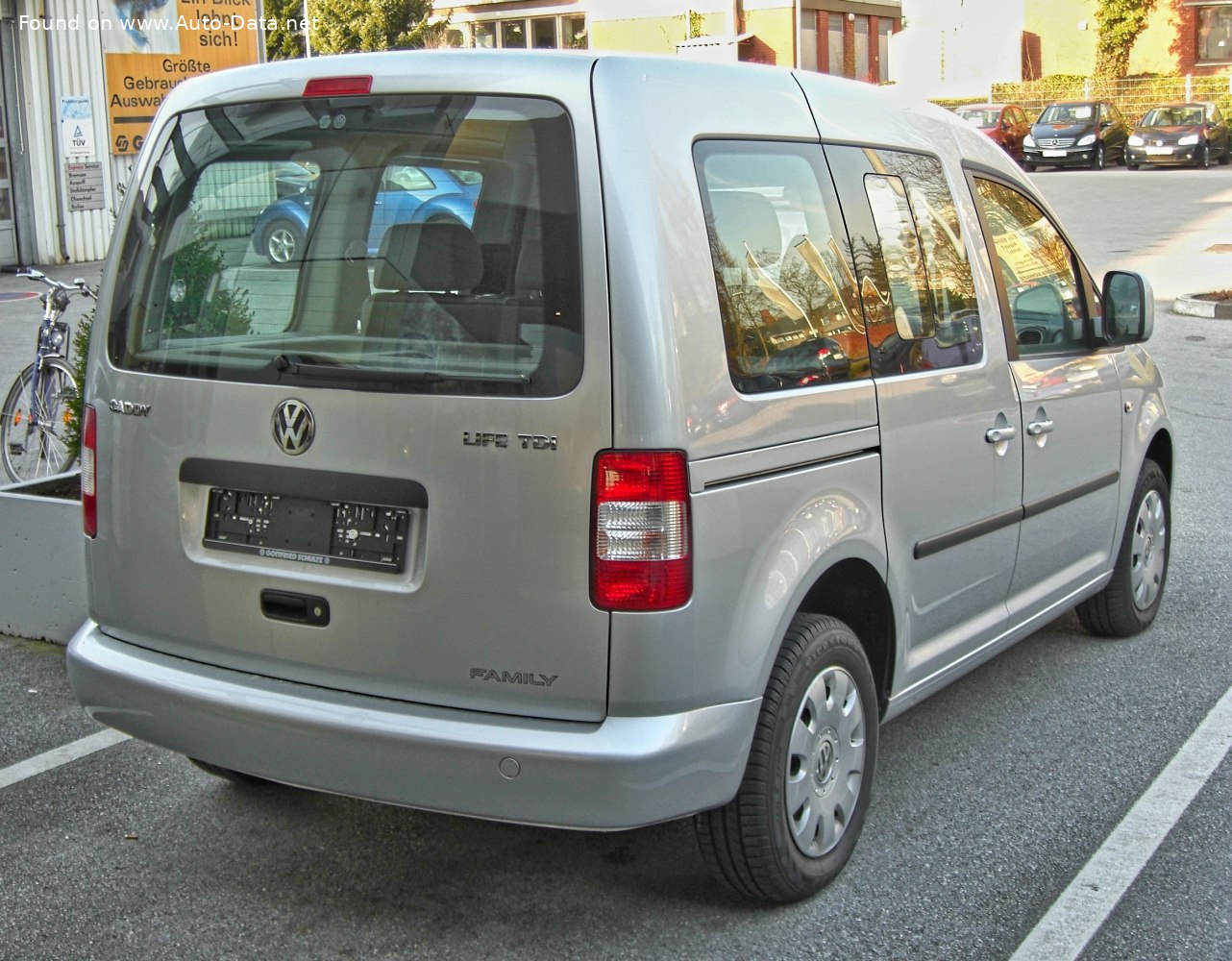

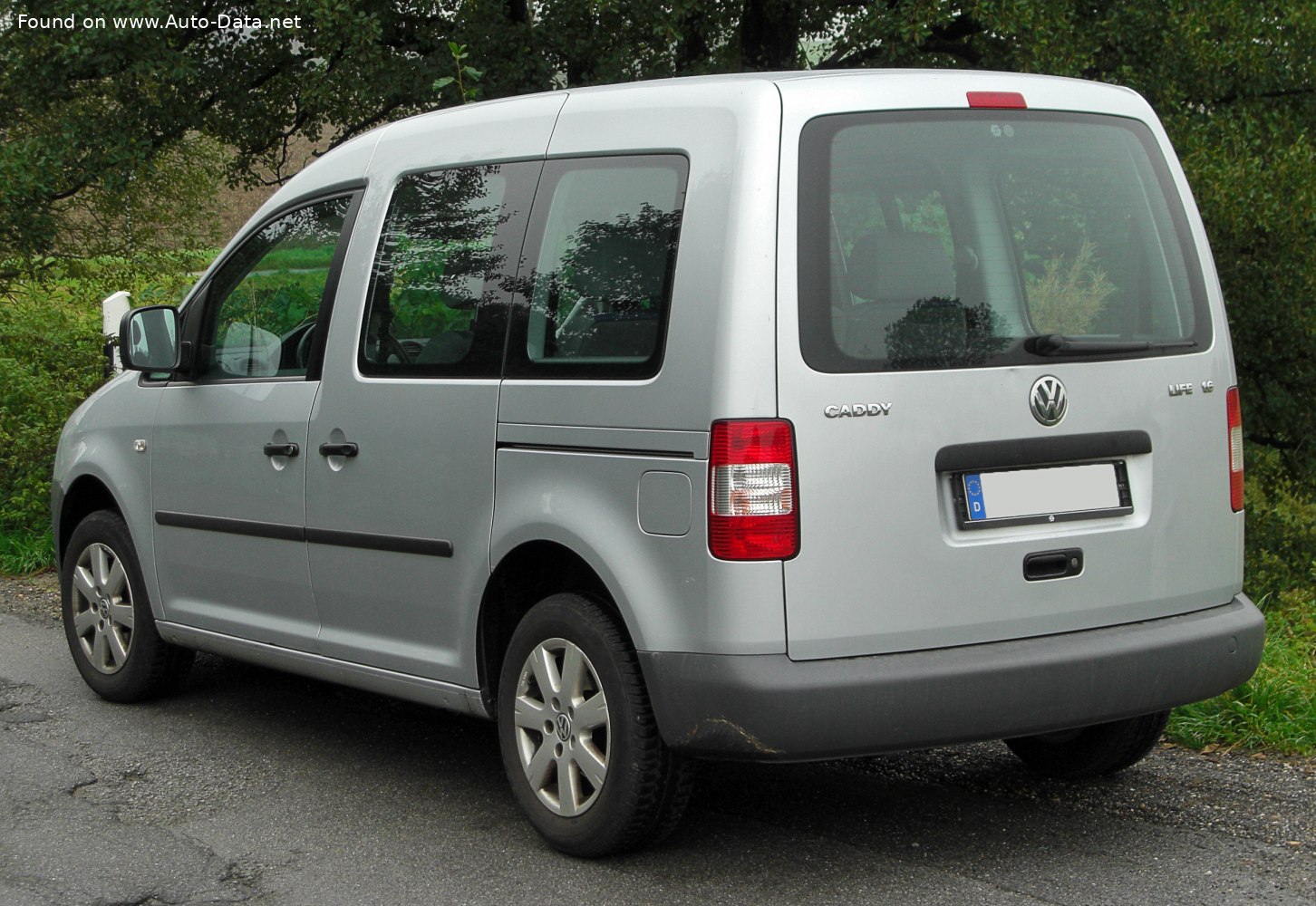

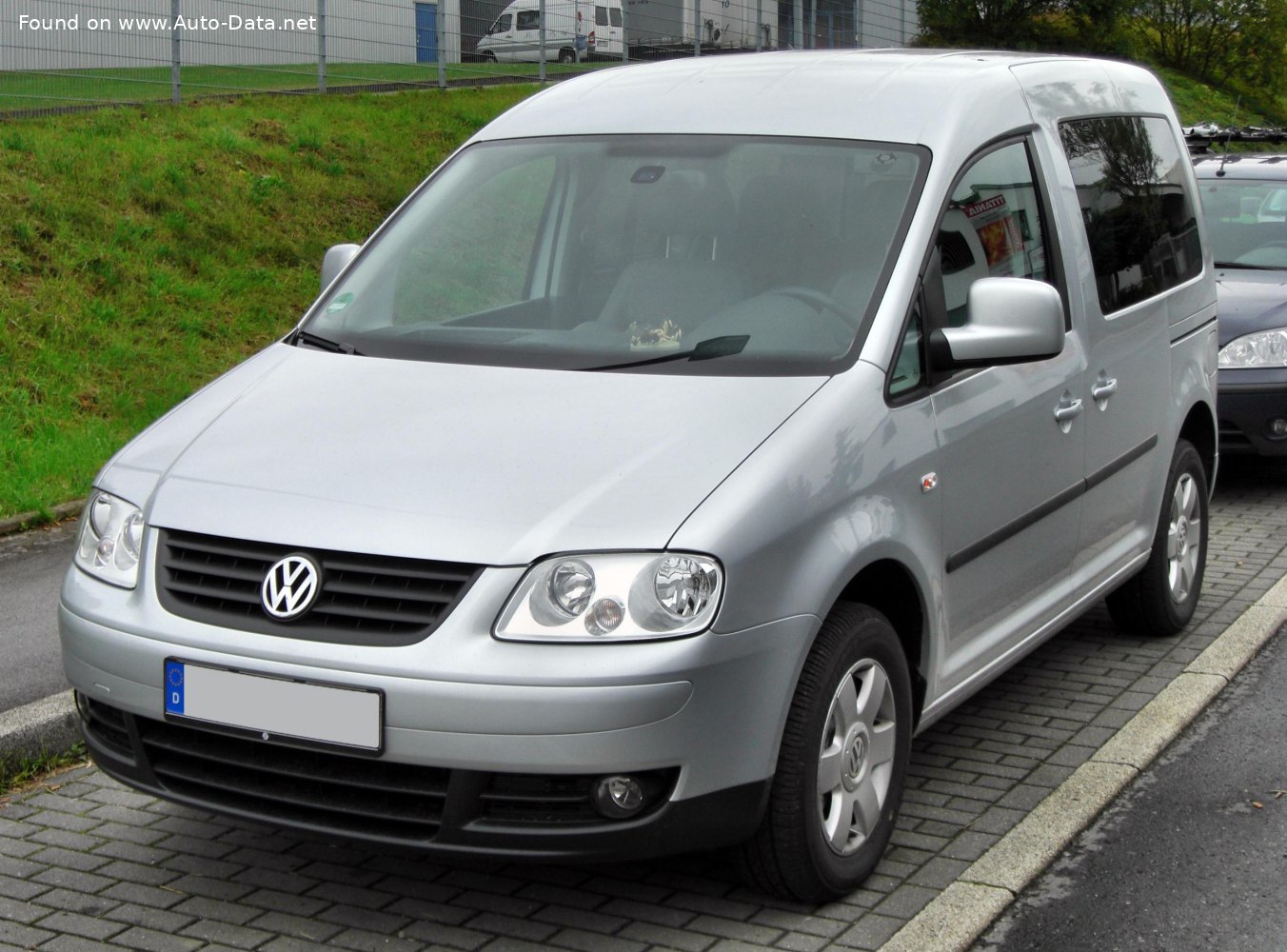

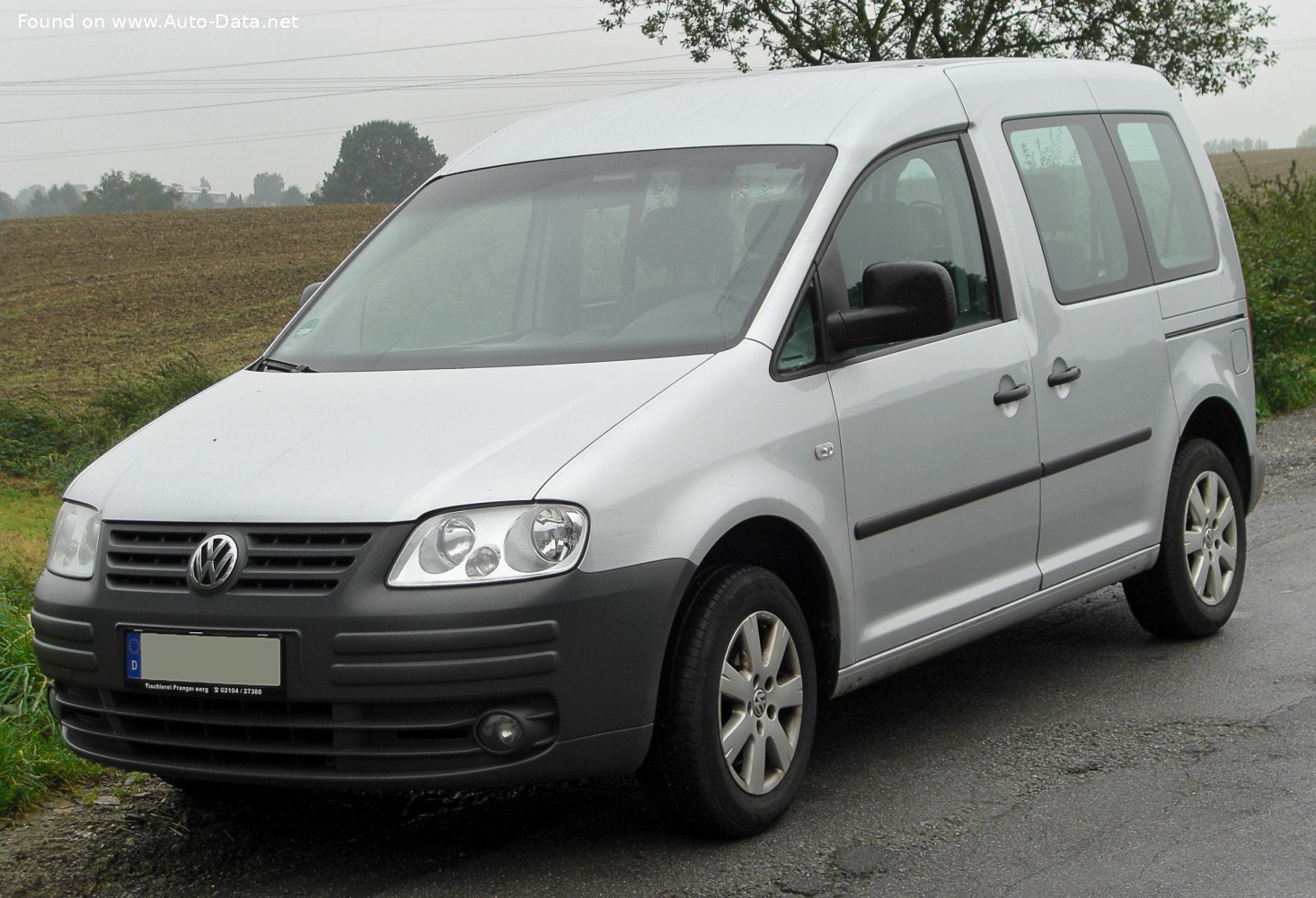

Volkswagen Caddy 3 2006 Gallery
Volkswagen Caddy 3 2006 Technical Specifications
General
Body type
Minivan
Brand
Volkswagen
Doors
4-5
End of production
2010
Generation
Caddy III
Model
Caddy
Modification (Engine)
1.9 TDI (105 Hp) DPF DSG
Powertrain Architecture
Internal Combustion engine
Seats
5-7
Start of production
2006
Performance
Acceleration 0 - 100 km/h
13.3 sec
Acceleration 0 - 60 mph
12.6 sec
Acceleration 0 - 62 mph
13.3 sec
CO2 emissions
182 g/km
Emission standard
Euro 4
Fuel Type
Diesel
Fuel consumption (economy) - combined
6.9 l/100 km
Fuel consumption (economy) - extra urban
6 l/100 km
Fuel consumption (economy) - urban
8.3 l/100 km
Maximum speed
166 km/h
Dimensions
Front overhang
880 mm
Front track
1537 mm
Height
1833 mm
Length
4405 mm
Minimum turning circle (turning diameter)
11.1 m
Rear (Back) track
1531 mm
Rear overhang
843 mm
Ride height (ground clearance)
176 mm
Wheelbase
2682 mm
Width
1794 mm
Engine
Compression ratio
19
Coolant
8 l
Cylinder Bore
79.5 mm
Engine Model/Code
EA188 / BLS
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1896 cm
Engine layout
Front, Transverse
Engine oil capacity
4.3 l
Engine oil specification
Log in to see.
Engine systems
Particulate filter
Fuel injection system
Pump-nozzle (Unit Injector)
Number of cylinders
4
Number of valves per cylinder
2
Power
105 Hp @ 4000 rpm.
Torque
250 Nm @ 1900 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 280x22 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
6 gears, automatic transmission DSG
Power steering
Electric Steering
Rear brakes
Disc, 260x12 mm
Rear suspension
Rigid axle suspension, Transverse stabilizer, Leaf spring
Steering type
Steering rack and pinion
Tires size
195/65 R15
Wheel rims size
6J x 15
Space
Fuel tank capacity
60 l
Kerb Weight
1511-1677 kg
Max load
603-769 kg
Max. roof load
100 kg
Max. weight
2280 kg
