Volkswagen Caddy 4 2015
2.0 TDI (102 Hp)
Generation Caddy 4
Body Type Minivan
Seats 5
2020
End Year
172 km/h
Maximum Speed
4
Doors
Volkswagen Caddy 4 2015 Key Specs
Acceleration 0 - 100 Km/h
12.9 sec
Acceleration 0 - 62 Mph
12.9 sec
Body Type
Minivan
Doors
4-5
Drive Wheel
Front wheel drive
End Of Production
2020
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
4.6 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
55 l
Generation
Caddy IV
Kerb Weight
1382-1402 kg
Maximum Speed
172 km/h
Modification (Engine)
2.0 TDI (102 Hp)
Number Of Cylinders
4
Power
102 Hp @ 2900-4000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
5-7
Start Of Production
2015
Wheel Rims Size
6J x 15; 6J x 16

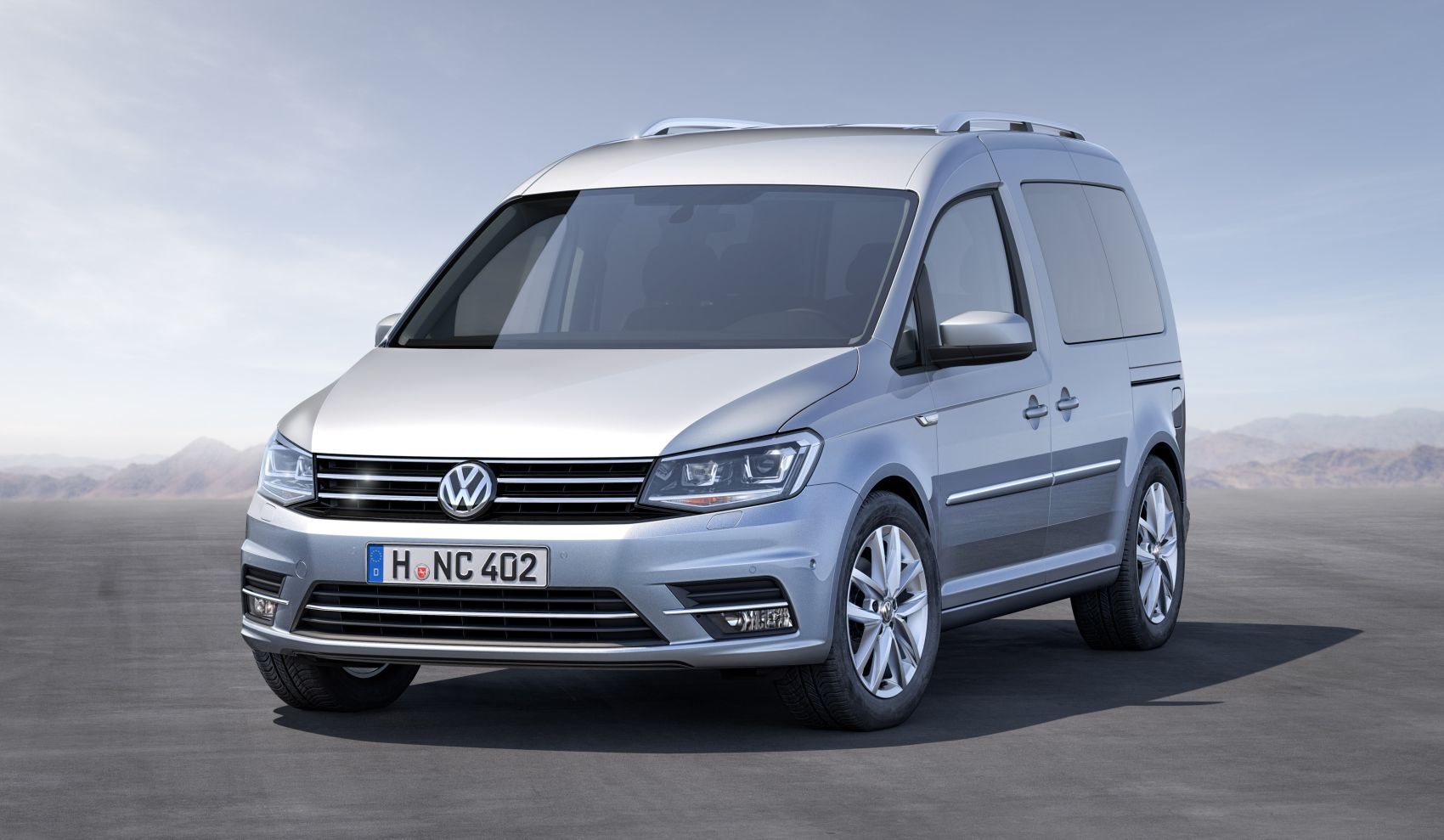

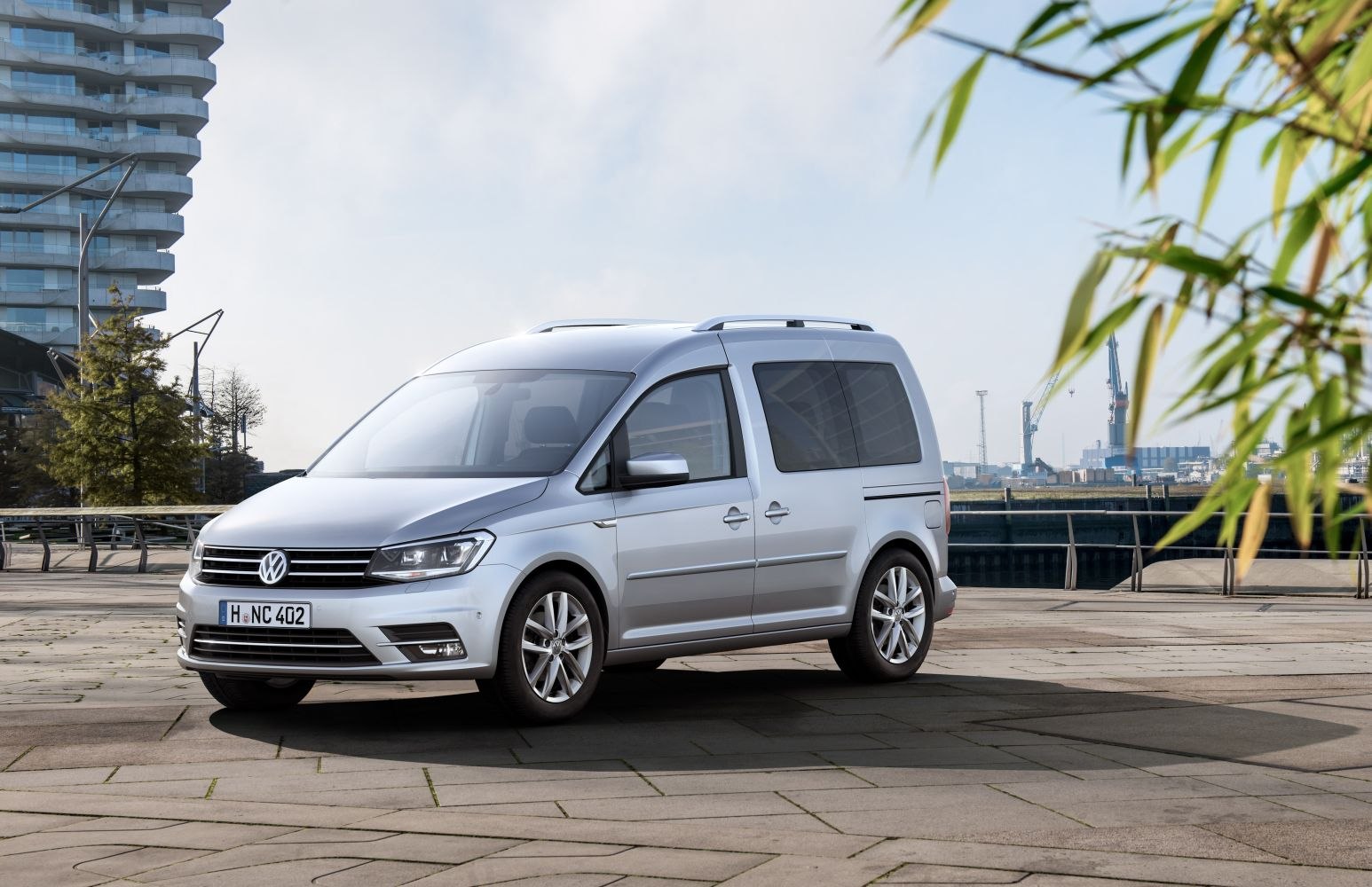

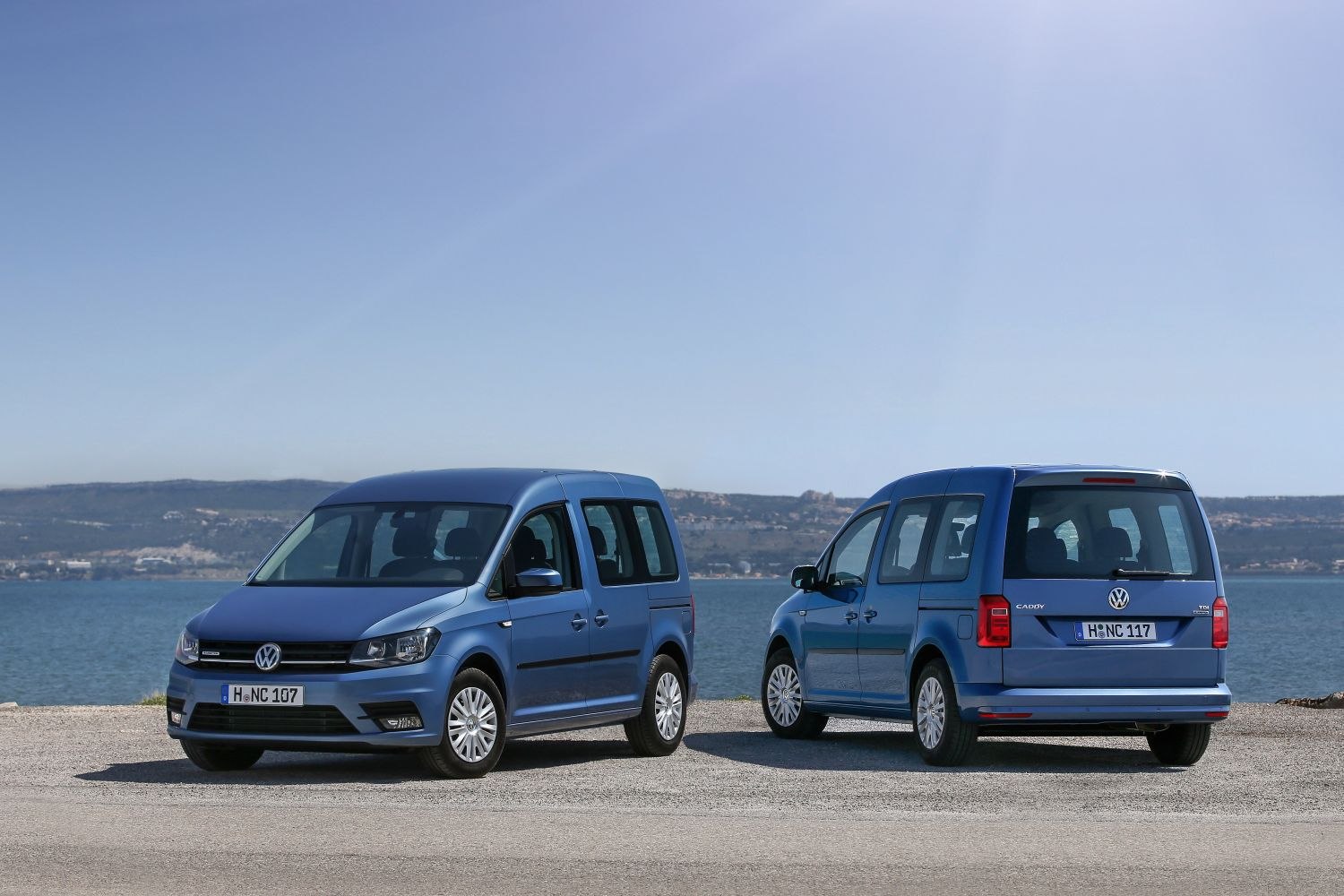

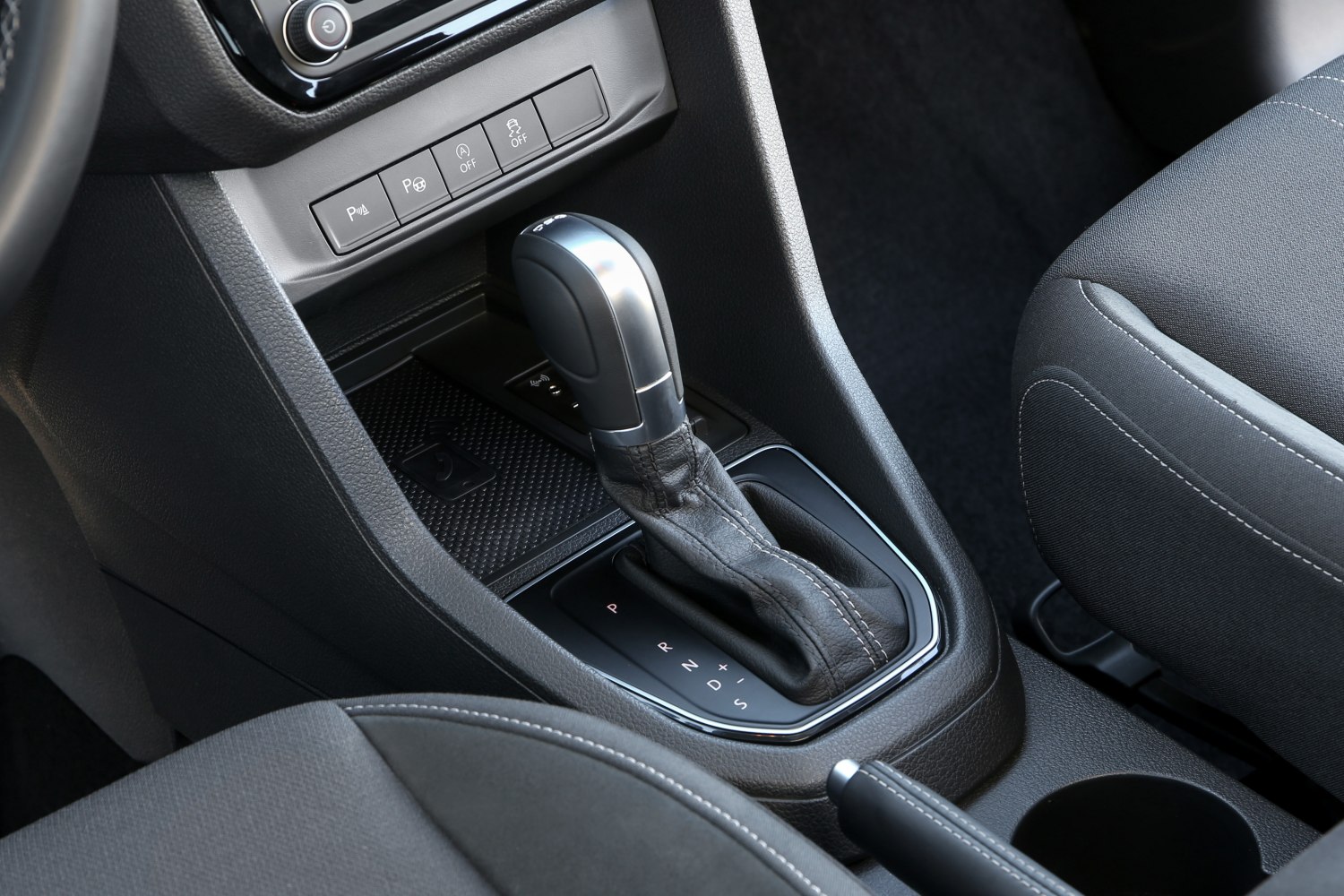

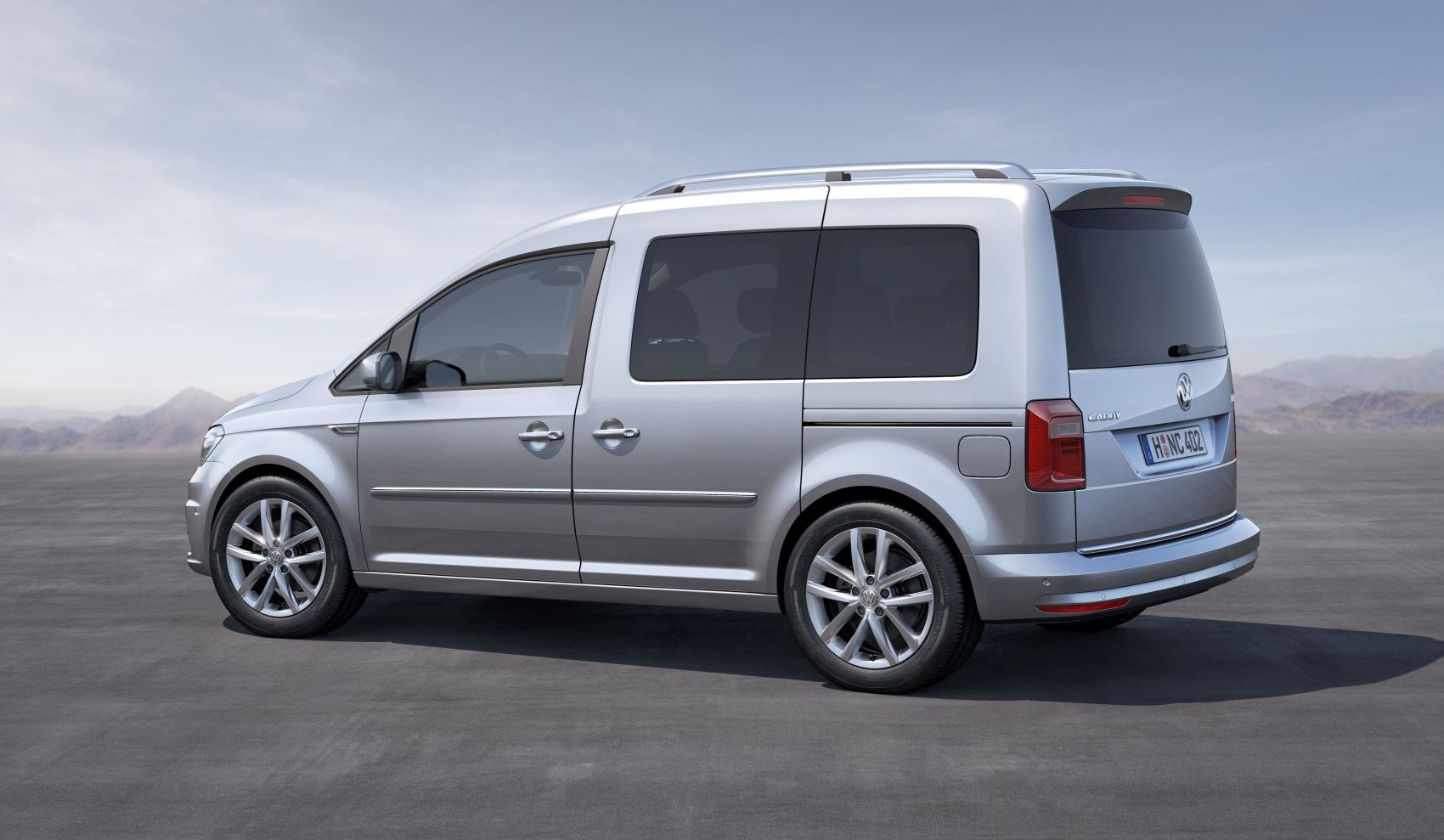

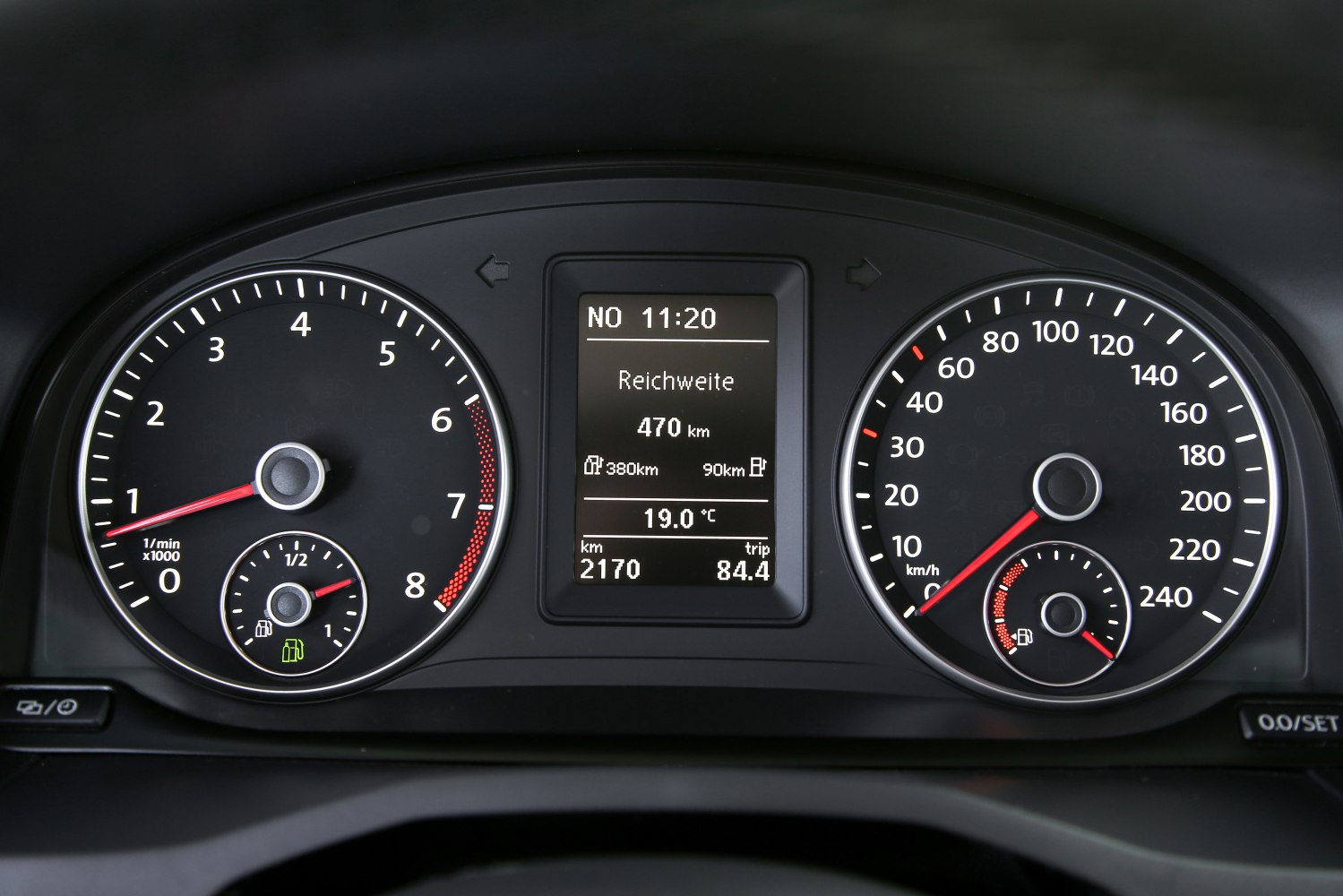

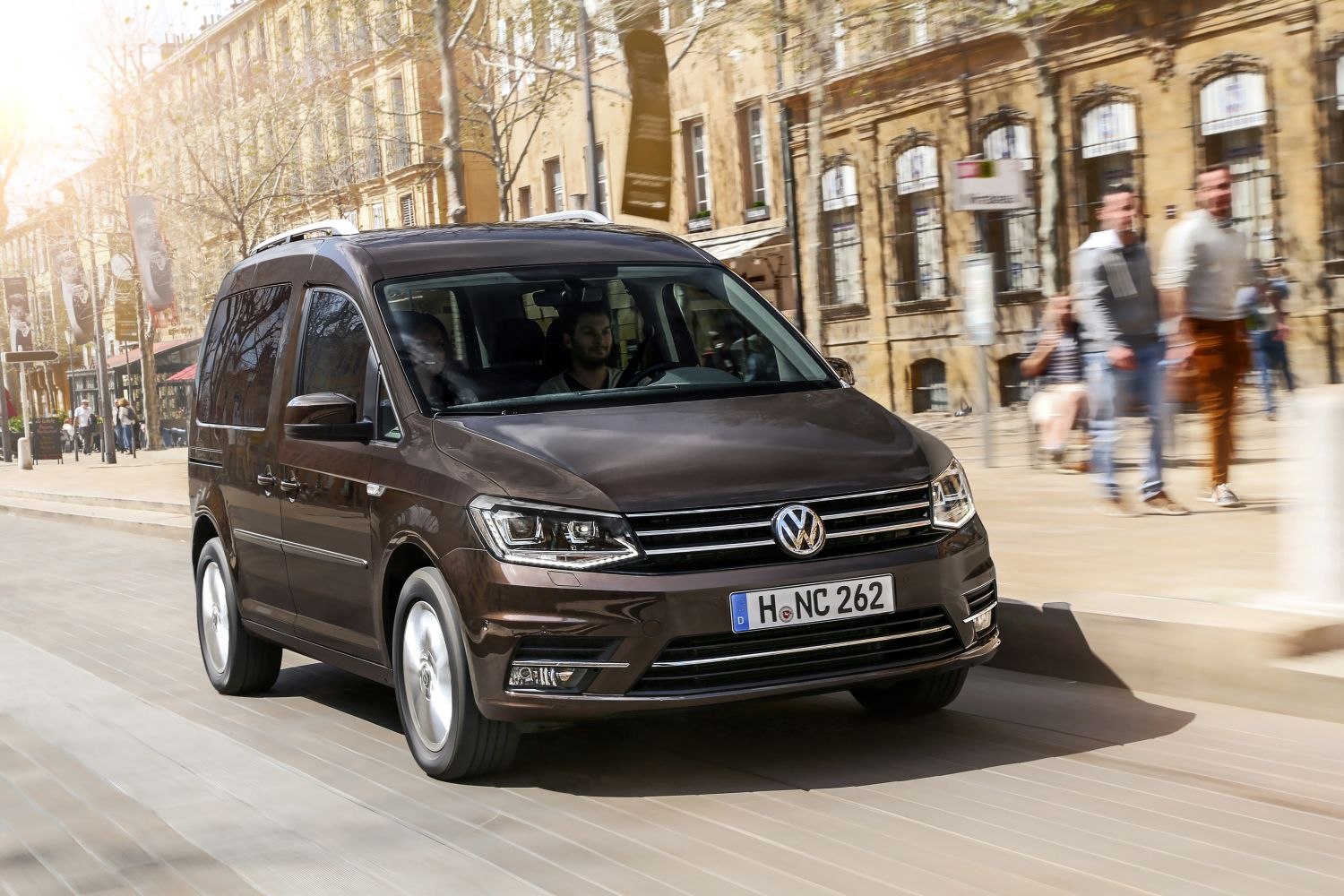

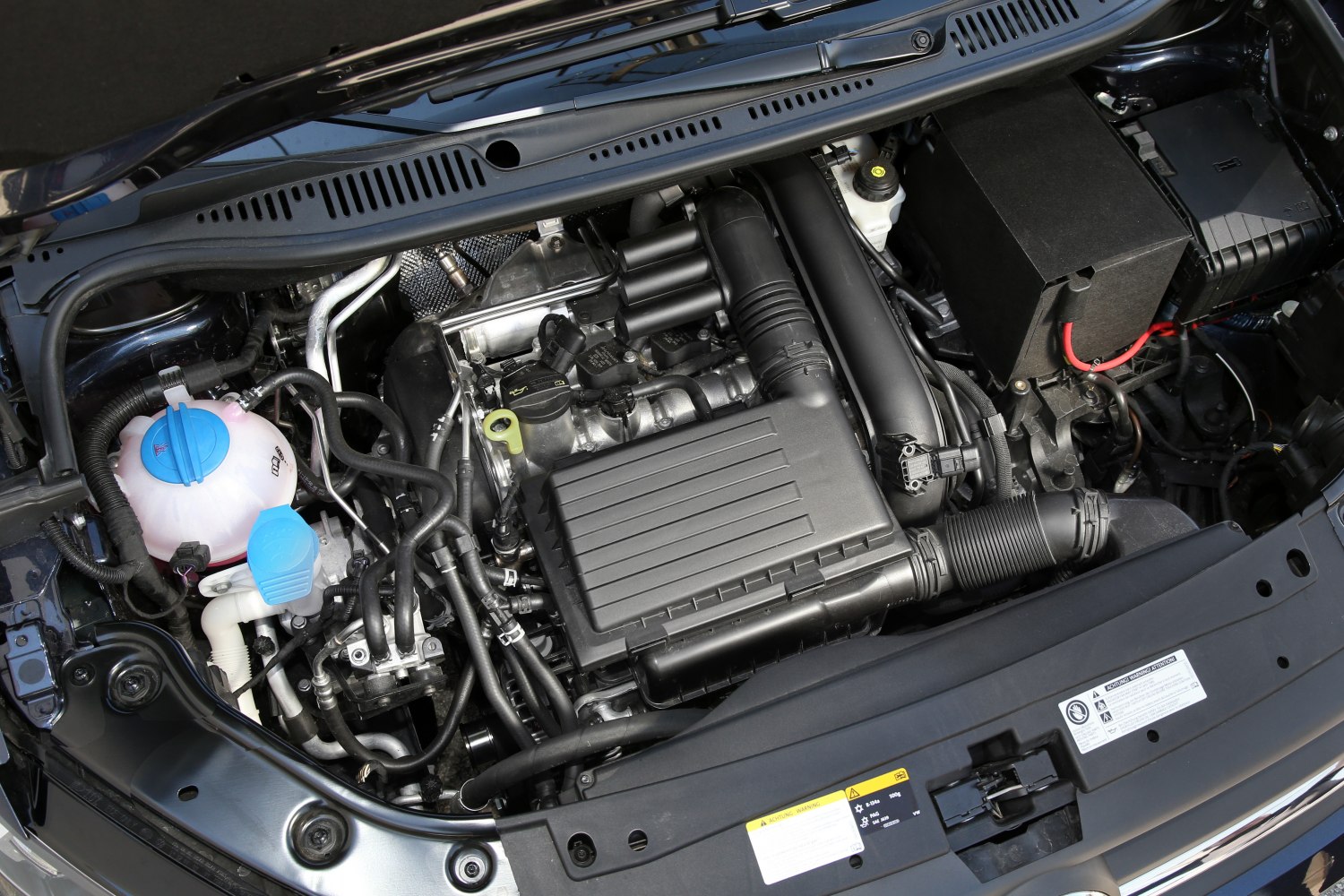

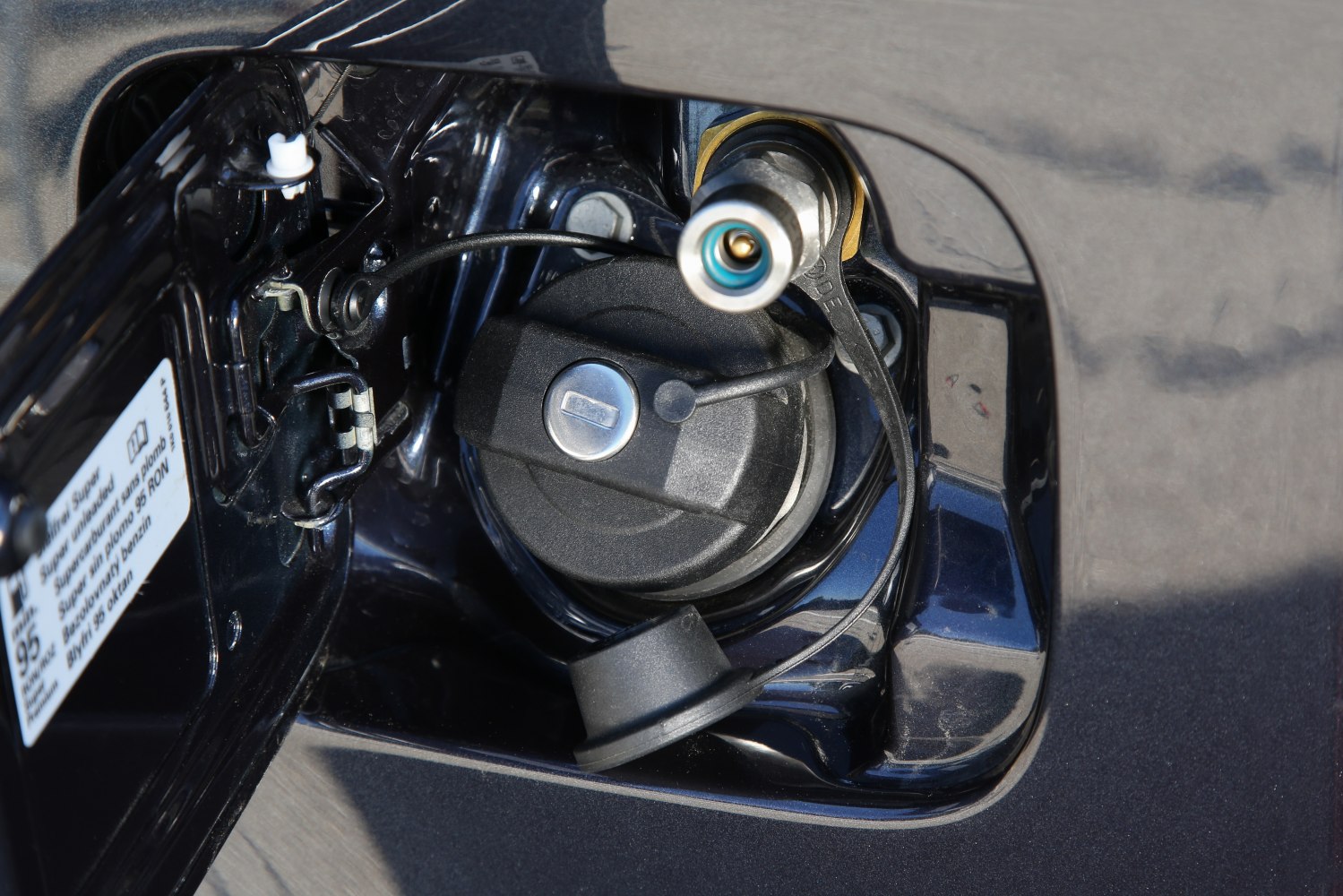

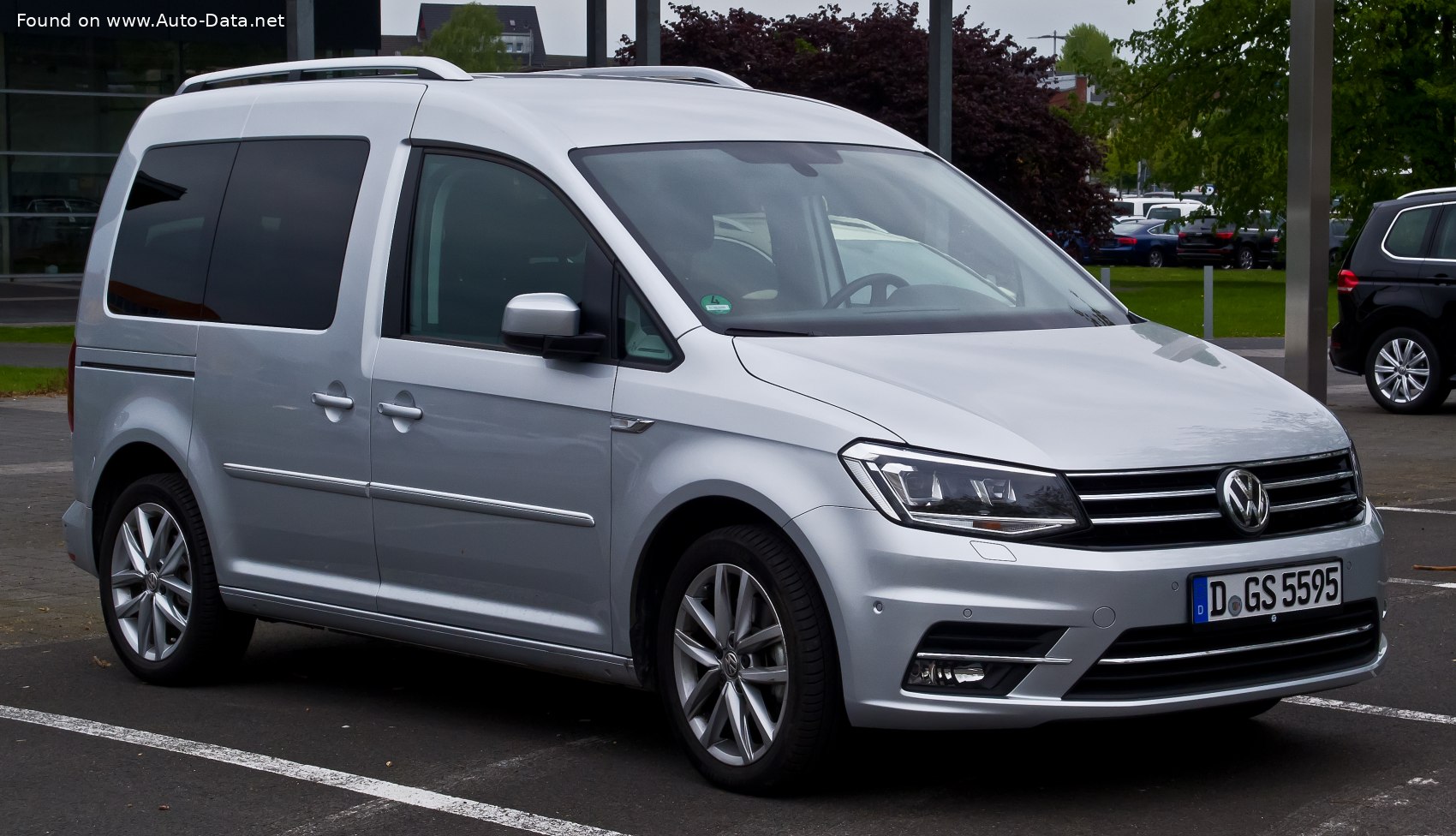

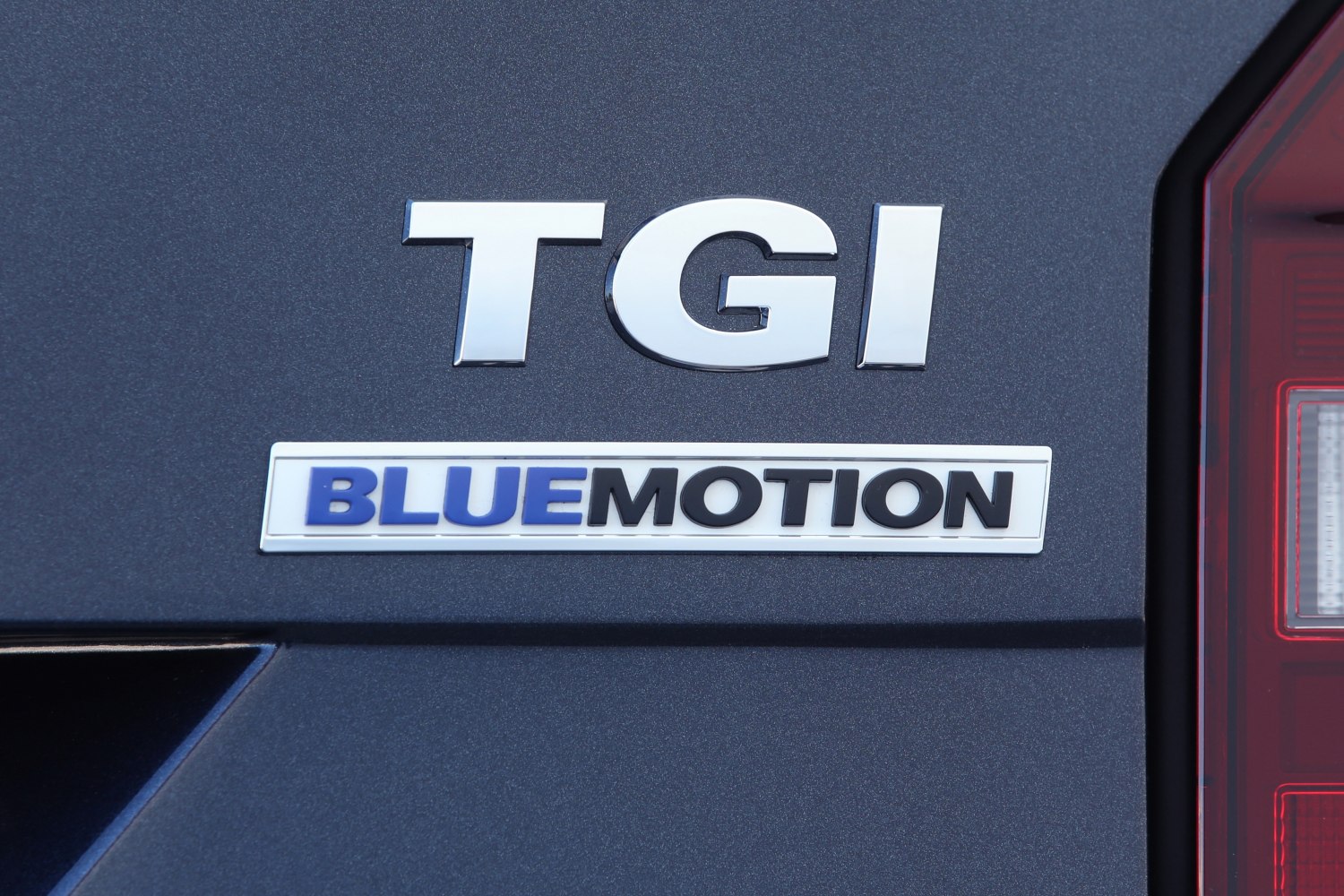

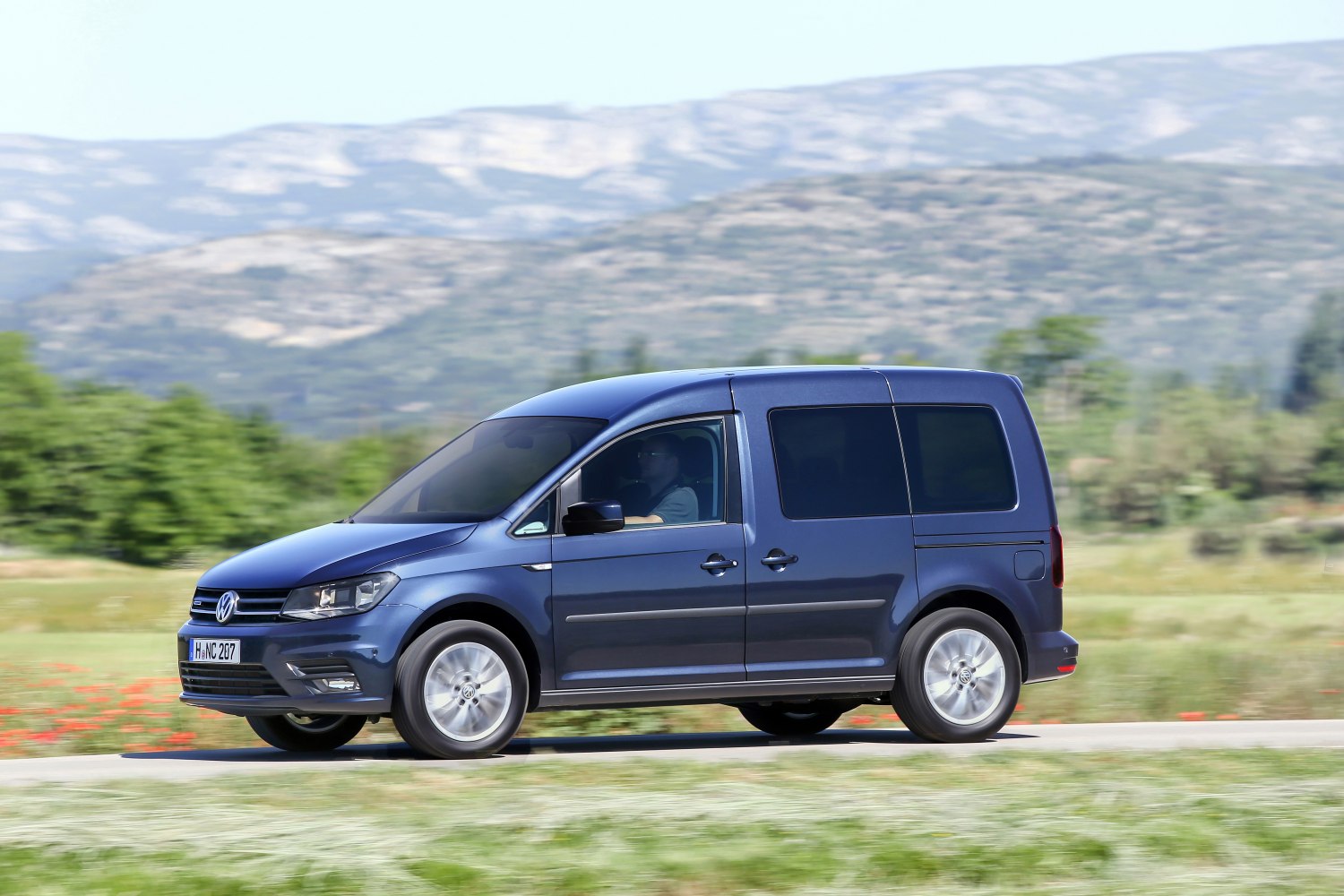

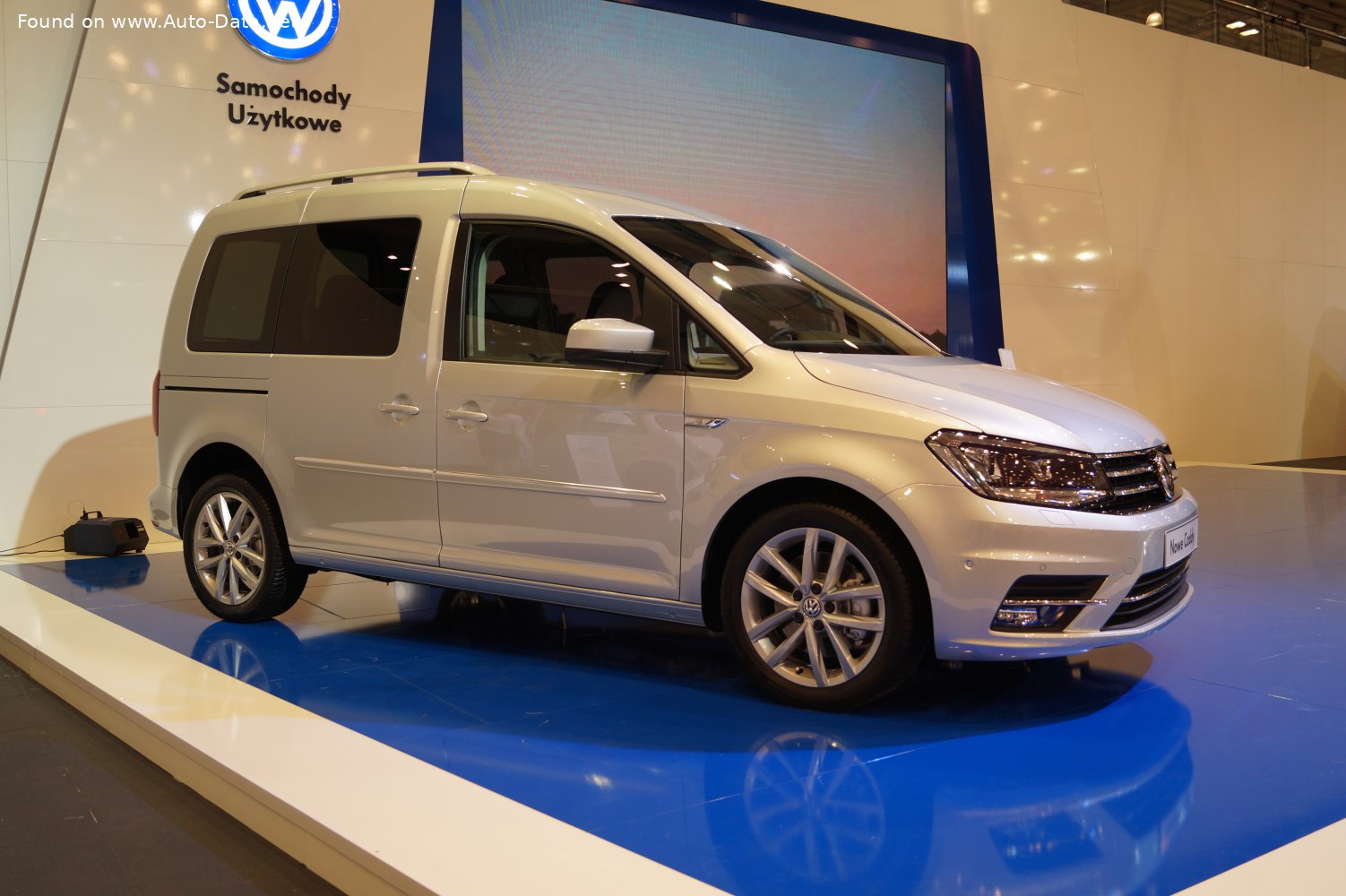

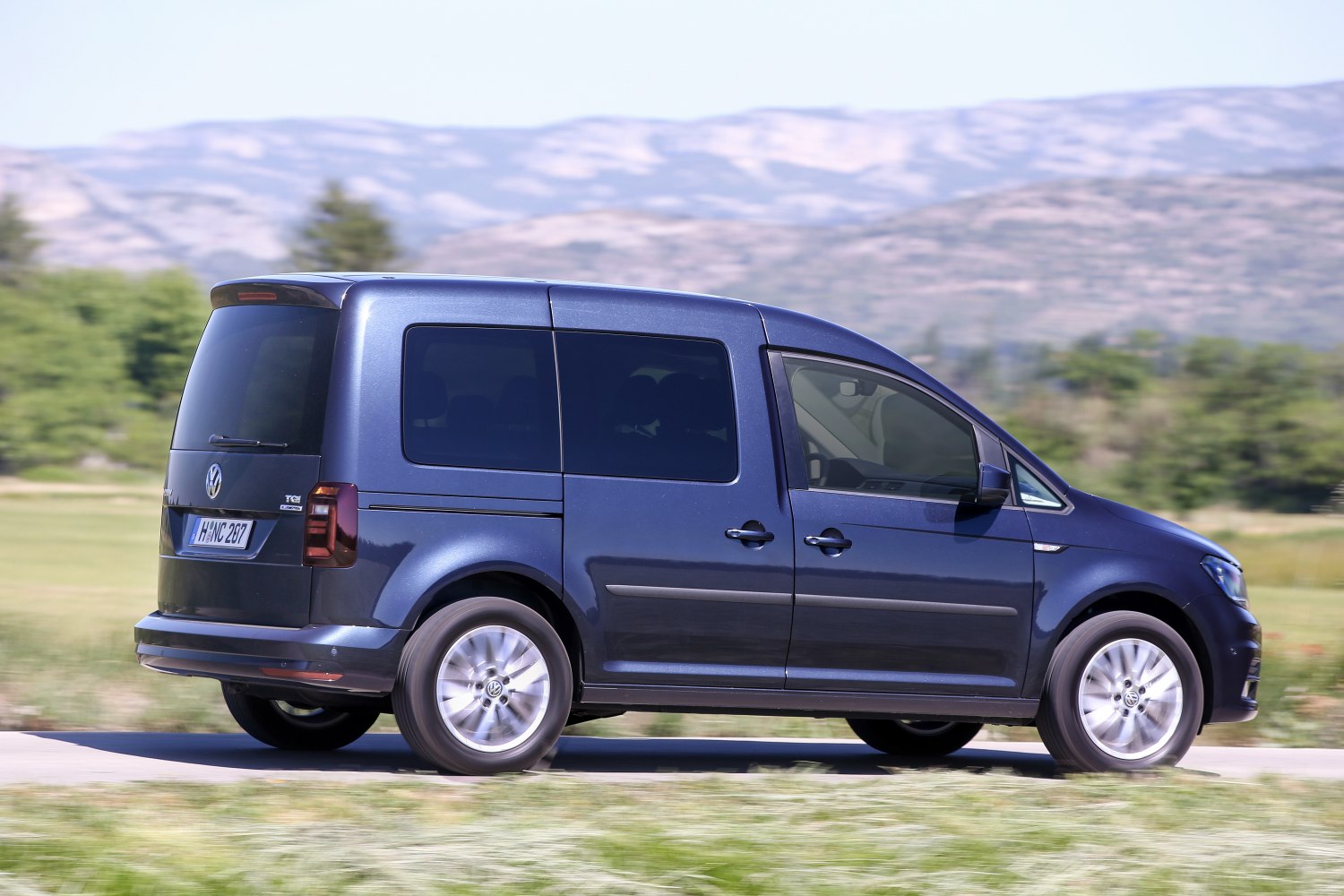

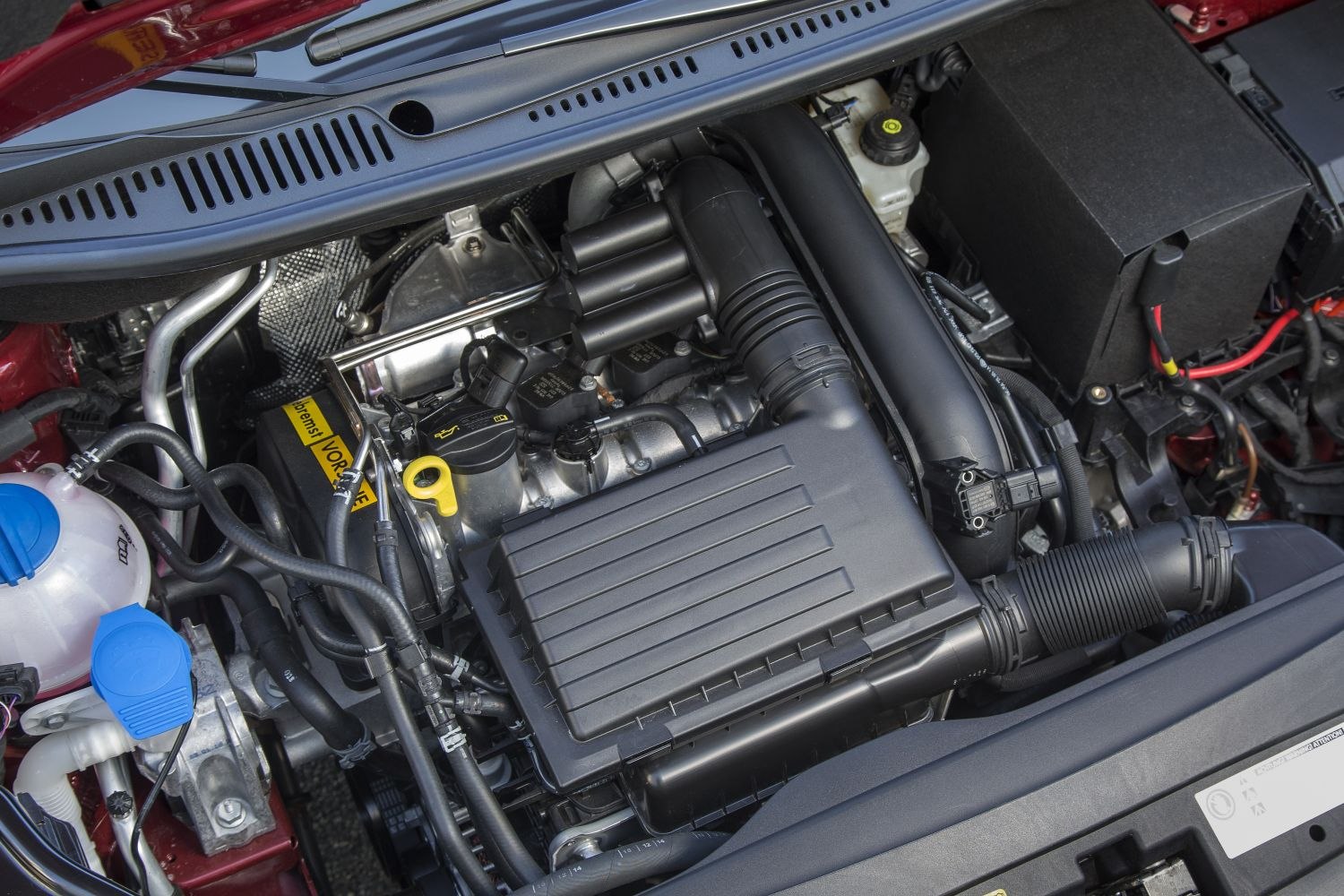

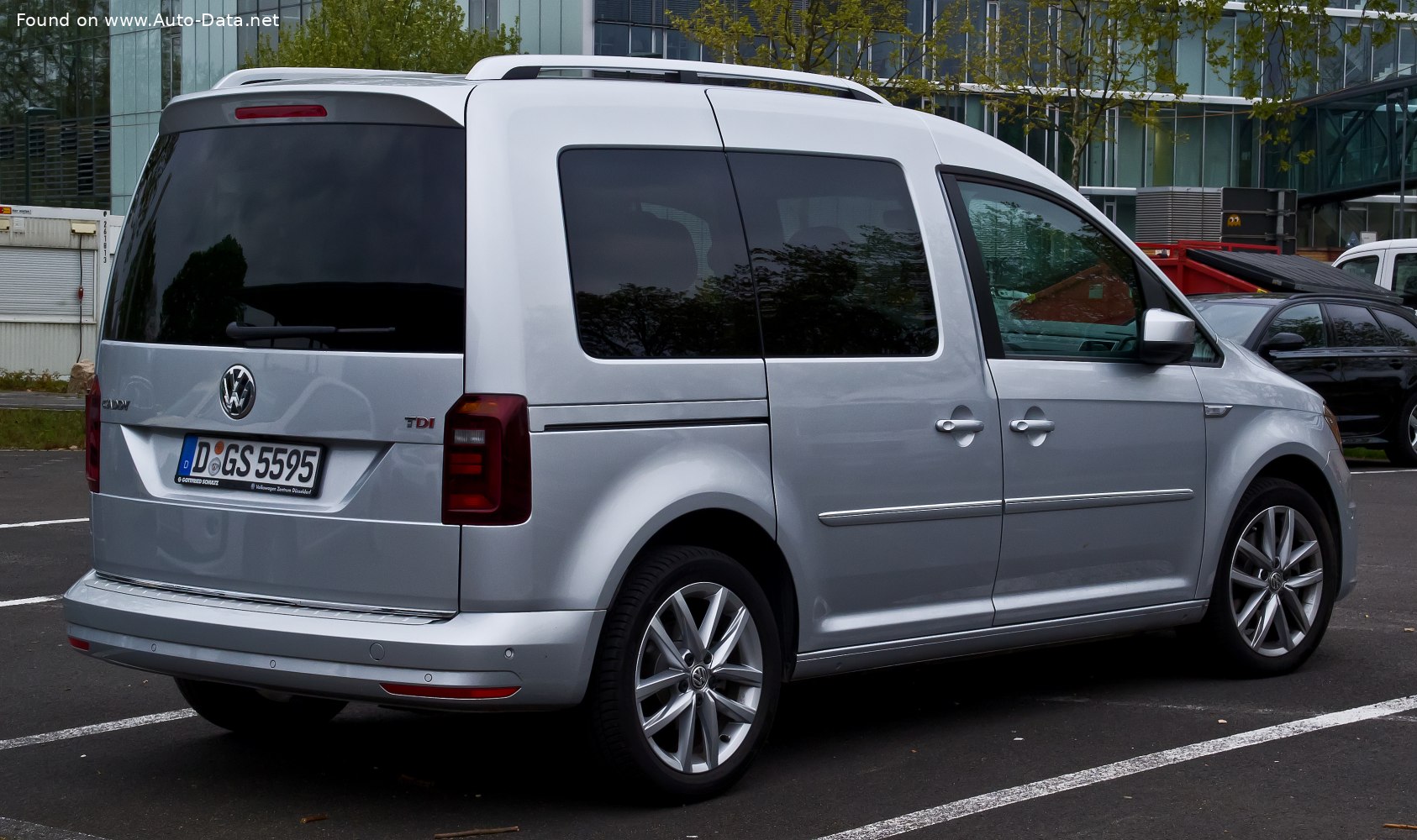

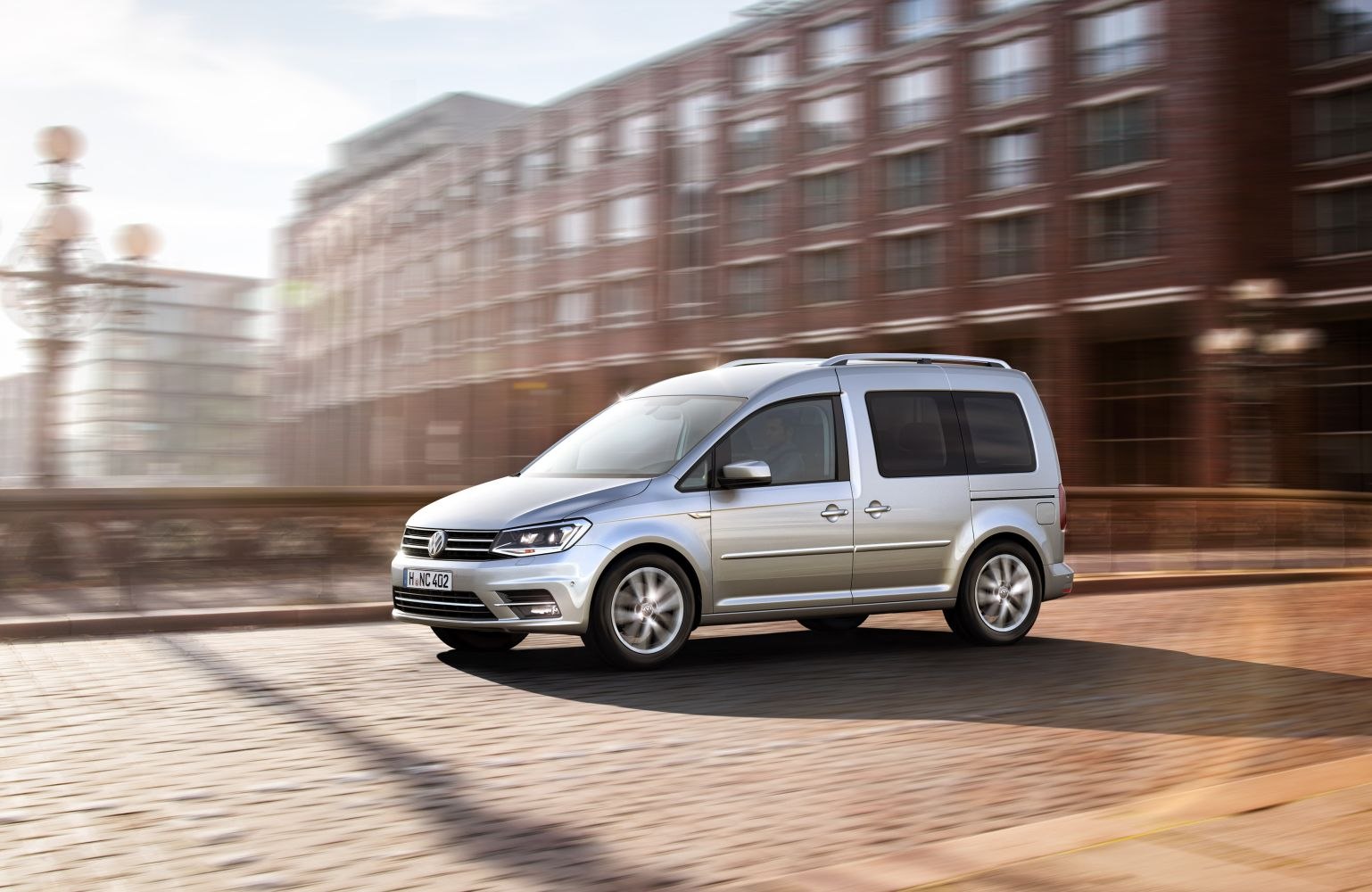

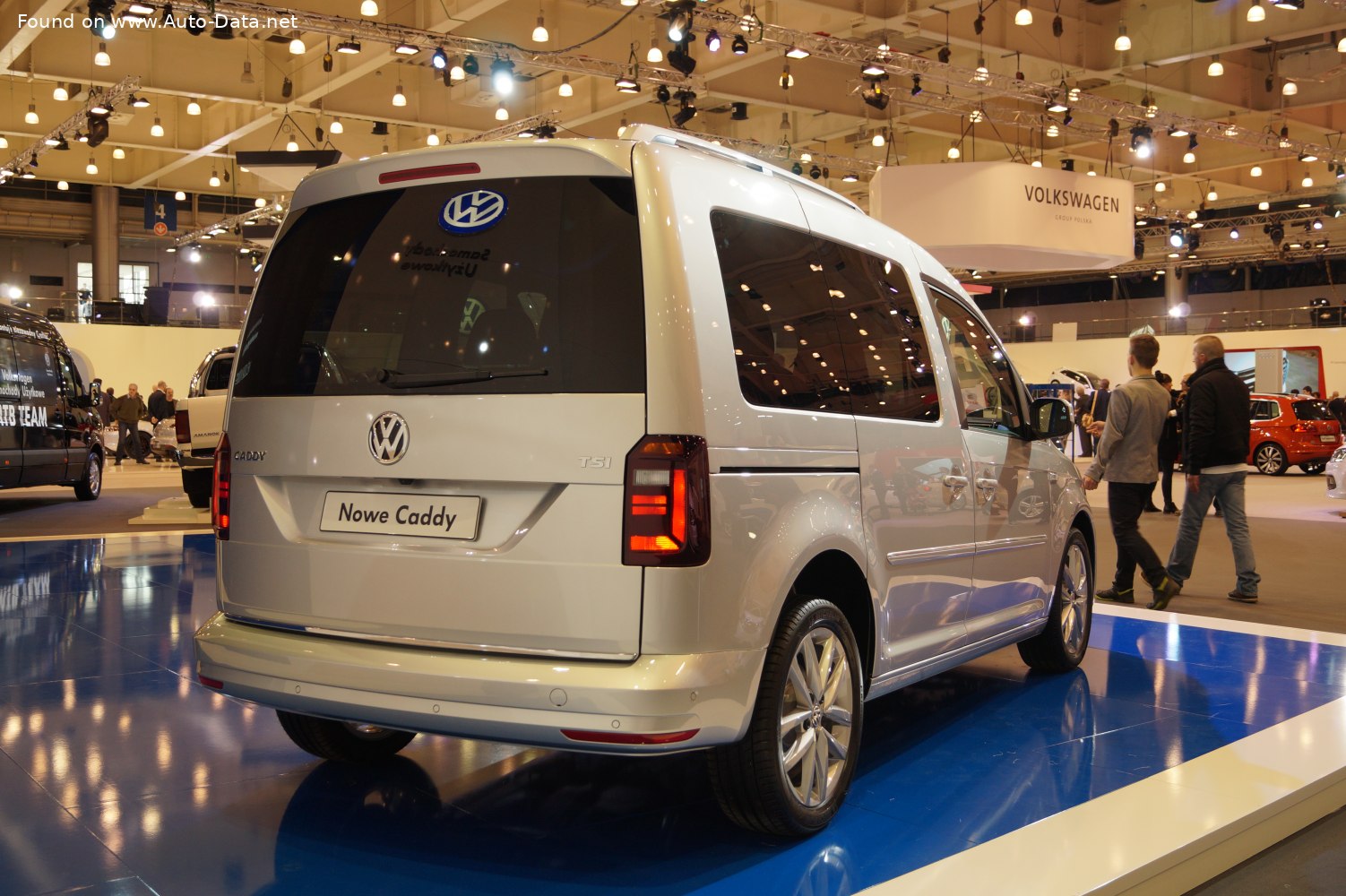

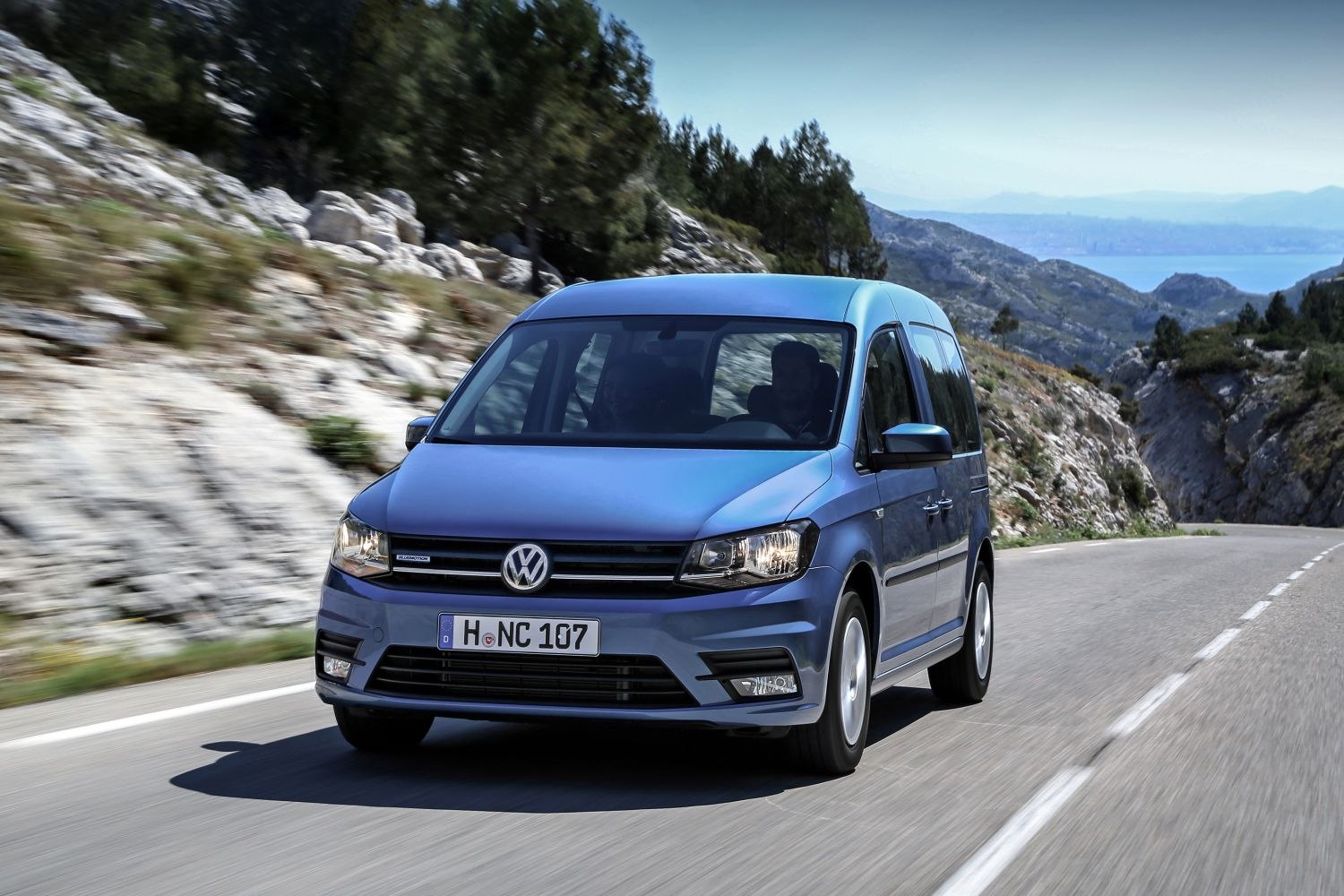

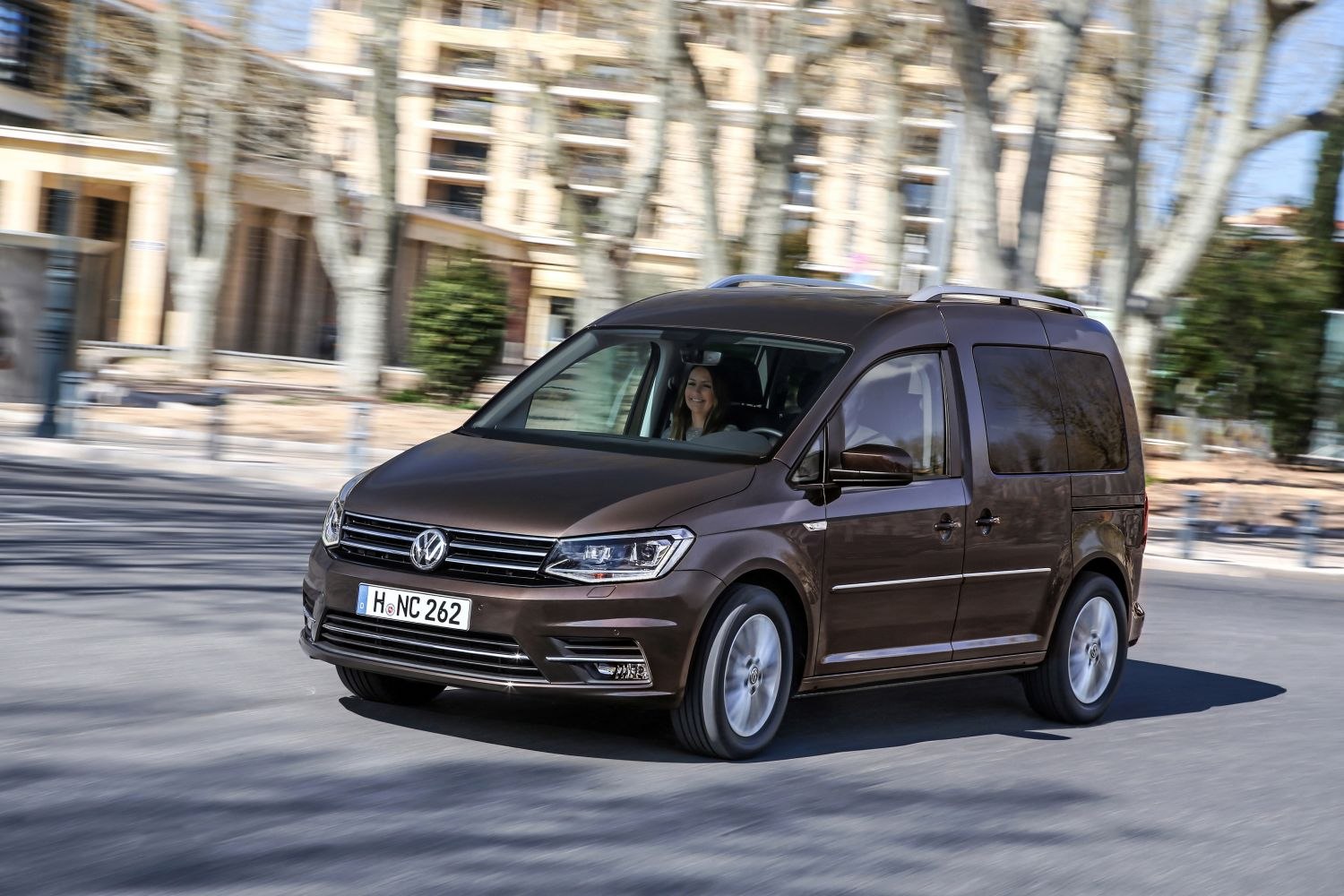

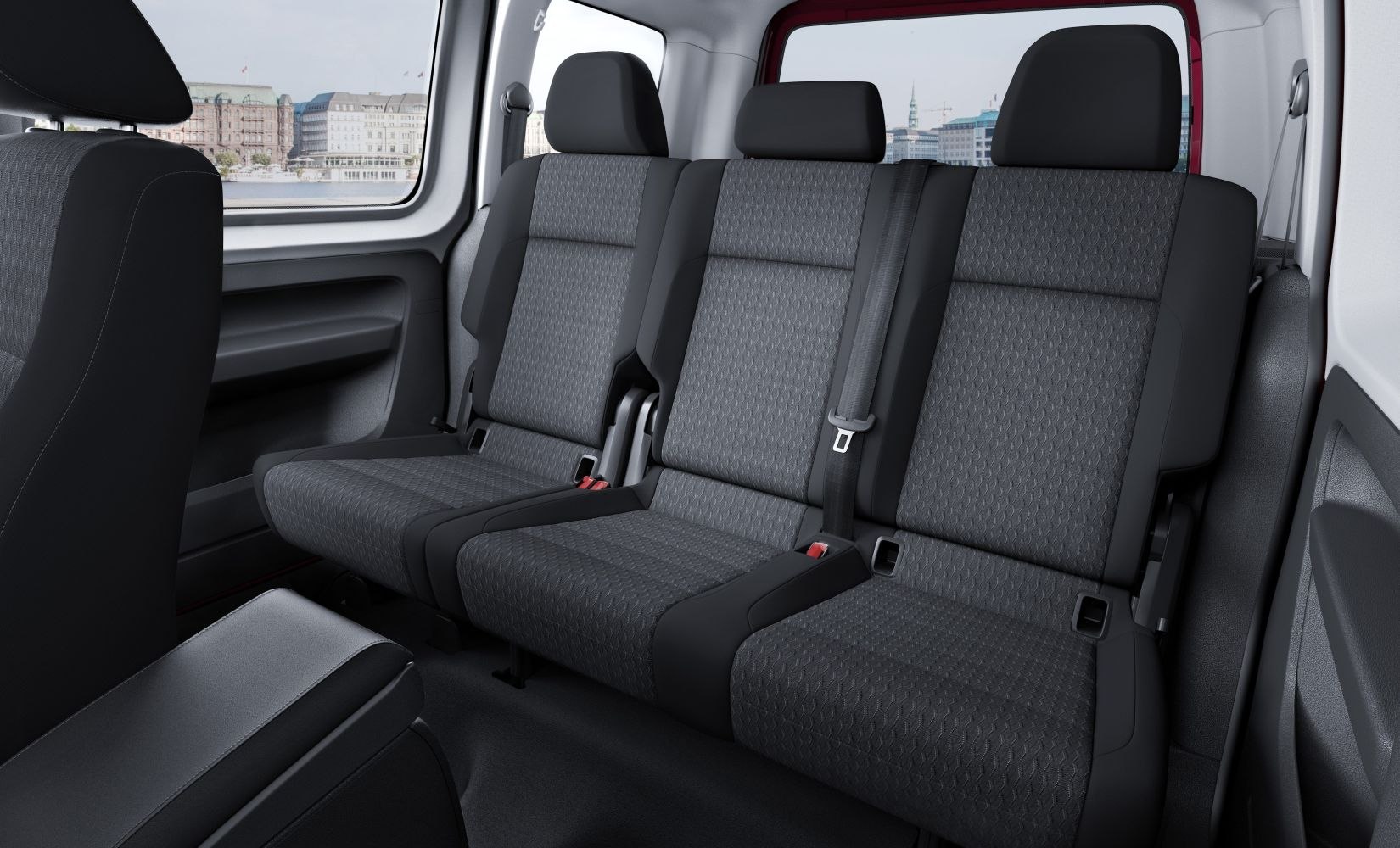

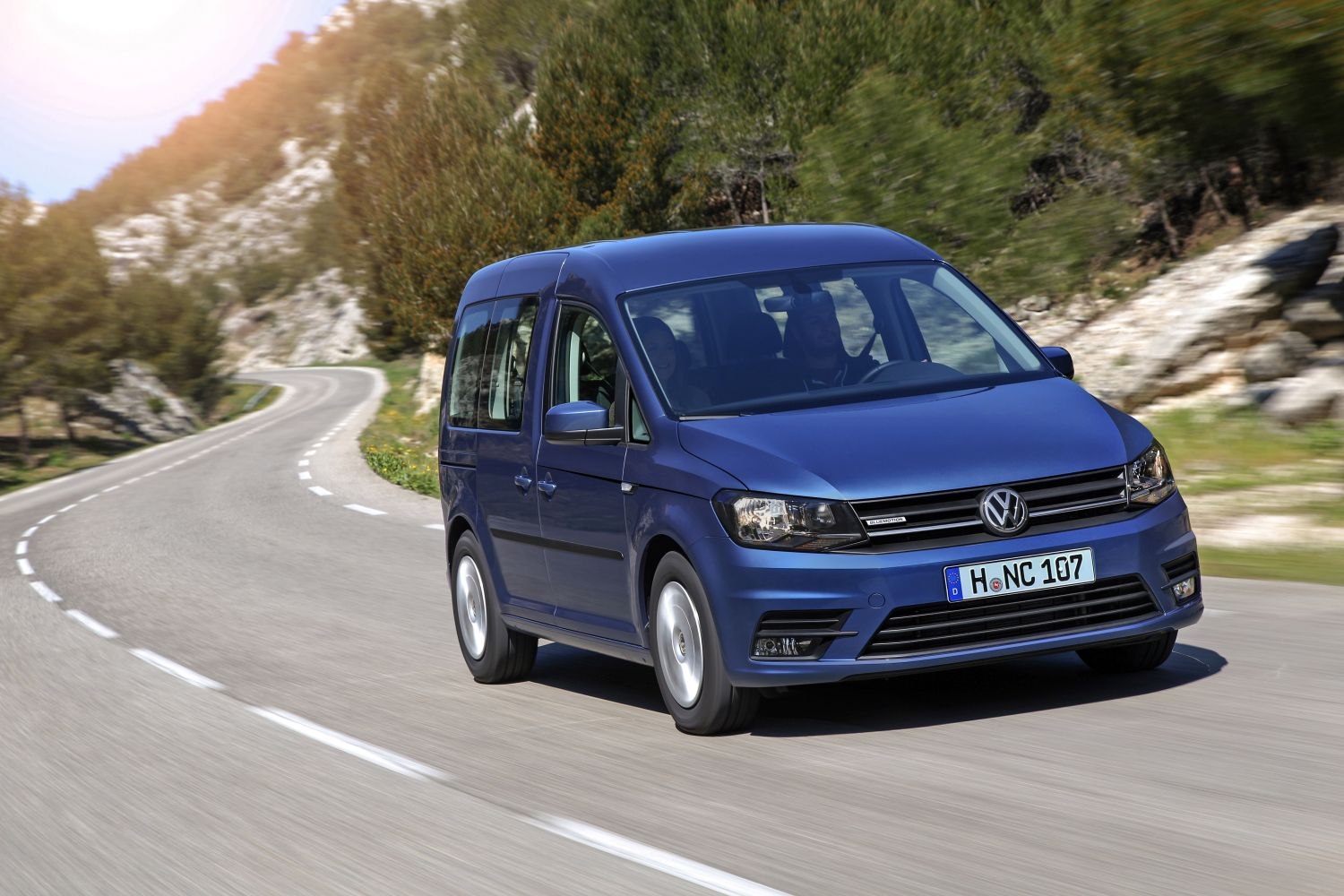

Volkswagen Caddy 4 2015 Gallery
Volkswagen Caddy 4 2015 Technical Specifications
General
Body type
Minivan
Brand
Volkswagen
Doors
4-5
End of production
2020
Generation
Caddy IV
Model
Caddy
Modification (Engine)
2.0 TDI (102 Hp)
Powertrain Architecture
Internal Combustion engine
Seats
5-7
Start of production
2015
Performance
Acceleration 0 - 100 km/h
12.9 sec
Acceleration 0 - 60 mph
12.3 sec
Acceleration 0 - 62 mph
12.9 sec
CO2 emissions (NEDC)
119-138 g/km
Emission standard
Euro 6
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC)
4.6-5.3 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
4.1-4.6 l/100 km
Fuel consumption (economy) - urban (NEDC)
5.3-6.4 l/100 km
Maximum speed
172 km/h
Dimensions
Approach angle
15.7°
Departure angle
17.5°
Front overhang
879 mm
Height
1858 mm
Length
4408 mm
Minimum turning circle (turning diameter)
11.1 m
Ramp-over (brakeover) angle
13.5°
Rear overhang
847 mm
Ride height (ground clearance)
155 mm
Wheelbase
2682 mm
Width
1793 mm
Engine
Compression ratio
16.2
Cylinder Bore
81 mm
Engine Model/Code
EA288 / CUUD, DFSD
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1968 cm
Engine layout
Front, Transverse
Engine oil capacity
4.6 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
4
Power
102 Hp @ 2900-4000 rpm.
Torque
250 Nm @ 1300-2800 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 288x25 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
5 gears, manual transmission
Power steering
Electric Steering
Rear brakes
Disc, 272x10 mm
Rear suspension
Rigid axle suspension, Transverse stabilizer, Leaf spring
Steering type
Steering rack and pinion
Tires size
195/65 R15; 205/55 R16
Wheel rims size
6J x 15; 6J x 16
Space
AdBlue tank
9 l
Fuel tank capacity
55 l
Kerb Weight
1382-1402 kg
Max load
873 kg
Max. roof load
100 kg
Max. weight
2255-2275 kg
Permitted towbar download
75 kg
