Jeep Compass 1 2006 2.0 (158 Hp) CVT2 Full Specifications
logo

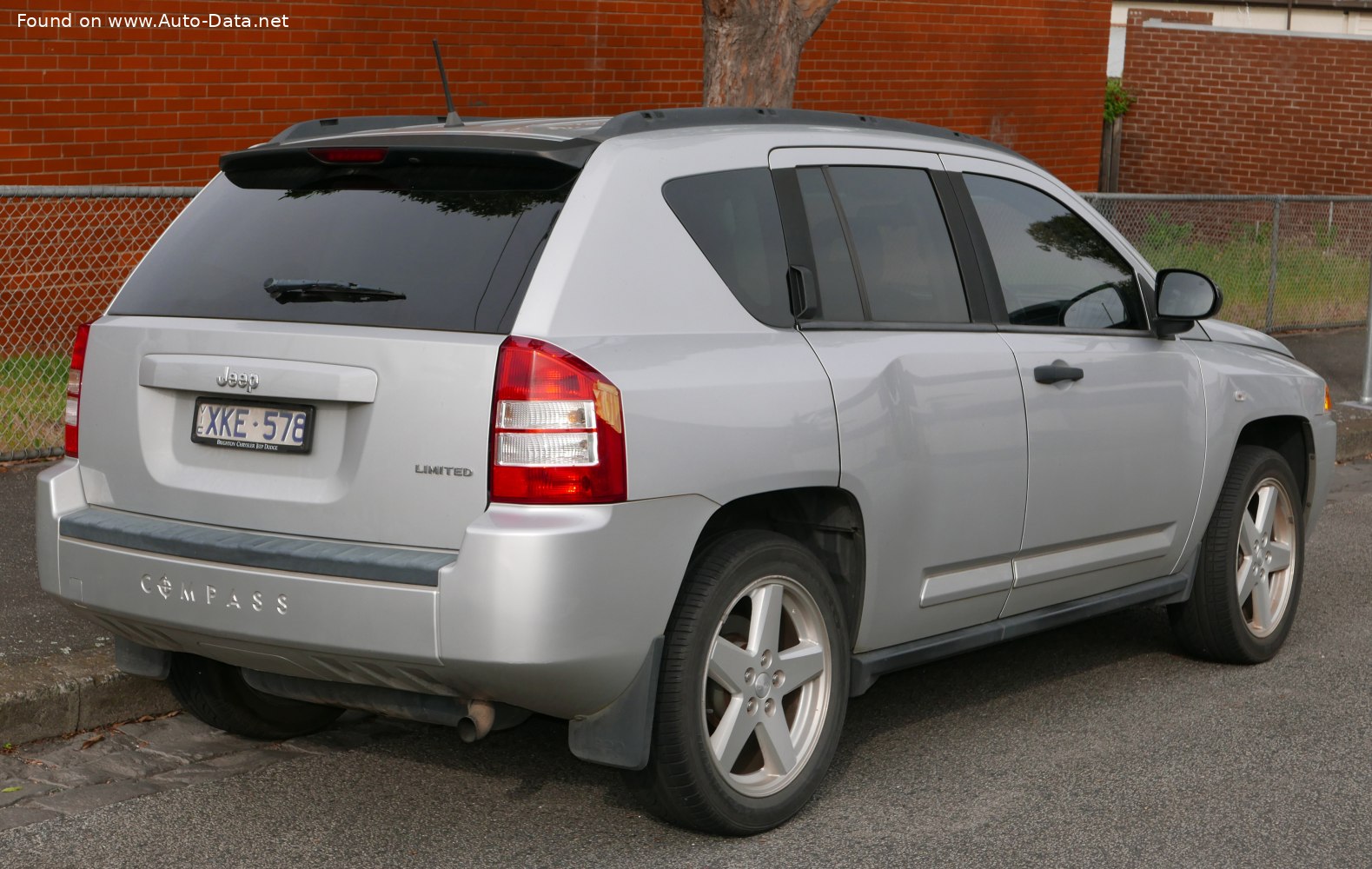

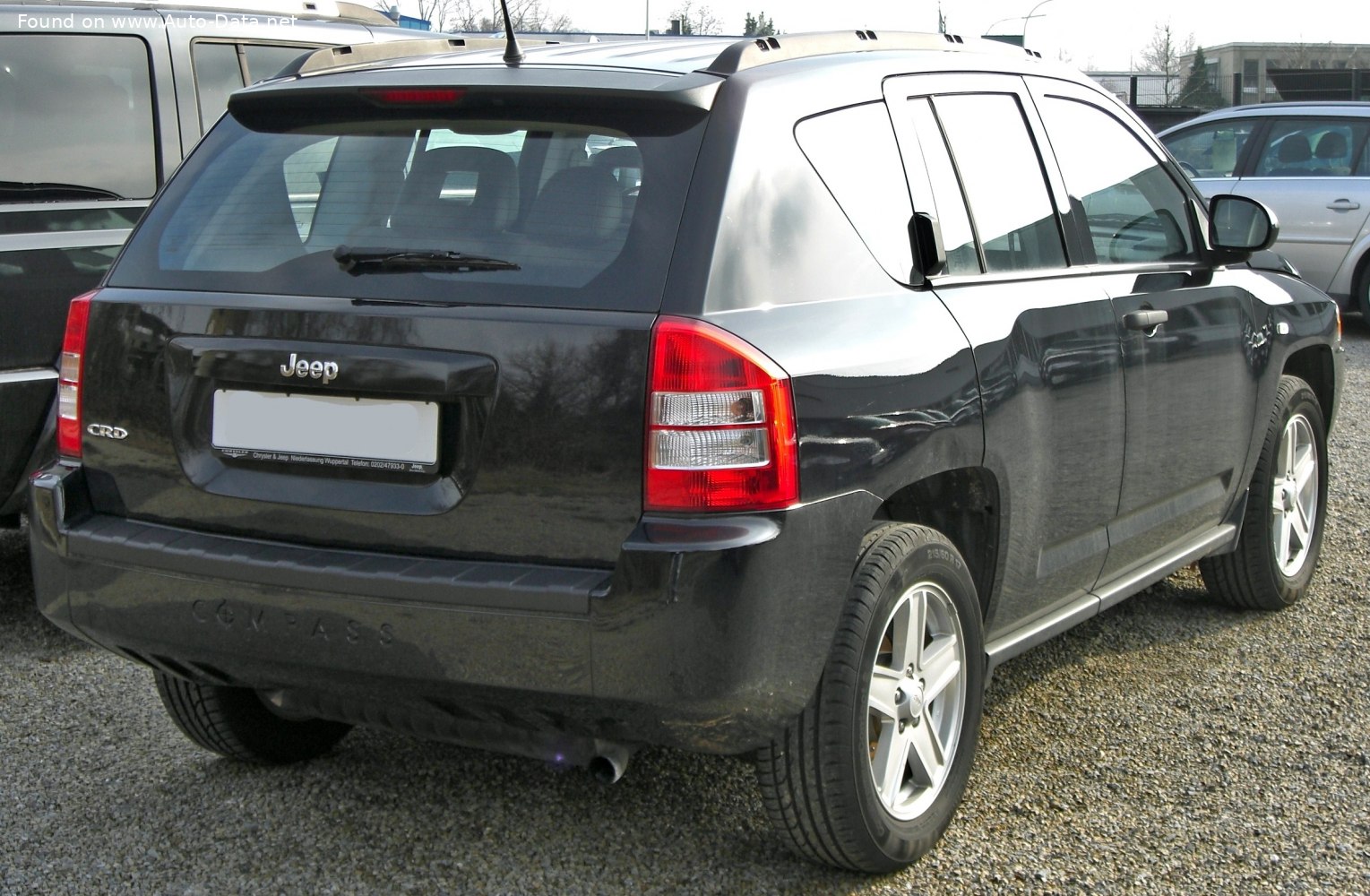

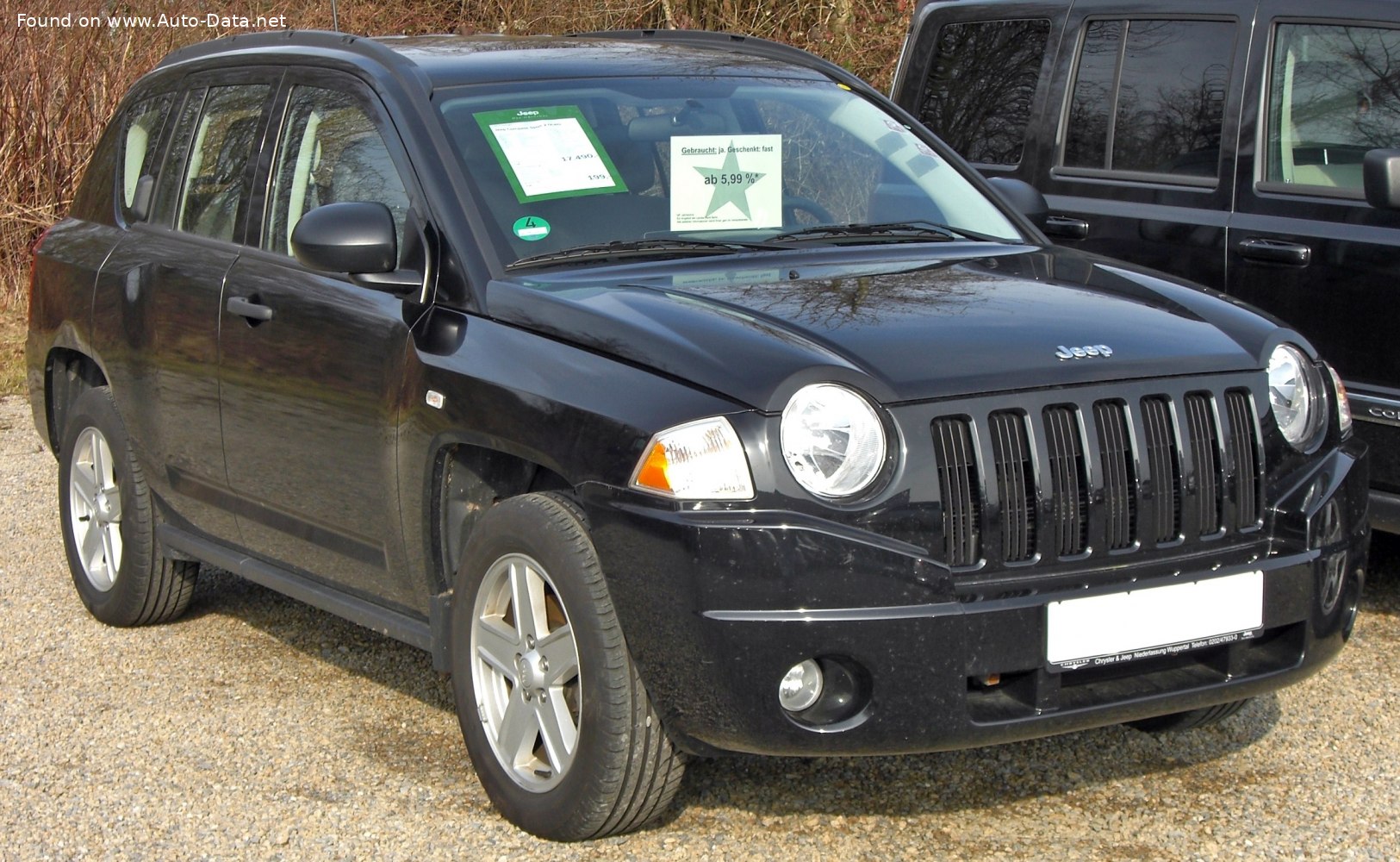

Jeep Compass 1 2006 2.0 (158 Hp) CVT2

Jeep Compass 1 2006
2.0 (158 Hp) CVT2

Generation Compass 1
Body Type SUV
Seats 5
2010 End Year
5 Doors

Jeep Compass 1 2006 Key Specs

Body Type
SUV
Doors
5
Drive Wheel
Front wheel drive
End Of Production
2010
Engine Aspiration
Naturally aspirated engine
Engine Oil Capacity
4.26 l
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
51.5 l
Generation
Compass I (MK)
Kerb Weight
1404 kg
Modification (Engine)
2.0 (158 Hp) CVT2
Number Of Cylinders
4
Power
158 Hp @ 6400 rpm.
Power Steering
Hydraulic Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
August, 2006
Wheel Rims Size
6.5J x 17; 7J x 18

Jeep Compass 1 2006 Technical Specifications

General

Body type
SUV
Brand
Jeep
Doors
5
End of production
2010
Generation
Compass I (MK)
Model
Compass
Modification (Engine)
2.0 (158 Hp) CVT2
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
August, 2006

Performance

Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - extra urban (EPA)
8.7 l/100 km
Fuel consumption (economy) - urban (EPA)
10.2 l/100 km

Dimensions

Approach angle
20.1-20.6°
Departure angle
31.4-32.2°
Front overhang
877 mm
Front track
1520 mm
Height
1632 mm
Length
4405 mm
Minimum turning circle (turning diameter)
10.8 m
Ramp-over (brakeover) angle
20.3-21°
Rear (Back) track
1520 mm
Rear overhang
893 mm
Ride height (ground clearance)
207-214 mm
Wheelbase
2635 mm
Width
1761 mm

Engine

Compression ratio
10.5
Coolant
6.8 l
Cylinder Bore
86 mm
Engine Model/Code
World / ECN
Engine aspiration
Naturally aspirated engine
Engine configuration
Inline
Engine displacement
1998 cm
Engine layout
Front, Transverse
Engine oil capacity
4.26 l
Engine oil specification
Log in to see.
Fuel injection system
Multi-port manifold injection
Maximum engine speed
6750 rpm.
Number of cylinders
4
Number of valves per cylinder
4
Power
158 Hp @ 6400 rpm.
Torque
191 Nm @ 5000 rpm.

Drivetrain

Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 294x26 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
automatic transmission CVT2
Power steering
Hydraulic Steering
Rear brakes
Drum, 229x35 mm
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
215/60 R17; 215/55 R18
Wheel rims size
6.5J x 17; 7J x 18

Space

Fuel tank capacity
51.5 l
Kerb Weight
1404 kg
