Jeep Compass 1 2011
2.4 (172 Hp)
Generation Compass 1 2011
Body Type SUV
Seats 5
2016
End Year
5
Doors
Jeep Compass 1 2011 Key Specs
Body Type
SUV
Doors
5
Drive Wheel
Front wheel drive
End Of Production
2016
Engine Aspiration
Naturally aspirated engine
Engine Oil Capacity
4.26 l
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
51.5 l
Generation
Compass I (MK, 2011)
Kerb Weight
1407-1479 kg
Modification (Engine)
2.4 (172 Hp)
Number Of Cylinders
4
Power
172 Hp @ 6000 rpm.
Power Steering
Hydraulic Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
2011
Wheel Rims Size
6.5J x 17; 7J x 18

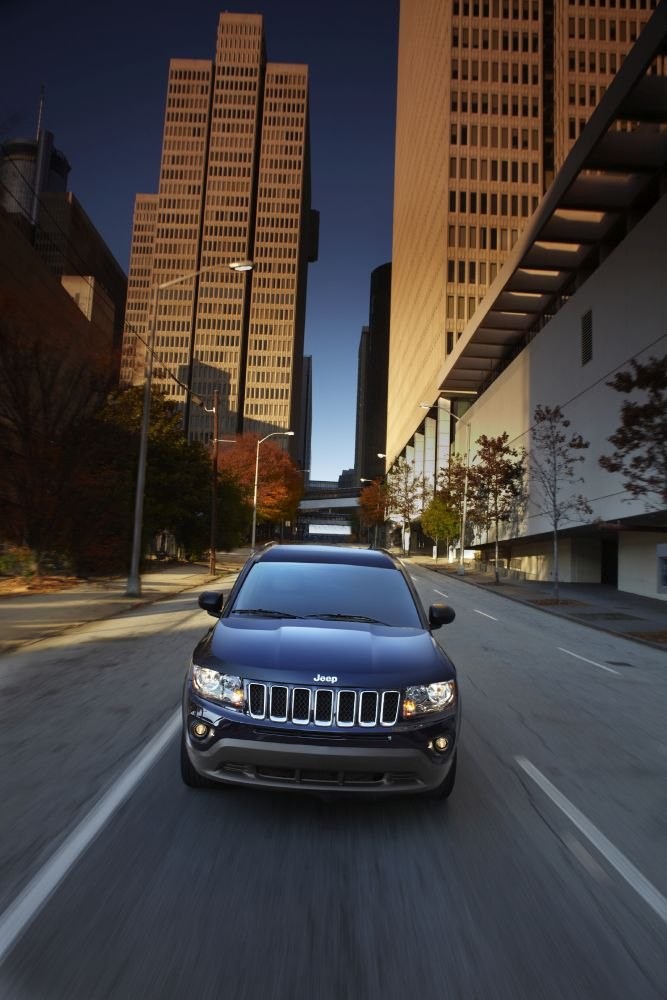

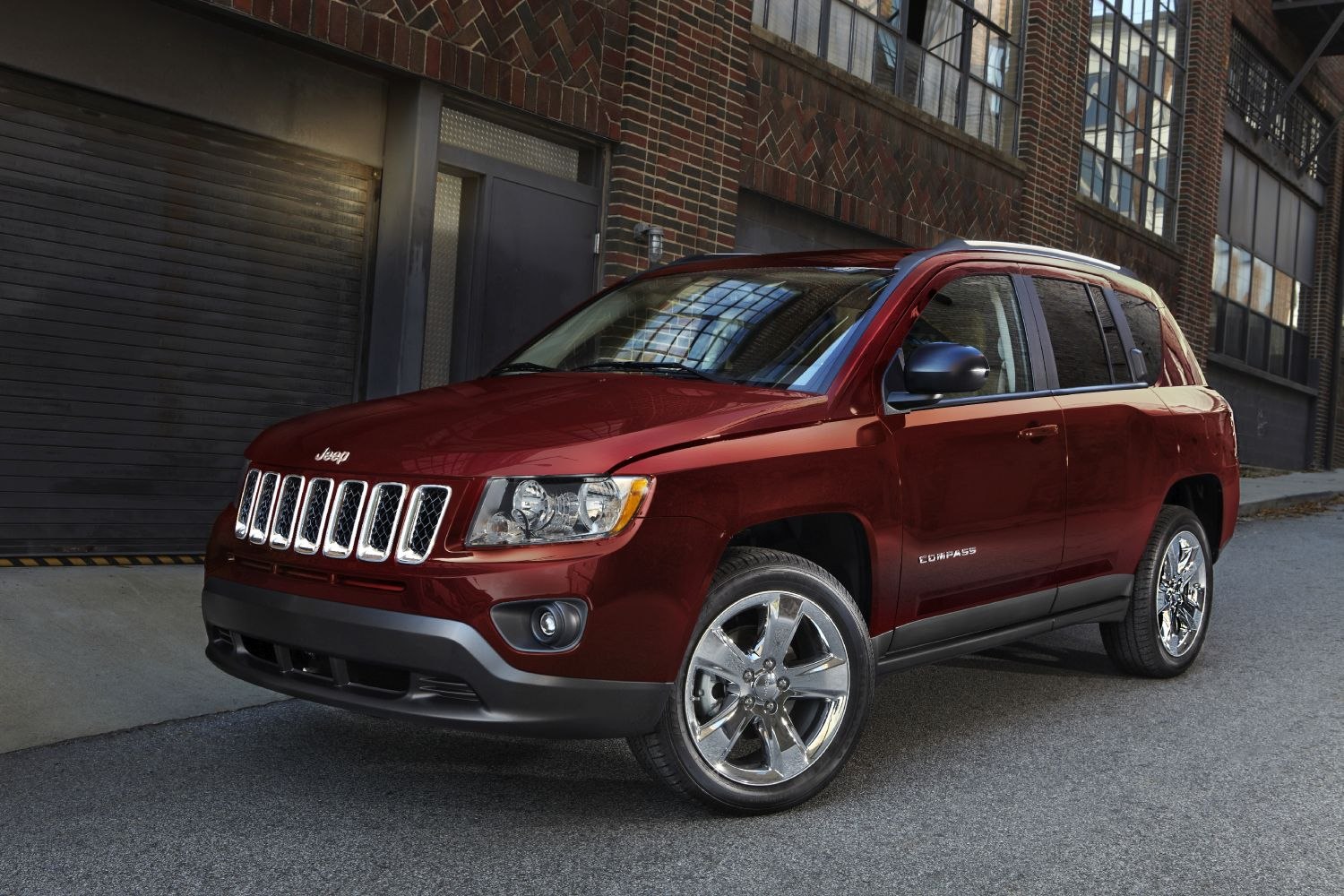

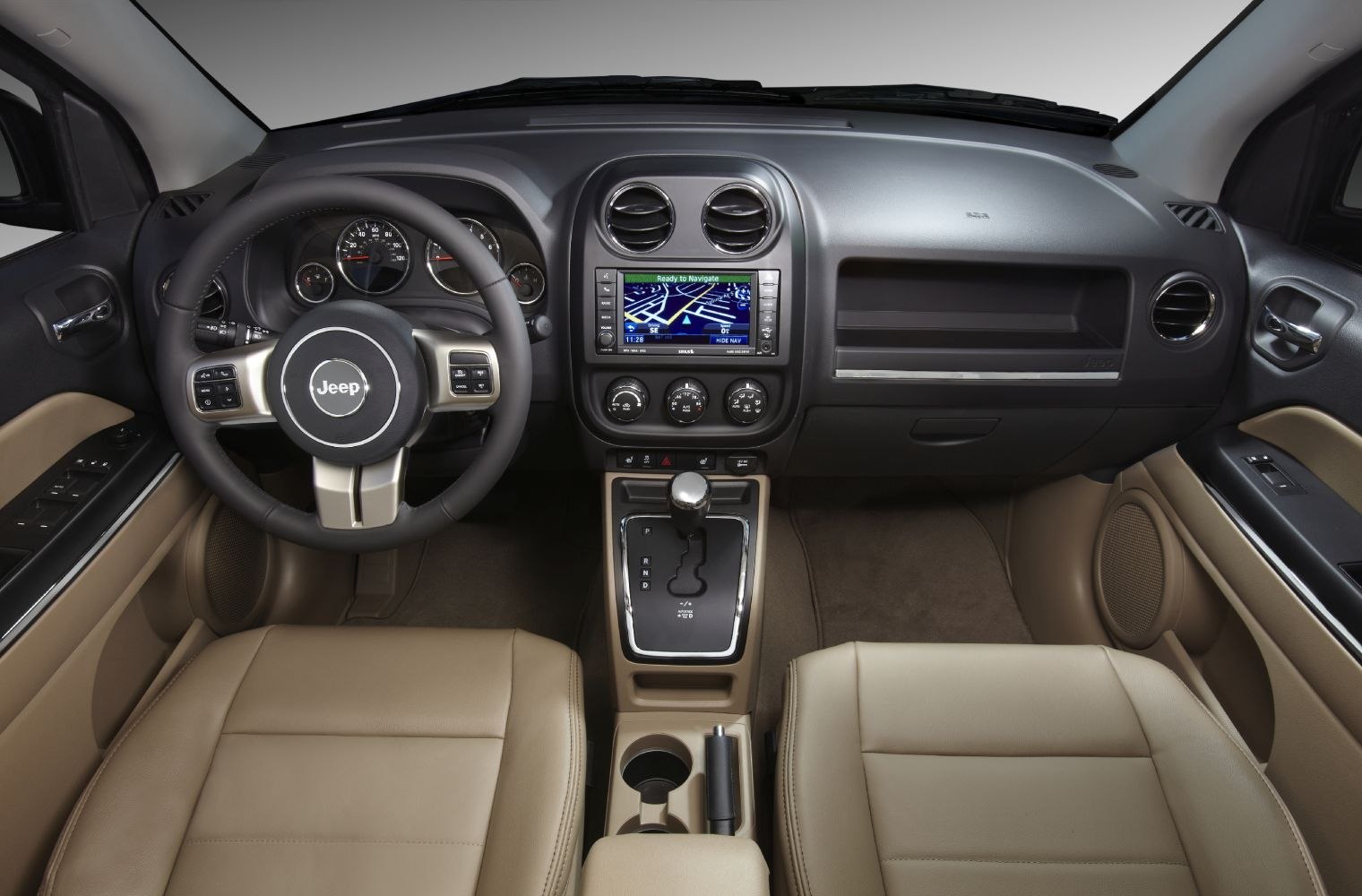

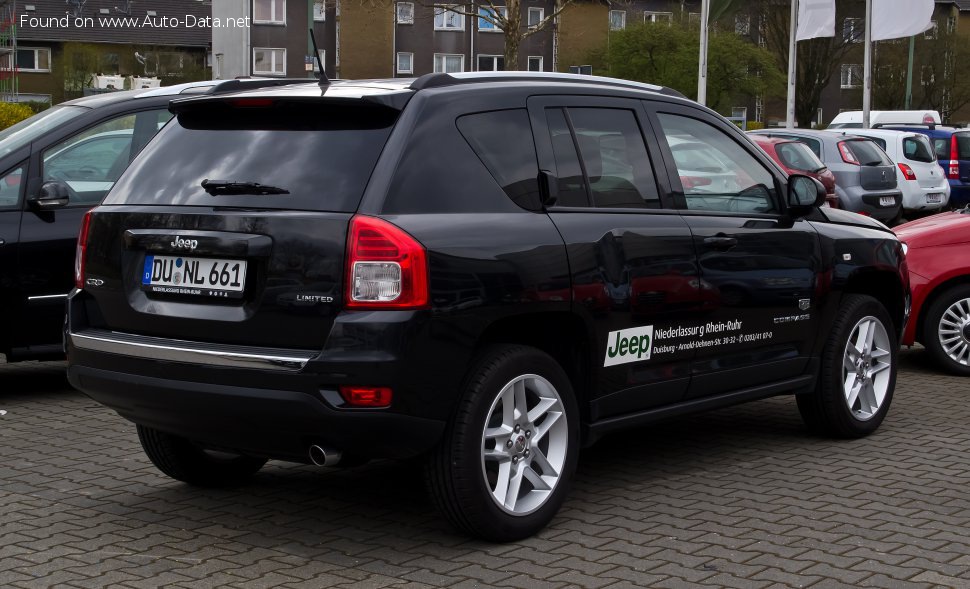

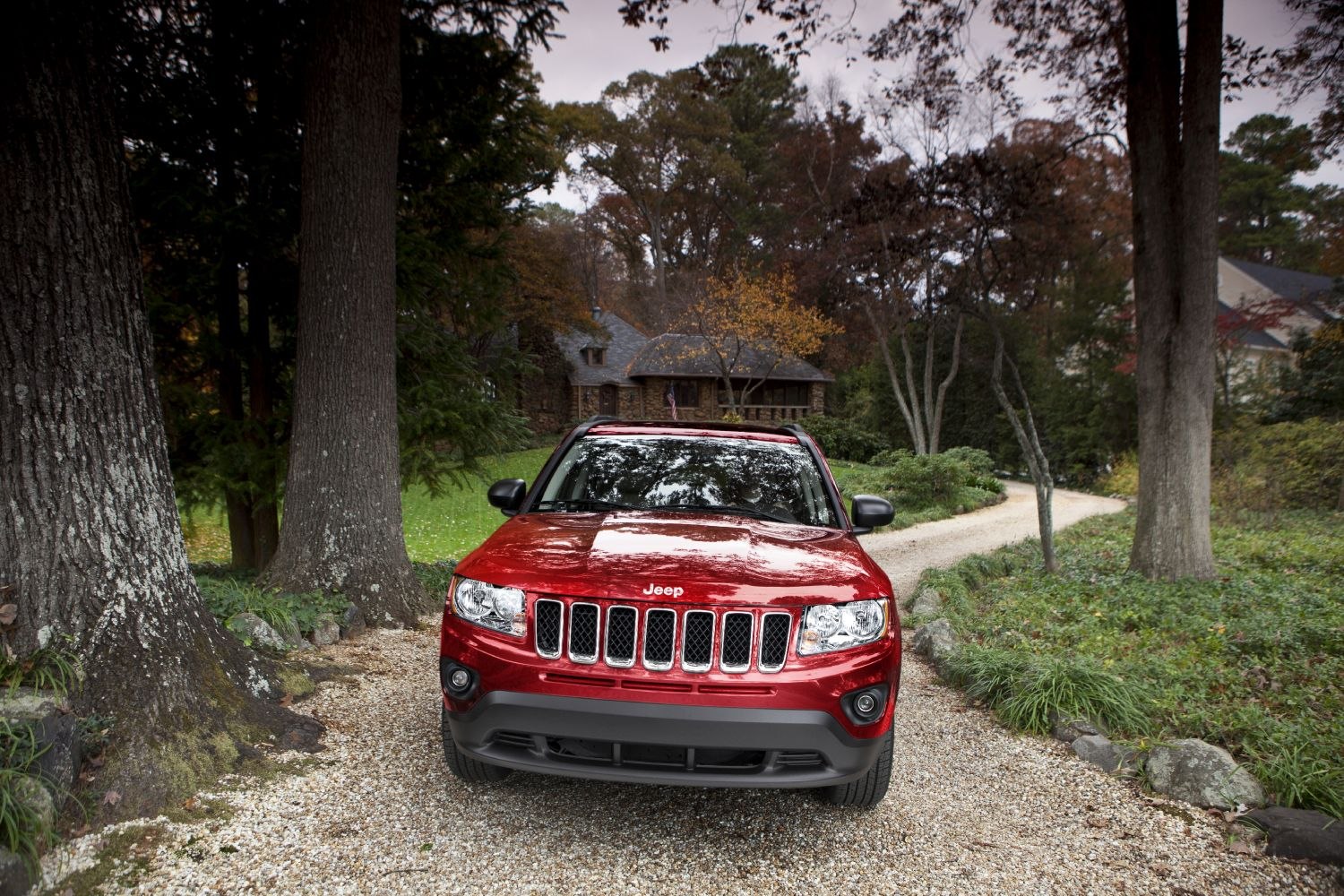

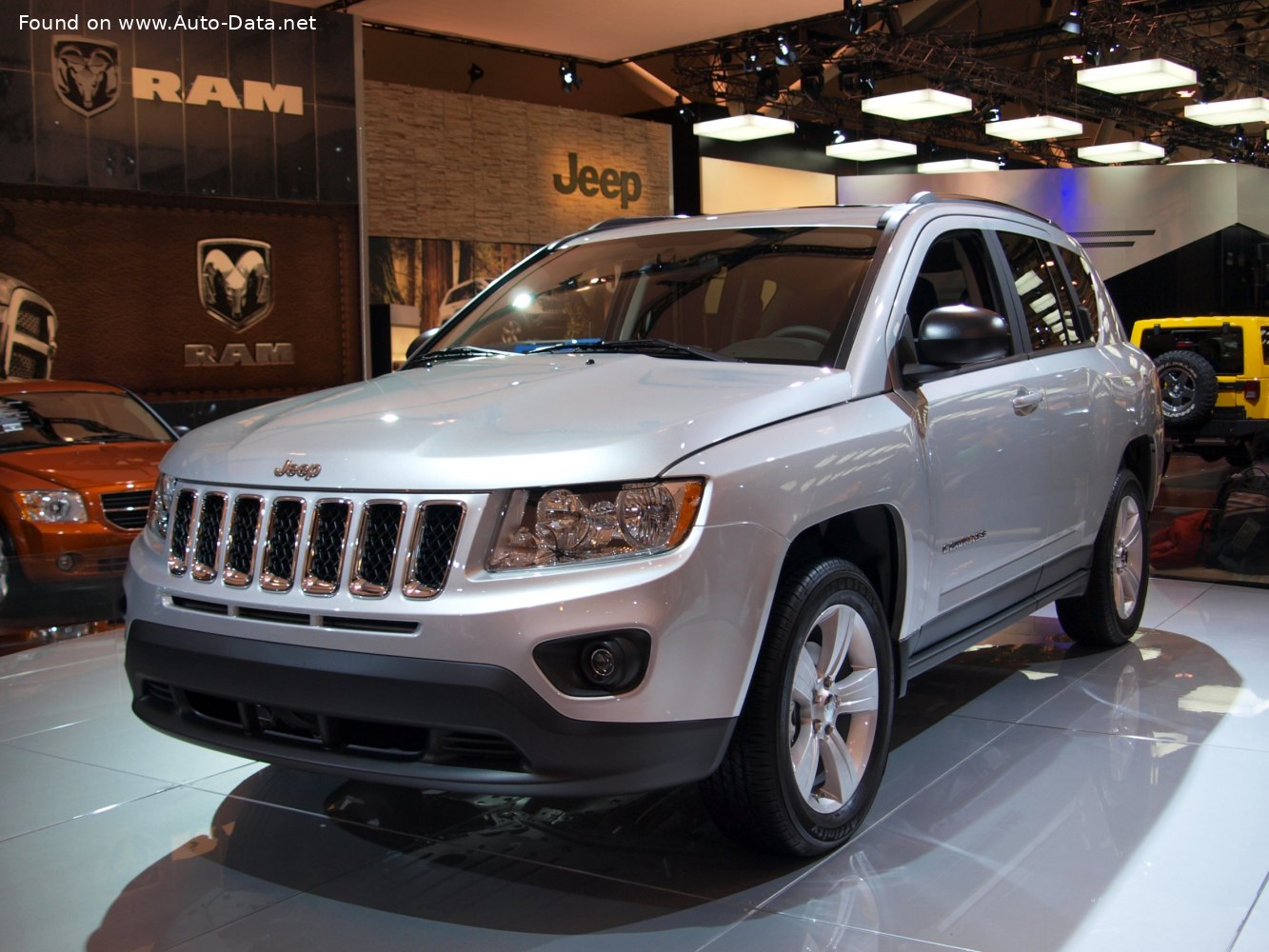

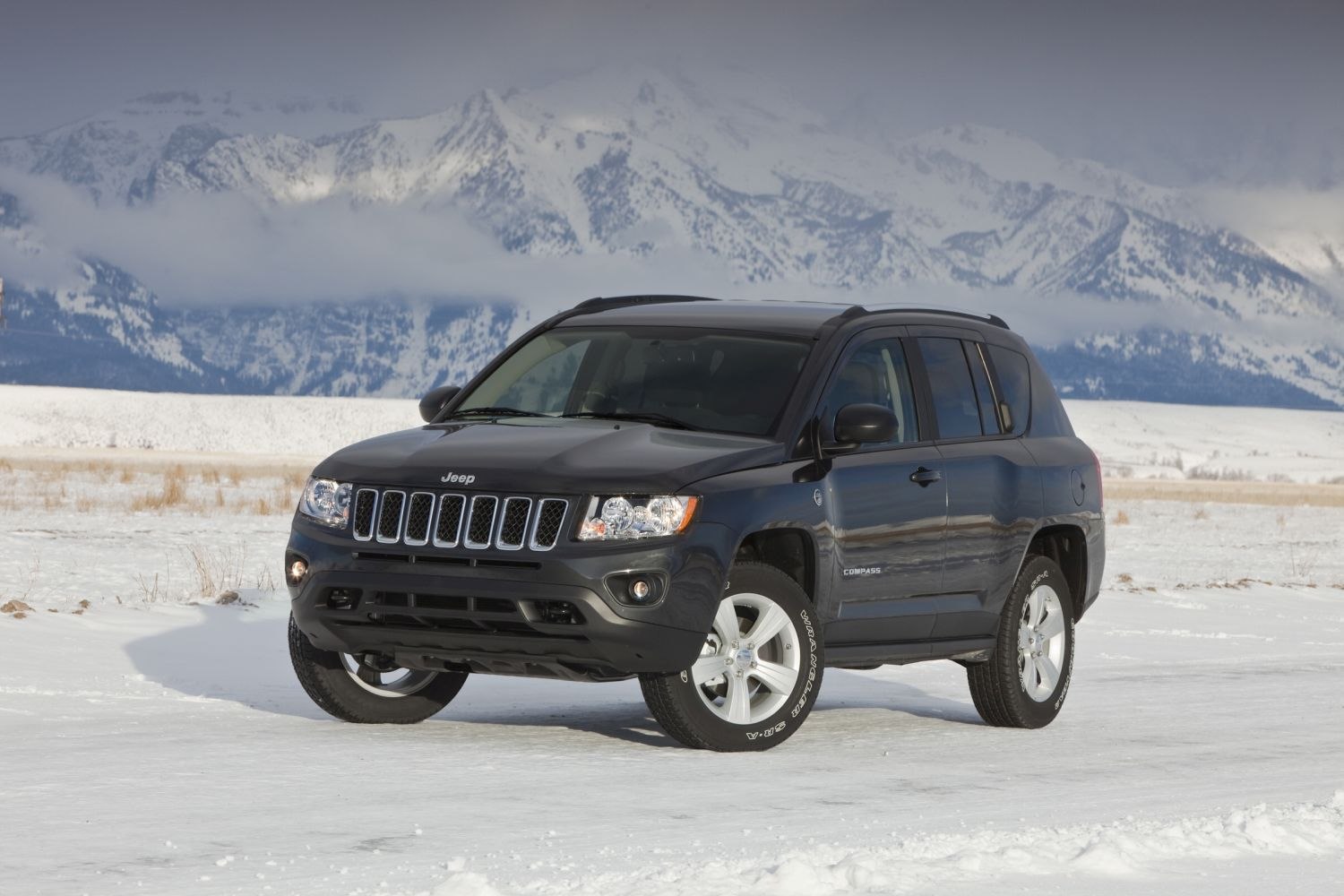

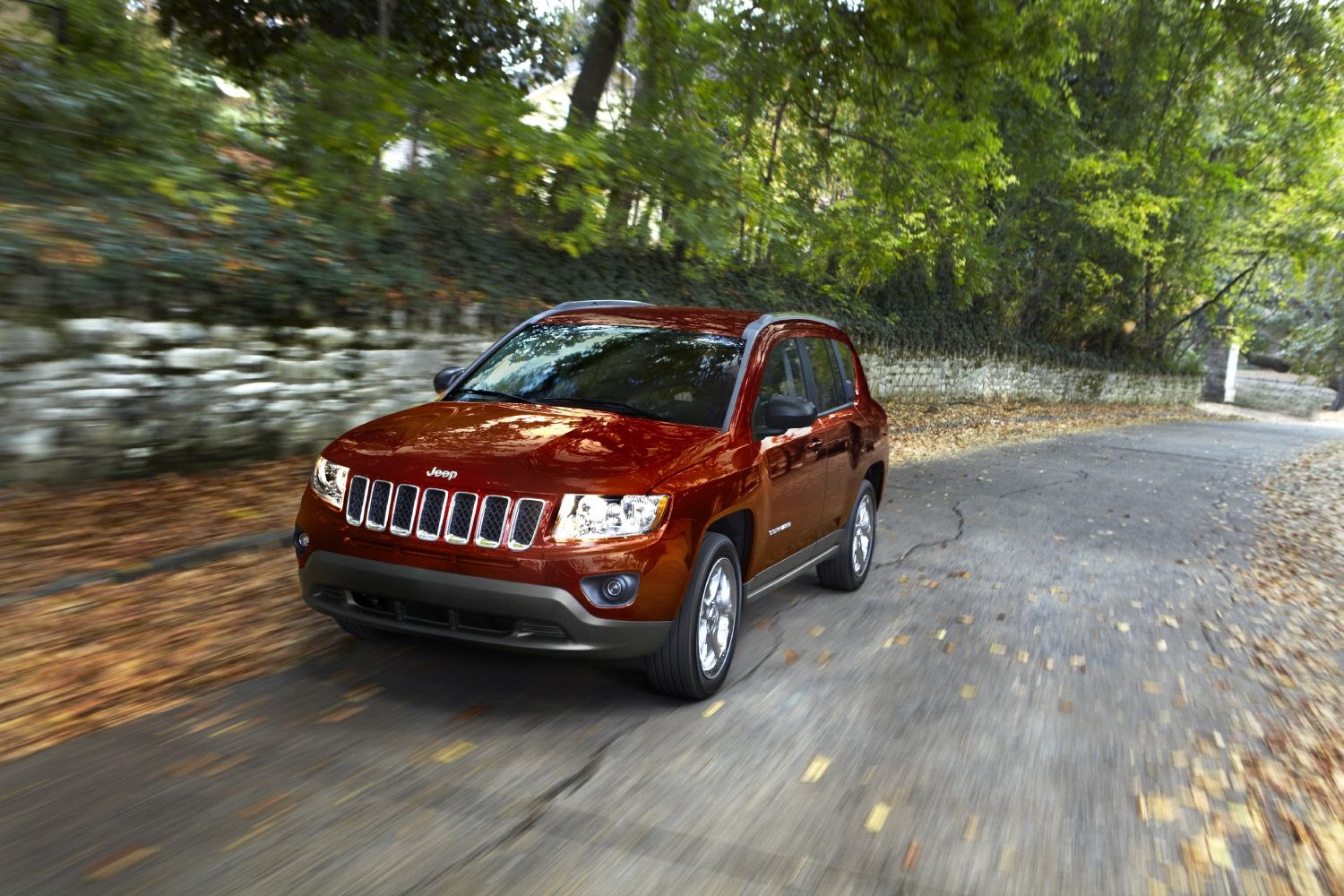

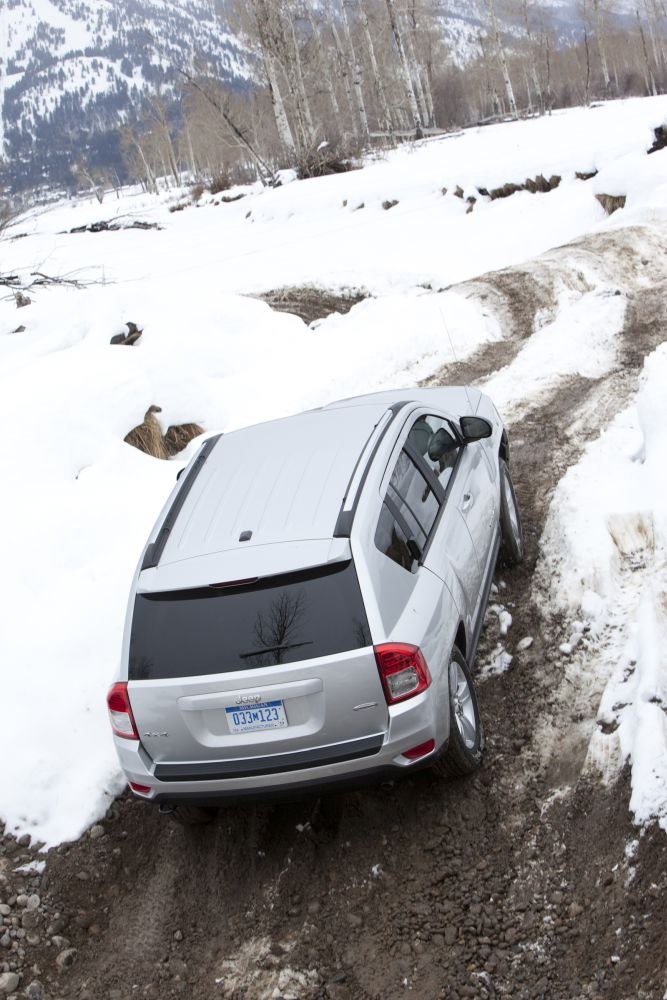

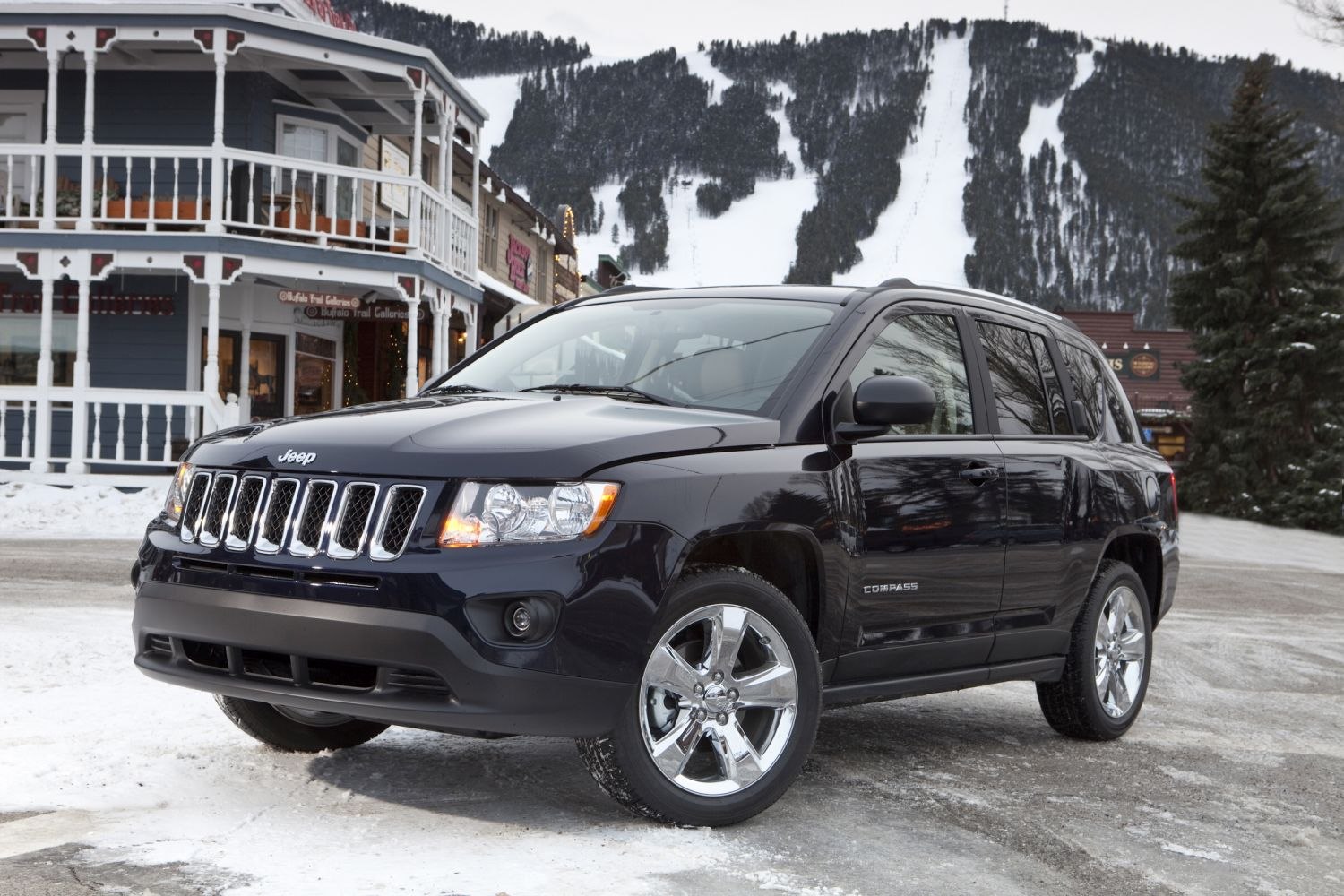

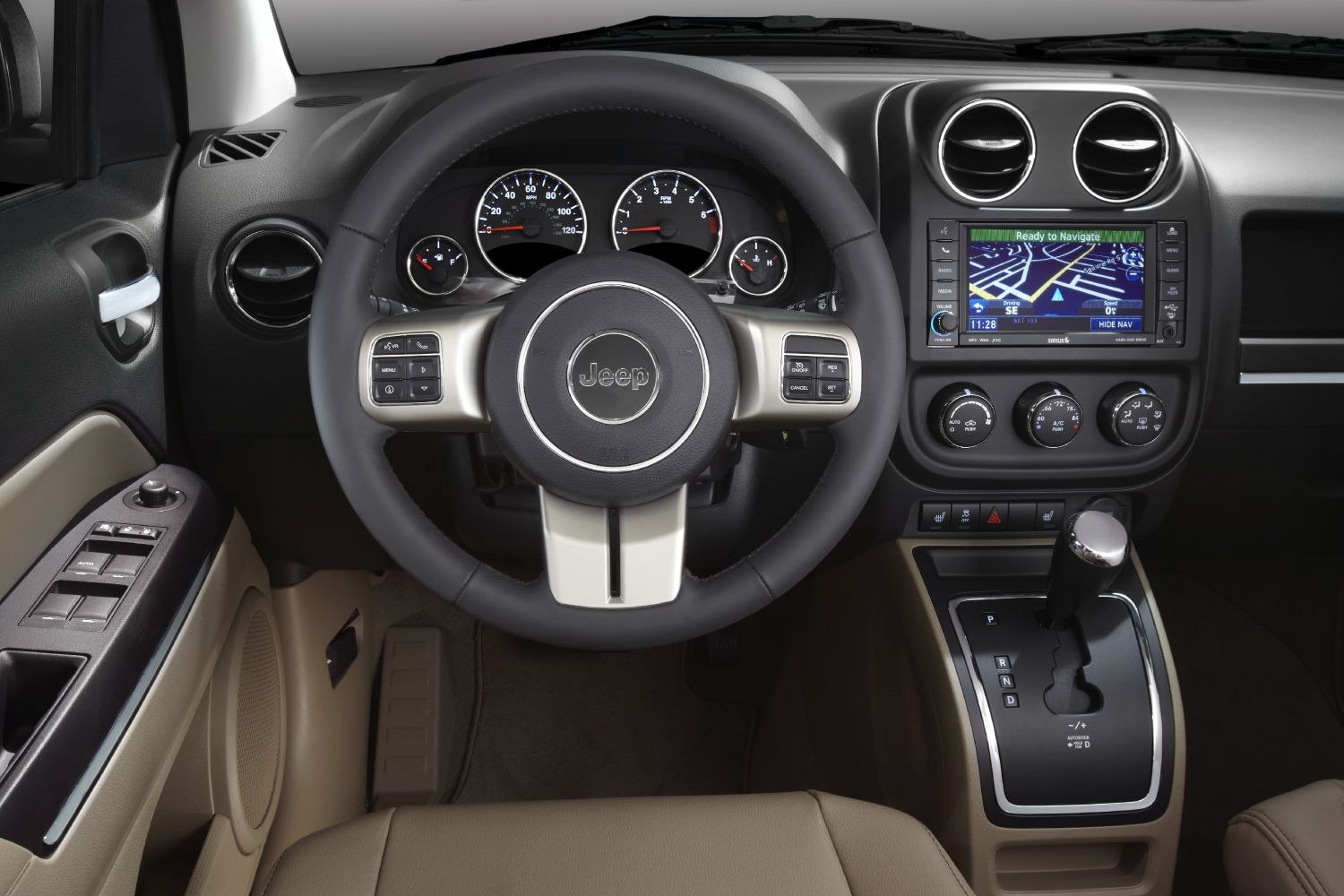

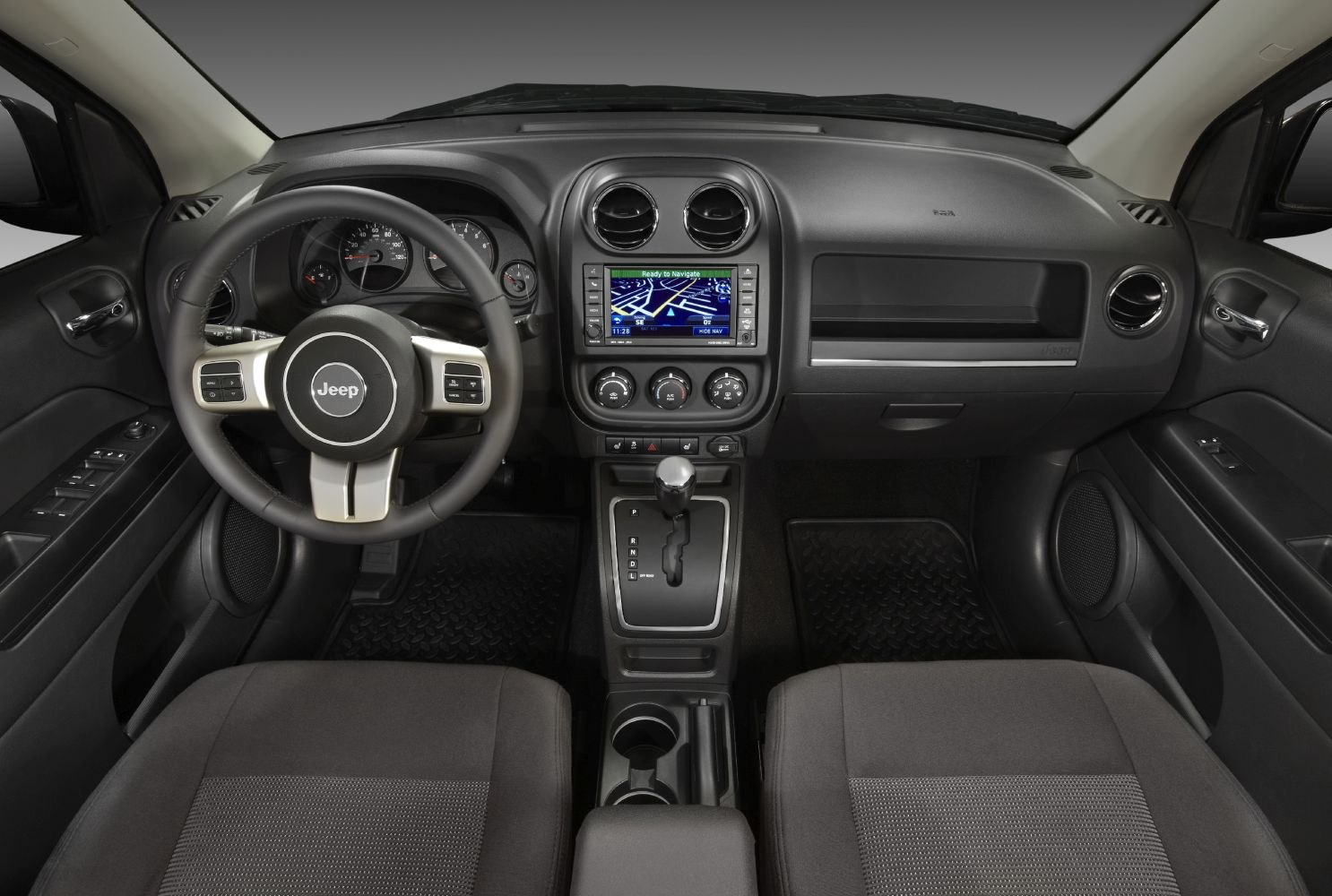

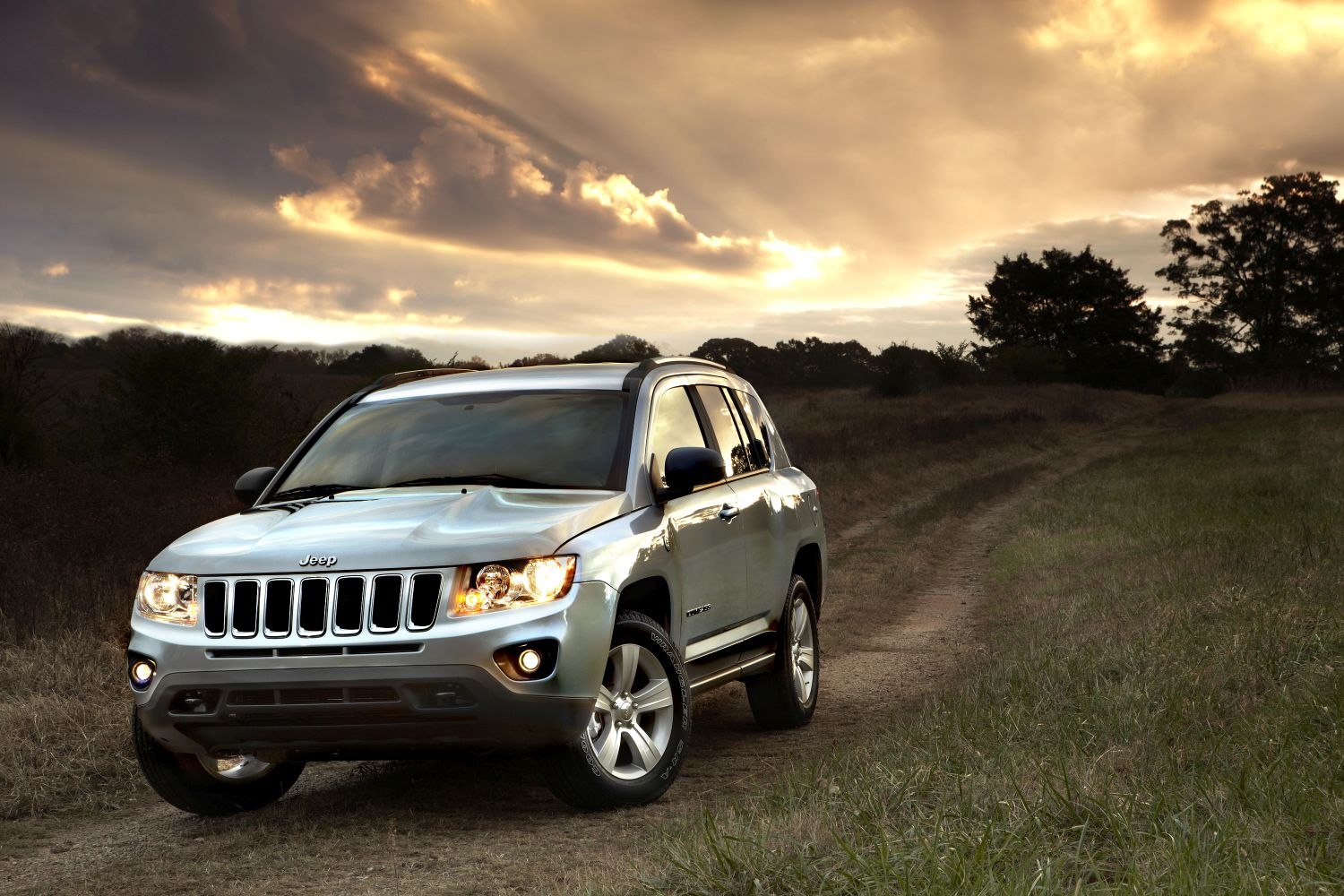

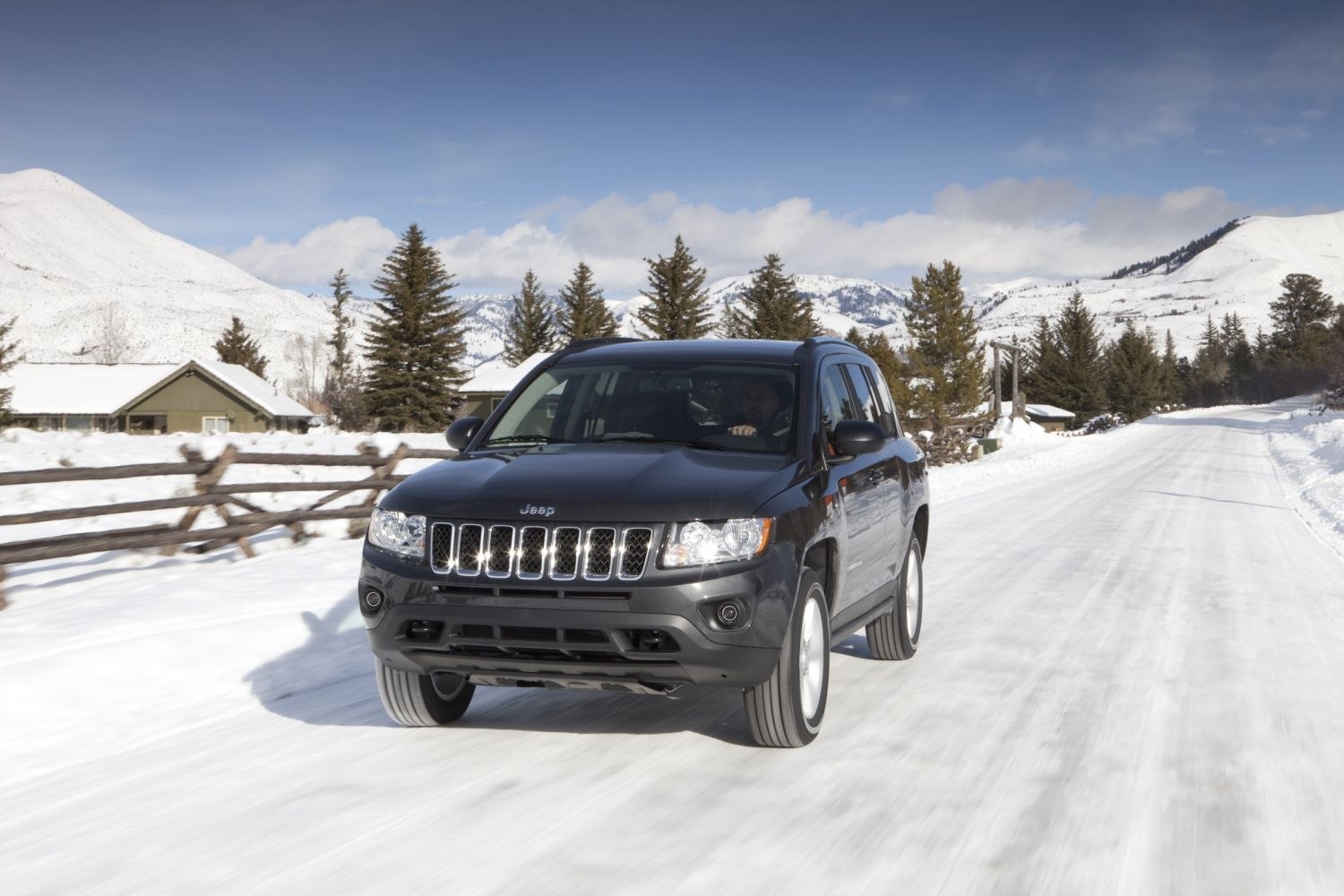

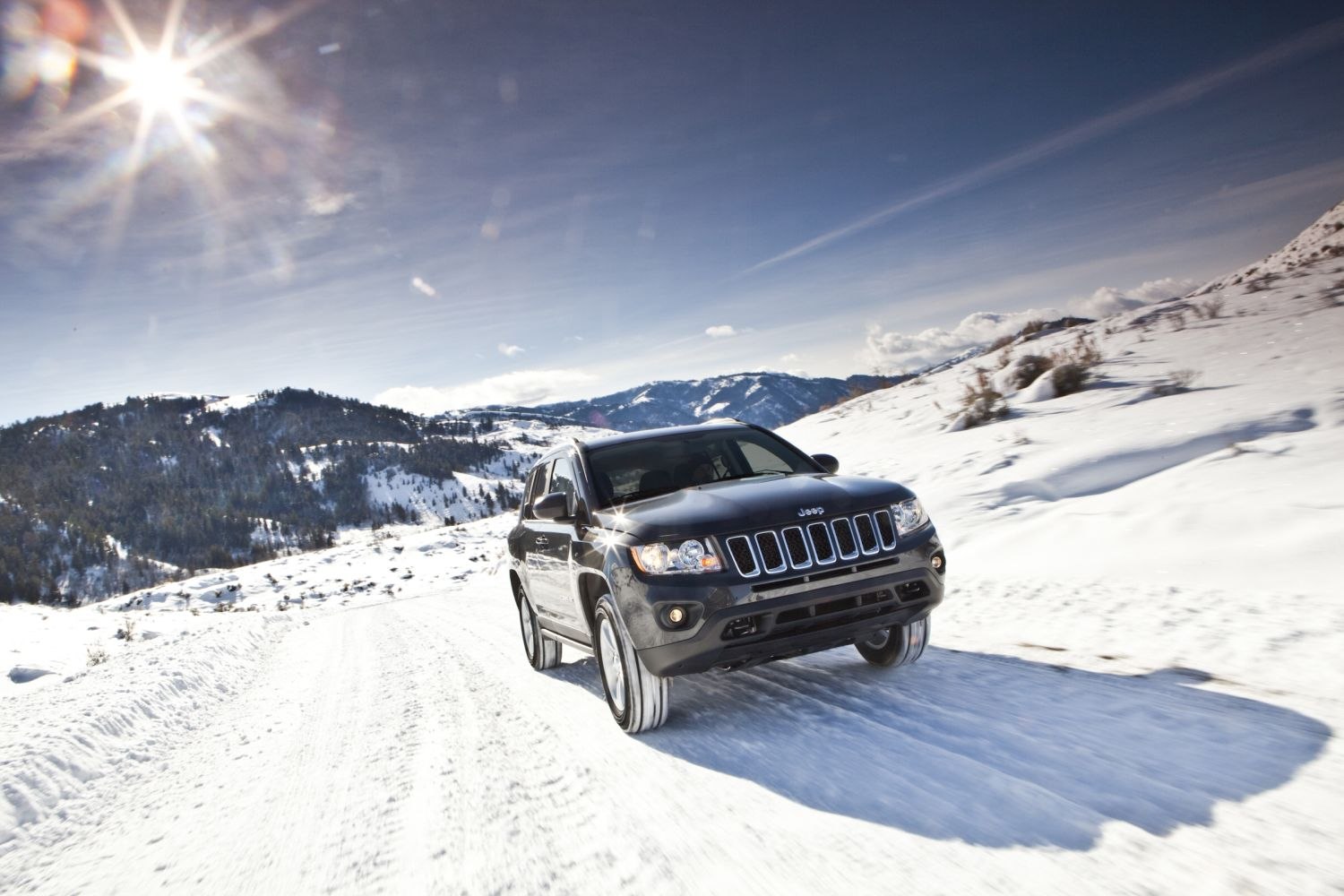

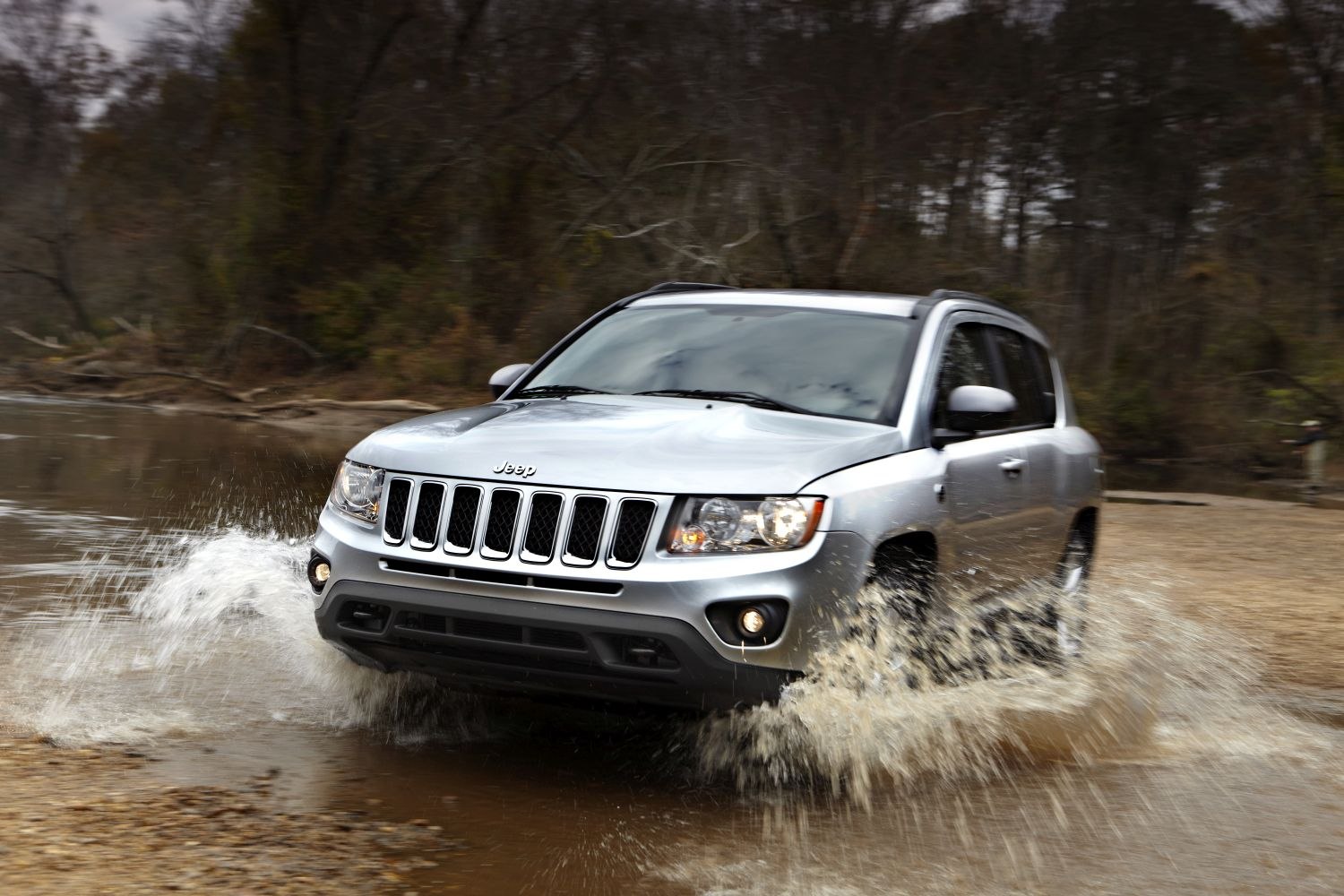

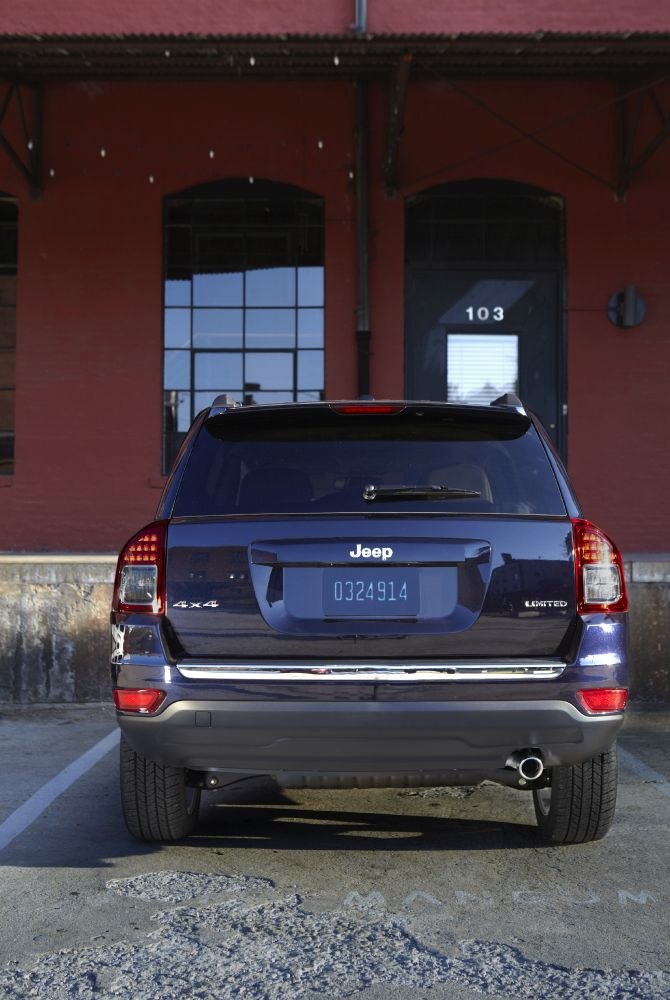

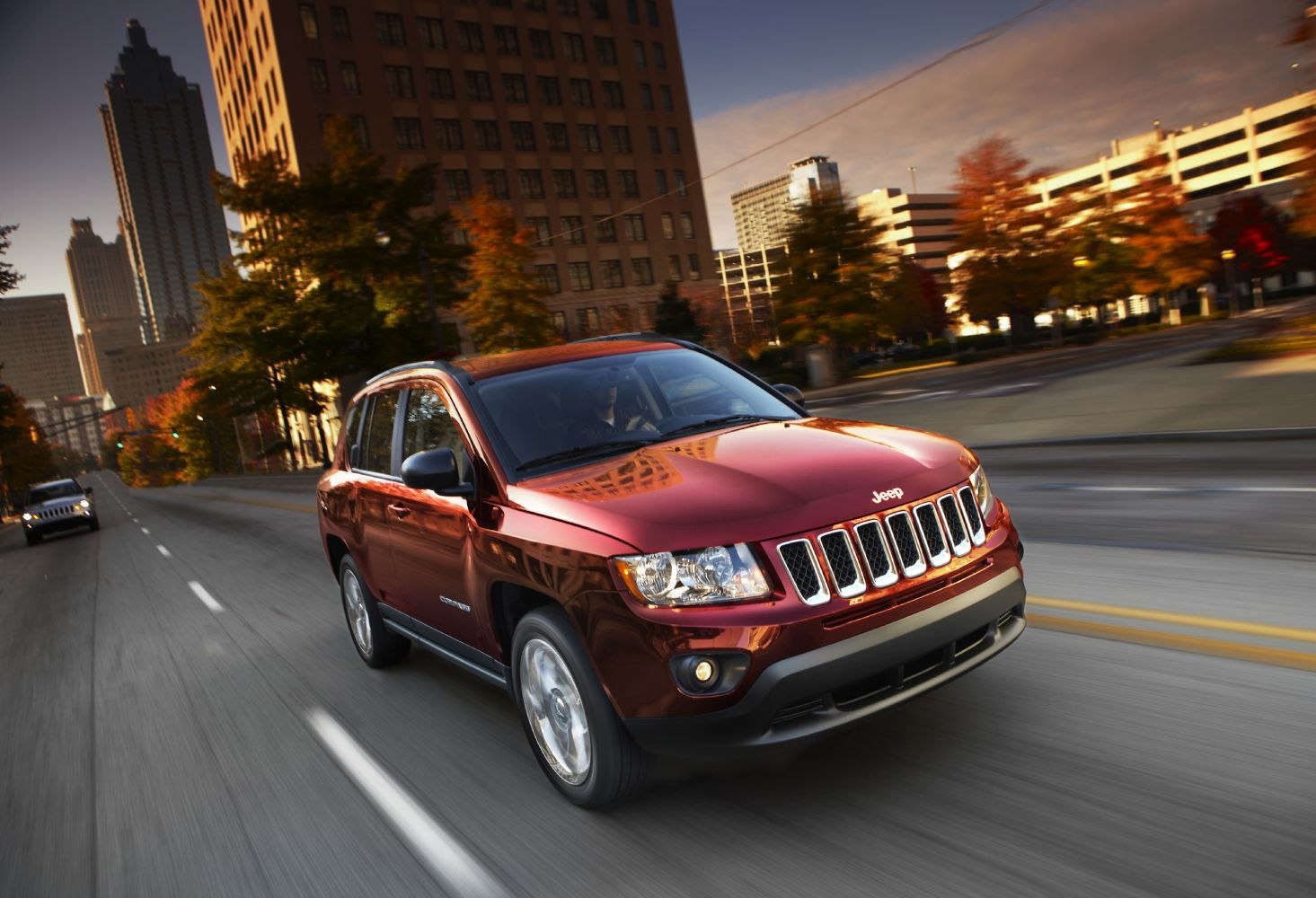

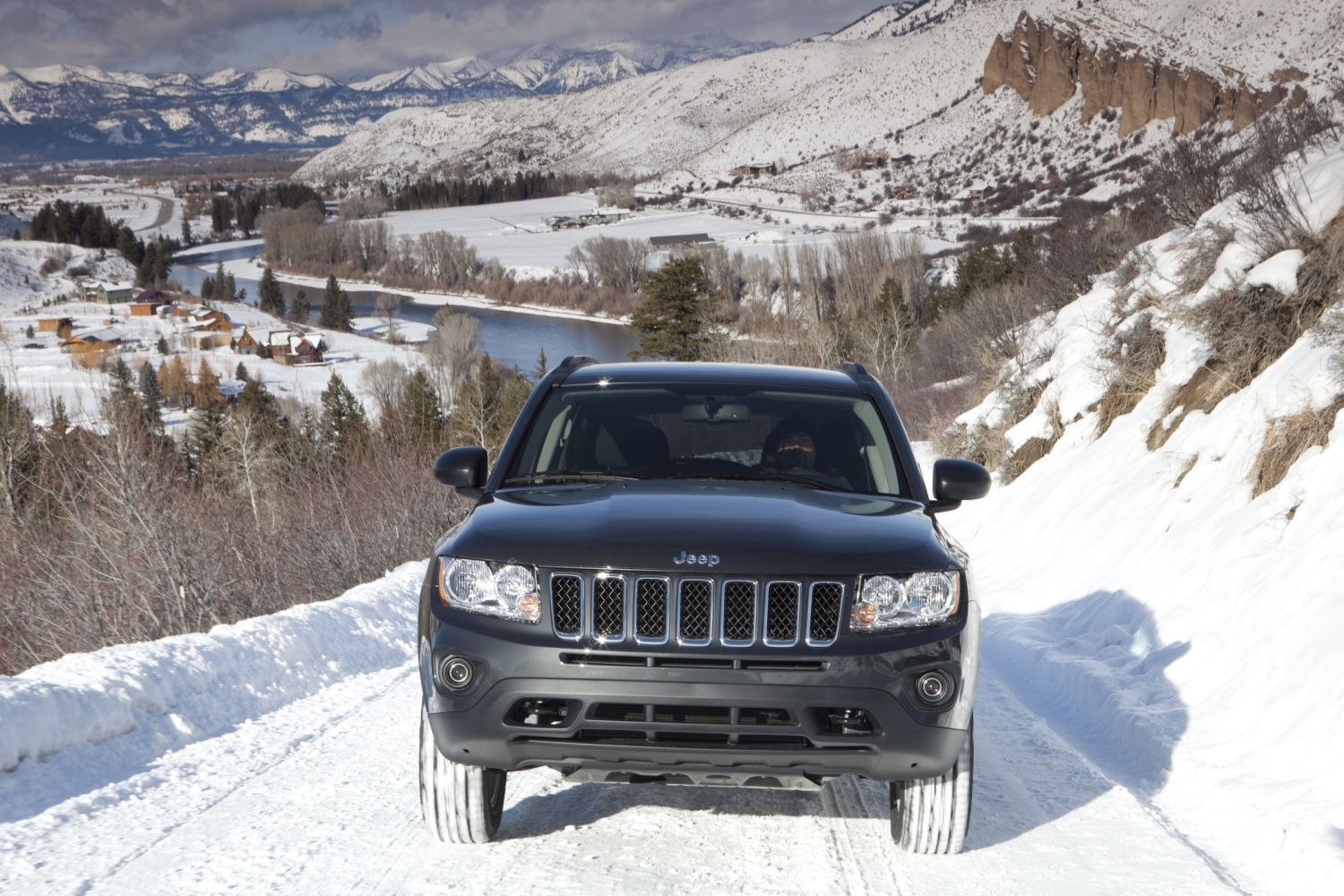

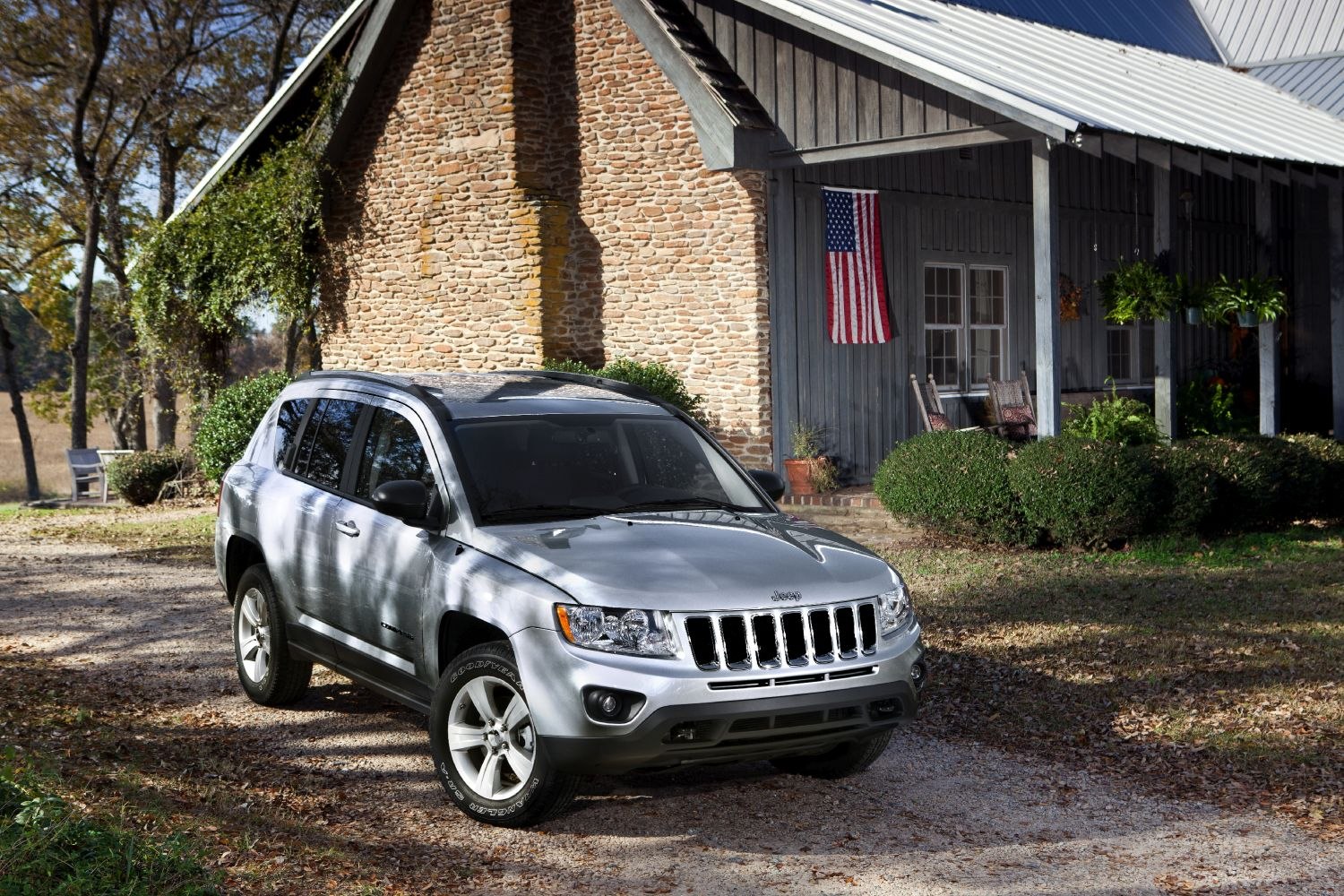

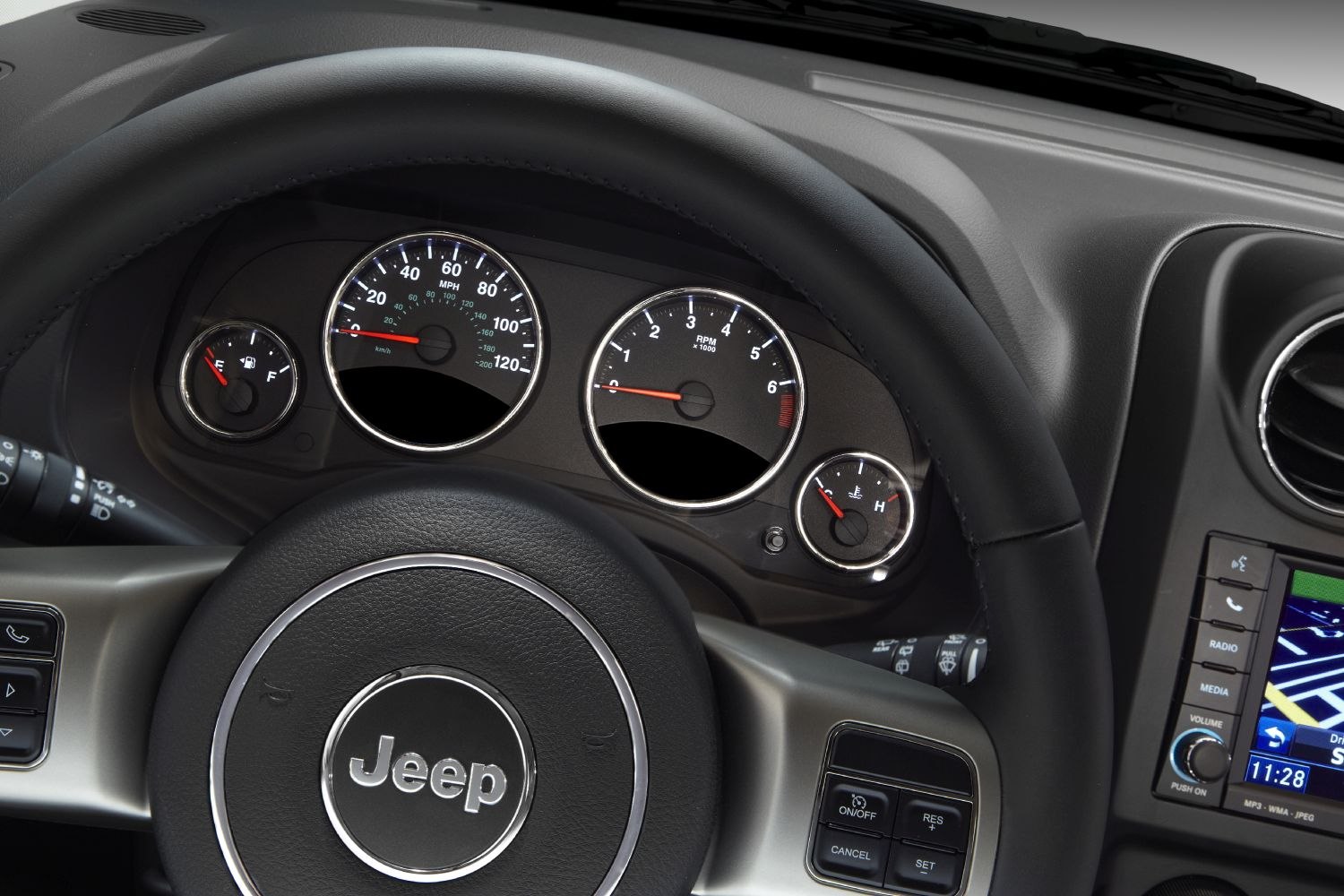

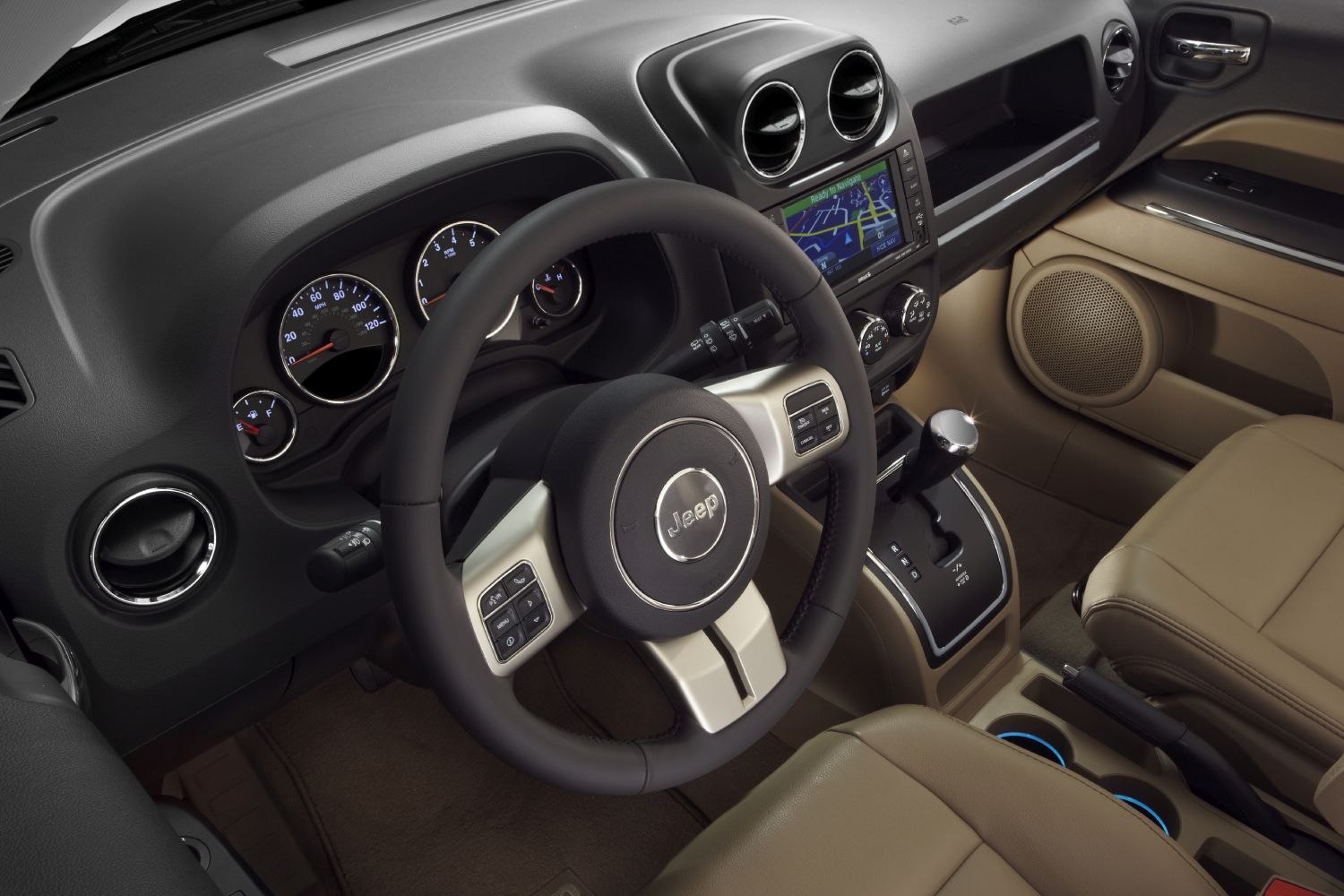

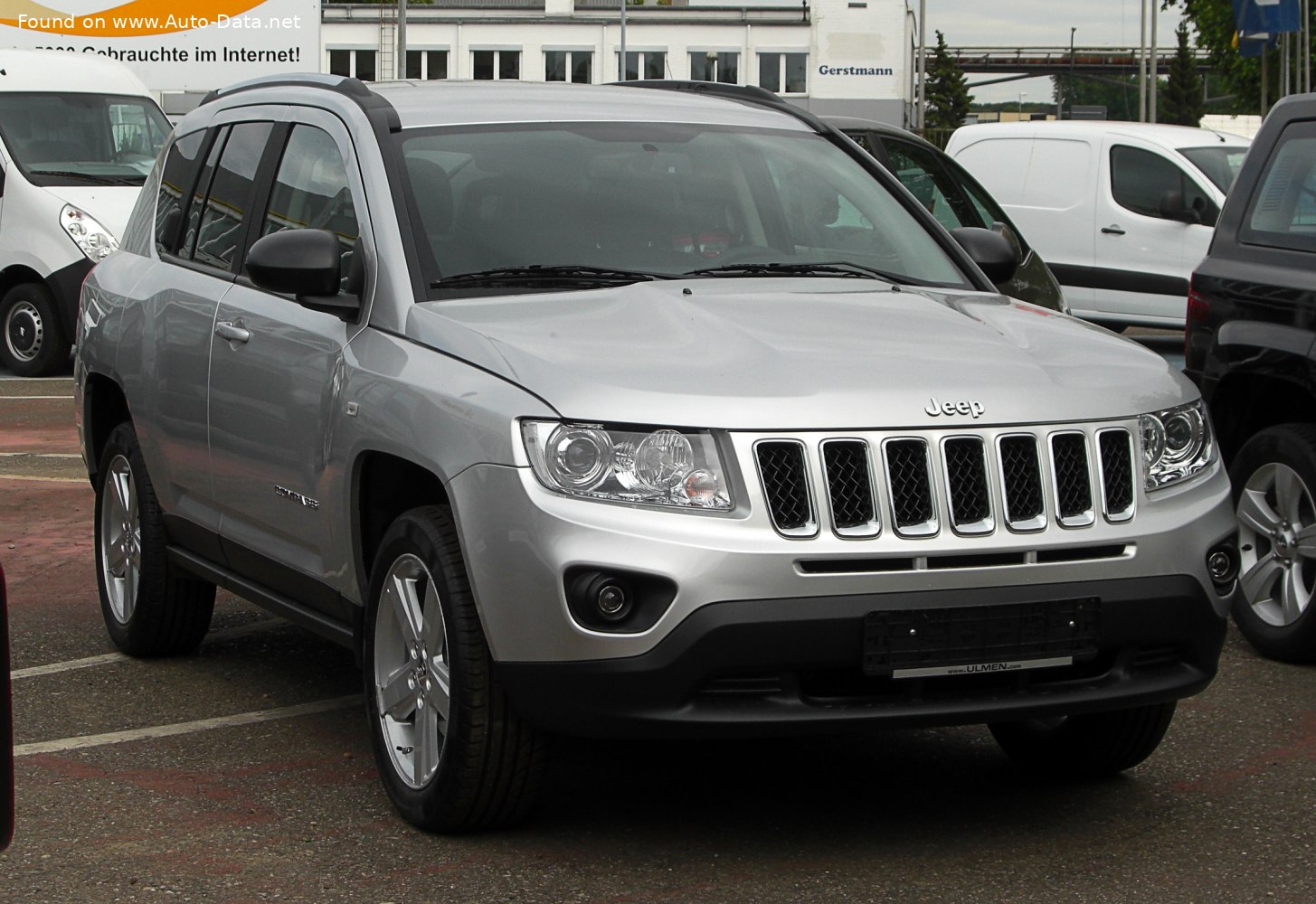

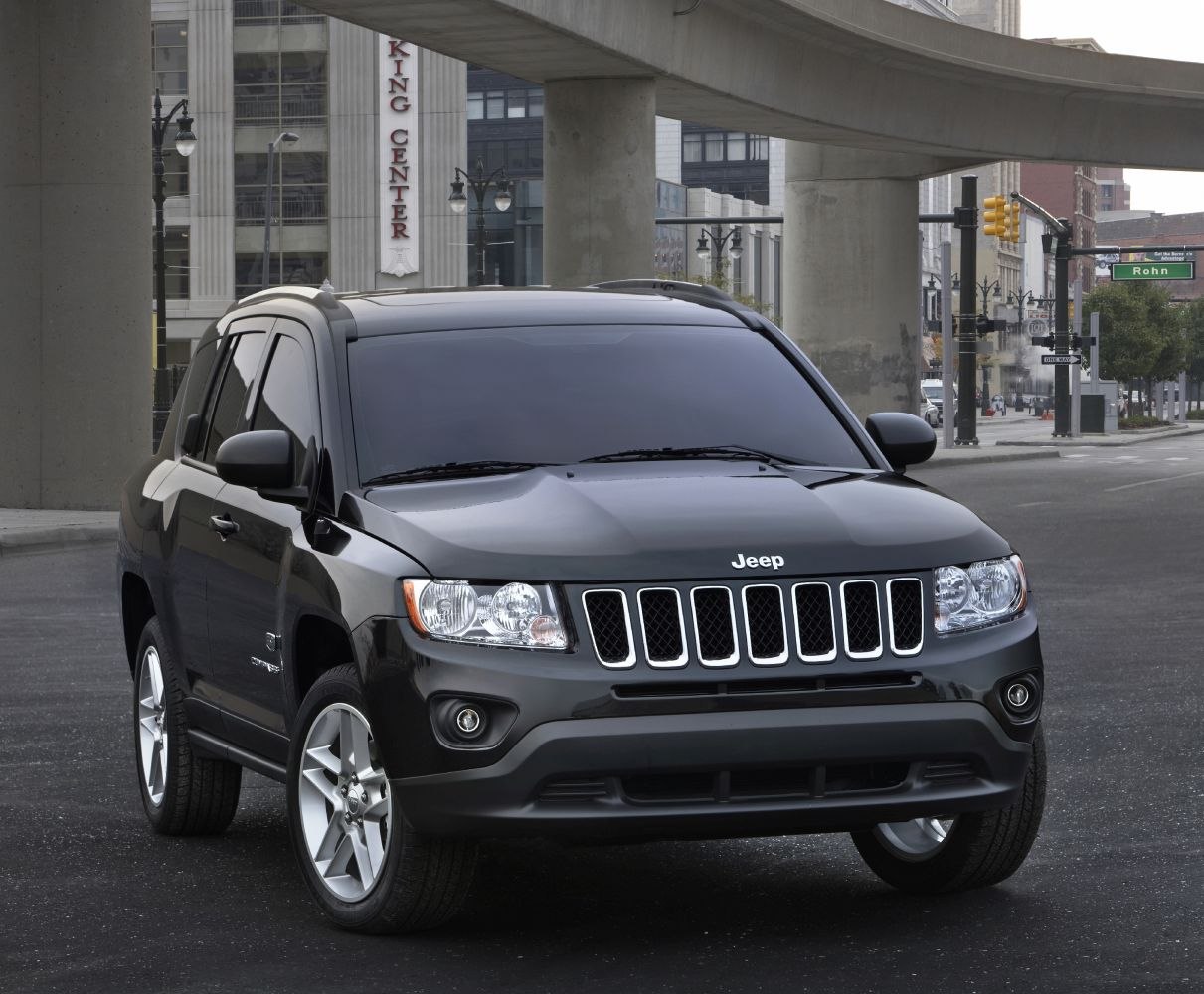

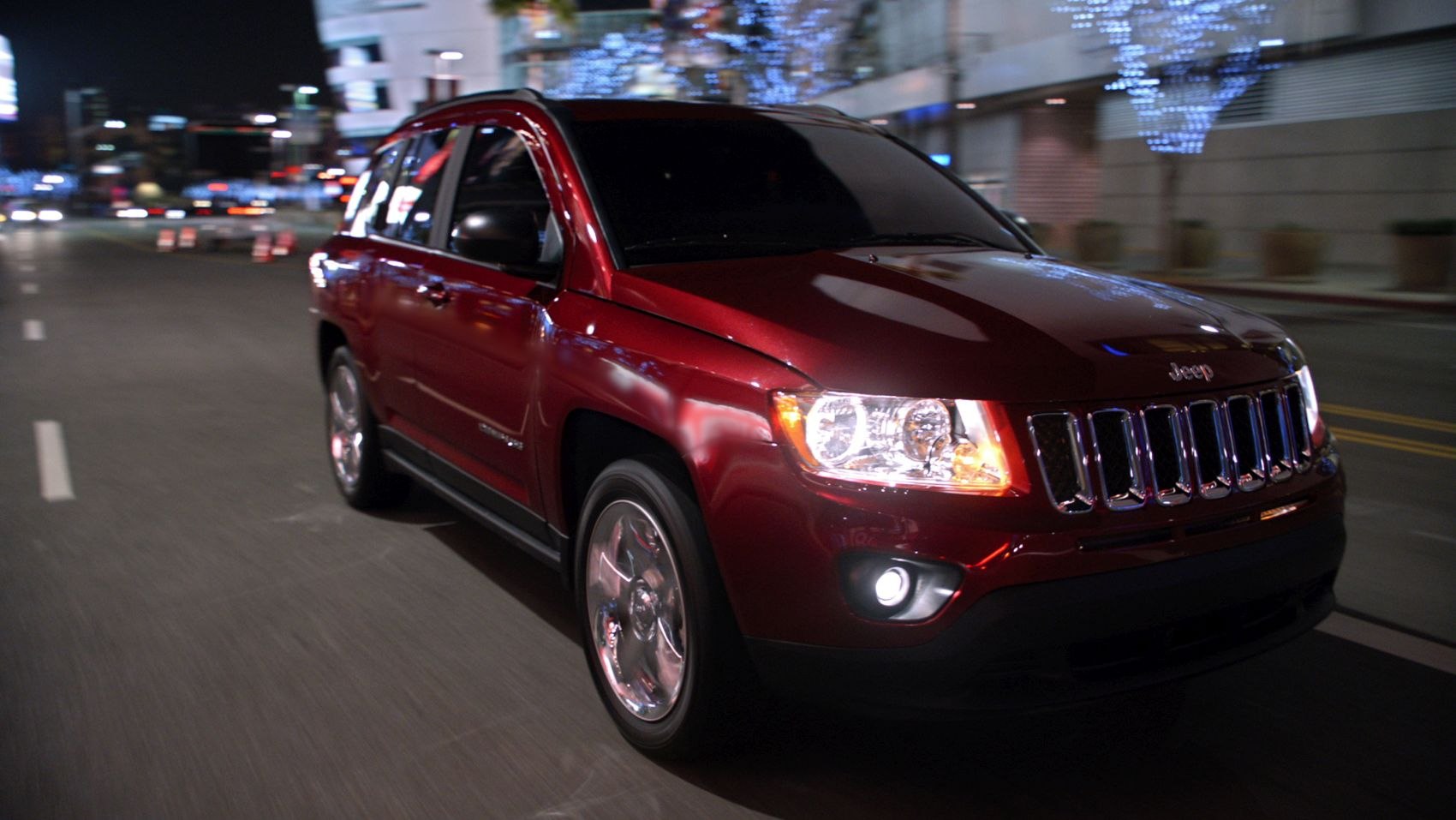

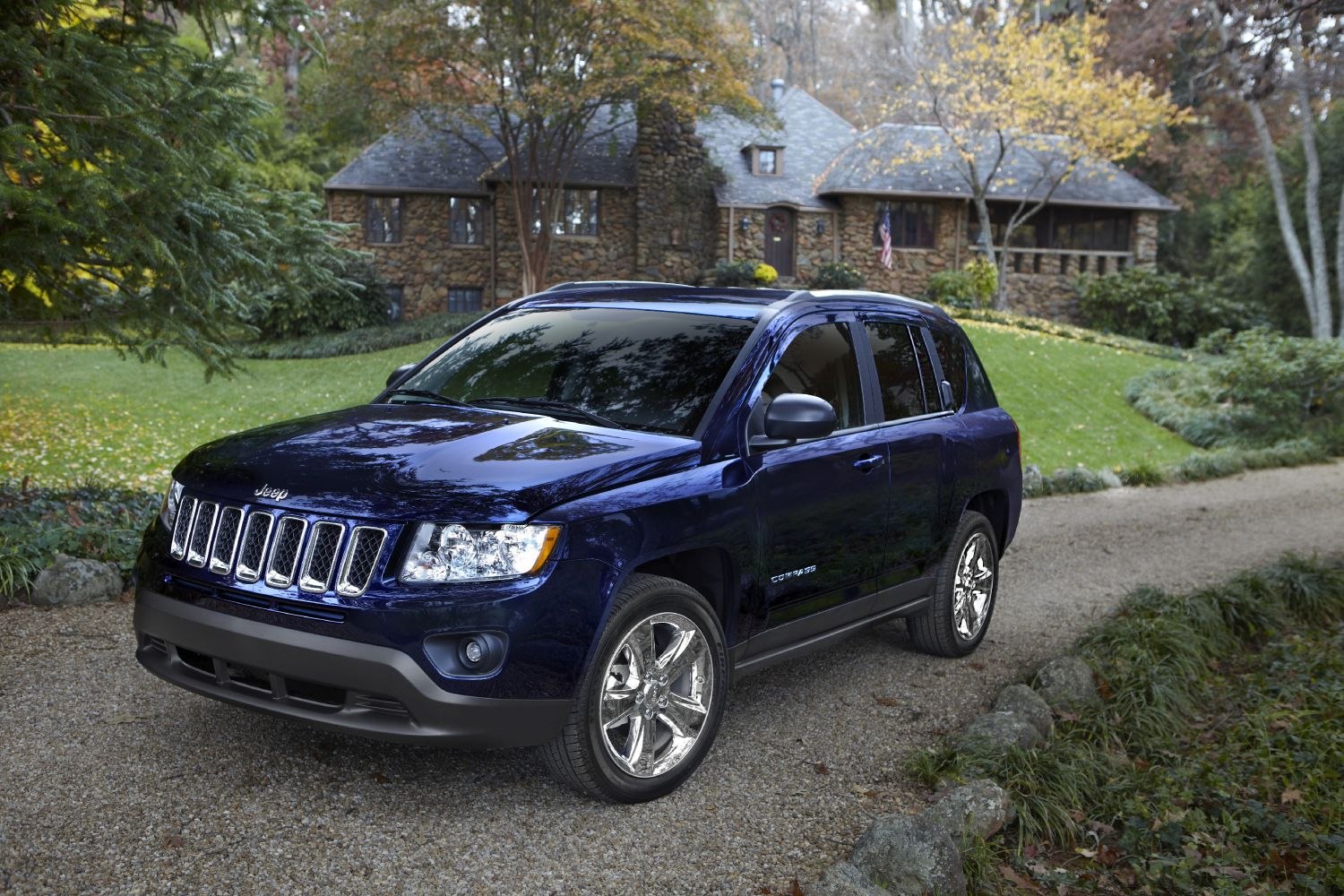

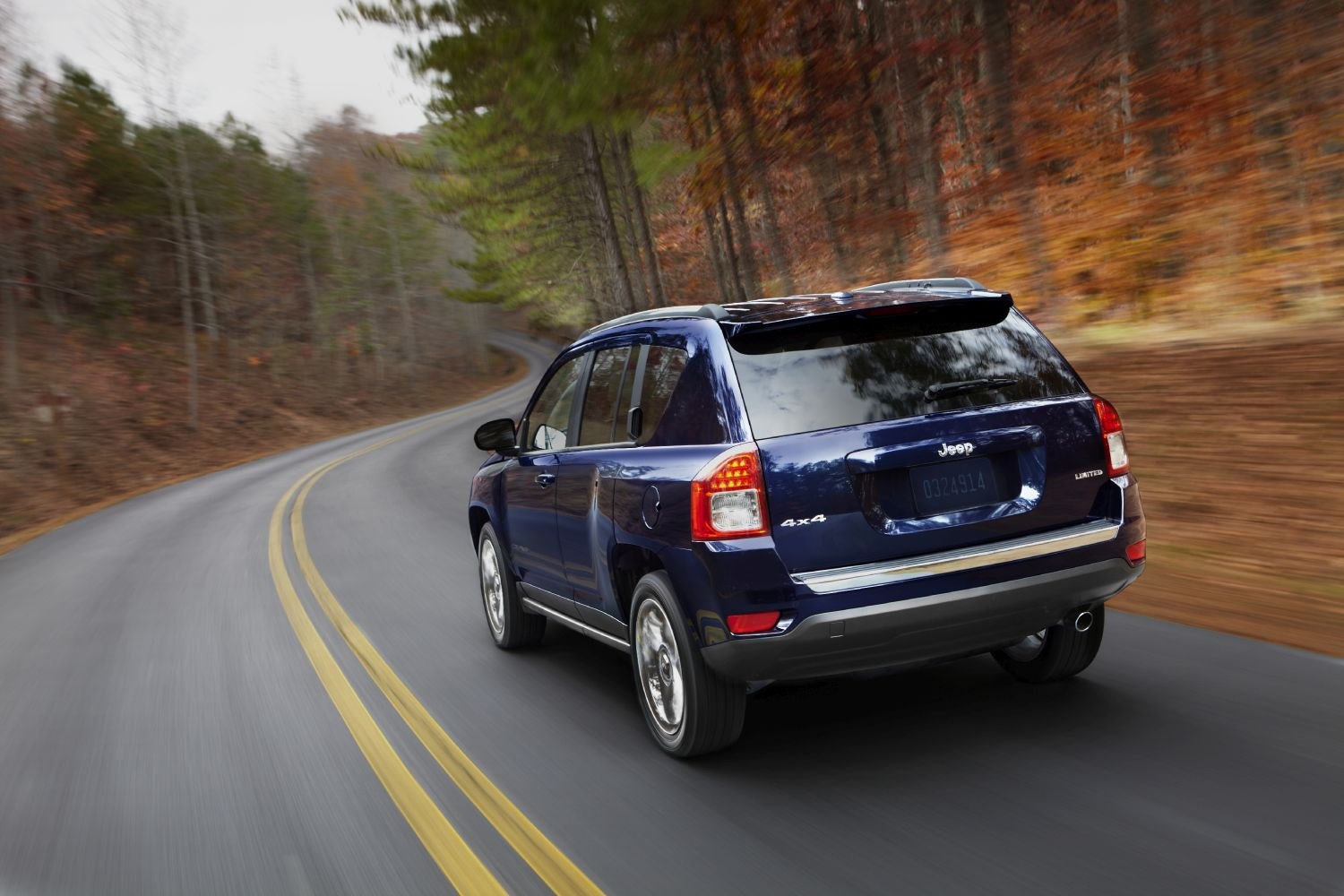

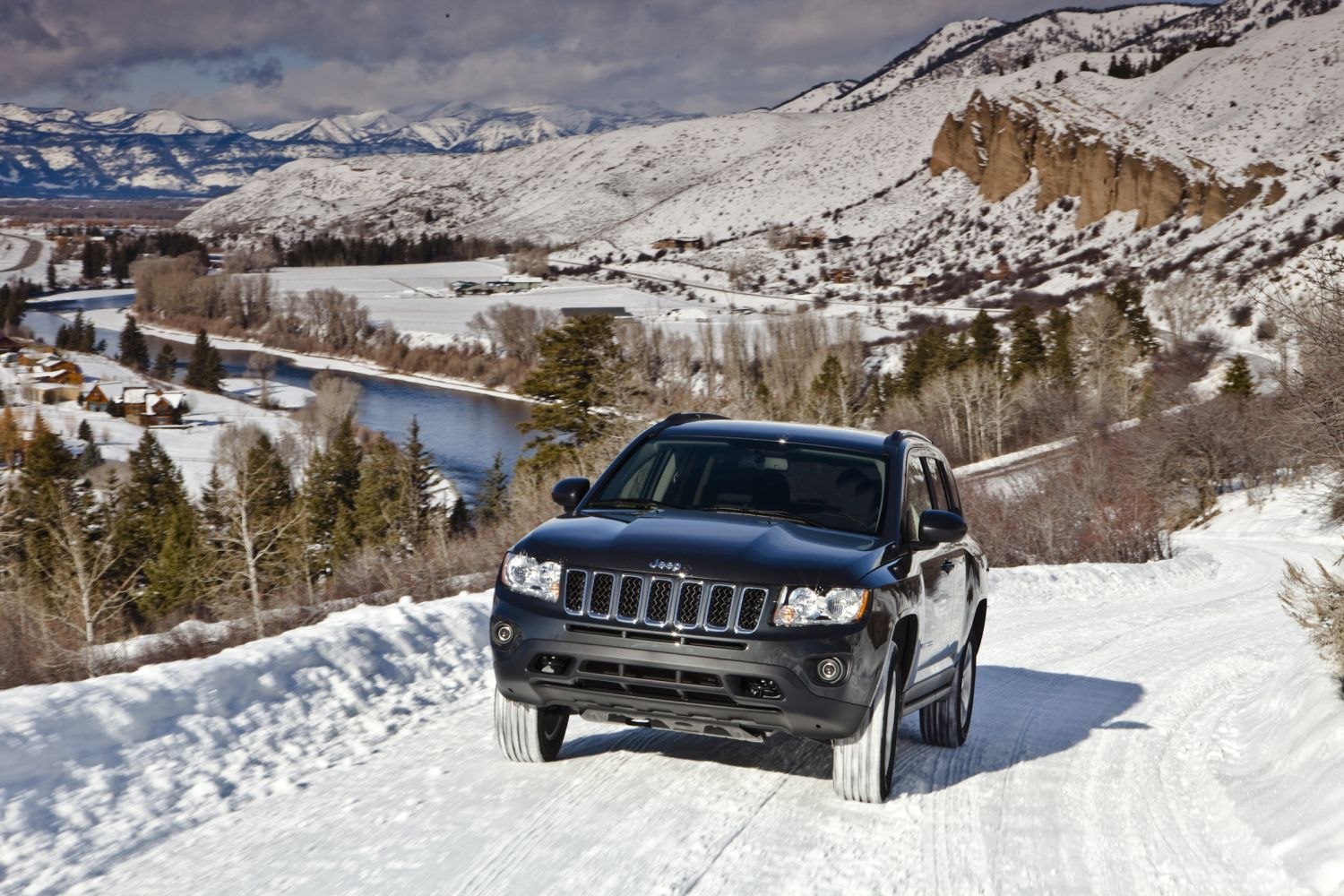

Jeep Compass 1 2011 Gallery
Jeep Compass 1 2011 Technical Specifications
General
Body type
SUV
Brand
Jeep
Doors
5
End of production
2016
Generation
Compass I (MK, 2011)
Model
Compass
Modification (Engine)
2.4 (172 Hp)
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
2011
Performance
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined (EPA)
9.4 l/100 km
Fuel consumption (economy) - extra urban (EPA)
8.4 l/100 km
Fuel consumption (economy) - urban (EPA)
10.2 l/100 km
Dimensions
Approach angle
19.5°
Departure angle
28.5°
Front overhang
916 mm
Front track
1520 mm
Height
1651 mm
Length
4448 mm
Minimum turning circle (turning diameter)
10.8-11.3 m
Ramp-over (brakeover) angle
20.6°
Rear (Back) track
1520 mm
Rear overhang
897 mm
Ride height (ground clearance)
206 mm
Wheelbase
2635 mm
Width
1812 mm
Engine
Compression ratio
10.5
Coolant
6.8 l
Cylinder Bore
88 mm
Engine Model/Code
World / ED3
Engine aspiration
Naturally aspirated engine
Engine configuration
Inline
Engine displacement
2360 cm
Engine layout
Front, Transverse
Engine oil capacity
4.26 l
Engine oil specification
Log in to see.
Fuel injection system
Multi-port manifold injection
Maximum engine speed
6500 rpm.
Number of cylinders
4
Number of valves per cylinder
4
Power
172 Hp @ 6000 rpm.
Torque
224 Nm @ 4400 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 294x26 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
5 gears, manual transmission
Power steering
Hydraulic Steering
Rear brakes
Drum, 229x35 mm
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
215/60 R17; 225/60 R17; 215/55 R18
Wheel rims size
6.5J x 17; 7J x 18
Space
Fuel tank capacity
51.5 l
Kerb Weight
1407-1479 kg
