BMW 5 Series Touring G61 2024
520d (197 Hp) Mild Hybrid xDrive Steptronic
Hybrid Car
Body Type Station wagon (estate)
Seats 5
4000 rpm.
Power HP RPM
218 km/h
Maximum Speed
5
Doors
BMW 5 Series Touring G61 2024 Key Specs
Acceleration 0 - 100 Km/h
7.5 sec
Acceleration 0 - 62 Mph
7.5 sec
Battery Voltage
48 V
Body Type
Station wagon (estate)
Doors
5
Drive Wheel
All wheel drive (4x4)
Engine Aspiration
Twin-power turbo, Intercooler
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
60 l
Generation
5 Series Touring (G61)
Kerb Weight
1895 kg
Maximum Speed
218 km/h
Modification (Engine)
520d (197 Hp) Mild Hybrid xDrive Steptronic
Number Of Cylinders
4
Power
197 Hp @ 4000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start Of Production
February, 2024
System Power
197 Hp
System Torque
400 Nm
Wheel Rims Size
7.5J x 18

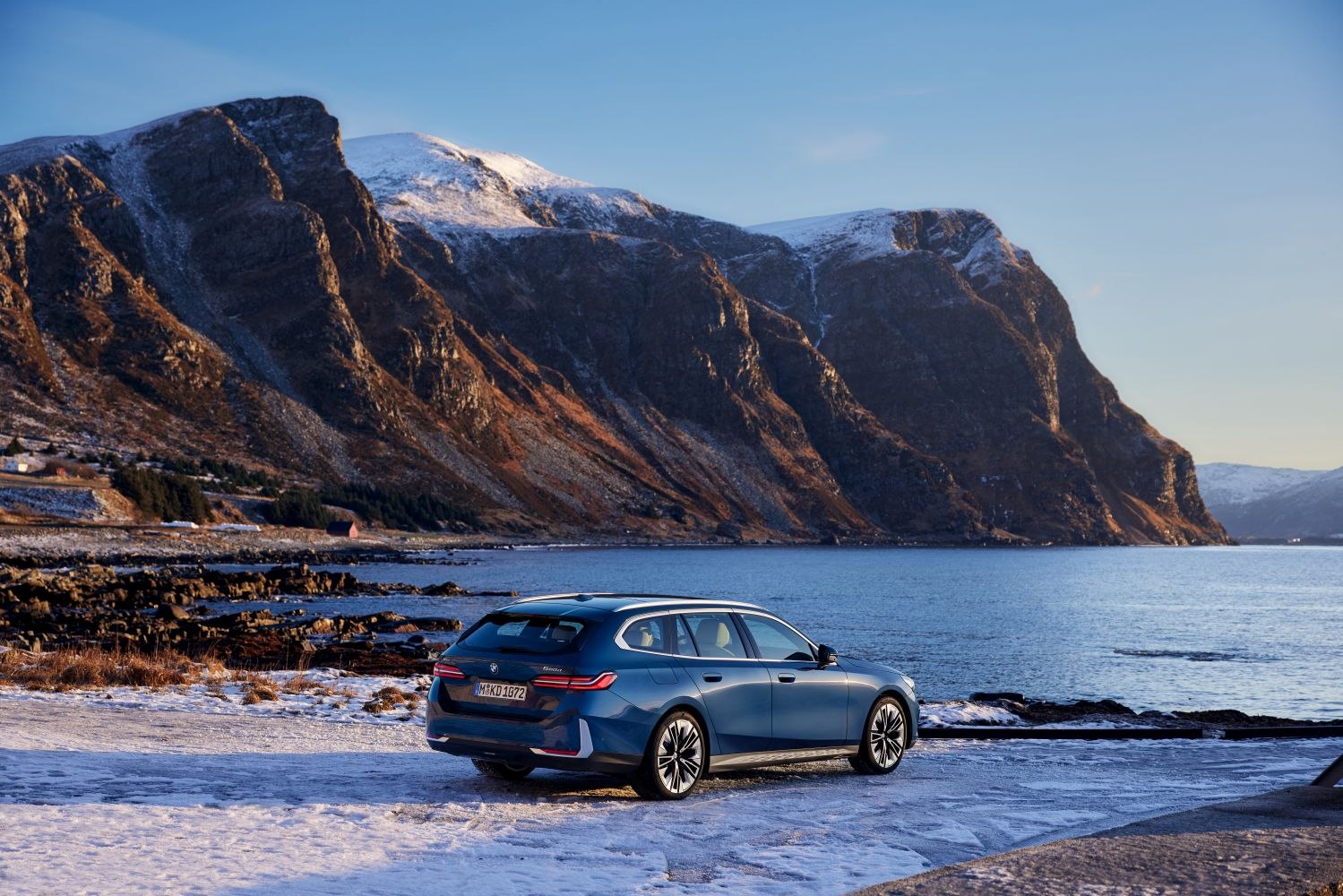

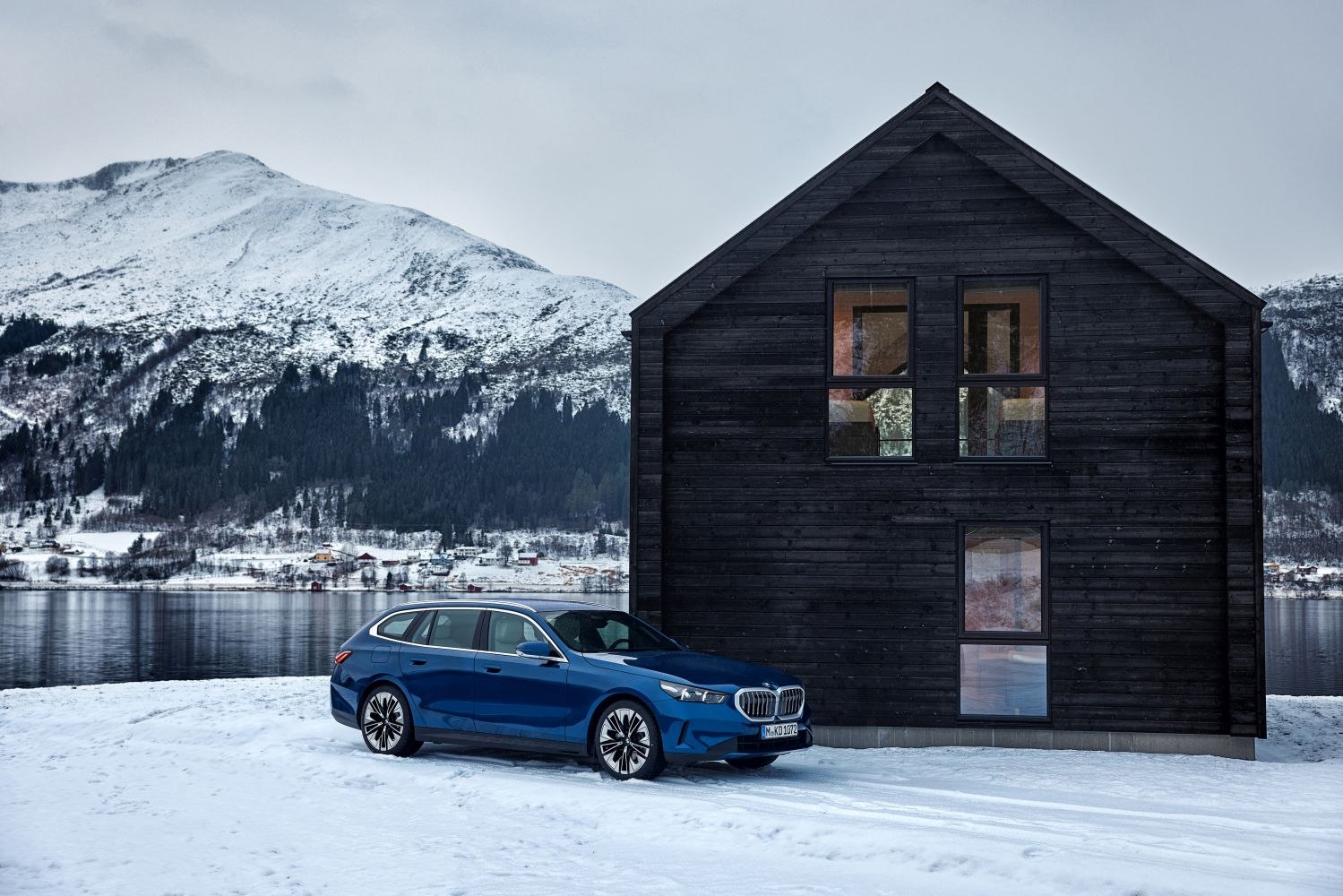

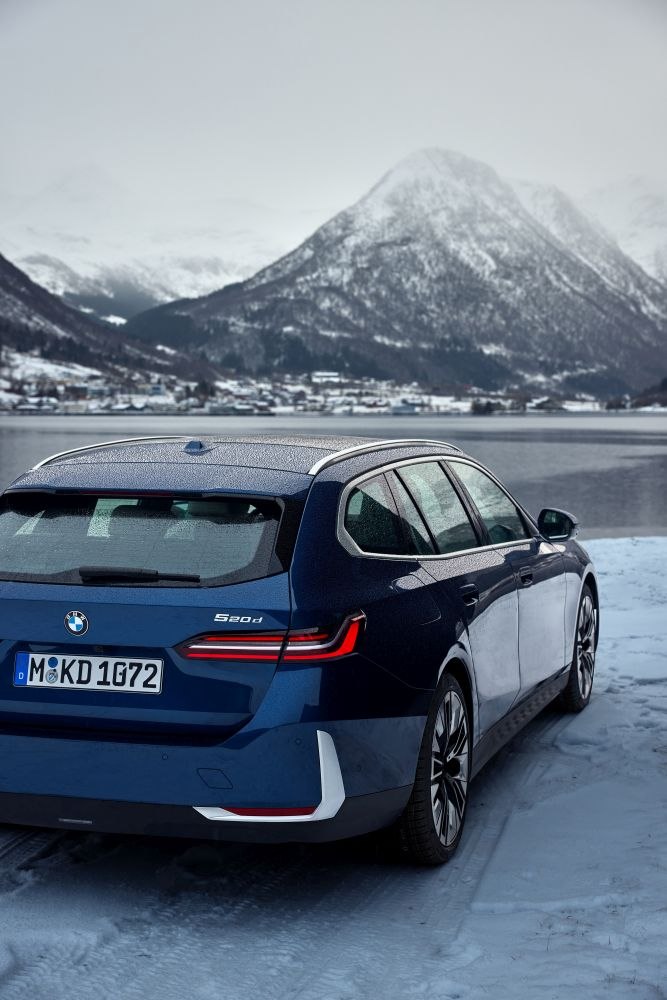

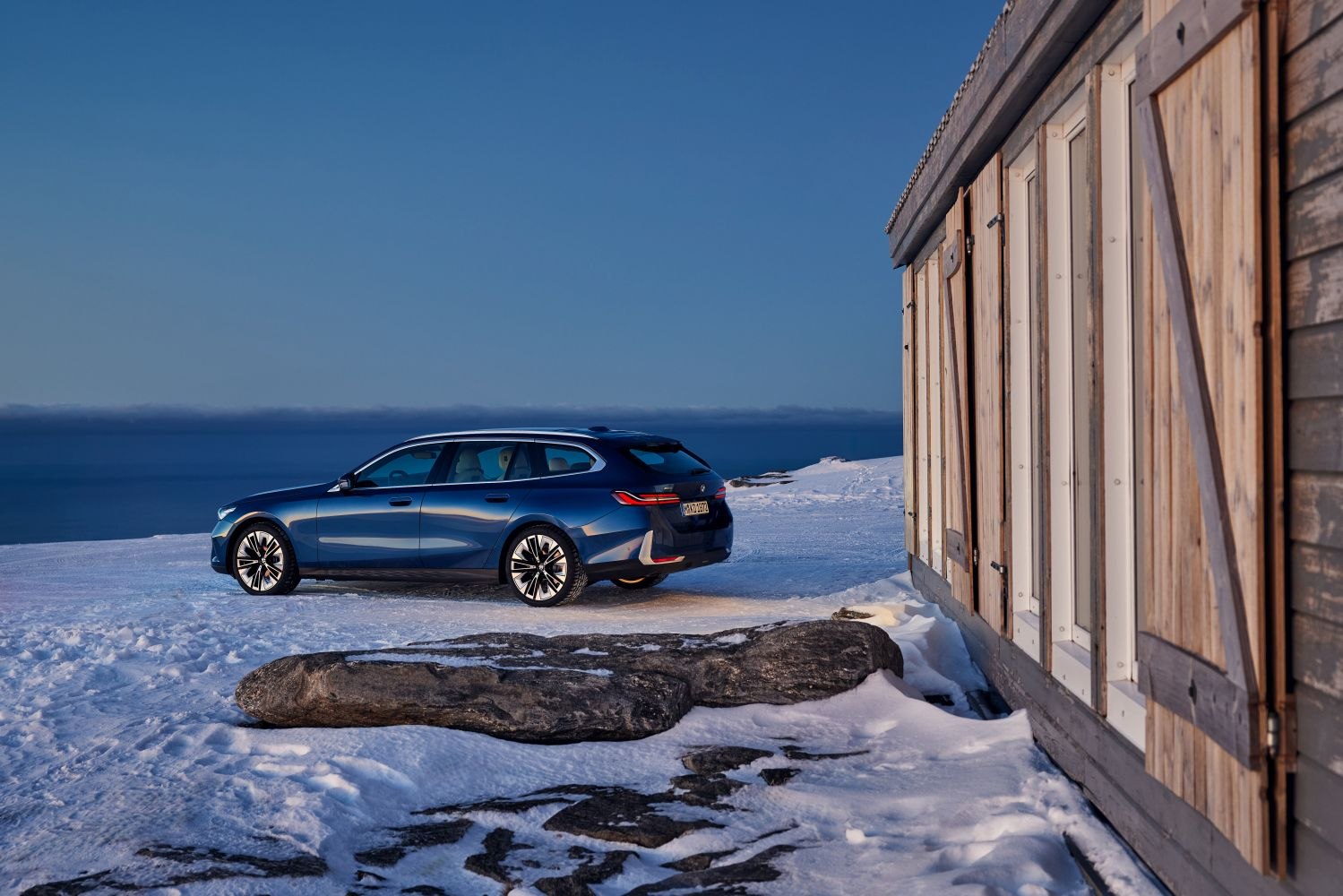

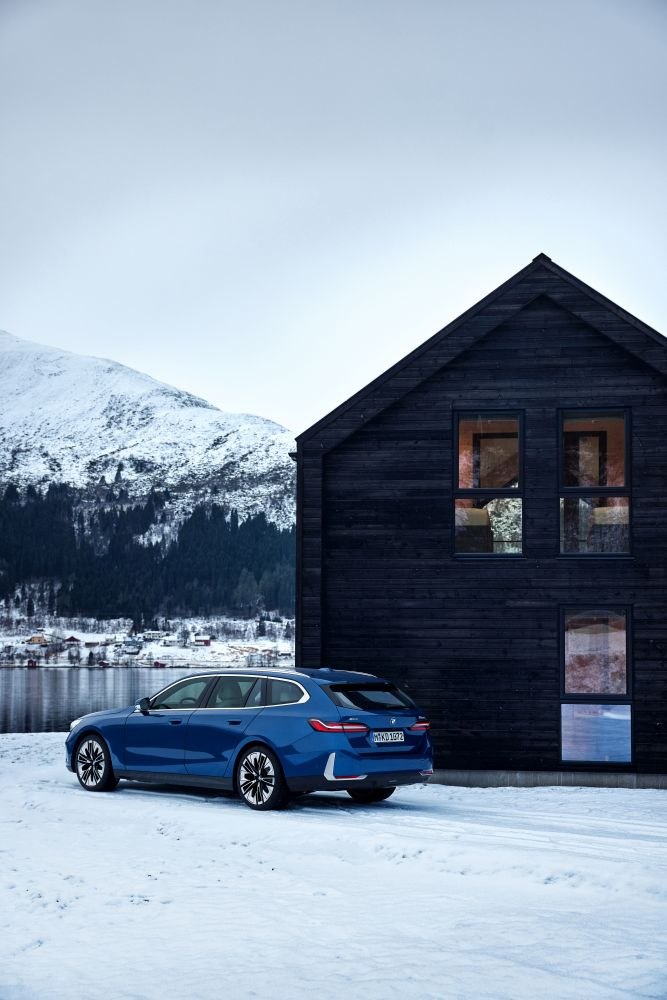

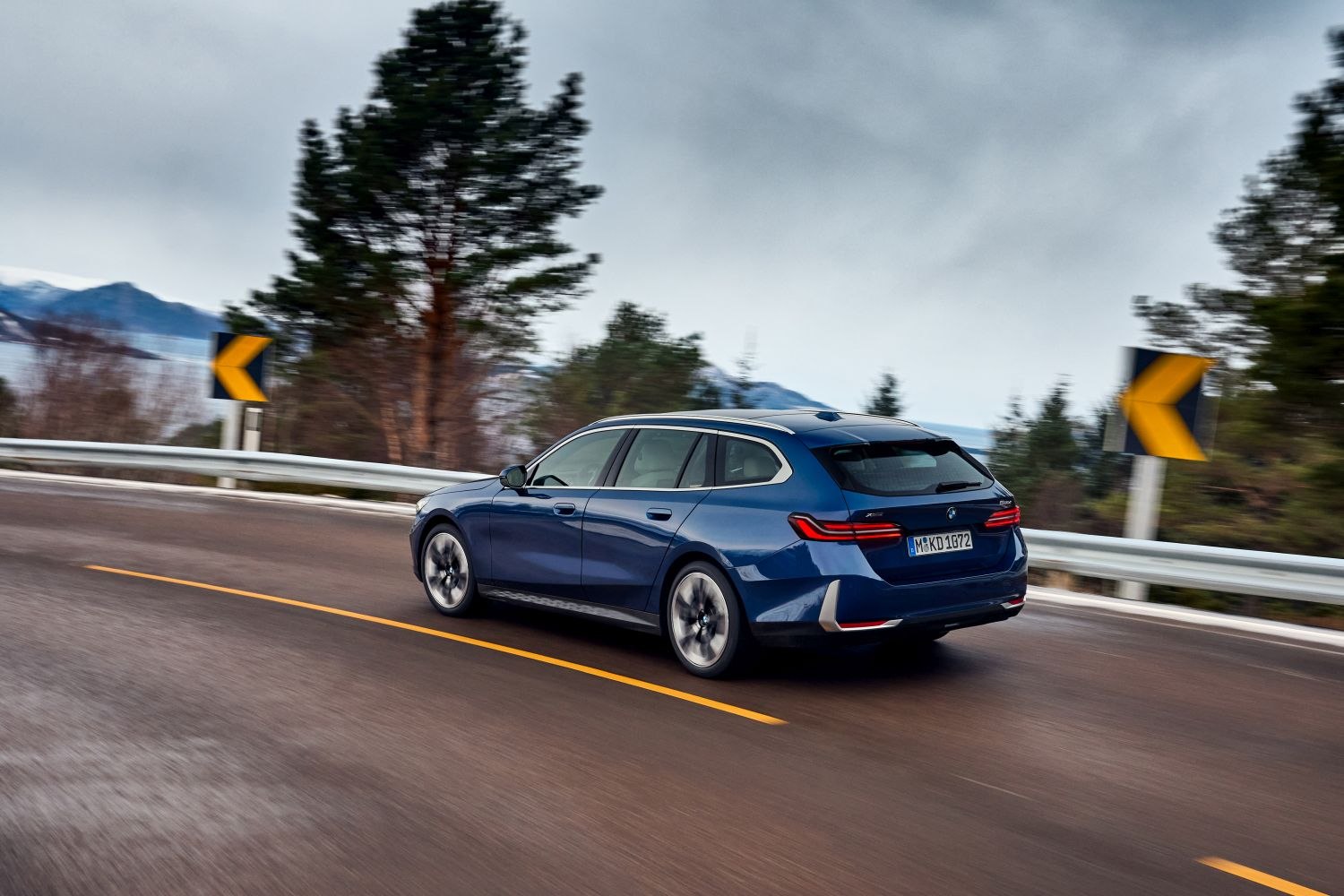

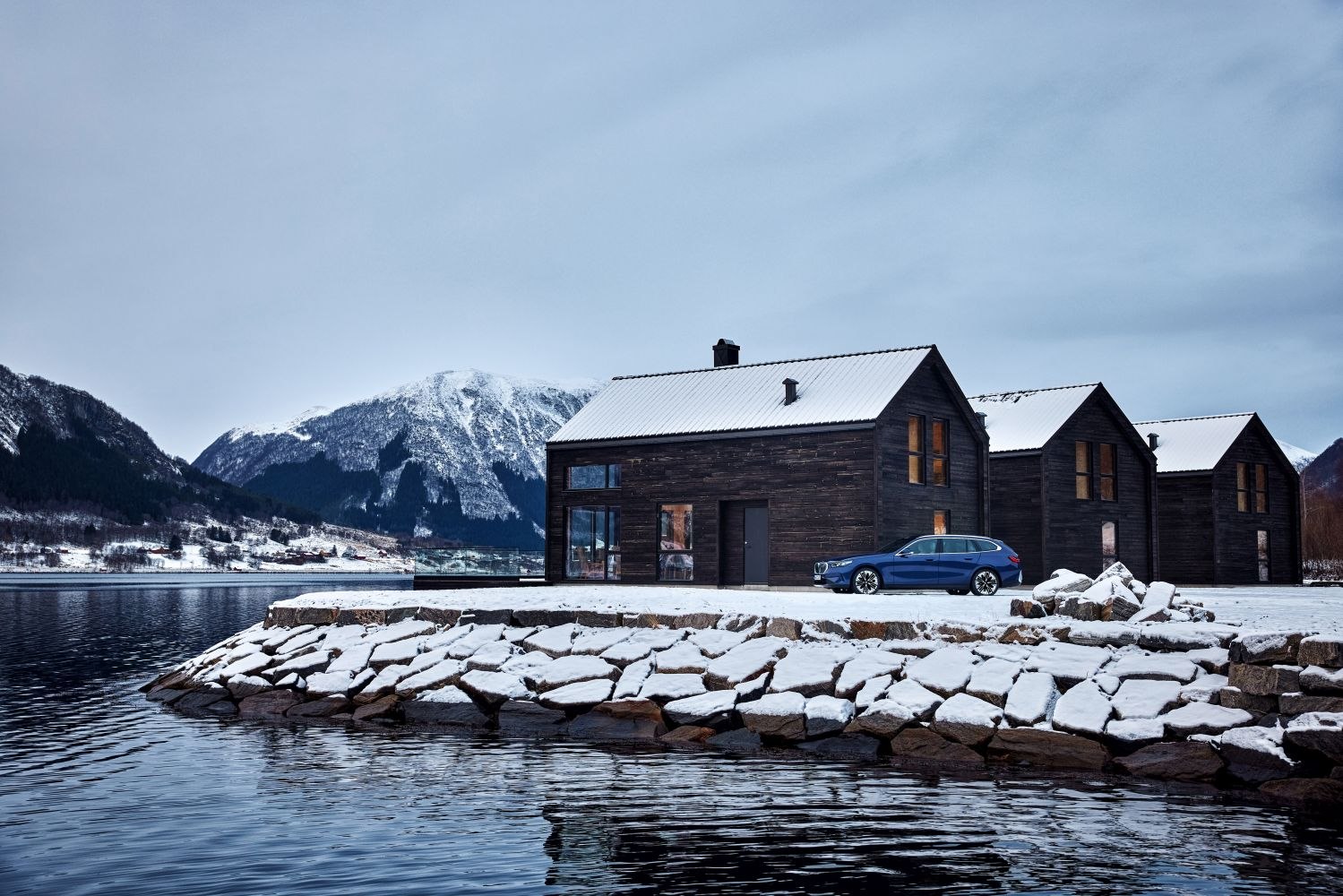

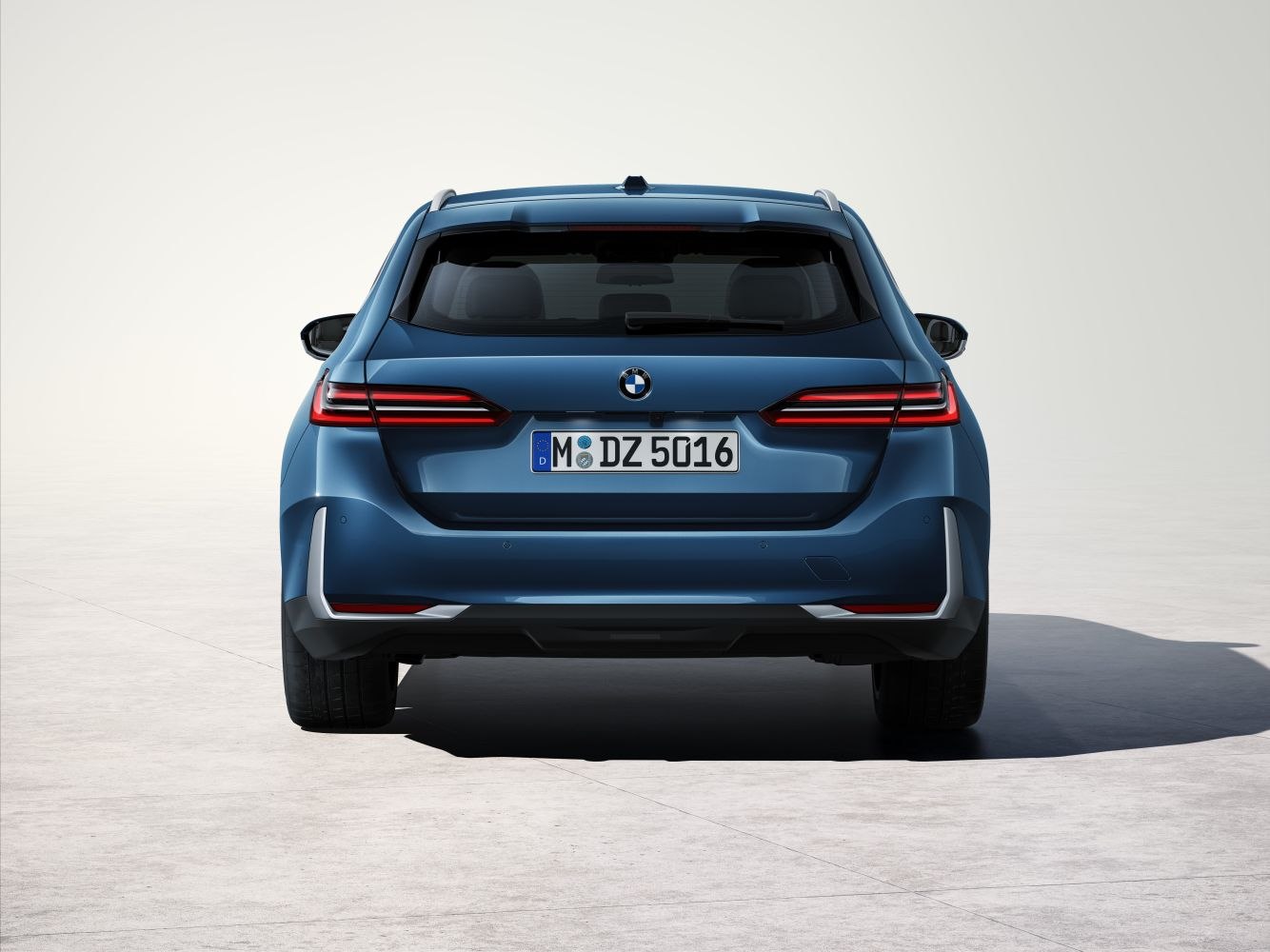

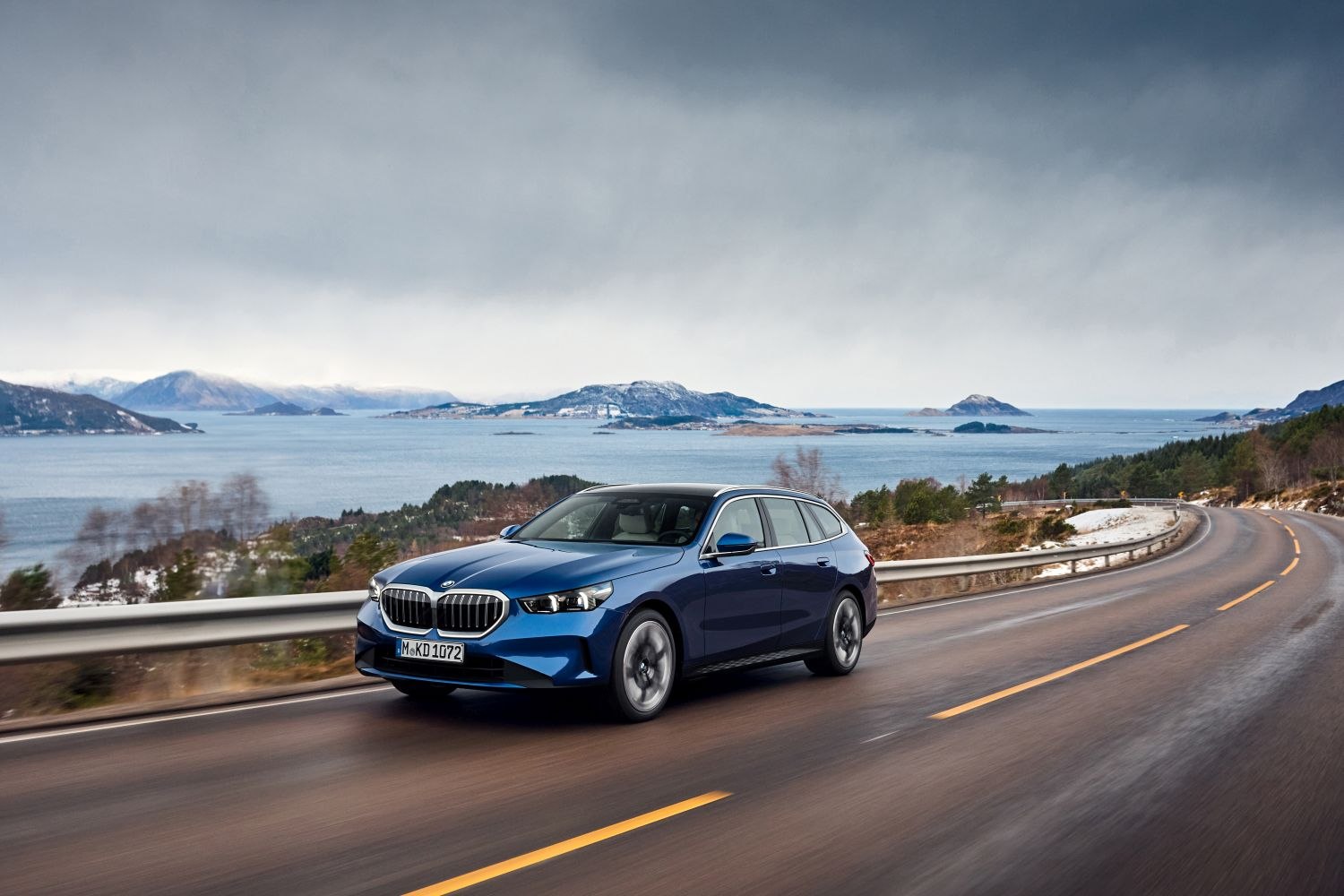

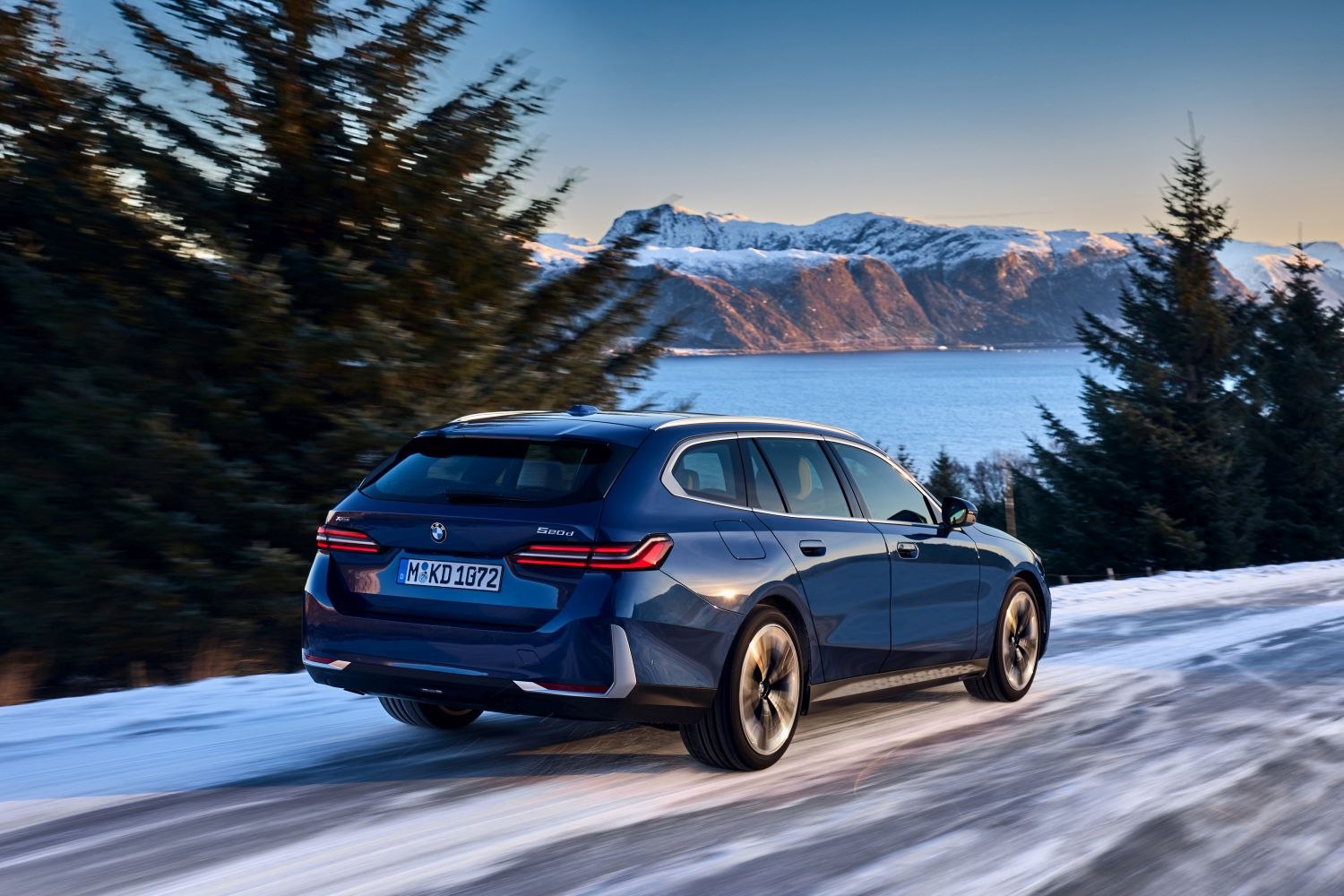

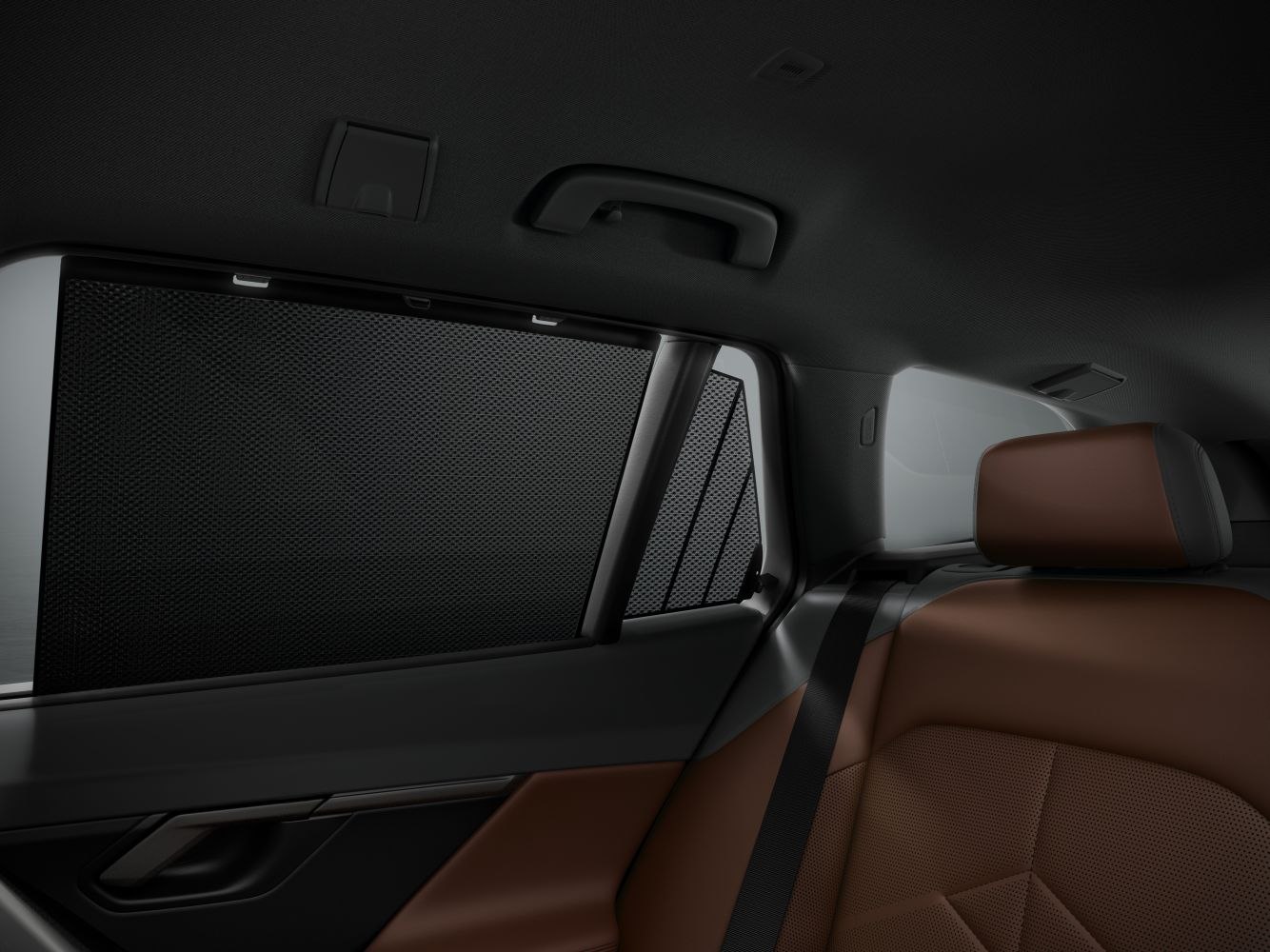

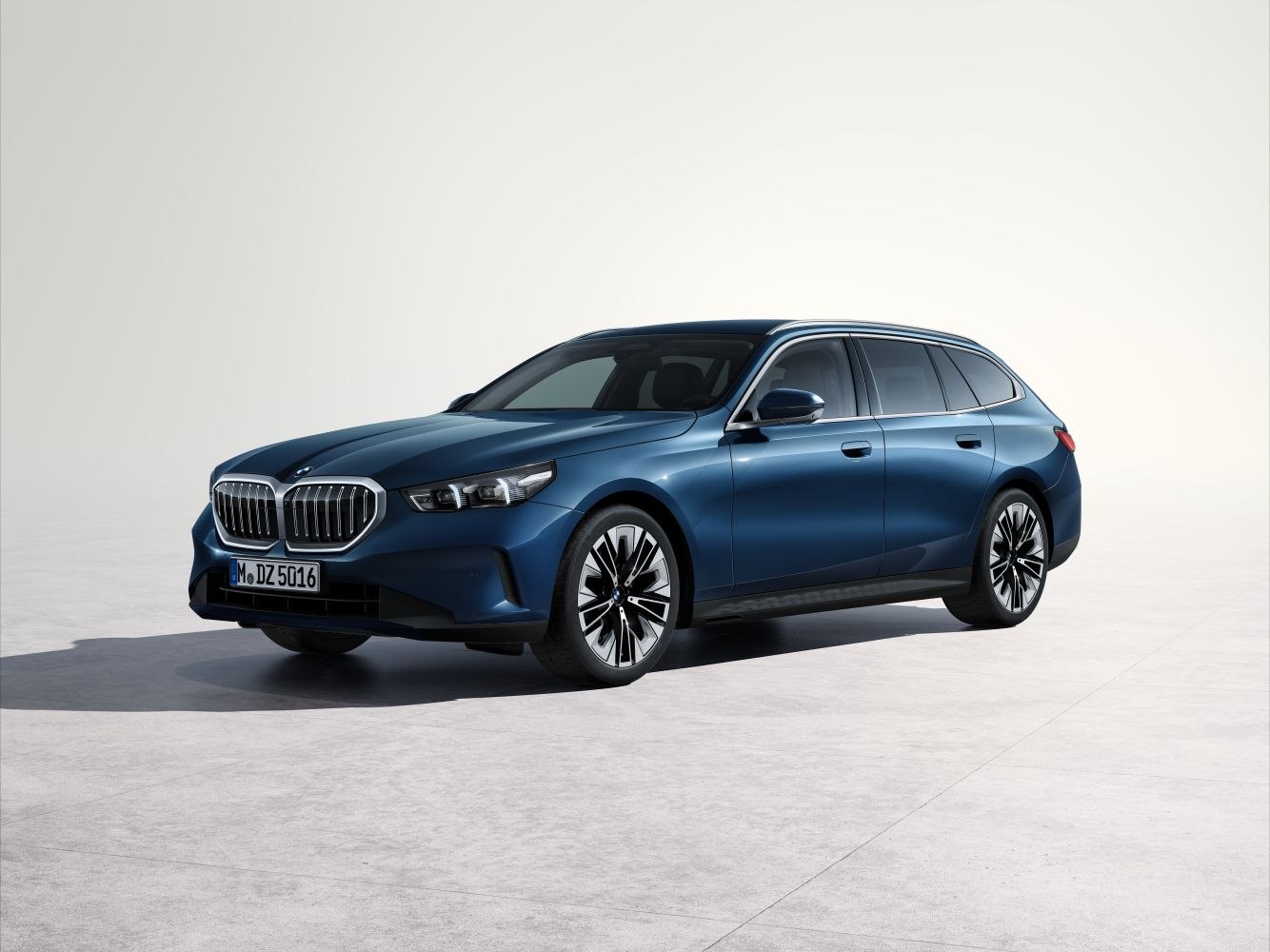

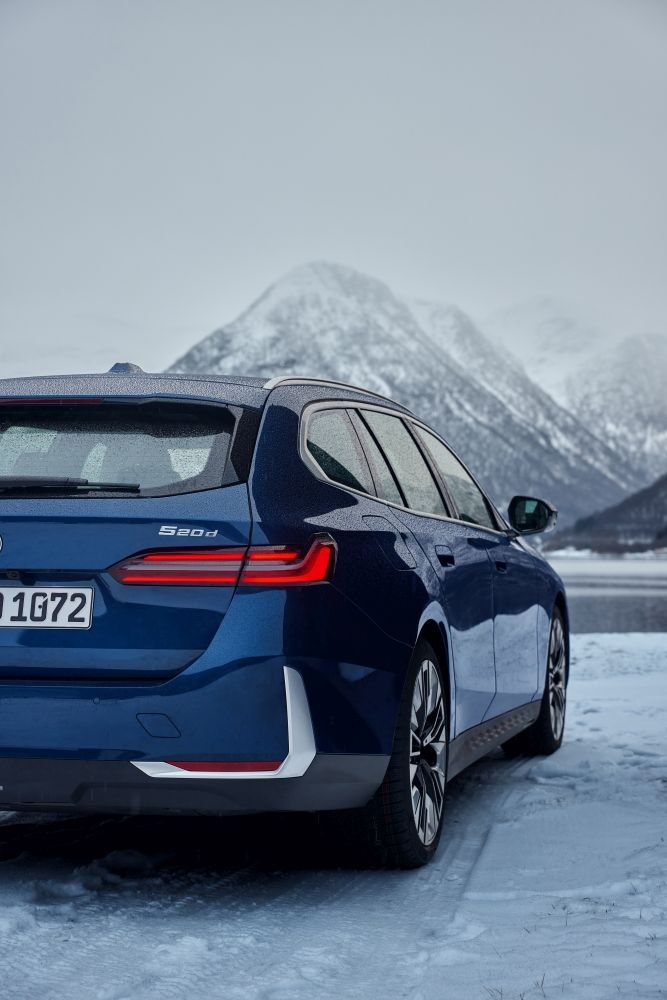

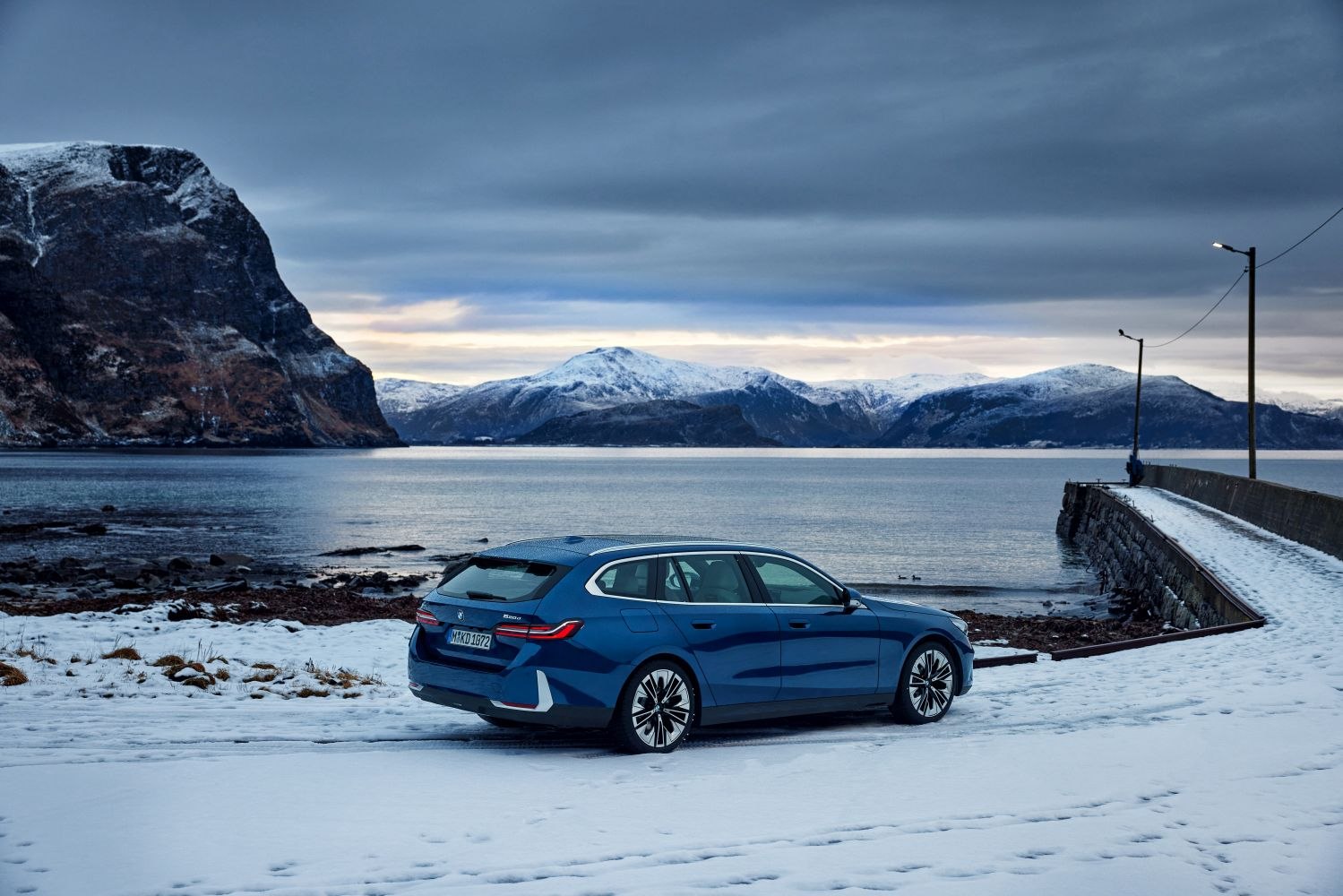

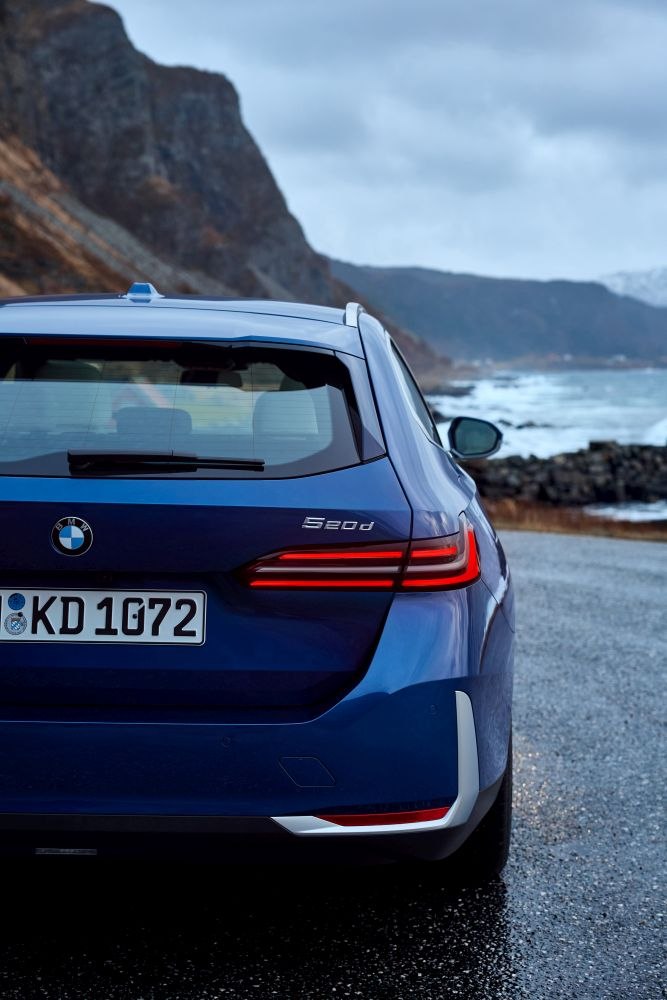

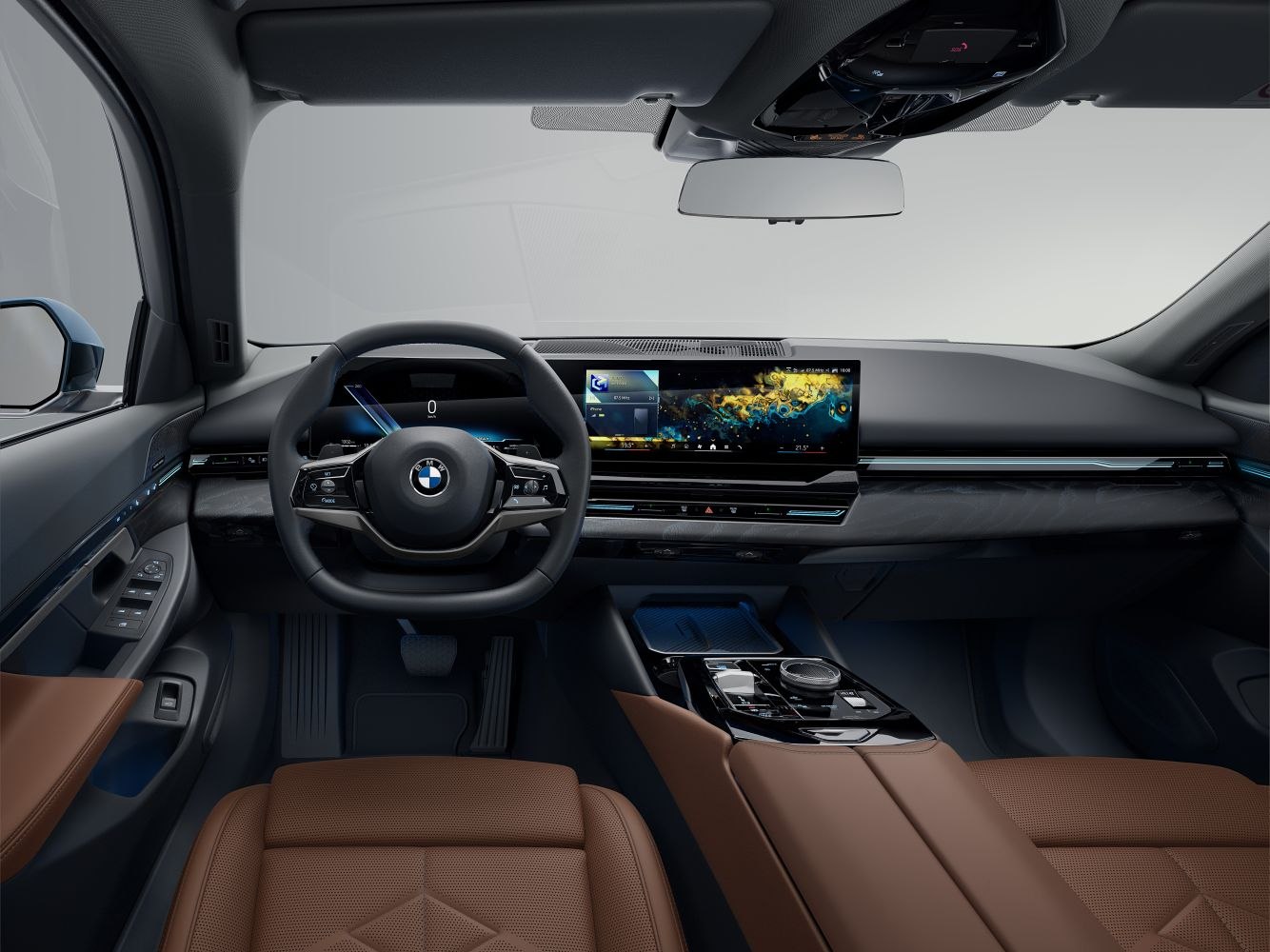

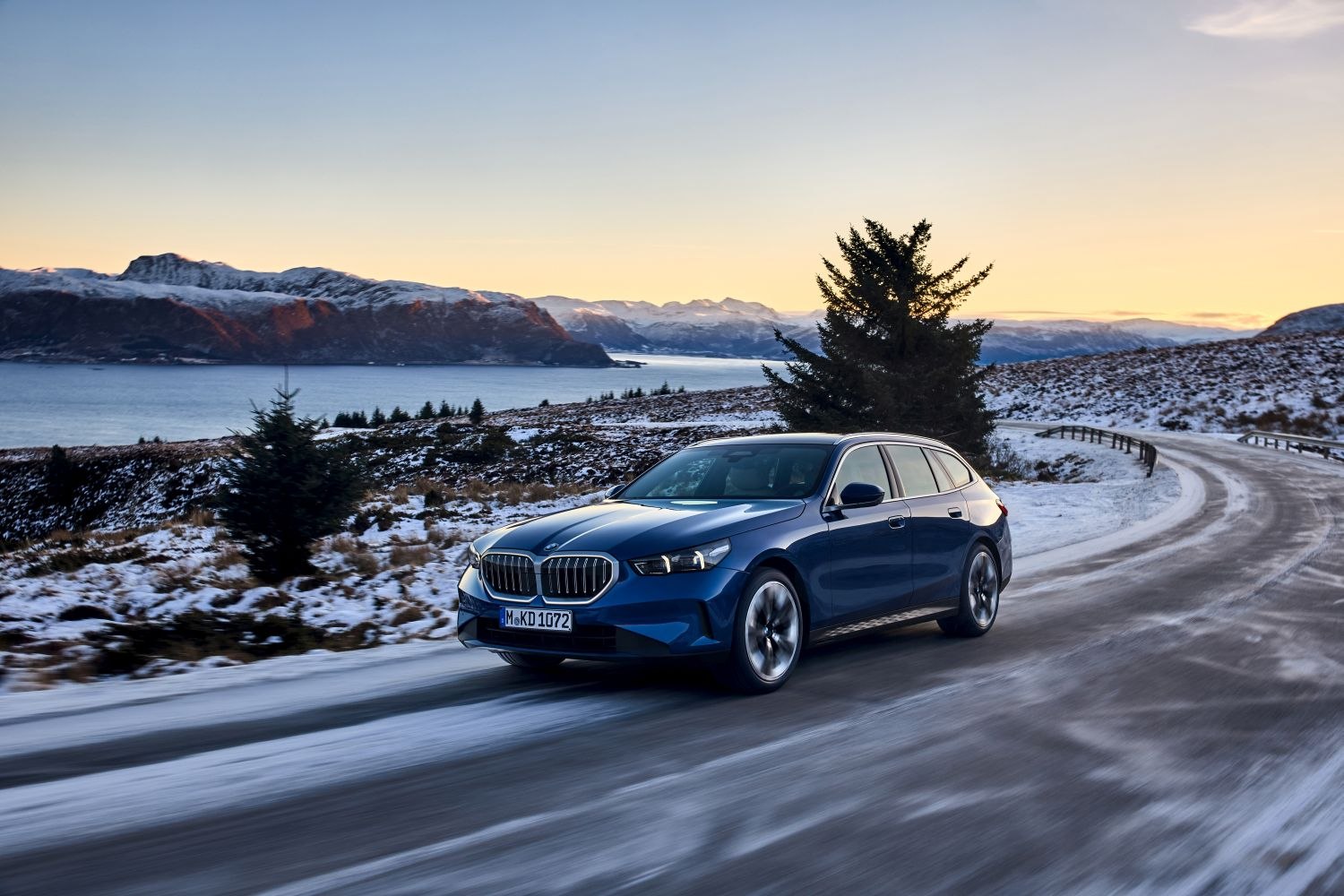

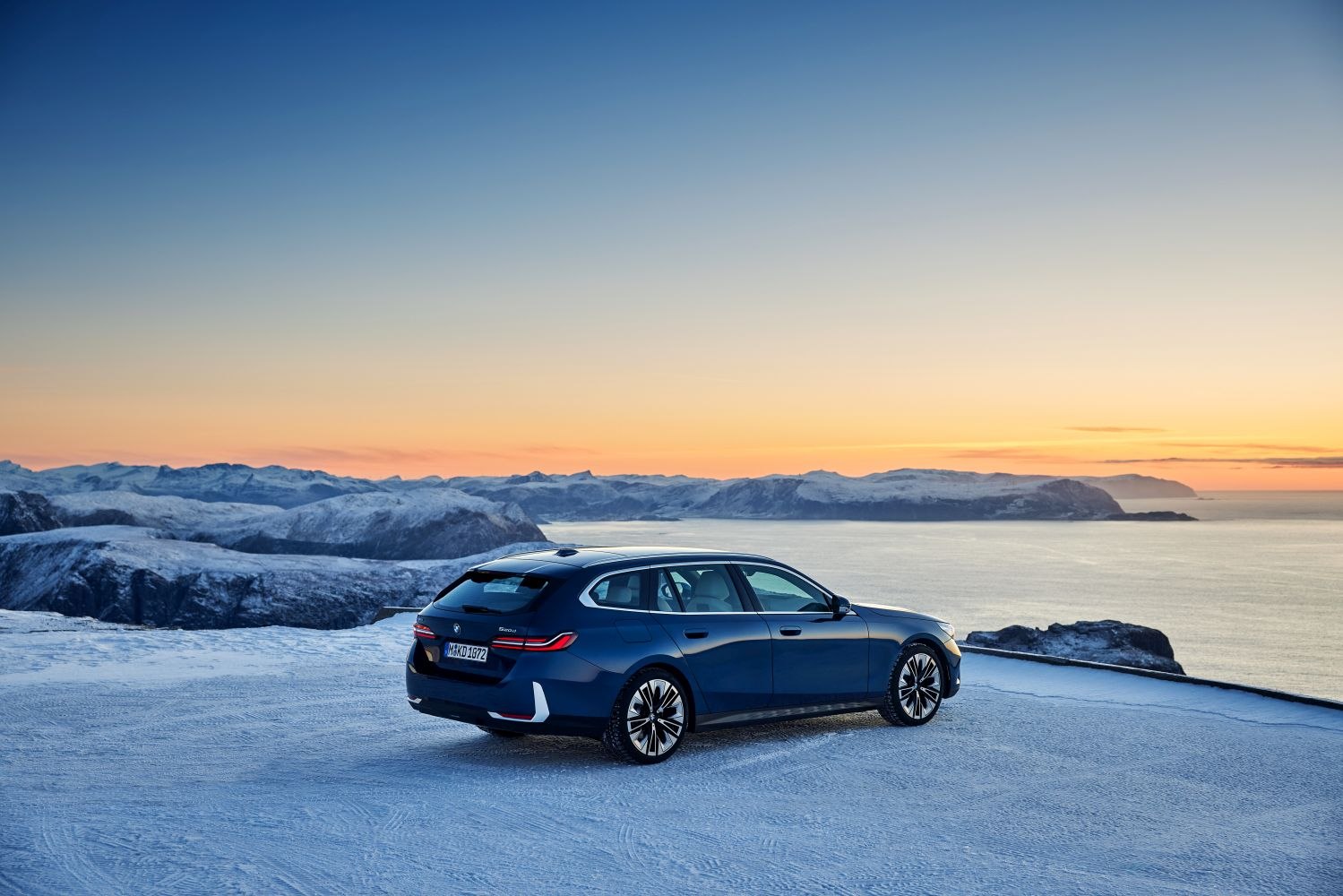

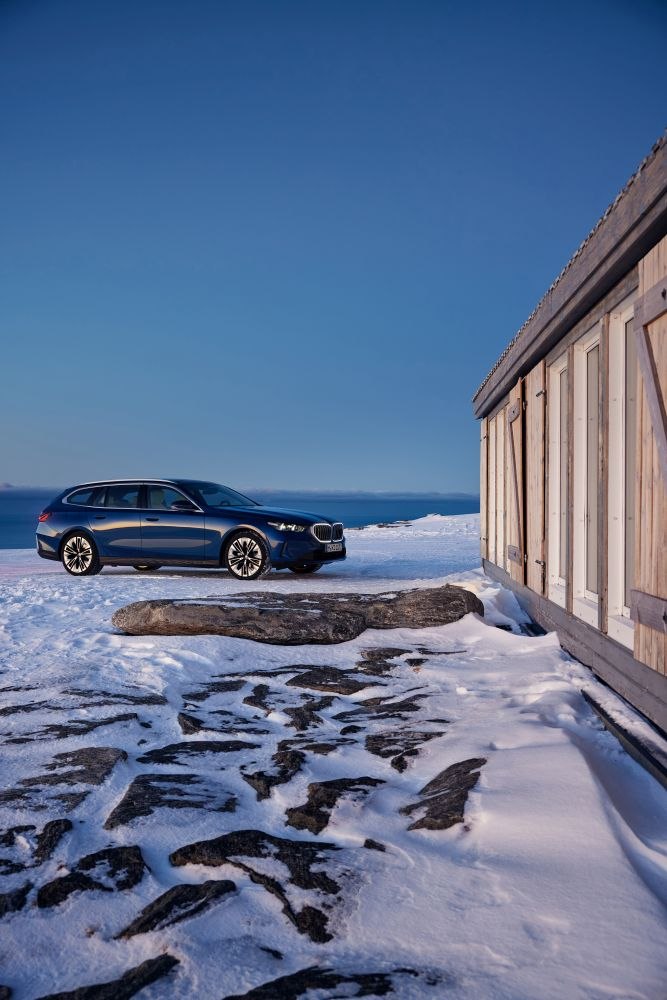

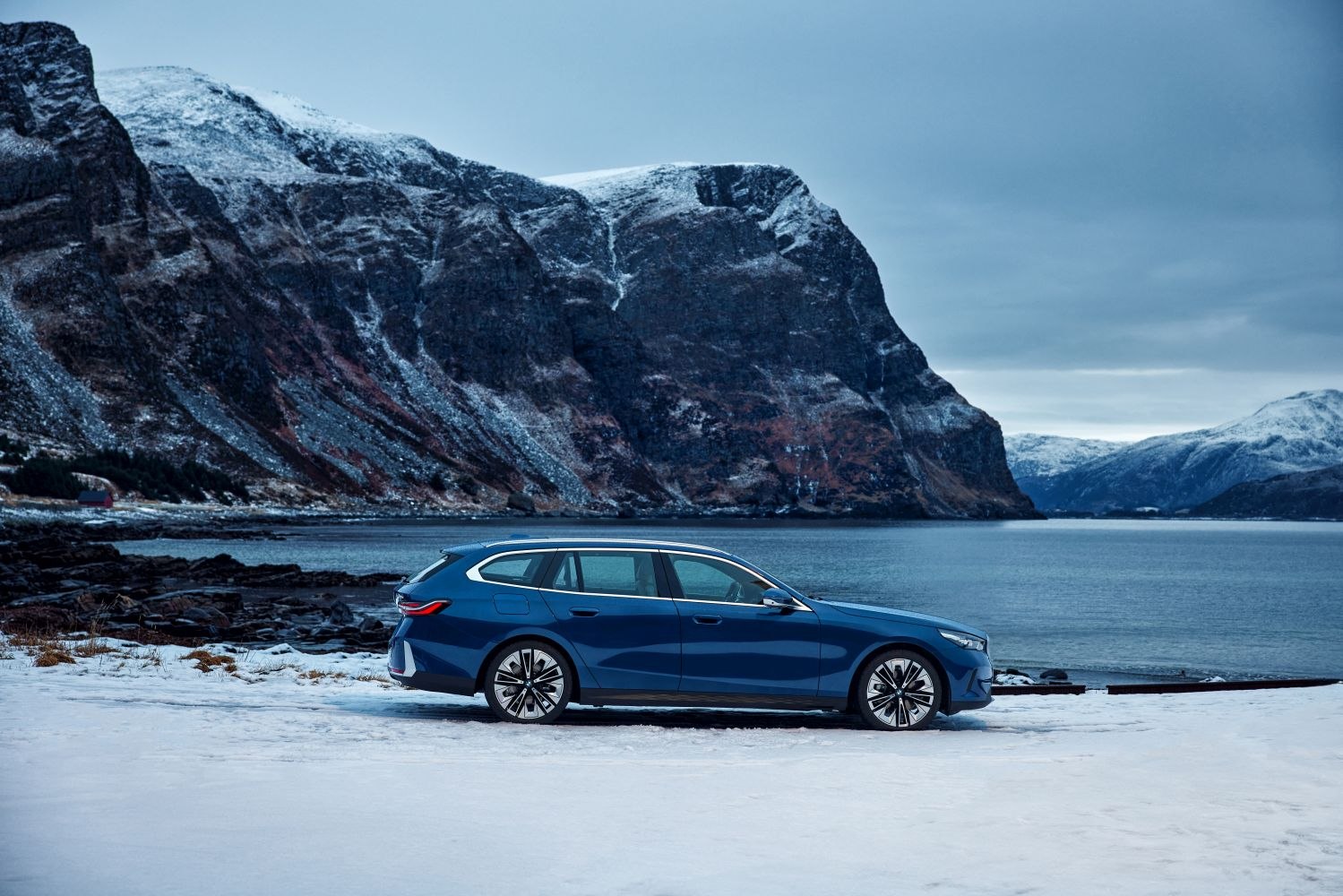

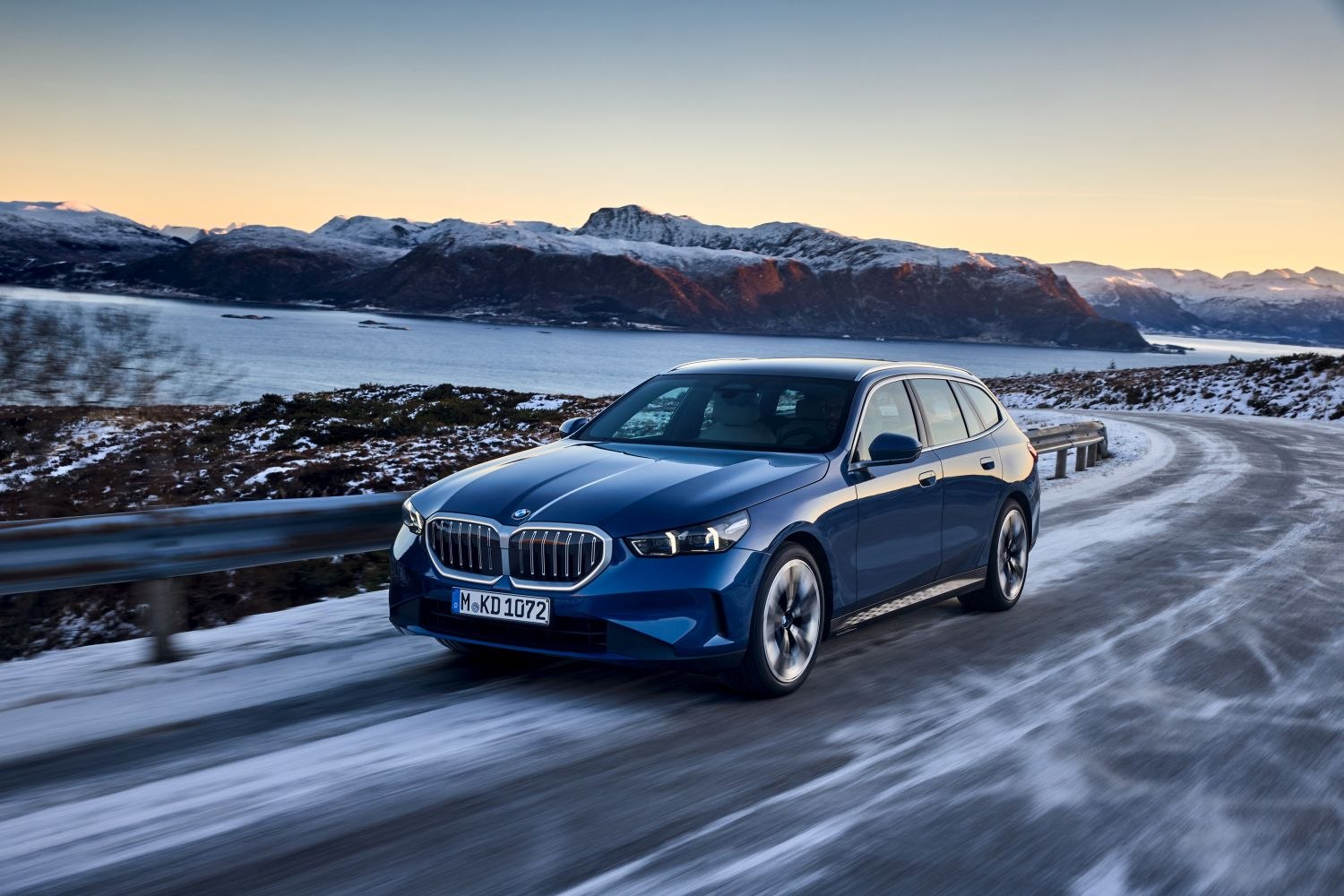

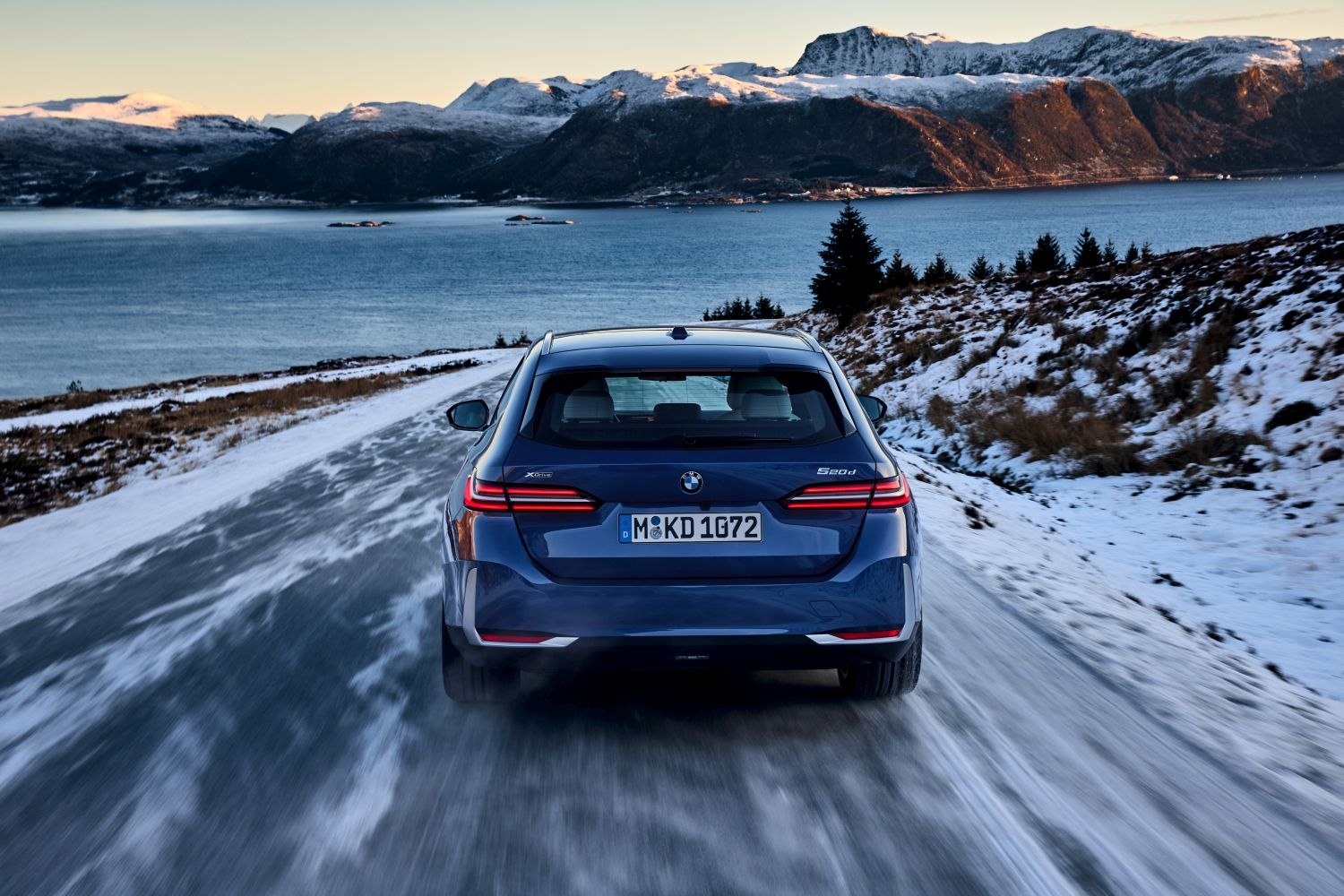

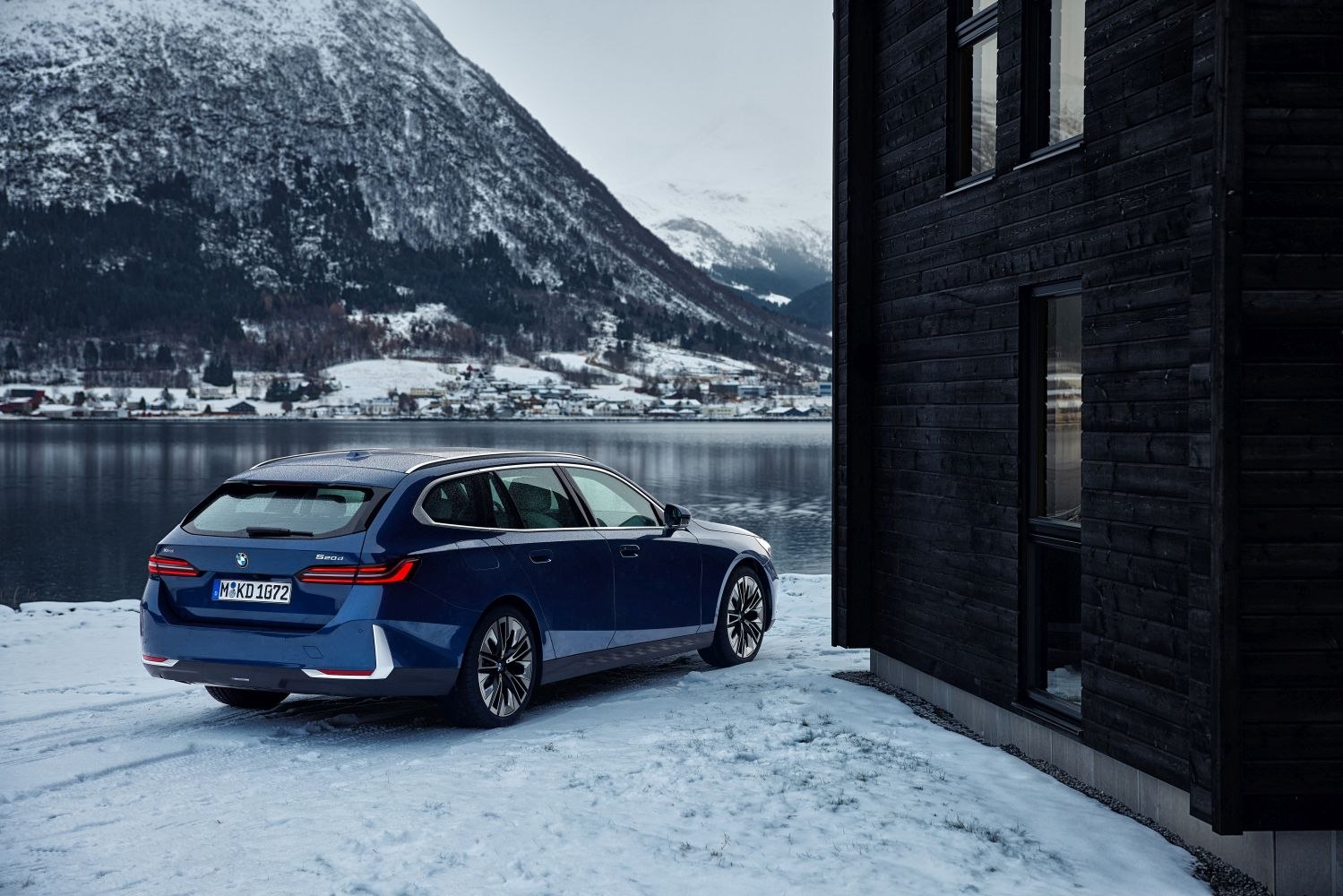

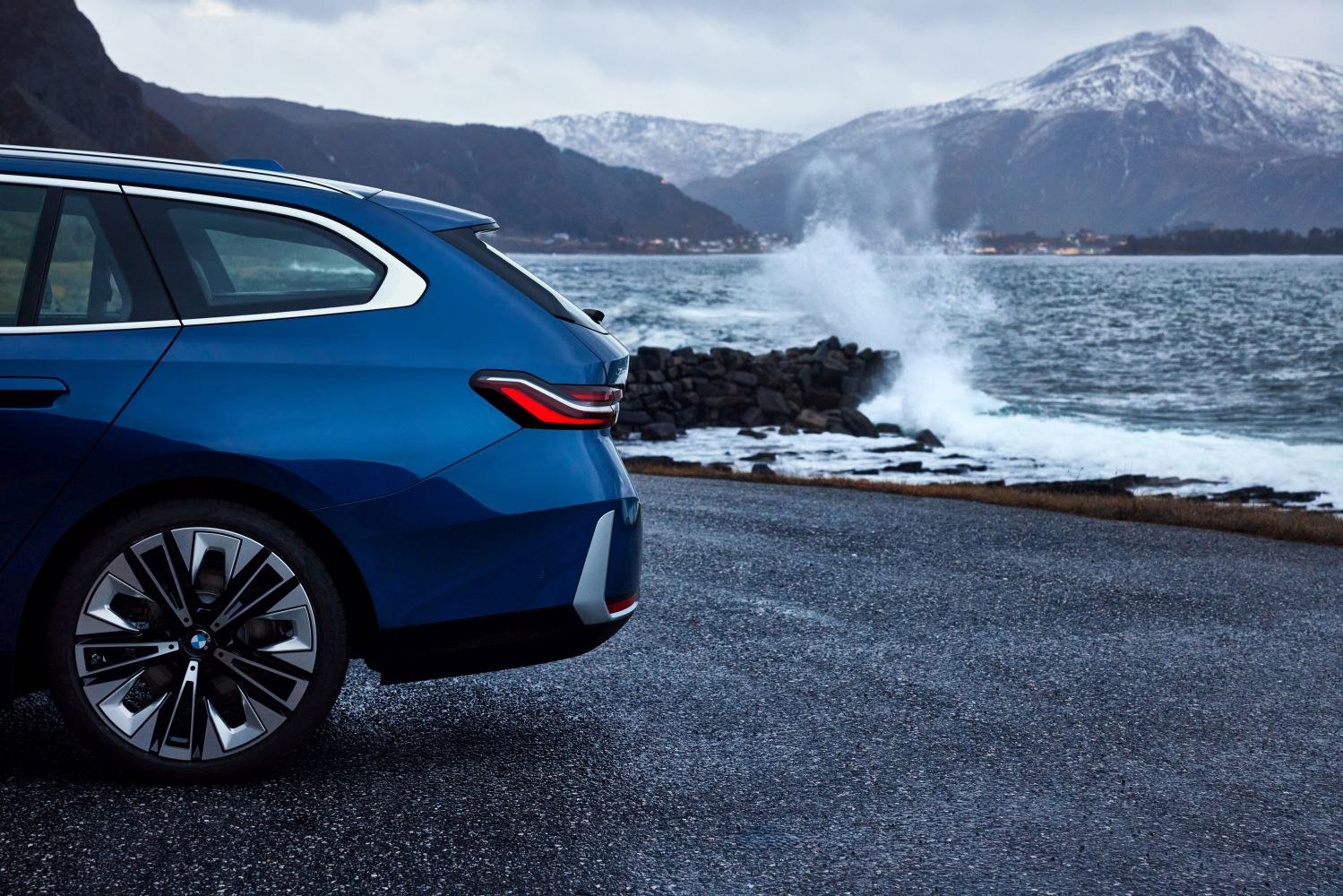

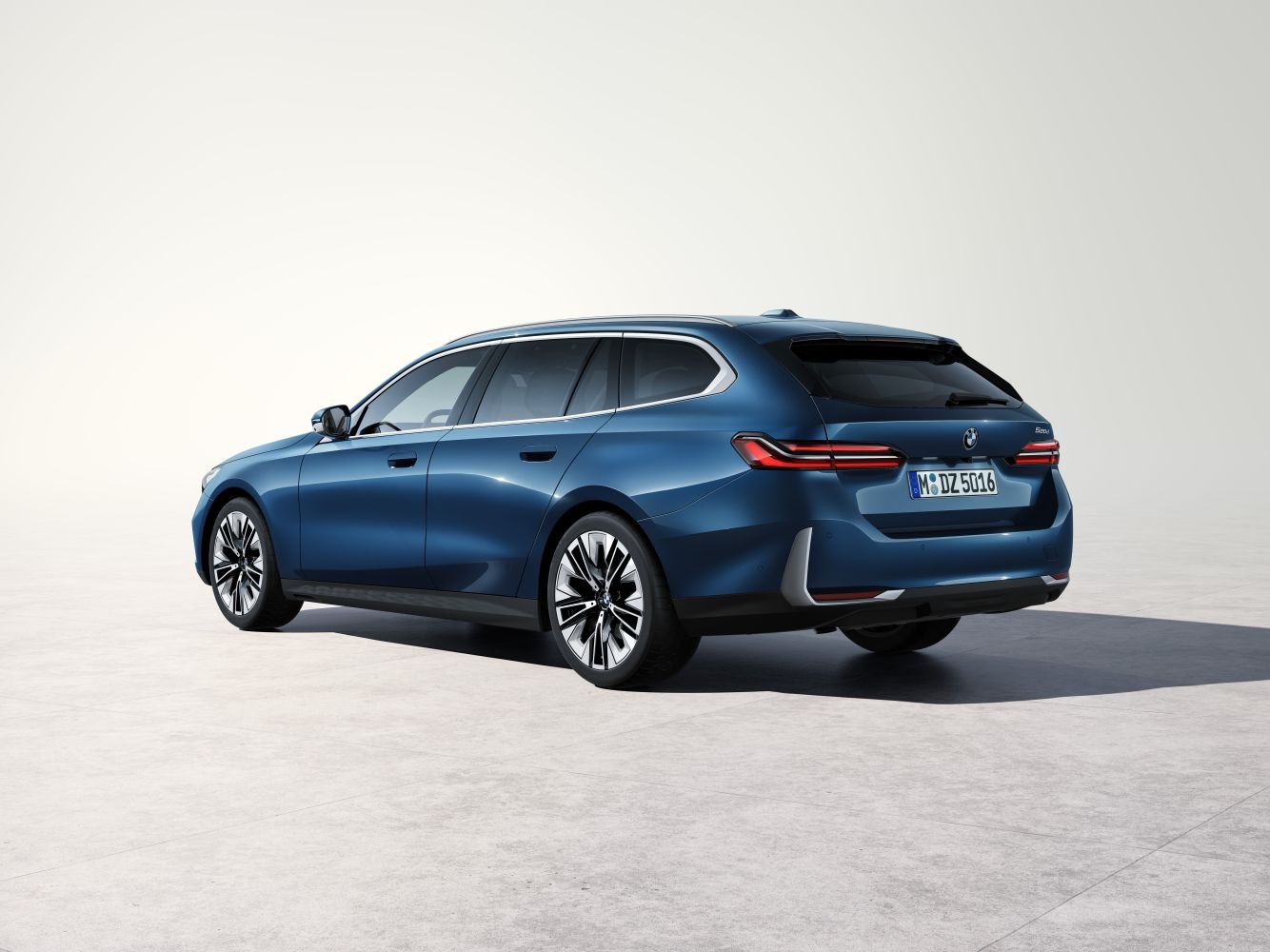

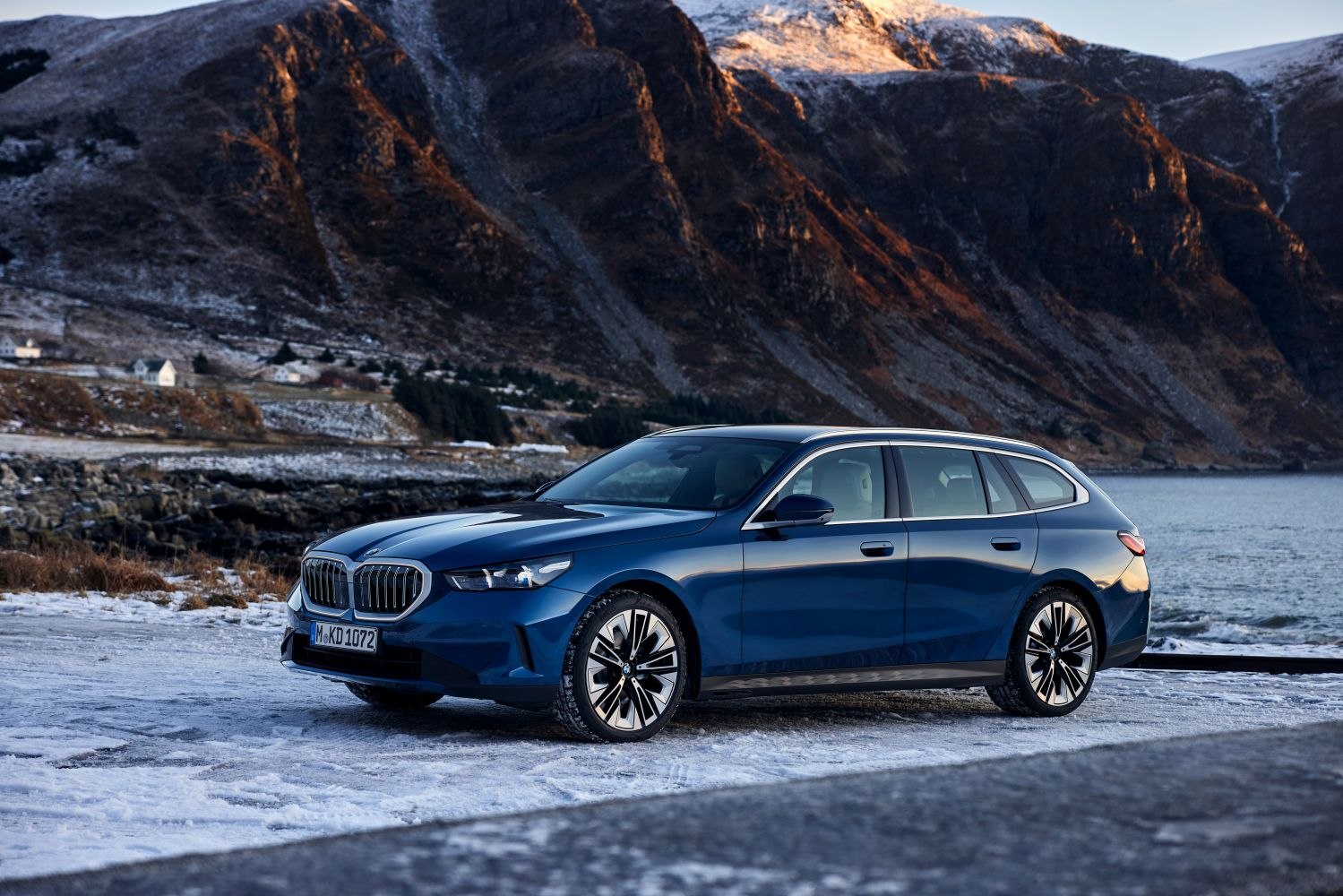

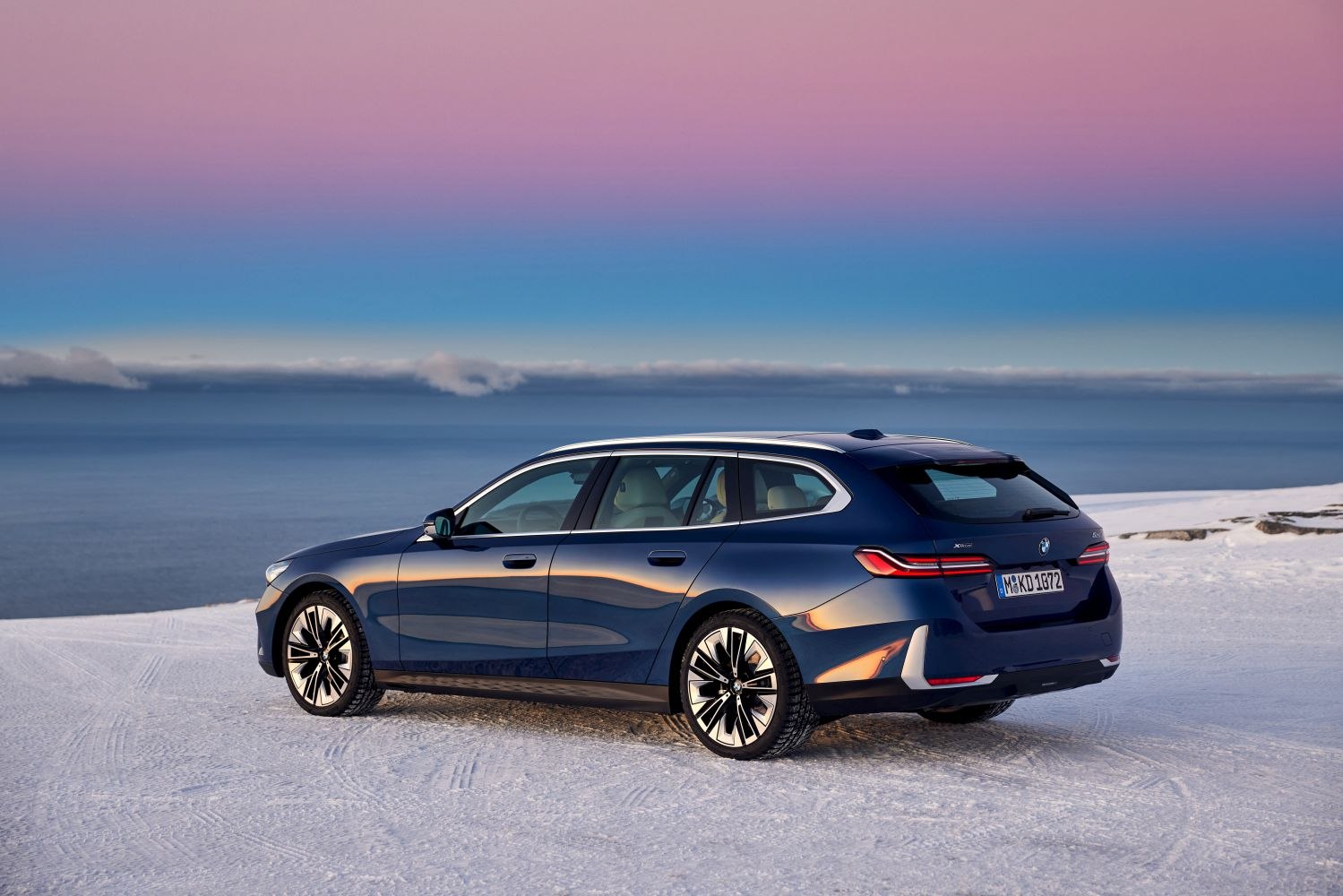

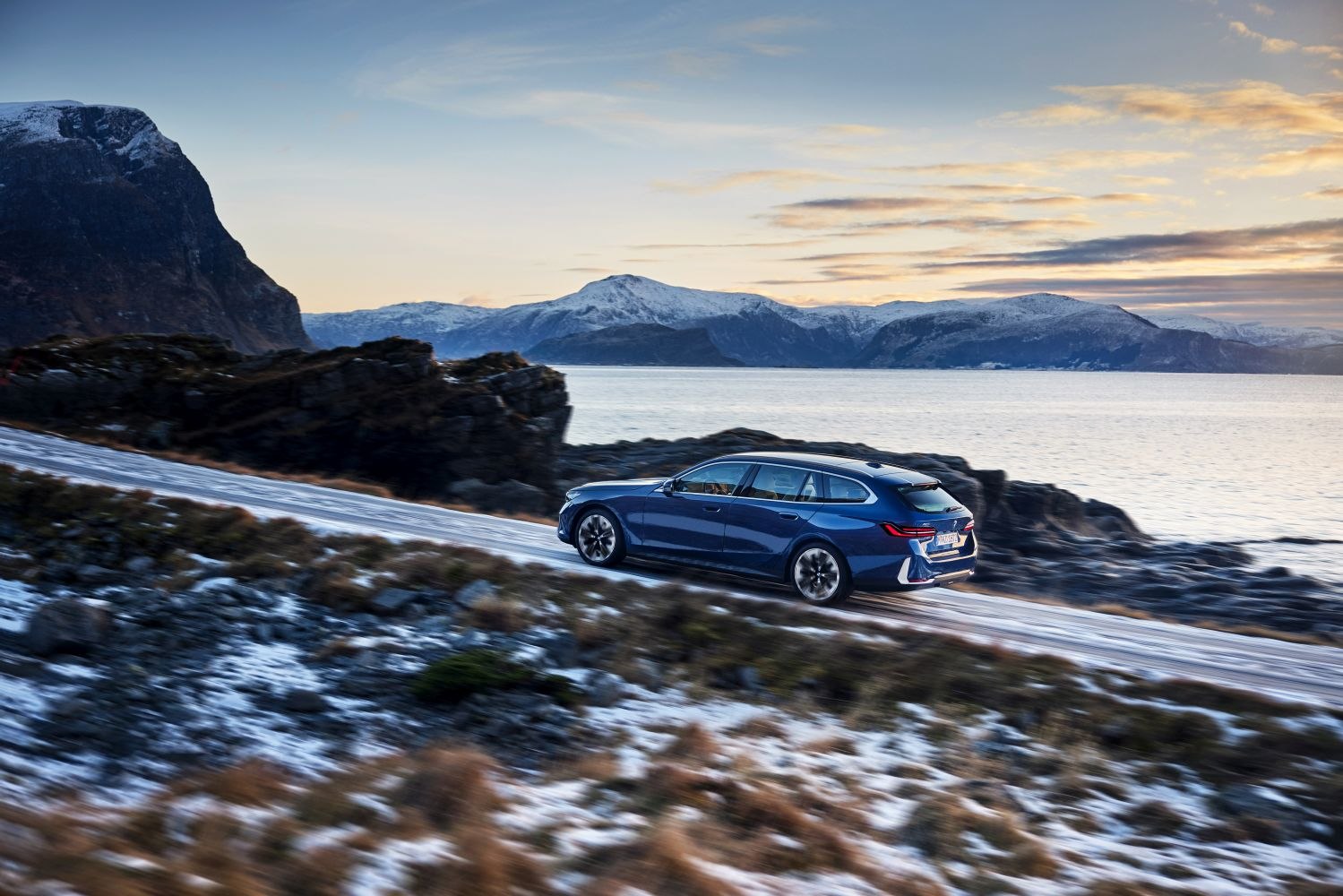

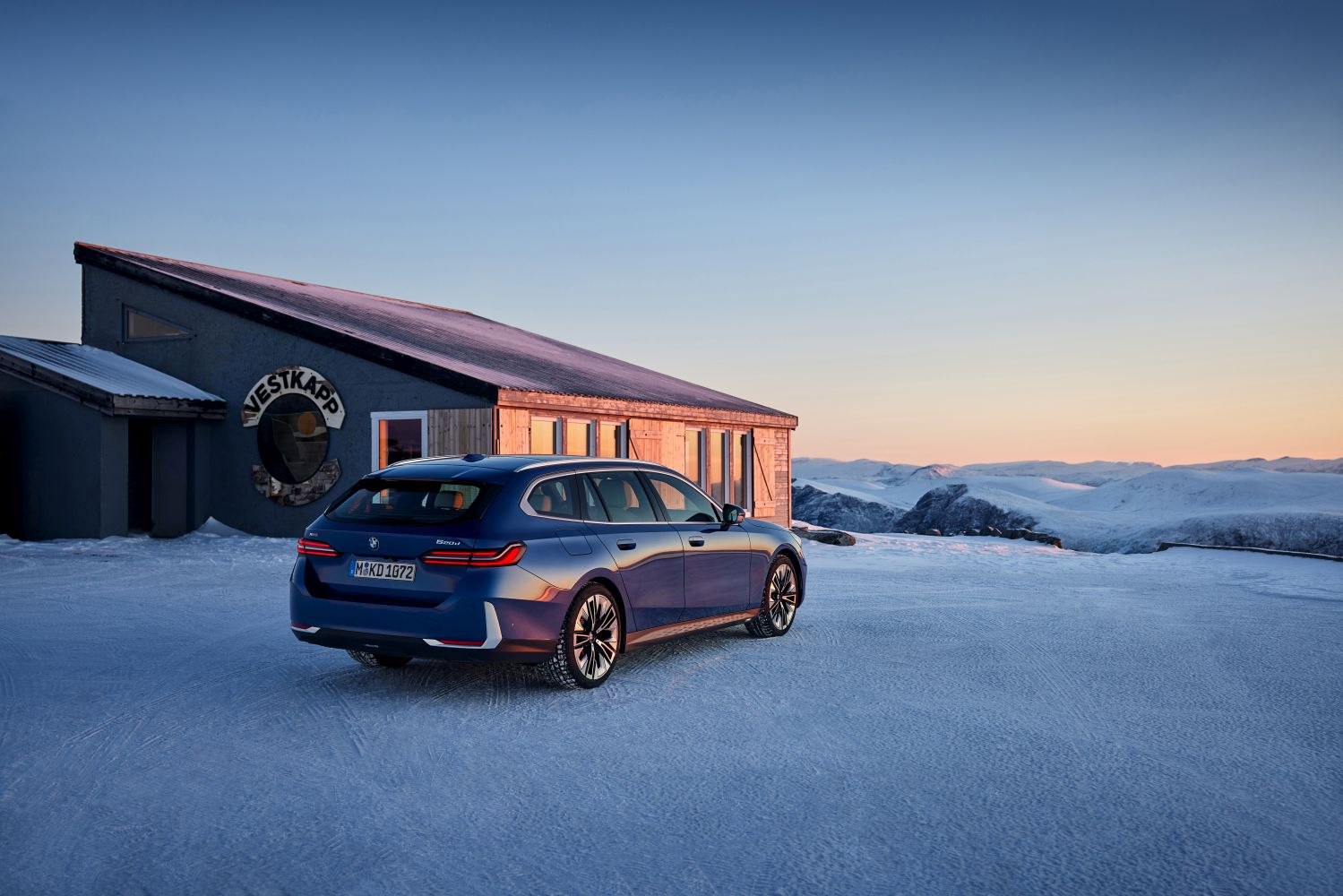

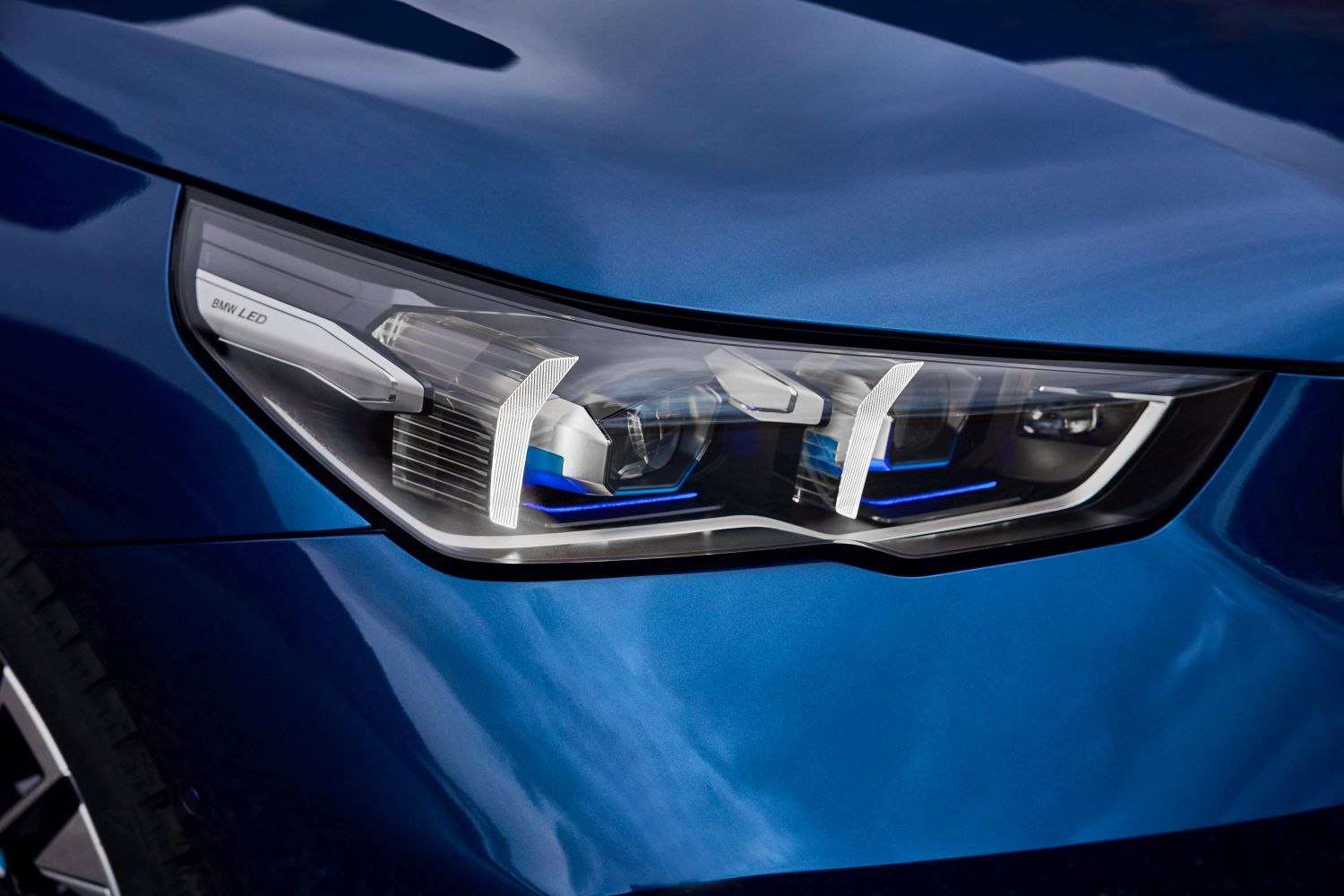

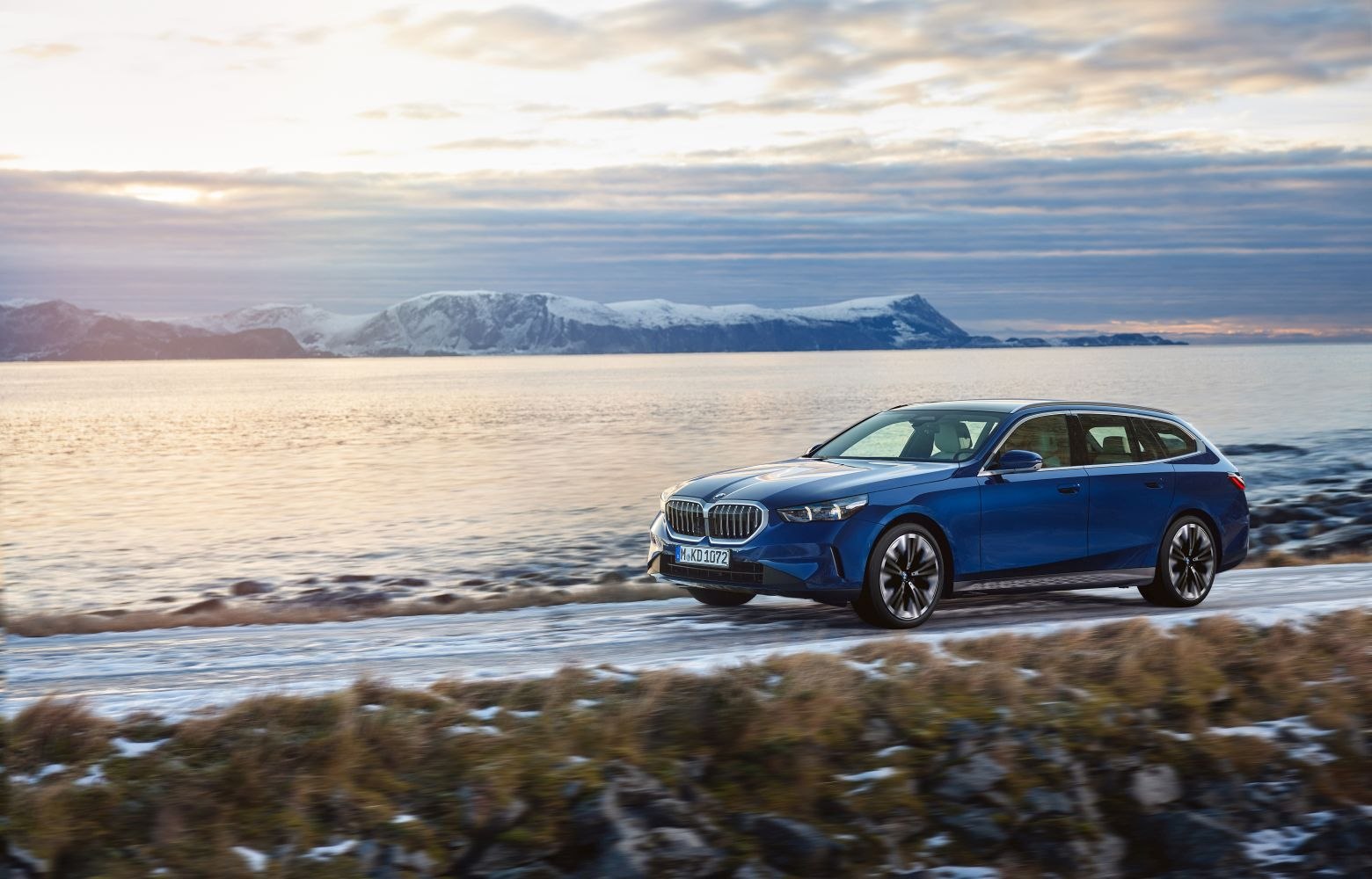

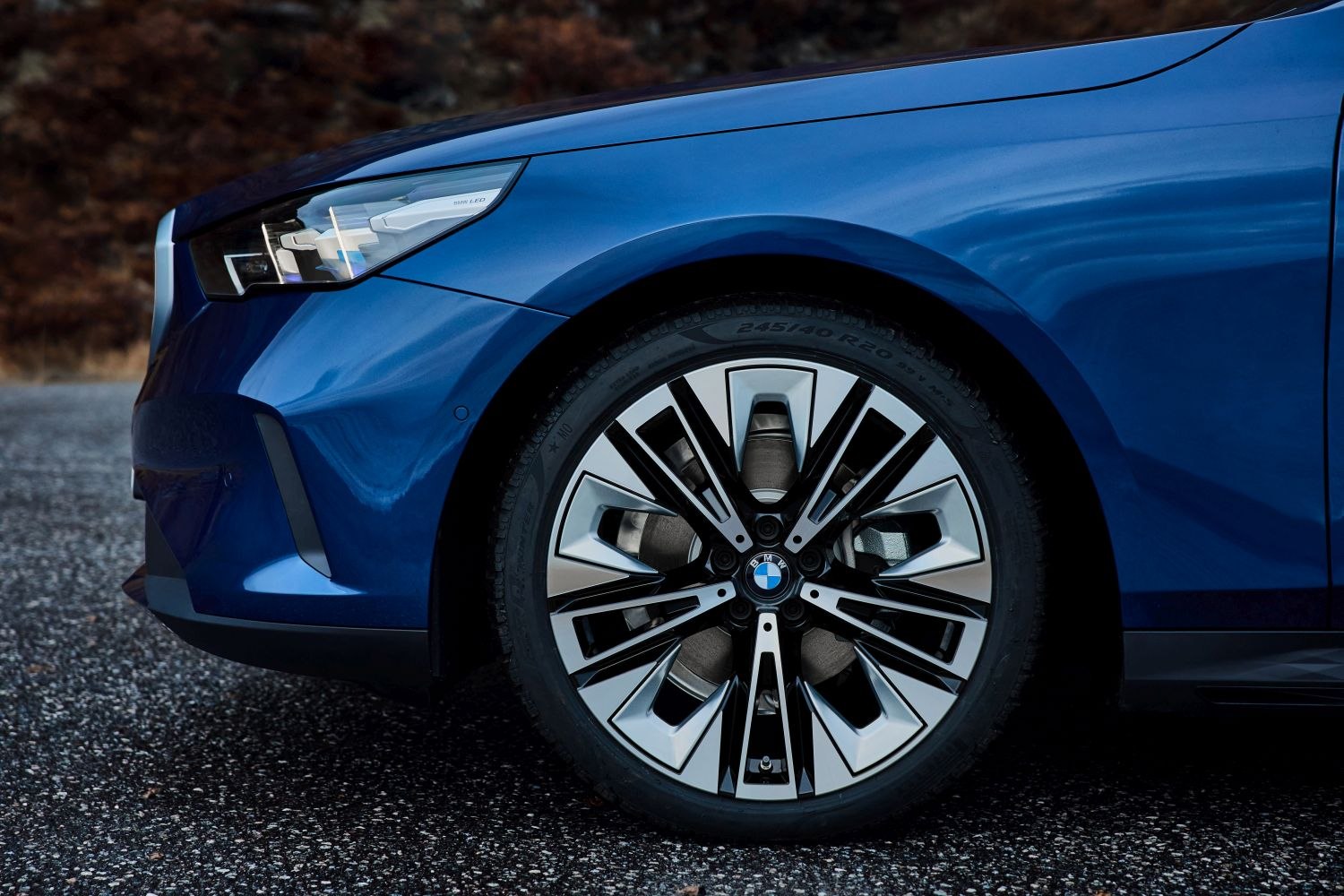

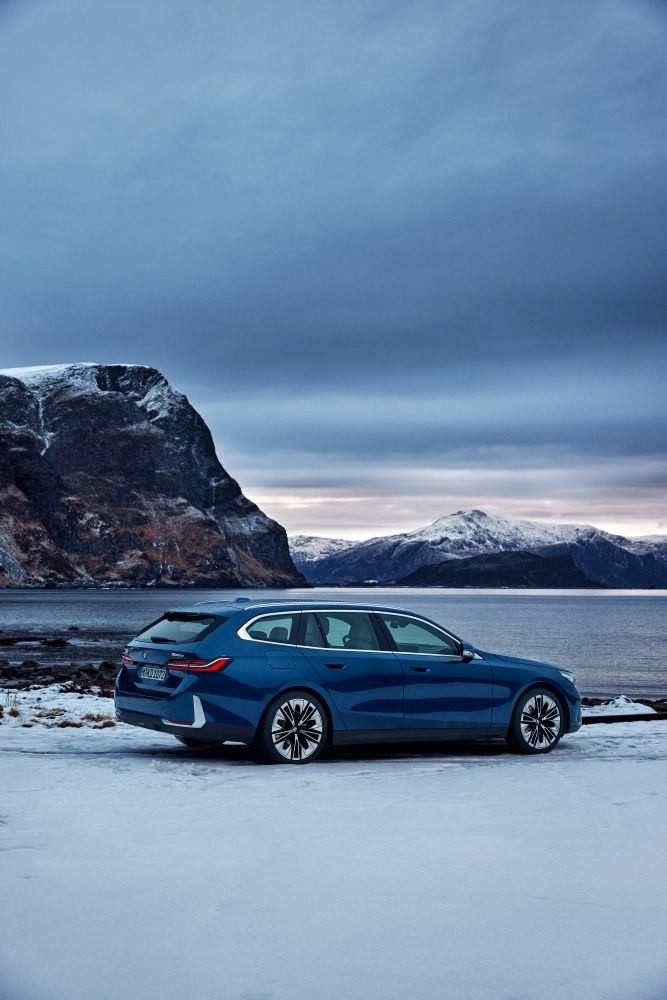

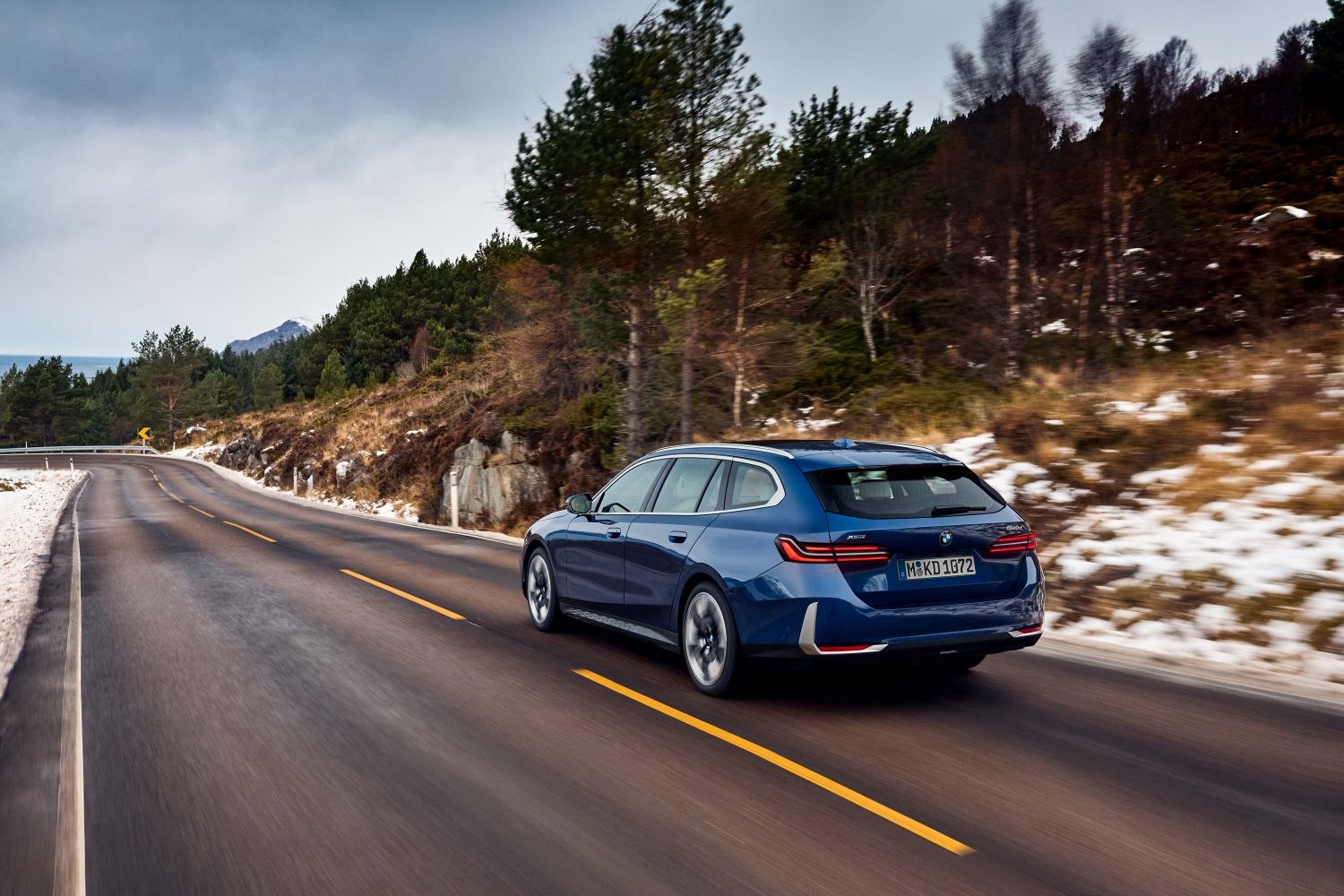

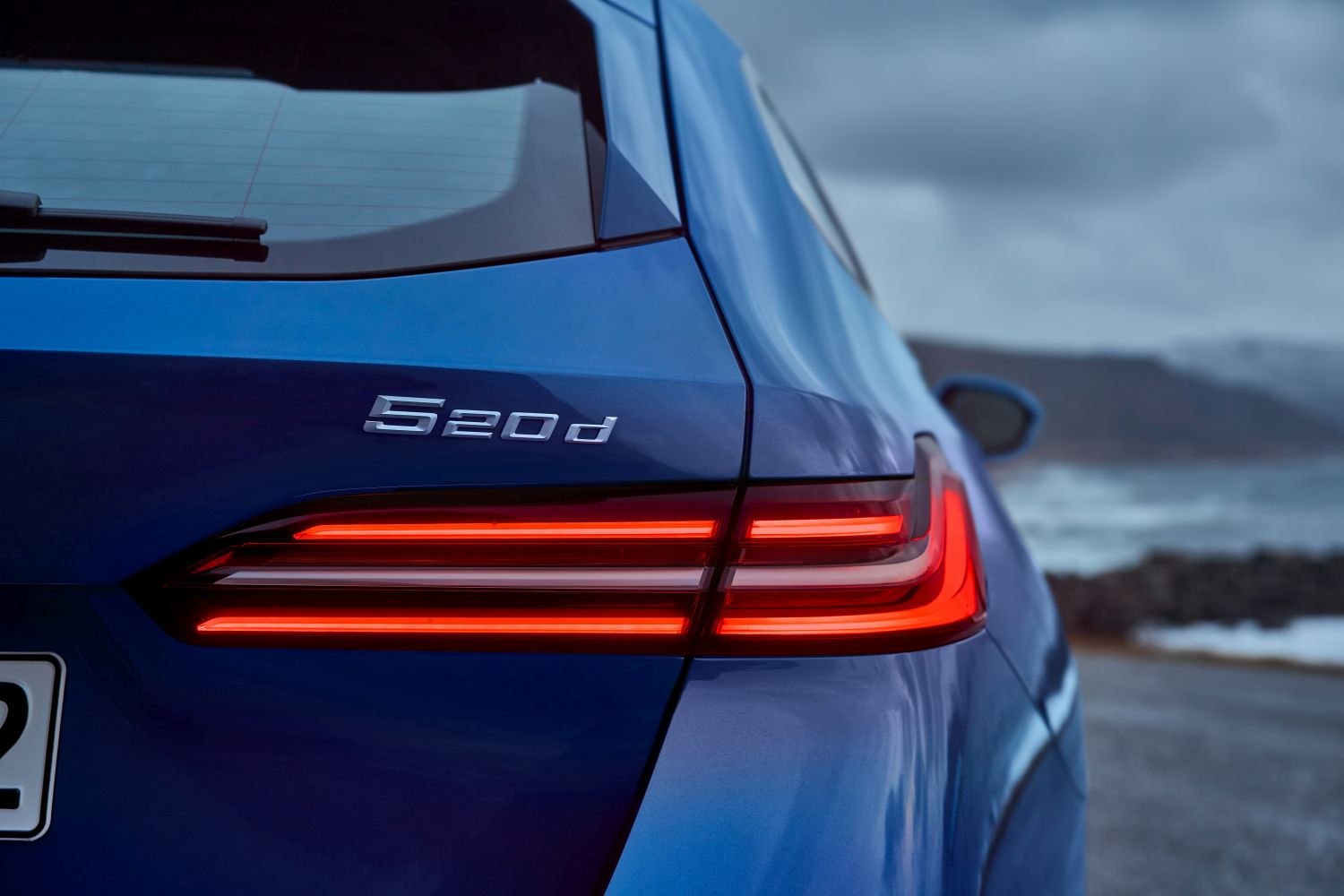

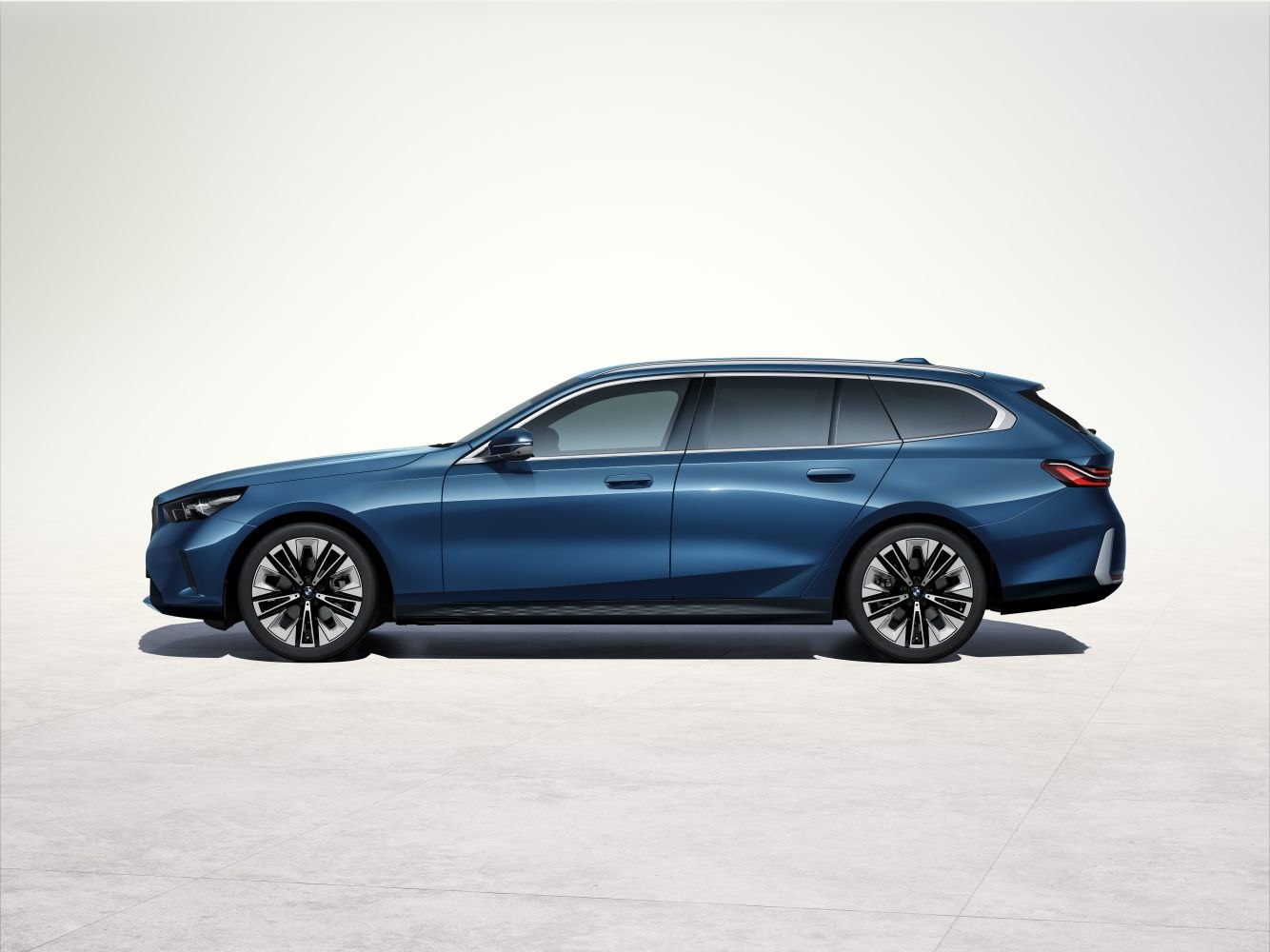

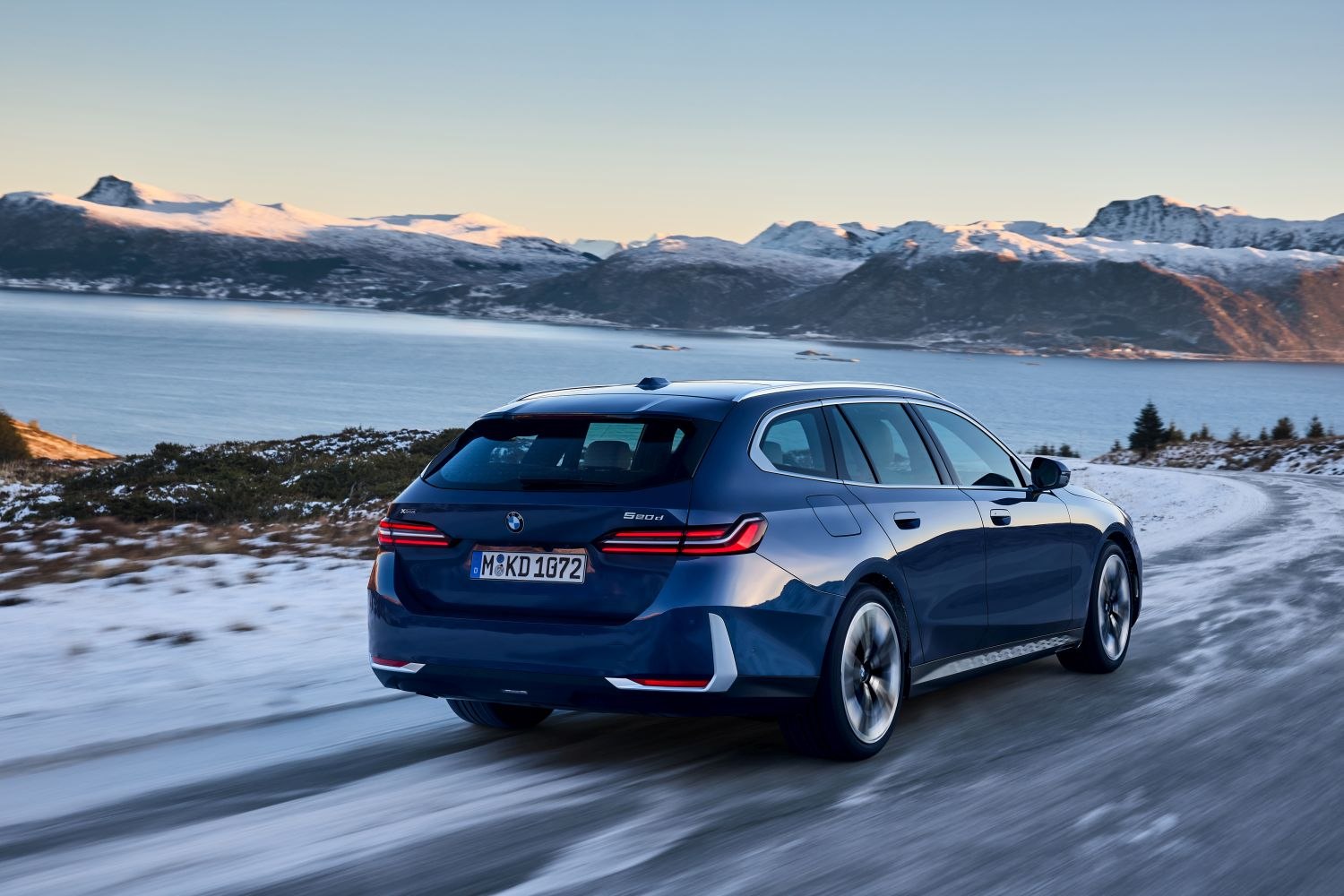

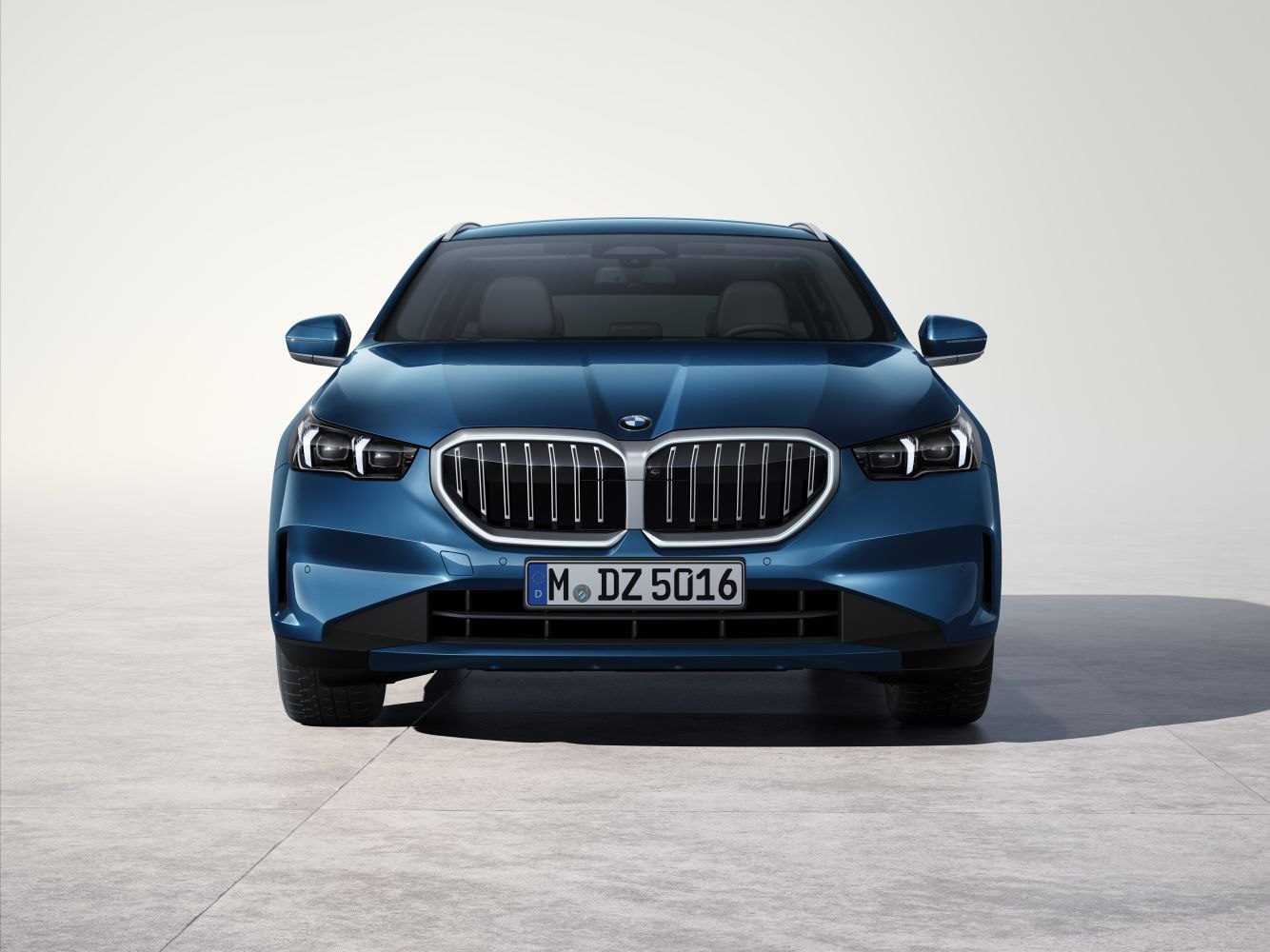

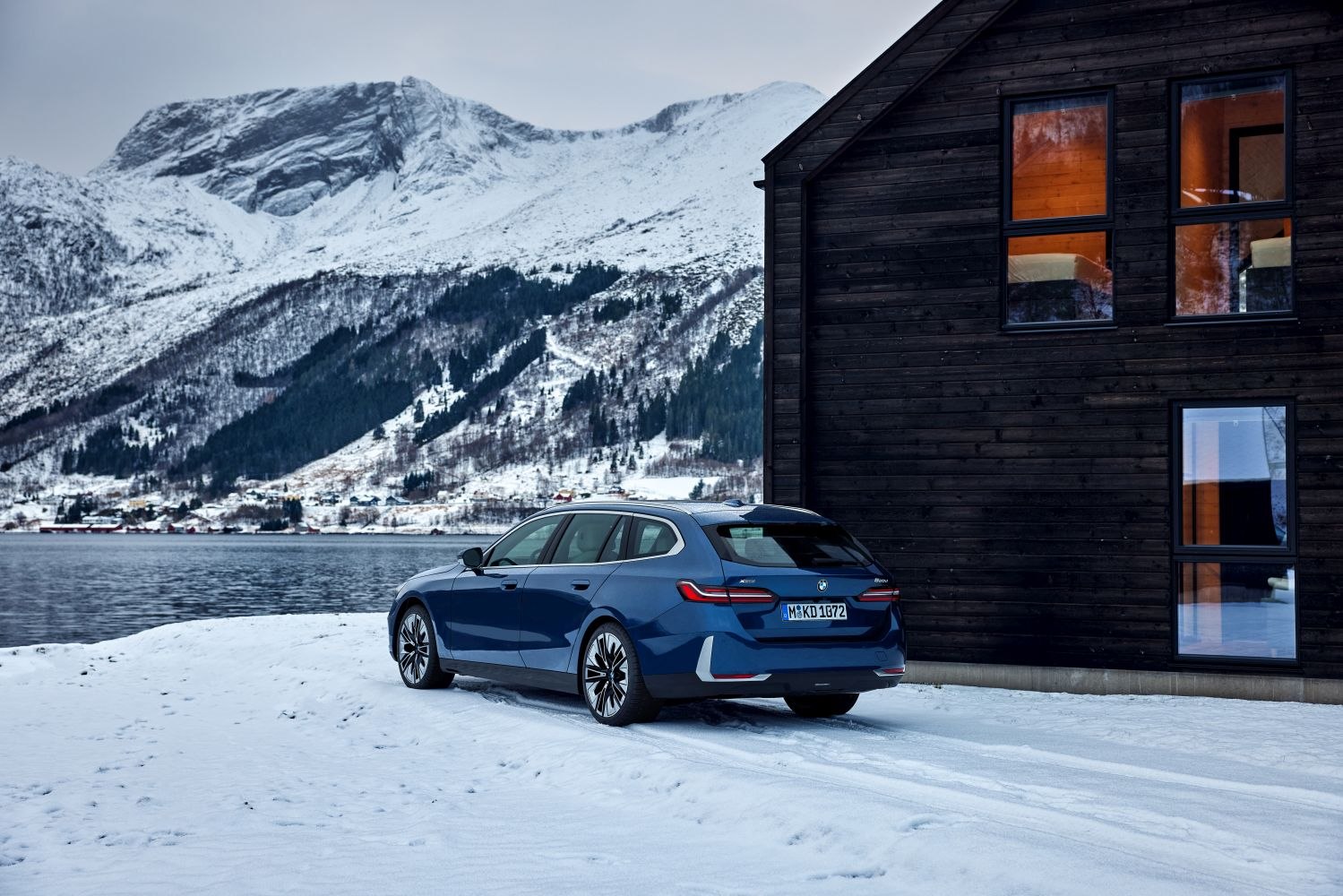

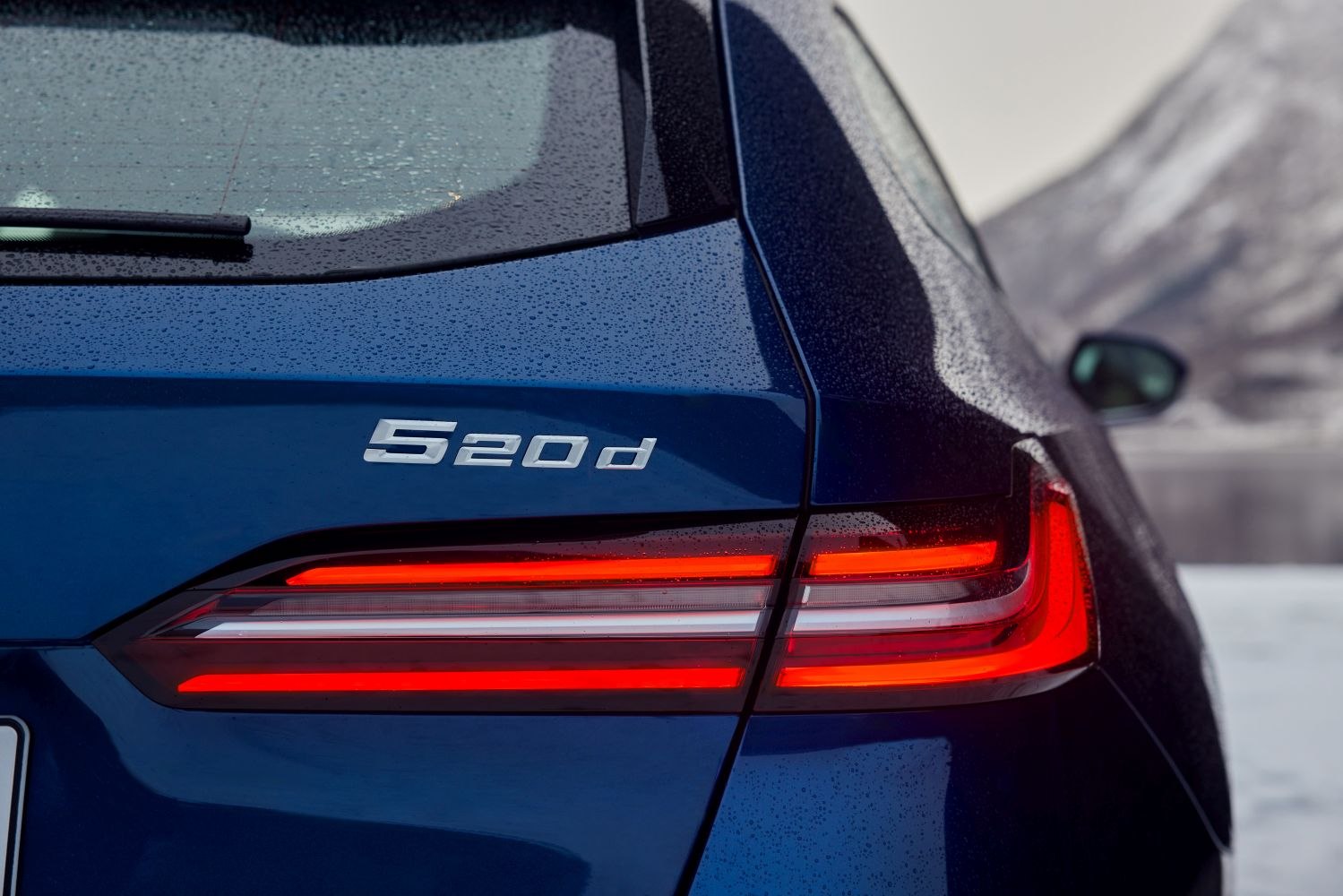

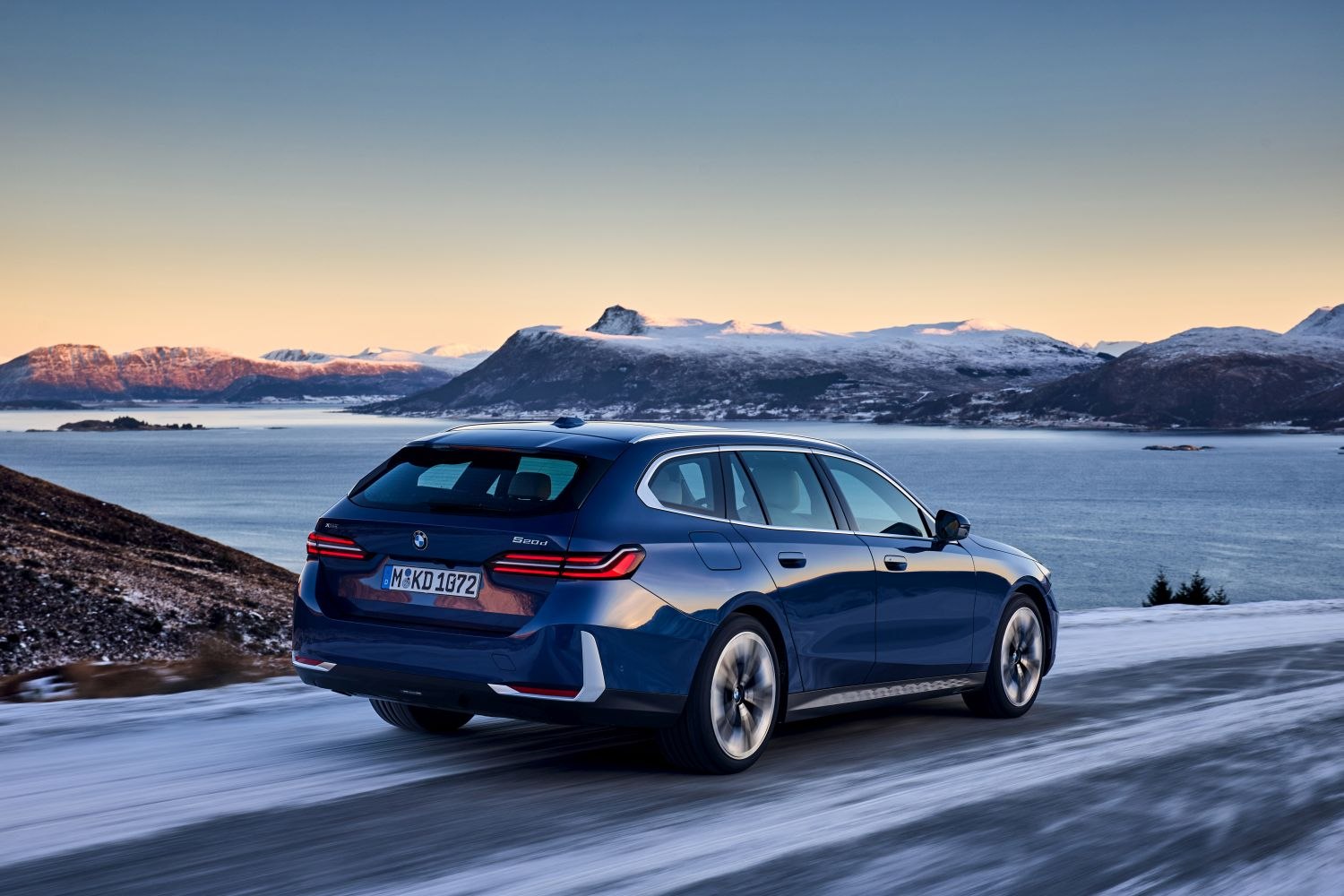

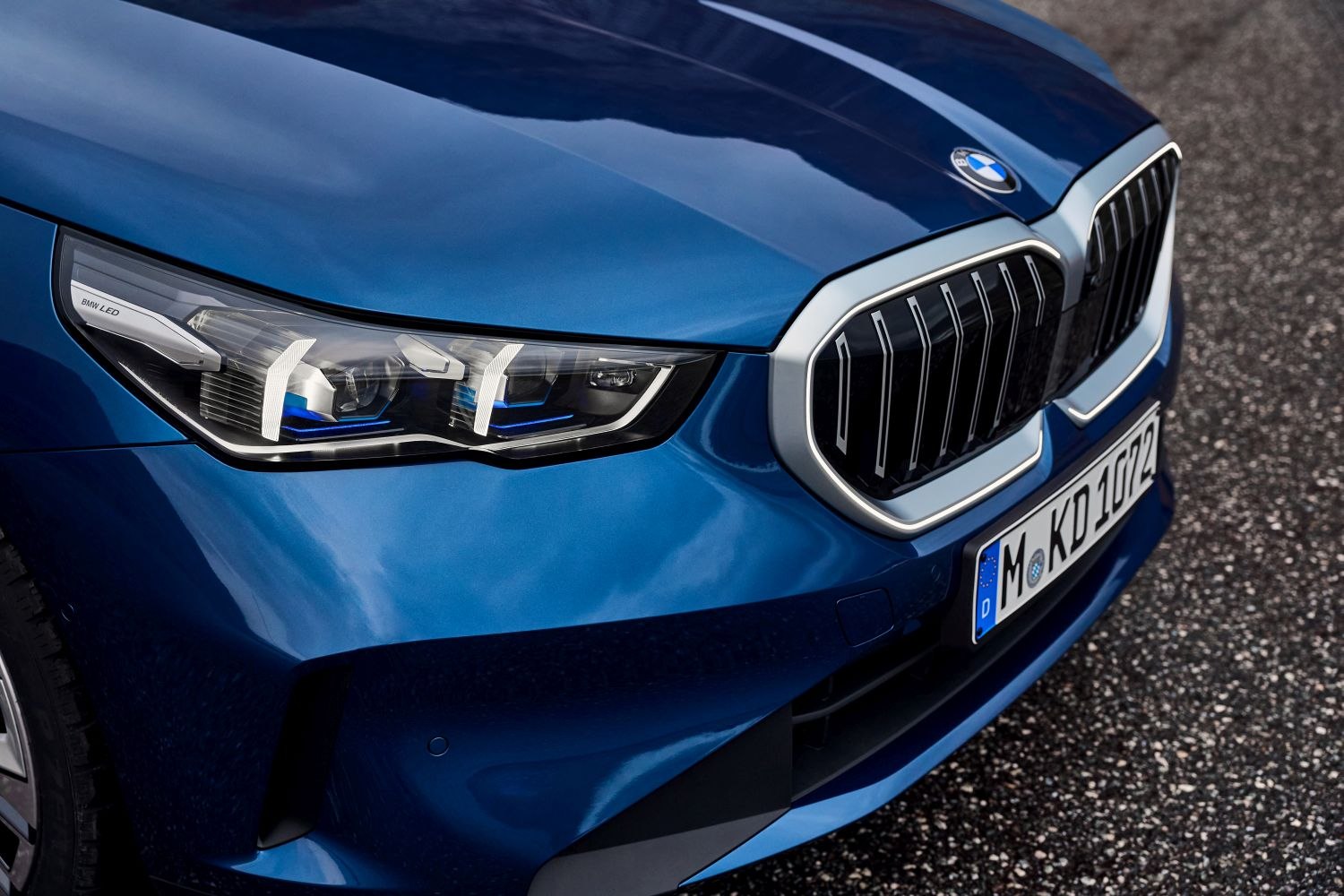

BMW 5 Series Touring G61 2024 Gallery
BMW 5 Series Touring G61 2024 Technical Specifications
General
Body type
Station wagon (estate)
Brand
BMW
Doors
5
Generation
5 Series Touring (G61)
Model
5 Series
Modification (Engine)
520d (197 Hp) Mild Hybrid xDrive Steptronic
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start of production
February, 2024
Performance
Acceleration 0 - 100 km/h
7.5 sec
Acceleration 0 - 60 mph
7.1 sec
Acceleration 0 - 62 mph
7.5 sec
CO2 emissions (WLTP)
149-163 g/km
Combined fuel consumption (WLTP)
5.7-6.2 l/100 km
Emission standard
Euro 6e
Fuel Type
Diesel
Maximum speed
218 km/h
Electric
Battery location
Under the trunk
Battery voltage
48 V
Electric motor Torque number 1
25 Nm
Electric motor location number 1
Integrated into the transmission
Electric motor power number 1
11 Hp
System power
197 Hp
System torque
400 Nm
Internal Engine
Compression ratio
16.5
Cylinder Bore
84 mm
Engine Model/Code
B47D20B
Engine aspiration
Twin-power turbo, Intercooler
Engine configuration
Inline
Engine displacement
1995 cm
Engine layout
Front, Longitudinal
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
90 mm
Power
197 Hp @ 4000 rpm.
Power per litre
98.7 Hp/l
Torque
400 Nm @ 1500-2750 rpm.
Dimensions
Drag coefficient (Cd)
0.26
Front overhang
945 mm
Front track
1634 mm
Height
1515 mm
Length
5060 mm
Minimum turning circle (turning diameter)
11.8 m
Rear (Back) track
1668 mm
Rear overhang
1120 mm
Ride height (ground clearance)
155 mm
Wheelbase
2995 mm
Width
1900 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs
Front suspension
Double wishbone
Number of gears and type of gearbox
8 gears, automatic transmission Steptronic
Power steering
Electric Steering
Rear brakes
Ventilated discs
Rear suspension
Independent multi-link suspension
Steering type
Steering rack and pinion
Tires size
225/55 R18 102Y XL
Wheel rims size
7.5J x 18
Space
Fuel tank capacity
60 l
Kerb Weight
1895 kg
Max load
660 kg
Max. roof load
100 kg
Max. weight
2555 kg
Permitted towbar download
100 kg
