Seres SF5 2019
1.5T (347 Hp) EREV
Hybrid Car
Body Type SUV
Battery Capacity 35 KW
150 km
Electric Range
180 km/h
Maximum Speed
5
Doors
Seres SF5 2019 Key Specs
Acceleration 0 - 100 Km/h
6.8 sec
Acceleration 0 - 62 Mph
6.8 sec
All-electric Range (NEDC)
150 km
Average Energy Consumption (NEDC)
18.8 kWh/100 km
Battery Voltage
345.6 V
Body Type
SUV
Doors
5
Drive Wheel
Rear wheel drive
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
4 l
Engine Systems
Start & Stop System
Fuel Type
Petrol / electricity
Fuel Tank Capacity
56 l
Generation
SF5
Gross Battery Capacity
35 kWh
Kerb Weight
2230 kg
Maximum Speed
180 km/h
Modification (Engine)
1.5T (347 Hp) EREV
Number Of Cylinders
4
Power
112 Hp @ 4000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
5
Start Of Production
2019
System Power
347 Hp
Wheel Rims Size
8.5J x 20

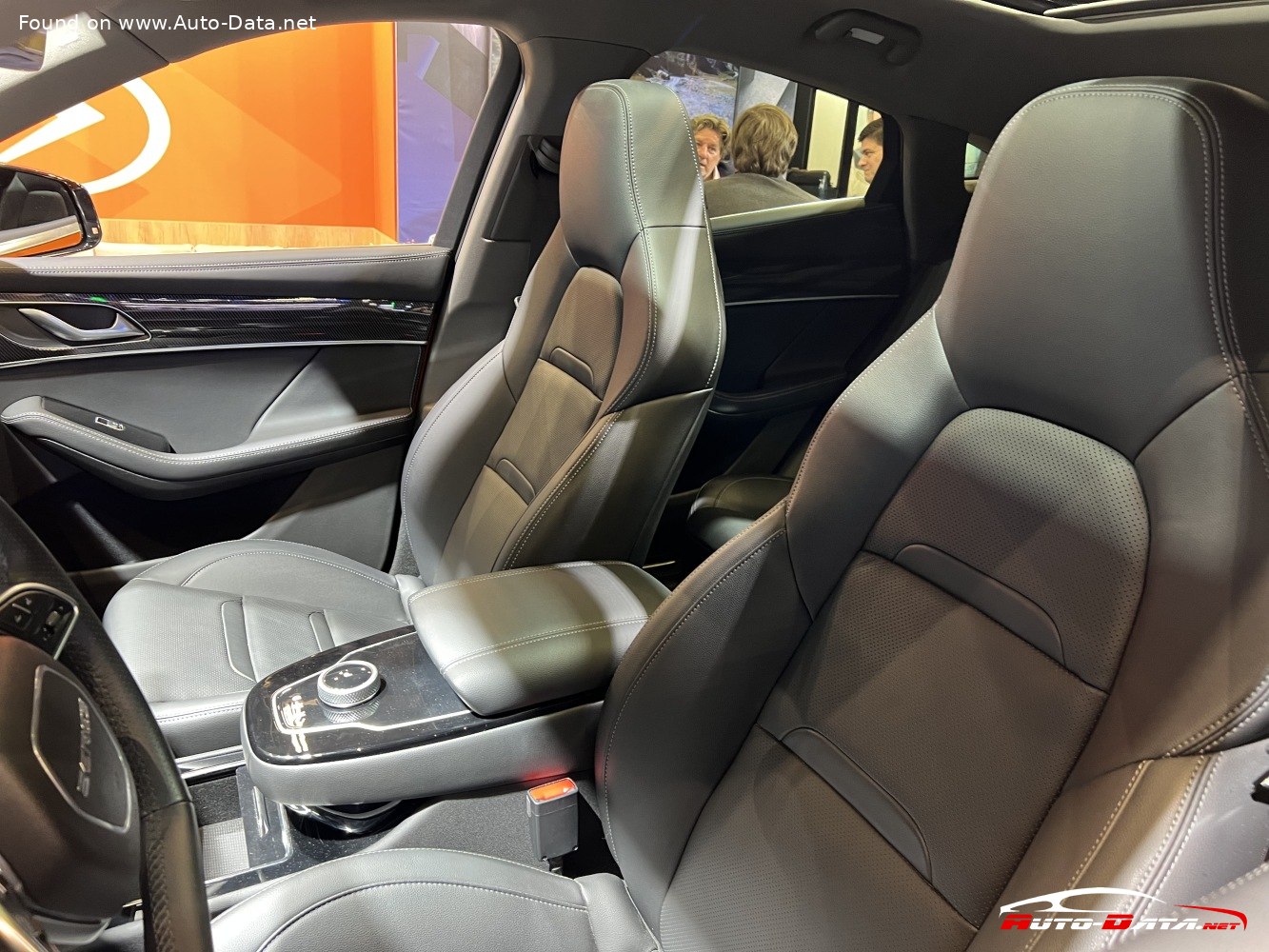

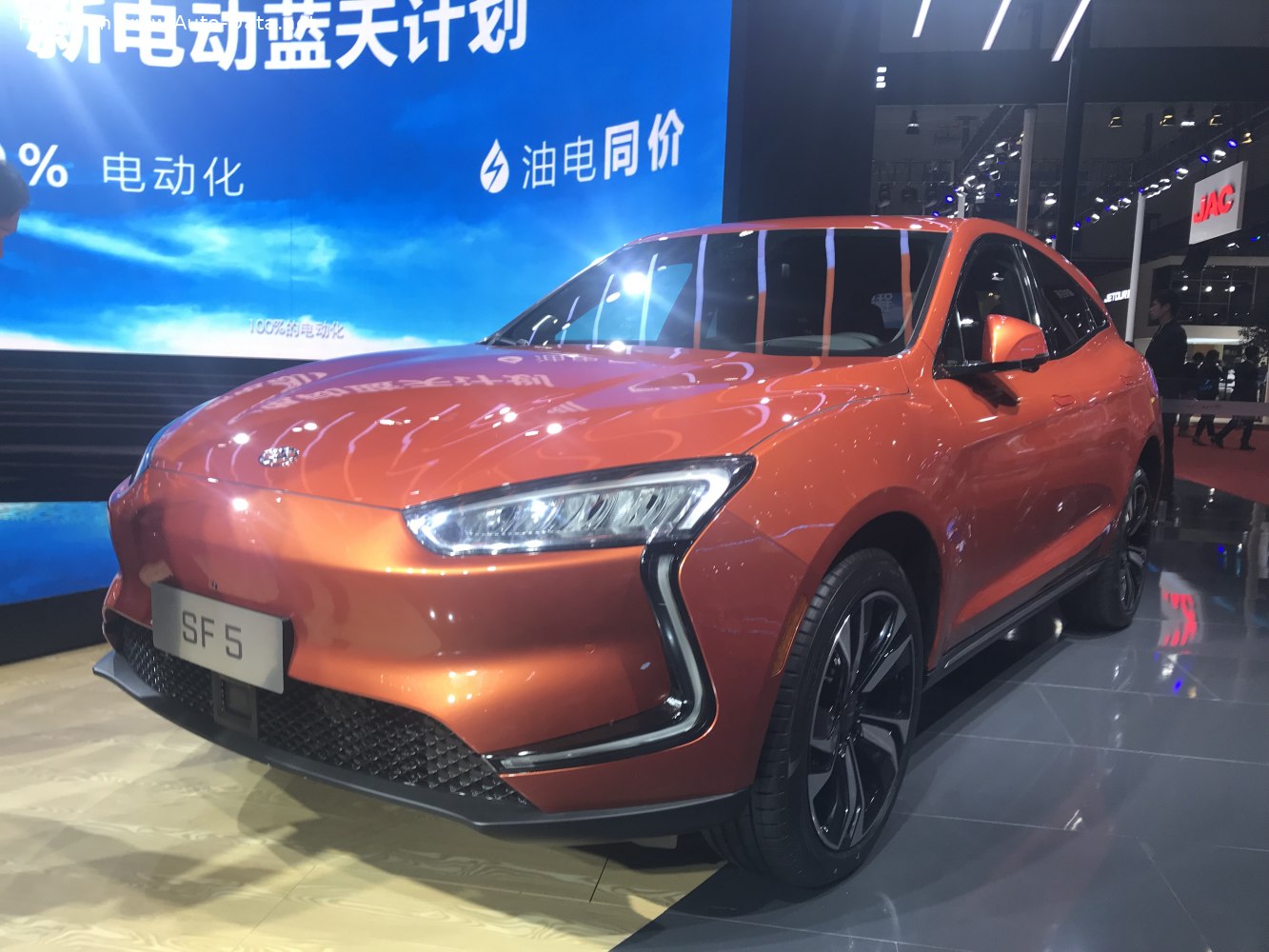

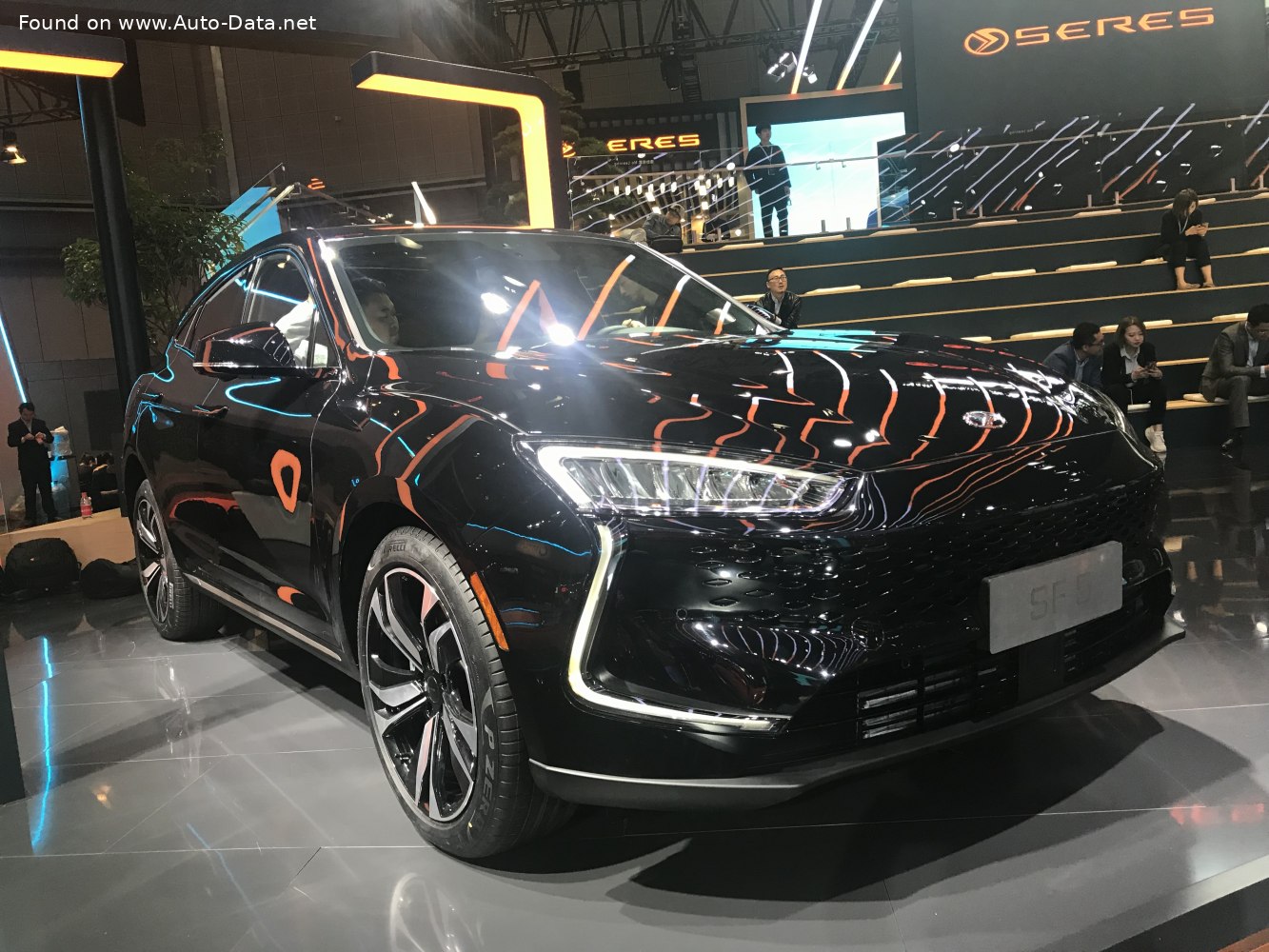

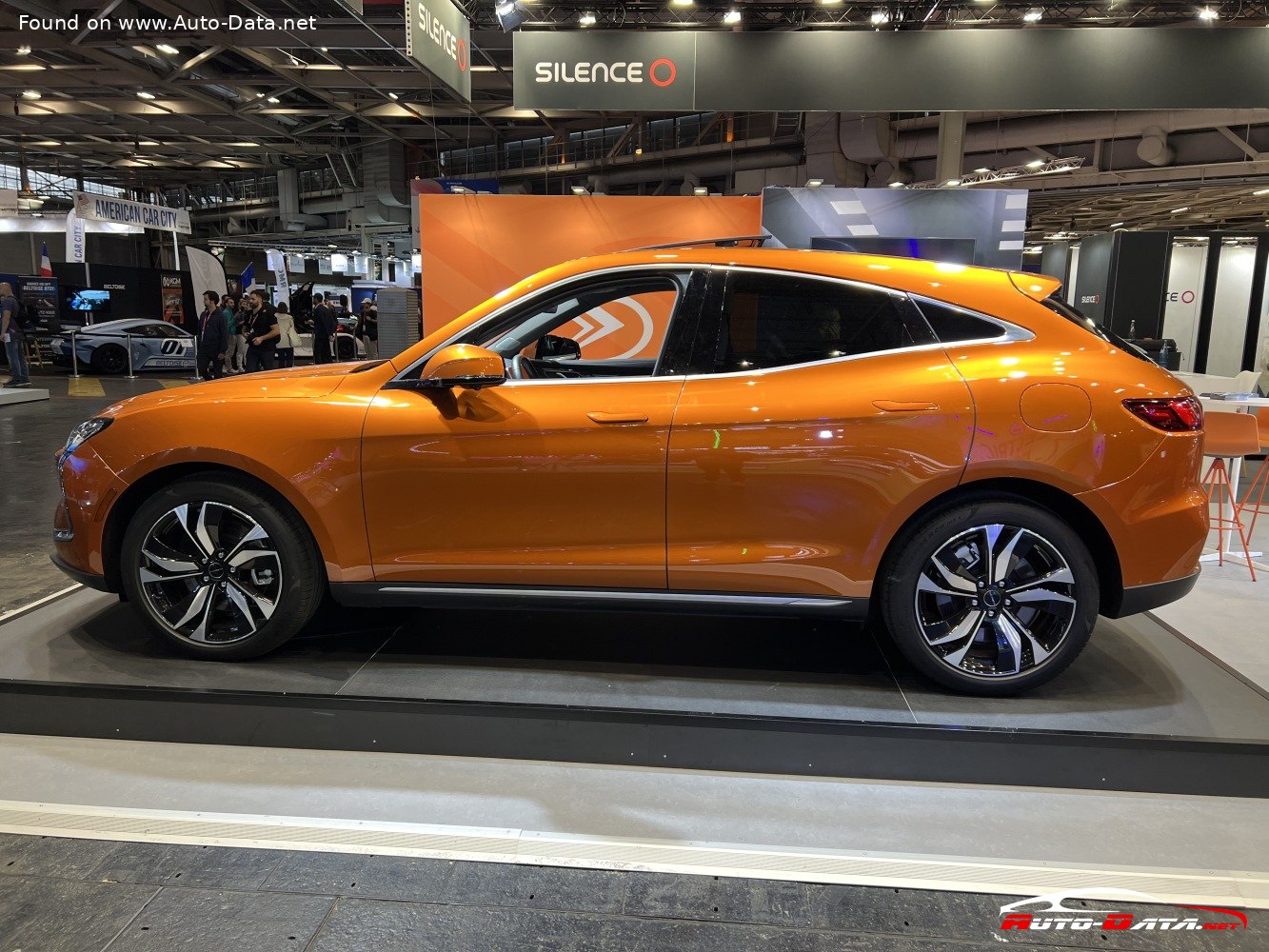

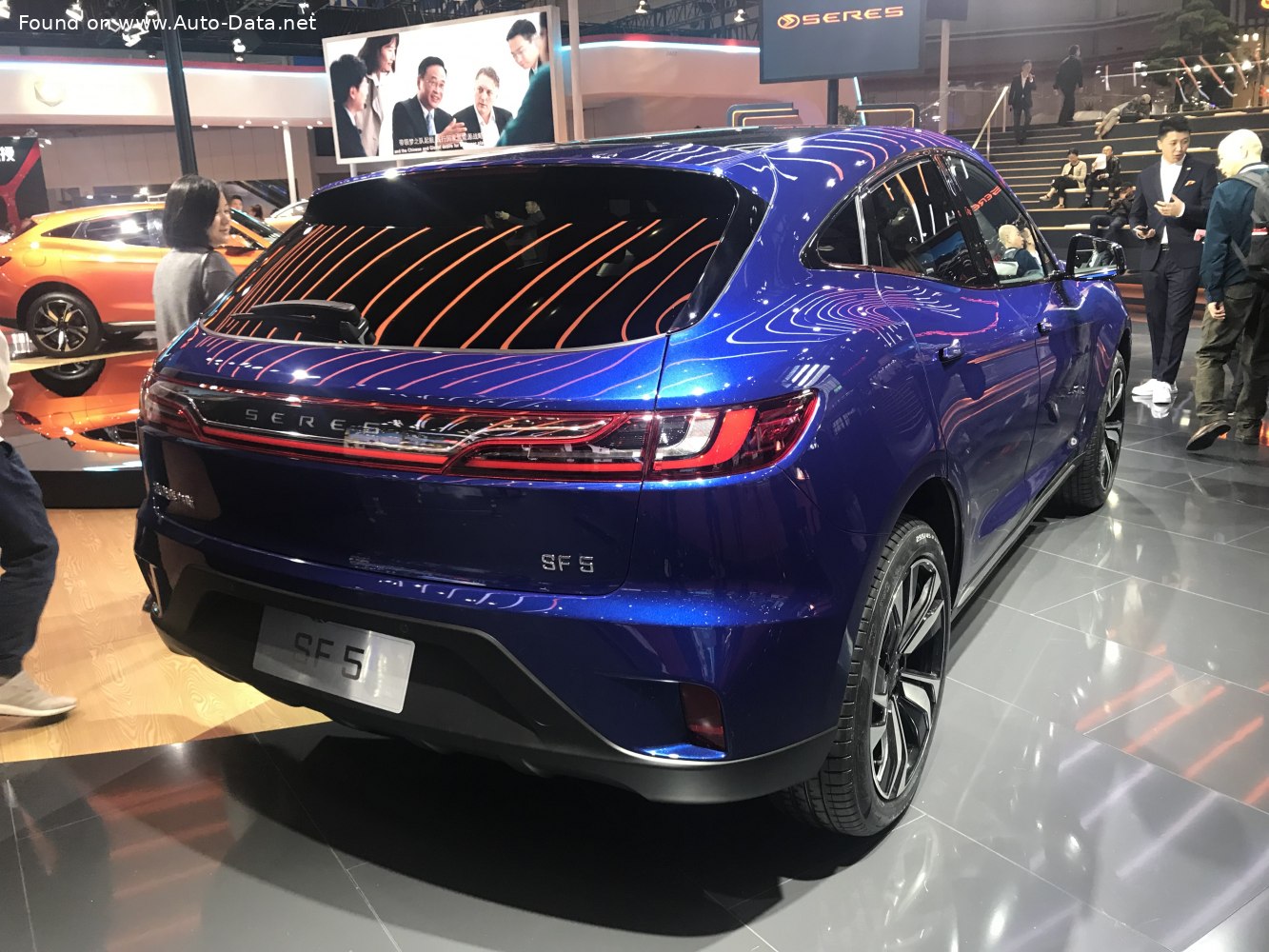

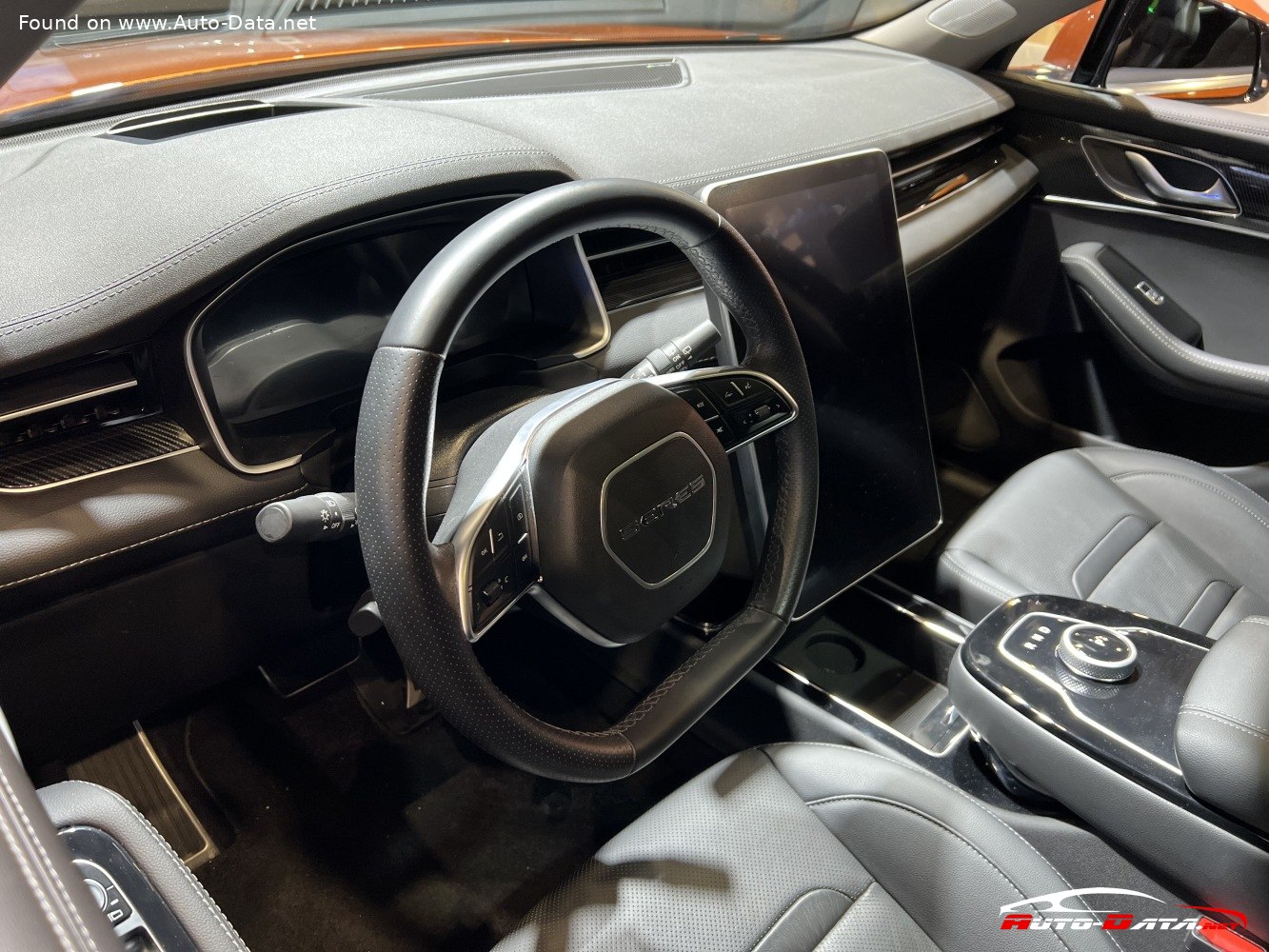

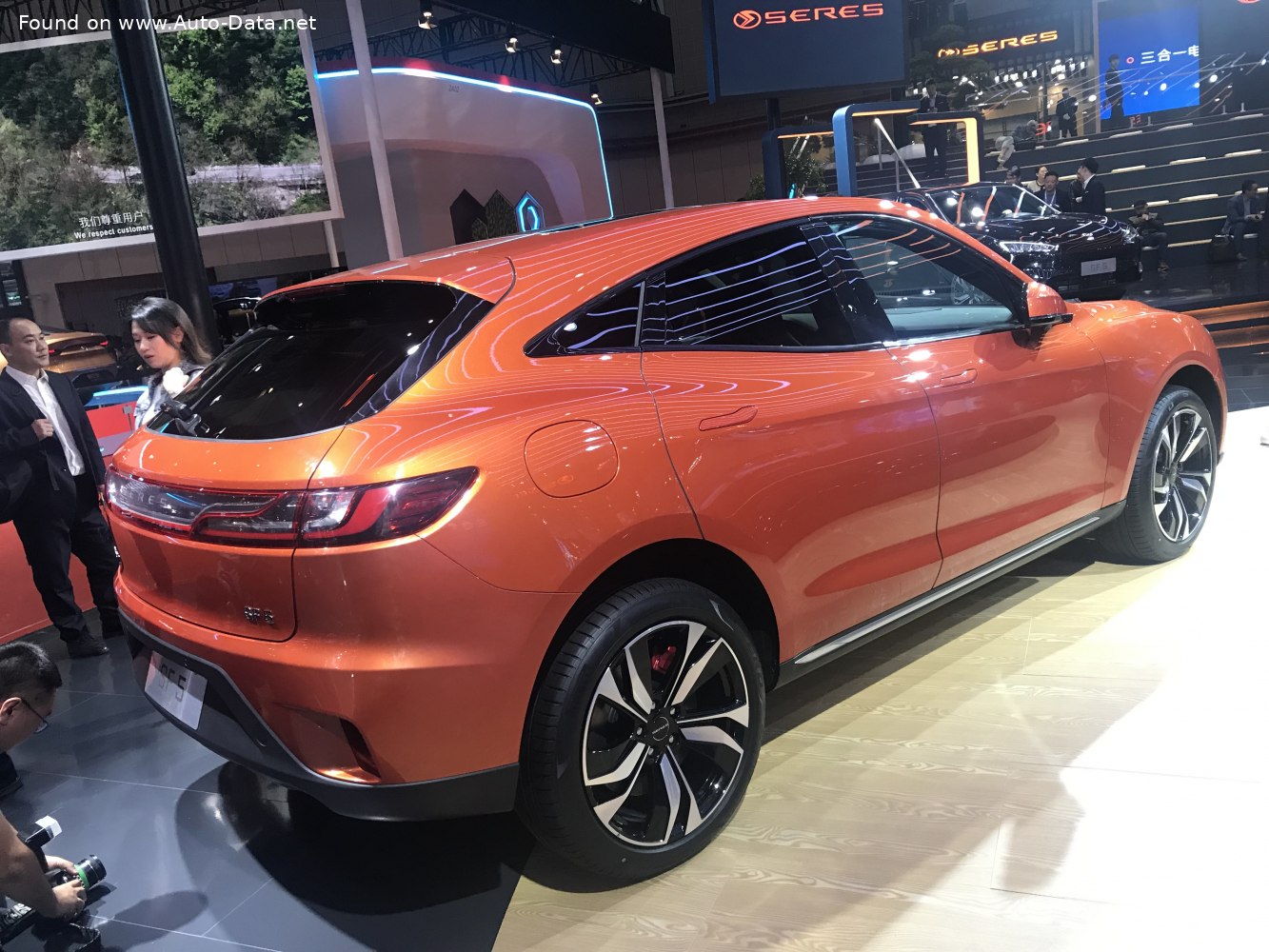

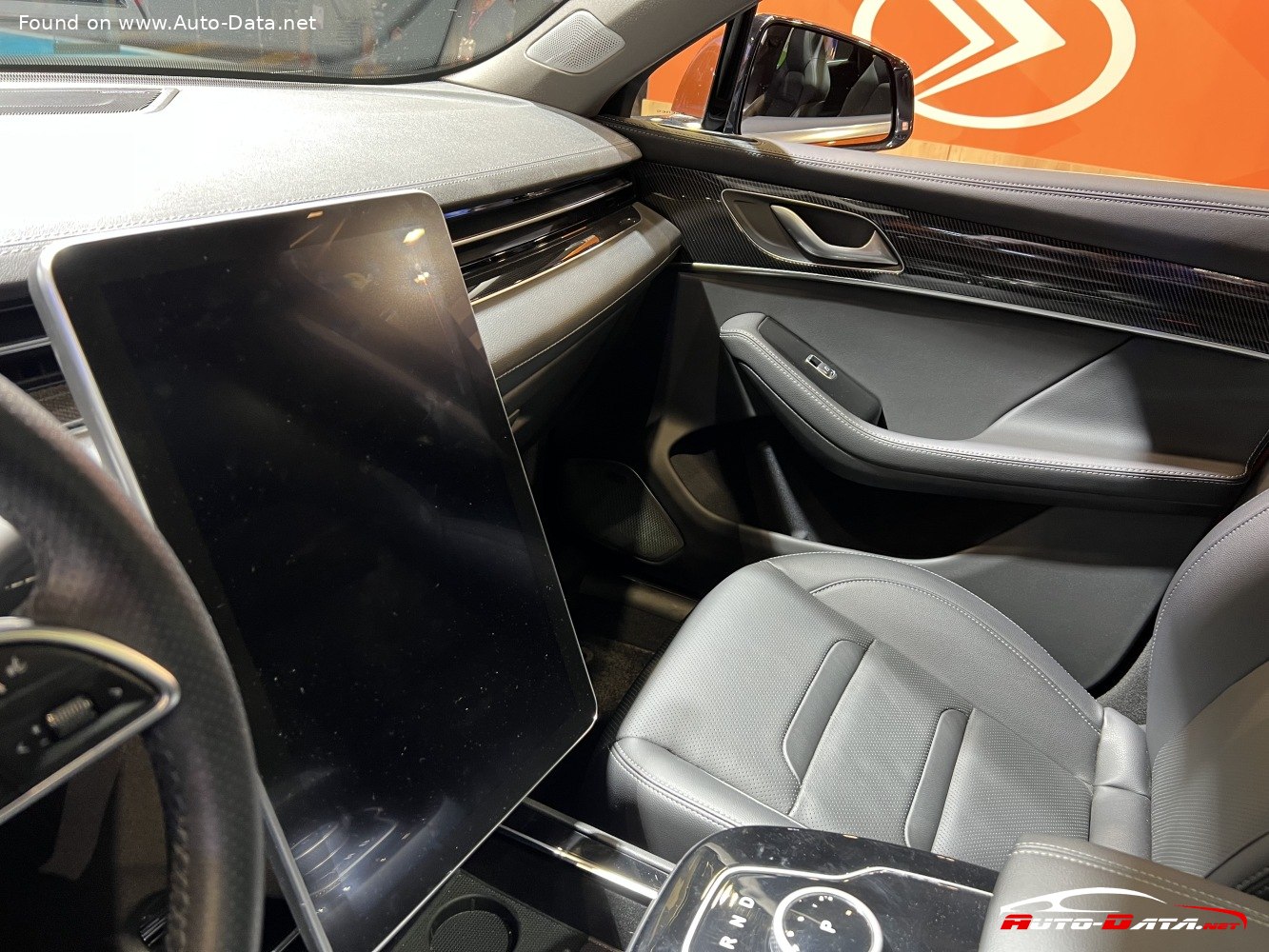

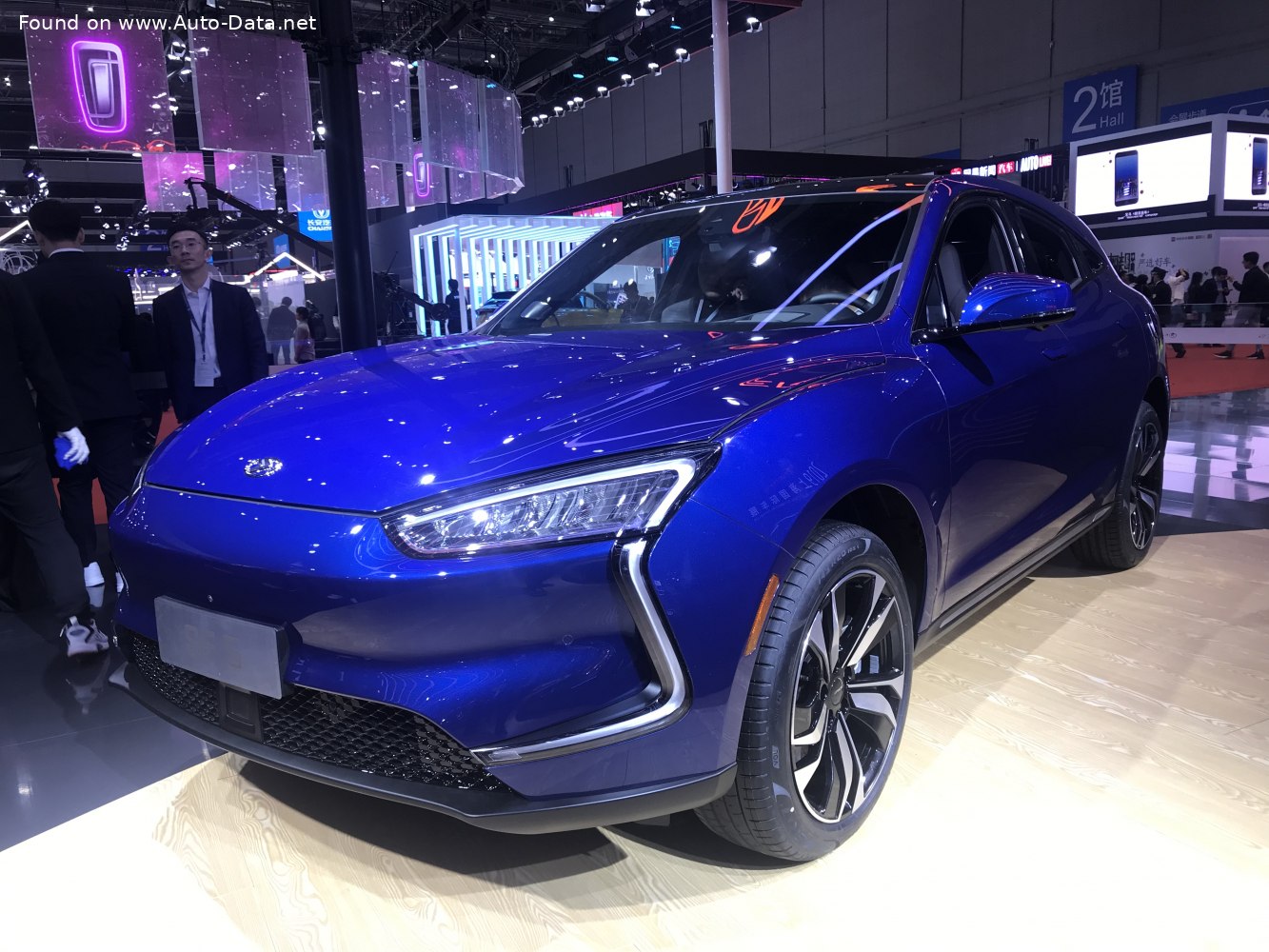

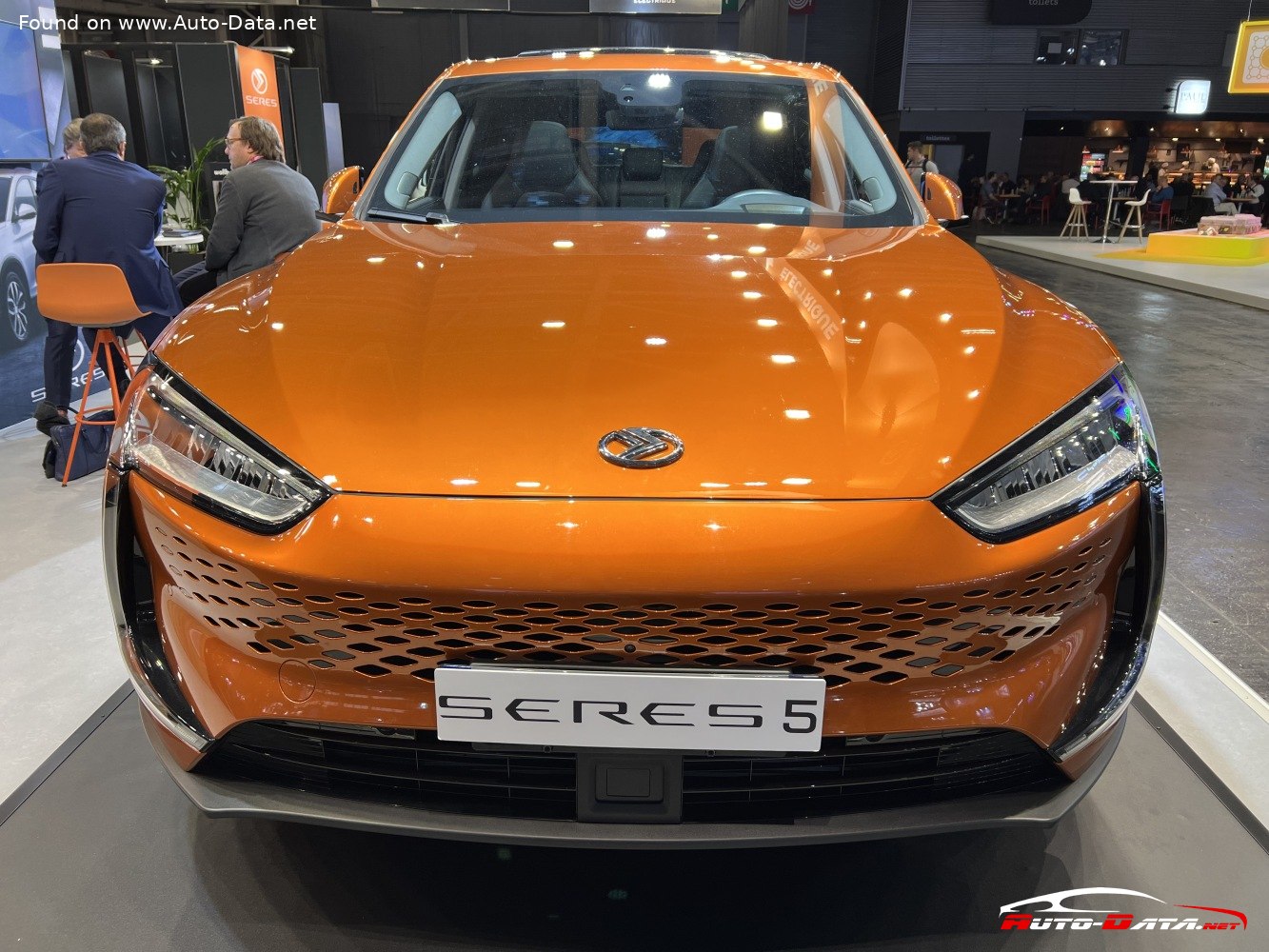

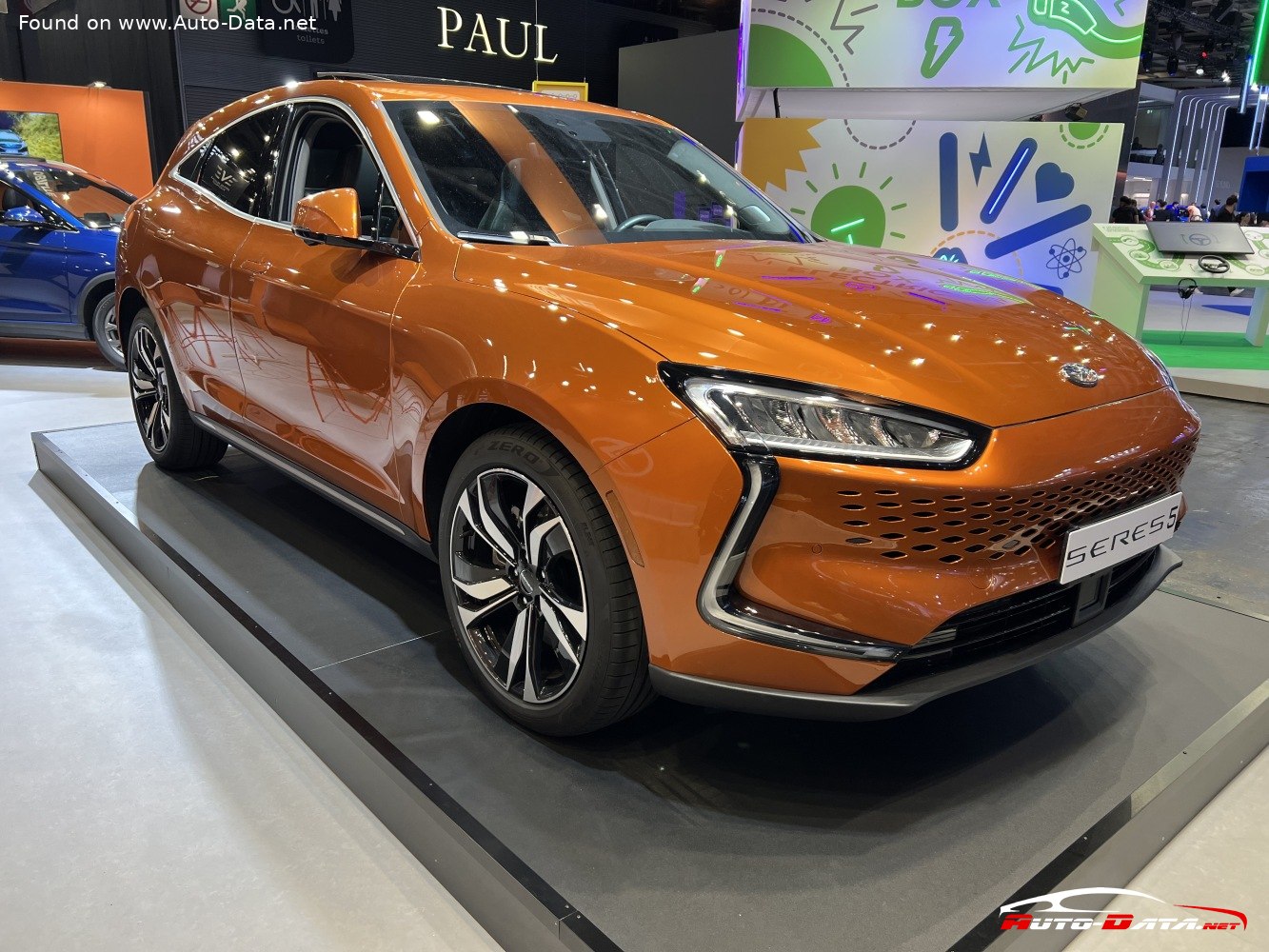

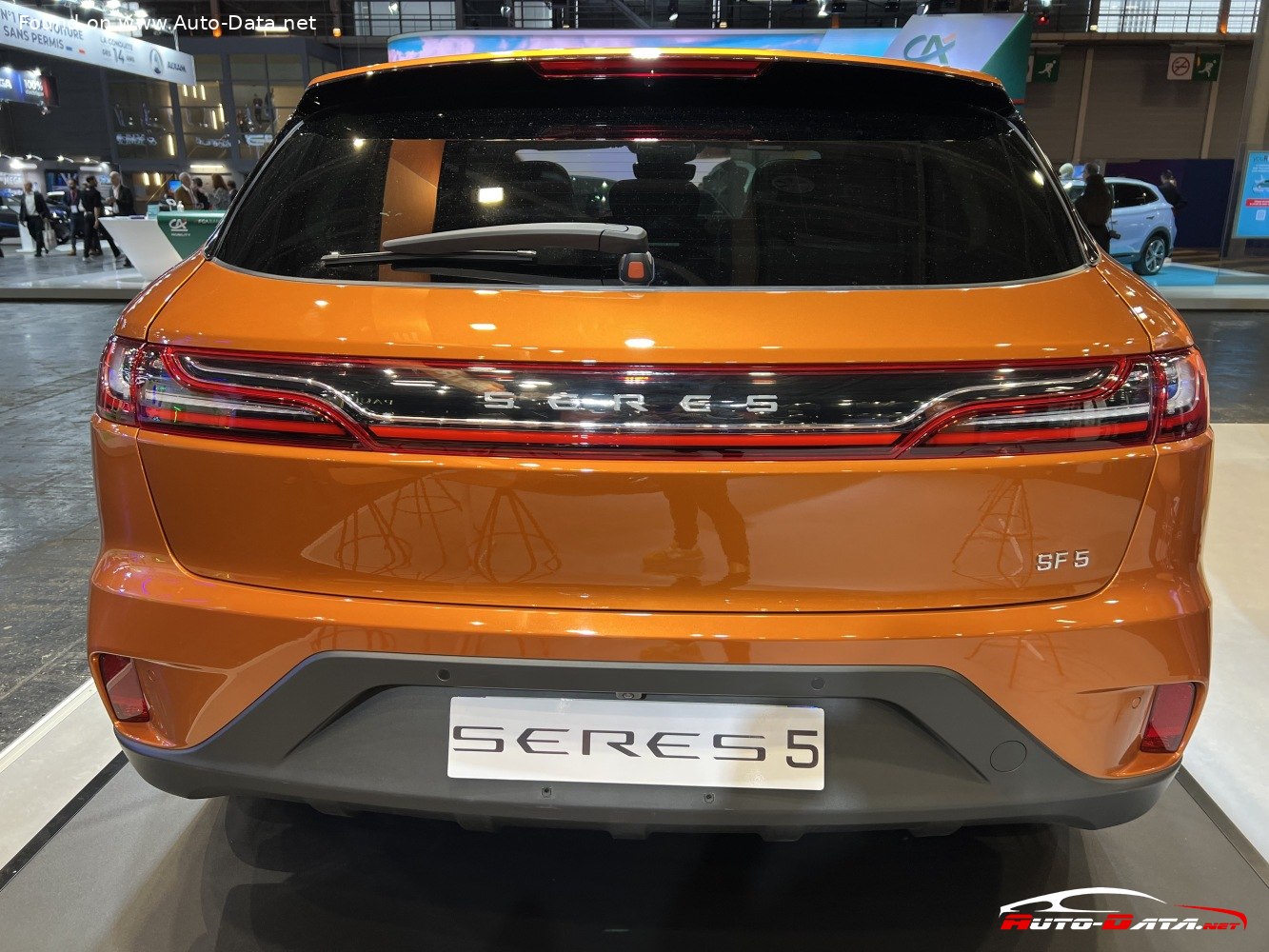

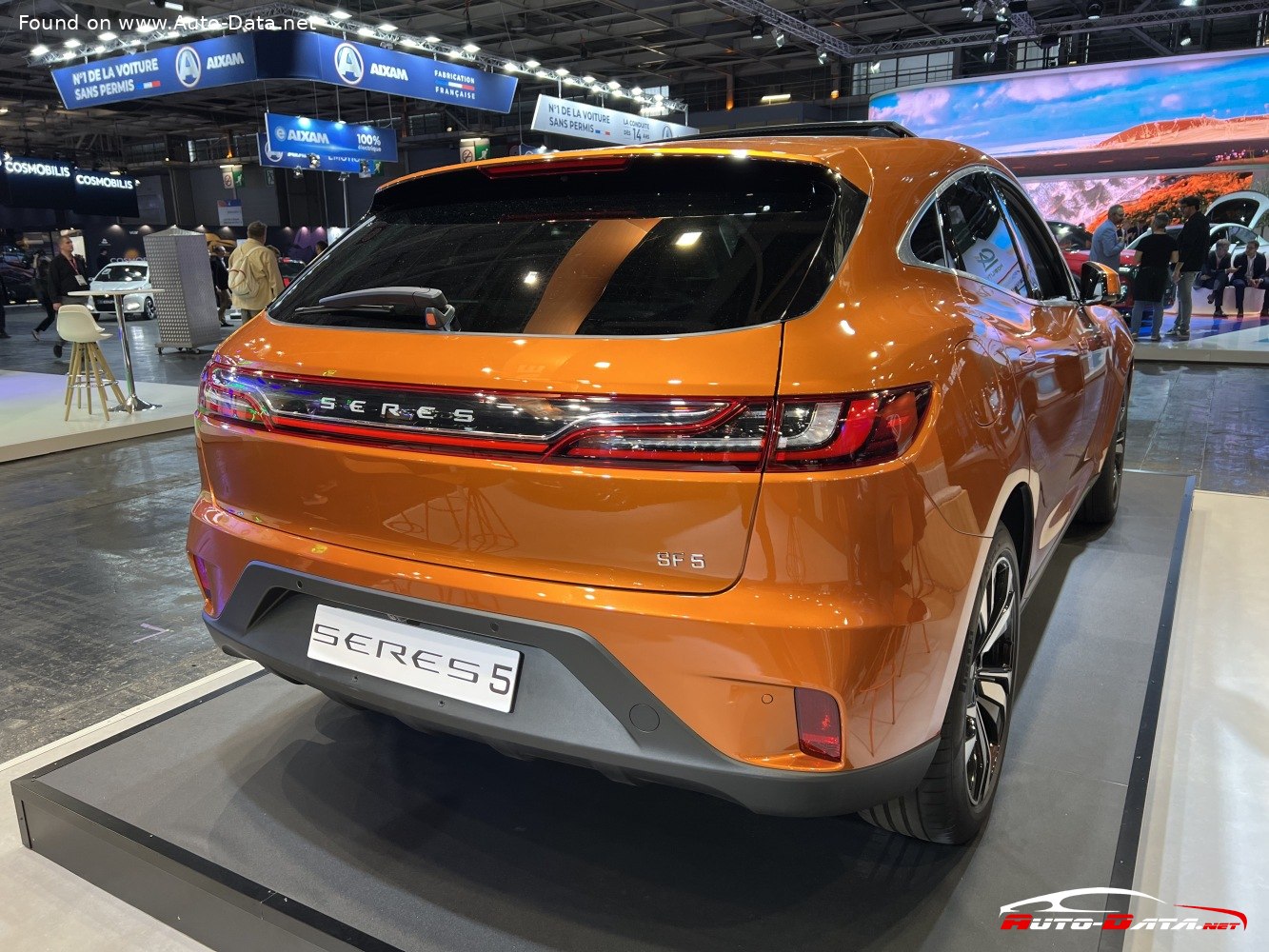

Seres SF5 2019 Gallery
Seres SF5 2019 Technical Specifications
General
Body type
SUV
Brand
Seres
Doors
5
Generation
SF5
Model
SF5
Modification (Engine)
1.5T (347 Hp) EREV
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
5
Start of production
2019
Performance
Acceleration 0 - 100 km/h
6.8 sec
Acceleration 0 - 60 mph
6.5 sec
Acceleration 0 - 62 mph
6.8 sec
Emission standard
China VI B
Fuel Type
Petrol / electricity
Fuel consumption (economy) - combined (NEDC)
1 l/100 km
Maximum speed
180 km/h
Electric
All-electric range (NEDC)
150 km
Average Energy consumption (NEDC)
18.8 kWh/100 km
Battery location
Below the floor
Battery voltage
345.6 V
Charging ports number 0
Log in to see.
Electric motor Torque number 1
520 Nm
Electric motor location number 1
Rear axle, Transverse
Electric motor model/code number 1
SEP200
Electric motor power number 1
347 Hp
Electric motor type number 1
Synchronous
Gross battery capacity
35 kWh
Maximum revolutions of the electric motor number 1
6500 rpm.
System power
347 Hp
Internal Engine
Compression ratio
8.3
Coolant
13 l
Cylinder Bore
75 mm
Engine Model/Code
SFG15TR
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1498 cm
Engine layout
Front, Transverse
Engine oil capacity
4 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop System
Fuel injection system
Multi-port manifold injection
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
84.8 mm
Power
112 Hp @ 4000 rpm.
Power per litre
74.8 Hp/l
Torque
196 Nm @ 1800-4000 rpm.
Dimensions
Approach angle
21°
Departure angle
25°
Front overhang
935 mm
Front track
1655 mm
Height
1625 mm
Length
4700 mm
Minimum turning circle (turning diameter)
12 m
Ramp-over (brakeover) angle
14.6°
Rear (Back) track
1650 mm
Rear overhang
890 mm
Ride height (ground clearance)
181 mm
Wheelbase
2875 mm
Width
1930 mm
Drivetrain
Drive wheel
Rear wheel drive
Front brakes
Ventilated discs, 362x28 mm
Front suspension
Double wishbone, Transverse stabilizer
Number of gears and type of gearbox
1 gears, automatic transmission
Power steering
Electric Steering
Rear brakes
Ventilated discs, 363.5x18 mm
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
255/45 R20
Wheel rims size
8.5J x 20
Space
Fuel tank capacity
56 l
Kerb Weight
2230 kg
Max load
375 kg
Max. weight
2605 kg
