Mazda CX-90 2023
3.3 e-SKYACTIV-D (254 Hp) Mild Hybrid i-ACTIV AWD Automatic
Hybrid Car
Body Type SUV, Crossover
Battery Capacity 0.33 KW
3750 rpm.
Power HP RPM
5
Doors
Mazda CX-90 2023 Key Specs
Battery Voltage
44.4 V
Body Type
SUV, Crossover
Doors
5
Drive Wheel
All wheel drive (4x4)
Engine Aspiration
Turbocharger, Intercooler
Engine Systems
Particulate filter
Fuel Type
Diesel
Fuel Consumption (economy) - Combined
5.4 l/100 km
Fuel Consumption (economy) - Extra Urban
5.3 l/100 km
Fuel Tank Capacity
74 l
Generation
CX-90
Gross Battery Capacity
0.33 kWh
Kerb Weight
2211-2241 kg
Modification (Engine)
3.3 e-SKYACTIV-D (254 Hp) Mild Hybrid i-ACTIV AWD Automatic
Number Of Cylinders
6
Power
254 Hp @ 3750 rpm.
Power Steering
Electric Steering
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
6-7
Start Of Production
April, 2023
Wheel Rims Size
8.5J x 19; 9.5J x 21

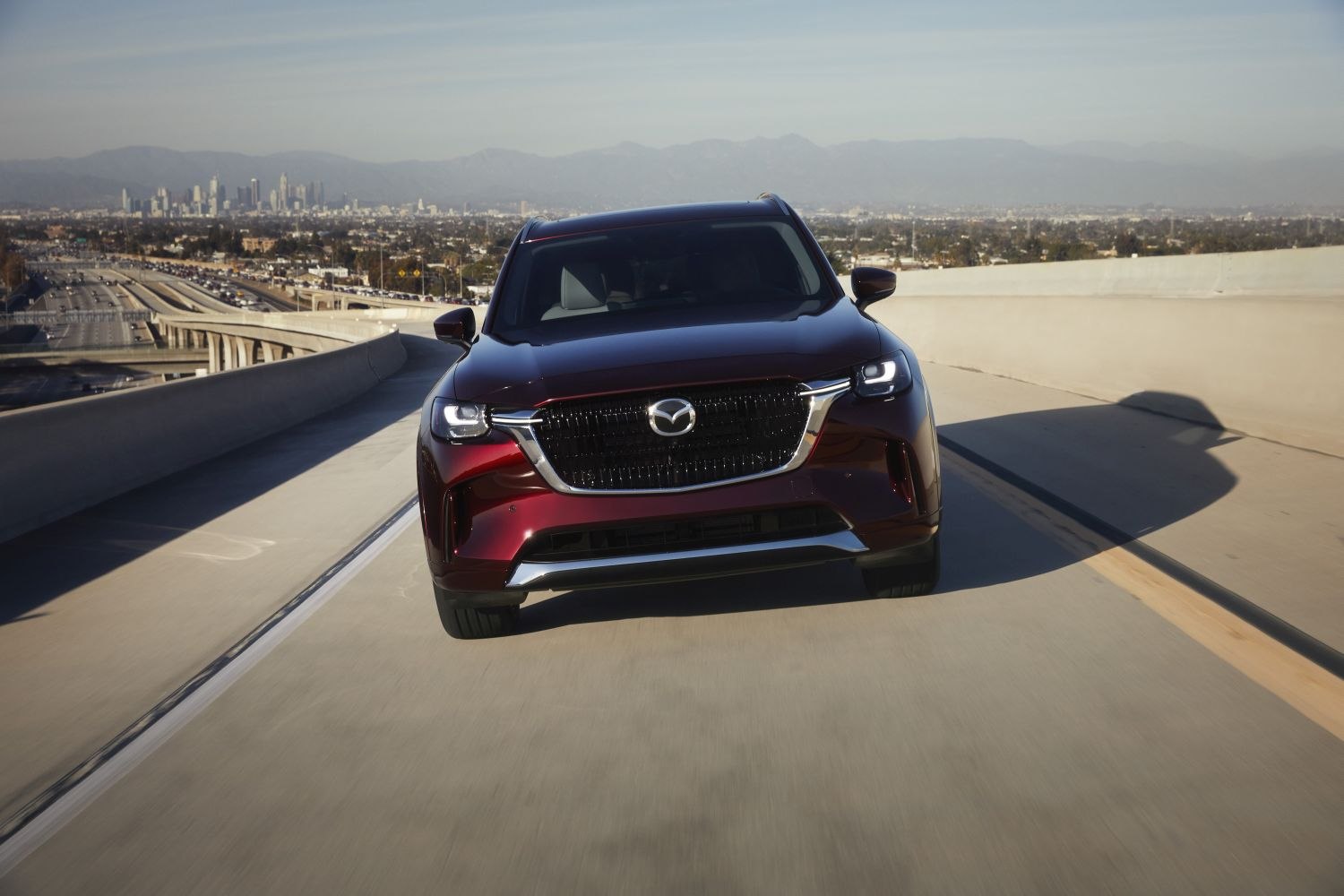

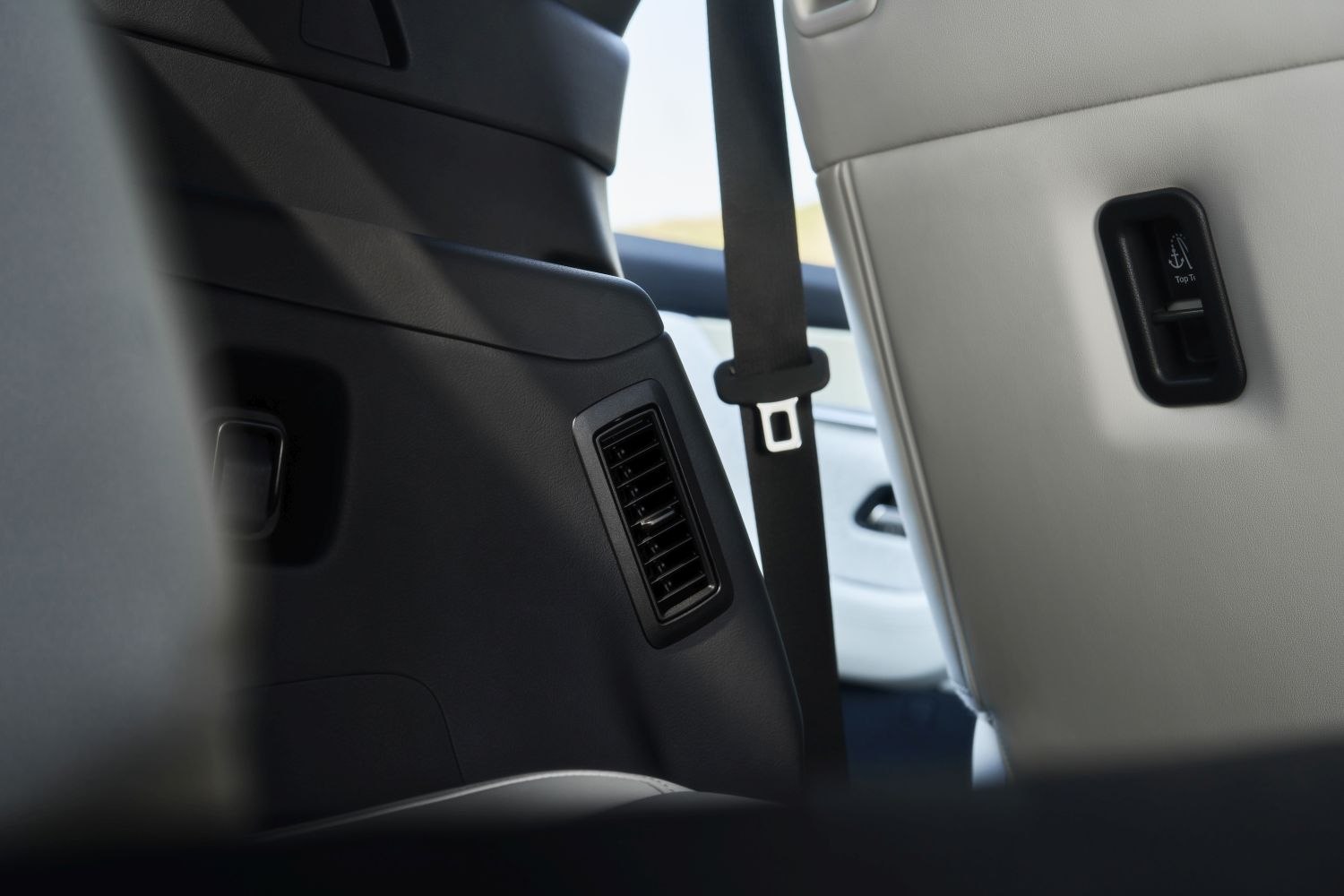

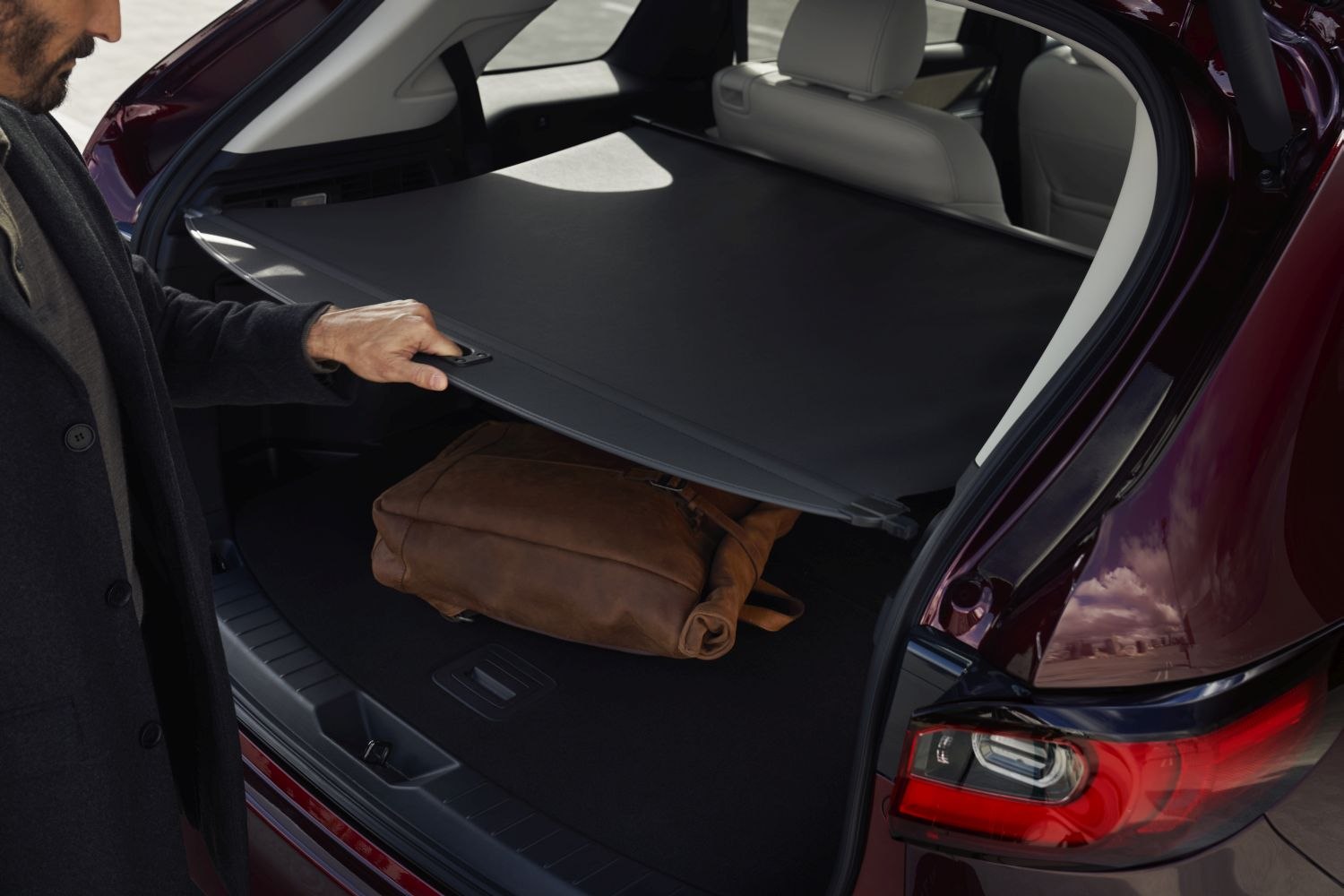

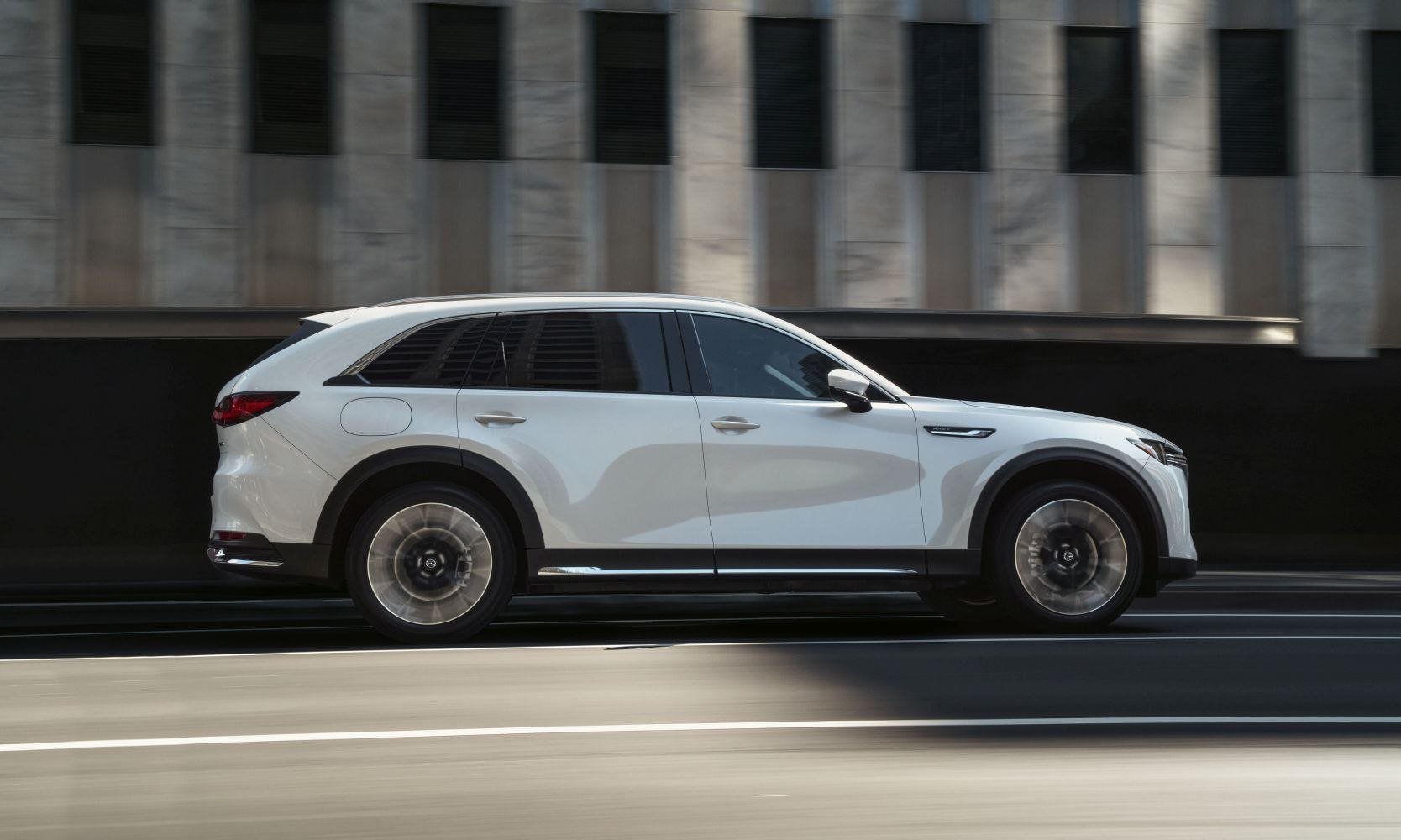

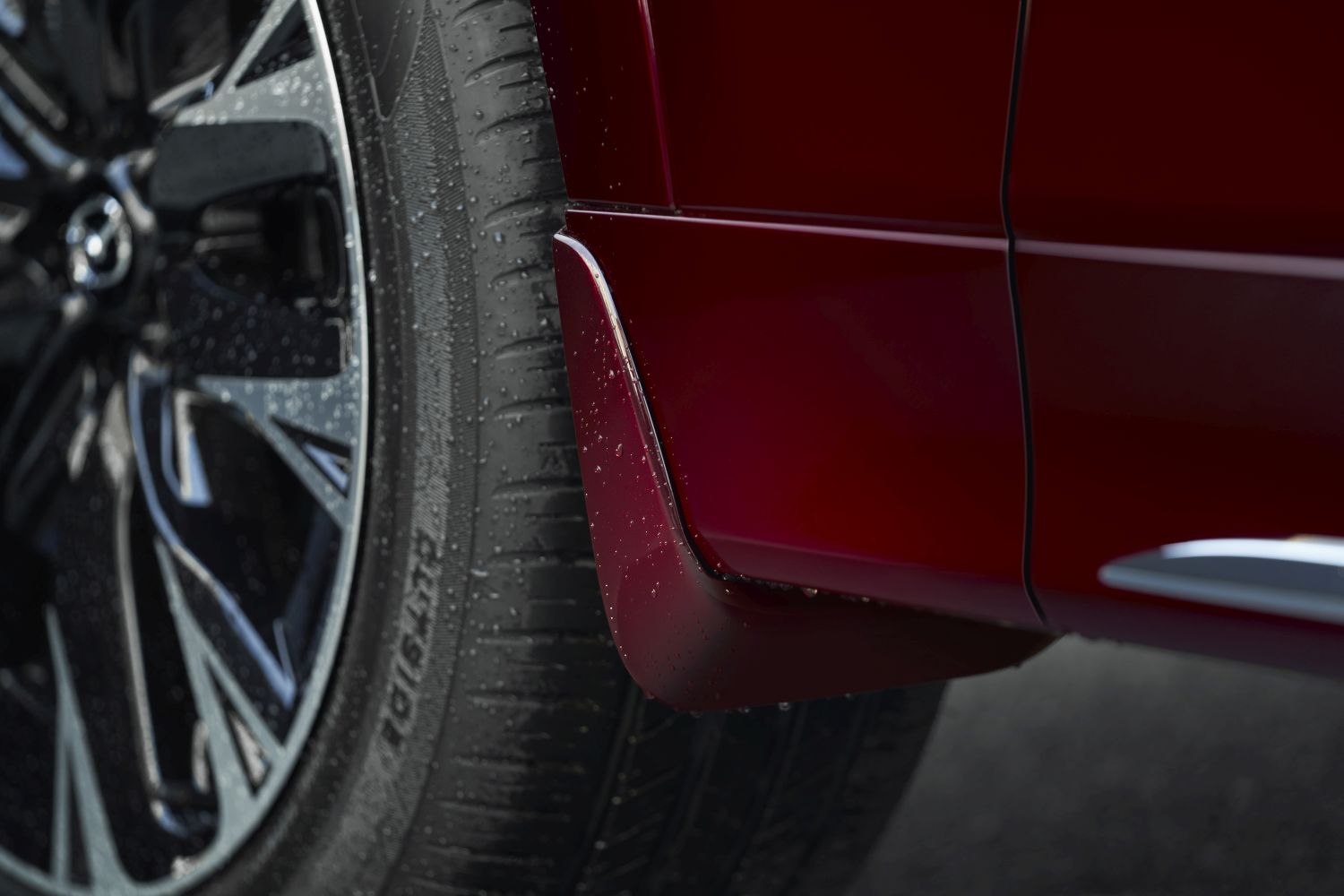

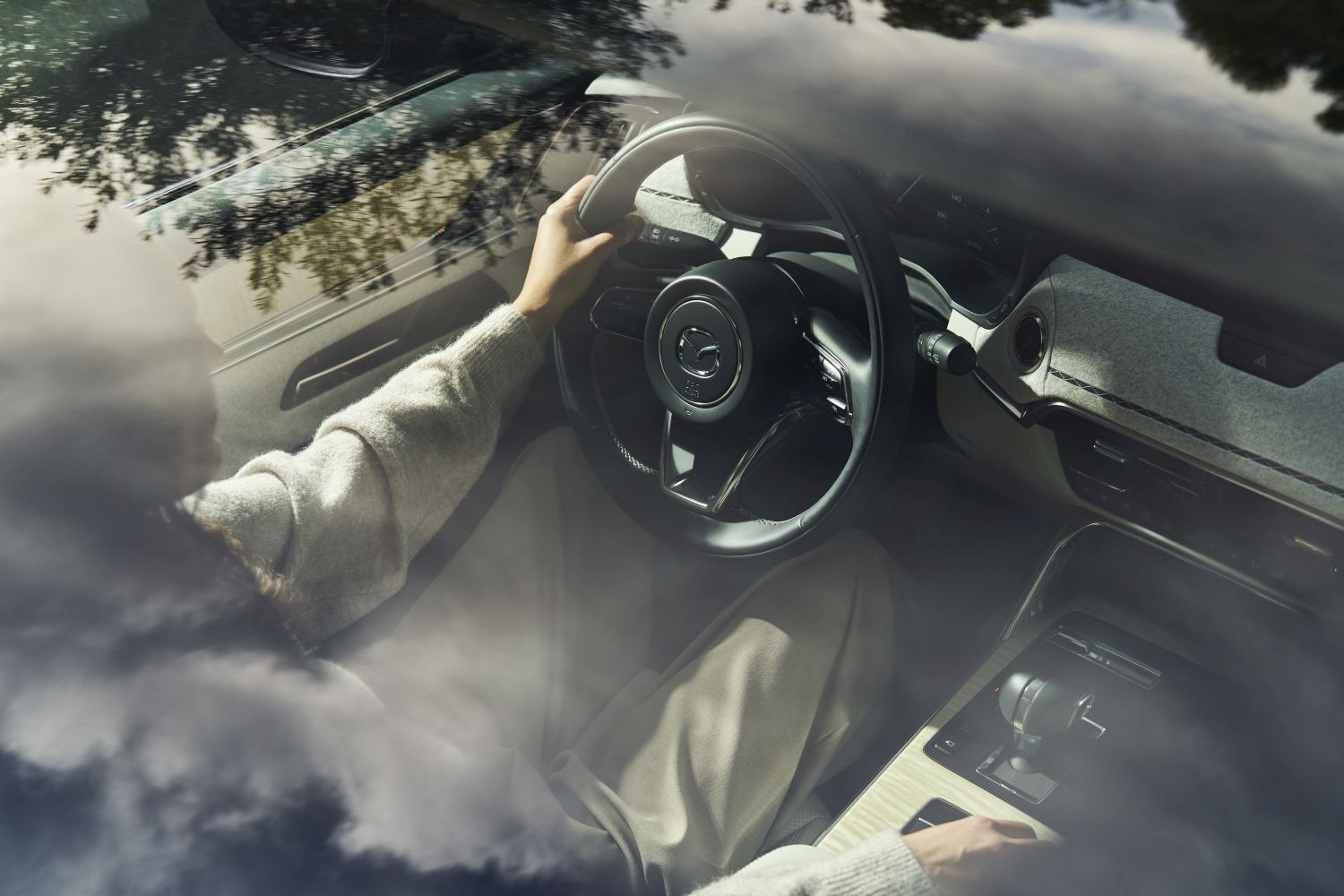

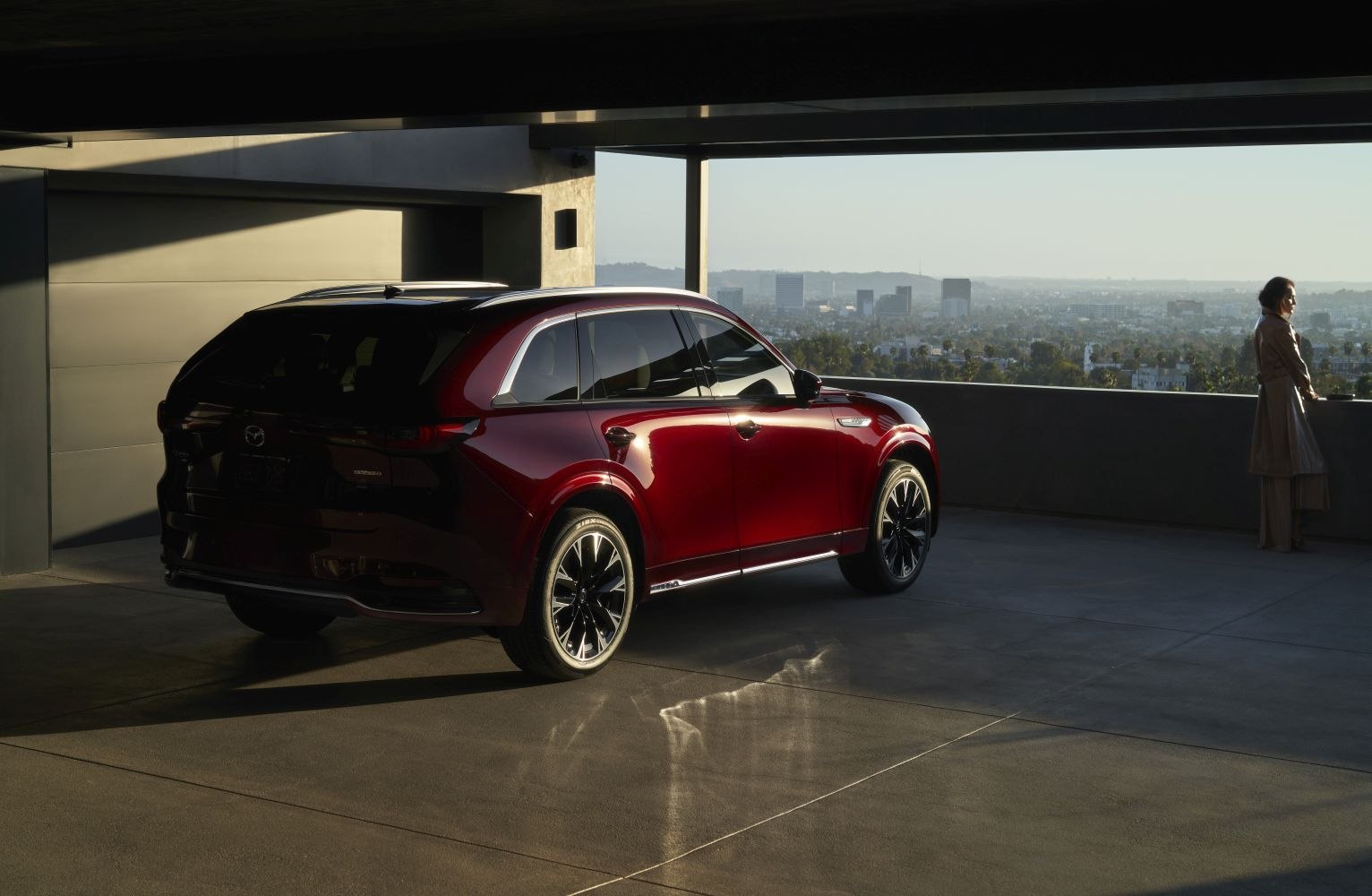

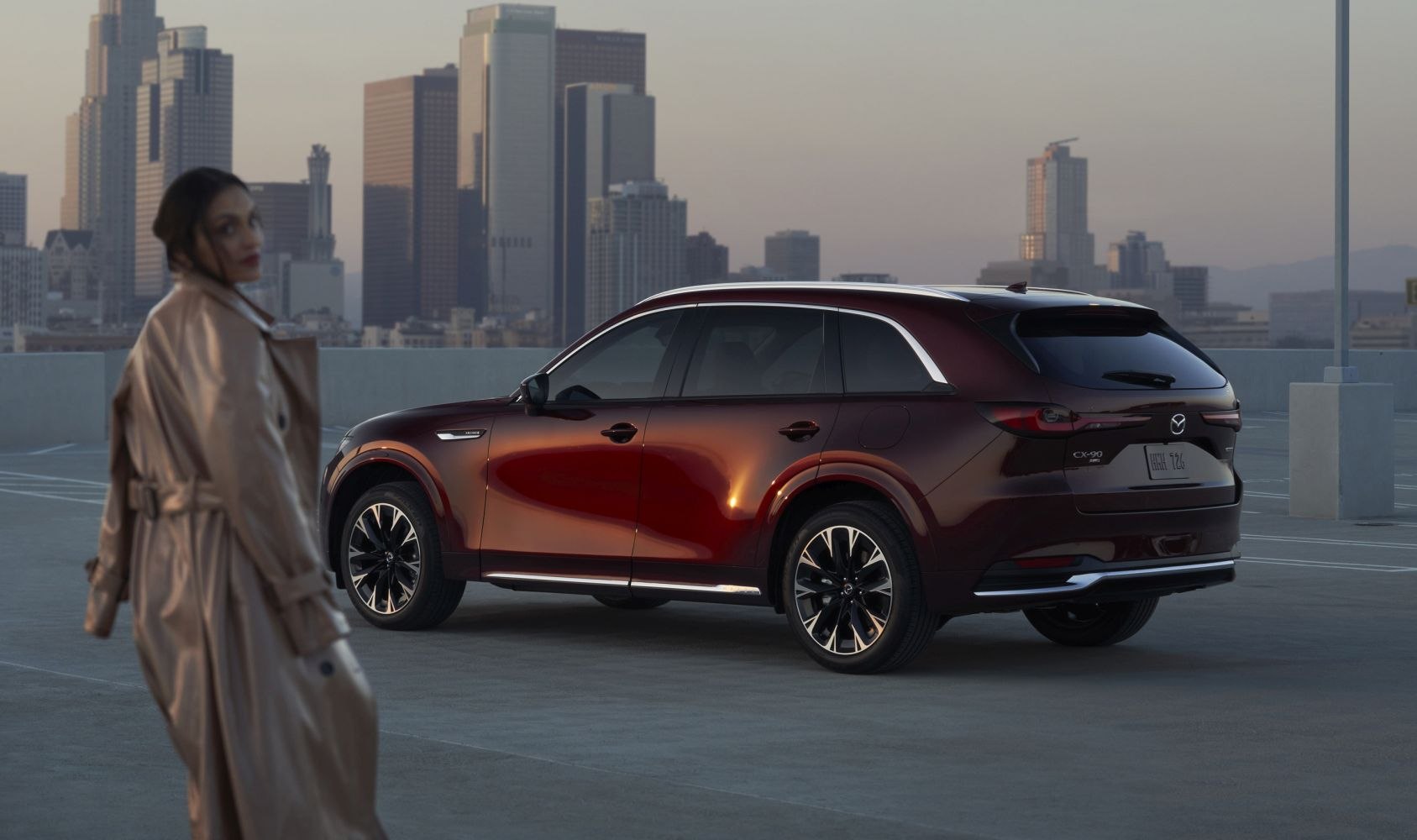

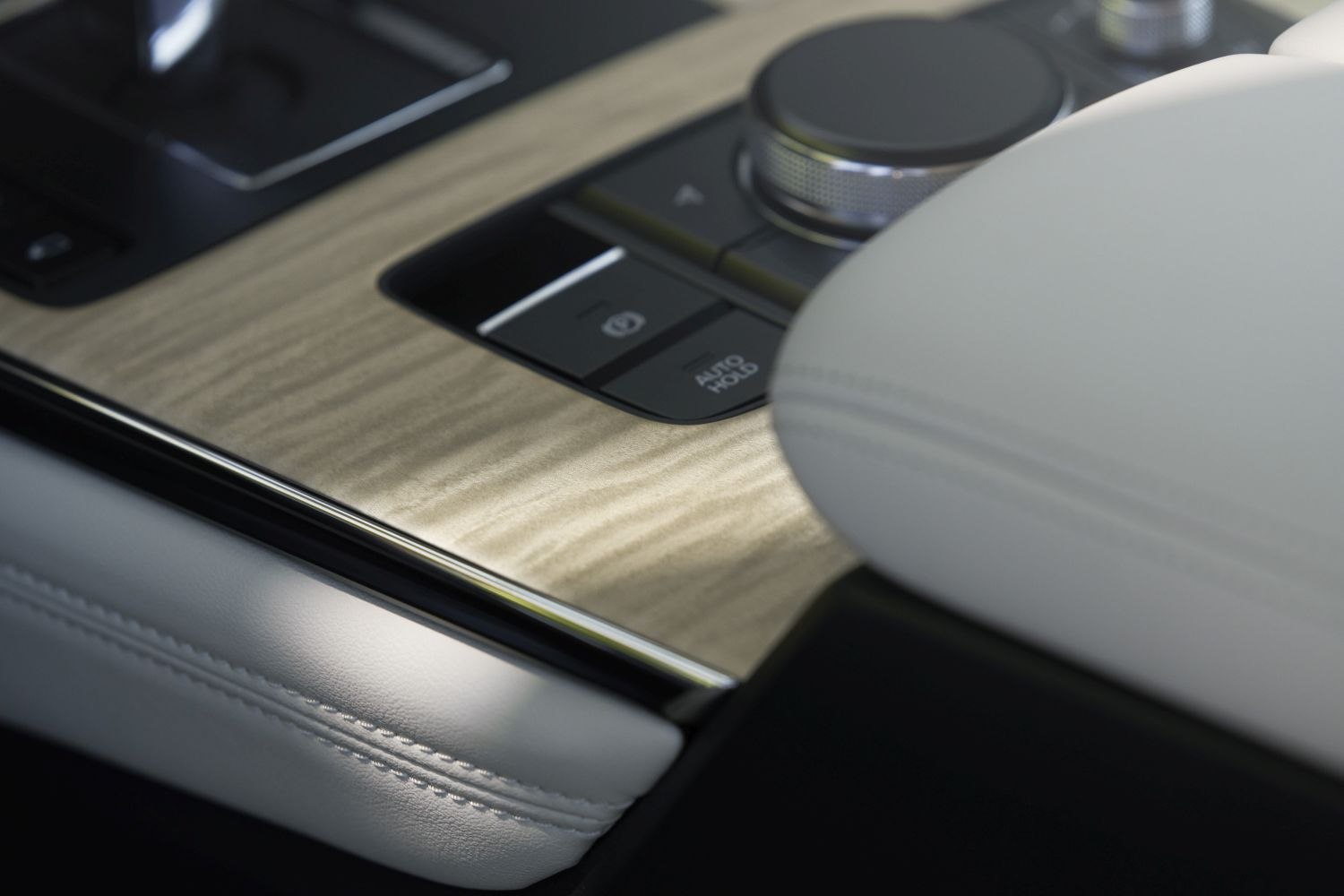

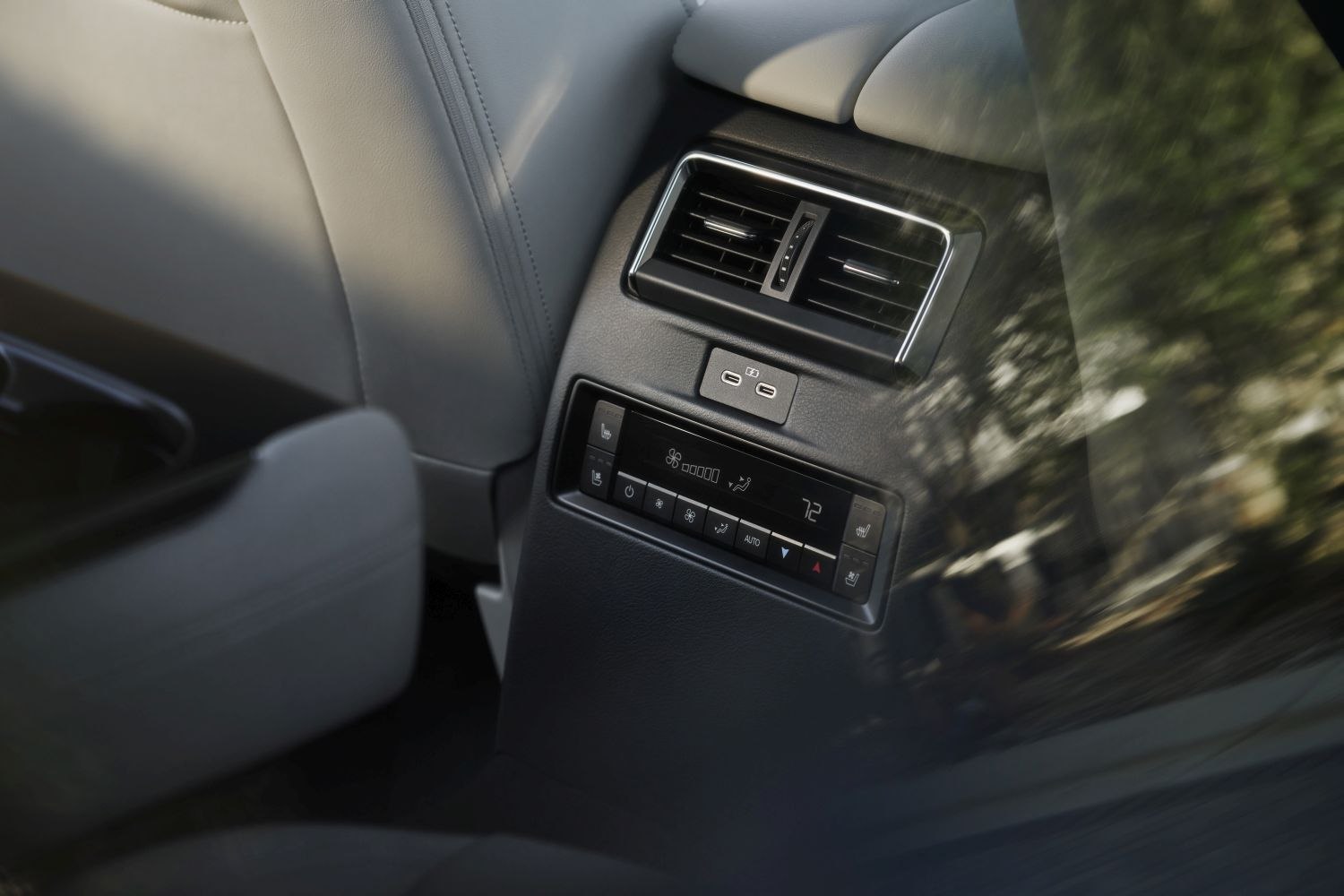

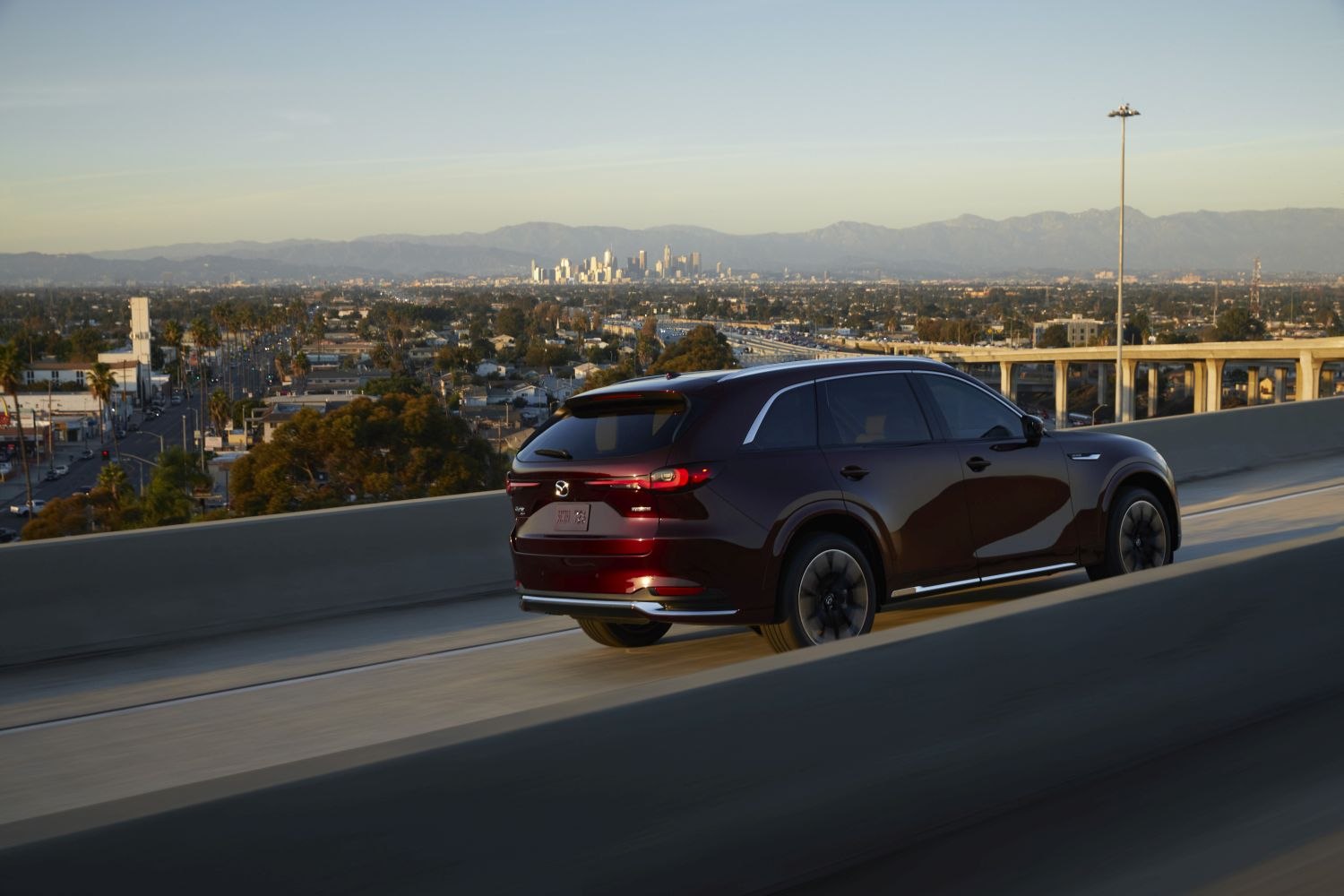

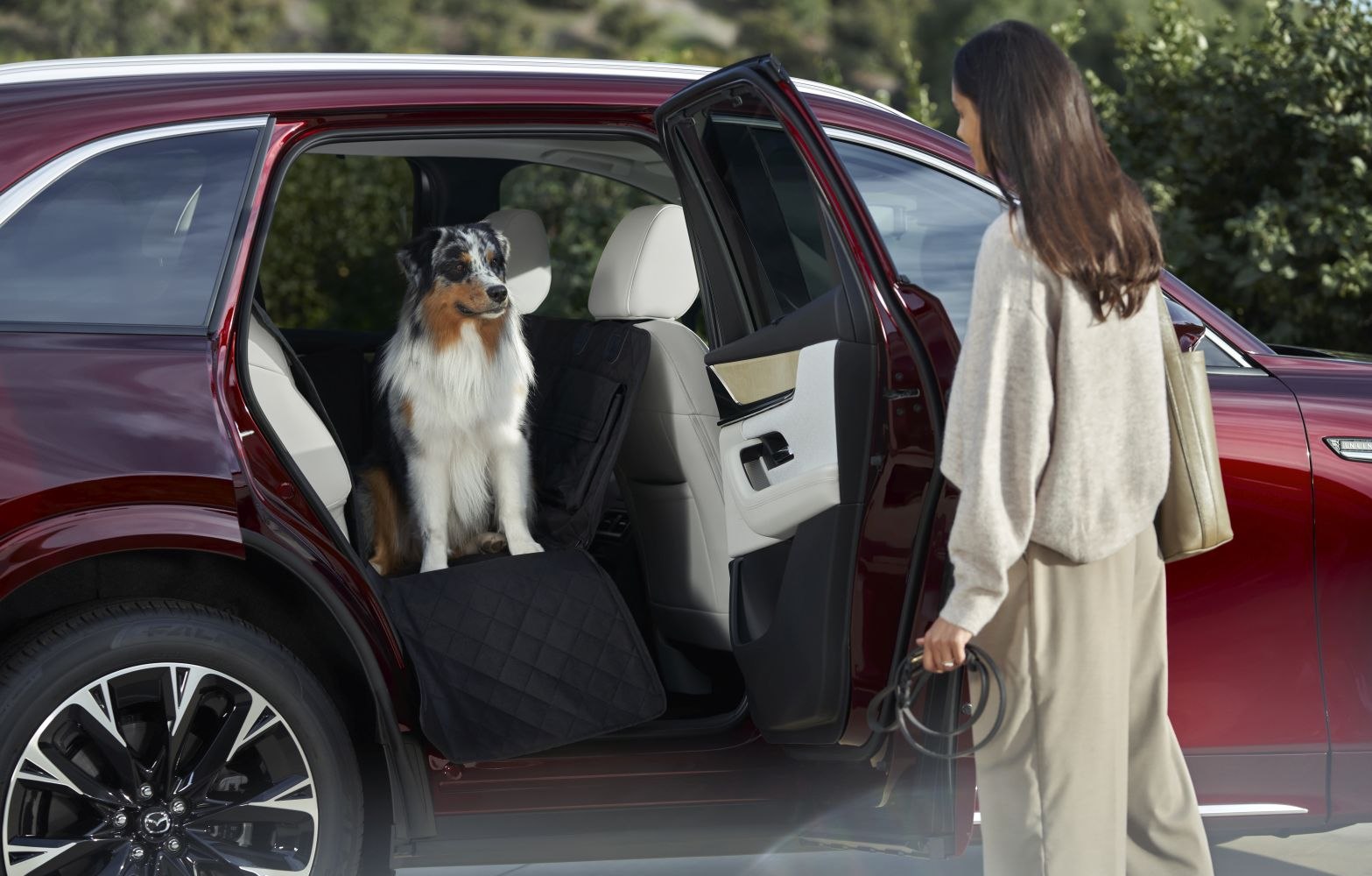

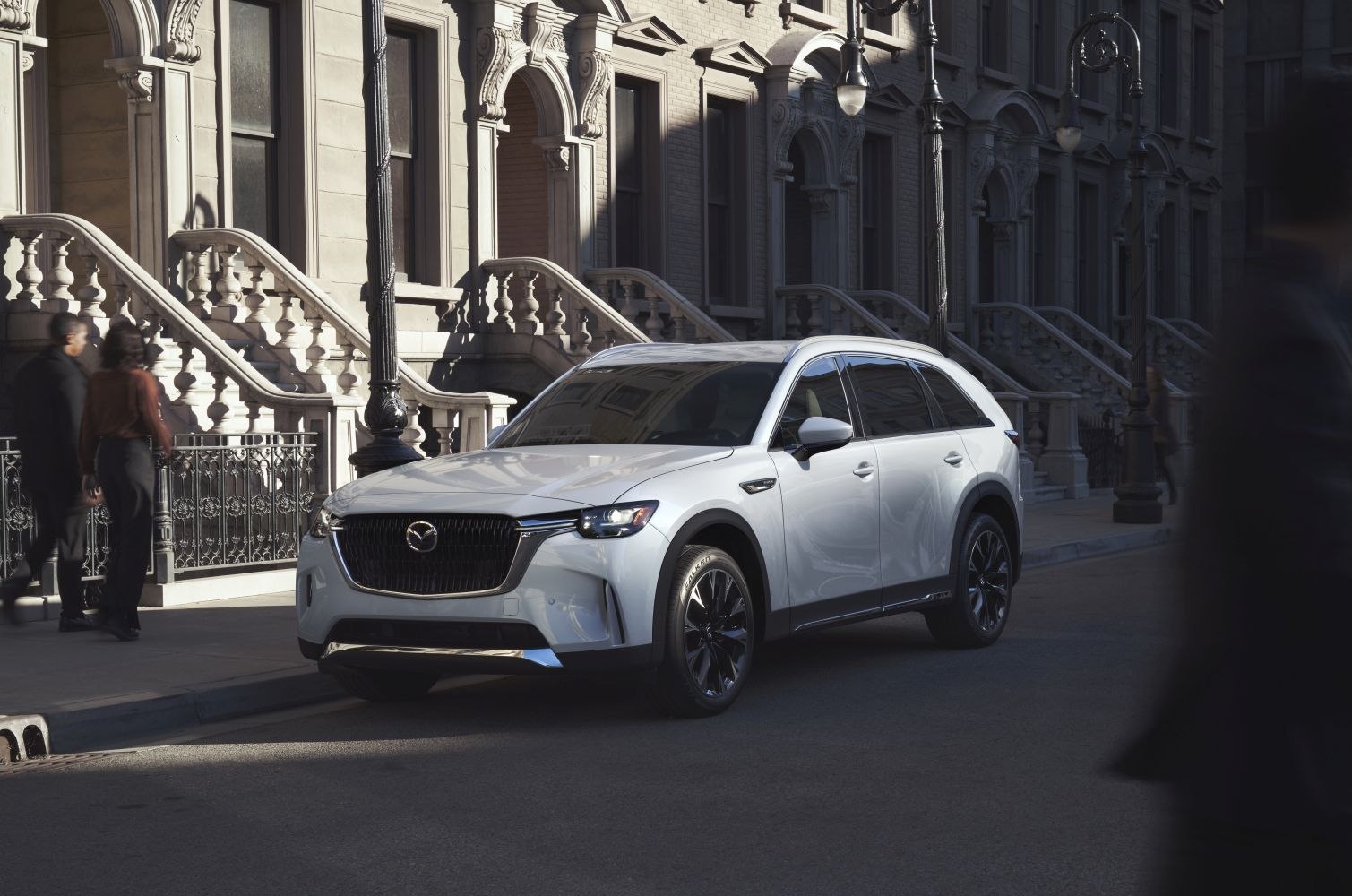

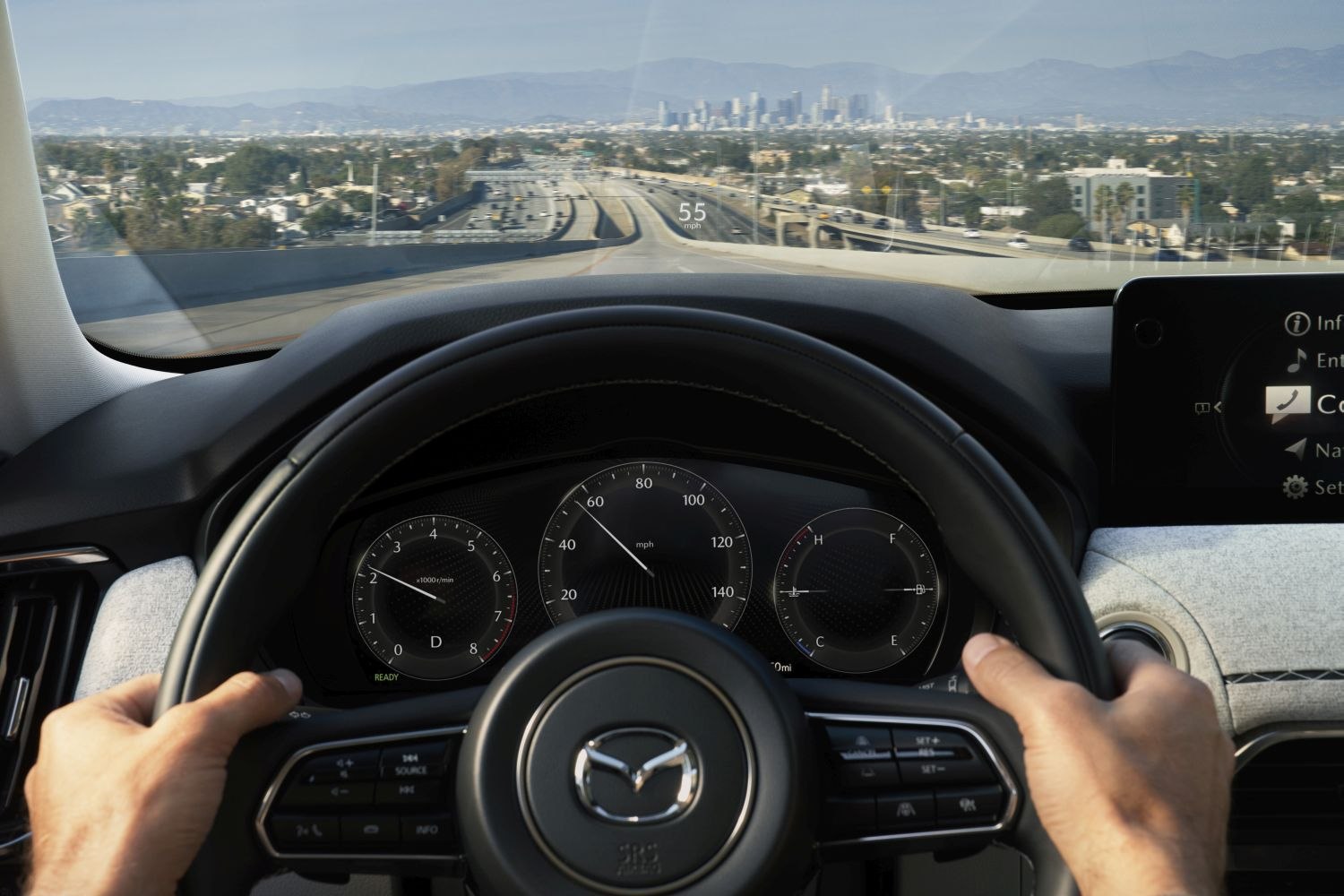

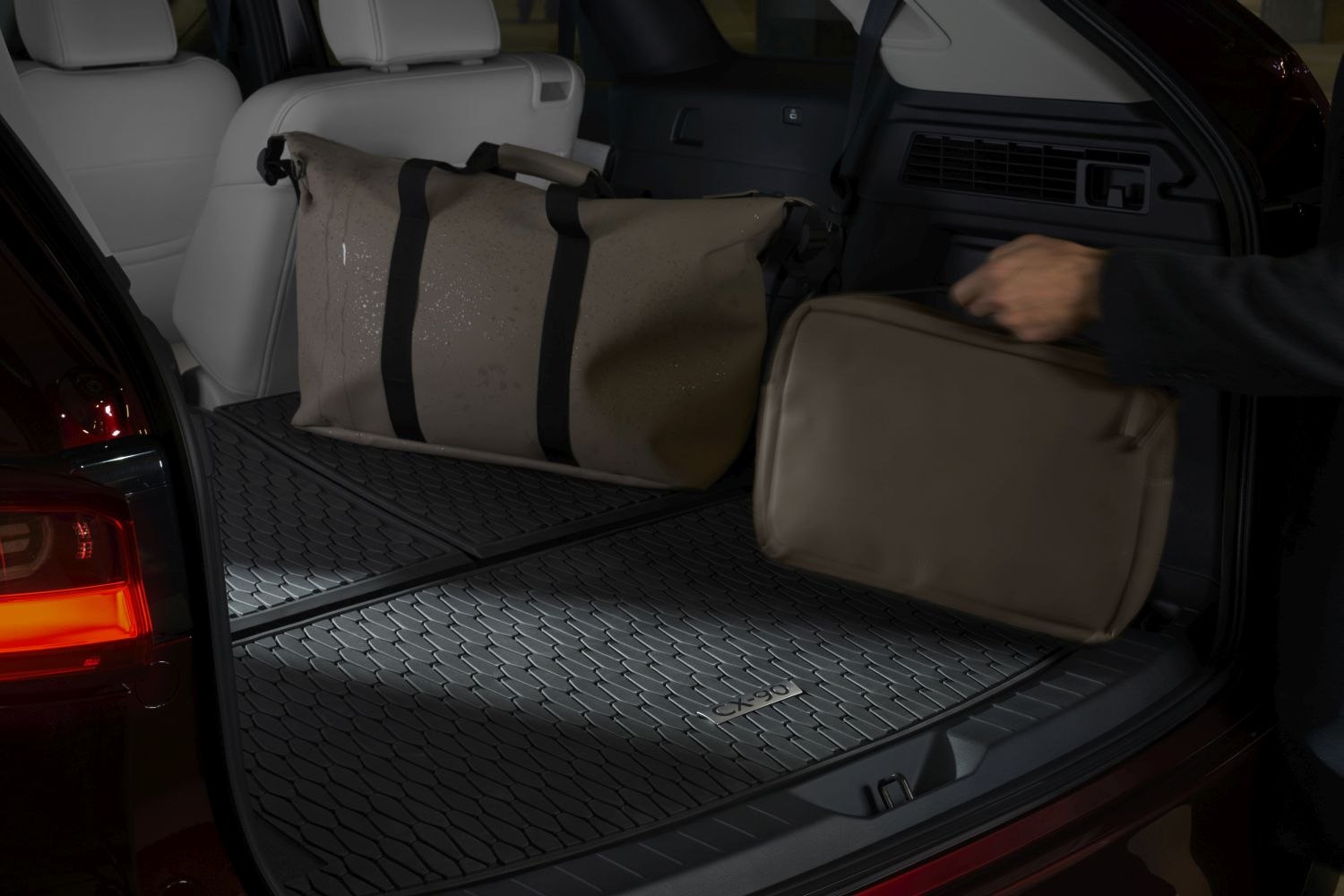

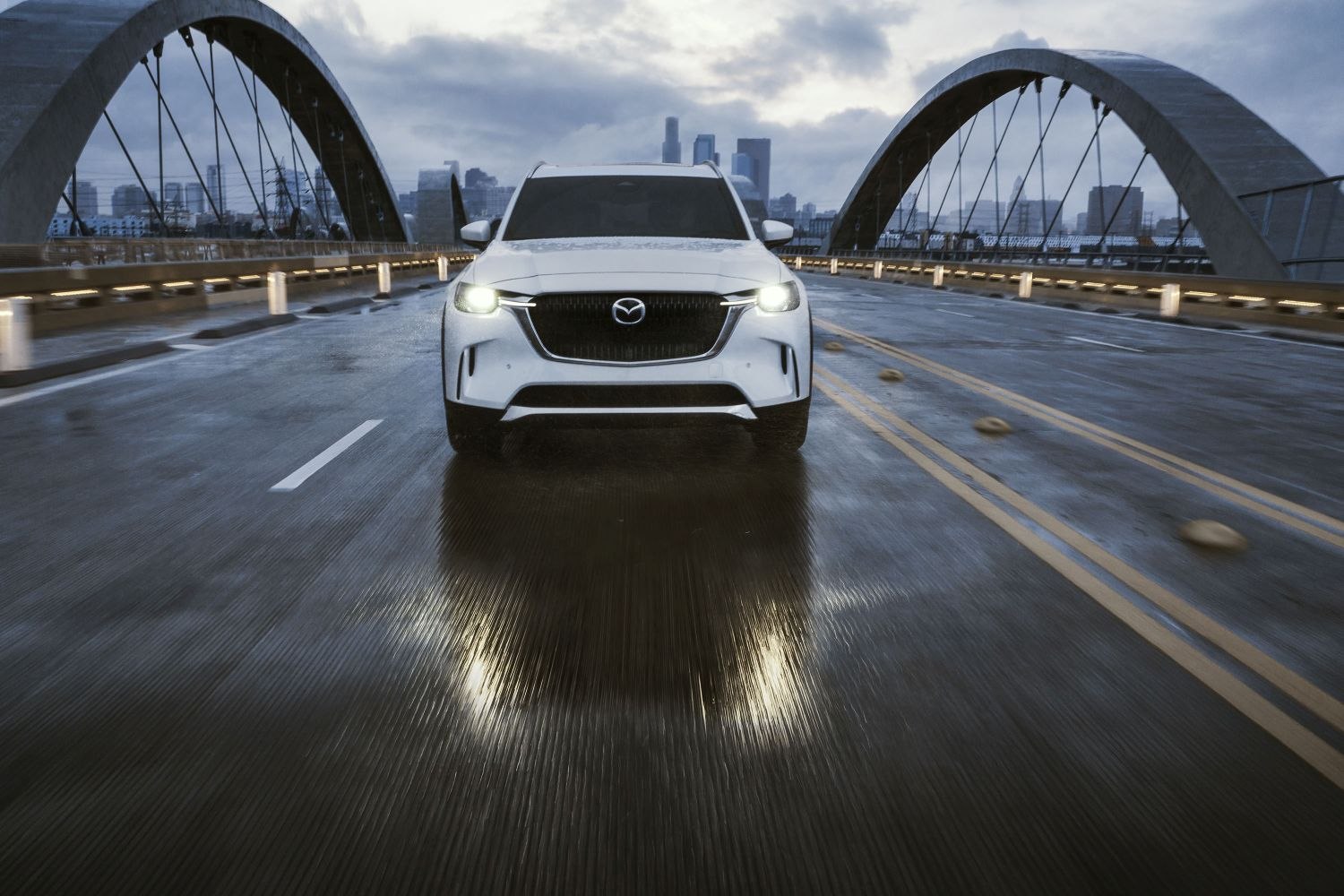

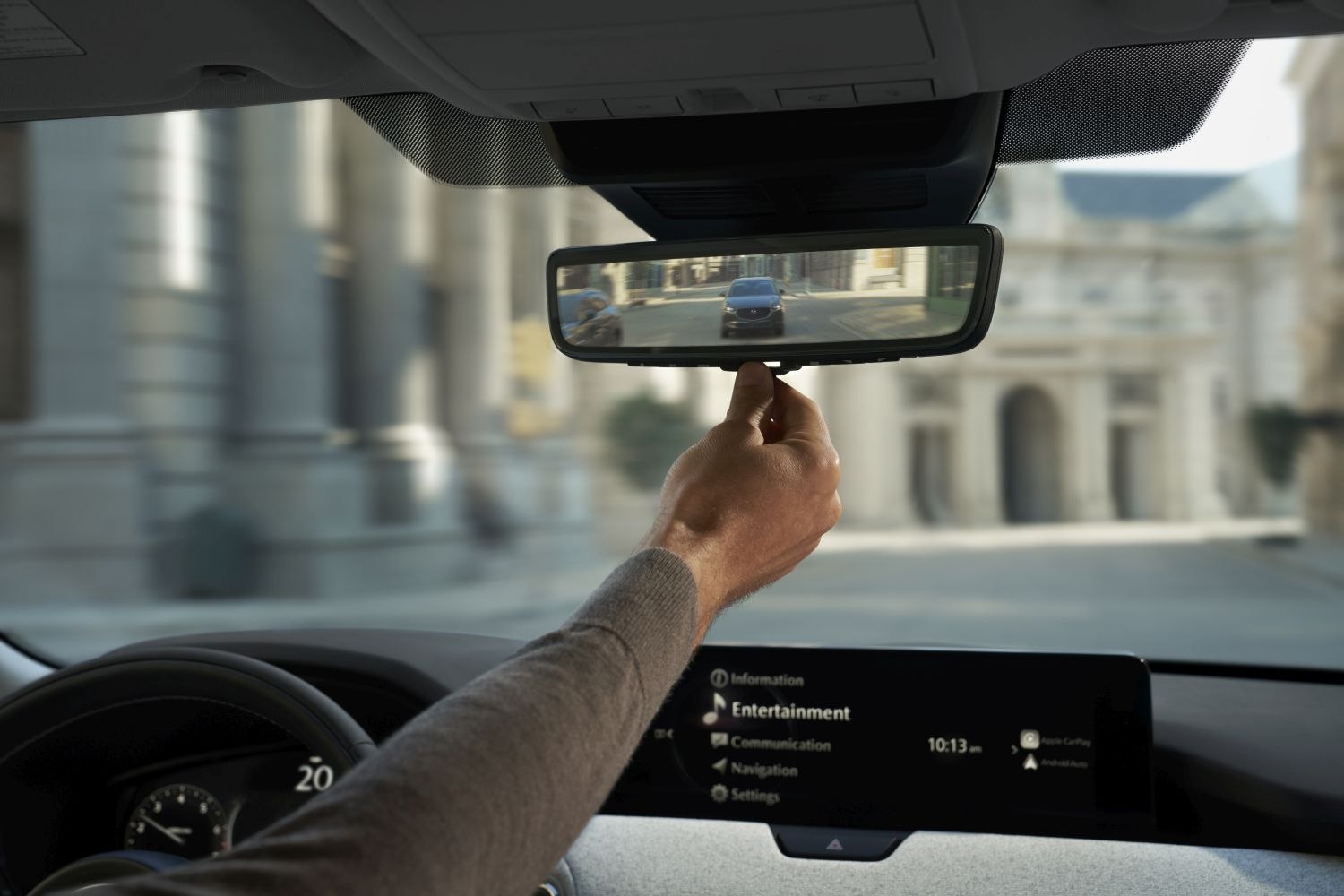

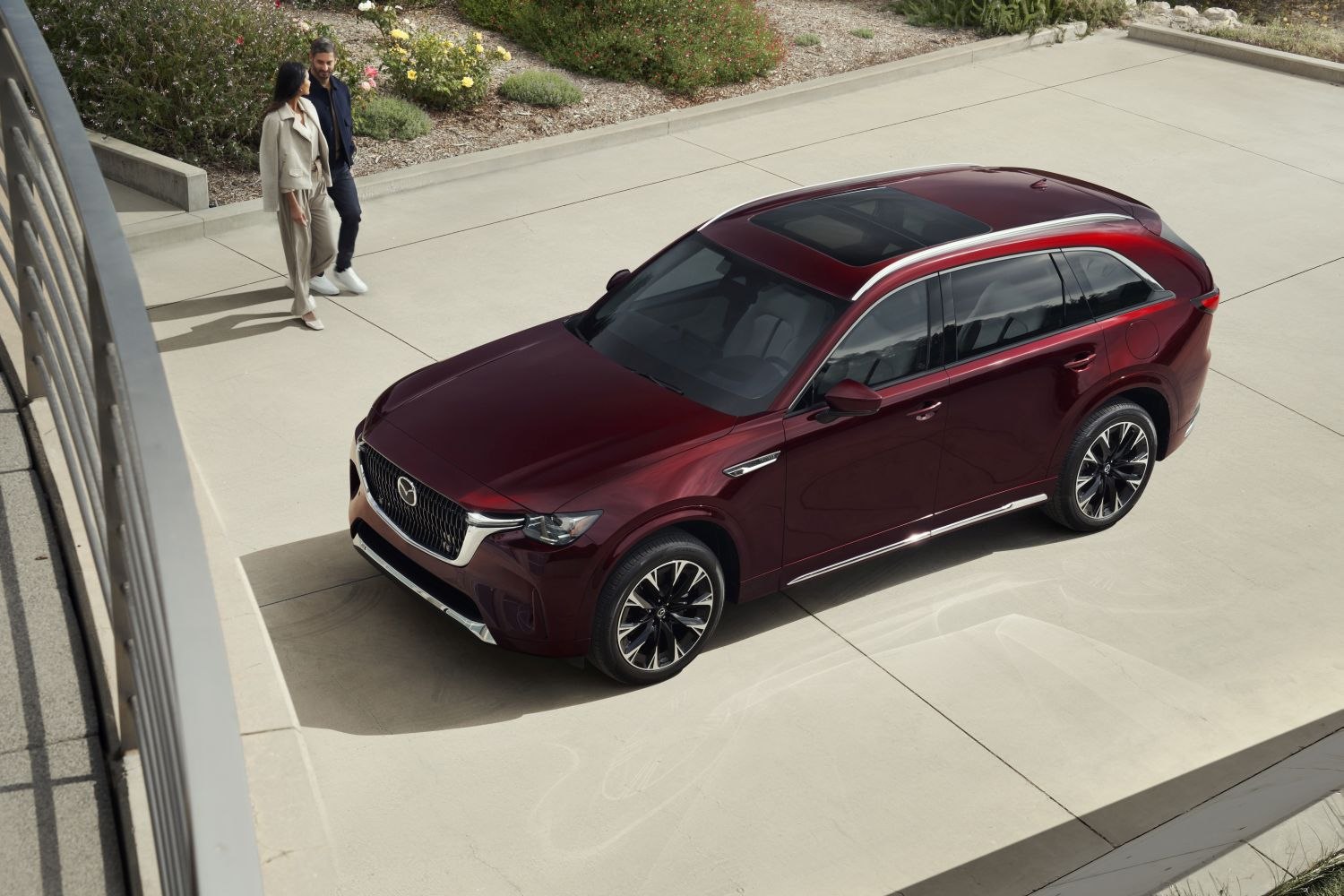

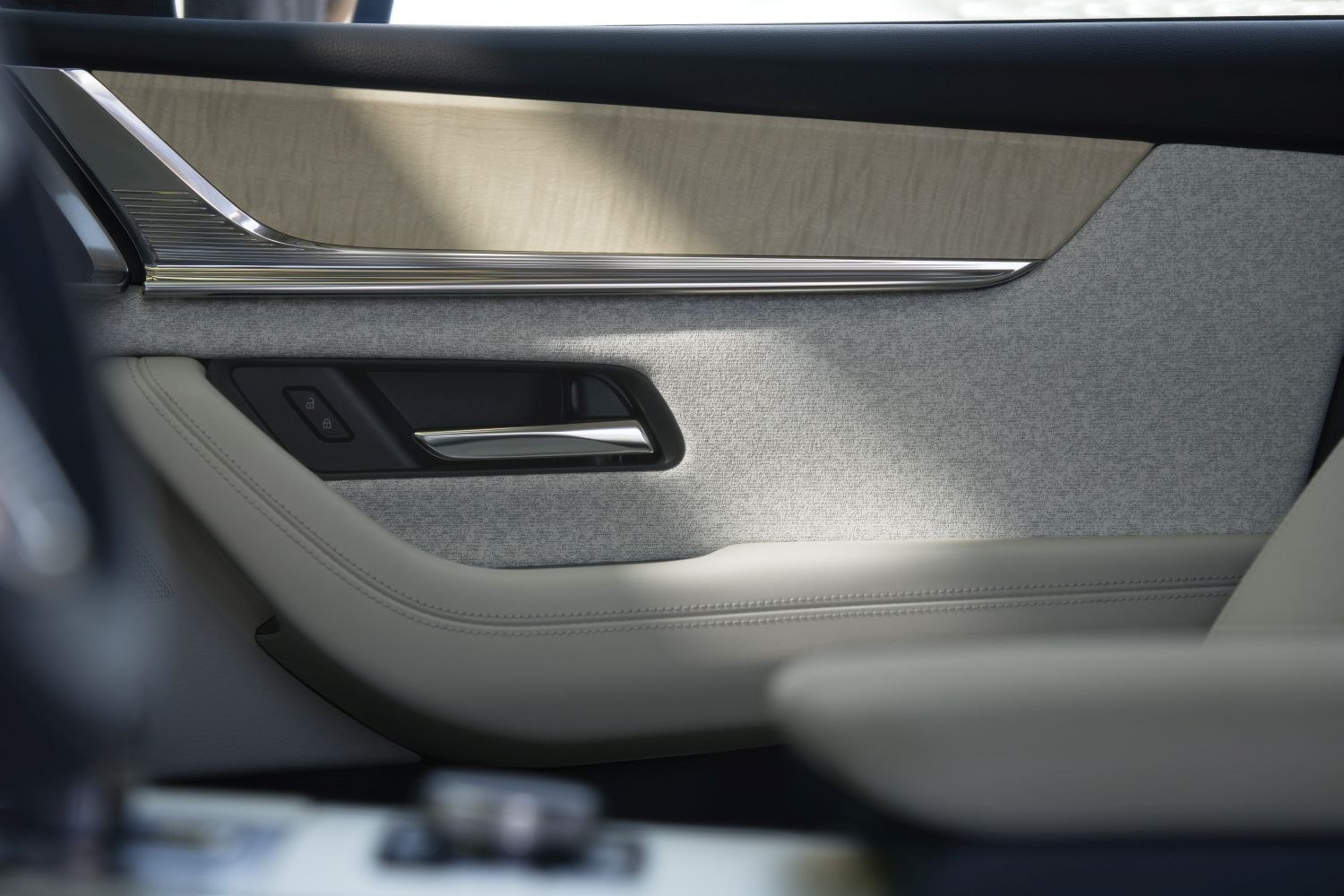

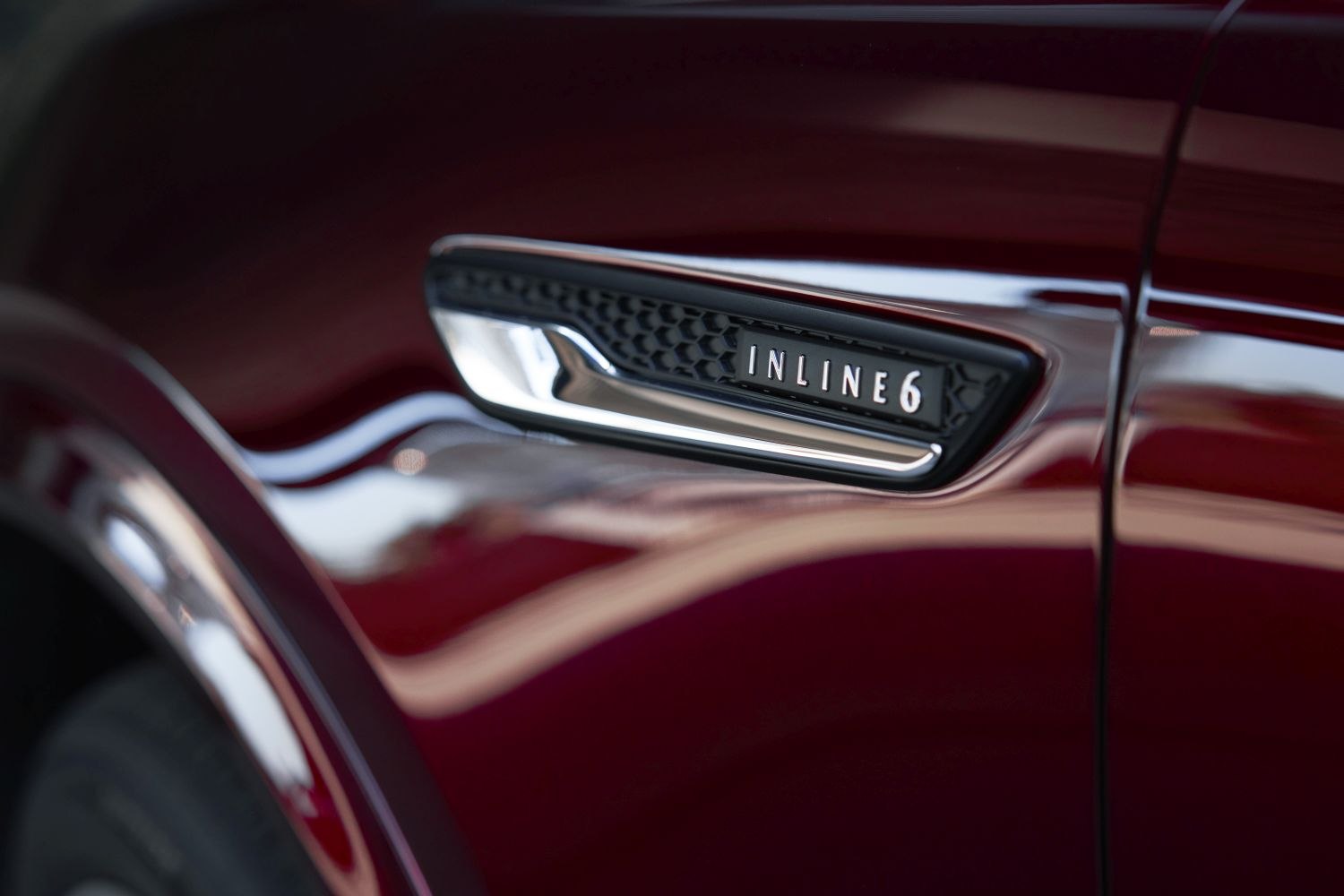

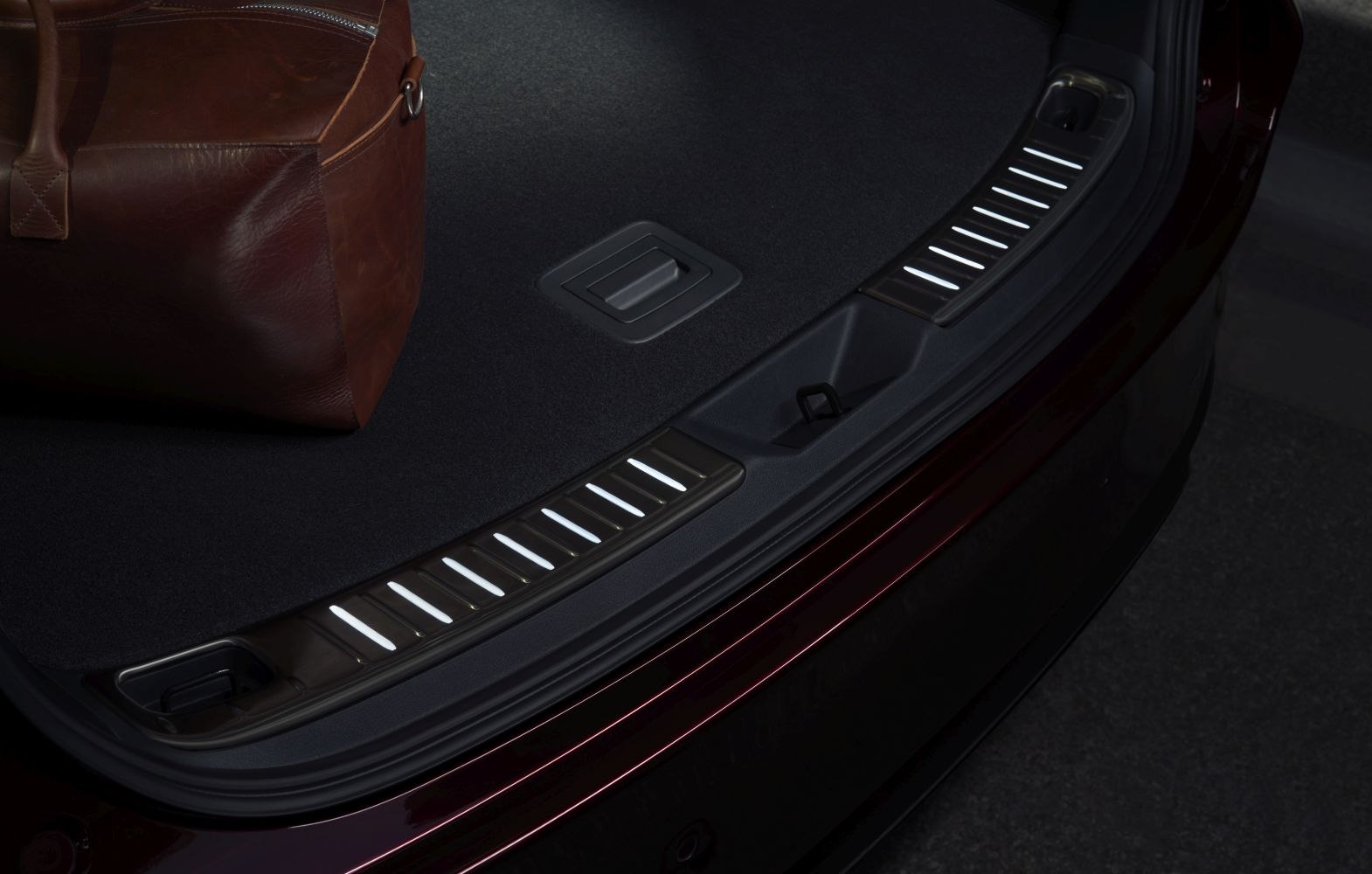

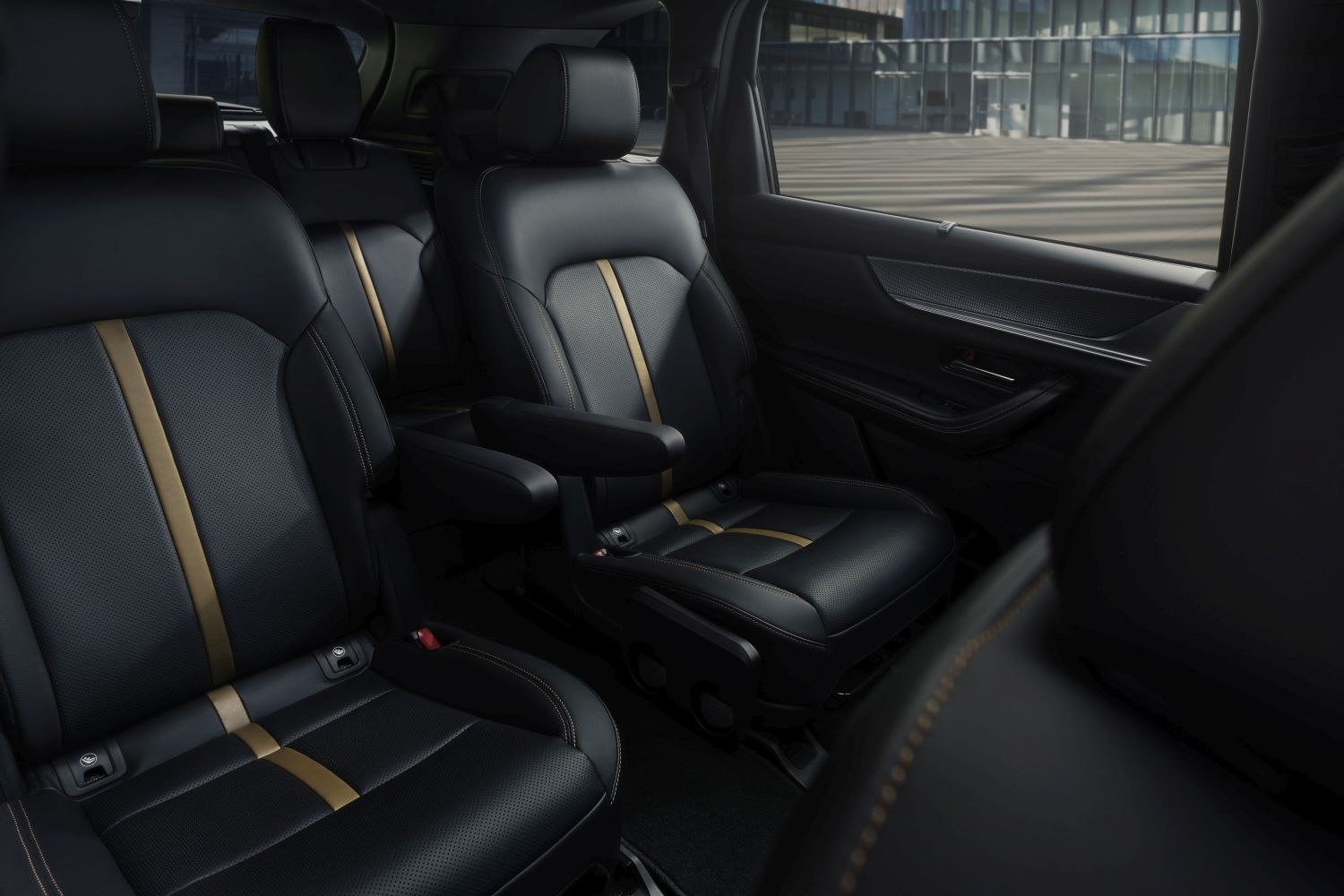

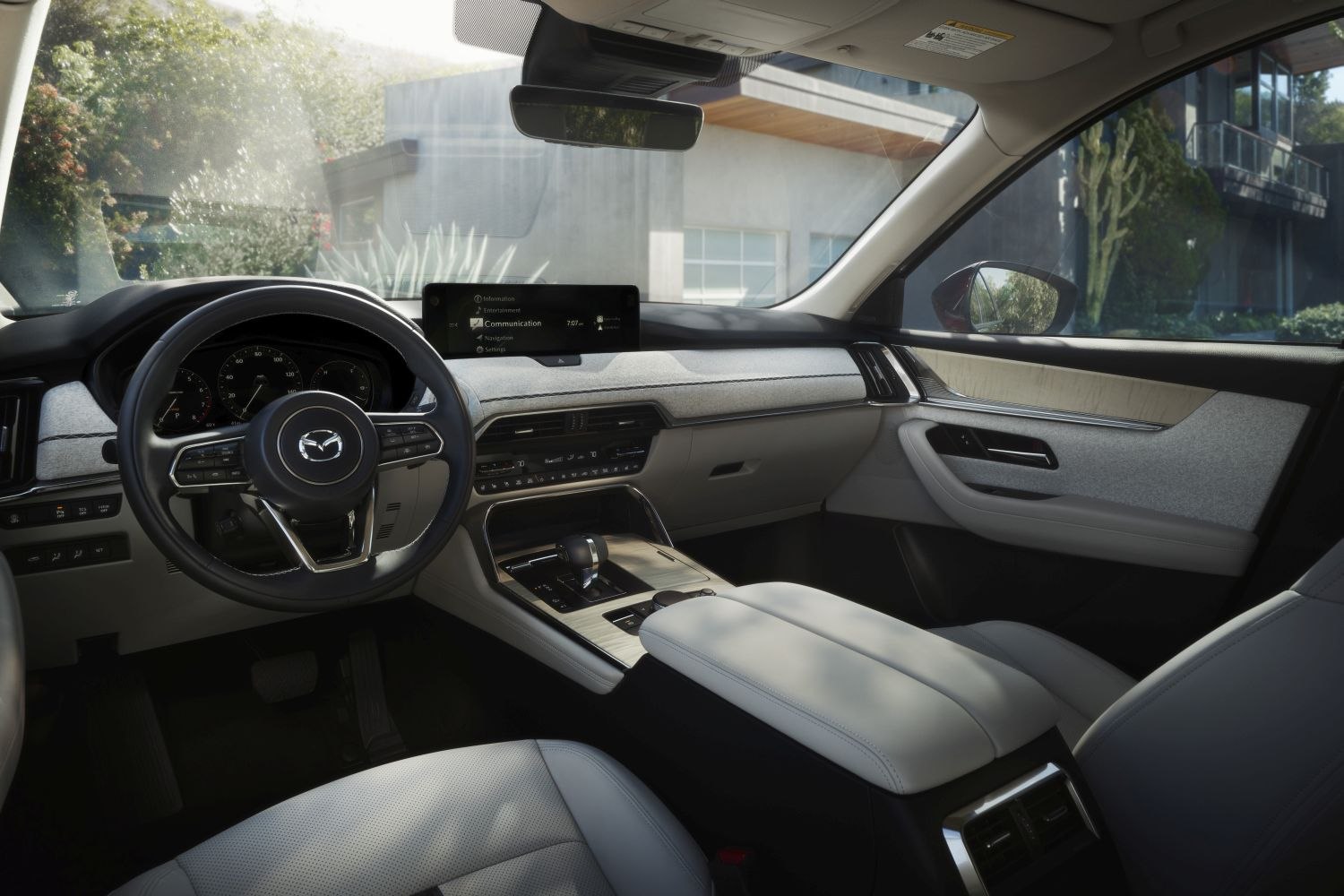

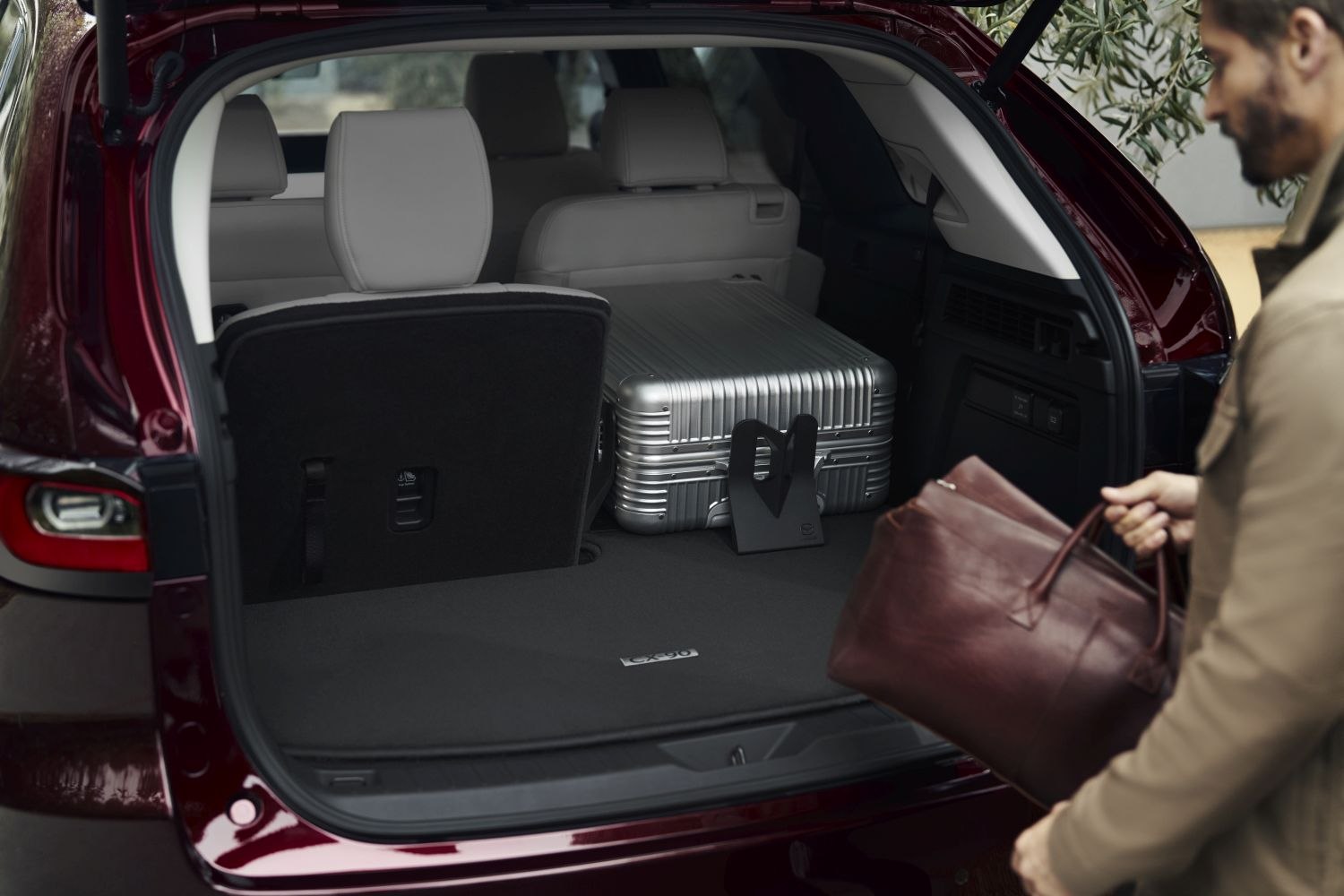

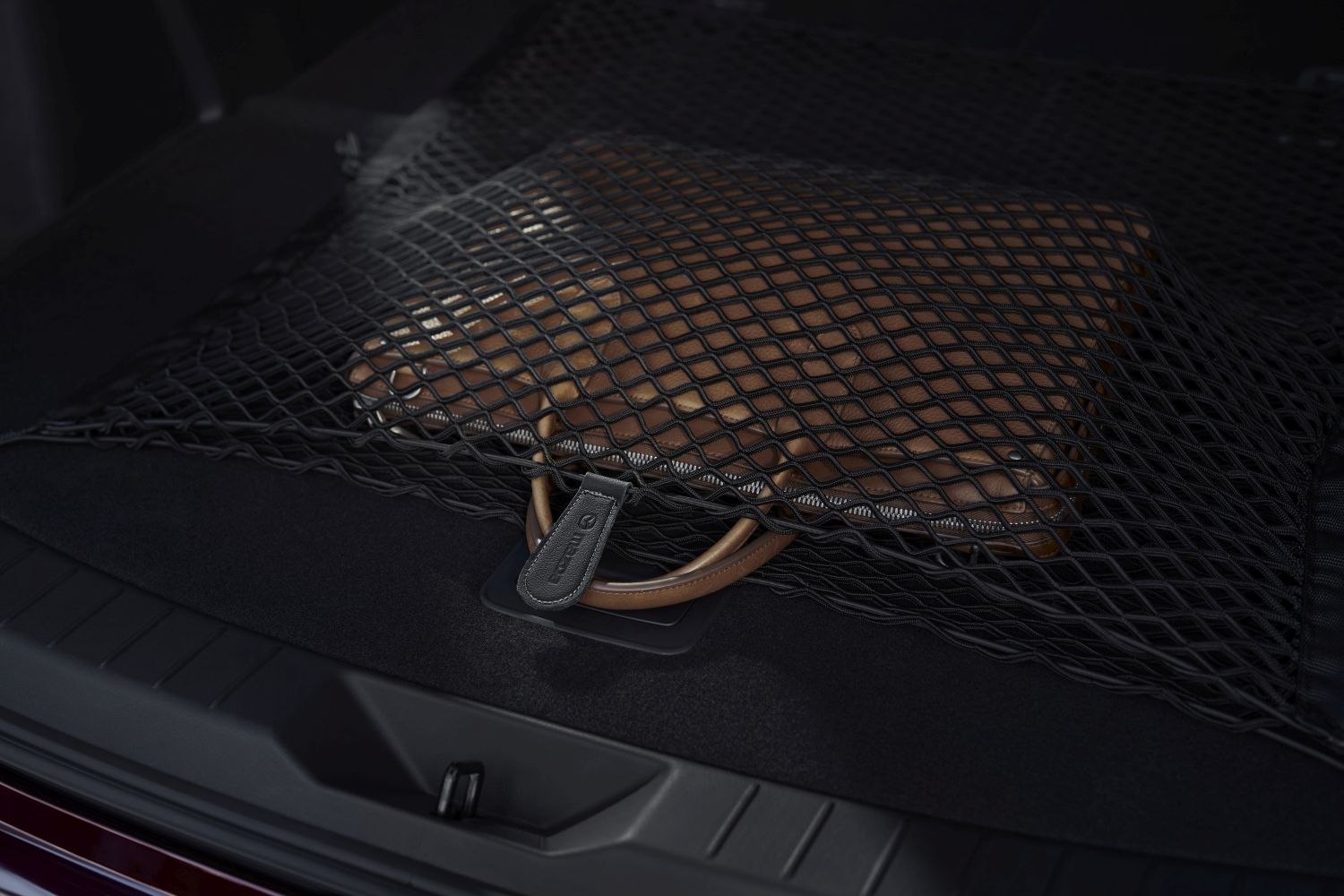

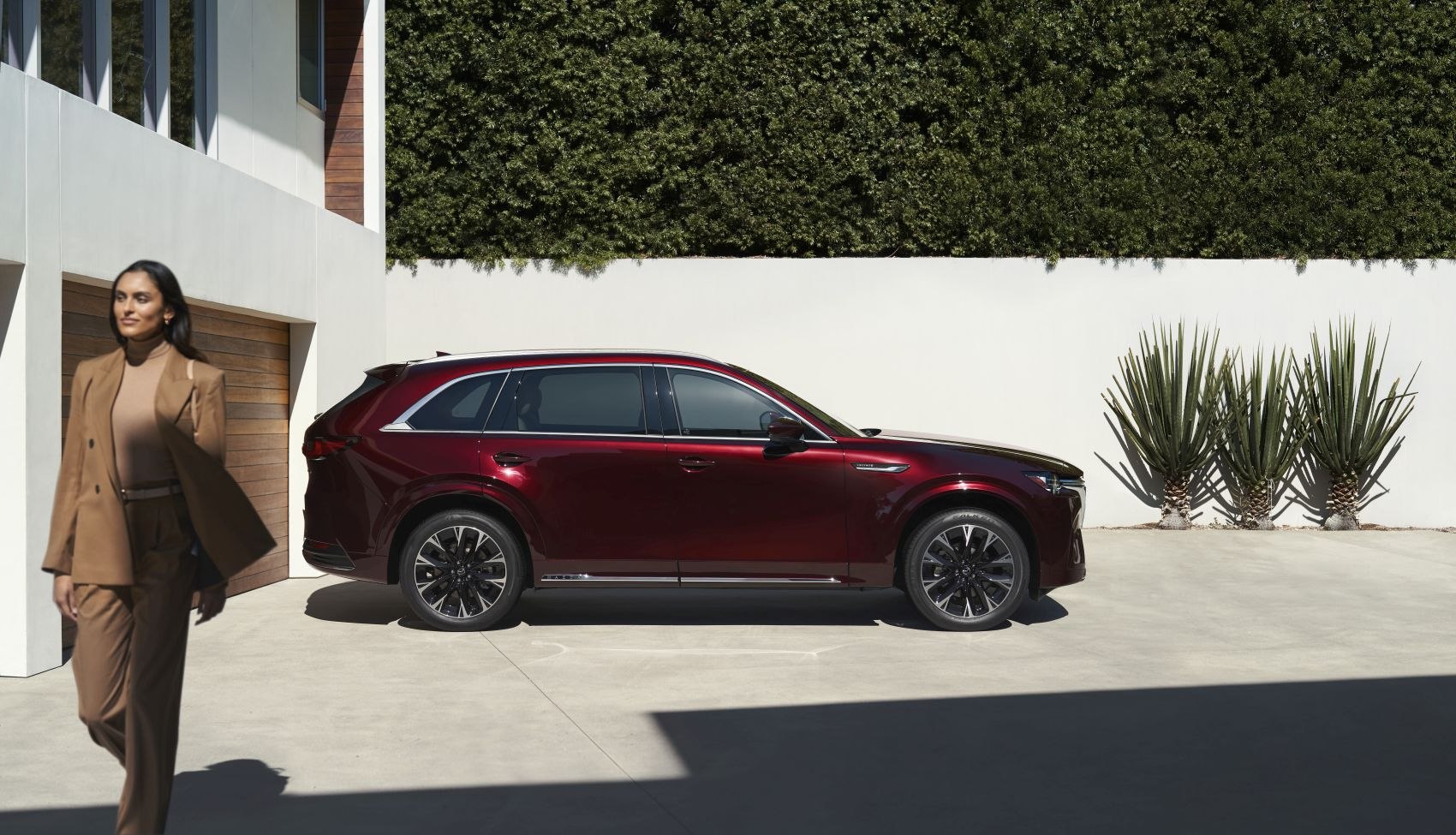

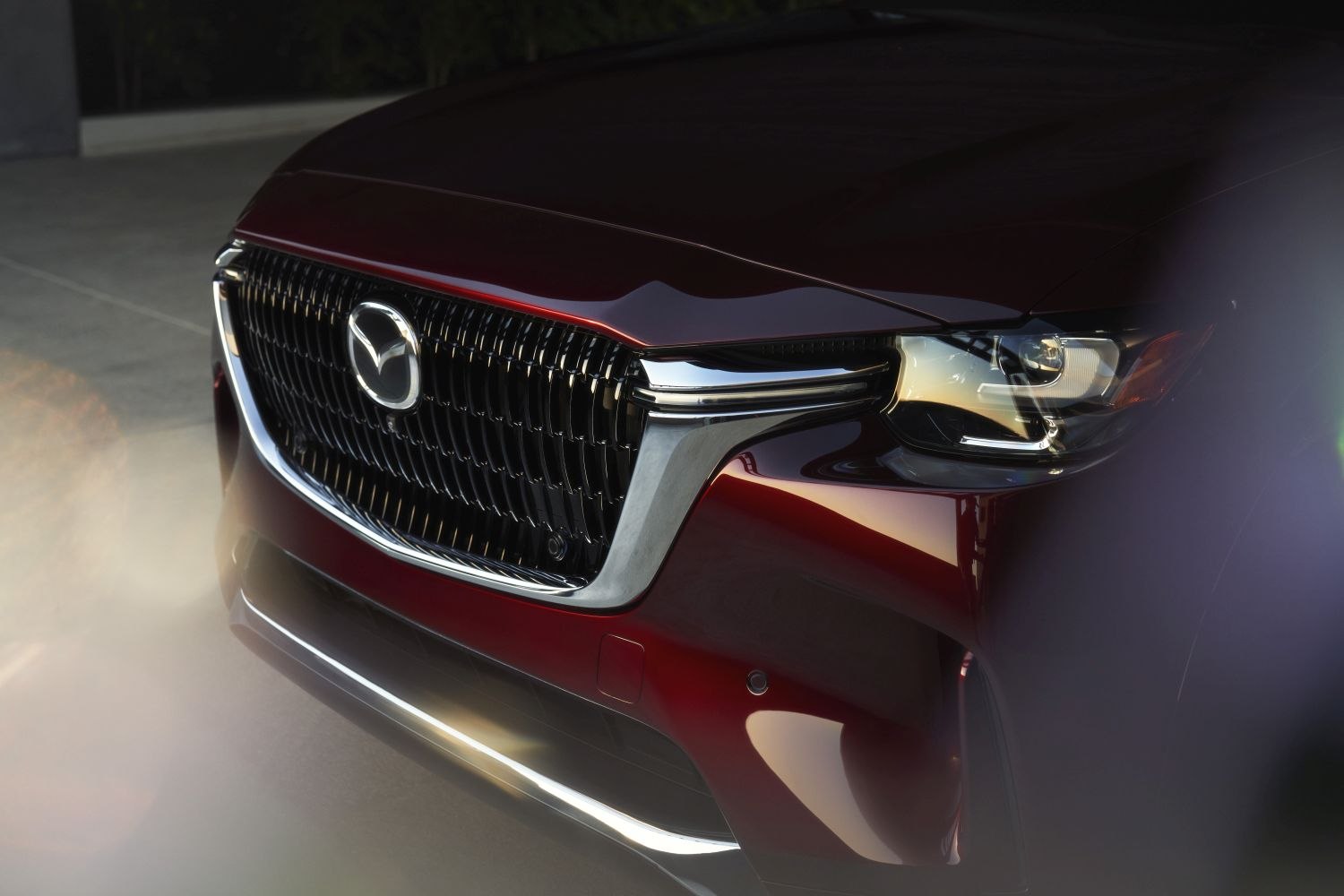

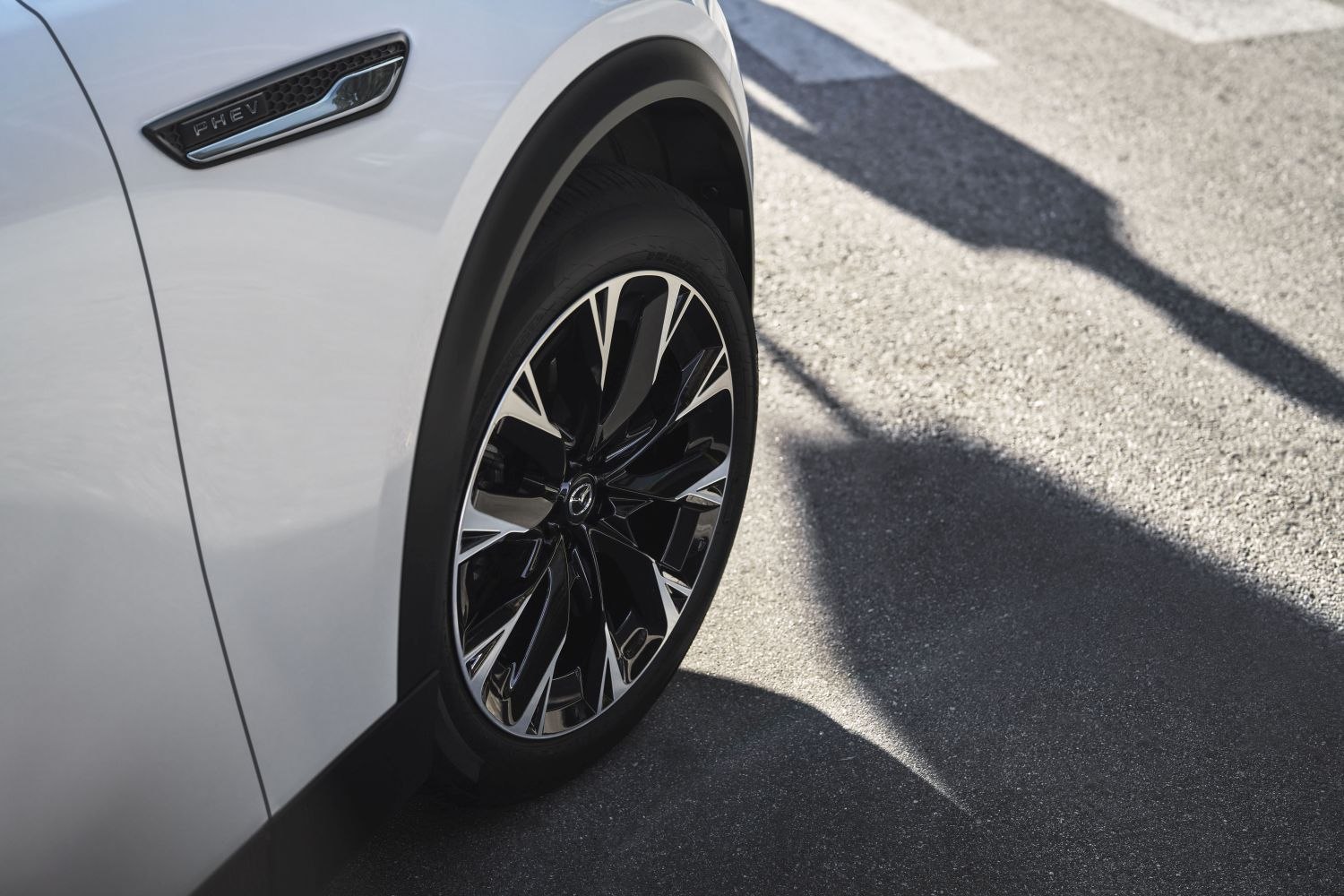

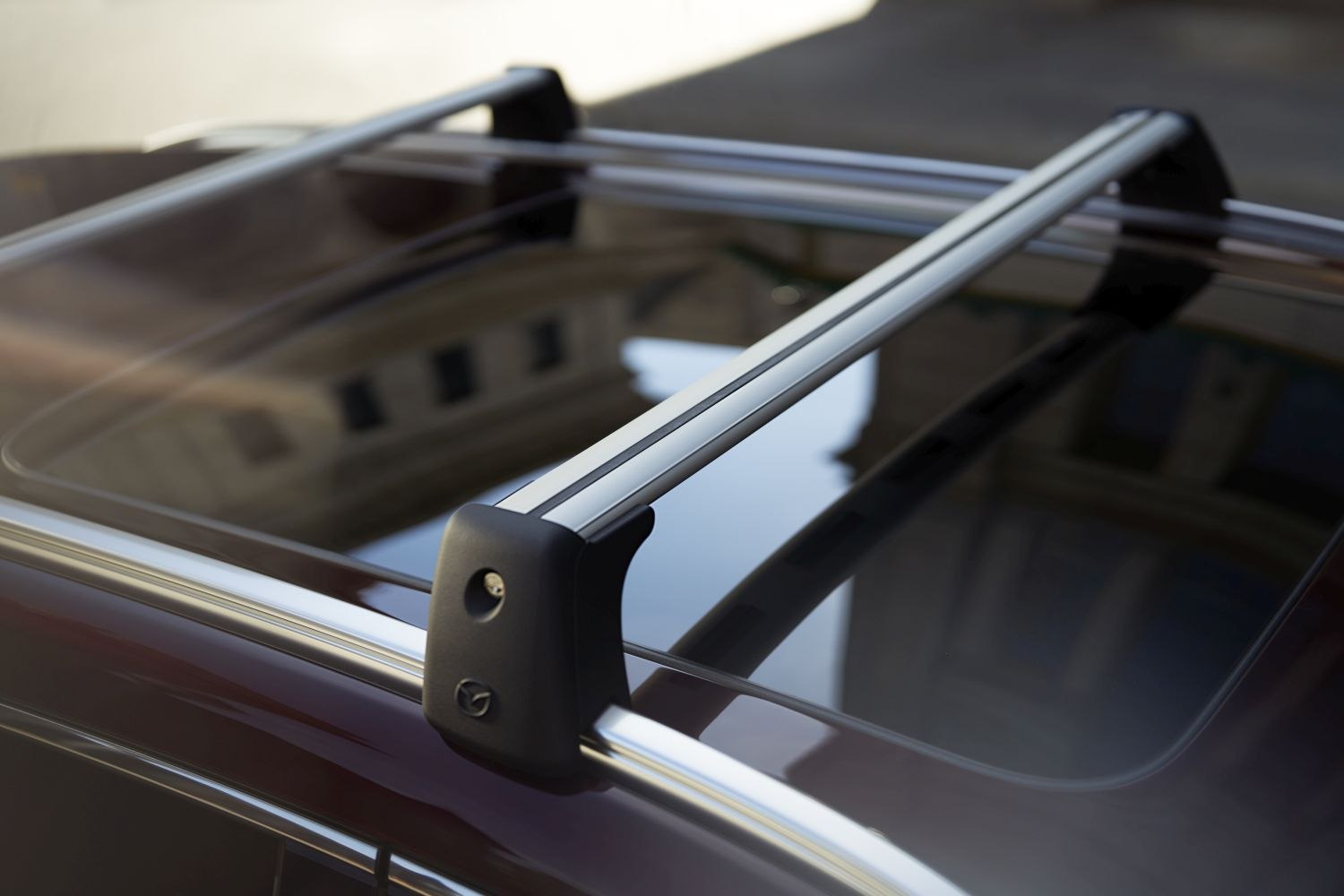

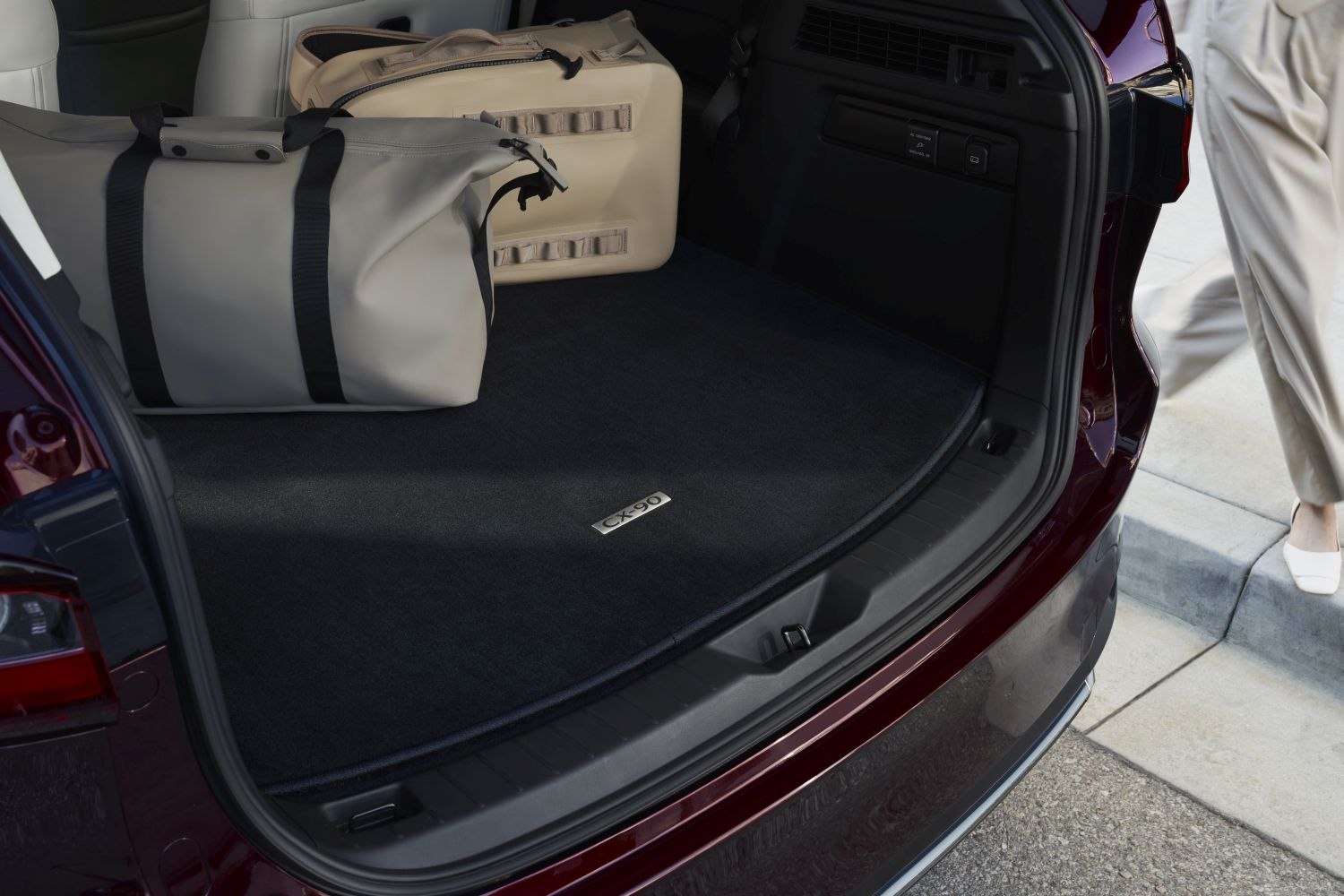

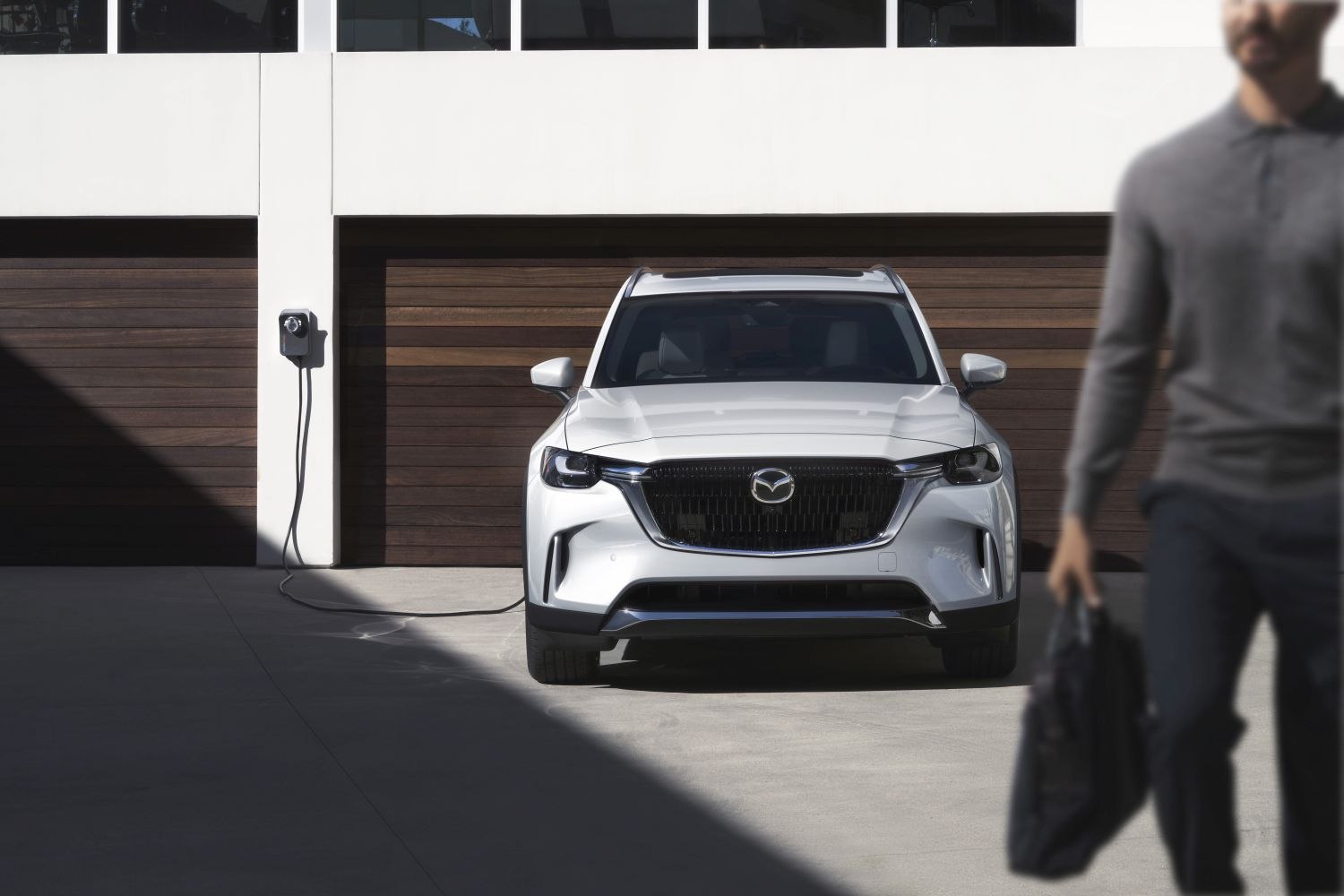

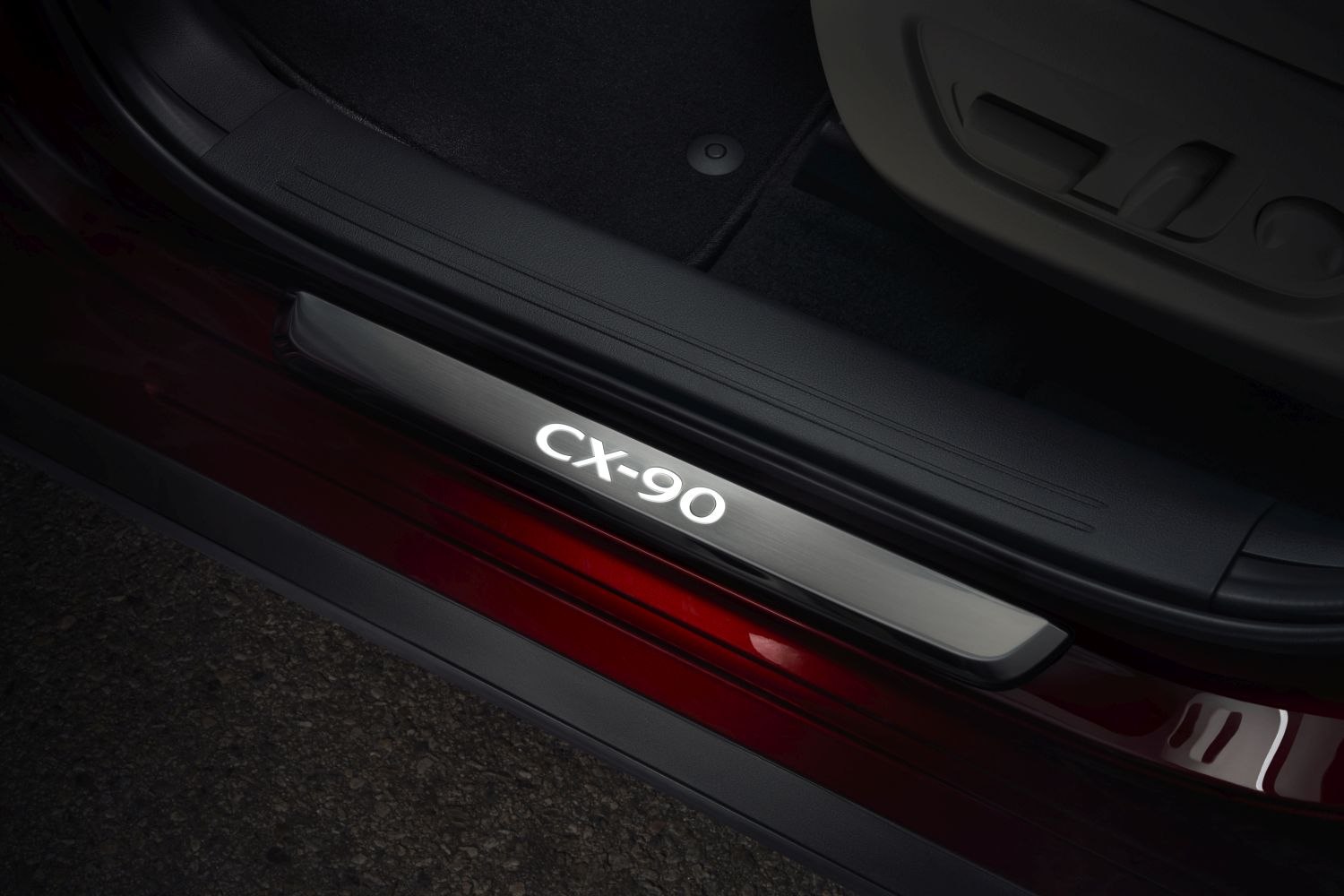

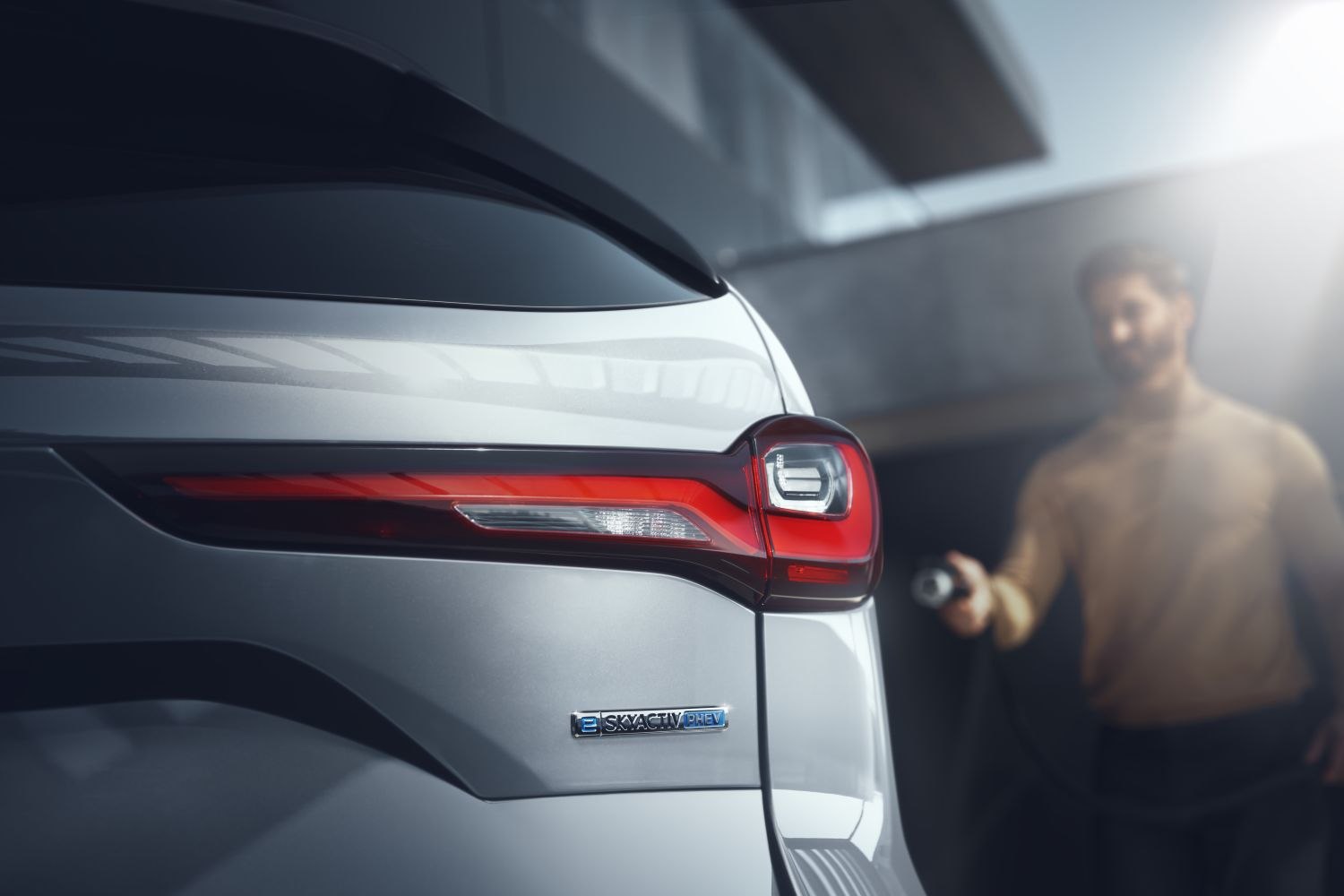

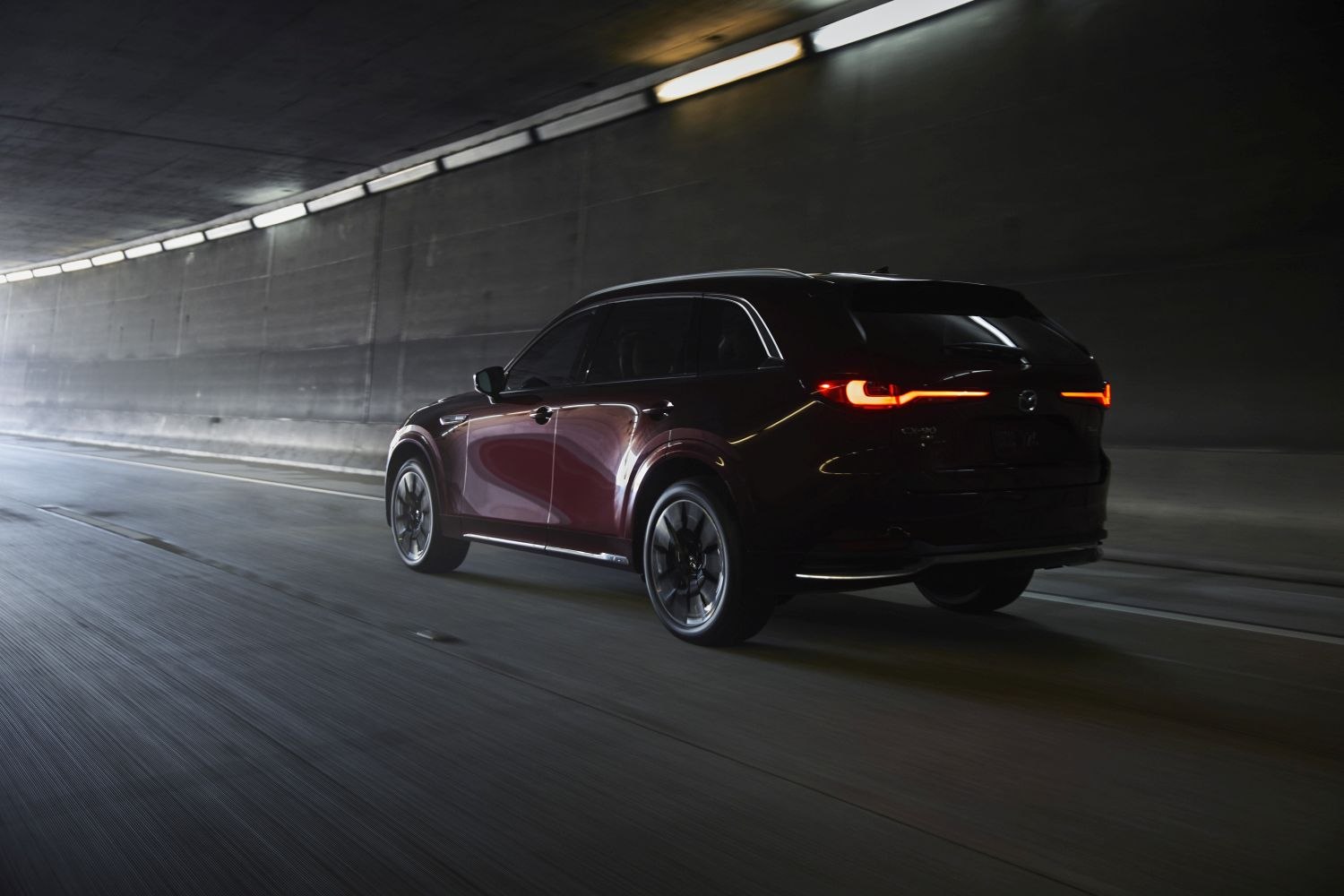

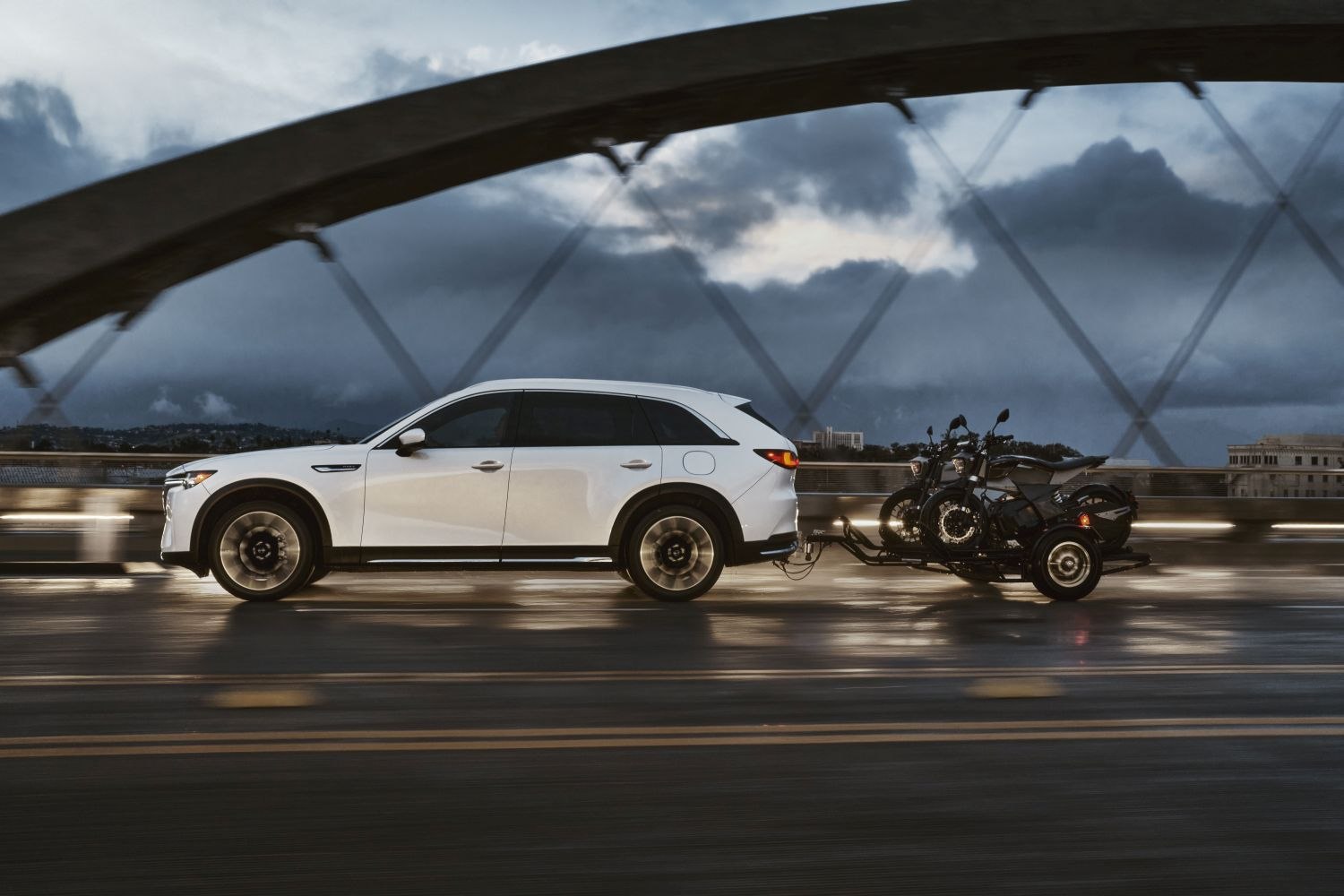

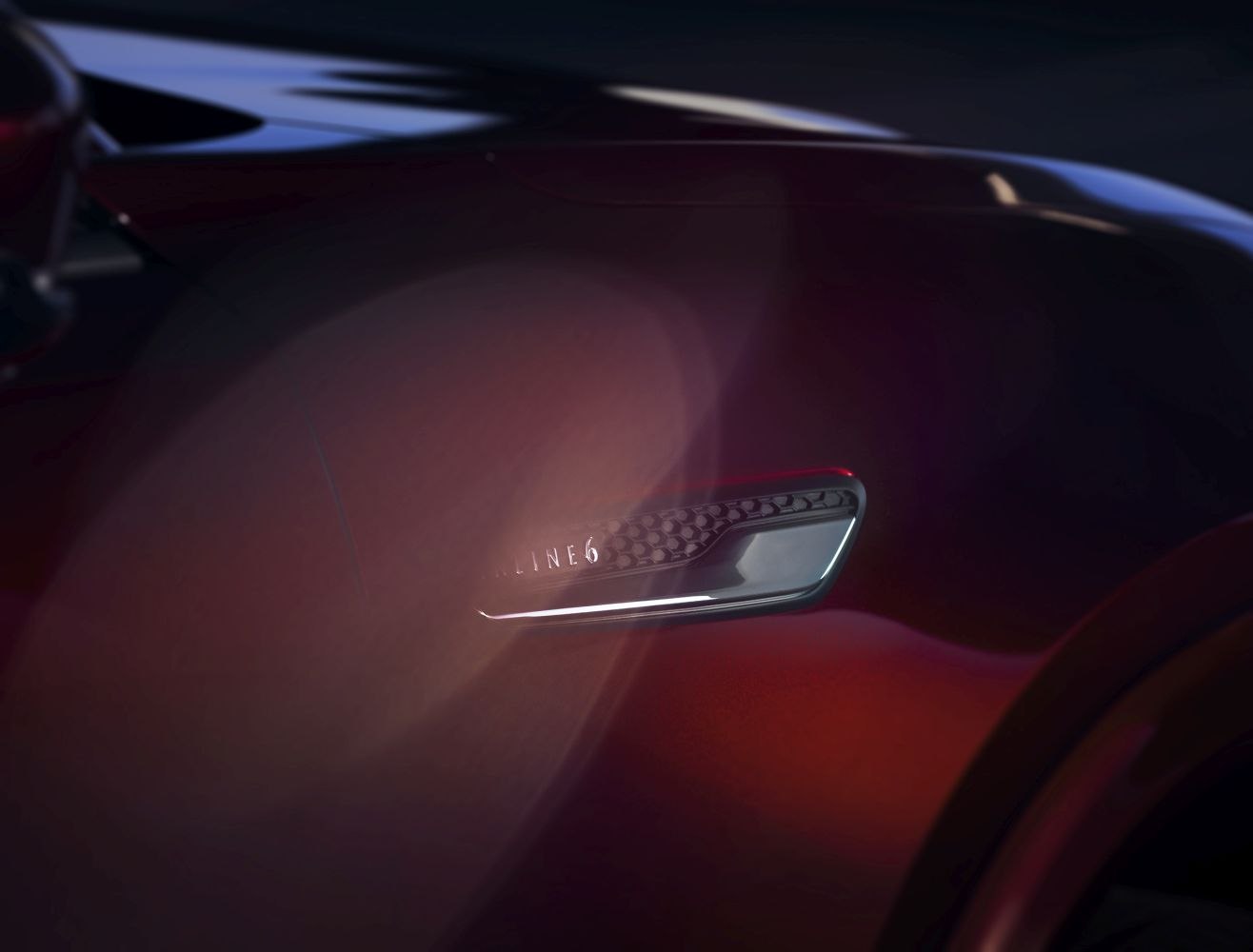

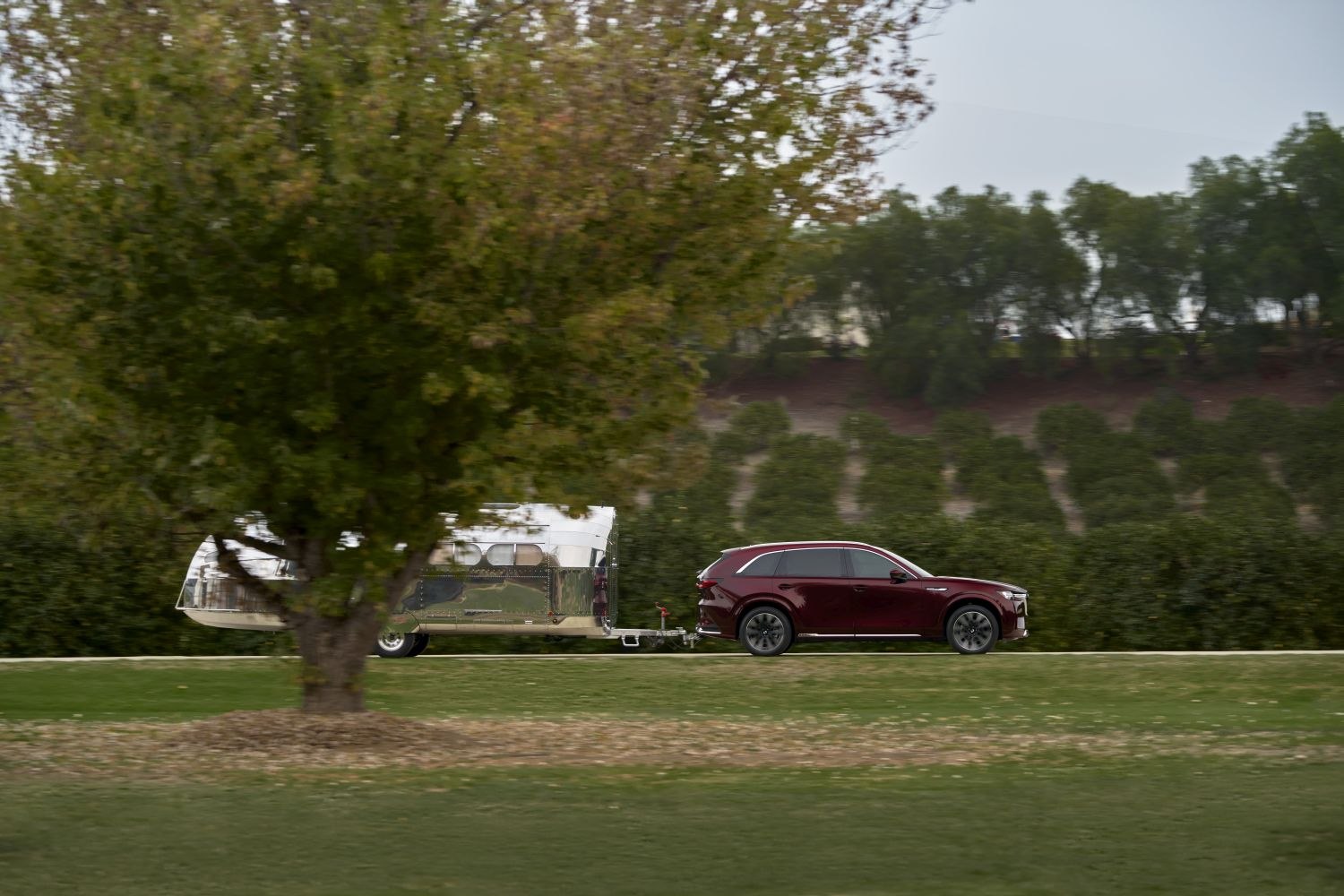

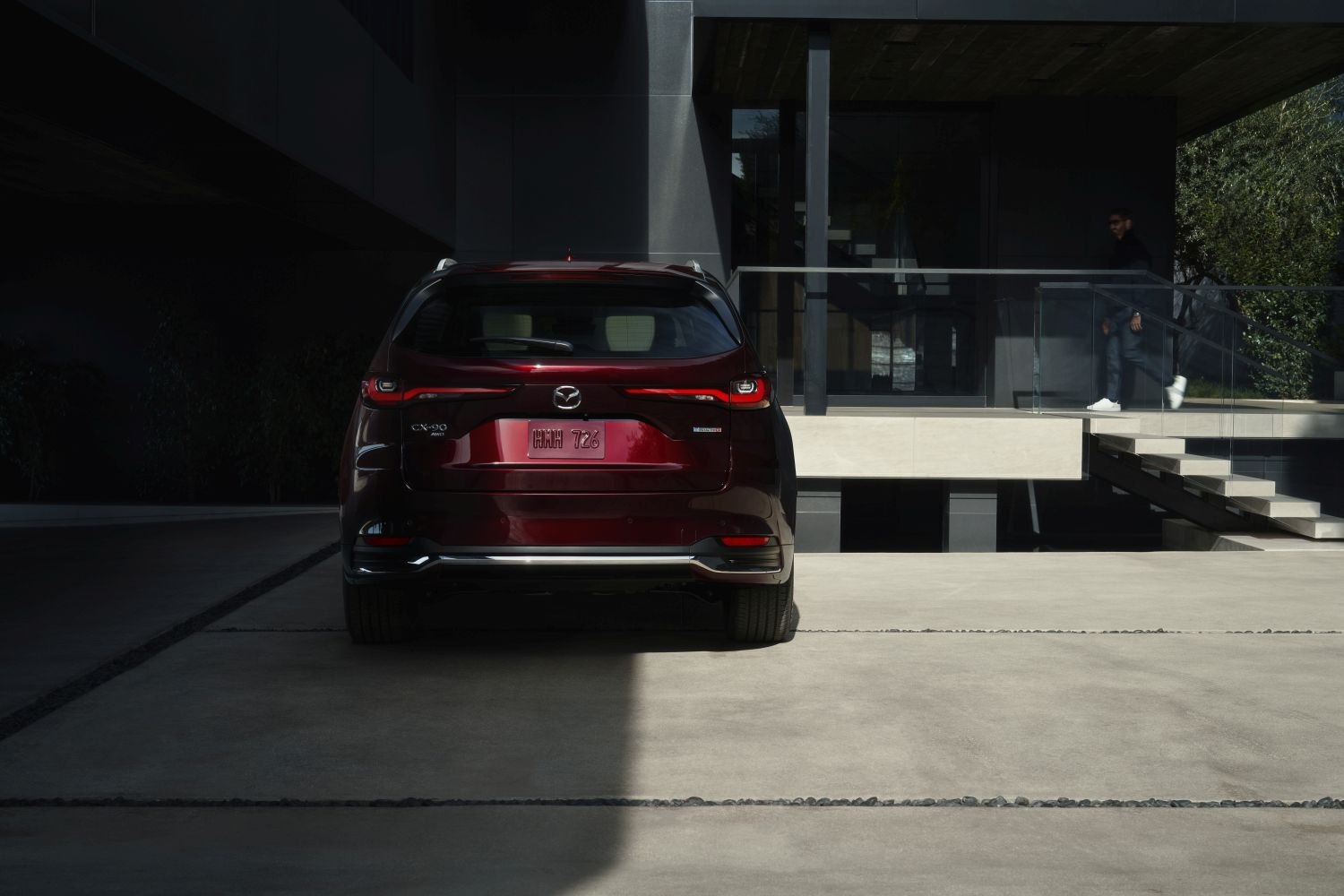

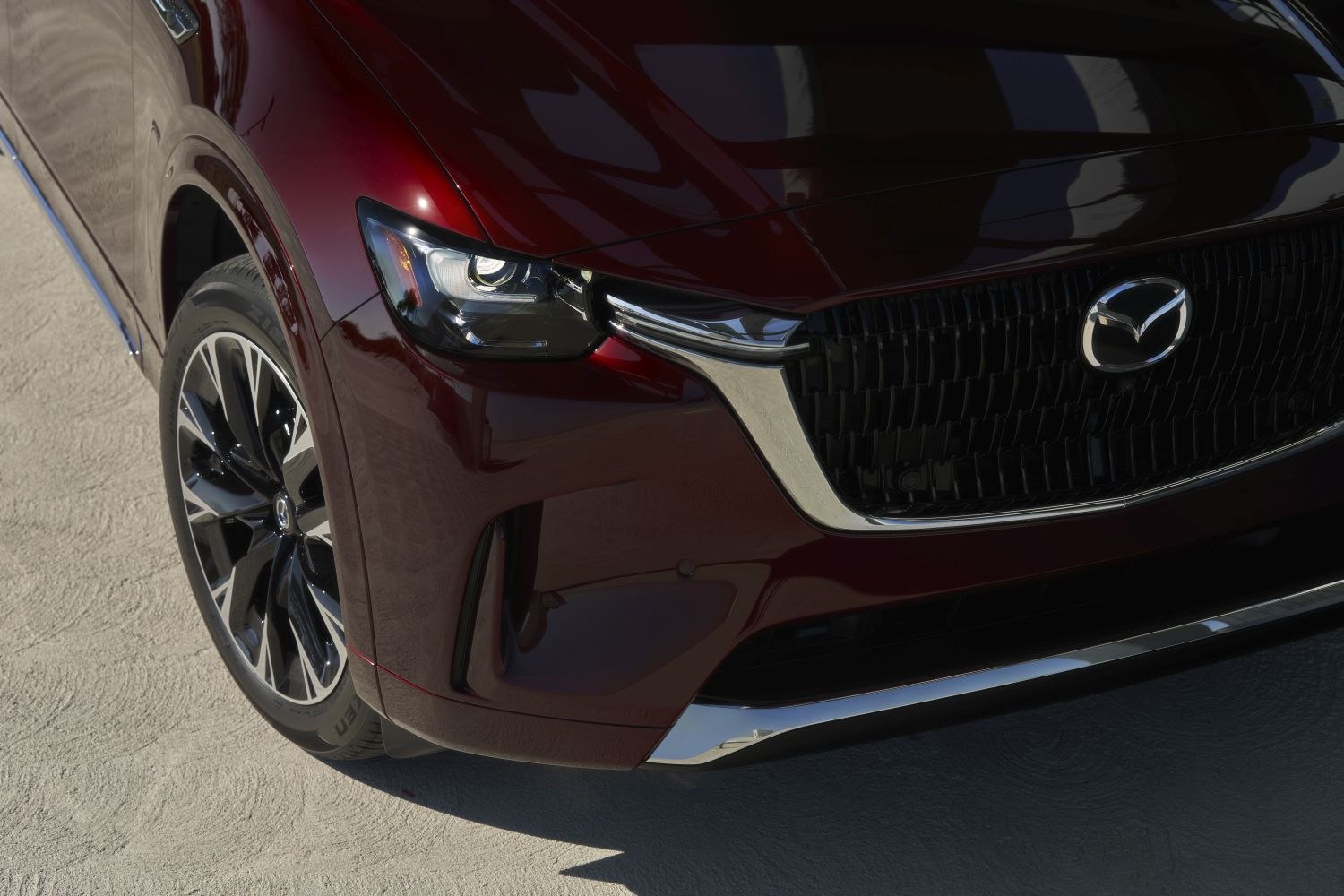

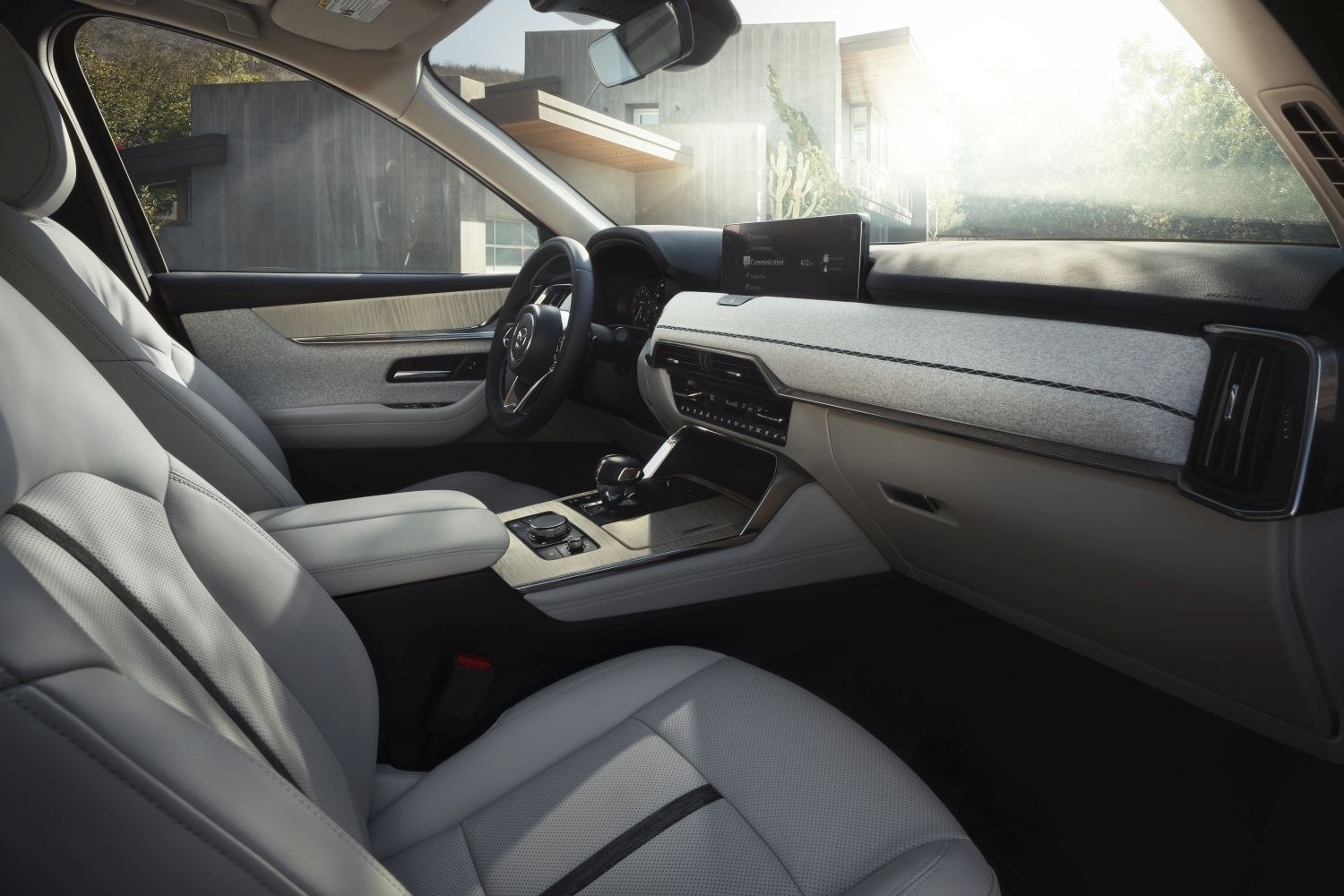

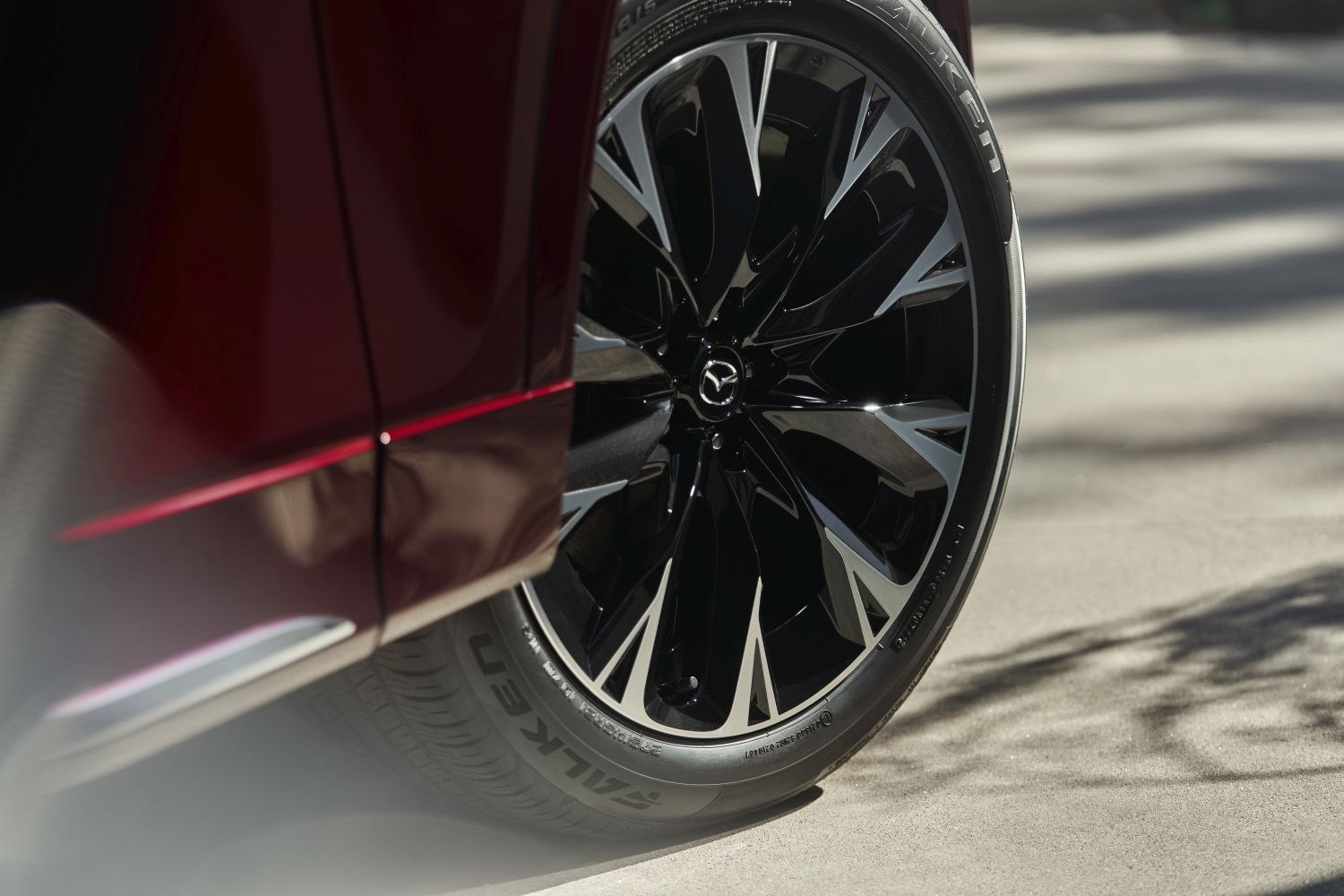

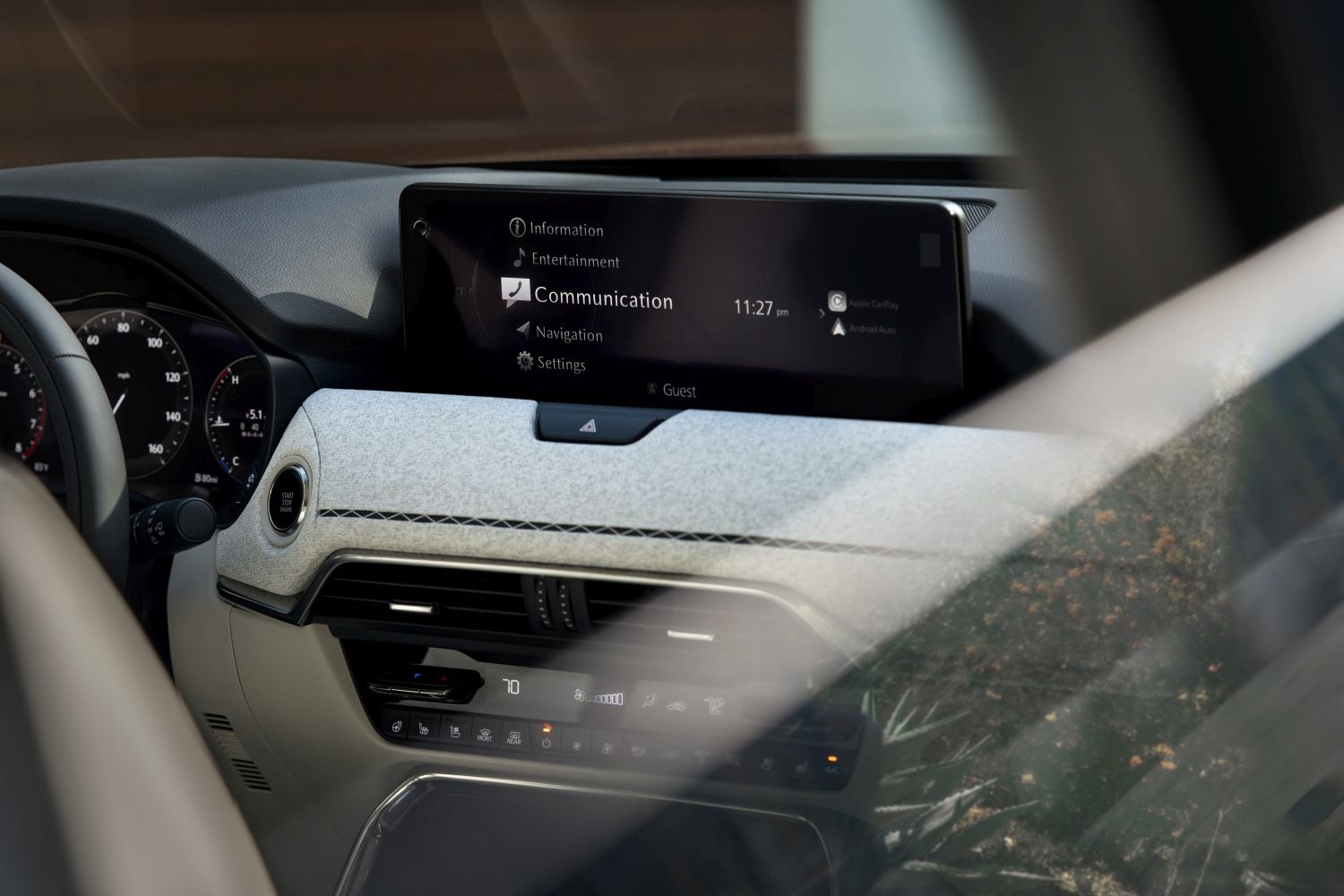

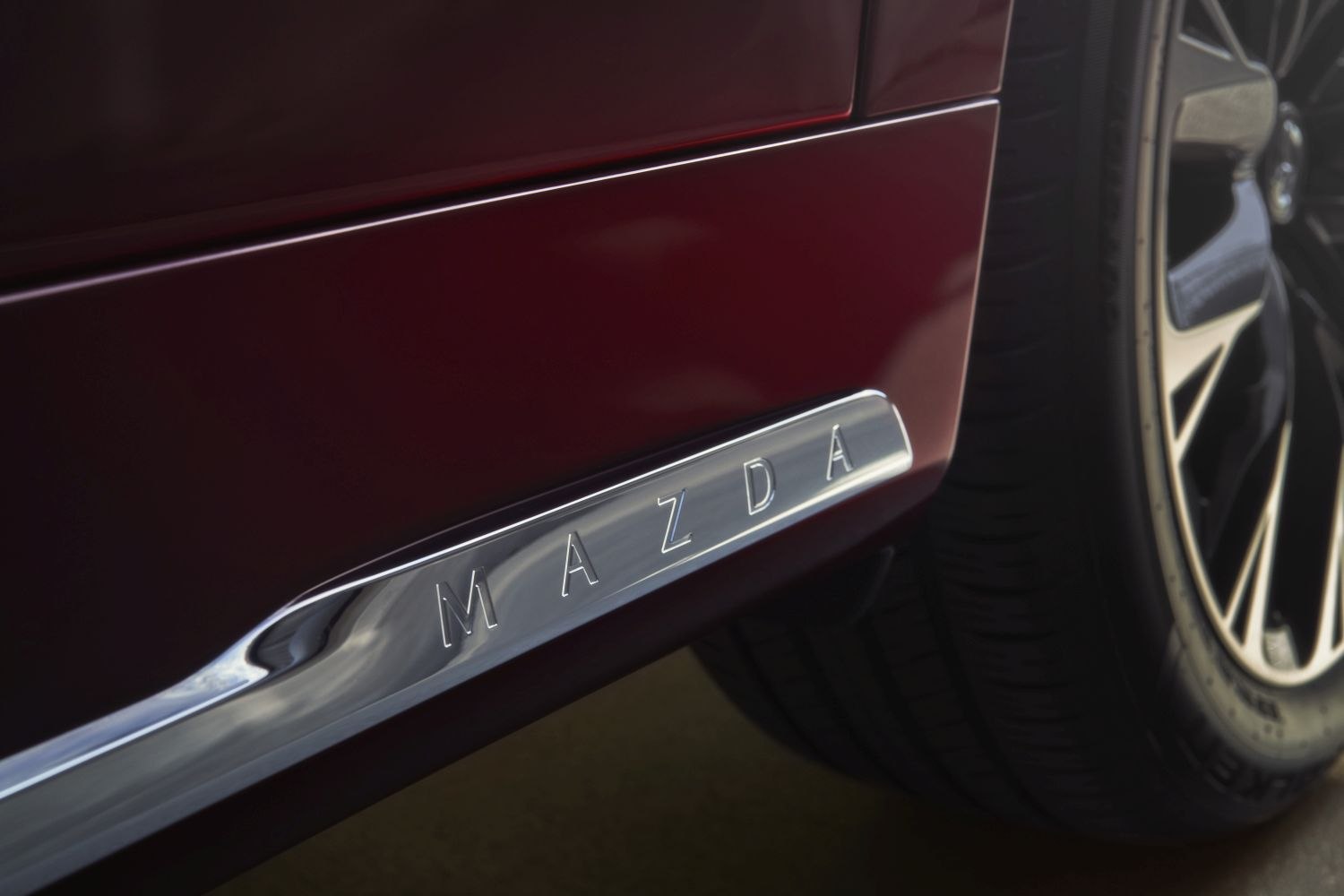

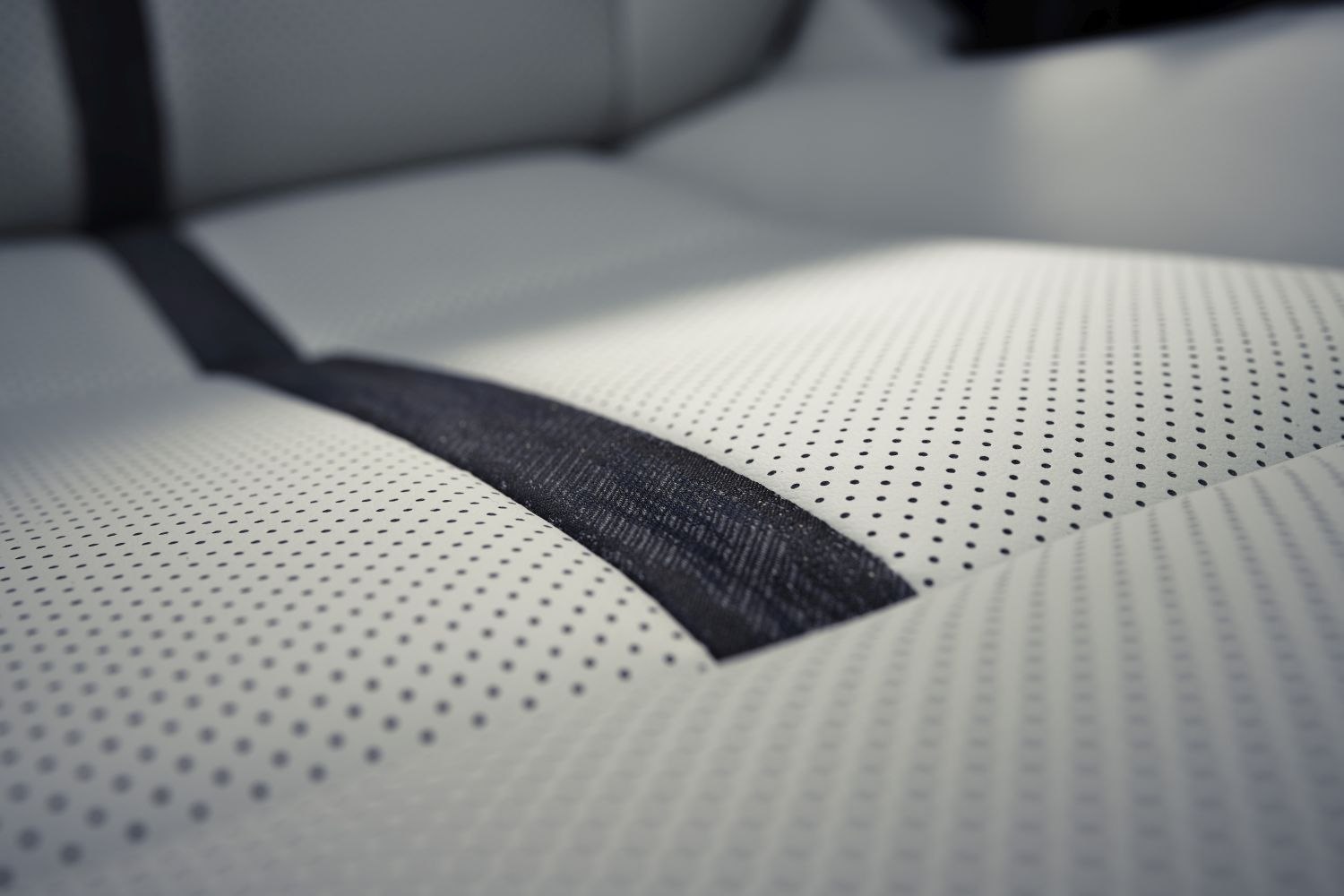

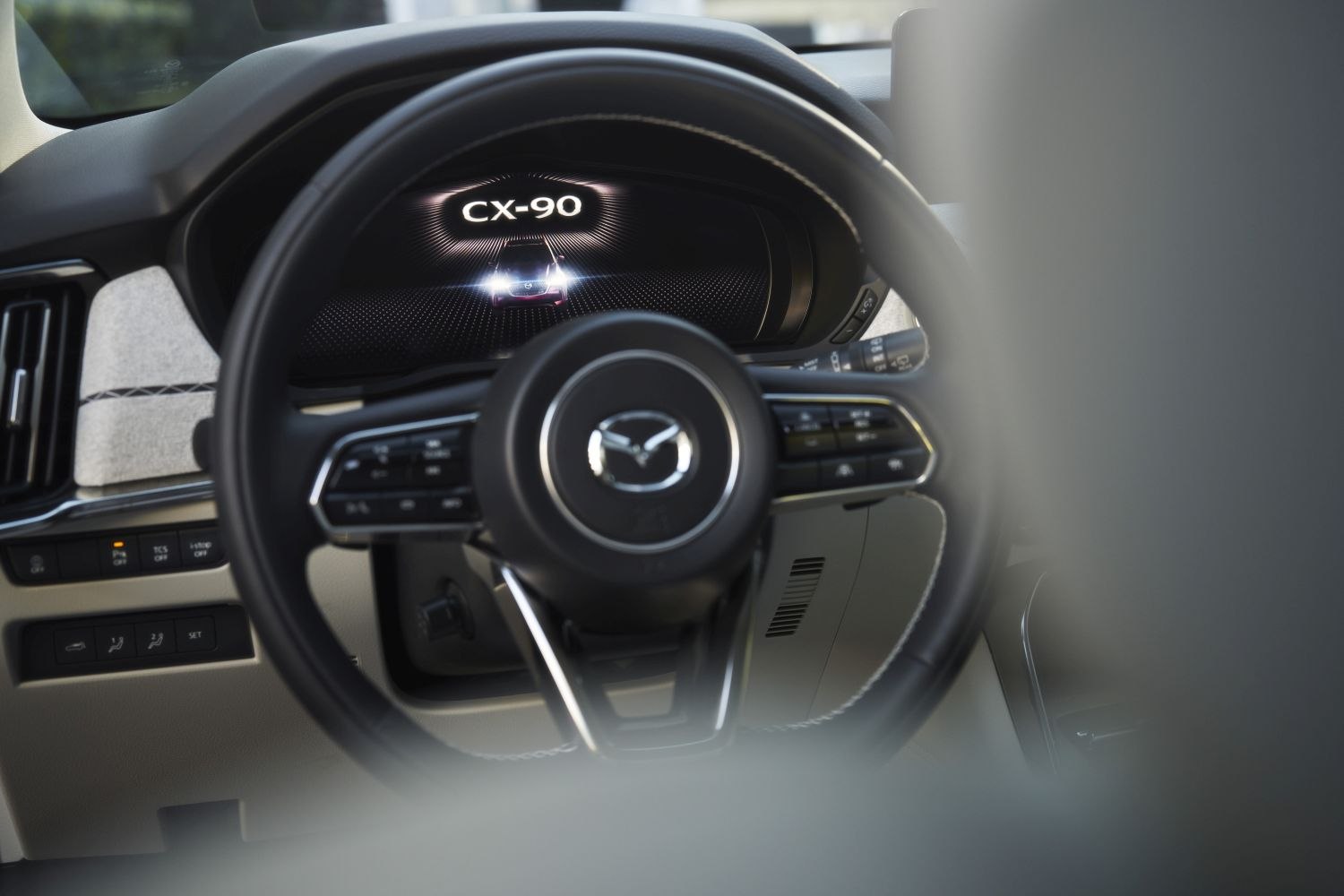

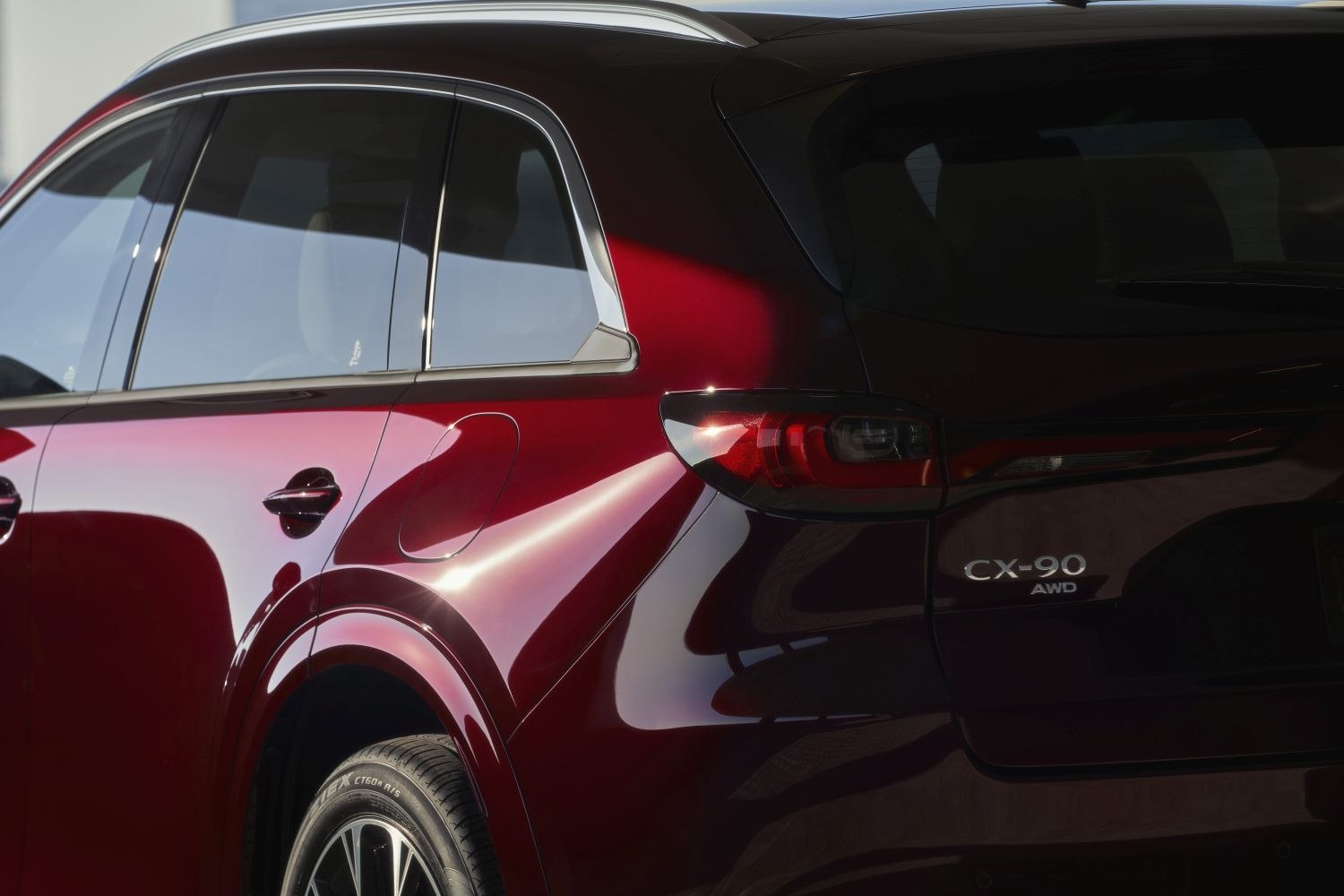

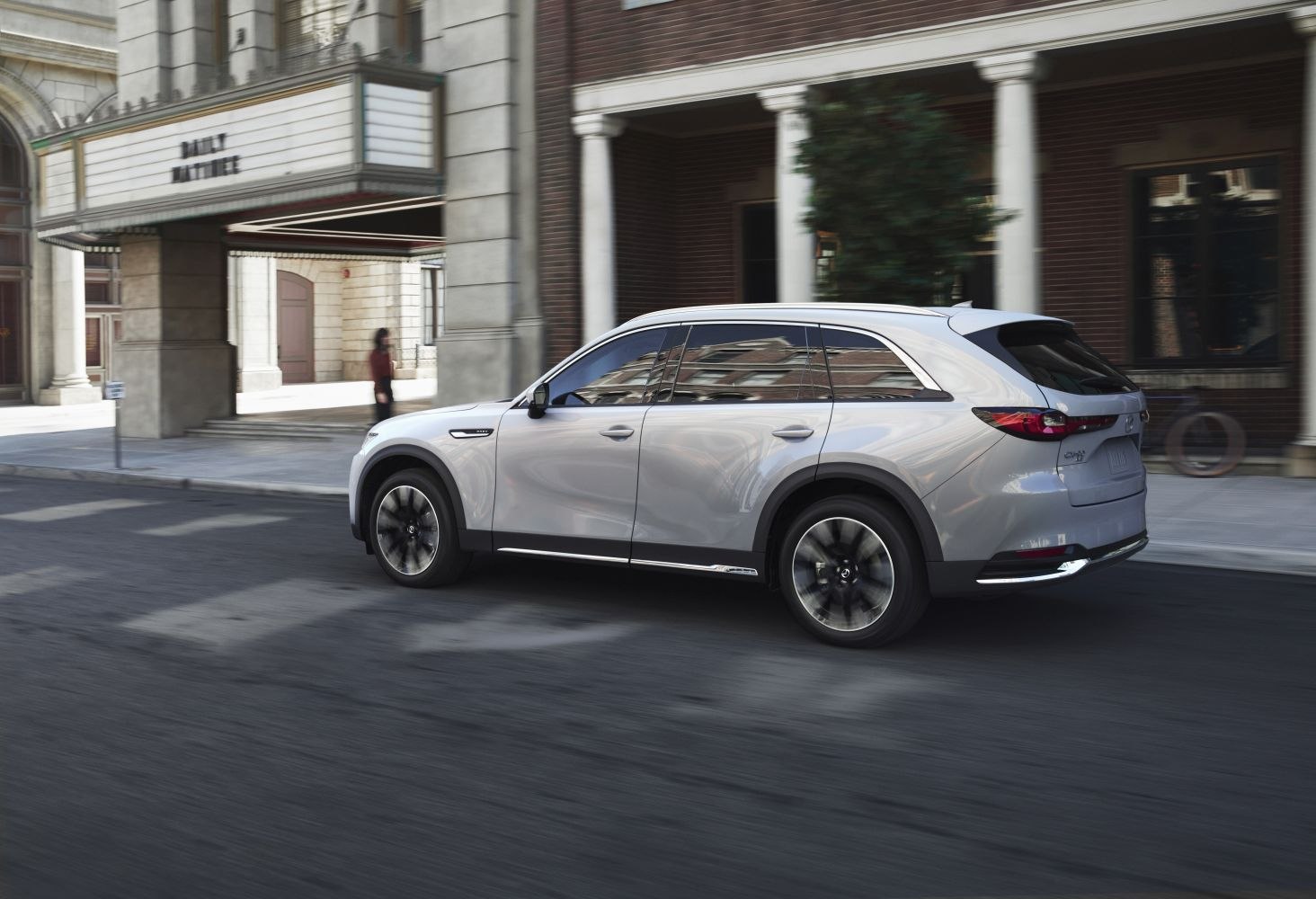

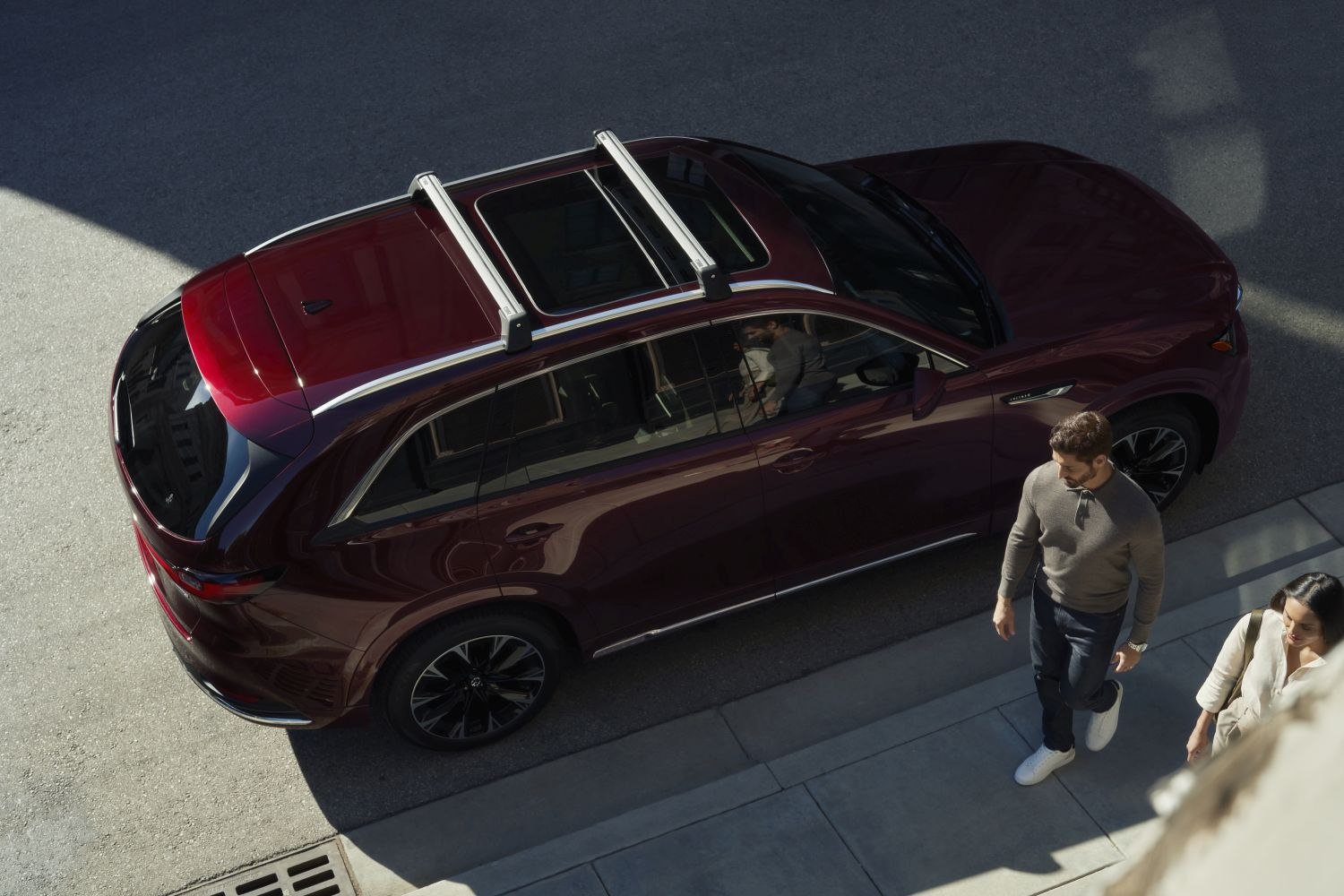

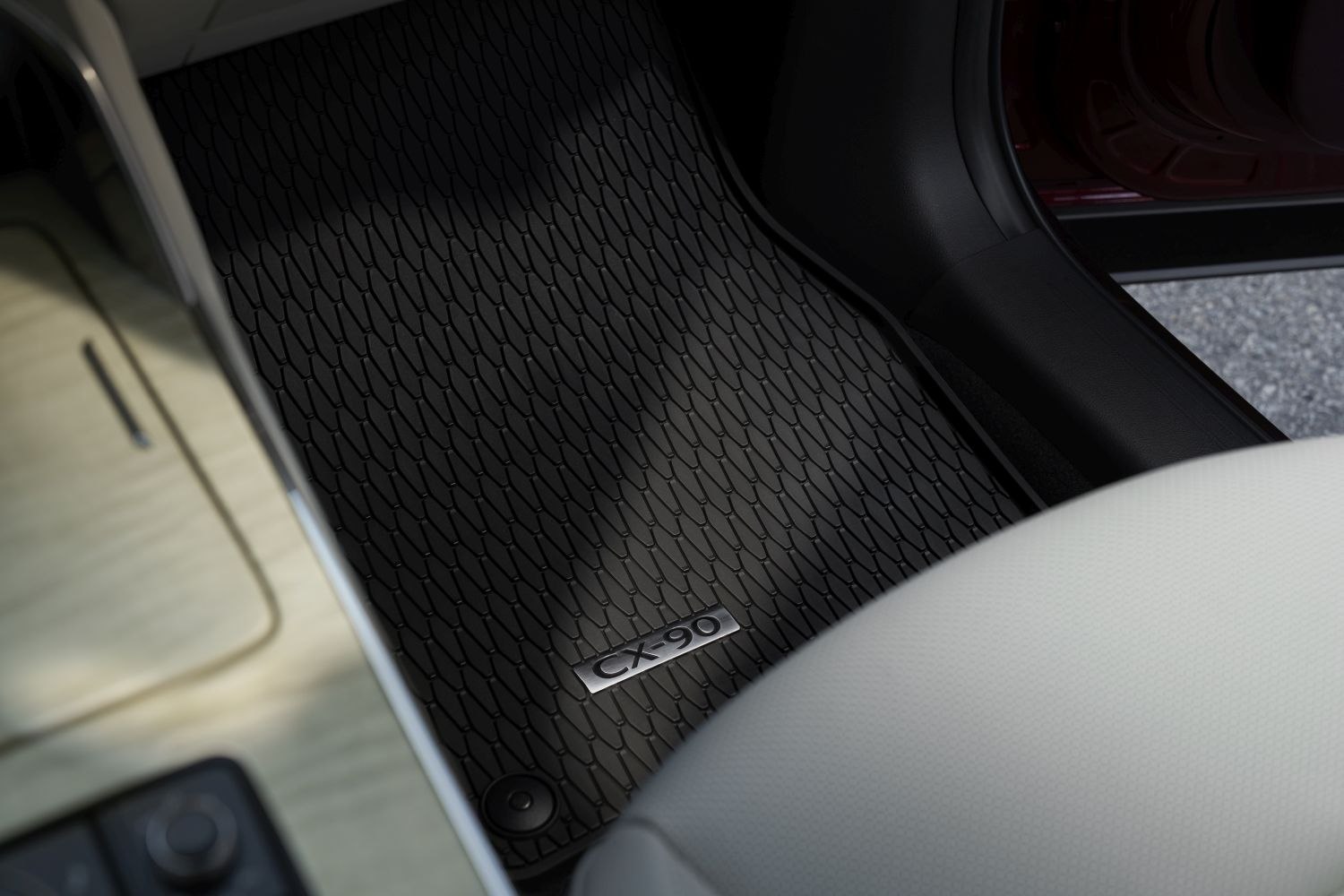

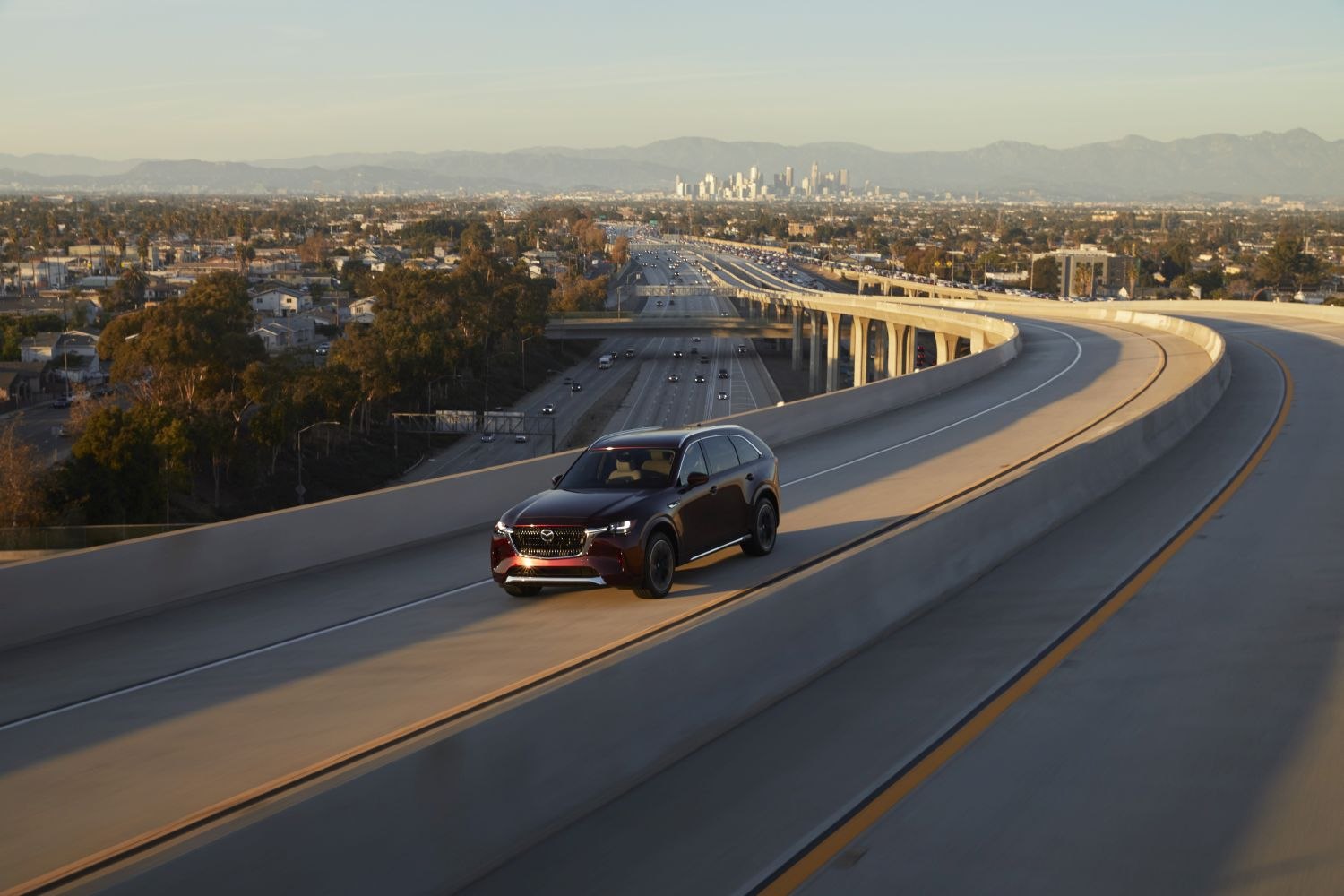

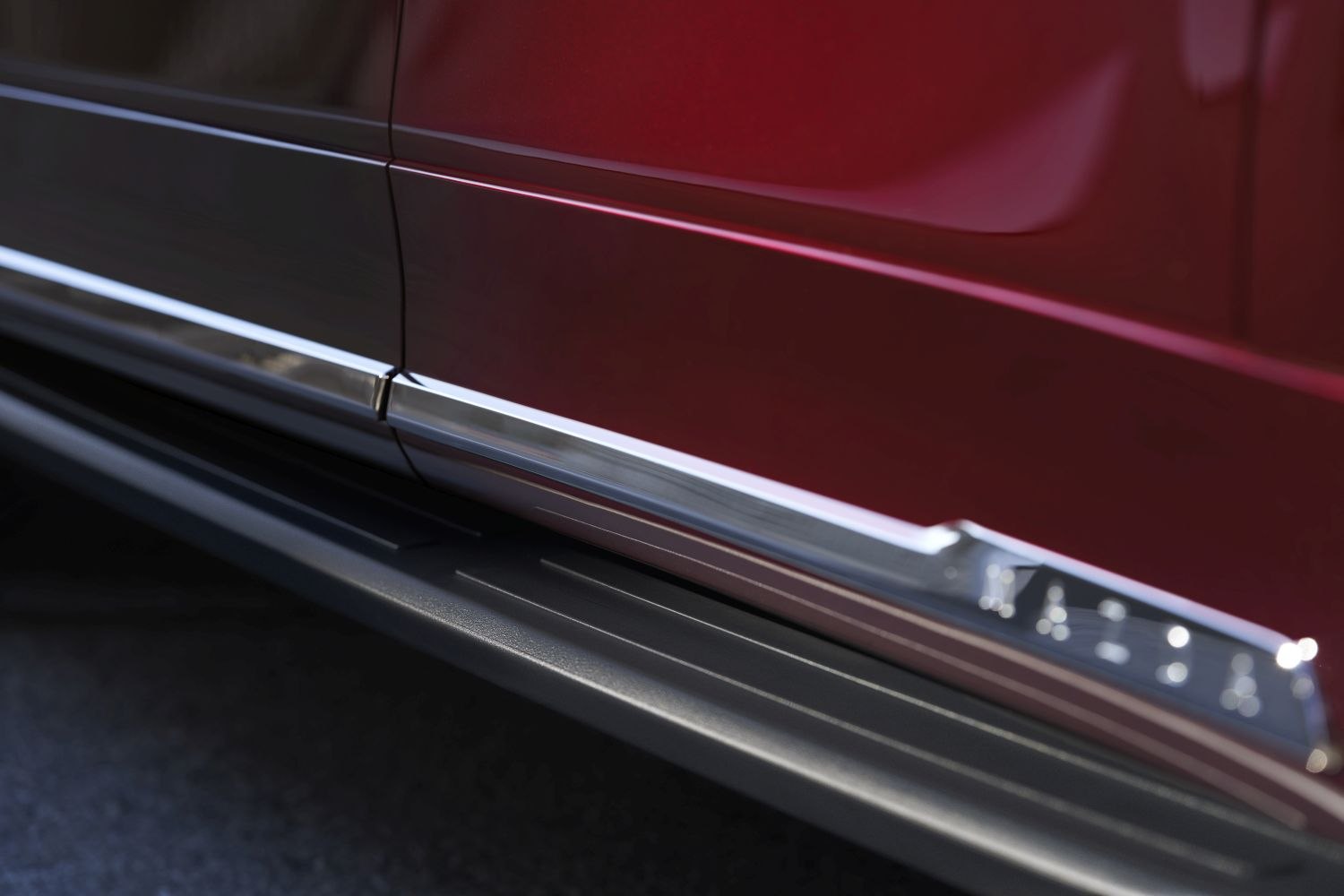

Mazda CX-90 2023 Gallery
Mazda CX-90 2023 Technical Specifications
General
Body type
SUV, Crossover
Brand
Mazda
Doors
5
Generation
CX-90
Model
CX-90
Modification (Engine)
3.3 e-SKYACTIV-D (254 Hp) Mild Hybrid i-ACTIV AWD Automatic
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
6-7
Start of production
April, 2023
Performance
CO2 emissions
143 g/km
Emission standard
Euro 5
Fuel Type
Diesel
Fuel consumption (economy) - combined
5.4 l/100 km
Fuel consumption (economy) - extra urban
5.3 l/100 km
Fuel consumption (economy) - urban
5.7 l/100 km
Electric
Battery voltage
44.4 V
Battery weight
15 kg
Electric motor Torque number 1
153 Nm @ 200 rpm.
Electric motor location number 1
Between the combustion engine and the transmission
Electric motor power number 1
17 Hp @ 900 rpm.
Gross battery capacity
0.33 kWh
Internal Engine
Compression ratio
15.2
Cylinder Bore
86 mm
Engine Model/Code
T3-VPTH
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
3283 cm
Engine layout
Front, Longitudinal
Engine systems
Particulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
6
Number of valves per cylinder
4
Piston Stroke
94.2 mm
Power
254 Hp @ 3750 rpm.
Power per litre
77.4 Hp/l
Torque
550 Nm @ 1500-2400 rpm.
Valvetrain
DOHC
Dimensions
Front overhang
870 mm
Front track
1705 mm
Height
1745 mm
Length
5120 mm
Minimum turning circle (turning diameter)
10.8 m
Rear (Back) track
1708 mm
Rear overhang
1130 mm
Ride height (ground clearance)
203 mm
Wheelbase
3120 mm
Width
1994 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs, 347 mm
Front suspension
Double wishbone
Number of gears and type of gearbox
8 gears, automatic transmission
Power steering
Electric Steering
Rear brakes
Ventilated discs, 350 mm
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
265/55 R19; 275/45 R21
Wheel rims size
8.5J x 19; 9.5J x 21
Space
Fuel tank capacity
74 l
Kerb Weight
2211-2241 kg
Max load
579 kg
Max. weight
2790-2820 kg
Permitted towbar download
150 kg
