Volkswagen Golf 5 2004
2.0 TDI 8V (140 Hp) DPF
Generation Golf 5
Body Type Hatchback
Seats 5
2008
End Year
205 km/h
Maximum Speed
3
Doors
Volkswagen Golf 5 2004 Key Specs
Acceleration 0 - 100 Km/h
9.3 sec
Acceleration 0 - 62 Mph
9.3 sec
Body Type
Hatchback
Doors
3
Drive Wheel
Front wheel drive
End Of Production
2008
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
3.8 l
Engine Systems
Particulate filter
Fuel Type
Diesel
Fuel Tank Capacity
55 l
Generation
Golf V (3-door)
Kerb Weight
1281-1451 kg
Maximum Speed
205 km/h
Modification (Engine)
2.0 TDI 8V (140 Hp) DPF
Number Of Cylinders
4
Power
140 Hp @ 4000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
December, 2004
Wheel Rims Size
6J x 15; 6.5J x 15; 6.5J x 16; 7J x 17

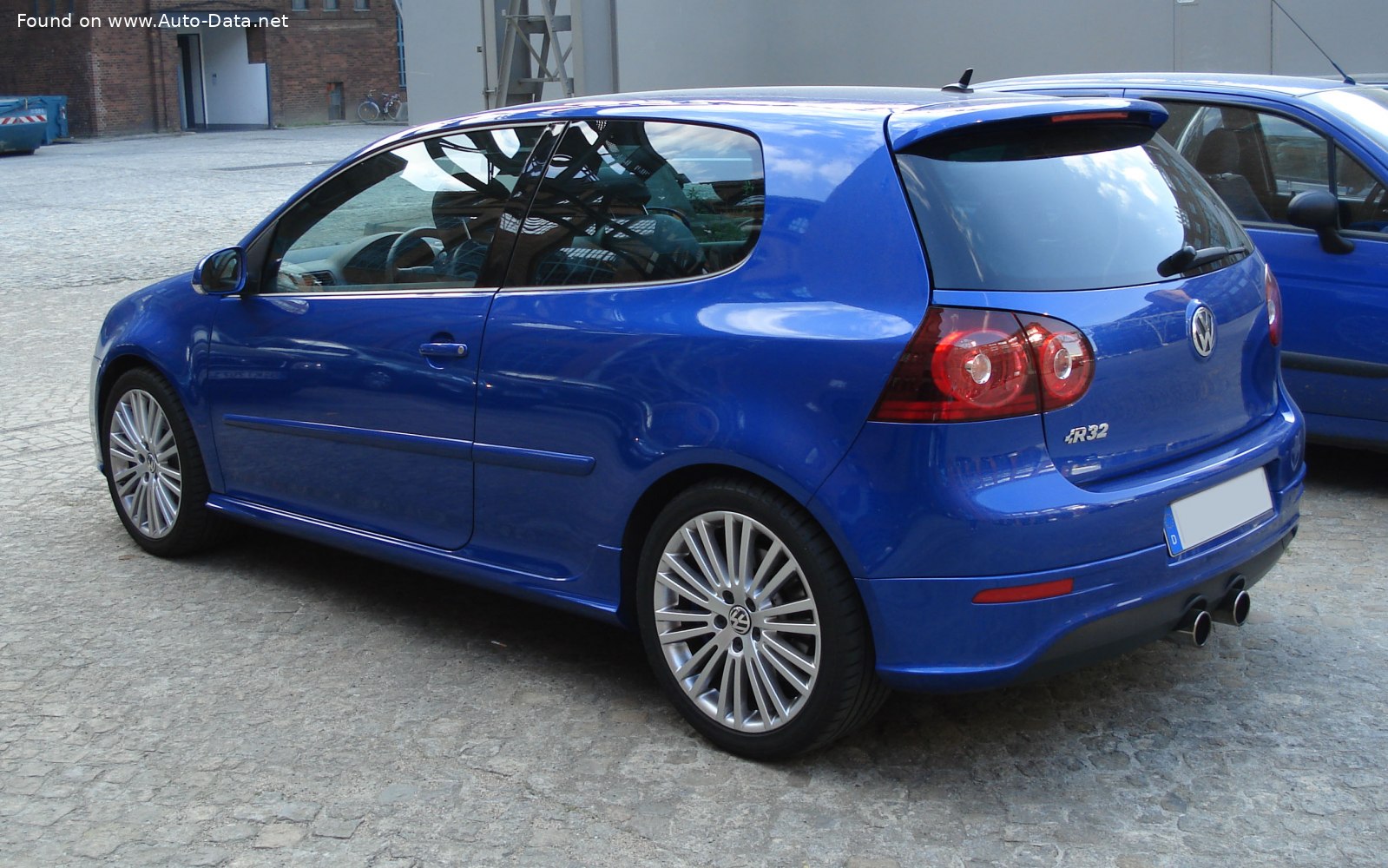

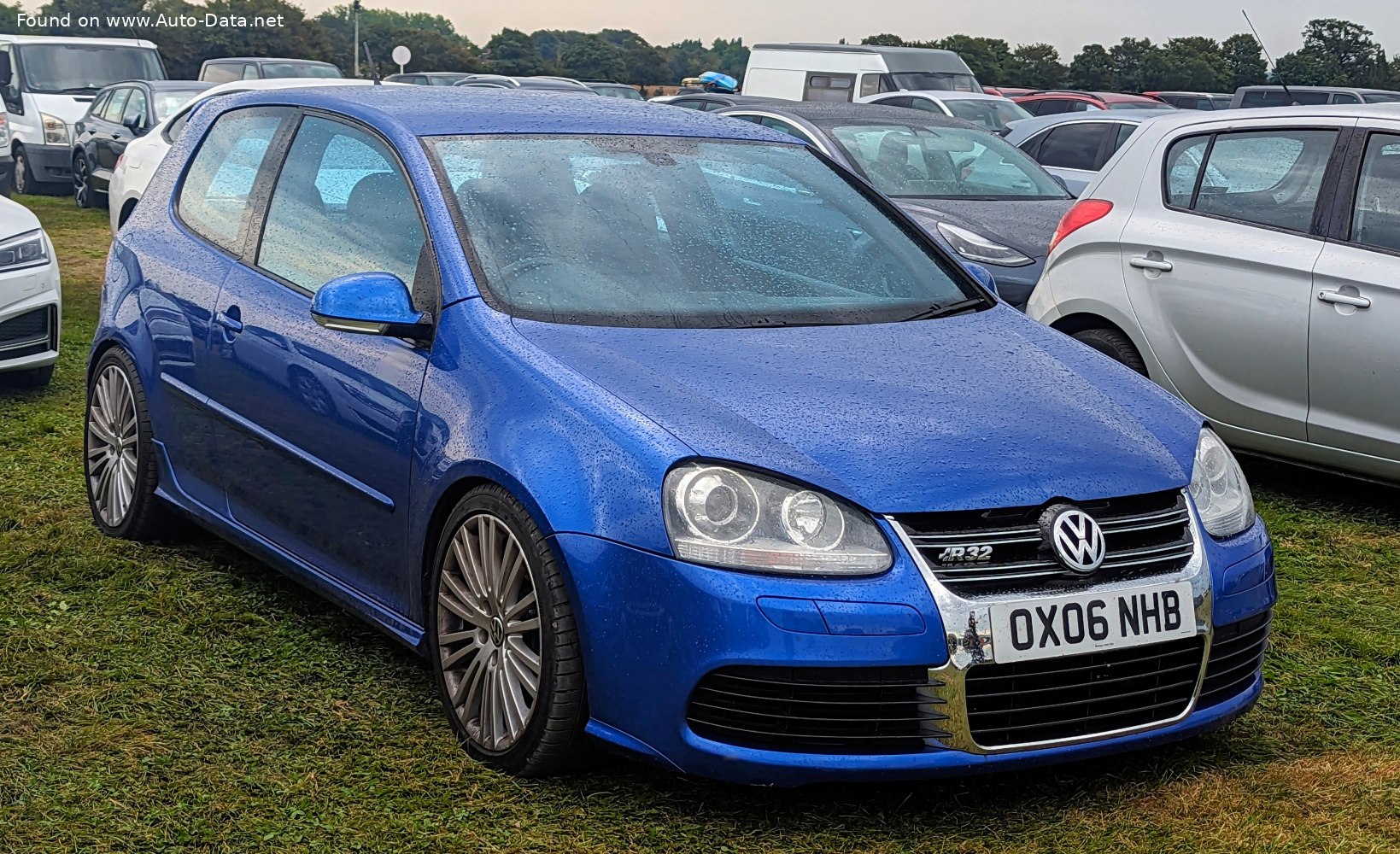

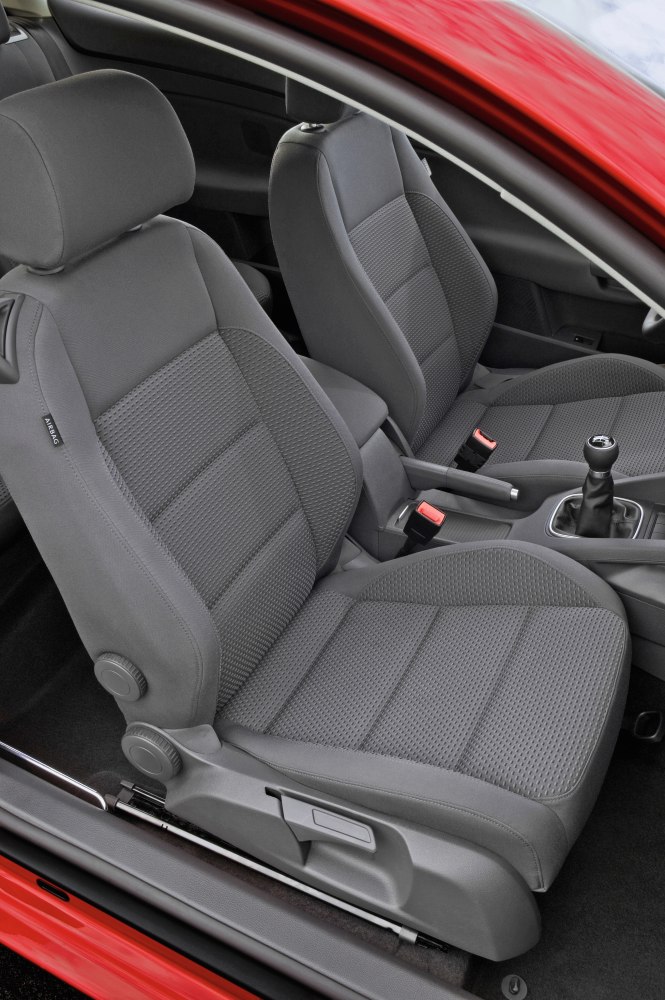

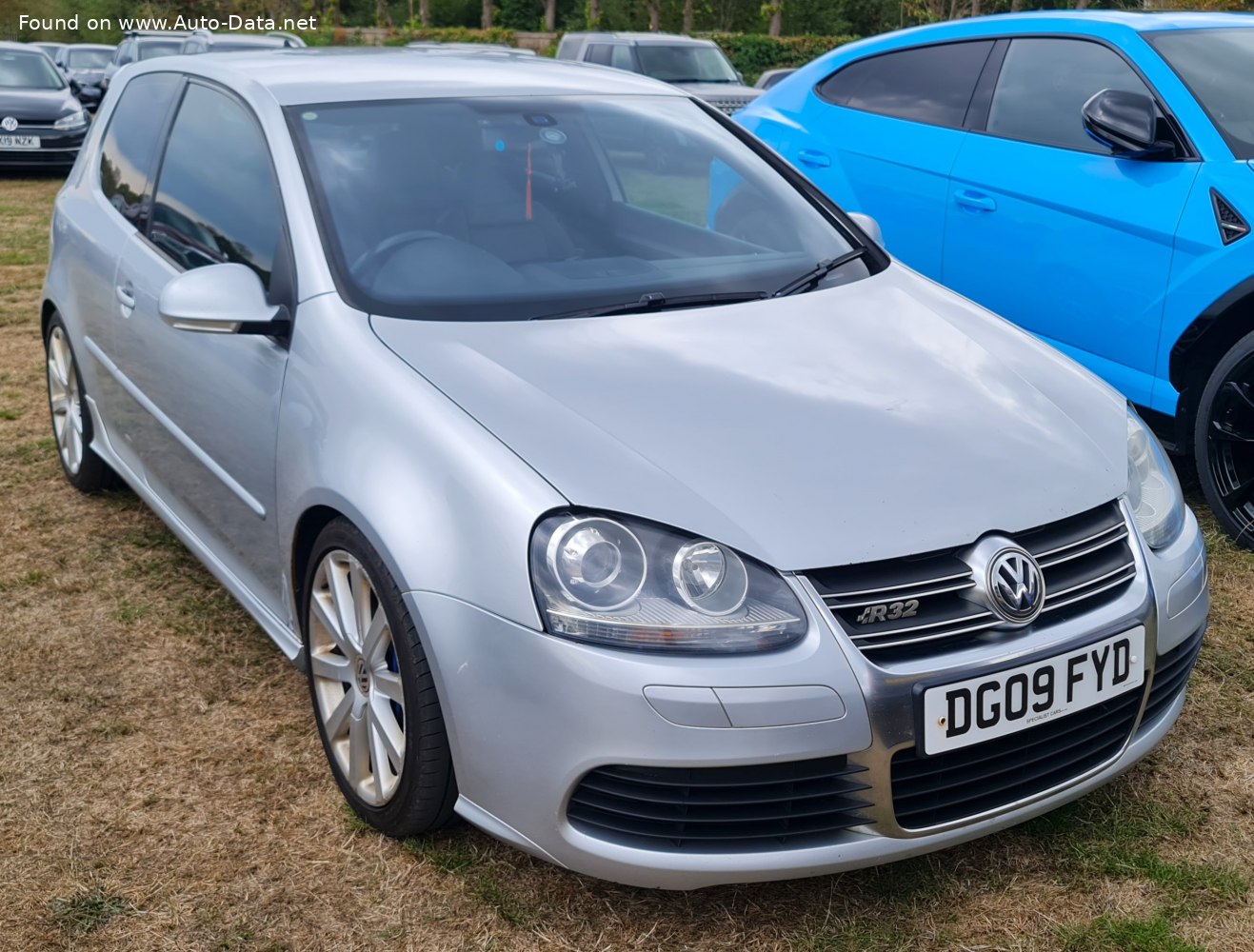

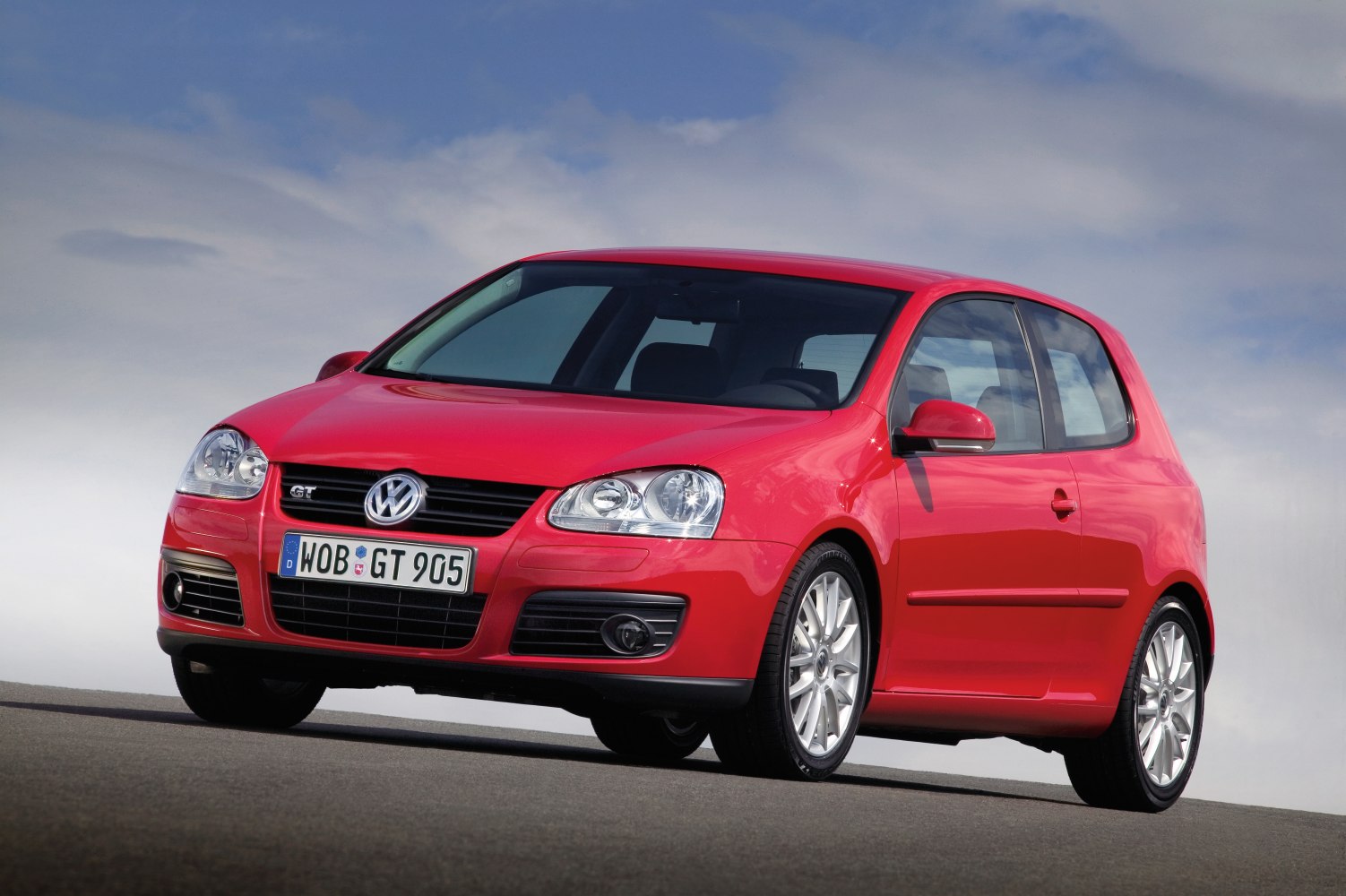

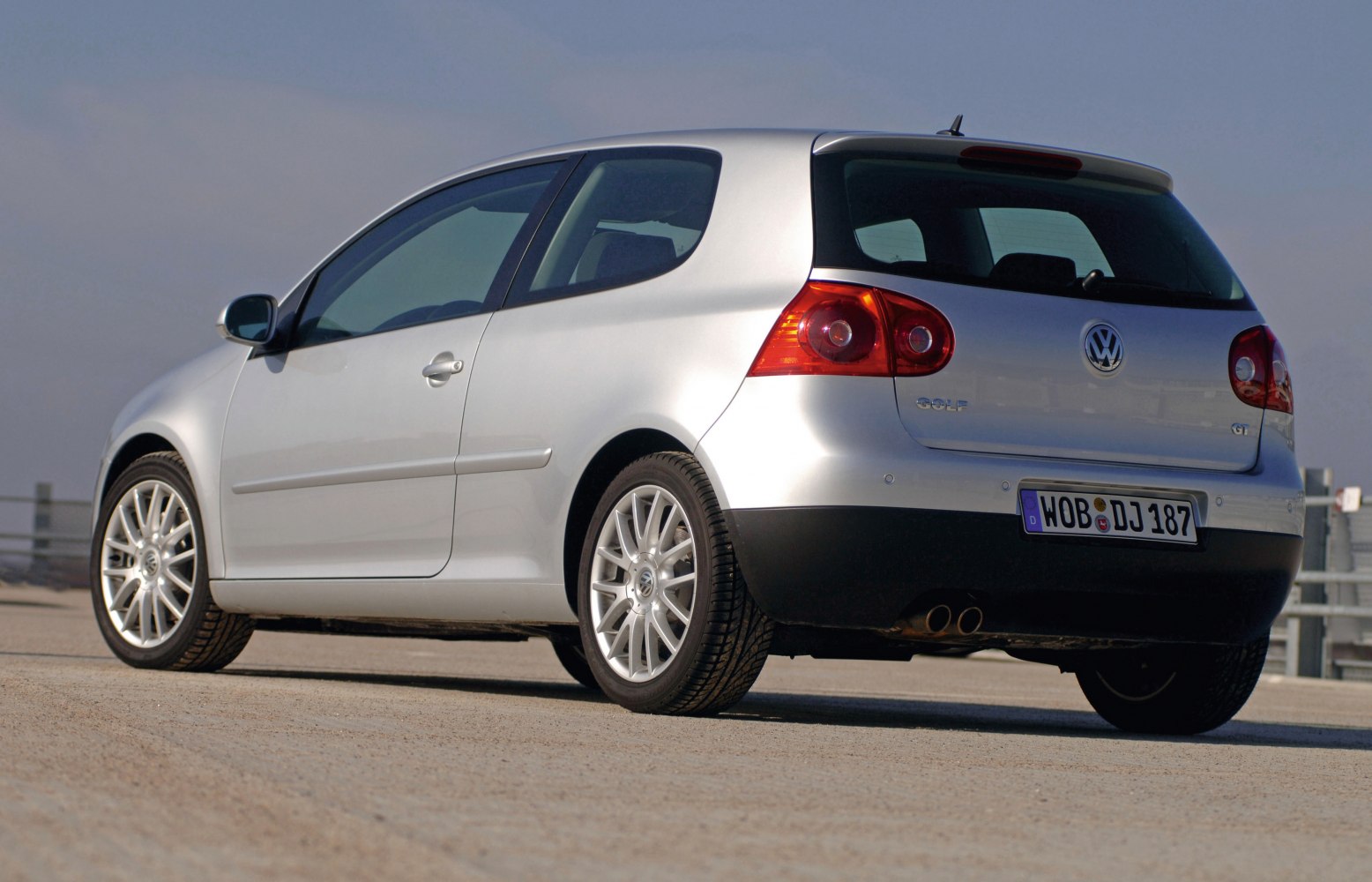

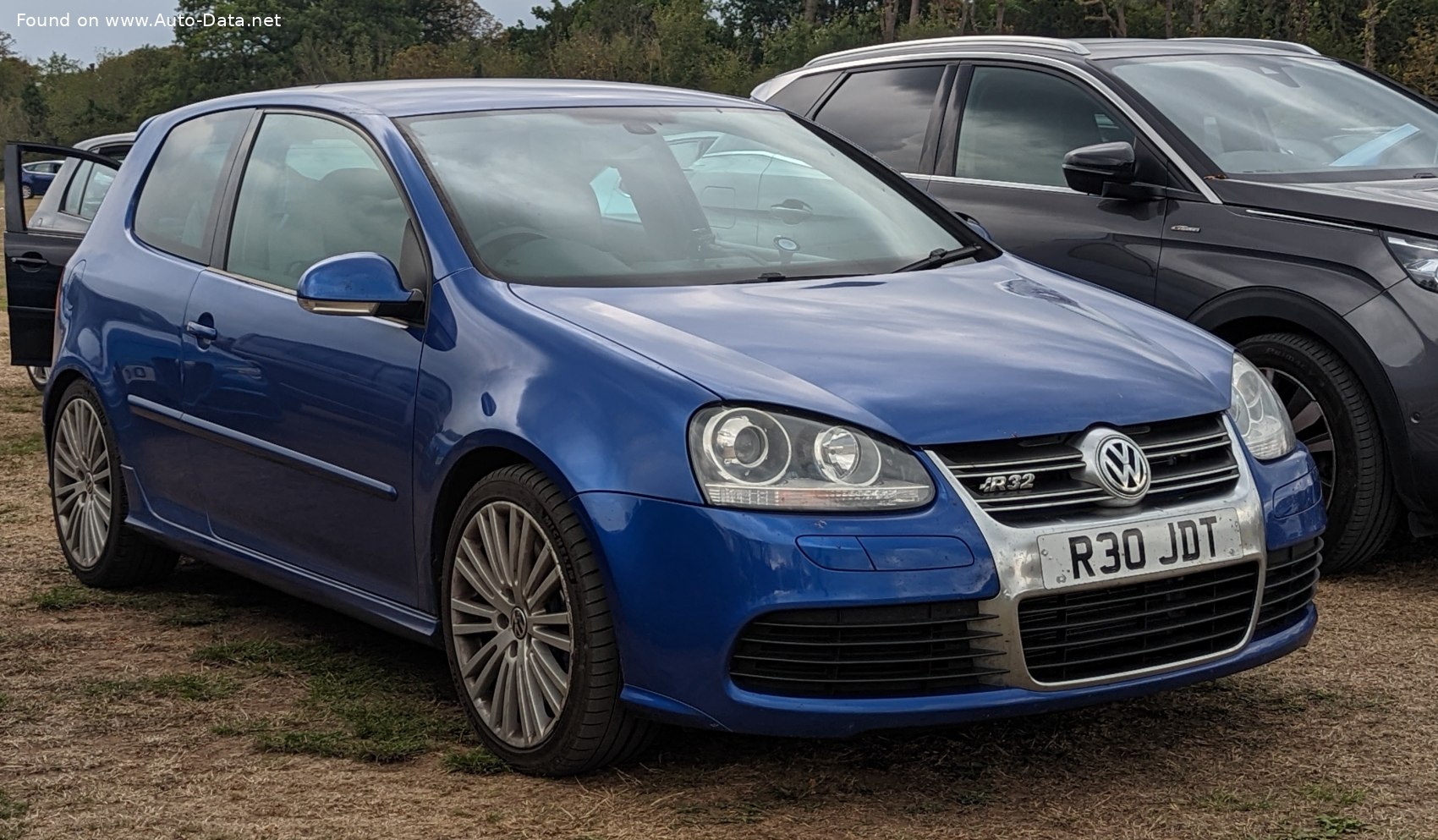

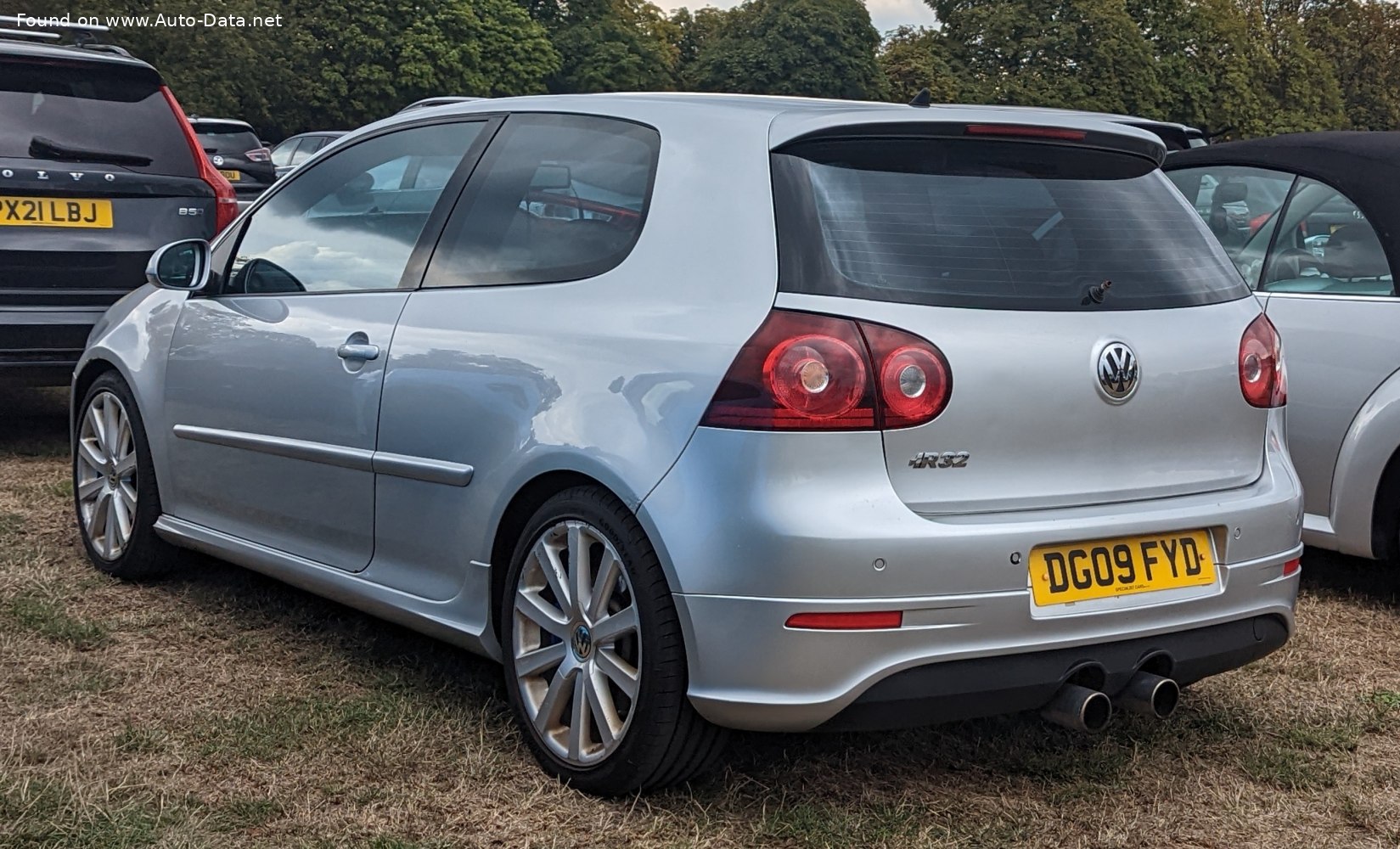

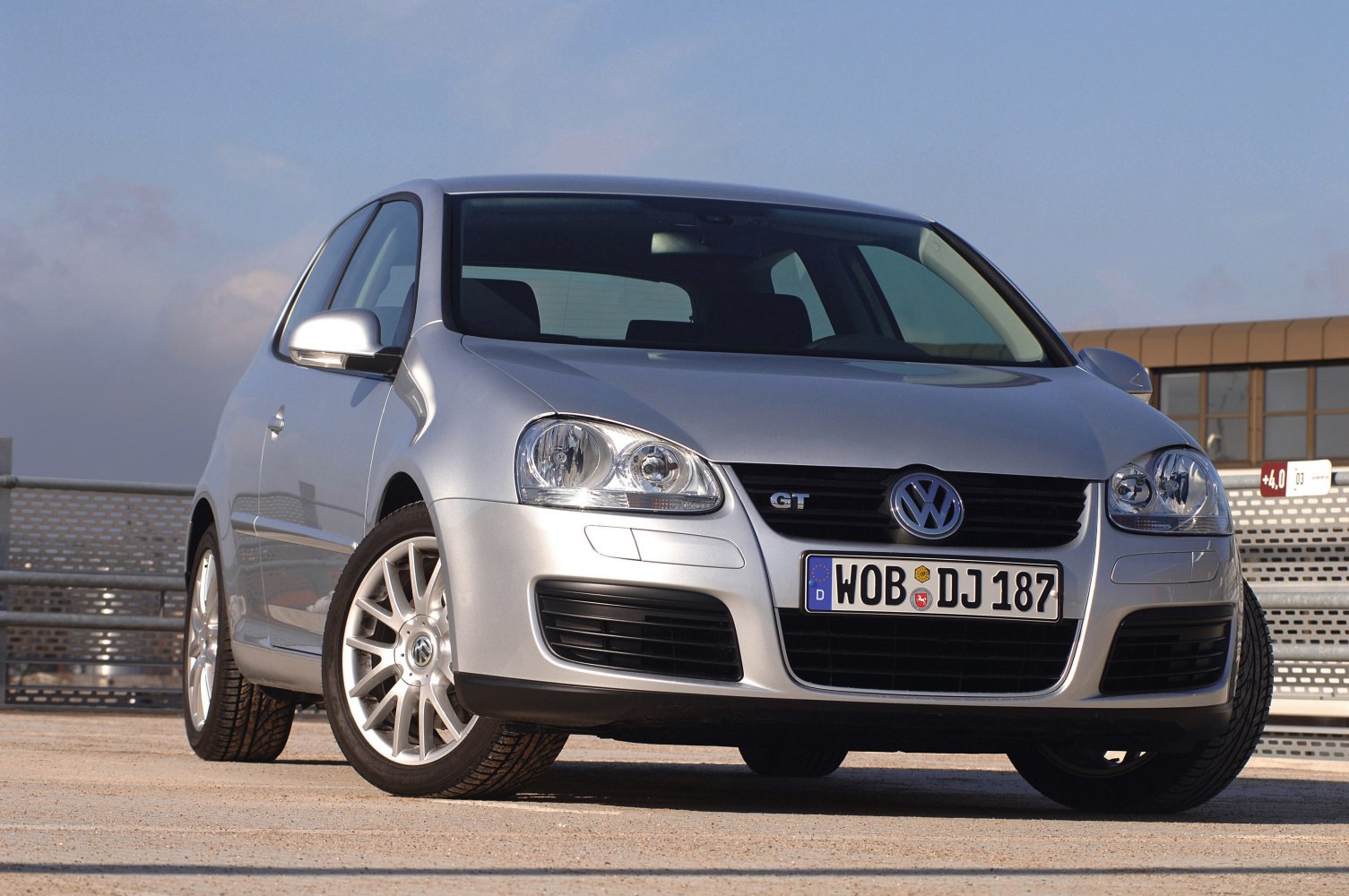

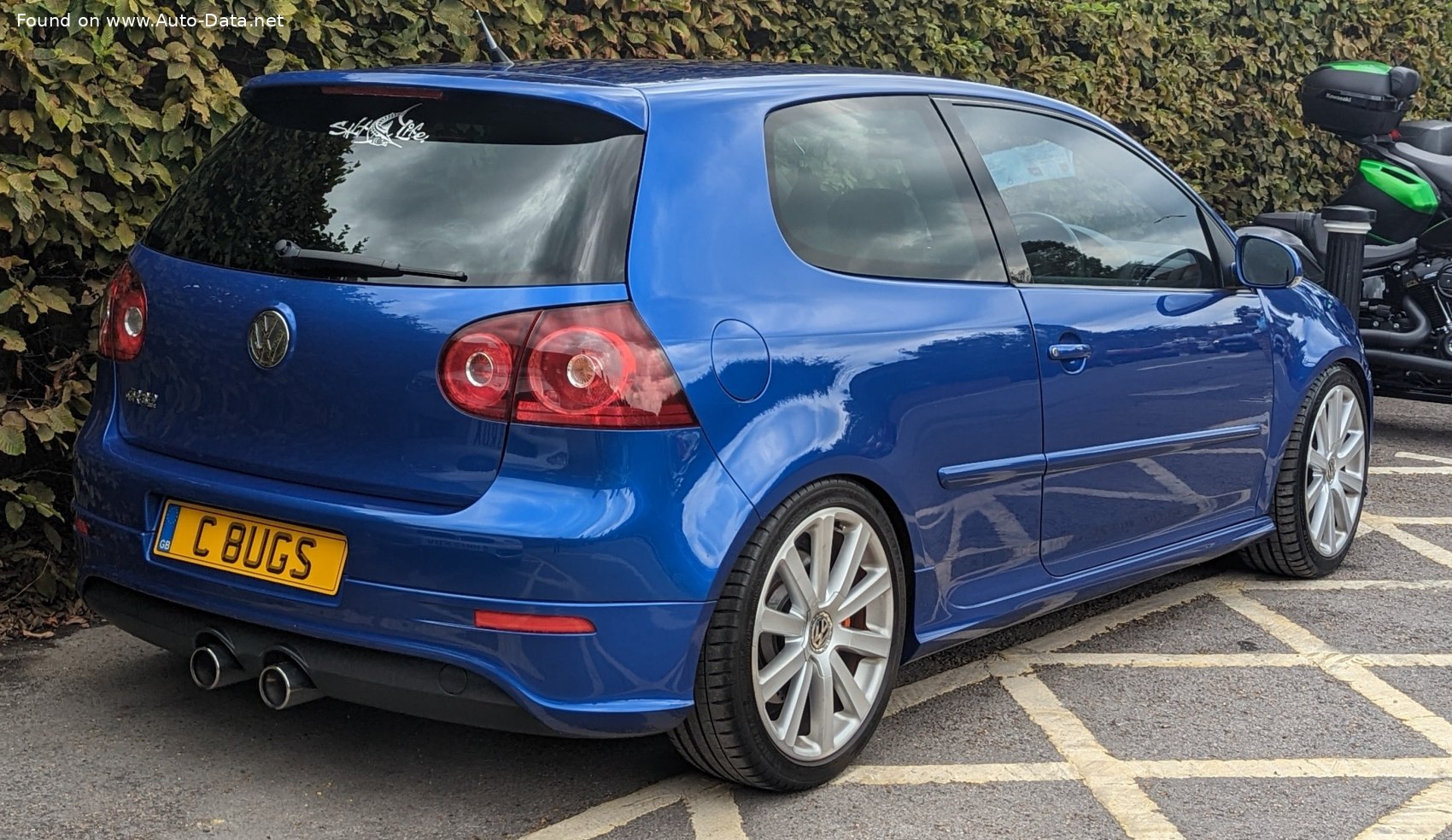

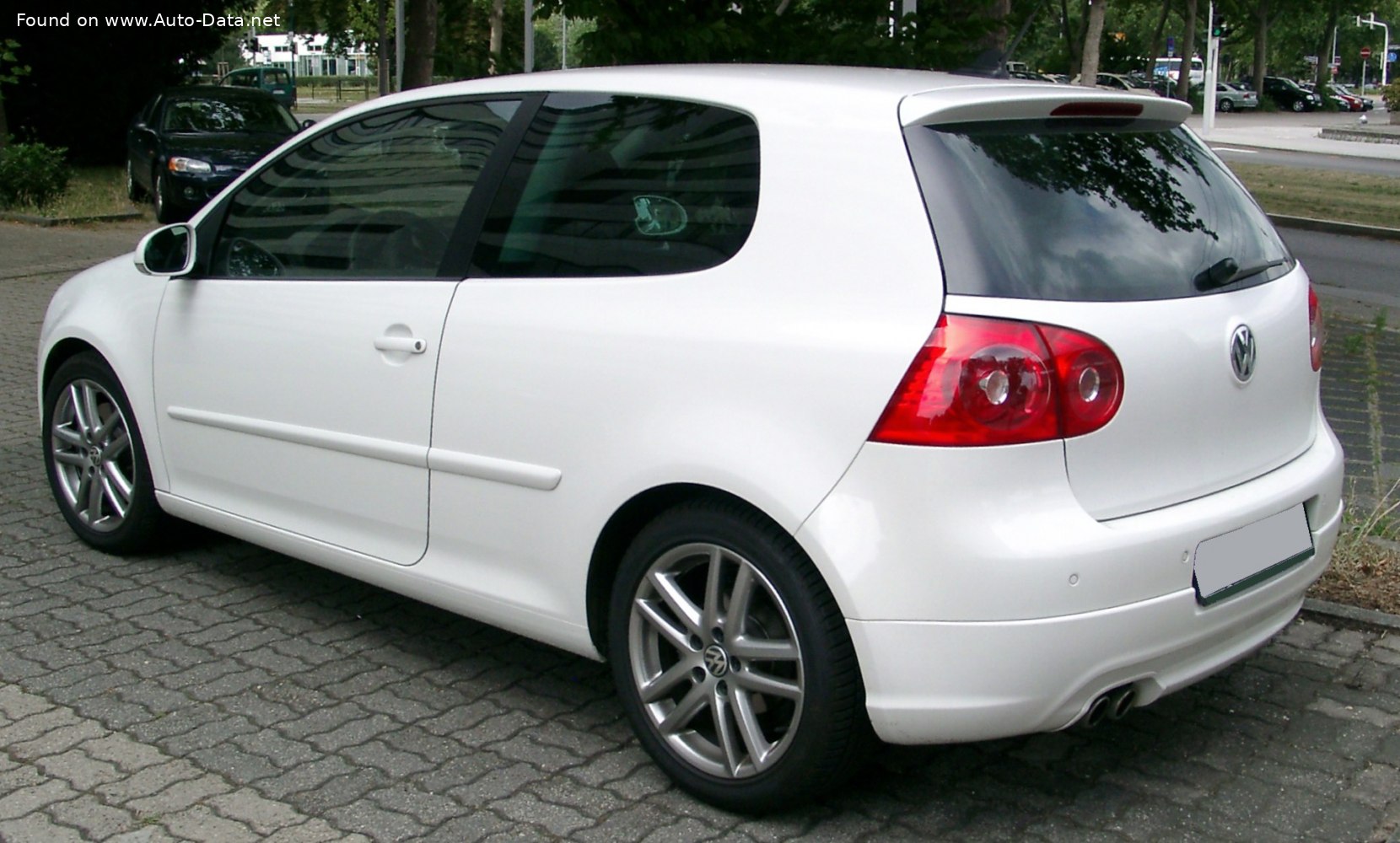

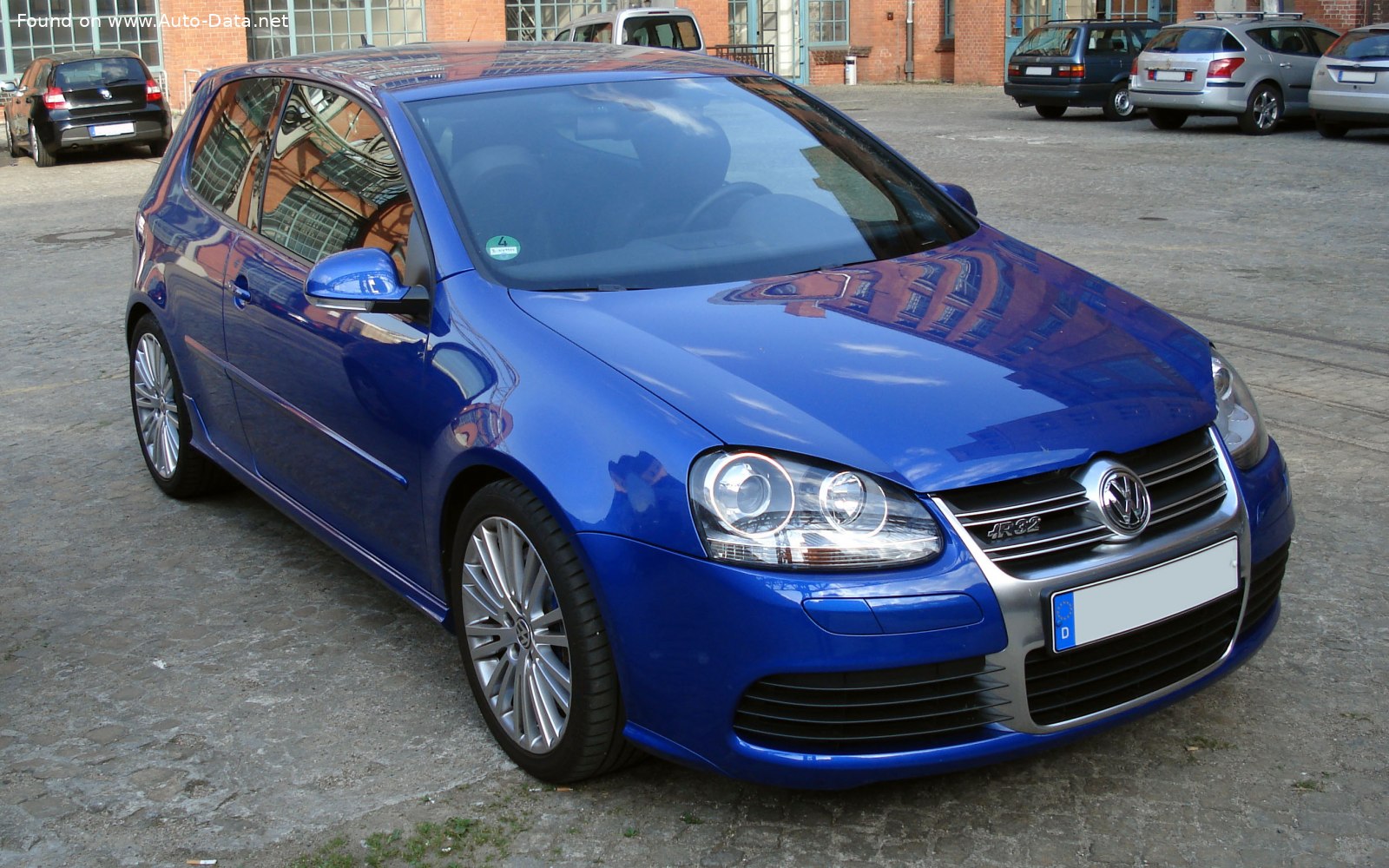

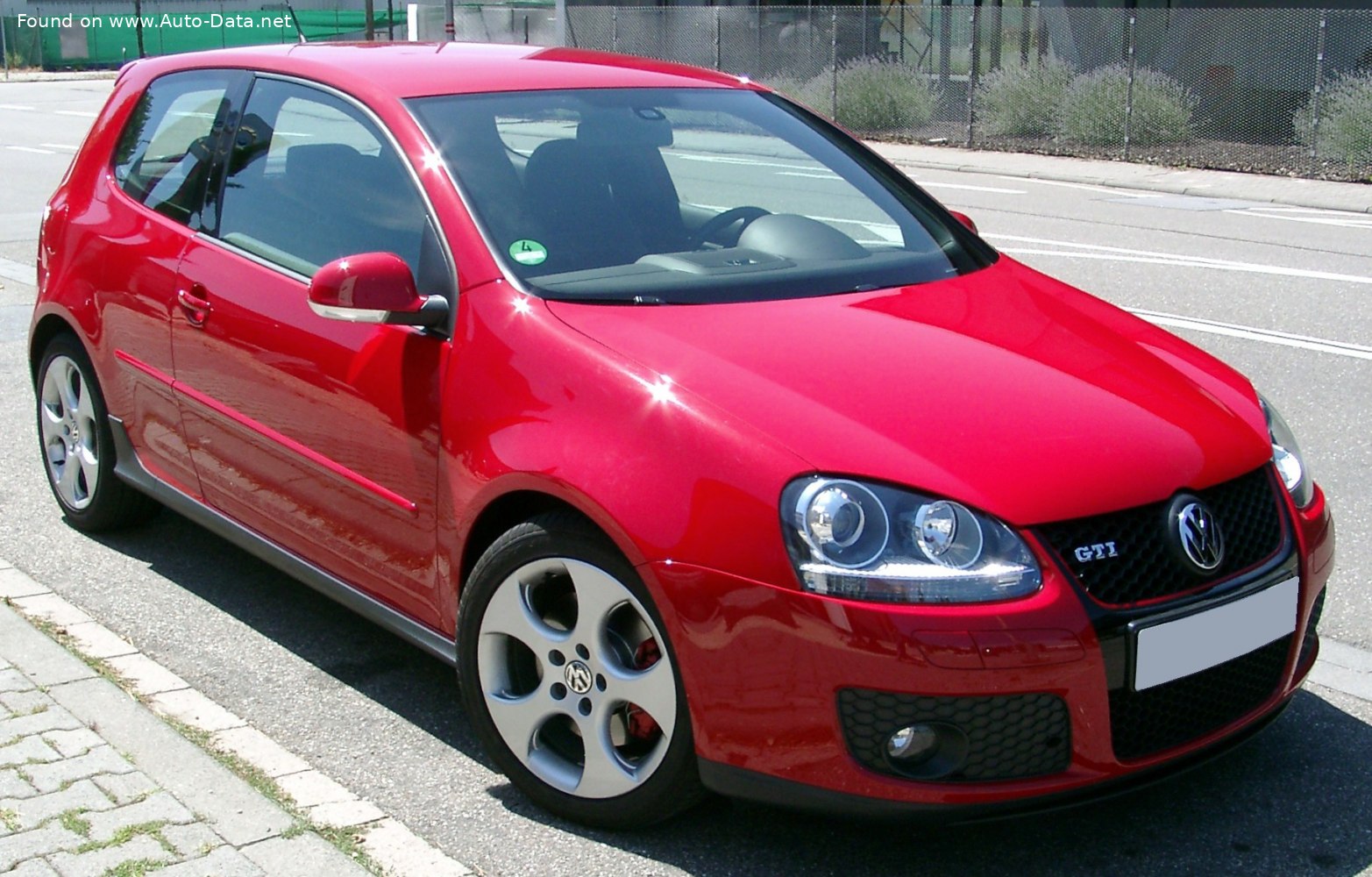

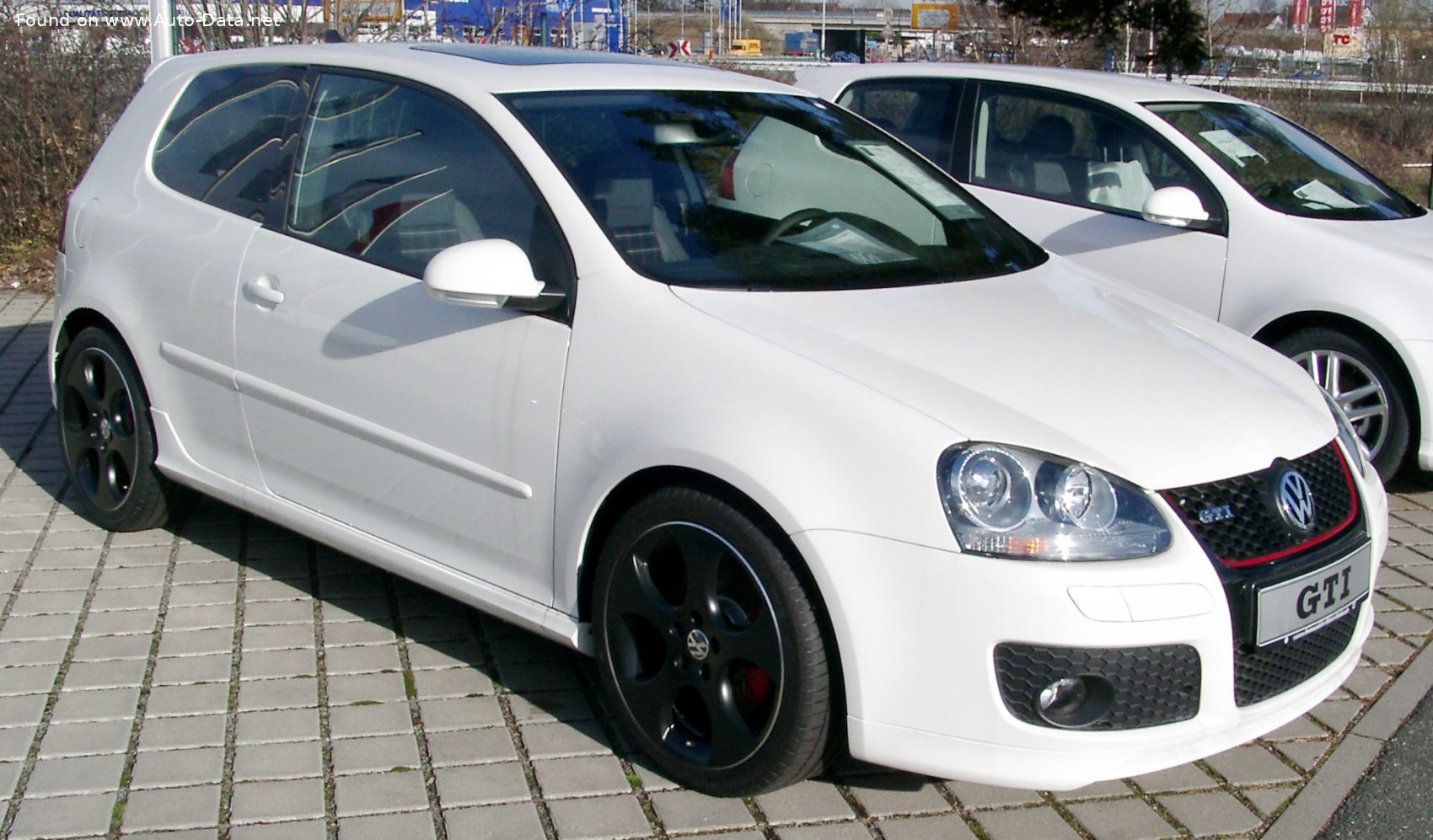

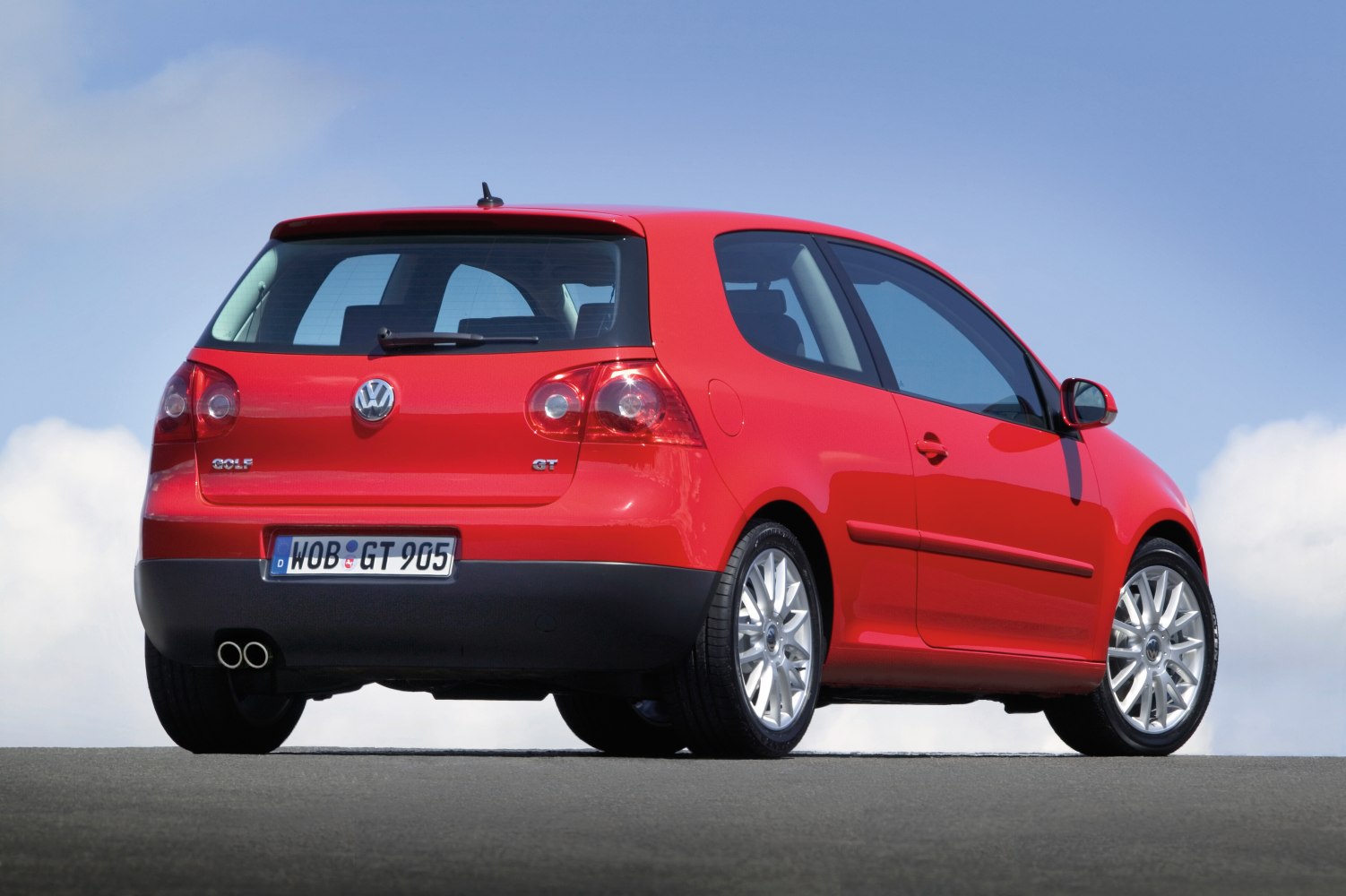

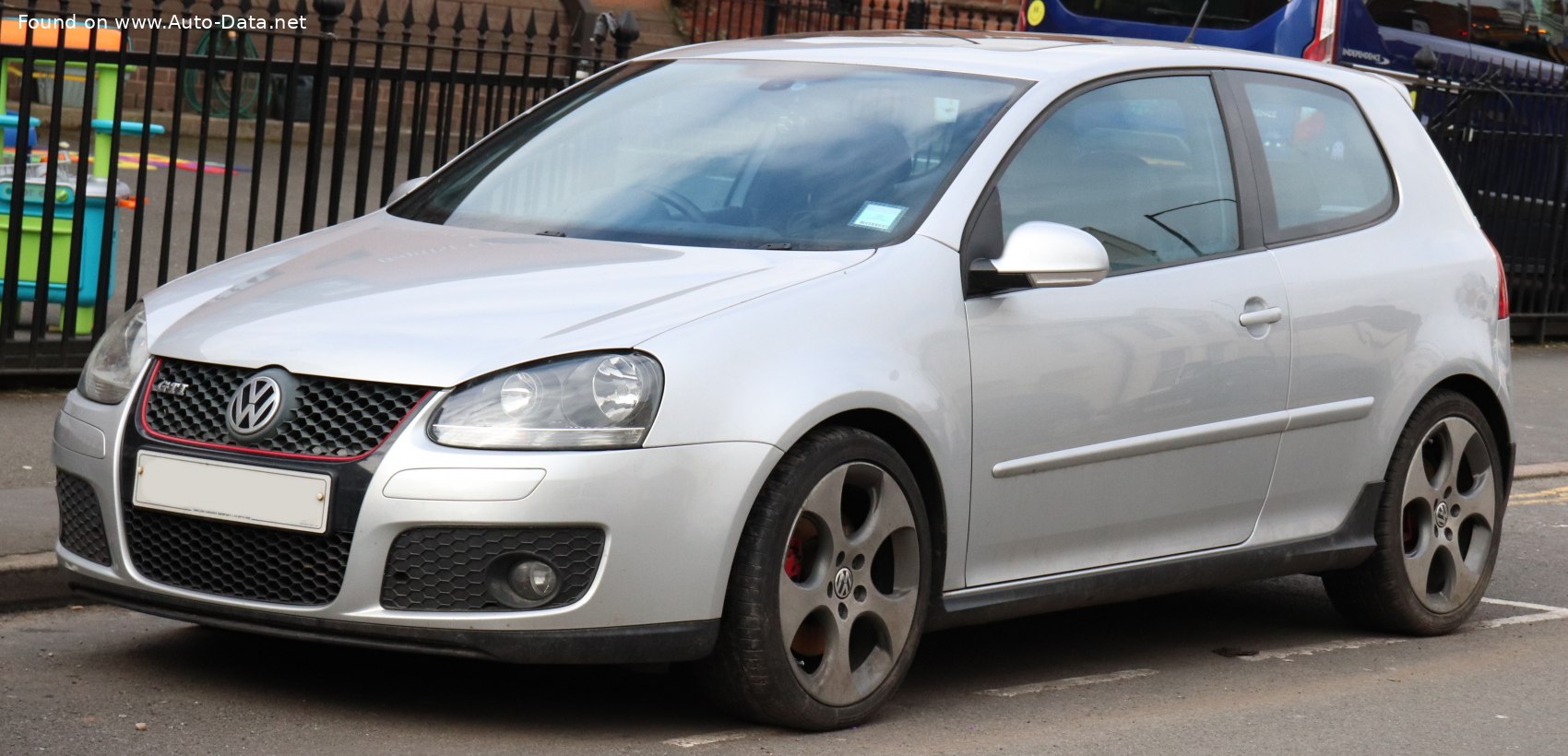

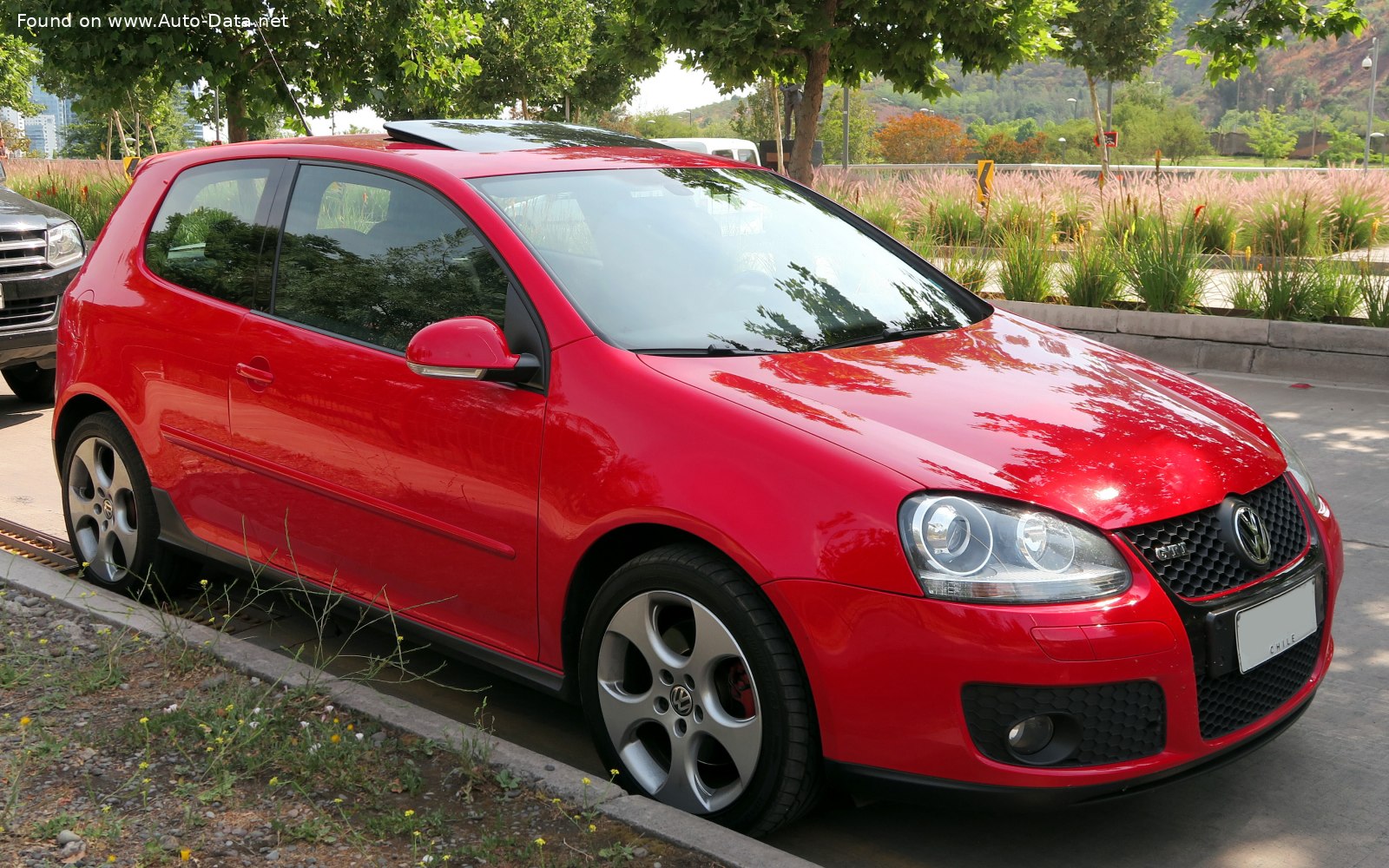

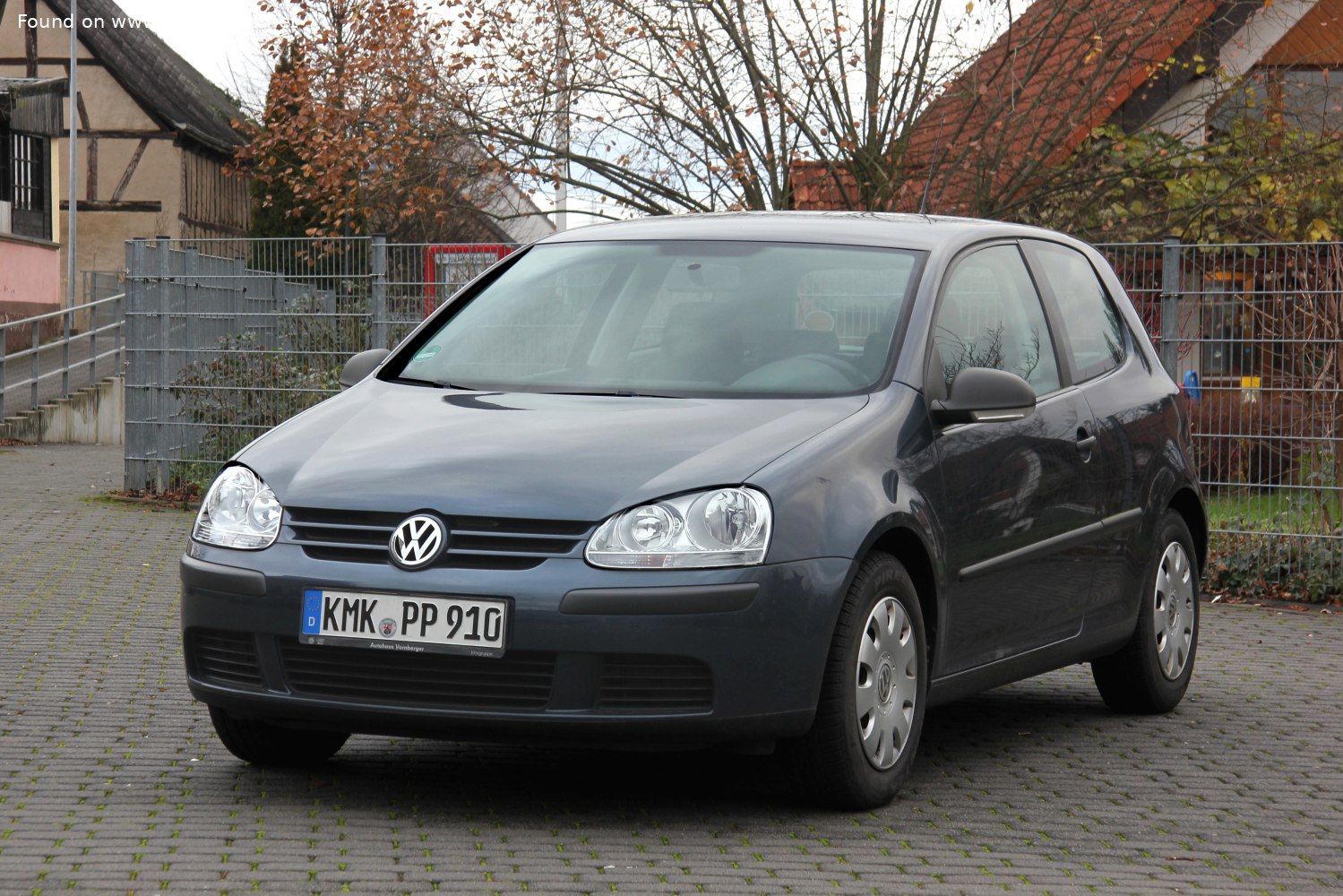

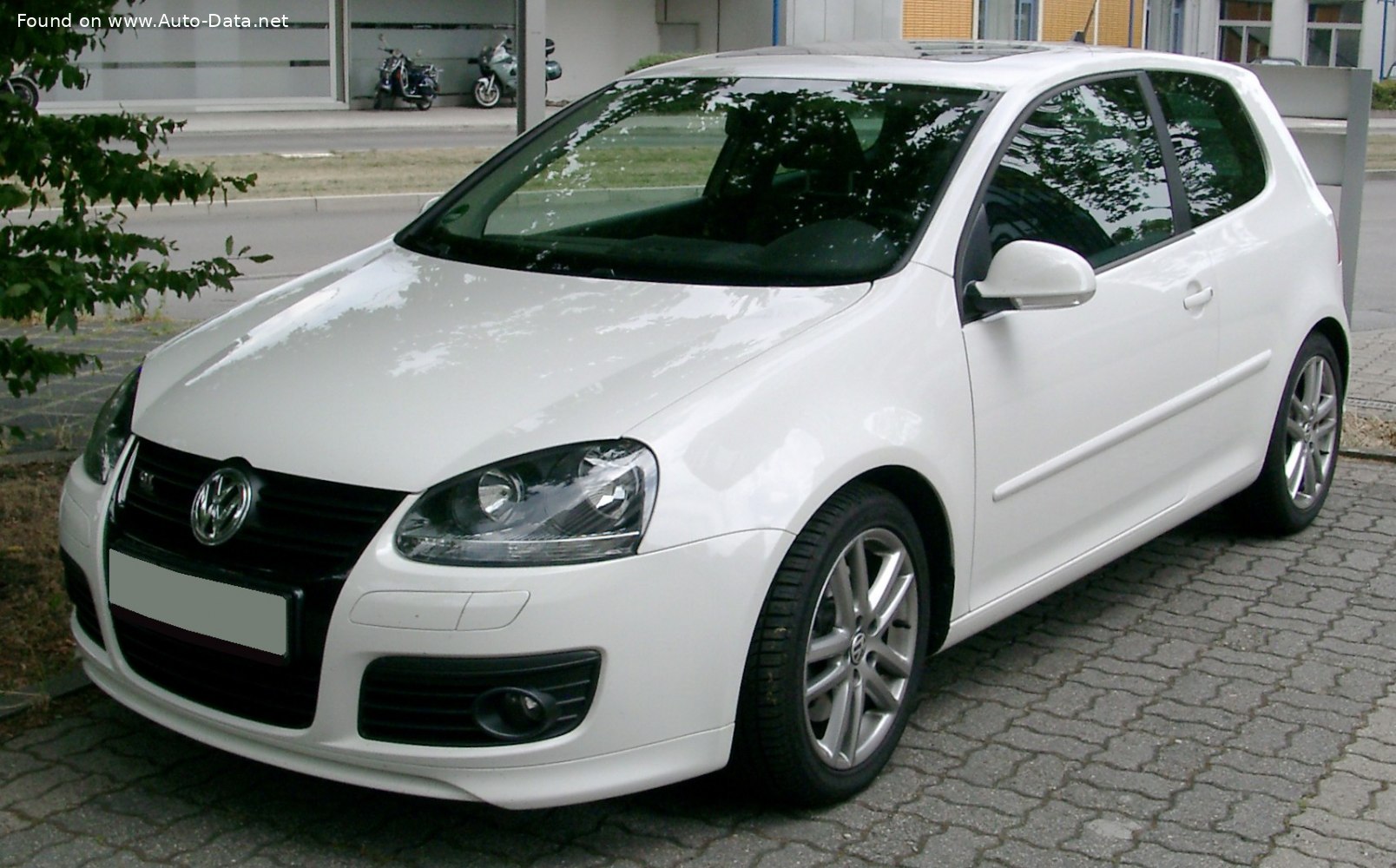

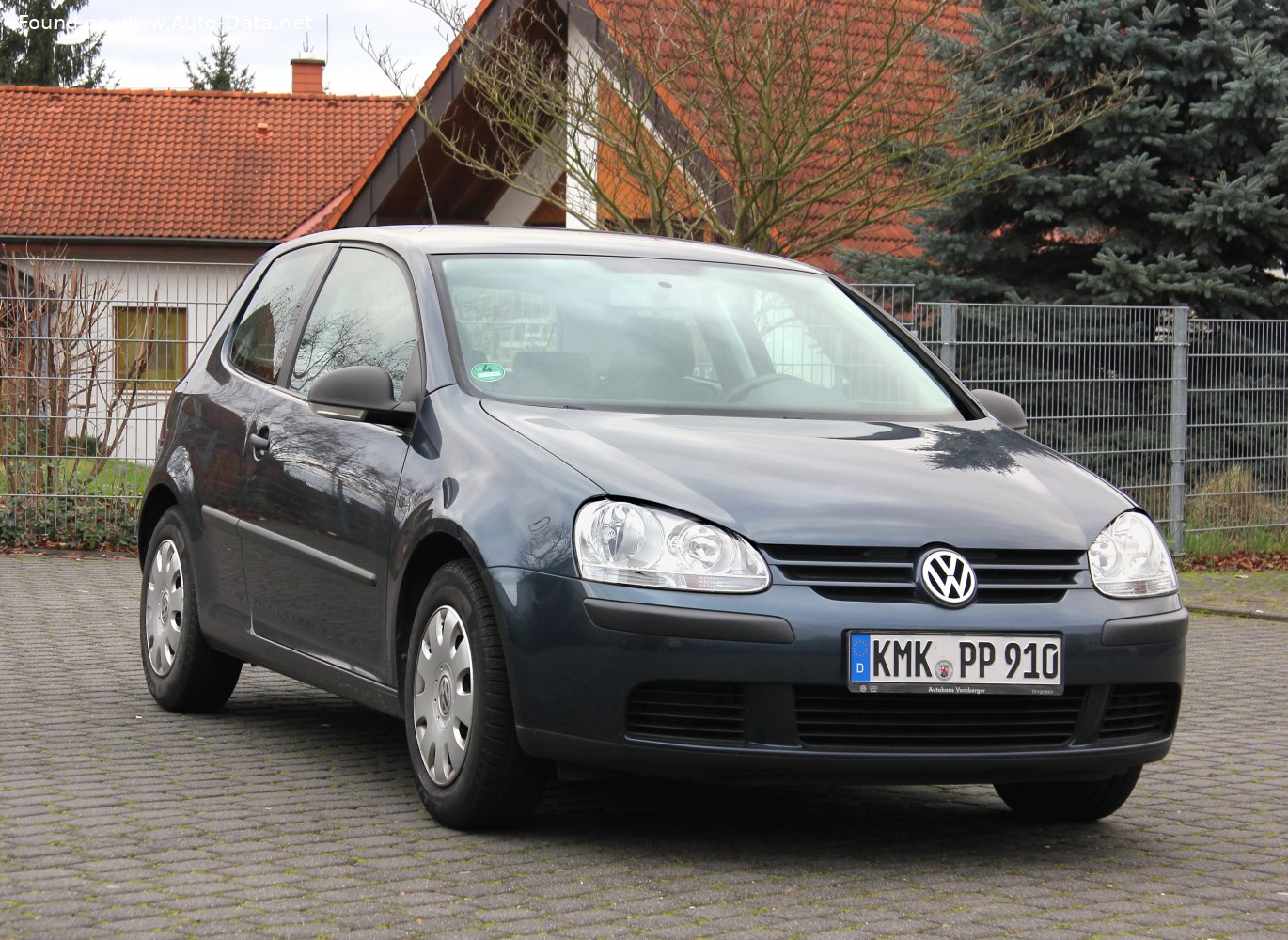

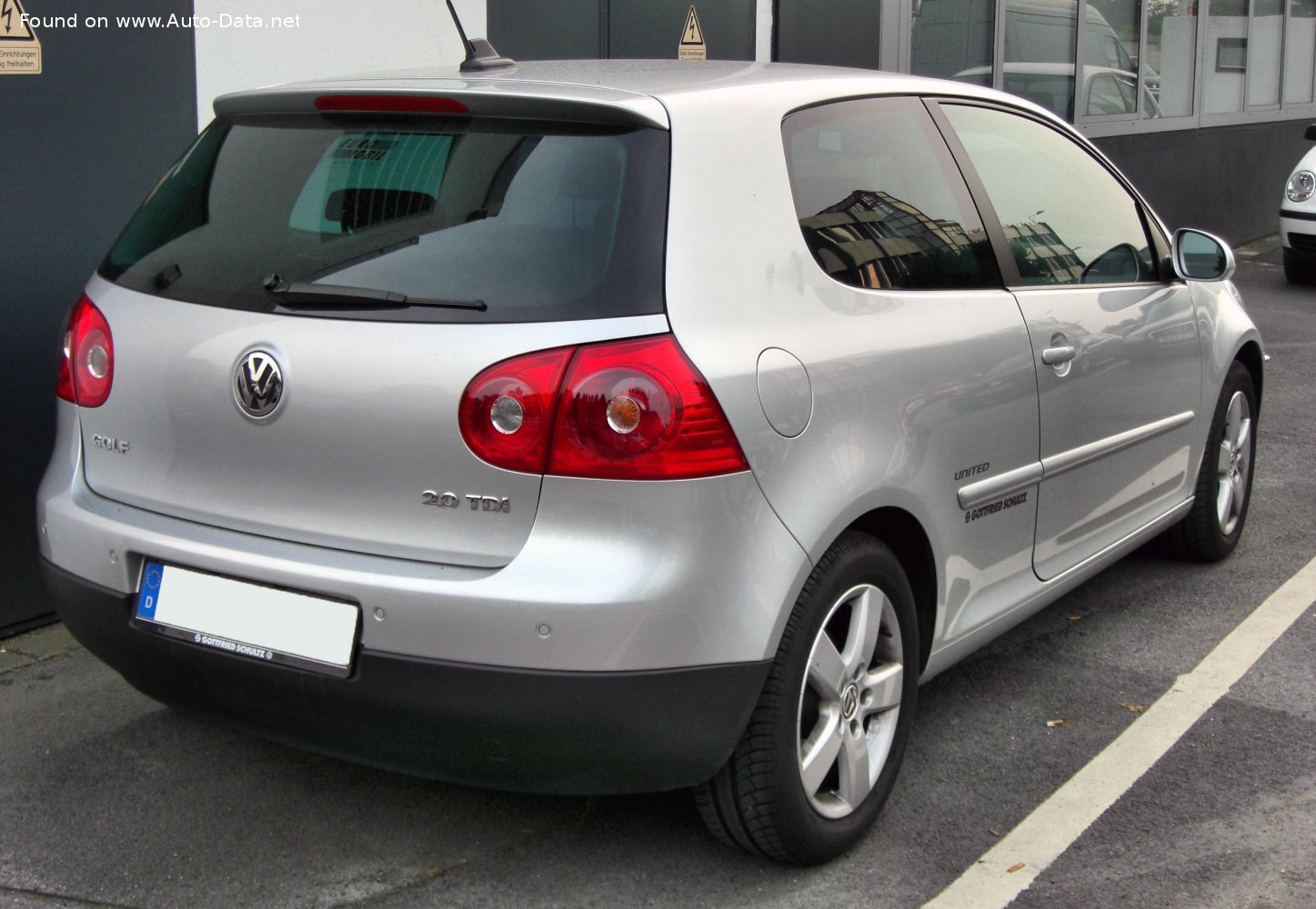

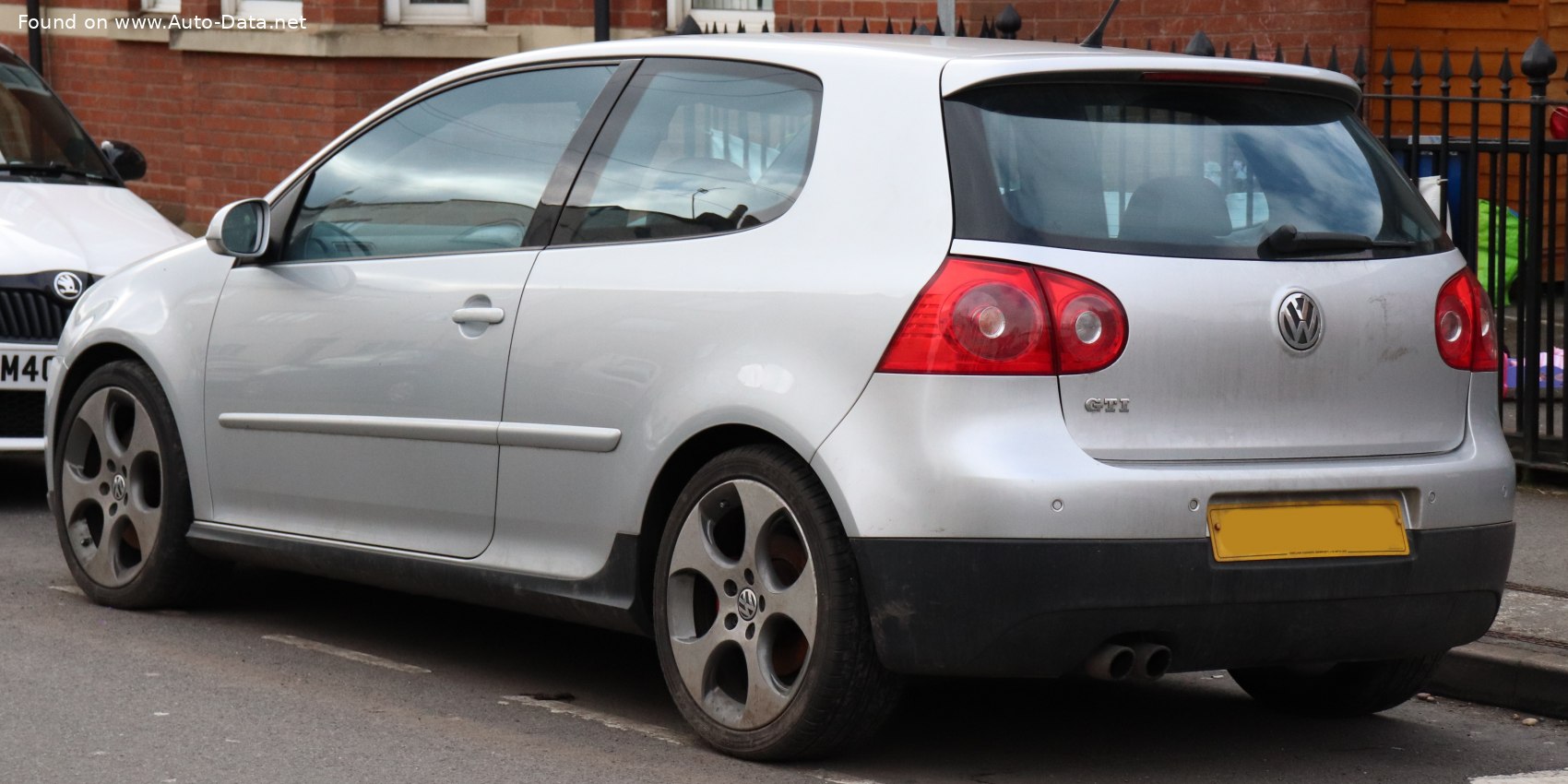

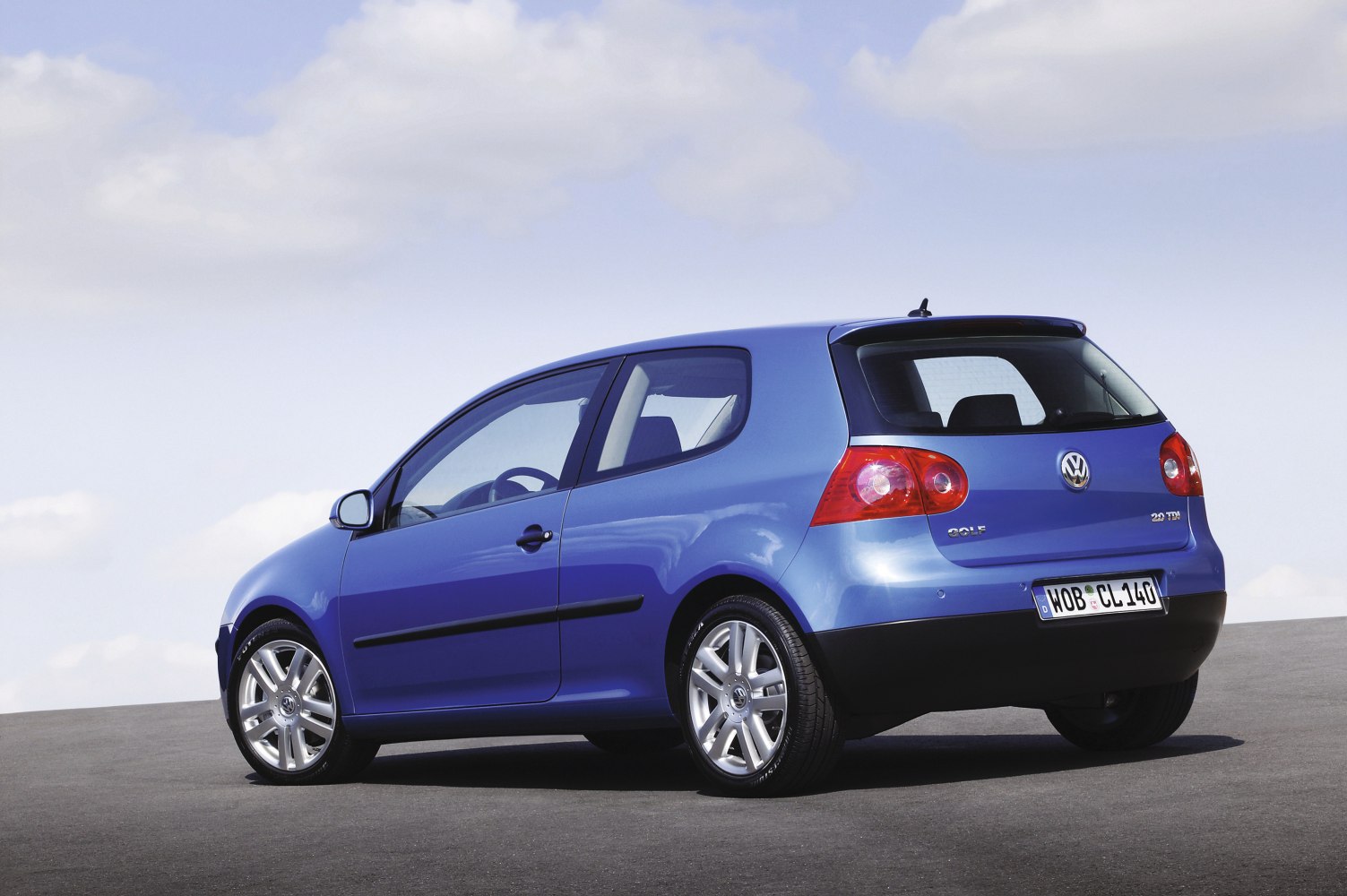

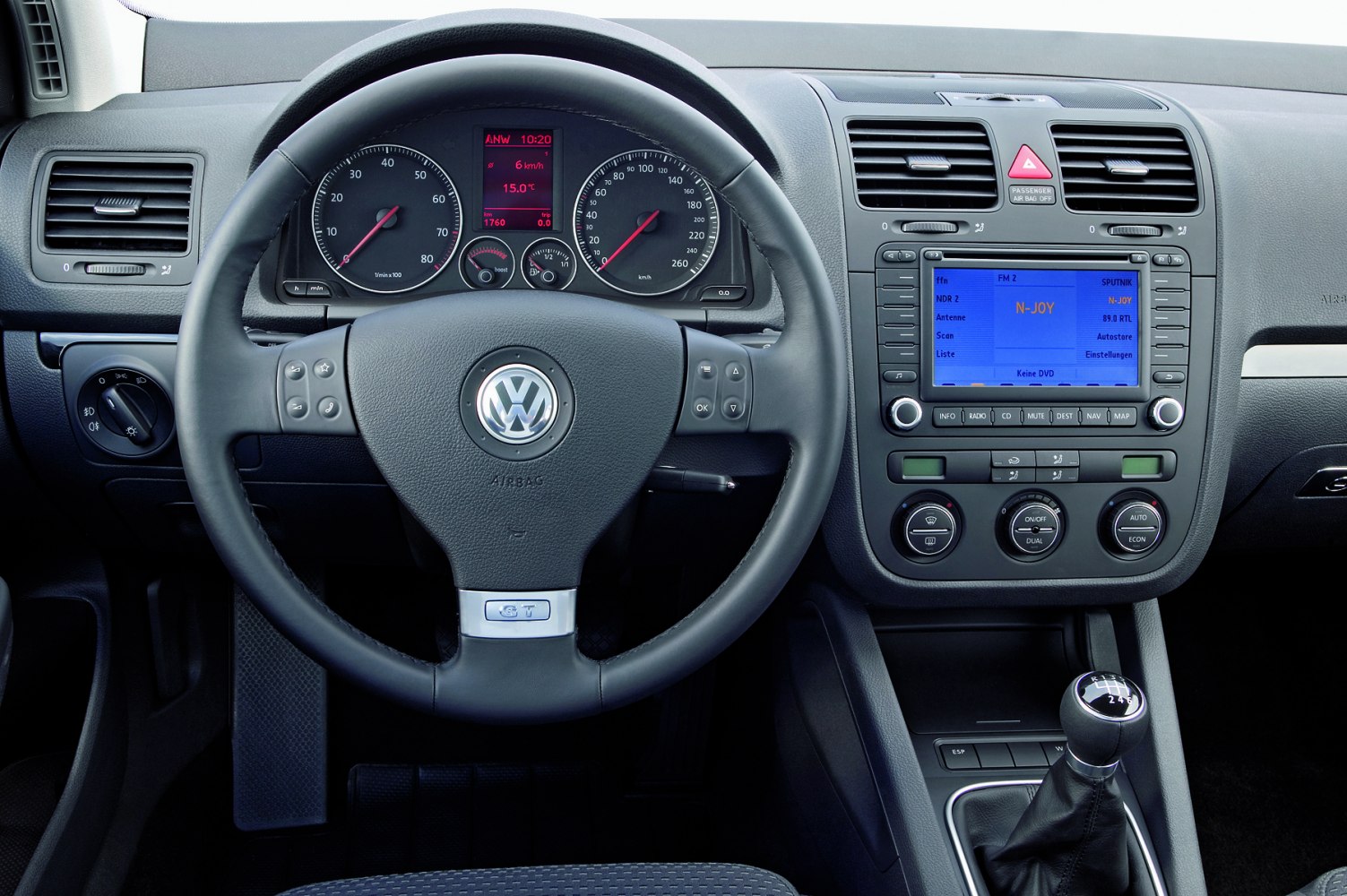

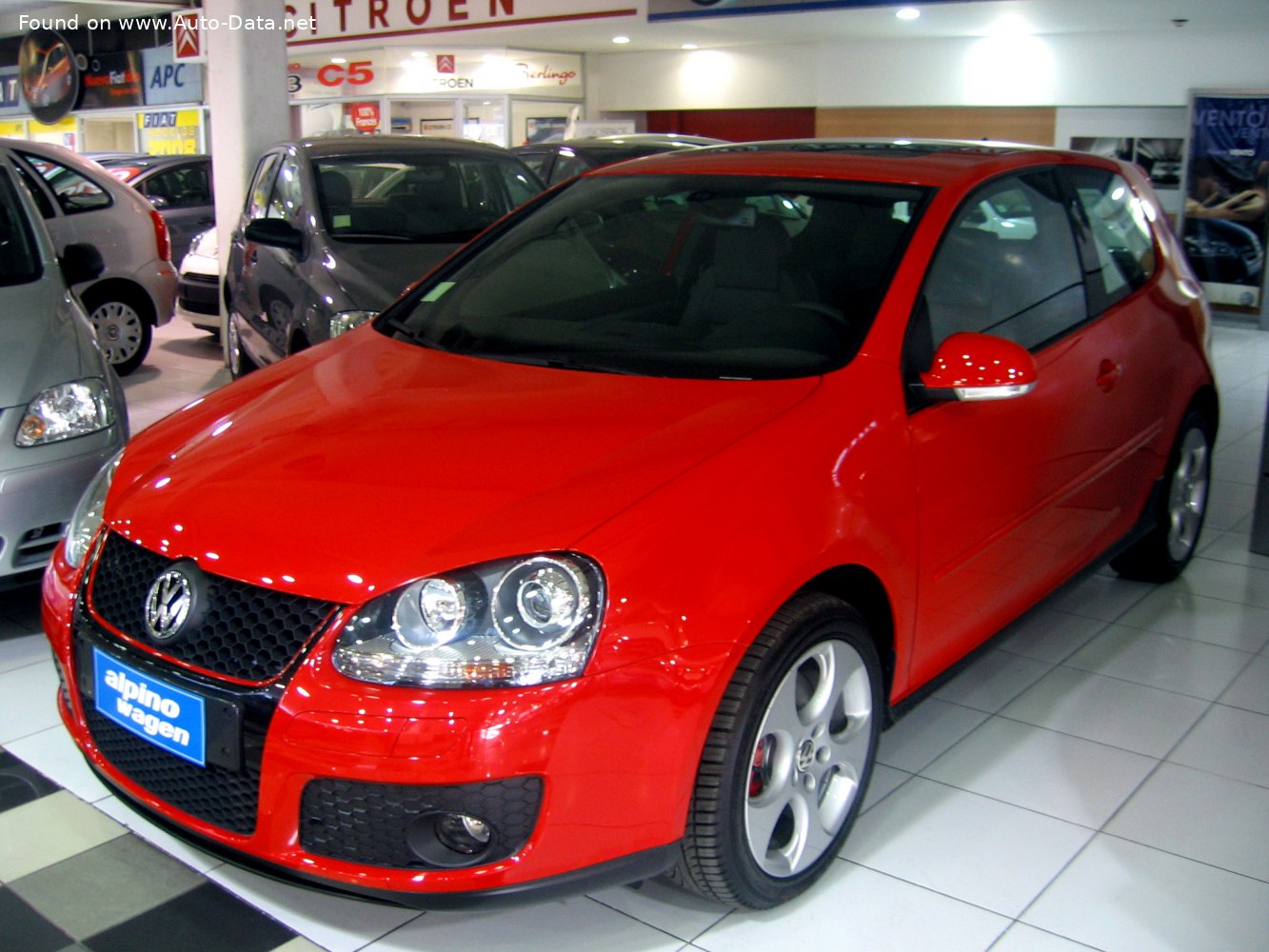

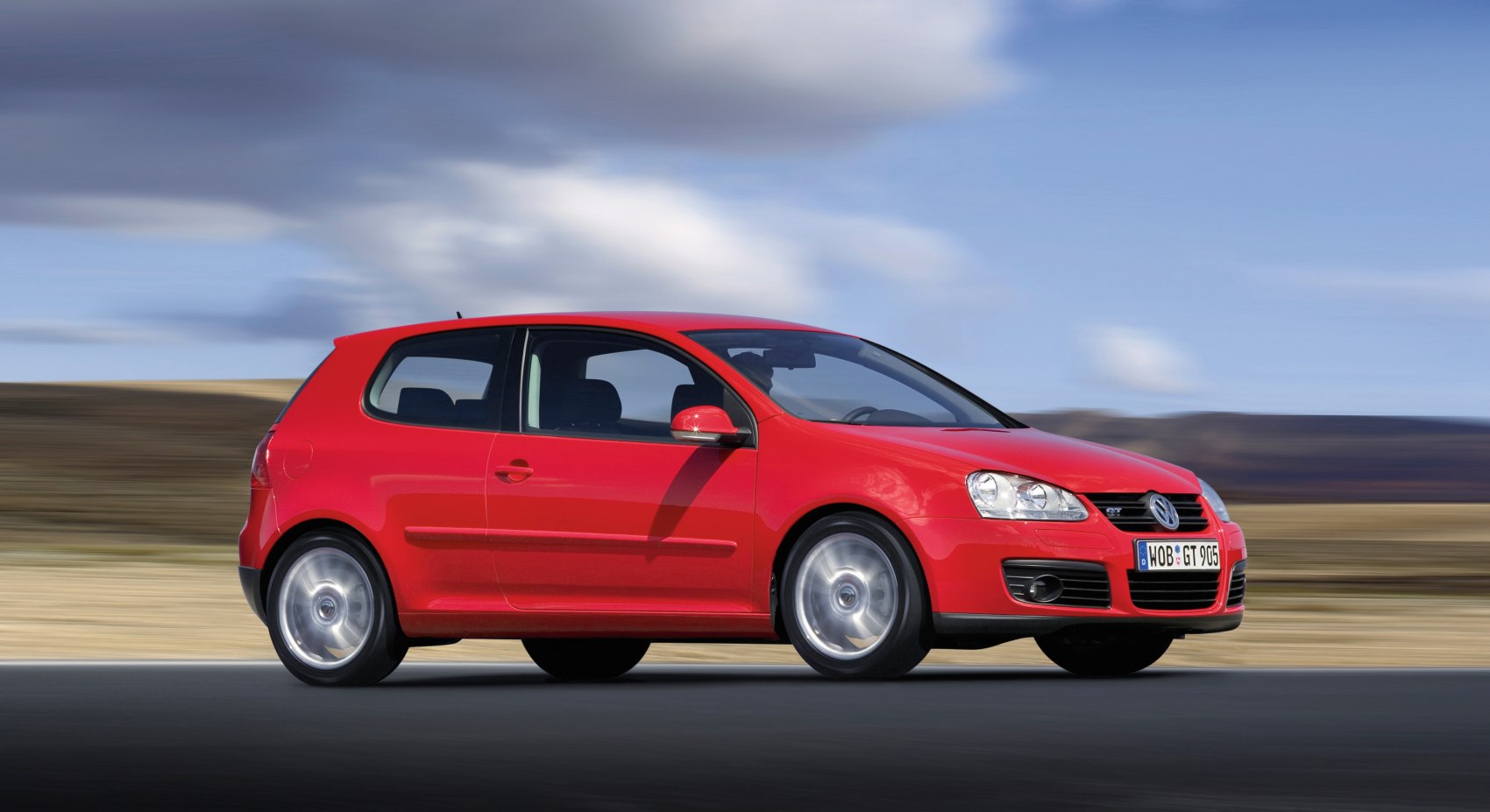

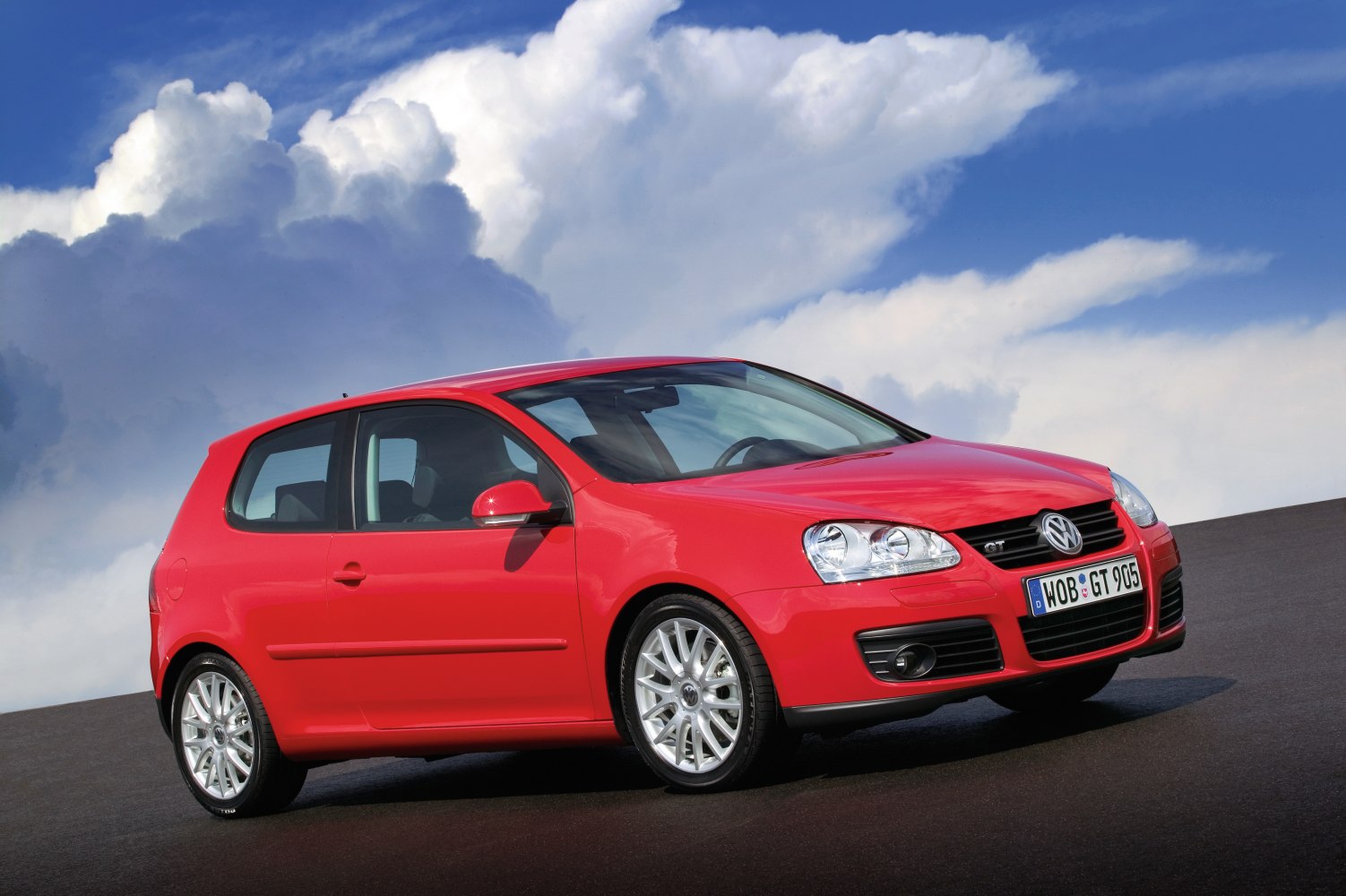

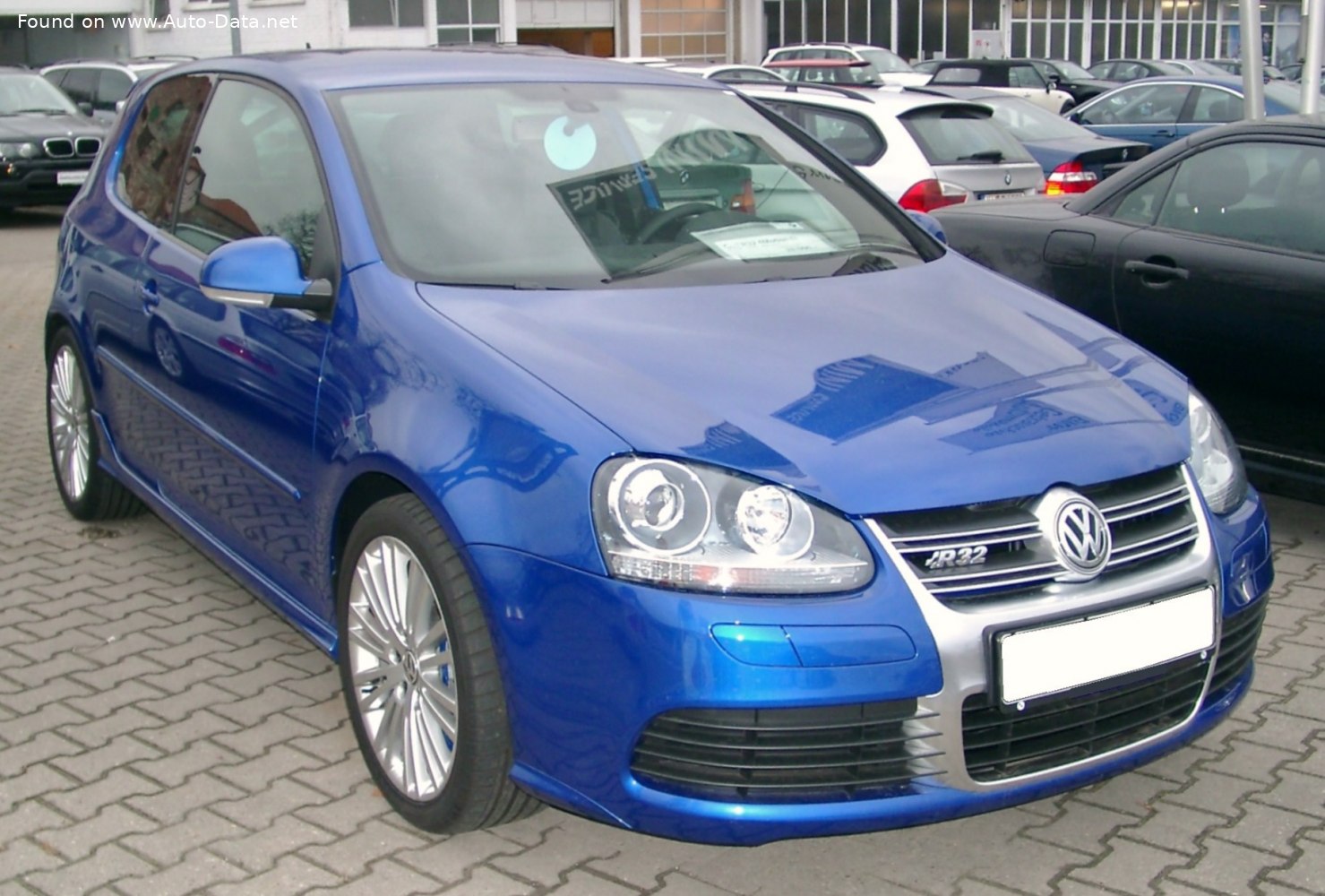

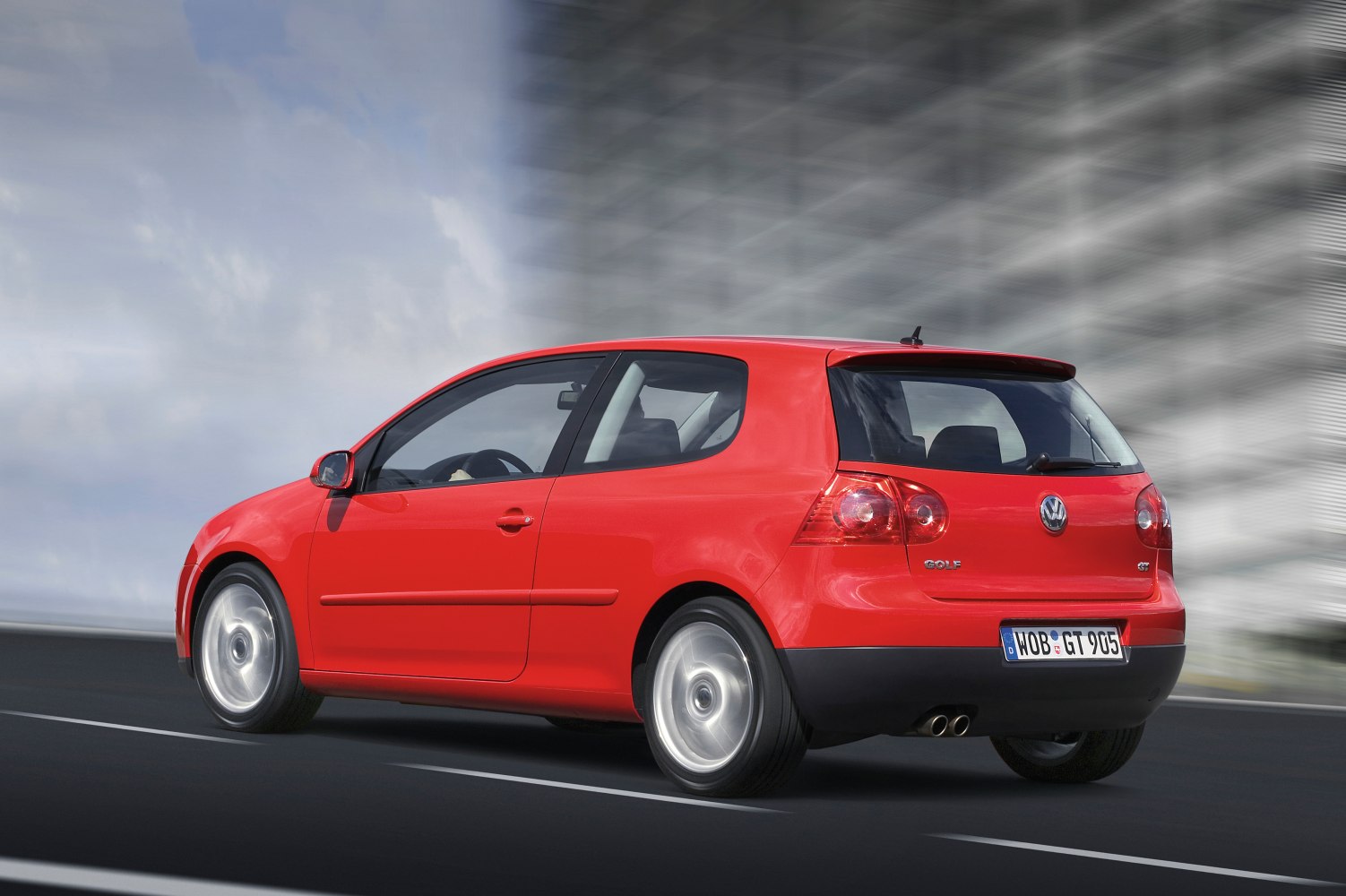

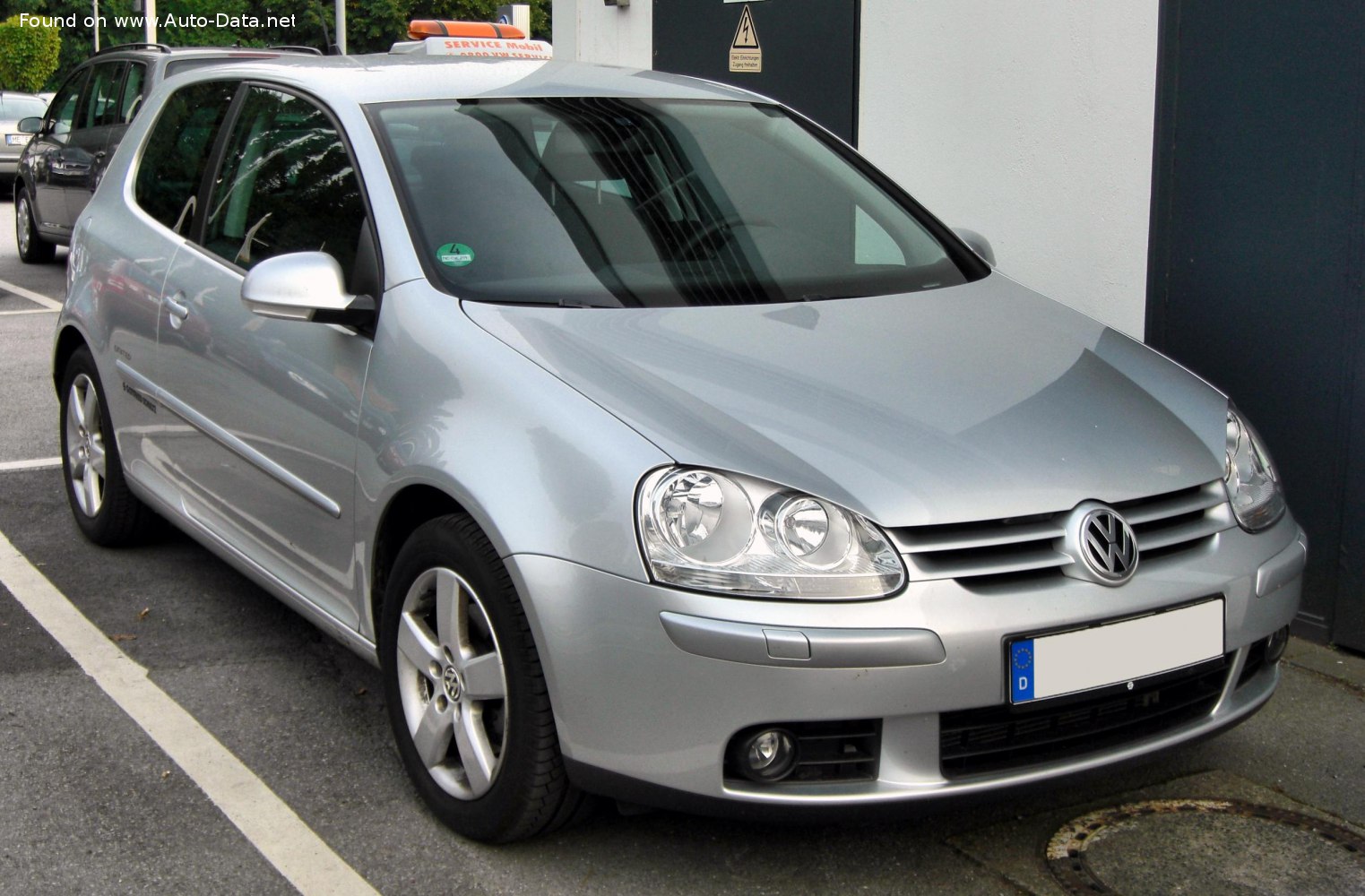

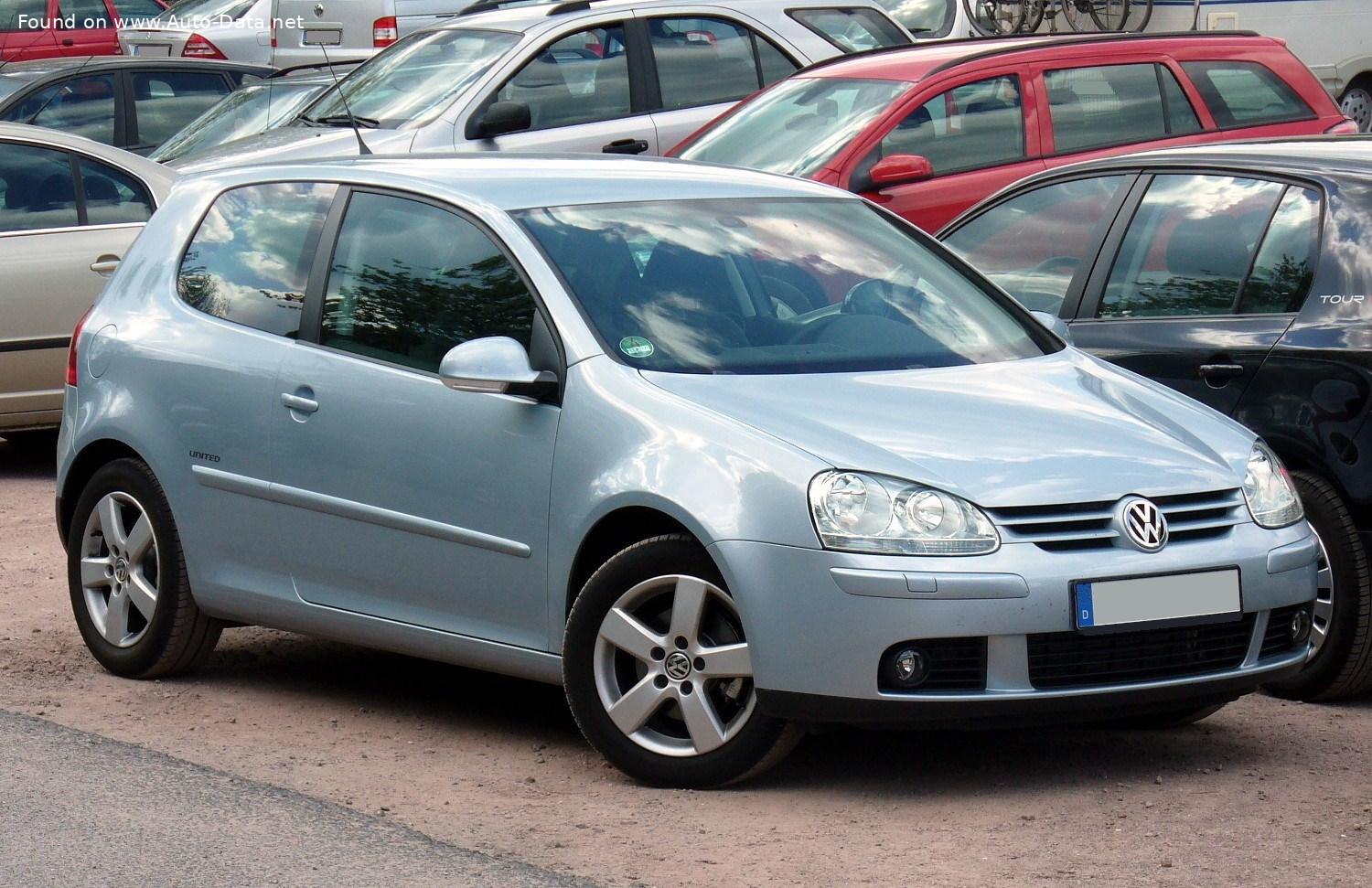

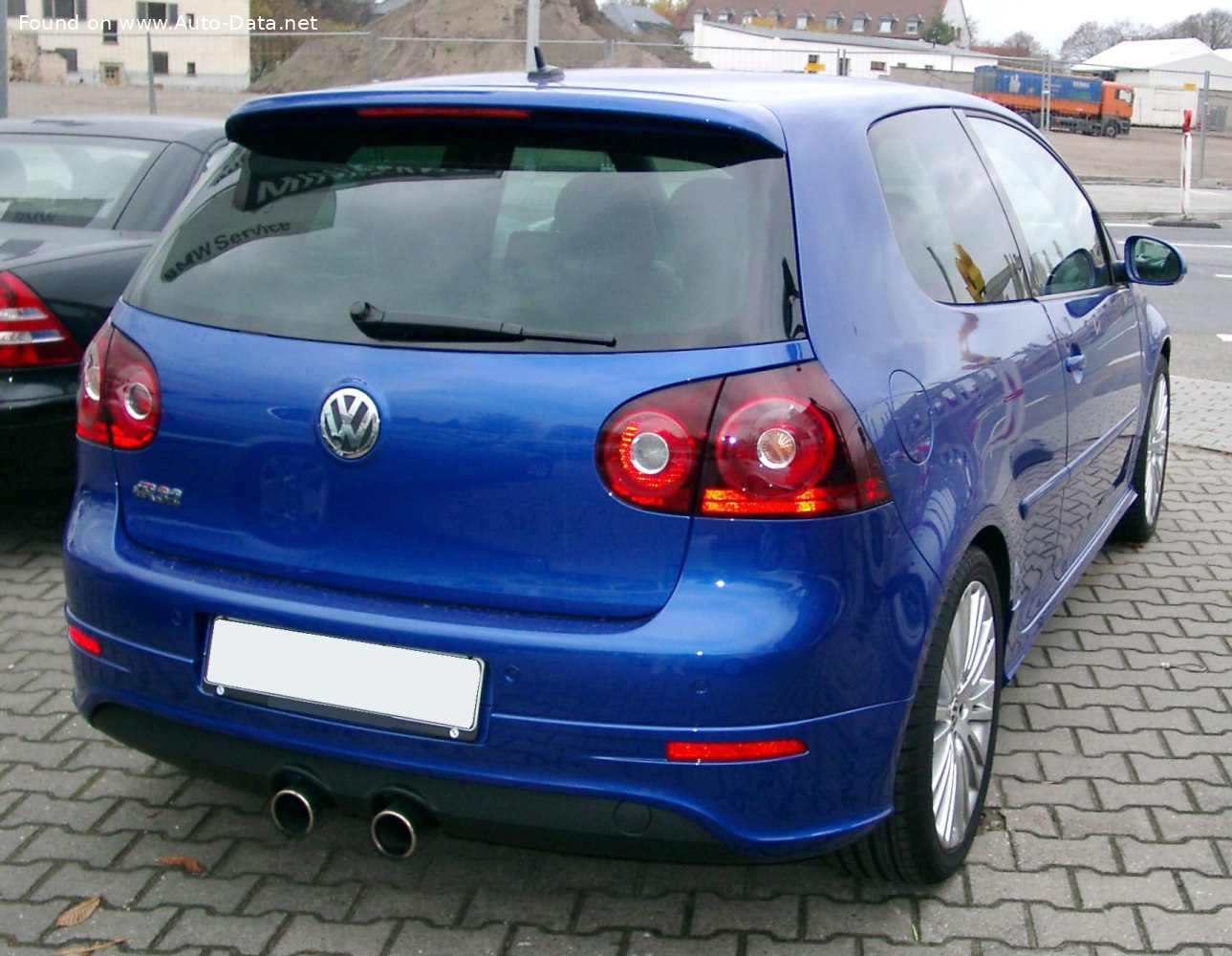

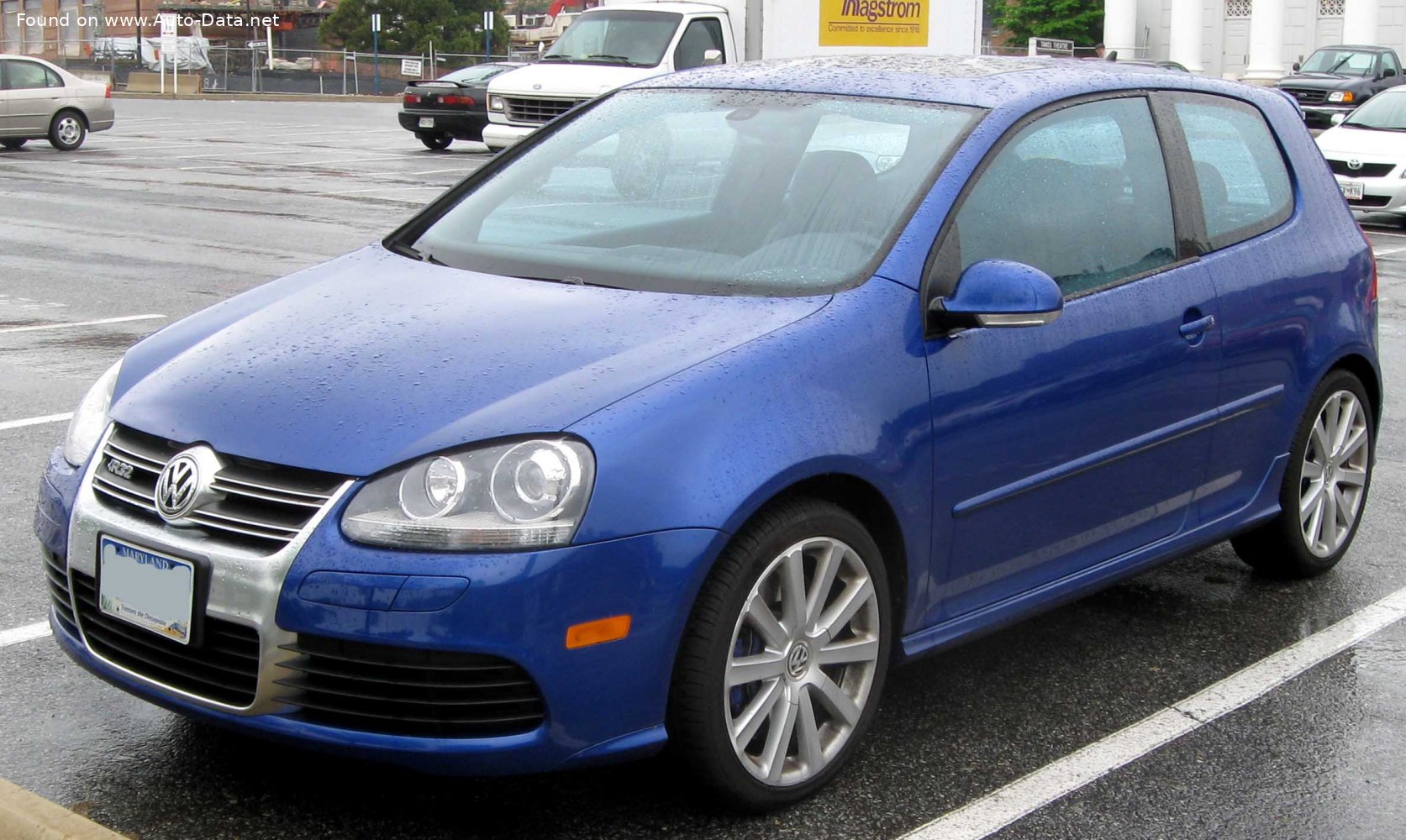

Volkswagen Golf 5 2004 Gallery
Volkswagen Golf 5 2004 Technical Specifications
General
Body type
Hatchback
Brand
Volkswagen
Doors
3
End of production
2008
Generation
Golf V (3-door)
Model
Golf
Modification (Engine)
2.0 TDI 8V (140 Hp) DPF
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
December, 2004
Performance
Acceleration 0 - 100 km/h
9.3 sec
Acceleration 0 - 60 mph
8.8 sec
Acceleration 0 - 62 mph
9.3 sec
CO2 emissions (NEDC)
149-154 g/km
Emission standard
Euro 4
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC)
5.5-5.7 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
4.7-4.9 l/100 km
Fuel consumption (economy) - urban (NEDC)
6.9-7.1 l/100 km
Maximum speed
205 km/h
Dimensions
Approach angle
13.9°
Departure angle
14.2°
Front overhang
880 mm
Front track
1539 mm
Height
1485 mm
Length
4204 mm
Minimum turning circle (turning diameter)
10.9 m
Ramp-over (brakeover) angle
9.4°
Rear (Back) track
1528 mm
Rear overhang
746 mm
Wheelbase
2578 mm
Width
1759 mm
Engine
Compression ratio
18.5
Coolant
8 l
Cylinder Bore
81 mm
Engine Model/Code
EA188 / BMM
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1968 cm
Engine layout
Front, Transverse
Engine oil capacity
3.8 l
Engine oil specification
Log in to see.
Engine systems
Particulate filter
Fuel injection system
Pump-nozzle (Unit Injector)
Number of cylinders
4
Number of valves per cylinder
2
Power
140 Hp @ 4000 rpm.
Torque
320 Nm @ 1750-2500 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
6 gears, manual transmission
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
195/65 R15; 205/55 R16; 225/45 R17
Wheel rims size
6J x 15; 6.5J x 15; 6.5J x 16; 7J x 17
Space
Fuel tank capacity
55 l
Kerb Weight
1281-1451 kg
Max load
419-589 kg
Max. roof load
75 kg
Max. weight
1870 kg
Permitted towbar download
75 kg
