Volkswagen Arteon Shooting Brake 2024
2.0 TDI (193 Hp) 4MOTION DSG
Generation Arteon Shooting Brake
Body Type Station wagon (estate)
Seats 5
230 km/h
Maximum Speed
5
Doors
Volkswagen Arteon Shooting Brake 2024 Key Specs
Acceleration 0 - 100 Km/h
7.6 sec
Acceleration 0 - 62 Mph
7.6 sec
Body Type
Station wagon (estate)
Doors
5
Drive Wheel
All wheel drive (4x4)
Engine Aspiration
Turbocharger, Intercooler
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
66 l
Generation
Arteon Shooting Brake (2020)
Kerb Weight
1646 kg
Maximum Speed
230 km/h
Modification (Engine)
2.0 TDI (193 Hp) 4MOTION DSG
Number Of Cylinders
4
Power
193 Hp
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
2024
Wheel Rims Size
8J x 18; 8J x 19; 8J x 20

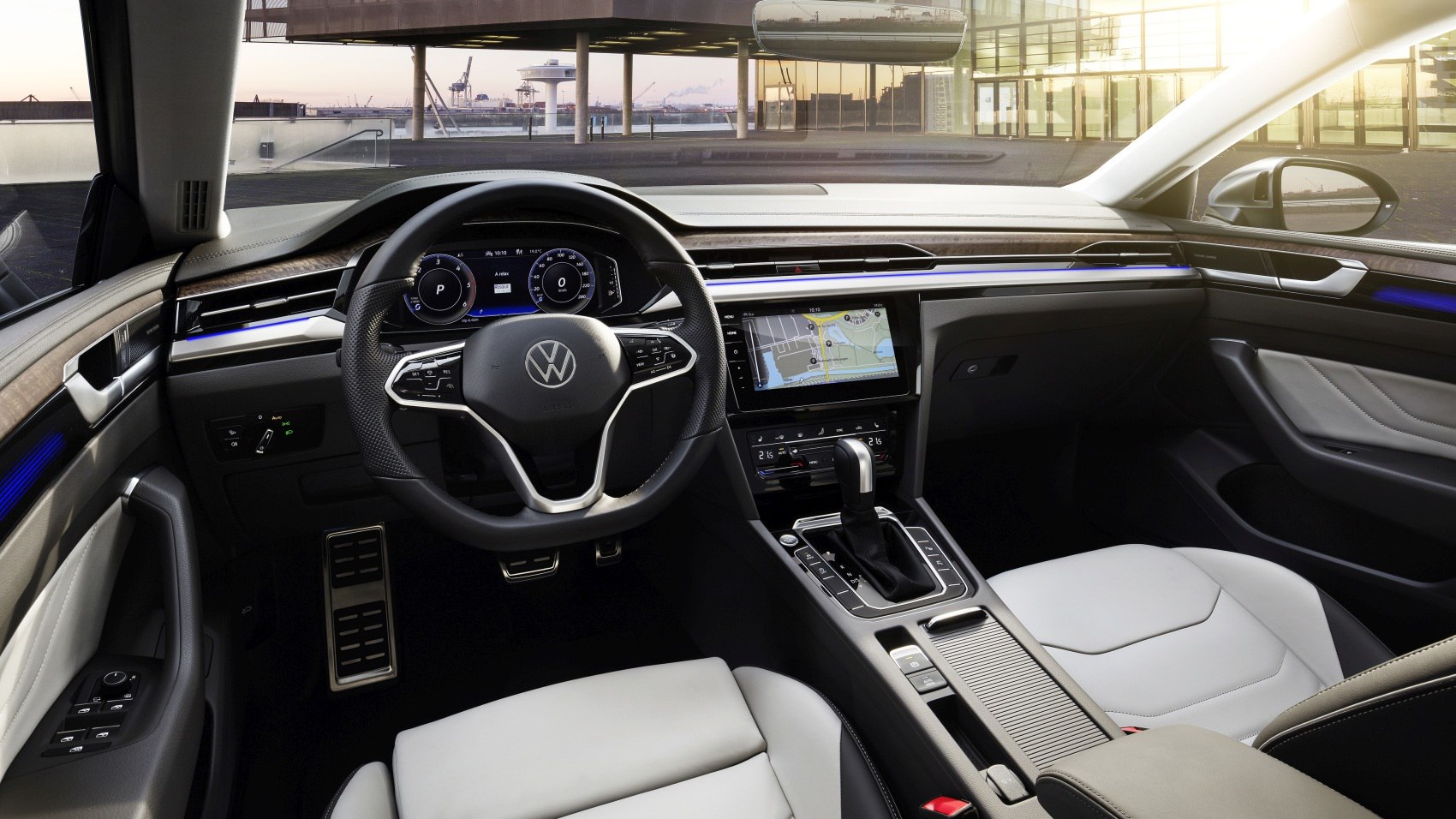

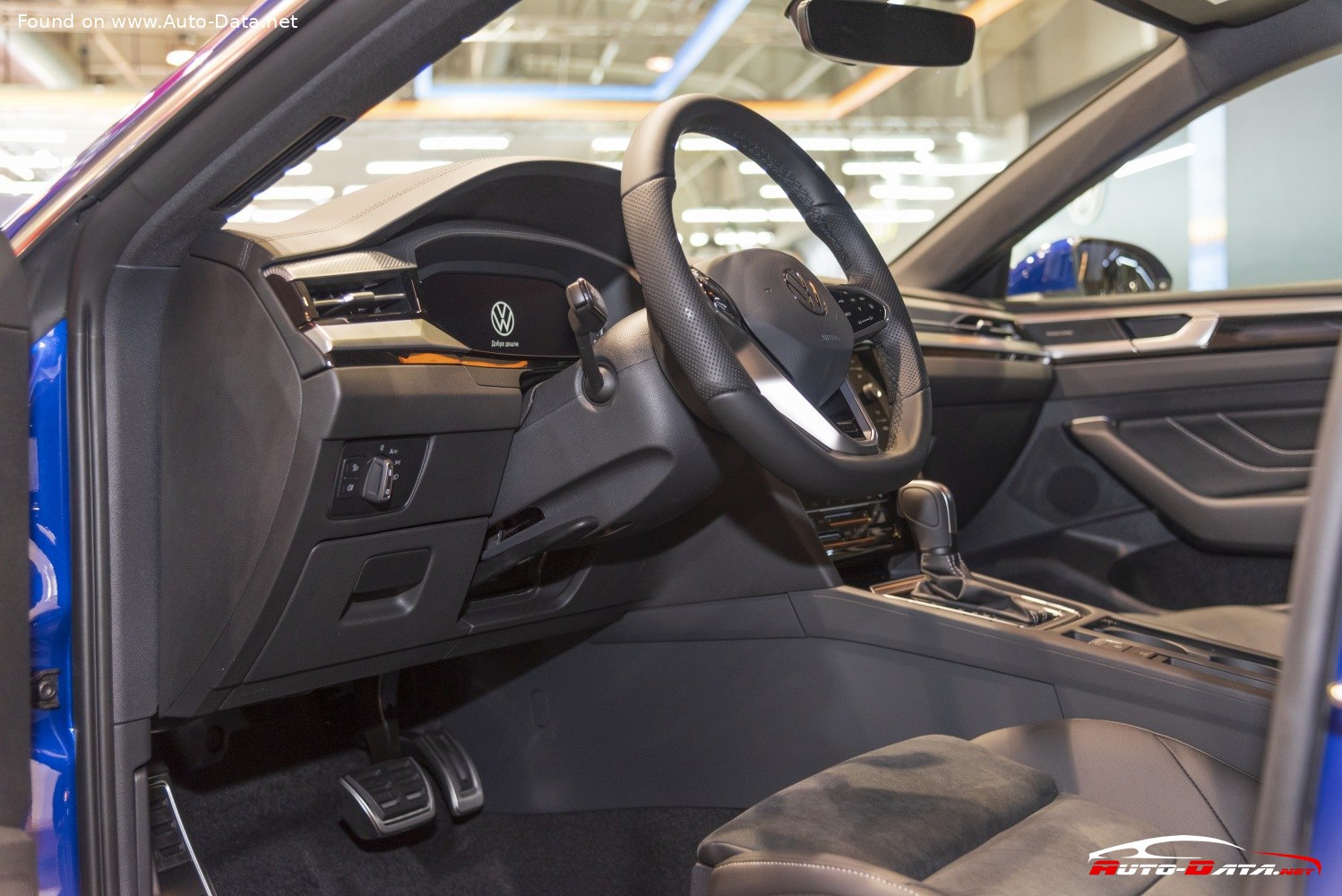

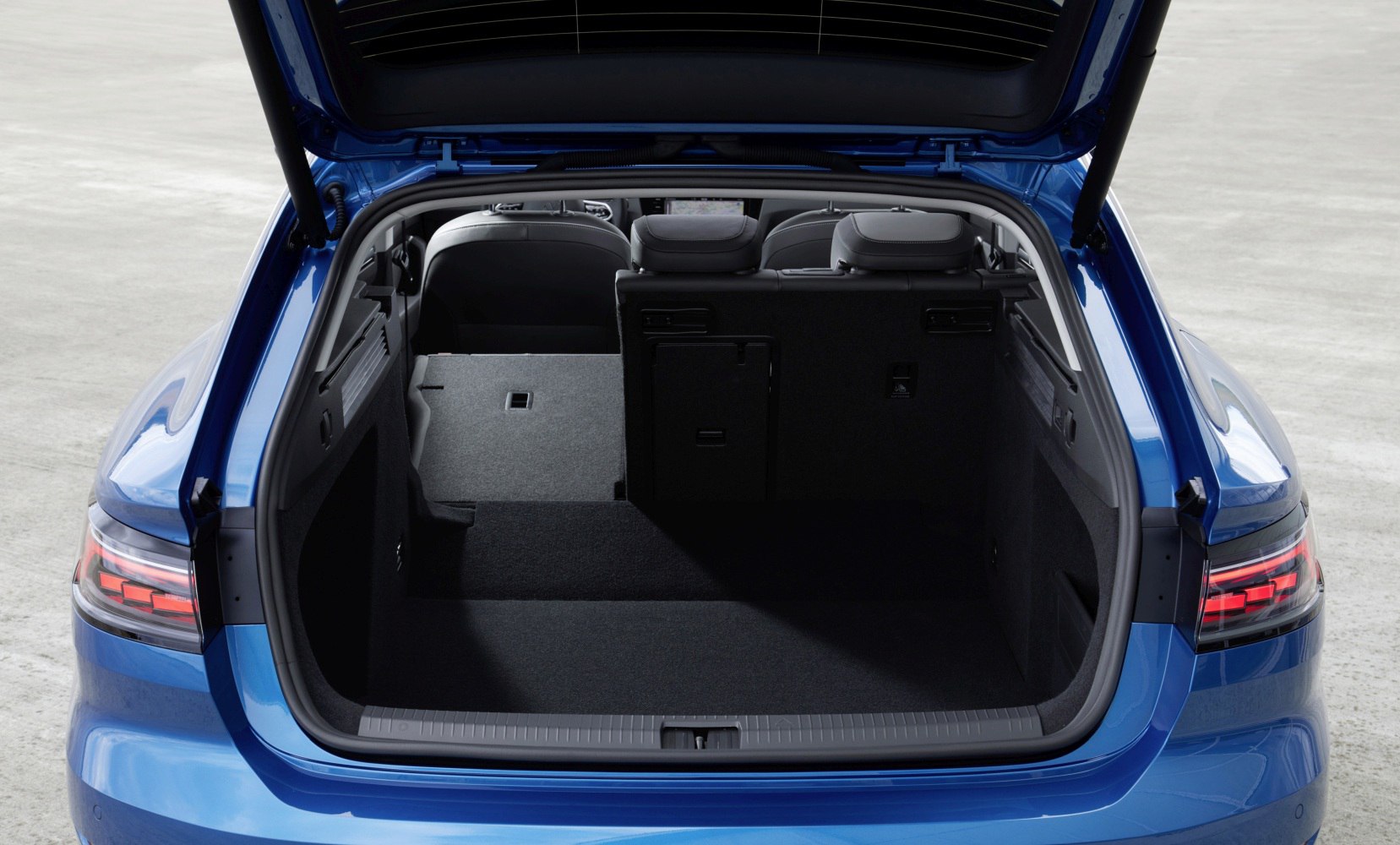

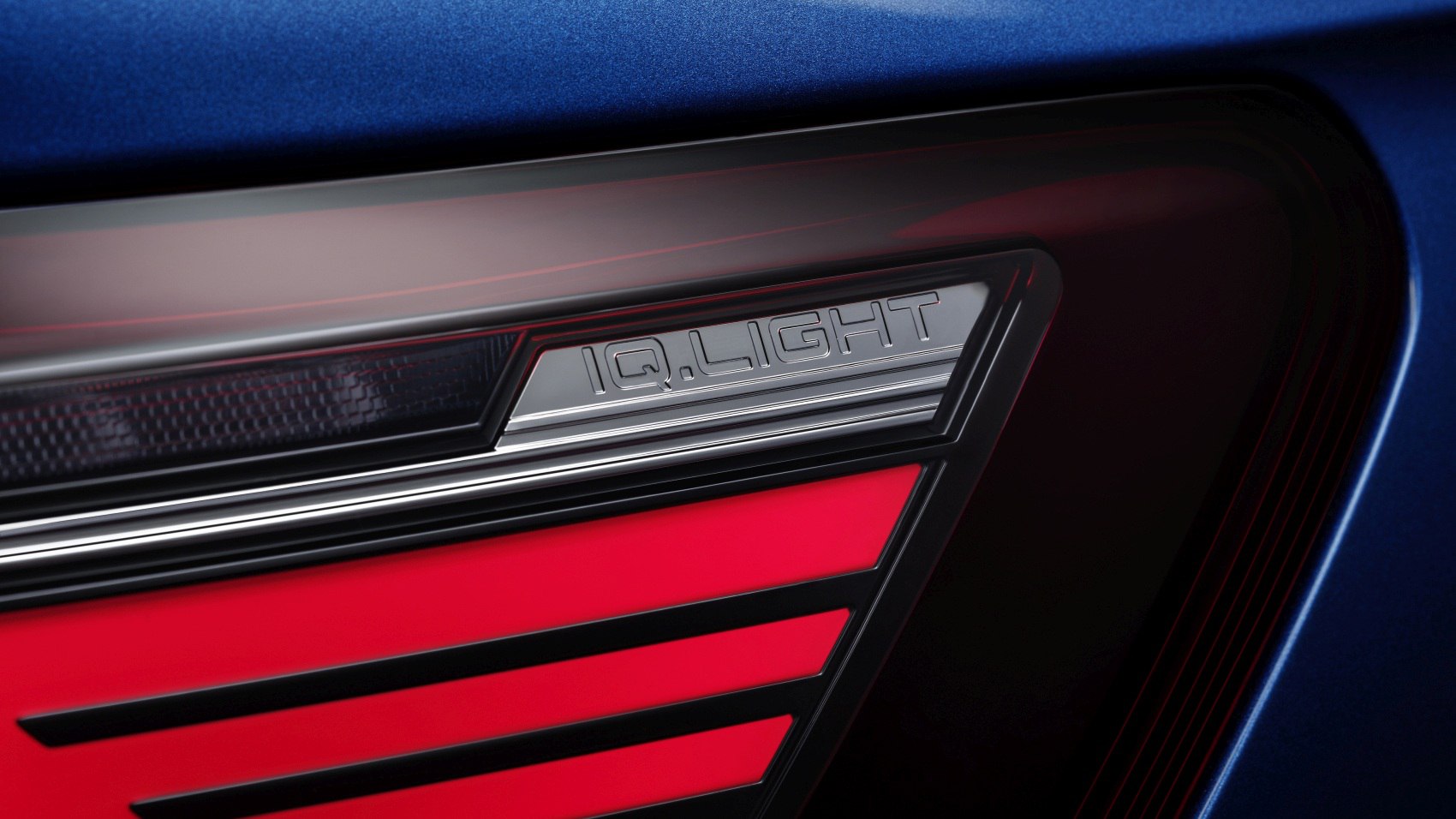

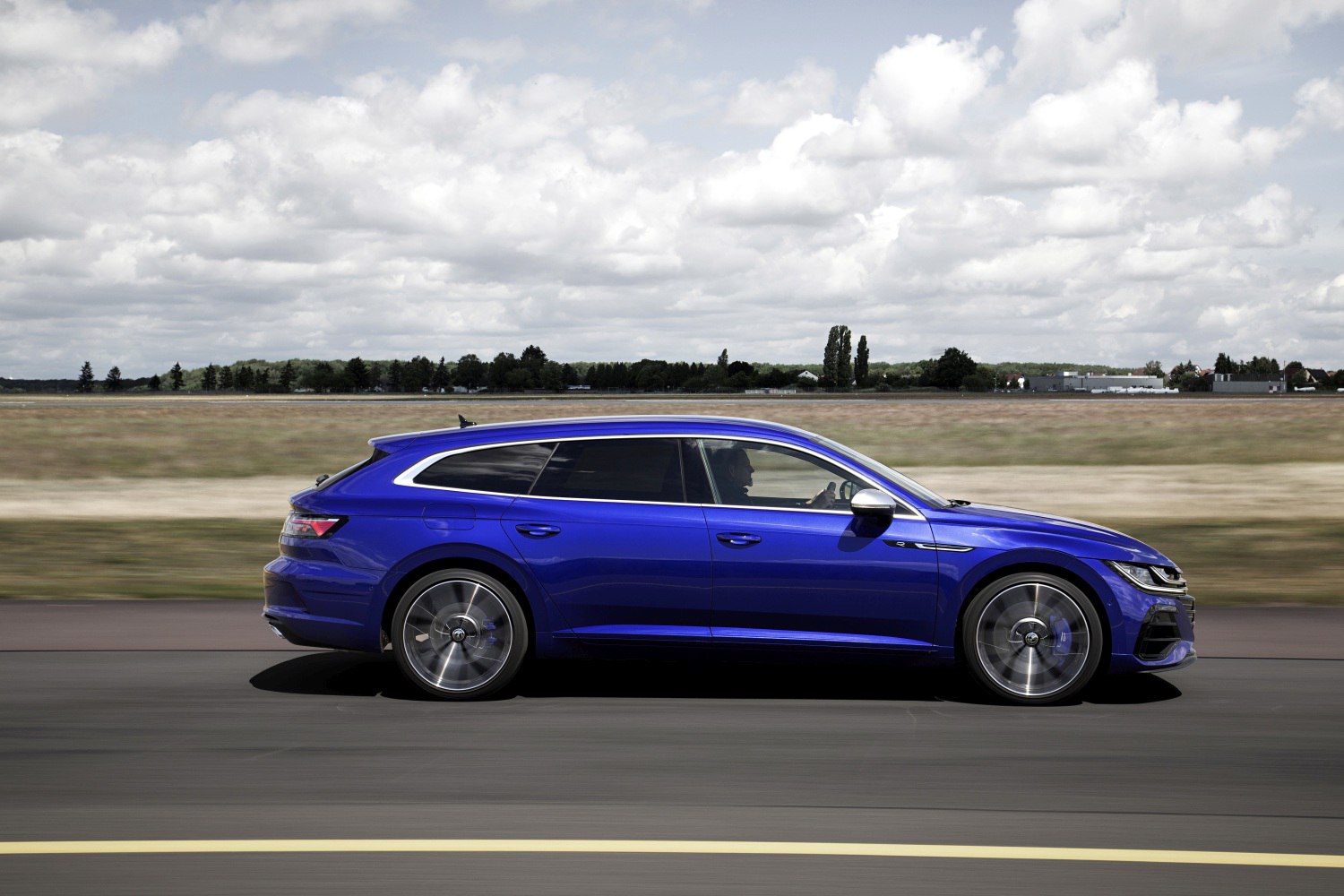

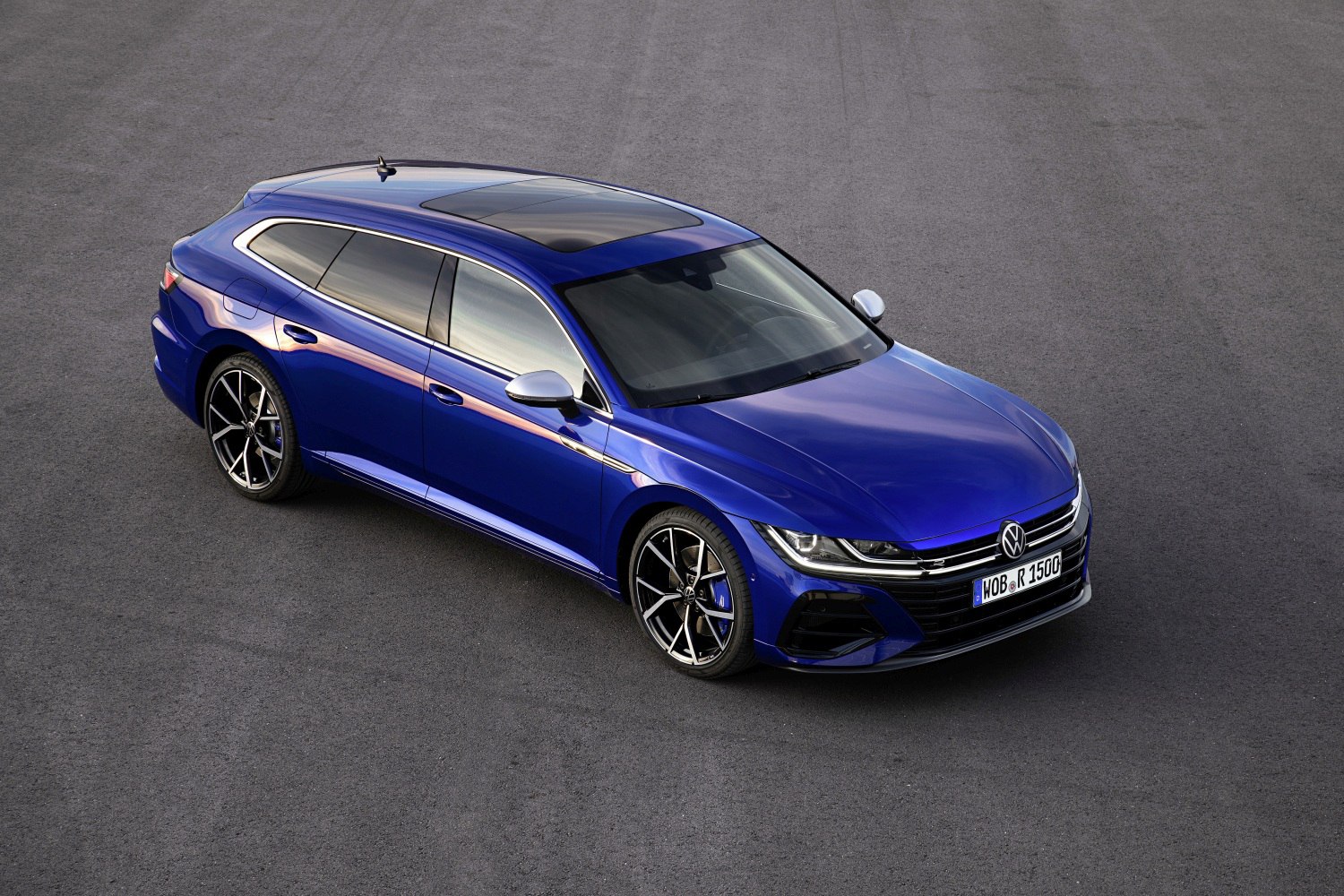

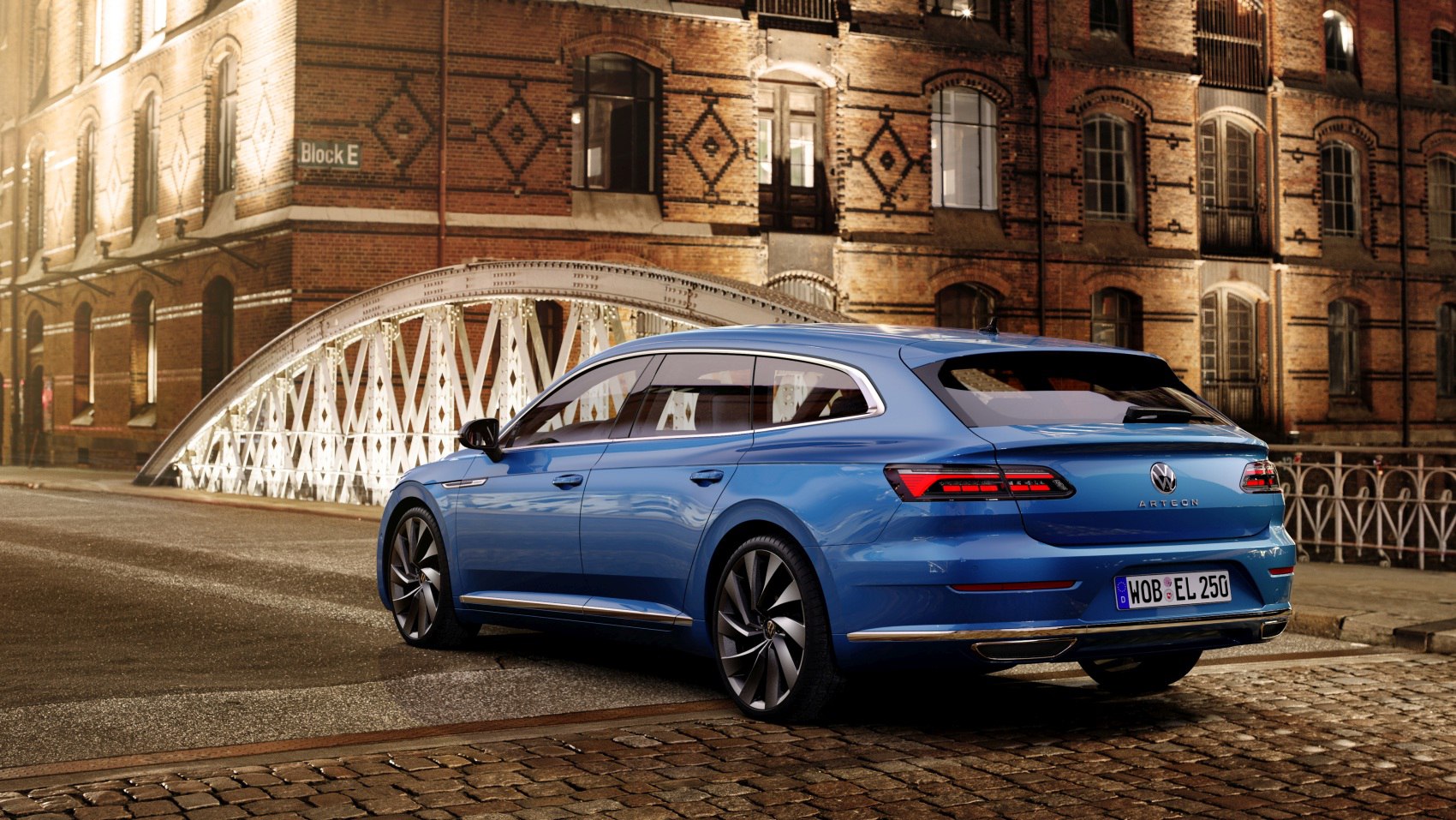

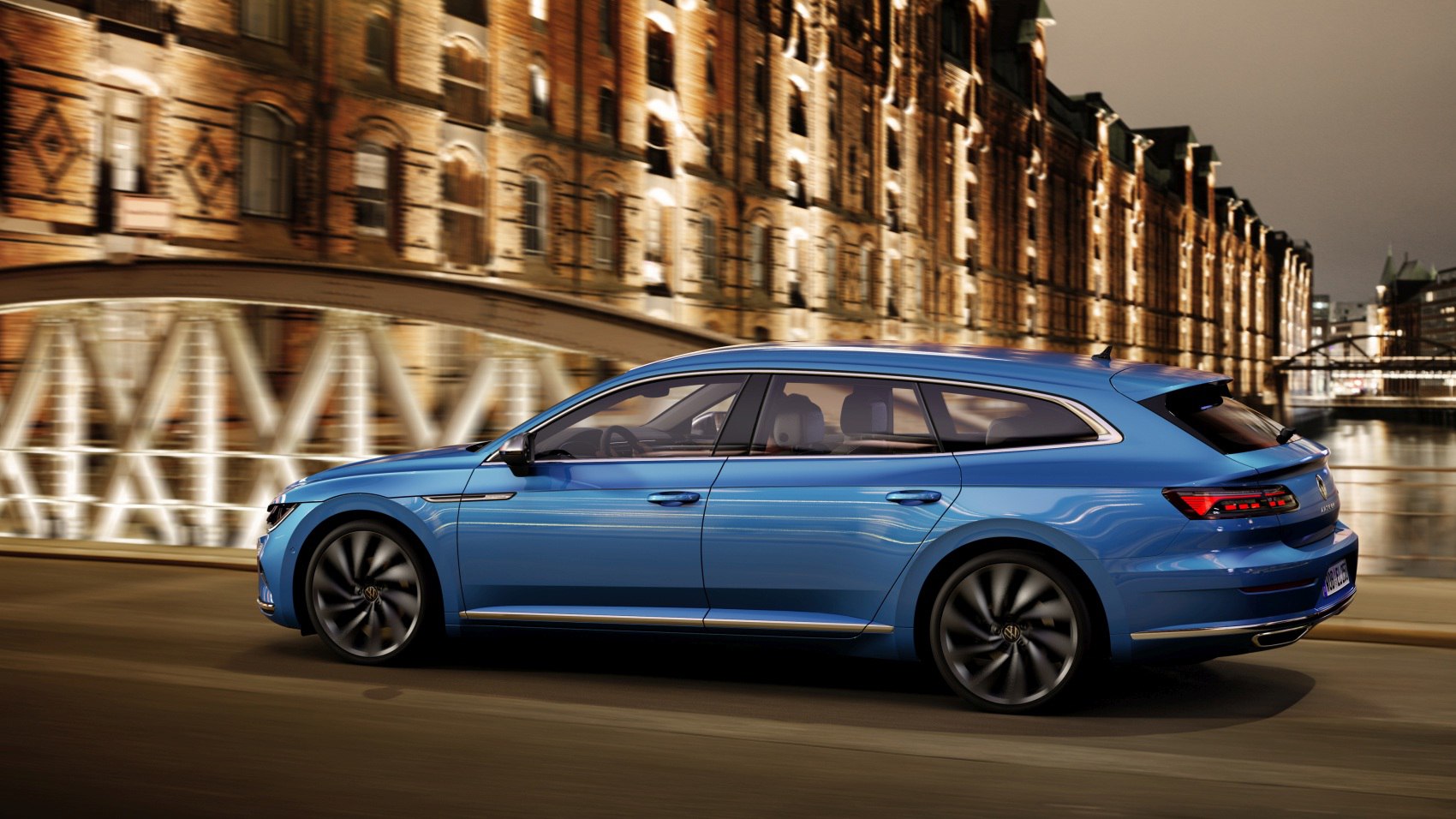

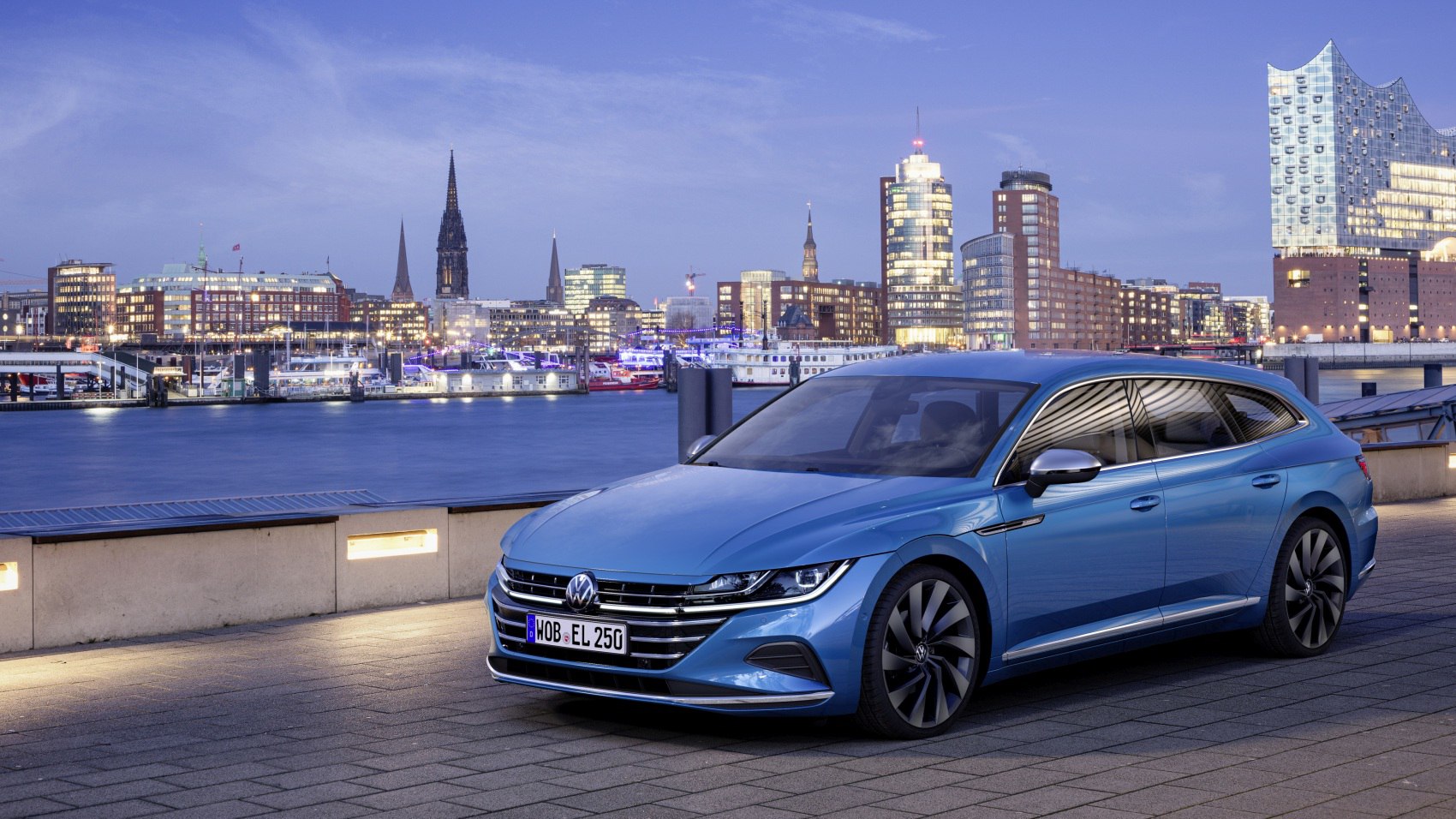

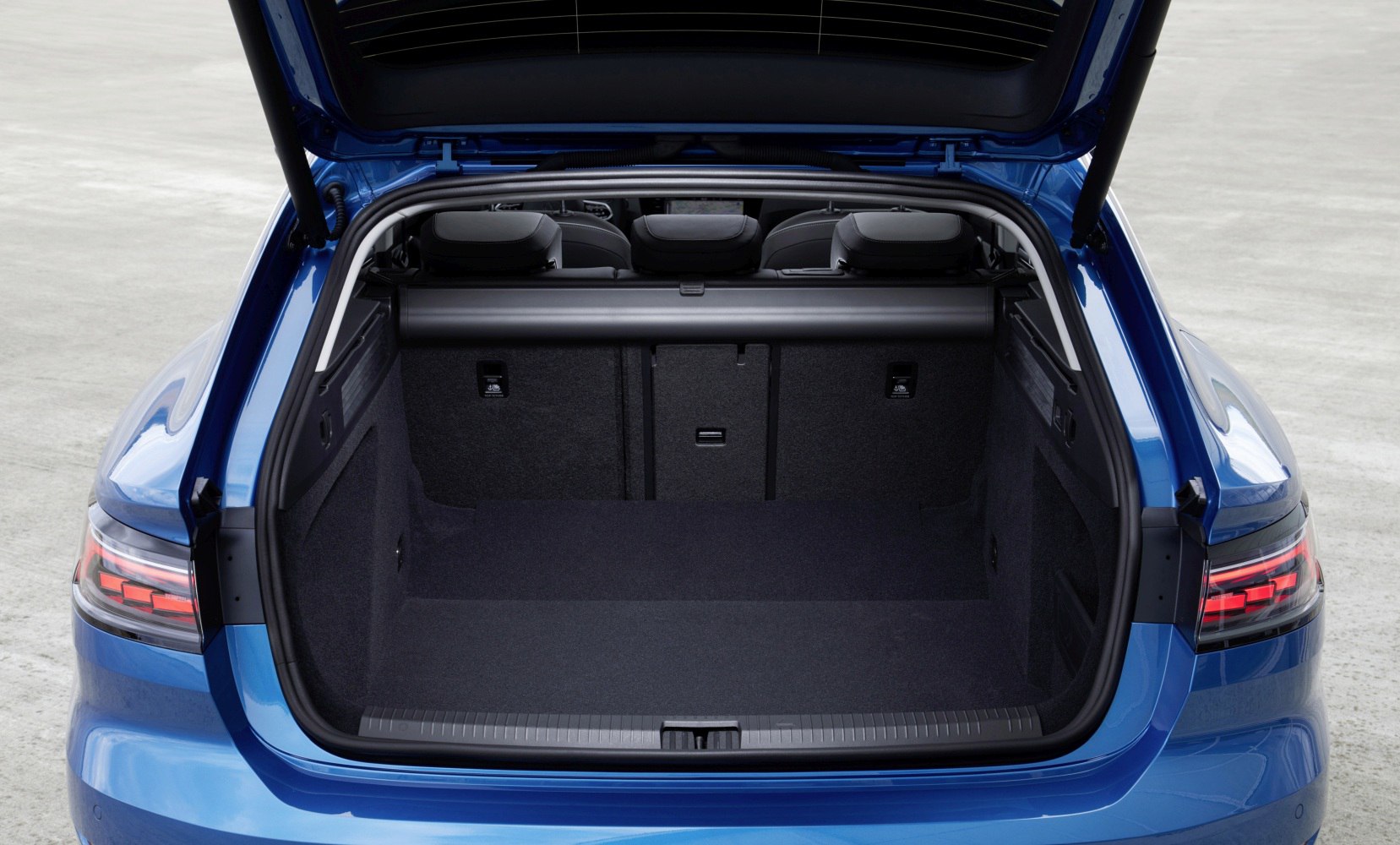

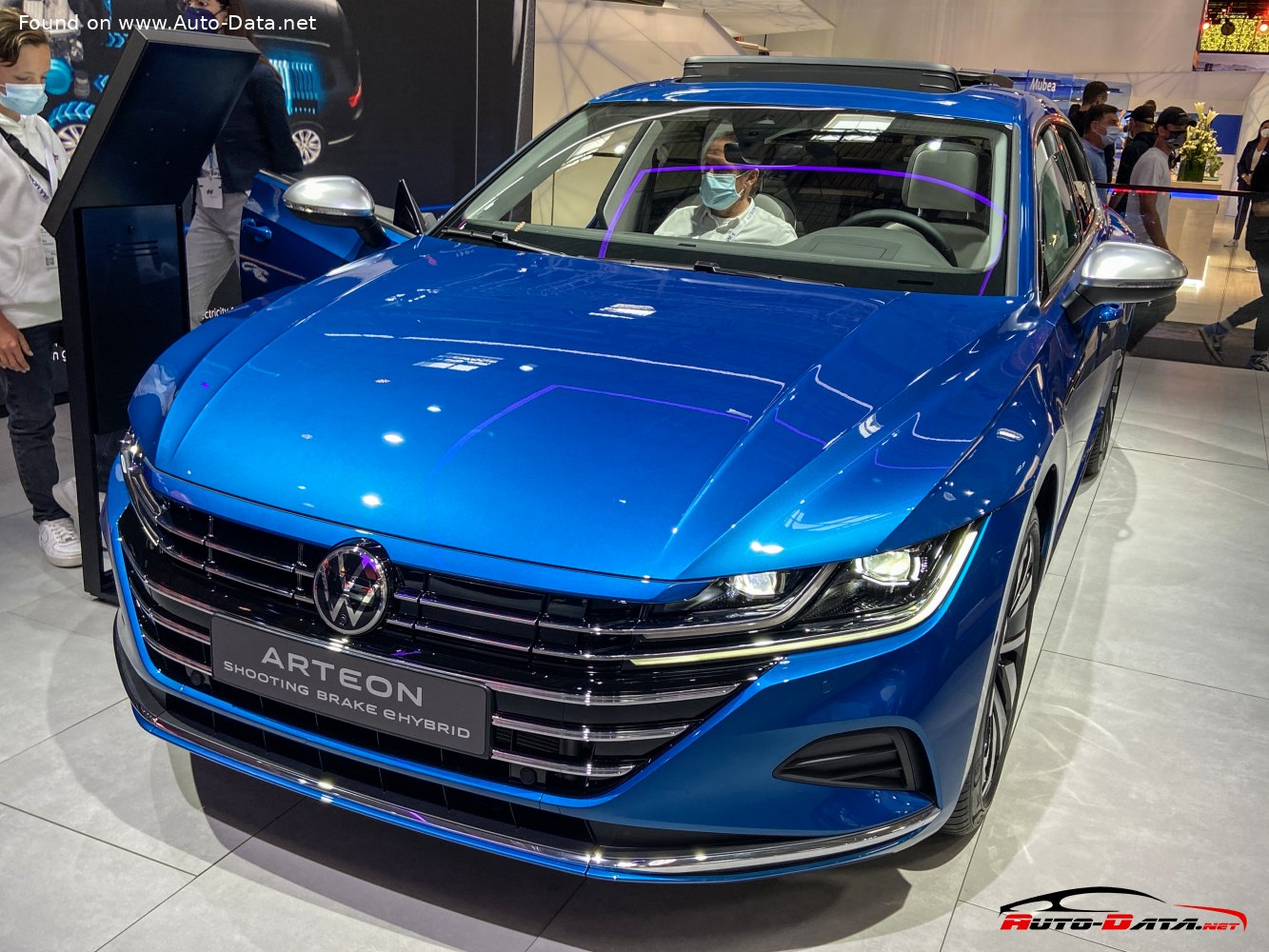

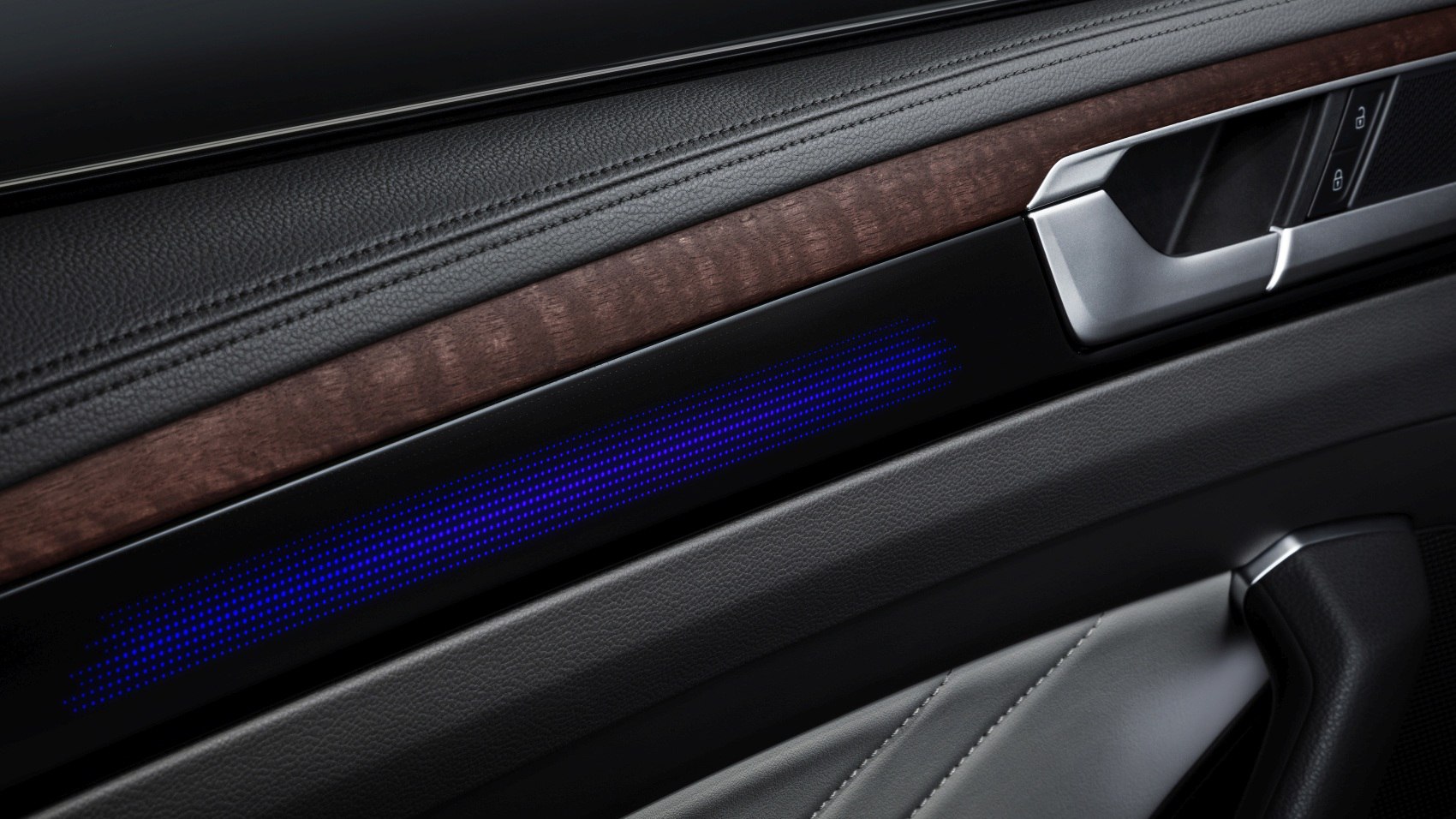

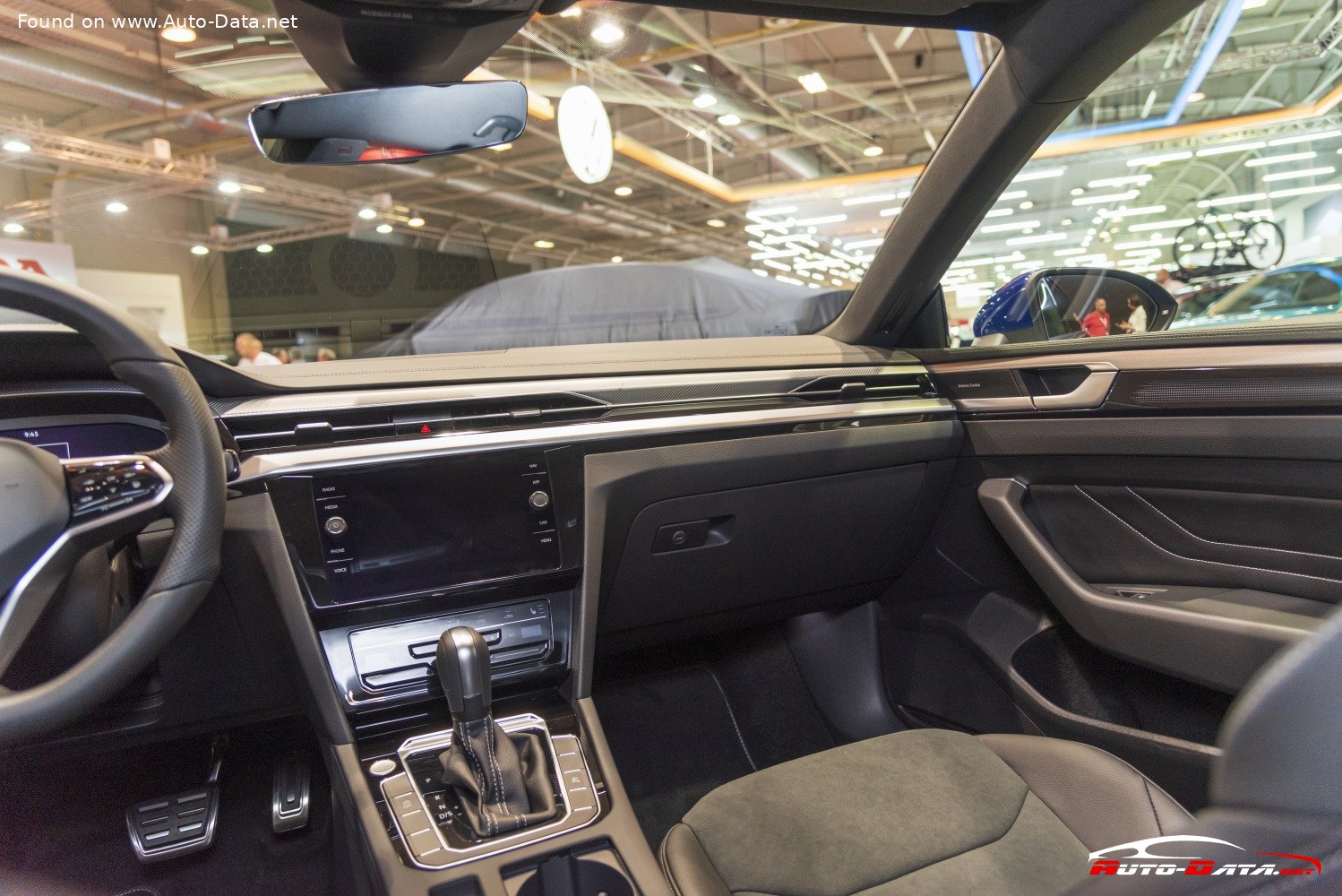

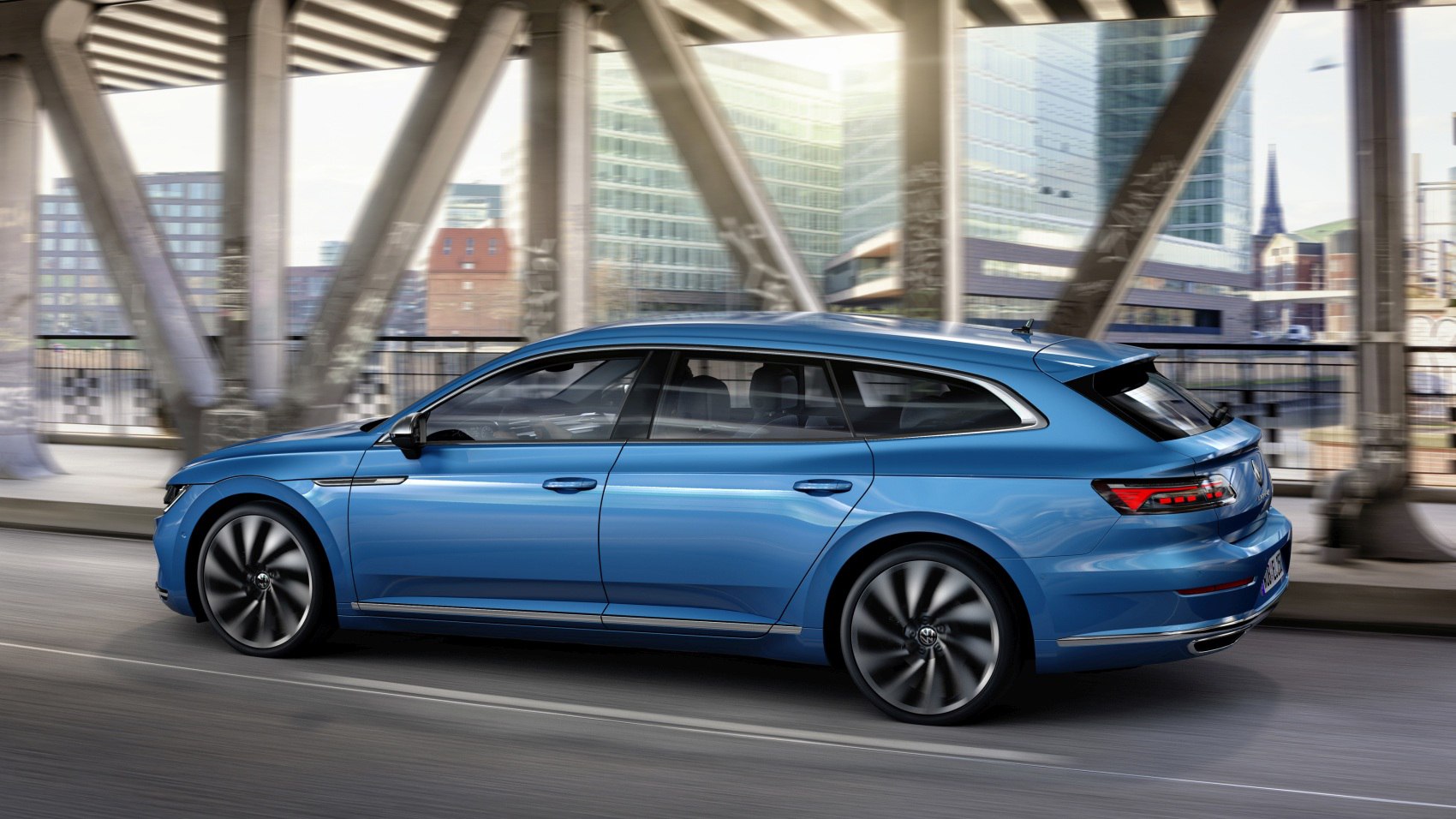

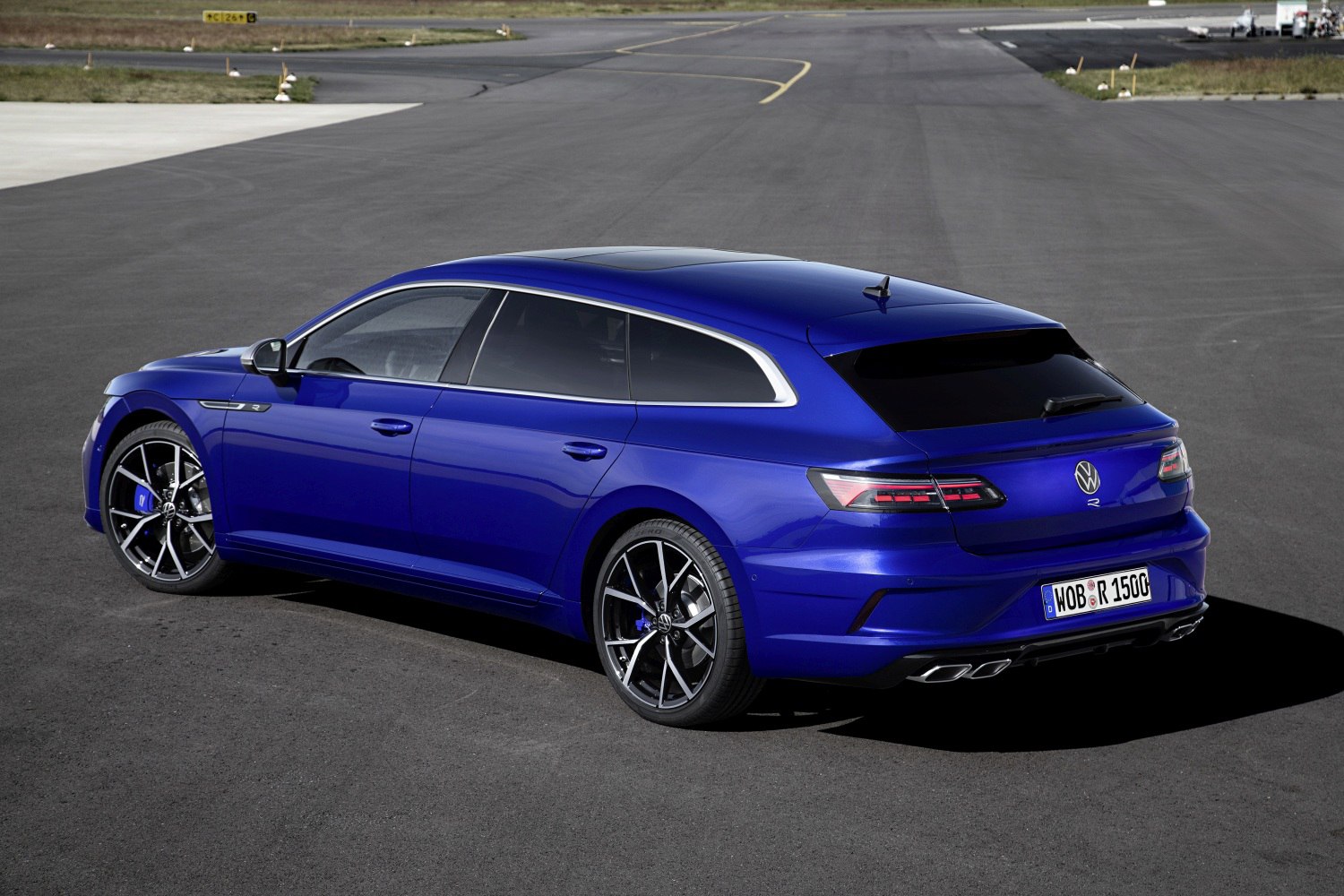

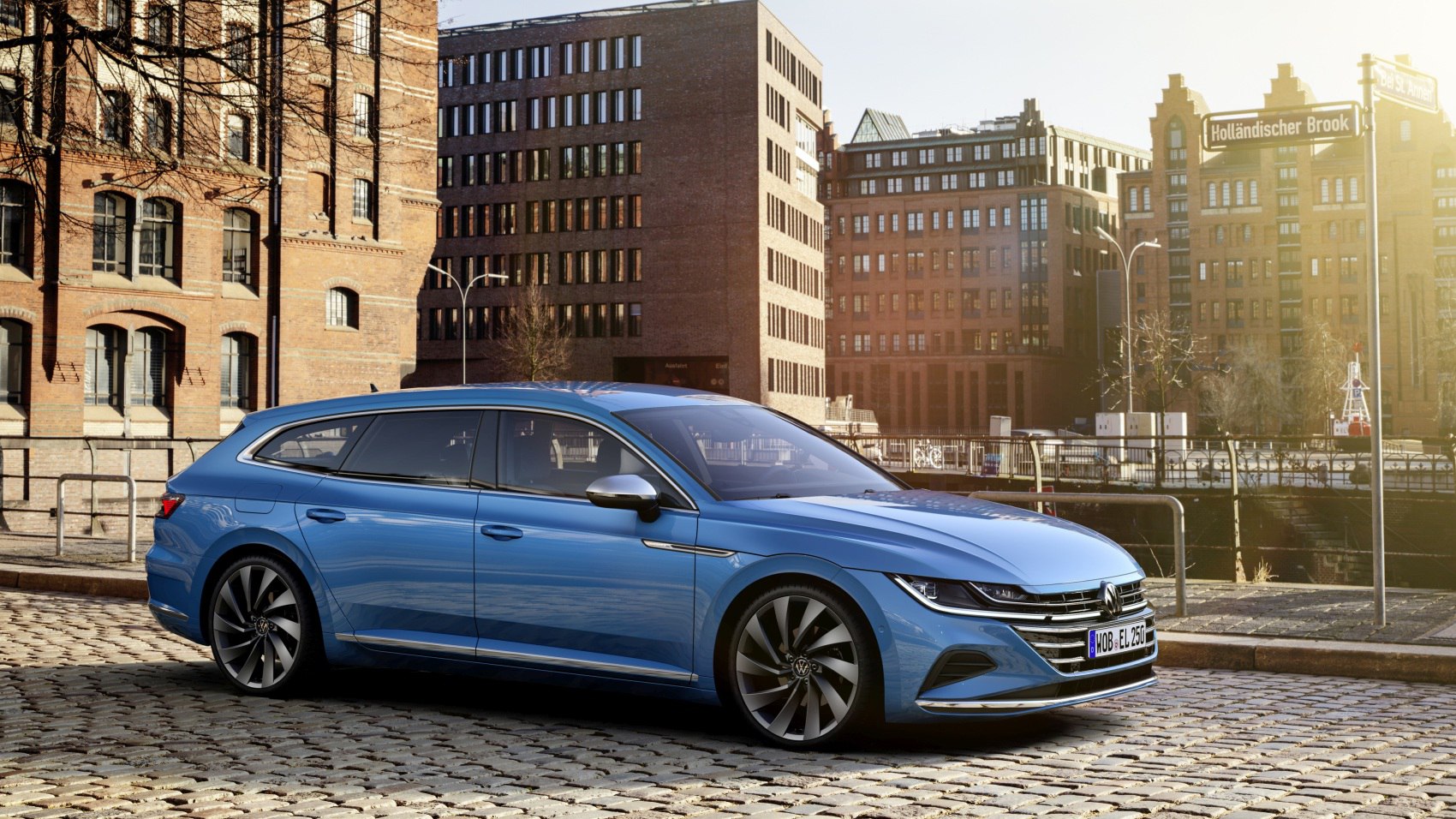

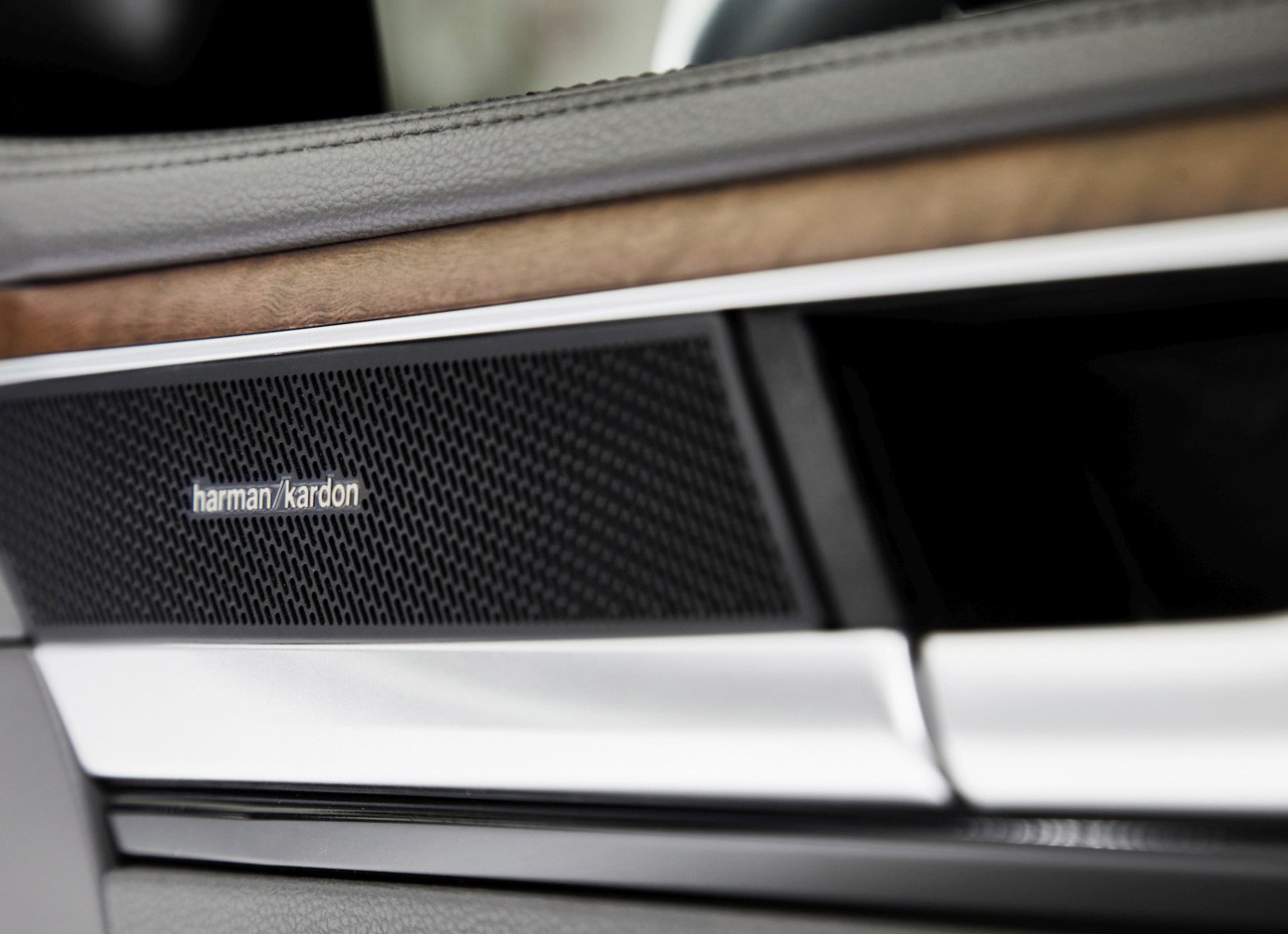

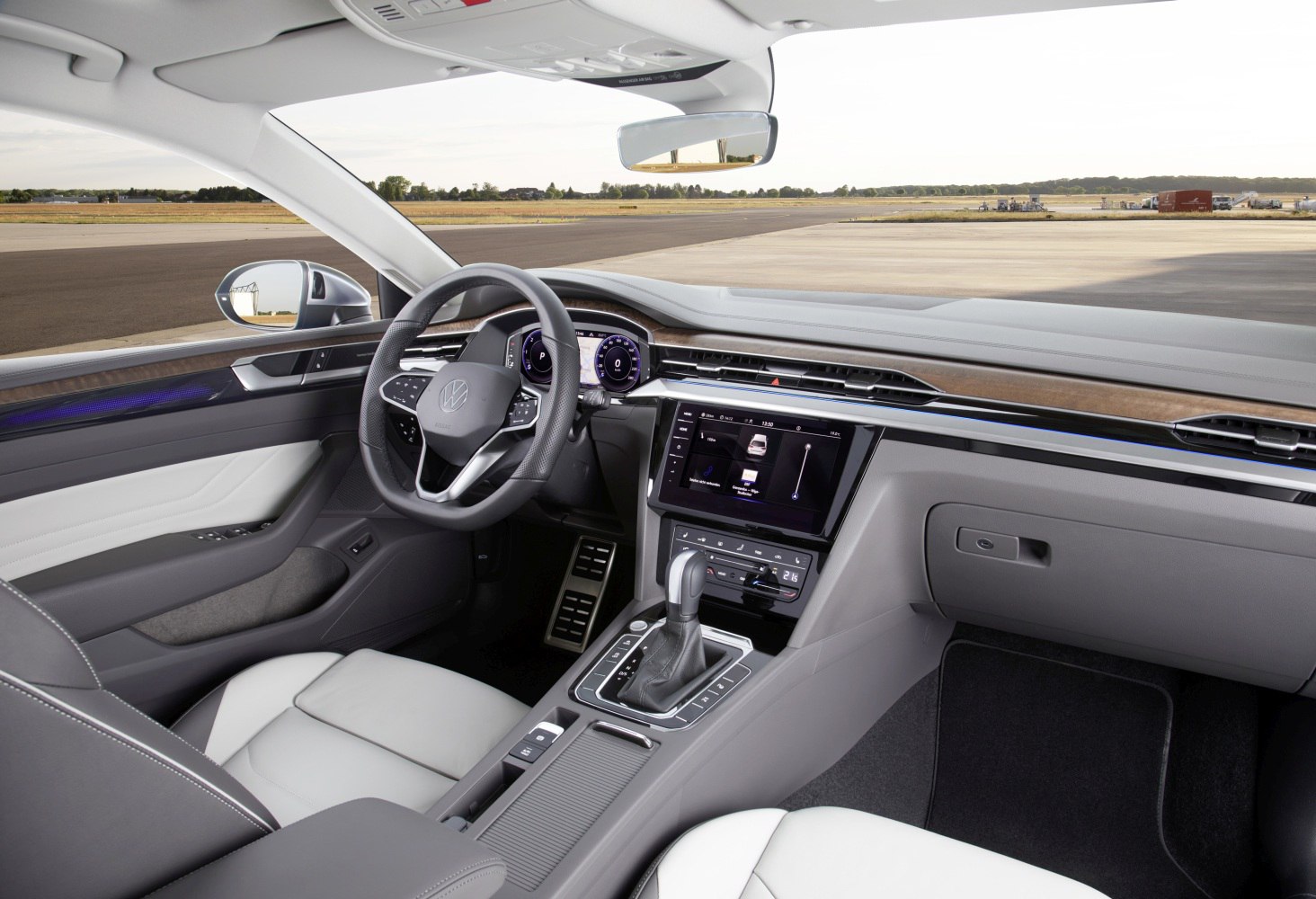

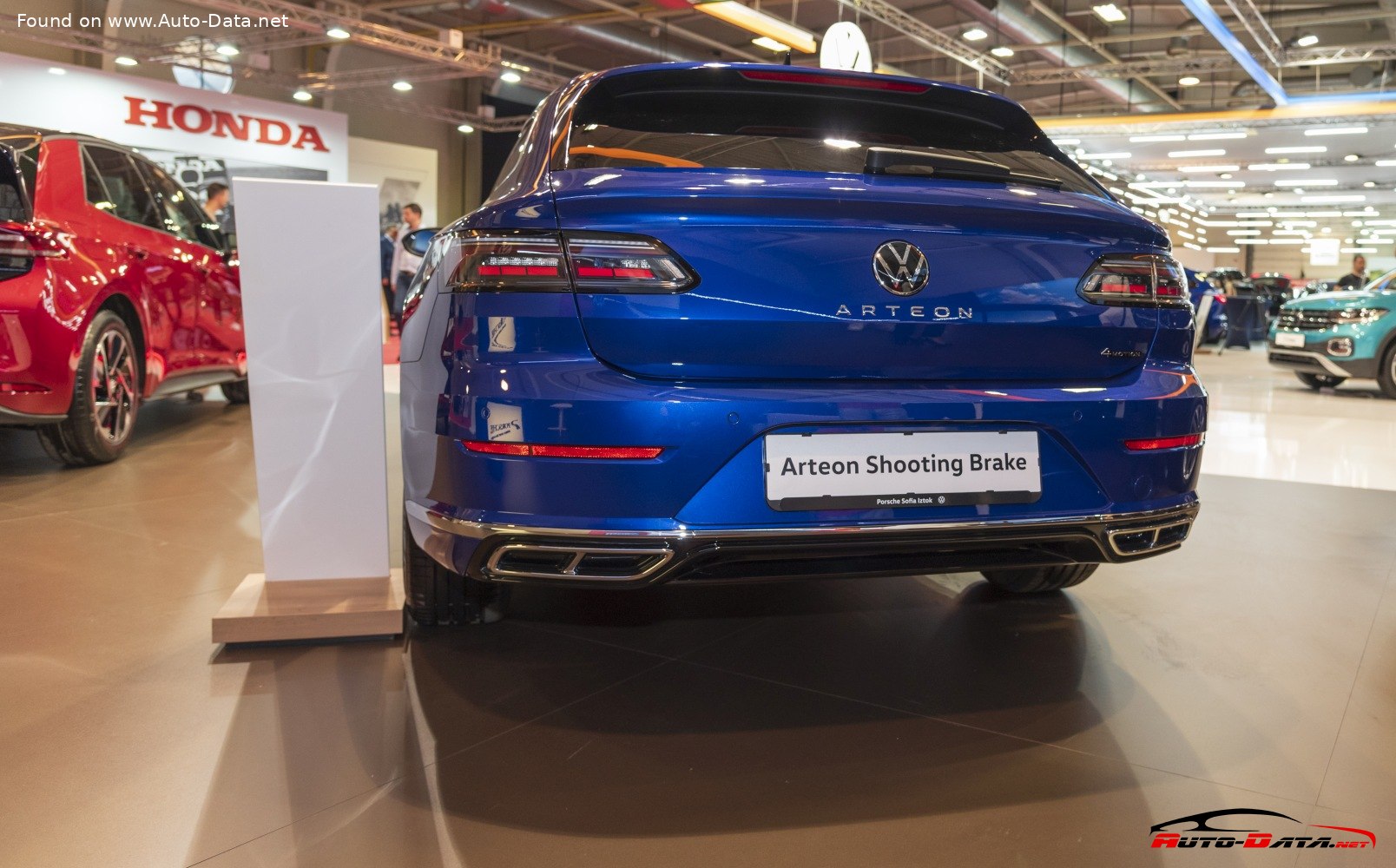

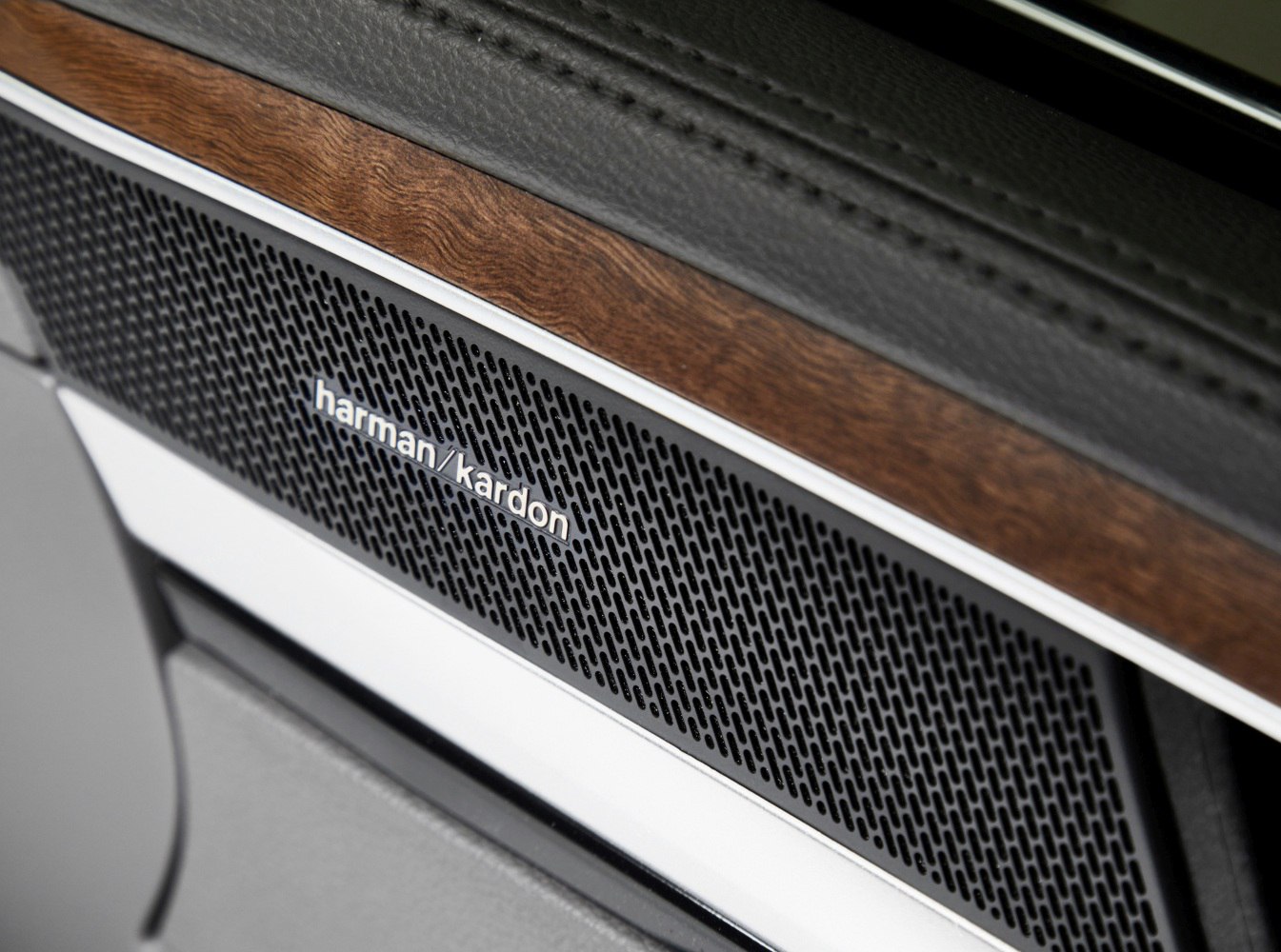

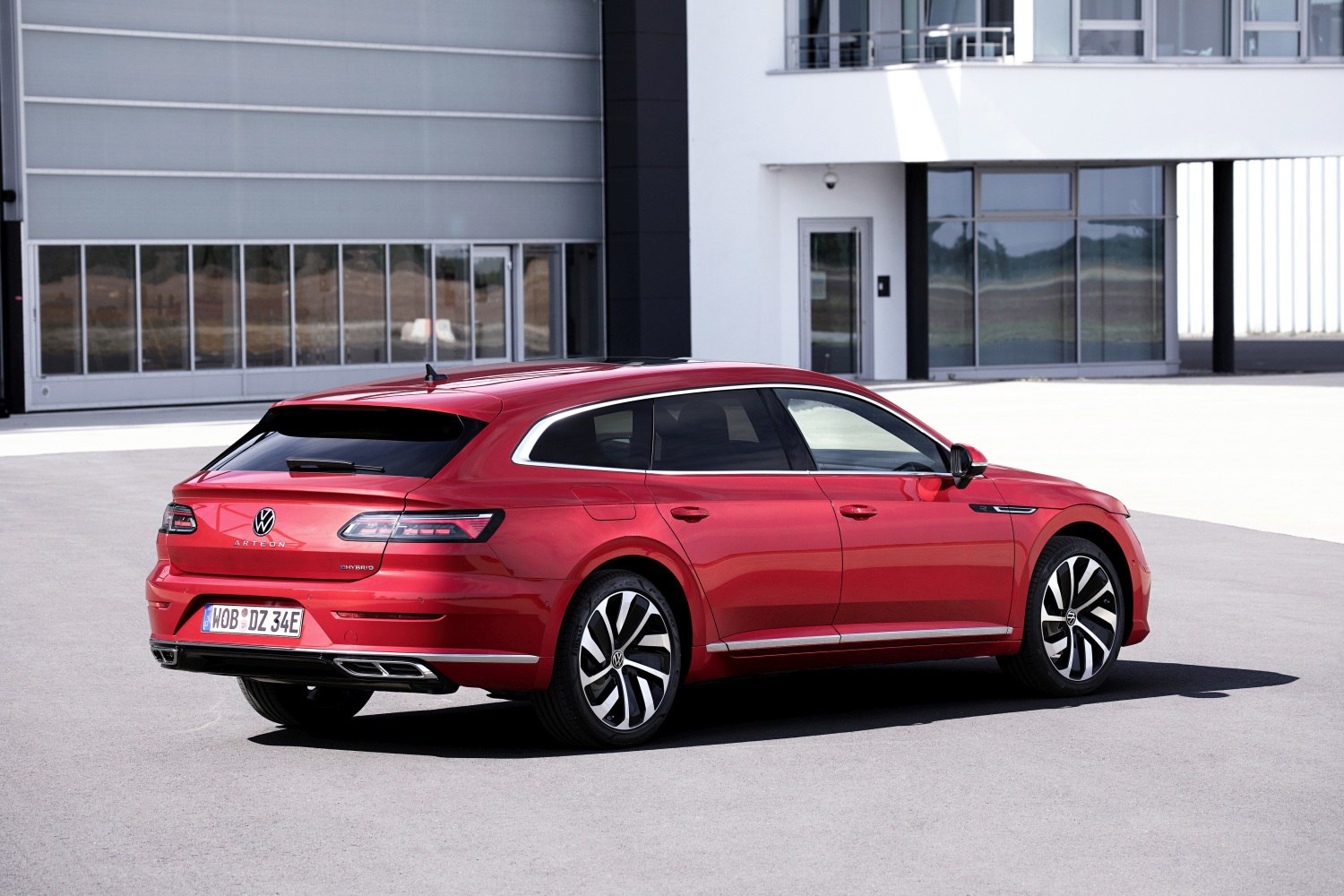

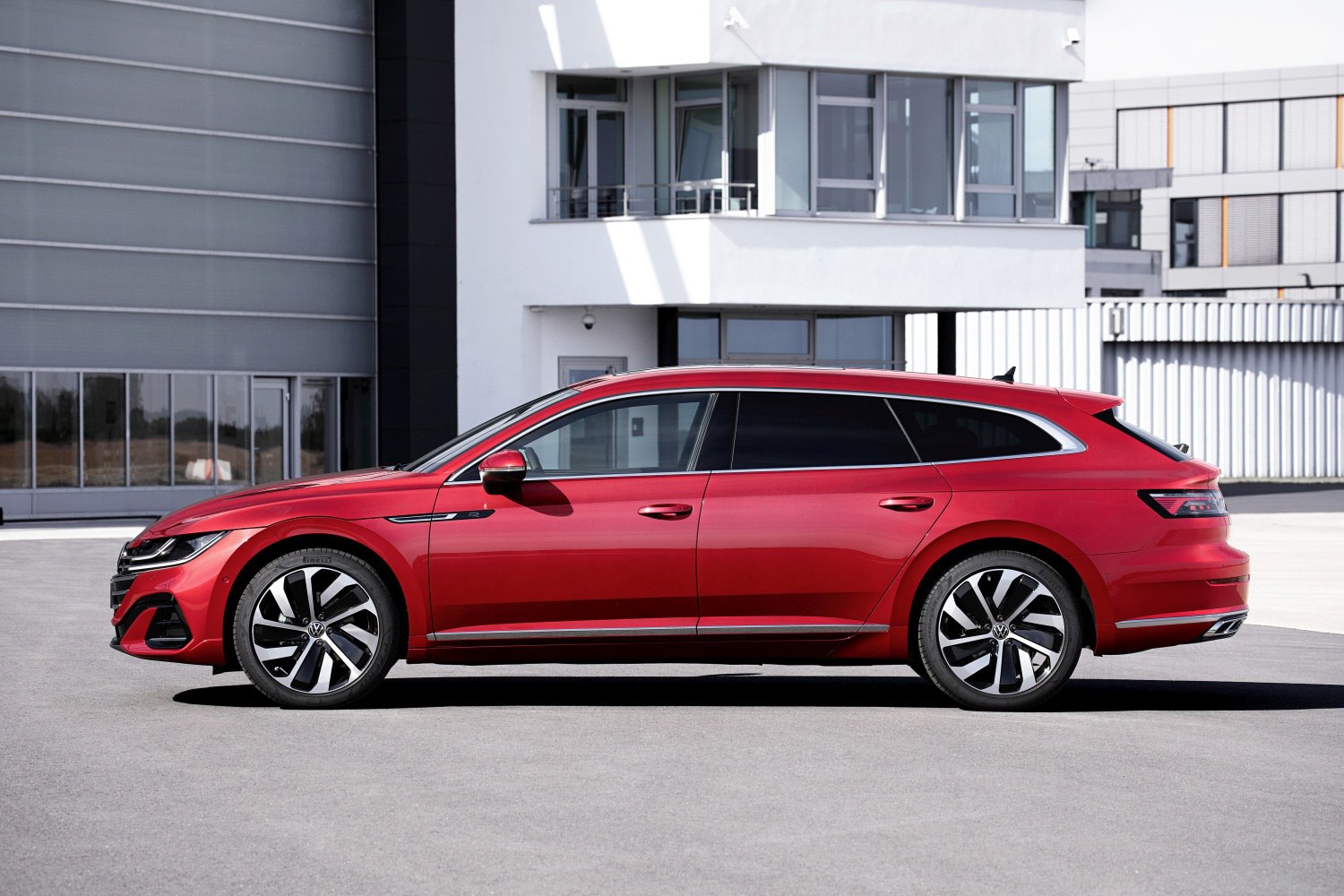

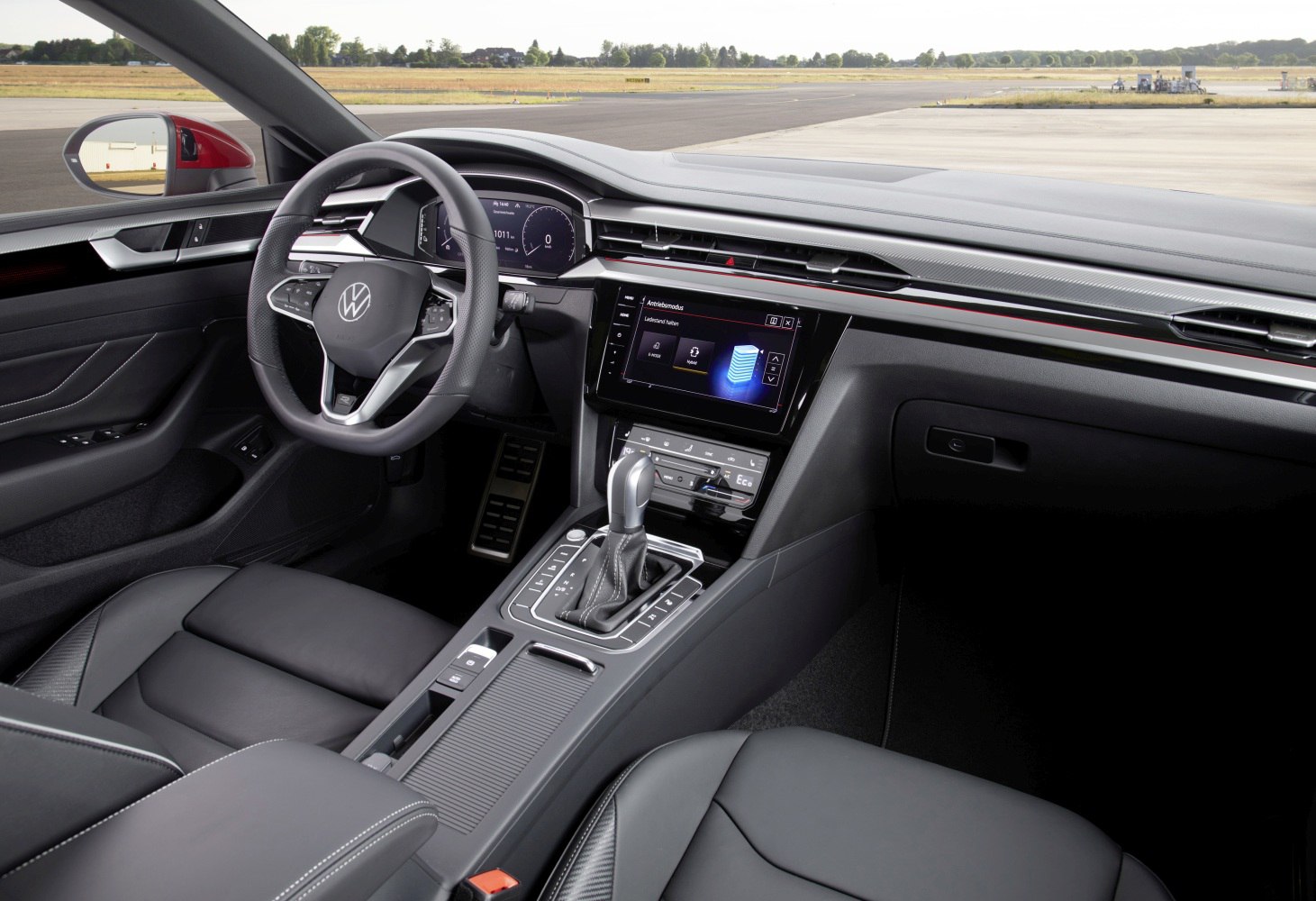

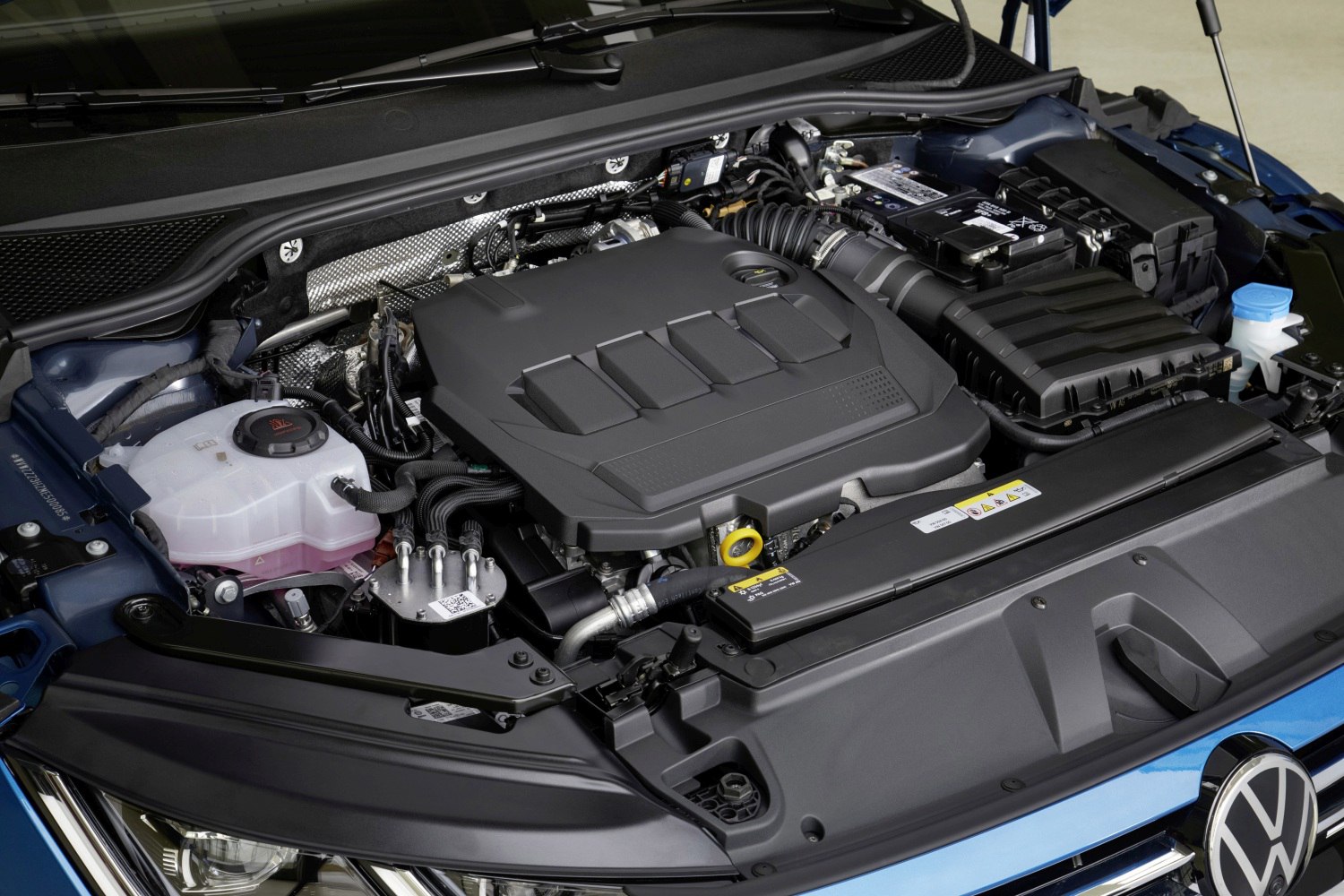

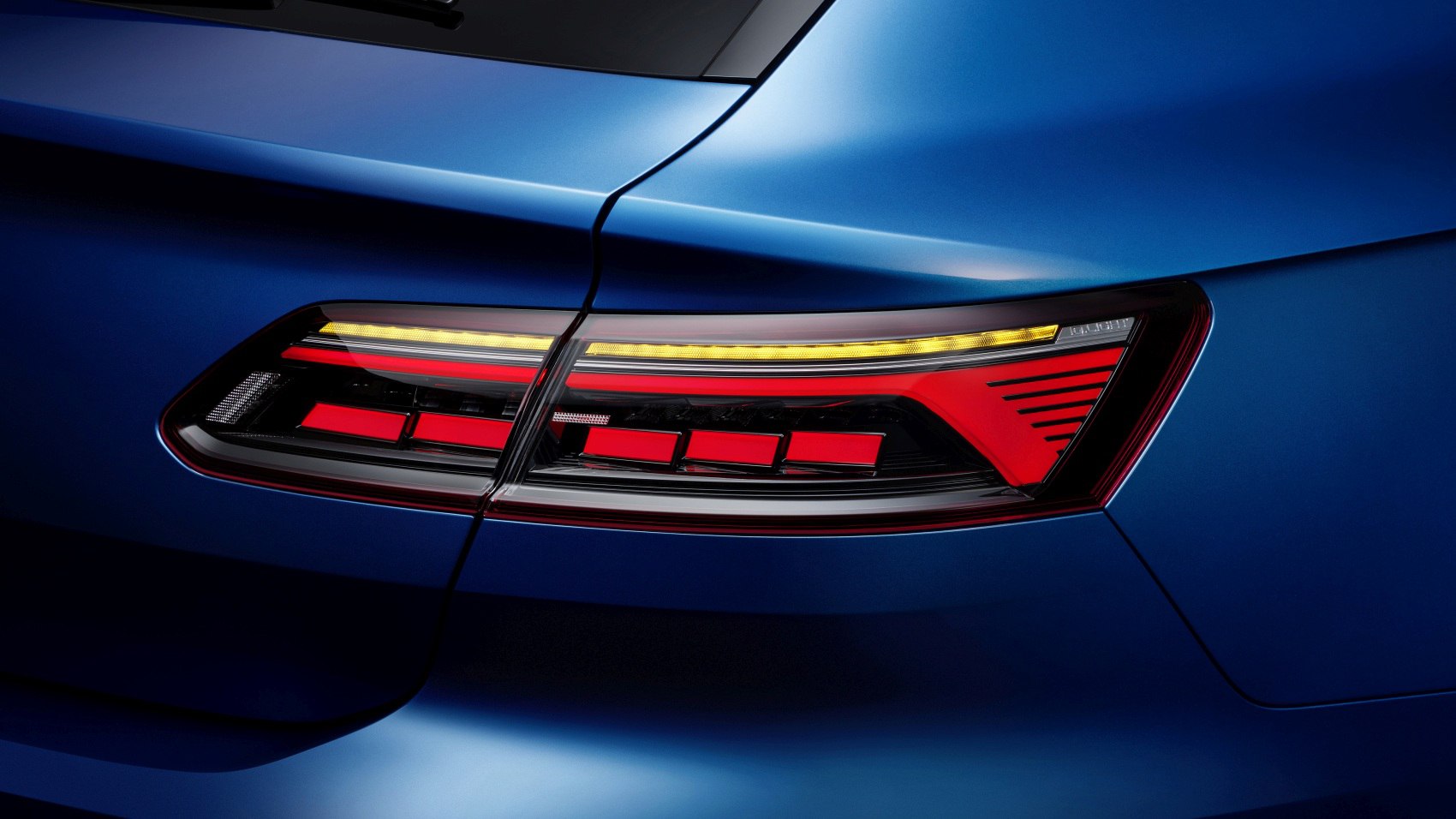

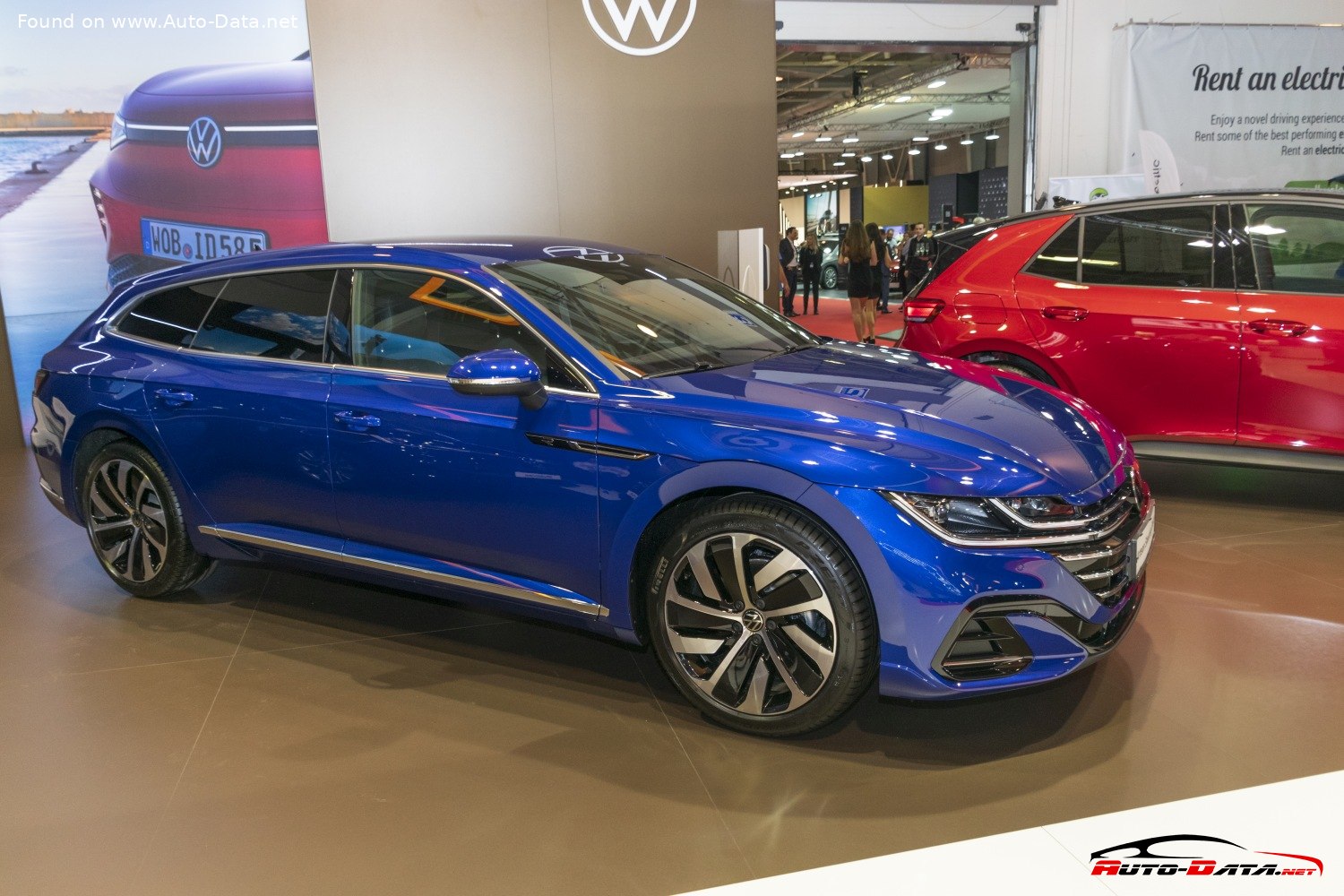

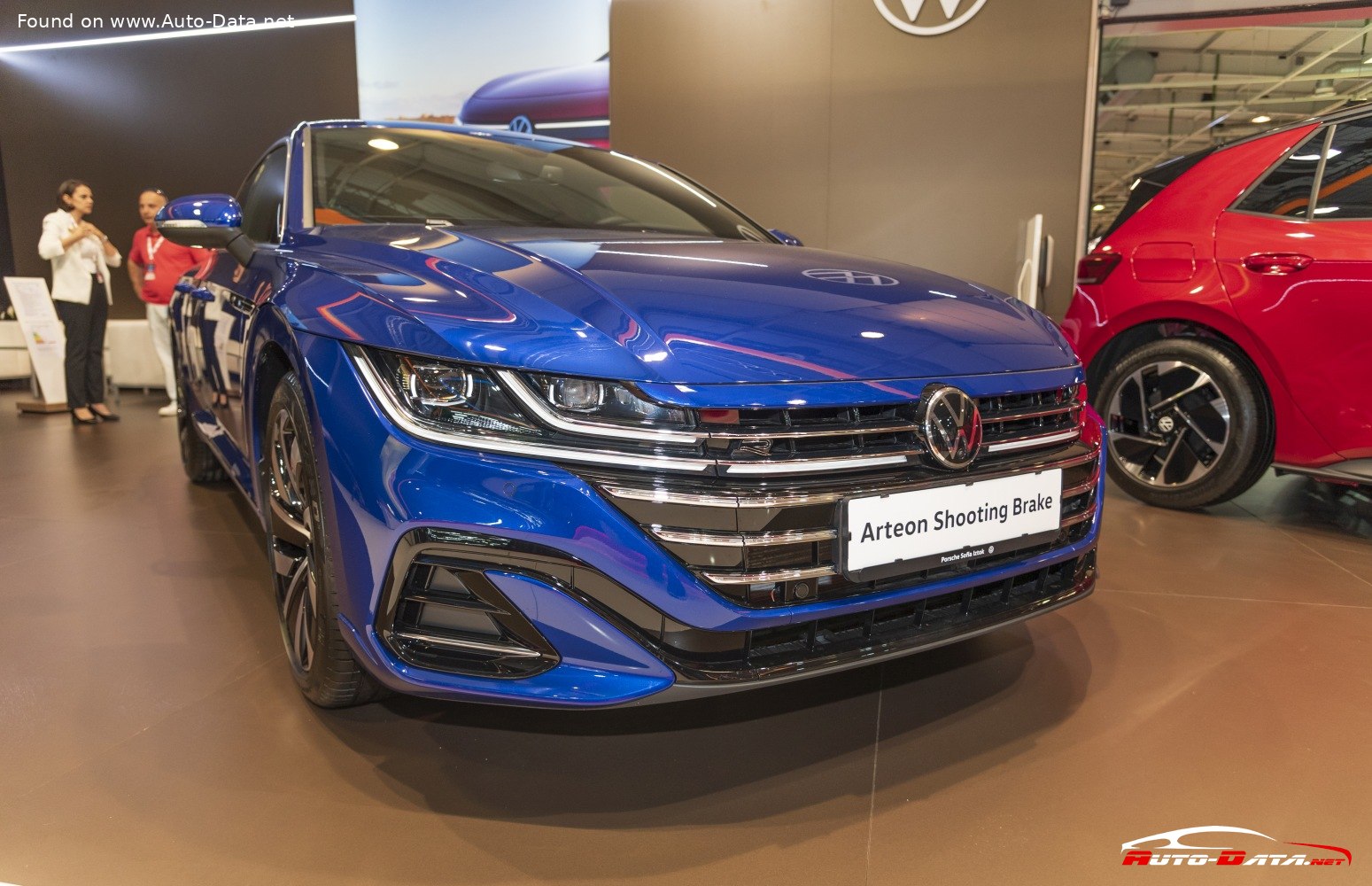

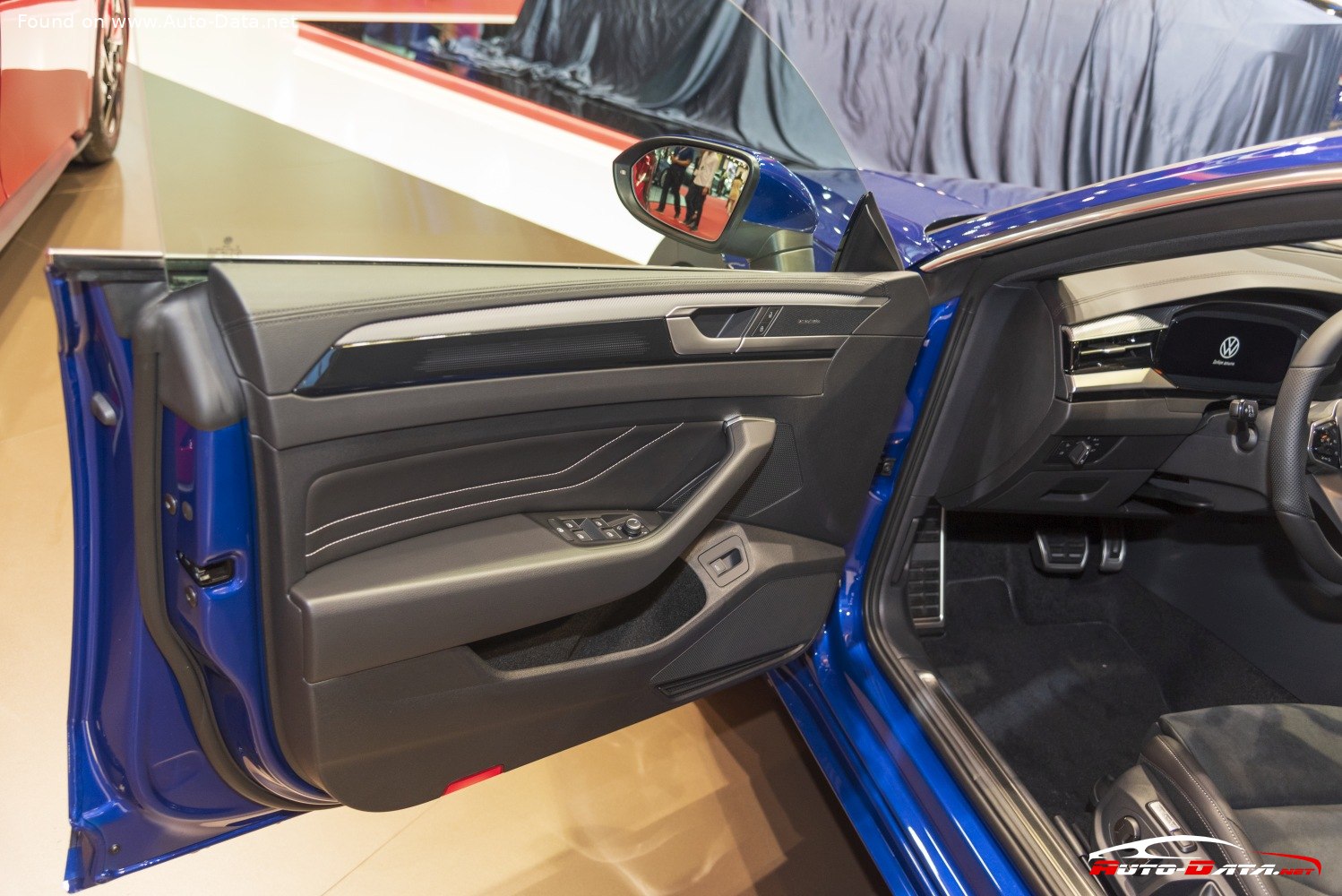

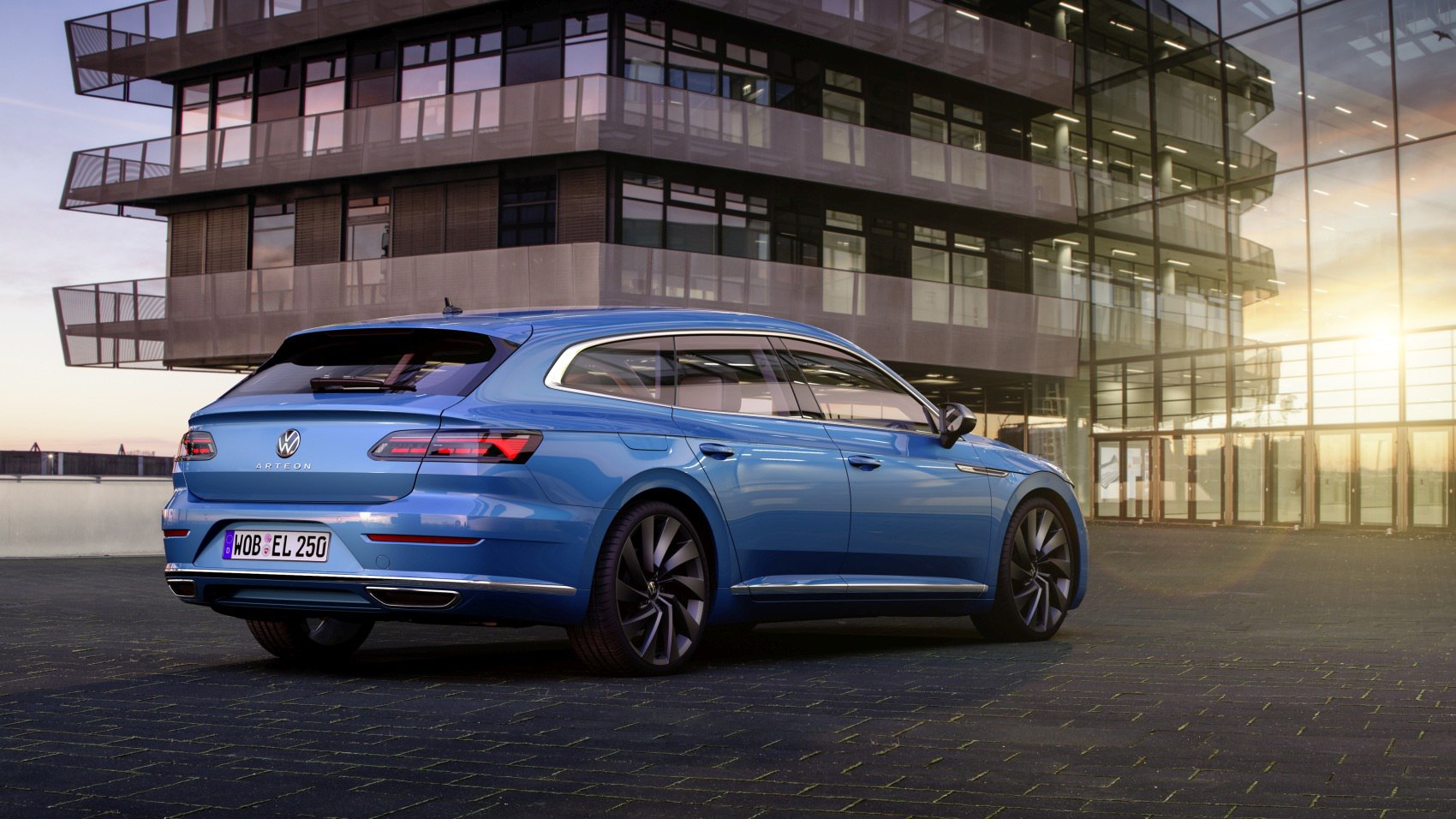

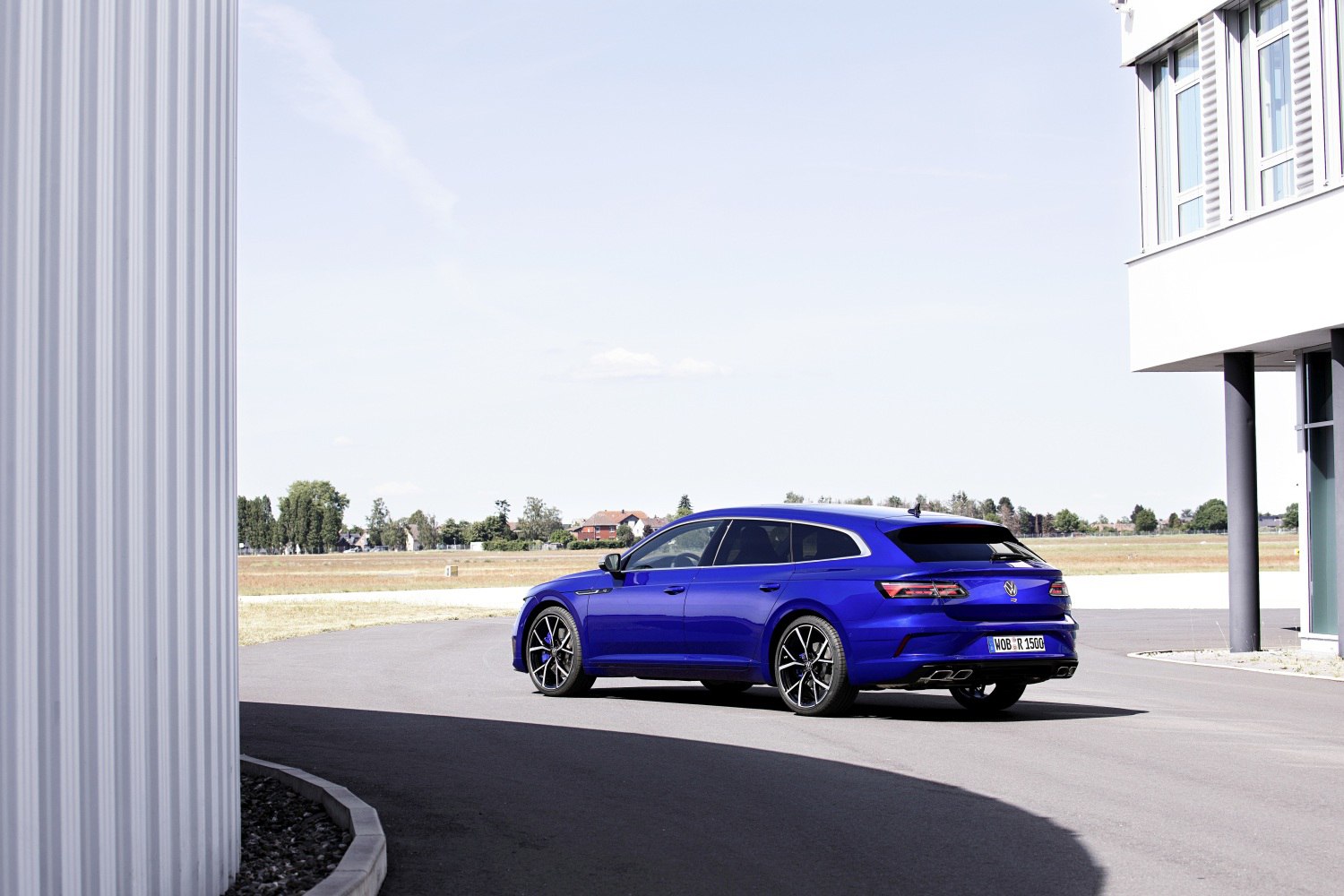

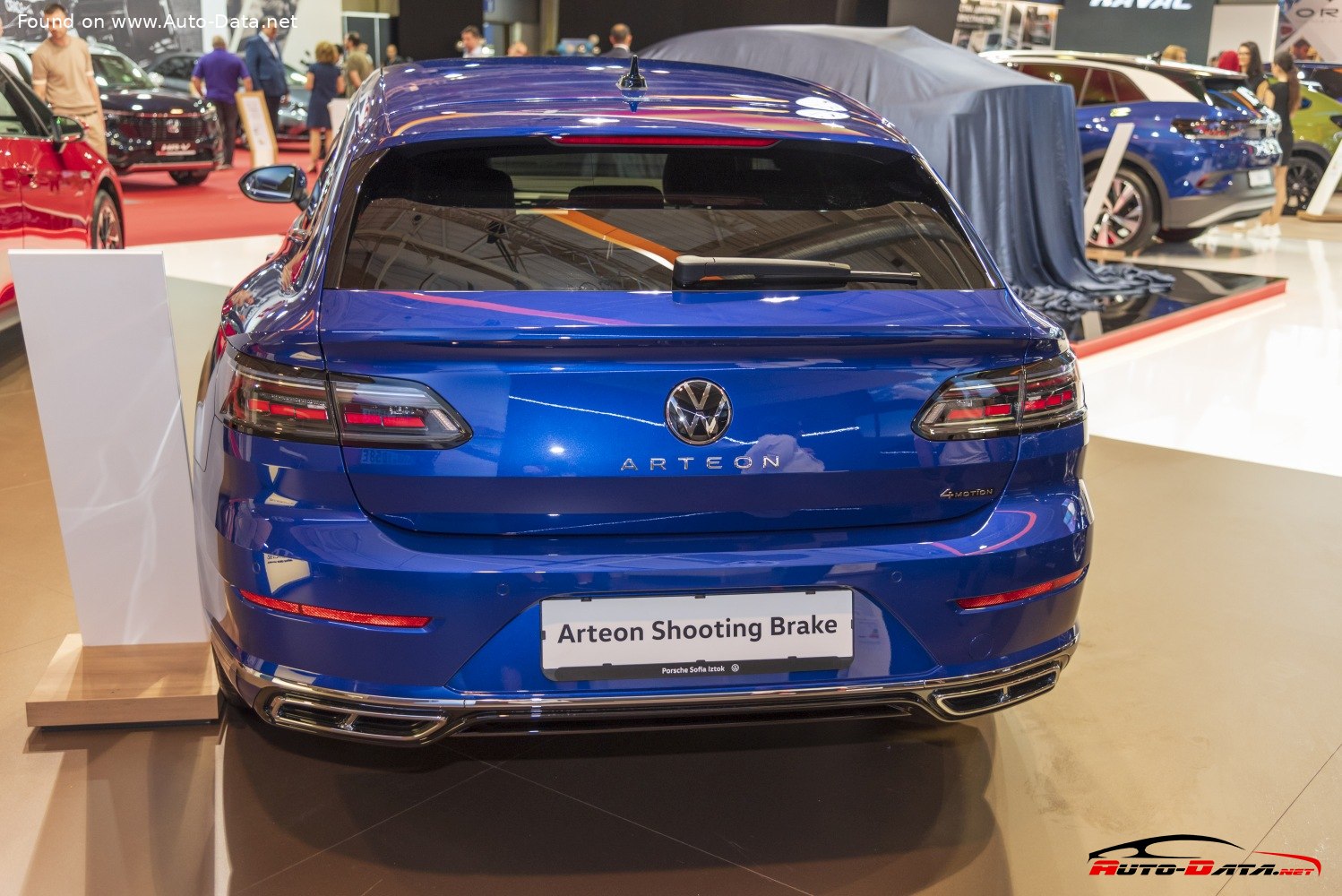

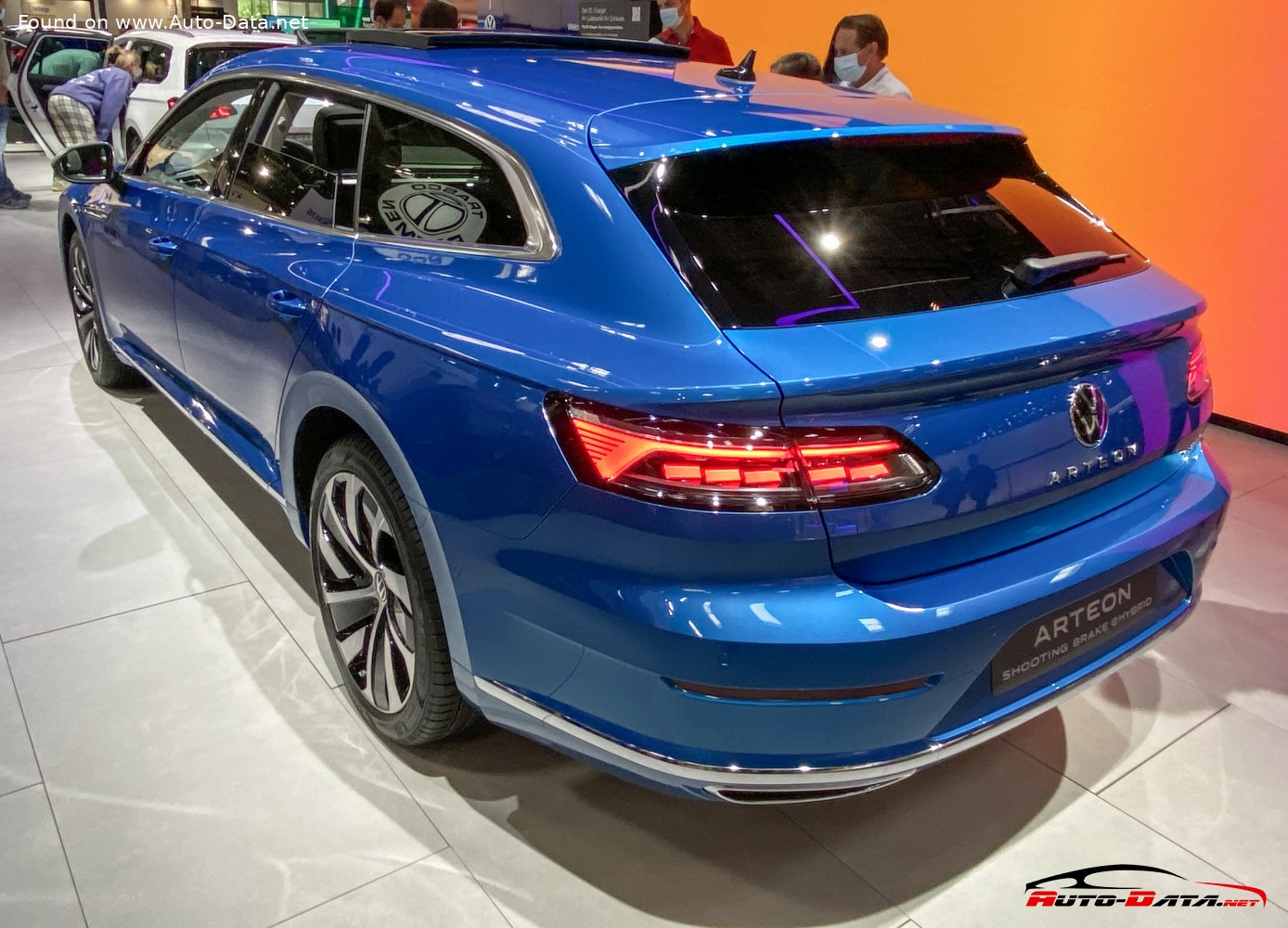

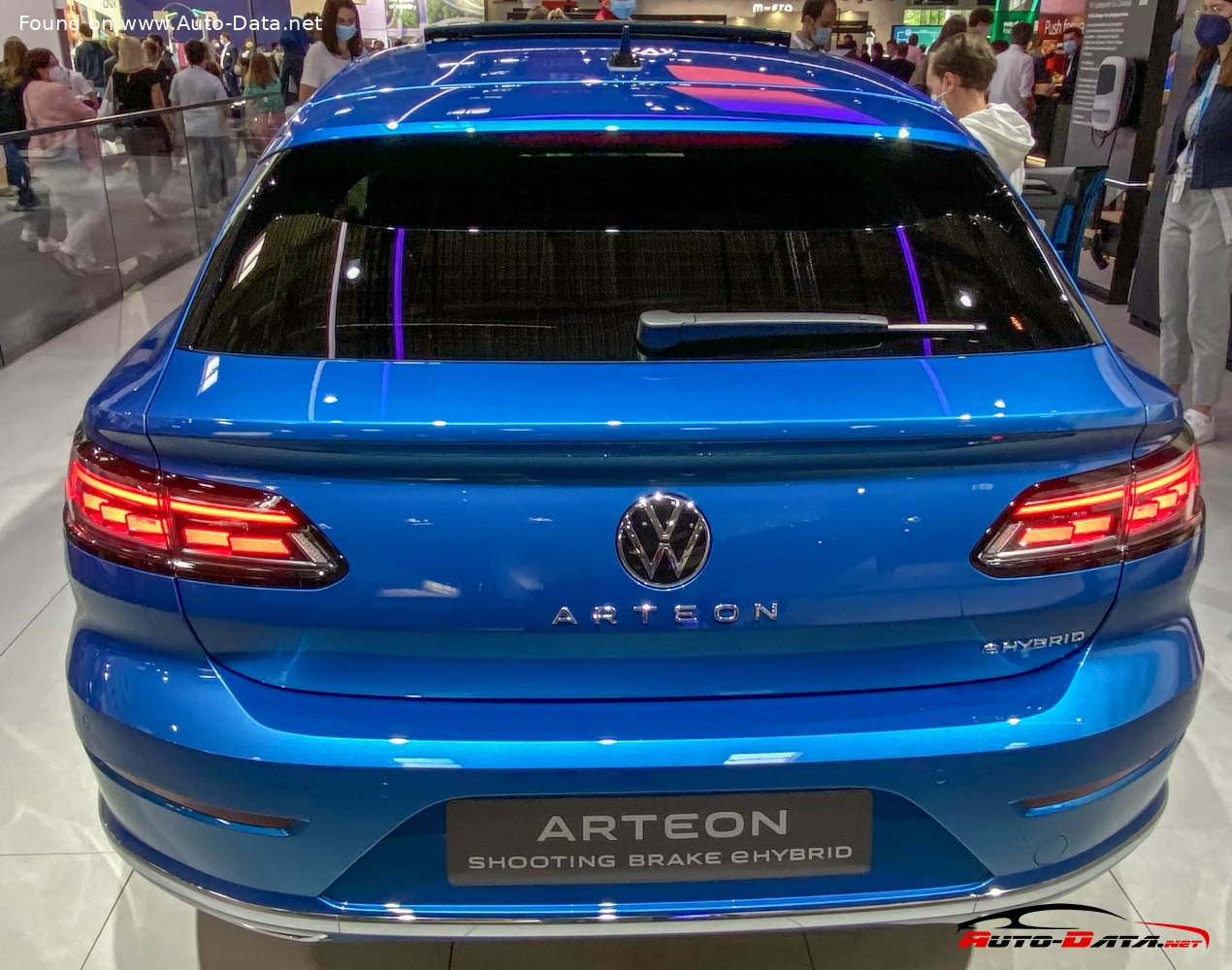

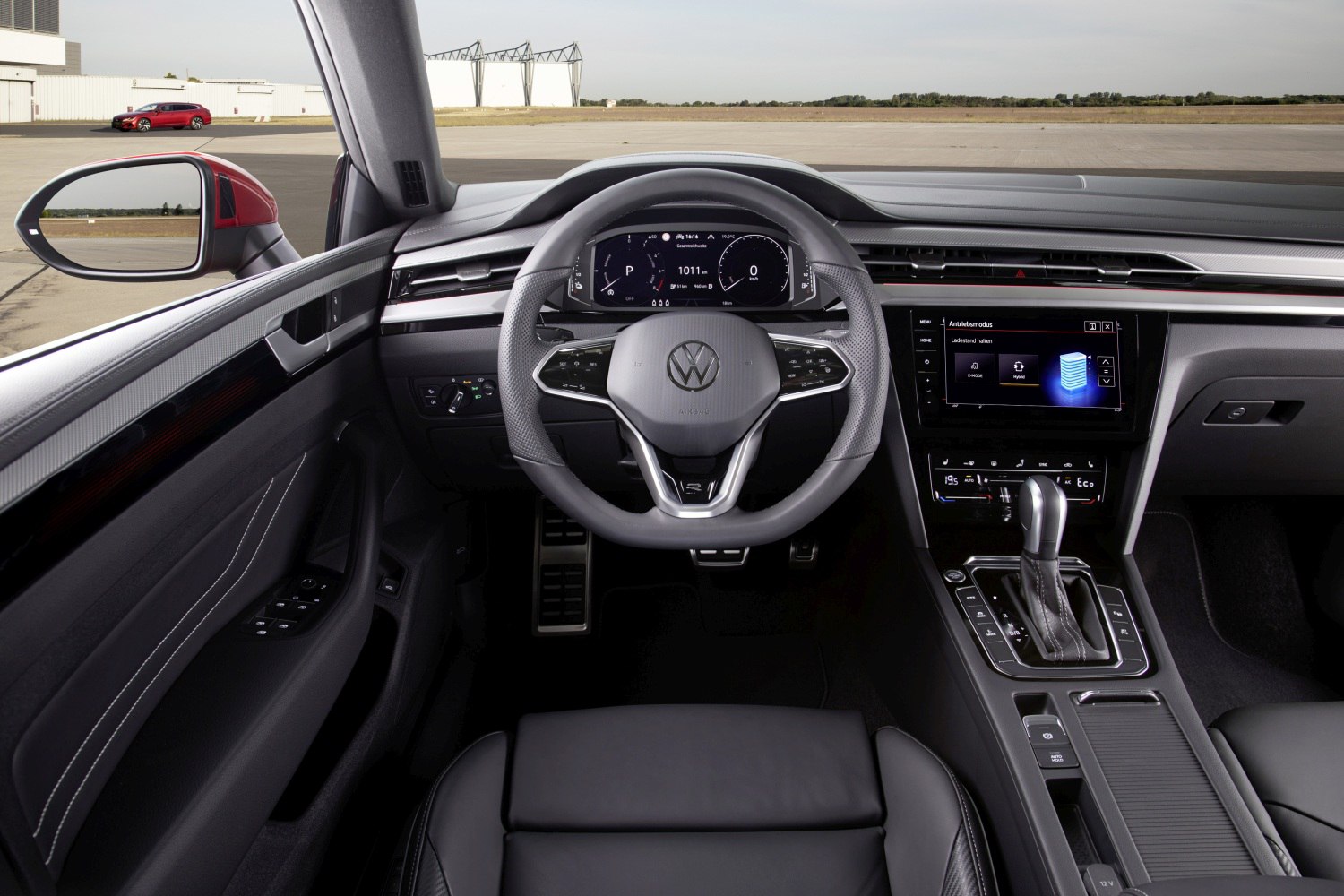

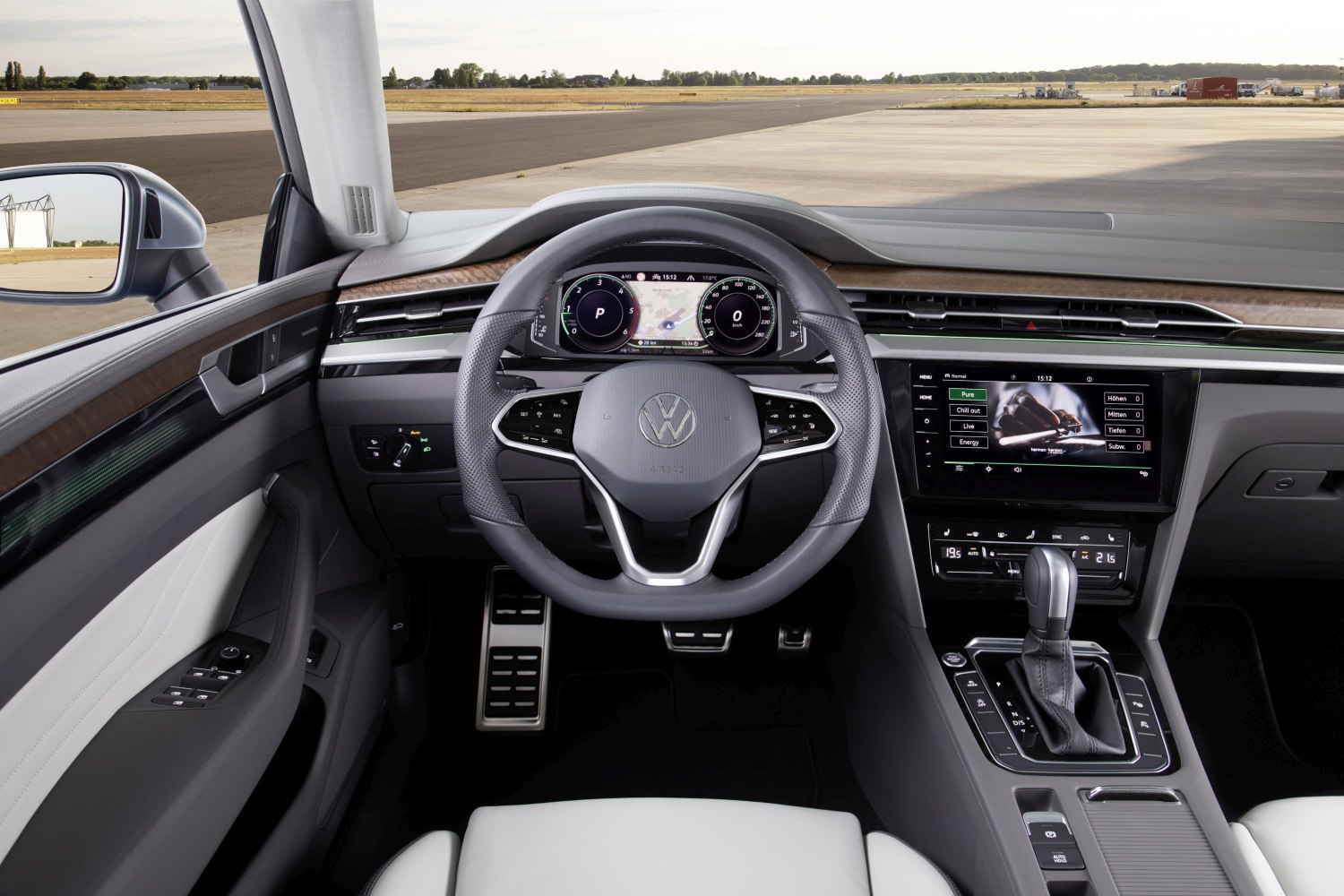

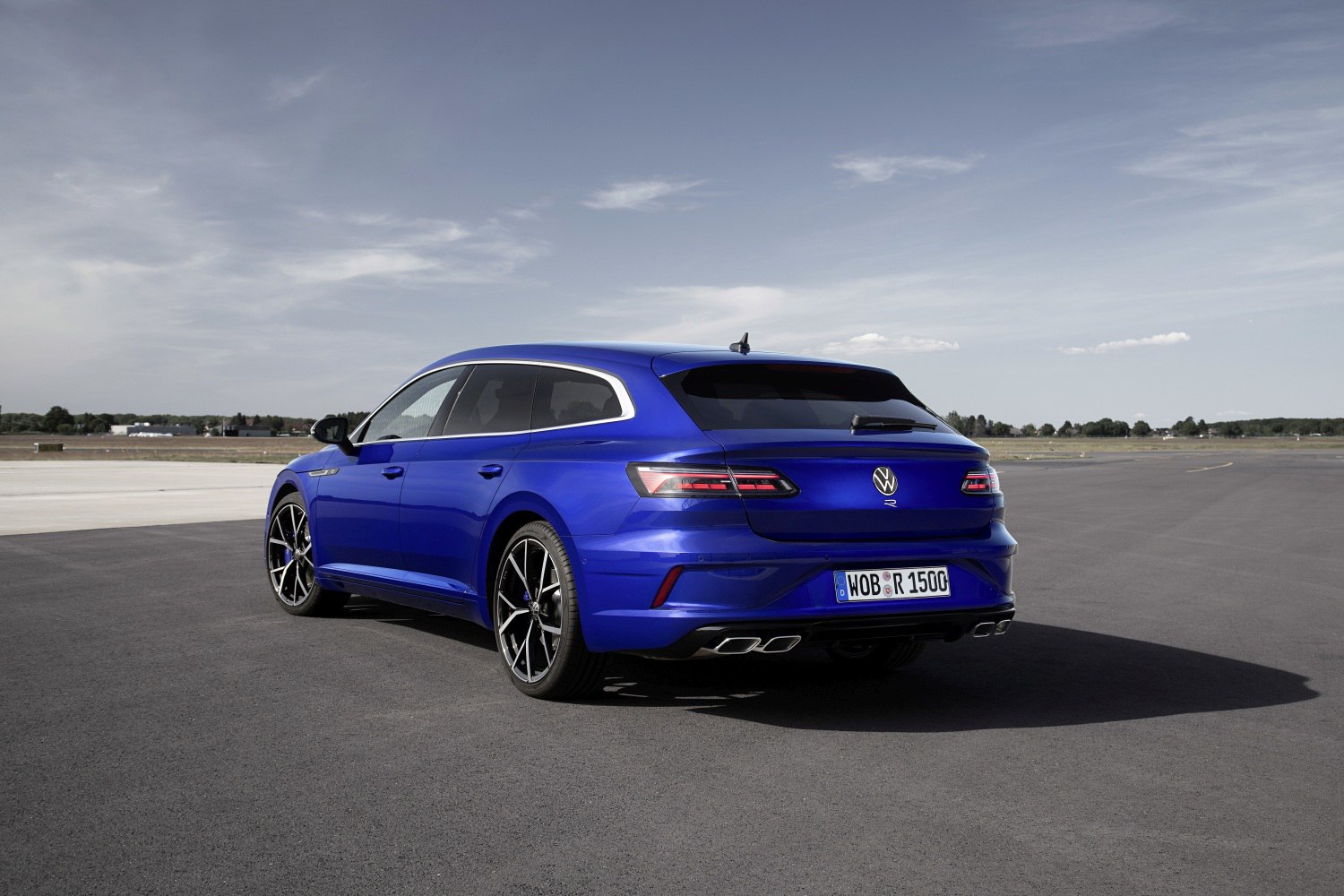

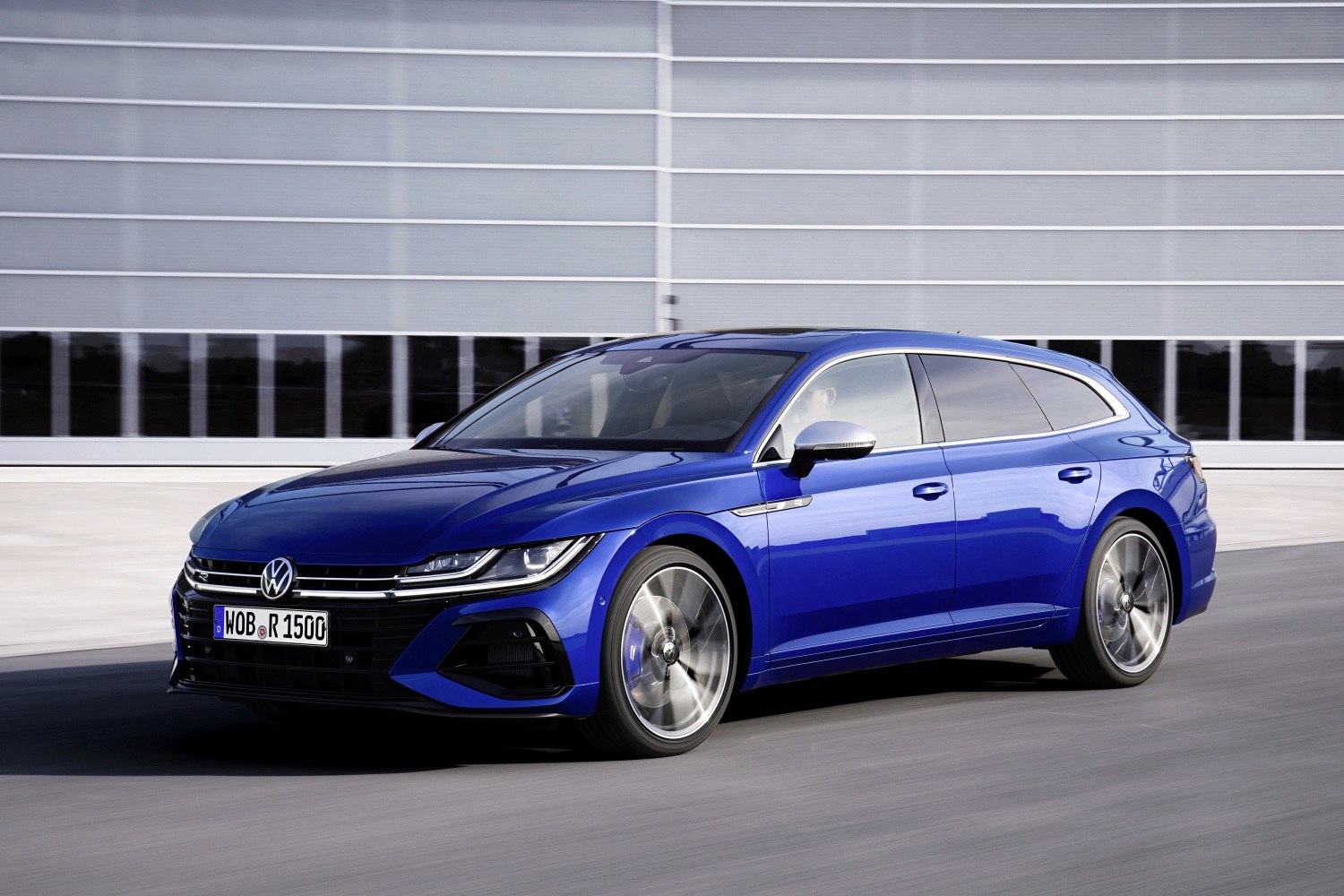

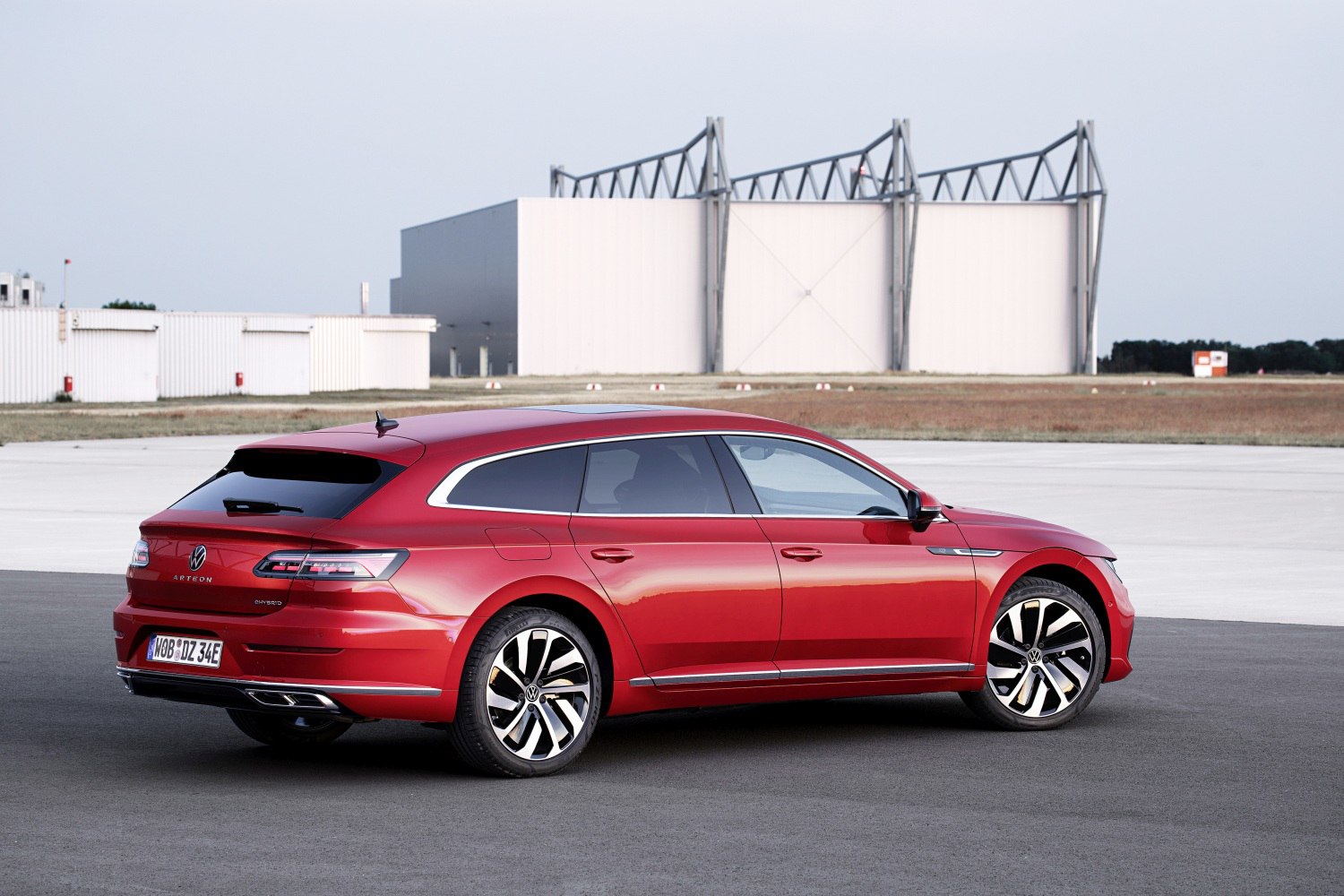

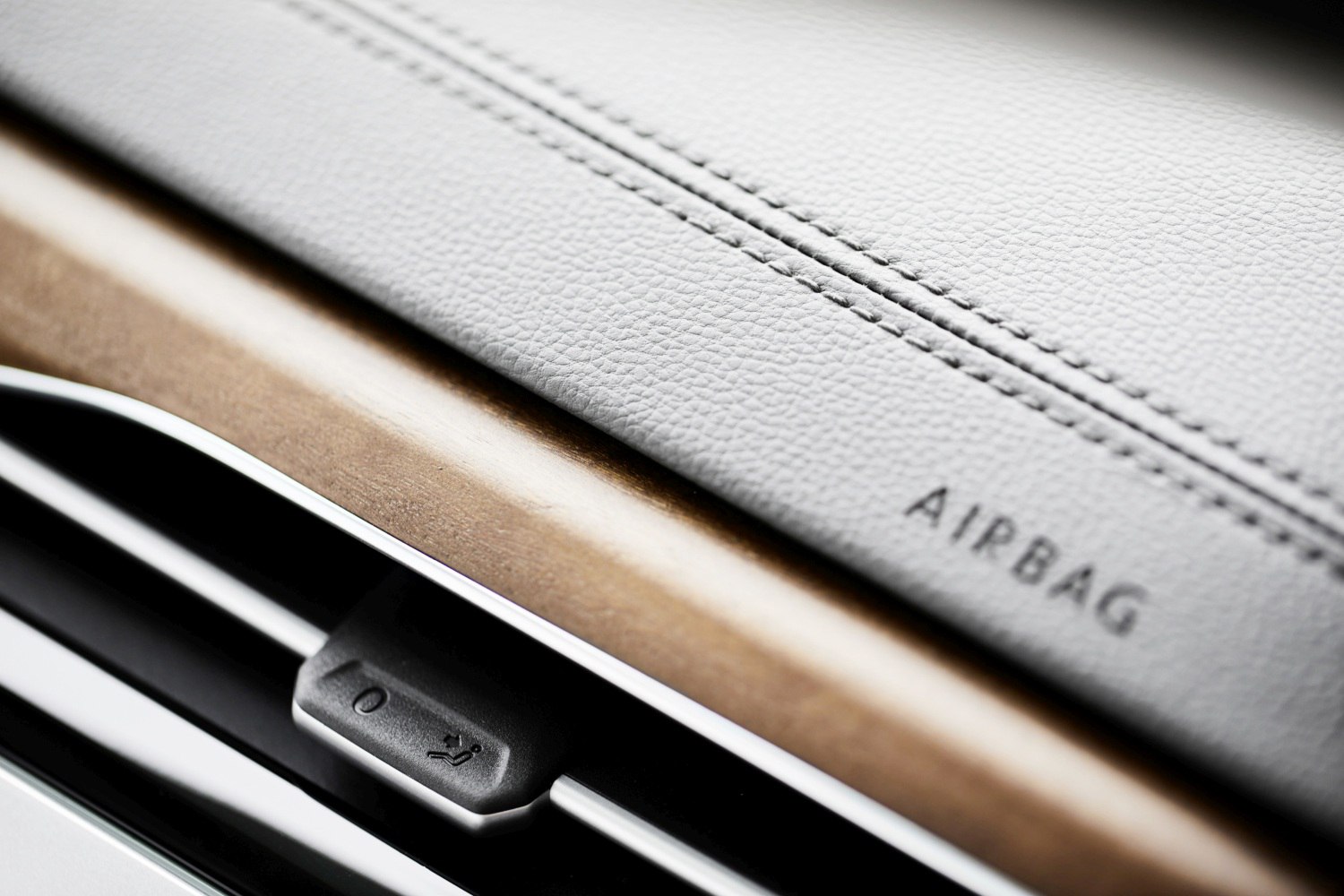

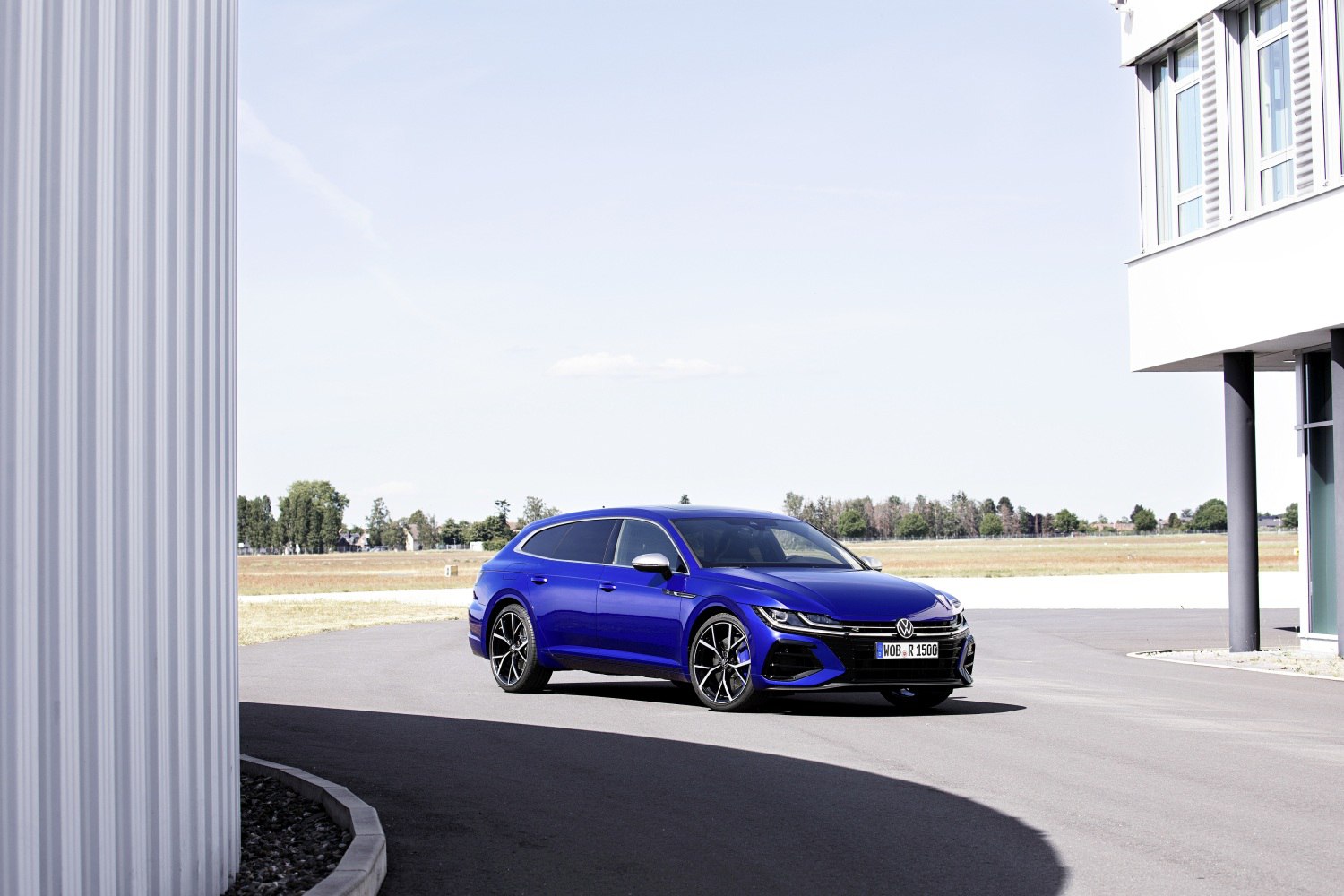

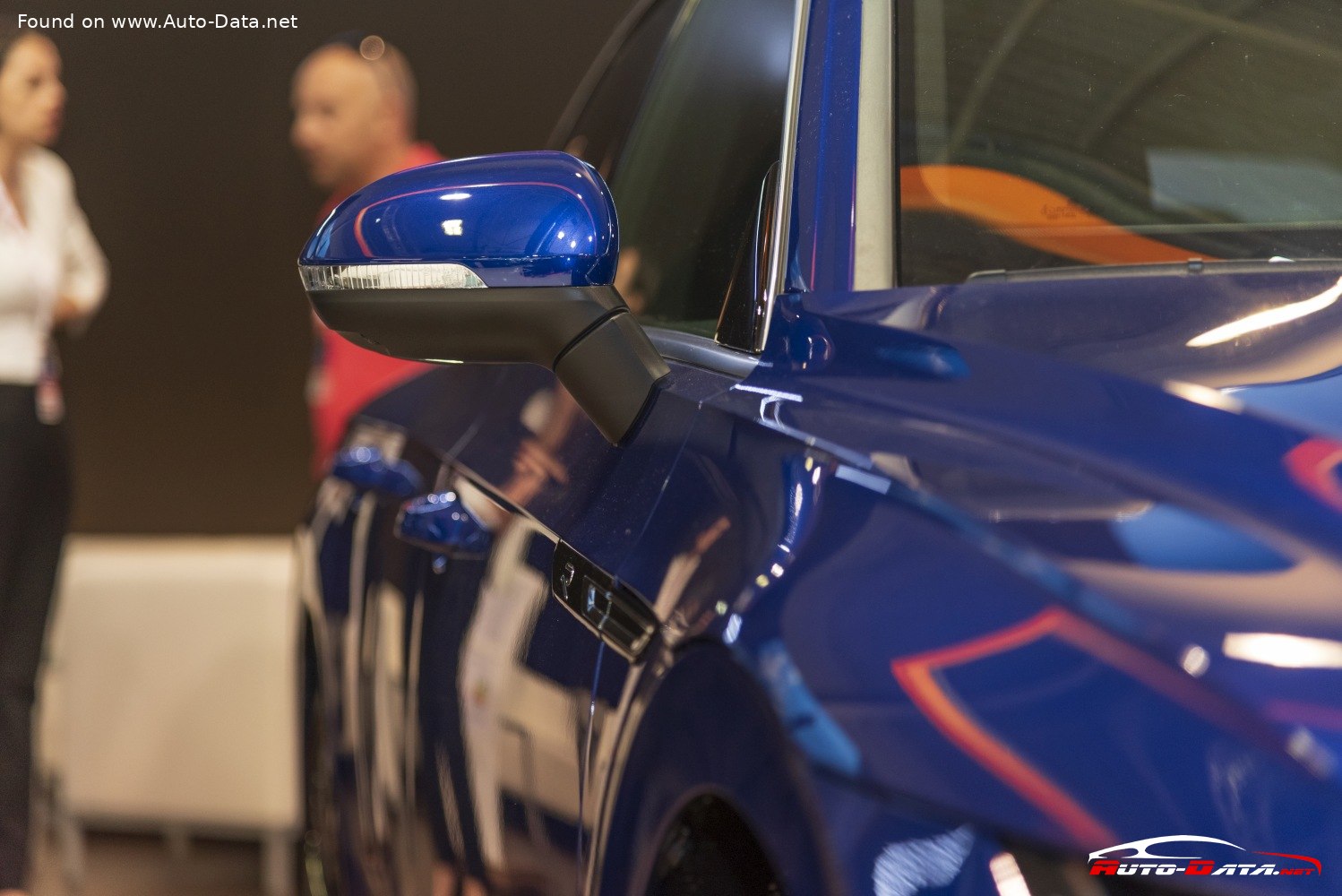

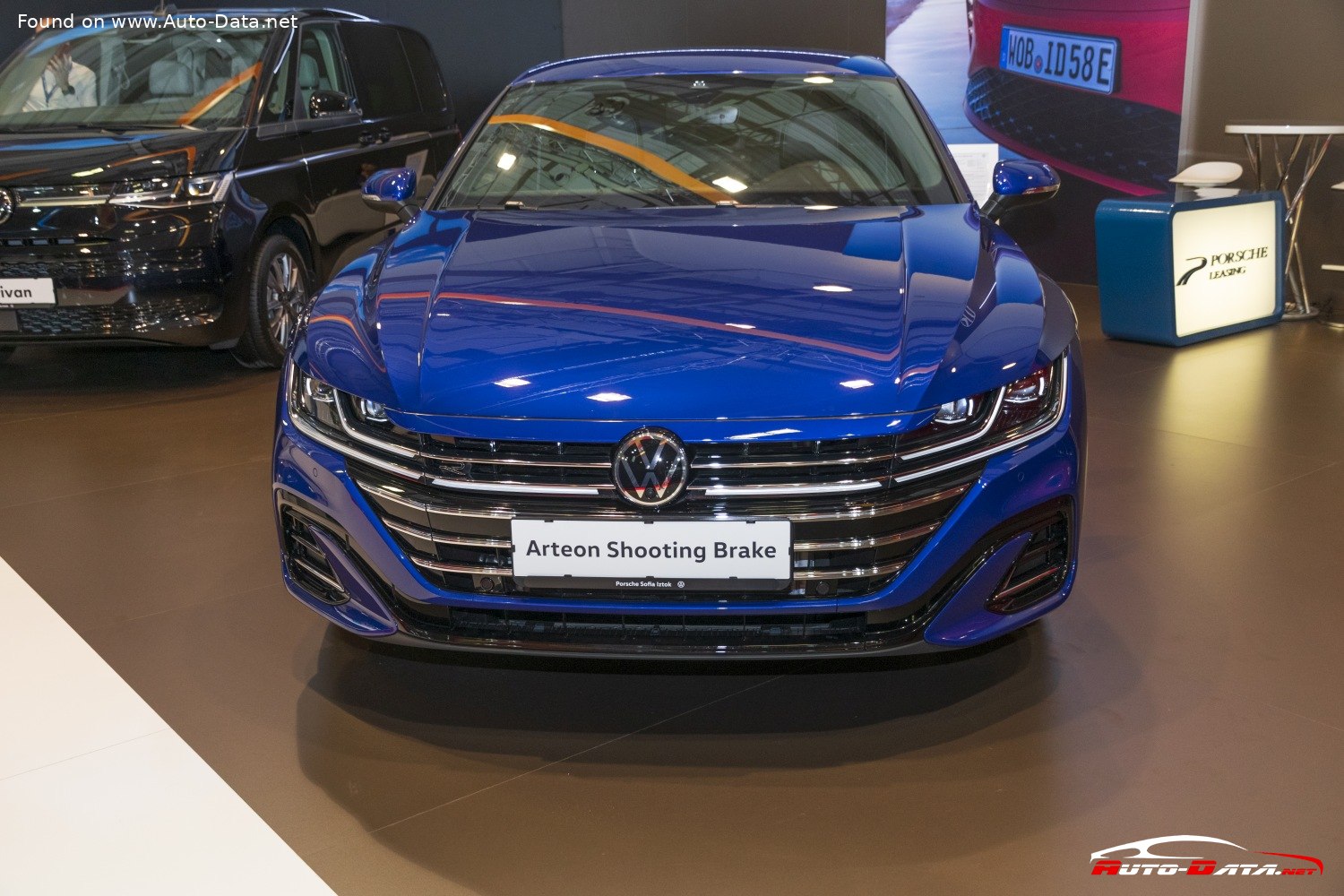

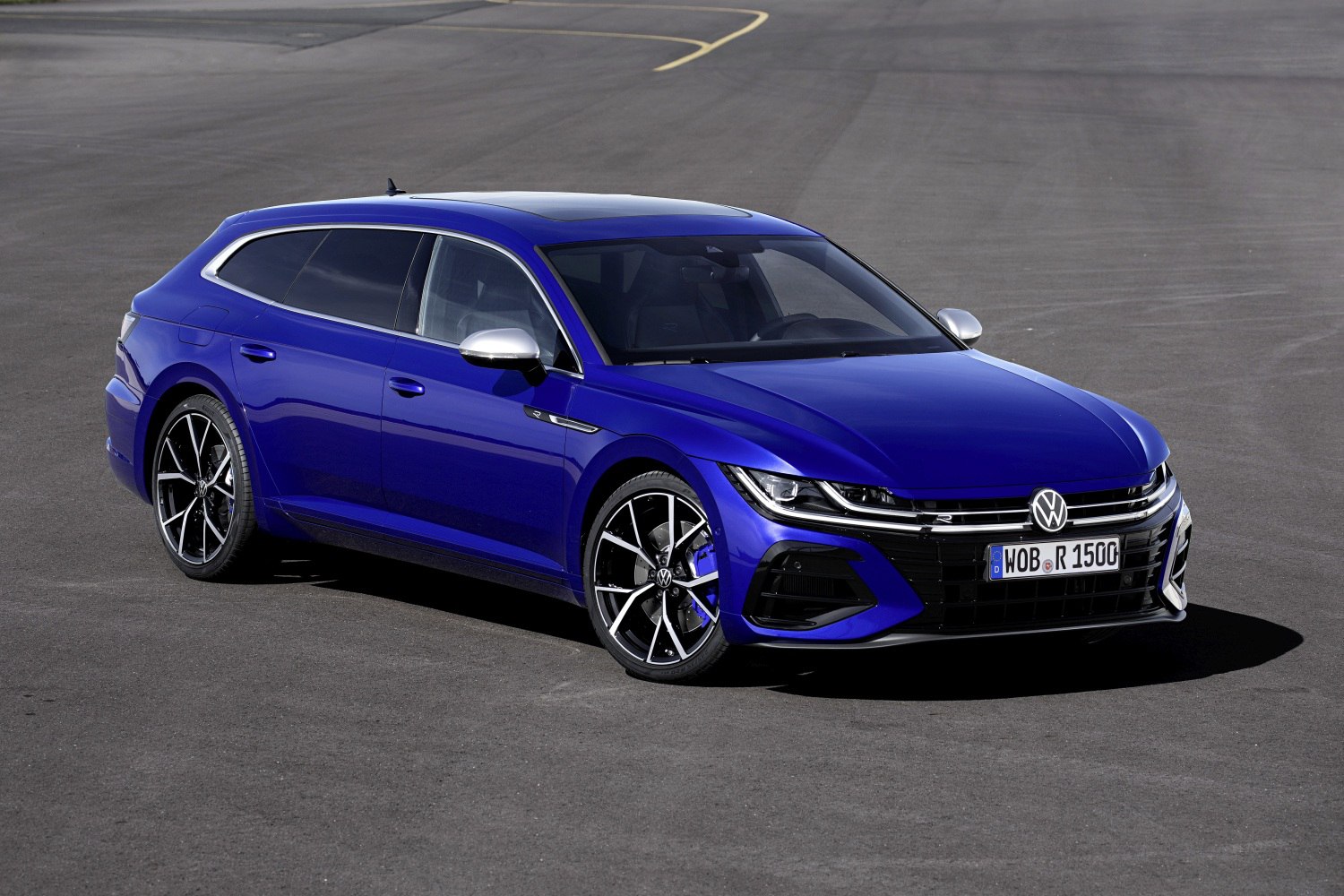

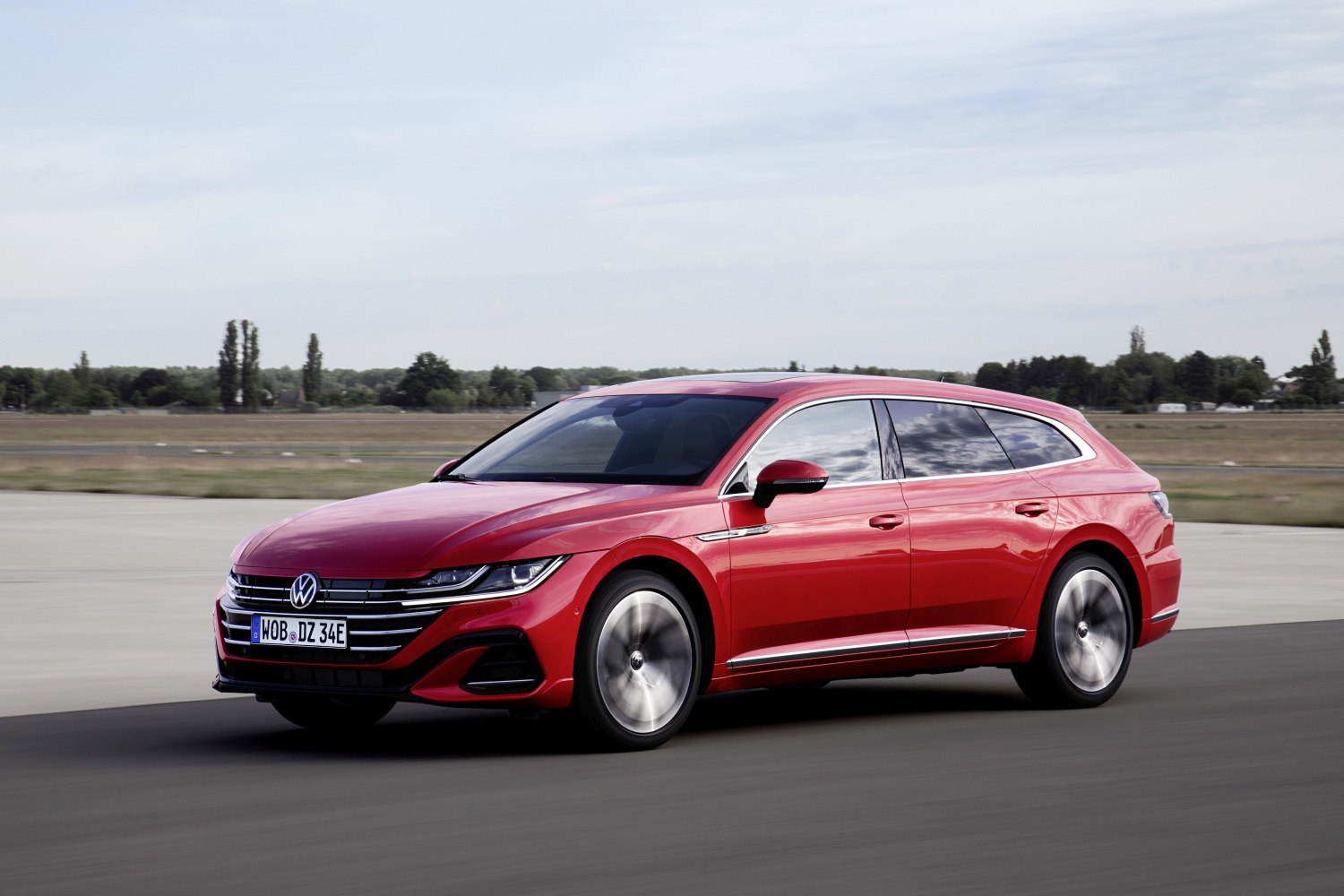

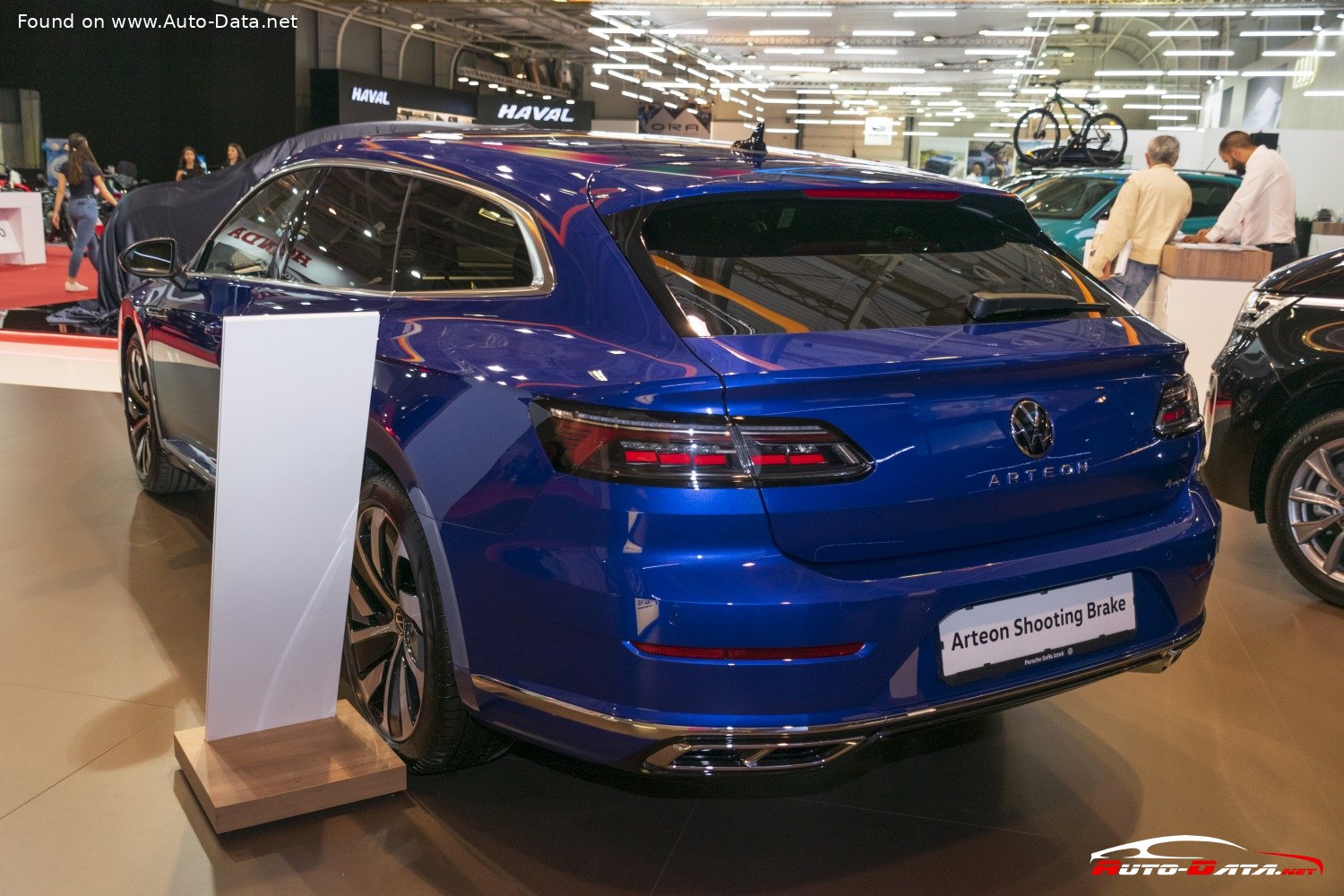

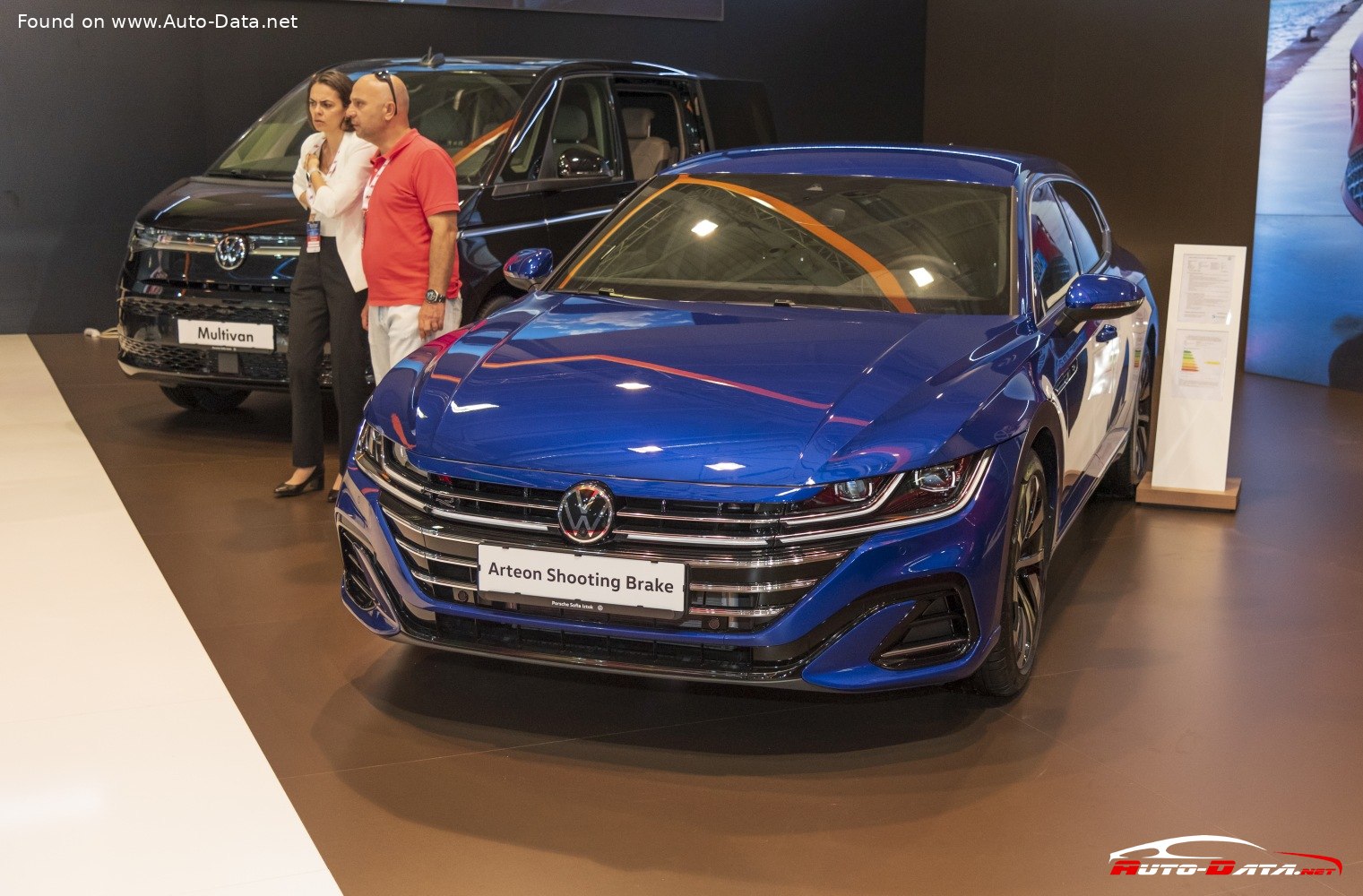

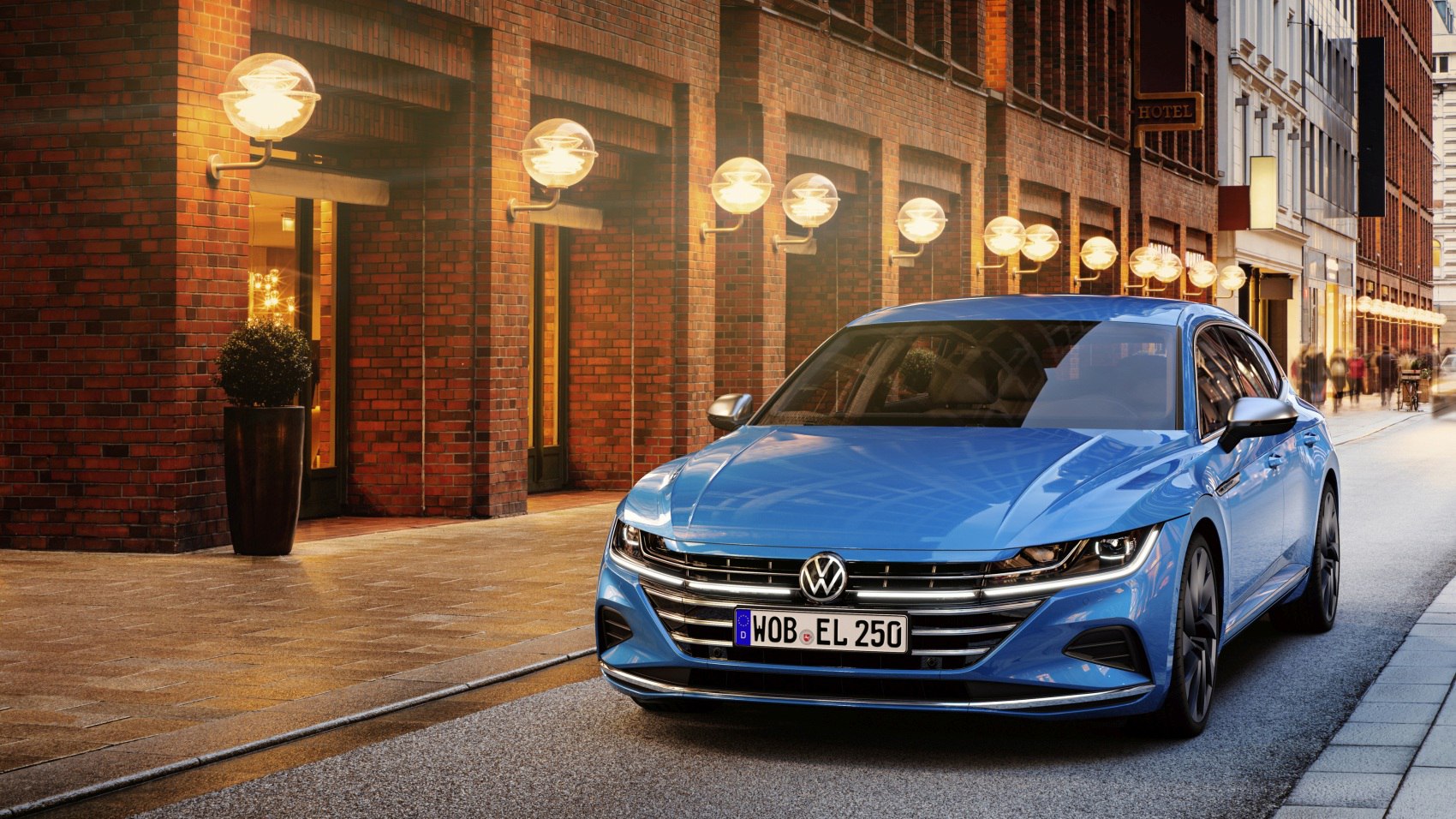

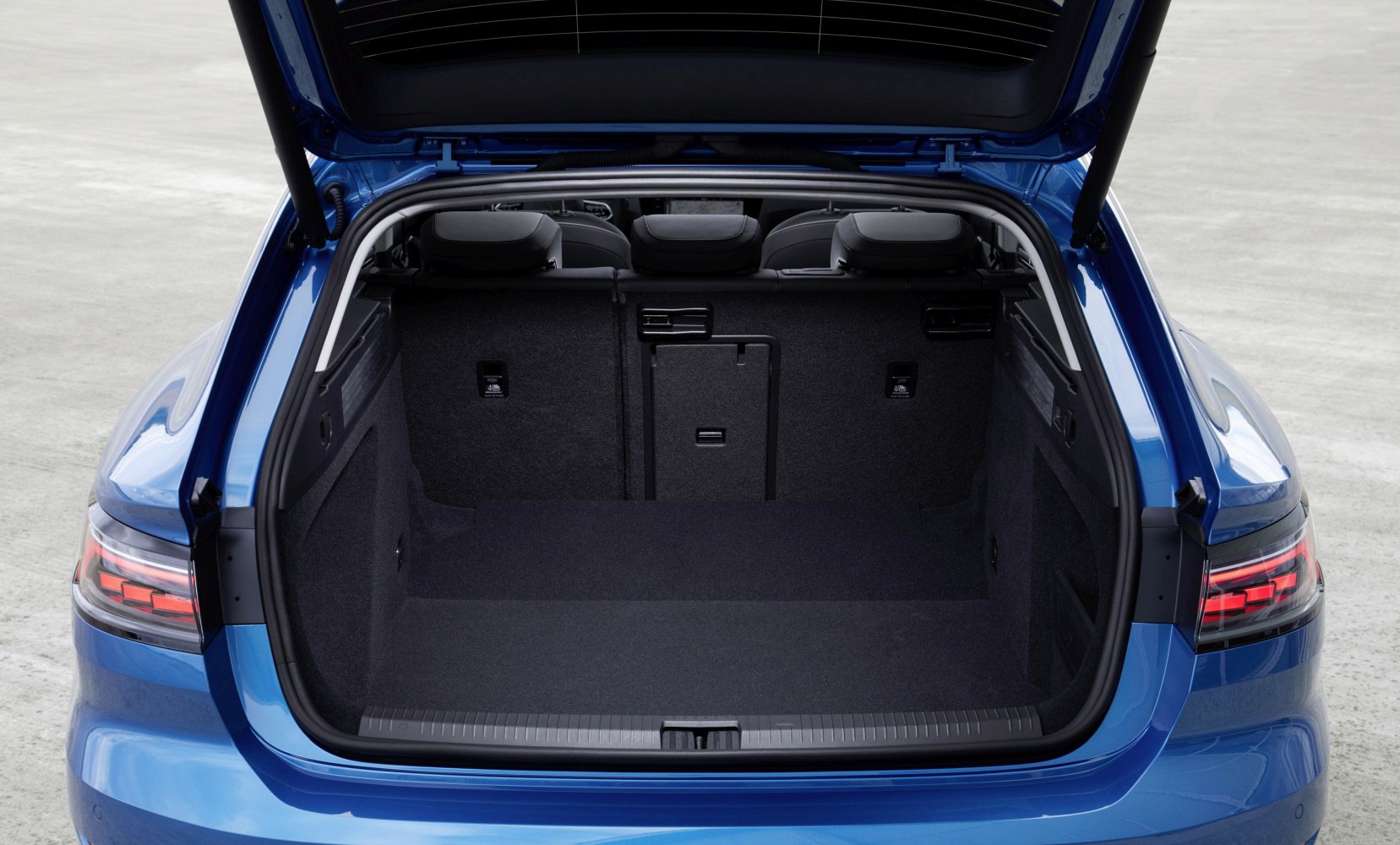

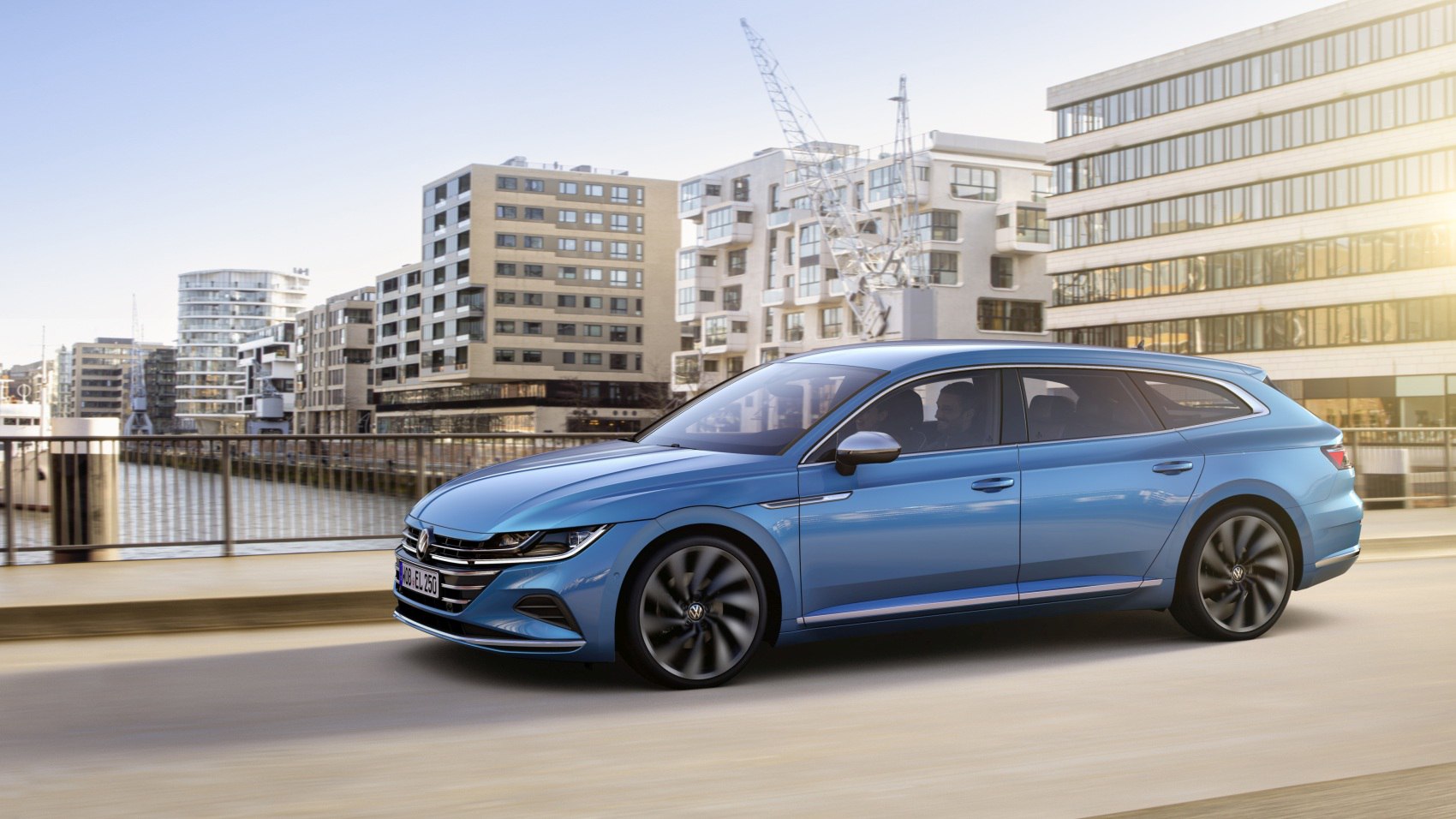

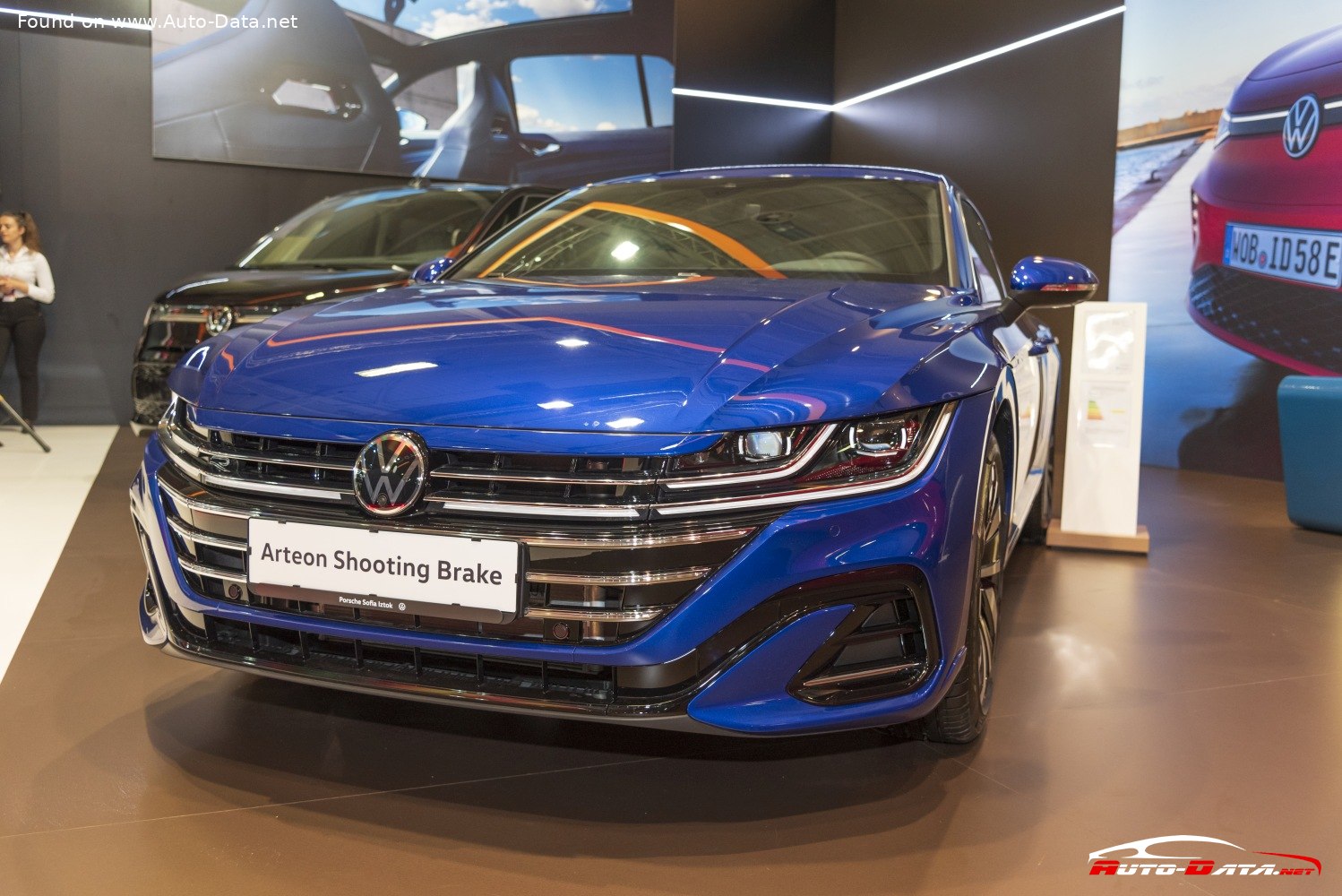

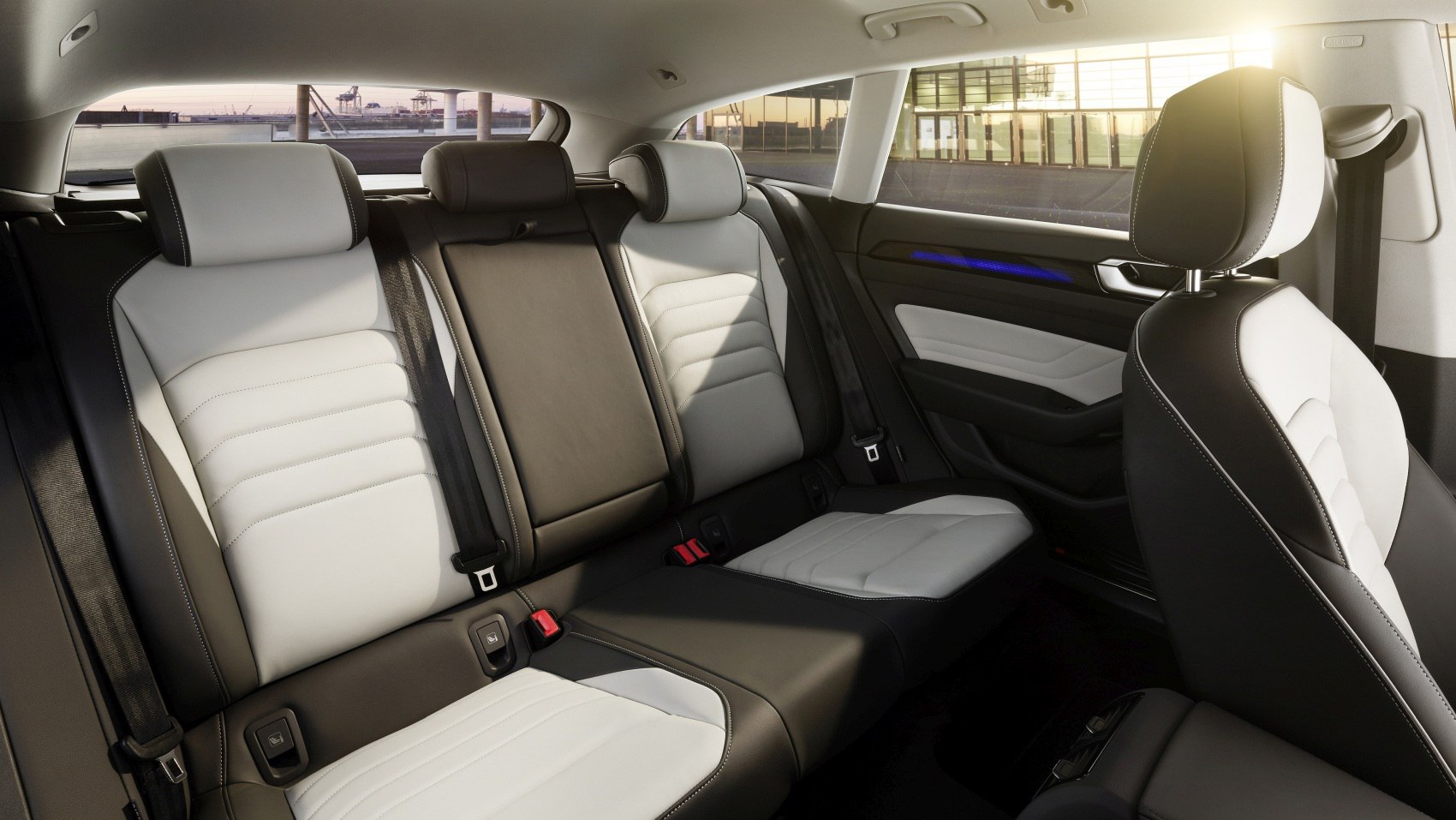

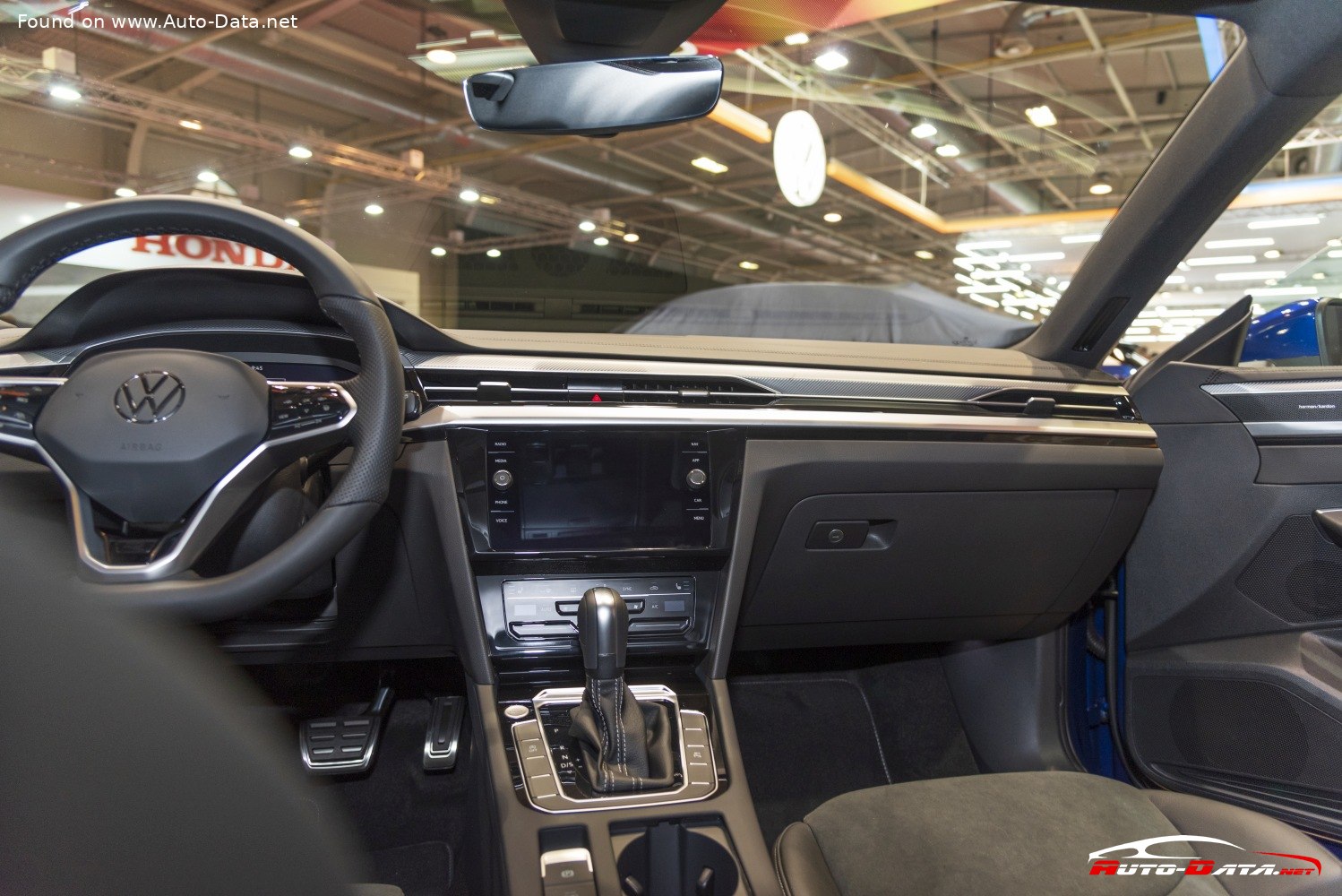

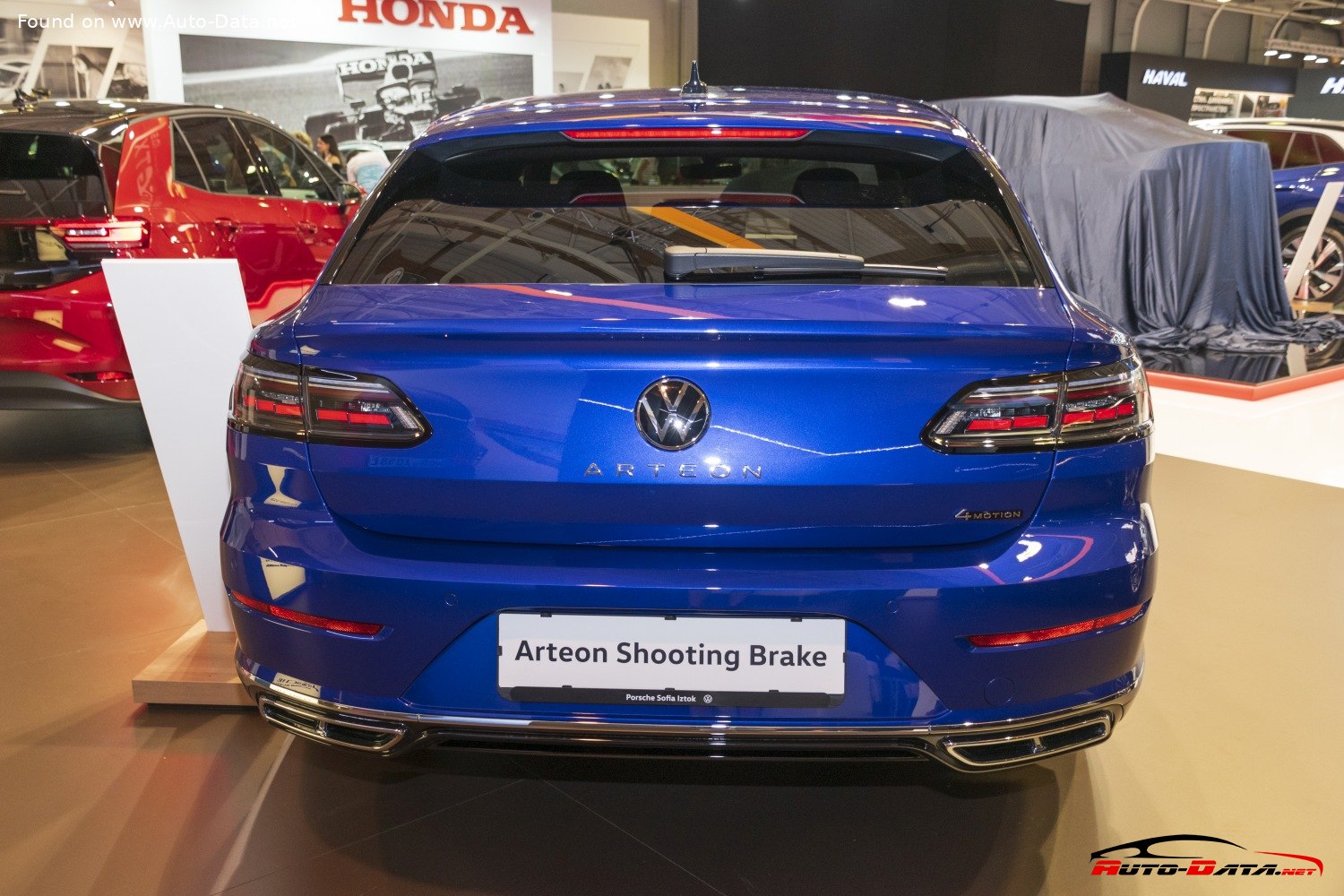

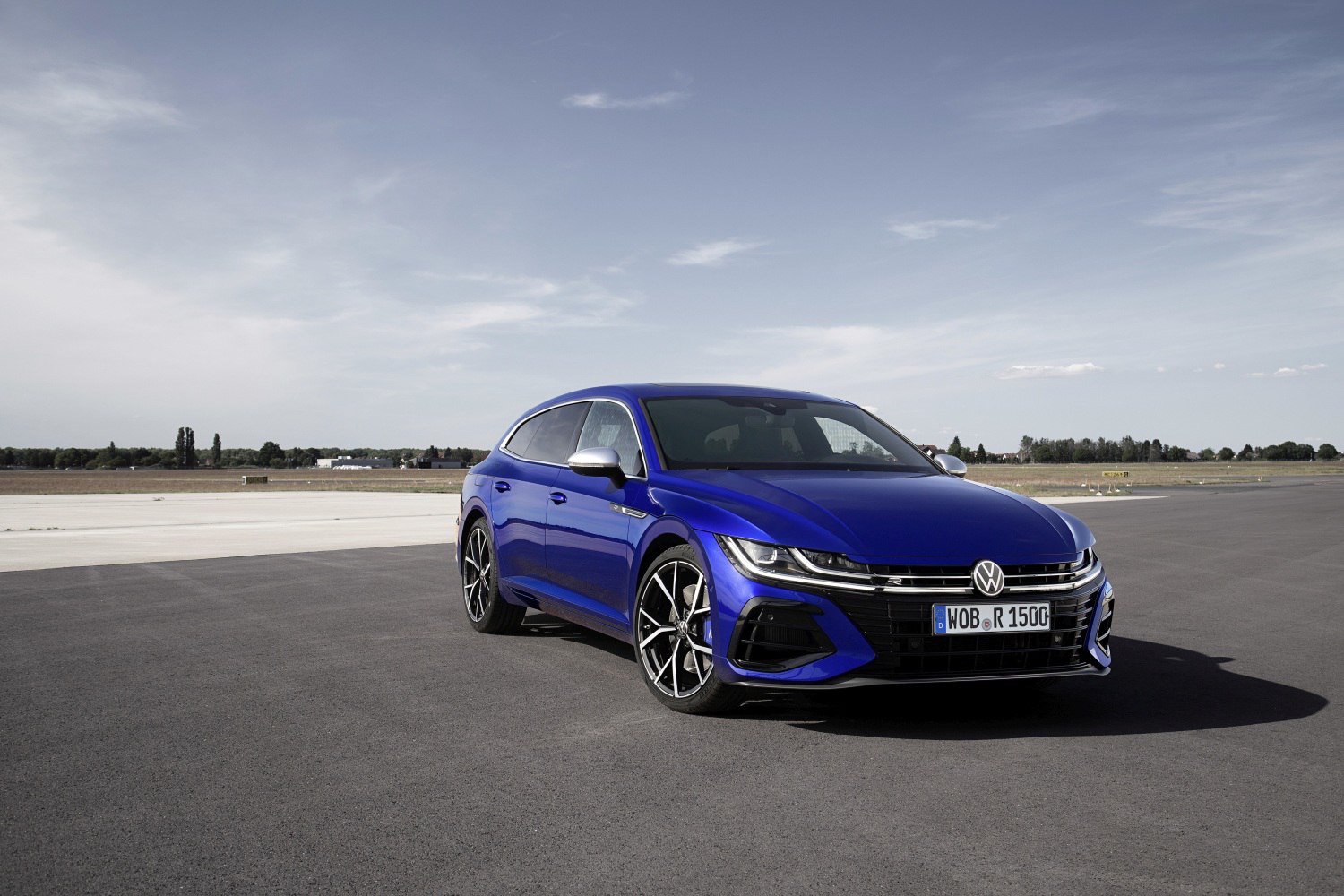

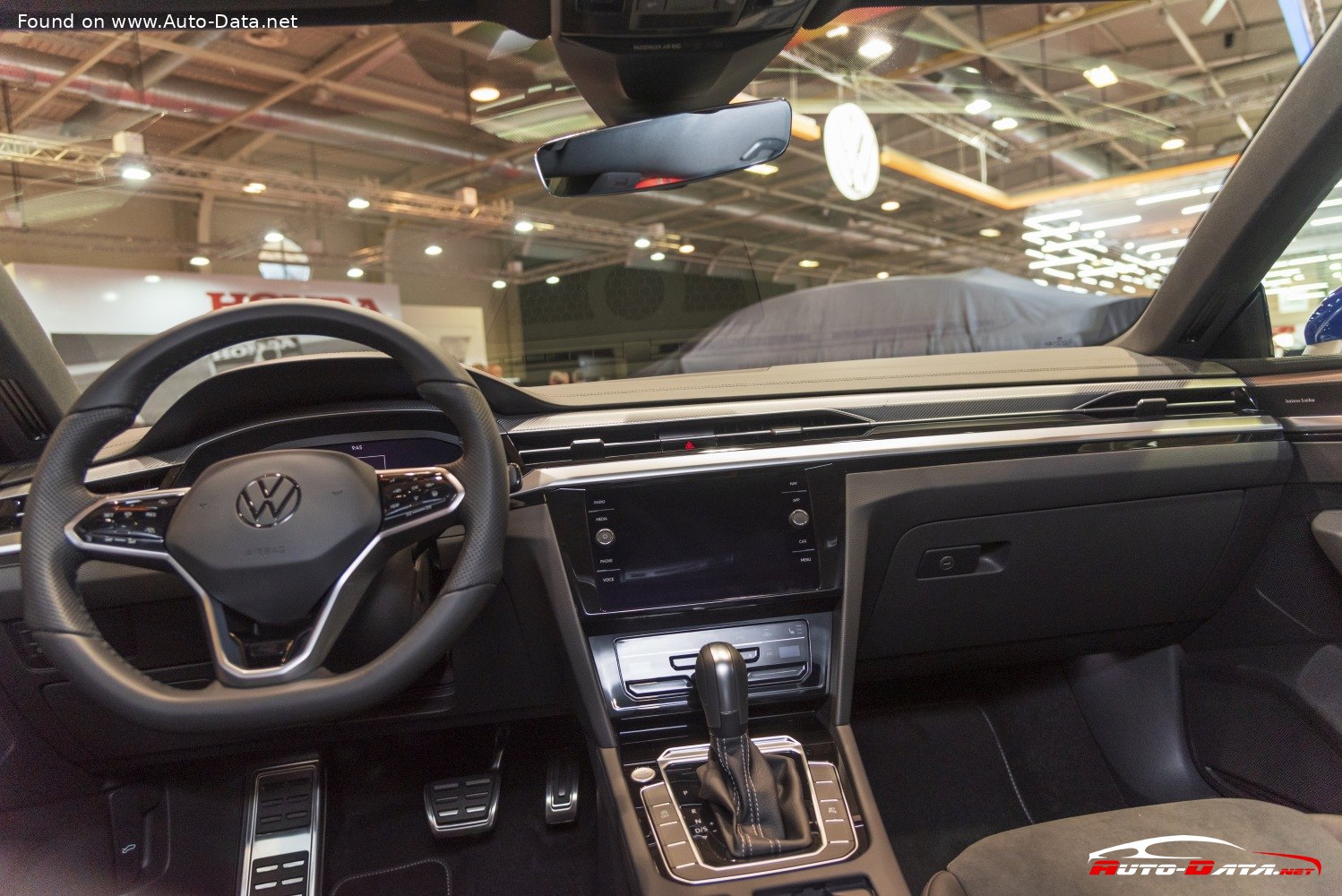

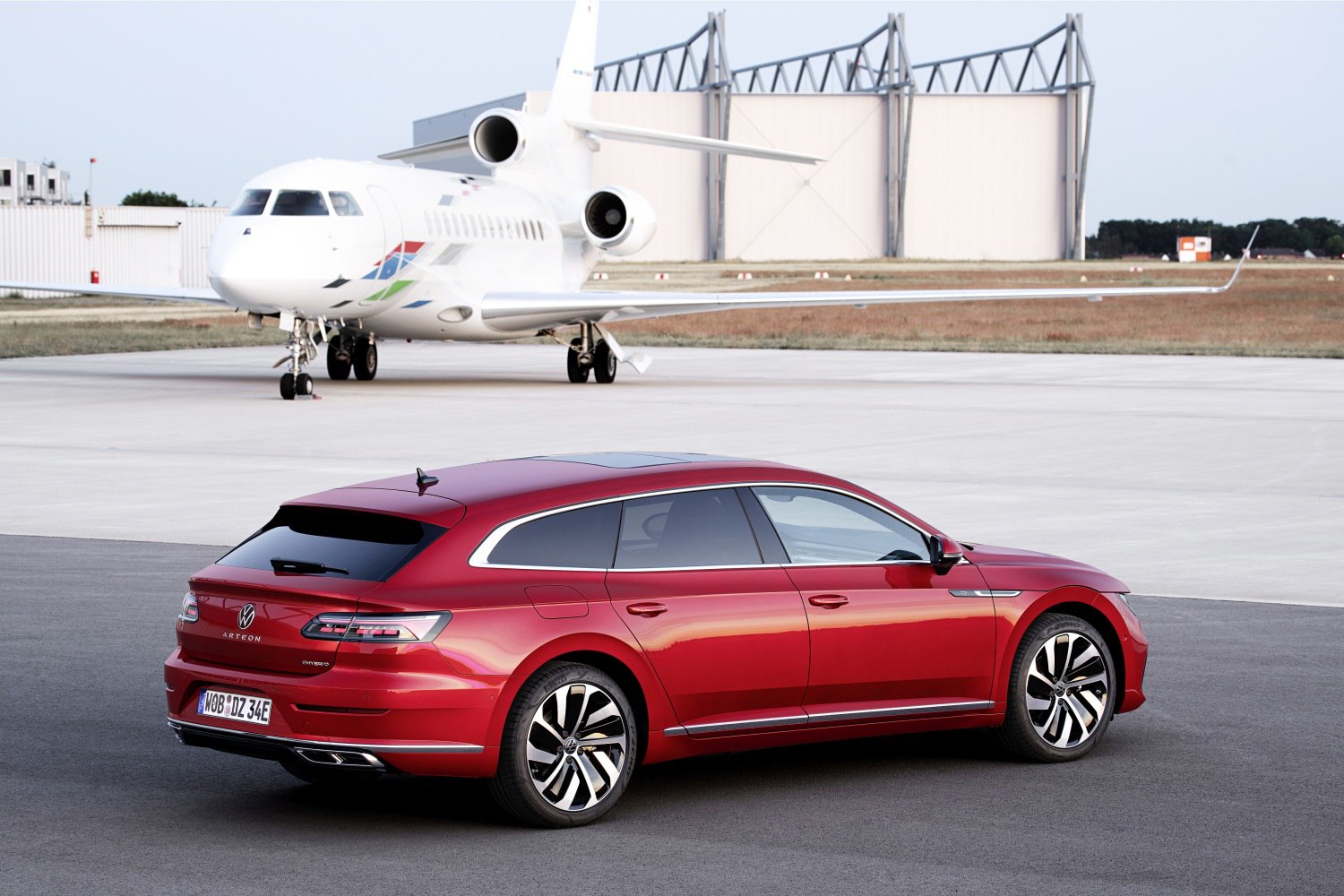

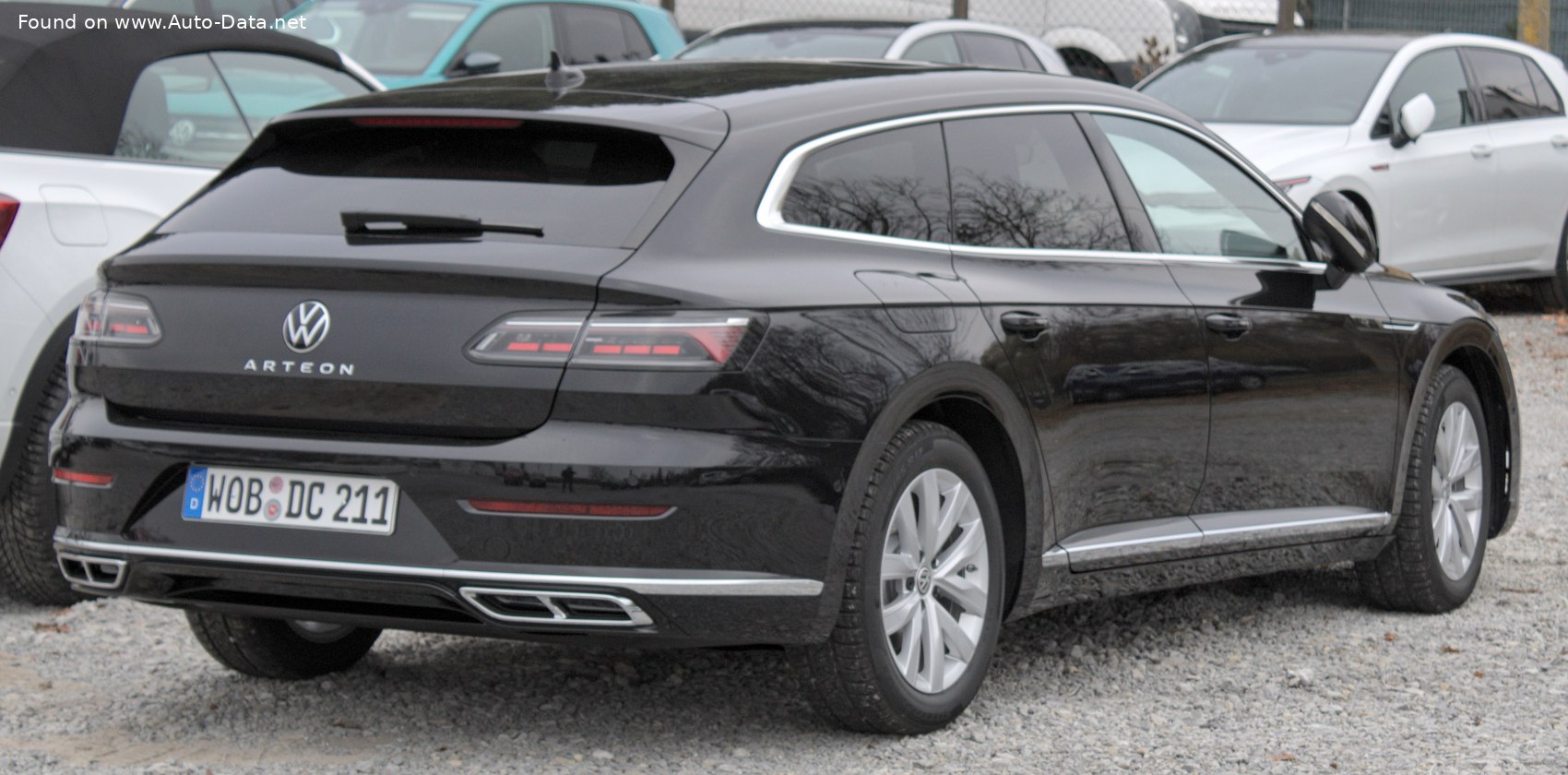

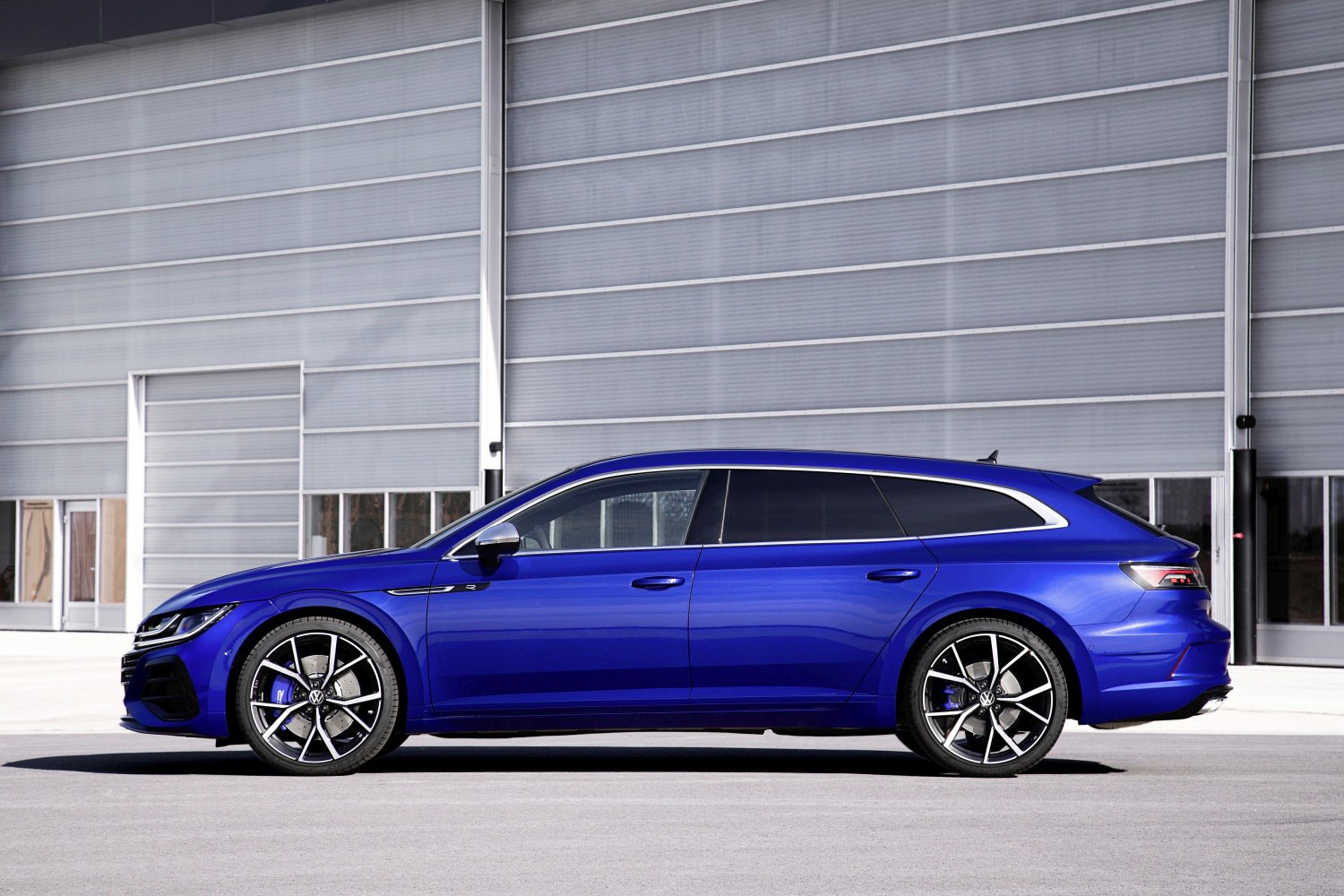

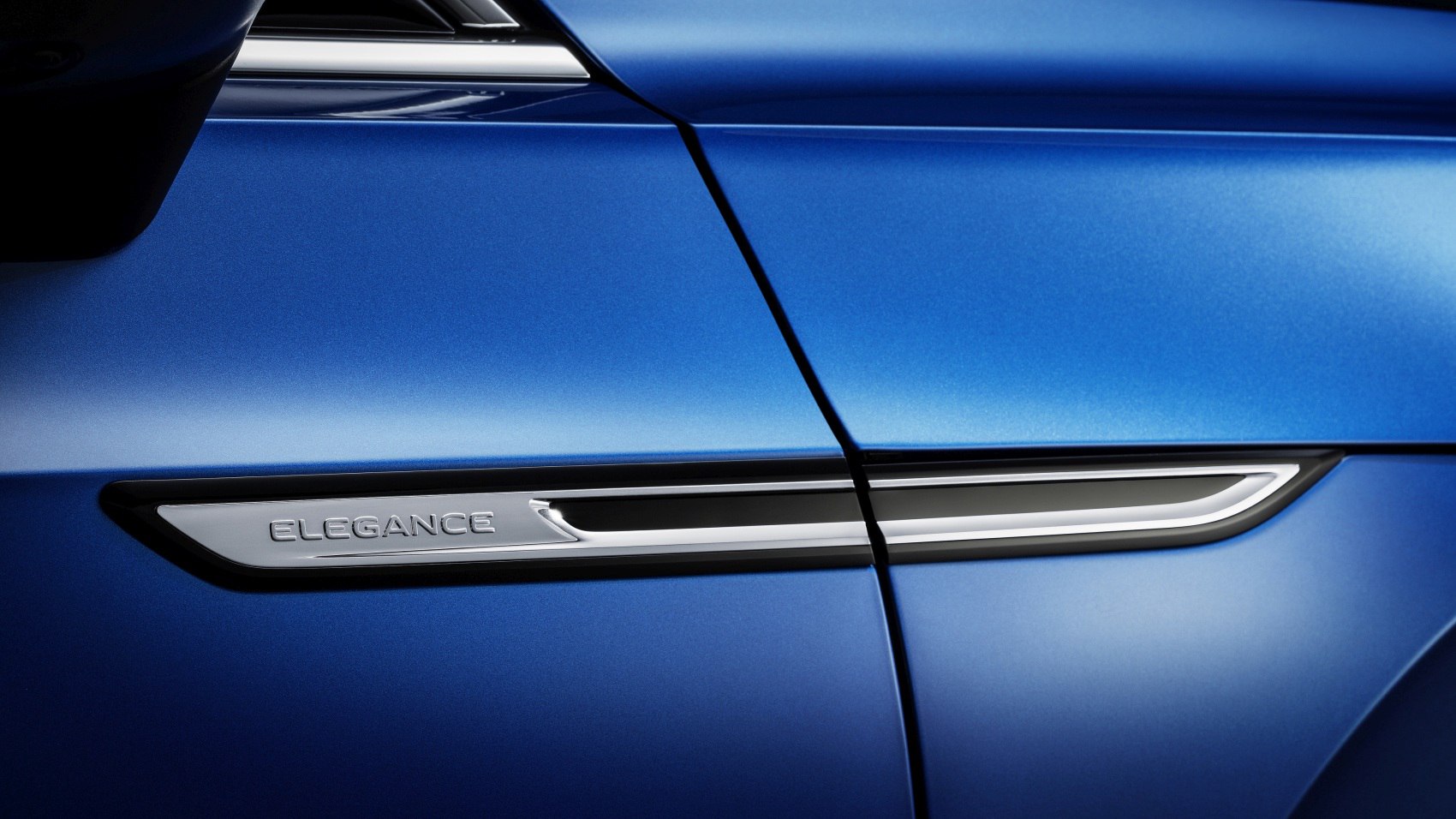

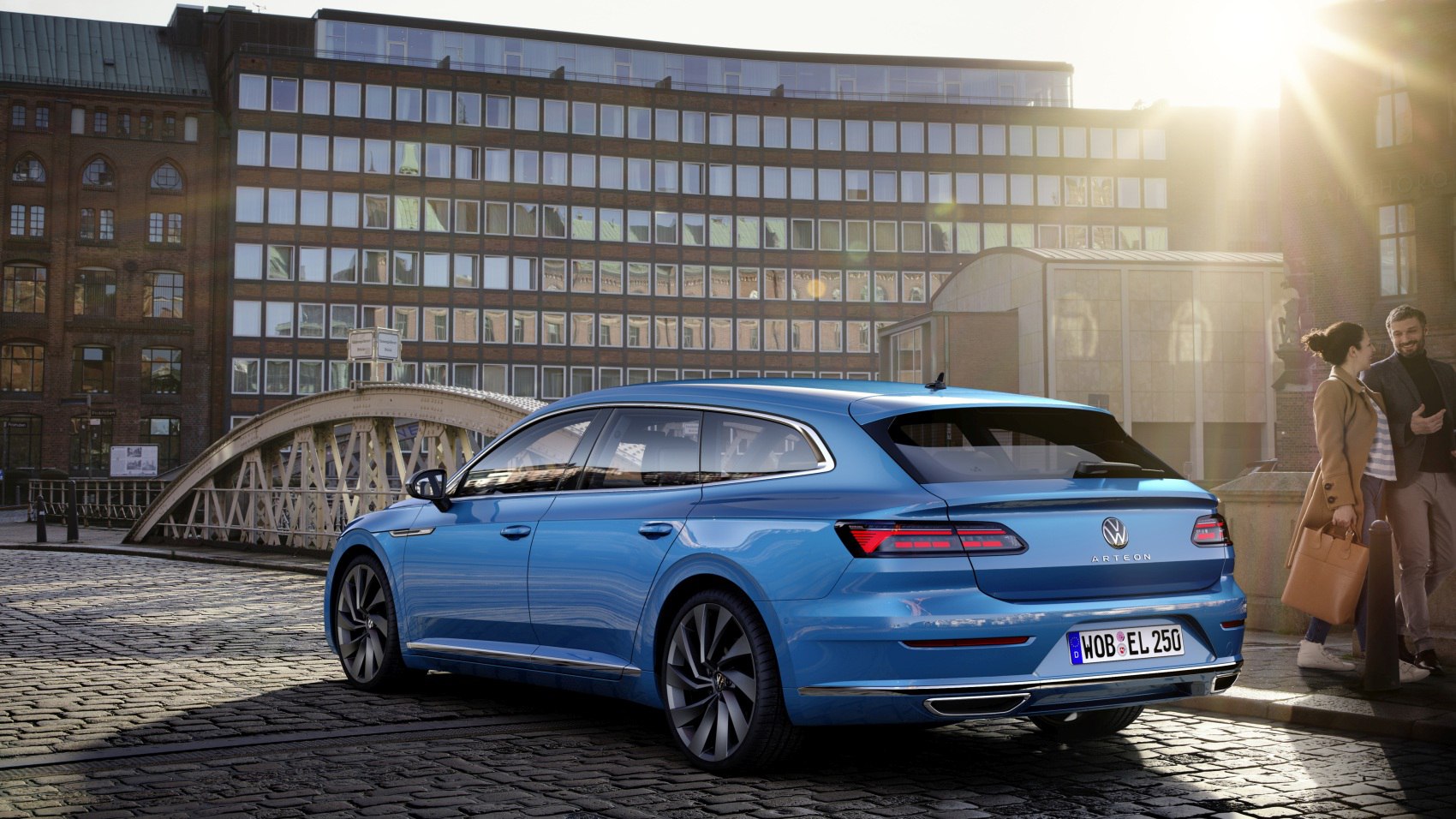

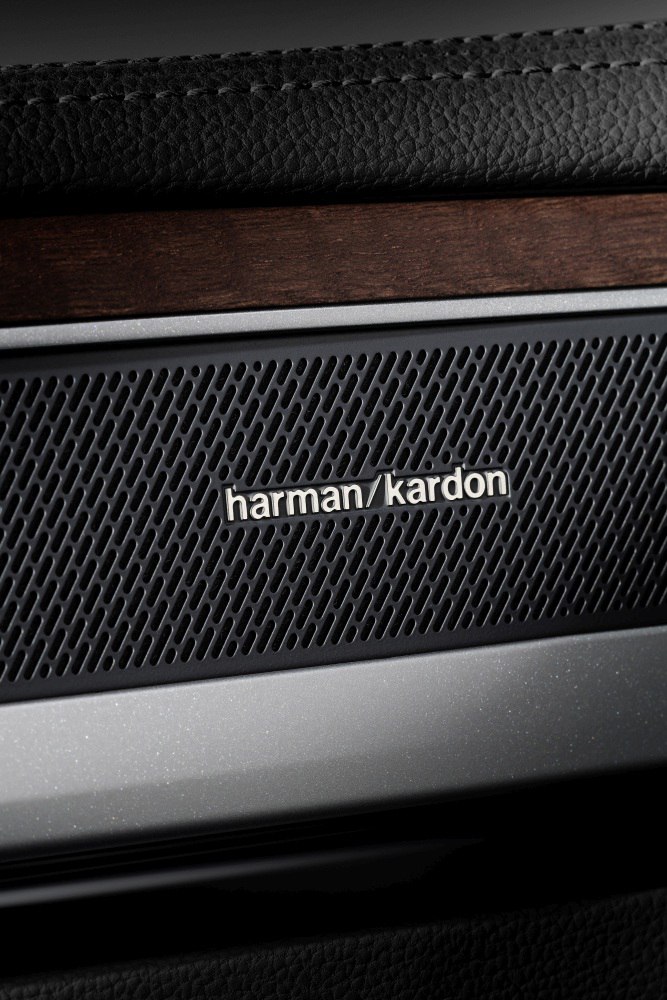

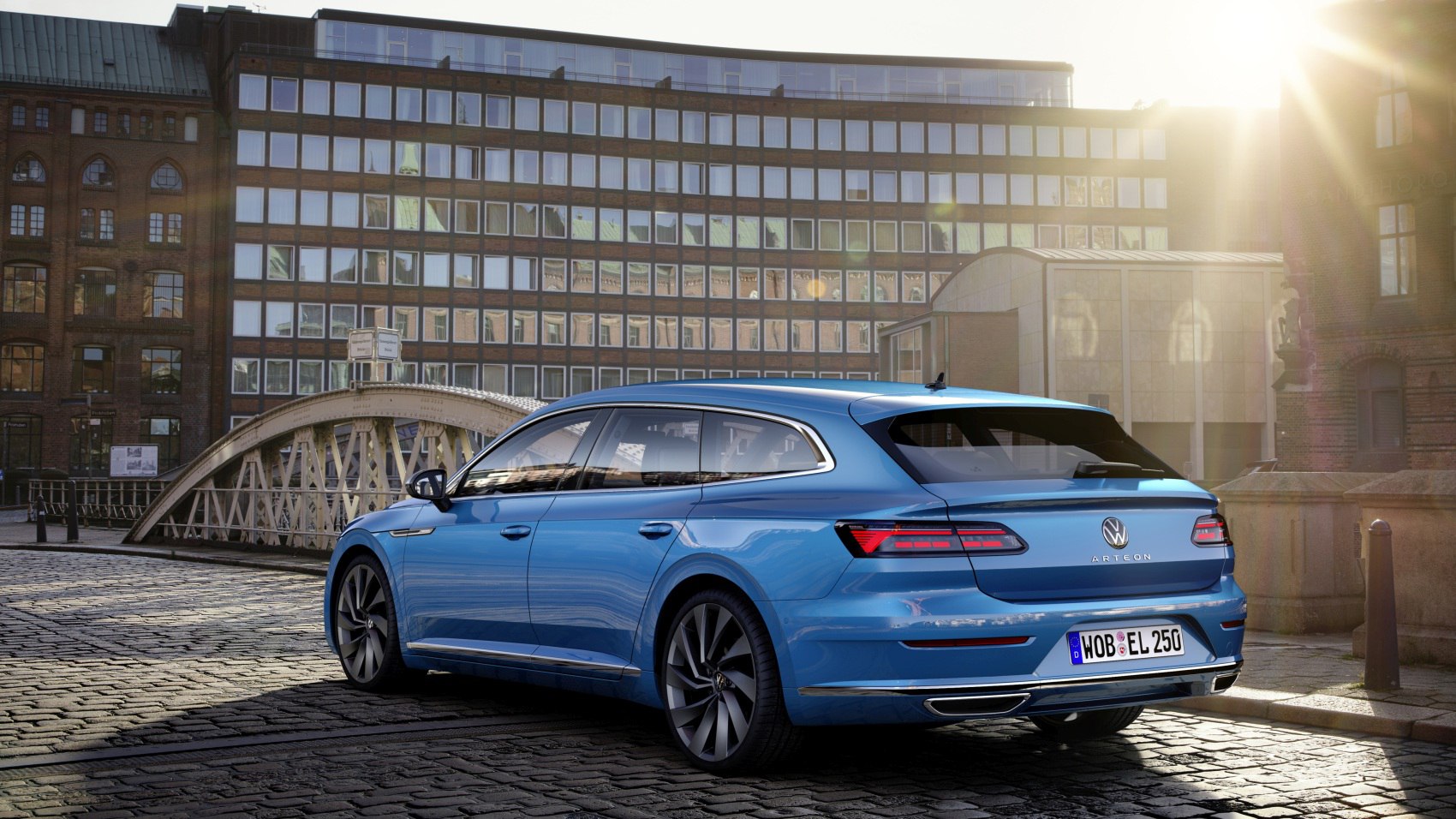

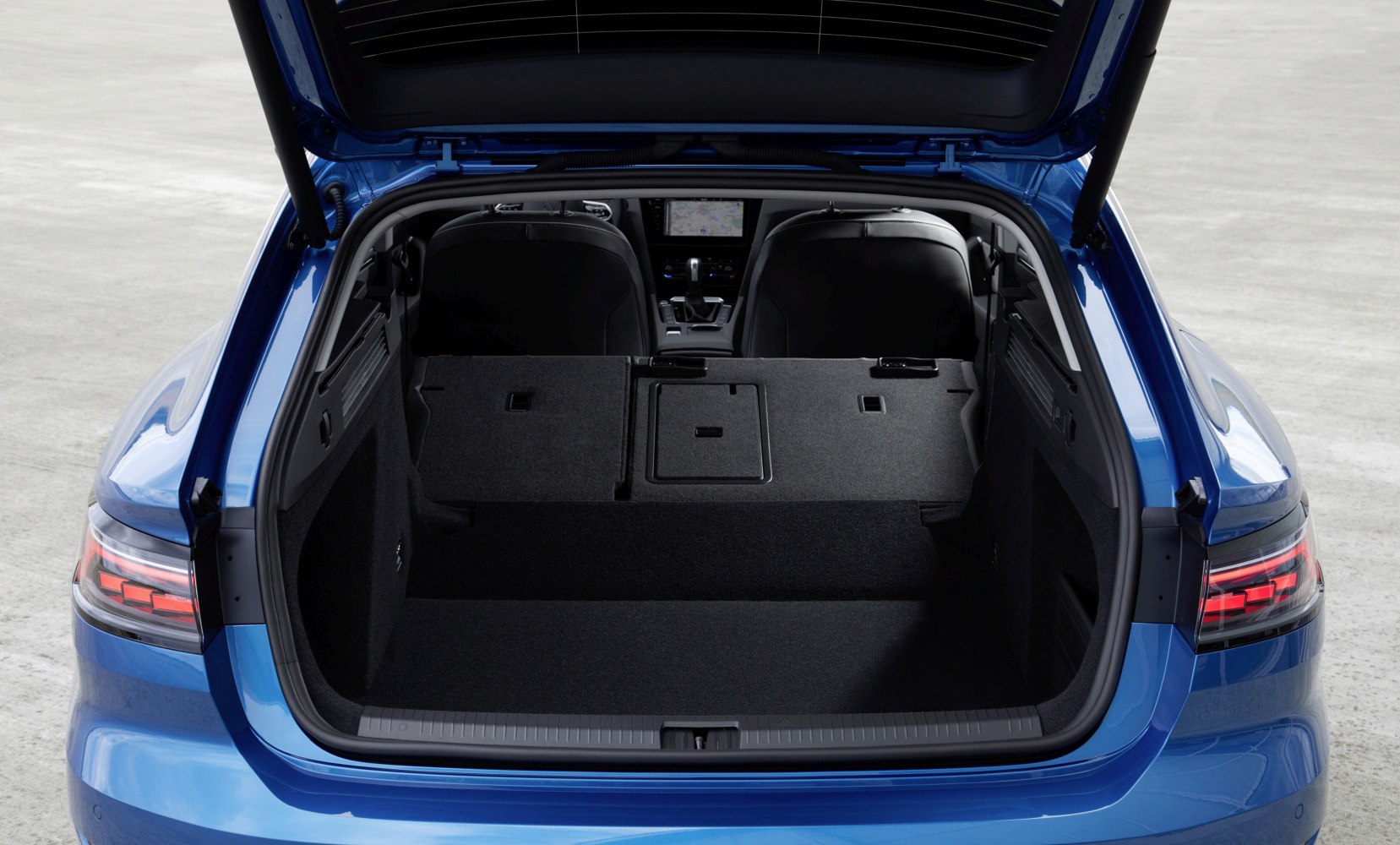

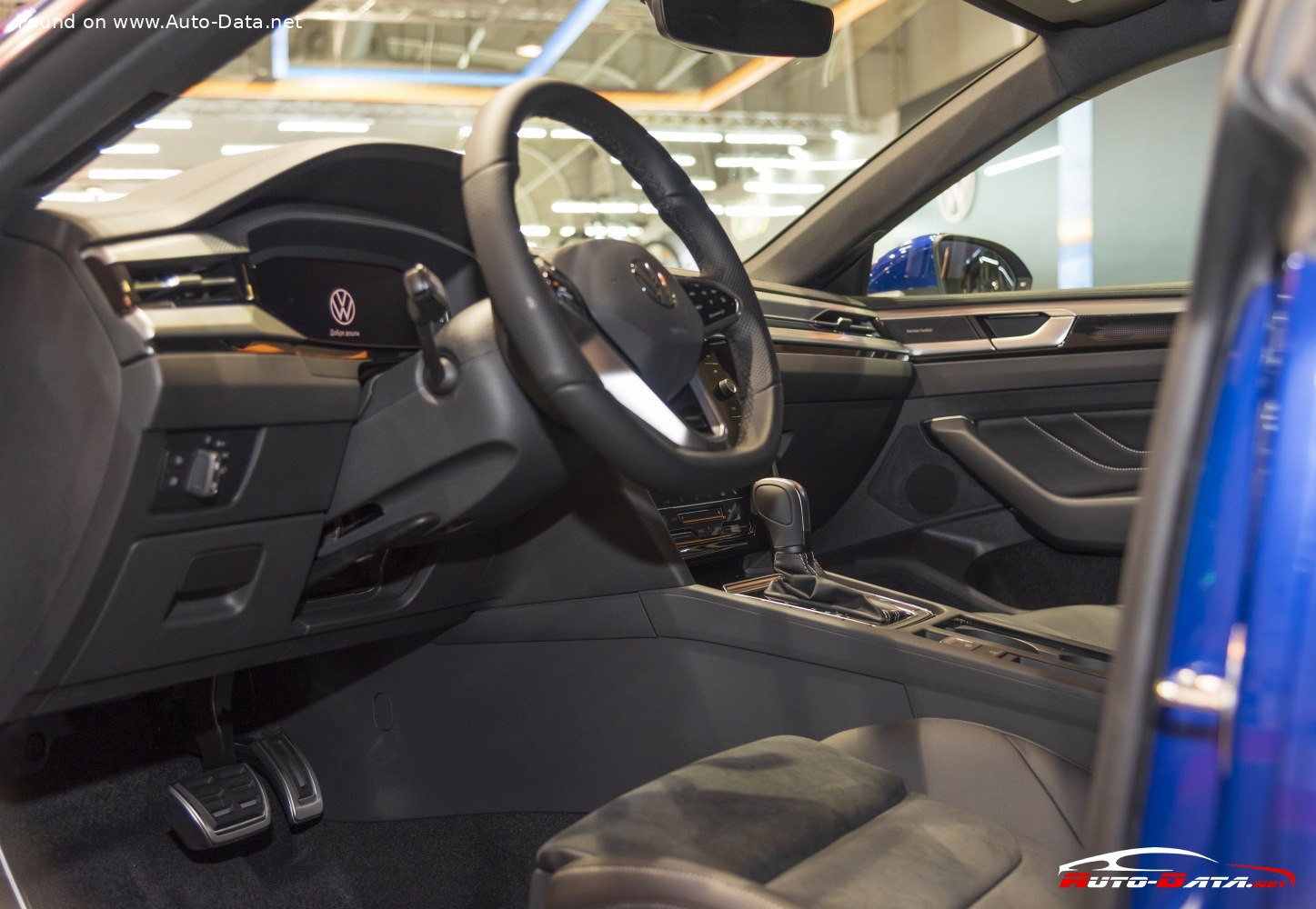

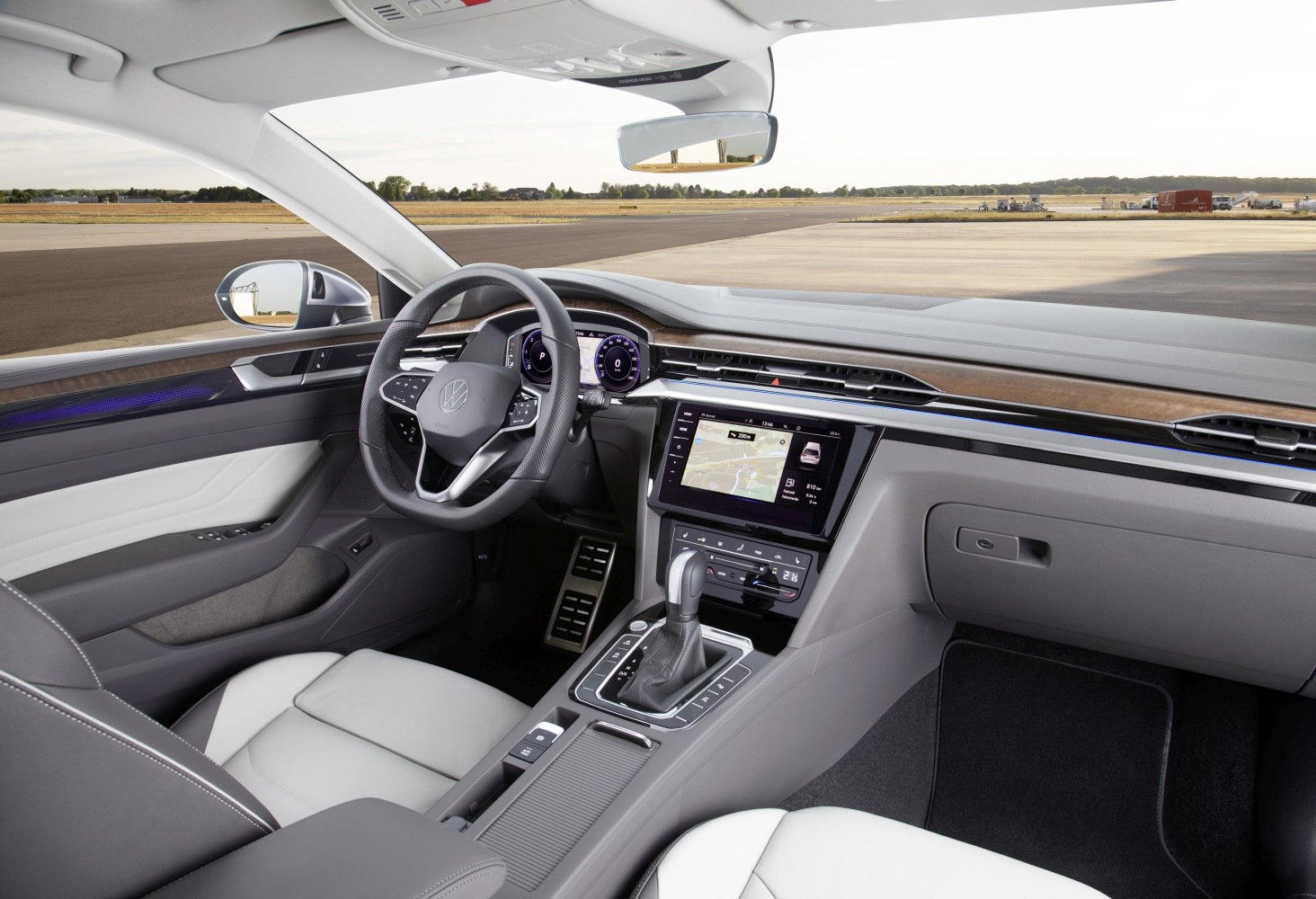

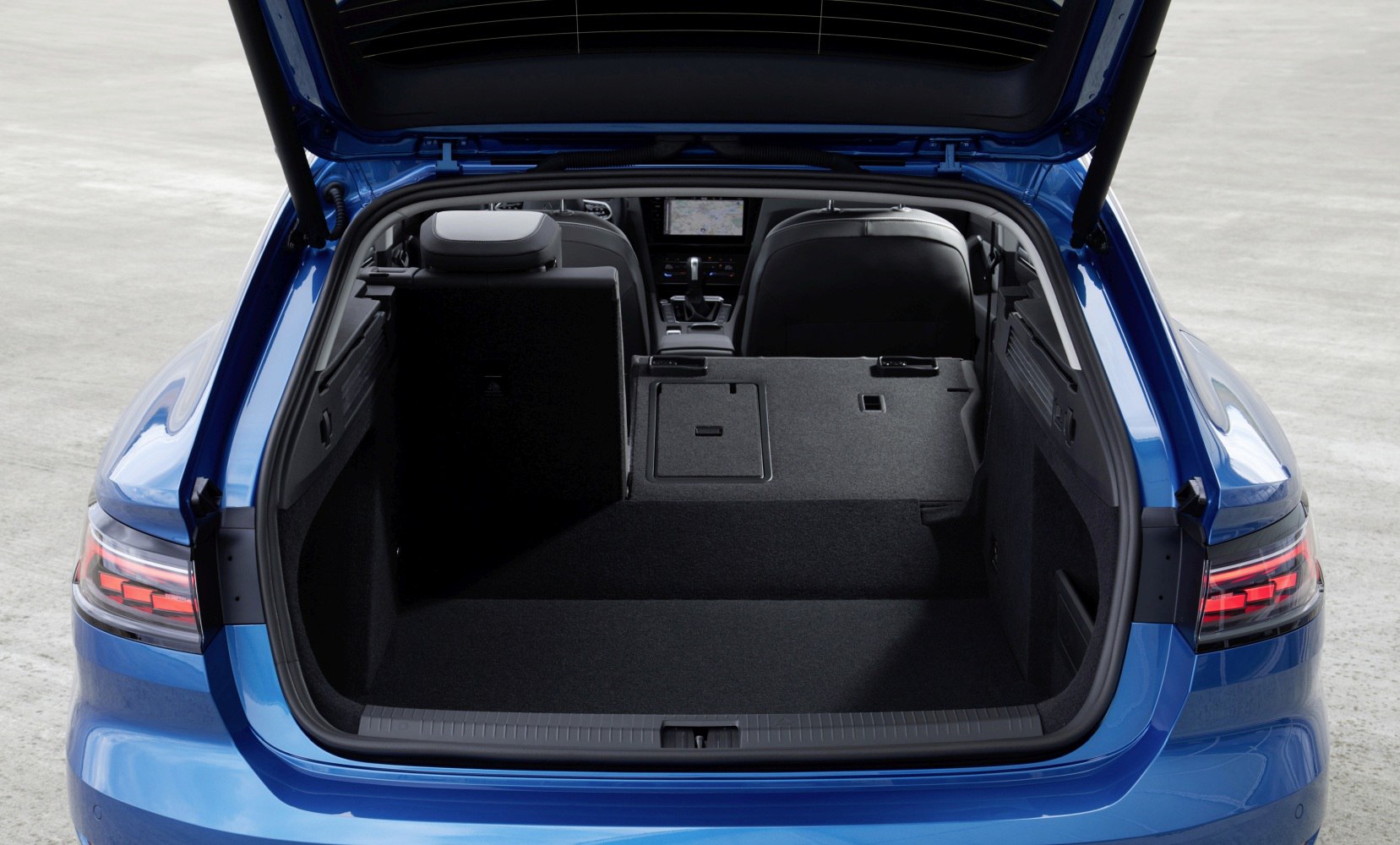

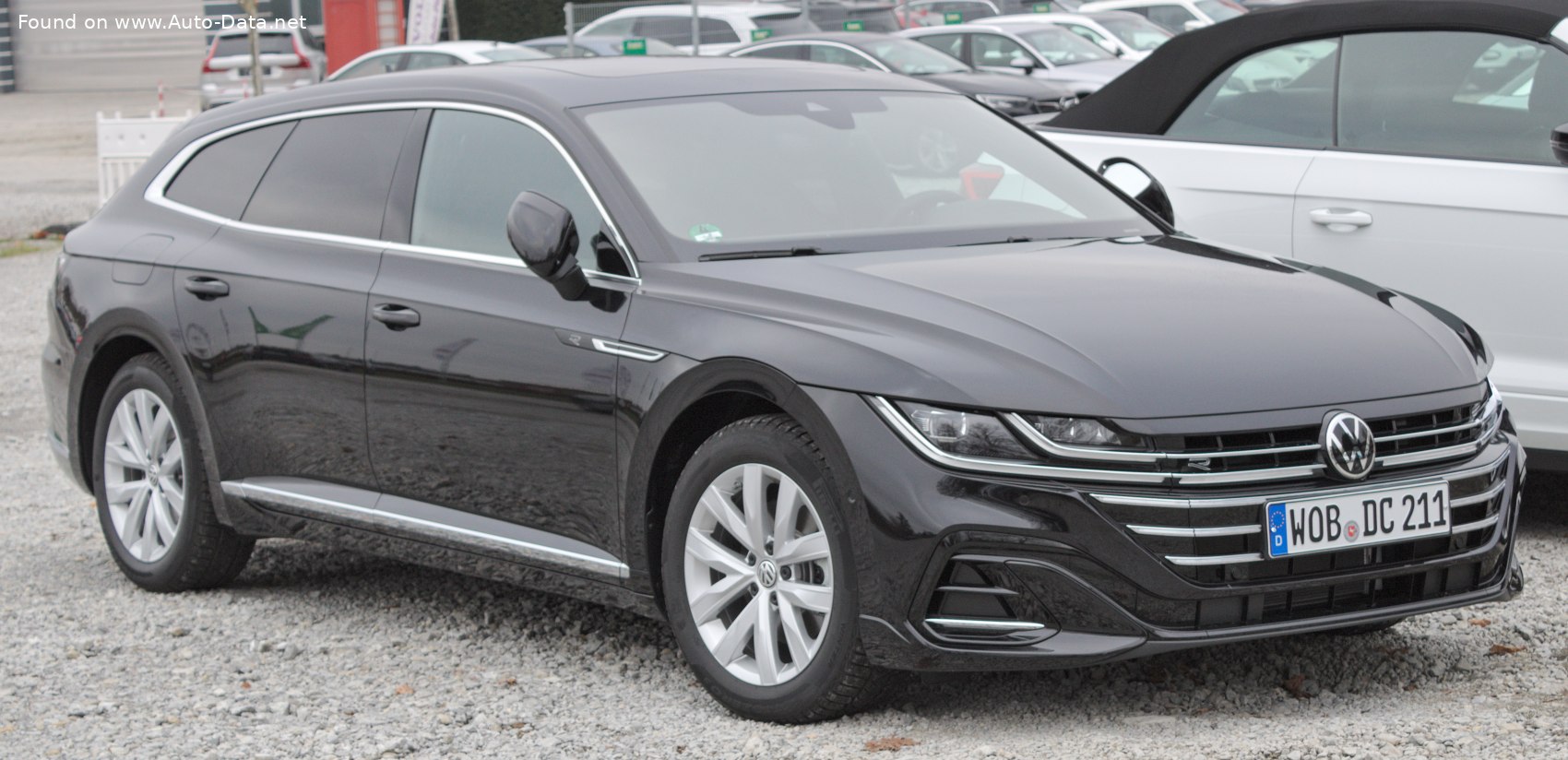

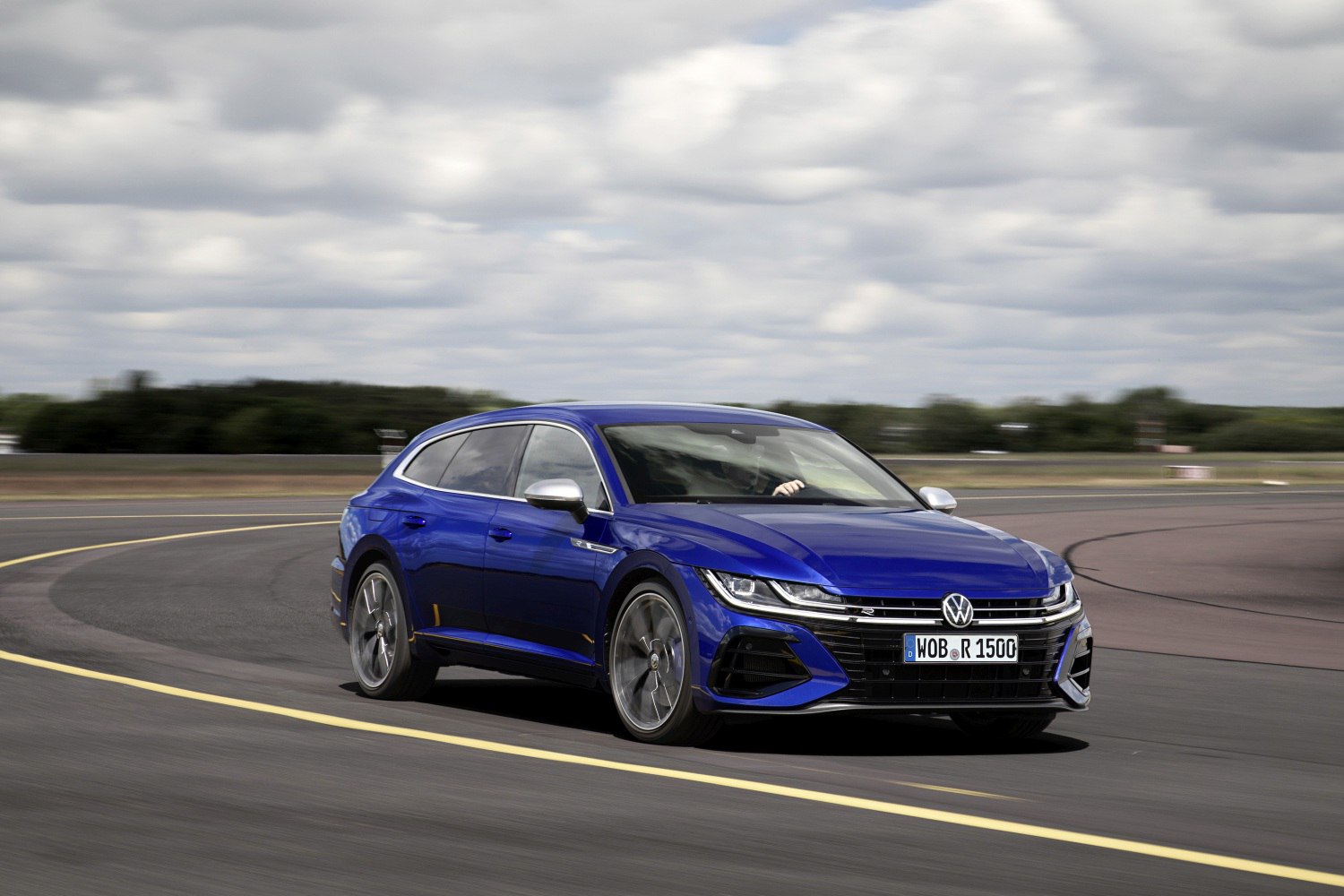

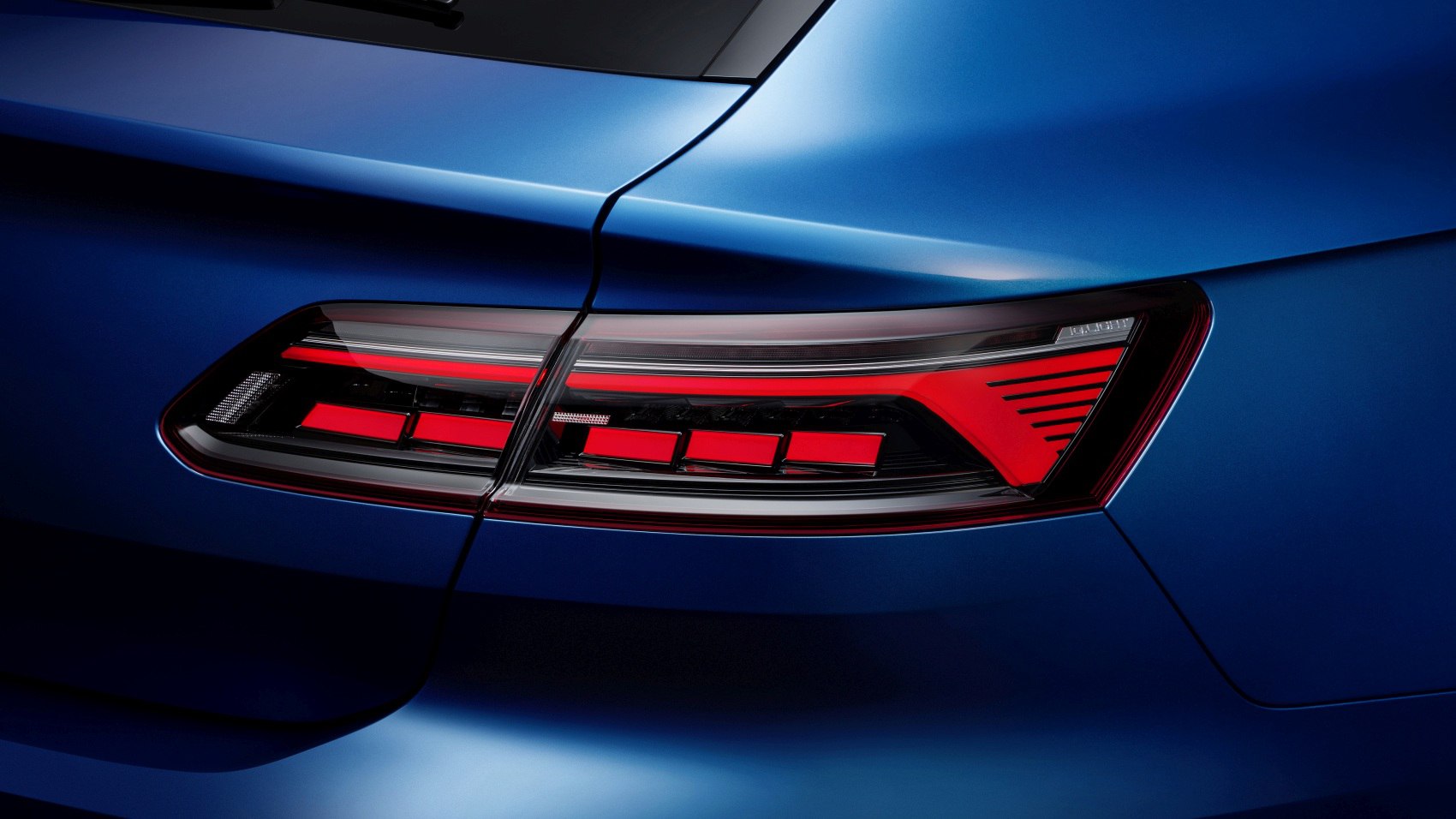

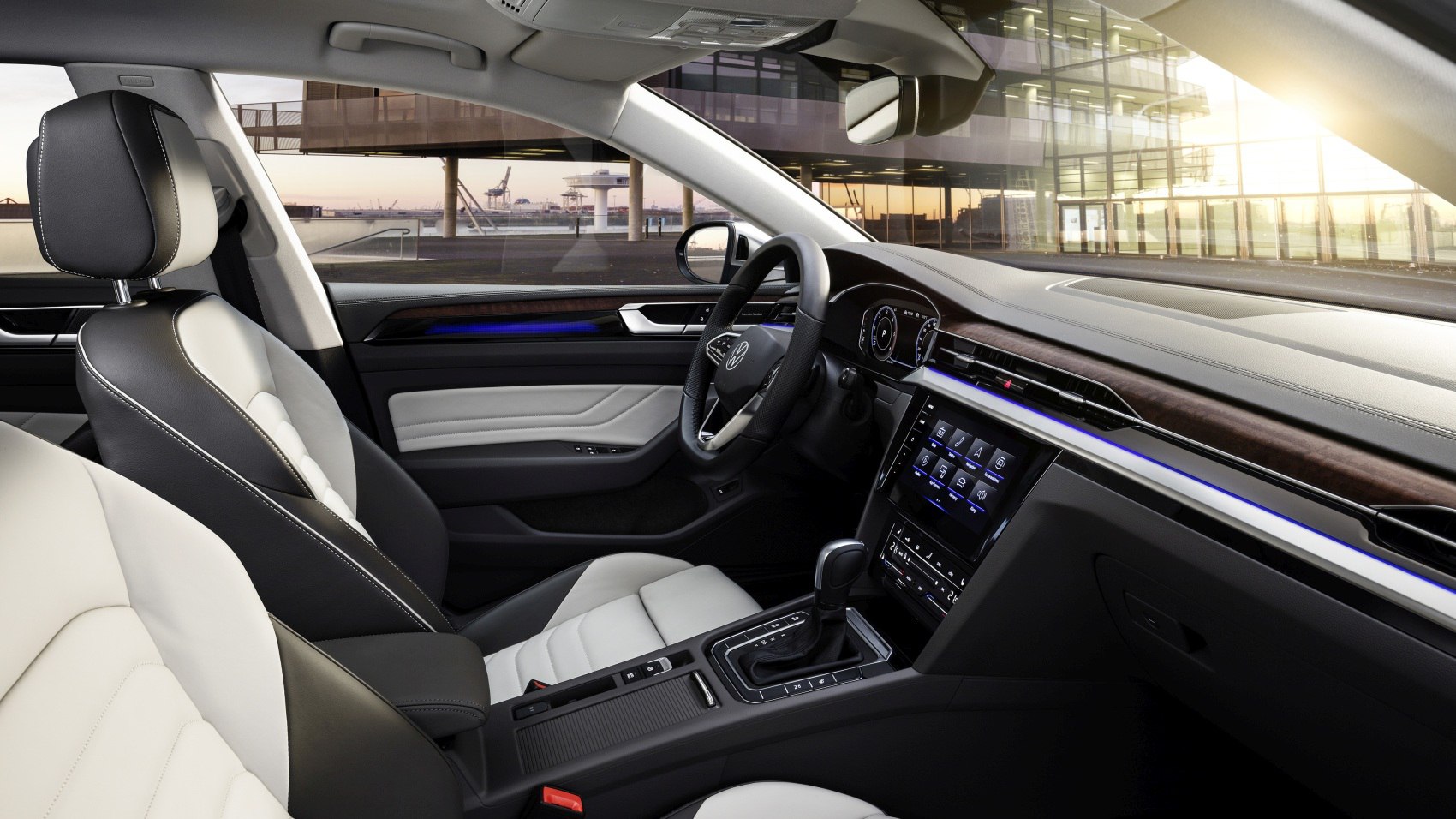

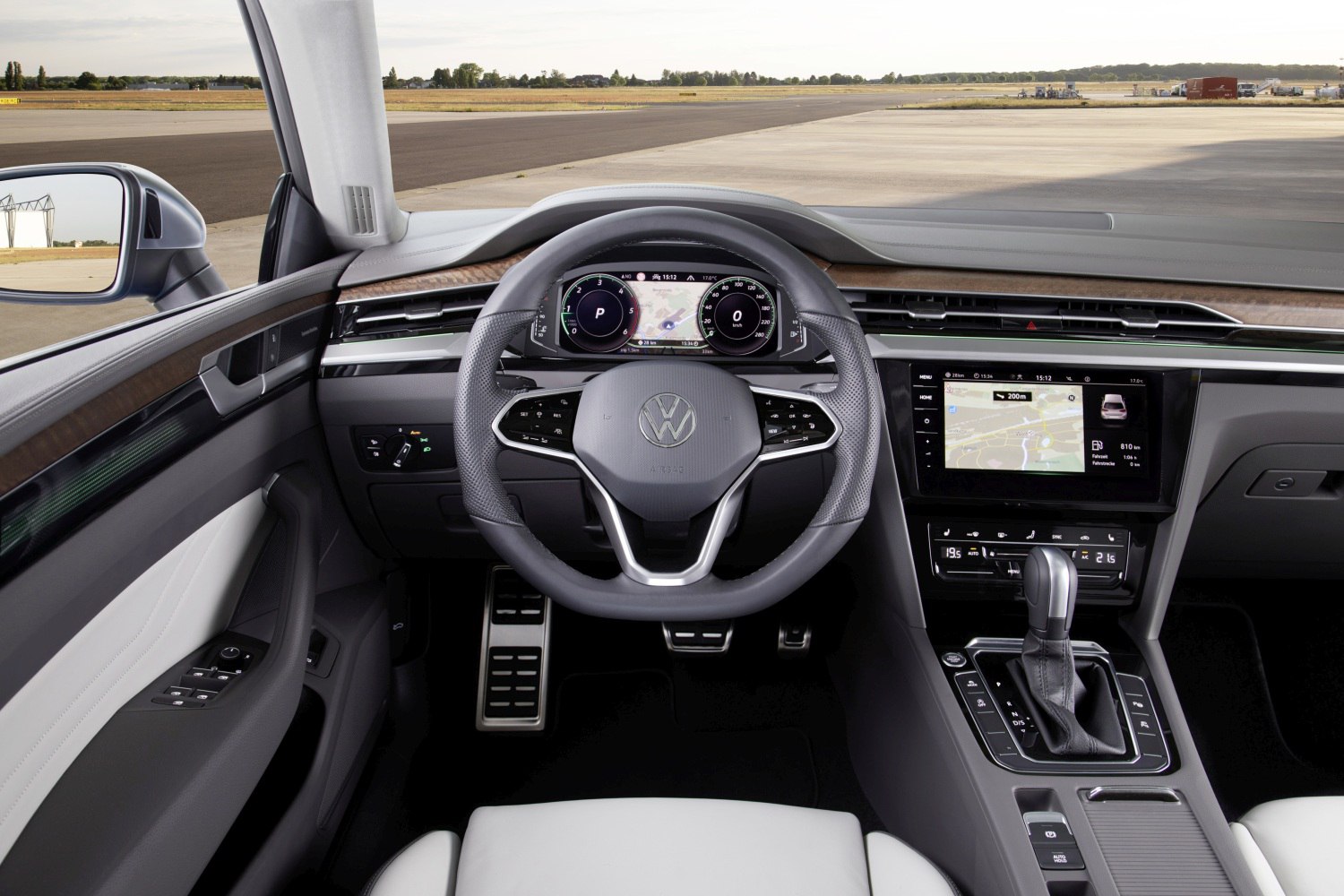

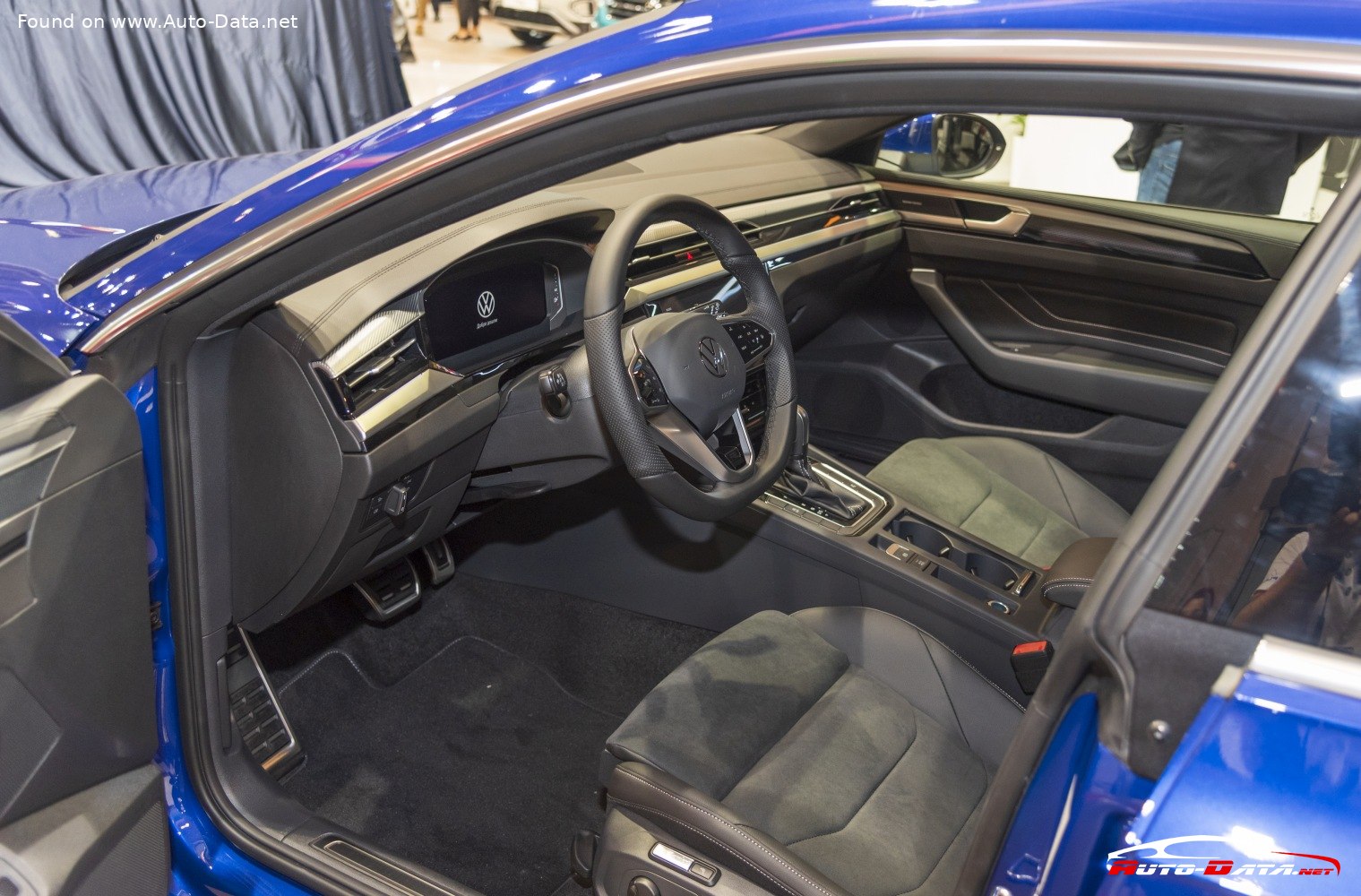

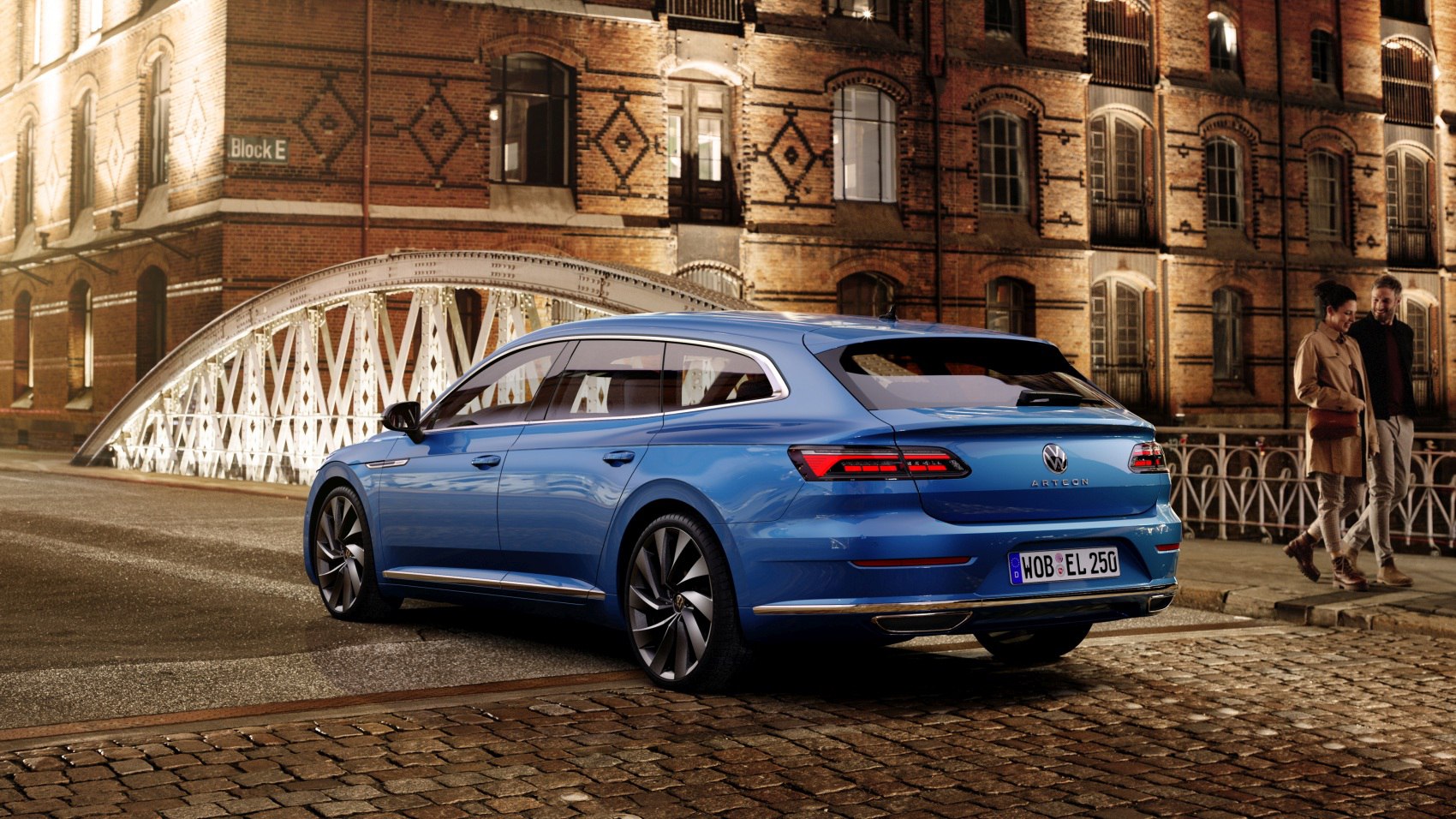

Volkswagen Arteon Shooting Brake 2024 Gallery
Volkswagen Arteon Shooting Brake 2024 Technical Specifications
General
Body type
Station wagon (estate)
Brand
Volkswagen
Doors
5
Generation
Arteon Shooting Brake (2020)
Model
Arteon
Modification (Engine)
2.0 TDI (193 Hp) 4MOTION DSG
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
2024
Performance
Acceleration 0 - 100 km/h
7.6 sec
Acceleration 0 - 60 mph
7.2 sec
Acceleration 0 - 62 mph
7.6 sec
CO2 emissions (WLTP)
155 g/km
Combined fuel consumption (WLTP)
5.9 l/100 km
Emission standard
Euro 6e
Fuel Type
Diesel
Maximum speed
230 km/h
Dimensions
Approach angle
12.5°
Departure angle
12.2°
Front track
1587-1591 mm
Height
1451 mm
Length
4866 mm
Minimum turning circle (turning diameter)
12 m
Ramp-over (brakeover) angle
10.2°
Rear (Back) track
1579-1583 mm
Wheelbase
2836 mm
Width
1871 mm
Engine
Cylinder Bore
81 mm
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1968 cm
Engine layout
Front, Transverse
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
4
Power
193 Hp
Torque
400 Nm @ 1750-3250 rpm.
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
7 gears, automatic transmission DSG
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
245/45 R18; 245/40 R19; 245/35 R20
Wheel rims size
8J x 18; 8J x 19; 8J x 20
Space
Fuel tank capacity
66 l
Kerb Weight
1646 kg
Max load
644 kg
Max. weight
2290 kg
Permitted towbar download
90 kg
