BMW M5 G90 2024
4.4 V8 (727 Hp) Plug-in Hybrid M xDrive M Steptronic
Hybrid Car
Body Type Sedan
Battery Capacity 22.1 KW
40 km
Electric Range
250 km/h
Maximum Speed
4
Doors
BMW M5 G90 2024 Key Specs
Acceleration 0 - 100 Km/h
3.5 sec
Acceleration 0 - 62 Mph
3.5 sec
All-electric Range
40 km
All-electric Range (WLTP)
67-69 km
Average Energy Consumption (WLTP)
25-25.5 kWh/100 km
Battery Voltage
347.5 V
Body Type
Sedan
Doors
4
Drive Wheel
All wheel drive (4x4)
Engine Aspiration
Twin-power turbo, Intercooler
Engine Oil Capacity
13.2 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Petrol / electricity
Fuel Tank Capacity
60 l
Generation
M5 (G90)
Gross Battery Capacity
22.1 kWh
Kerb Weight
2435 kg
Max Speed (electric)
140 km/h
Maximum Speed
250 km/h, Electronically limited
Modification (Engine)
4.4 V8 (727 Hp) Plug-in Hybrid M xDrive M Steptronic
Number Of Cylinders
8
Power
585 Hp @ 5600-6500 rpm.
Power Steering
Electric Steering
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
5
Start Of Production
July, 2024
System Power
727 Hp
System Torque
1000 Nm
Wheel Rims Size
Front wheel rims: 10.5J x 20Rear wheel rims: 11J x 21

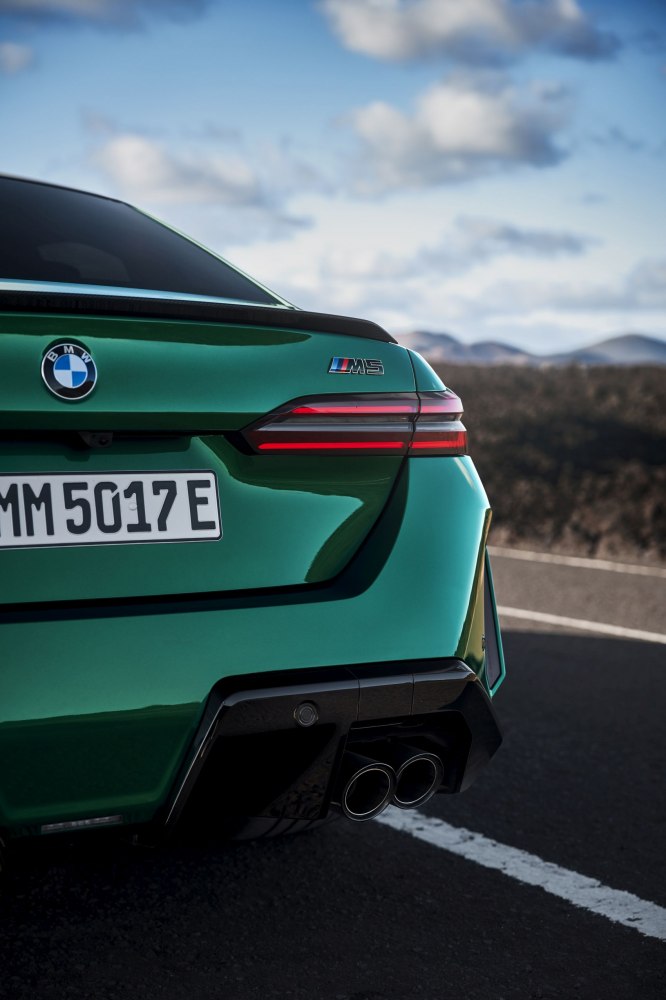

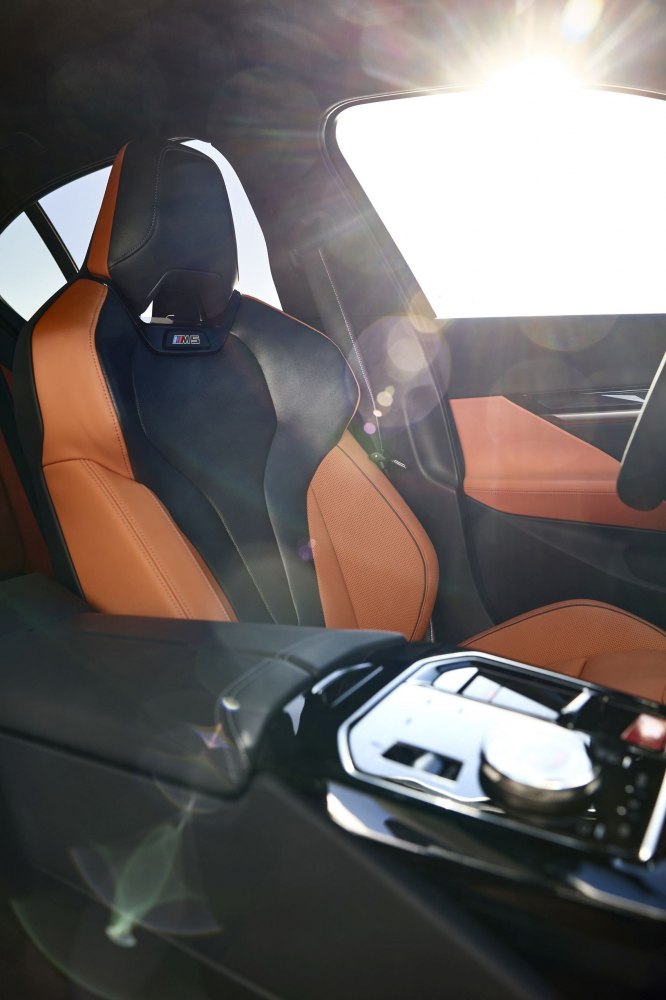

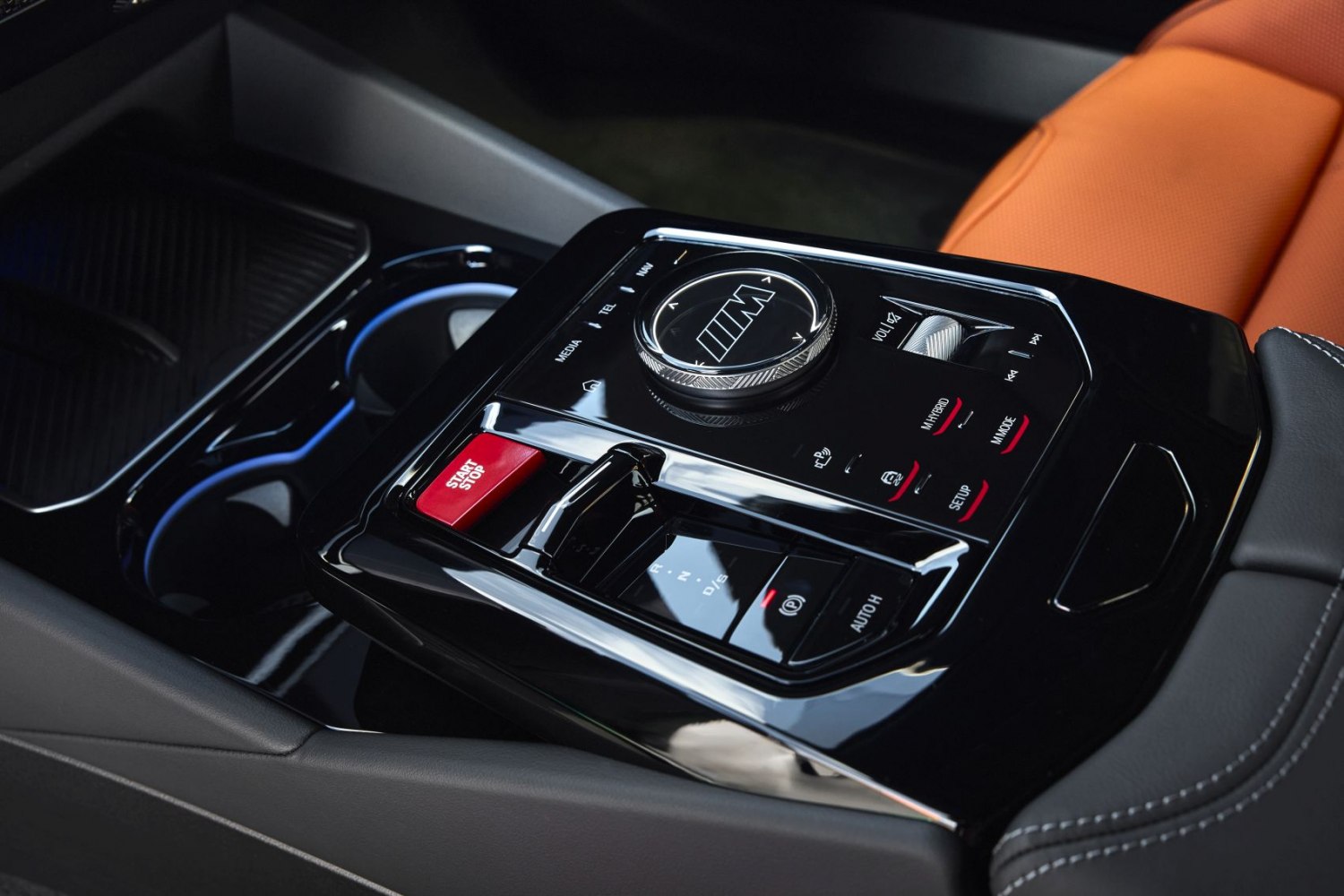

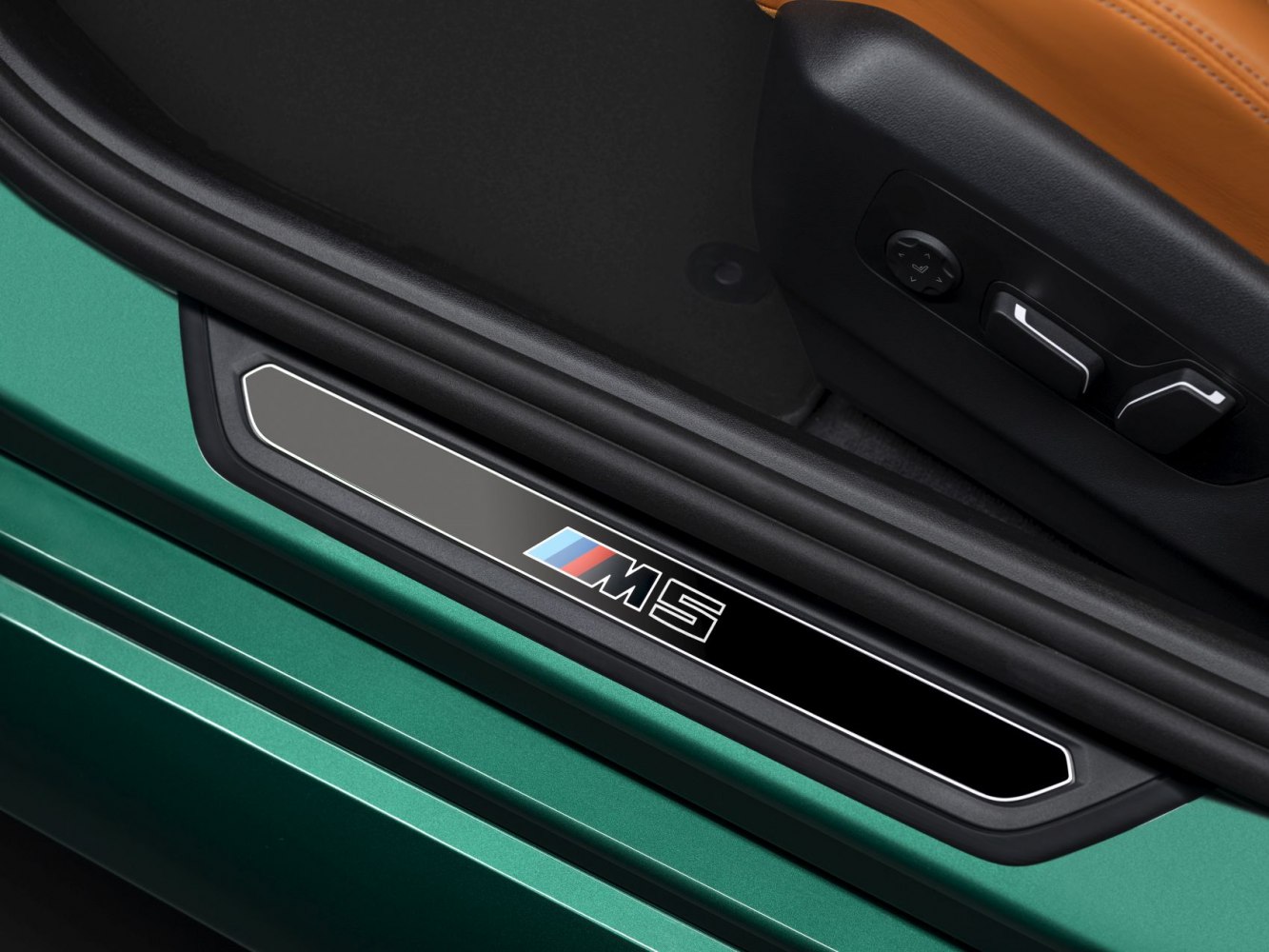

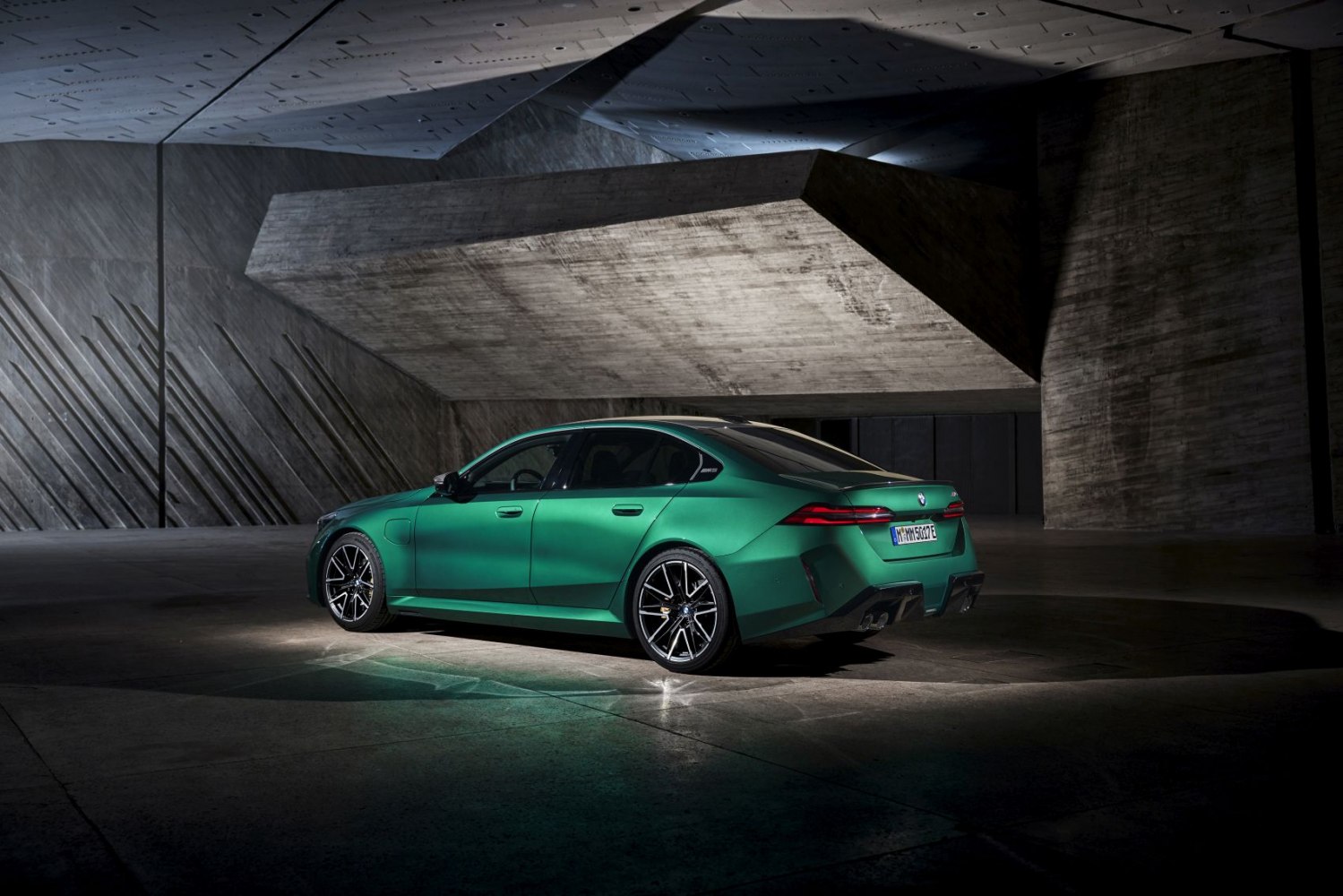

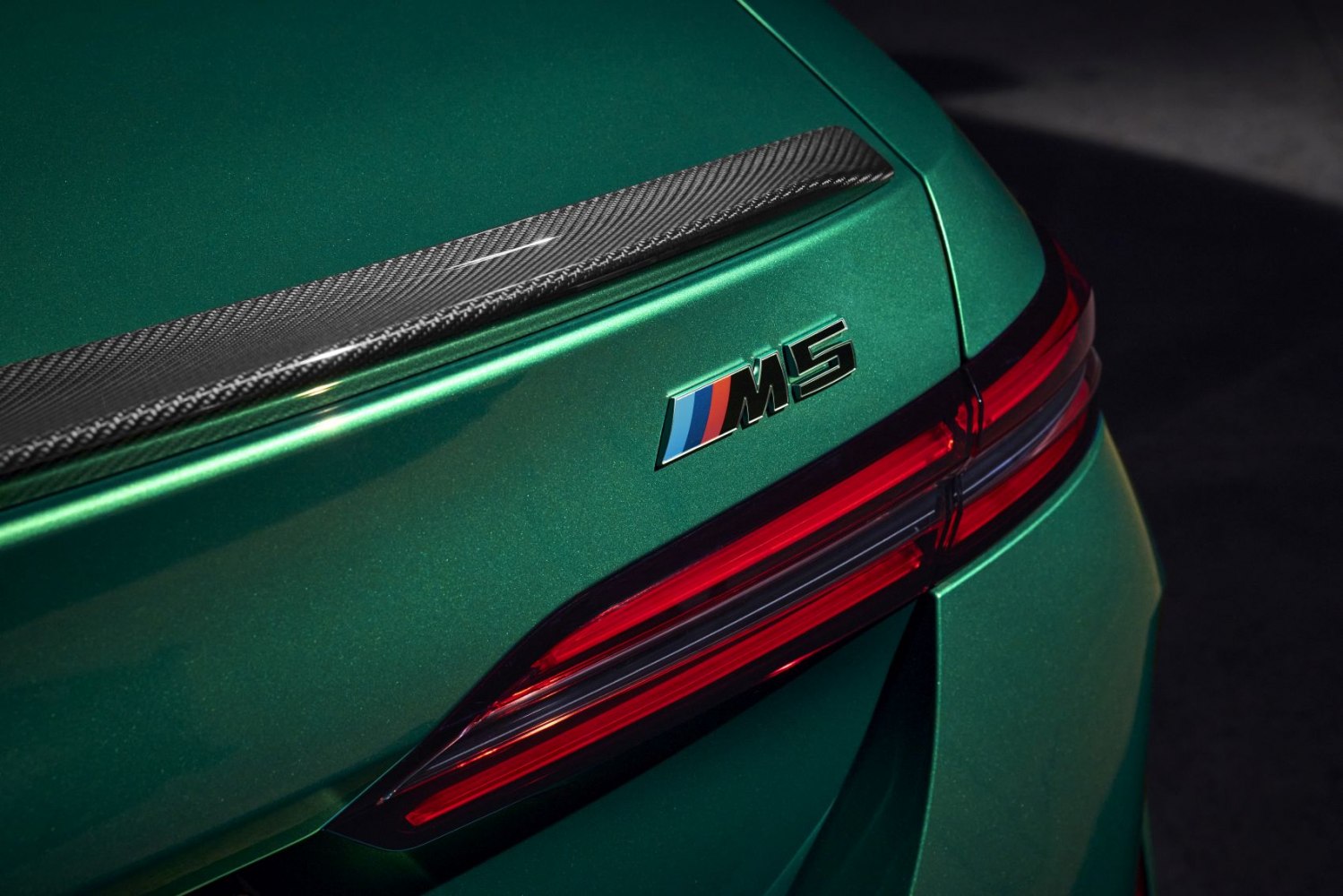

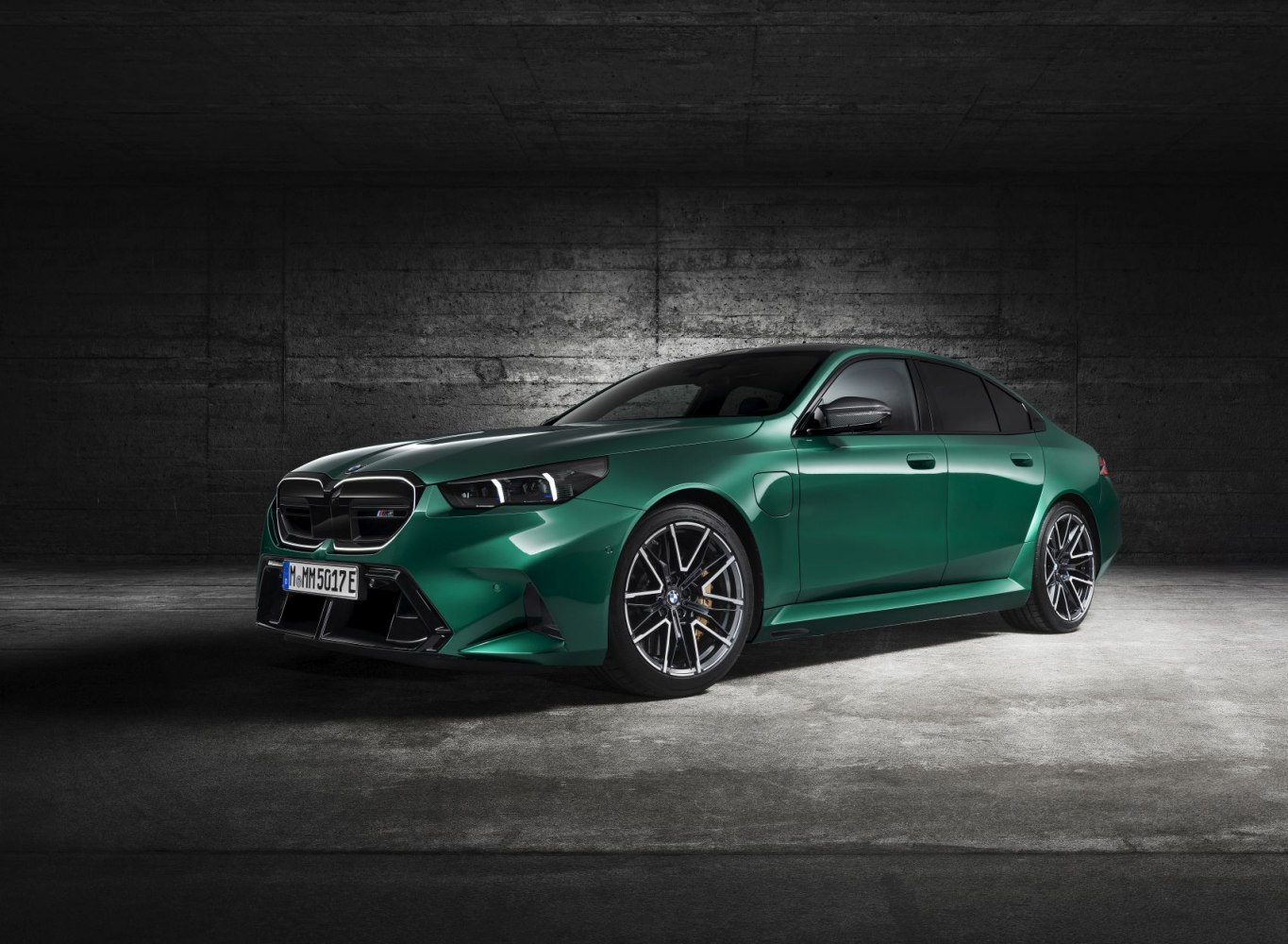

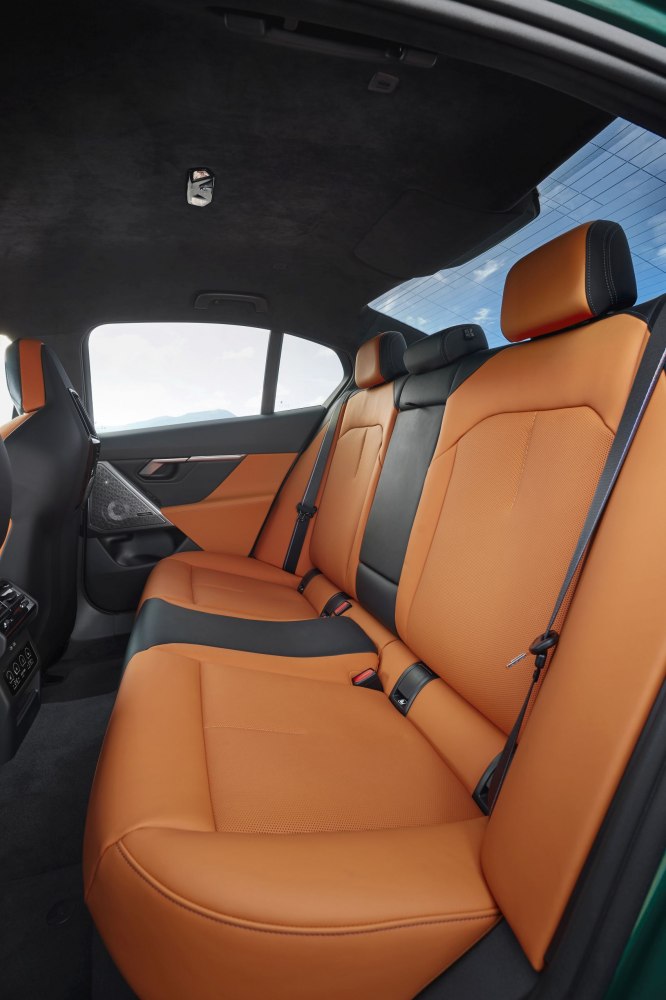

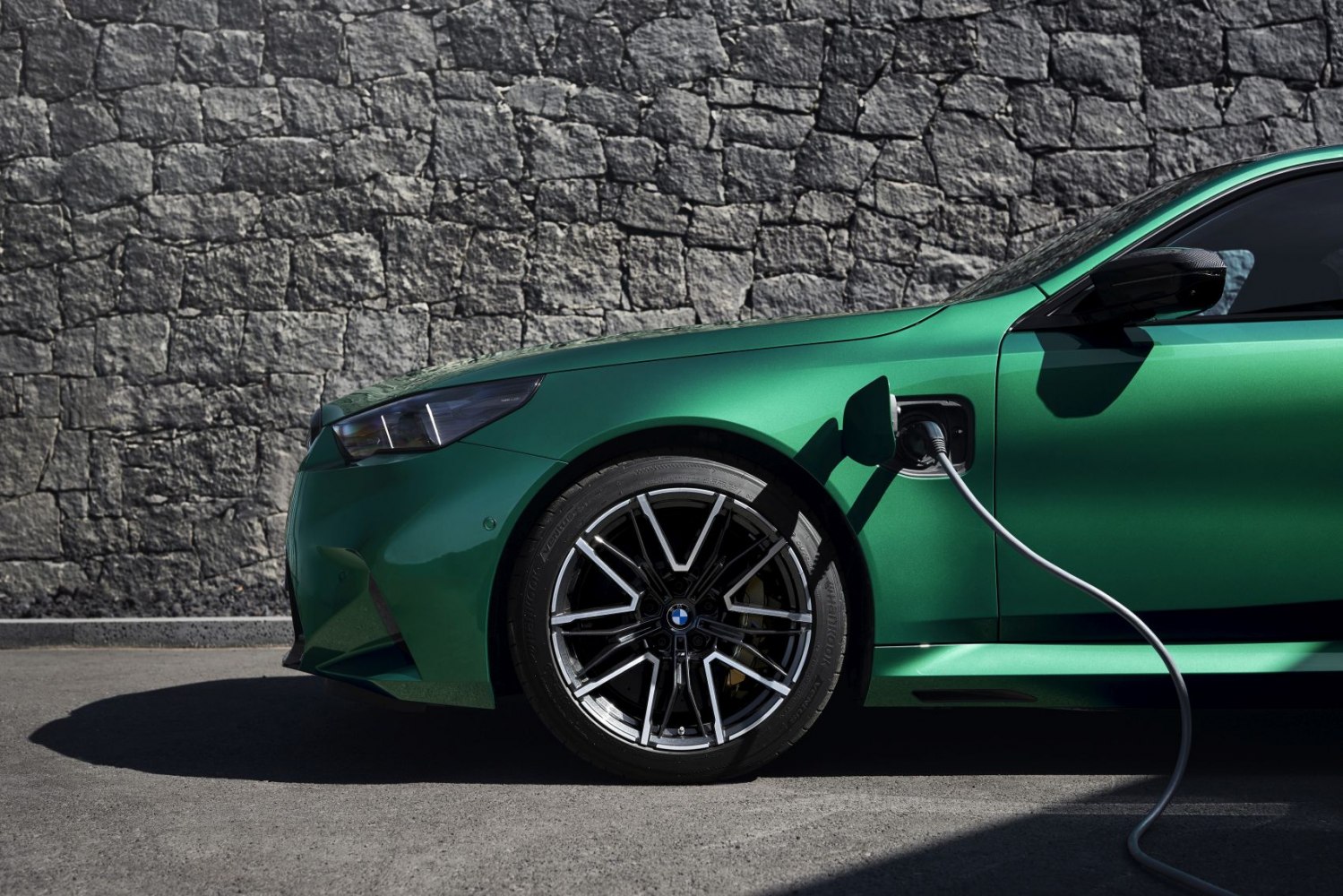

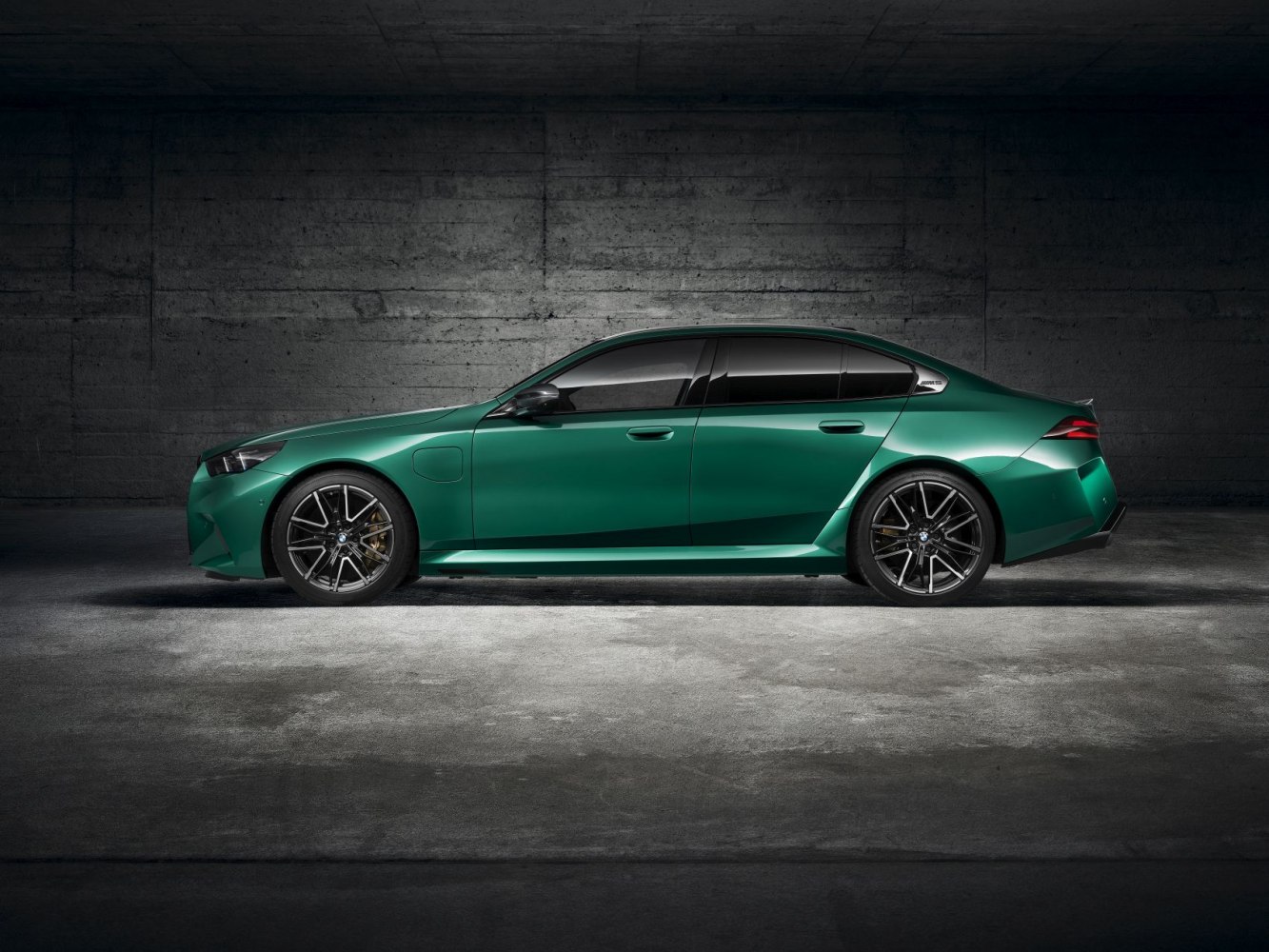

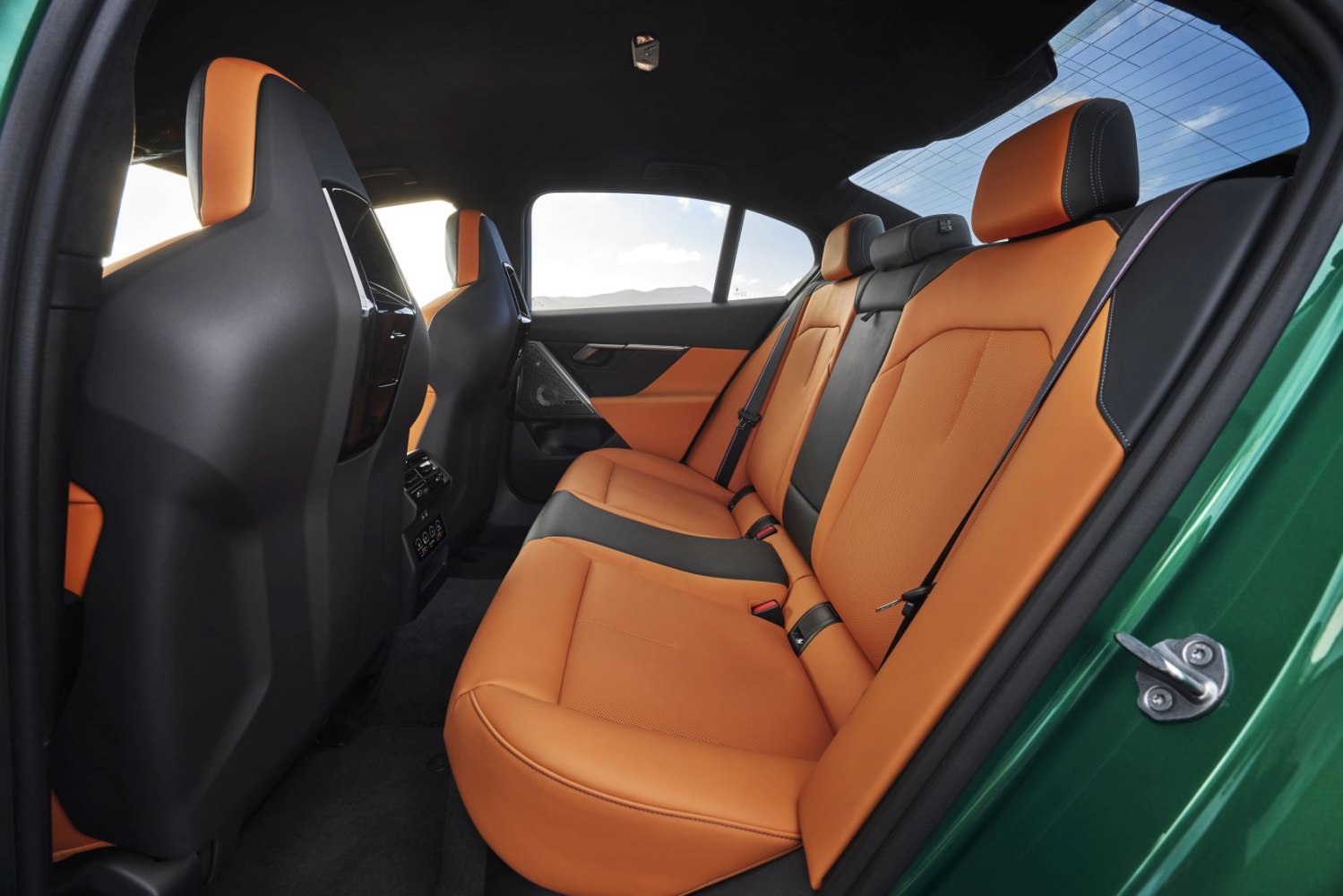

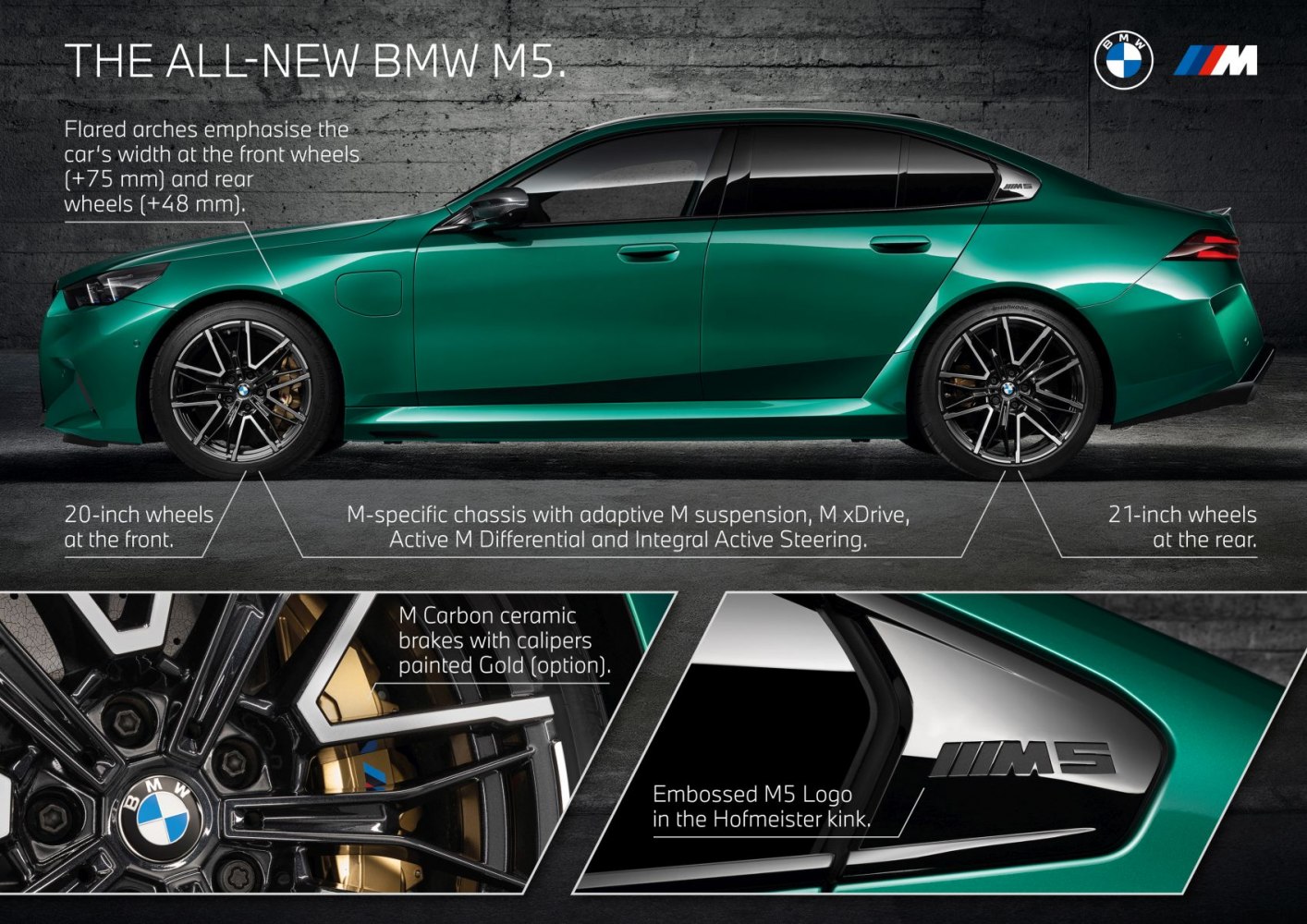

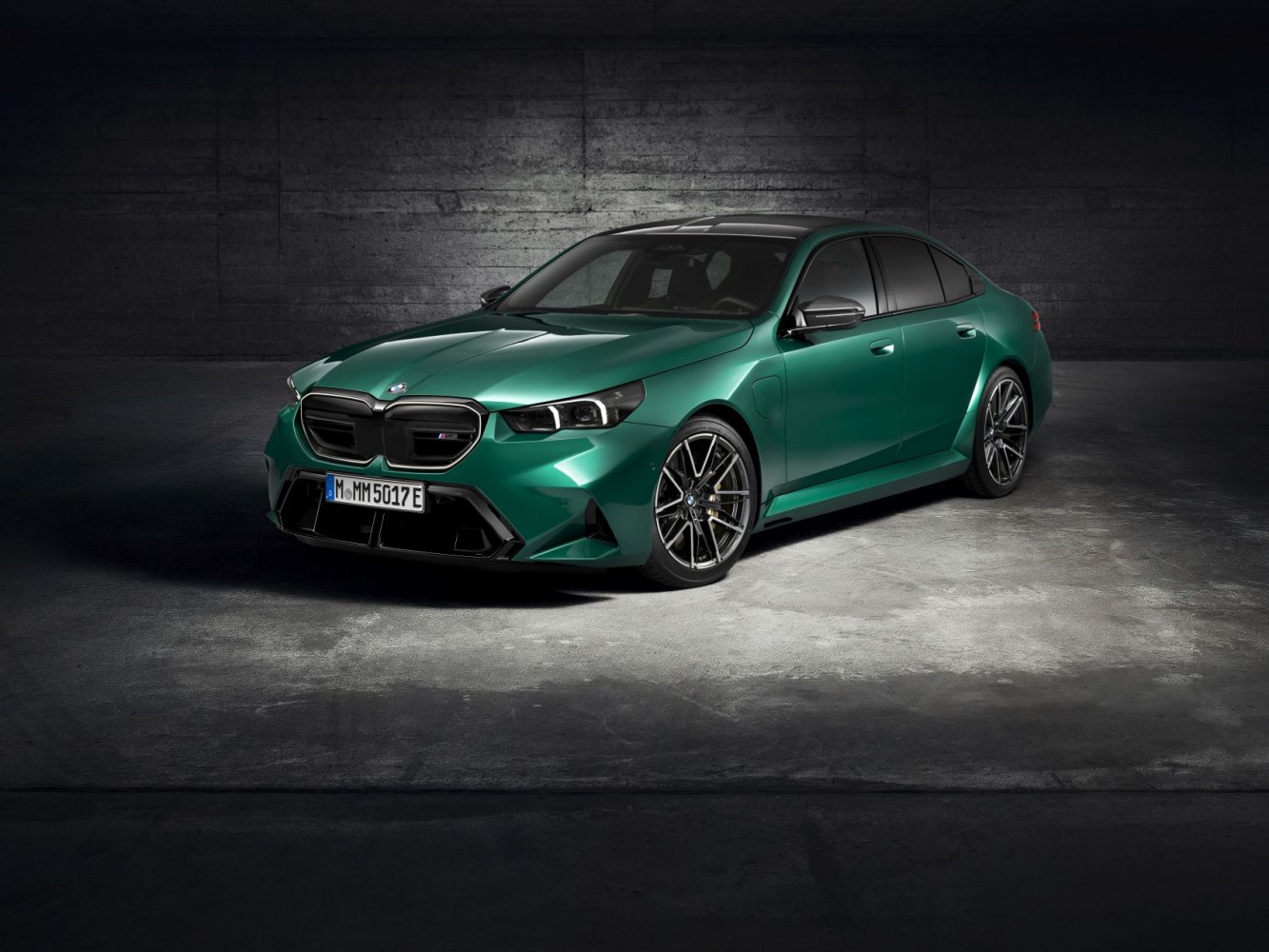

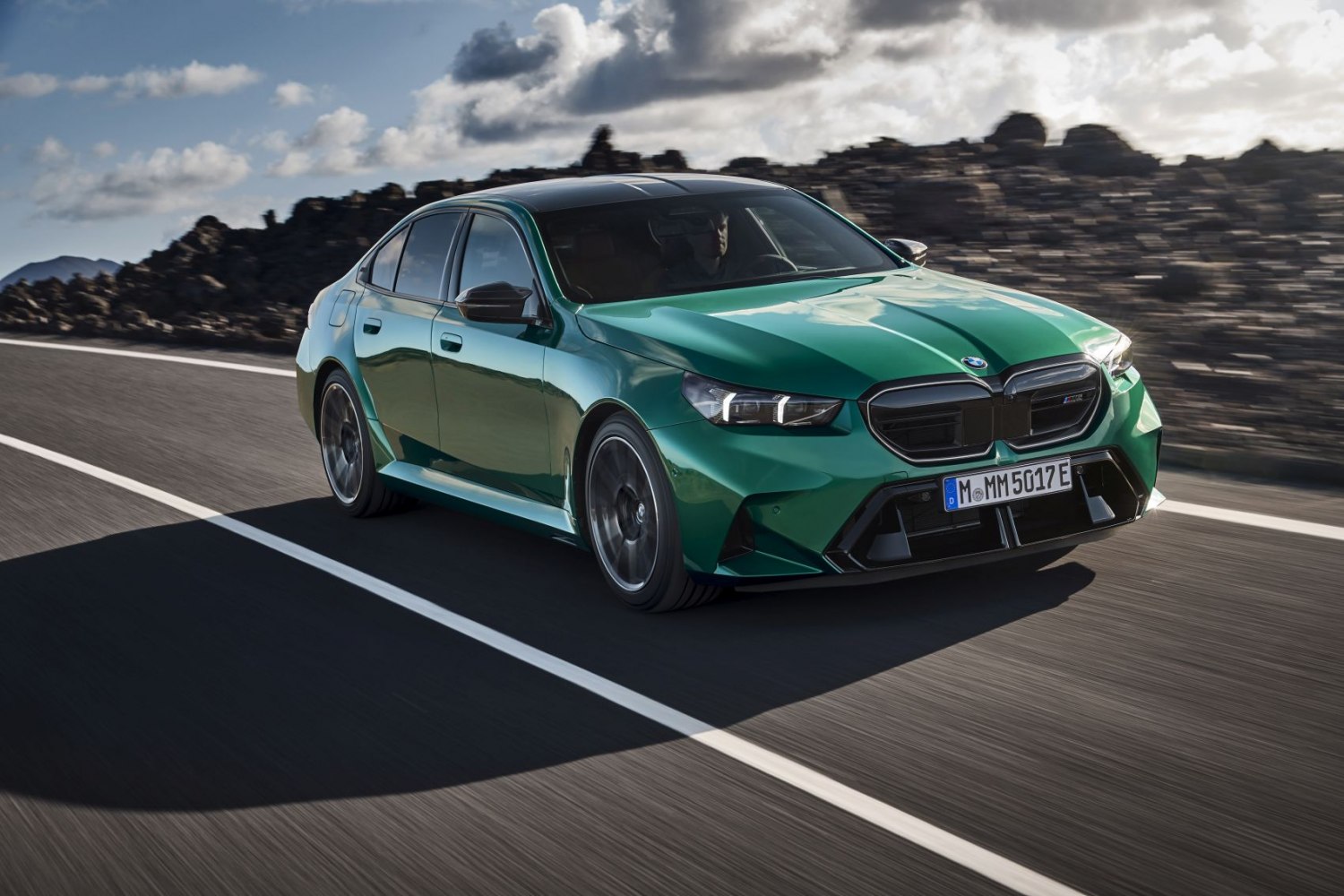

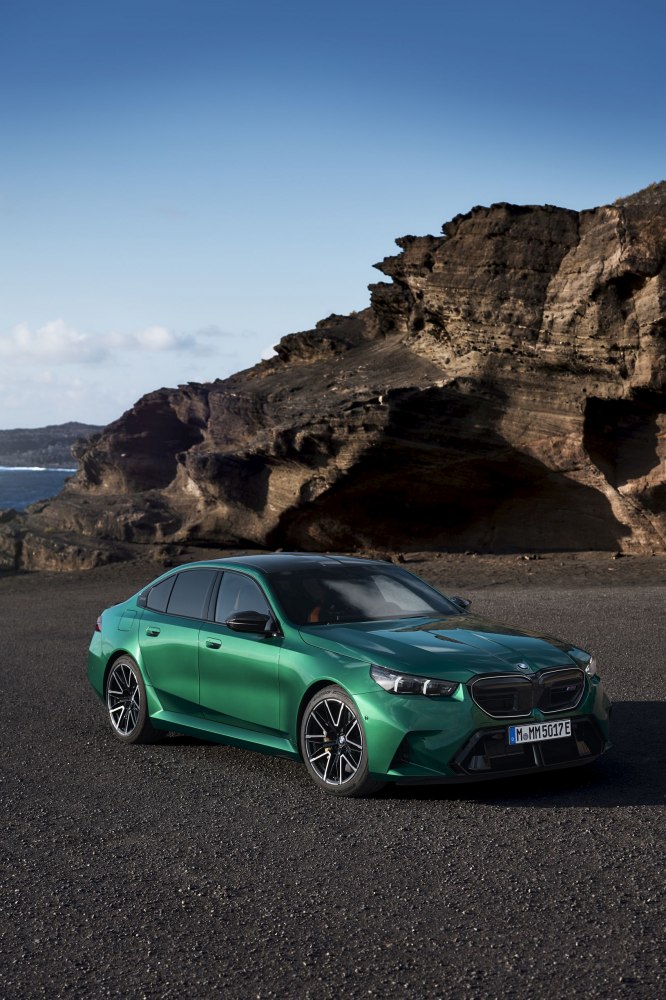

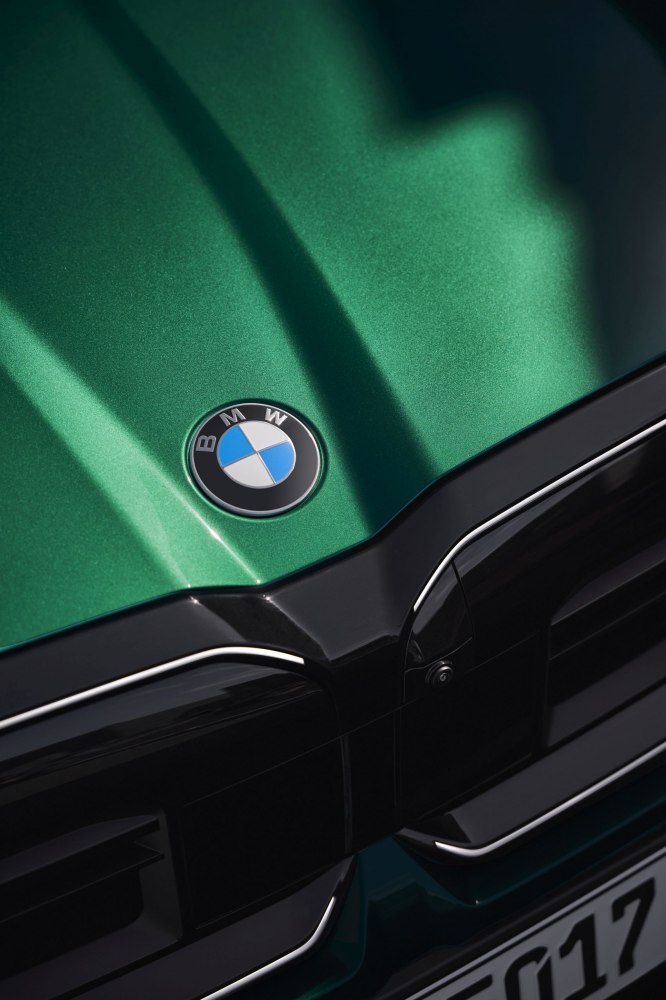

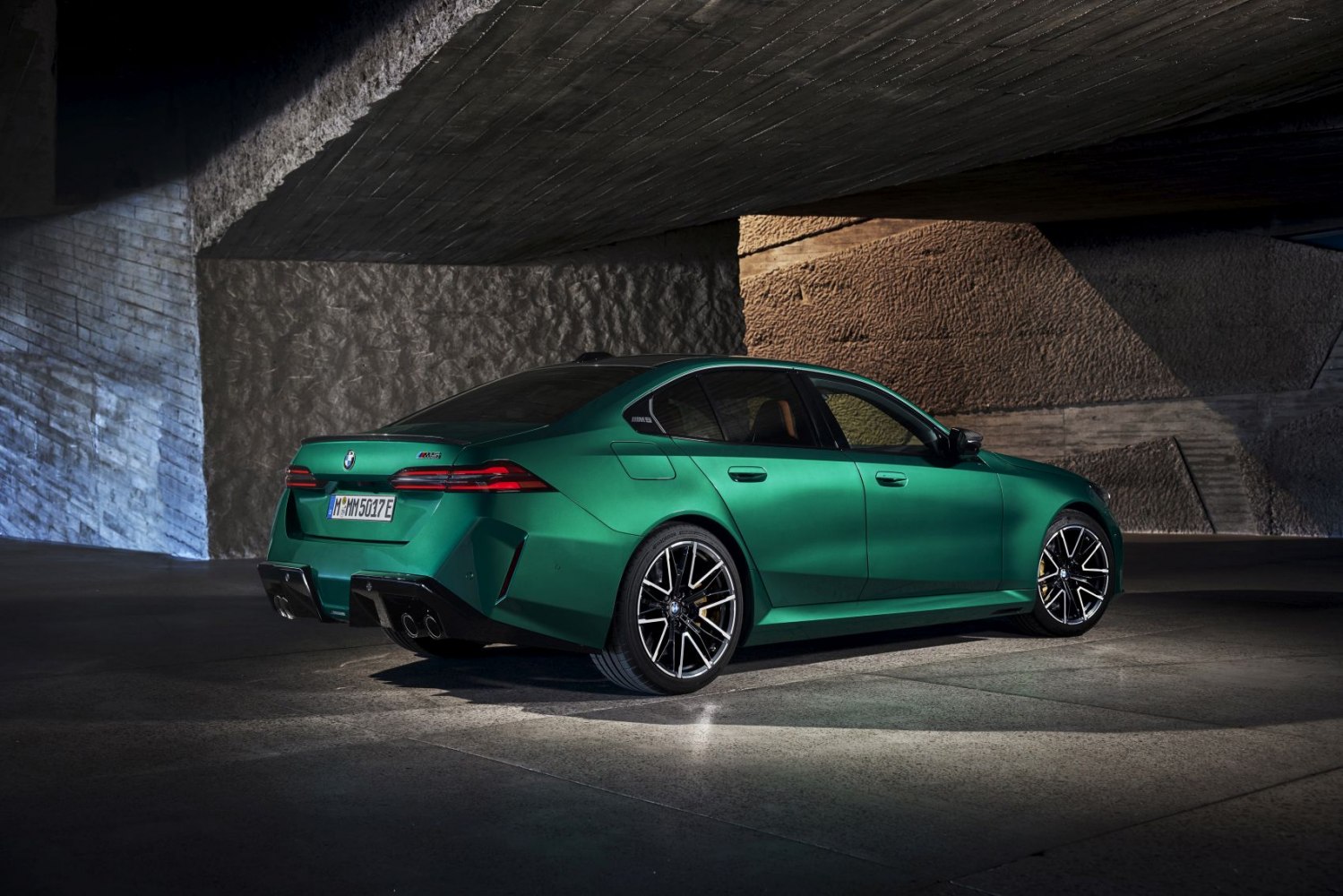

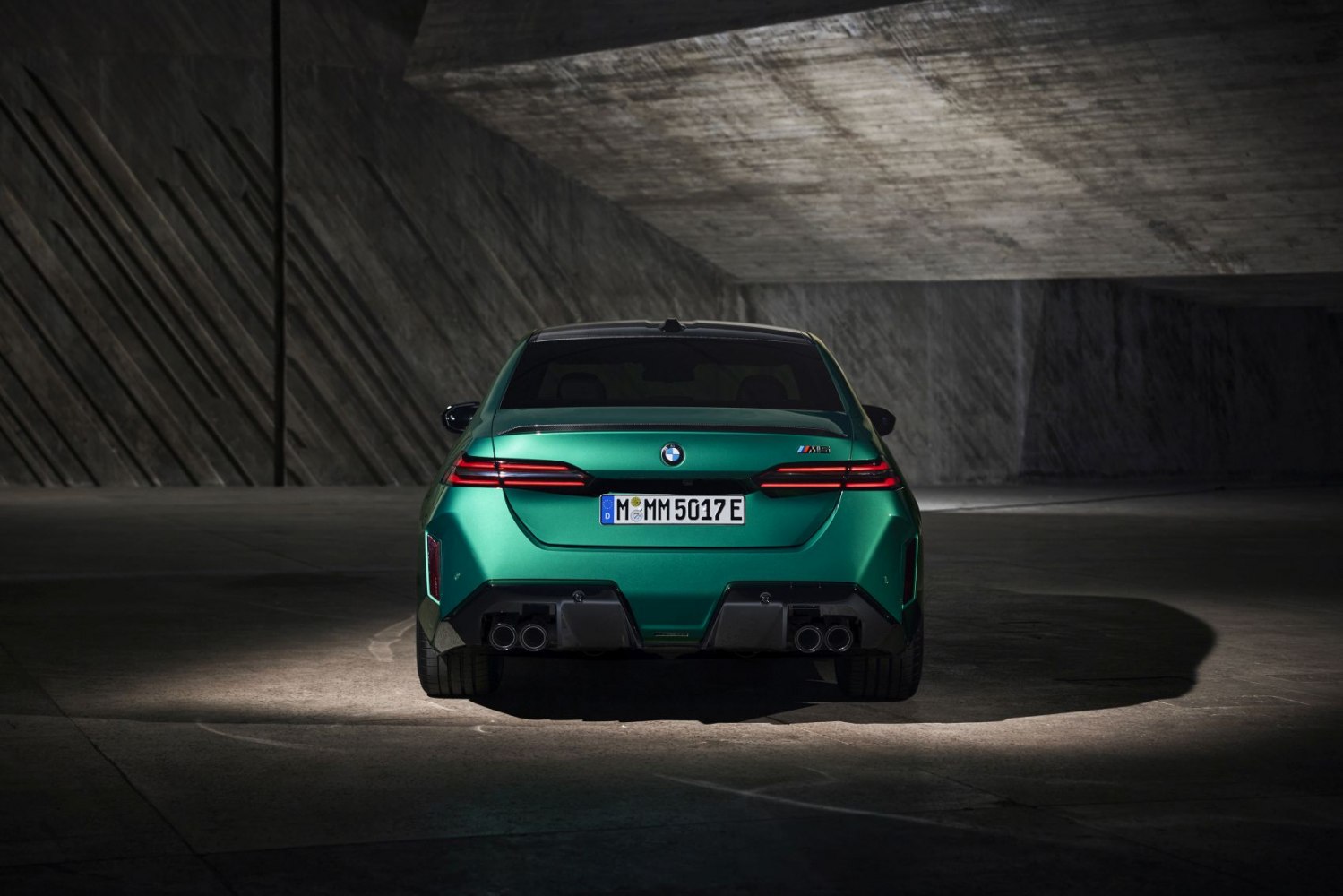

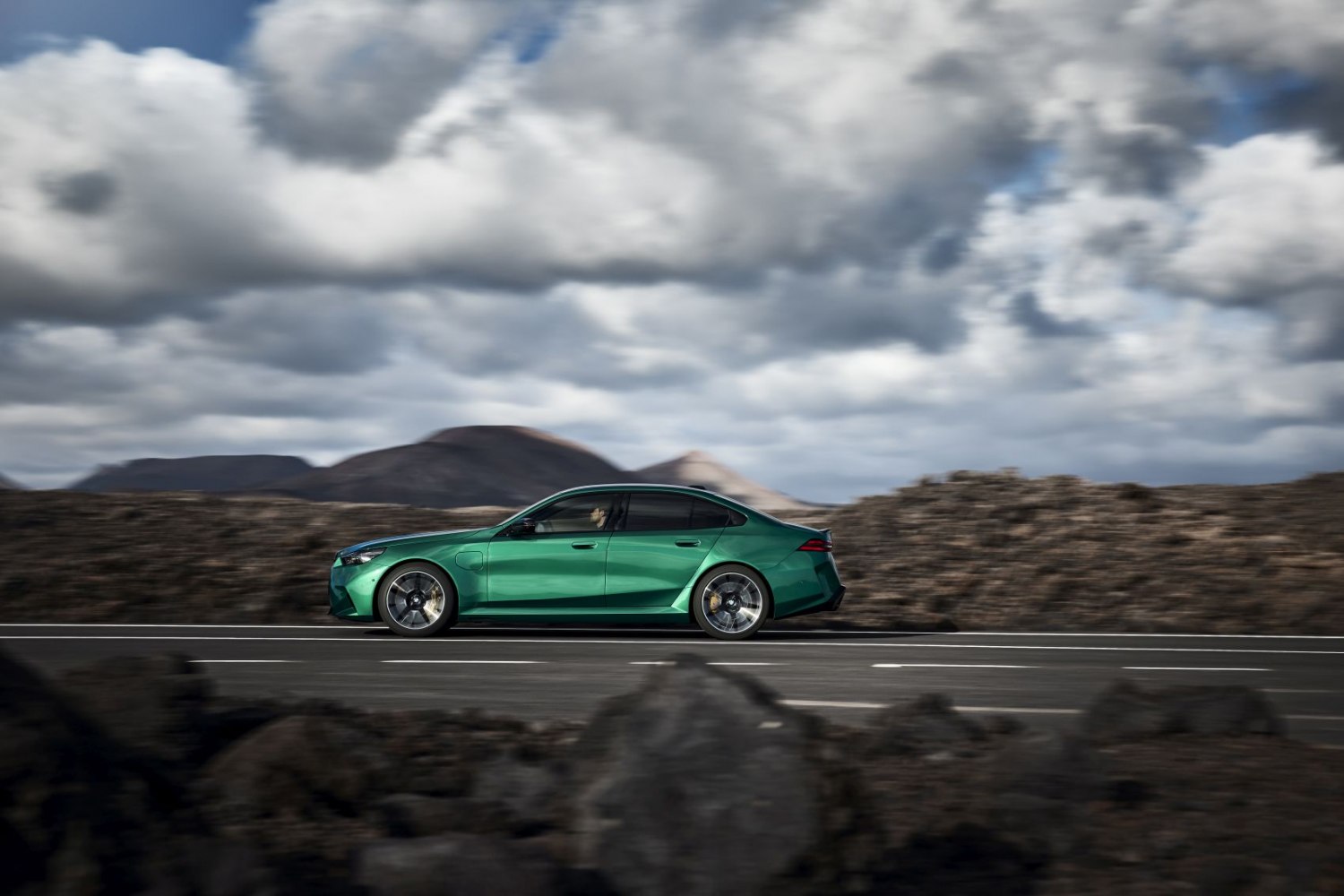

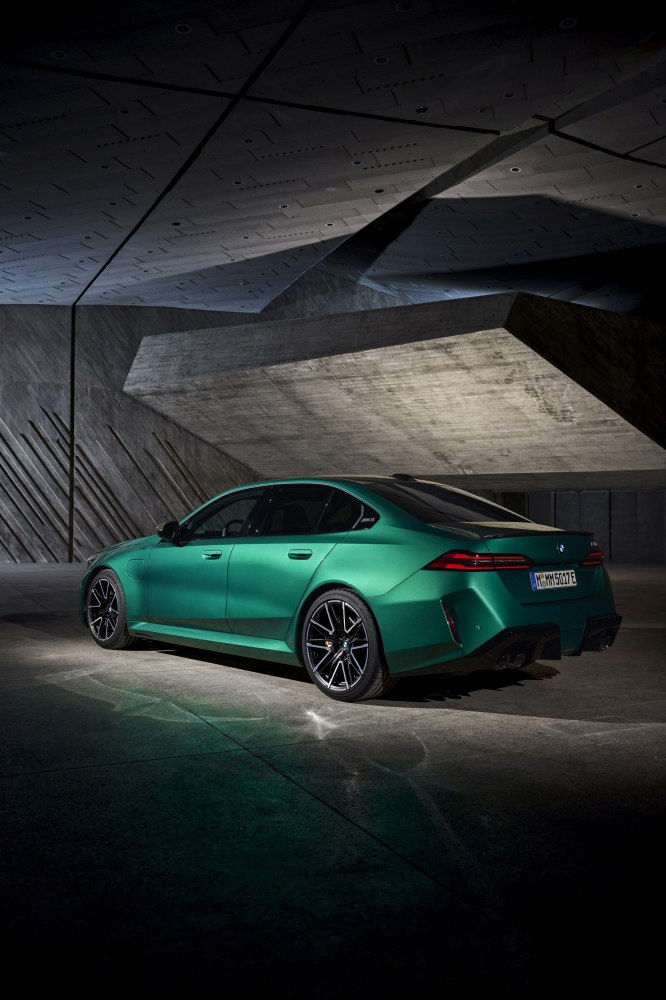

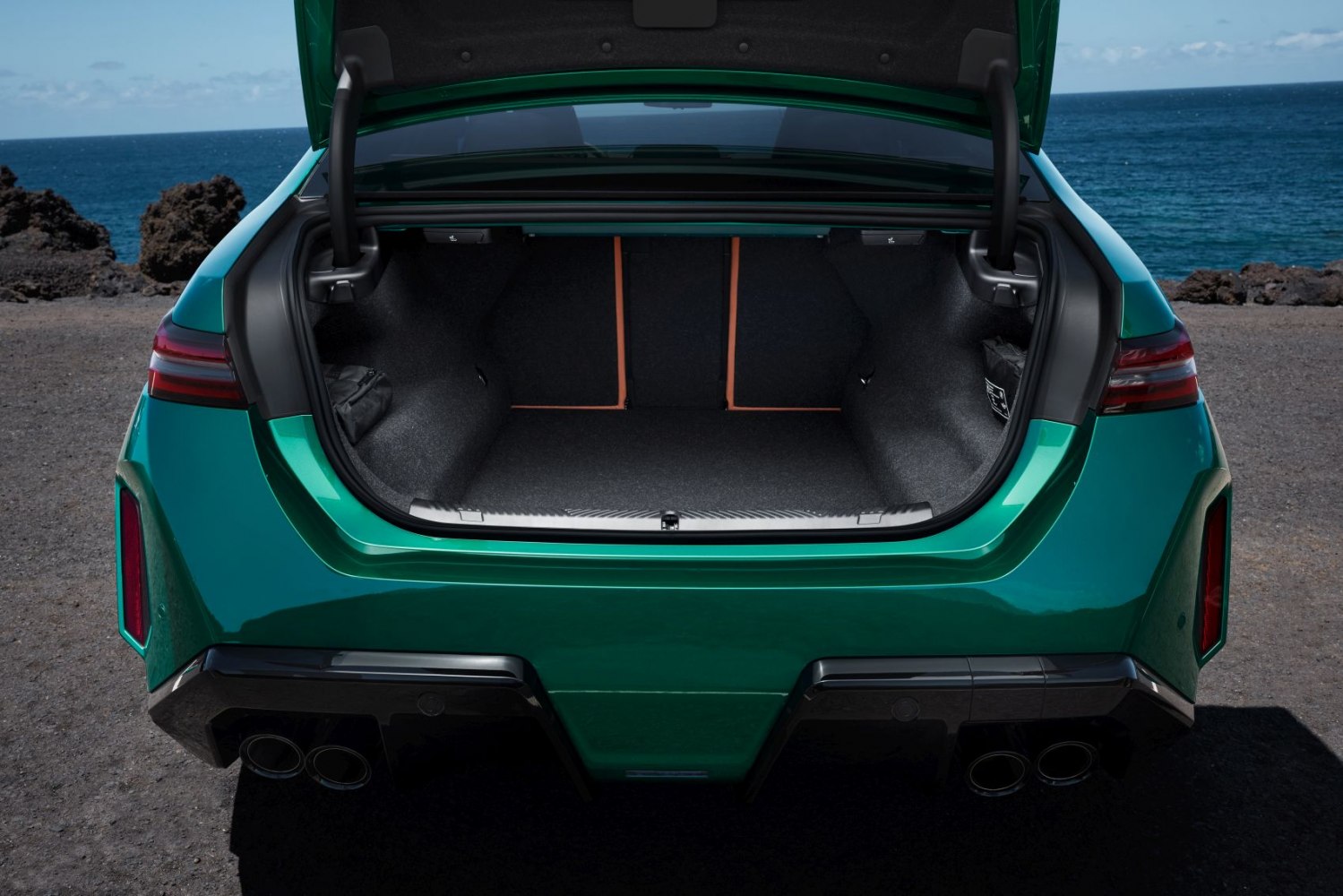

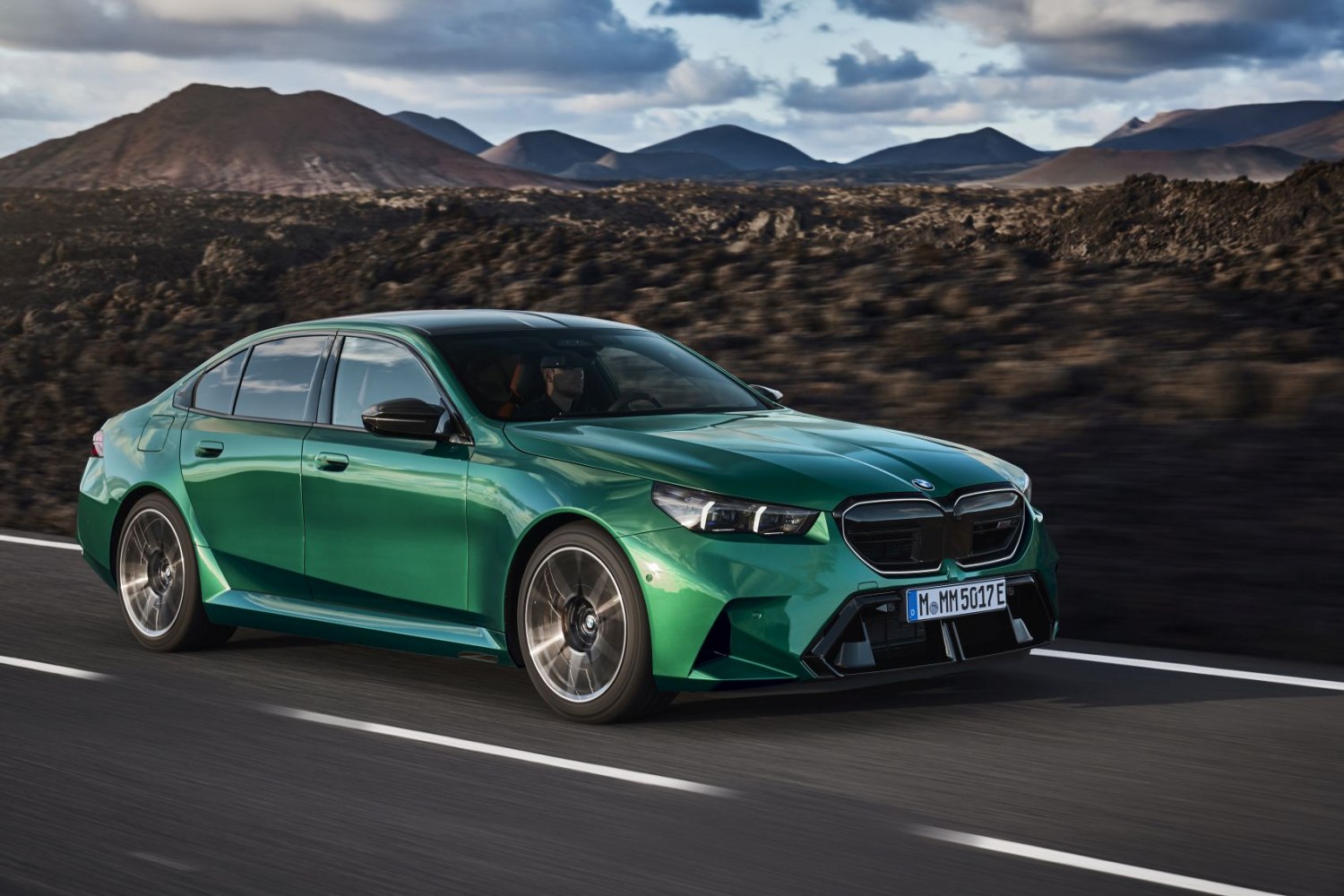

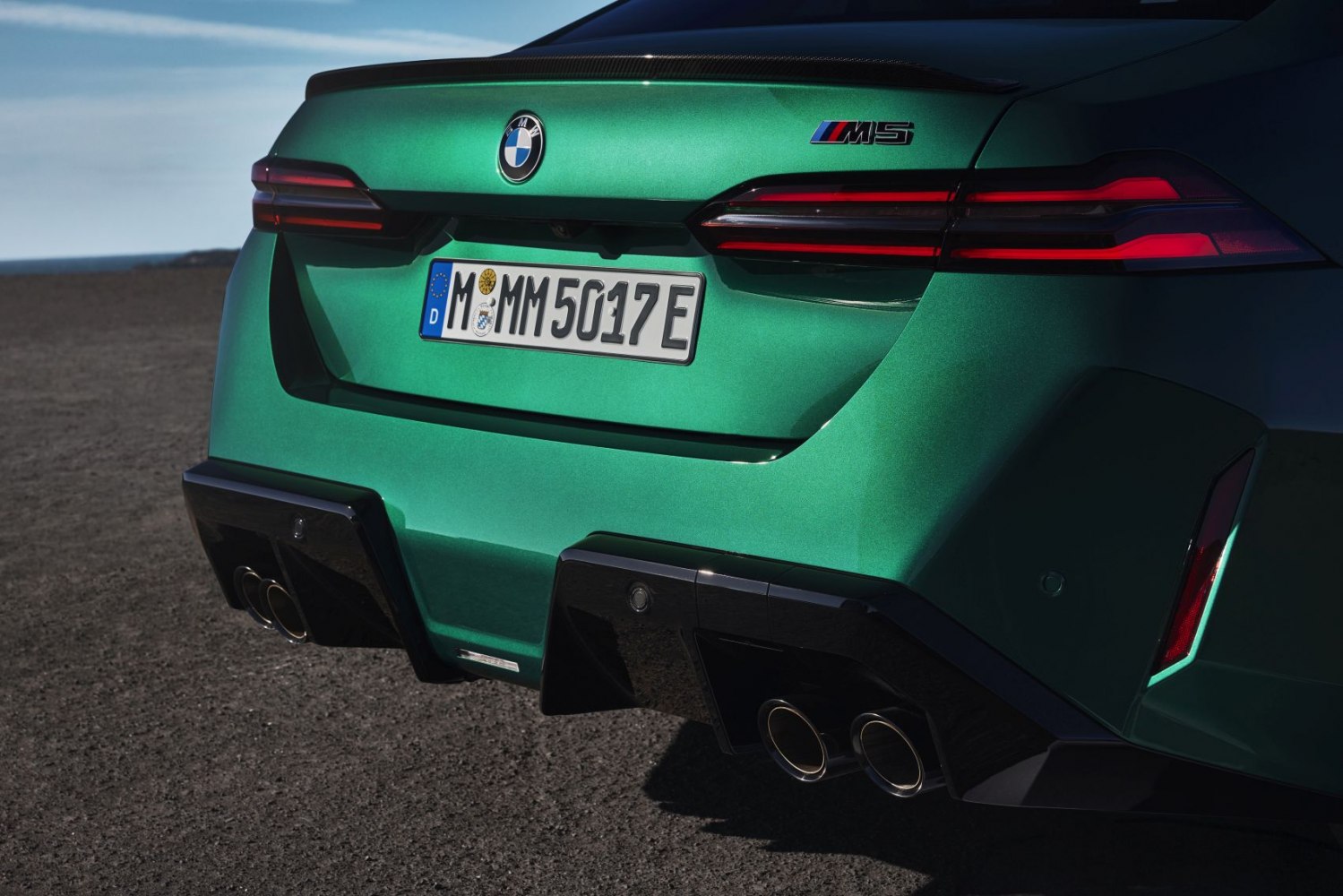

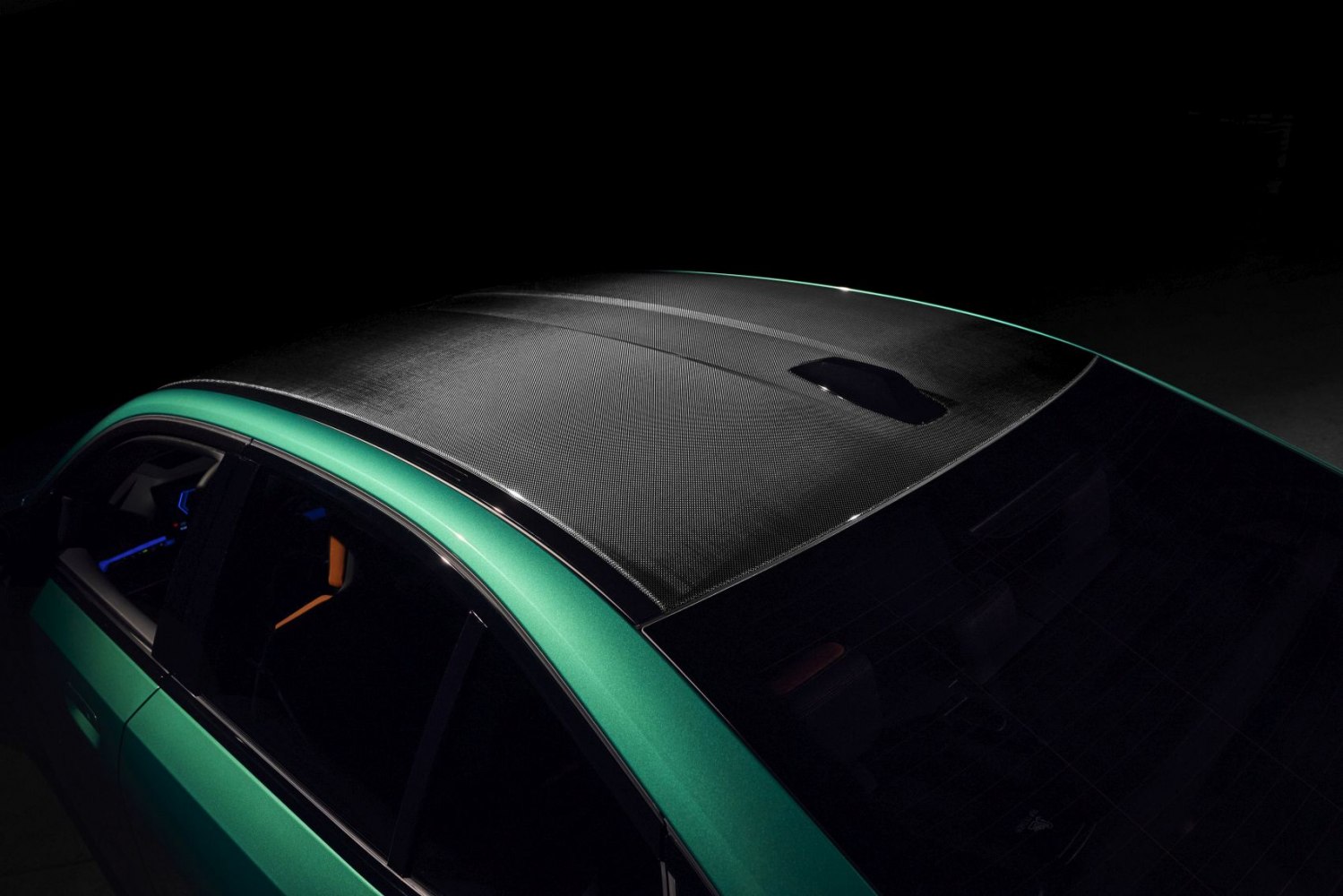

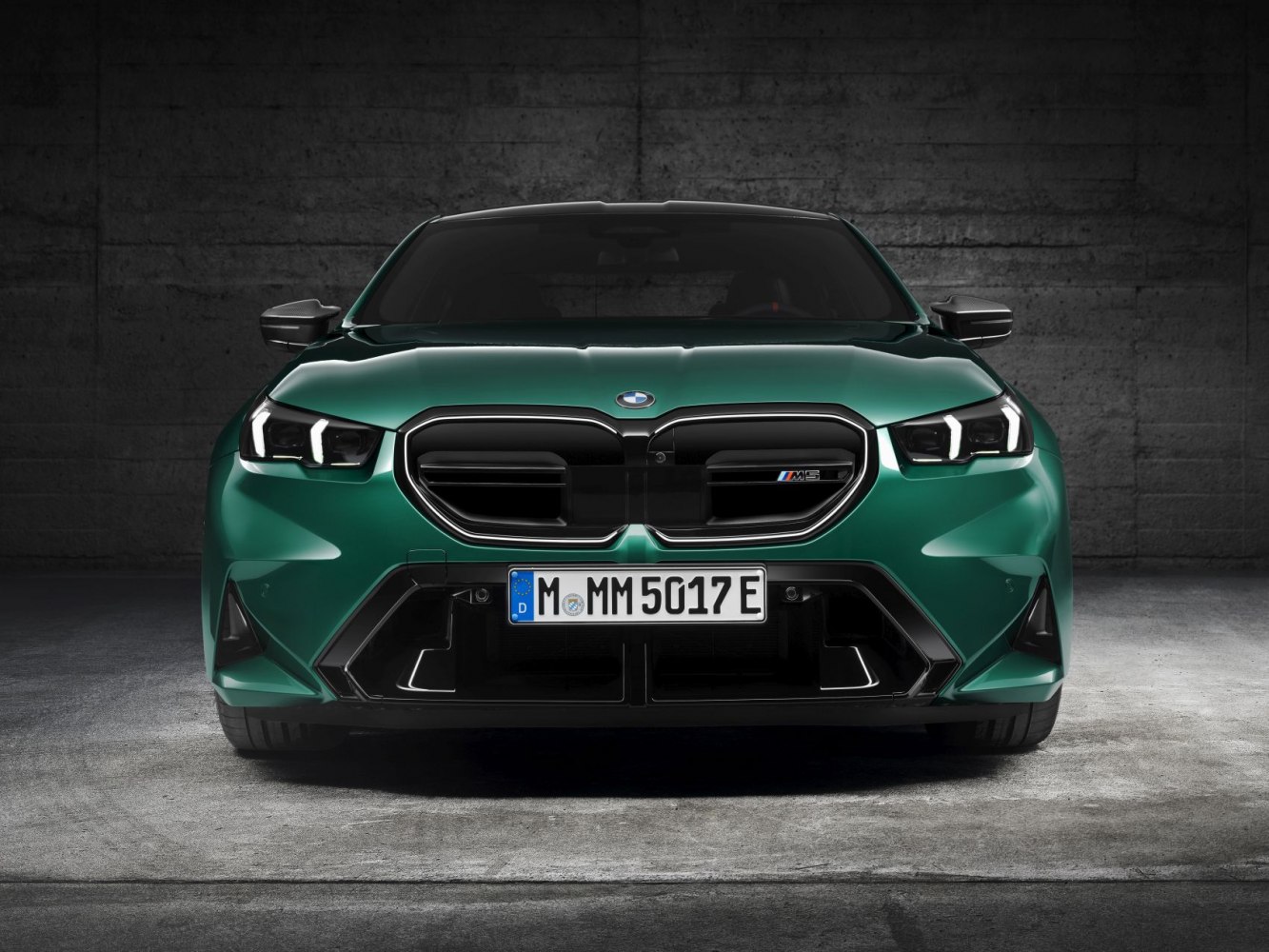

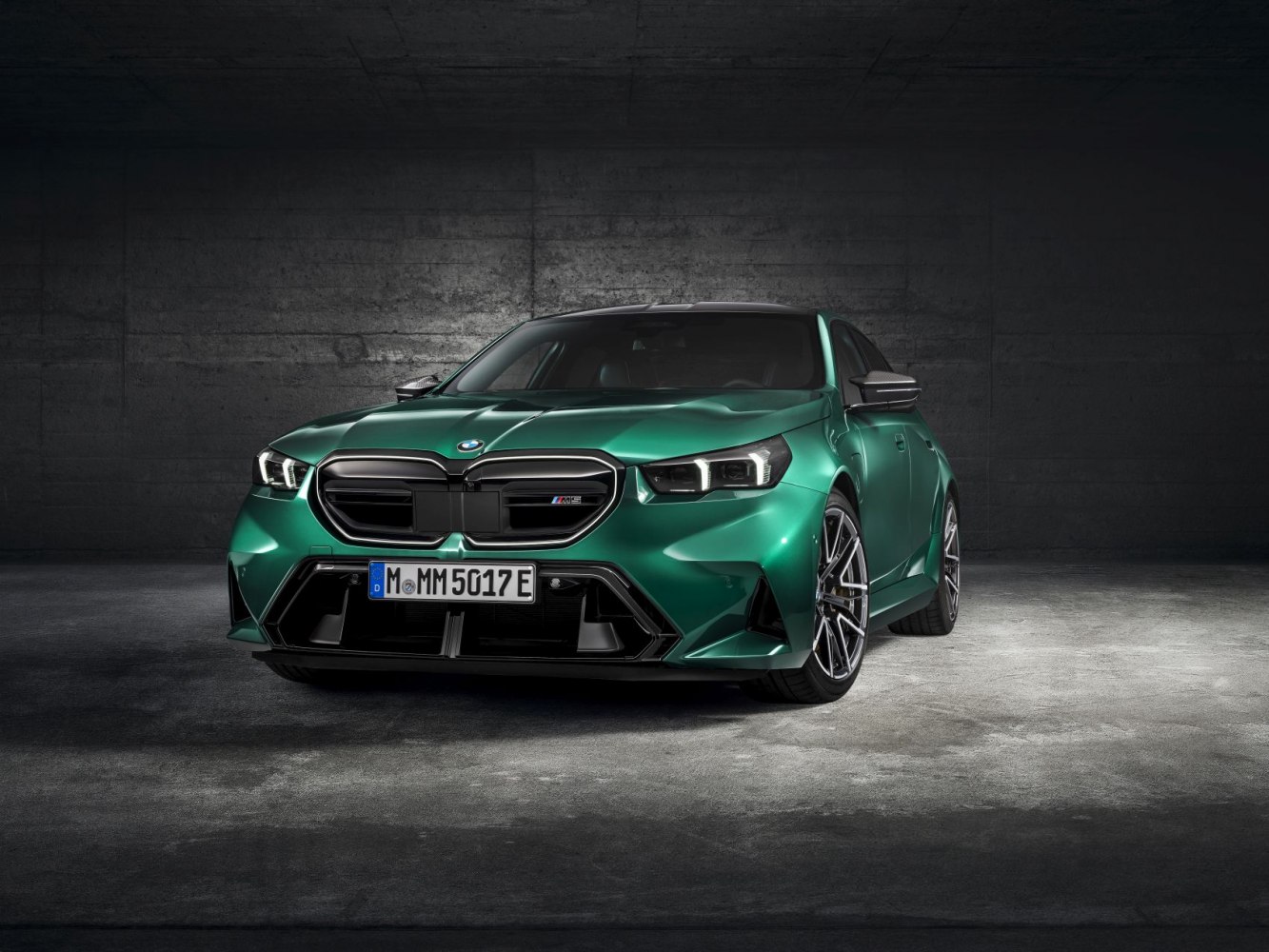

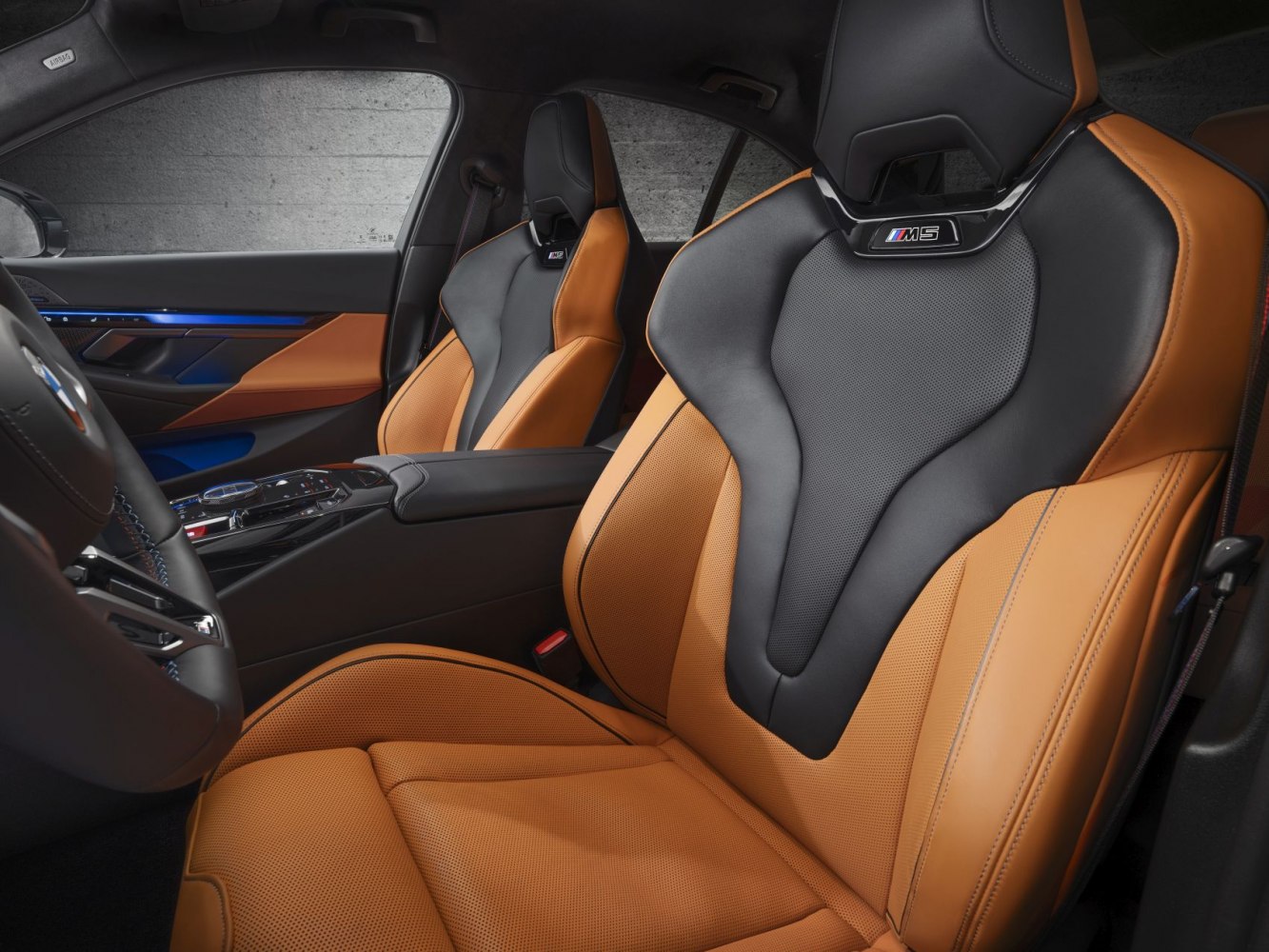

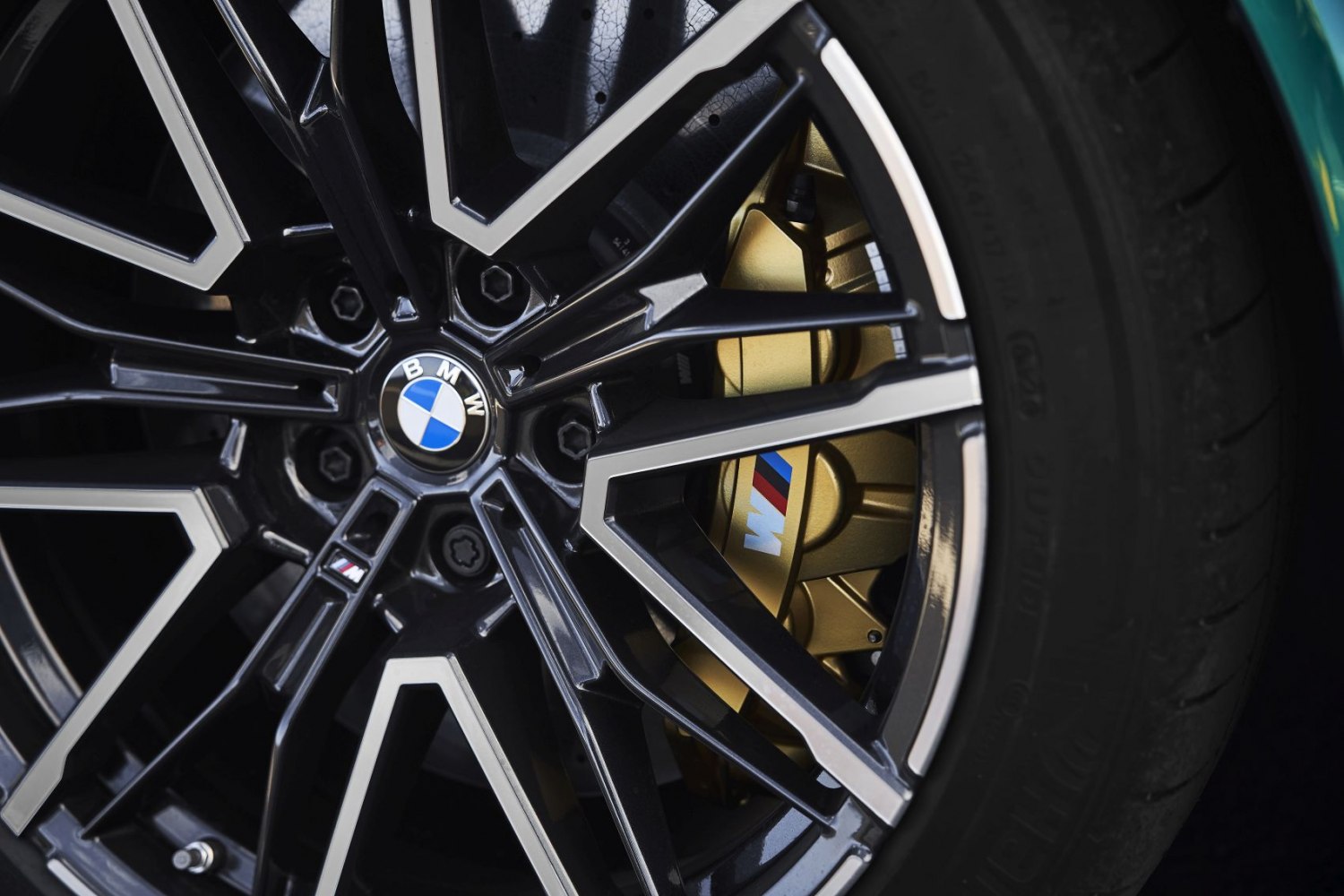

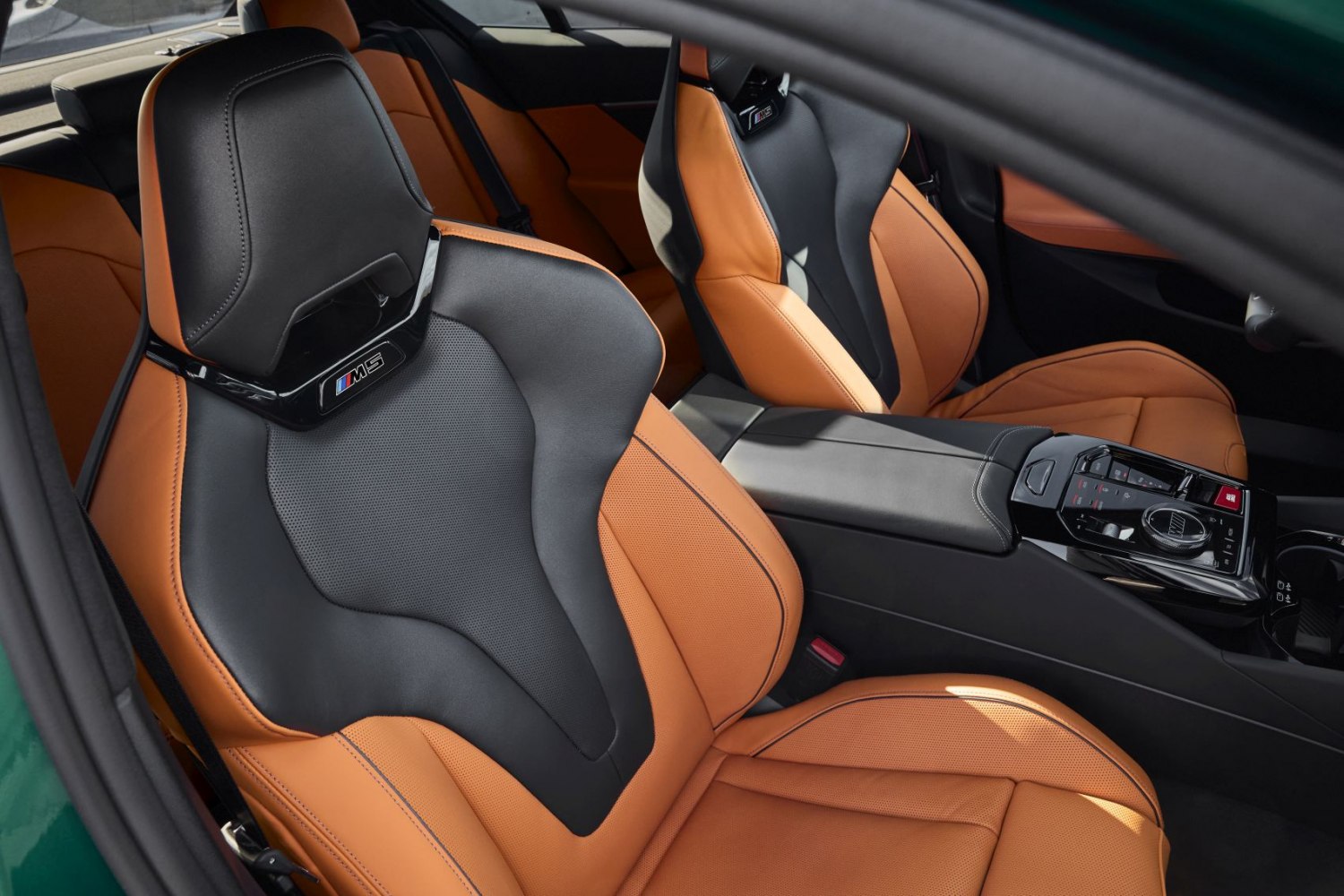

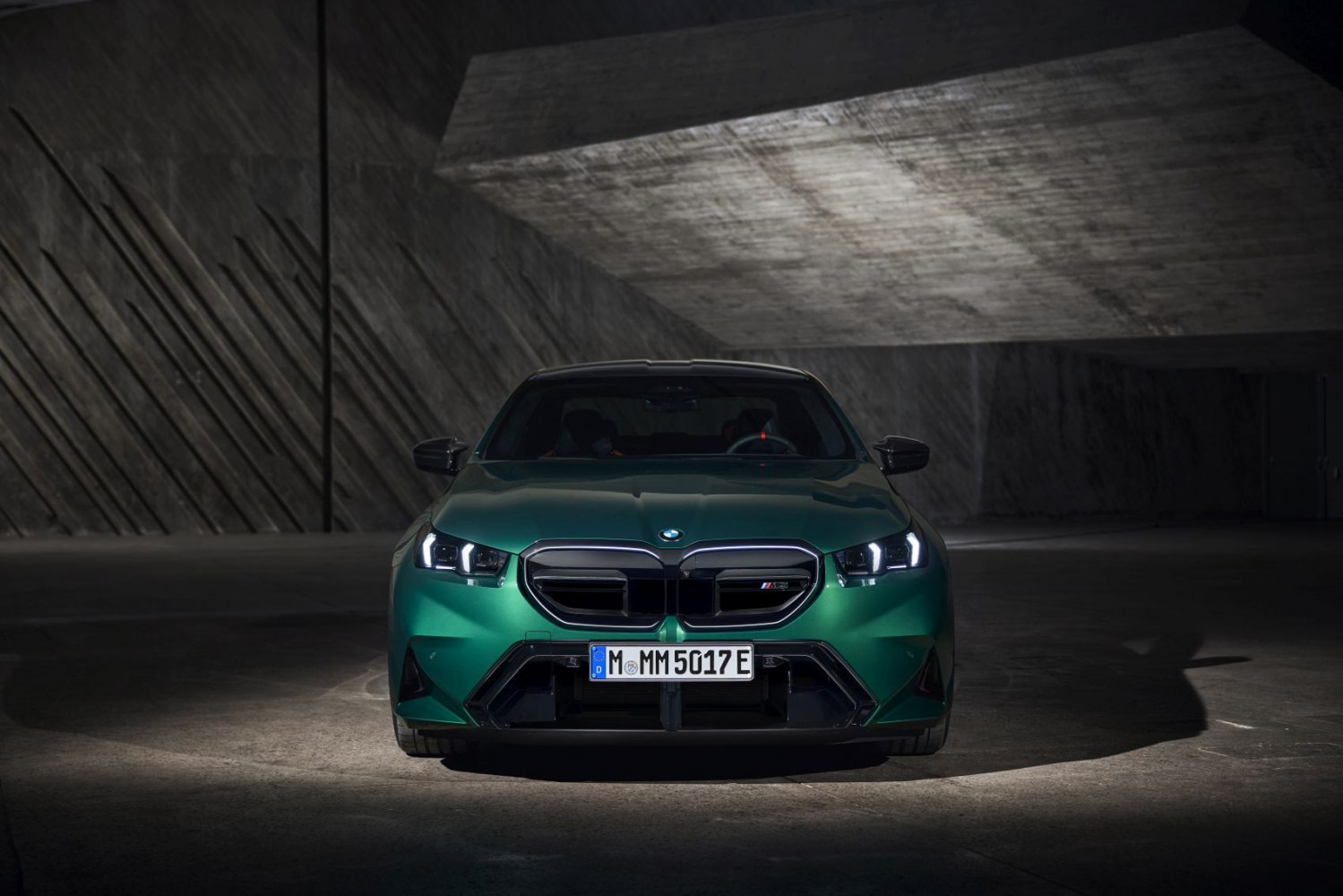

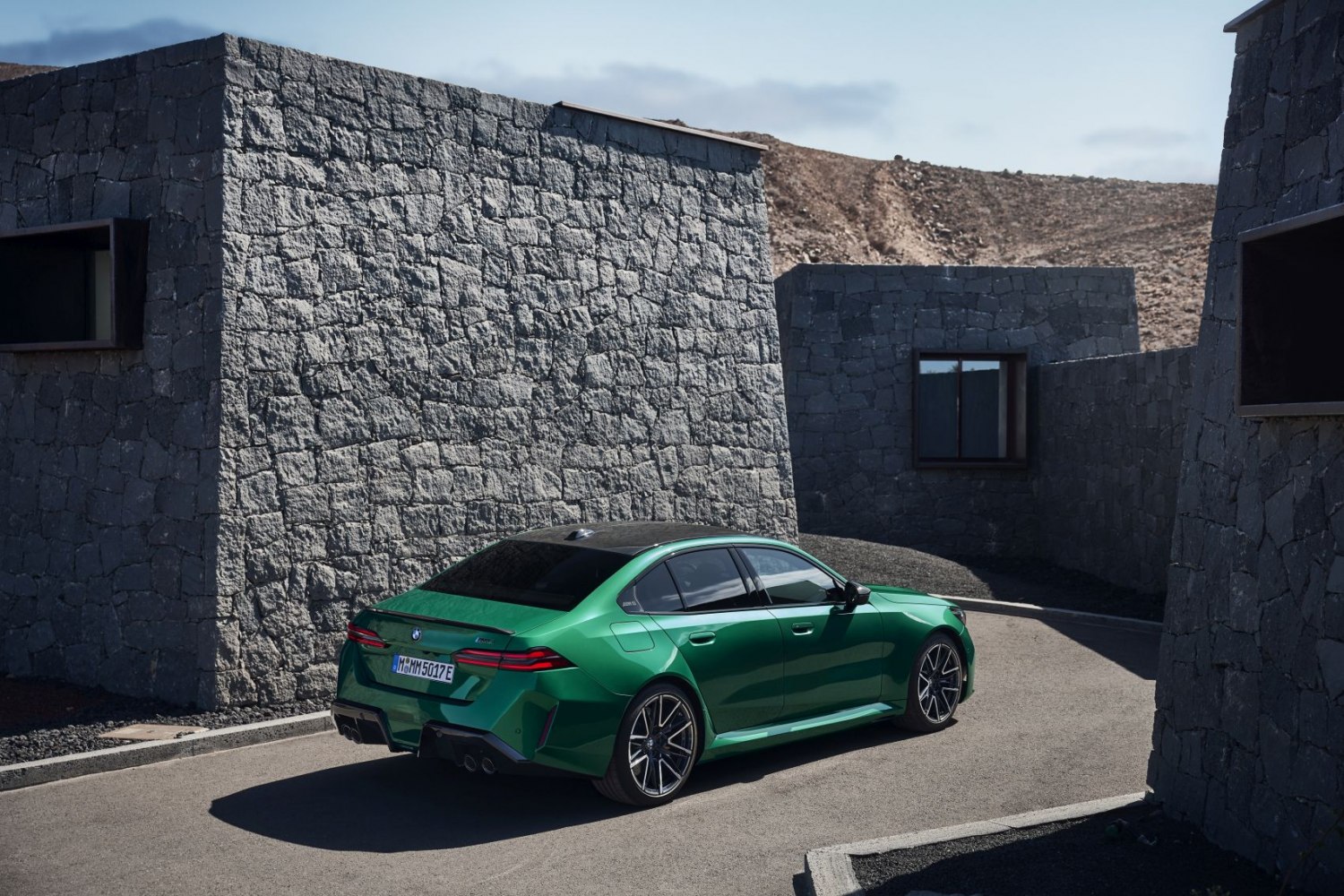

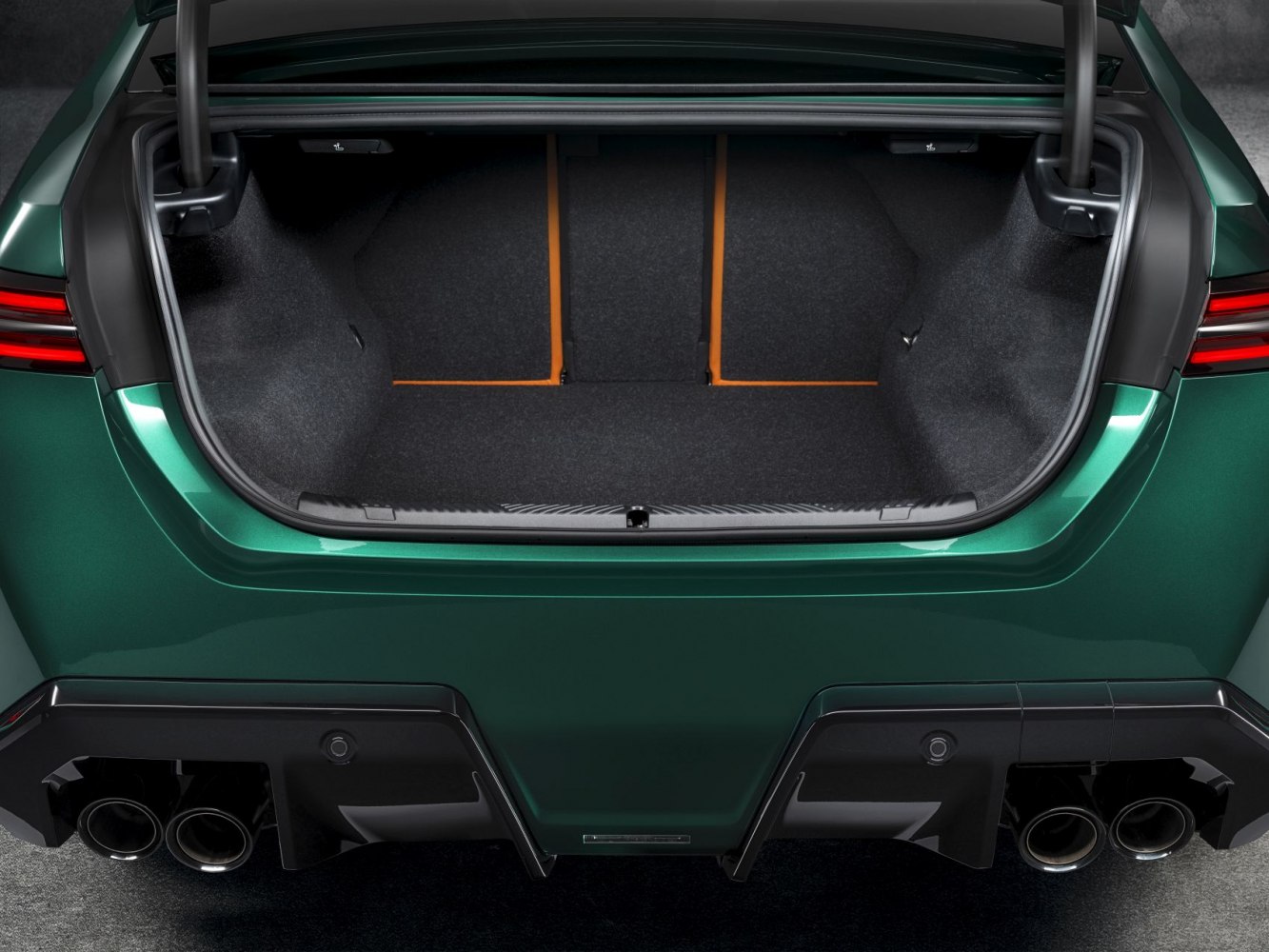

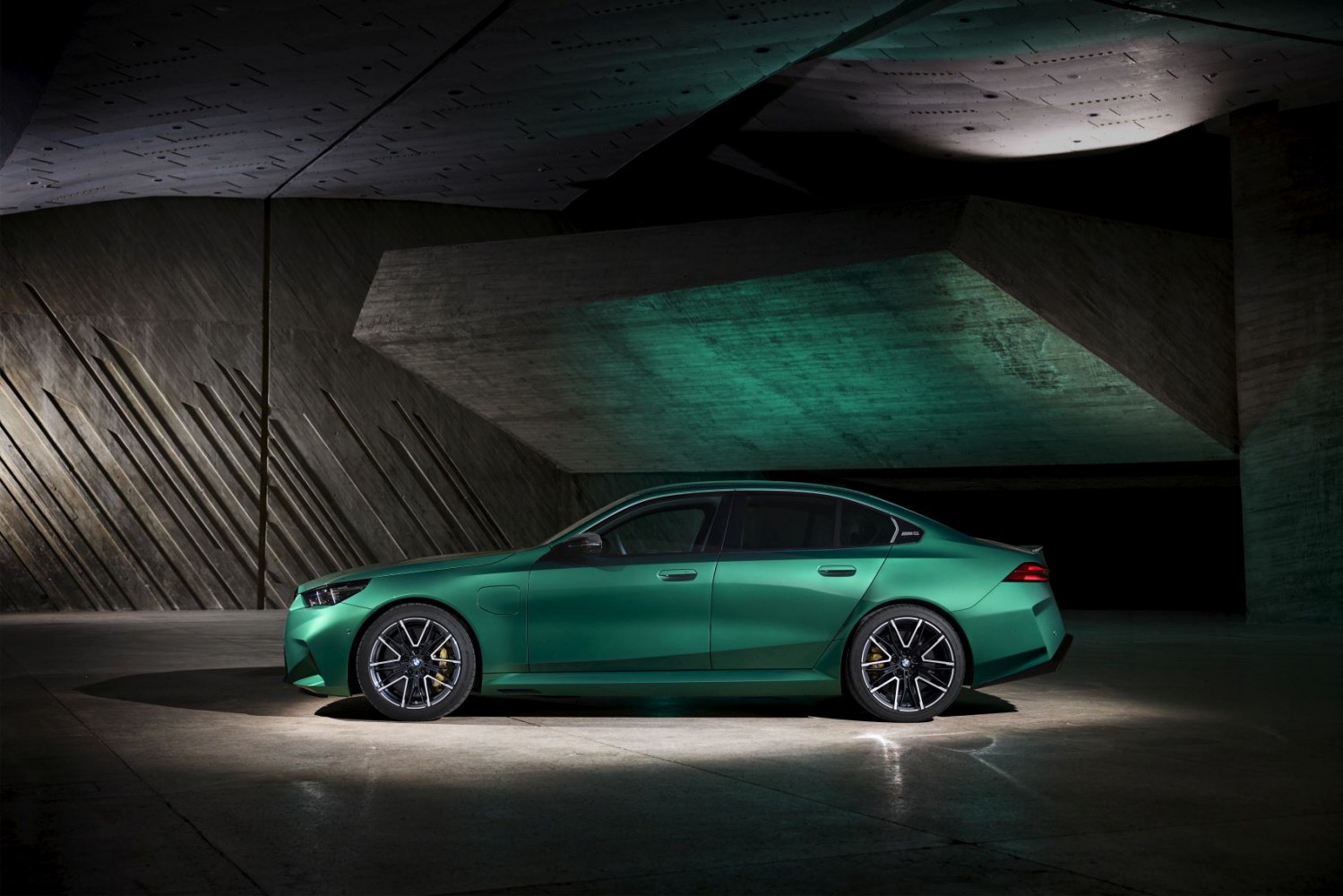

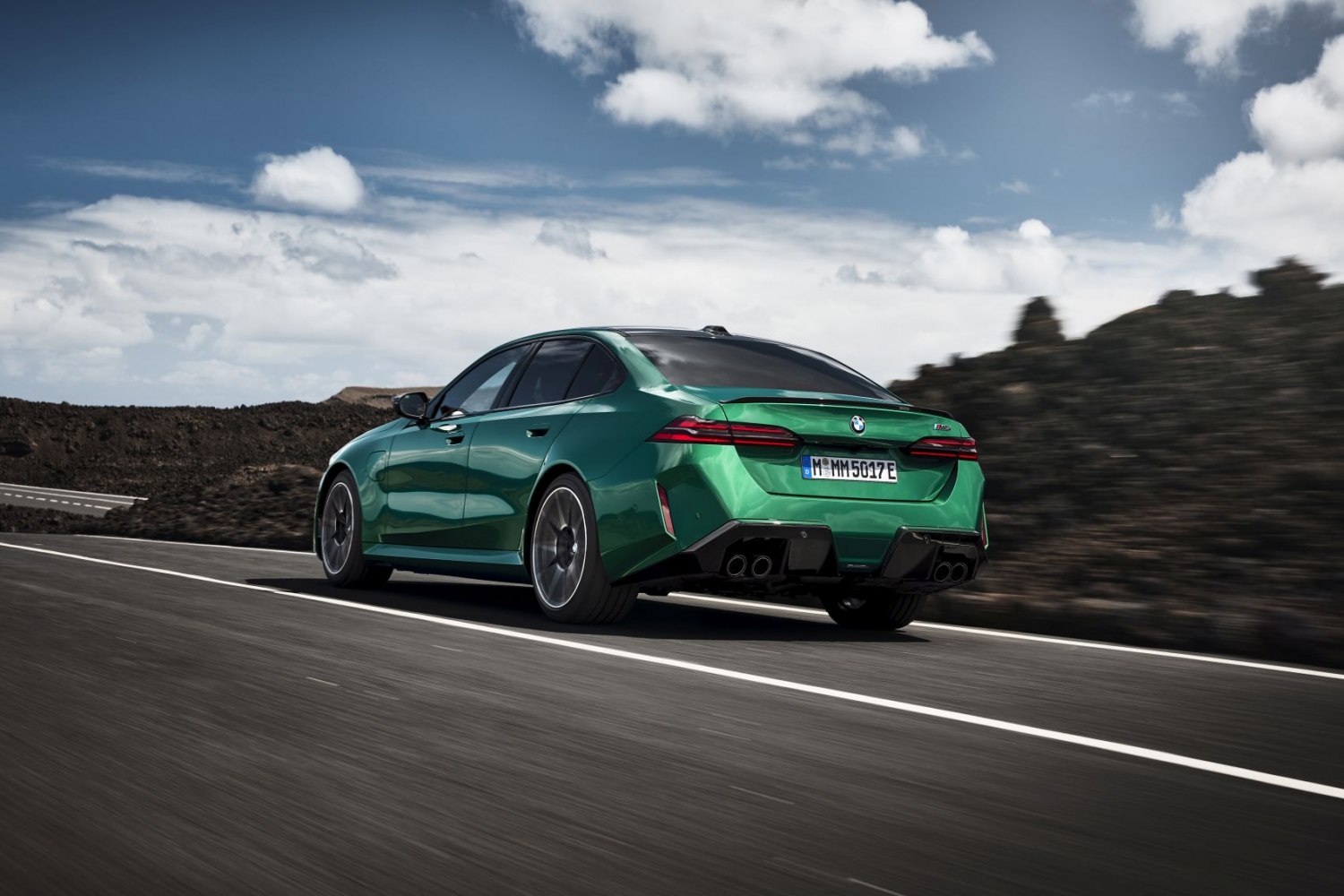

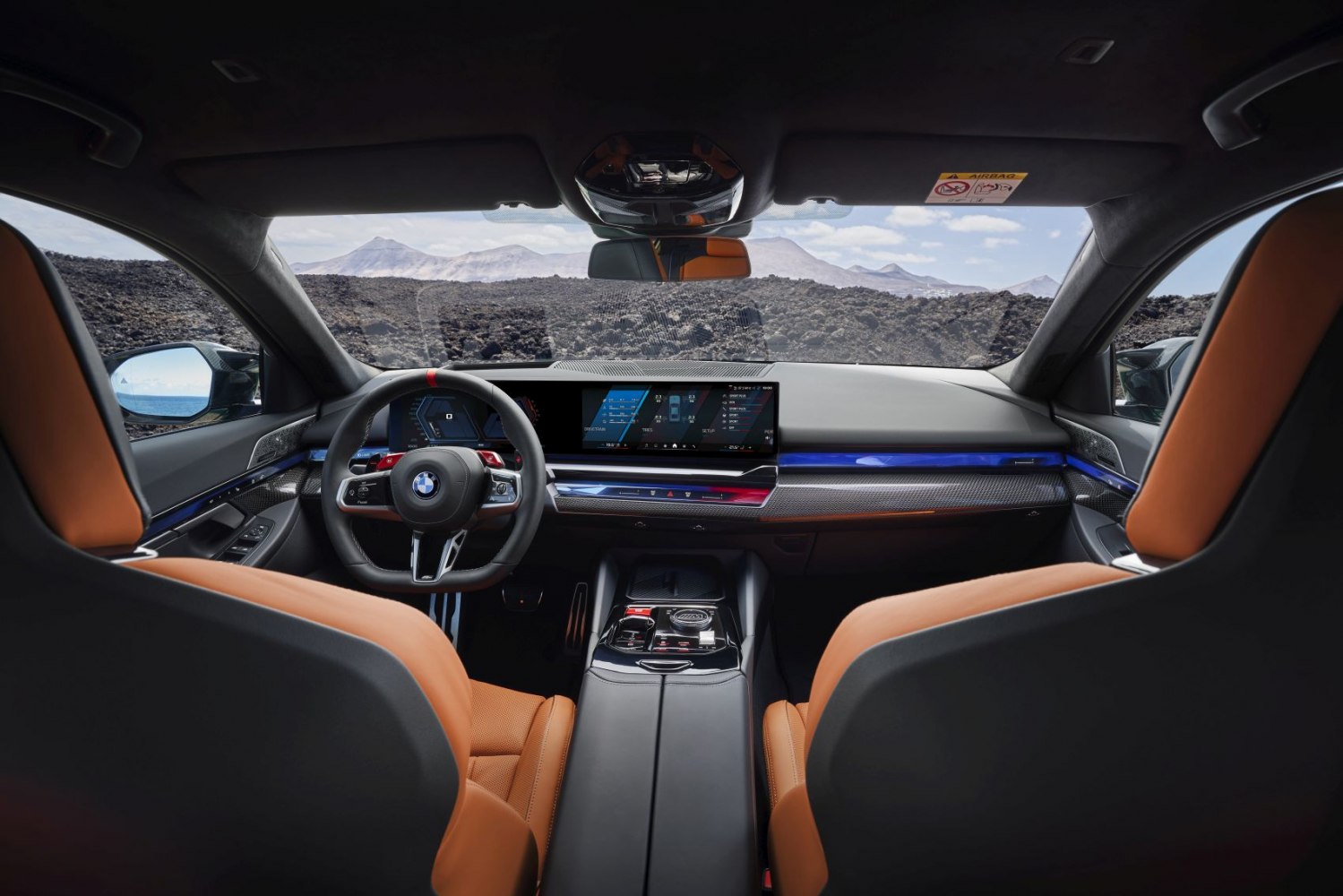

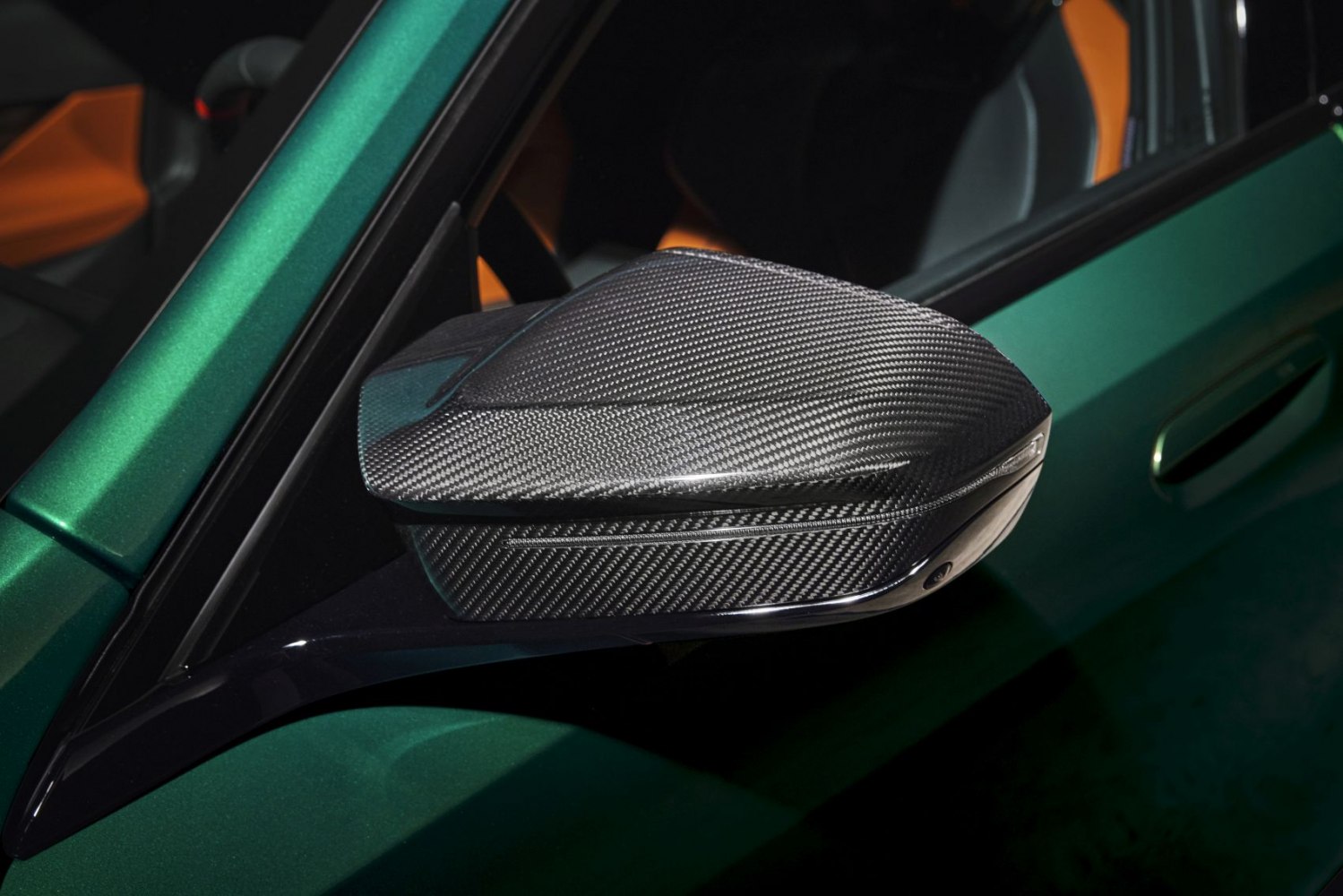

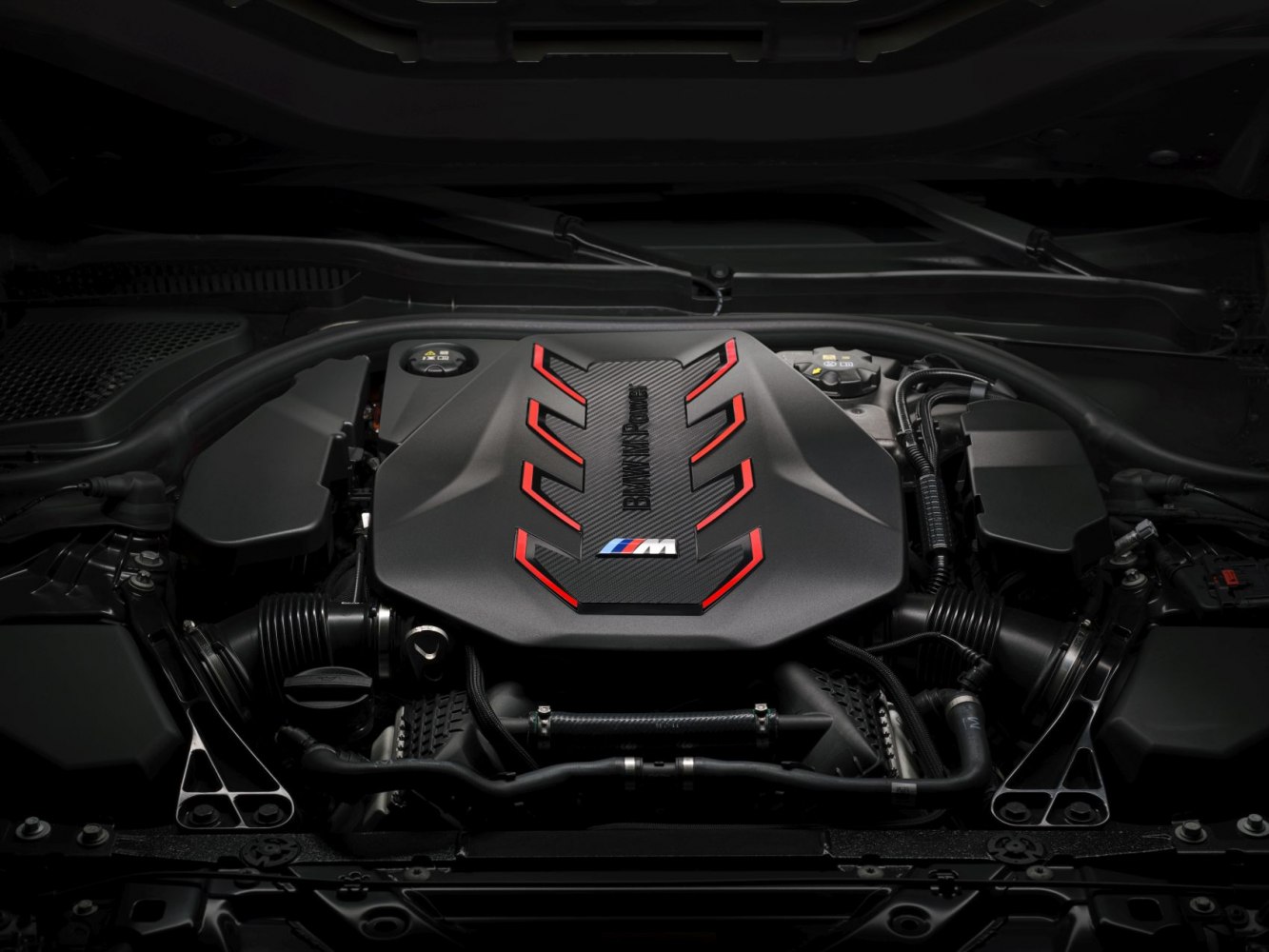

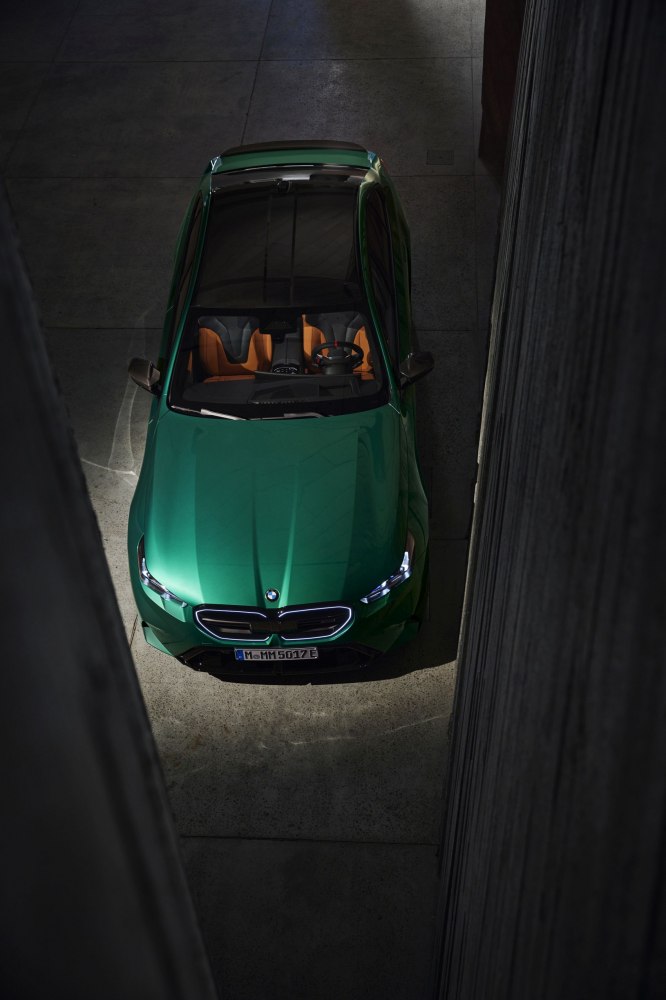

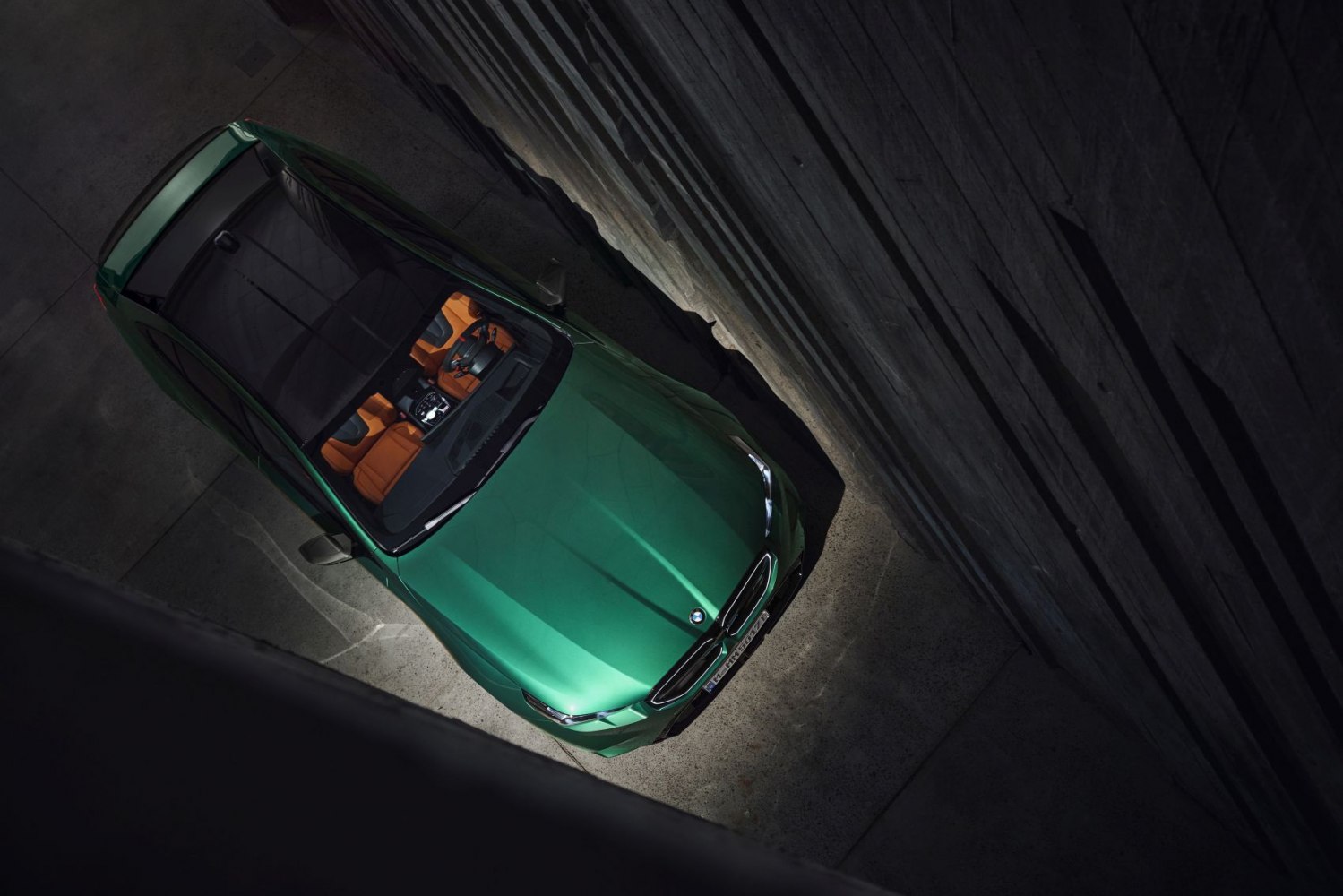

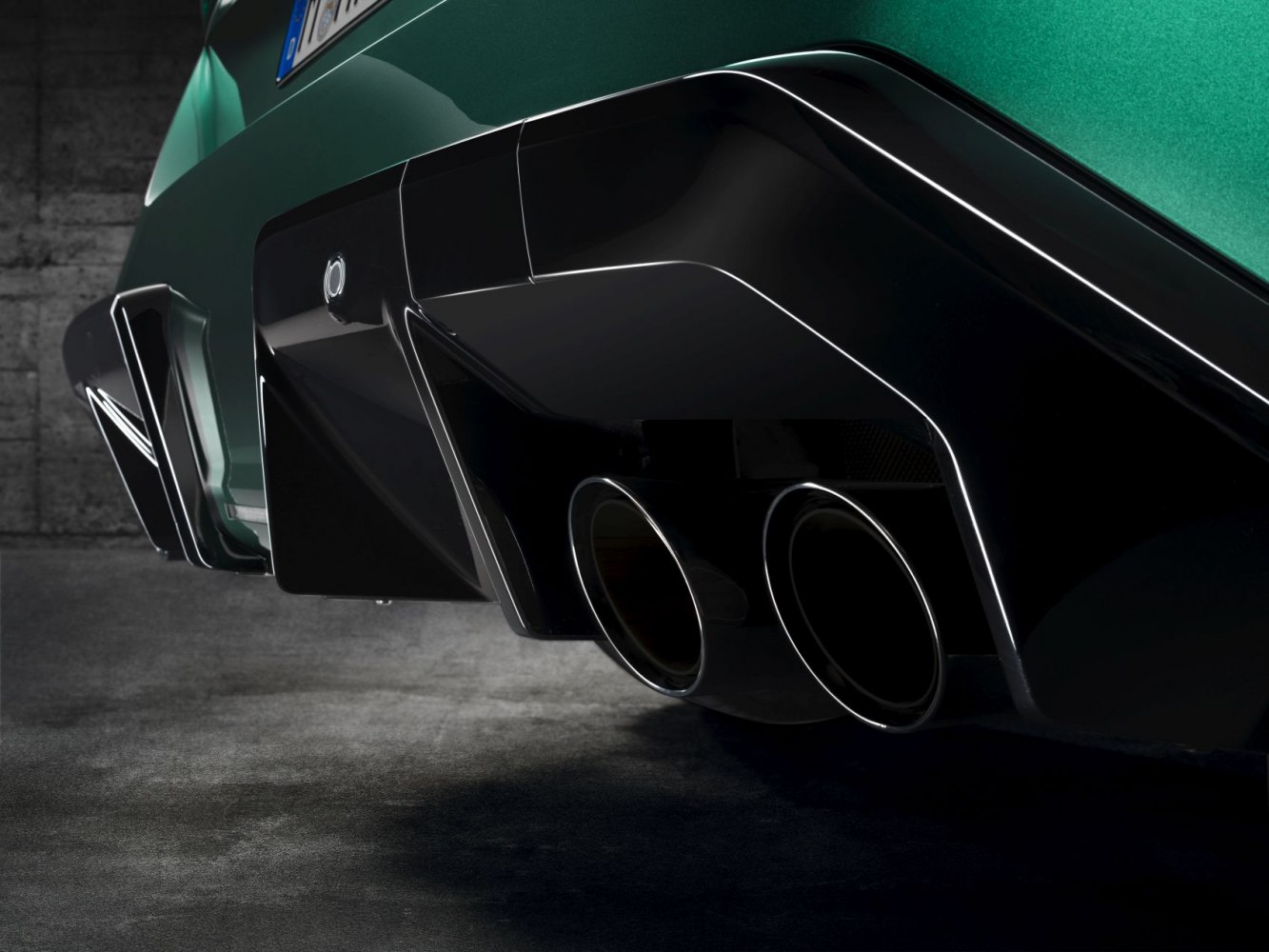

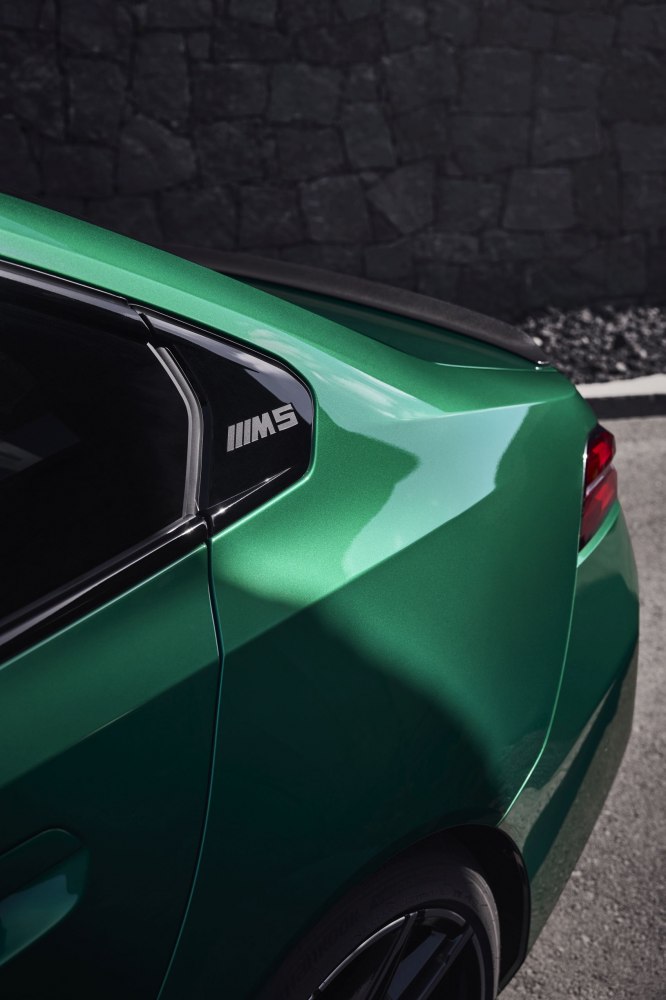

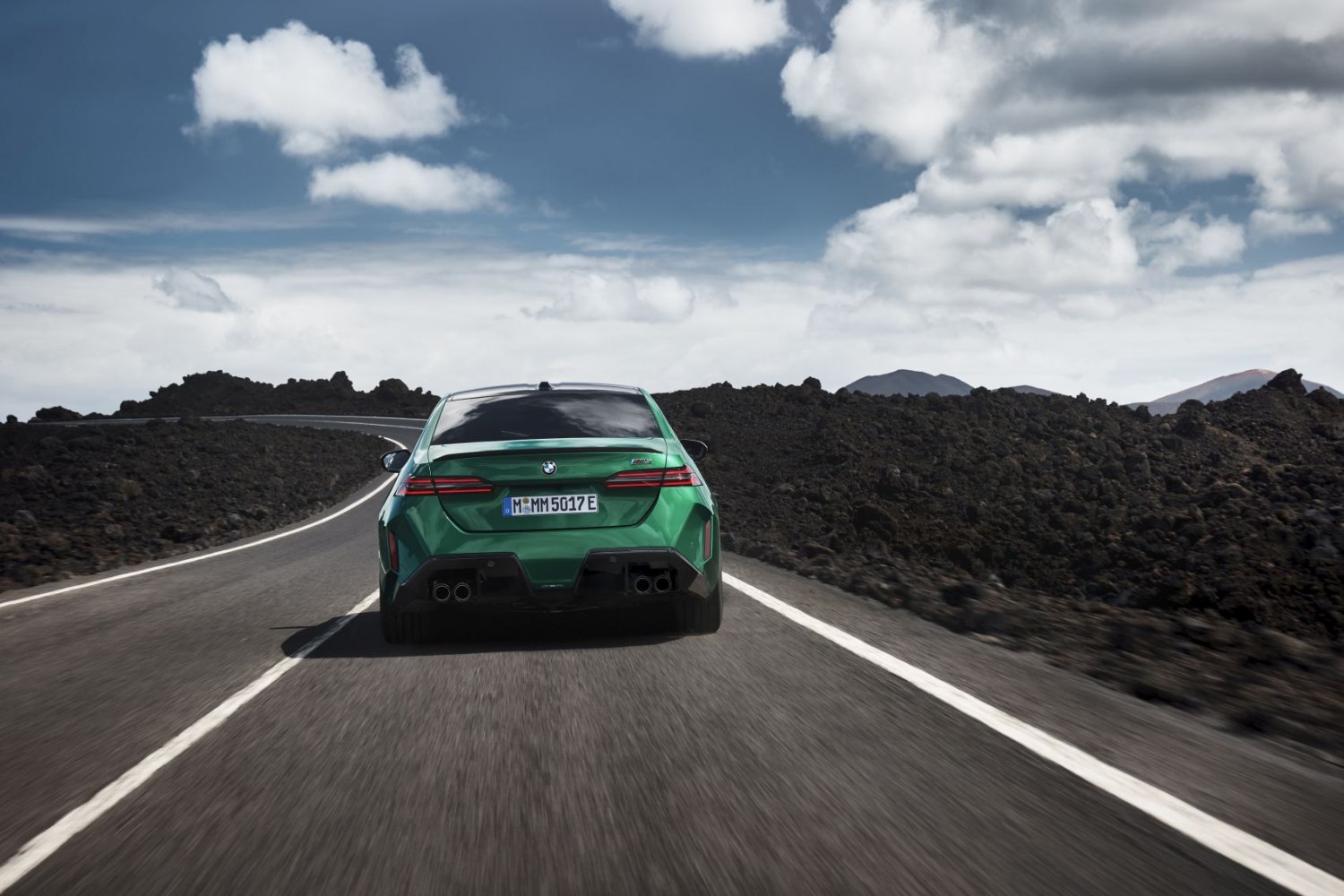

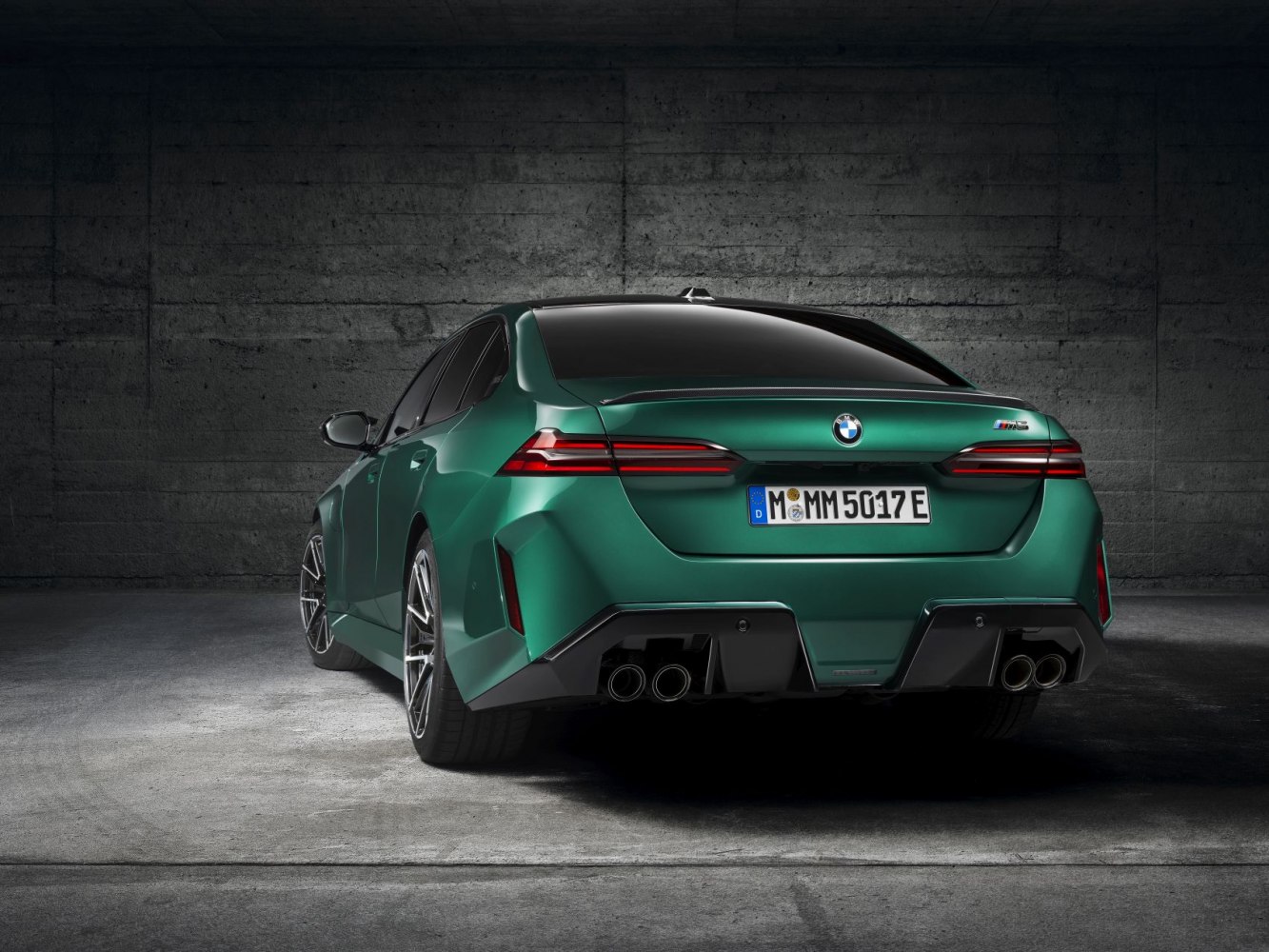

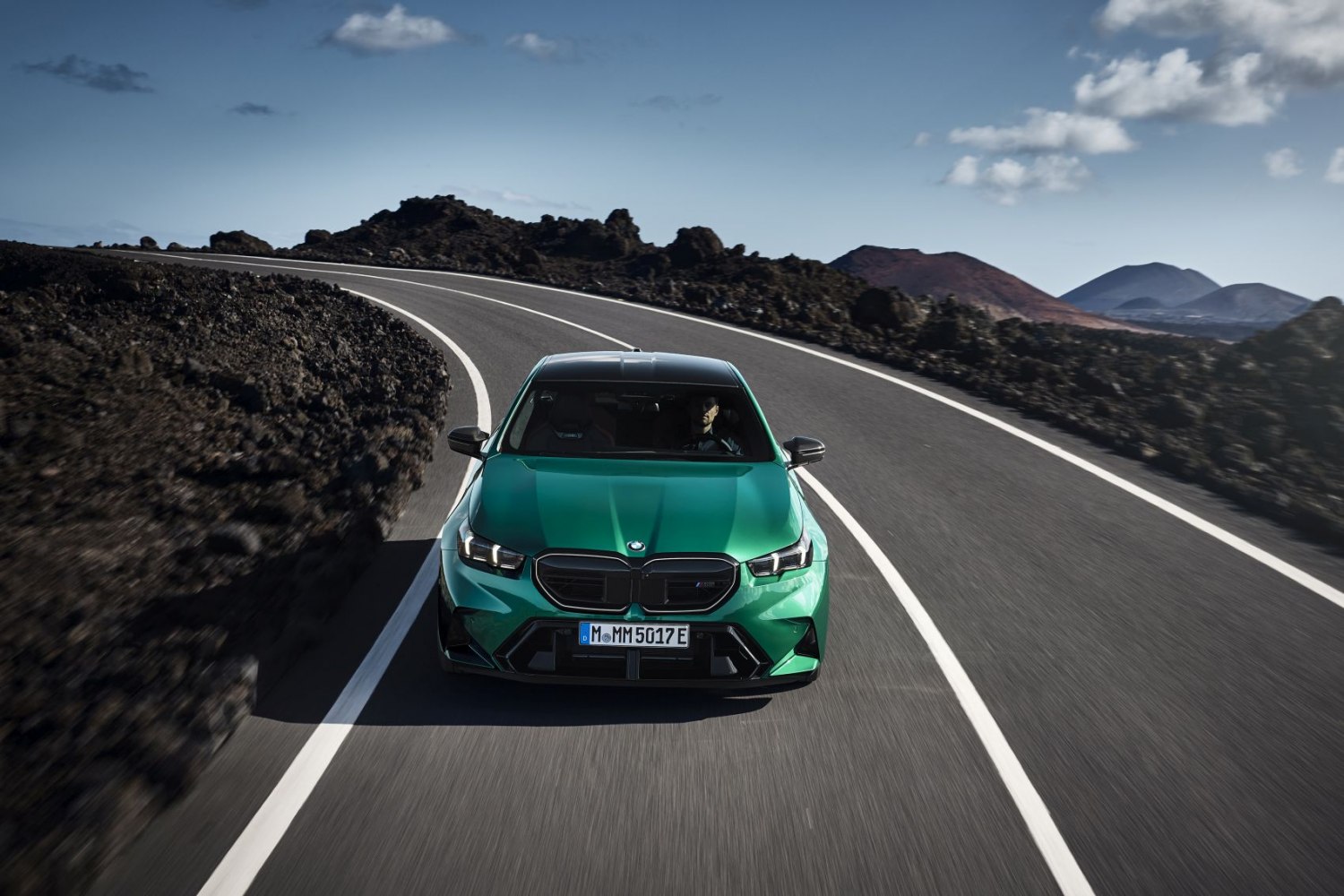

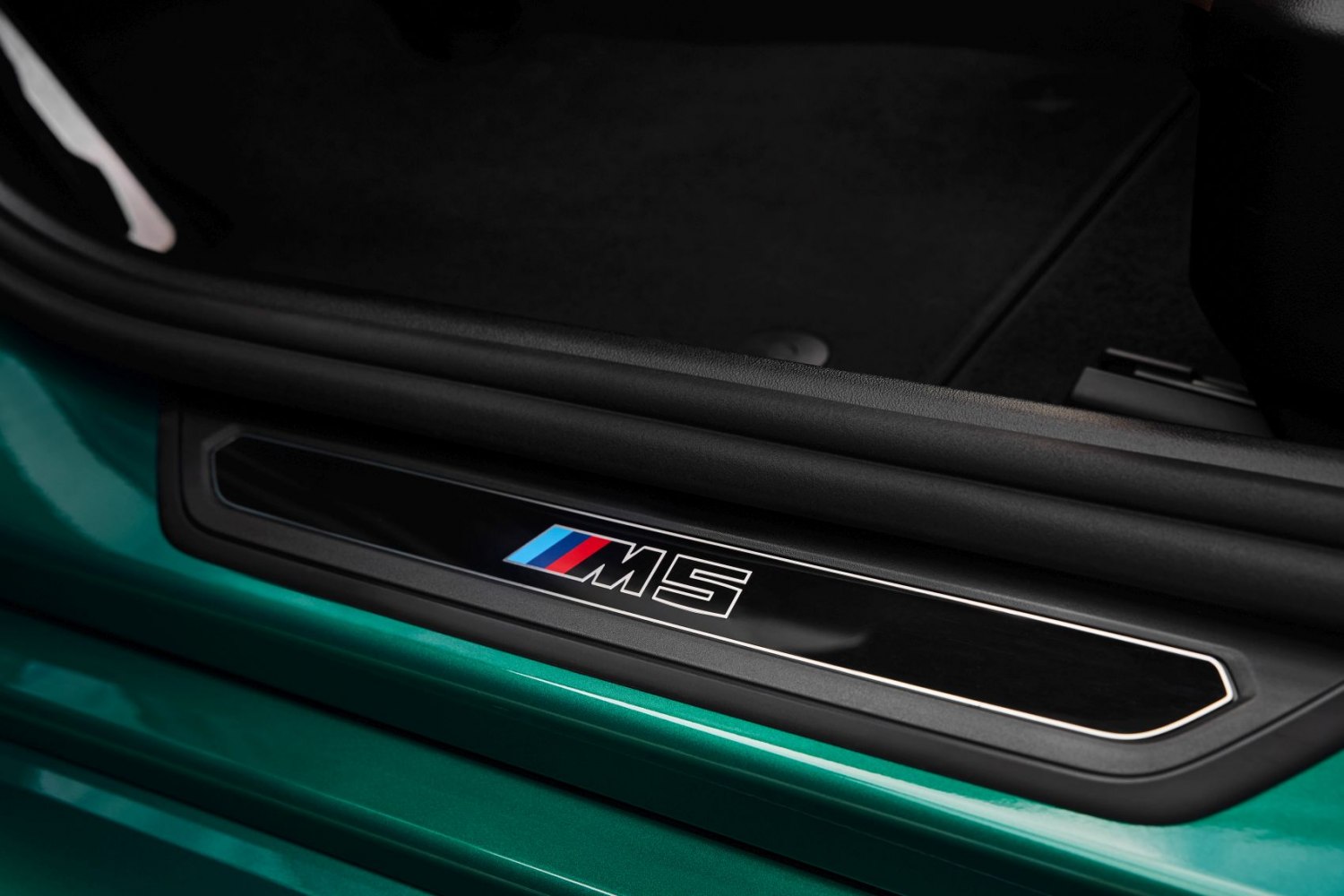

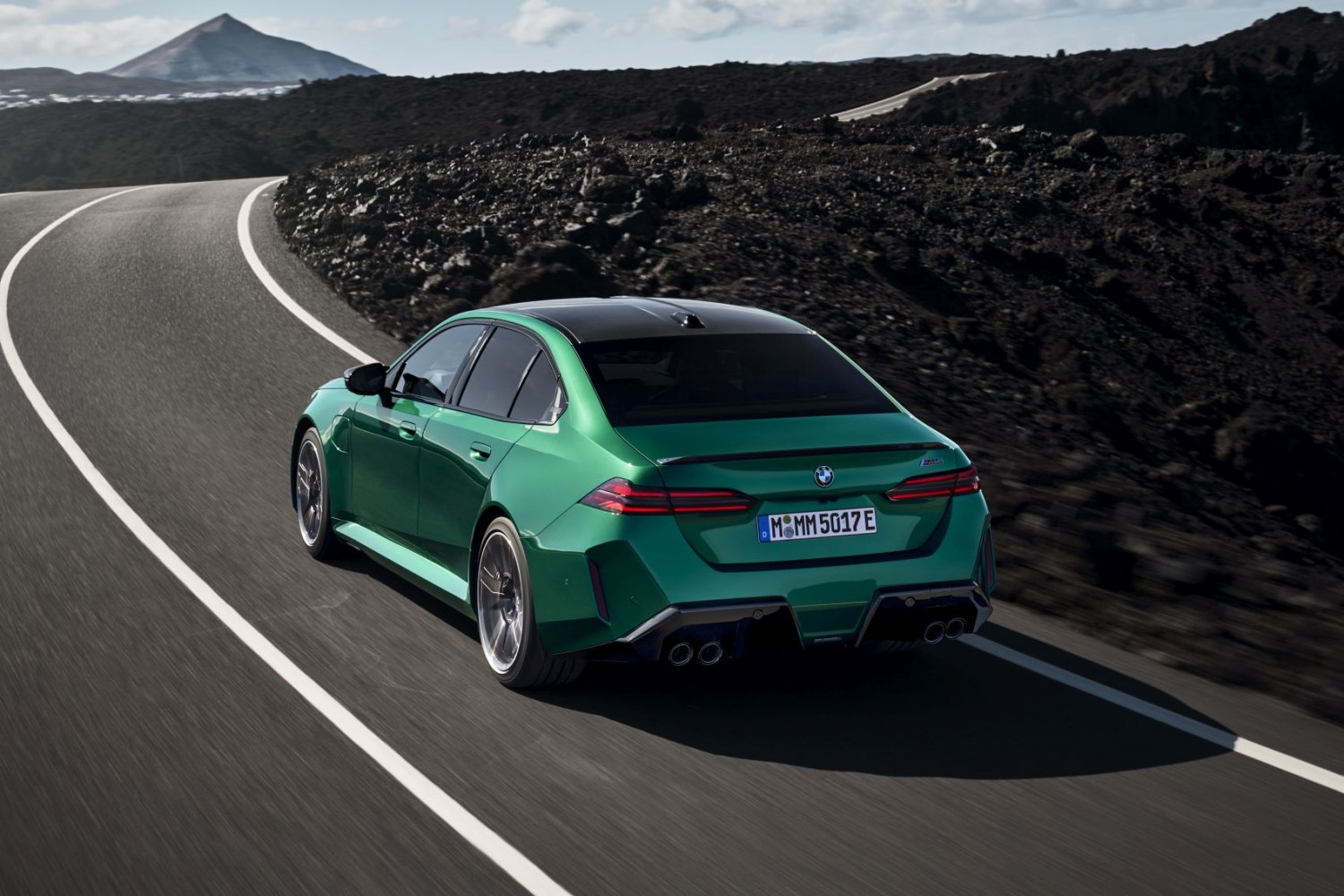

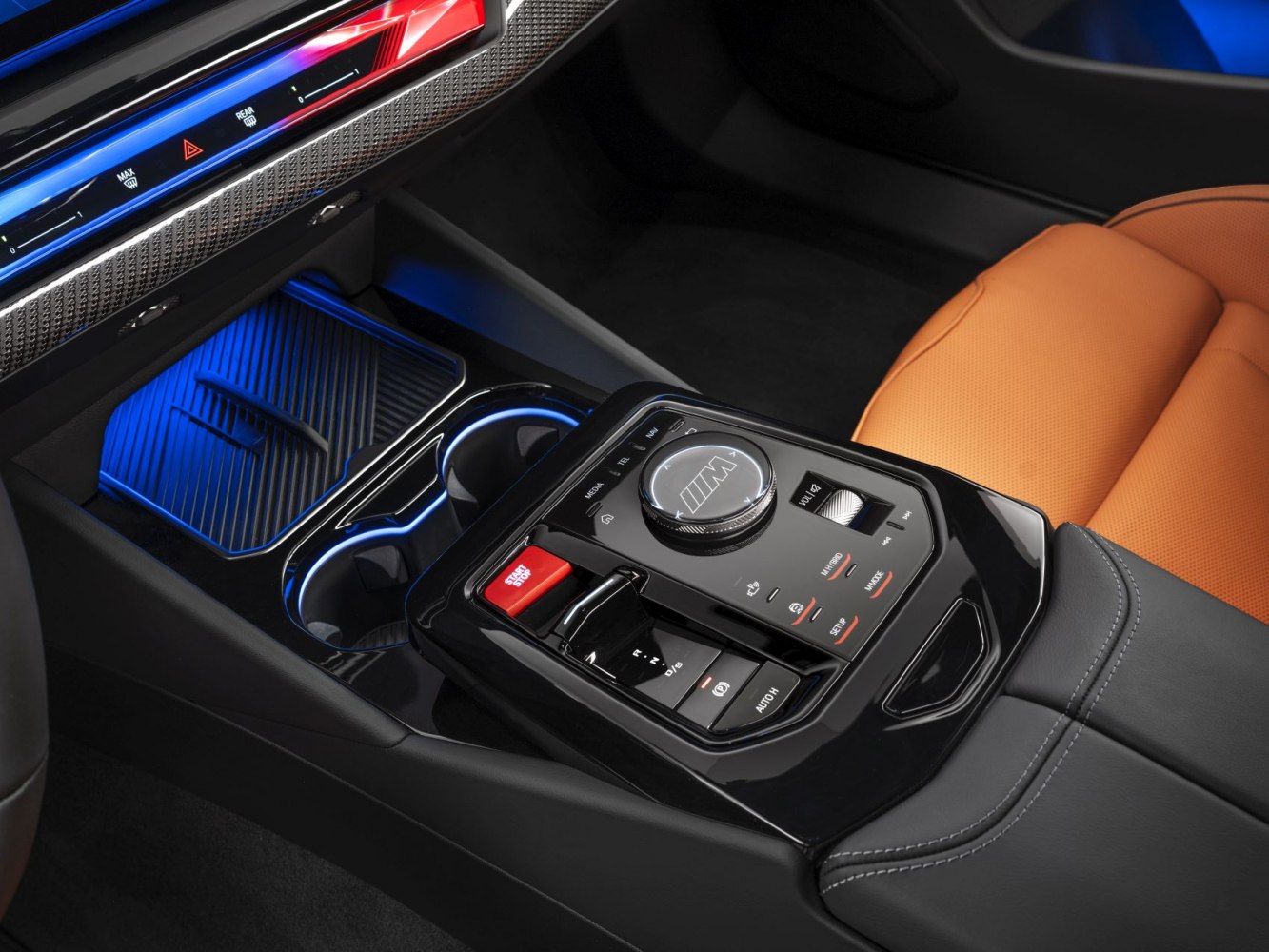

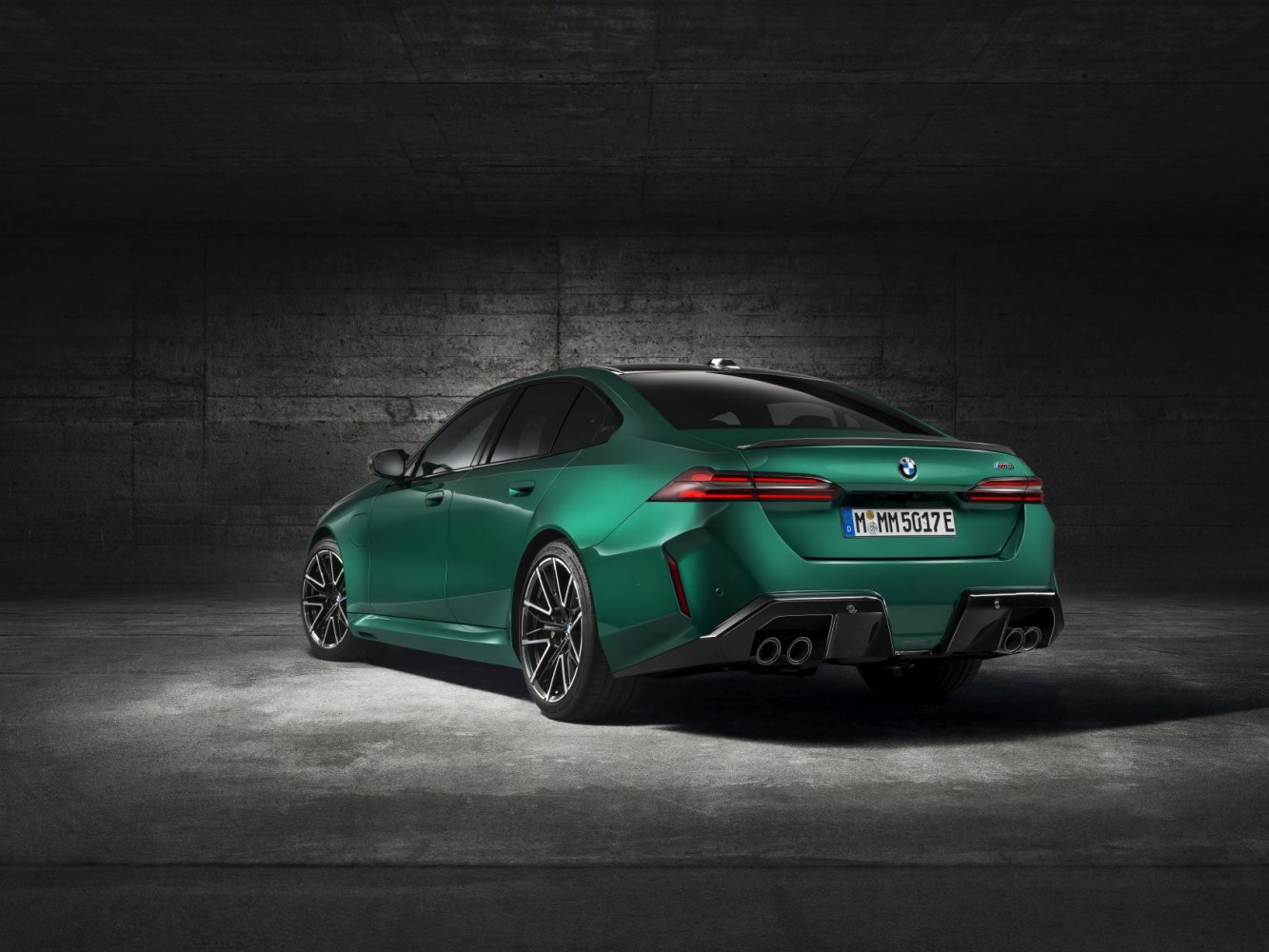

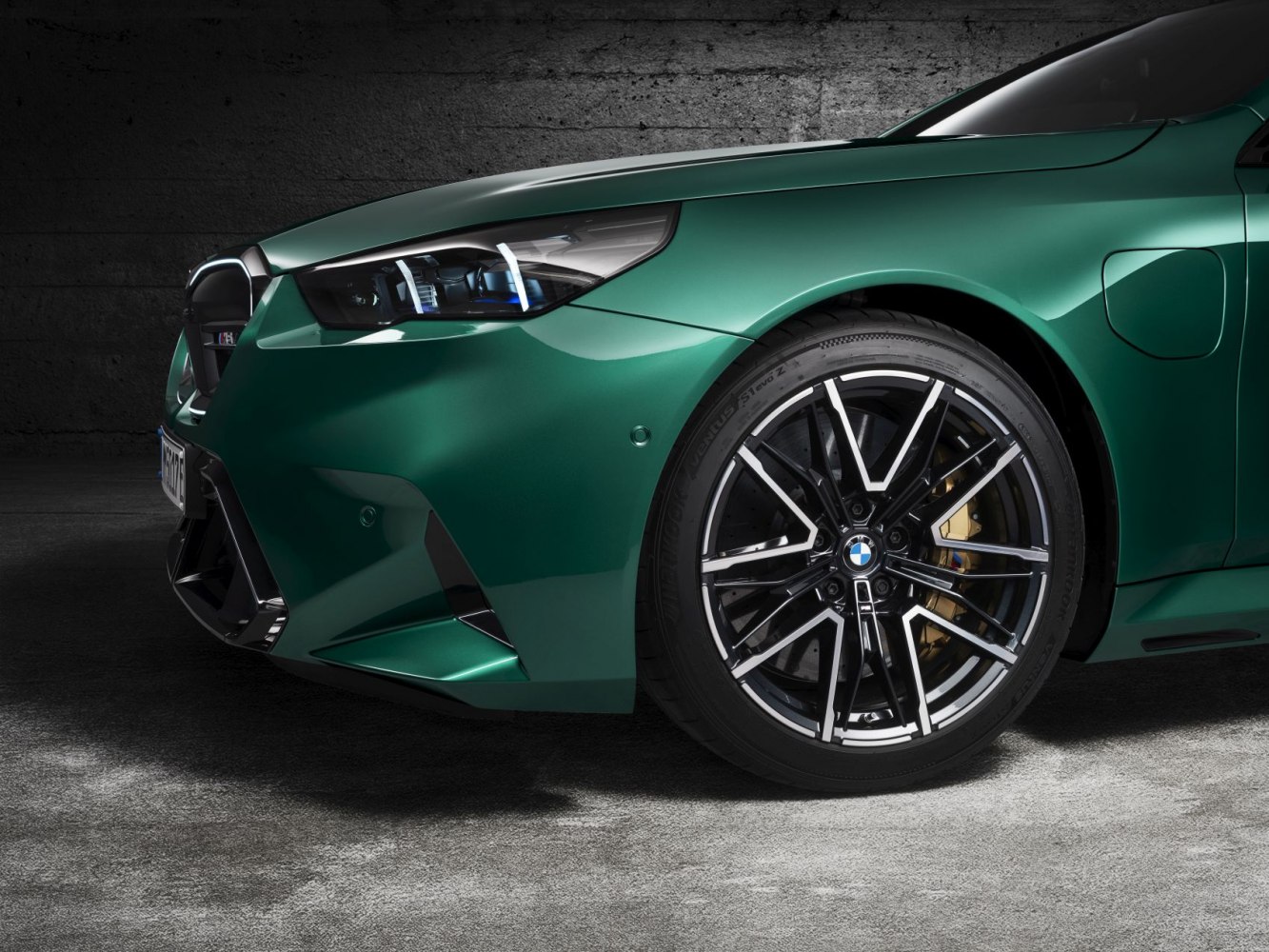

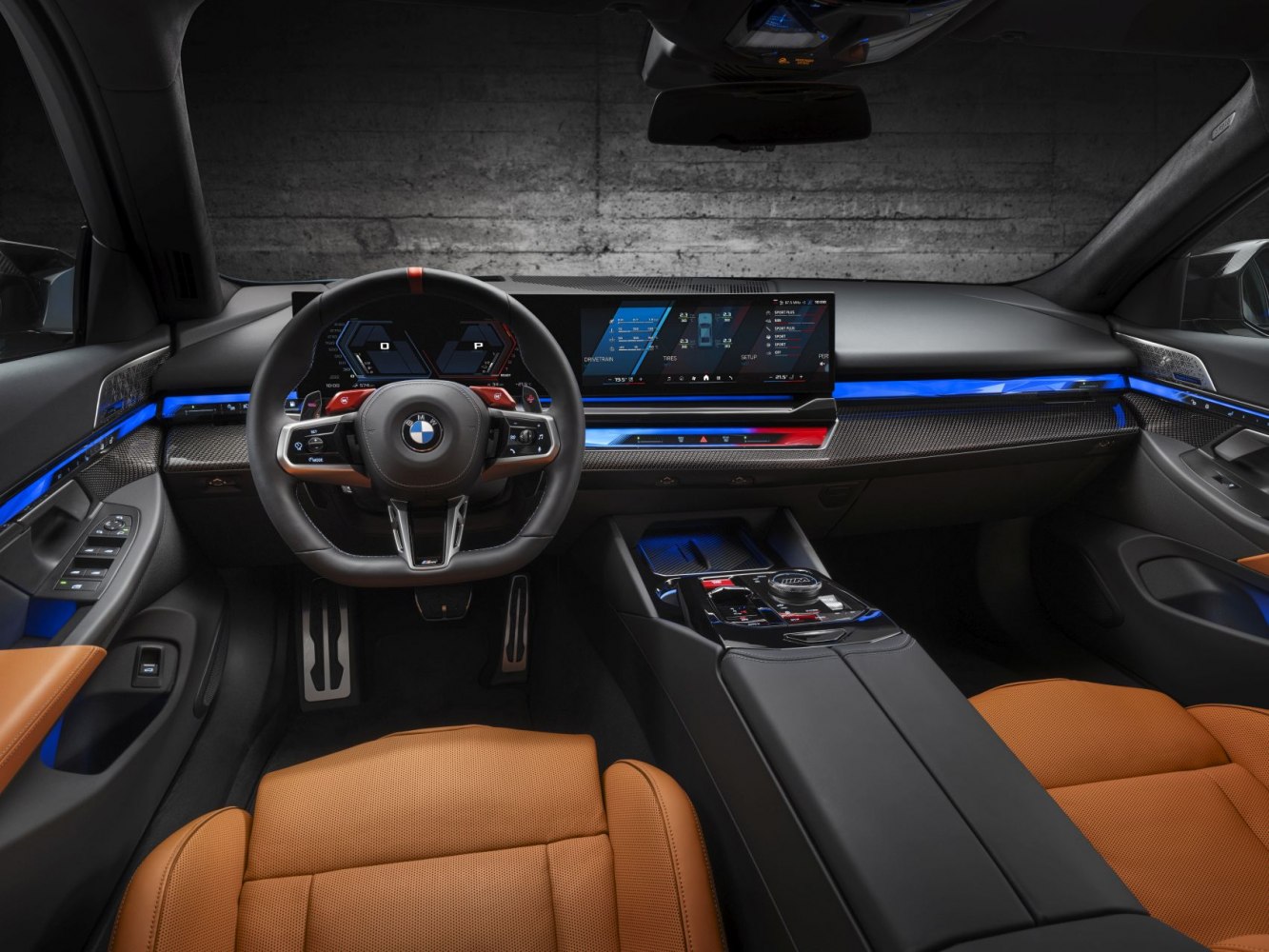

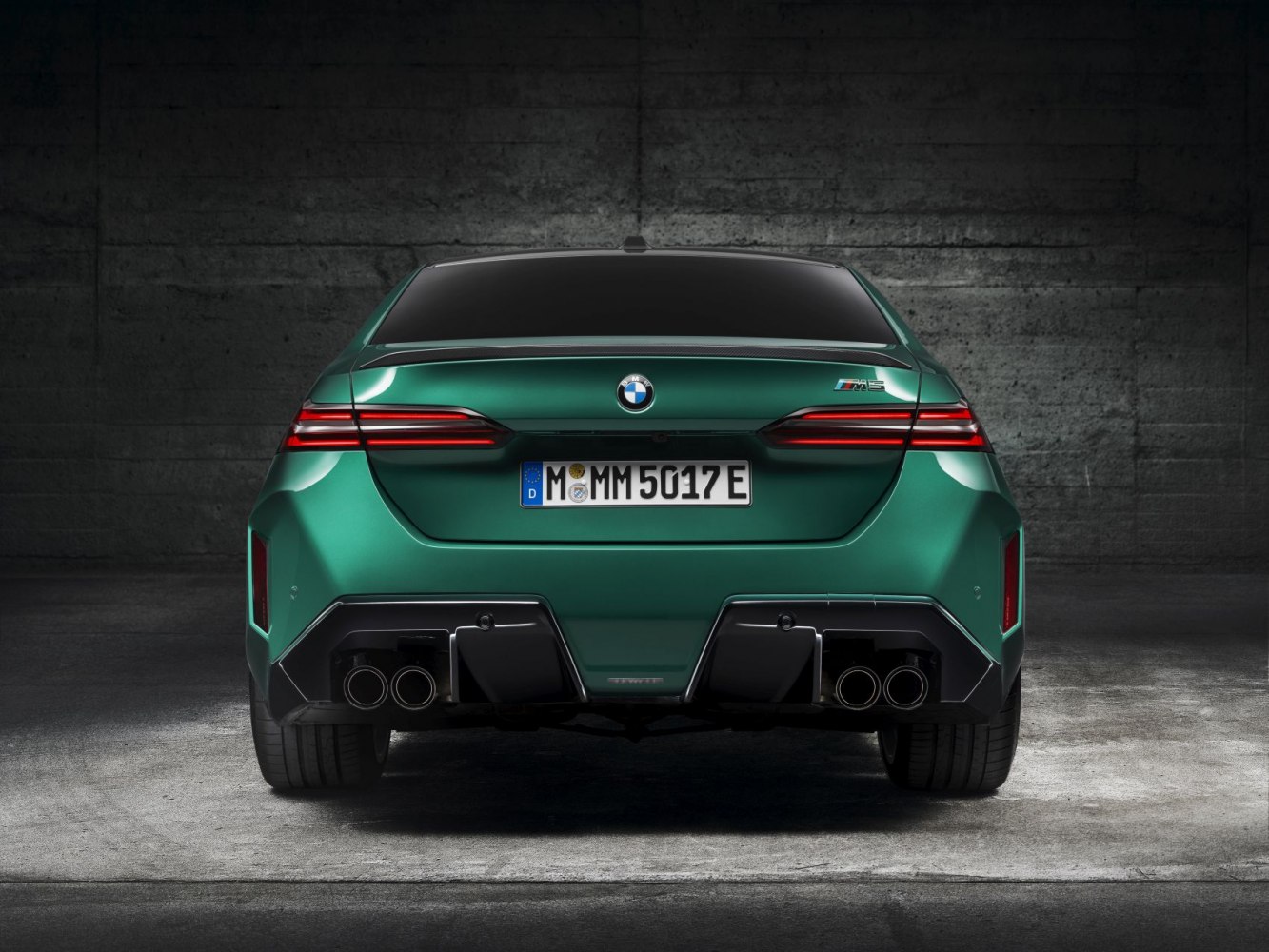

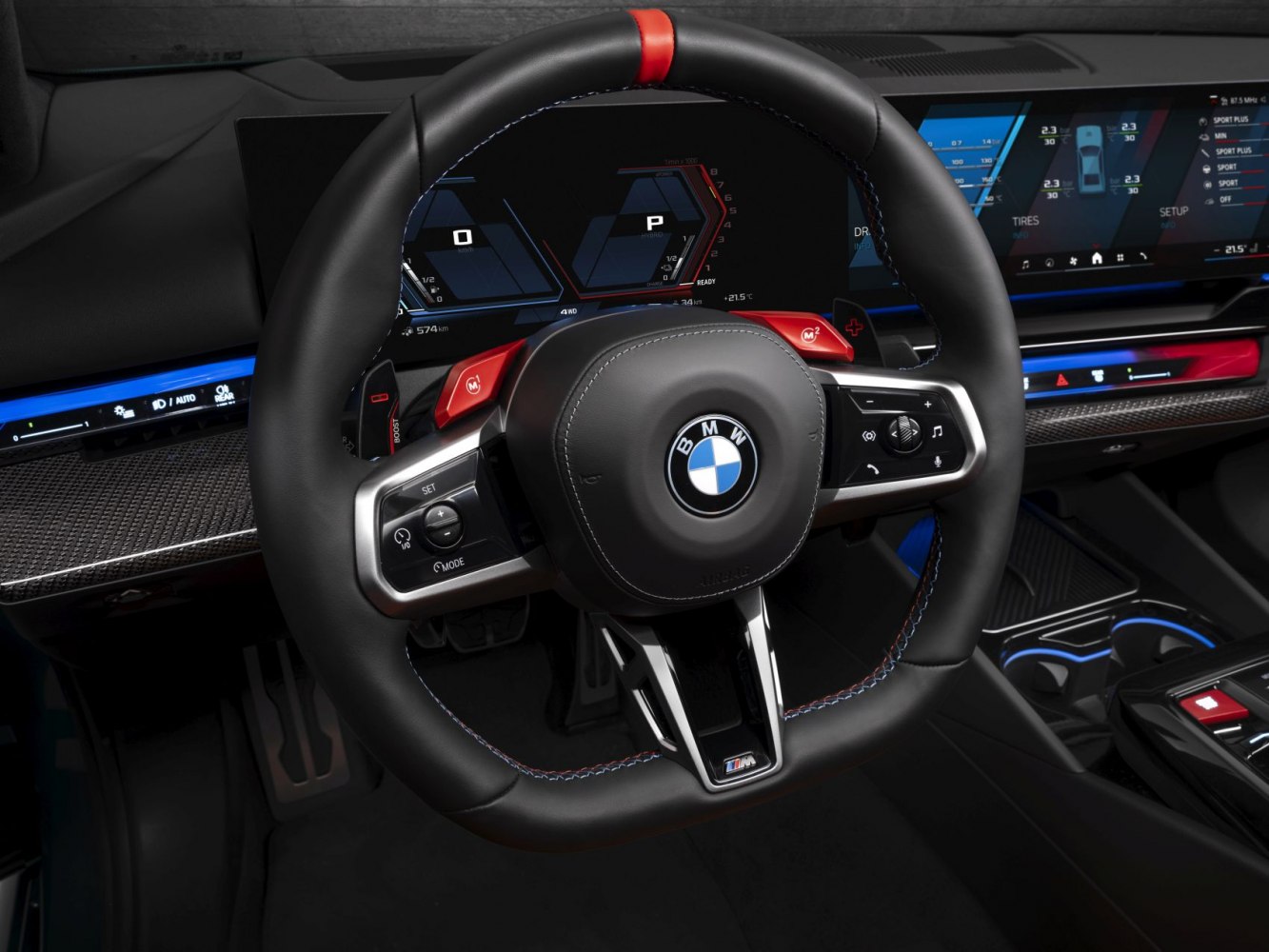

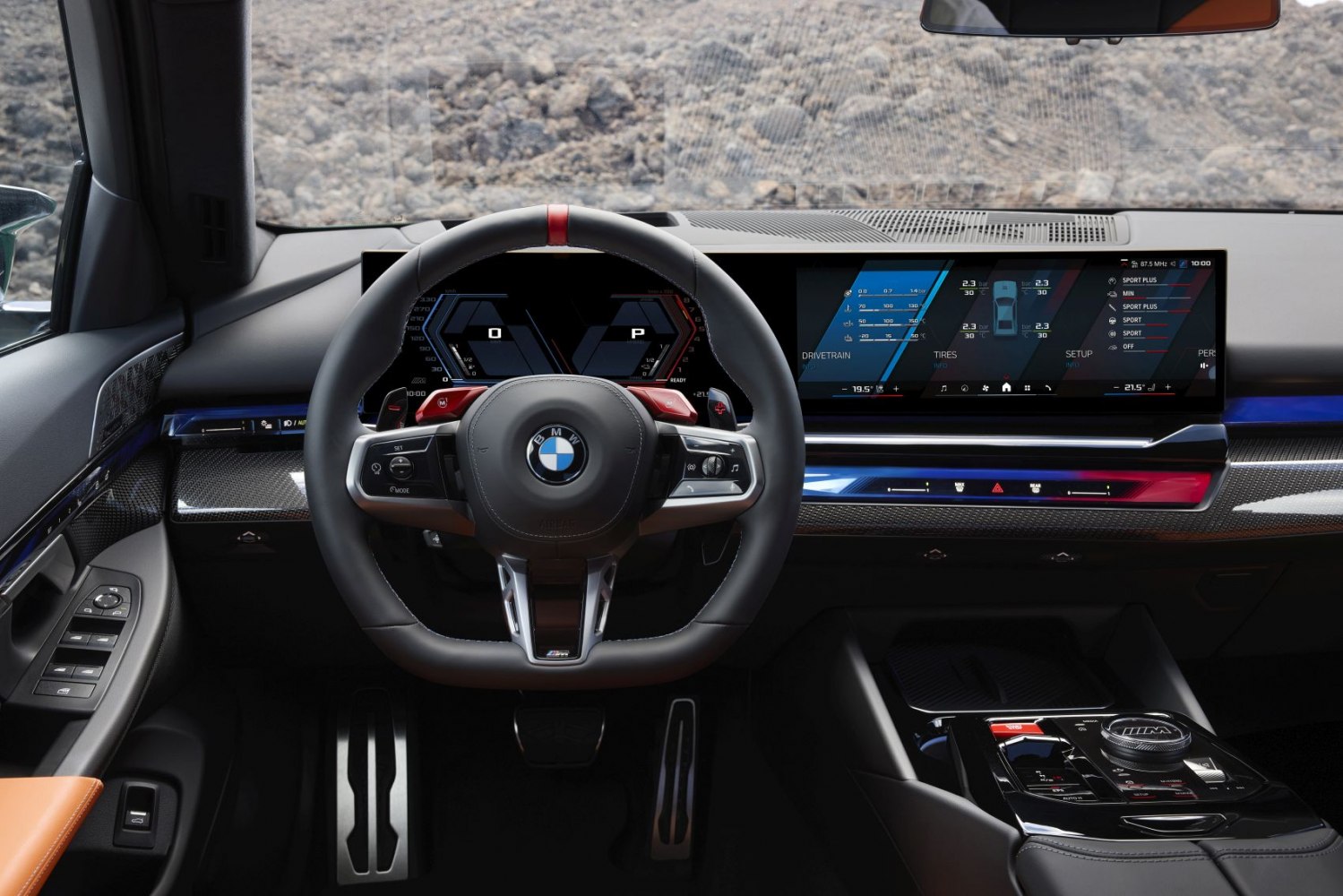

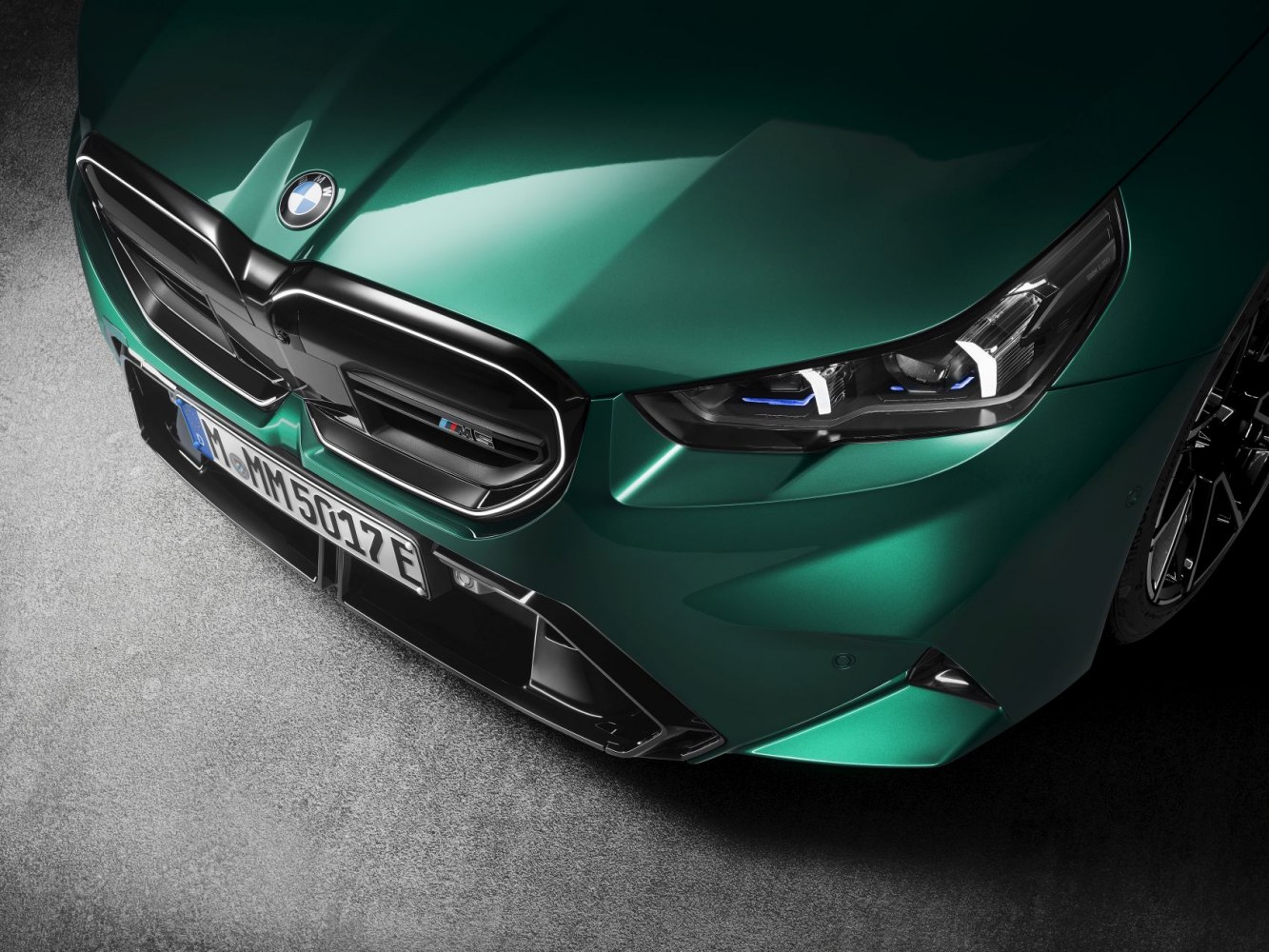

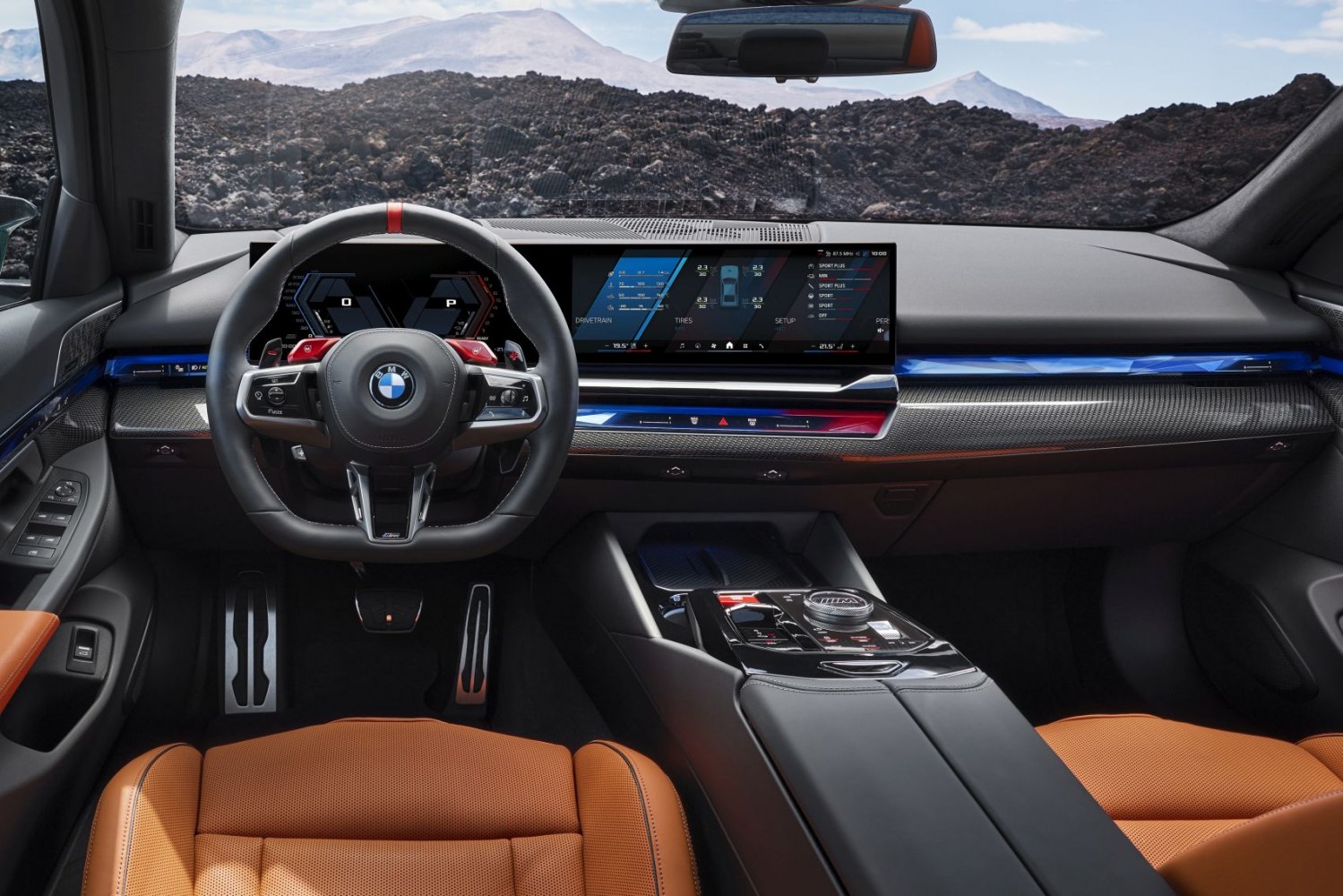

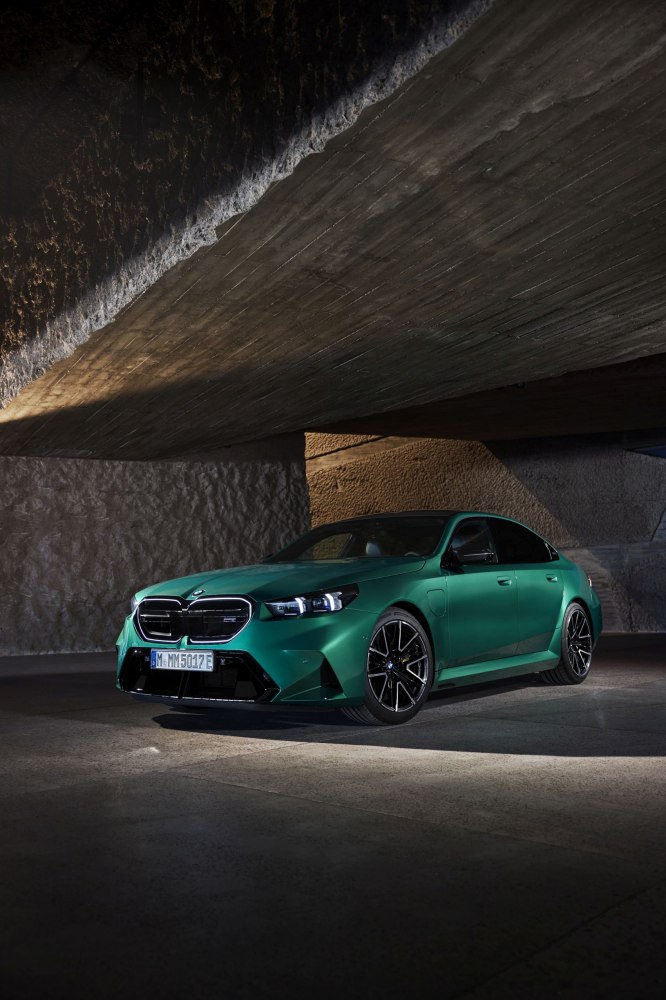

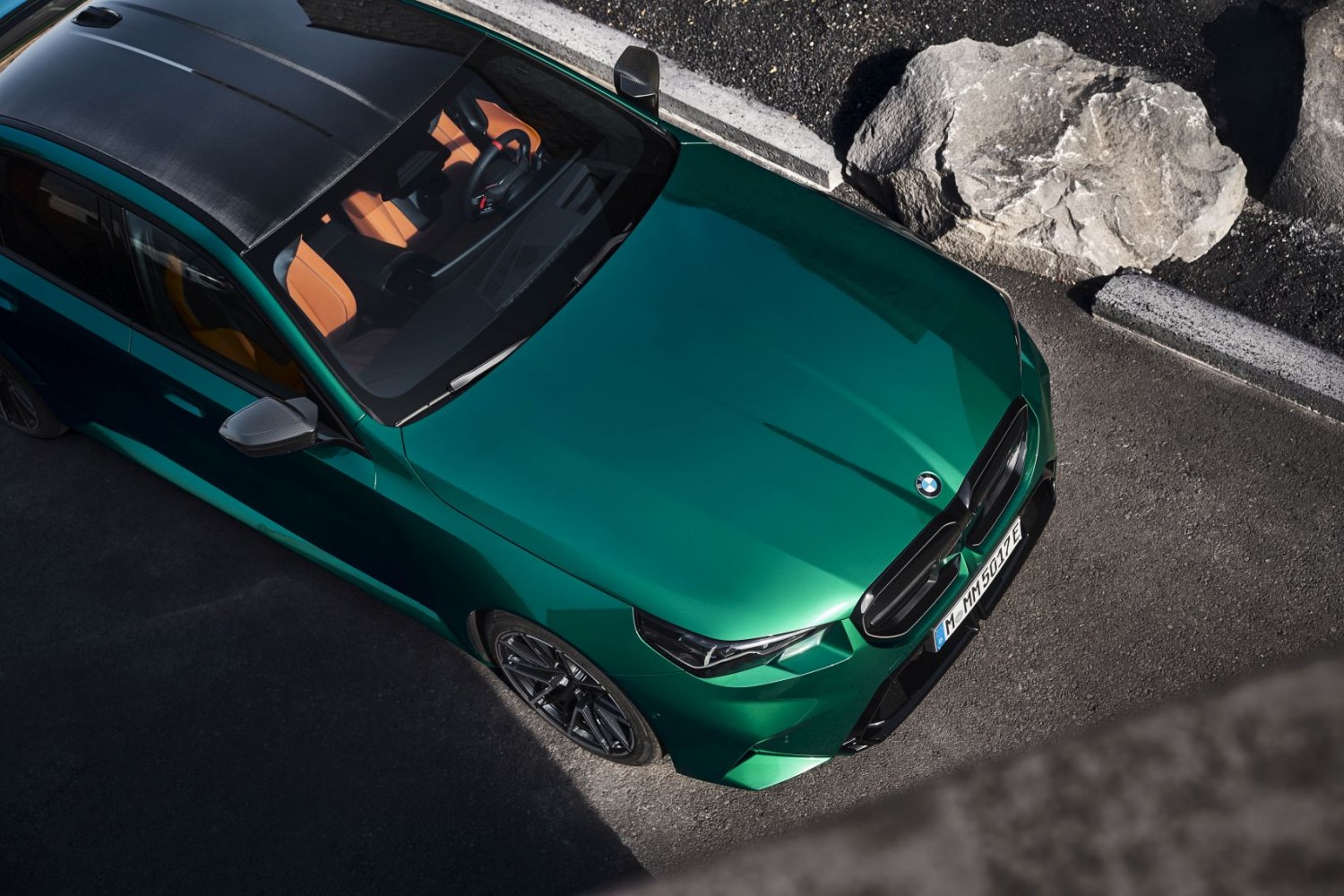

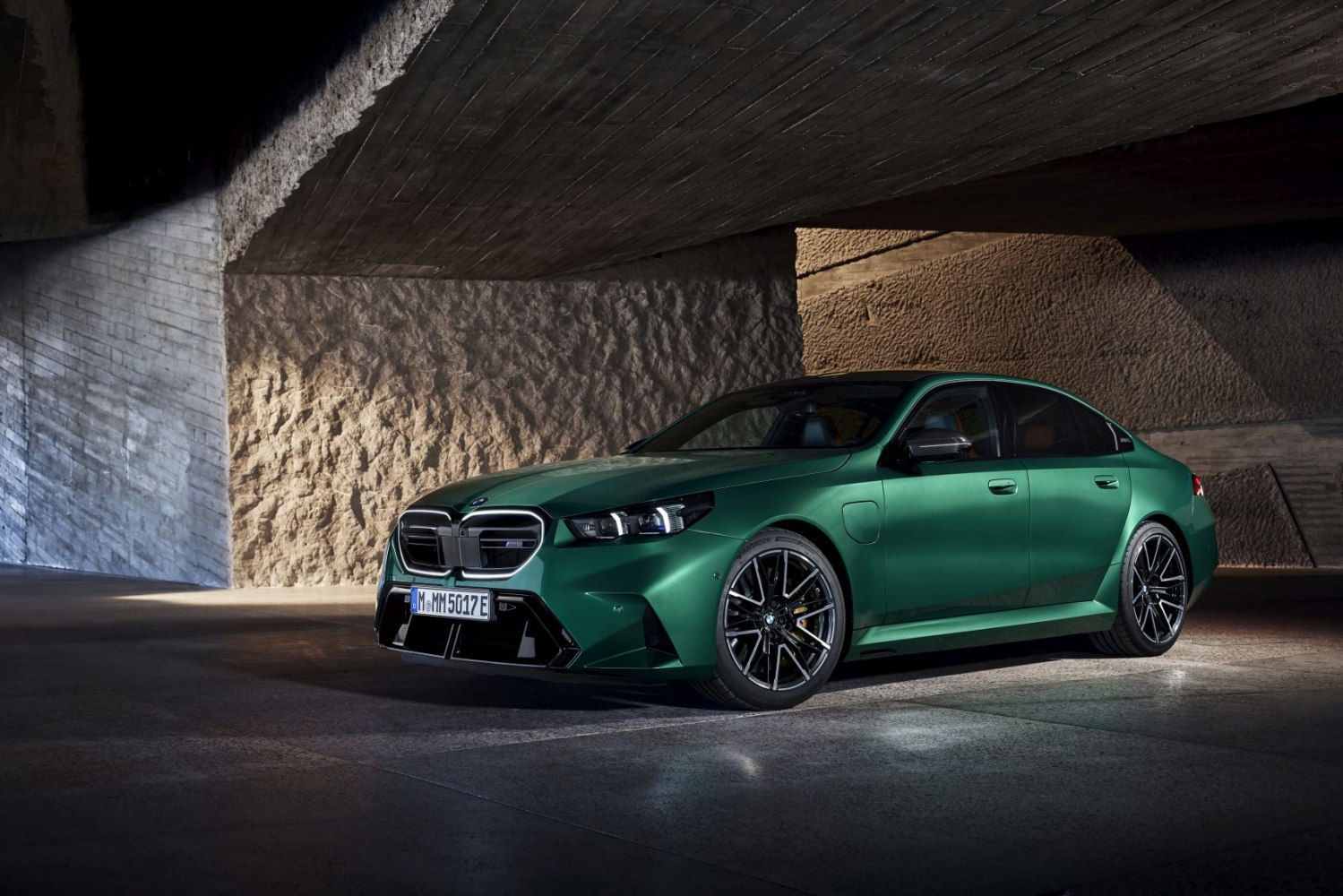

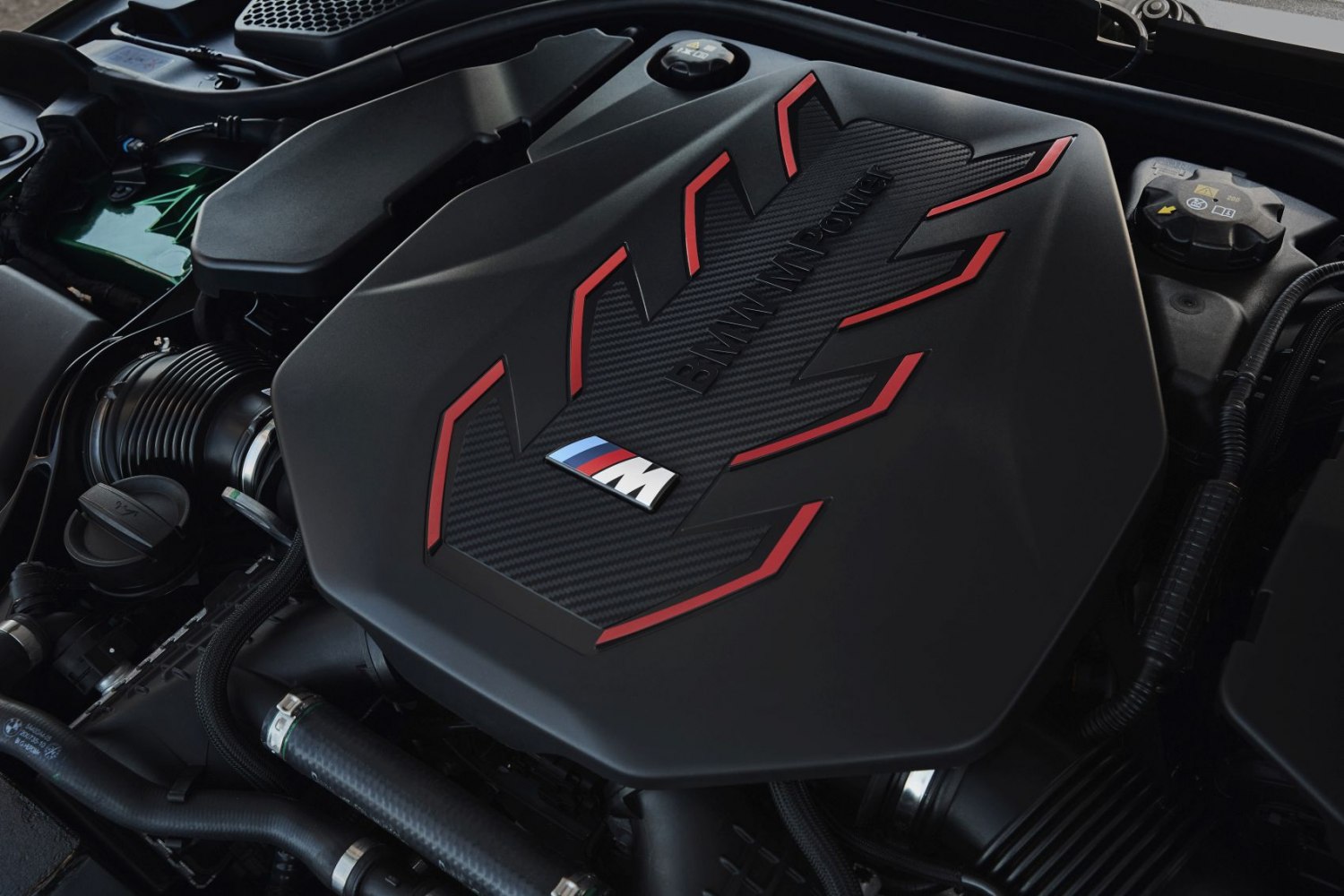

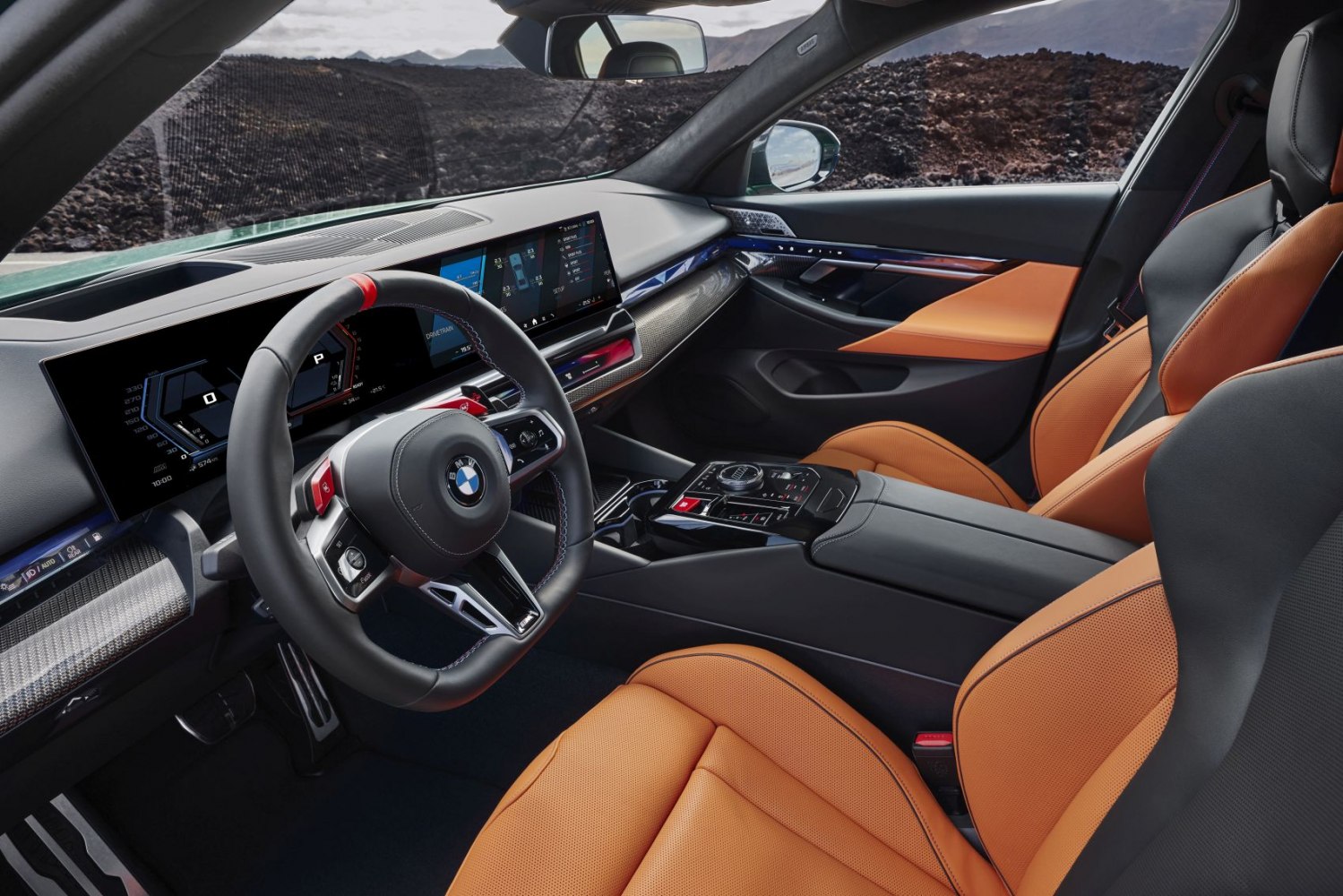

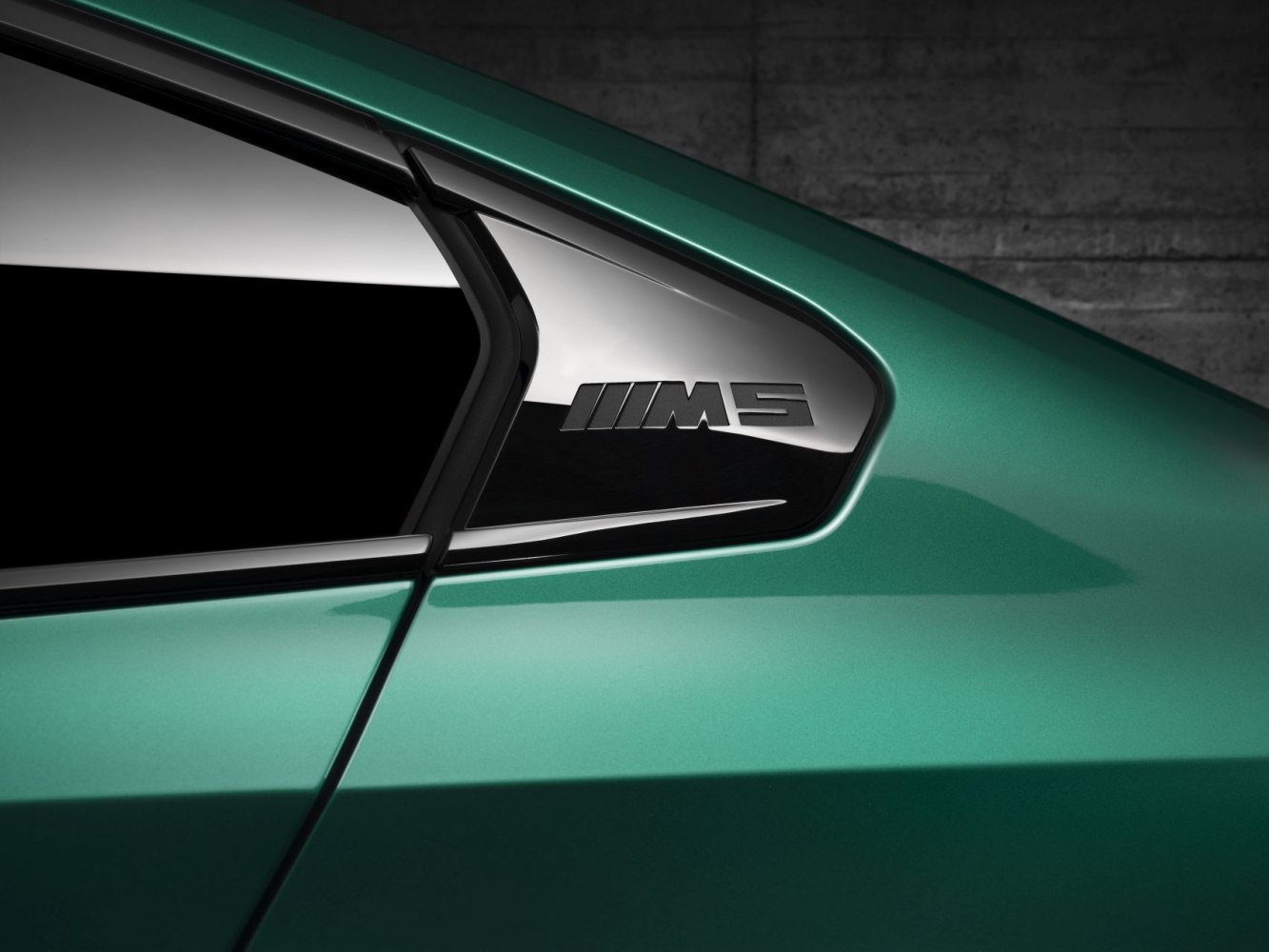

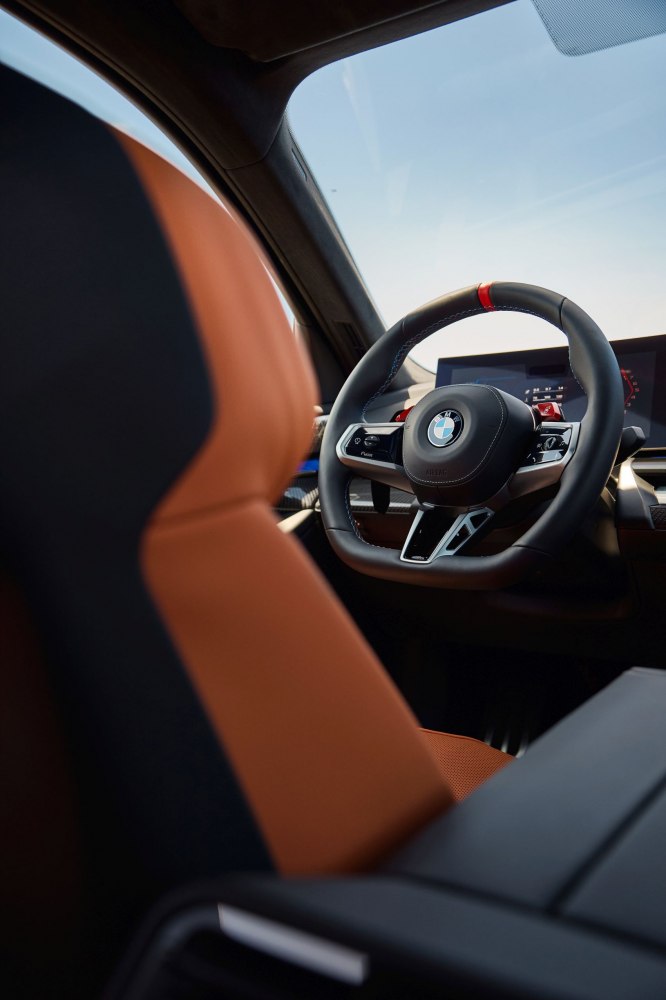

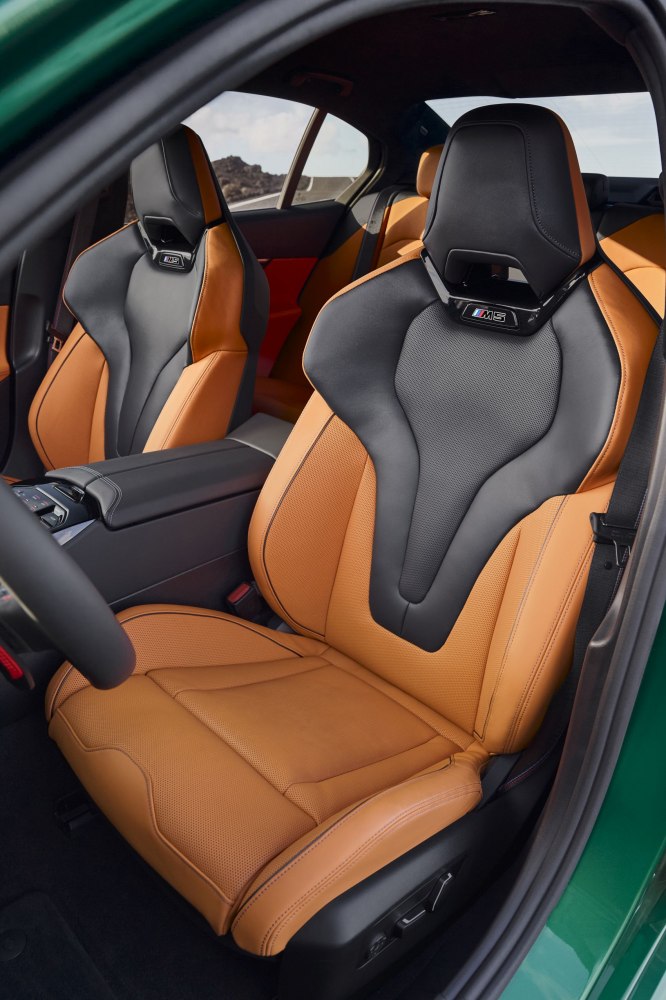

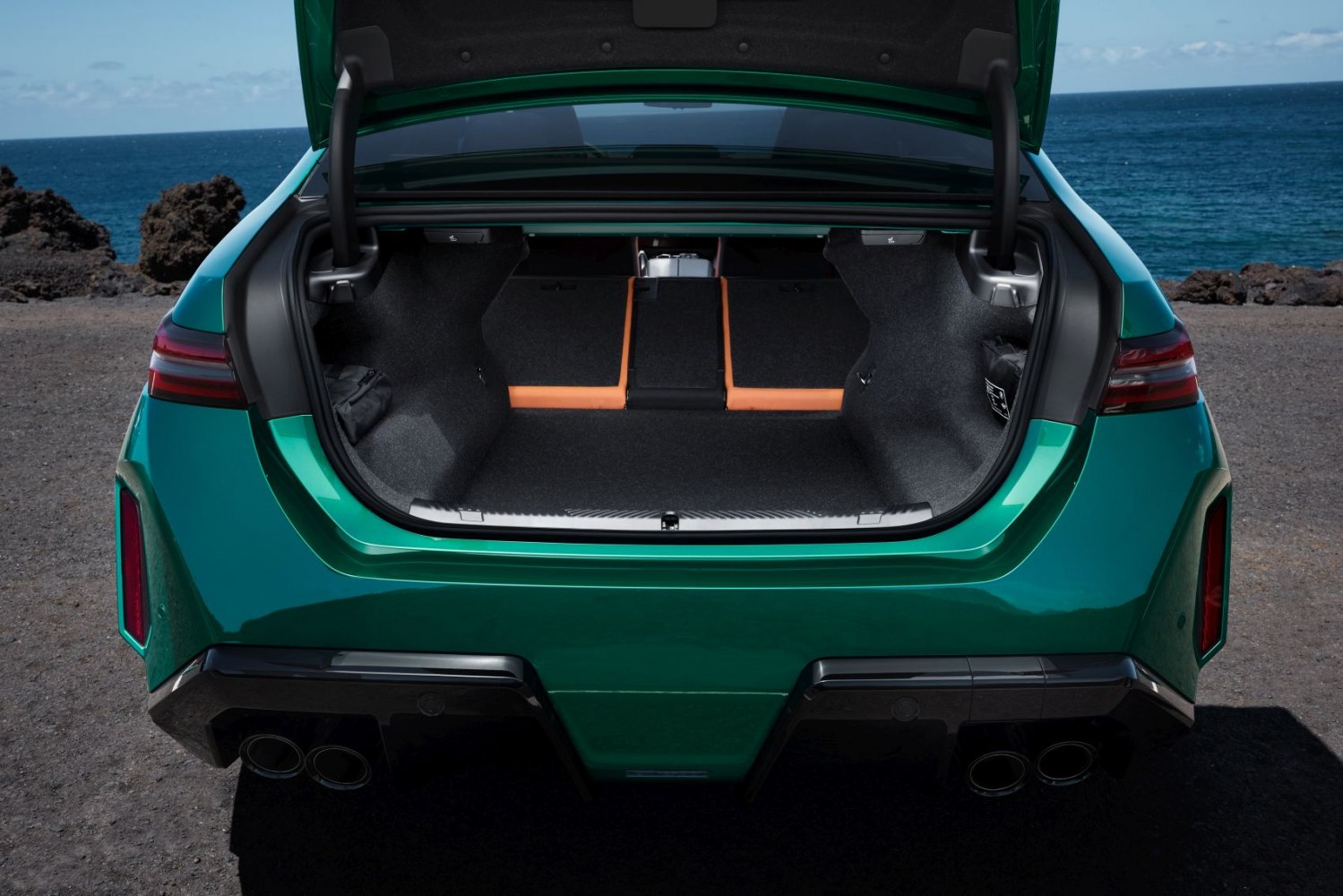

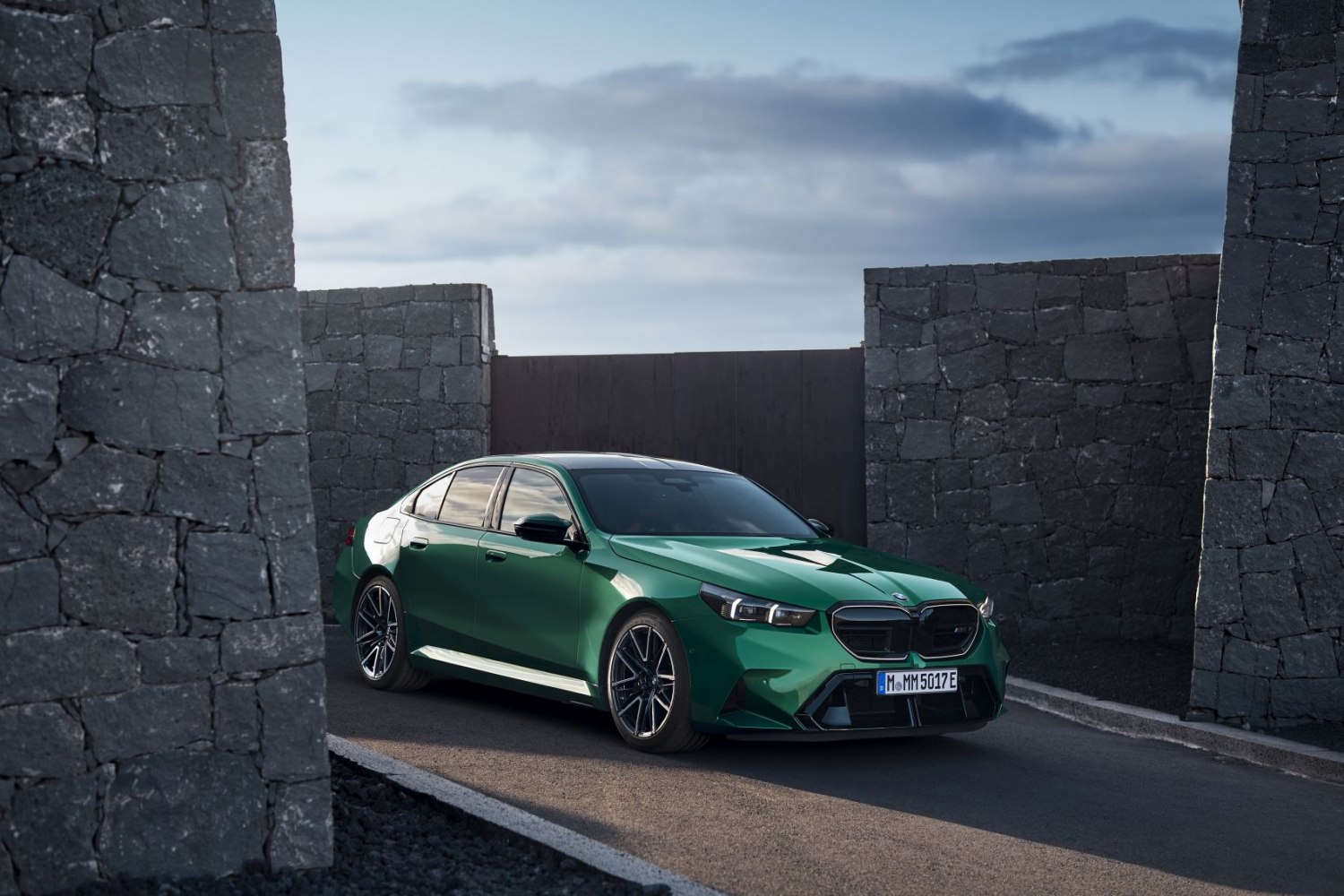

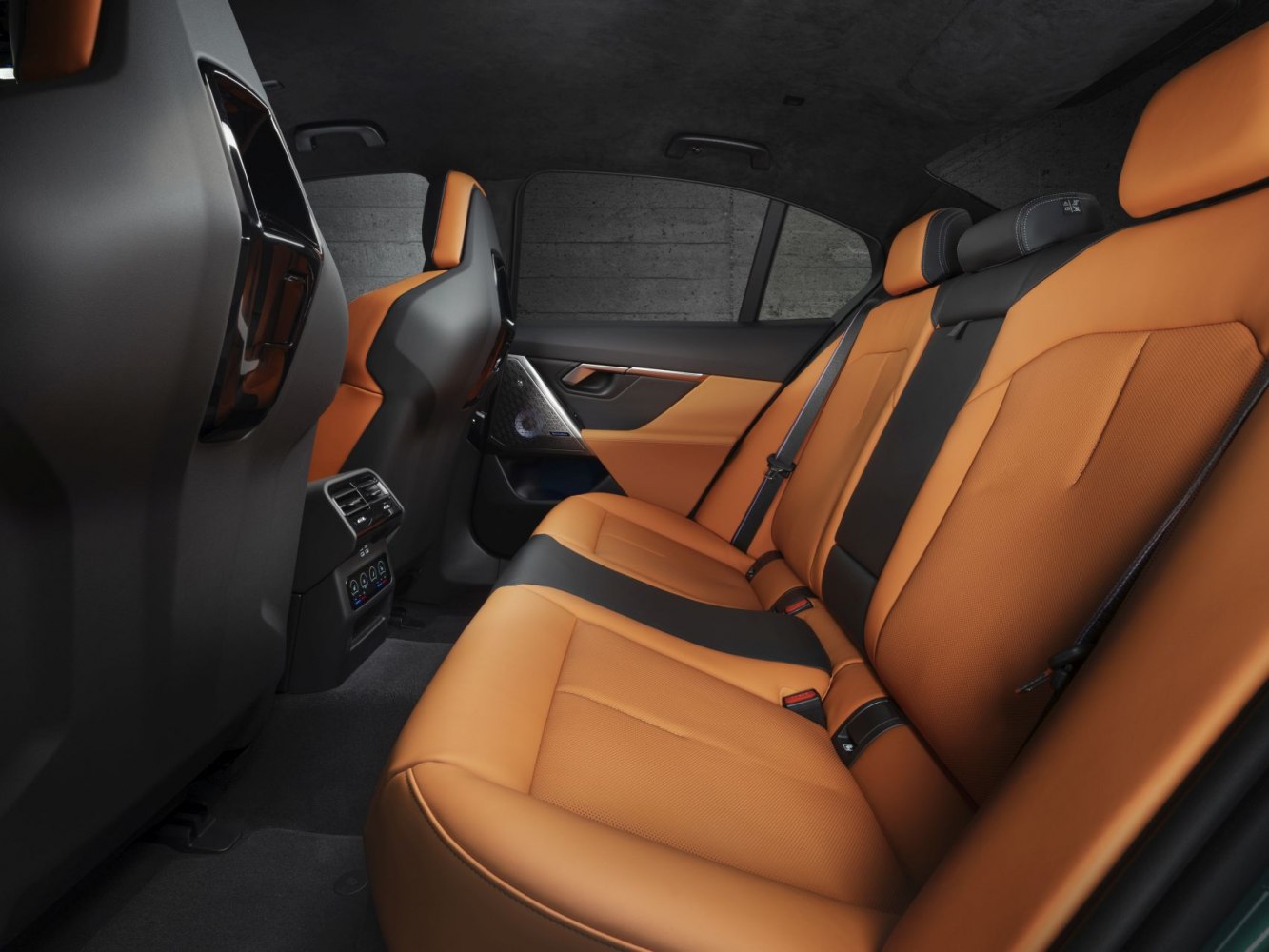

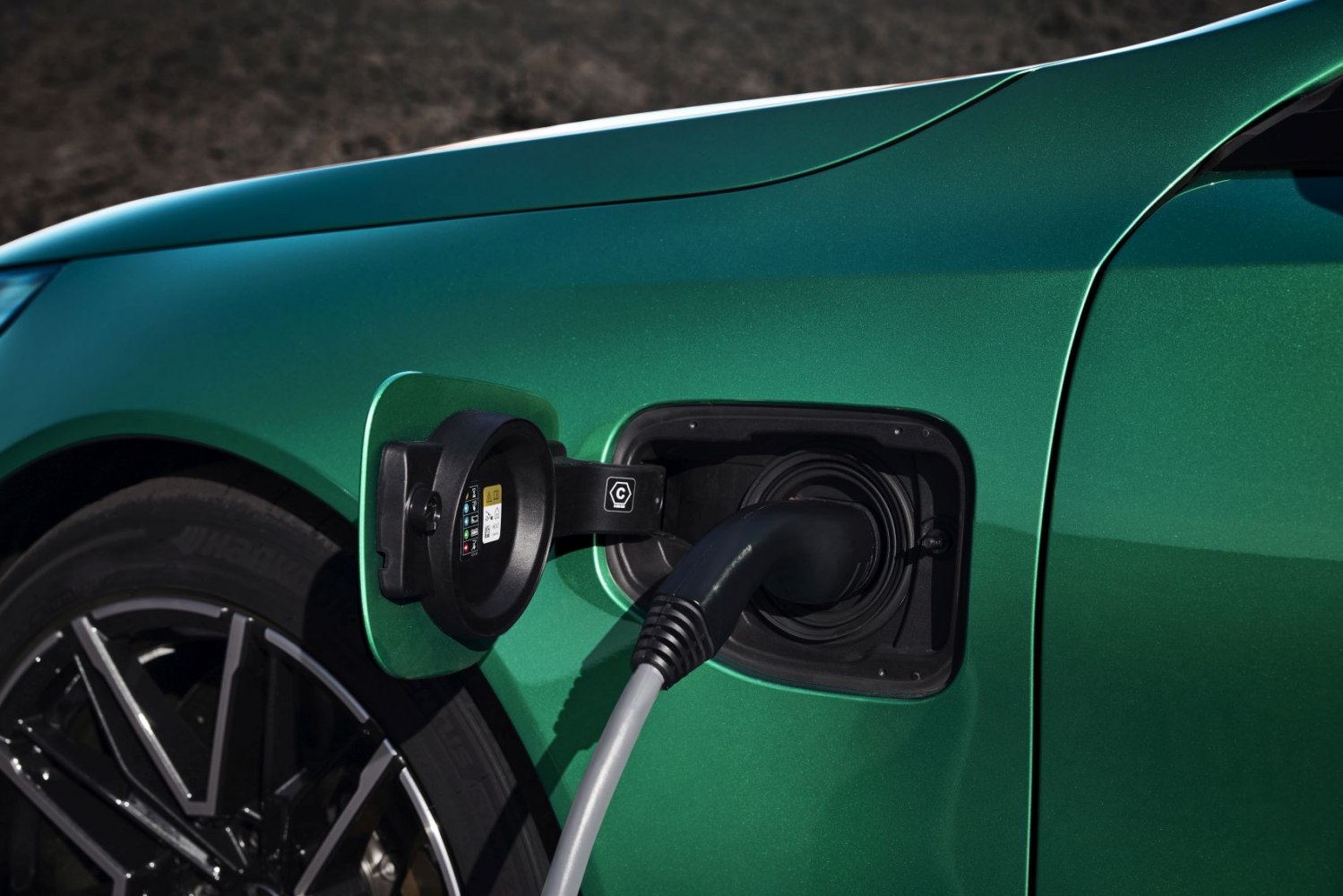

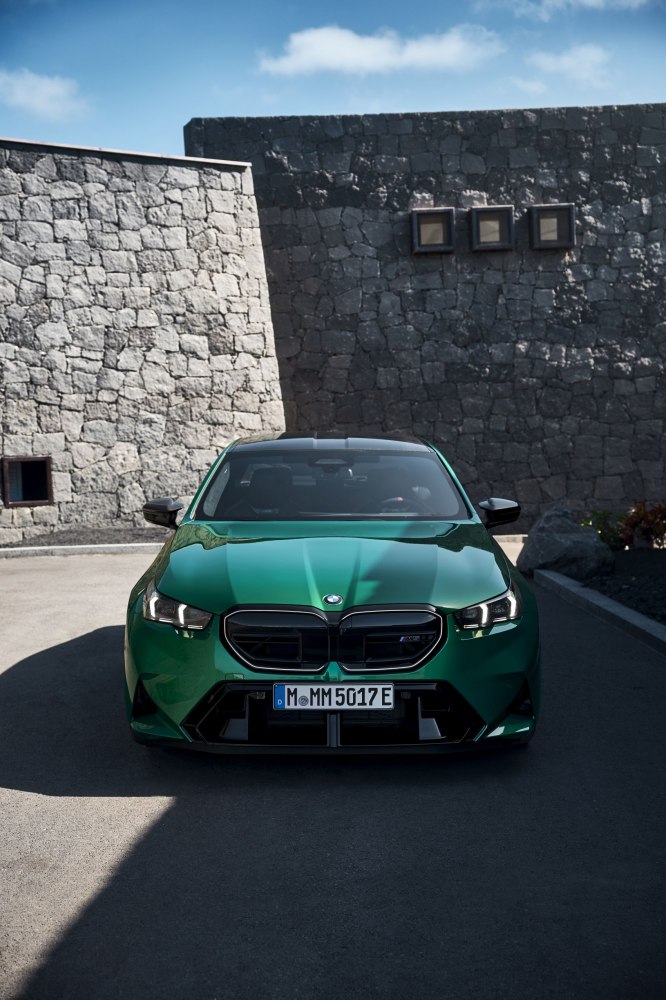

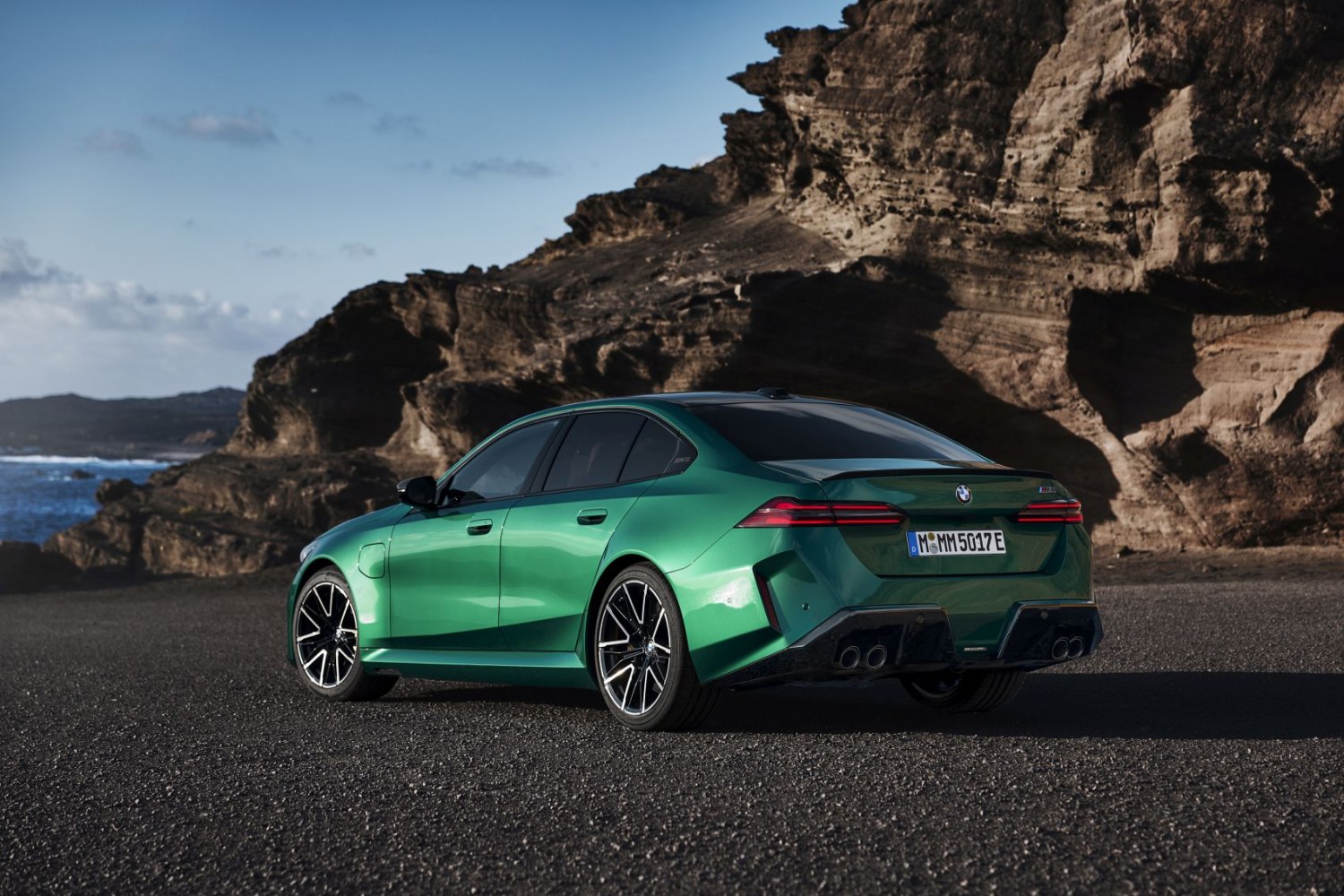

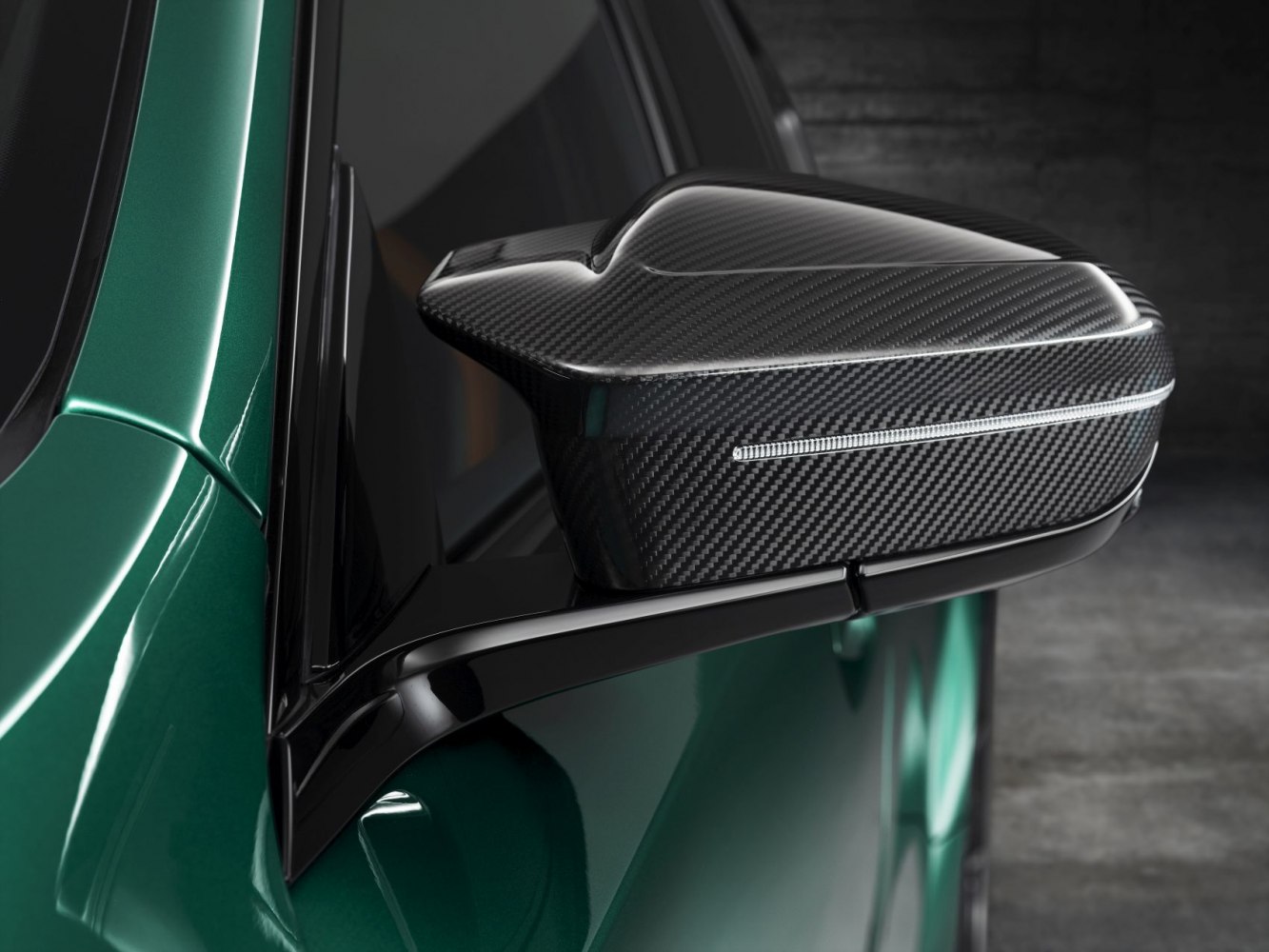

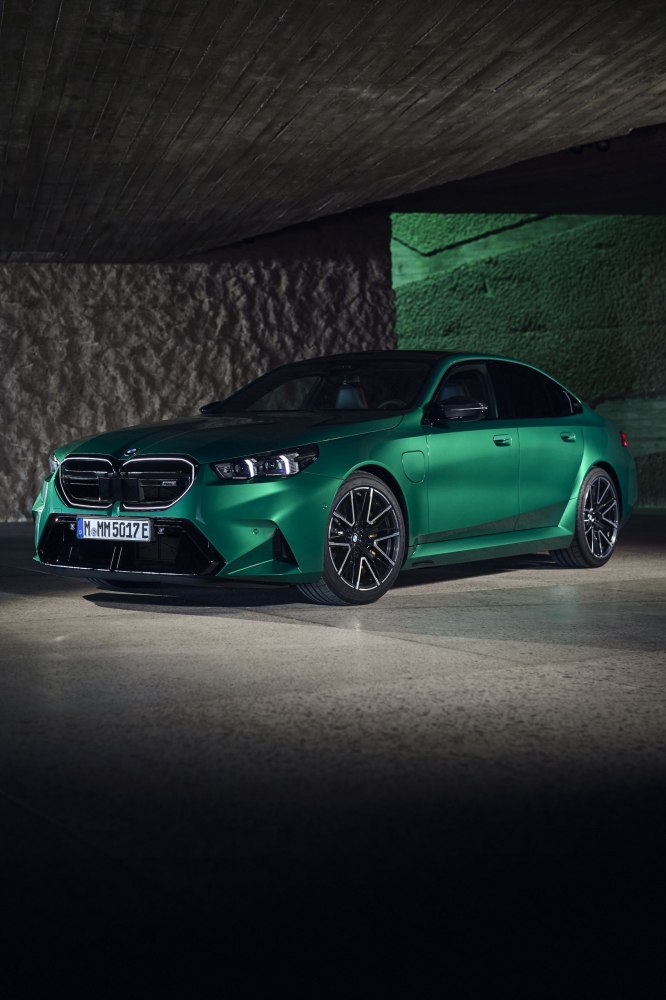

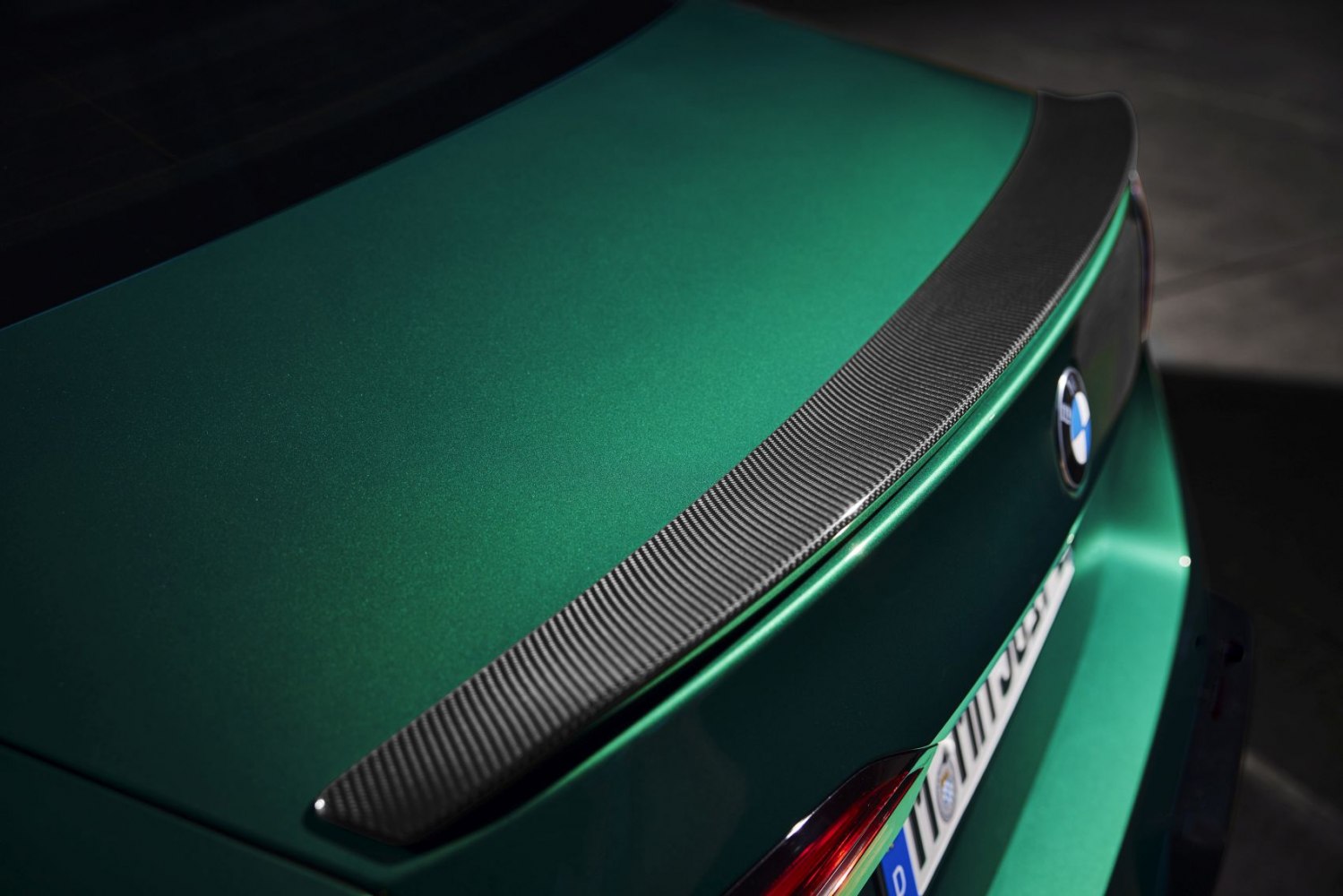

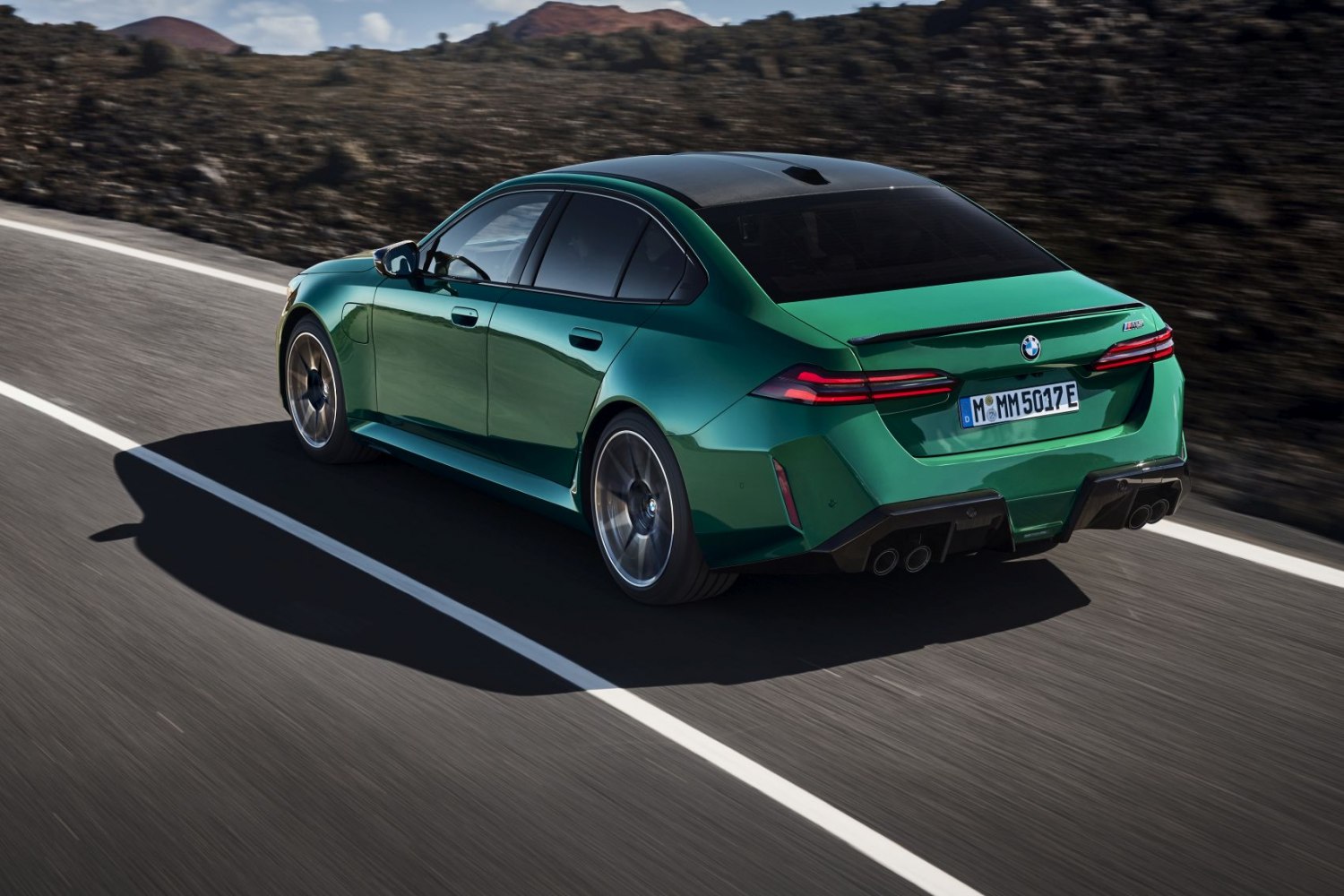

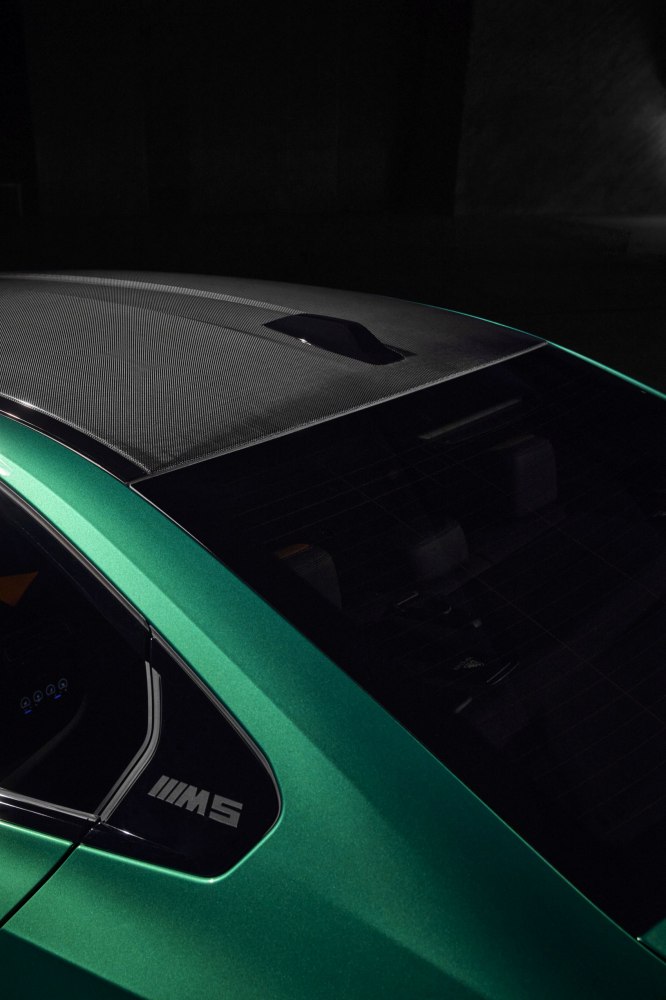

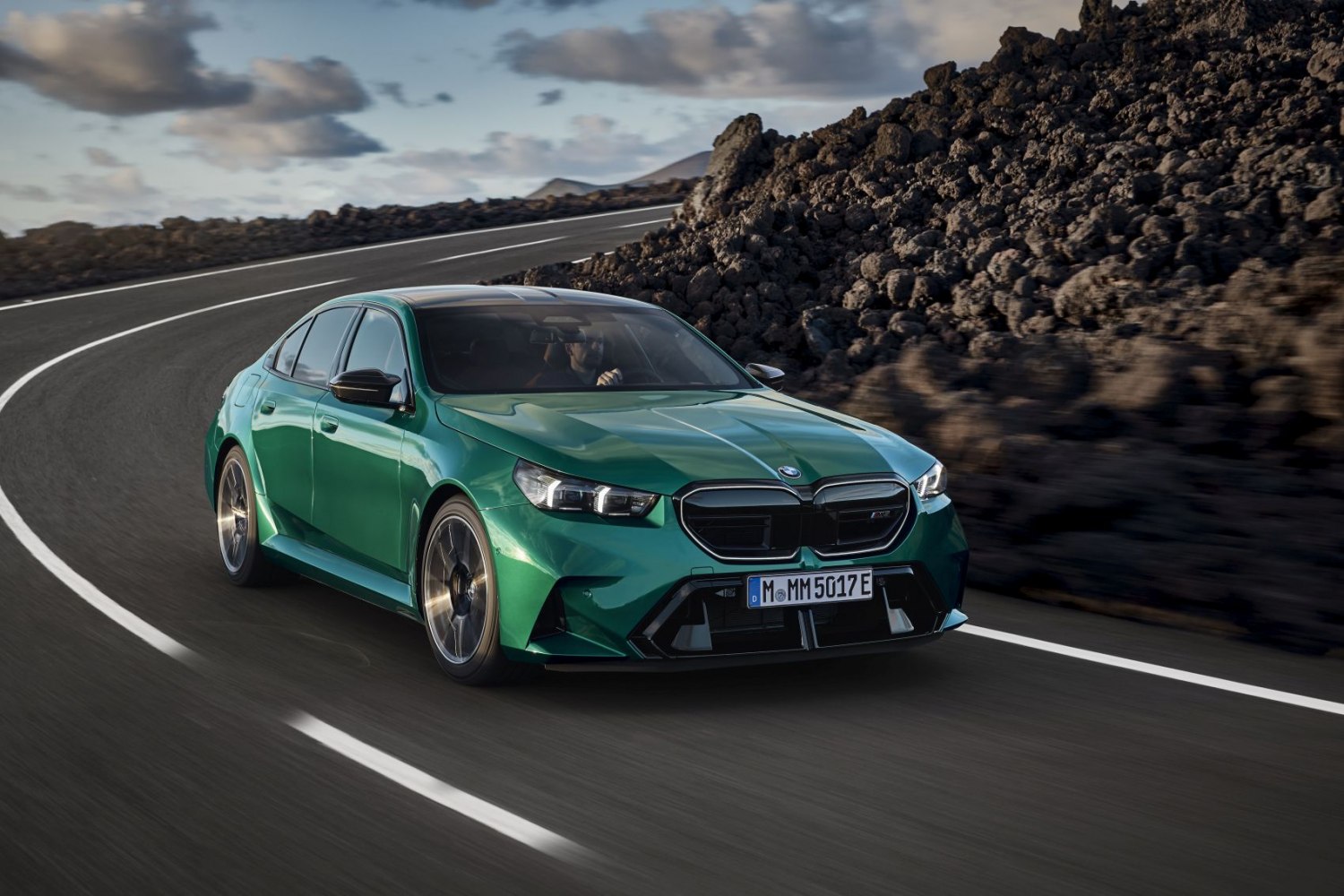

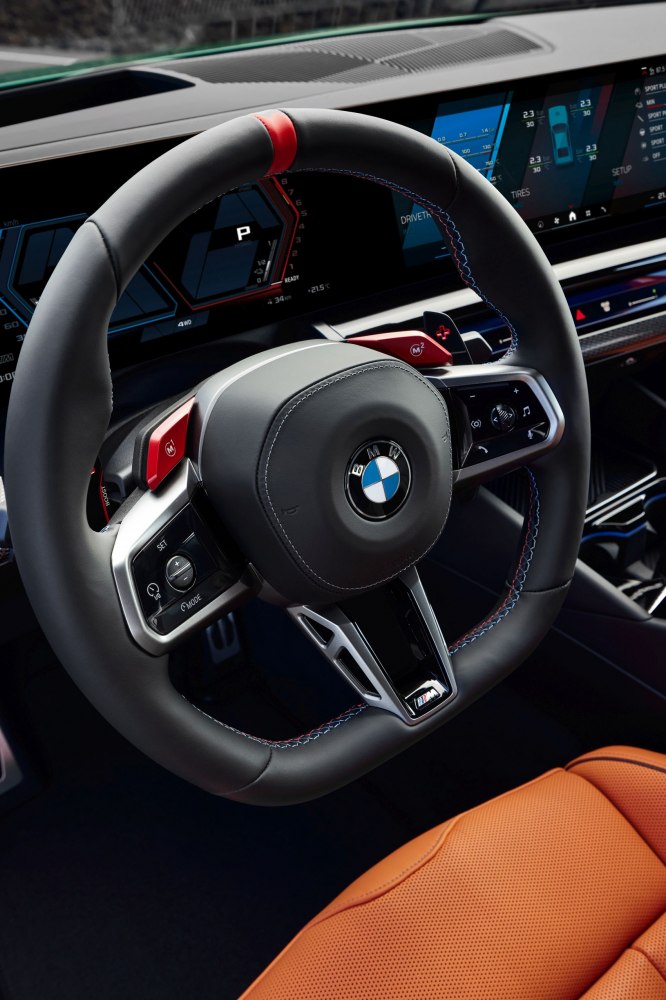

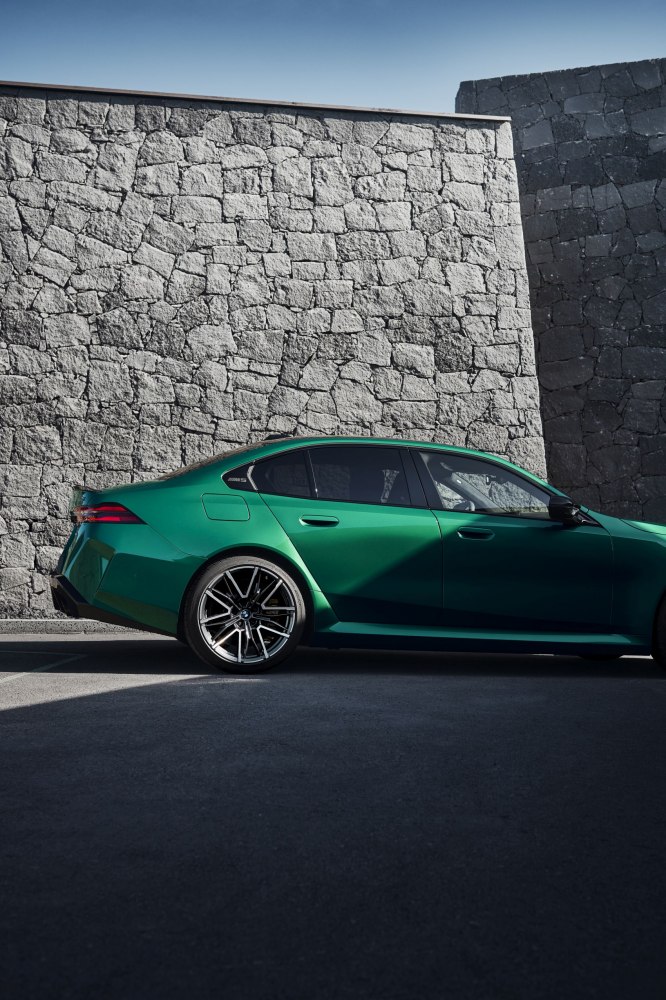

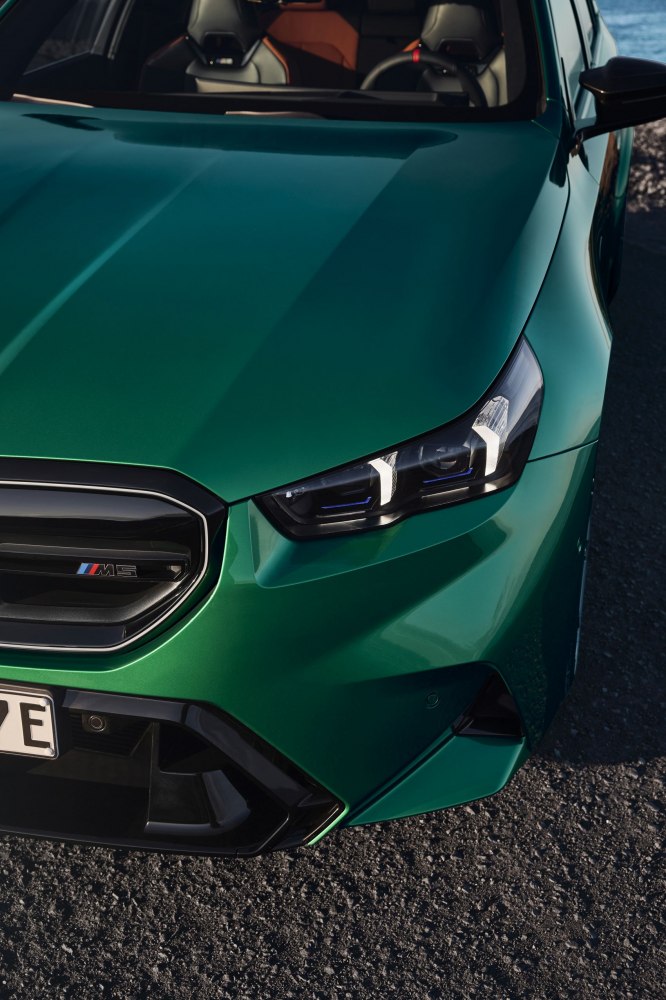

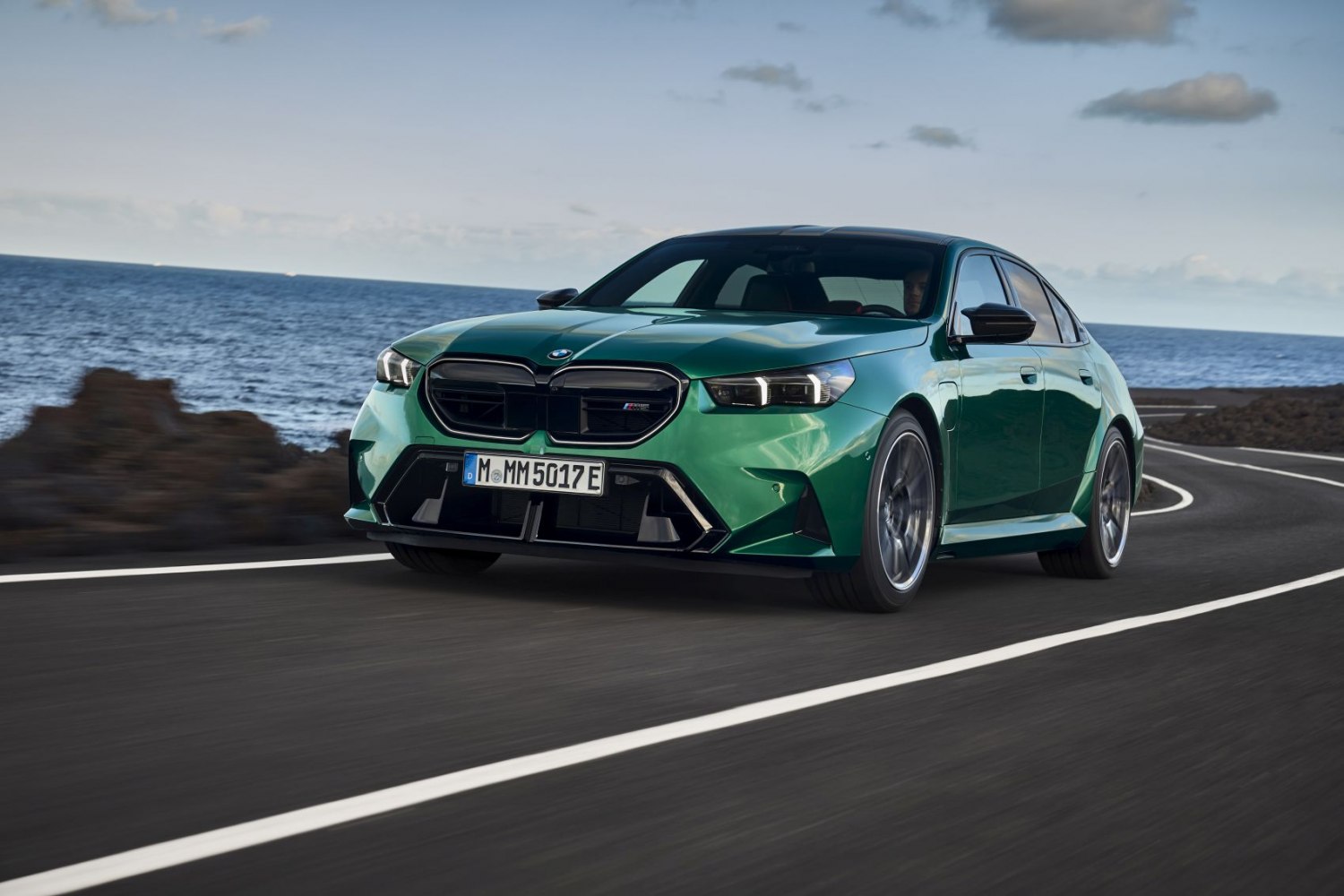

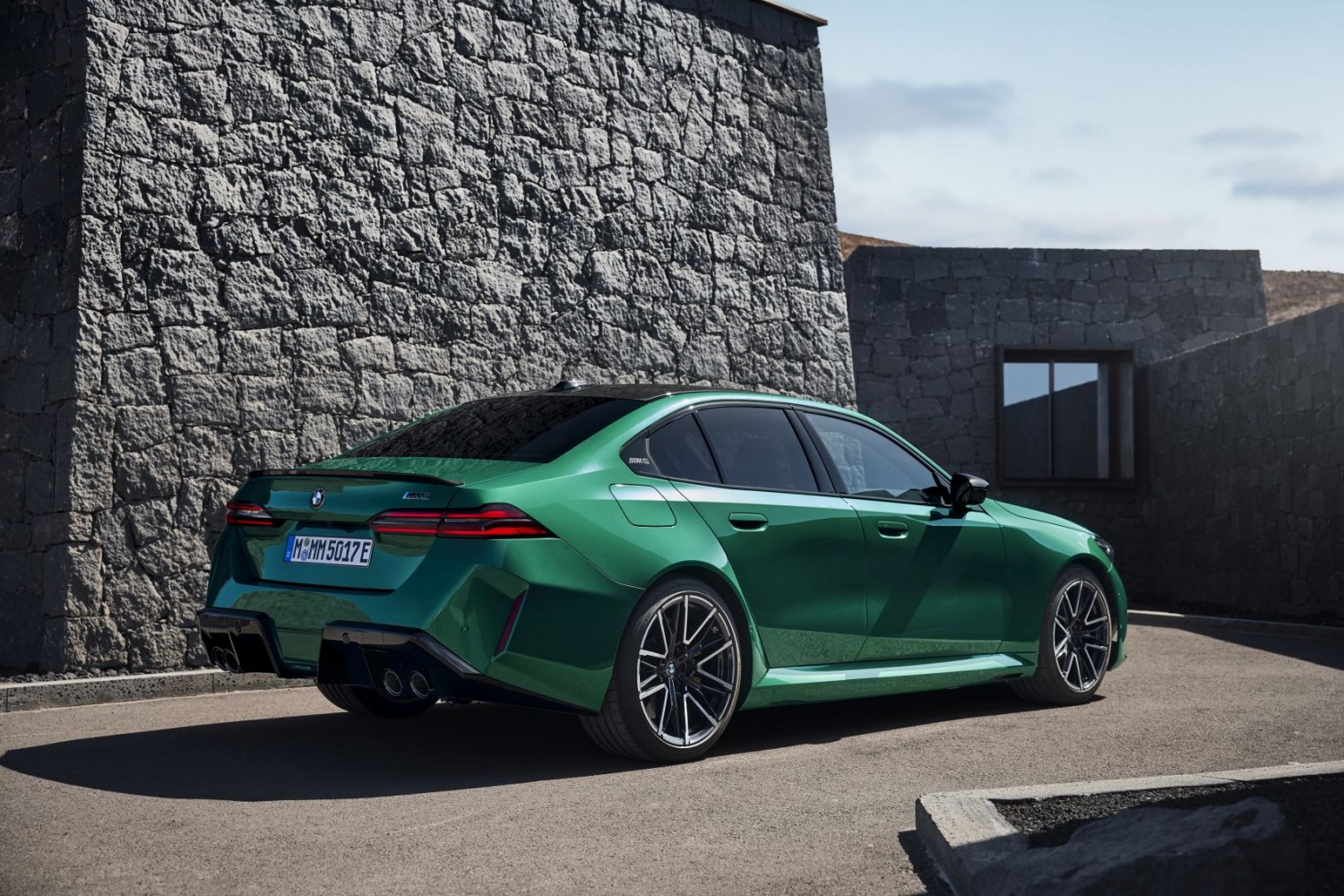

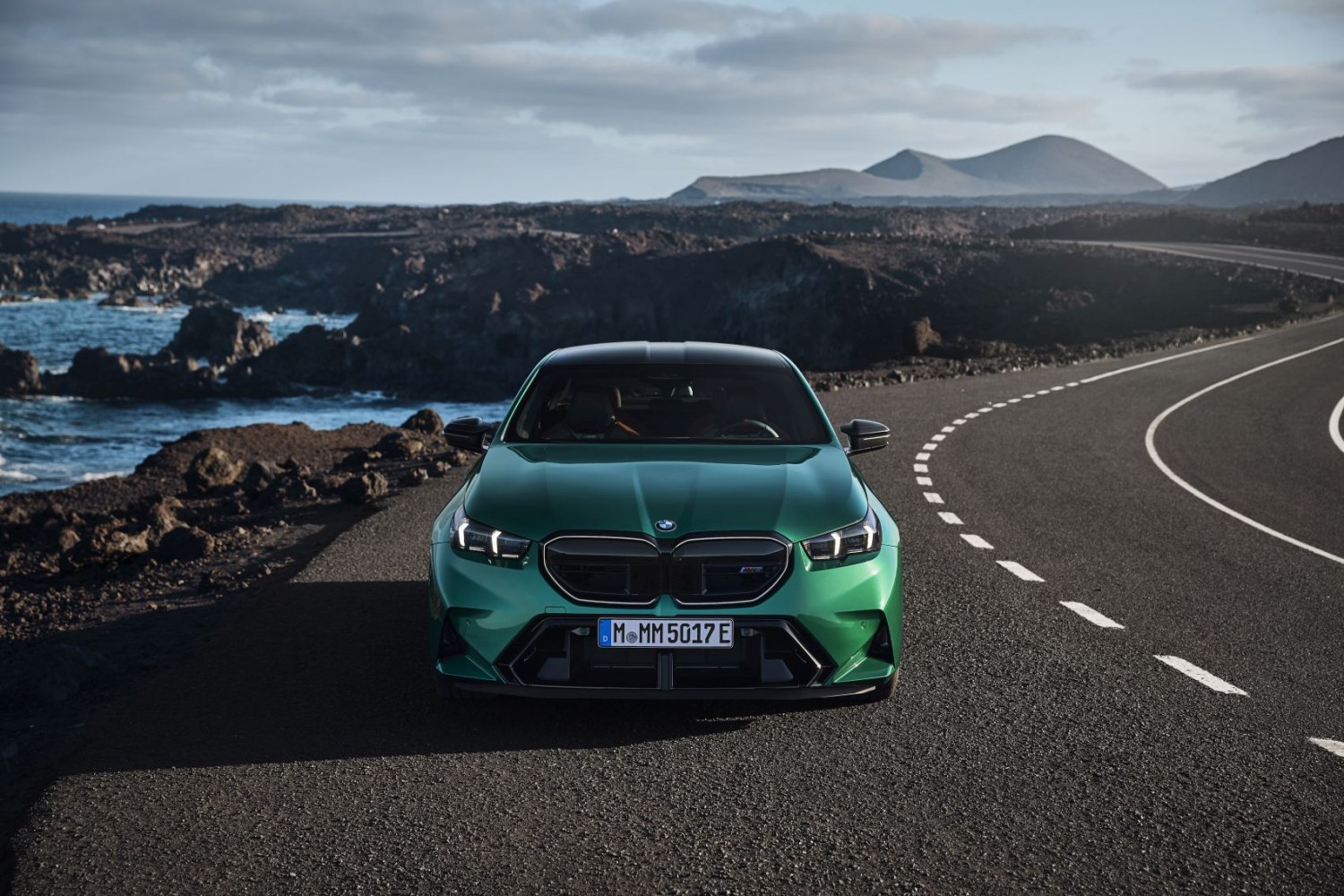

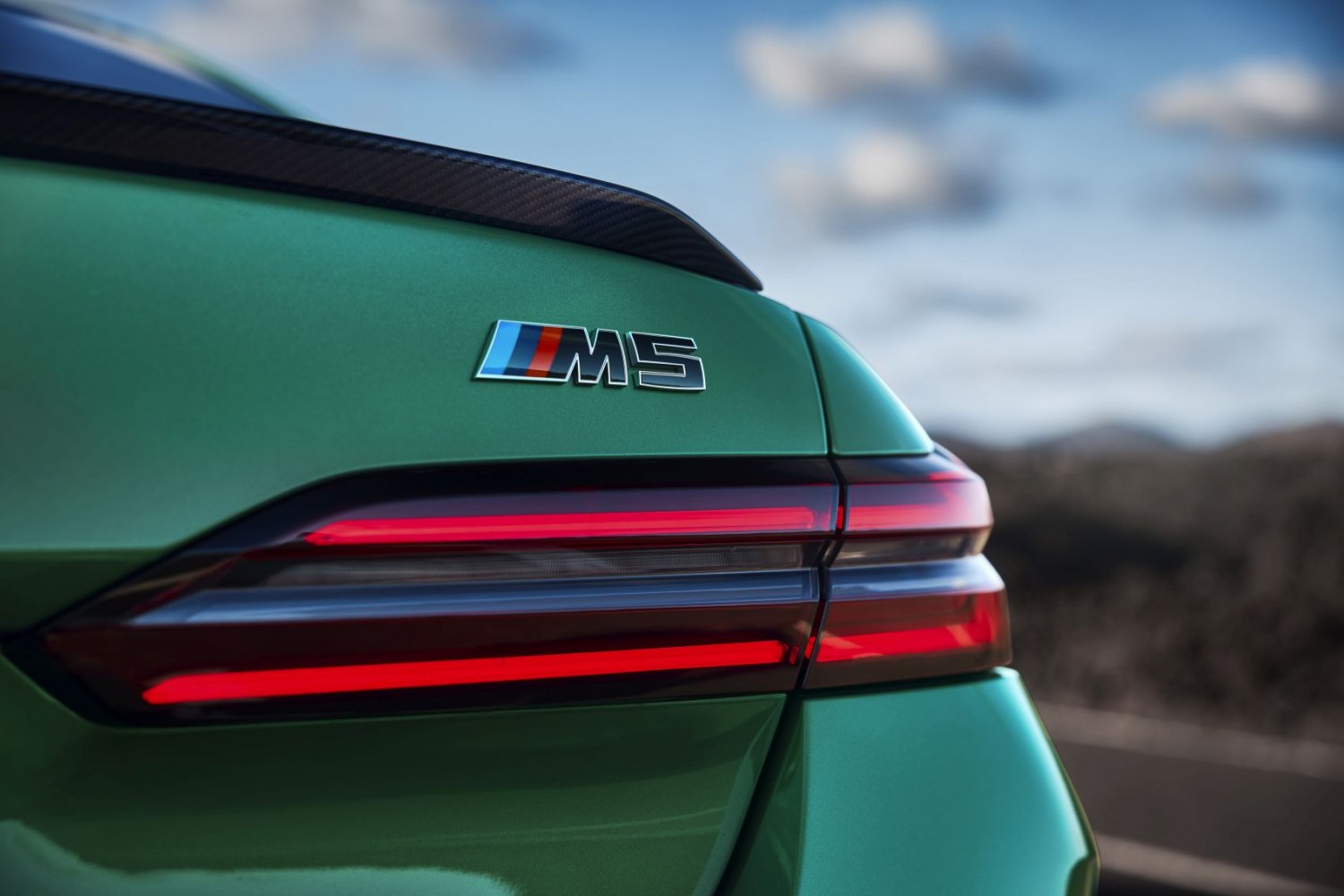

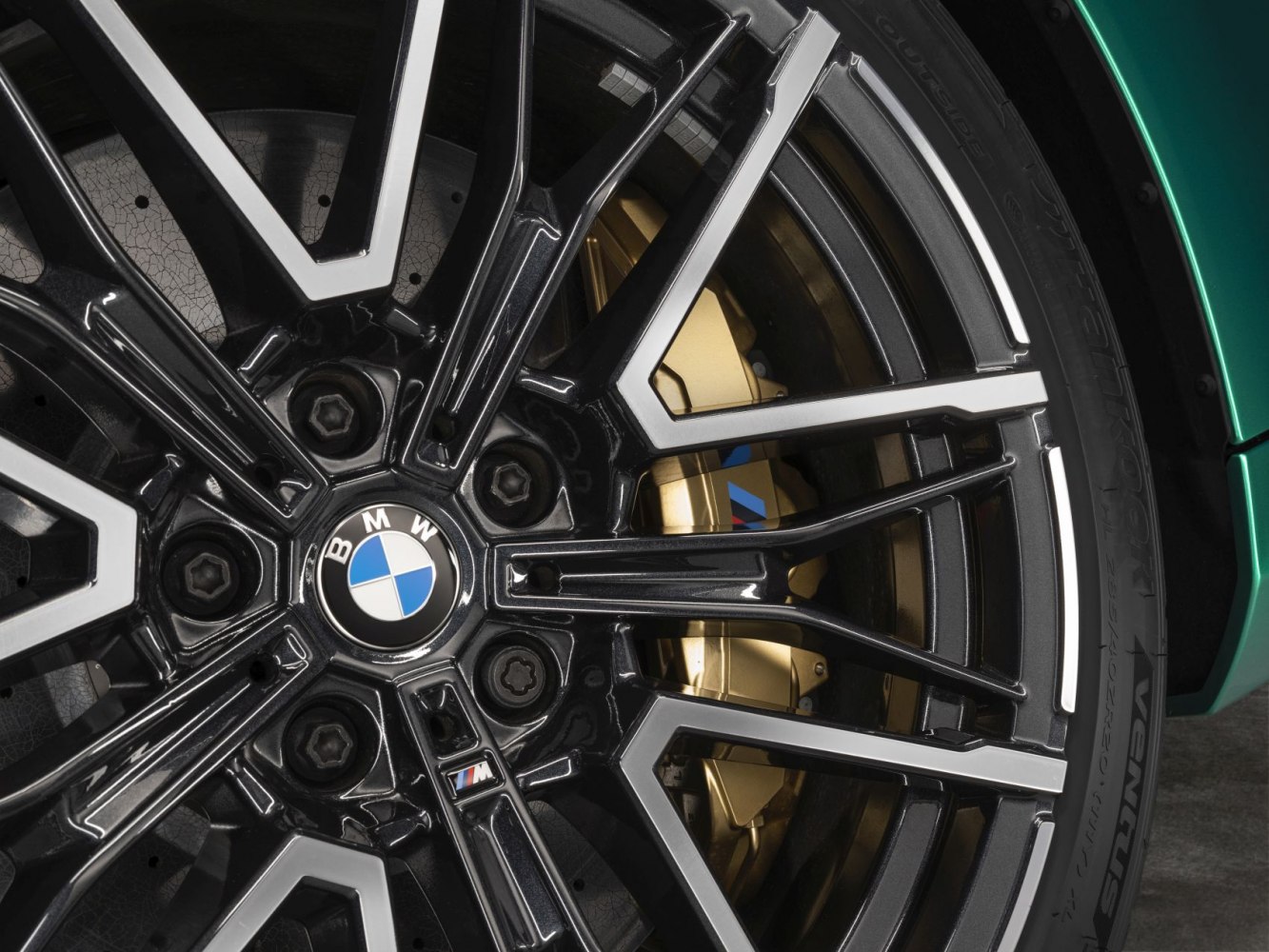

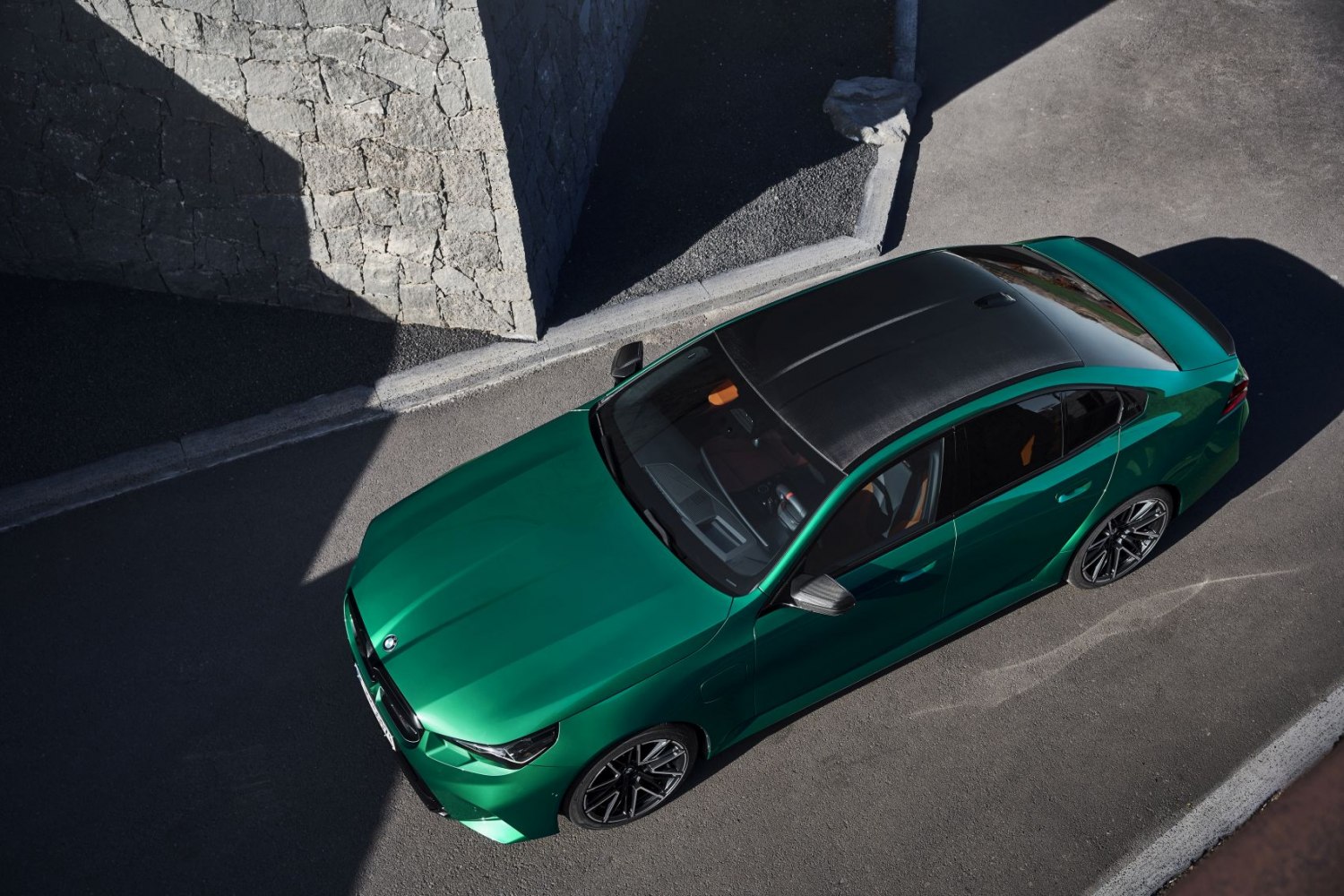

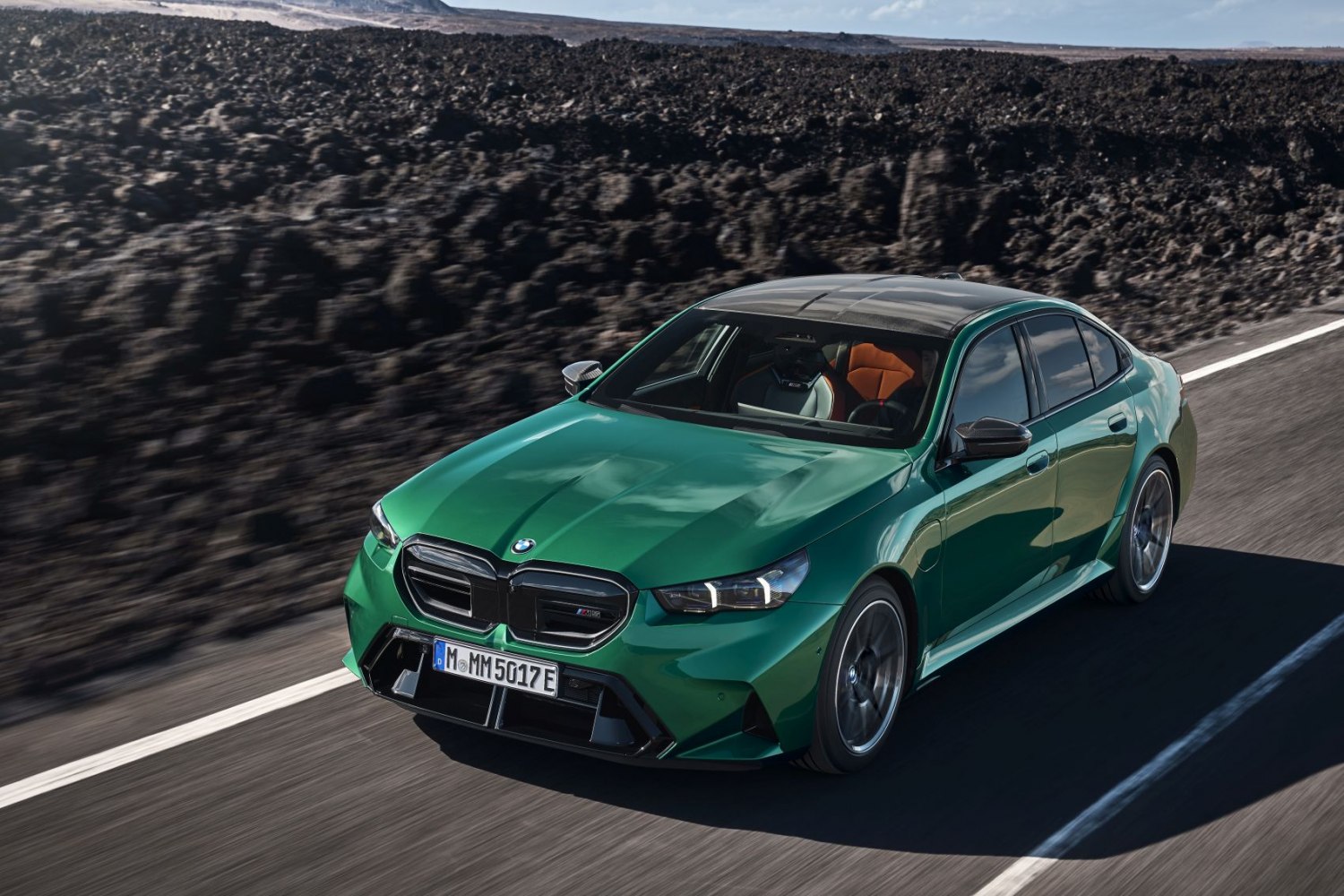

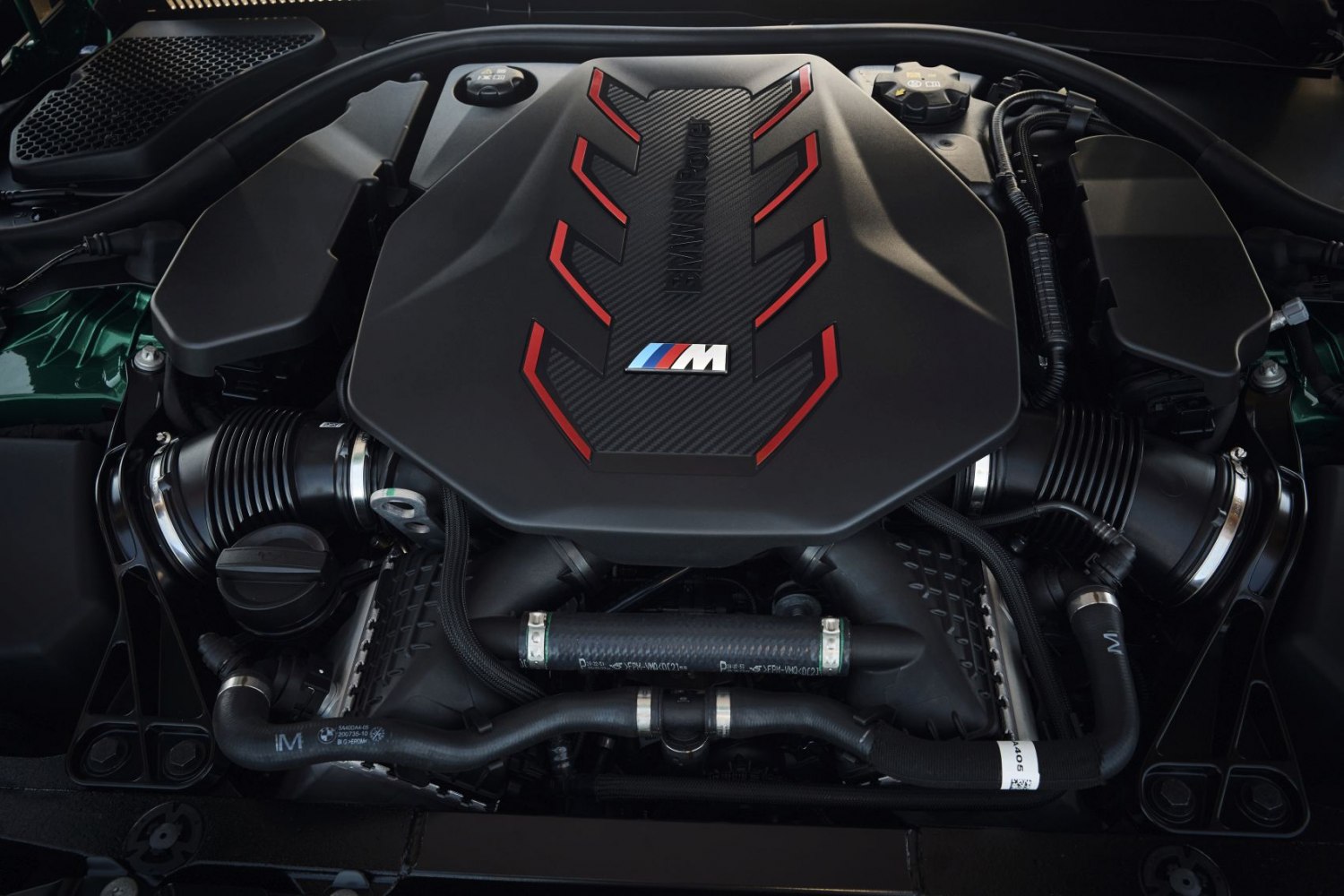

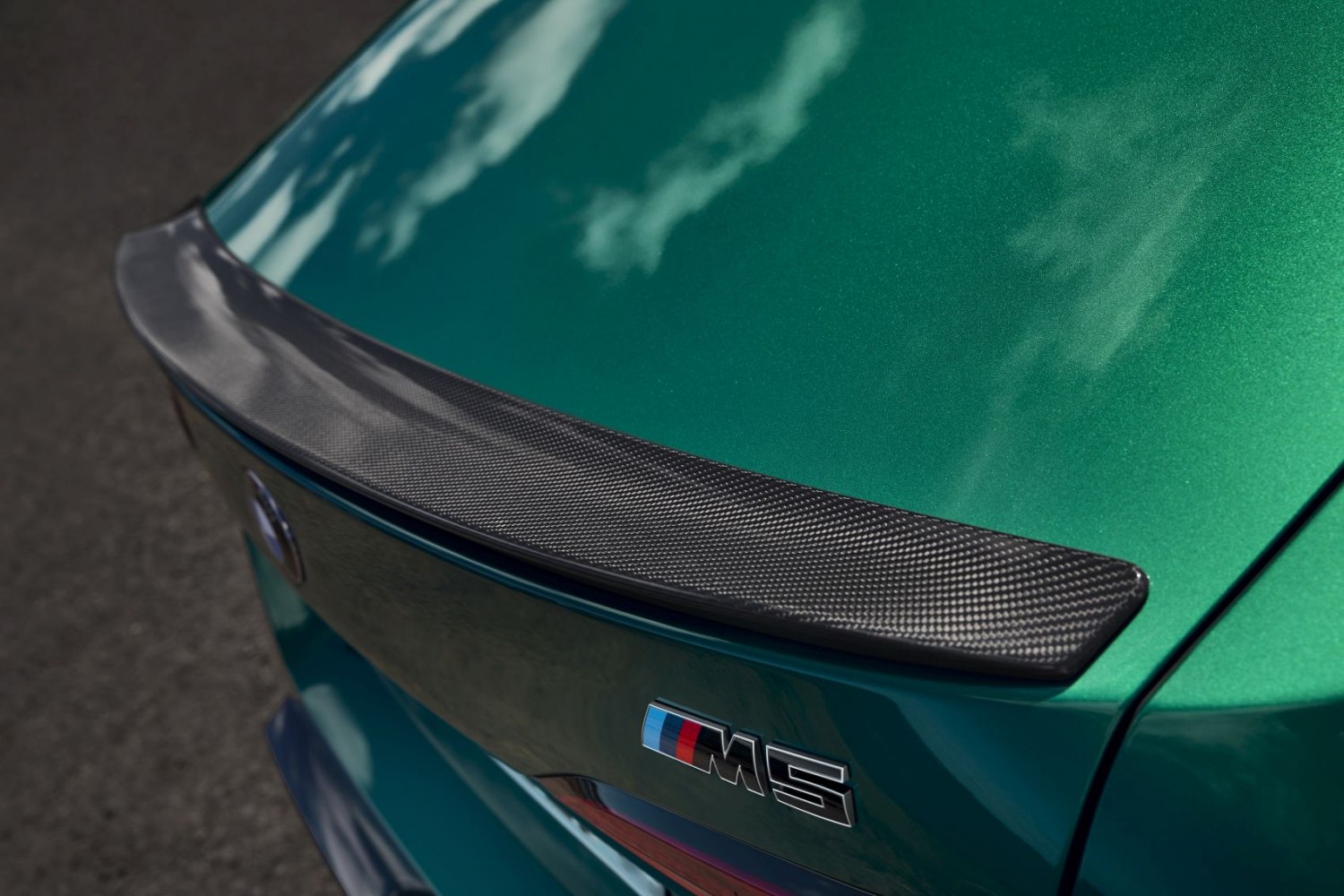

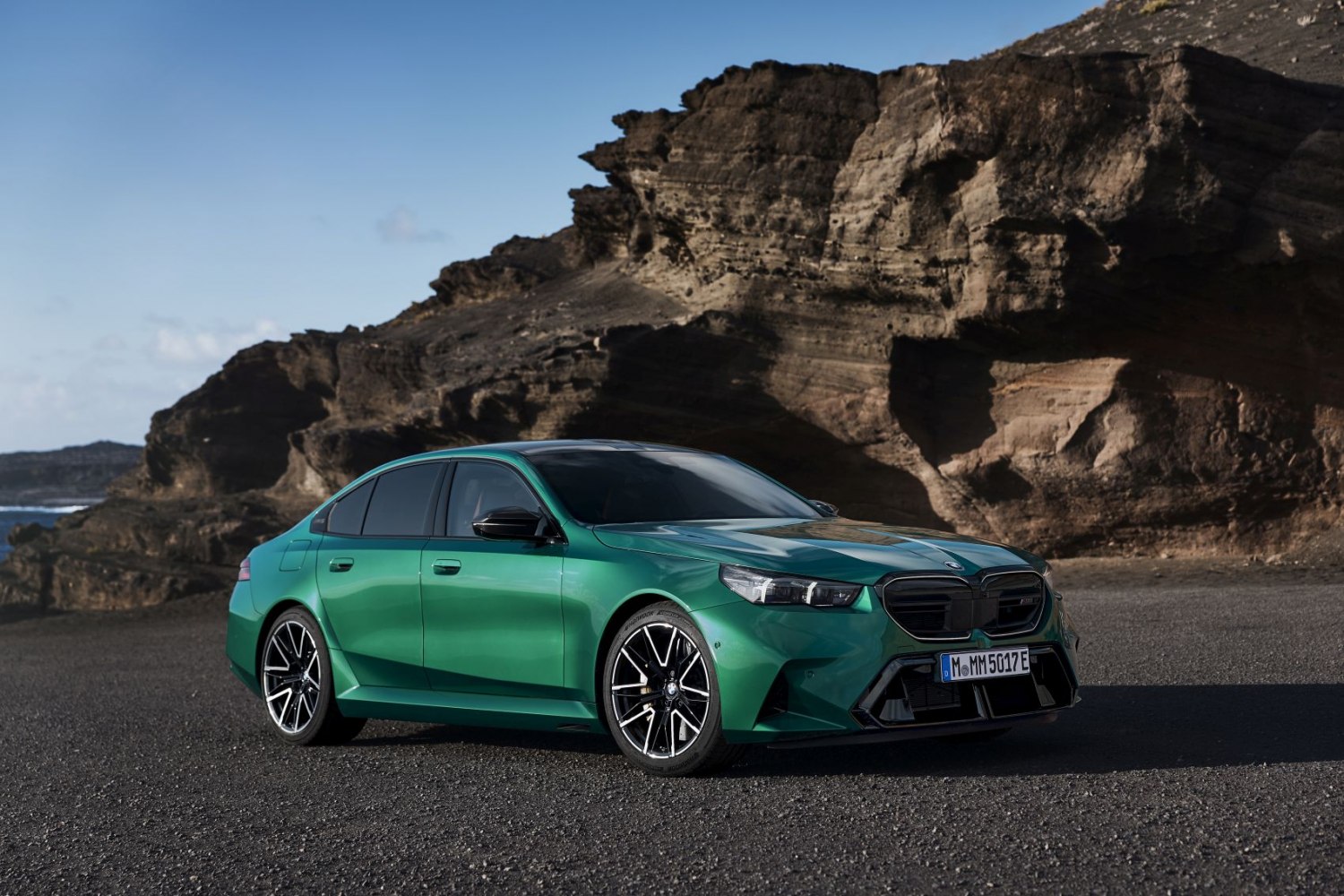

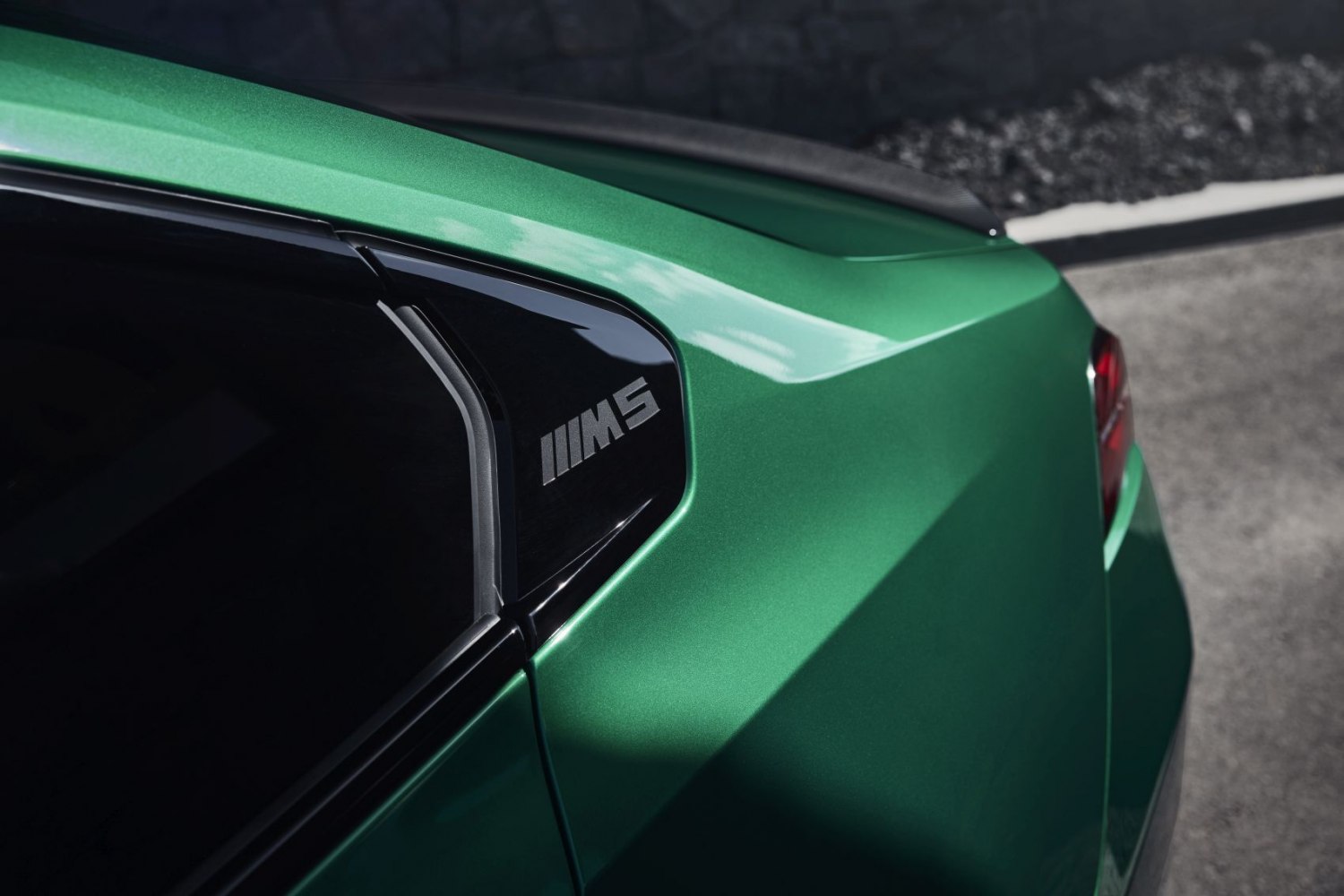

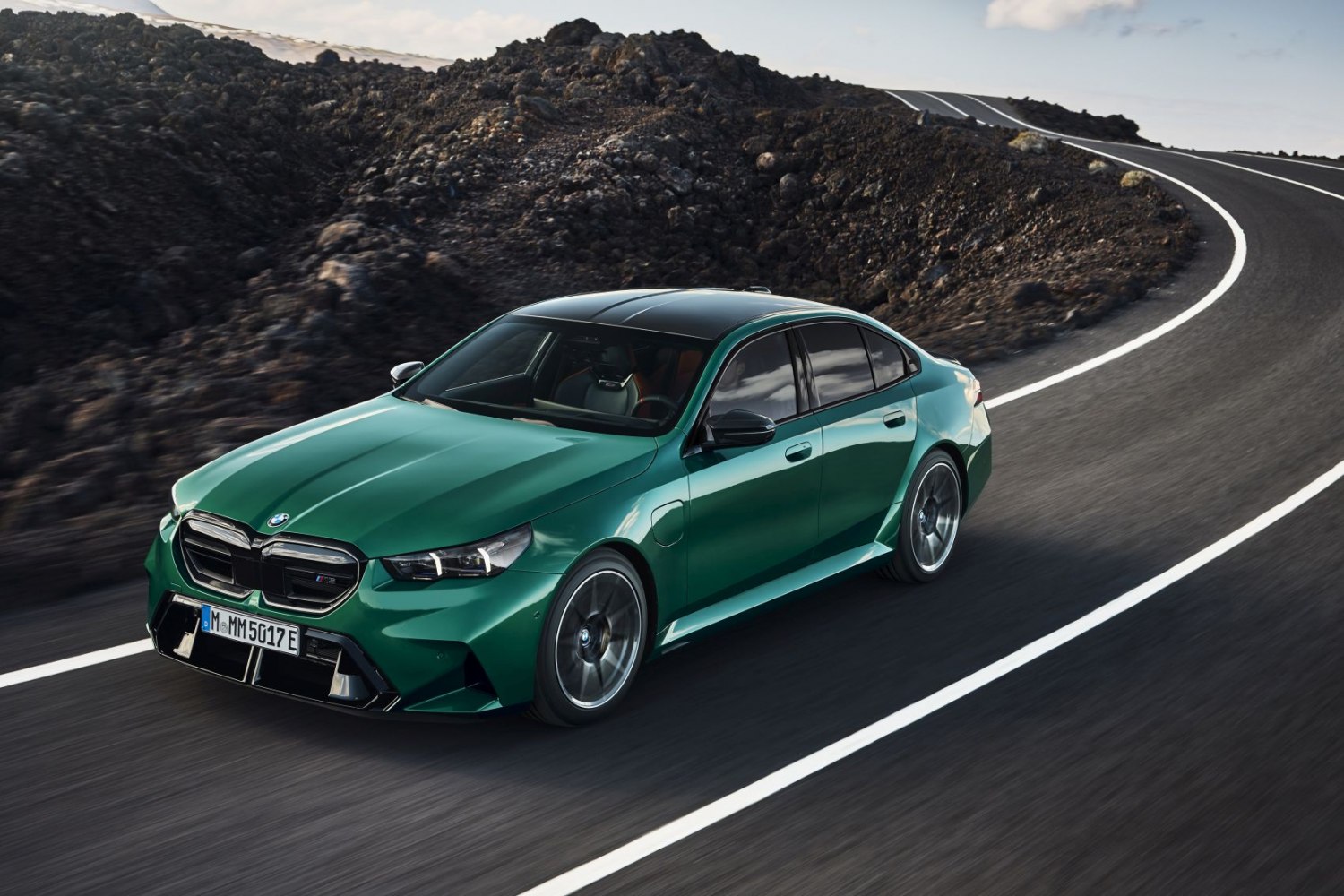

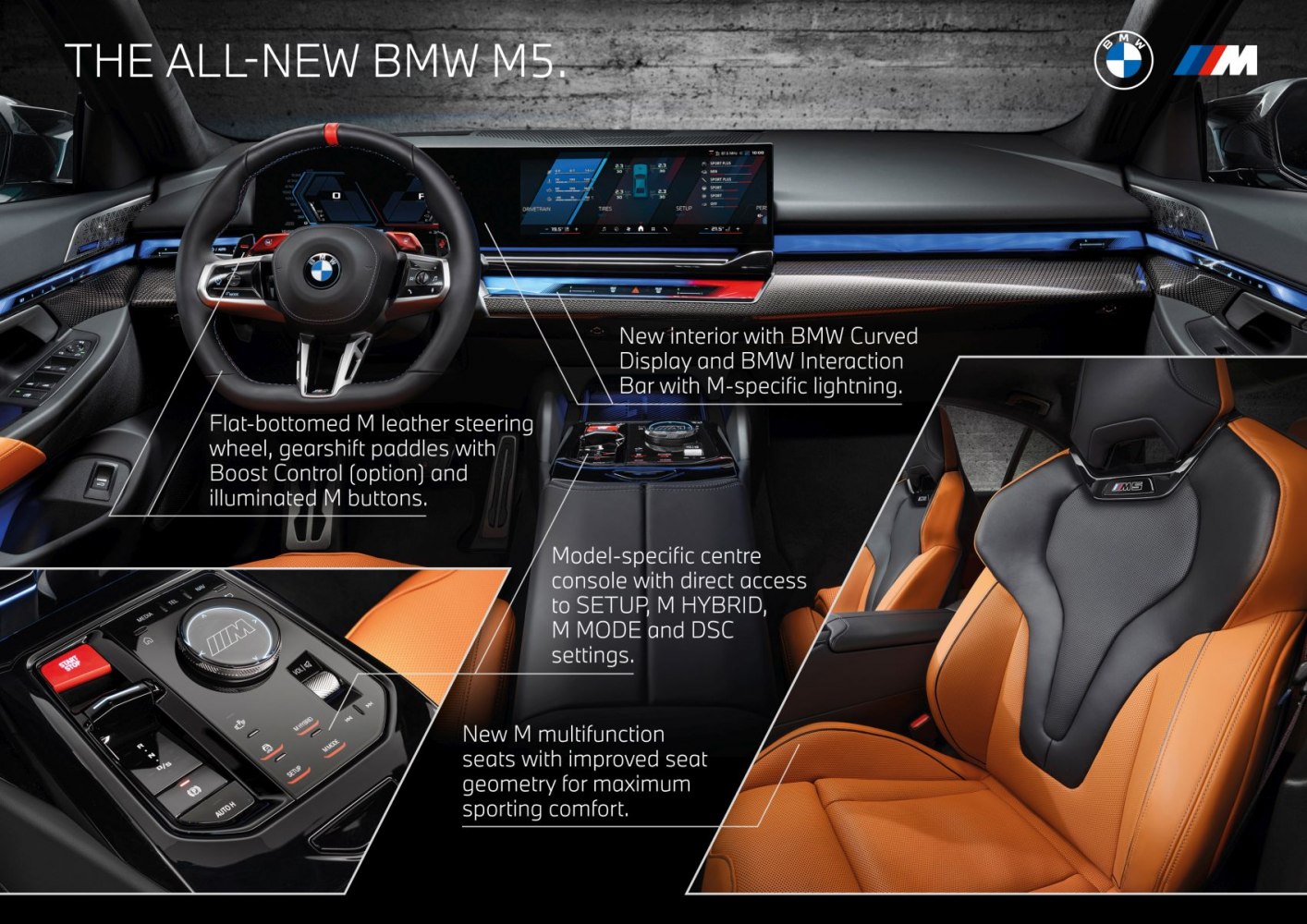

BMW M5 G90 2024 Gallery
BMW M5 G90 2024 Technical Specifications
General
Body type
Sedan
Brand
BMW
Doors
4
Generation
M5 (G90)
Model
M5
Modification (Engine)
4.4 V8 (727 Hp) Plug-in Hybrid M xDrive M Steptronic
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
5
Start of production
July, 2024
Performance
Acceleration 0 - 100 km/h
3.5 sec
Acceleration 0 - 200 km/h
10.9 sec
Acceleration 0 - 60 mph
3.4 sec
Acceleration 0 - 62 mph
3.5 sec
CO2 emissions (WLTP)
37-39 g/km
Combined fuel consumption (WLTP)
1.6-1.7 l/100 km
Emission standard
Euro 6e
Fuel Type
Petrol / electricity
Maximum speed
250 km/h, Electronically limited
Electric
All-electric range
40 km
All-electric range (WLTP)
67-69 km
Average Energy consumption (WLTP)
25-25.5 kWh/100 km
Battery location
Below the floor
Battery voltage
347.5 V
Charging ports number 0
Log in to see.
Electric motor Torque number 1
280 Nm @ 1000-5000 rpm.
Electric motor location number 1
Between the combustion engine and the transmission
Electric motor power number 1
197 Hp @ 6000 rpm.
Electric motor type number 1
Synchronous
Gross battery capacity
22.1 kWh
Max speed (electric)
140 km/h
Net (usable) battery capacity
18.6 kWh
System power
727 Hp
System torque
1000 Nm
Internal Engine
Compression ratio
10.5
Cylinder Bore
89 mm
Engine Model/Code
S68B44T0
Engine aspiration
Twin-power turbo, Intercooler
Engine configuration
V-engine
Engine displacement
4395 cm
Engine layout
Front, Longitudinal
Engine oil capacity
13.2 l
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Direct injection
Maximum engine speed
7200 rpm.
Number of cylinders
8
Number of valves per cylinder
4
Piston Stroke
88.3 mm
Power
585 Hp @ 5600-6500 rpm.
Power per litre
133.1 Hp/l
Torque
750 Nm @ 1800-5400 rpm.
Valvetrain
VALVETRONIC, Double-VANOS
Dimensions
Drag coefficient (Cd)
0.32
Front overhang
934 mm
Front track
1684 mm
Height
1510 mm
Length
5096 mm
Minimum turning circle (turning diameter)
12.6 m
Rear (Back) track
1660 mm
Rear overhang
1156 mm
Ride height (ground clearance)
115 mm
Wheelbase
3006 mm
Width
1970 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs, 410 mm
Front suspension
Coil spring, Double wishbone, Transverse stabilizer
Number of gears and type of gearbox
8 gears, automatic transmission M Steptronic
Power steering
Electric Steering
Rear brakes
Ventilated discs, 398 mm
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
Front wheel tires: 285/40 ZR20Rear wheel tires: 295/35 ZR21
Wheel rims size
Front wheel rims: 10.5J x 20Rear wheel rims: 11J x 21
Space
Fuel tank capacity
60 l
Kerb Weight
2435 kg
Max load
505 kg
Max. roof load
75 kg
Max. weight
2940 kg
Permitted towbar download
100 kg
