Chevrolet Orlando 1 2011
2.4 (174 Hp)
Generation Orlando 1
Body Type Minivan
Seats 7
2014
End Year
5
Doors
Chevrolet Orlando 1 2011 Key Specs
Body Type
Minivan
Doors
5
Drive Wheel
Front wheel drive
End Of Production
2014
Engine Aspiration
Naturally aspirated engine
Engine Oil Capacity
4.7 l
Fuel Type
Petrol (Gasoline)
Fuel Consumption (economy) - Combined
8.6 l/100 km
Fuel Consumption (economy) - Extra Urban
6.7-7 l/100 km
Fuel Tank Capacity
64 l
Generation
Orlando I
Kerb Weight
1596-1616 kg
Modification (Engine)
2.4 (174 Hp)
Number Of Cylinders
4
Power
174 Hp @ 6700 rpm.
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
7
Start Of Production
2011
Wheel Rims Size
6.5J x 16; 8J x 18

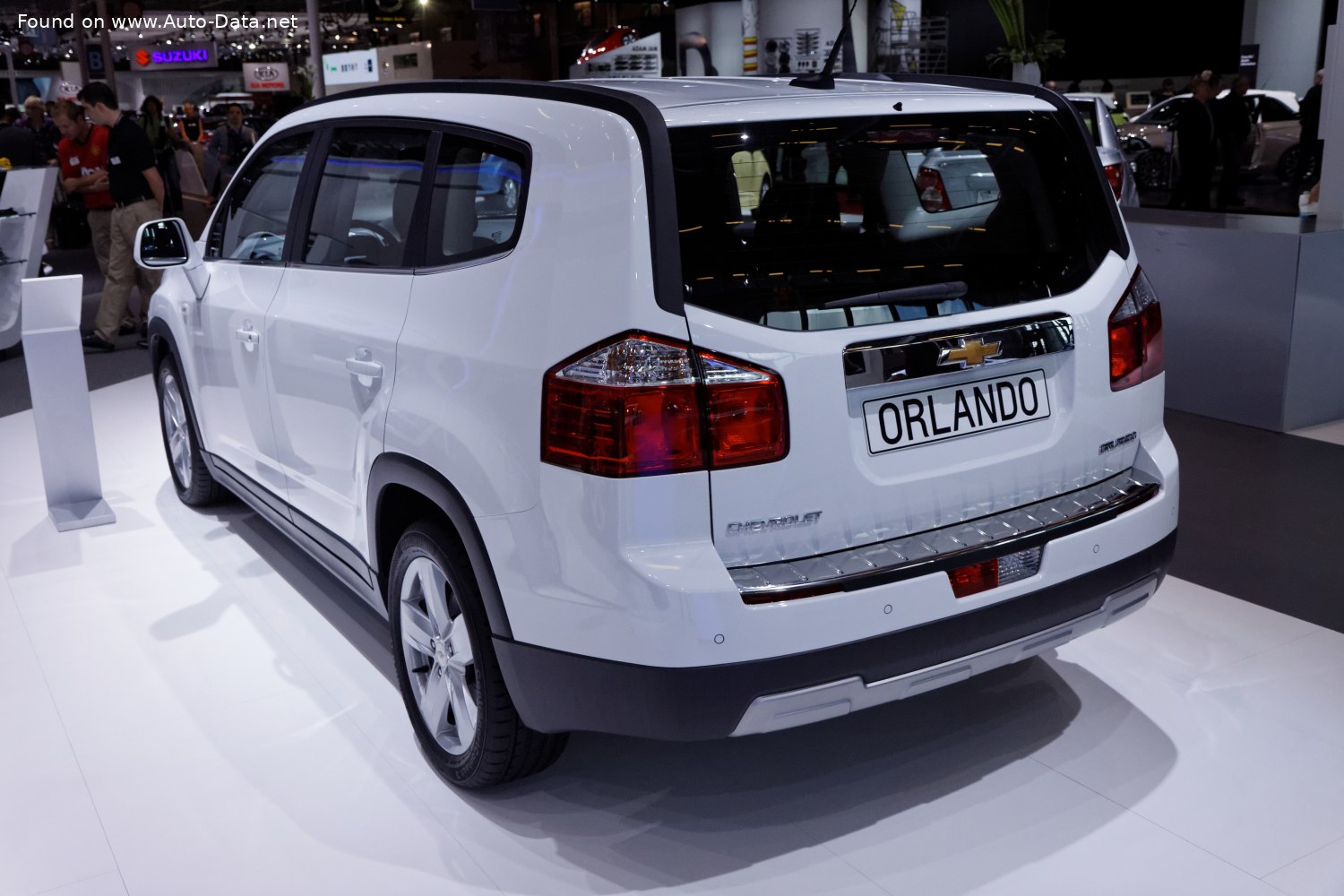

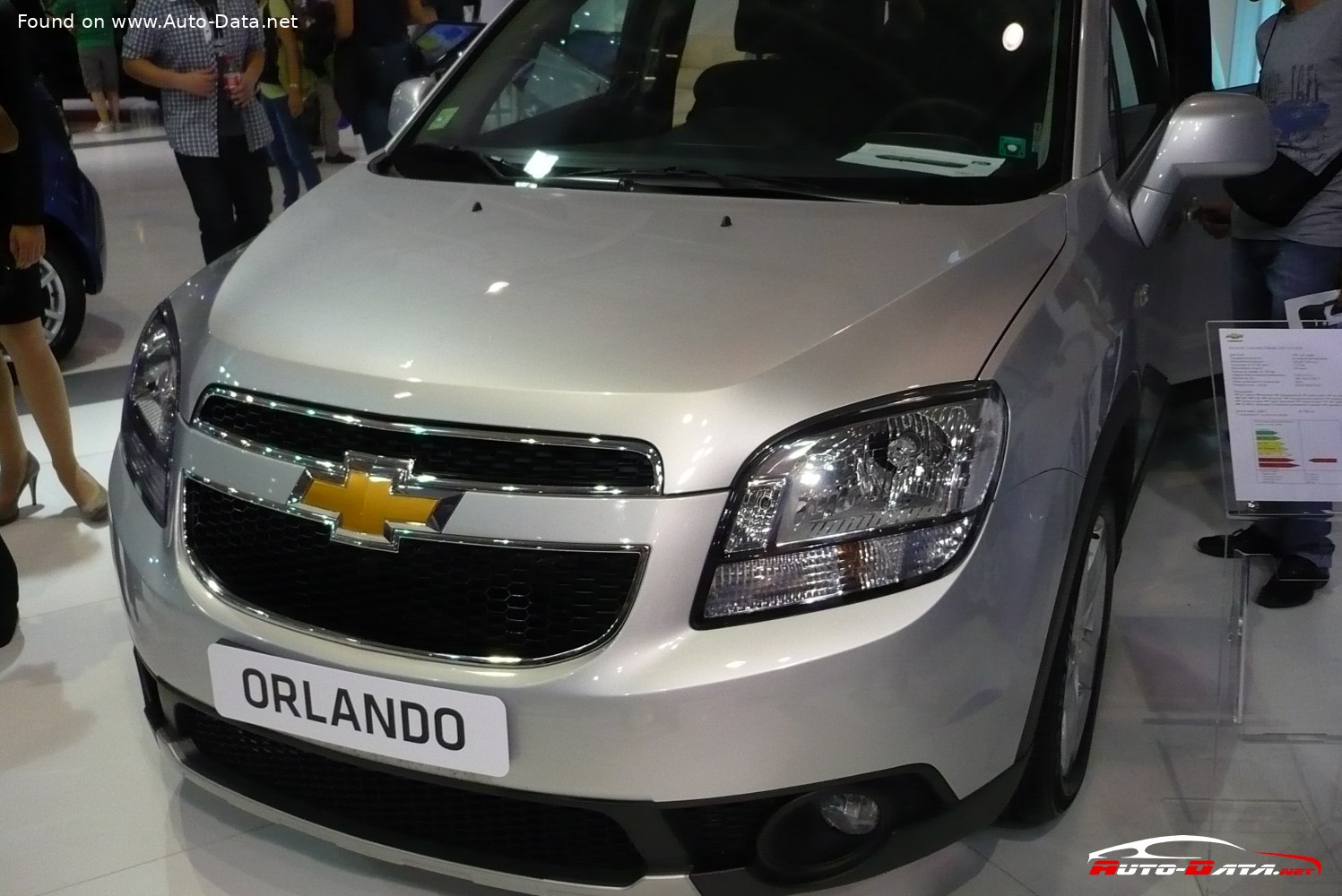

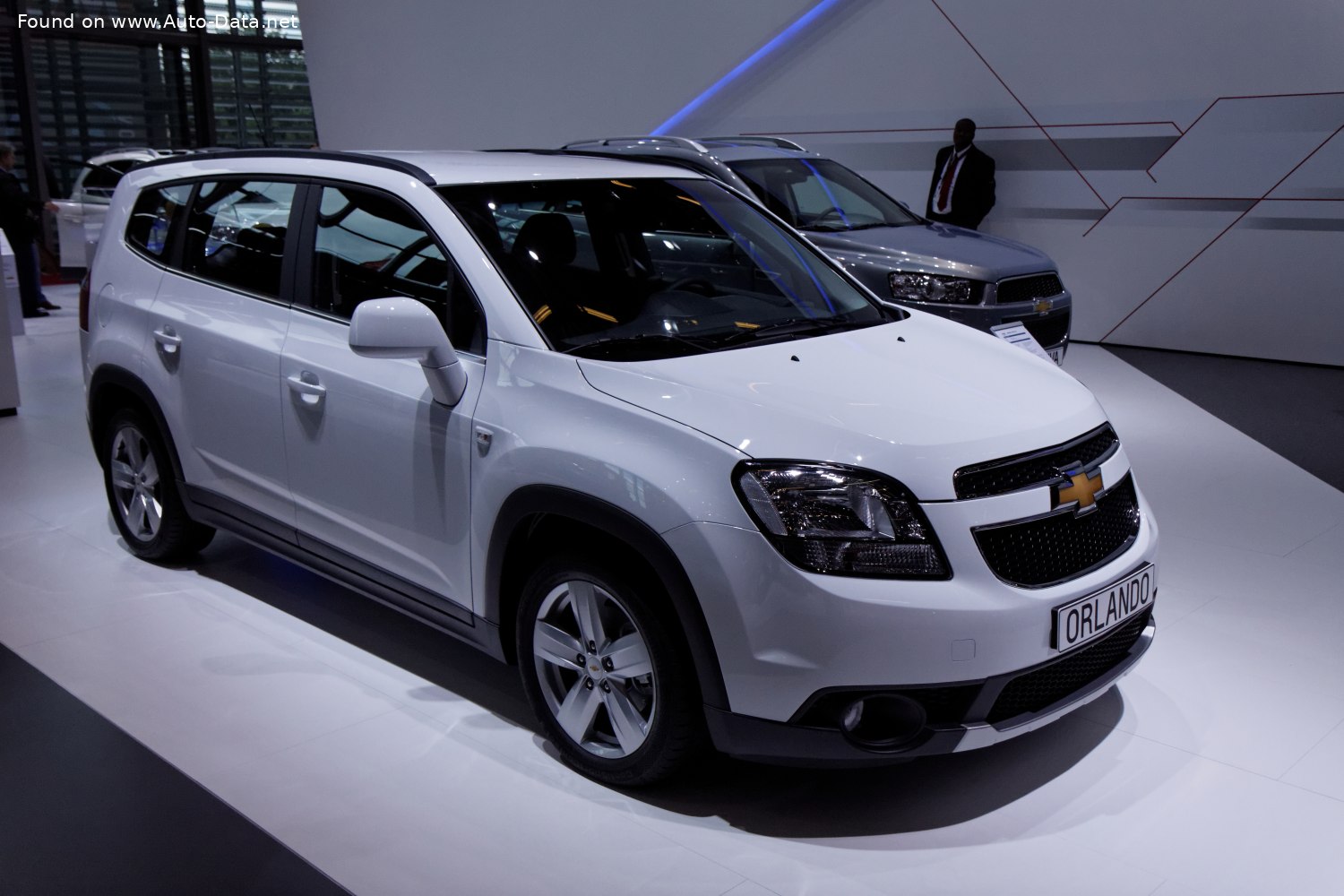

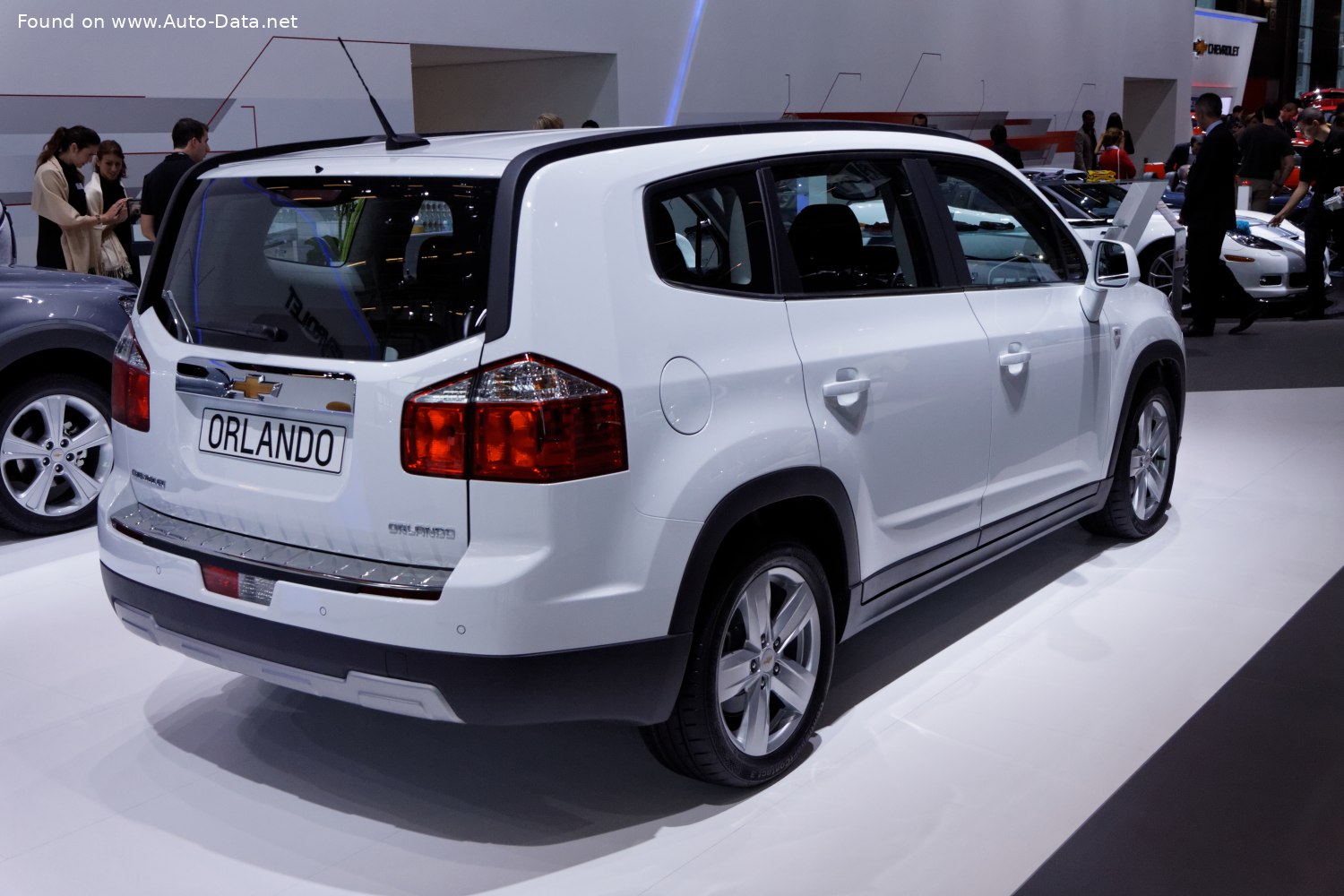

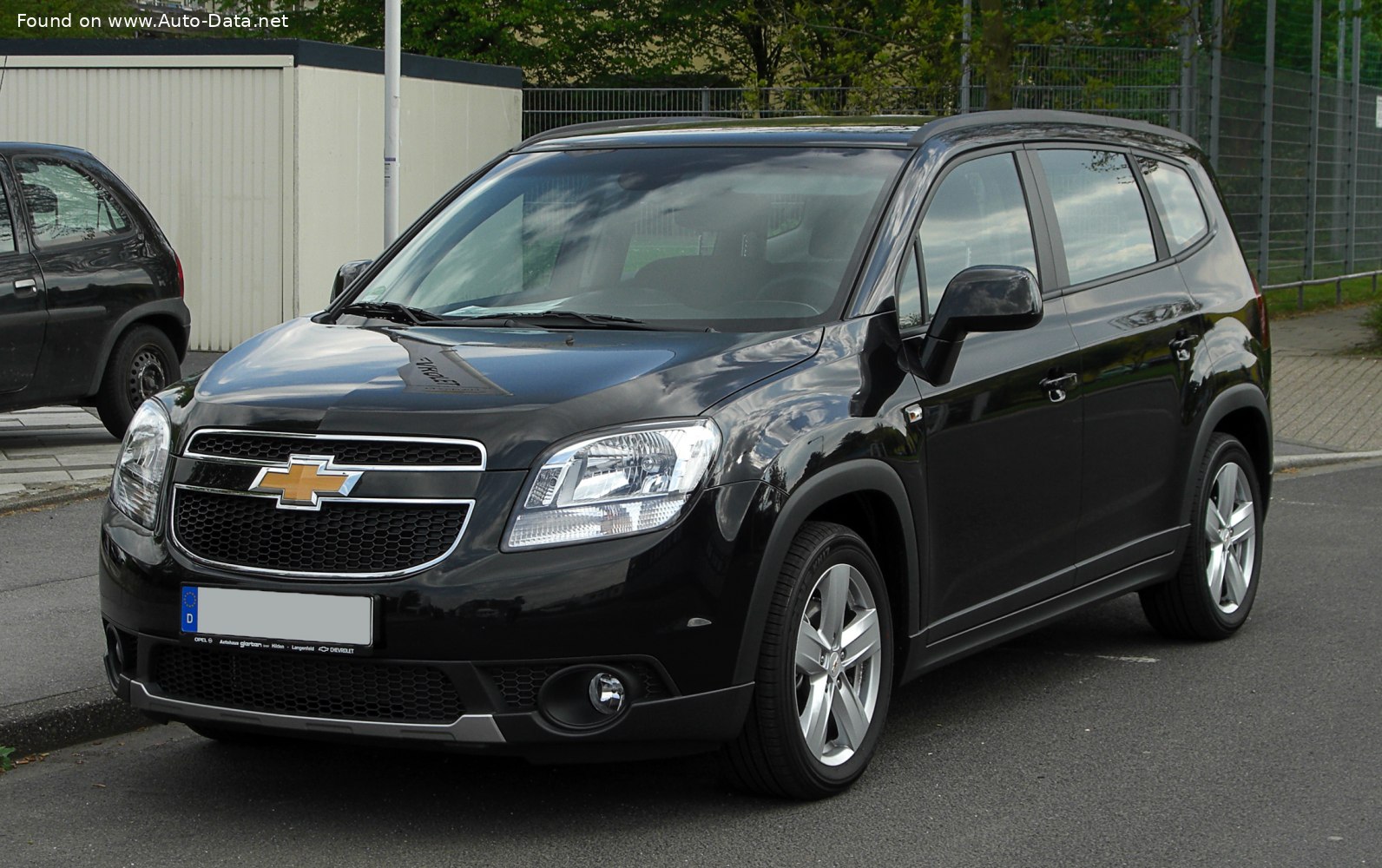

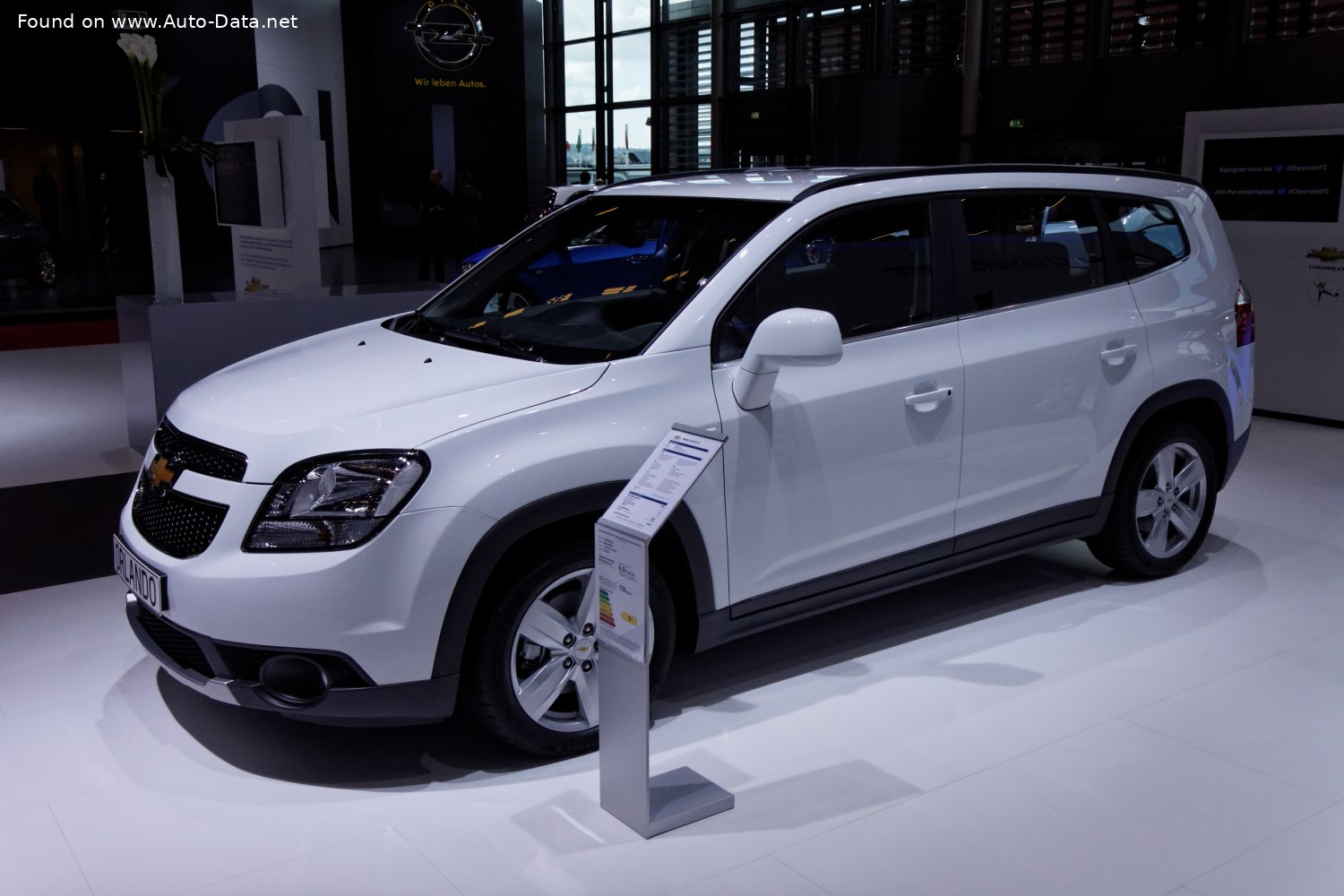

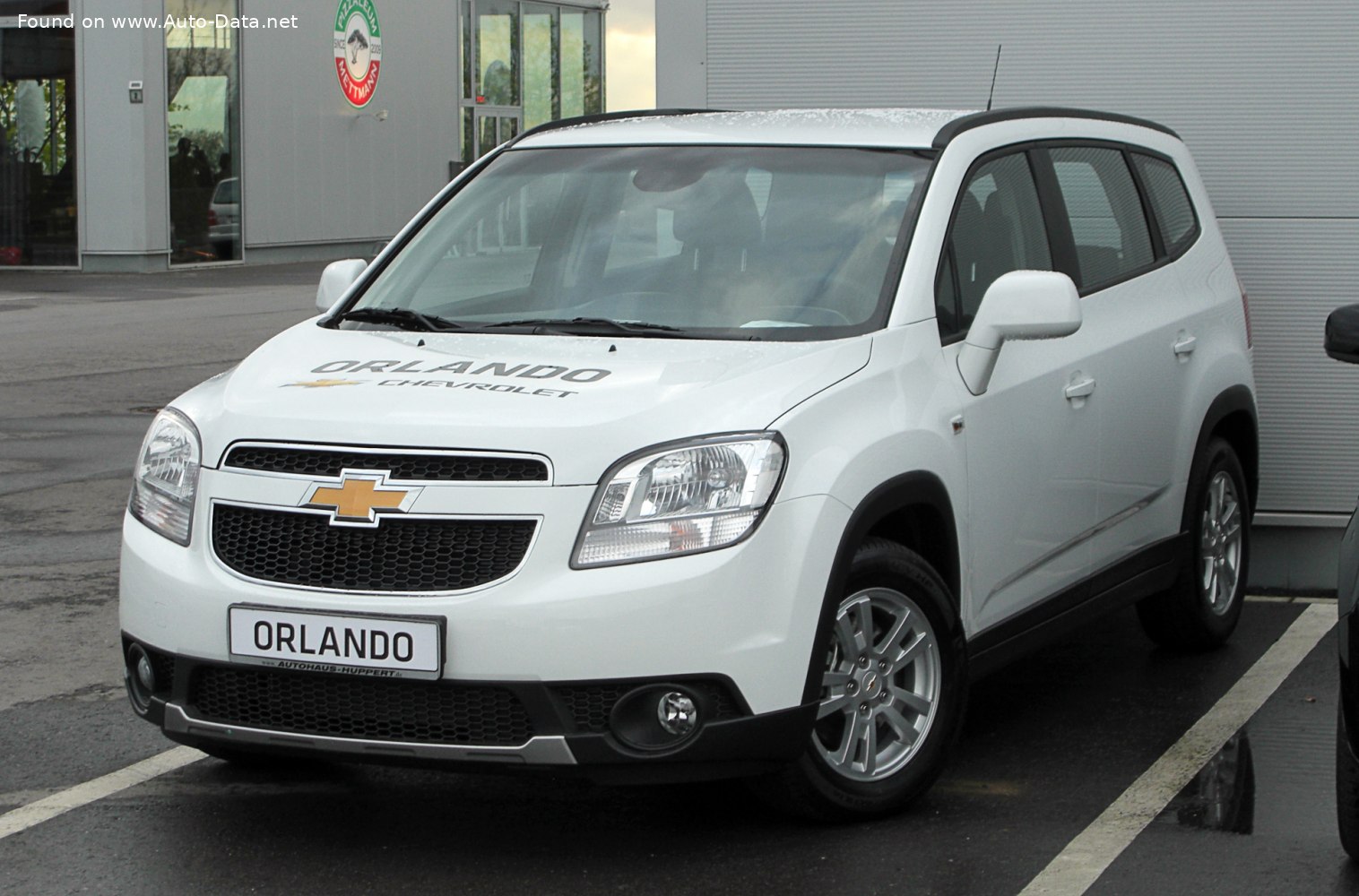

Chevrolet Orlando 1 2011 Gallery
Chevrolet Orlando 1 2011 Technical Specifications
General
Body type
Minivan
Brand
Chevrolet
Doors
5
End of production
2014
Generation
Orlando I
Model
Orlando
Modification (Engine)
2.4 (174 Hp)
Powertrain Architecture
Internal Combustion engine
Seats
7
Start of production
2011
Performance
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined
8.6 l/100 km
Fuel consumption (economy) - extra urban
6.7-7 l/100 km
Fuel consumption (economy) - urban
10.1 l/100 km
Dimensions
Front track
1587 mm
Height
1635 mm
Length
4665 mm
Minimum turning circle (turning diameter)
11.3-11.8 m
Rear (Back) track
1570 mm
Ride height (ground clearance)
129 mm
Wheelbase
2760 mm
Width
1835 mm
Engine
Compression ratio
11.2:1
Coolant
7.1 l
Cylinder Bore
88 mm
Engine Model/Code
Ecotec / LAF
Engine aspiration
Naturally aspirated engine
Engine configuration
Inline
Engine displacement
2384 cm
Engine layout
Front, Transverse
Engine oil capacity
4.7 l
Engine oil specification
Log in to see.
Fuel injection system
Direct injection
Number of cylinders
4
Number of valves per cylinder
4
Power
174 Hp @ 6700 rpm.
Torque
232 Nm @ 4900 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 300x26 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
6 gears, manual transmission
Power steering
Electric Steering
Rear brakes
Ventilated discs, 292x16 mm
Rear suspension
Torsion
Steering type
Steering rack and pinion
Tires size
215/60 R16; 235/45 R18
Wheel rims size
6.5J x 16; 8J x 18
Space
Fuel tank capacity
64 l
Kerb Weight
1596-1616 kg
Max load
567-587 kg
Max. weight
2183 kg
