Renault Rafale 2024
1.2 (300 Hp) E-Tech Plug-in Hybrid 4x4 Multi-Mode
Hybrid Car
Body Type Coupe, SUV
Battery Capacity 22 KW
180 km/h
Maximum Speed
5
Doors
Renault Rafale 2024 Key Specs
Acceleration 0 - 100 Km/h
6.4 sec
Acceleration 0 - 62 Mph
6.4 sec
Battery Voltage
400 V
Body Type
Coupe, SUV
Doors
5
Drive Wheel
All wheel drive (4x4)
Engine Aspiration
Turbocharger, Intercooler
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Petrol / electricity
Fuel Tank Capacity
55 l
Generation
Rafale
Gross Battery Capacity
22 kWh
Kerb Weight
1934 kg
Maximum Speed
180 km/h
Modification (Engine)
1.2 (300 Hp) E-Tech Plug-in Hybrid 4x4 Multi-Mode
Number Of Cylinders
3
Power
150 Hp
Power Steering
Electric Steering
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
5
Start Of Production
June, 2024
System Power
300 Hp @ 4500 rpm.
System Torque
Nm @ 1750 rpm.
Wheel Rims Size
20; 21

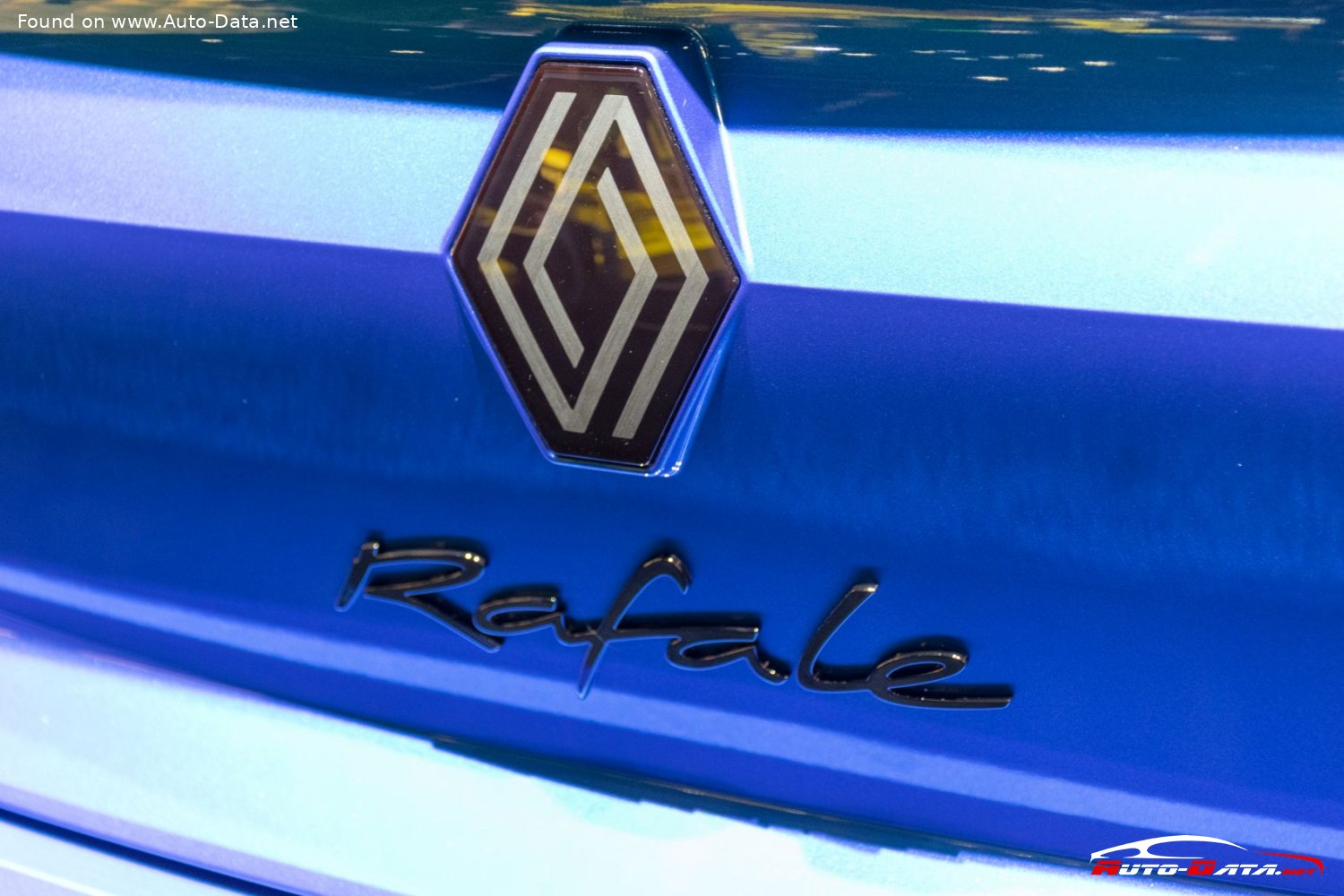

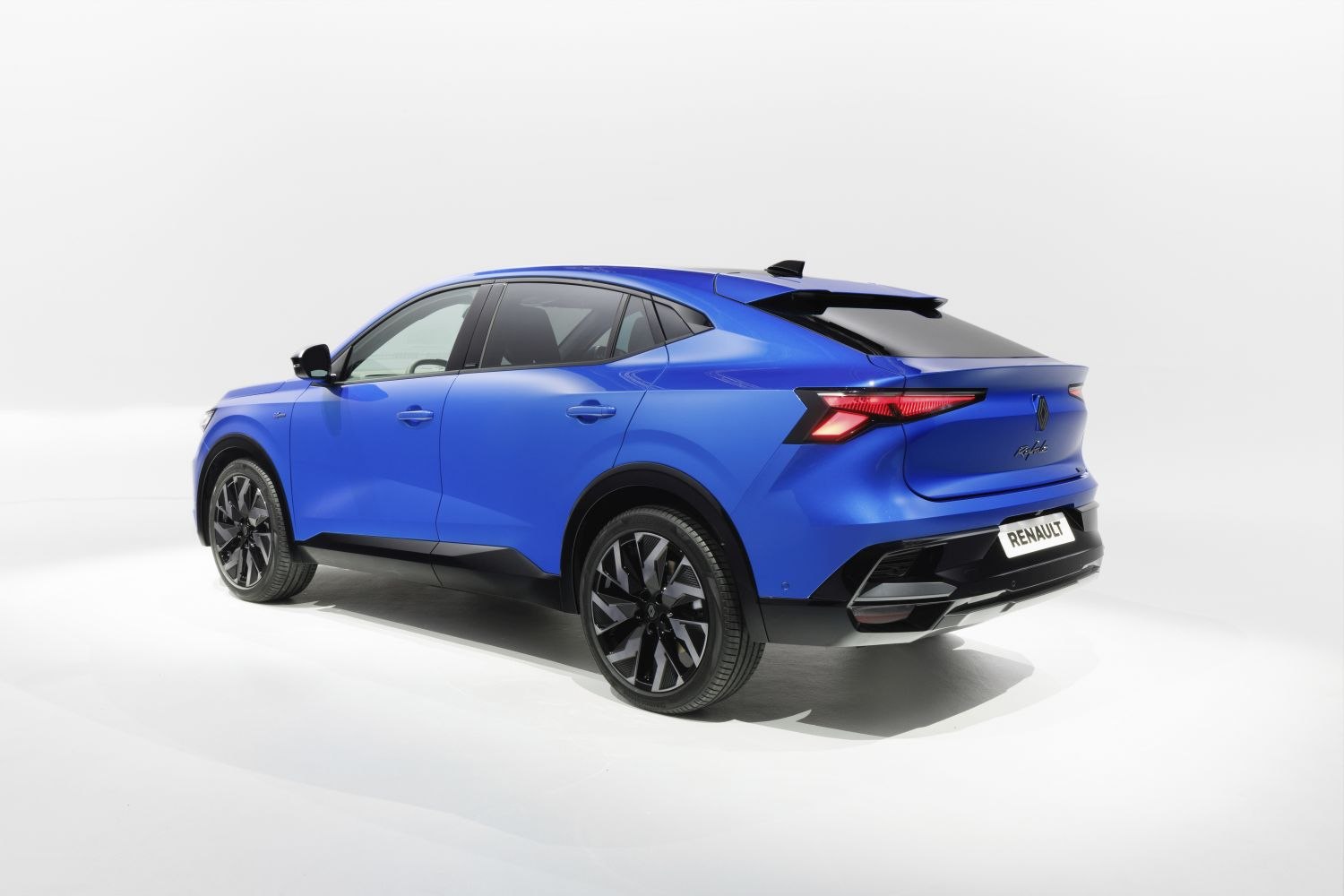

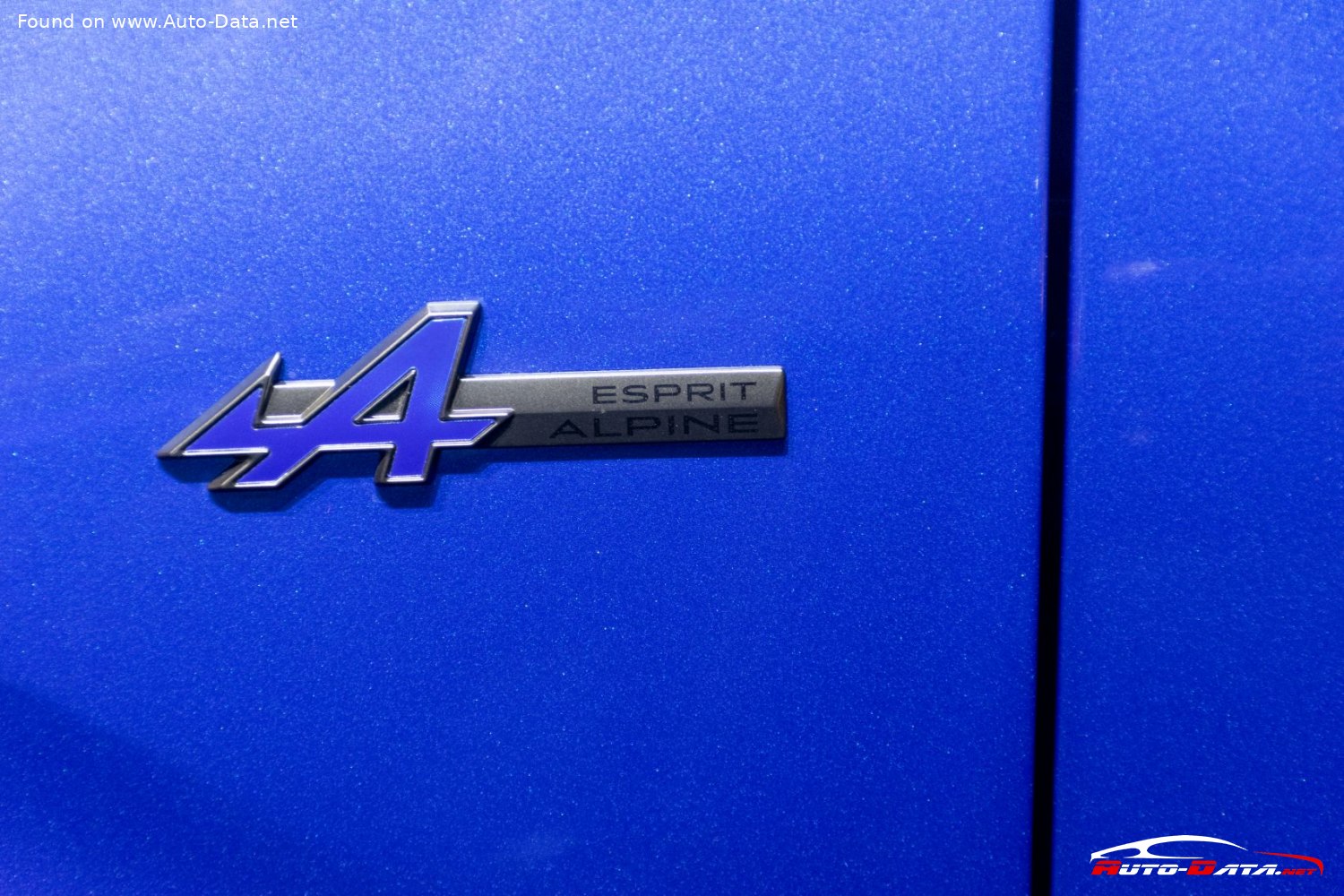

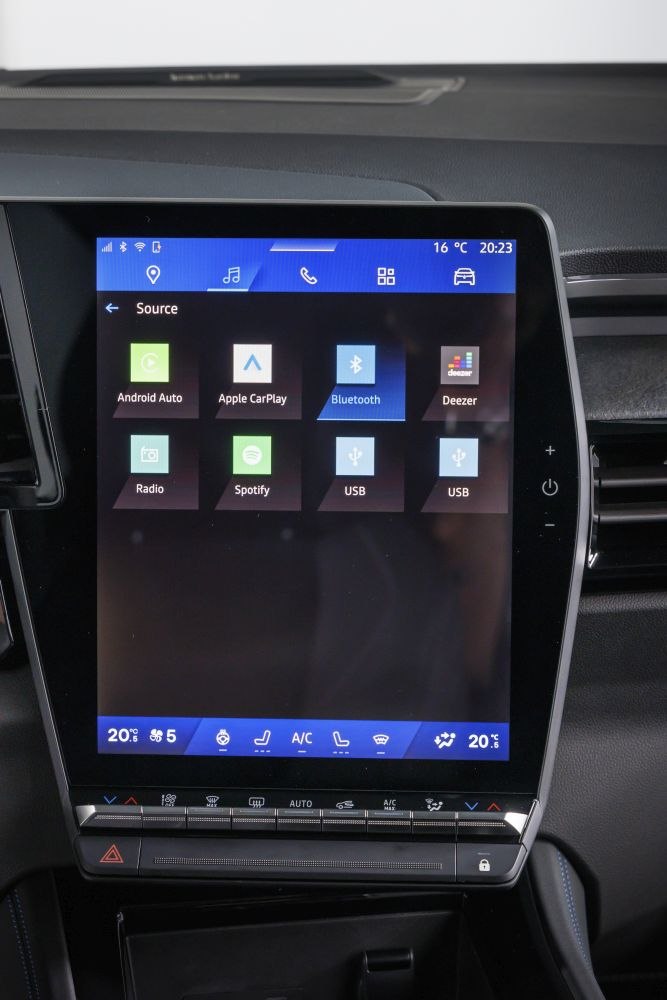

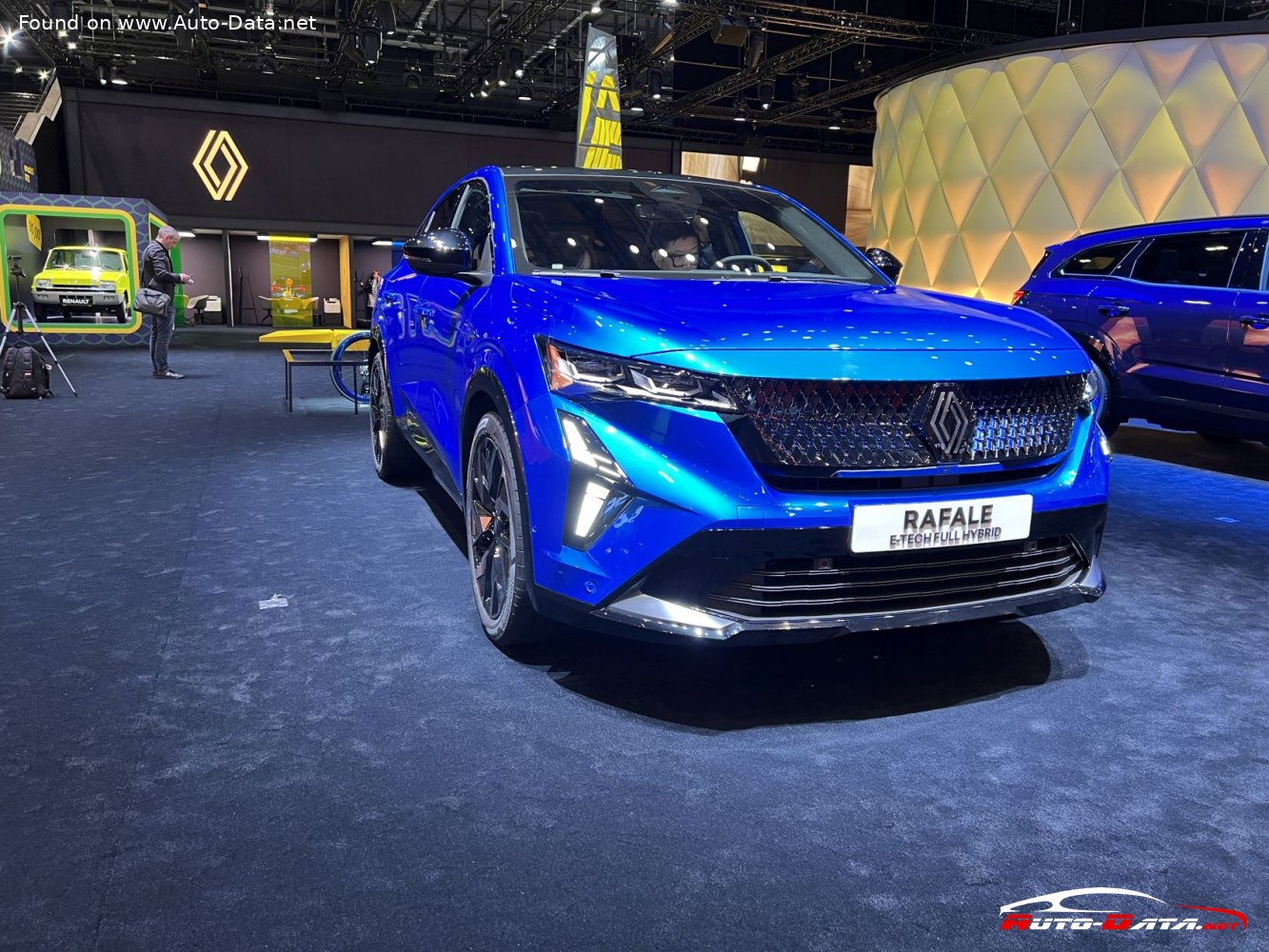

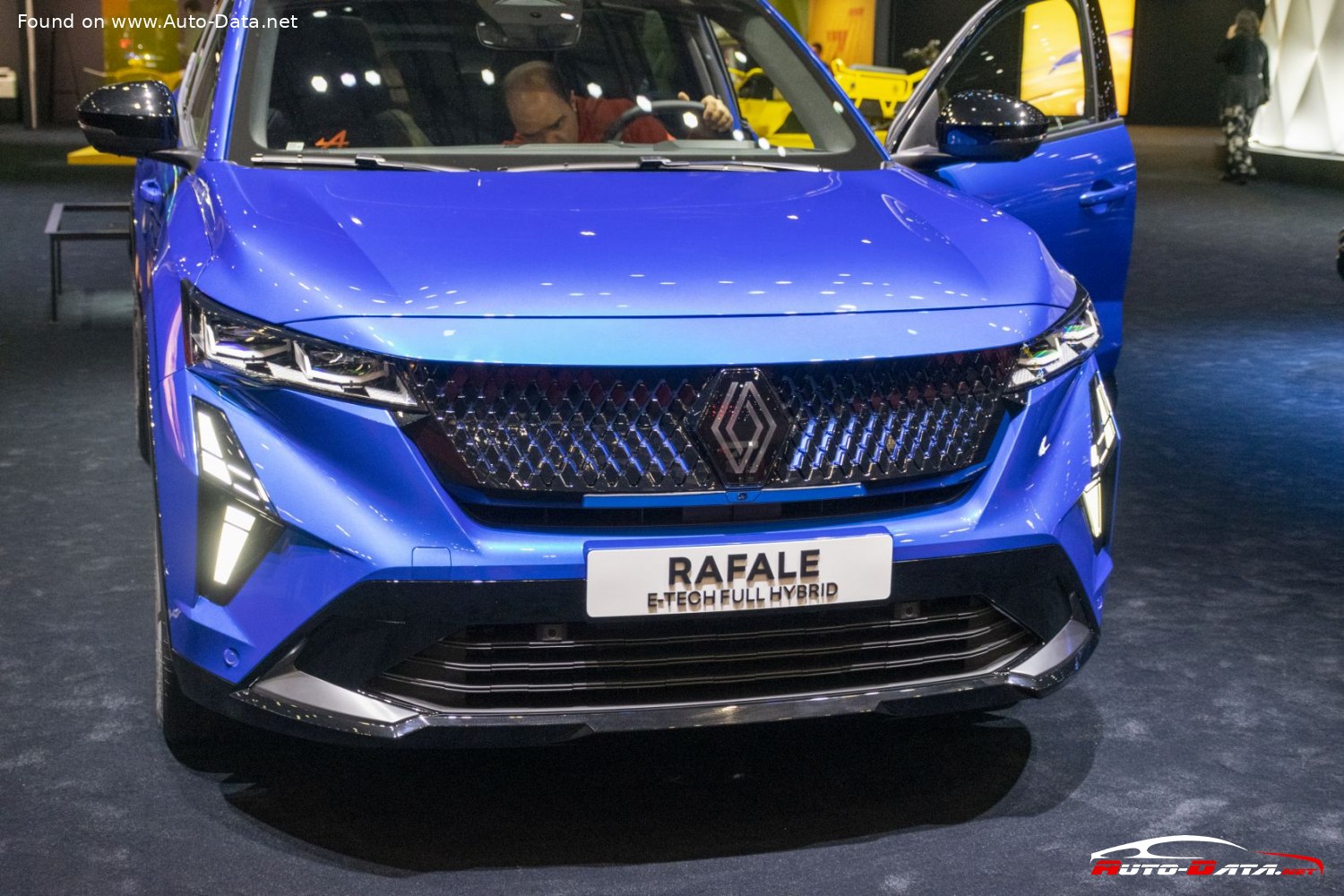

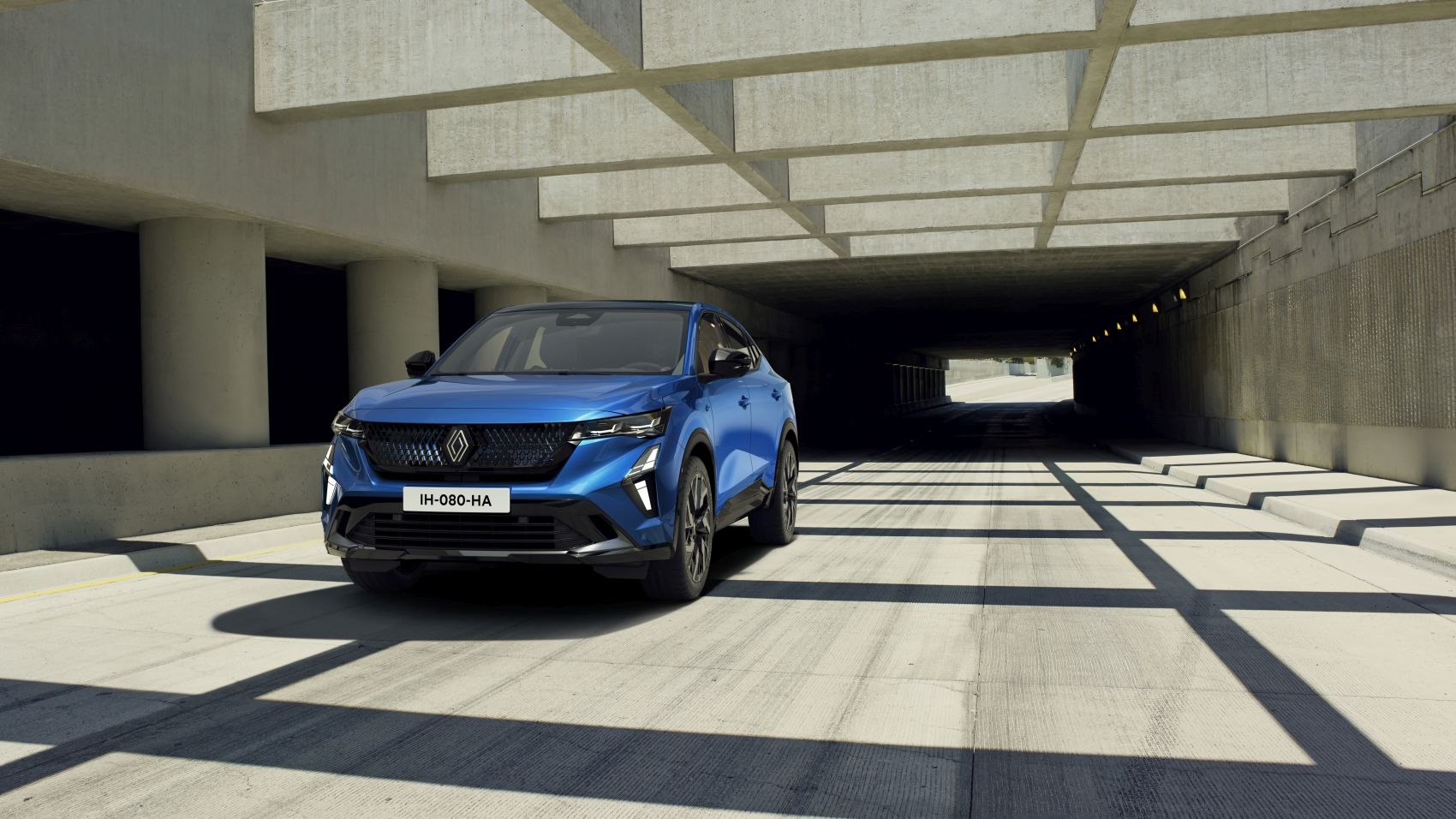

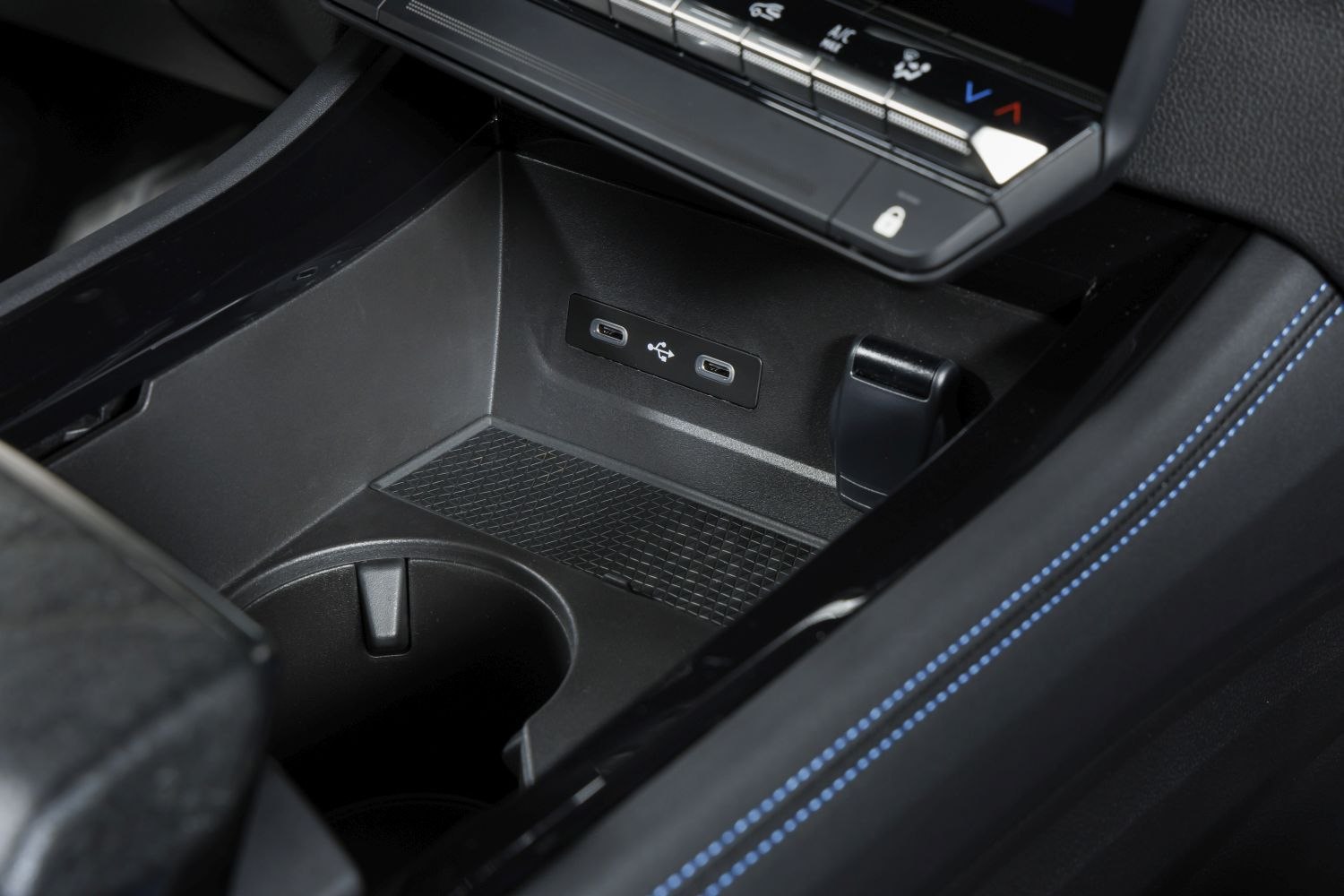

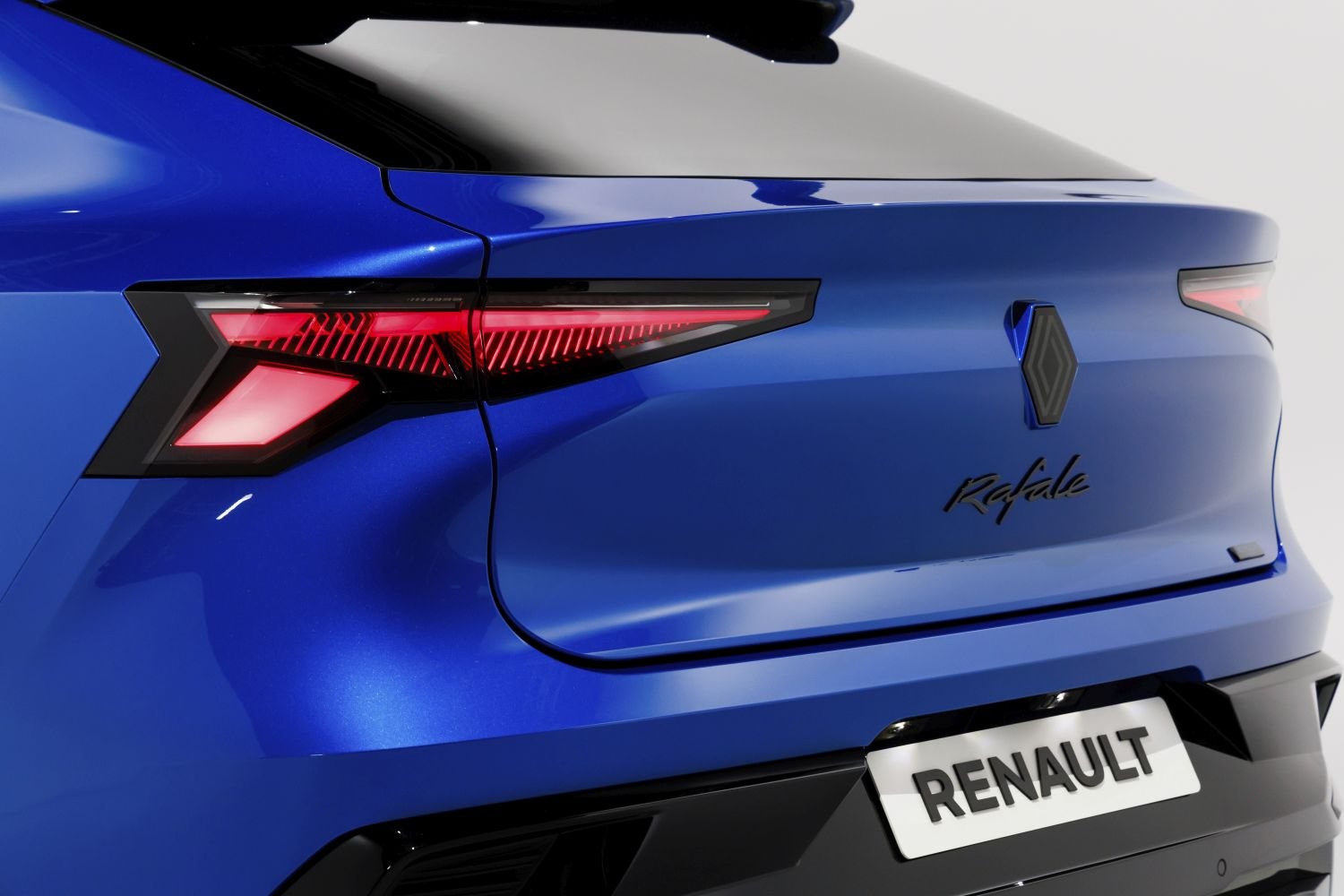

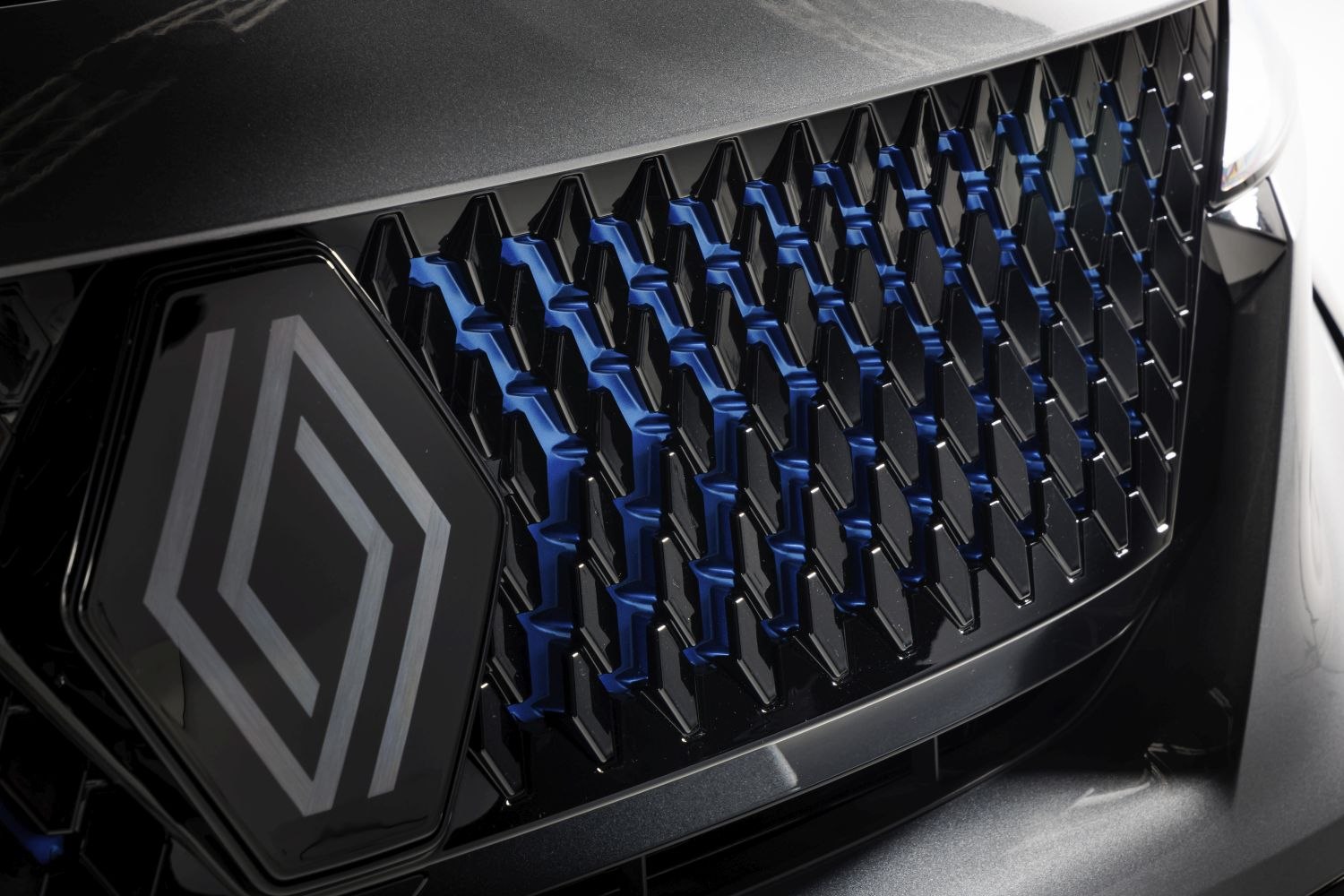

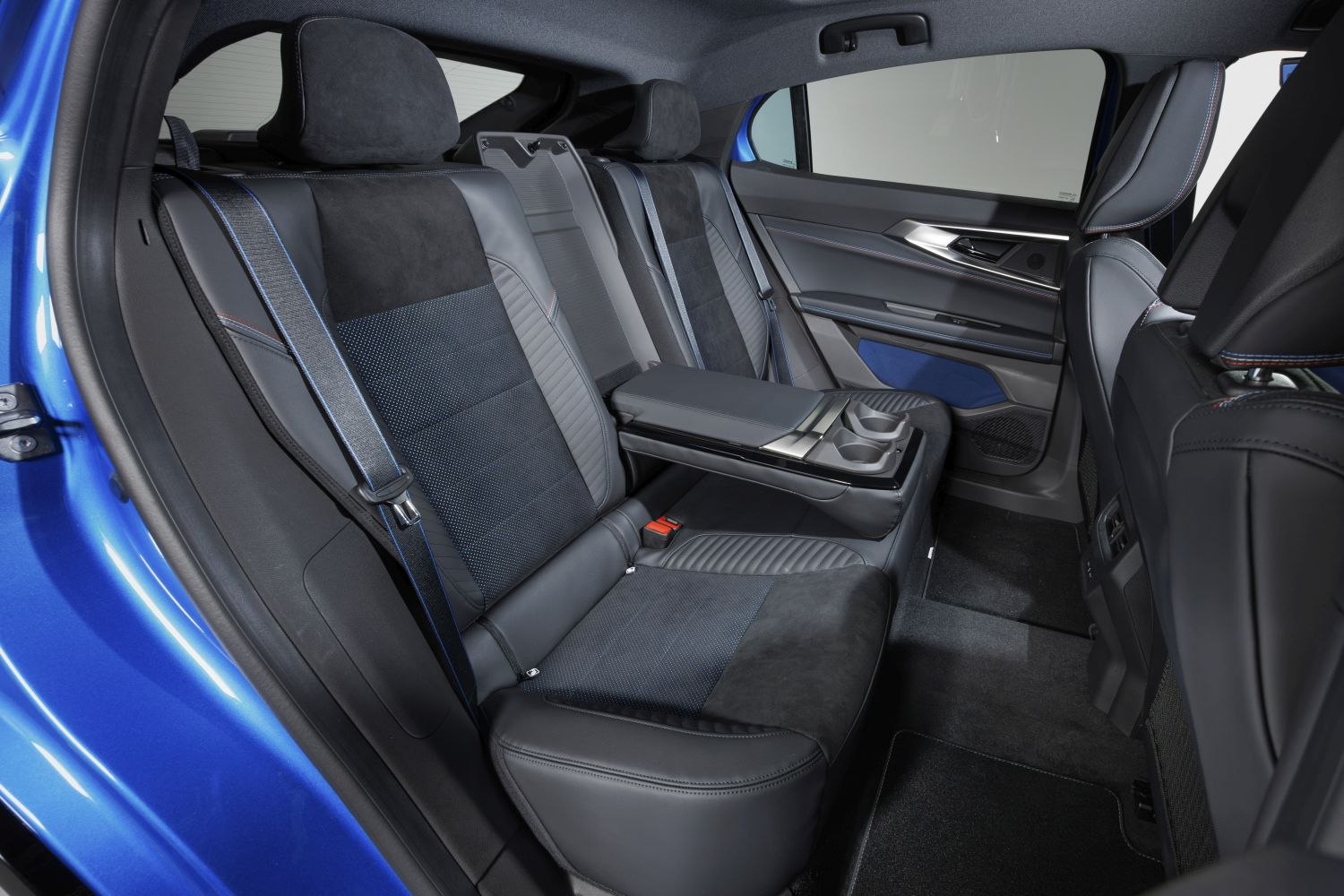

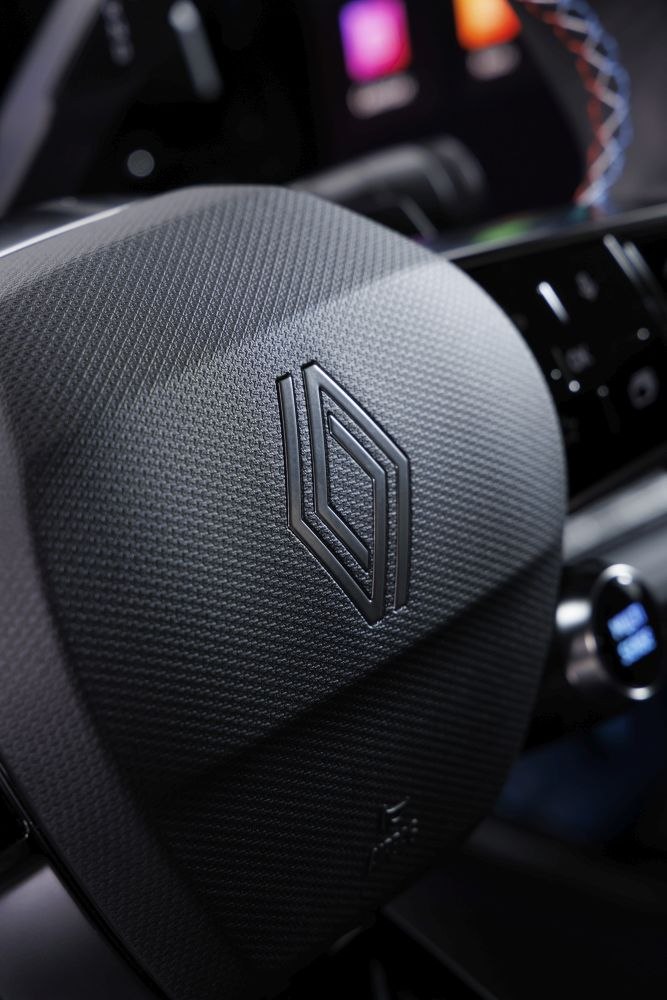

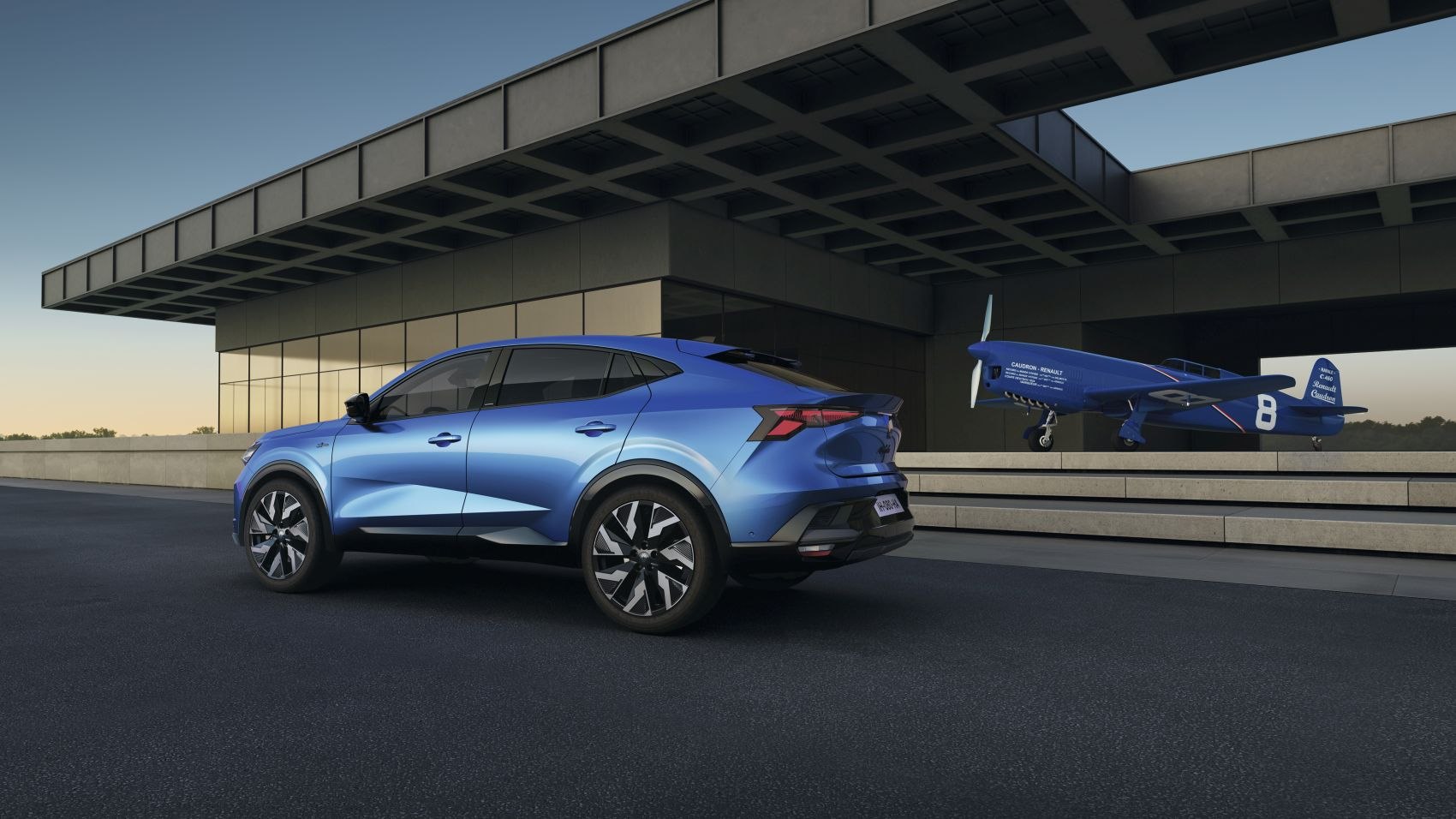

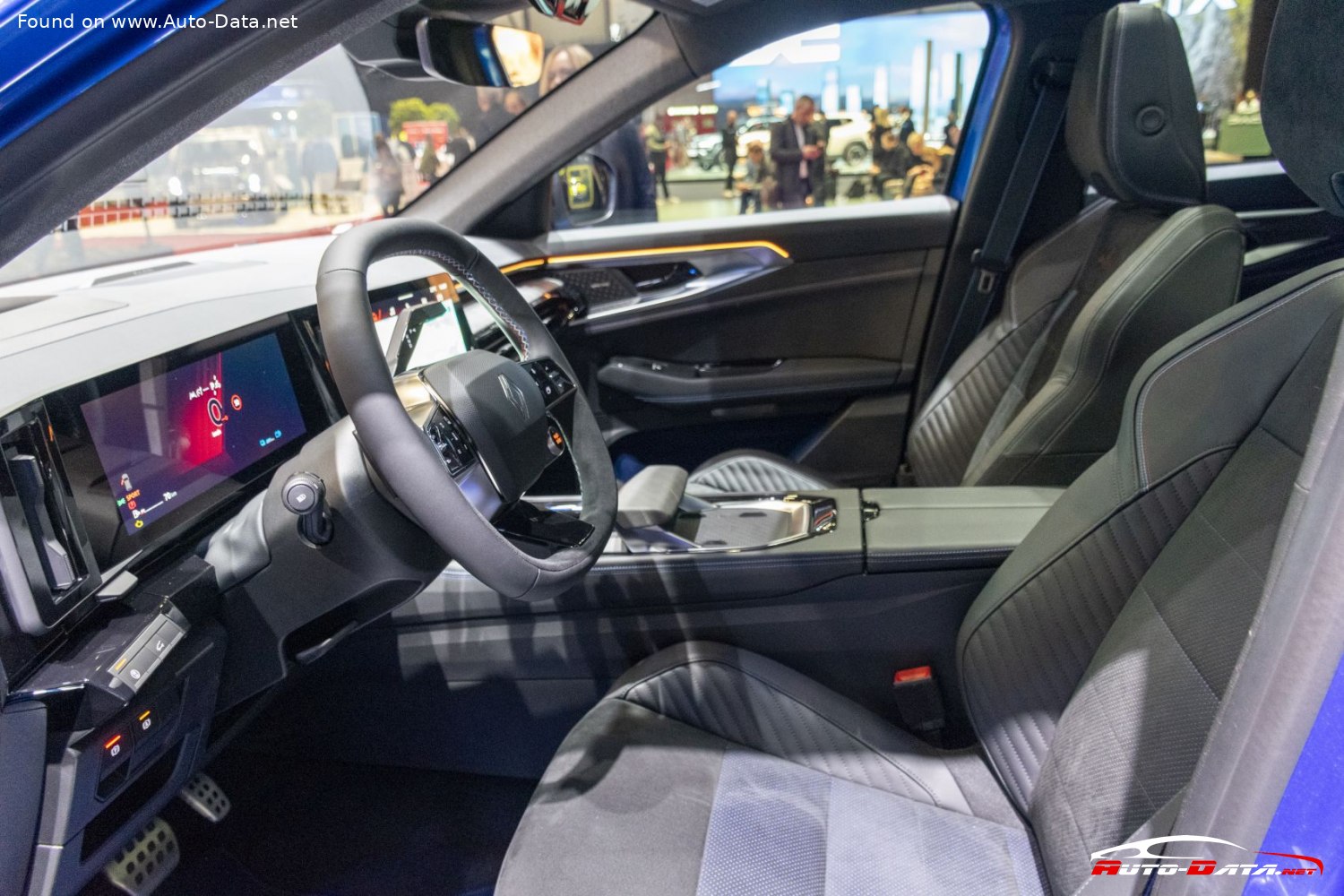

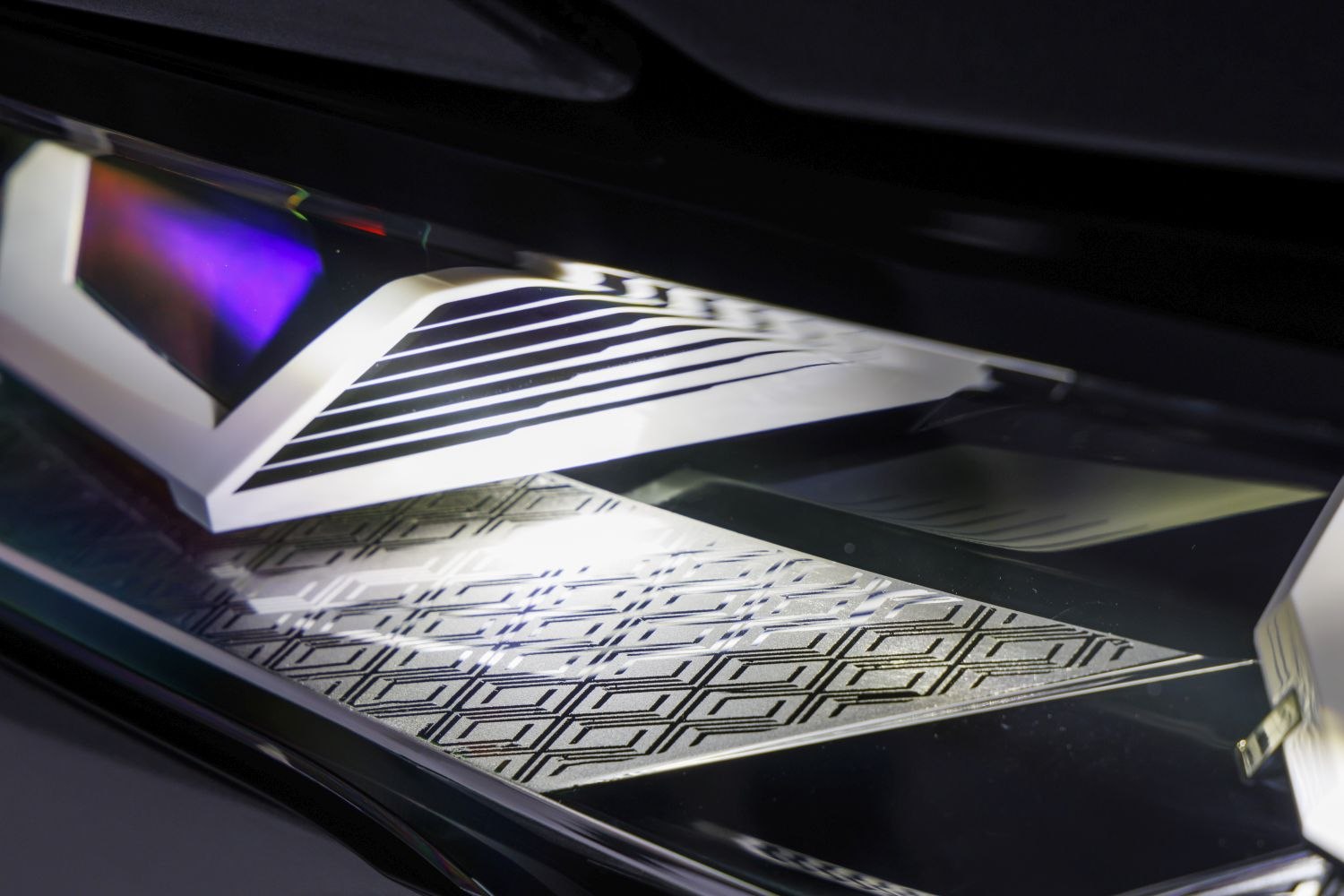

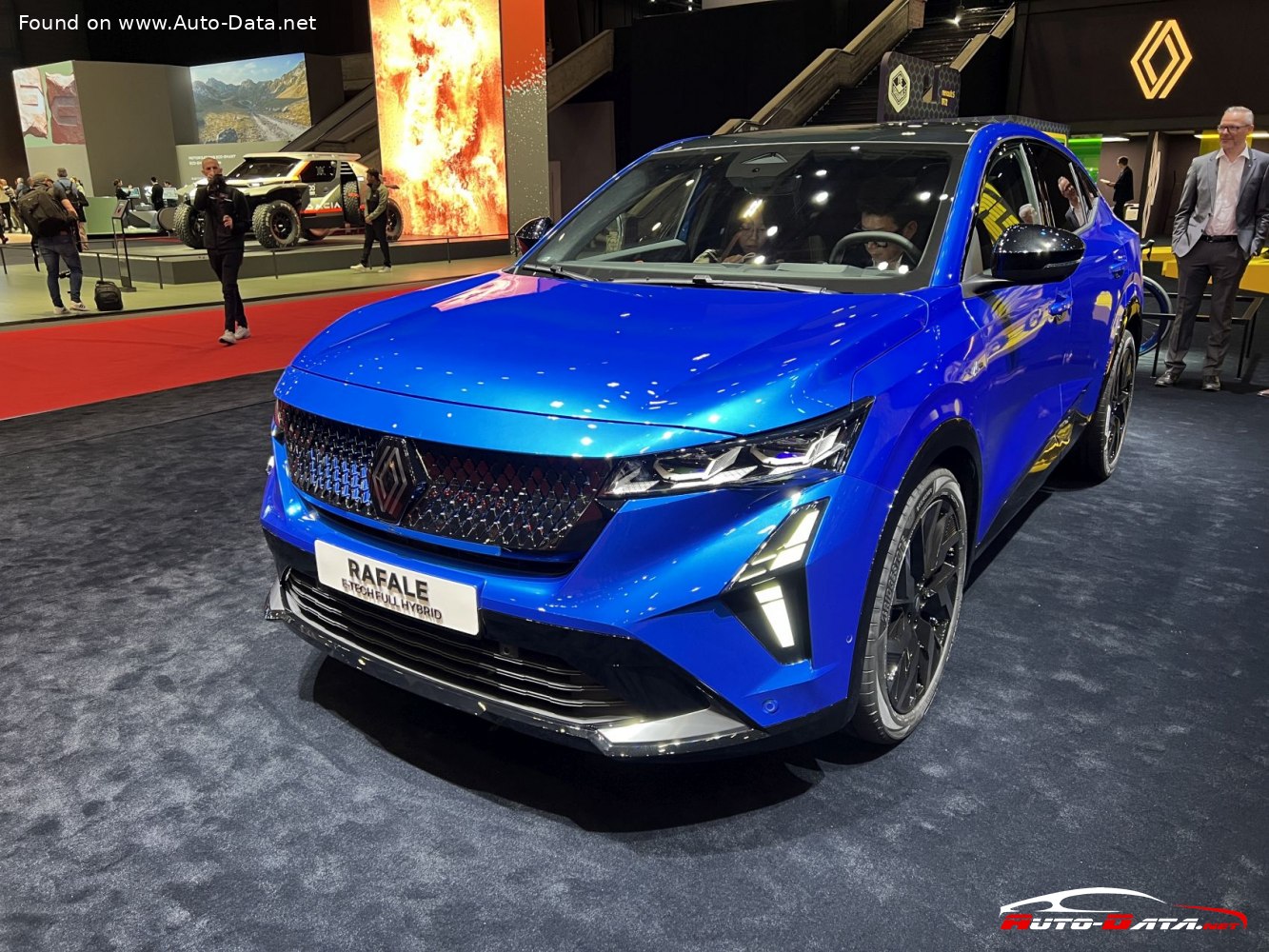

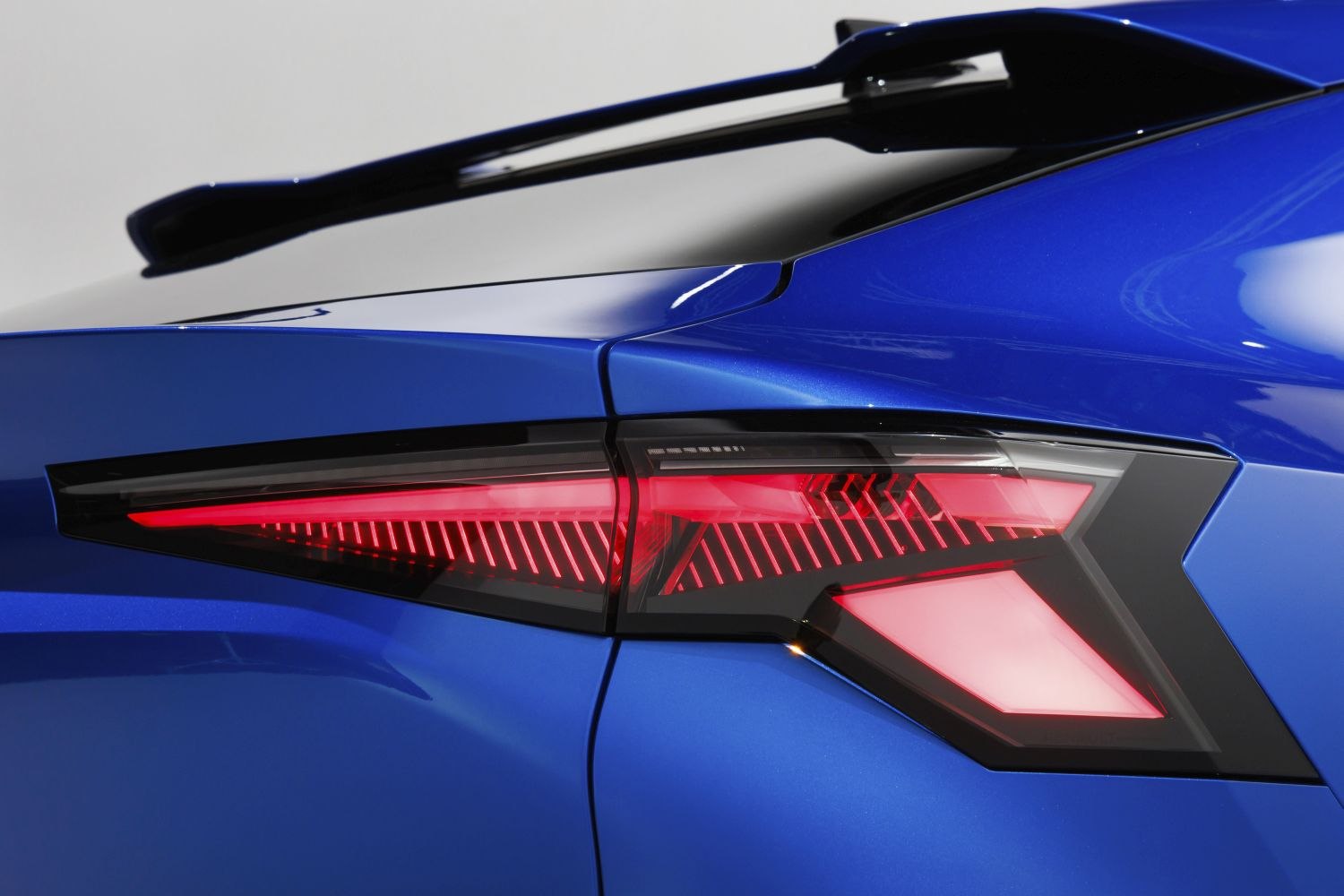

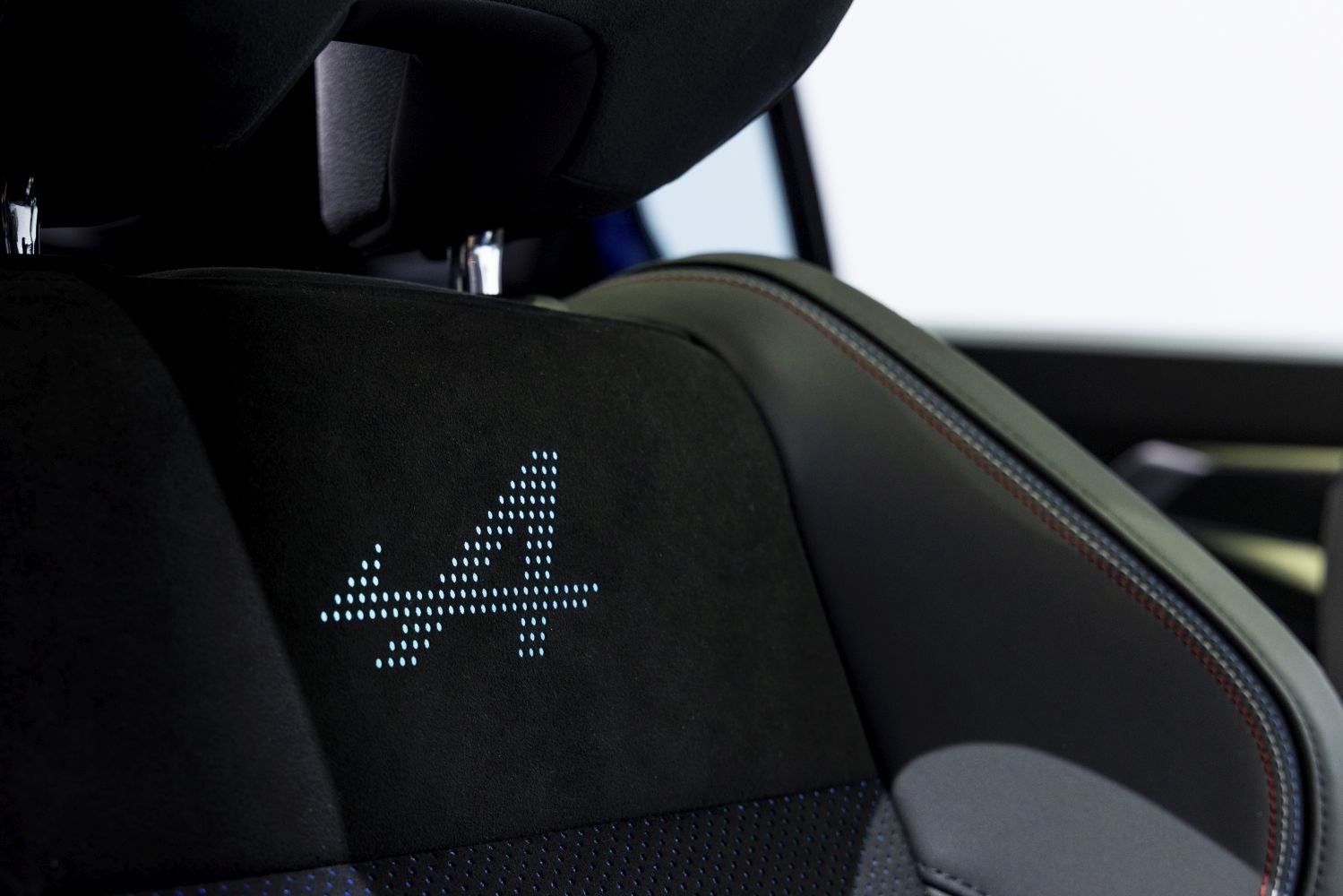

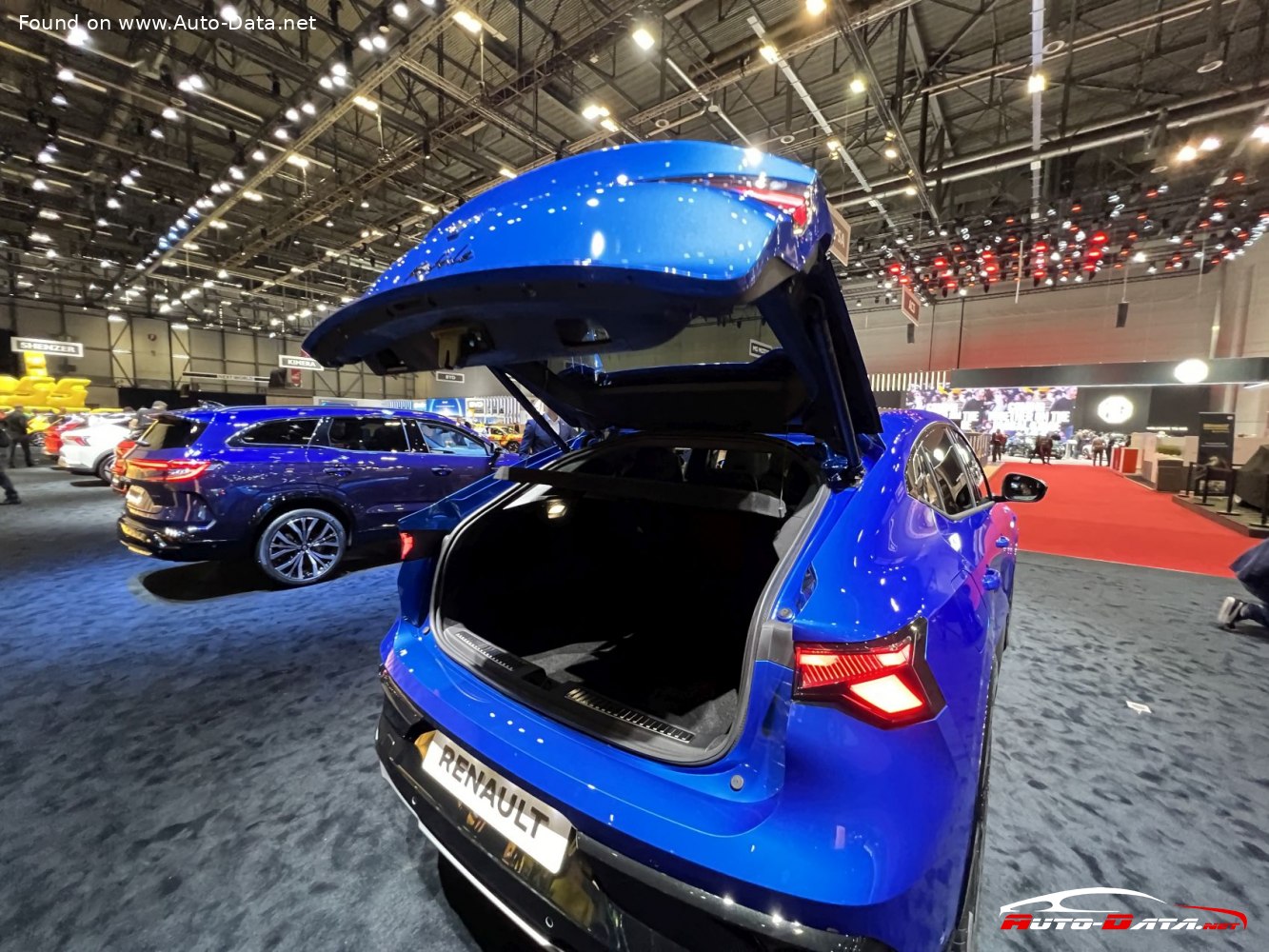

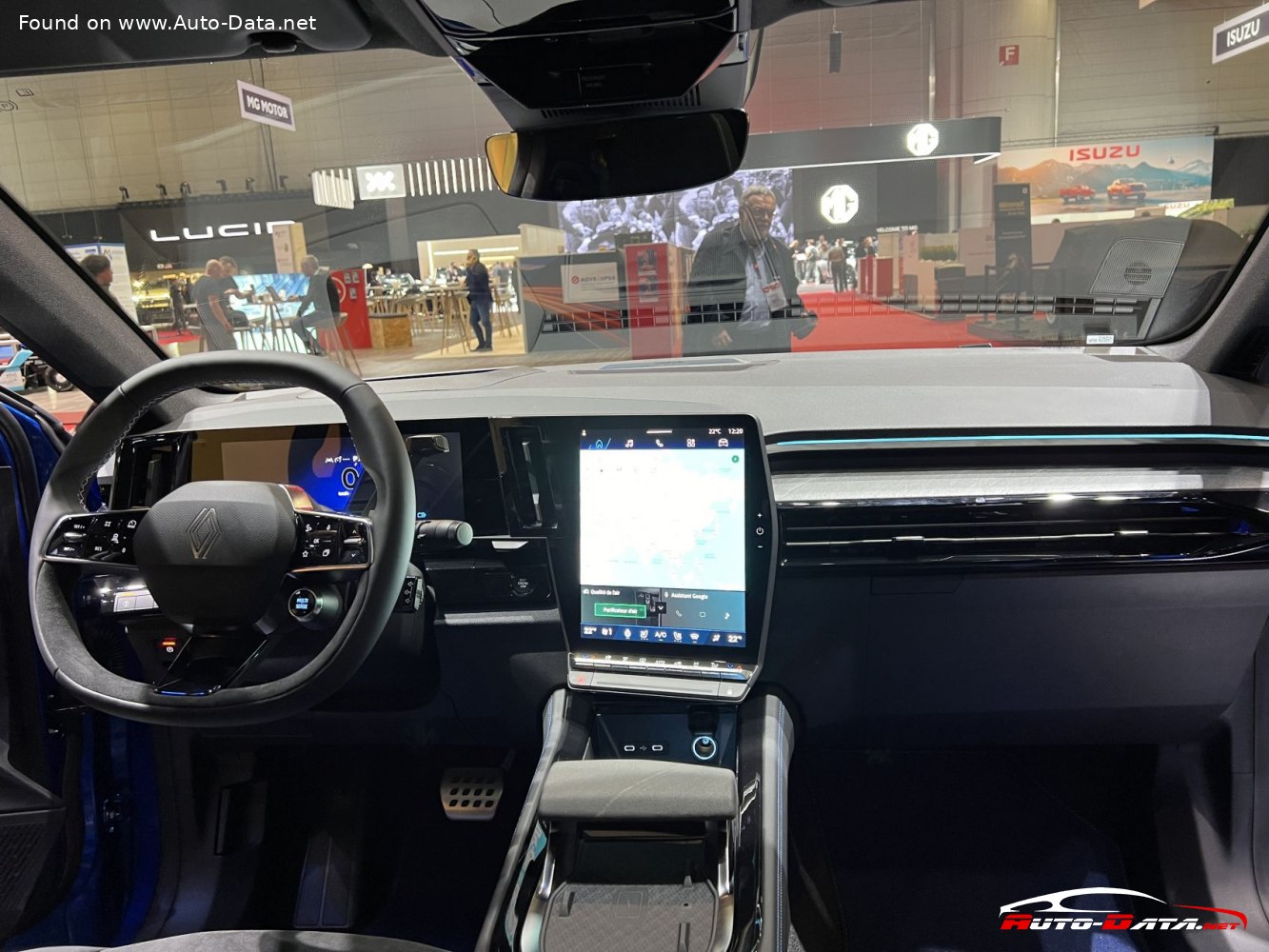

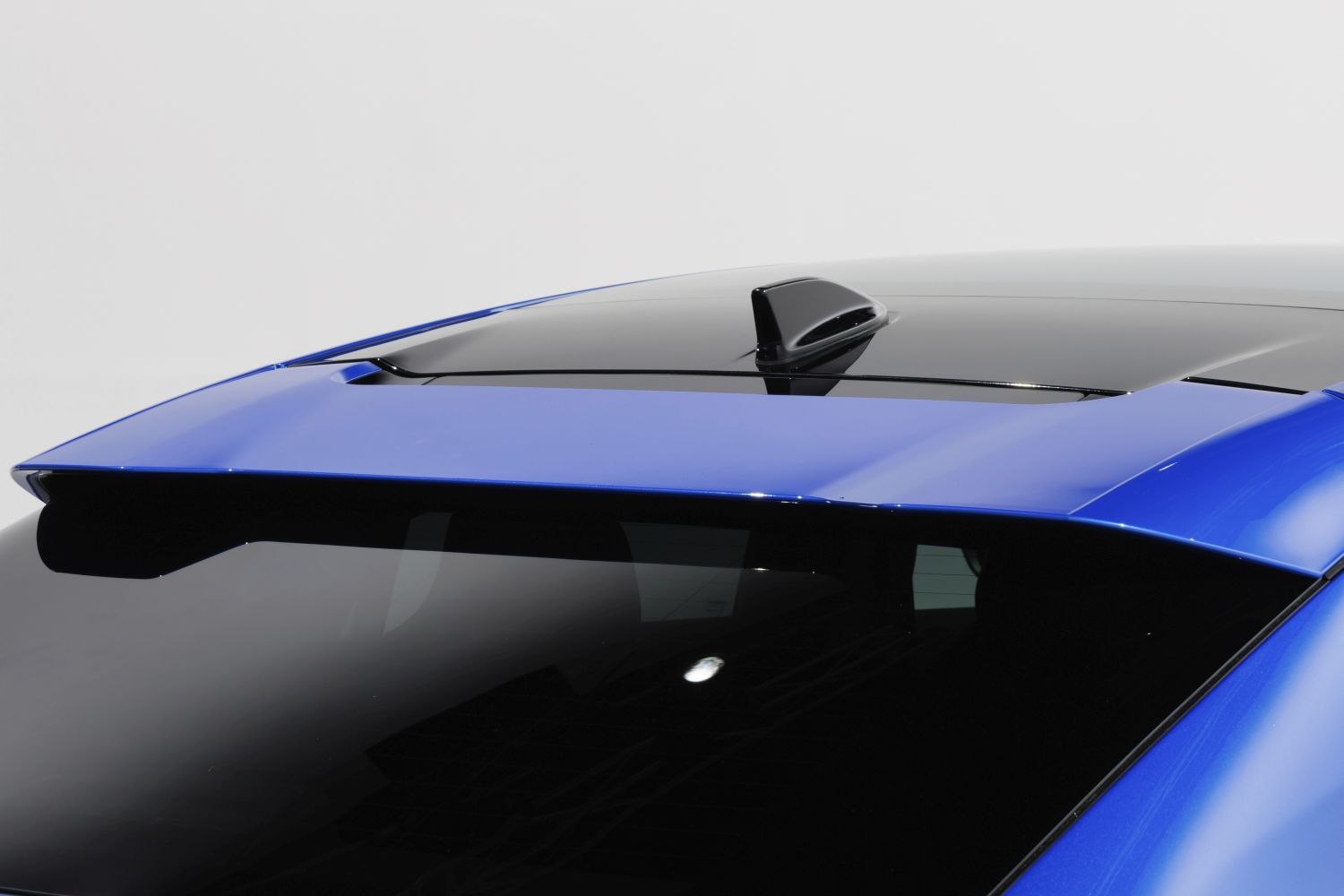

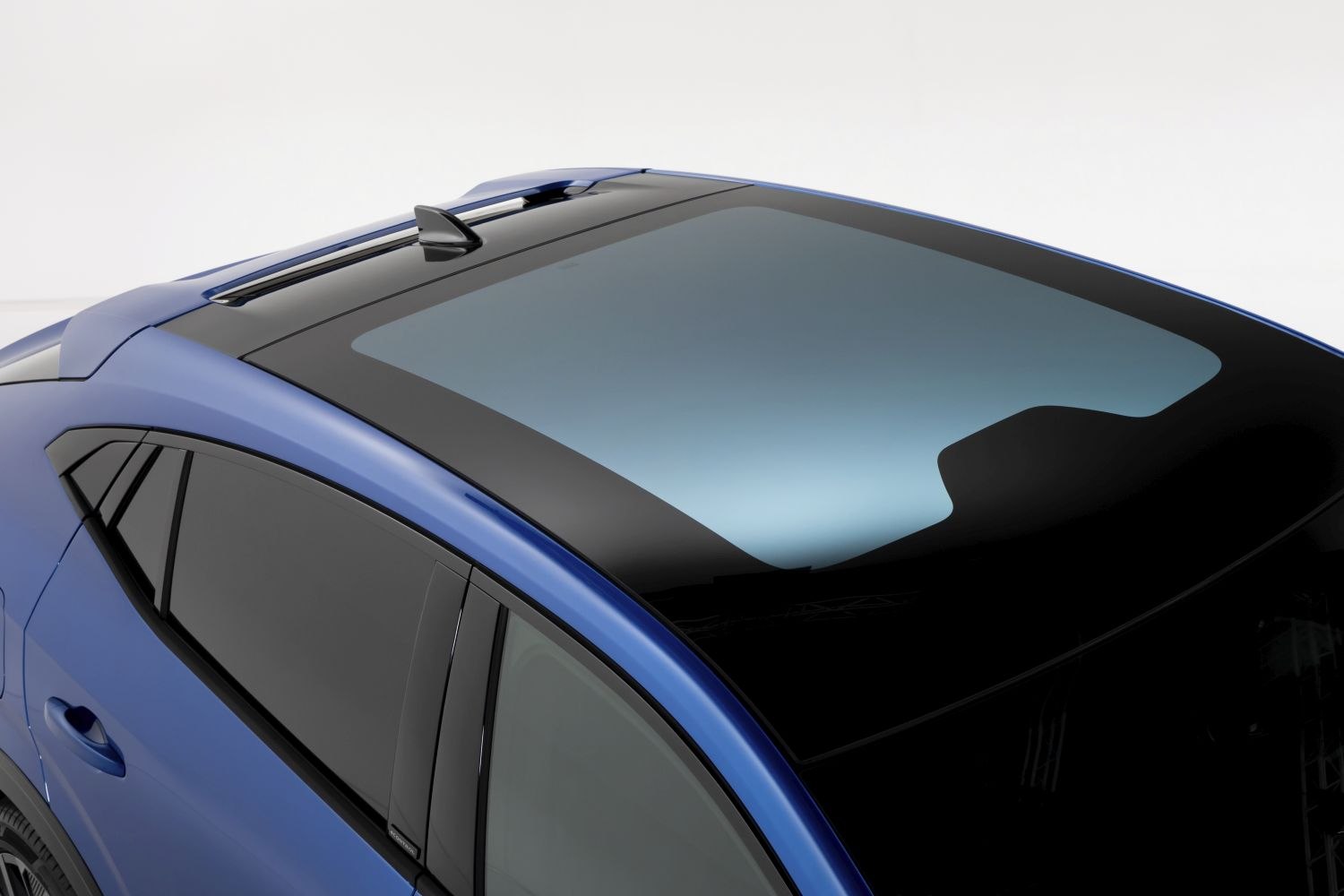

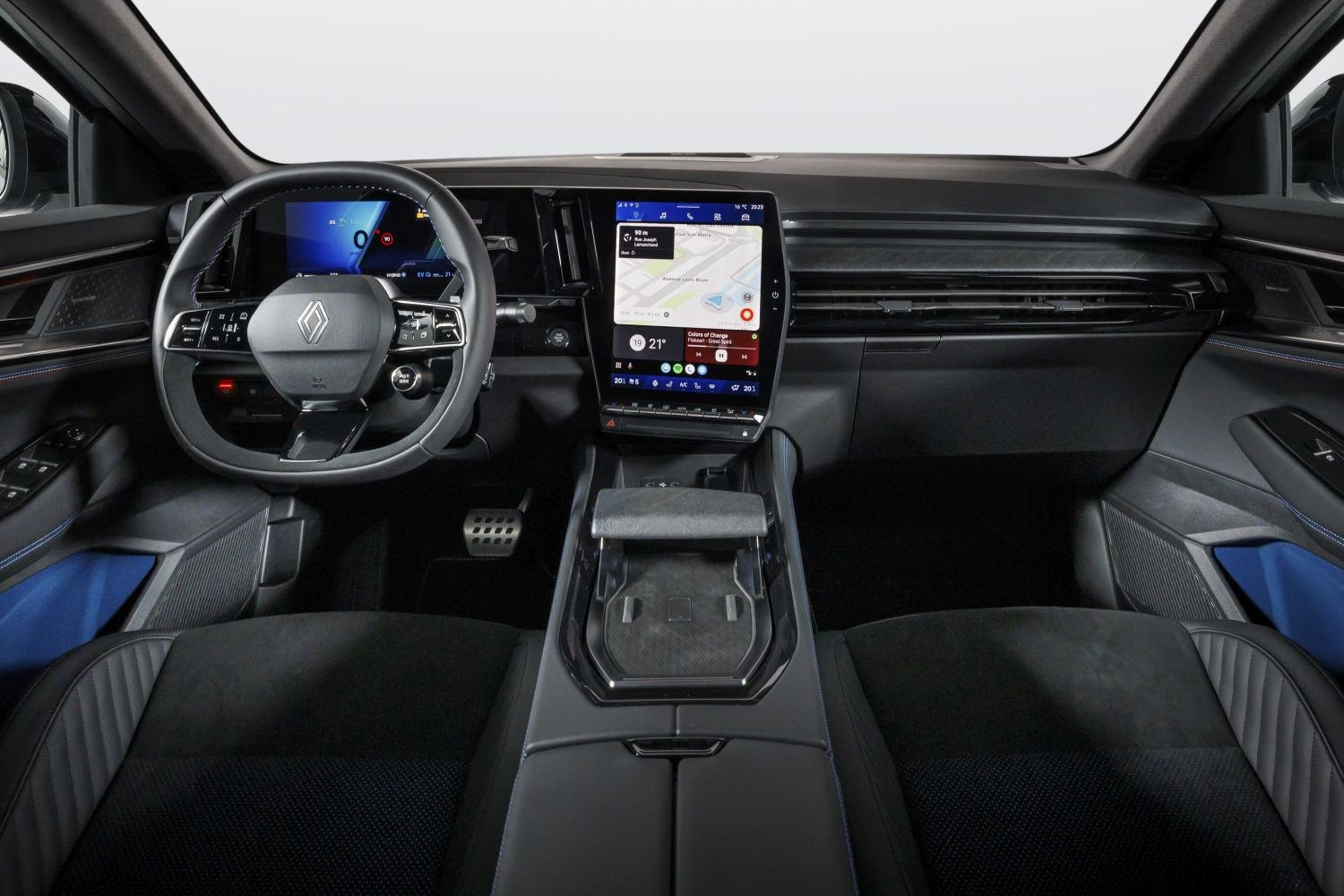

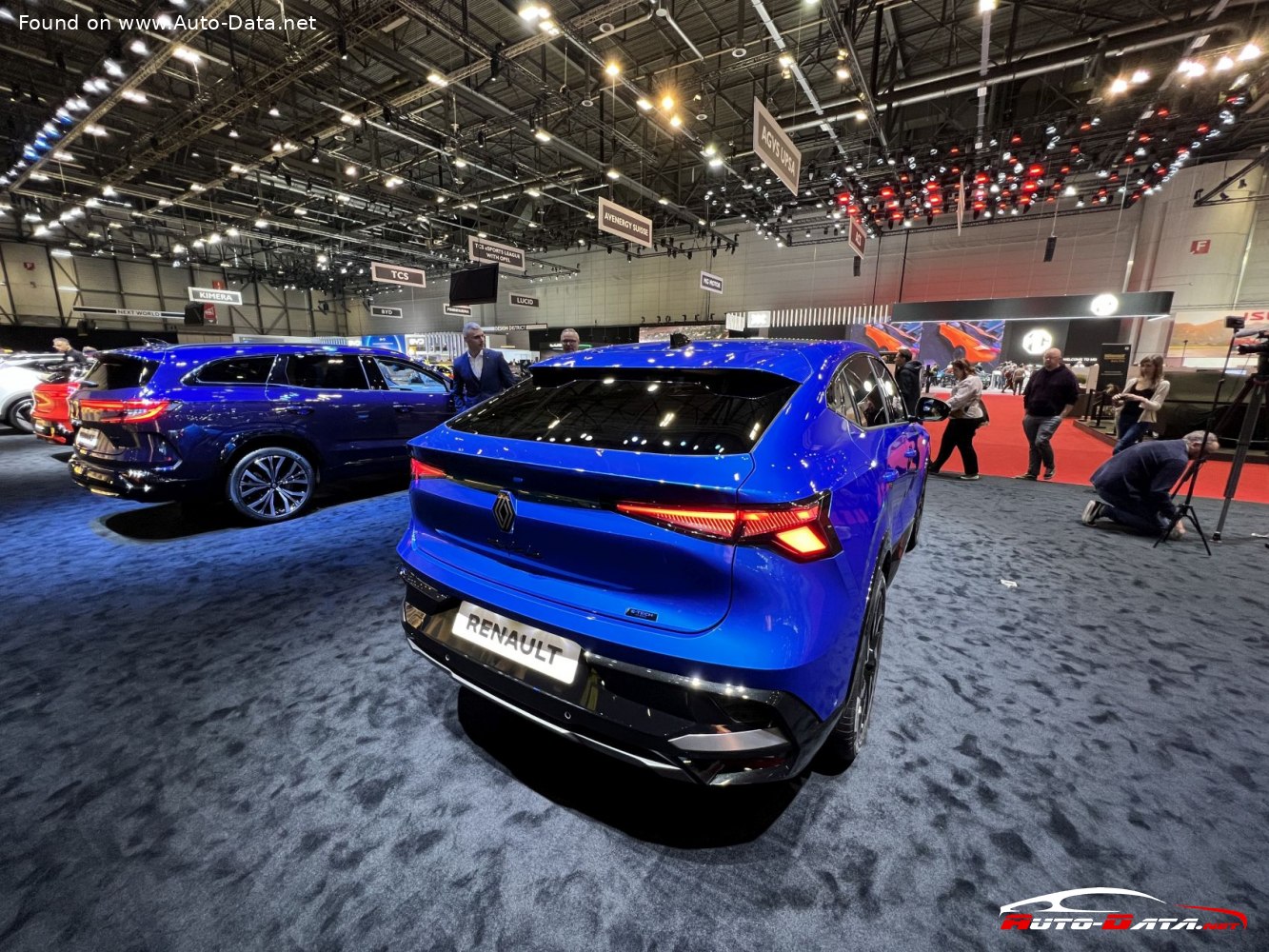

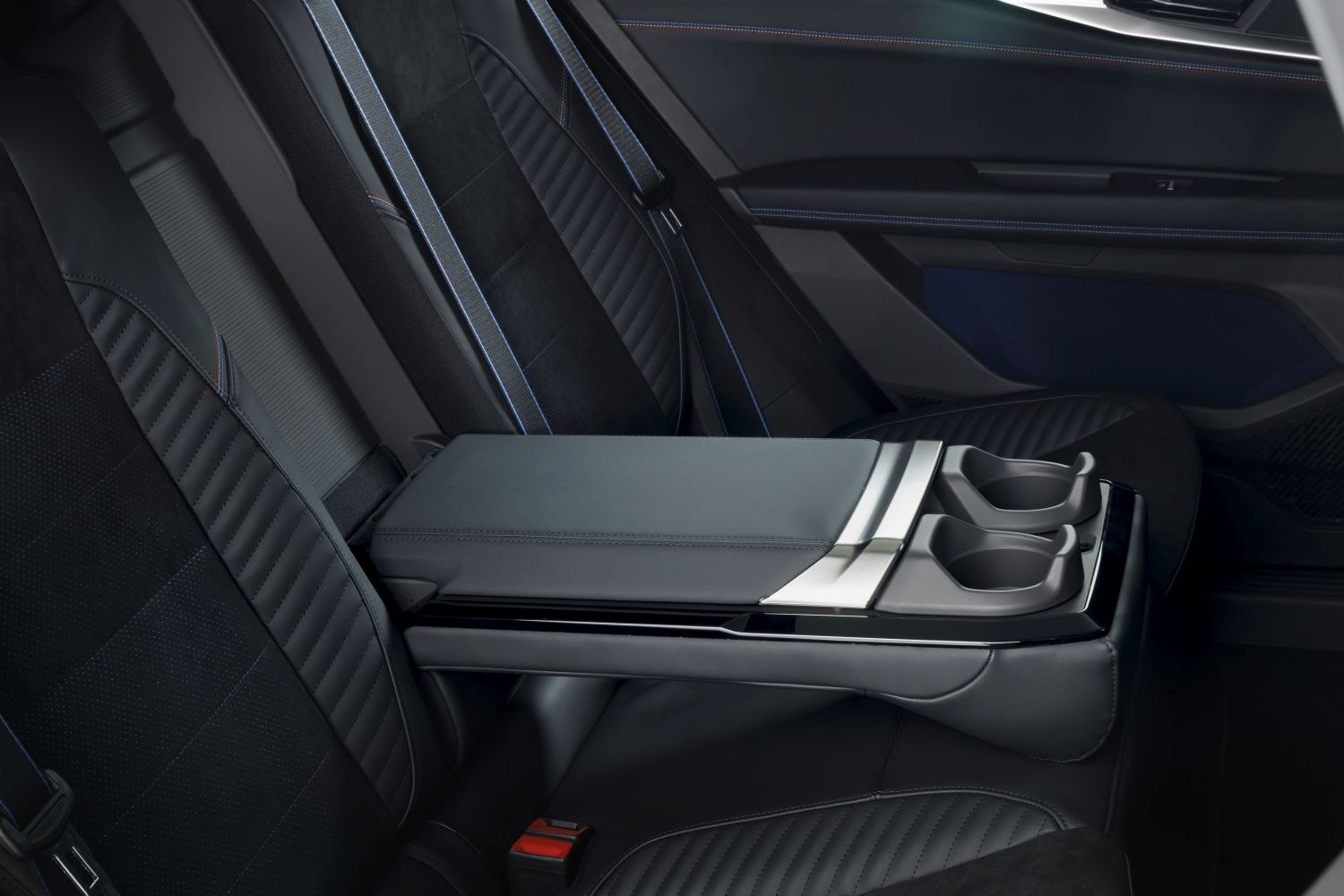

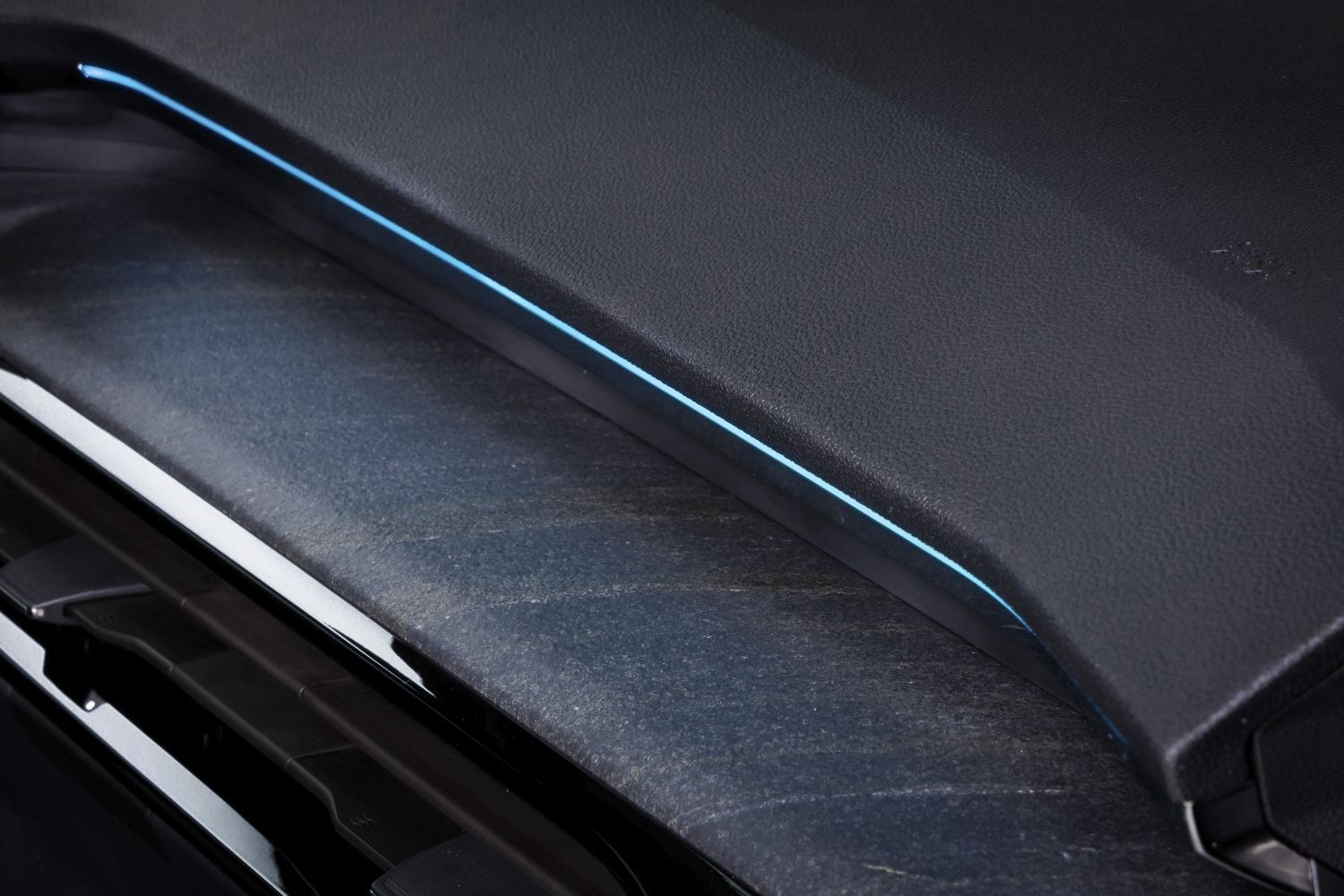

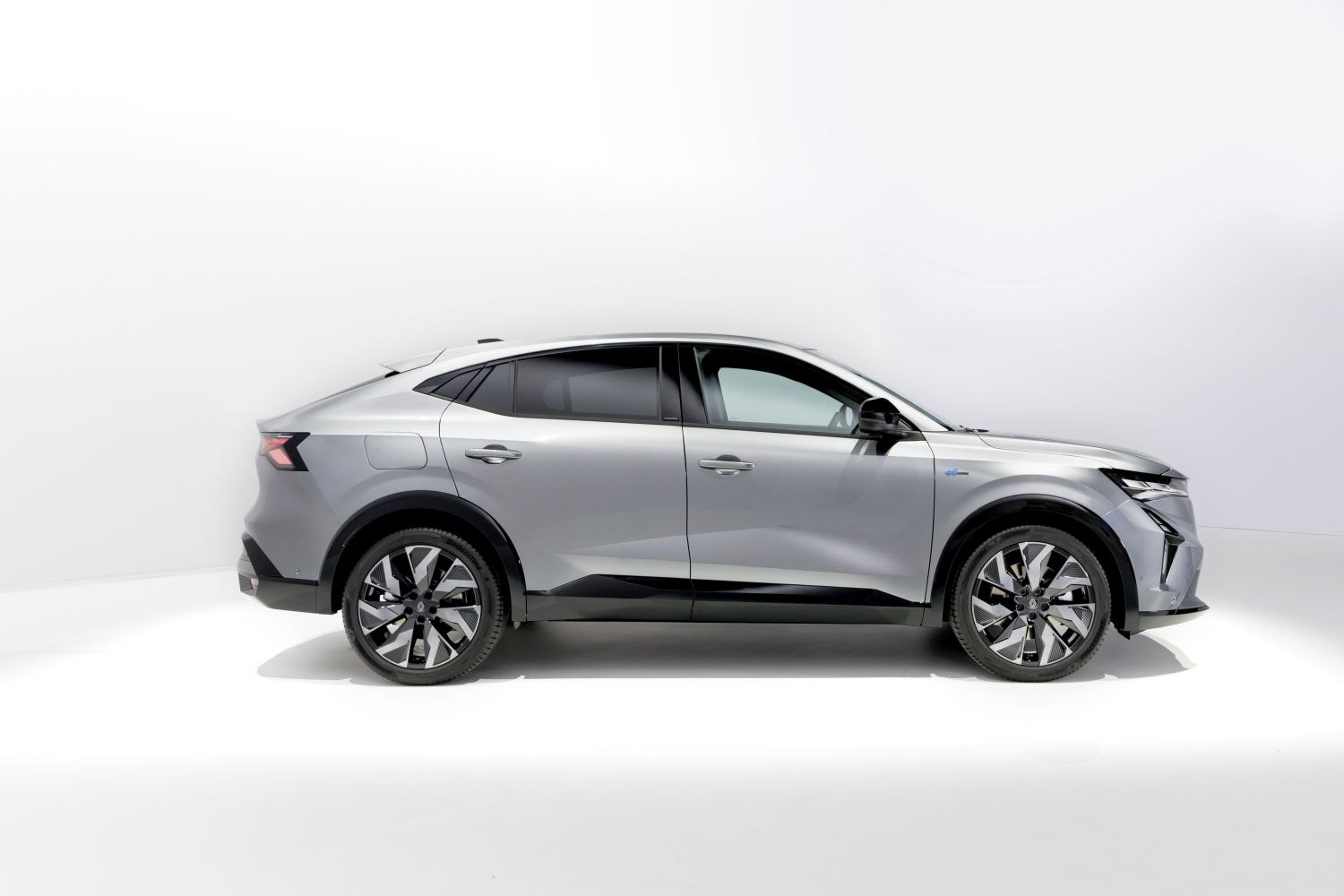

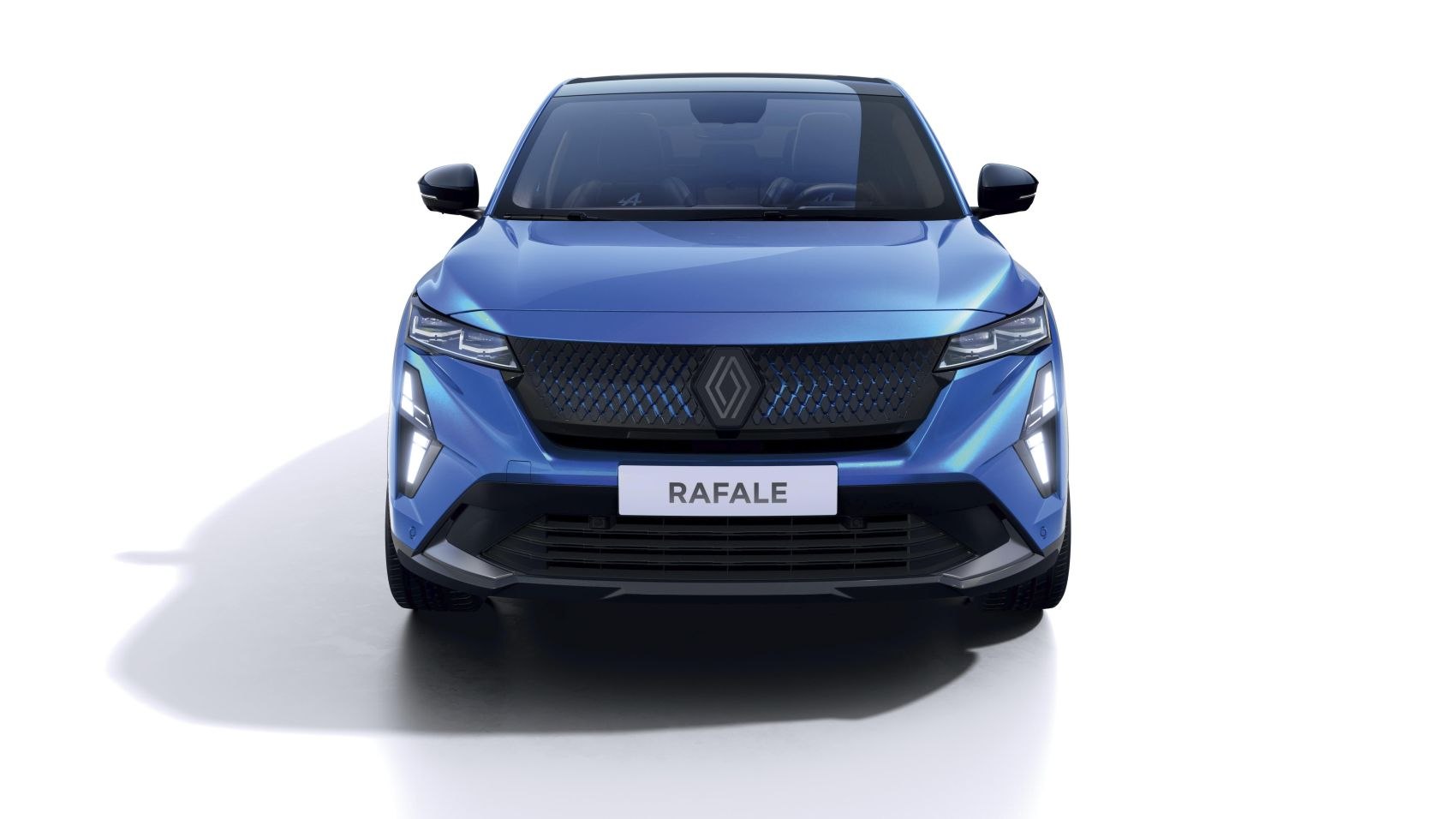

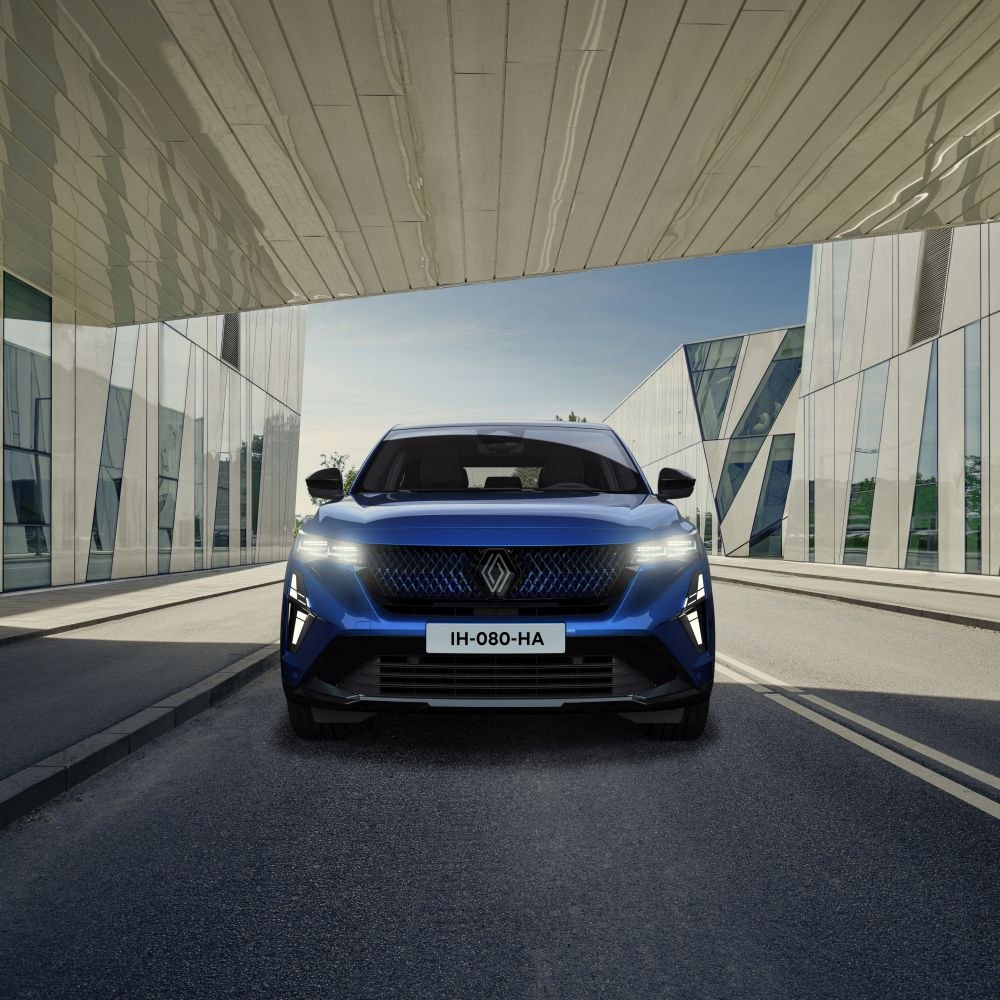

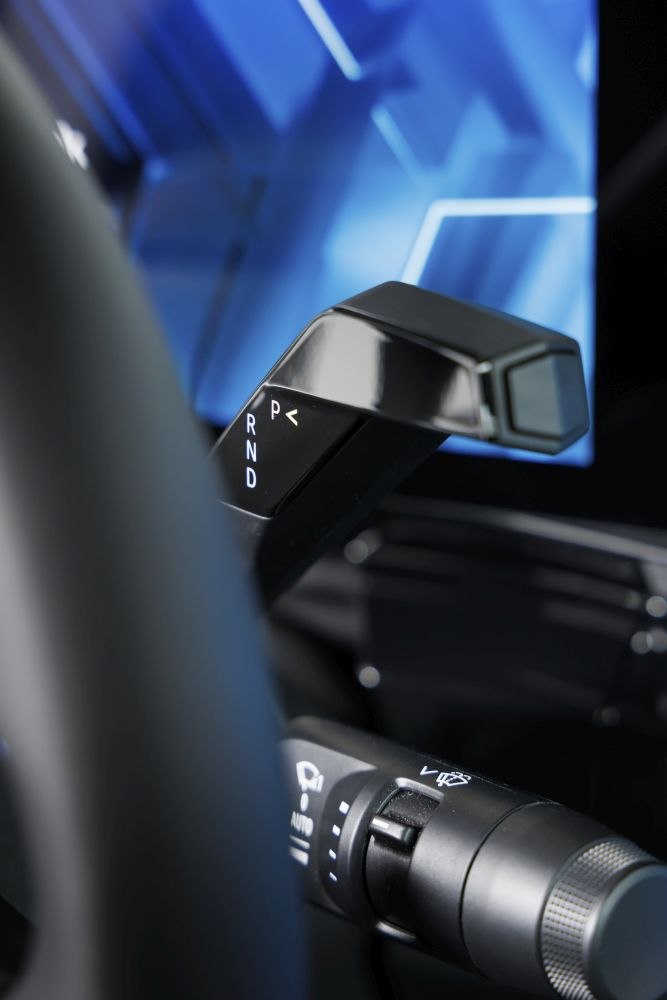

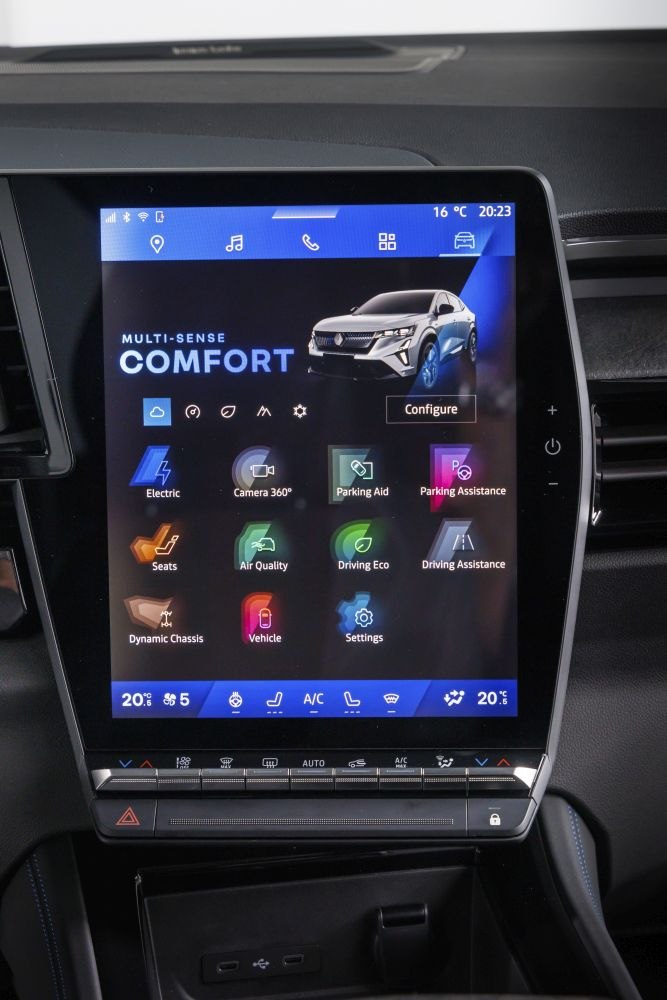

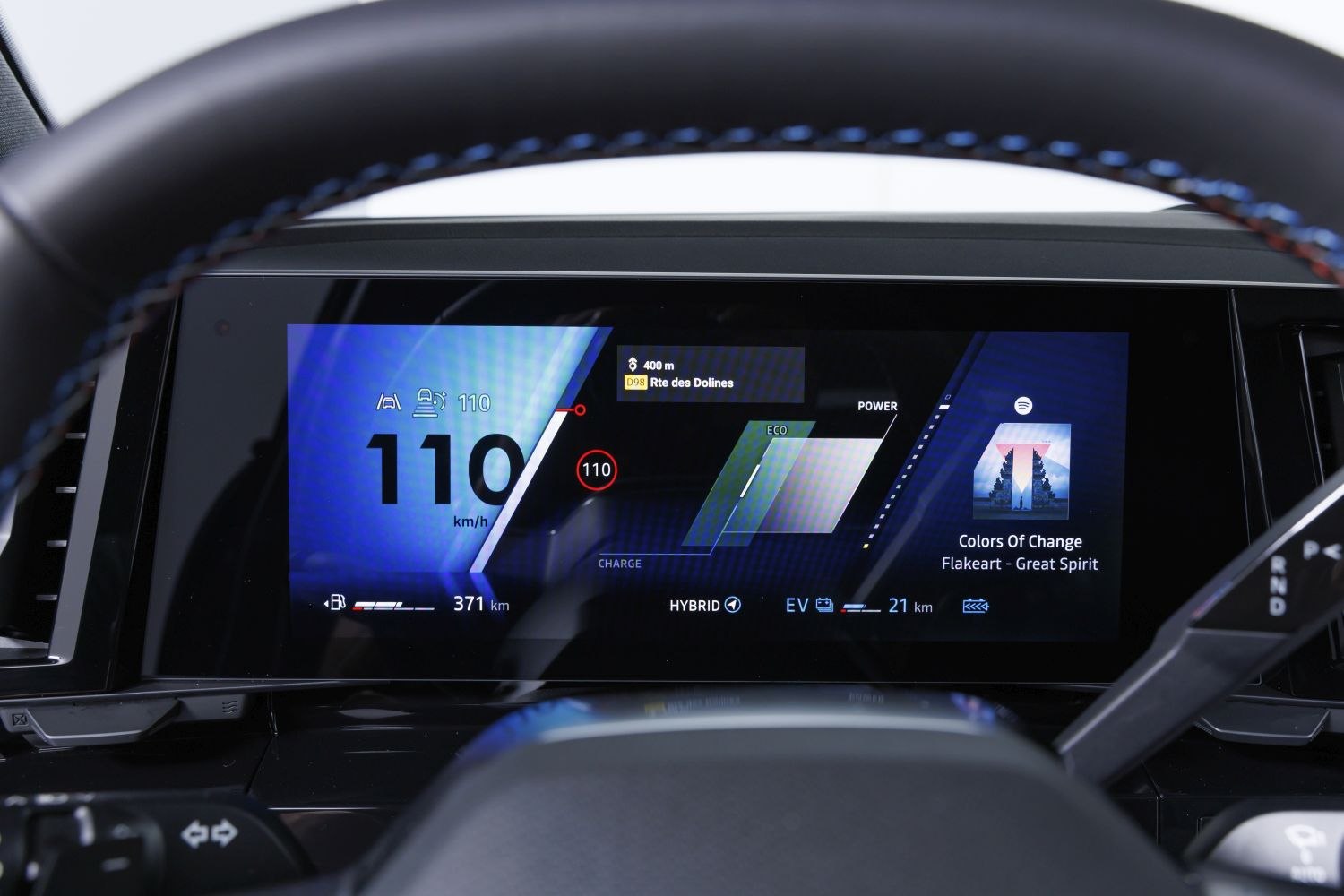

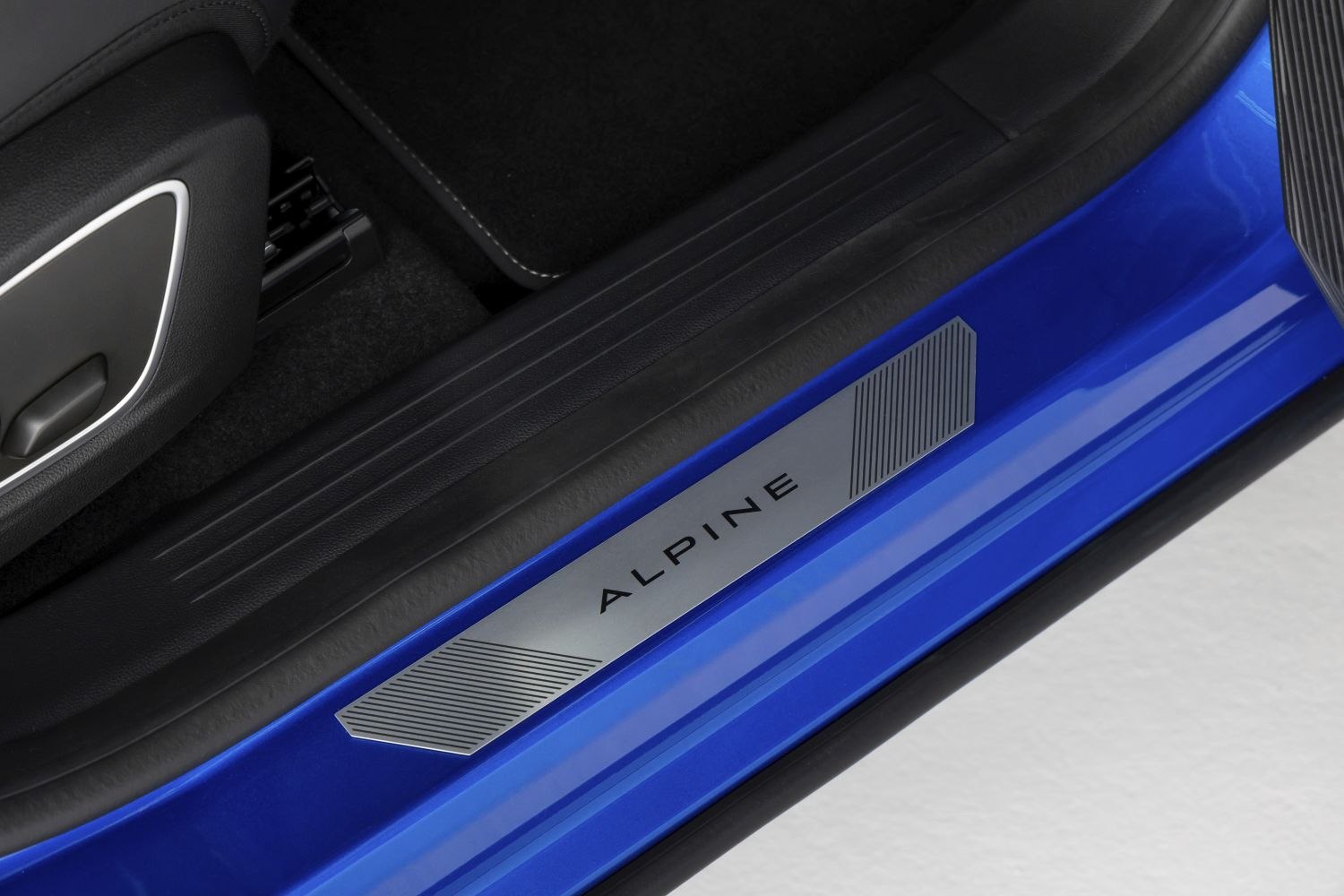

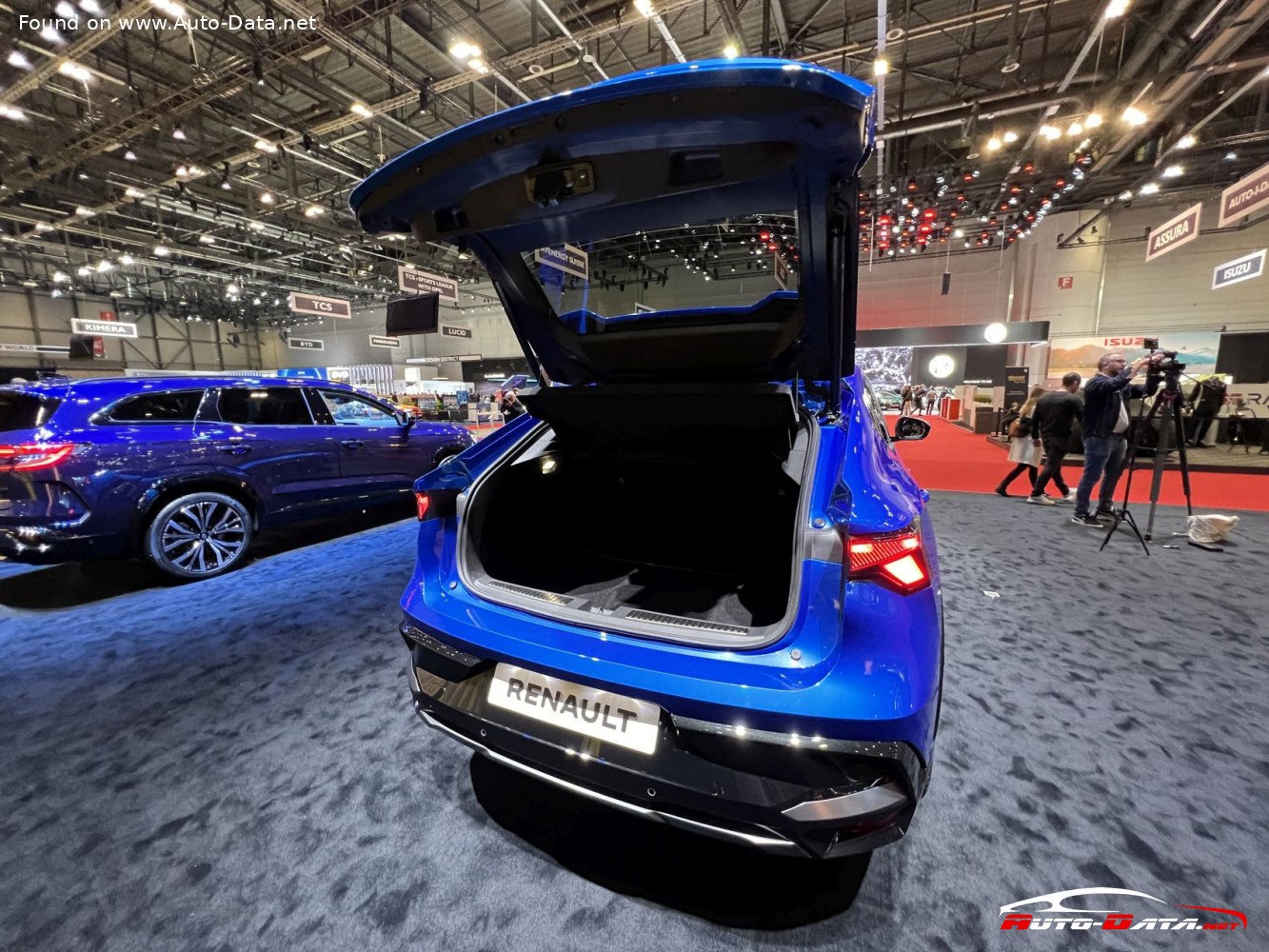

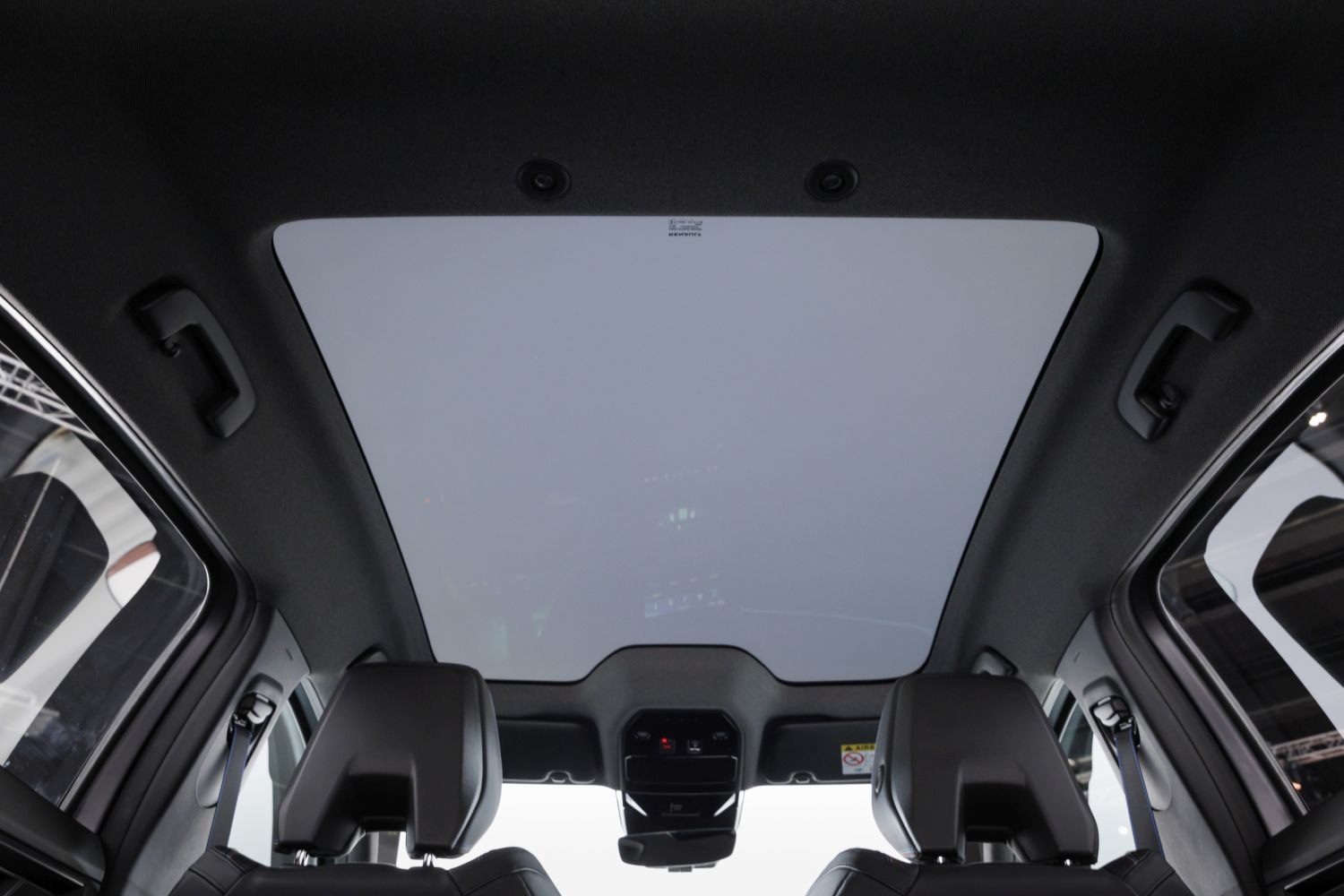

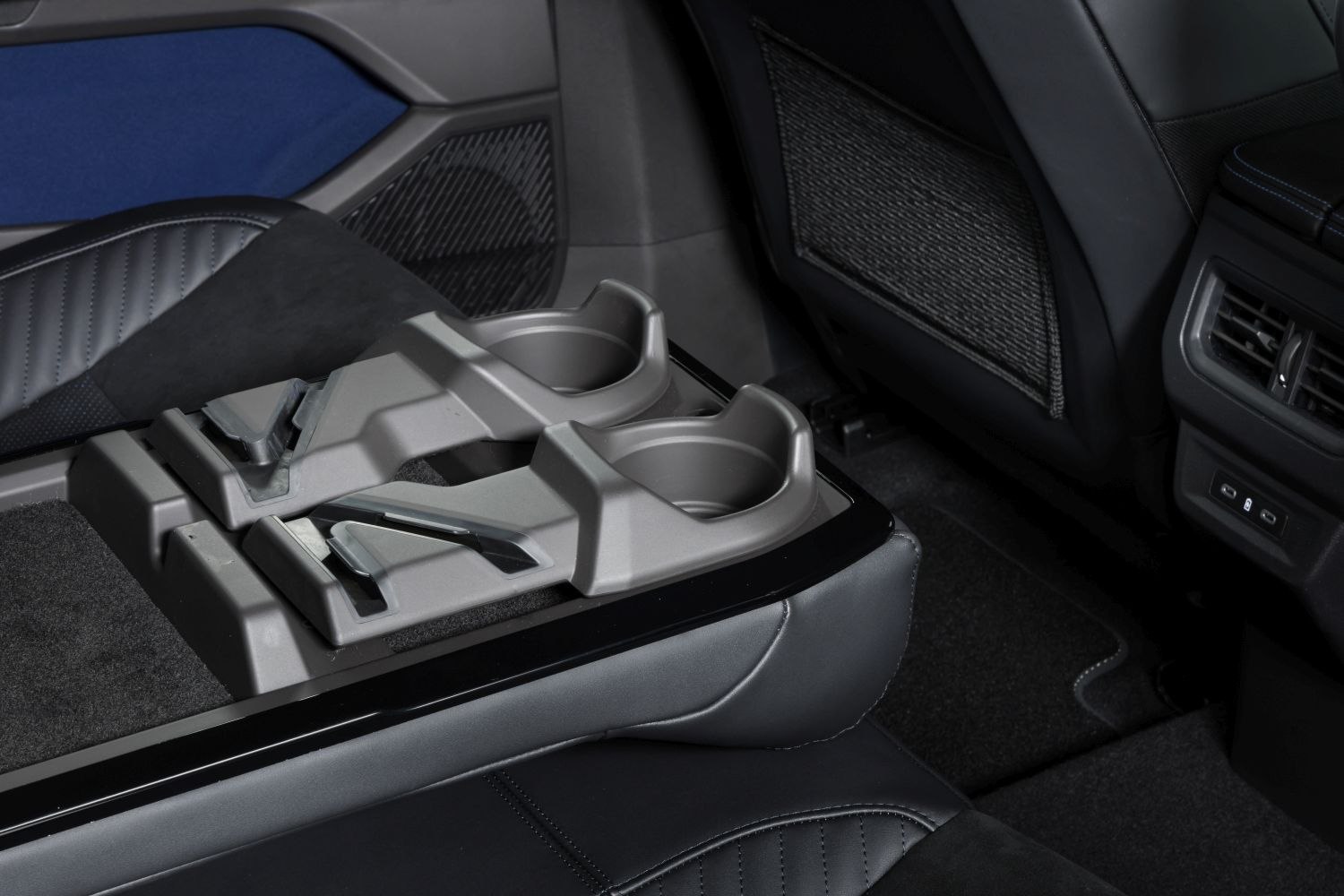

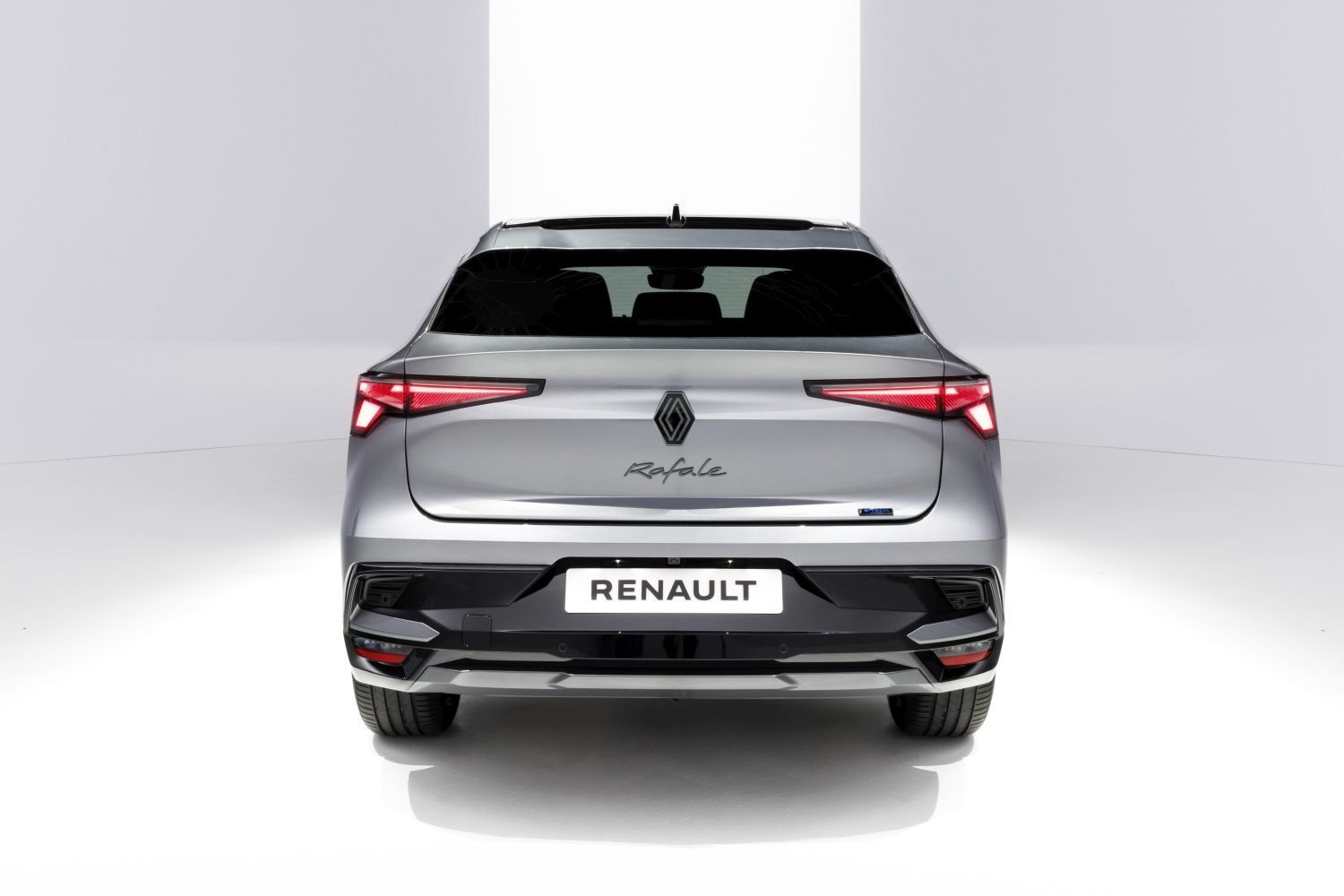

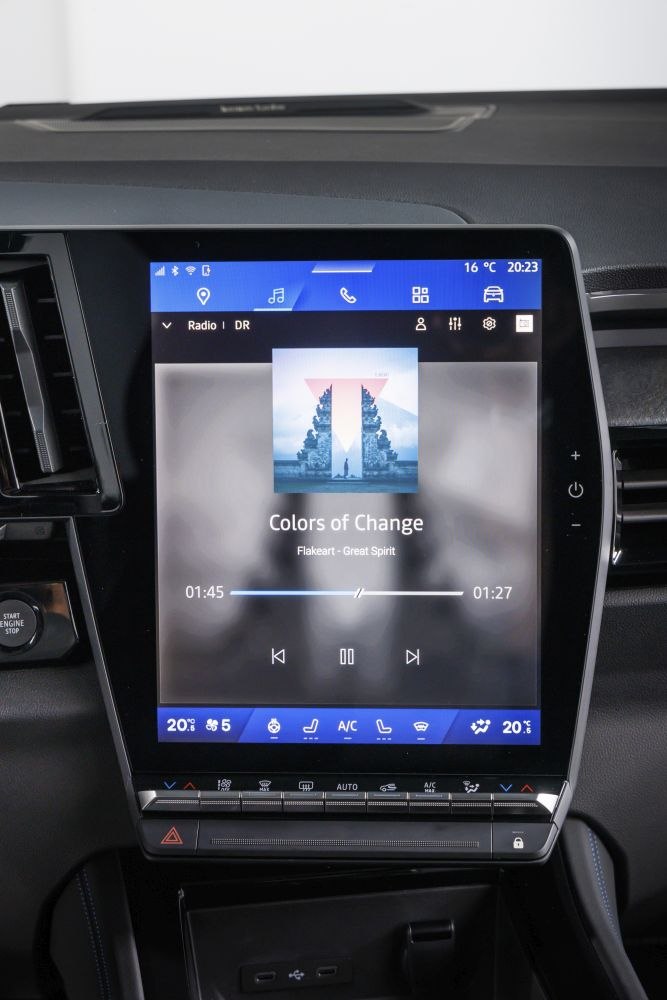

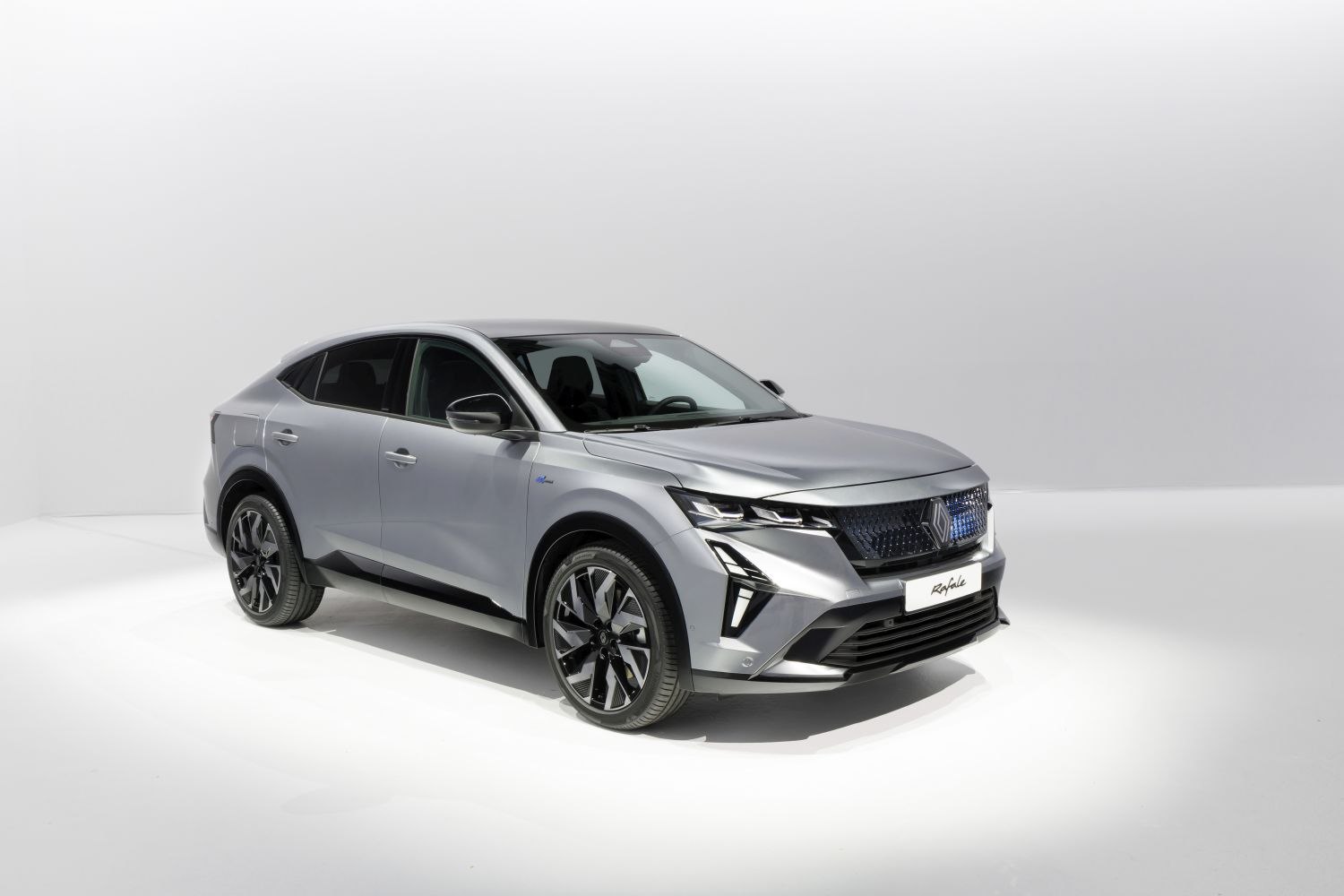

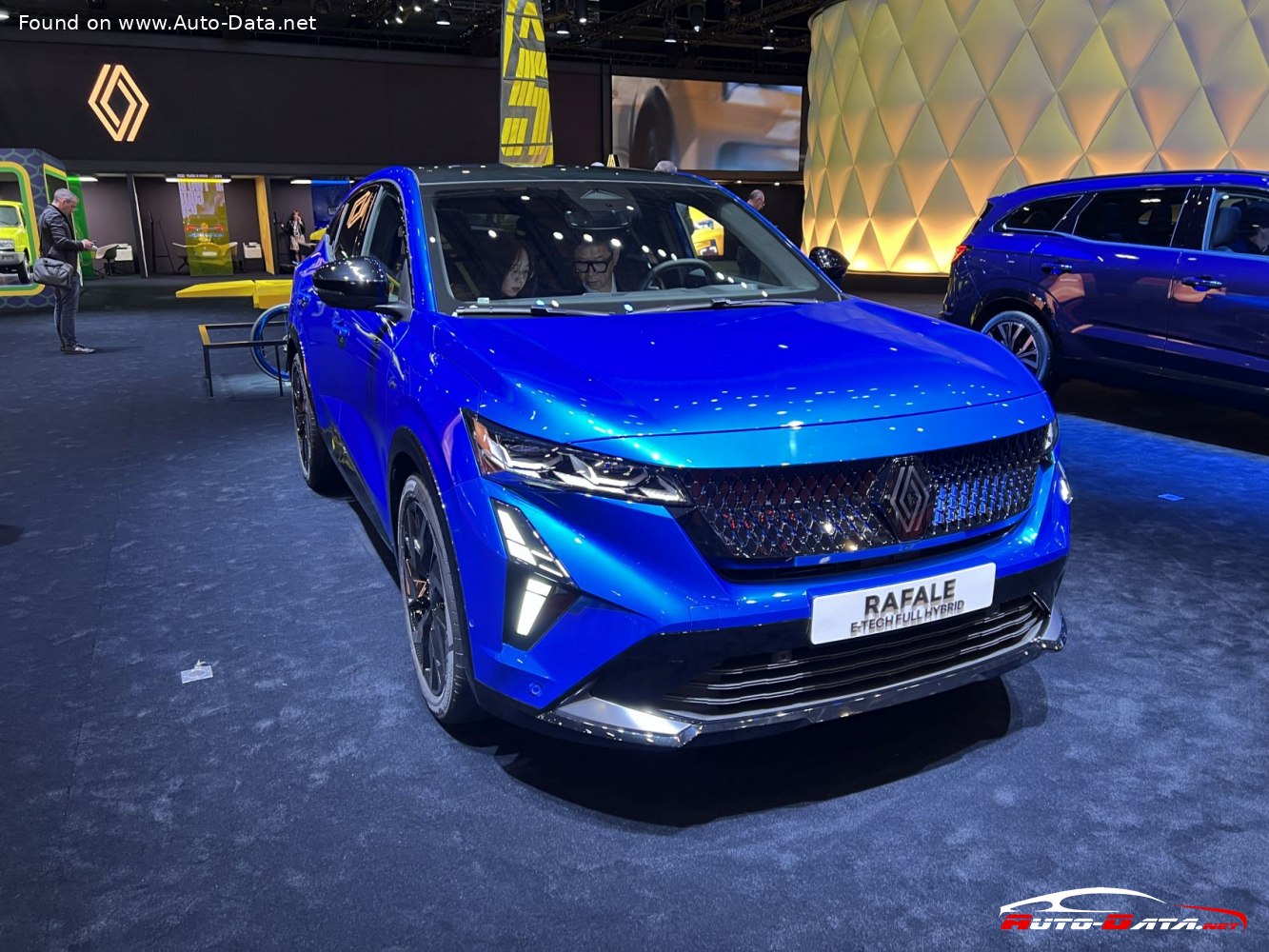

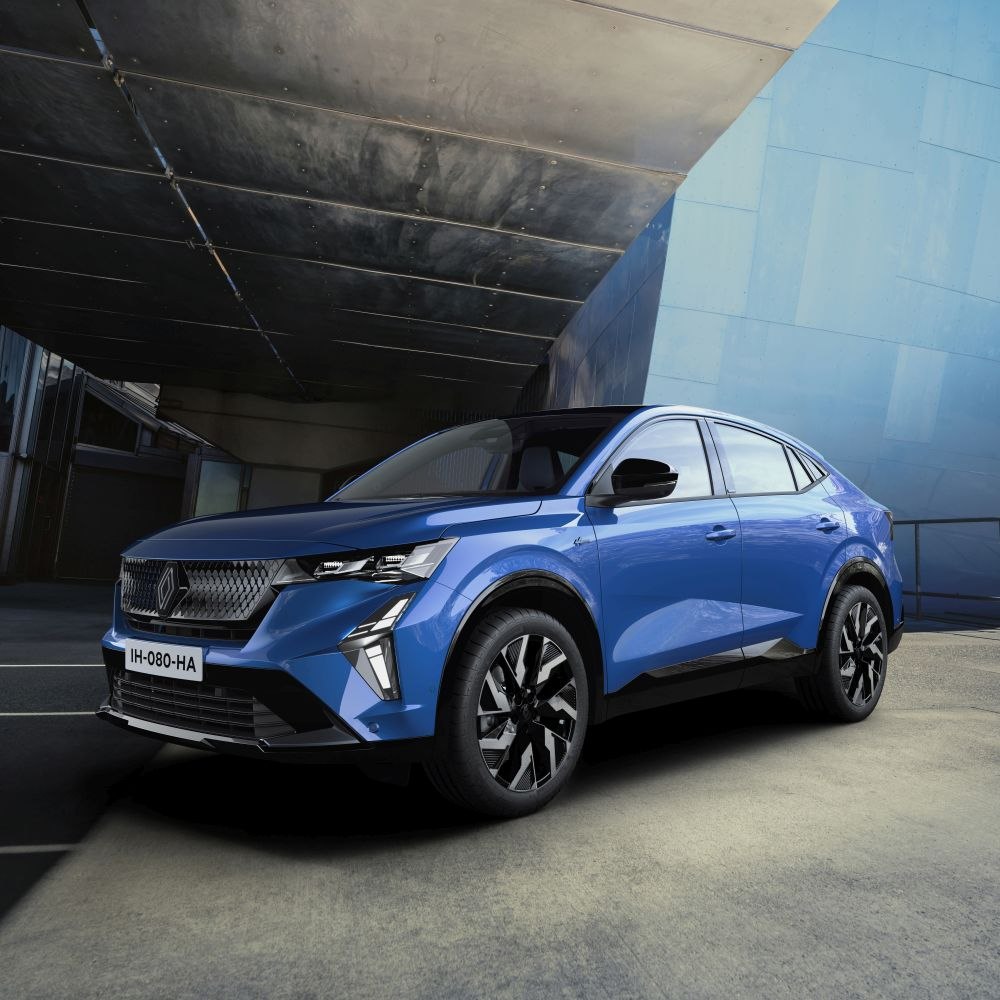

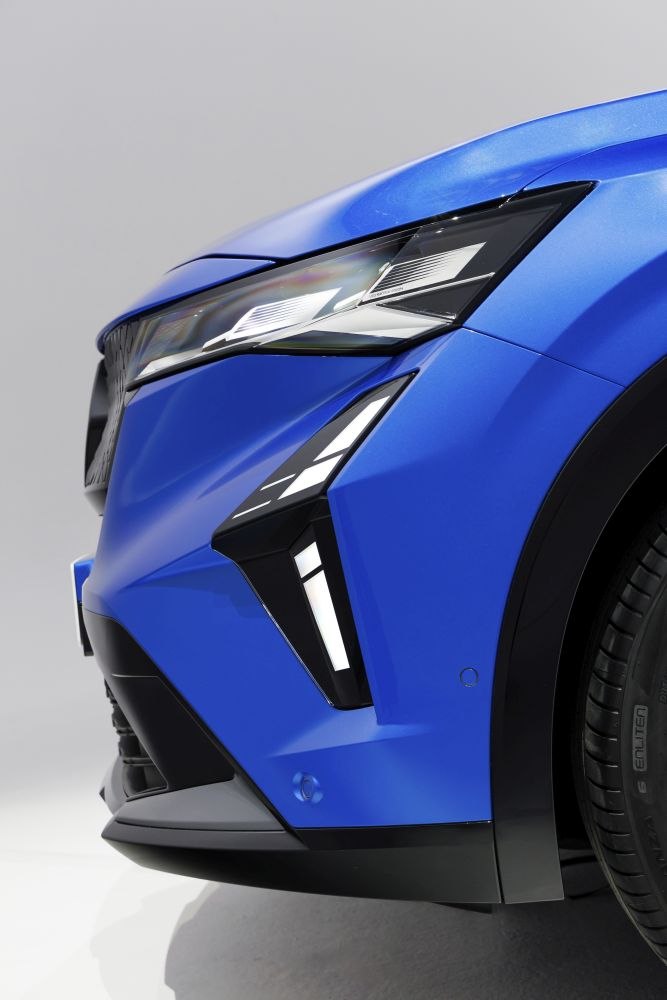

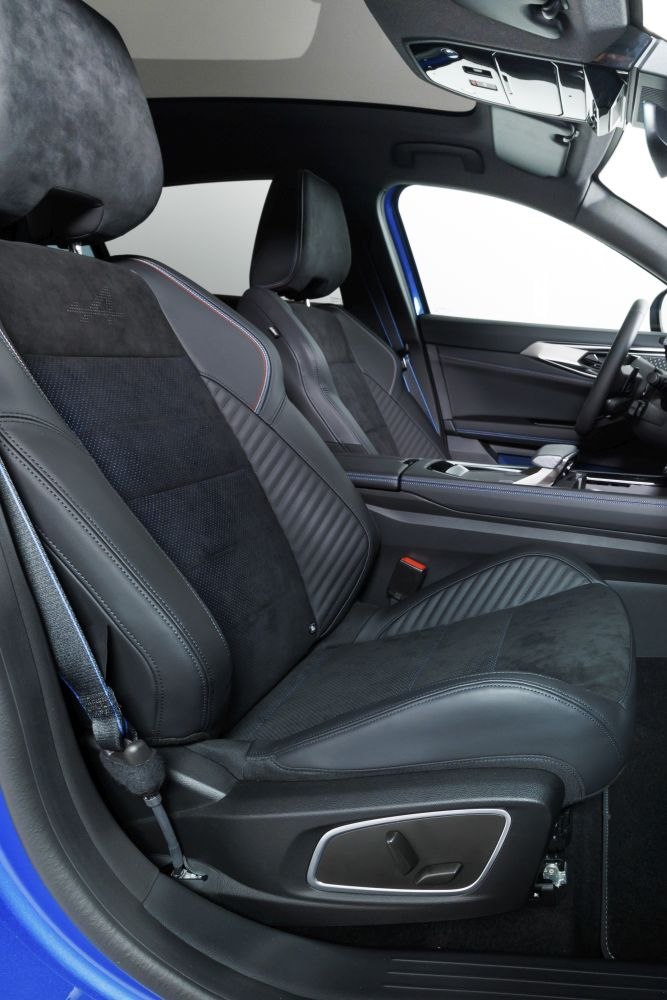

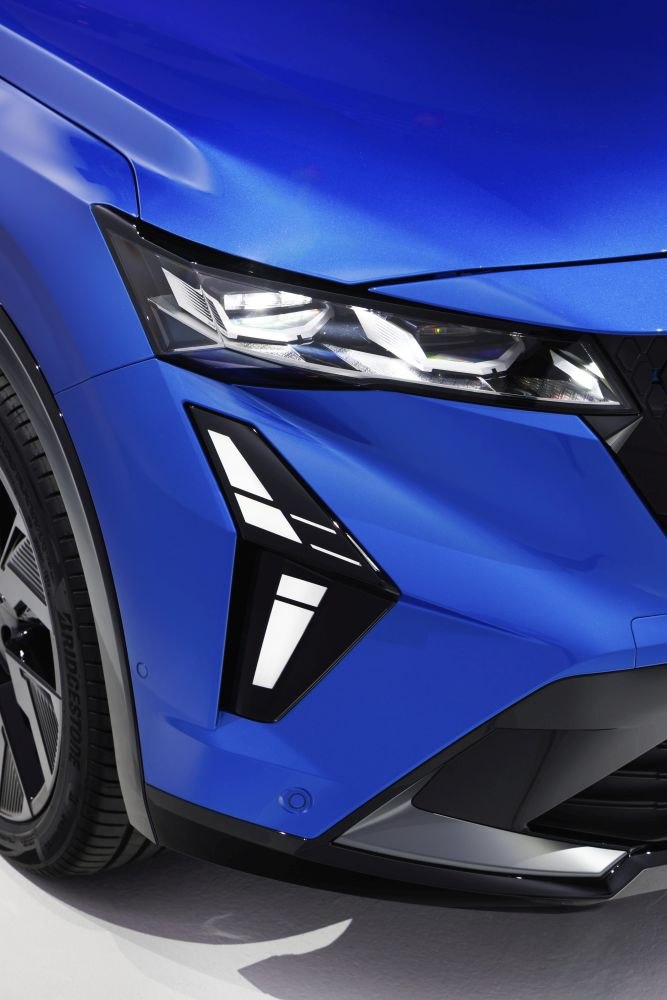

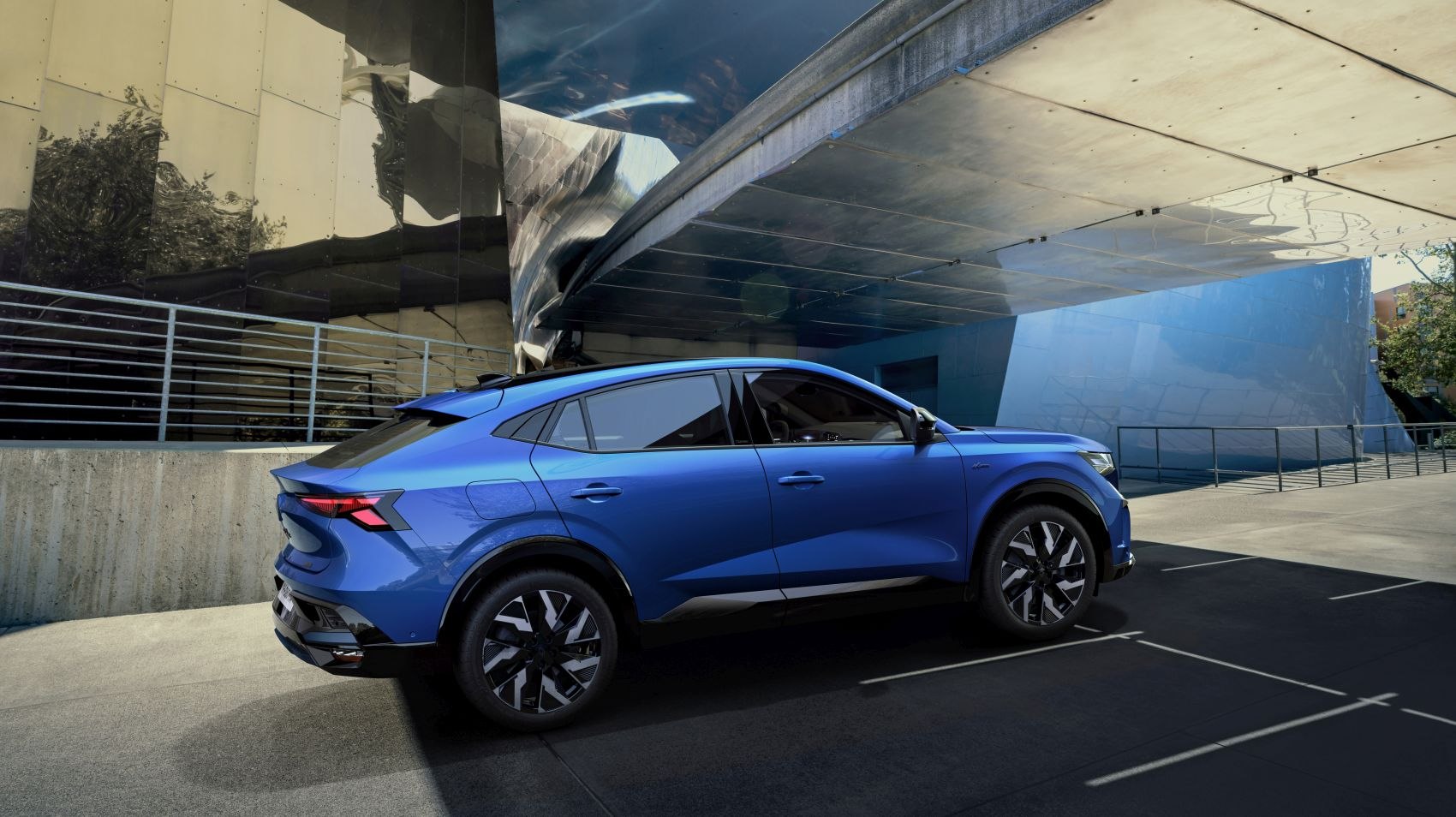

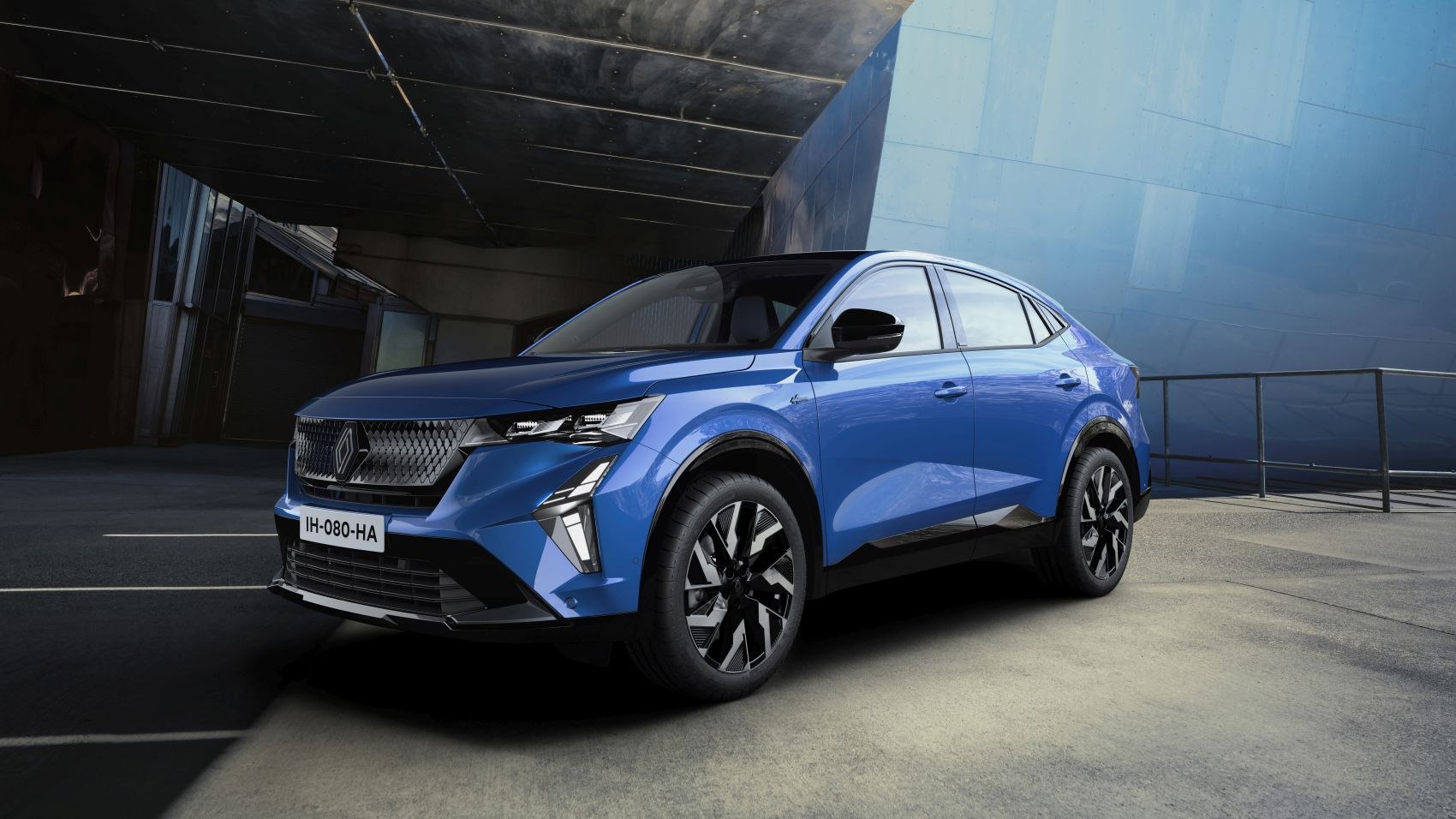

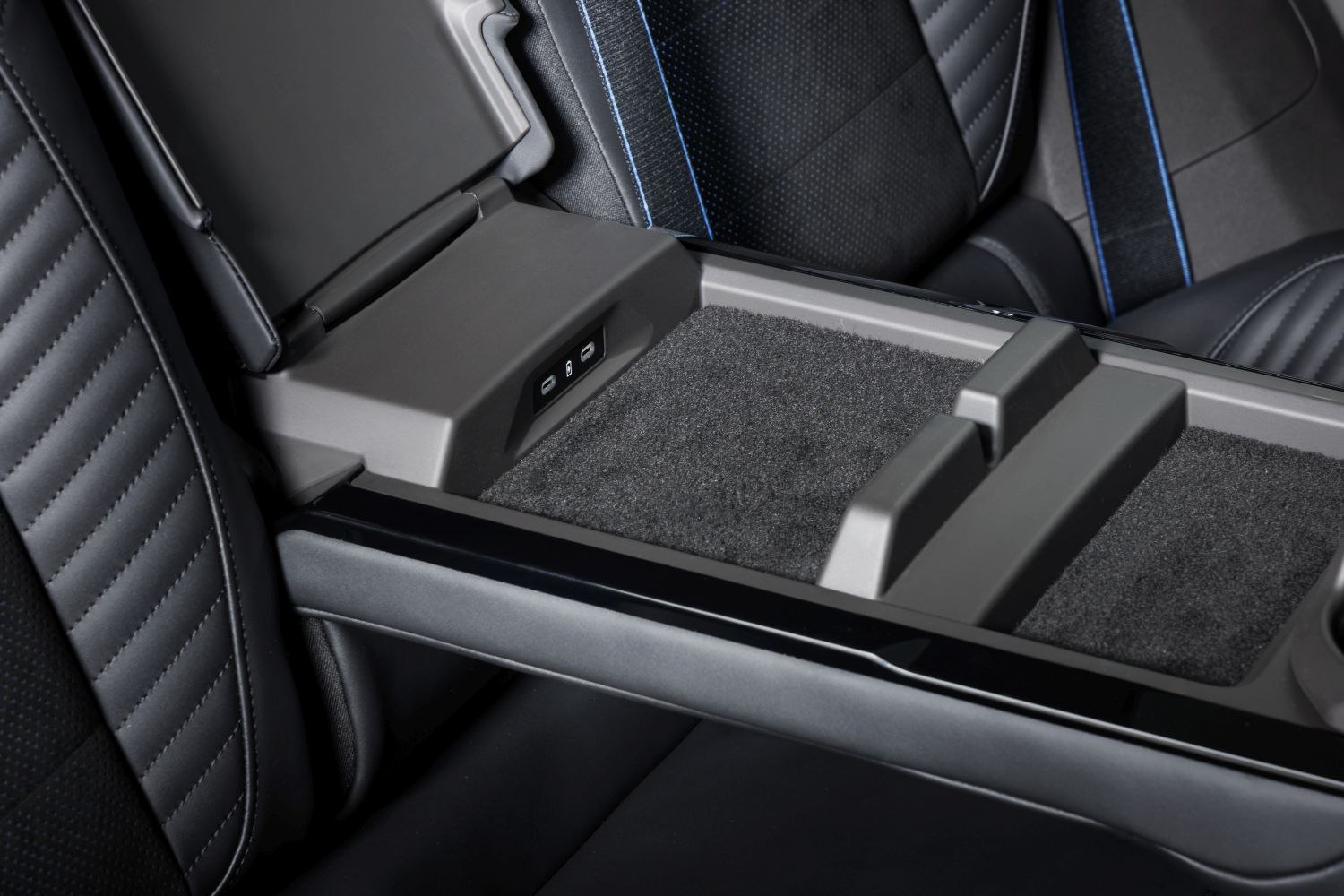

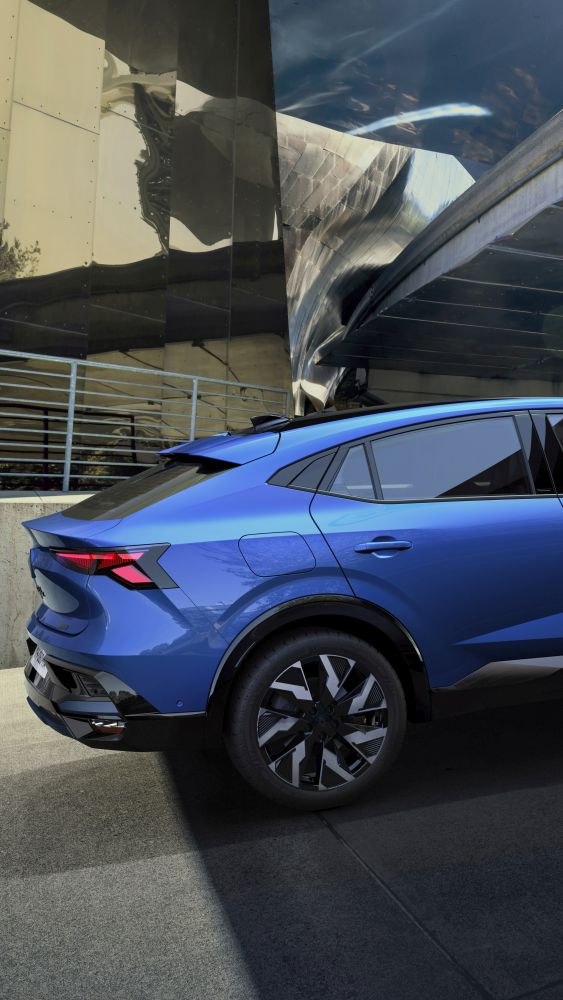

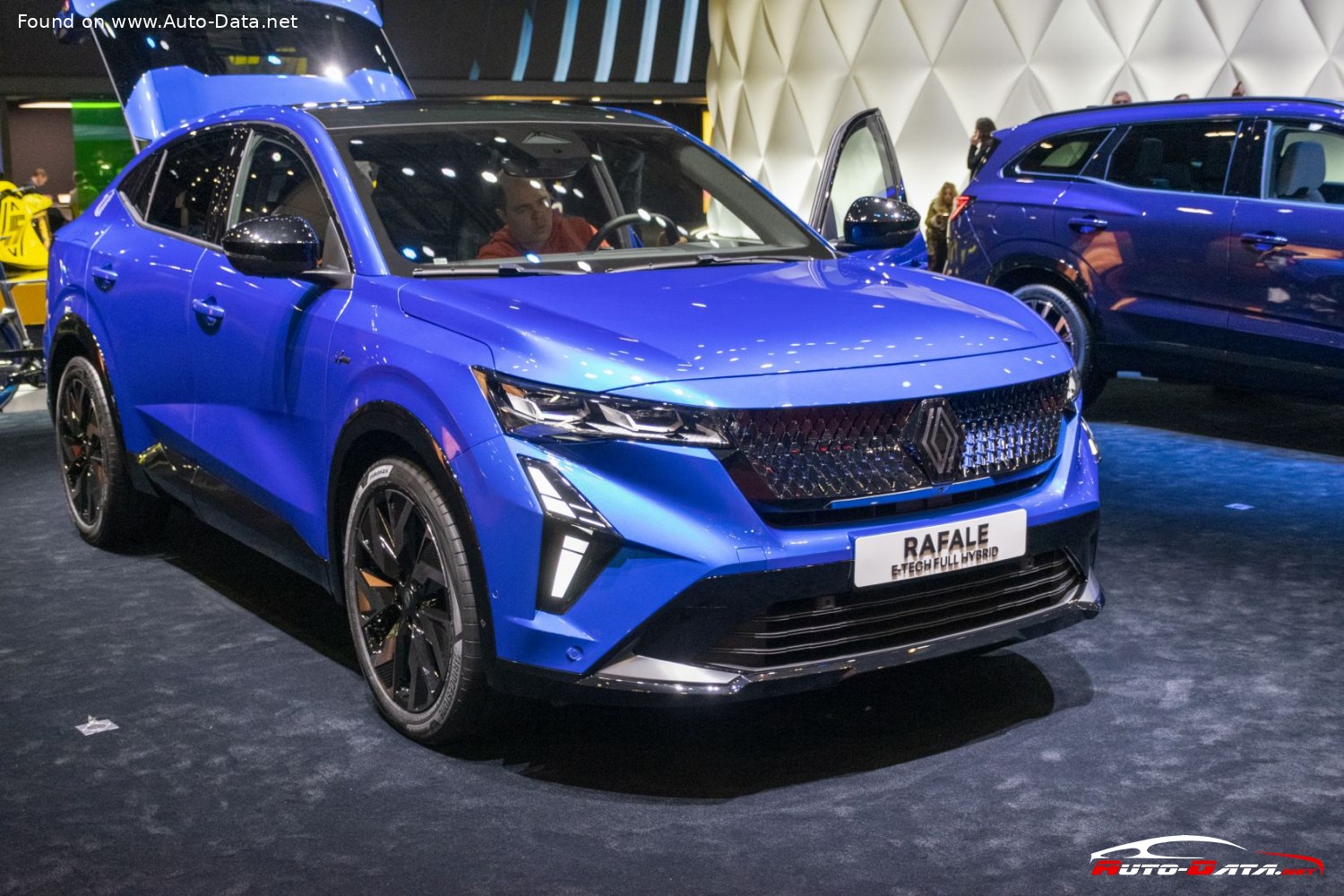

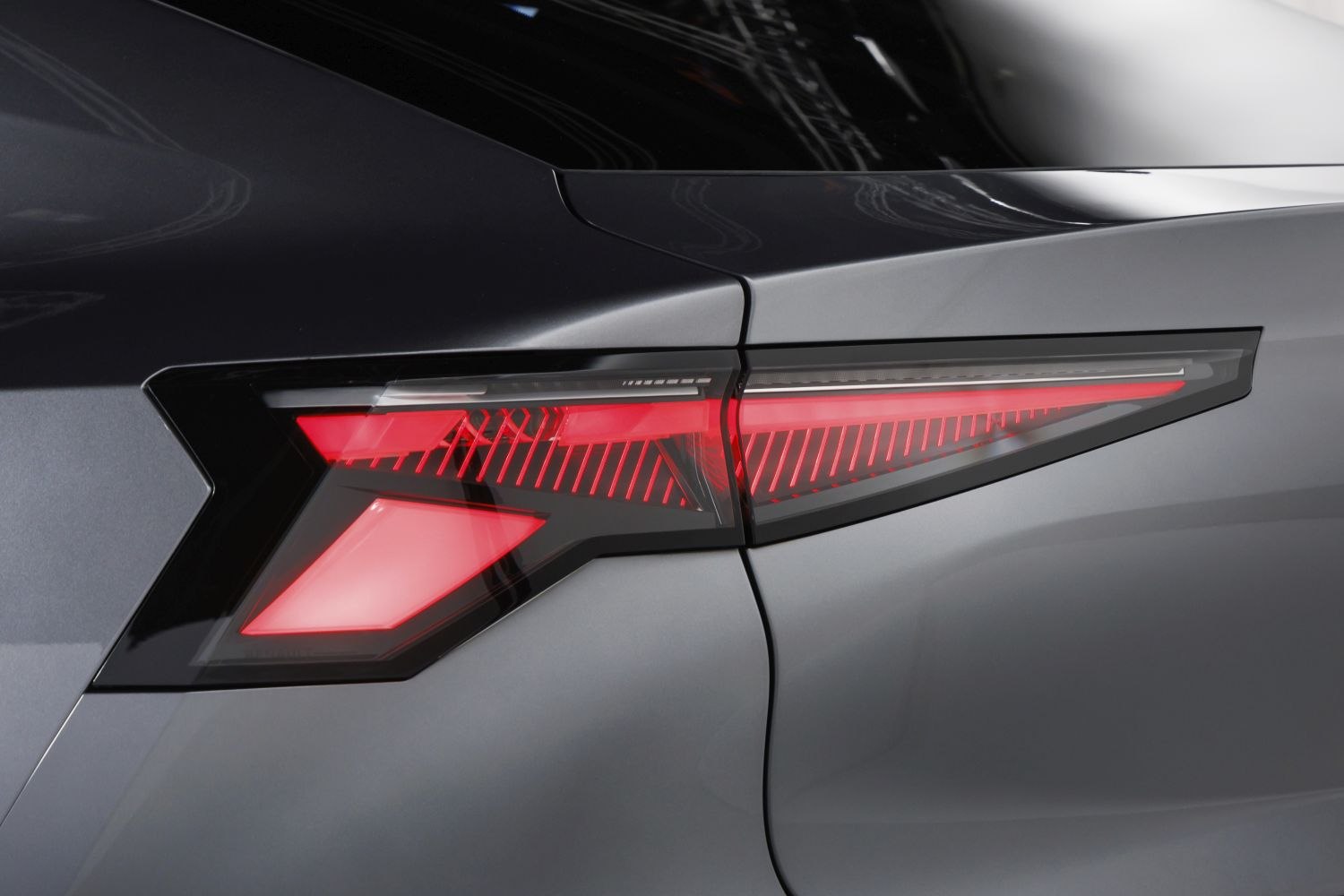

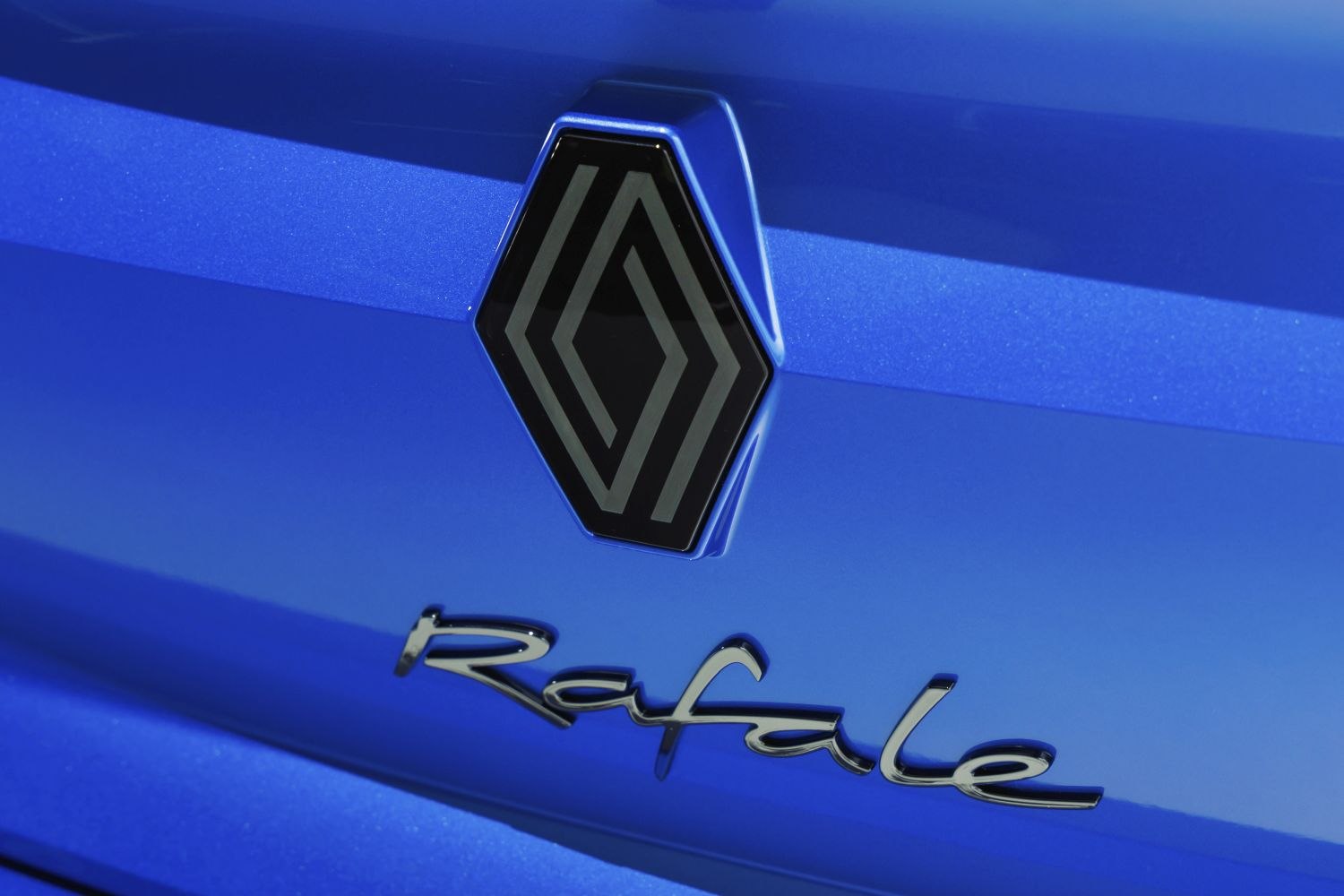

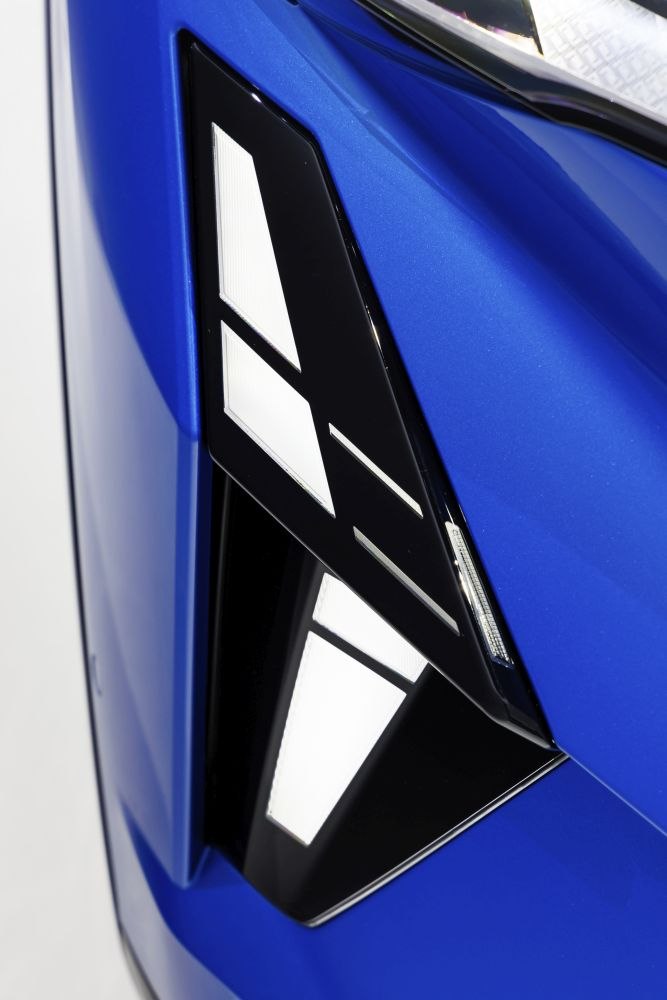

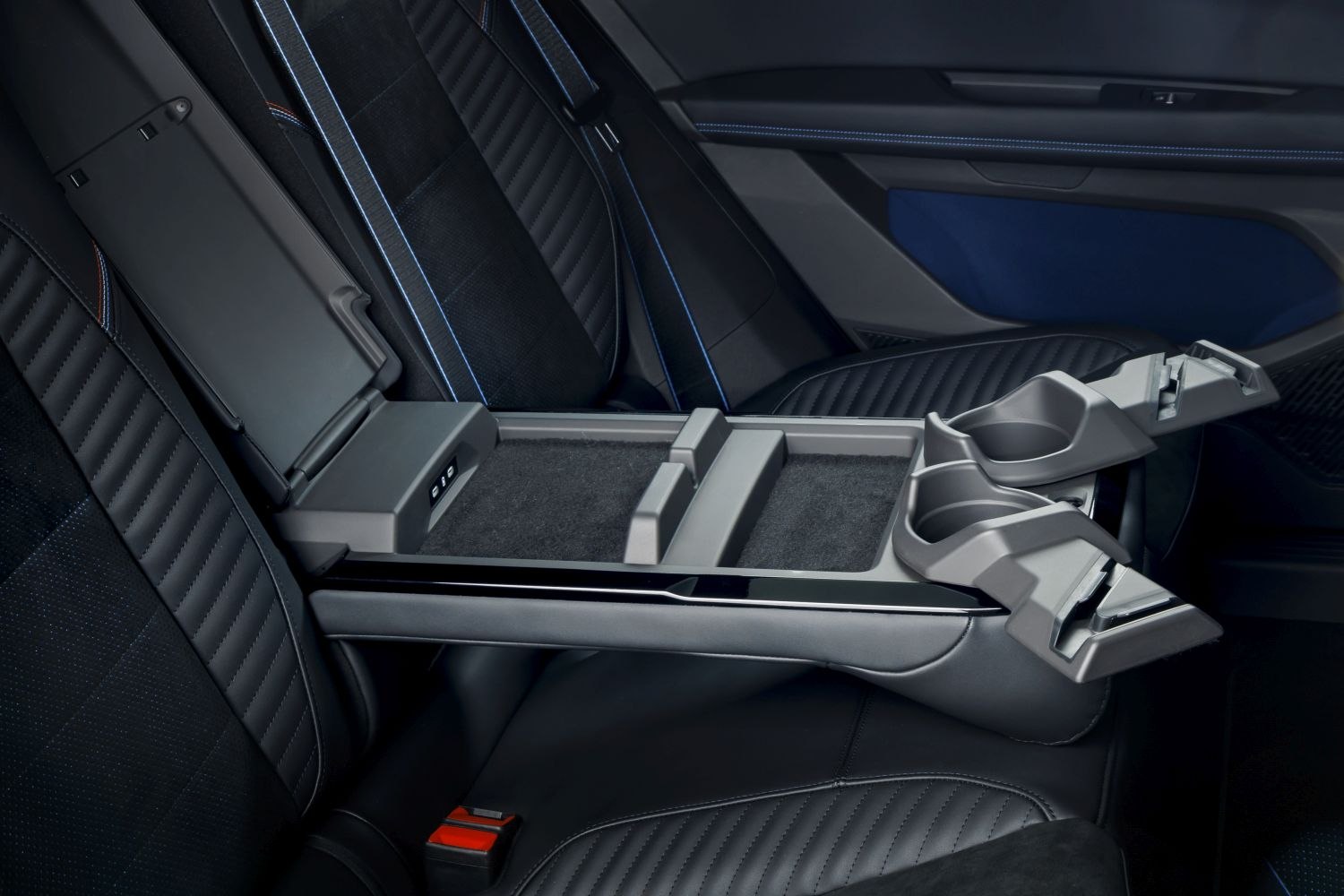

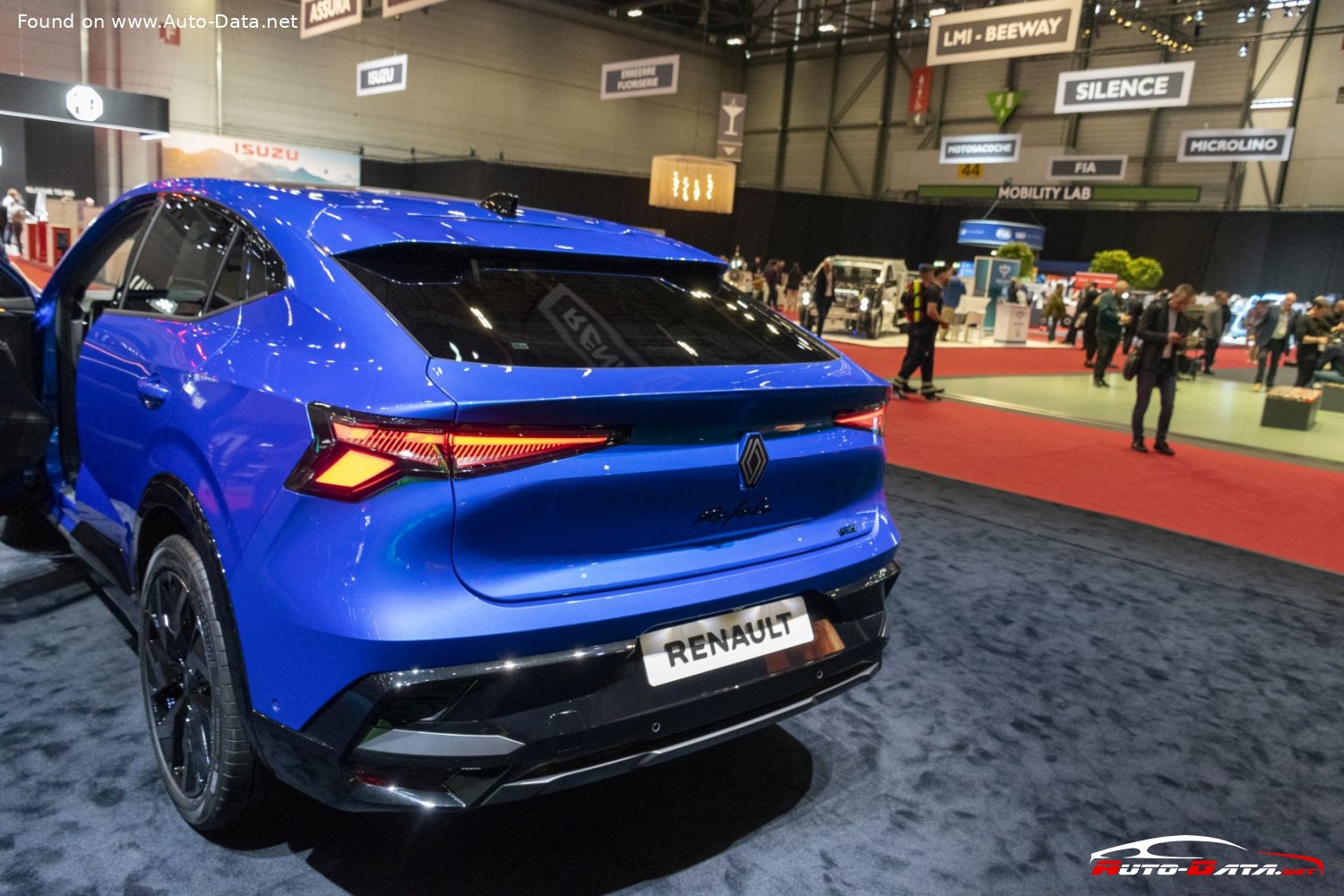

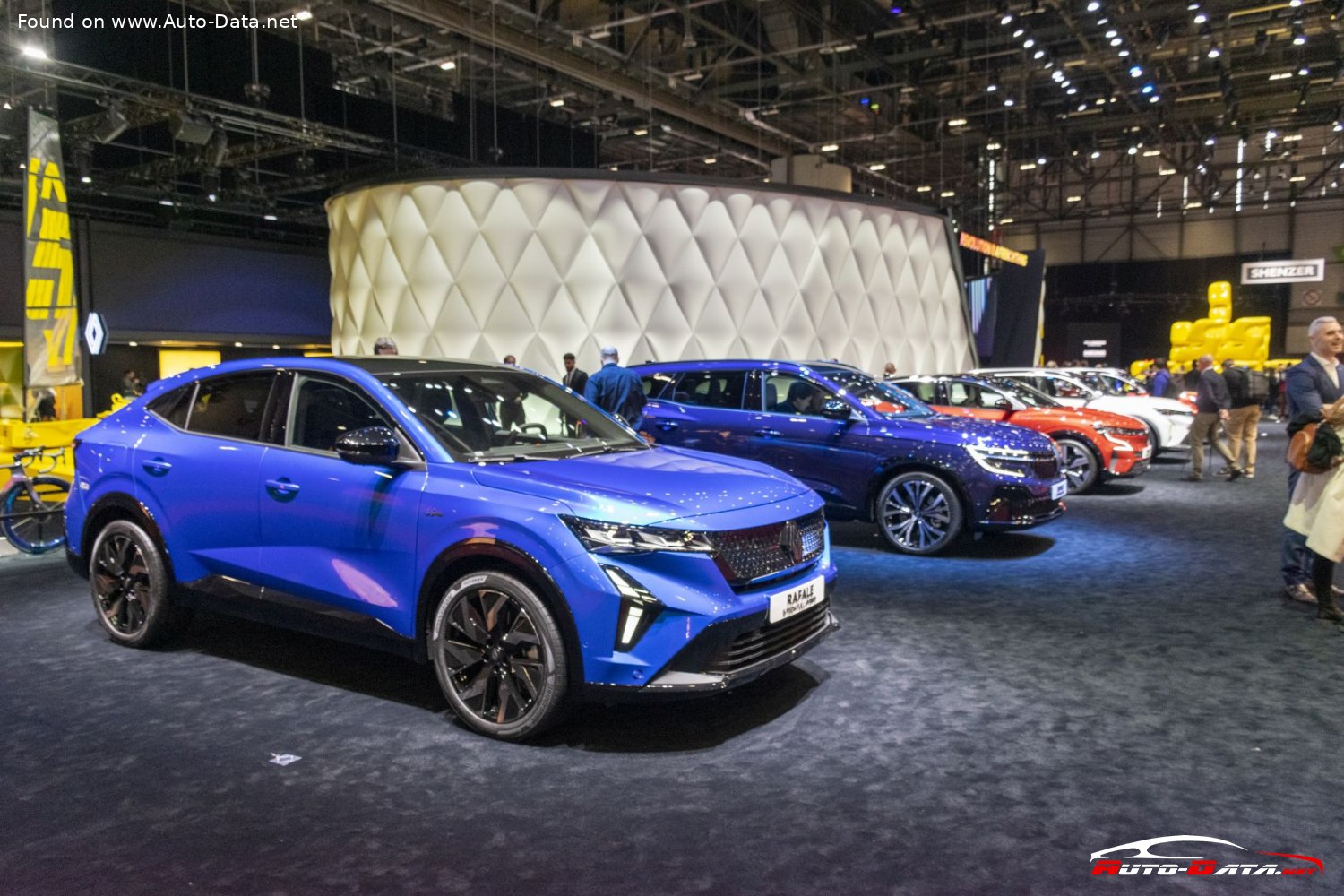

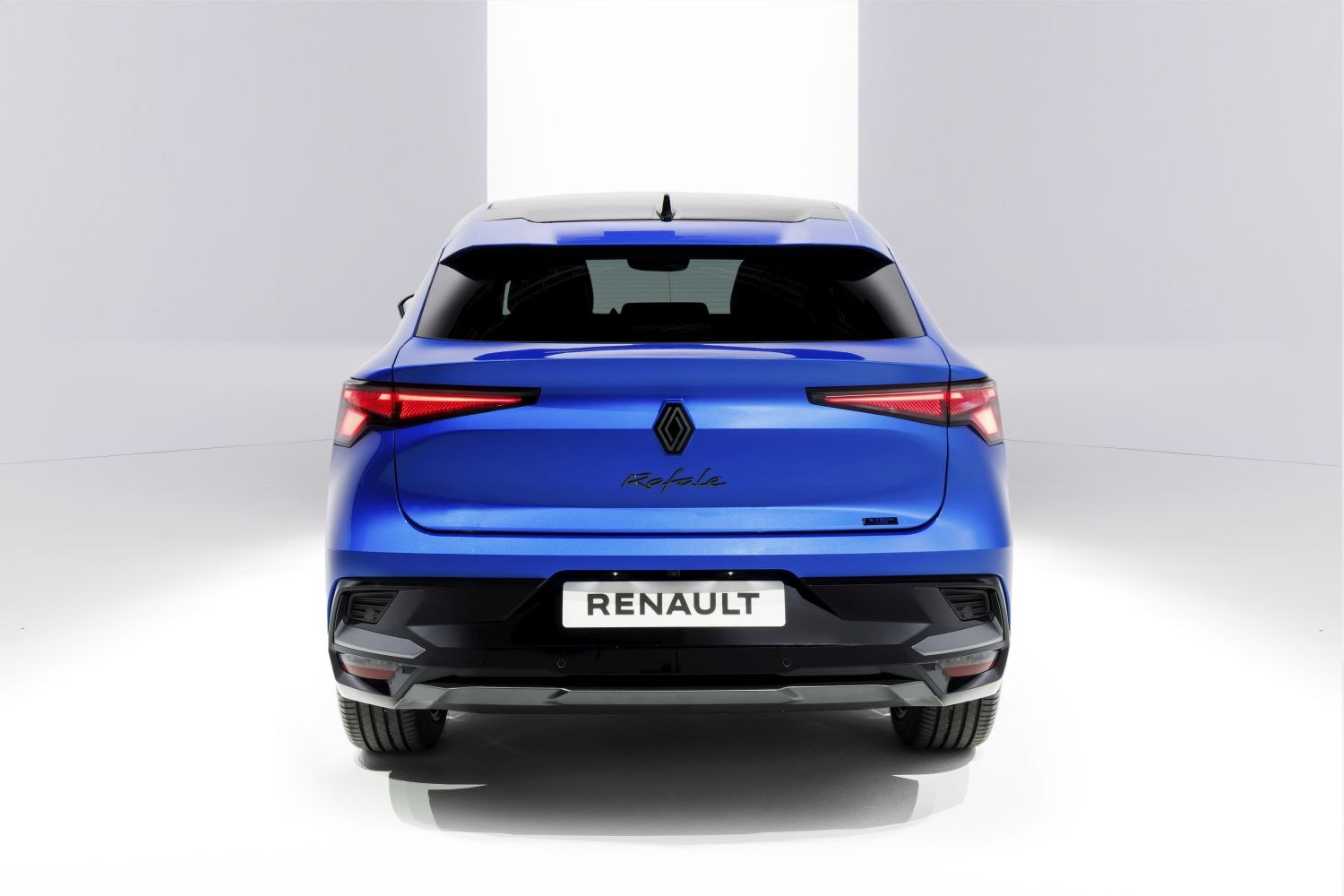

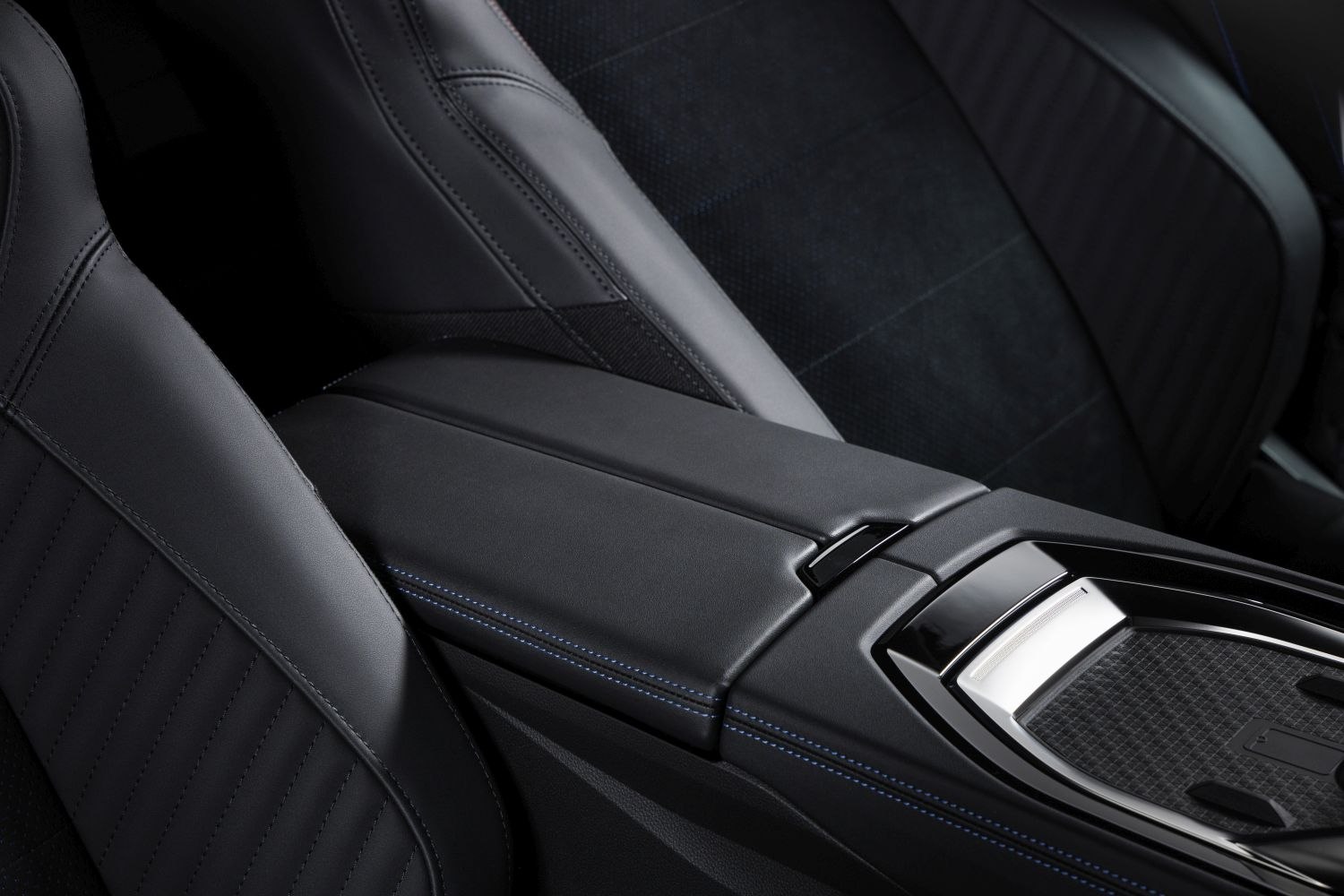

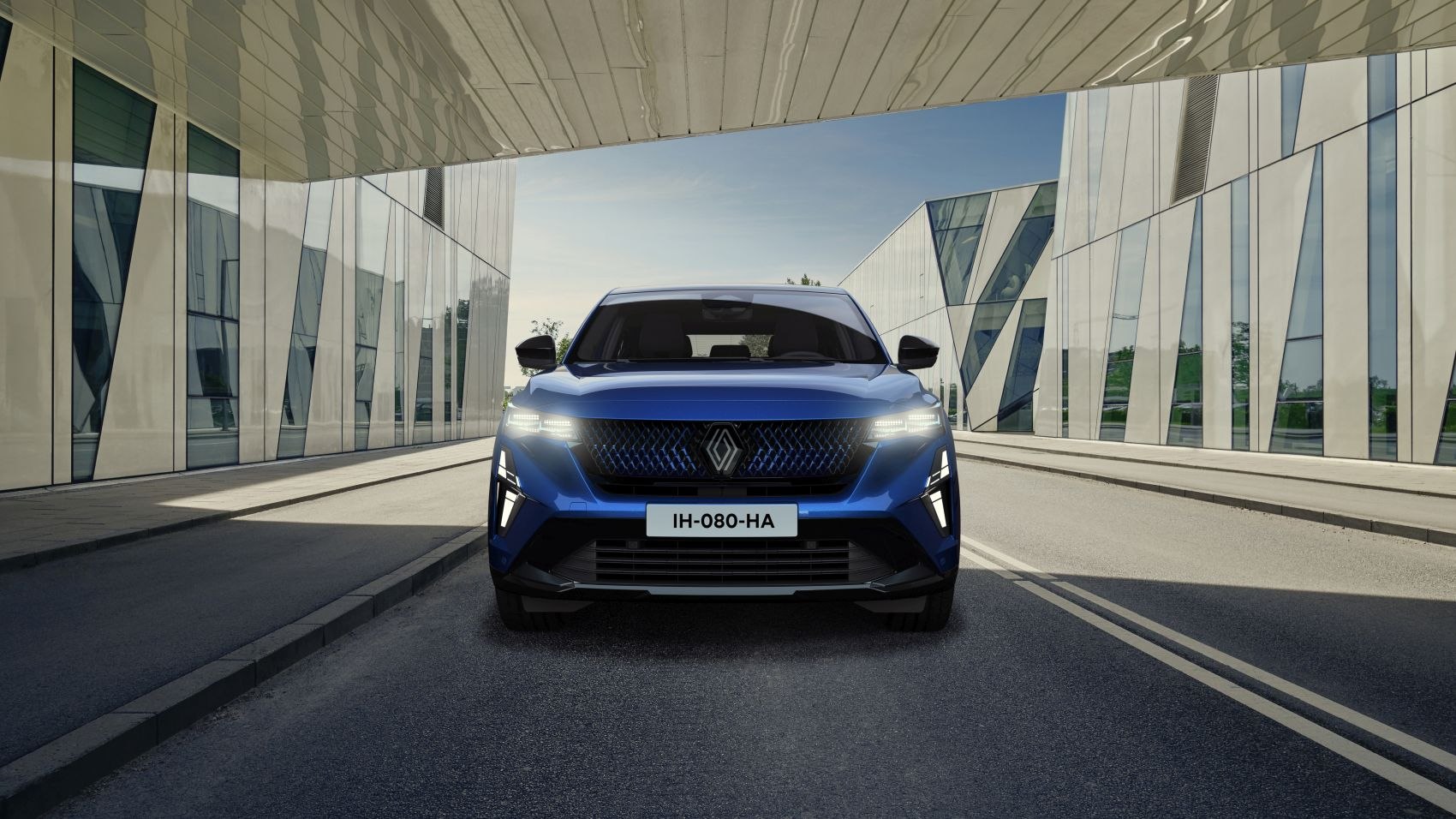

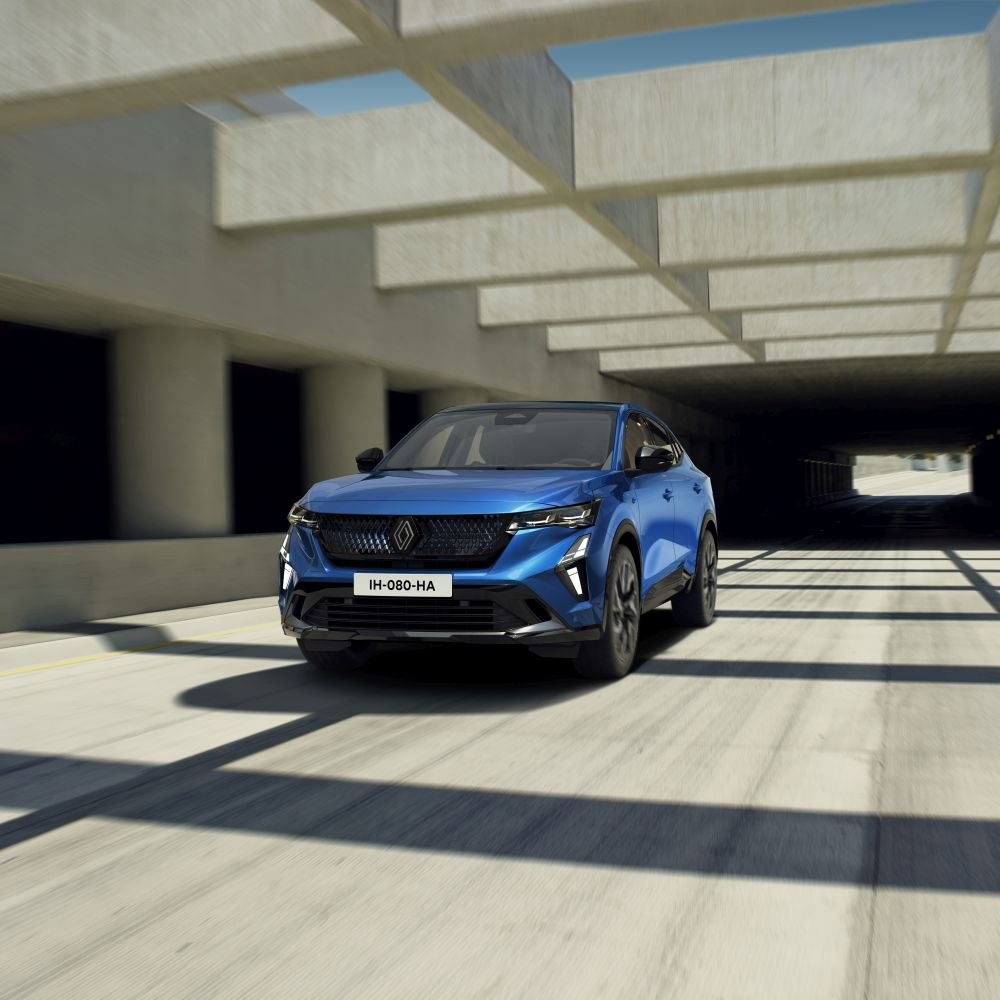

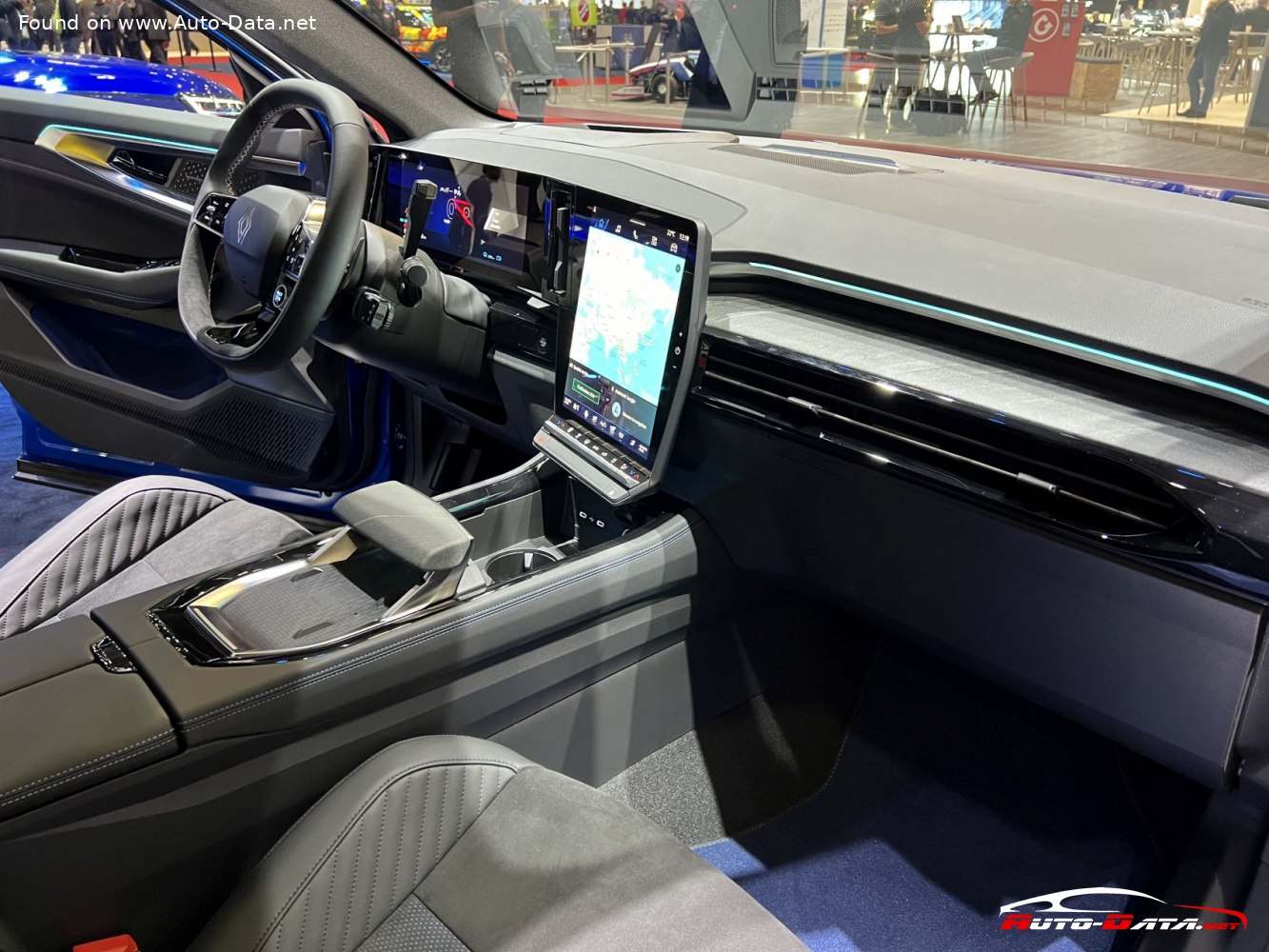

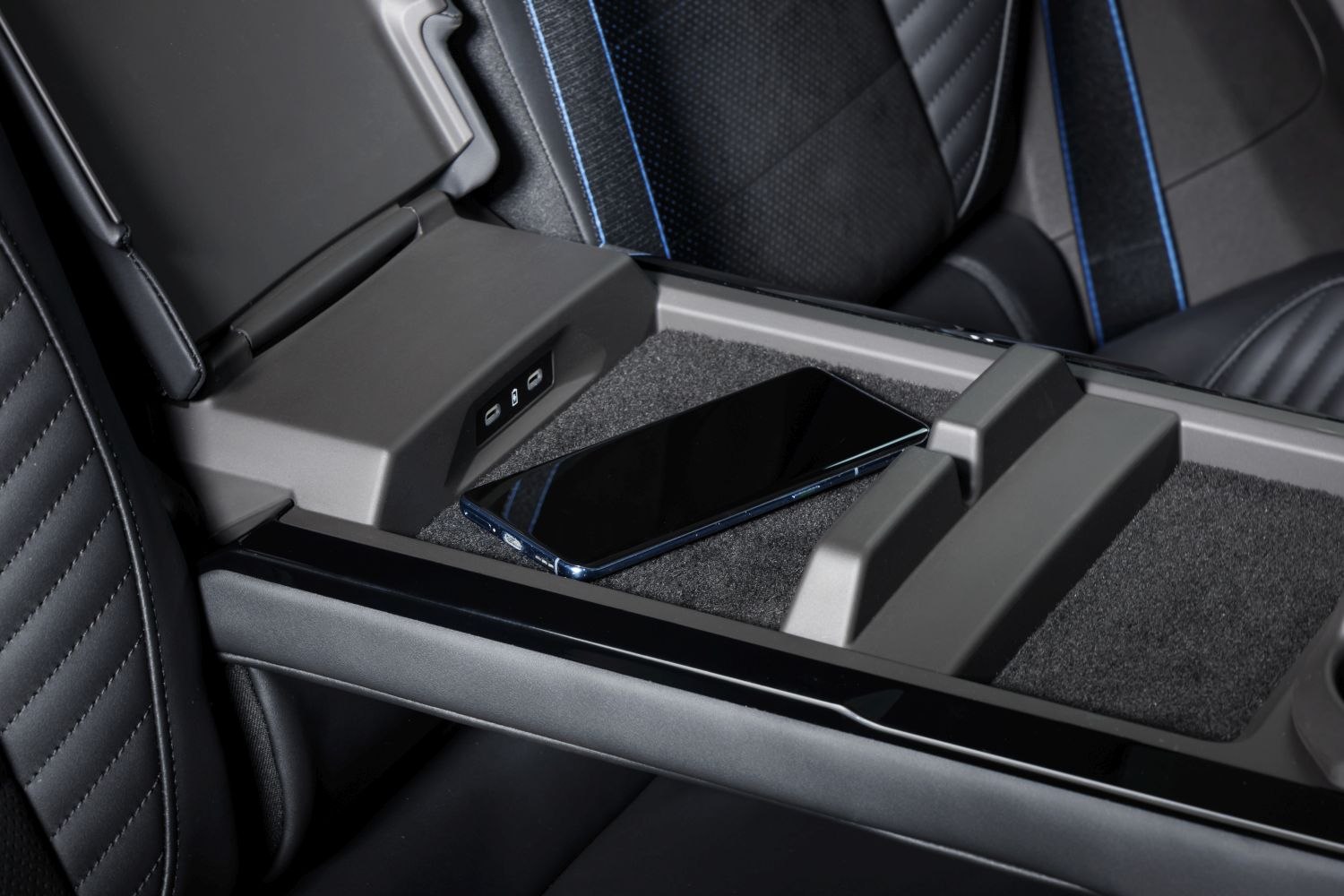

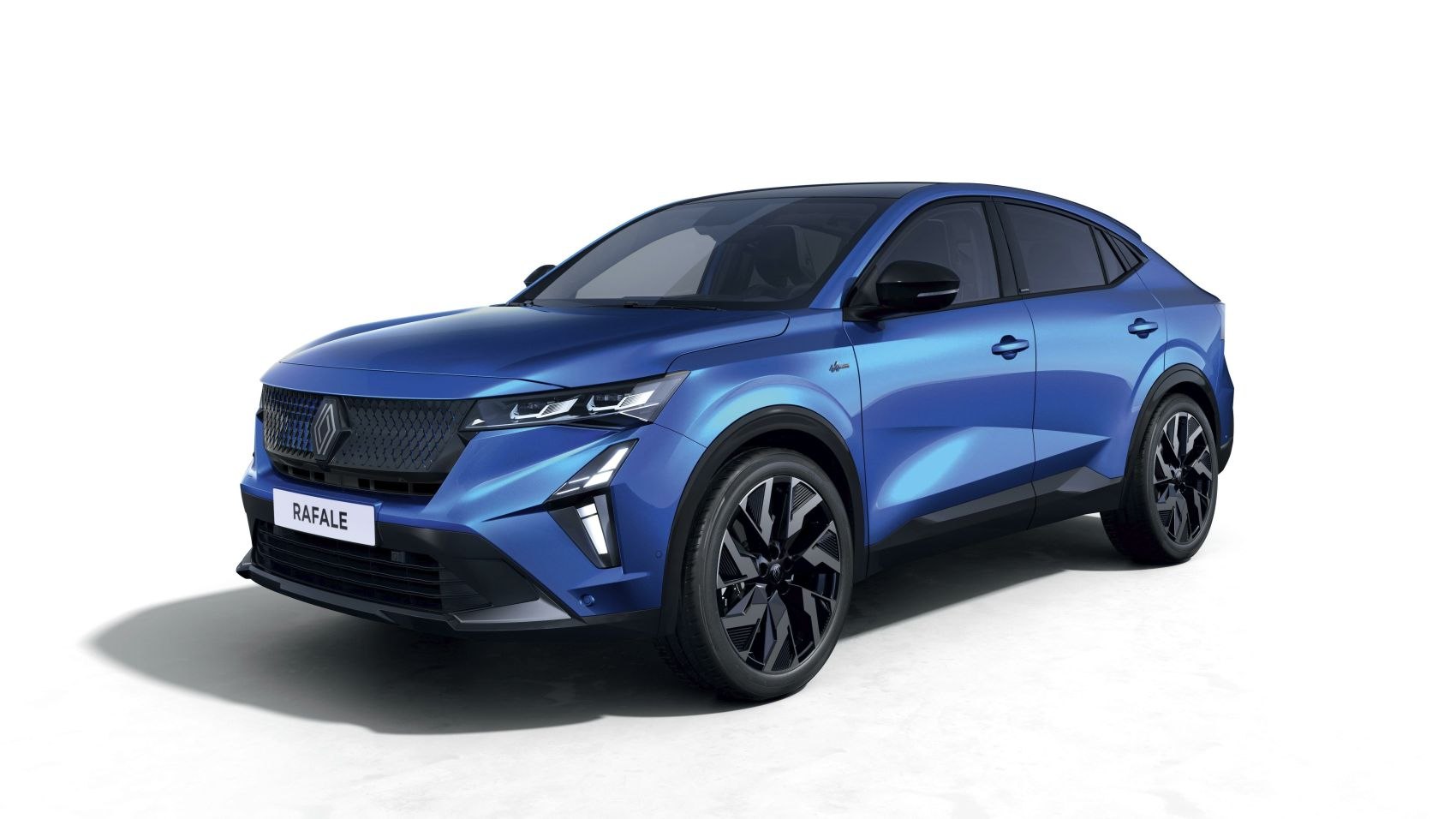

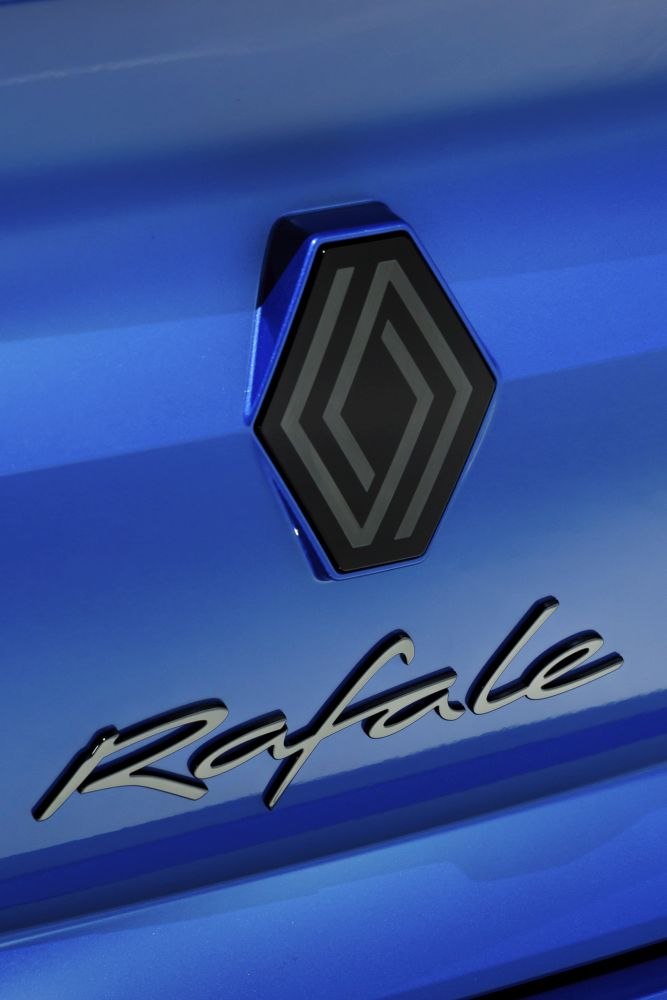

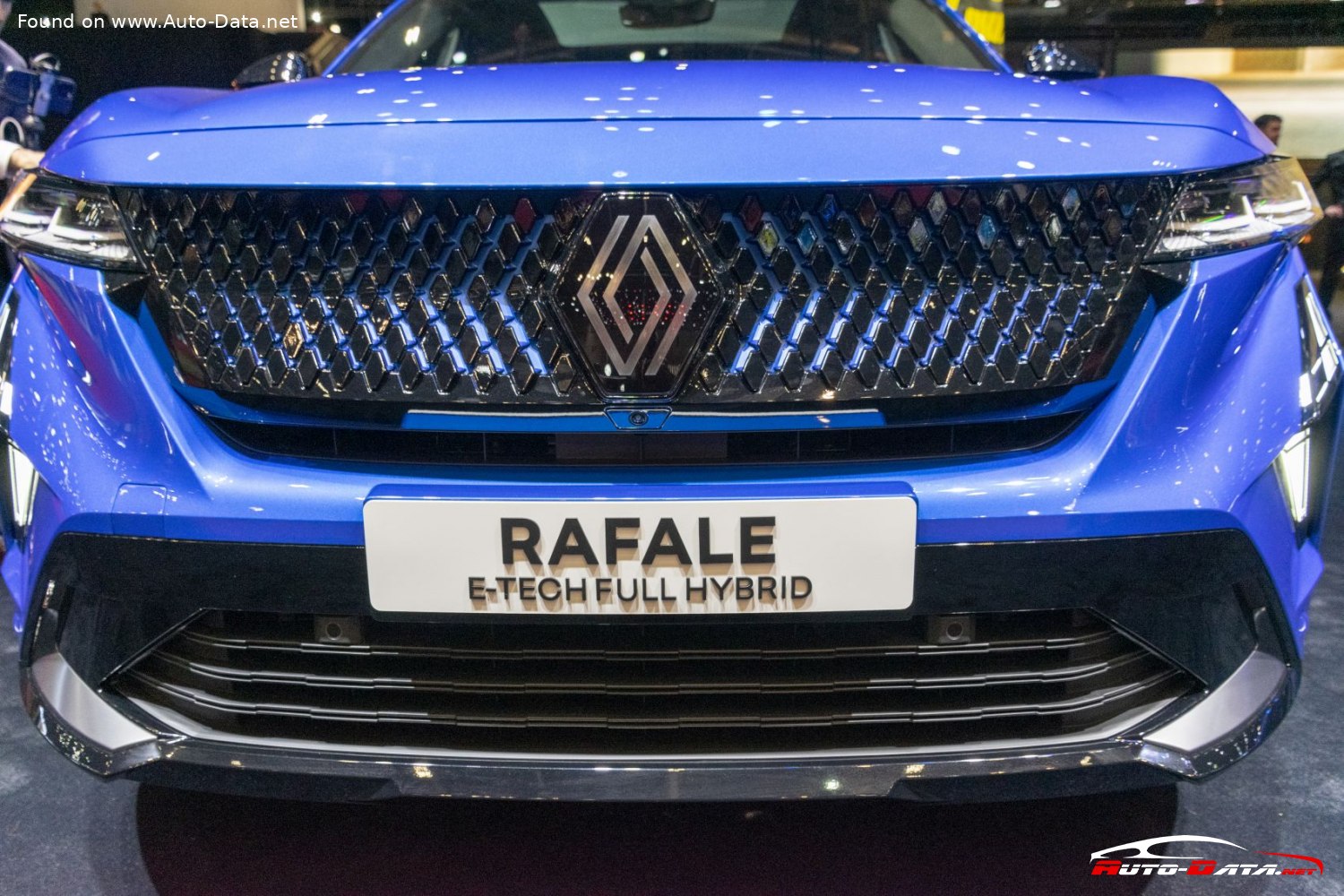

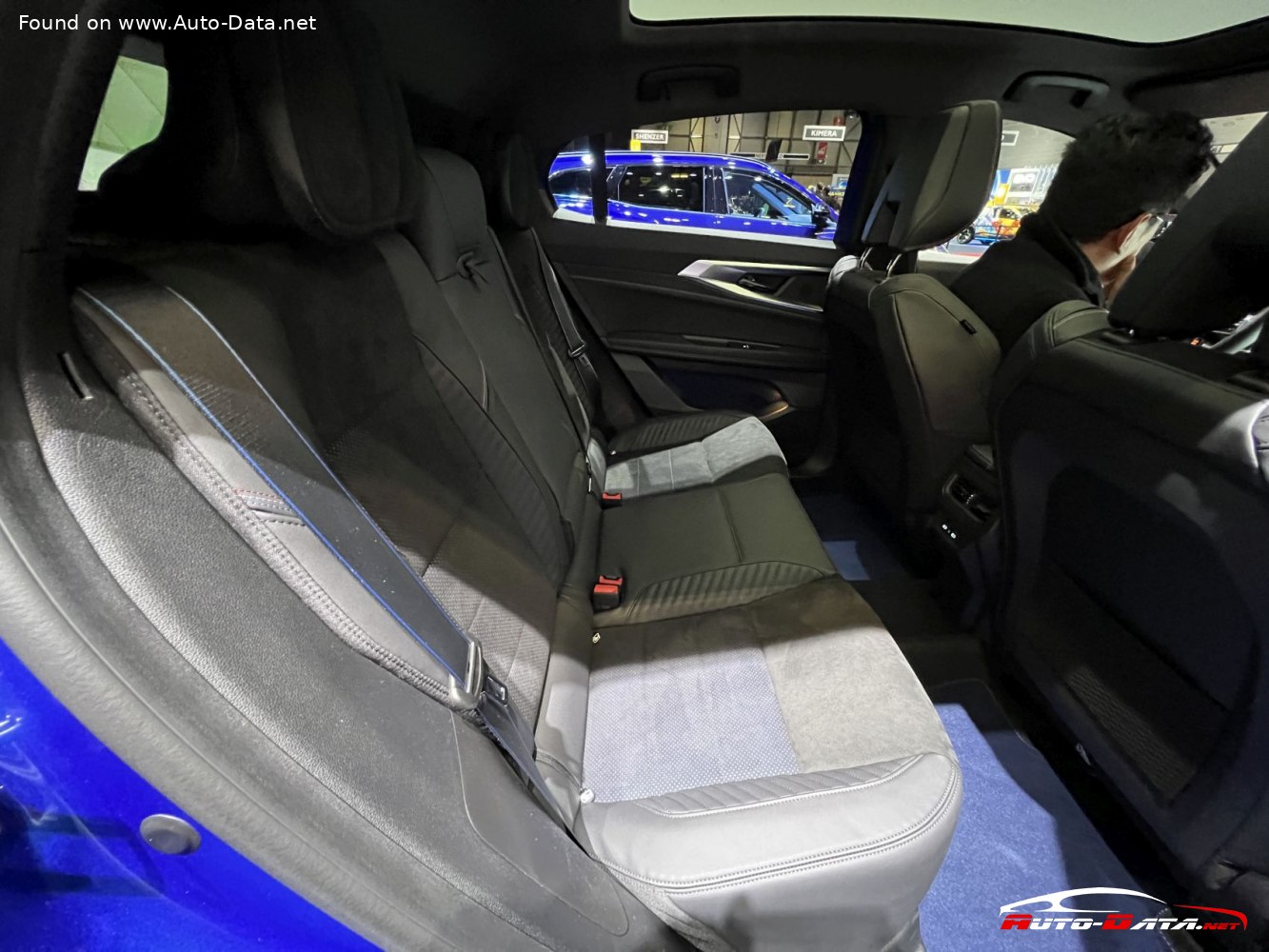

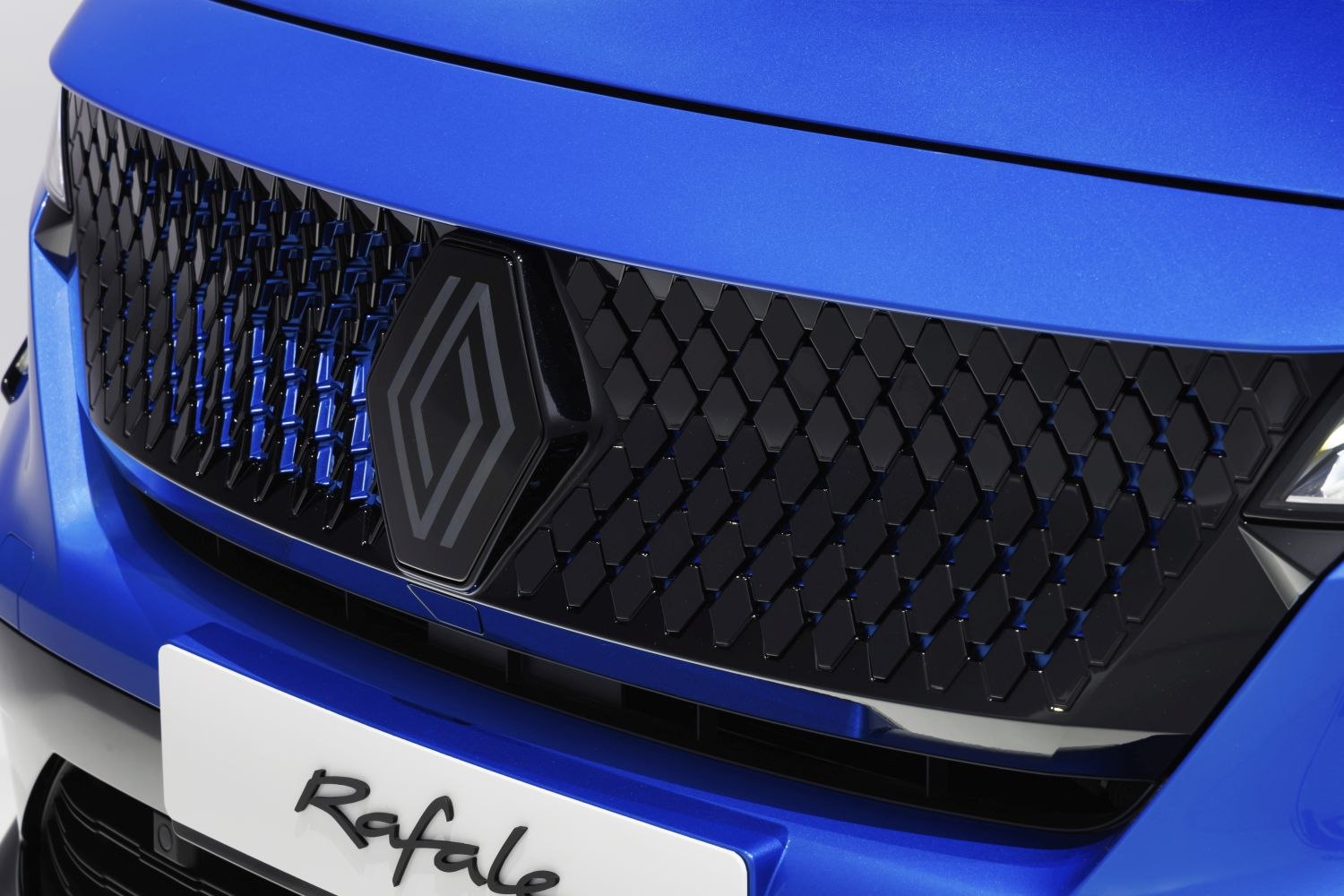

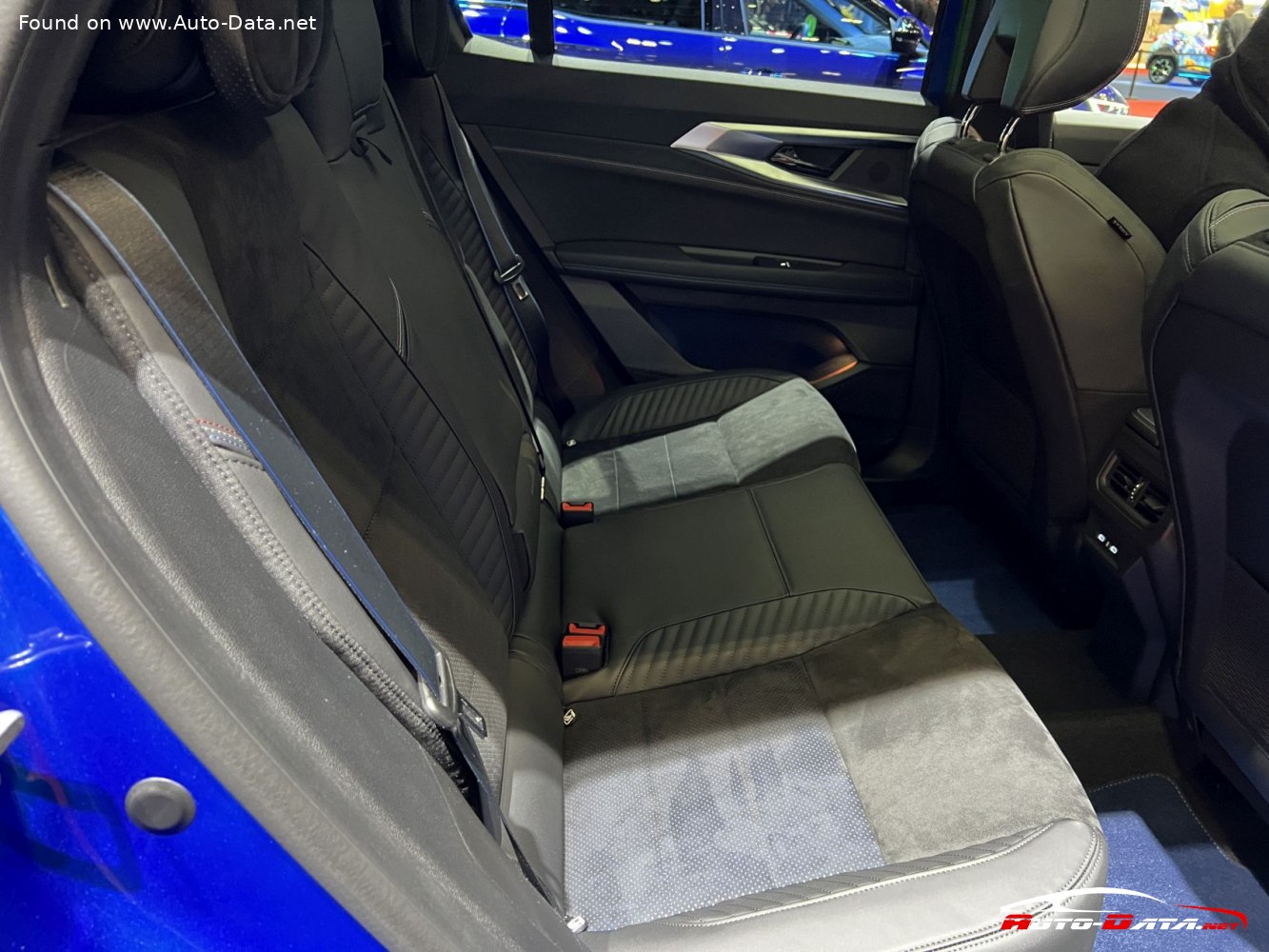

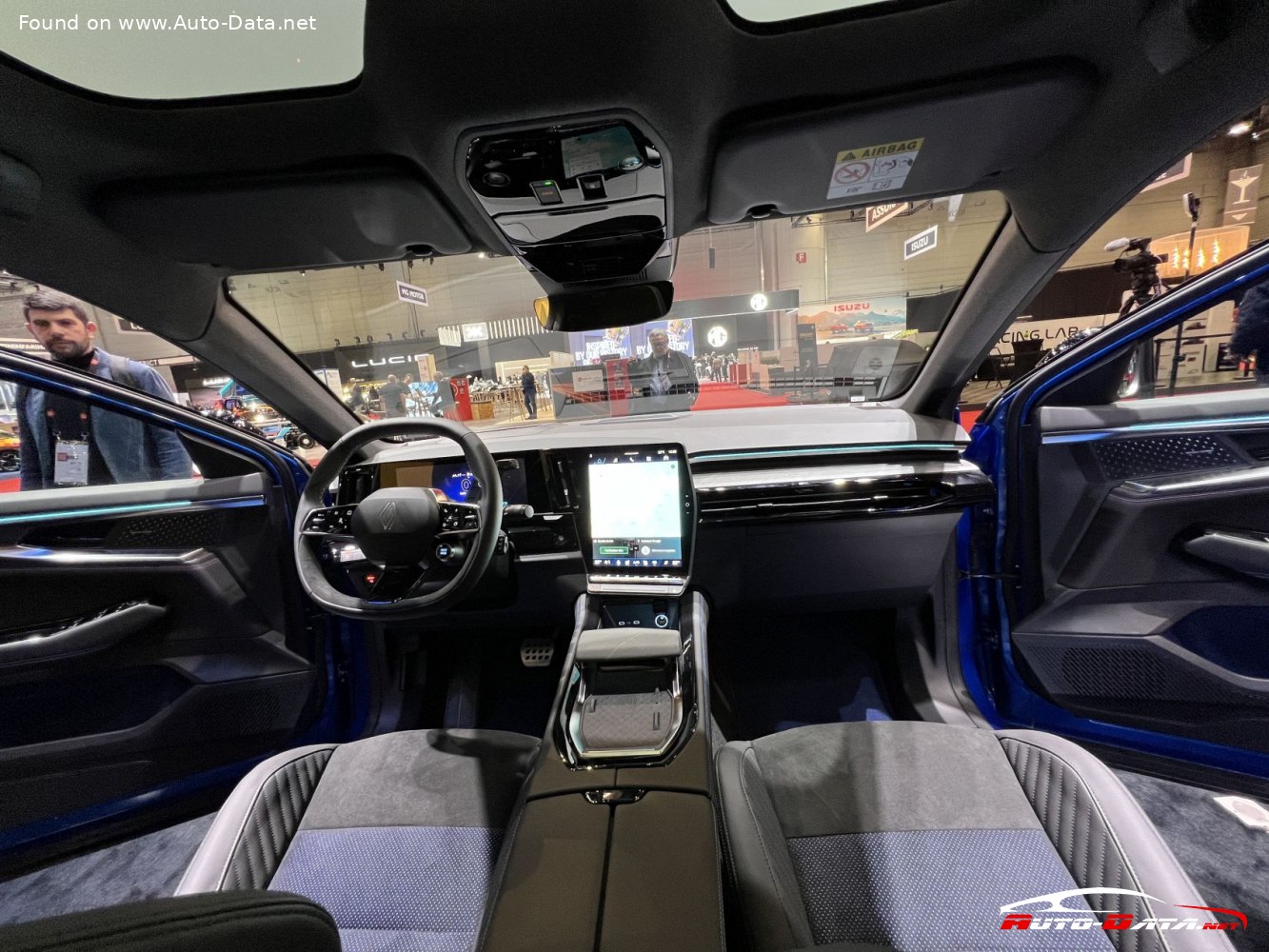

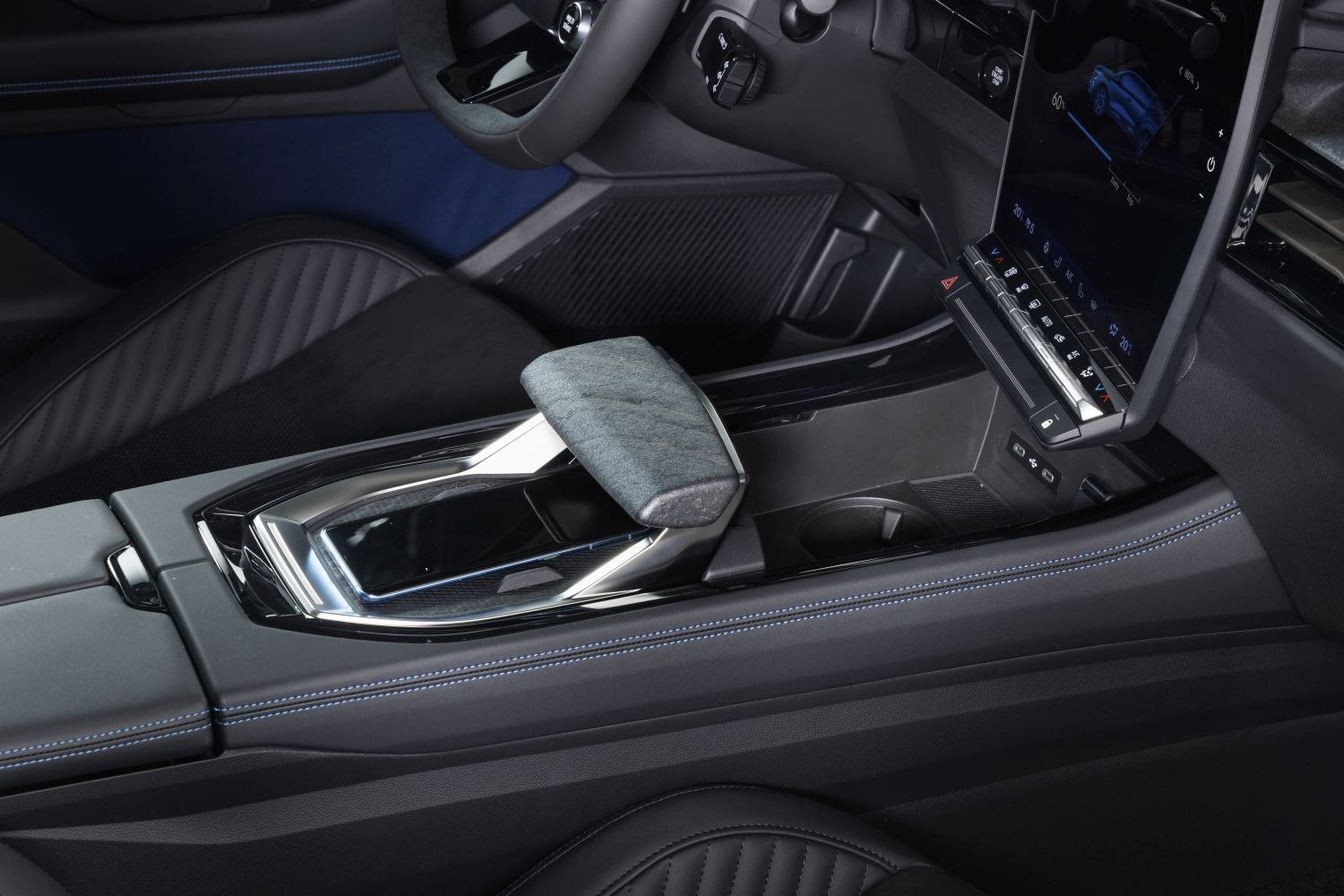

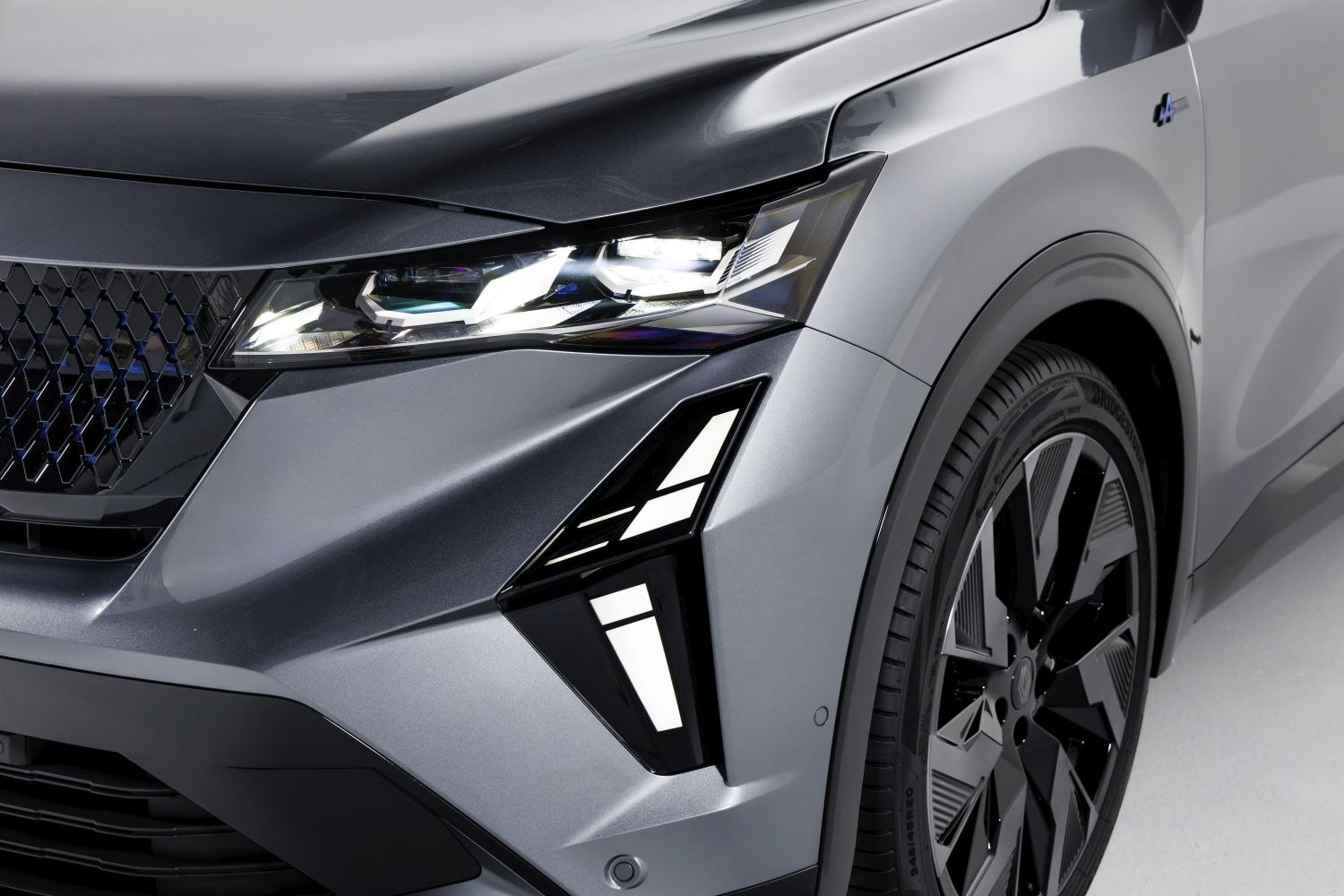

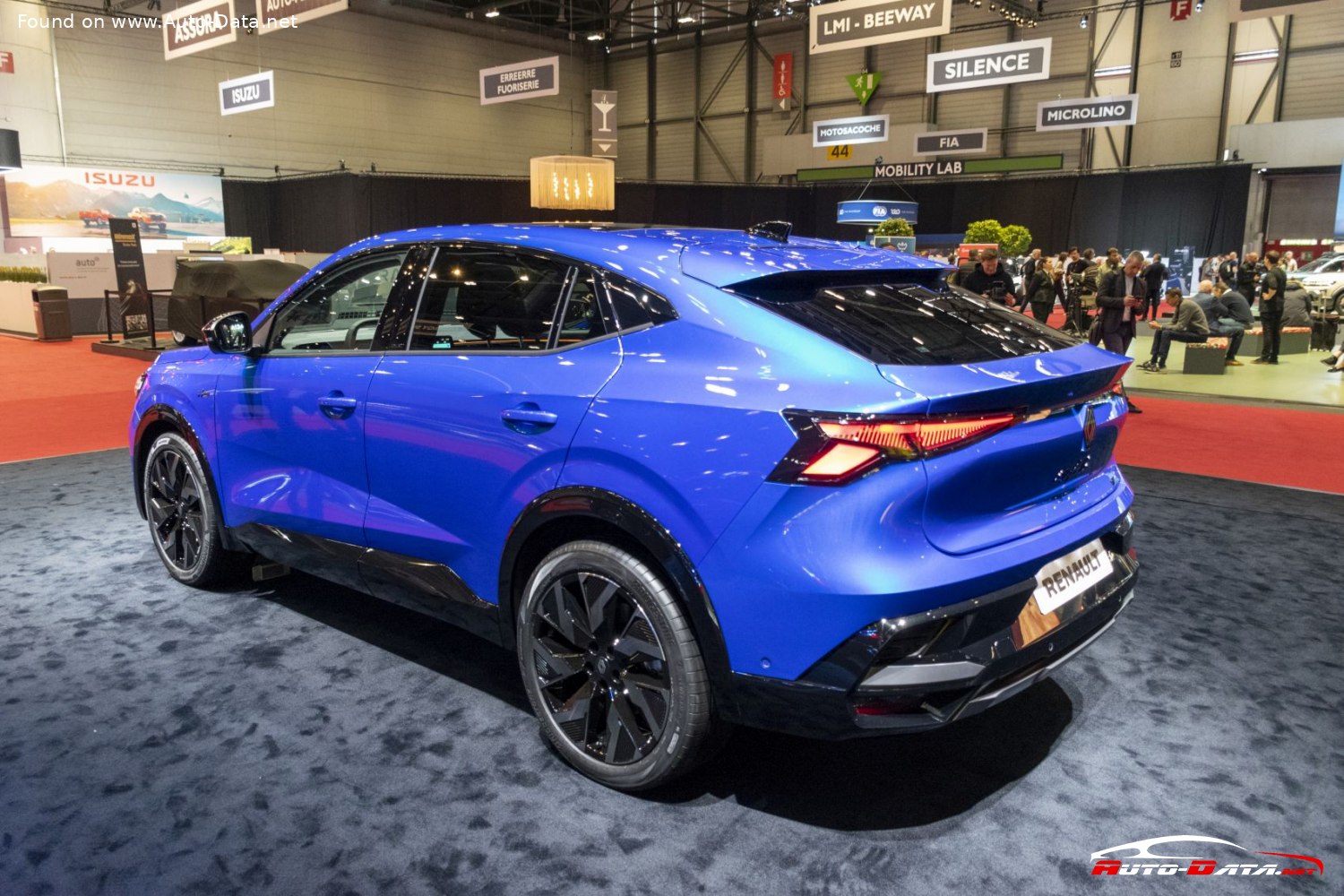

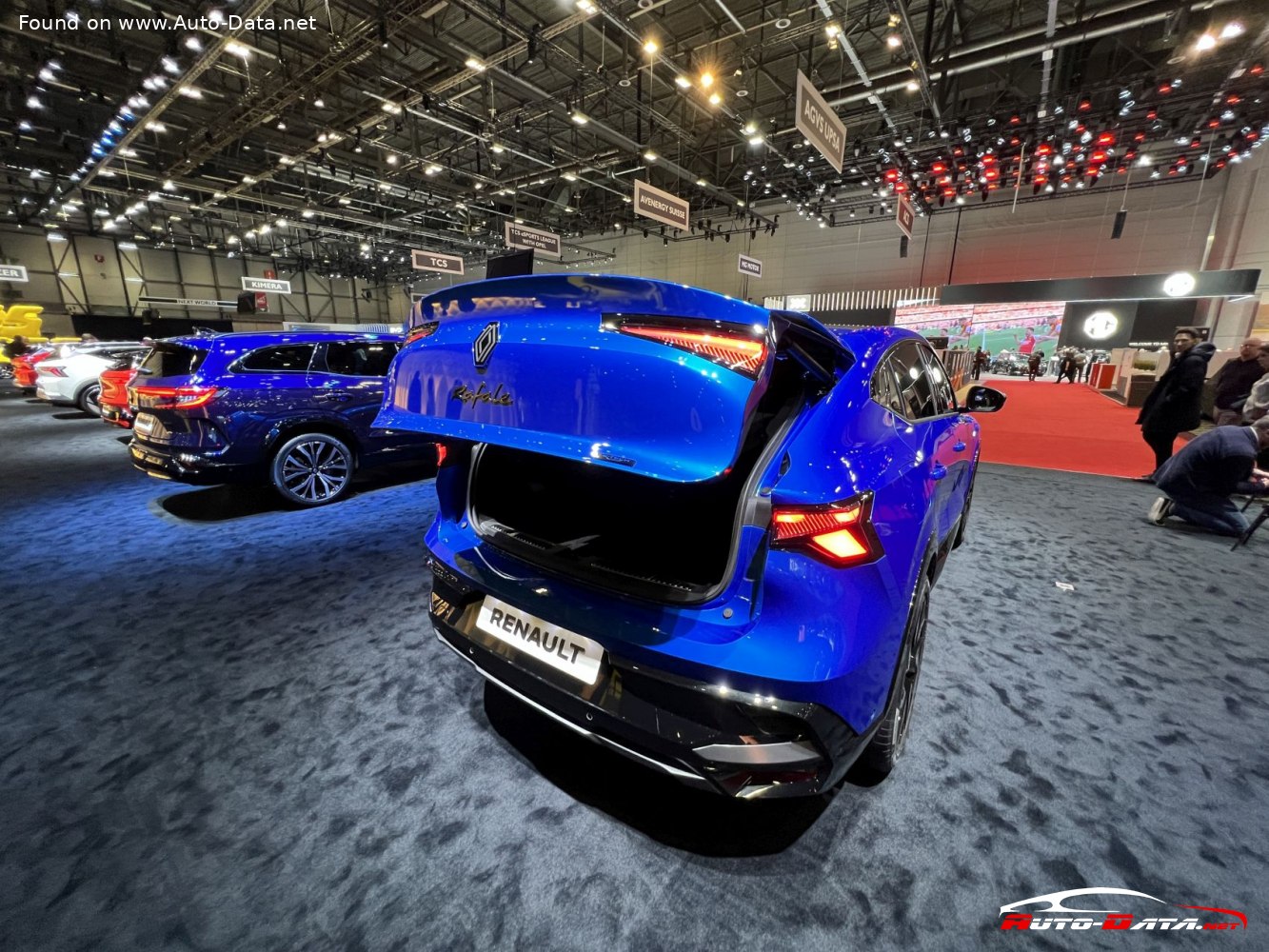

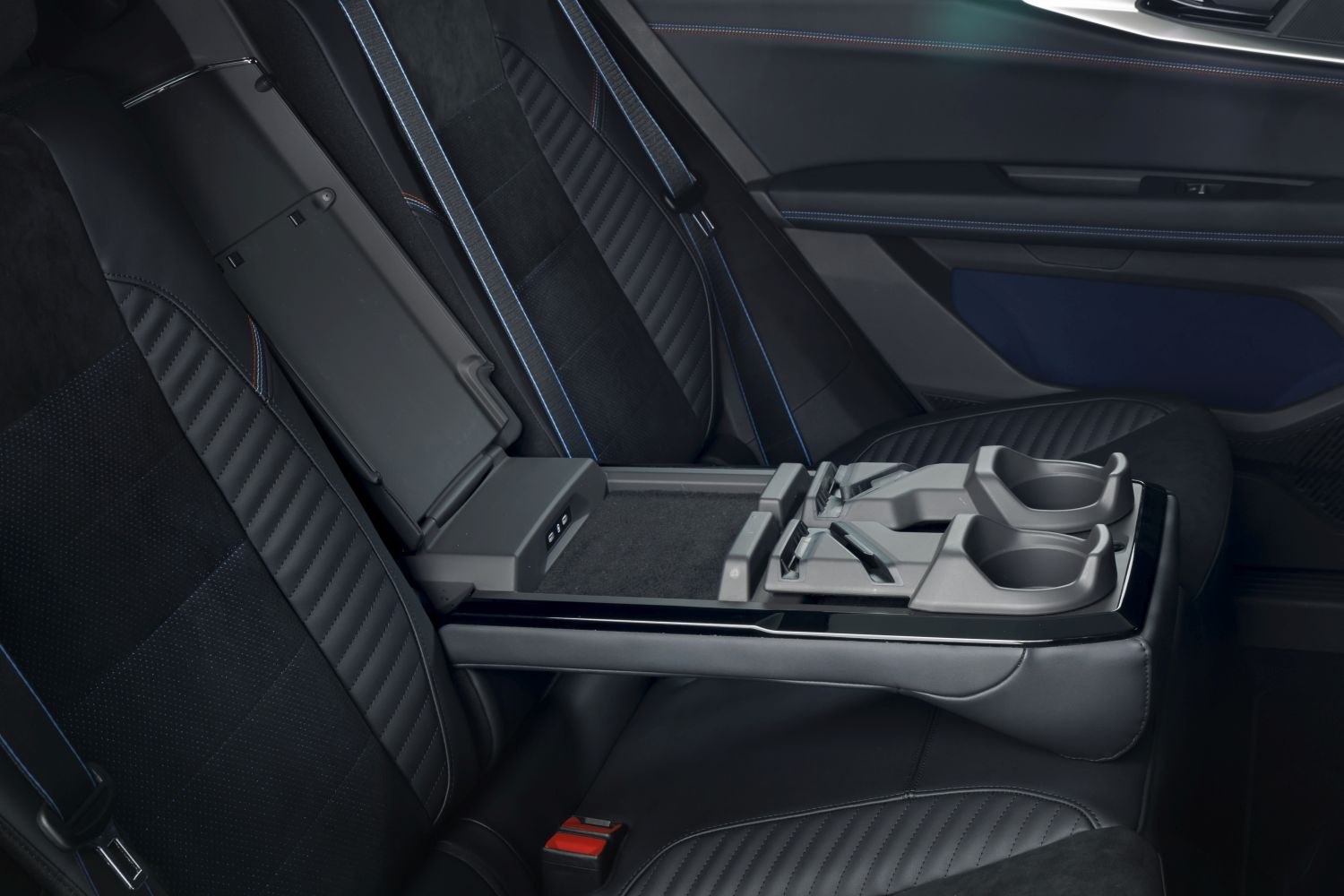

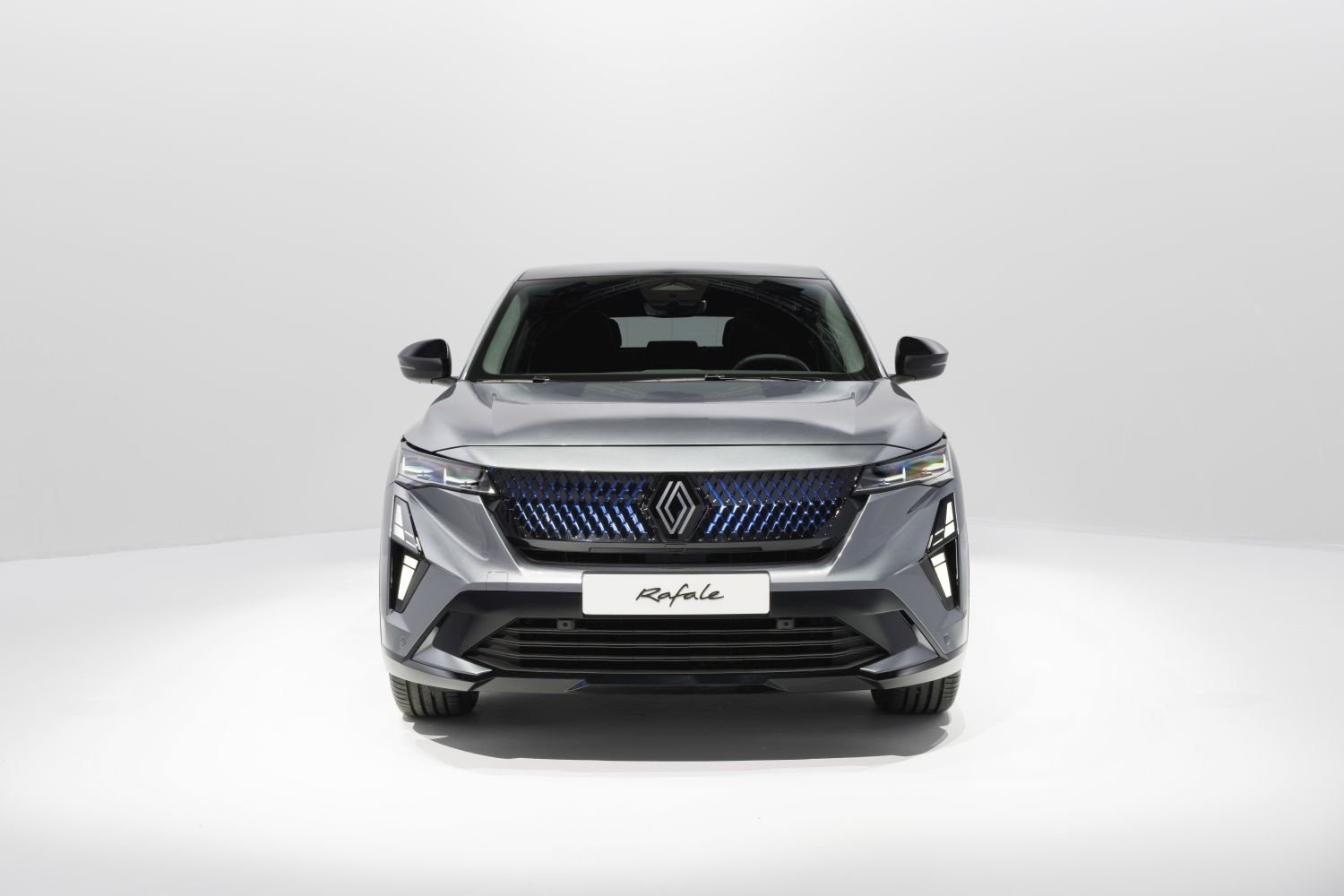

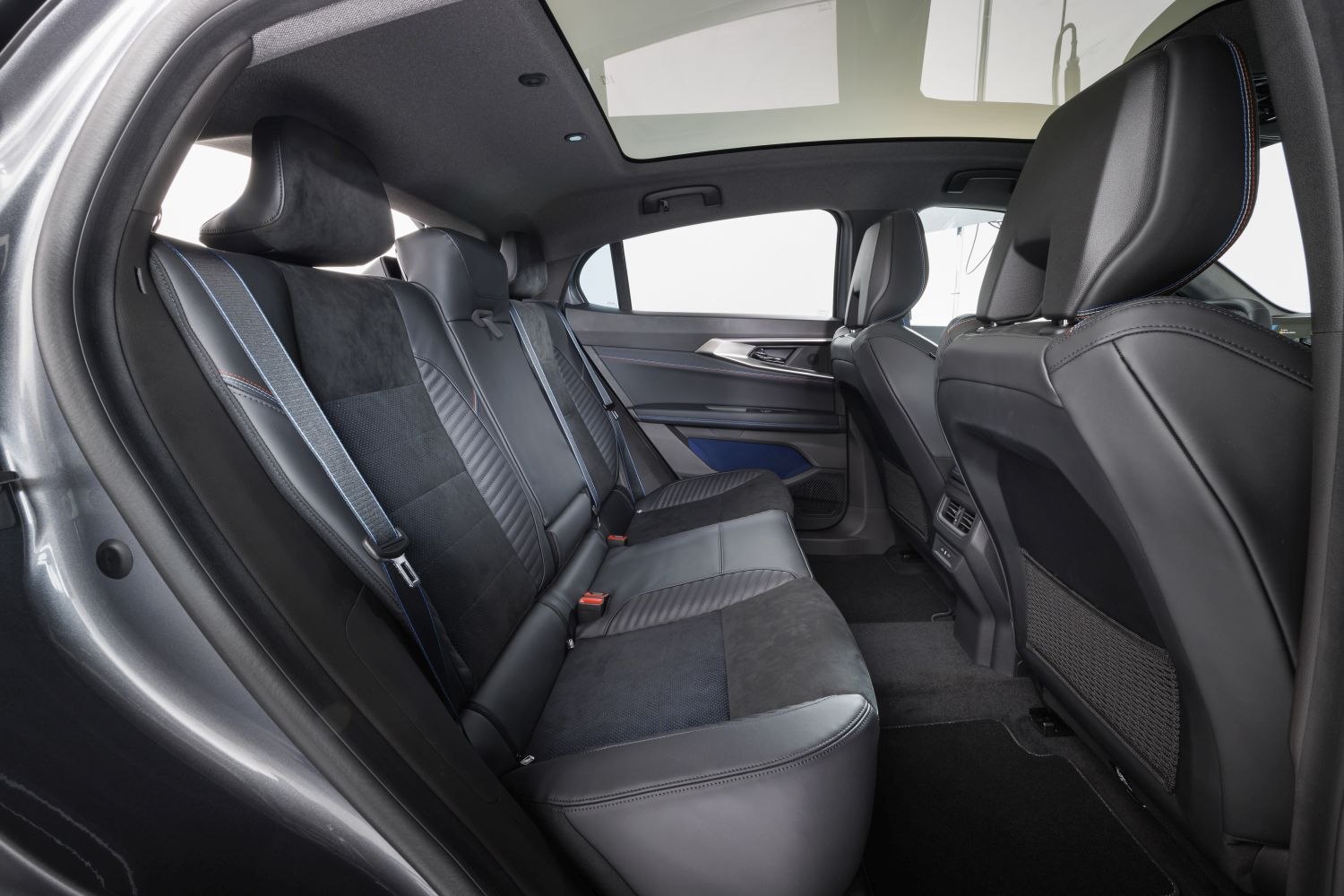

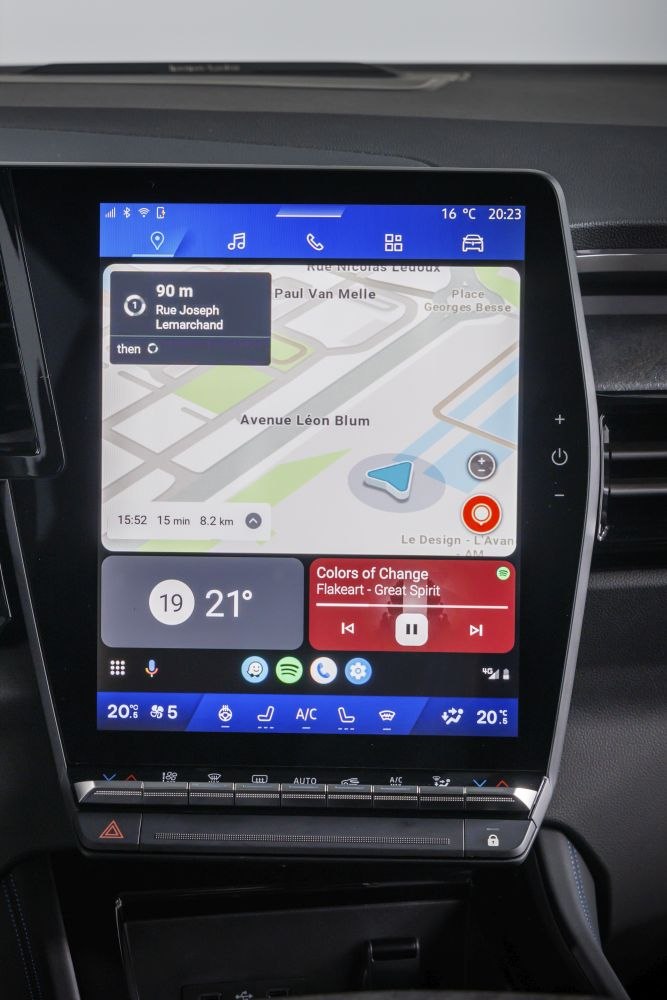

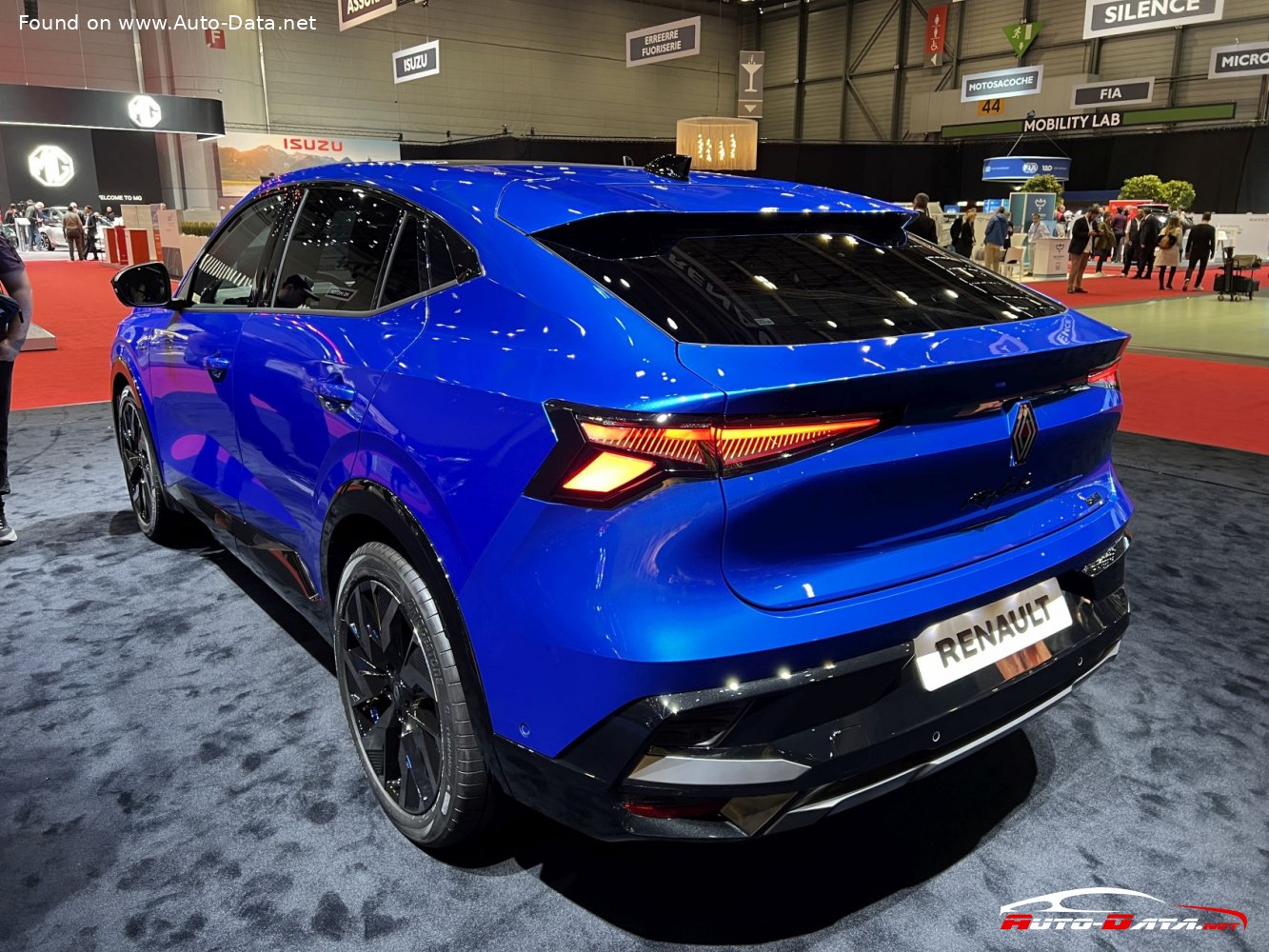

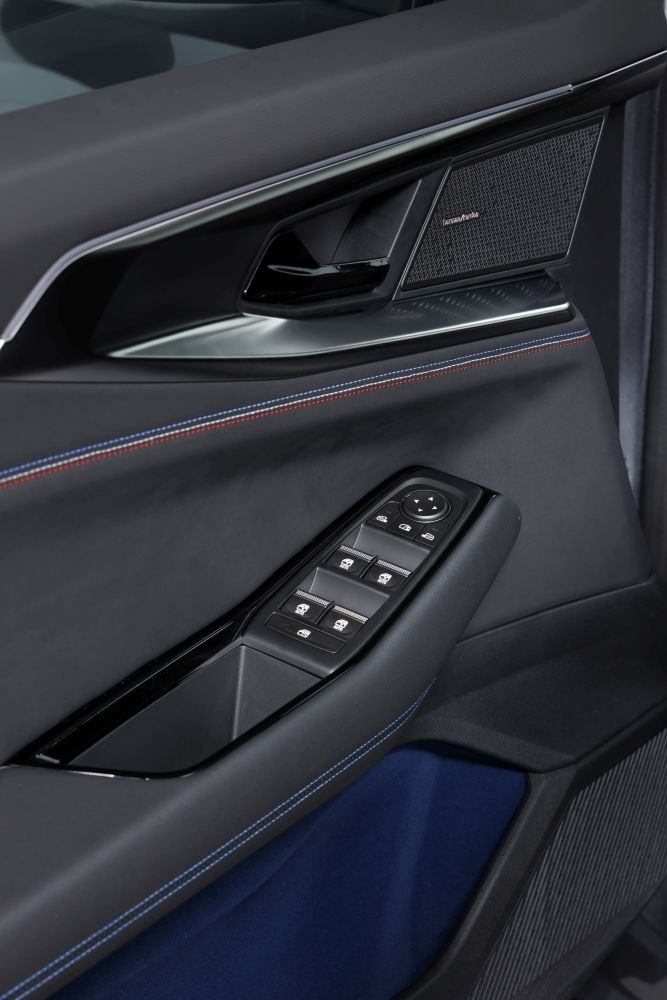

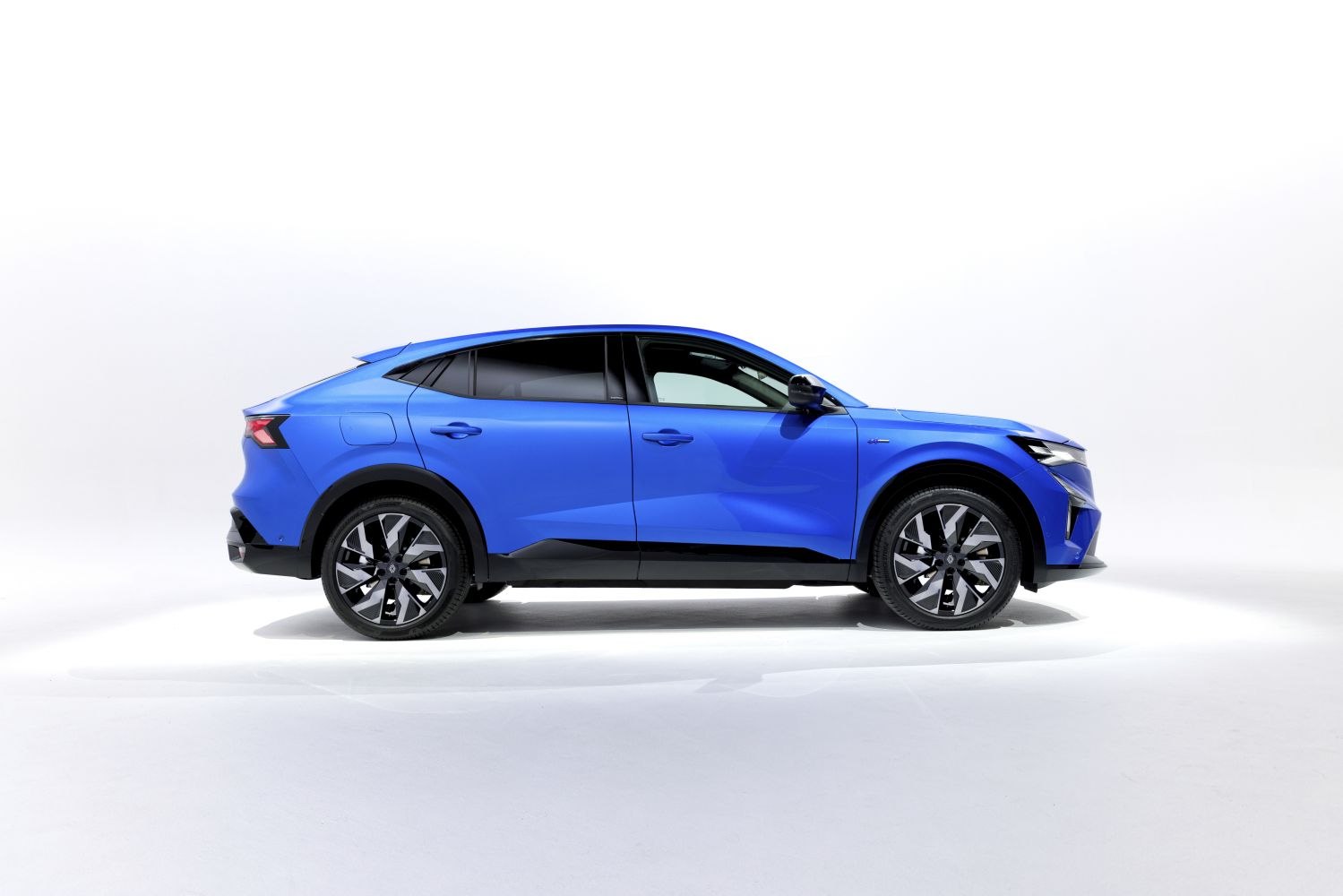

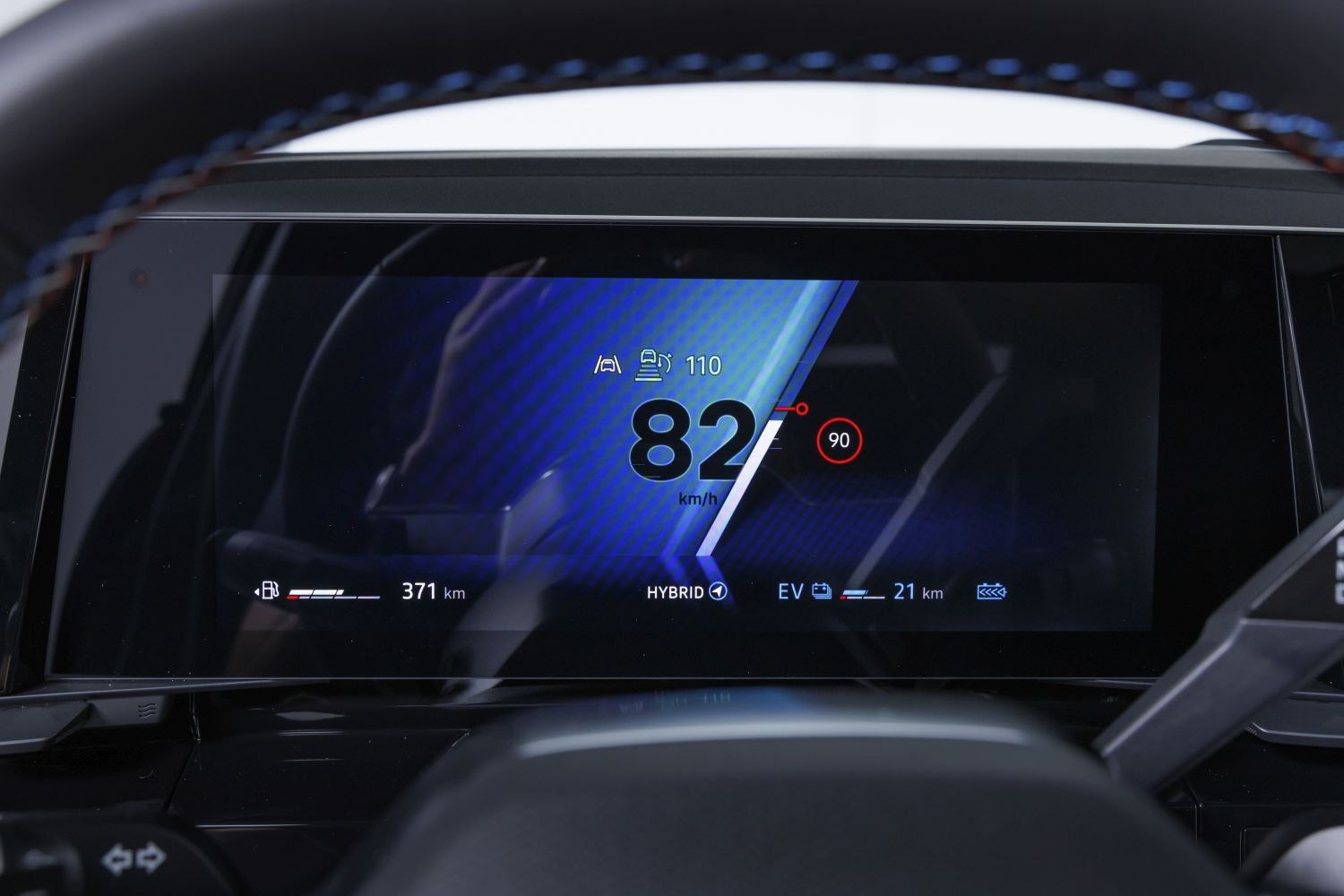

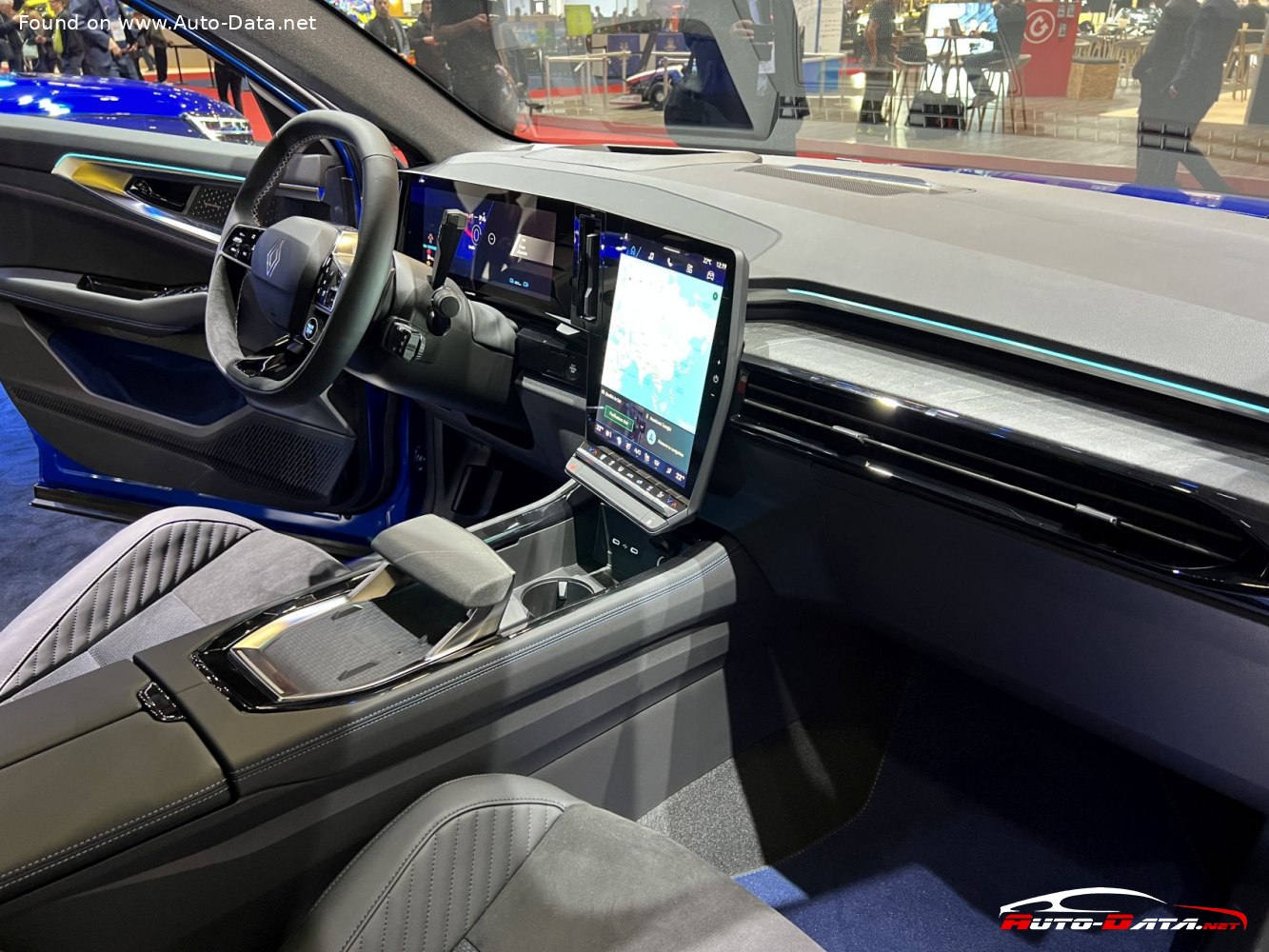

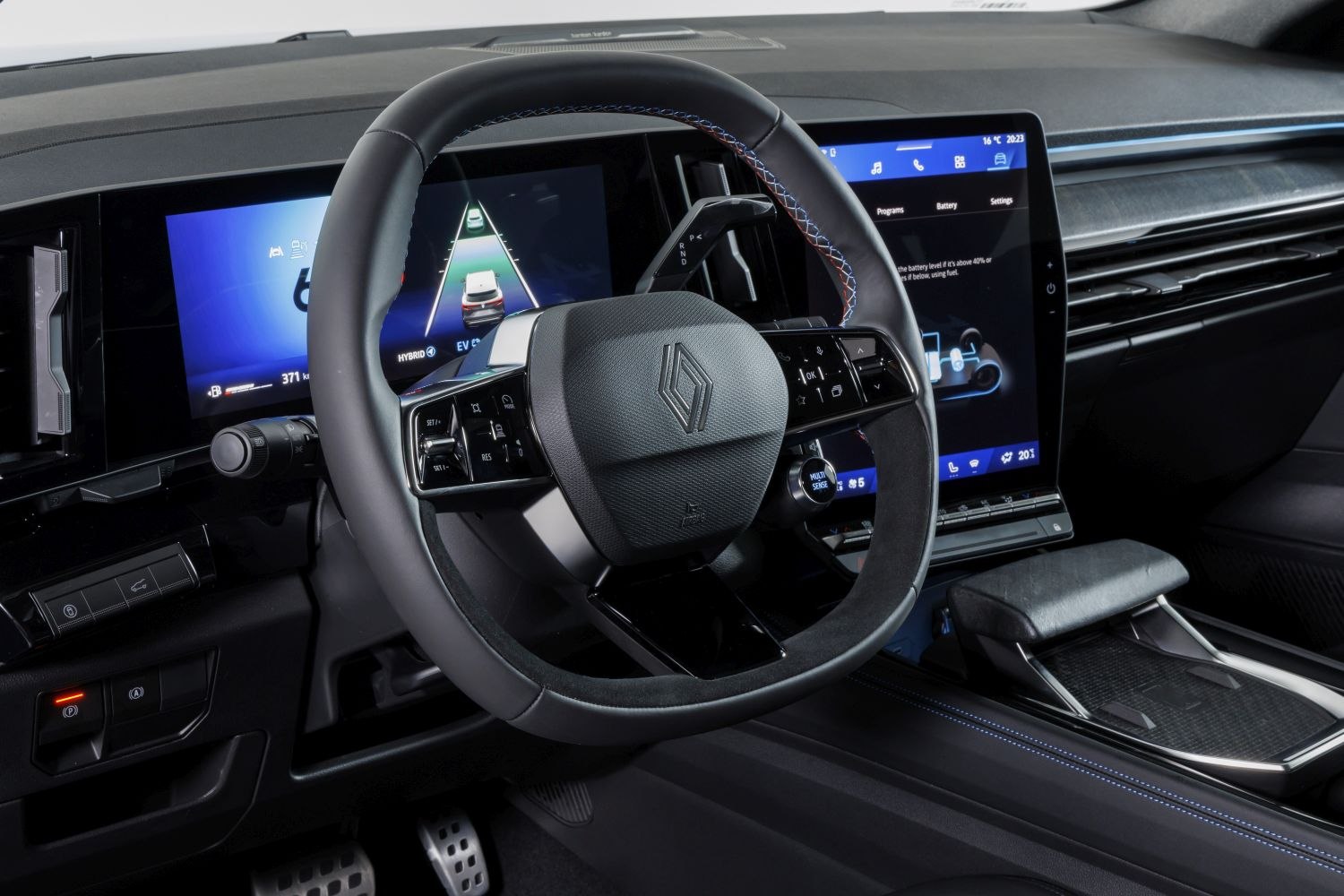

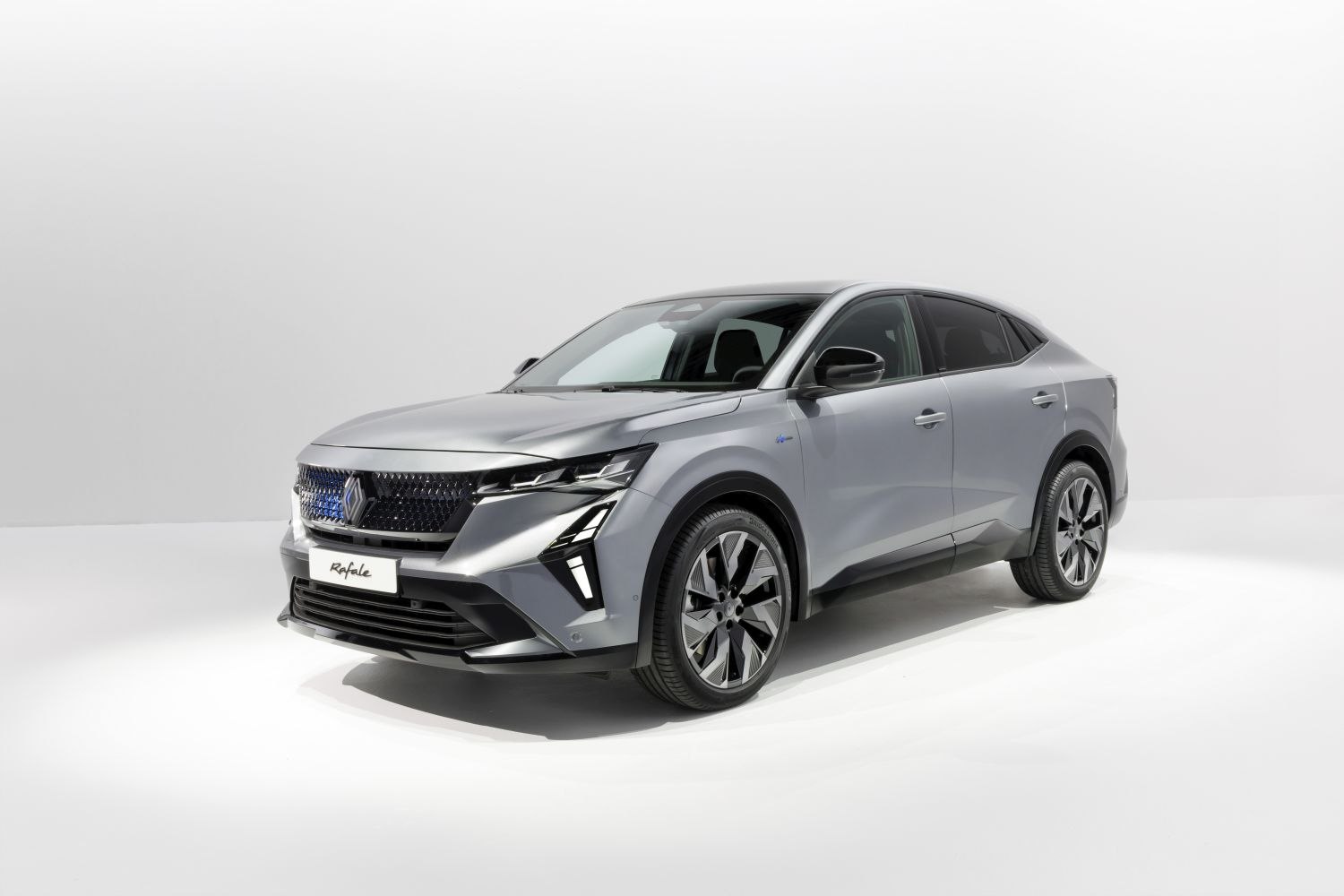

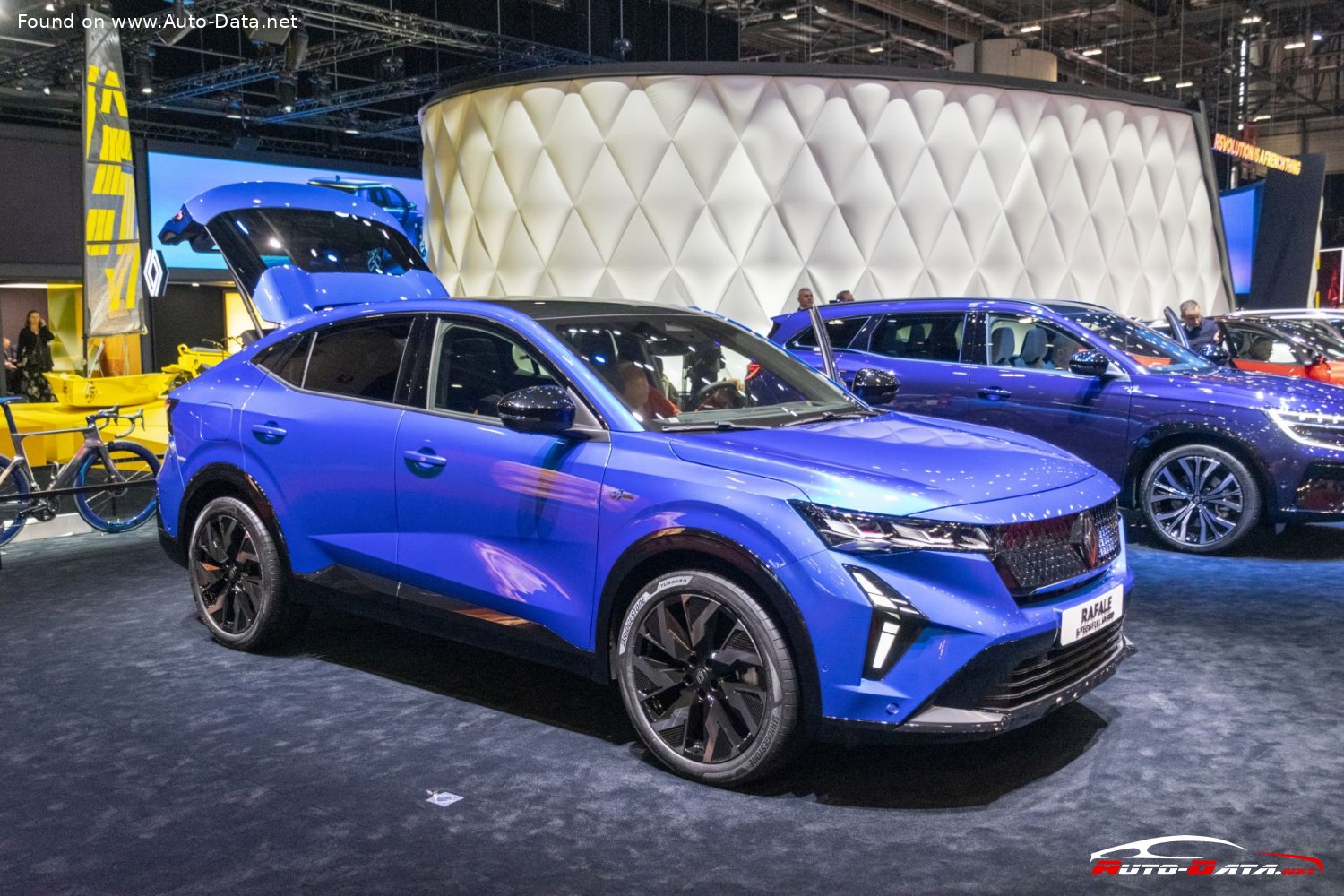

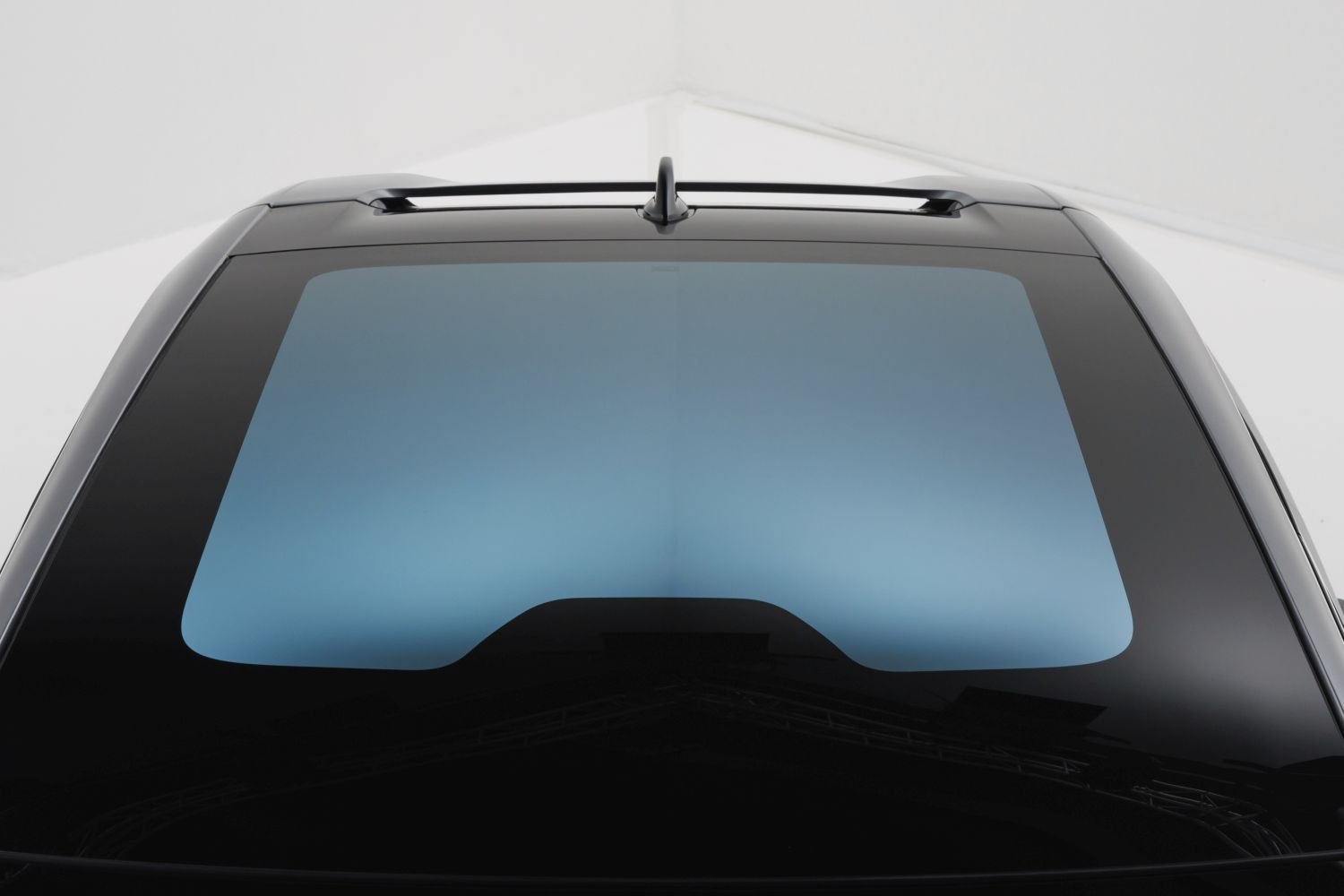

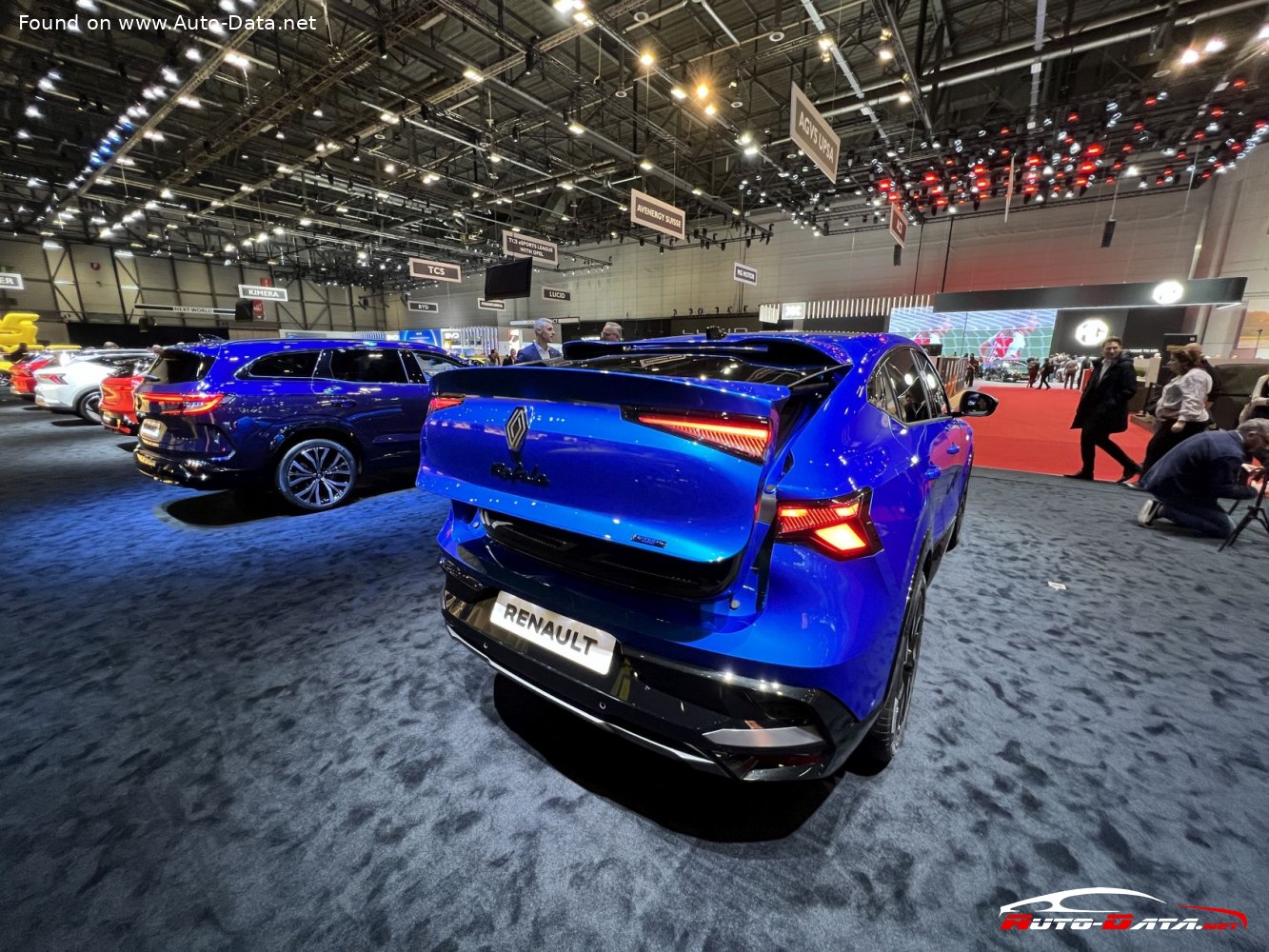

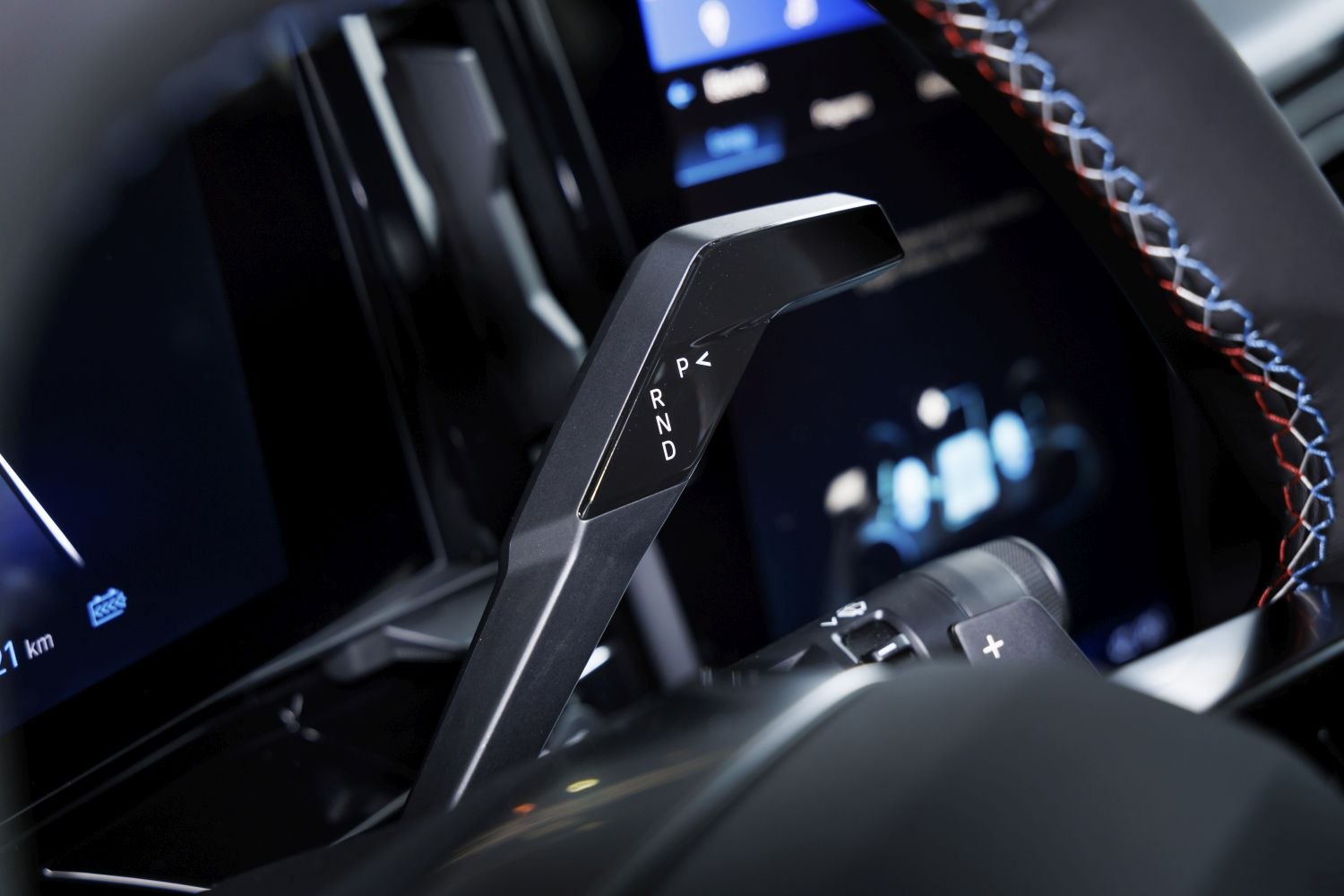

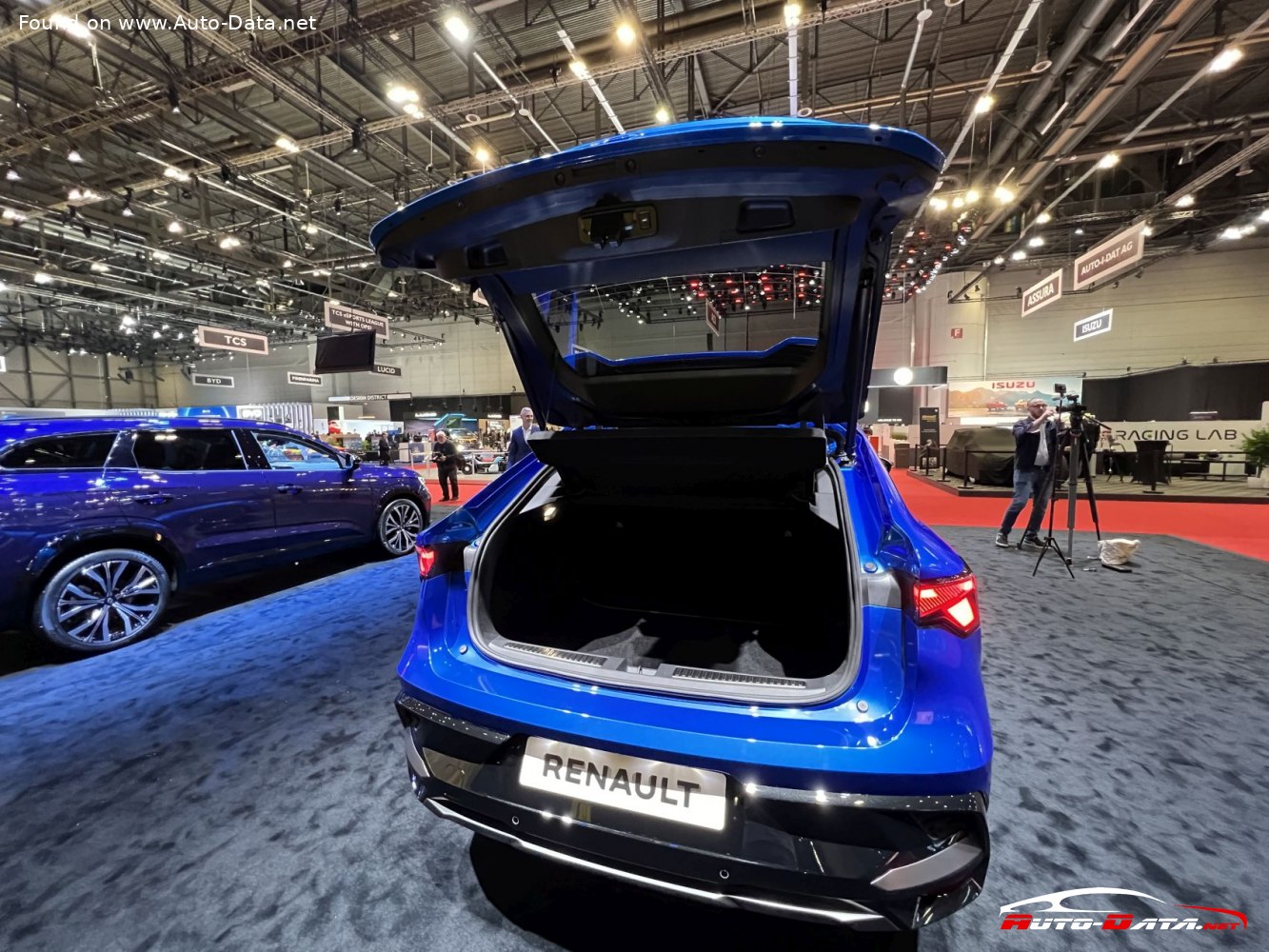

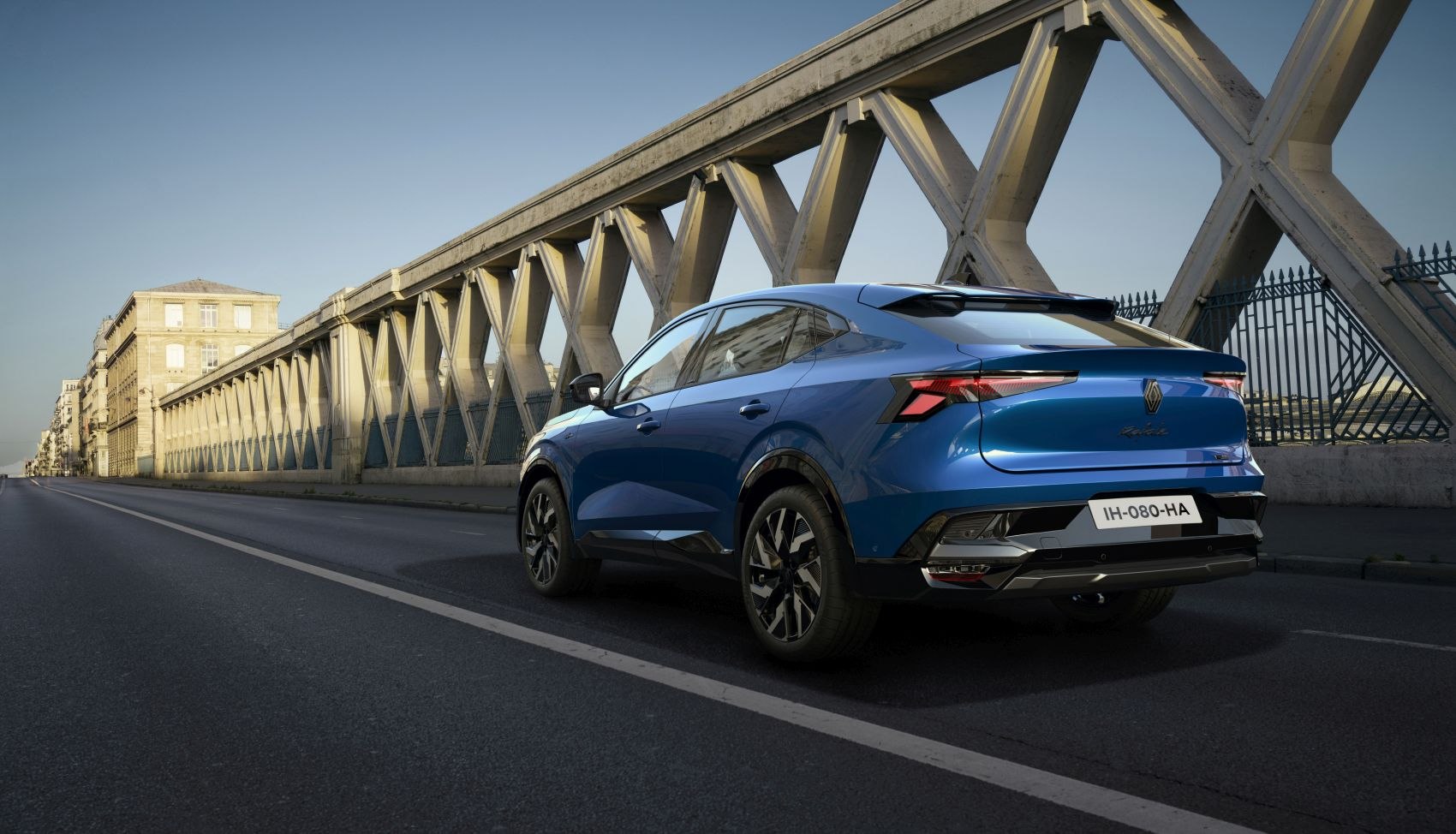

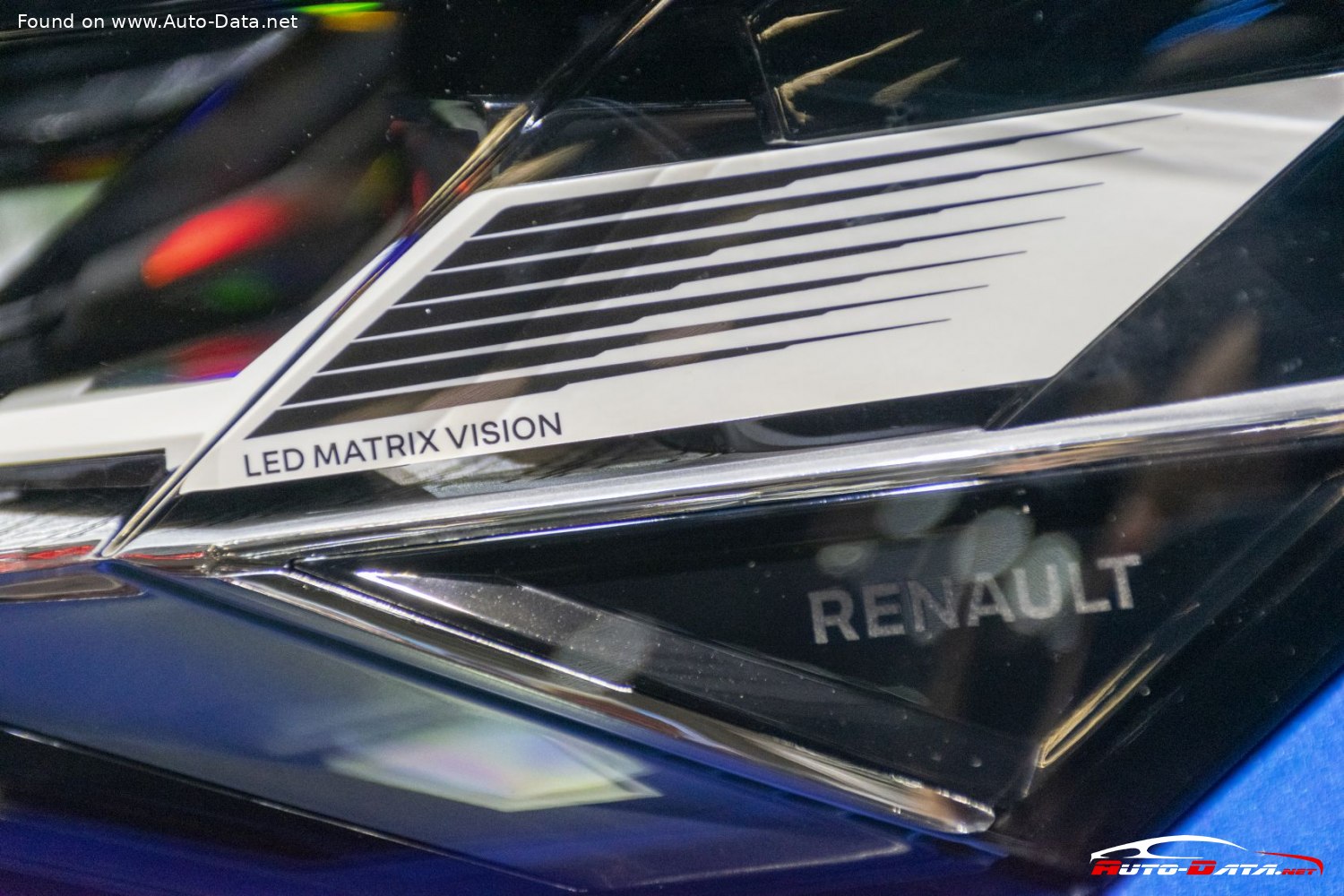

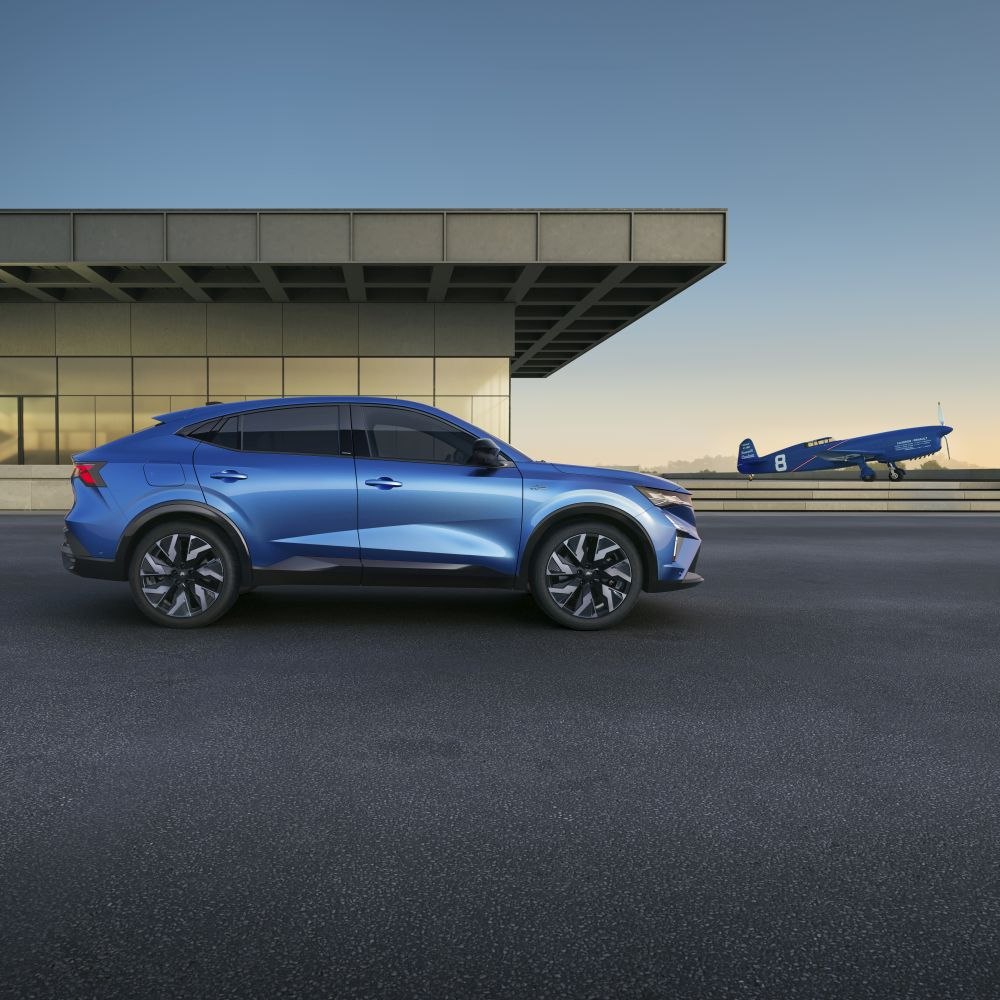

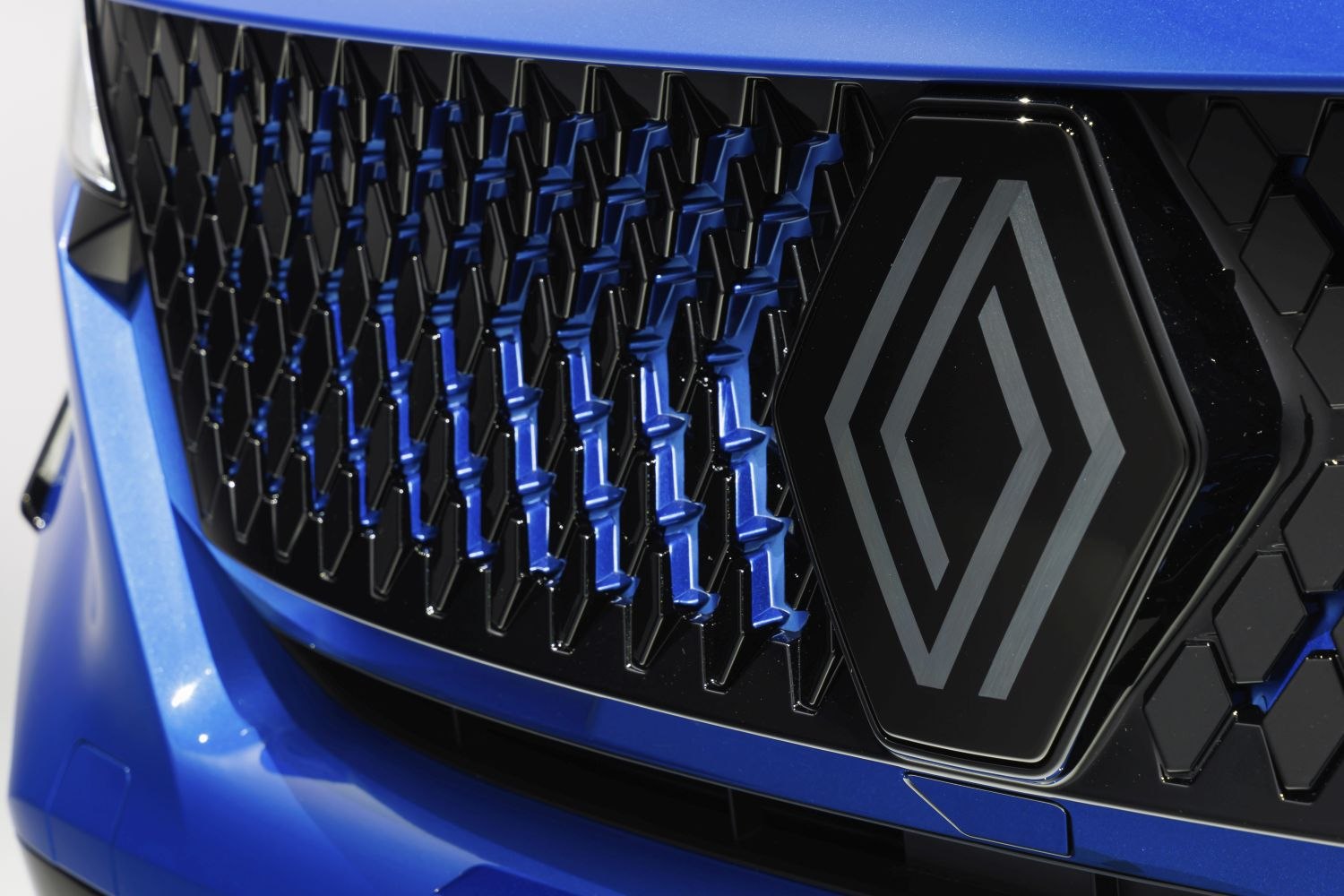

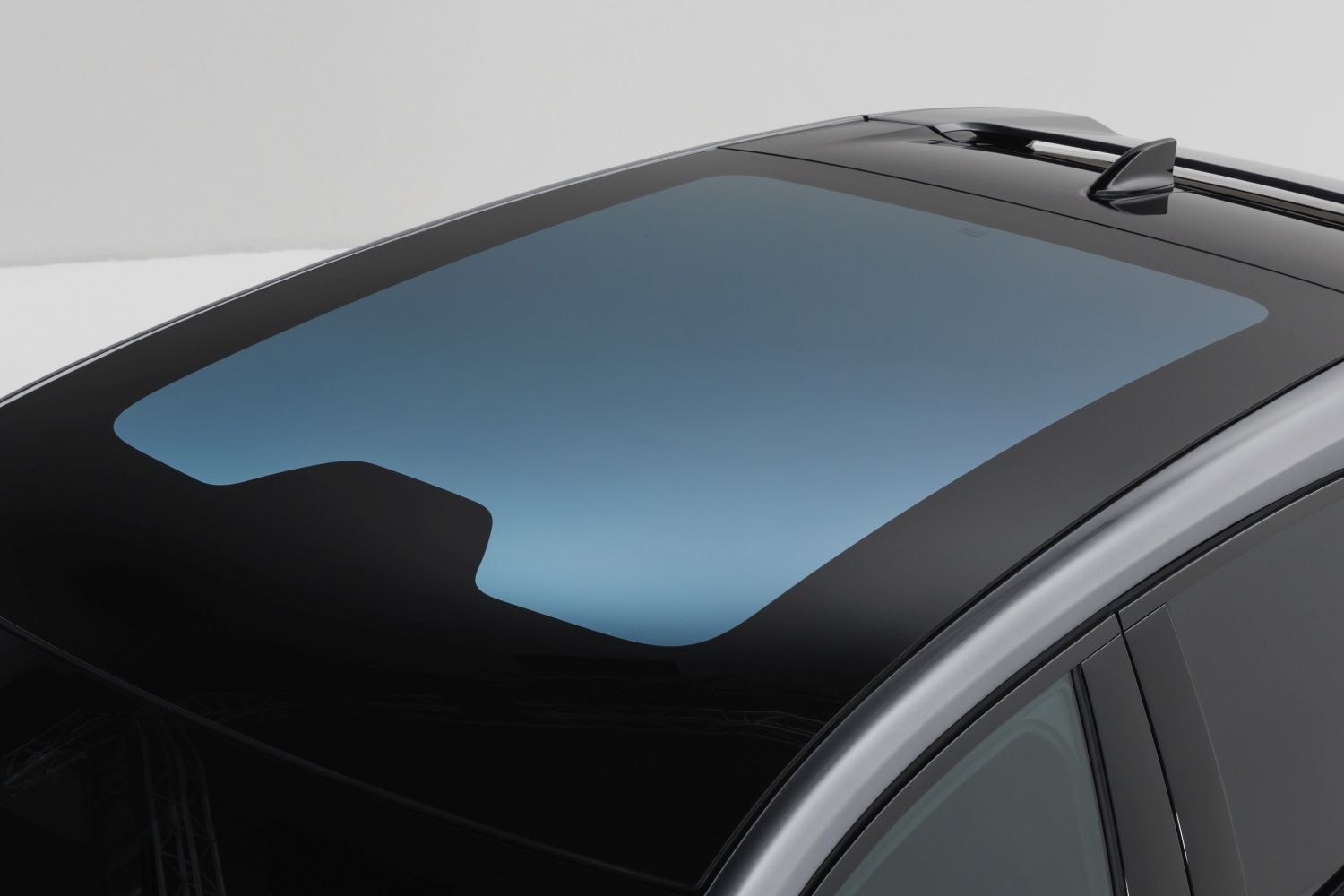

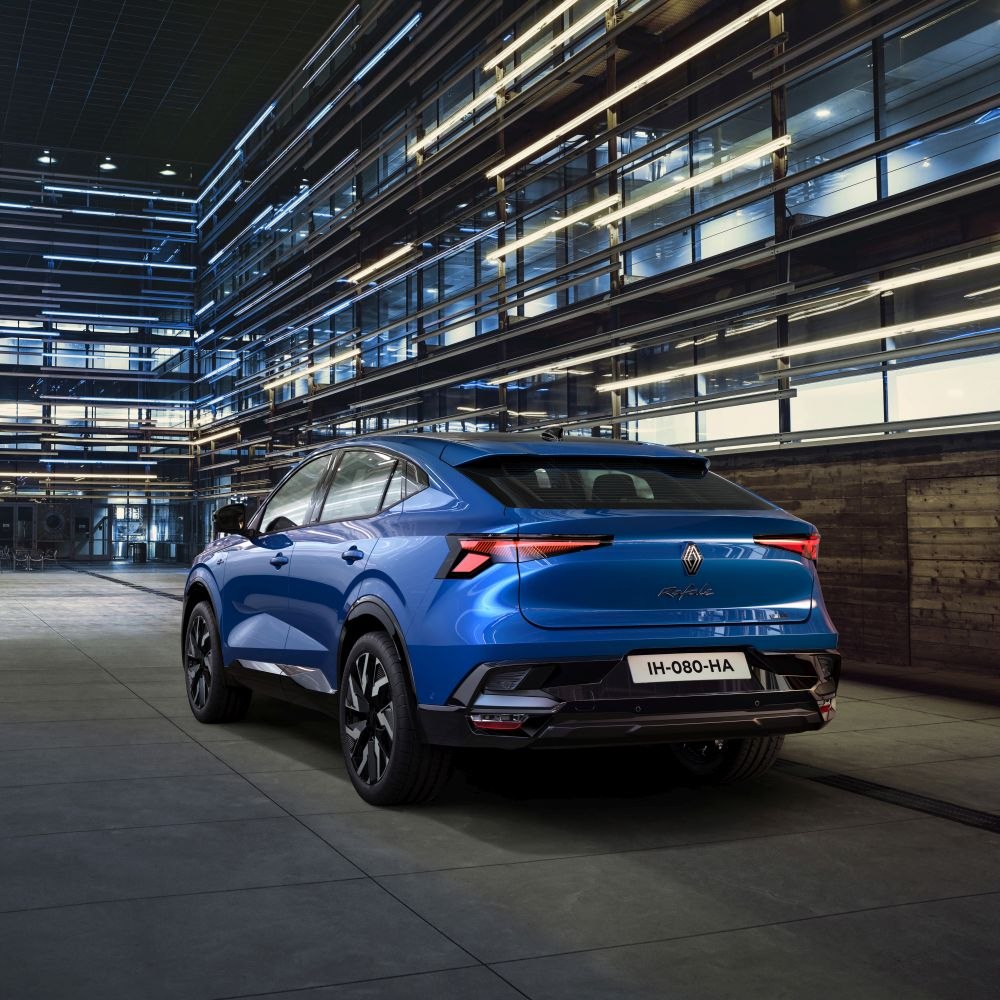

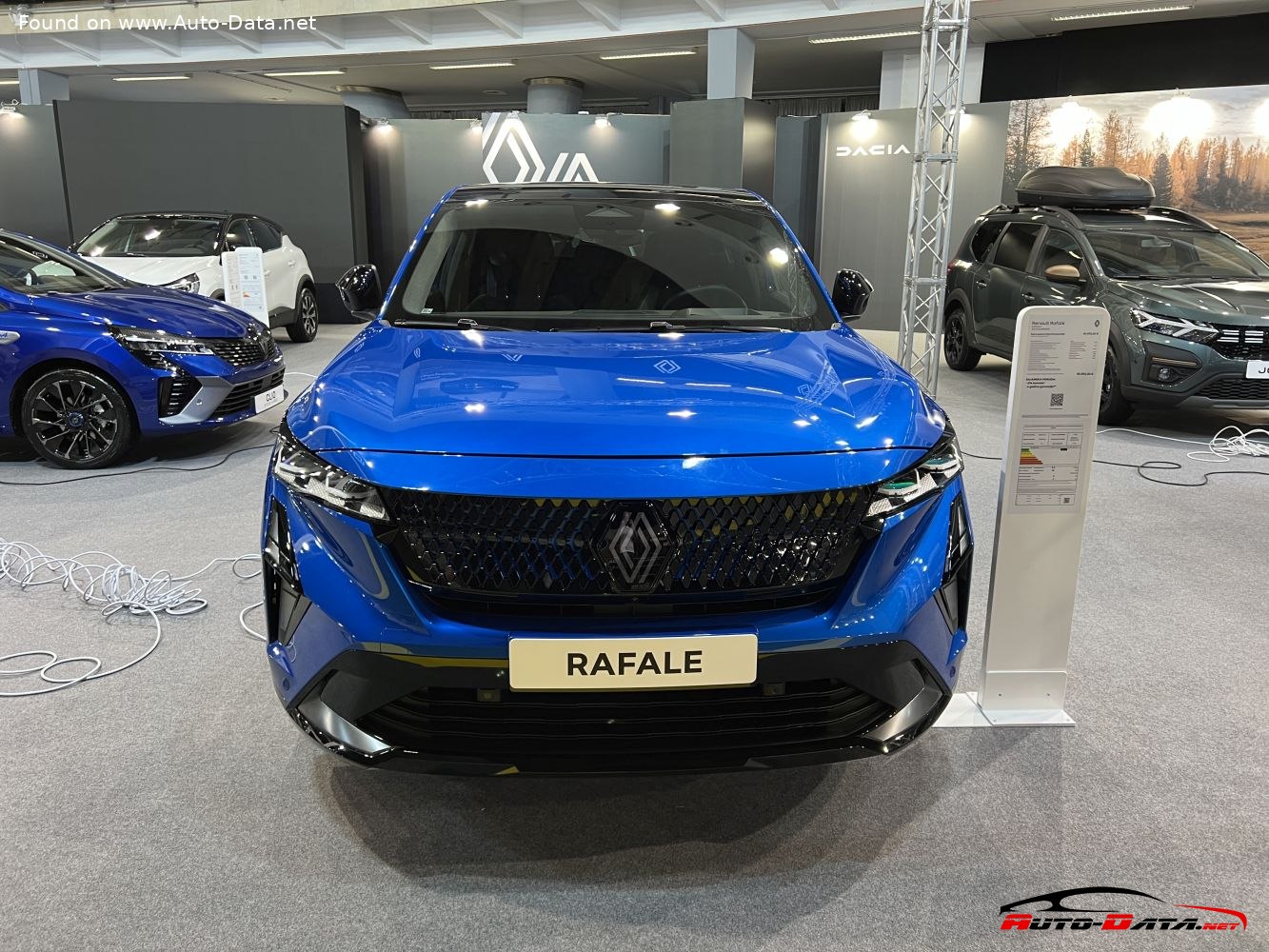

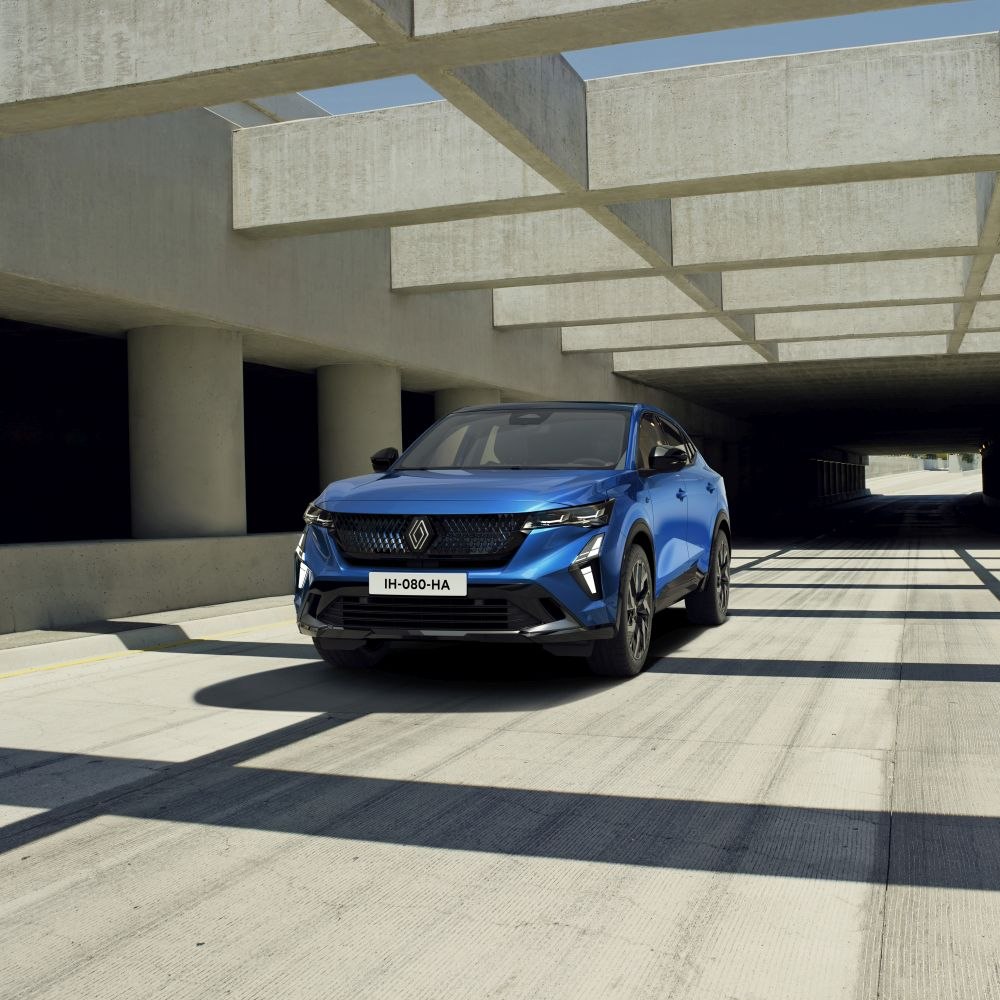

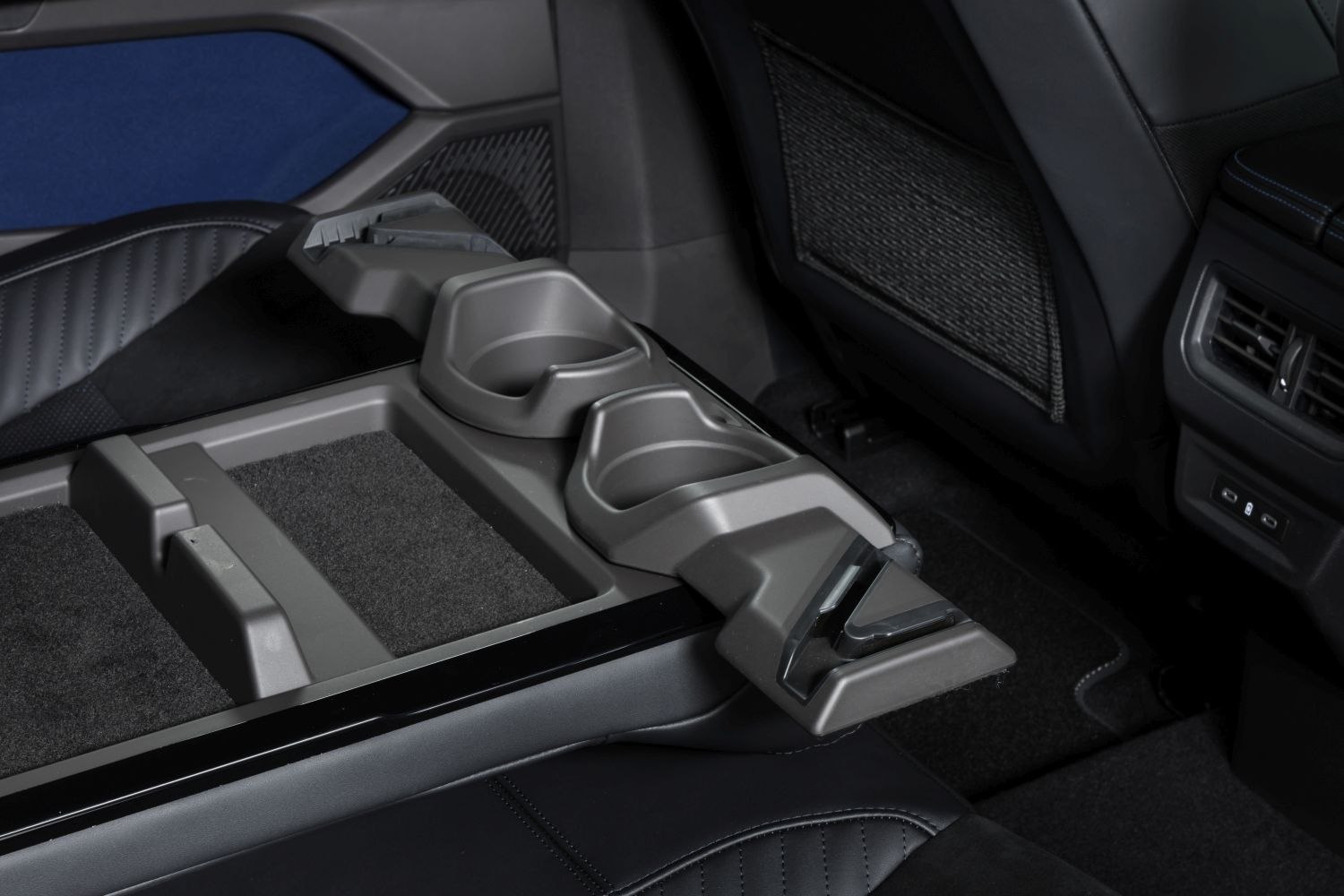

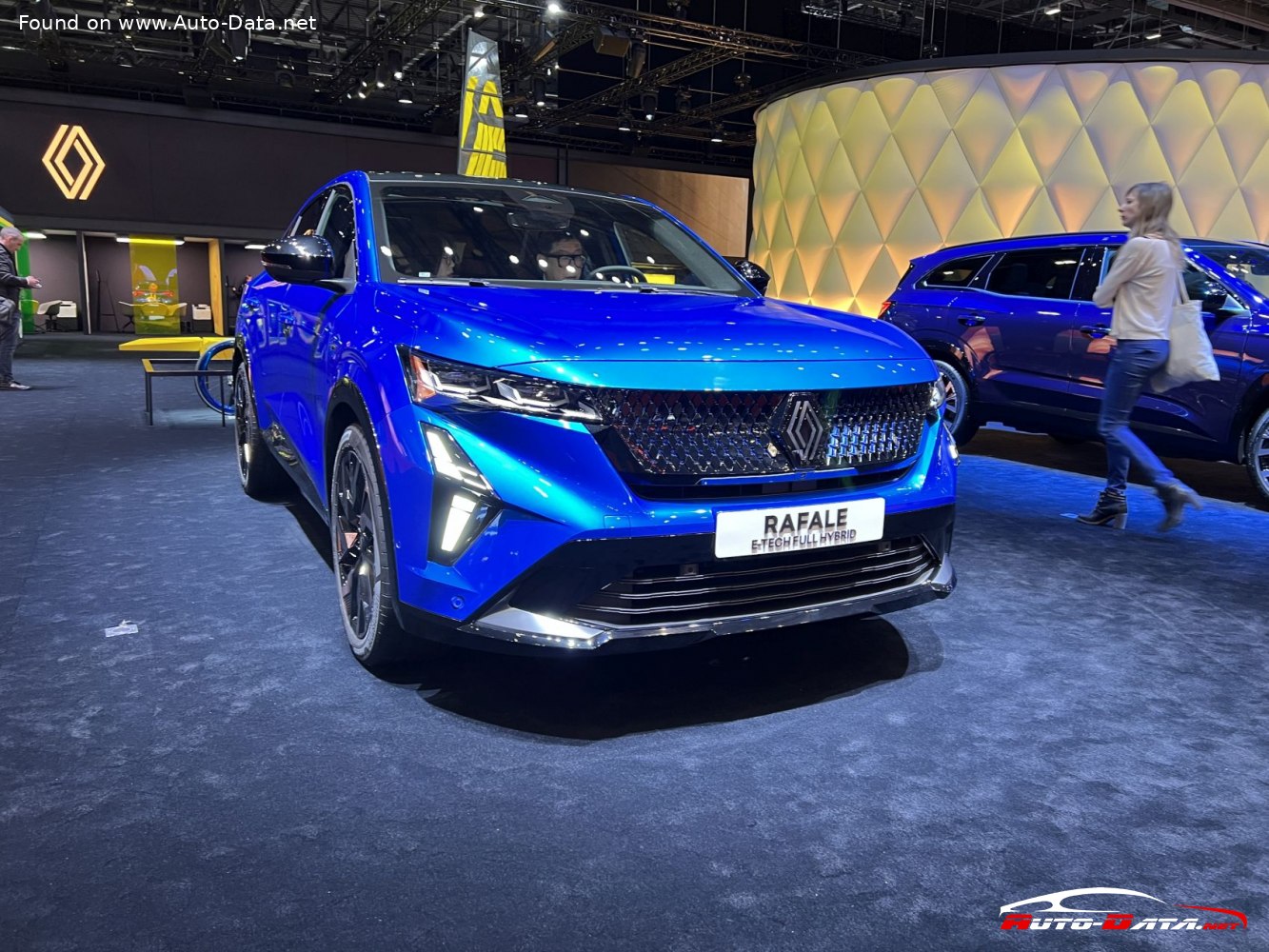

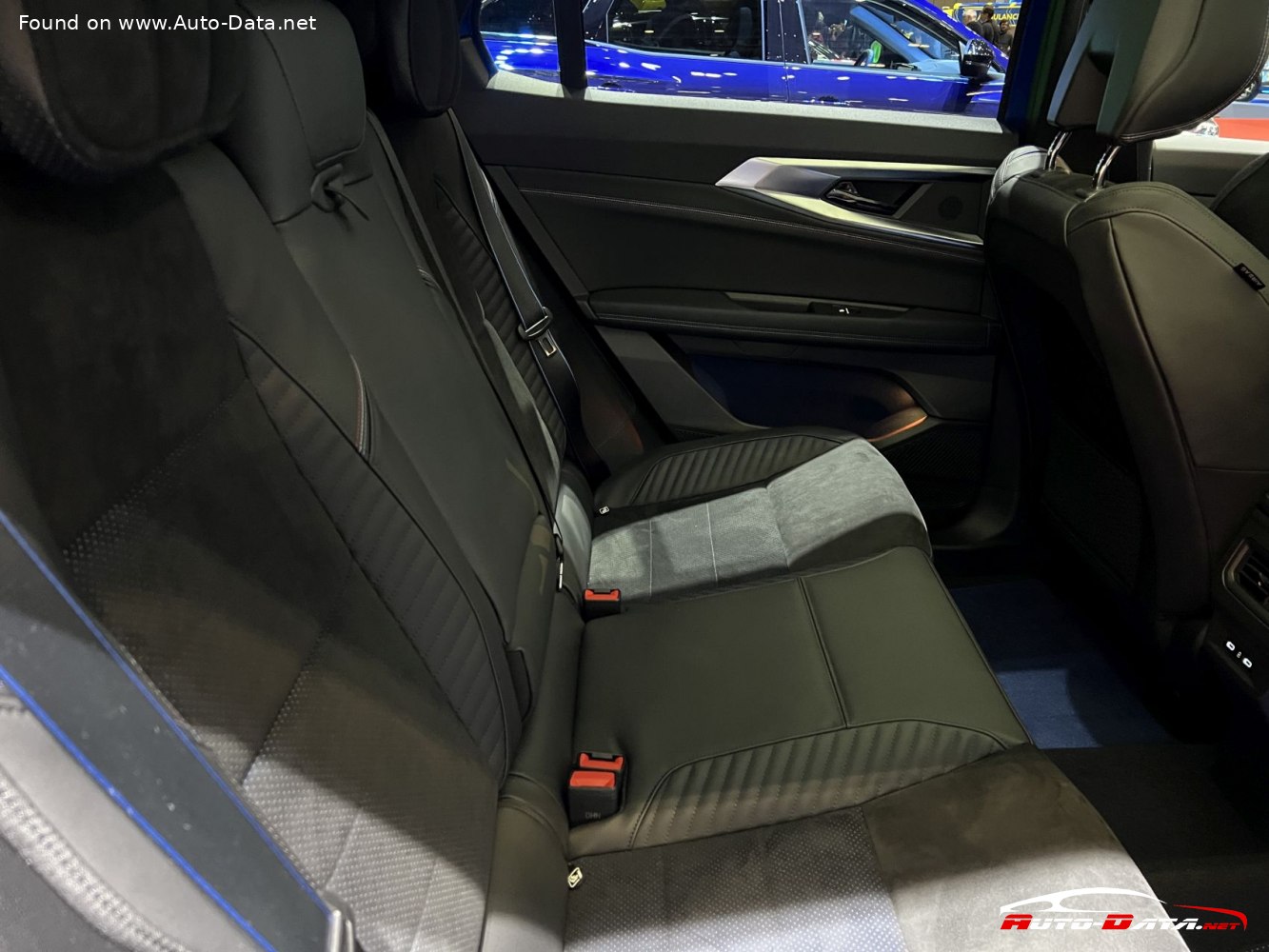

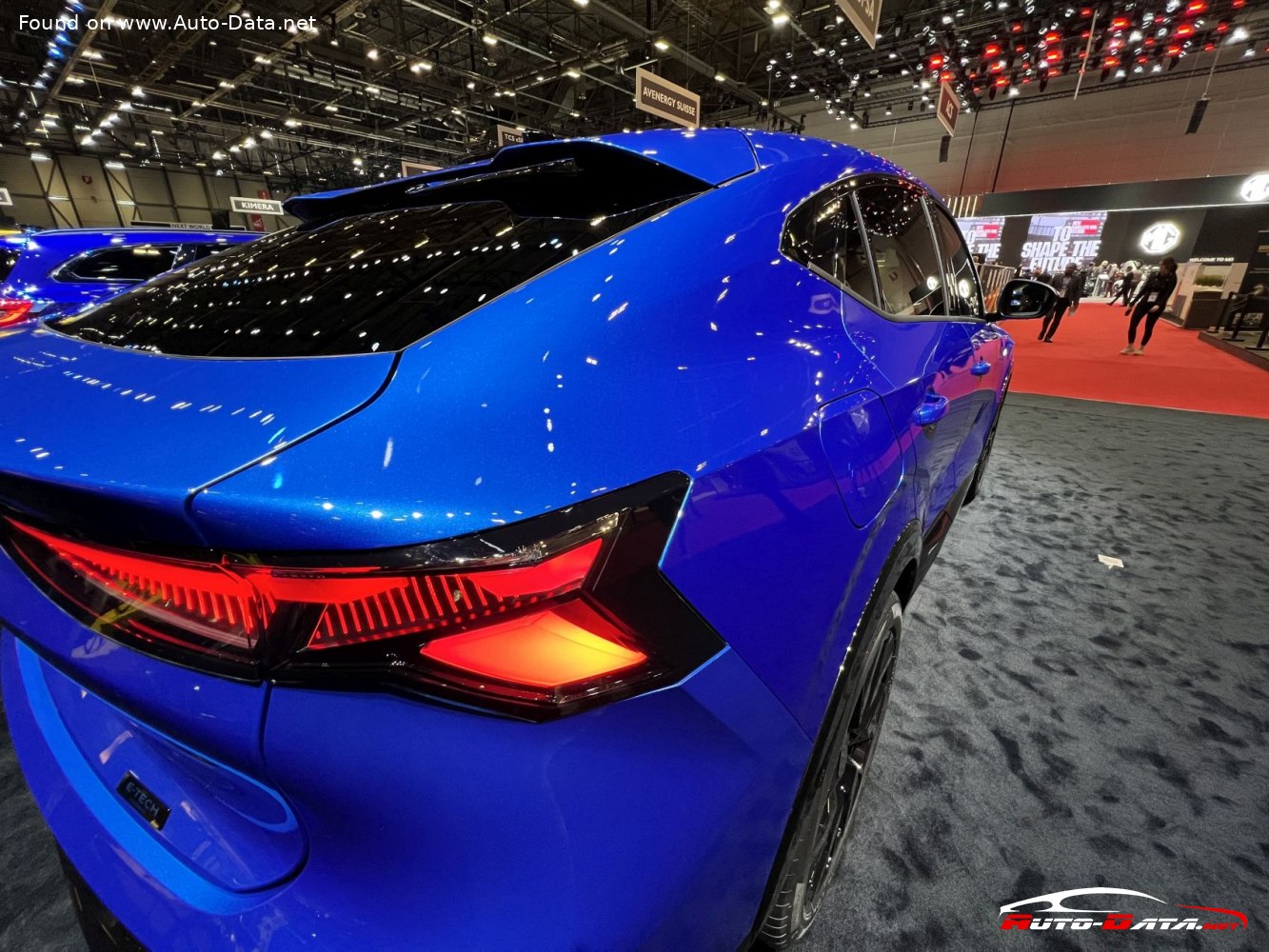

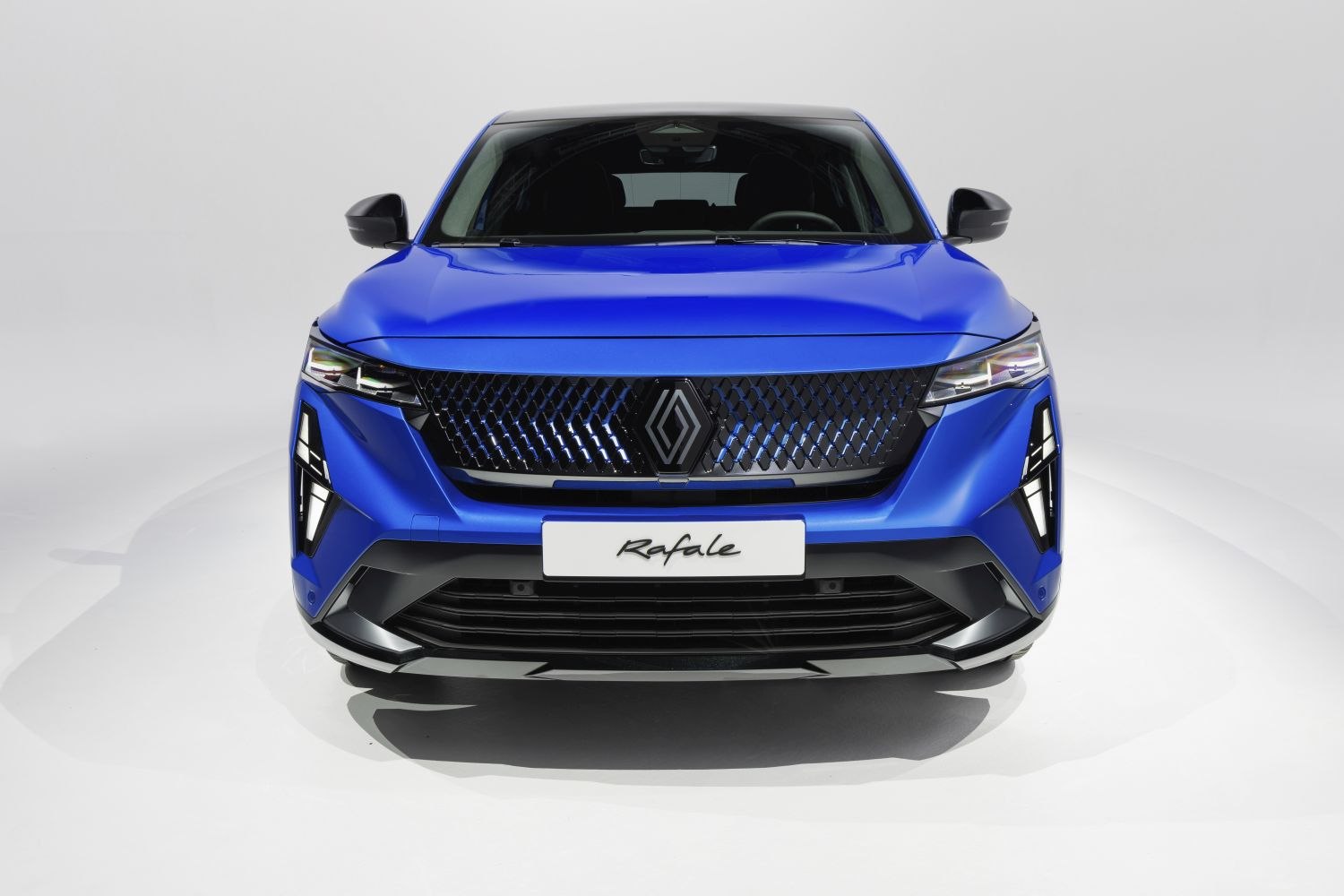

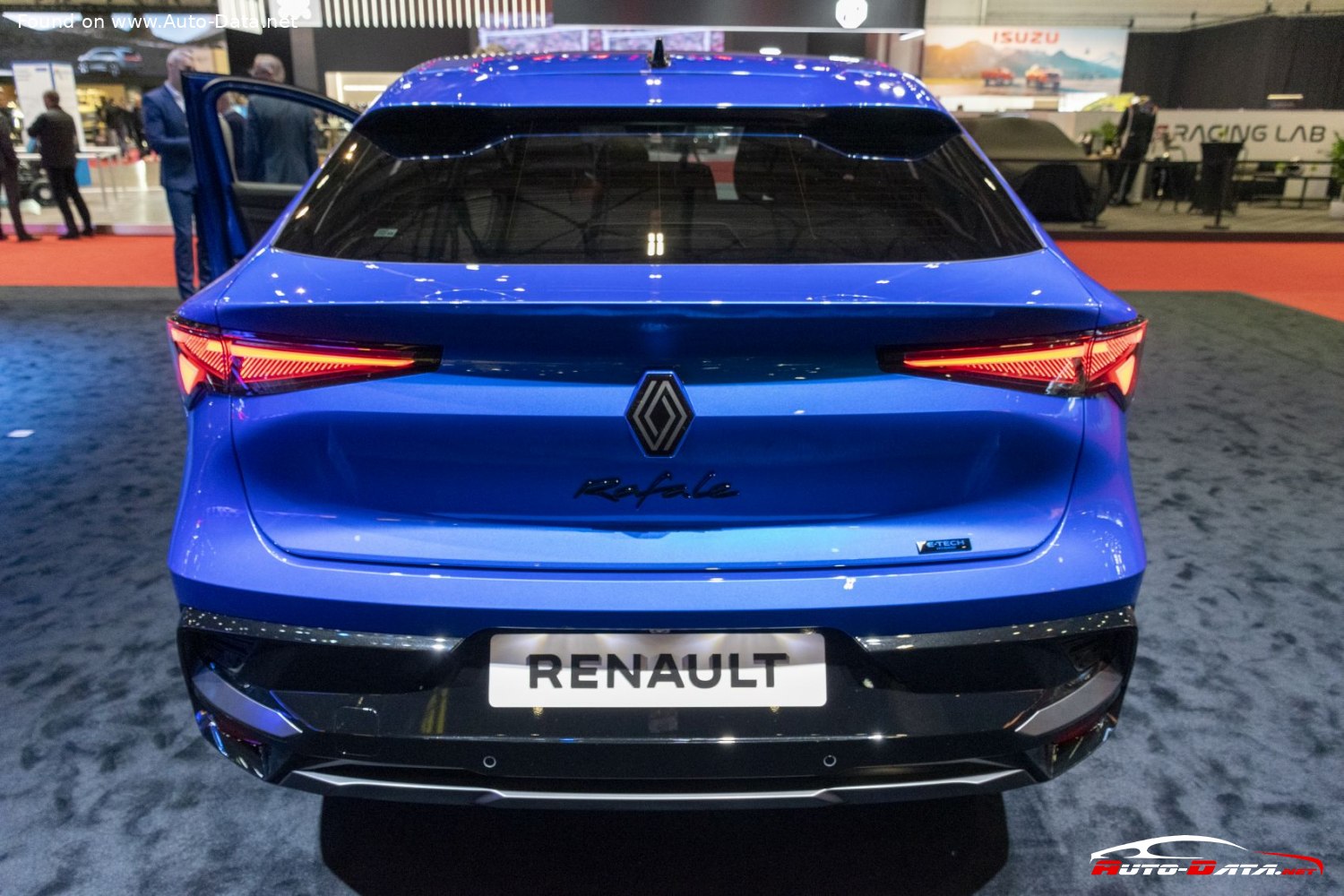

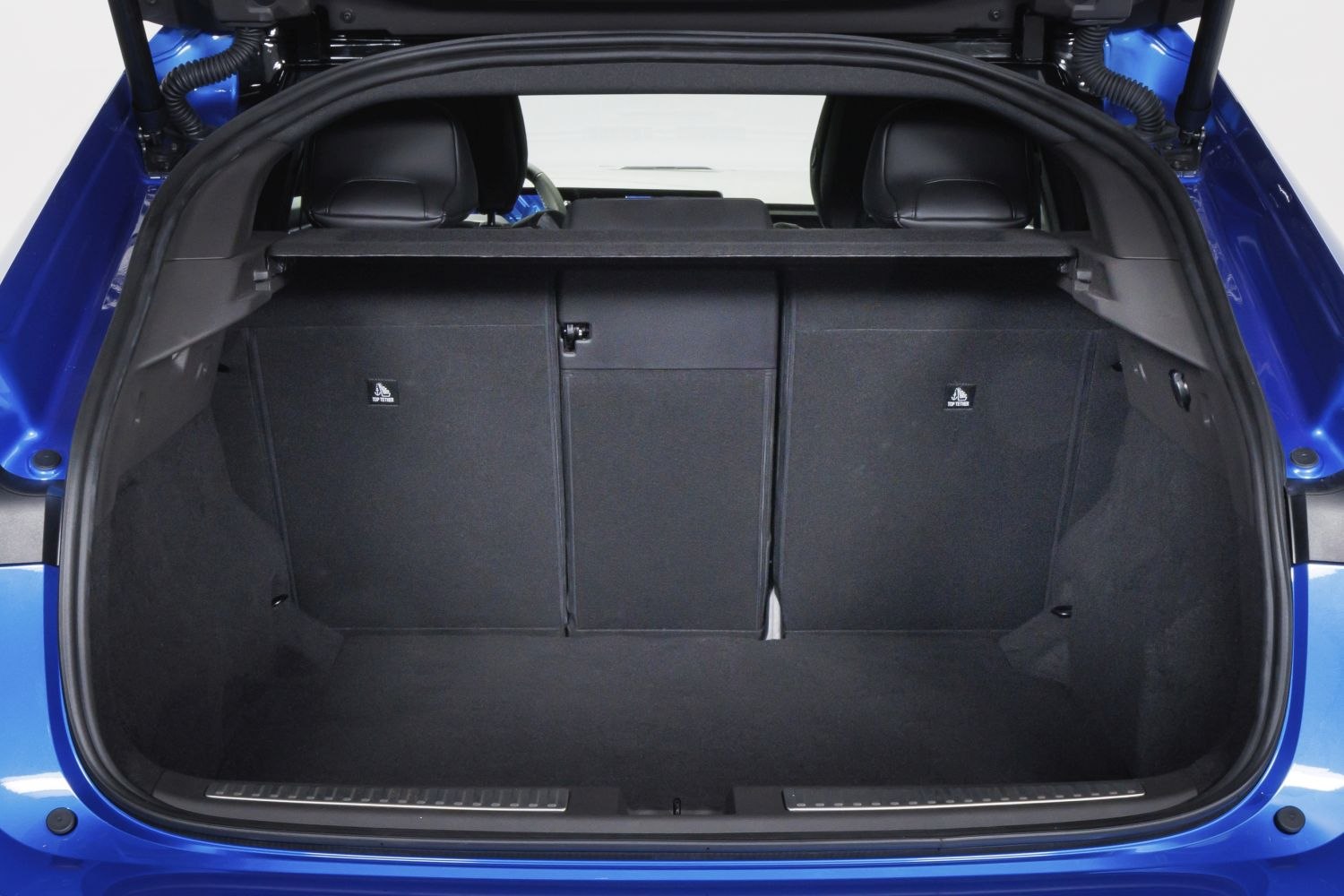

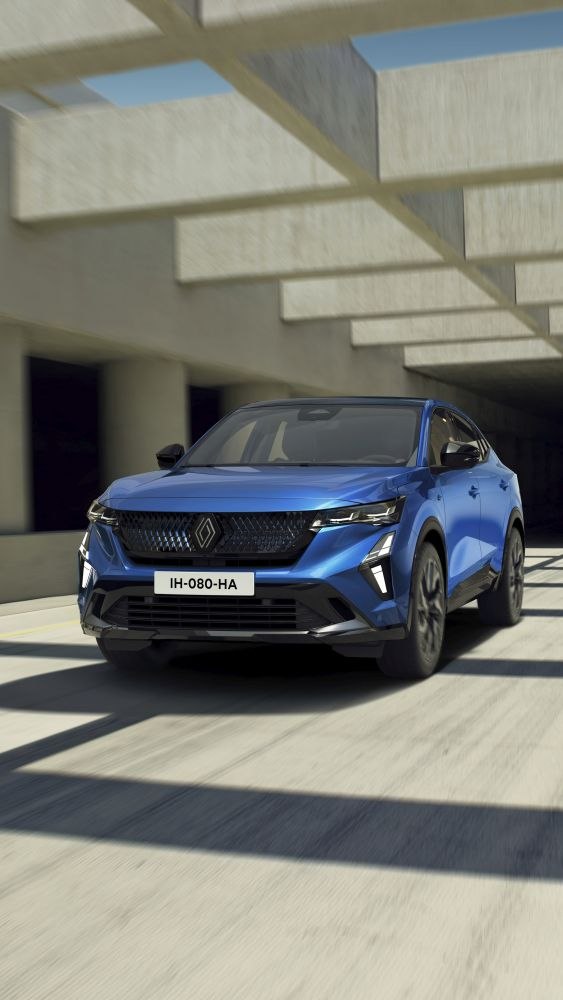

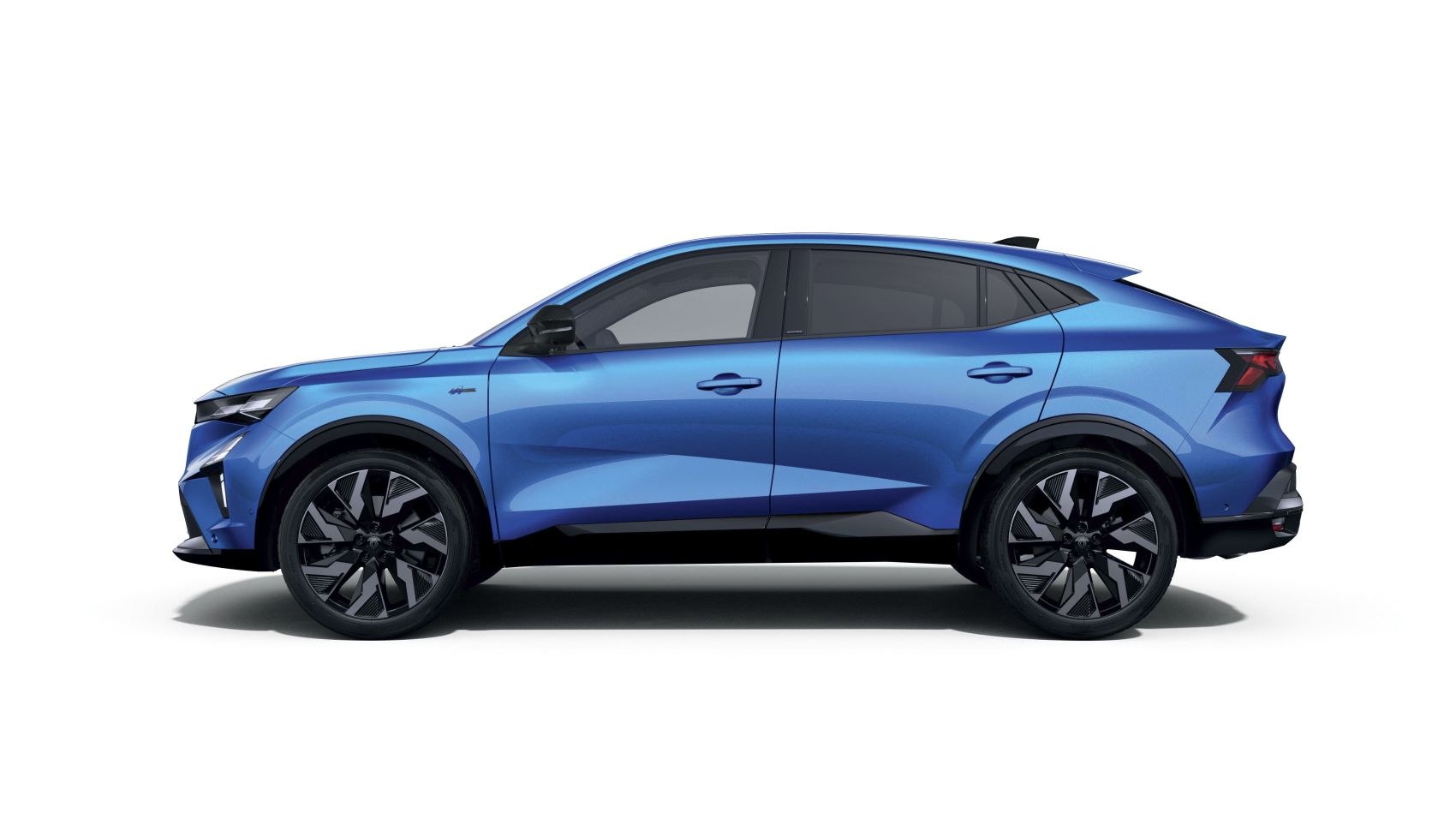

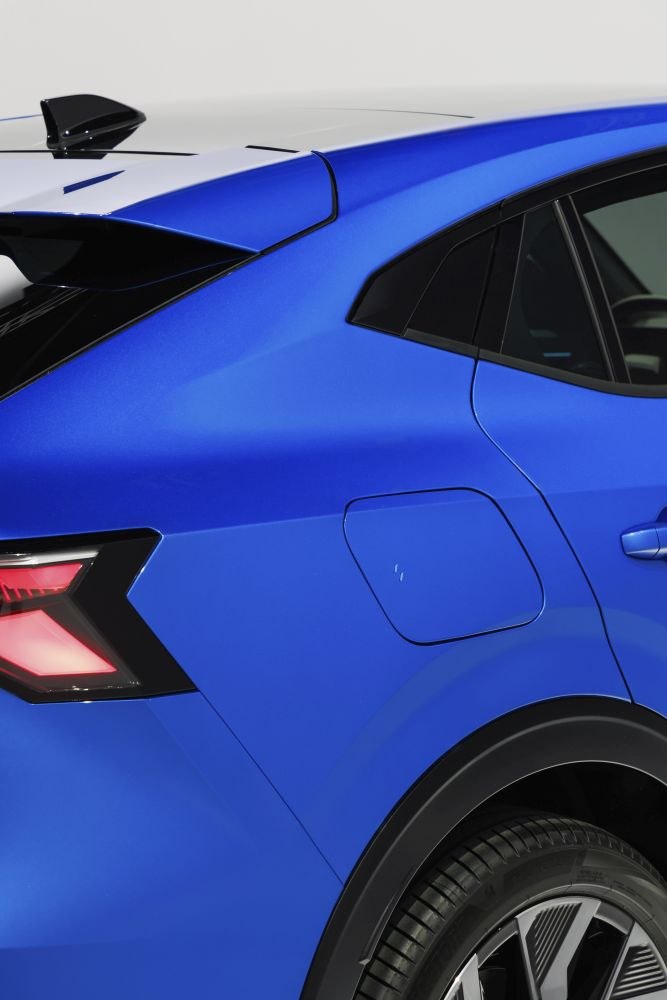

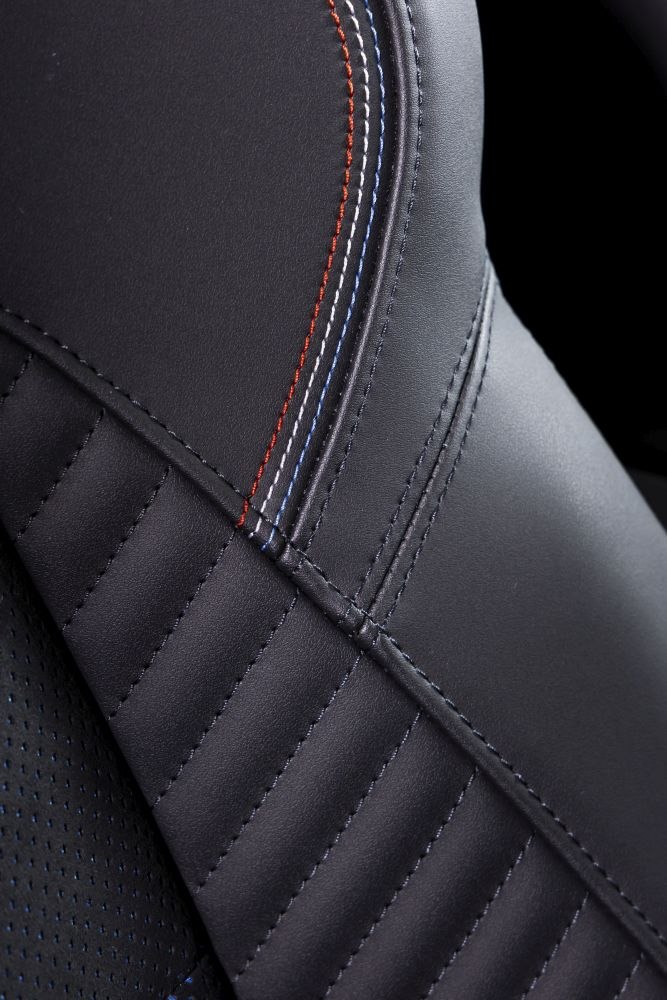

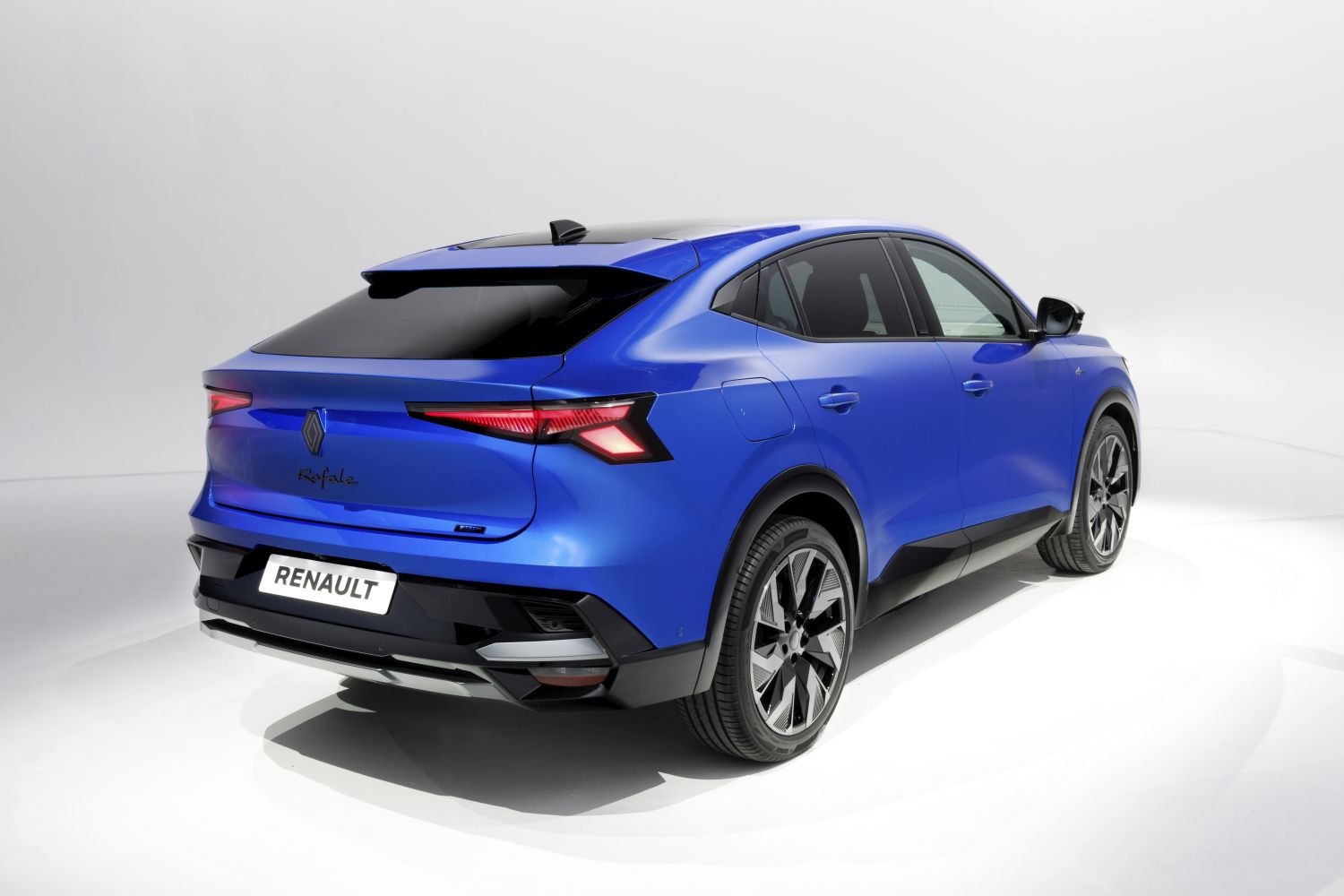

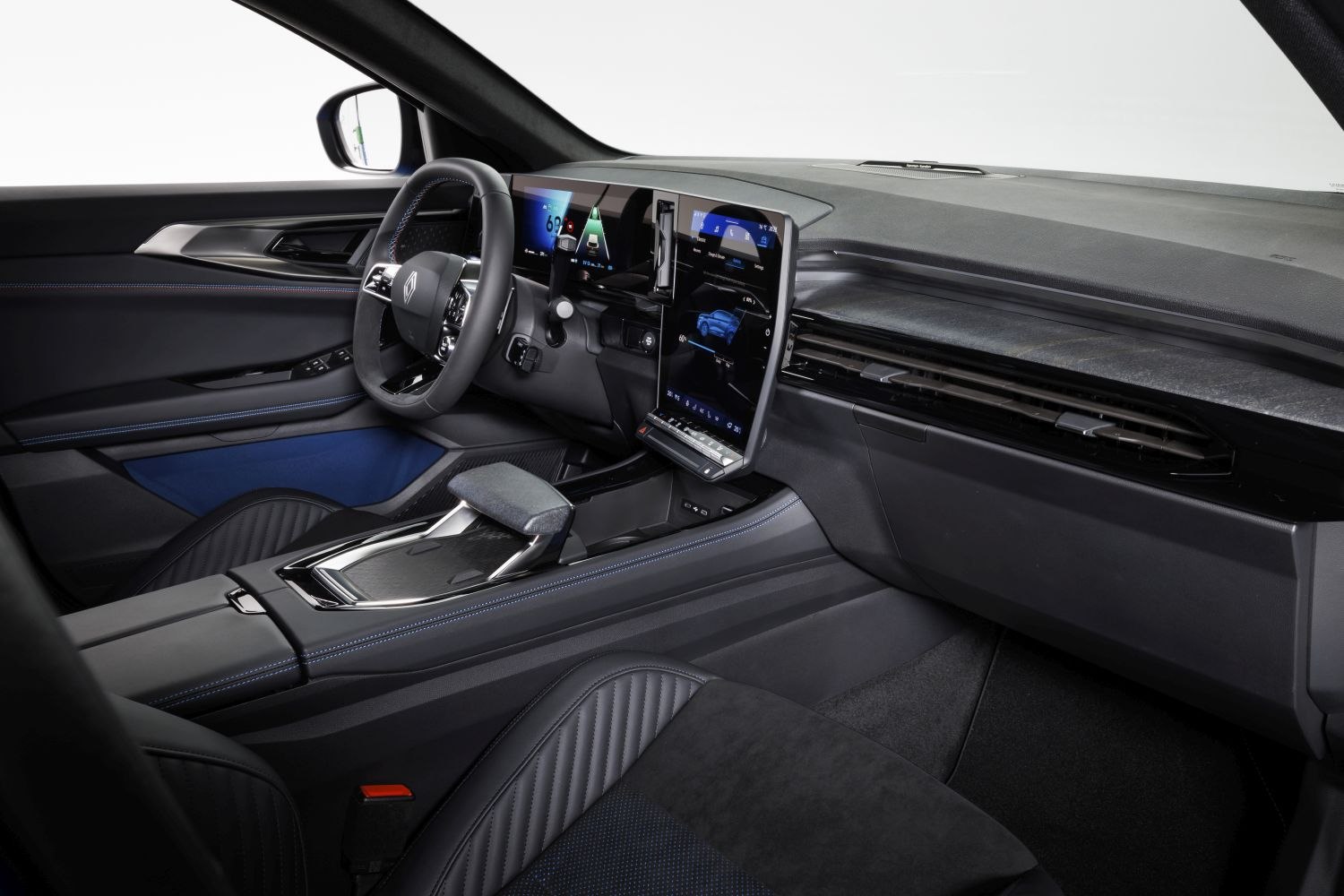

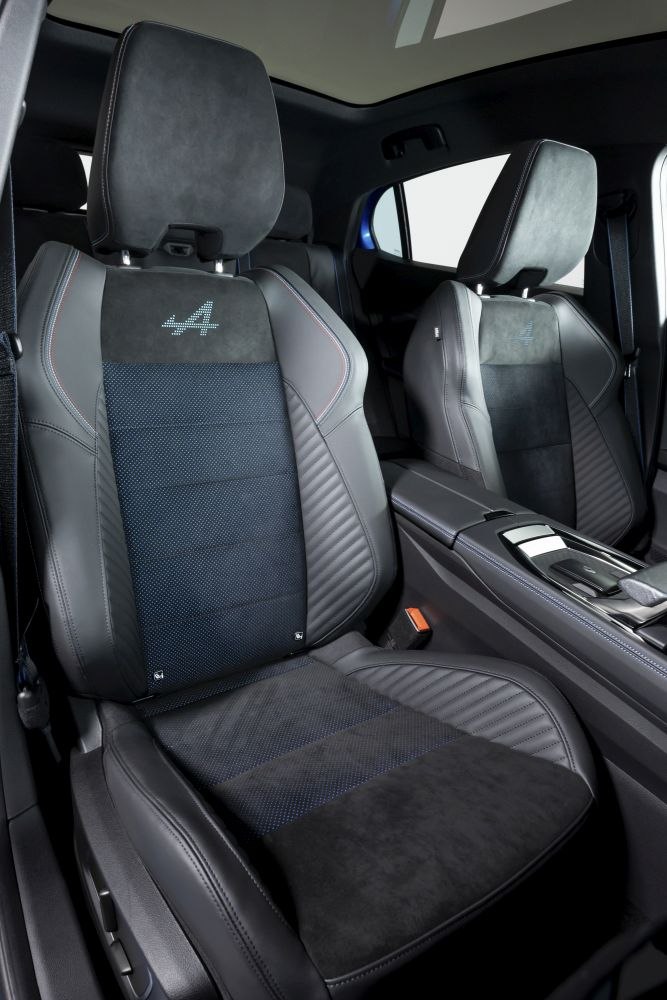

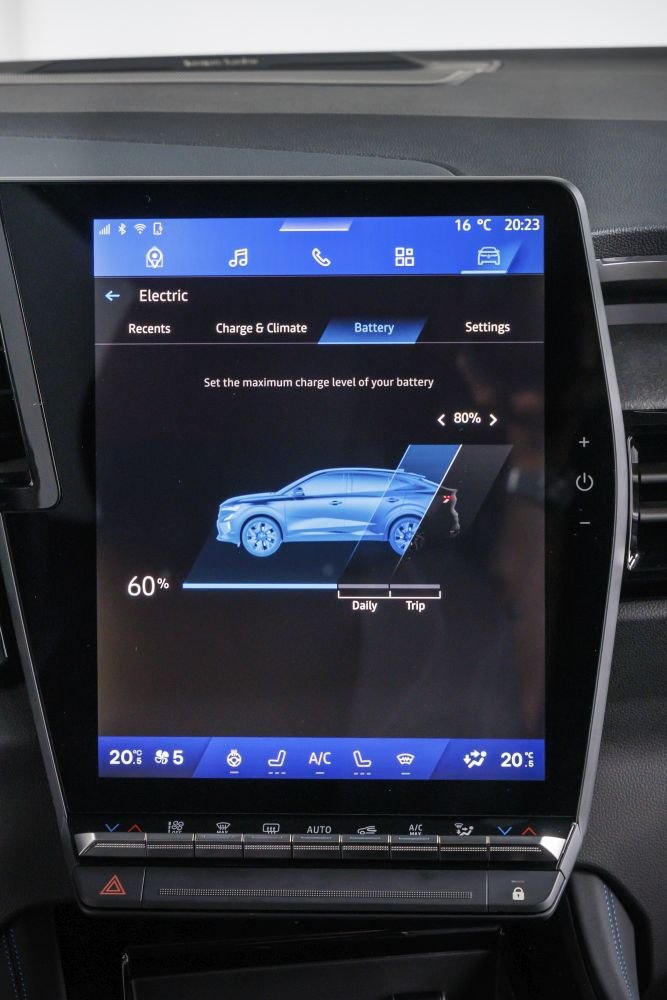

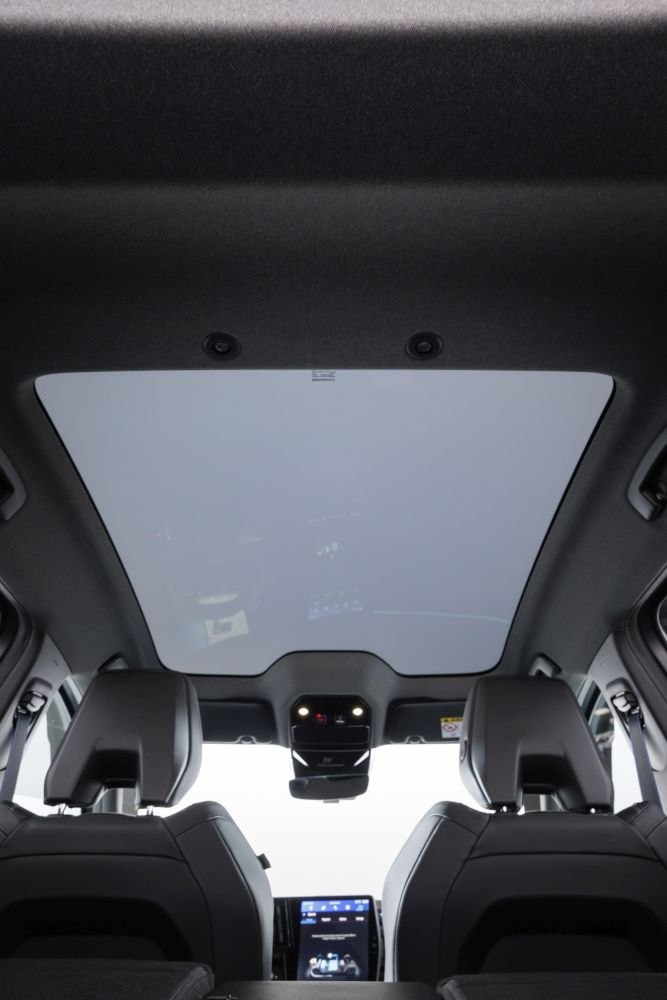

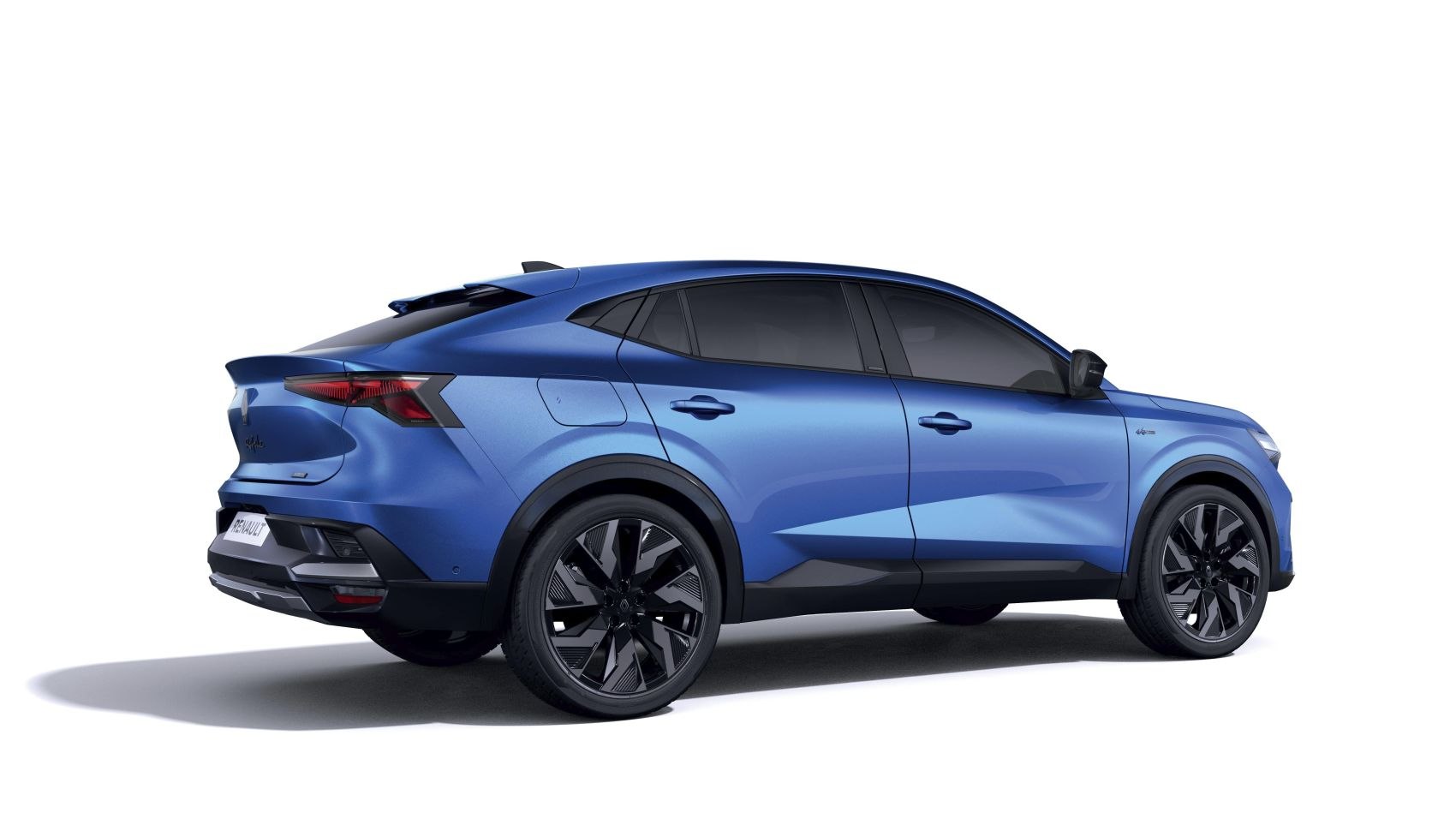

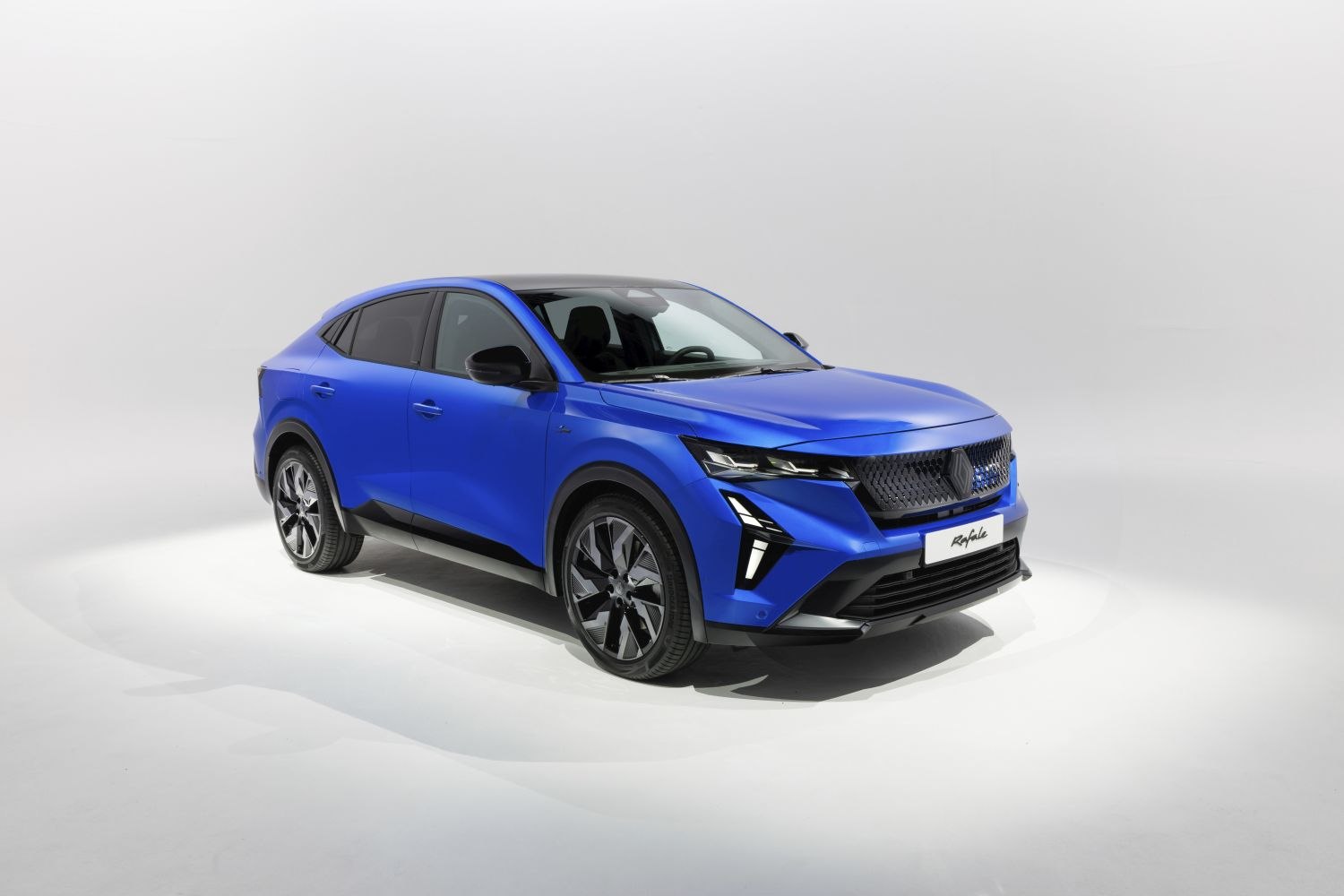

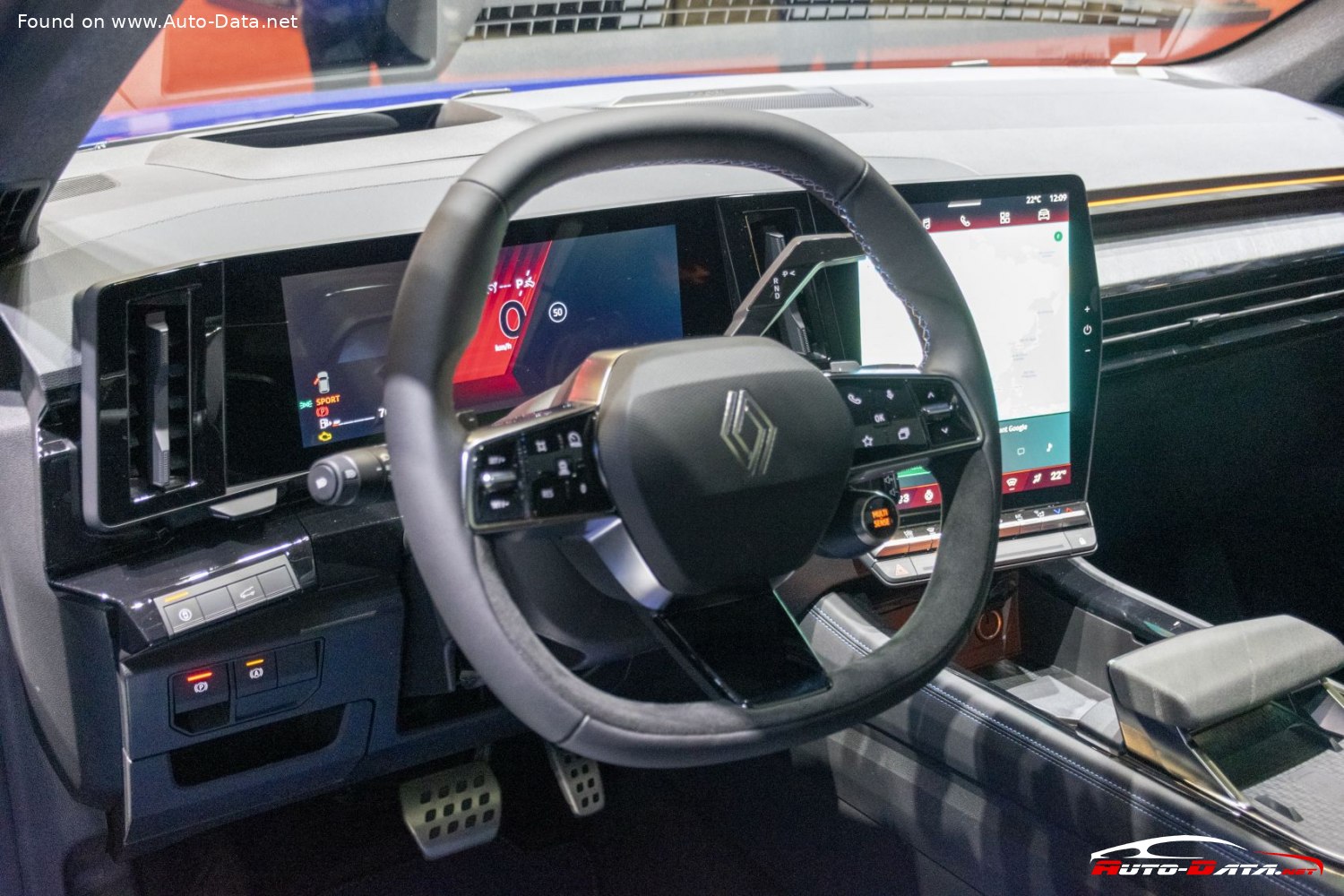

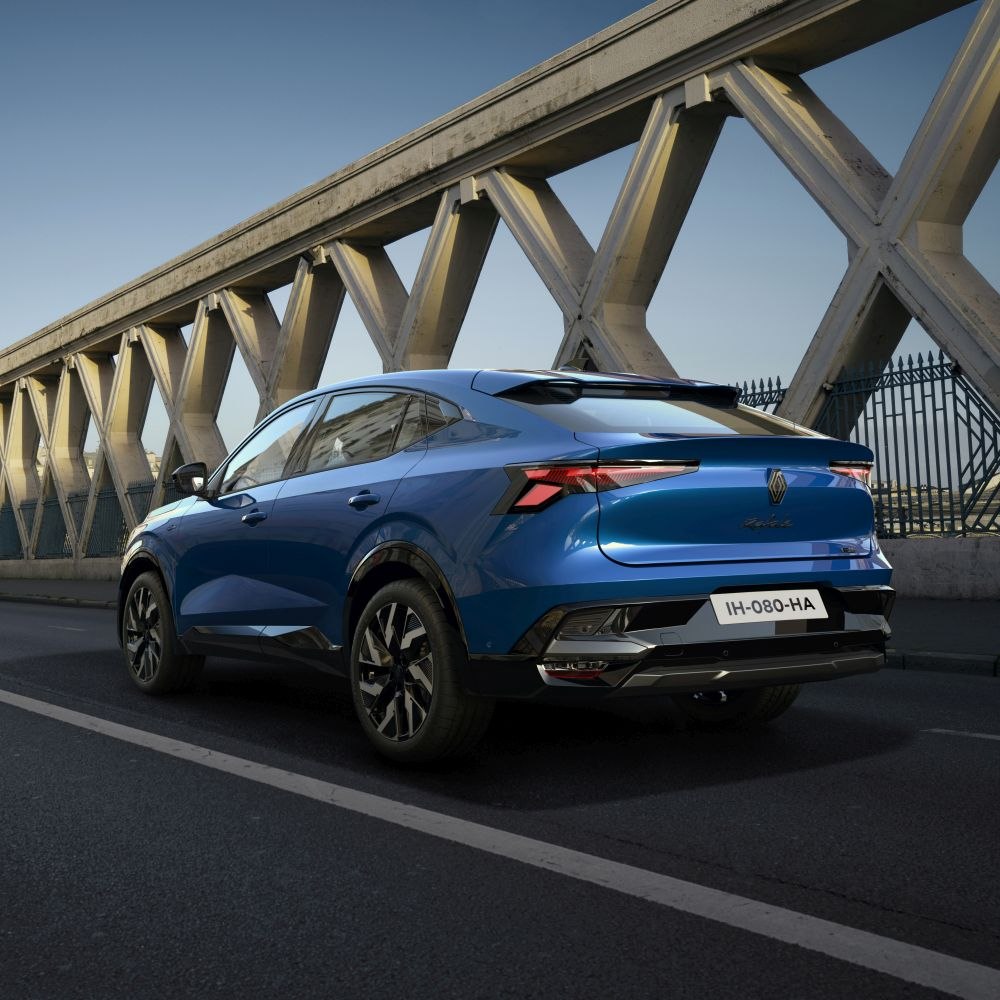

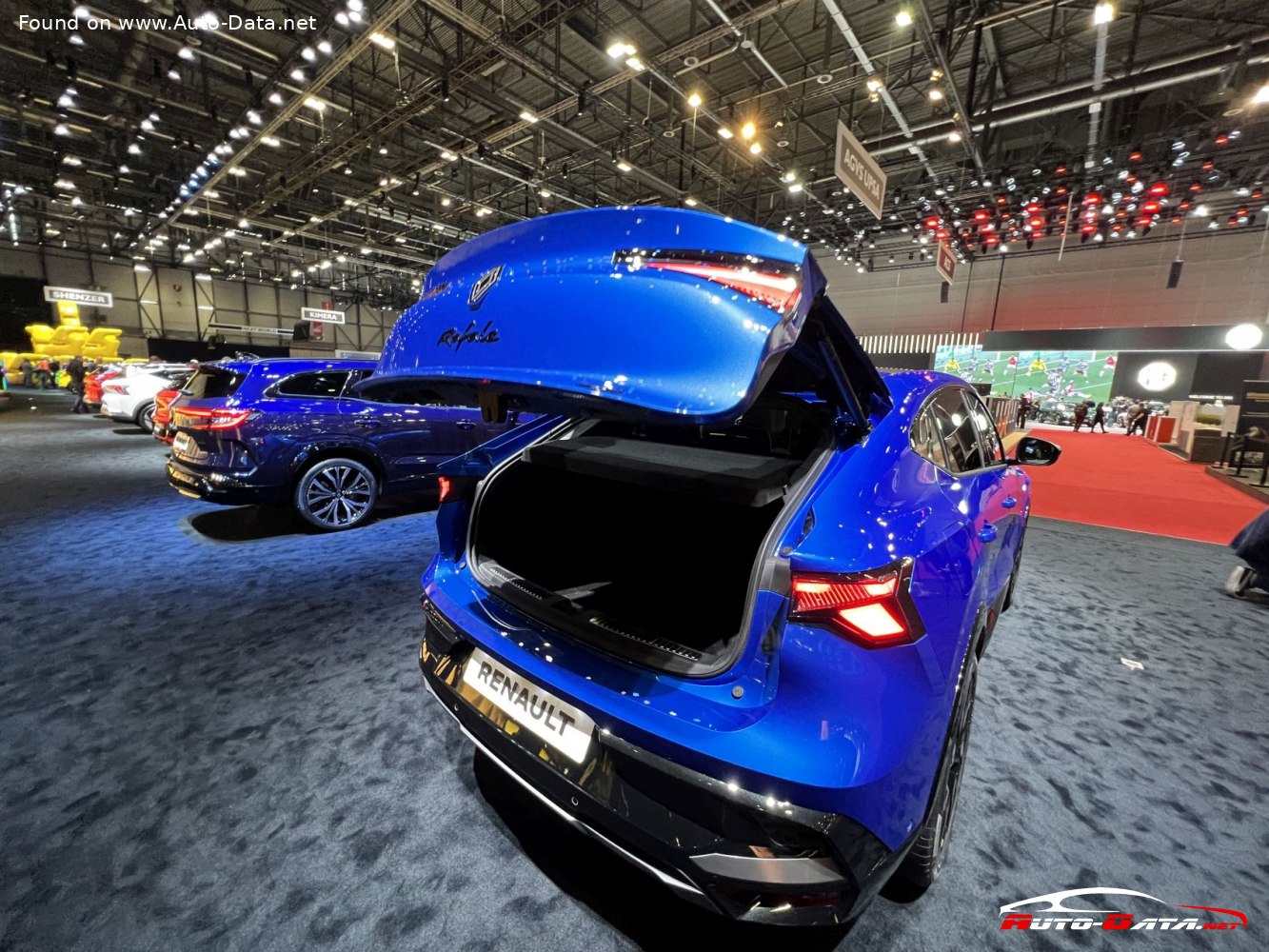

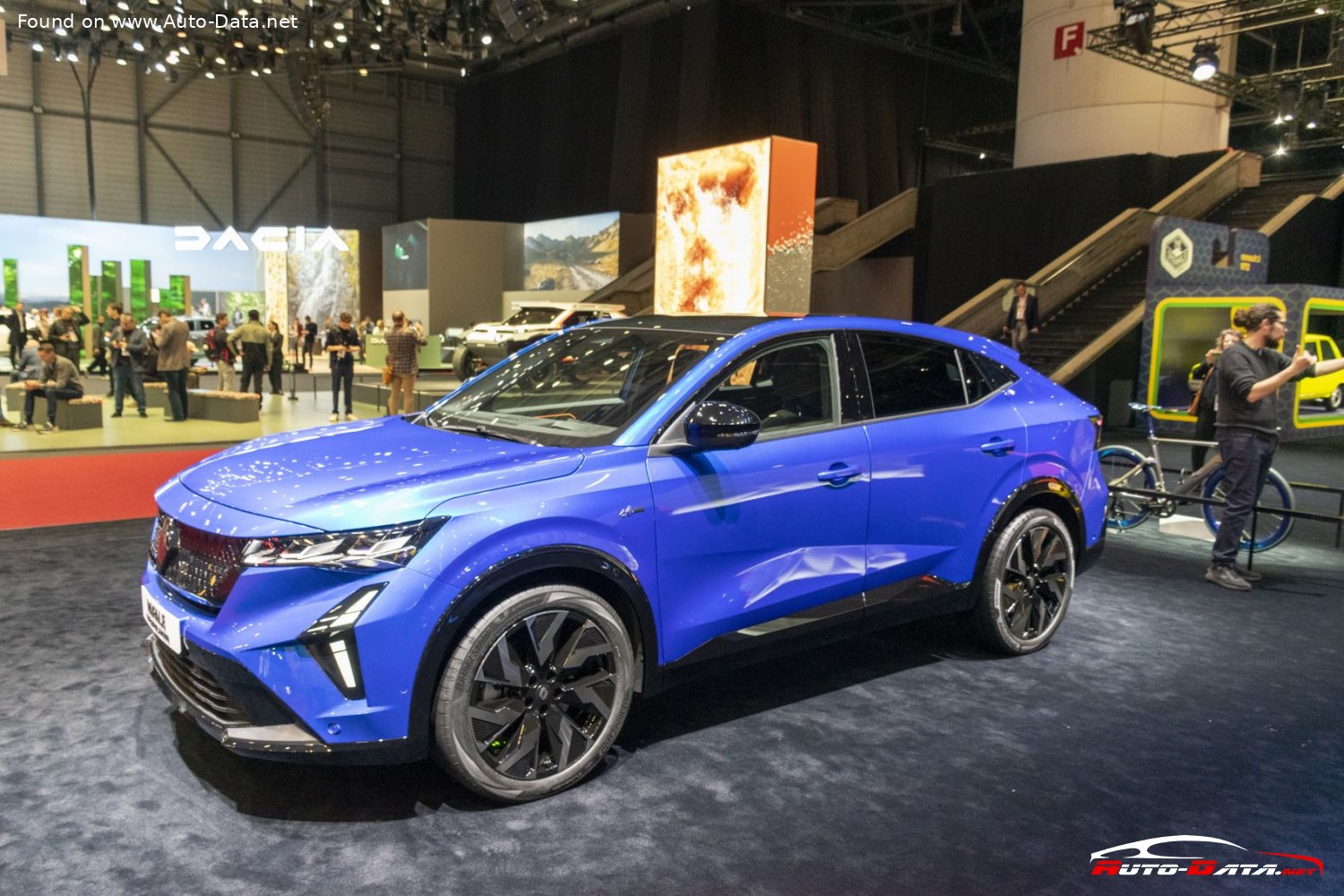

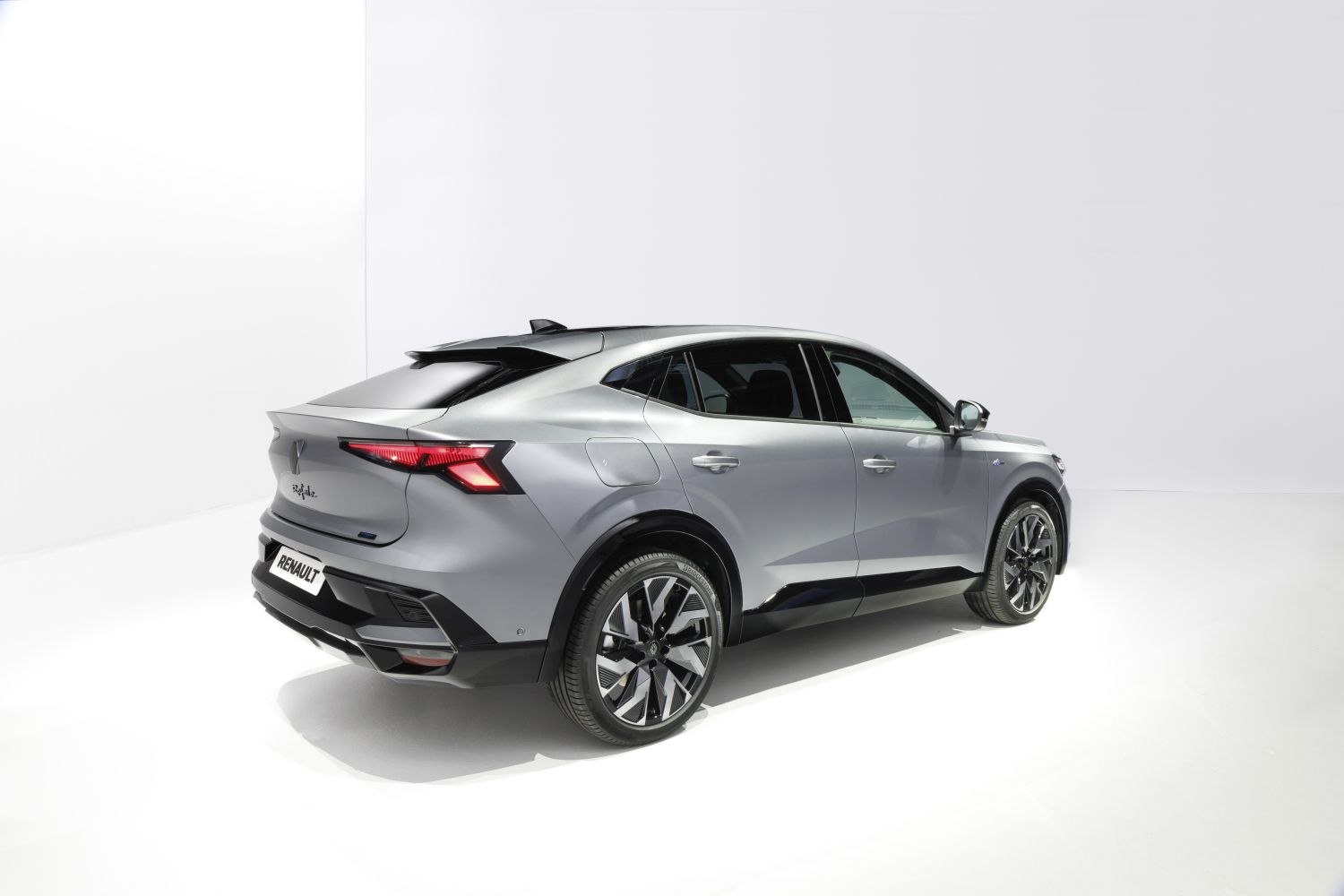

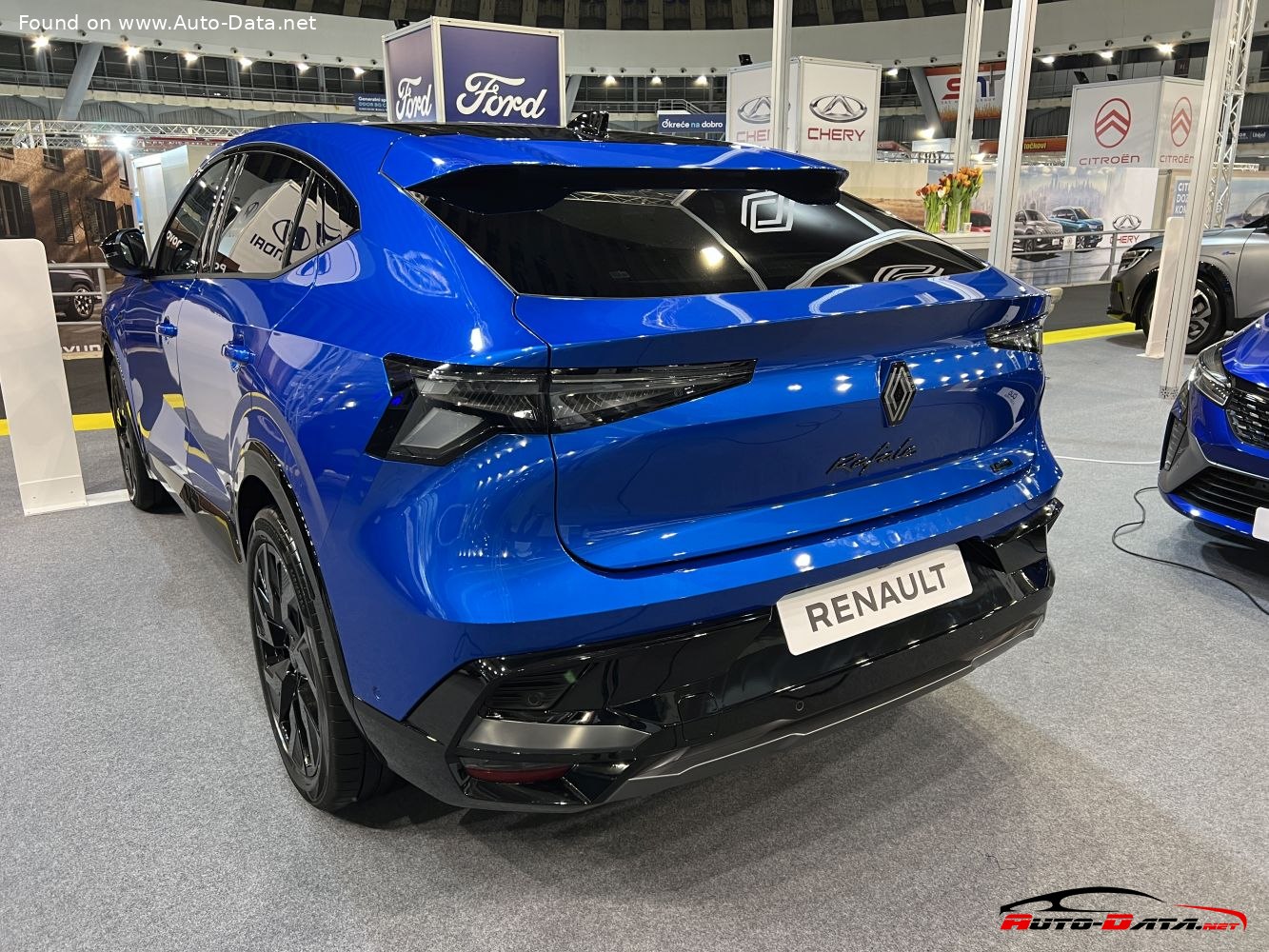

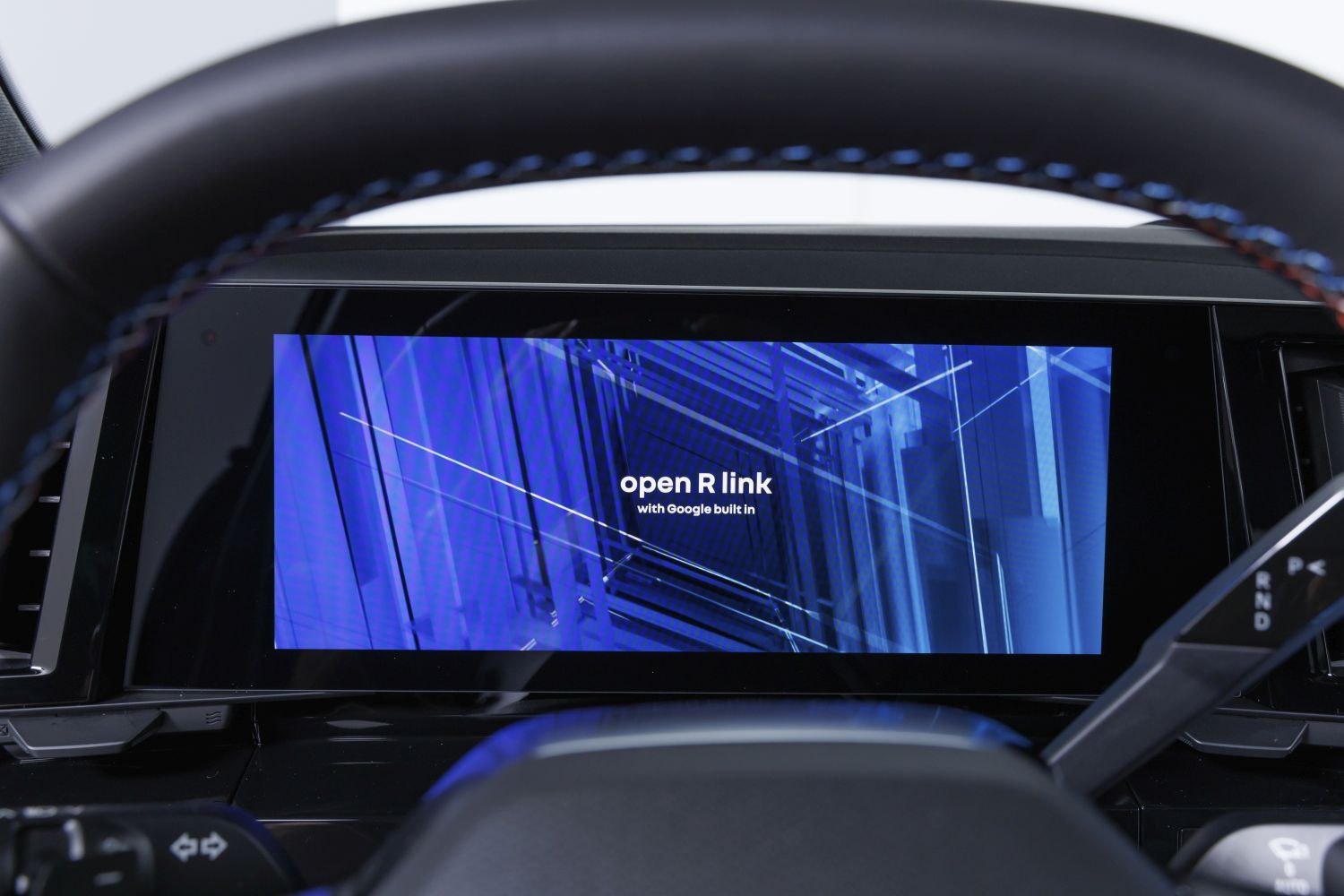

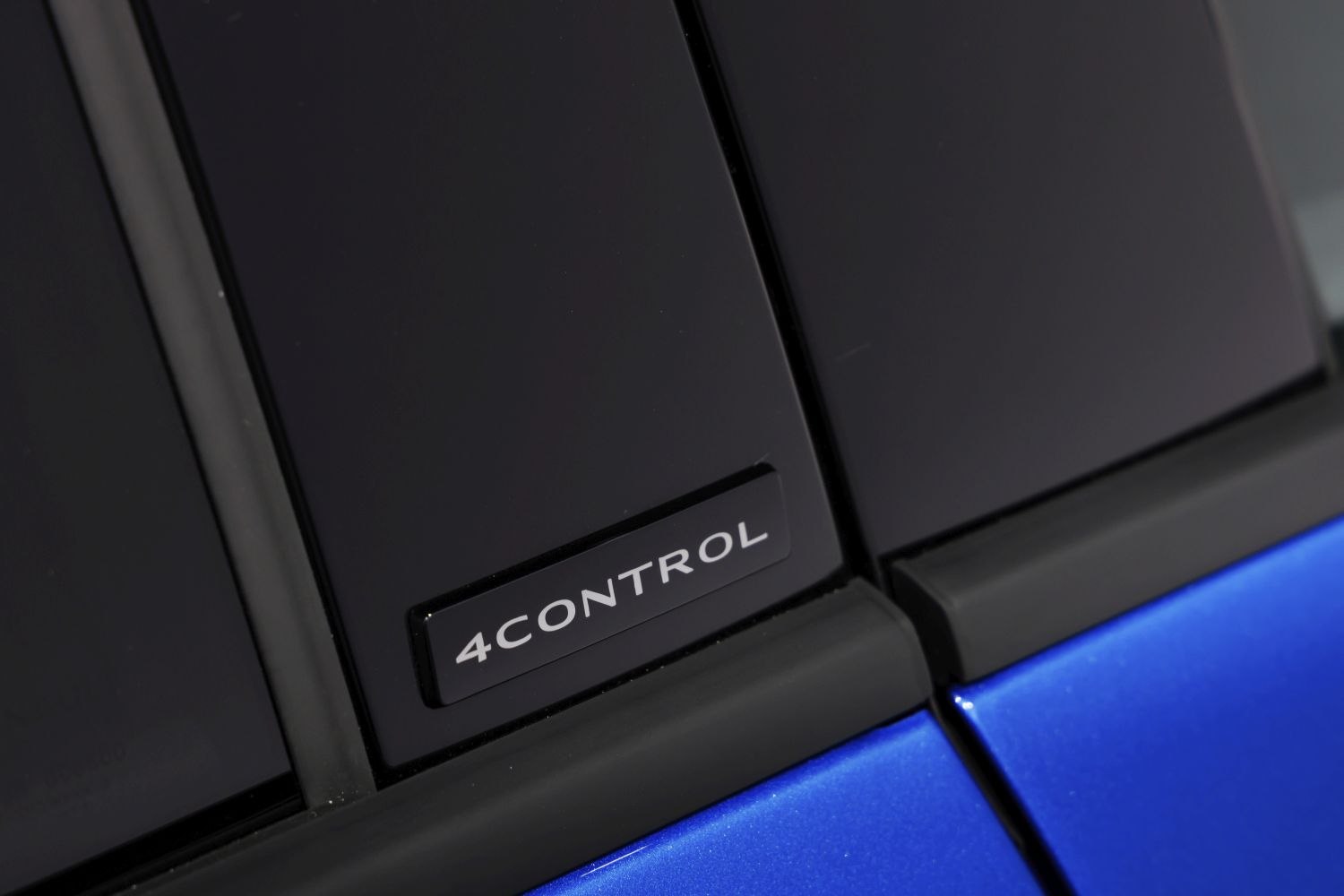

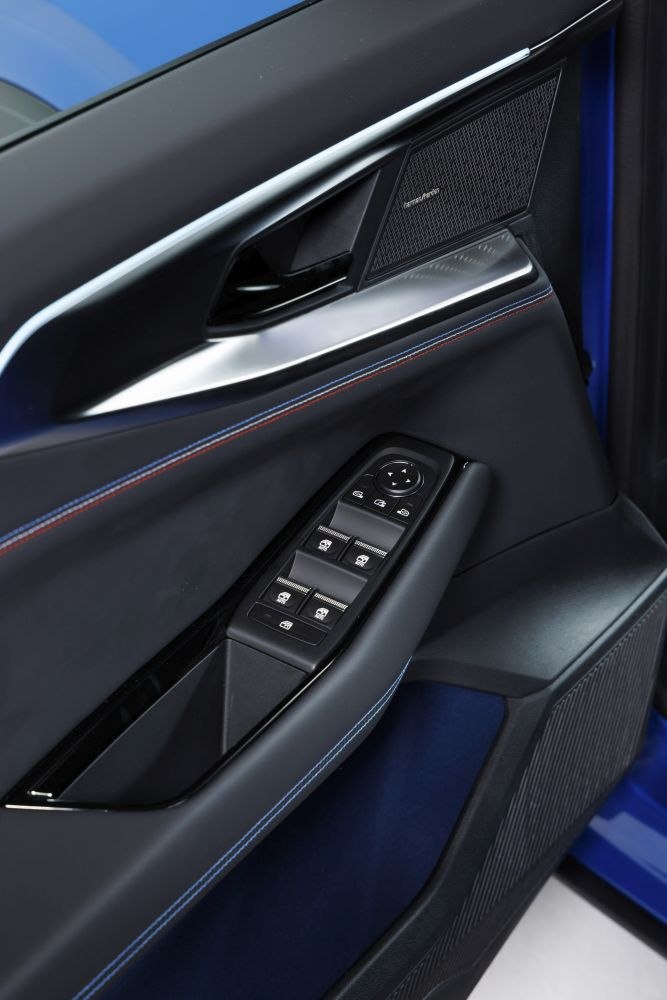

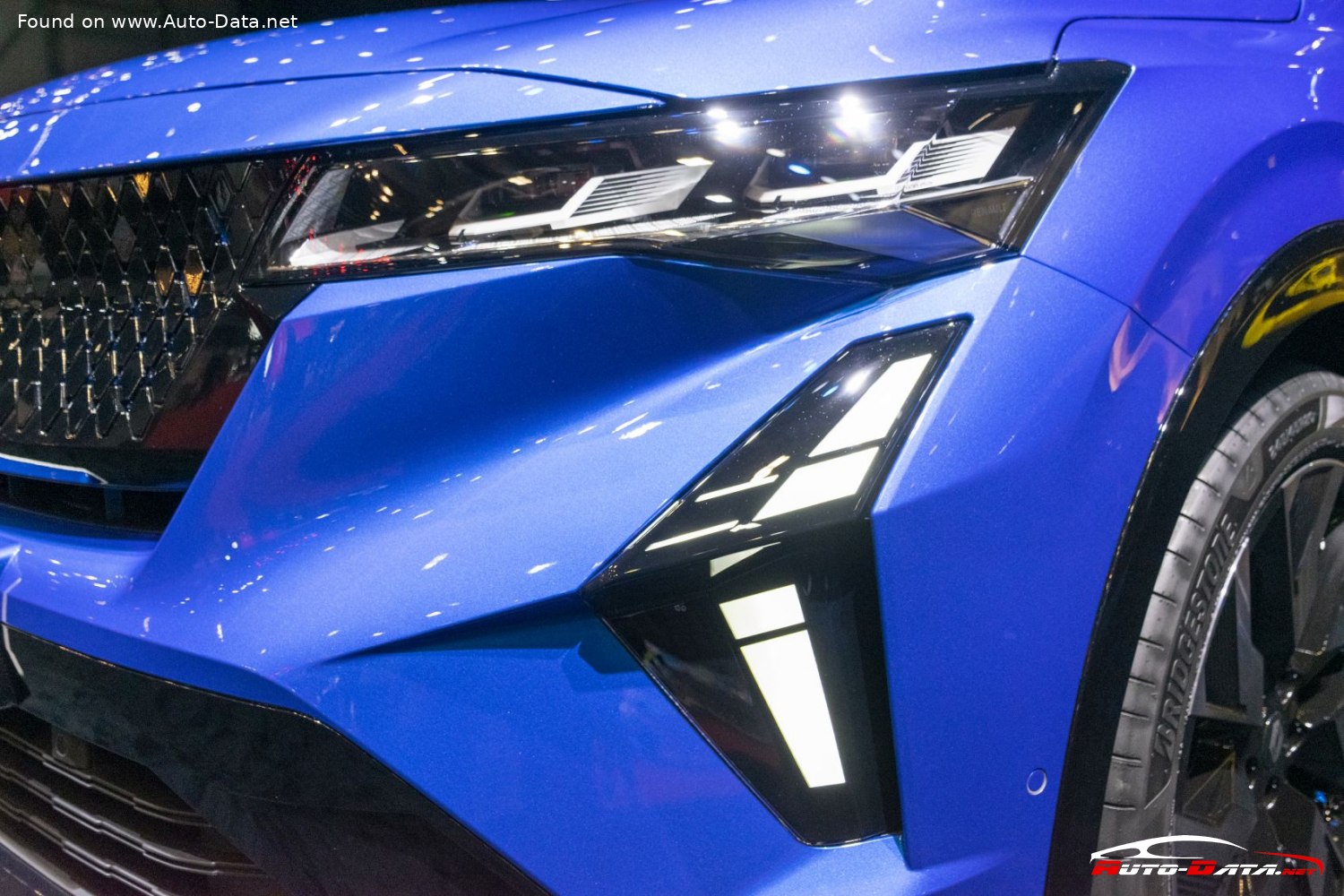

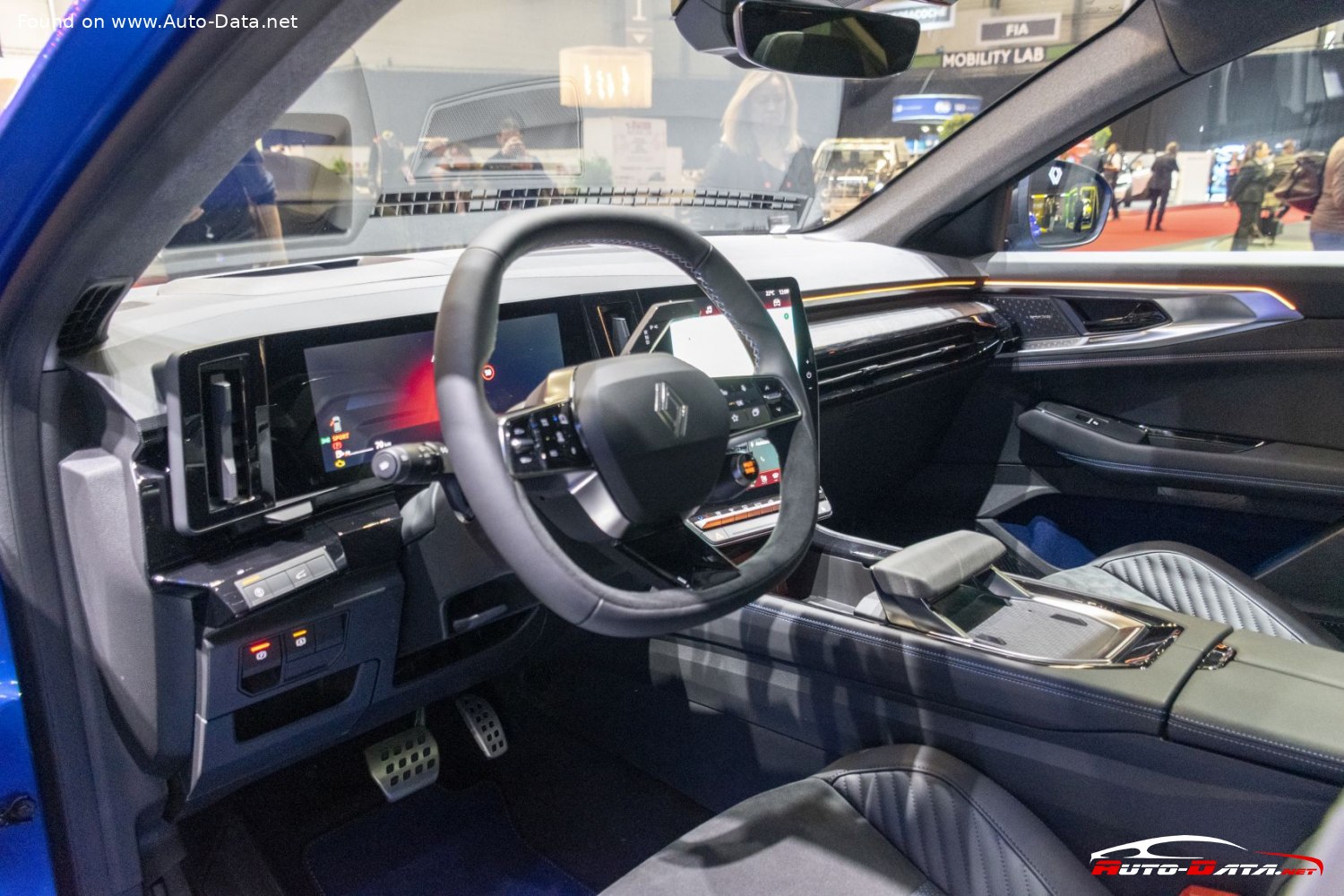

Renault Rafale 2024 Gallery
Renault Rafale 2024 Technical Specifications
General
Body type
Coupe, SUV
Brand
Renault
Doors
5
Generation
Rafale
Model
Rafale
Modification (Engine)
1.2 (300 Hp) E-Tech Plug-in Hybrid 4x4 Multi-Mode
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
5
Start of production
June, 2024
Performance
Acceleration 0 - 100 km/h
6.4 sec
Acceleration 0 - 60 mph
6.1 sec
Acceleration 0 - 62 mph
6.4 sec
CO2 emissions (WLTP)
15-19 g/km
Combined fuel consumption (WLTP)
0.7-0.9 l/100 km
Emission standard
Euro 6
Fuel Type
Petrol / electricity
Maximum speed
180 km/h
Electric
Battery location
Below the floor, under the rear seatsBelow the floor, under the front seats
Battery voltage
400 V
Charging ports number 0
Log in to see.
Electric motor Torque number 1
205 Nm
Electric motor Torque number 2
200 Nm
Electric motor location number 1
Integrated into the transmission
Electric motor location number 2
Rear axle, Transverse
Electric motor power number 1
68 Hp
Electric motor power number 2
136 Hp
Gross battery capacity
22 kWh
System power
300 Hp @ 4500 rpm.
System torque
Nm @ 1750 rpm.
Internal Engine
Engine Model/Code
HR12
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1199 cm
Engine layout
Front, Transverse
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Direct injection
Number of cylinders
3
Number of valves per cylinder
4
Power
150 Hp
Power per litre
125.1 Hp/l
Torque
230 Nm
Dimensions
Front overhang
942 mm
Front track
1604 mm
Height
1613 mm
Length
4710 mm
Minimum turning circle (turning diameter)
10.4 m
Rear (Back) track
1604 mm
Rear overhang
1029 mm
Ride height (ground clearance)
145 mm
Wheelbase
2738 mm
Width
1866 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs
Number of gears and type of gearbox
automatic transmission Multi-Mode
Power steering
Electric Steering
Rear brakes
Disc
Steering type
Steering rack and pinion

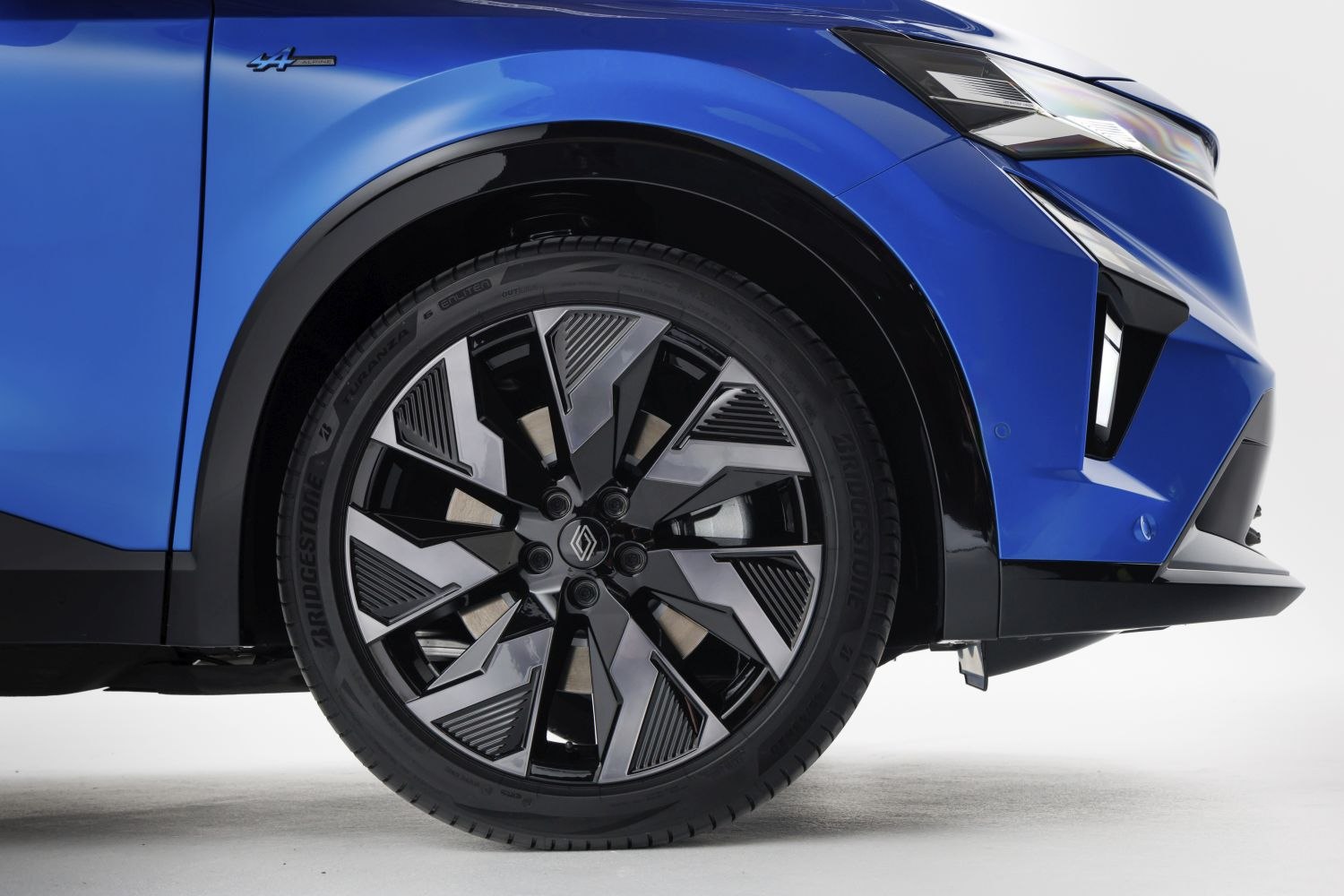

Tires size
245/45 R20; 245/40 R21
Wheel rims size
20; 21
Space
Fuel tank capacity
55 l
Kerb Weight
1934 kg
Max load
506 kg
Max. weight
2440 kg
