Seat Altea 2009
1.9 TDI (90 Hp)
Generation Altea 2009
Body Type MPV
Seats 5
2010
End Year
172 km/h
Maximum Speed
5
Doors
Seat Altea 2009 Key Specs
Acceleration 0 - 100 Km/h
14.3 sec
Acceleration 0 - 62 Mph
14.3 sec
Body Type
MPV
Doors
5
Drive Wheel
Front wheel drive
End Of Production
2010
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
4.3 l
Fuel Type
Diesel
Fuel Tank Capacity
55 l
Generation
Altea (2009)
Kerb Weight
1405 kg
Maximum Speed
172 km/h
Modification (Engine)
1.9 TDI (90 Hp)
Number Of Cylinders
4
Power
90 Hp @ 4000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
2009
Wheel Rims Size
6J x 15; 6.5J x 16; 7J x 17

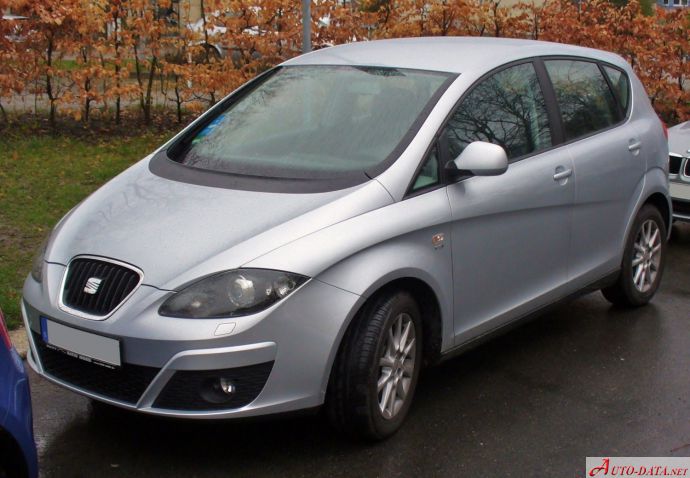

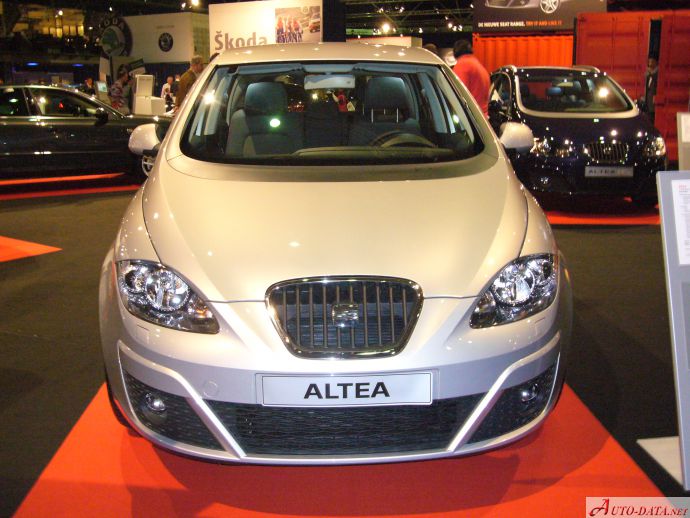

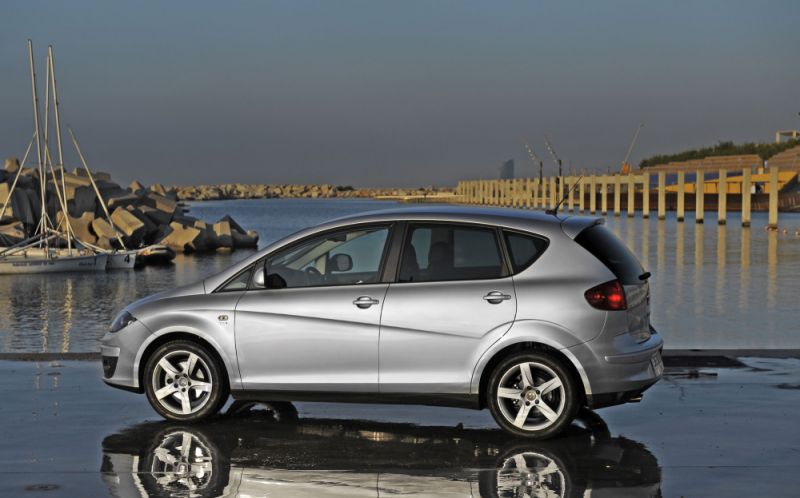

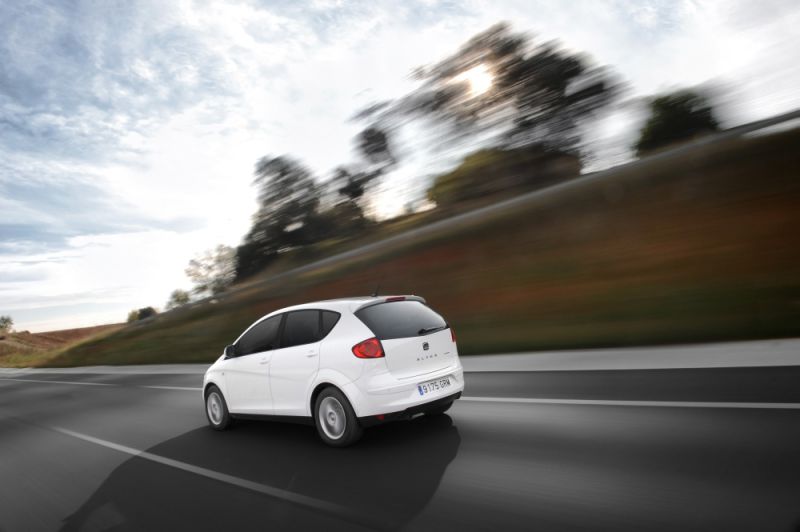

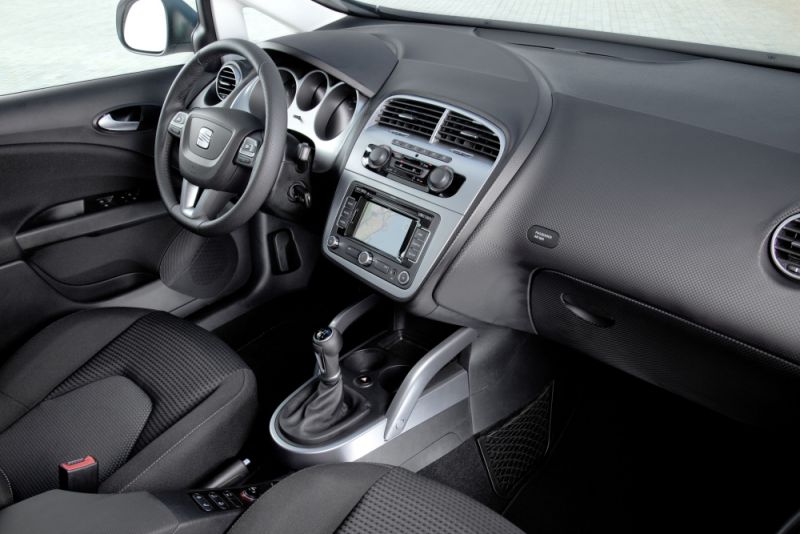

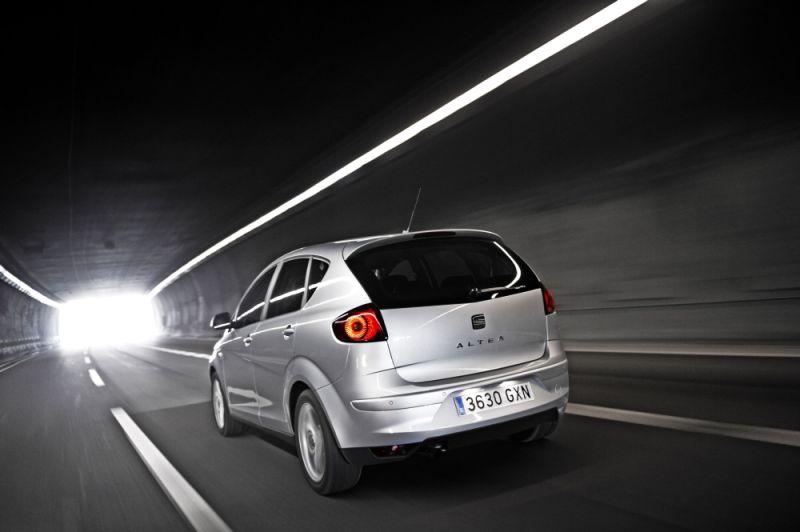

Seat Altea 2009 Gallery
Seat Altea 2009 Technical Specifications
General
Body type
MPV
Brand
Seat
Doors
5
End of production
2010
Generation
Altea (2009)
Model
Altea
Modification (Engine)
1.9 TDI (90 Hp)
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
2009
Performance
Acceleration 0 - 100 km/h
14.3 sec
Acceleration 0 - 60 mph
13.6 sec
Acceleration 0 - 62 mph
14.3 sec
CO2 emissions (NEDC)
142 g/km
Emission standard
Euro 4
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC)
5.4 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
4.5 l/100 km
Fuel consumption (economy) - urban (NEDC)
6.8 l/100 km
Maximum speed
172 km/h
Dimensions
Drag coefficient (Cd)
0.32
Front overhang
915 mm
Front track
1527-1541 mm
Height
1576 mm
Length
4282 mm
Minimum turning circle (turning diameter)
10.7 m
Rear (Back) track
1503-1517 mm
Rear overhang
789 mm
Wheelbase
2578 mm
Width
1768 mm
Engine
Compression ratio
18.5:1
Coolant
5.6 l
Cylinder Bore
79.5 mm
Engine Model/Code
EA188 / BXF
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1896 cm
Engine layout
Front, Transverse
Engine oil capacity
4.3 l
Engine oil specification
Log in to see.
Fuel injection system
Pump-nozzle (Unit Injector)
Number of cylinders
4
Number of valves per cylinder
2
Power
90 Hp @ 4000 rpm.
Torque
210 Nm @ 1800 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 288x25 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
5 gears, manual transmission
Power steering
Electric Steering
Rear brakes
Disc, 253x10 mm
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
195/65 R15; 205/55 R16; 225/45 R17
Wheel rims size
6J x 15; 6.5J x 16; 7J x 17
Space
Fuel tank capacity
55 l
Kerb Weight
1405 kg
Max load
595 kg
Max. weight
2000 kg
