Jeep Wagoneer 50 WS 2022
3.0 (420 Hp) TorqueFlite
Generation Wagoneer 50 WS
Body Type SUV
Seats 7
5200 rpm.
Power HP RPM
5
Doors
Jeep Wagoneer 50 WS 2022 Key Specs
Body Type
SUV
Doors
5
Drive Wheel
Rear wheel drive
Engine Aspiration
Twin-Turbo, Intercooler
Engine Oil Capacity
7.1 l
Engine Systems
Start & Stop System
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
115.4 l
Generation
Wagoneer L (WS)
Kerb Weight
2752-2770 kg
Modification (Engine)
3.0 (420 Hp) TorqueFlite
Number Of Cylinders
6
Power
420 Hp @ 5200 rpm.
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
7-8
Start Of Production
April, 2022
Wheel Rims Size
8J x 18; 9J x 20; 9J x 22

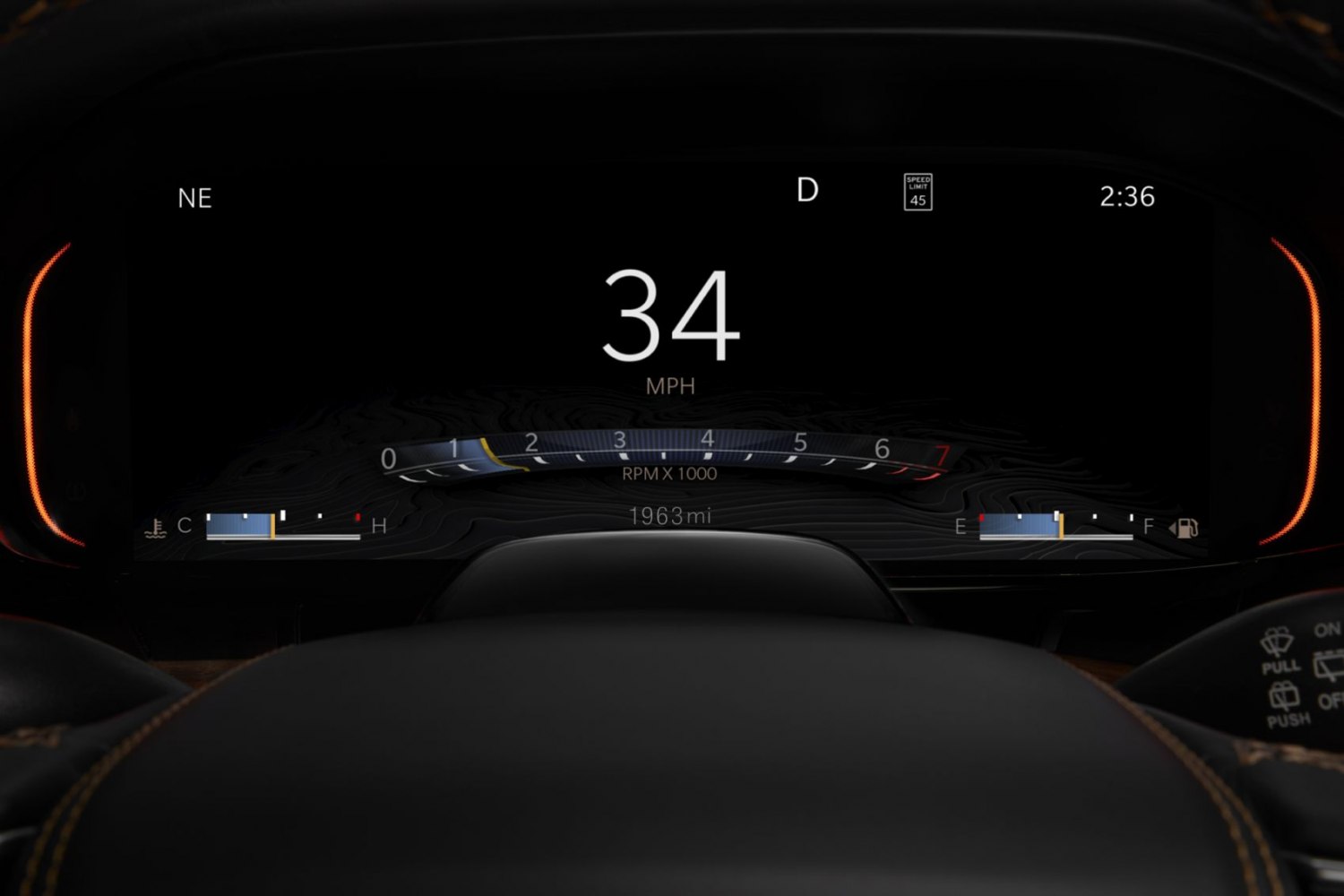

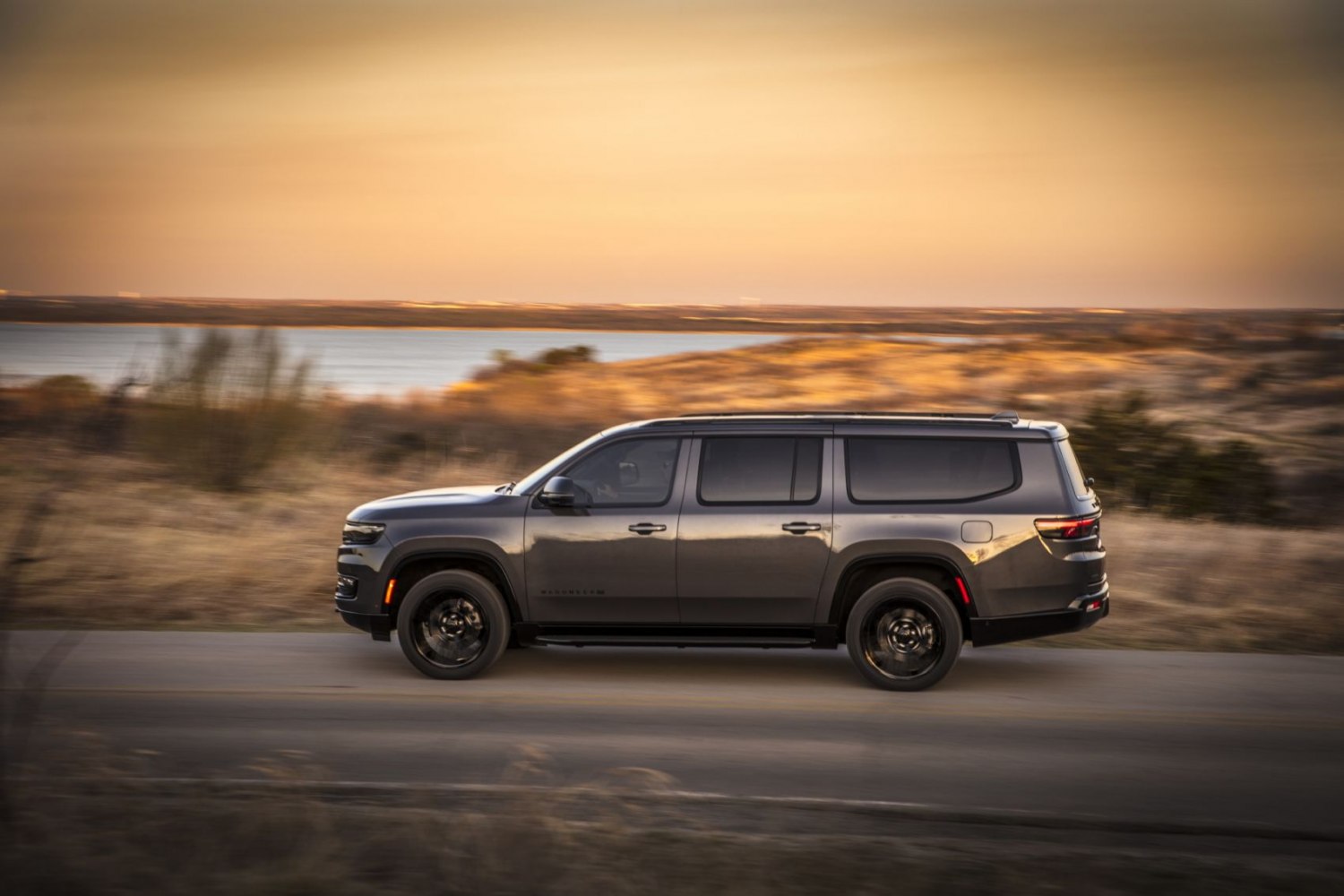

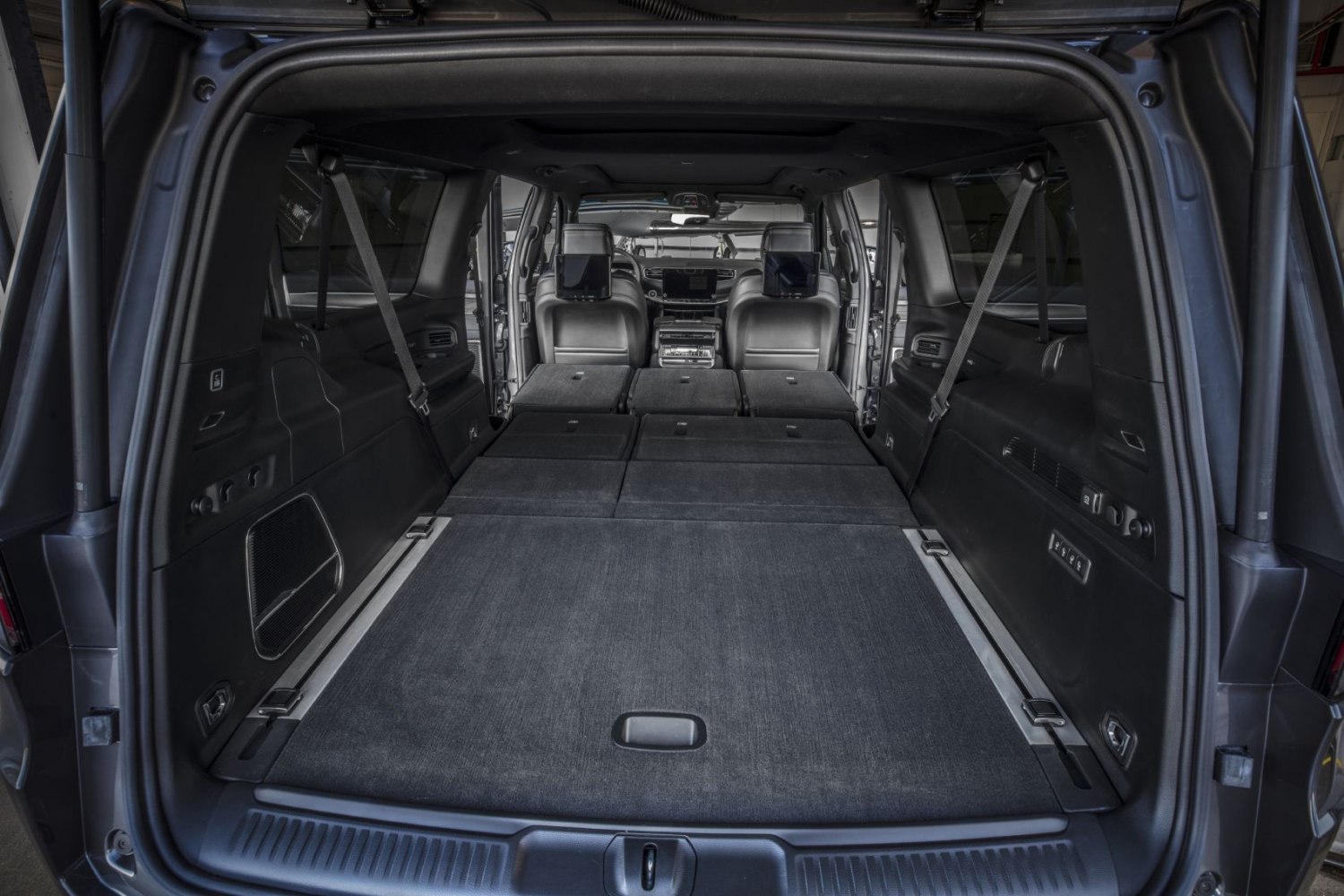

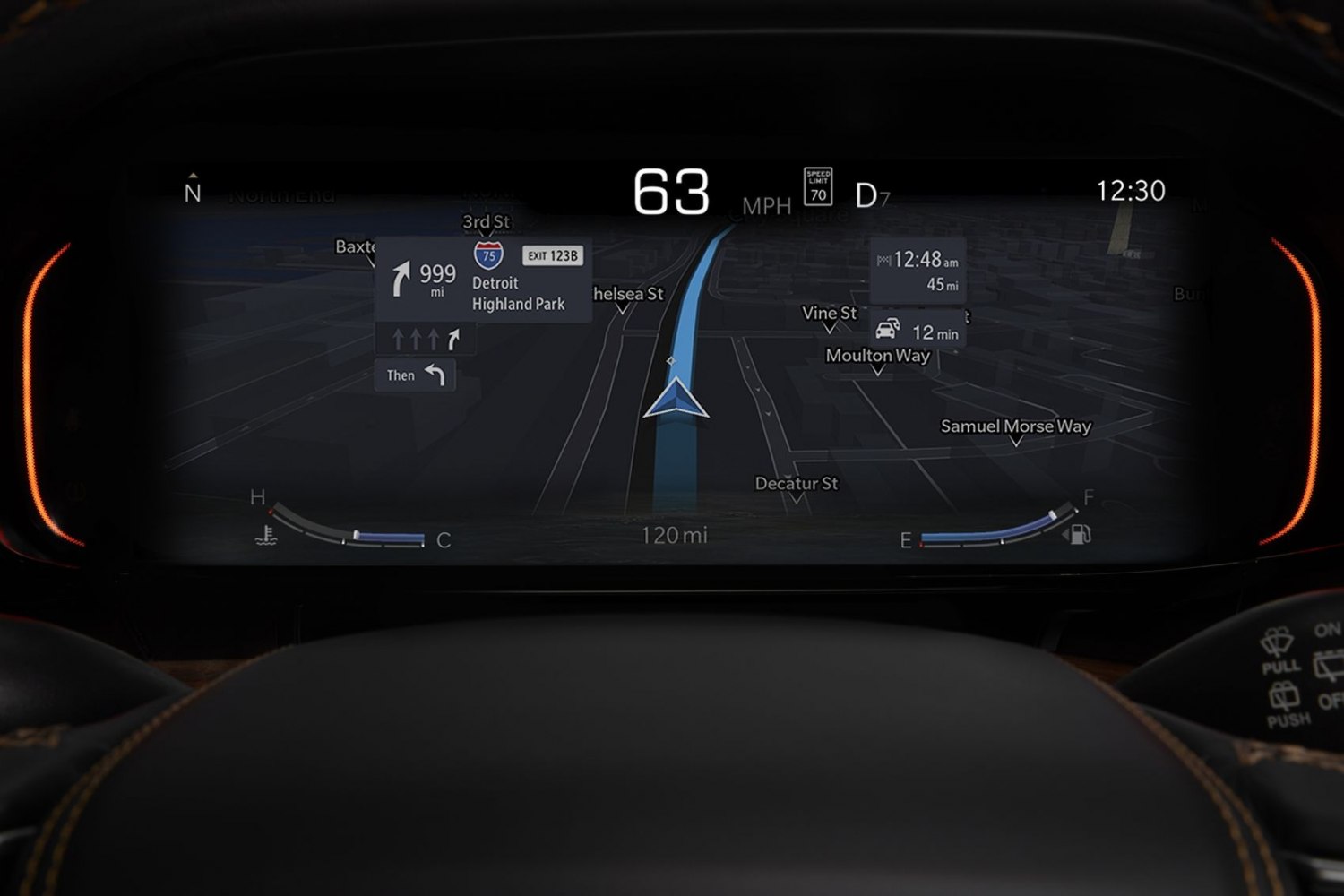

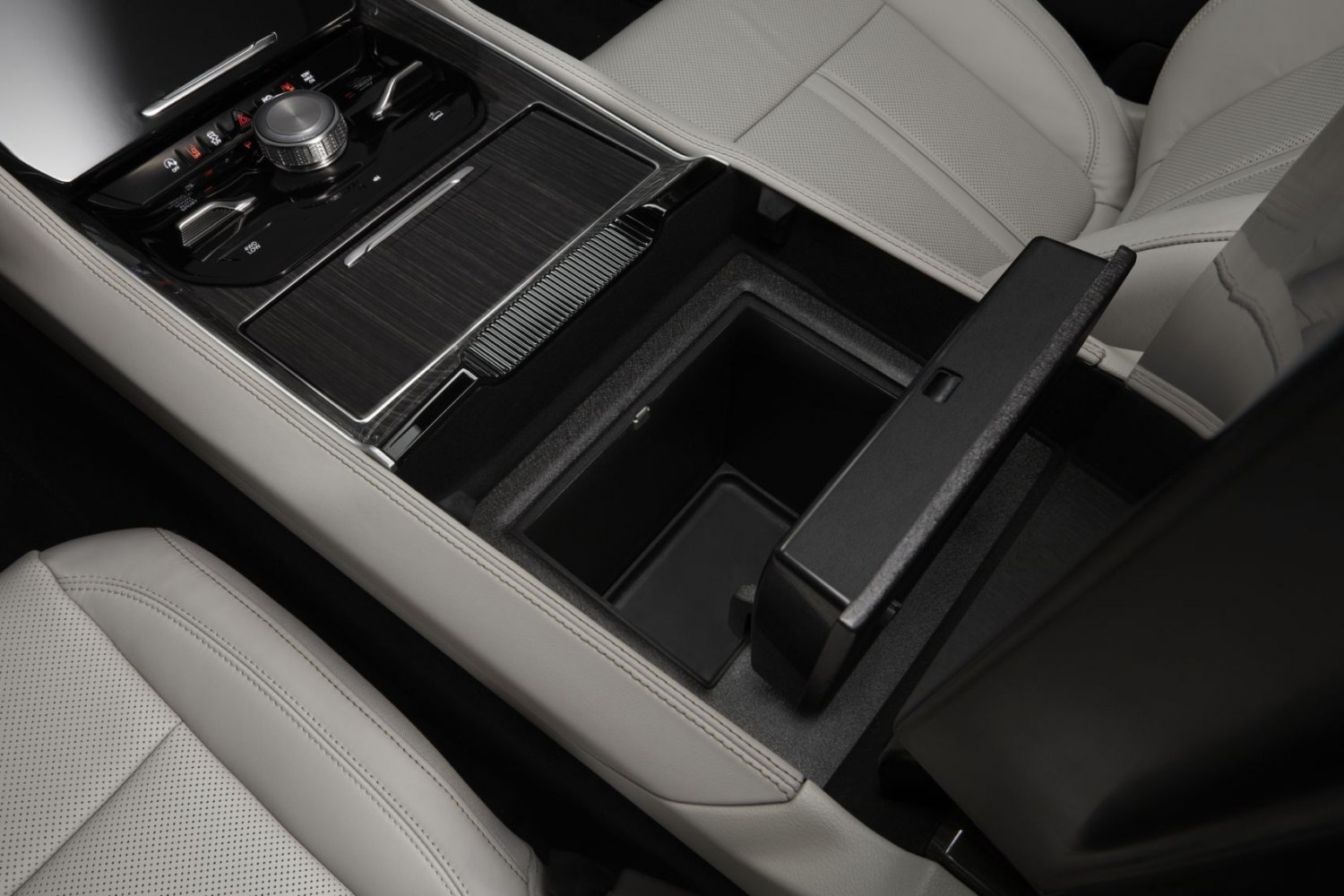

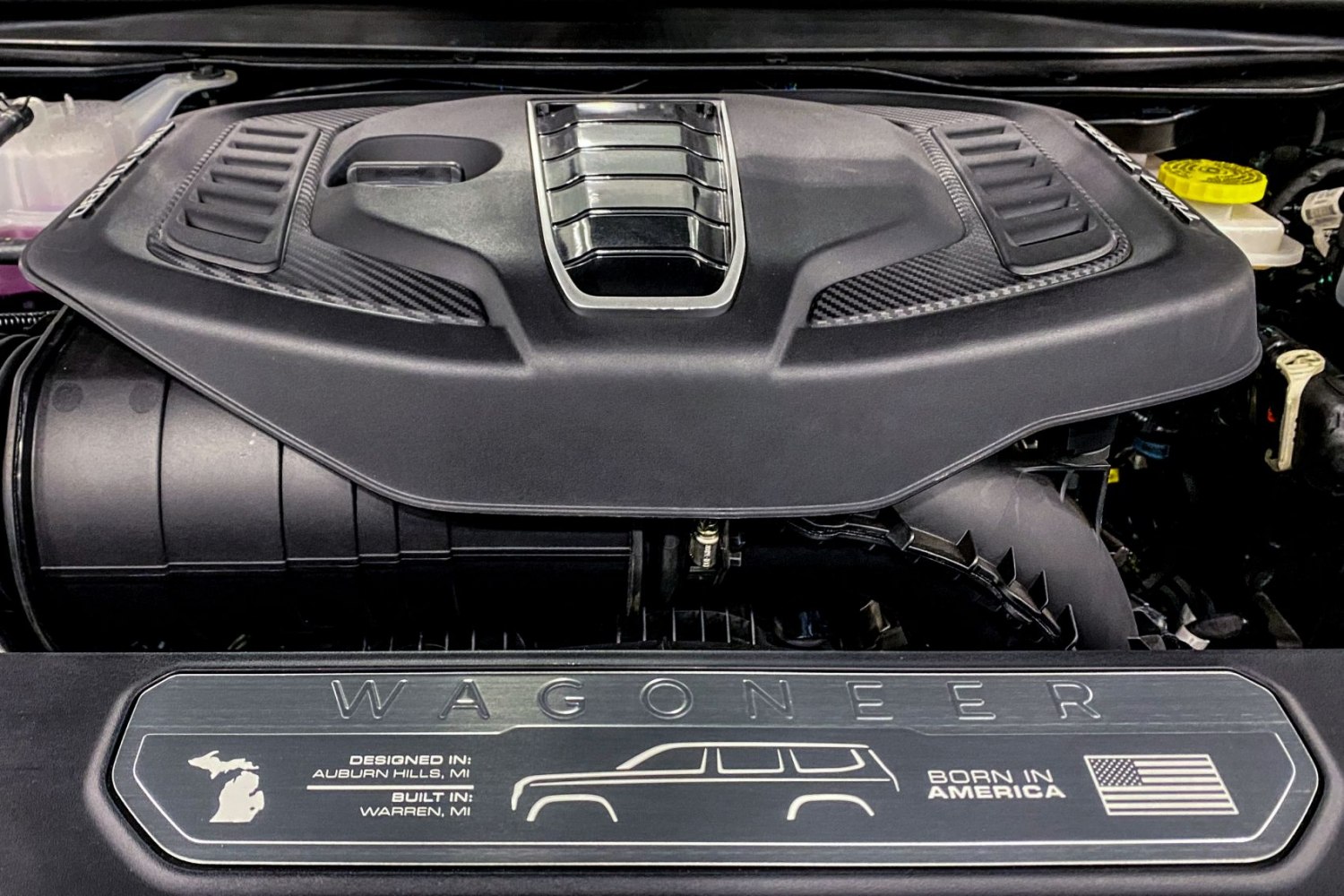

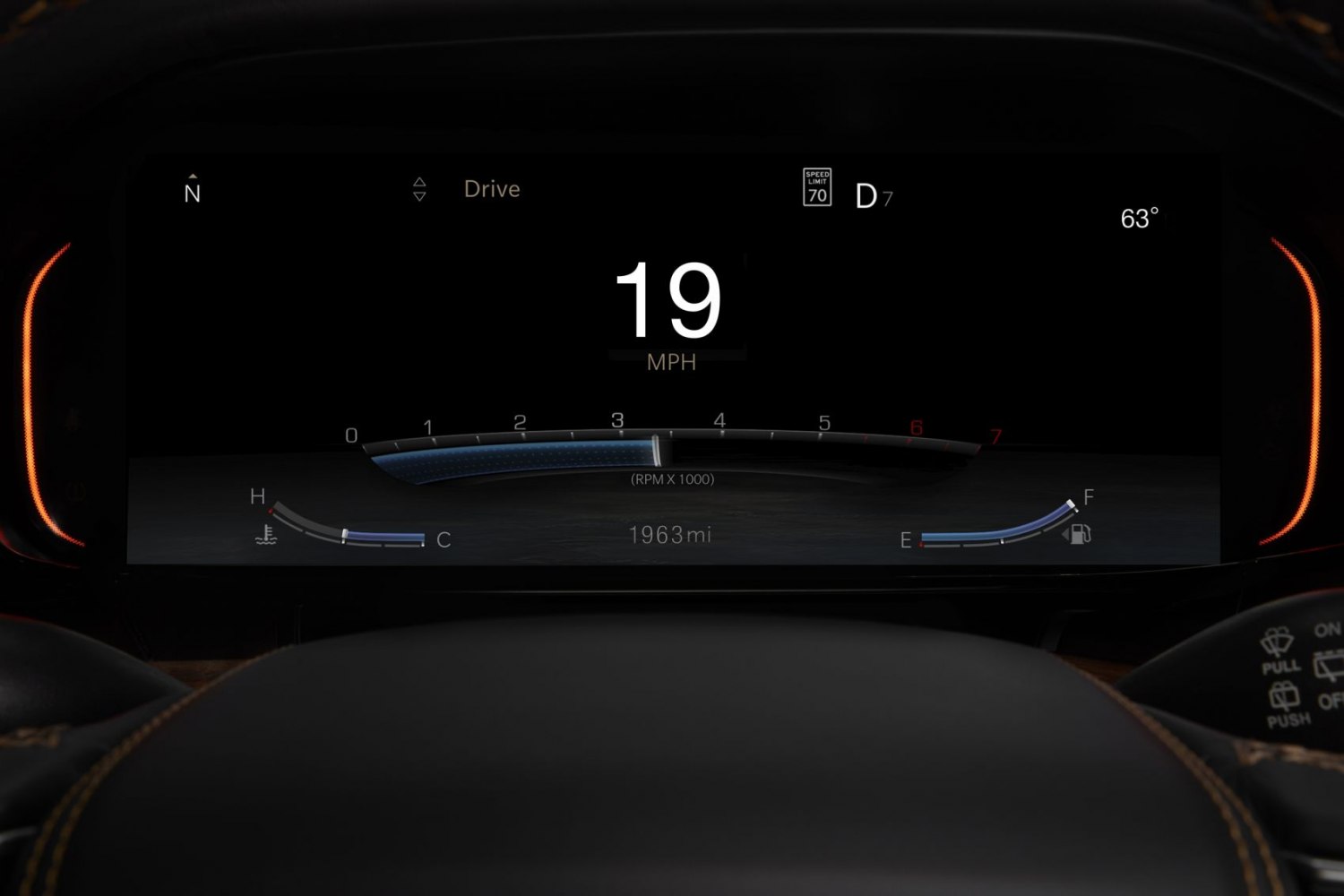

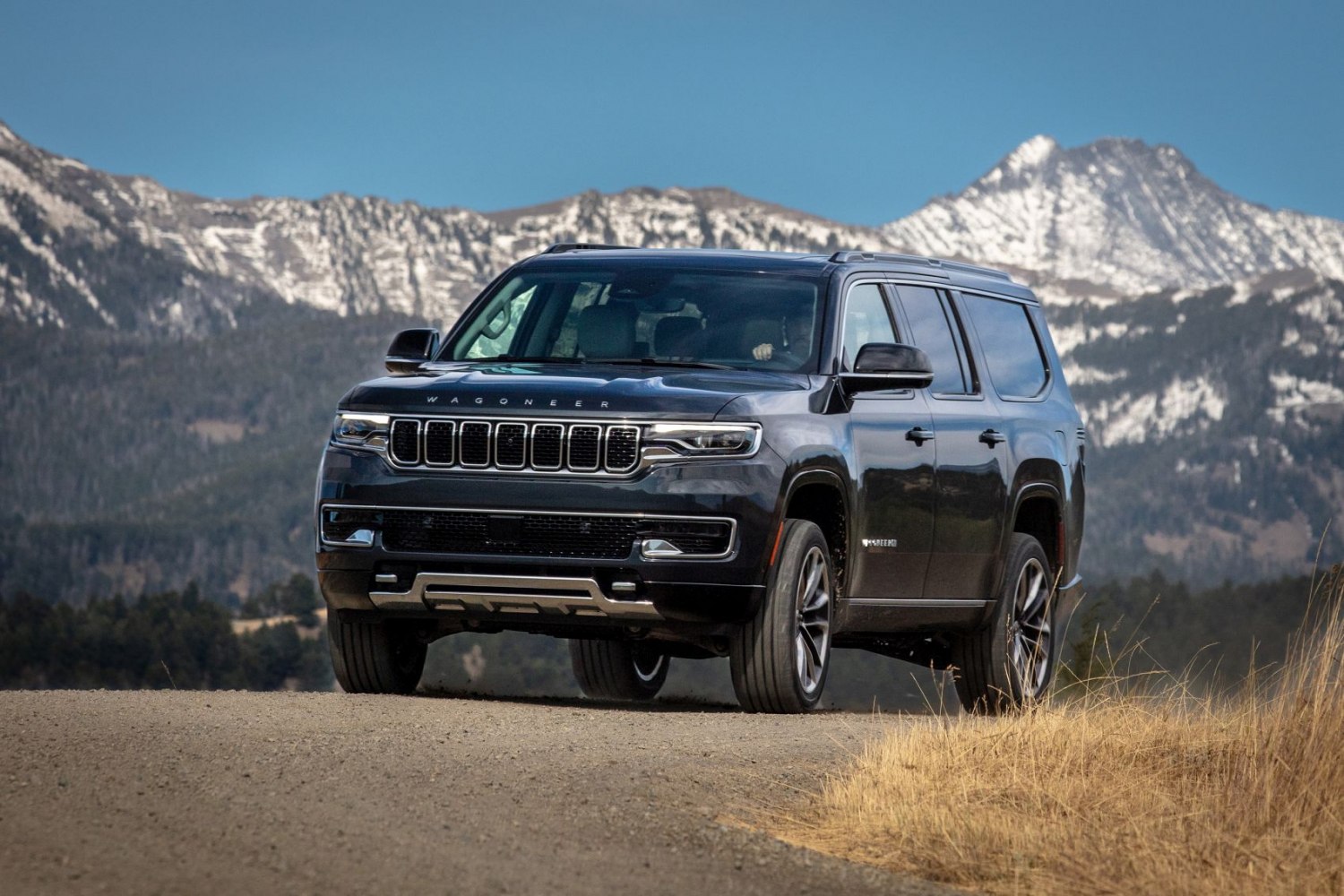

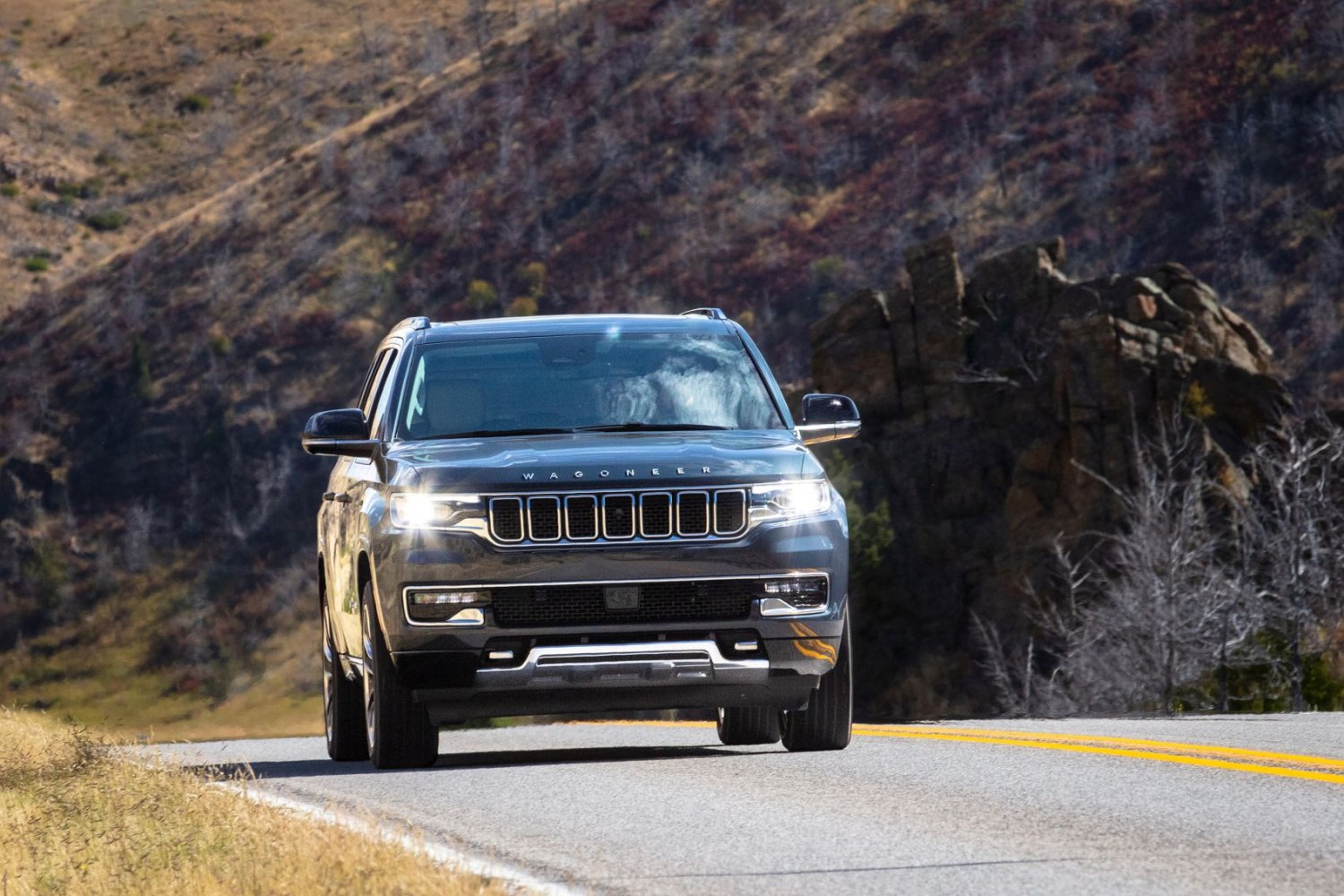

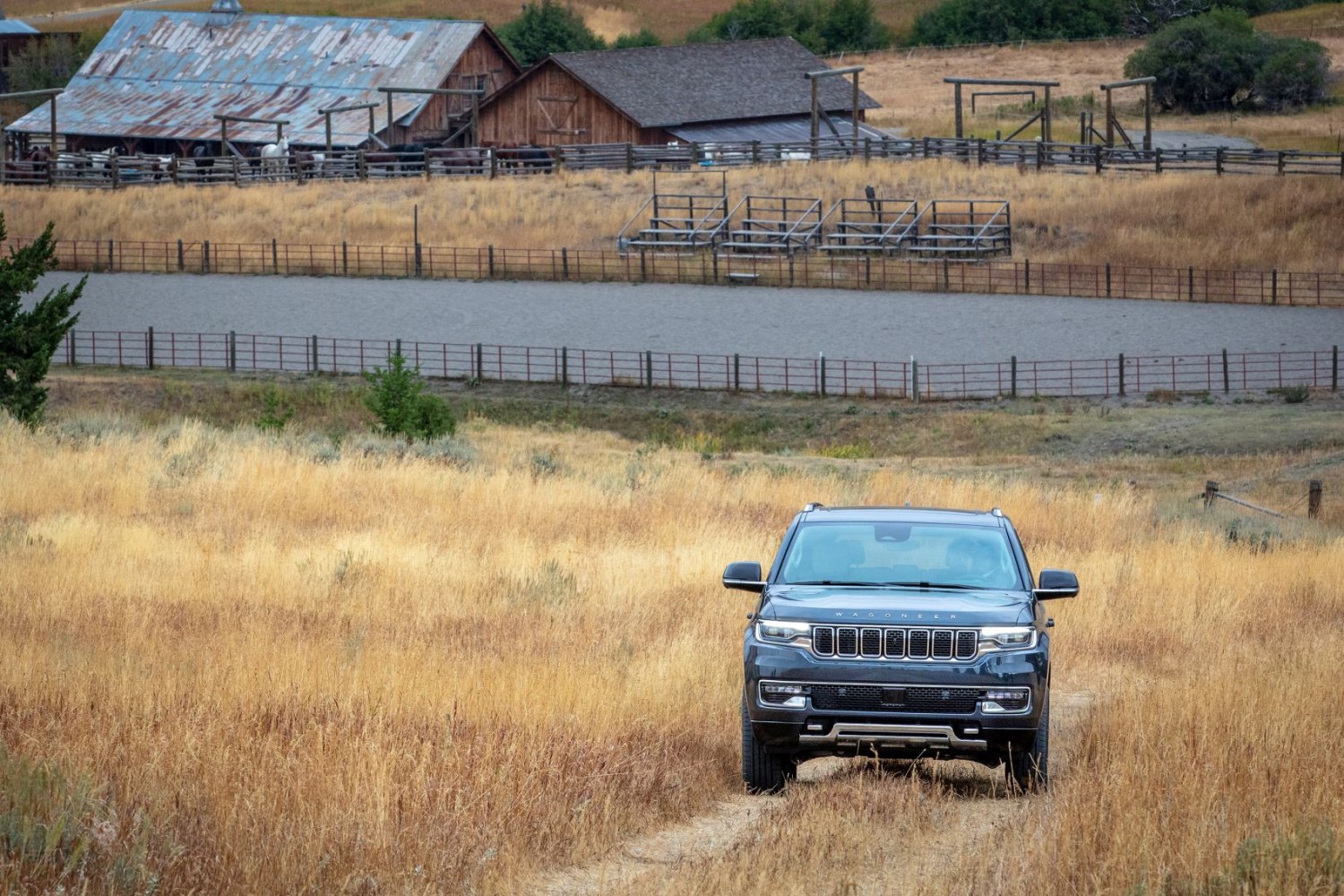

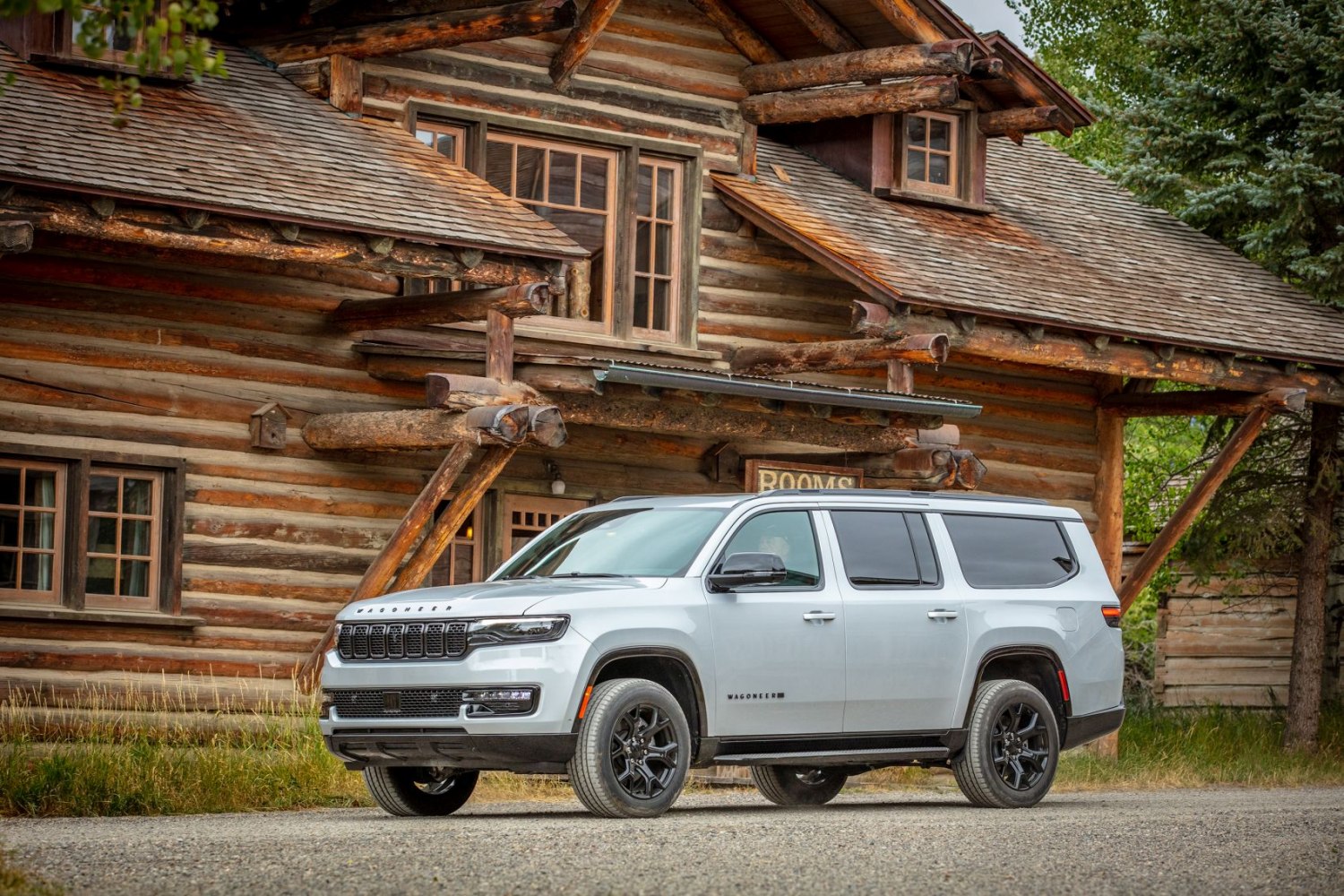

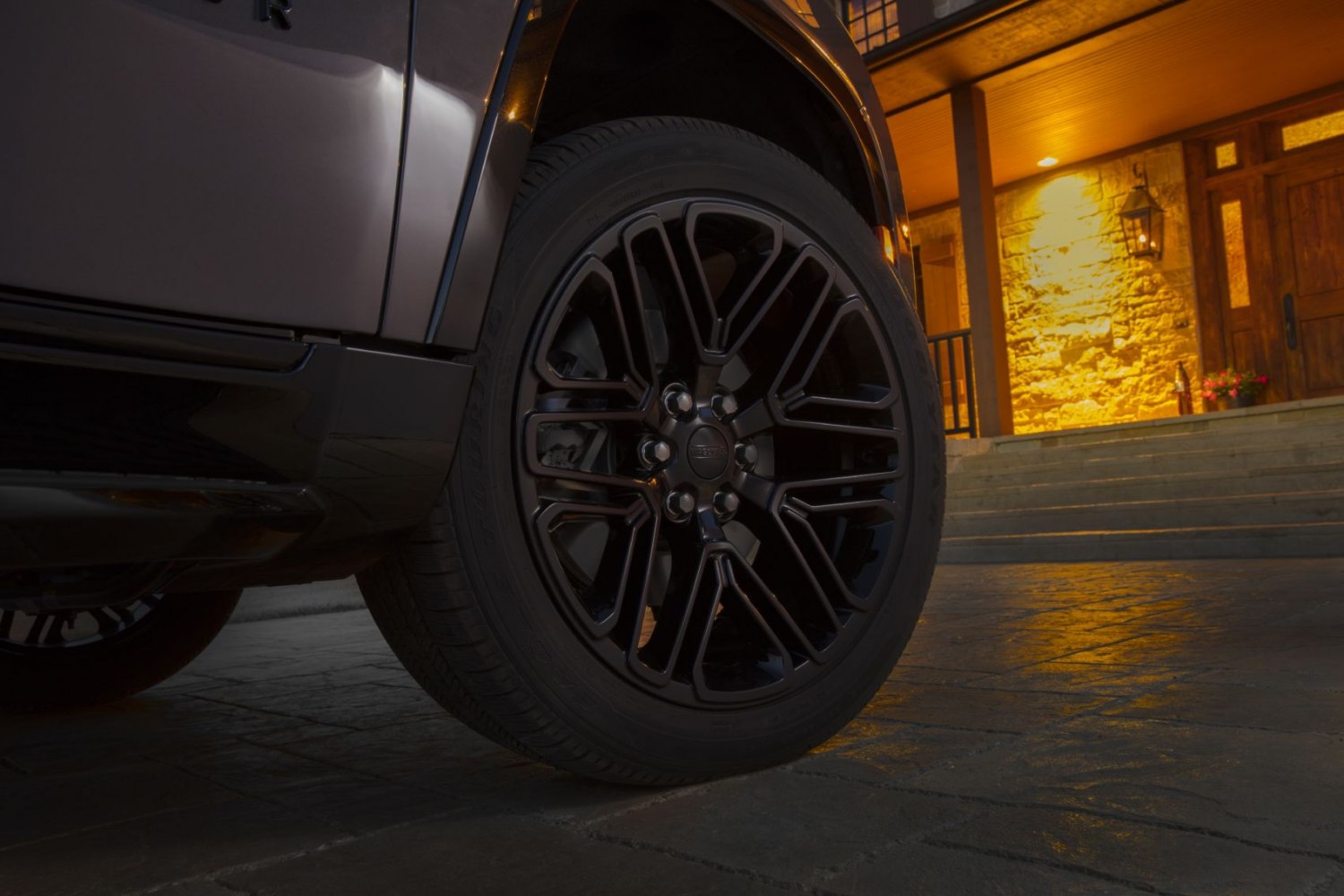

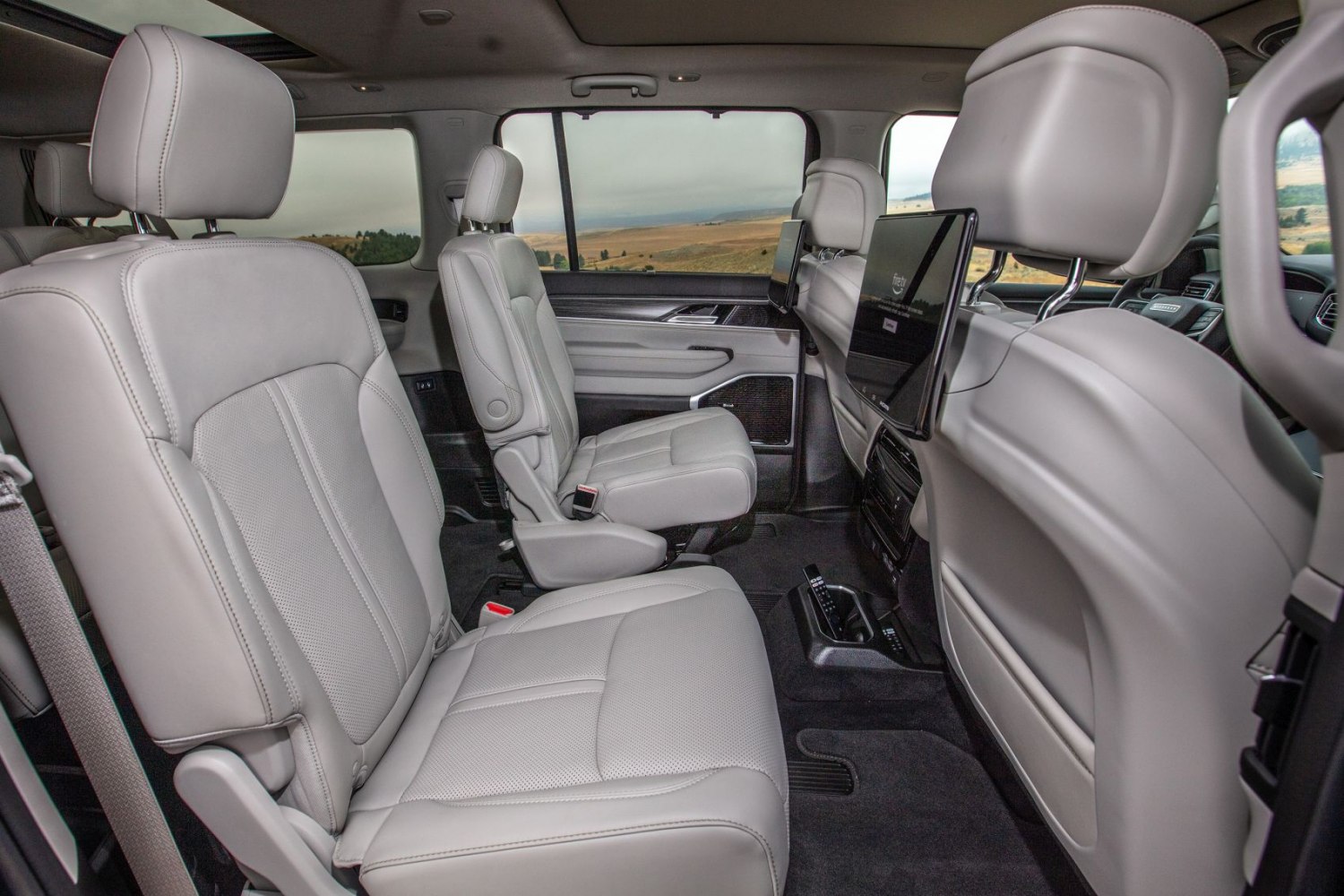

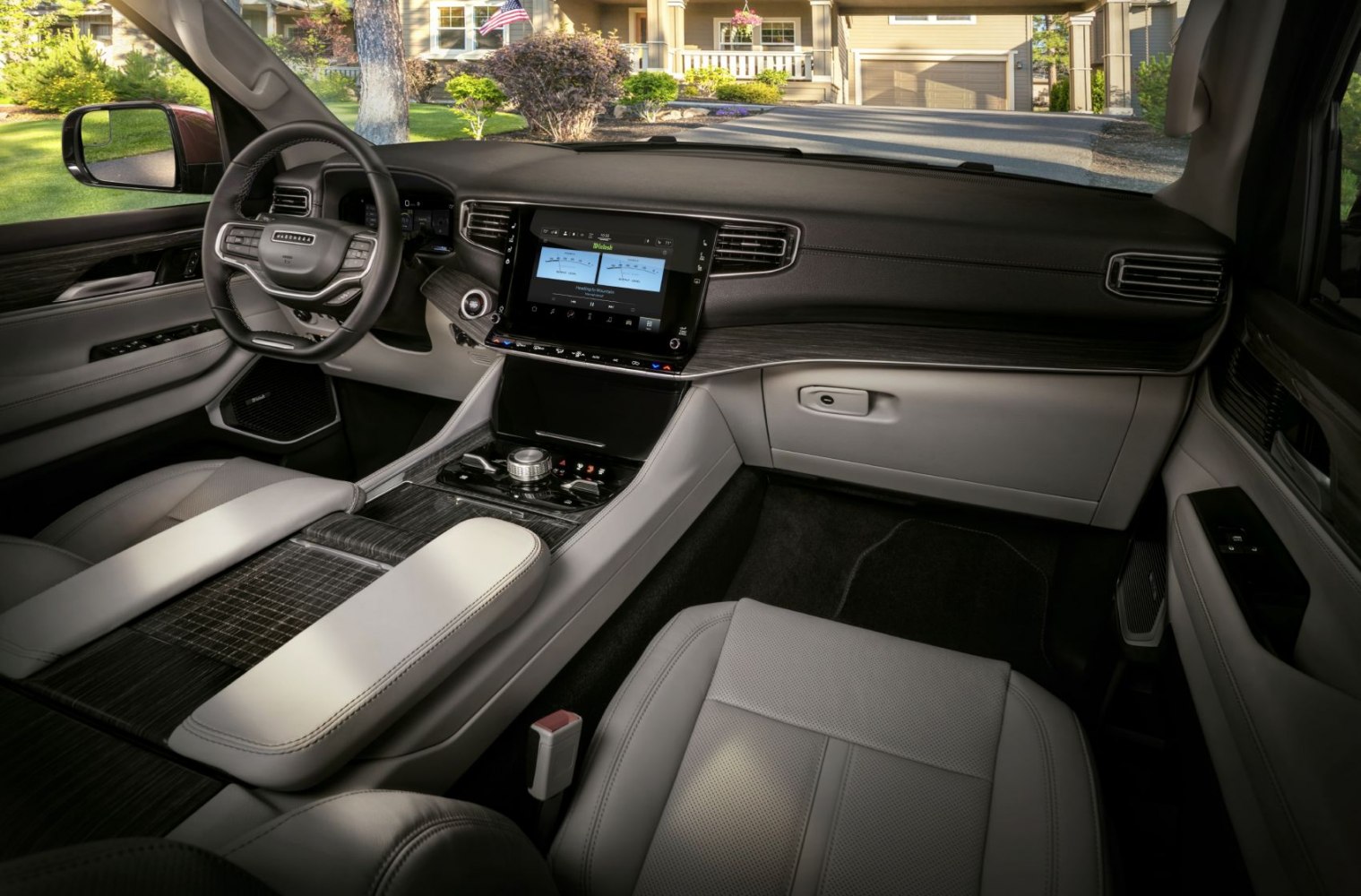

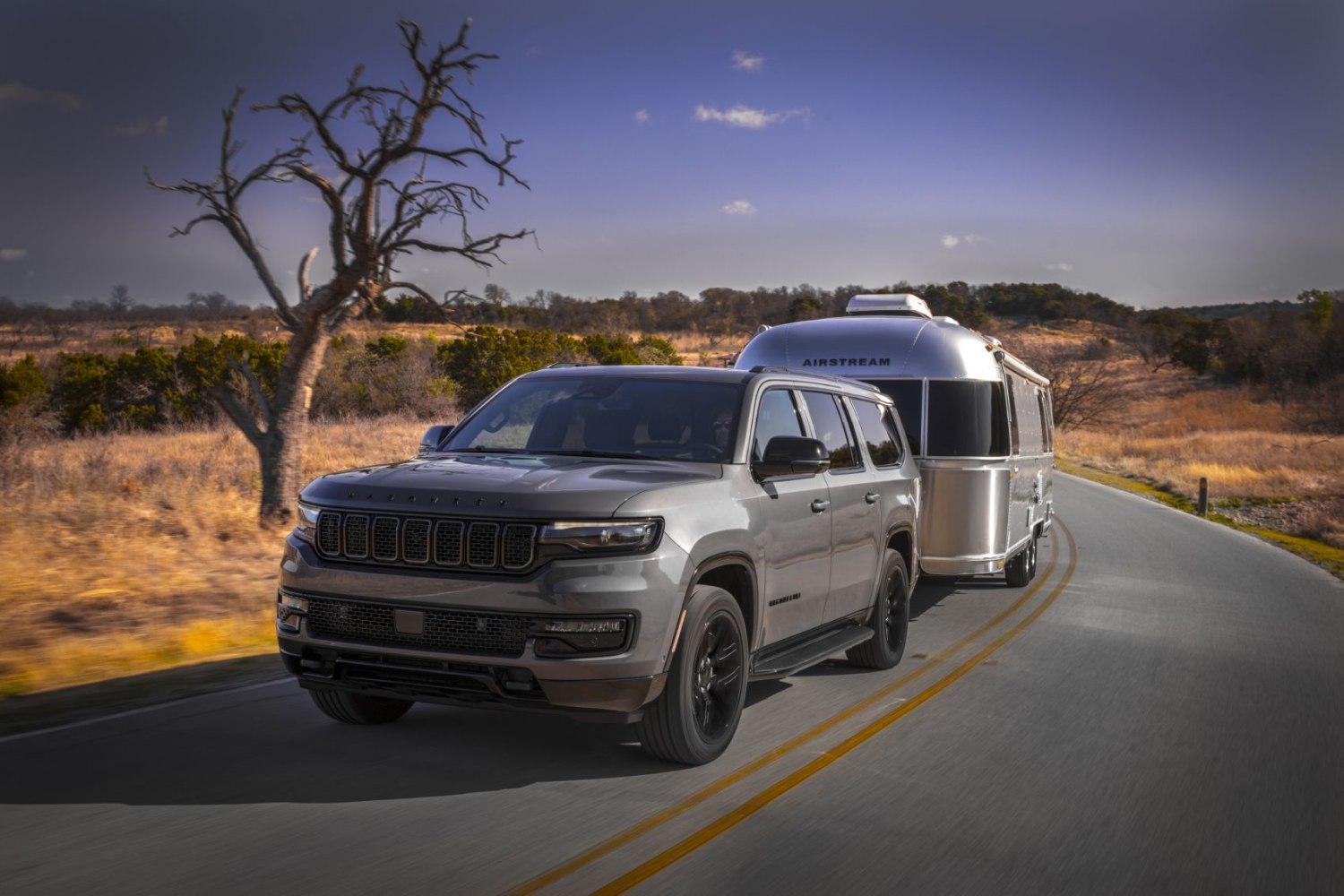

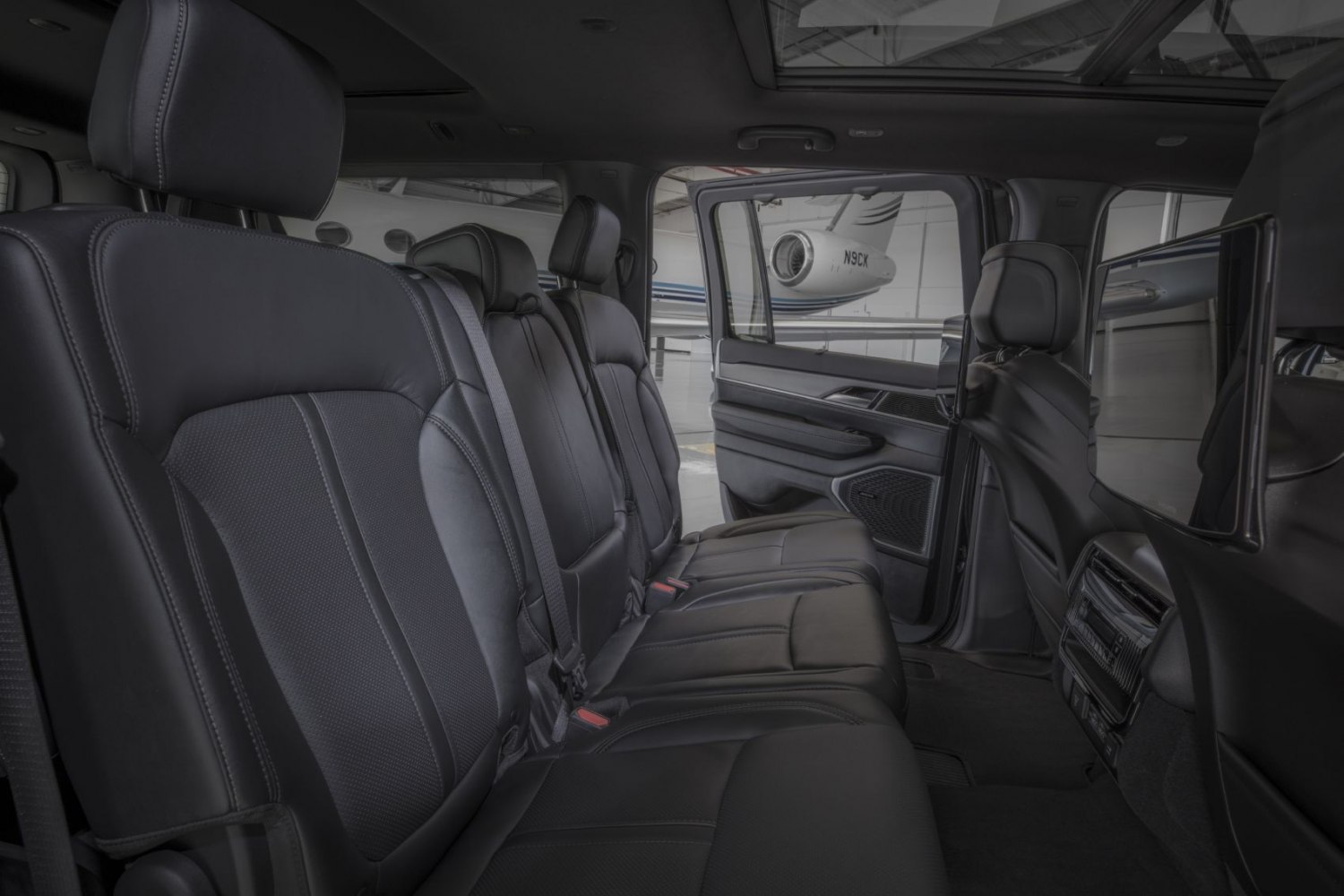

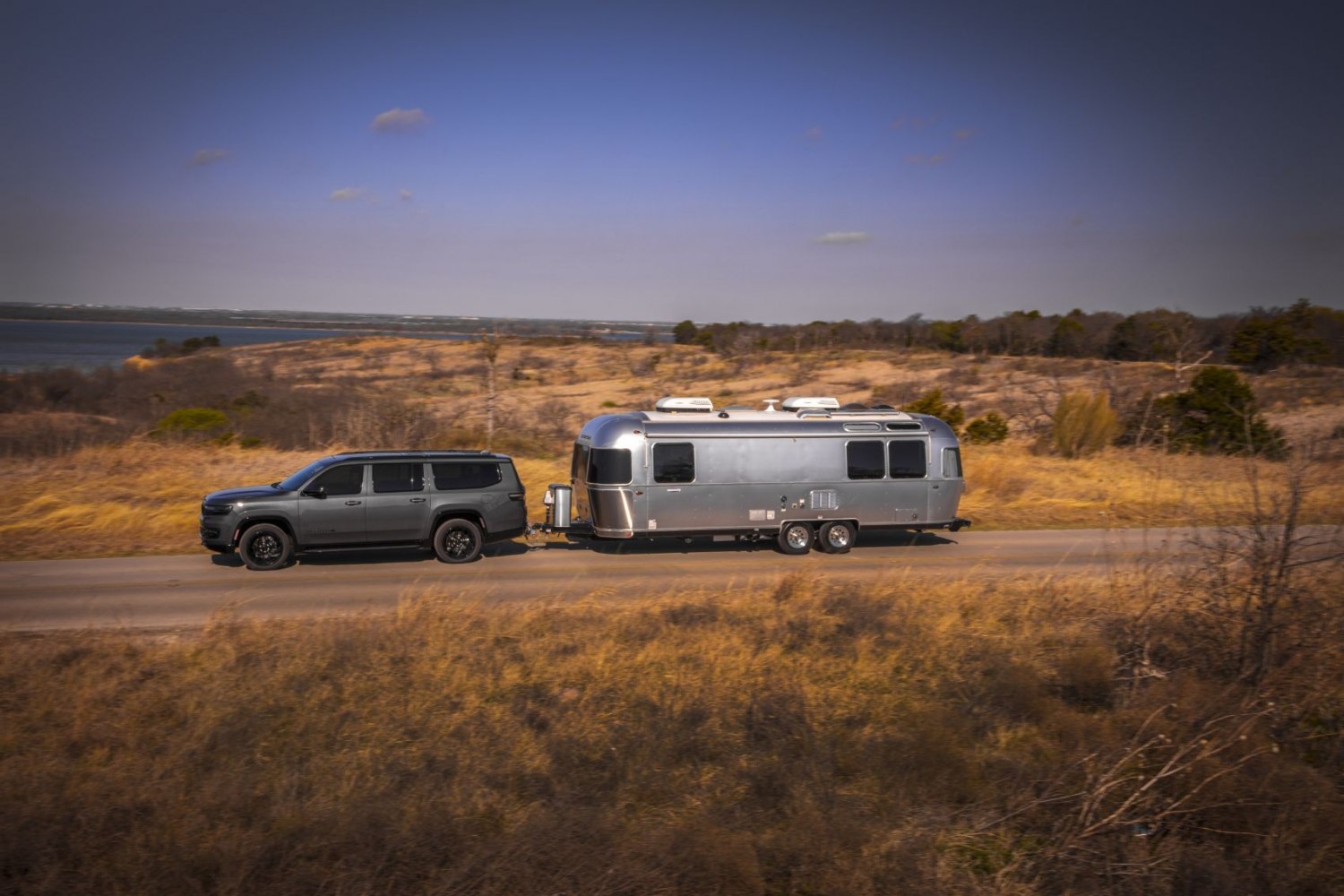

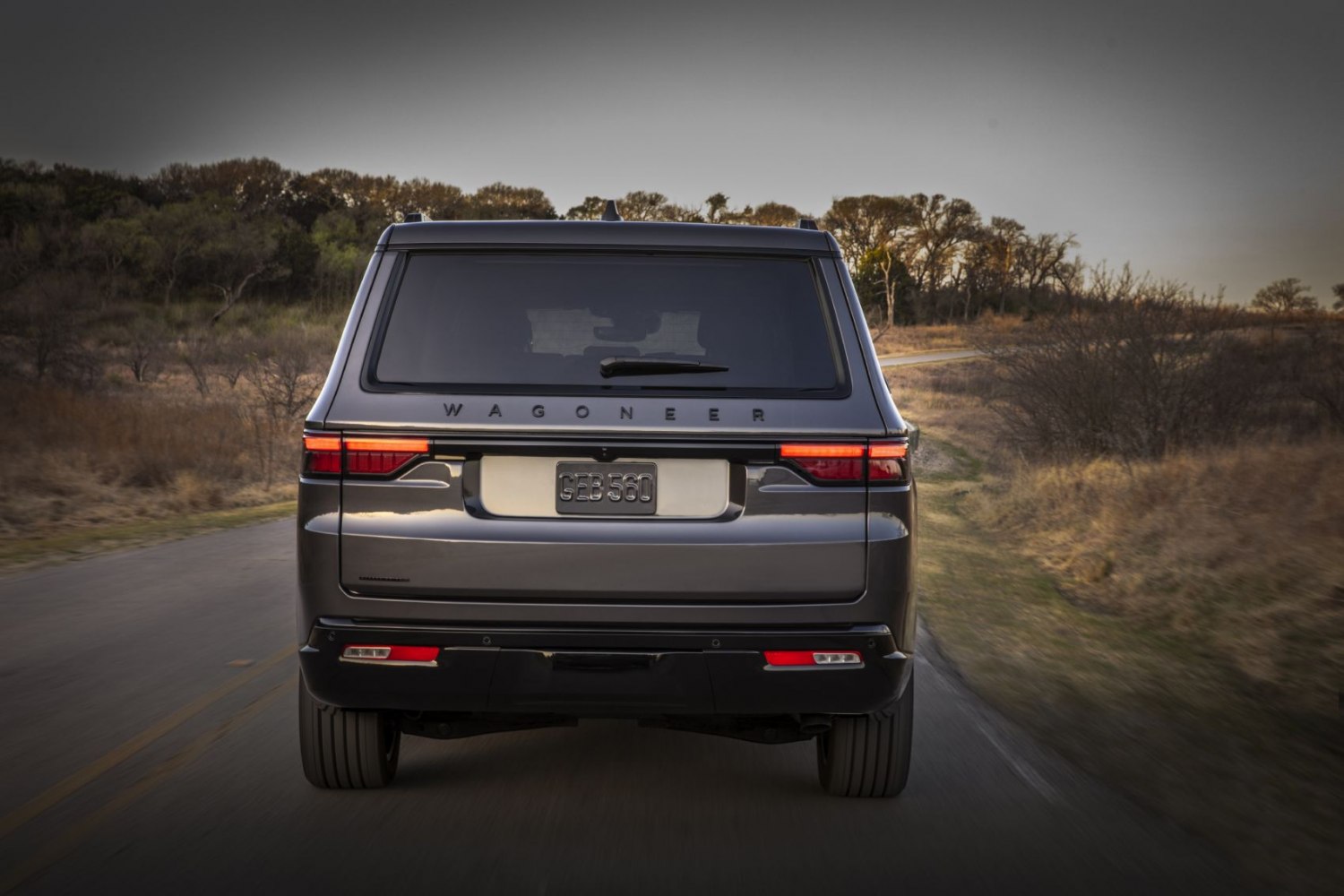

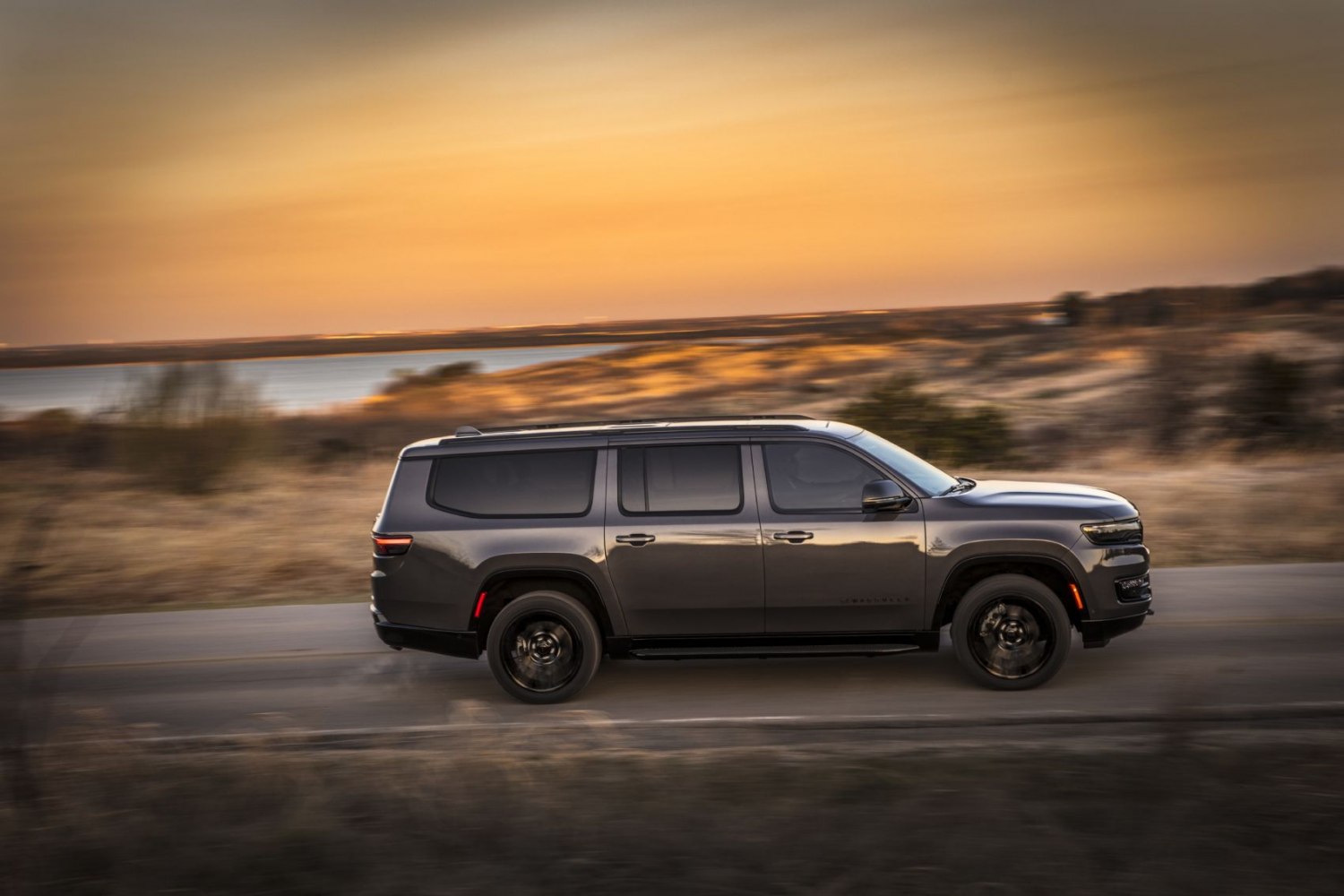

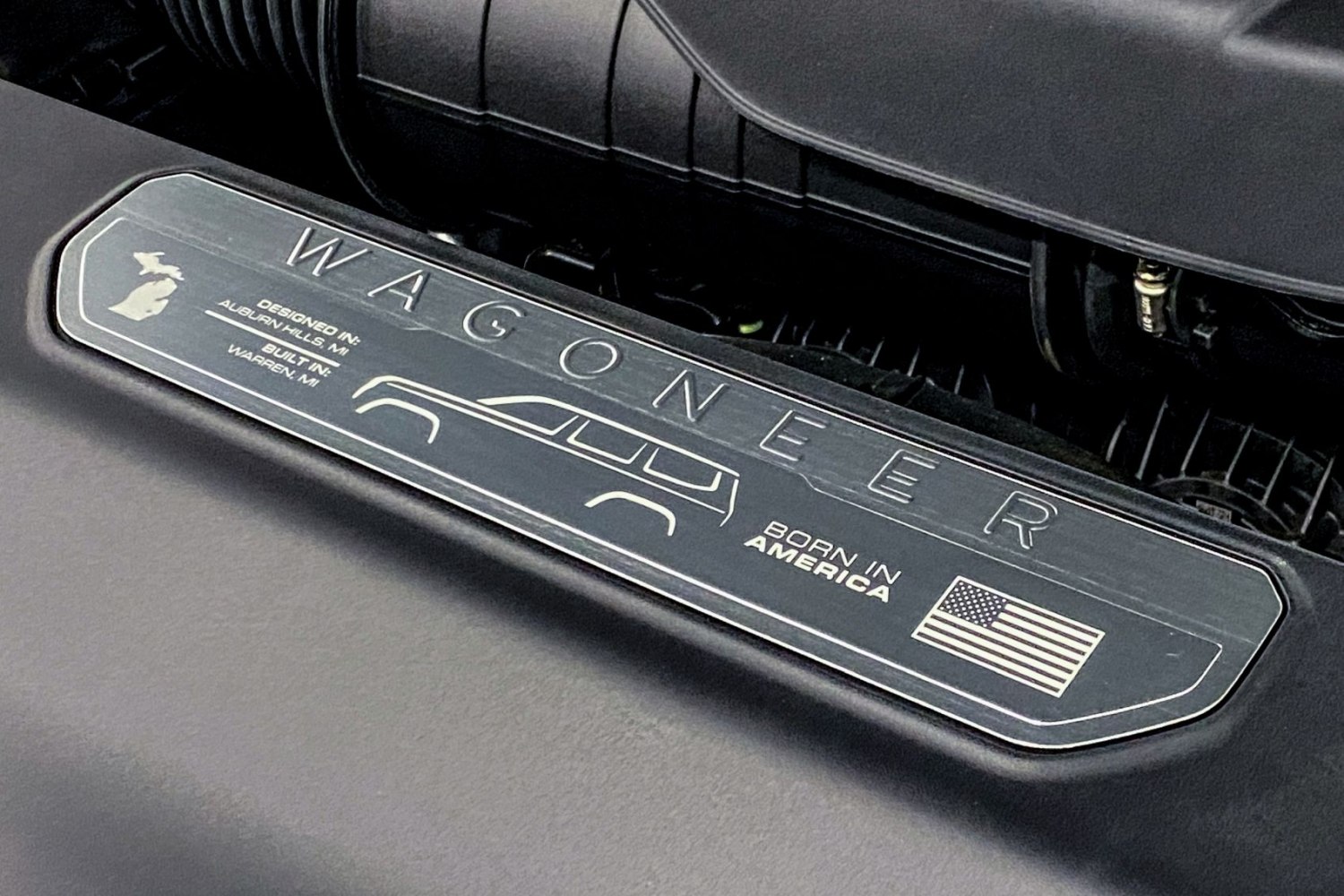

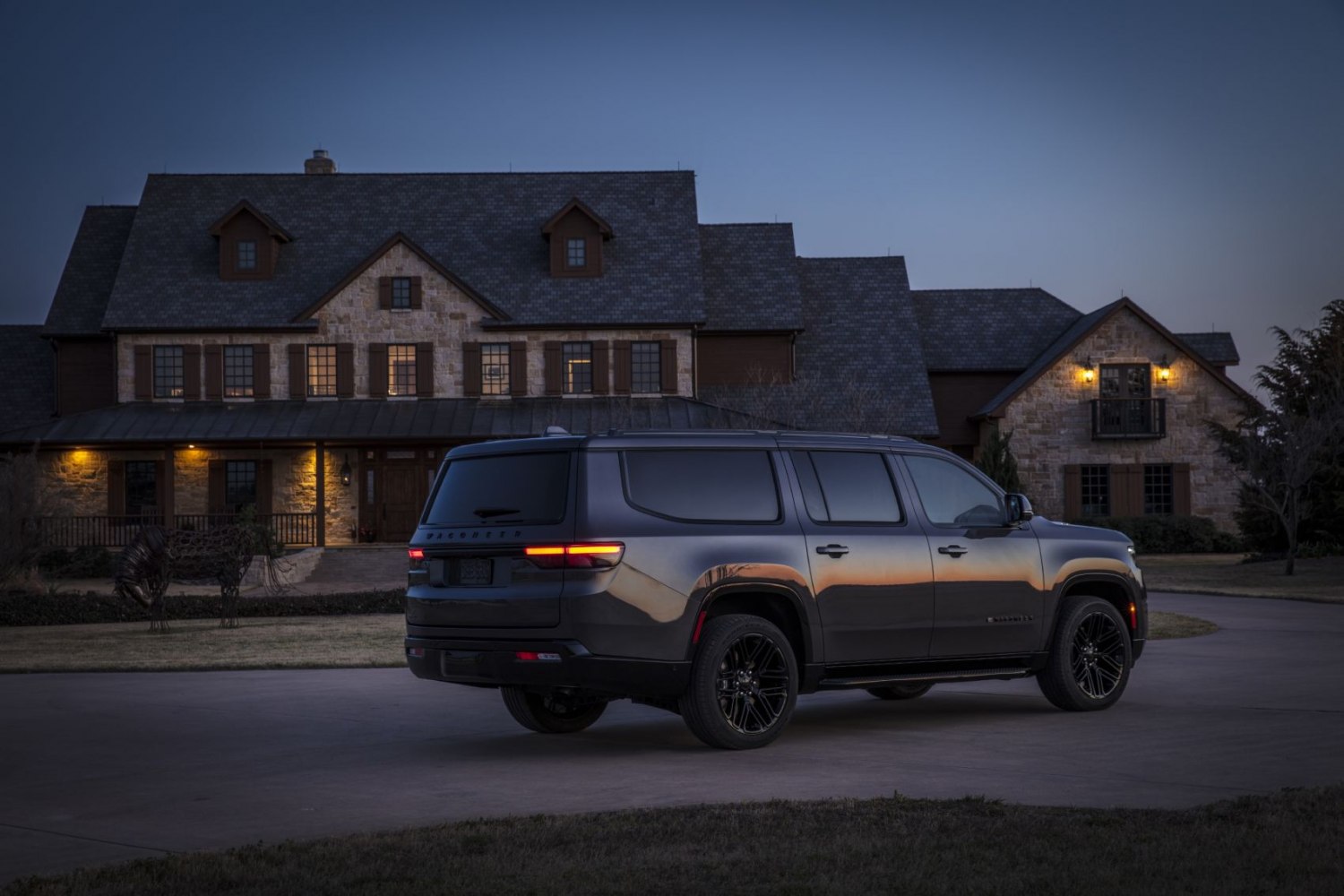

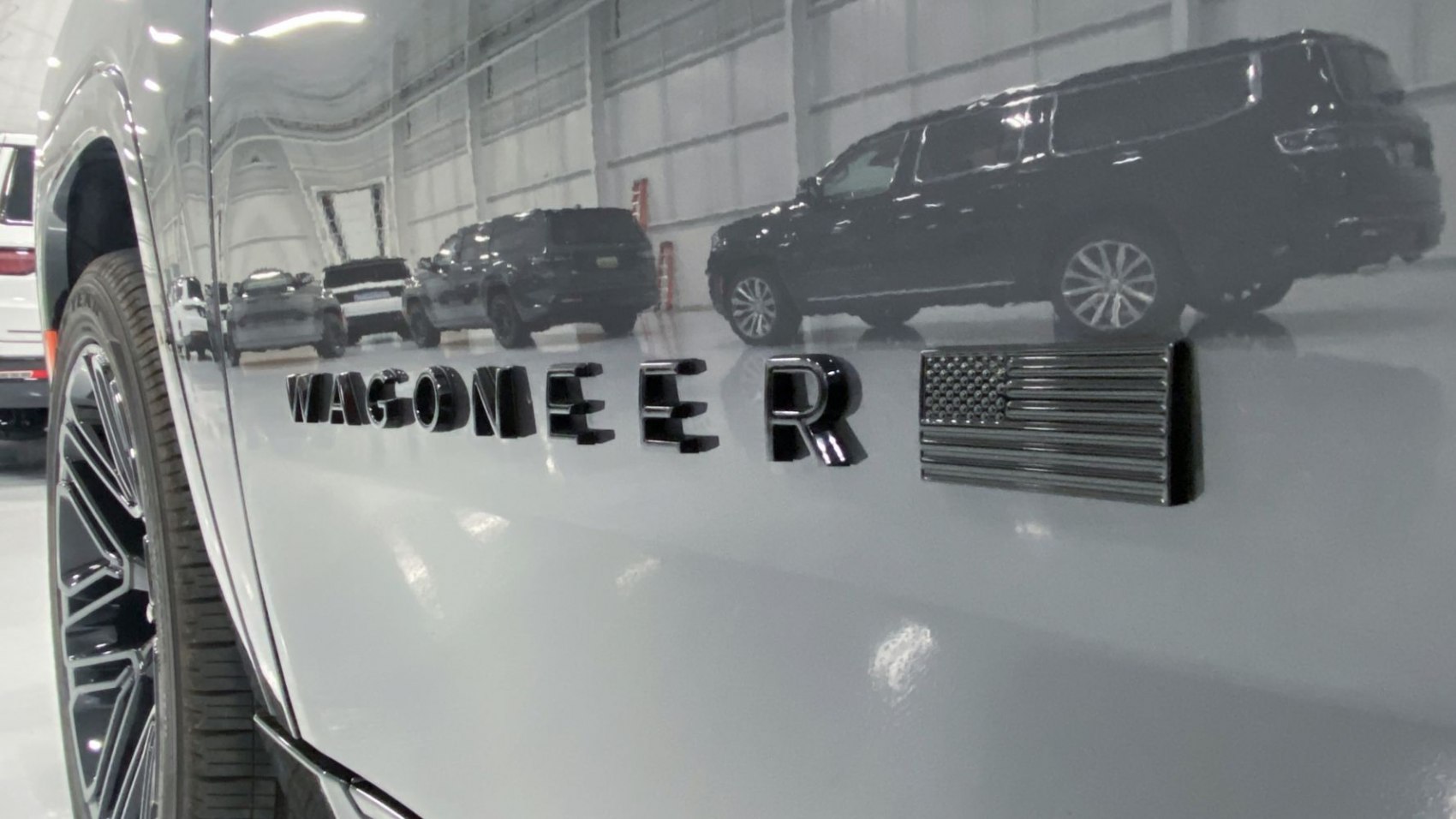

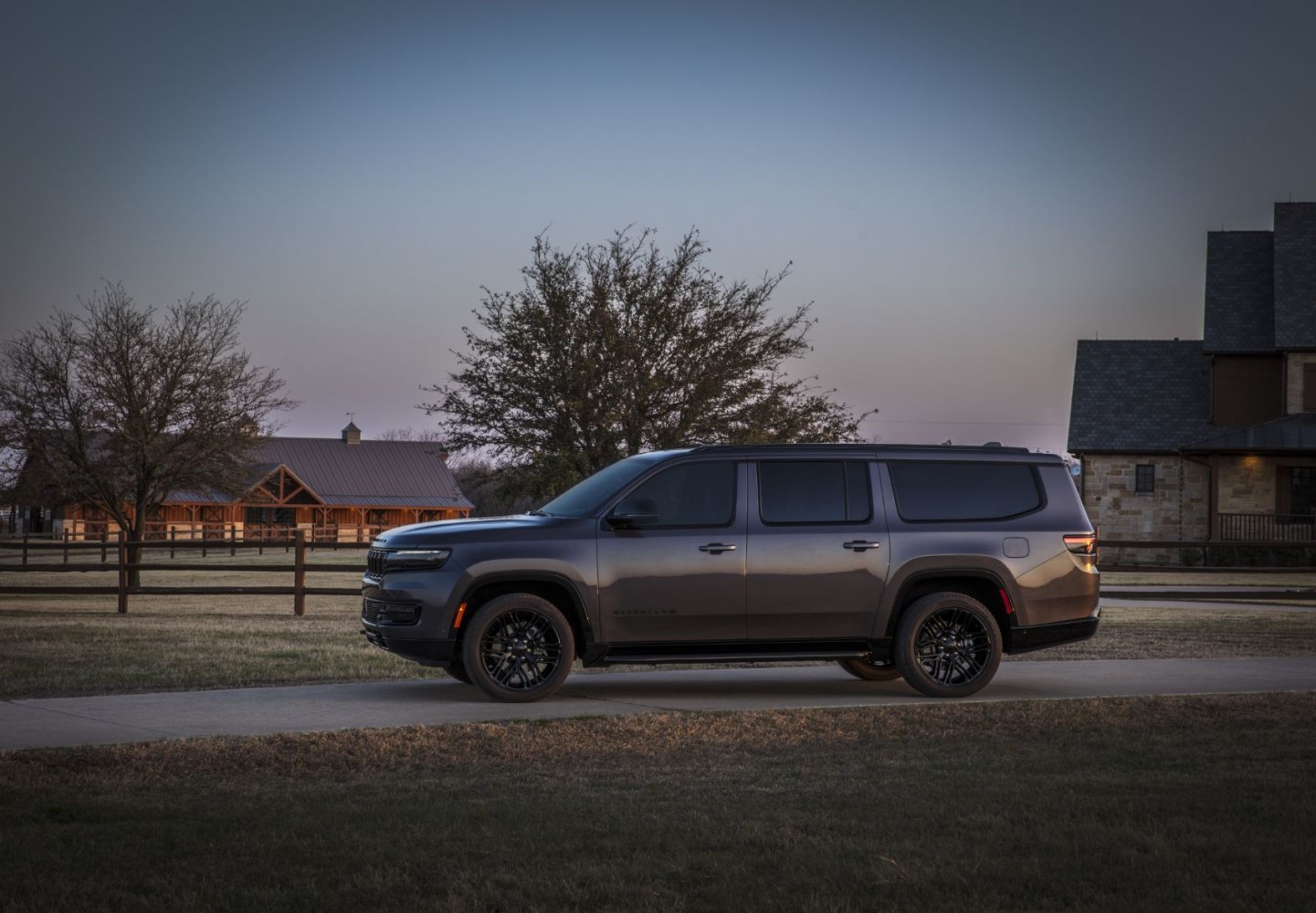

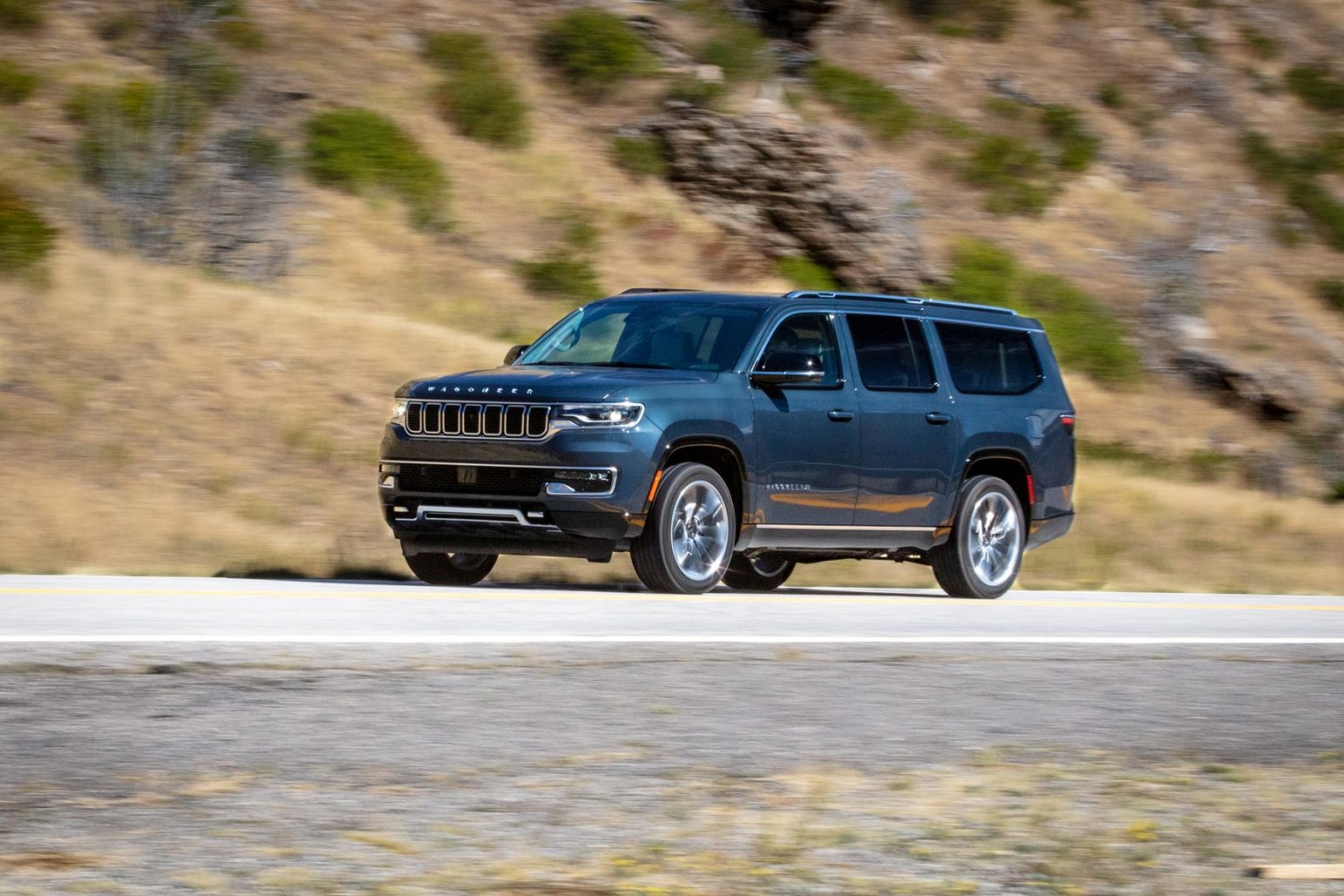

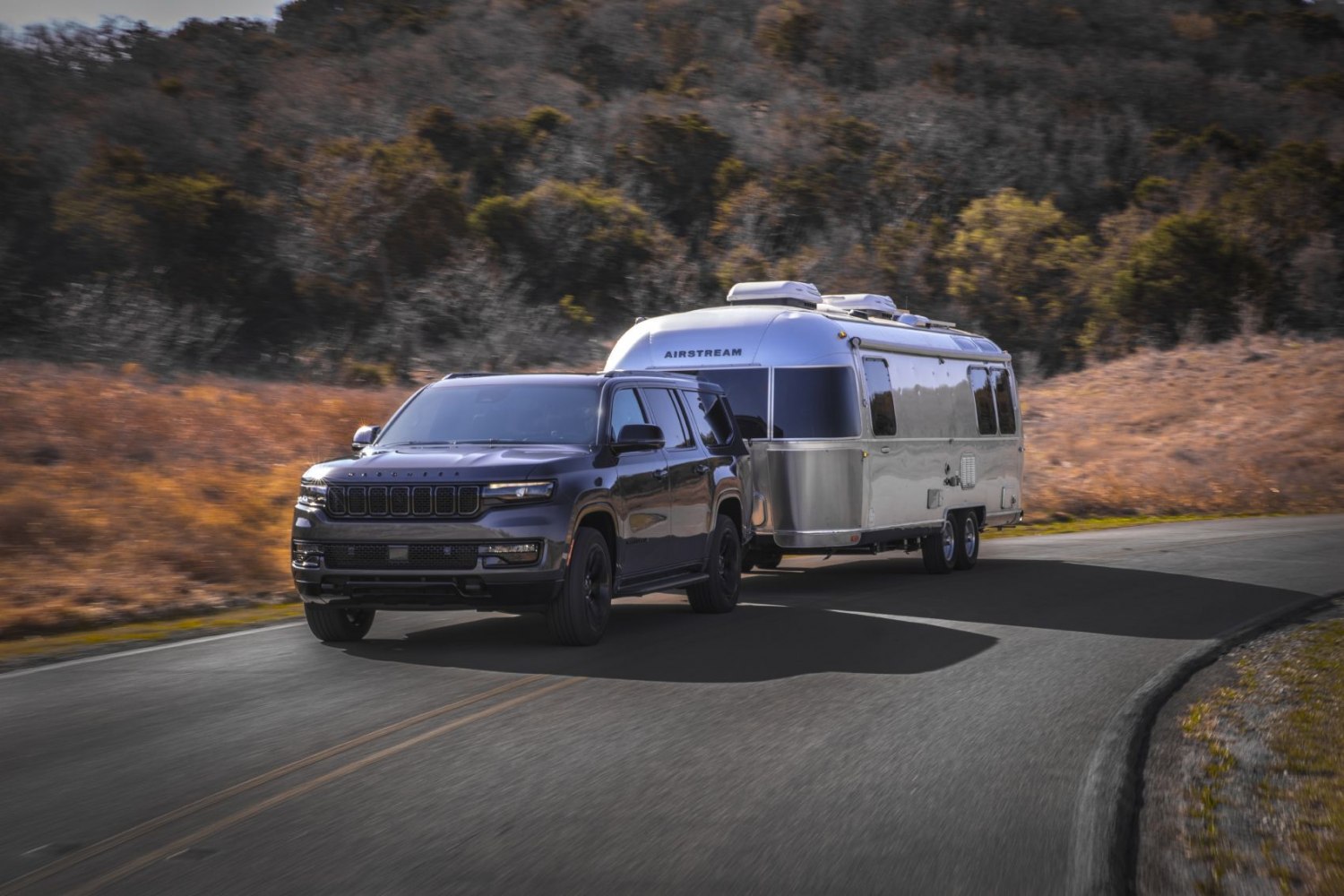

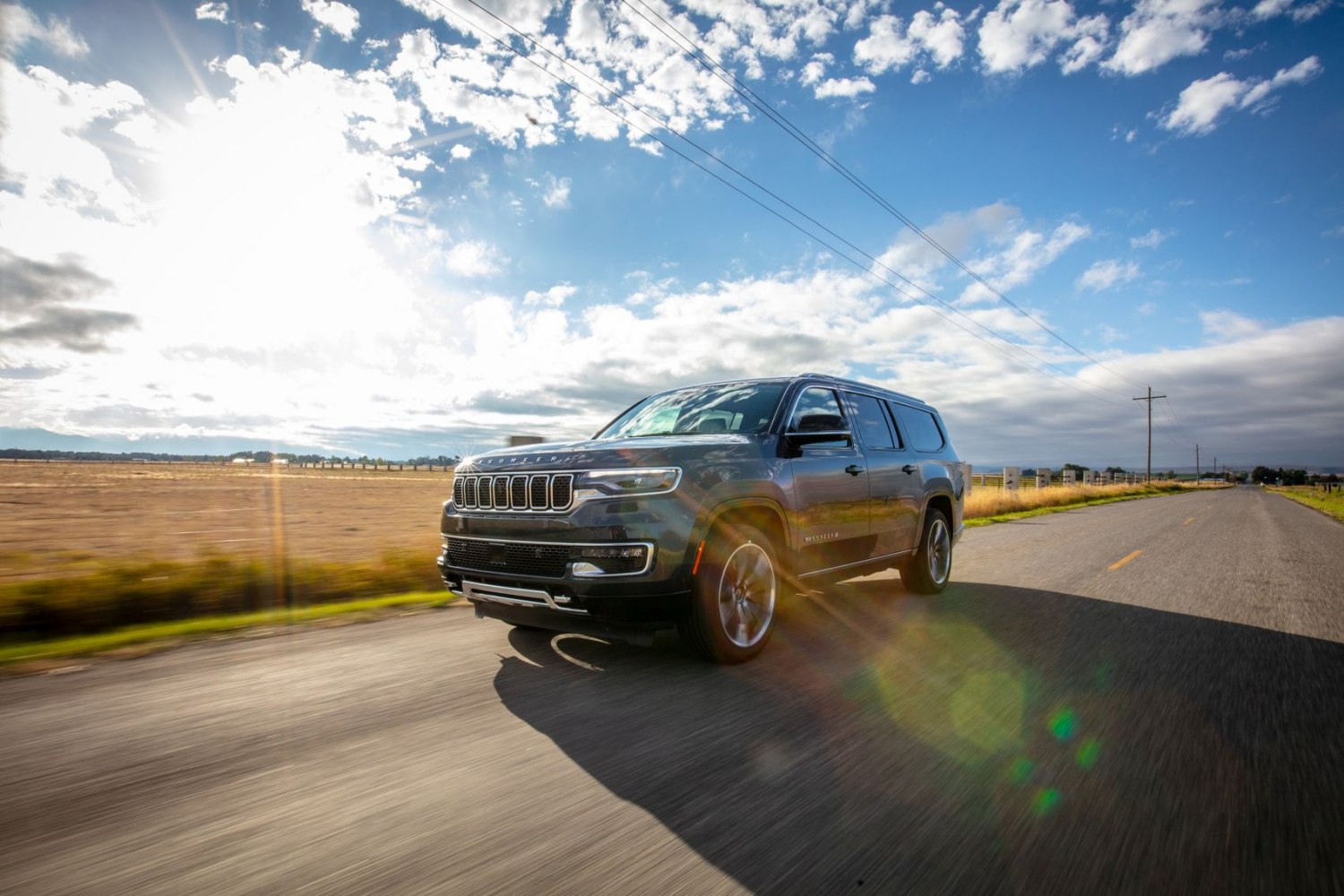

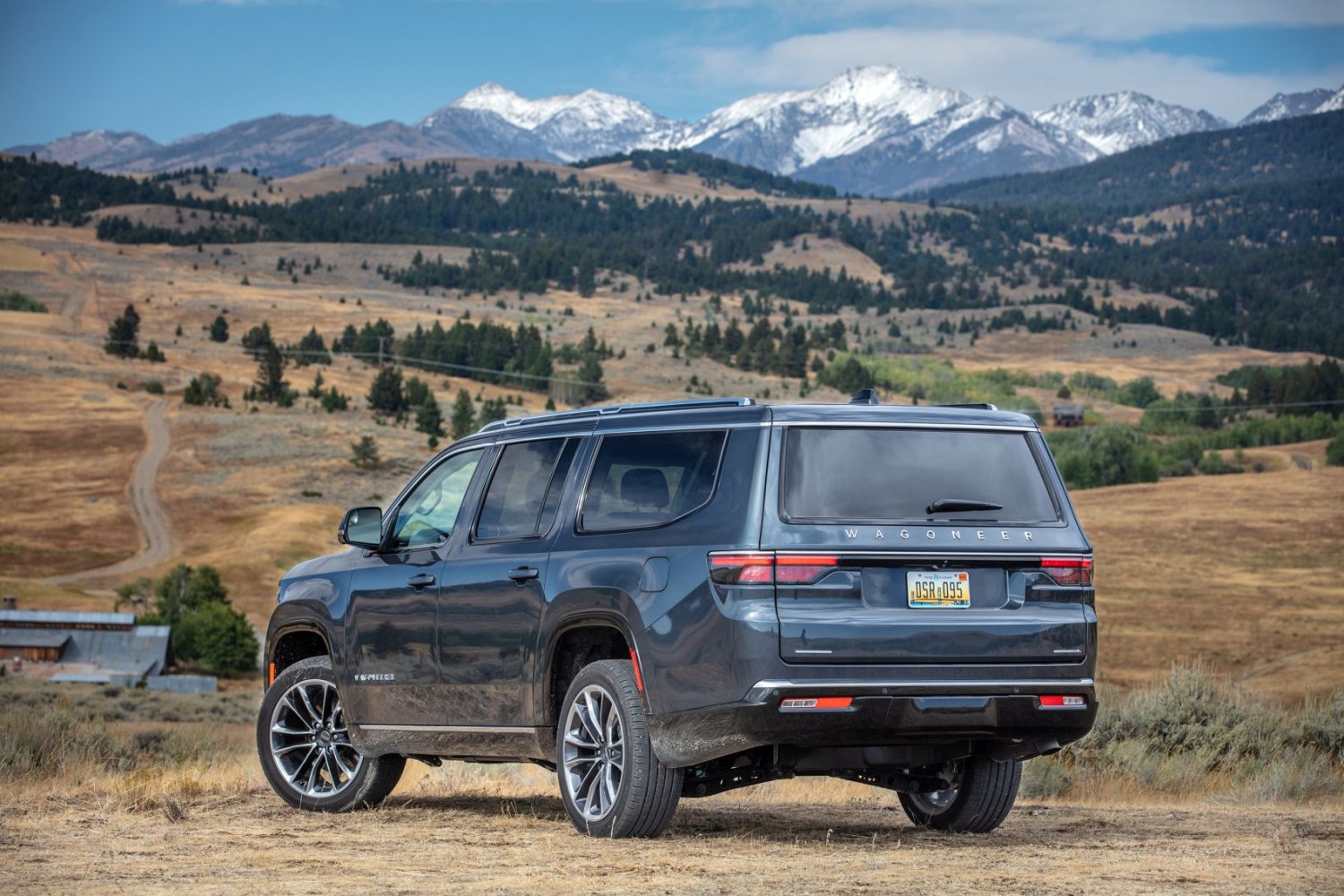

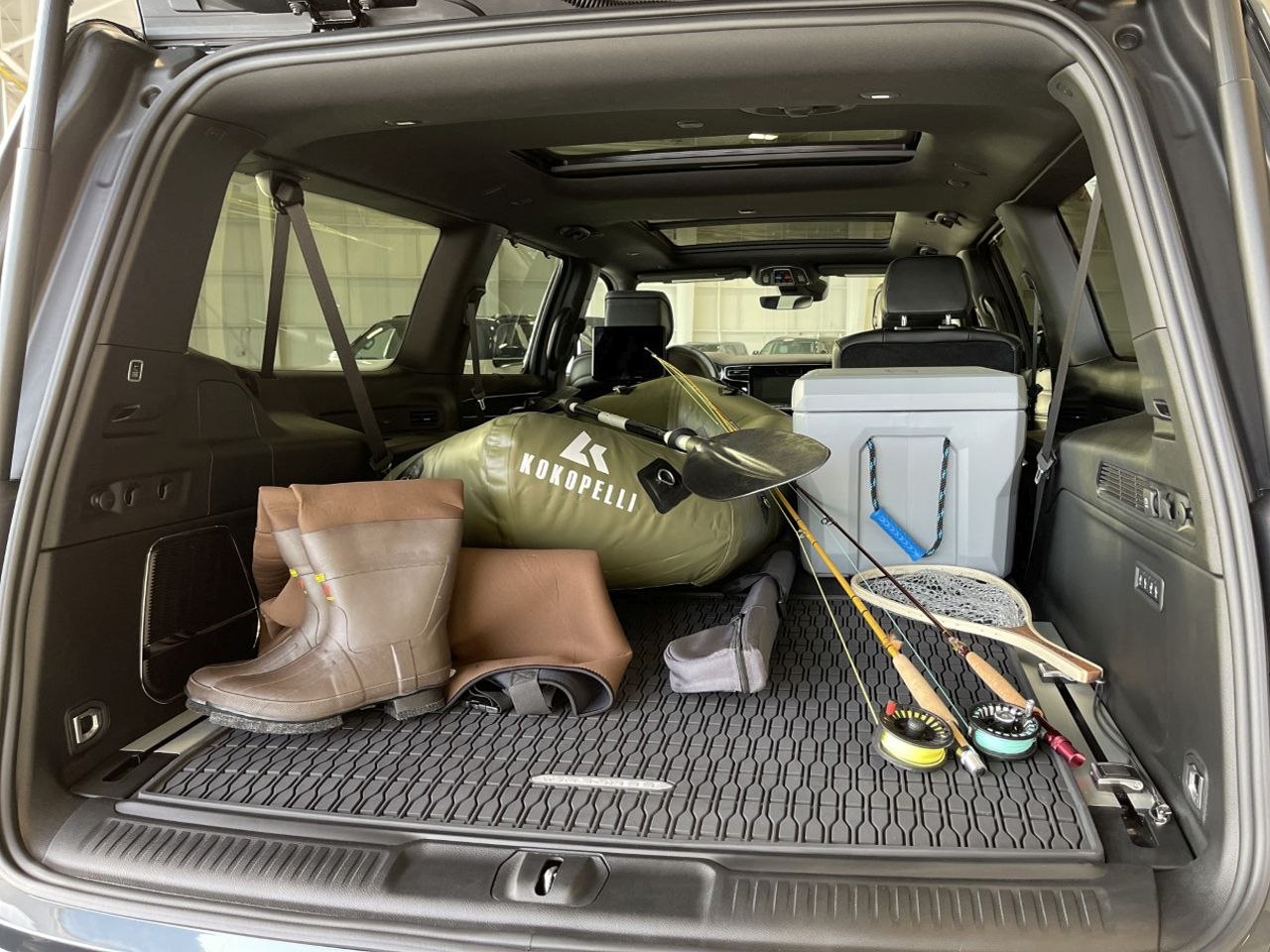

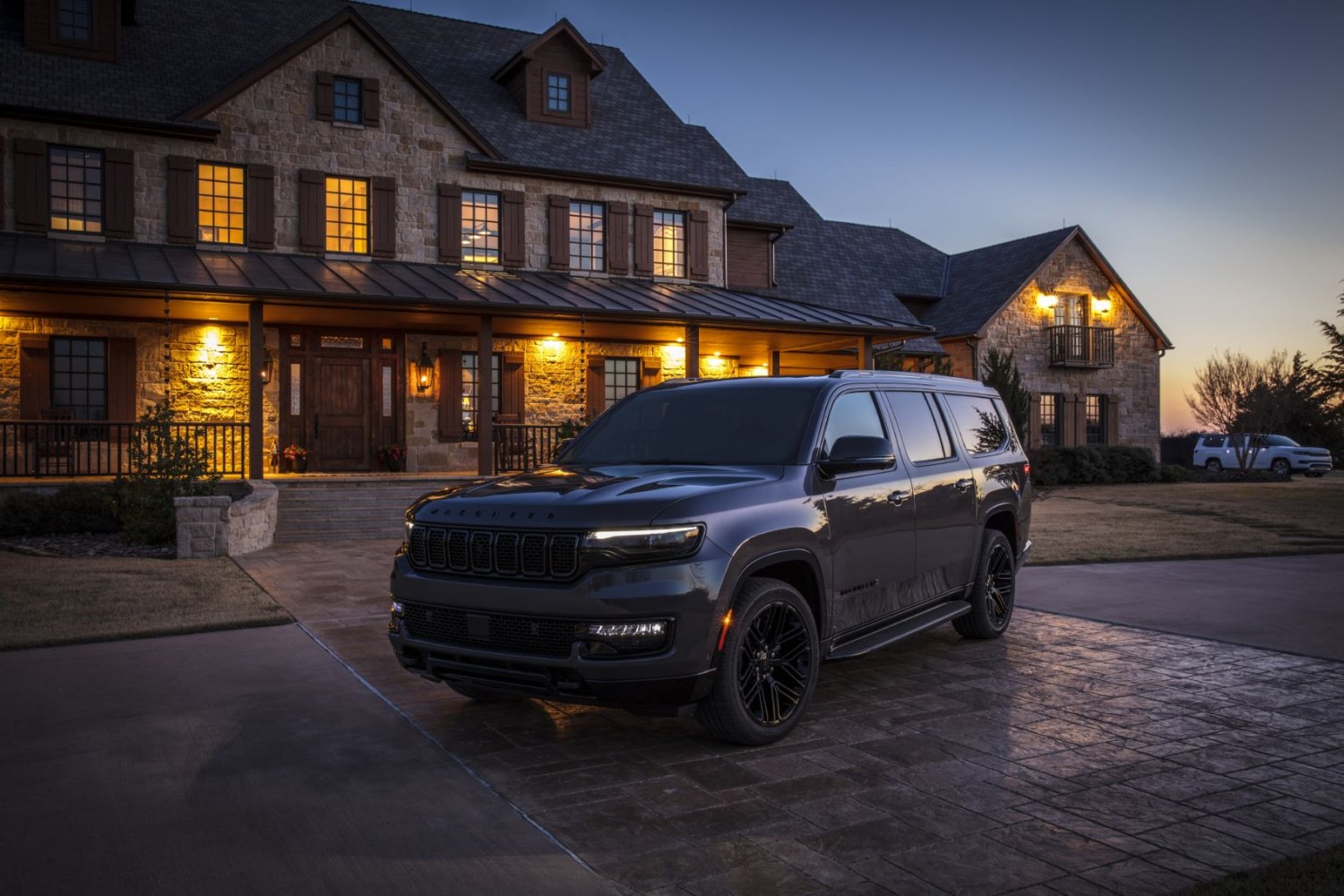

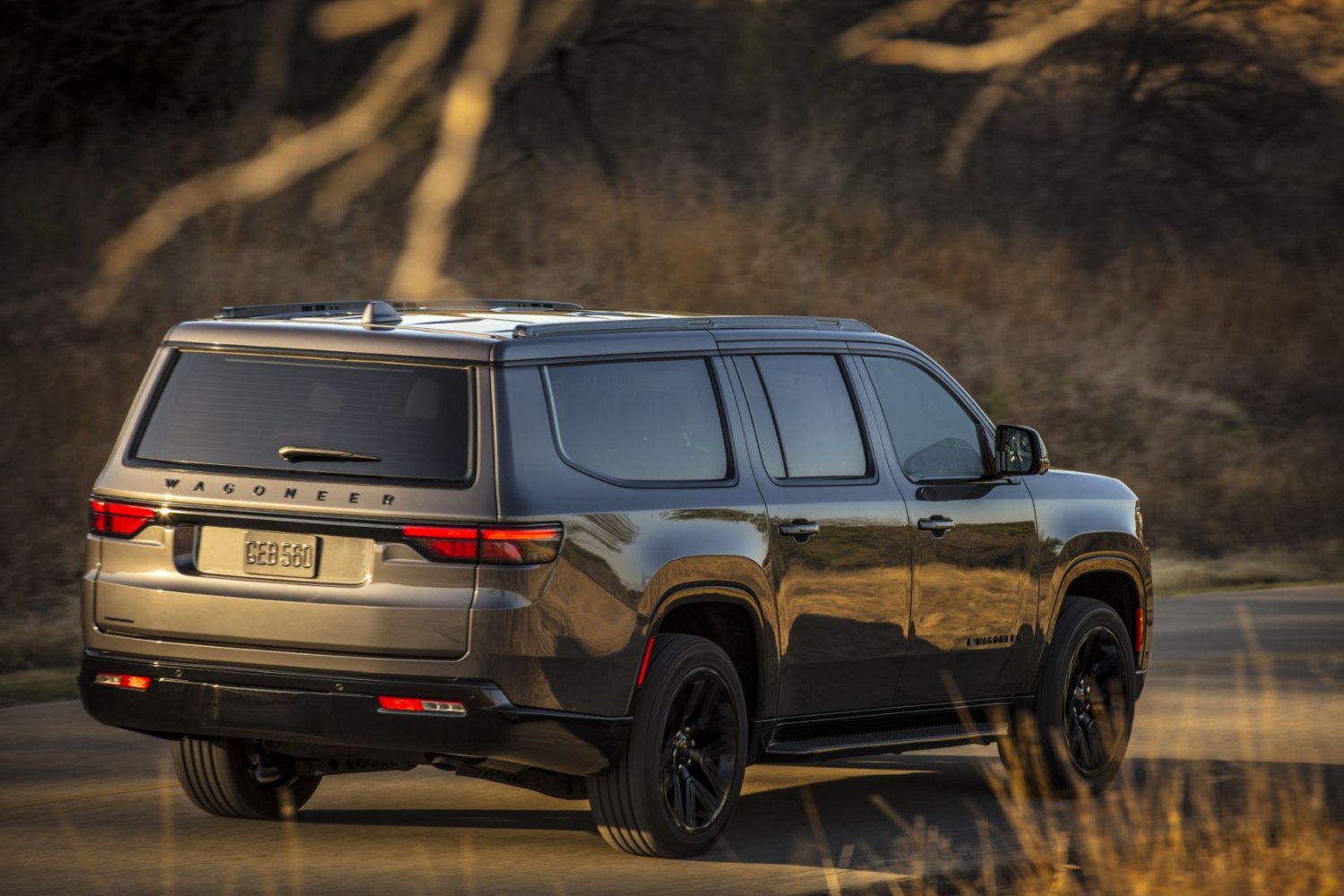

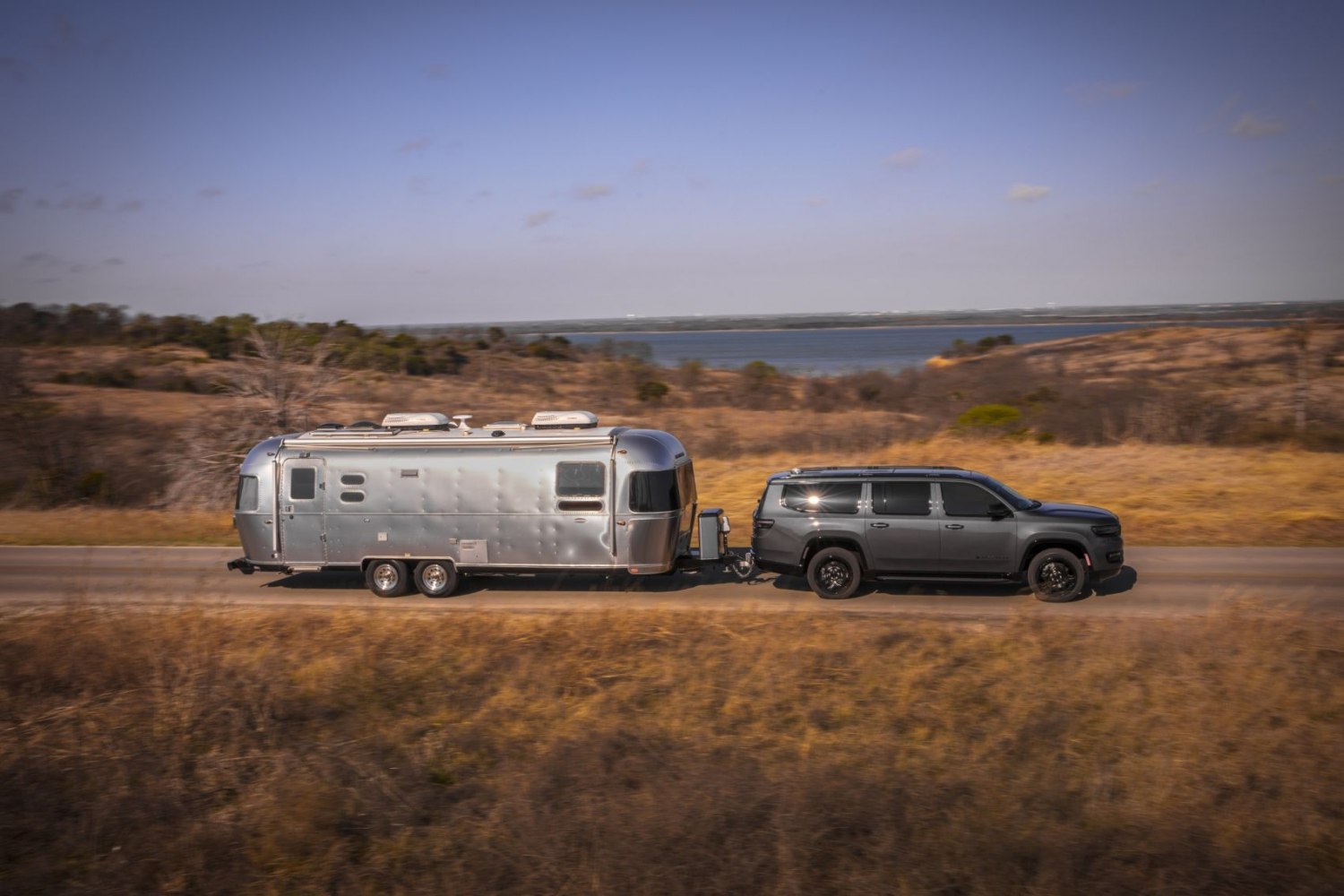

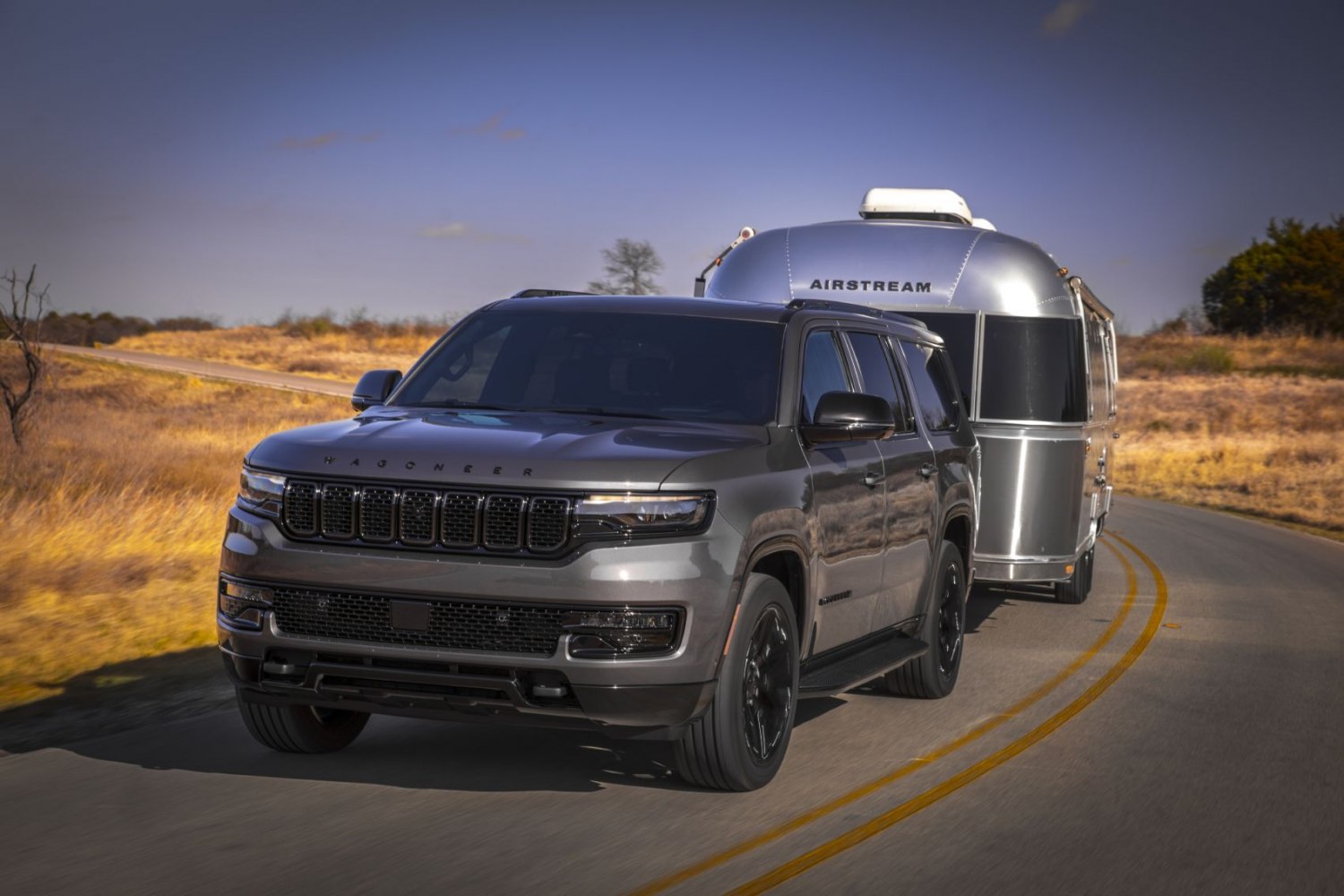

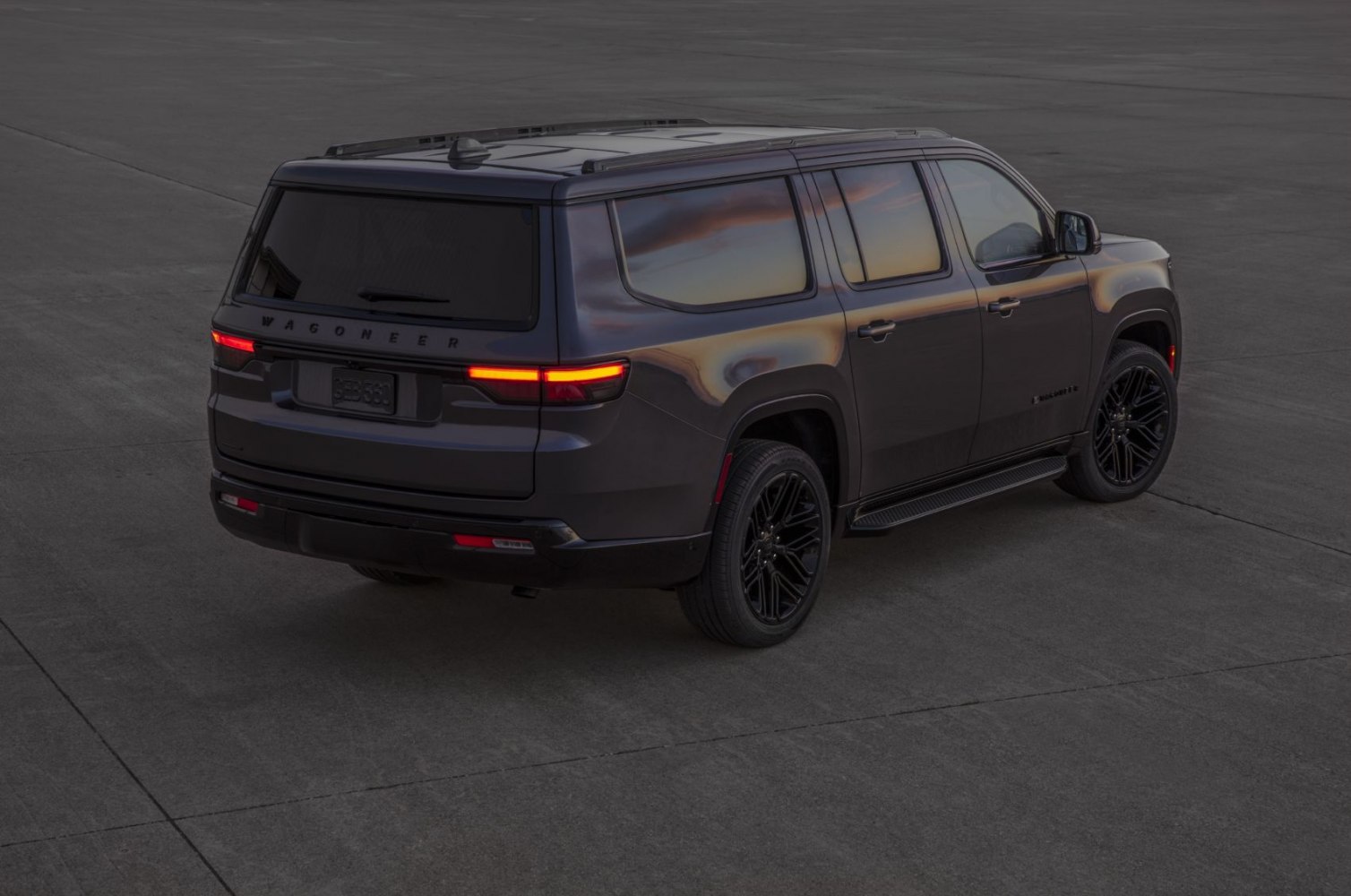

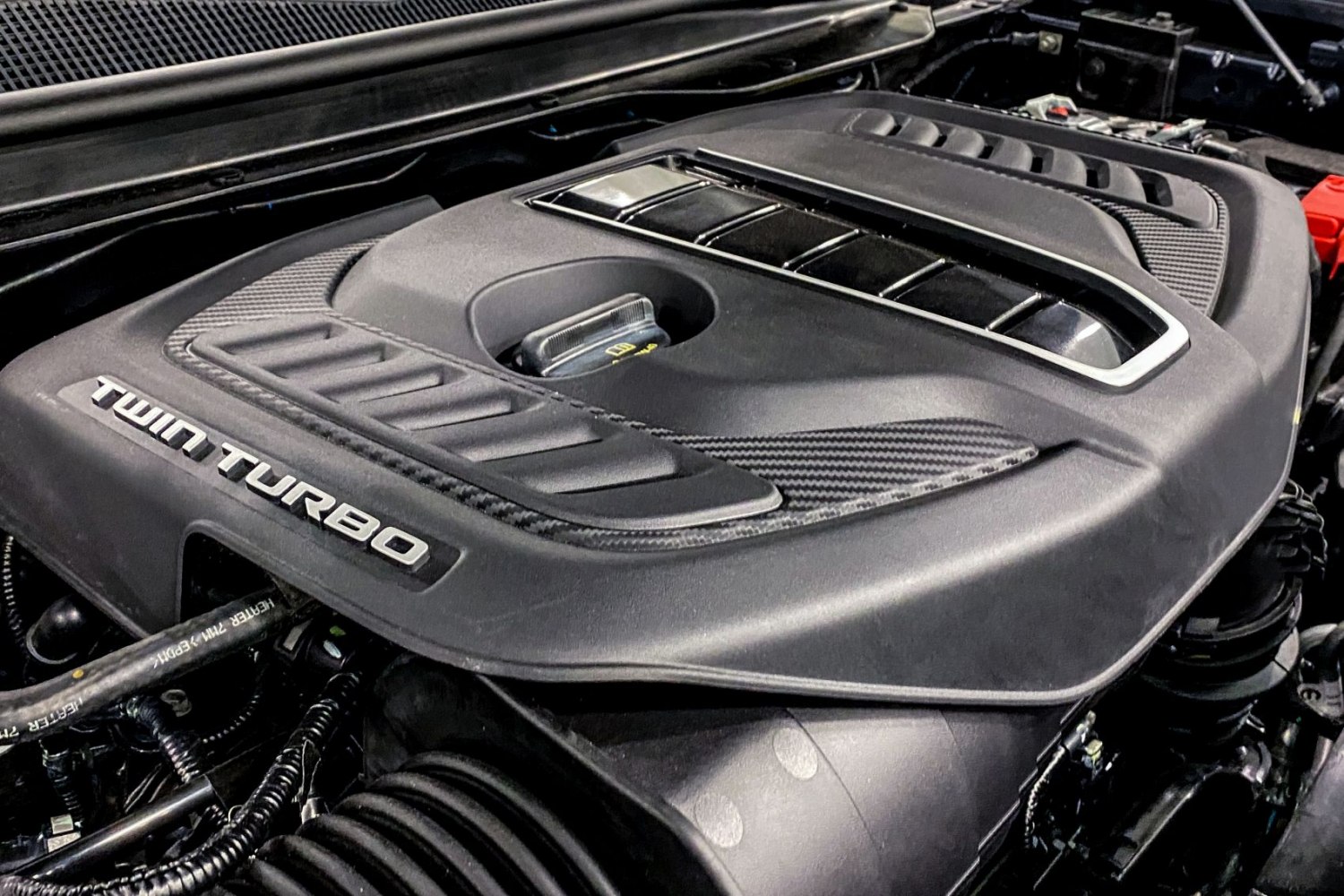

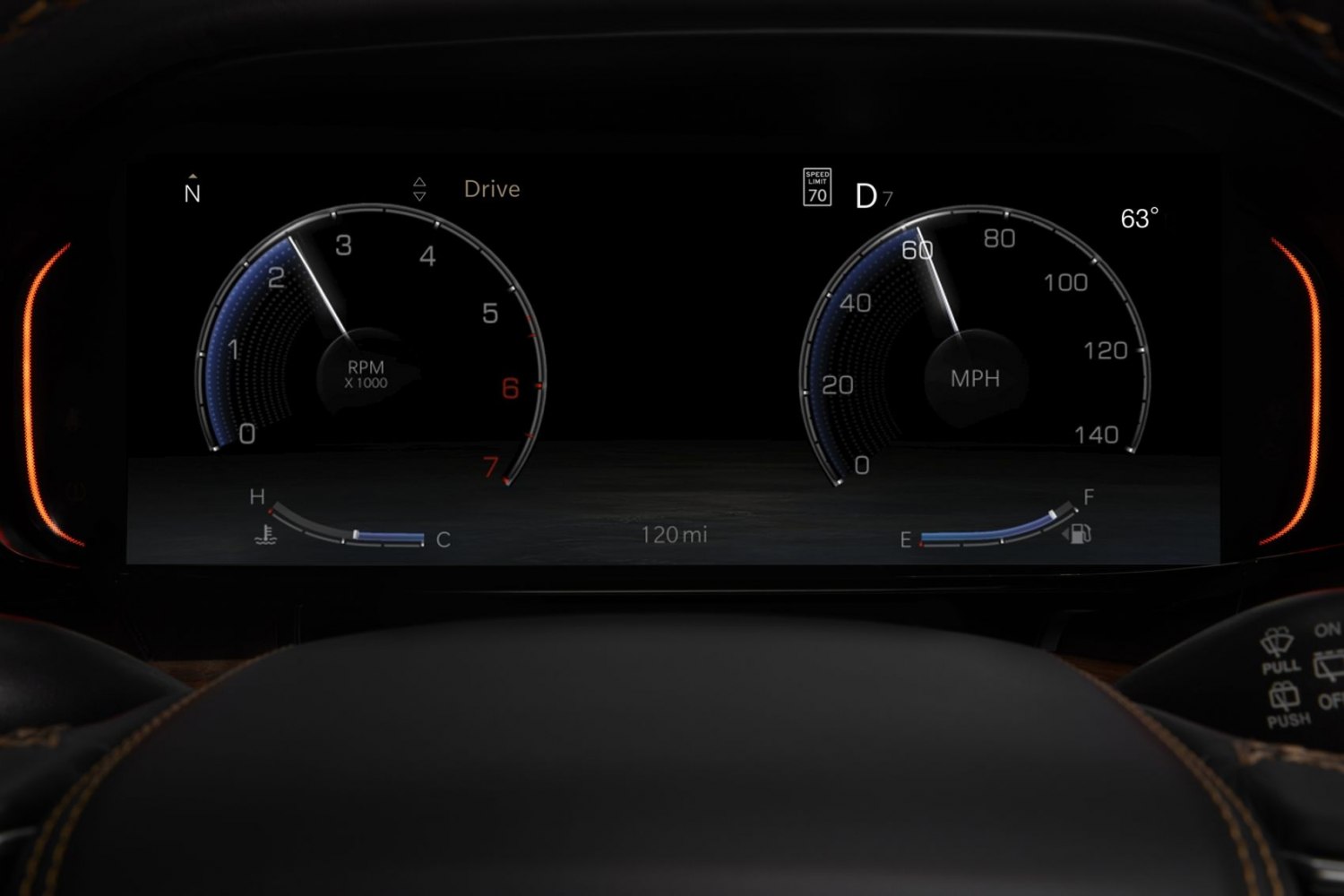

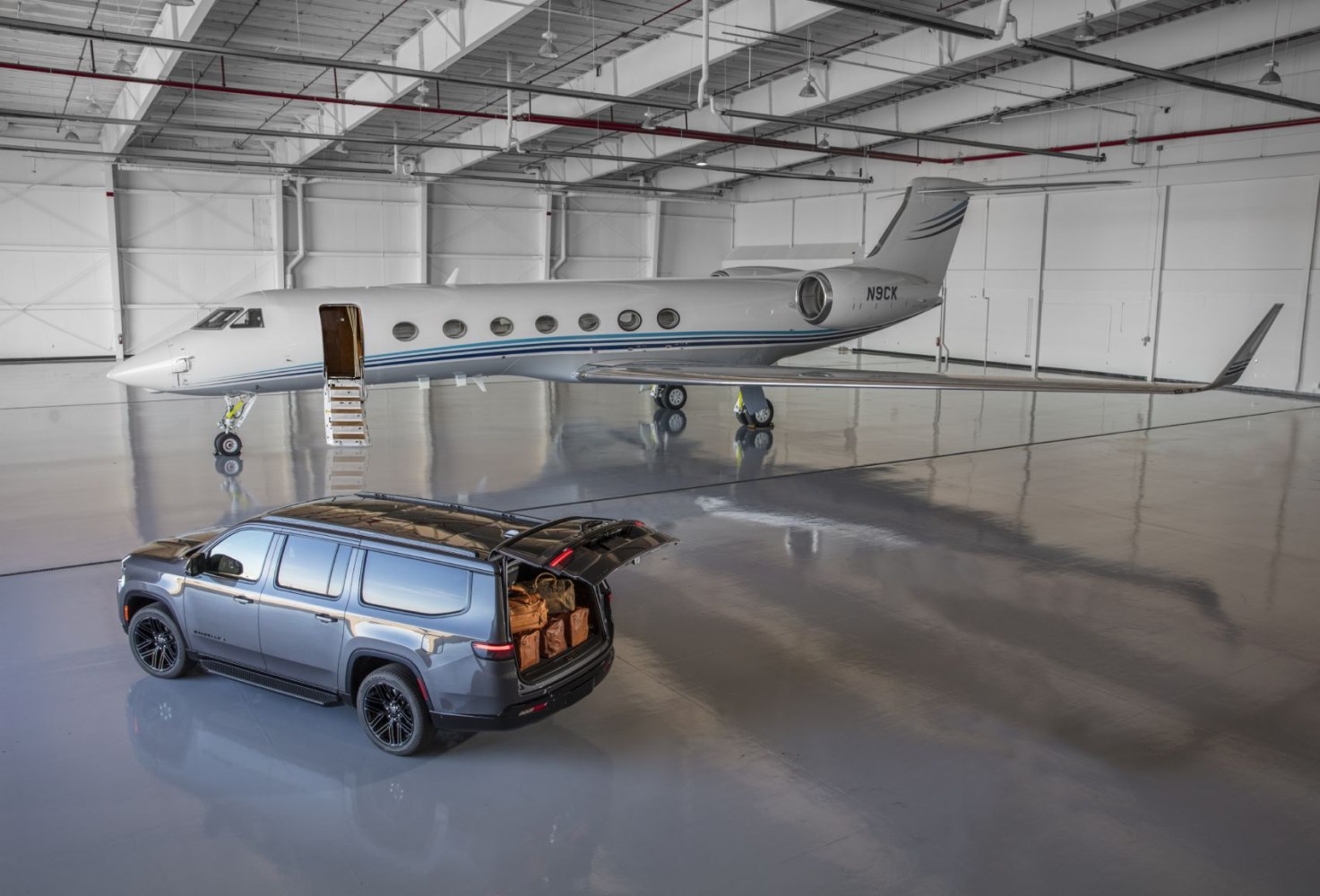

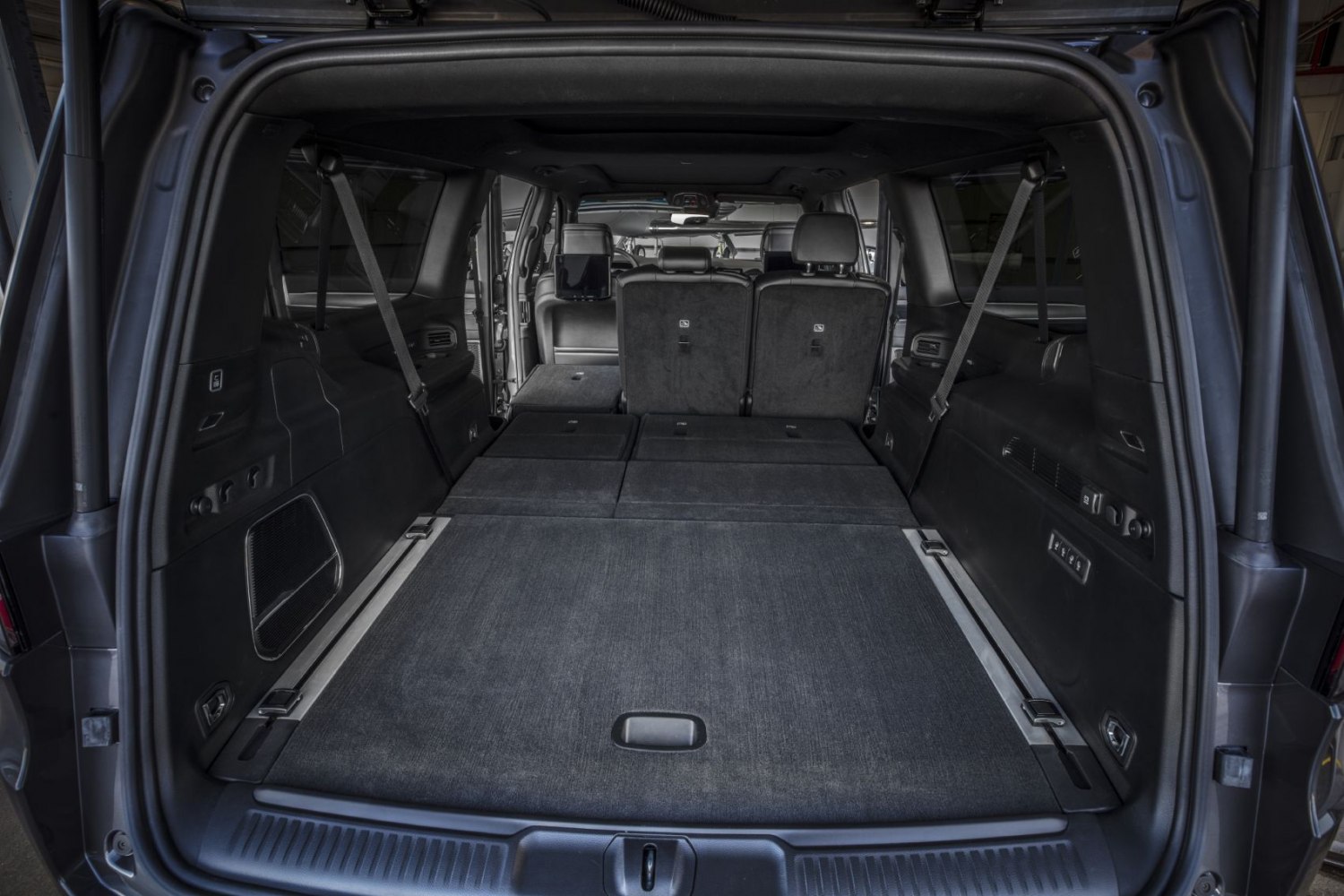

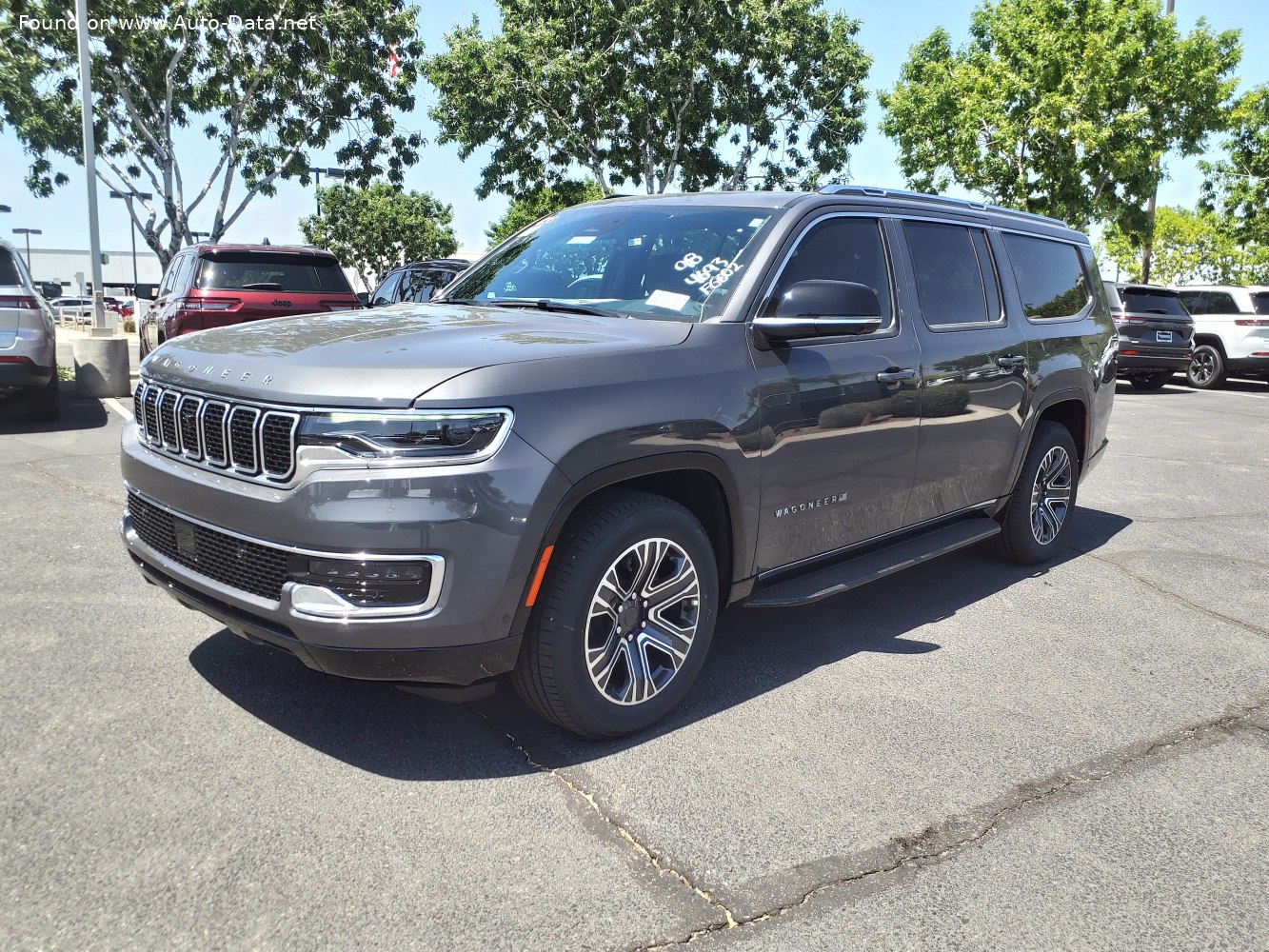

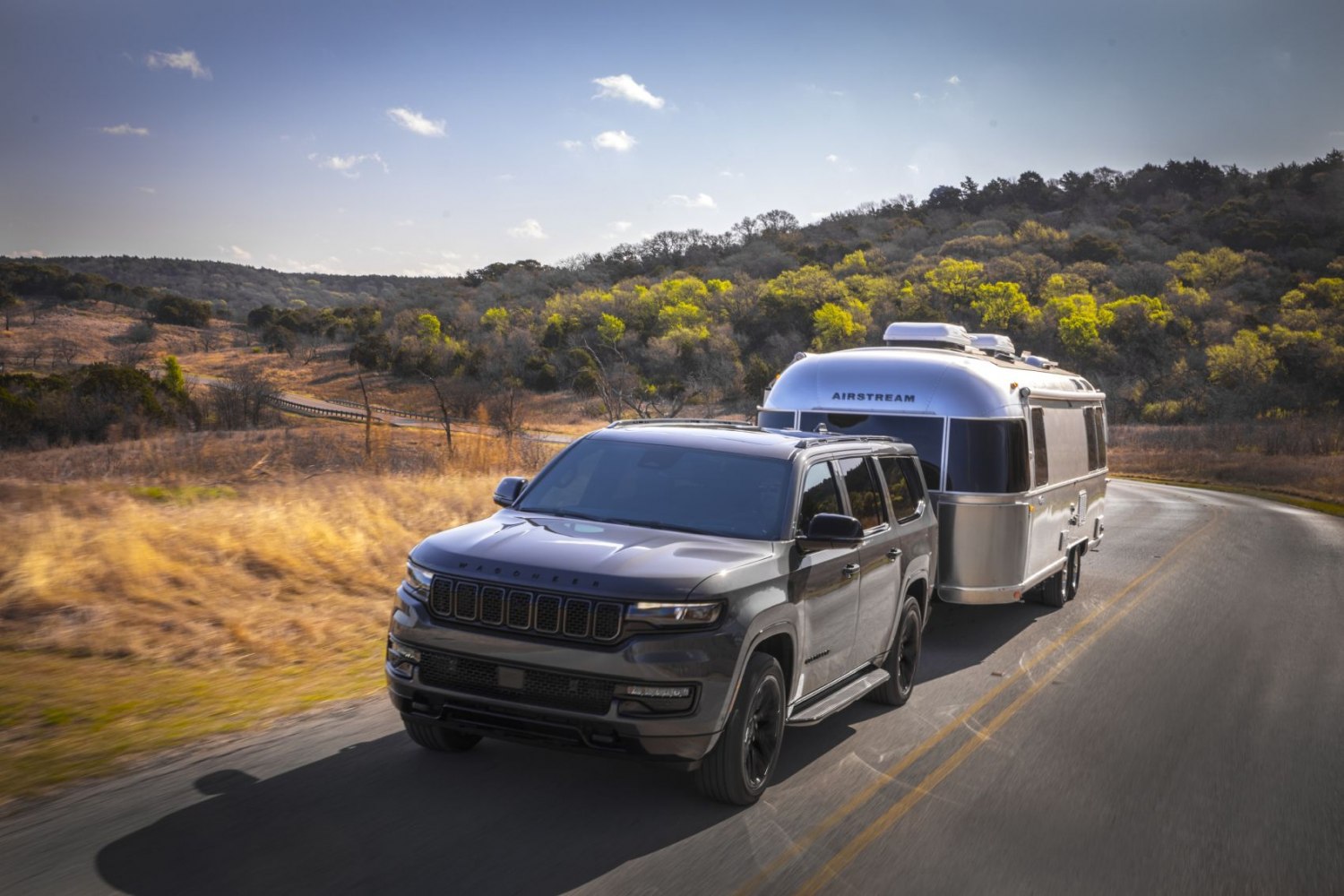

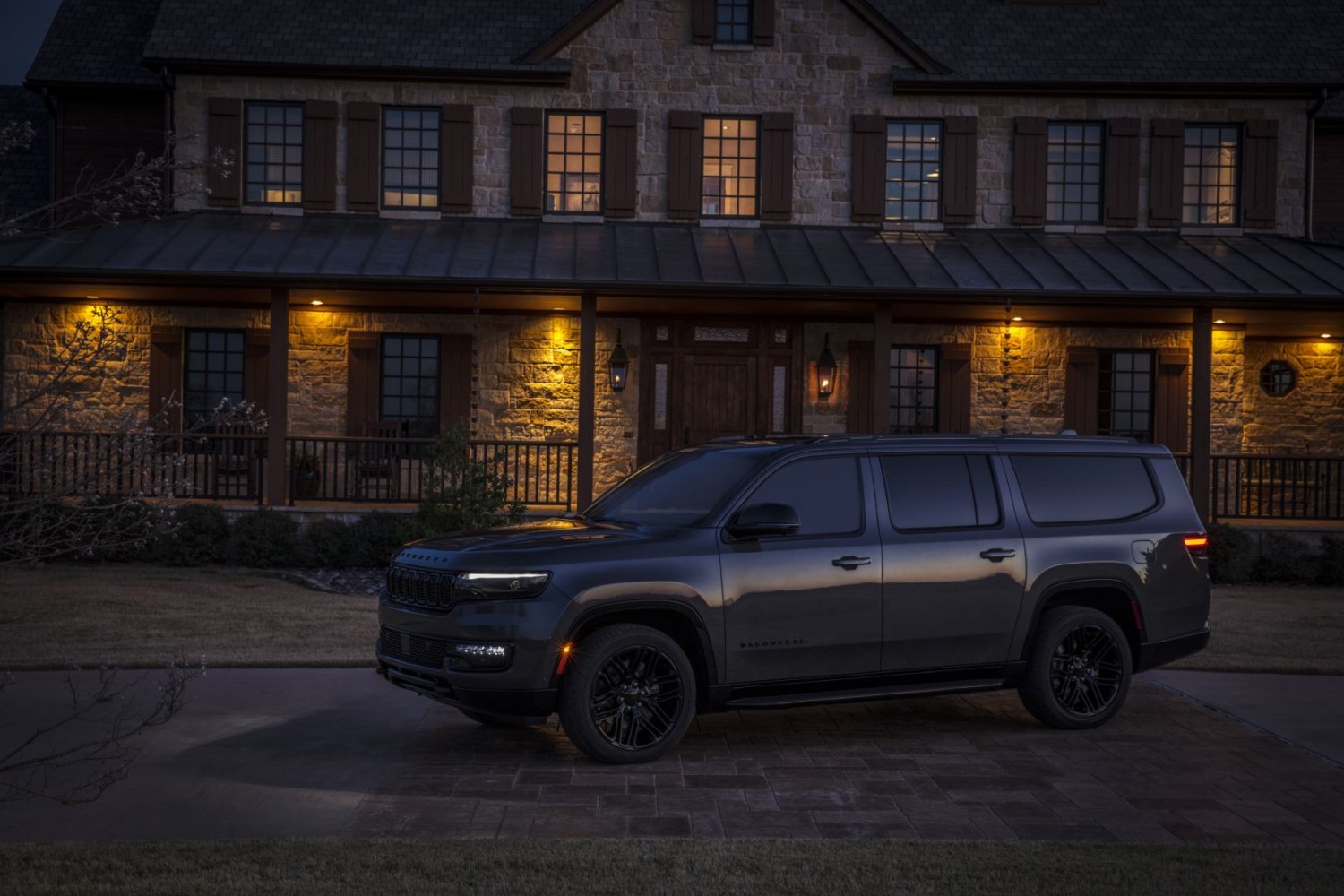

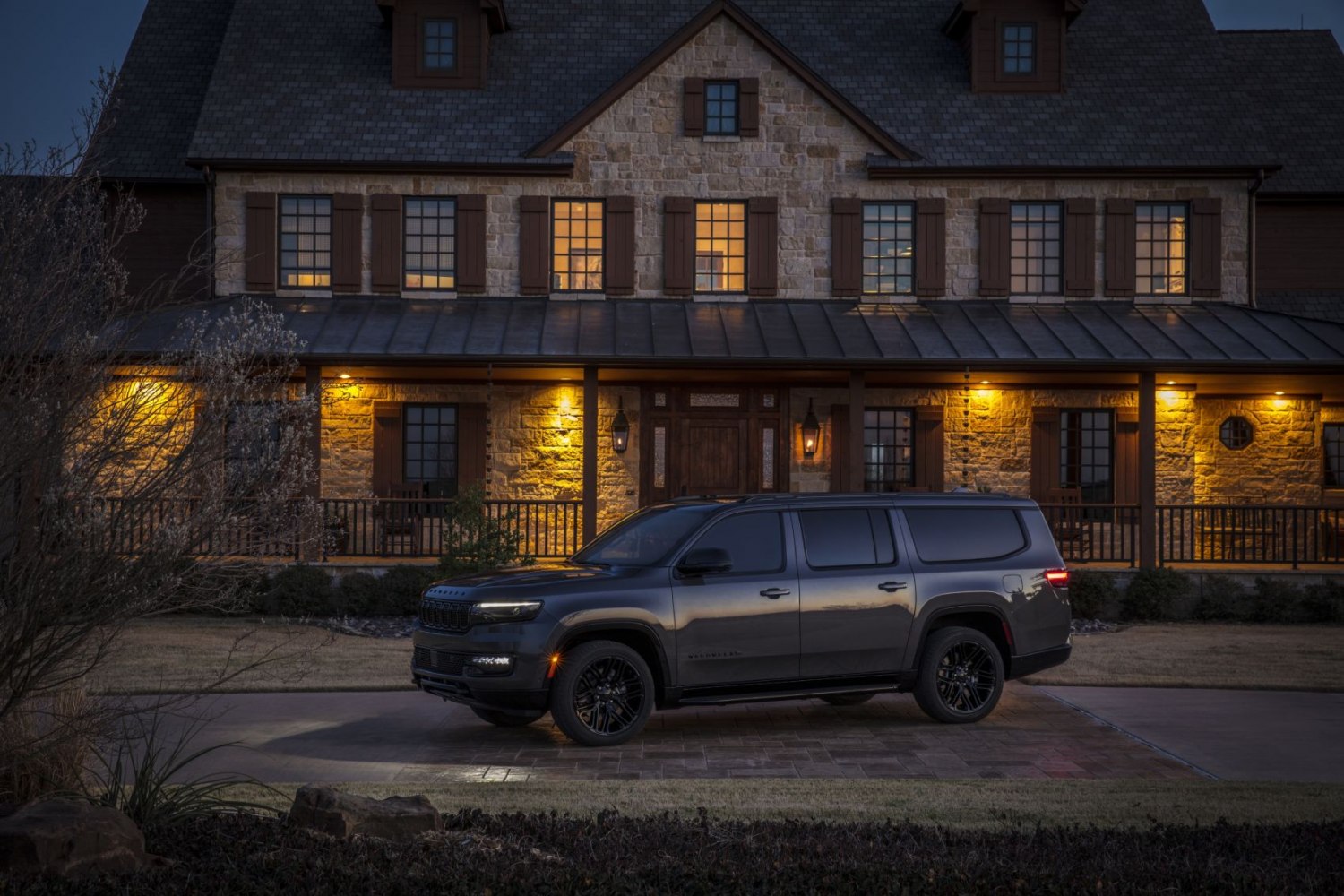

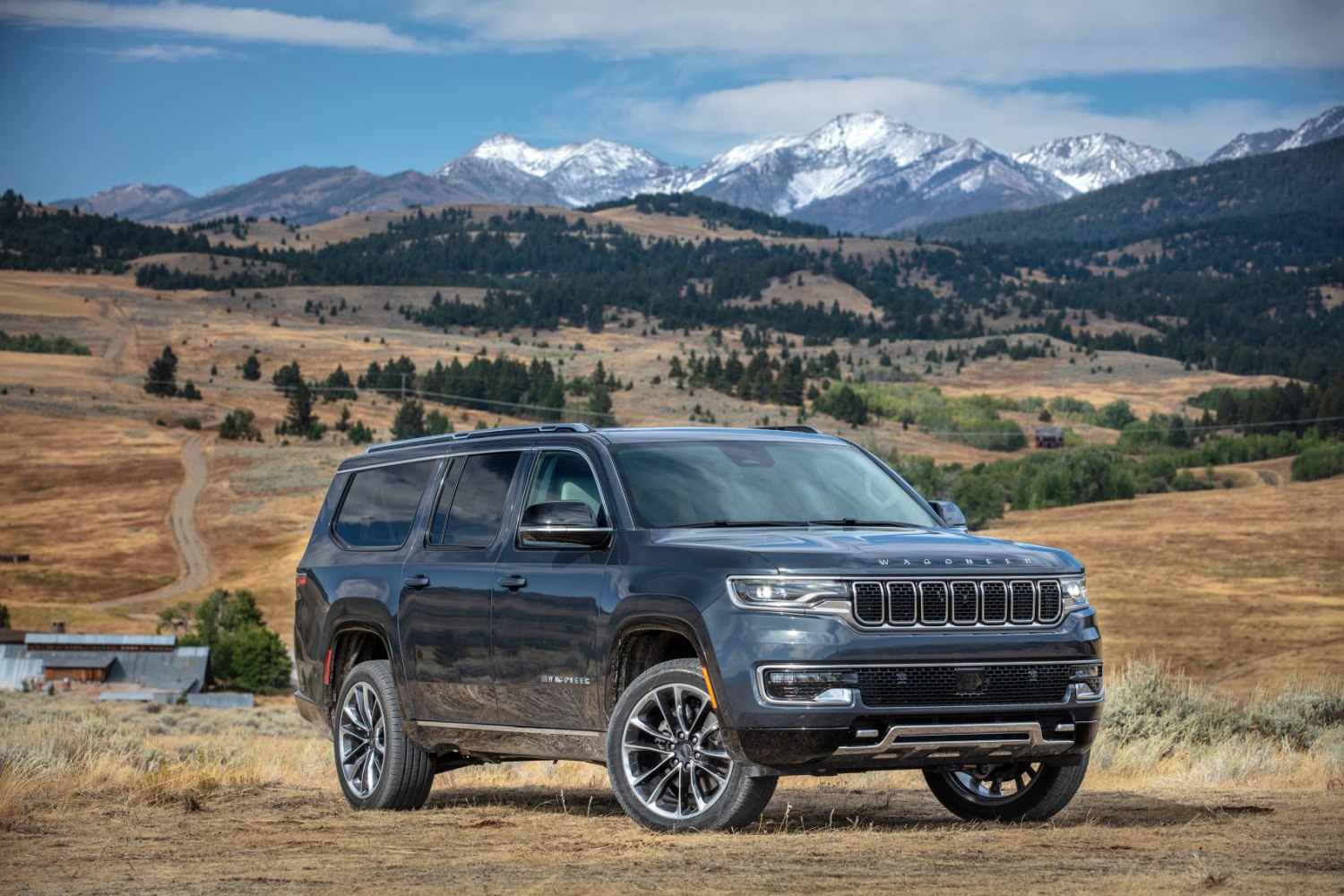

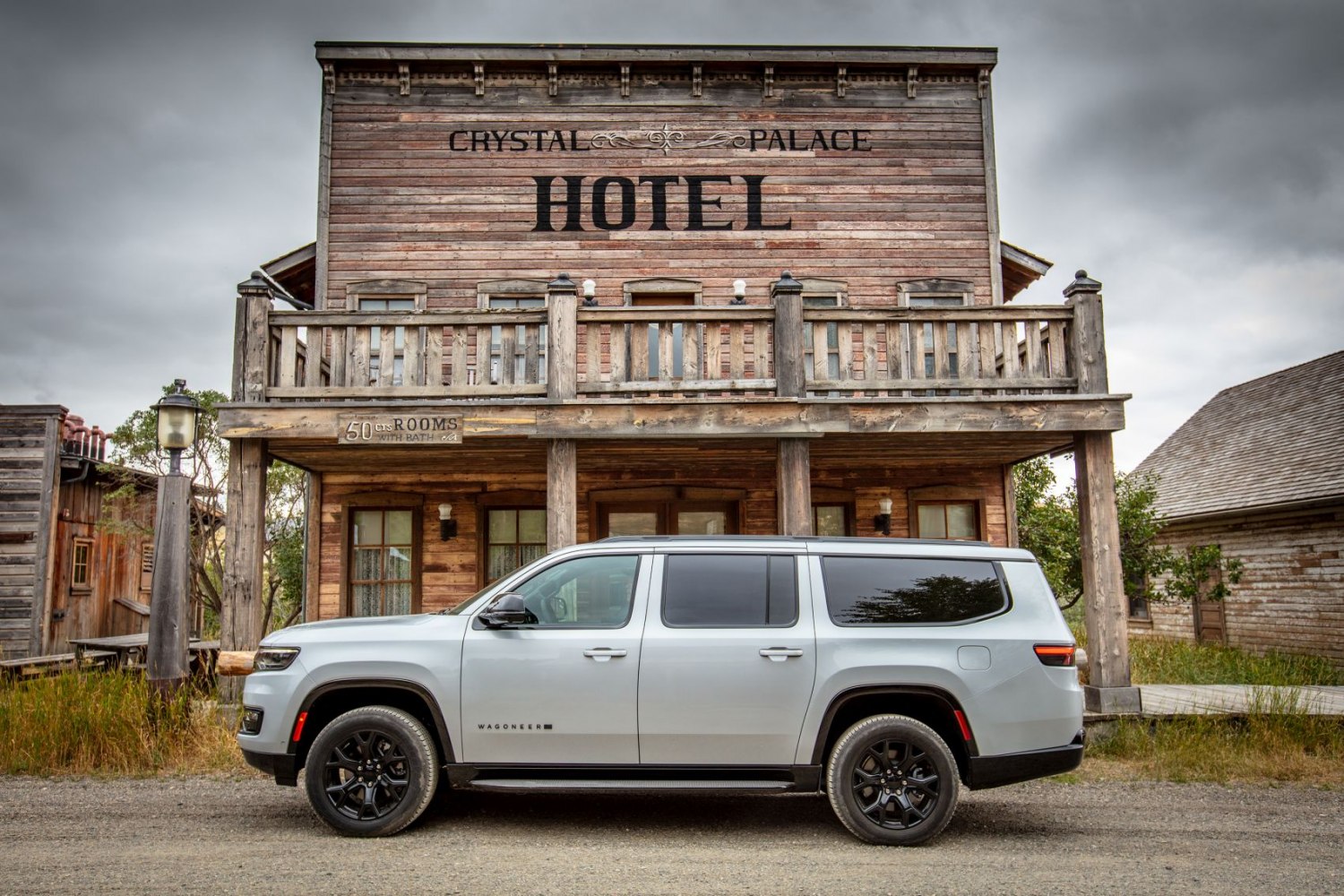

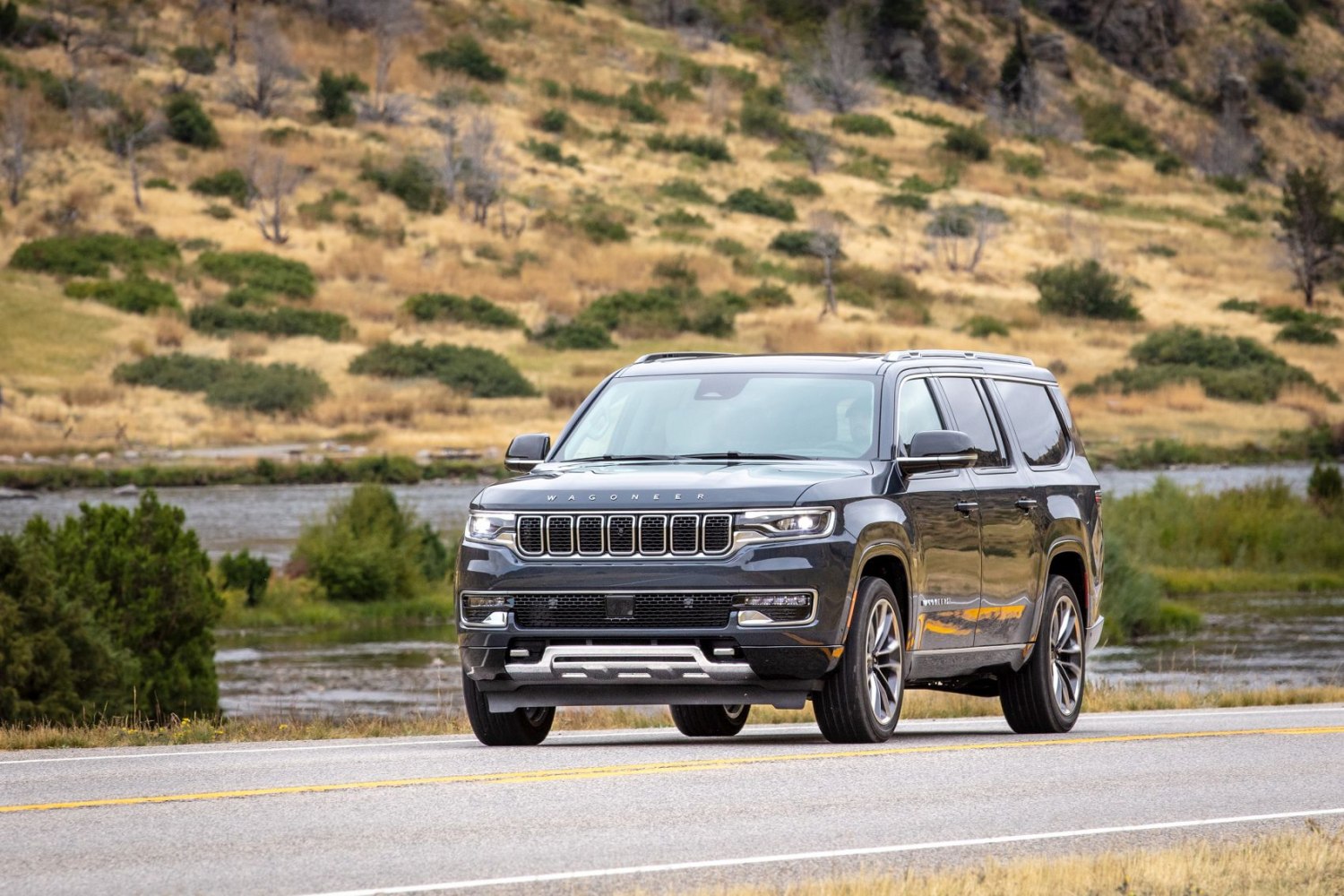

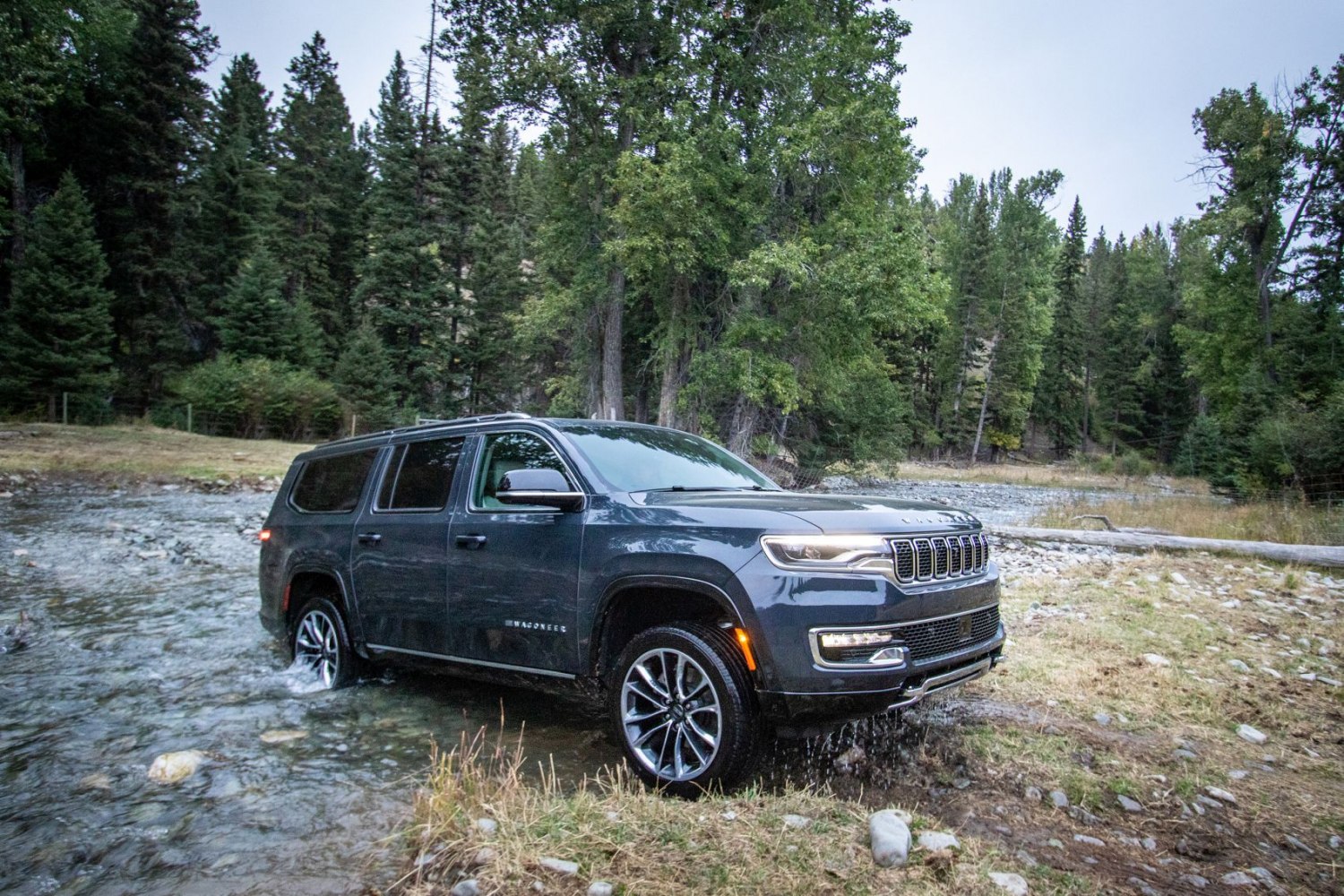

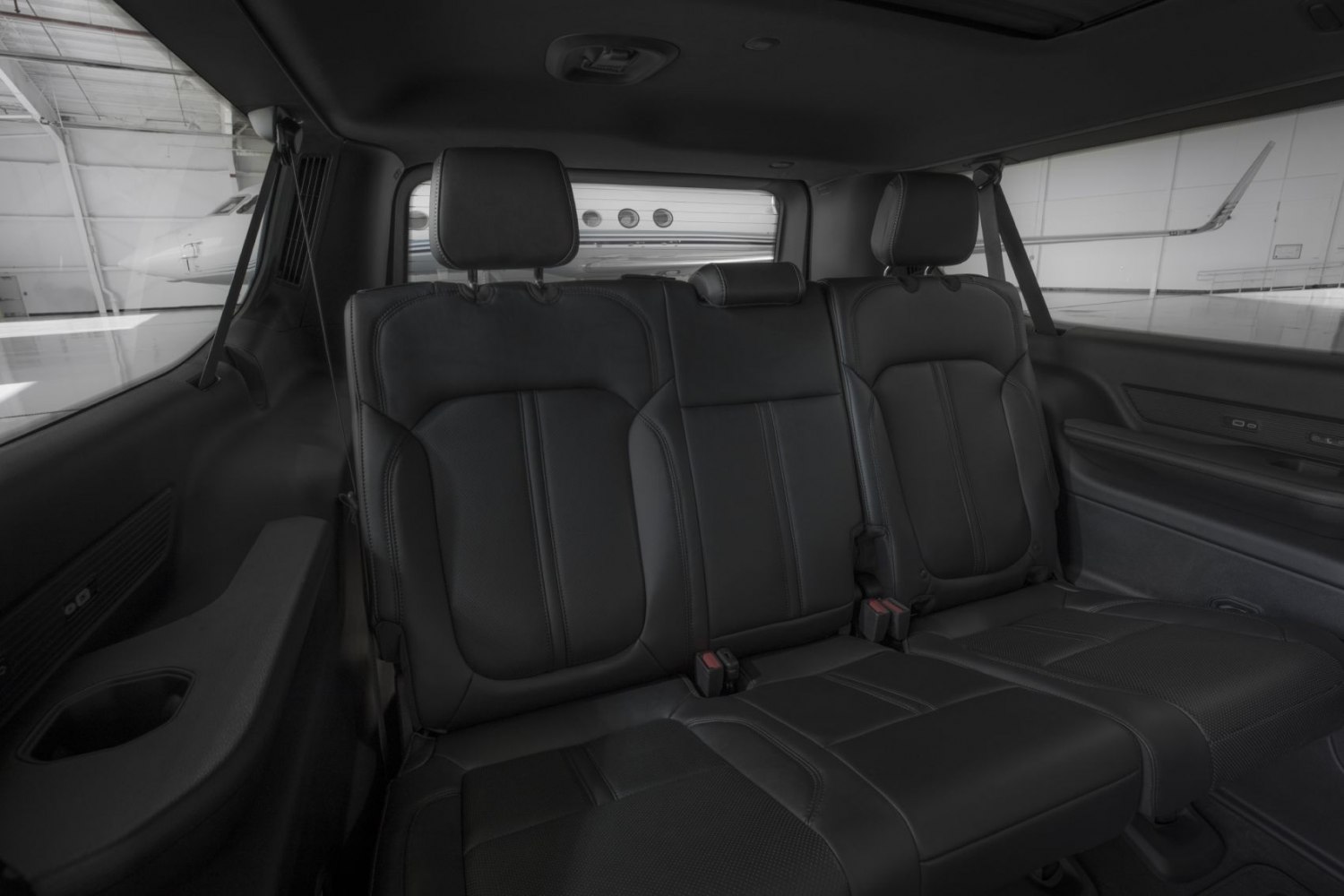

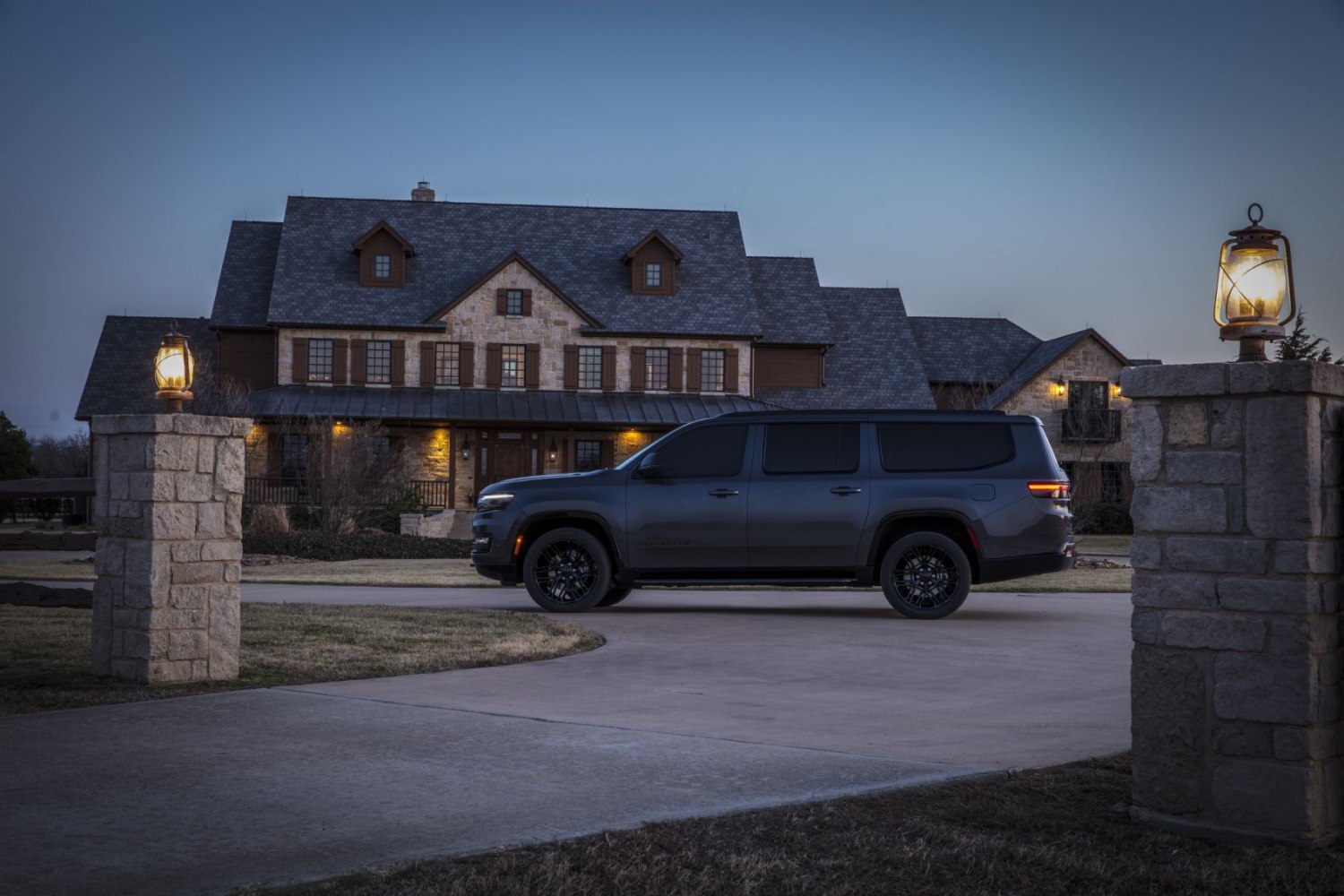

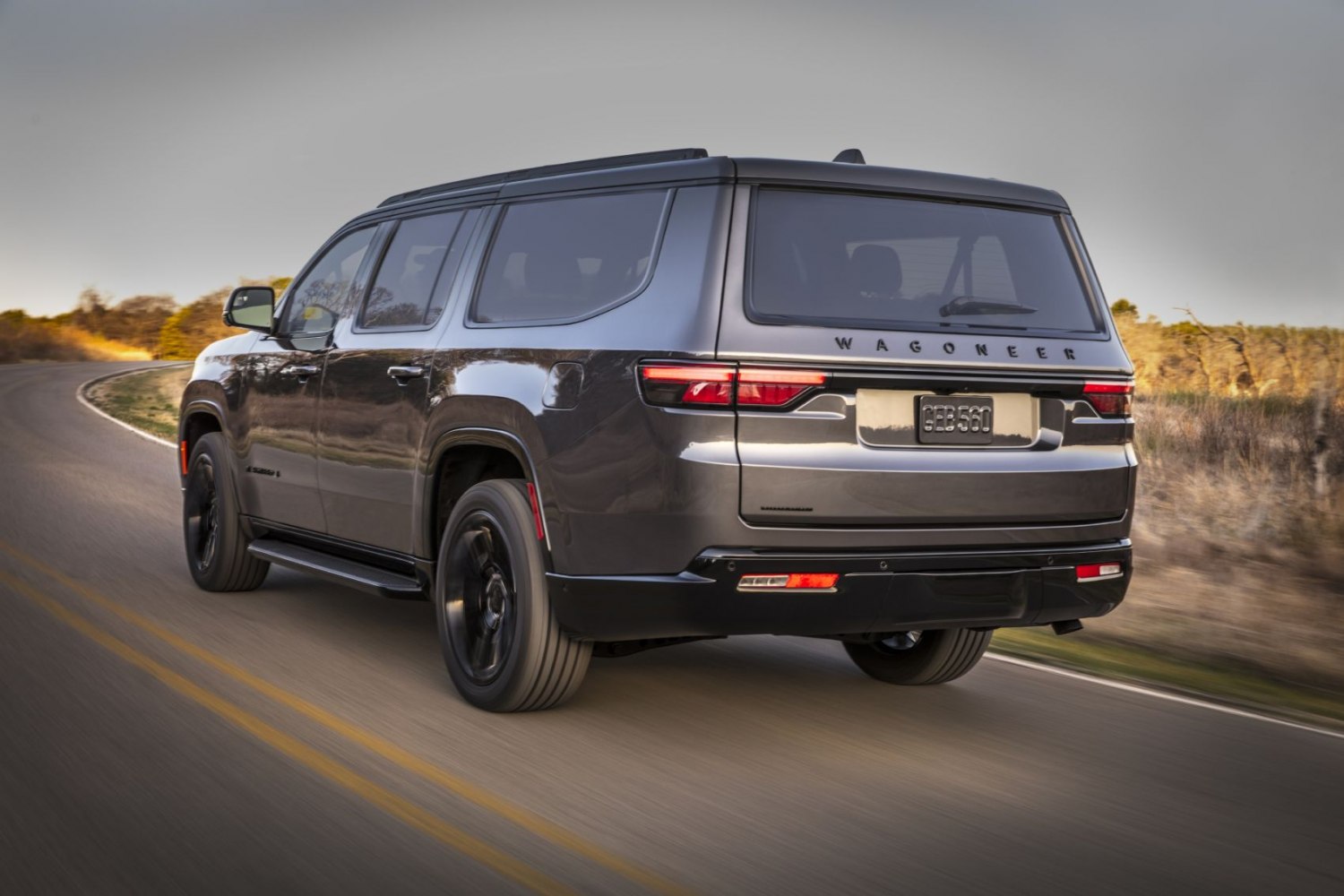

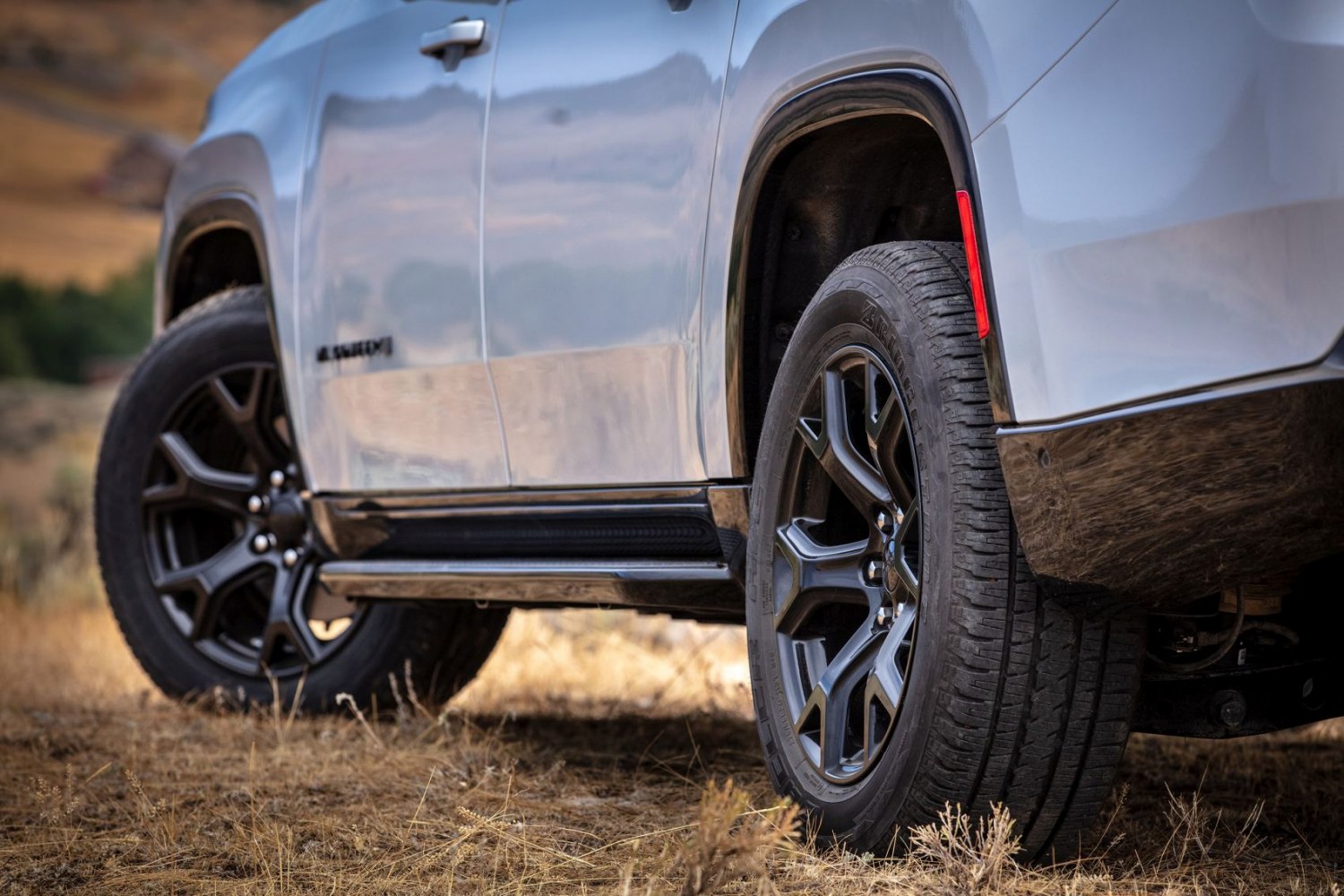

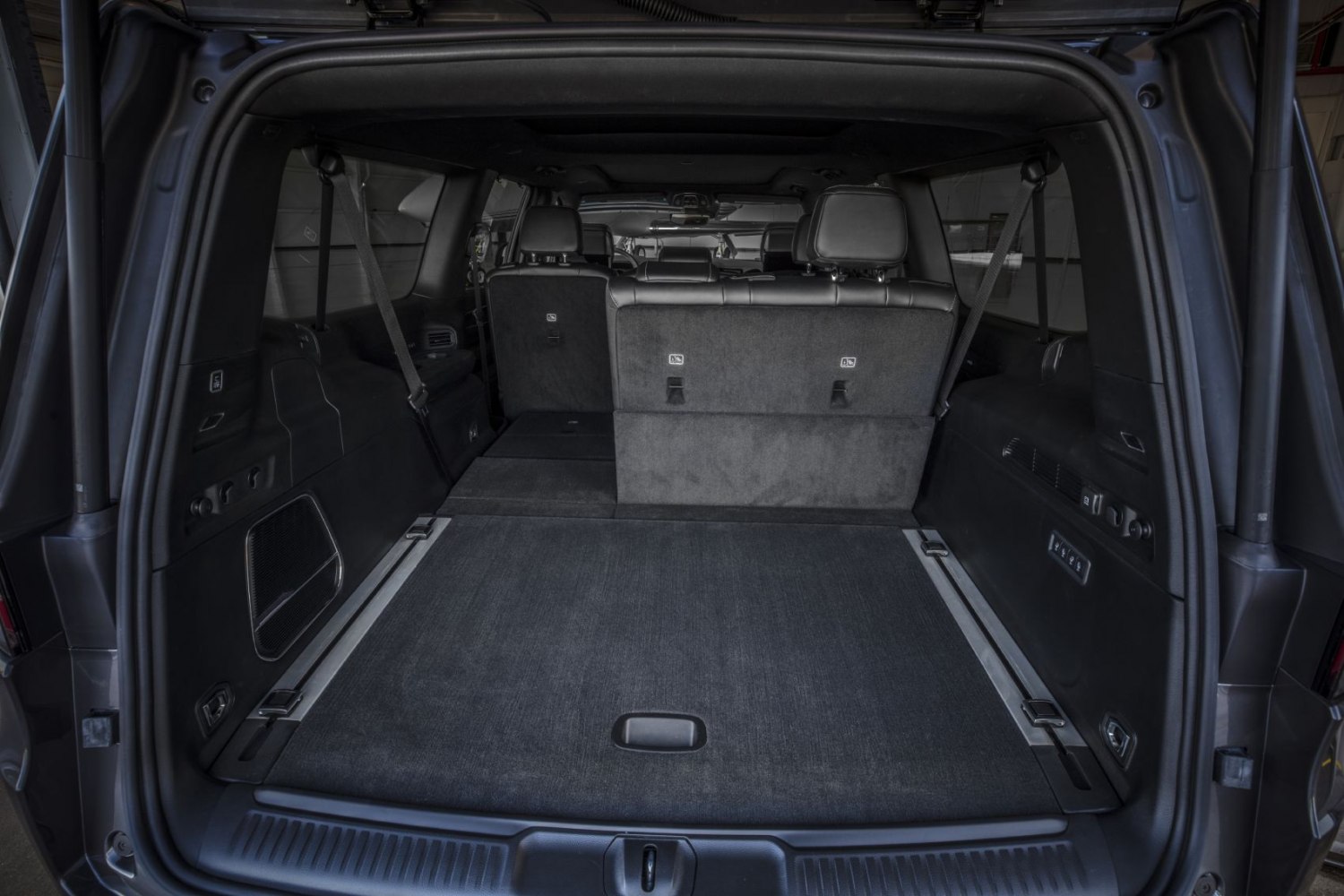

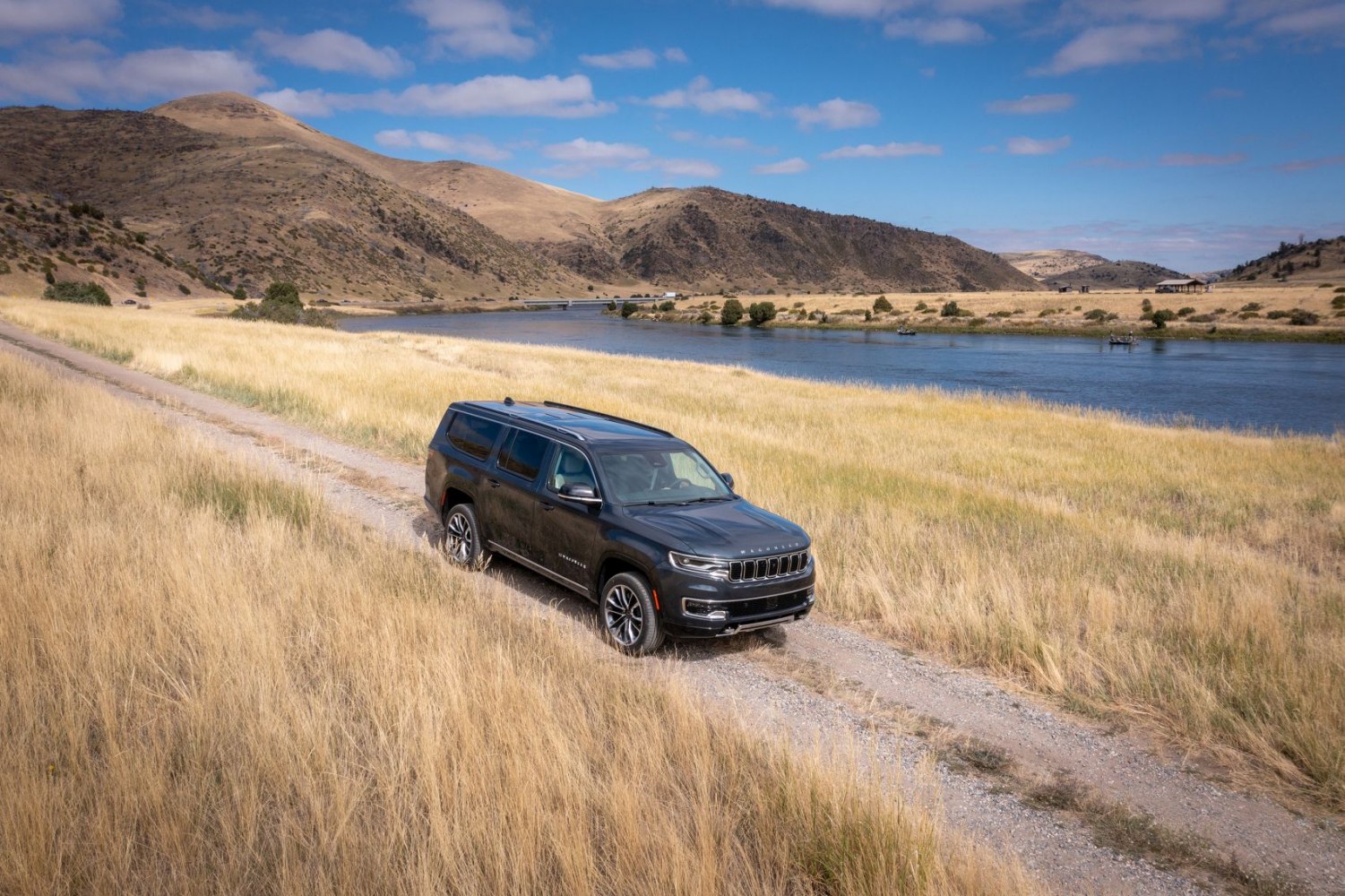

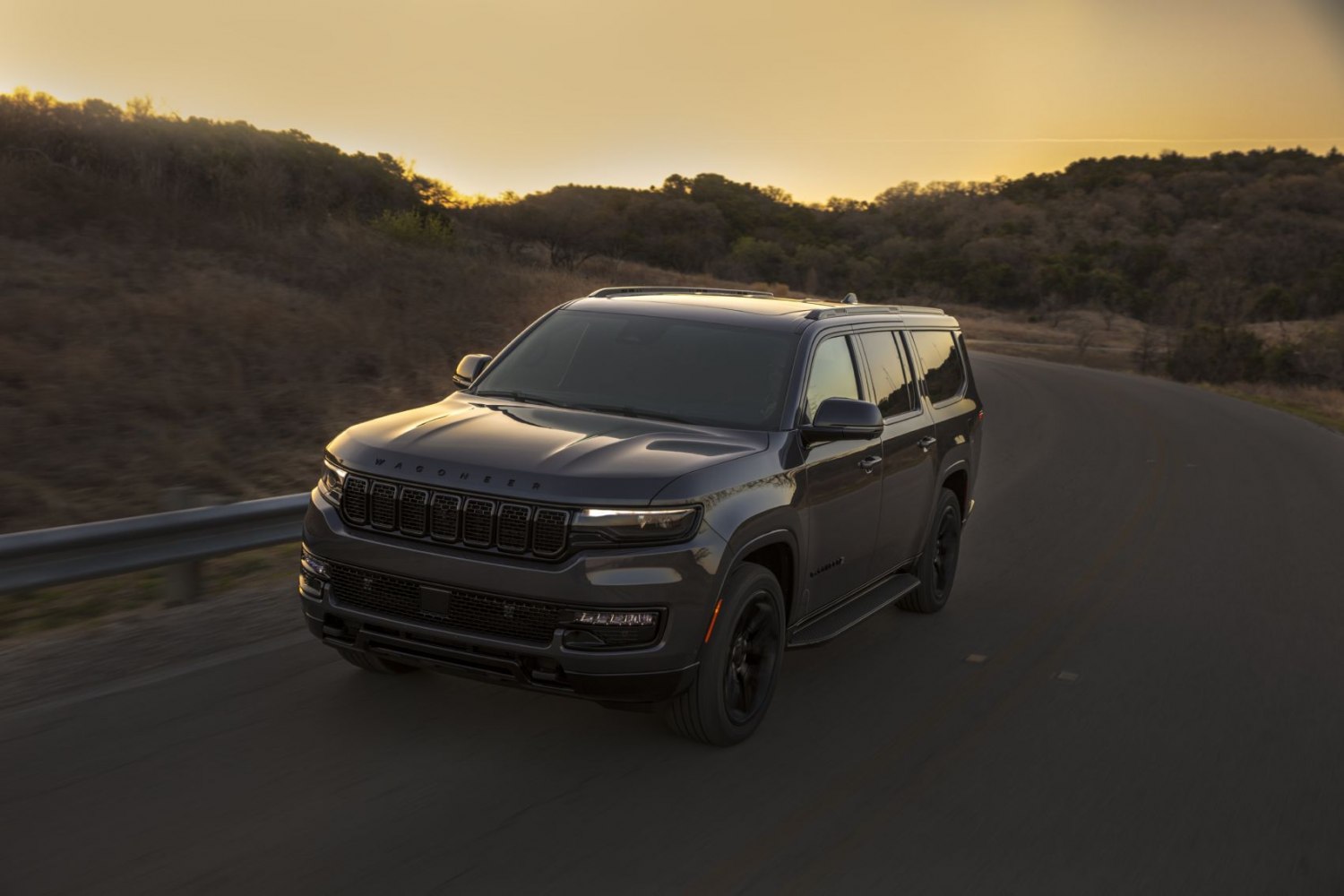

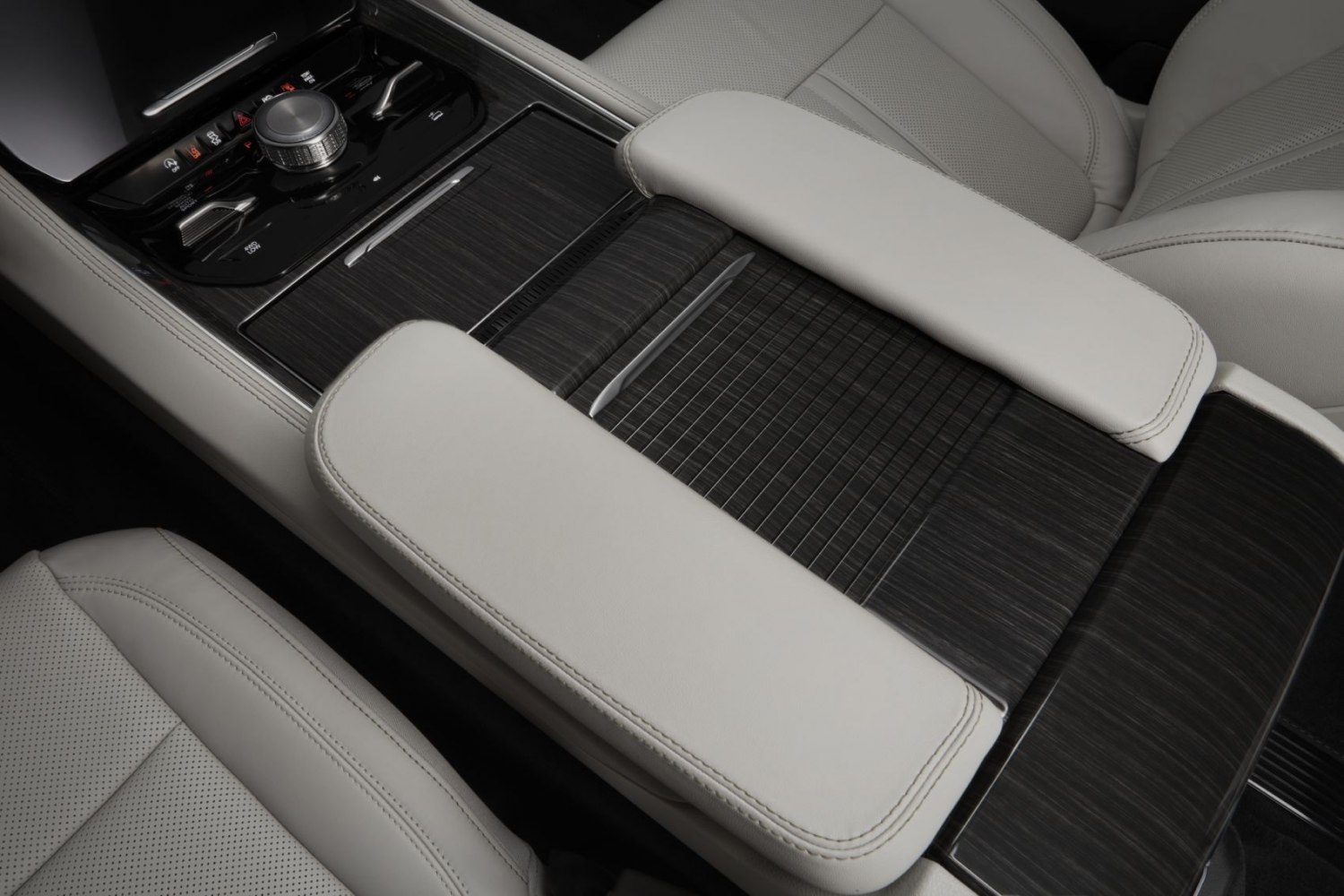

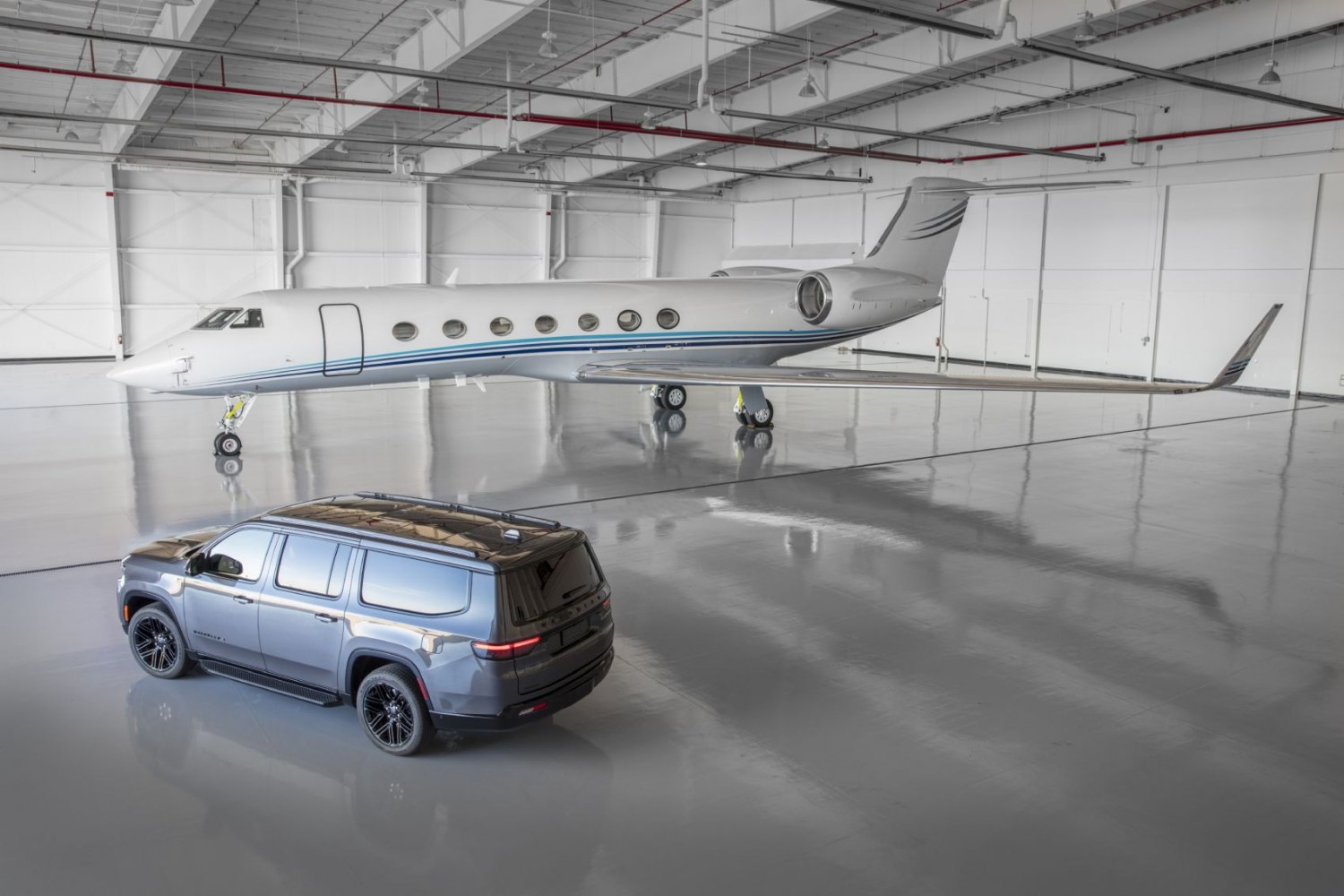

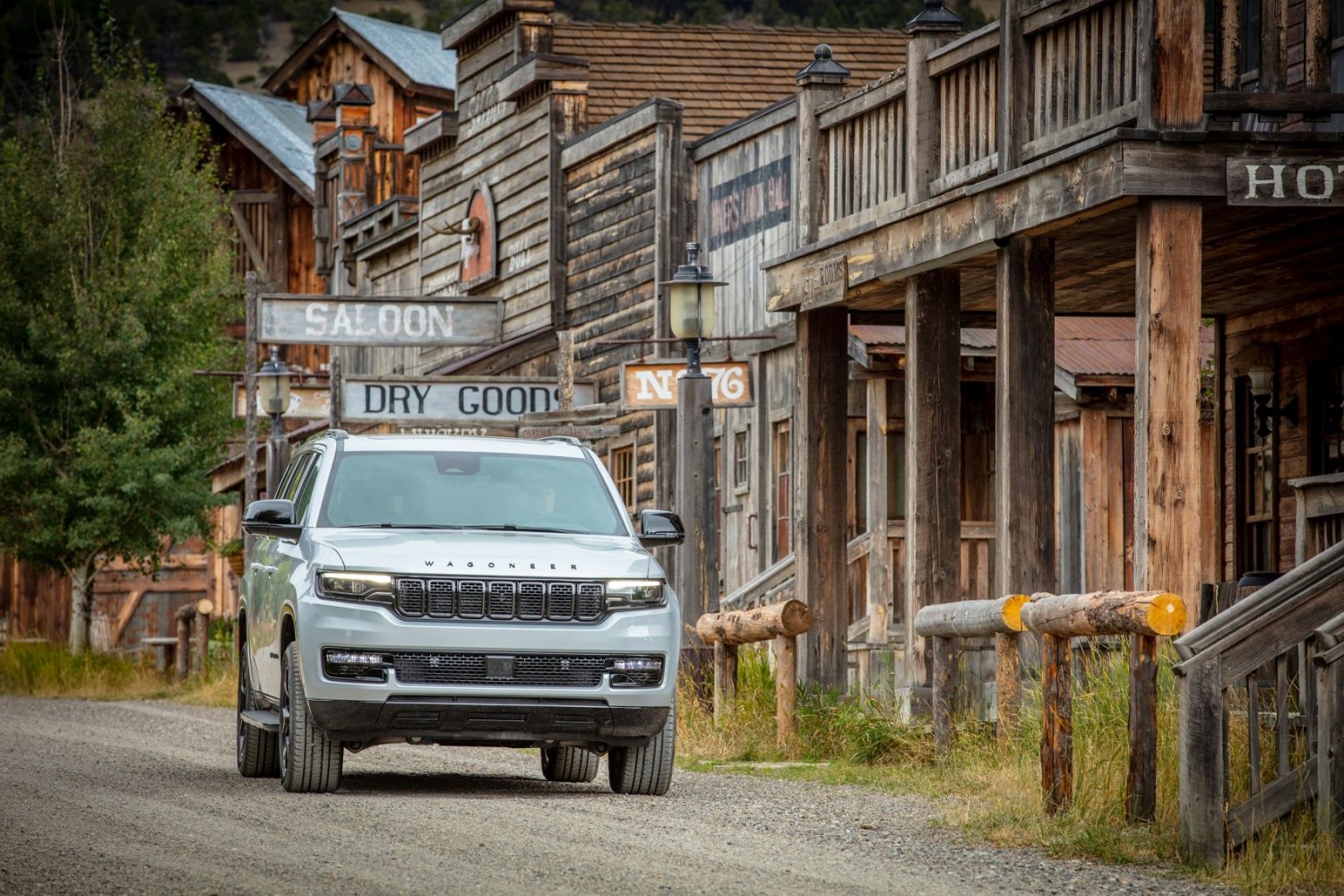

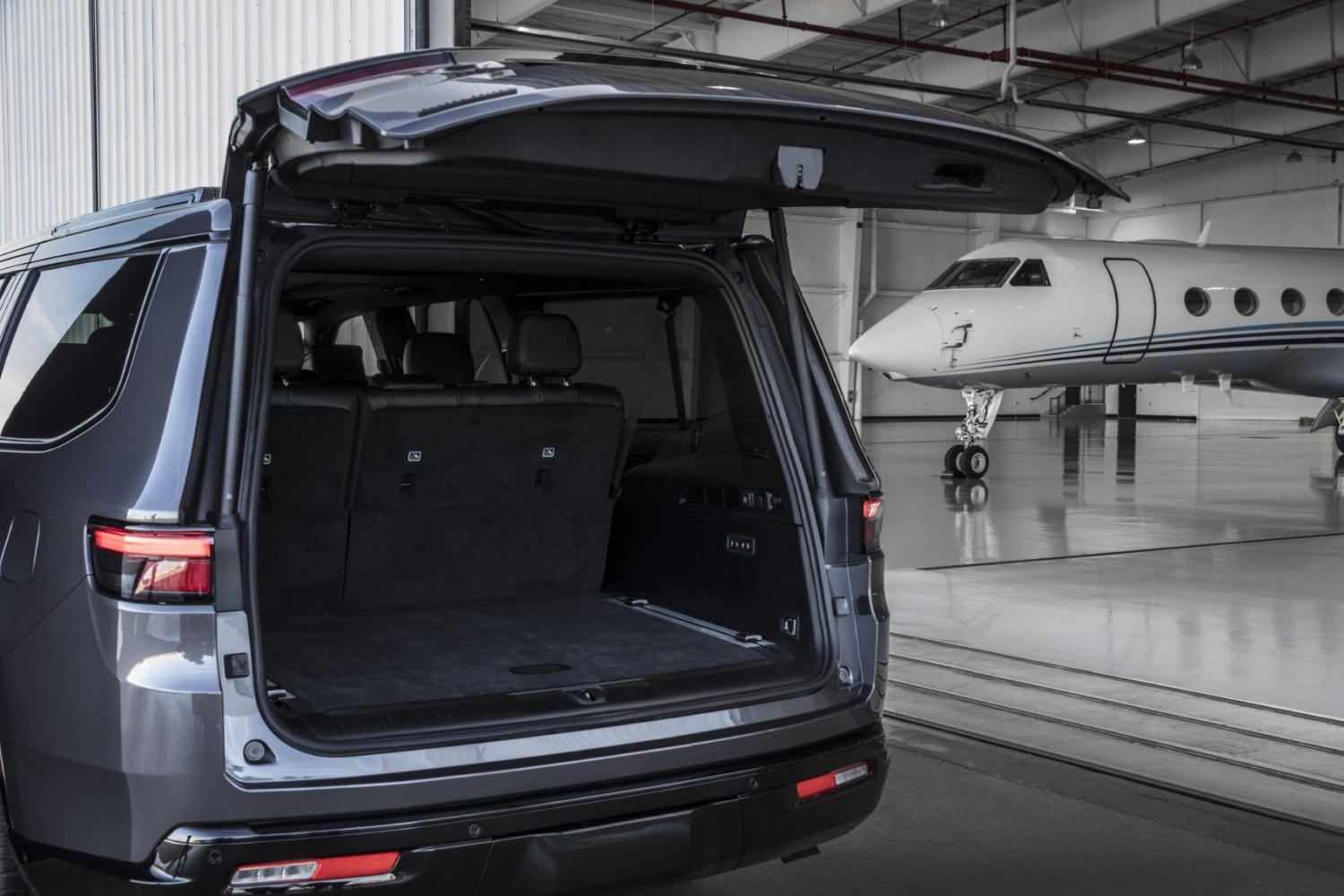

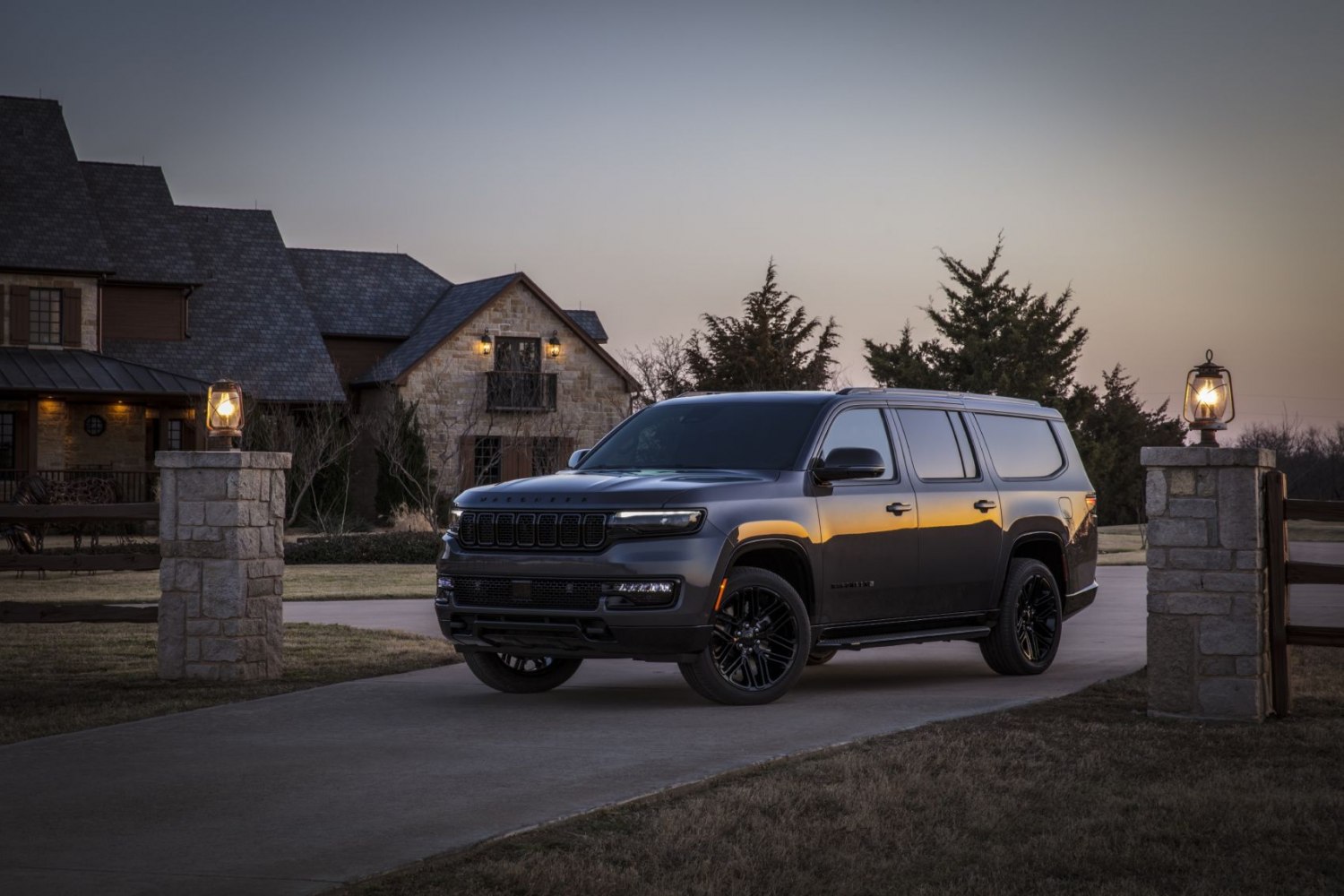

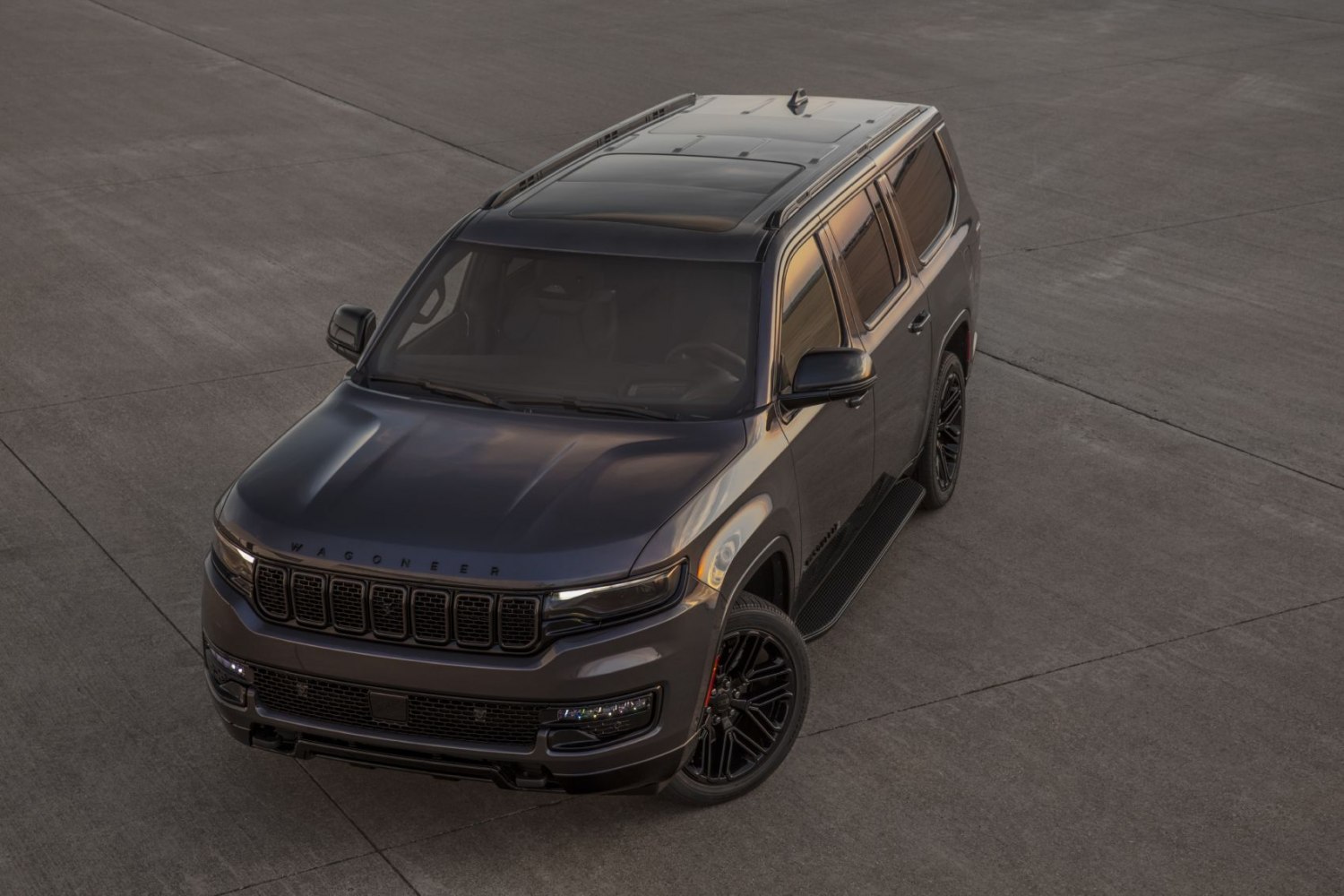

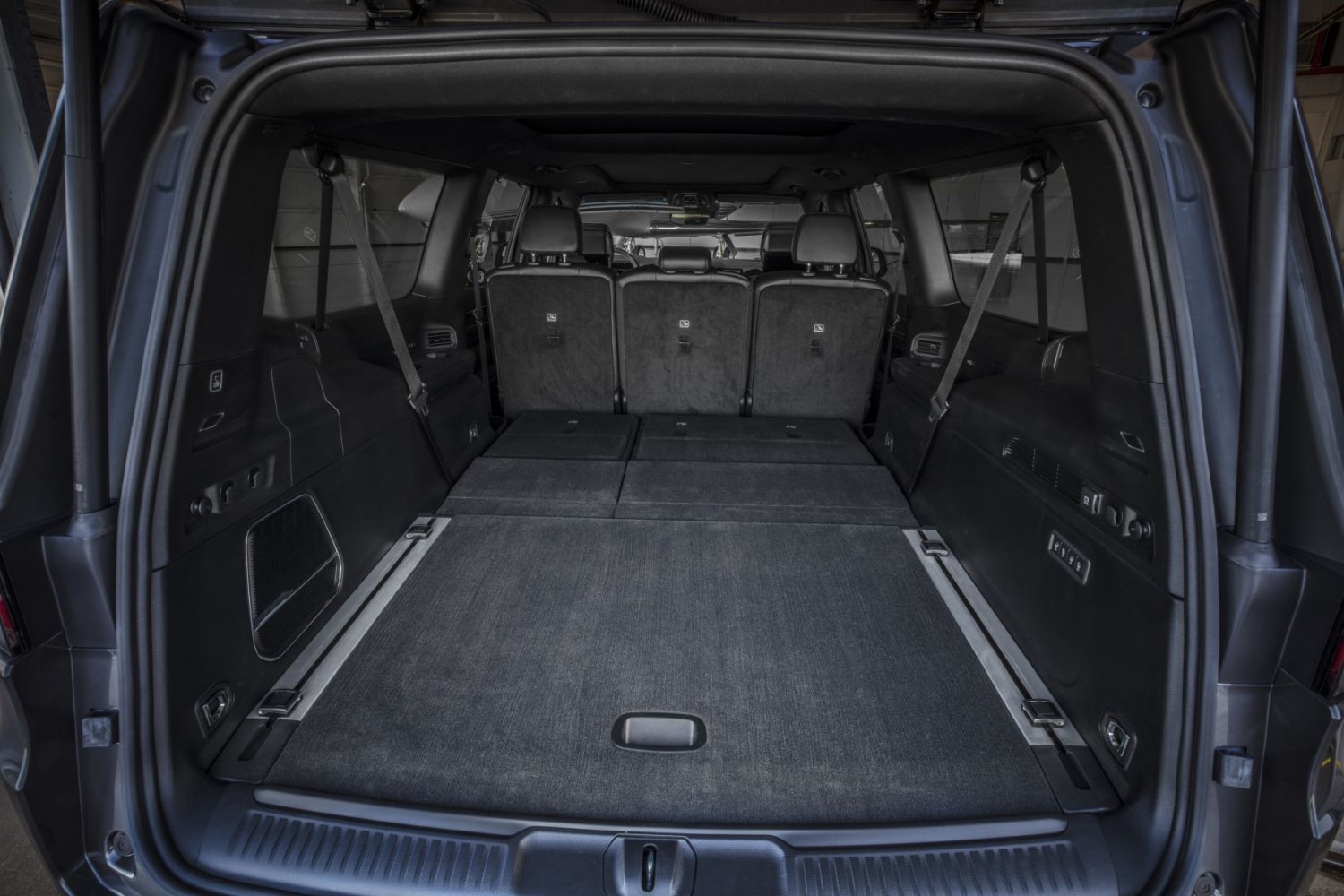

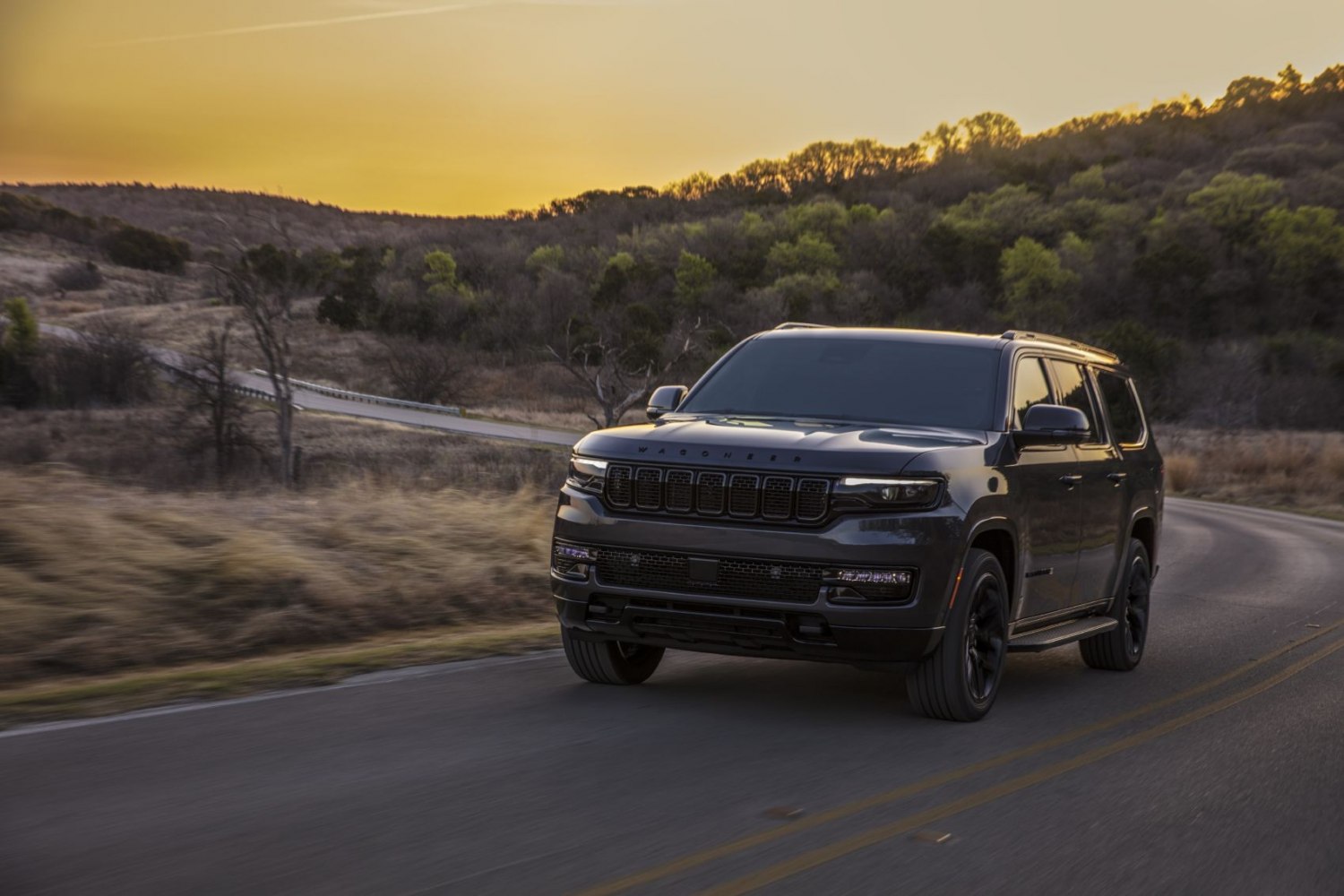

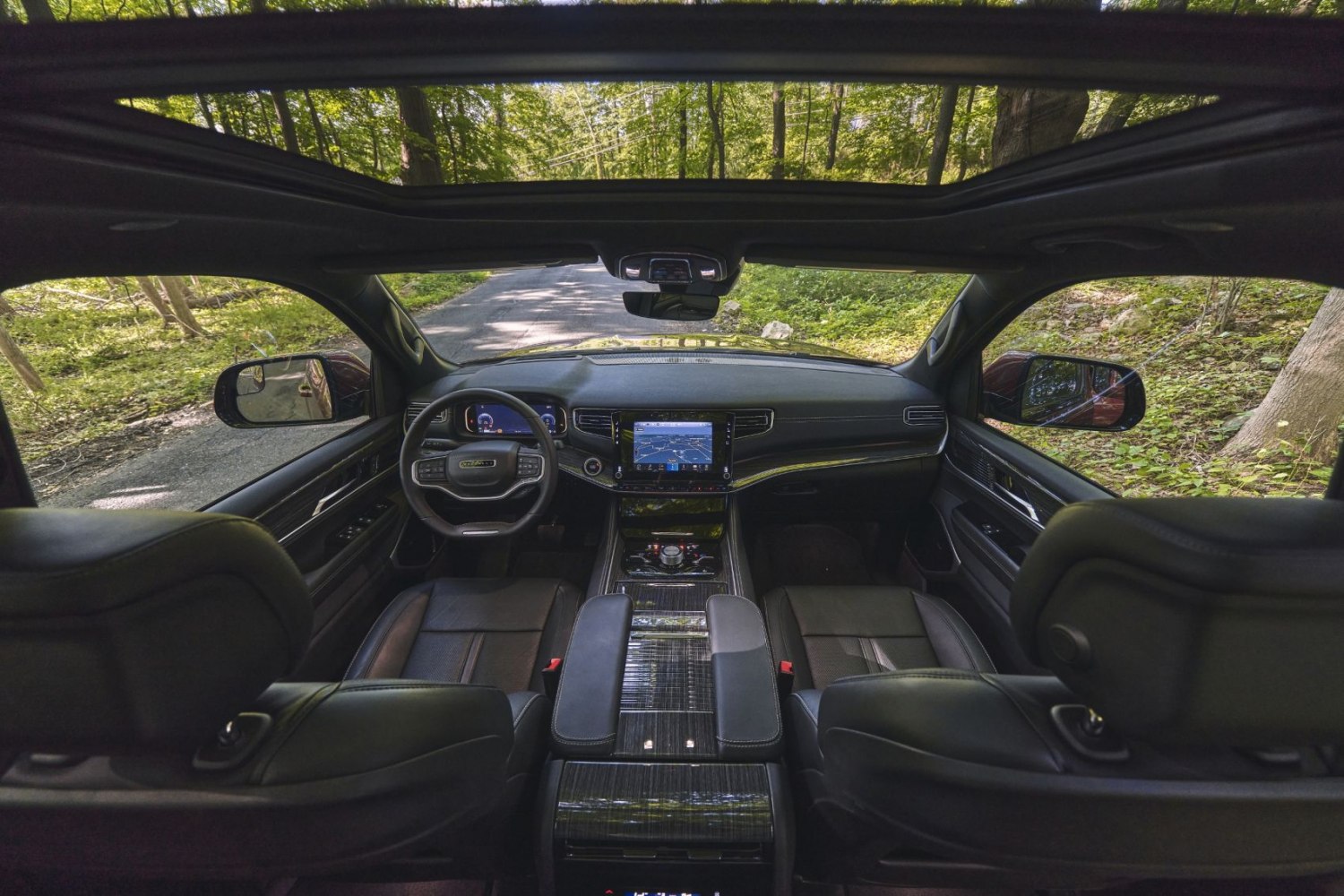

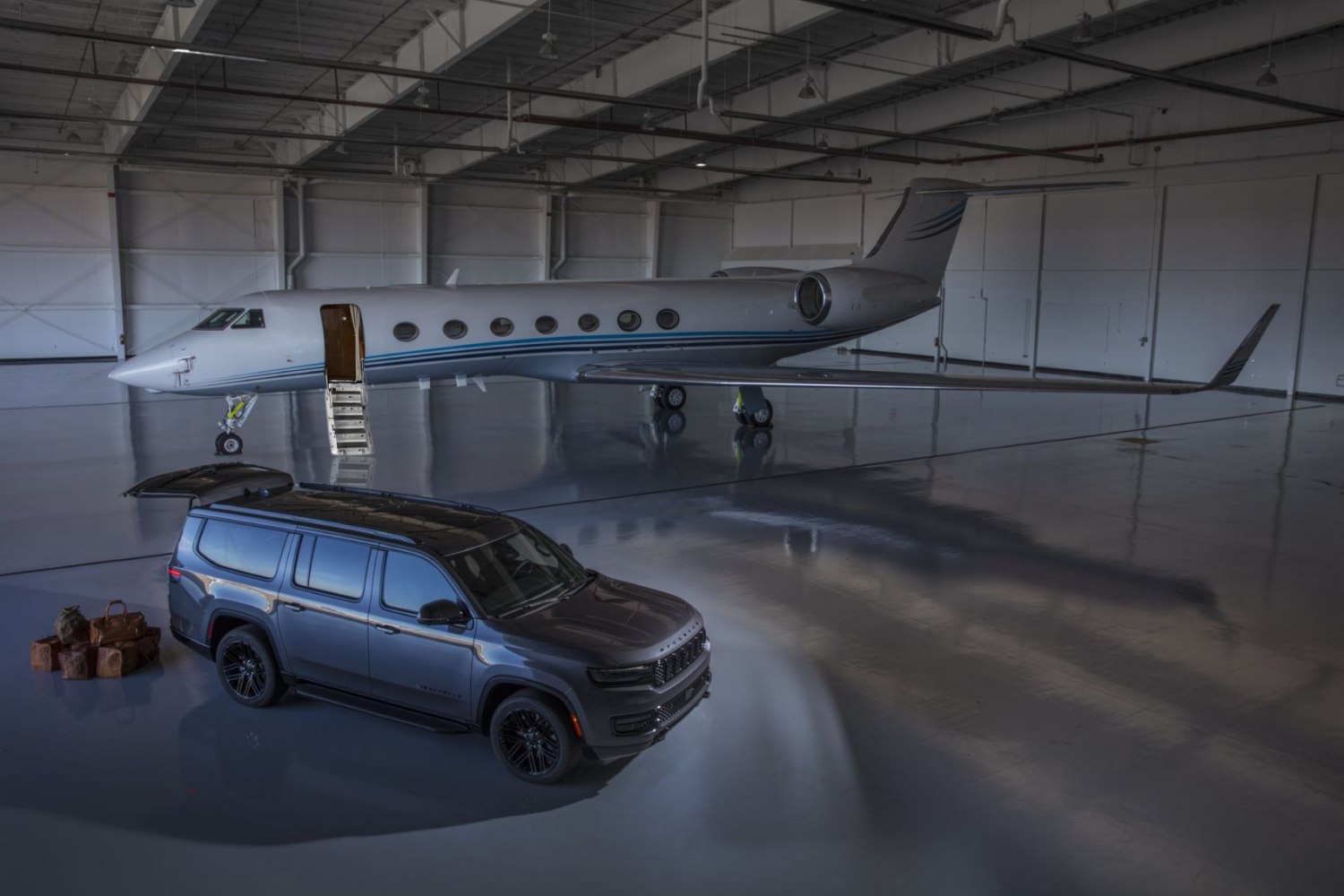

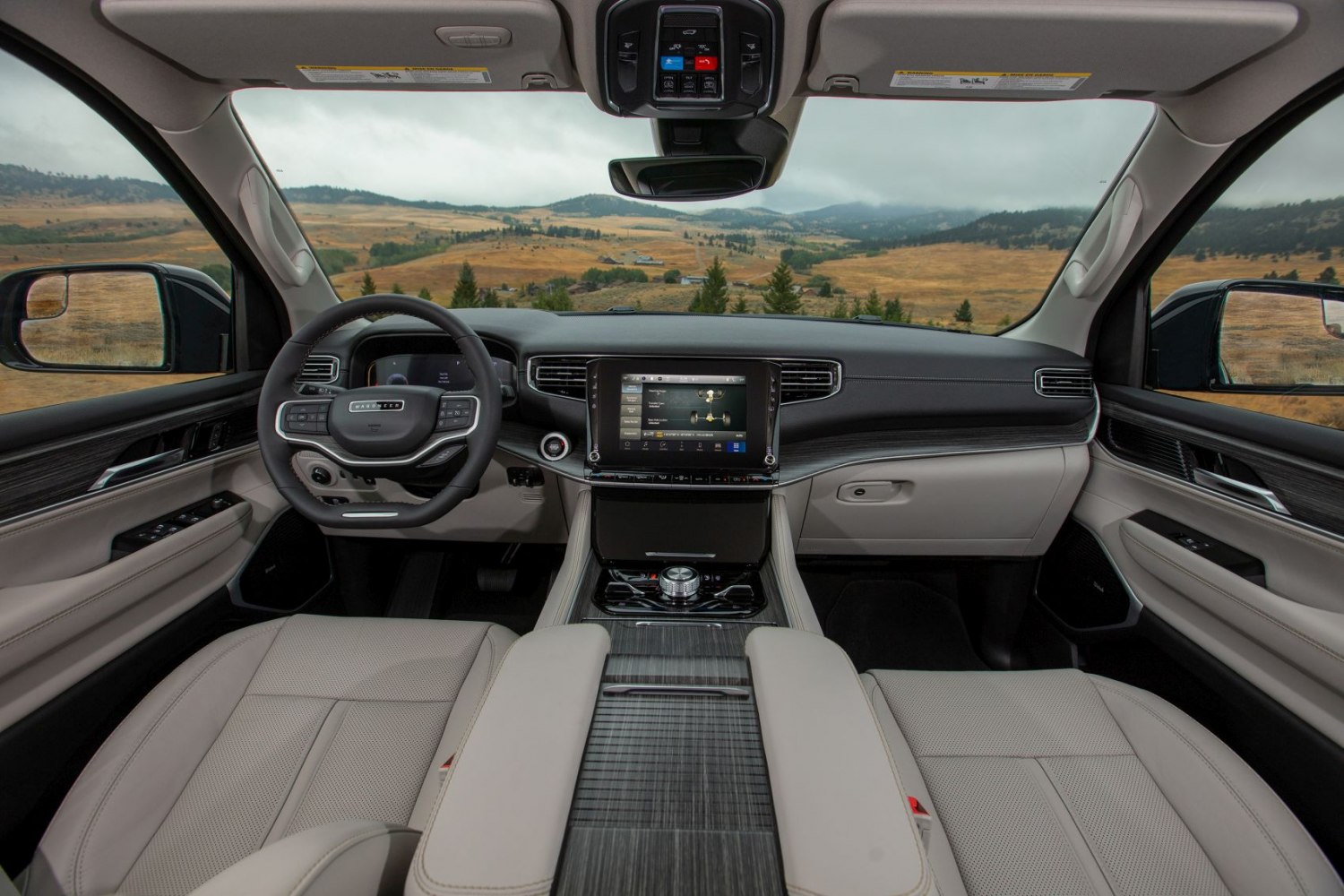

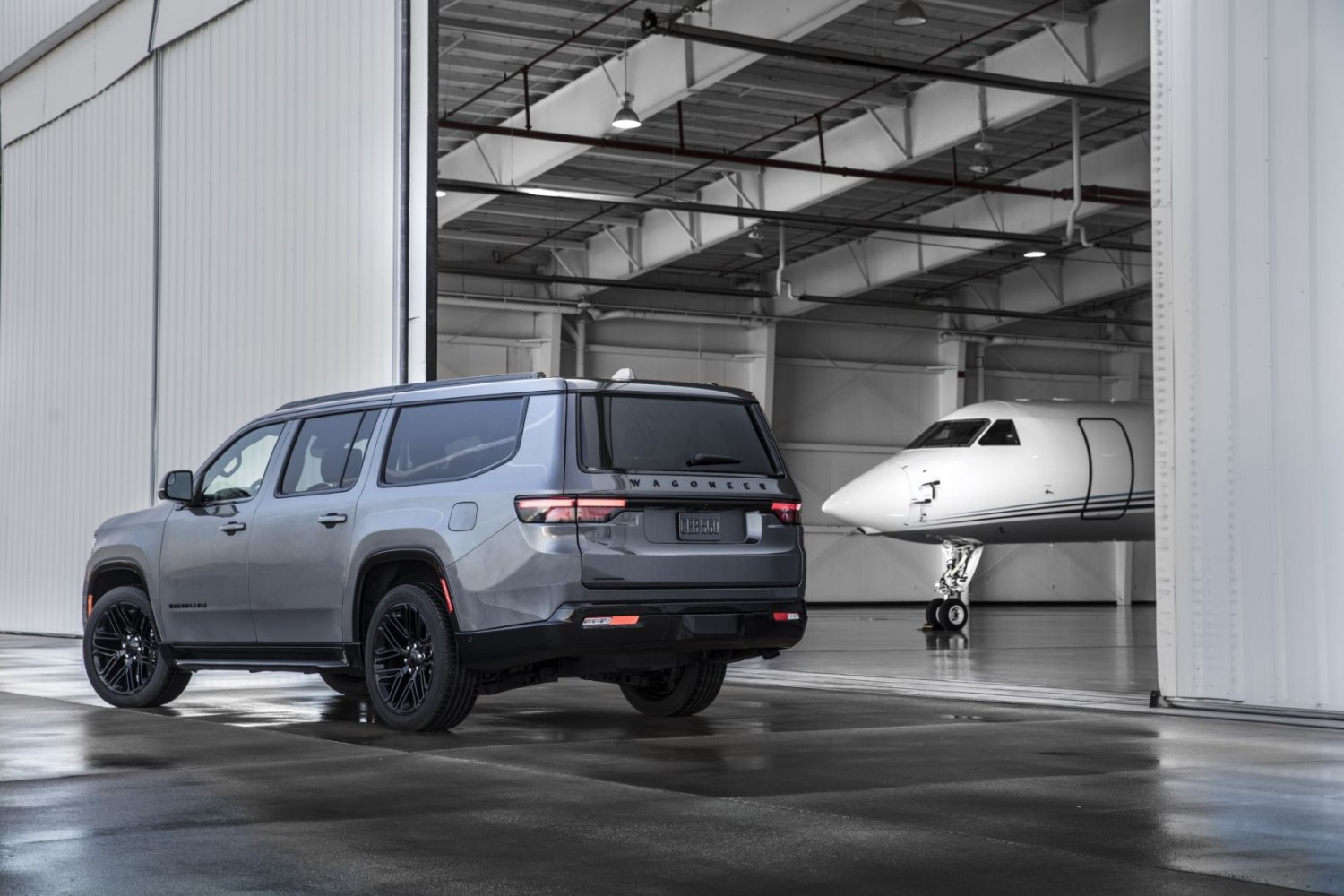

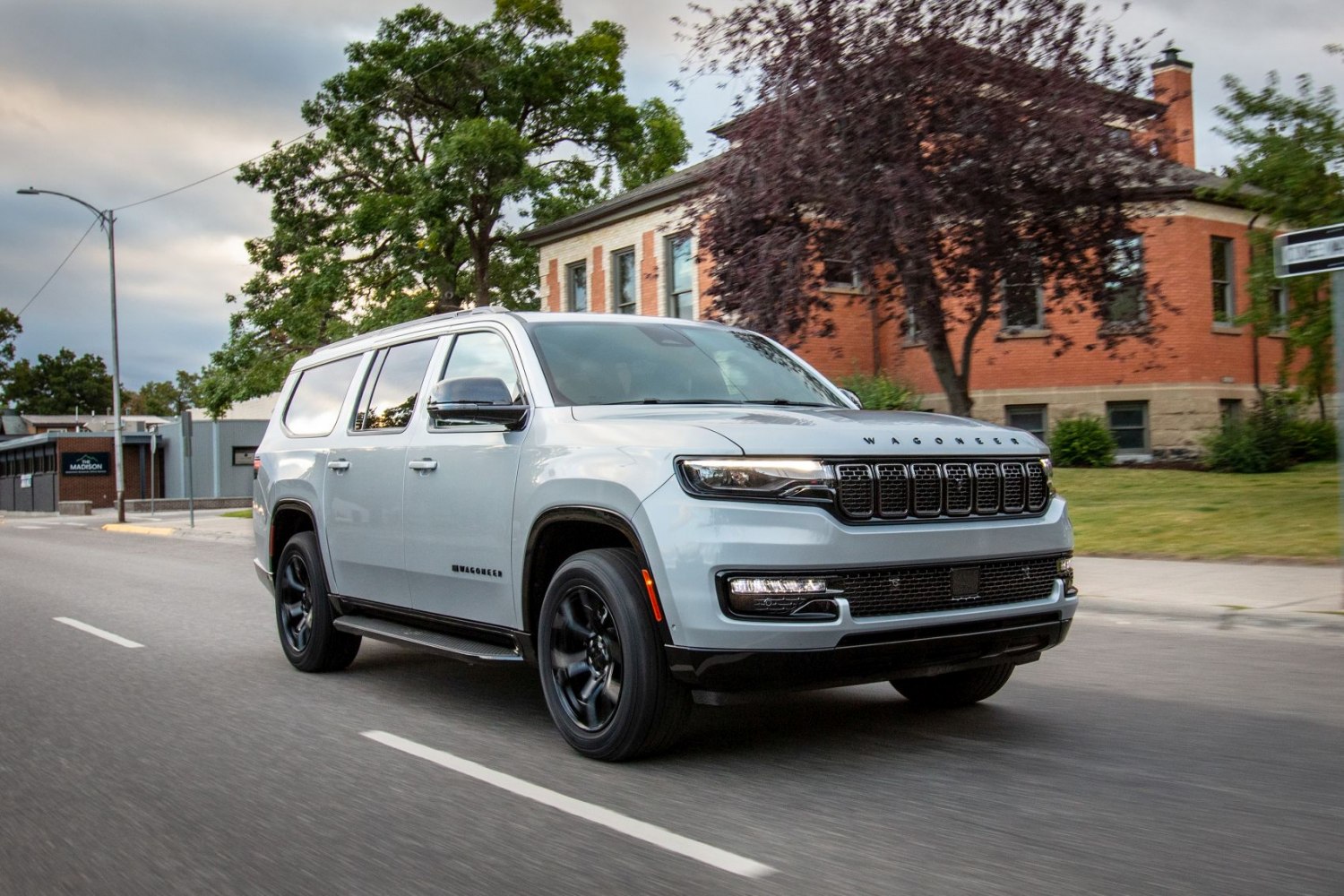

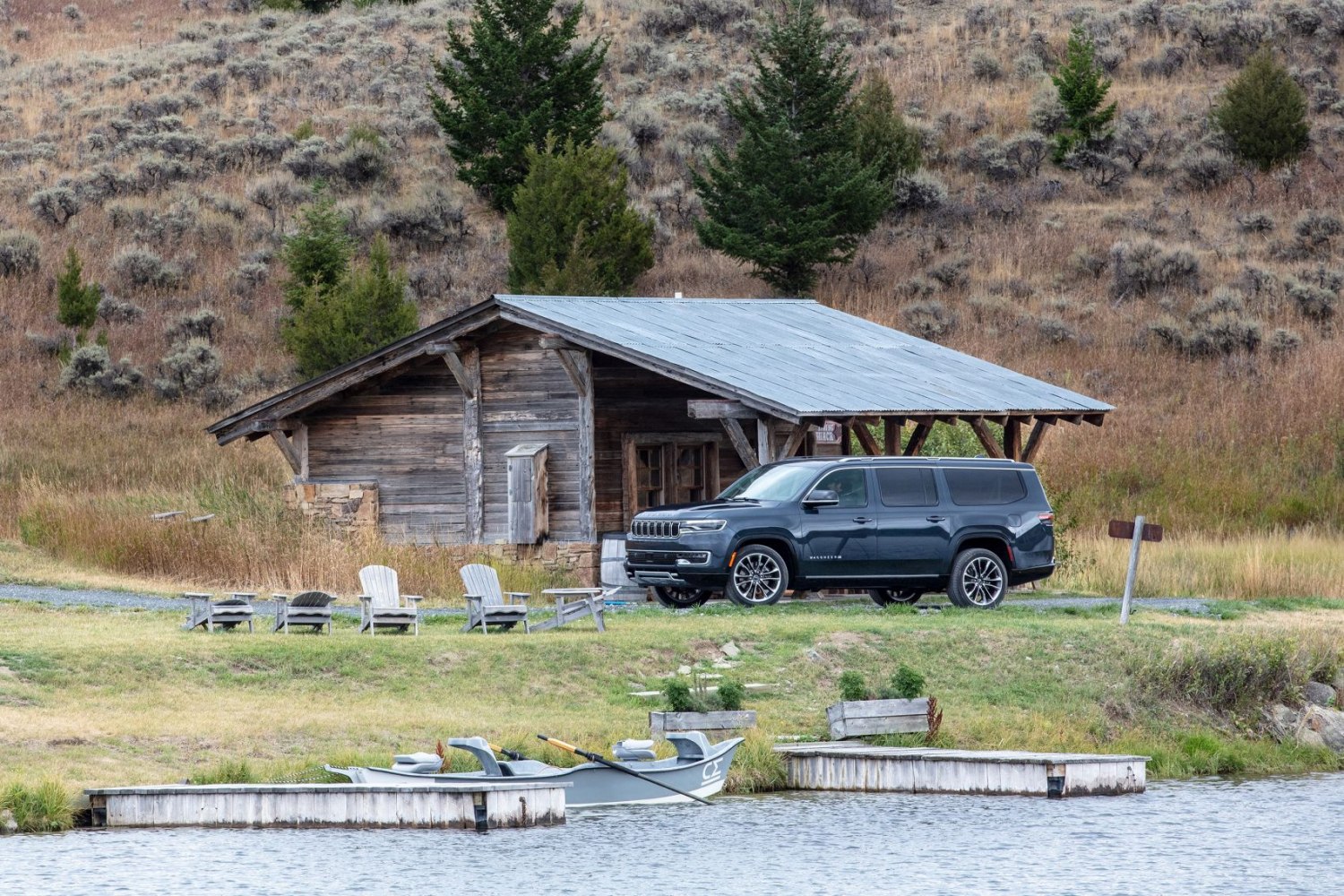

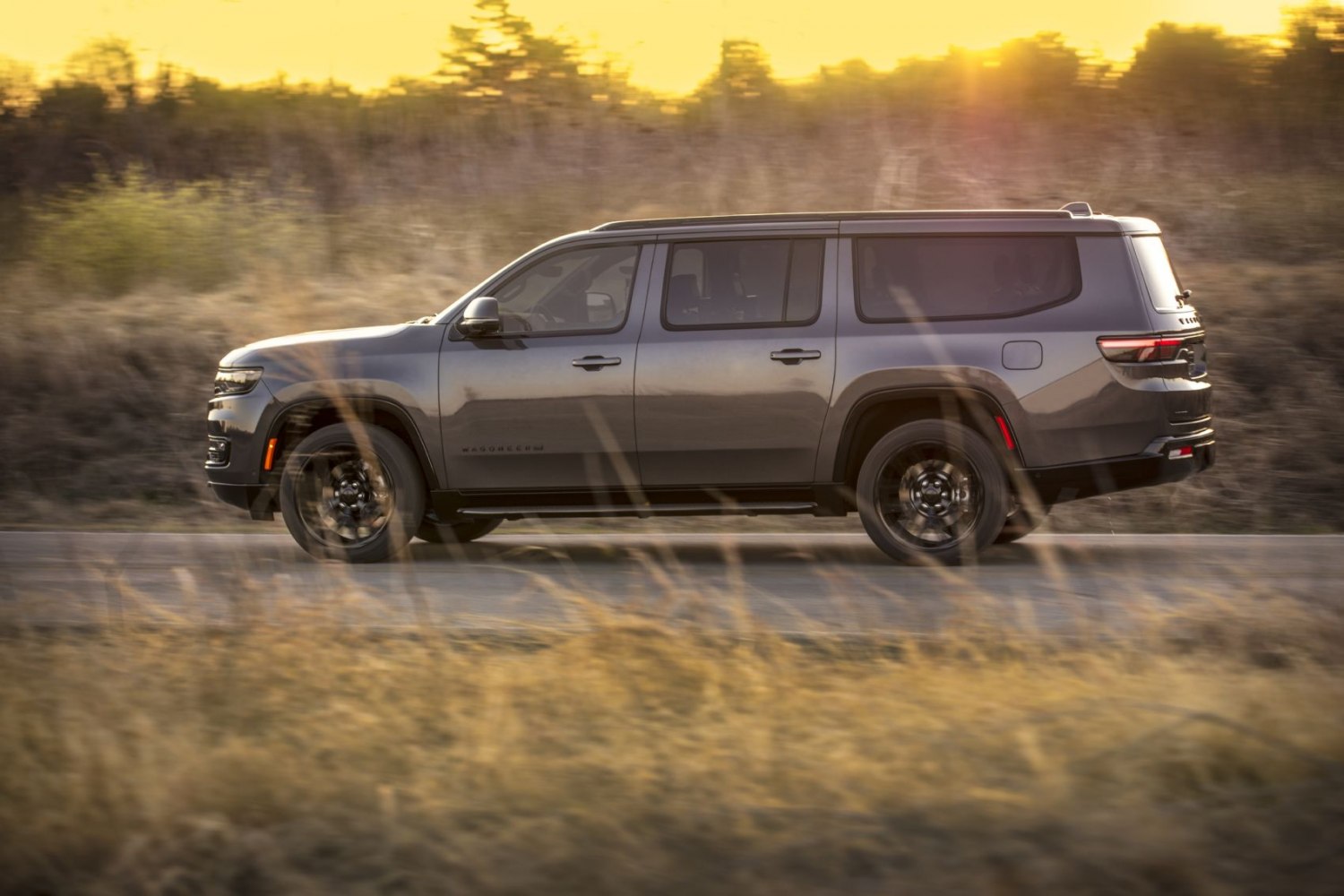

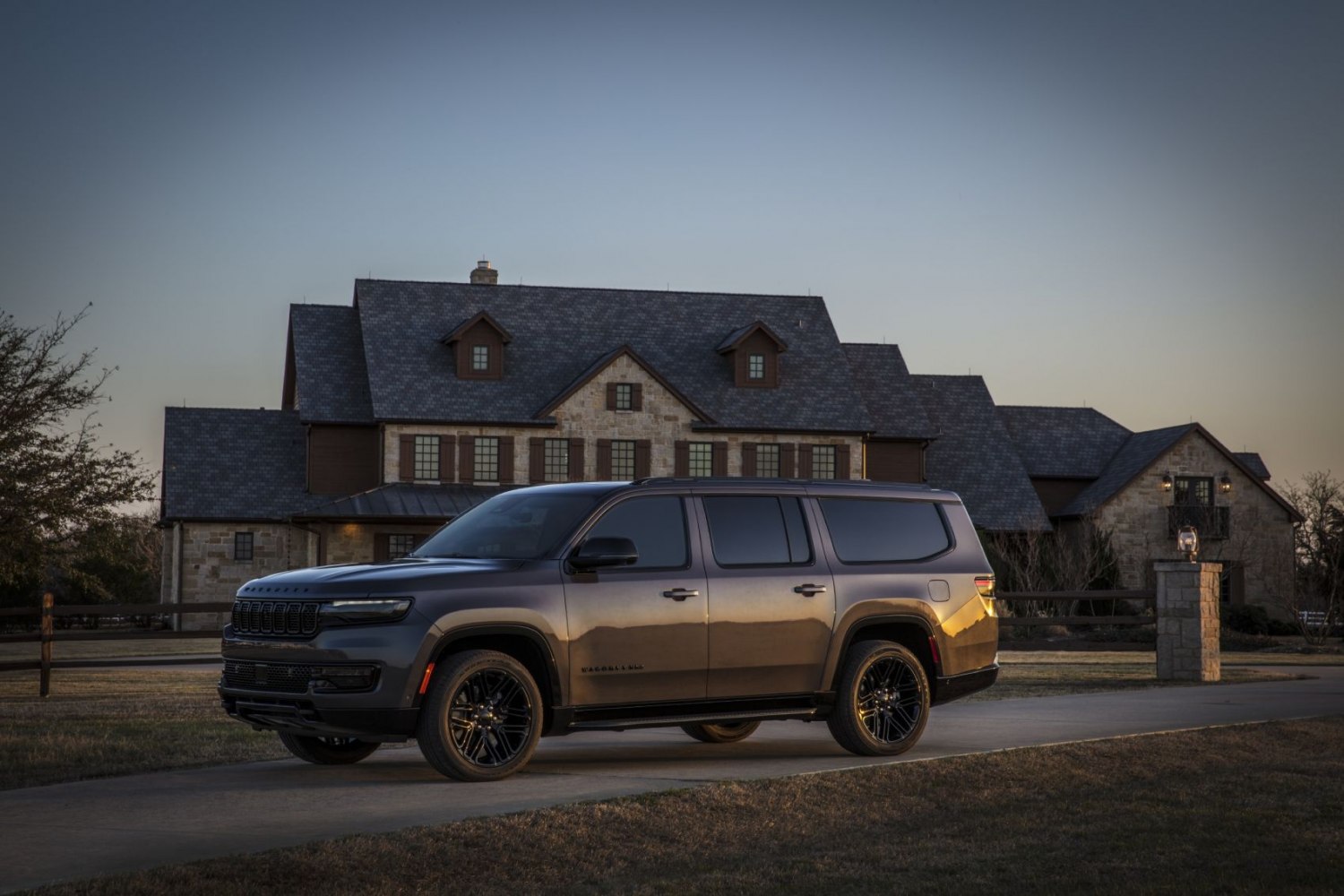

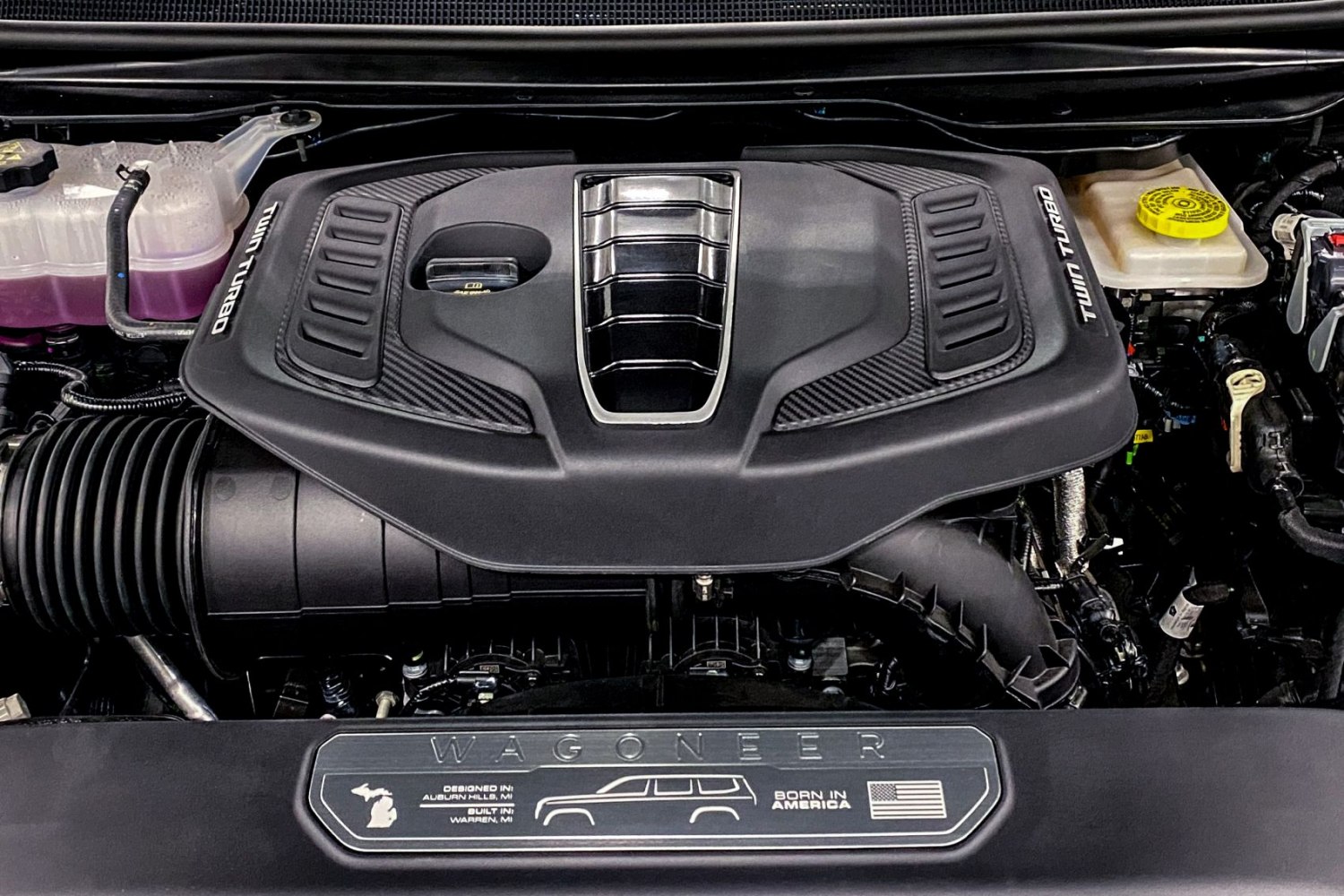

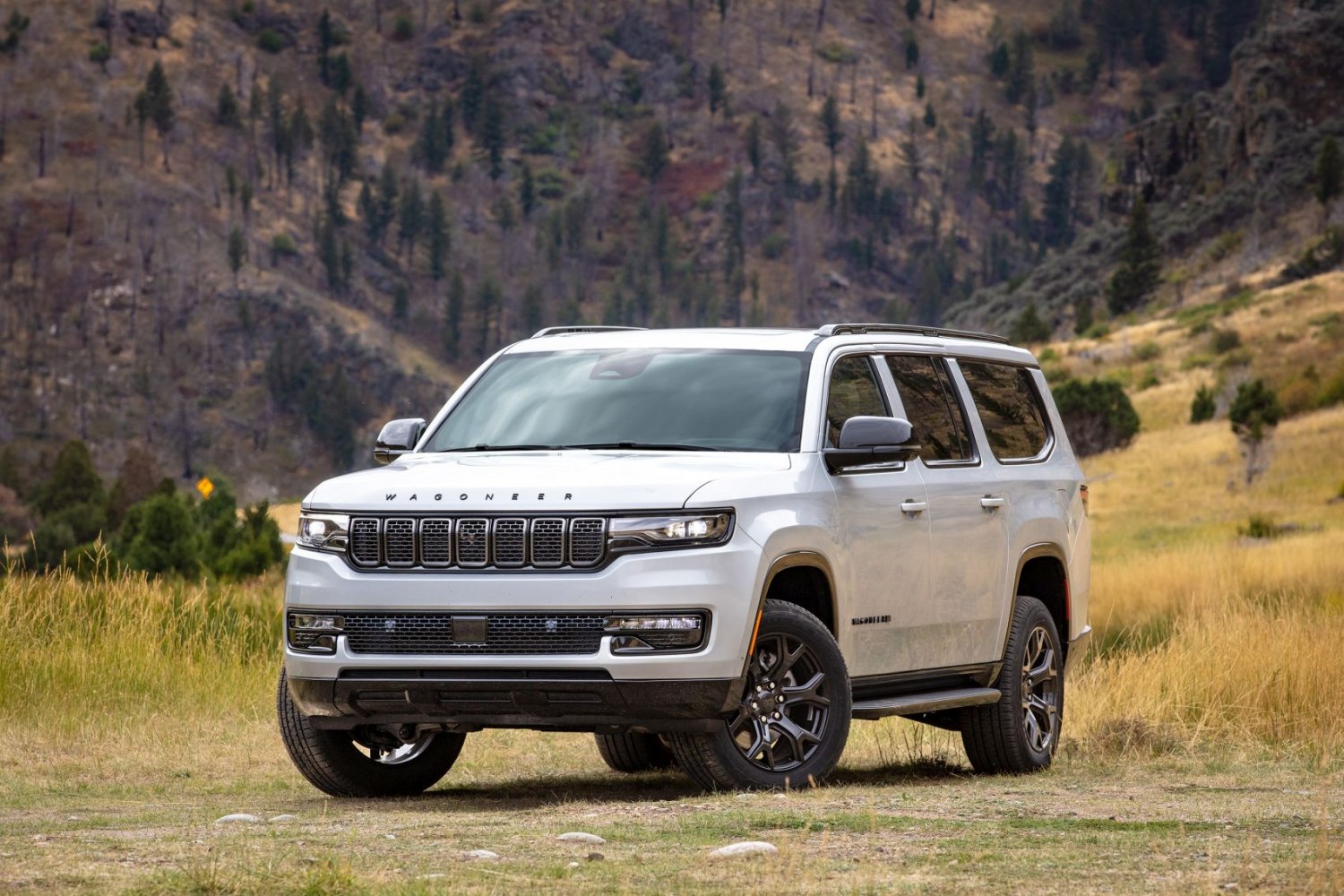

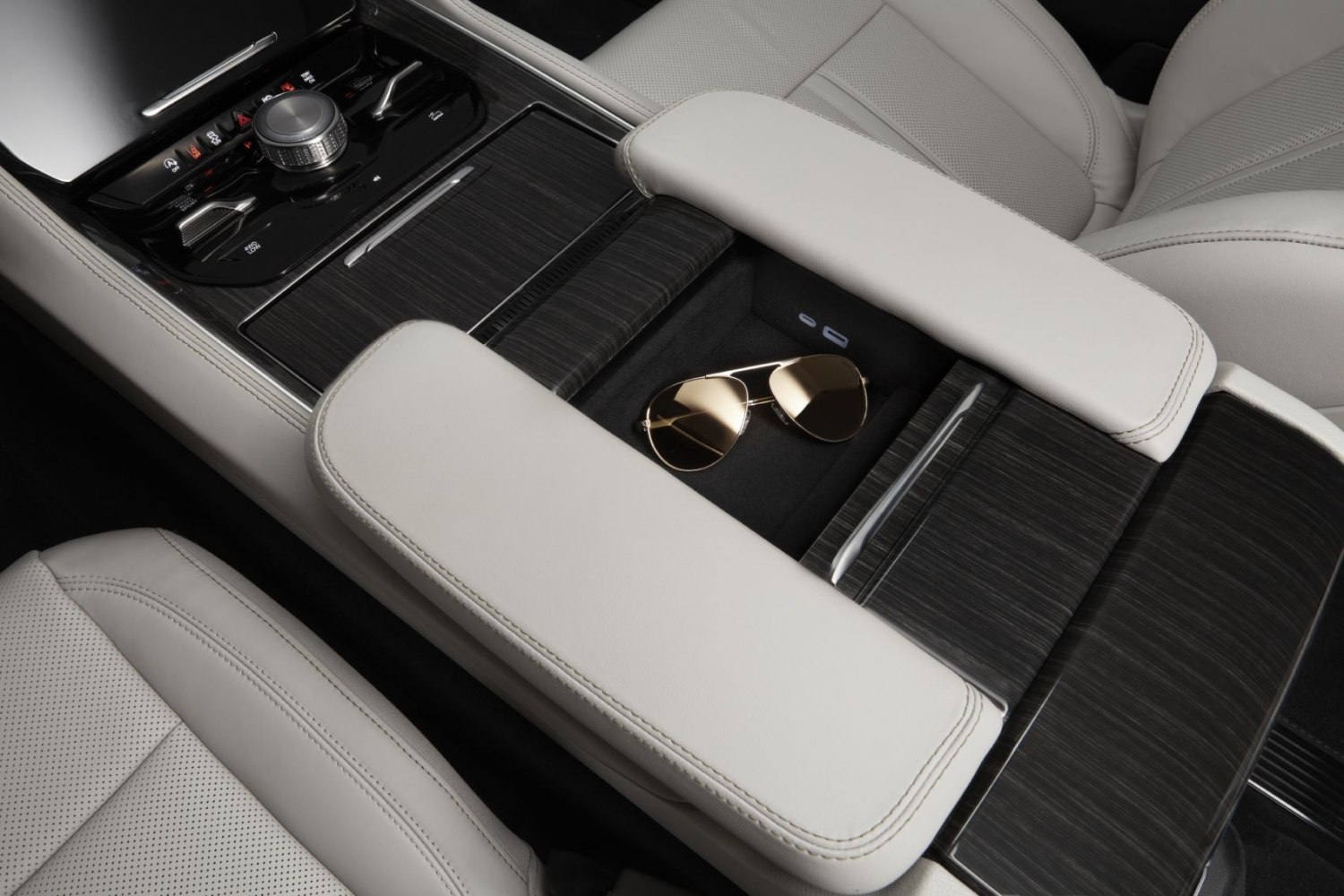

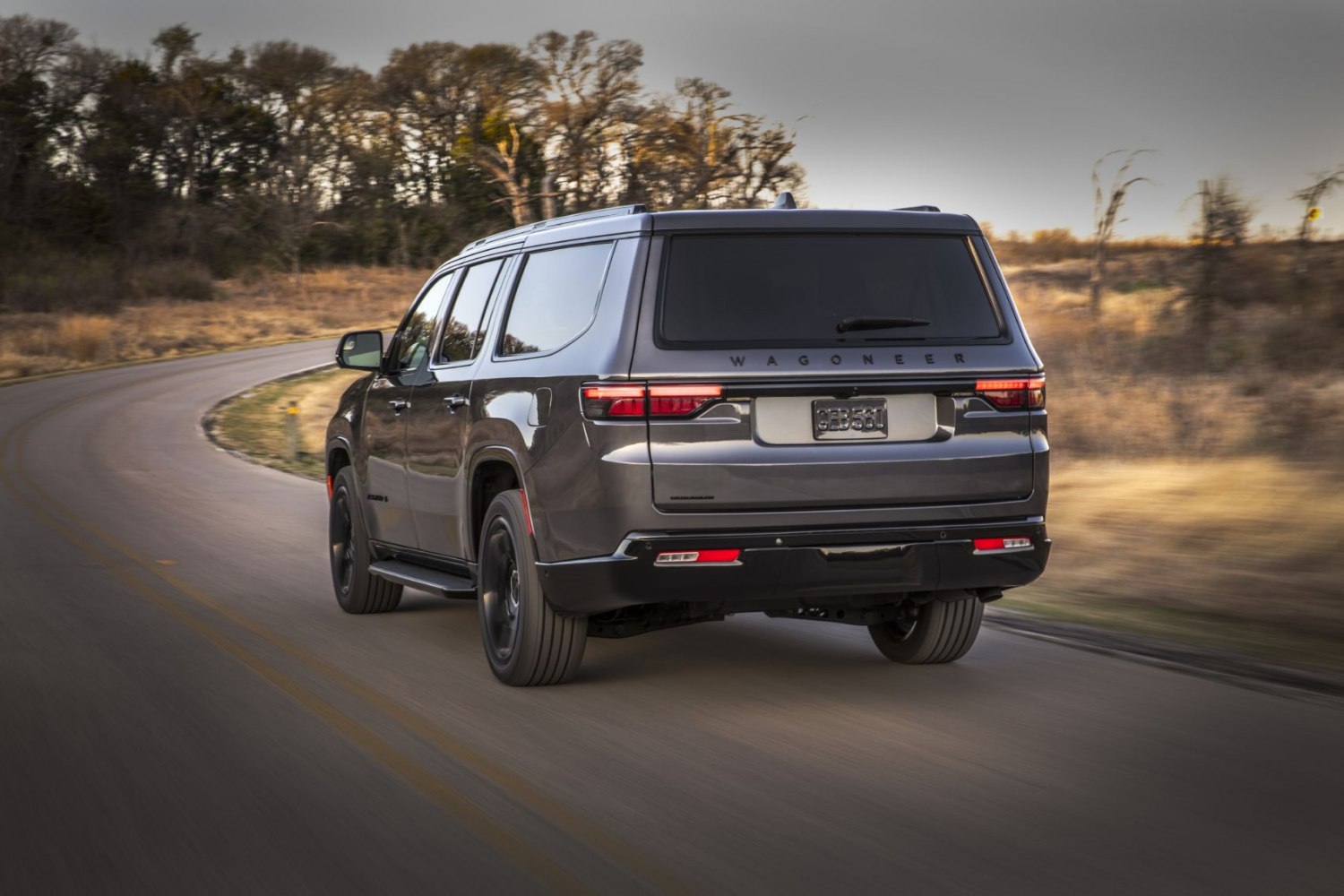

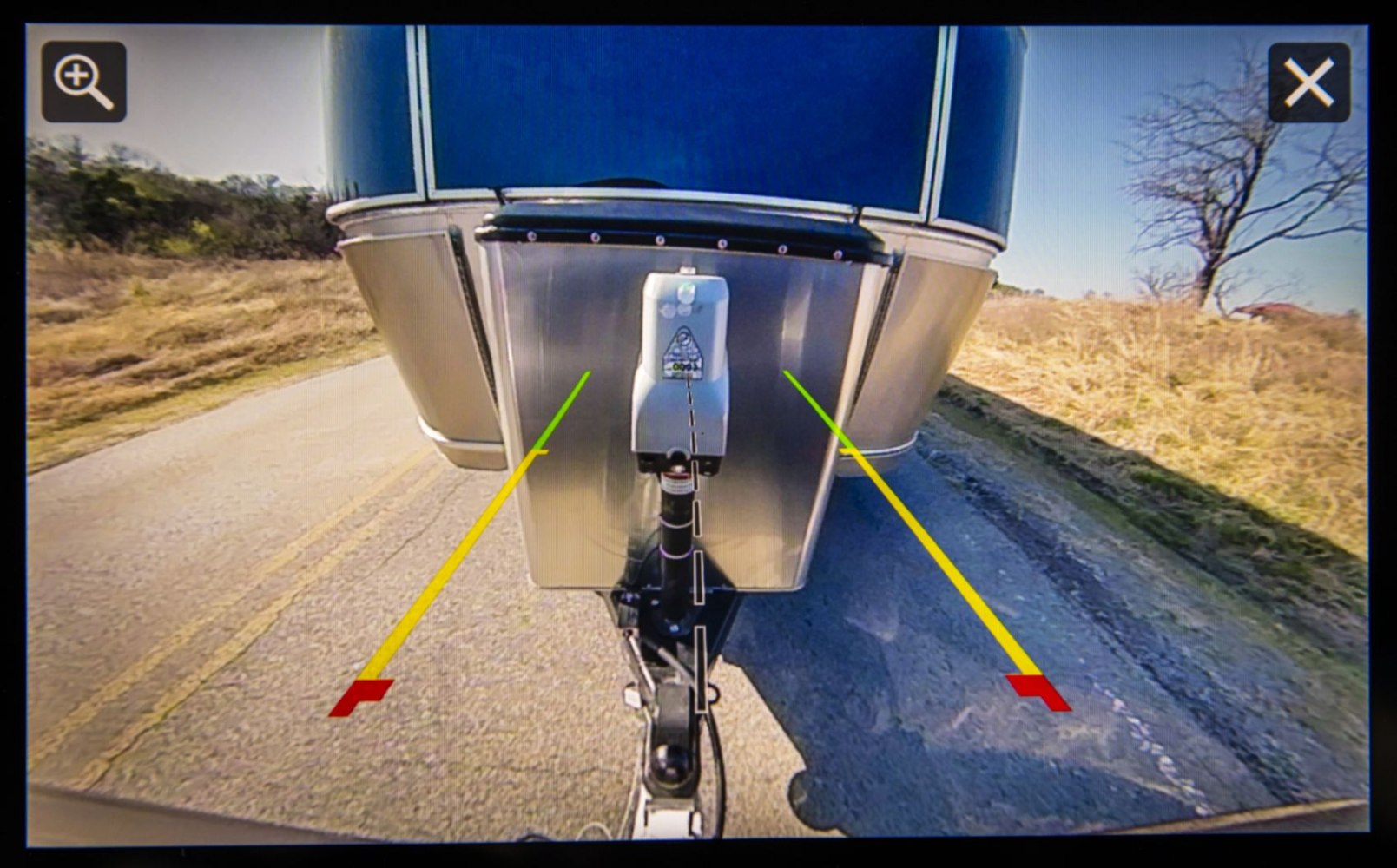

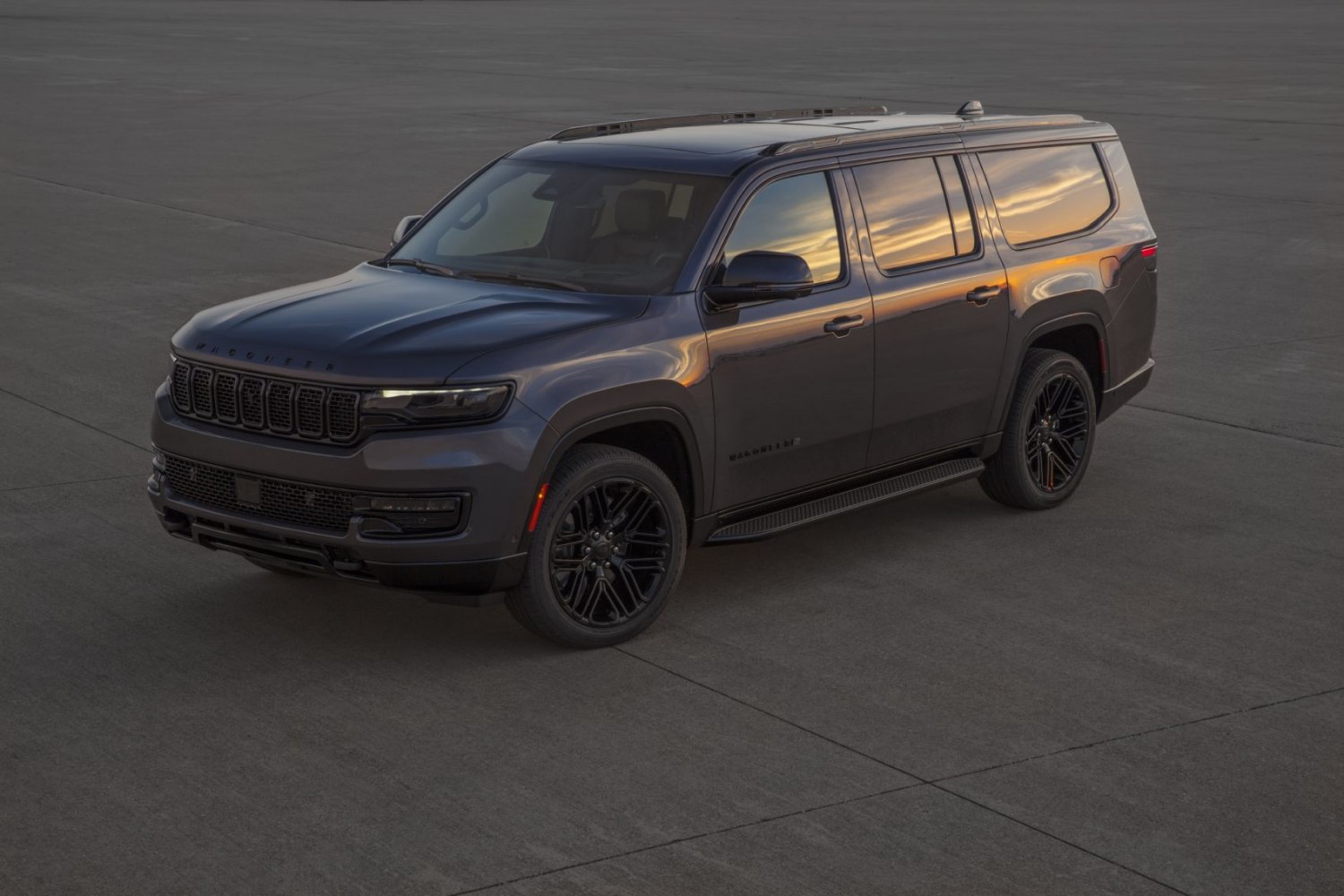

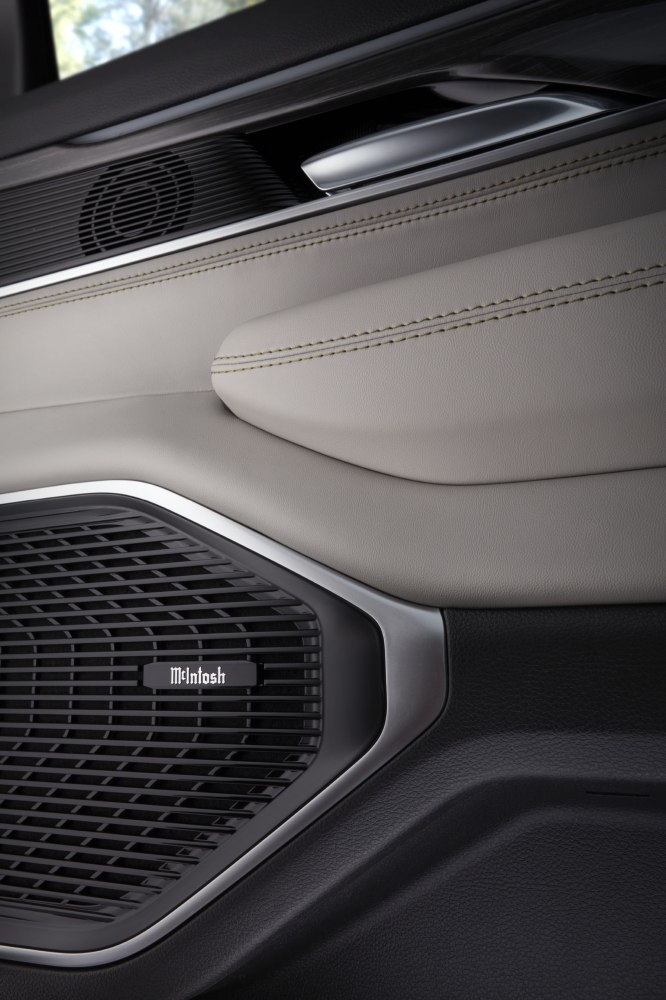

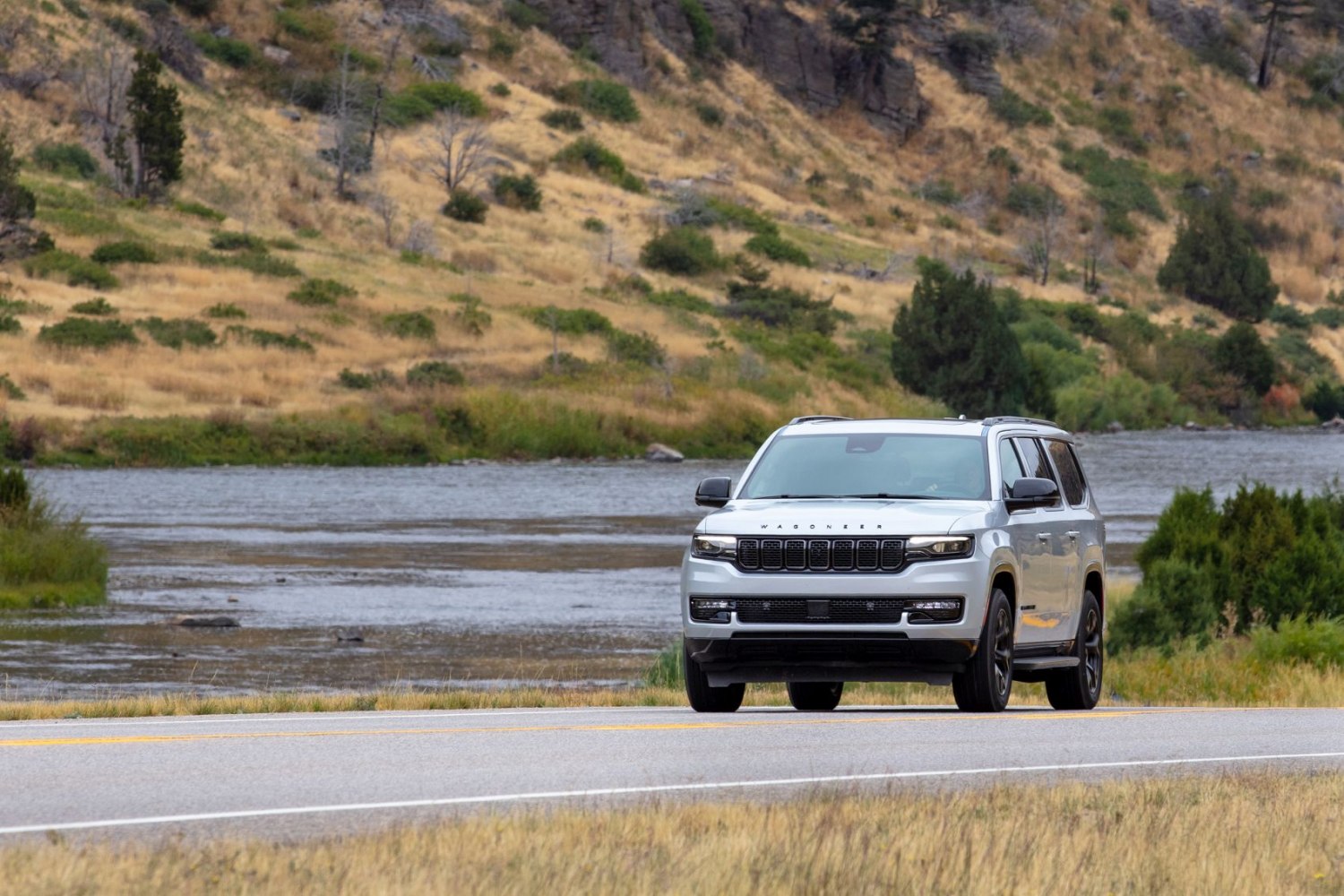

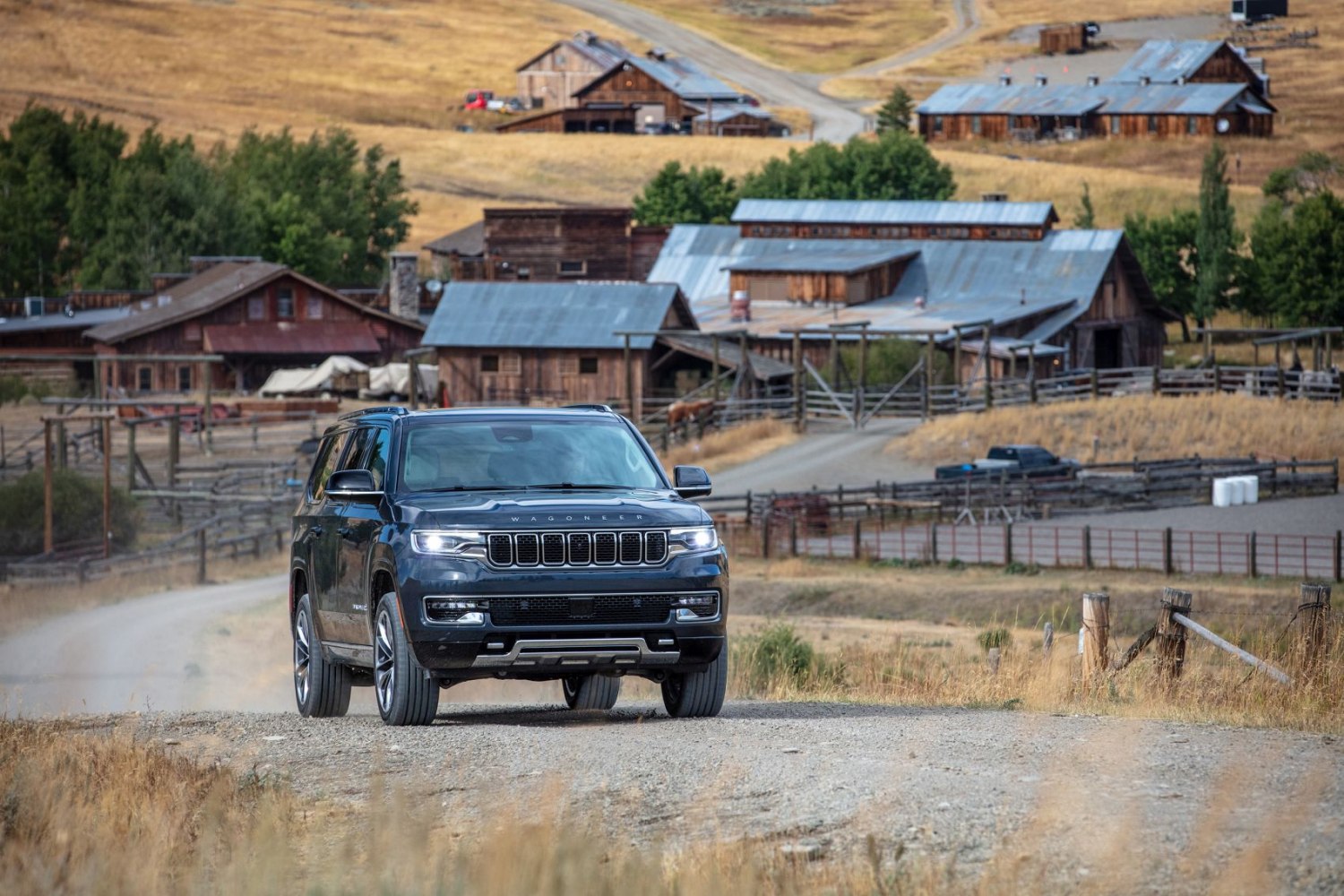

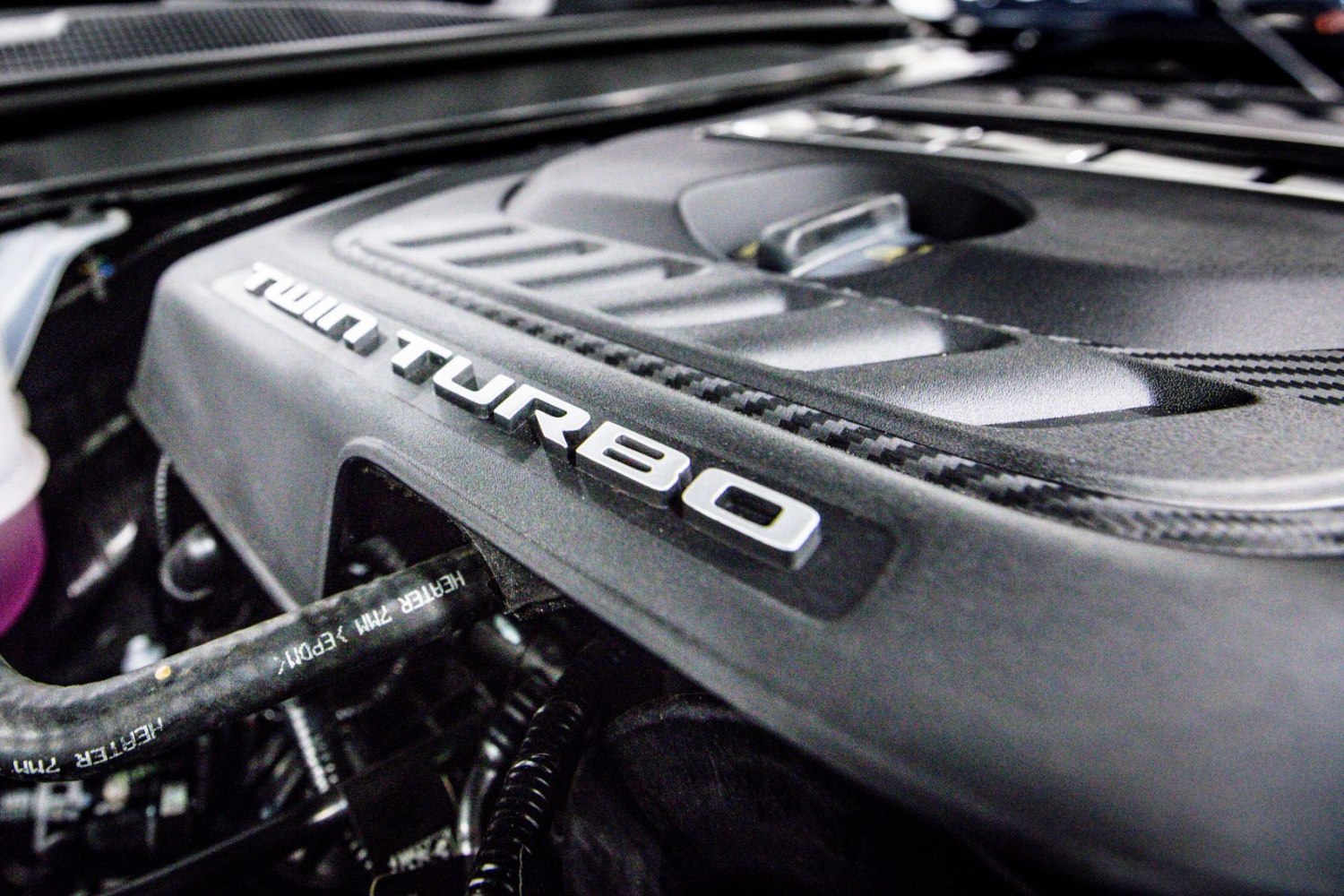

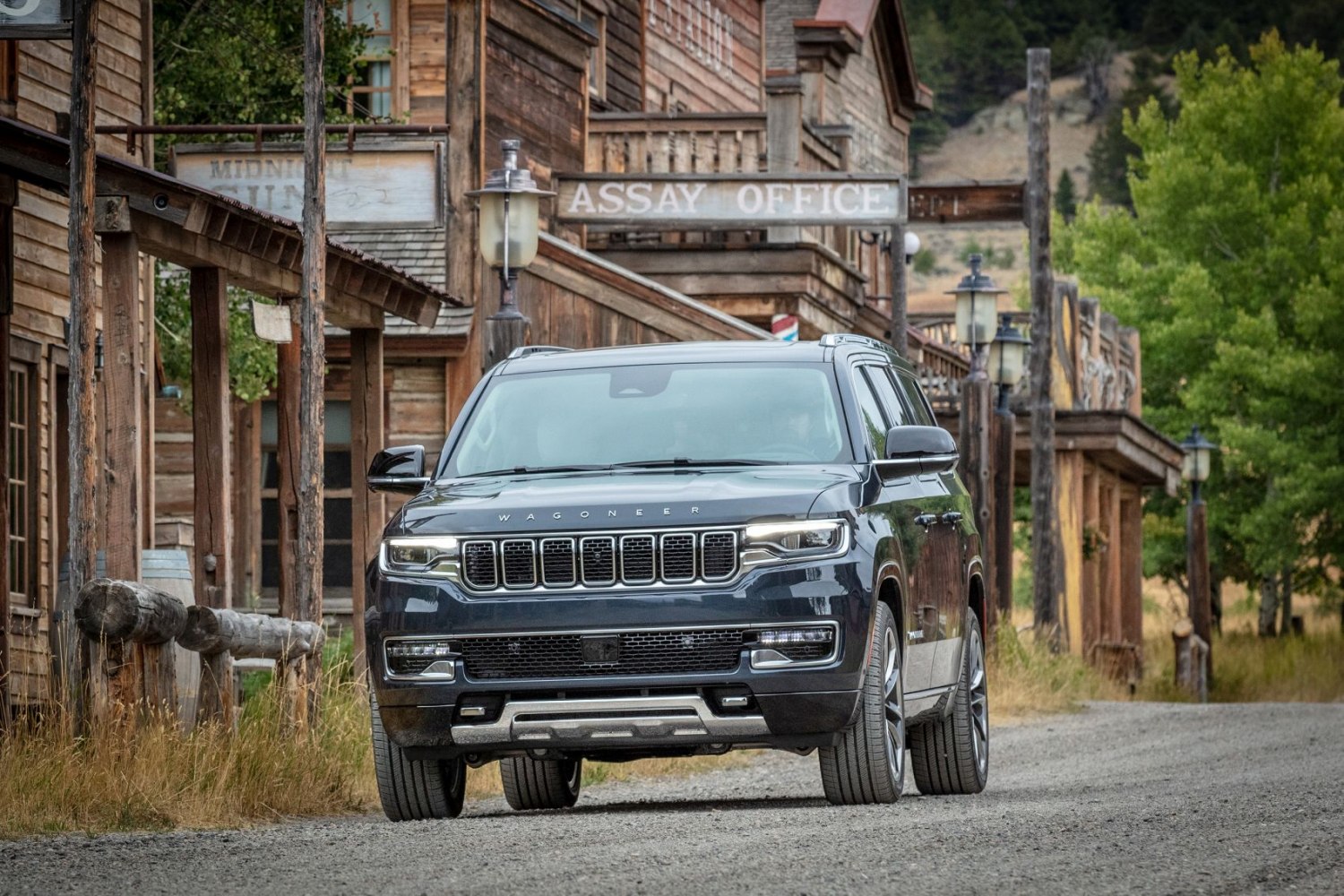

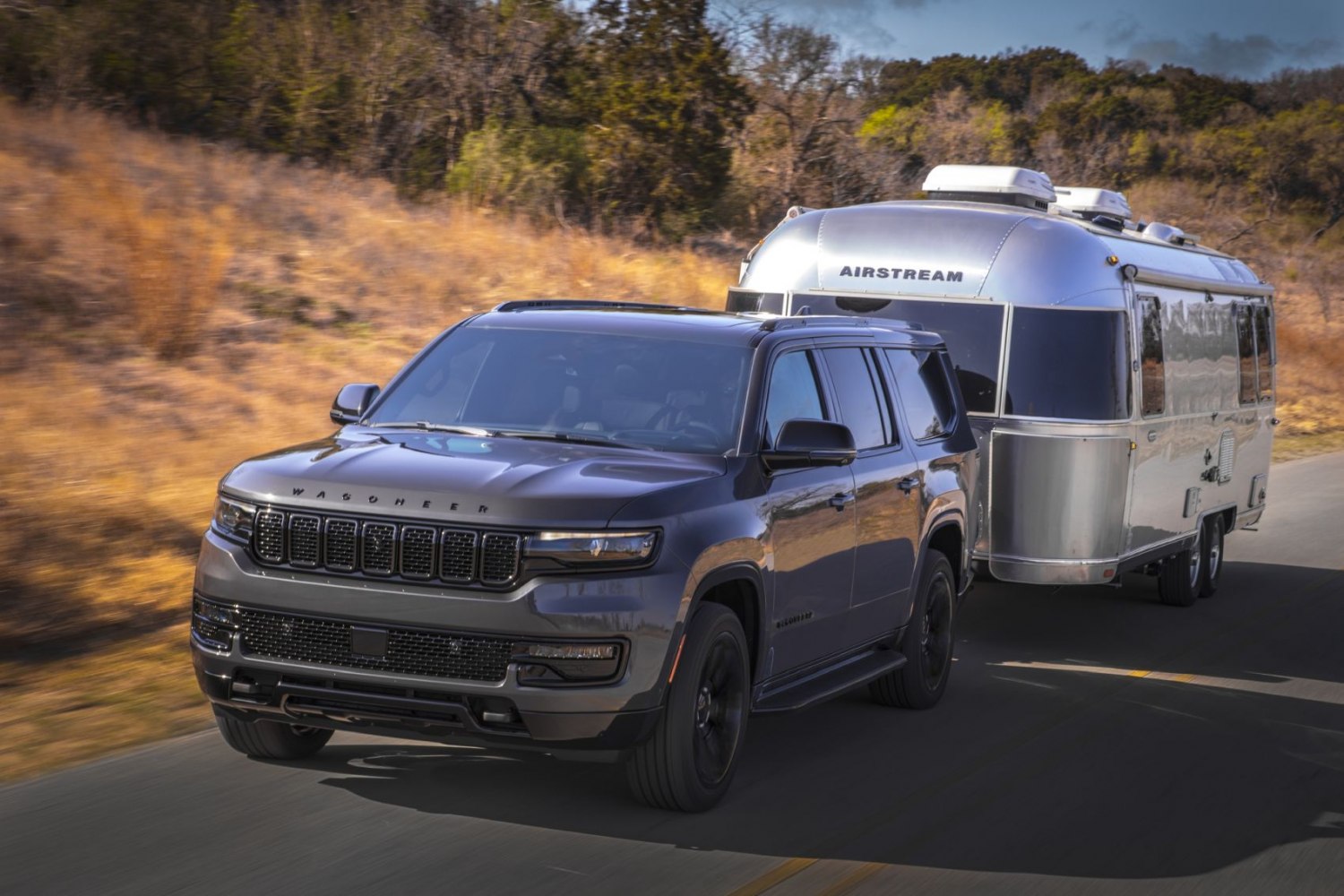

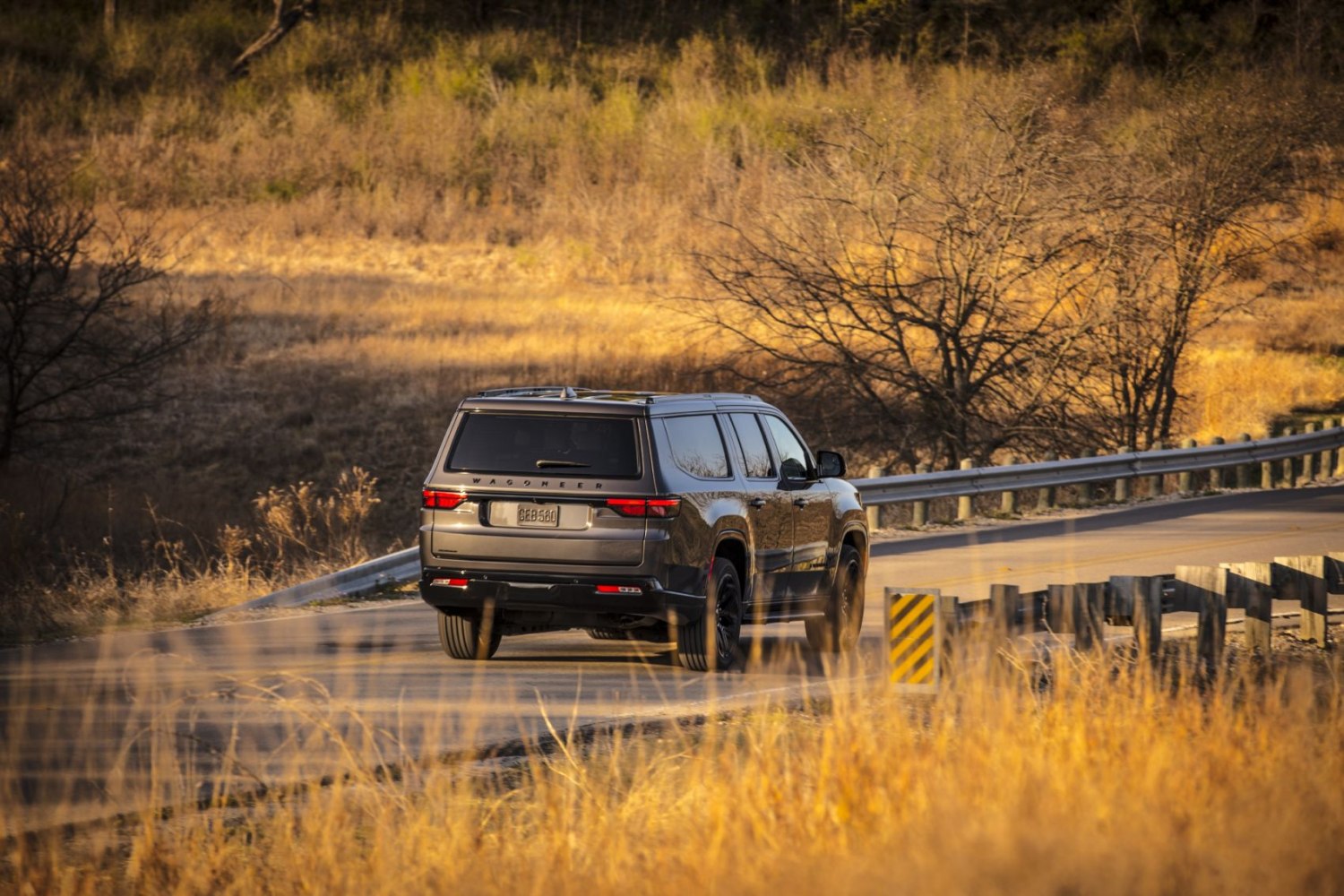

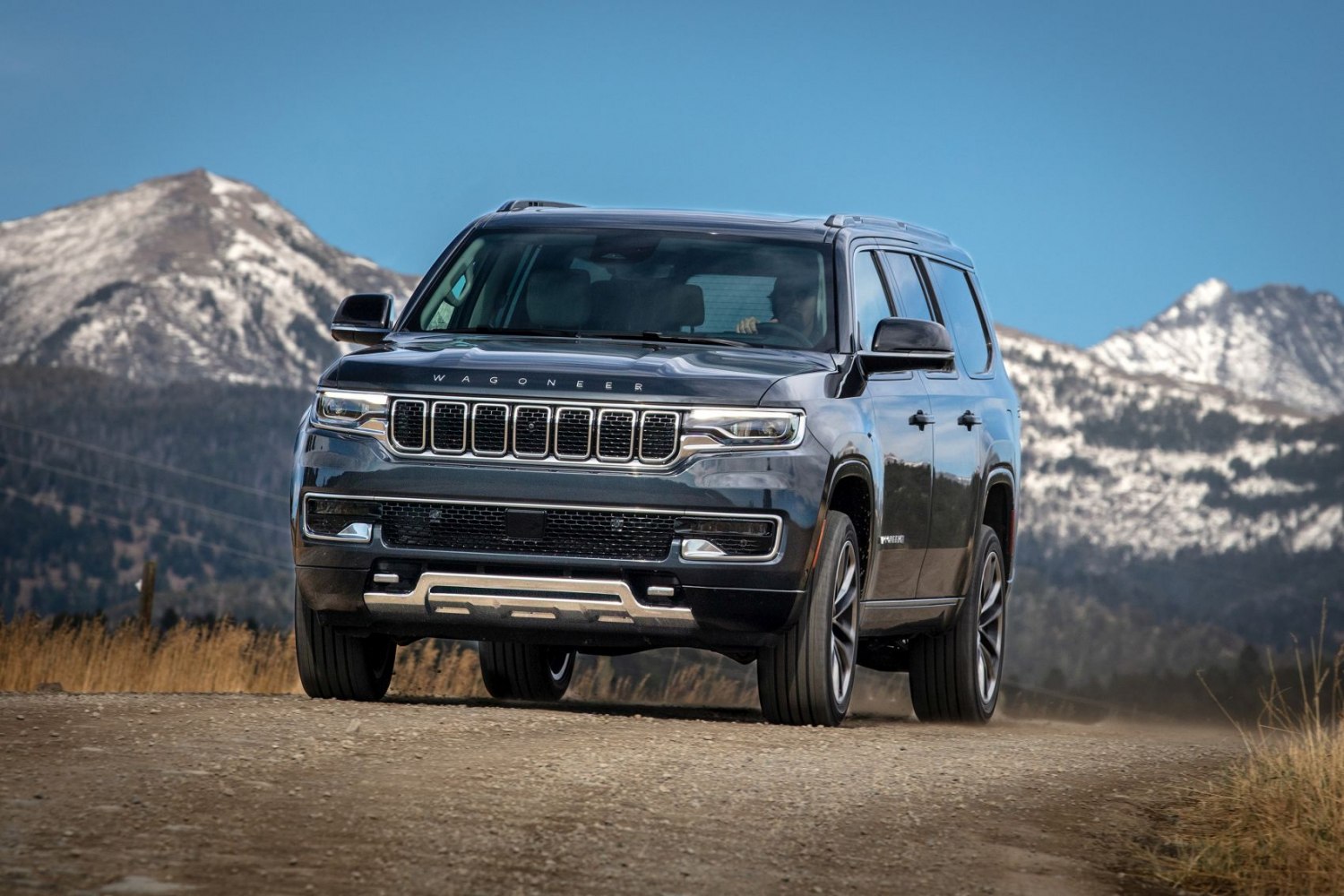

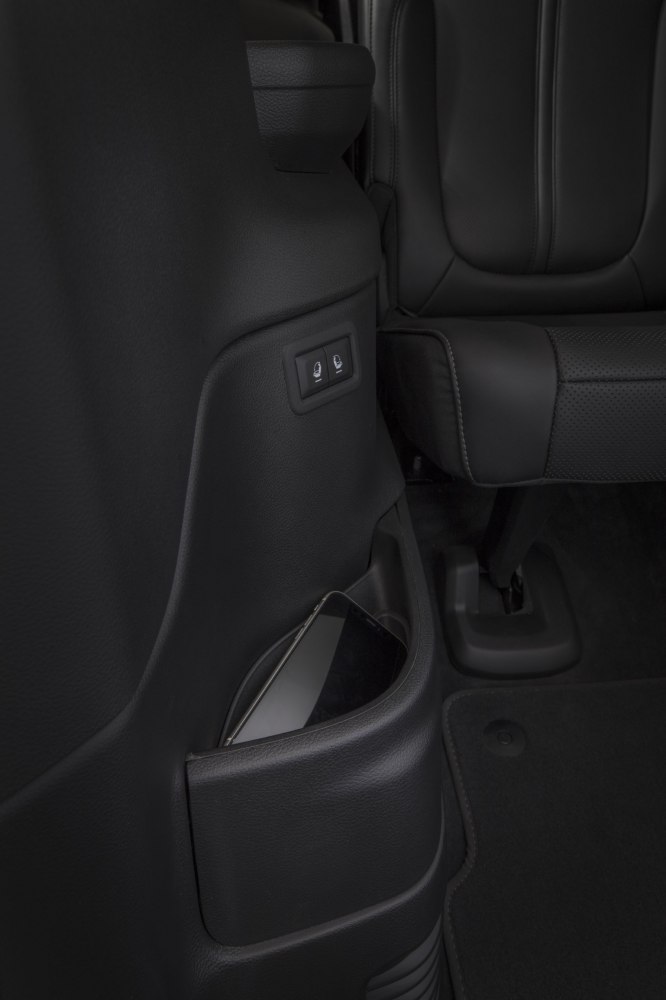

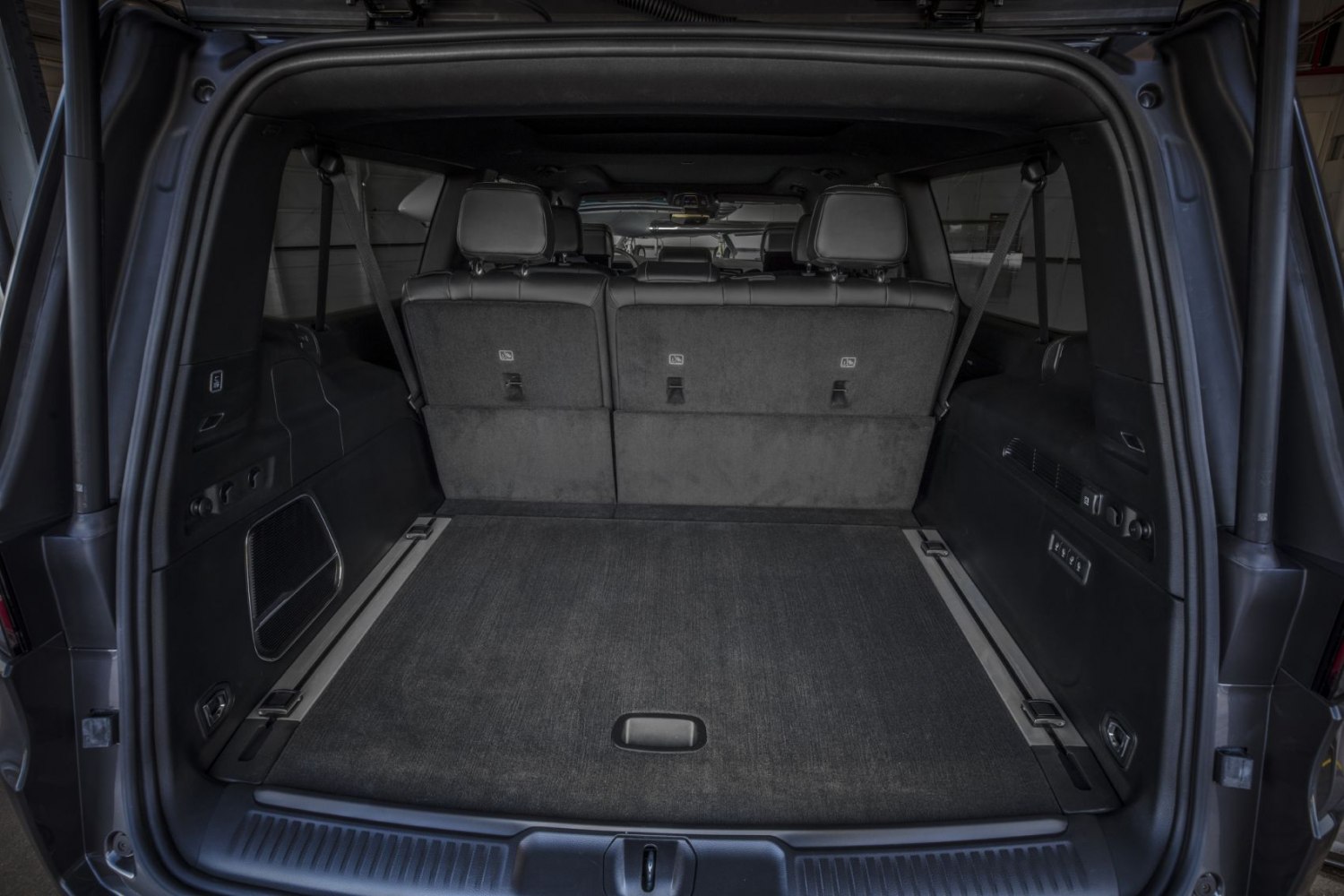

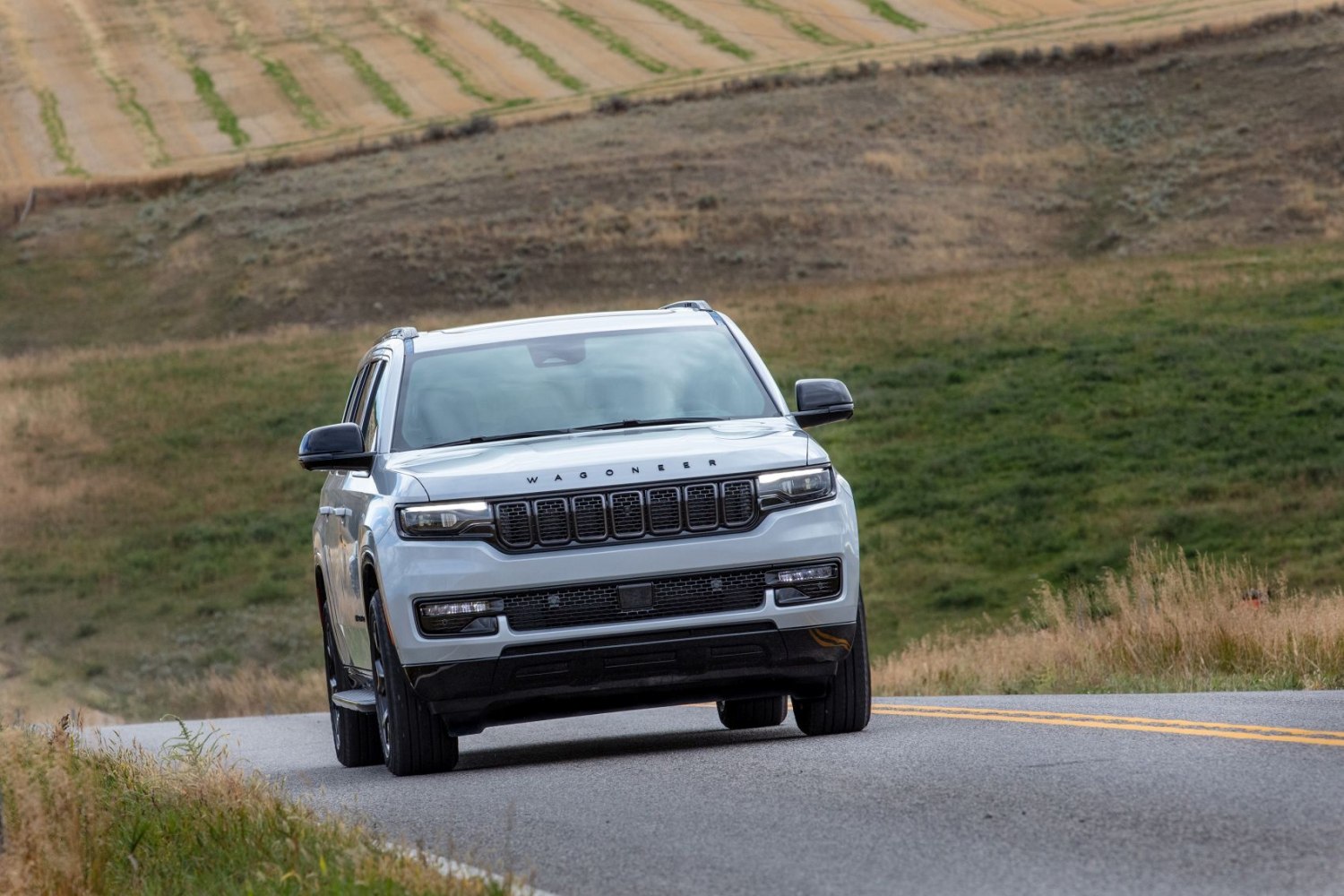

Jeep Wagoneer 50 WS 2022 Gallery
Jeep Wagoneer 50 WS 2022 Technical Specifications
General
Body type
SUV
Brand
Jeep
Doors
5
Generation
Wagoneer L (WS)
Model
Wagoneer
Modification (Engine)
3.0 (420 Hp) TorqueFlite
Powertrain Architecture
Internal Combustion engine
Seats
7-8
Start of production
April, 2022
Performance
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined (EPA)
11.8 l/100 km
Fuel consumption (economy) - extra urban (EPA)
9.8 l/100 km
Fuel consumption (economy) - urban (EPA)
13.8 l/100 km
Dimensions
Approach angle
21.5-25°
Departure angle
18.8-21.3°
Drag coefficient (Cd)
0.352
Front track
1738 mm
Height
1963 mm
Length
5759 mm
Minimum turning circle (turning diameter)
12.9 m
Ramp-over (brakeover) angle
17.8-20.4°
Rear (Back) track
1734 mm
Ride height (ground clearance)
210-253 mm
Wheelbase
3303 mm
Width
2124 mm
Engine
Compression ratio
10.4:1
Coolant
15.7 l
Cylinder Bore
84 mm
Engine Model/Code
Hurricane
Engine aspiration
Twin-Turbo, Intercooler
Engine configuration
Inline
Engine displacement
2993 cm
Engine layout
Front, Longitudinal
Engine oil capacity
7.1 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop System
Fuel injection system
Direct injection
Maximum engine speed
5800 rpm.
Number of cylinders
6
Number of valves per cylinder
4
Power
420 Hp @ 5200 rpm.
Torque
635 Nm @ 3500 rpm.
Drivetrain
Drive wheel
Rear wheel drive
Front brakes
Ventilated discs, 378x30 mm
Front suspension
Coil spring, Double wishbone, Transverse stabilizer, Air Suspension - Optional
Number of gears and type of gearbox
8 gears, automatic transmission TorqueFlite
Power steering
Electric Steering
Rear brakes
Disc, 375x22 mm
Rear suspension
Independent multi-link spring suspension with stabilizer, Air Suspension - Optional
Steering type
Steering rack and pinion
Tires size
275/65 R18; 275/55 R20; 285/45 R22
Wheel rims size
8J x 18; 9J x 20; 9J x 22
Space
Fuel tank capacity
115.4 l
Kerb Weight
2752-2770 kg
Max load
605-632 kg
Max. weight
3357-3402 kg
