Seat Leon 5 2024
1.5 TSI (272 Hp) e-Hybrid DSG
Hybrid Car
Body Type Hatchback
Battery Capacity 25.8 KW
126-133 km
Electric Range
220 km/h
Maximum Speed
5
Doors
Seat Leon 5 2024 Key Specs
Acceleration 0 - 100 Km/h
7.7 sec
Acceleration 0 - 62 Mph
7.7 sec
All-electric Range (WLTP)
126-133 km
Average Energy Consumption (WLTP)
15.6-16.2 kWh/100 km
Body Type
Hatchback
Doors
5
Drive Wheel
Front wheel drive
Engine Aspiration
Turbocharger, Intercooler
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Petrol / electricity
Fuel Tank Capacity
40 l
Generation
Leon IV
Gross Battery Capacity
25.8 kWh
Kerb Weight
1595 kg
Maximum Speed
220 km/h
Modification (Engine)
1.5 TSI (272 Hp) e-Hybrid DSG
Number Of Cylinders
4
Power
204 Hp @ 5000-6000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
5
Start Of Production
July, 2024
System Power
272 Hp
System Torque
330 Nm
Wheel Rims Size
17; 18

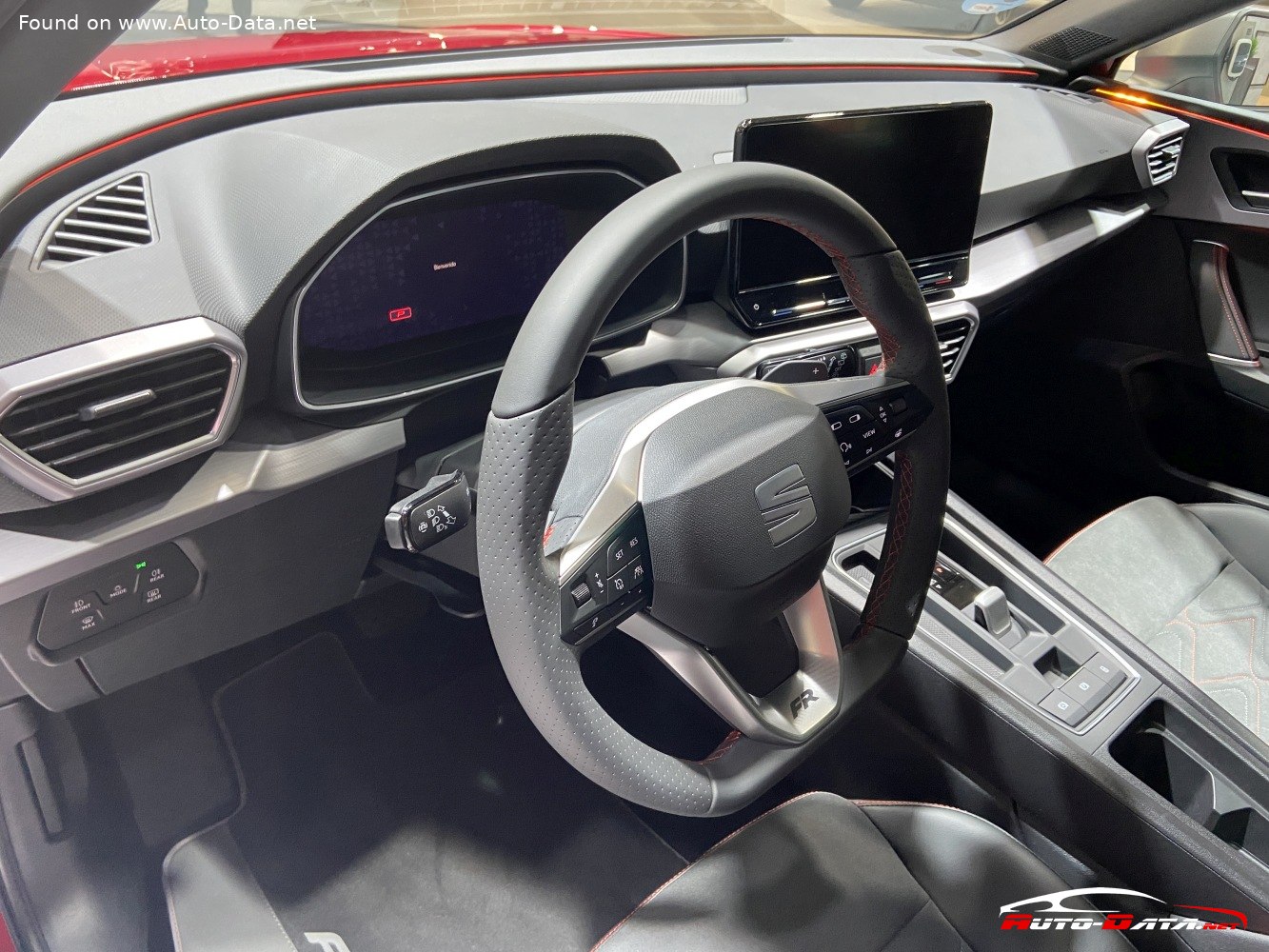

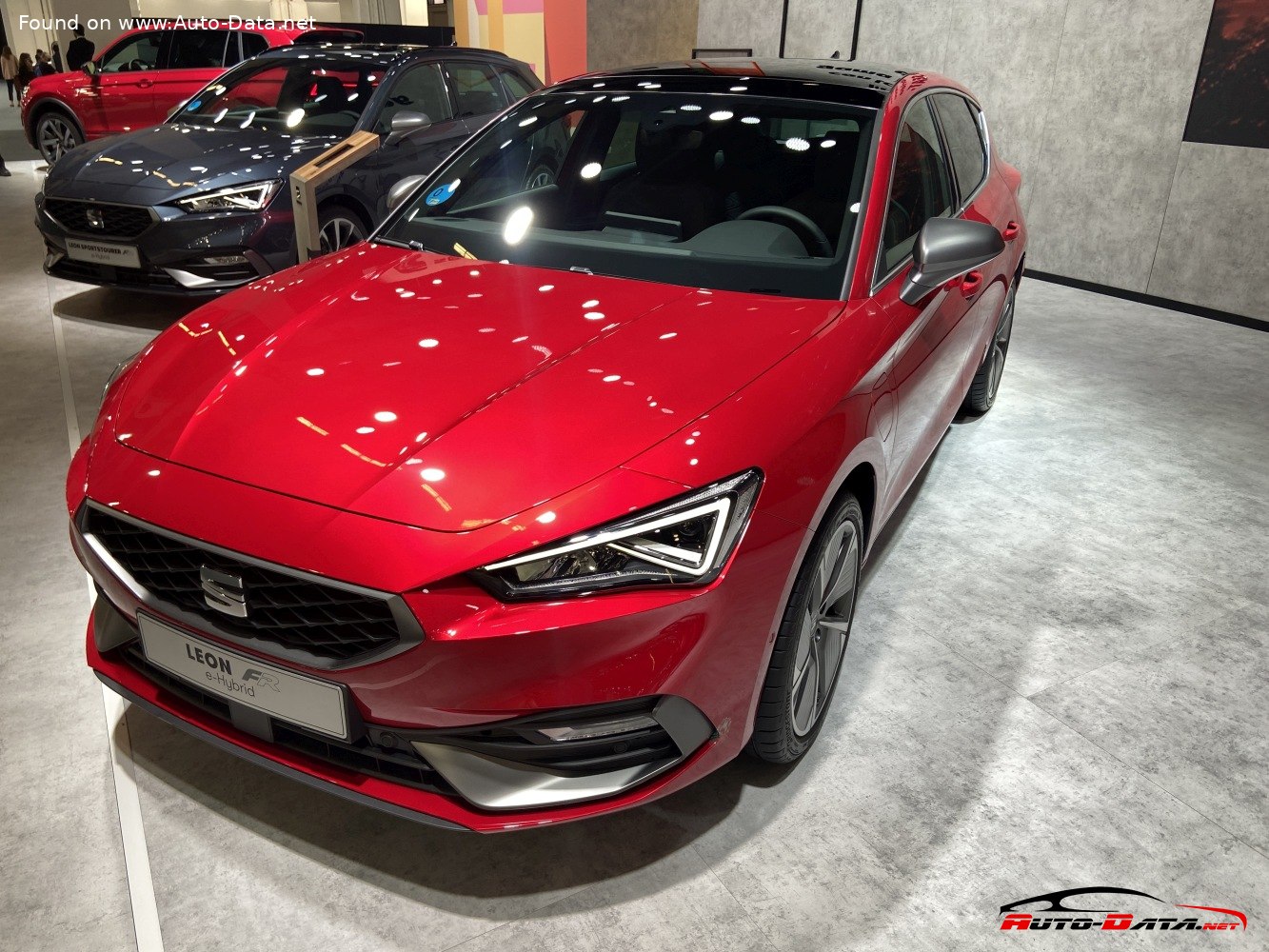

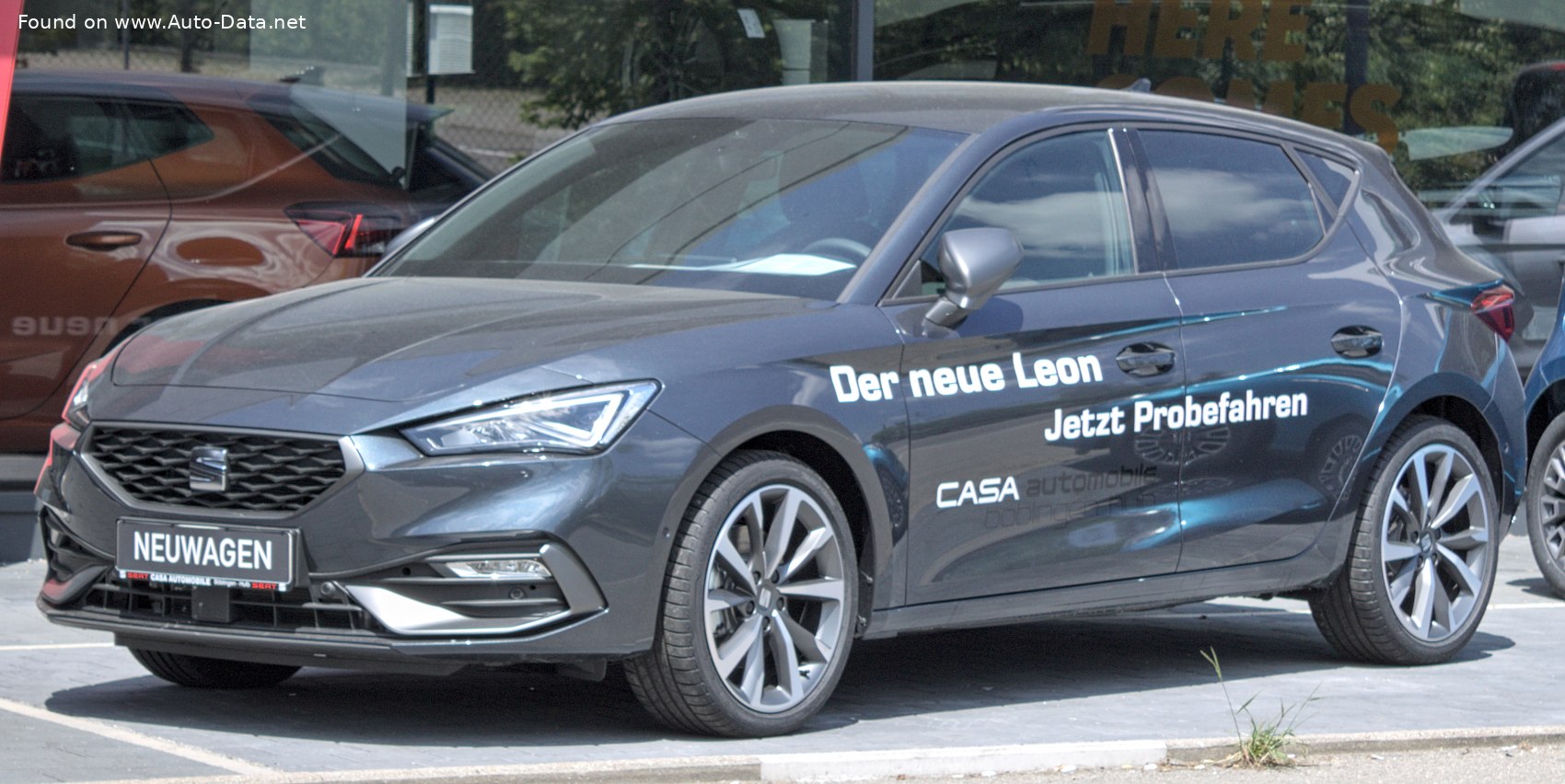

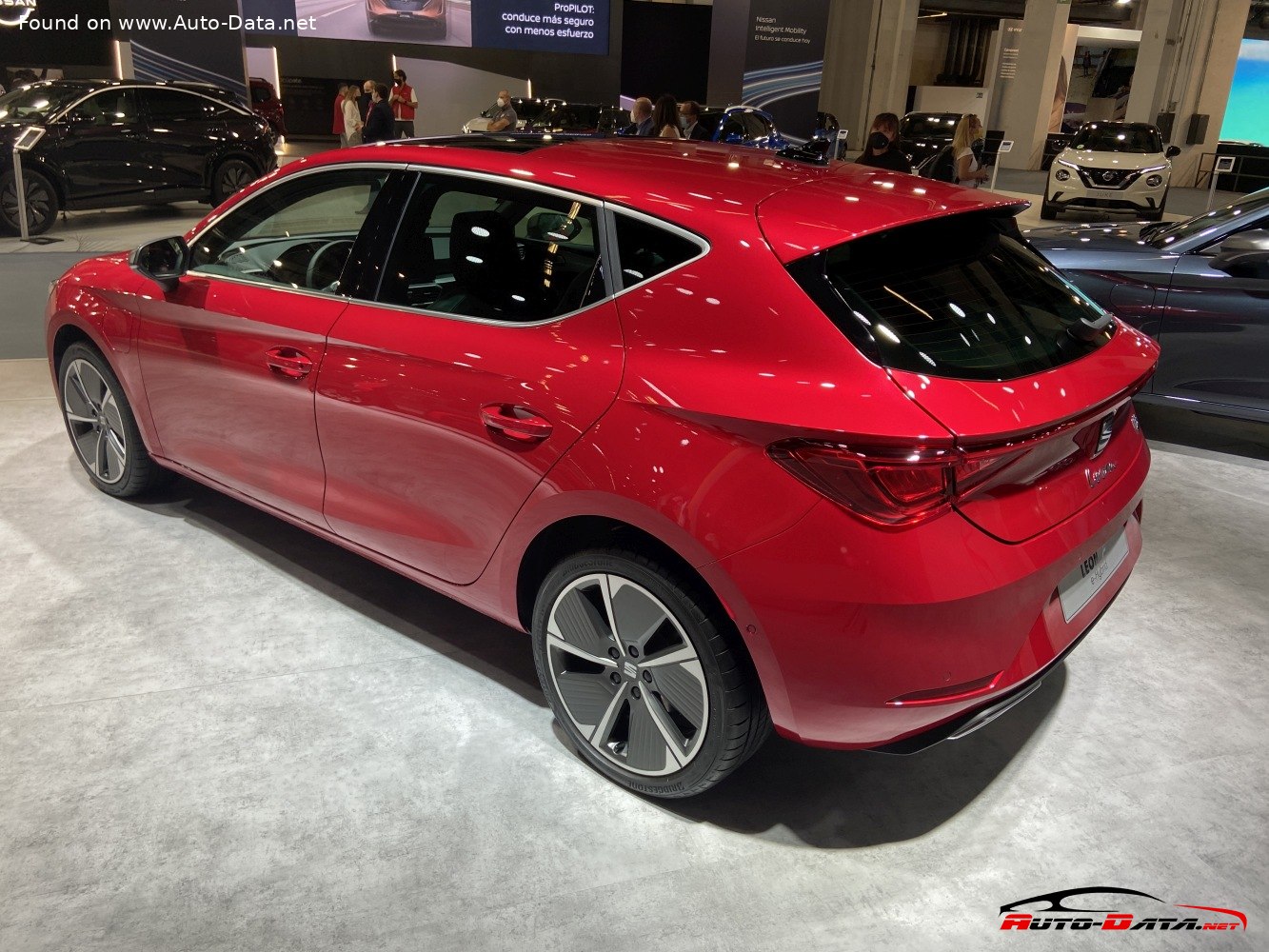

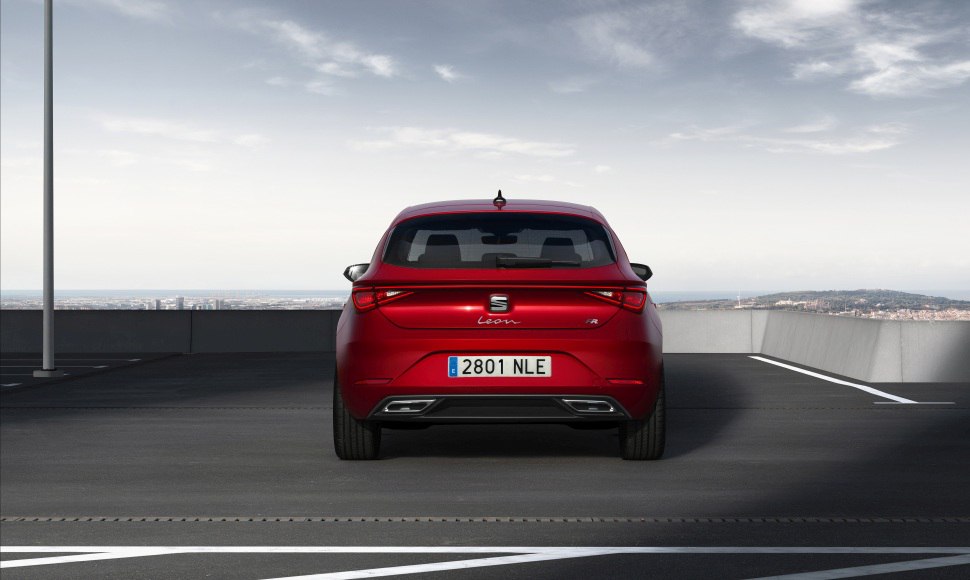

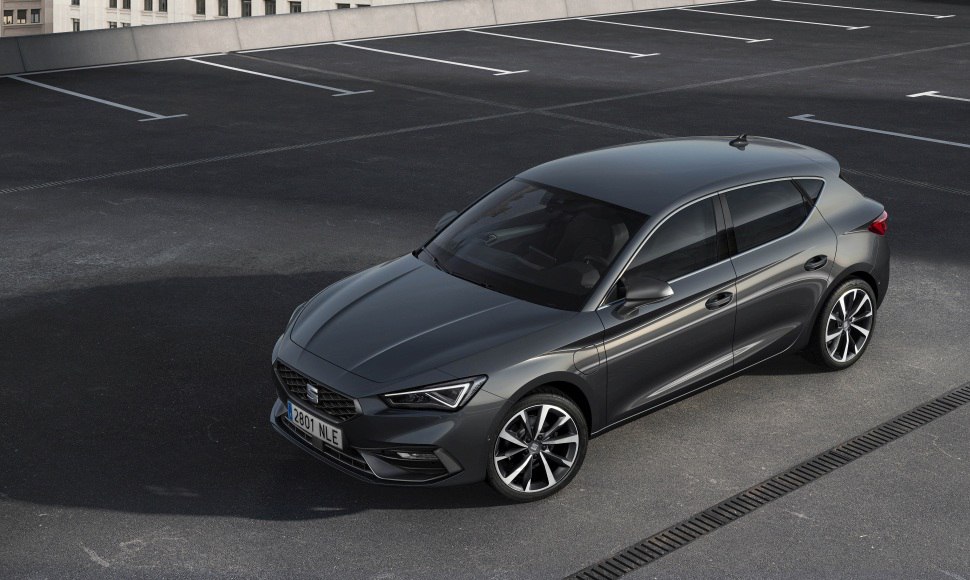

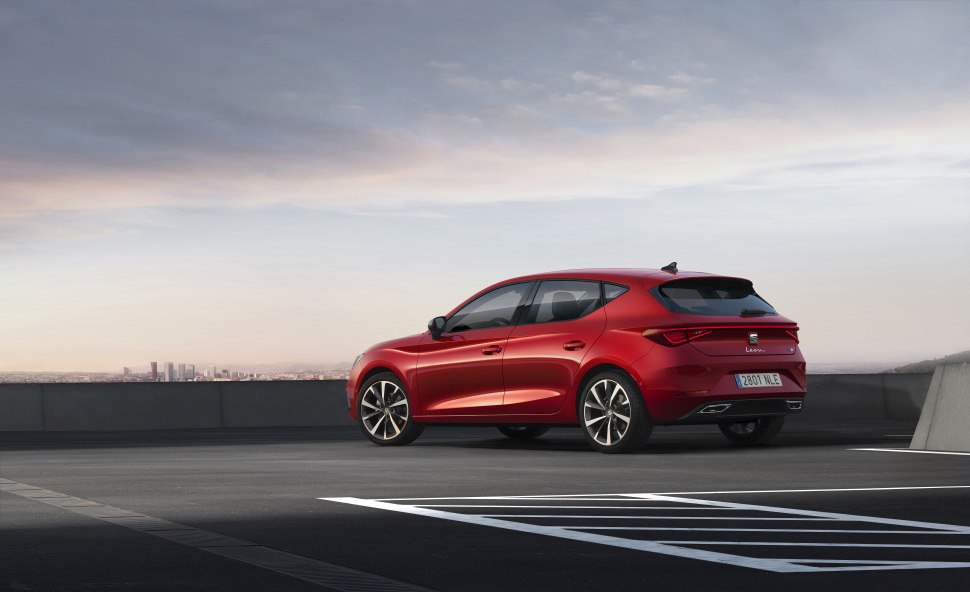

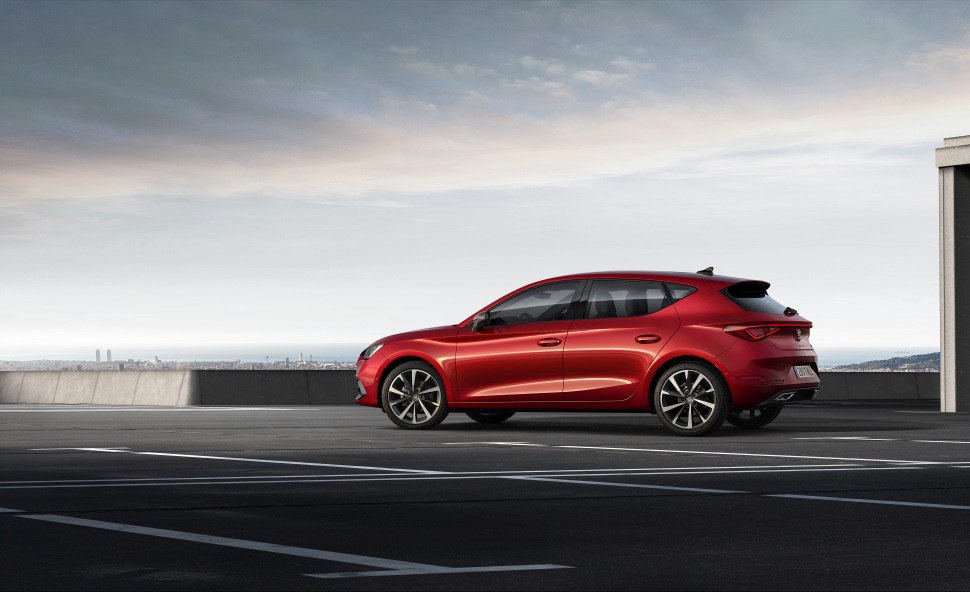

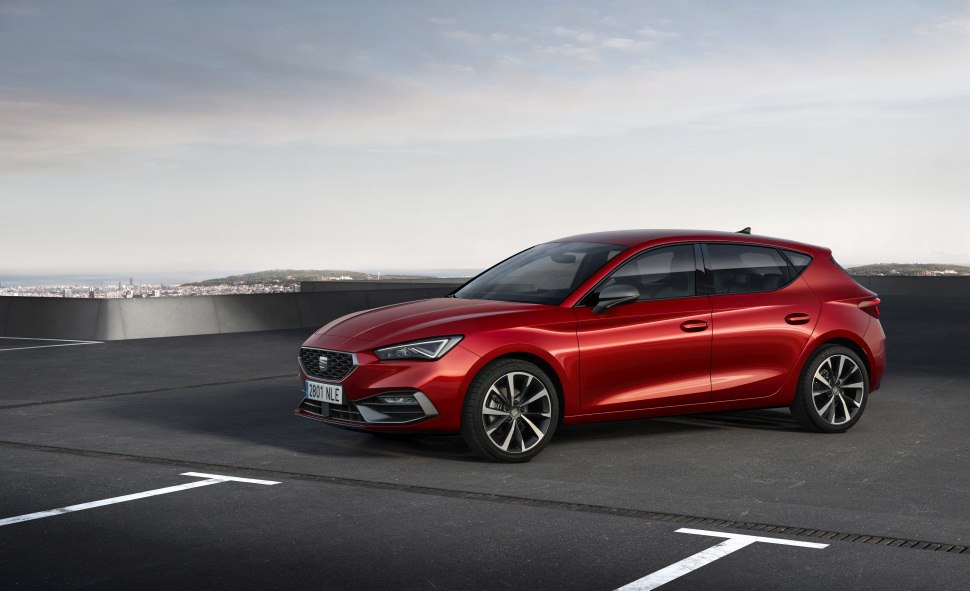

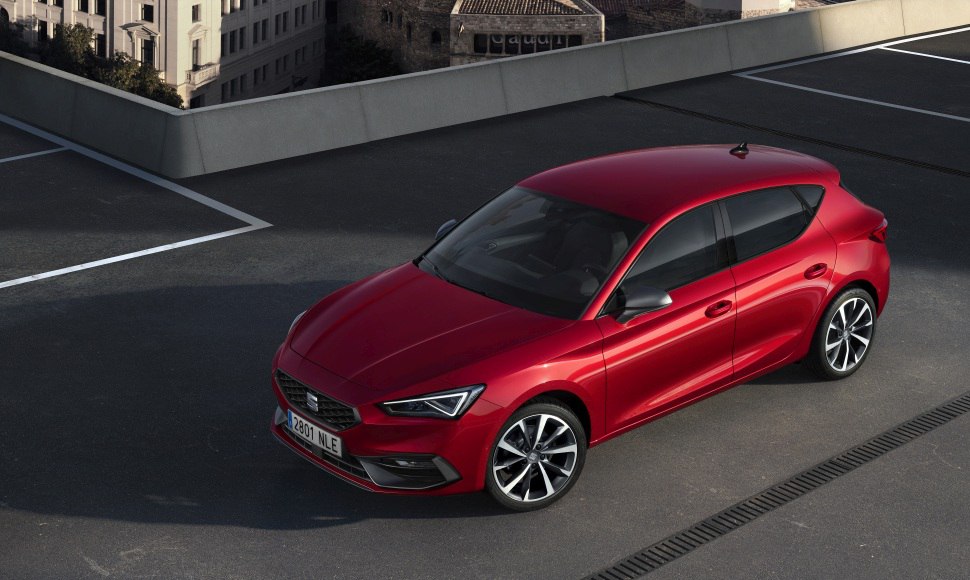

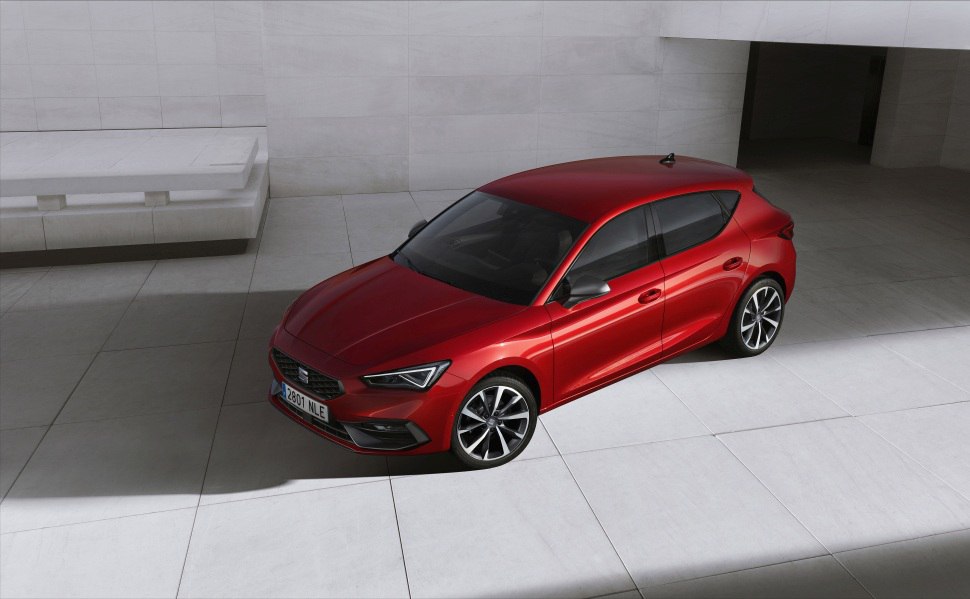

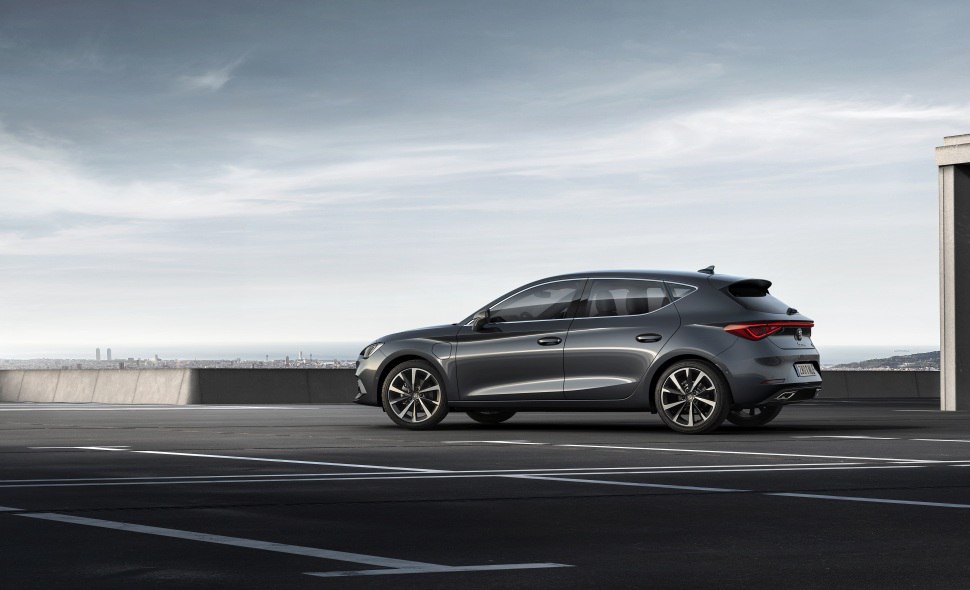

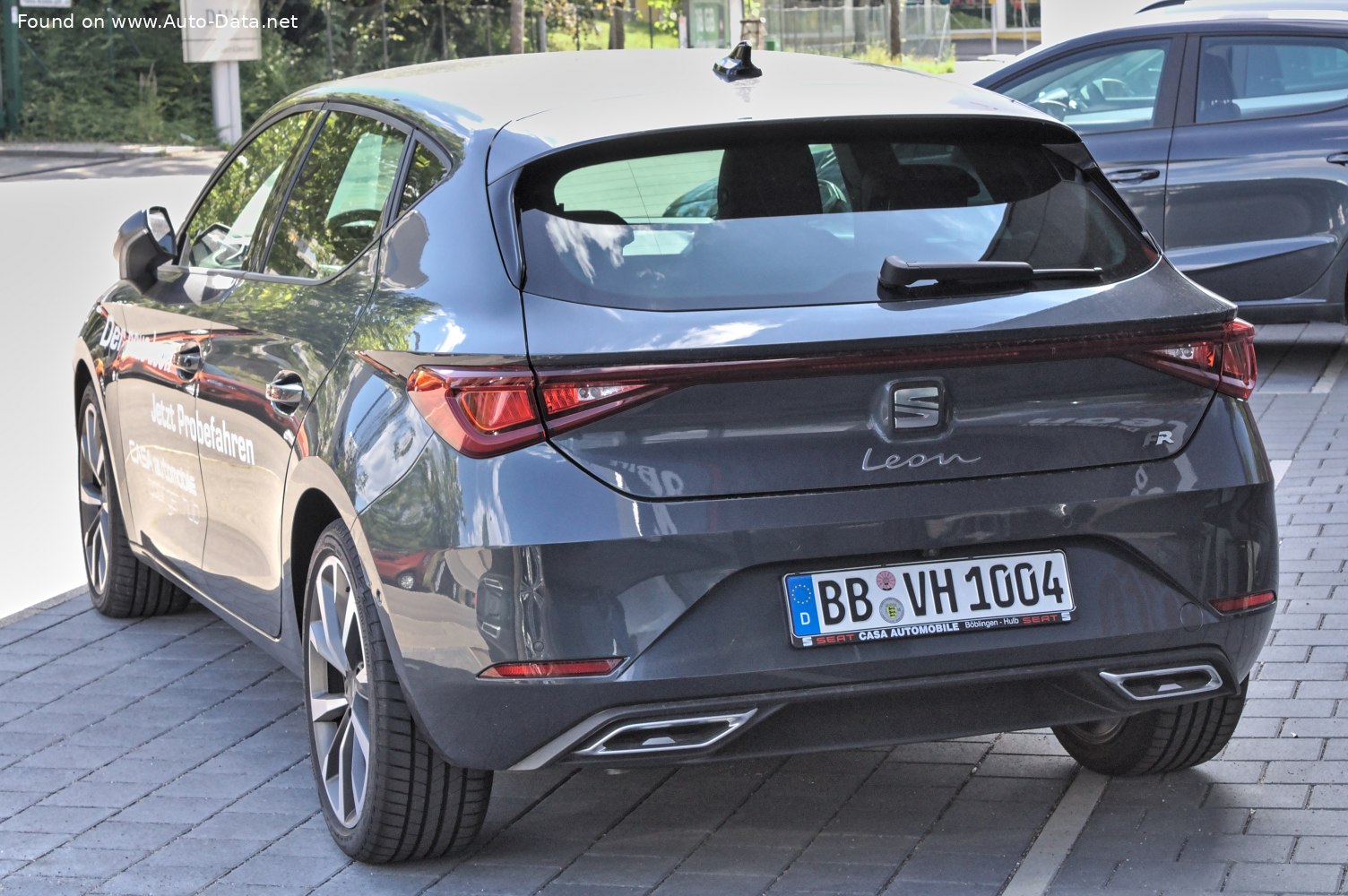

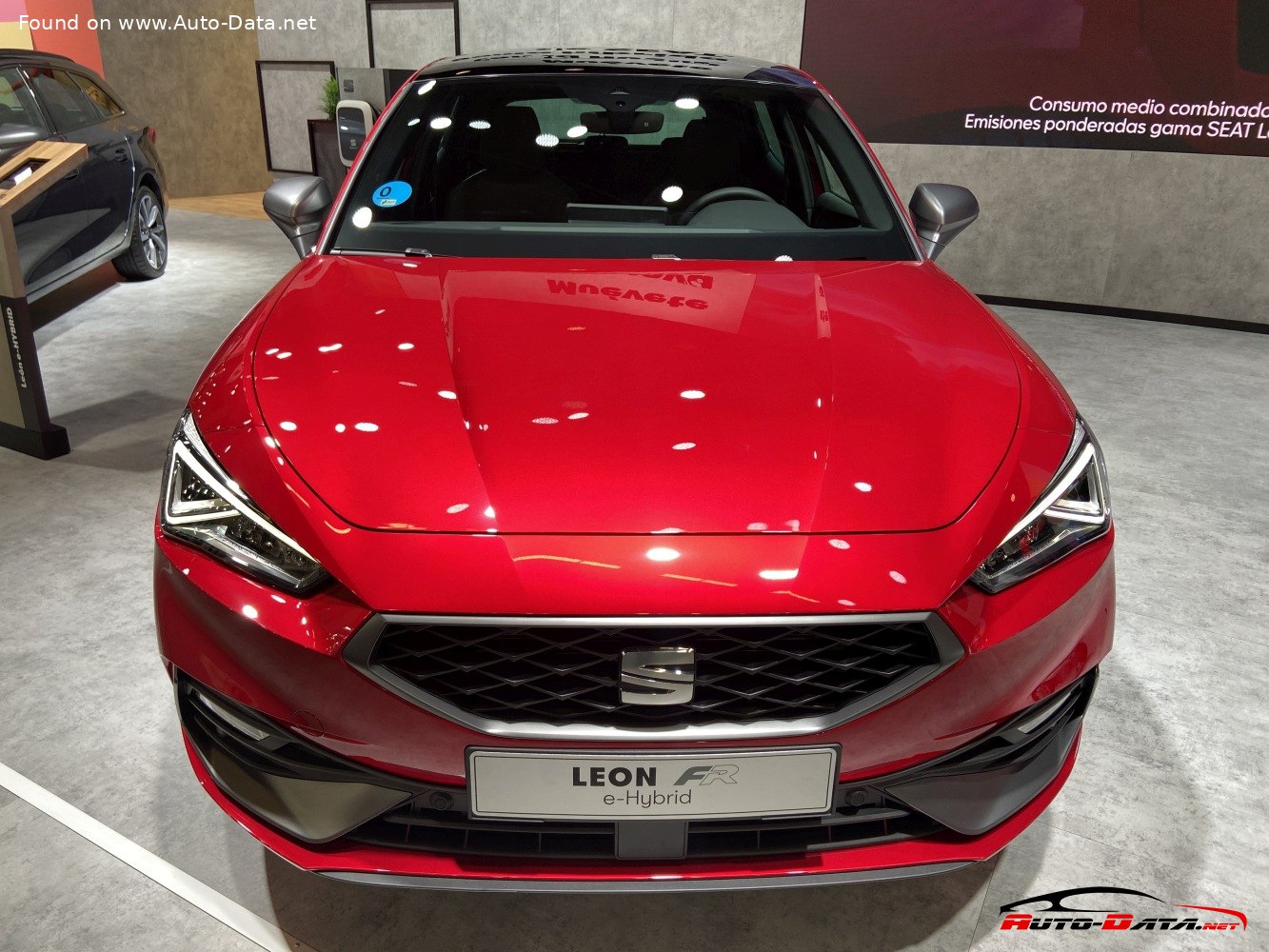

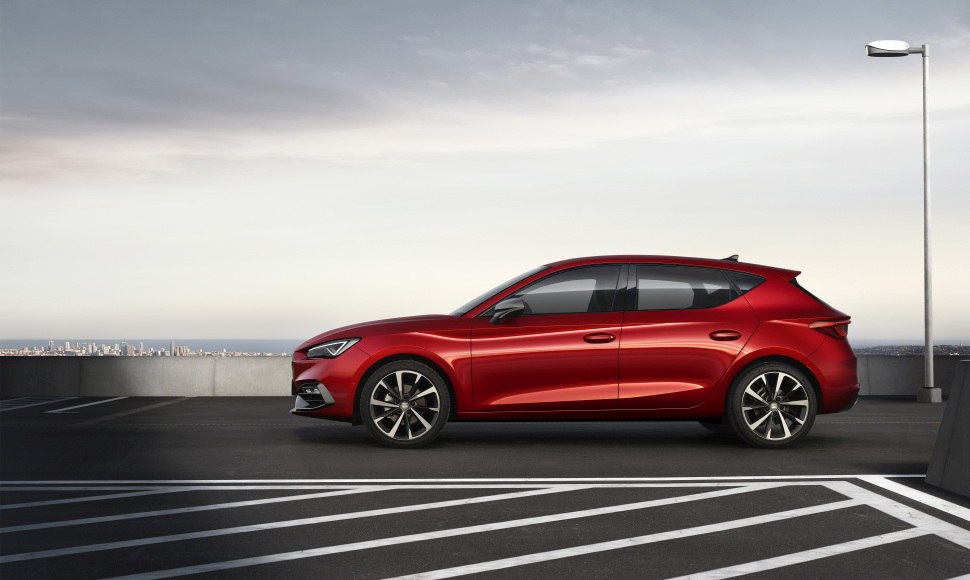

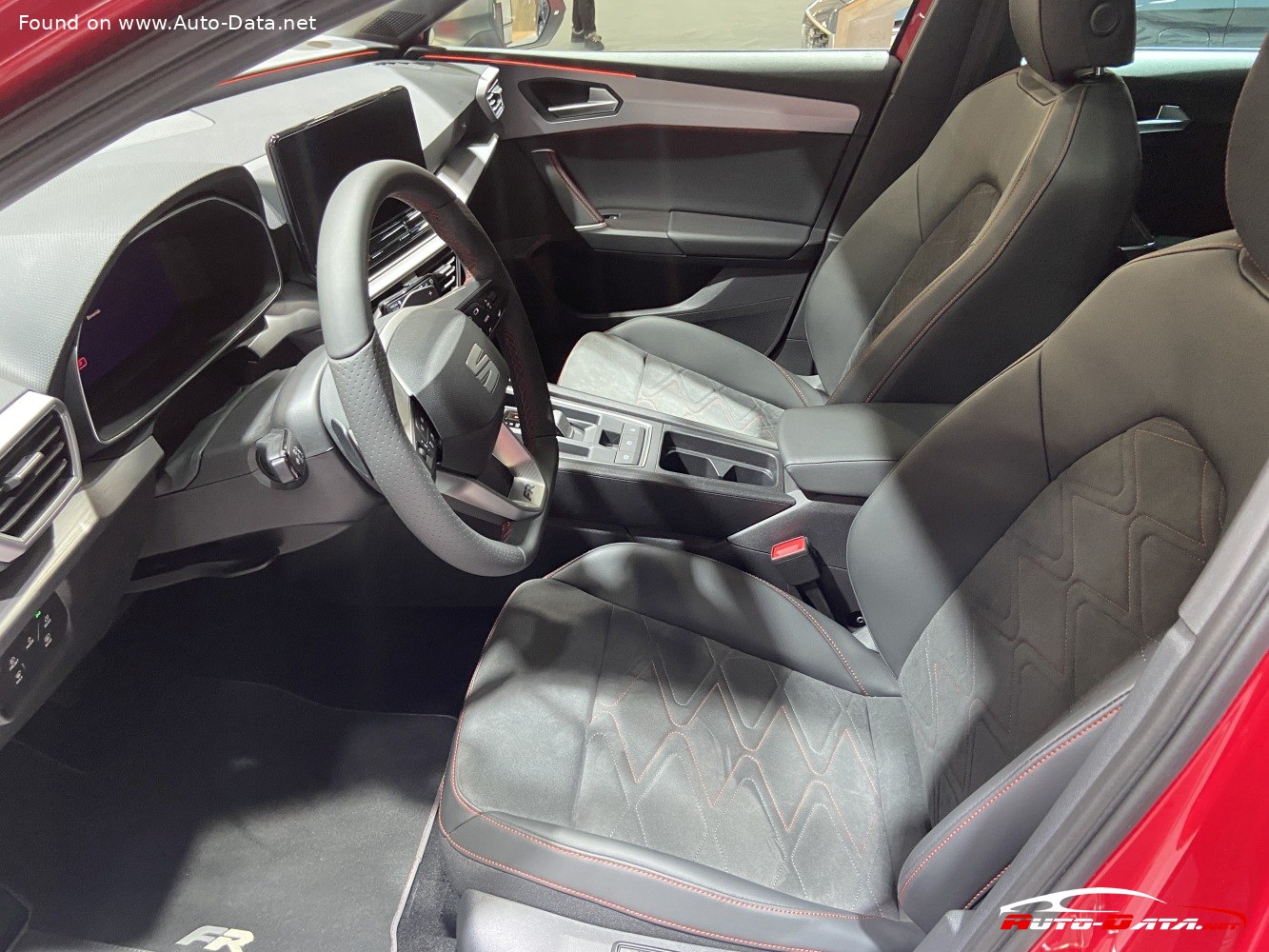

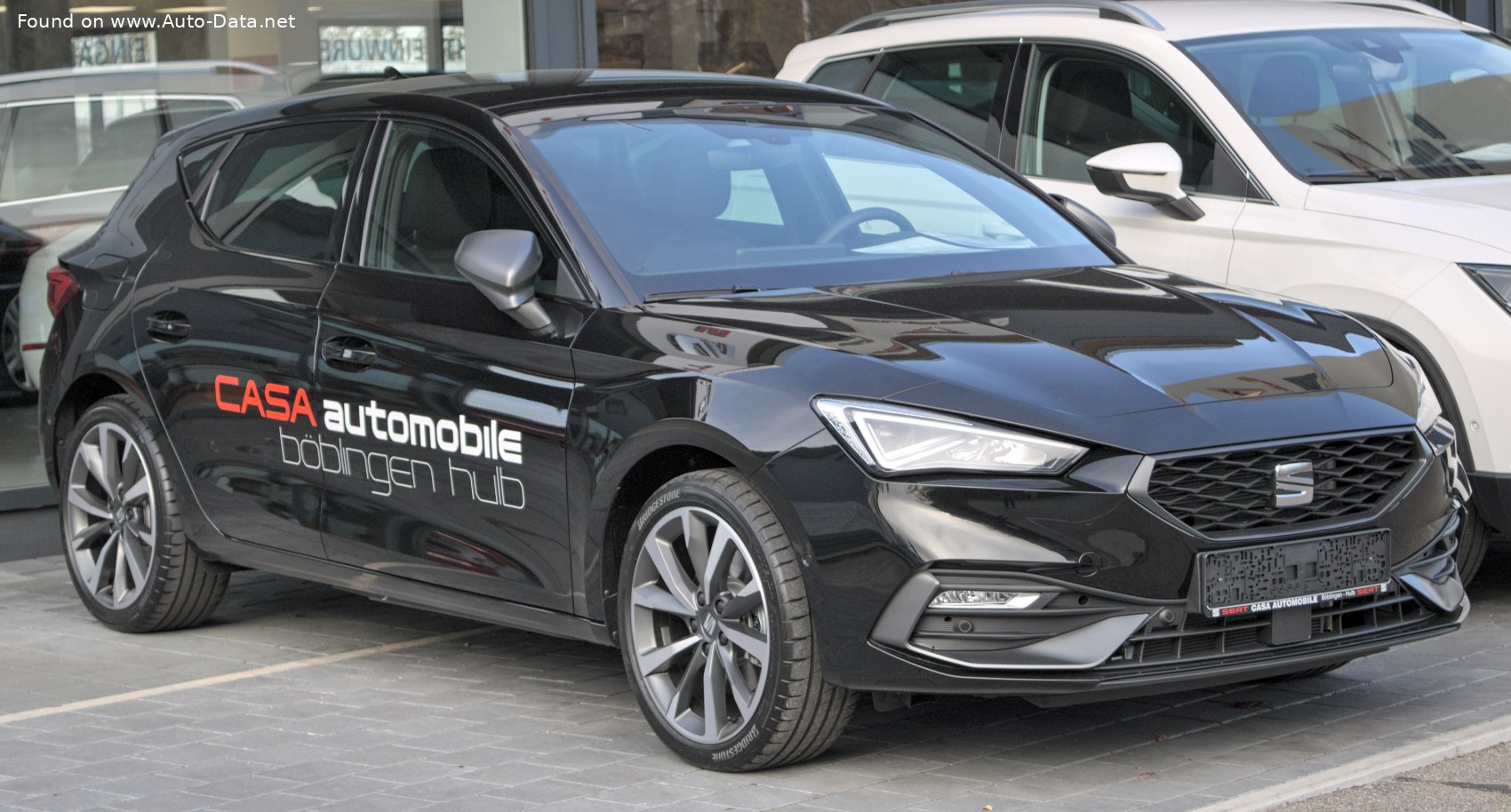

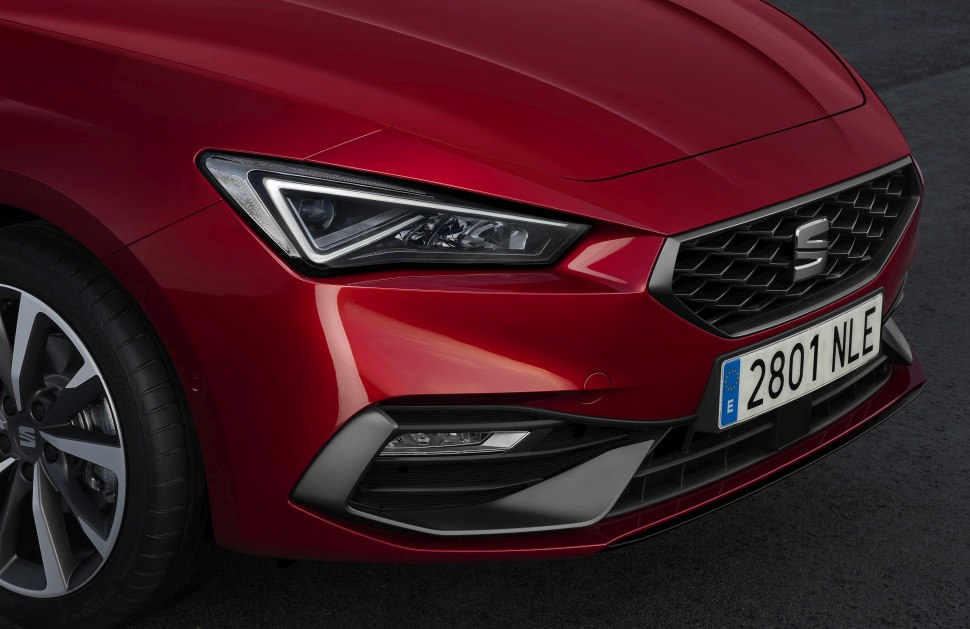

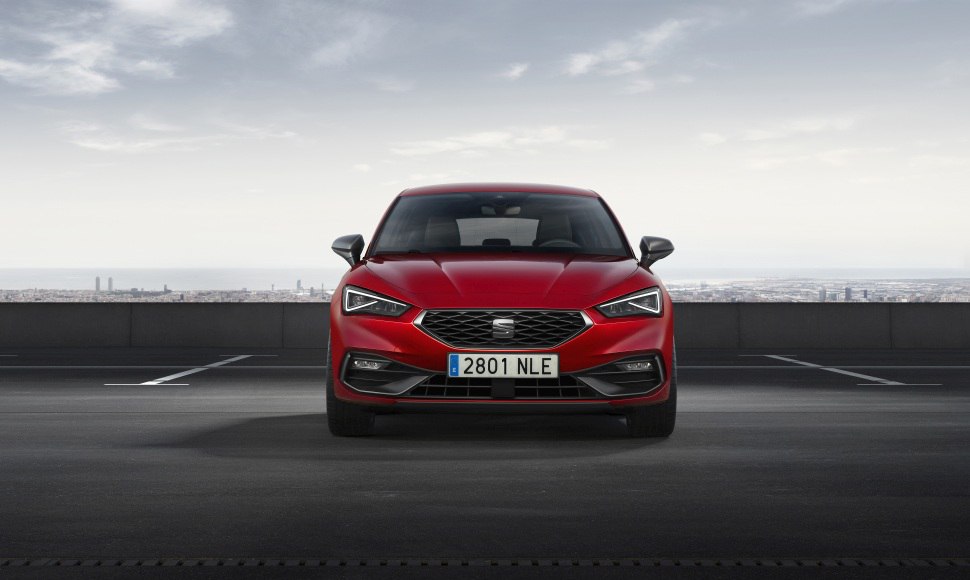

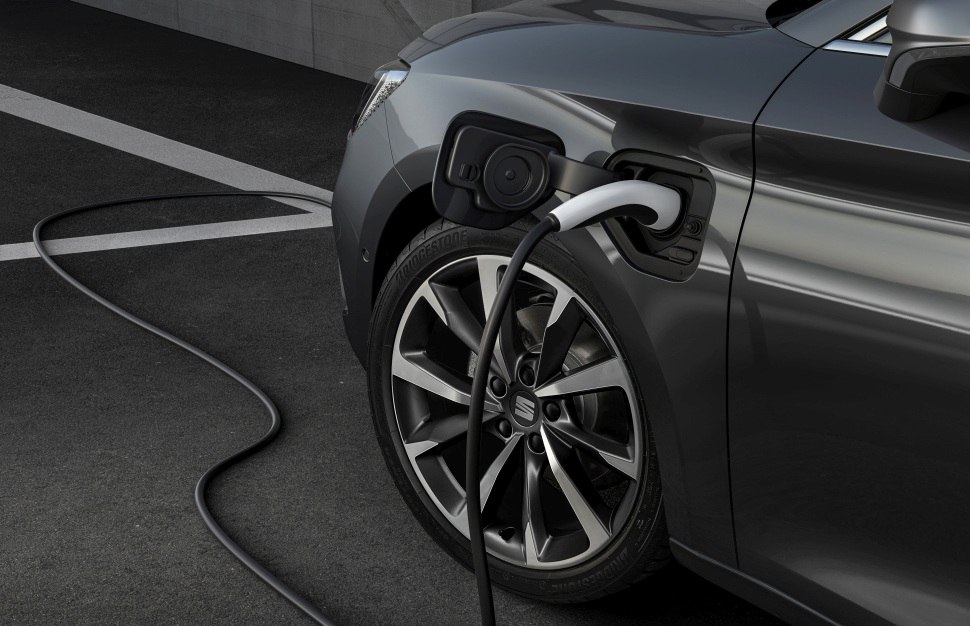

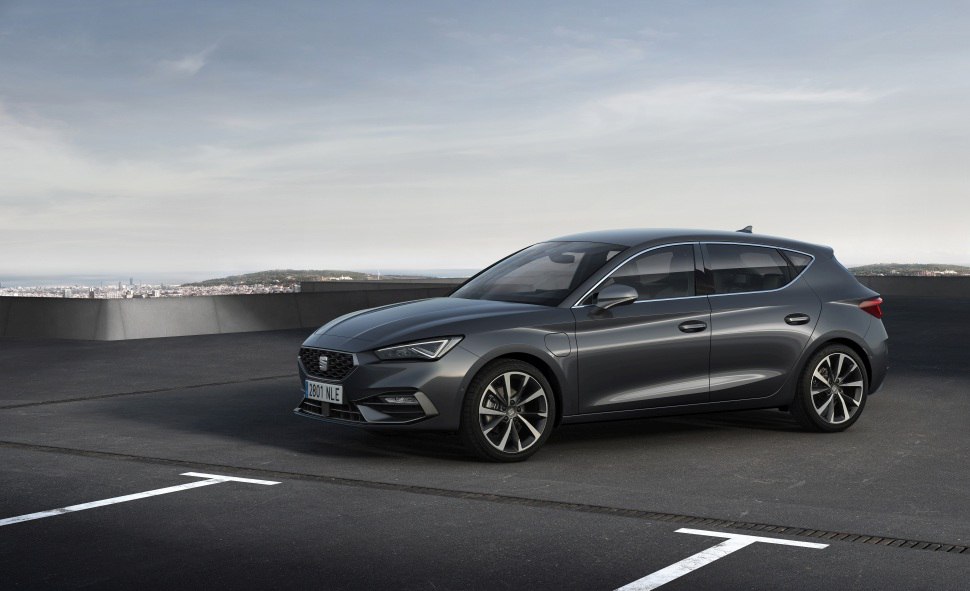

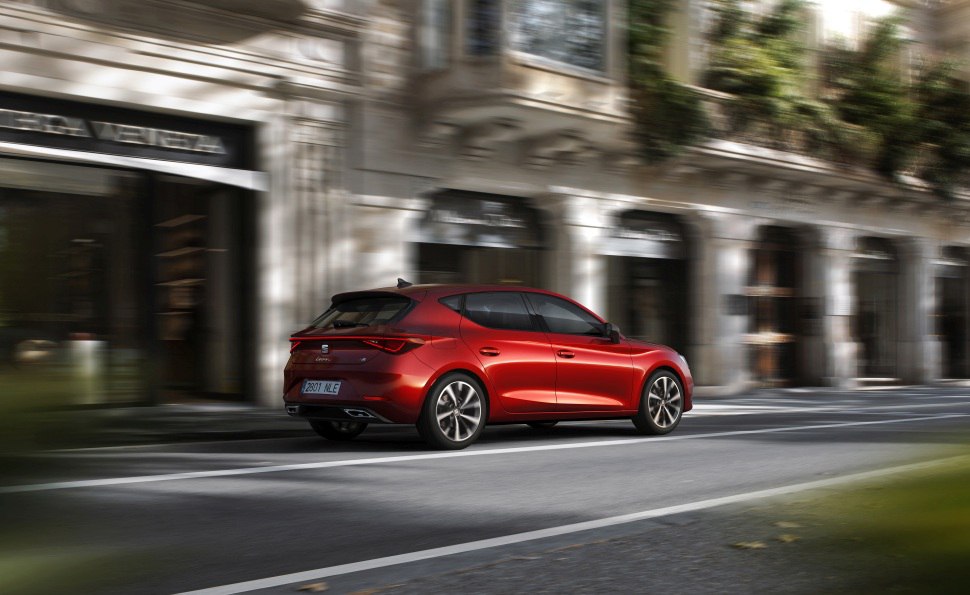

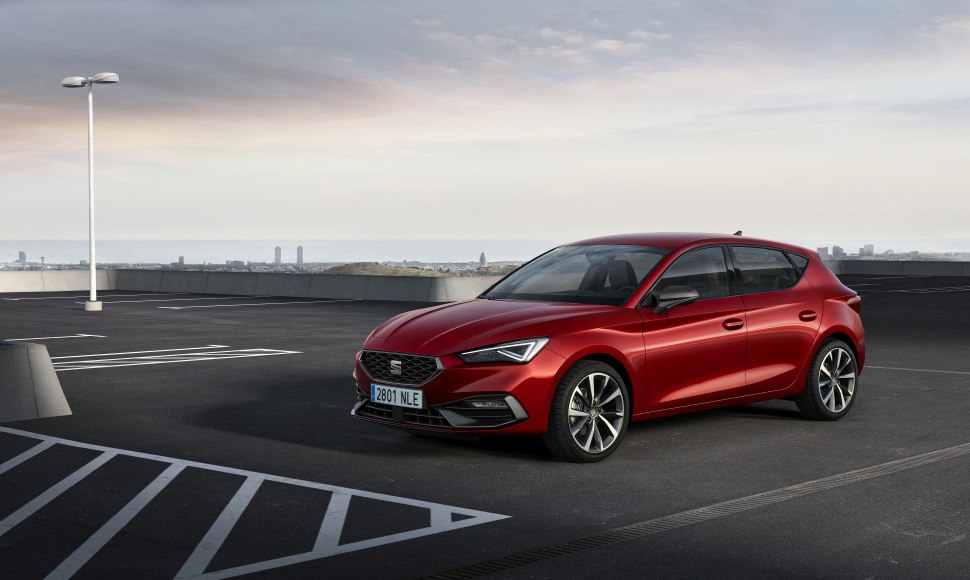

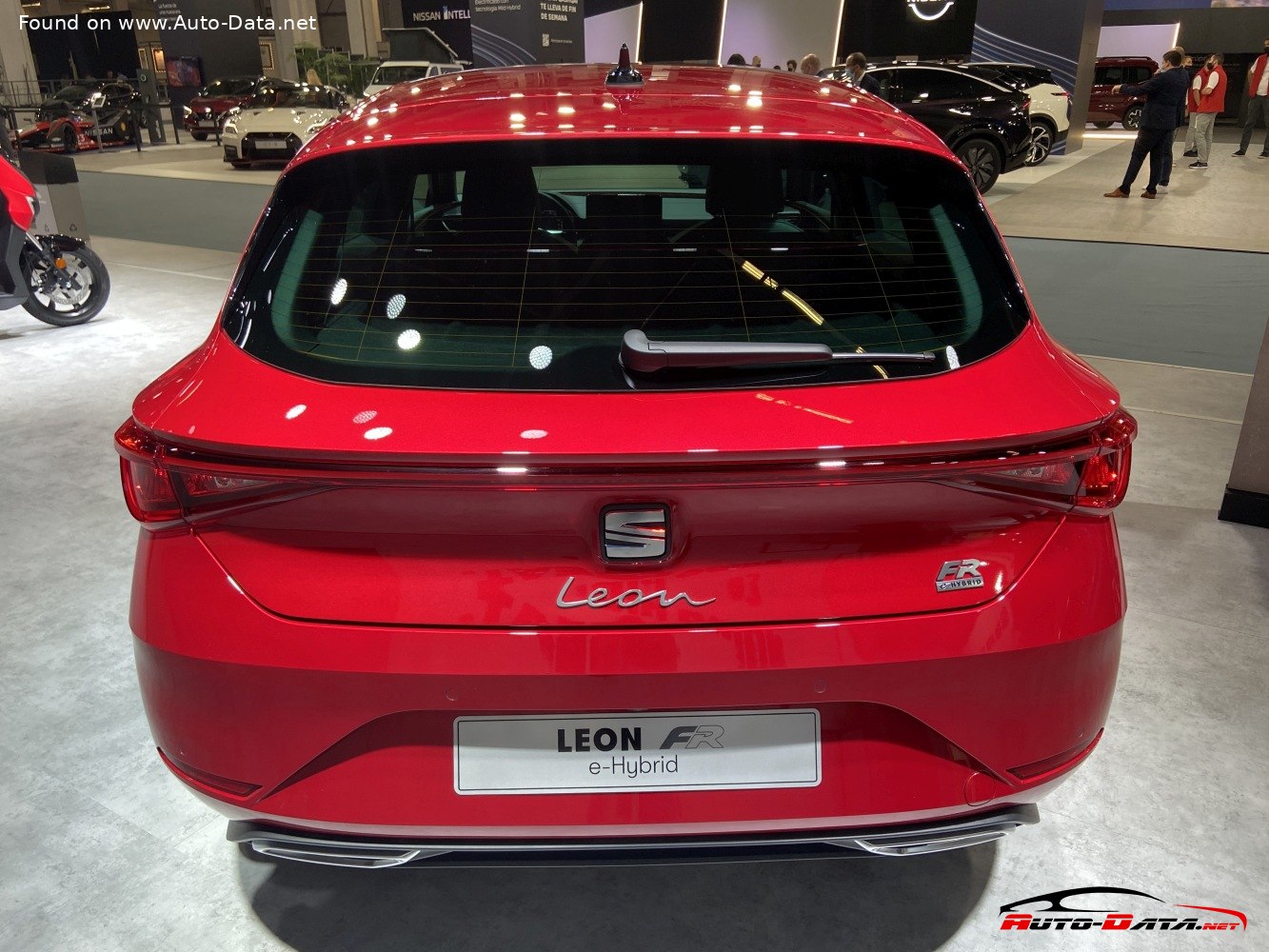

Seat Leon 5 2024 Gallery
Seat Leon 5 2024 Technical Specifications
General
Body type
Hatchback
Brand
Seat
Doors
5
Generation
Leon IV
Model
Leon
Modification (Engine)
1.5 TSI (272 Hp) e-Hybrid DSG
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
5
Start of production
July, 2024
Performance
Acceleration 0 - 100 km/h
7.7 sec
Acceleration 0 - 60 mph
7.3 sec
Acceleration 0 - 62 mph
7.7 sec
CO2 emissions (WLTP)
8 g/km
Combined fuel consumption (WLTP)
0.4 l/100 km
Emission standard
Euro 6 EA
Fuel Type
Petrol / electricity
Maximum speed
220 km/h
Electric
All-electric range (WLTP)
126-133 km
Average Energy consumption (WLTP)
15.6-16.2 kWh/100 km
Battery location
Below the floor, under the rear seats
Charging ports number 0
Log in to see.
Electric motor location number 1
Between the combustion engine and the transmission
Electric motor power number 1
116 Hp
Electric motor type number 1
Synchronous
Gross battery capacity
25.8 kWh
Net (usable) battery capacity
19.7 kWh
System power
272 Hp
System torque
330 Nm
Internal Engine
Compression ratio
11.5:1
Cylinder Bore
74.5 mm
Engine Model/Code
DUC
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1498 cm
Engine layout
Front, Transverse
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Direct injection
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
85.9 mm
Power
204 Hp @ 5000-6000 rpm.
Power per litre
136.2 Hp/l
Torque
250 Nm @ 1500-4000 rpm.
Dimensions
Front track
1514-1544 mm
Height
1460 mm
Length
4368 mm
Minimum turning circle (turning diameter)
11.2 m
Rear (Back) track
1516 mm
Wheelbase
2682 mm
Width
1799 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs
Front suspension
Independent type McPherson
Number of gears and type of gearbox
6 gears, automatic transmission DSG
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Independent multi-link suspension
Steering type
Steering rack and pinion
Tires size
225/45 R17; 225/40 R18
Wheel rims size
17; 18
Space
Fuel tank capacity
40 l
Kerb Weight
1595 kg
Max load
535 kg
Max. roof load
75 kg
Max. weight
2130 kg
Permitted towbar download
80 kg
