Volkswagen Tiguan 2011
2.0 TDI BMT (140 Hp) 4MOTION
Generation Tiguan 2011
Body Type SUV
Seats 5
2015
End Year
190 km/h
Maximum Speed
5
Doors
Volkswagen Tiguan 2011 Key Specs
Acceleration 0 - 100 Km/h
10.2 sec
Acceleration 0 - 62 Mph
10.2 sec
Body Type
SUV
Doors
5
Drive Wheel
All wheel drive (4x4)
End Of Production
2015
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
4 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
64 l
Generation
Tiguan I (2011)
Kerb Weight
1580-1582 kg
Maximum Speed
190 km/h
Modification (Engine)
2.0 TDI BMT (140 Hp) 4MOTION
Number Of Cylinders
4
Power
140 Hp @ 4200 rpm.
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
2011
Wheel Rims Size
6.5J x 16; 6.5J x 17; 7J x 17; 7J x 18; 8J x 18; 9J x 19

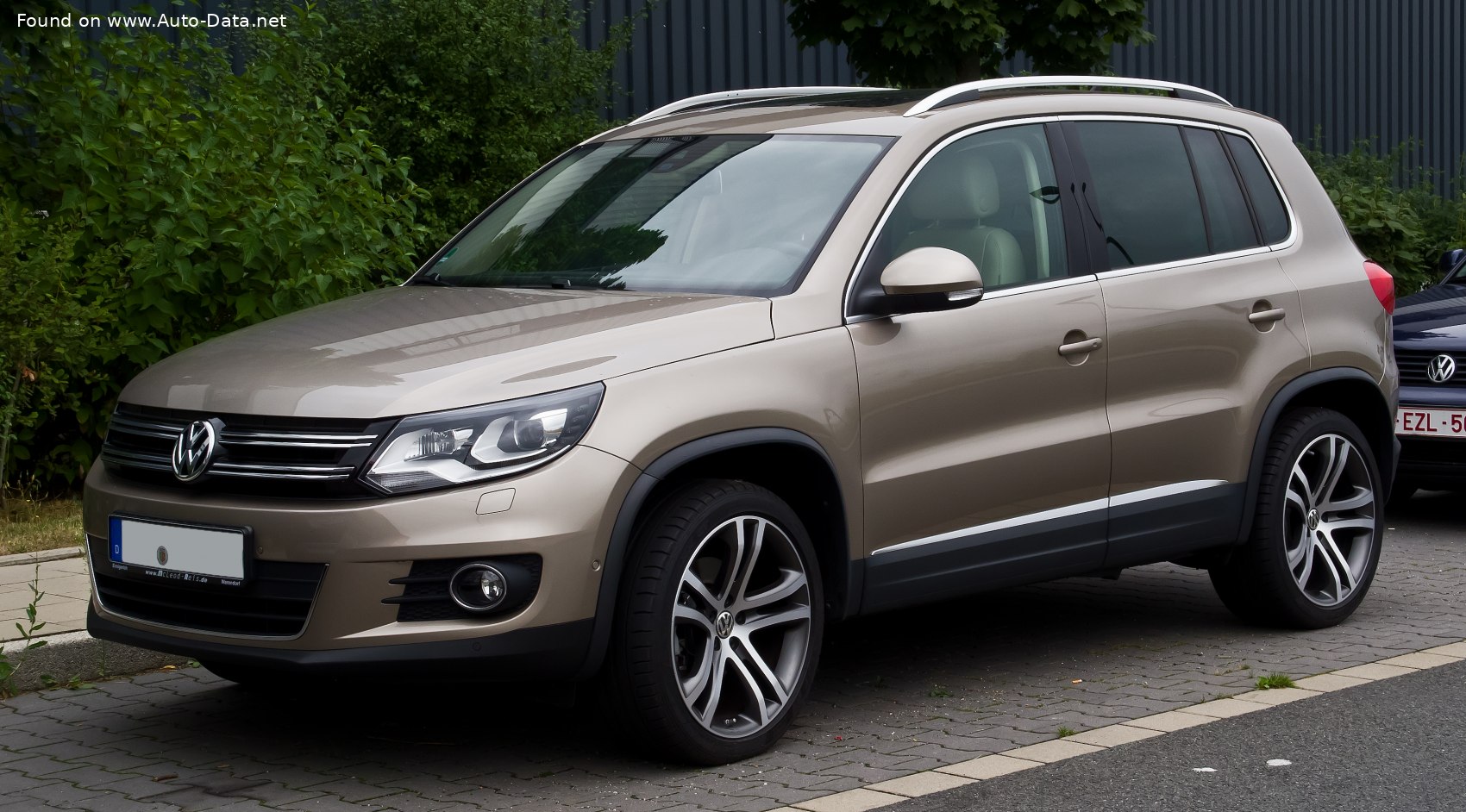

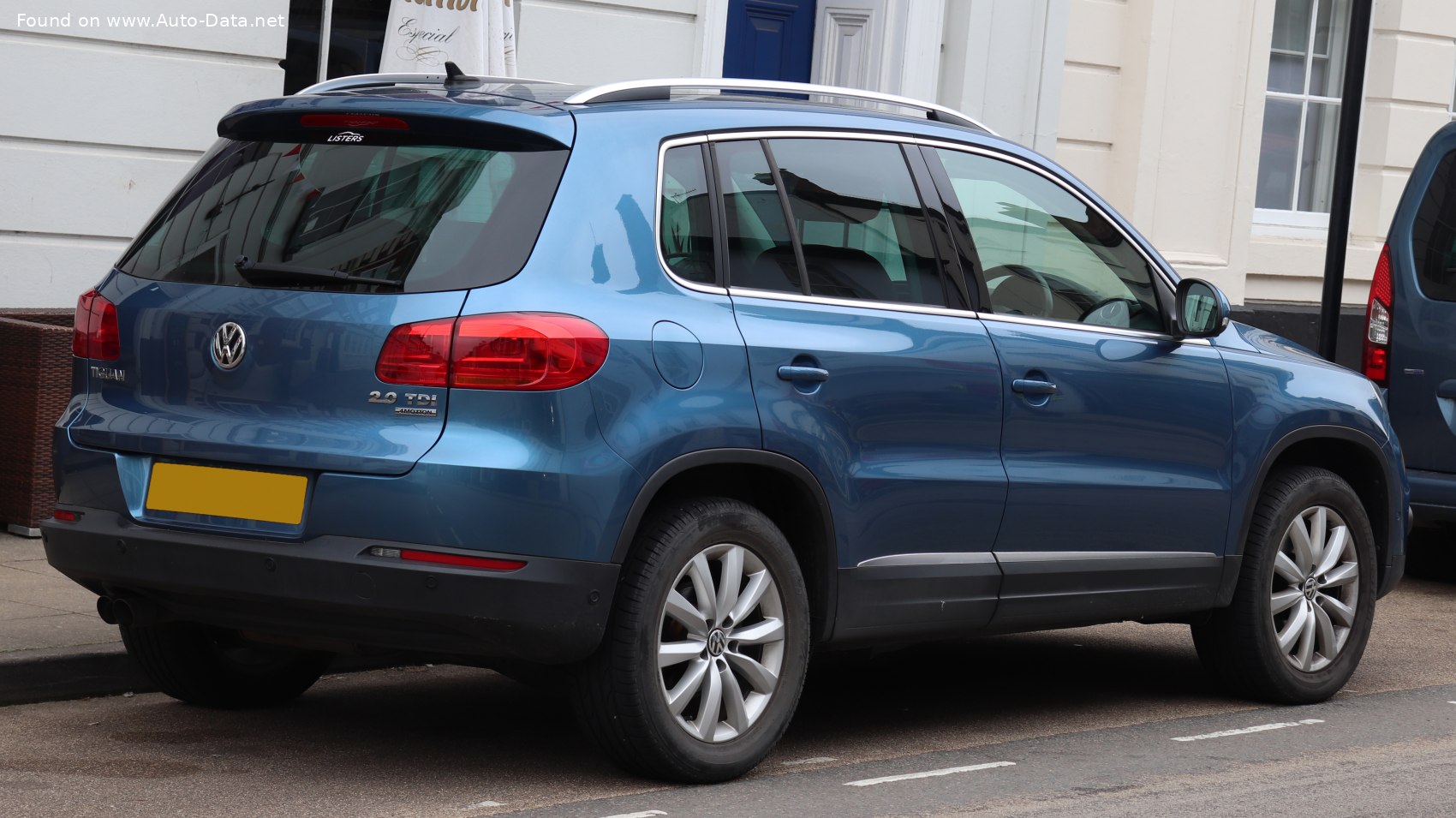

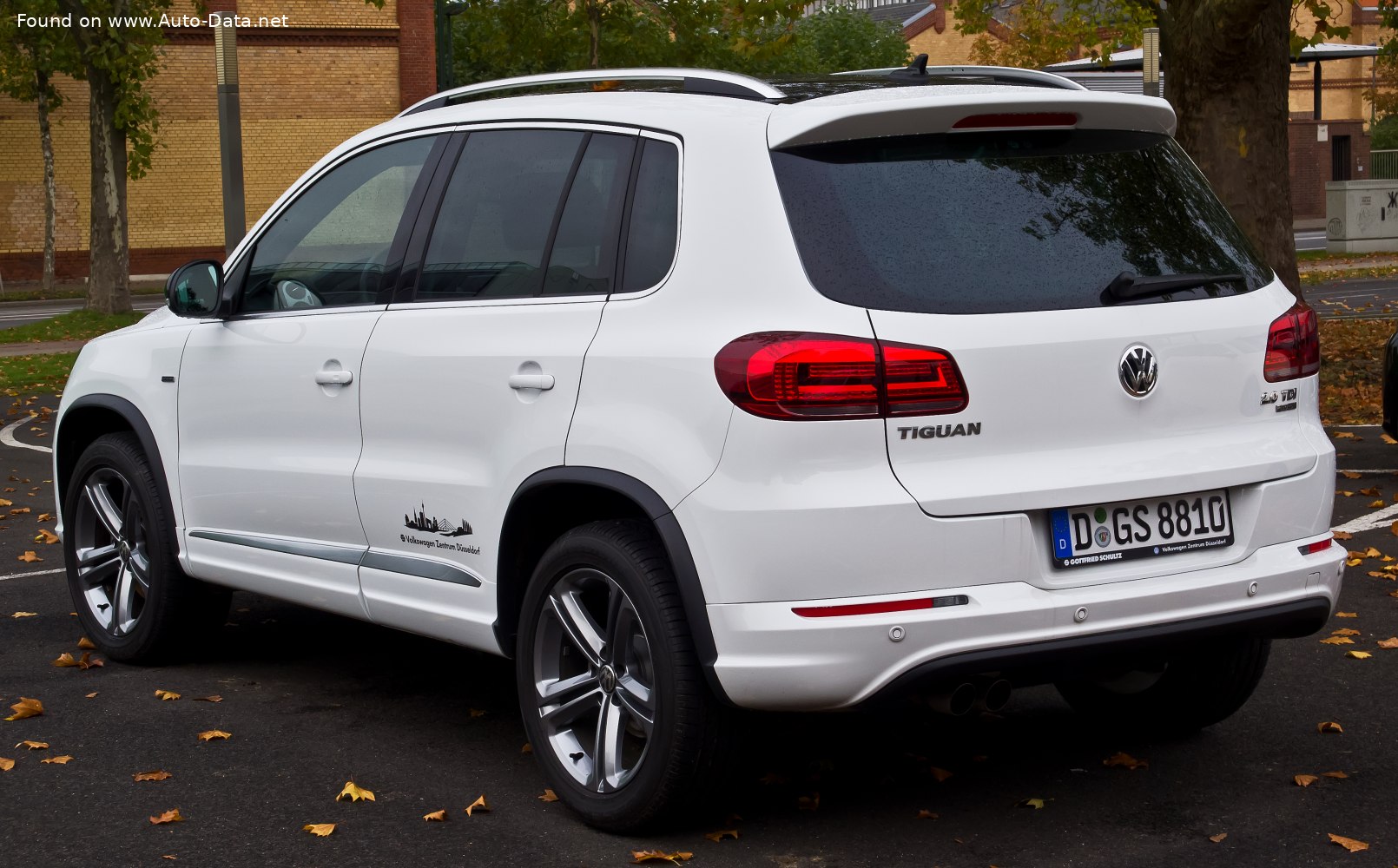

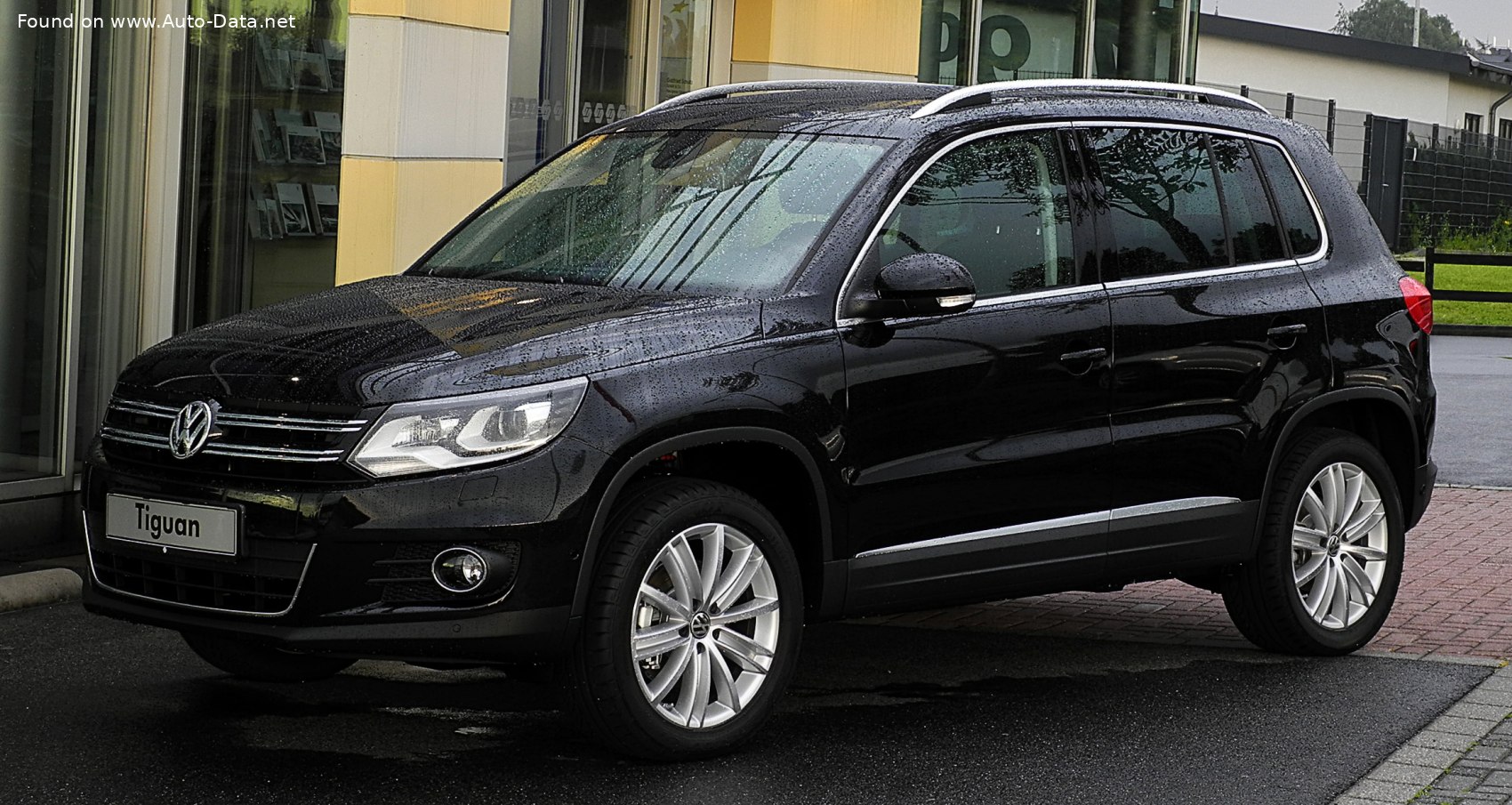

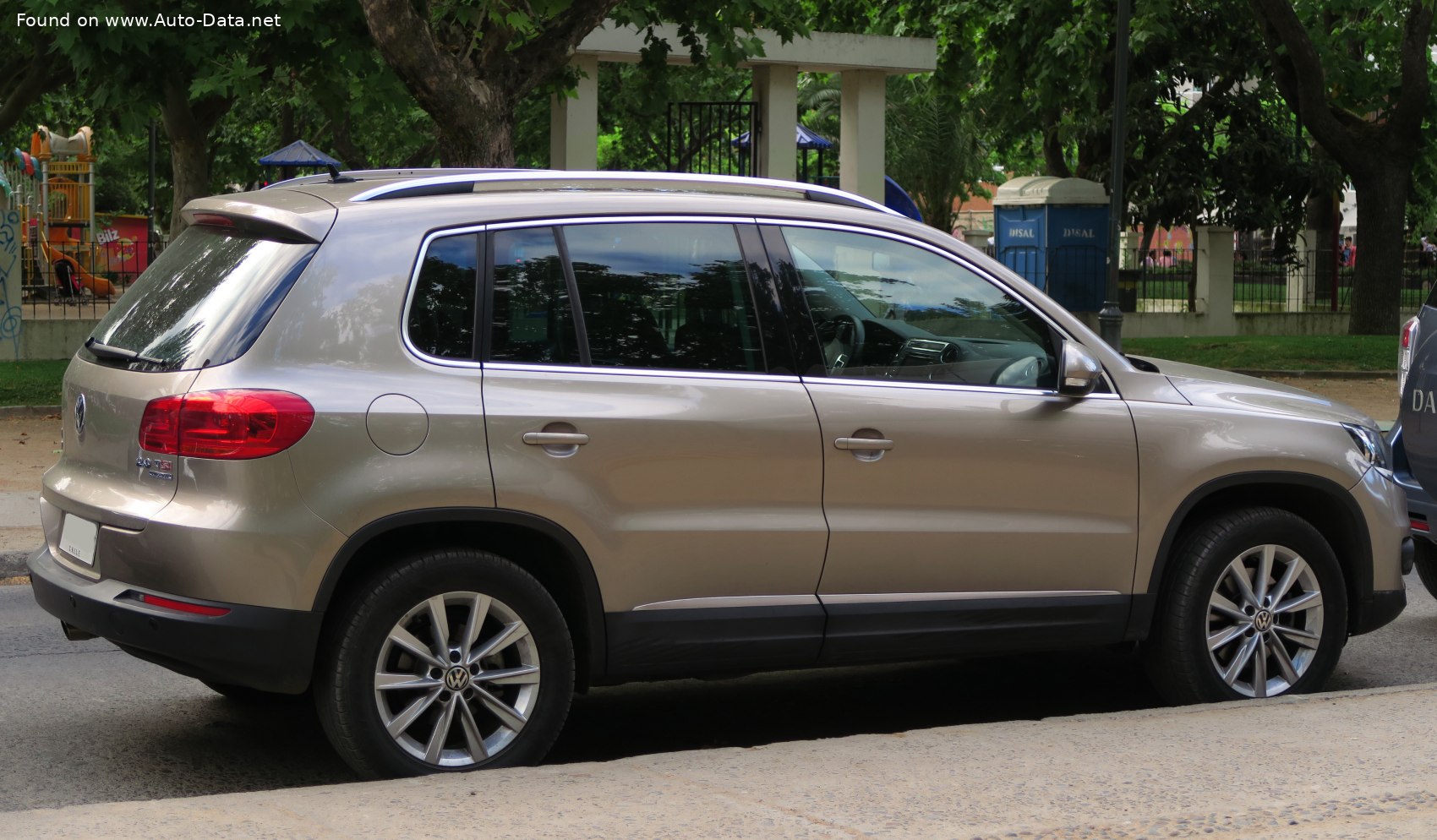

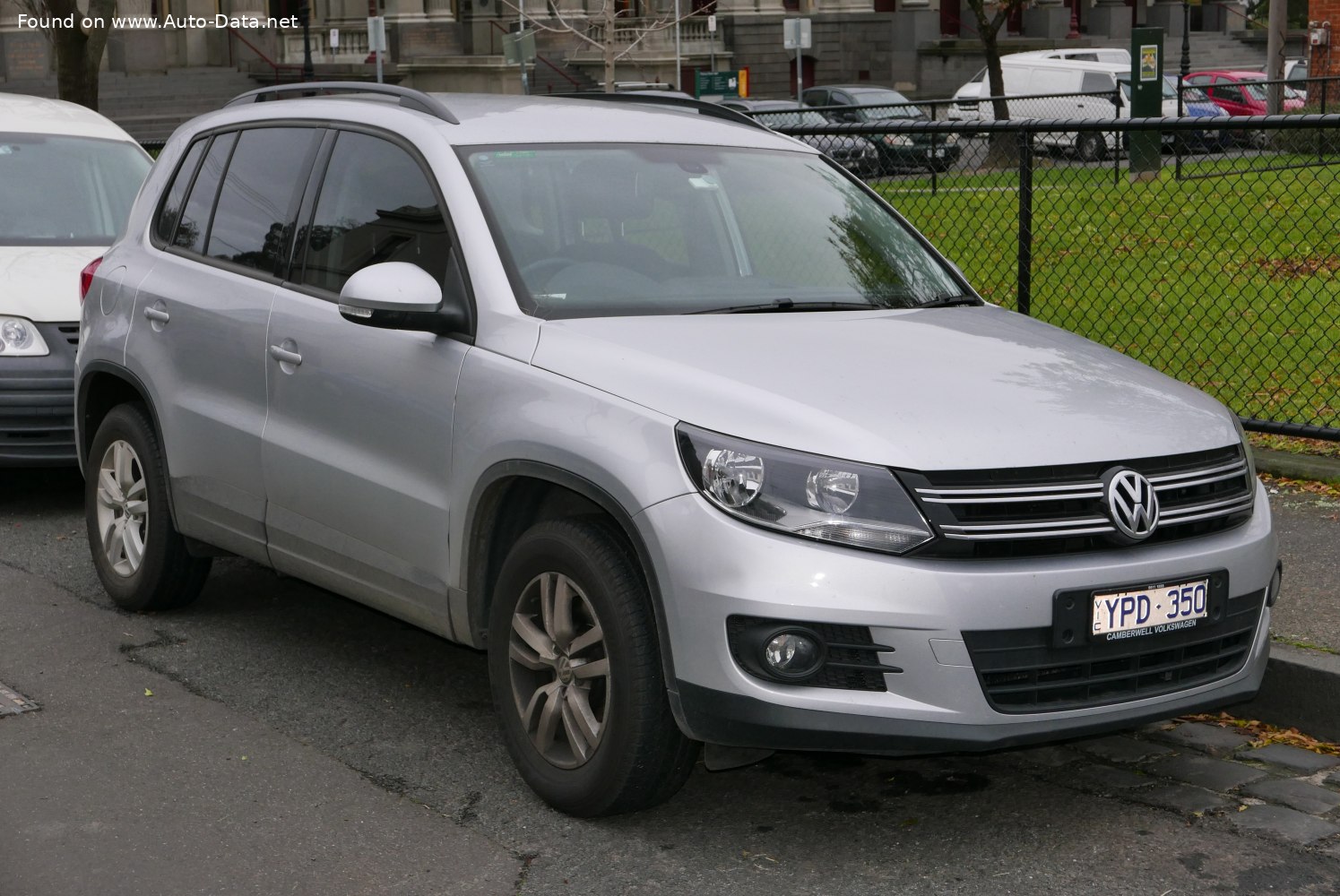

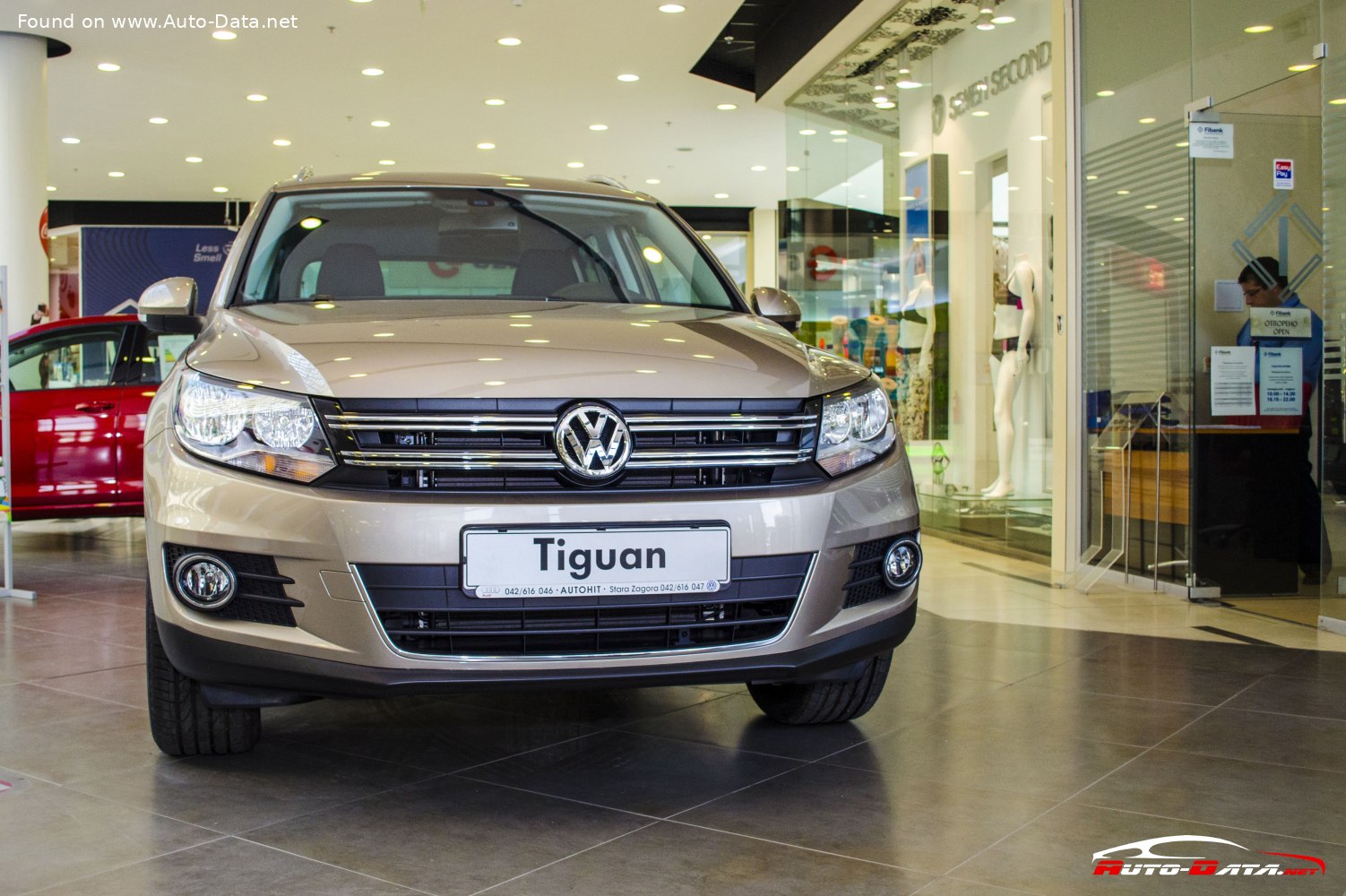

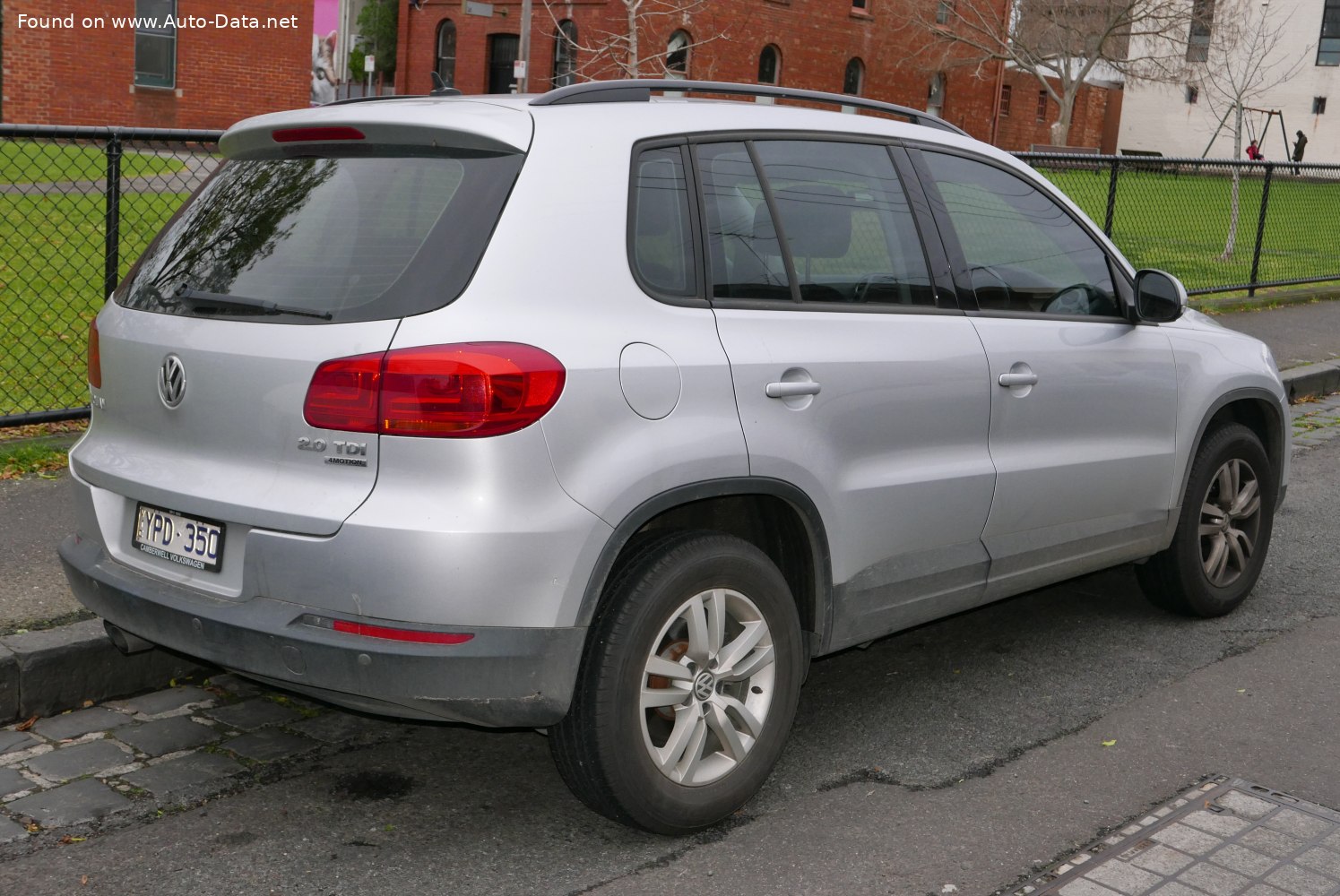

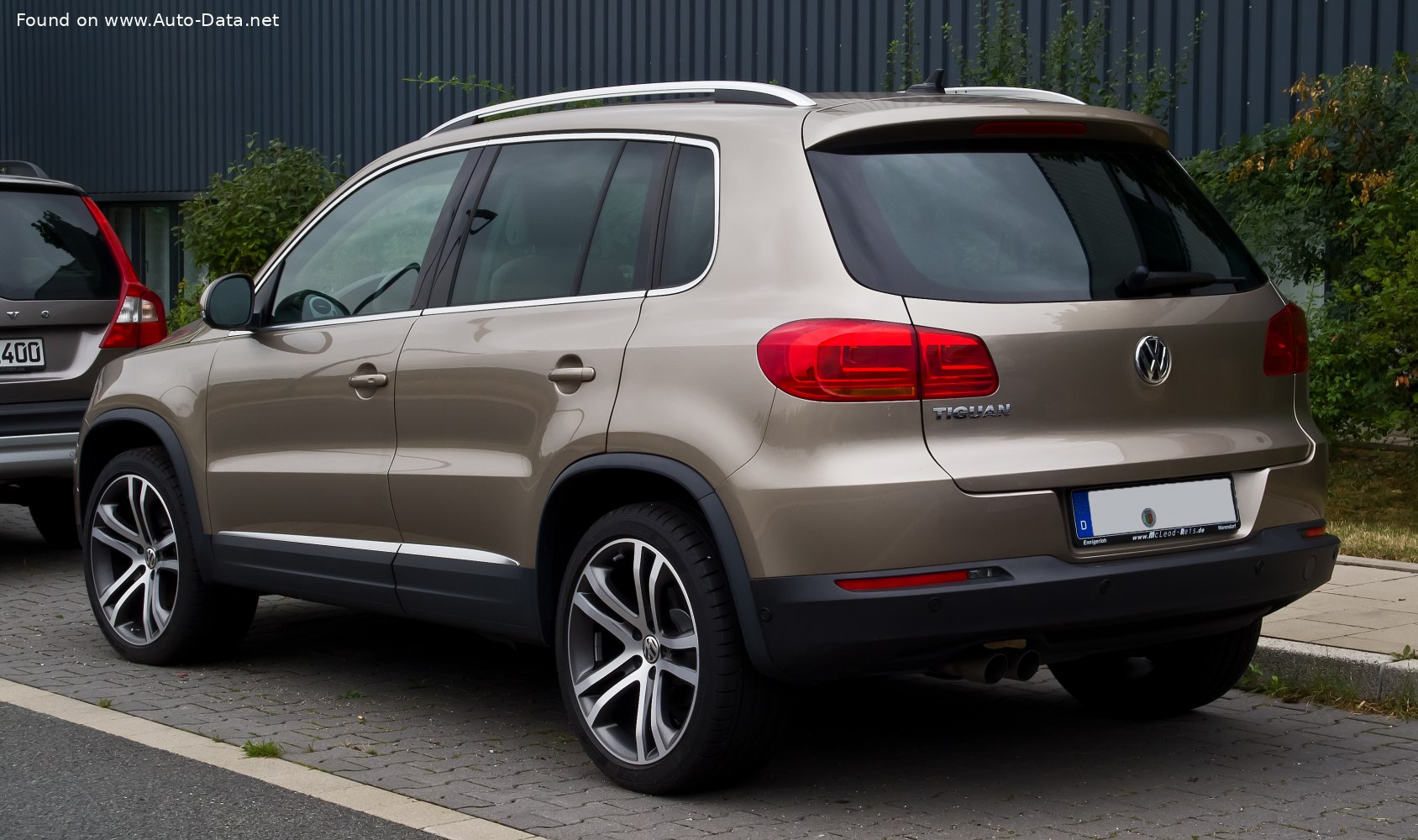

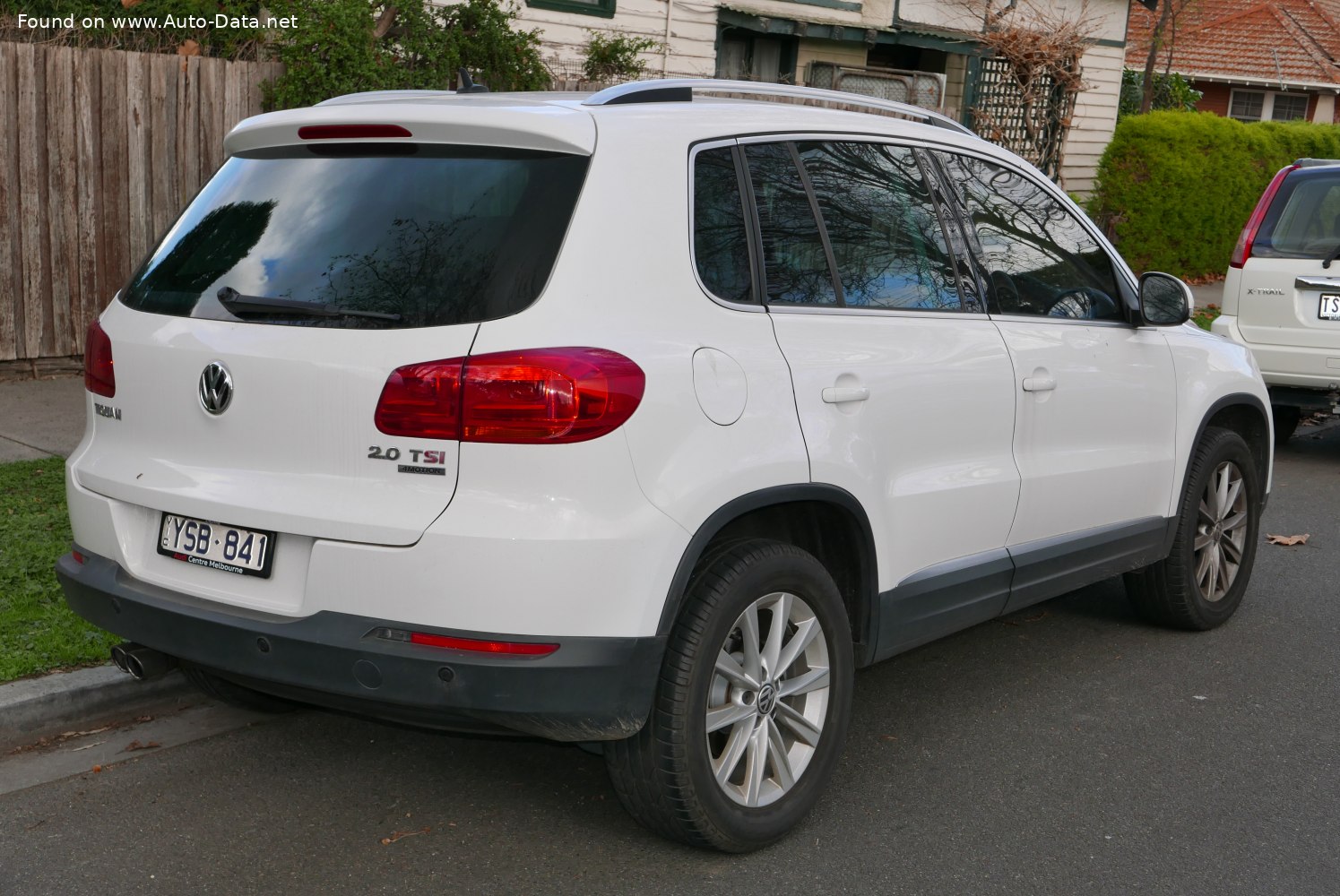

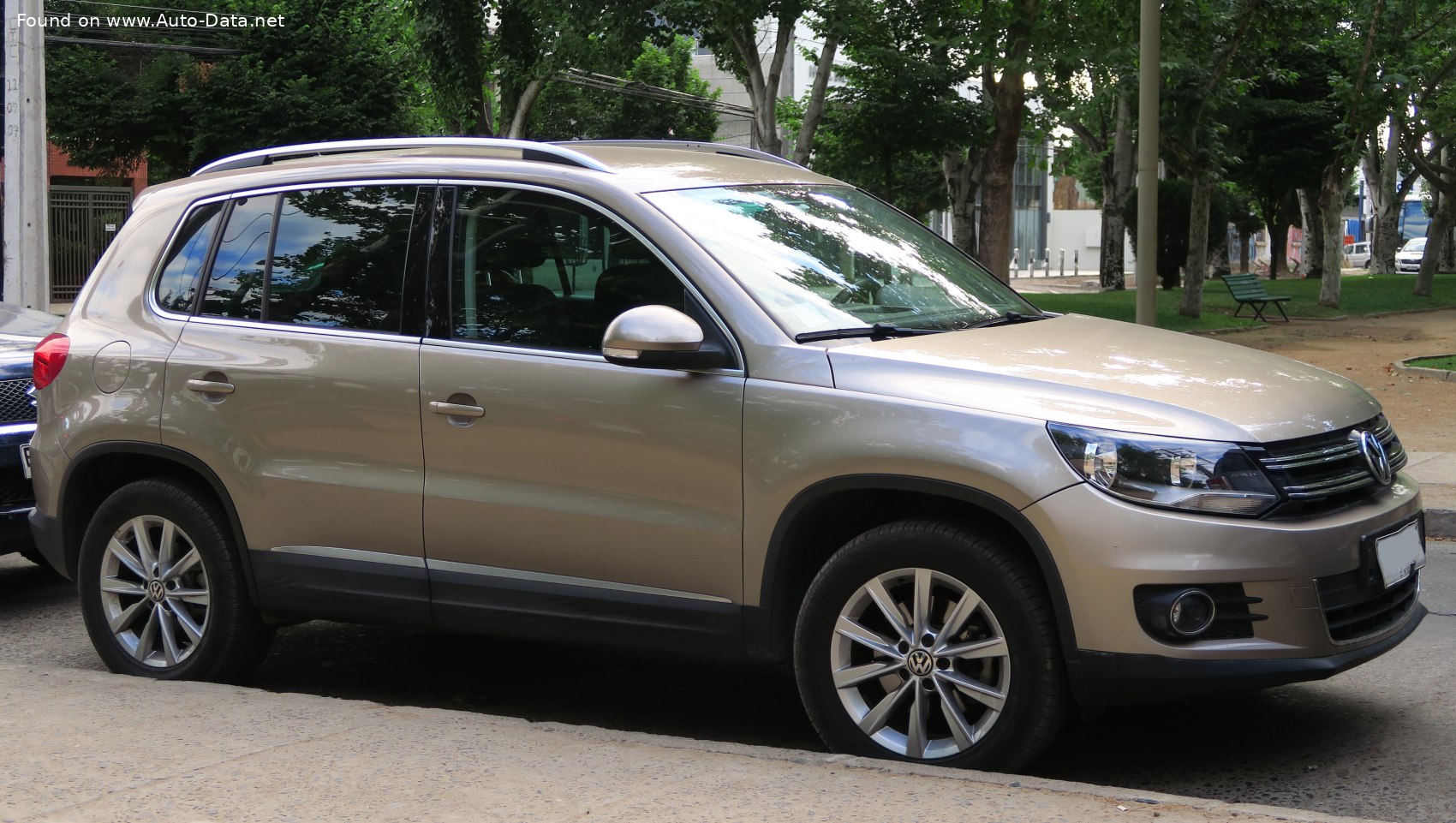

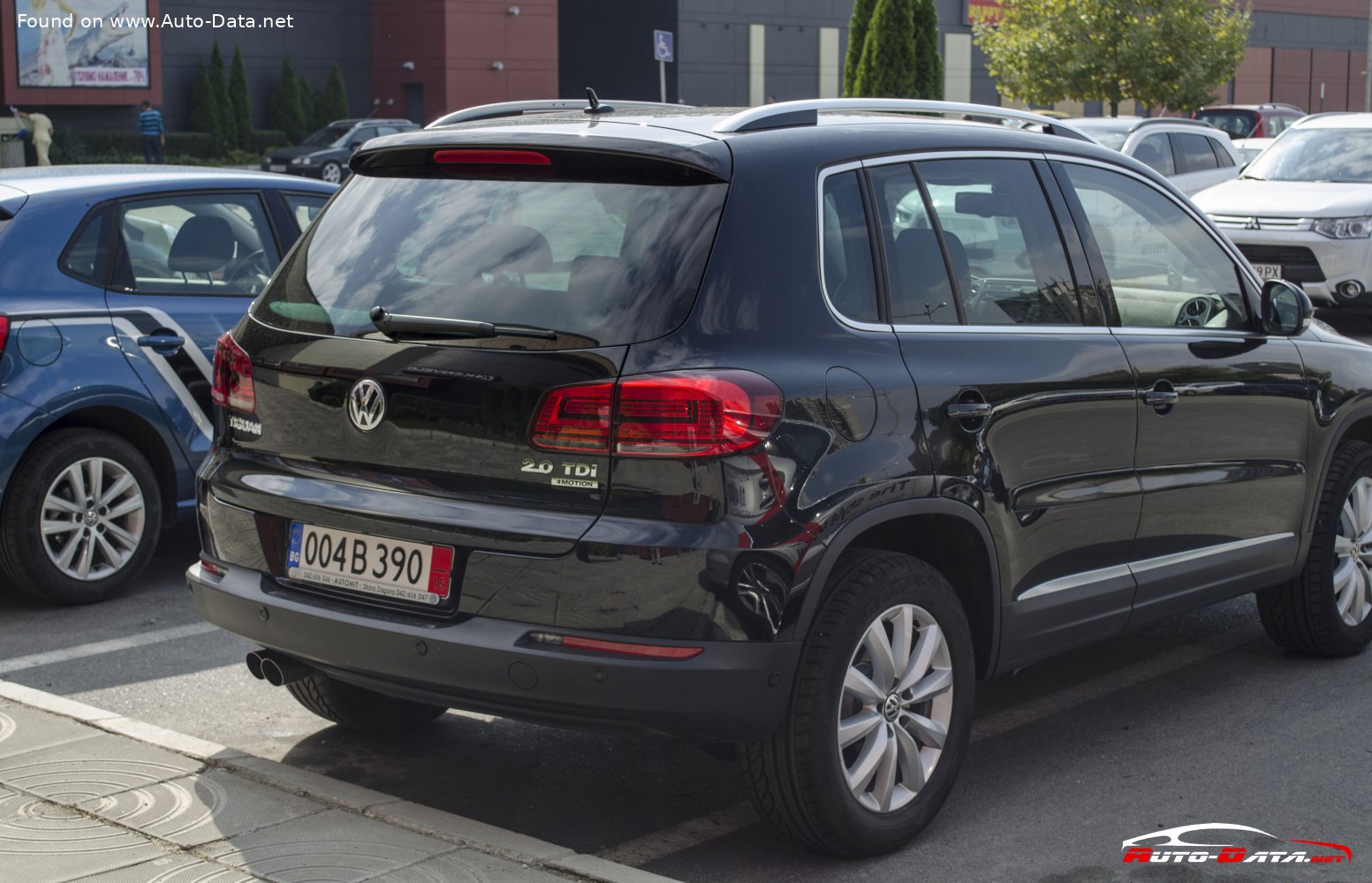

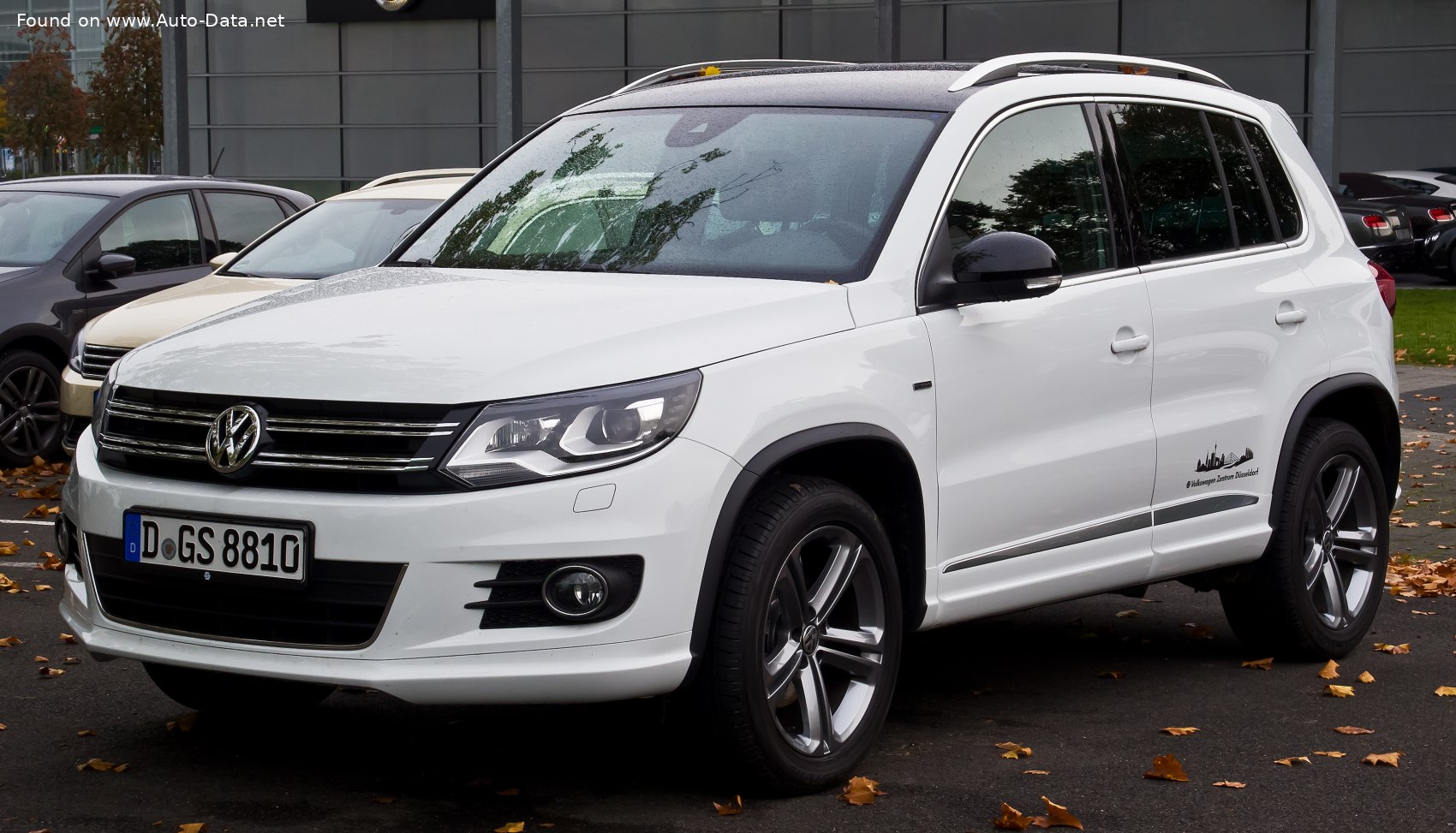

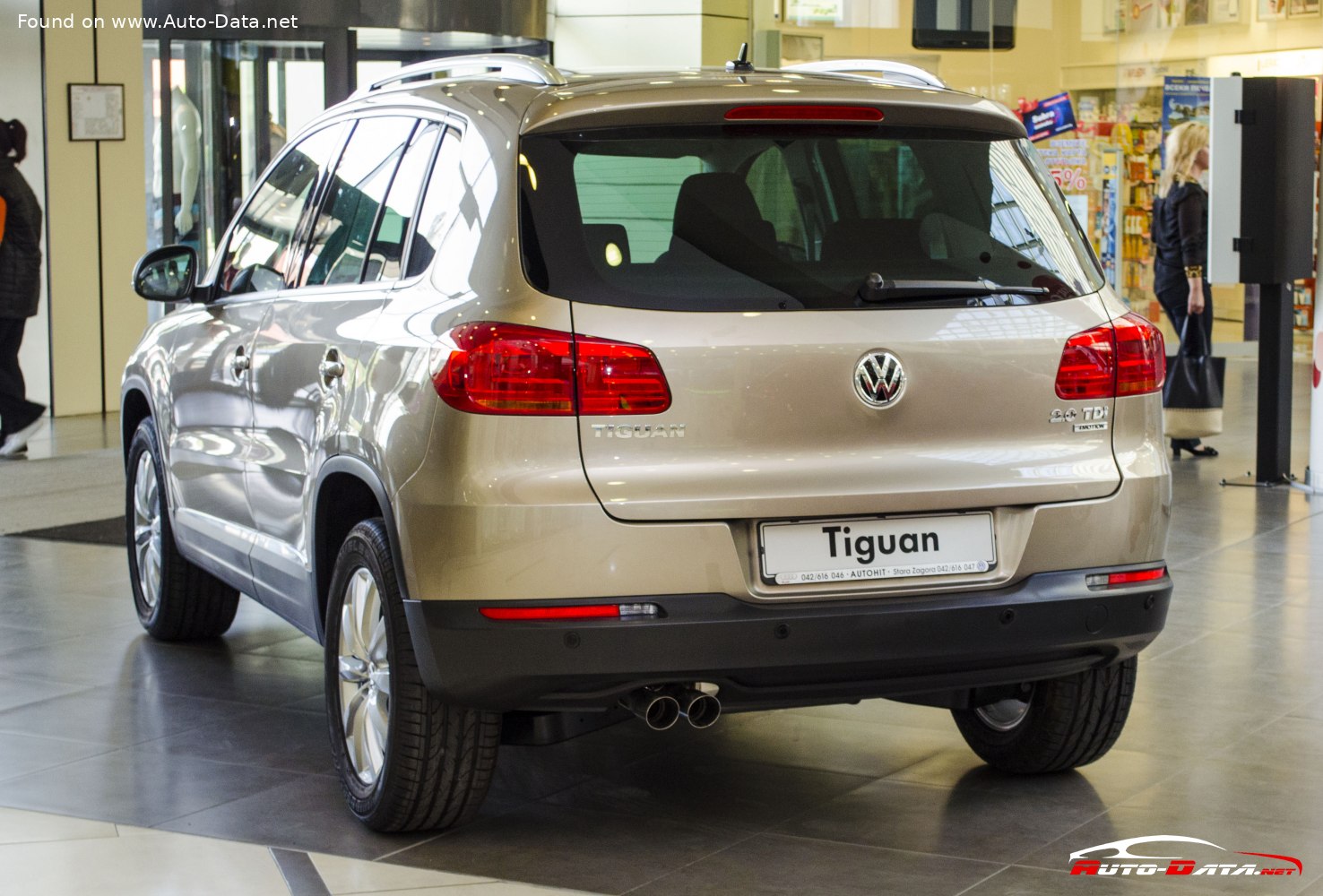

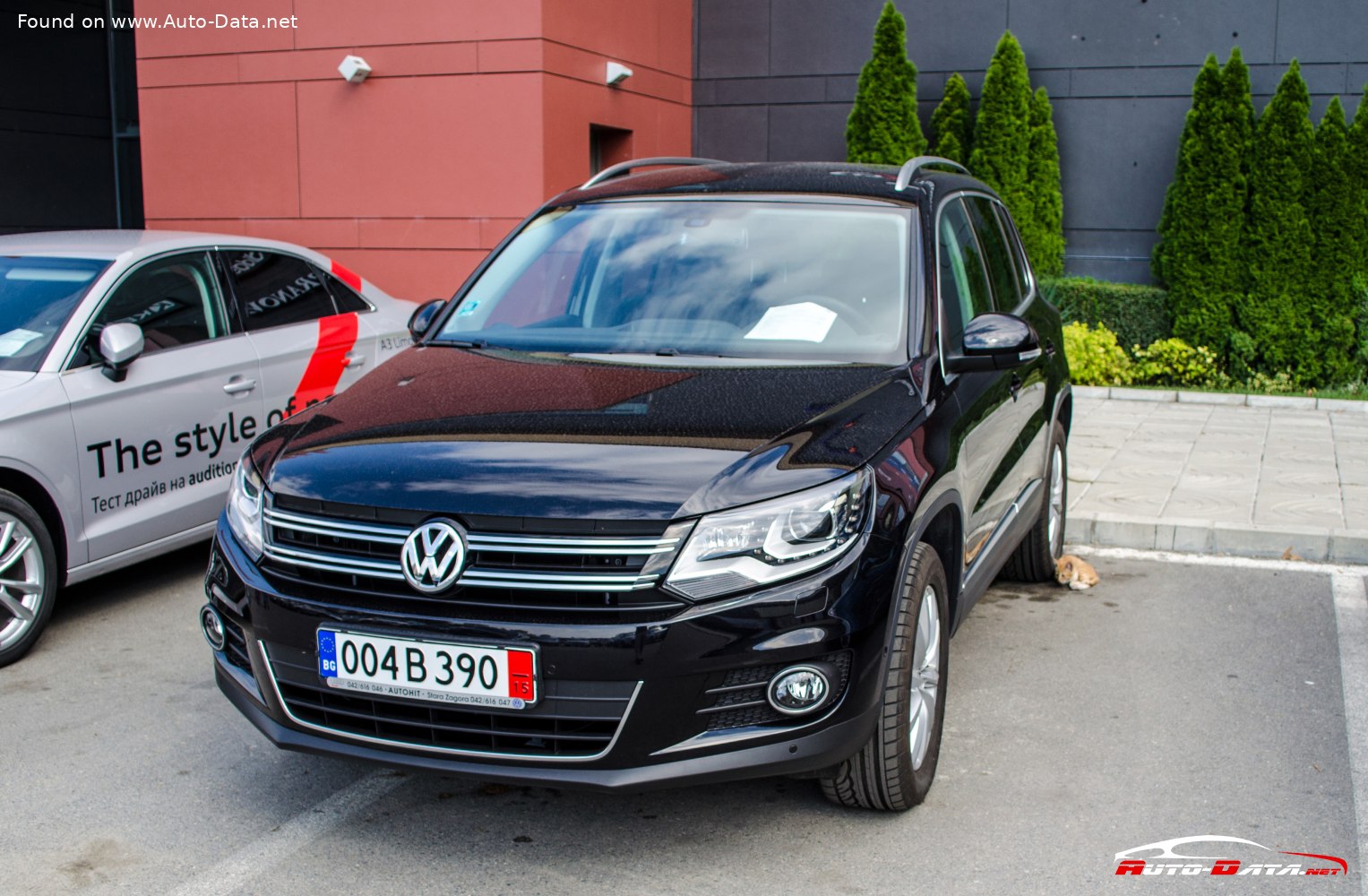

Volkswagen Tiguan 2011 Gallery
Volkswagen Tiguan 2011 Technical Specifications
General
Body type
SUV
Brand
Volkswagen
Doors
5
End of production
2015
Generation
Tiguan I (2011)
Model
Tiguan
Modification (Engine)
2.0 TDI BMT (140 Hp) 4MOTION
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
2011
Performance
Acceleration 0 - 100 km/h
10.2 sec
Acceleration 0 - 60 mph
9.7 sec
Acceleration 0 - 62 mph
10.2 sec
CO2 emissions (NEDC)
150 g/km
Emission standard
Euro 5
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC)
5.8 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
5.1 l/100 km
Fuel consumption (economy) - urban (NEDC)
6.9 l/100 km
Maximum speed
190 km/h
Dimensions
Approach angle
18°
Departure angle
25°
Front track
1569 mm
Height
1703 mm
Length
4426 mm
Minimum turning circle (turning diameter)
12 m
Ramp-over (brakeover) angle
20°
Rear (Back) track
1571 mm
Ride height (ground clearance)
200 mm
Wheelbase
2604 mm
Width
1809 mm
Engine
Compression ratio
16.5:1
Coolant
8 l
Cylinder Bore
81 mm
Engine Model/Code
EA189 / CBAB, CFFB, CLJA
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1968 cm
Engine layout
Front, Transverse
Engine oil capacity
4 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
4
Power
140 Hp @ 4200 rpm.
Torque
320 Nm @ 1750-2500 rpm.
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
6 gears, manual transmission
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
215/65 R16; 215/60 R17; 235/55 R17; 235/50 R18; 255/40 R19
Wheel rims size
6.5J x 16; 6.5J x 17; 7J x 17; 7J x 18; 8J x 18; 9J x 19
Space
Fuel tank capacity
64 l
Kerb Weight
1580-1582 kg
Max load
668-670 kg
Max. roof load
75 kg
Max. weight
2250 kg
Permitted towbar download
100 kg
