KGM Actyon 2024
1.5 GDI (163 Hp)
Generation Actyon
Body Type Coupe, SUV
Seats 5
5000-5500 rpm.
Power HP RPM
194 km/h
Maximum Speed
5
Doors
KGM Actyon 2024 Key Specs
Body Type
Coupe, SUV
Doors
5
Drive Wheel
Front wheel drive
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
4.5 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
50 l
Generation
Actyon
Kerb Weight
1550 kg
Maximum Speed
194 km/h
Modification (Engine)
1.5 GDI (163 Hp)
Number Of Cylinders
4
Power
163 Hp @ 5000-5500 rpm.
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
2024
Wheel Rims Size
8J x 20

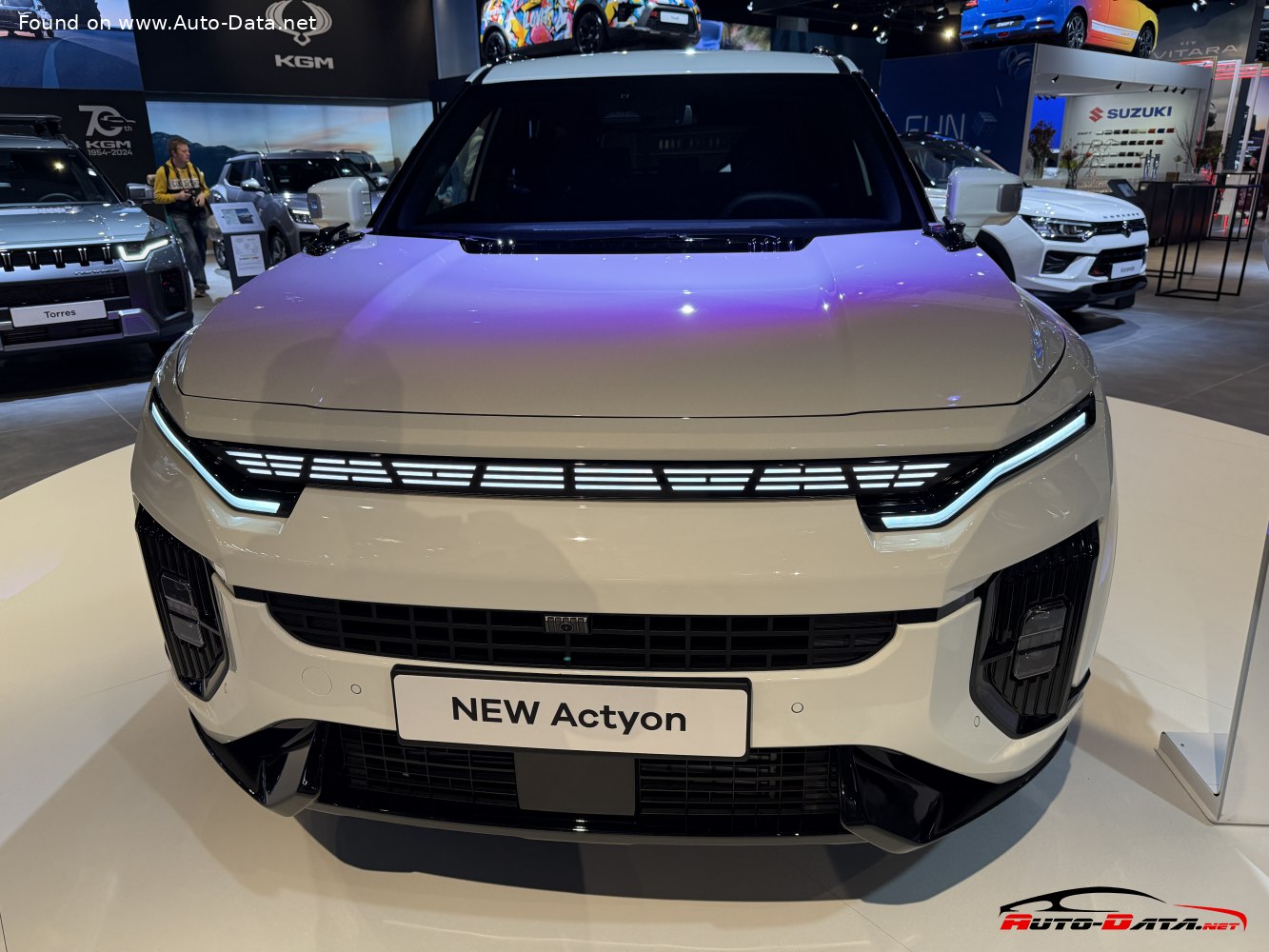

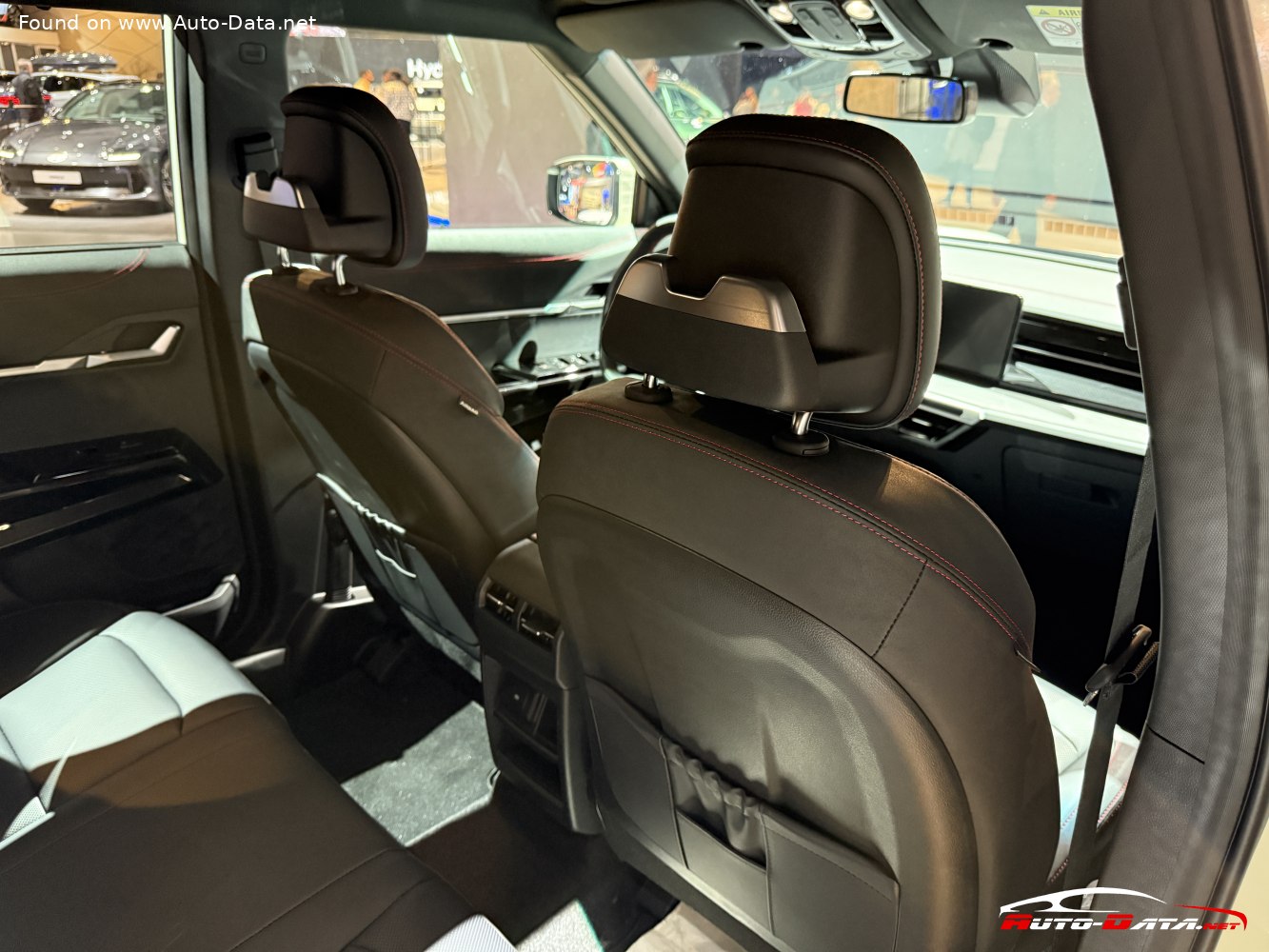

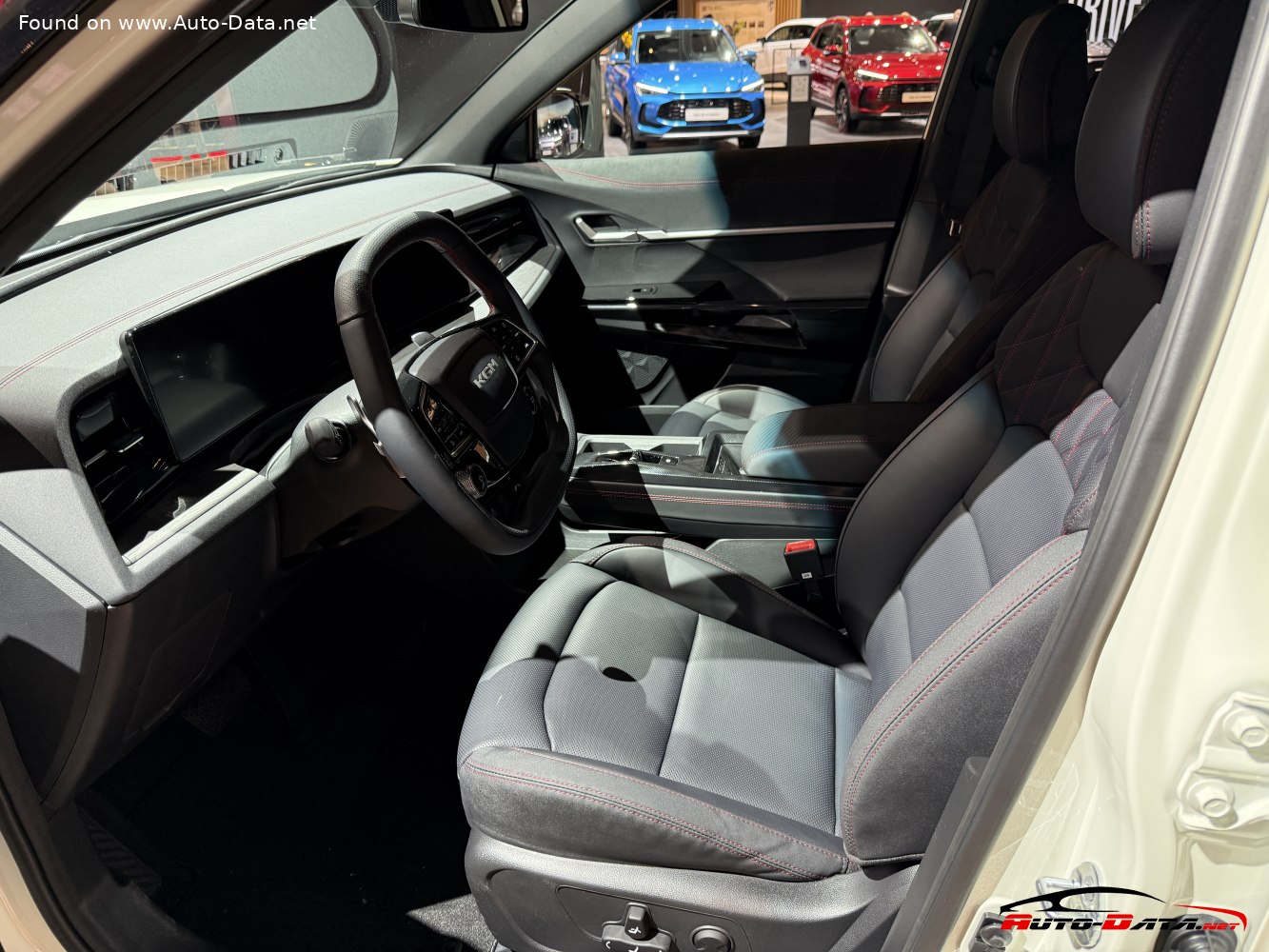

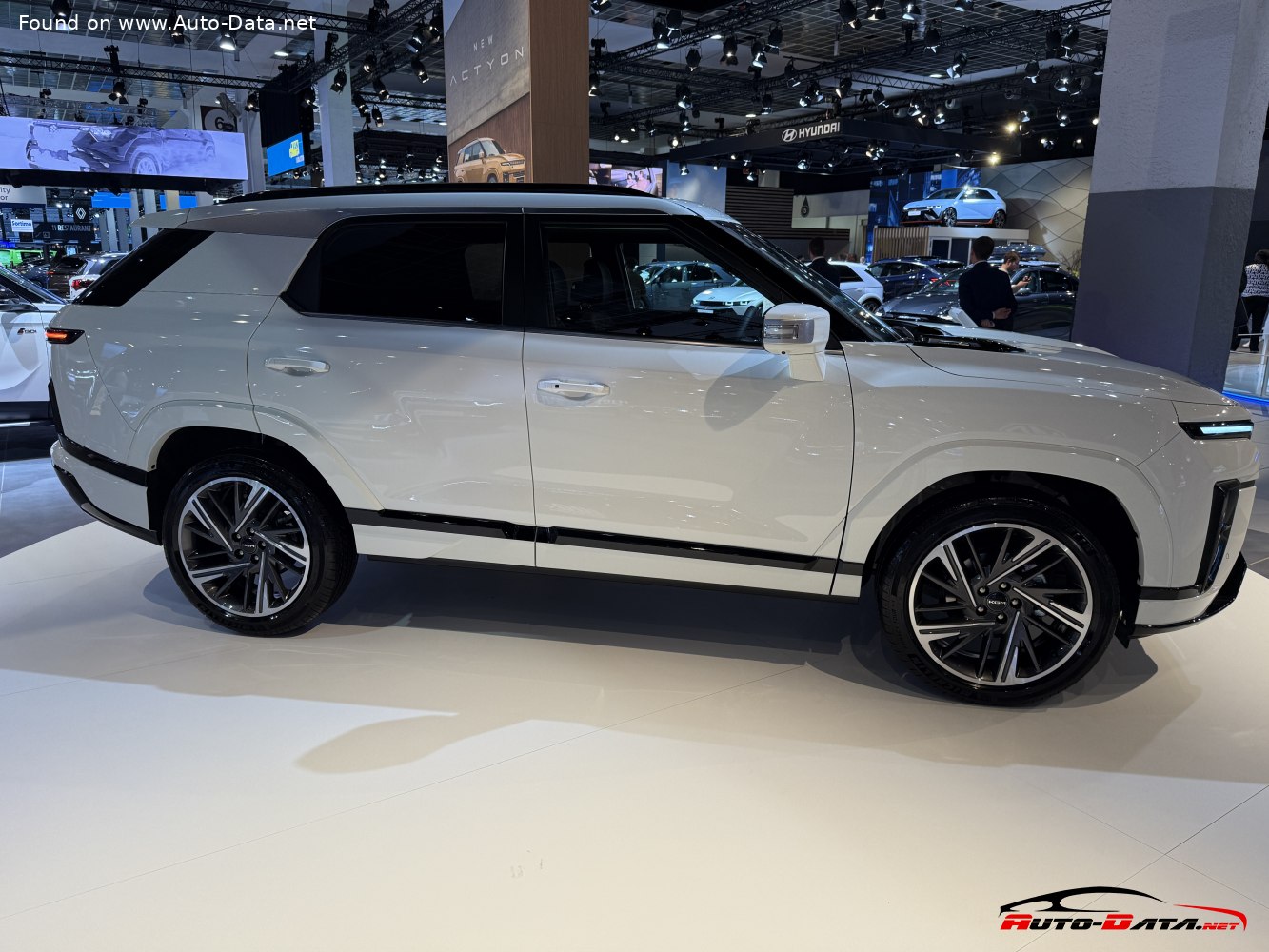

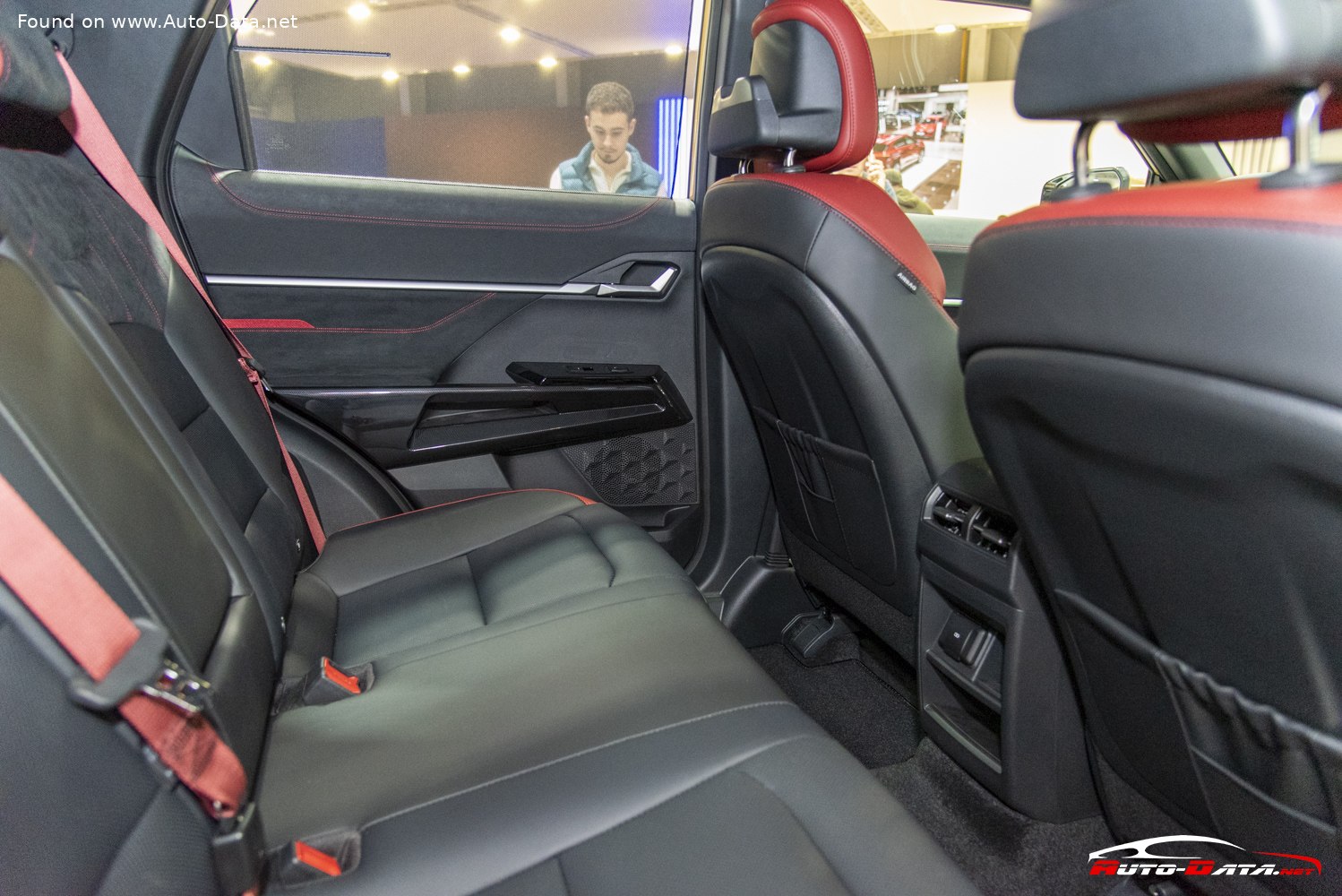

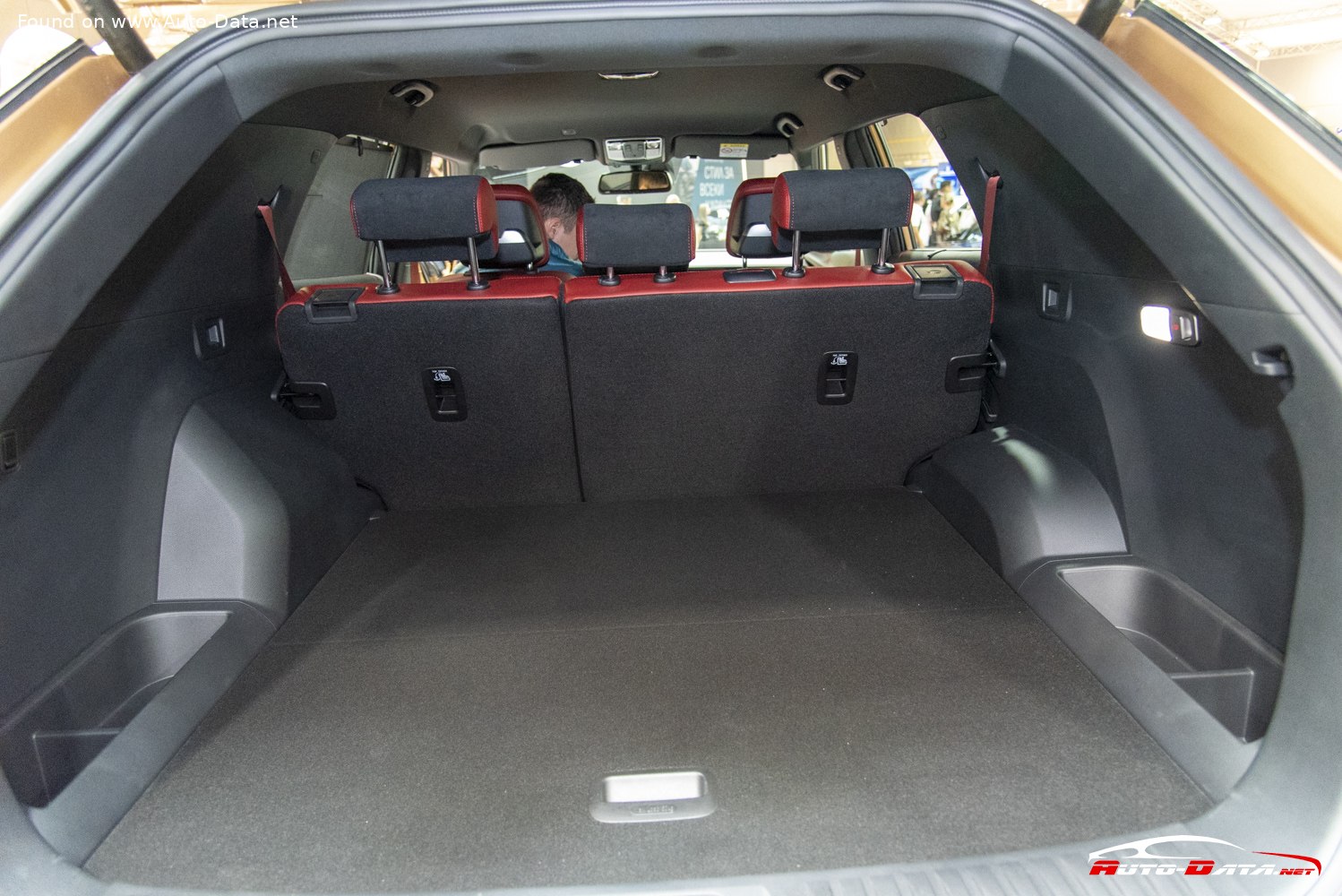

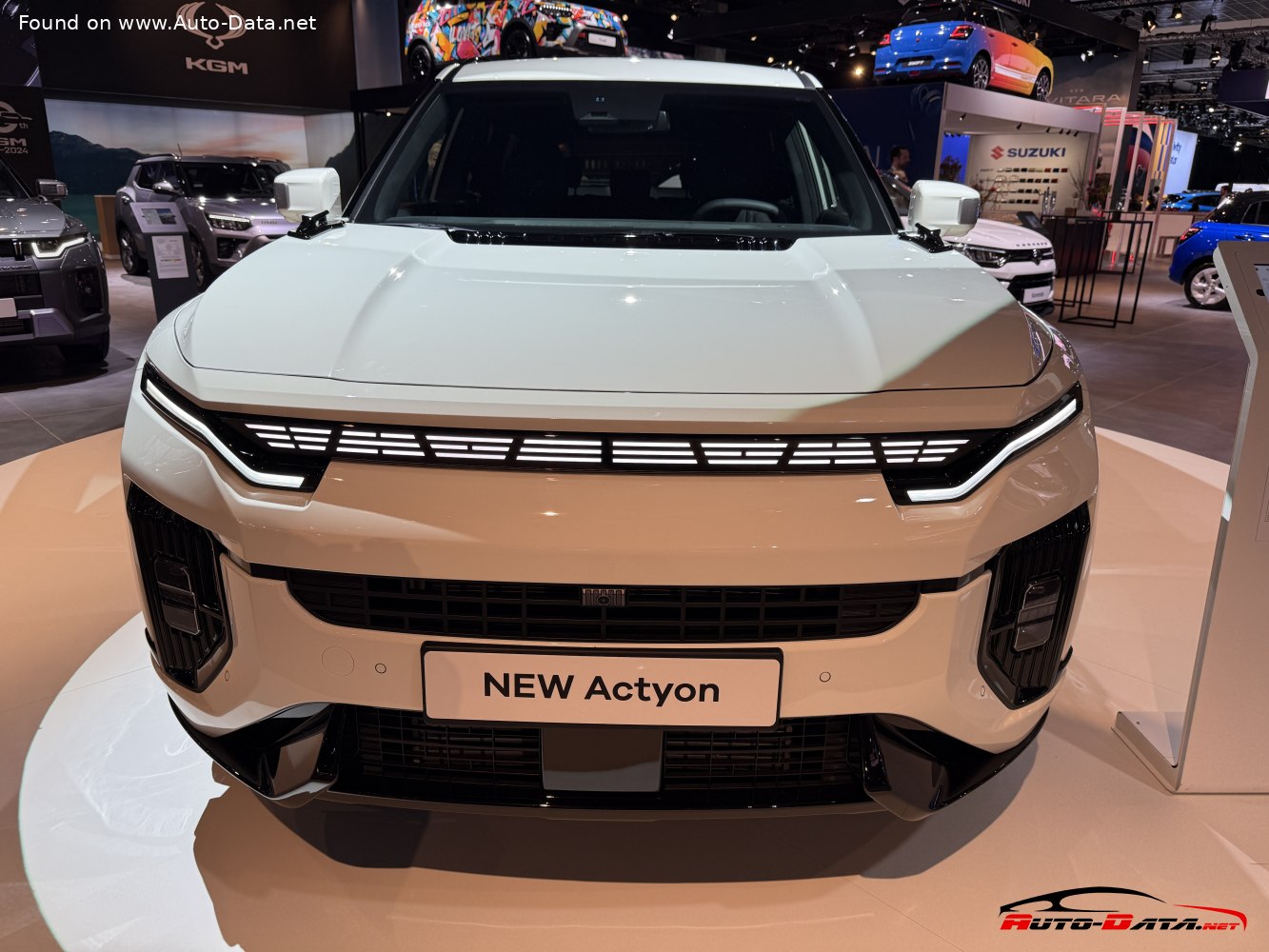

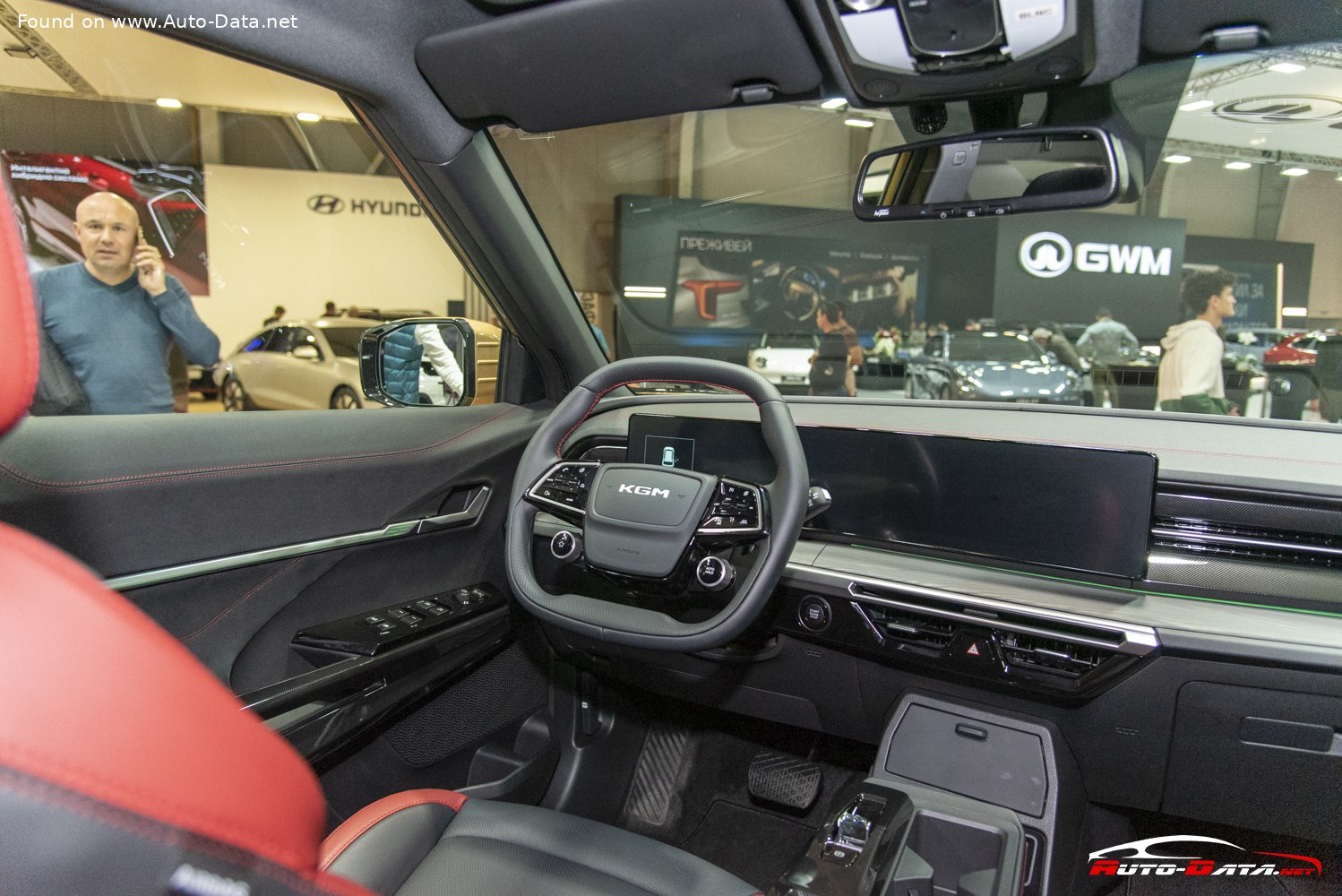

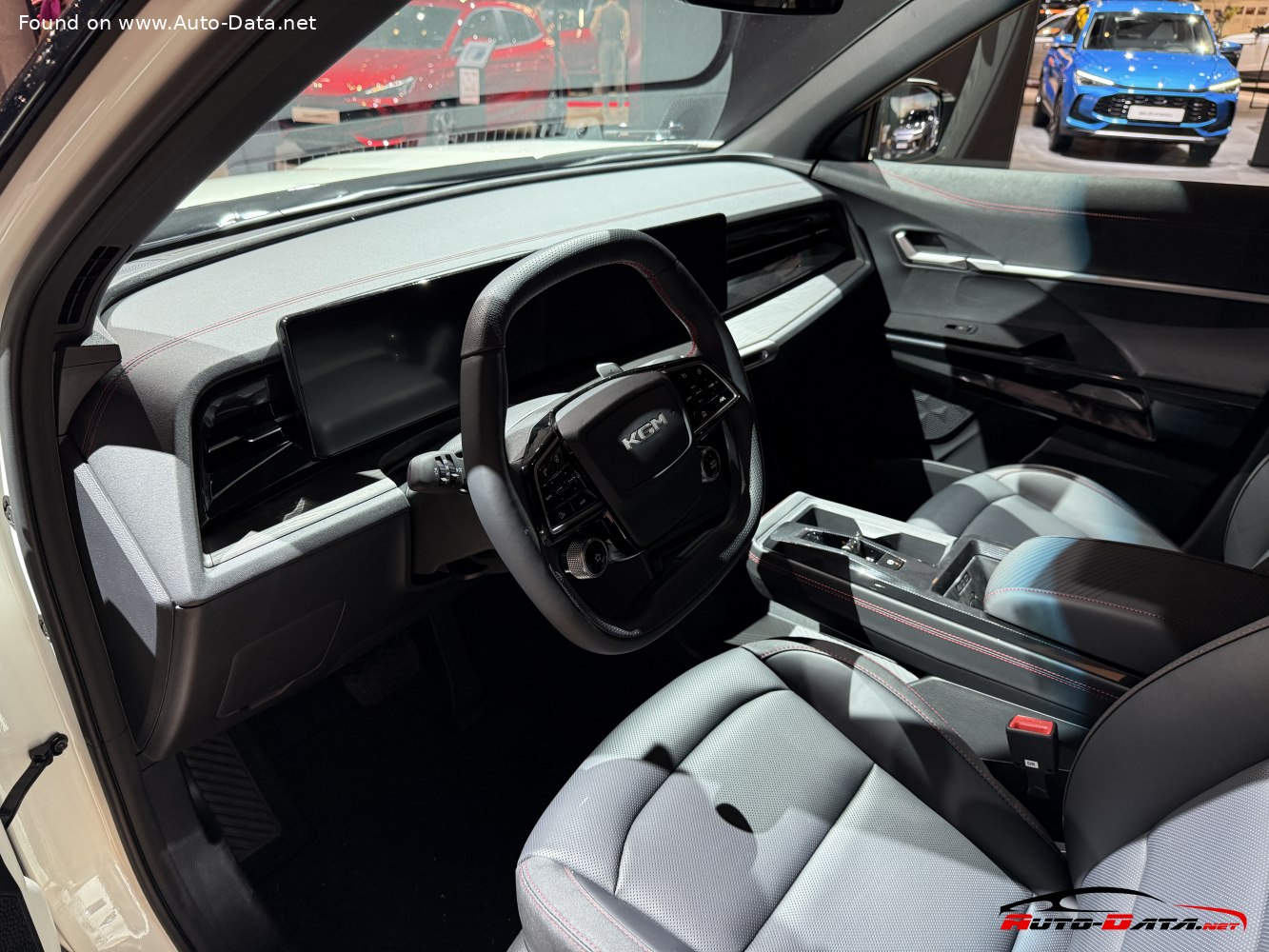

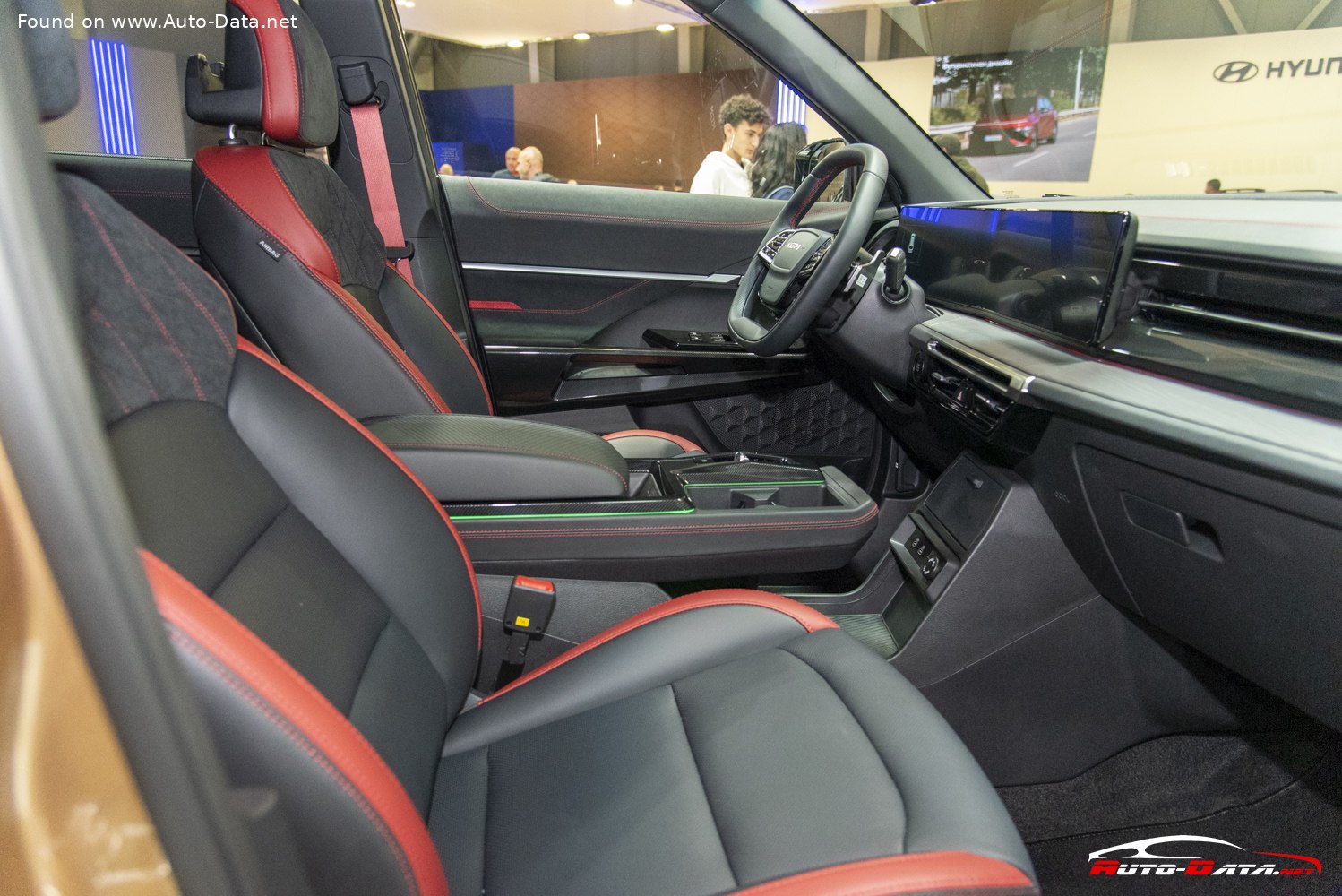

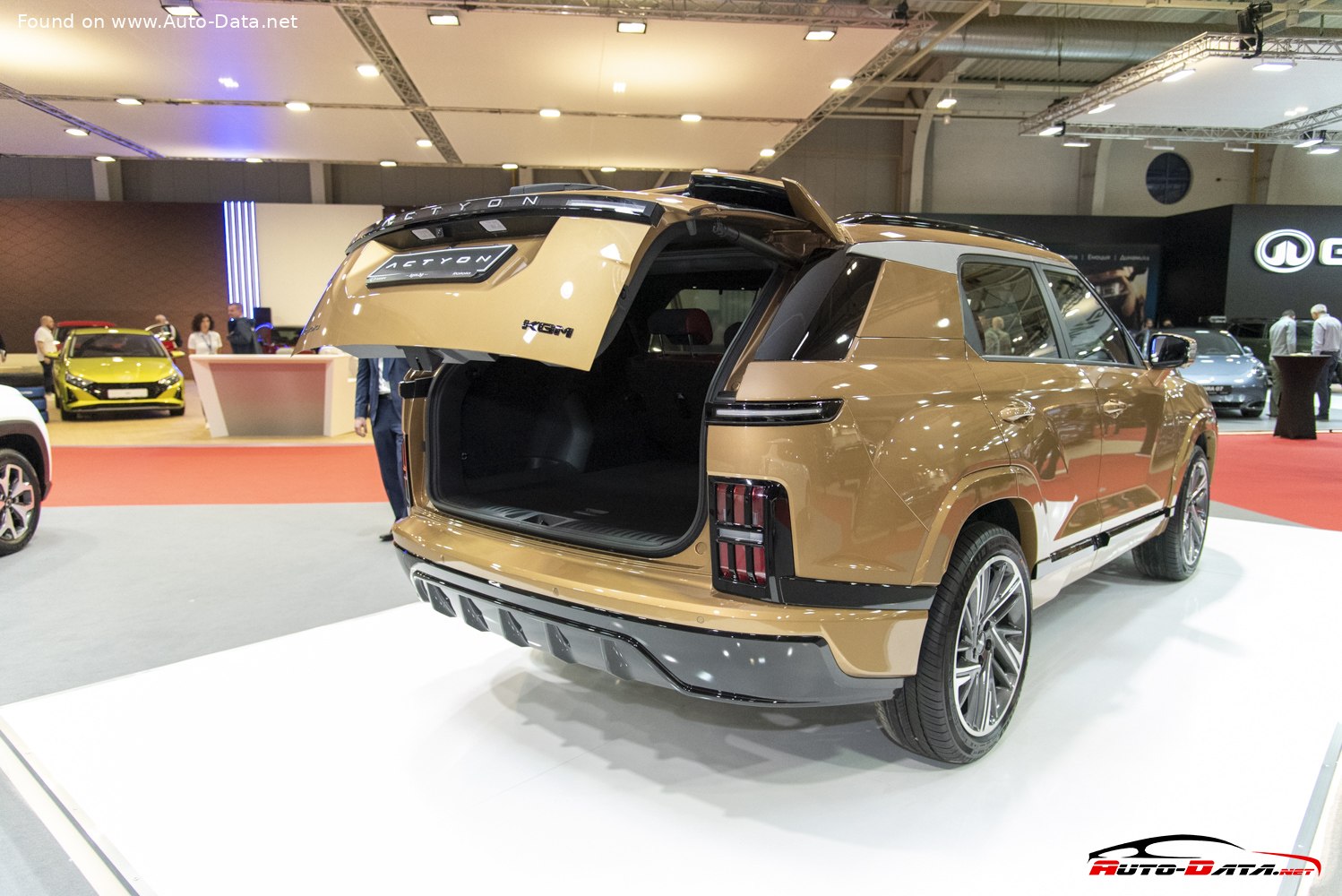

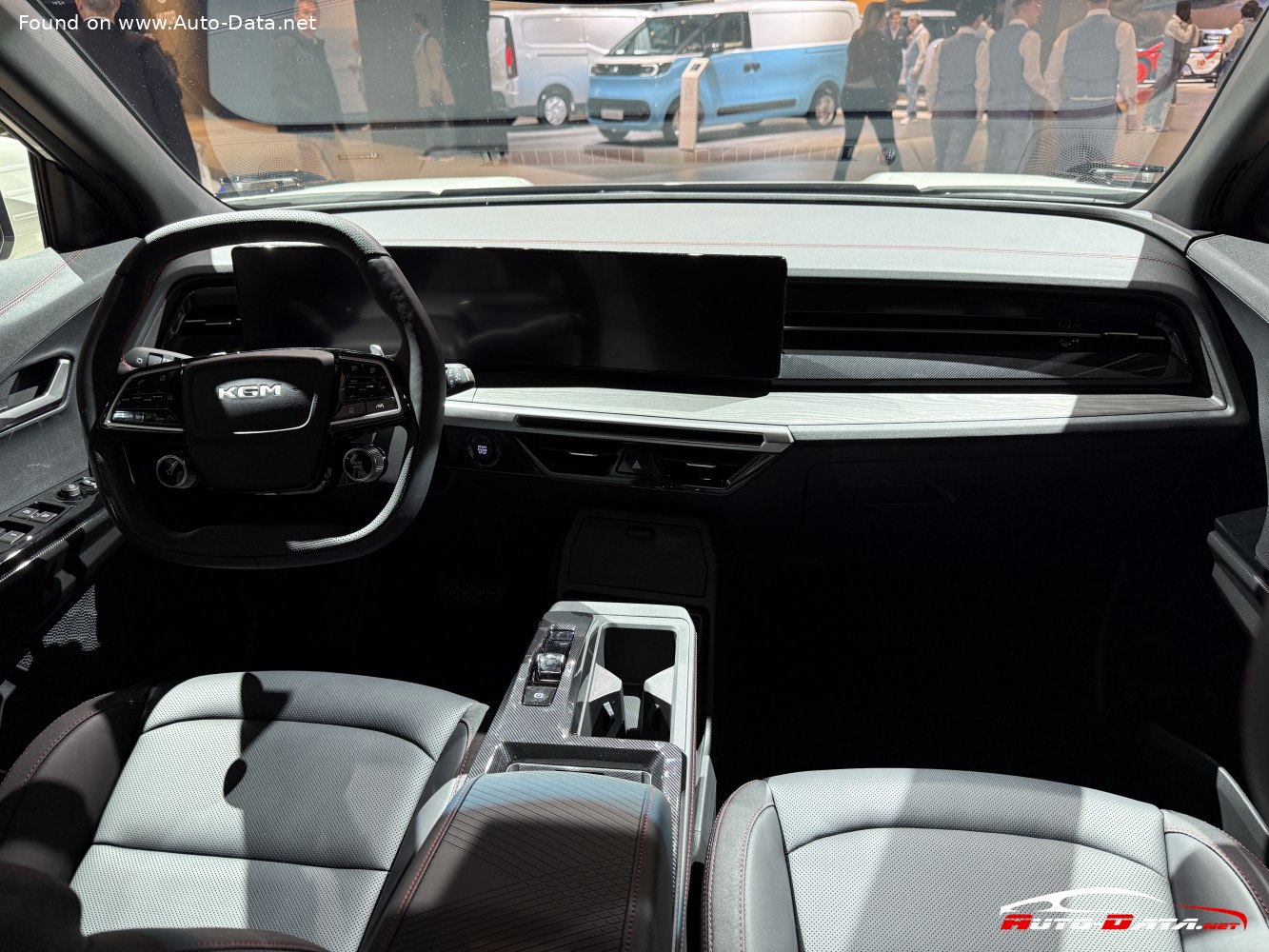

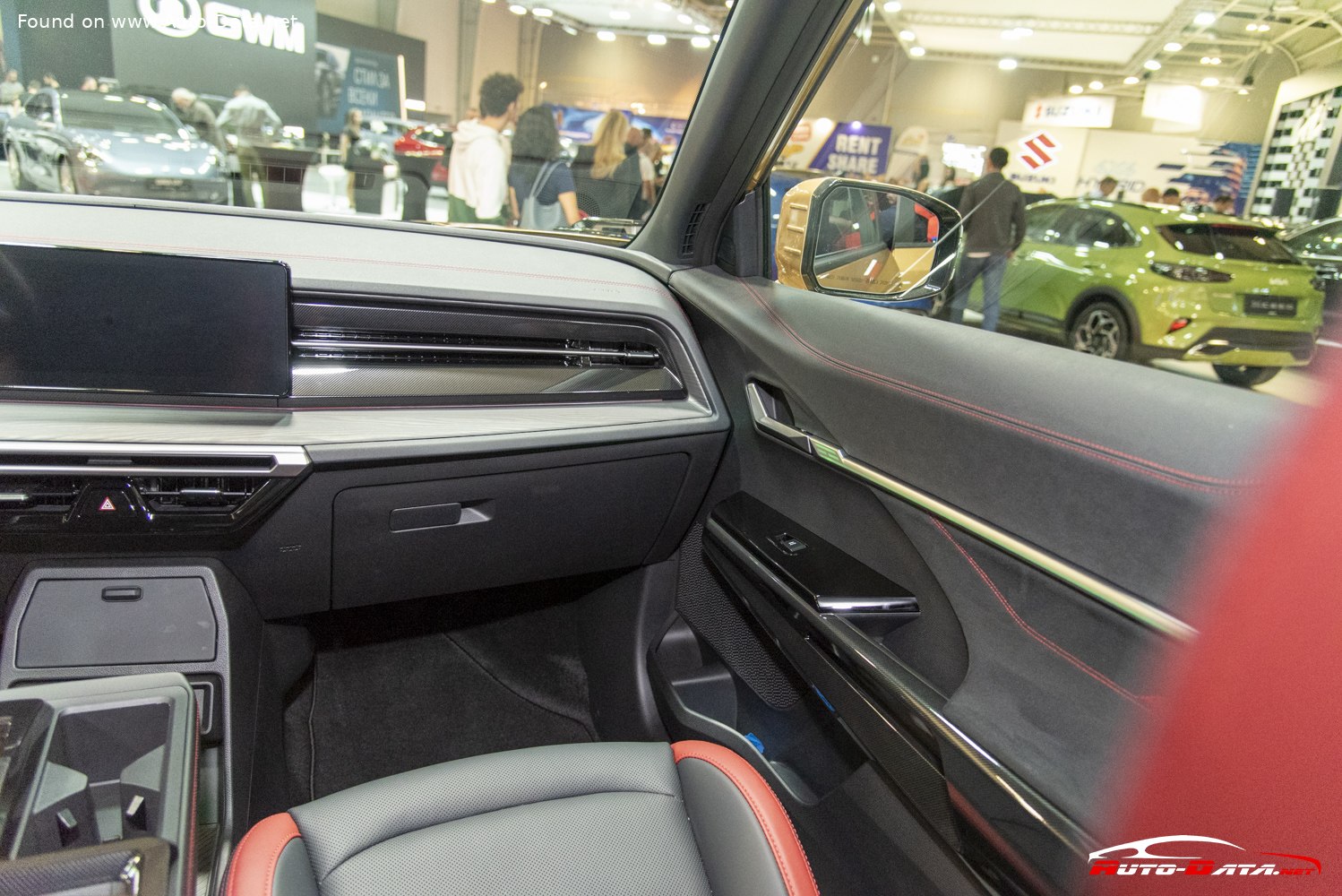

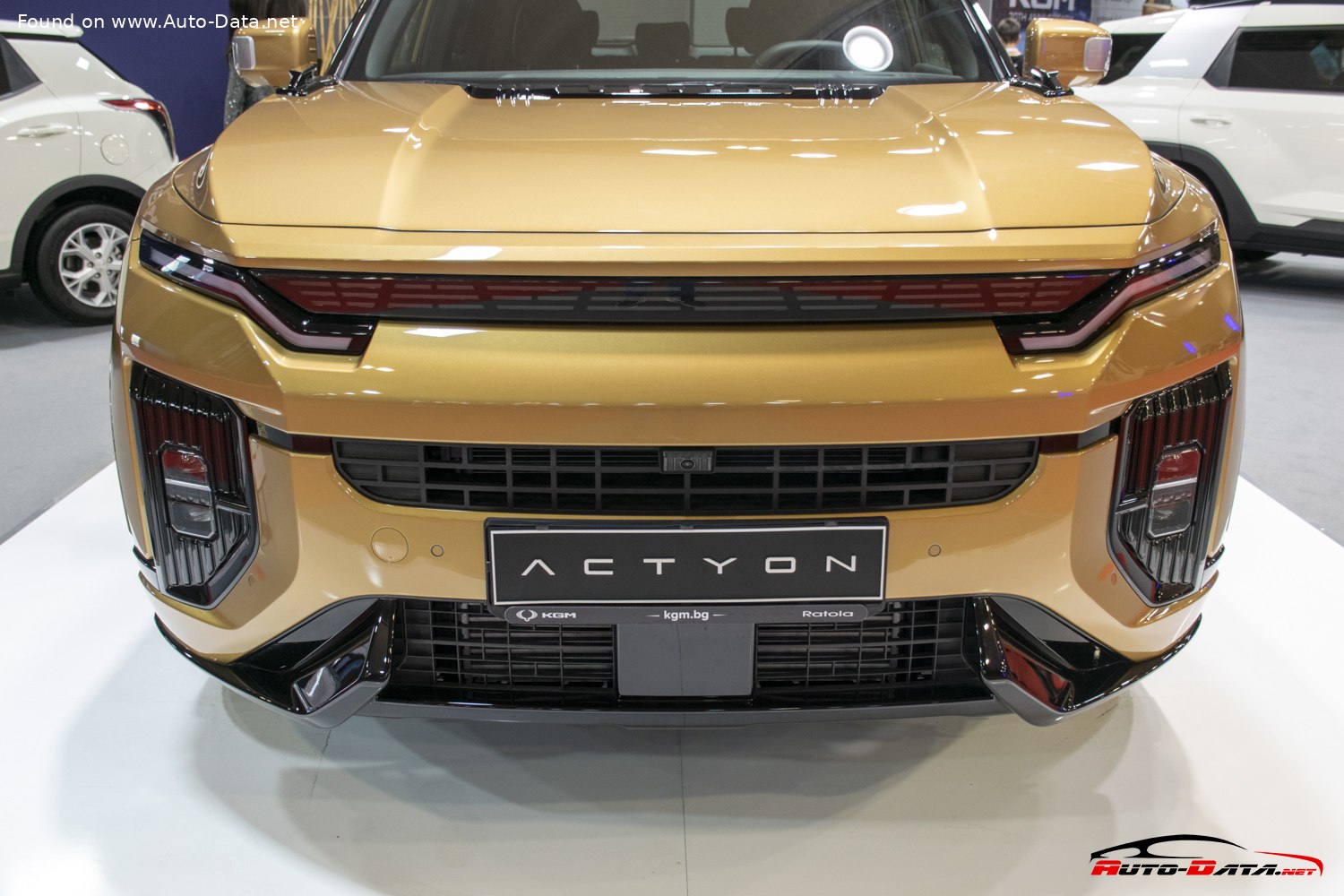

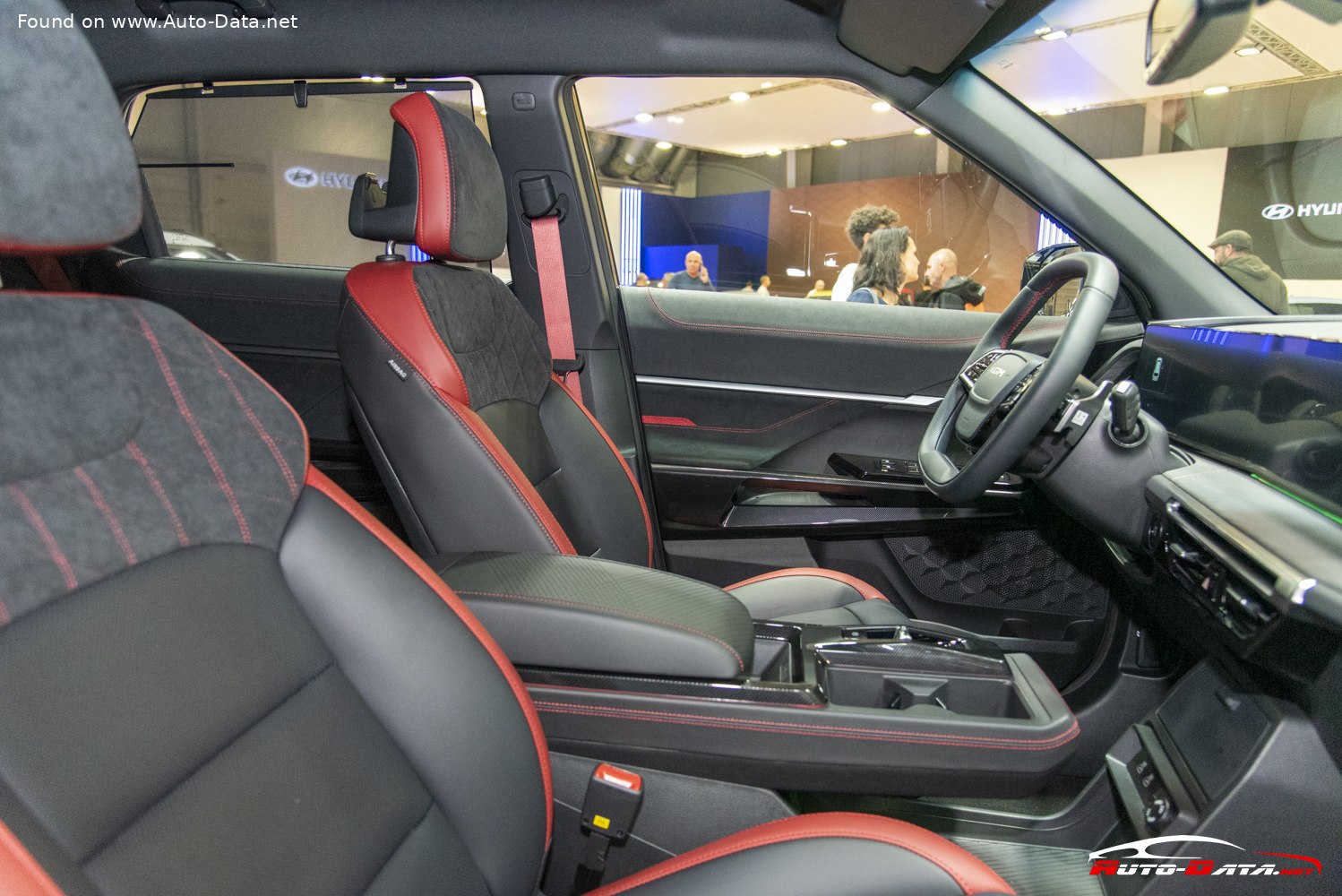

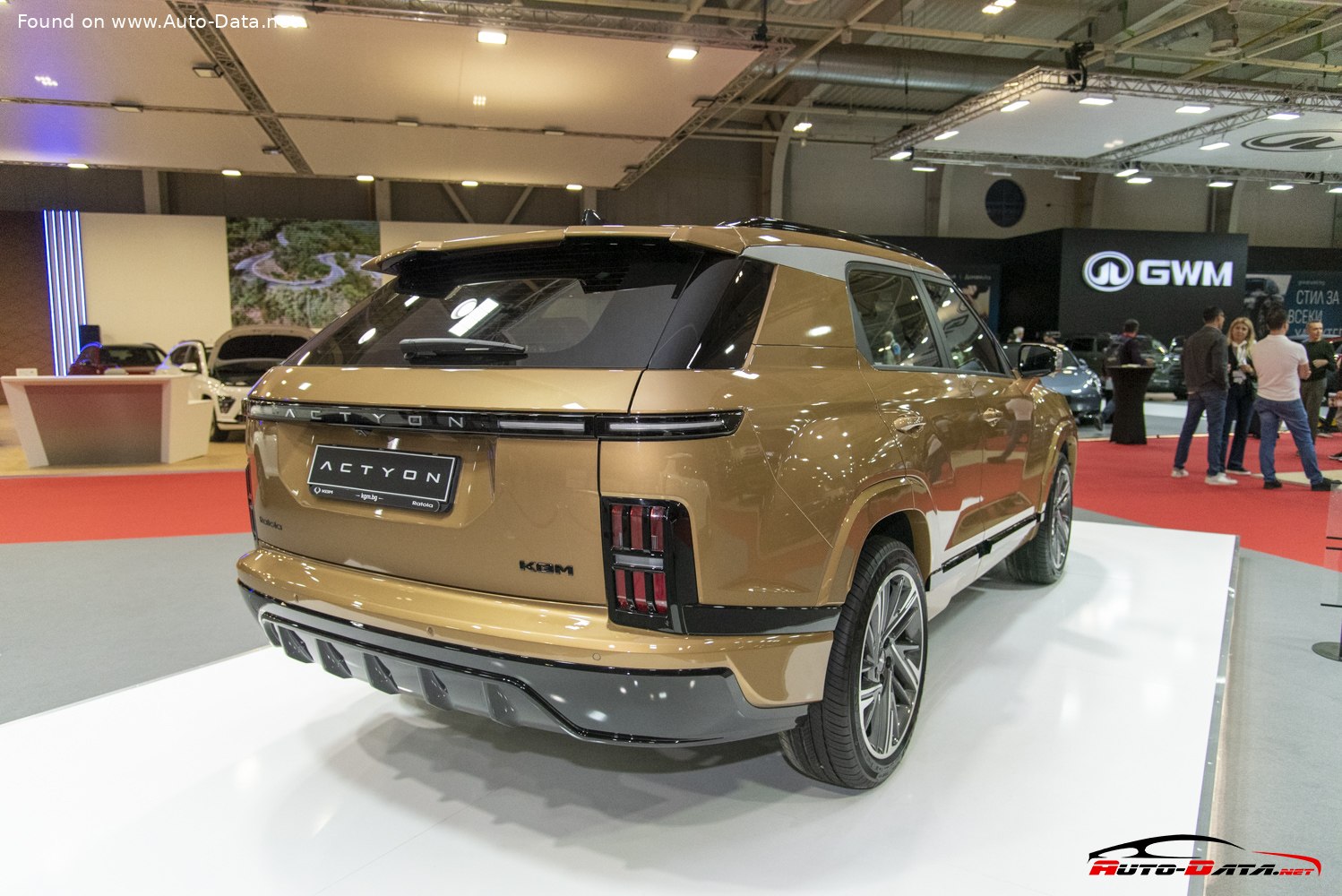

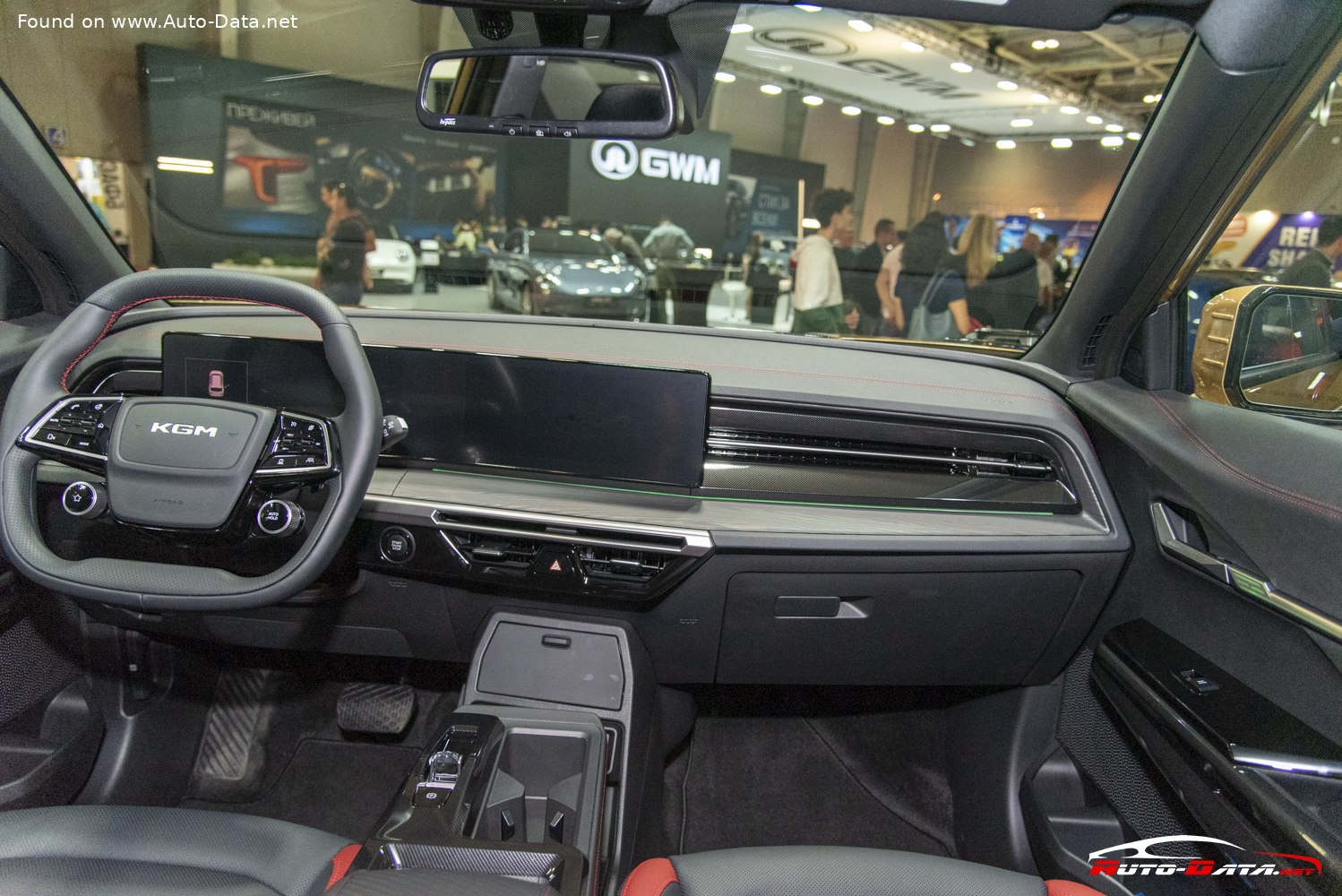

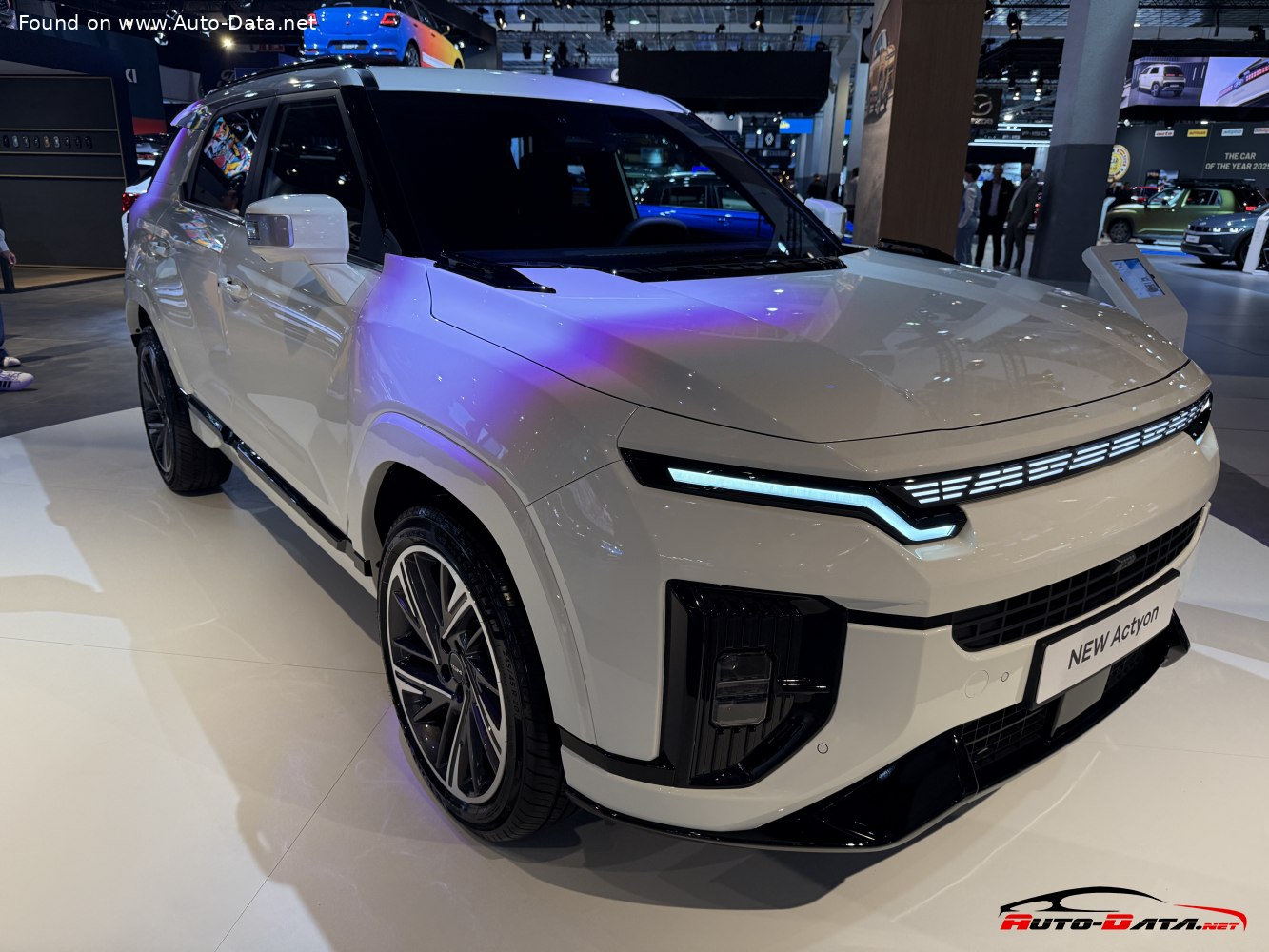

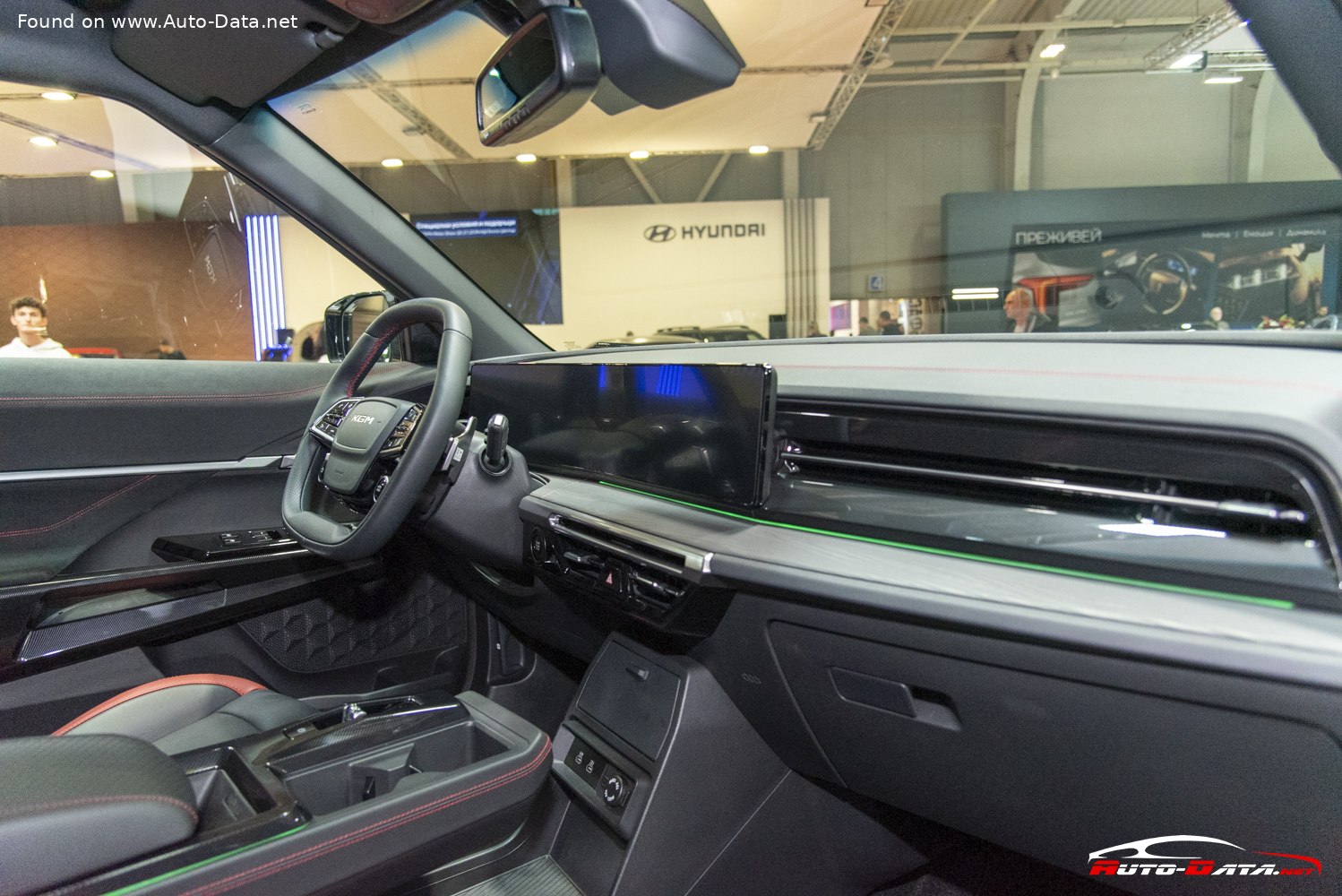

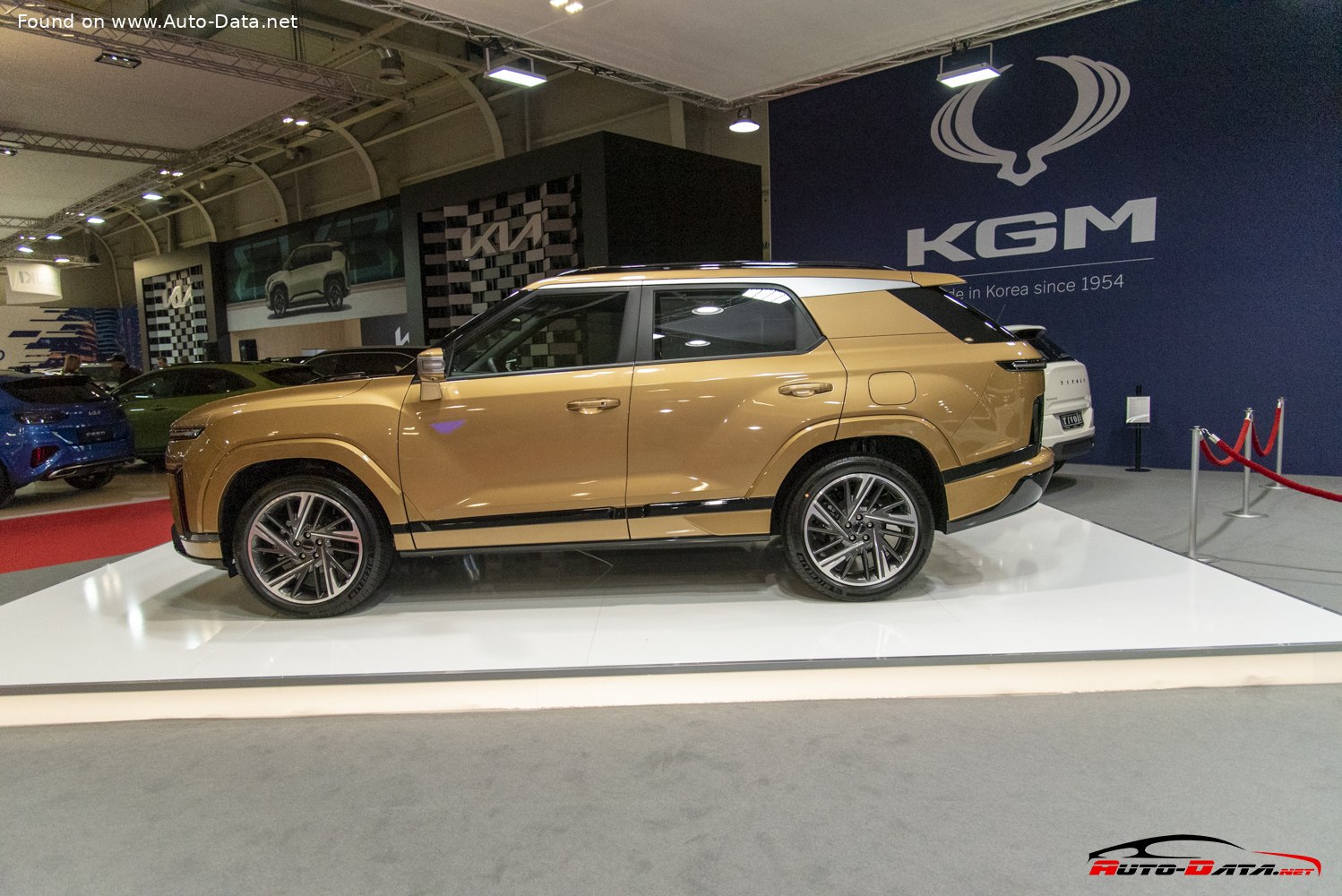

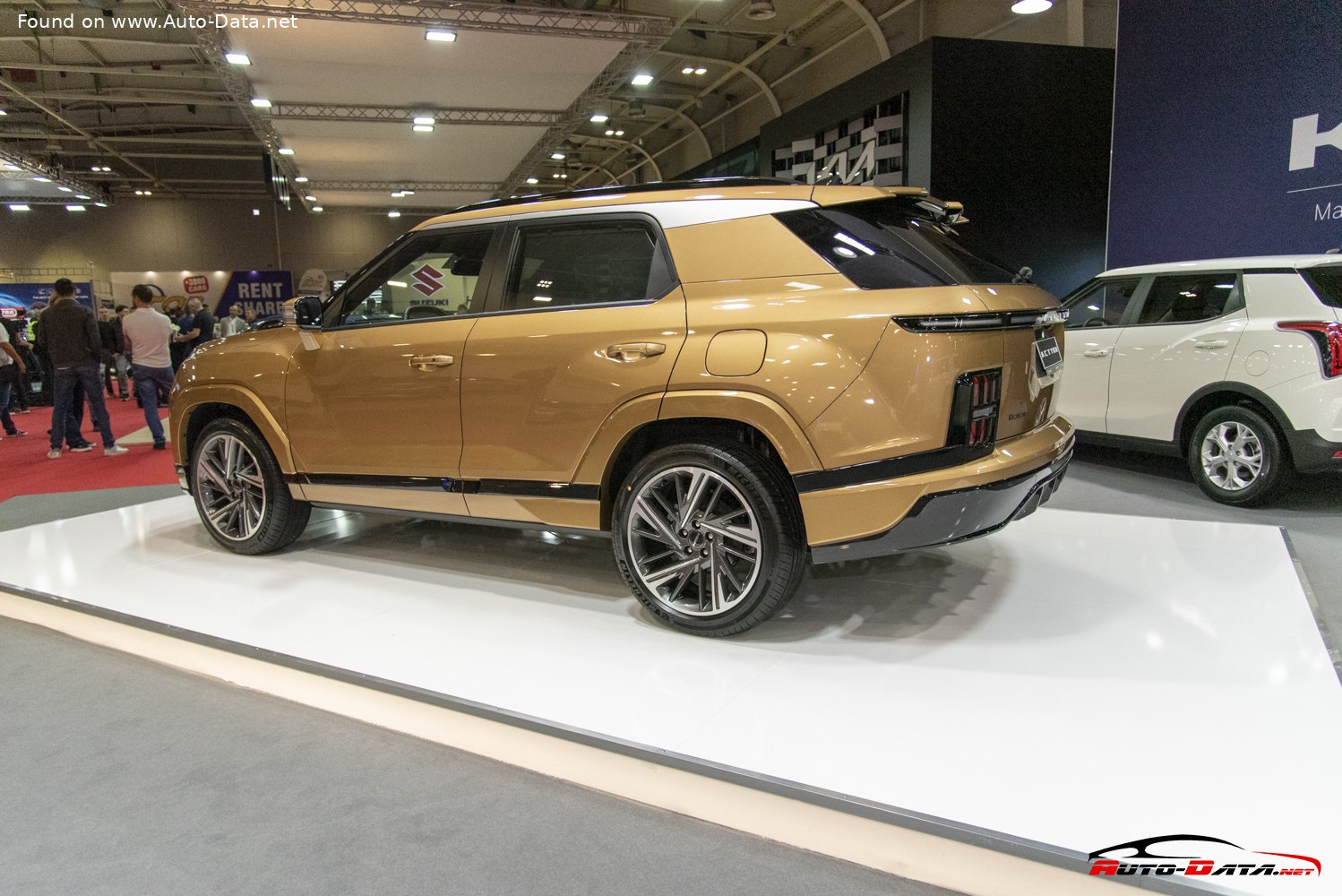

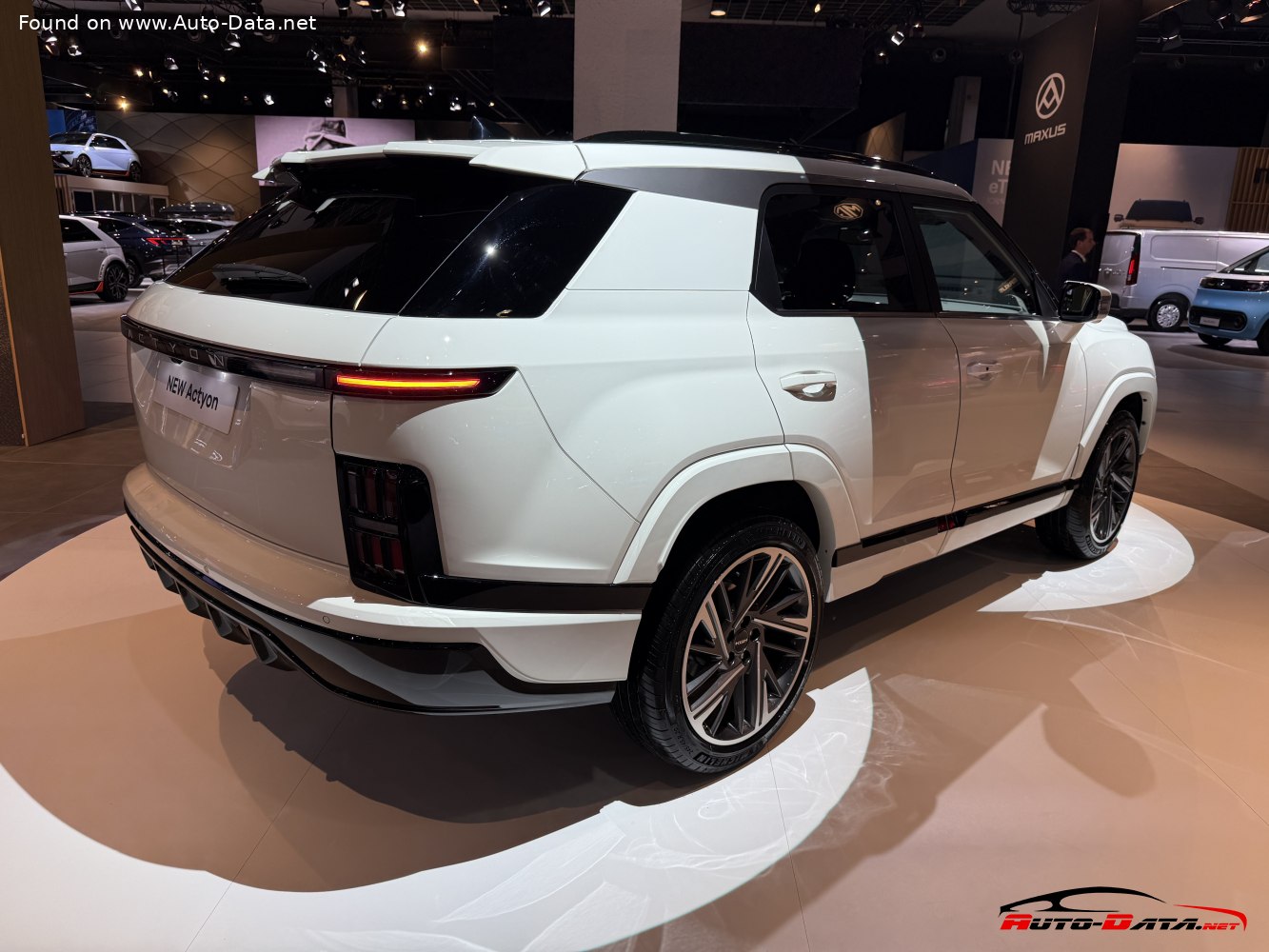

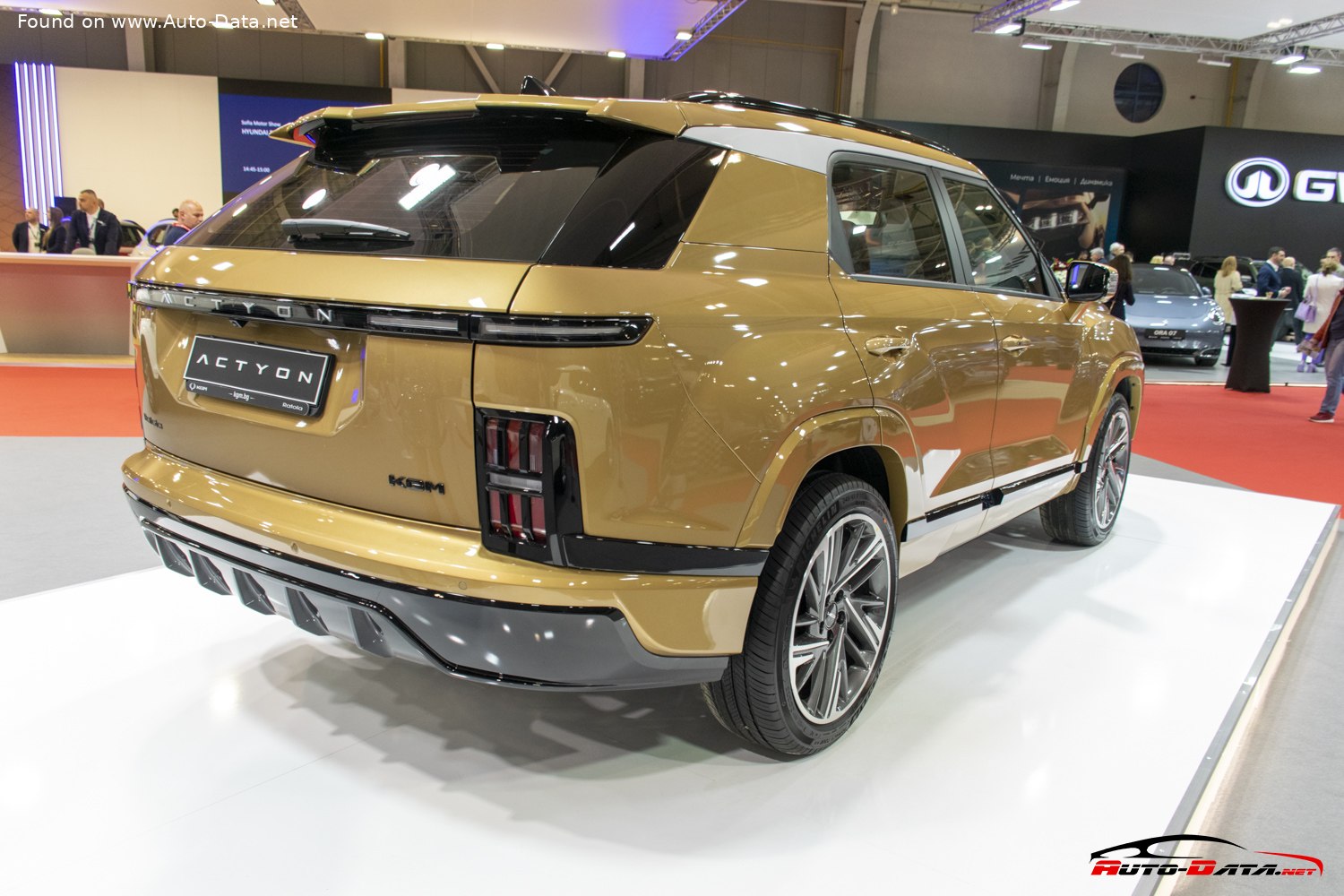

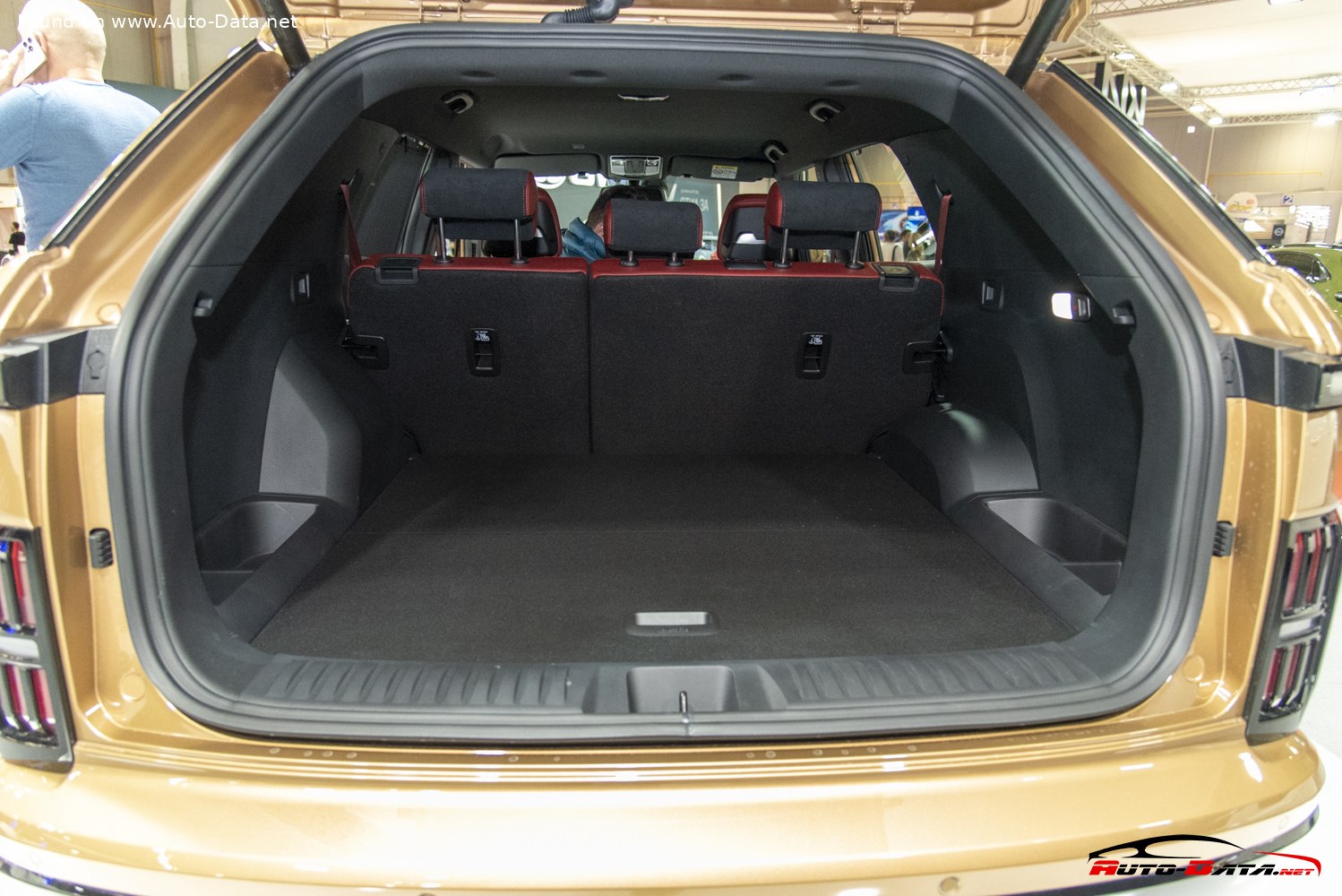

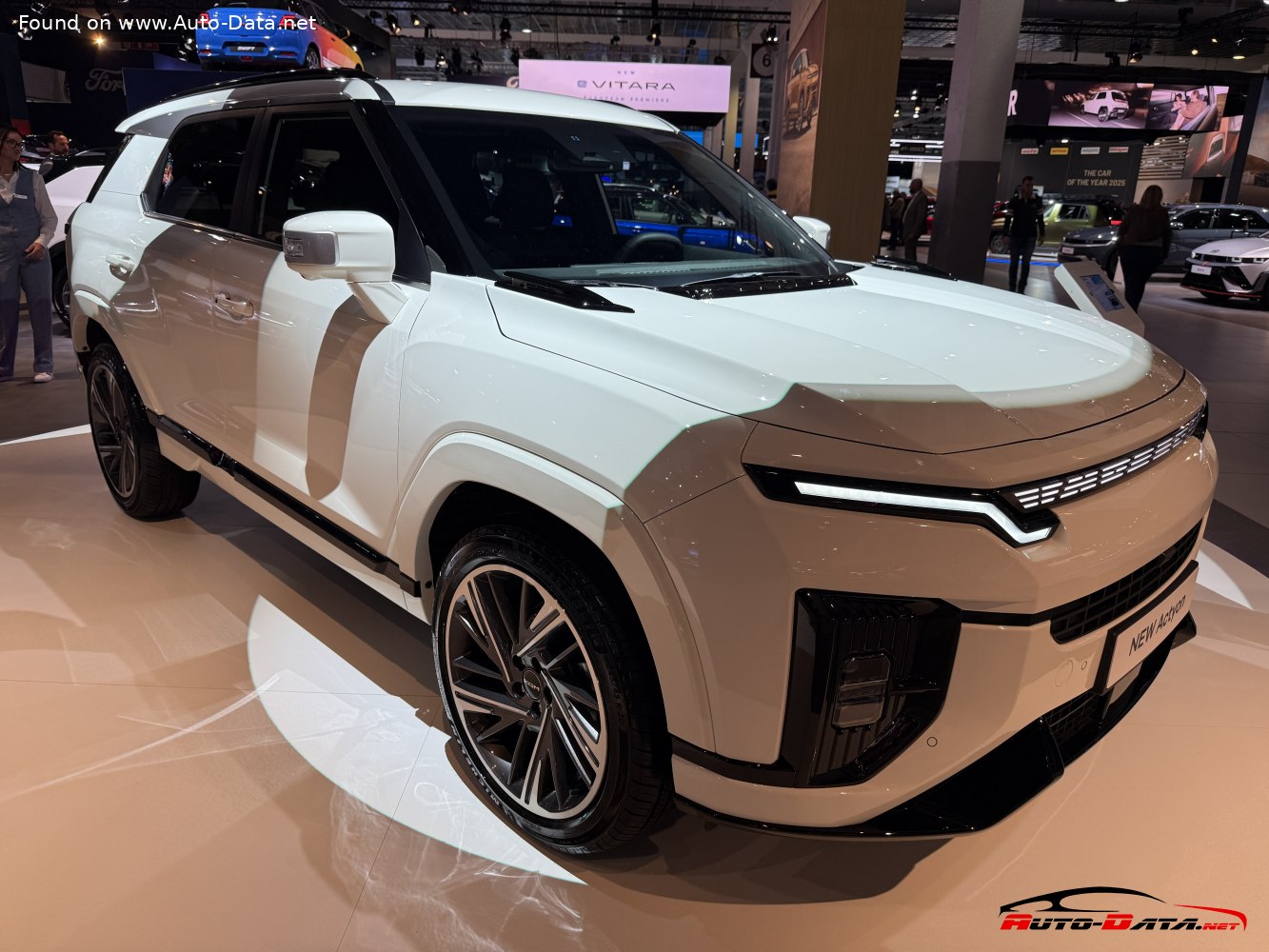

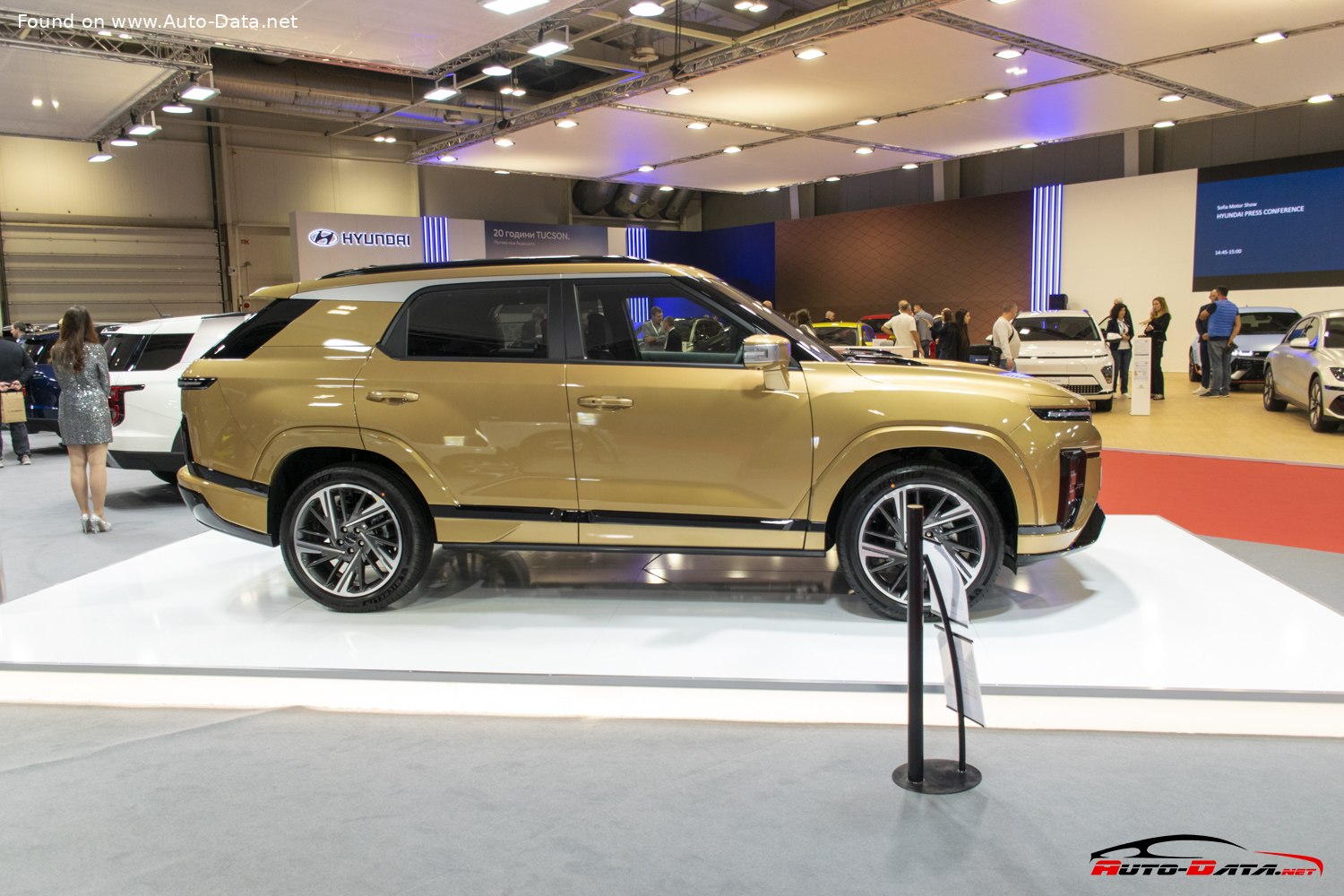

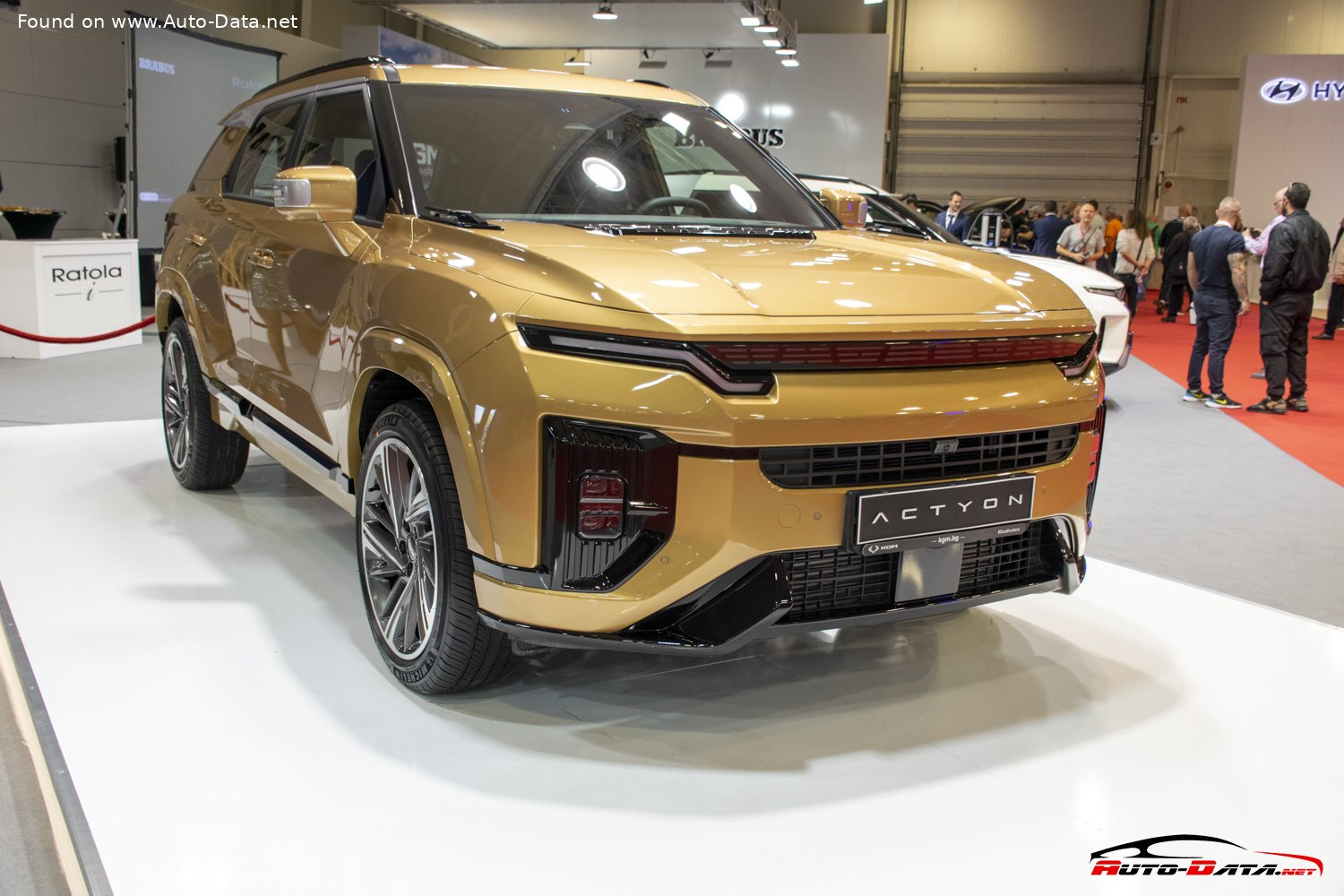

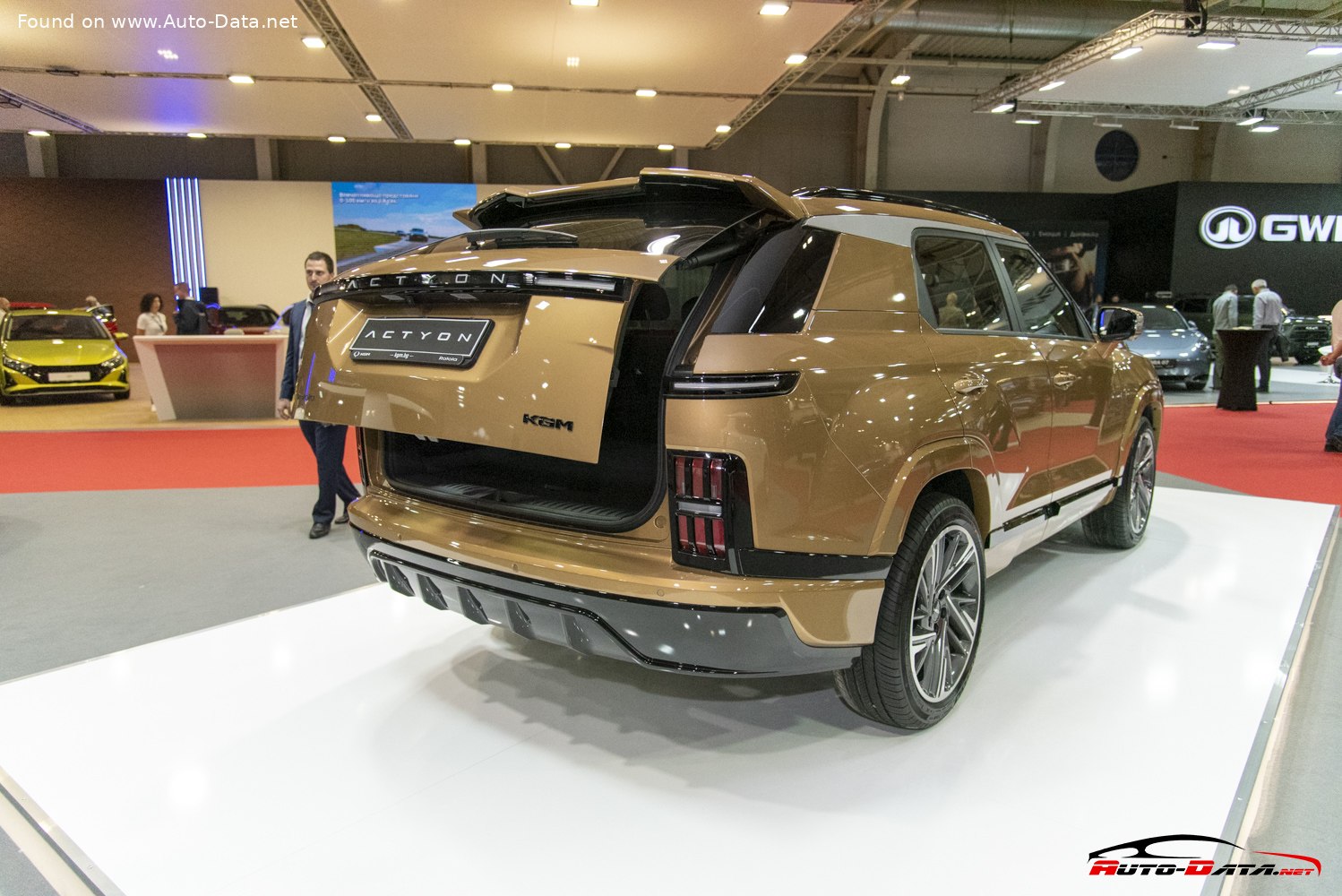

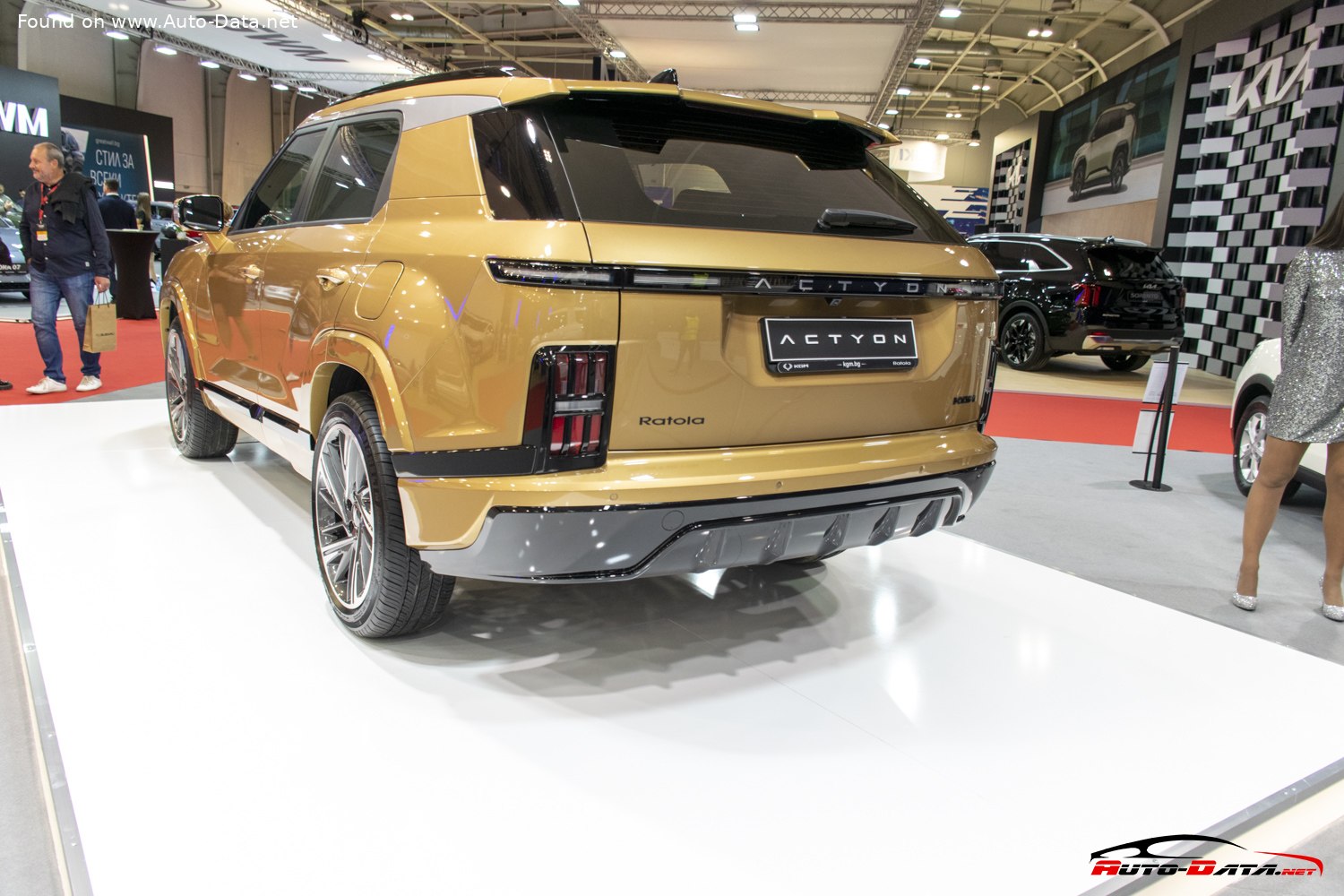

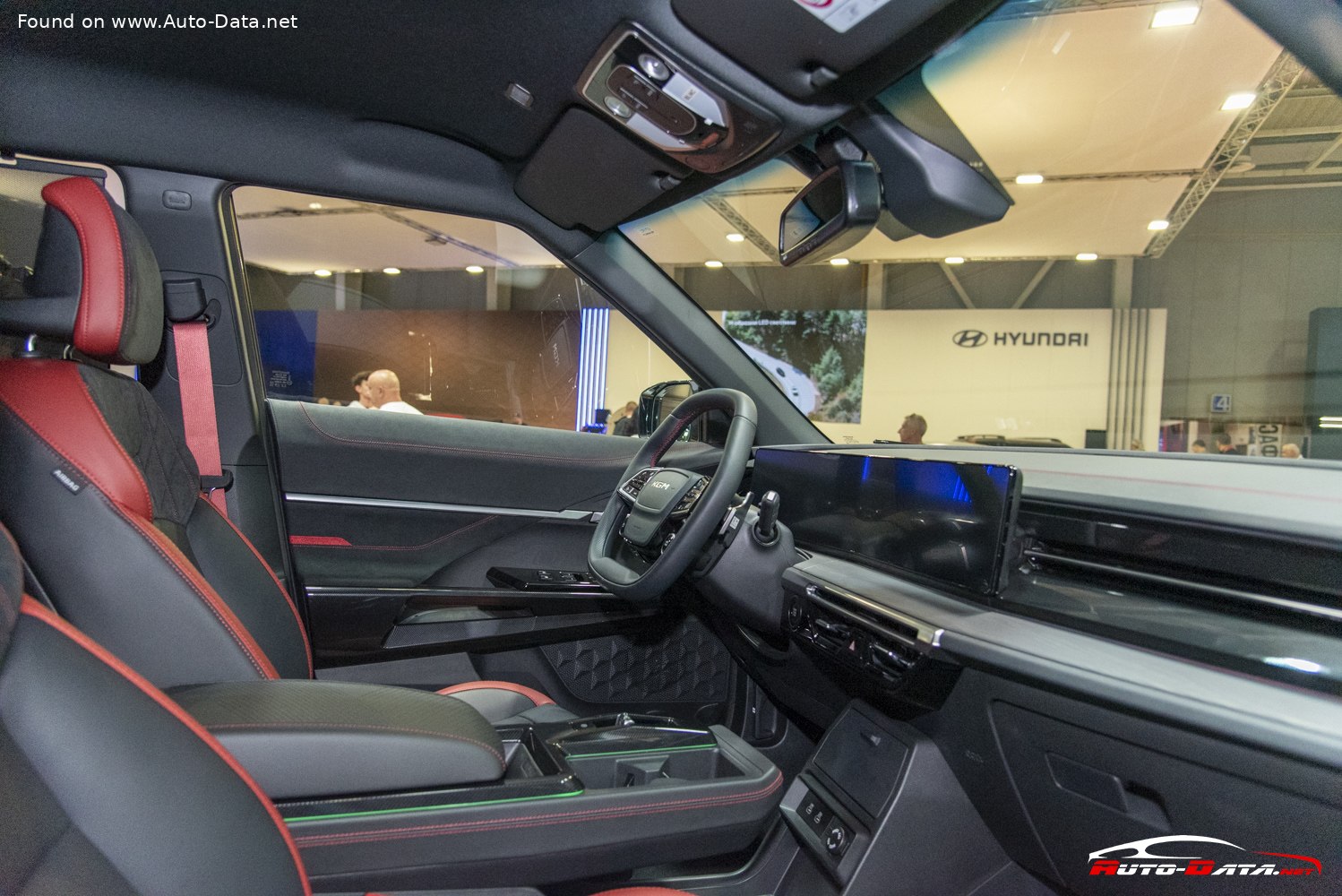

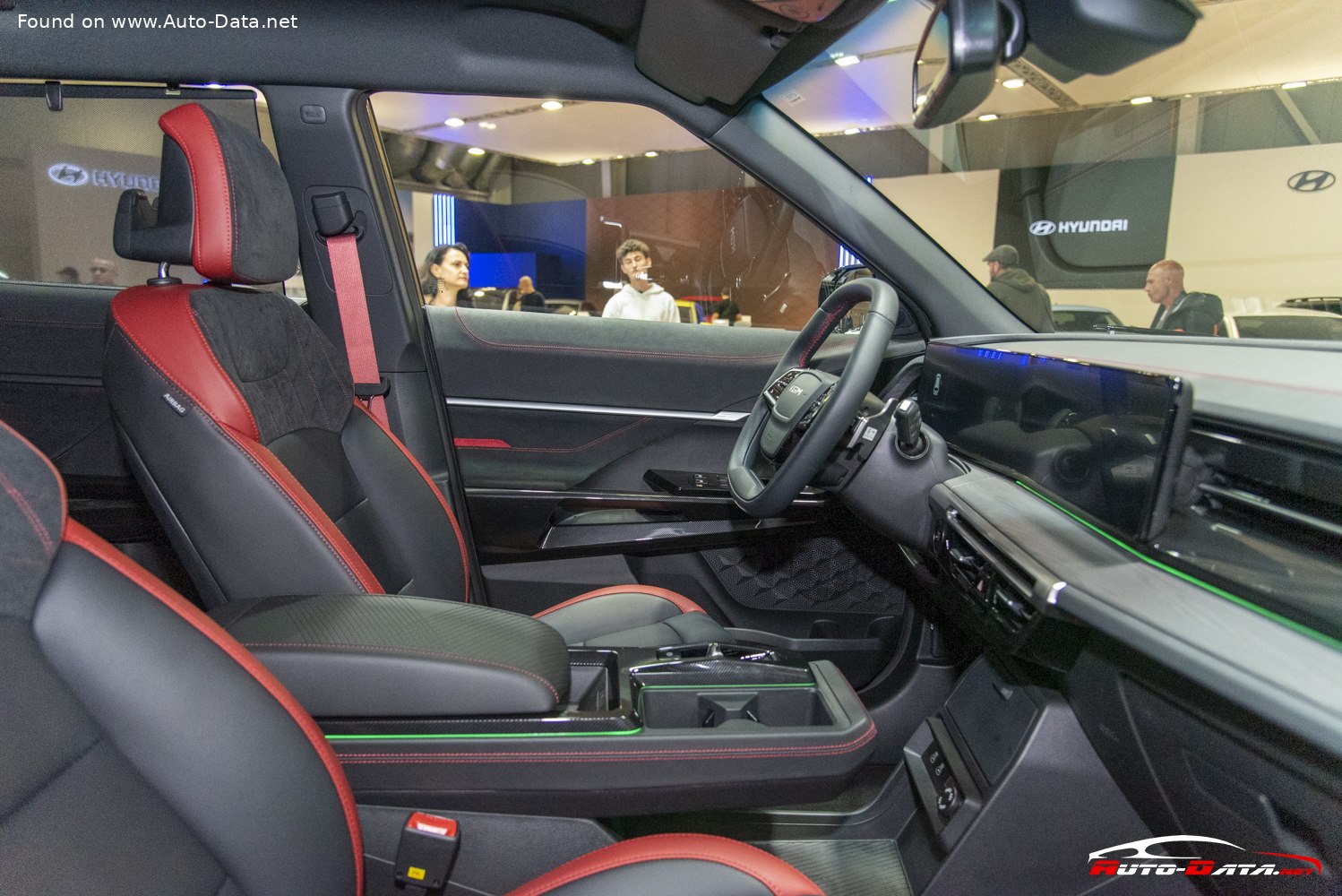

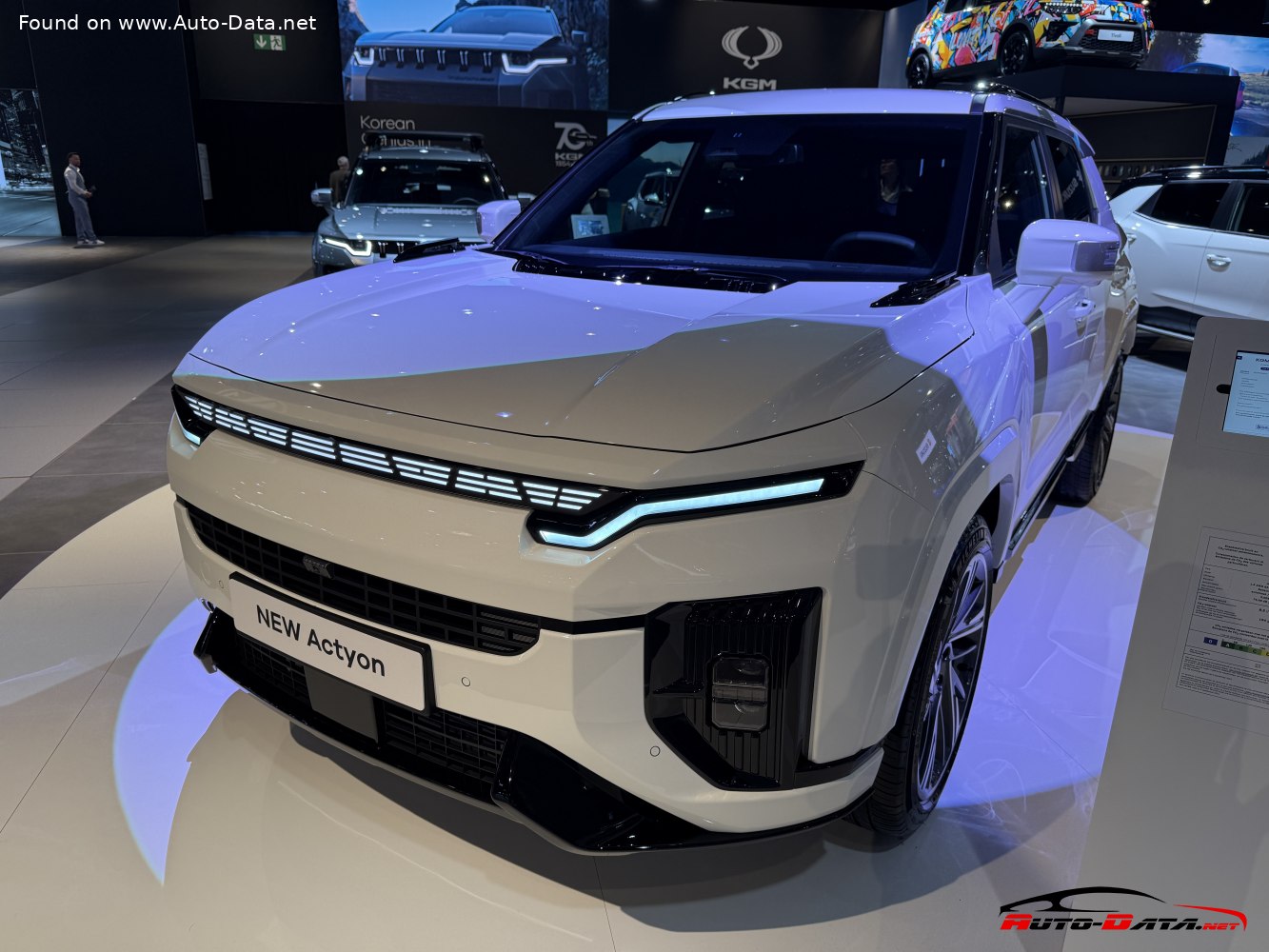

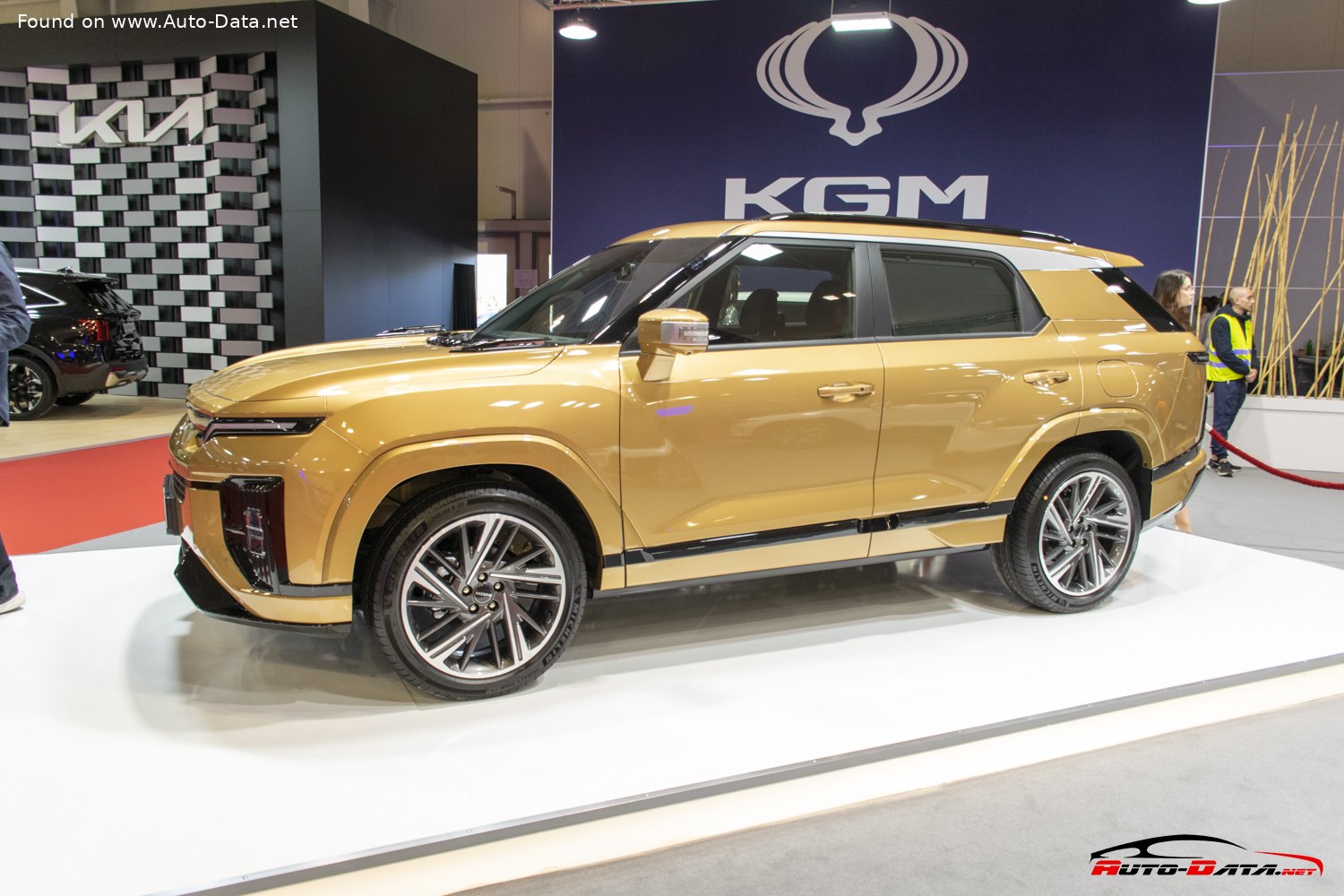

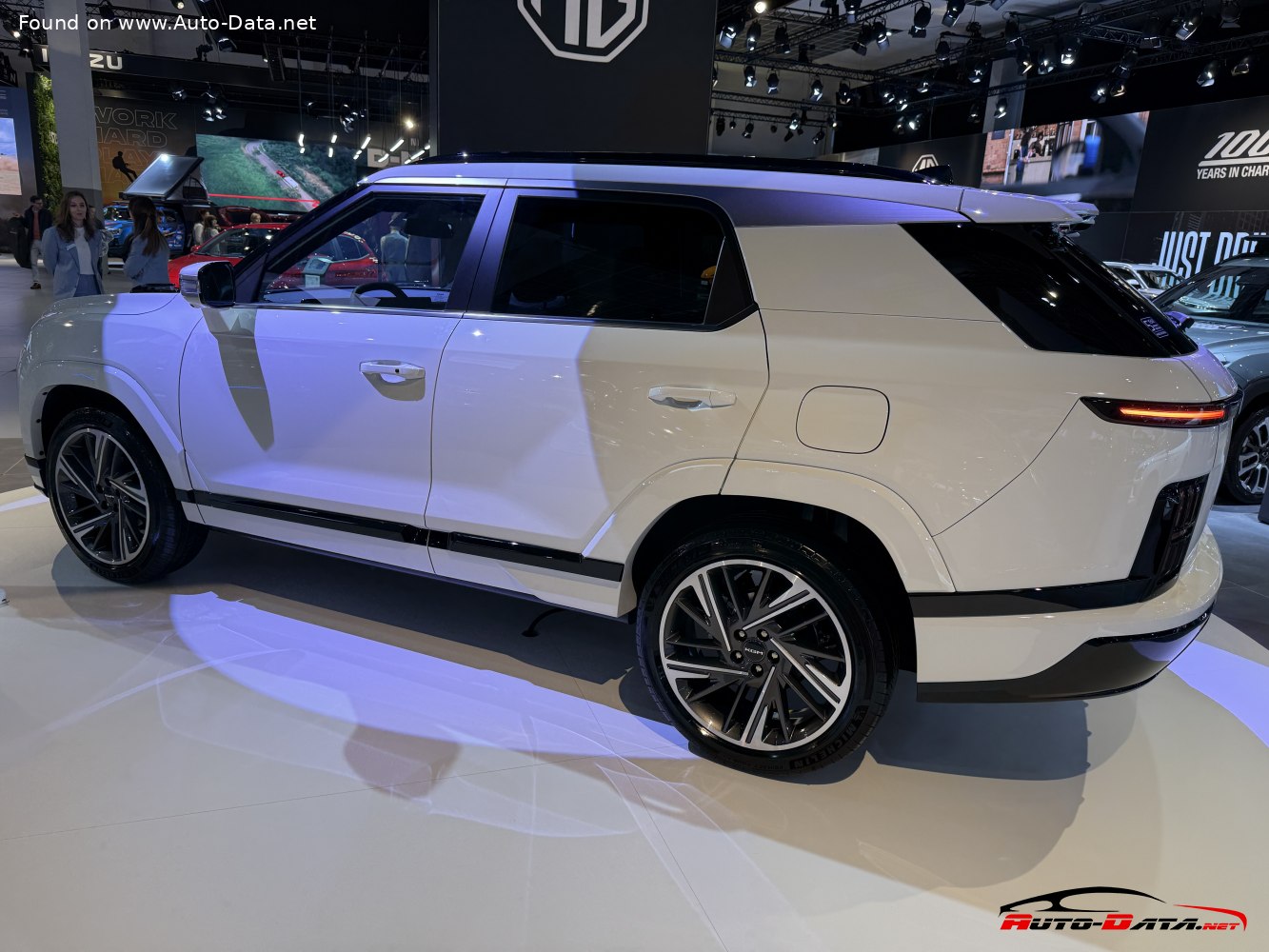

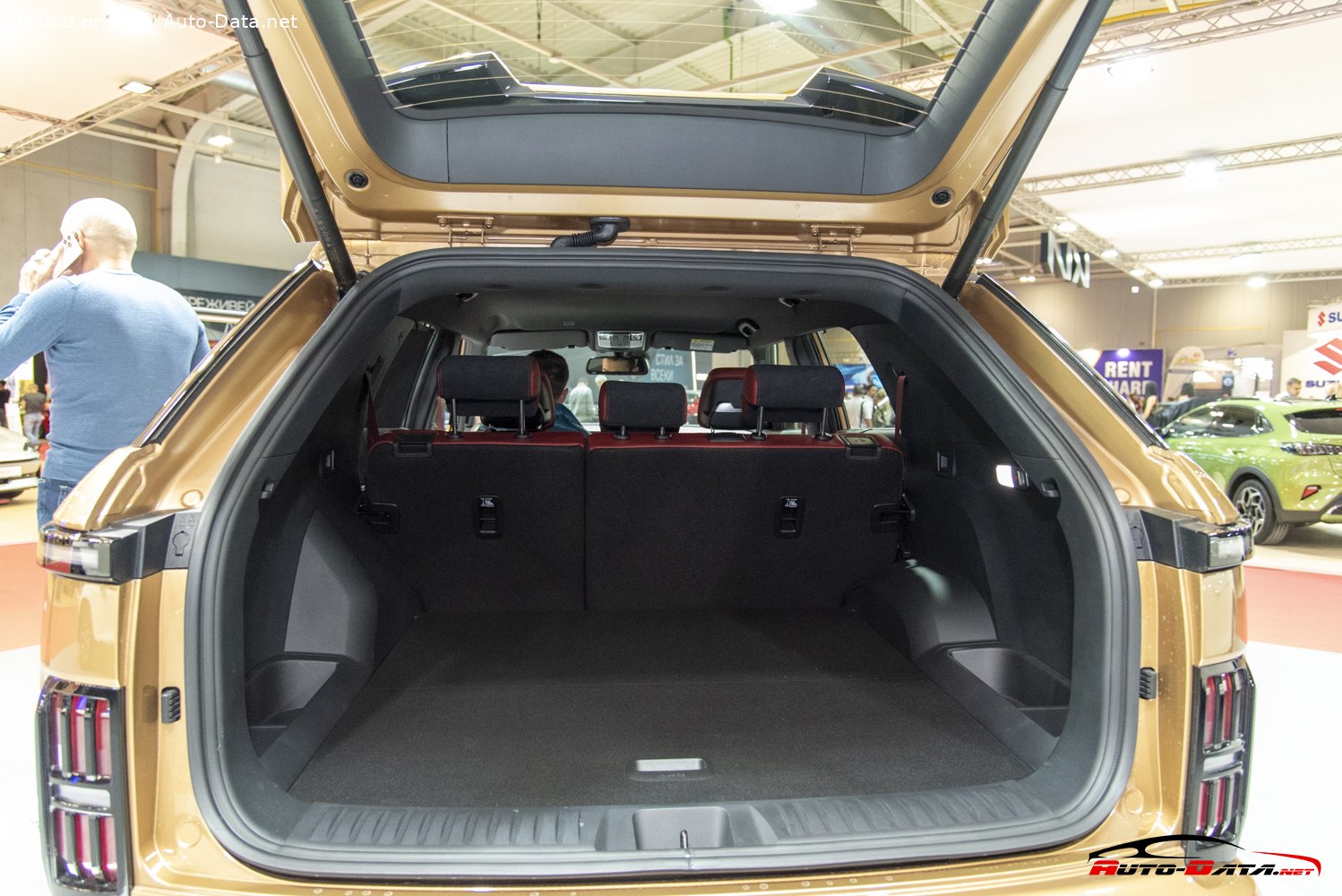

KGM Actyon 2024 Gallery
KGM Actyon 2024 Technical Specifications
General
Body type
Coupe, SUV
Brand
KGM
Doors
5
Generation
Actyon
Model
Actyon
Modification (Engine)
1.5 GDI (163 Hp)
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
2024
Performance
CO2 emissions (WLTP)
181 g/km
Combined fuel consumption (WLTP)
7.95 l/100 km
Emission standard
Euro 6e
Fuel Type
Petrol (Gasoline)
Maximum speed
194 km/h
Dimensions
Approach angle
17.6°
Departure angle
21.4°
Front overhang
915 mm
Front track
1610-1635 mm
Height
1680 mm
Length
4740 mm
Minimum turning circle (turning diameter)
10.86 m
Rear (Back) track
1630-1655 mm
Rear overhang
1145 mm
Ride height (ground clearance)
206 mm
Wheelbase
2680 mm
Width
1910 mm
Engine
Compression ratio
9.5:1
Coolant
7 l
Cylinder Bore
76 mm
Engine Model/Code
G15DTF
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1497 cm
Engine layout
Front, Transverse
Engine oil capacity
4.5 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Direct injection
Number of cylinders
4
Number of valves per cylinder
4
Power
163 Hp @ 5000-5500 rpm.
Torque
280 Nm @ 1500-4000 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Disc
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
6 gears, manual transmission
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
245/45 R20
Wheel rims size
8J x 20
Space
Fuel tank capacity
50 l
Kerb Weight
1550 kg
Max load
500 kg
Max. roof load
75 kg
Max. weight
2050 kg
Permitted towbar download
85 kg
