BAIC BJ30 2 2024
e 1.5T (334 Hp) Hybrid DHT
Hybrid Car
Body Type SUV
Battery Capacity 1.67 KW
5000 rpm.
Power HP RPM
170 km/h
Maximum Speed
5
Doors
BAIC BJ30 2 2024 Key Specs
Body Type
SUV
Doors
5
Drive Wheel
Front wheel drive
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
4.7 l
Engine Systems
Start & Stop System
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
60 l
Generation
BJ30 II
Gross Battery Capacity
1.67 kWh
Kerb Weight
1690 kg
Maximum Speed
170 km/h
Modification (Engine)
e 1.5T (334 Hp) Hybrid DHT
Number Of Cylinders
4
Power
158 Hp @ 5000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
5
Start Of Production
2024
System Power
334 Hp
System Torque
550 Nm
Wheel Rims Size
7J x 18; 7J x 19

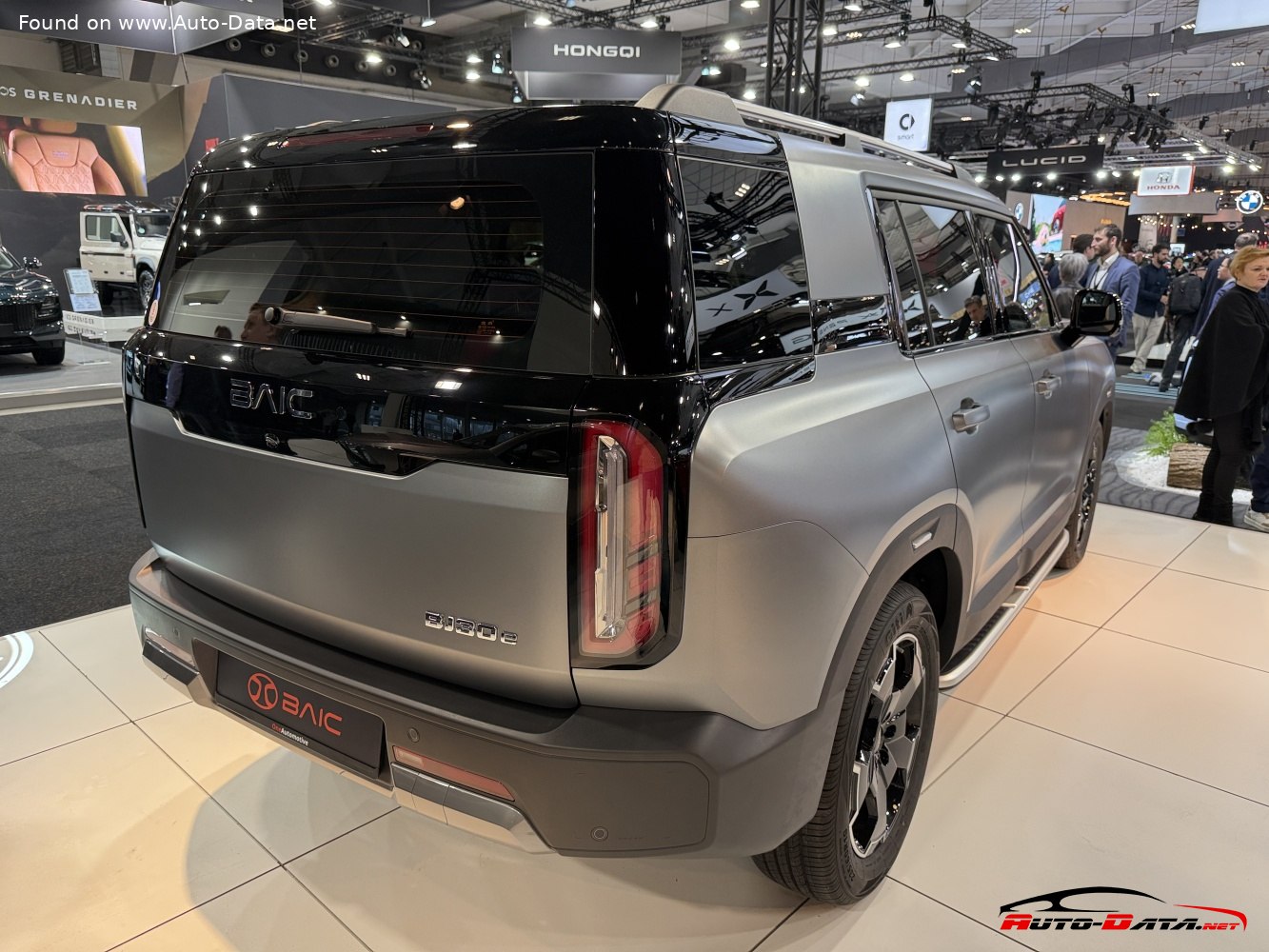

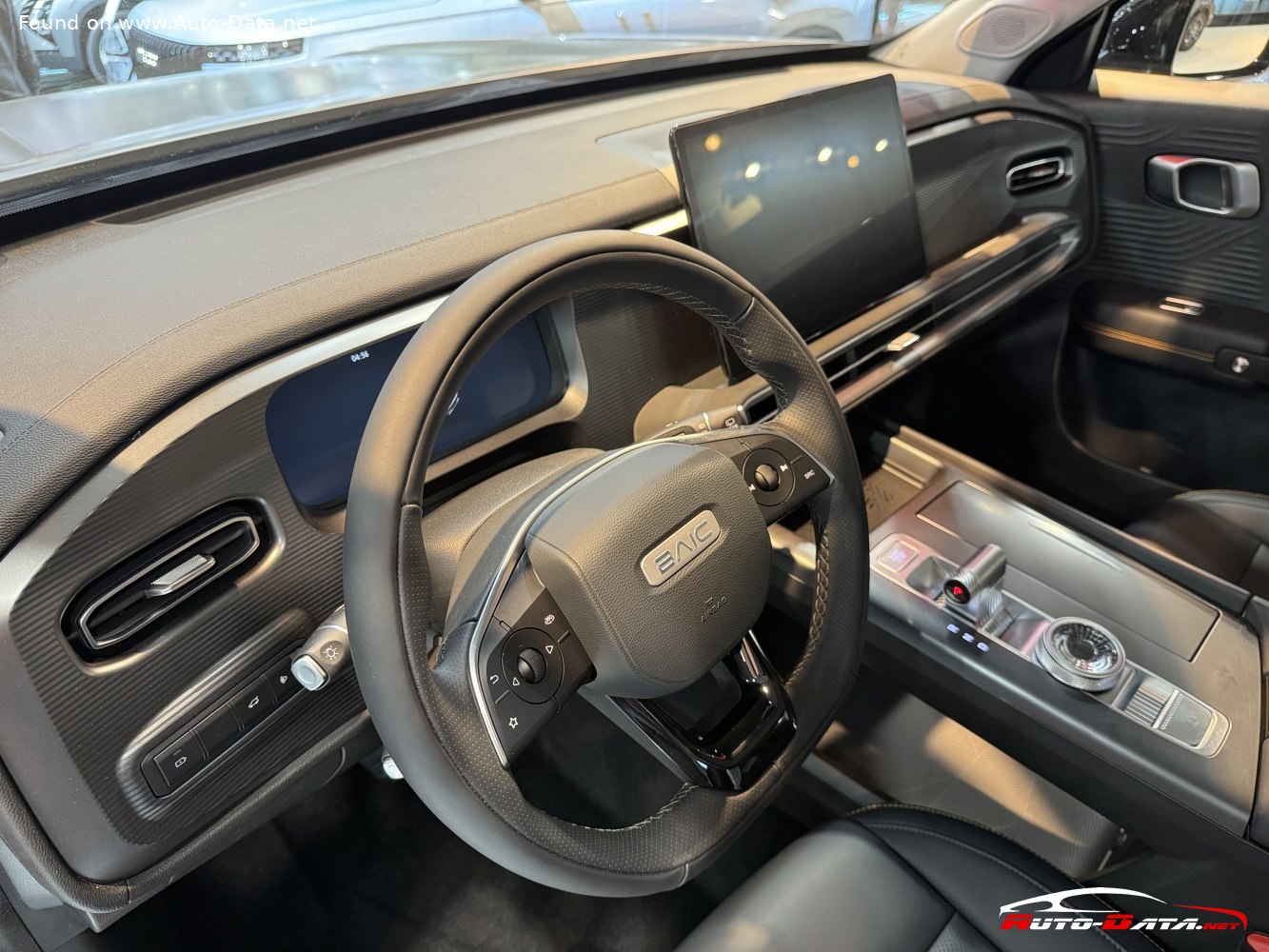

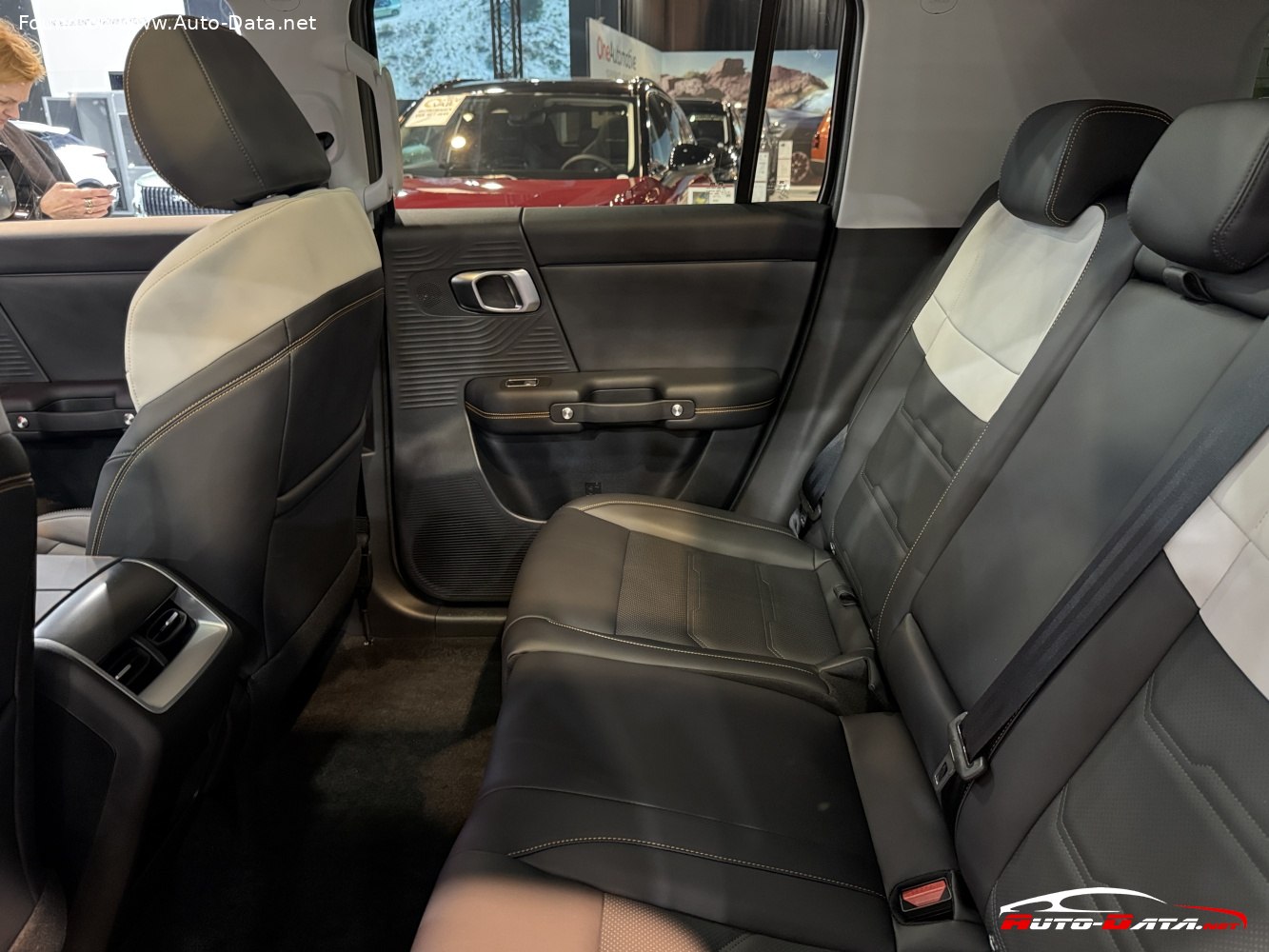

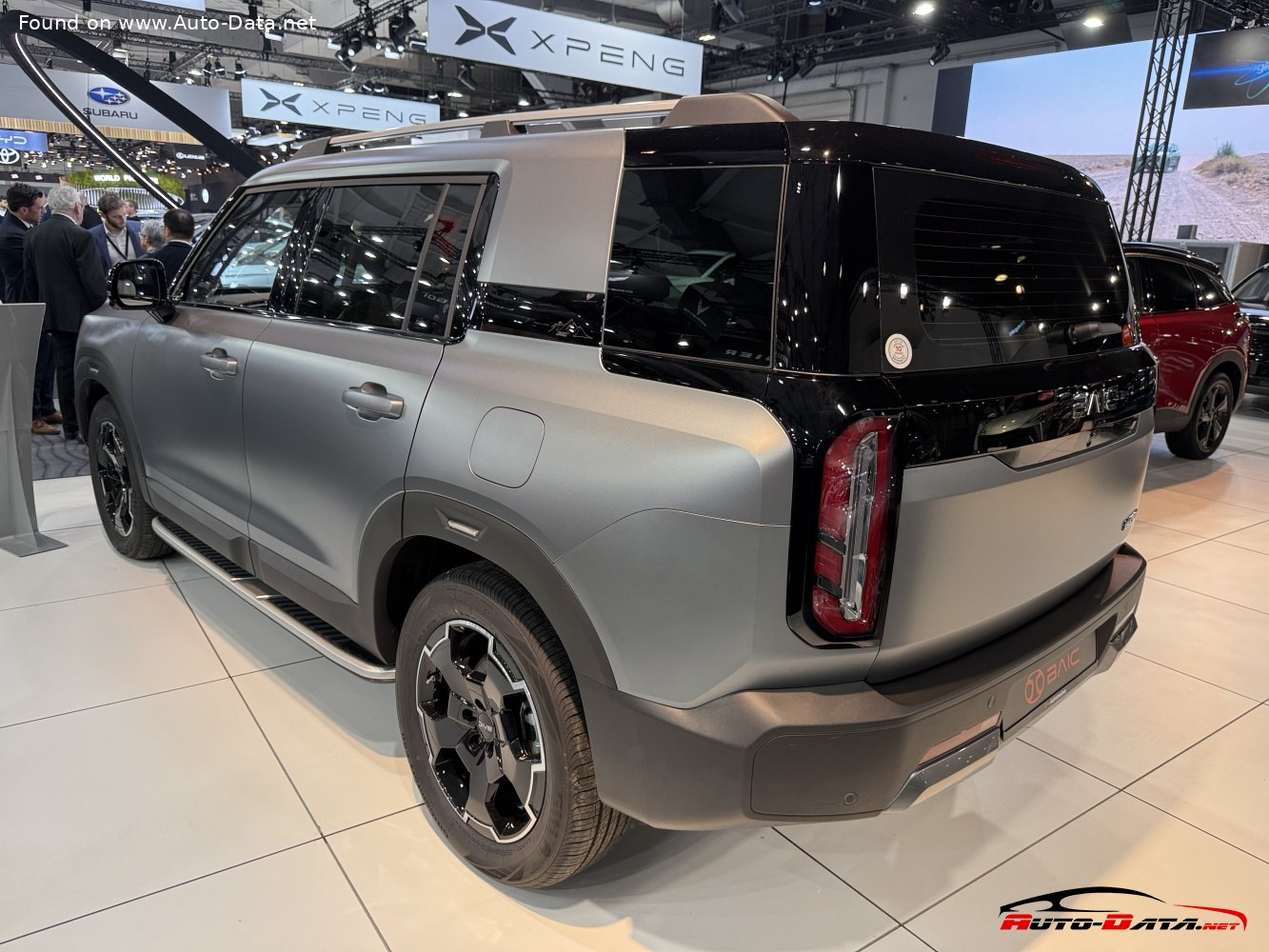

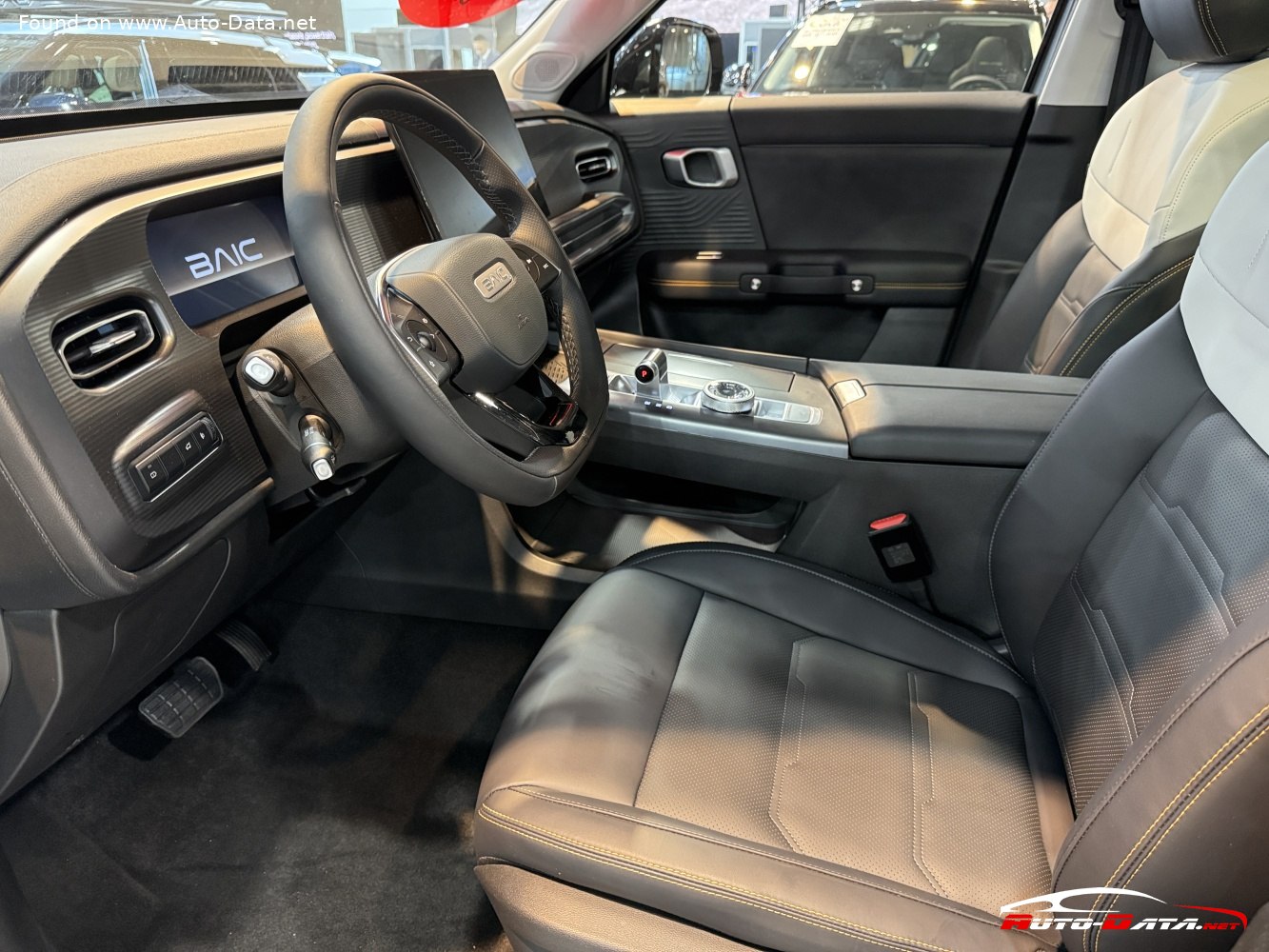

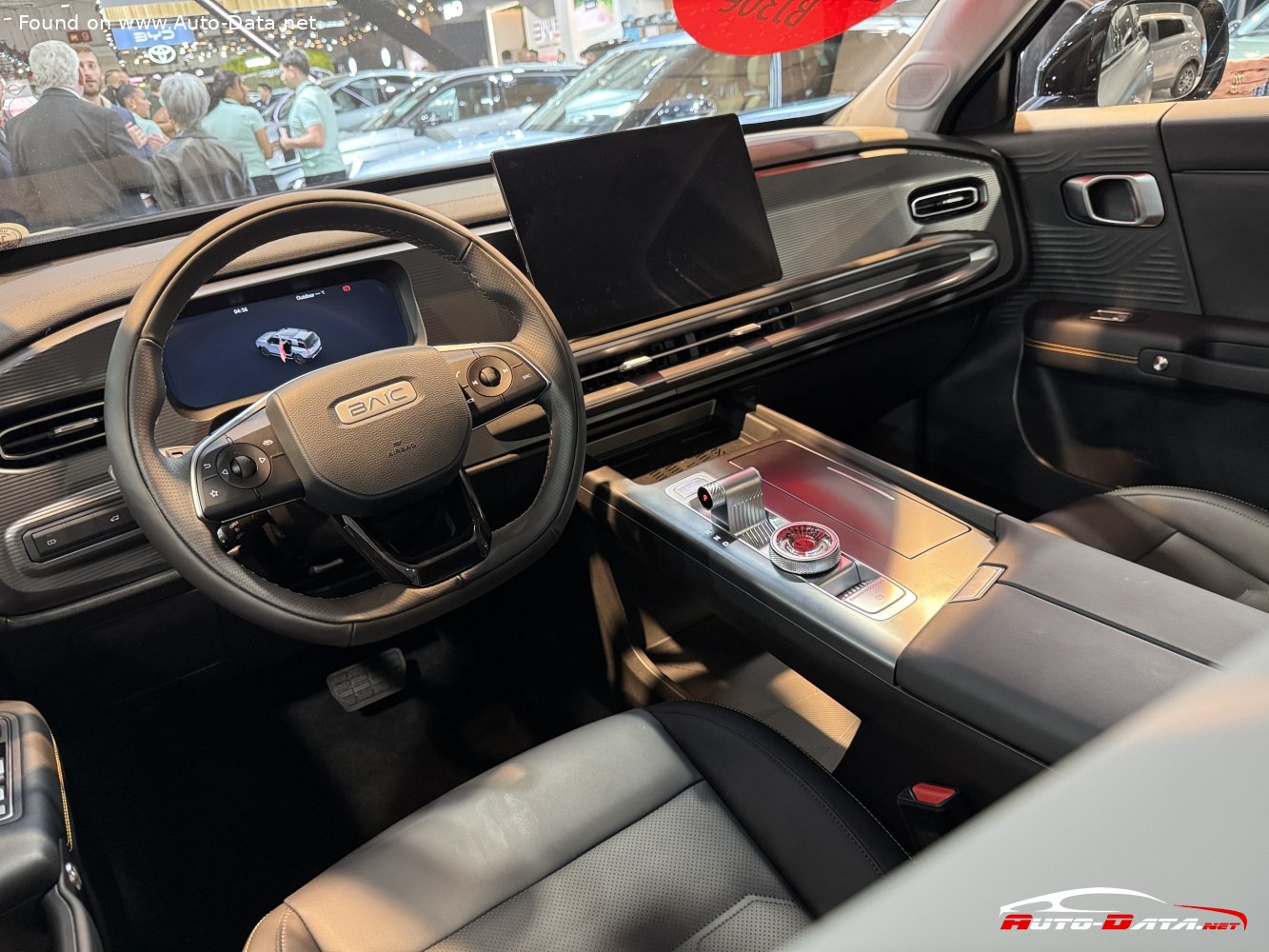

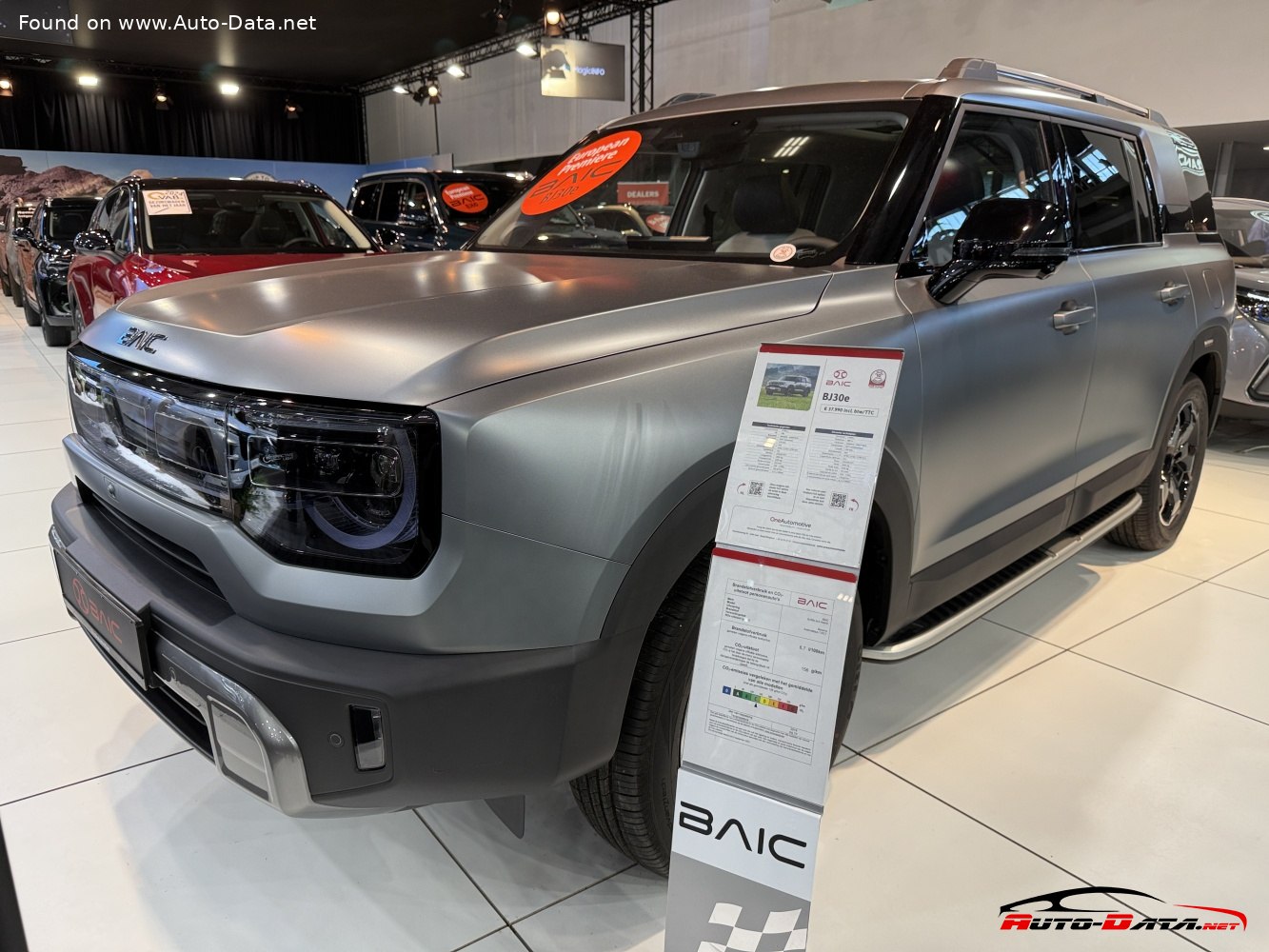

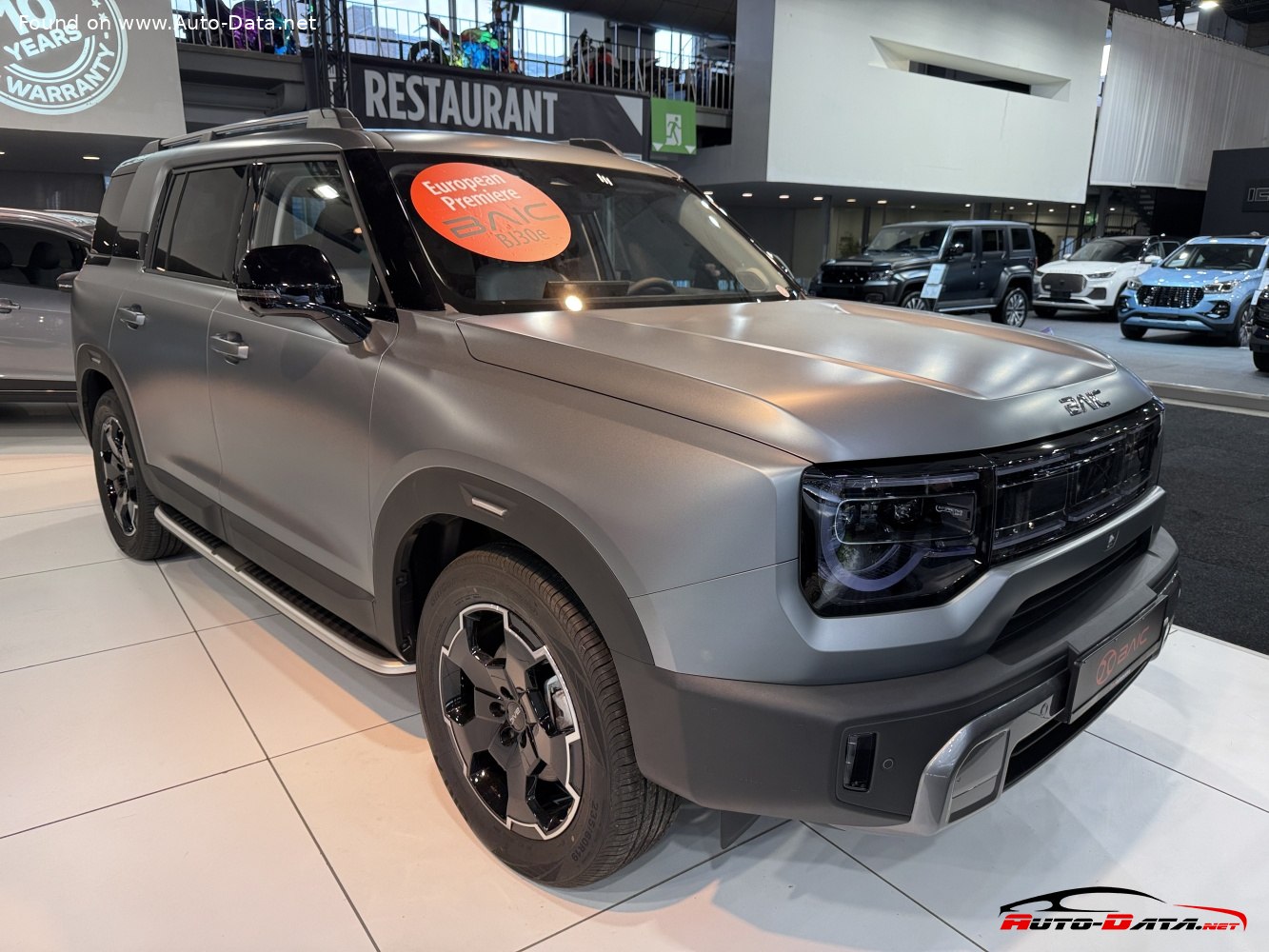

BAIC BJ30 2 2024 Gallery
BAIC BJ30 2 2024 Technical Specifications
General
Body type
SUV
Brand
BAIC
Doors
5
Generation
BJ30 II
Model
BJ30
Modification (Engine)
e 1.5T (334 Hp) Hybrid DHT
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
5
Start of production
2024
Performance
Emission standard
Euro 6
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined (WLTC)
5.85 l/100 km
Maximum speed
170 km/h
Electric
Battery location
Under the trunk
Electric motor Torque number 1
315 Nm
Electric motor location number 1
Integrated into the transmission
Electric motor model/code number 1
TZ210XYH02
Electric motor power number 1
177 Hp
Electric motor type number 1
Synchronous
Gross battery capacity
1.67 kWh
Maximum revolutions of the electric motor number 1
4300 rpm.
System power
334 Hp
System torque
550 Nm
Internal Engine
Compression ratio
13.25:1
Coolant
7 l
Cylinder Bore
74.5 mm
Engine Model/Code
A156T2H-H1
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1498 cm
Engine layout
Front, Transverse
Engine oil capacity
4.7 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop System
Fuel injection system
Direct injection
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
85.9 mm
Power
158 Hp @ 5000 rpm.
Power per litre
105.5 Hp/l
Torque
235 Nm @ 2000-4500 rpm.
Valvetrain
DOHC
Dimensions
Approach angle
25°
Departure angle
30°
Front overhang
933 mm
Front track
1625 mm
Height
1790 mm
Length
4730 mm
Ramp-over (brakeover) angle
21°
Rear (Back) track
1635 mm
Rear overhang
977 mm
Ride height (ground clearance)
215 mm
Wading depth
450 mm
Wheelbase
2820 mm
Width
1910 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
2 gears, automatic transmission DHT
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
235/65 R18; 235/60 R19
Wheel rims size
7J x 18; 7J x 19
Space
Fuel tank capacity
60 l
Kerb Weight
1690 kg
Max load
433 kg
Max. roof load
80 kg
Max. weight
2123 kg
