BMW X6 E71 2009
ActiveHybrid 4.4 V8 (485 Hp) xDrive Steptronic
Hybrid Car
Body Type SUV
Battery Capacity 2.4 KW
2.5 km
Electric Range
236 km/h
Maximum Speed
5
Doors
BMW X6 E71 2009 Key Specs
Acceleration 0 - 100 Km/h
5.6 sec
Acceleration 0 - 62 Mph
5.6 sec
All-electric Range (NEDC)
2.5 km
Battery Voltage
288 V
Body Type
SUV
Doors
5
Drive Wheel
All wheel drive (4x4)
End Of Production
January, 2012
Engine Aspiration
2 x Twin-scroll turbo, Intercooler
Engine Oil Capacity
8.5 l
Engine Systems
Start & Stop System
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
85 l
Generation
X6 (E71)
Gross Battery Capacity
2.4 kWh
Kerb Weight
2450-2580 kg
Max Speed (electric)
60 km/h
Maximum Speed
236 km/h, Electronically limited
Modification (Engine)
ActiveHybrid 4.4 V8 (485 Hp) xDrive Steptronic
Number Of Cylinders
8
Power
407 Hp @ 5500-6400 rpm.
Power Steering
Electric Steering
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
5
Start Of Production
October, 2009
System Power
485 Hp
System Torque
780 Nm
Wheel Rims Size
Front wheel rims: 9J x 19; 10J x 20Rear wheel rims: 9J x 19; 11J x 20

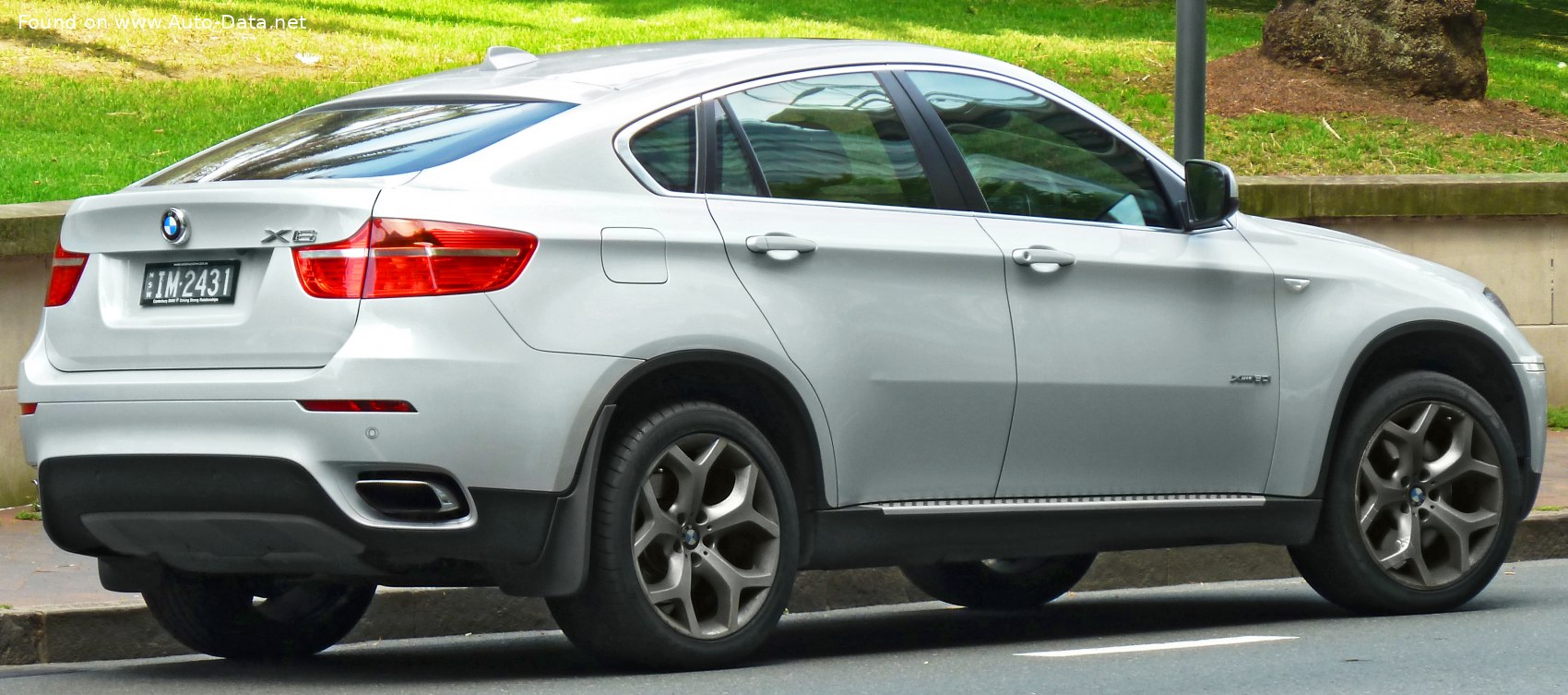

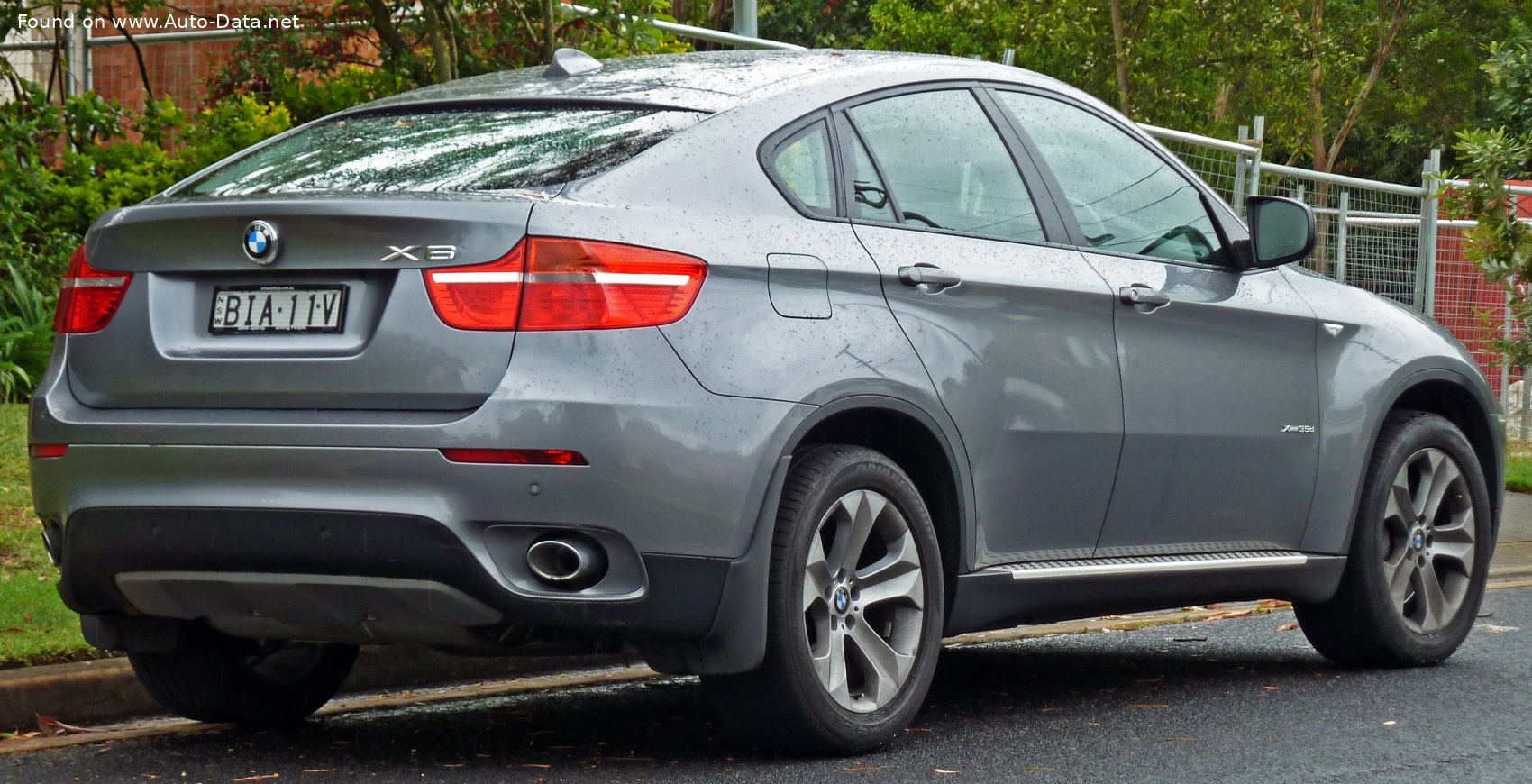

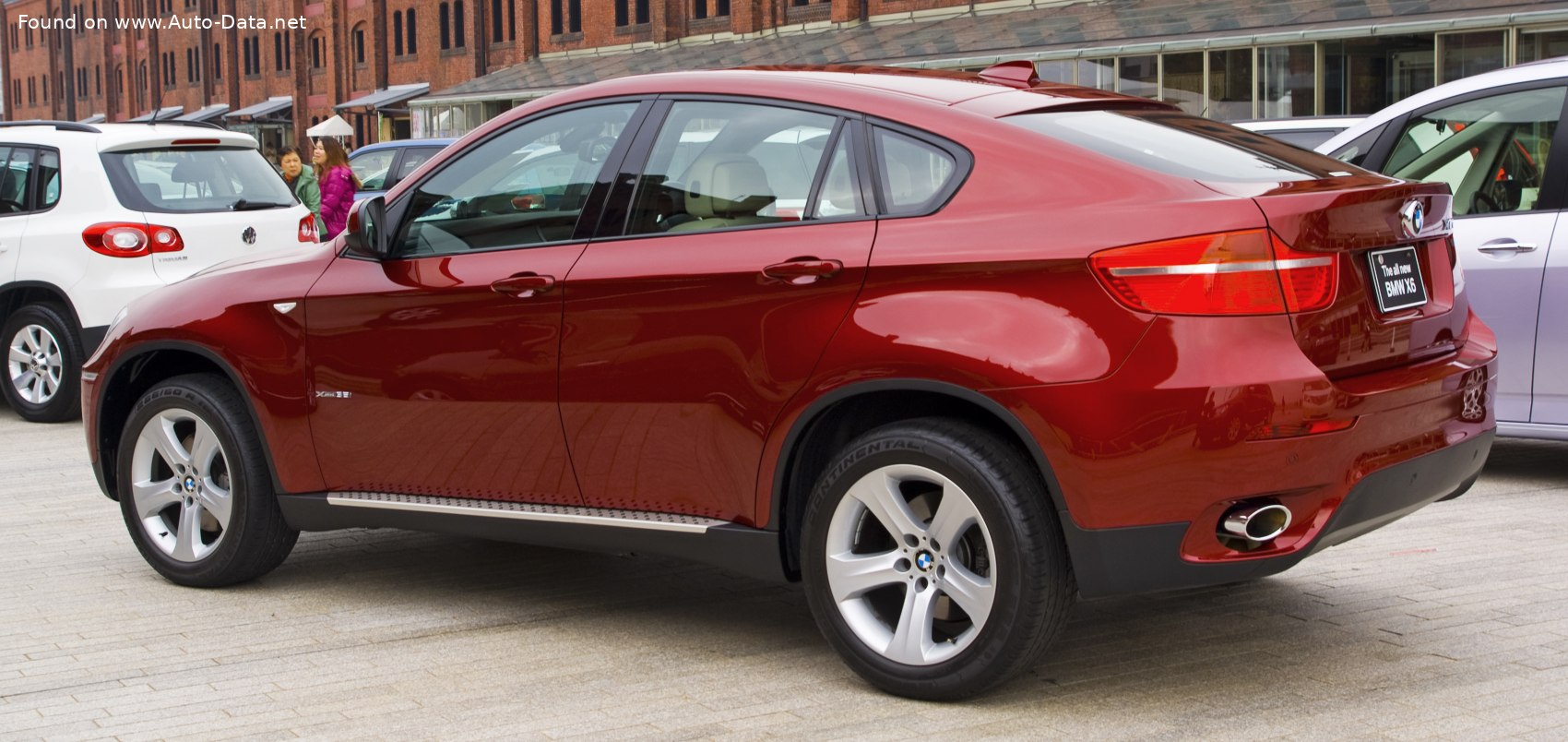

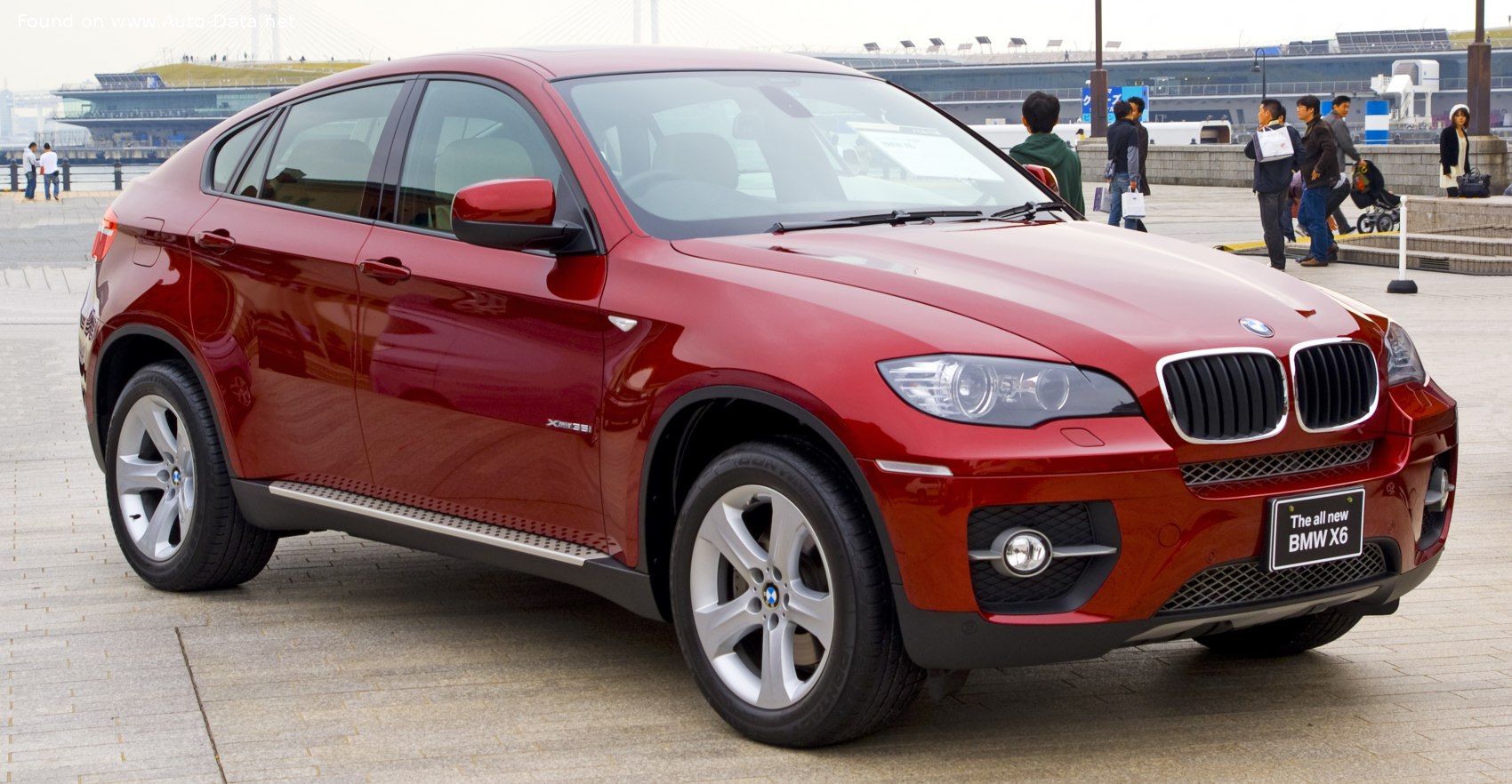

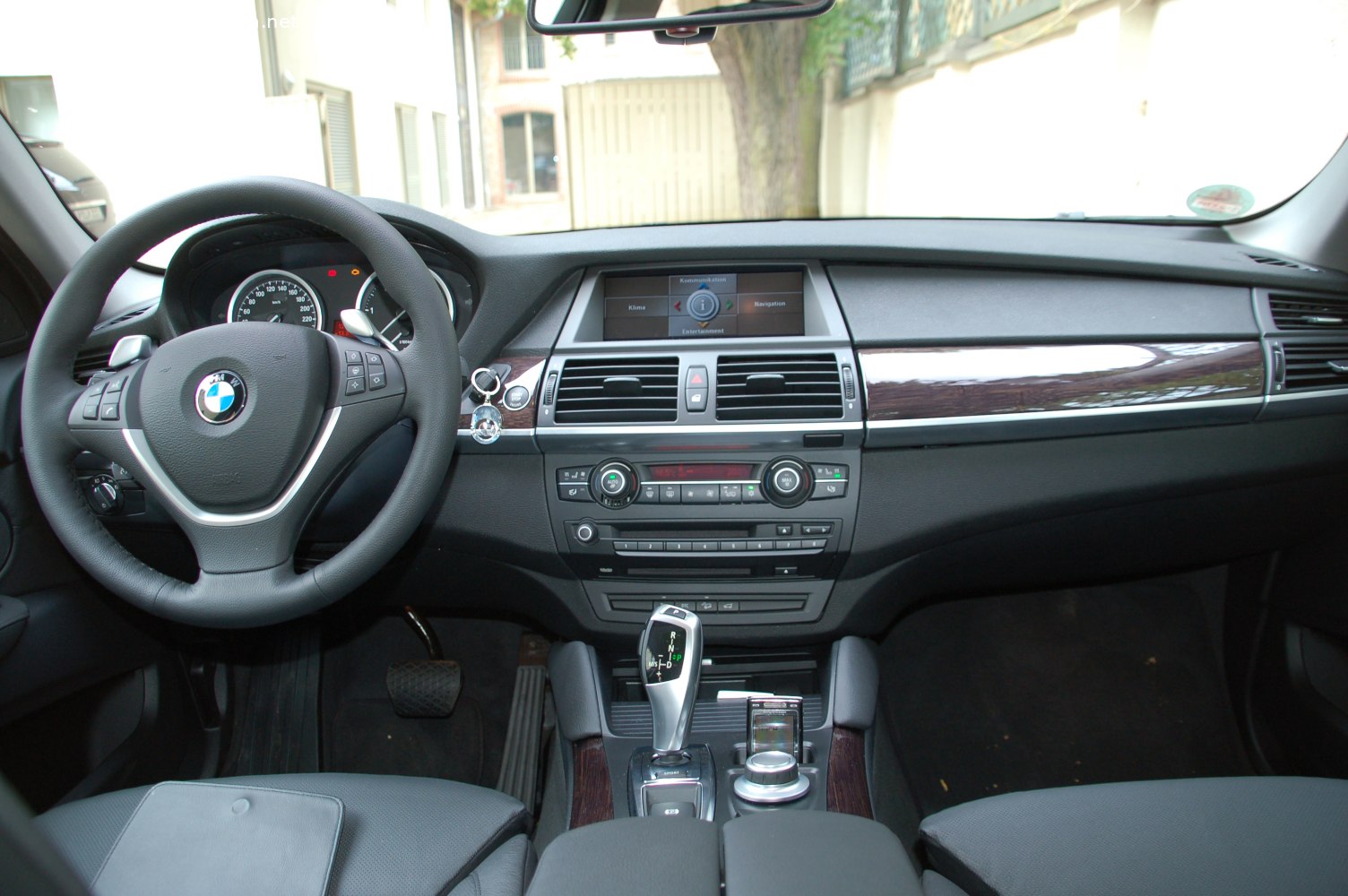

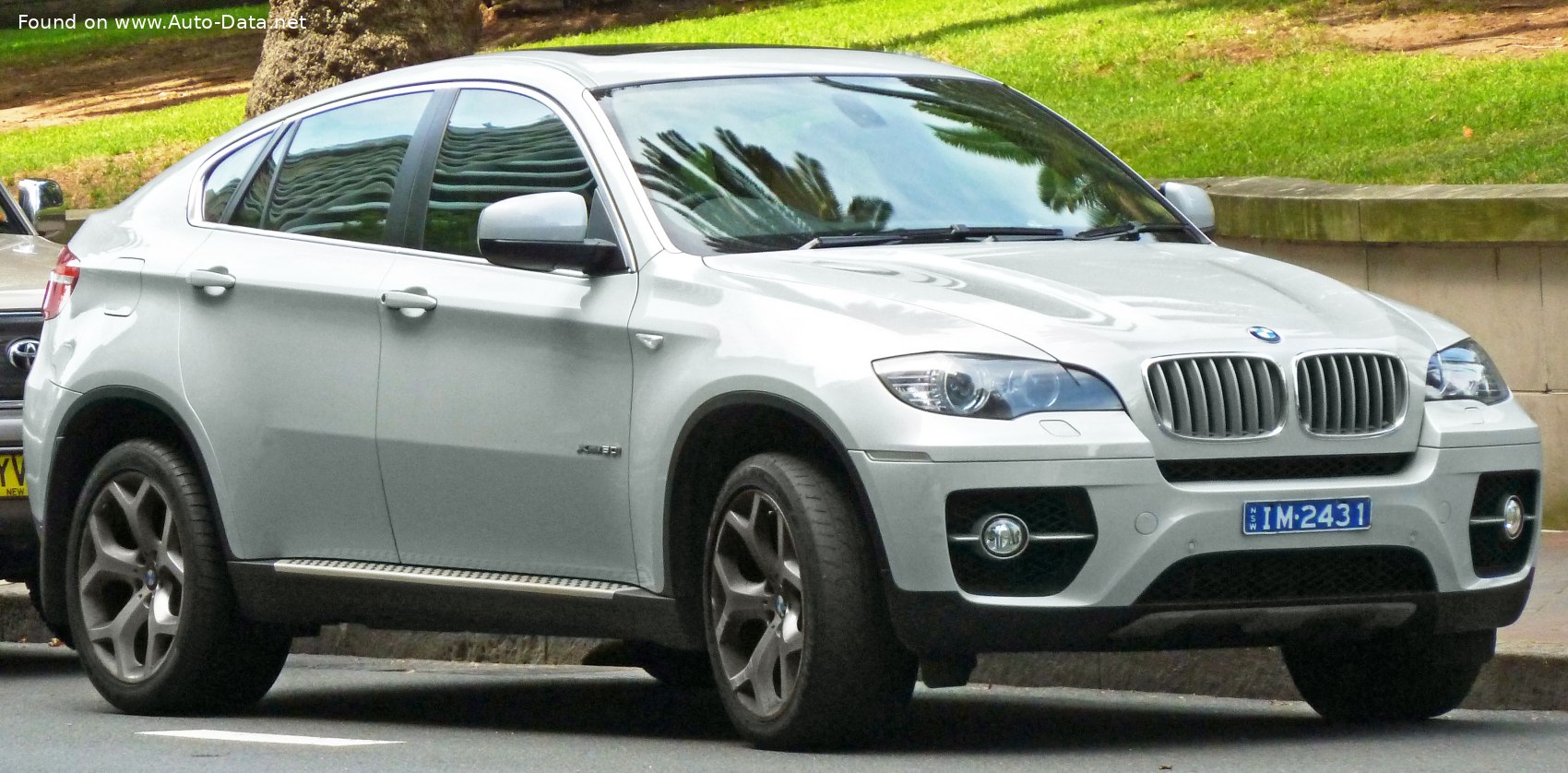

BMW X6 E71 2009 Gallery
BMW X6 E71 2009 Technical Specifications
General
Body type
SUV
Brand
BMW
Doors
5
End of production
January, 2012
Generation
X6 (E71)
Model
X6
Modification (Engine)
ActiveHybrid 4.4 V8 (485 Hp) xDrive Steptronic
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
5
Start of production
October, 2009
Performance
Acceleration 0 - 100 km/h
5.6 sec
Acceleration 0 - 60 mph
5.3 sec
Acceleration 0 - 62 mph
5.6 sec
CO2 emissions (NEDC)
231 g/km
Emission standard
Euro 5
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined (NEDC)
9.9 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
9.4 l/100 km
Fuel consumption (economy) - urban (NEDC)
10.8 l/100 km
Maximum speed
236 km/h, Electronically limited
Electric
All-electric range (NEDC)
2.5 km
Battery location
Under the trunk
Battery voltage
288 V
Battery weight
83 kg
Electric motor Torque number 1
260 Nm @ 0 rpm.
Electric motor Torque number 2
280 Nm @ 0 rpm.
Electric motor location number 1
Integrated into the transmission
Electric motor location number 2
Integrated into the transmission
Electric motor power number 1
91 Hp @ 2750 rpm.
Electric motor power number 2
86 Hp @ 2500 rpm.
Electric motor type number 1
Synchronous
Electric motor type number 2
Synchronous
Gross battery capacity
2.4 kWh
Max speed (electric)
60 km/h
Net (usable) battery capacity
1.4 kWh
Recuperation output
50 kW
System power
485 Hp
System torque
780 Nm
Internal Engine
Compression ratio
10:1
Coolant
21.8 l
Cylinder Bore
89 mm
Engine Model/Code
N63B44A
Engine aspiration
2 x Twin-scroll turbo, Intercooler
Engine configuration
V-engine
Engine displacement
4395 cm
Engine layout
Front, Longitudinal
Engine oil capacity
8.5 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop System
Fuel injection system
Direct injection
Number of cylinders
8
Number of valves per cylinder
4
Piston Stroke
88.3 mm
Power
407 Hp @ 5500-6400 rpm.
Power per litre
92.6 Hp/l
Torque
600 Nm @ 1750-4500 rpm.
Valvetrain
Double-VANOS
Dimensions
Approach angle
26.1°
Departure angle
25.9°
Drag coefficient (Cd)
0.36
Front overhang
858 mm
Front track
1644 mm
Height
1697 mm
Length
4877 mm
Minimum turning circle (turning diameter)
12.8 m
Ramp-over (brakeover) angle
19.7°
Rear (Back) track
1706 mm
Rear overhang
1086 mm
Ride height (ground clearance)
219 mm
Wheelbase
2933 mm
Width
1983 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs, 385x36 mm
Front suspension
Coil spring, Double wishbone, Transverse stabilizer
Number of gears and type of gearbox
7 gears, automatic transmission Steptronic
Power steering
Electric Steering
Rear brakes
Ventilated discs, 345x24 mm
Rear suspension
Independent multi-link suspension, Air suspension, Transverse stabilizer
Steering type
Steering rack and pinion
Tires size
Front wheel tires: 255/50 R19; 275/40 R20Rear wheel tires: 255/50 R19; 315/35 R20
Wheel rims size
Front wheel rims: 9J x 19; 10J x 20Rear wheel rims: 9J x 19; 11J x 20
Space
Fuel tank capacity
85 l
Kerb Weight
2450-2580 kg
Max load
445-575 kg
Max. roof load
100 kg
Max. weight
3025 kg
Permitted towbar download
120 kg
