Fiat Doblo 1 2002
1.6 16V (103 Hp) 7 Seat
Generation Doblo 1
Body Type Minivan
Seats 7
2005
End Year
165 km/h
Maximum Speed
5
Doors
Fiat Doblo 1 2002 Key Specs
Acceleration 0 - 100 Km/h
13.4 sec
Acceleration 0 - 62 Mph
13.4 sec
Body Type
Minivan
Doors
5
Drive Wheel
Front wheel drive
End Of Production
2005
Engine Aspiration
Naturally aspirated engine
Engine Oil Capacity
3.9 l
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
60 l
Generation
Doblo I (223)
Kerb Weight
1365 kg
Maximum Speed
165 km/h
Modification (Engine)
1.6 16V (103 Hp) 7 Seat
Number Of Cylinders
4
Power
103 Hp @ 5750 rpm.
Power Steering
Hydraulic Steering
Powertrain Architecture
Internal Combustion engine
Seats
7
Start Of Production
2002
Wheel Rims Size
5.5J x 14

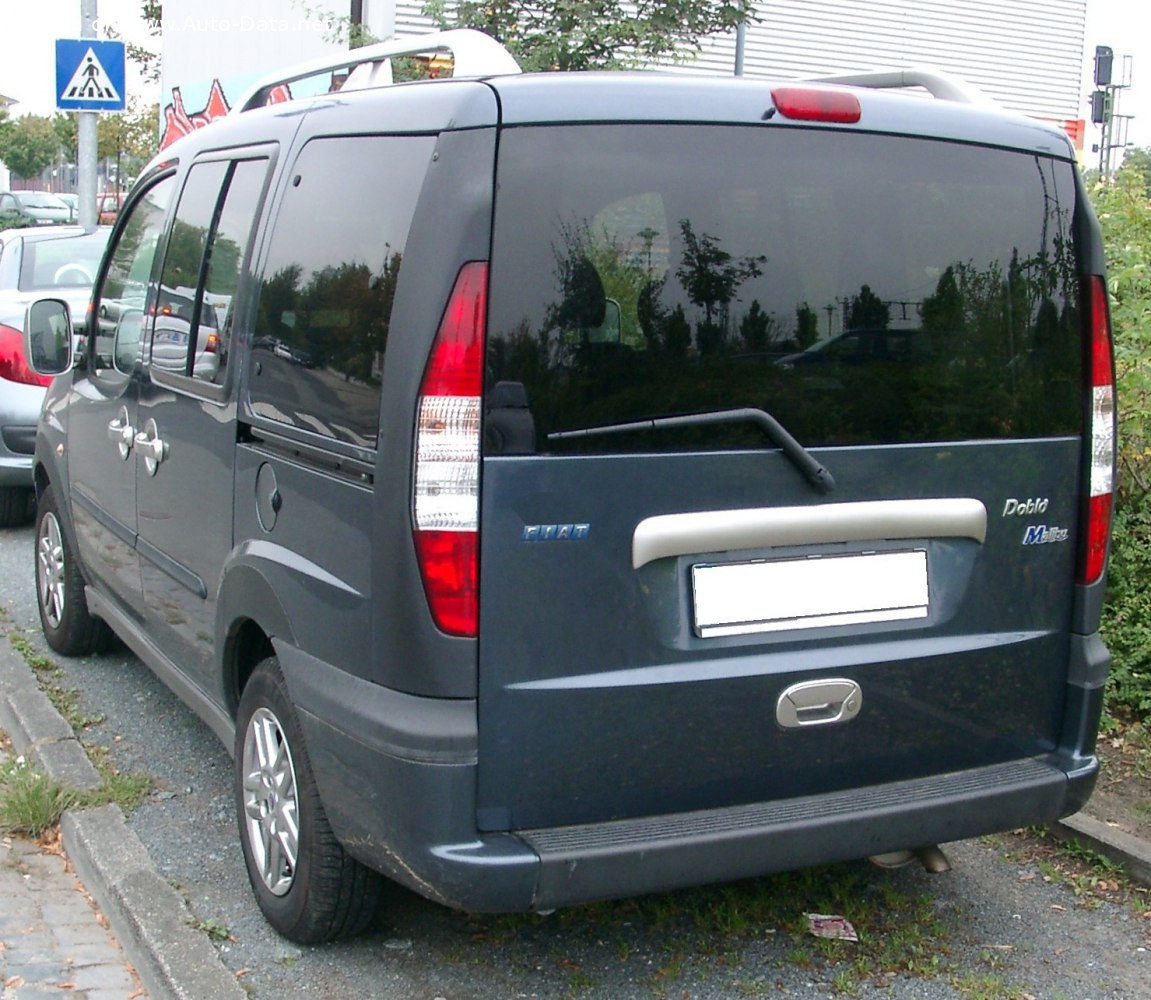

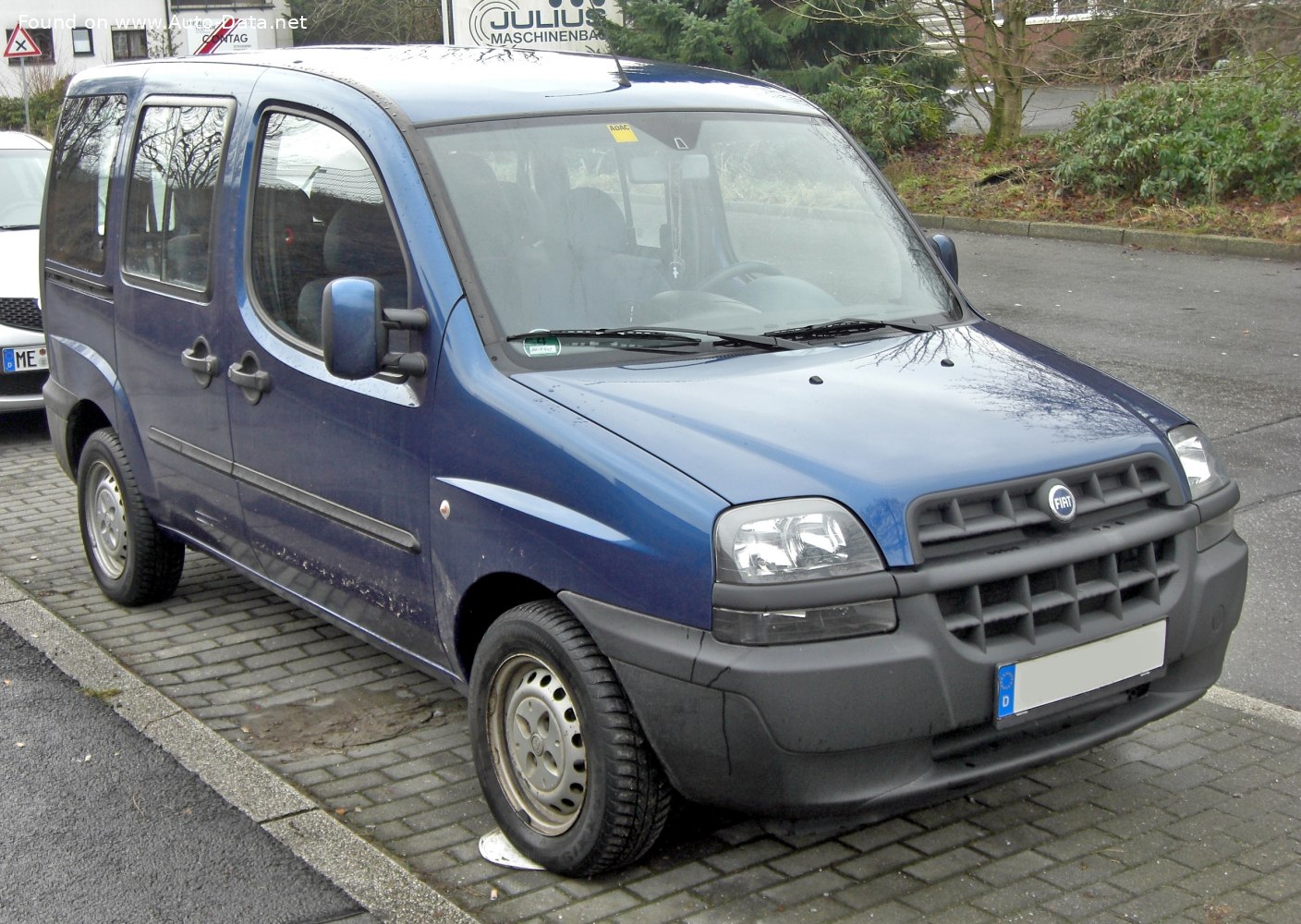

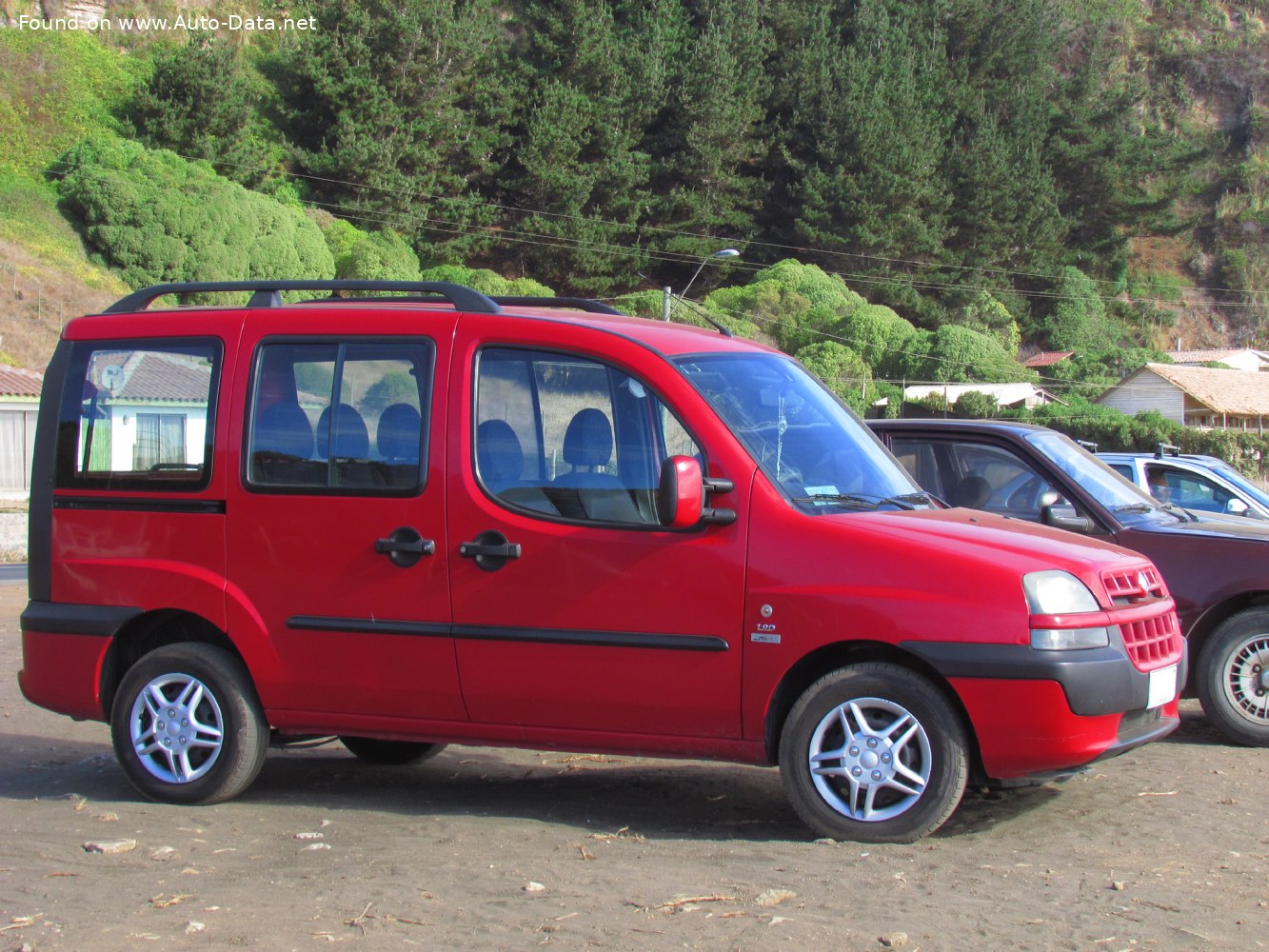

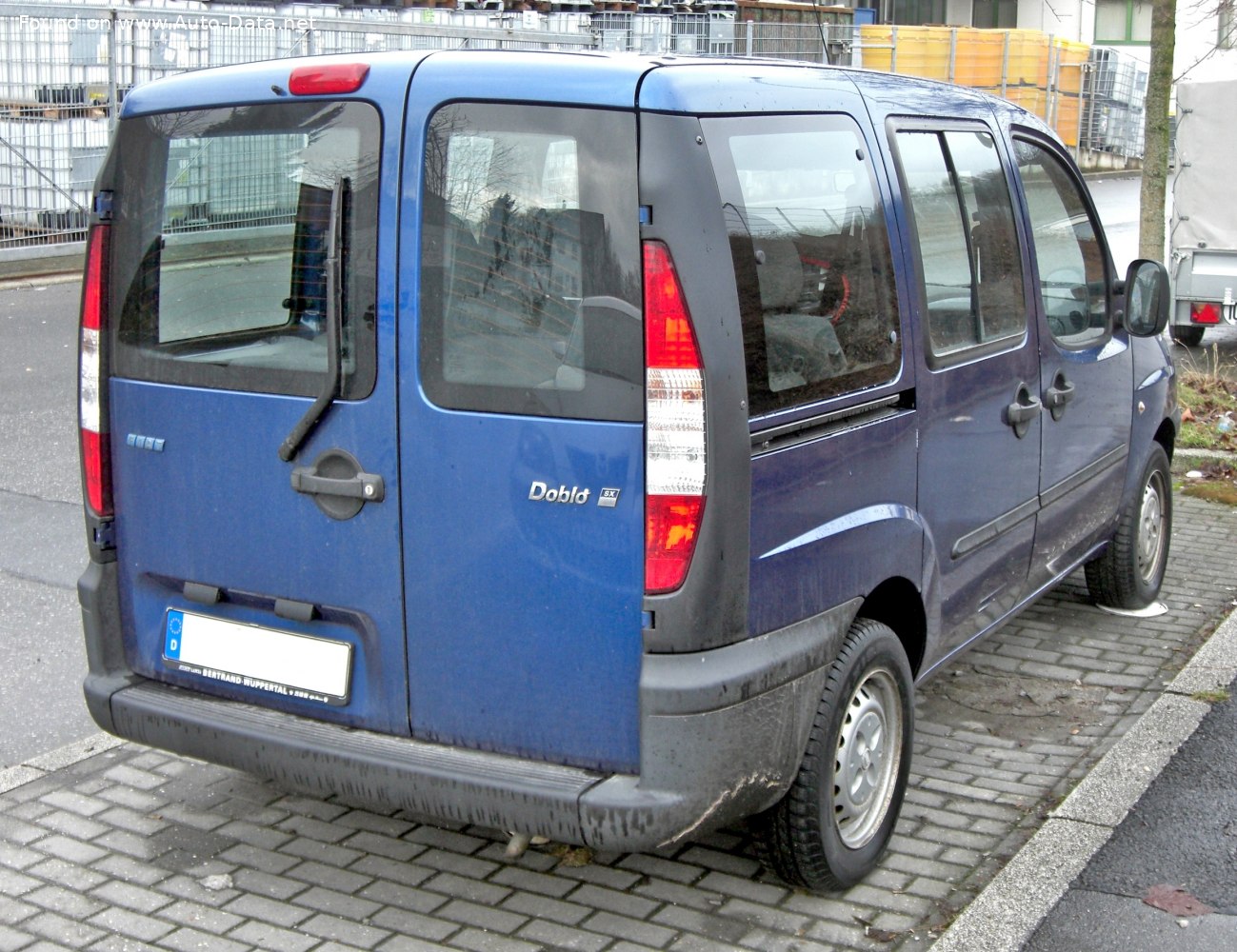

Fiat Doblo 1 2002 Gallery
Fiat Doblo 1 2002 Technical Specifications
General
Body type
Minivan
Brand
Fiat
Doors
5
End of production
2005
Generation
Doblo I (223)
Model
Doblo
Modification (Engine)
1.6 16V (103 Hp) 7 Seat
Powertrain Architecture
Internal Combustion engine
Seats
7
Start of production
2002
Performance
Acceleration 0 - 100 km/h
13.4 sec
Acceleration 0 - 60 mph
12.7 sec
Acceleration 0 - 62 mph
13.4 sec
CO2 emissions (NEDC)
208 g/km
Emission standard
Euro 3
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined (NEDC)
8.8 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
7.2 l/100 km
Fuel consumption (economy) - urban (NEDC)
11.2 l/100 km
Maximum speed
165 km/h
Dimensions
Front overhang
758 mm
Front track
1495 mm
Height
1810 mm
Length
4159 mm
Minimum turning circle (turning diameter)
10.5 m
Rear (Back) track
1496 mm
Rear overhang
835 mm
Wheelbase
2566 mm
Width
1714 mm
Engine
Compression ratio
10.5:1
Coolant
4.2 l
Cylinder Bore
80.5 mm
Engine Model/Code
182B6000
Engine aspiration
Naturally aspirated engine
Engine configuration
Inline
Engine displacement
1596 cm
Engine layout
Front, Transverse
Engine oil capacity
3.9 l
Engine oil specification
Log in to see.
Fuel injection system
Multi-port manifold injection
Number of cylinders
4
Number of valves per cylinder
4
Power
103 Hp @ 5750 rpm.
Torque
145 Nm @ 4000 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 257 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
5 gears, manual transmission
Power steering
Hydraulic Steering
Rear brakes
Drum, 228 mm
Rear suspension
Rigid axle suspension, Transverse stabilizer, Leaf spring
Steering type
Steering rack and pinion
Tires size
175/70 R14
Wheel rims size
5.5J x 14
Space
Fuel tank capacity
60 l
Kerb Weight
1365 kg
Max load
585 kg
Max. roof load
100 kg
Max. weight
1950 kg
