Fiat Doblo 1 223 2005
1.6 16V (103/92 Hp) Natural Power CNG
Generation Doblo 1 223 2005
Body Type Minivan
Seats 5
2010
End Year
163 km/h
Maximum Speed
5
Doors
Fiat Doblo 1 223 2005 Key Specs
Body Type
Minivan
Doors
5
Drive Wheel
Front wheel drive
End Of Production
2010
Engine Aspiration
Naturally aspirated engine
Engine Oil Capacity
3.9 l
Fuel Type
Petrol / CNG
Fuel Tank Capacity
60 l
Generation
Doblo I (223, 2005)
Kerb Weight
1445 kg
Maximum Speed
163 km/h
Modification (Engine)
1.6 16V (103/92 Hp) Natural Power CNG
Number Of Cylinders
4
Power
103 Hp @ 5750 rpm.
Power Steering
Hydraulic Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
October, 2005
Wheel Rims Size
5.5J x 14

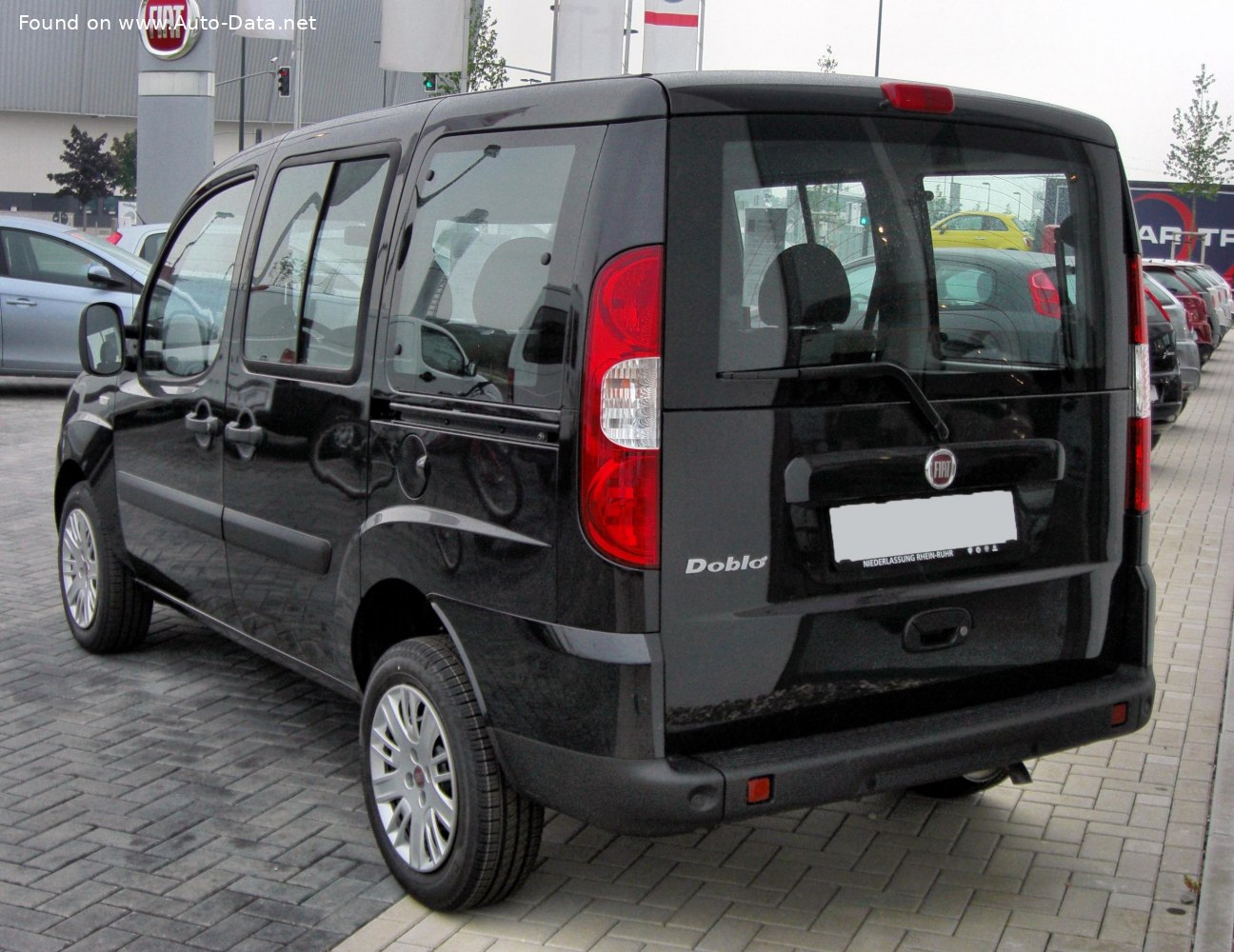

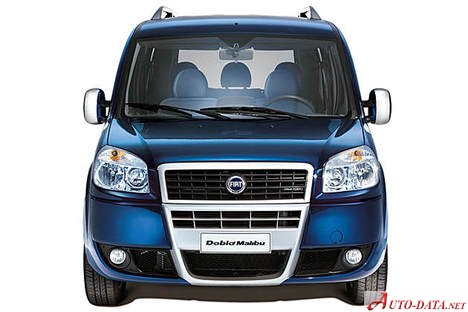

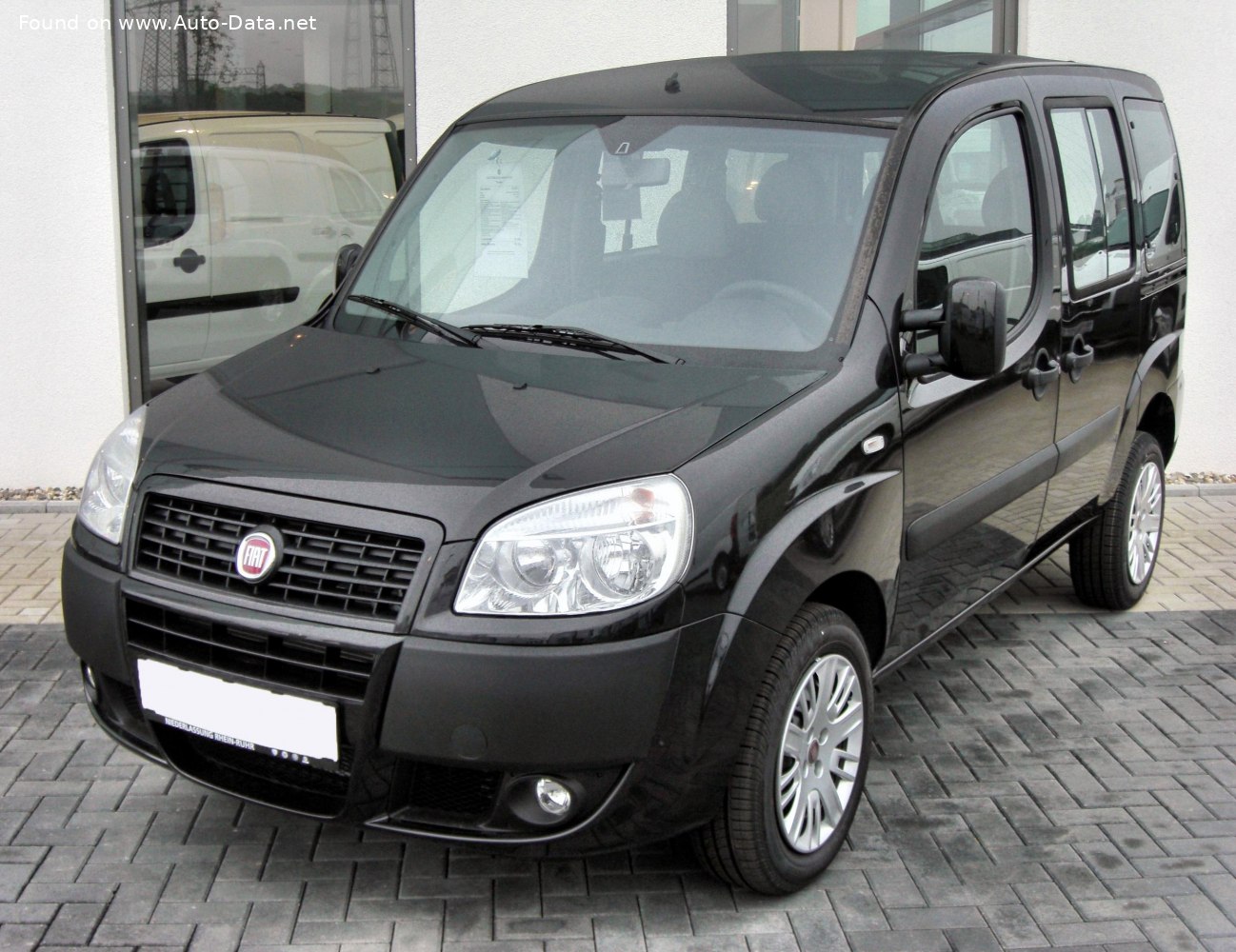

Fiat Doblo 1 223 2005 Gallery
Fiat Doblo 1 223 2005 Technical Specifications
General
Body type
Minivan
Brand
Fiat
Doors
5
End of production
2010
Generation
Doblo I (223, 2005)
Model
Doblo
Modification (Engine)
1.6 16V (103/92 Hp) Natural Power CNG
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
October, 2005
Performance
CO2 emissions (CNG) (NEDC)
161 g/km
CO2 emissions (NEDC)
218 g/km
Emission standard
Euro 4
Fuel Type
Petrol / CNG
Fuel consumption (economy) - combined (CNG) (NEDC)
5.9 kg/100 km
Fuel consumption (economy) - combined (NEDC)
9.2 l/100 km
Fuel consumption (economy) - extra urban (CNG) (NEDC)
5 kg/100 km
Fuel consumption (economy) - extra urban (NEDC)
7.7 l/100 km
Fuel consumption (economy) - urban (CNG) (NEDC)
7.6 kg/100 km
Fuel consumption (economy) - urban (NEDC)
11.9 l/100 km
Maximum speed
163 km/h
Maximum speed (CNG)
152 km/h
Dimensions
Front overhang
833 mm
Front track
1514 mm
Height
1818 mm
Length
4253 mm
Minimum turning circle (turning diameter)
10.5 m
Rear (Back) track
1505 mm
Rear overhang
837 mm
Wheelbase
2583 mm
Width
1722 mm
Engine
Compression ratio
10.5:1
Coolant
4.2 l
Cylinder Bore
80.5 mm
Engine Model/Code
182B6000
Engine aspiration
Naturally aspirated engine
Engine configuration
Inline
Engine displacement
1596 cm
Engine layout
Front, Transverse
Engine oil capacity
3.9 l
Engine oil specification
Log in to see.
Fuel injection system
Multi-port manifold injection
Number of cylinders
4
Number of valves per cylinder
4
Power
103 Hp @ 5750 rpm.
Power (CNG)
92 Hp @ 5750 rpm.
Power per litre (CNG)
57.6 Hp/l
Torque
145 Nm @ 4000 rpm.
Torque (CNG)
130 Nm @ 4000 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 284 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
5 gears, manual transmission
Power steering
Hydraulic Steering
Rear brakes
Drum, 228 mm
Rear suspension
Rigid axle suspension, Transverse stabilizer, Leaf spring
Steering type
Steering rack and pinion
Tires size
175/70 R14
Wheel rims size
5.5J x 14
Space
CNG cylinder capacity
22 kg
Fuel tank capacity
60 l
Kerb Weight
1445 kg
Max load
485 kg
Max. roof load
100 kg
Max. weight
1930 kg
