Lexus HS 2009
250h (190 Hp) Full Hybrid ECVT
Hybrid Car
Body Type Sedan
Seats 5
2013
End Year
180 km/h
Maximum Speed
4
Doors
Lexus HS 2009 Key Specs
Battery Voltage
244.8 V
Body Type
Sedan
Doors
4
Drive Wheel
Front wheel drive
End Of Production
January, 2013
Engine Aspiration
Naturally aspirated engine
Engine Oil Capacity
4.3 l
Engine Systems
Start & Stop System
Fuel Type
Petrol (Gasoline)
Fuel Consumption (economy) - Combined
6.7 l/100 km
Fuel Consumption (economy) - Extra Urban
6.9 l/100 km
Fuel Tank Capacity
55 l
Generation
HS
Kerb Weight
1670-1710 kg
Maximum Speed
180 km/h, Electronically limited
Modification (Engine)
250h (190 Hp) Full Hybrid ECVT
Number Of Cylinders
4
Power
150 Hp @ 6000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
5
Start Of Production
July, 2009
System Power
190 Hp
Wheel Rims Size
7.0J x 17; 7.5J x 18

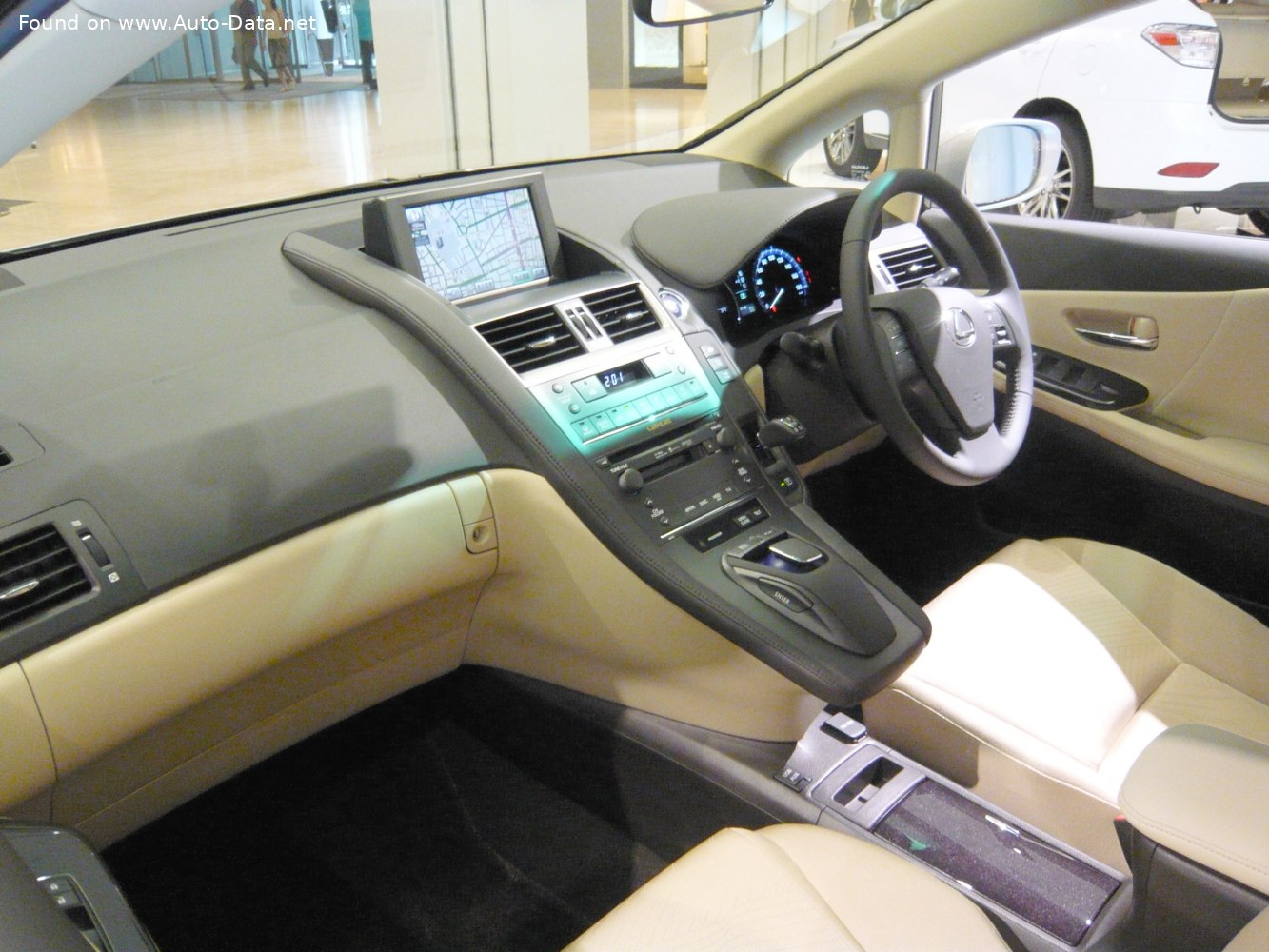

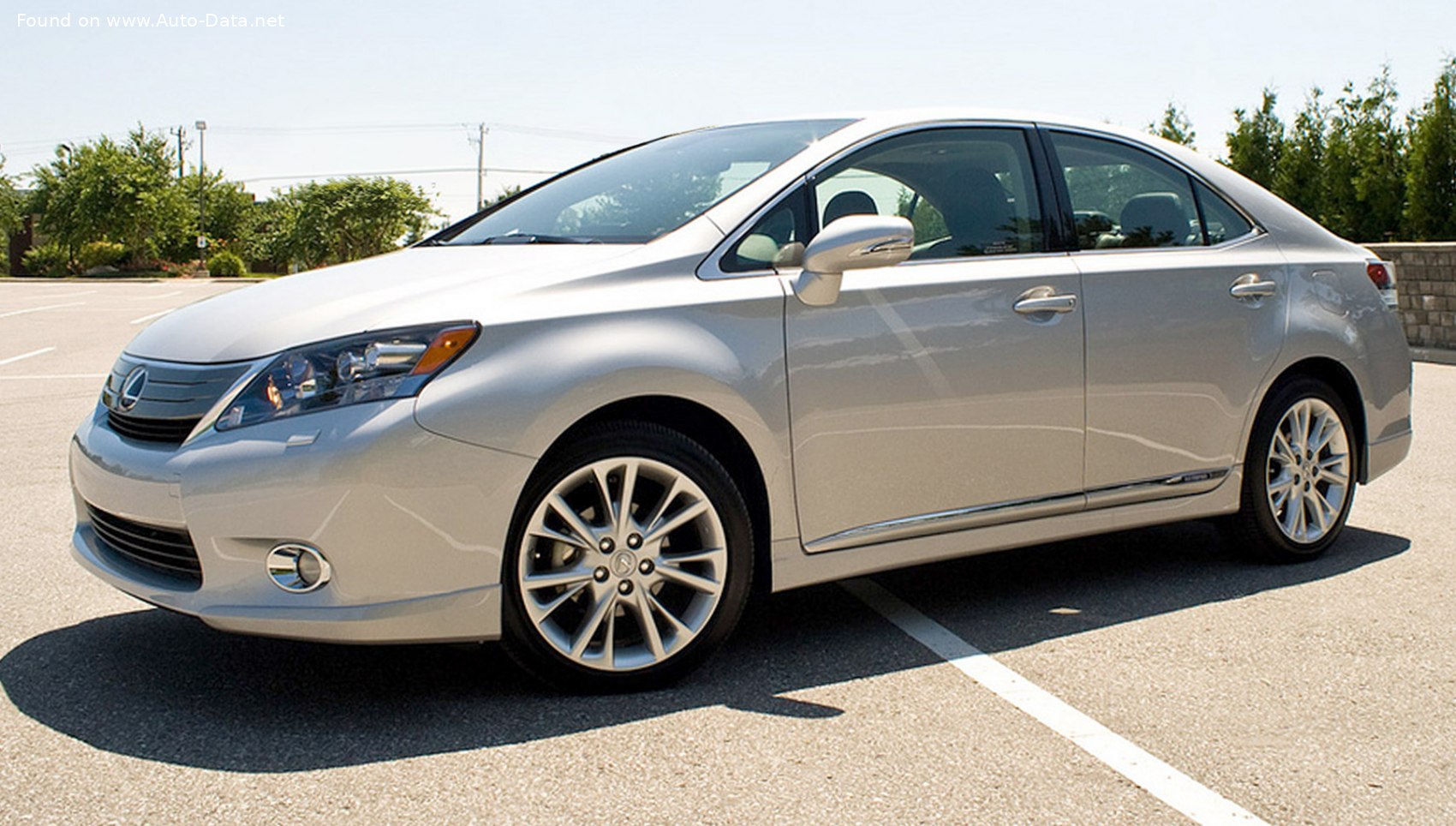

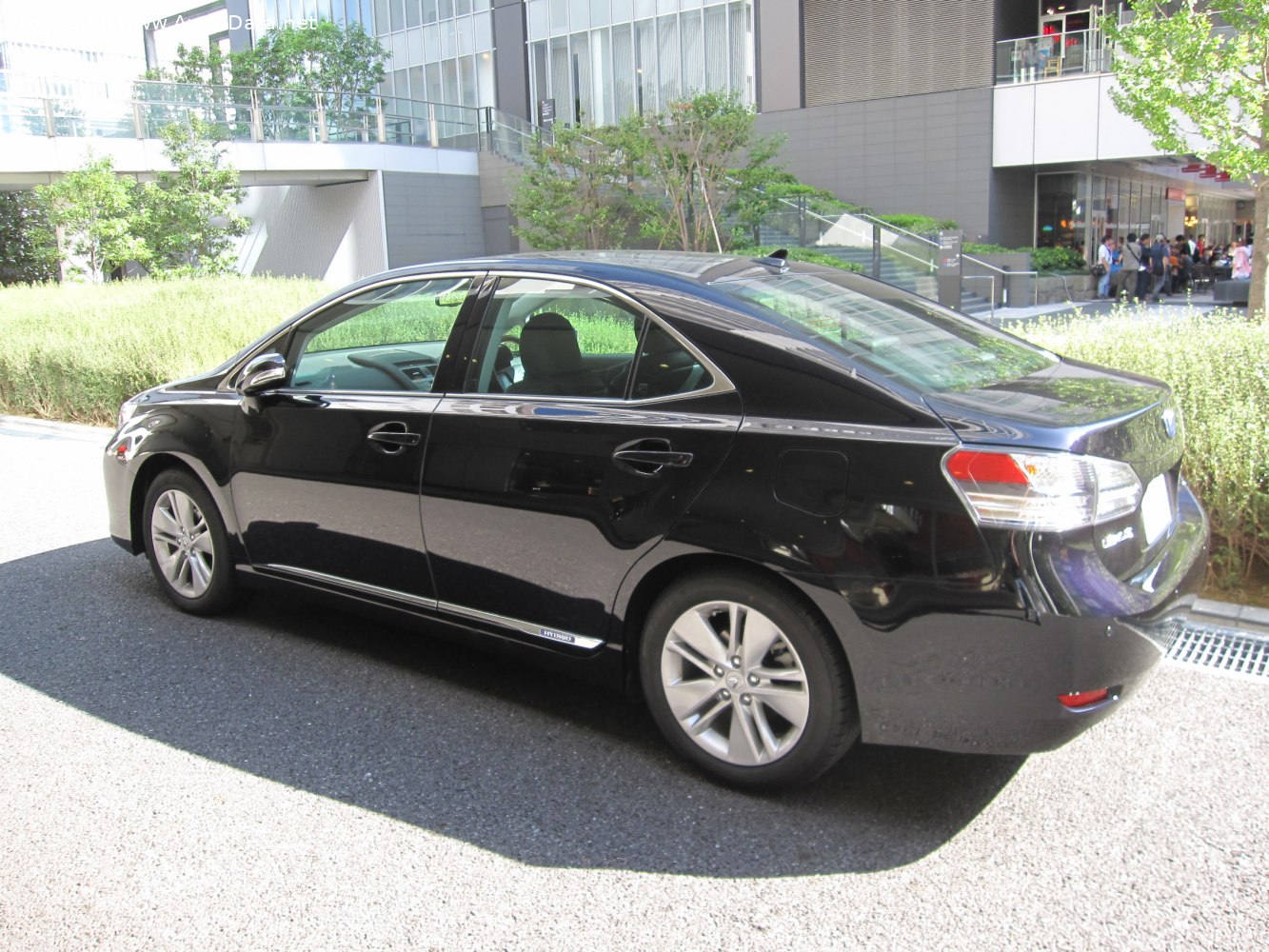

Lexus HS 2009 Gallery
Lexus HS 2009 Technical Specifications
General
Body type
Sedan
Brand
Lexus
Doors
4
End of production
January, 2013
Generation
HS
Model
HS
Modification (Engine)
250h (190 Hp) Full Hybrid ECVT
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
5
Start of production
July, 2009
Performance
Acceleration 0 - 60 mph
8.4 sec
Emission standard
SULEV II
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined
6.7 l/100 km
Fuel consumption (economy) - extra urban
6.9 l/100 km
Fuel consumption (economy) - urban
6.7 l/100 km
Maximum speed
180 km/h, Electronically limited
Electric
Battery location
Below the floor, under the rear seats
Battery voltage
244.8 V
Electric motor location number 1
Front axle, Transverse
Electric motor power number 1
143 Hp
Electric motor type number 1
Synchronous
System power
190 Hp
Internal Engine
Compression ratio
12.5:1
Coolant
7.3 l
Engine Model/Code
2AZ-FXE
Engine aspiration
Naturally aspirated engine
Engine configuration
Inline
Engine displacement
2360 cm
Engine layout
Front, Transverse
Engine oil capacity
4.3 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop System
Fuel injection system
Direct injection
Number of cylinders
4
Number of valves per cylinder
4
Power
150 Hp @ 6000 rpm.
Power per litre
63.6 Hp/l
Torque
187 Nm @ 4400 rpm.
Valvetrain
DOHC, VVT-i
Dimensions
Drag coefficient (Cd)
0.27
Front track
1535 mm
Height
1505 mm
Length
4695 mm
Minimum turning circle (turning diameter)
11.4 m
Rear (Back) track
1530 mm
Ride height (ground clearance)
155 mm
Wheelbase
2700 mm
Width
1785 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 274.32 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
automatic transmission ECVT
Power steering
Electric Steering
Rear brakes
Disc, 279.4 mm
Rear suspension
Double wishbone, Transverse stabilizer, Coil spring
Steering type
Steering rack and pinion
Tires size
215/55 R17; 225/45 R18
Wheel rims size
7.0J x 17; 7.5J x 18
Space
Fuel tank capacity
55 l
Kerb Weight
1670-1710 kg
Max load
416-456 kg
Max. weight
2126 kg
