BMW 5 Series Touring G61 2024
520i (208 Hp) Mild Hybrid Steptronic
Hybrid Car
Body Type Station wagon (estate)
Battery Capacity 0.9 KW
4400-6500 rpm.
Power HP RPM
222 km/h
Maximum Speed
5
Doors
BMW 5 Series Touring G61 2024 Key Specs
Acceleration 0 - 100 Km/h
7.8 sec
Acceleration 0 - 62 Mph
7.8 sec
Battery Voltage
48 V
Body Type
Station wagon (estate)
Doors
5
Drive Wheel
Rear wheel drive
Engine Aspiration
Twin-scroll turbo, Intercooler
Engine Oil Capacity
6.3 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
60 l
Generation
5 Series Touring (G61)
Gross Battery Capacity
0.9 kWh
Kerb Weight
1775 kg
Maximum Speed
222 km/h
Modification (Engine)
520i (208 Hp) Mild Hybrid Steptronic
Number Of Cylinders
4
Power
190 Hp @ 4400-6500 rpm.
Power Steering
Electric Steering
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start Of Production
November, 2024
System Power
208 Hp
System Torque
330 Nm
Wheel Rims Size
7.5J x 18

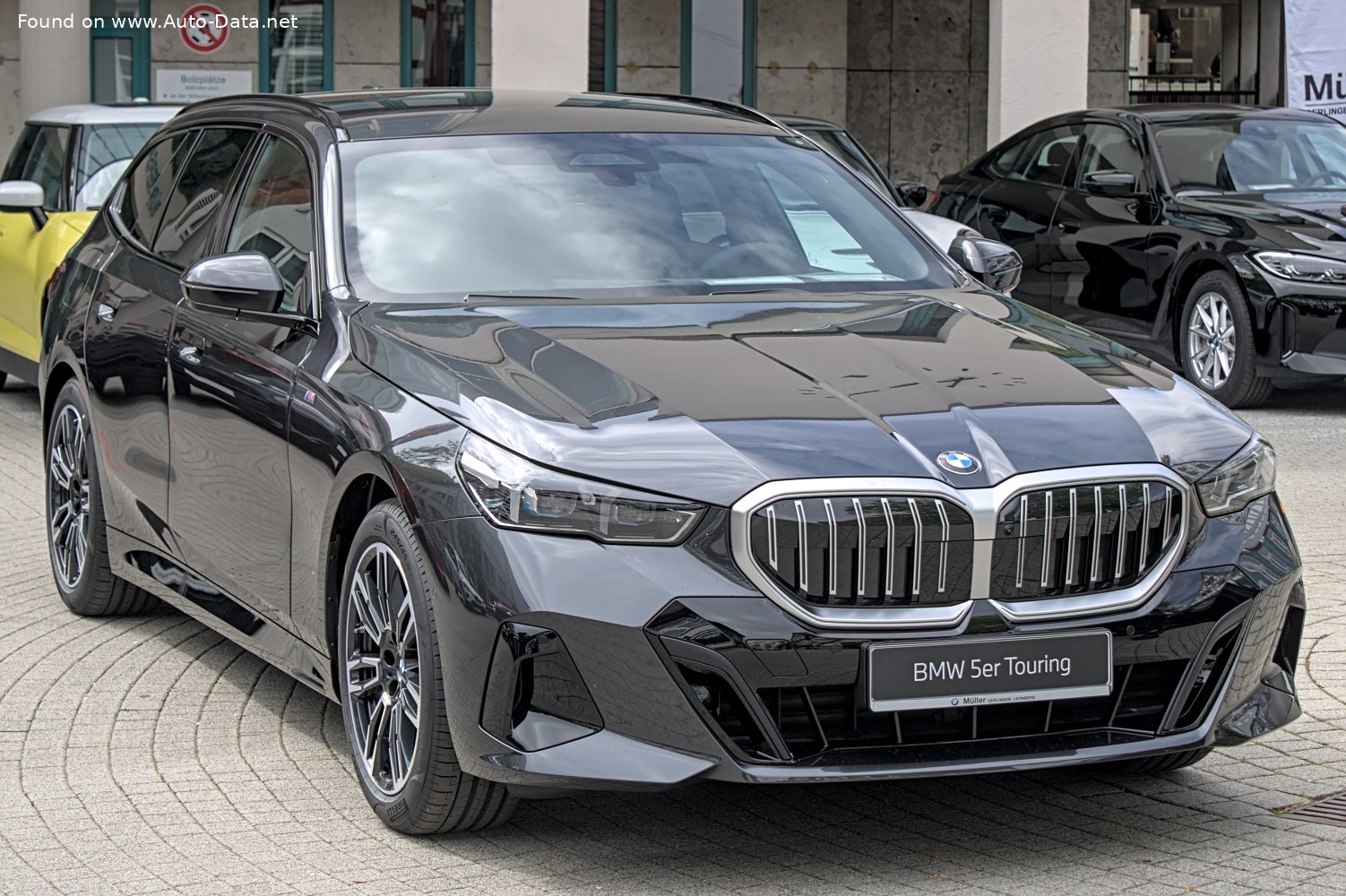

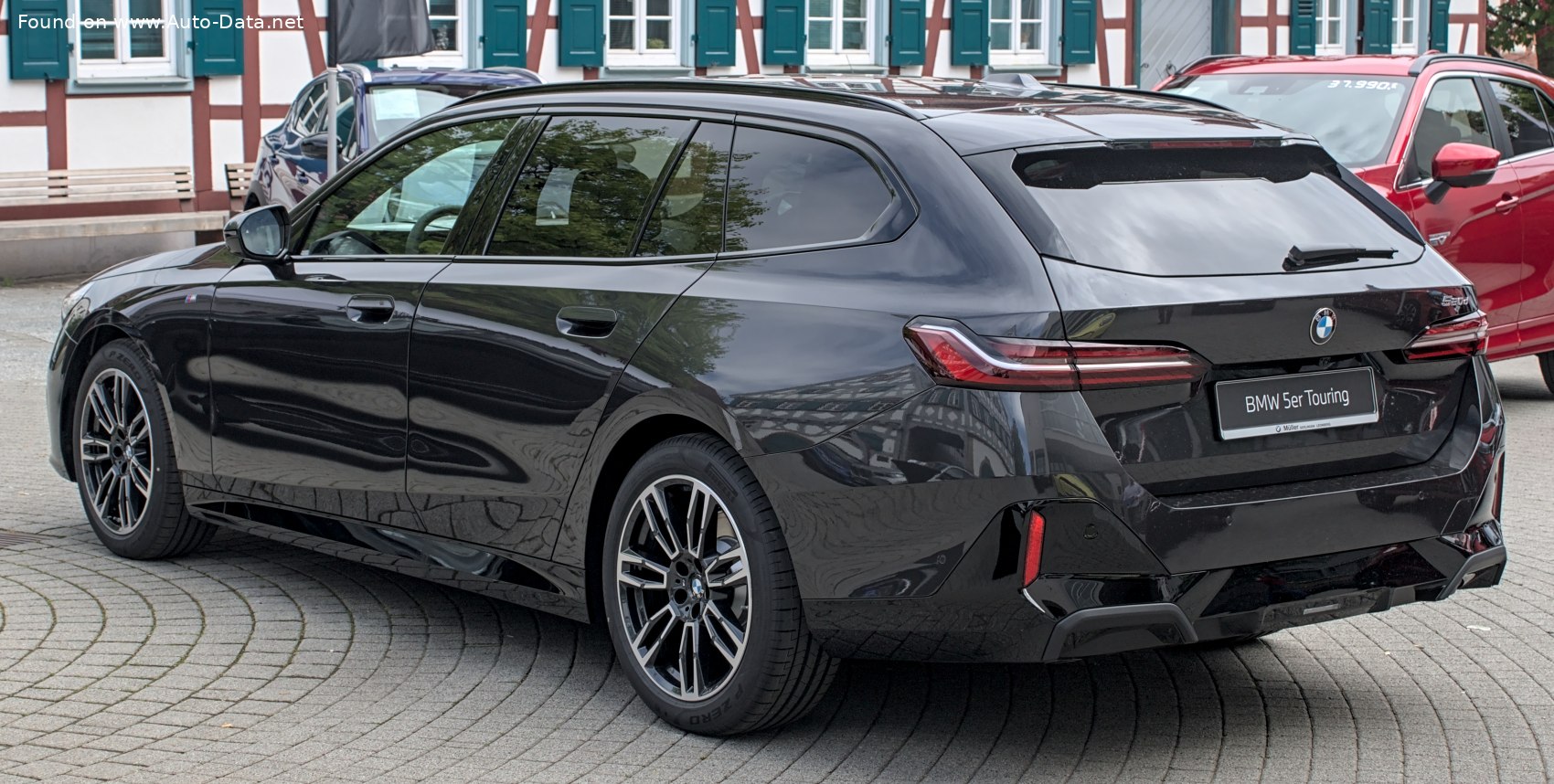

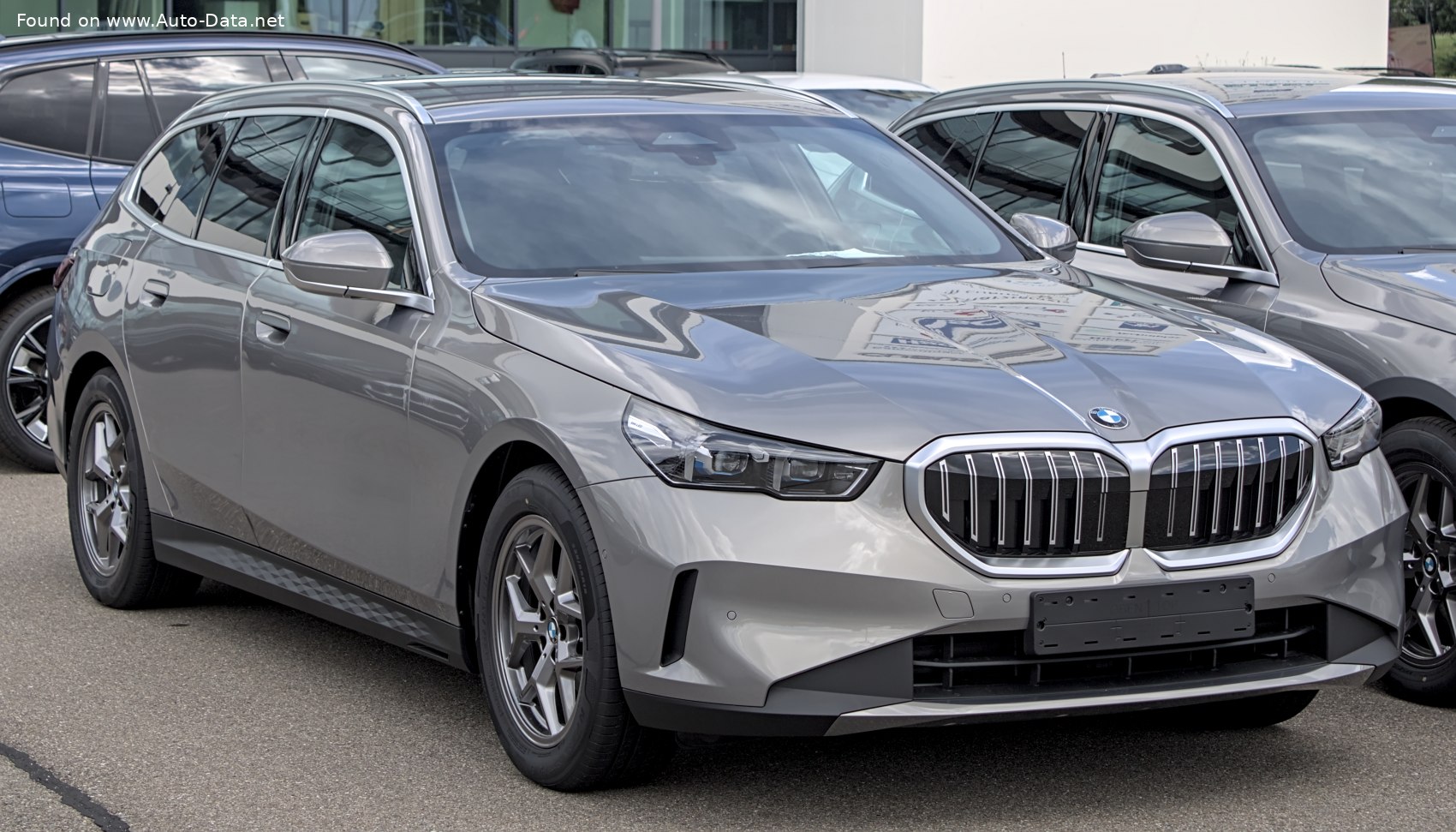

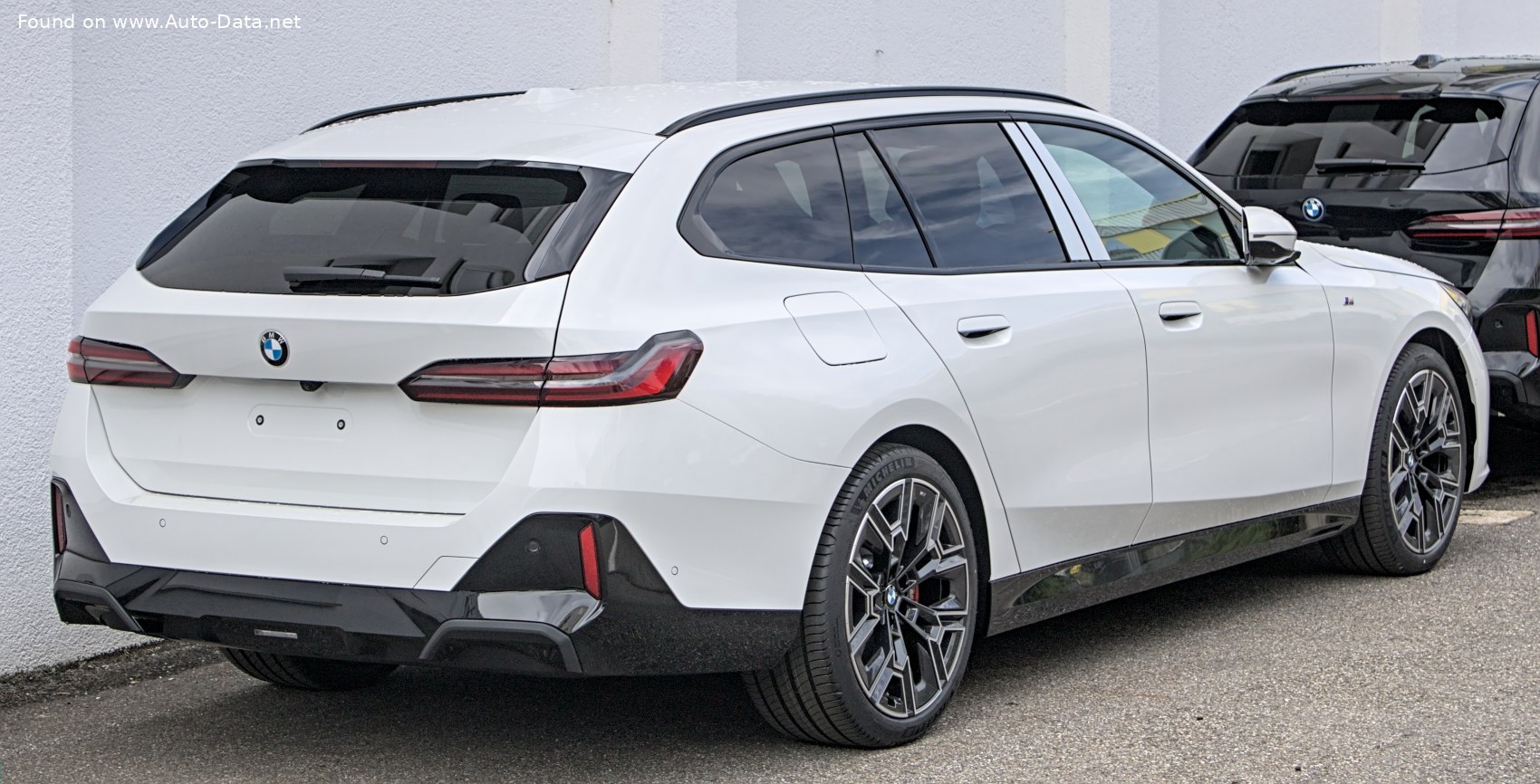

BMW 5 Series Touring G61 2024 Gallery
BMW 5 Series Touring G61 2024 Technical Specifications
General
Body type
Station wagon (estate)
Brand
BMW
Doors
5
Generation
5 Series Touring (G61)
Model
5 Series
Modification (Engine)
520i (208 Hp) Mild Hybrid Steptronic
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start of production
November, 2024
Performance
Acceleration 0 - 100 km/h
7.8 sec
Acceleration 0 - 60 mph
7.4 sec
Acceleration 0 - 62 mph
7.8 sec
CO2 emissions (WLTP)
137-153 g/km
Combined fuel consumption (WLTP)
6.1-6.8 l/100 km
Emission standard
Euro 6e
Fuel Type
Petrol (Gasoline)
Maximum speed
222 km/h
Electric
Battery location
Under the trunk
Battery voltage
48 V
Electric motor Torque number 1
200 Nm
Electric motor location number 1
Between the combustion engine and the transmission
Electric motor power number 1
18 Hp
Electric motor type number 1
Synchronous
Gross battery capacity
0.9 kWh
System power
208 Hp
System torque
330 Nm
Internal Engine
Compression ratio
11.6:1
Cylinder Bore
82 mm
Engine Model/Code
B48B20P
Engine aspiration
Twin-scroll turbo, Intercooler
Engine configuration
Inline
Engine displacement
1998 cm
Engine layout
Front, Longitudinal
Engine oil capacity
6.3 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Direct injection
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
94.6 mm
Power
190 Hp @ 4400-6500 rpm.
Power per litre
95.1 Hp/l
Torque
310 Nm @ 1500-4000 rpm.
Valvetrain
VALVETRONIC, Double-VANOS
Dimensions
Drag coefficient (Cd)
0.26
Front overhang
945 mm
Front track
1634 mm
Height
1515 mm
Length
5060 mm
Minimum turning circle (turning diameter)
11.7 m
Rear (Back) track
1668 mm
Rear overhang
1120 mm
Ride height (ground clearance)
155 mm
Wheelbase
2995 mm
Width
1900 mm
Drivetrain
Drive wheel
Rear wheel drive
Front brakes
Ventilated discs
Front suspension
Coil spring, Double wishbone, Transverse stabilizer
Number of gears and type of gearbox
8 gears, automatic transmission Steptronic
Power steering
Electric Steering
Rear brakes
Ventilated discs
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
225/55 R18
Wheel rims size
7.5J x 18
Space
Fuel tank capacity
60 l
Kerb Weight
1775 kg
Max load
660 kg
Max. roof load
100 kg
Max. weight
2435 kg
Permitted towbar download
100 kg
