BMW 2 Series Active Tourer U06 2024
220d (163 Hp) Mild Hybrid Steptronic DCT
Hybrid Car
Body Type MPV
Battery Capacity 0.9 KW
3750-4000 rpm.
Power HP RPM
220 km/h
Maximum Speed
5
Doors
BMW 2 Series Active Tourer U06 2024 Key Specs
Acceleration 0 - 100 Km/h
8.3 sec
Acceleration 0 - 62 Mph
8.3 sec
Battery Voltage
48 V
Body Type
MPV
Doors
5
Drive Wheel
Front wheel drive
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
6.5 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
54 l
Generation
2 Series Active Tourer (U06)
Gross Battery Capacity
0.9 kWh
Kerb Weight
1565 kg
Maximum Speed
220 km/h
Modification (Engine)
220d (163 Hp) Mild Hybrid Steptronic DCT
Number Of Cylinders
4
Power
150 Hp @ 3750-4000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start Of Production
July, 2024
System Power
163 Hp
System Torque
400 Nm
Wheel Rims Size
7J x 16; 7J x 17; 7.5J x 18; 8J x 19

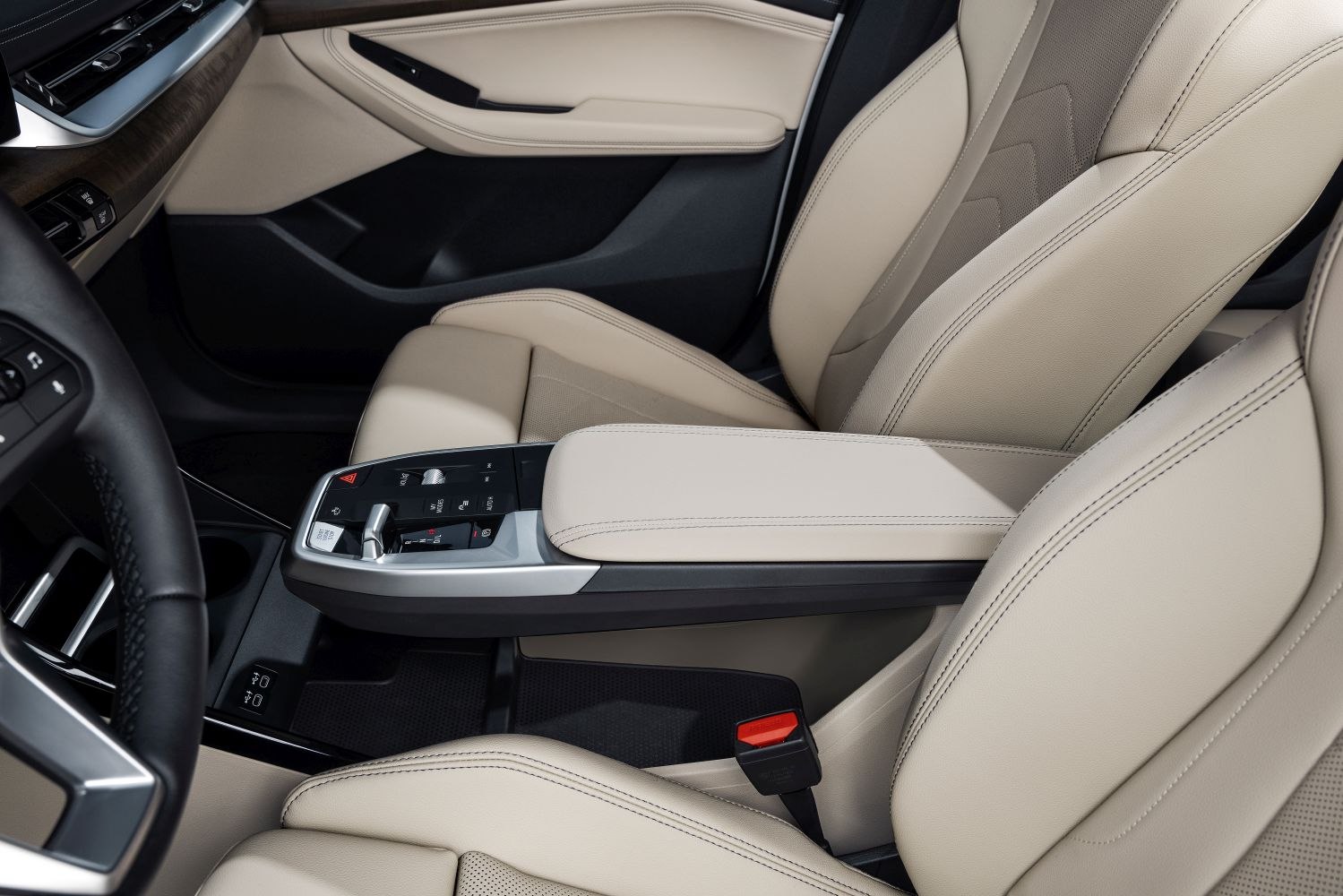

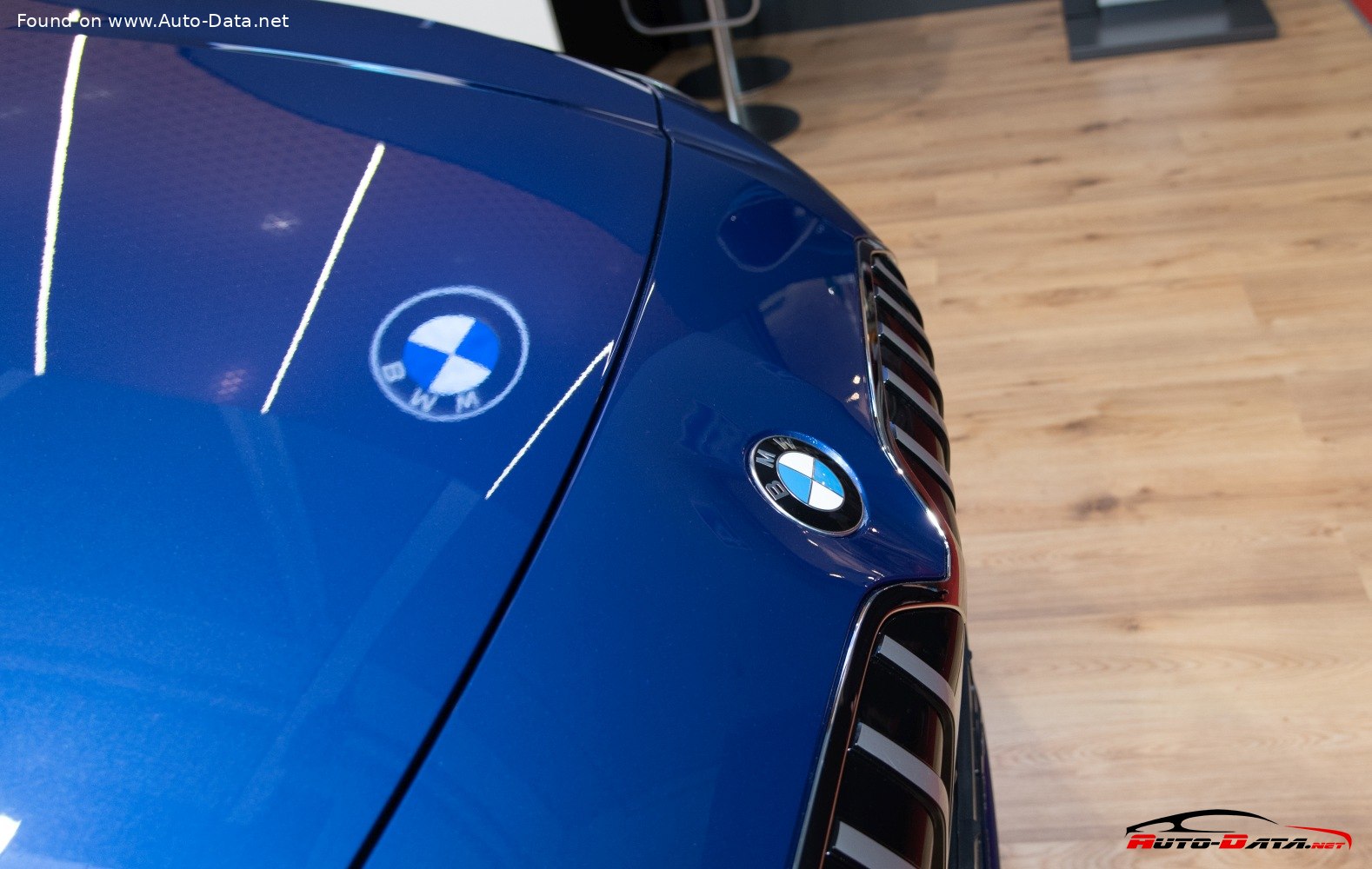

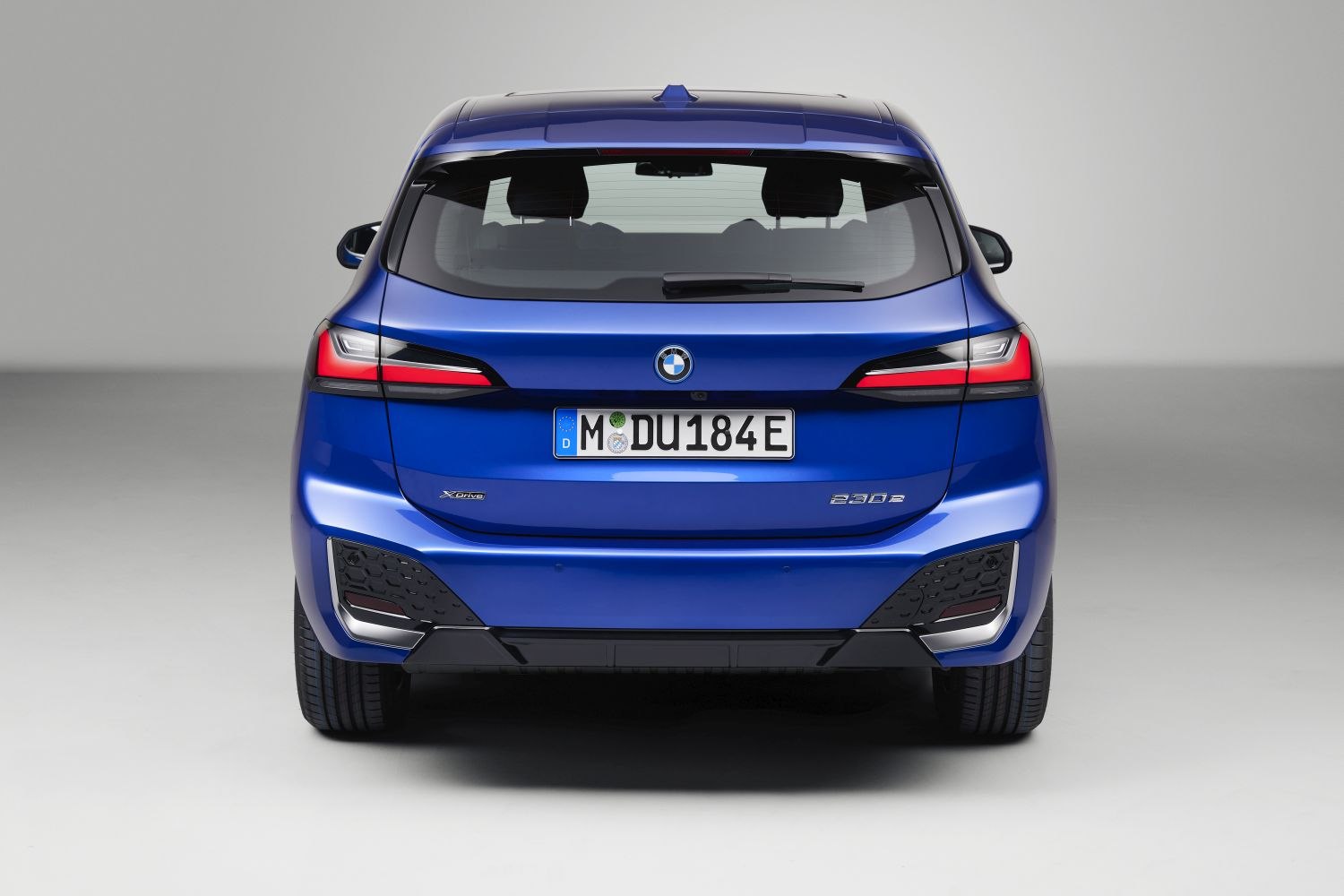

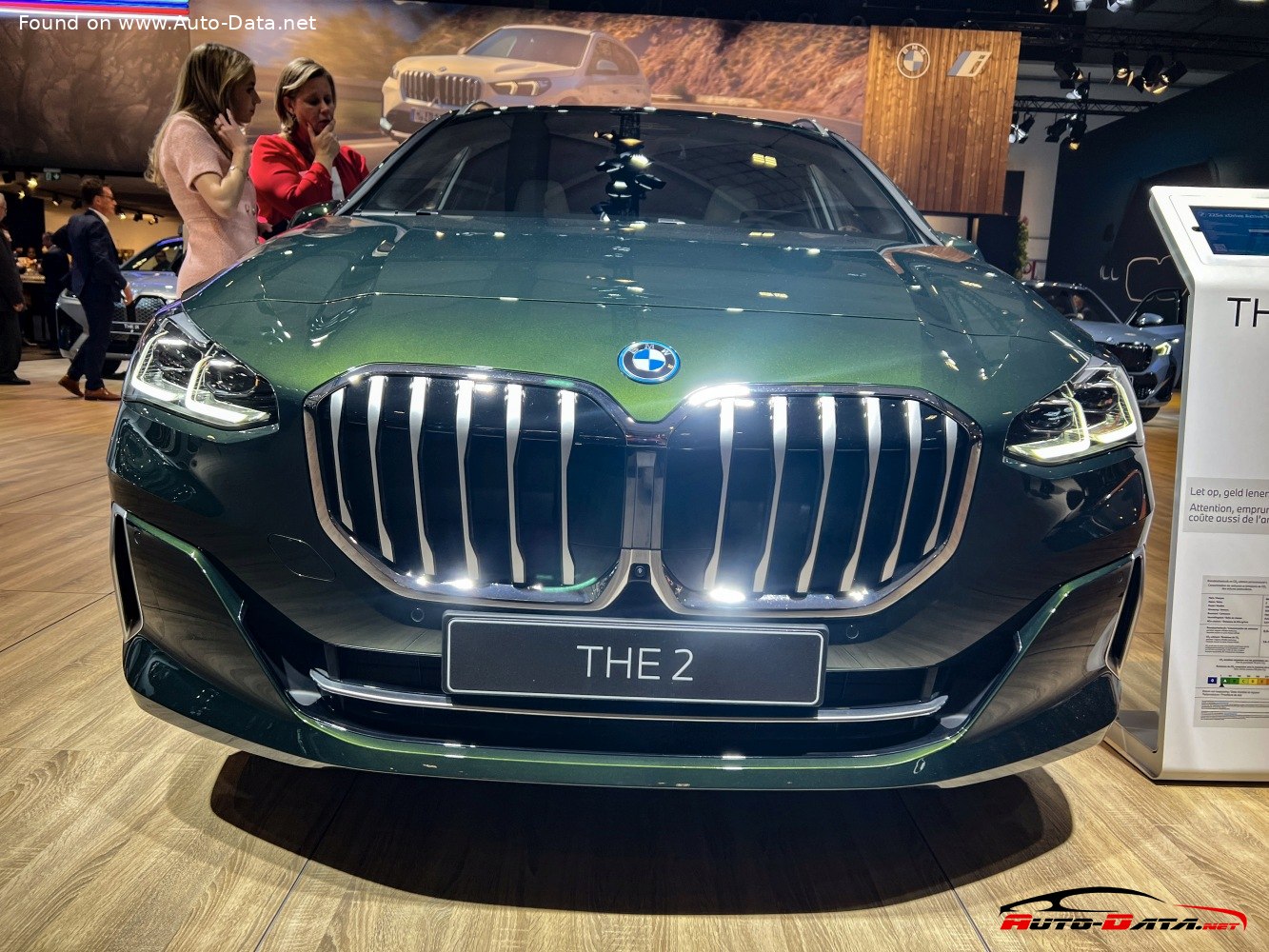

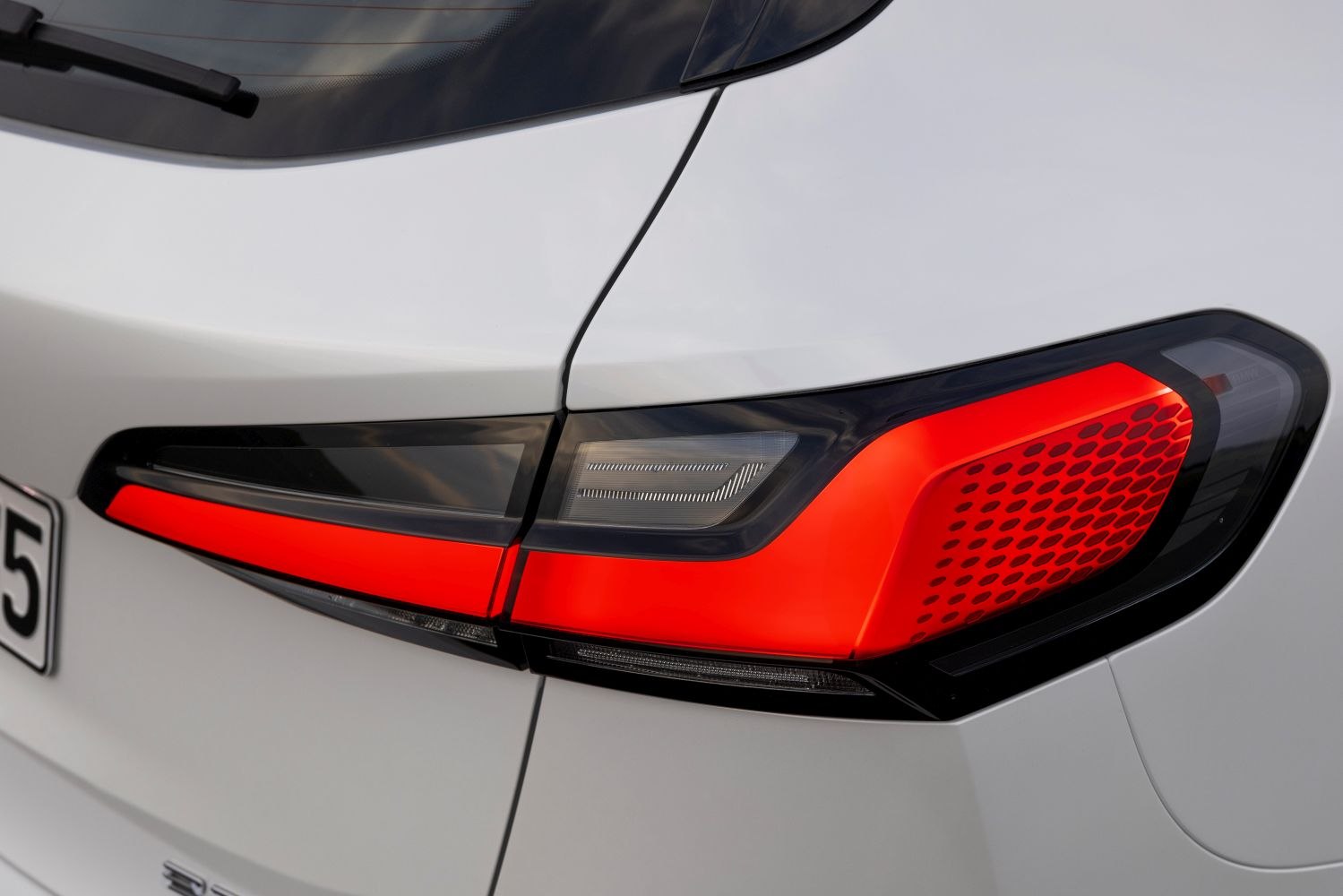

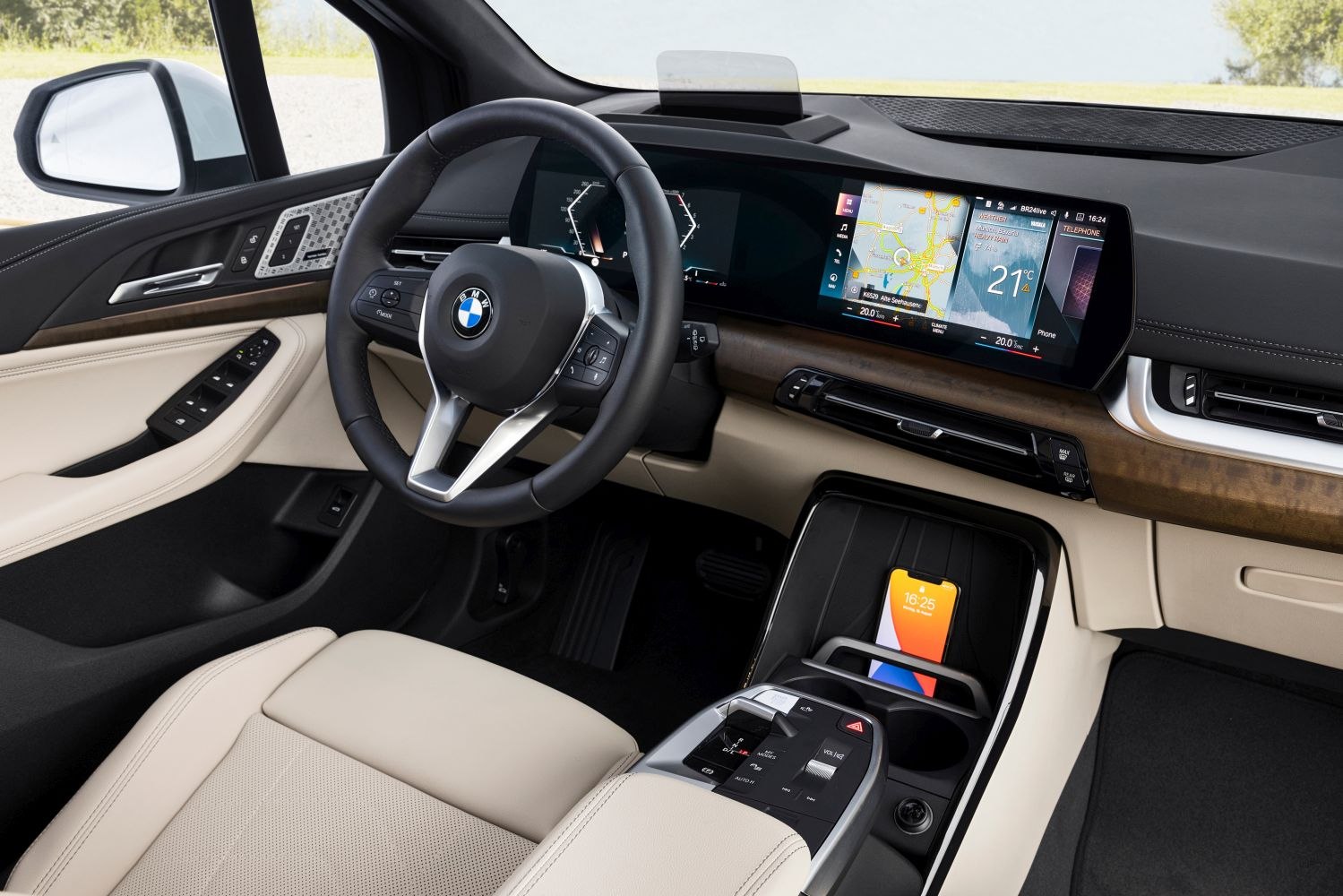

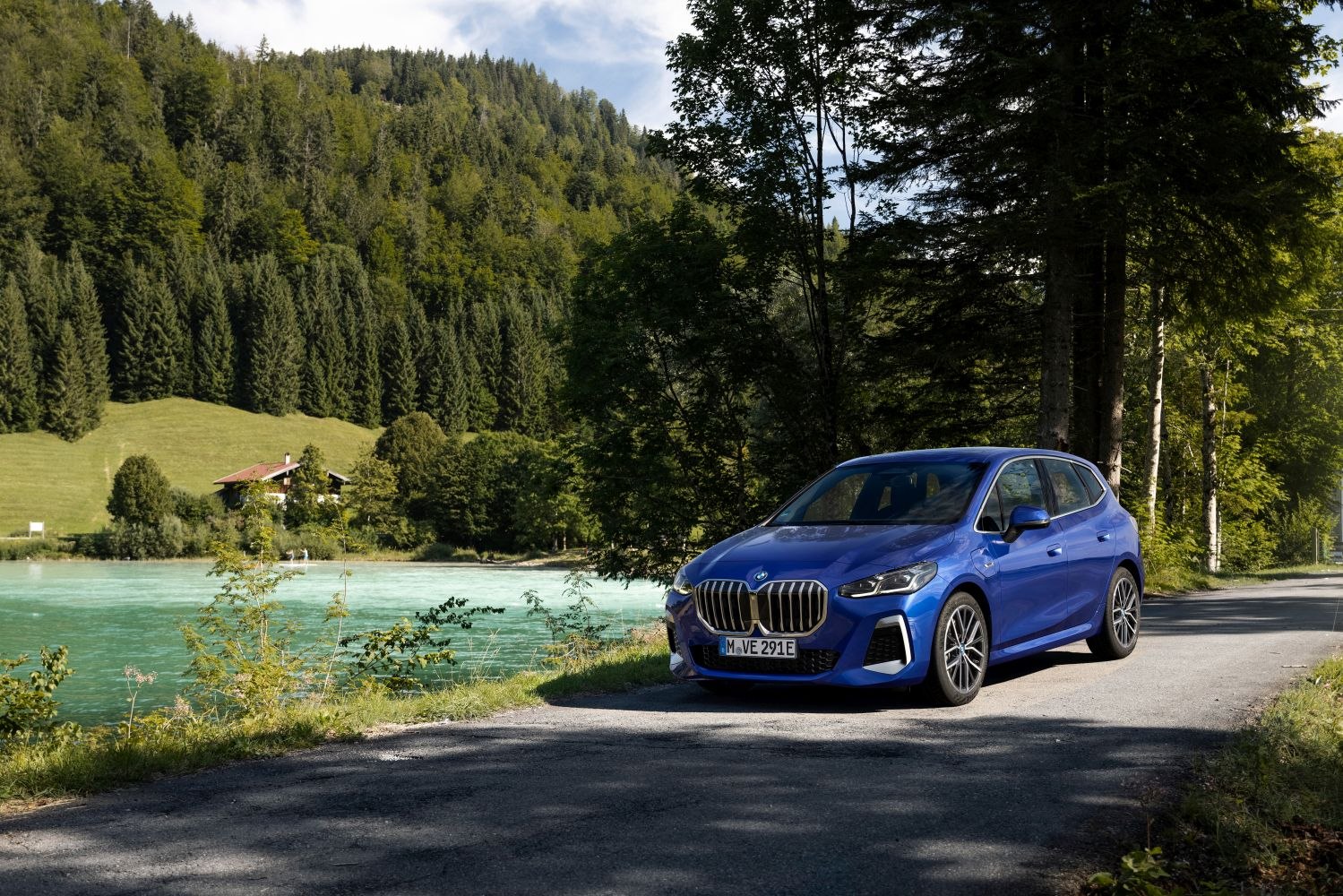

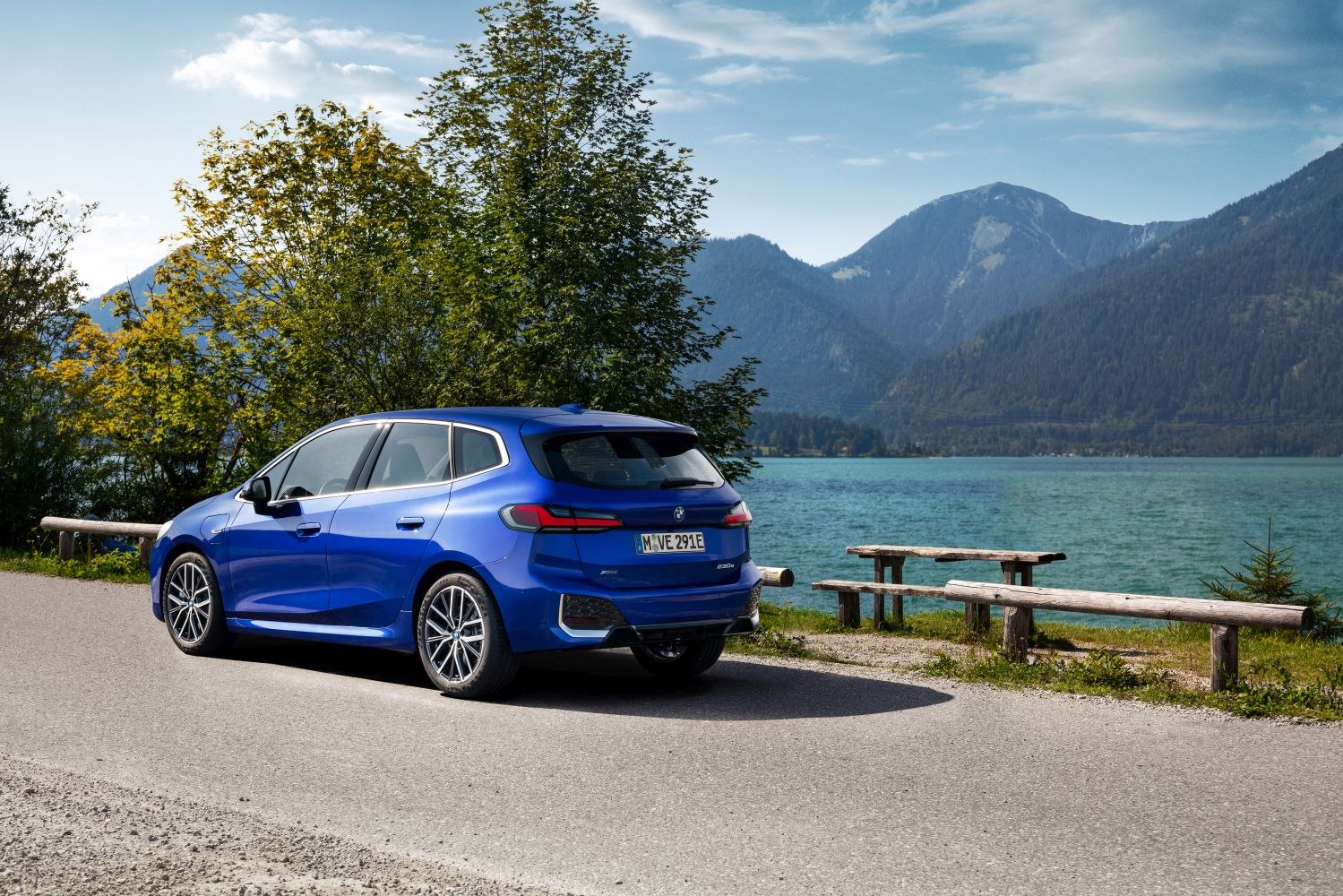

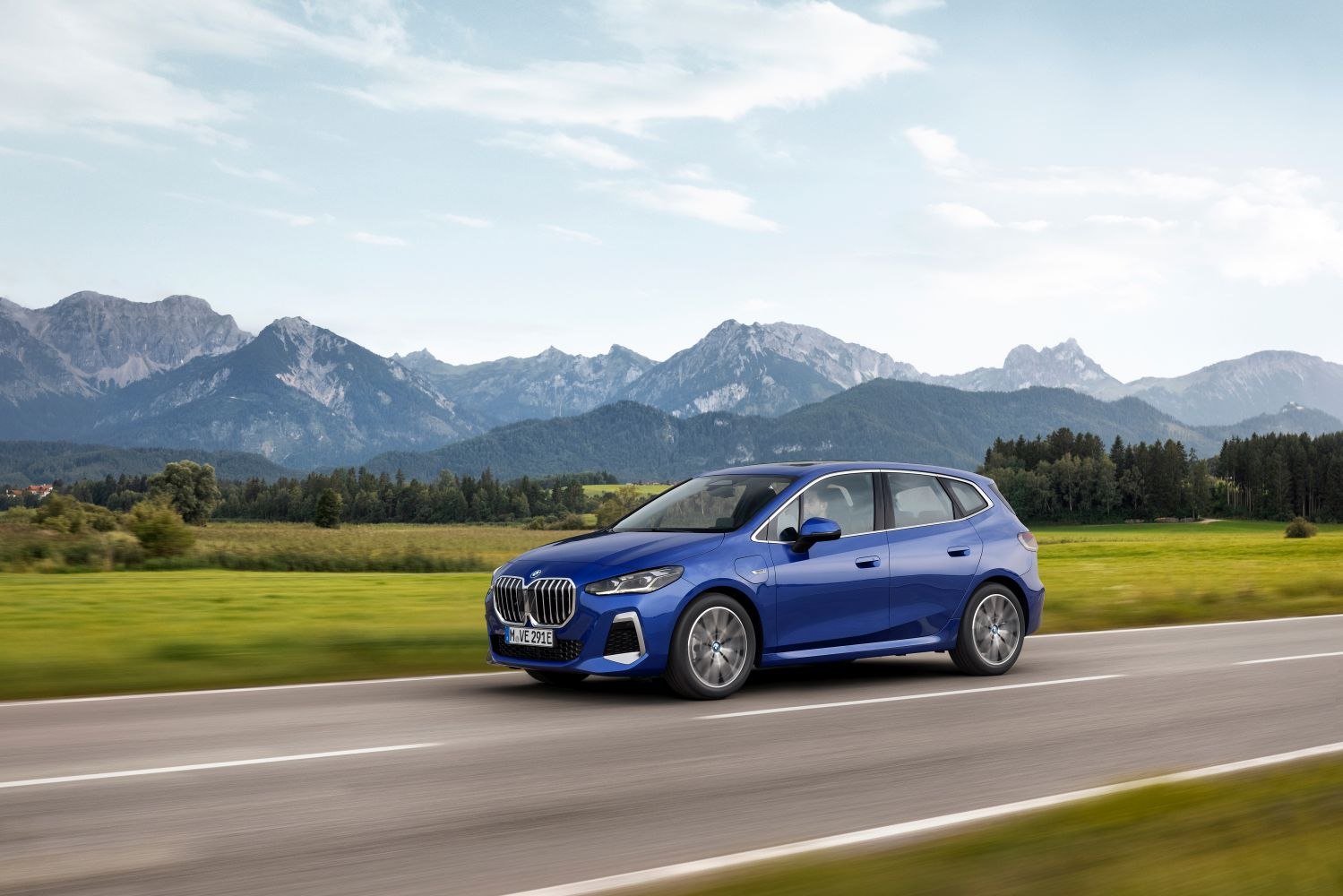

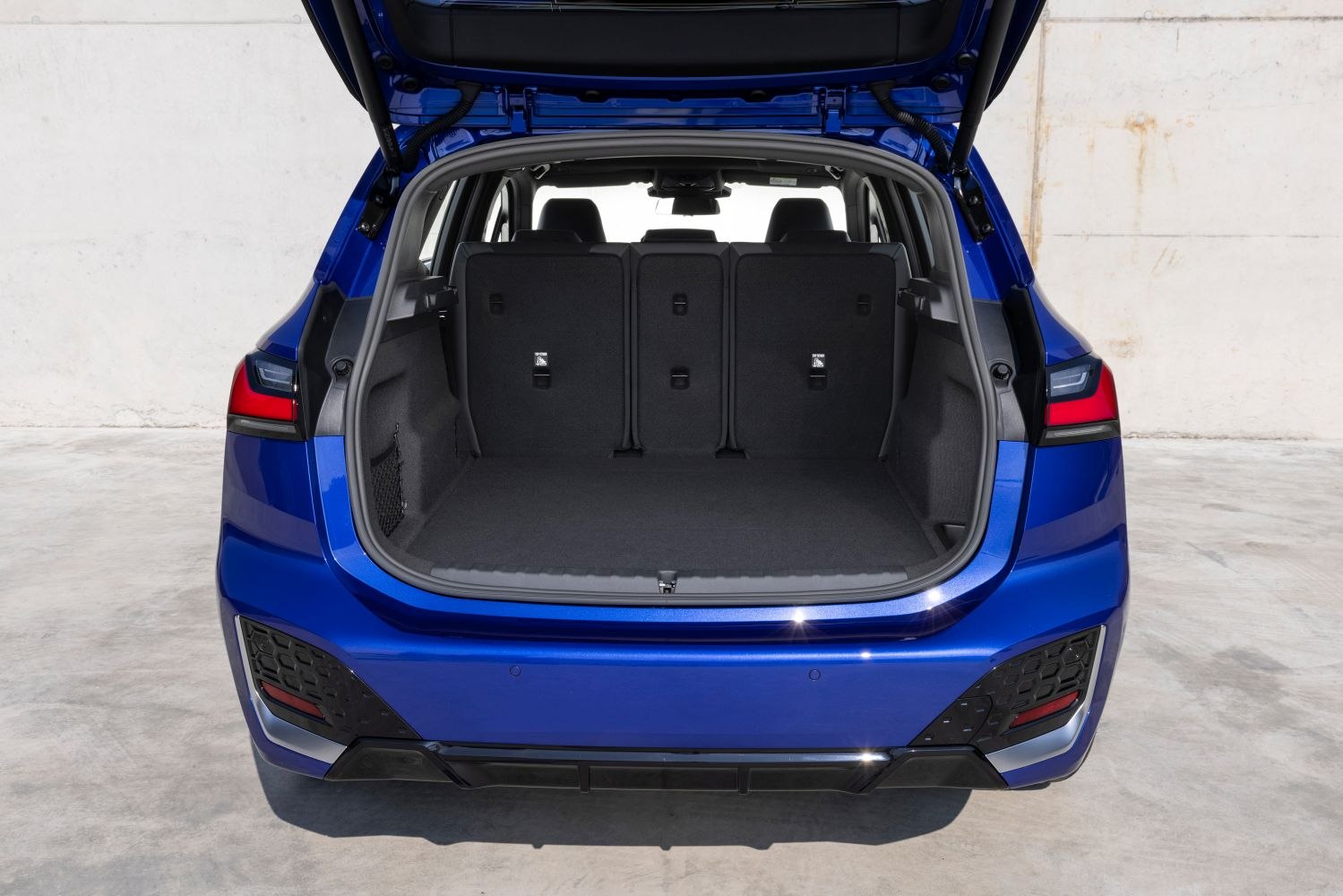

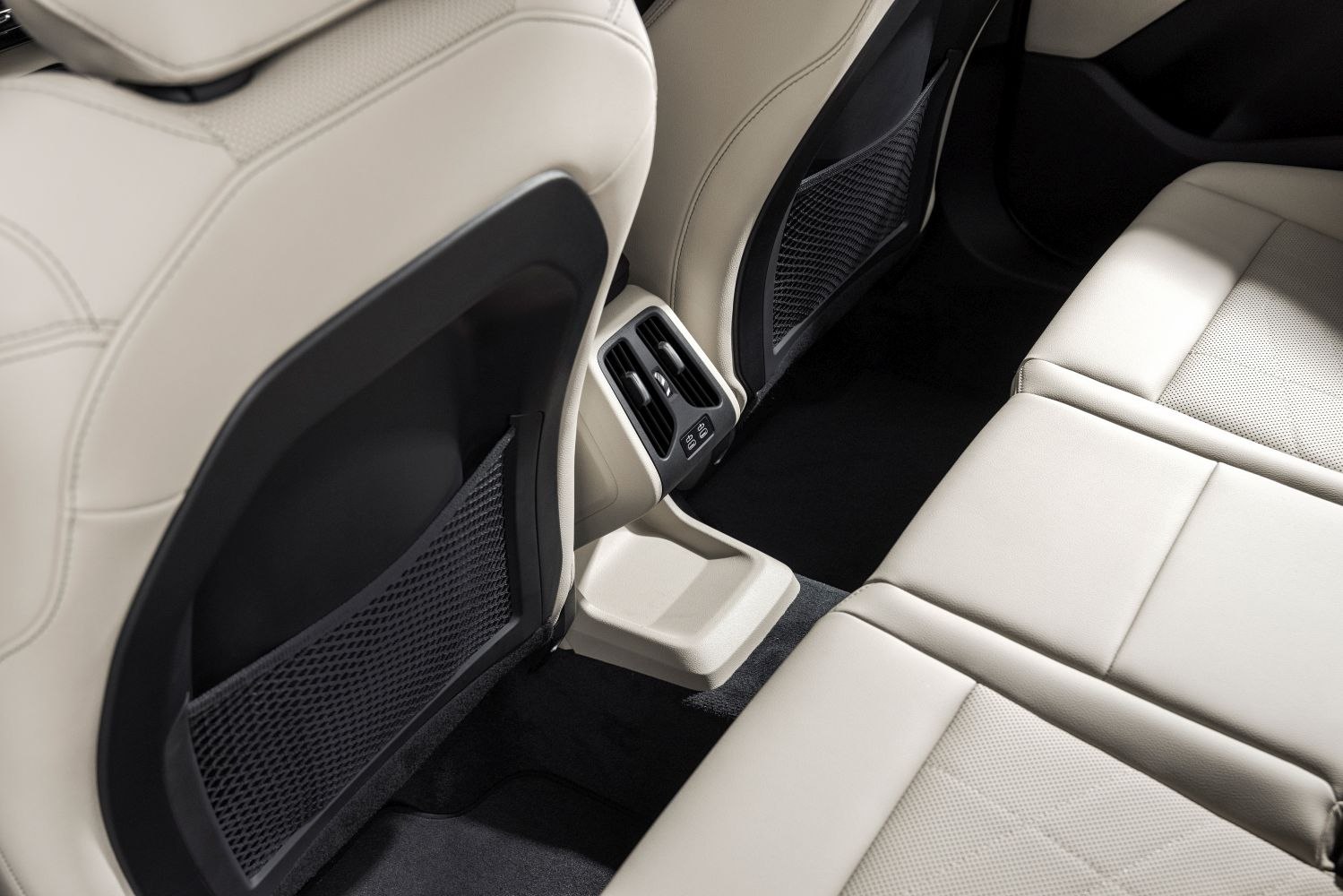

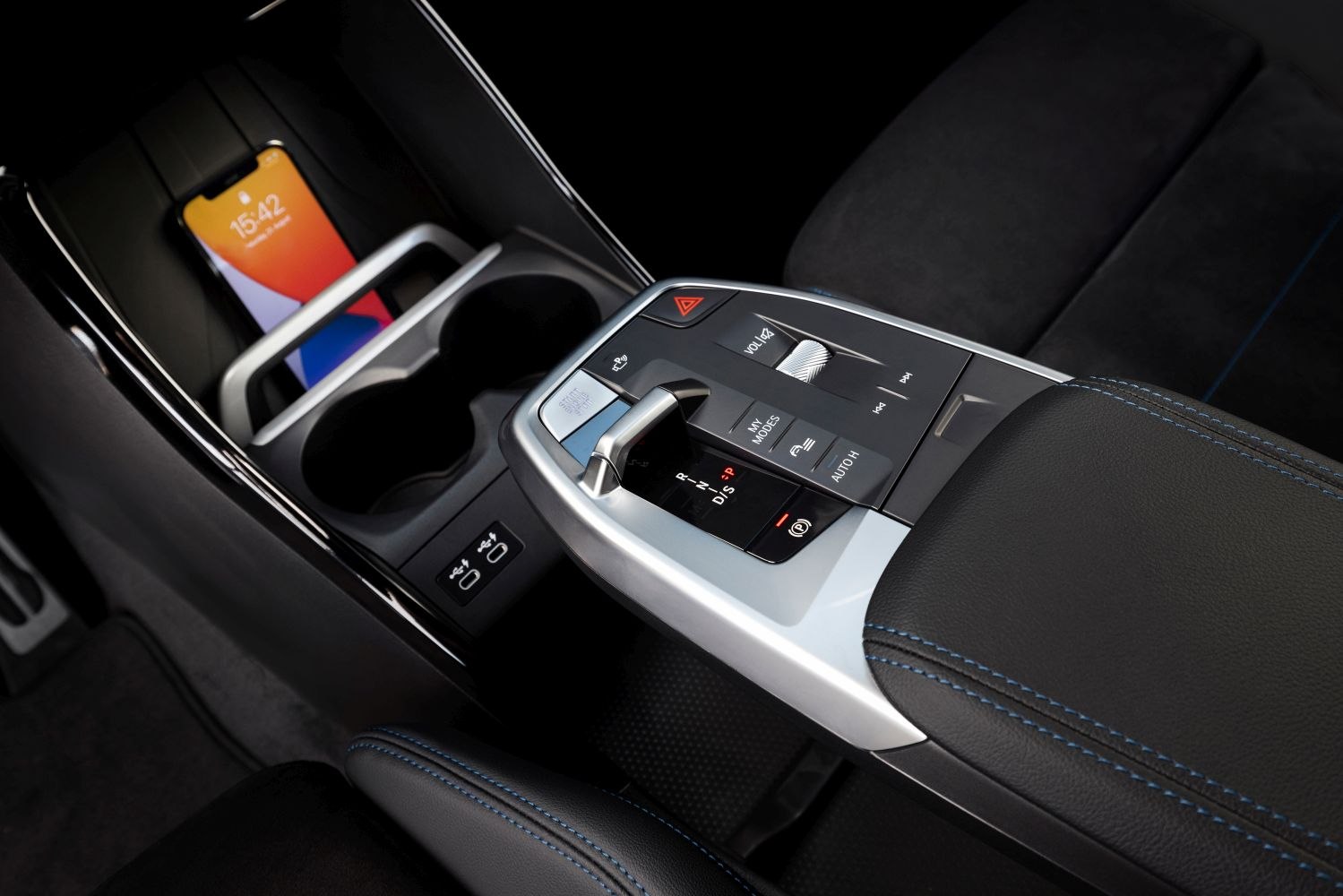

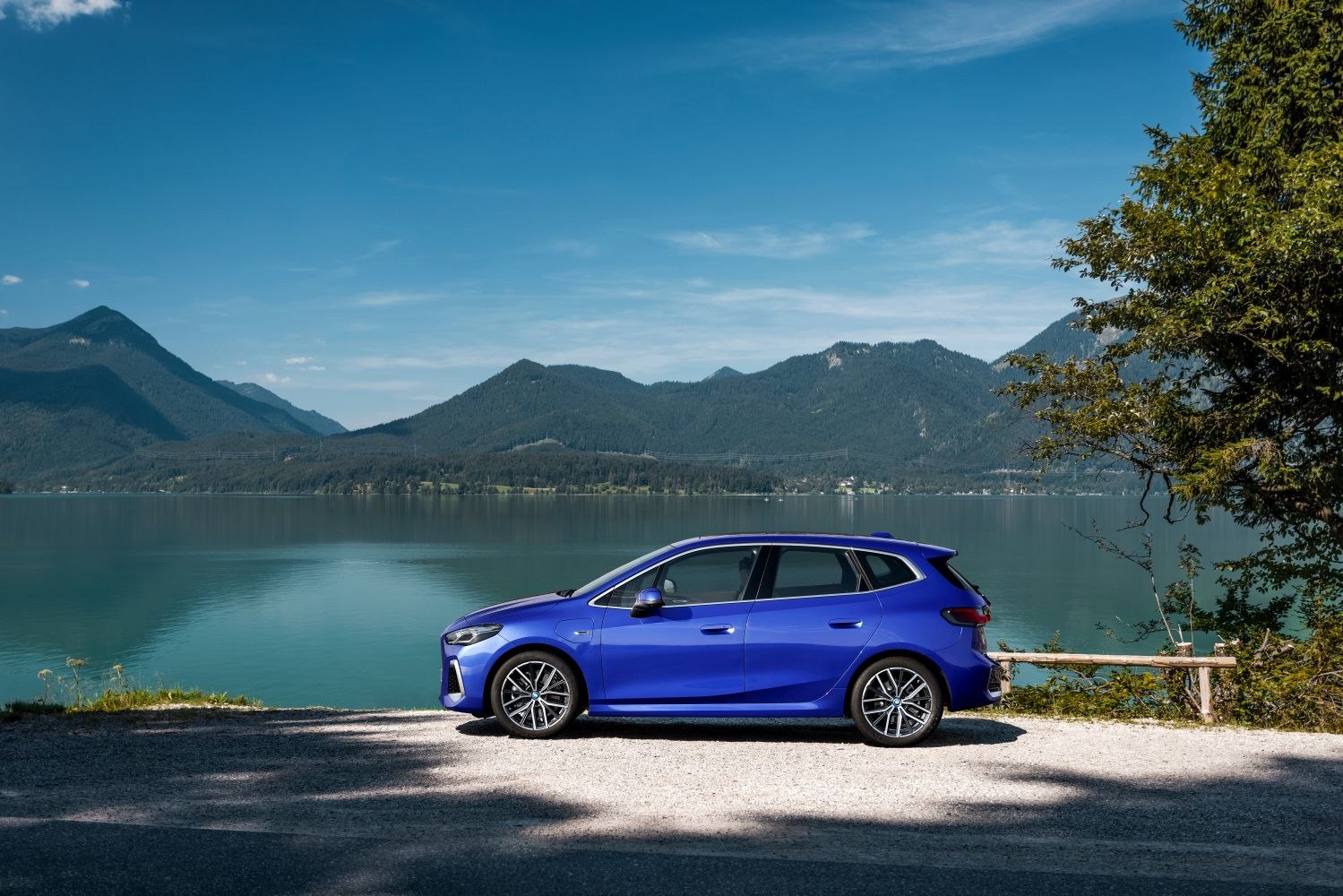

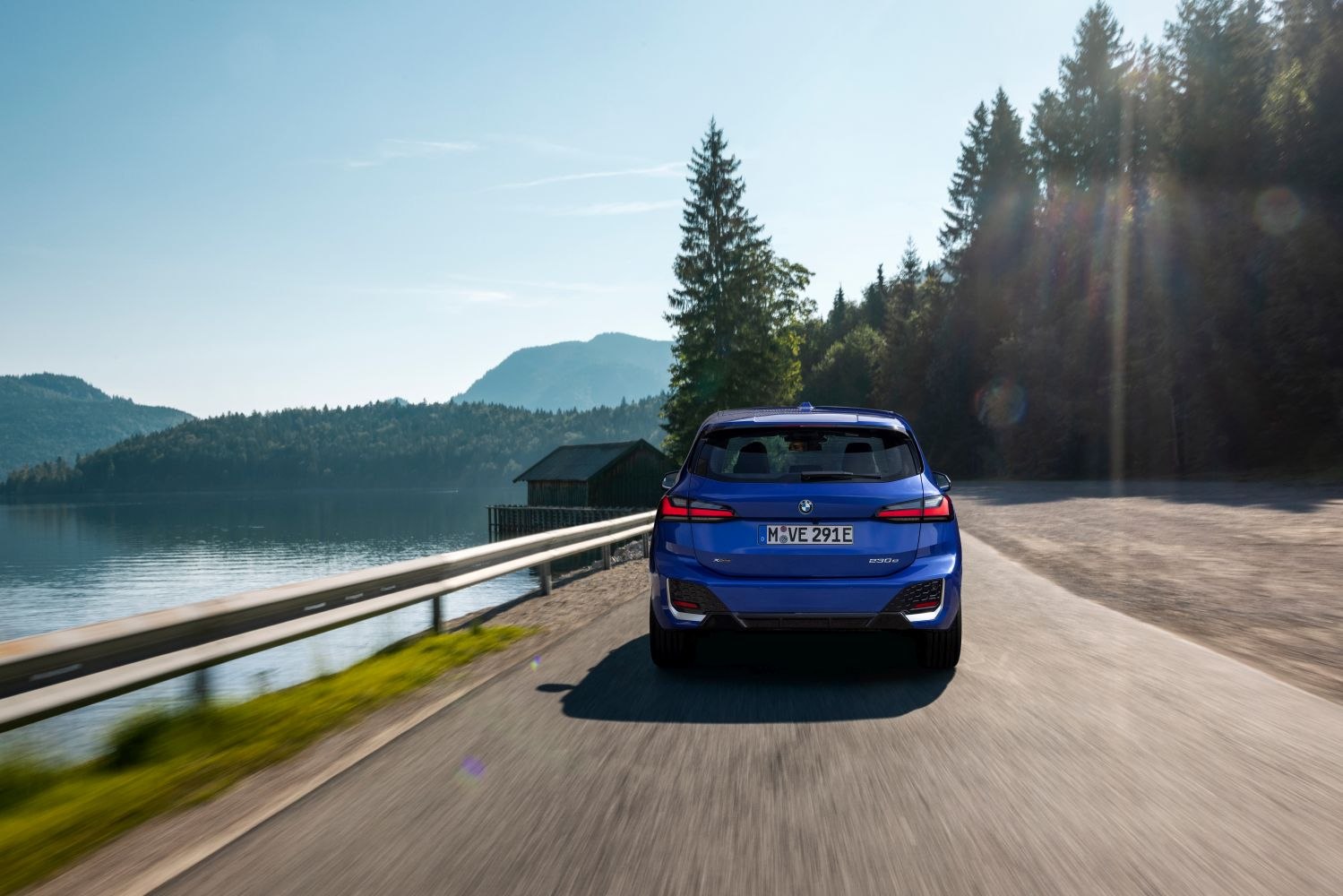

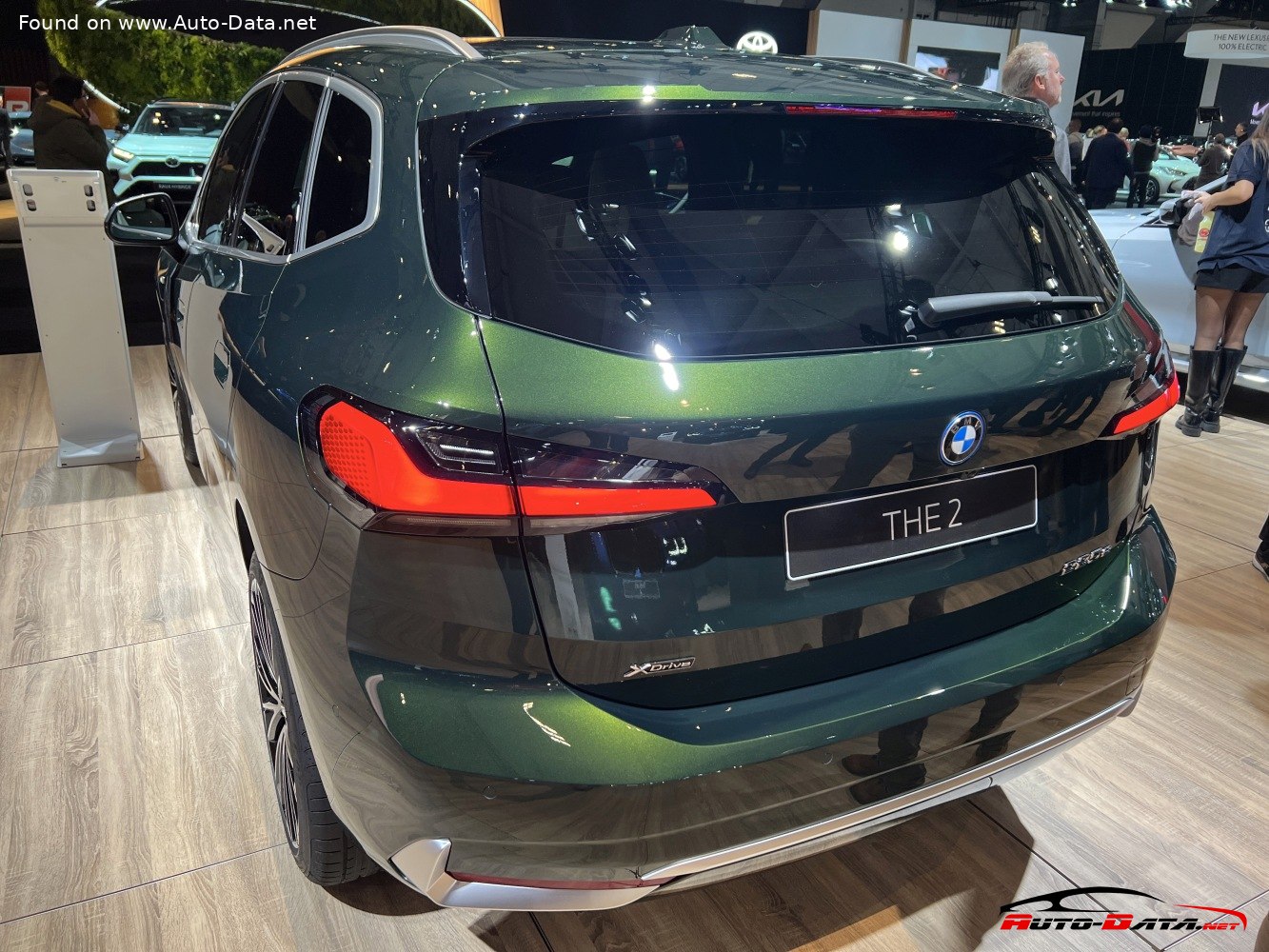

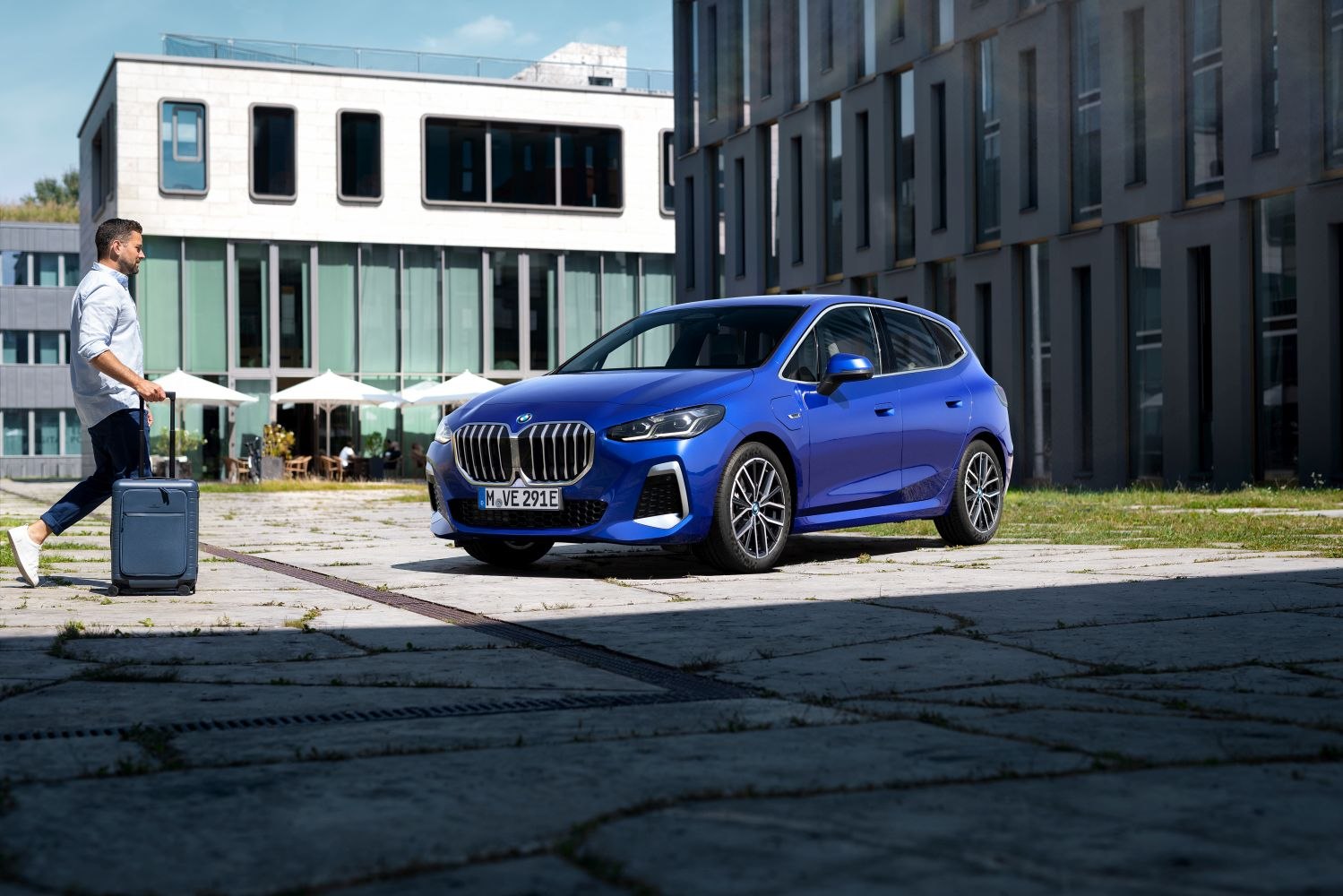

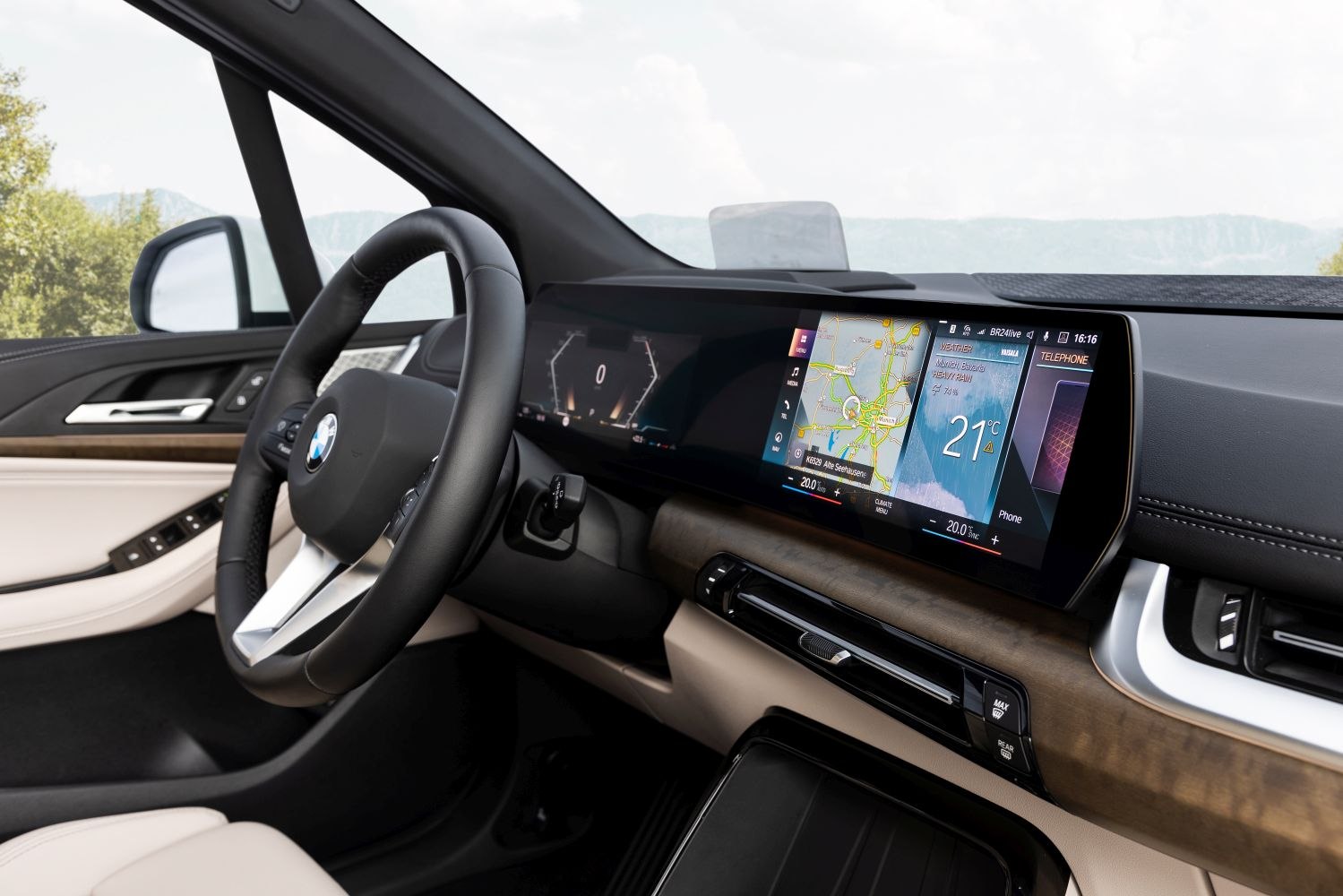

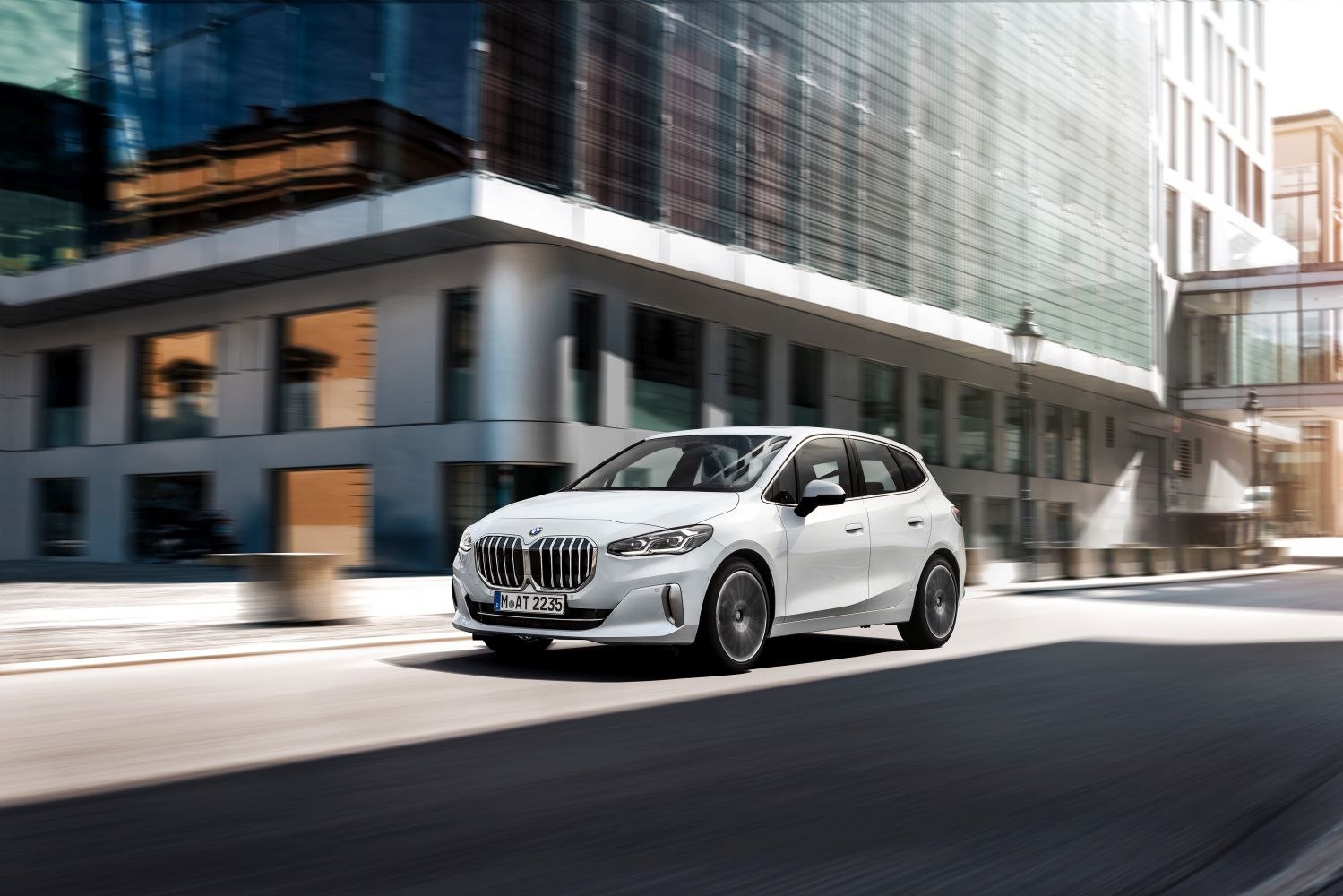

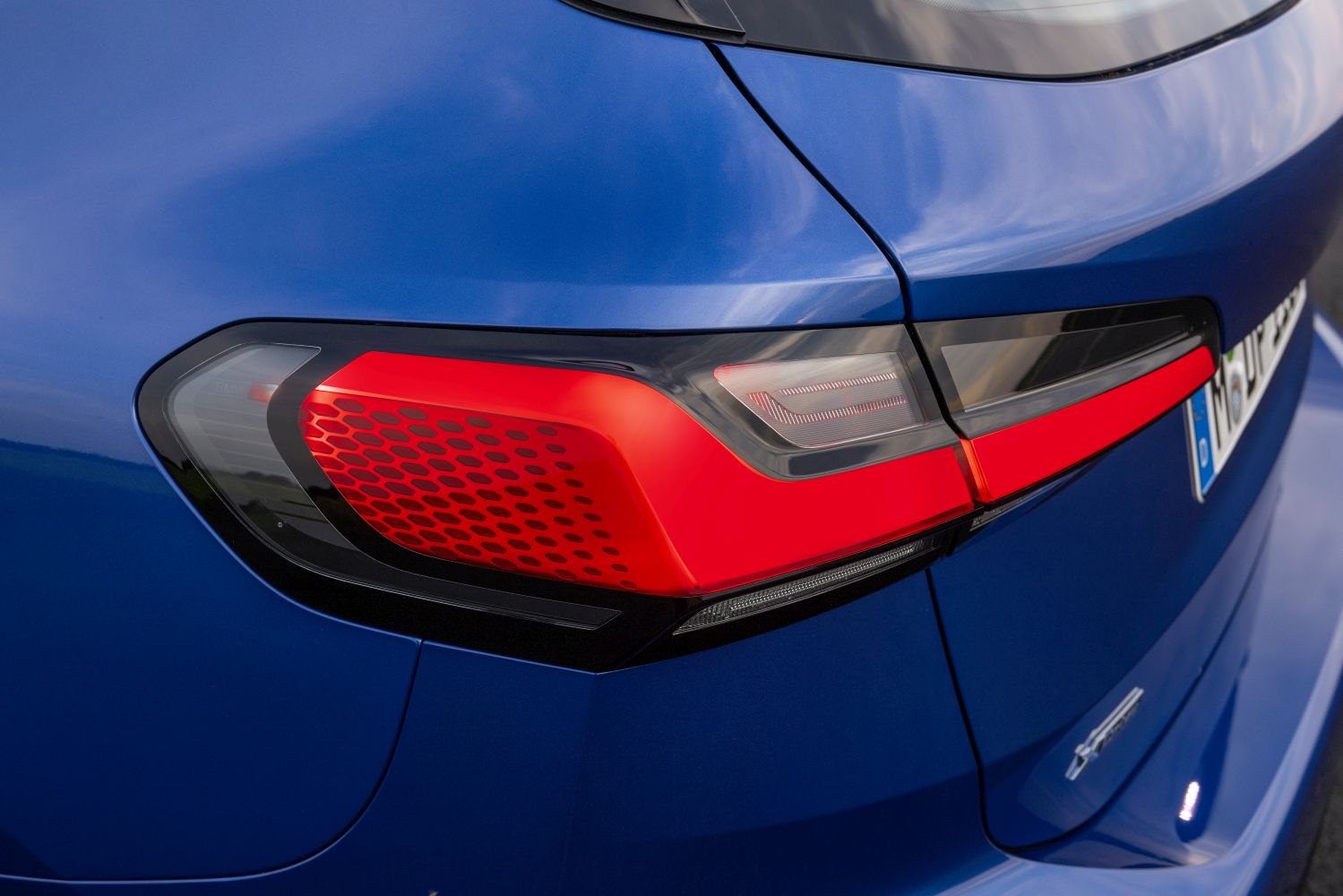

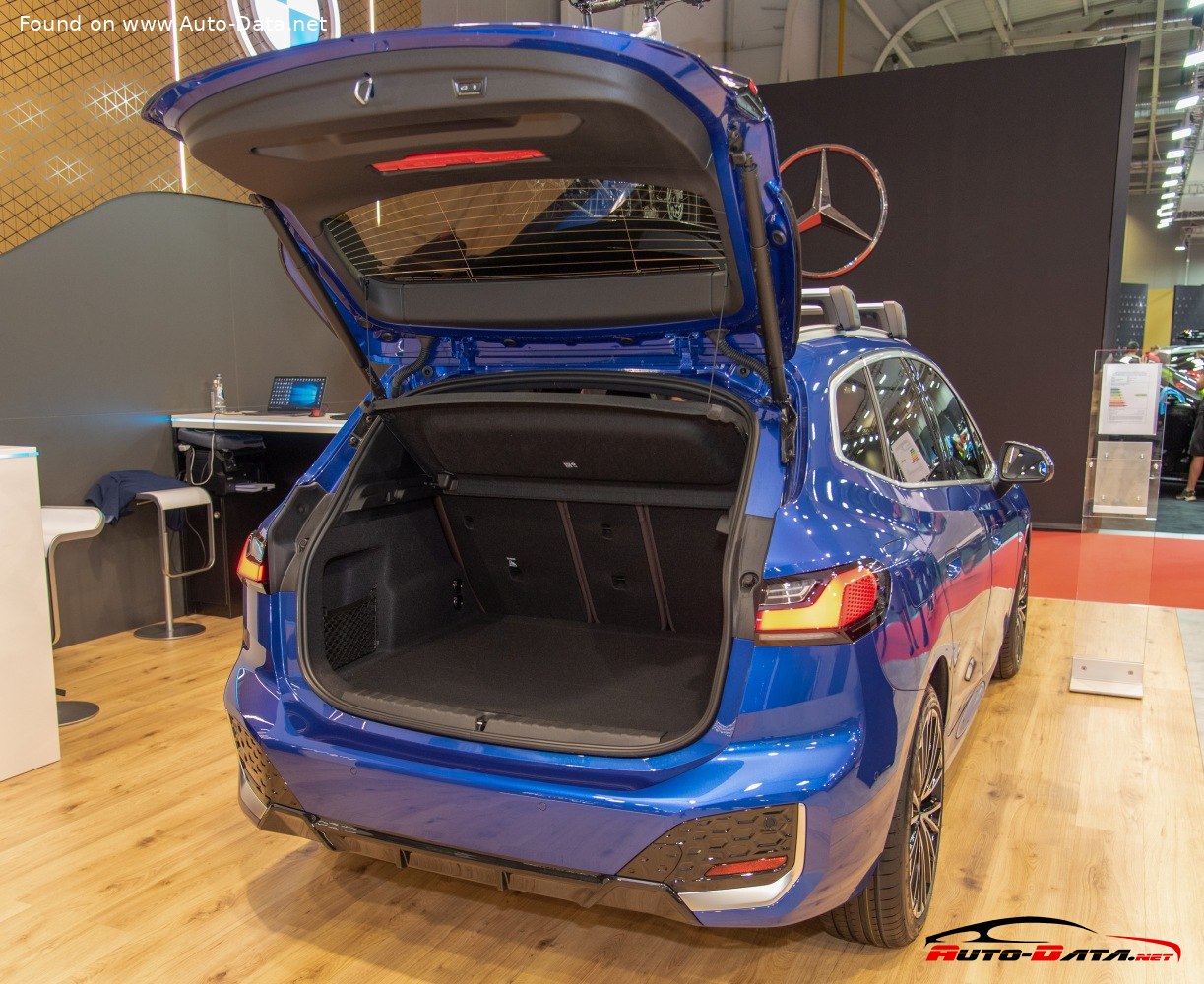

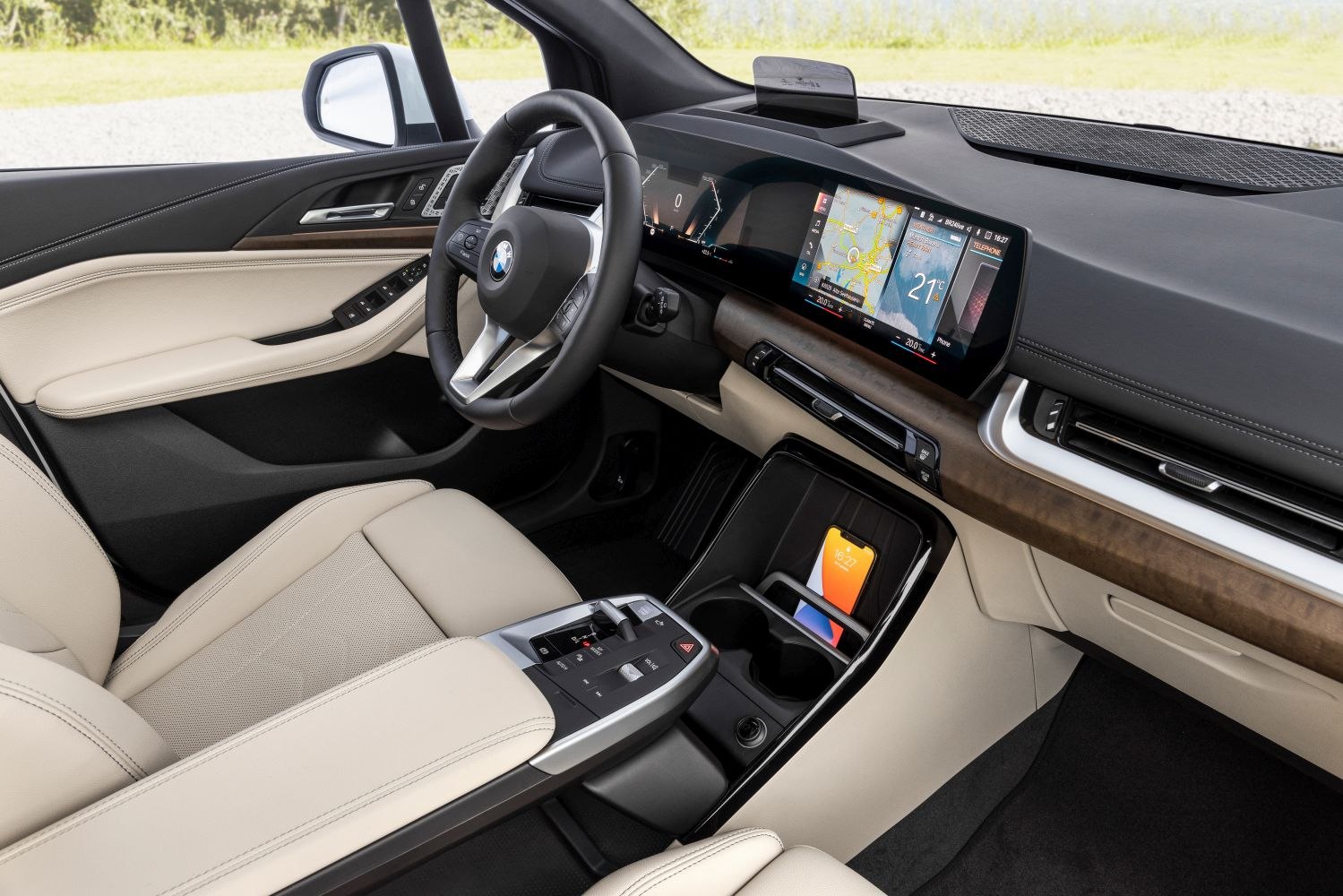

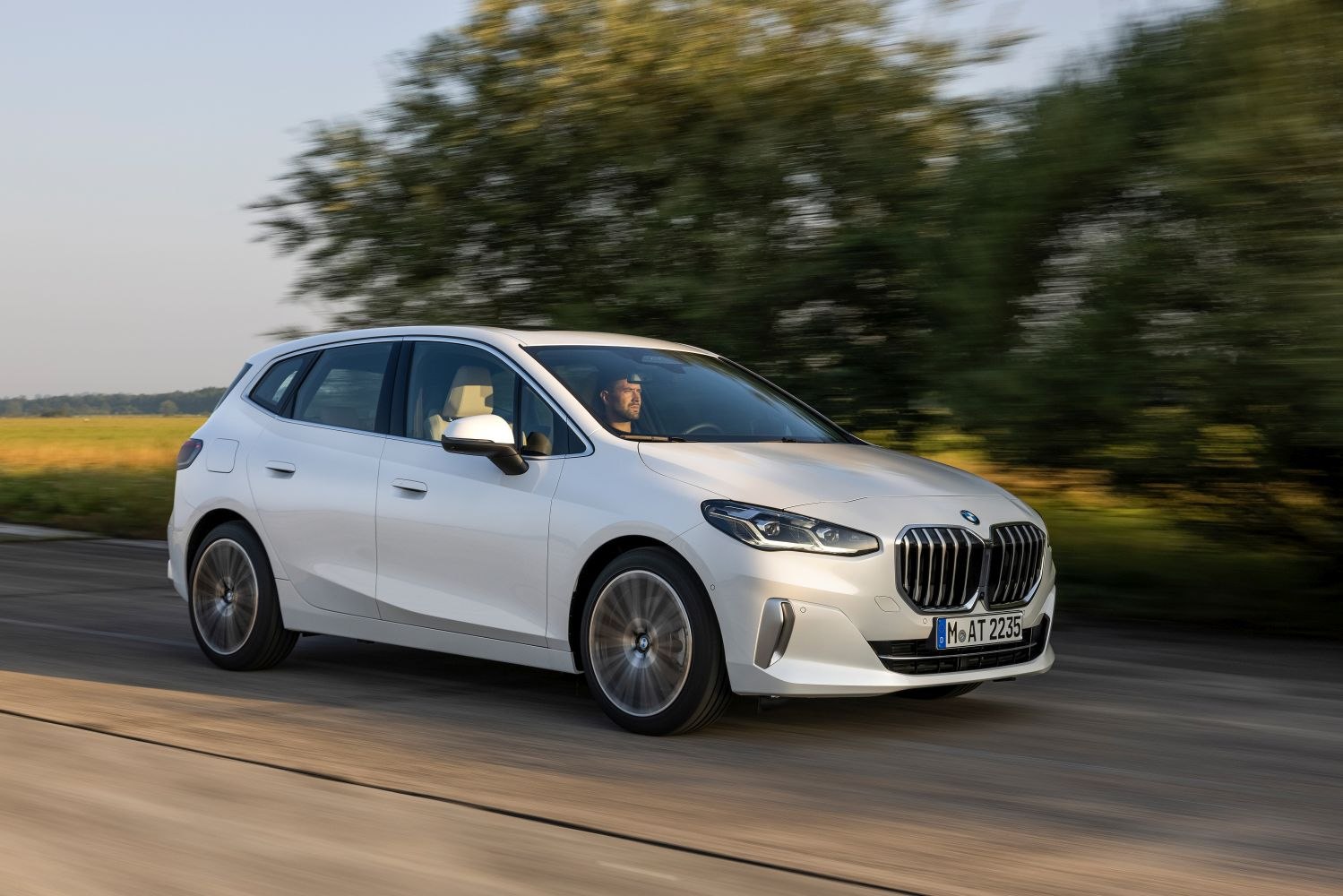

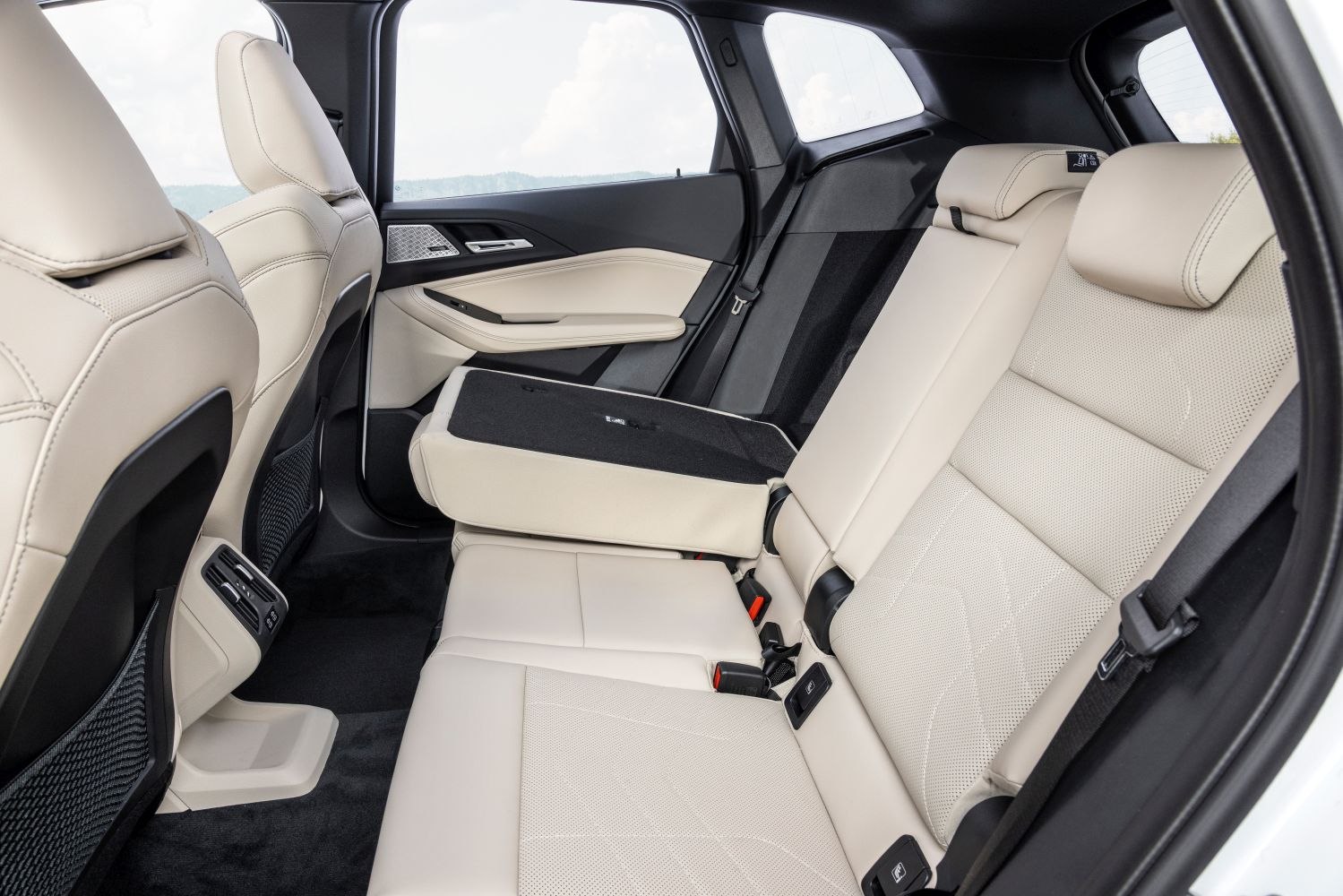

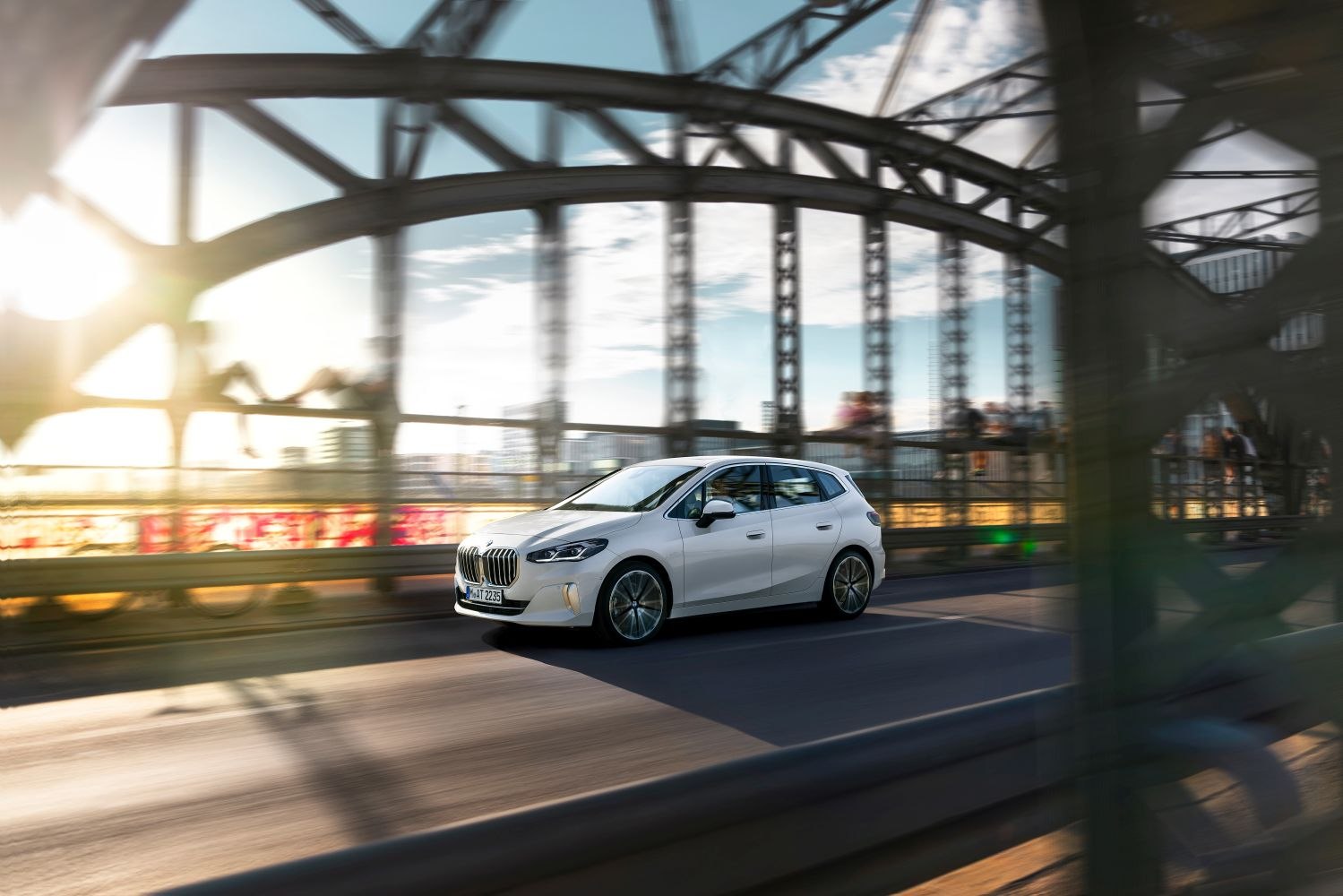

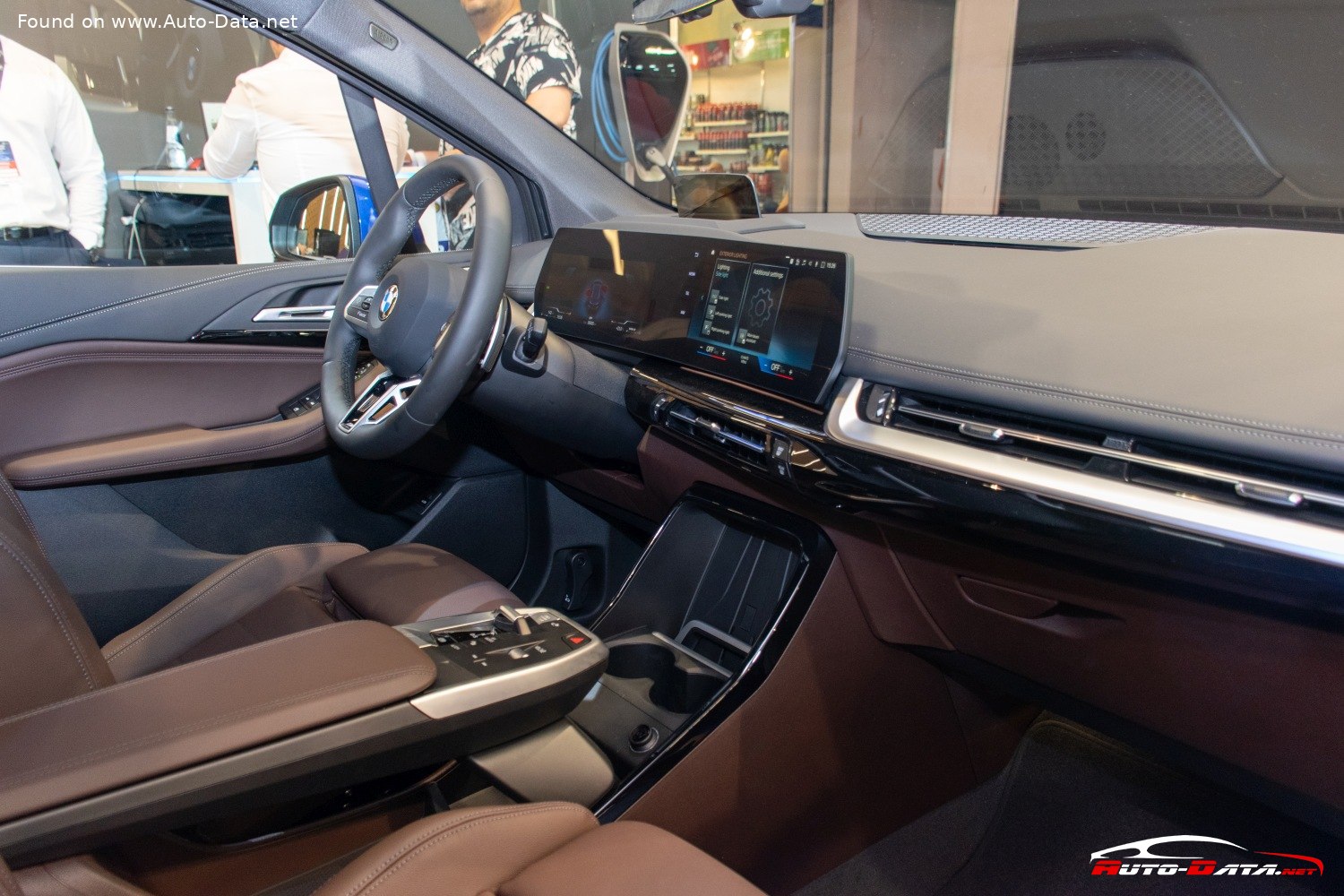

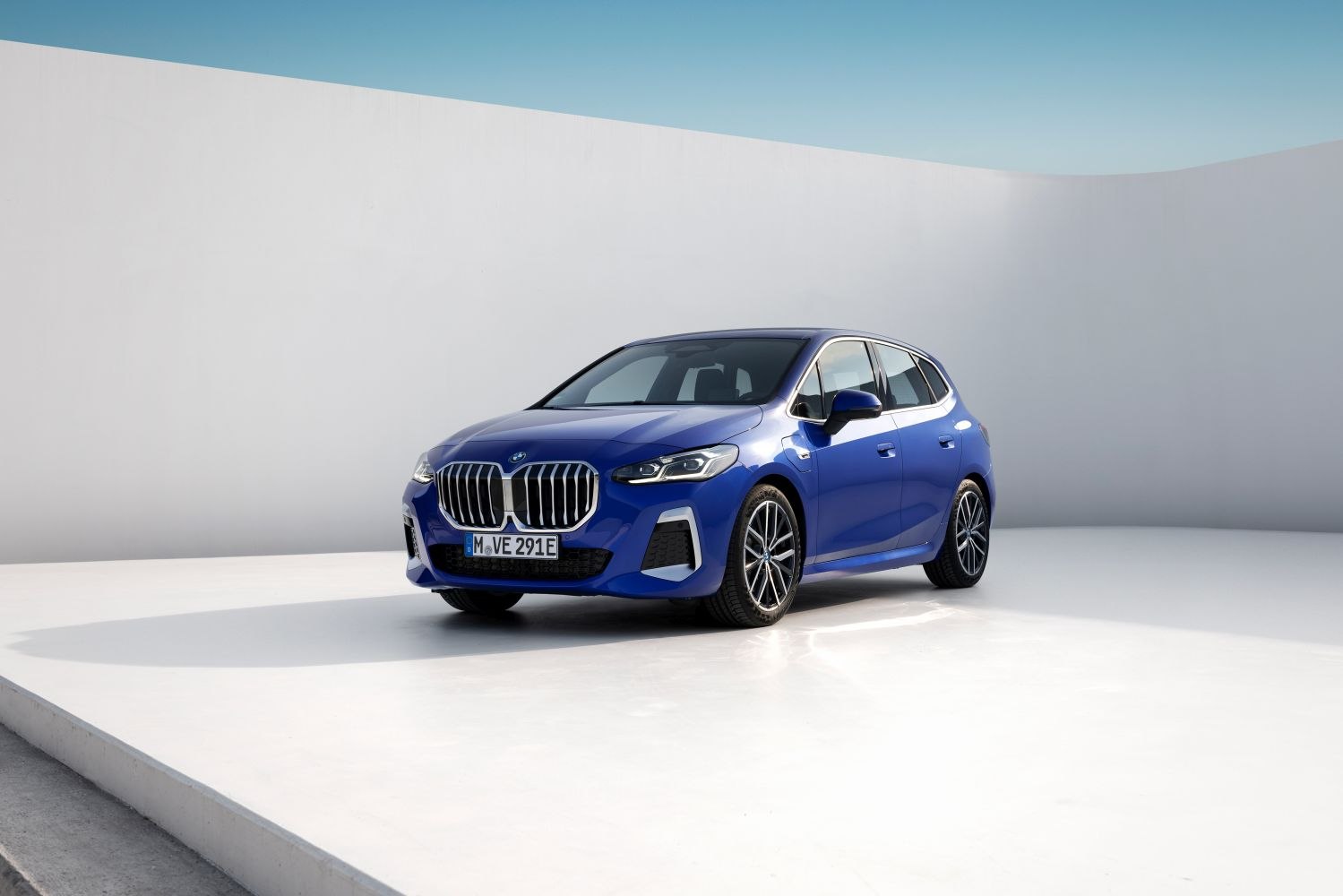

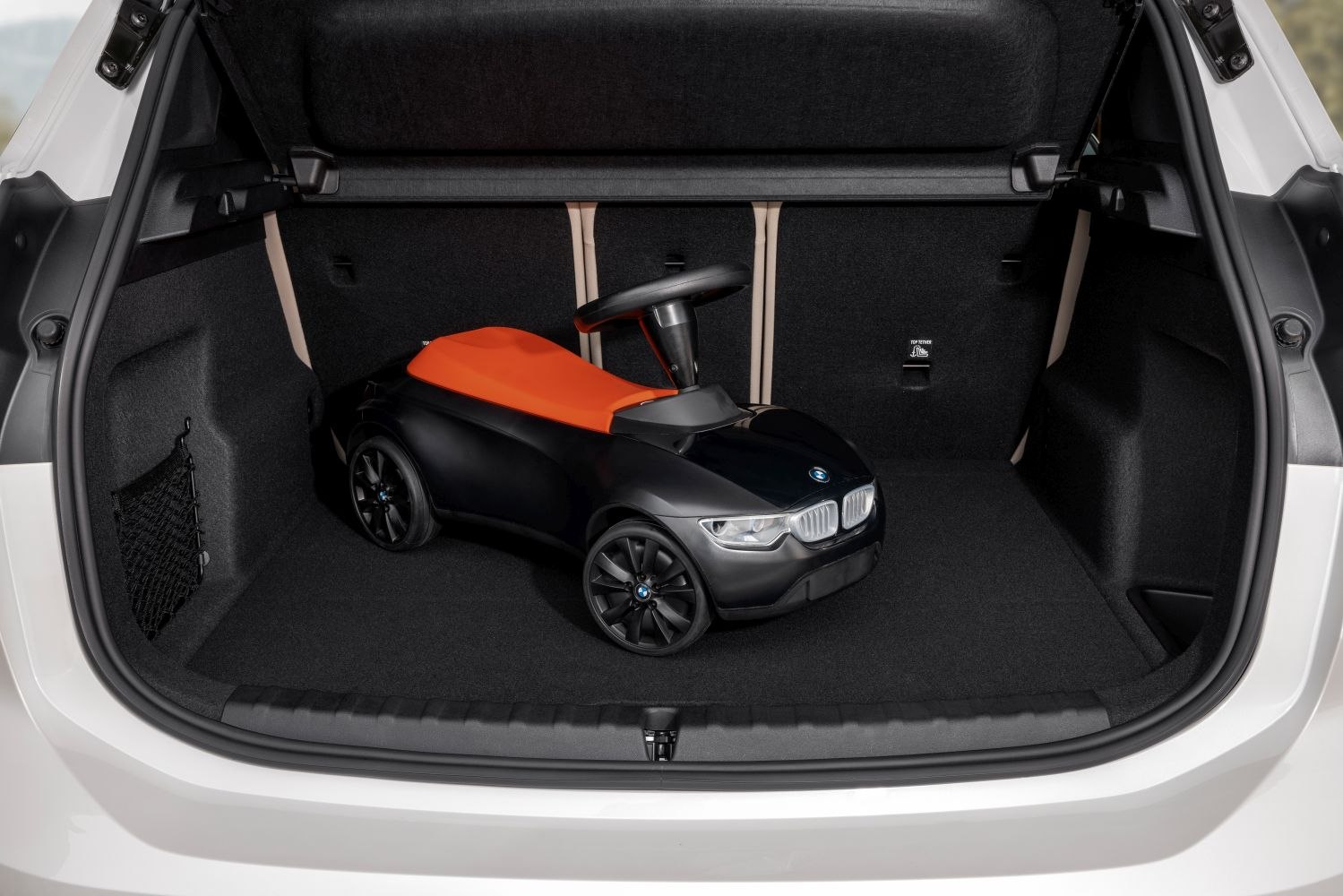

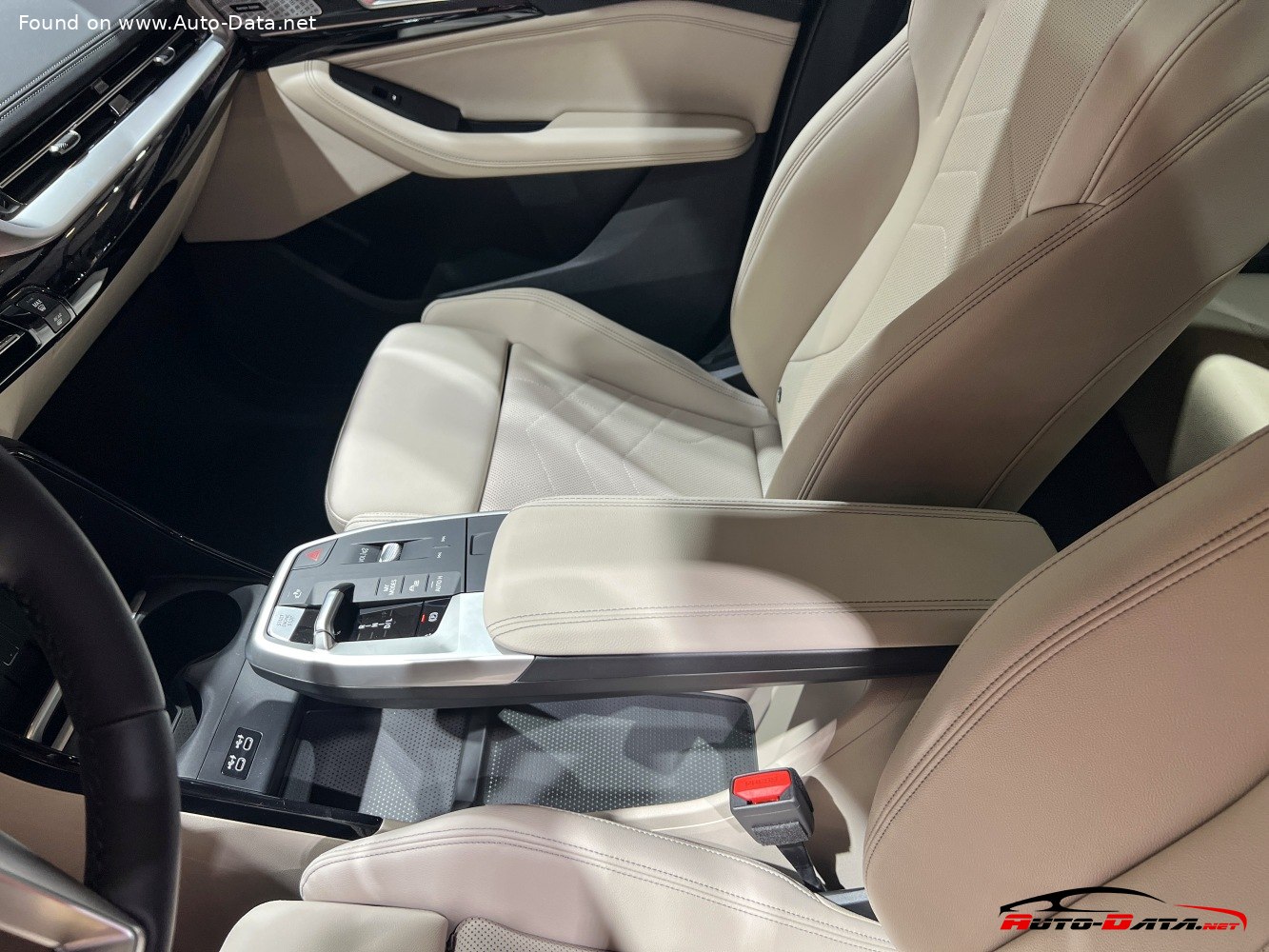

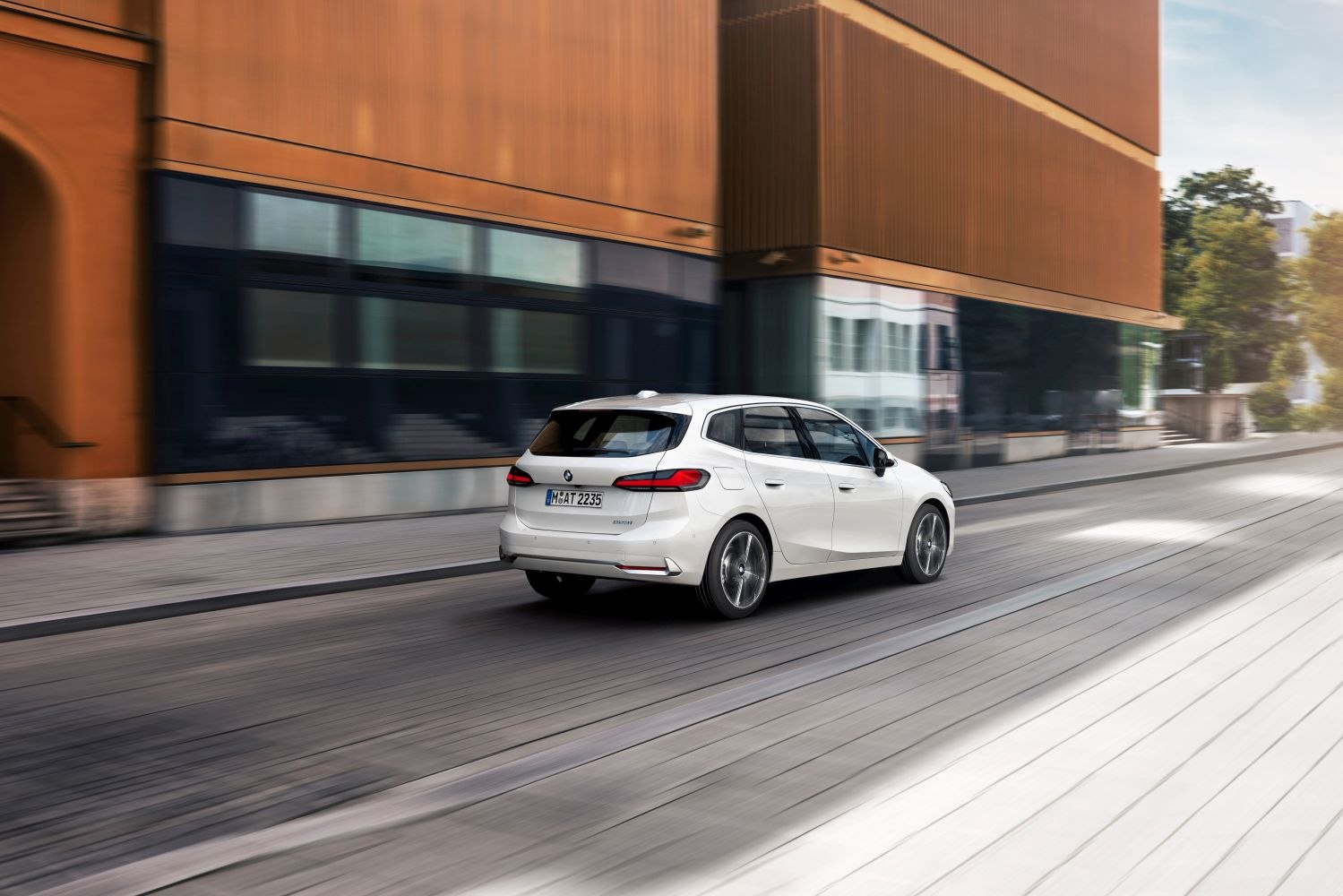

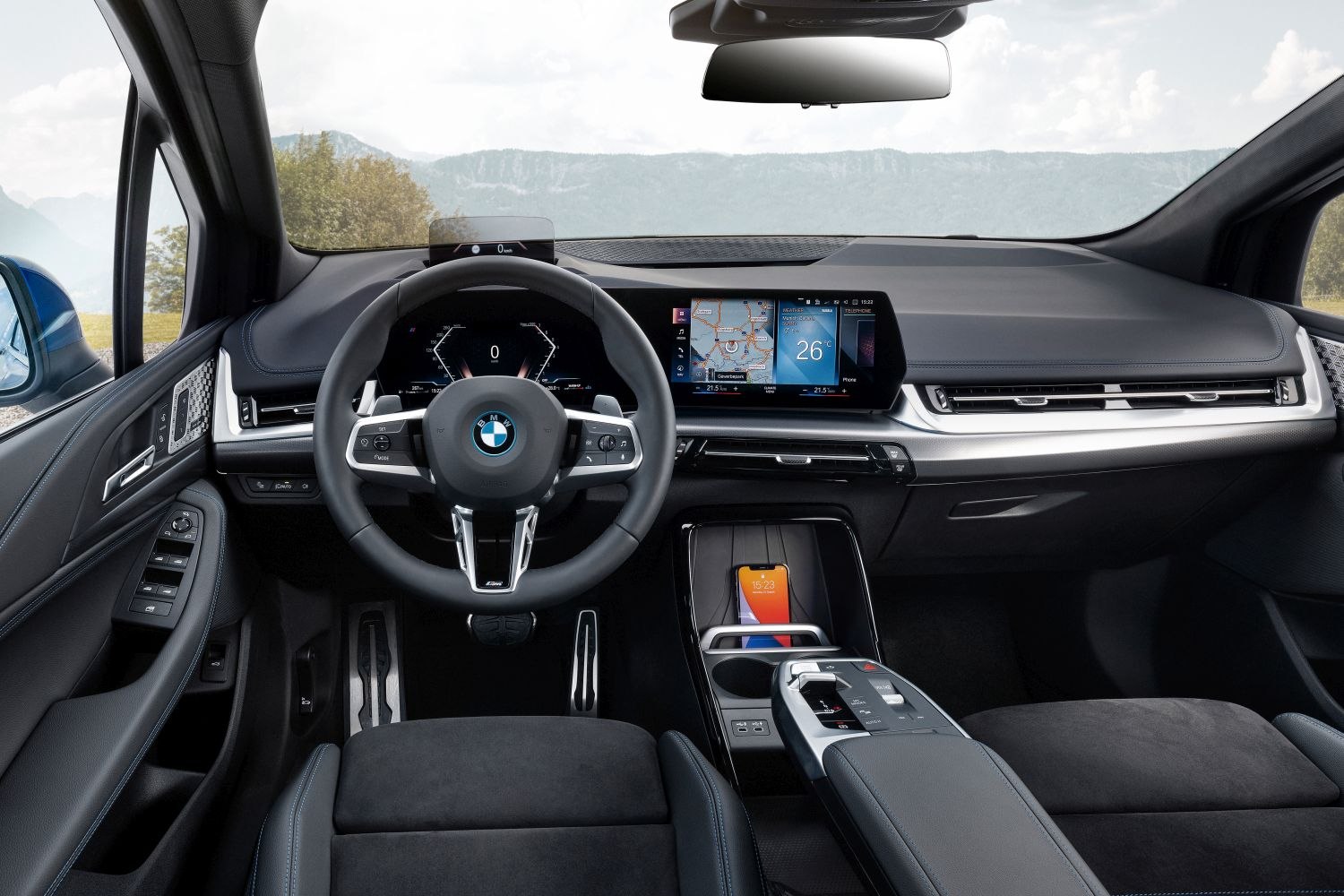

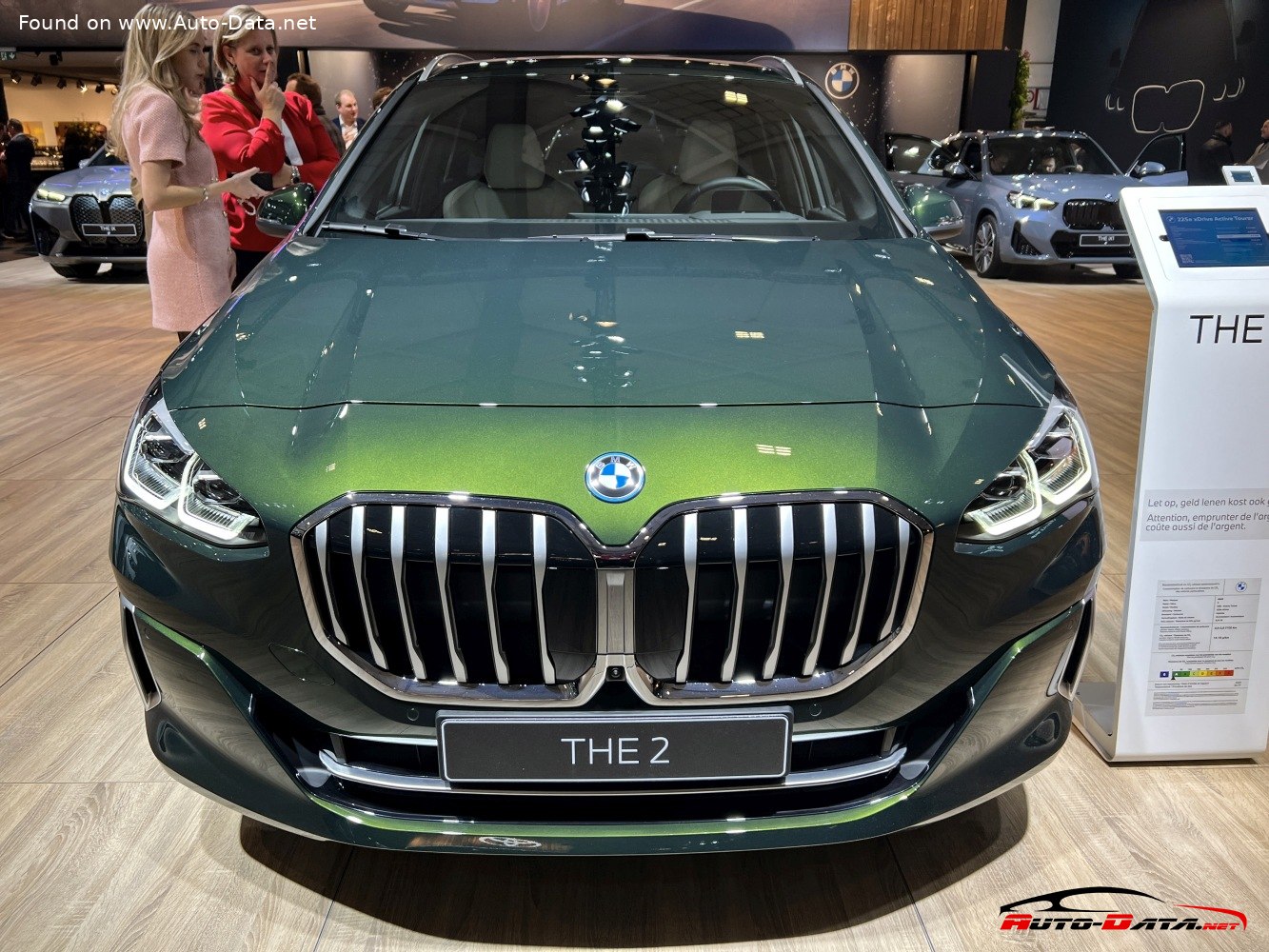

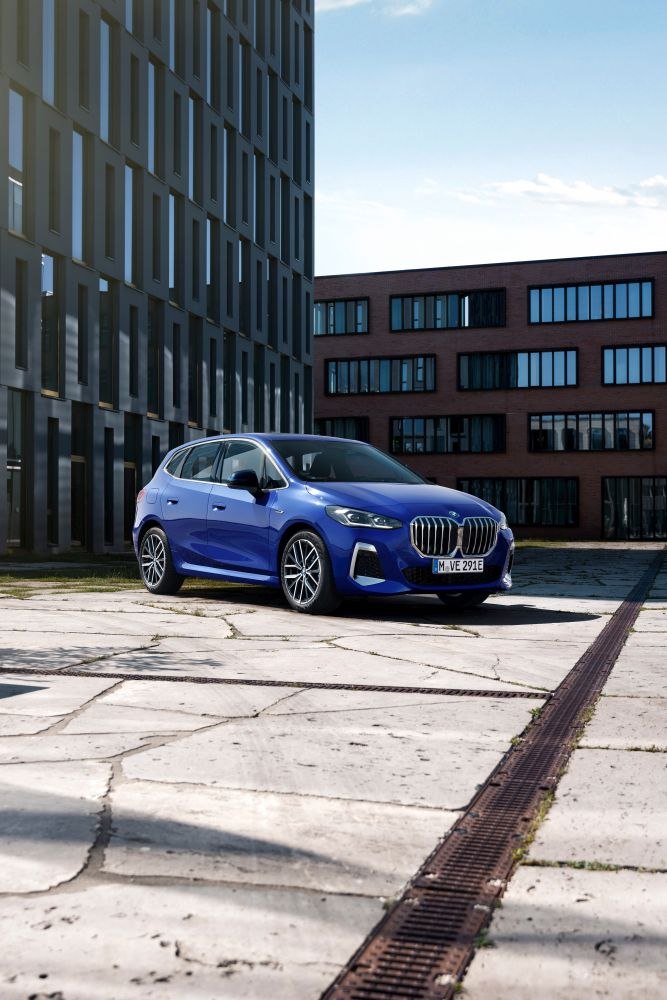

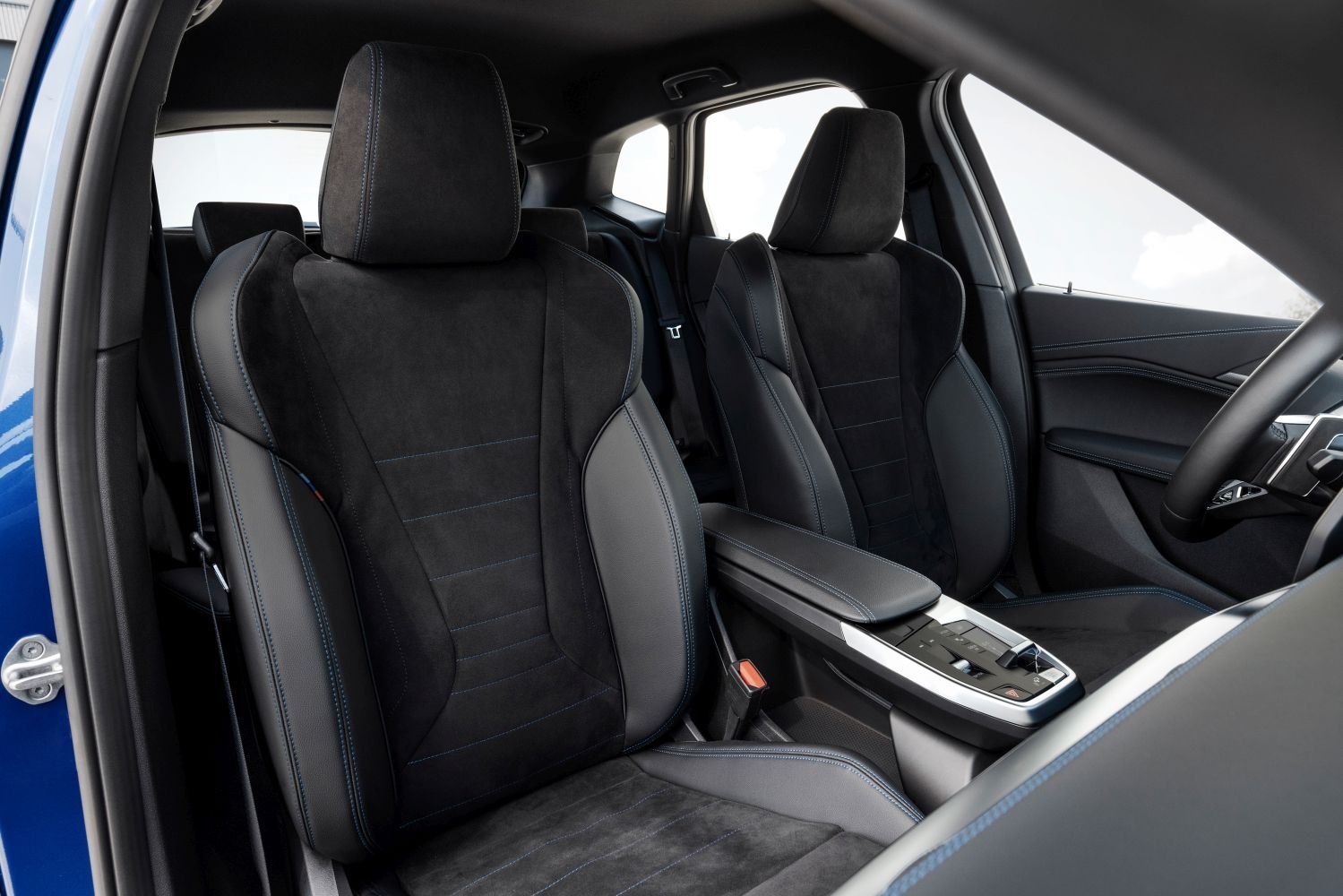

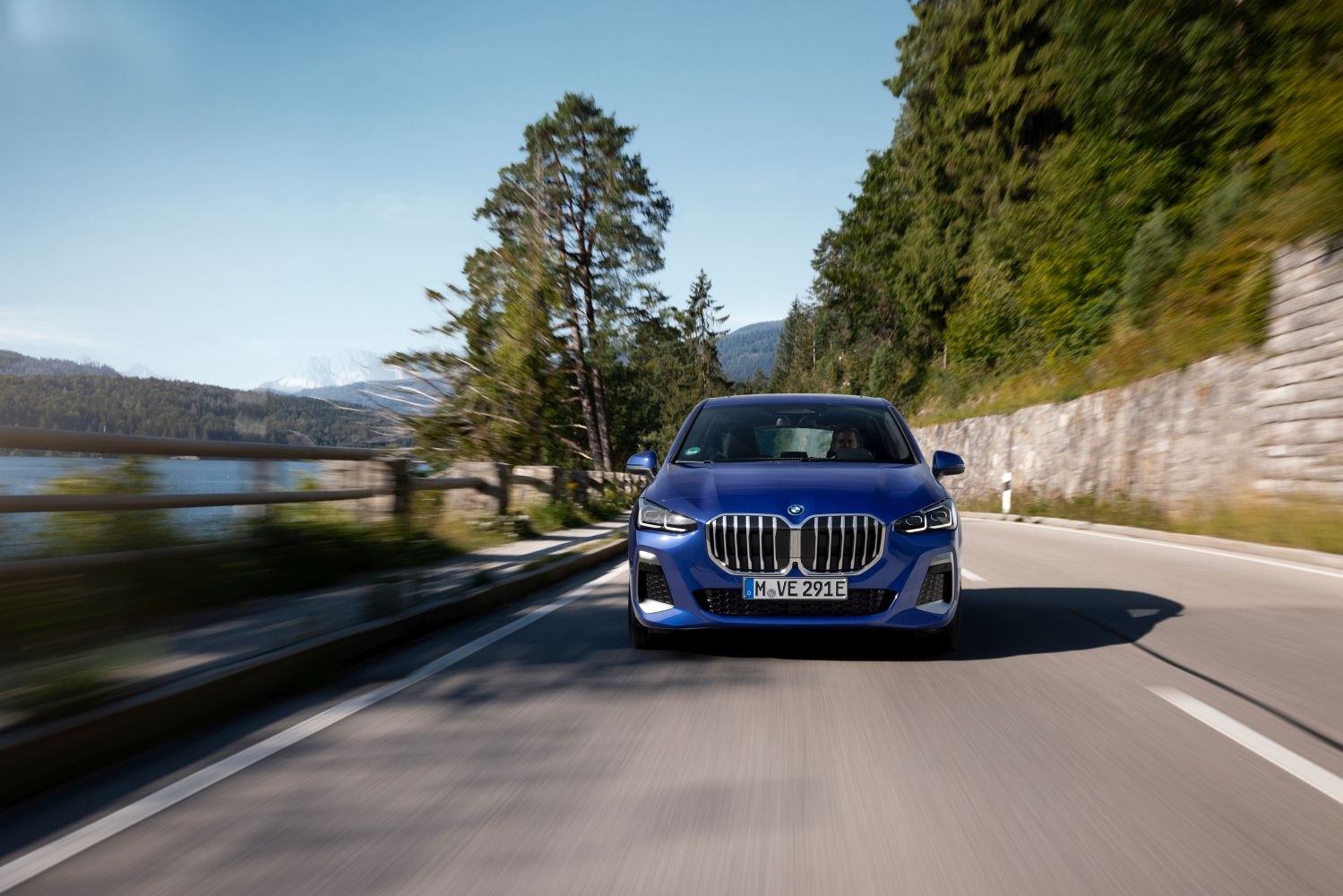

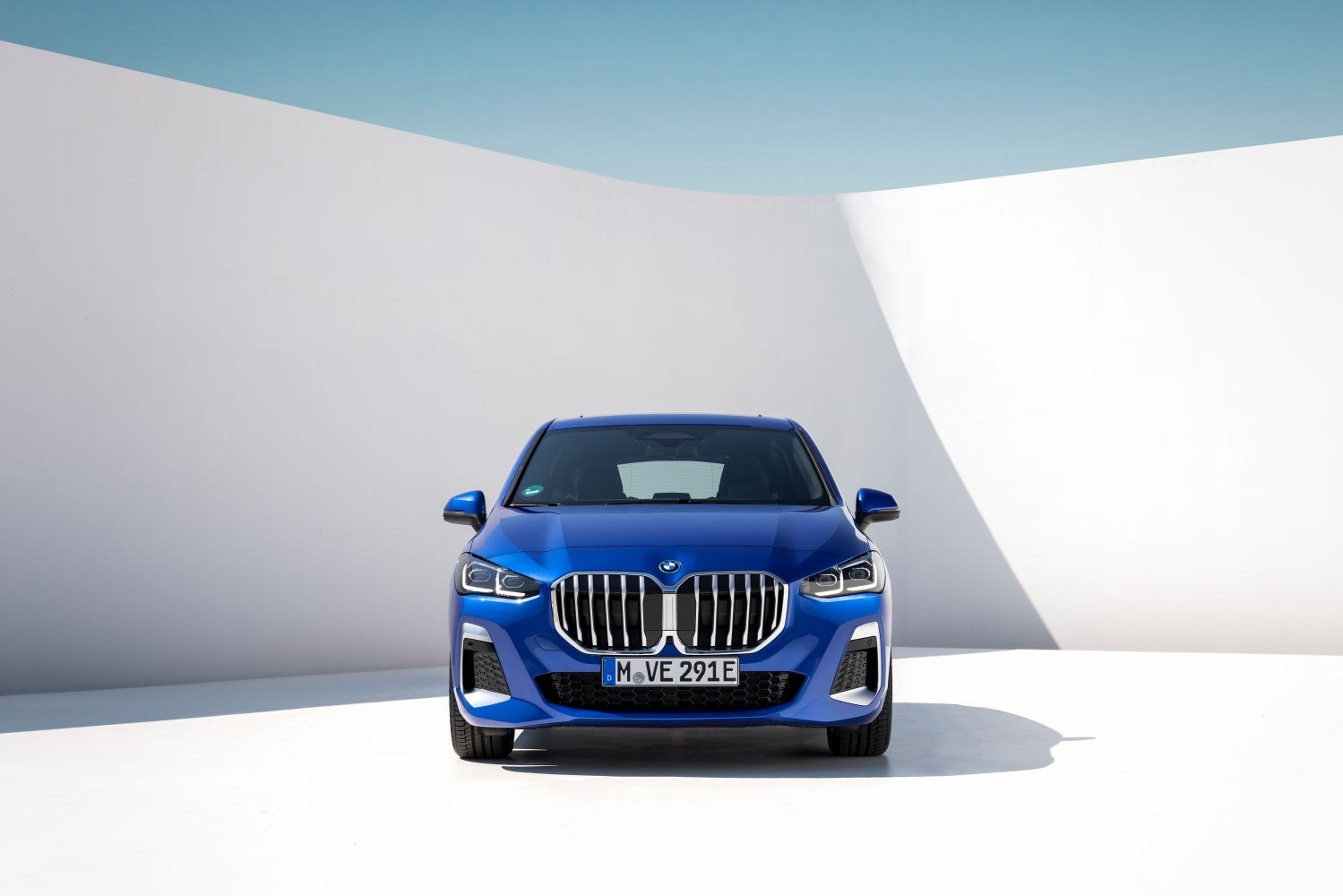

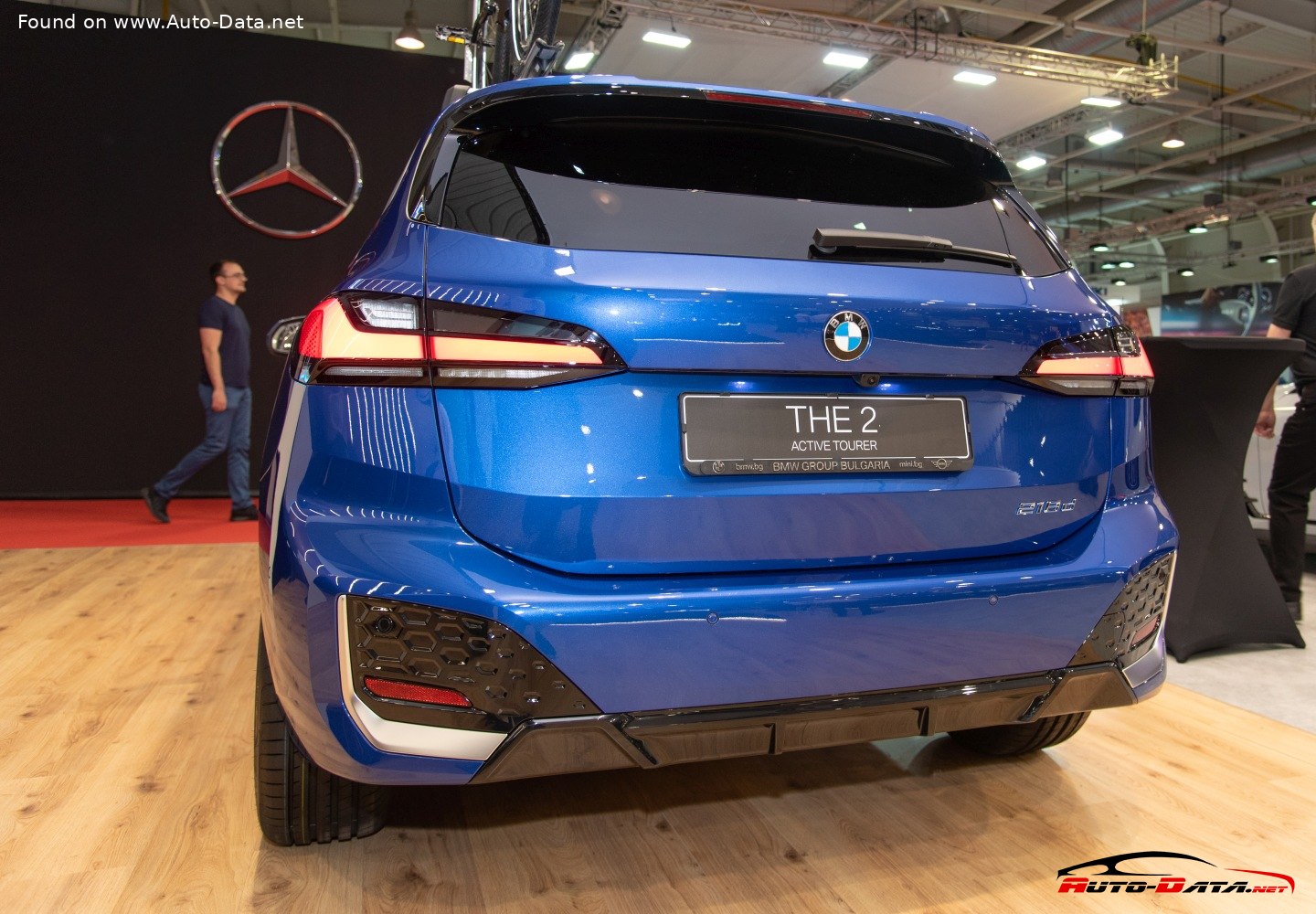

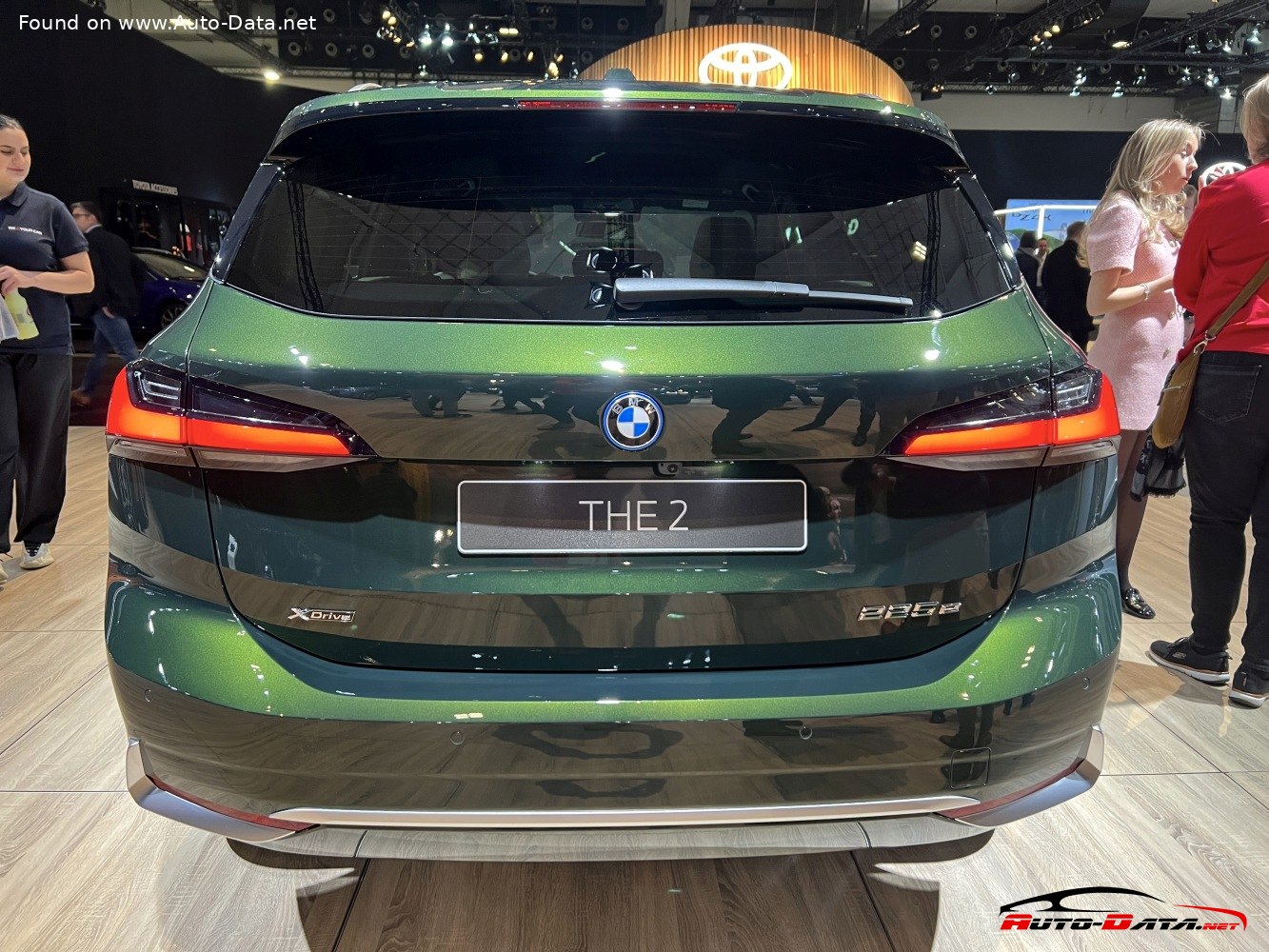

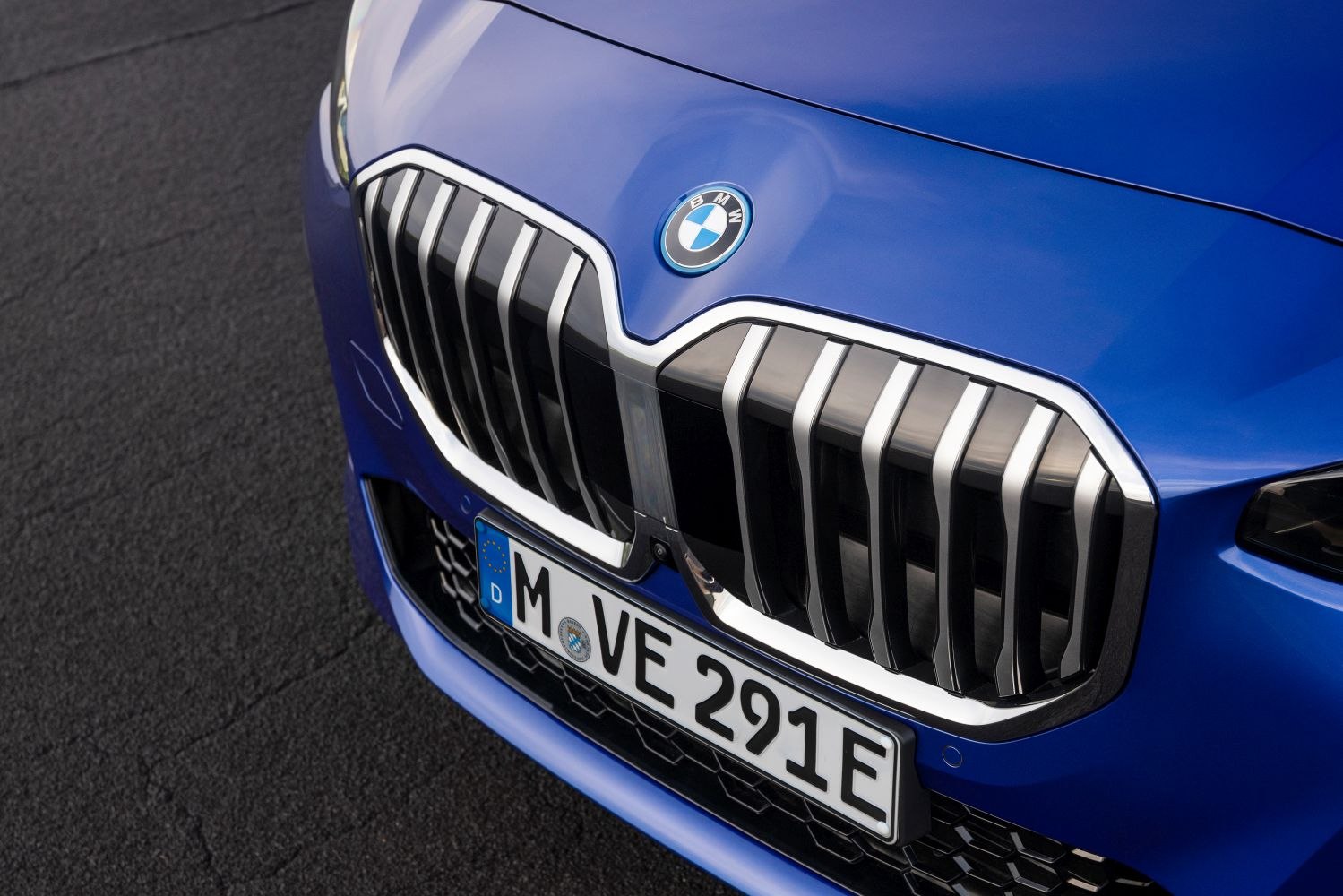

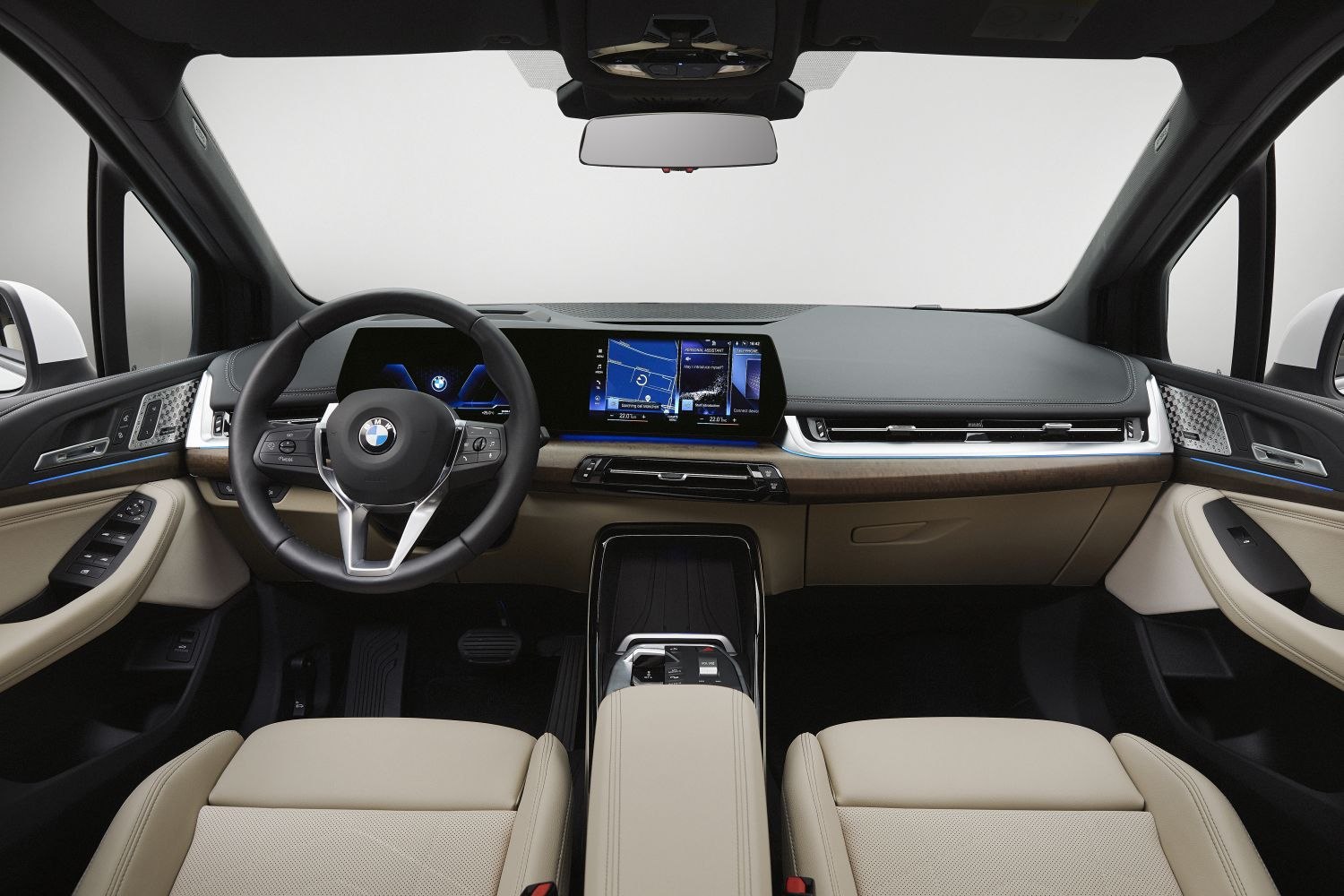

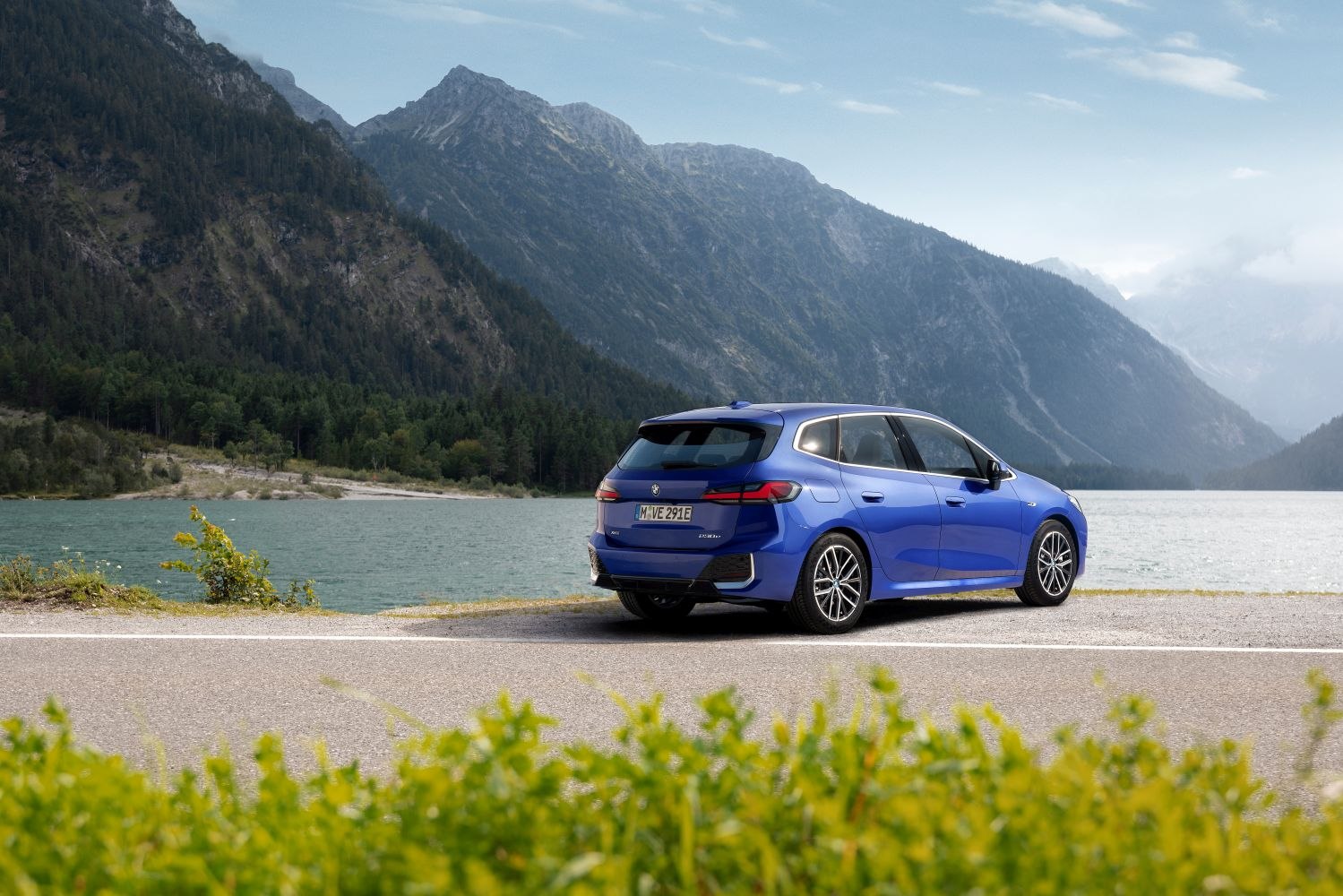

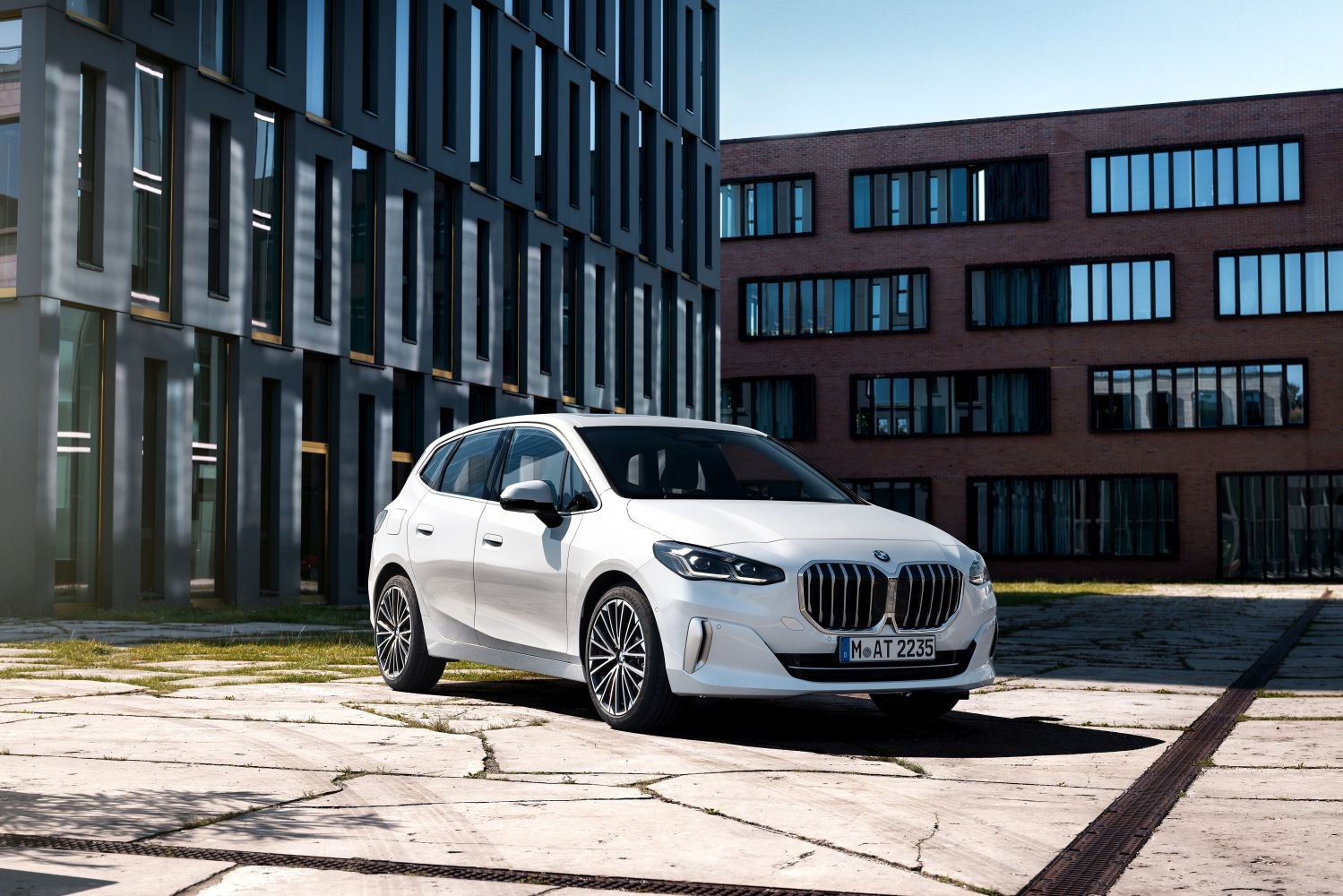

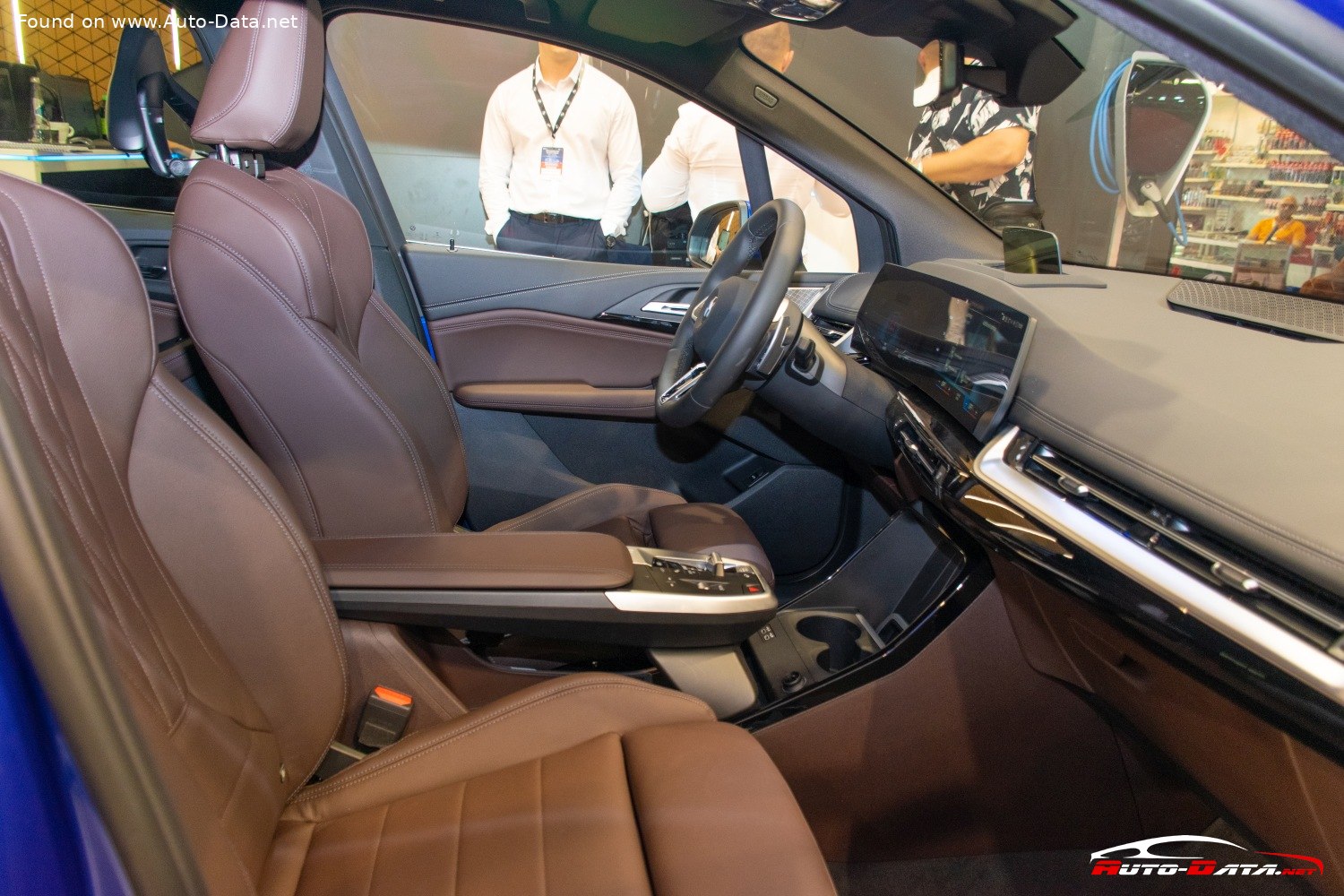

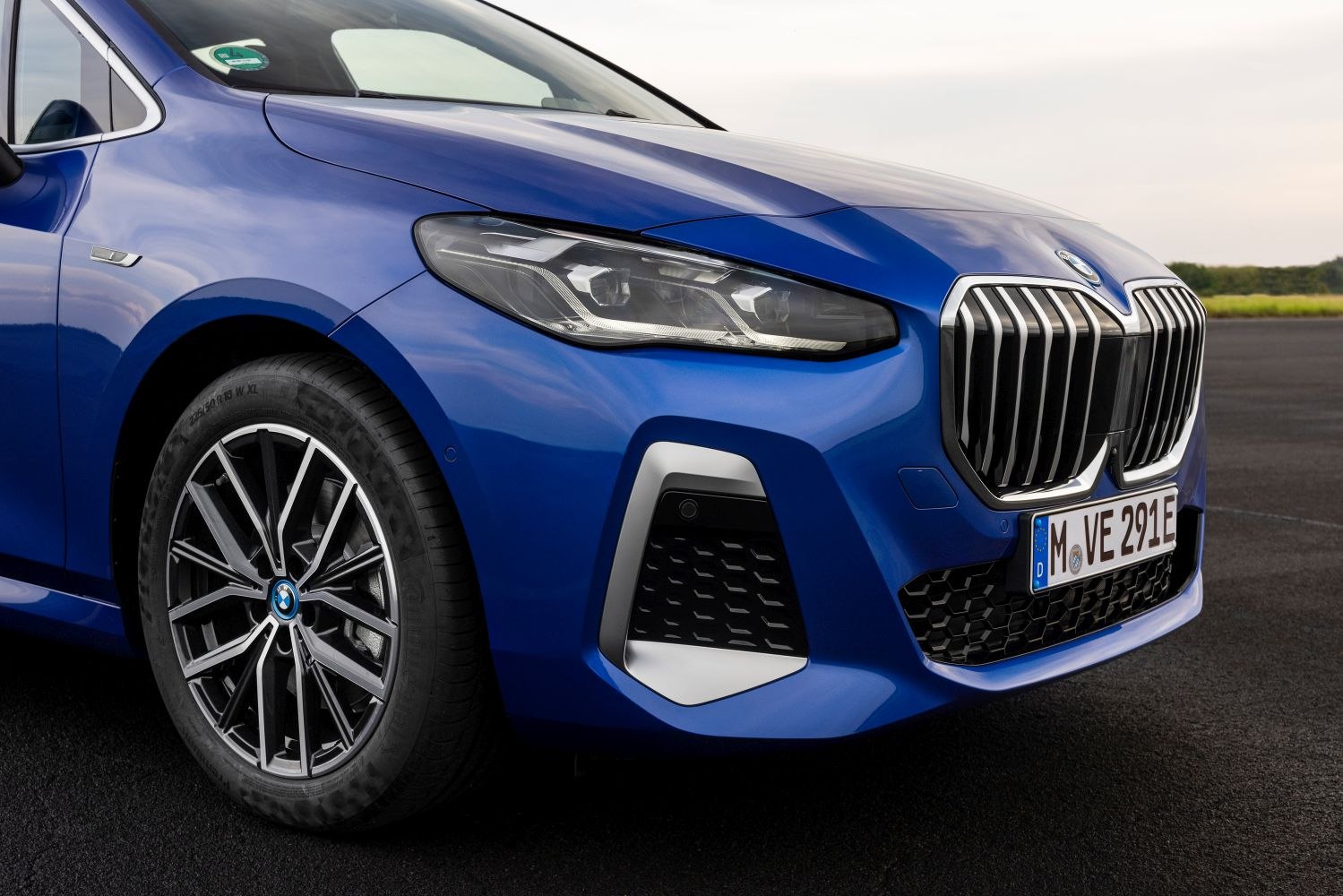

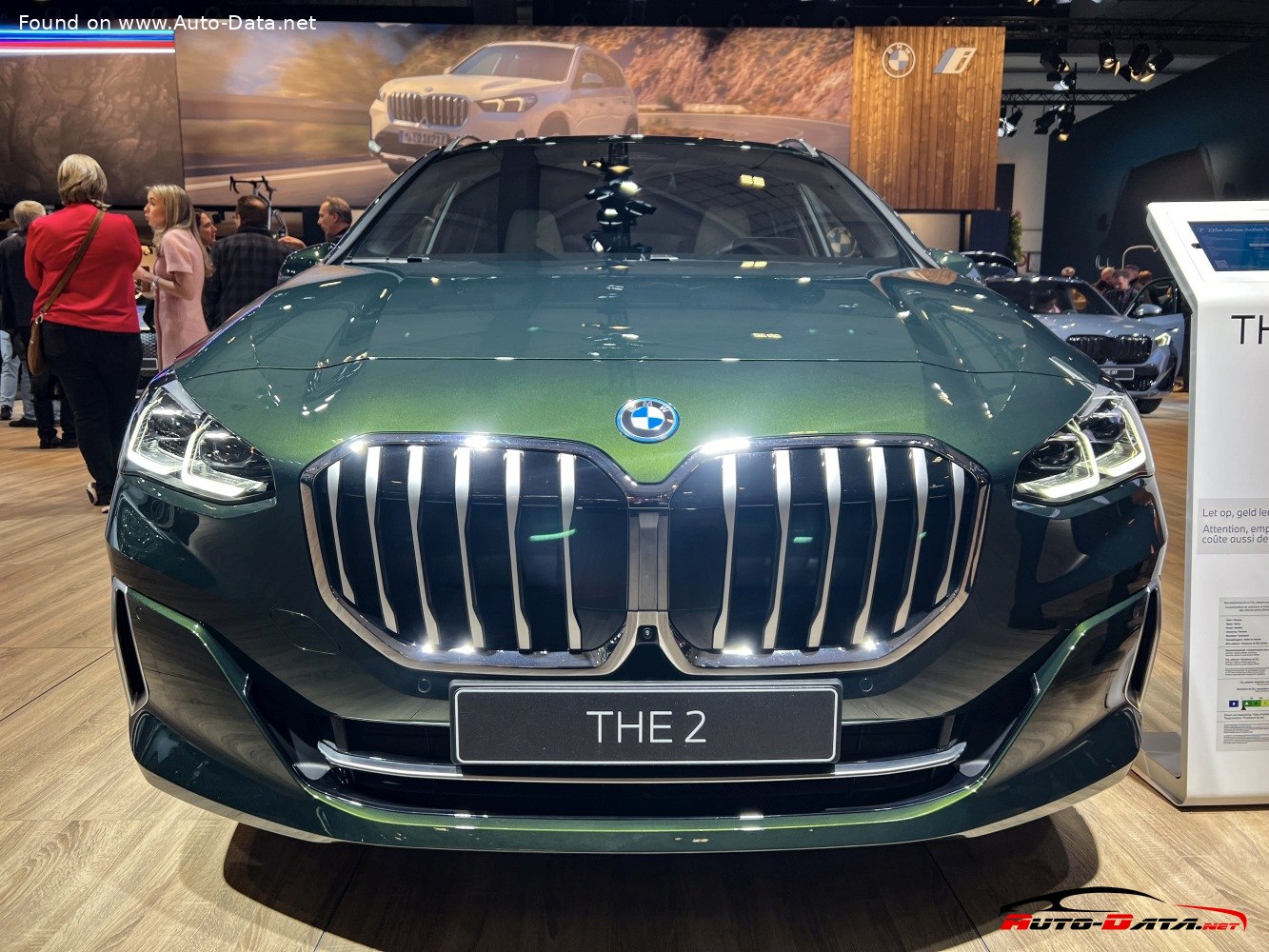

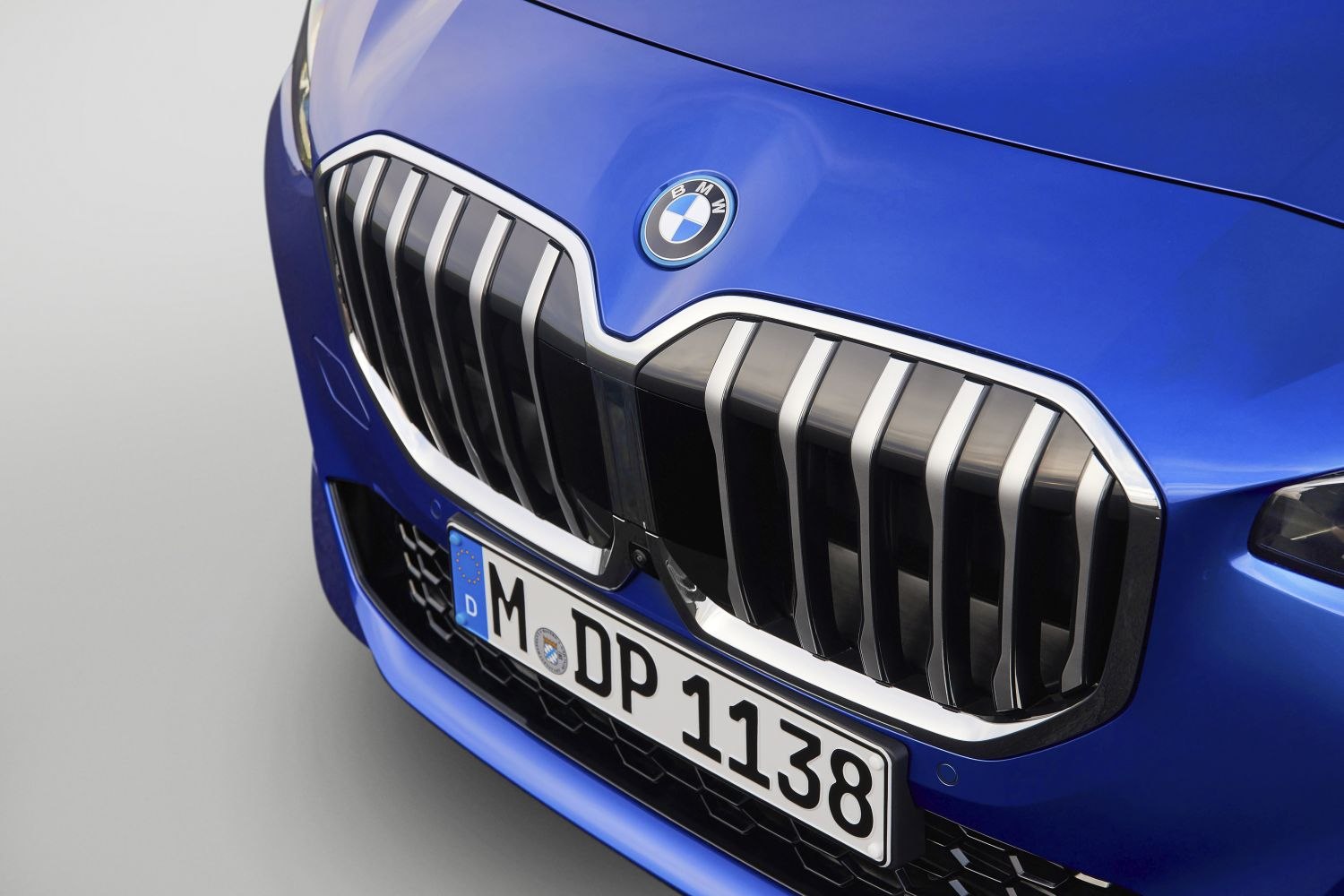

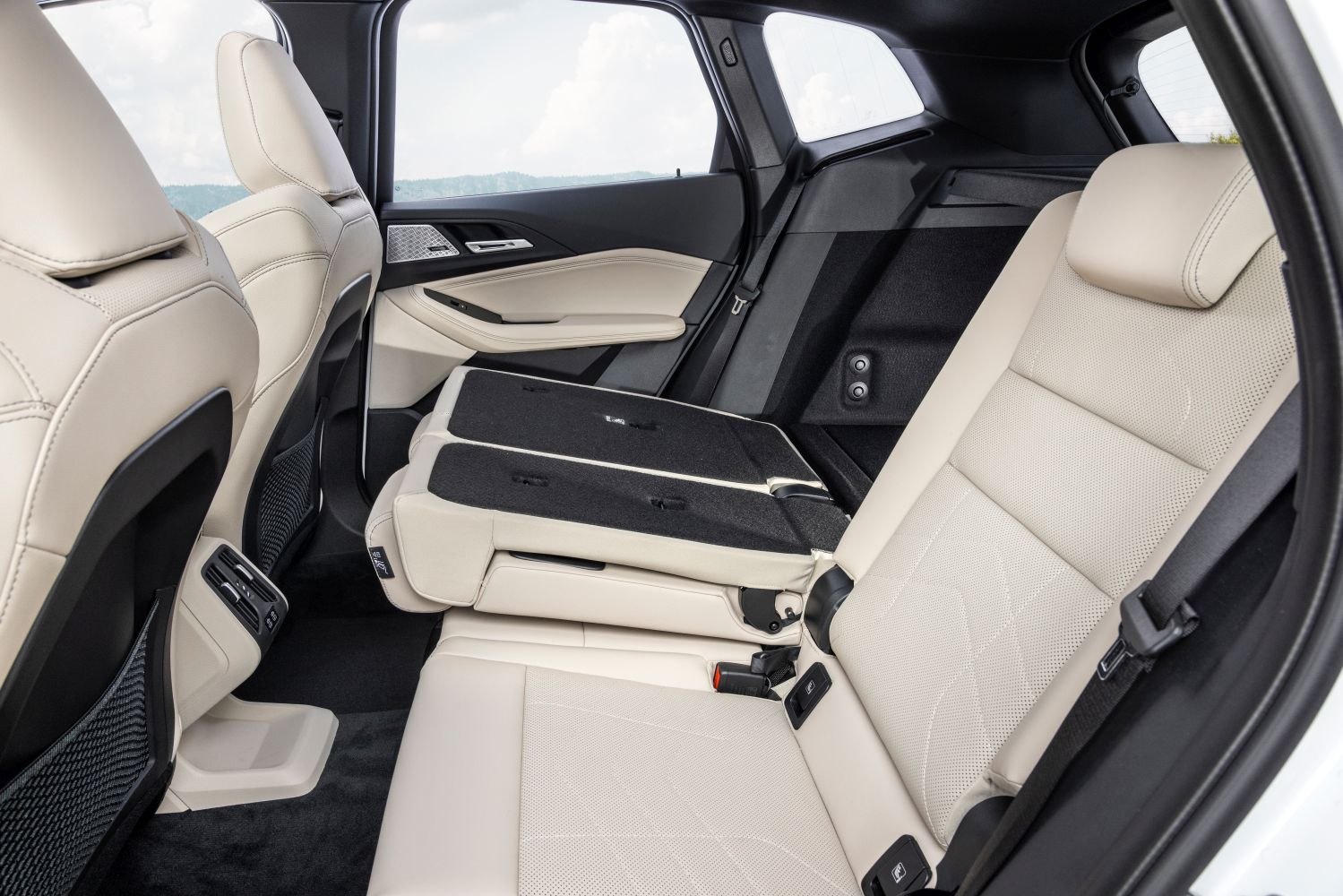

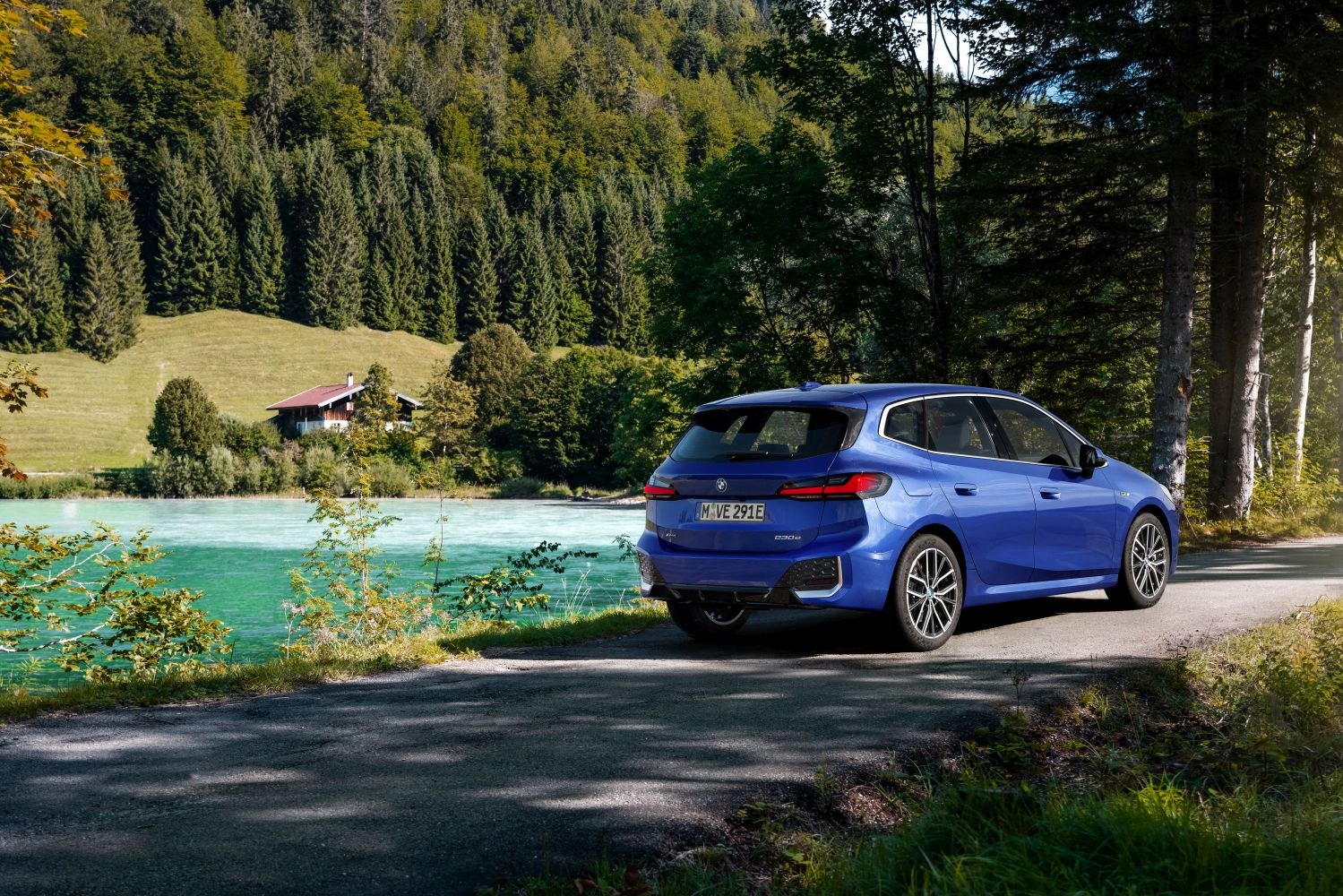

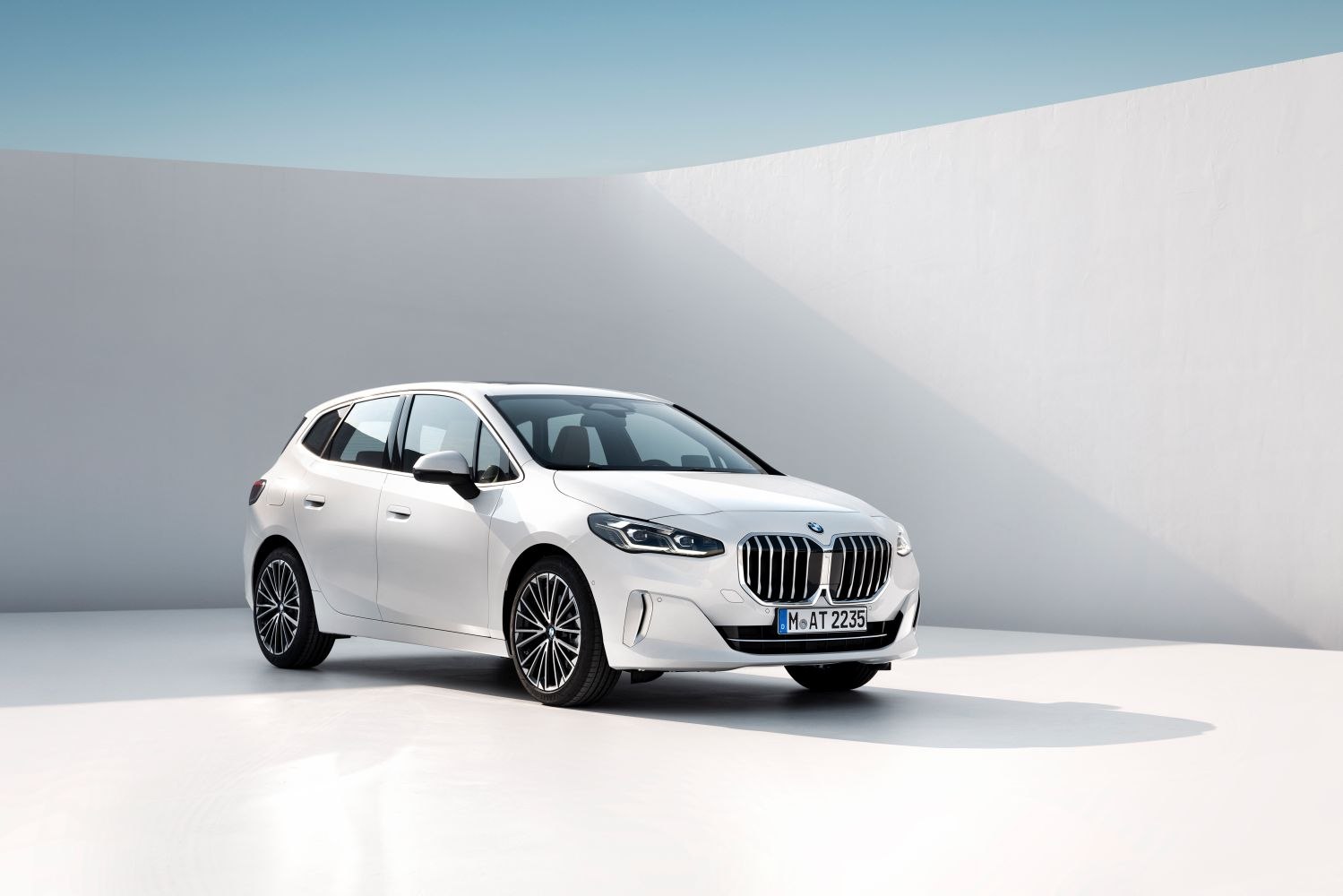

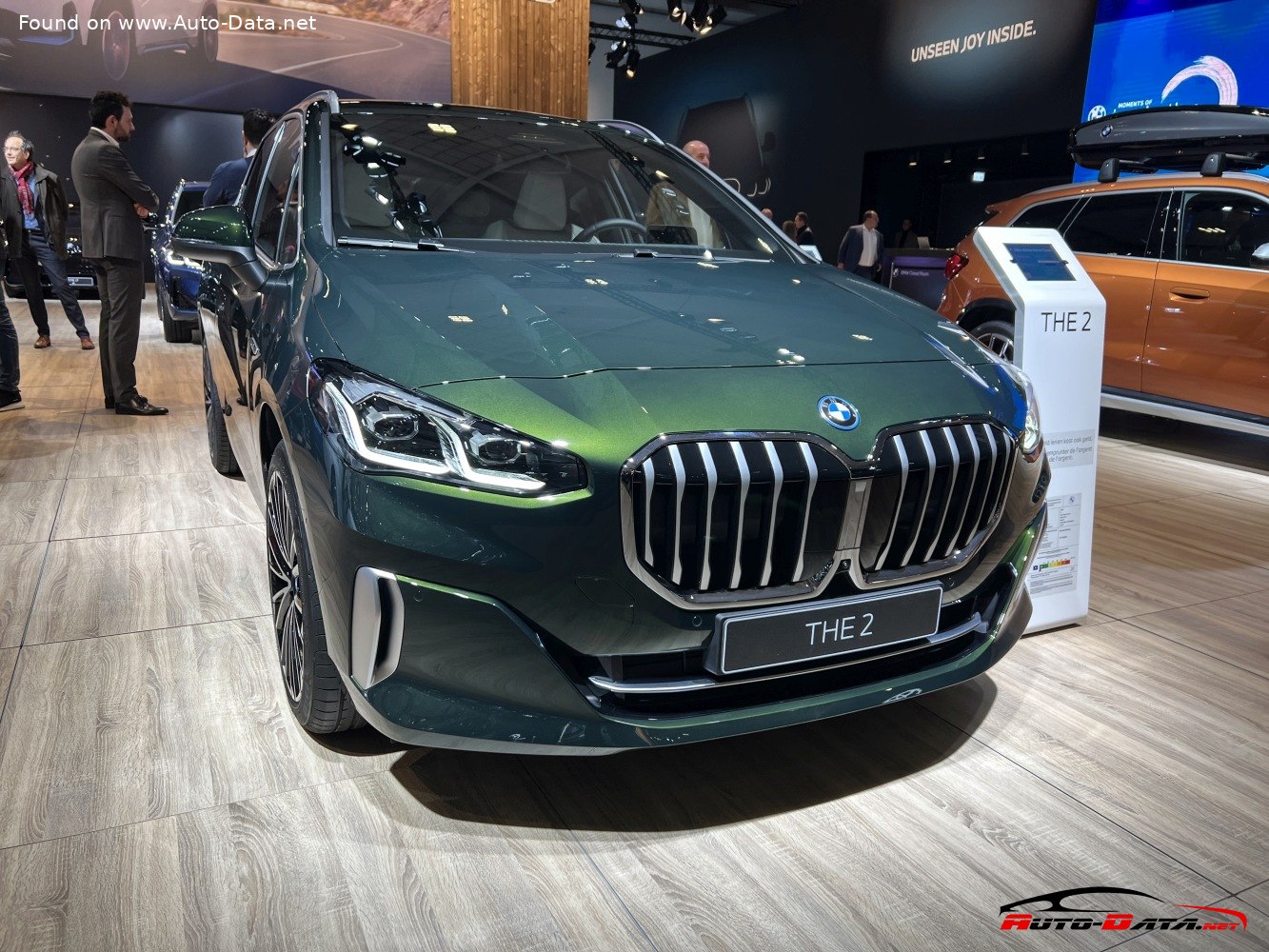

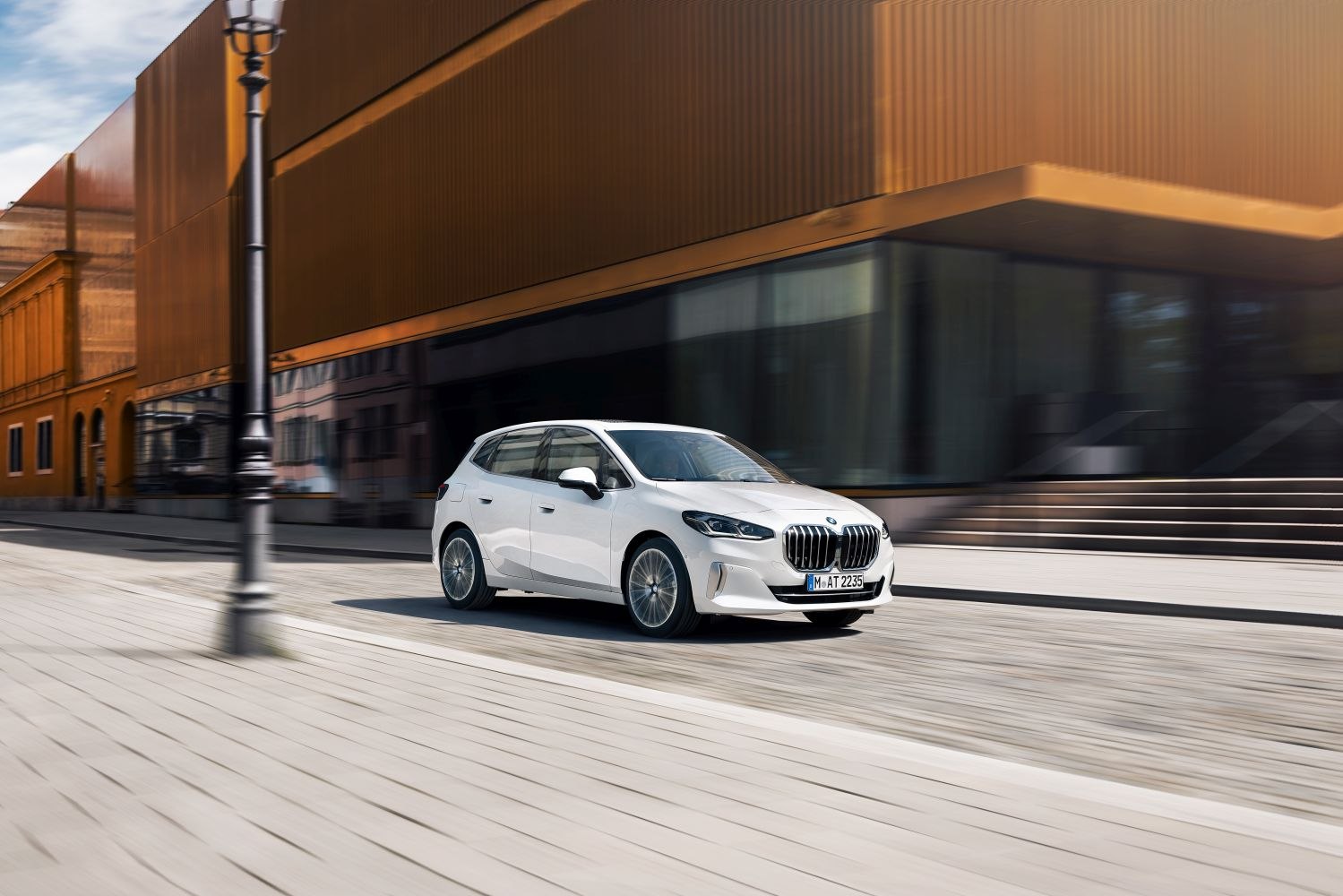

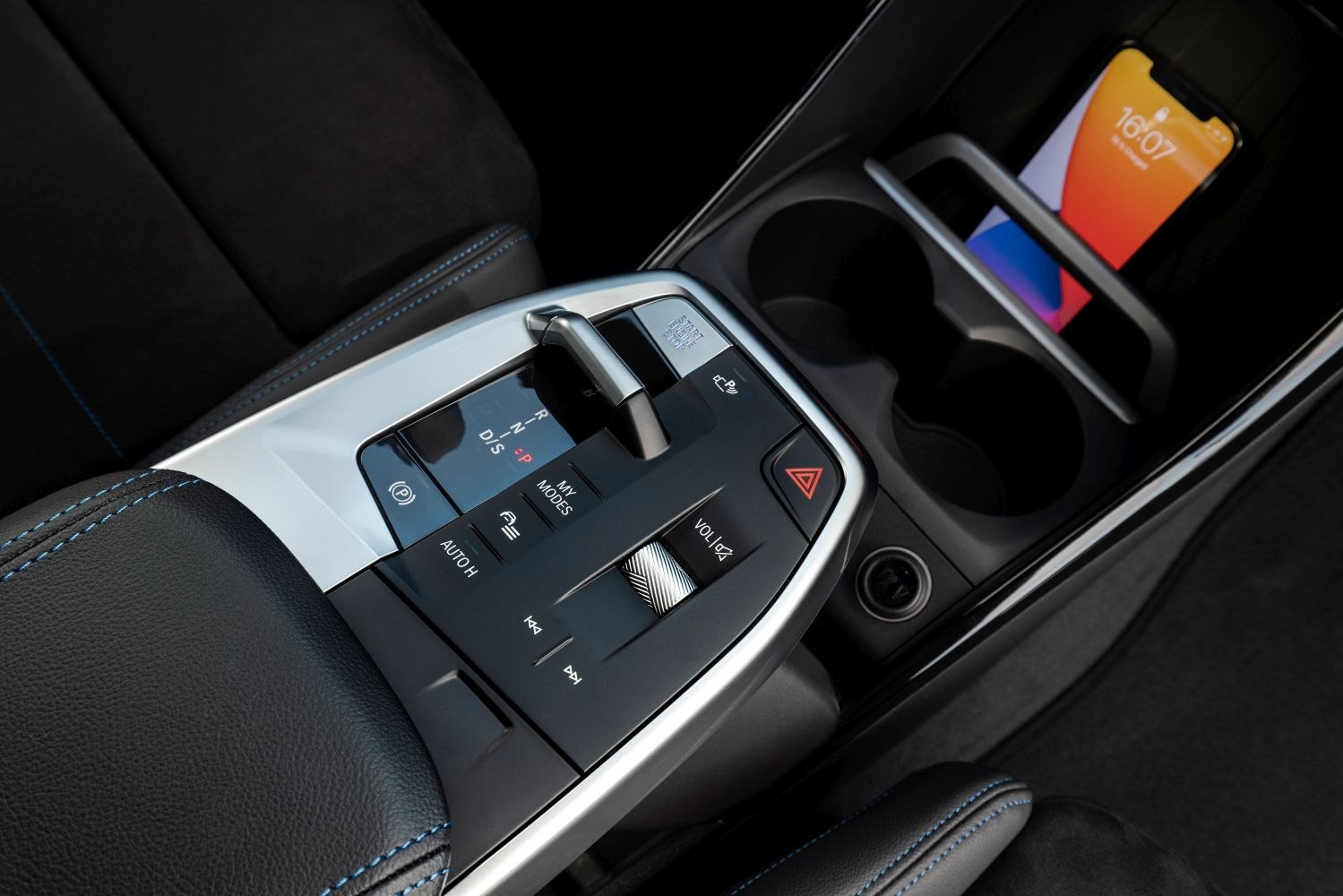

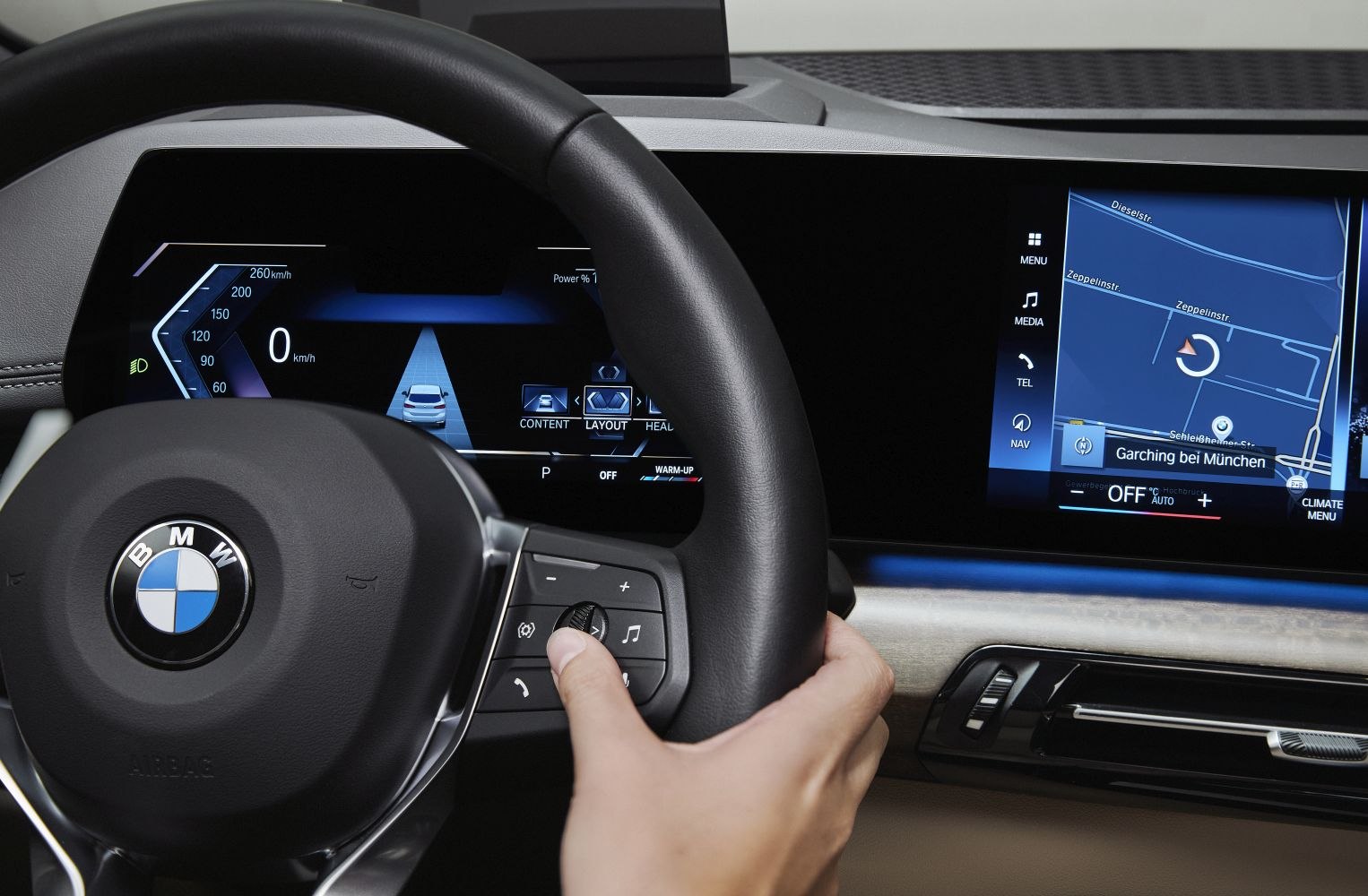

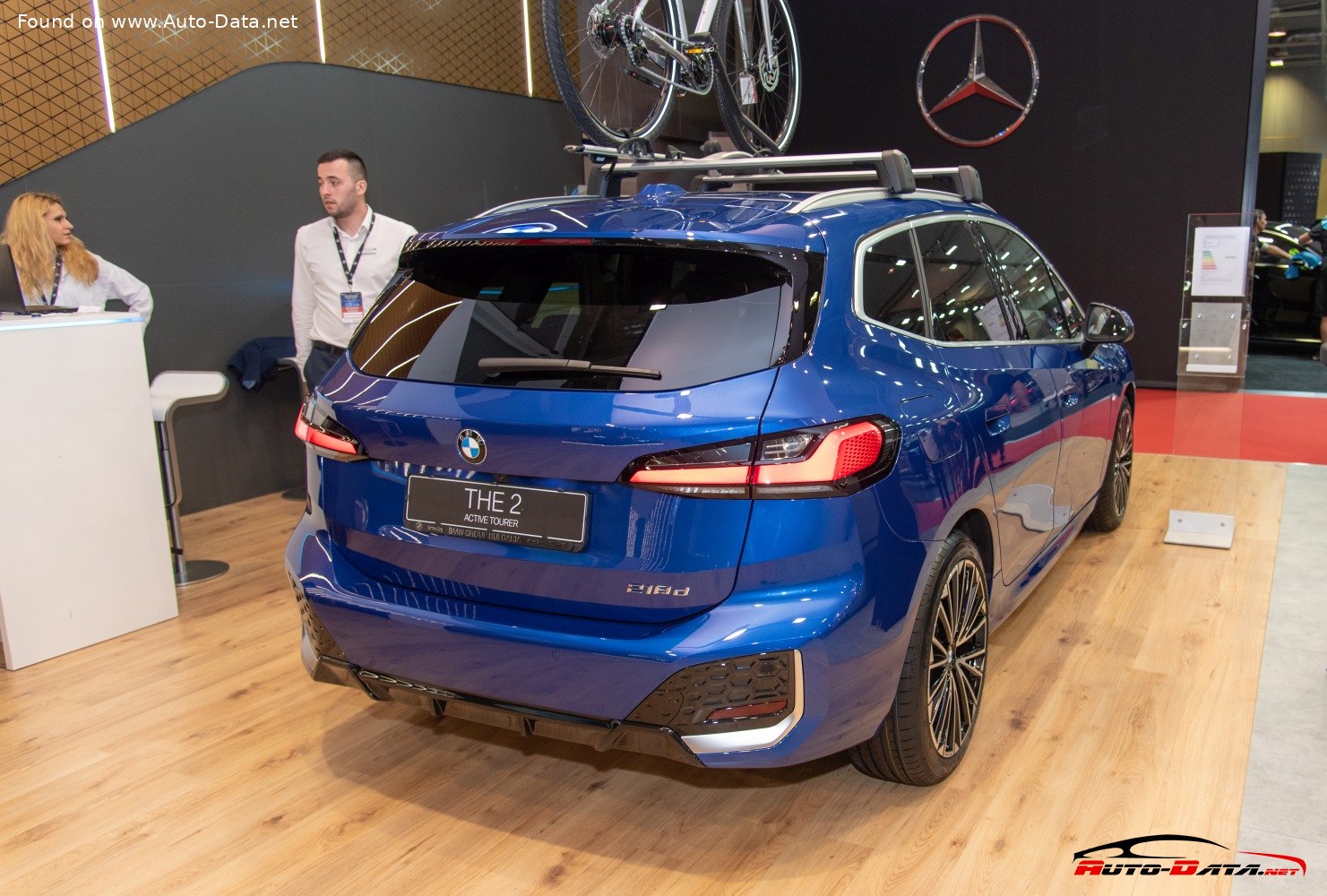

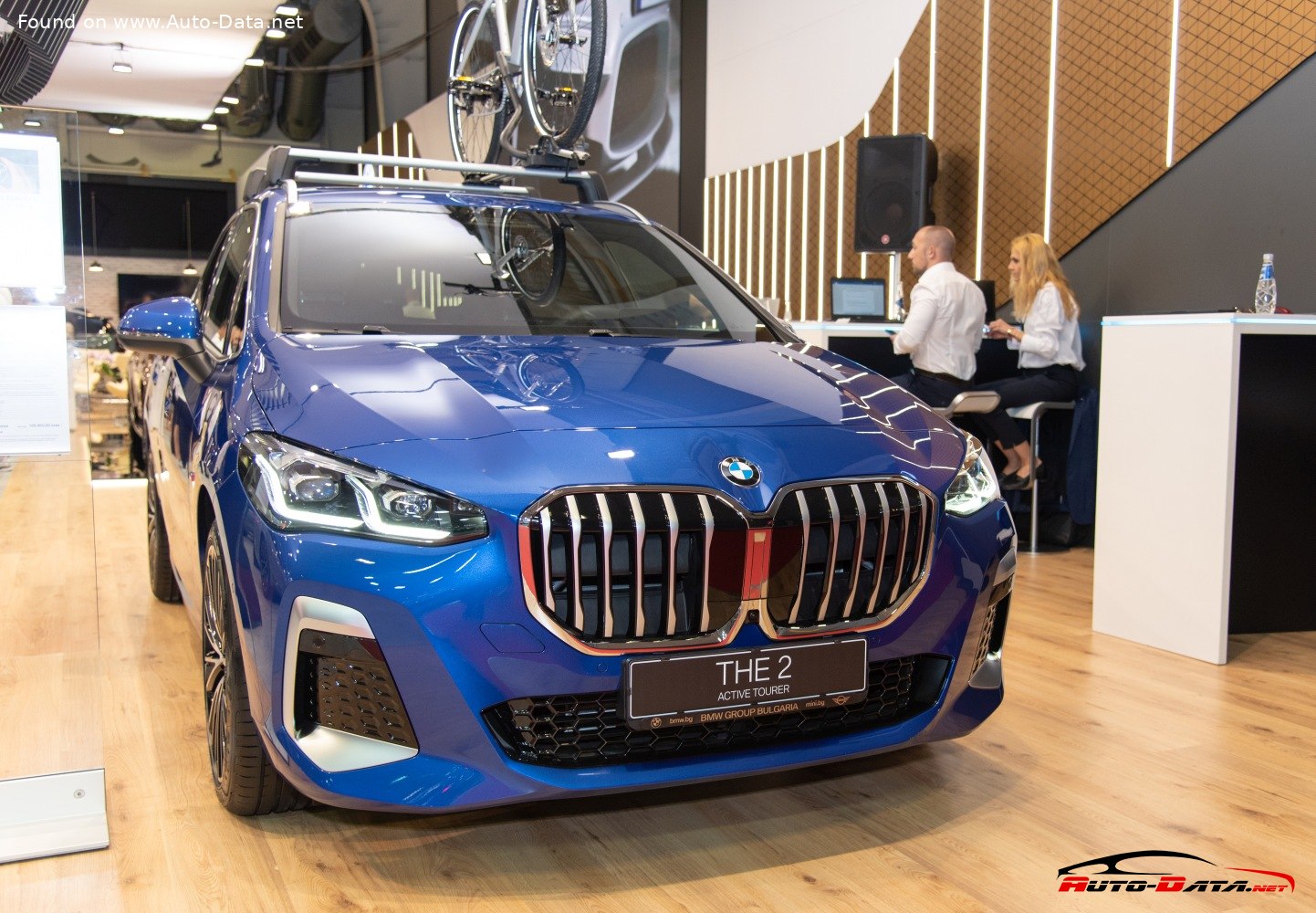

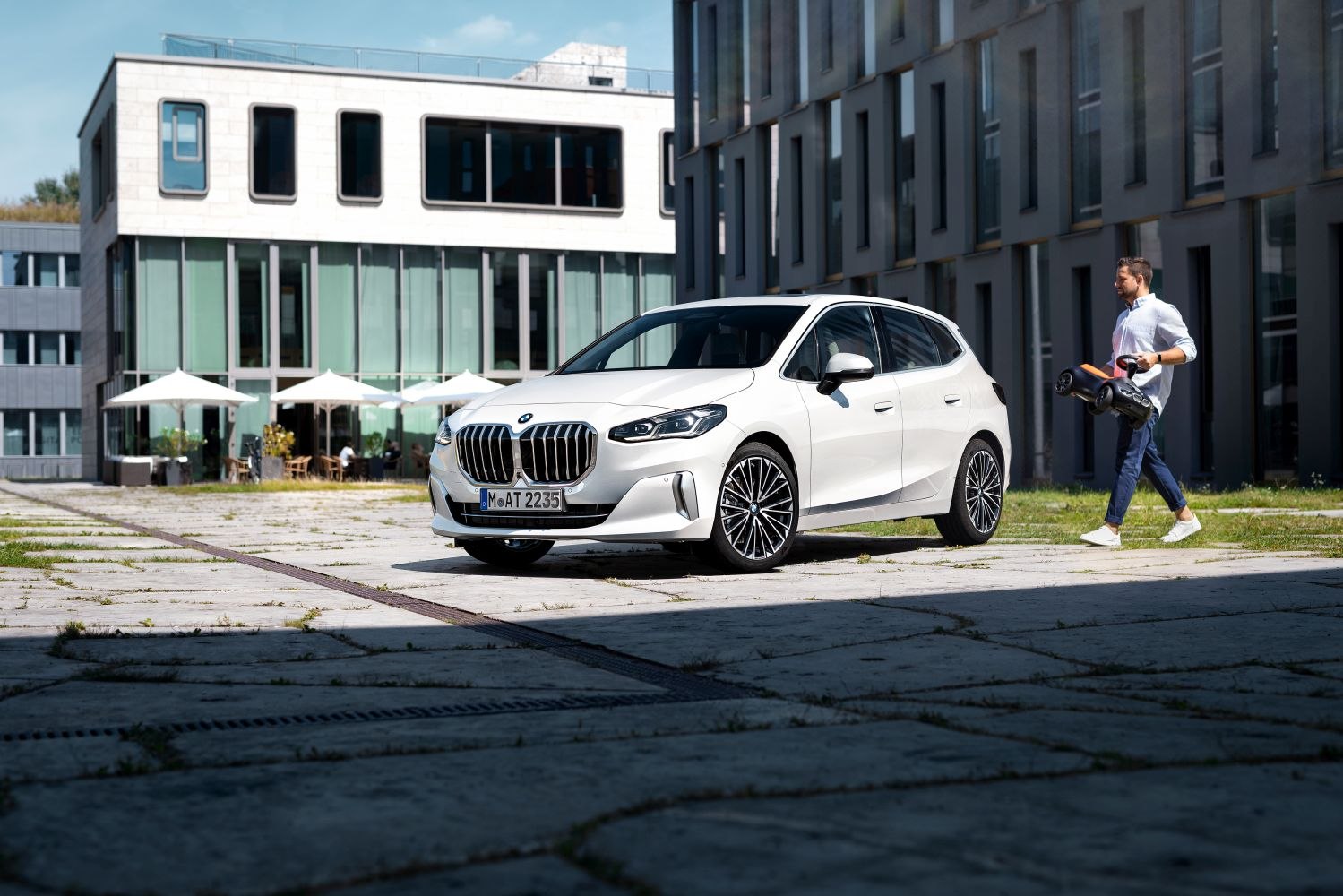

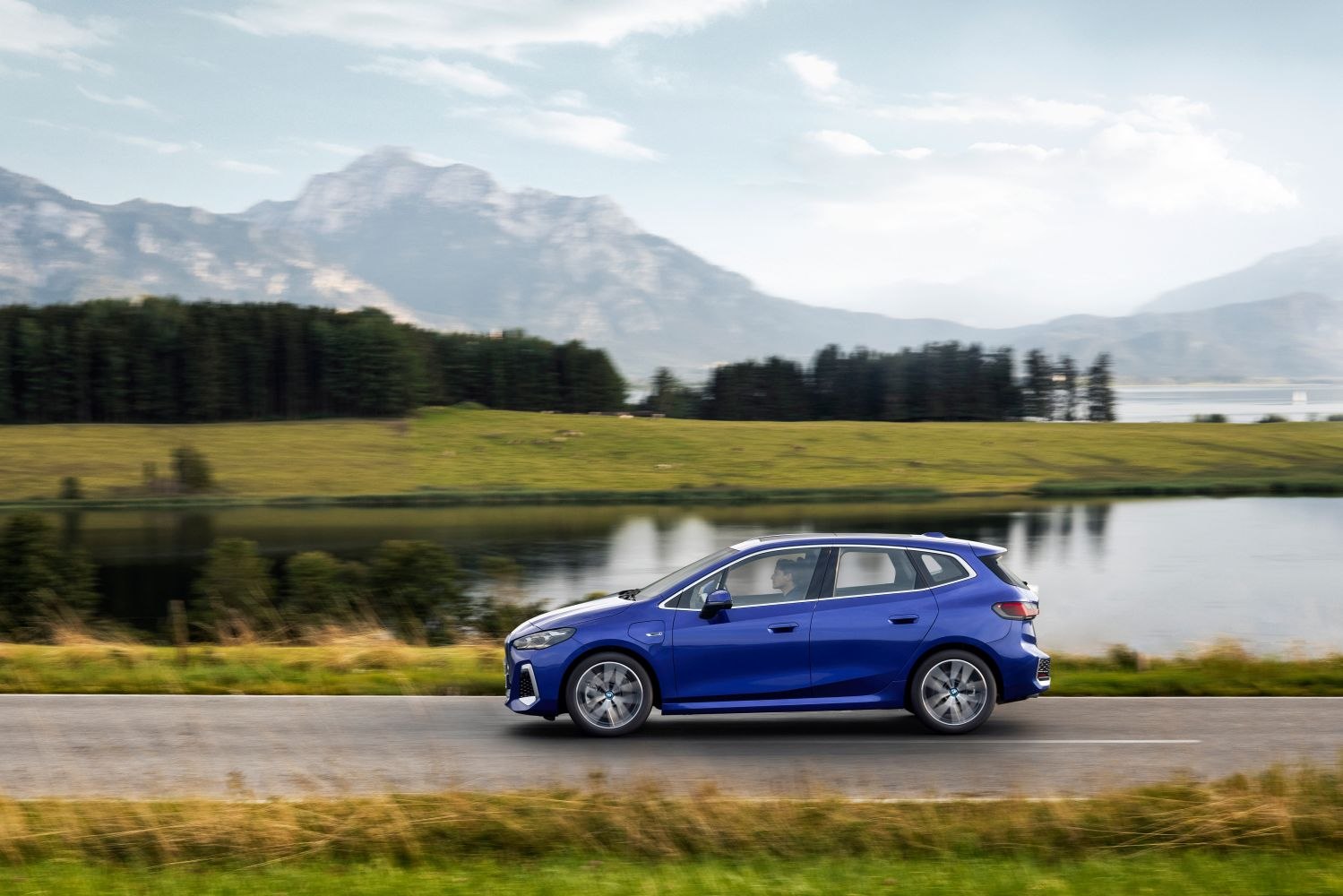

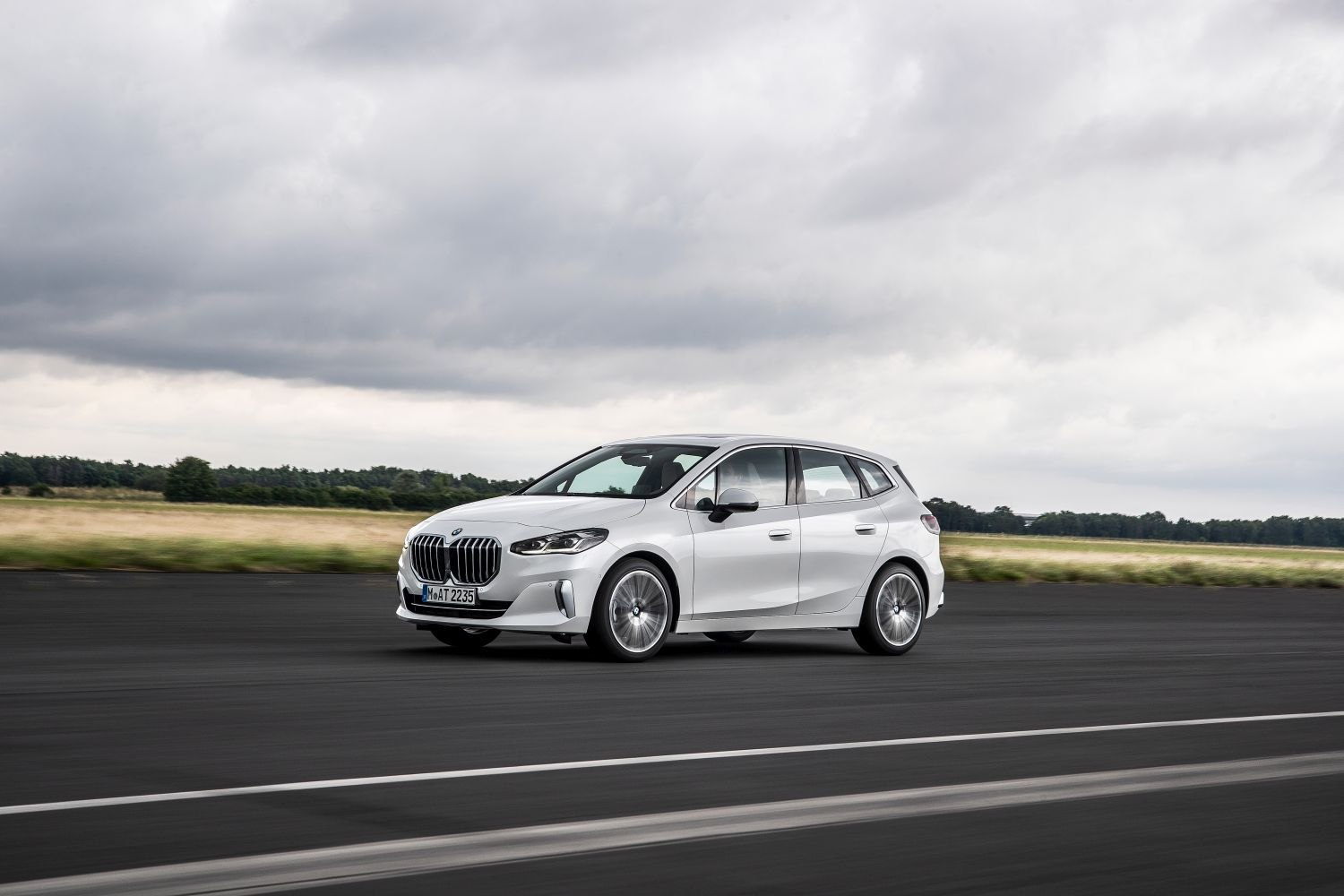

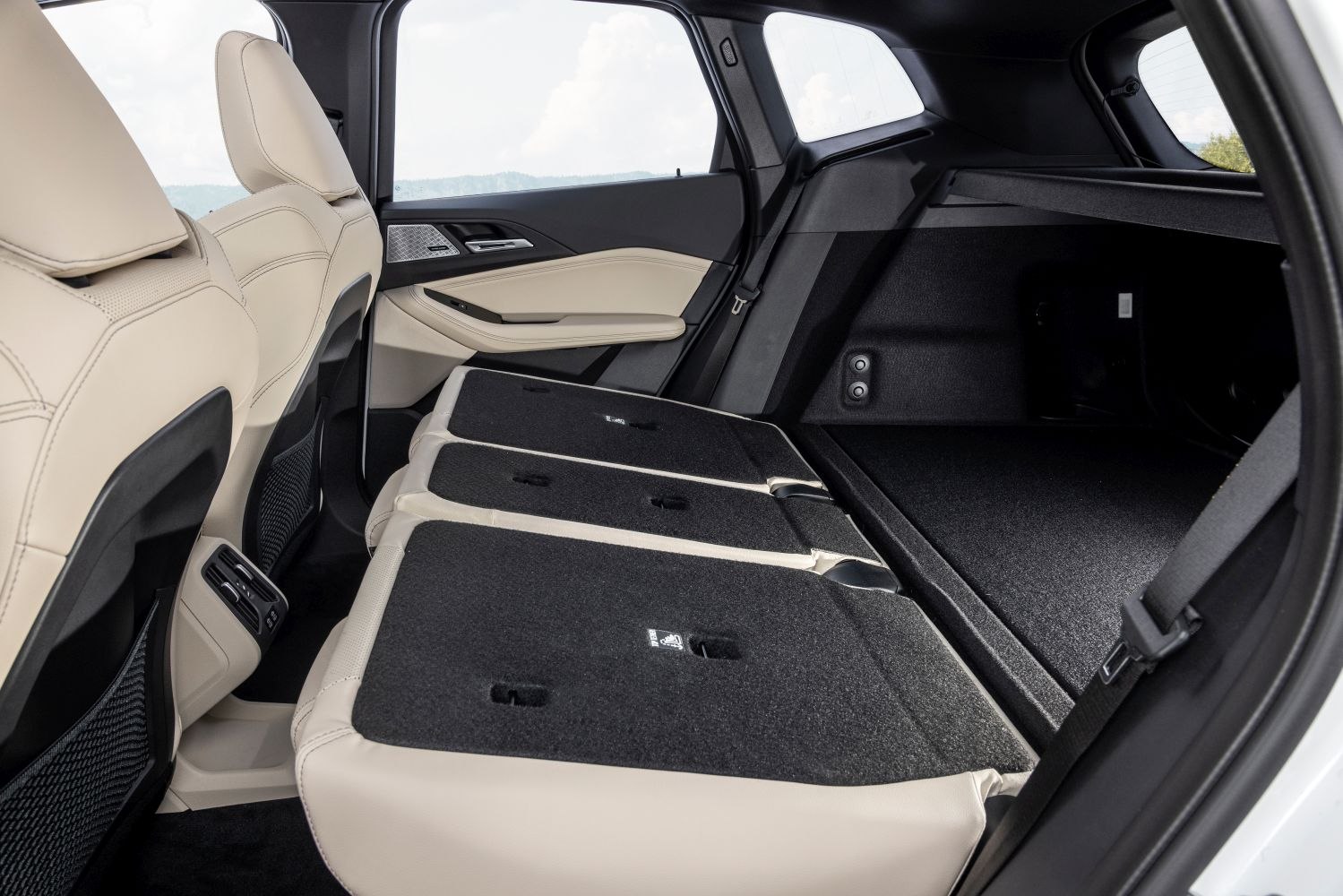

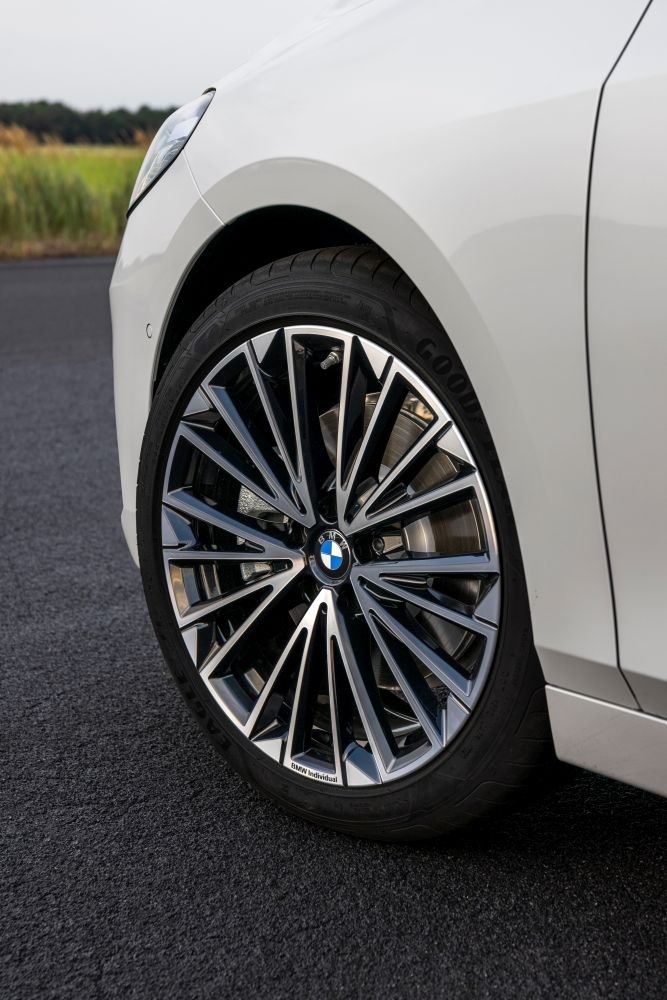

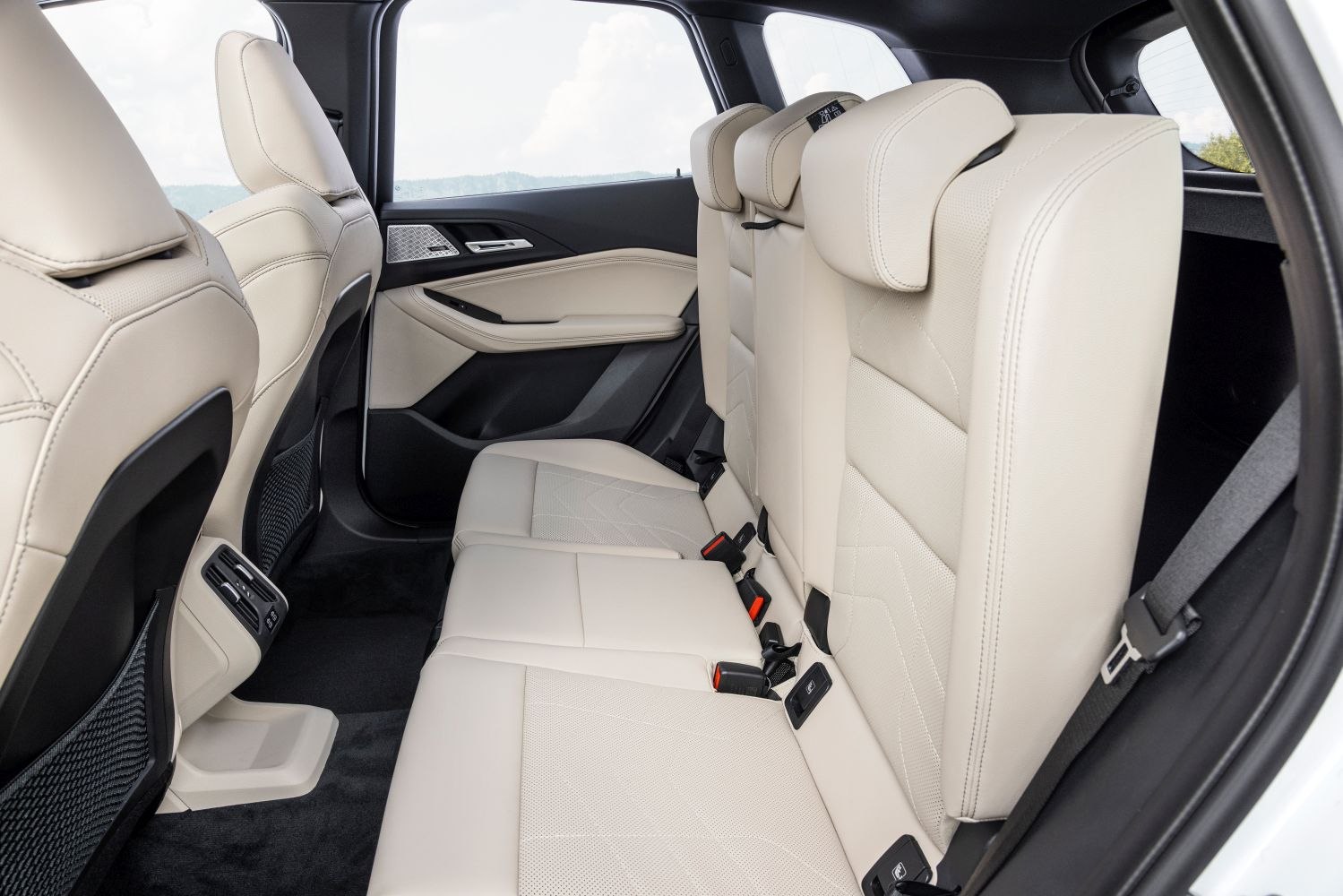

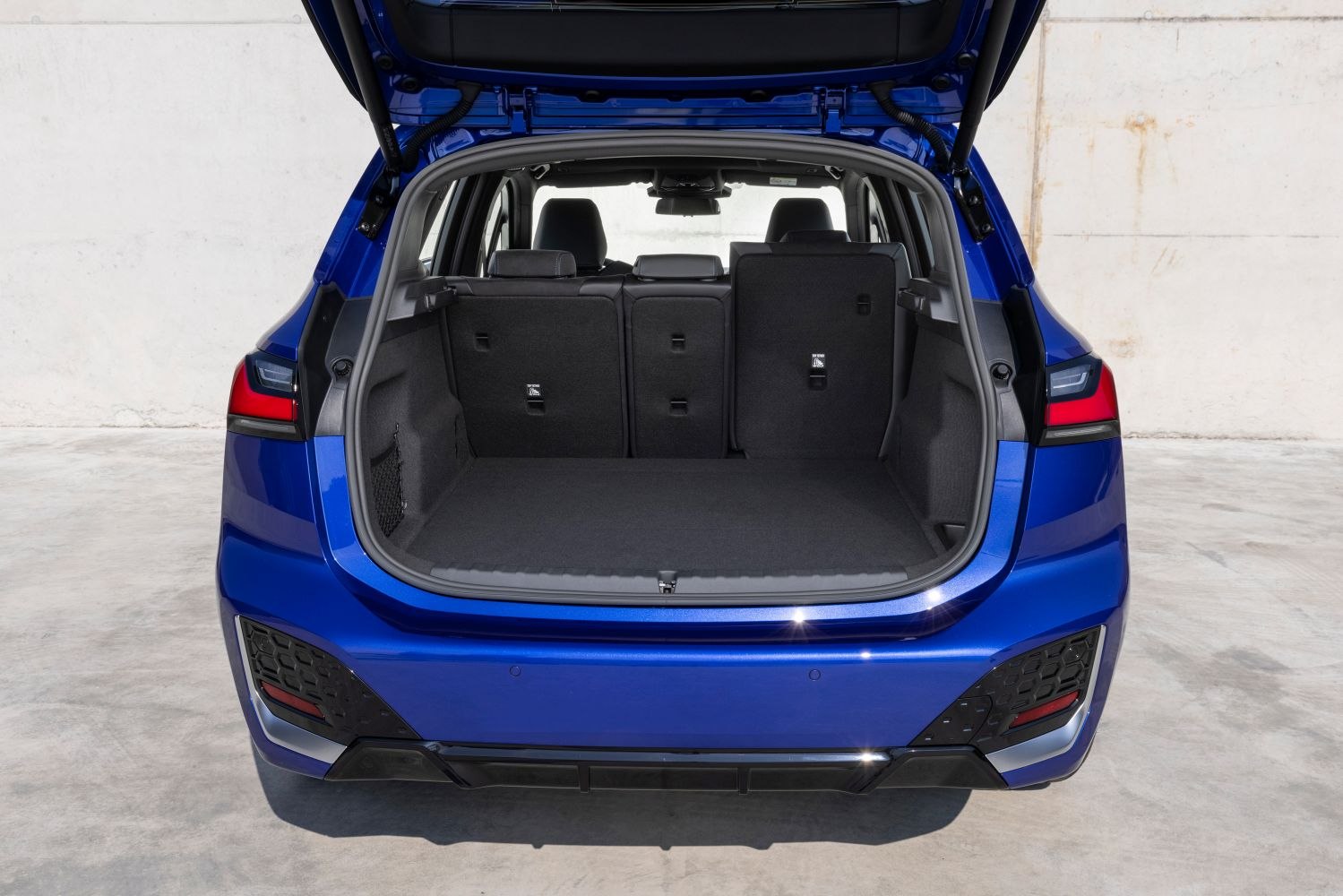

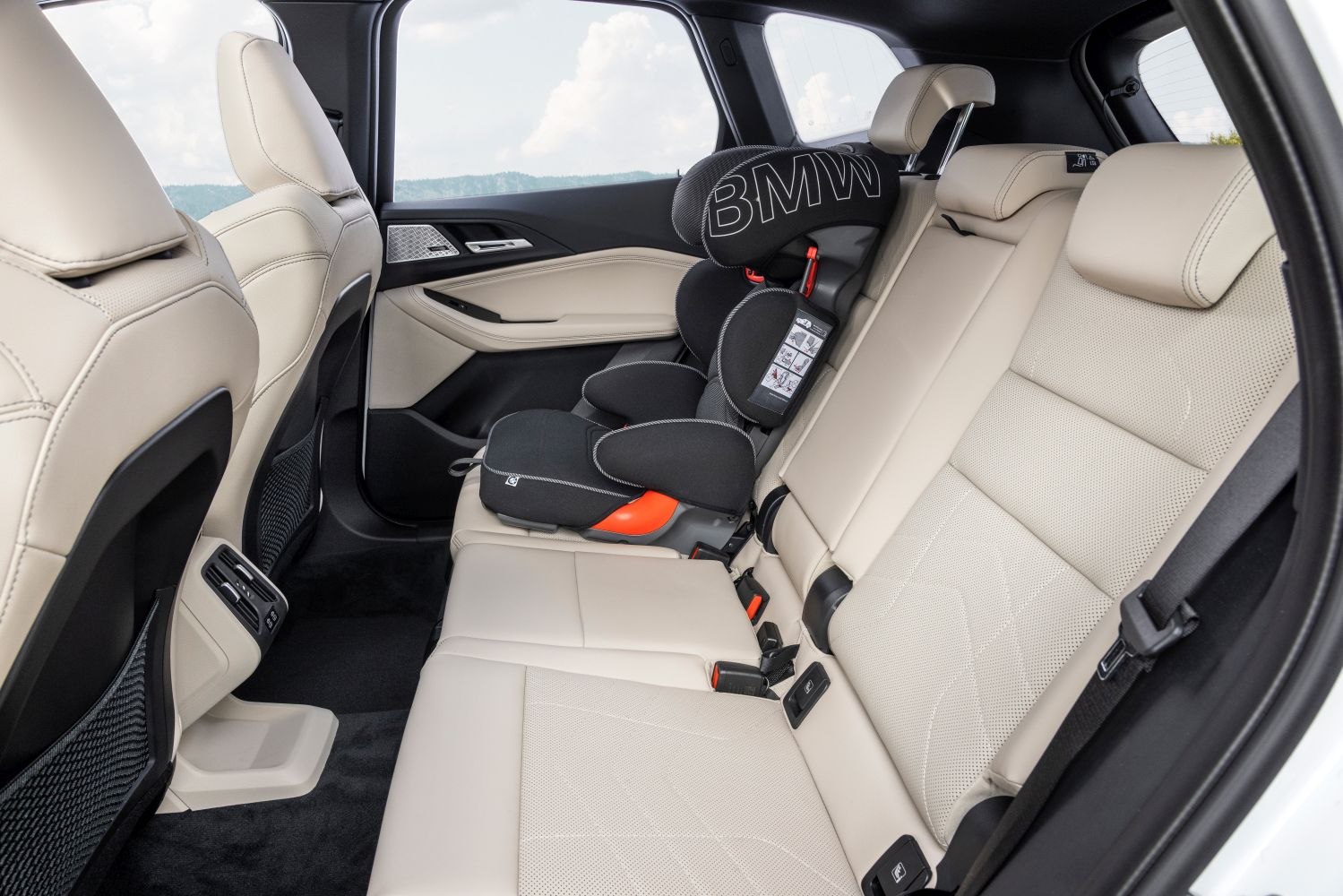

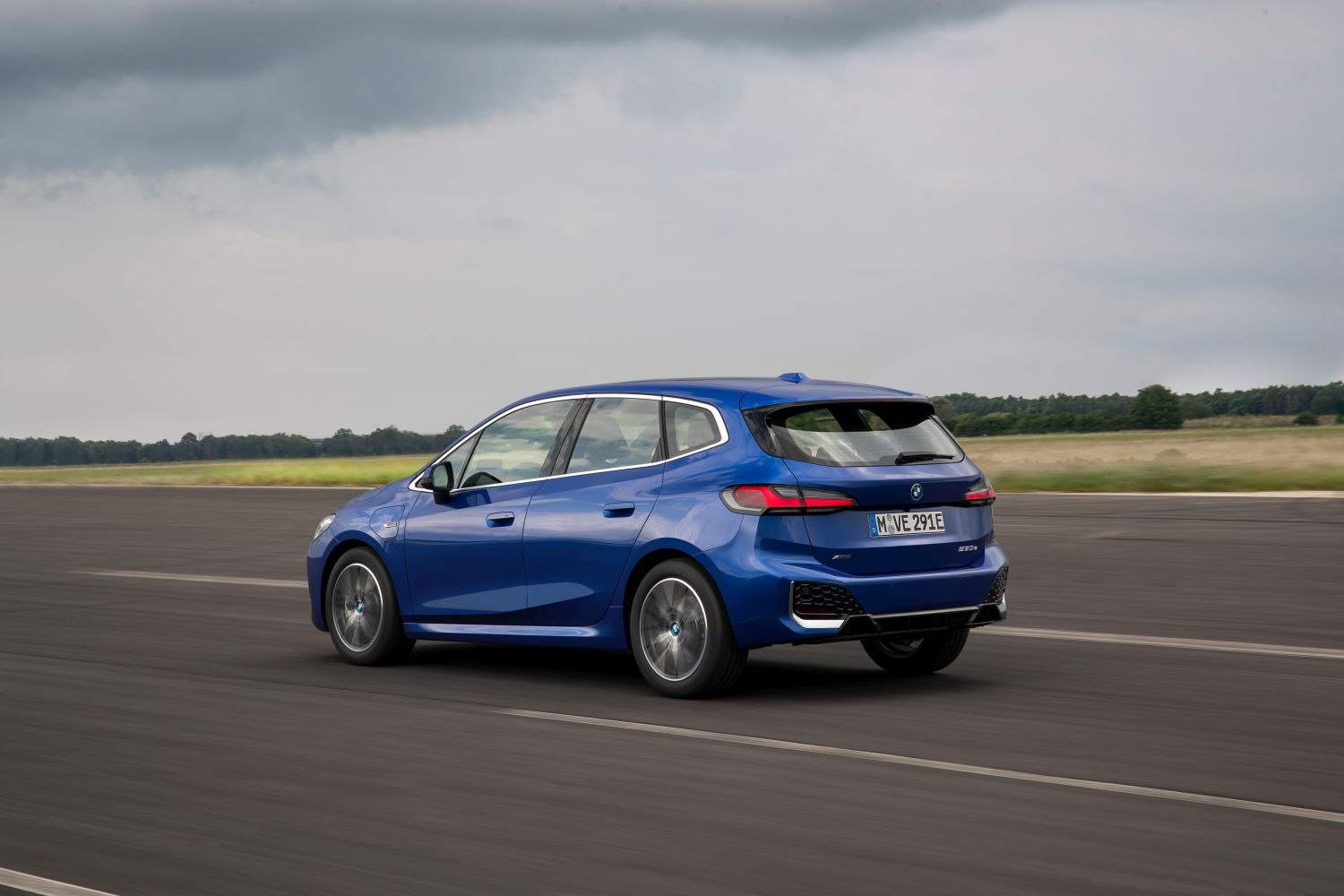

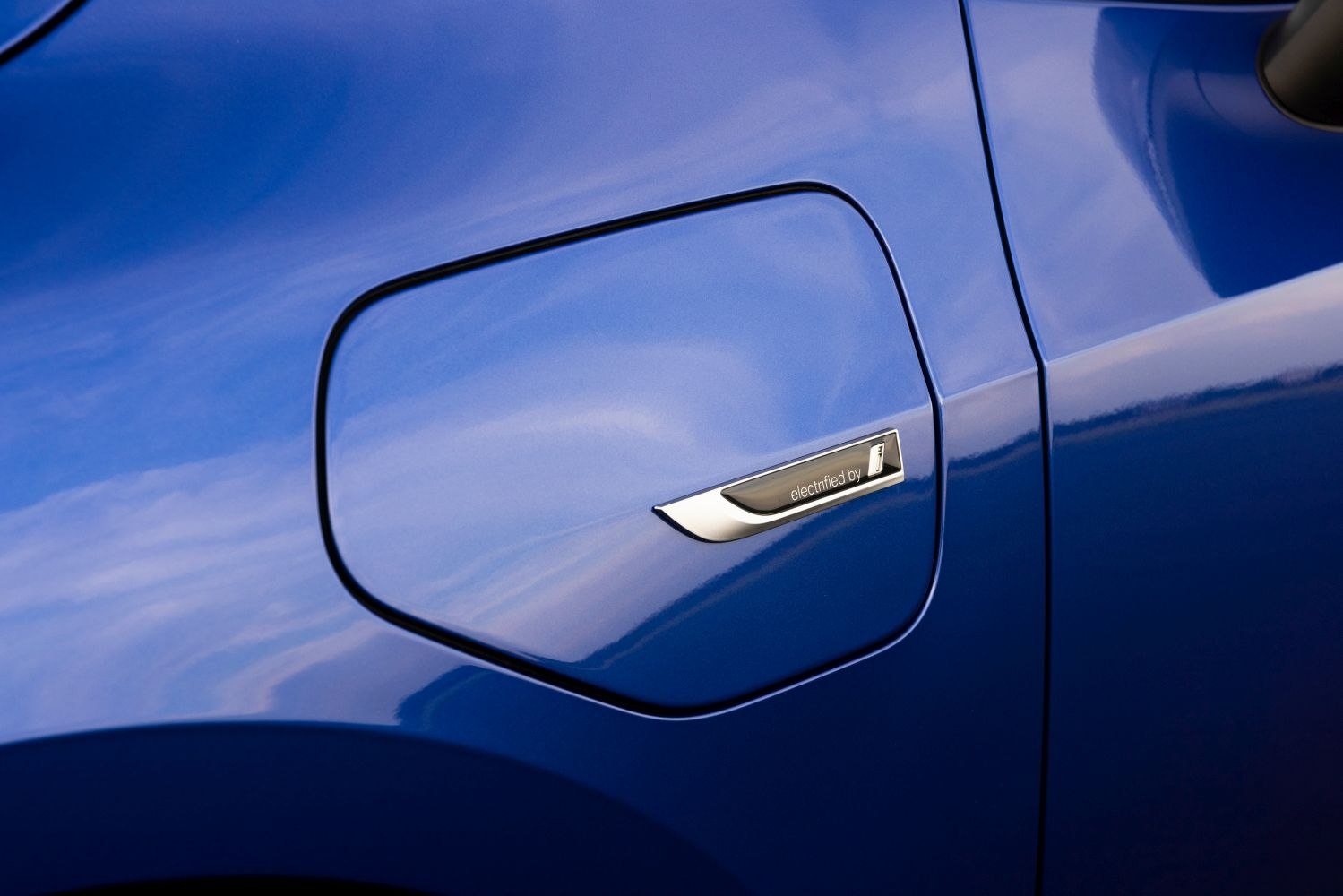

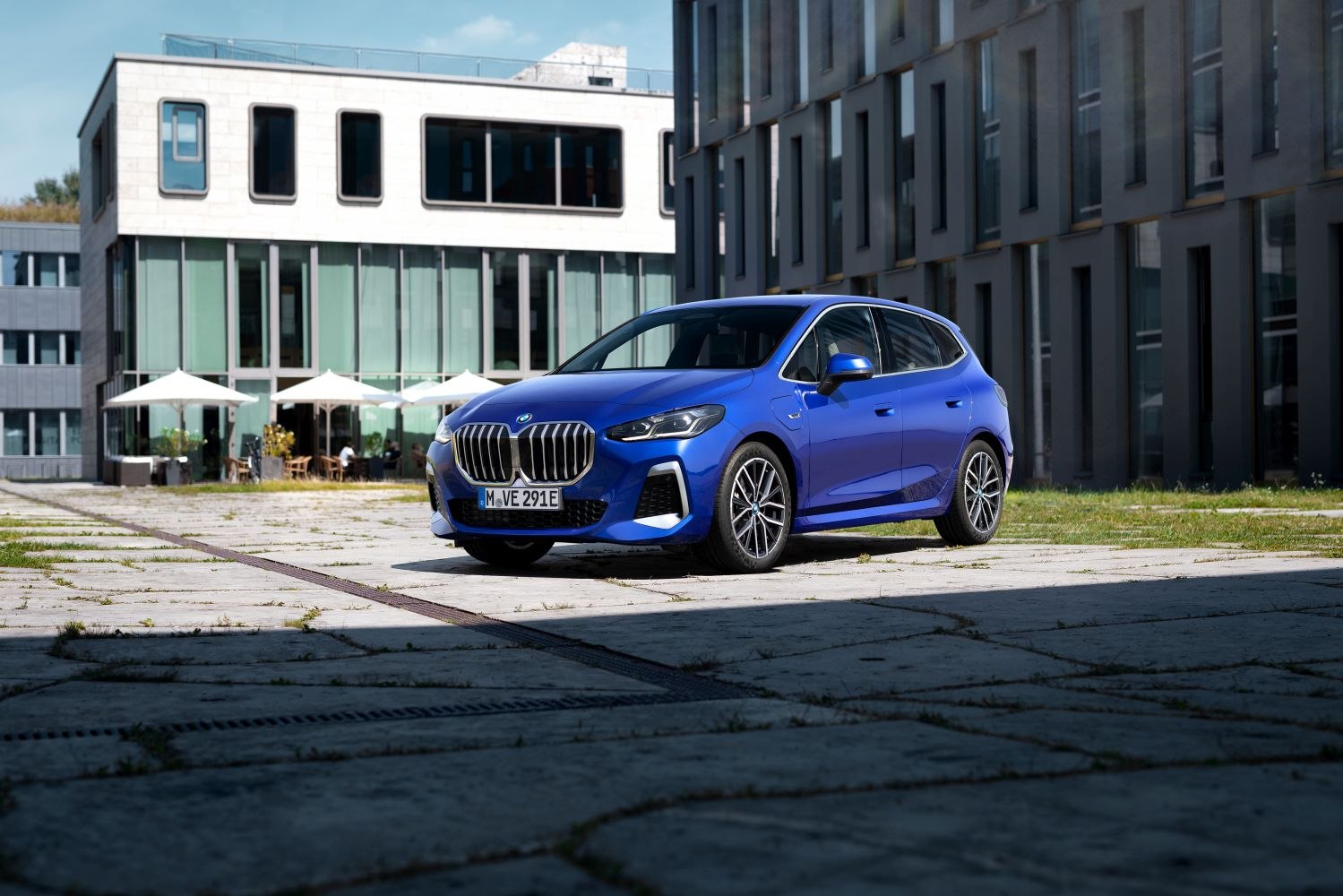

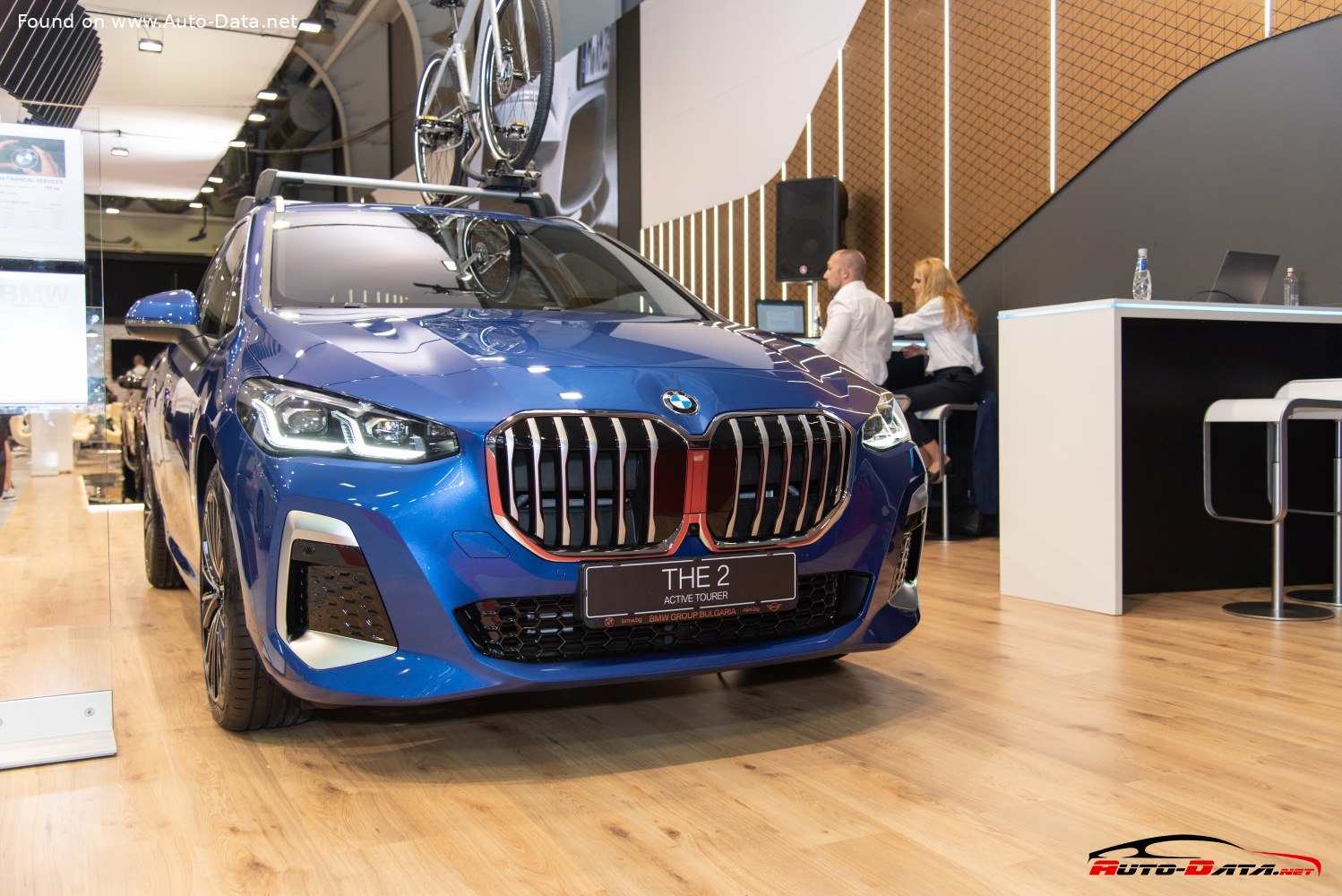

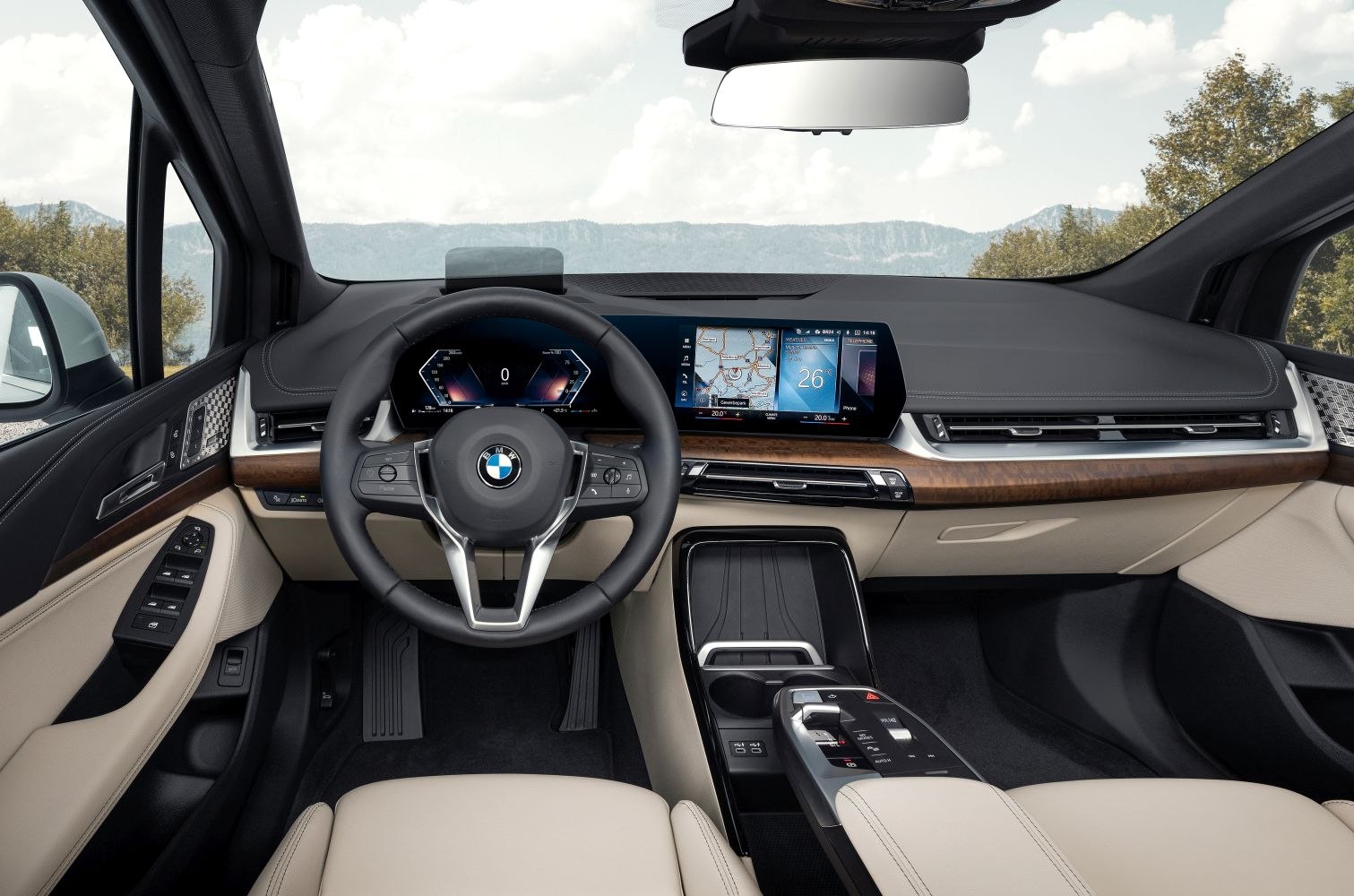

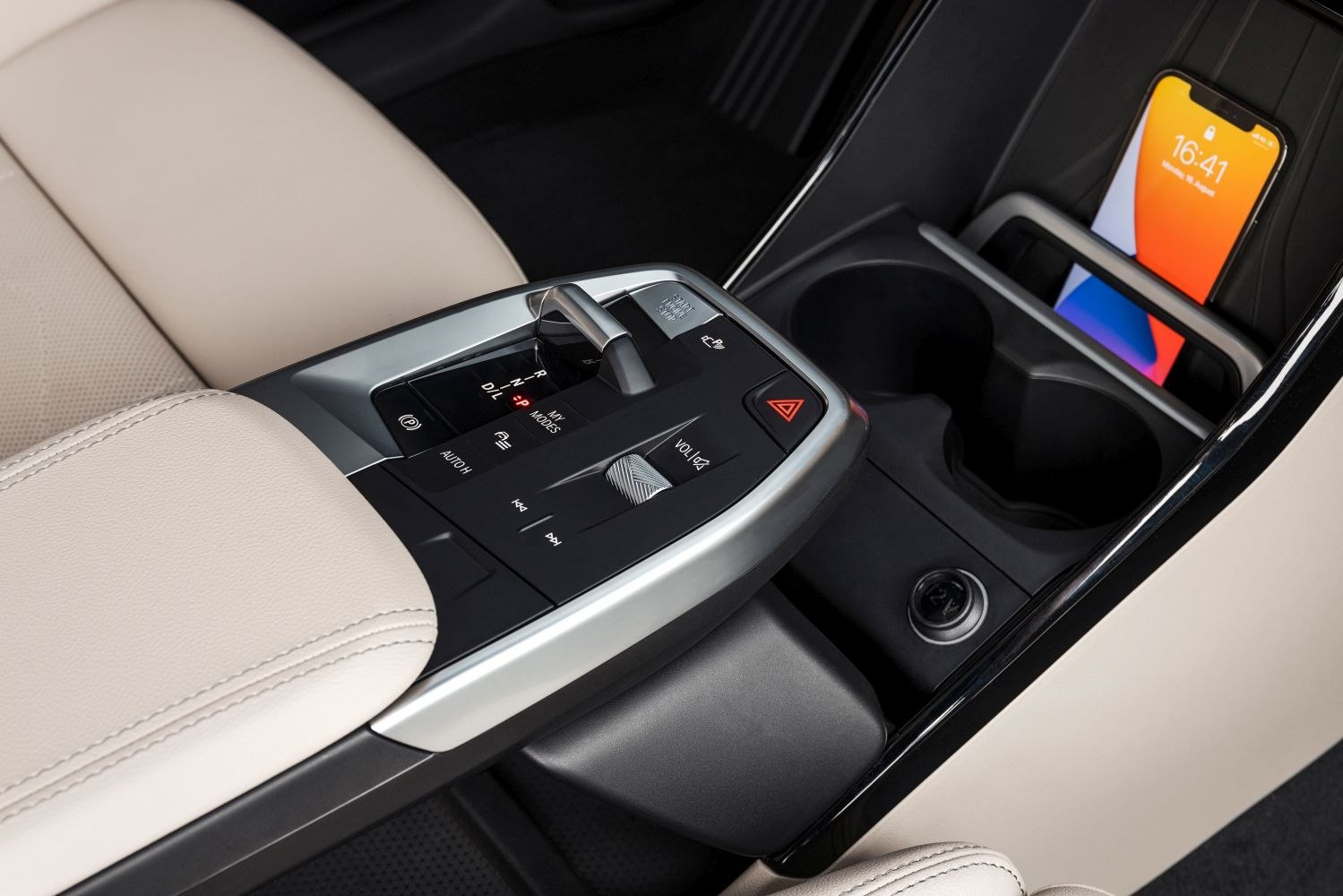

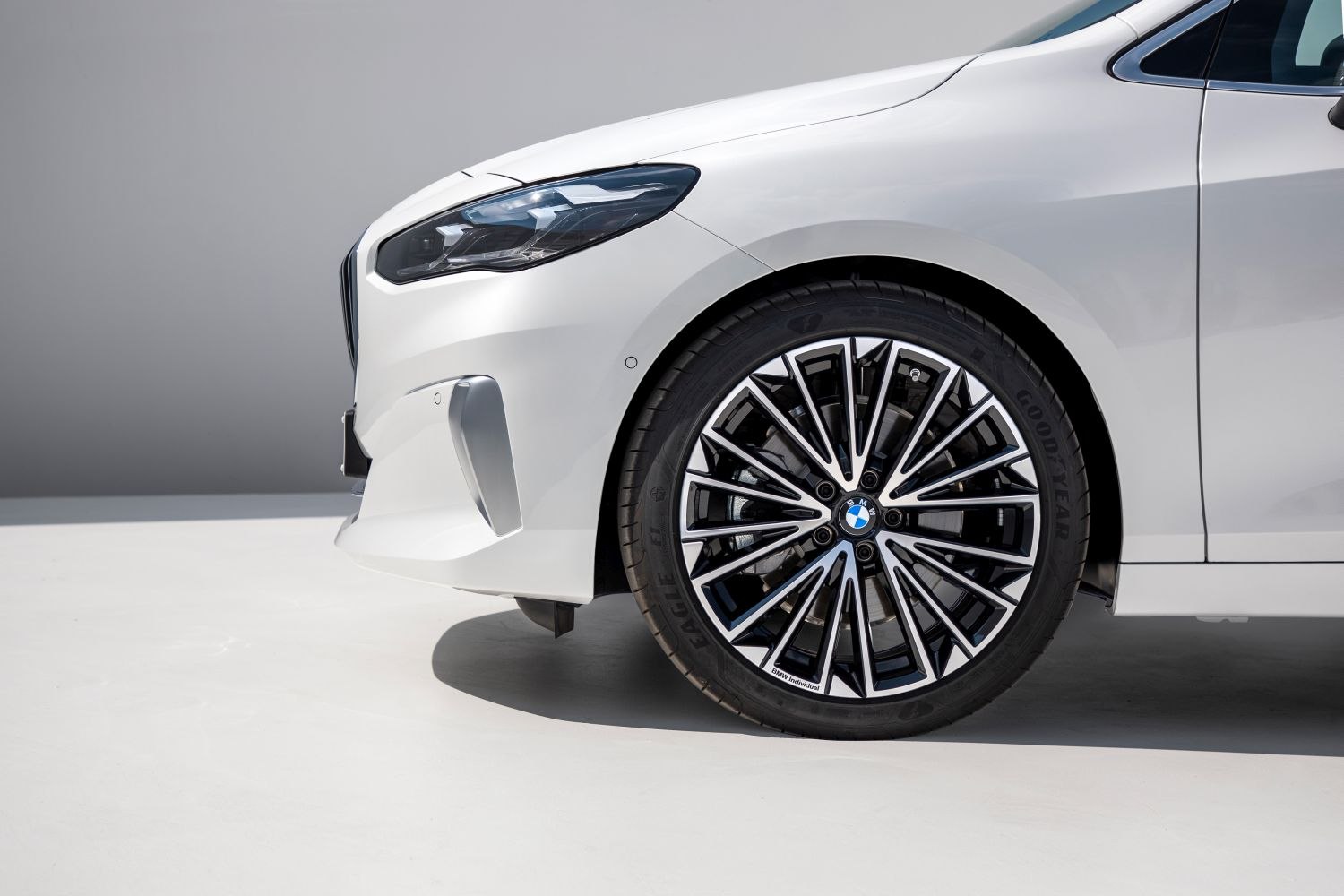

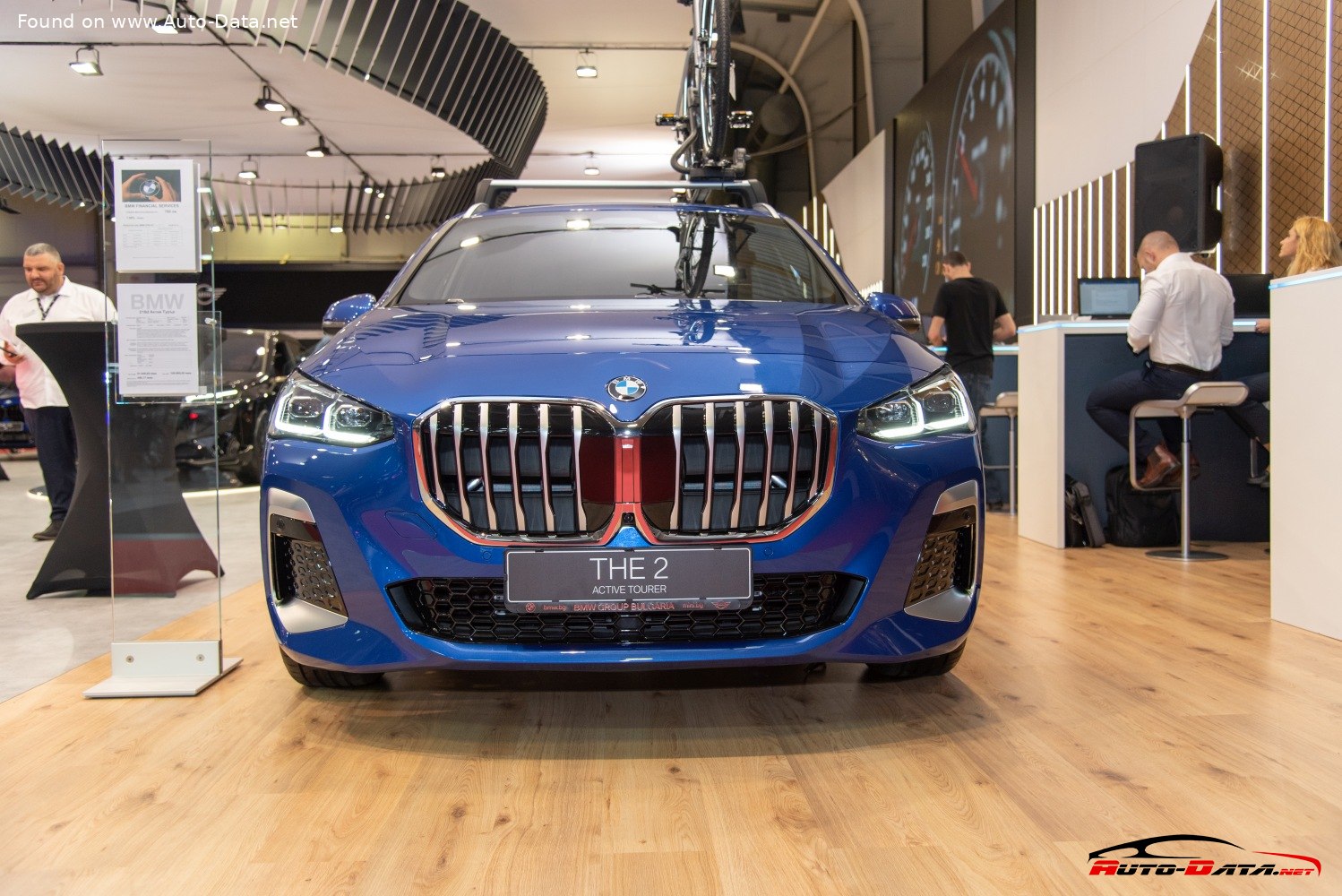

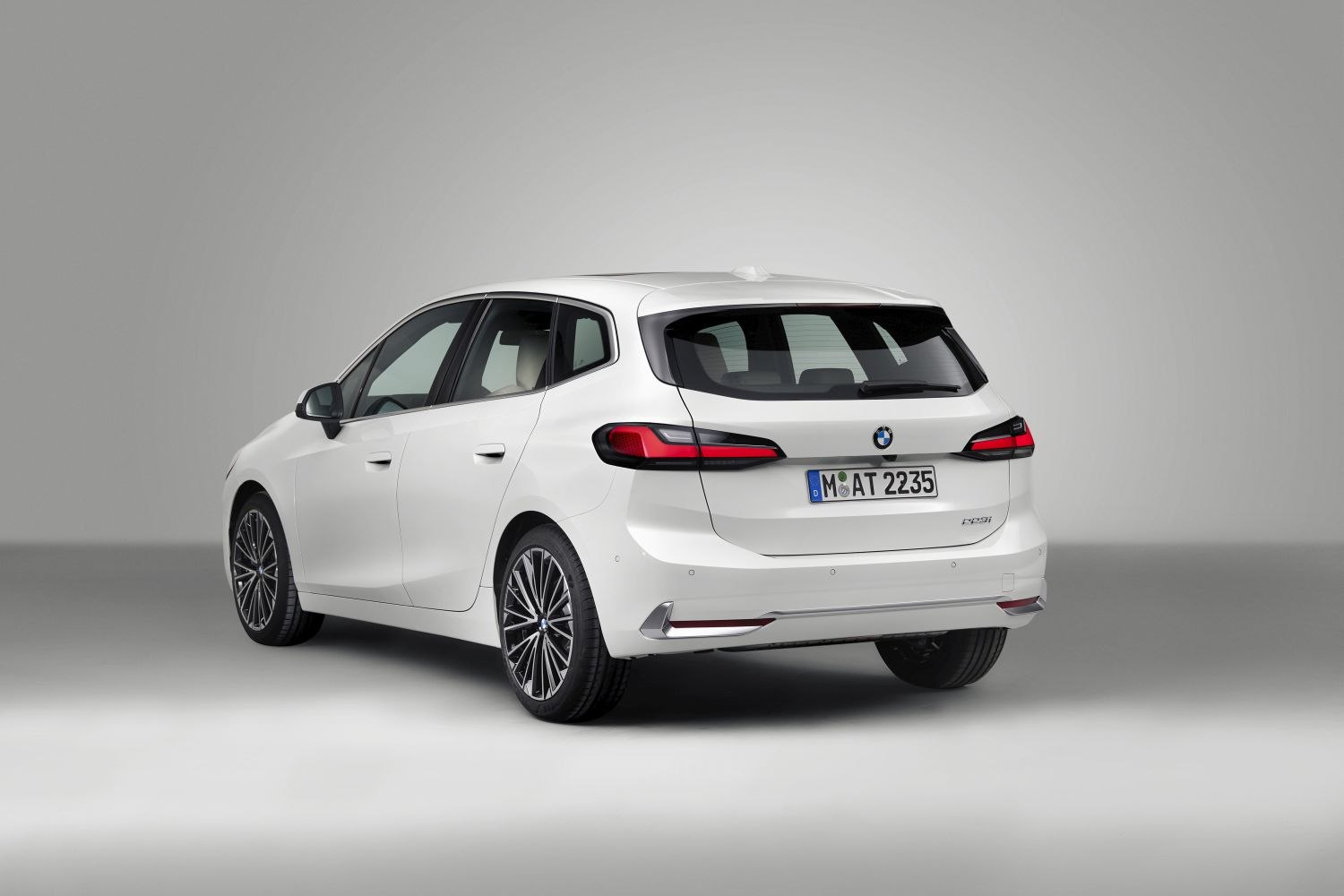

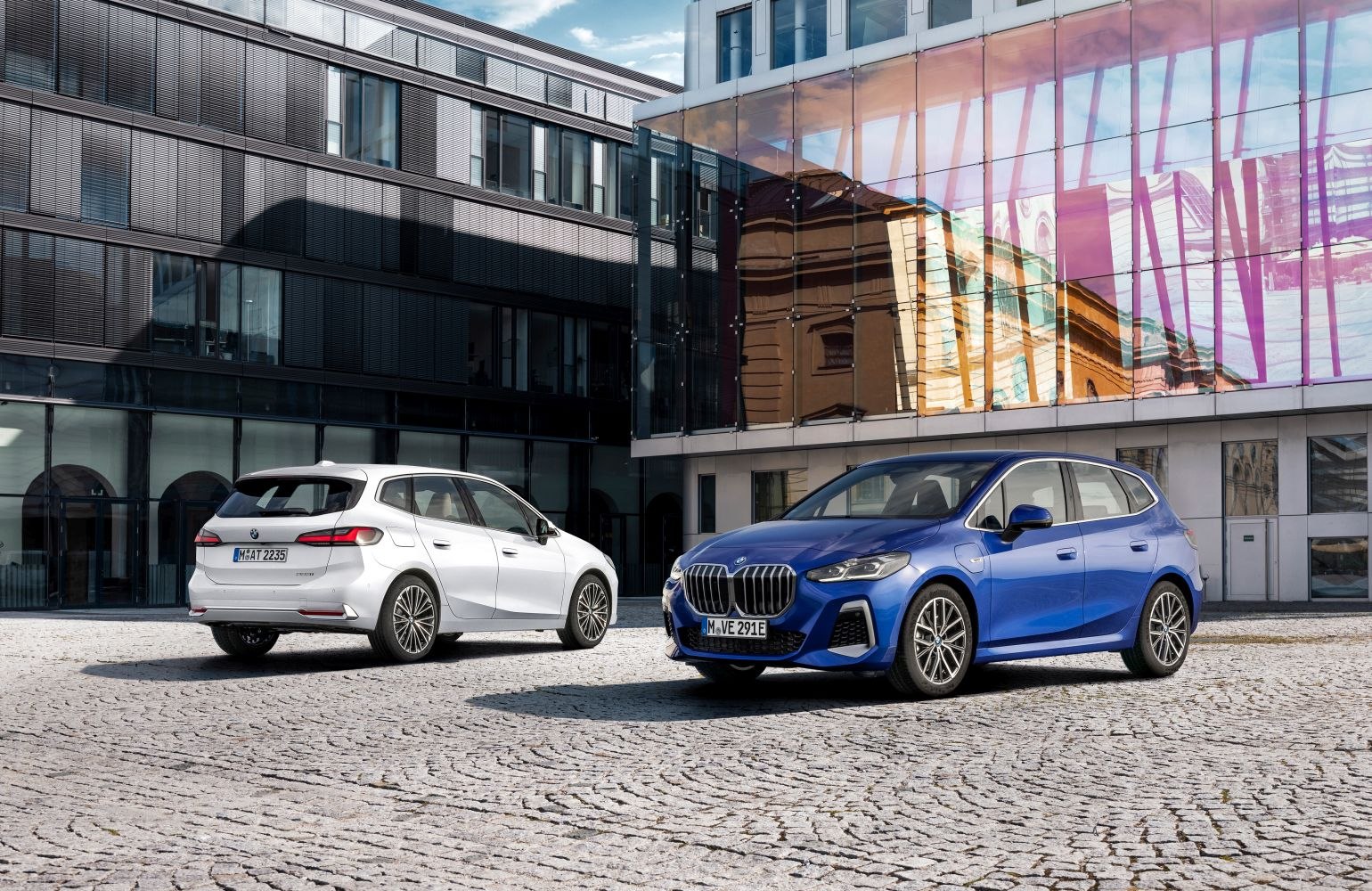

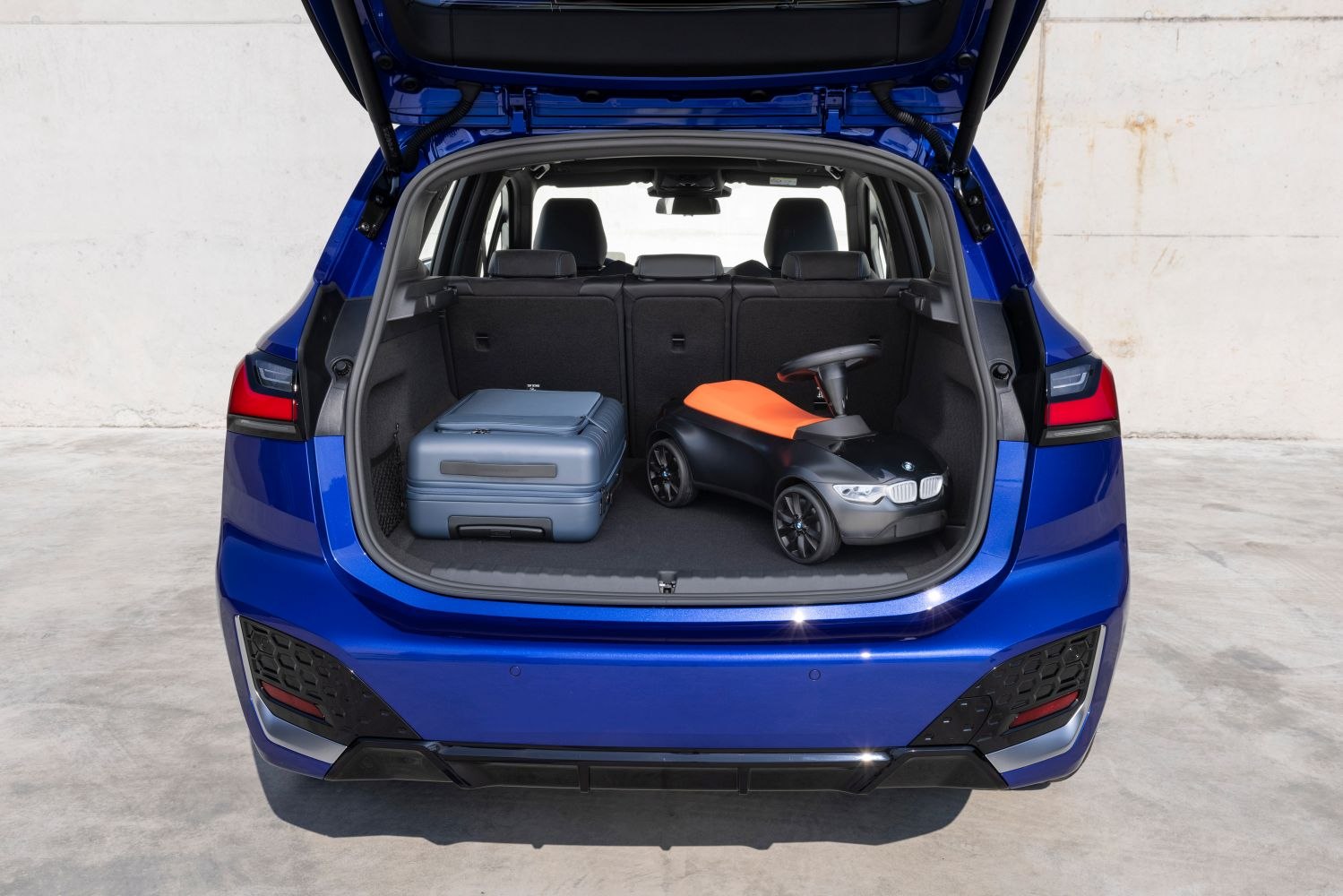

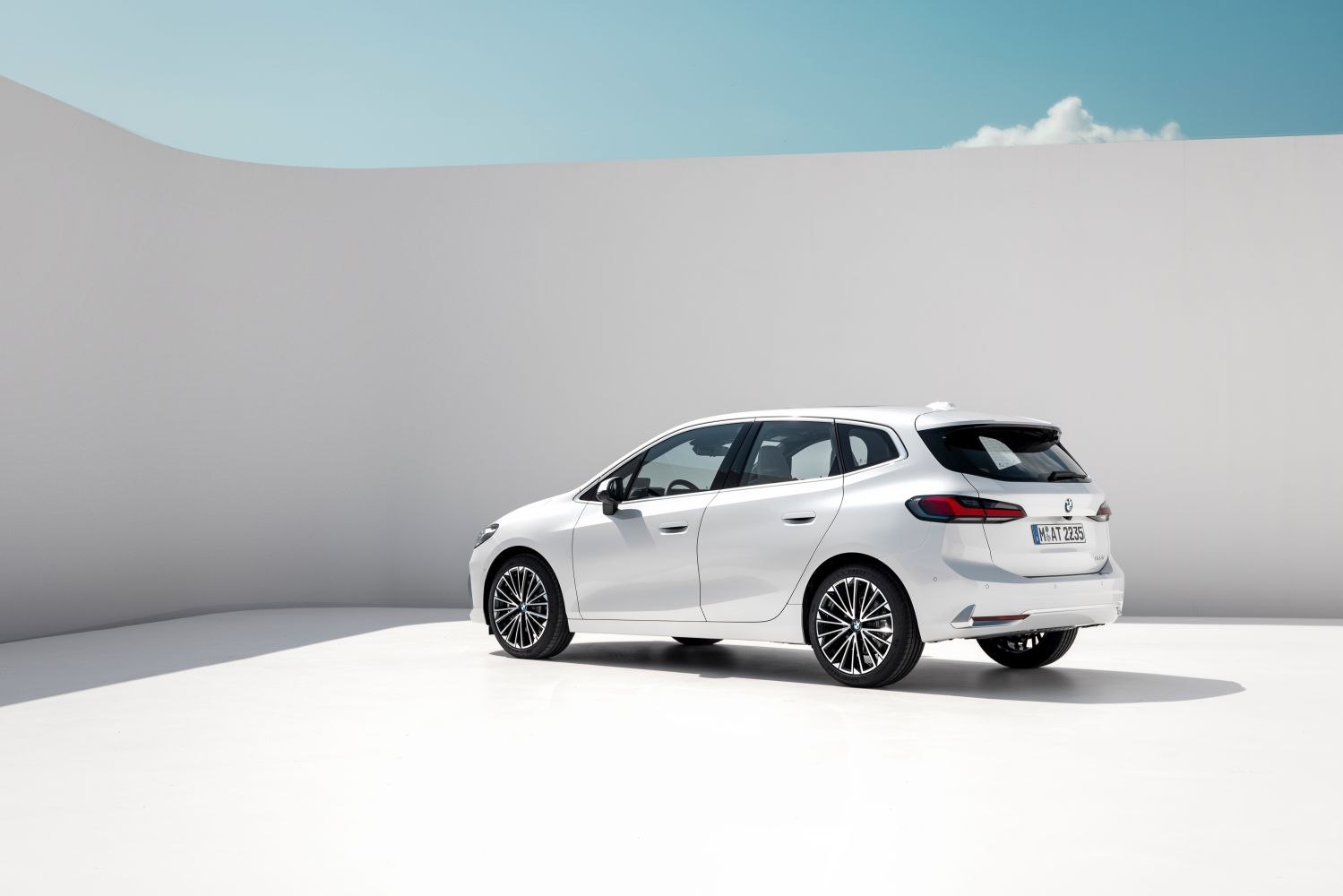

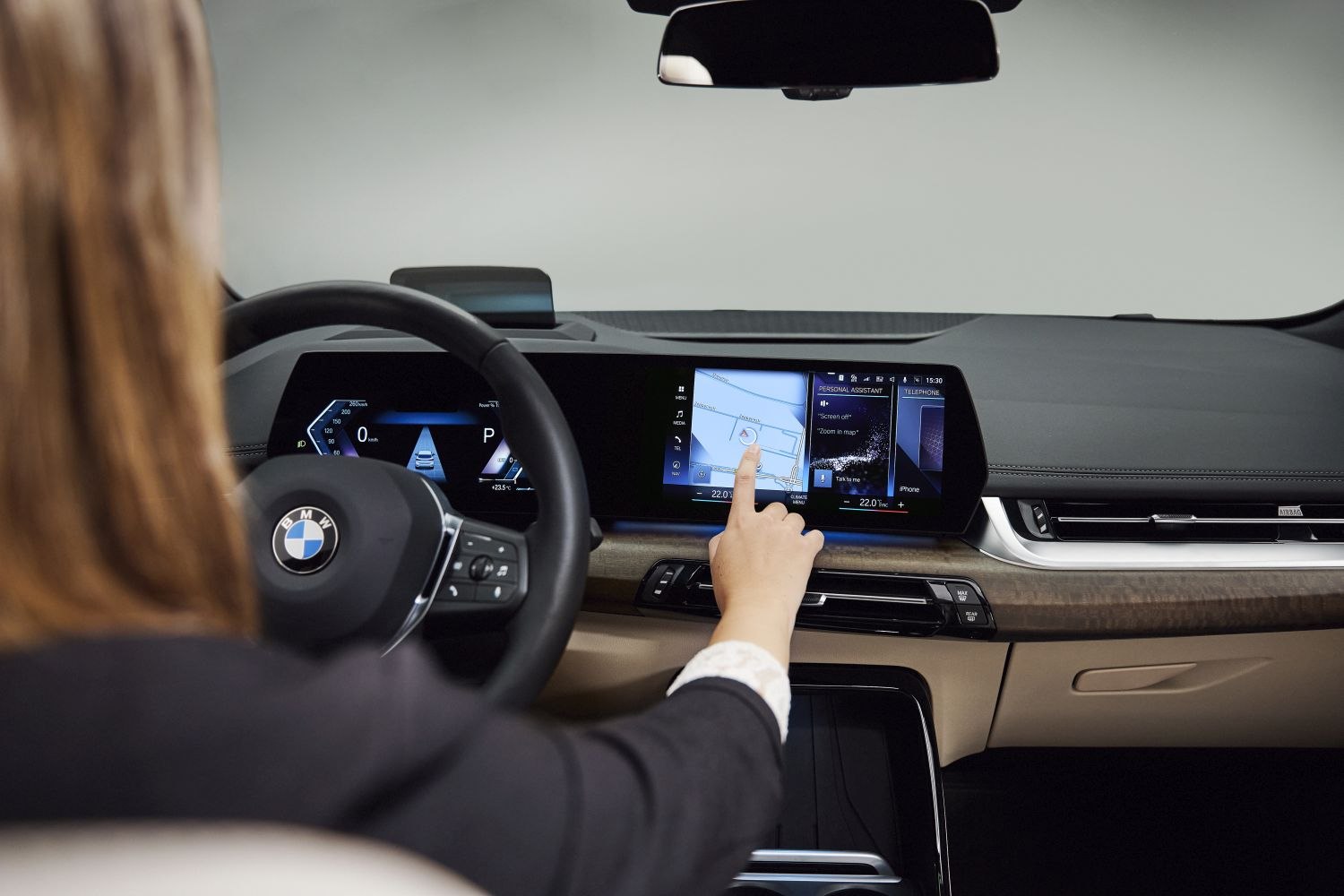

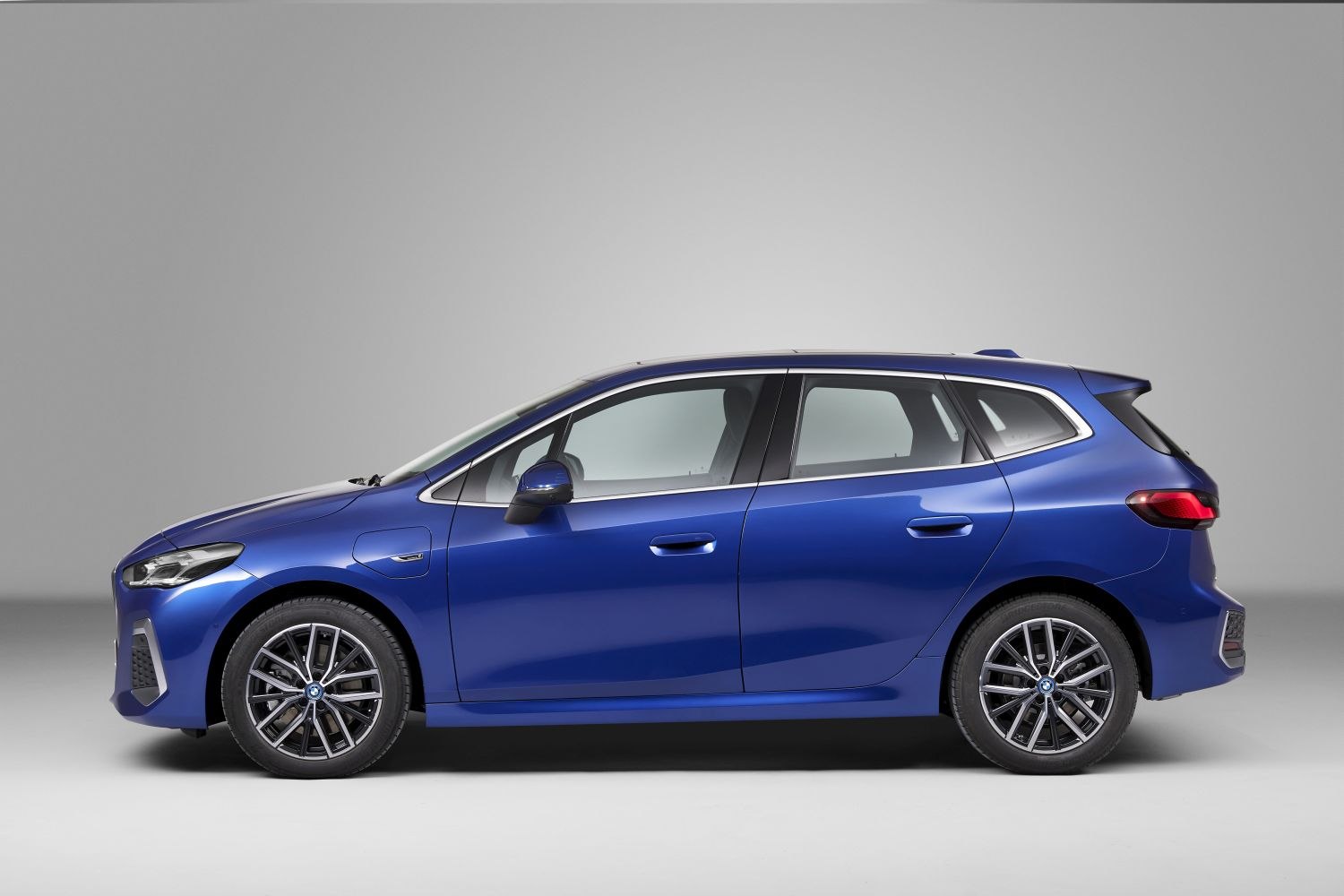

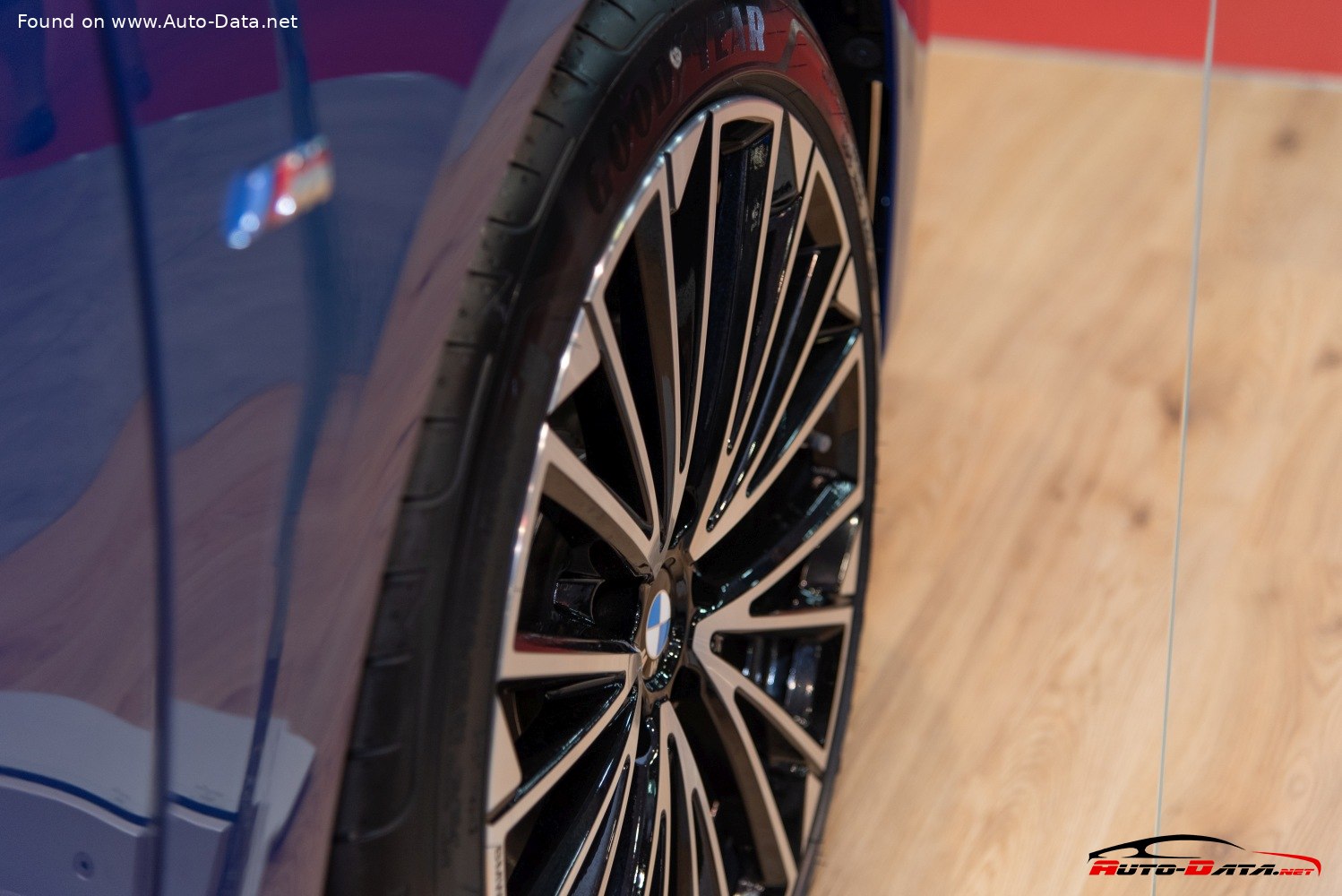

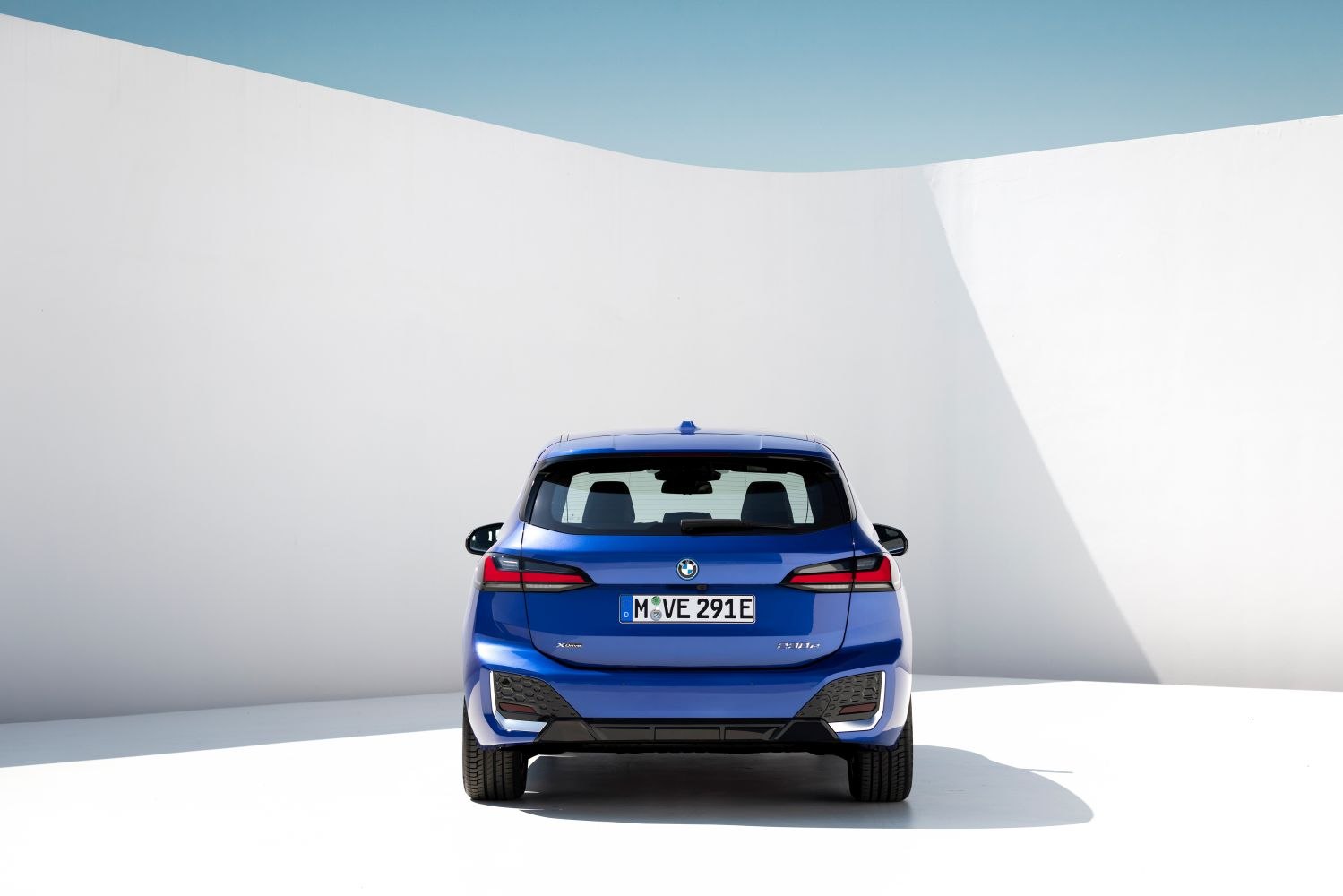

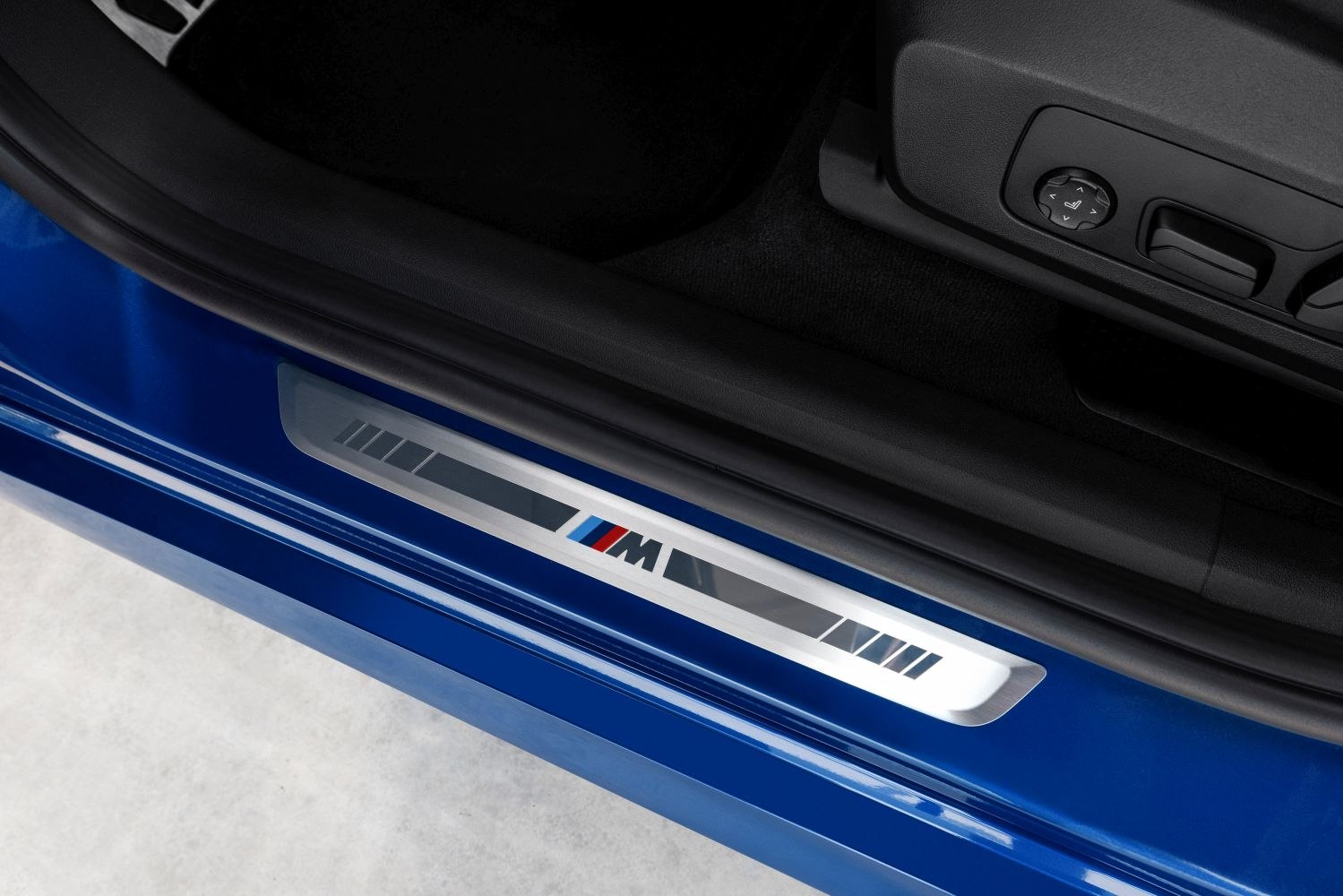

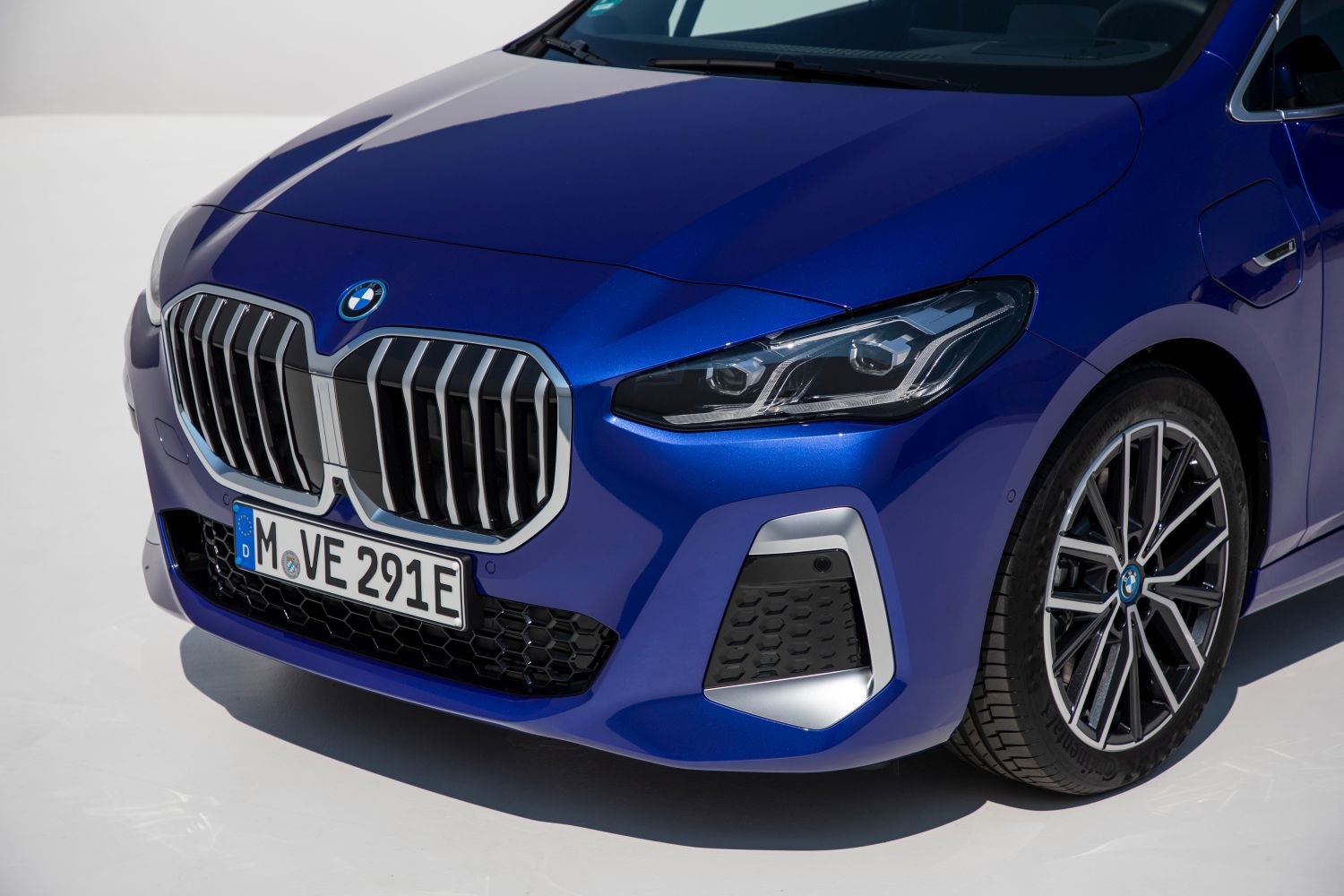

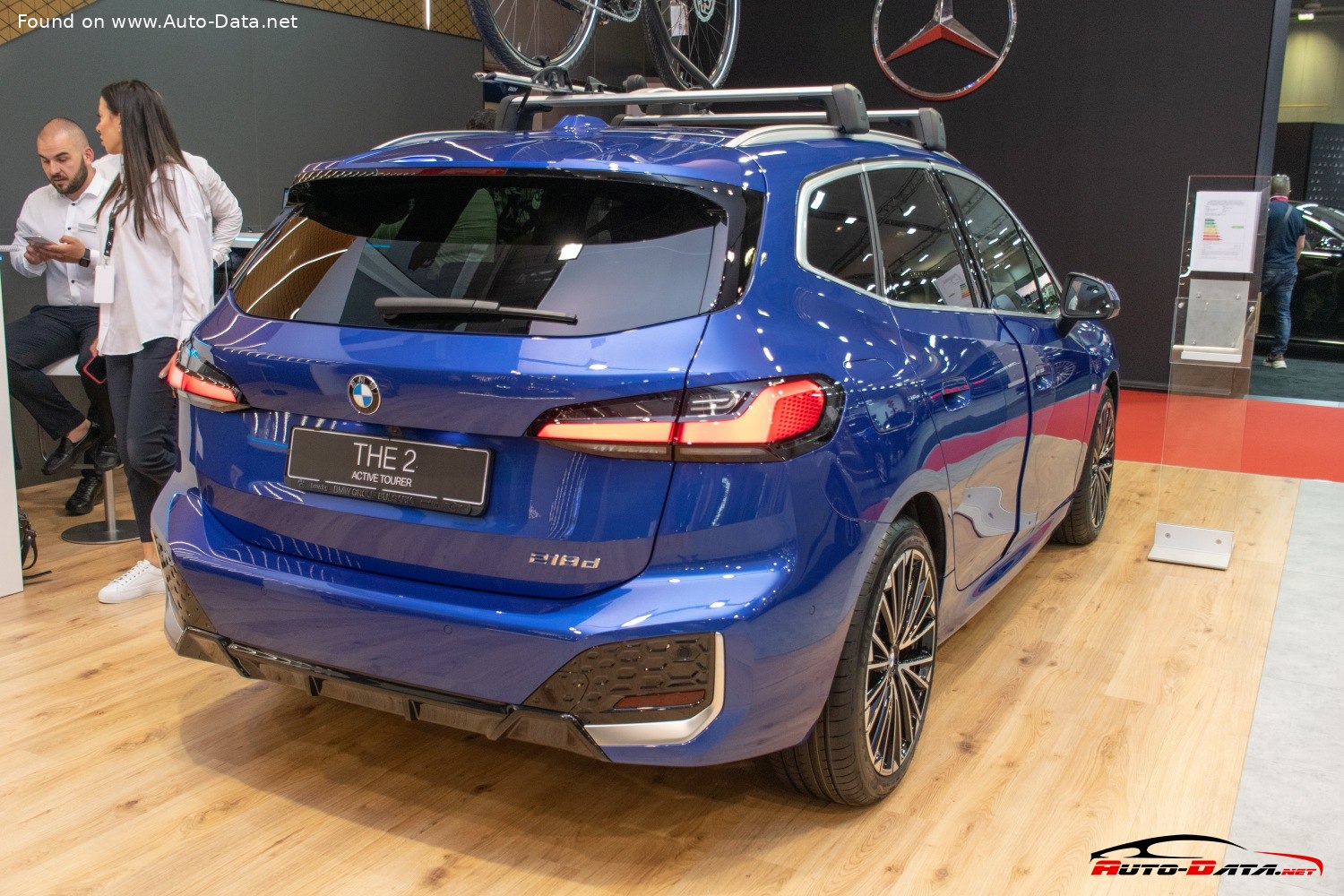

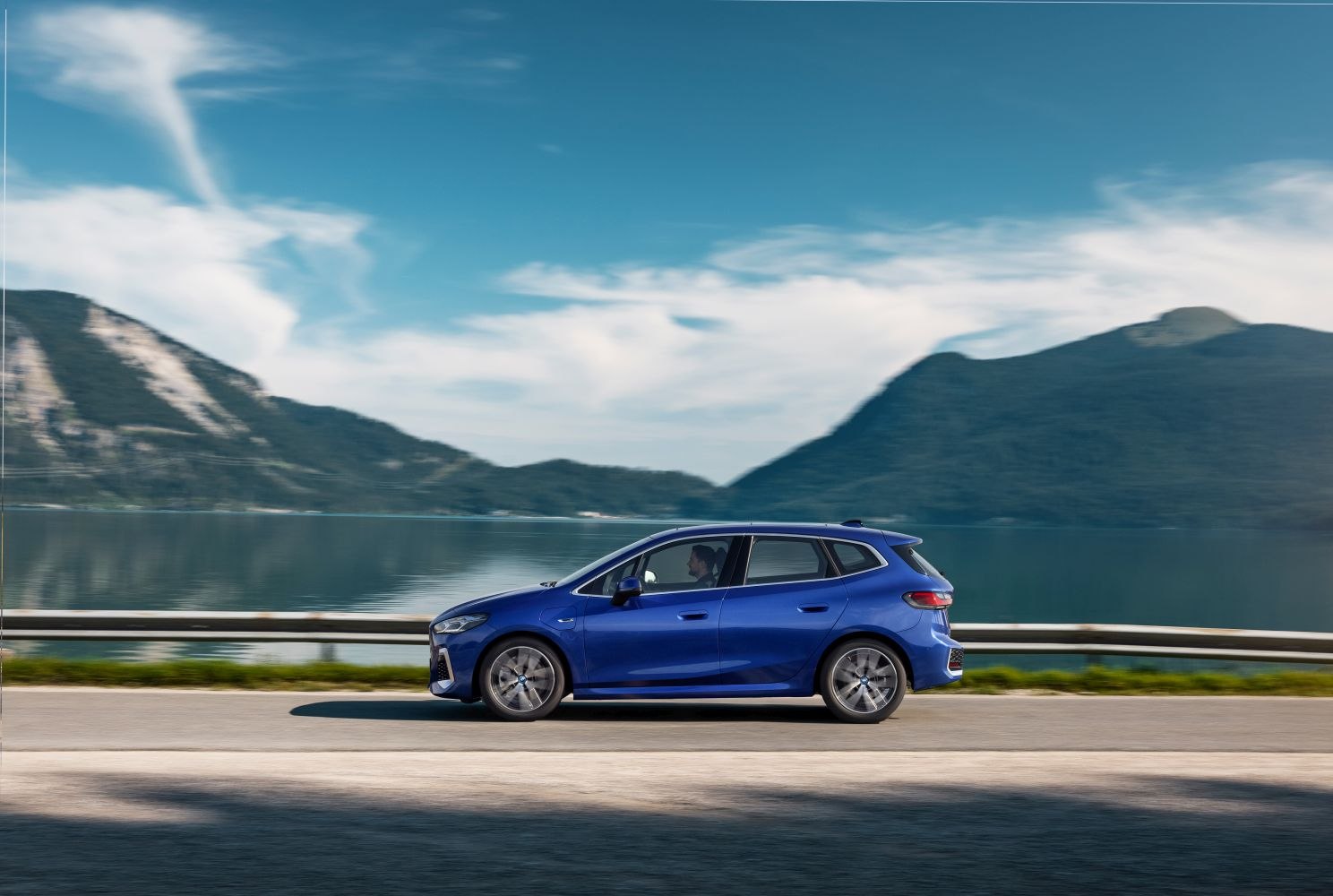

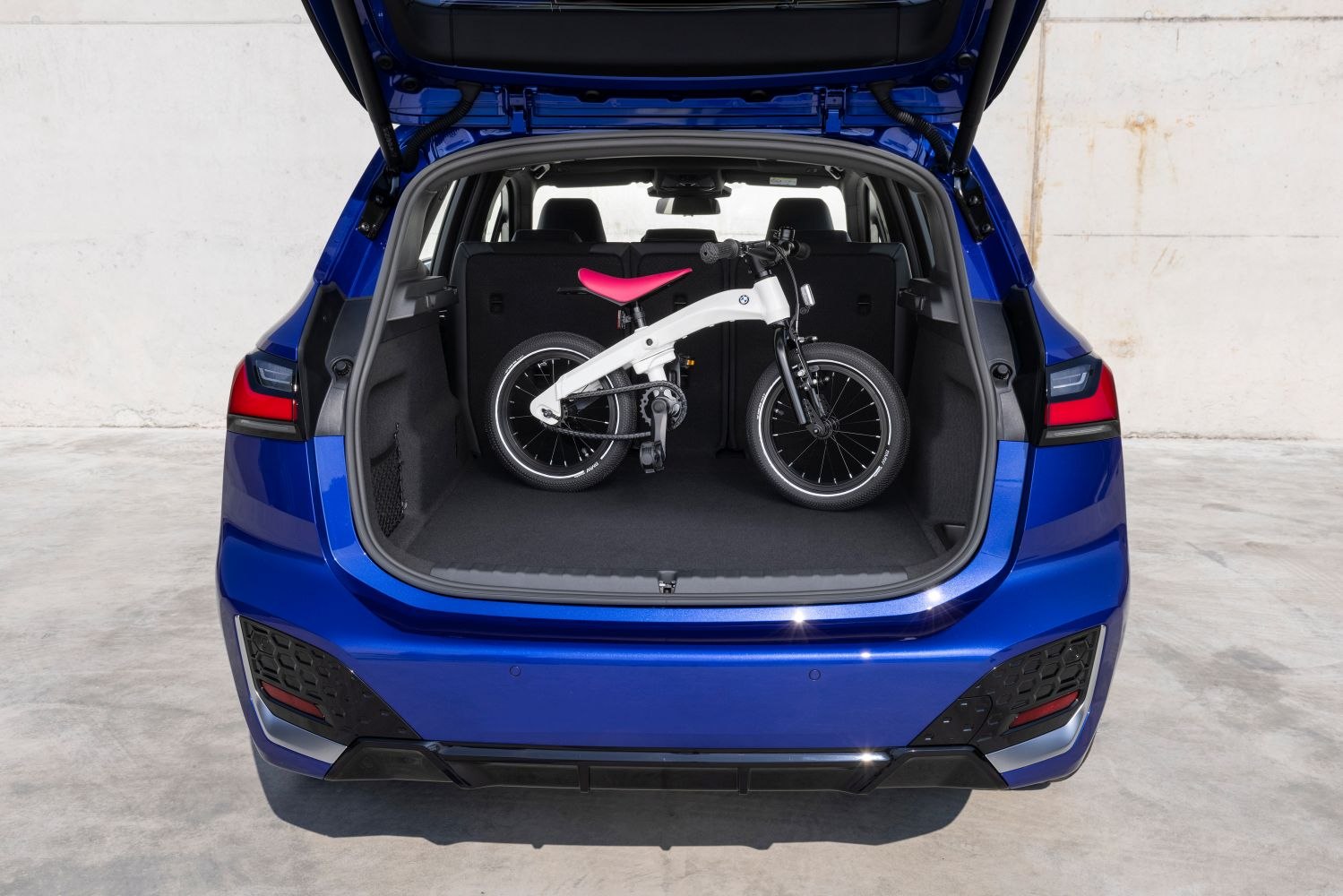

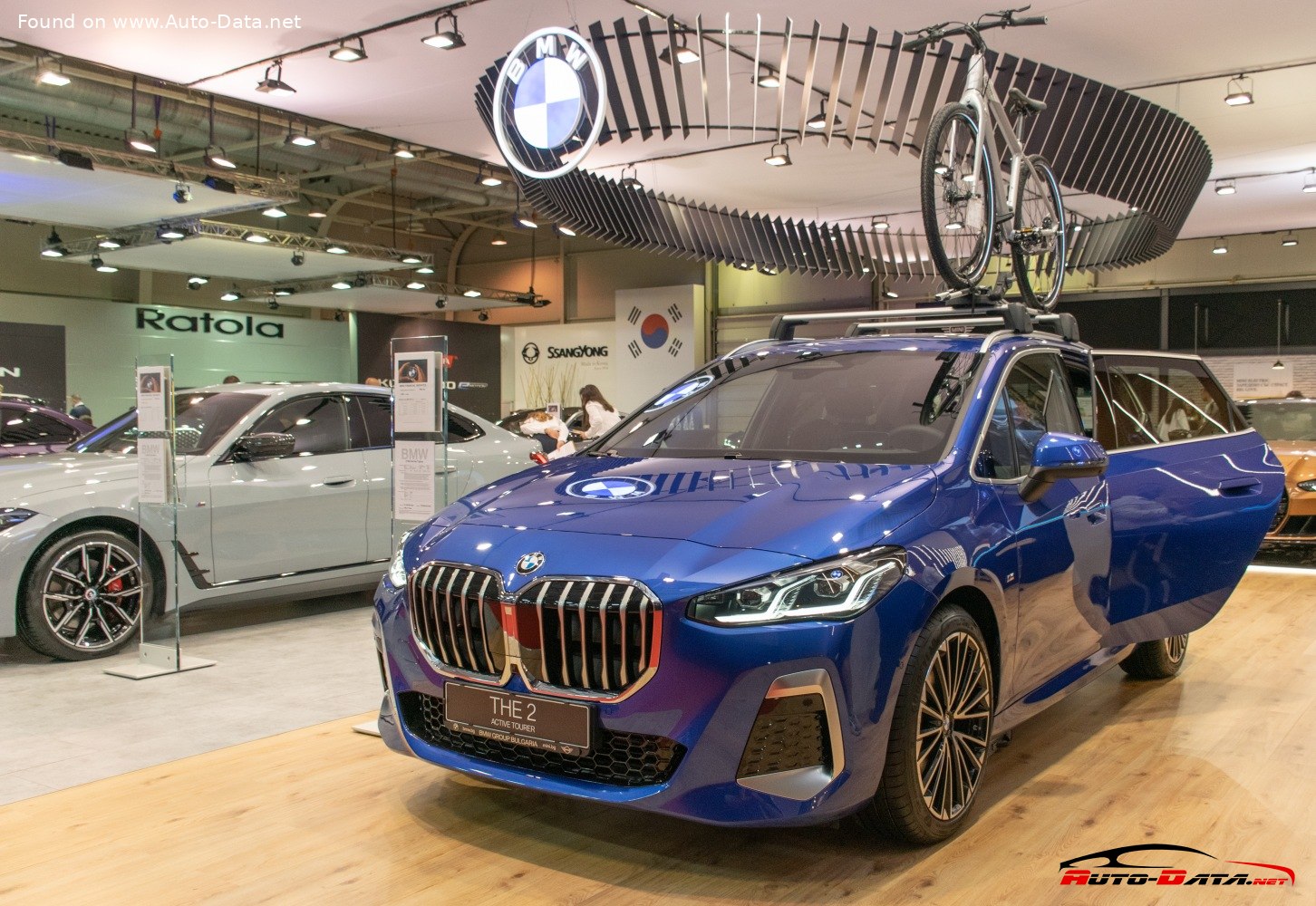

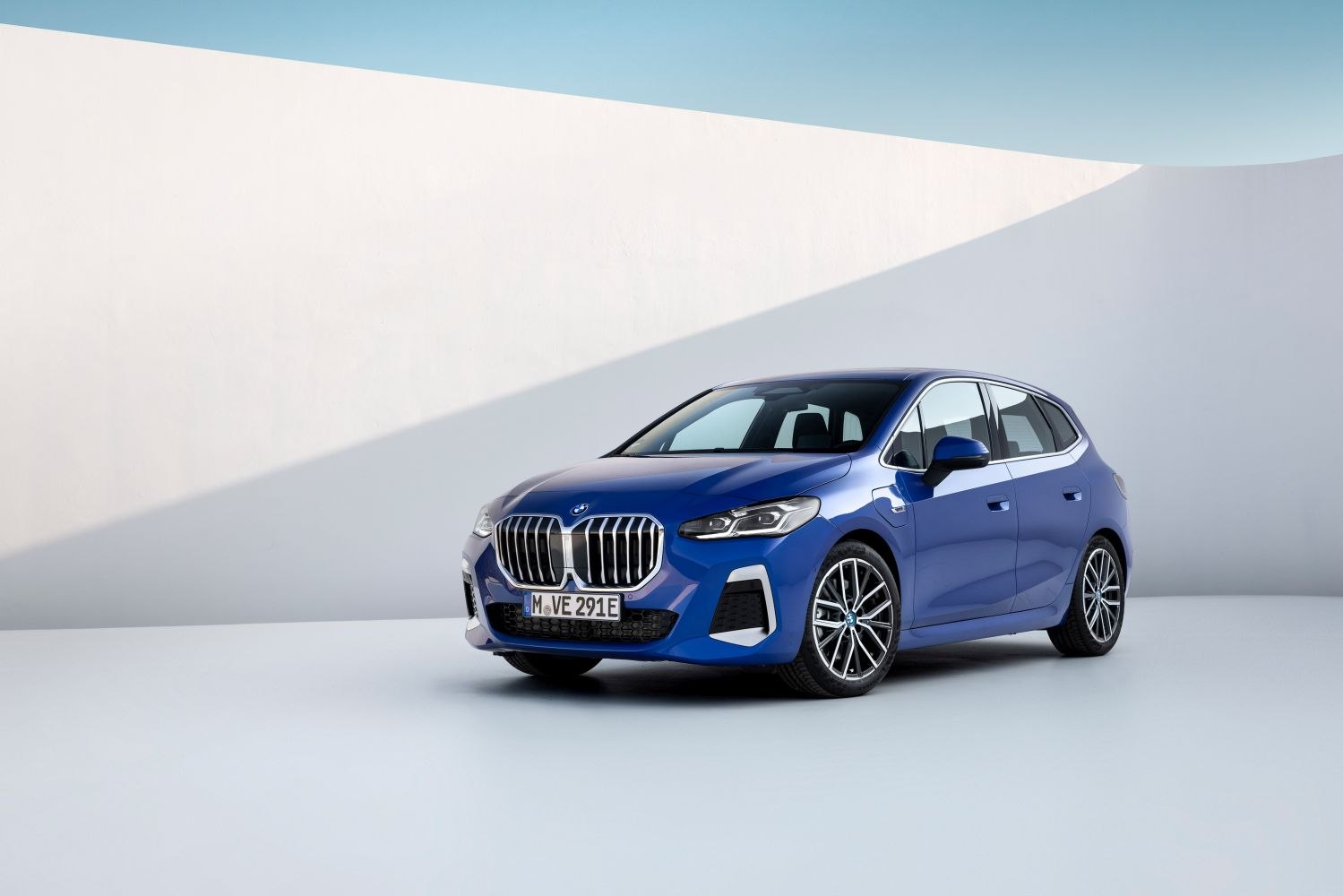

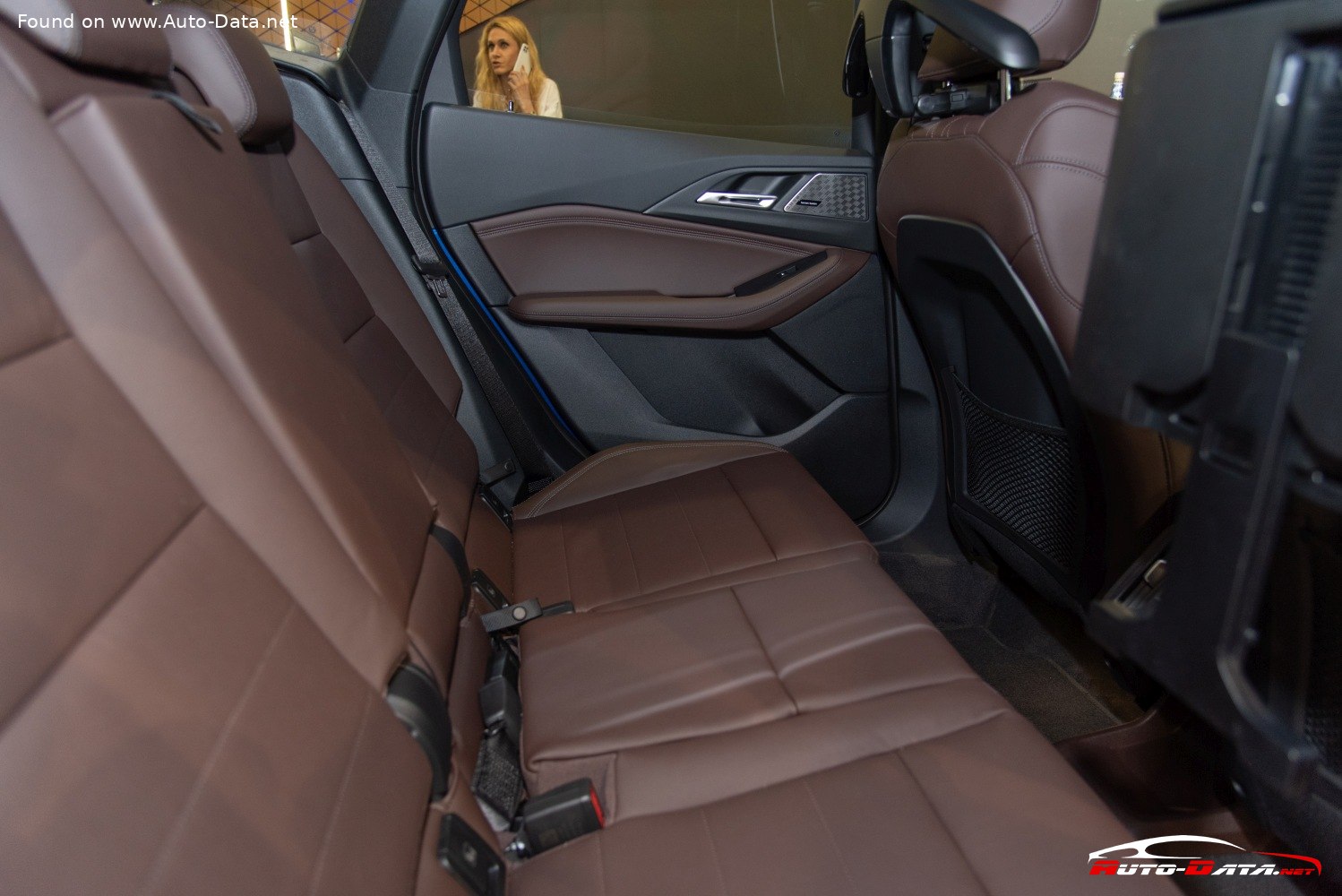

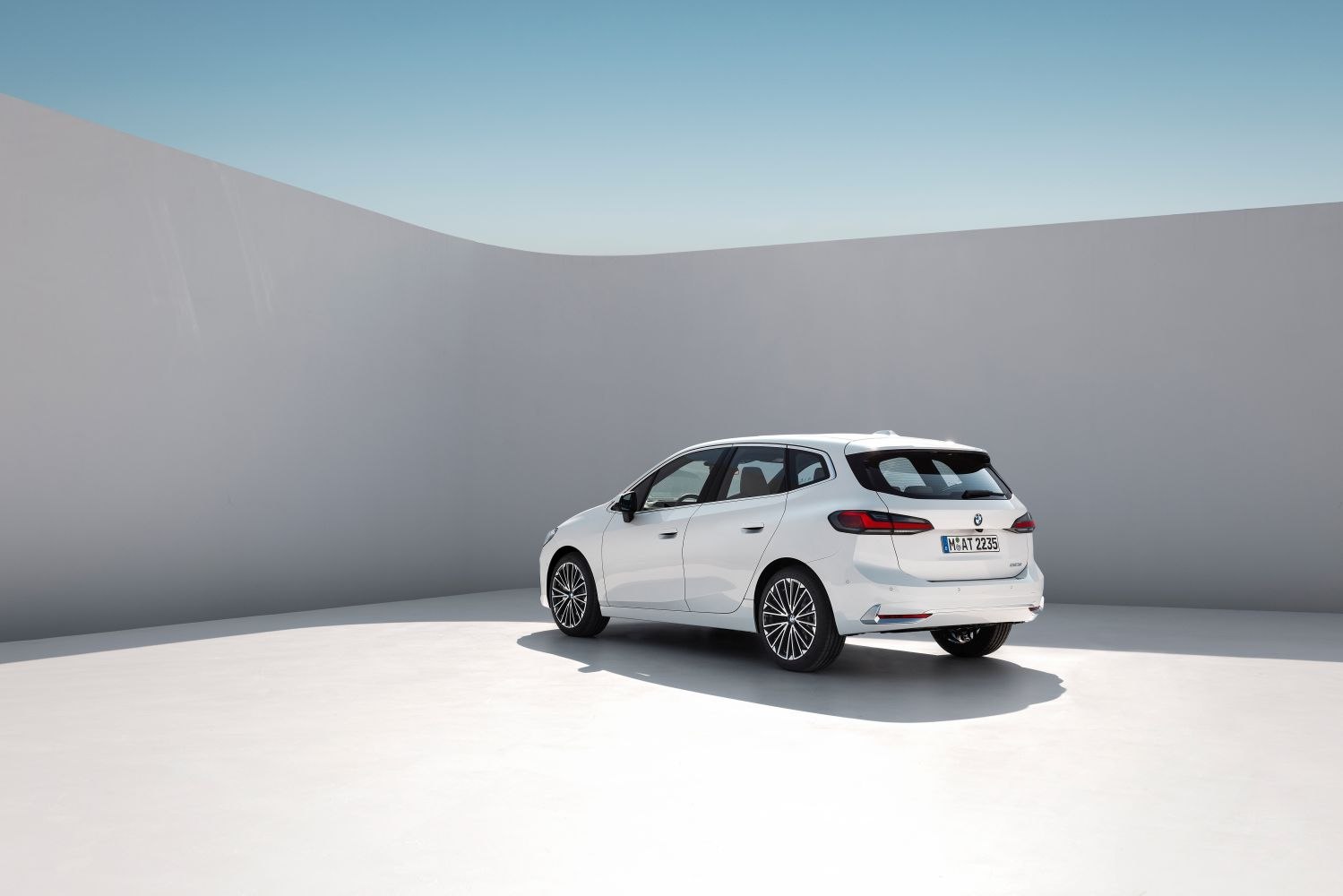

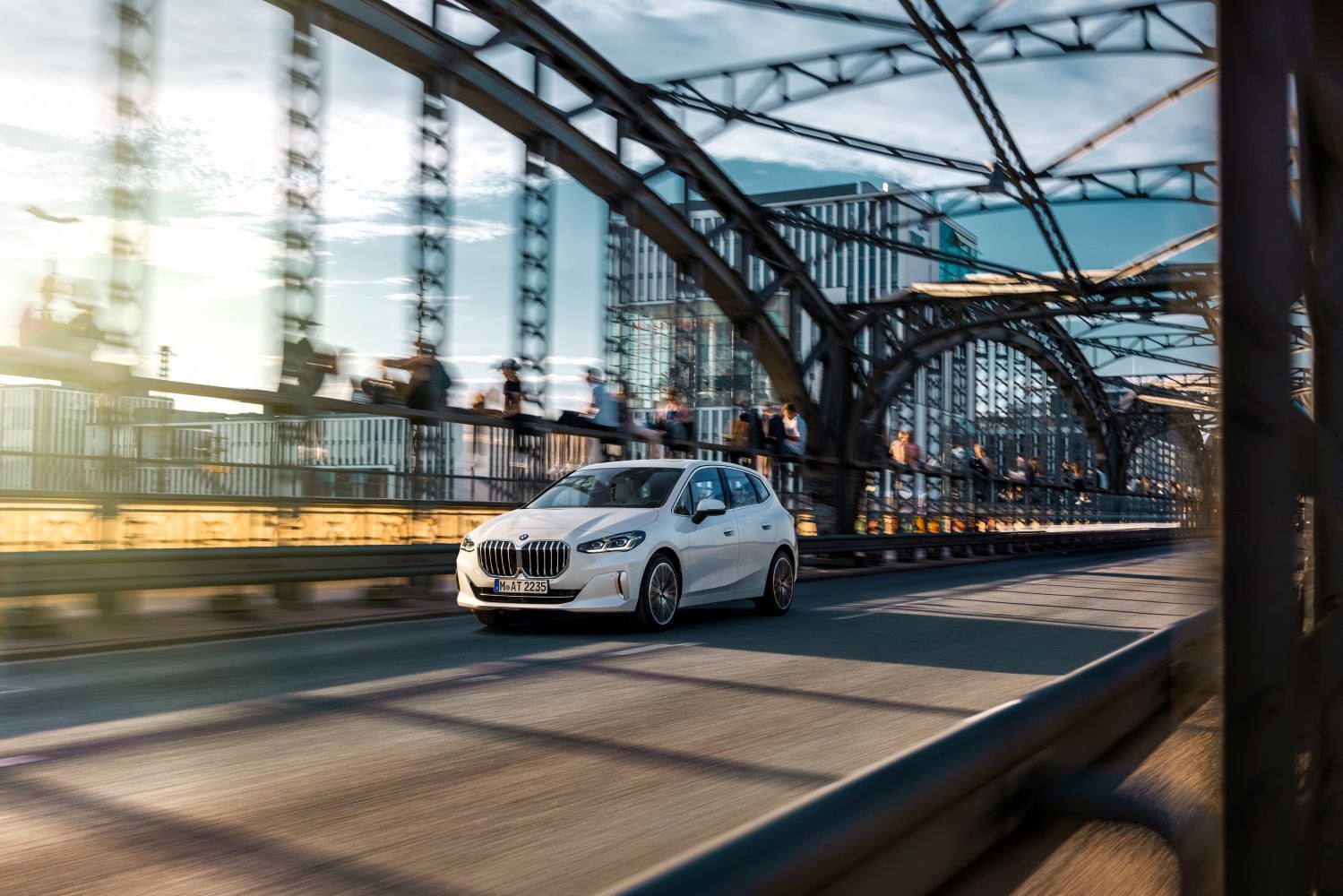

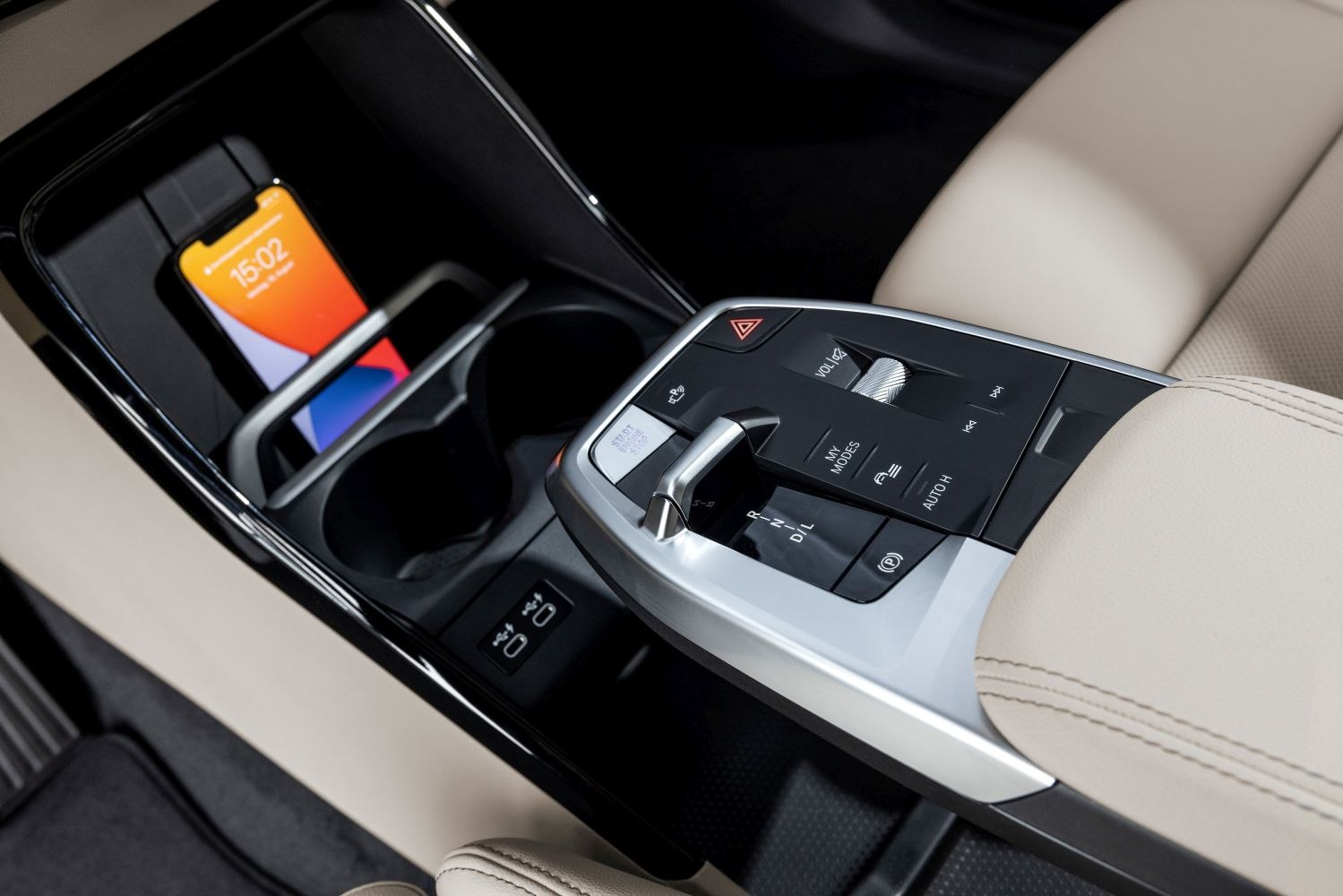

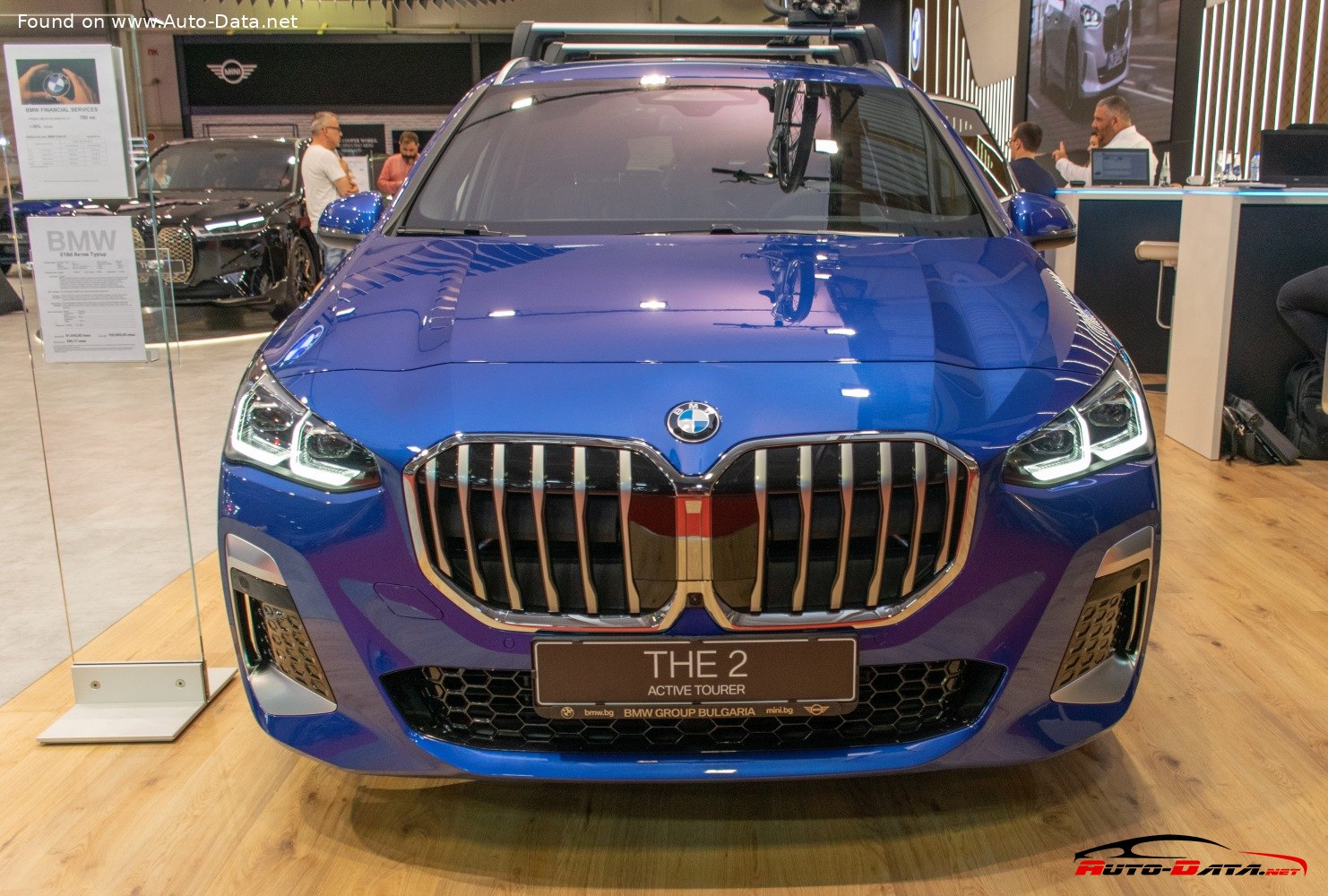

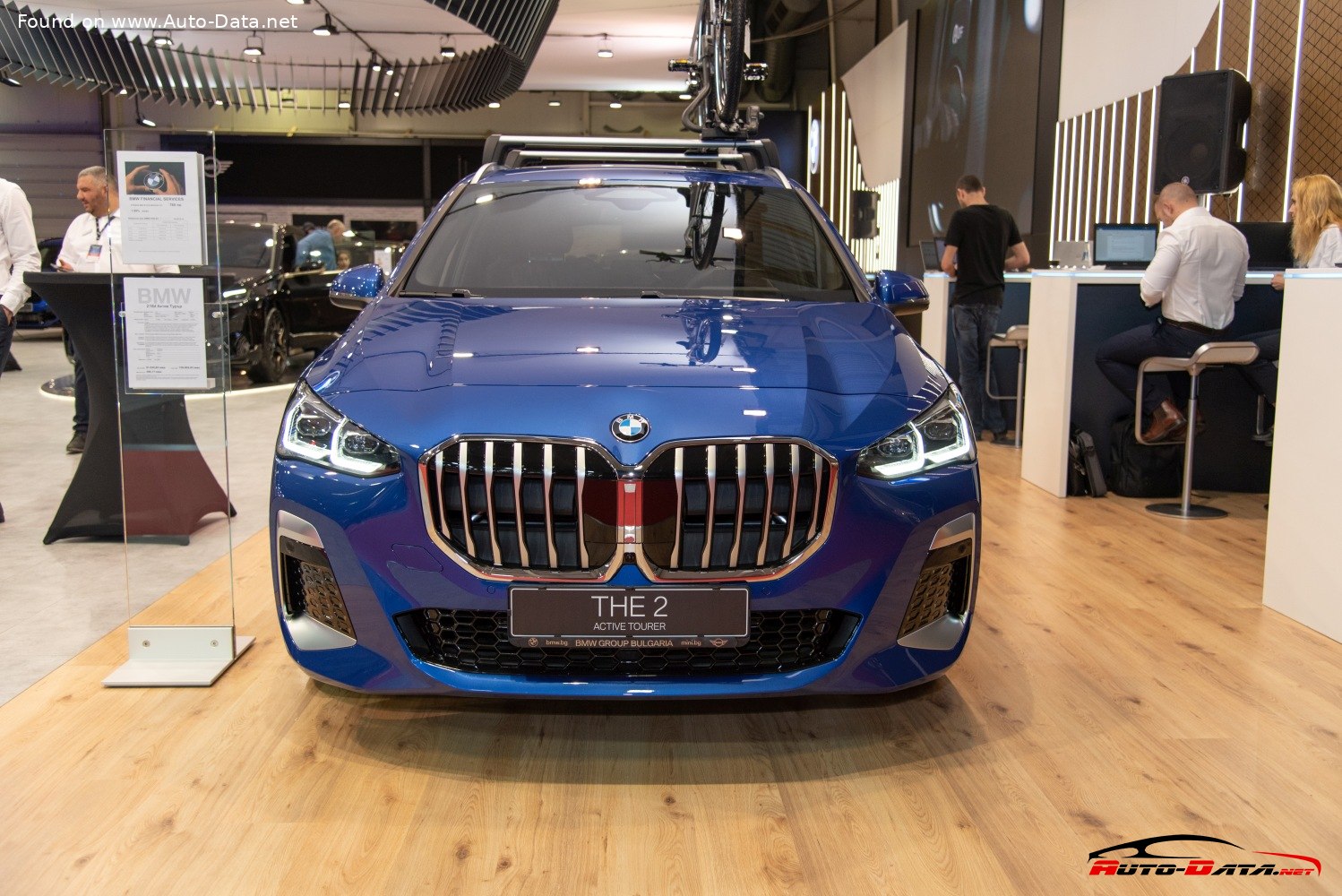

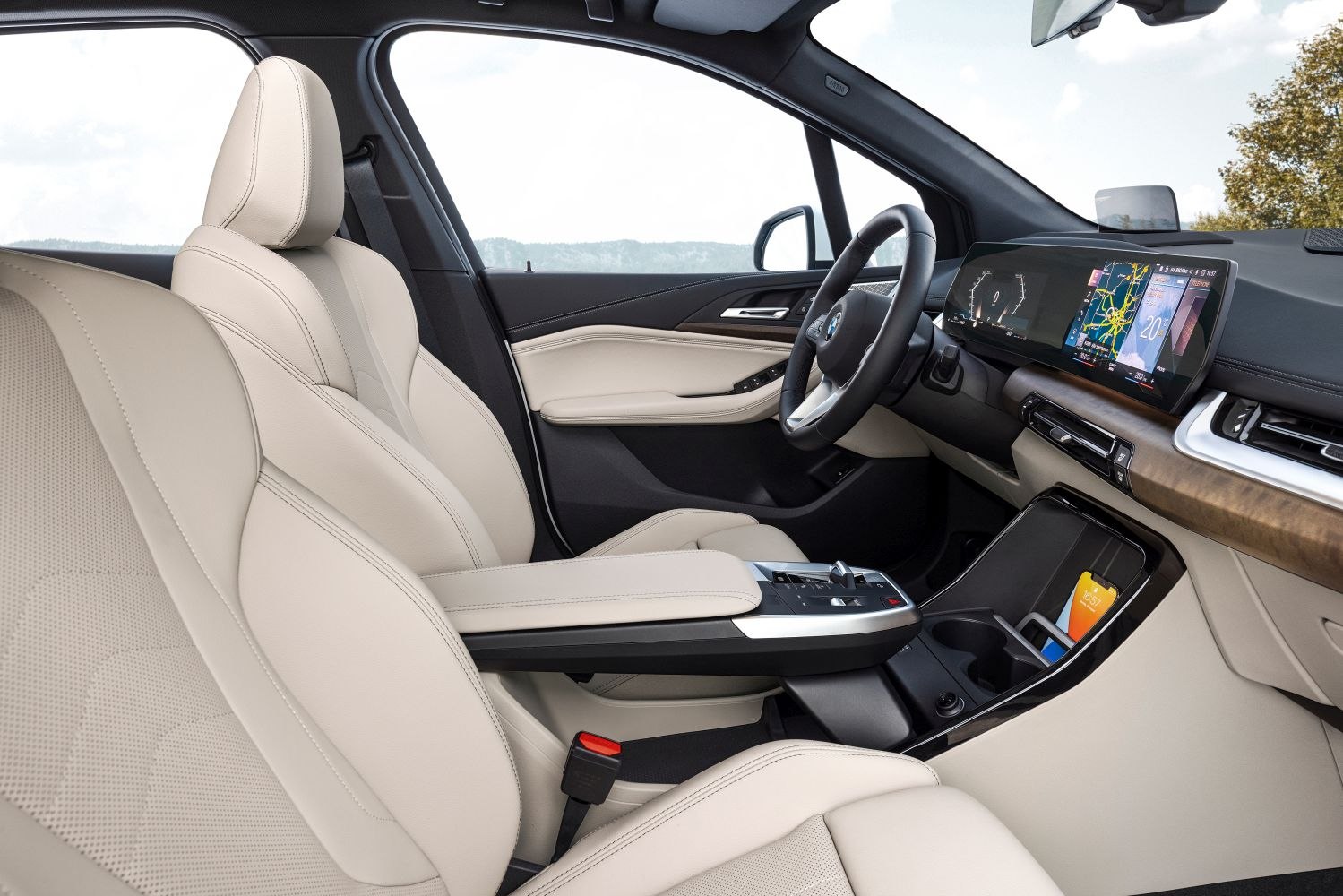

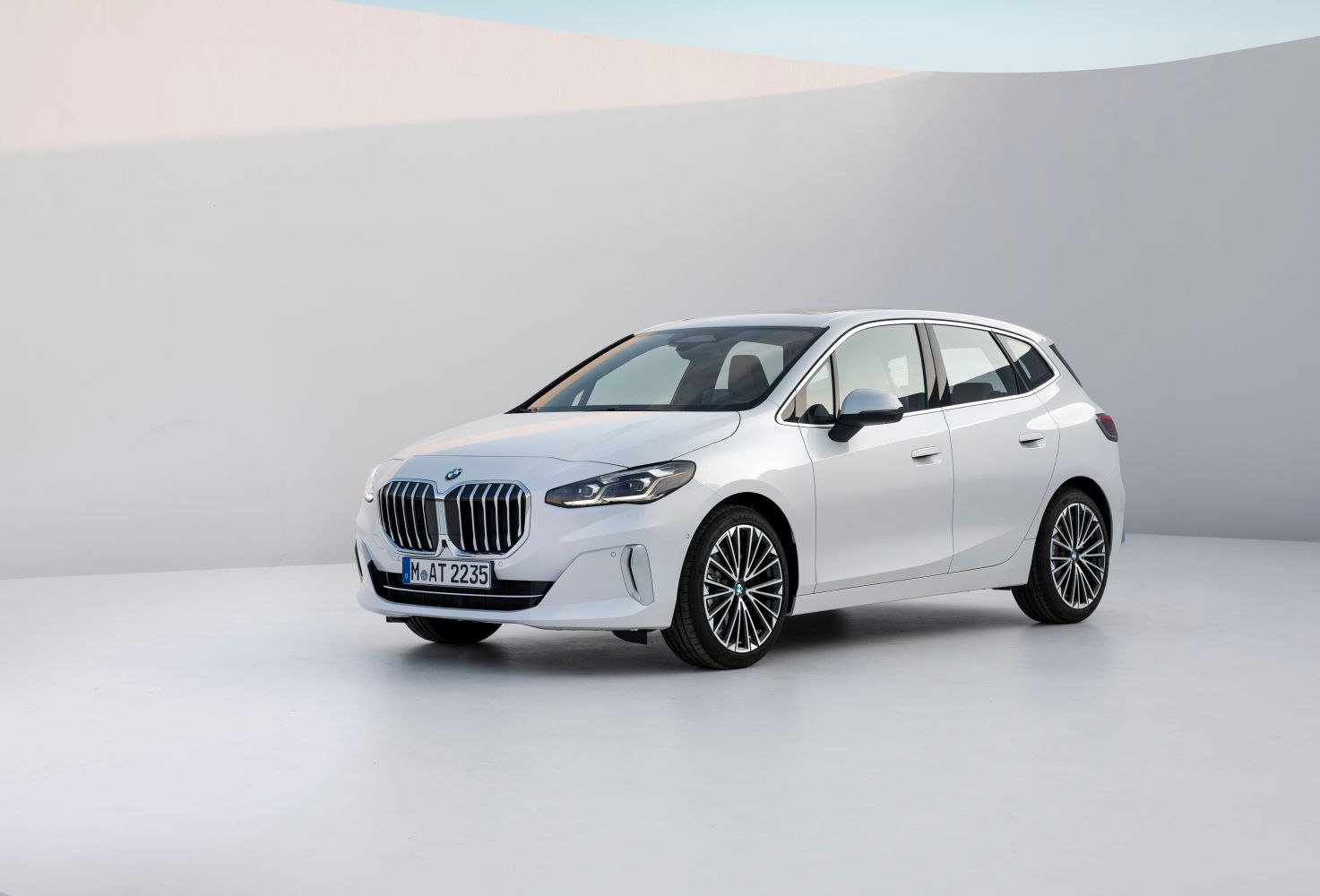

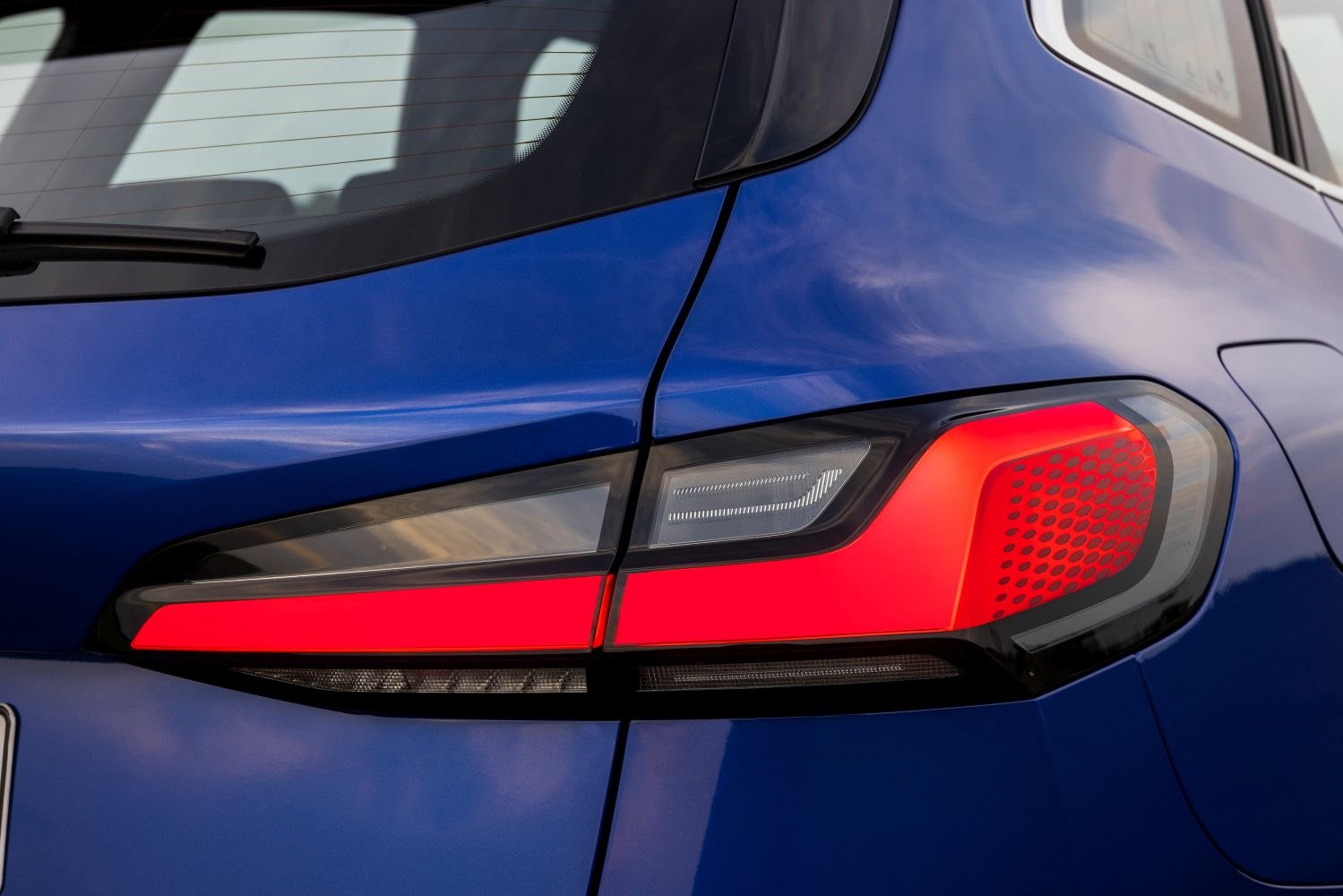

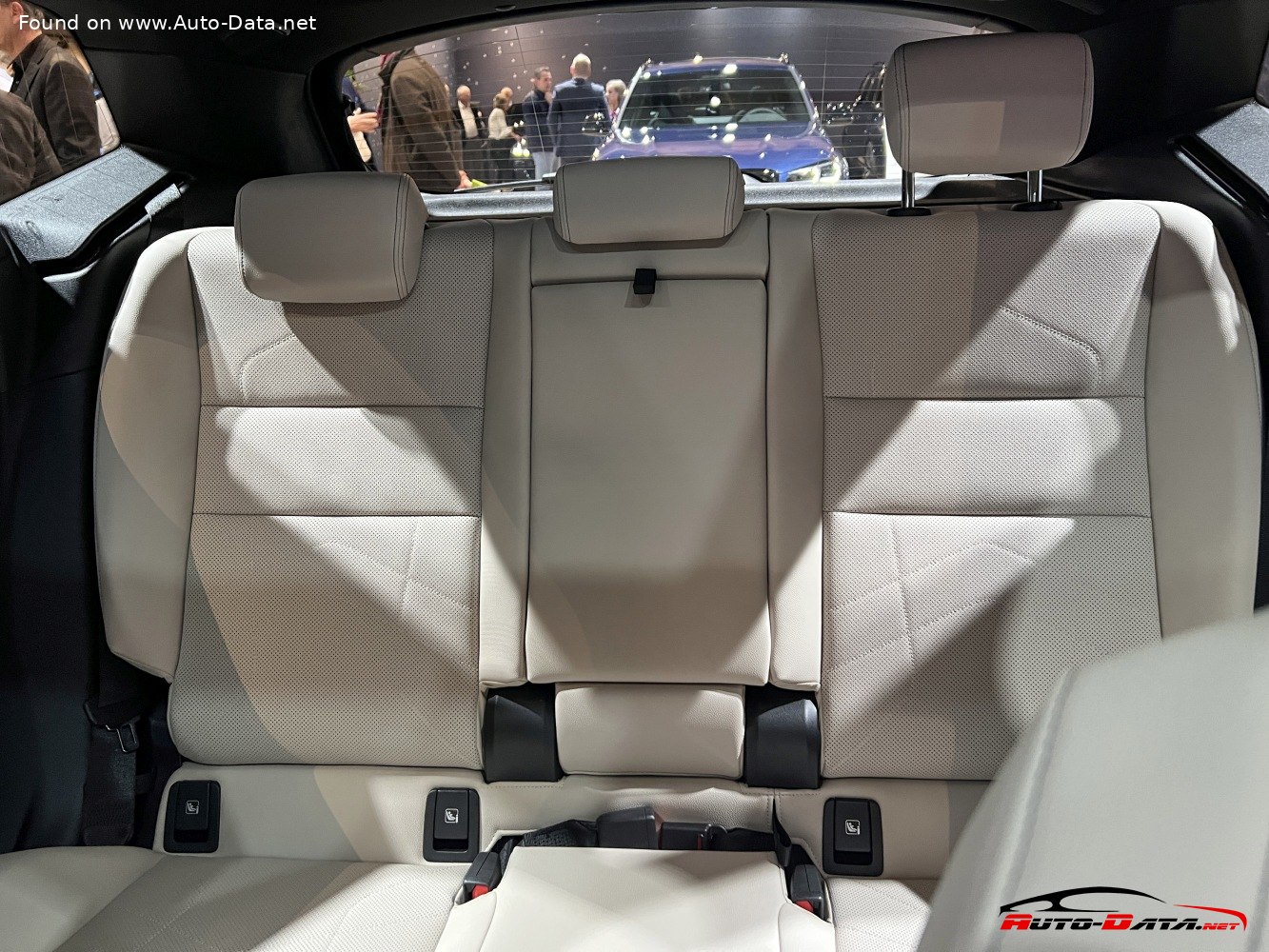

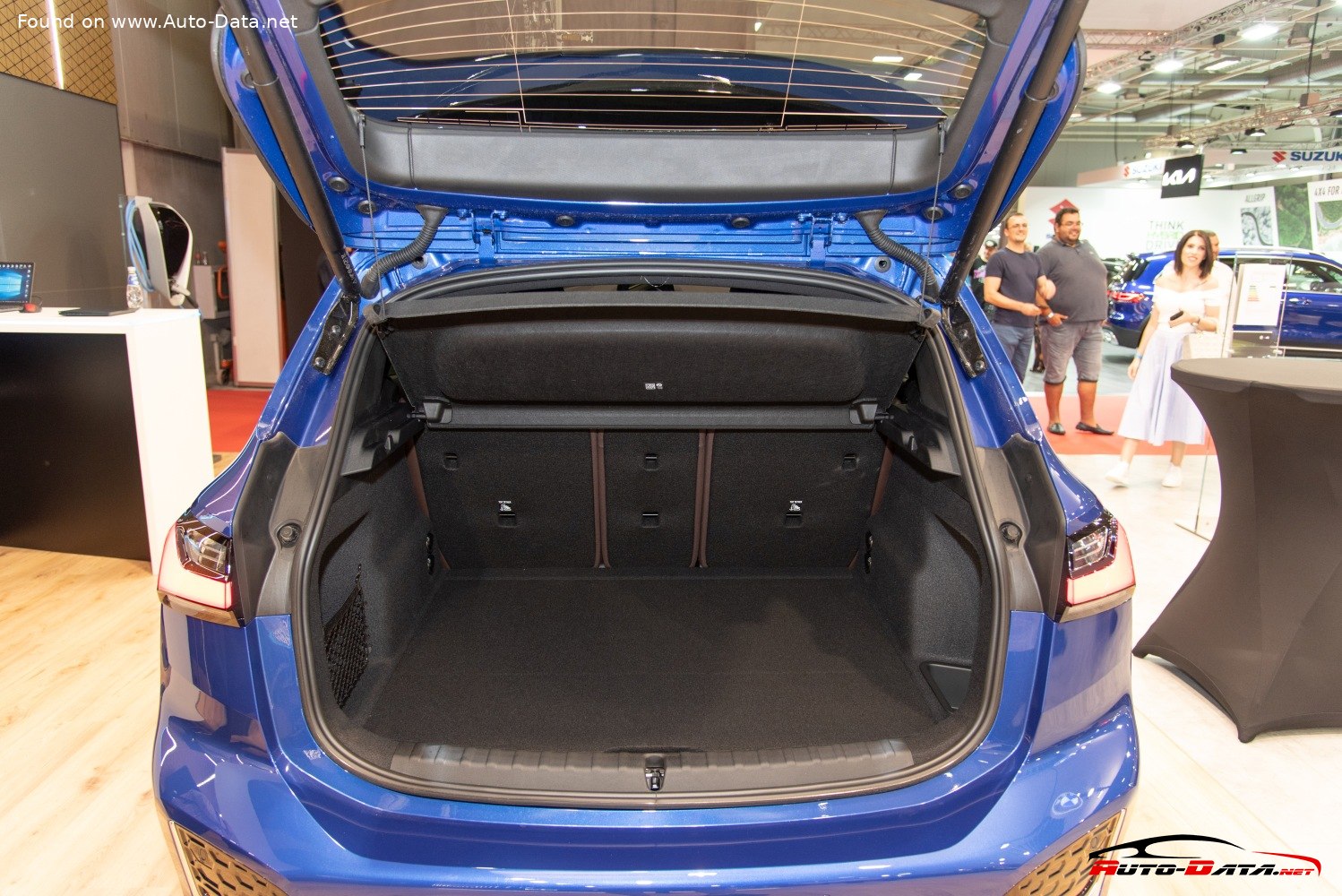

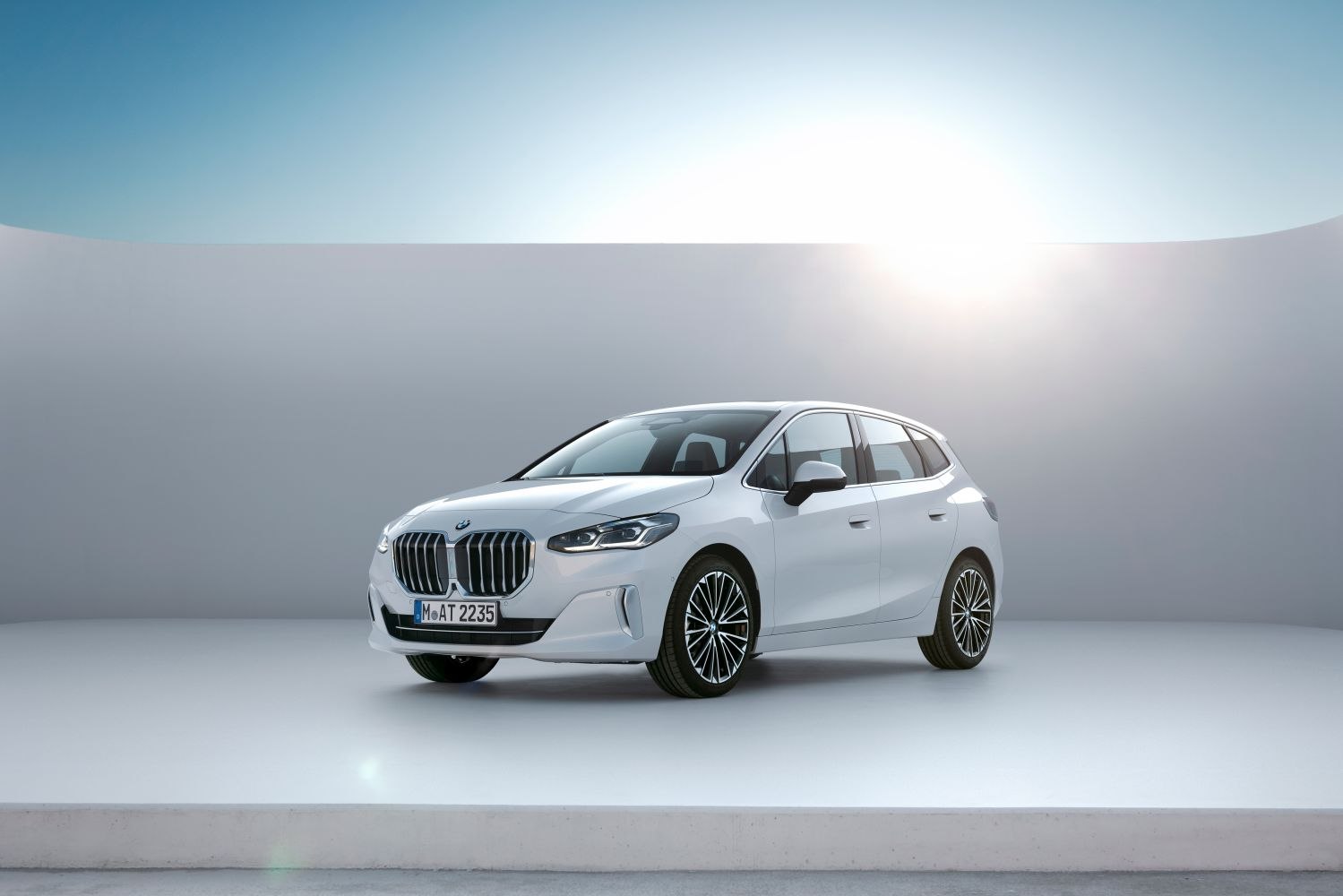

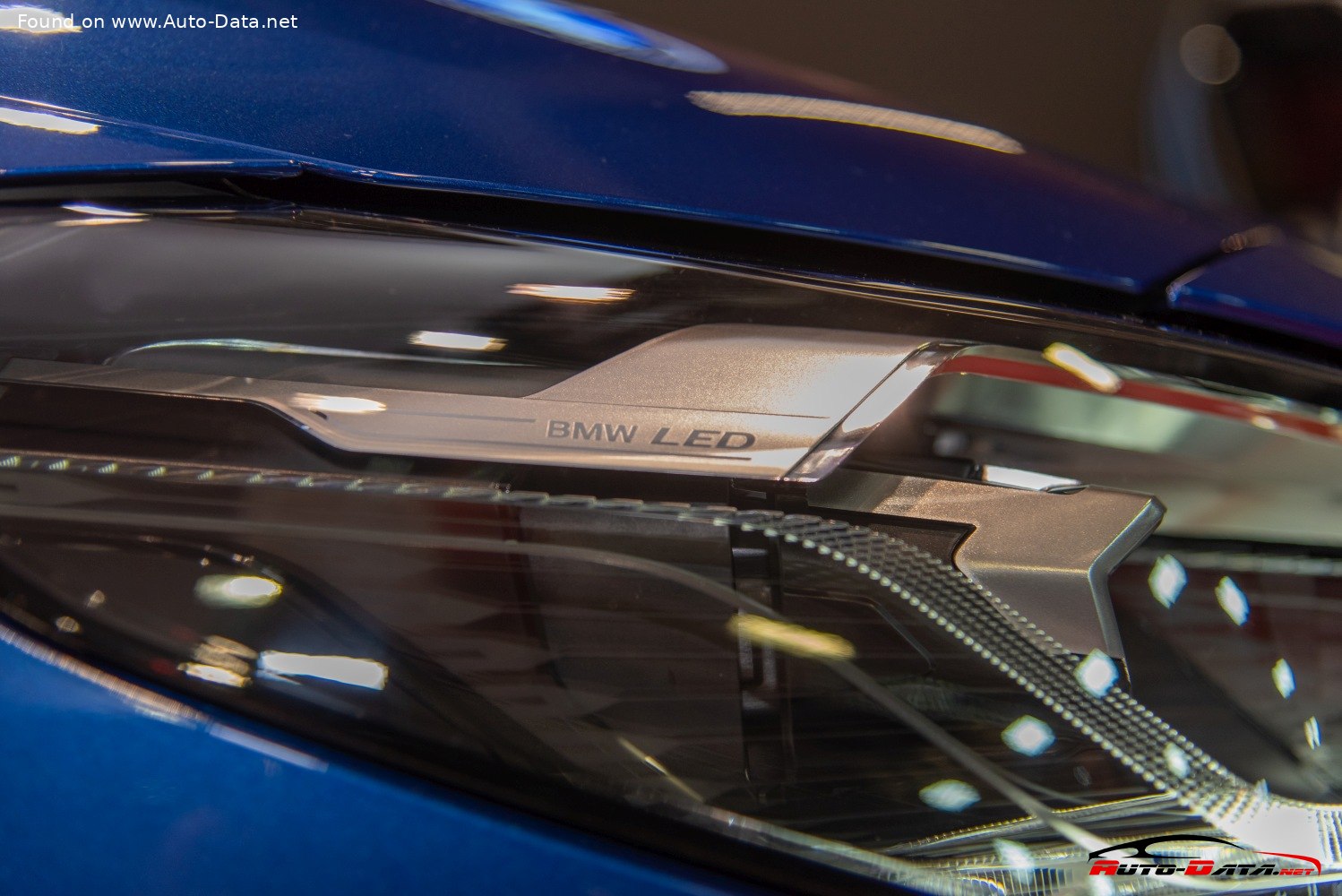

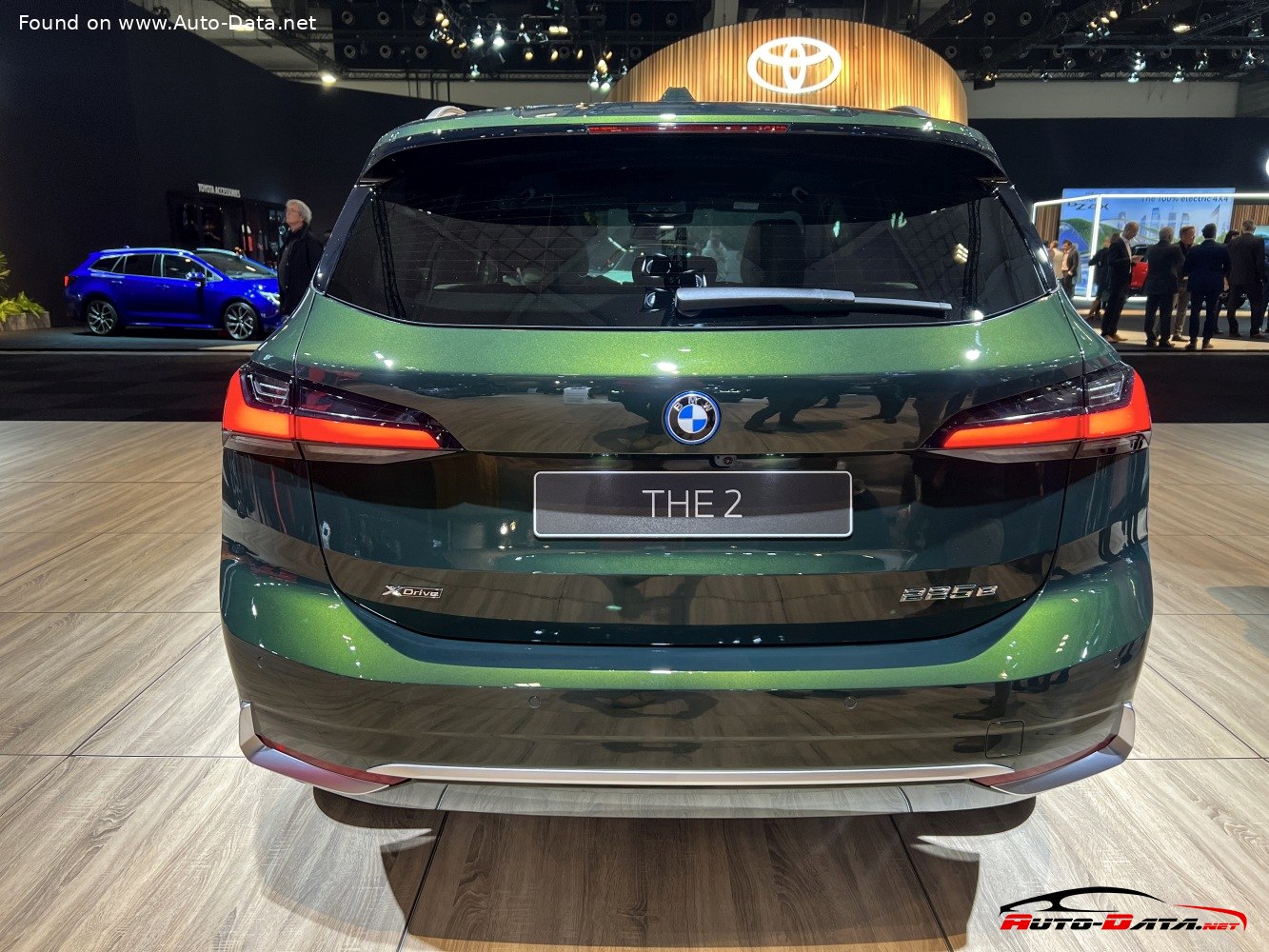

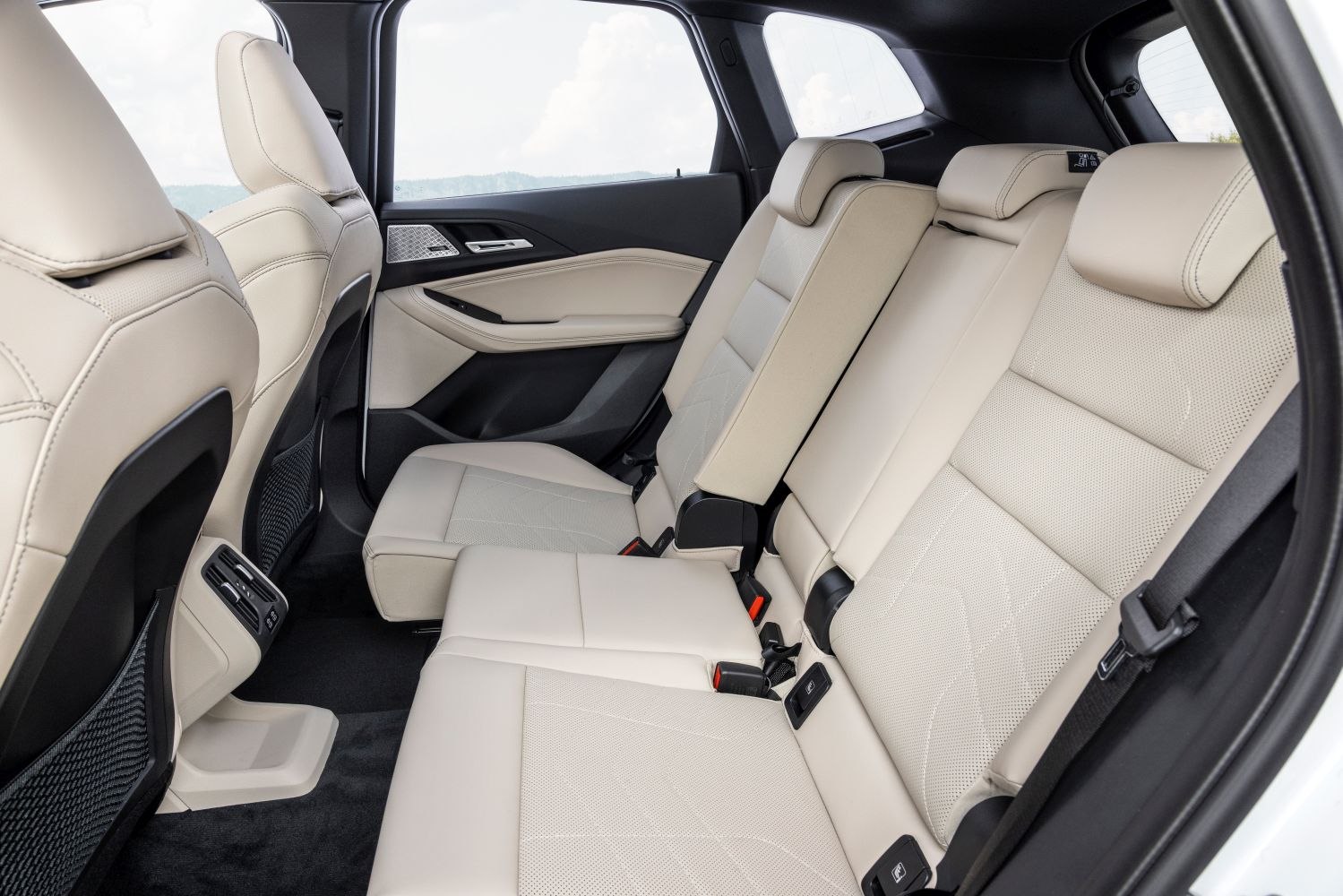

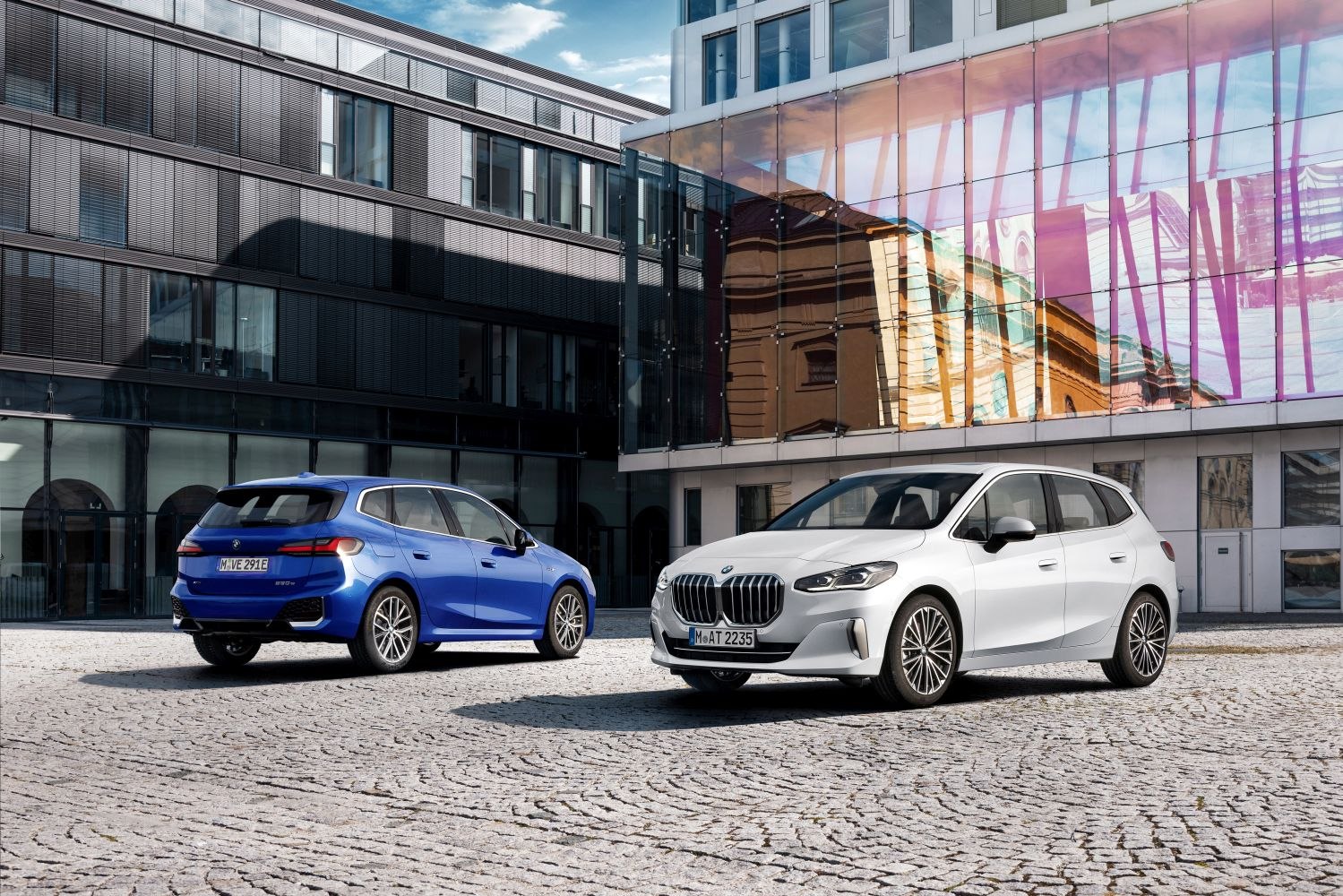

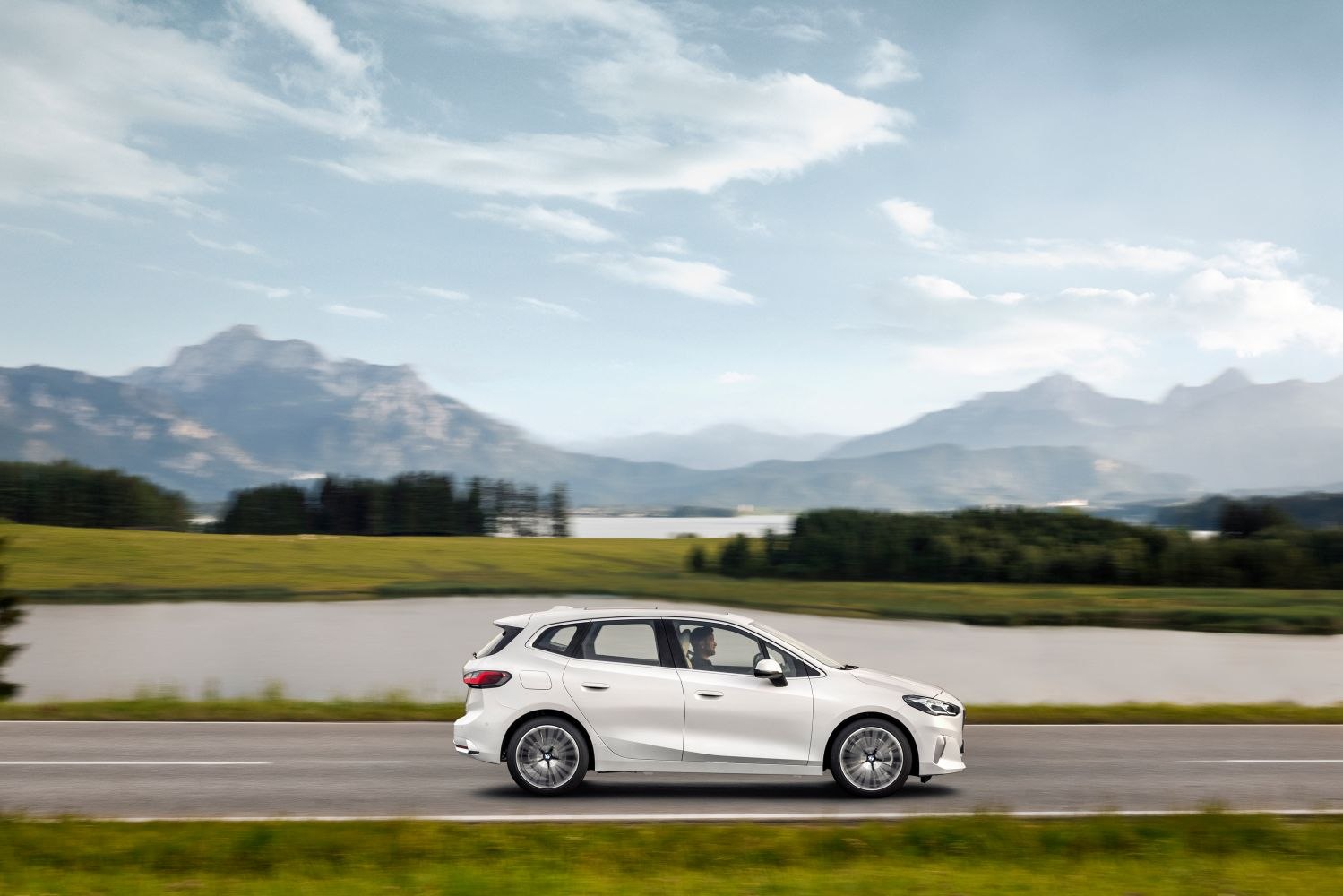

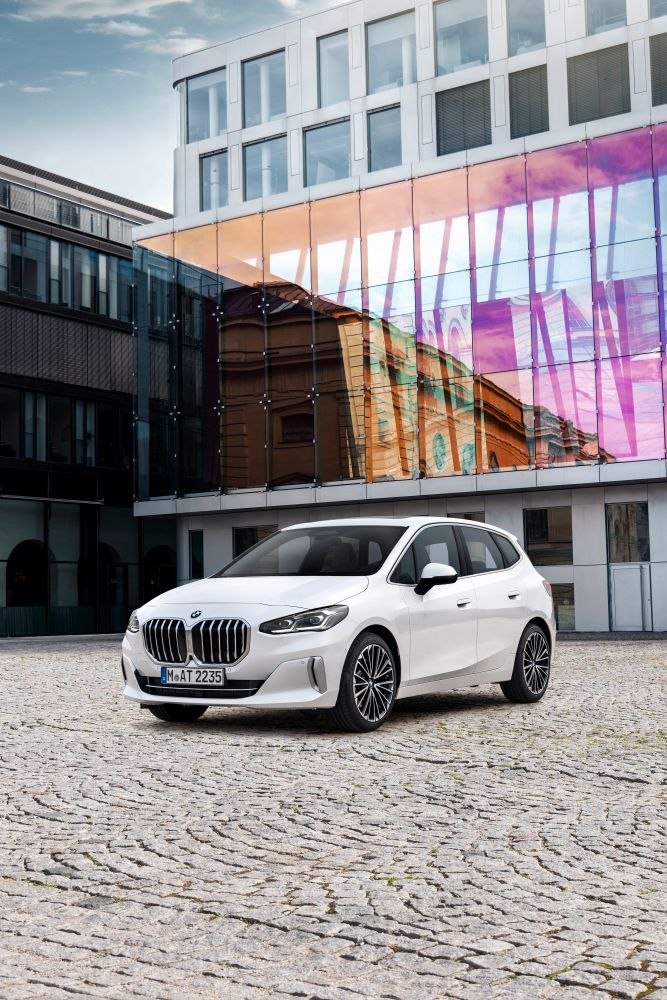

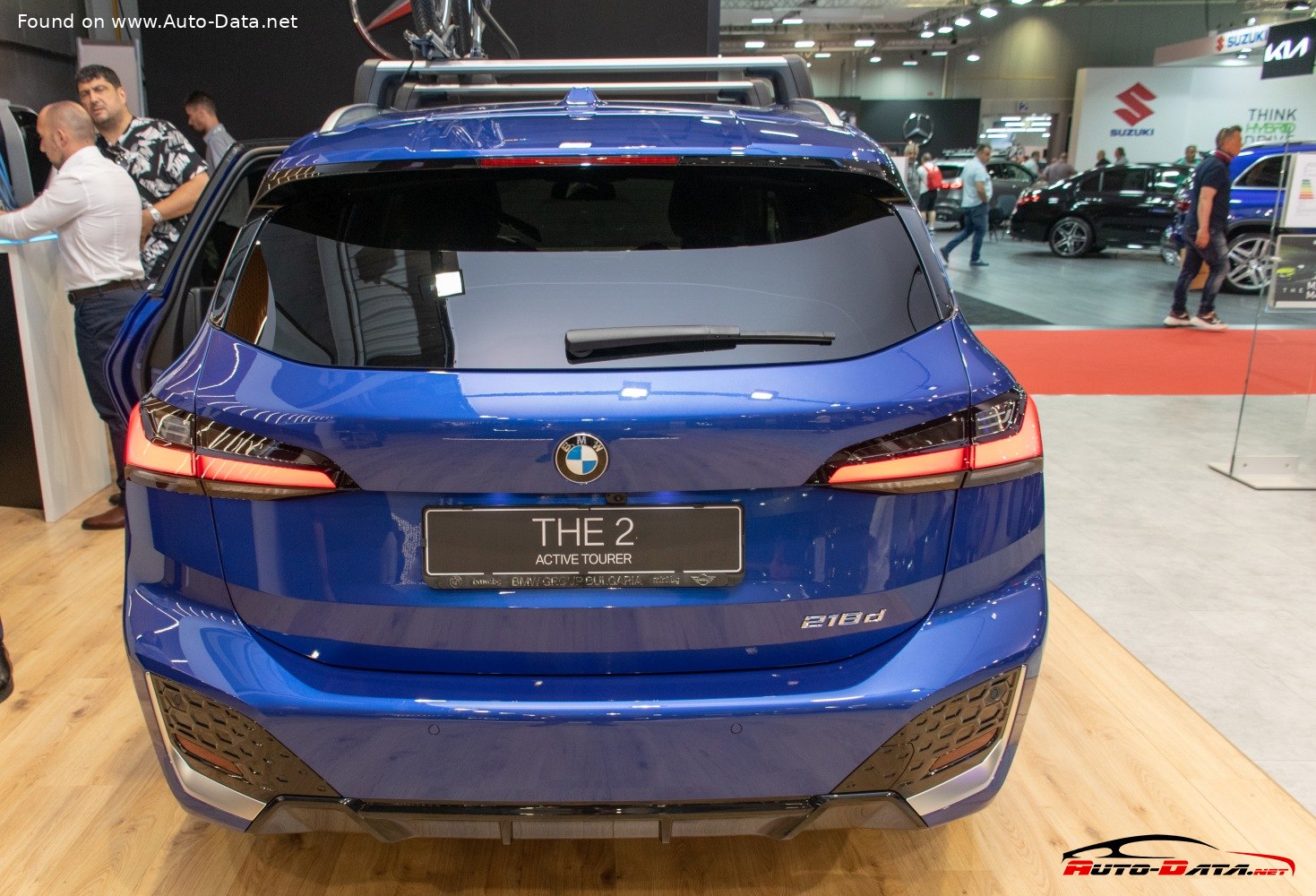

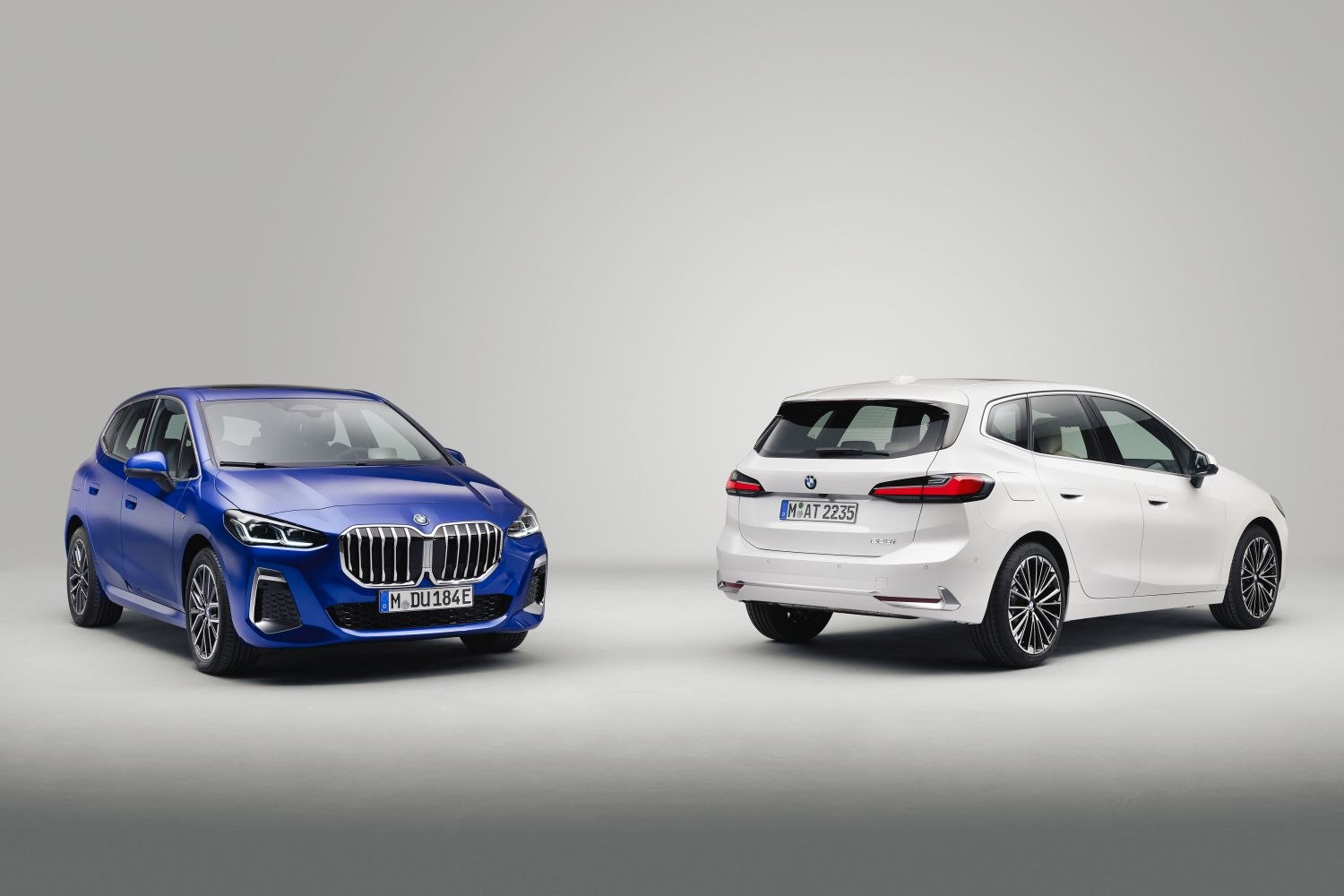

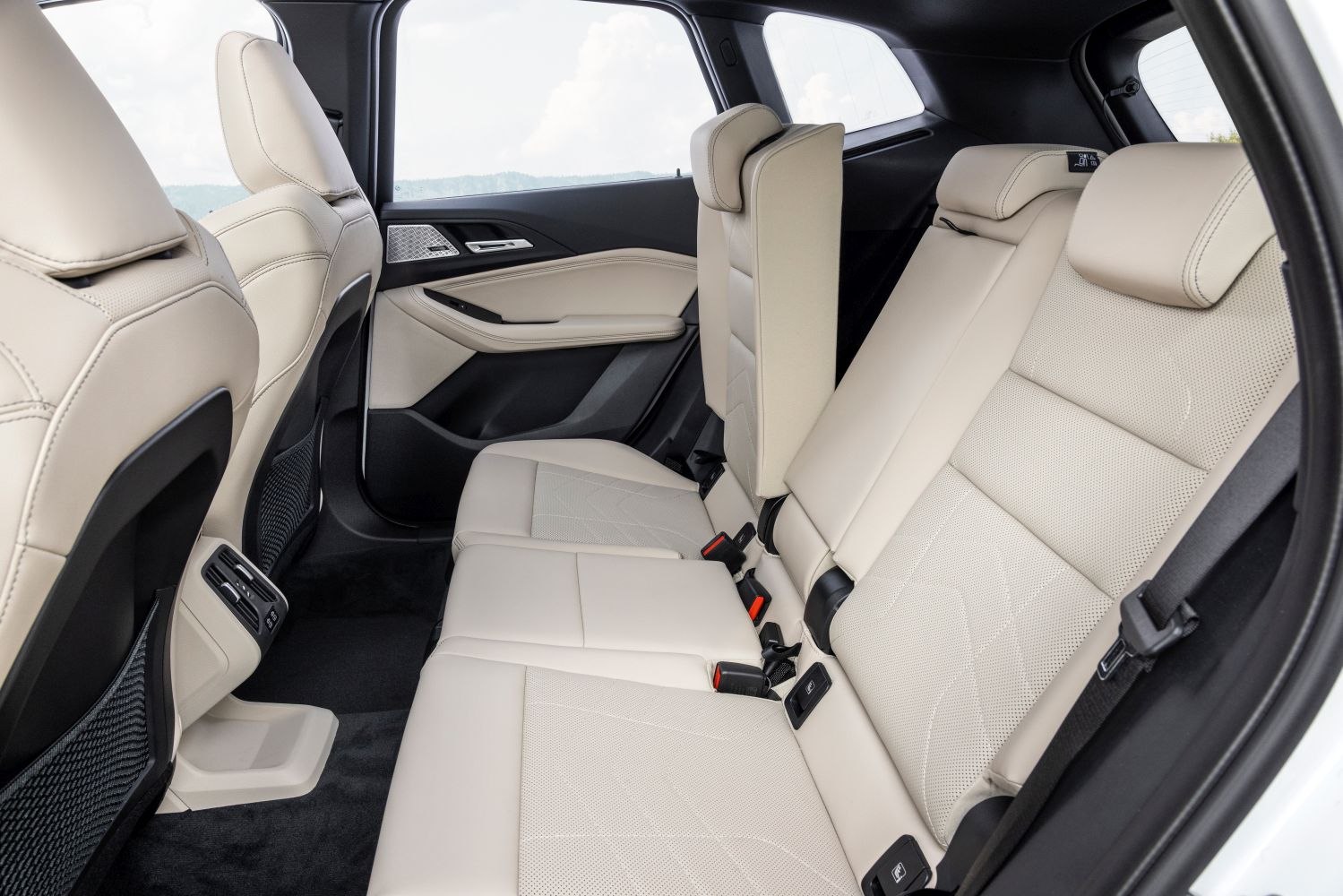

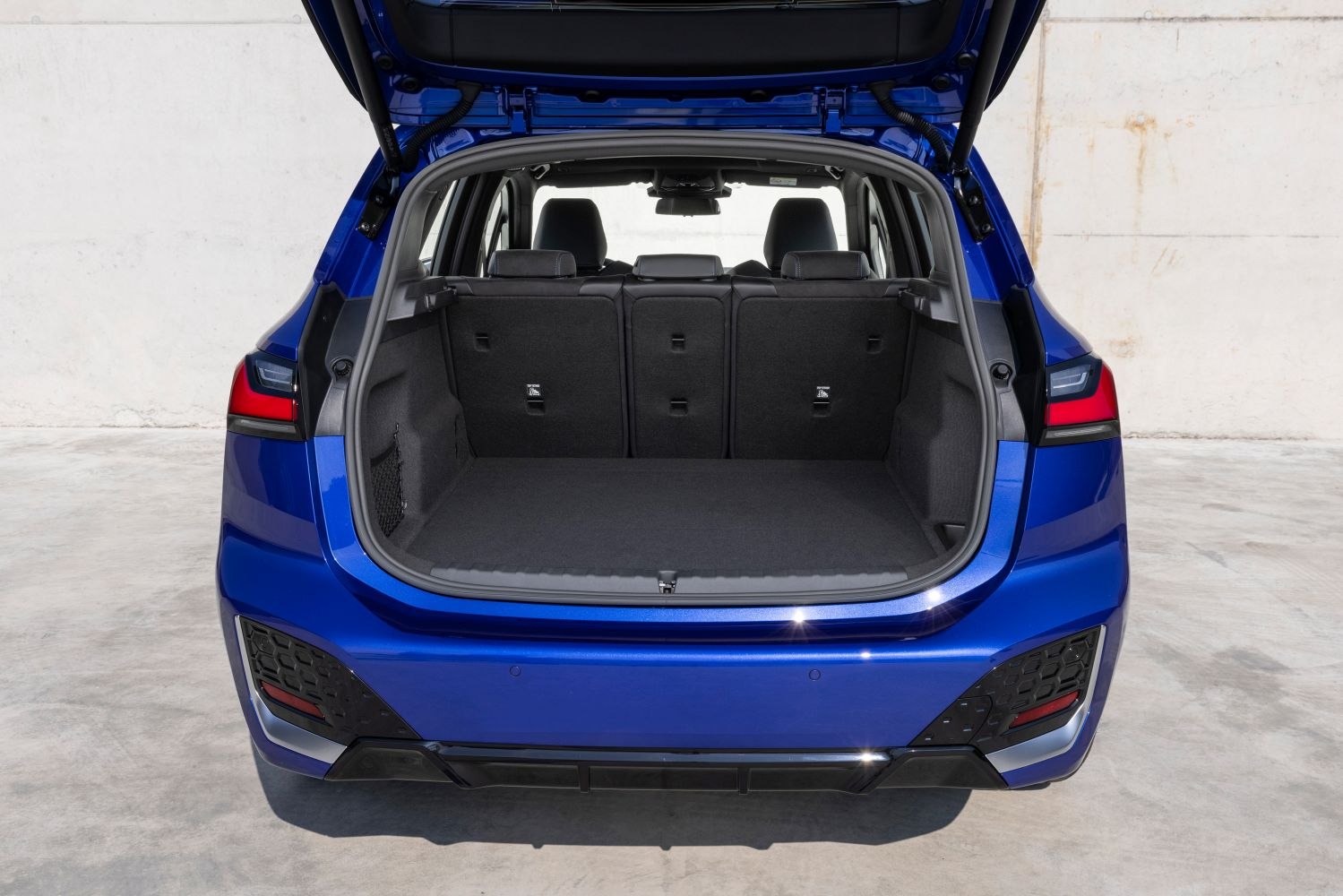

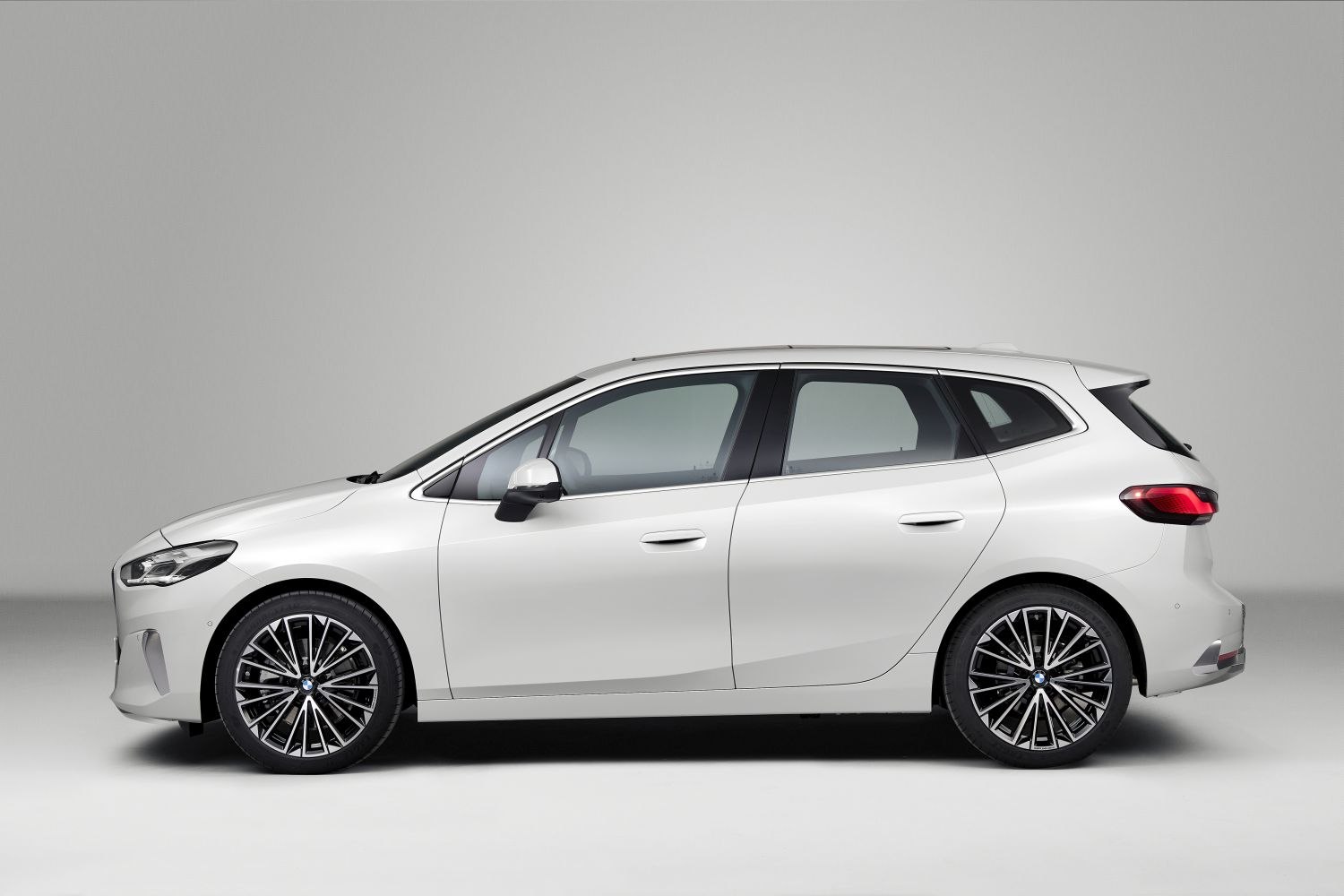

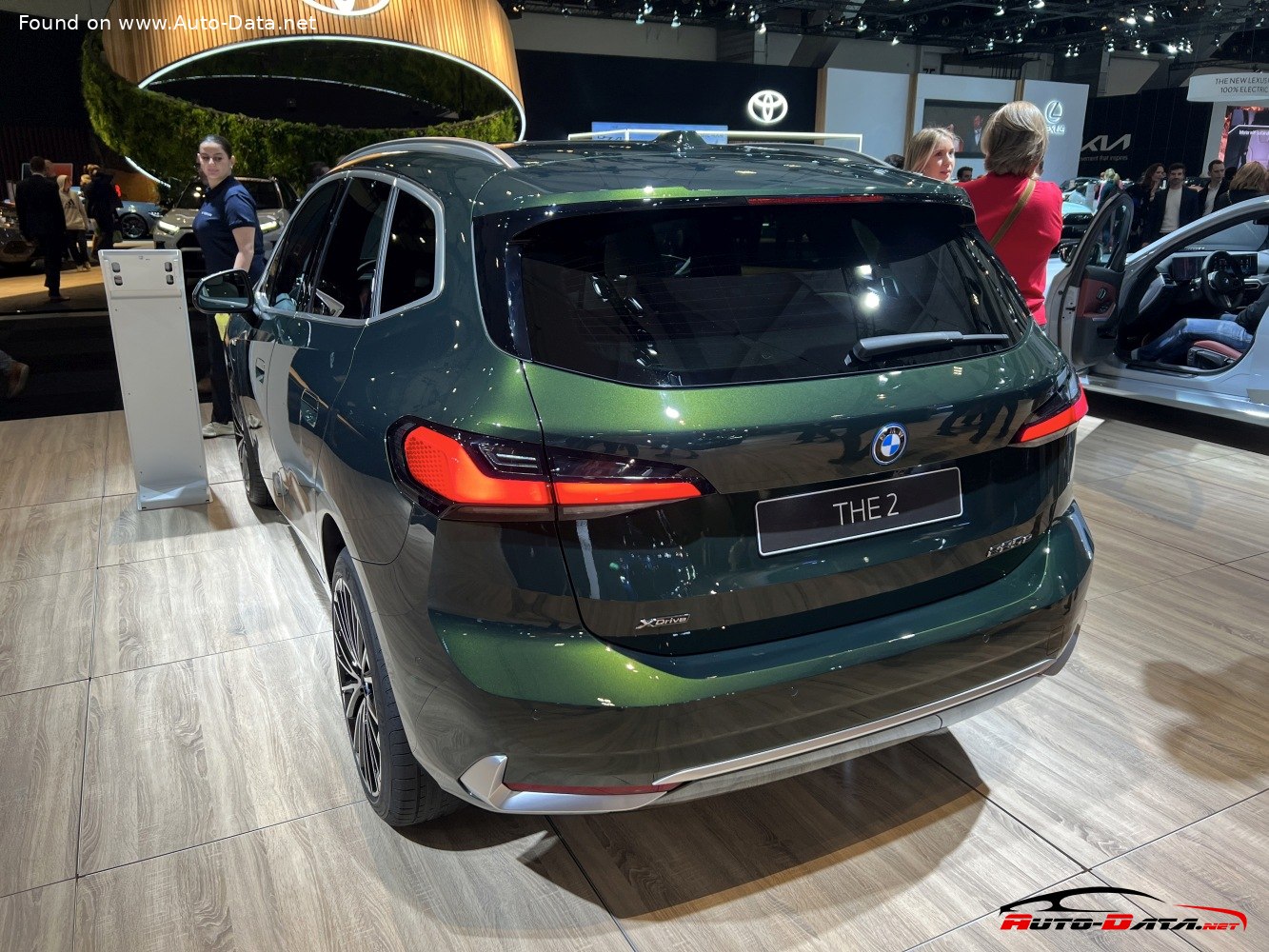

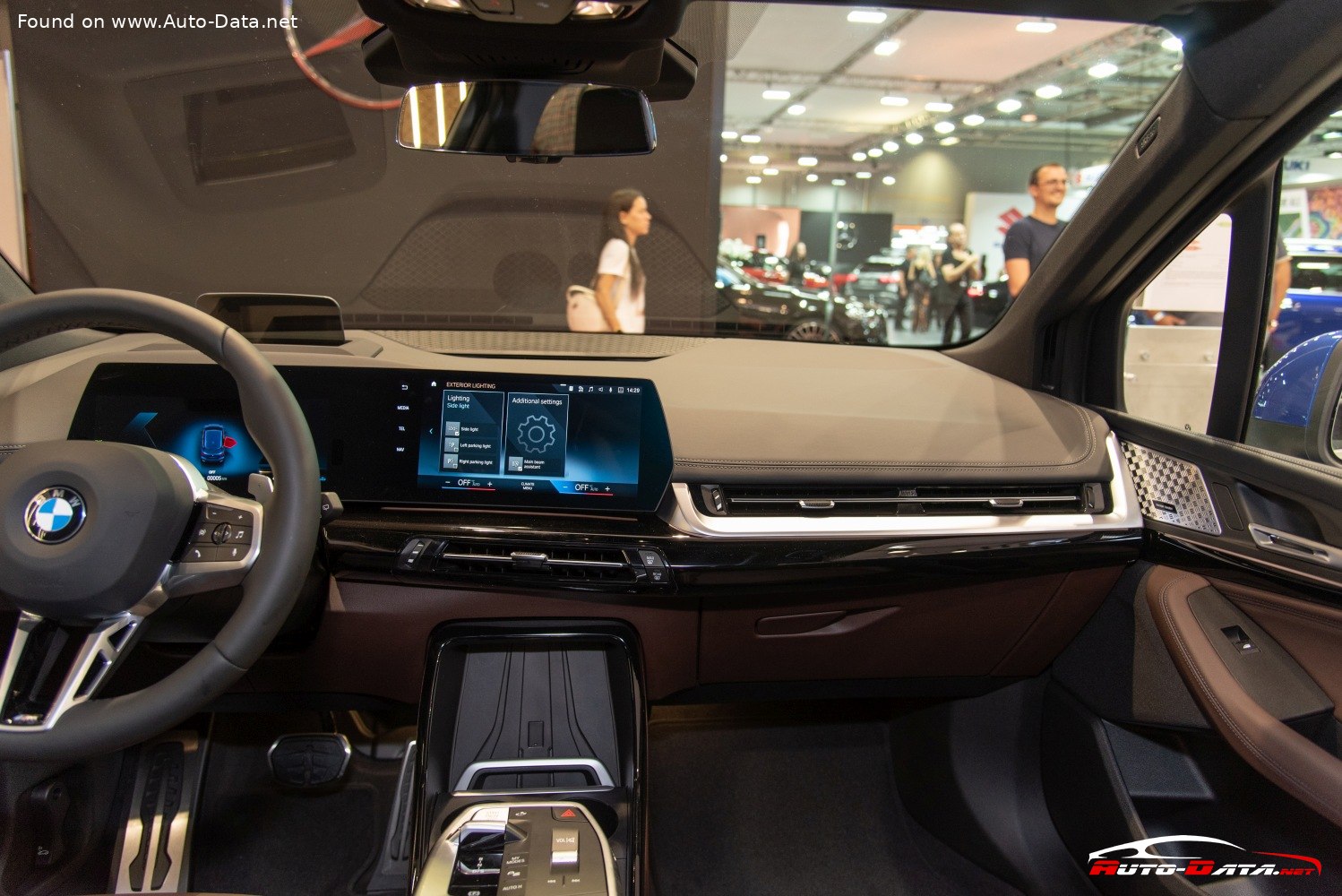

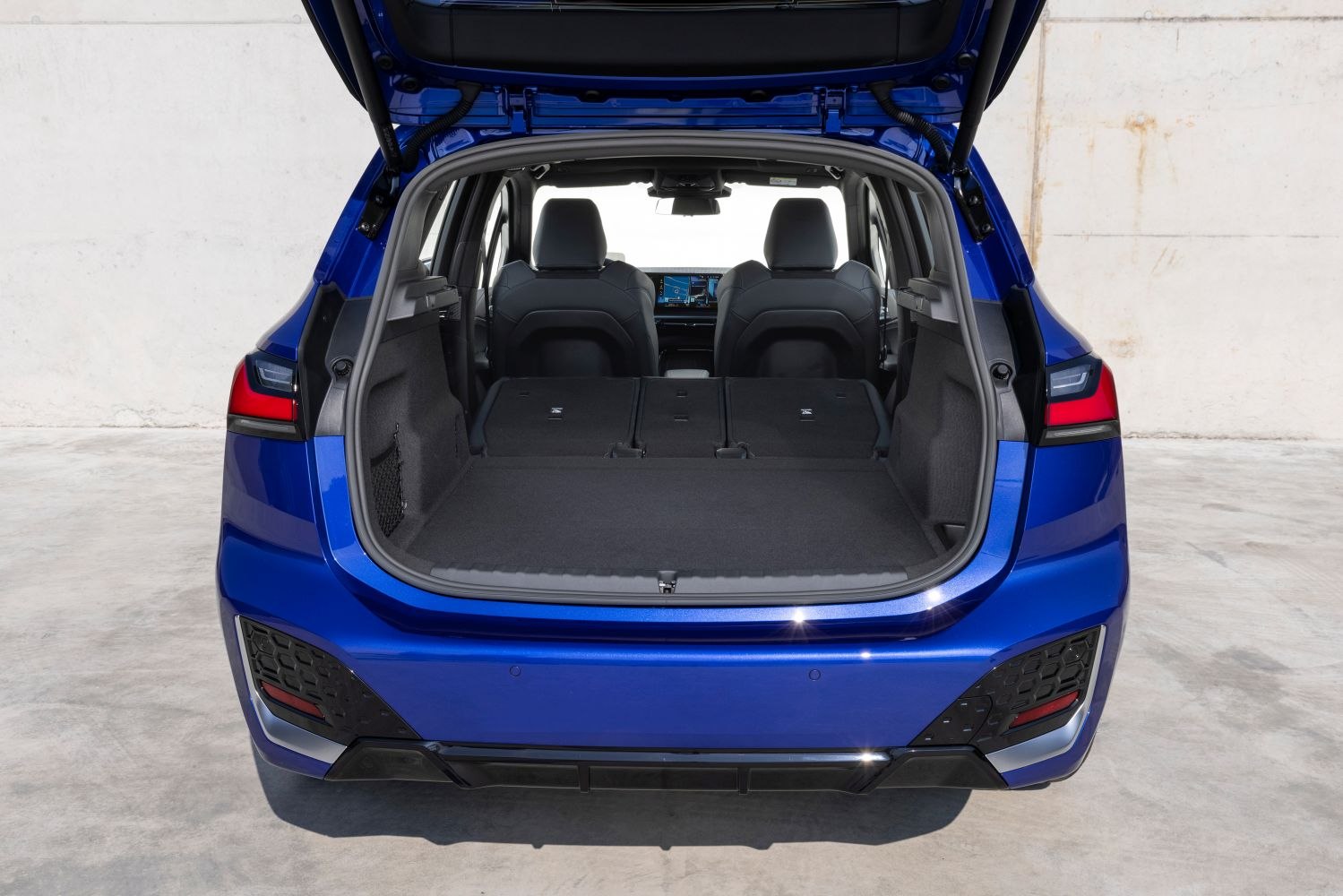

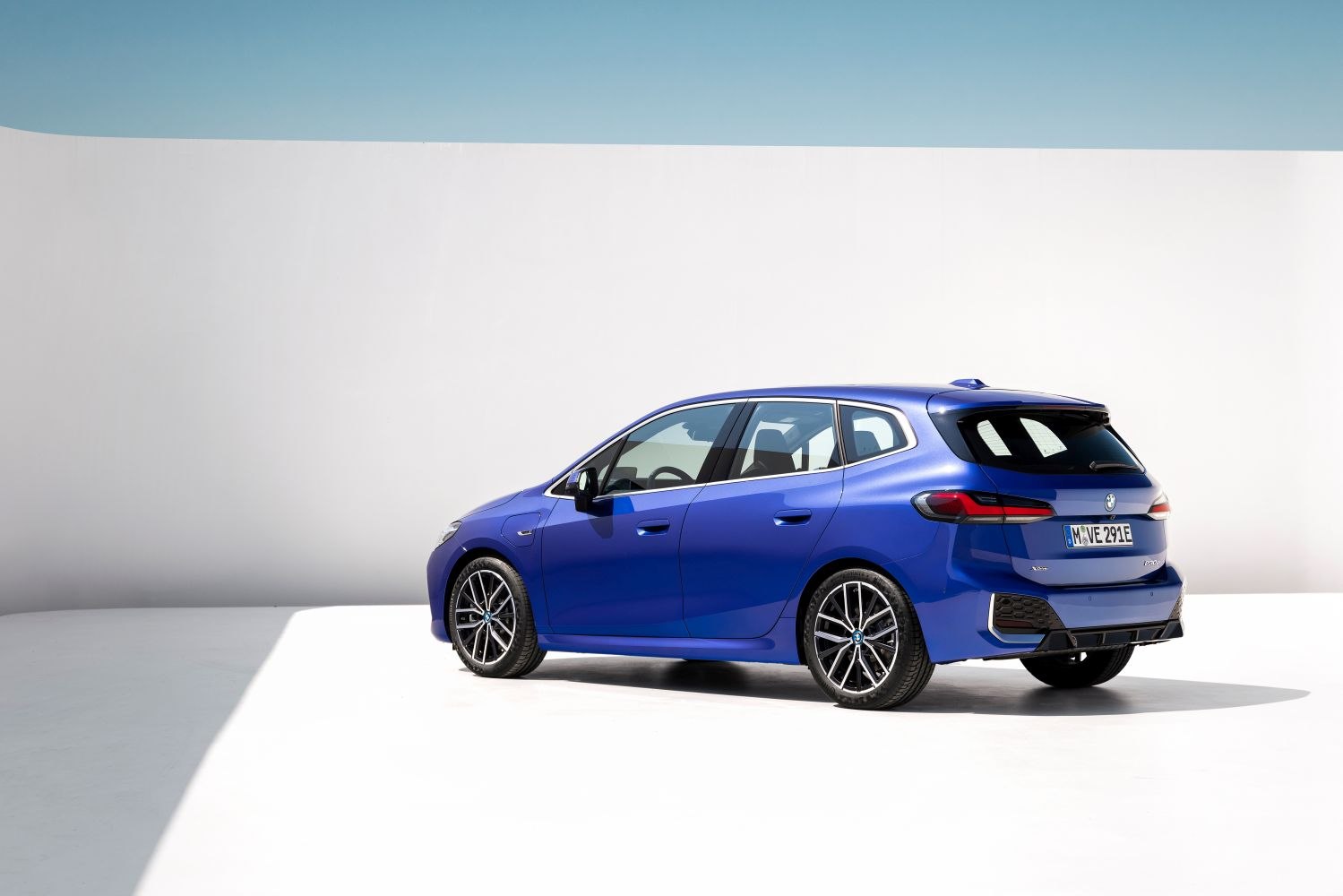

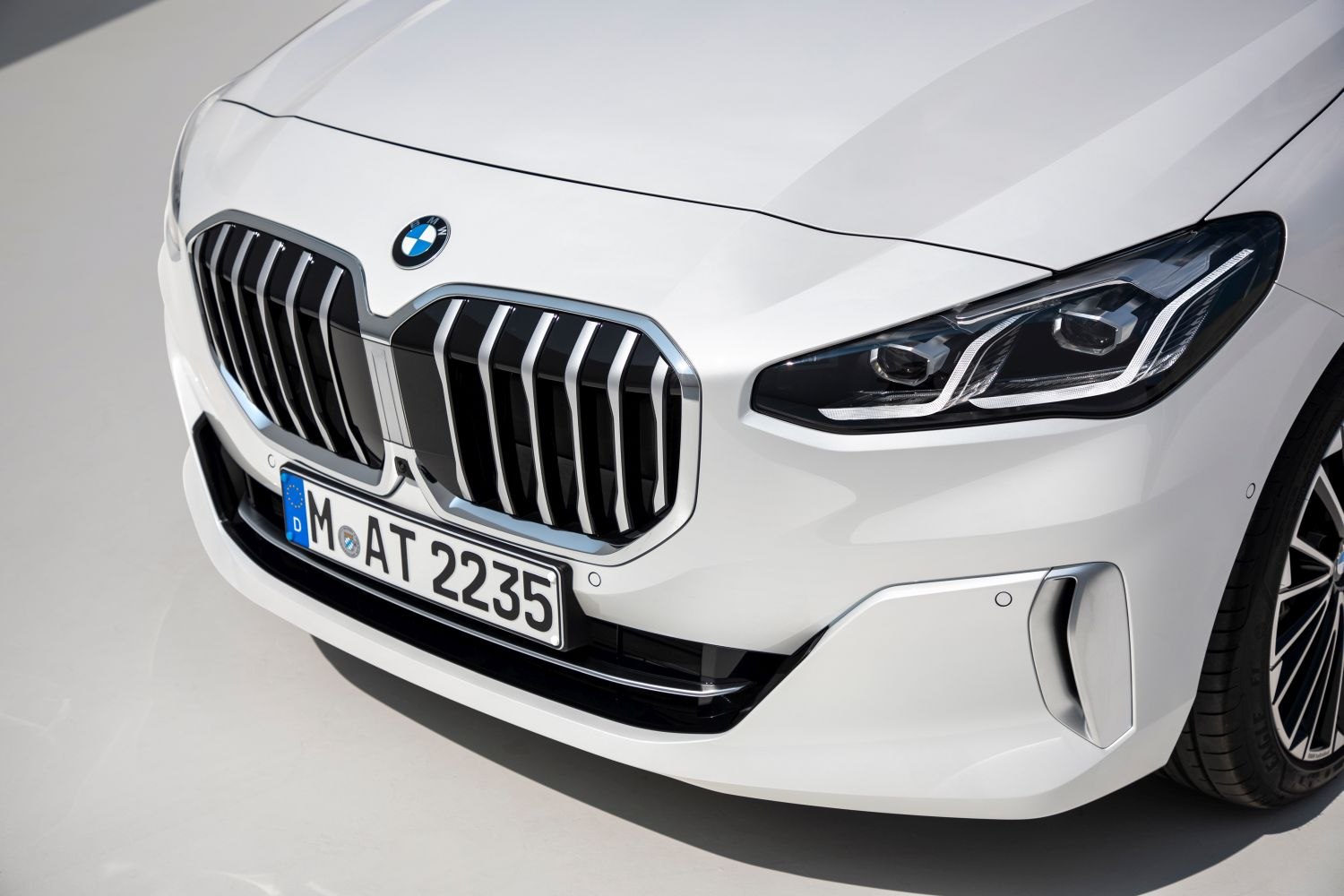

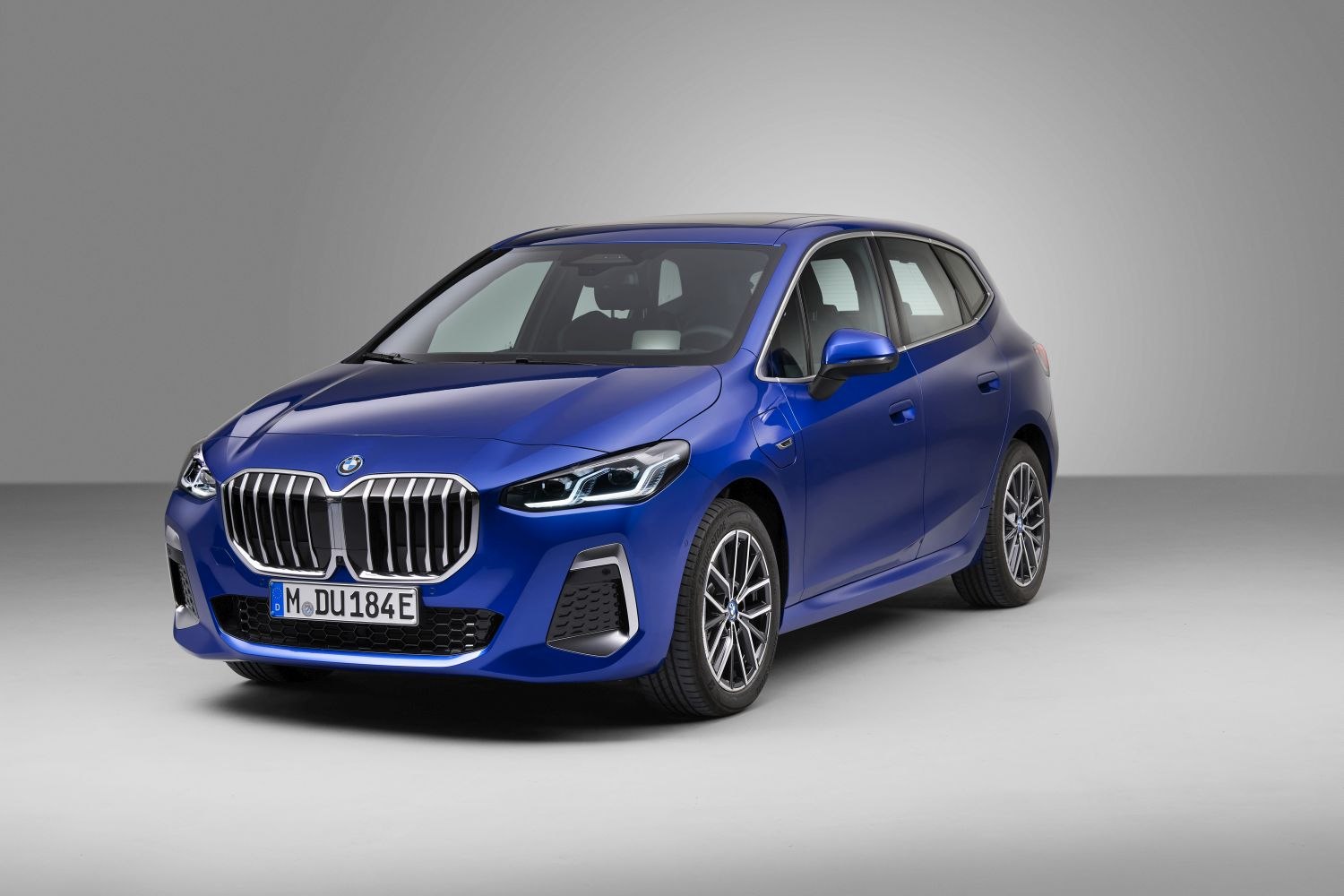

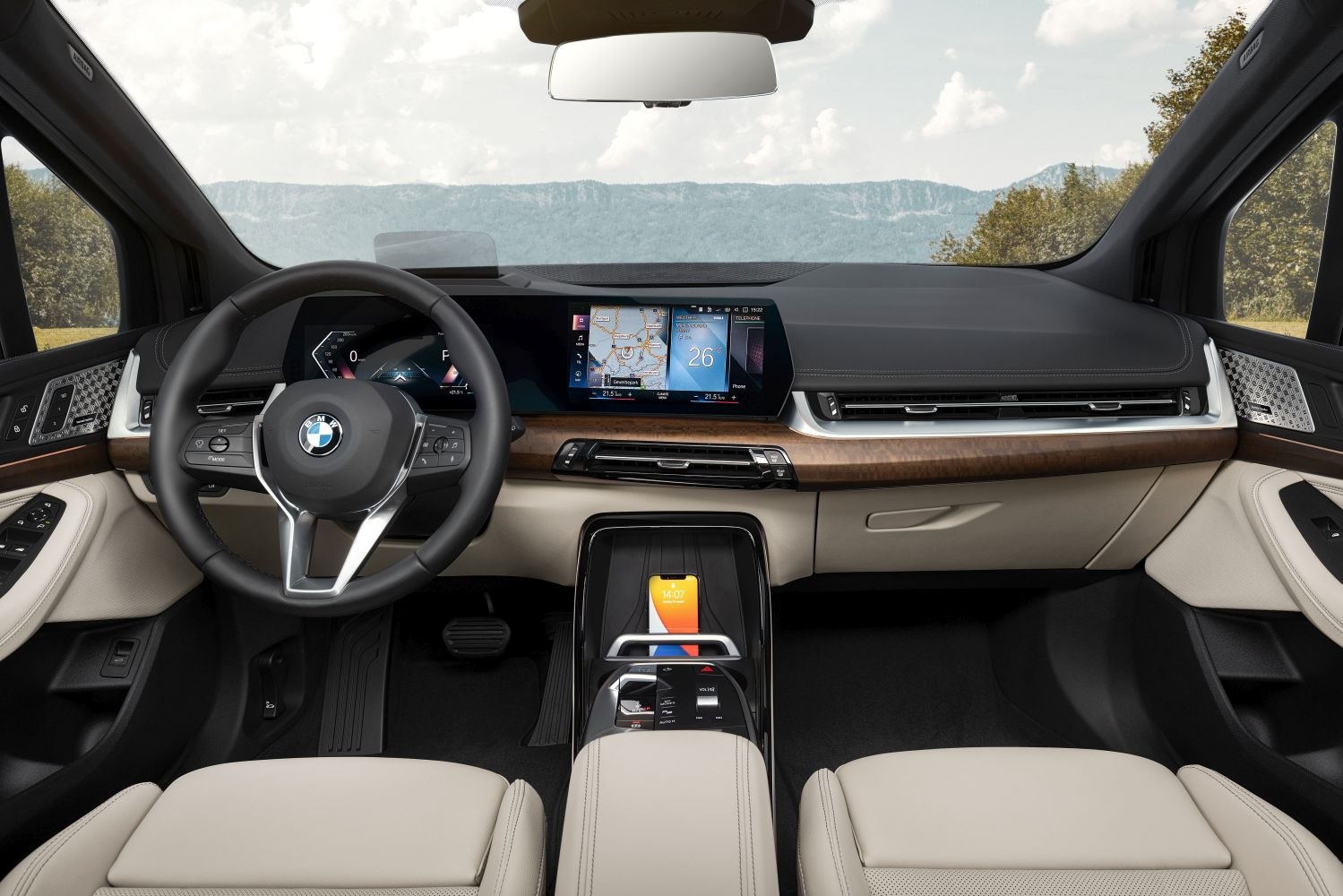

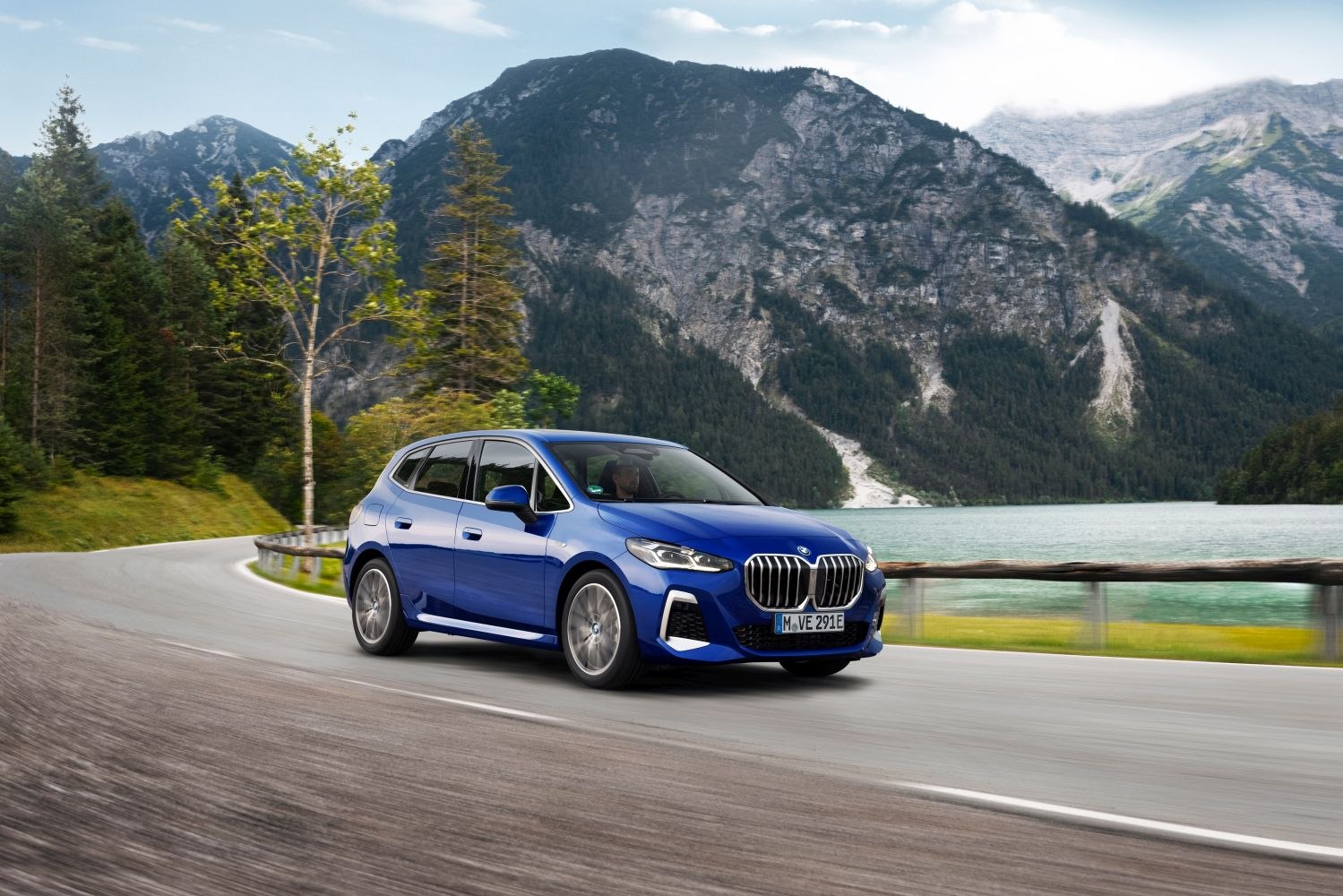

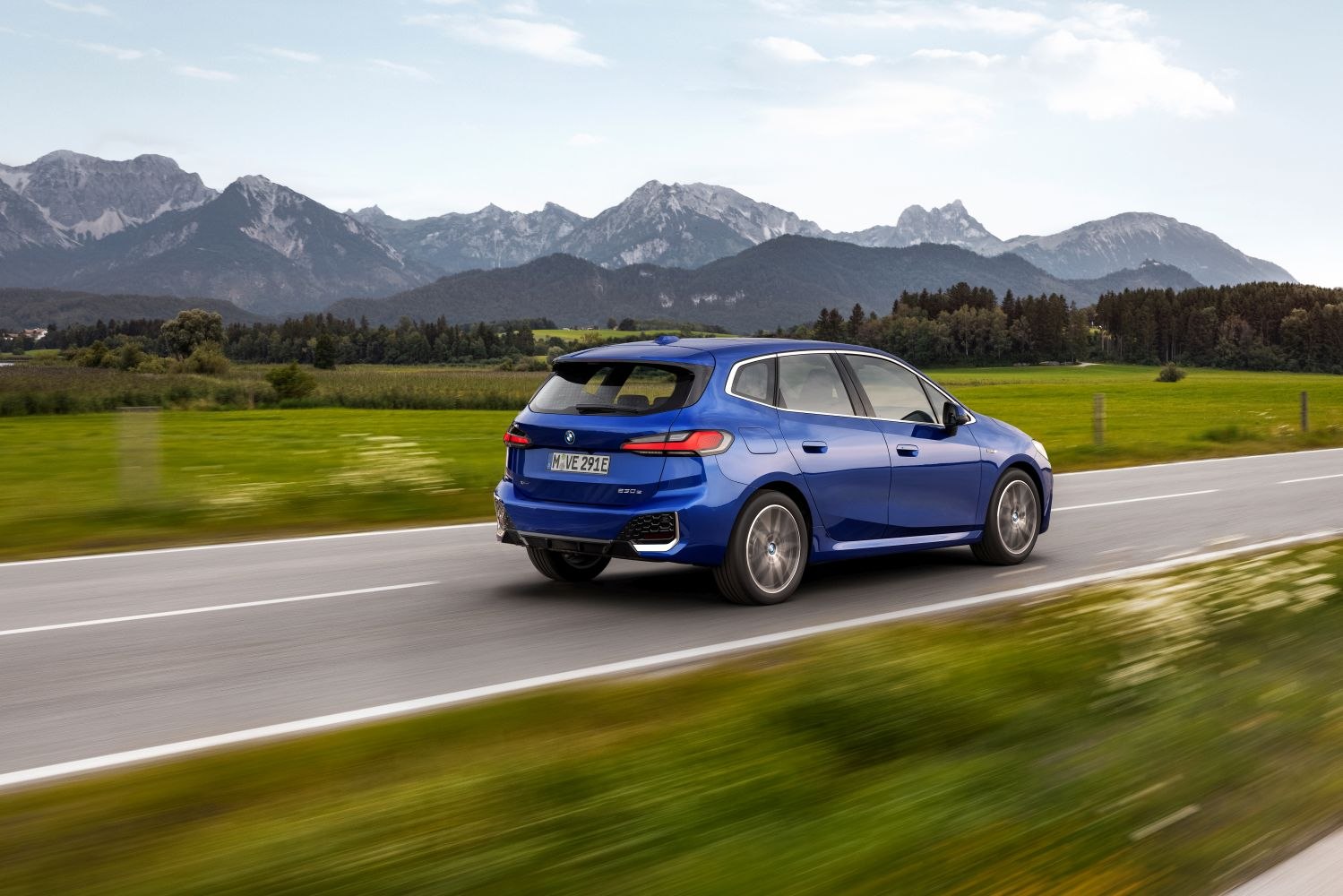

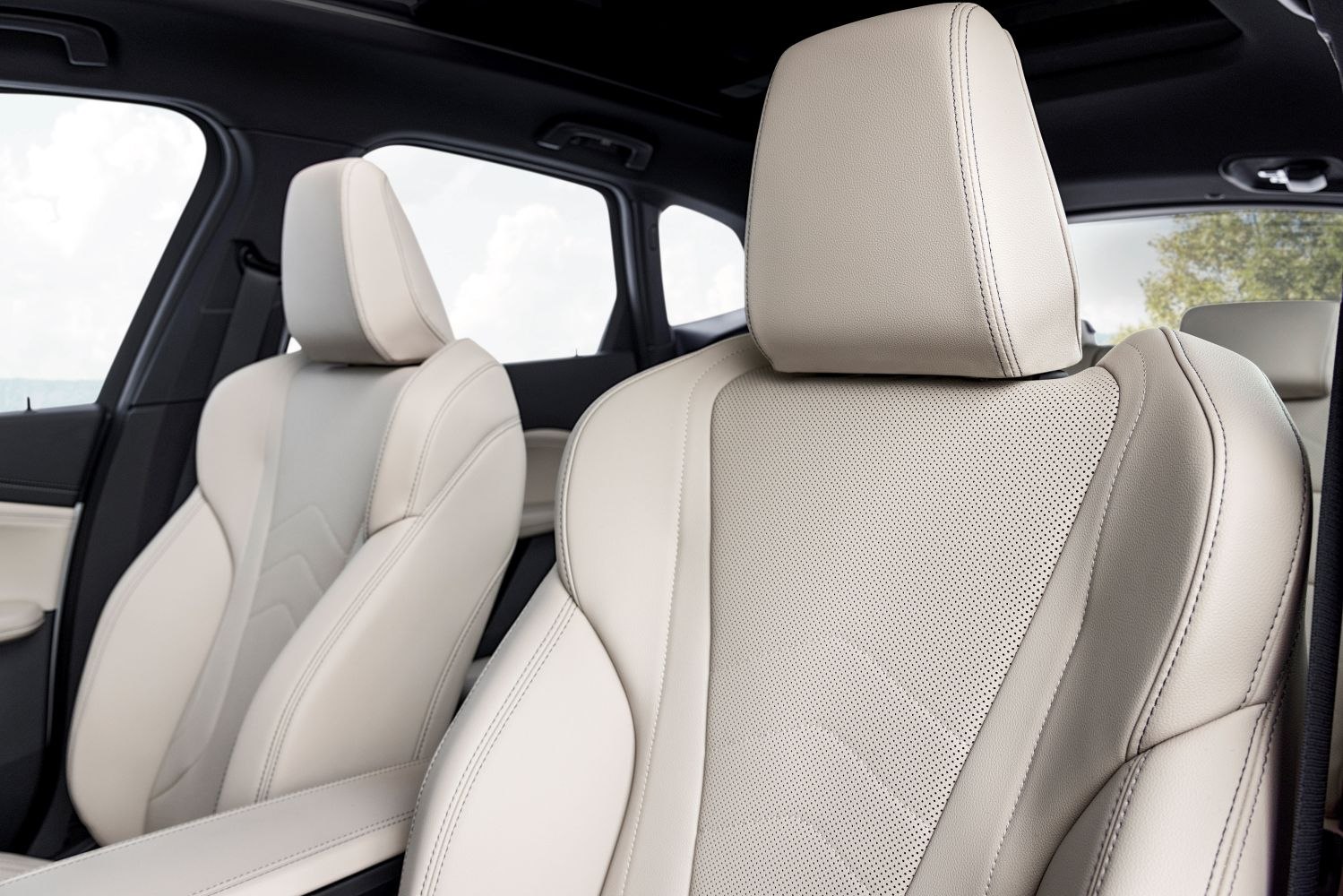

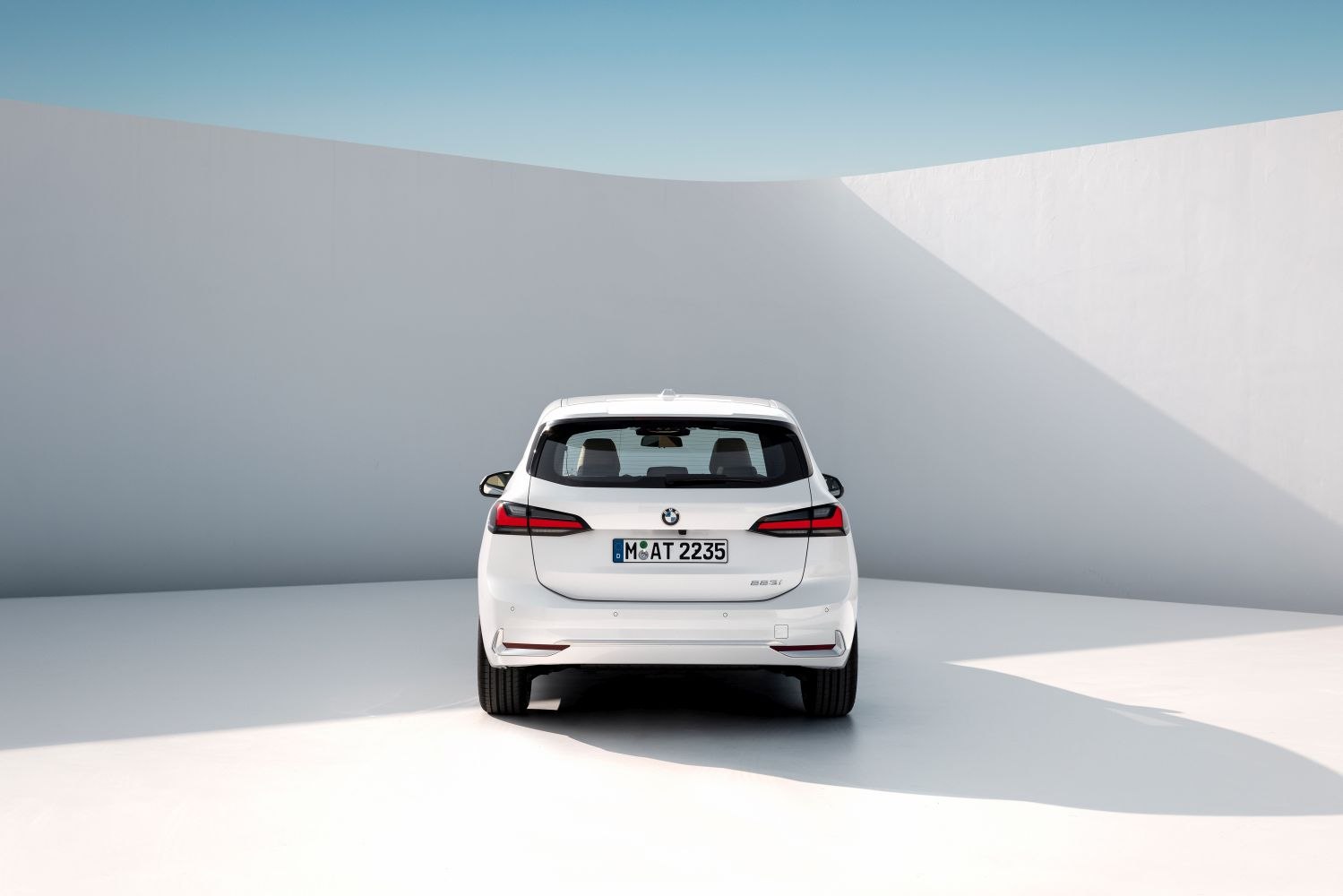

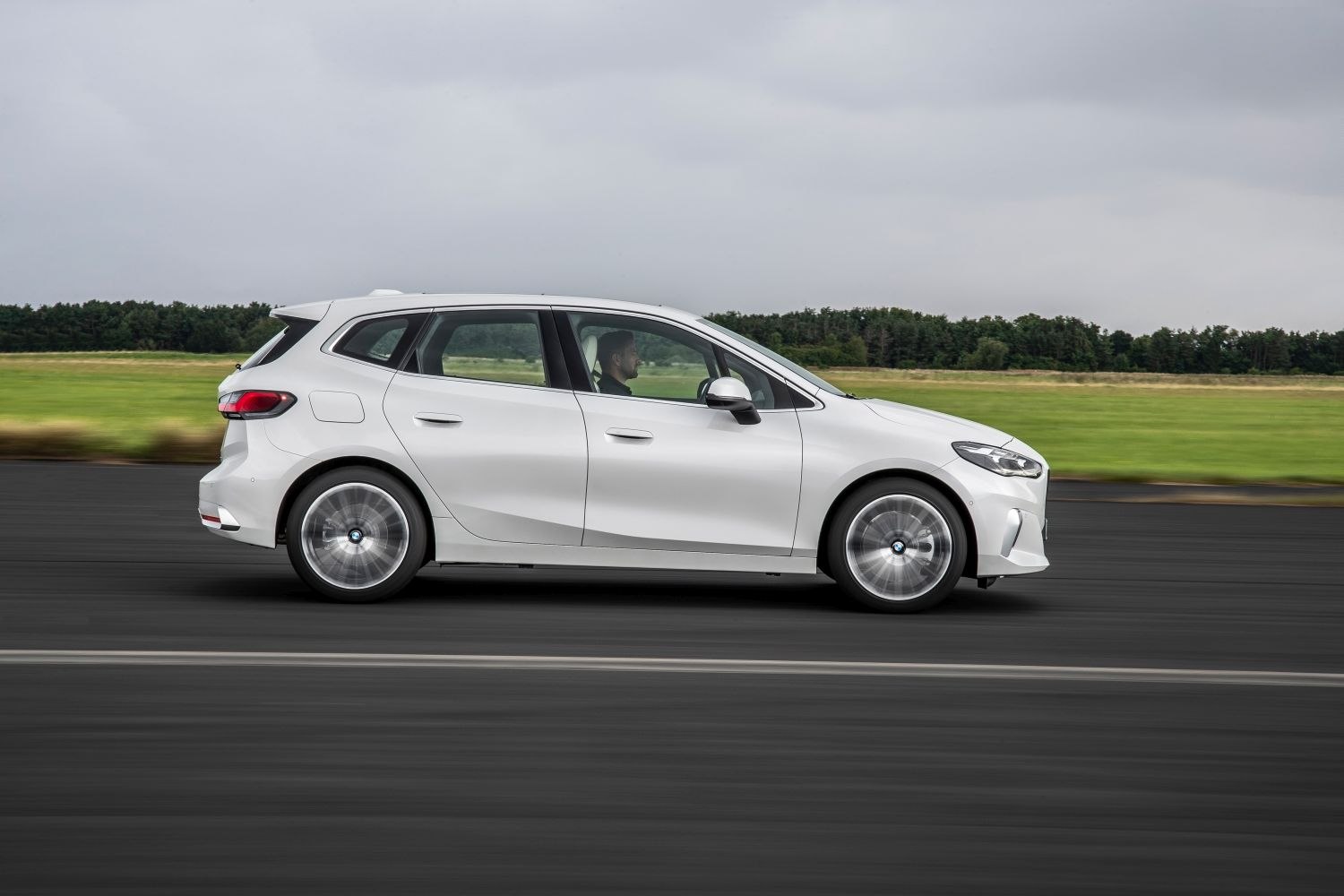

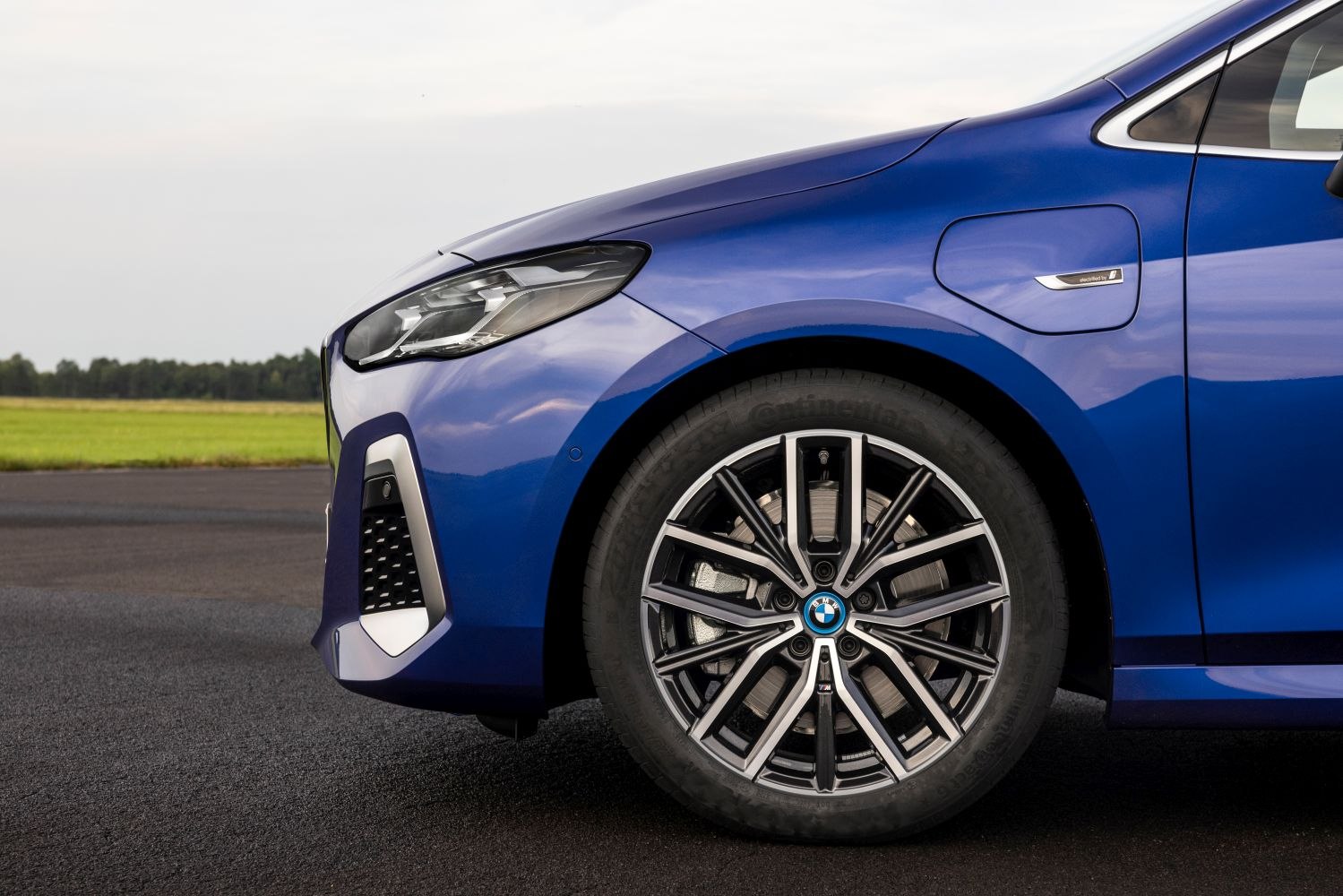

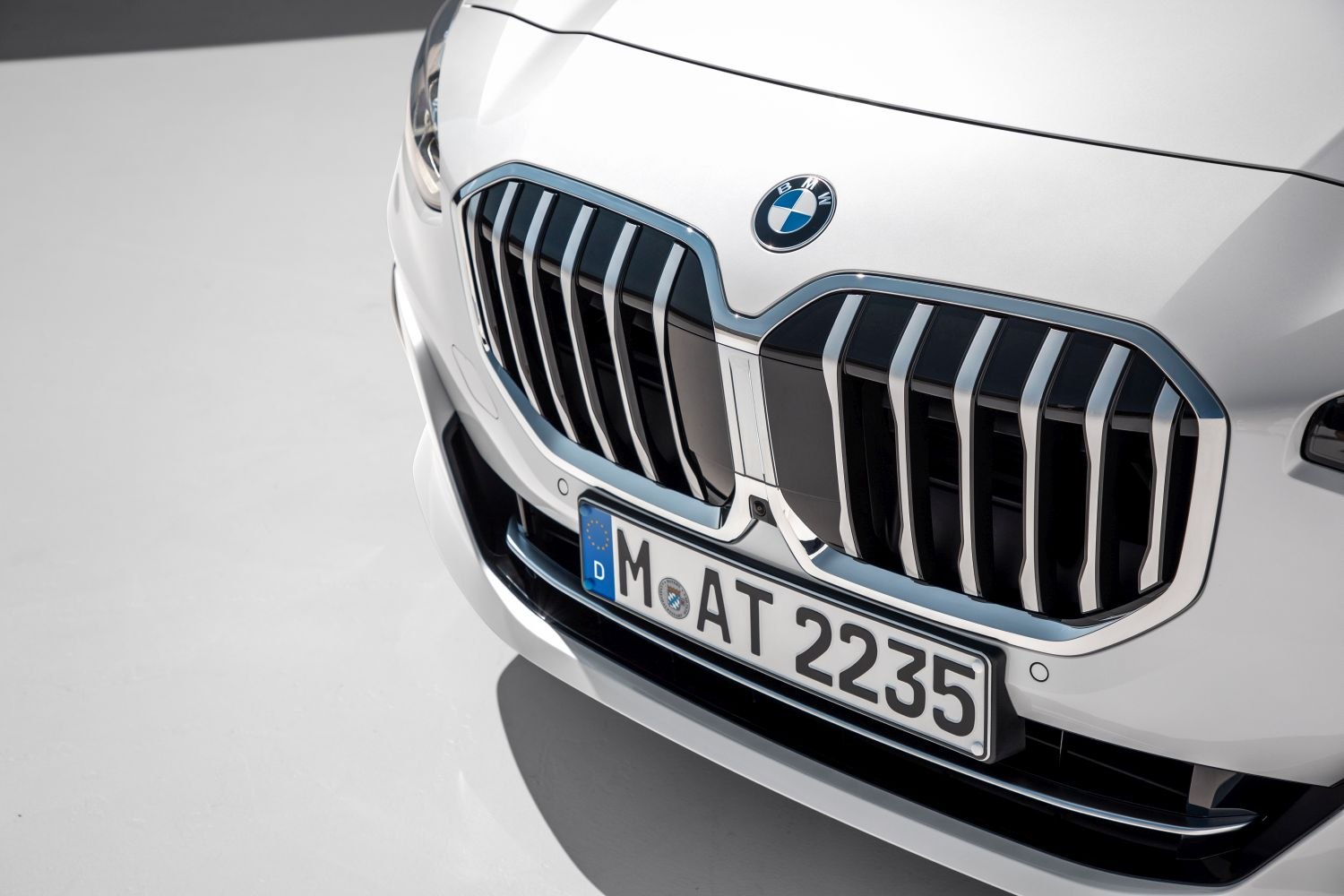

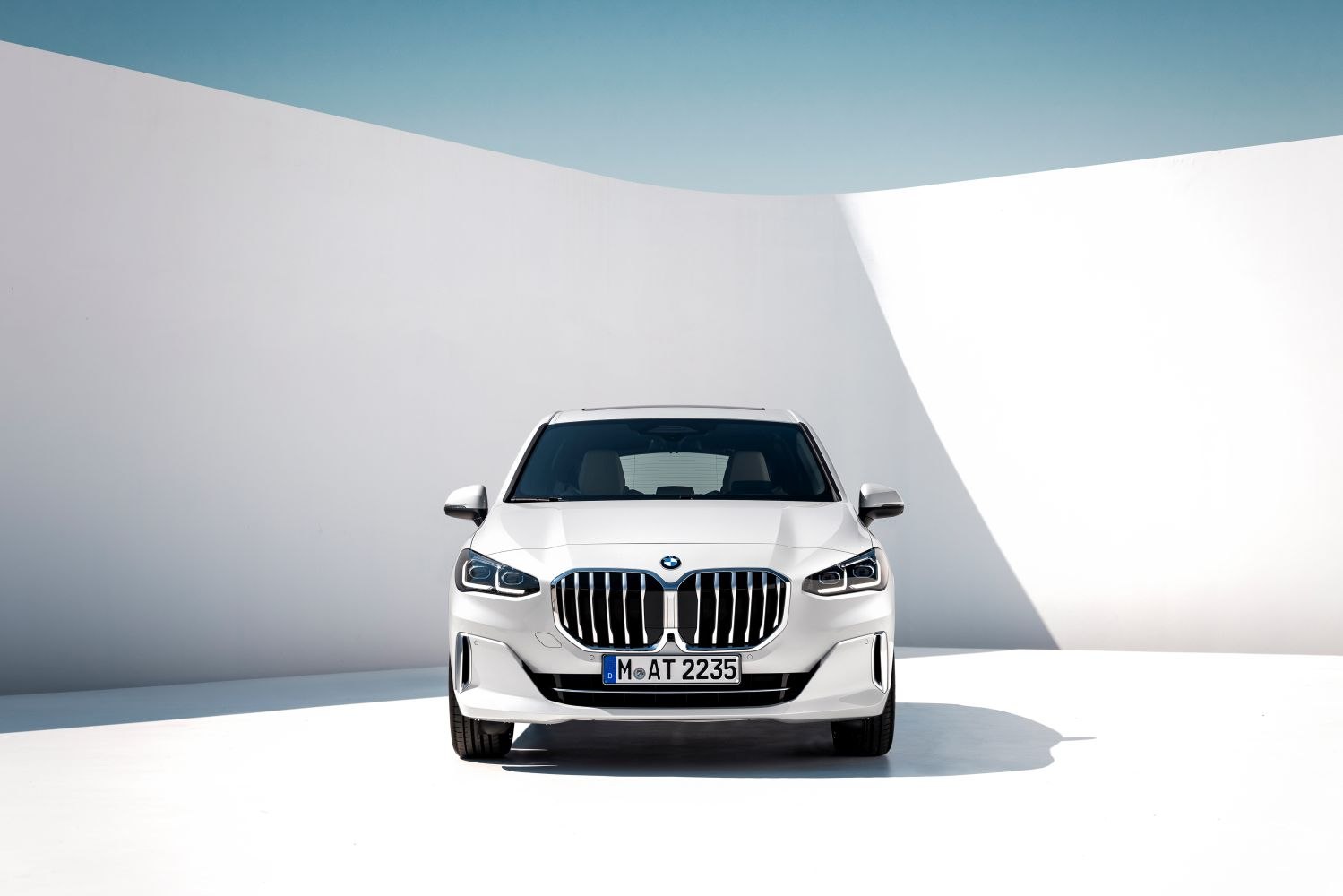

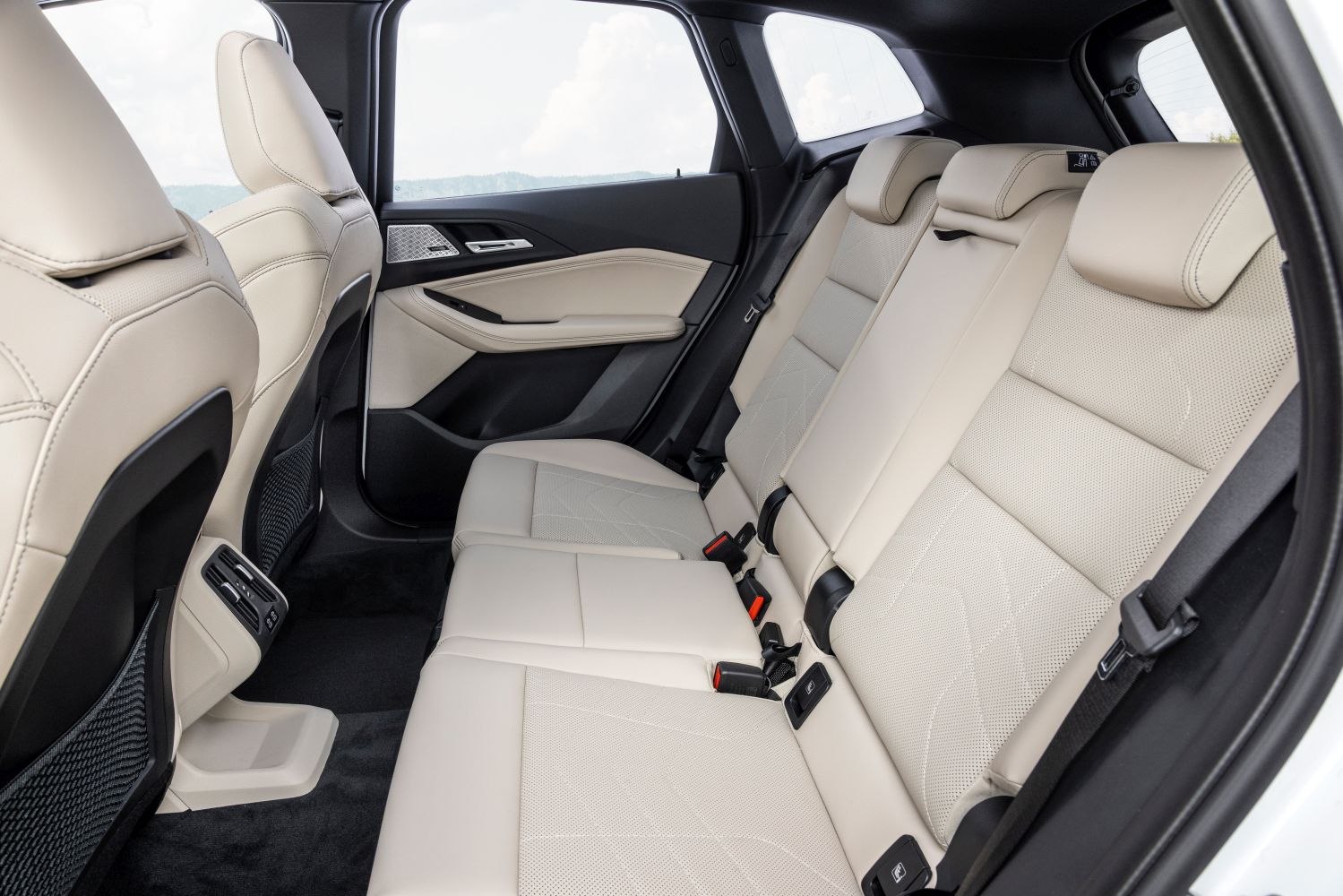

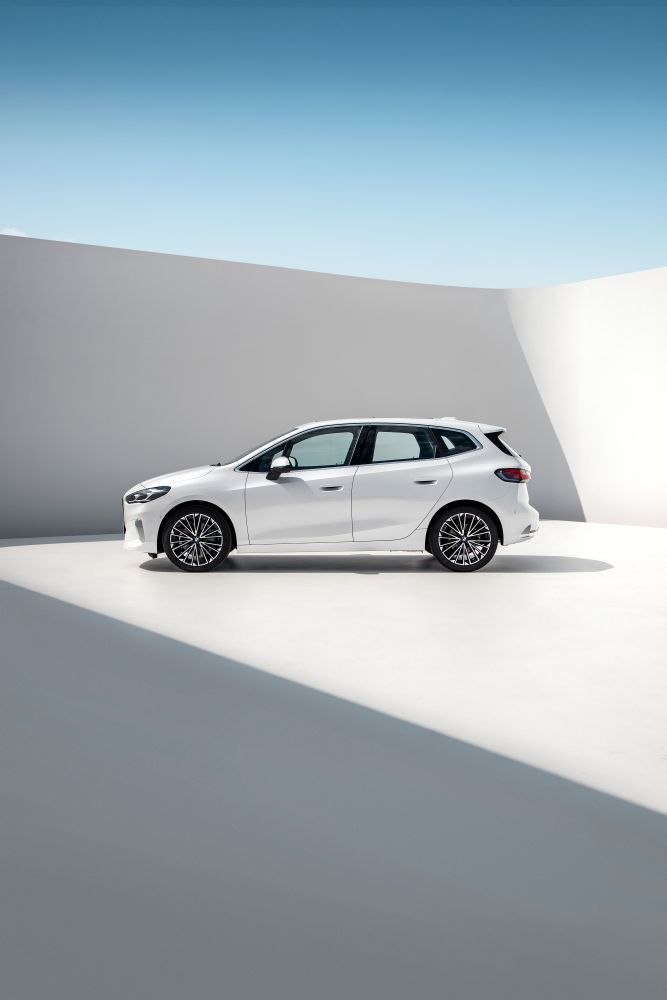

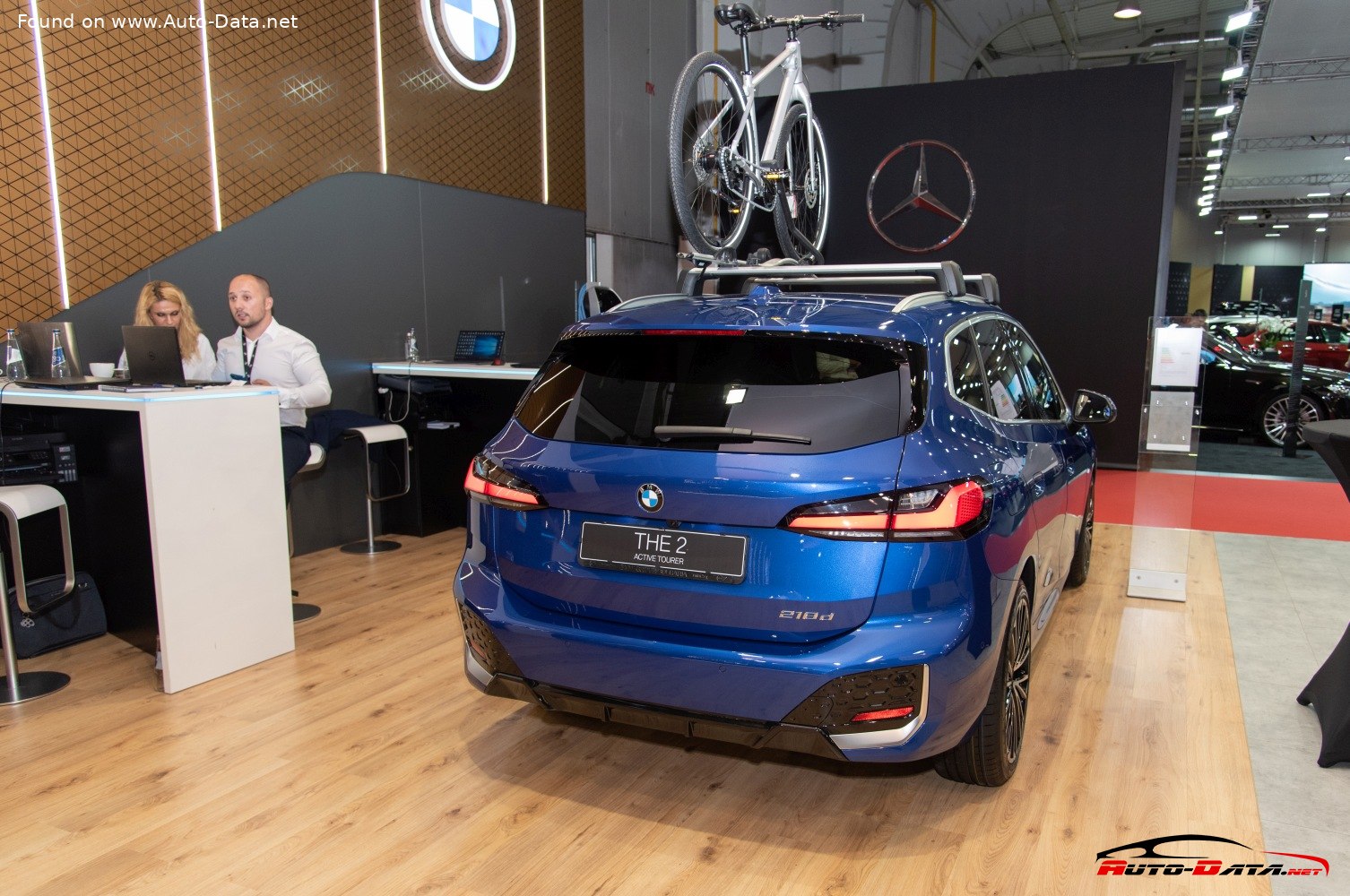

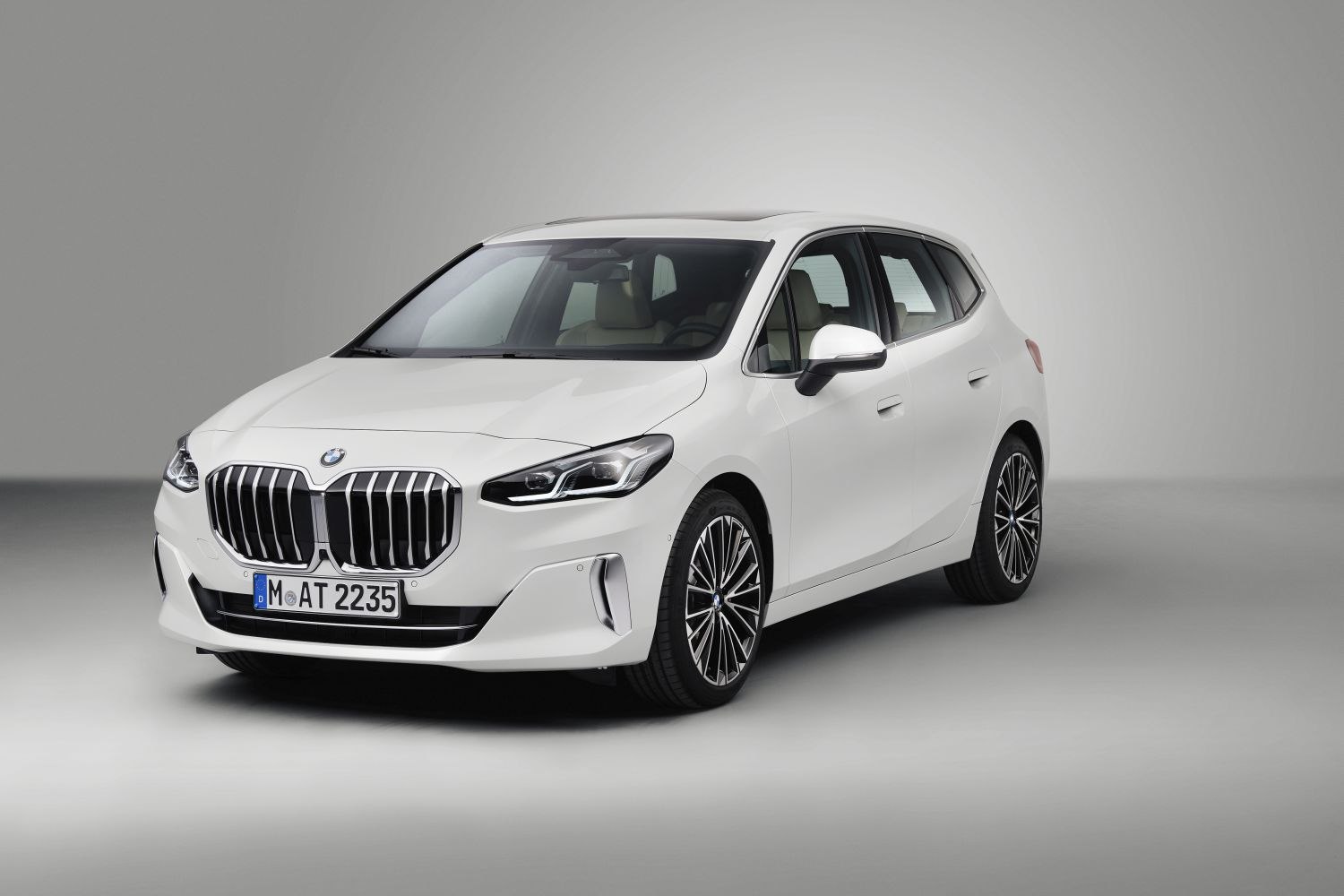

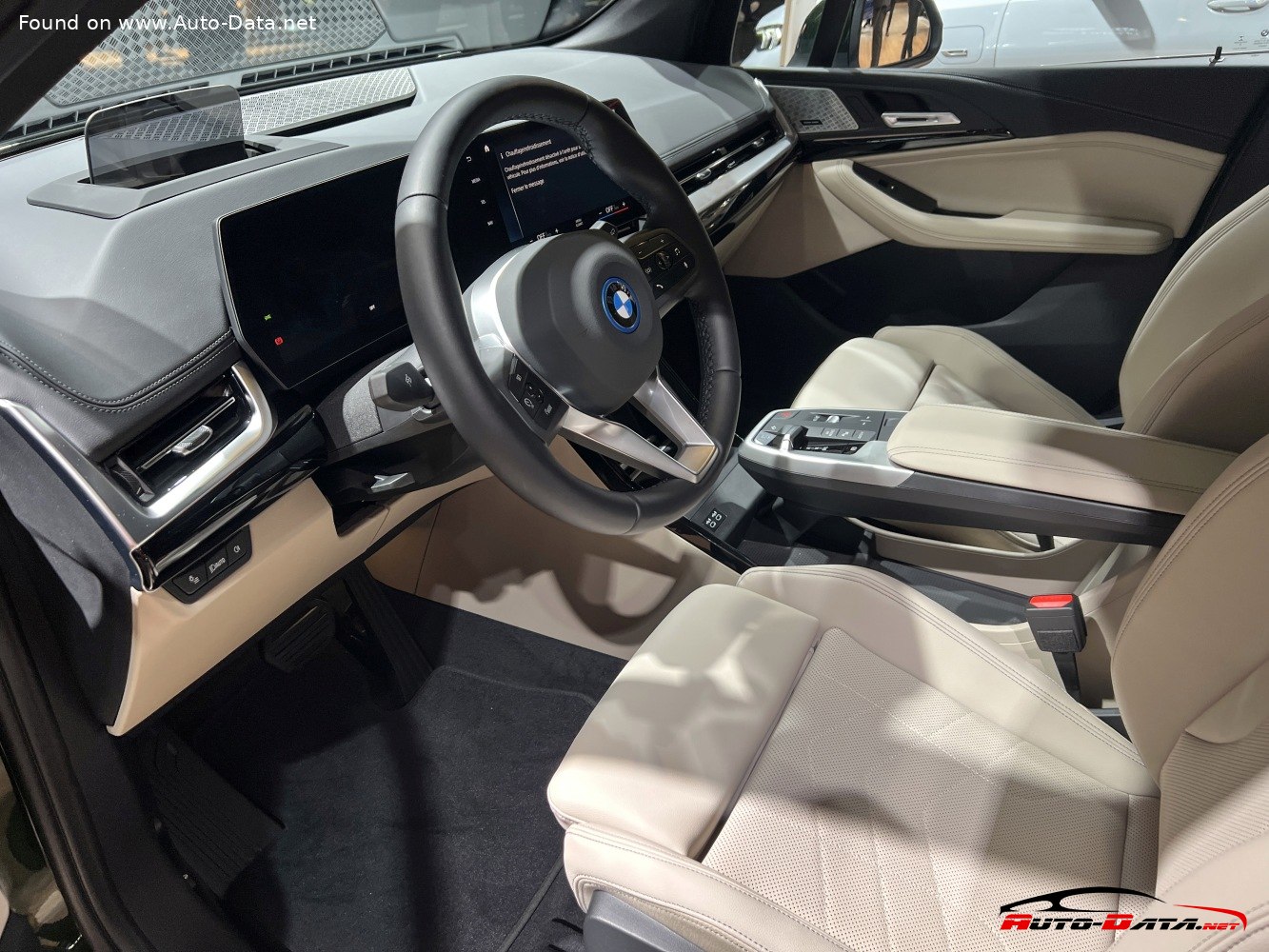

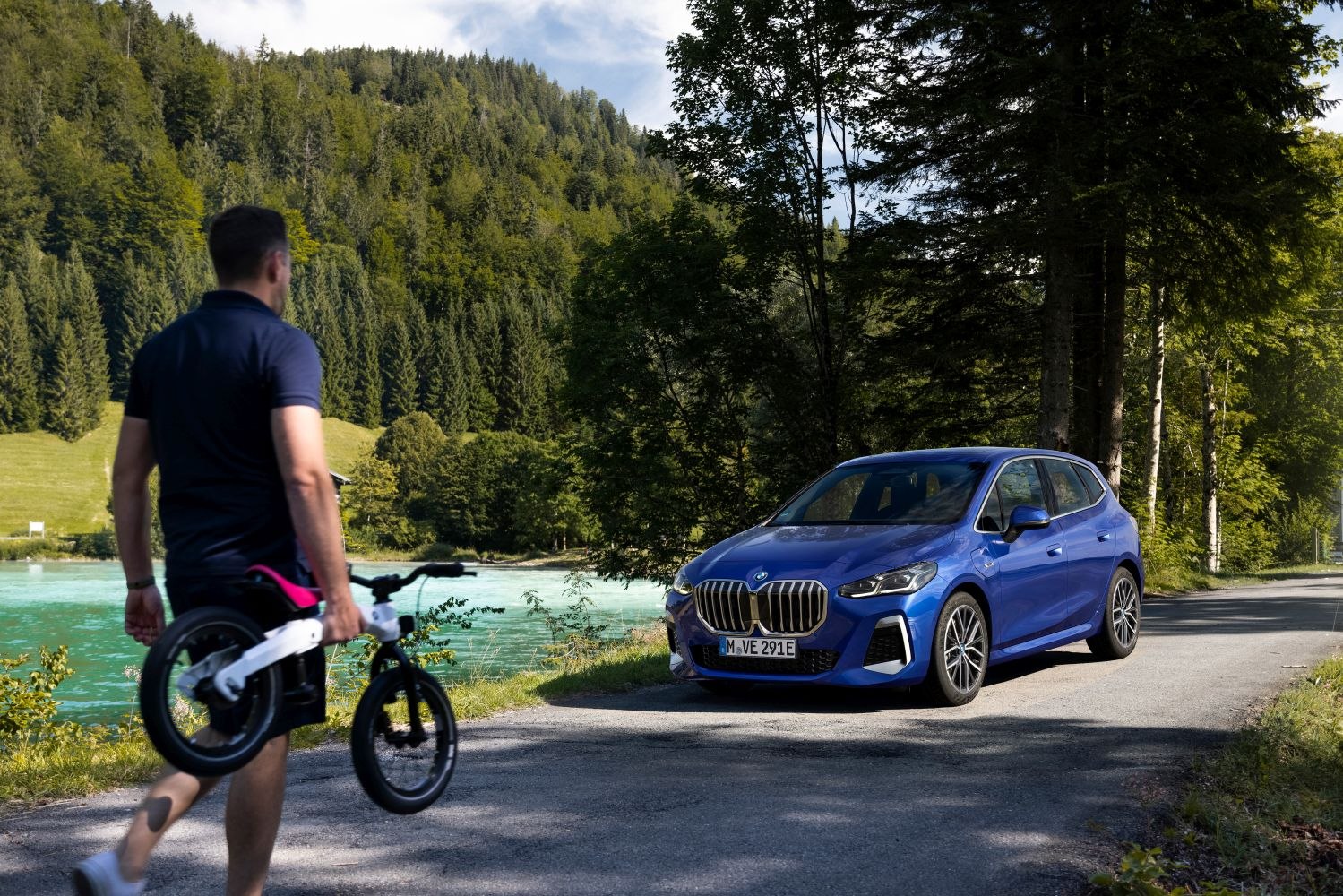

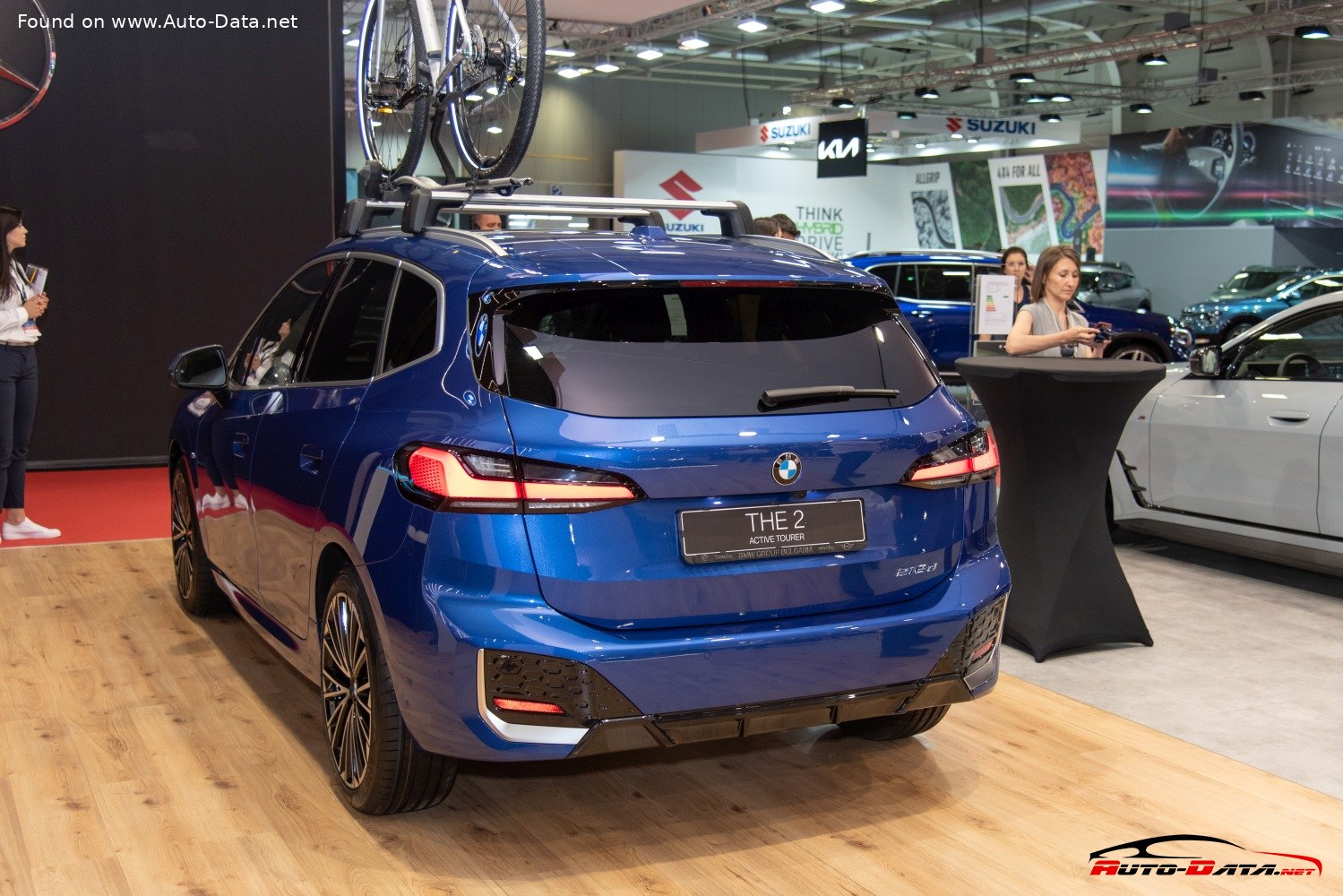

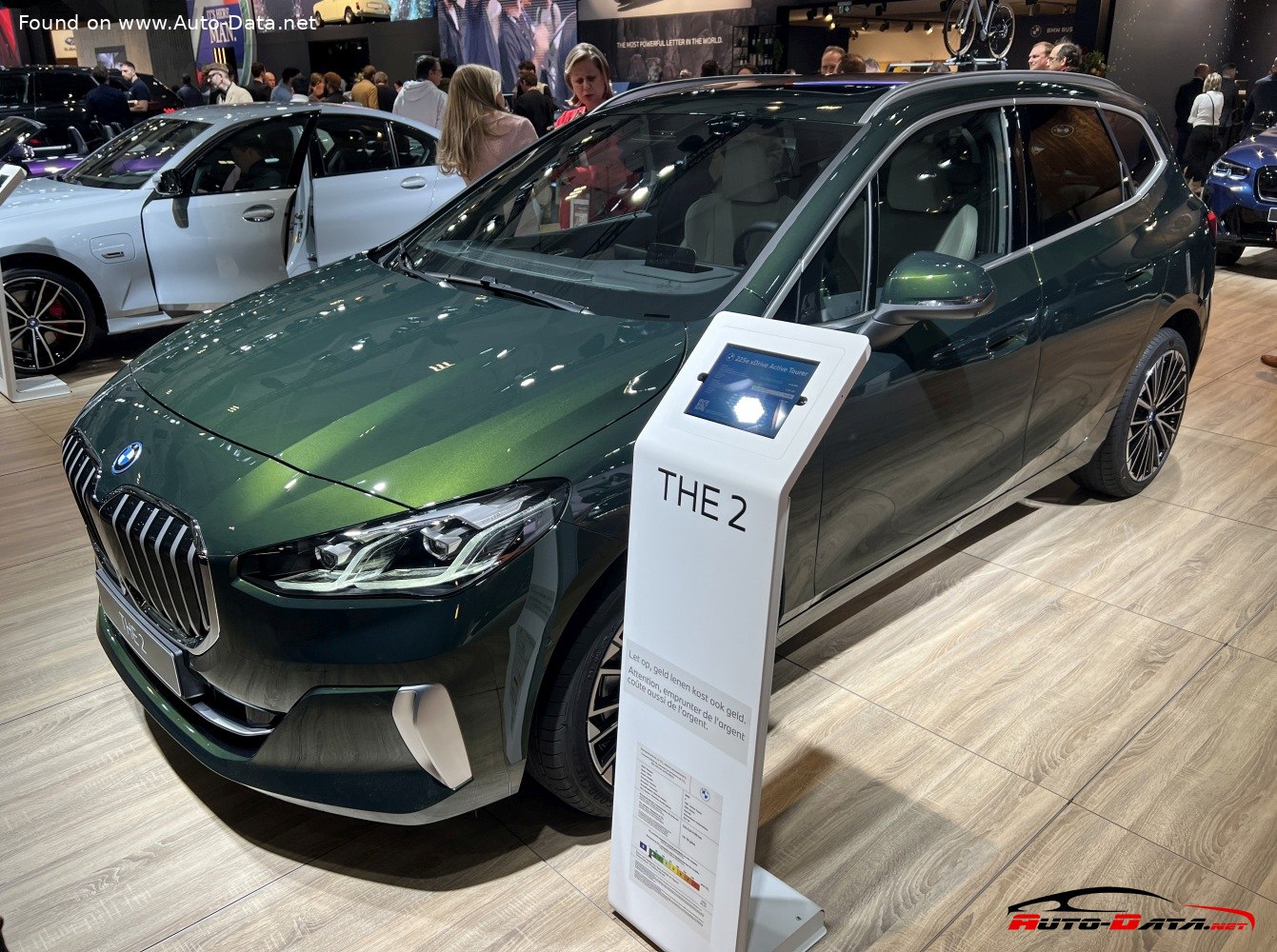

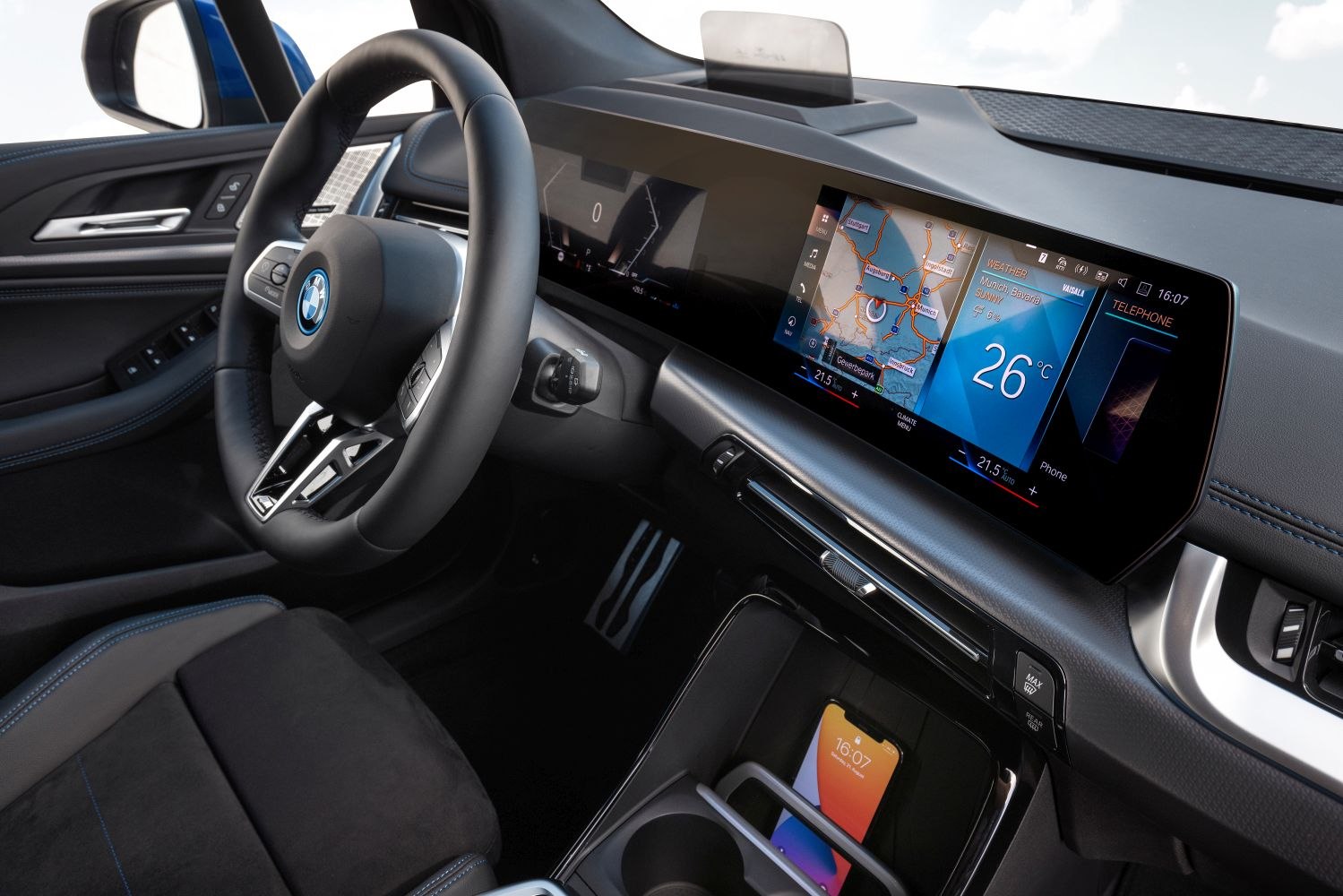

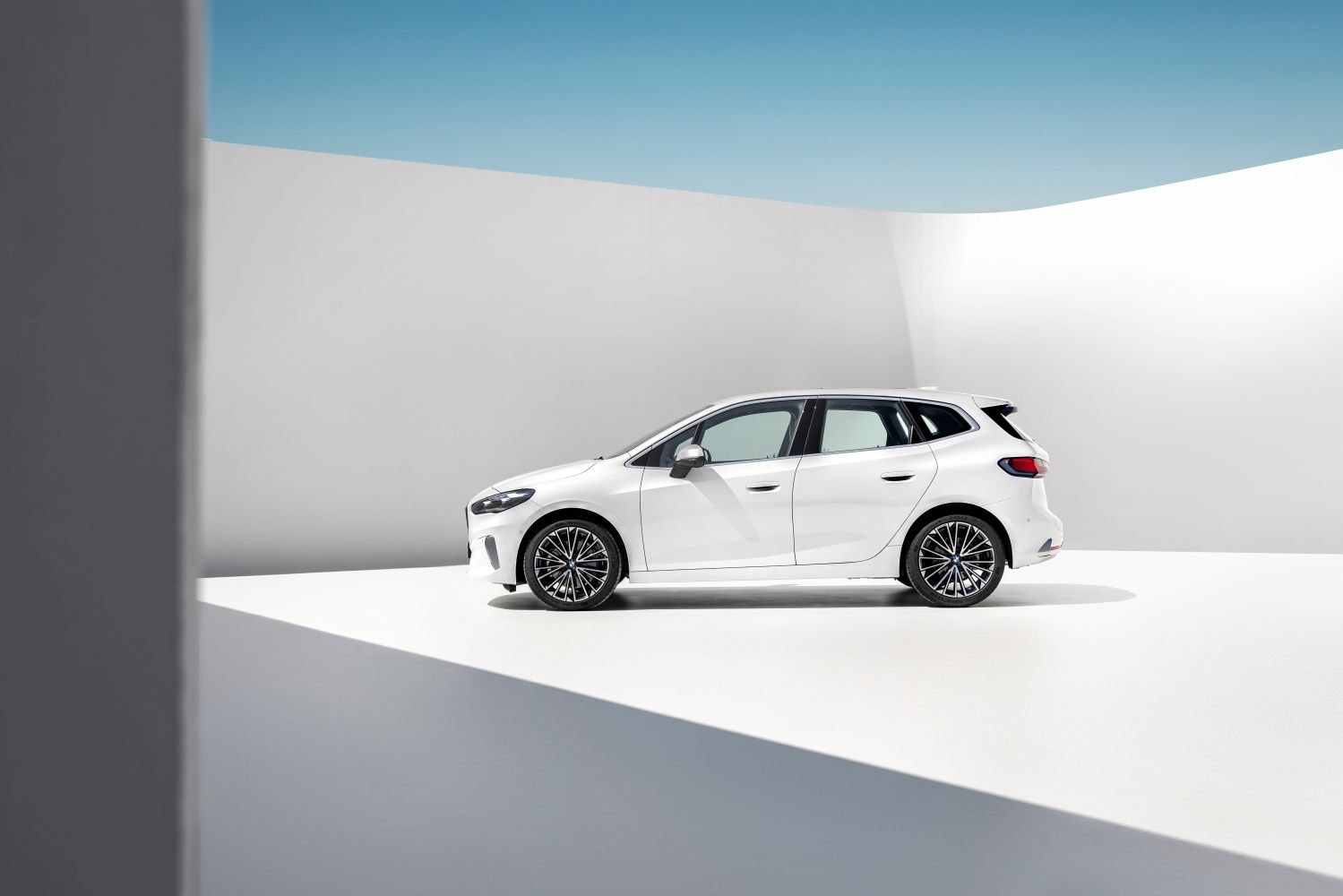

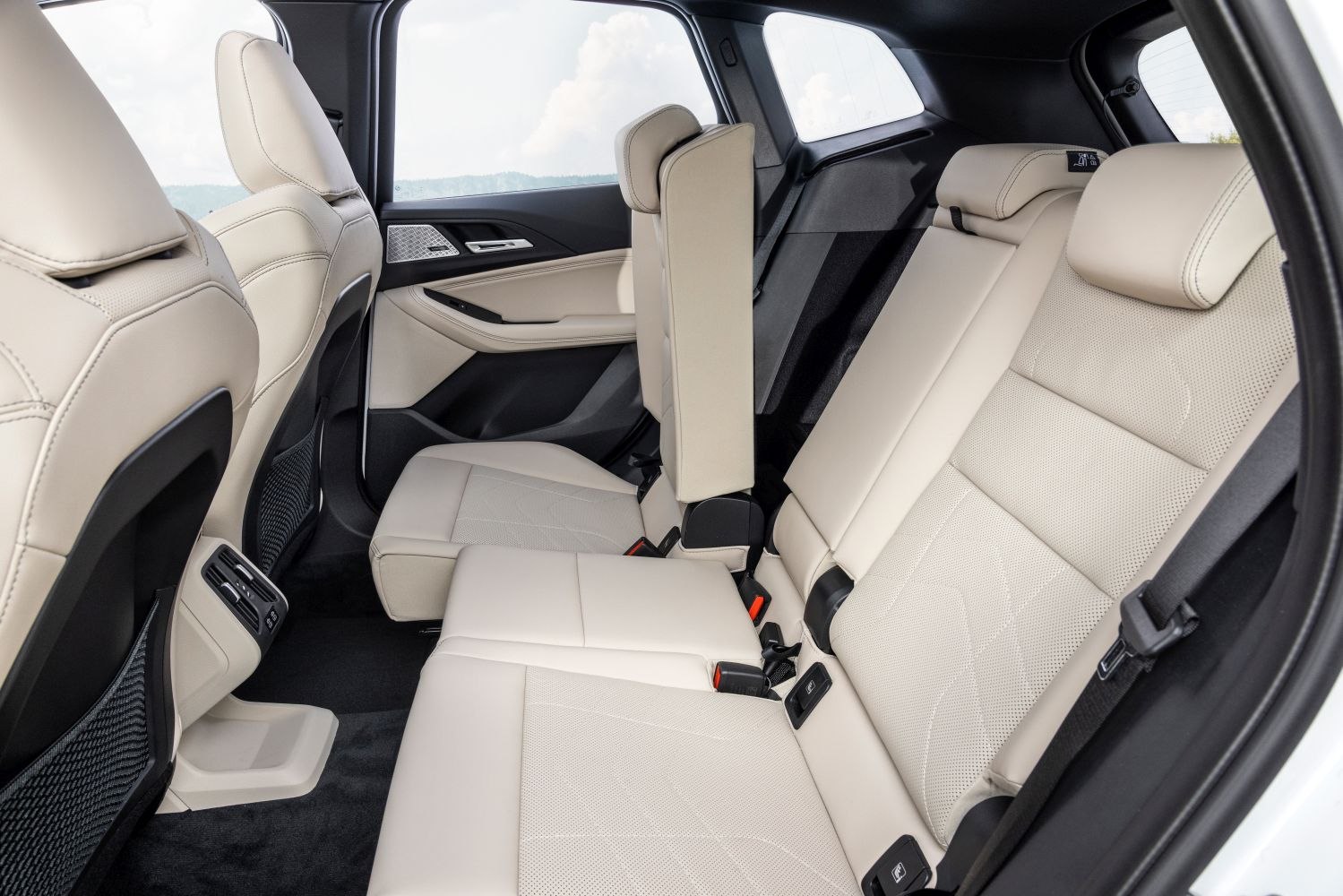

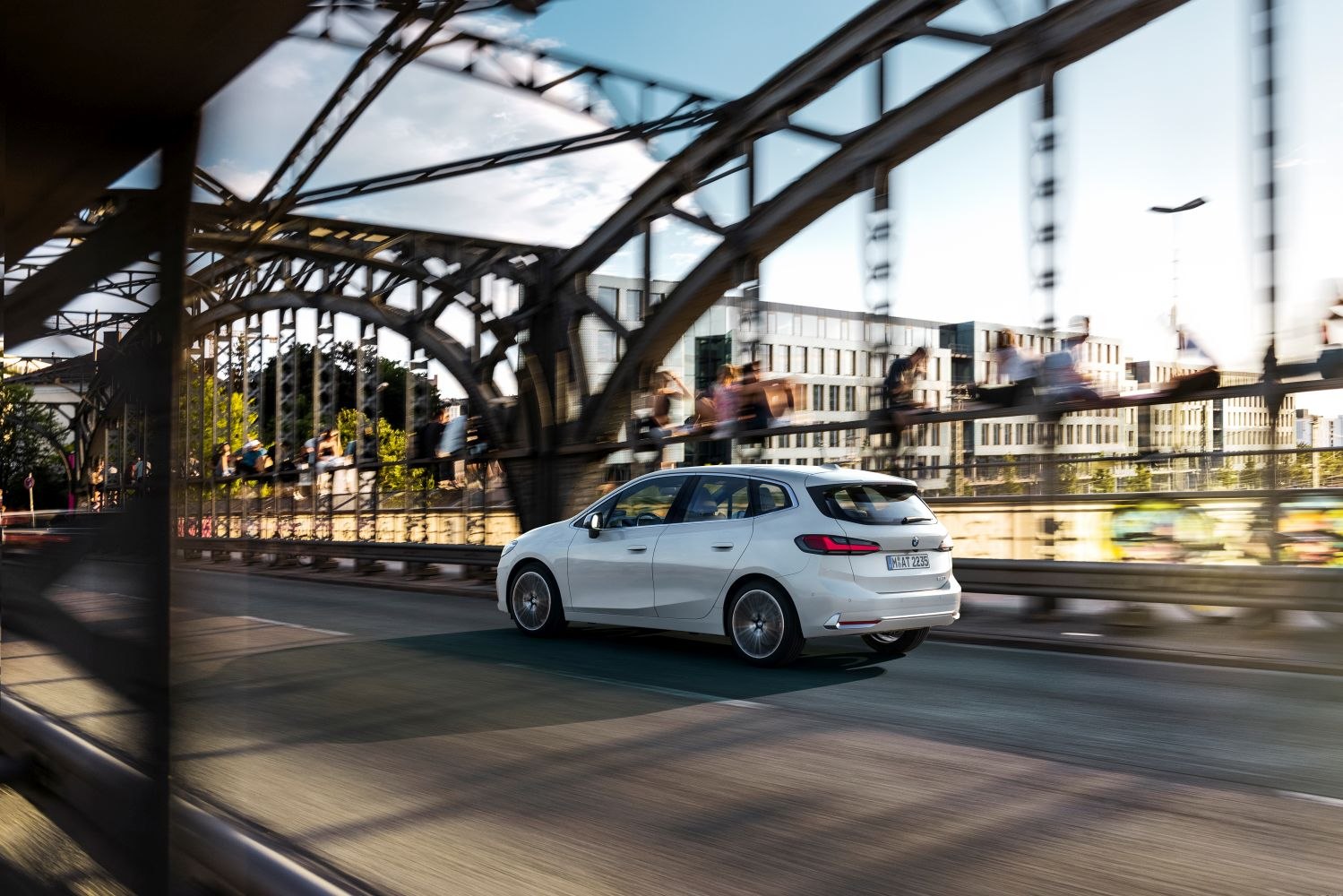

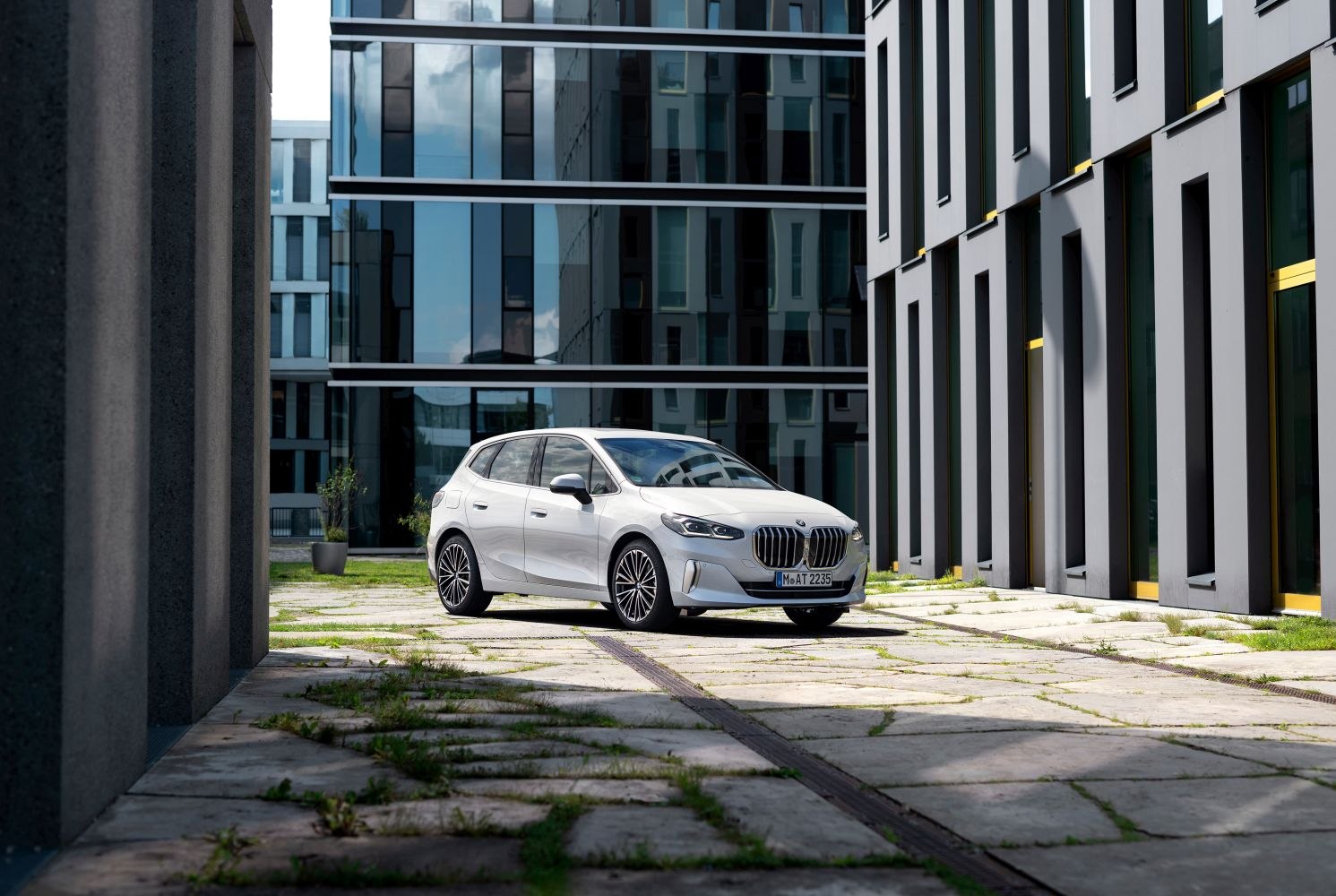

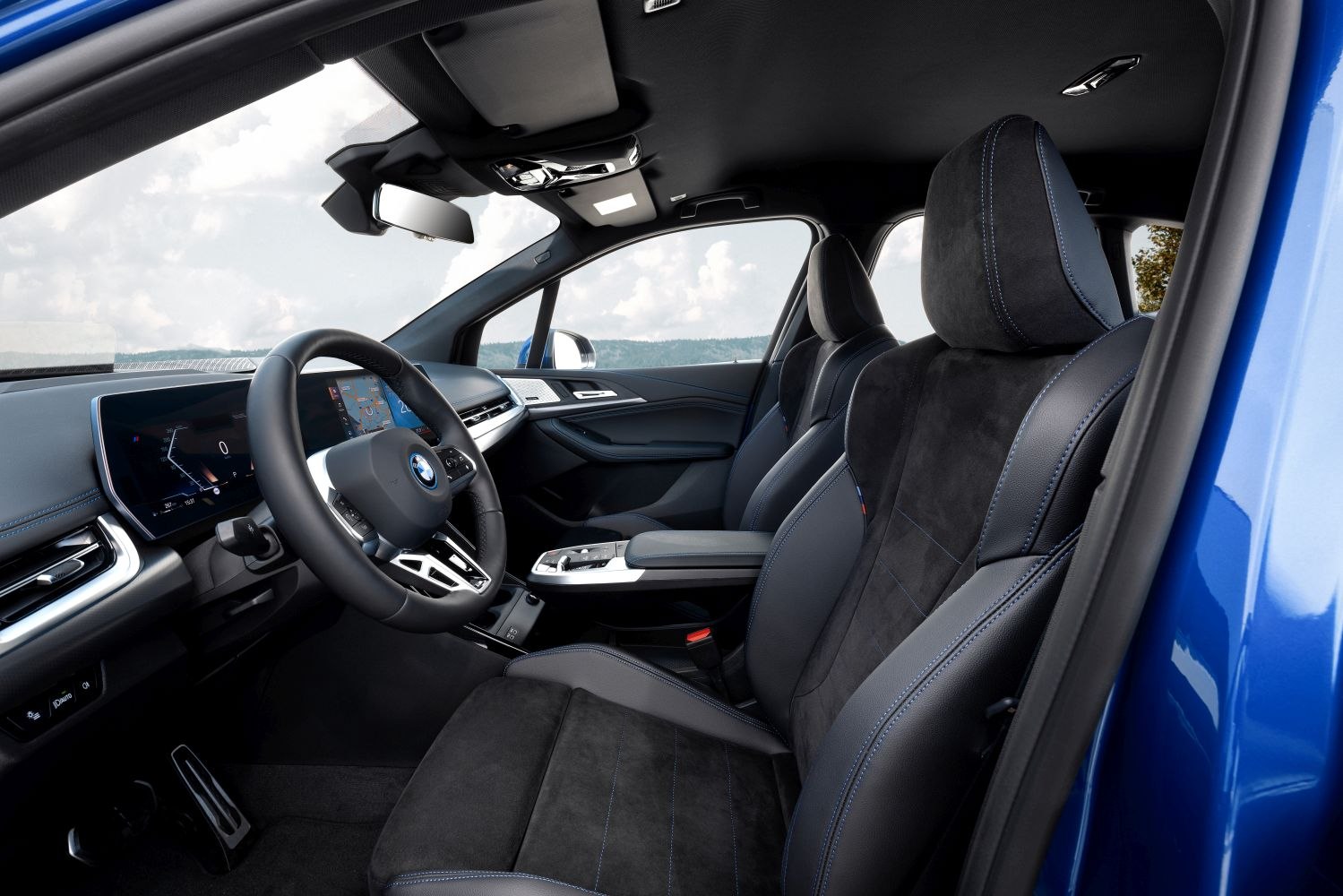

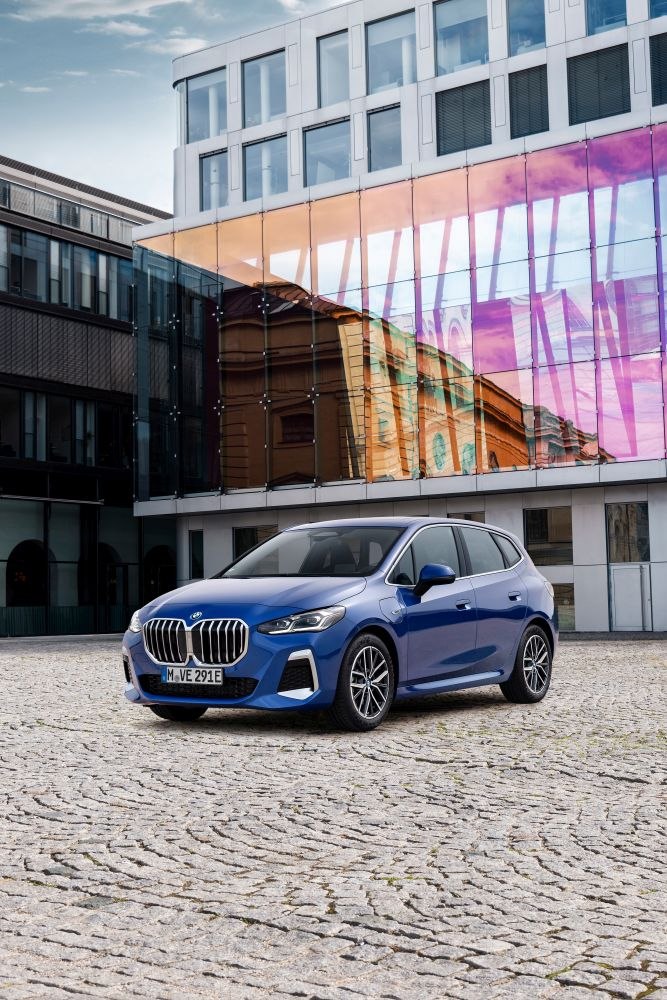

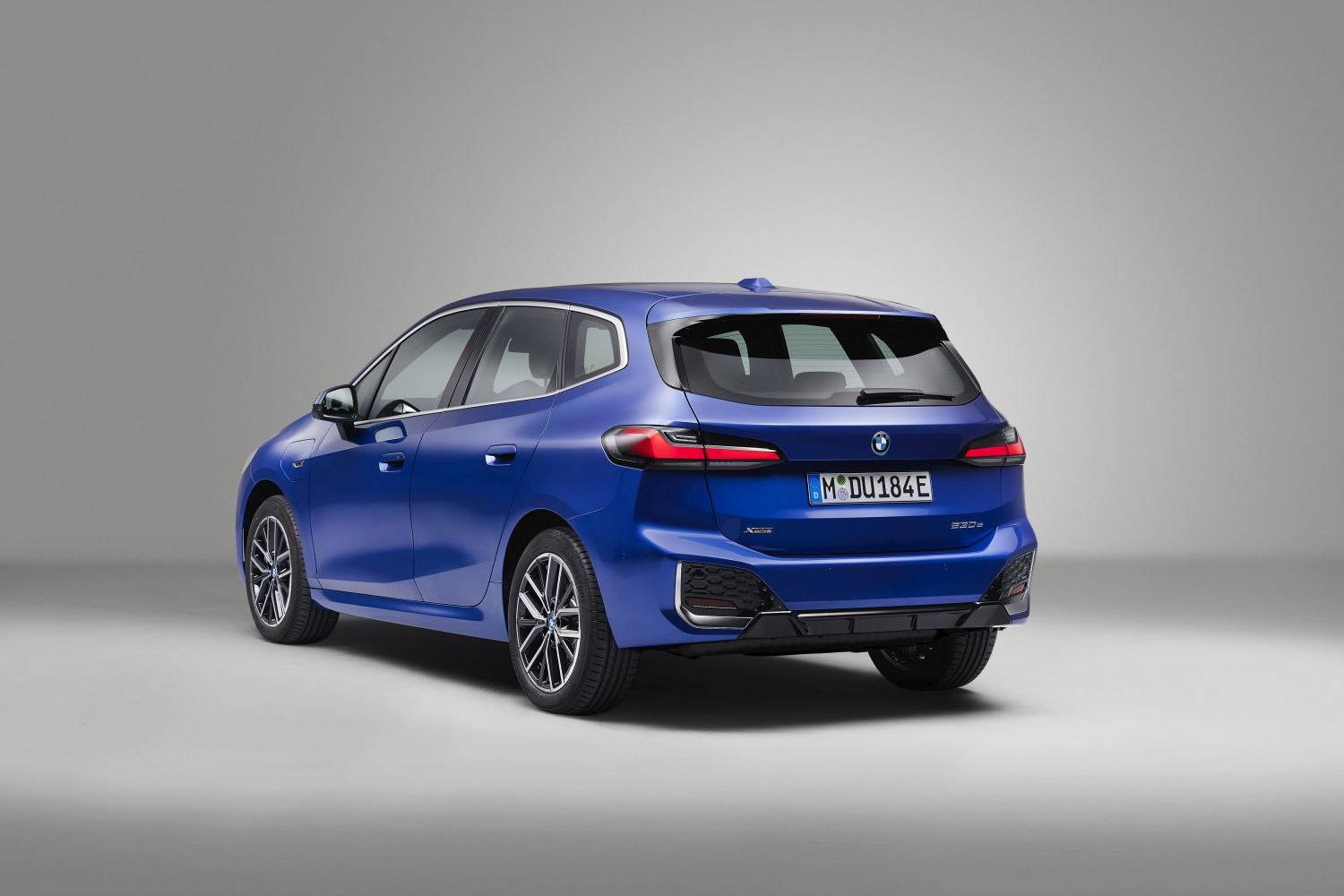

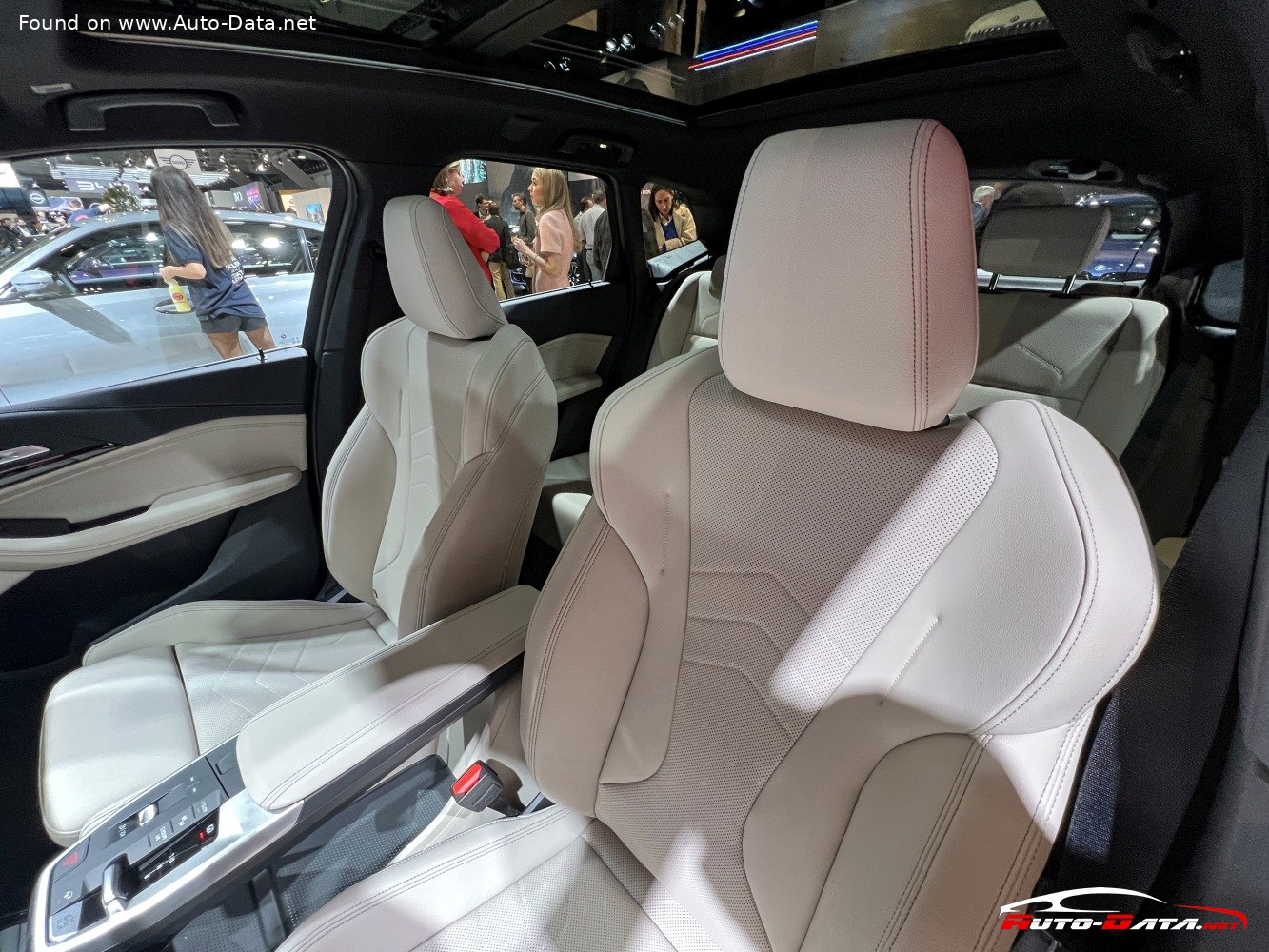

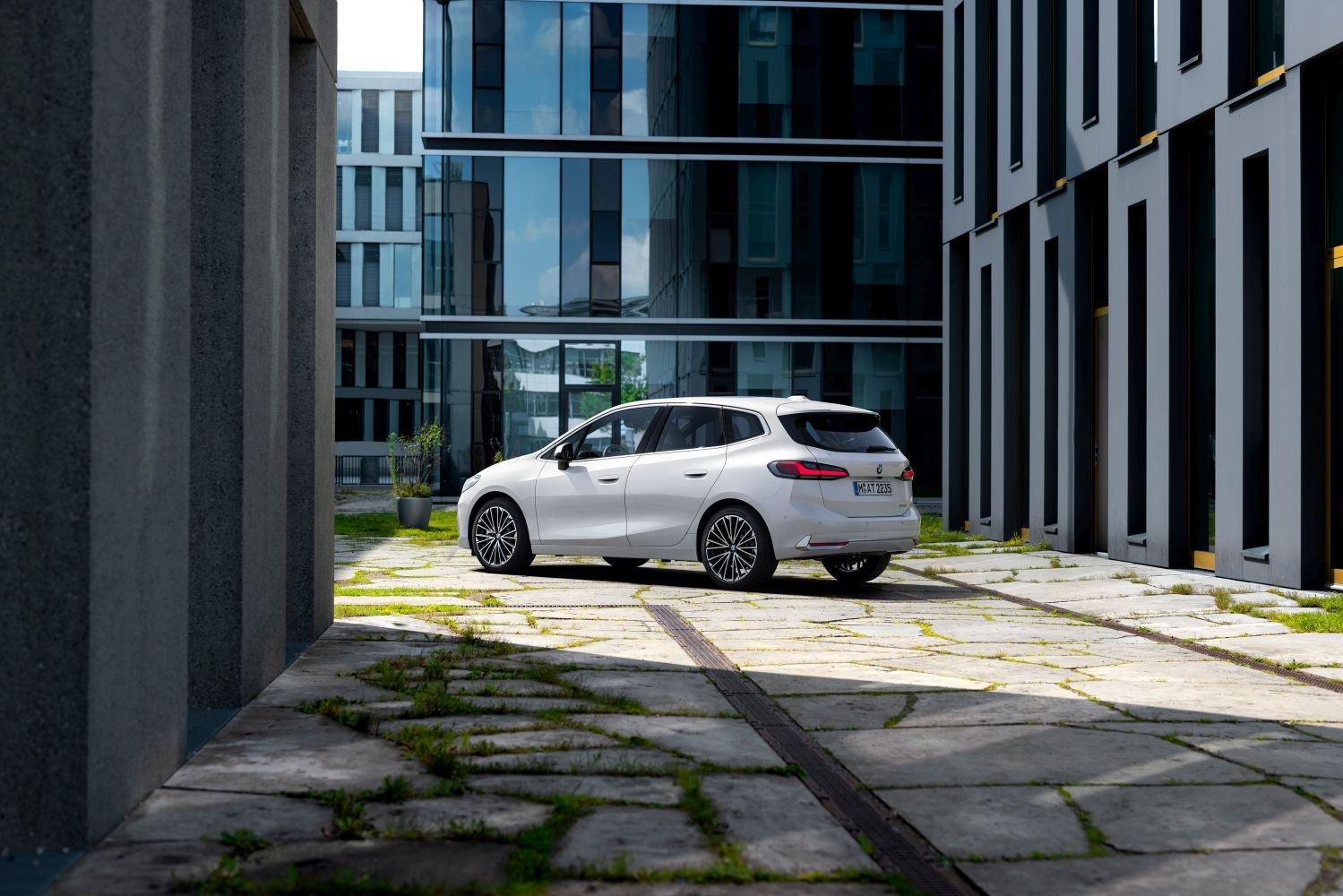

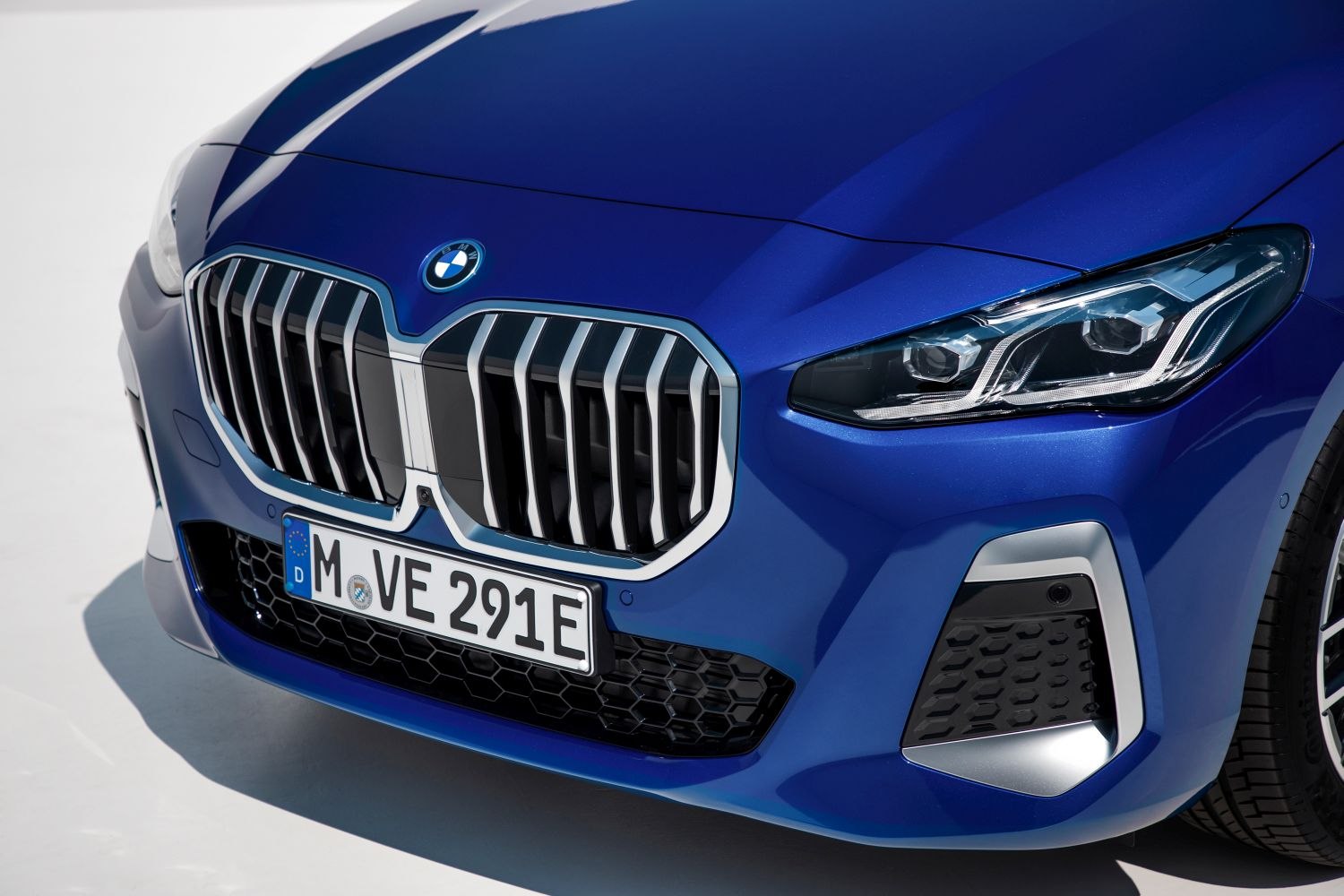

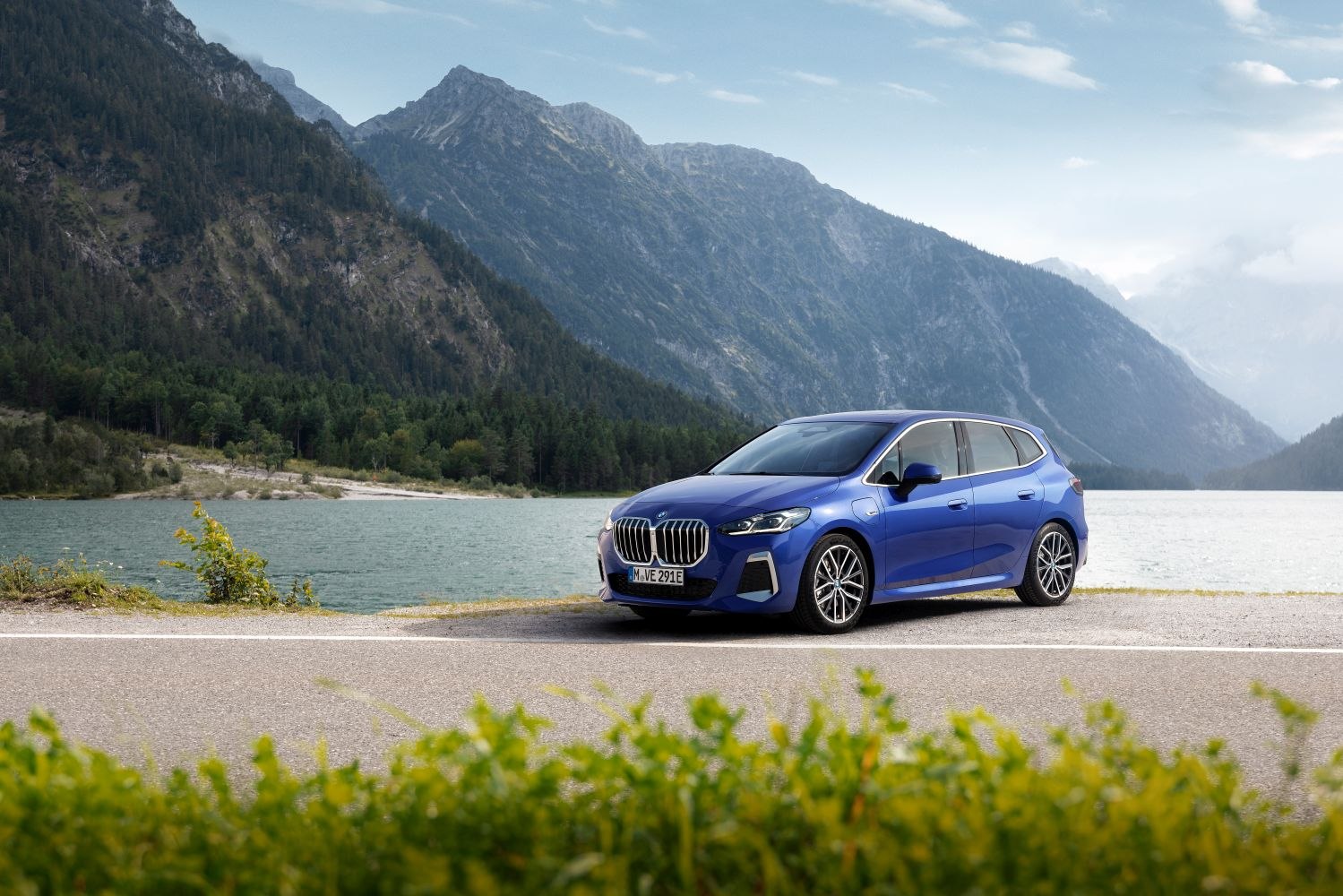

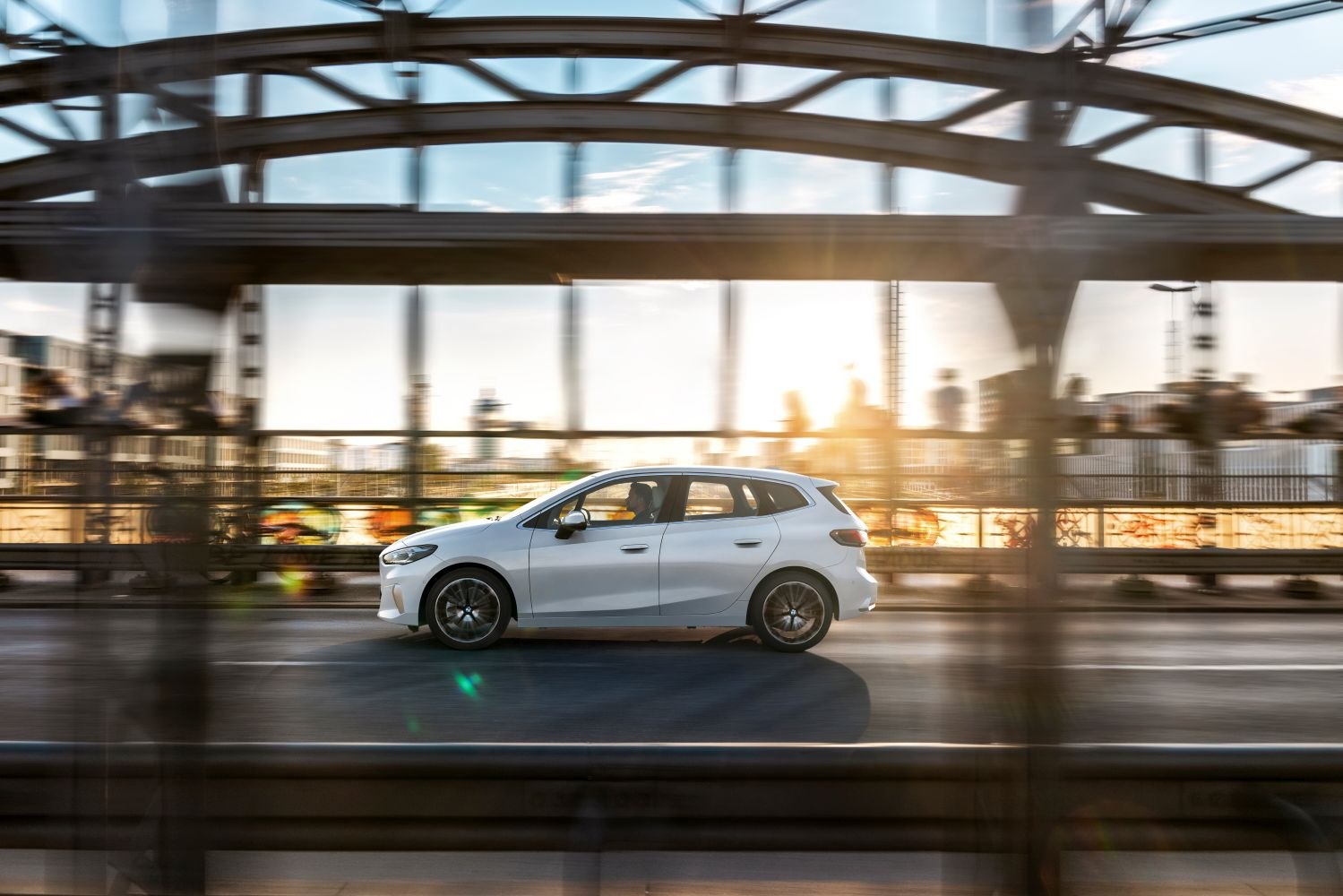

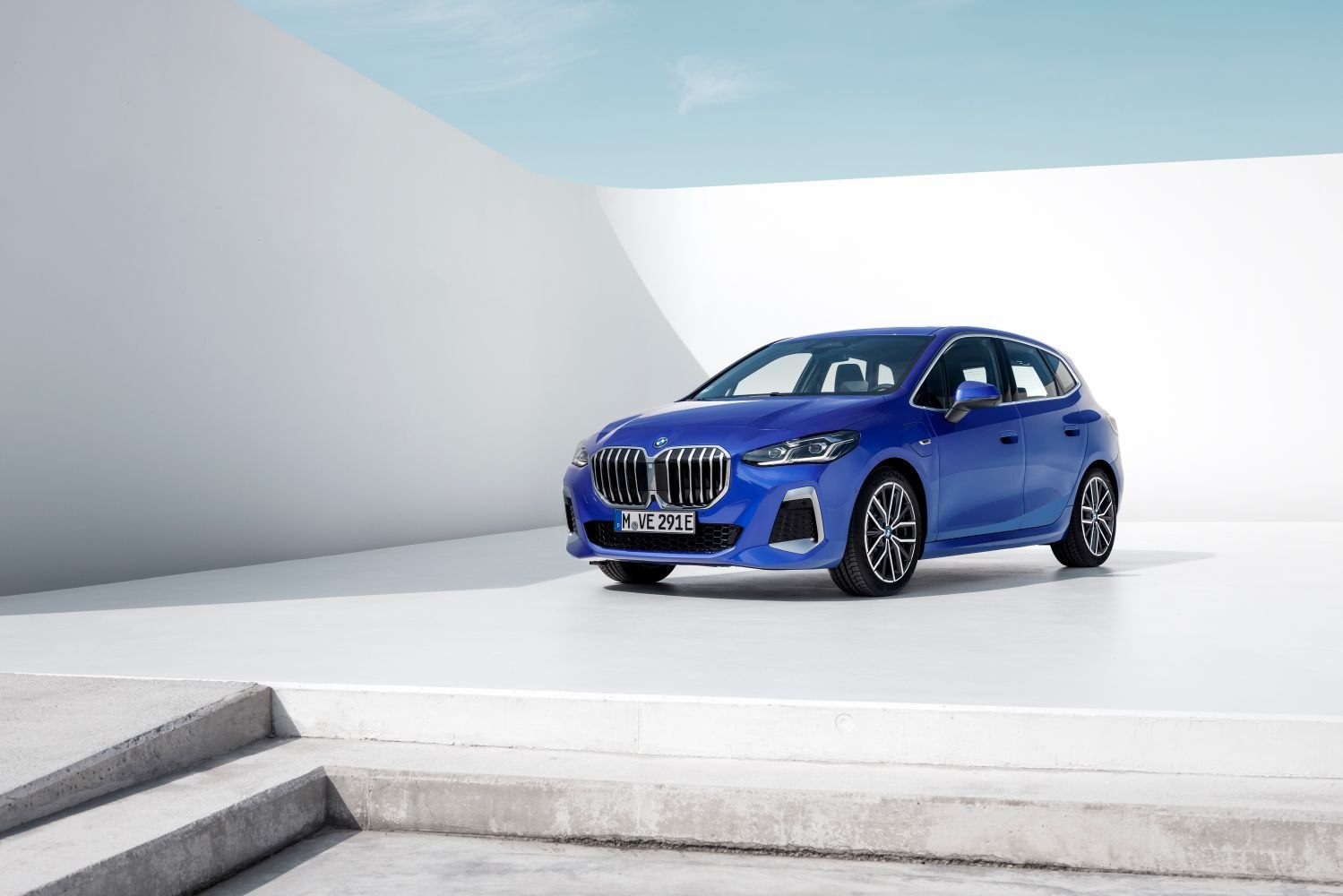

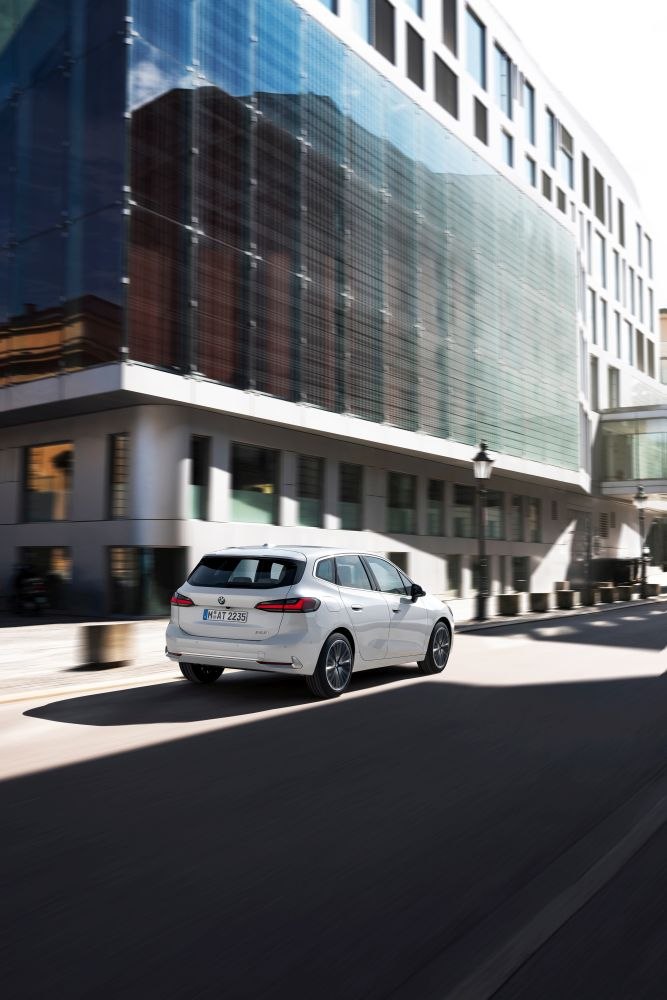

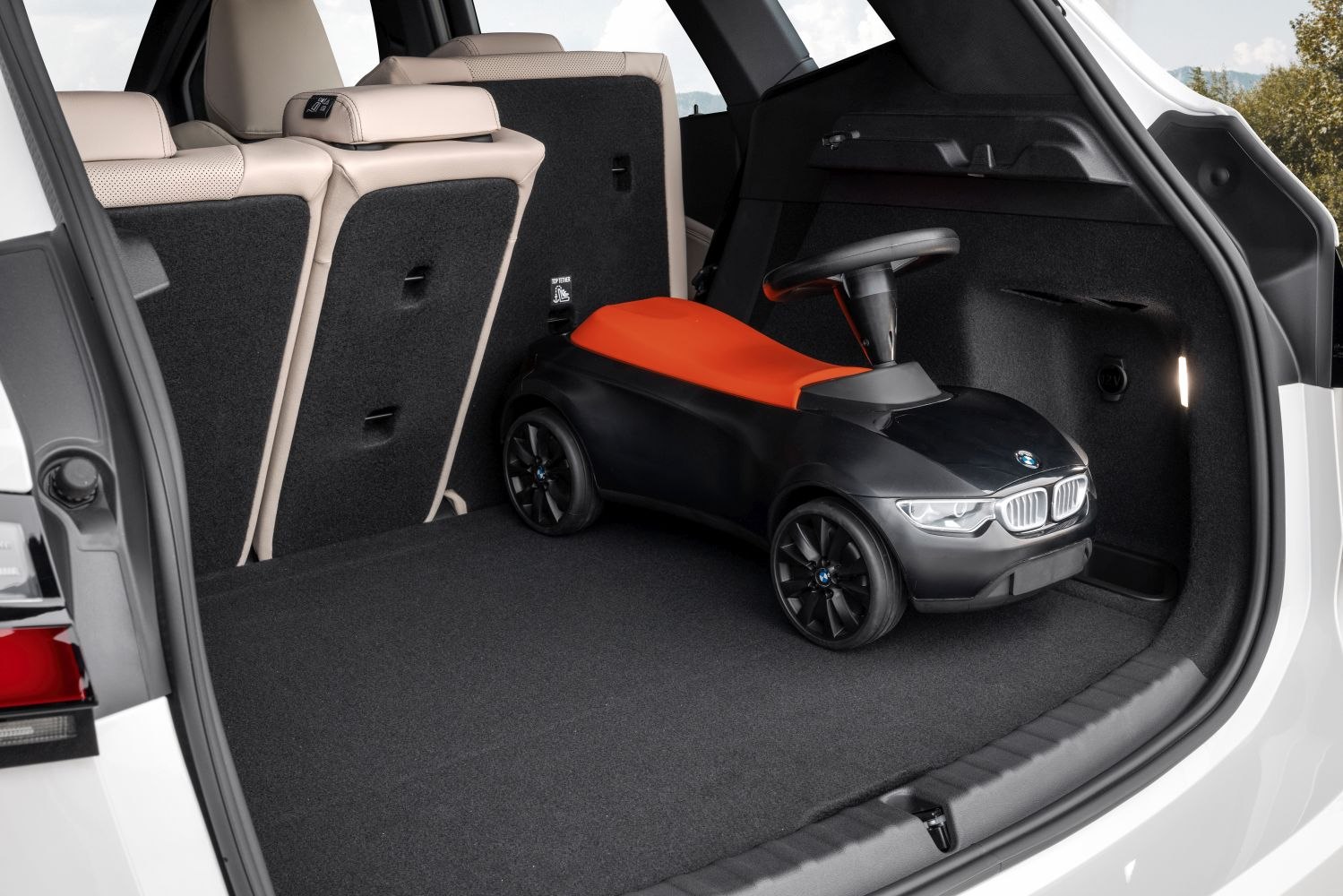

BMW 2 Series Active Tourer U06 2024 Gallery
BMW 2 Series Active Tourer U06 2024 Technical Specifications
General
Body type
MPV
Brand
BMW
Doors
5
Generation
2 Series Active Tourer (U06)
Model
2 Series
Modification (Engine)
220d (163 Hp) Mild Hybrid Steptronic DCT
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start of production
July, 2024
Performance
Acceleration 0 - 100 km/h
8.3 sec
Acceleration 0 - 60 mph
7.9 sec
Acceleration 0 - 62 mph
8.3 sec
CO2 emissions (WLTP)
117-128 g/km
Combined fuel consumption (WLTP)
4.5-4.9 l/100 km
Emission standard
Euro 6e
Fuel Type
Diesel
Maximum speed
220 km/h
Electric
Battery location
Inside the trunk
Battery voltage
48 V
Electric motor Torque number 1
55 Nm
Electric motor location number 1
Integrated into the transmission
Electric motor power number 1
20 Hp
Gross battery capacity
0.9 kWh
Recuperation output
15 kW
System power
163 Hp
System torque
400 Nm
Internal Engine
Cylinder Bore
84 mm
Engine Model/Code
B47C20B
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1995 cm
Engine layout
Front, Transverse
Engine oil capacity
6.5 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
90 mm
Power
150 Hp @ 3750-4000 rpm.
Power per litre
75.2 Hp/l
Torque
360 Nm @ 1500-2500 rpm.
Valvetrain
DOHC
Dimensions
Front overhang
861 mm
Front track
1586 mm
Height
1576 mm
Length
4386 mm
Minimum turning circle (turning diameter)
11.4 m
Rear (Back) track
1588 mm
Rear overhang
855 mm
Ride height (ground clearance)
171 mm
Wheelbase
2670 mm
Width
1824 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs
Front suspension
Spring Strut, Transverse stabilizer
Number of gears and type of gearbox
7 gears, automatic transmission Steptronic DCT
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
205/65 R16; 205/60 R17; 225/50 R18; 225/45 R19
Wheel rims size
7J x 16; 7J x 17; 7.5J x 18; 8J x 19
Space
Fuel tank capacity
54 l
Kerb Weight
1565 kg
Max load
555 kg
Max. roof load
75 kg
Max. weight
2120 kg
Permitted towbar download
75 kg
