Aion 5 2 2024
64.5 kWh (184 Hp)
Electric Car
Body Type SUV
Battery Capacity 64.5 KW
505 km
Electric Range
175 km/h
Maximum Speed
5
Doors
Aion 5 2 2024 Key Specs
Acceleration 0 - 100 Km/h
7.9 sec
Acceleration 0 - 62 Mph
7.9 sec
All-electric Range (NEDC)
505 km
Battery Voltage
301.44 V
Body Type
SUV
Doors
5
Drive Wheel
Front wheel drive
Fuel Type
Electricity
Generation
V II
Gross Battery Capacity
64.5 kWh
Kerb Weight
1815-1855 kg
Maximum Speed
175 km/h
Modification (Engine)
64.5 kWh (184 Hp)
Power Steering
Electric Steering
Powertrain Architecture
BEV (Electric Vehicle)
Seats
5
Start Of Production
November, 2024
System Power
184 Hp
System Torque
240 Nm
Wheel Rims Size
19

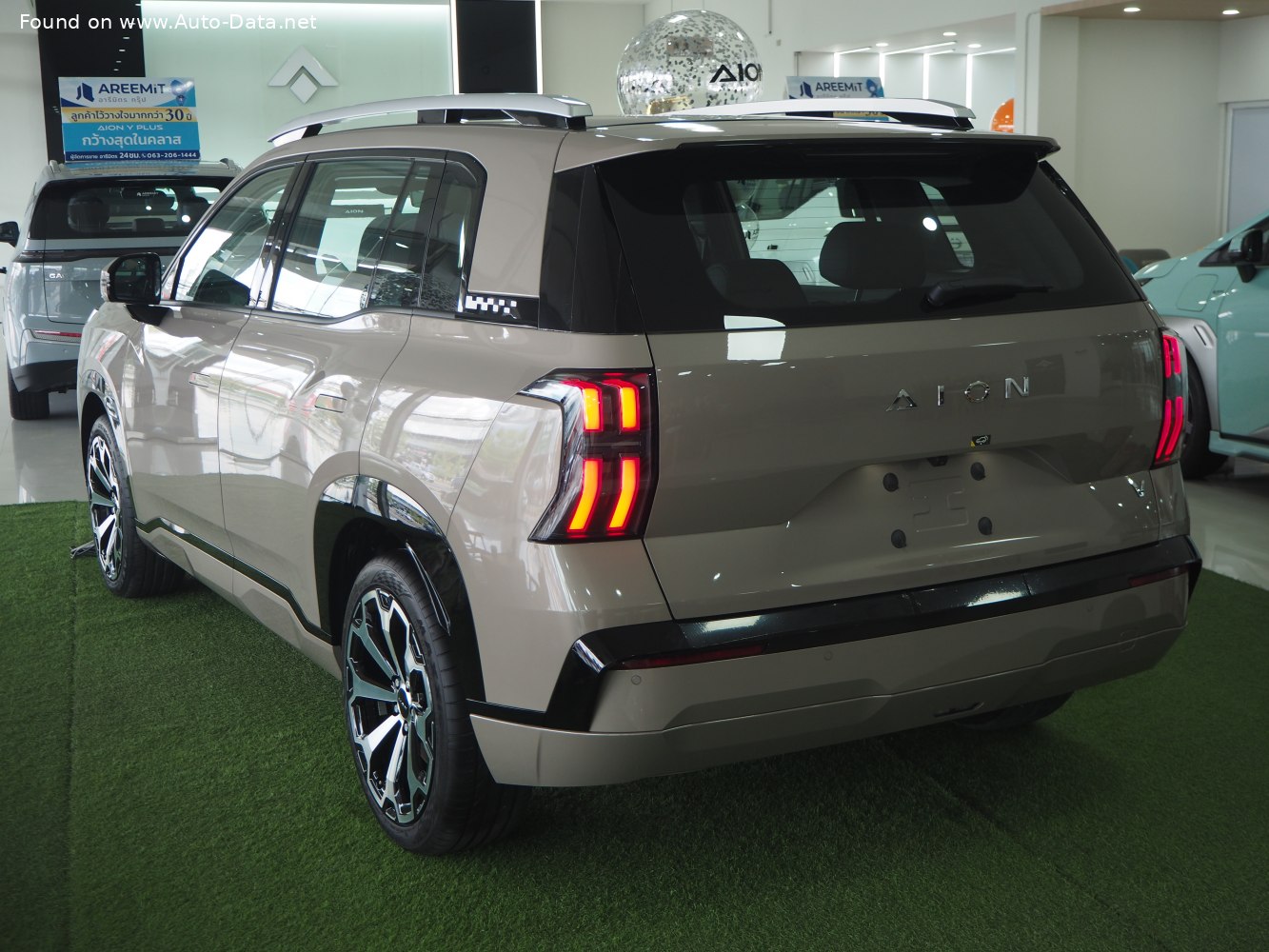

Aion 5 2 2024 Gallery
Aion 5 2 2024 Technical Specifications
General
Body type
SUV
Brand
Aion
Doors
5
Generation
V II
Model
V
Modification (Engine)
64.5 kWh (184 Hp)
Powertrain Architecture
BEV (Electric Vehicle)
Seats
5
Start of production
November, 2024
Performance
Acceleration 0 - 100 km/h
7.9 sec
Acceleration 0 - 60 mph
7.5 sec
Acceleration 0 - 62 mph
7.9 sec
Fuel Type
Electricity
Maximum speed
175 km/h
Electric
All-electric range (NEDC)
505 km
Battery location
Below the floor
Battery voltage
301.44 V
Charging ports number 0
Log in to see.
Electric motor Torque number 1
240 Nm
Electric motor location number 1
Front axle, Transverse
Electric motor model/code number 1
TZ180XYXOF54
Electric motor power number 1
184 Hp
Electric motor type number 1
Synchronous
Gross battery capacity
64.5 kWh
Maximum revolutions of the electric motor number 1
20000 rpm.
System power
184 Hp
System torque
240 Nm
Dimensions
Approach angle
17°
Departure angle
23°
Drag coefficient (Cd)
0.27
Front overhang
925 mm
Front track
1600 mm
Height
1686 mm
Length
4605 mm
Minimum turning circle (turning diameter)
11.2 m
Rear (Back) track
1600 mm
Rear overhang
905 mm
Ride height (ground clearance)
180 mm
Wheelbase
2775 mm
Width
1854 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
1 gears, automatic transmission
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Semi-independent, coil spring, Torsion
Steering type
Steering rack and pinion
Tires size
225/45 R19
Wheel rims size
19
Space
Kerb Weight
1815-1855 kg
Max load
425-465 kg
Max. roof load
75 kg
Max. weight
2280 kg
