Aion ES 2023
55.2 kWh (136 Hp)
Electric Car
Body Type Sedan
Battery Capacity 55.2 KW
364 km
Electric Range
150 km/h
Maximum Speed
4
Doors
Aion ES 2023 Key Specs
Acceleration 0 - 100 Km/h
12.1 sec
Acceleration 0 - 62 Mph
12.1 sec
All-electric Range (WLTP)
364 km
Average Energy Consumption (WLTP)
16.7 kWh/100 km
Battery Voltage
326.4 V
Body Type
Sedan
Doors
4
Drive Wheel
Front wheel drive
Fuel Type
Electricity
Generation
ES
Gross Battery Capacity
55.2 kWh
Kerb Weight
1645-1665 kg
Maximum Speed
150 km/h
Modification (Engine)
55.2 kWh (136 Hp)
Power Steering
Electric Steering
Powertrain Architecture
BEV (Electric Vehicle)
Seats
5
Start Of Production
November, 2023
System Power
136 Hp
System Torque
225 Nm
Wheel Rims Size
17

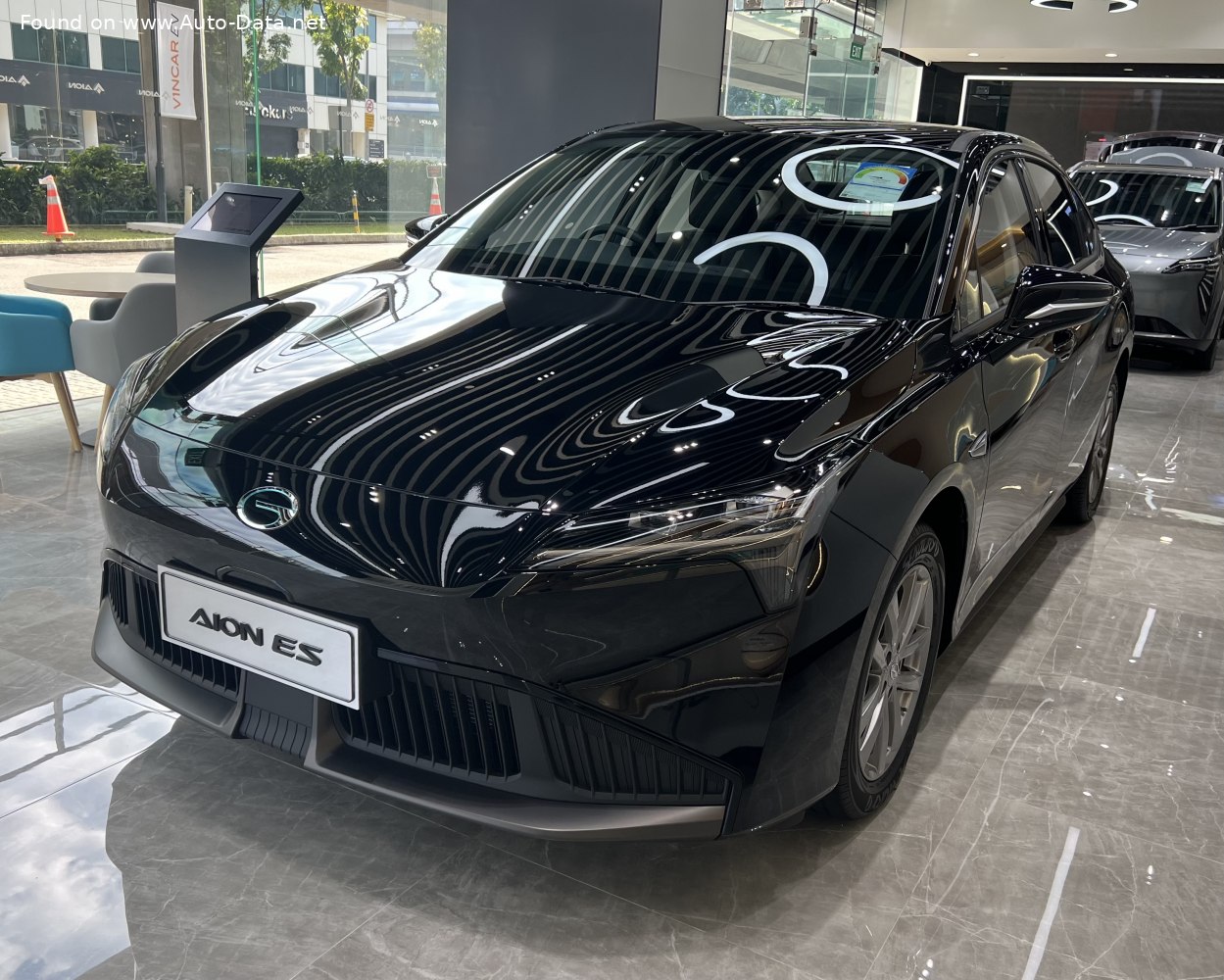

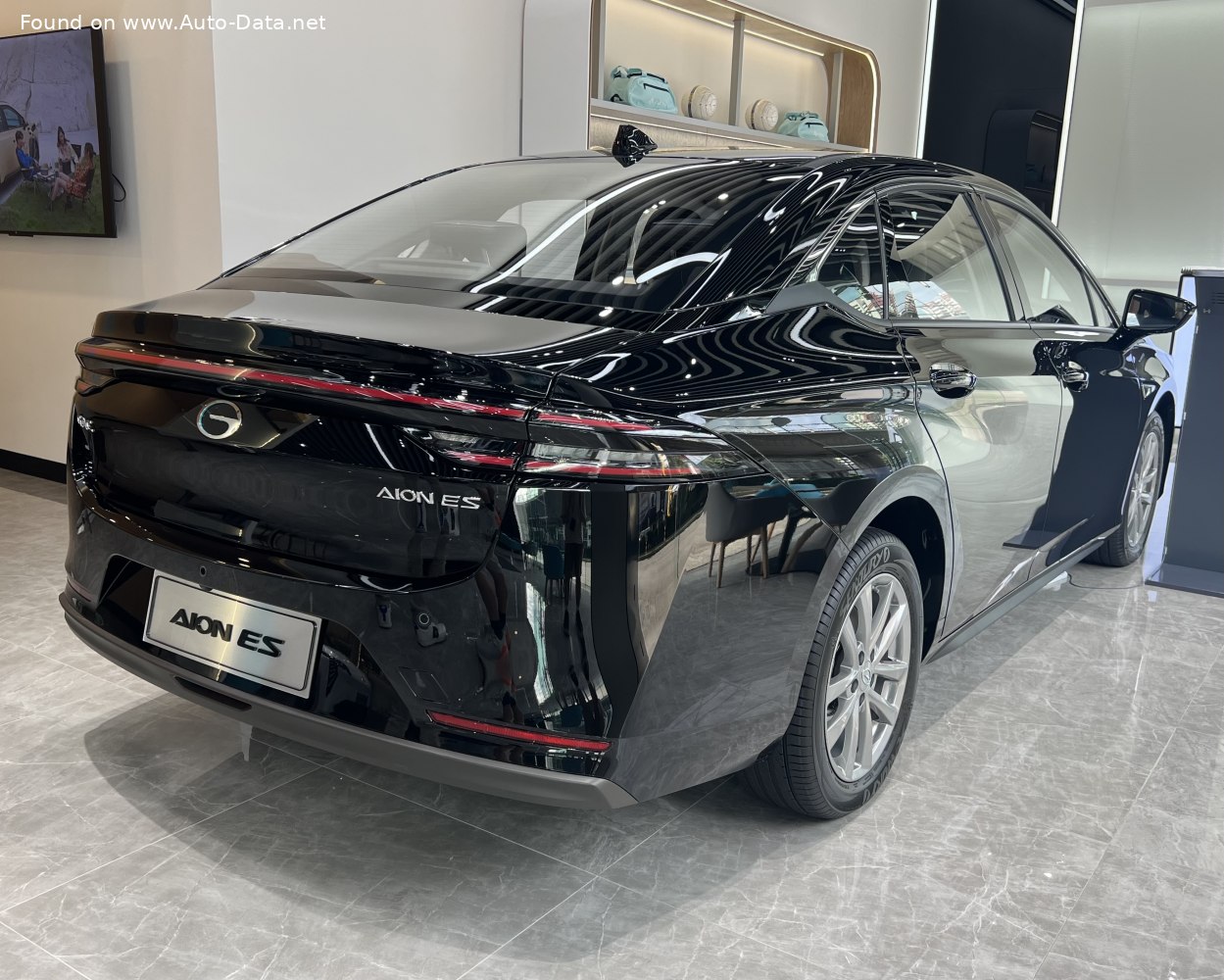

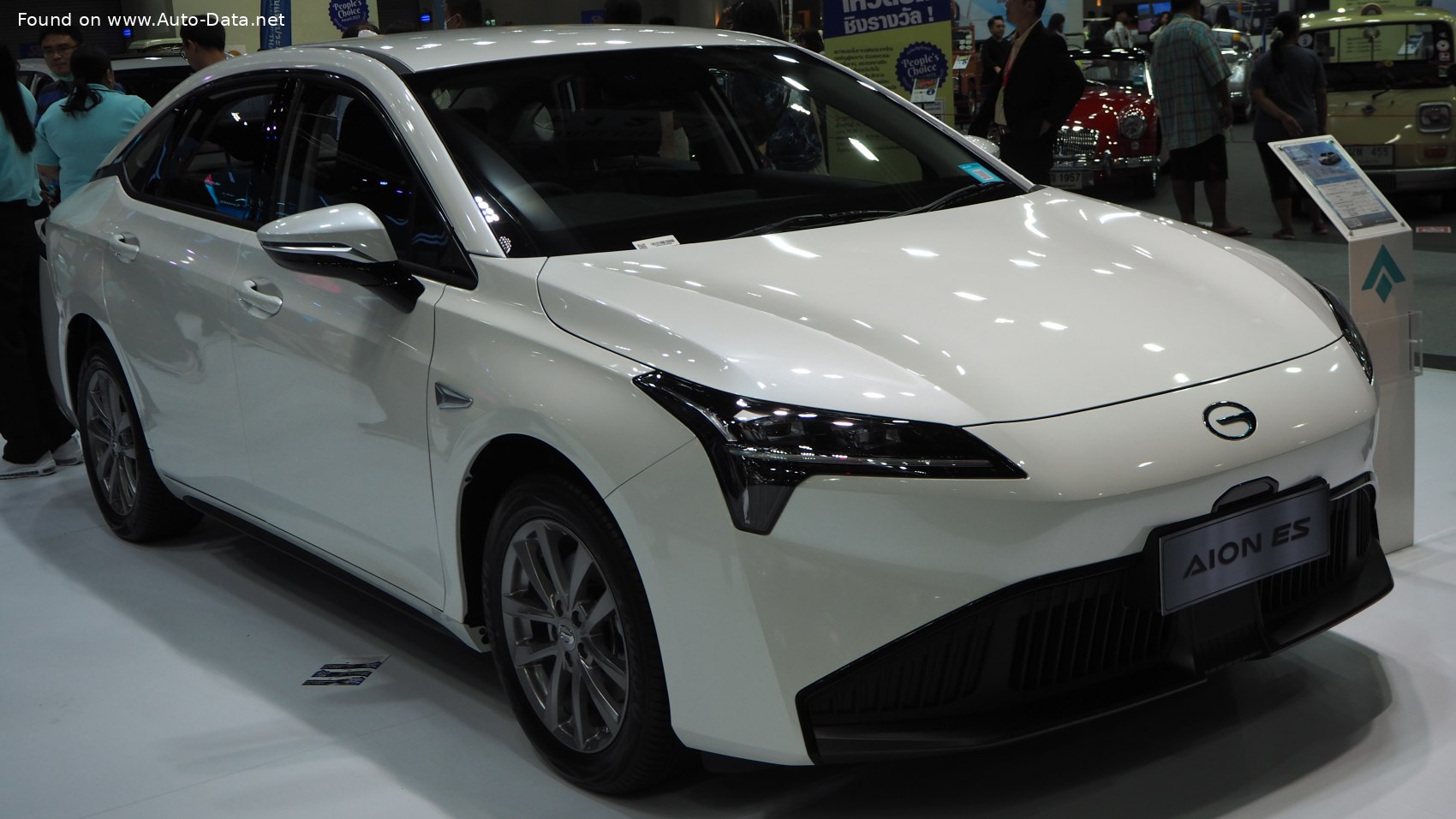

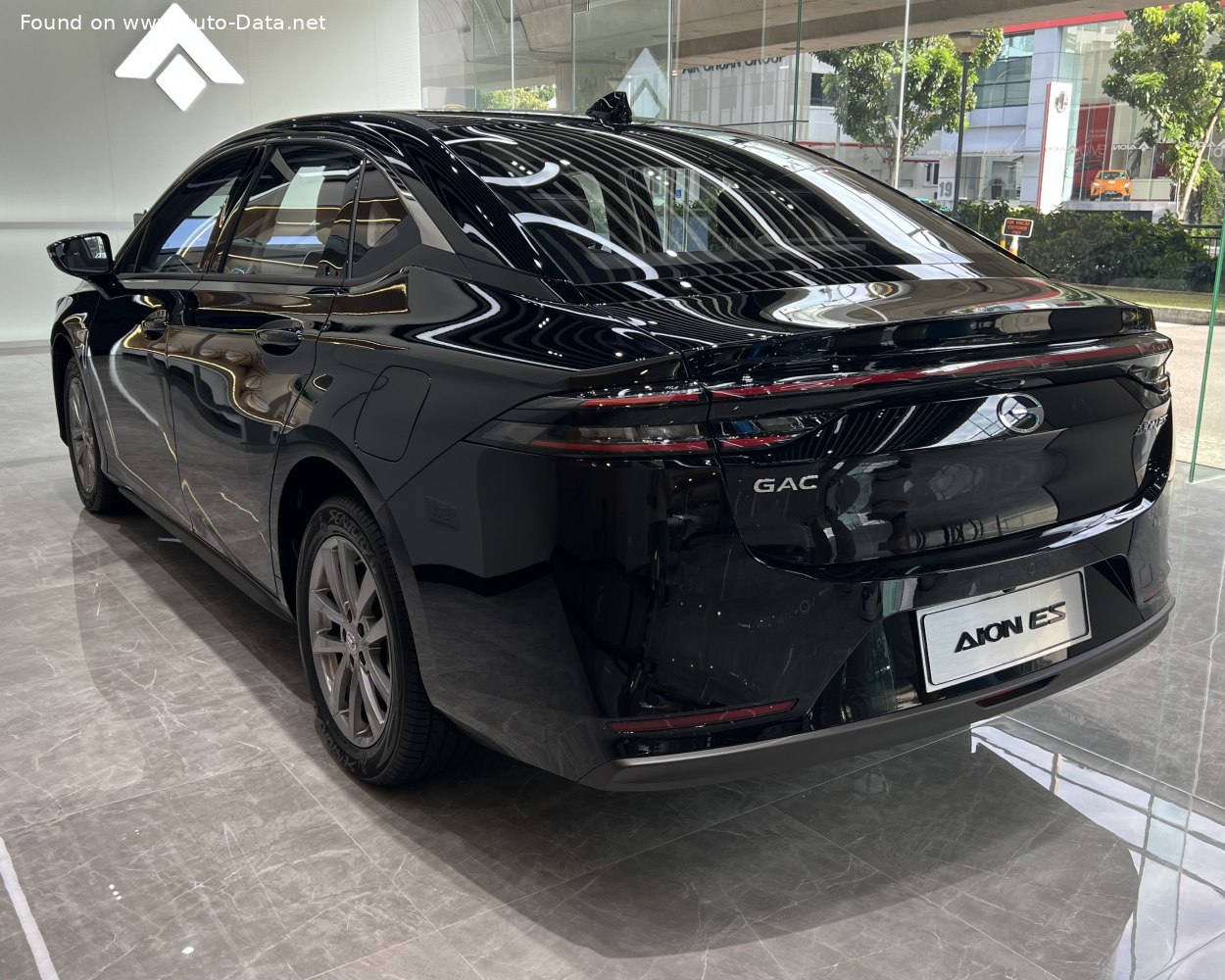

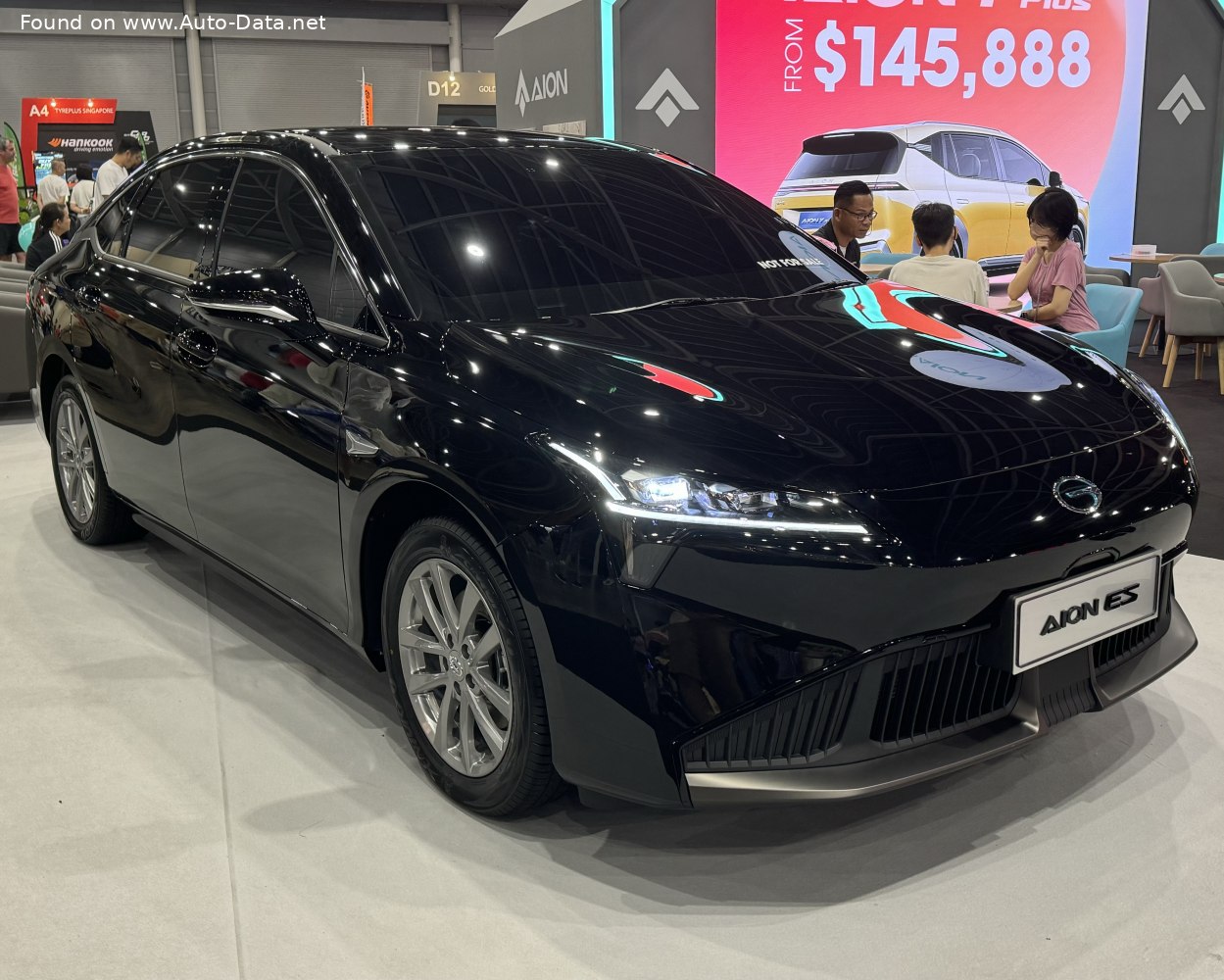

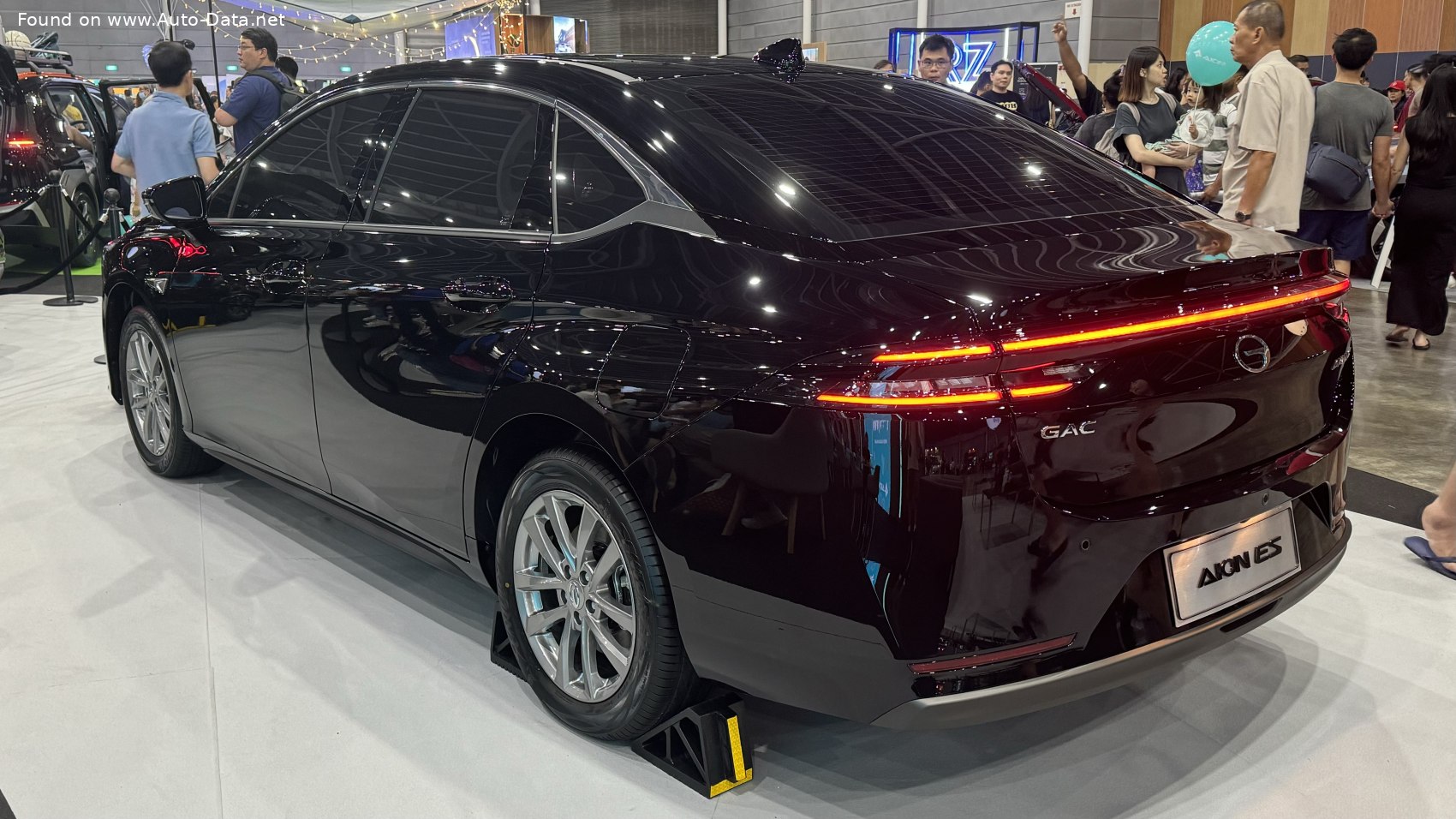

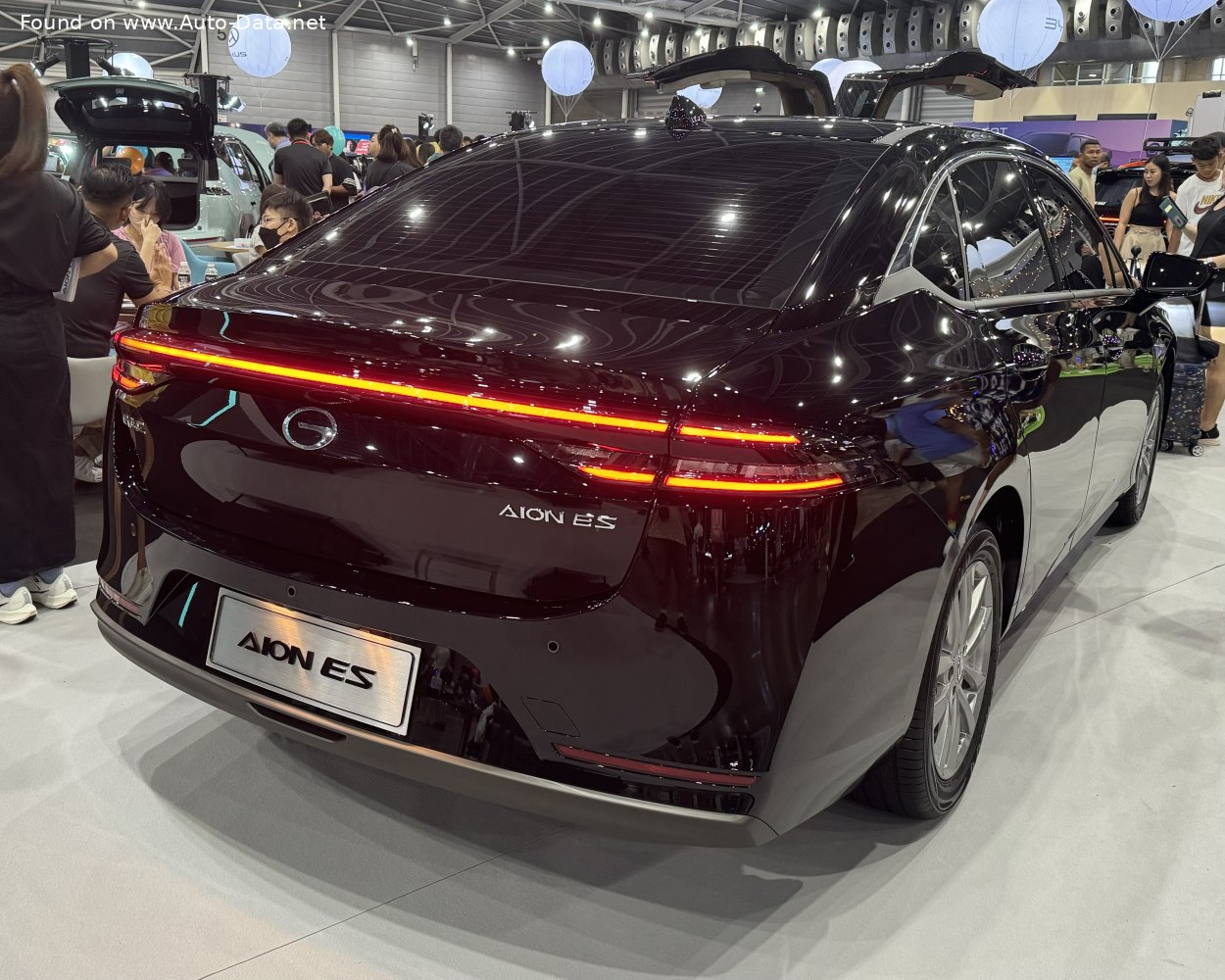

Aion ES 2023 Gallery
Aion ES 2023 Technical Specifications
General
Body type
Sedan
Brand
Aion
Doors
4
Generation
ES
Model
ES
Modification (Engine)
55.2 kWh (136 Hp)
Powertrain Architecture
BEV (Electric Vehicle)
Seats
5
Start of production
November, 2023
Performance
Acceleration 0 - 100 km/h
12.1 sec
Acceleration 0 - 60 mph
11.5 sec
Acceleration 0 - 62 mph
12.1 sec
Fuel Type
Electricity
Maximum speed
150 km/h
Electric
All-electric range (CLTC)
442 km
All-electric range (WLTP)
364 km
Average Energy consumption (CLTC)
13.6 kWh/100 km
Average Energy consumption (WLTP)
16.7 kWh/100 km
Battery location
Below the floor
Battery voltage
326.4 V
Charging ports number 0
Log in to see.
Electric motor Torque number 1
225 Nm
Electric motor location number 1
Front axle, Transverse
Electric motor model/code number 1
TZ184XYA2002
Electric motor power number 1
136 Hp
Electric motor type number 1
Synchronous
Gross battery capacity
55.2 kWh
Maximum revolutions of the electric motor number 1
14000 rpm.
System power
136 Hp
System torque
225 Nm
Dimensions
Approach angle
13°
Climb angle
16.7°
Departure angle
14°
Front overhang
960 mm
Front track
1600 mm
Height
1545 mm
Length
4810 mm
Minimum turning circle (turning diameter)
11 m
Rear (Back) track
1602 mm
Rear overhang
1100 mm
Ride height (ground clearance)
120 mm
Wheelbase
2750 mm
Width
1880 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
1 gears, automatic transmission
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Semi-independent, coil spring, Torsion
Steering type
Steering rack and pinion
Tires size
215/55 R17
Wheel rims size
17
Space
Kerb Weight
1645-1665 kg
Max load
470-490 kg
Max. weight
2135 kg
