Aion S Max 2023
67.9 kWh (245 Hp)
Electric Car
Body Type Sedan
Battery Capacity 67.9 KW
163 km/h
Maximum Speed
4
Doors
Aion S Max 2023 Key Specs
Acceleration 0 - 100 Km/h
6.7 sec
Acceleration 0 - 62 Mph
6.7 sec
Body Type
Sedan
Doors
4
Drive Wheel
Front wheel drive
Fuel Type
Electricity
Generation
S Max
Gross Battery Capacity
67.9 kWh
Kerb Weight
1660 kg
Maximum Speed
163 km/h
Modification (Engine)
67.9 kWh (245 Hp)
Power Steering
Electric Steering
Powertrain Architecture
BEV (Electric Vehicle)
Seats
5
Start Of Production
October, 2023
System Power
245 Hp
System Torque
309 Nm
Wheel Rims Size
18

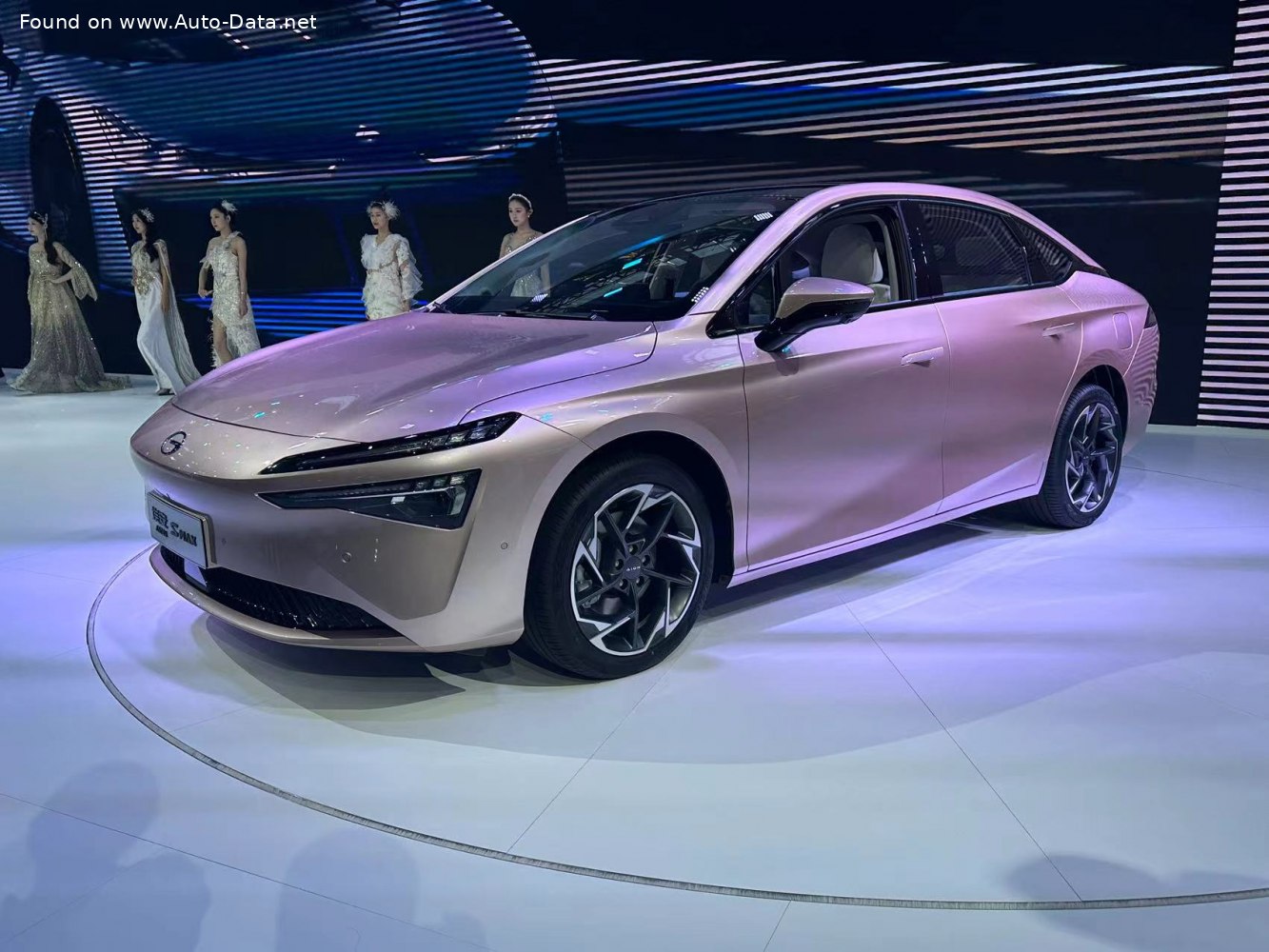

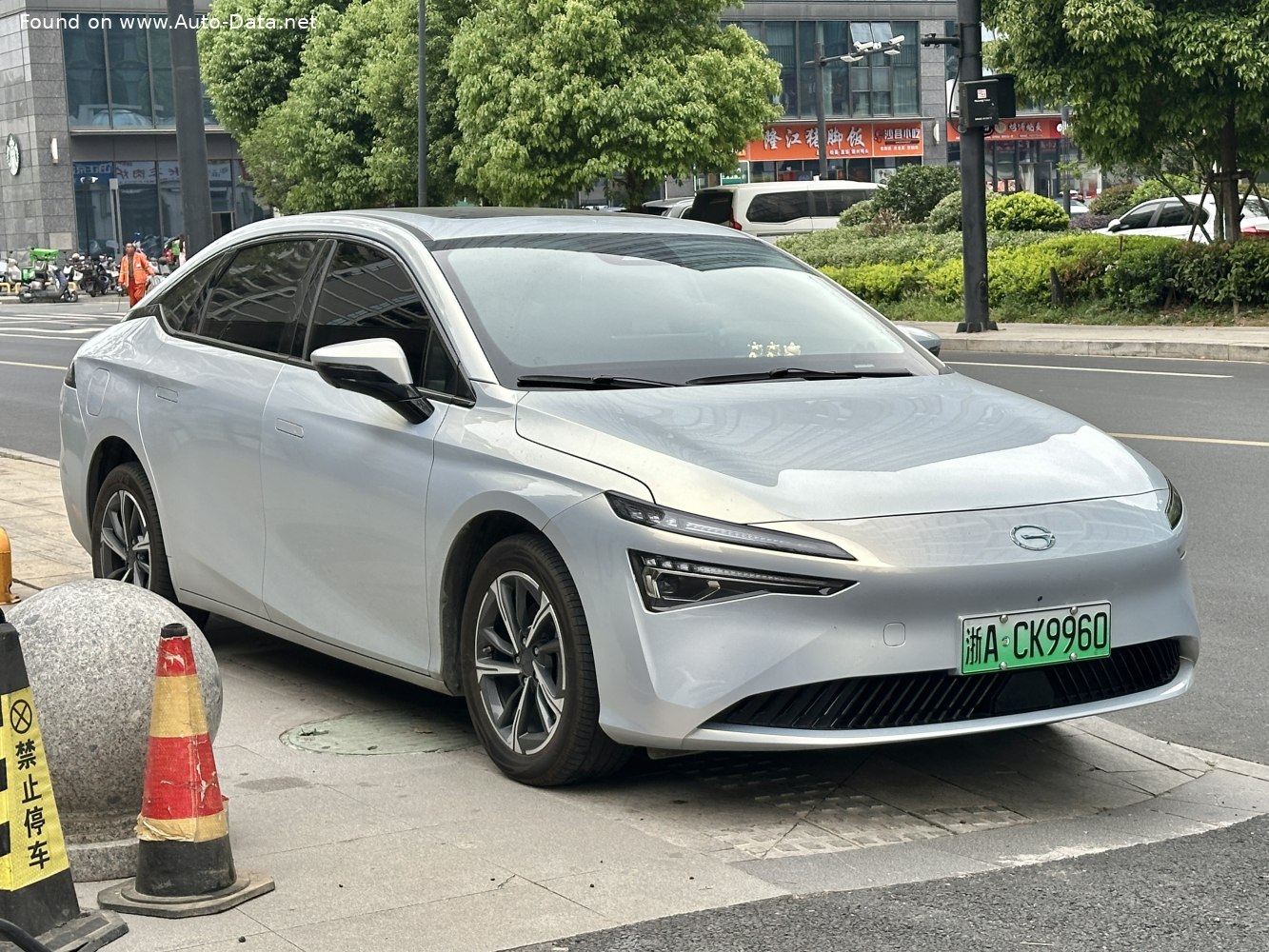

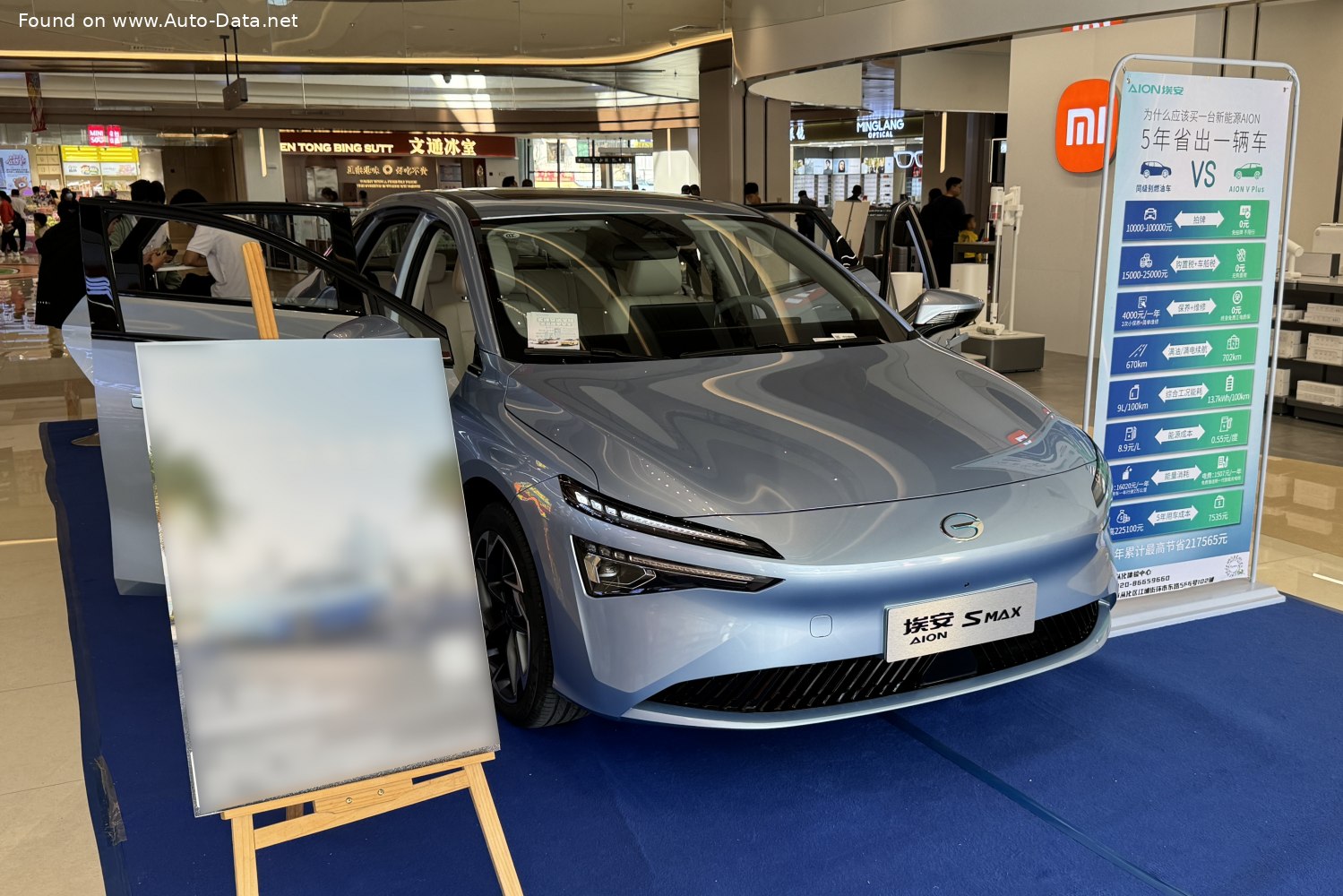

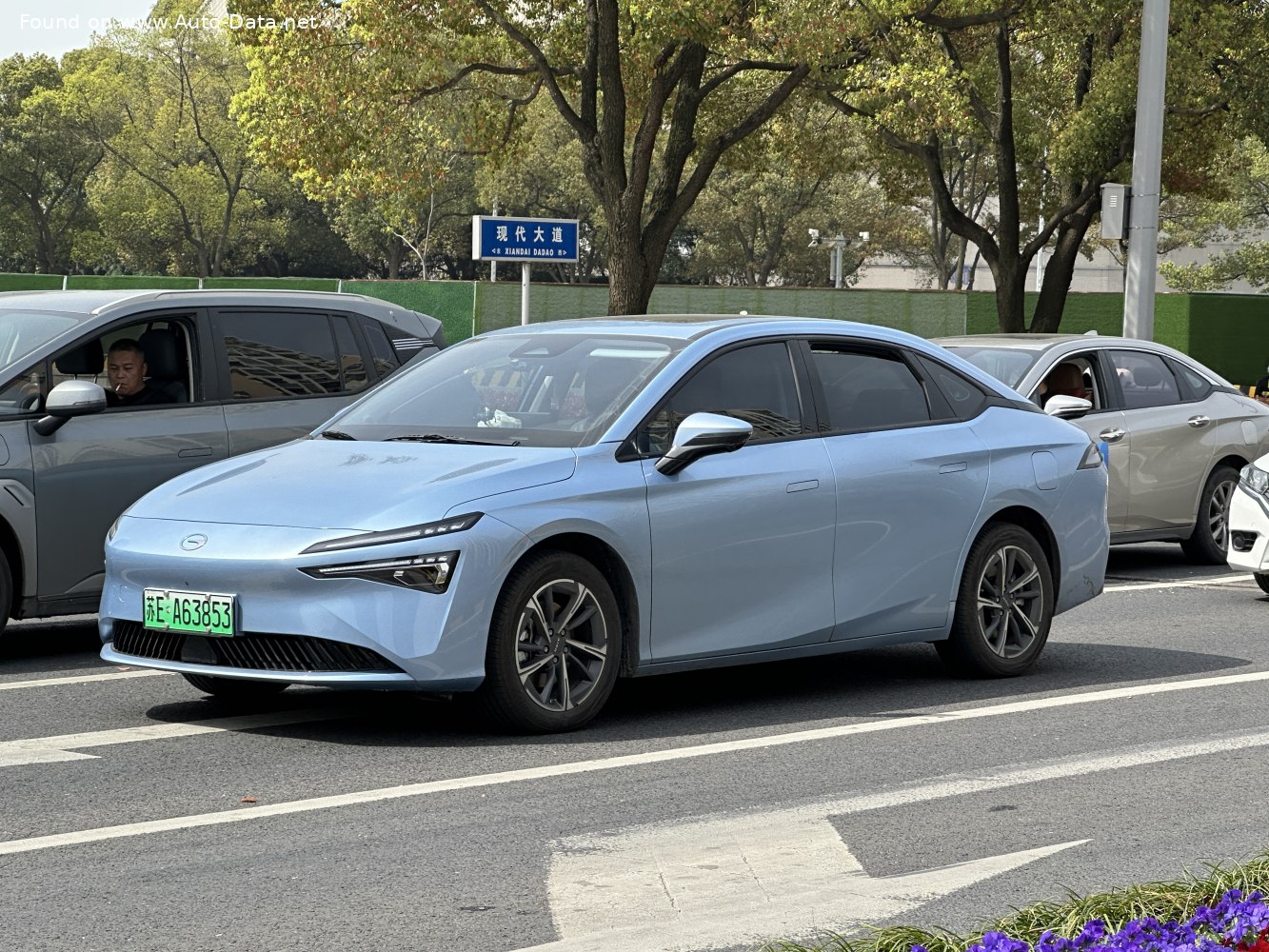

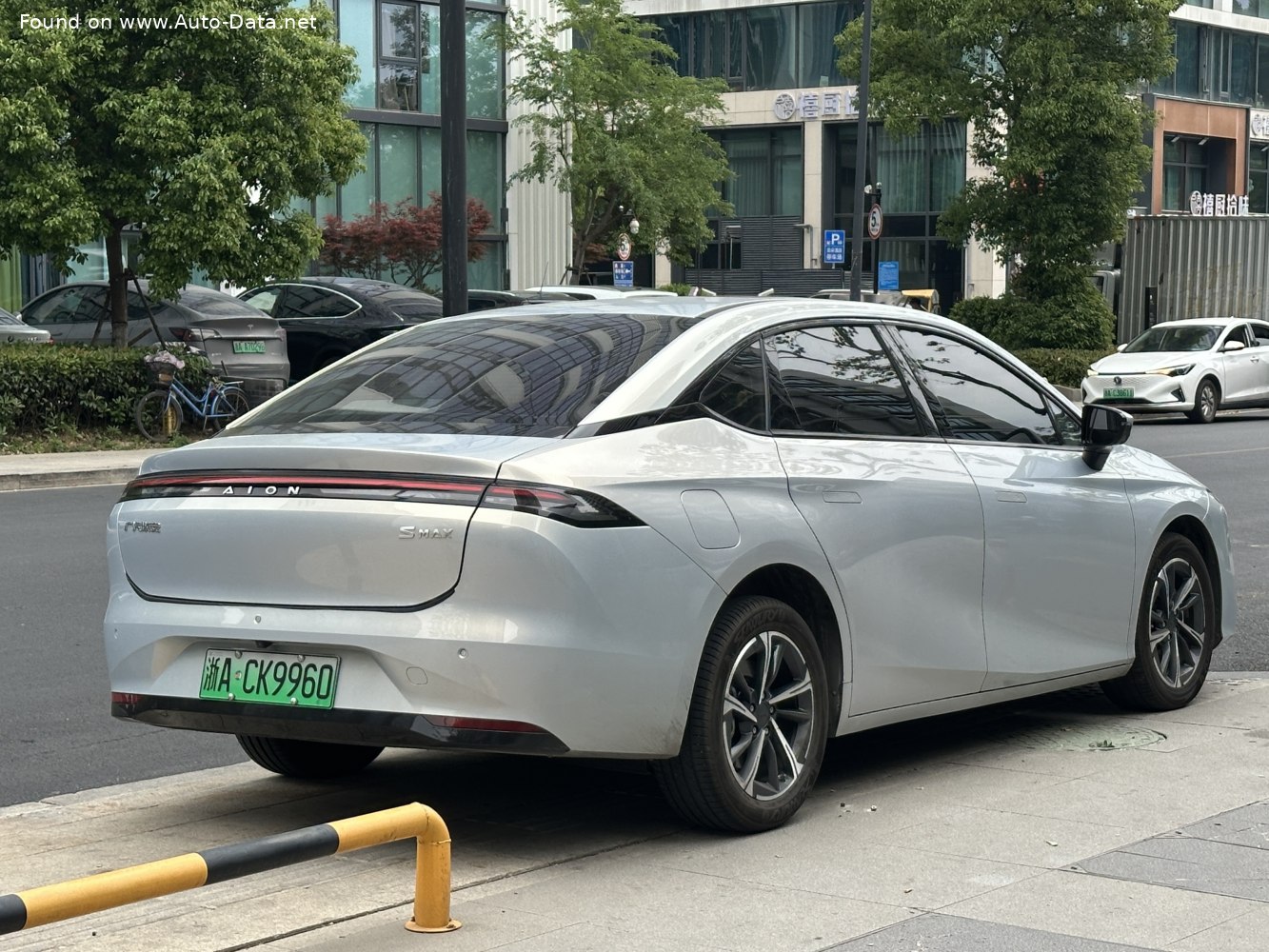

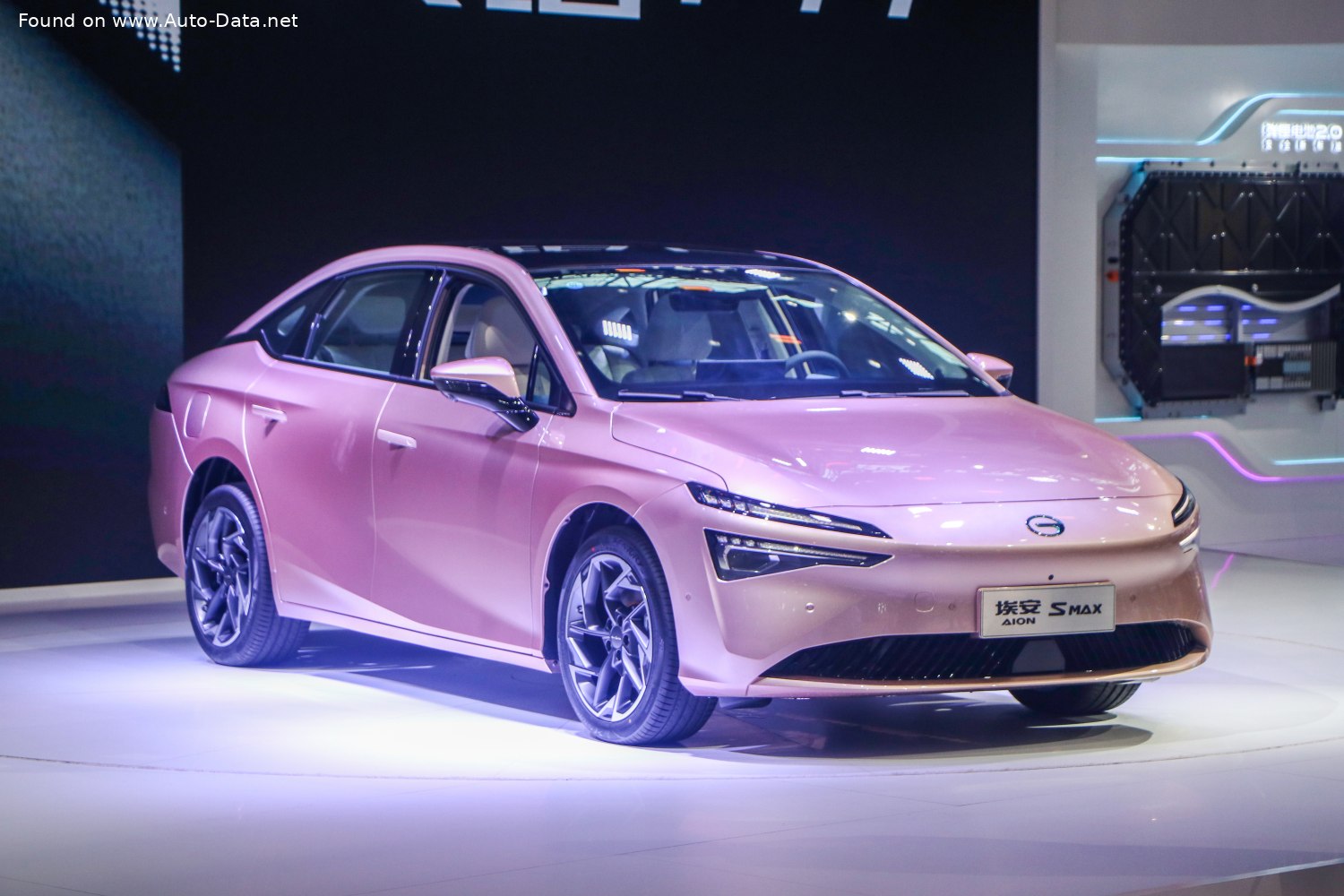

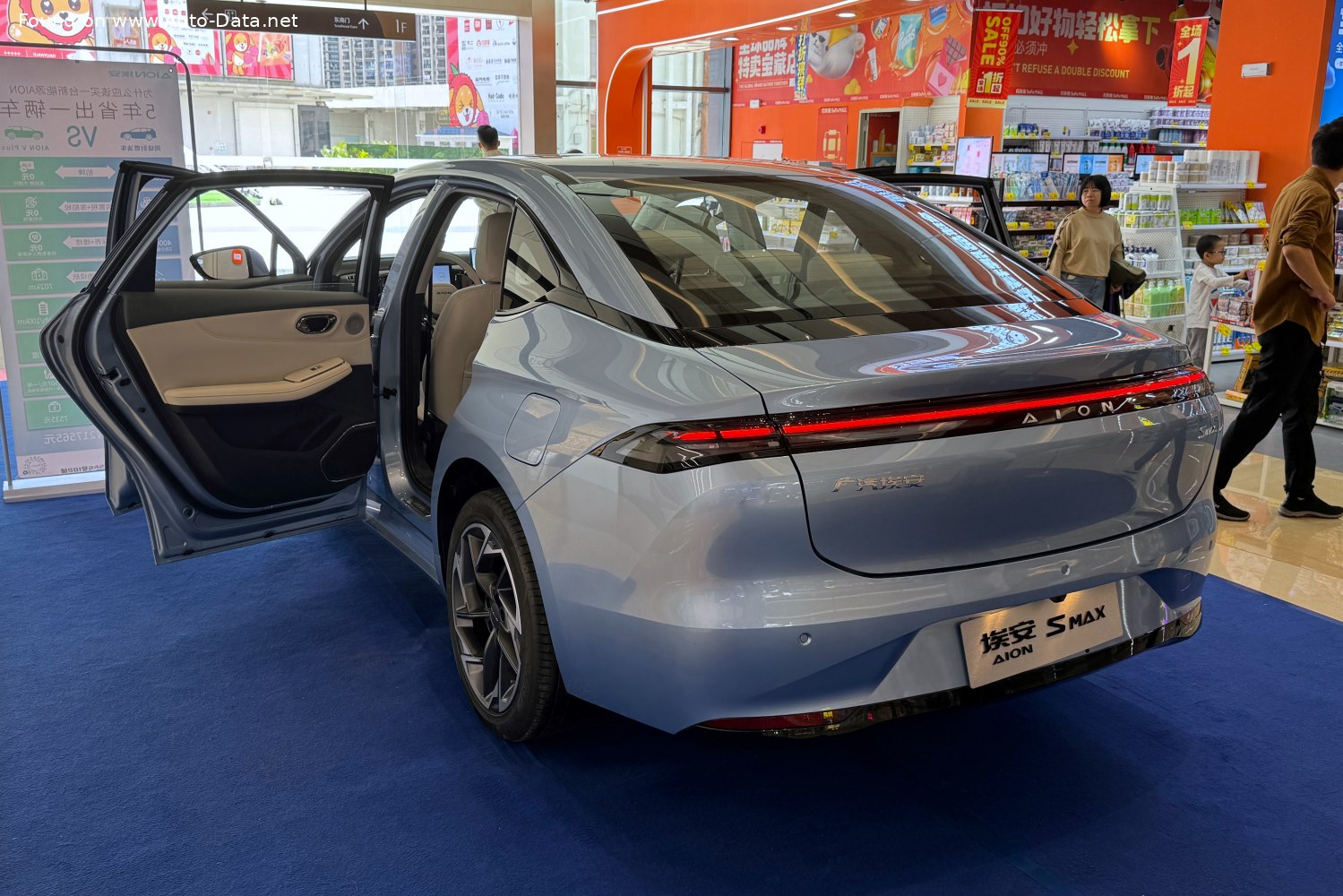

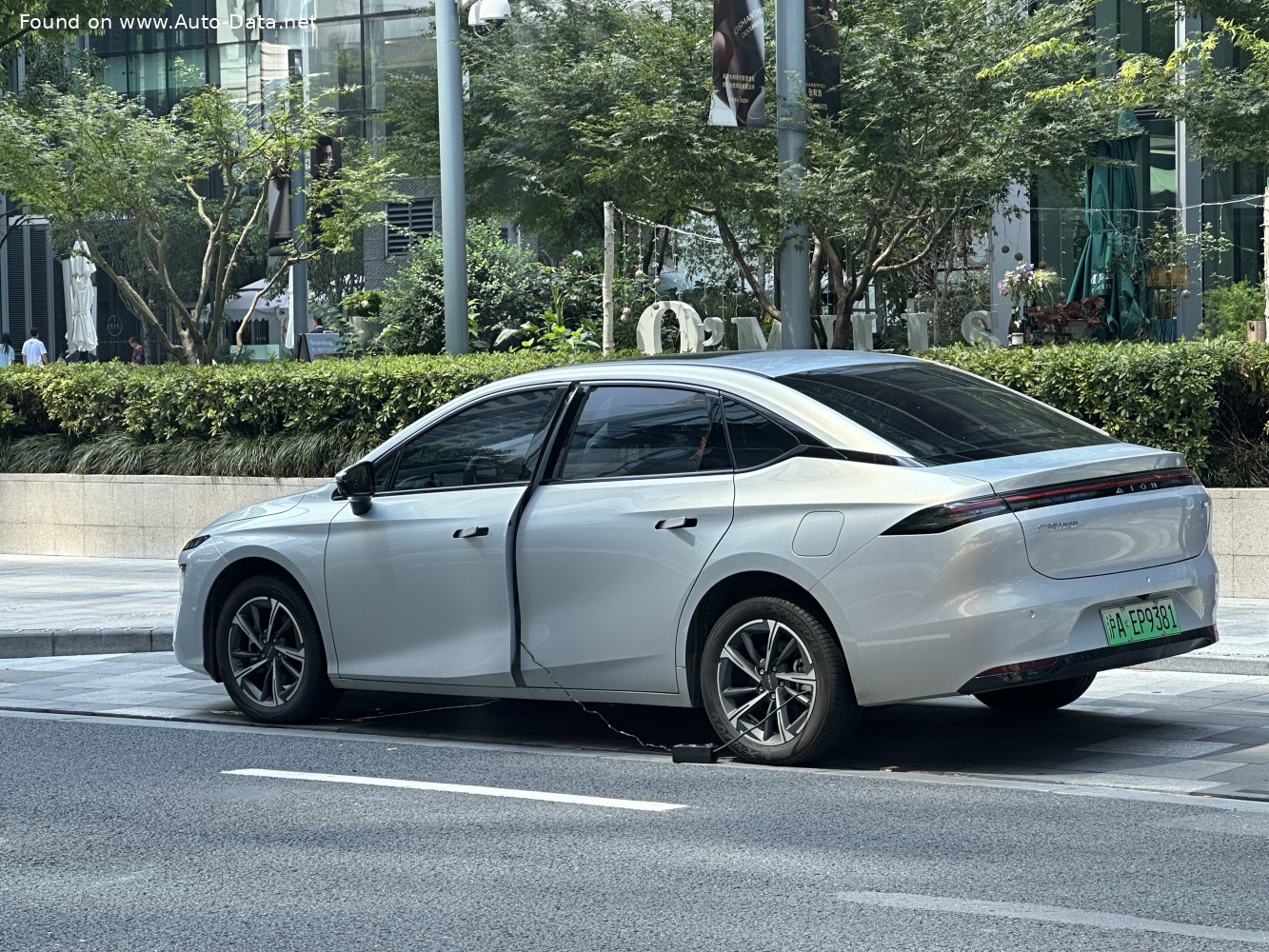

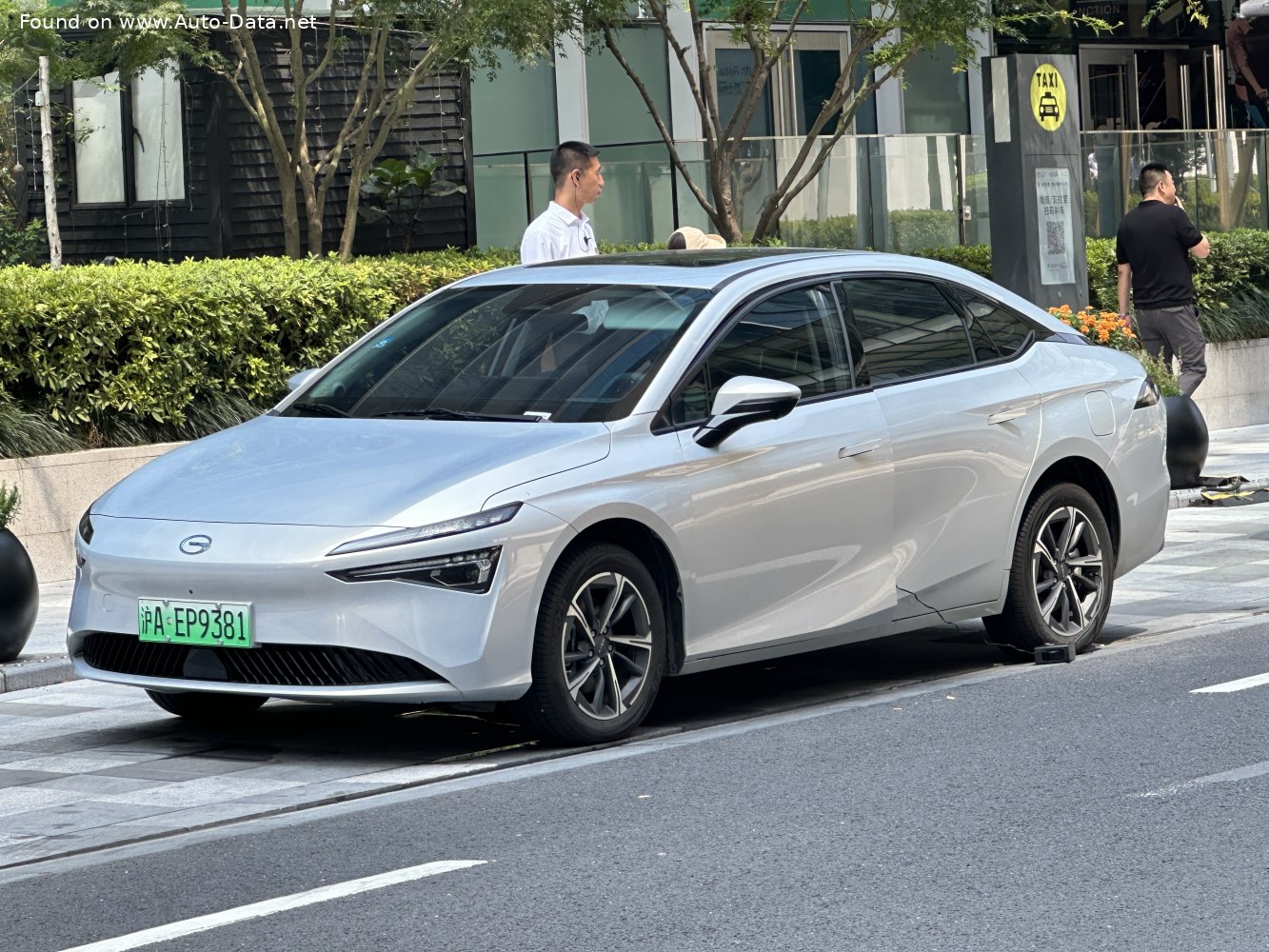

Aion S Max 2023 Gallery
Aion S Max 2023 Technical Specifications
General
Body type
Sedan
Brand
Aion
Doors
4
Generation
S Max
Model
S
Modification (Engine)
67.9 kWh (245 Hp)
Powertrain Architecture
BEV (Electric Vehicle)
Seats
5
Start of production
October, 2023
Performance
Acceleration 0 - 100 km/h
6.7 sec
Acceleration 0 - 60 mph
6.4 sec
Acceleration 0 - 62 mph
6.7 sec
Fuel Type
Electricity
Maximum speed
163 km/h
Electric
All-electric range (CLTC)
610 km
Average Energy consumption (CLTC)
12.7 kWh/100 km
Battery location
Below the floor
Charging ports number 0
Log in to see.
Electric motor Torque number 1
309 Nm
Electric motor location number 1
Front axle, Transverse
Electric motor model/code number 1
TZ180XYX3T11
Electric motor power number 1
245 Hp
Electric motor type number 1
Synchronous
Gross battery capacity
67.9 kWh
System power
245 Hp
System torque
309 Nm
Dimensions
Approach angle
14°
Departure angle
17°
Front track
1600 mm
Height
1515 mm
Length
4863 mm
Rear (Back) track
1602 mm
Wheelbase
2760 mm
Width
1890 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
1 gears, automatic transmission
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Semi-independent, coil spring, Torsion
Steering type
Steering rack and pinion
Tires size
235/45 R18
Wheel rims size
18
Space
Kerb Weight
1660 kg
Max load
475 kg
Max. weight
2135 kg
