Ferrari SF90 20 Spider 2023
4.0 V8 (1030 Hp) PHEV E4WD F1 DCT
Hybrid Car
Body Type Roadster
Seats 2
25 km
Electric Range
320 km/h
Maximum Speed
2
Doors
Ferrari SF90 20 Spider 2023 Key Specs
Acceleration 0 - 100 Km/h
2.3 sec
Acceleration 0 - 62 Mph
2.3 sec
All-electric Range
25 km
Body Type
Roadster
Doors
2
Drive Wheel
All wheel drive (4x4)
Engine Aspiration
Twin-Turbo, Intercooler
Engine Oil Capacity
7.6 l
Engine Systems
Particulate filter
Fuel Type
petrol / electricity
Fuel Tank Capacity
68 l
Generation
SF90 XX Spider
Kerb Weight
1660 kg
Max Speed (electric)
135 km/h
Maximum Speed
320 km/h
Modification (Engine)
4.0 V8 (1030 Hp) PHEV E4WD F1 DCT
Number Of Cylinders
8
Power
797 Hp @ 7900 rpm.
Power Steering
Electric Steering
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
2
Start Of Production
June, 2023
System Power
1030 Hp

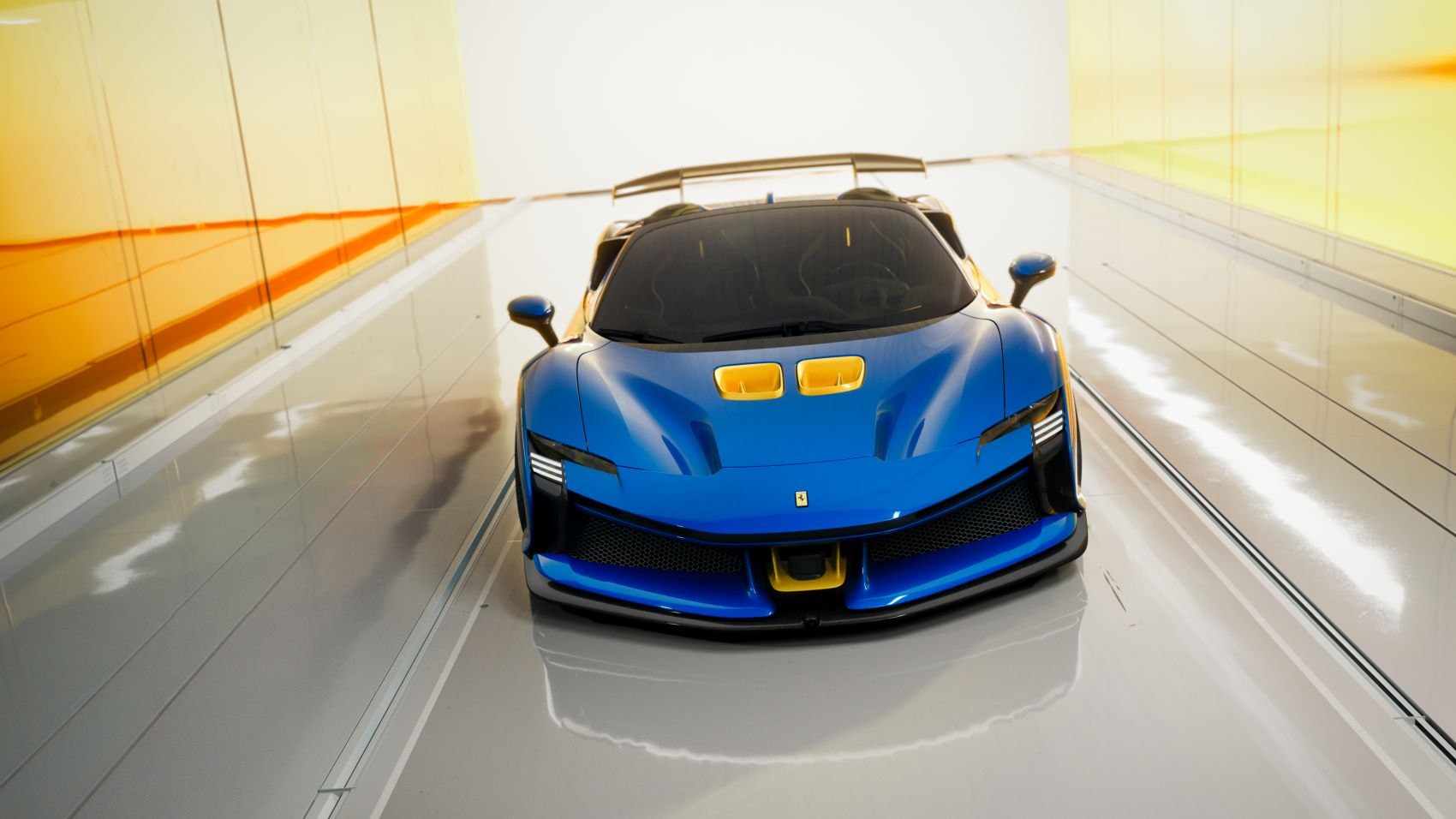

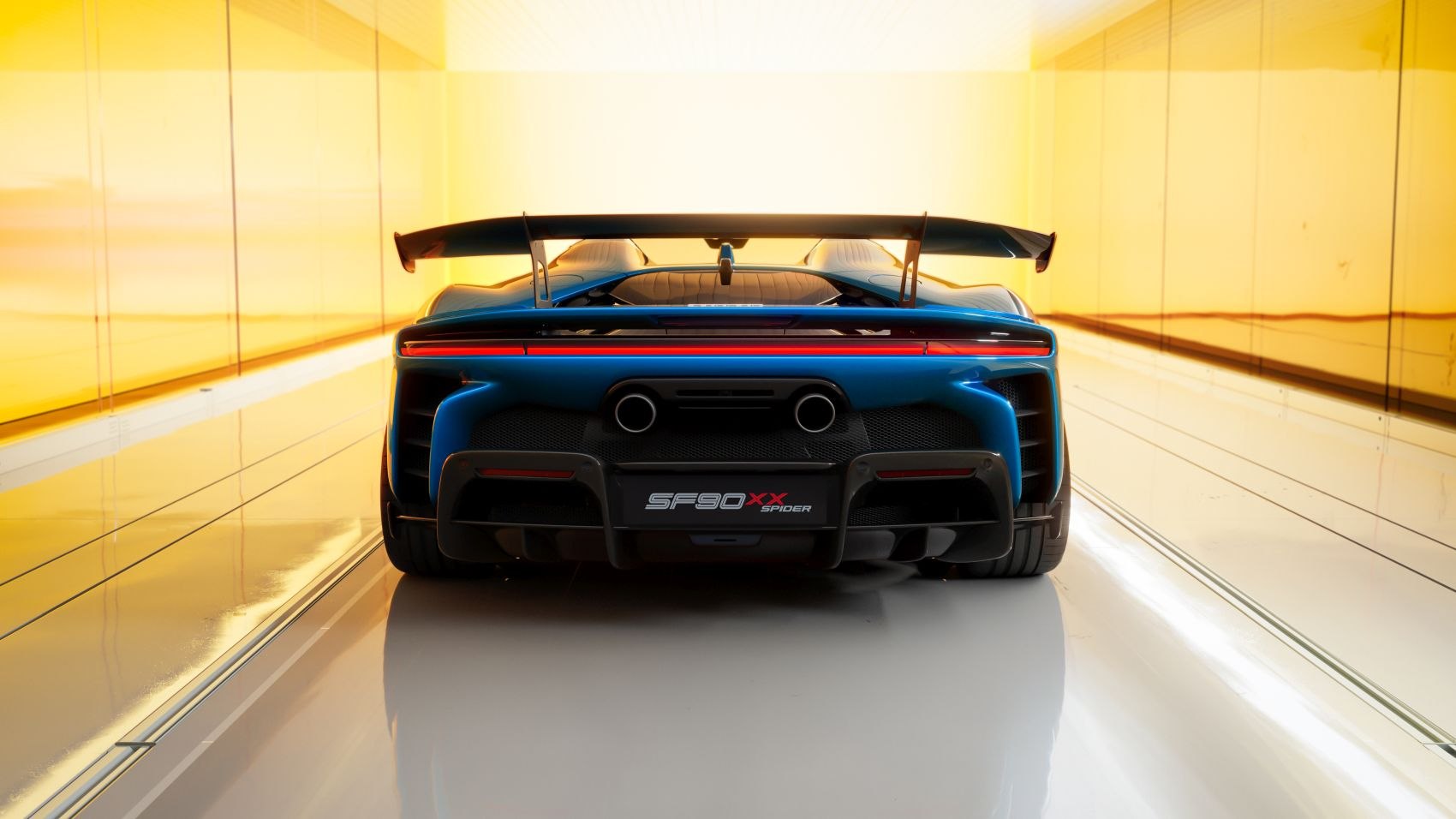

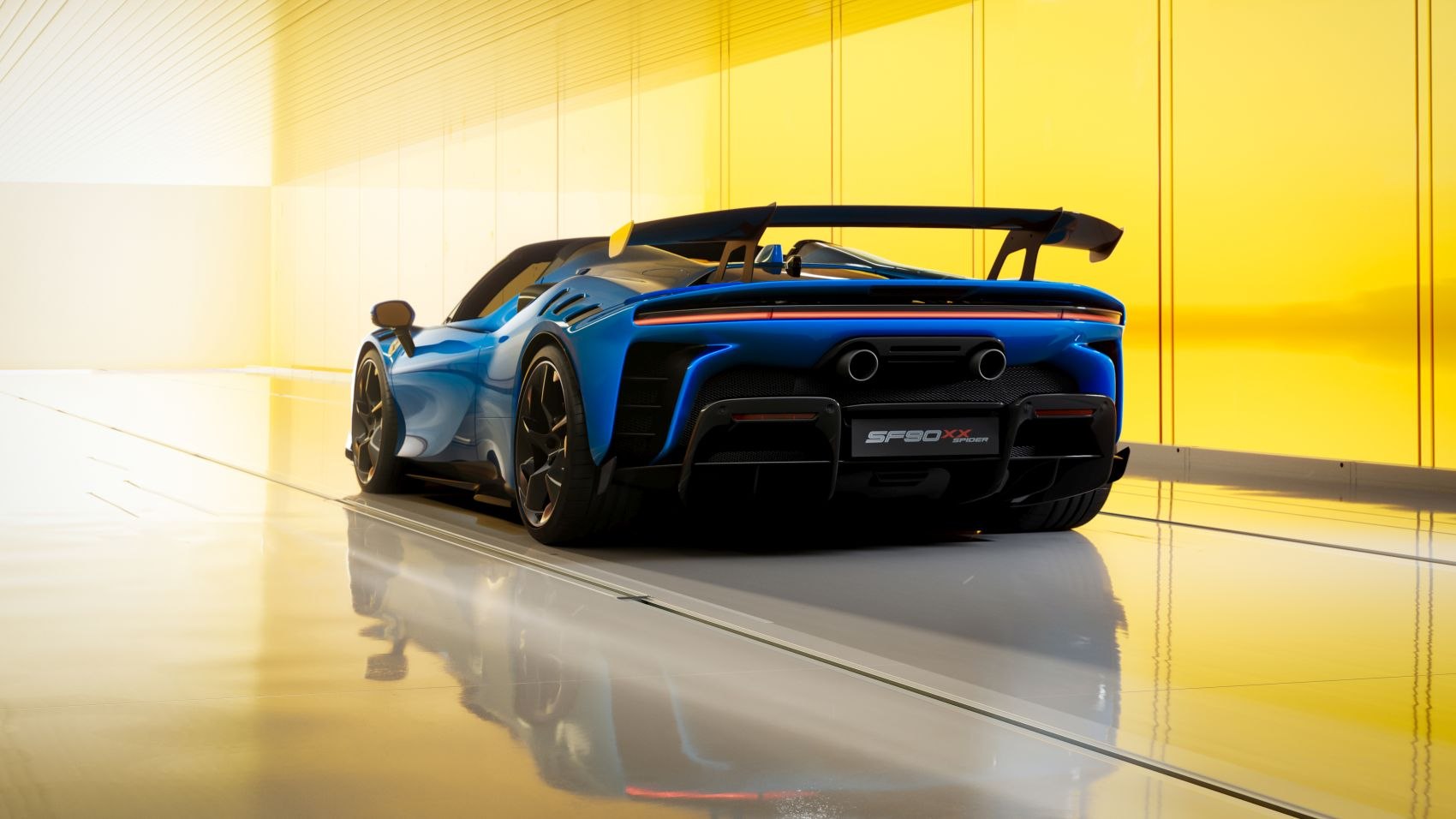

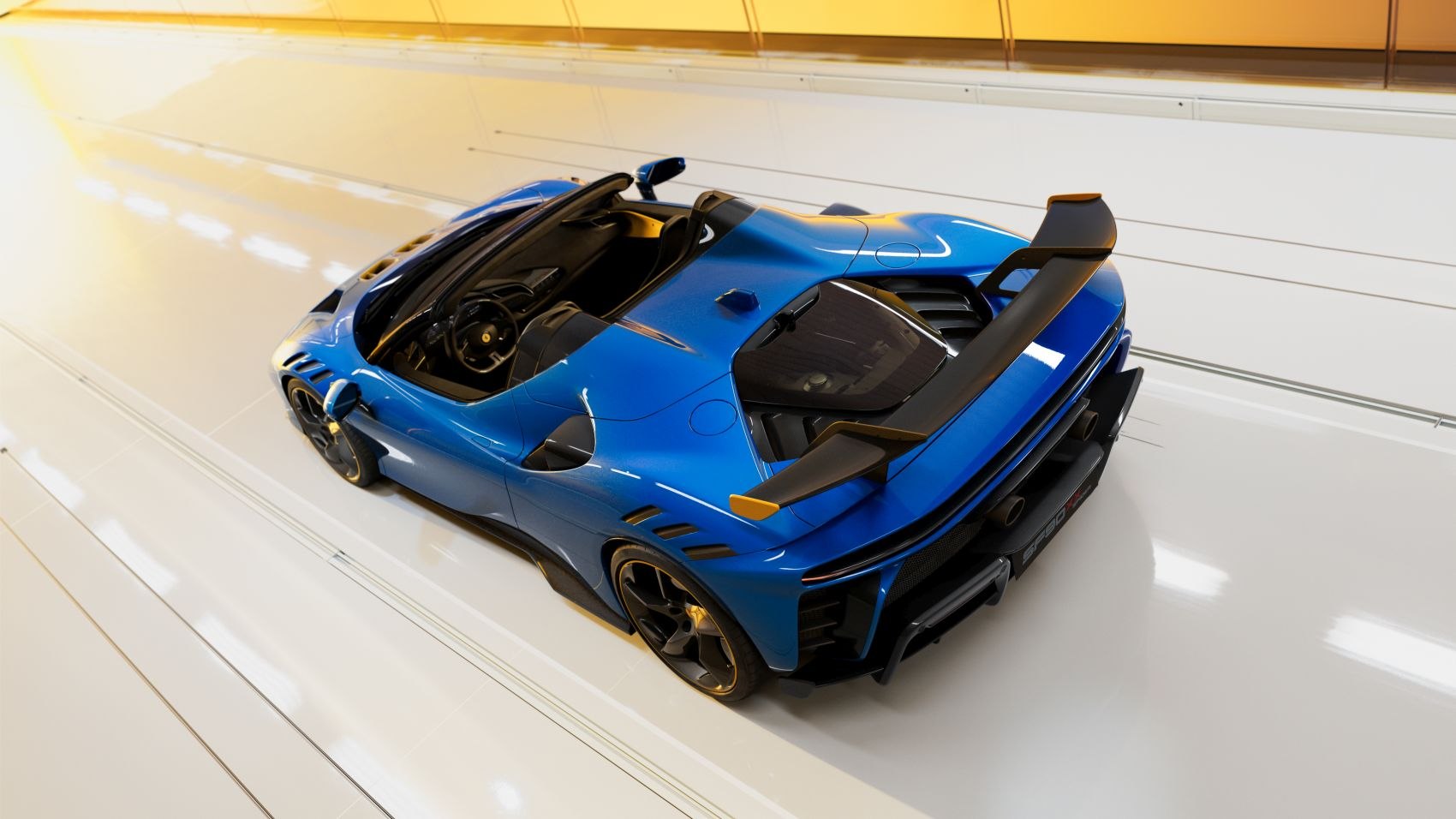

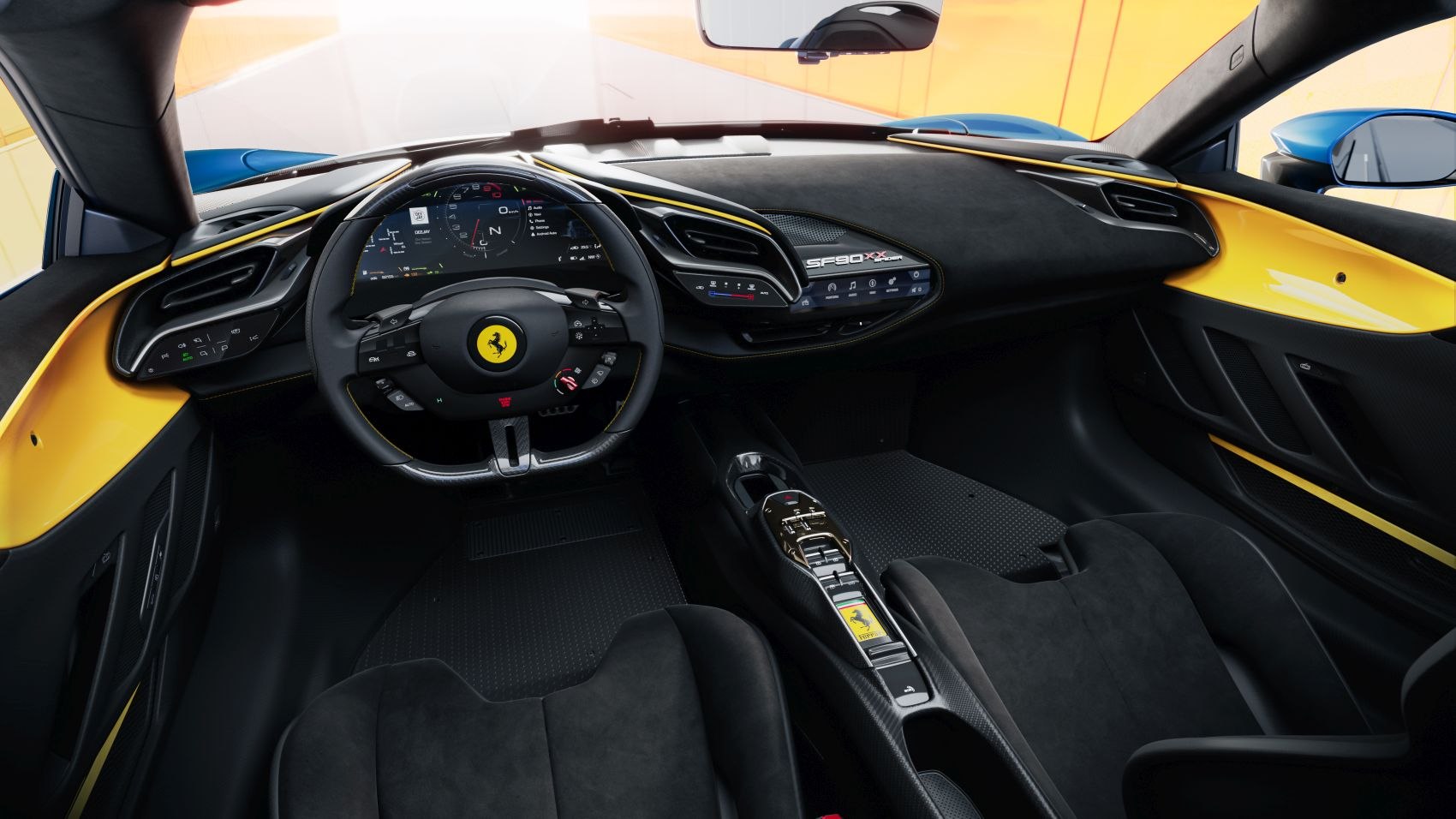

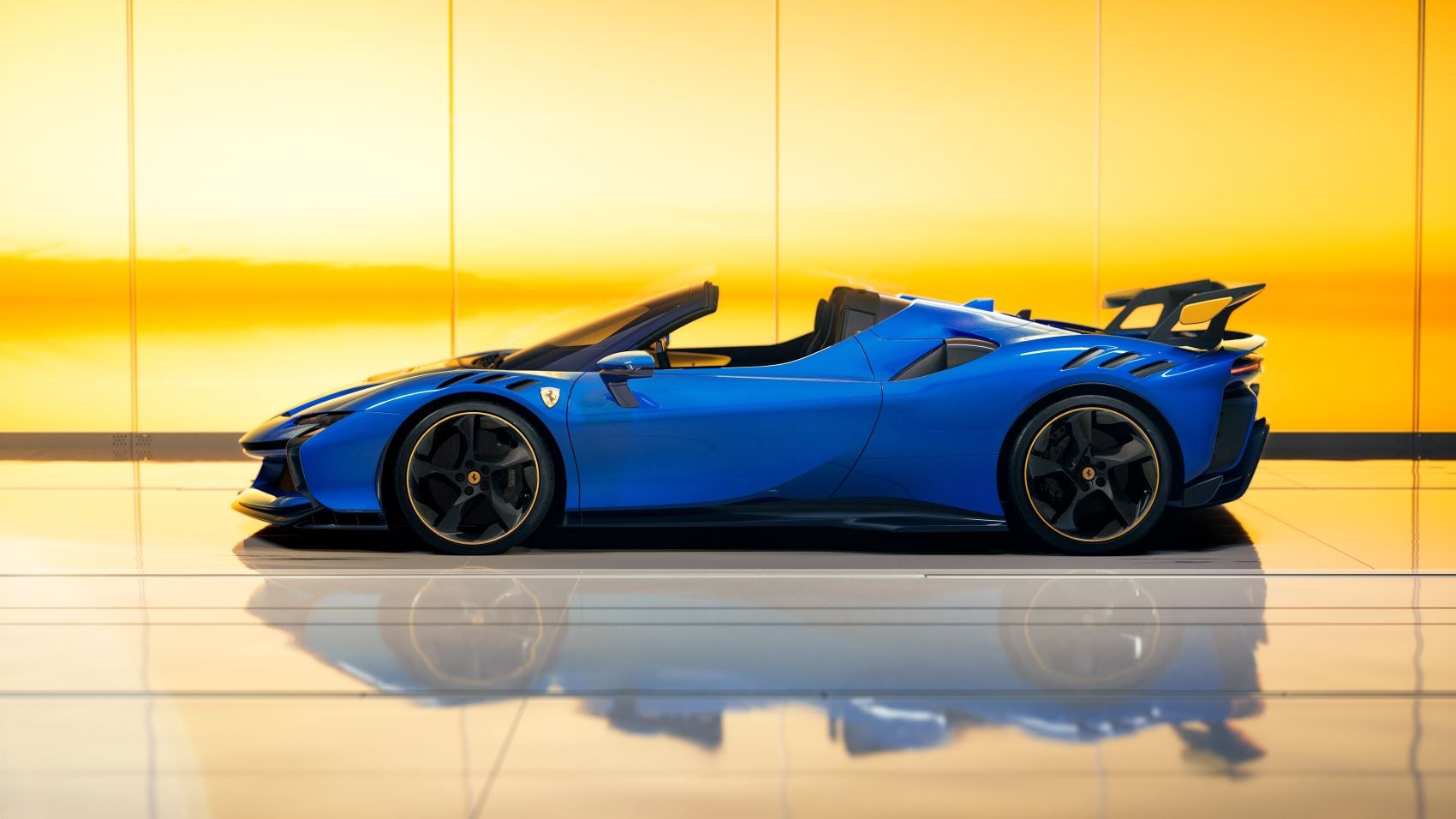

Ferrari SF90 20 Spider 2023 Gallery
Ferrari SF90 20 Spider 2023 Technical Specifications
General
Body type
Roadster
Brand
Ferrari
Doors
2
Generation
SF90 XX Spider
Model
SF90
Modification (Engine)
4.0 V8 (1030 Hp) PHEV E4WD F1 DCT
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
2
Start of production
June, 2023
Performance
Acceleration 0 - 100 km/h
2.3 sec
Acceleration 0 - 200 km/h
6.7 sec
Acceleration 0 - 60 mph
2.2 sec
Acceleration 0 - 62 mph
2.3 sec
Fuel Type
petrol / electricity
Maximum speed
320 km/h
Electric
All-electric range
25 km
Battery location
Behind the back wall of the passenger cabin
Electric motor location number 1
Front axle, Transverse
Electric motor location number 2
Front axle, Transverse
Electric motor location number 3
Between the combustion engine and the transmission
Gross battery capacity
7.9 kWh
Max speed (electric)
135 km/h
System power
1030 Hp
Internal Engine
Compression ratio
9.5
Coolant
20.2 l
Cylinder Bore
88 mm
Engine Model/Code
F154FB
Engine aspiration
Twin-Turbo, Intercooler
Engine configuration
V-engine
Engine displacement
3990 cm
Engine layout
Middle, Longitudinal
Engine oil capacity
7.6 l
Engine oil specification
Log in to see.
Engine systems
Particulate filter
Fuel injection system
Direct injection
Maximum engine speed
8000 rpm.
Number of cylinders
8
Number of valves per cylinder
4
Piston Stroke
82 mm
Power
797 Hp @ 7900 rpm.
Power per litre
199.7 Hp/l
Torque
804 Nm @ 6250 rpm.
Dimensions
Front track
1683 mm
Height
1225 mm
Length
4850 mm
Rear (Back) track
1674 mm
Wheelbase
2650 mm
Width
2014 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs, 398x38 mm
Number of gears and type of gearbox
8 gears, automatic transmission F1 DCT
Power steering
Electric Steering
Rear brakes
Ventilated discs, 390x32 mm
Steering type
Steering rack and pinion
Tires size
Front wheel tires: 255/35 ZR F20Rear wheel tires: 315/30 ZR F20
Wheel rims size
Front wheel rims: 20Rear wheel rims: 20
Space
Fuel tank capacity
68 l
Kerb Weight
1660 kg
