Ford Ranger 5 SuperCrew Americas 2023
Raptor 3.0 EcoBoost V6 (405 Hp) 4x4 Automatic
Generation Ranger 5 SuperCrew Americas
Body Type Pick-up
Seats 5
4
Doors
Ford Ranger 5 SuperCrew Americas 2023 Key Specs
Body Type
Pick-up
Doors
4
Drive Wheel
All wheel drive (4x4)
Engine Aspiration
Twin-Turbo, Intercooler
Engine Systems
Start & Stop System
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
77 l
Generation
Ranger V SuperCrew (Americas)
Kerb Weight
2415 kg
Modification (Engine)
Raptor 3.0 EcoBoost V6 (405 Hp) 4x4 Automatic
Number Of Cylinders
6
Power
405 Hp
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
2023

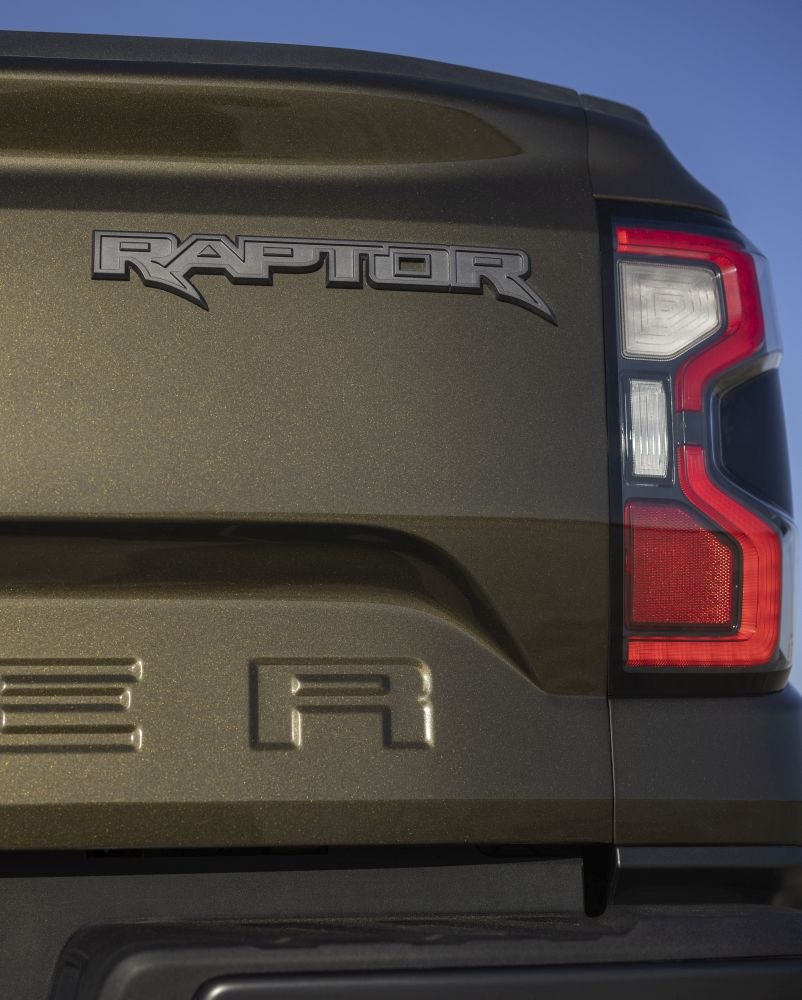

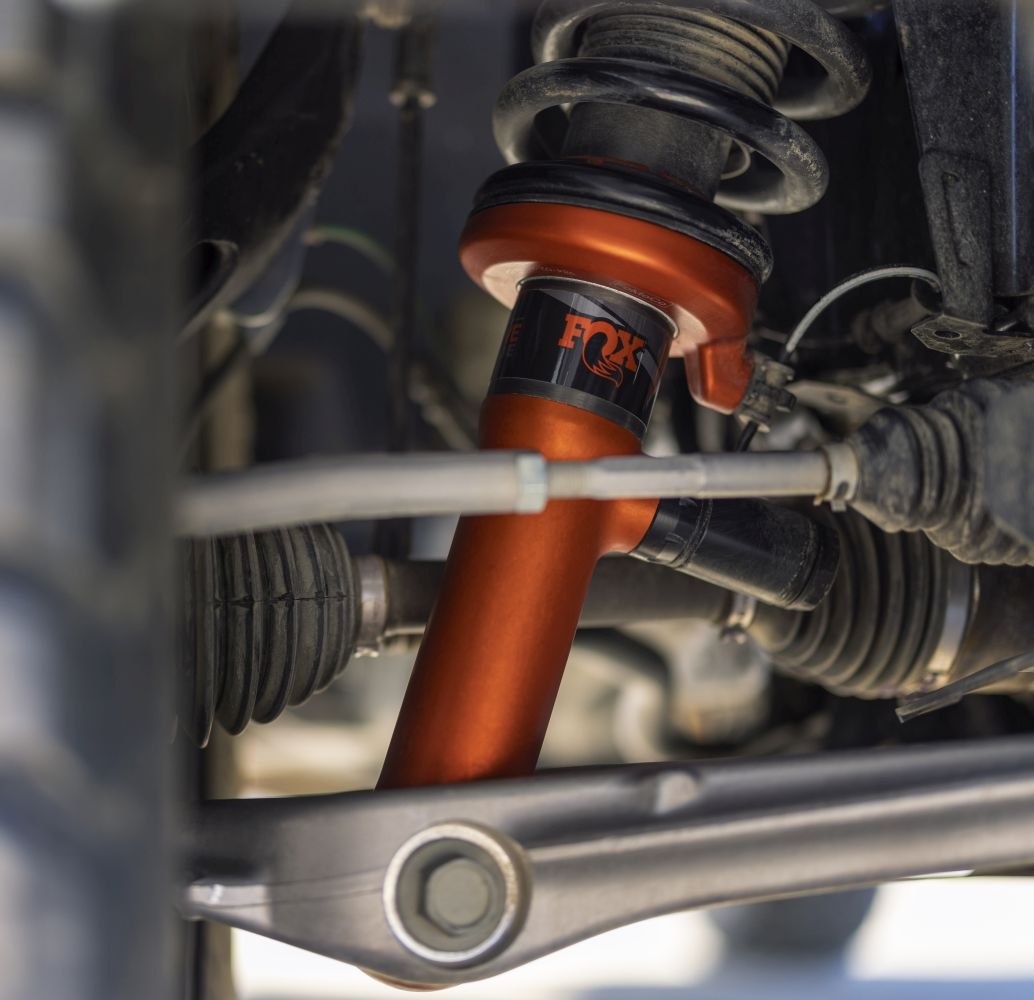

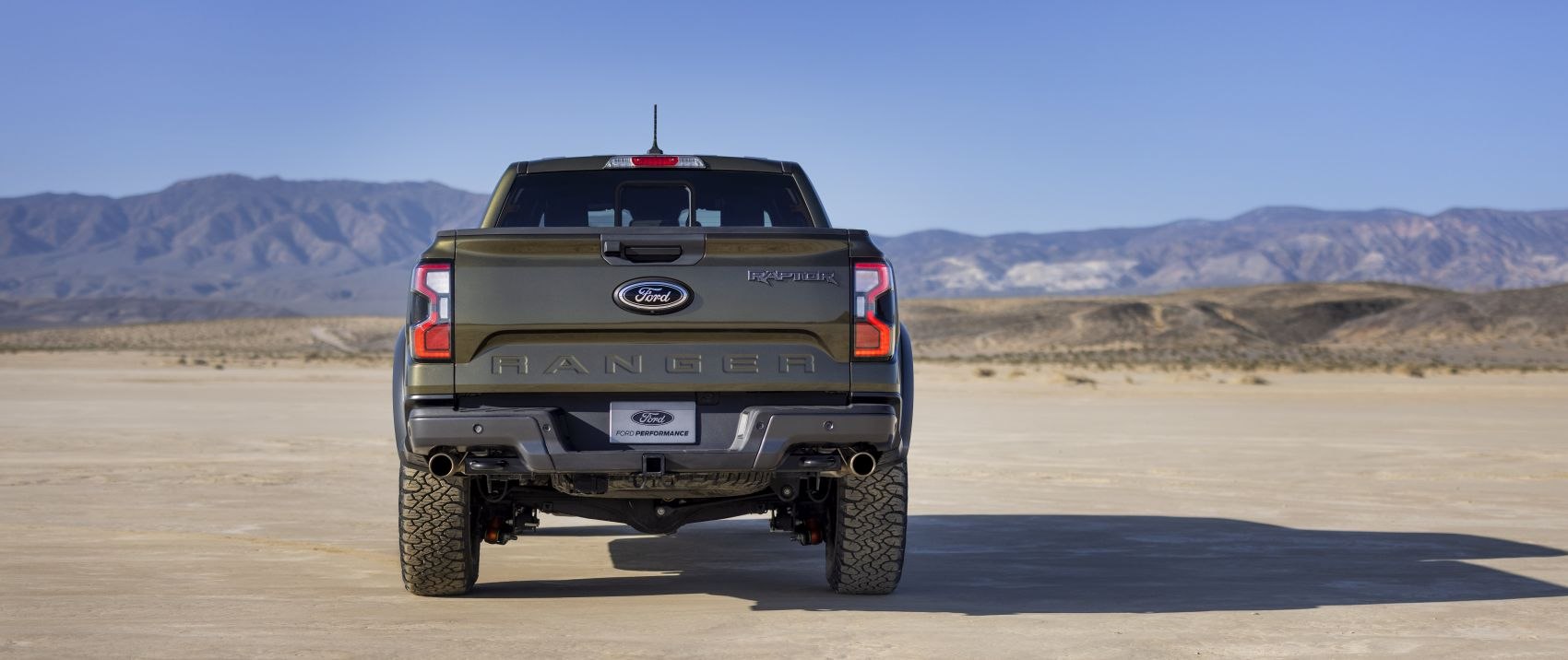

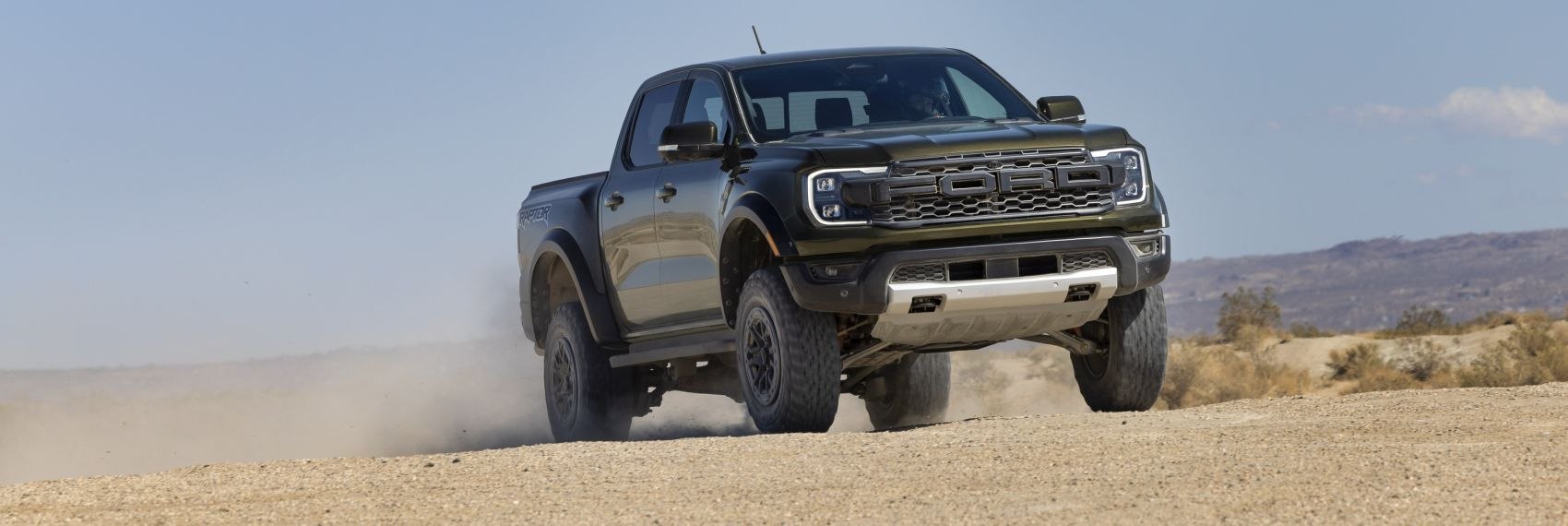

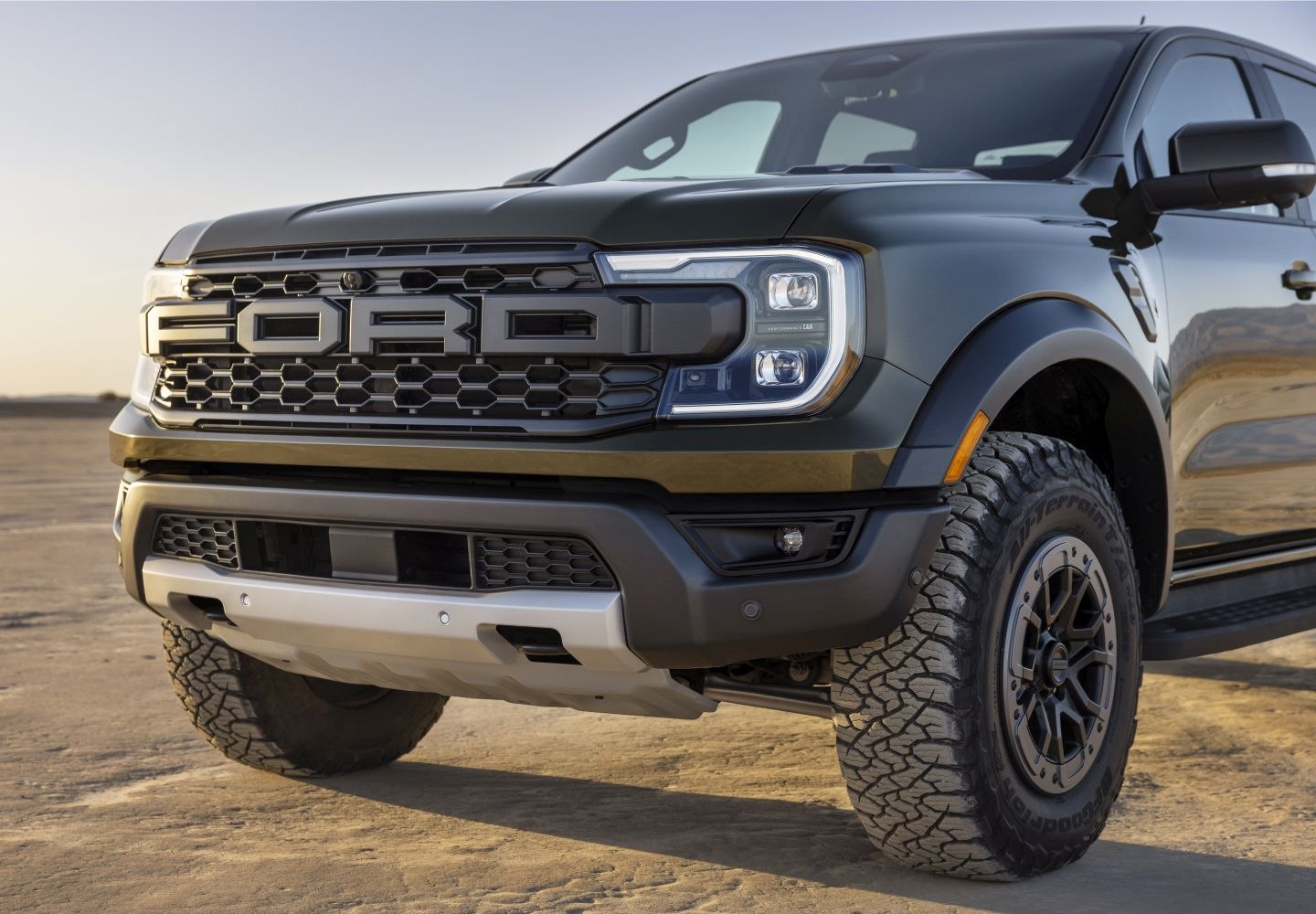

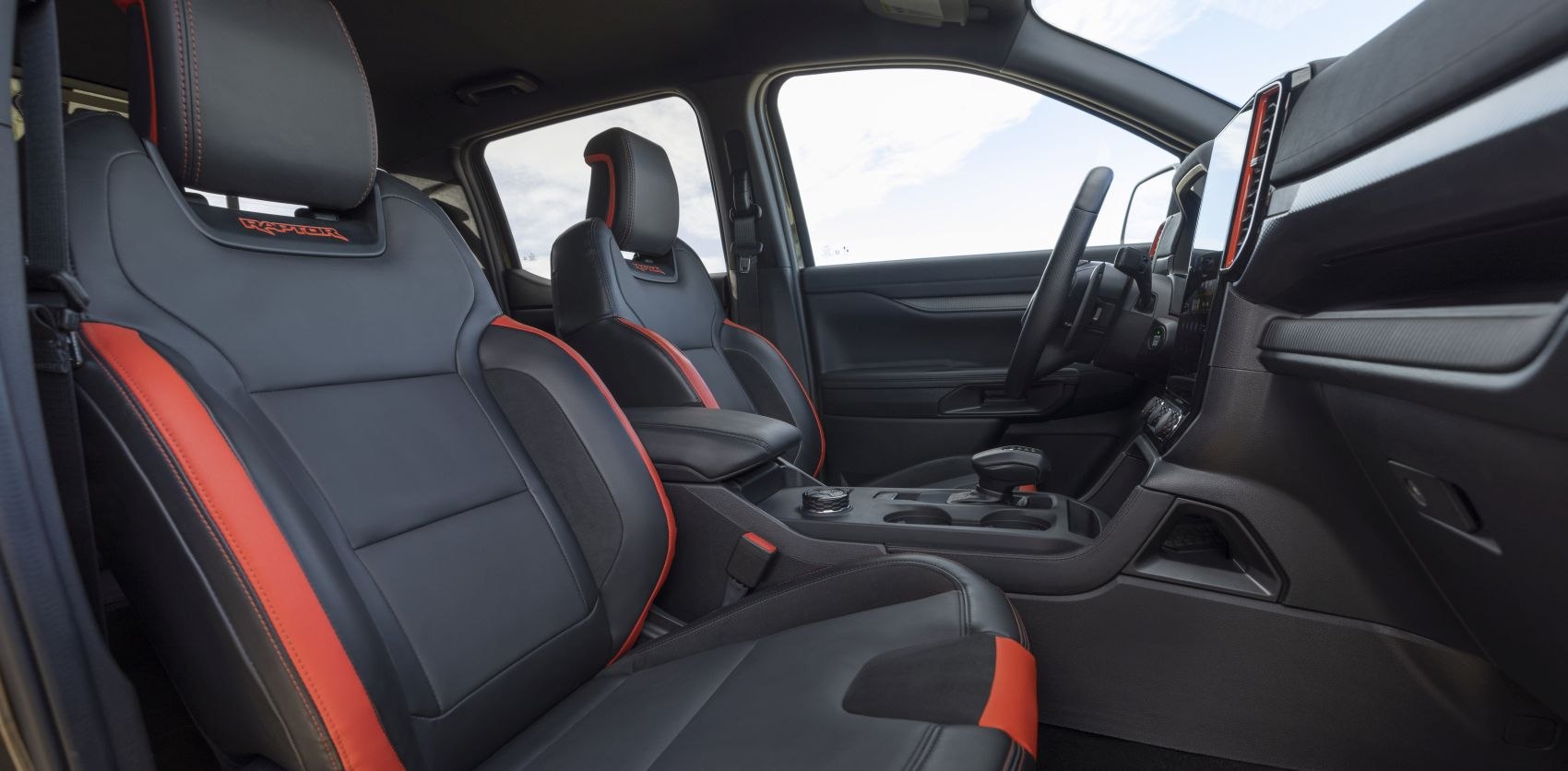

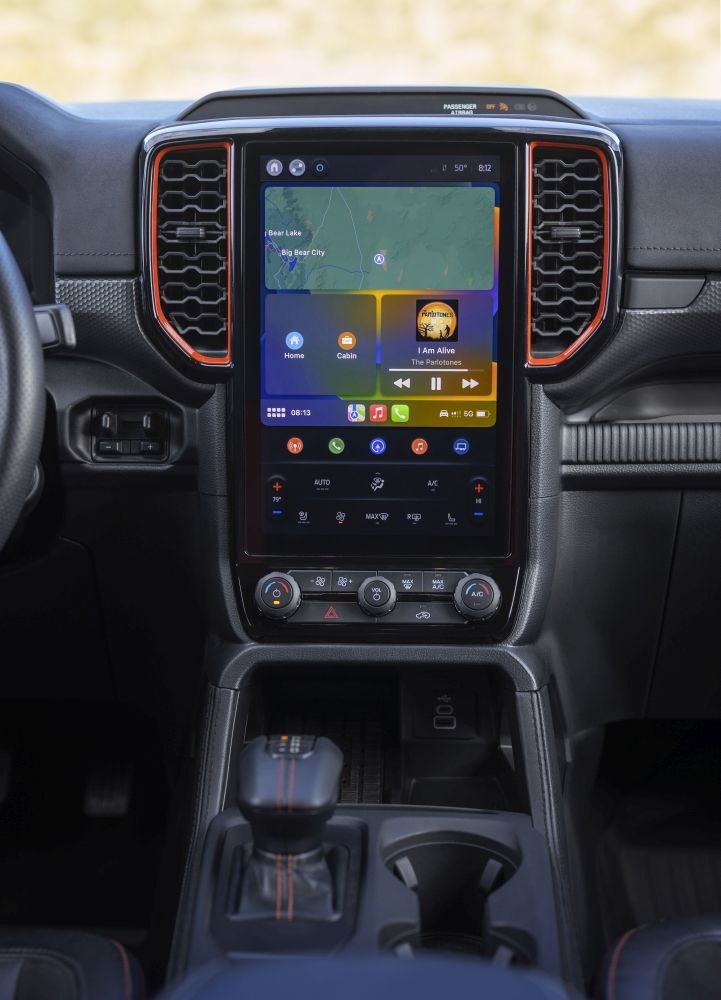

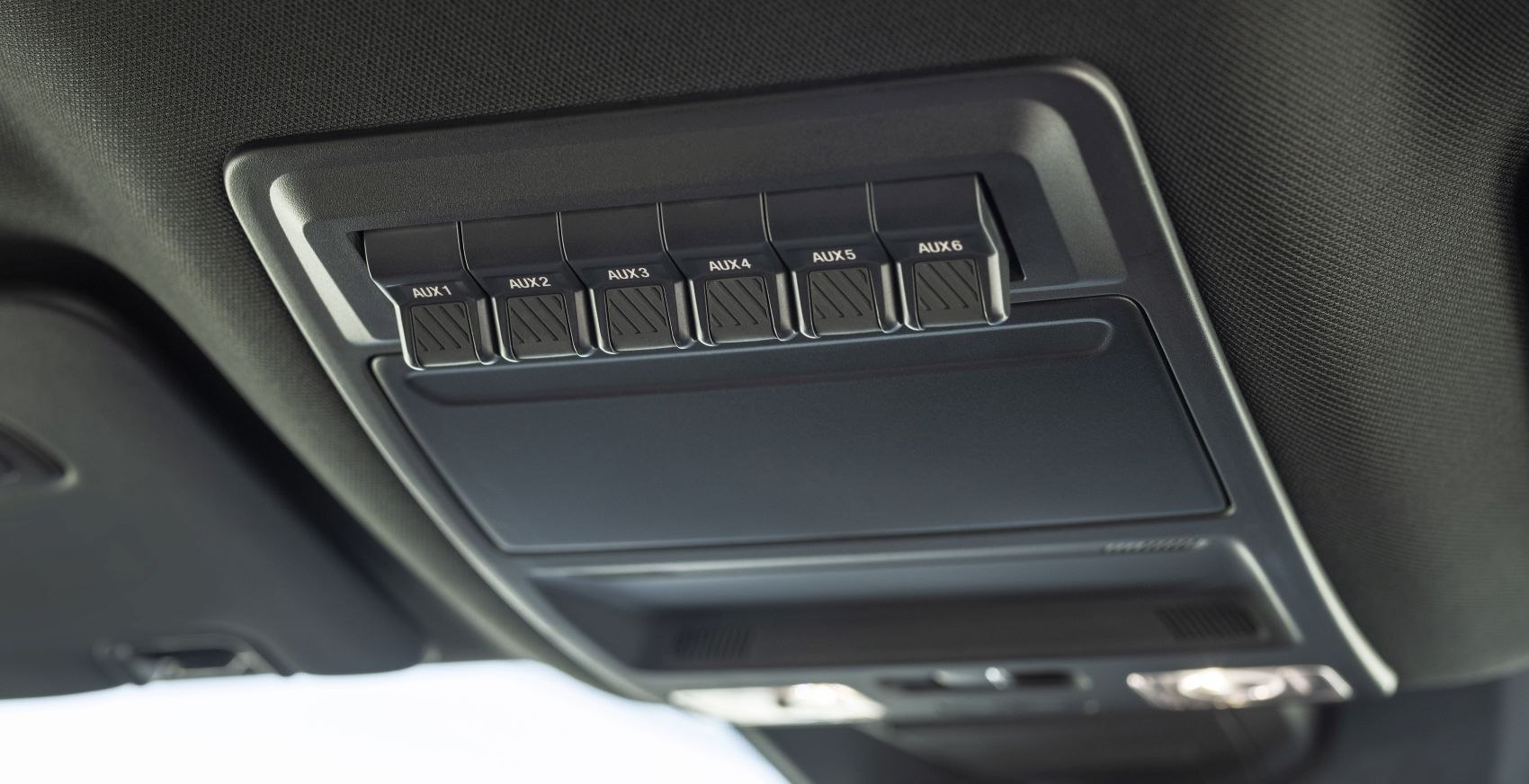

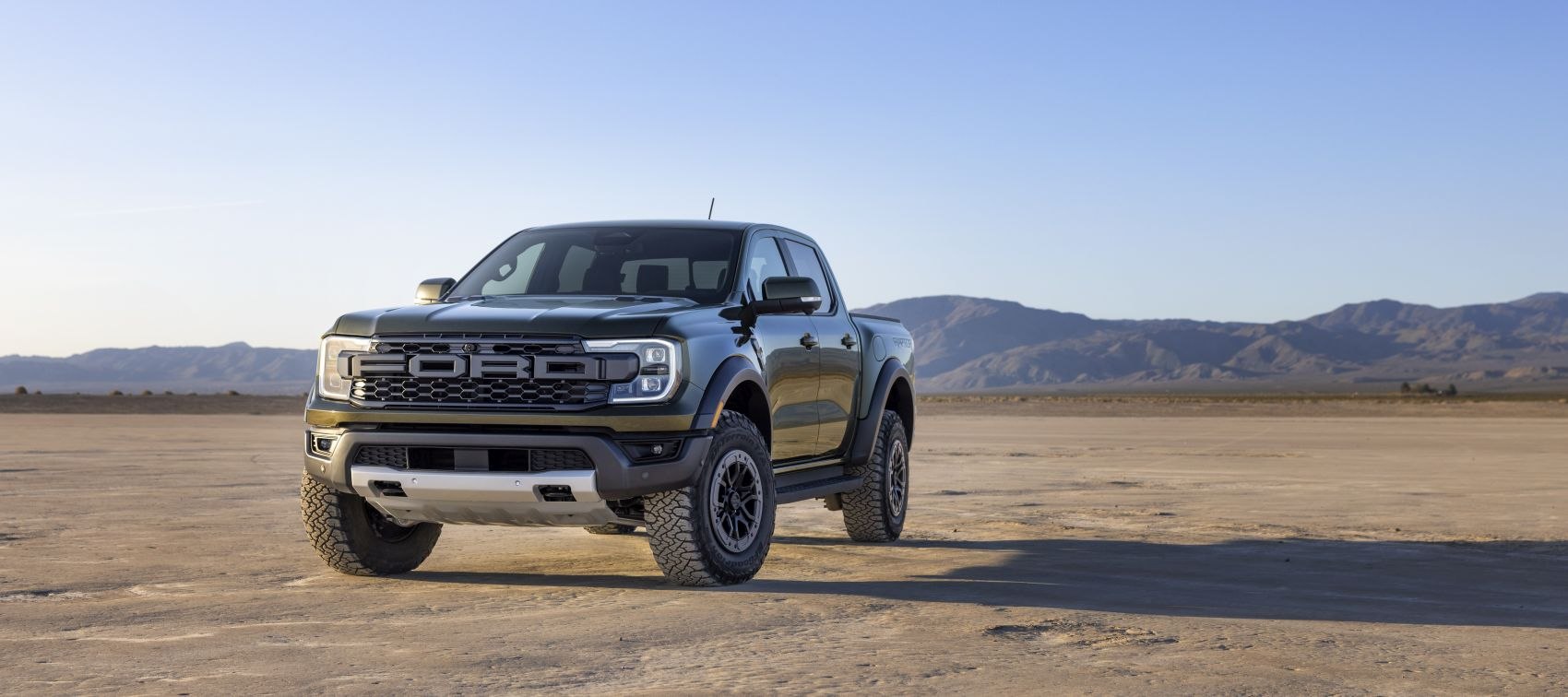

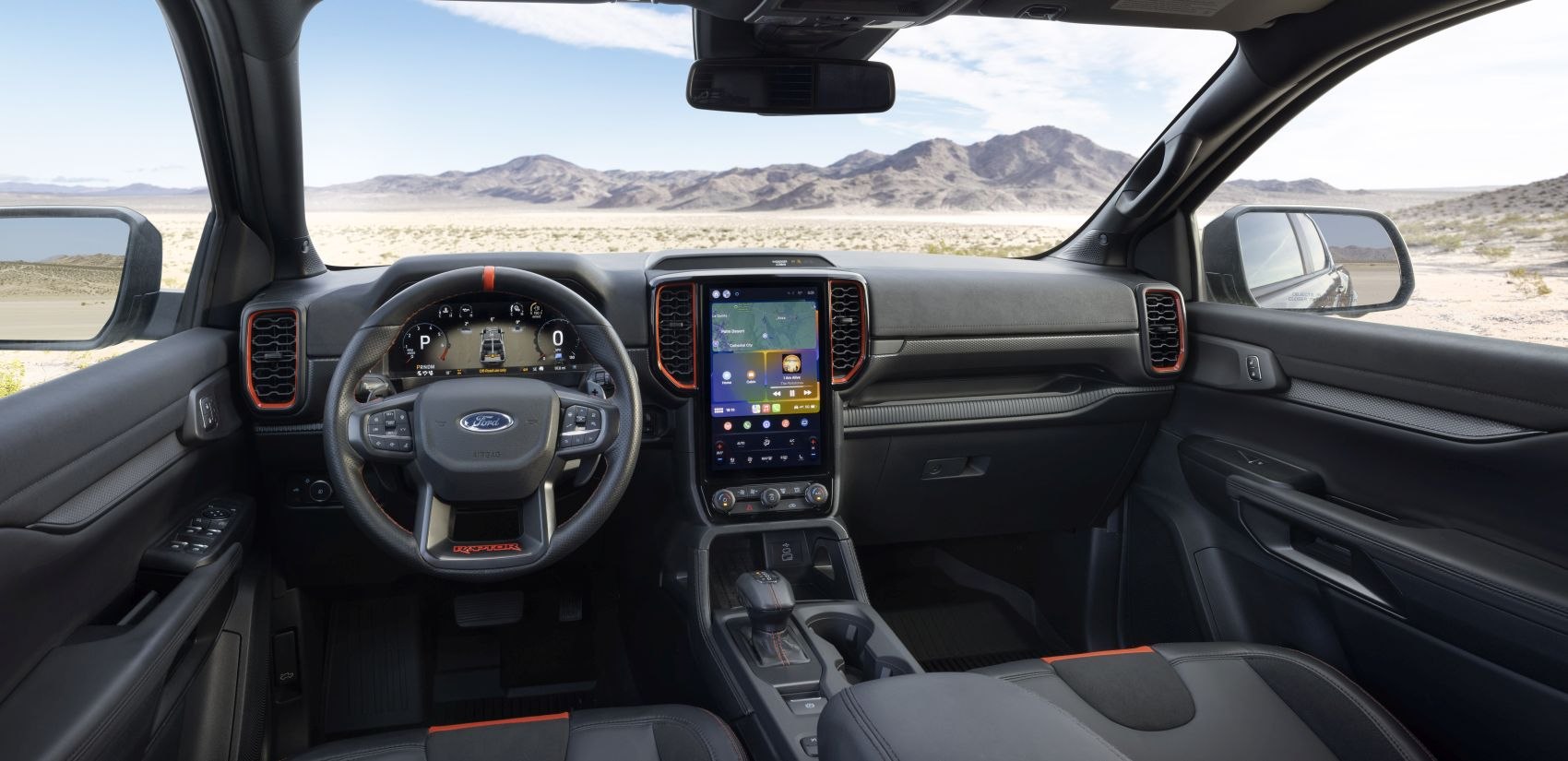

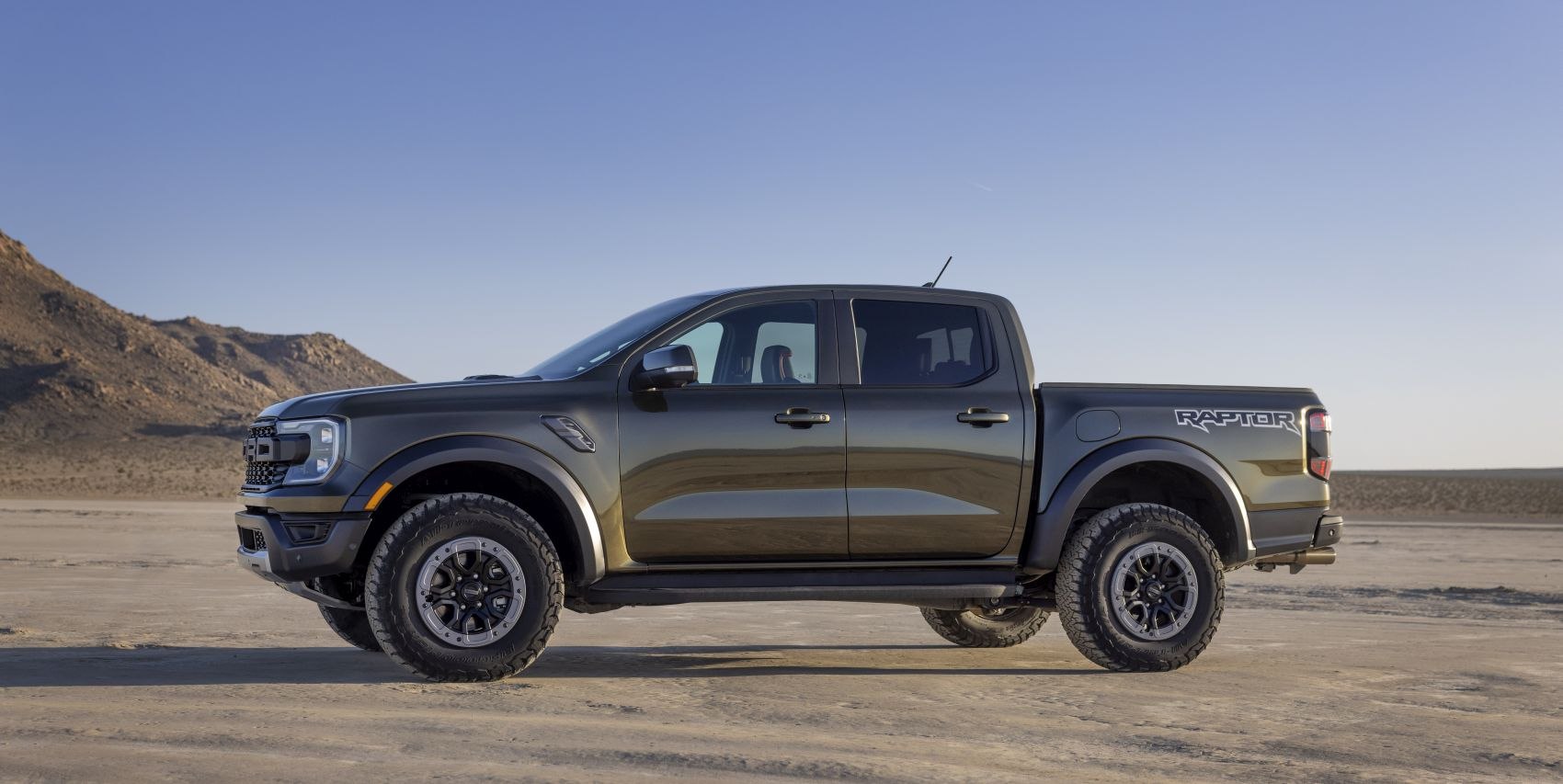

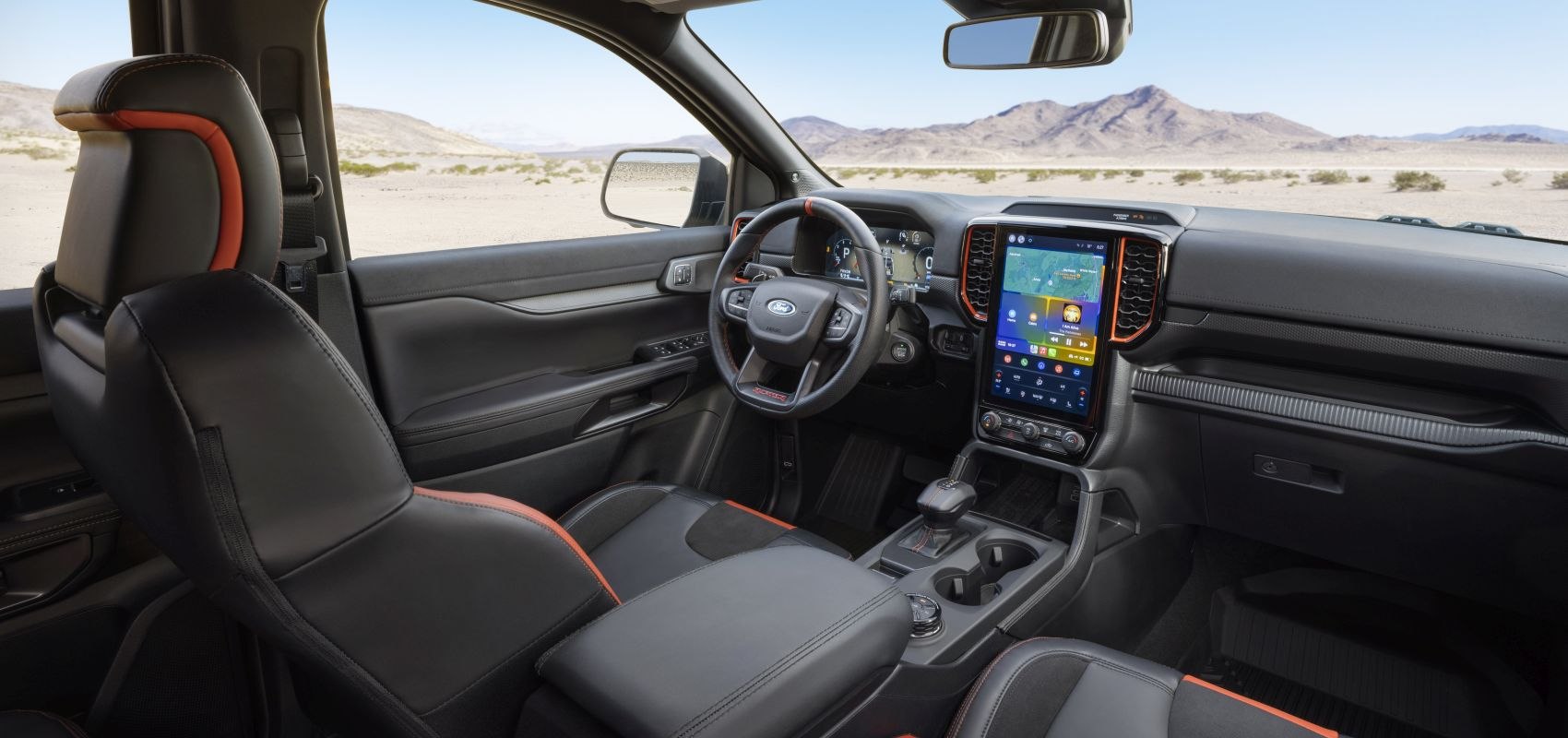

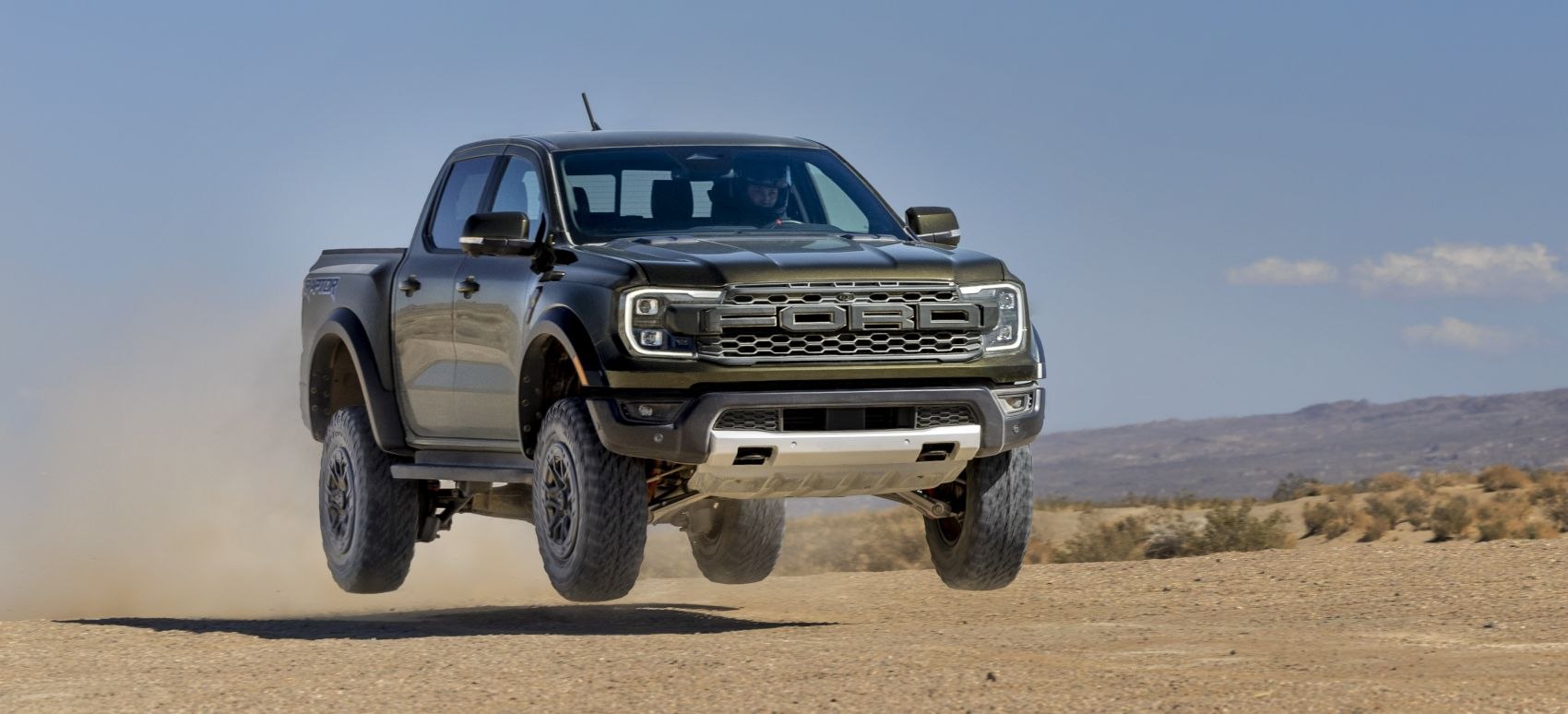

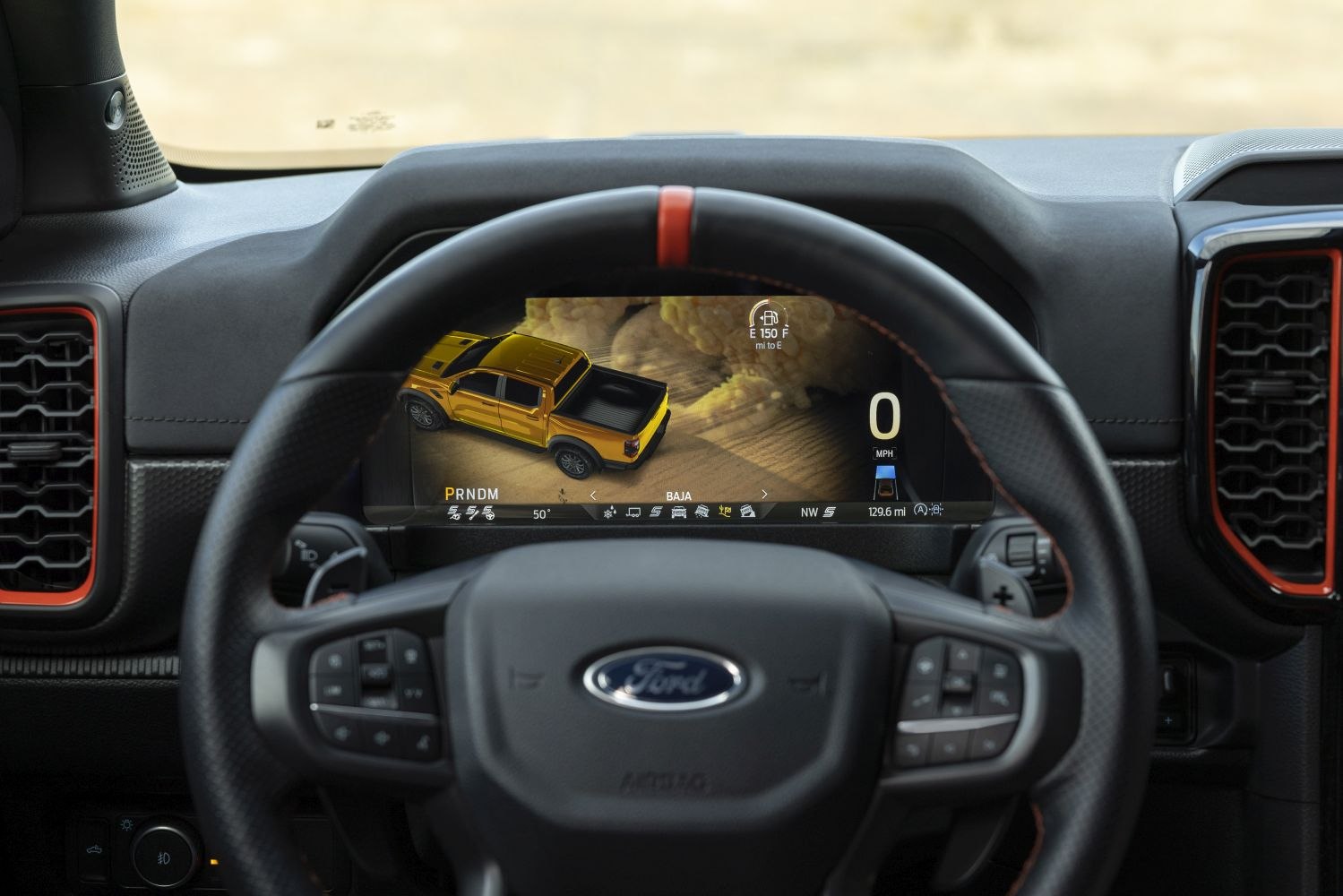

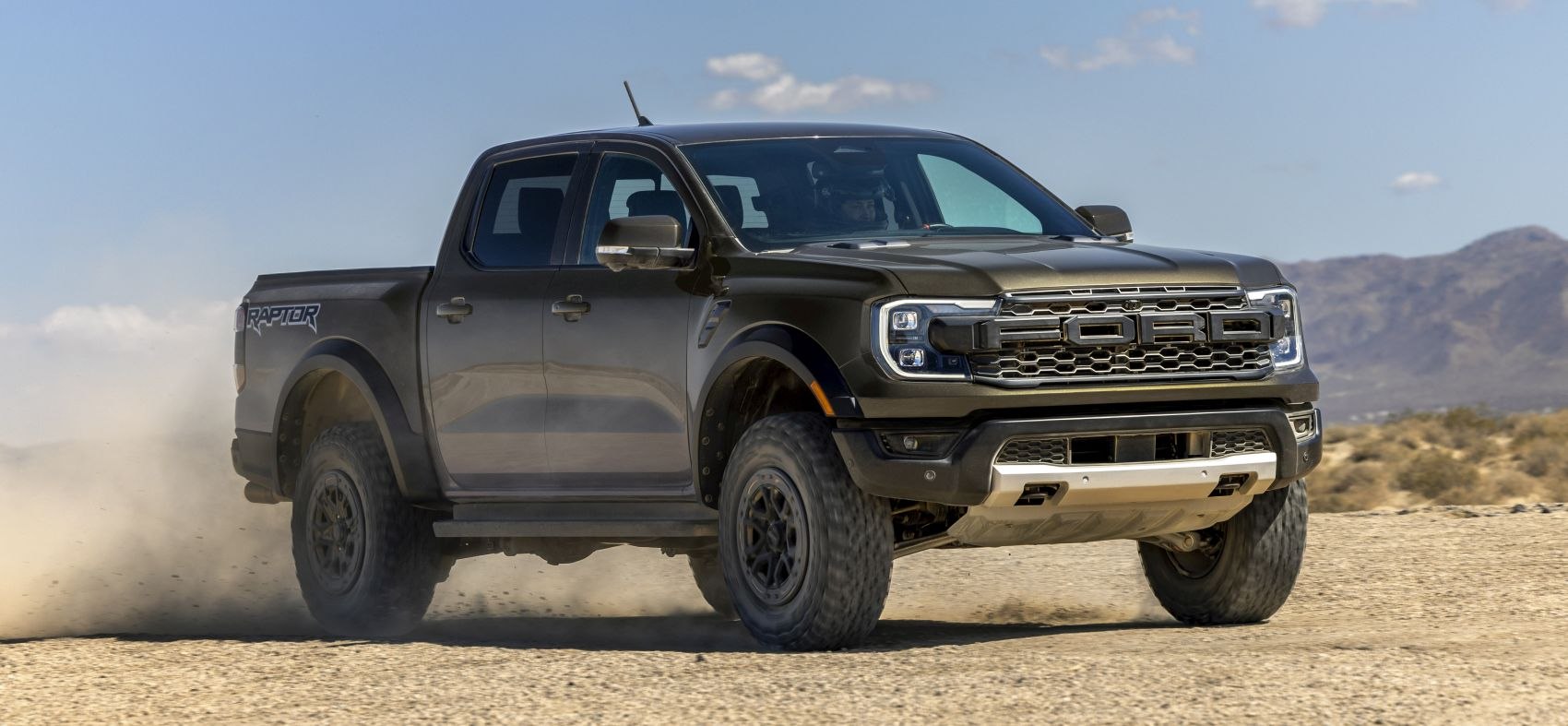

Ford Ranger 5 SuperCrew Americas 2023 Gallery
Ford Ranger 5 SuperCrew Americas 2023 Technical Specifications
General
Body type
Pick-up
Brand
Ford
Doors
4
Generation
Ranger V SuperCrew (Americas)
Model
Ranger
Modification (Engine)
Raptor 3.0 EcoBoost V6 (405 Hp) 4x4 Automatic
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
2023
Performance
Fuel Type
Petrol (Gasoline)
Dimensions
Approach angle
33°
Departure angle
26.4°
Front overhang
861 mm
Front track
1709 mm
Height
1928 mm
Length
5357 mm
Minimum turning circle (turning diameter)
13.2 m
Ramp-over (brakeover) angle
24.2°
Rear (Back) track
1709 mm
Rear overhang
1224 mm
Ride height (ground clearance)
272 mm
Wheelbase
3269 mm
Width
2007 mm
Engine
Compression ratio
10.5
Cylinder Bore
85.4 mm
Engine Model/Code
EcoBoost
Engine aspiration
Twin-Turbo, Intercooler
Engine configuration
V-engine
Engine displacement
2949 cm
Engine layout
Front, Longitudinal
Engine systems
Start & Stop System
Fuel injection system
Direct injection / Multi-point indirect injection
Number of cylinders
6
Number of valves per cylinder
4
Power
405 Hp
Torque
583 Nm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs, 310.9x33.78 mm
Front suspension
Double wishbone
Number of gears and type of gearbox
10 gears, automatic transmission
Power steering
Electric Steering
Rear brakes
Ventilated discs, 307.85x23.88 mm
Rear suspension
Rigid axle suspension, Coil spring
Steering type
Steering rack and pinion
Tires size
285/70 R17
Wheel rims size
17
Space
Fuel tank capacity
77 l
Kerb Weight
2415 kg
Max load
665 kg
Max. weight
3080 kg
