Volkswagen Caravelle T5 Long 2003
2.0 (116 Hp)
Generation Caravelle T5 Long
Body Type Van
Seats 5
2009
End Year
163 km/h
Maximum Speed
4
Doors
Volkswagen Caravelle T5 Long 2003 Key Specs
Acceleration 0 - 100 Km/h
17.8 sec
Acceleration 0 - 62 Mph
17.8 sec
Body Type
Van
Doors
4-5
Drive Wheel
Front wheel drive
End Of Production
2009
Engine Aspiration
Naturally aspirated engine
Engine Oil Capacity
5 l
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
80 l
Generation
Caravelle (T5) Long
Kerb Weight
1890-2110 kg
Maximum Speed
163 km/h
Modification (Engine)
2.0 (116 Hp)
Number Of Cylinders
4
Power
116 Hp @ 5200 rpm.
Power Steering
Hydraulic Steering
Powertrain Architecture
Internal Combustion engine
Seats
5-9
Start Of Production
2003
Wheel Rims Size
6.5J x 16

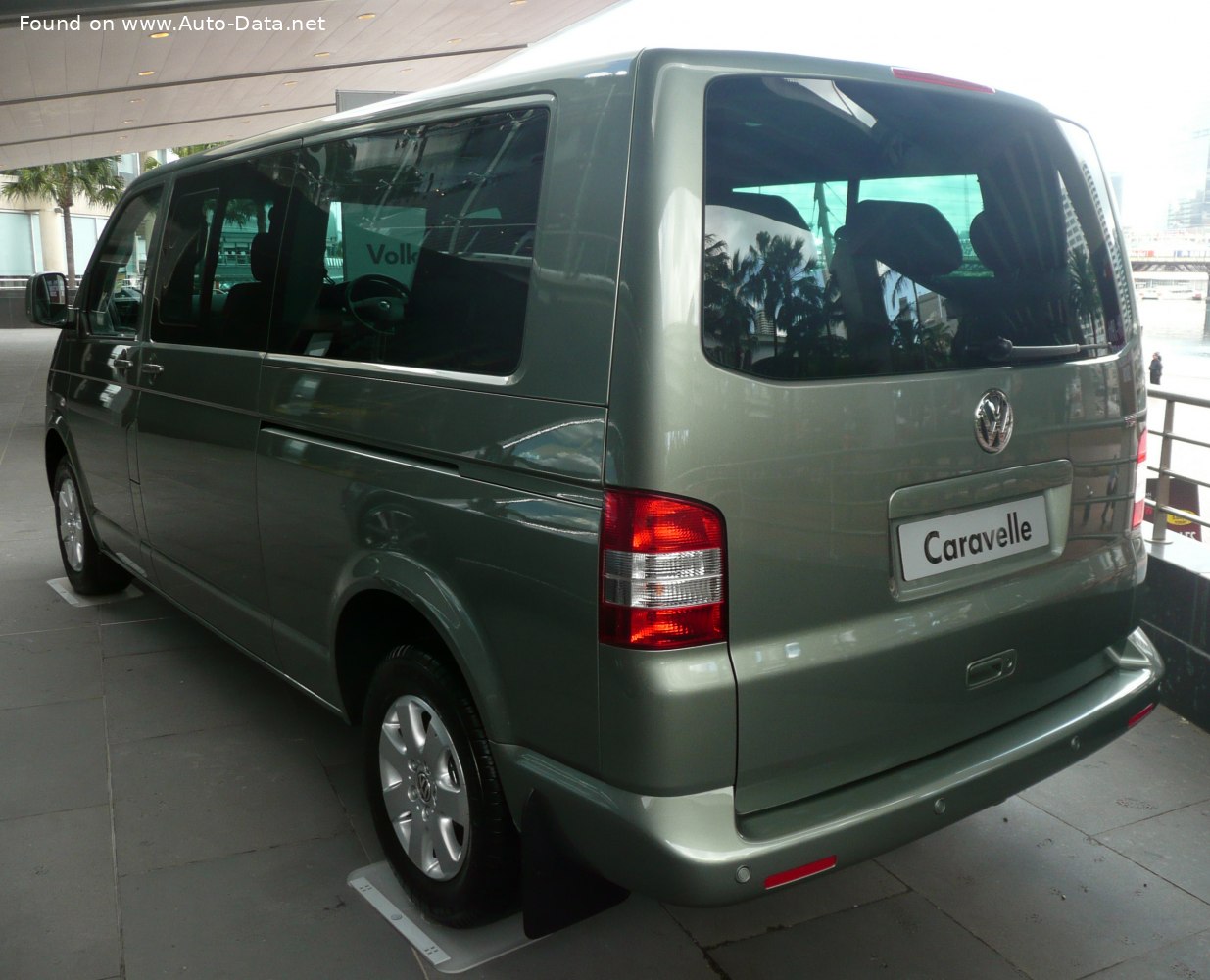

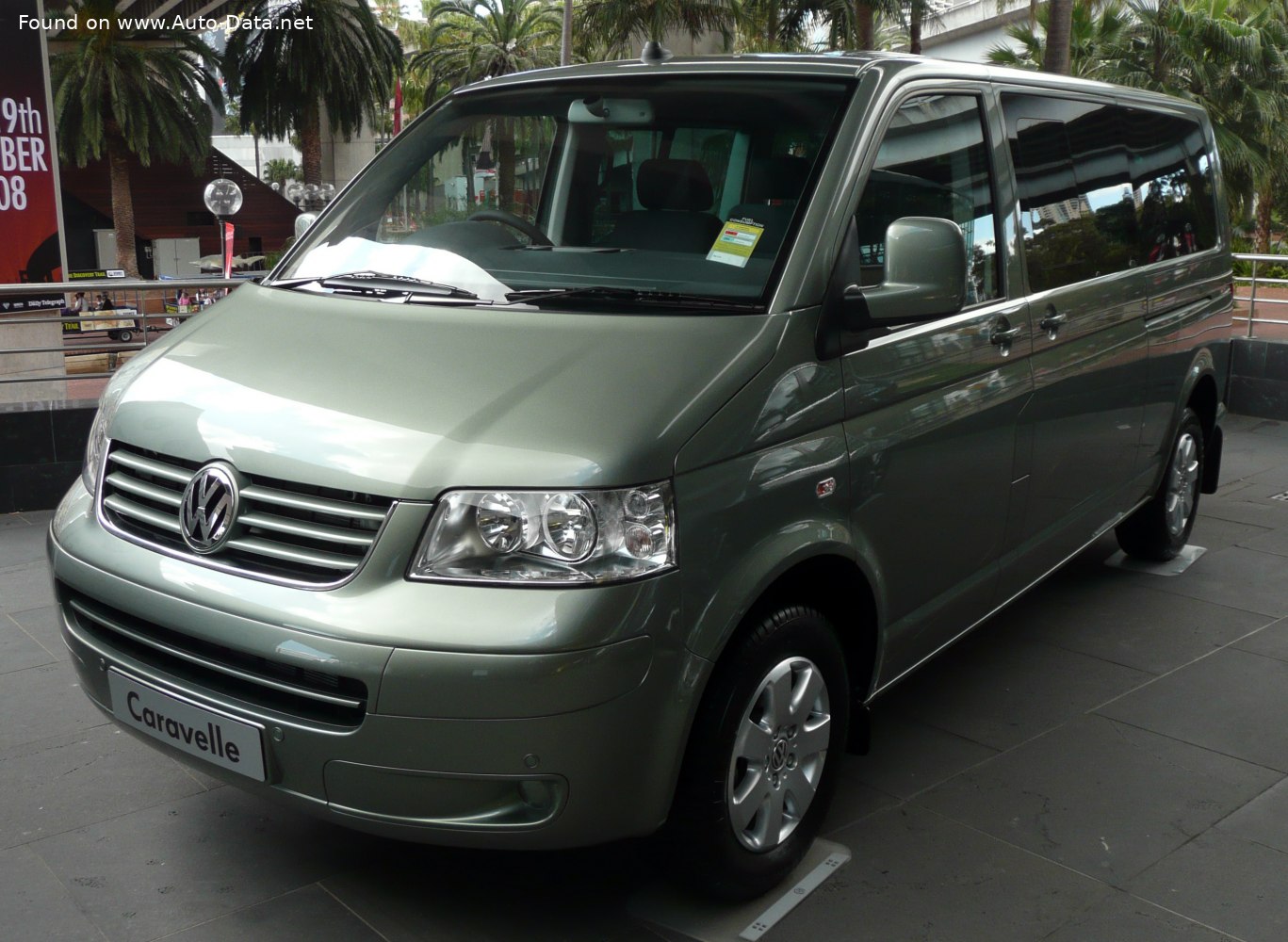

Volkswagen Caravelle T5 Long 2003 Gallery
Volkswagen Caravelle T5 Long 2003 Pros and Cons
Pros
- Spacious interior with seating for up to 9 passengers
- Generous cargo capacity of up to 6700 liters
- Reliable 2.0-liter petrol engine with 116 HP
- Good fuel efficiency for a van of its size
- Versatile towing capacity of up to 2000 kg
- Comfortable ride with hydraulic power steering
Cons
- Acceleration is slower at 17.8 seconds for 0-100 km/h
- Higher fuel consumption in urban areas
- Limited modern tech features compared to newer models
Volkswagen Caravelle T5 Long 2003 FAQs
What is the fuel efficiency of this vehicle?
This model offers a combined fuel consumption of 10.4-10.6 l/100 km, making it a practical choice for long trips.
How many passengers can this van accommodate?
The vehicle can seat between 5 to 9 passengers, depending on the configuration, making it ideal for larger groups.
What is the maximum speed of this automobile?
It has a top speed of 163 km/h, ensuring smooth highway cruising.
Does this car have good cargo space?
Yes, it offers up to 6700 liters of maximum trunk space, perfect for transporting large items.
What type of engine does this model have?
It features a 2.0-liter, 4-cylinder petrol engine with 116 HP, providing reliable performance.
Is this vehicle suitable for towing?
Yes, it can tow up to 2000 kg with brakes, making it versatile for various hauling needs.
What are the dimensions of this van?
It measures 5290 mm in length, 1904 mm in width, and 1959 mm in height, offering a spacious interior.
What safety features are included?
This model comes with ABS (Anti-lock Braking System) and hydraulic power steering for enhanced safety.
Volkswagen Caravelle T5 Long 2003 Technical Specifications
General
Body type
Van
Brand
Volkswagen
Doors
4-5
End of production
2009
Generation
Caravelle (T5) Long
Model
Caravelle
Modification (Engine)
2.0 (116 Hp)
Powertrain Architecture
Internal Combustion engine
Seats
5-9
Start of production
2003
Performance
Acceleration 0 - 100 km/h
17.8 sec
Acceleration 0 - 60 mph
16.9 sec
Acceleration 0 - 62 mph
17.8 sec
CO2 emissions (NEDC)
250-254 g/km
Emission standard
Euro 4
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined (NEDC)
10.4-10.6 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
8.4-8.6 l/100 km
Fuel consumption (economy) - urban (NEDC)
13.6-13.8 l/100 km
Maximum speed
163 km/h
Dimensions
Front overhang
894 mm
Front track
1628 mm
Height
1959 mm
Length
5290 mm
Minimum turning circle (turning diameter)
13.2 m
Rear (Back) track
1628 mm
Rear overhang
996 mm
Ride height (ground clearance)
165 mm
Wheelbase
3400 mm
Width
1904 mm
Engine
Compression ratio
10.5:1
Coolant
7.1 l
Cylinder Bore
82.5 mm
Engine Model/Code
EA113 / AXA
Engine aspiration
Naturally aspirated engine
Engine configuration
Inline
Engine displacement
1984 cm
Engine layout
Front, Transverse
Engine oil capacity
5 l
Engine oil specification
Log in to see.
Fuel injection system
Multi-port manifold injection
Number of cylinders
4
Number of valves per cylinder
2
Power
116 Hp @ 5200 rpm.
Torque
170 Nm @ 2700-4700 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 308x29.5 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
5 gears, manual transmission
Power steering
Hydraulic Steering
Rear brakes
Ventilated discs, 294x22 mm
Rear suspension
Independent coil spring, Transverse stabilizer, Trailing arm
Steering type
Steering rack and pinion
Tires size
205/65 R16; 215/65 R16
Wheel rims size
6.5J x 16
Space
Fuel tank capacity
80 l
Kerb Weight
1890-2110 kg
Max load
740-960 kg
Max. roof load
100 kg
Max. weight
2850 kg
Permitted towbar download
100 kg
