Lexus TX 2023
500h (366 Hp) Hybrid DIRECT4 ECT-i
Hybrid Car
Body Type SUV
Seats 6
6000 rpm
Power HP RPM
180 km/h
Maximum Speed
5
Doors
Lexus TX 2023 Key Specs
Body Type
SUV
Doors
5
Drive Wheel
All wheel drive (4x4)
Engine Aspiration
Twin-scroll turbo, Intercooler
Engine Oil Capacity
5.3 l
Engine Systems
Start & Stop System
Fuel Type
Petrol (Gasoline)
Fuel Consumption (economy) - Combined
8.7 l/100 km
Fuel Consumption (economy) - Extra Urban
8.4 l/100 km
Fuel Tank Capacity
65 l
Generation
TX
Kerb Weight
2245-2254 kg
Maximum Speed
180 km/h, Electronically limited
Modification (Engine)
500h (366 Hp) Hybrid DIRECT4 ECT-i
Number Of Cylinders
4
Power
271 Hp @ 6000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
6
Start Of Production
October, 2023
System Power
366 Hp

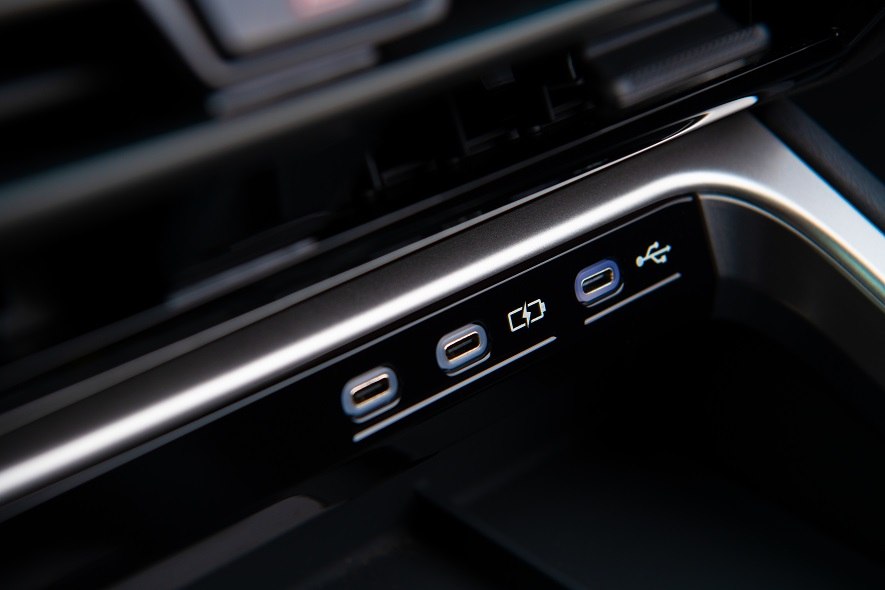

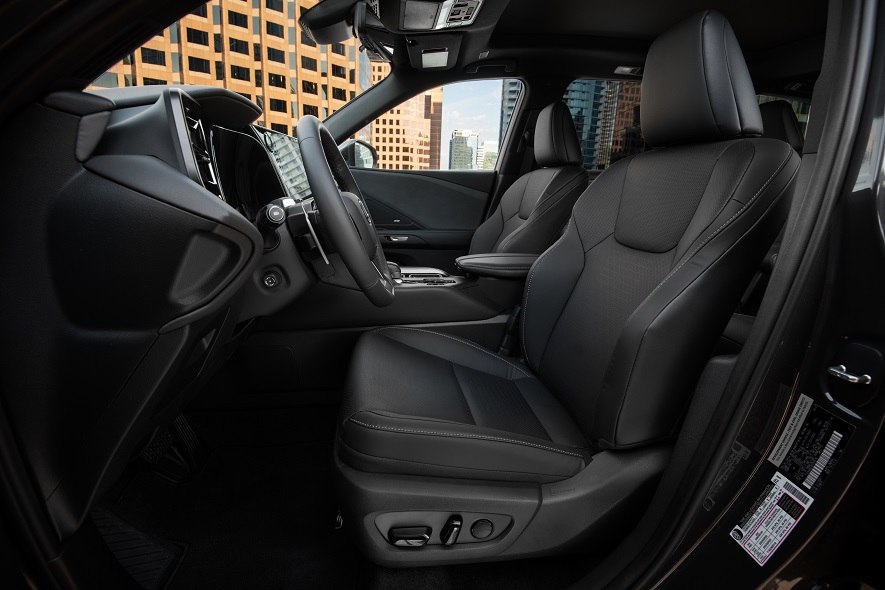

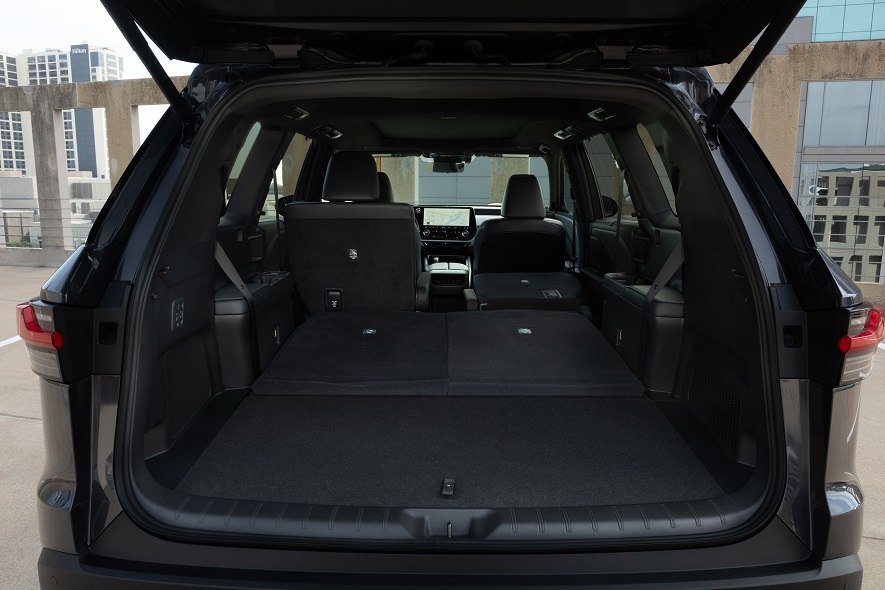

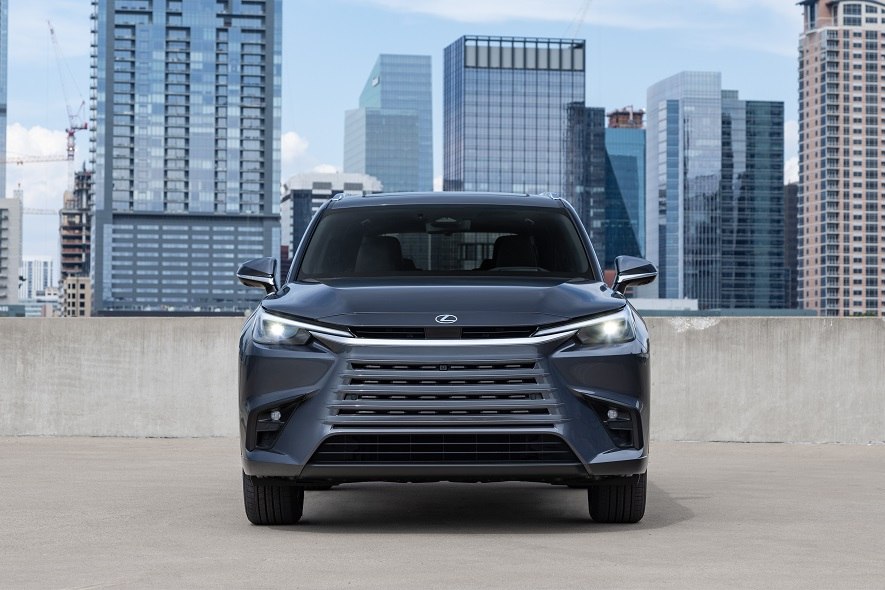

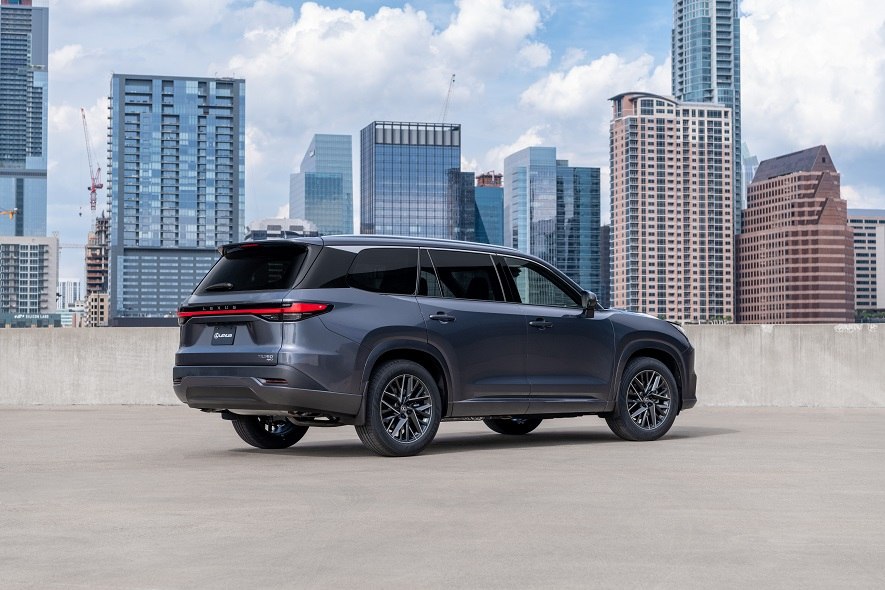

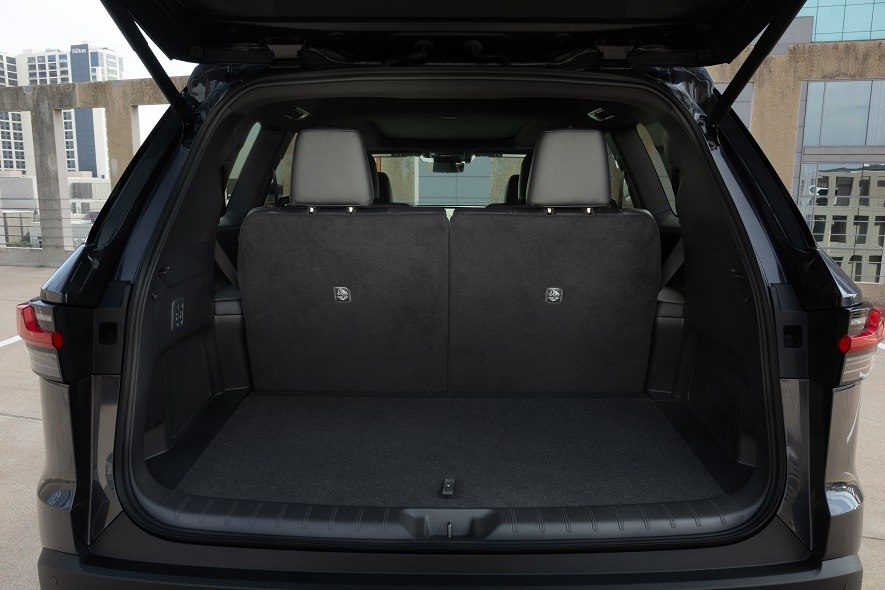

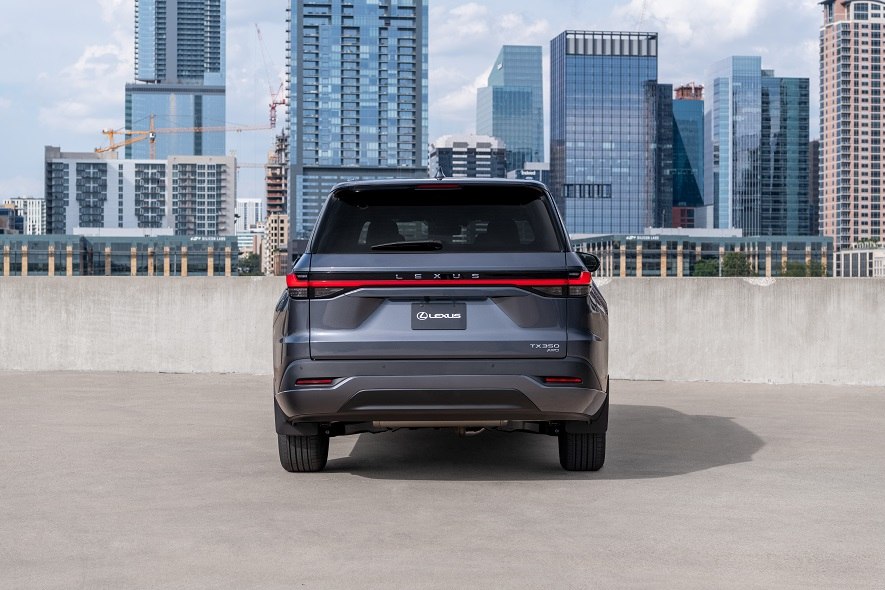

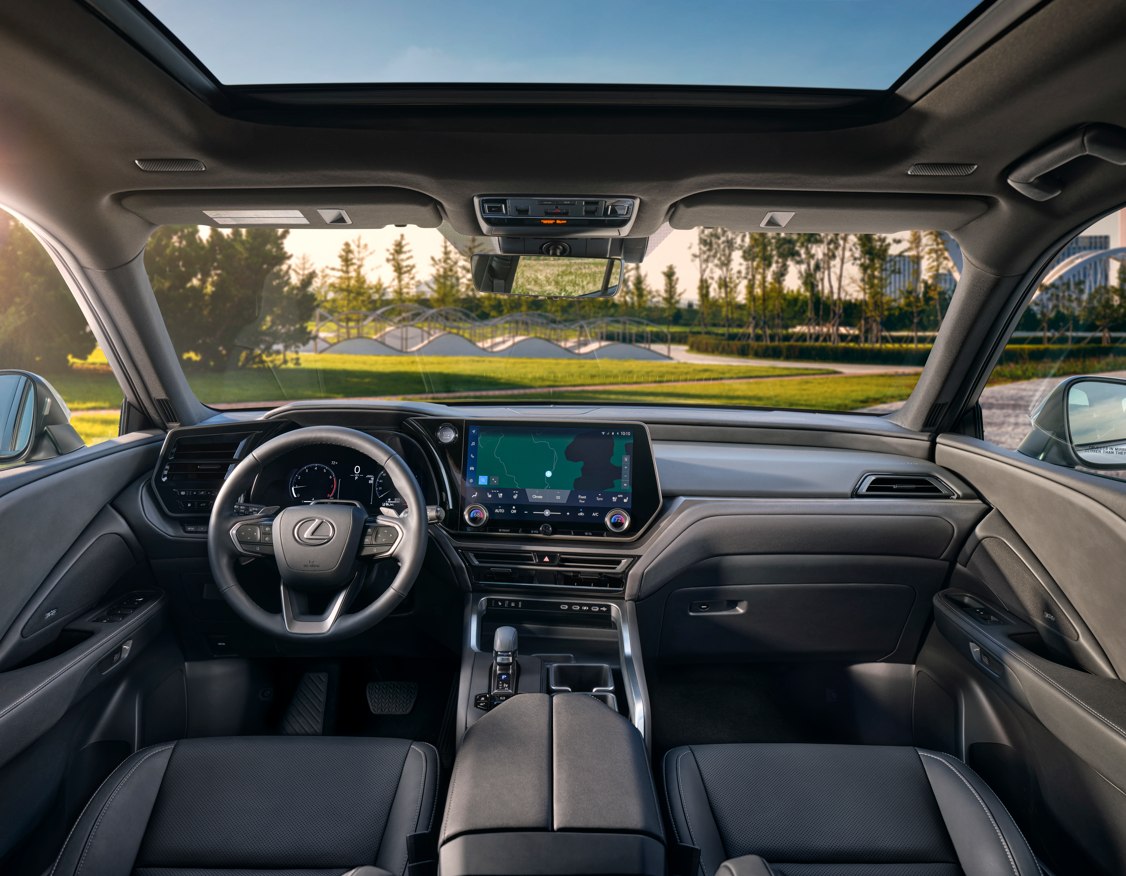

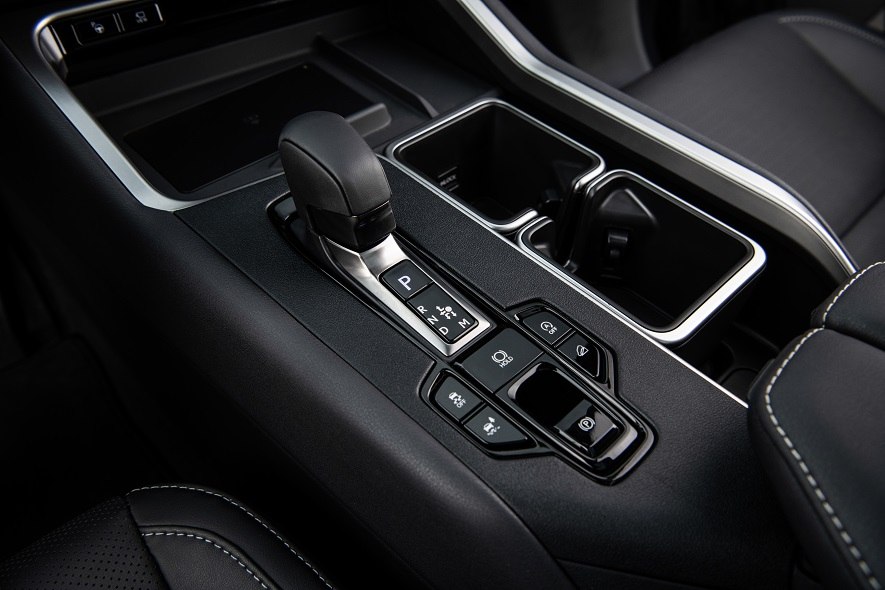

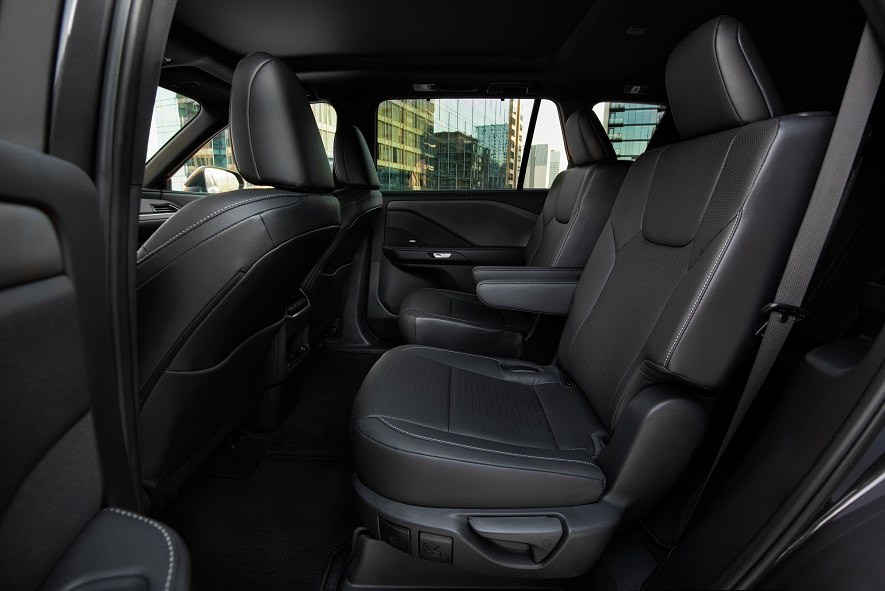

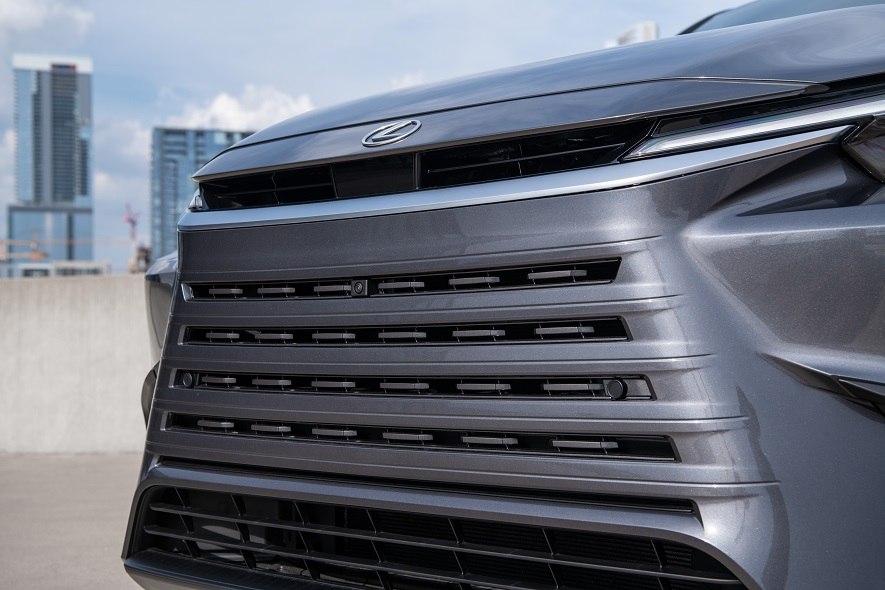

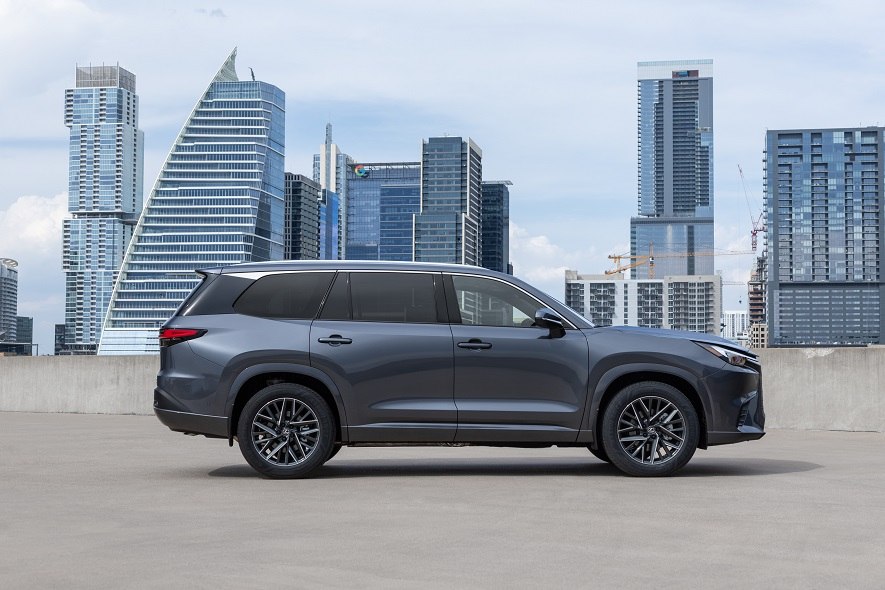

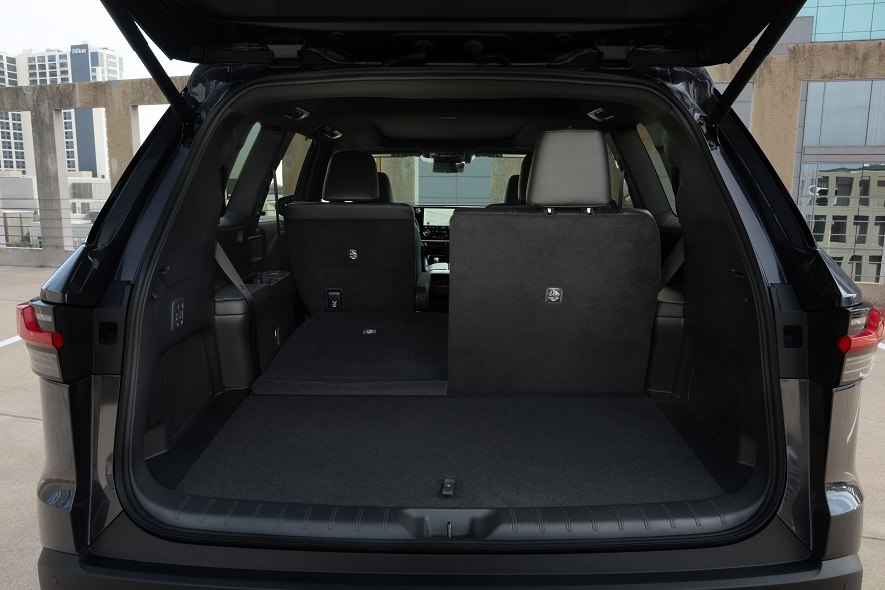

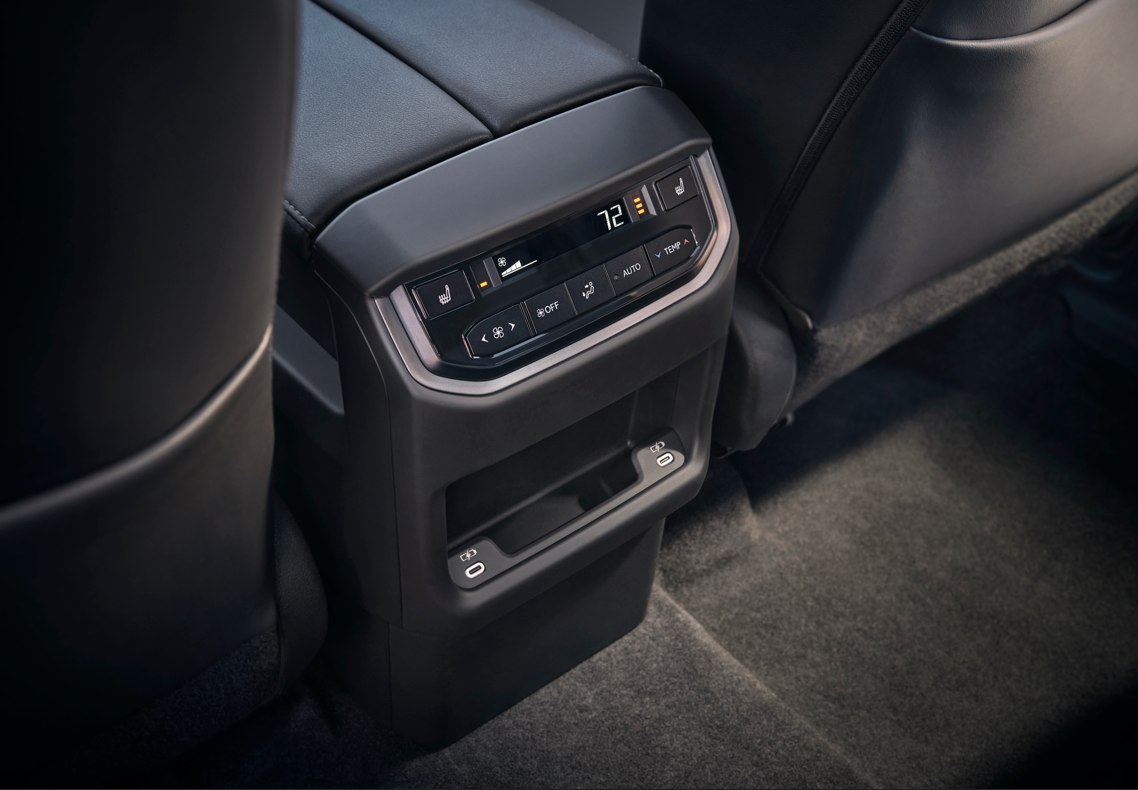

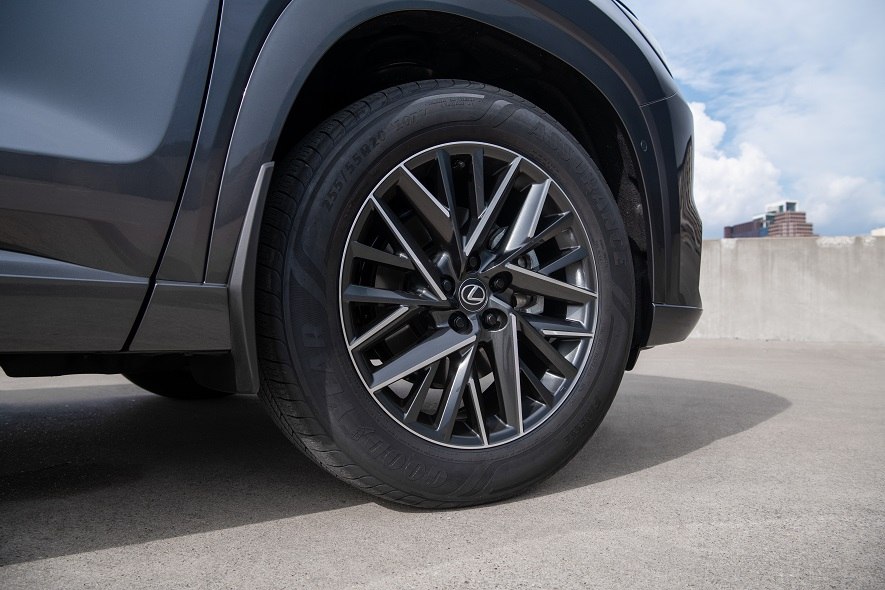

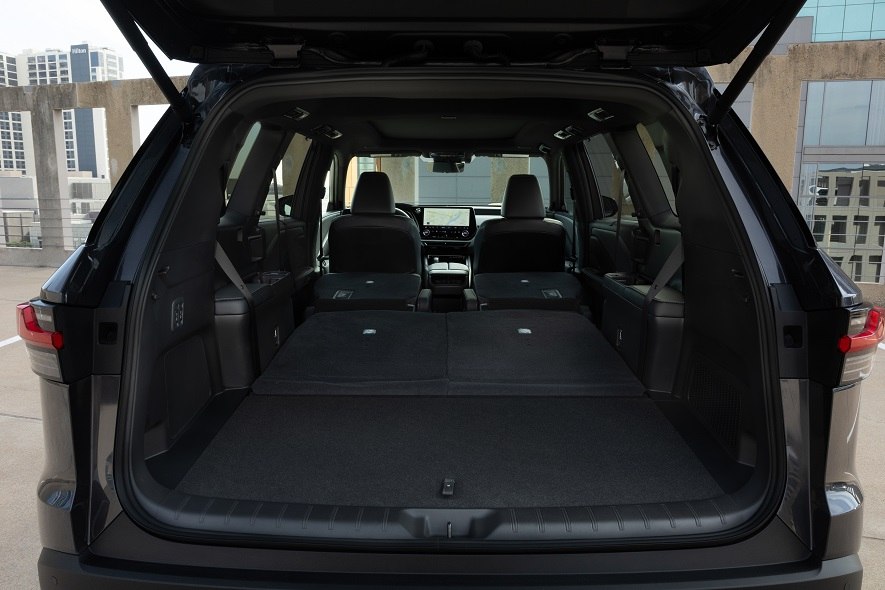

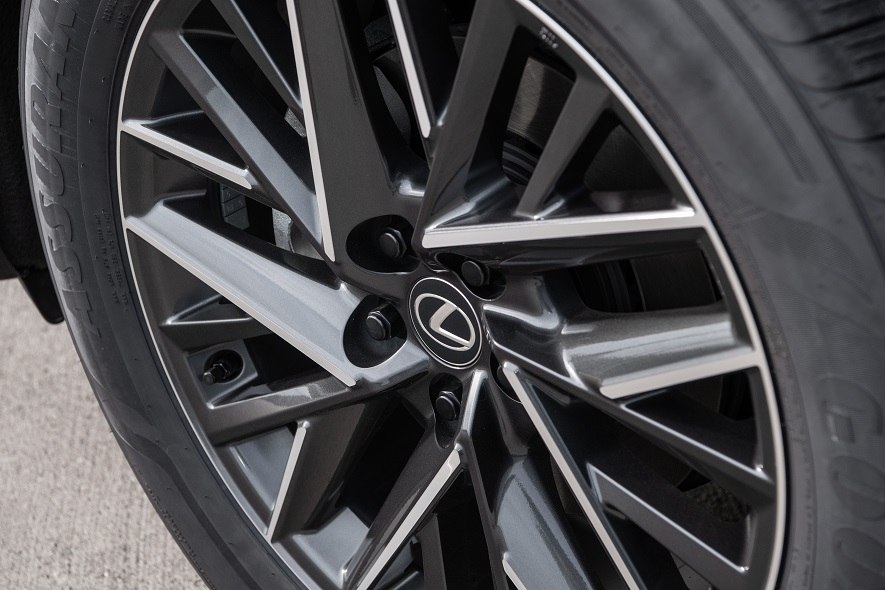

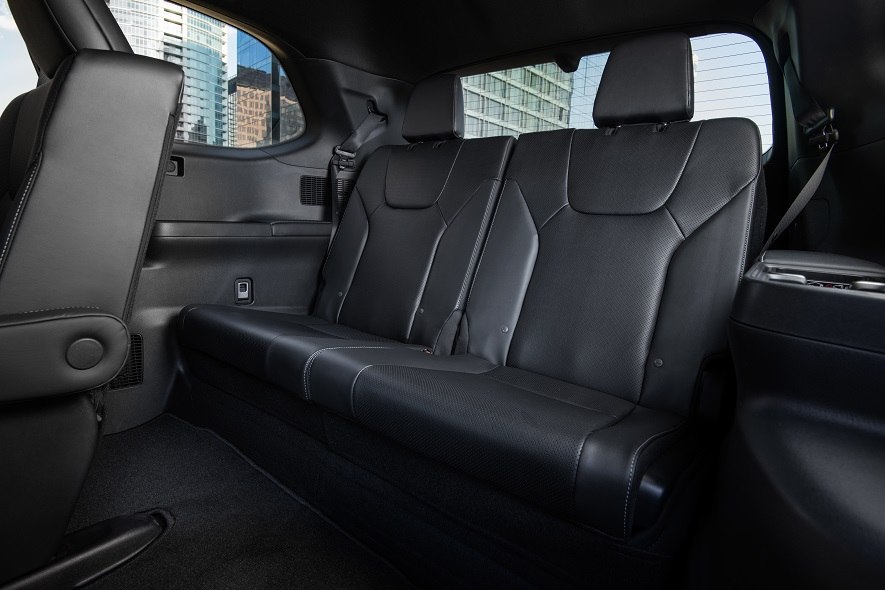

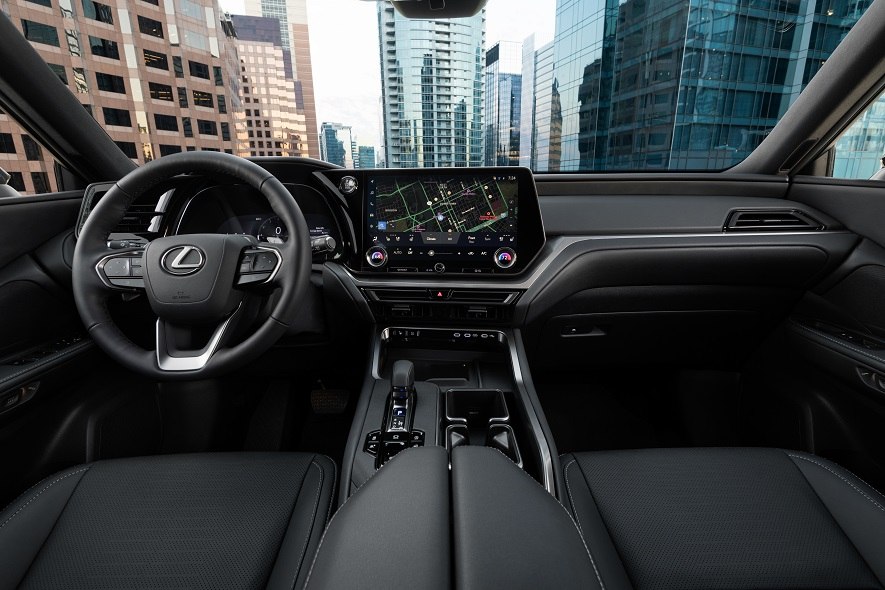

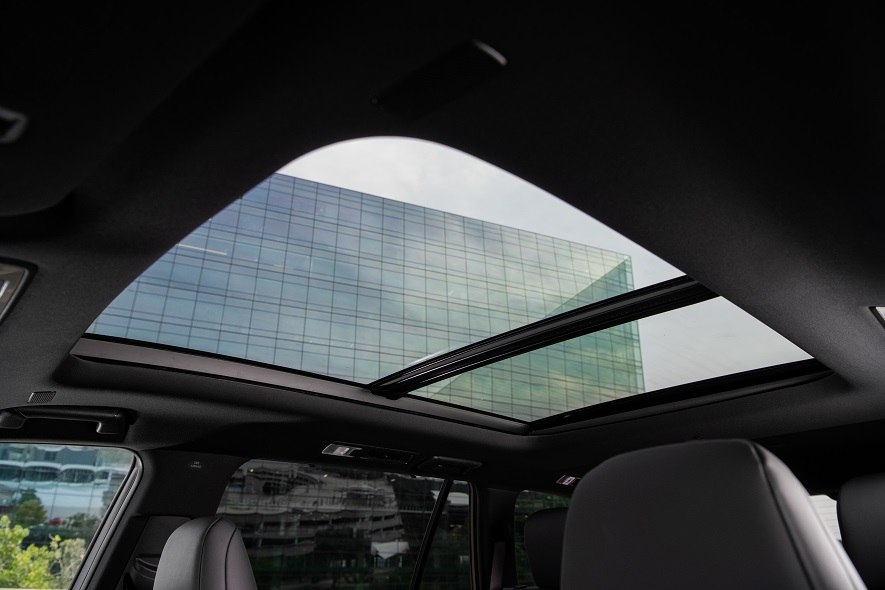

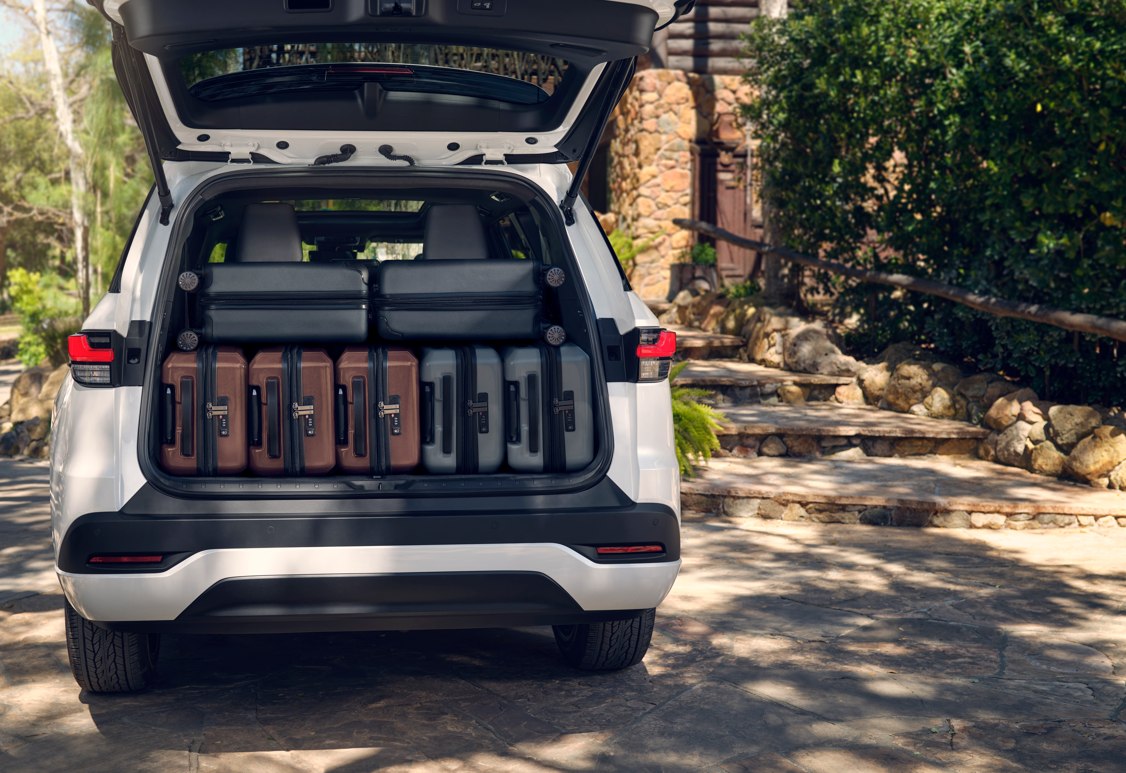

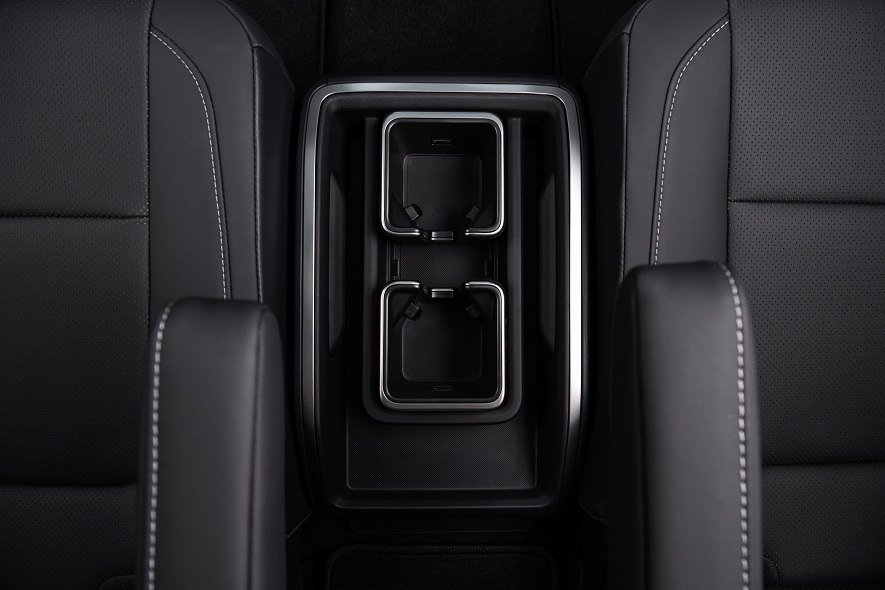

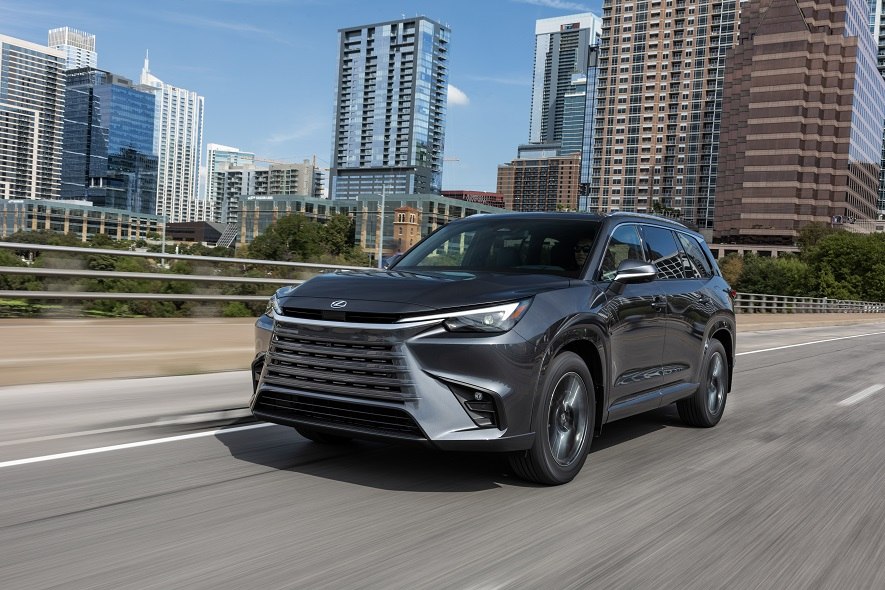

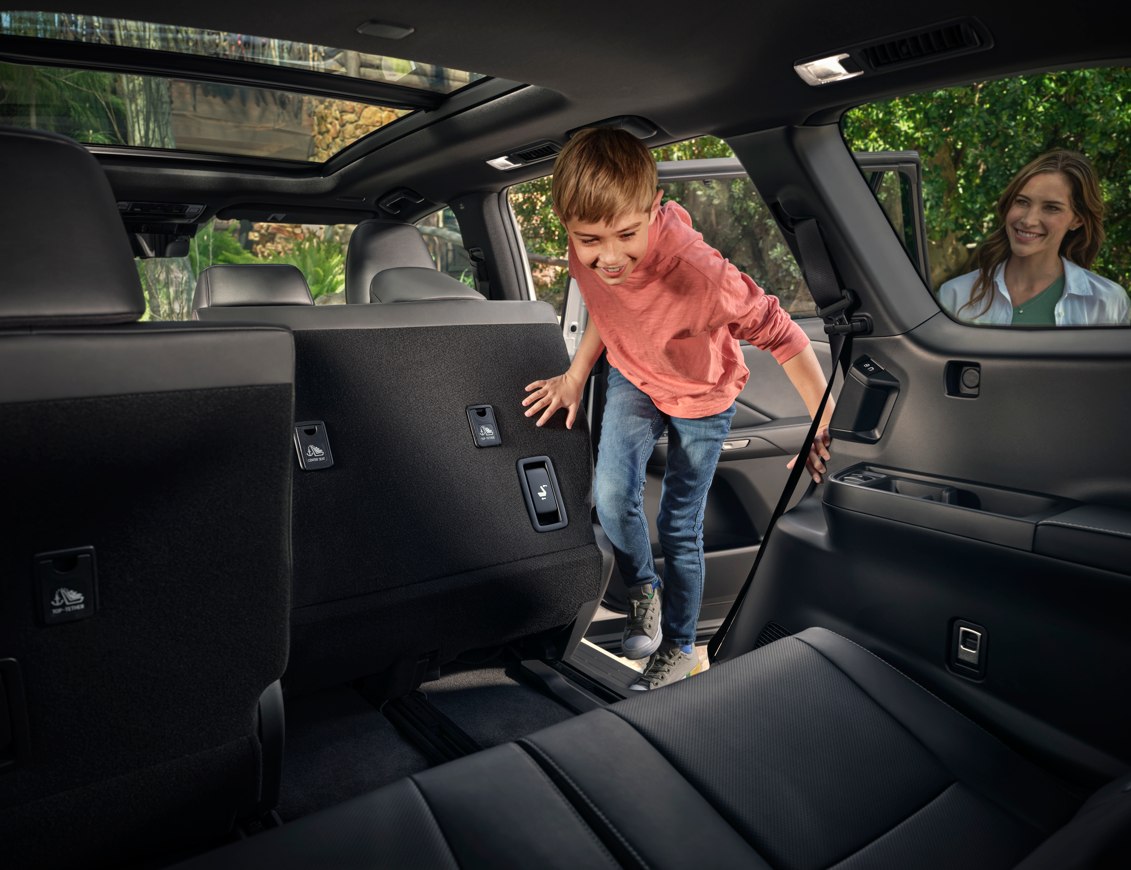

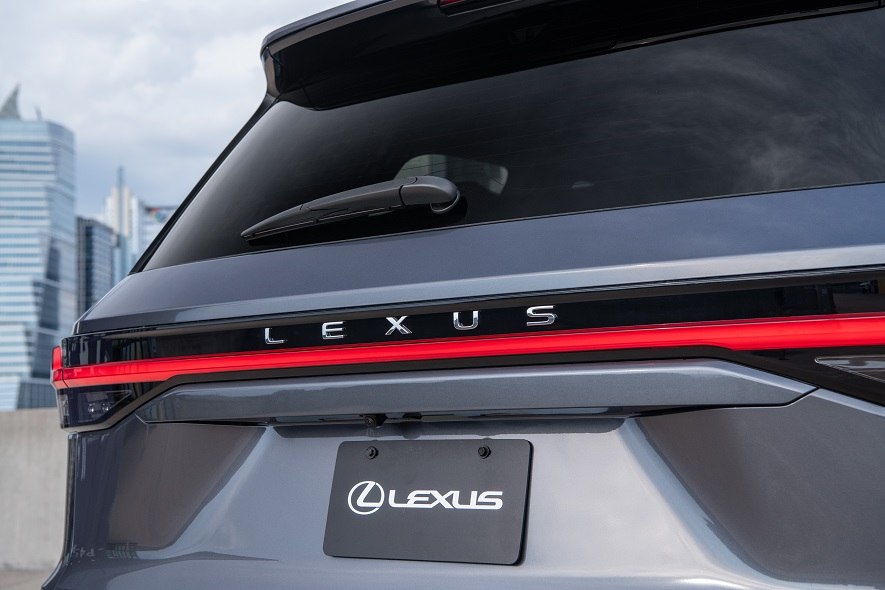

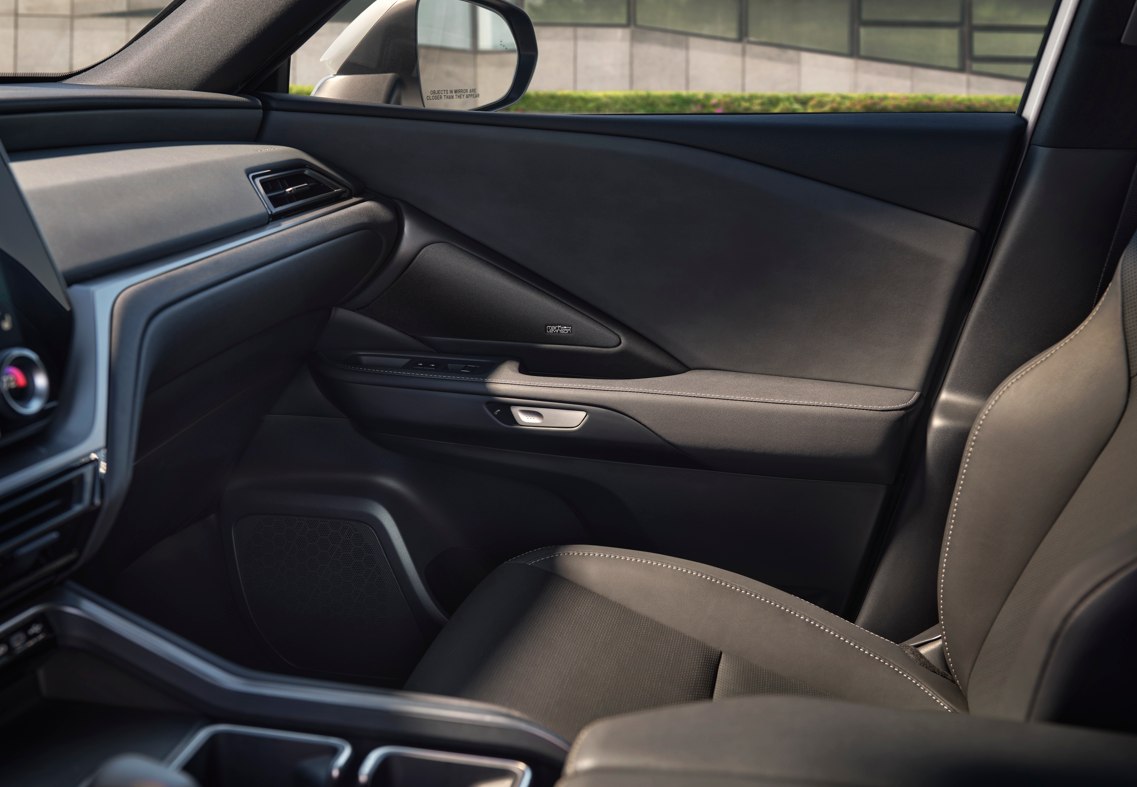

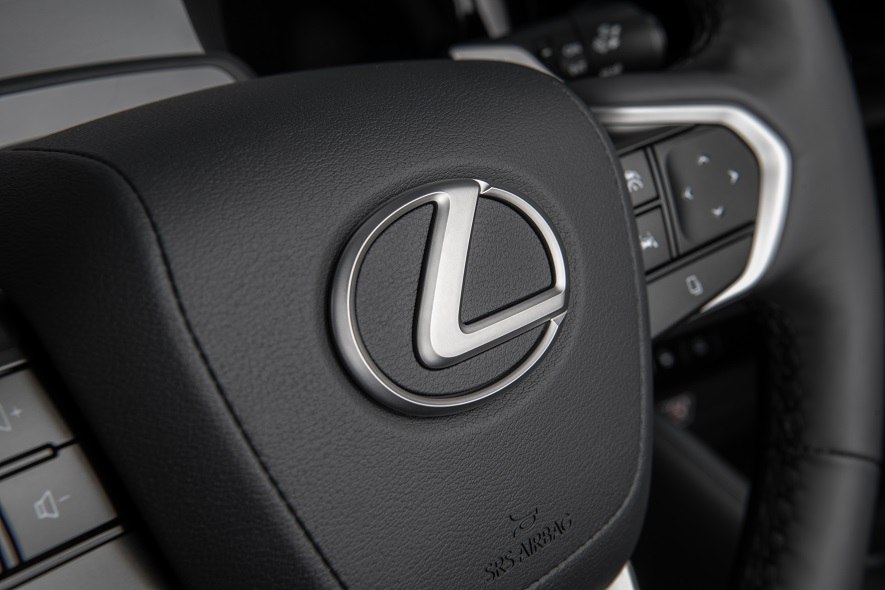

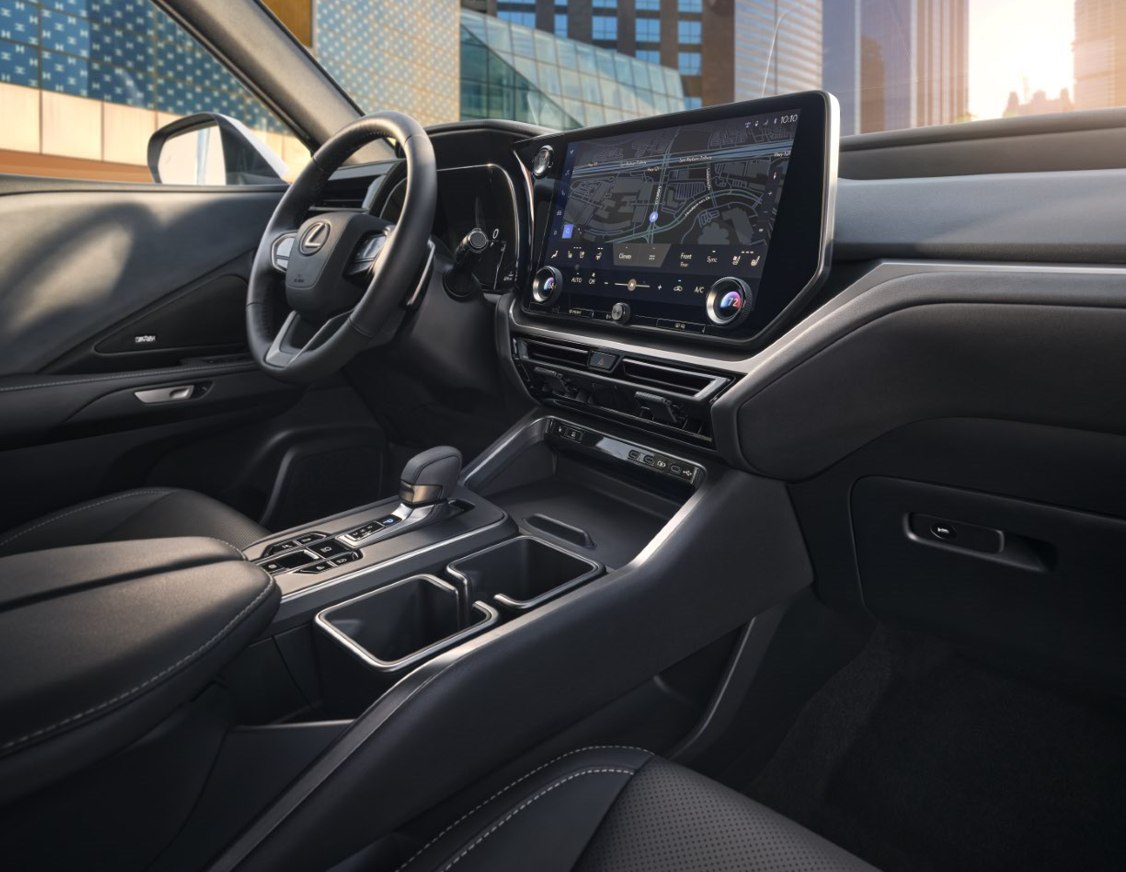

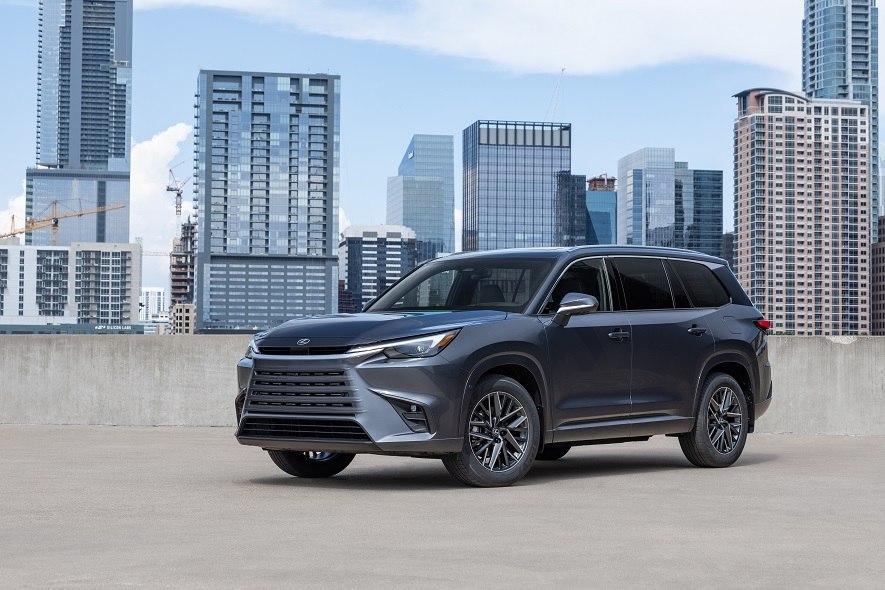

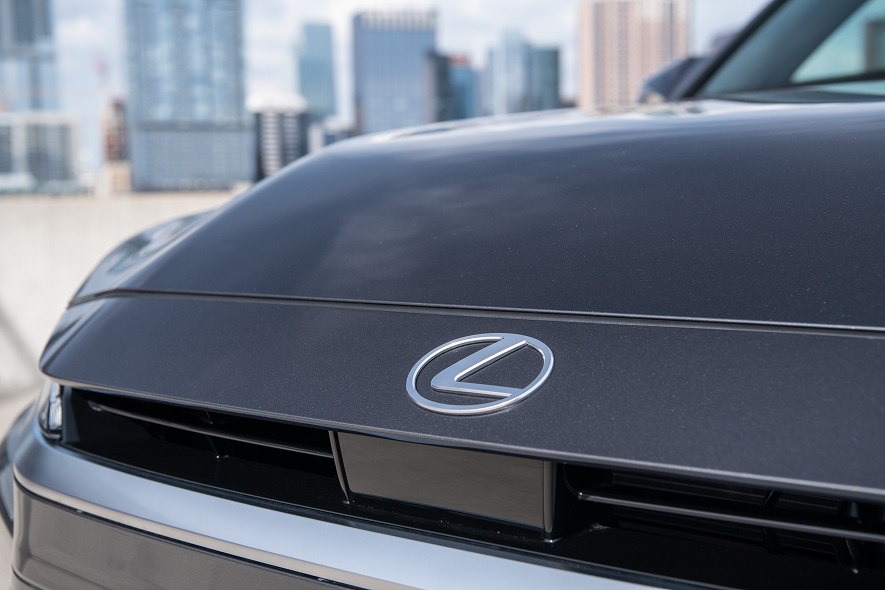

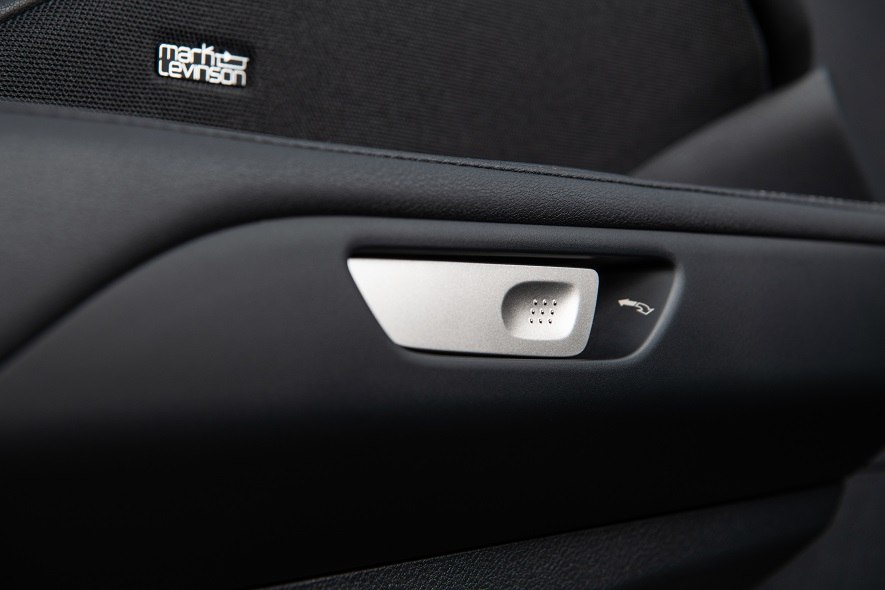

Lexus TX 2023 Gallery
Lexus TX 2023 Technical Specifications
General
Body type
SUV
Brand
Lexus
Doors
5
Generation
TX
Model
TX
Modification (Engine)
500h (366 Hp) Hybrid DIRECT4 ECT-i
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
6
Start of production
October, 2023
Performance
Acceleration 0 - 60 mph
6.1 sec
Emission standard
SULEV
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined
8.7 l/100 km
Fuel consumption (economy) - extra urban
8.4 l/100 km
Fuel consumption (economy) - urban
8.7 l/100 km
Maximum speed
180 km/h, Electronically limited
Electric
Battery location
Under the rear seats
Battery voltage
288 V
Electric motor Torque number 1
292 Nm @ 2000-3000 rpm.
Electric motor Torque number 2
168 Nm @ 2000-3000 rpm.
Electric motor location number 1
Between the combustion engine and the transmission
Electric motor location number 2
Rear axle, Transverse
Electric motor power number 1
85 Hp
Electric motor power number 2
101 Hp
Electric motor type number 1
Synchronous
Electric motor type number 2
Synchronous
Gross battery capacity
1.4 kWh
System power
366 Hp
System torque
550 Nm

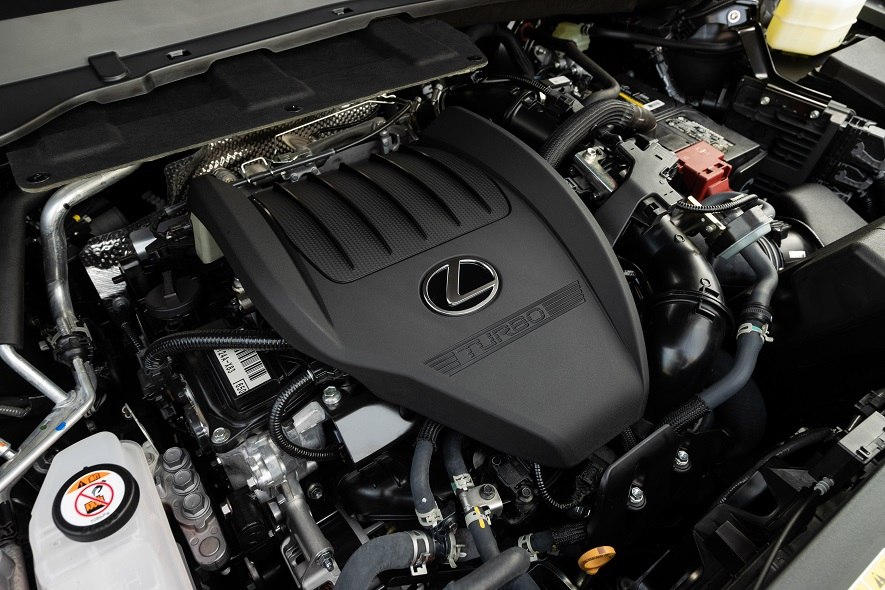

Internal Engine
Compression ratio
11
Coolant
11.5 l
Cylinder Bore
87.5 mm
Engine Model/Code
T24A-FTS
Engine aspiration
Twin-scroll turbo, Intercooler
Engine configuration
Inline
Engine displacement
2393 cm
Engine layout
Front, Transverse
Engine oil capacity
5.3 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop System
Fuel injection system
Direct injection / Multi-point indirect injection
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
99.5 mm
Power
271 Hp @ 6000 rpm.
Power per litre
113.2 Hp/l
Torque
460 Nm @ 2000-3600 rpm.
Valvetrain
DOHC, VVT-i
Dimensions
Approach angle
17.1°
Departure angle
22.3°
Drag coefficient (Cd)
0.34
Front overhang
1060 mm
Front track
1713 mm
Height
1780 mm
Length
5170 mm
Minimum turning circle (turning diameter)
11 m
Rear (Back) track
1721 mm
Rear overhang
1160 mm
Ride height (ground clearance)
203 mm
Wheelbase
2950 mm
Width
1990 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs, 399 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
6 gears, automatic transmission ECT-i
Power steering
Electric Steering
Rear brakes
Ventilated discs, 338 mm
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Wheel rims size
22
Space
Fuel tank capacity
65 l
Kerb Weight
2245-2254 kg
Max load
610-619 kg
Max. weight
2864 kg
