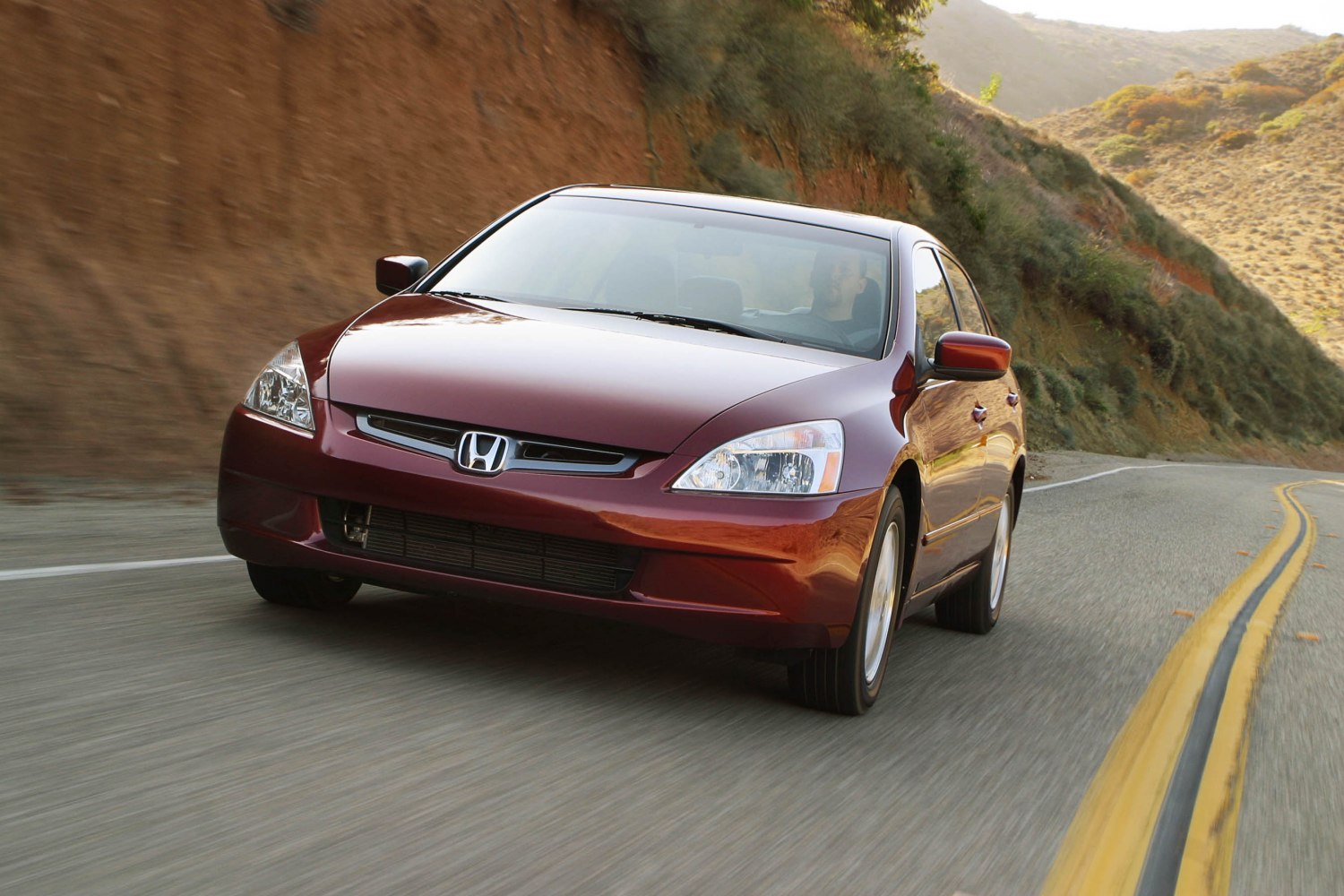

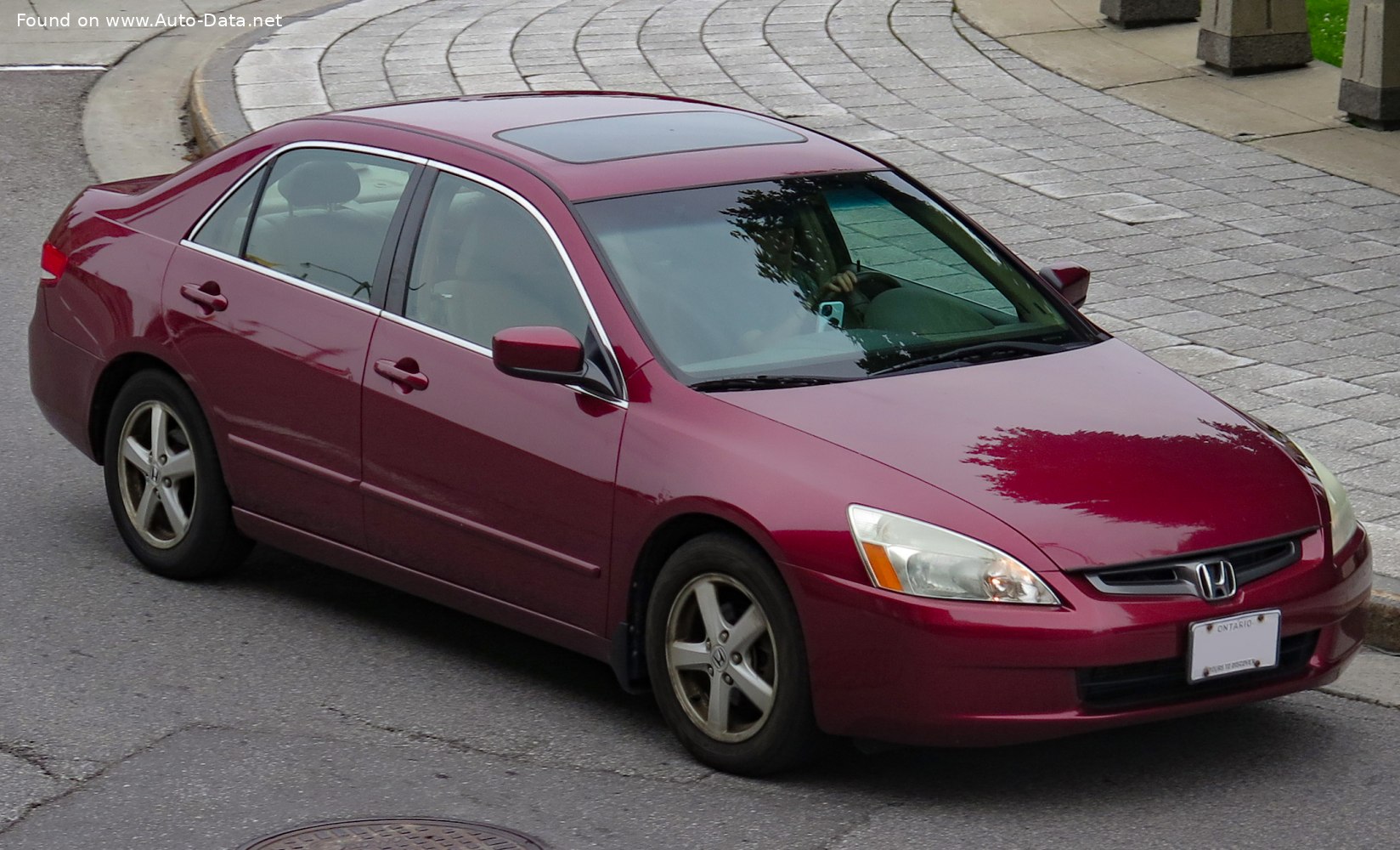

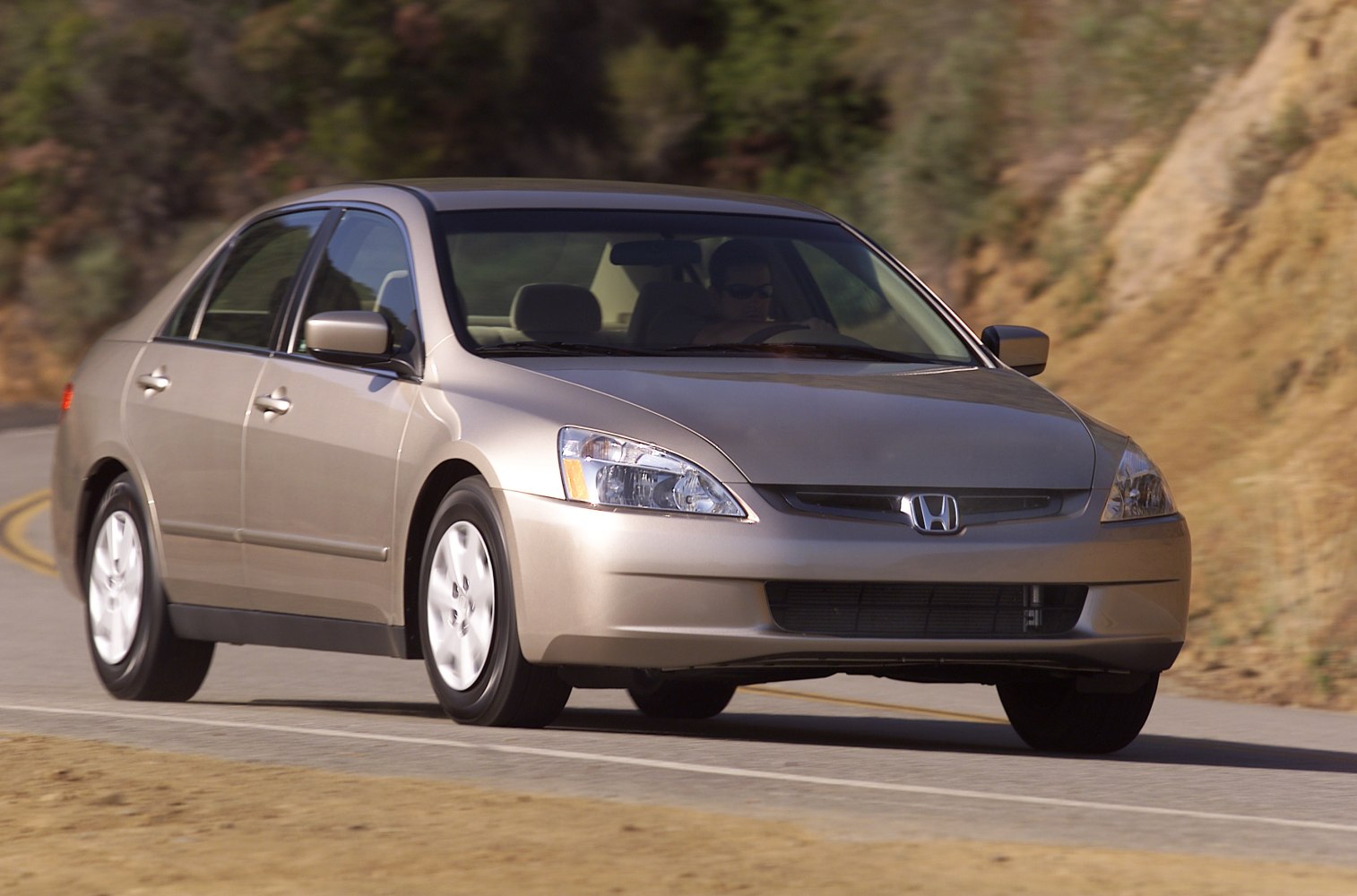

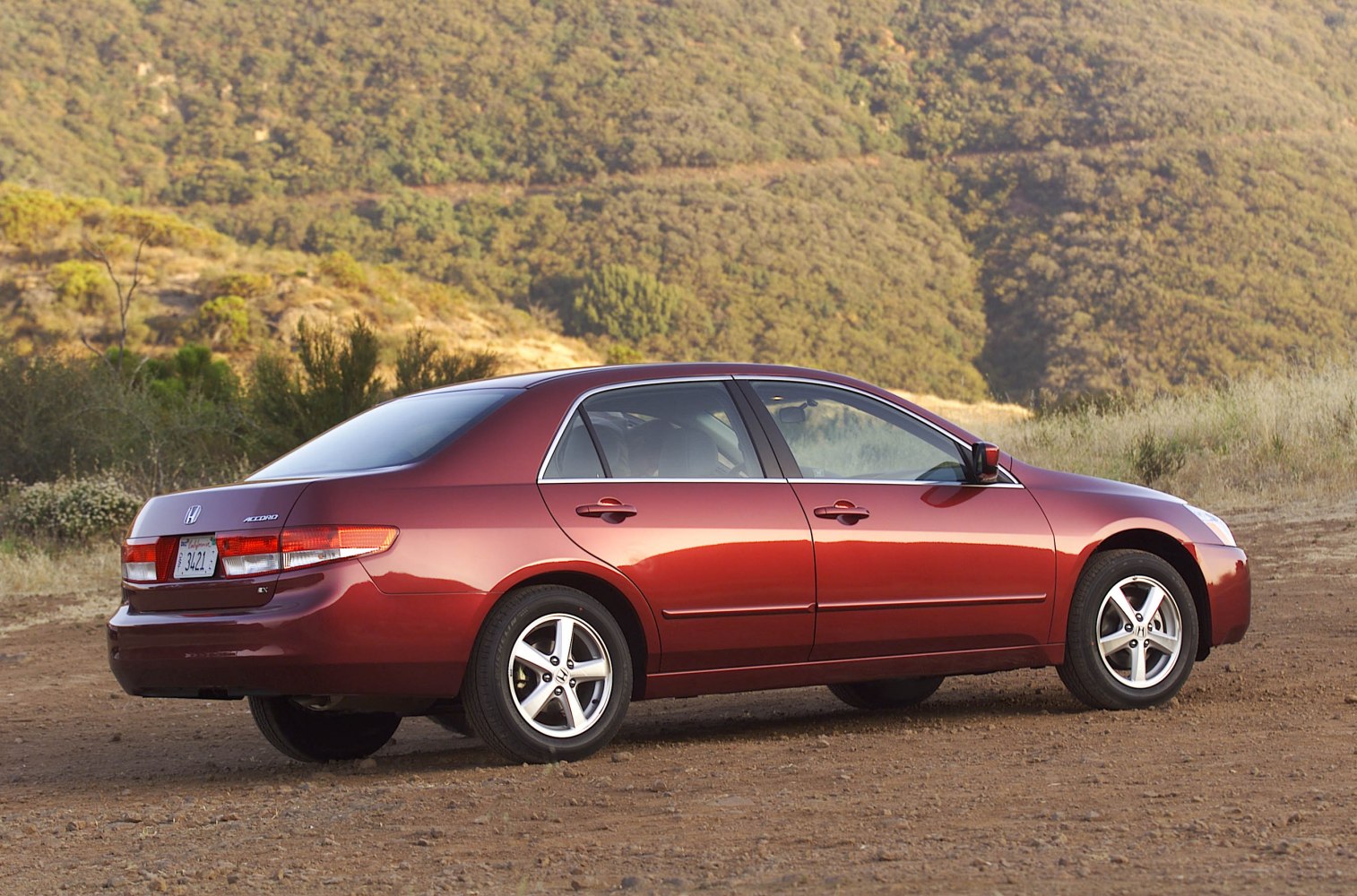

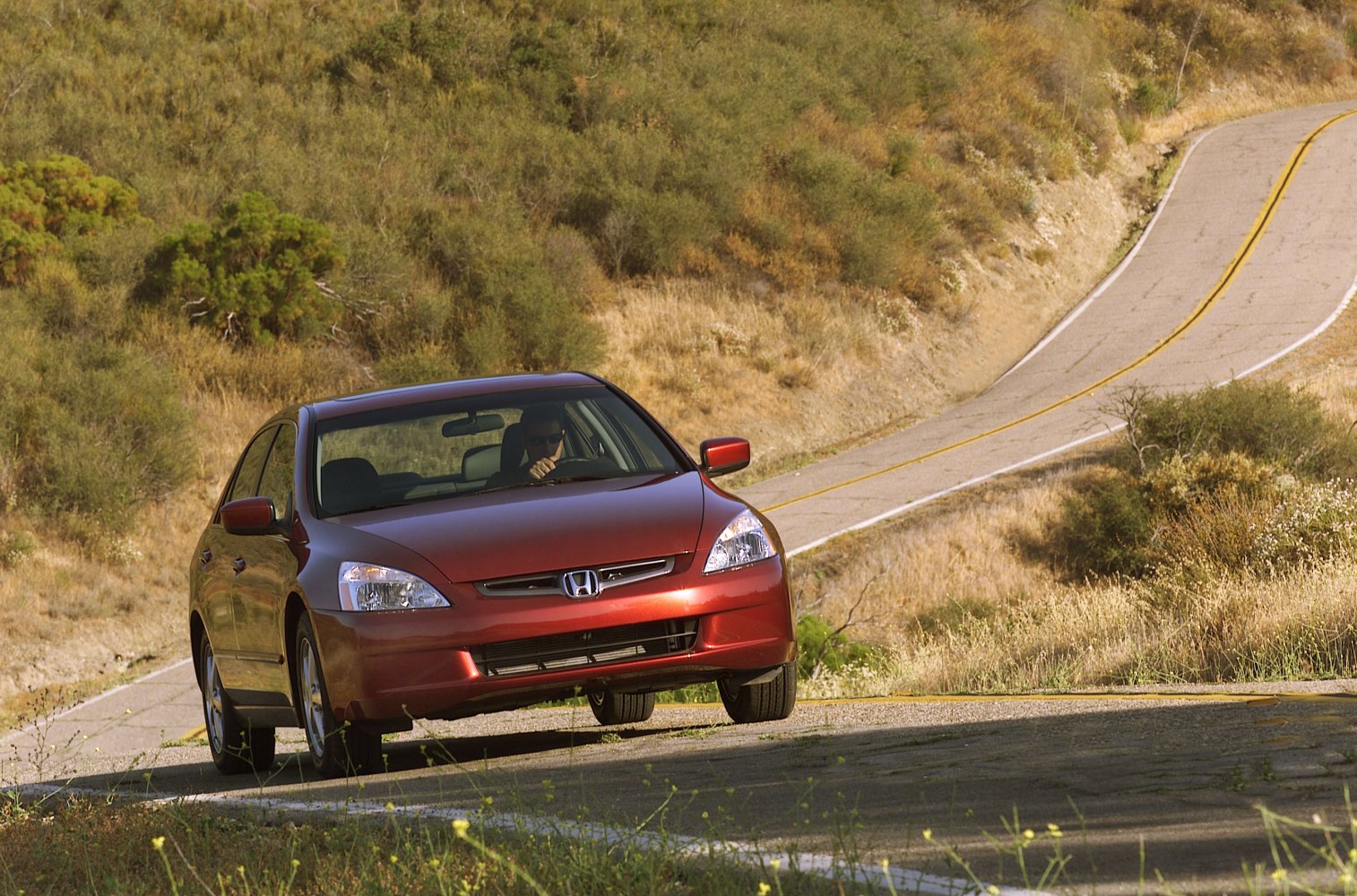

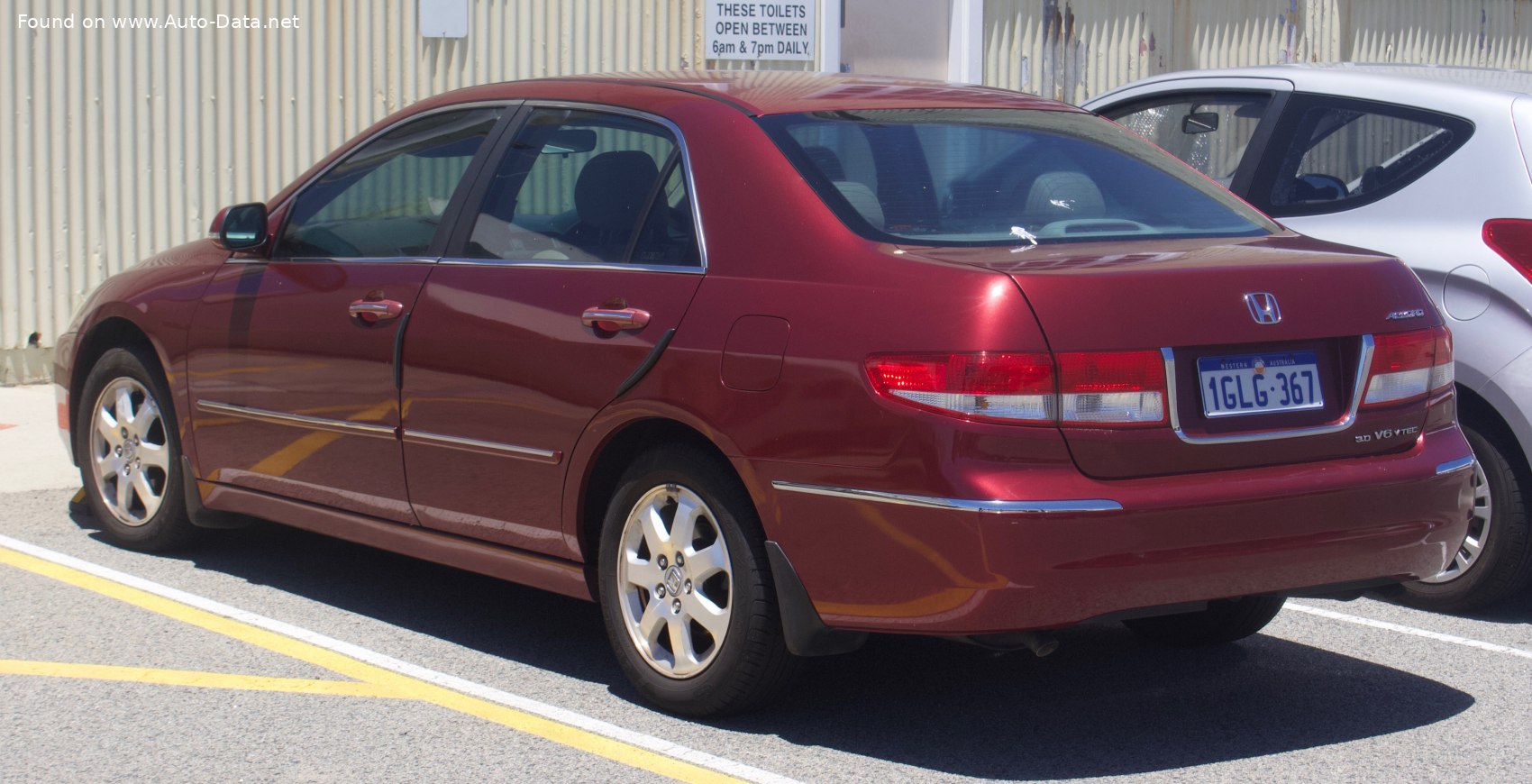

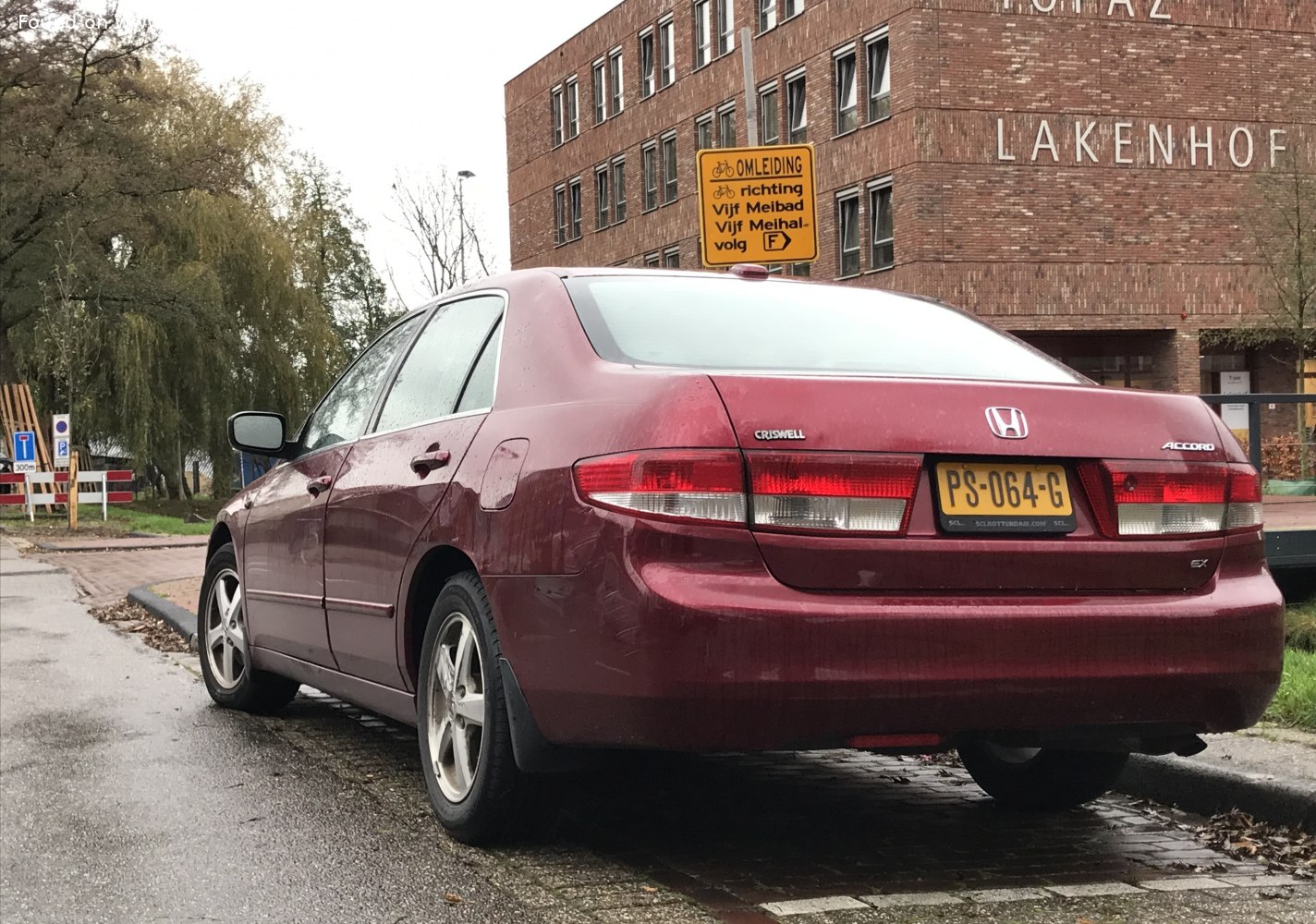

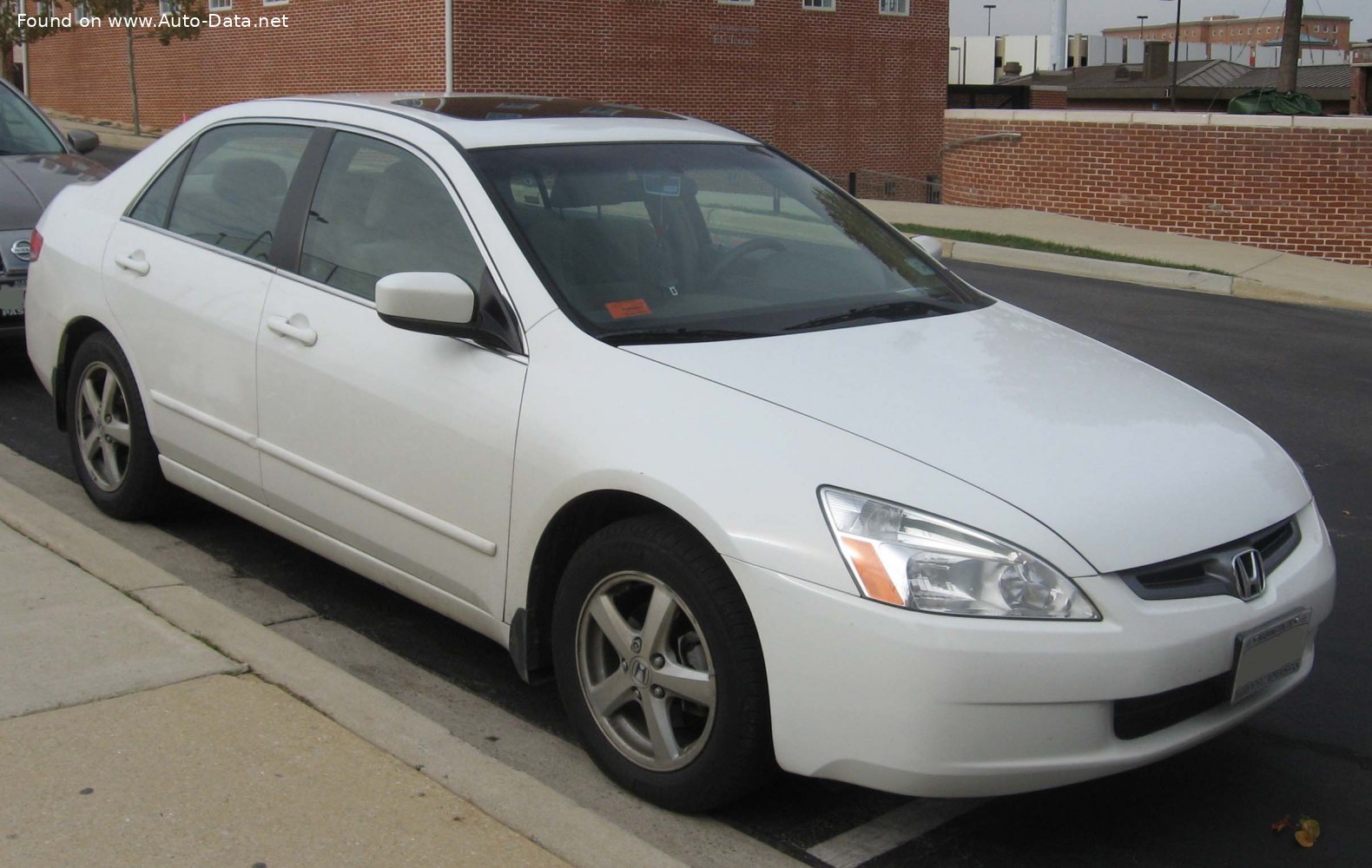

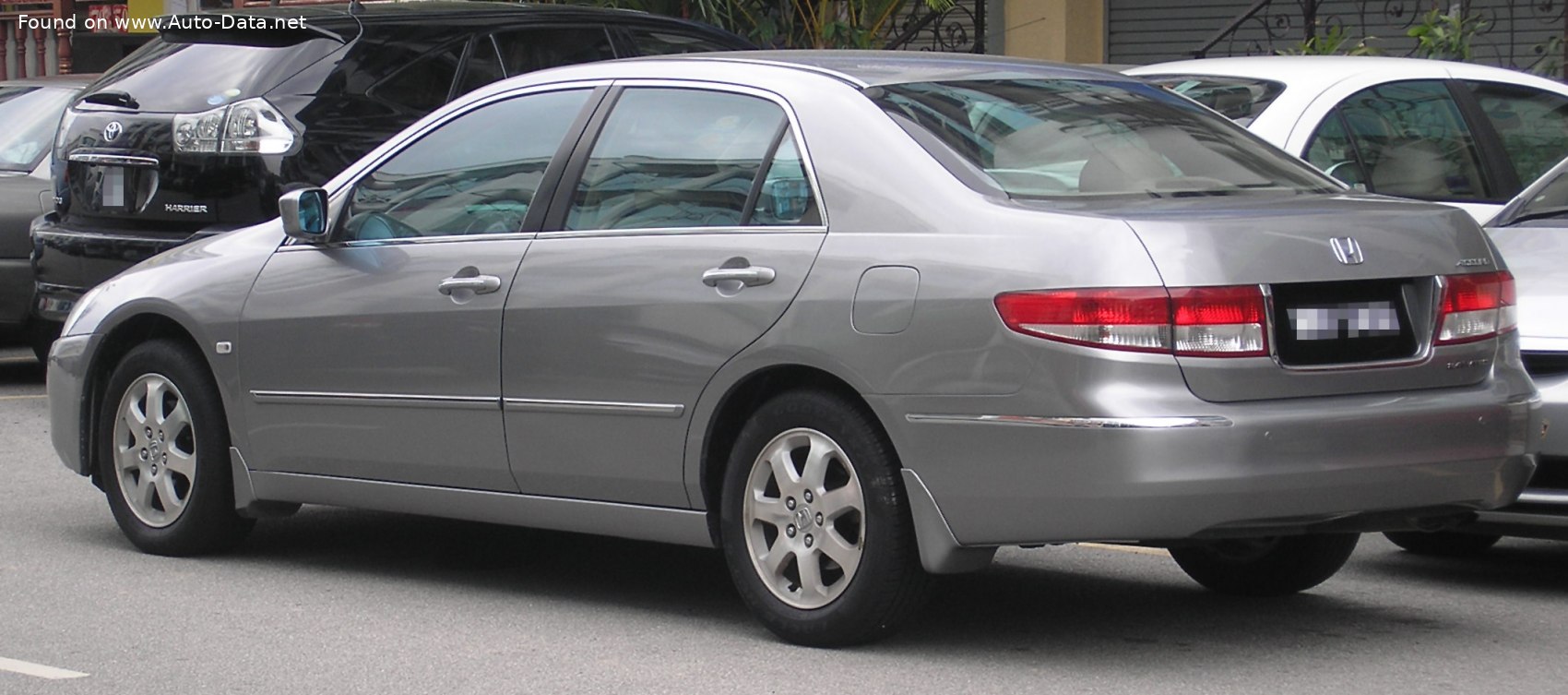

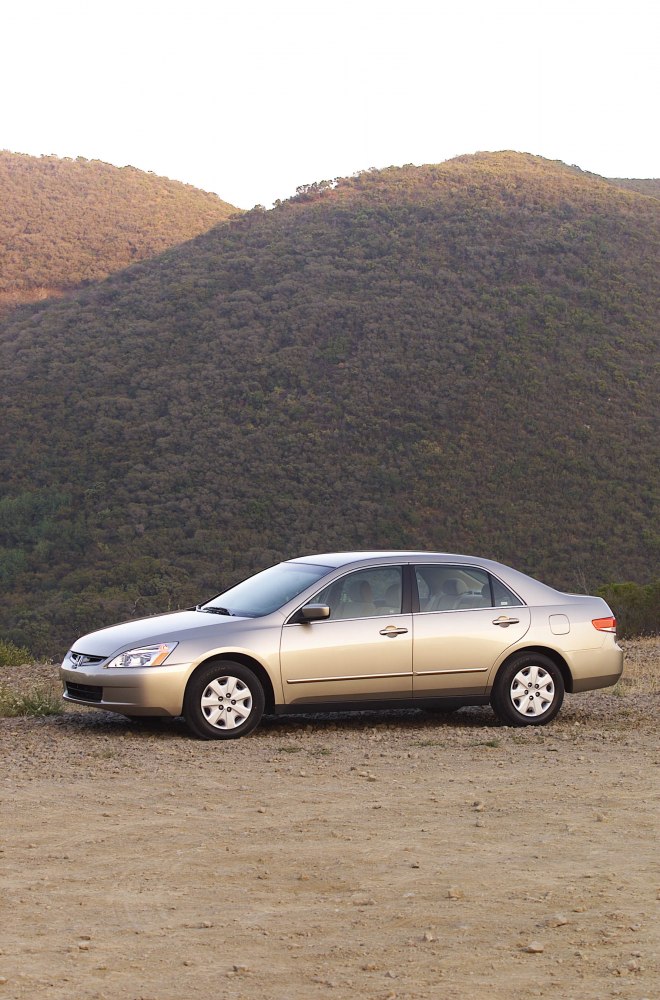

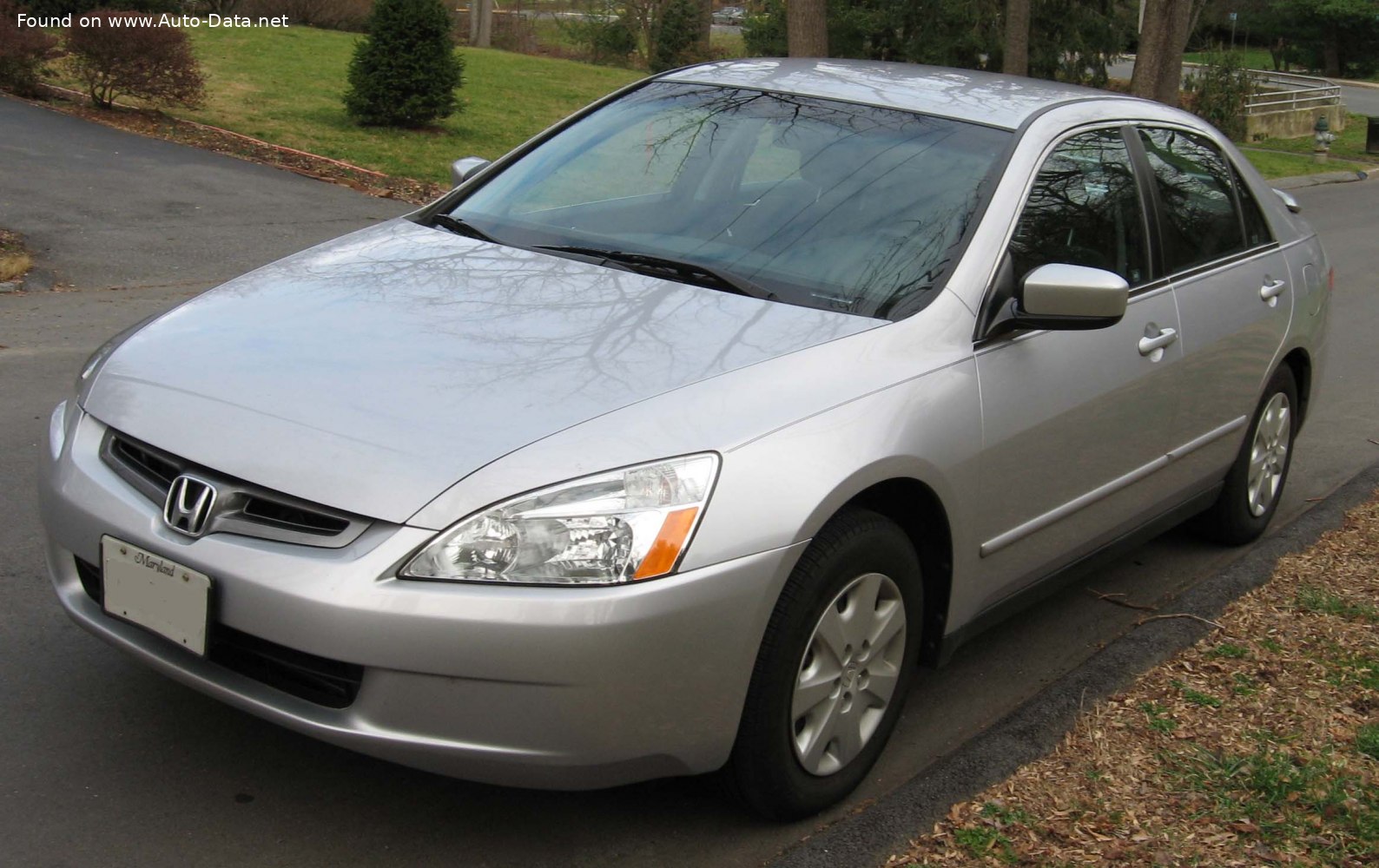

Honda Accord 7 North America 2004 3.0 V6 i-VTEC (255 Hp) IMA Hybrid Automatic

Honda Accord 7 North America 2004 3.0 V6 i-VTEC (255 Hp) IMA Hybrid Automatic
Brand : Honda
Model : Accord
Body Type : Sedan
Fuel Type : Petrol (Gasoline)
Engine Type : Hybrid
Battery Capacity : 0.9 KW
Doors : 4
Start Year : 2004

Technical Sheet

Battery Voltage
: 144 V
Body Type
: Sedan
Doors
: 4
Drive Wheel
: Front wheel drive
End Of Production
: August, 2005
Engine Aspiration
: Naturally aspirated engine
Engine Oil Capacity
: 4.3 l
Engine Systems
: Start & Stop SystemCylinder deactivation system
Fuel Type
: Petrol (Gasoline)
Fuel Tank Capacity
: 64.7 l
Generation
: Accord VII (North America)
Gross Battery Capacity
: 0.9 kWh
Kerb Weight
: 1588 kg
Modification (Engine)
: 3.0 V6 i-VTEC (255 Hp) IMA Hybrid Automatic
Number Of Cylinders
: 6
Power
: 240 Hp @ 6250 rpm.
Power Steering
: Electric Steering
Powertrain Architecture
: MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
: 5
Start Of Production
: December, 2004
System Power
: 255 Hp @ 6000 rpm.
System Torque
: 315 Nm @ 5000 rpm.
Wheel Rims Size
: 6.5J x 16
General
Body type Sedan
Brand Honda
Doors 4
End of production August, 2005
Generation Accord VII (North America)
Model Accord
Modification (Engine) 3.0 V6 i-VTEC (255 Hp) IMA Hybrid Automatic
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats 5
Start of production December, 2004
Performance
Emission standard ULEV-2
Fuel Type Petrol (Gasoline)
Fuel consumption (economy) - extra urban (EPA) 6.4 l/100 km
Fuel consumption (economy) - urban (EPA) 7.8 l/100 km
Electric
Gross battery capacity 0.9 kWh
Battery voltage 144 V
Battery location Behind the back wall of the passenger cabin
Electric motor power number 1 16 Hp @ 840 rpm.
Electric motor Torque number 1 136 Nm @ 840 rpm.
Electric motor location number 1 Between the combustion engine and the transmission
Electric motor type number 1 Synchronous
System power 255 Hp @ 6000 rpm.
System torque 315 Nm @ 5000 rpm.

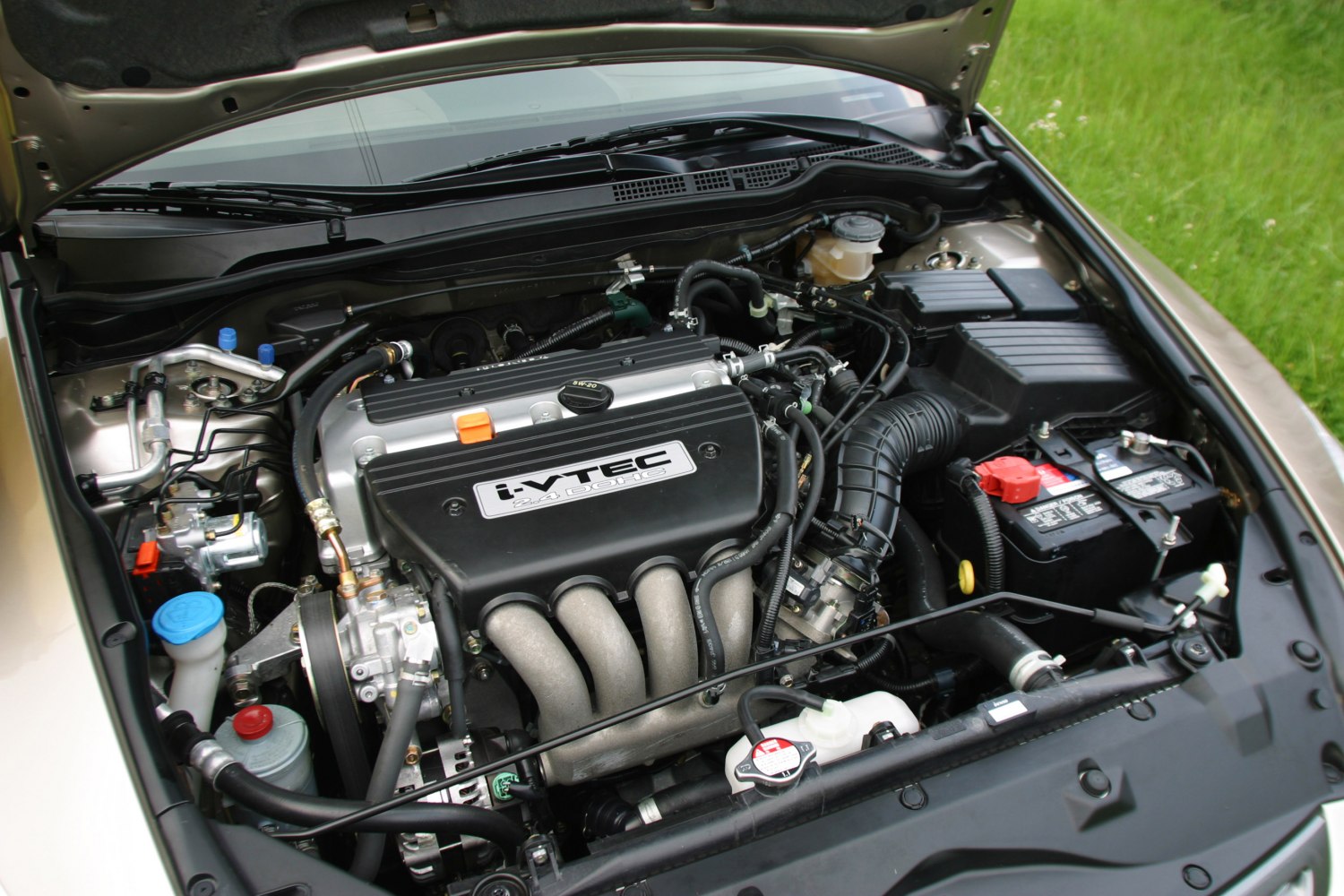

Internal Engine
Compression ratio 10.5
Coolant 8.4 l
Cylinder Bore 86 mm
Engine Model/Code JNA1
Engine aspiration Naturally aspirated engine
Engine configuration V-engine
Engine displacement 2997 cm
Engine layout Front, Transverse
Engine oil capacity 4.3 l
Engine oil specification Log in to see.
Engine systems Start & Stop SystemCylinder deactivation system
Fuel injection system Multi-port manifold injection
Number of cylinders 6
Number of valves per cylinder 4
Piston Stroke 86 mm
Power 240 Hp @ 6250 rpm.
Power per litre 80.1 Hp/l
Torque 287 Nm @ 5000 rpm.
Valvetrain SOHC, i-VTEC
Dimensions
Front track 1553 mm
Height 1453 mm
Length 4813 mm
Minimum turning circle (turning diameter) 11 m
Rear (Back) track 1554 mm
Wheelbase 2740 mm
Width 1820 mm
Drivetrain
Drive wheel Front wheel drive
Front brakes Ventilated discs, 282 mm
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Number of gears and type of gearbox 5 gears, automatic transmission
Power steering Electric Steering
Rear brakes Disc, 259 mm
Rear suspension Independent multi-link spring suspension with stabilizer
Steering type Steering rack and pinion
Tires size 215/60 R16
Wheel rims size 6.5J x 16
Space
Fuel tank capacity 64.7 l
Kerb Weight 1588 kg
Max load 432 kg
Max. weight 2020 kg
