Ford Expedition 3 EL U3542 2014
3.5 EcoBoost V6 (365 Hp) SelectShift
Generation Expedition 3 EL U3542 2014
Body Type SUV
Seats 7
2017
End Year
5
Doors
Ford Expedition 3 EL U3542 2014 Key Specs
Body Type
SUV
Doors
5
Drive Wheel
Rear wheel drive
End Of Production
July, 2017
Engine Aspiration
Twin-Turbo, Intercooler
Engine Oil Capacity
5.7 l
Fuel Type
Petrol (Gasoline)
Fuel Tank Capacity
127 l
Generation
Expedition III EL (U3542, 2014)
Kerb Weight
2649 kg
Modification (Engine)
3.5 EcoBoost V6 (365 Hp) SelectShift
Number Of Cylinders
6
Power
365 Hp @ 5000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
7-8
Start Of Production
August, 2014
Wheel Rims Size
7.5J x 17; 8J x 17; 8.5J x 18; 8.5J x 20; 9.5J x 22

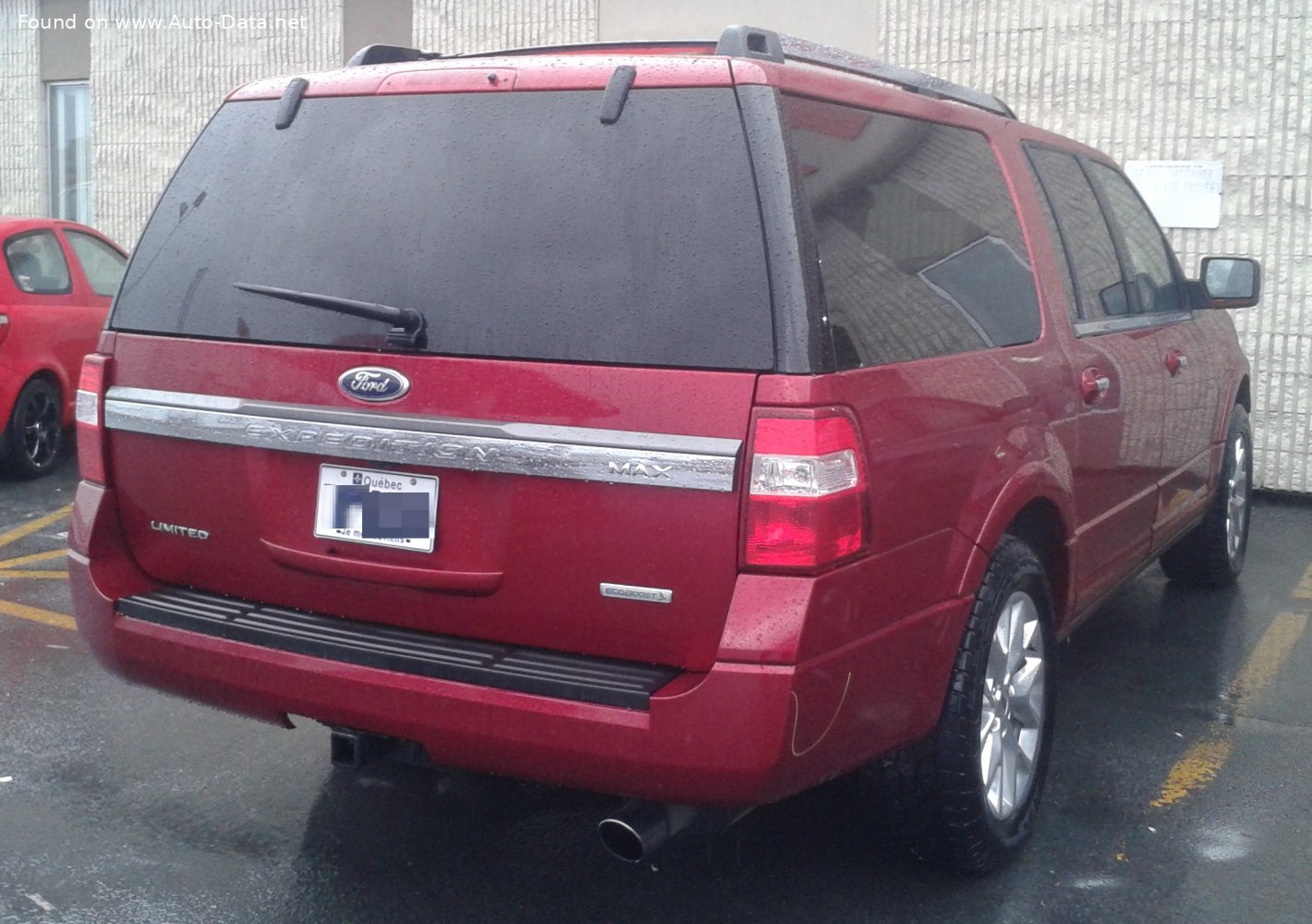

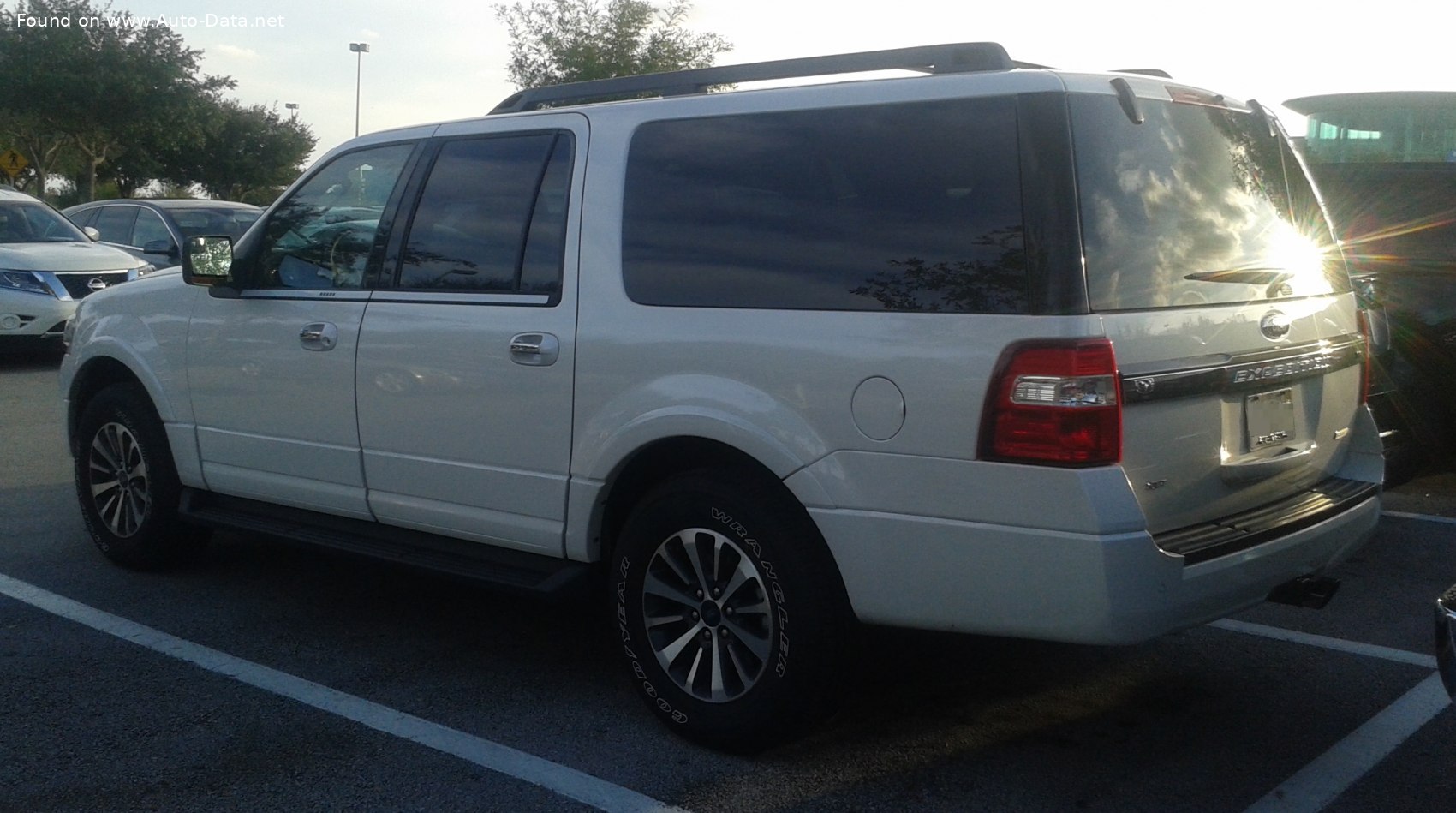

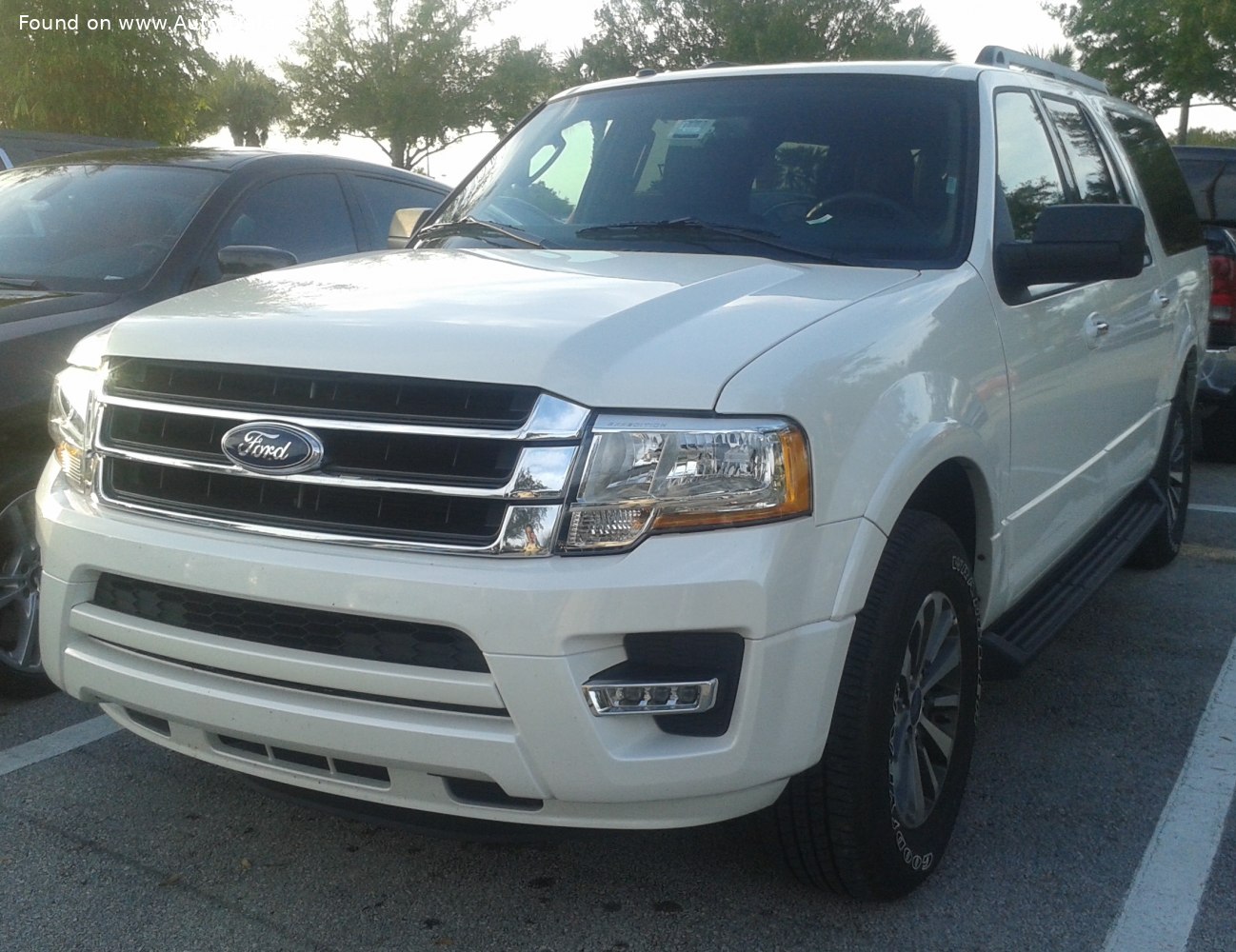

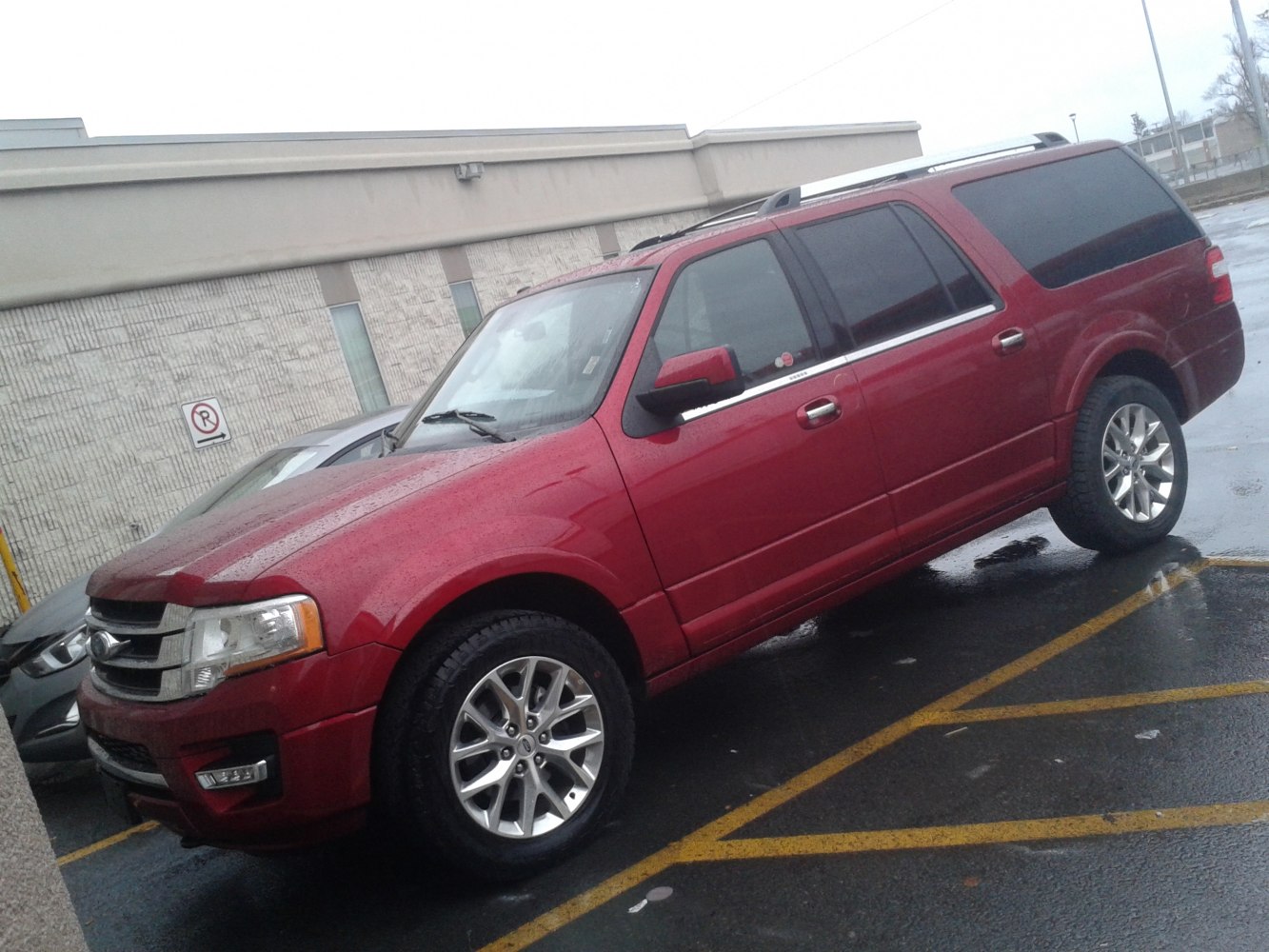

Ford Expedition 3 EL U3542 2014 Gallery
Ford Expedition 3 EL U3542 2014 Technical Specifications
General
Body type
SUV
Brand
Ford
Doors
5
End of production
July, 2017
Generation
Expedition III EL (U3542, 2014)
Model
Expedition
Modification (Engine)
3.5 EcoBoost V6 (365 Hp) SelectShift
Powertrain Architecture
Internal Combustion engine
Seats
7-8
Start of production
August, 2014
Performance
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined (EPA)
13.8 l/100 km
Fuel consumption (economy) - extra urban (EPA)
11.8 l/100 km
Fuel consumption (economy) - urban (EPA)
15.7 l/100 km
Dimensions
Approach angle
22.5°
Departure angle
20.4°
Front overhang
986 mm
Front track
1702 mm
Height
1973 mm
Length
5609 mm
Minimum turning circle (turning diameter)
13.9 m
Ramp-over (brakeover) angle
15.8°
Rear (Back) track
1707 mm
Rear overhang
1298 mm
Ride height (ground clearance)
211 mm
Wheelbase
3327 mm
Width
2001 mm
Engine
Compression ratio
10
Coolant
17 l
Cylinder Bore
92.5 mm
Engine Model/Code
EcoBoost
Engine aspiration
Twin-Turbo, Intercooler
Engine configuration
V-engine
Engine displacement
3496 cm
Engine layout
Front, Longitudinal
Engine oil capacity
5.7 l
Engine oil specification
Log in to see.
Fuel injection system
Direct injection
Number of cylinders
6
Number of valves per cylinder
4
Power
365 Hp @ 5000 rpm.
Torque
569 Nm @ 2500 rpm.
Drivetrain
Drive wheel
Rear wheel drive
Front brakes
Ventilated discs, 350x34 mm
Front suspension
Coil spring, Double wishbone, Transverse stabilizer
Number of gears and type of gearbox
6 gears, automatic transmission SelectShift
Power steering
Electric Steering
Rear brakes
Ventilated discs, 334.5x22 mm
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
265/70 R17; 275/65 R18; 275/55 R20; 285/45 R22
Wheel rims size
7.5J x 17; 8J x 17; 8.5J x 18; 8.5J x 20; 9.5J x 22
Space
Fuel tank capacity
127 l
Kerb Weight
2649 kg
Max load
735 kg
Max. weight
3384 kg
