Kia Carnival 4 2023
1.6 T-GDI Smartstream (245 Hp) Hybrid Automatic 9 Seats
Hybrid Car
Body Type Minivan
Battery Capacity 1.49 KW
5500 rpm.
Power HP RPM
5
Doors
Kia Carnival 4 2023 Key Specs
Battery Voltage
270 V
Body Type
Minivan
Doors
5
Drive Wheel
Front wheel drive
Engine Aspiration
Turbocharger, Intercooler
Engine Systems
Start & Stop System
Fuel Type
Petrol (Gasoline)
Fuel Consumption (economy) - Combined
7.1-7.4 l/100 km
Fuel Consumption (economy) - Extra Urban
7.5-7.6 l/100 km
Generation
Carnival IV (2023)
Gross Battery Capacity
1.49 kWh
Kerb Weight
2155-2165 kg
Modification (Engine)
1.6 T-GDI Smartstream (245 Hp) Hybrid Automatic 9 Seats
Number Of Cylinders
4
Power
180 Hp @ 5500 rpm.
Power Steering
Electric Steering
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
9
Start Of Production
November, 2023
System Power
245 Hp
System Torque
367 Nm
Wheel Rims Size
7J x 18; 7.5J x 19

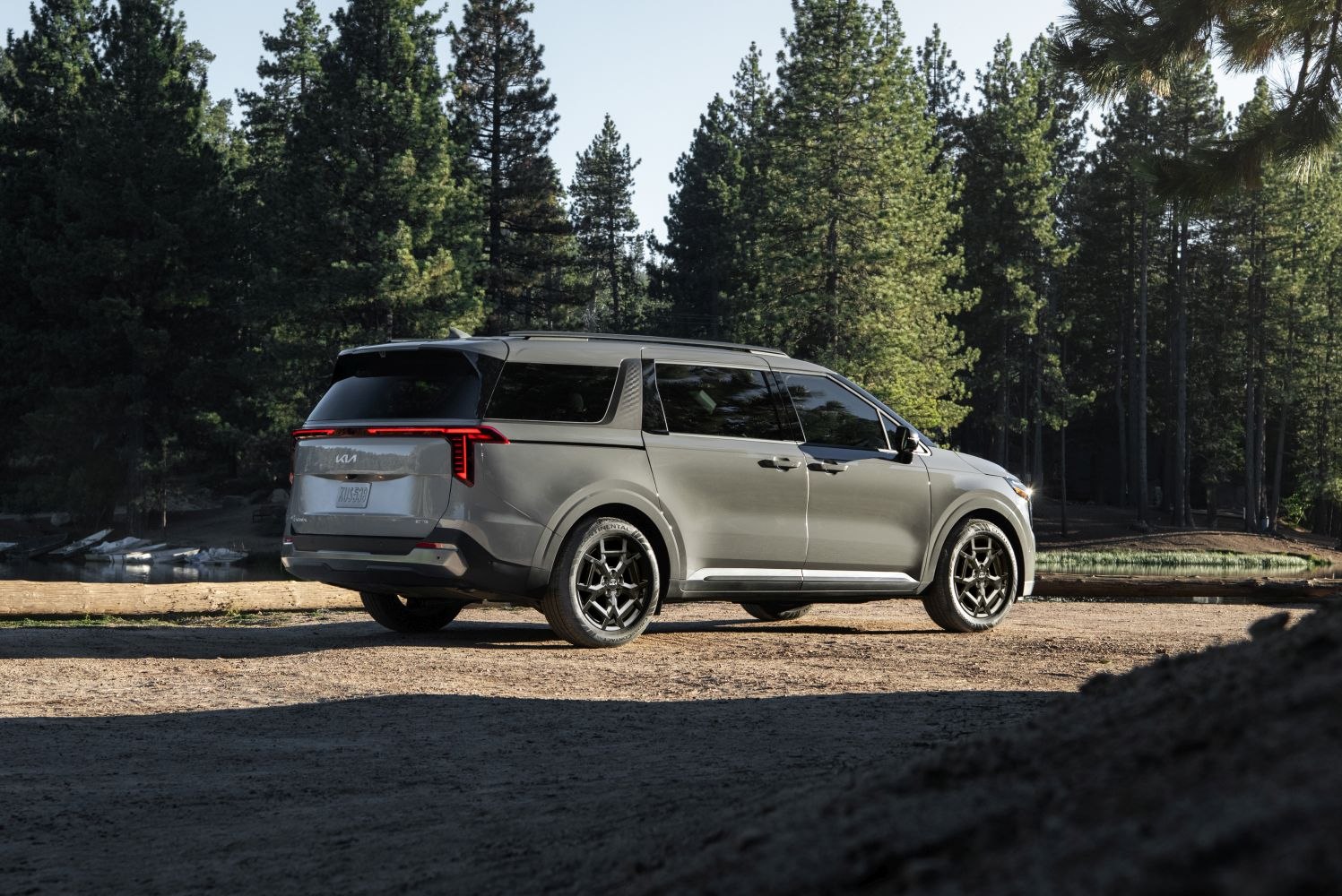

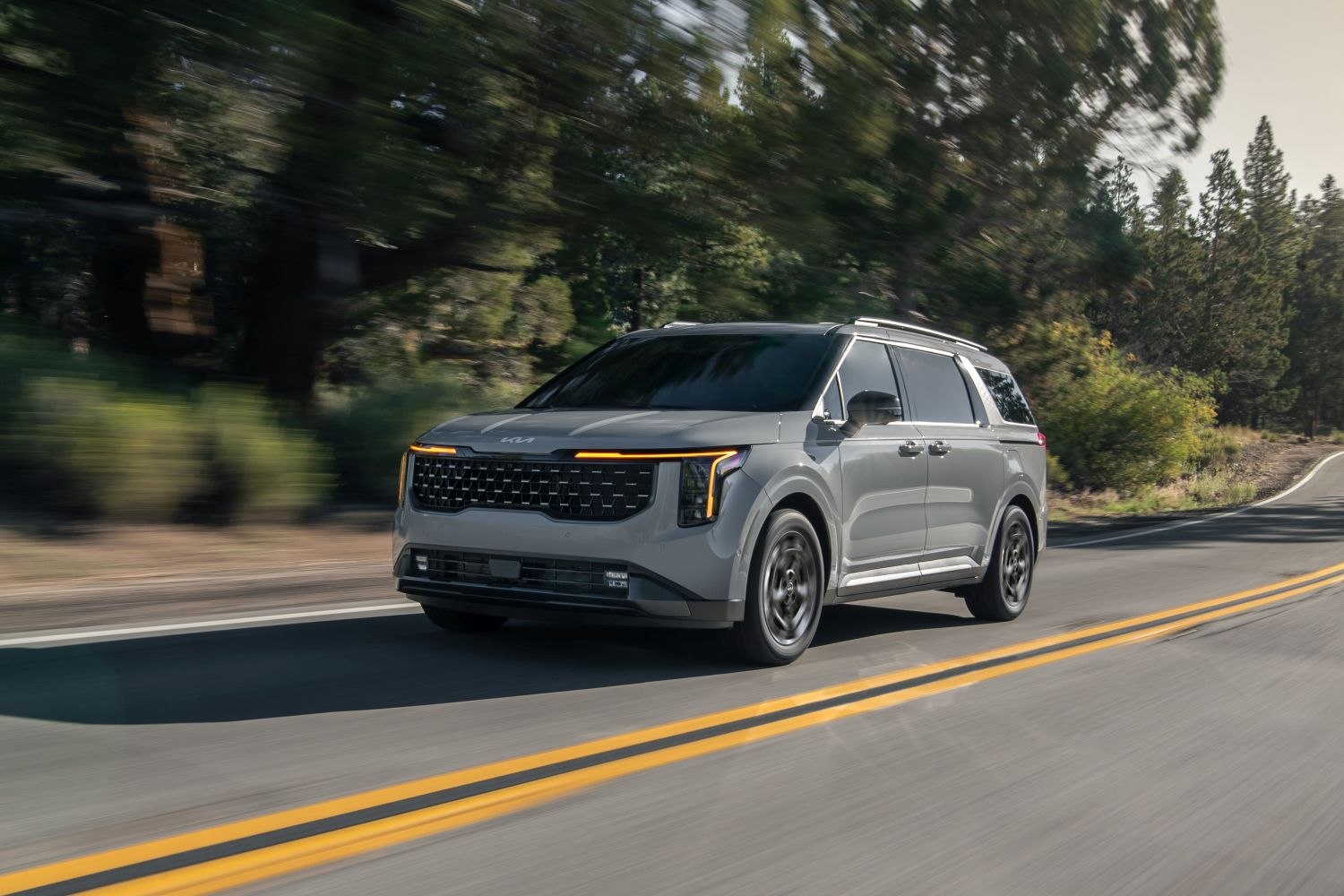

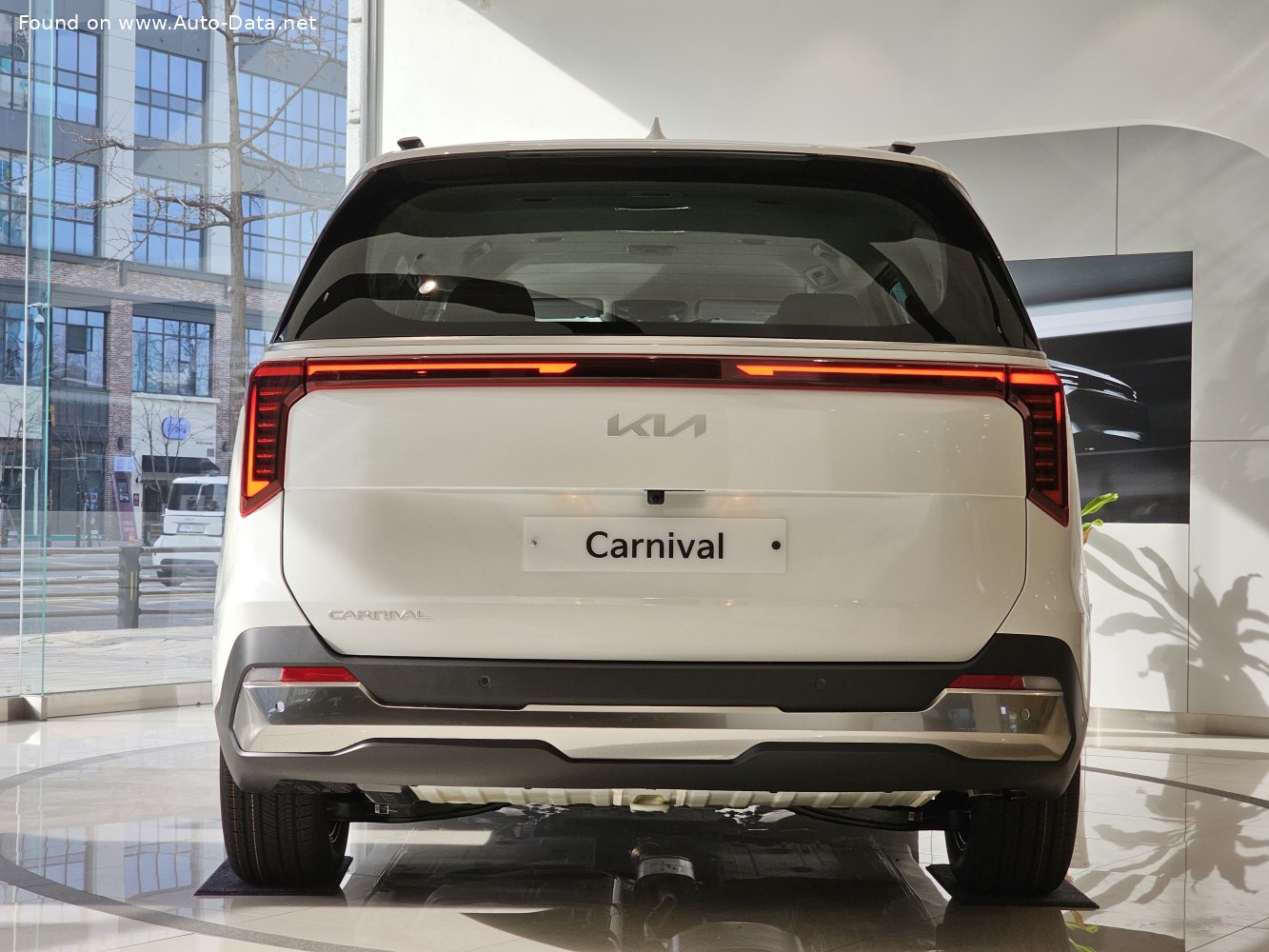

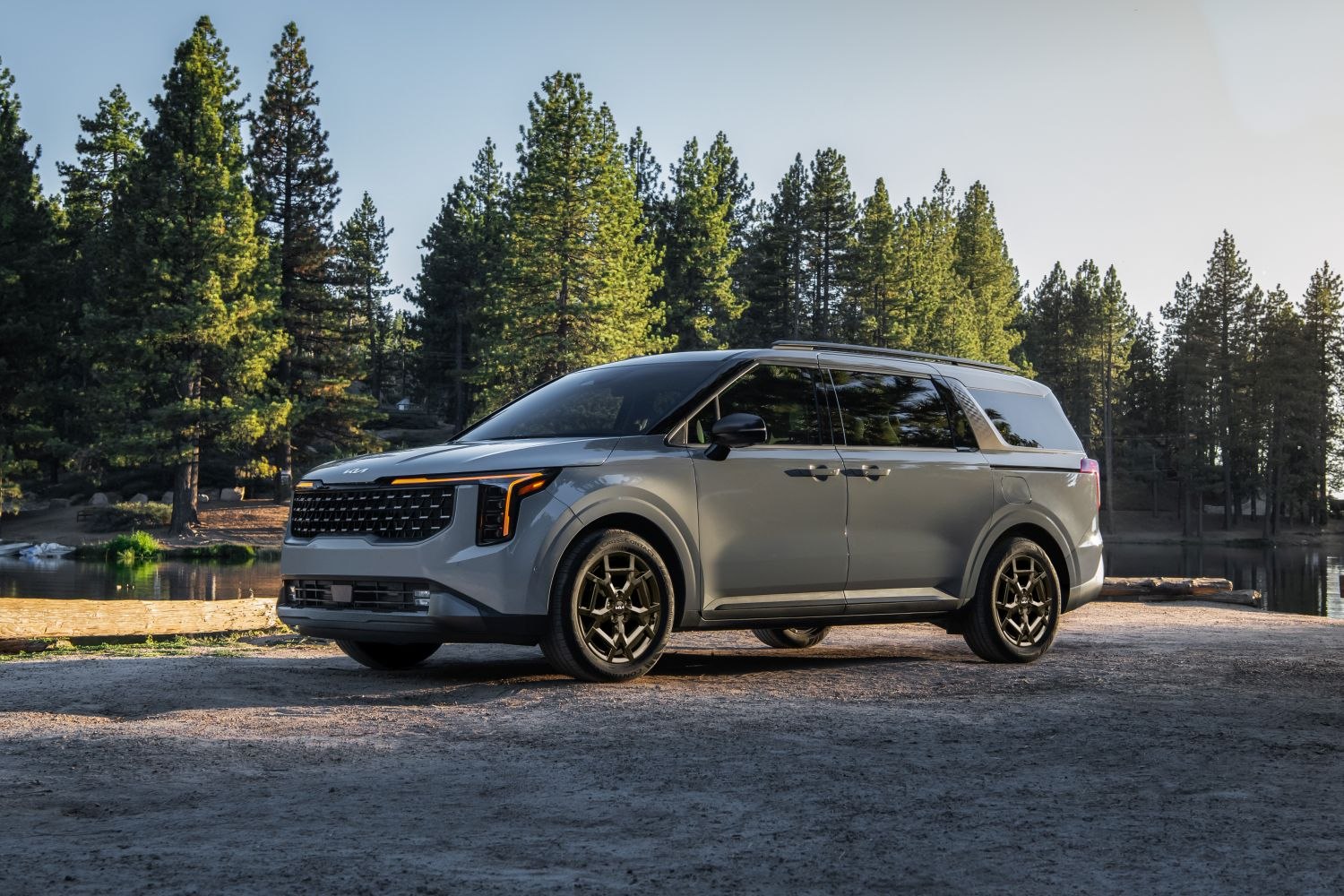

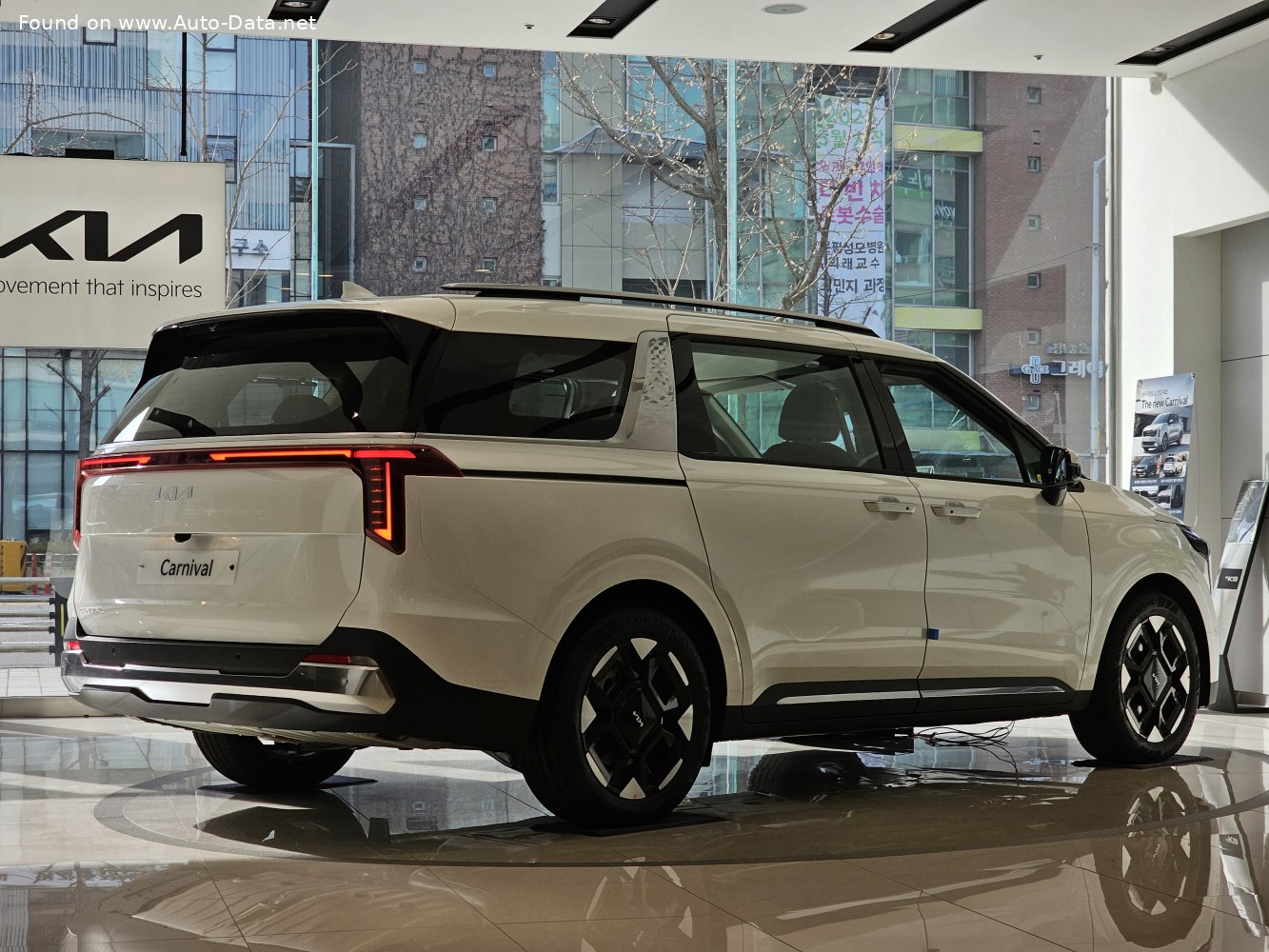

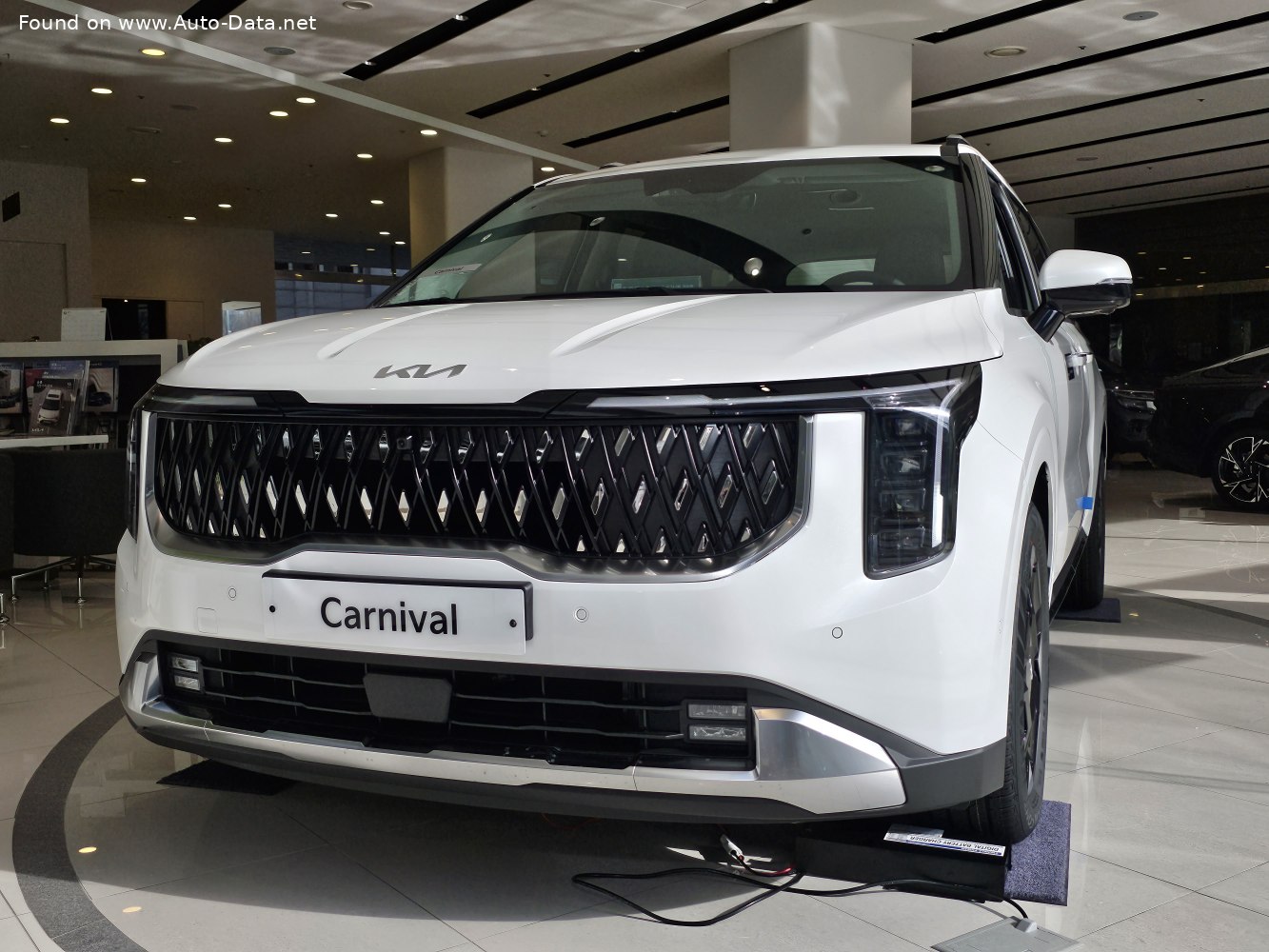

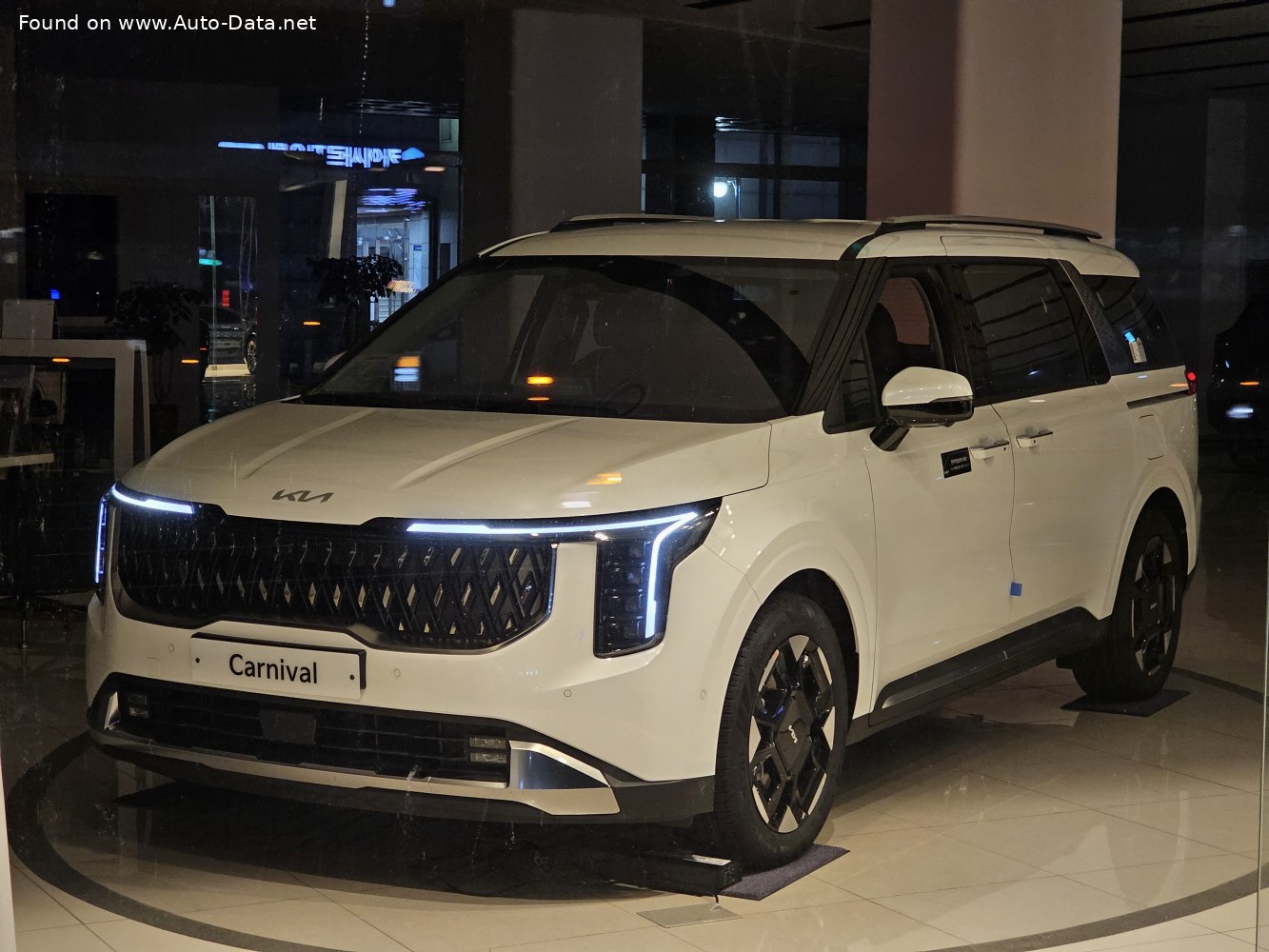

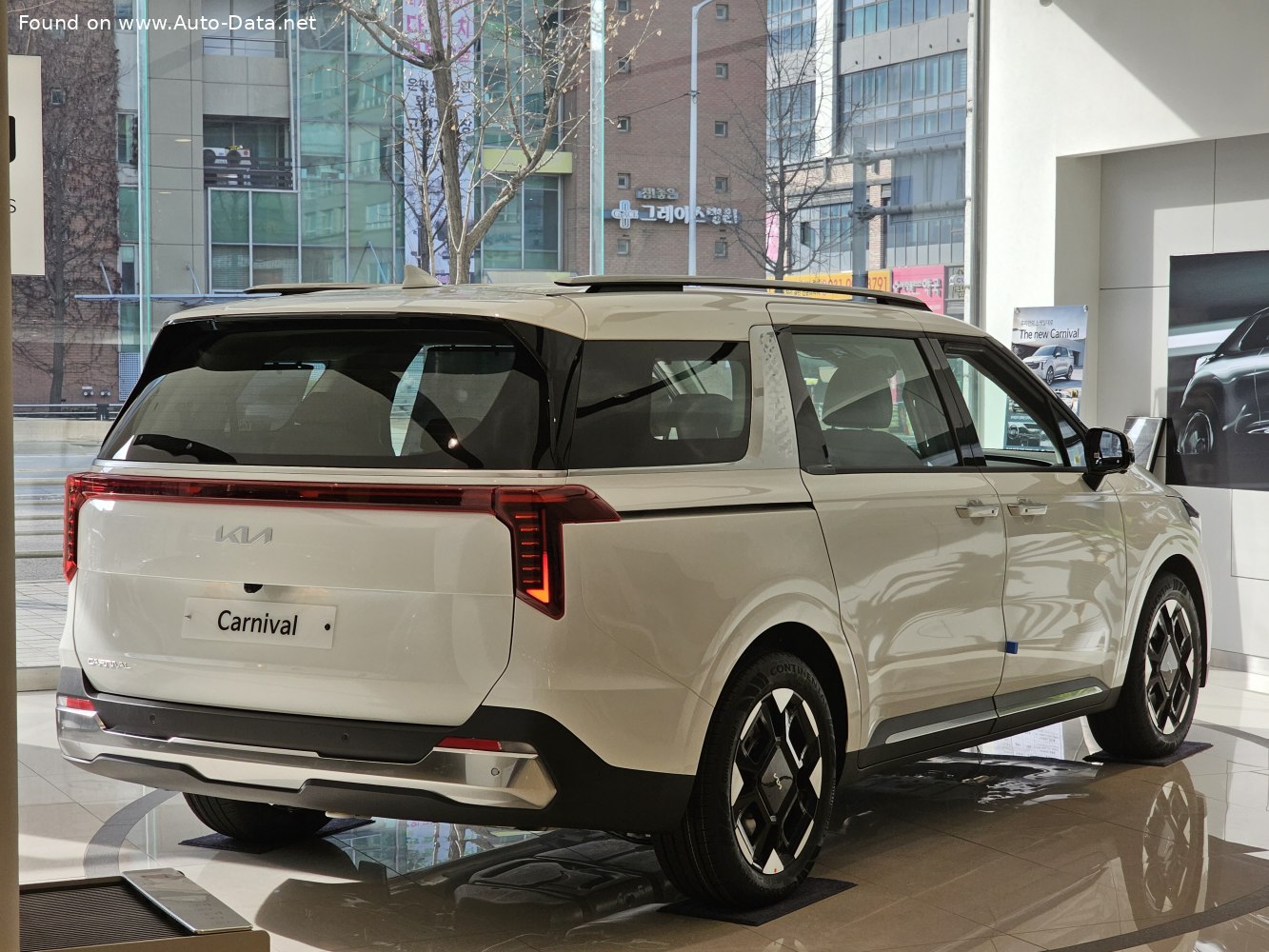

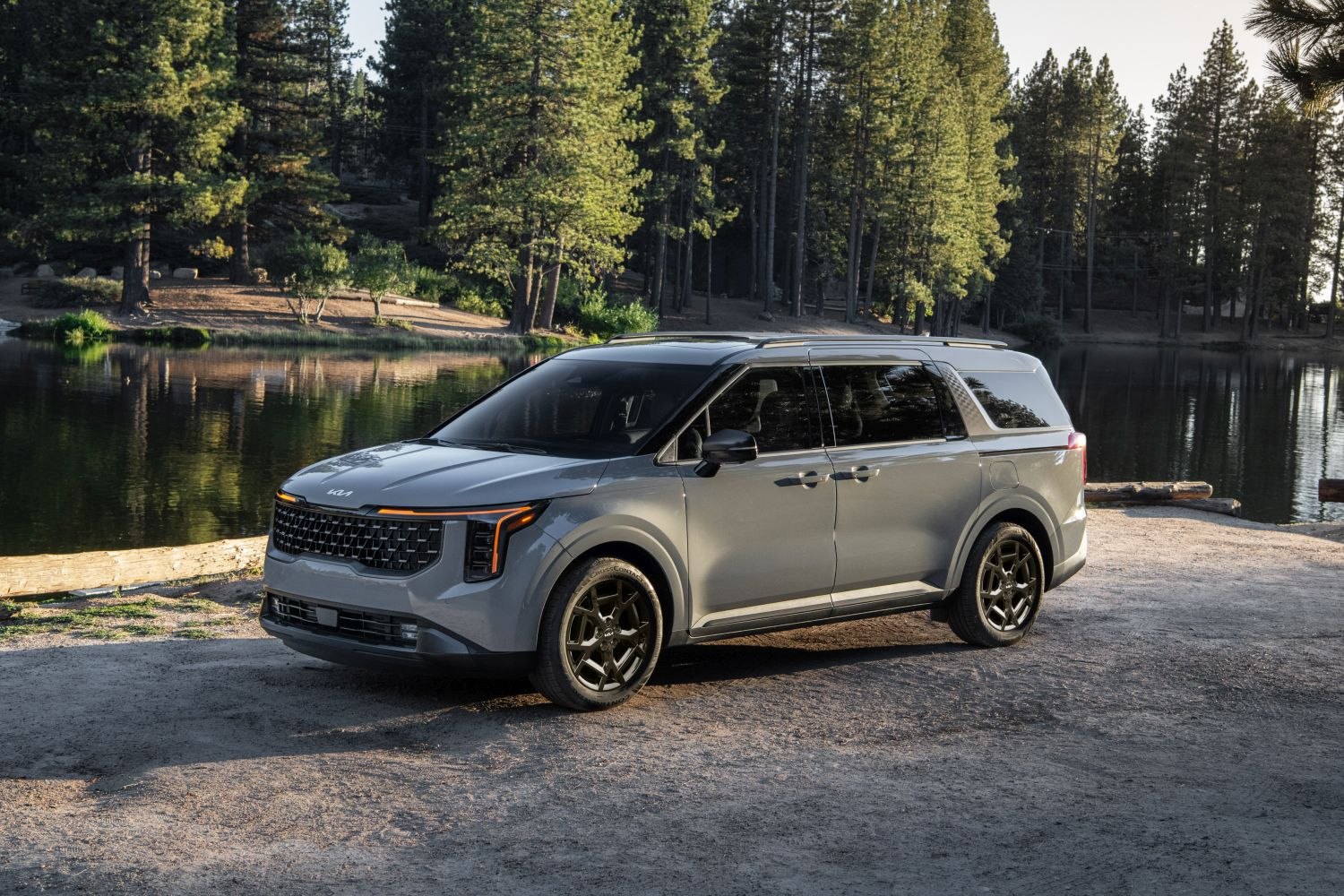

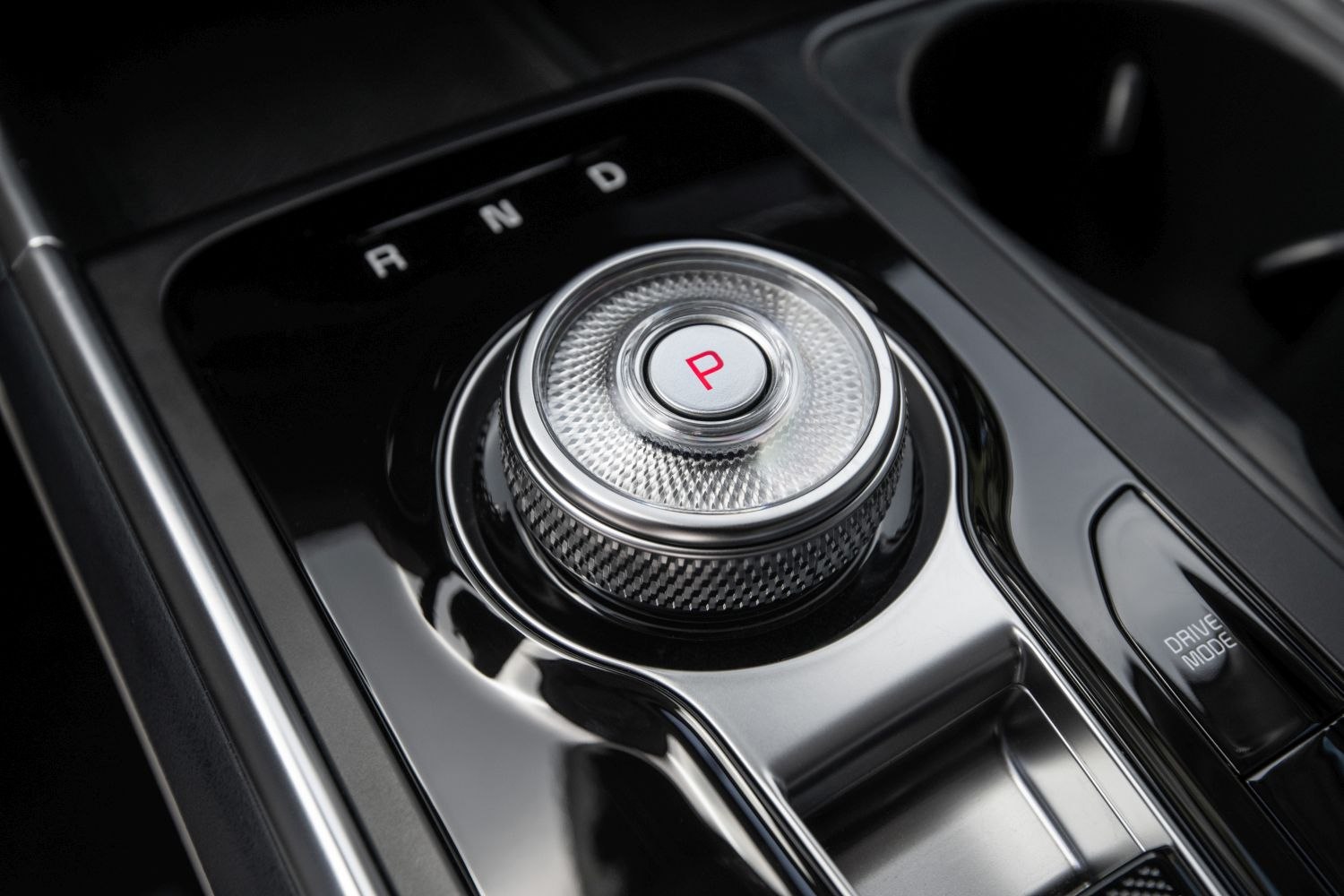

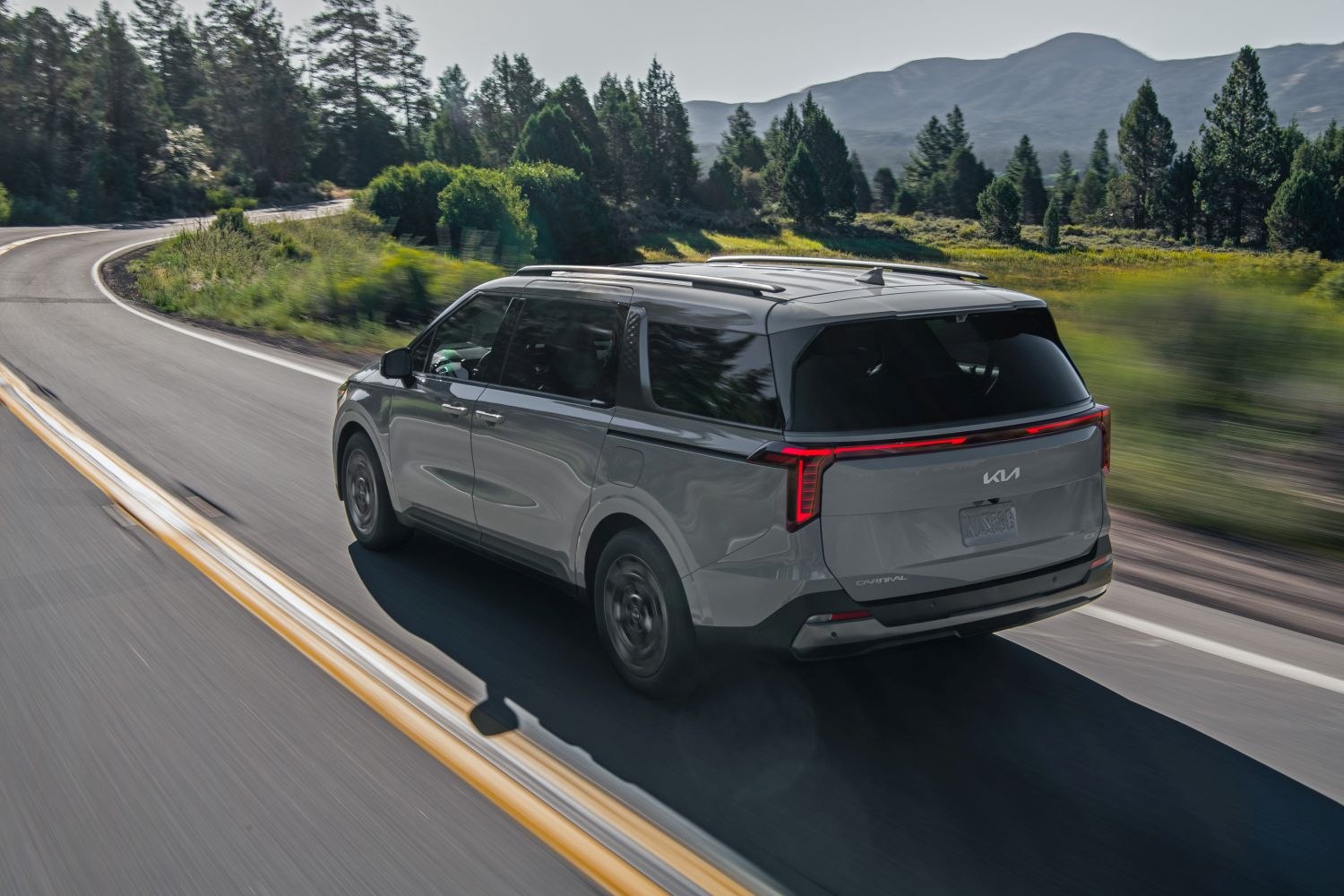

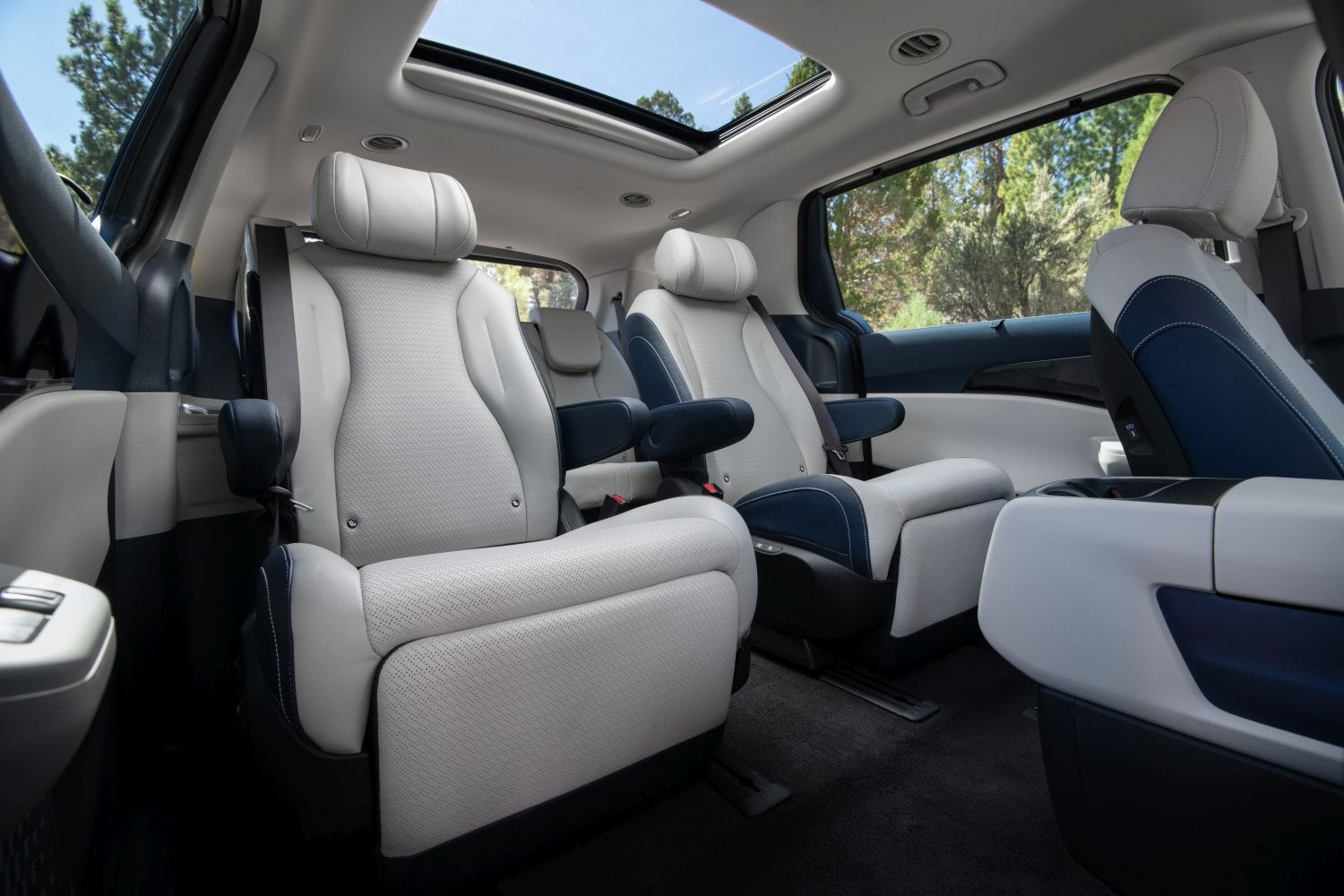

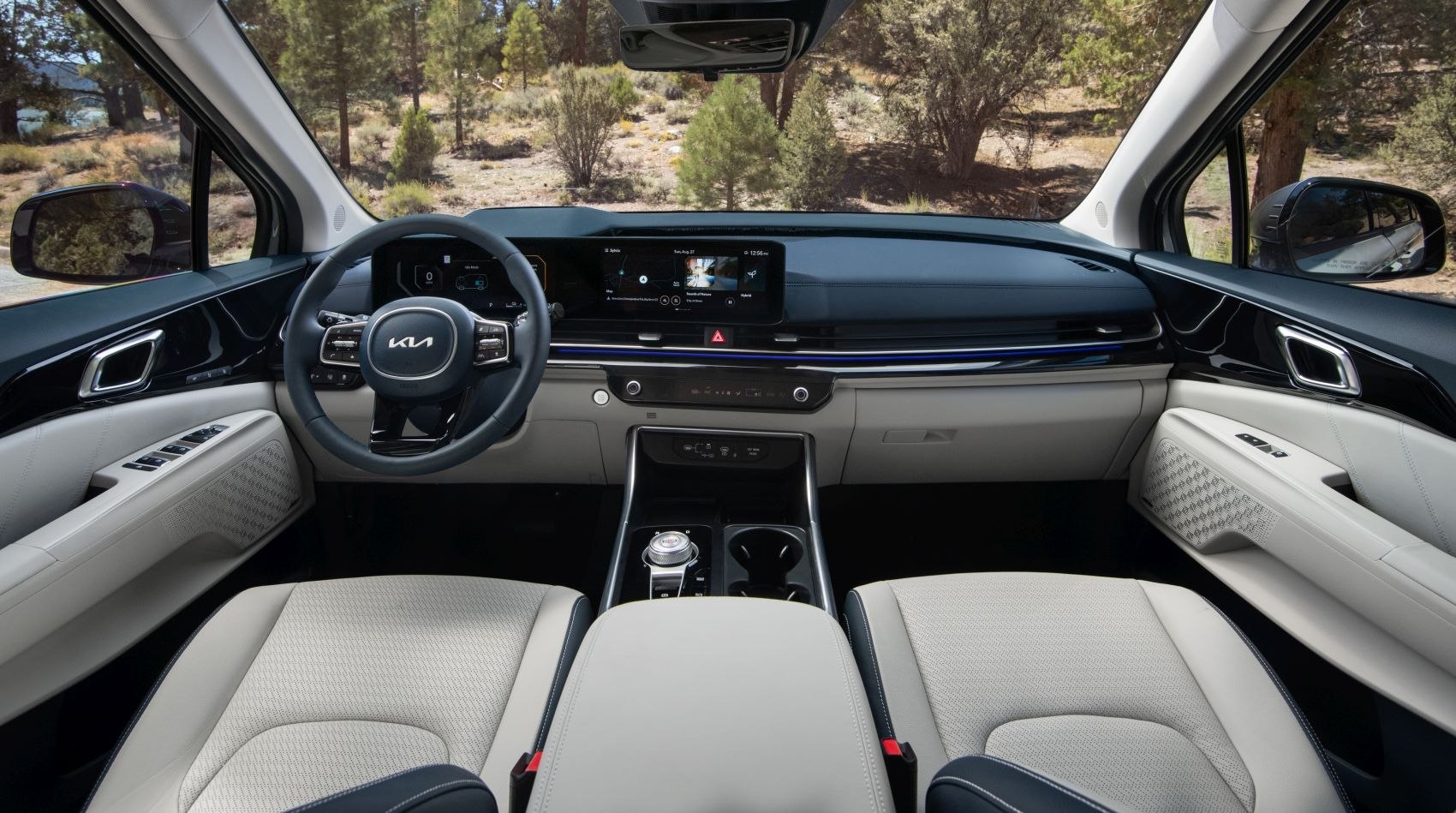

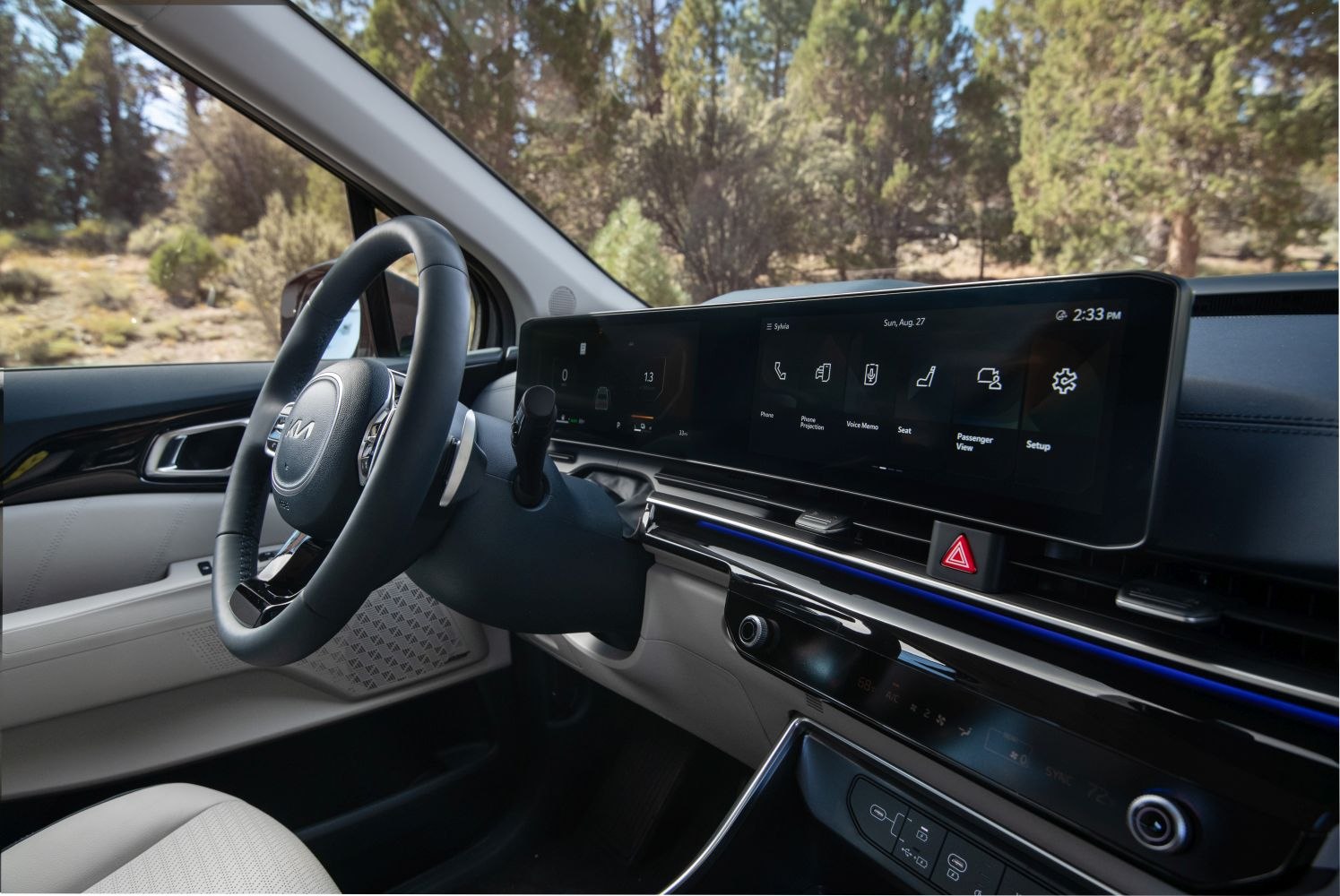

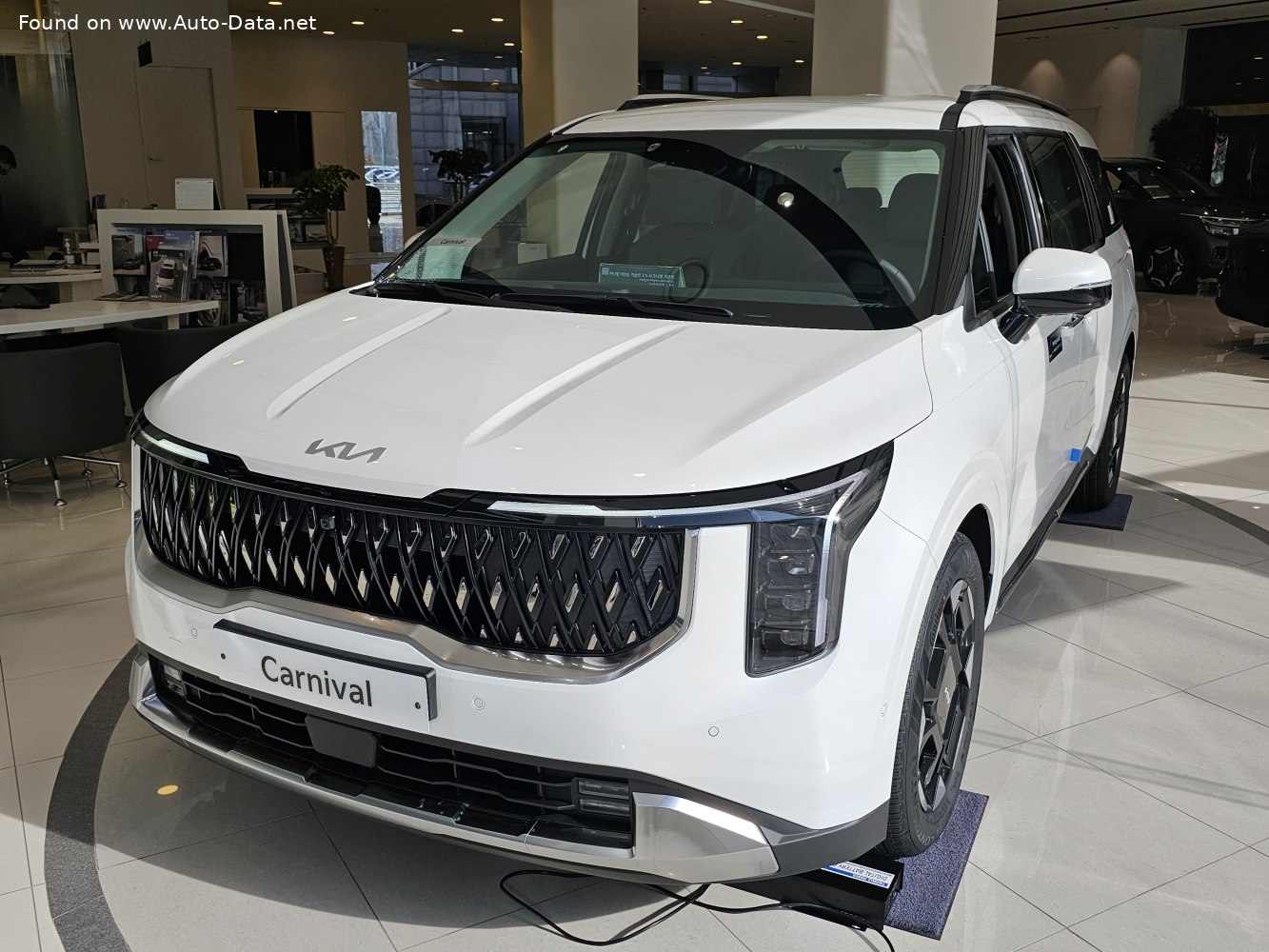

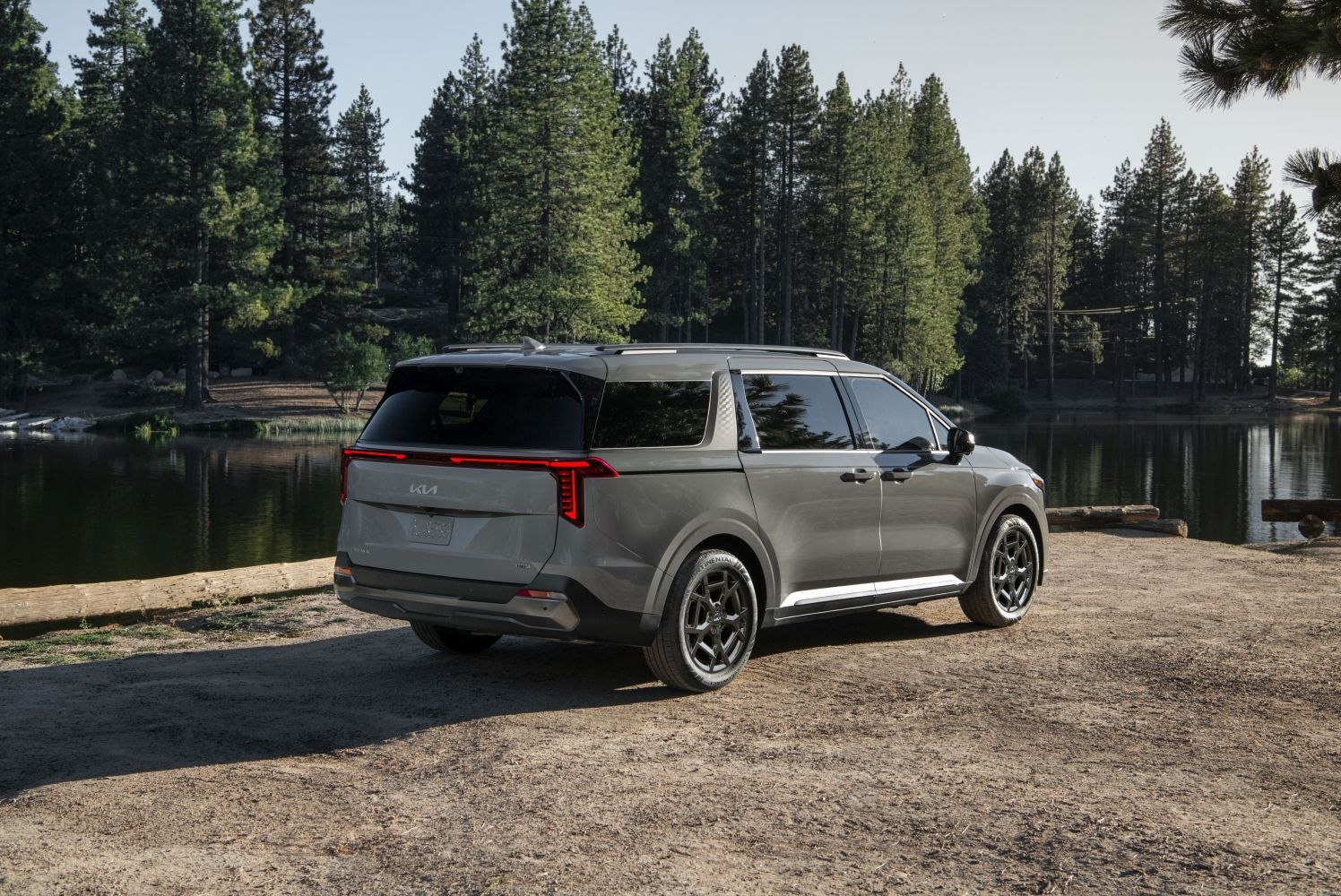

Kia Carnival 4 2023 Gallery
Kia Carnival 4 2023 Technical Specifications
General
Body type
Minivan
Brand
Kia
Doors
5
Generation
Carnival IV (2023)
Model
Carnival
Modification (Engine)
1.6 T-GDI Smartstream (245 Hp) Hybrid Automatic 9 Seats
Powertrain Architecture
FHEV (Full Hybrid Electric Vehicle)
Seats
9
Start of production
November, 2023
Performance
CO2 emissions
116-121 g/km
Fuel Type
Petrol (Gasoline)
Fuel consumption (economy) - combined
7.1-7.4 l/100 km
Fuel consumption (economy) - extra urban
7.5-7.6 l/100 km
Fuel consumption (economy) - urban
6.8-7.1 l/100 km
Electric
Battery voltage
270 V
Battery weight
42 kg
Electric motor Torque number 1
304 Nm
Electric motor location number 1
Between the combustion engine and the transmission
Electric motor power number 1
73 Hp
Electric motor type number 1
Synchronous
Gross battery capacity
1.49 kWh
System power
245 Hp
System torque
367 Nm
Internal Engine
Cylinder Bore
75.6 mm
Engine Model/Code
Smartstream
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1598 cm
Engine layout
Front, Transverse
Engine systems
Start & Stop System
Fuel injection system
Direct injection
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
89 mm
Power
180 Hp @ 5500 rpm.
Power per litre
112.6 Hp/l
Torque
265 Nm @ 1500-4500 rpm.
Valvetrain
DOHC
Dimensions
Approach angle
15.4°
Departure angle
20°
Front overhang
935 mm
Front track
1739-1744 mm
Height
1785 mm
Length
5155 mm
Rear (Back) track
1738-1743 mm
Rear overhang
1130 mm
Ride height (ground clearance)
173 mm
Wheelbase
3090 mm
Width
1995 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs
Front suspension
Independent type McPherson
Number of gears and type of gearbox
6 gears, automatic transmission
Power steering
Electric Steering
Rear brakes
Ventilated discs
Rear suspension
Independent multi-link suspension
Steering type
Steering rack and pinion
Tires size
230/60 R18; 235/55 R19
Wheel rims size
7J x 18; 7.5J x 19
Space
Kerb Weight
2155-2165 kg
