Mercedes-Benz S-class W223 2023
S 350d (313 Hp) EQ Boost 4MATIC 9G-TRONIC
Hybrid Car
Body Type Sedan
Battery Capacity 0.9 KW
3600-4800 rpm.
Power HP RPM
250 km/h
Maximum Speed
4
Doors
Mercedes-Benz S-class W223 2023 Key Specs
Acceleration 0 - 100 Km/h
5.5 sec
Acceleration 0 - 62 Mph
5.5 sec
Battery Voltage
48 V
Body Type
Sedan
Doors
4
Drive Wheel
All wheel drive (4x4)
Engine Aspiration
BiTurbo, Intercooler
Engine Oil Capacity
9 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
65 l
Generation
S-class (W223)
Gross Battery Capacity
0.9 kWh
Kerb Weight
2050 kg
Maximum Speed
250 km/h, Electronically limited
Modification (Engine)
S 350d (313 Hp) EQ Boost 4MATIC 9G-TRONIC
Number Of Cylinders
6
Power
313 Hp @ 3600-4800 rpm.
Power Steering
Electric Steering
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start Of Production
May, 2023
Wheel Rims Size
Front wheel rims: 8J x 19; 8.5J x 19; 9J x 20; 9J x 21Rear wheel rims: 8J x 19; 8.5J x 19; 10J x 19; 9J x 20; 10J x 20; 10J x 21

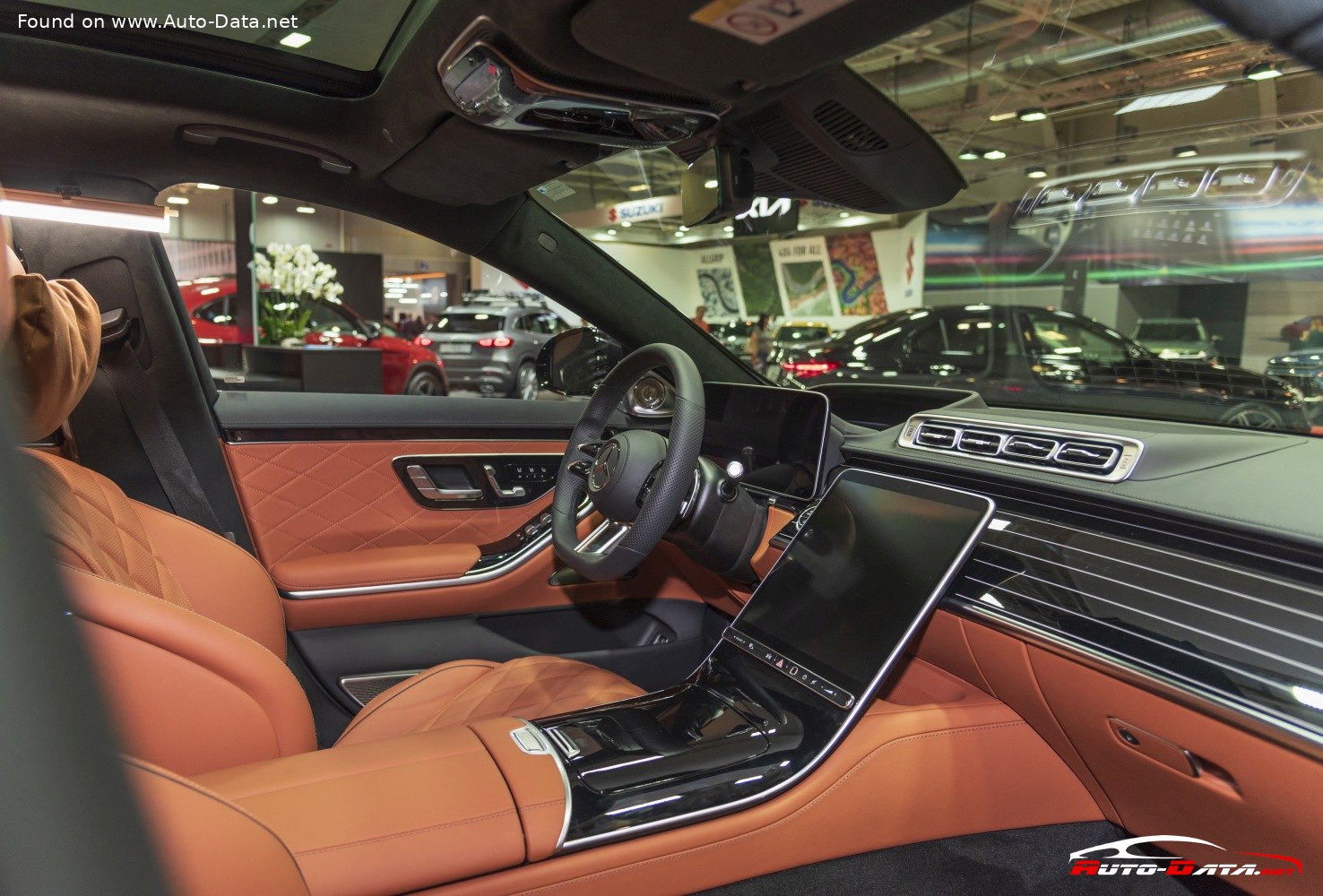

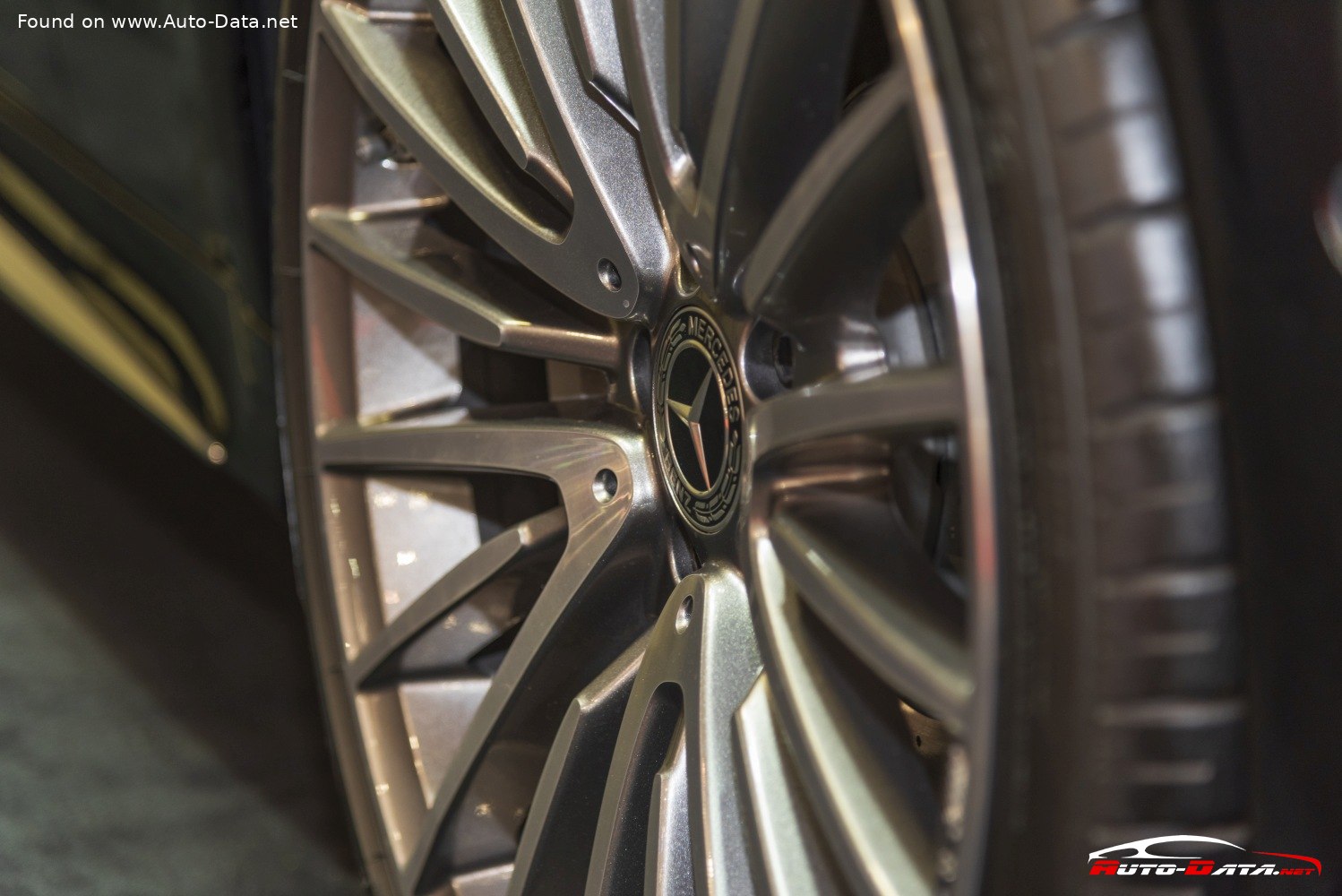

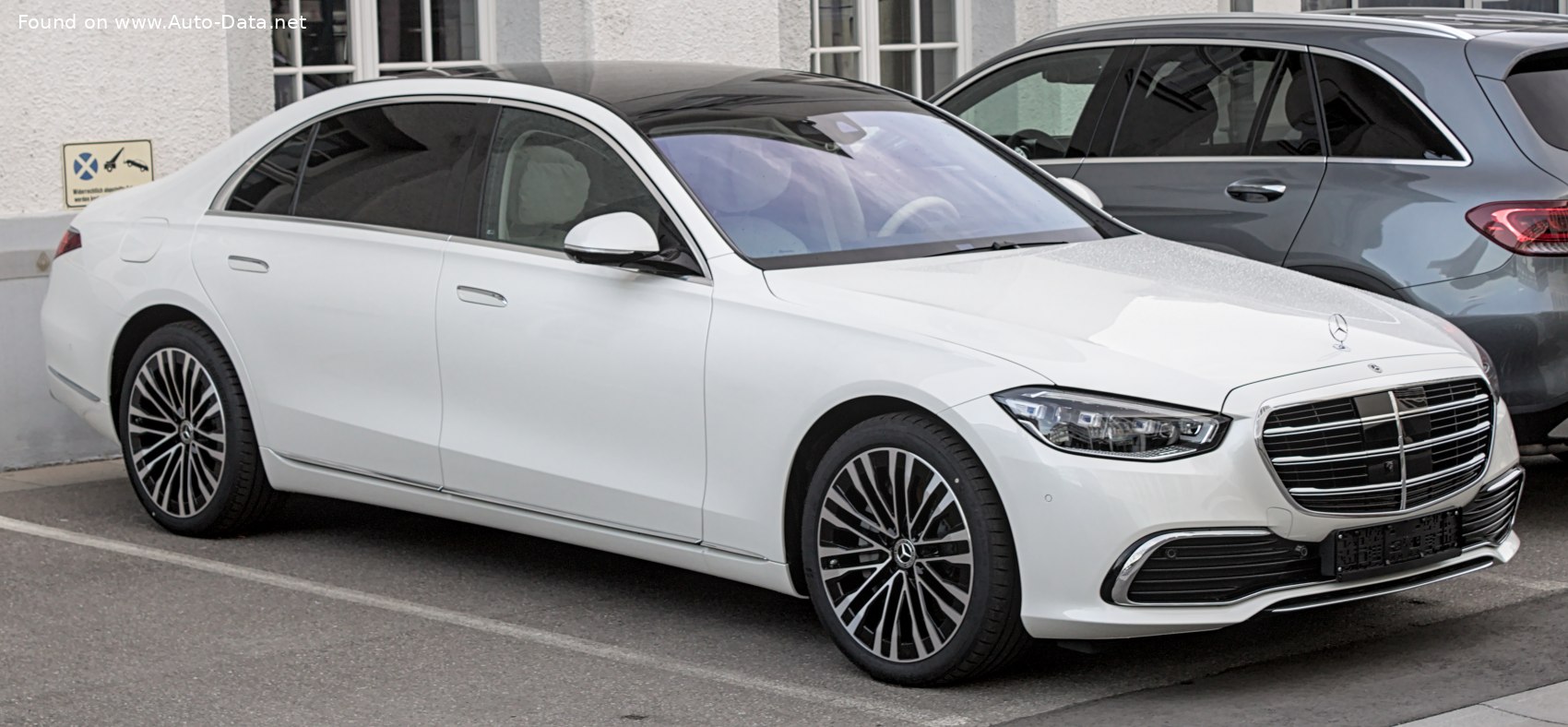

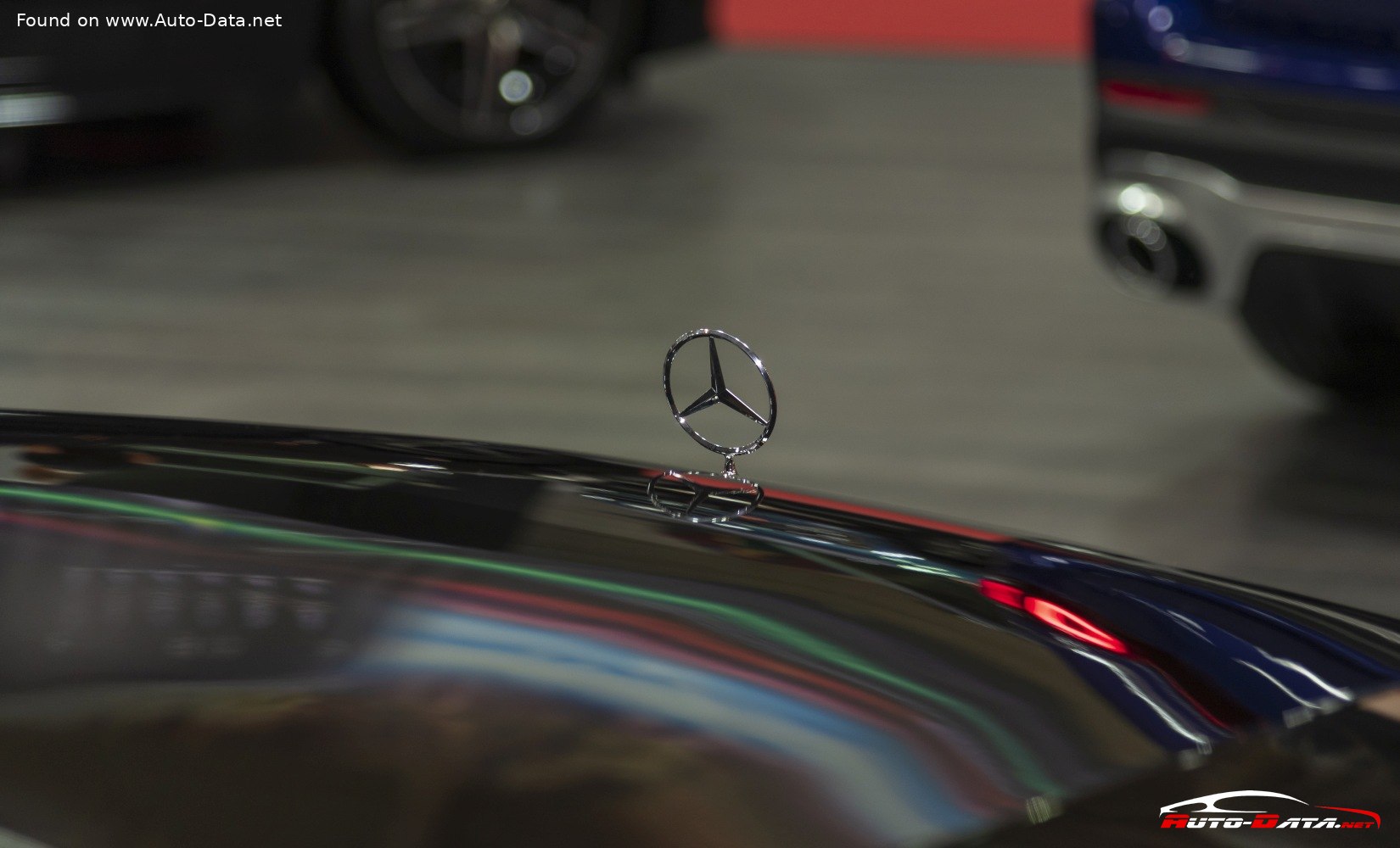

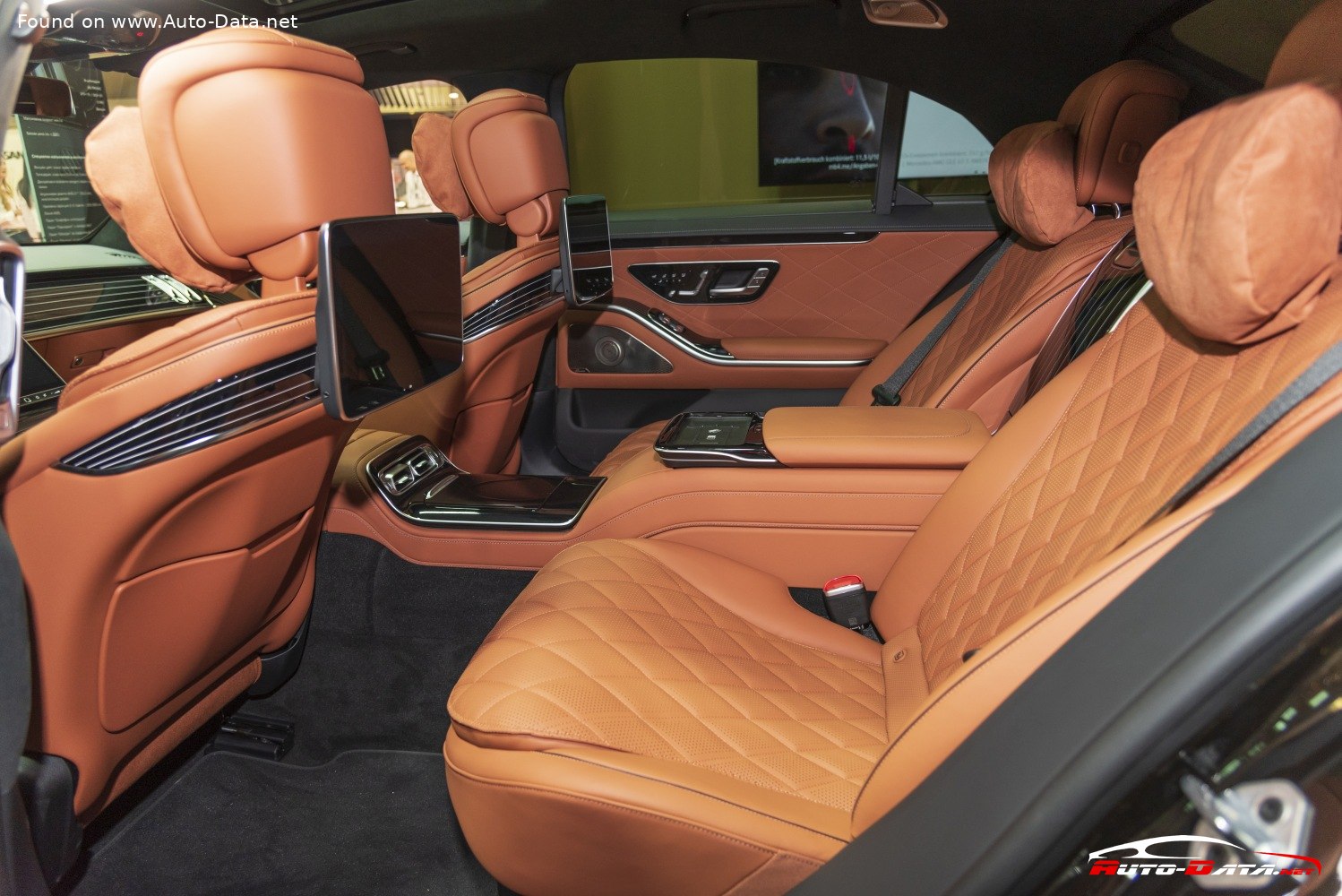

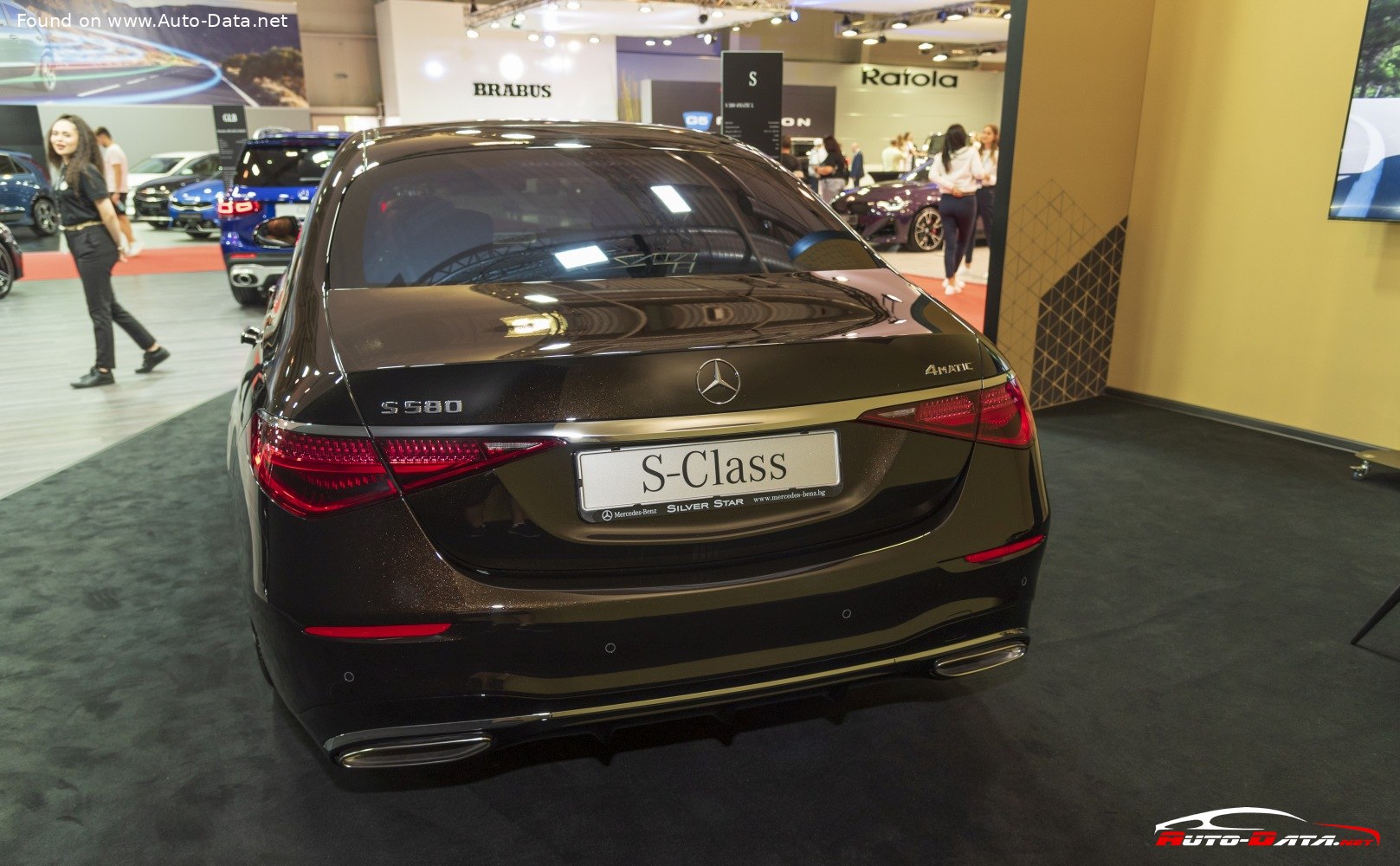

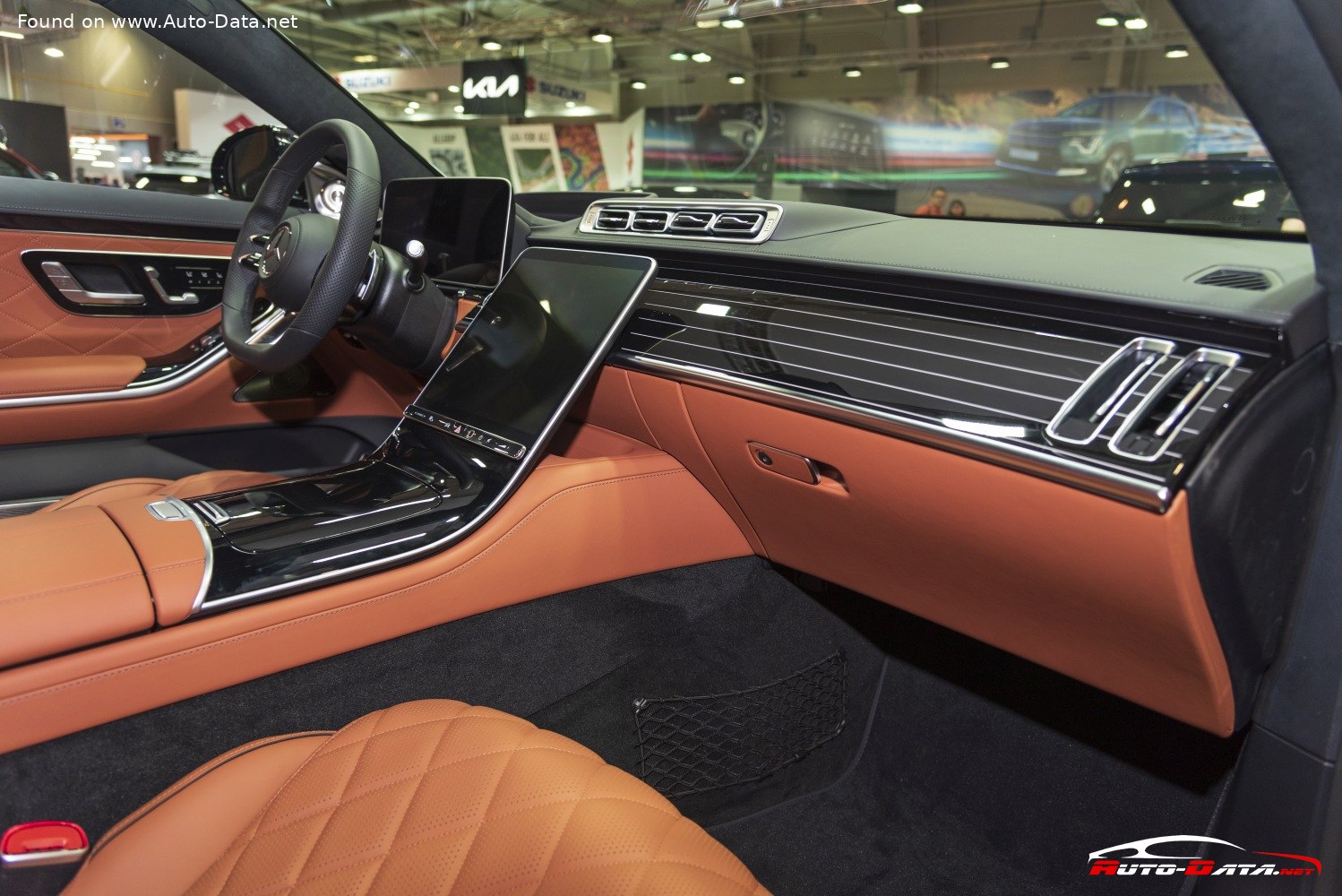

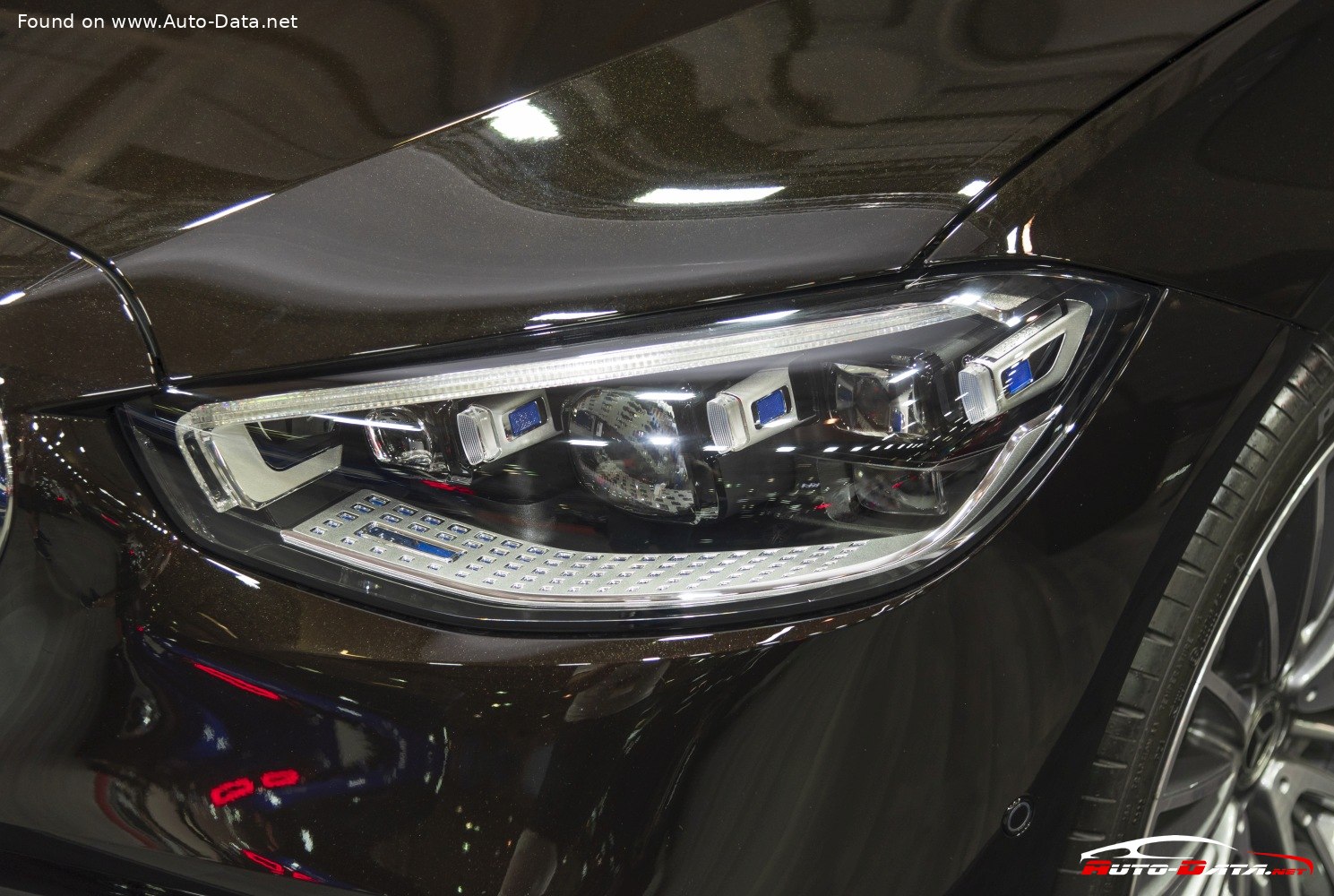

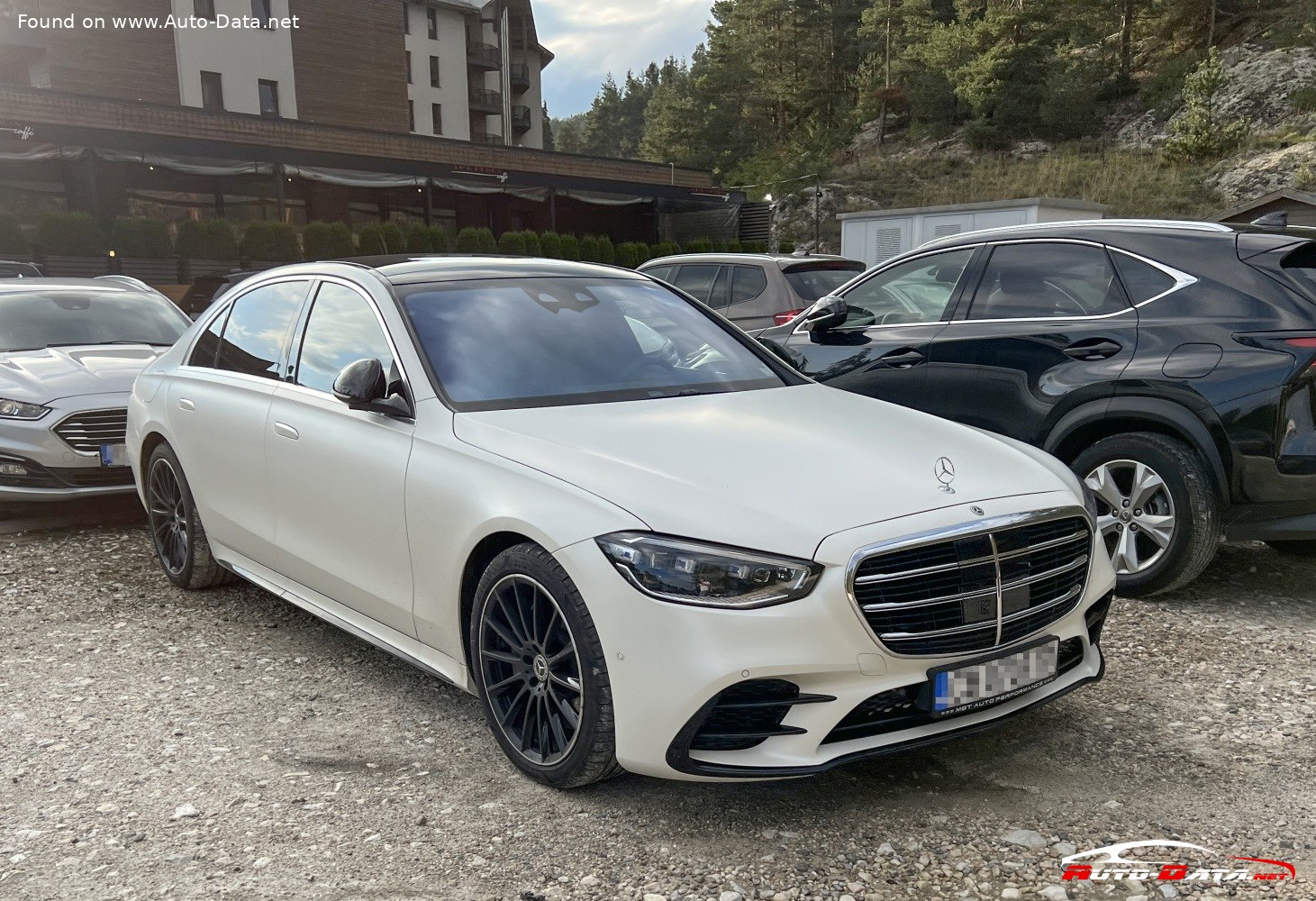

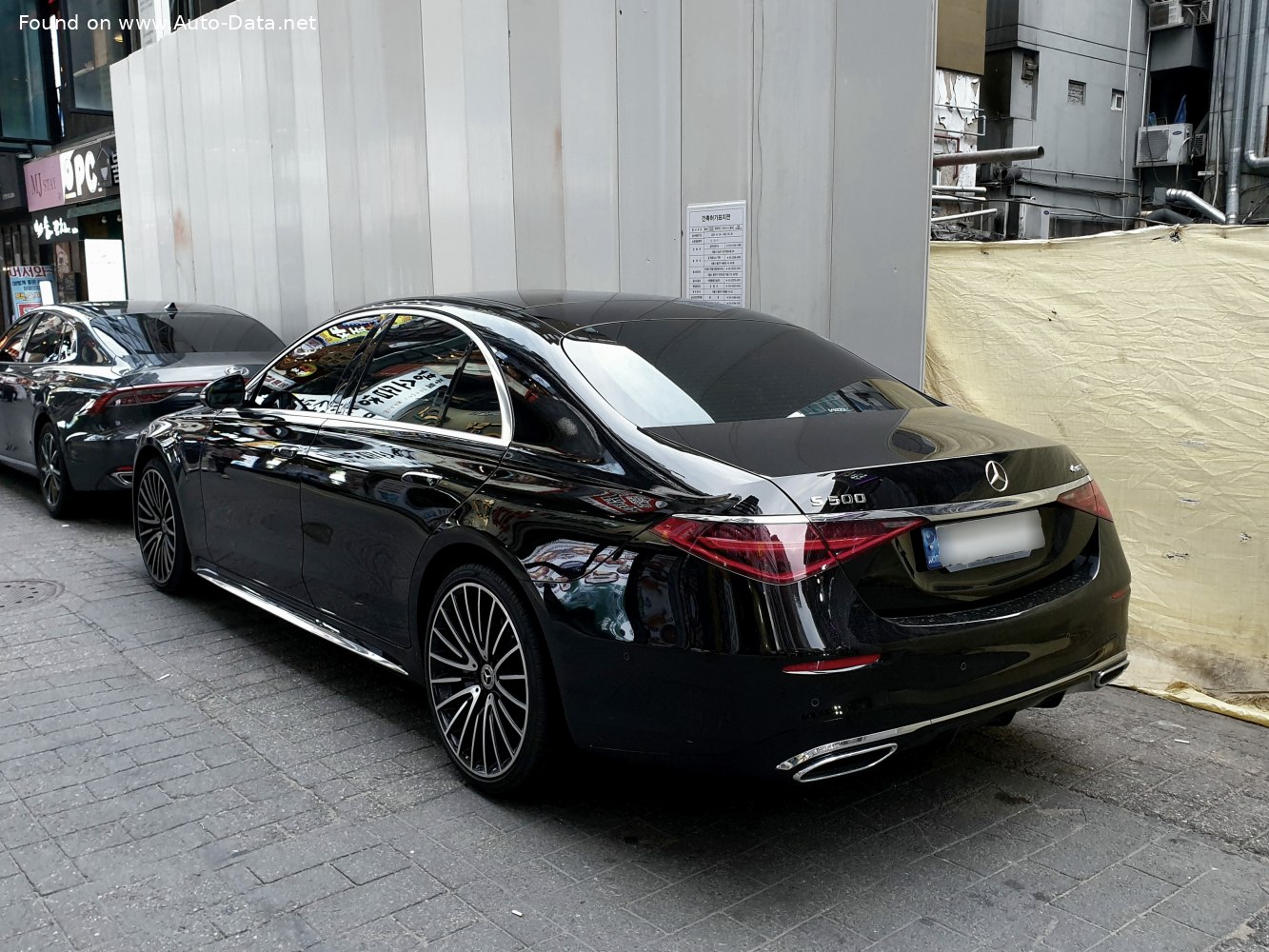

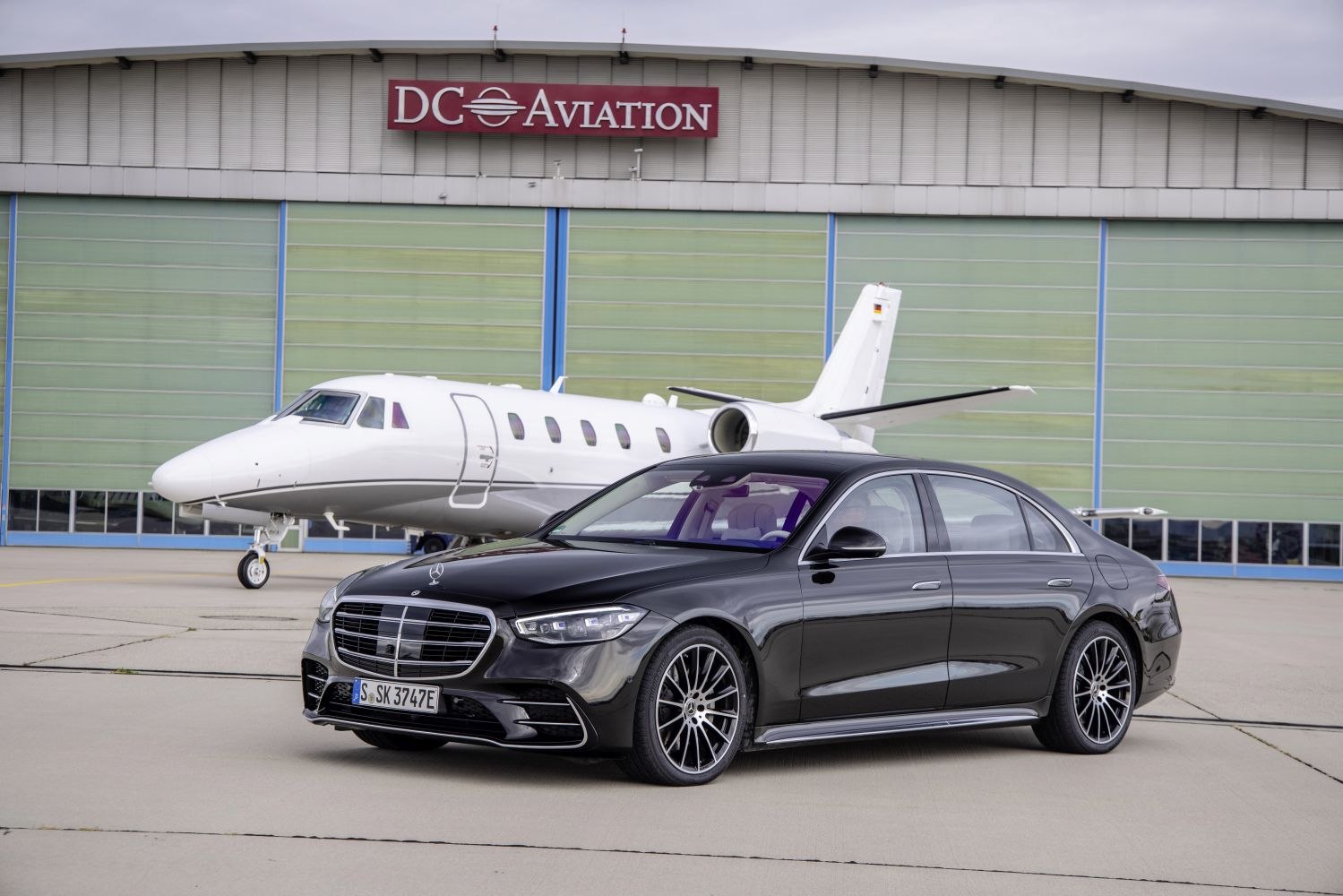

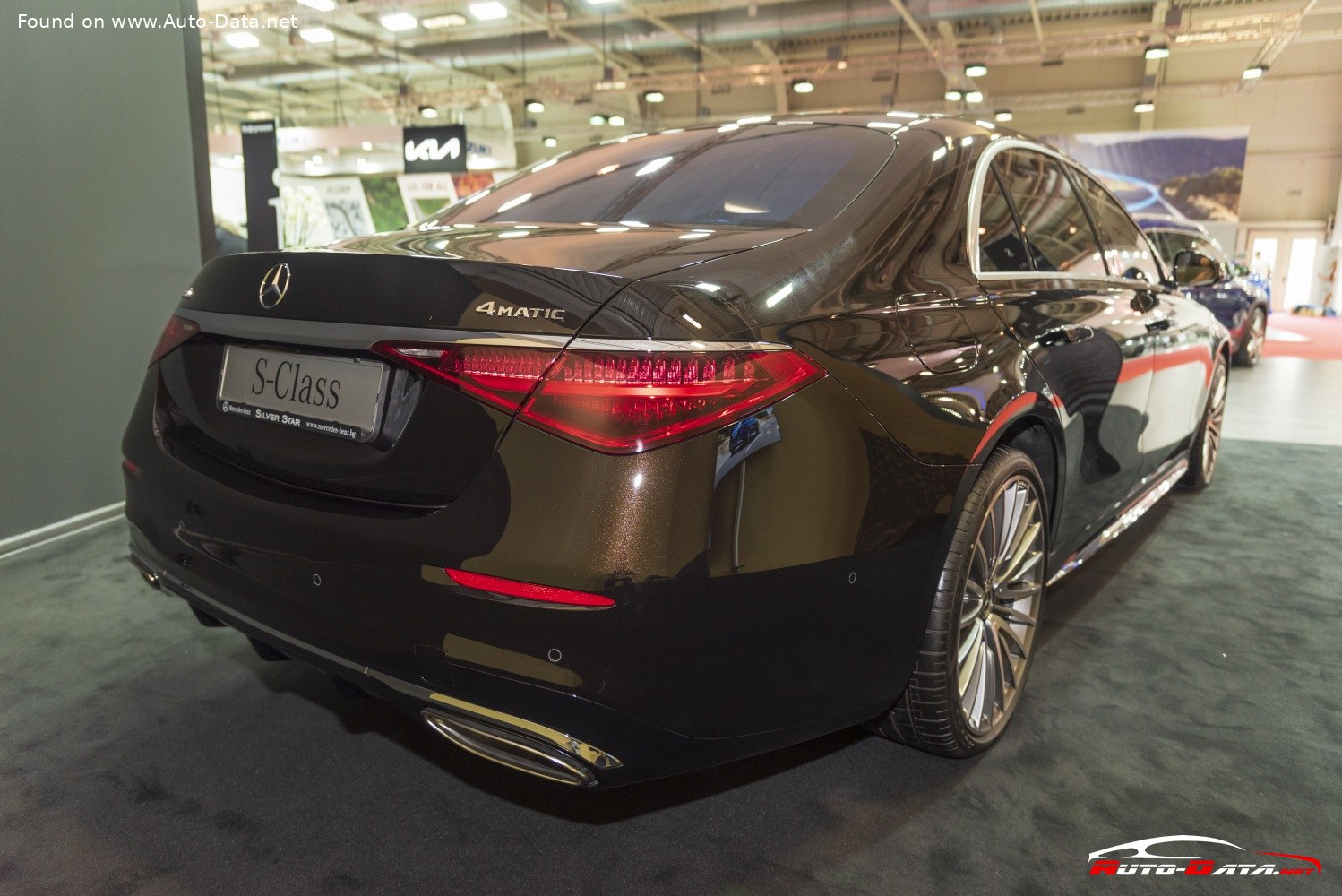

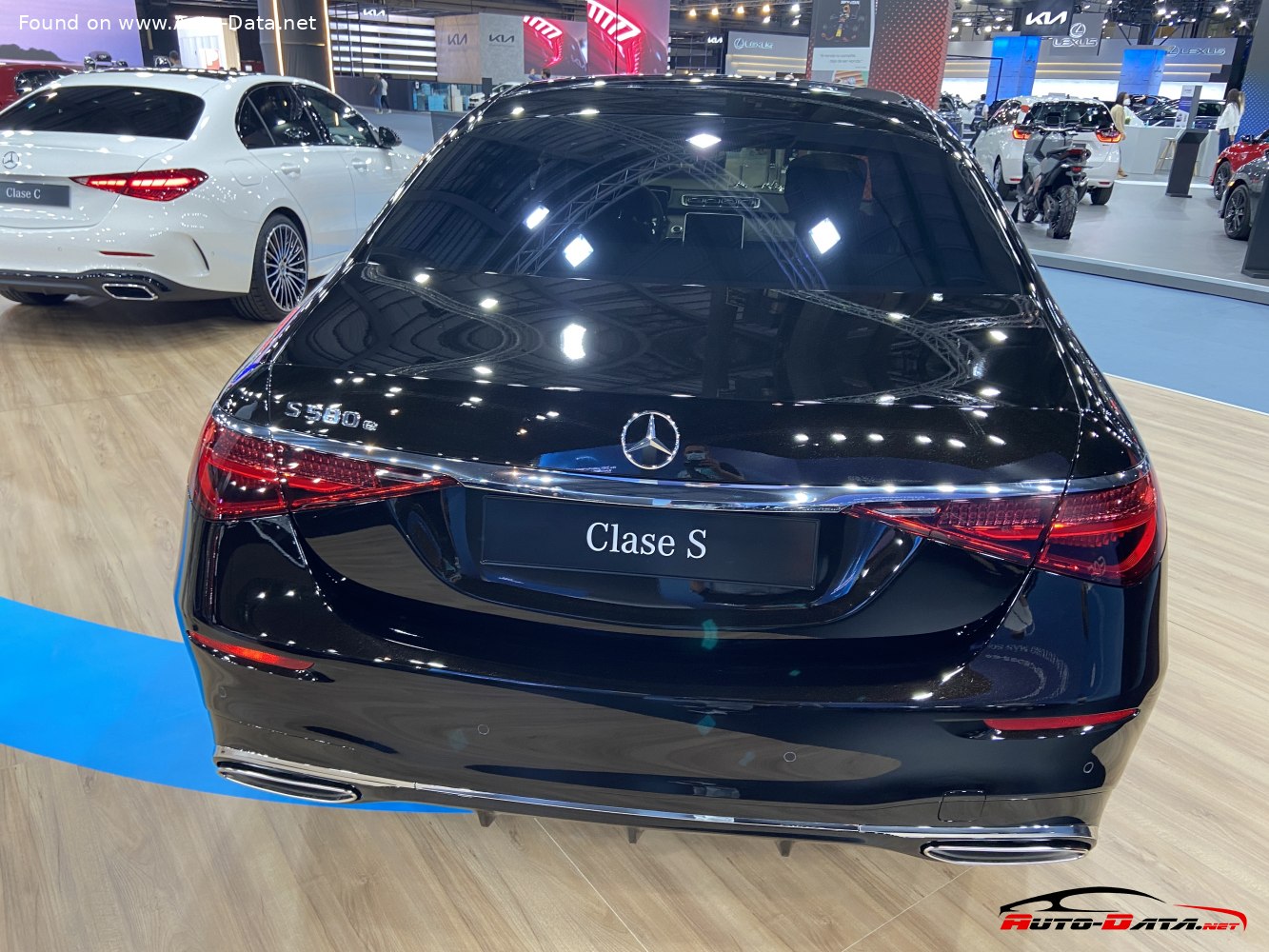

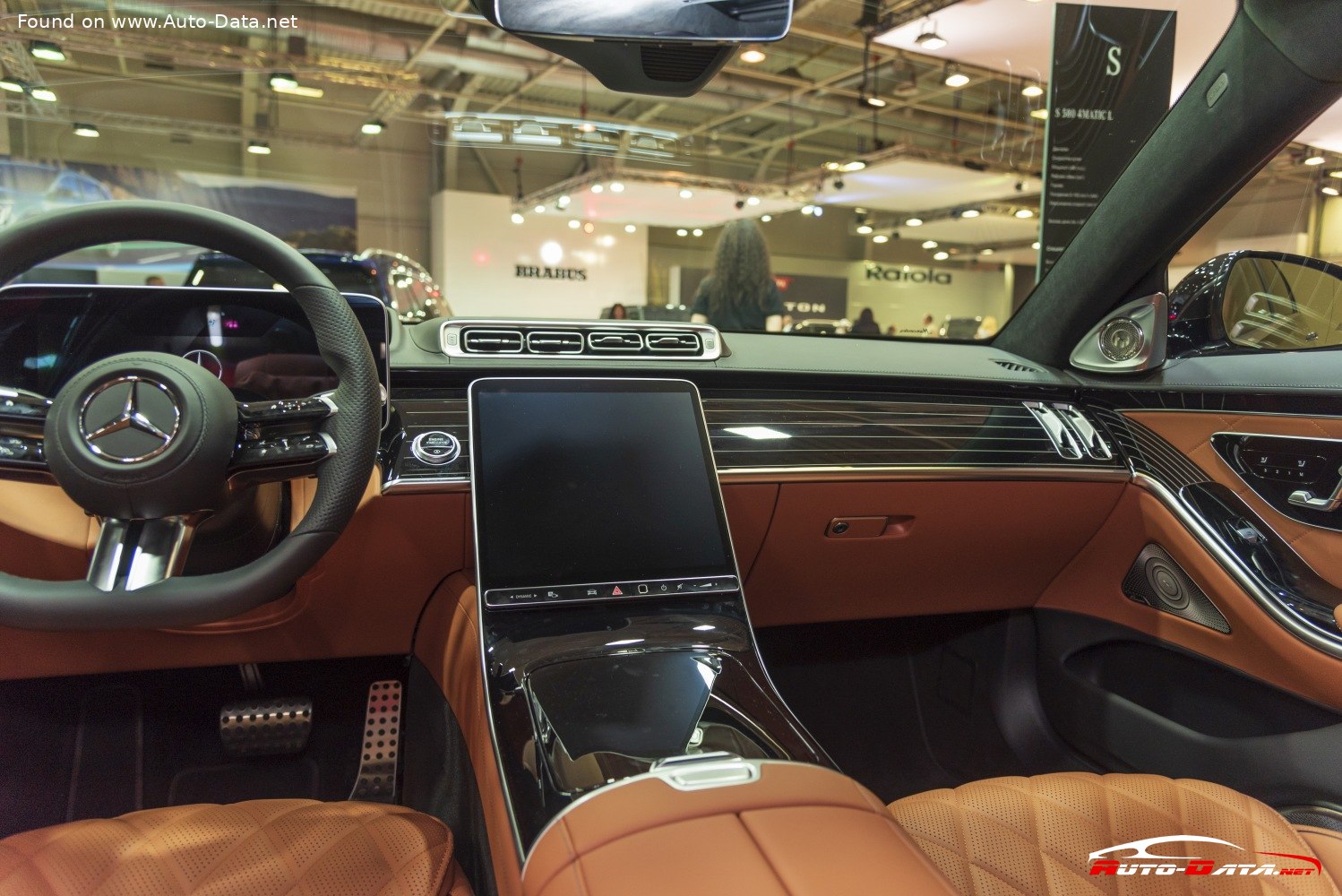

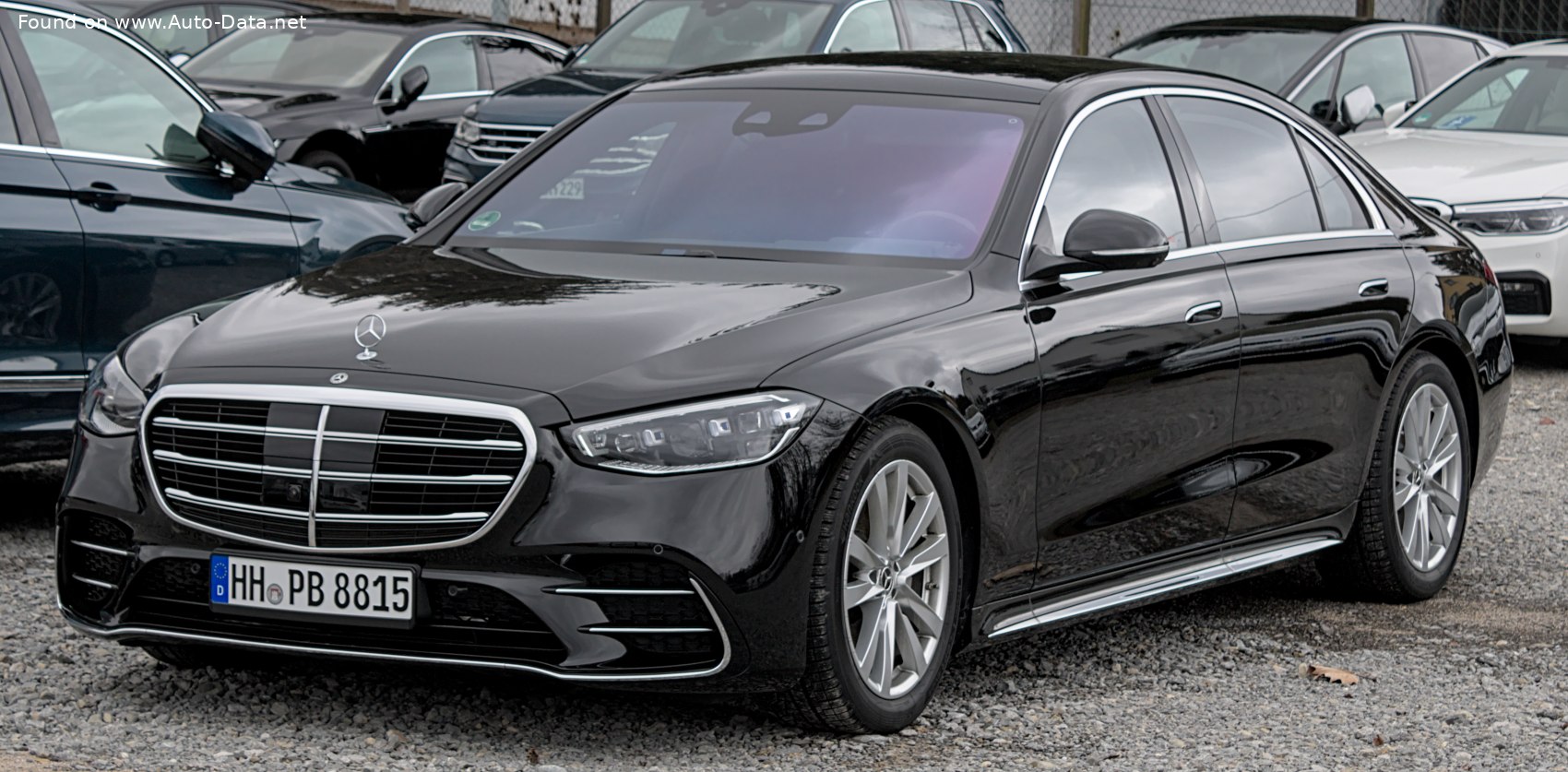

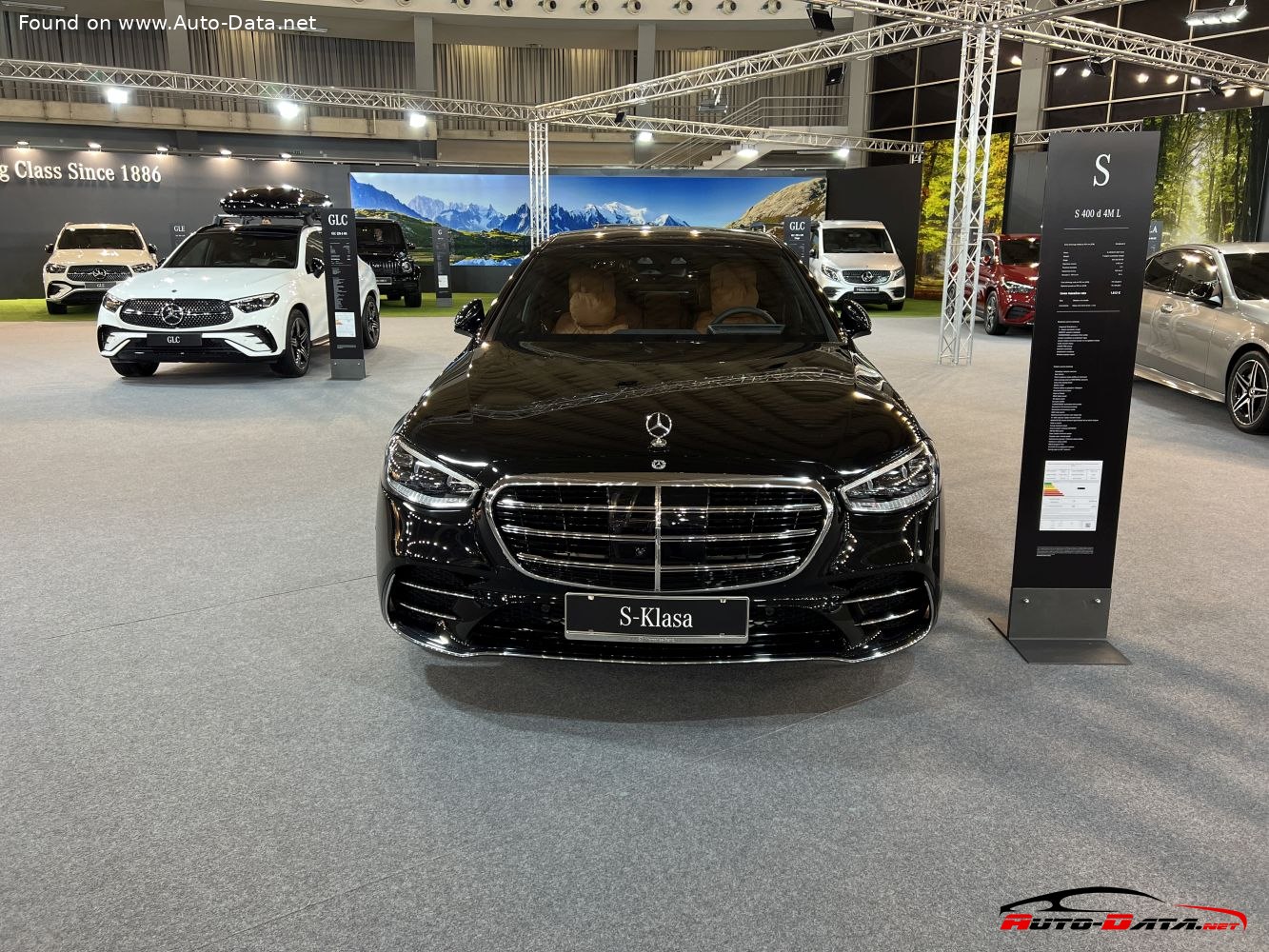

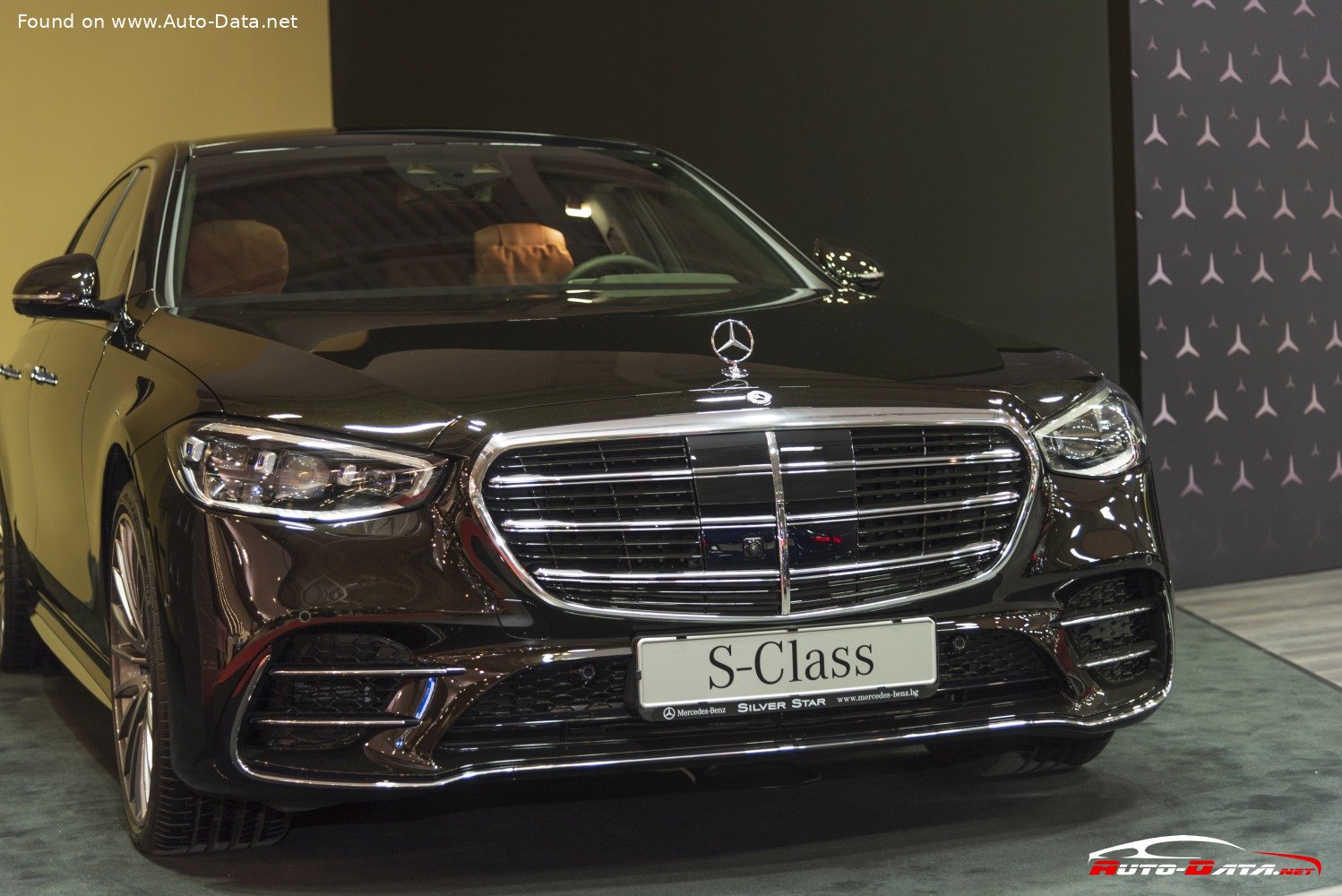

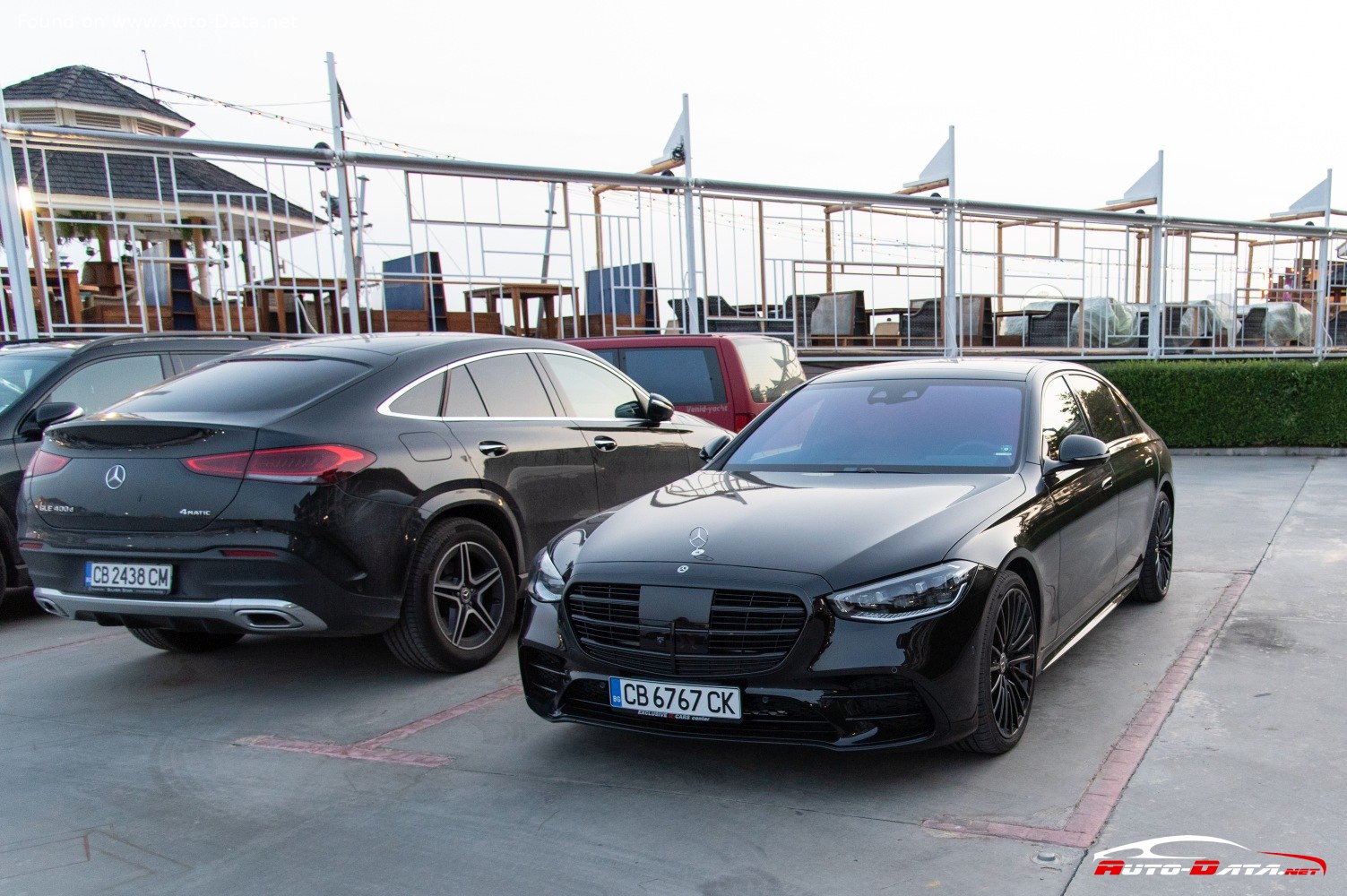

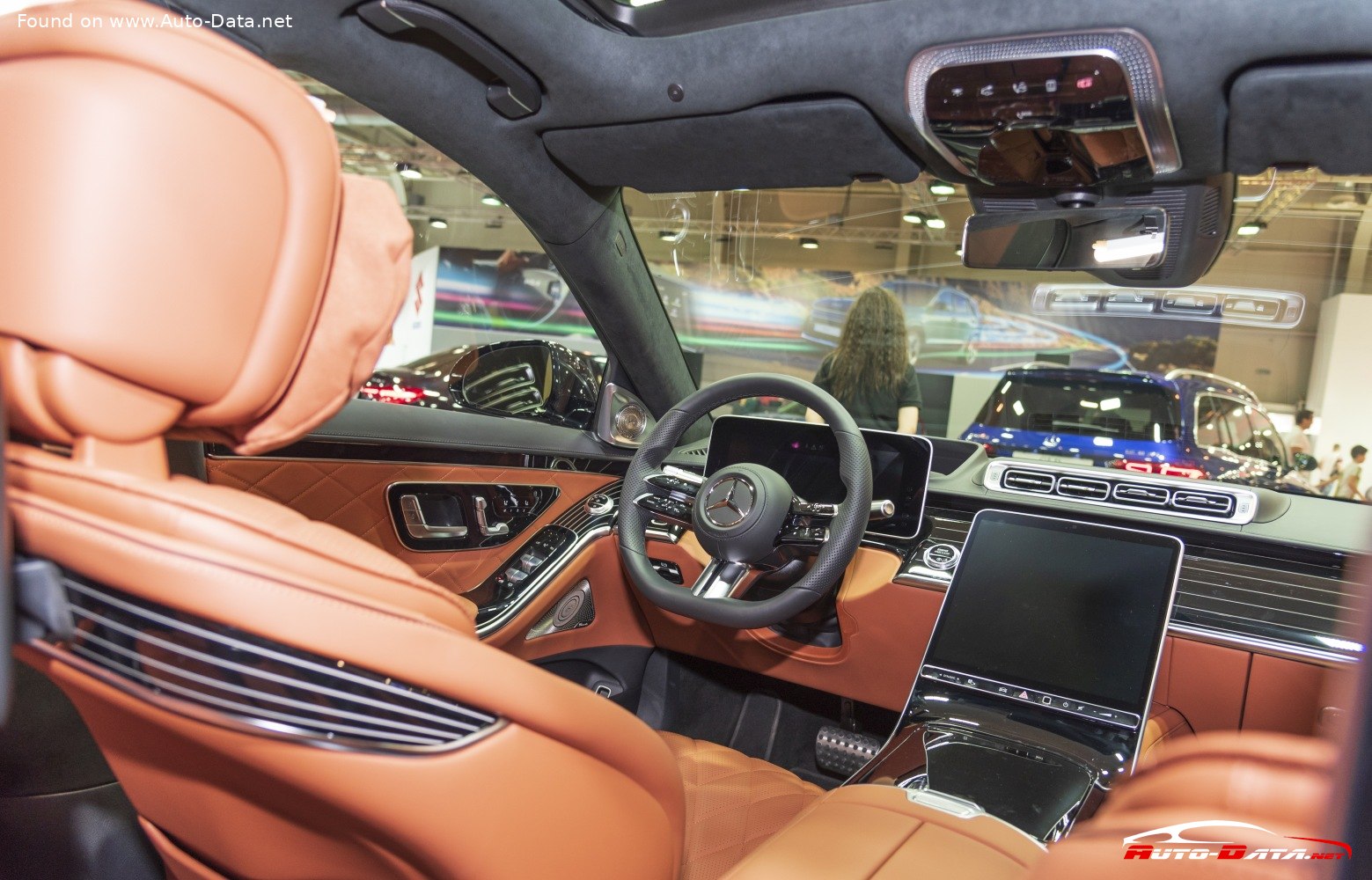

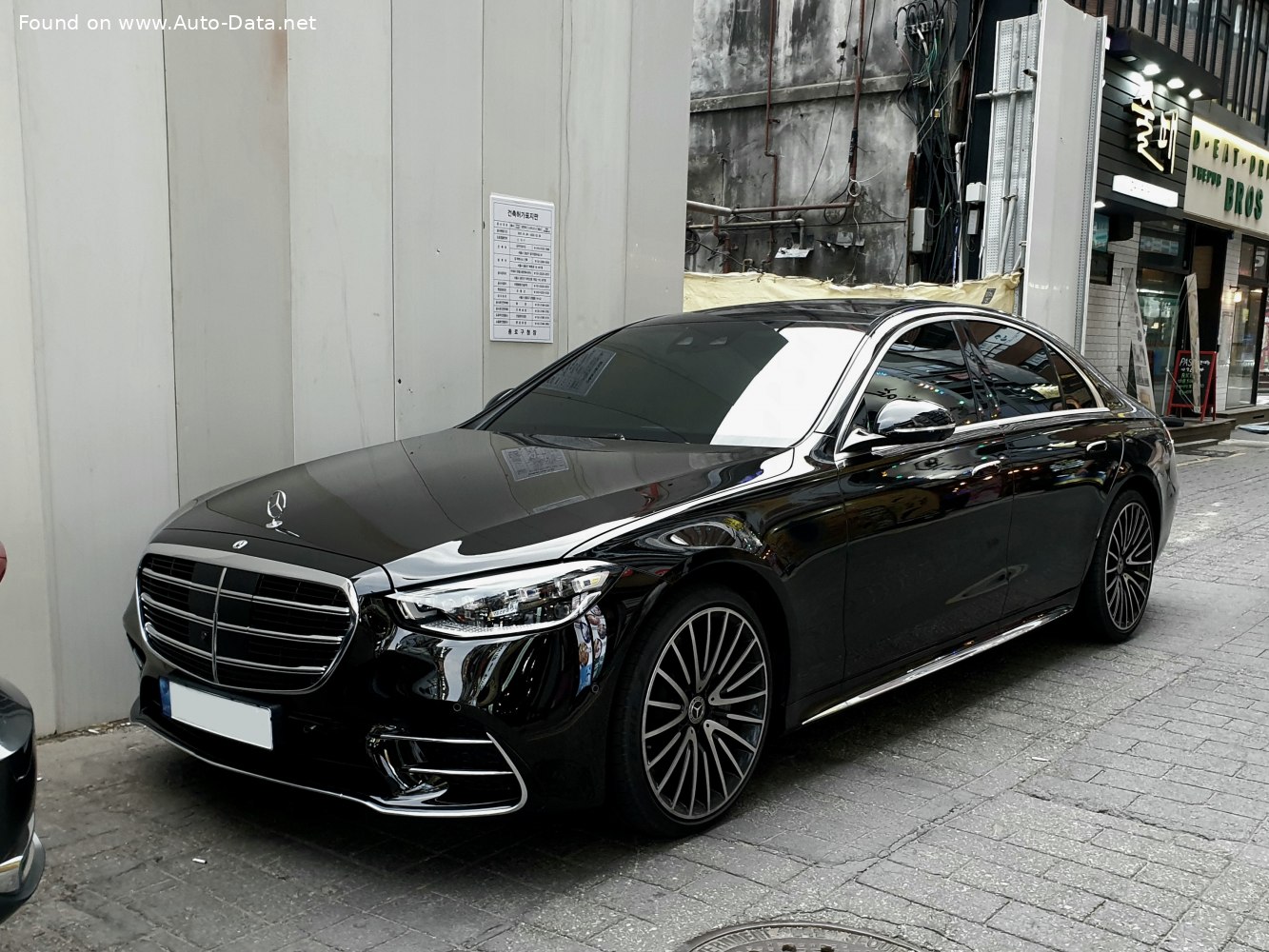

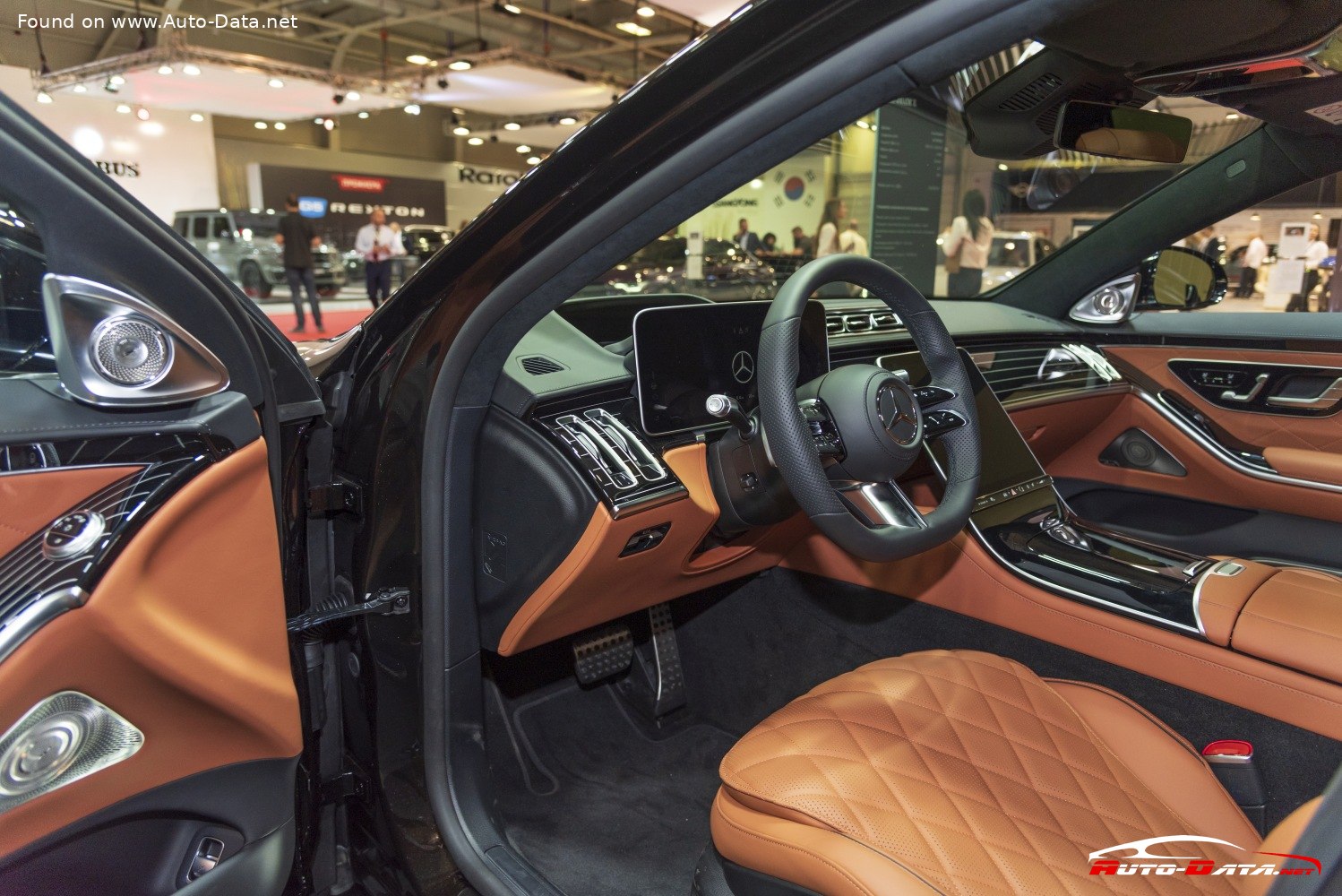

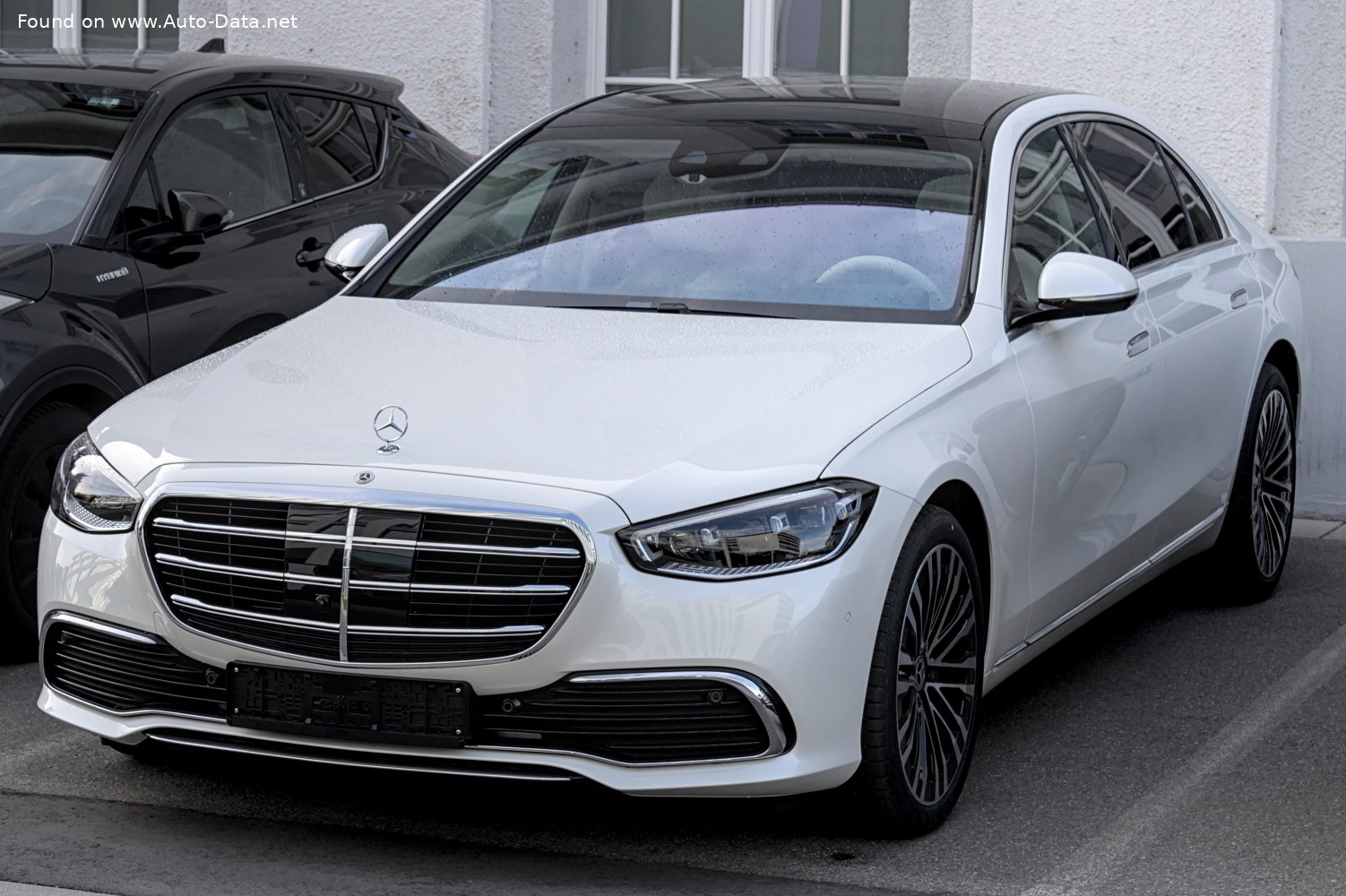

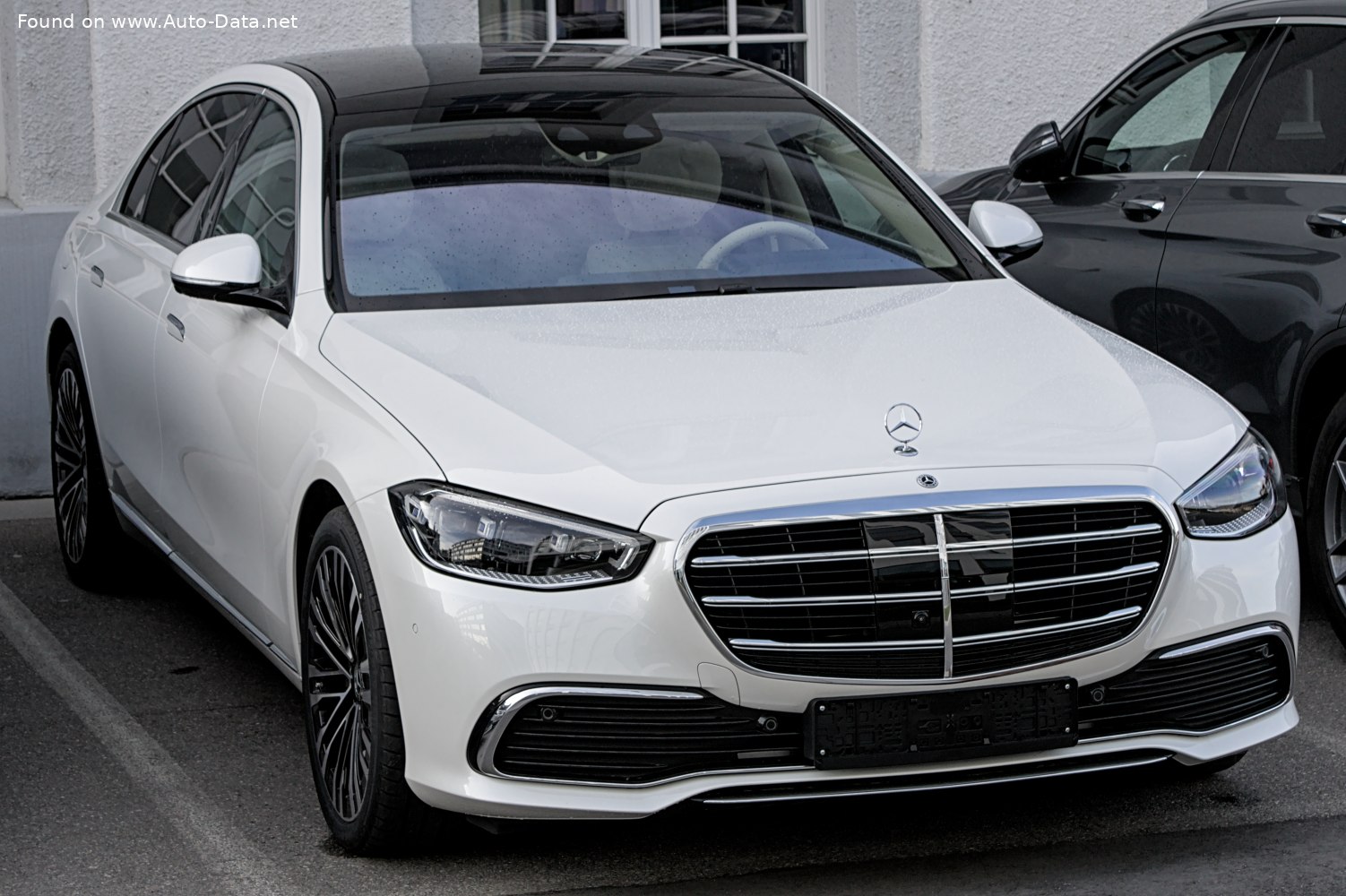

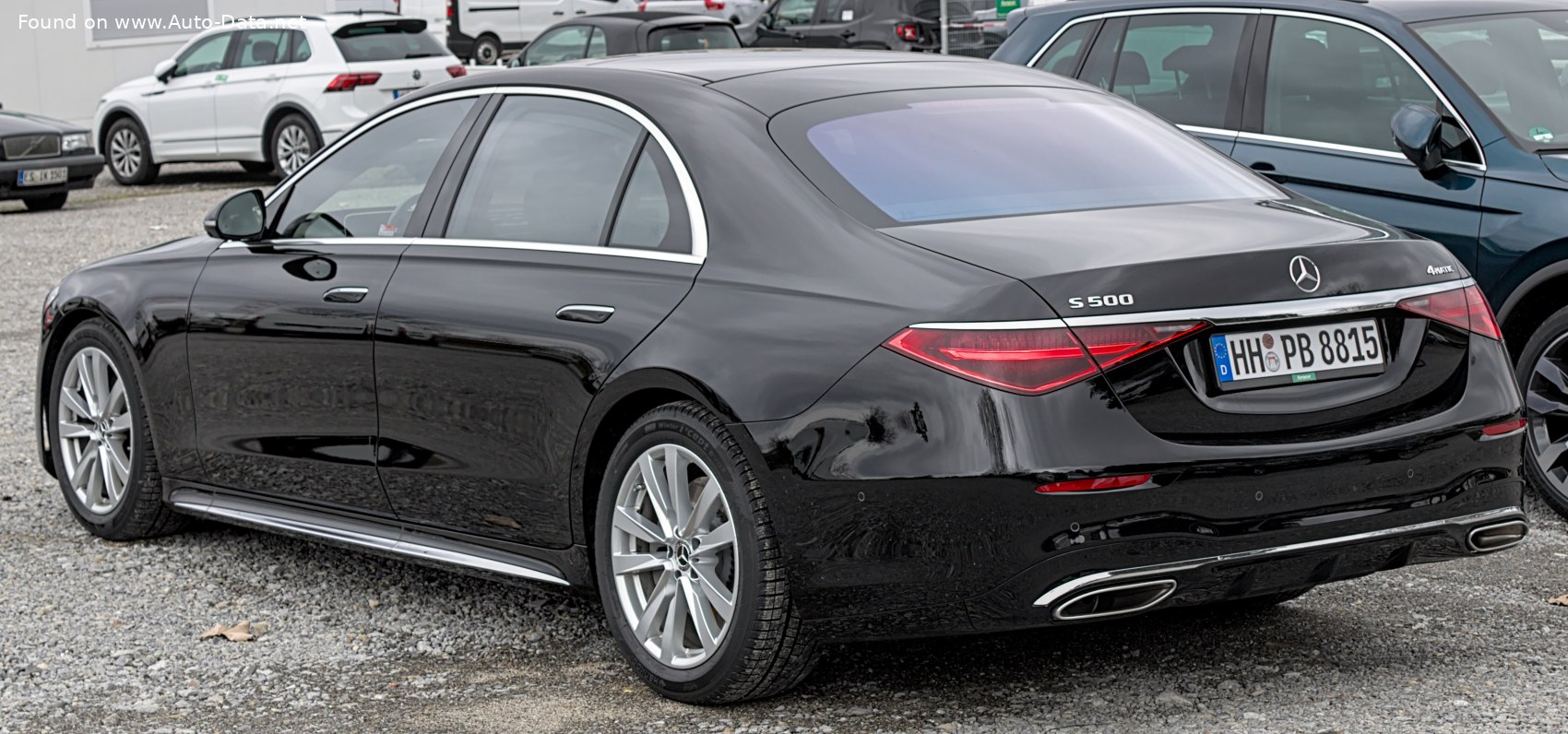

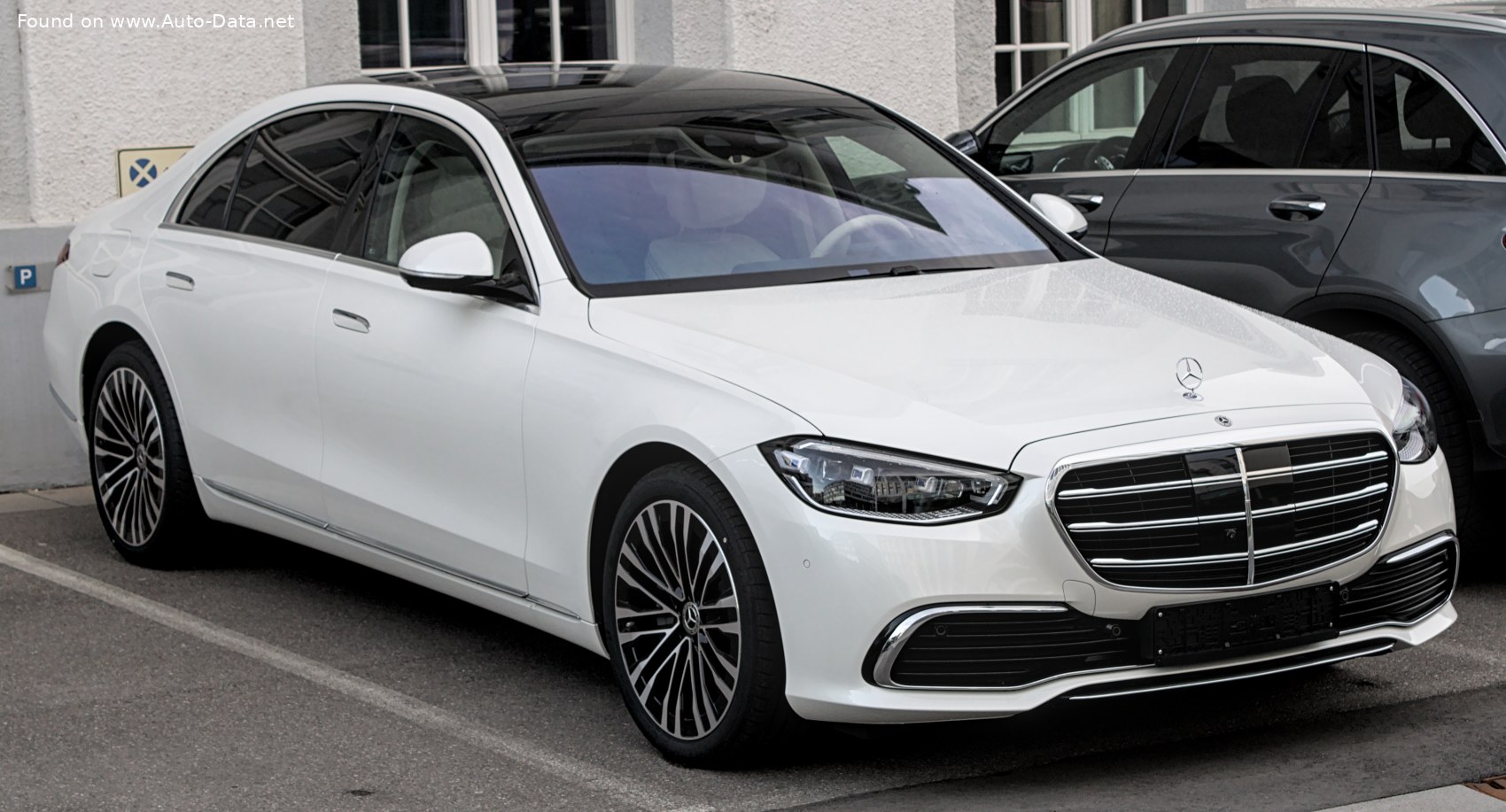

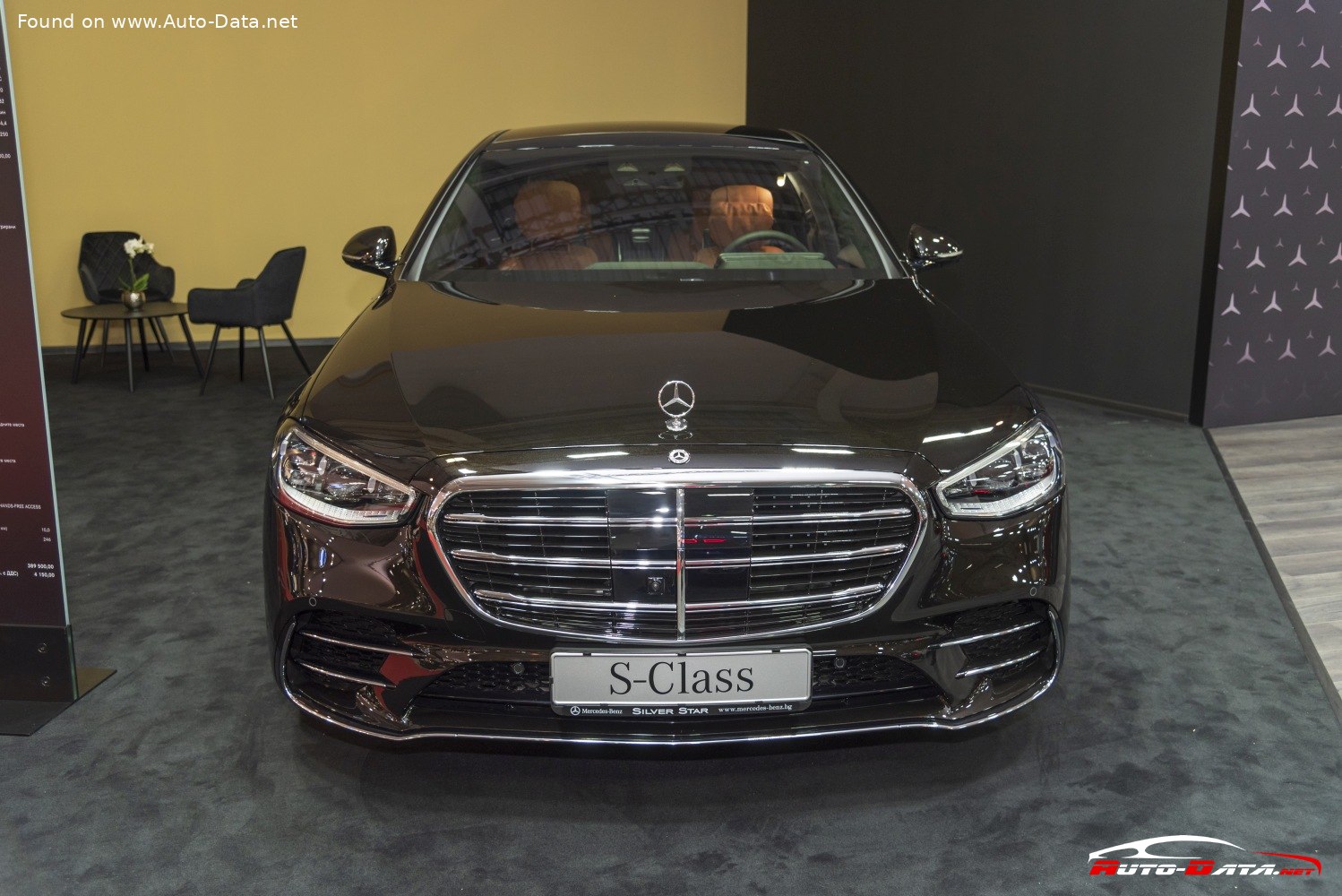

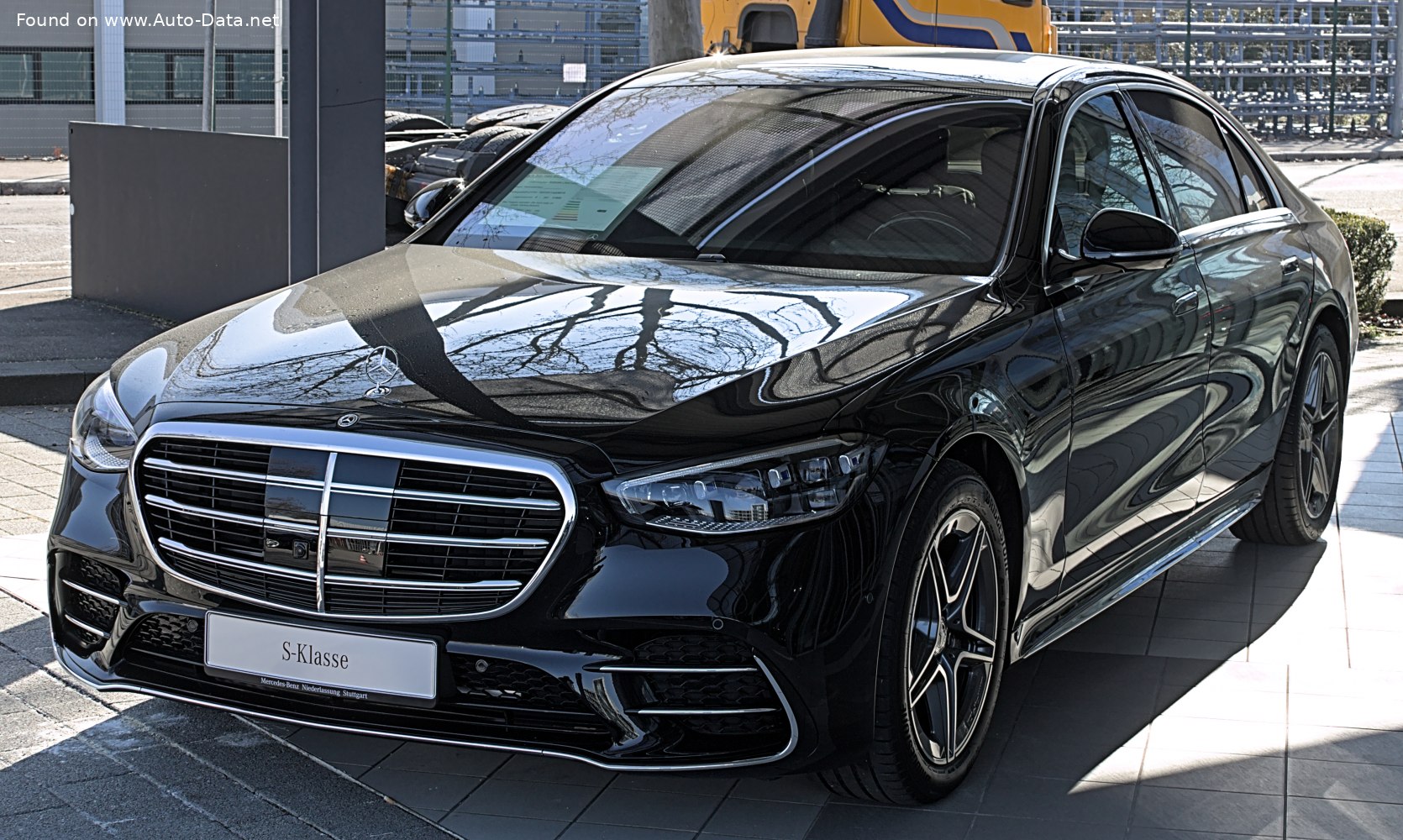

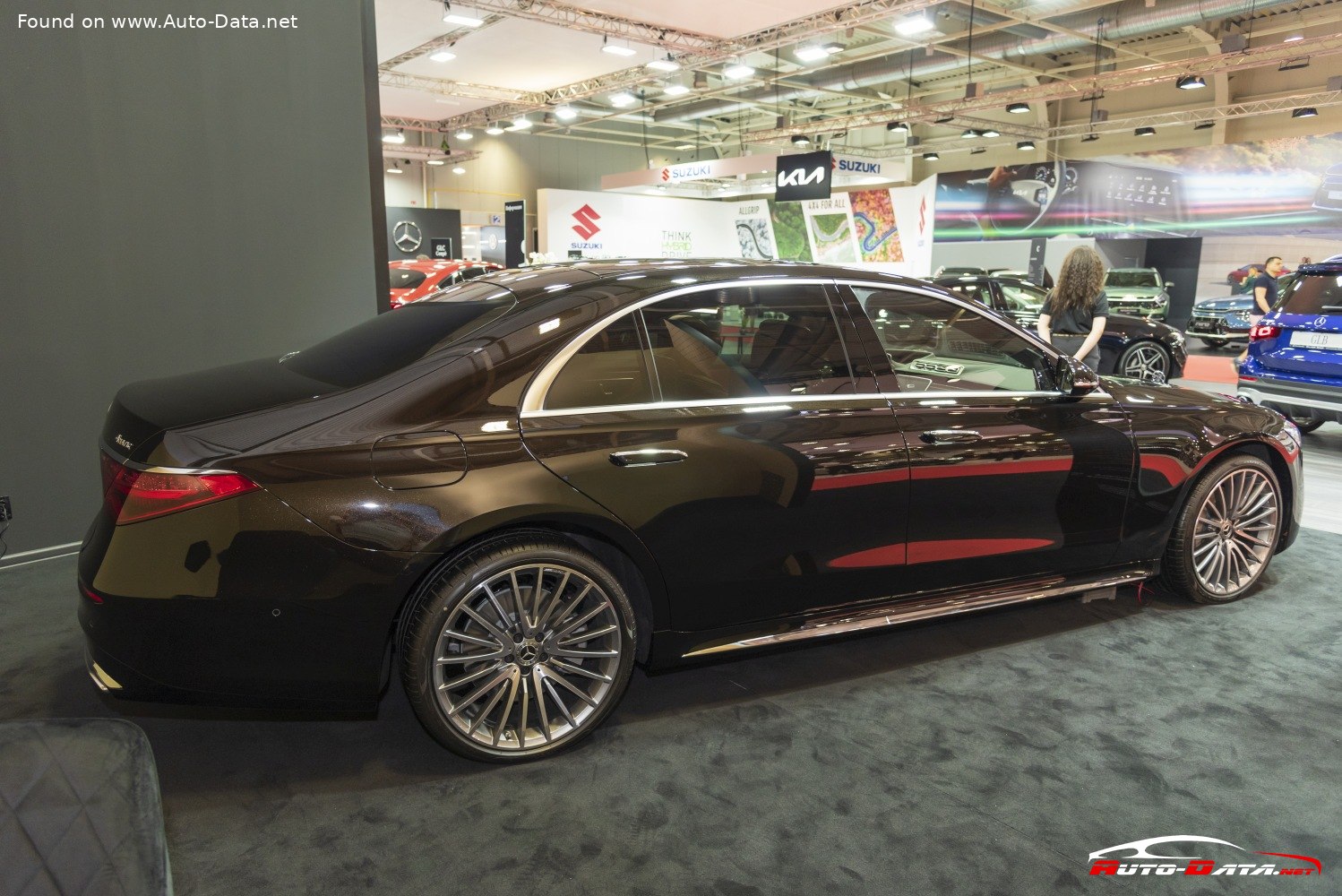

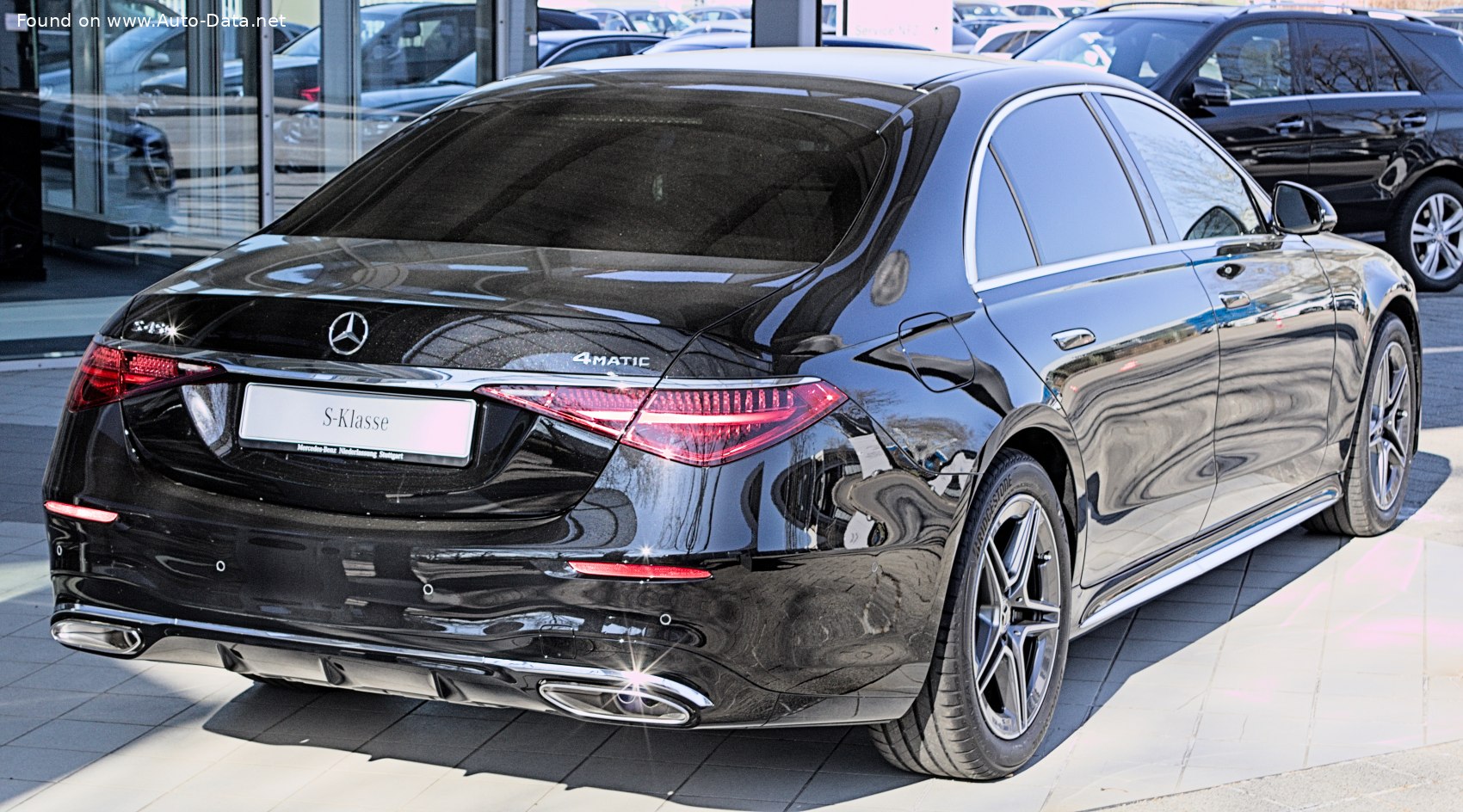

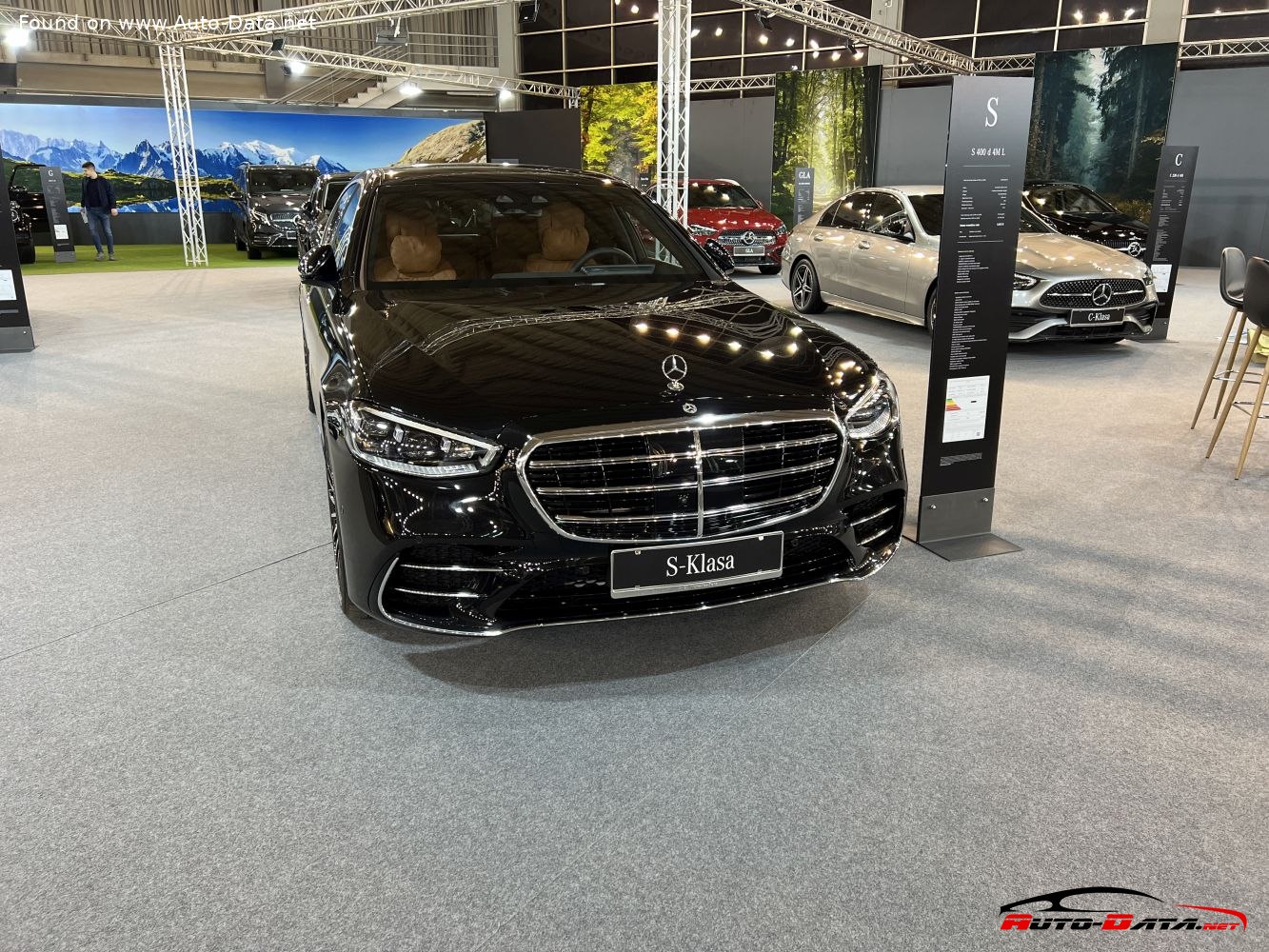

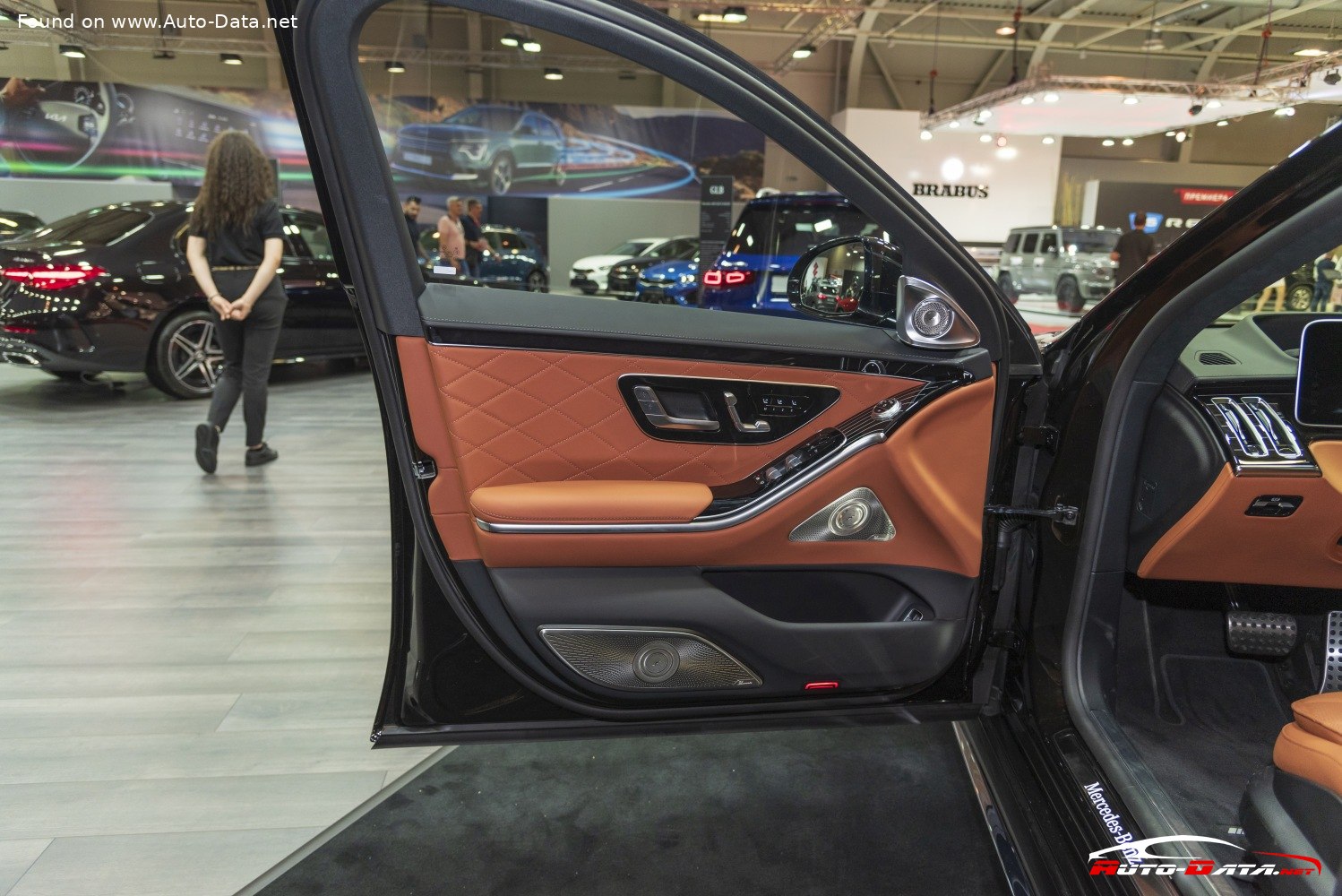

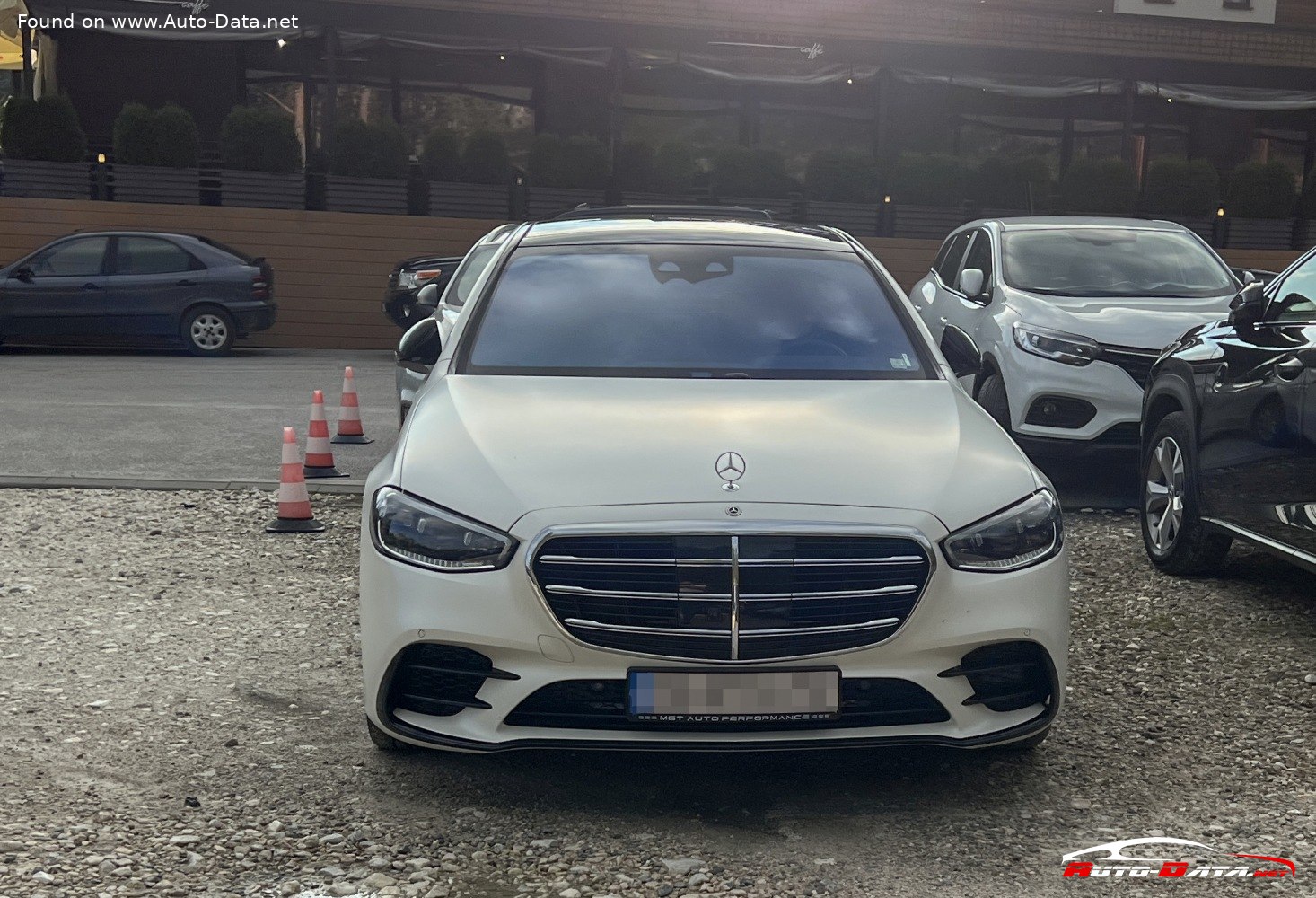

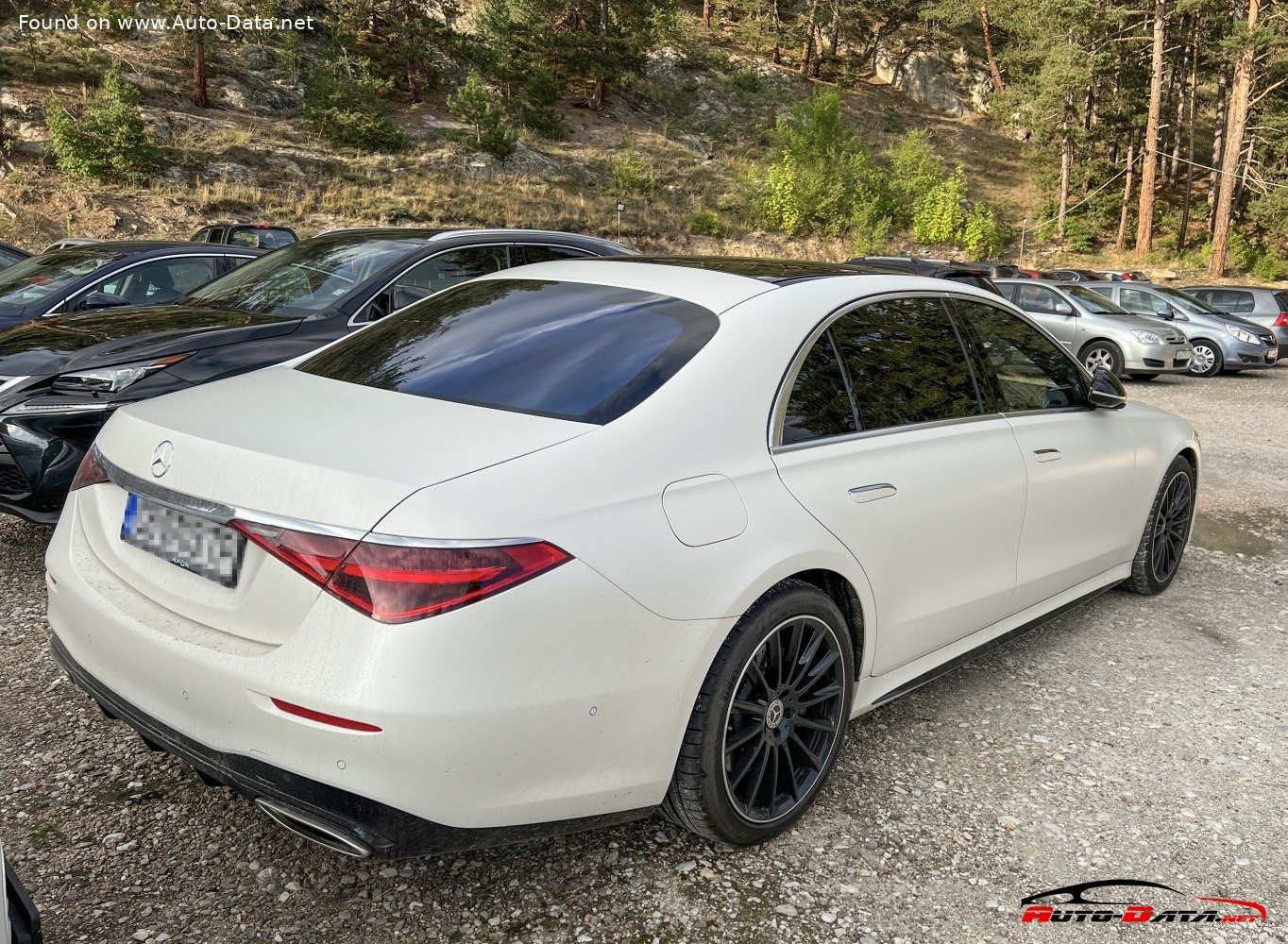

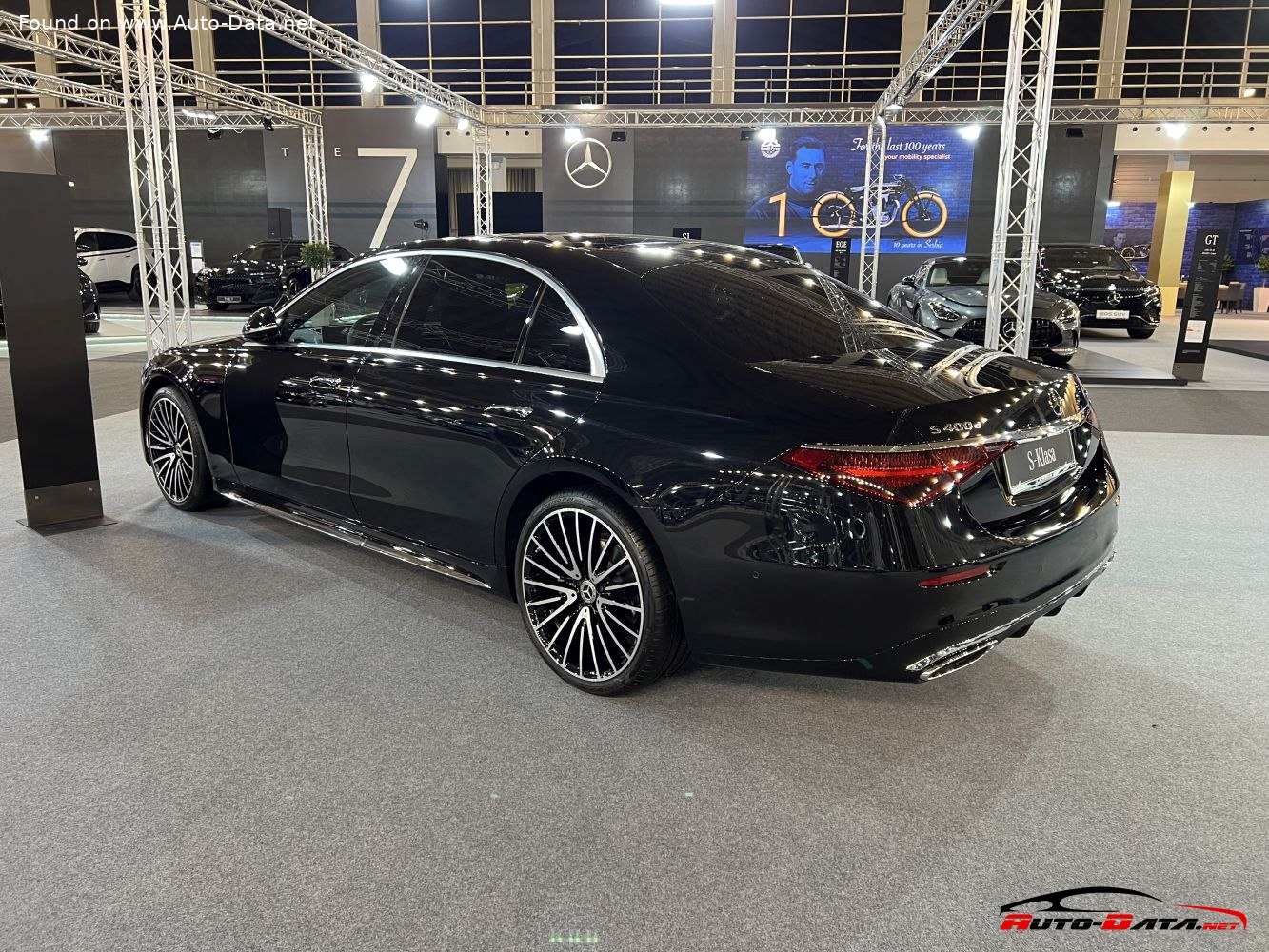

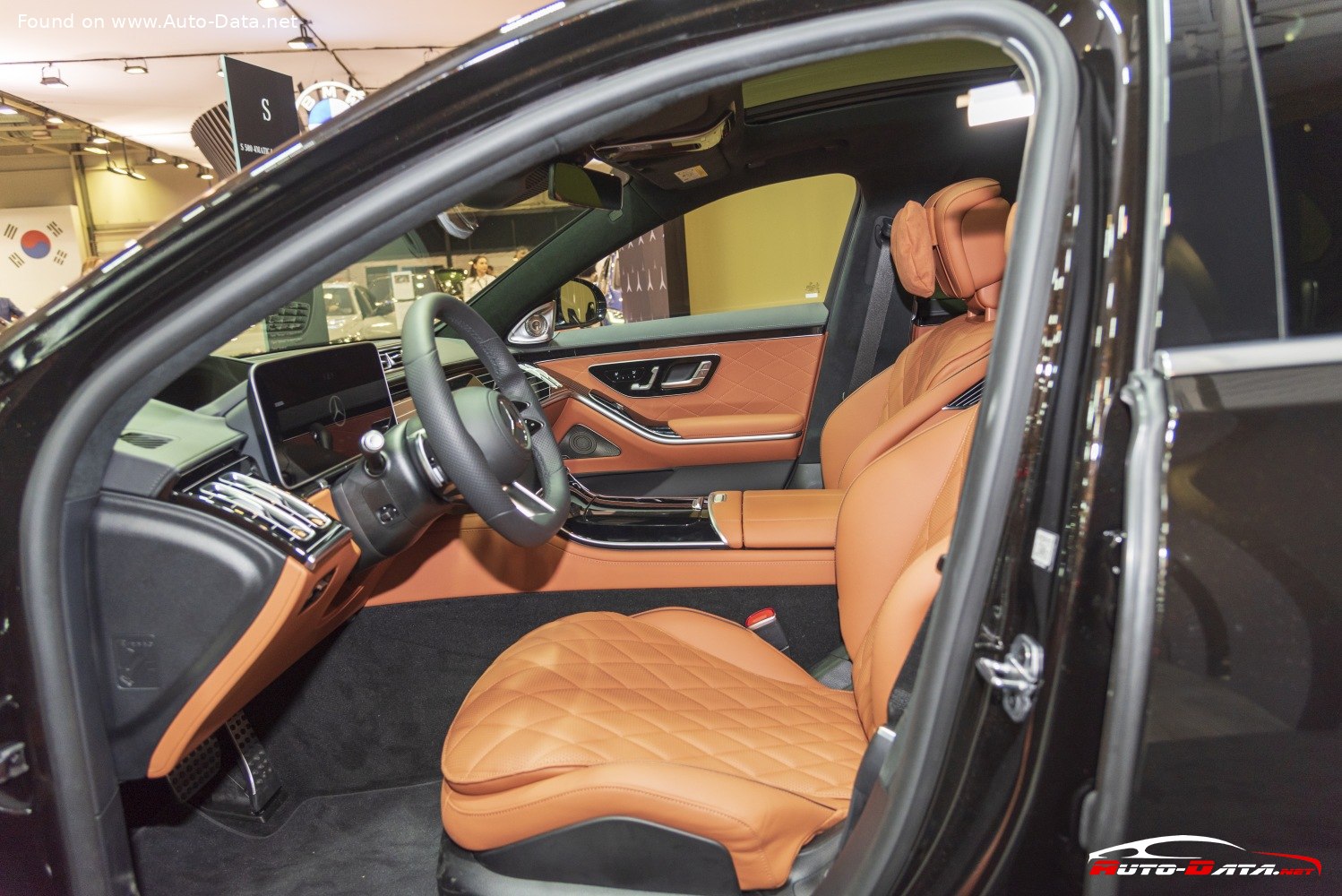

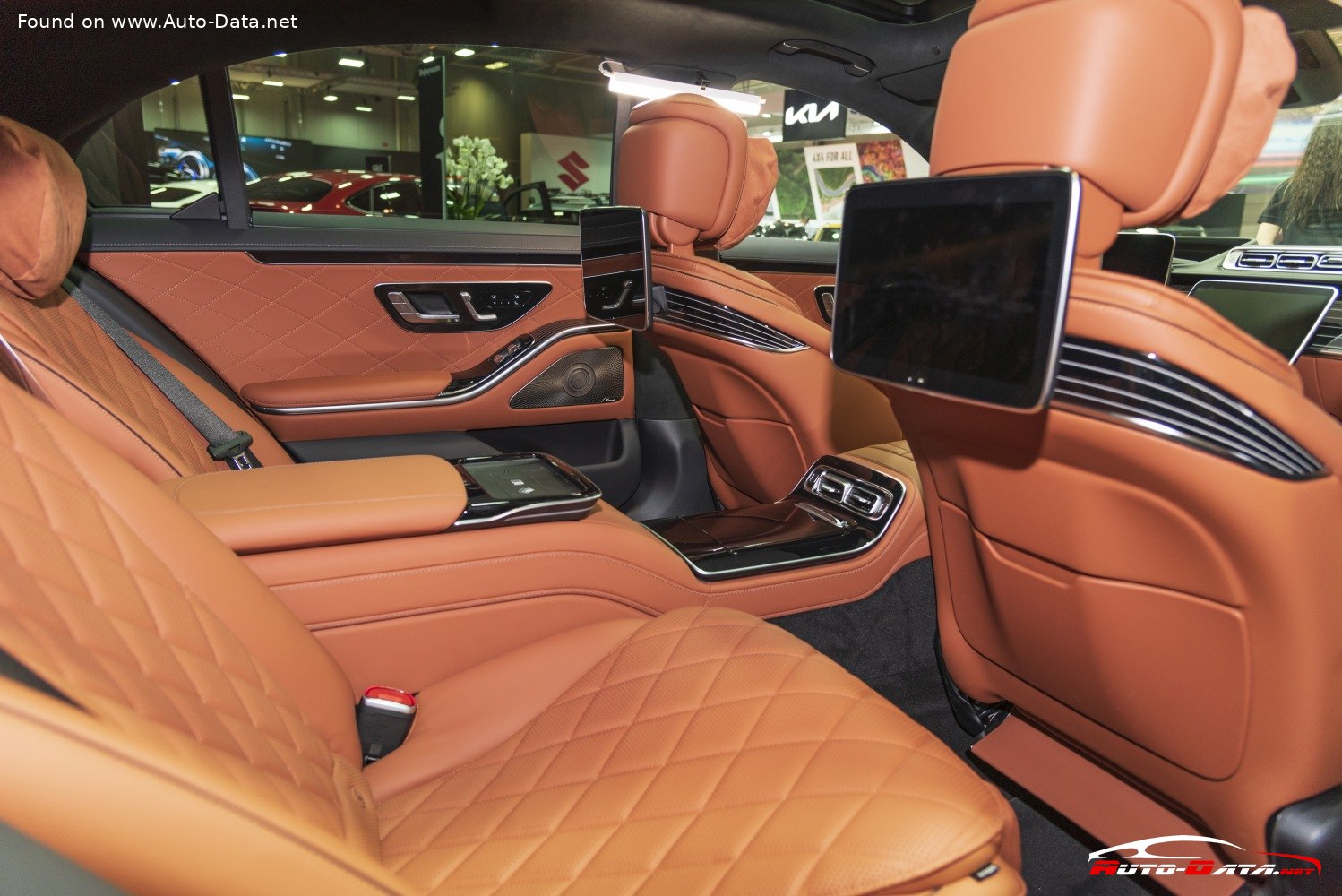

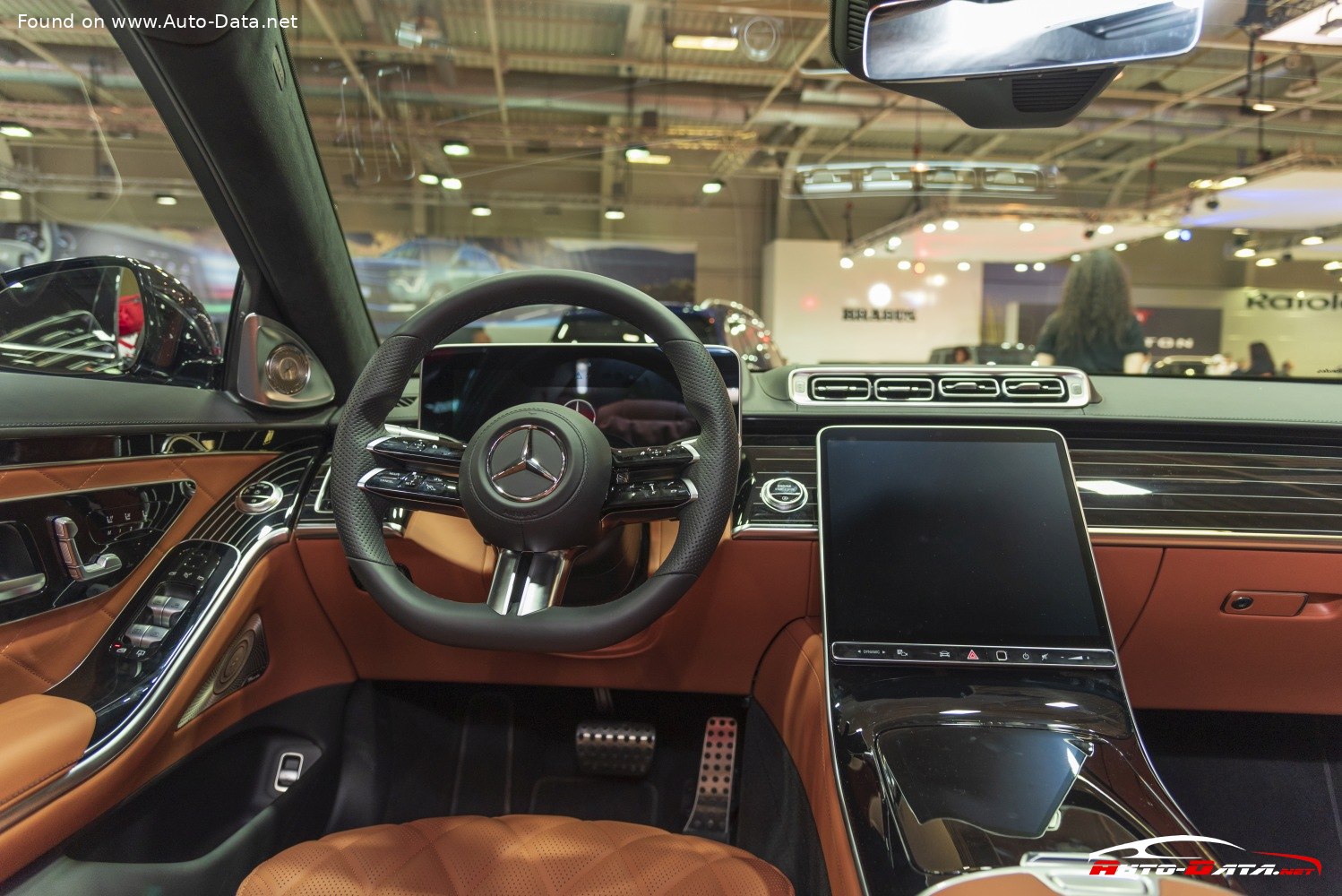

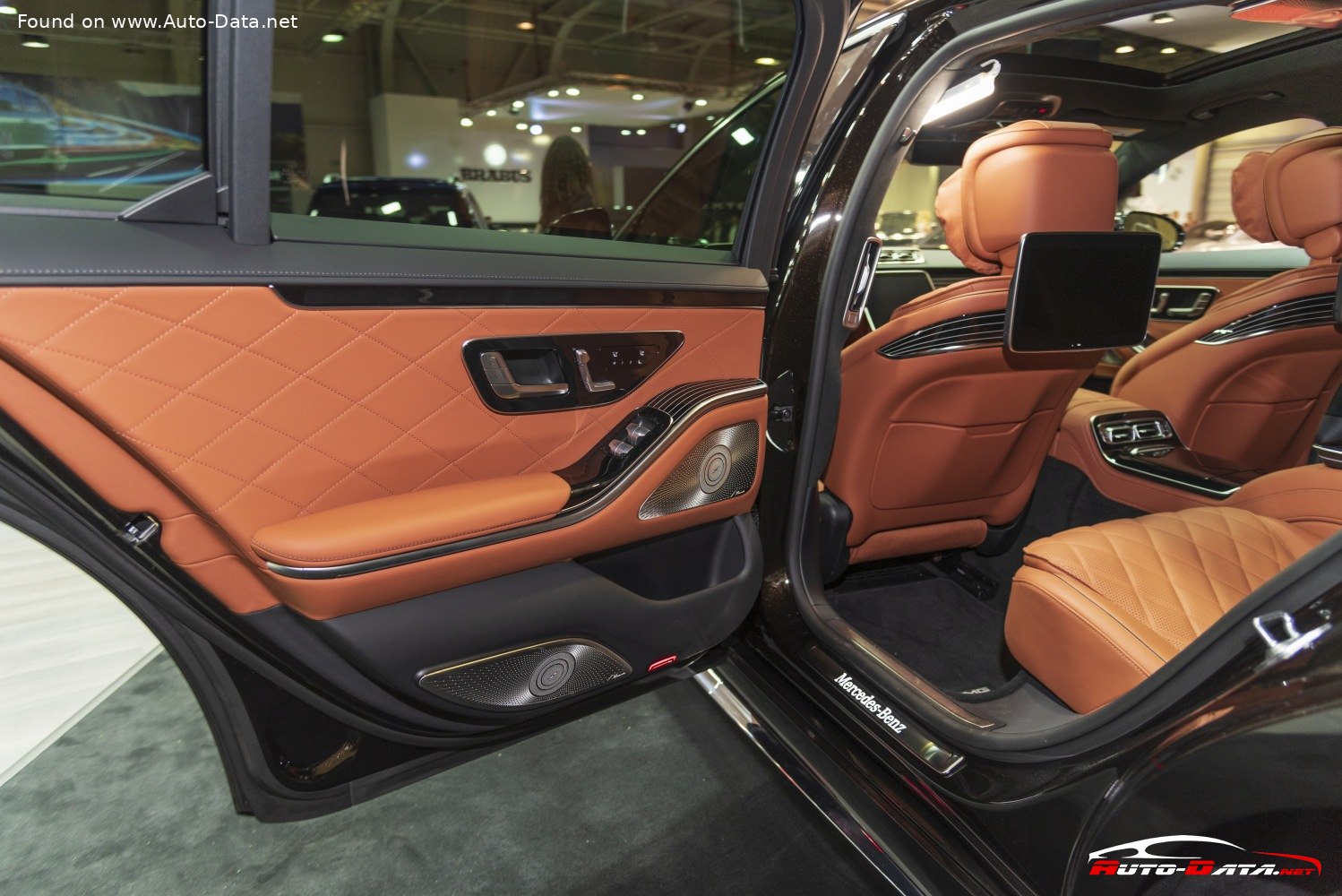

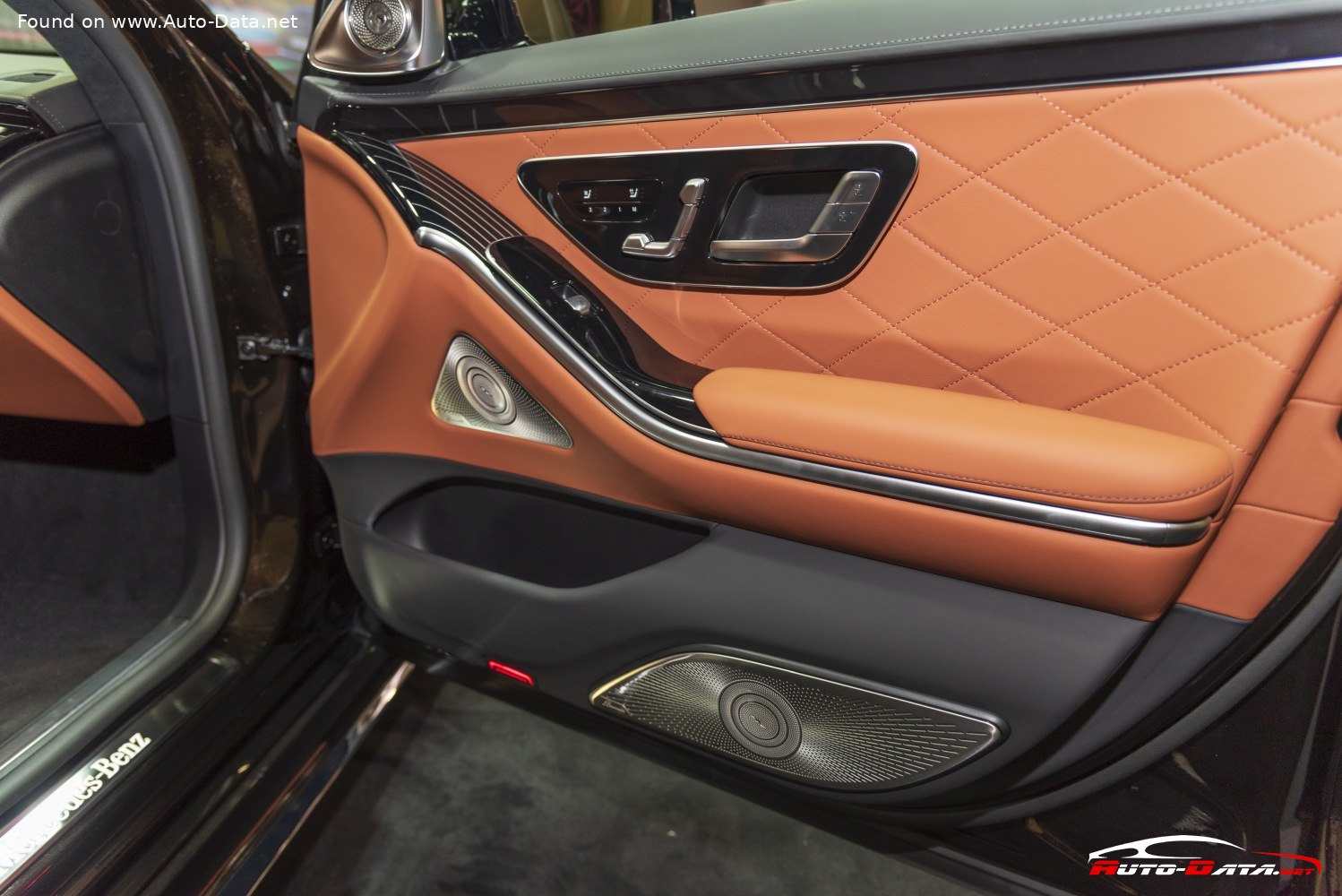

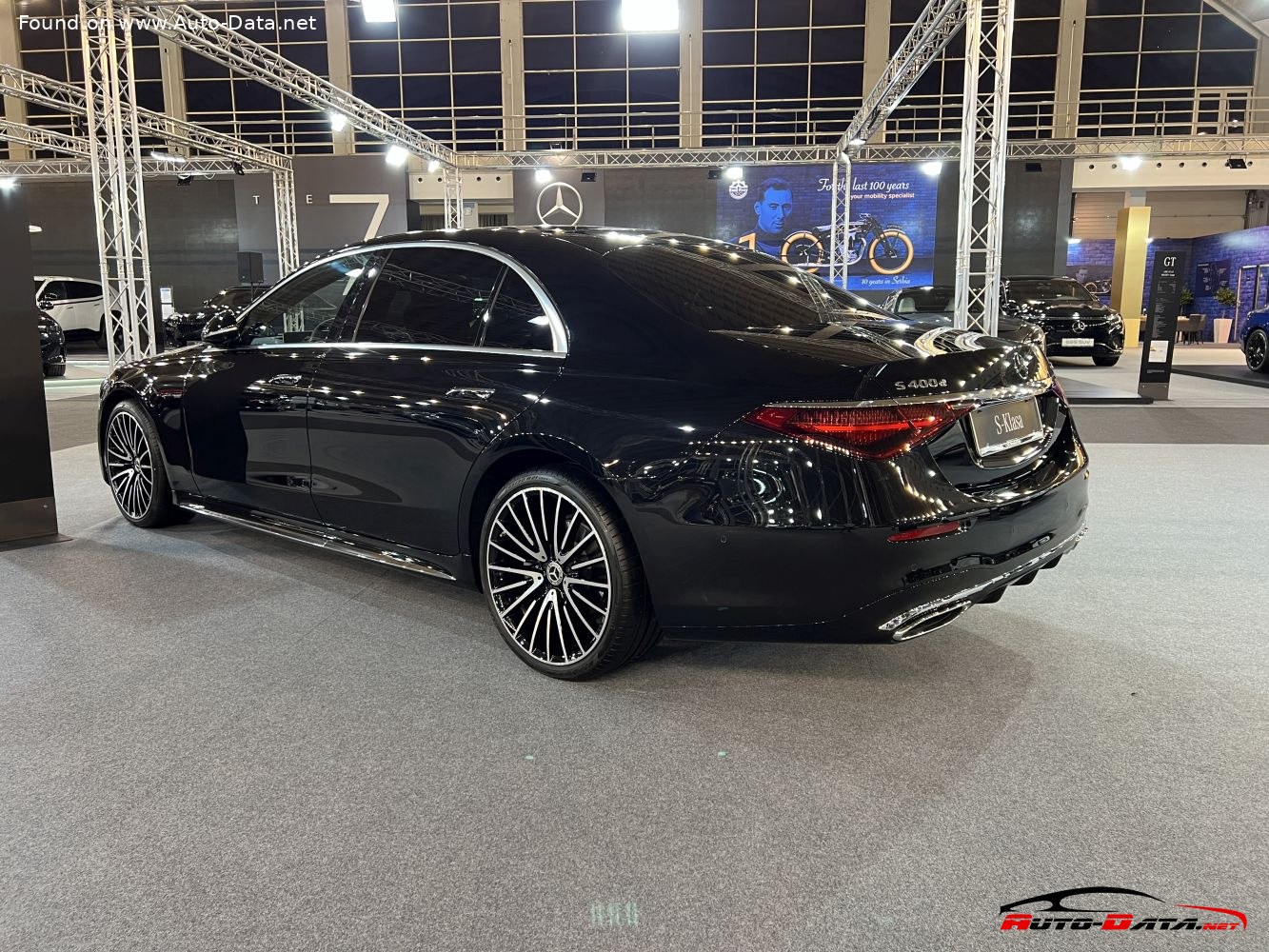

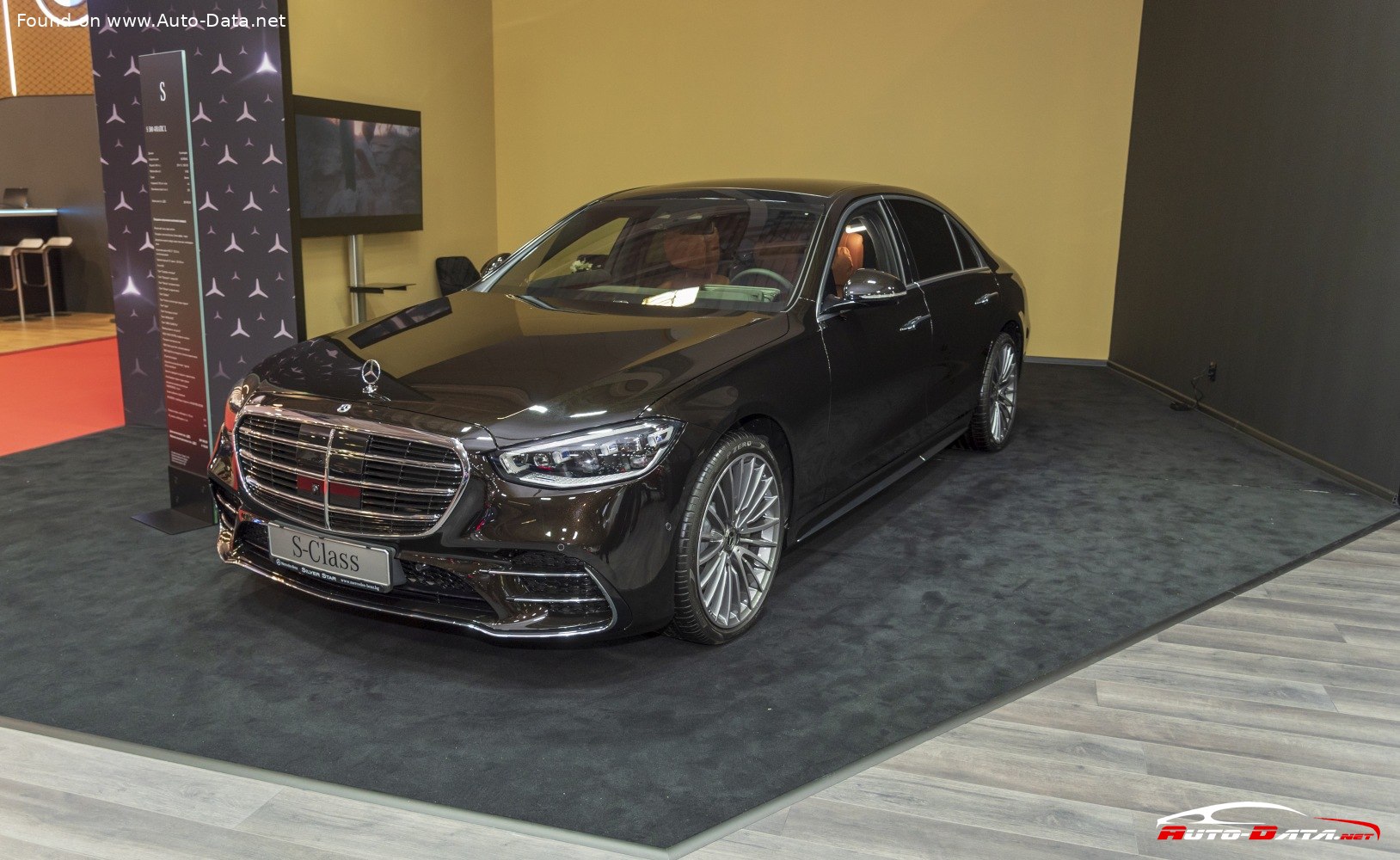

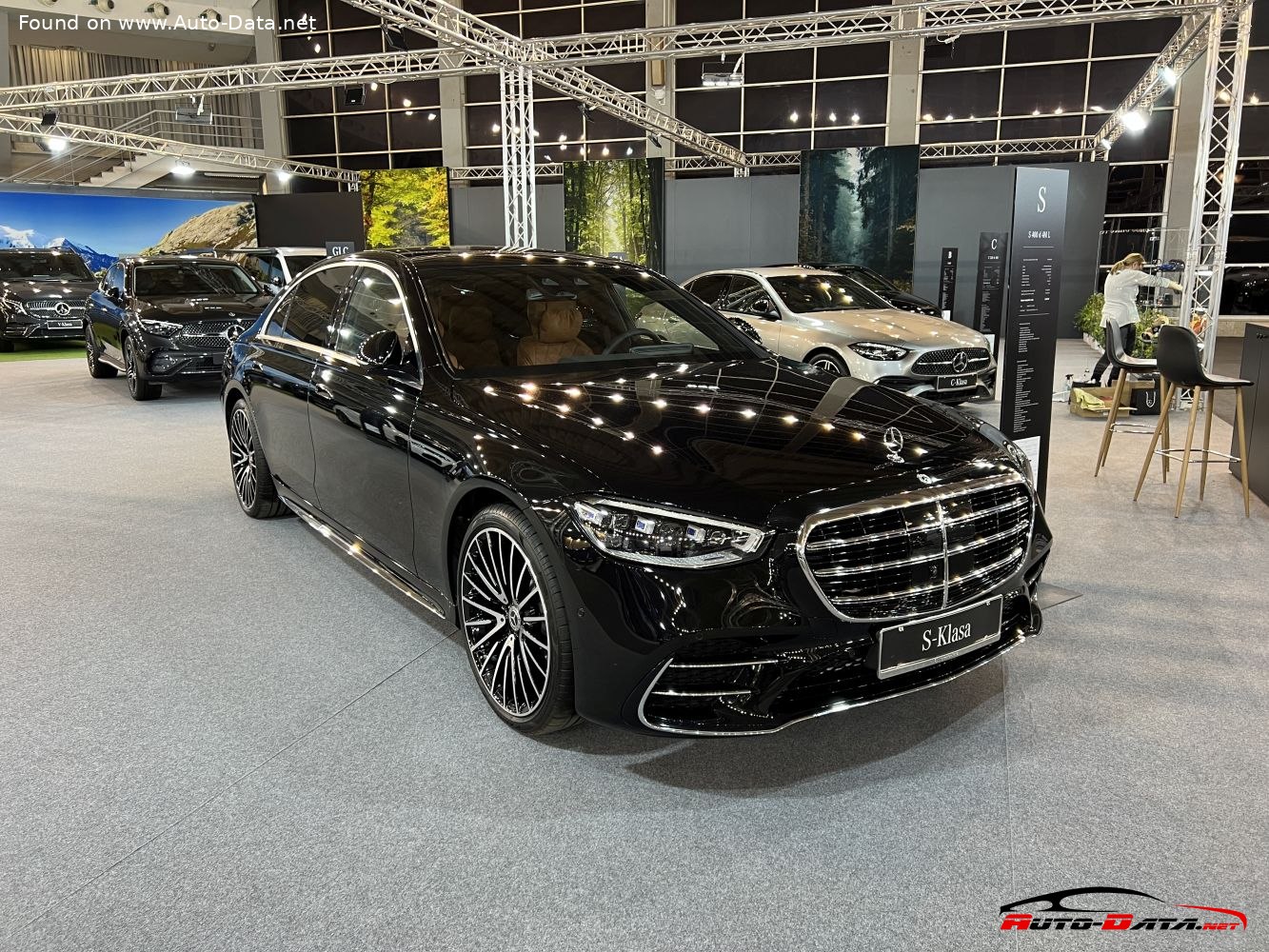

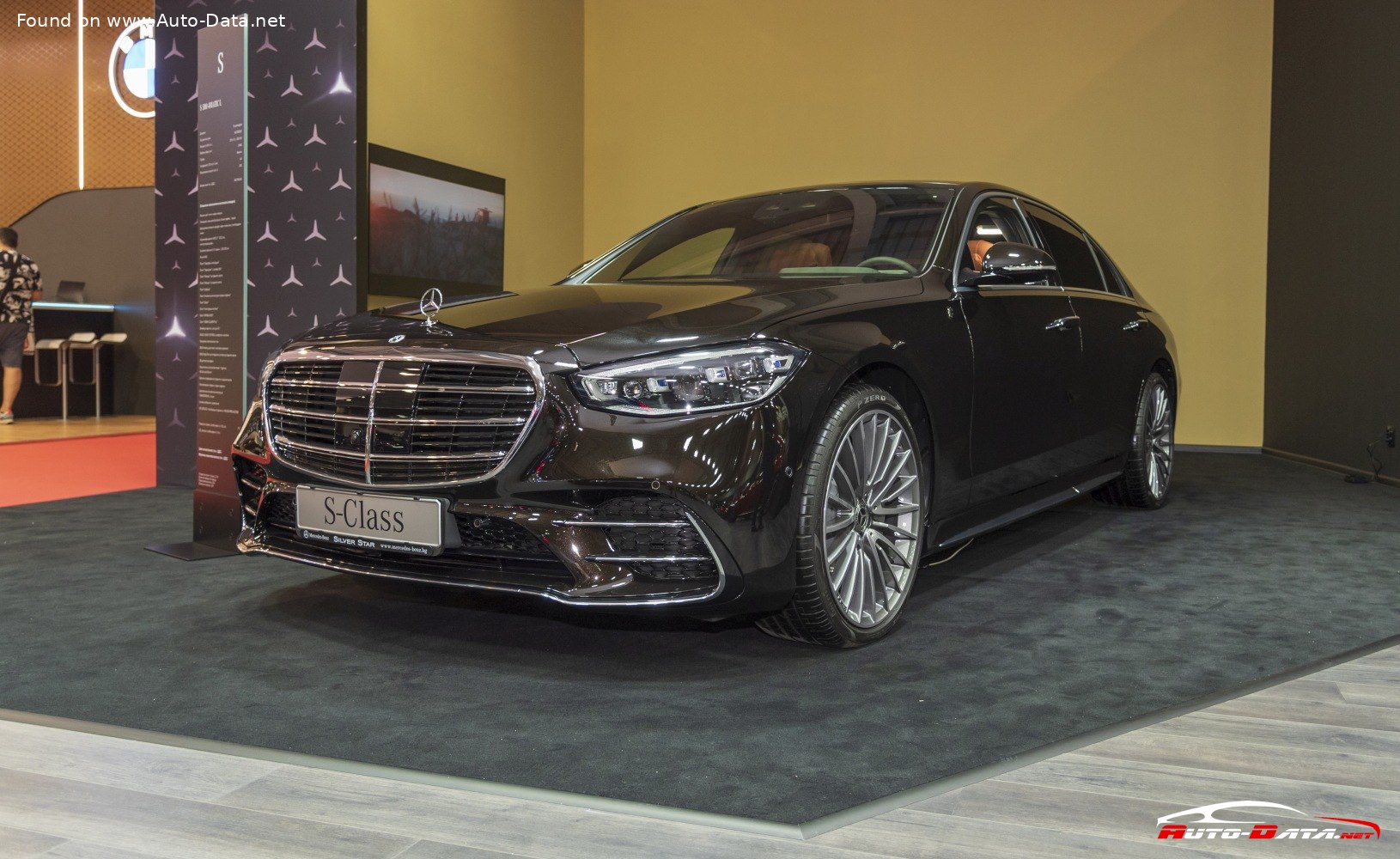

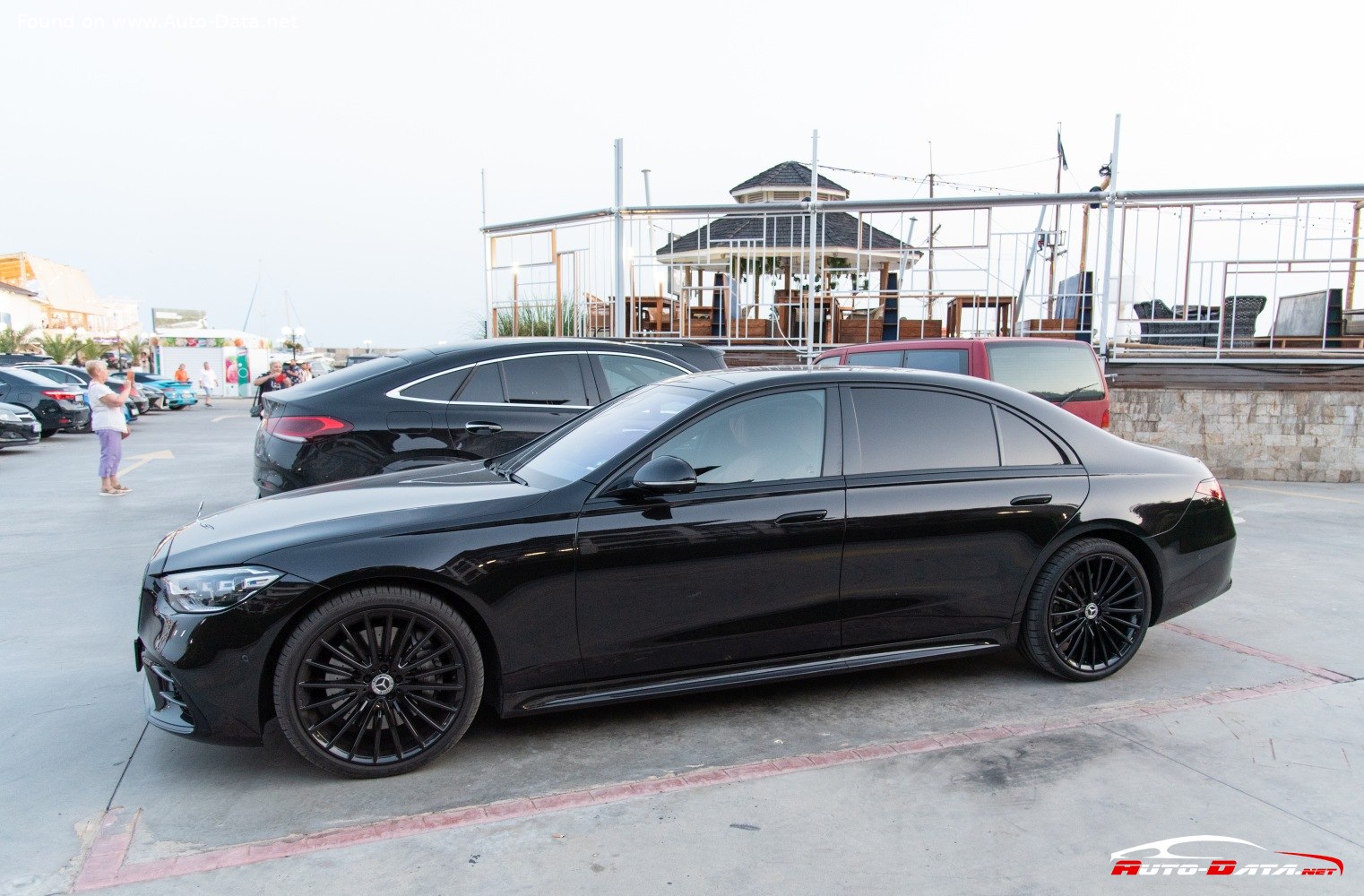

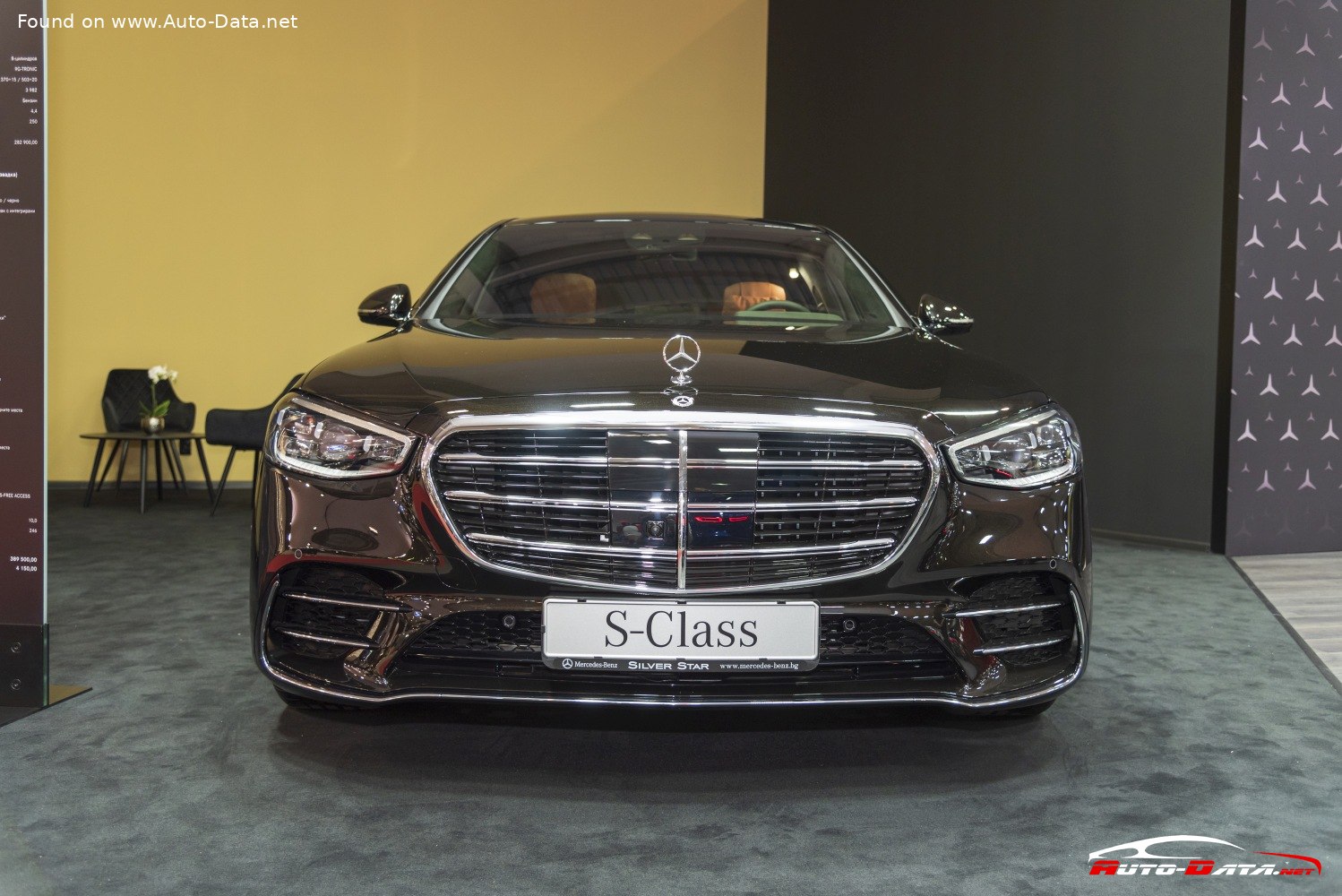

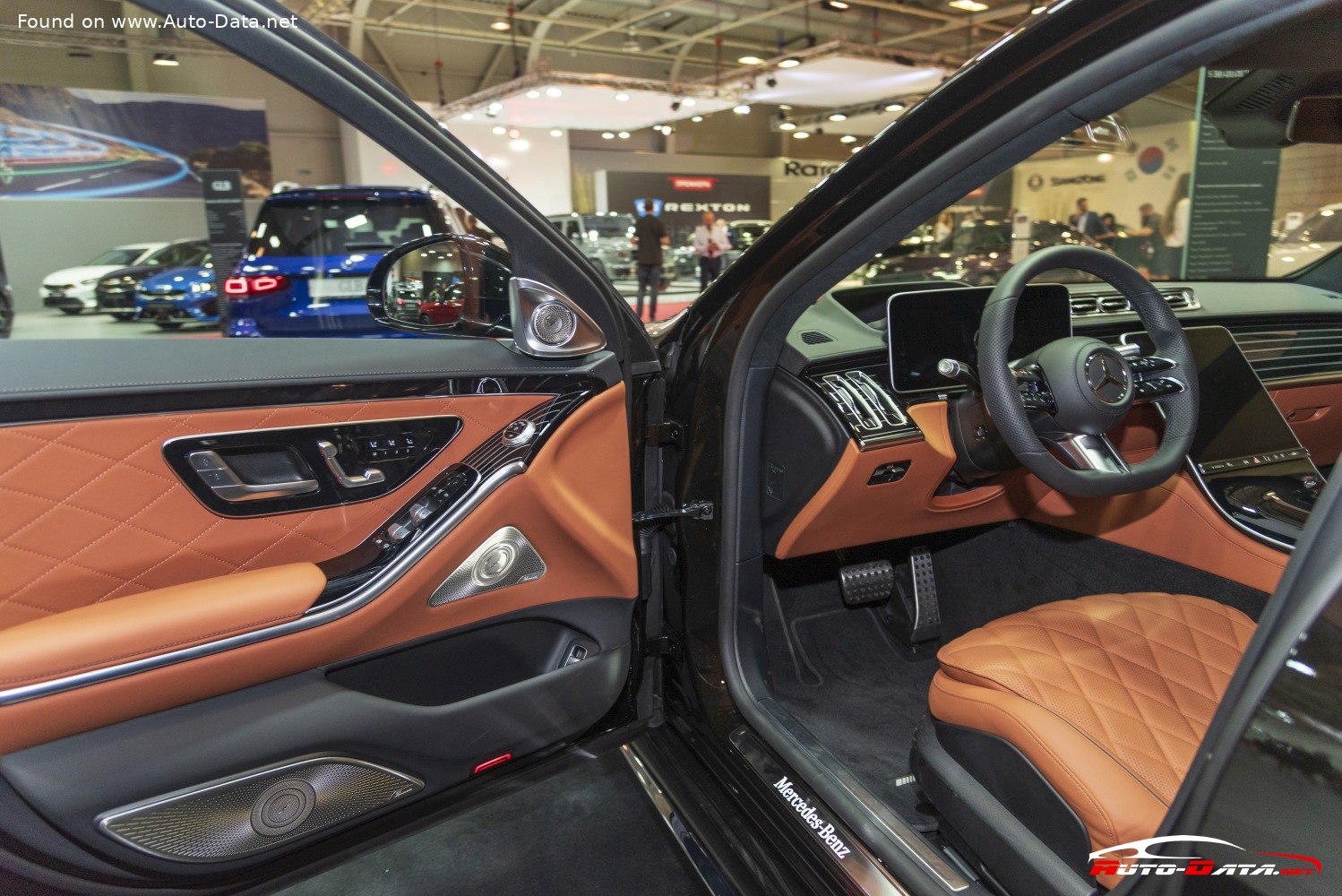

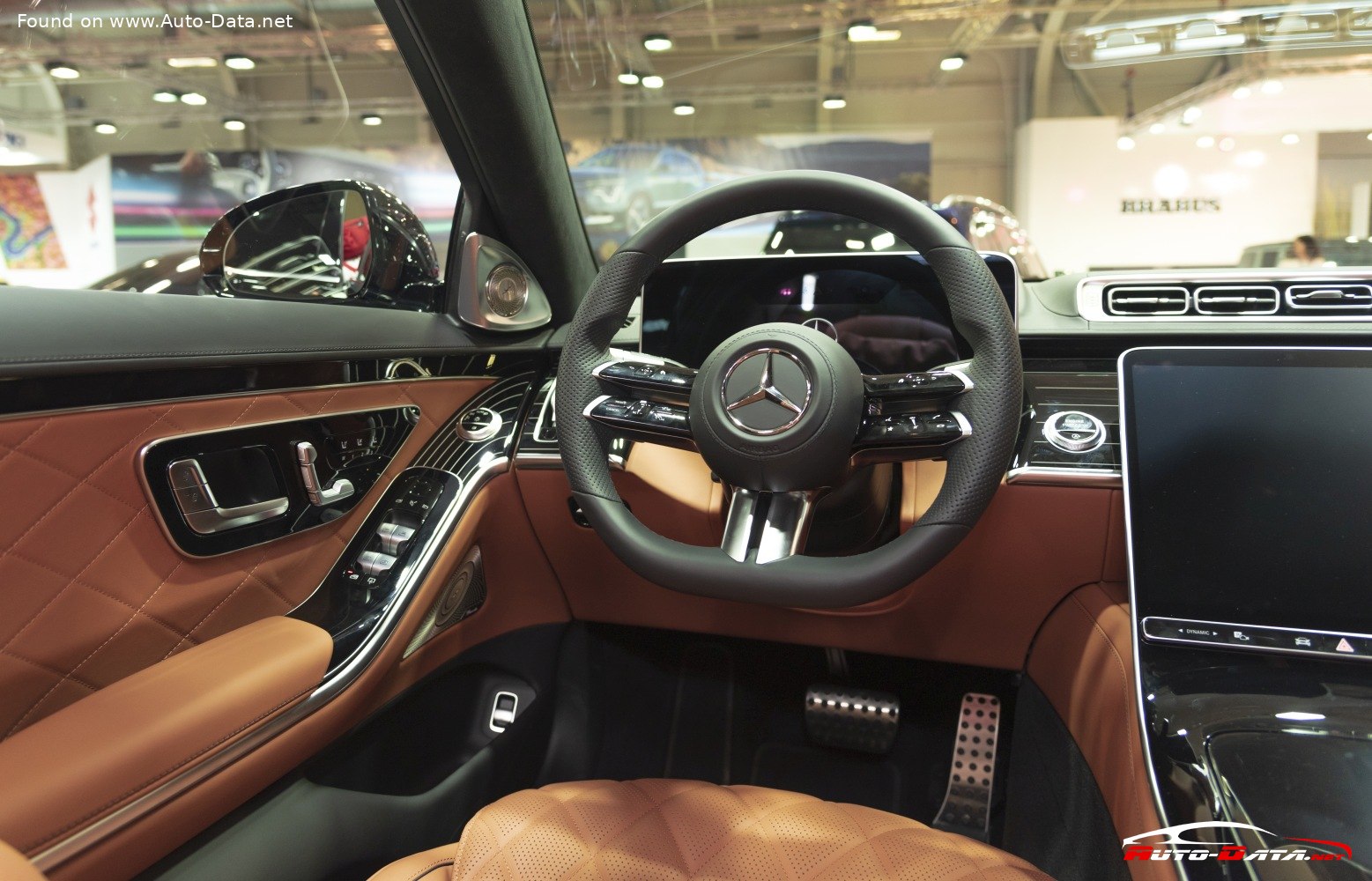

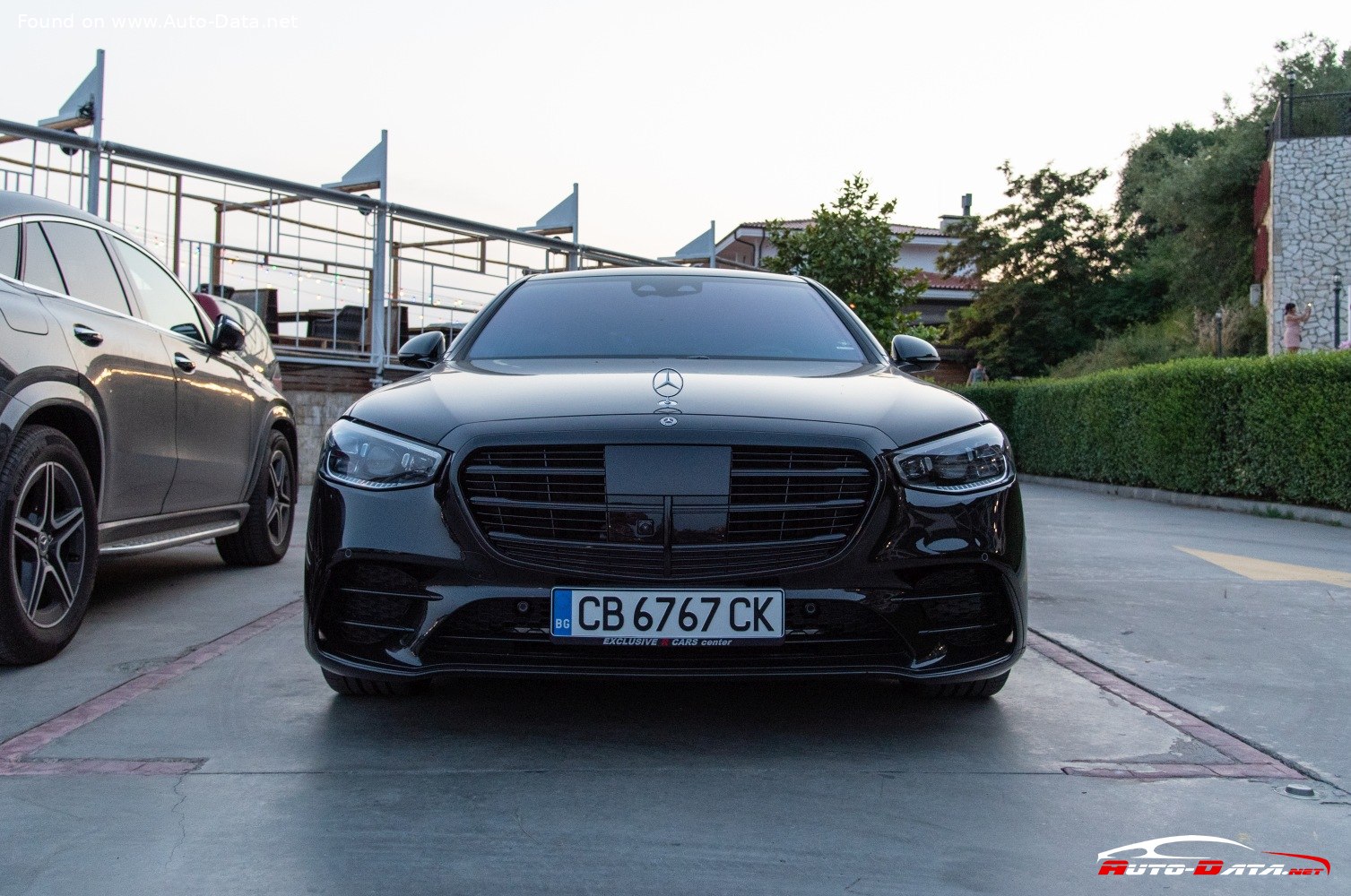

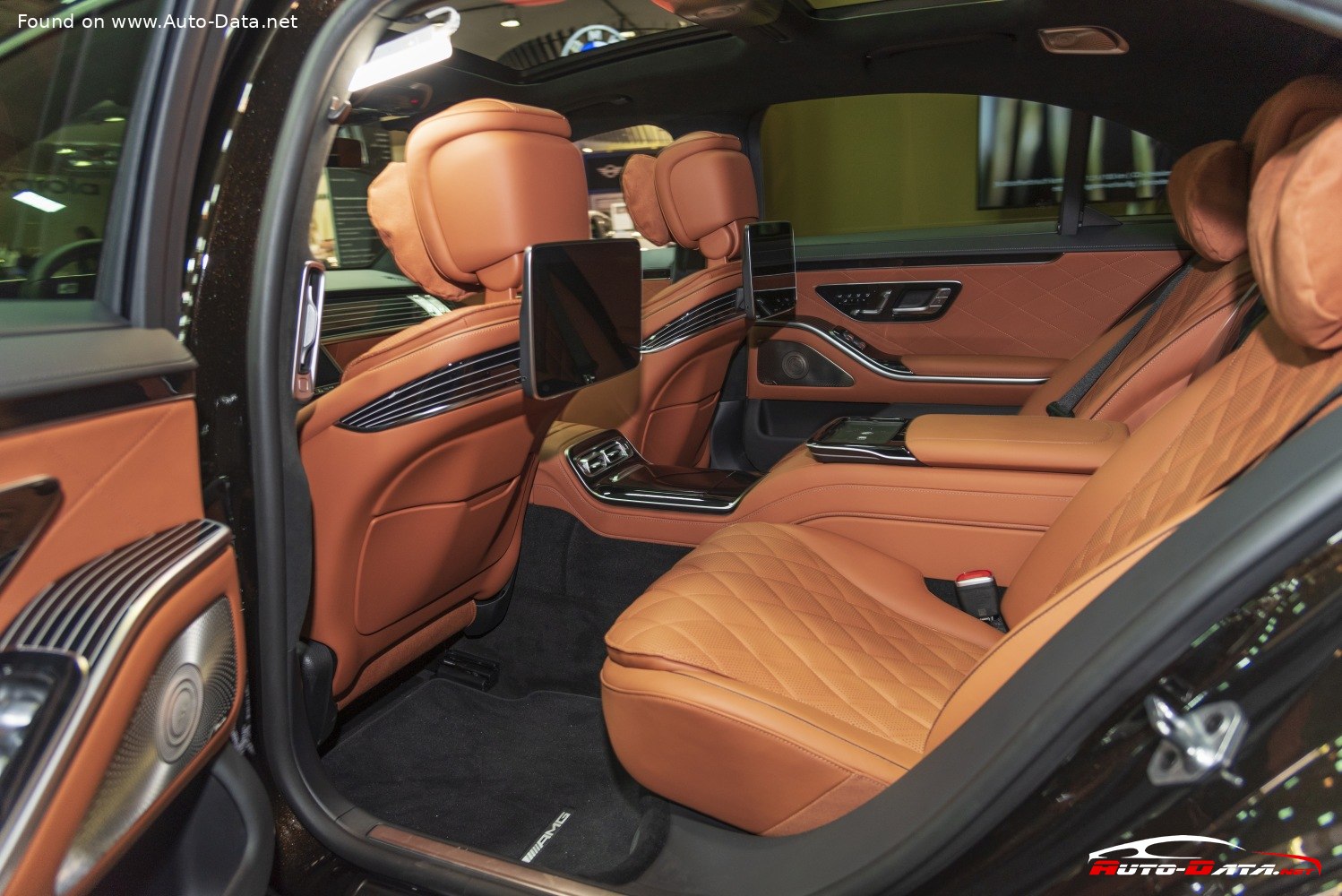

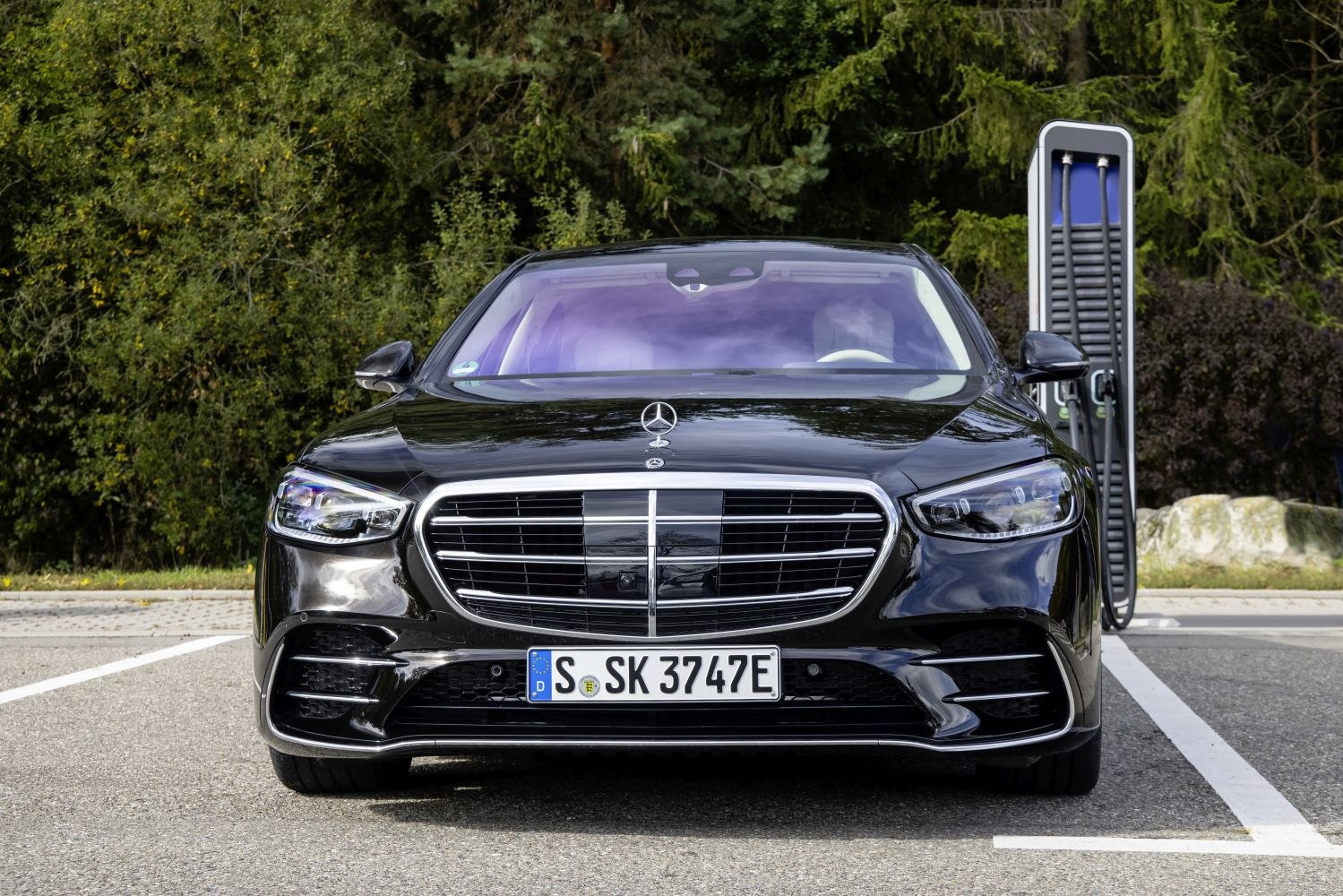

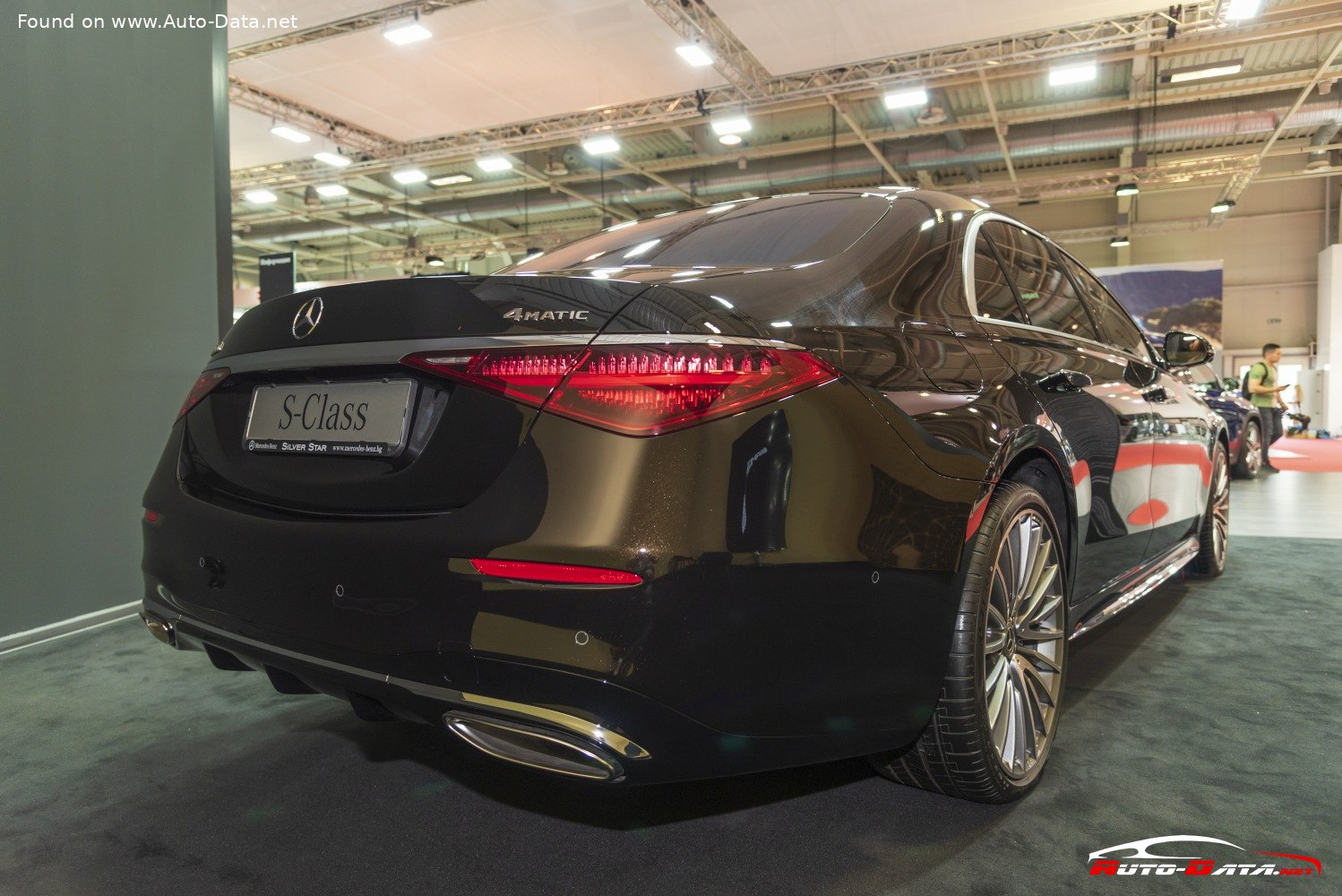

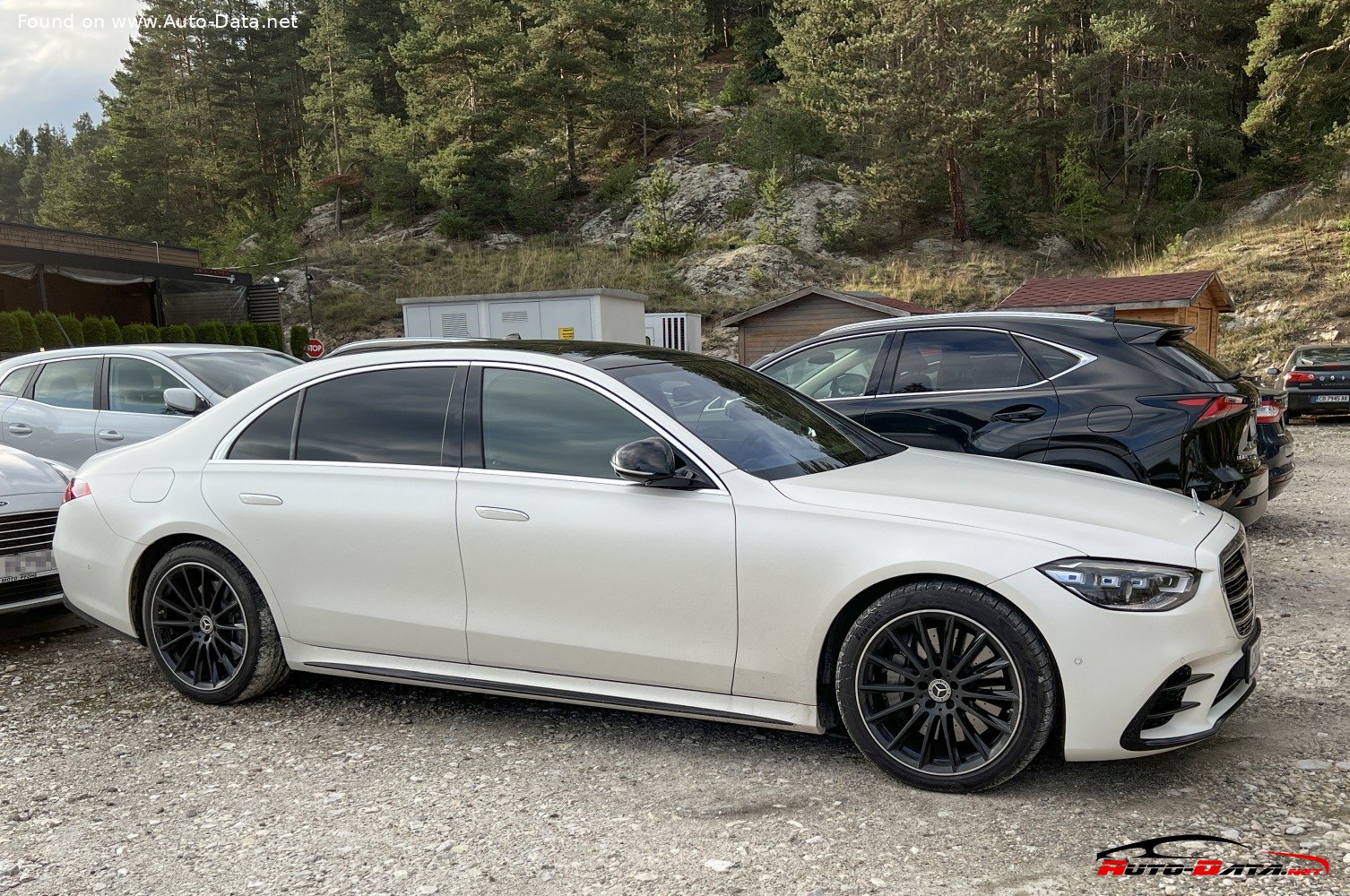

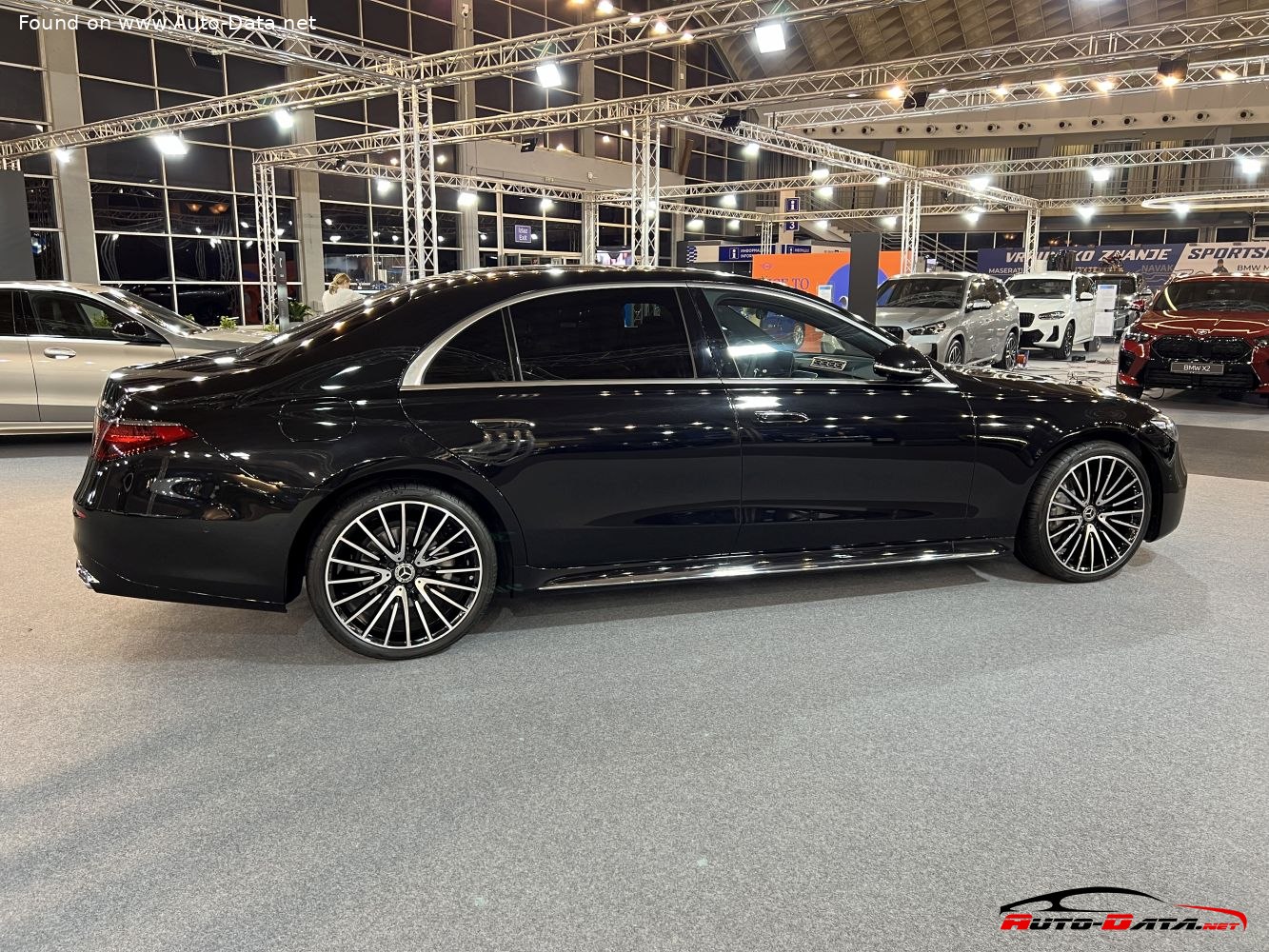

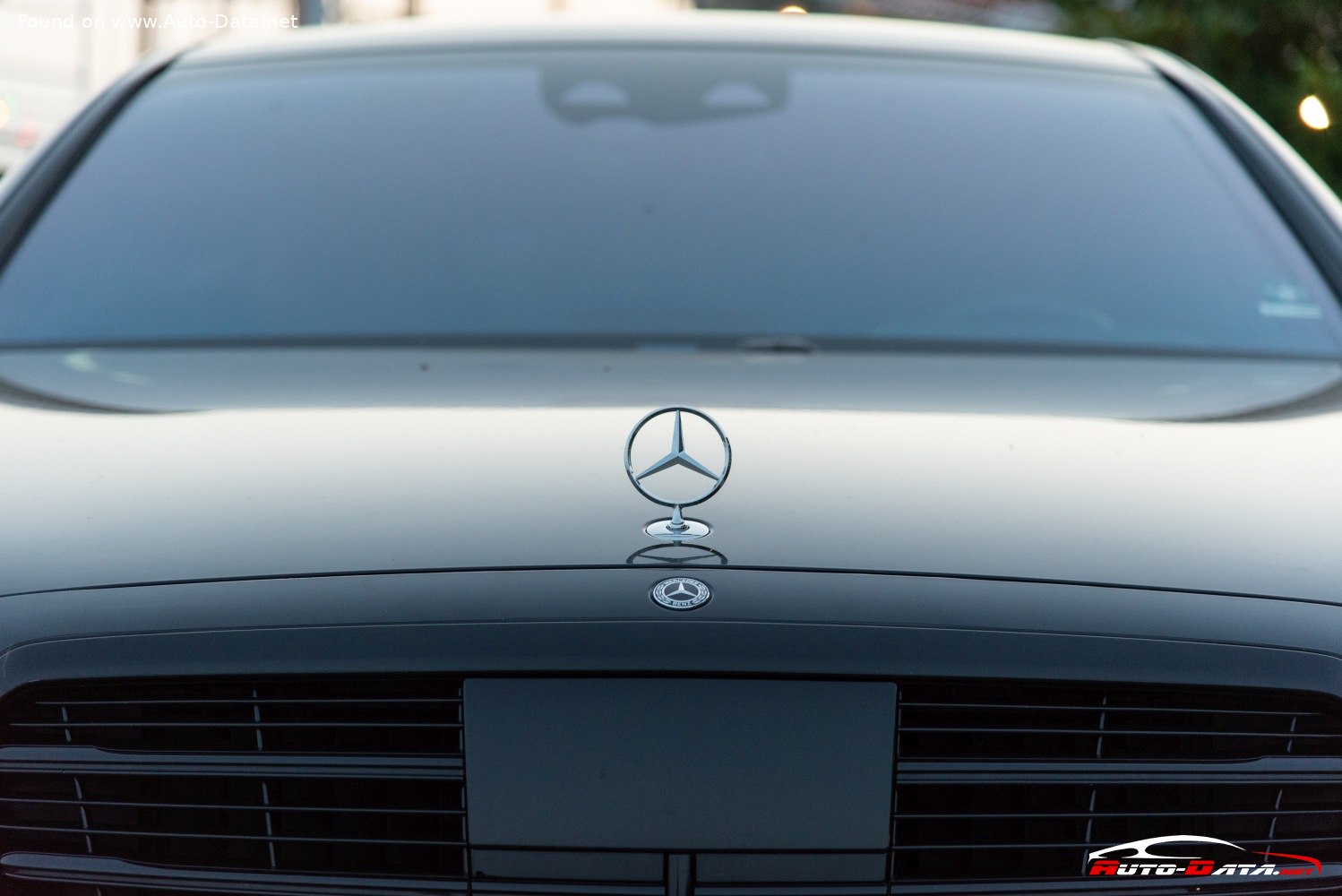

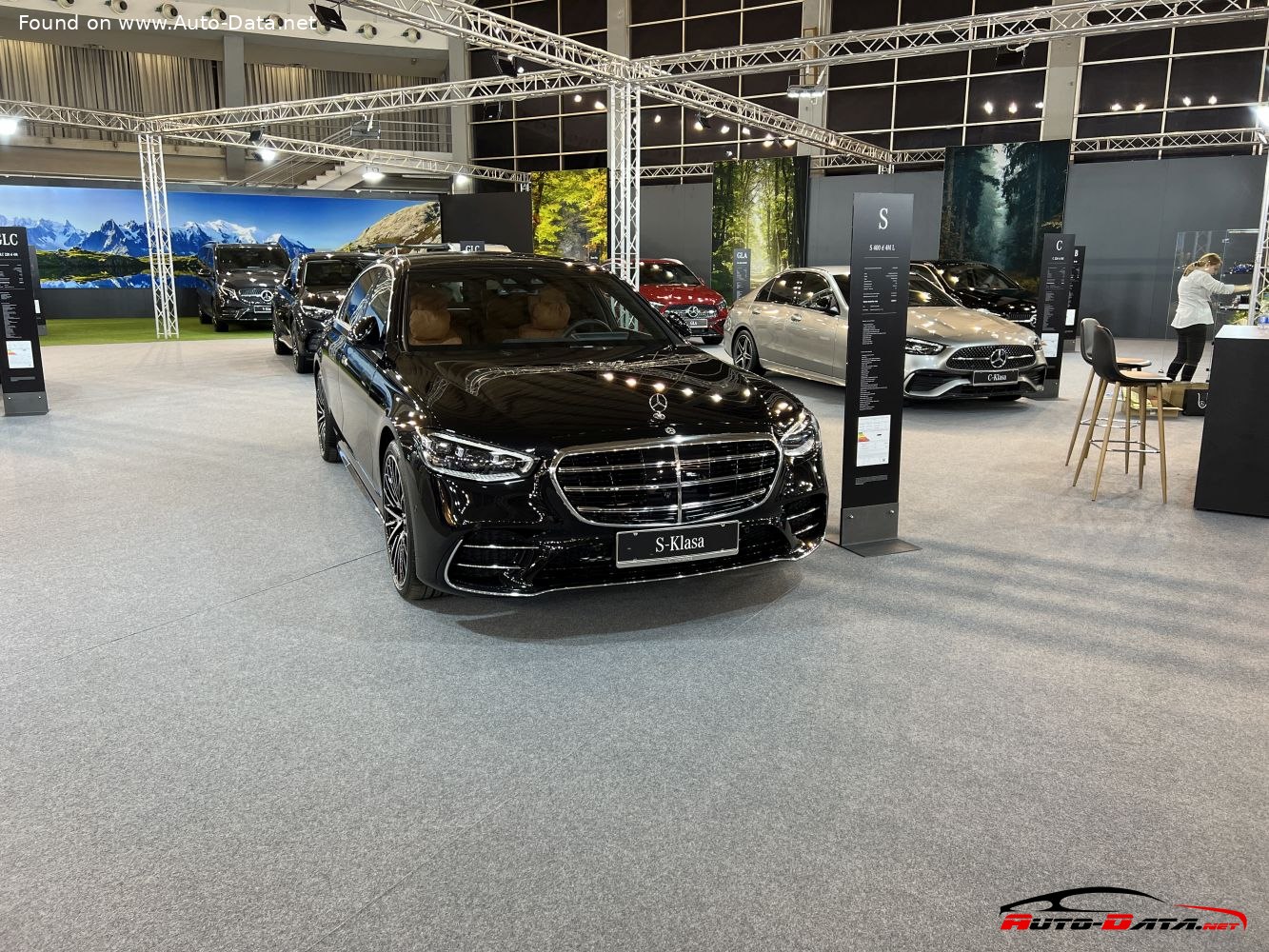

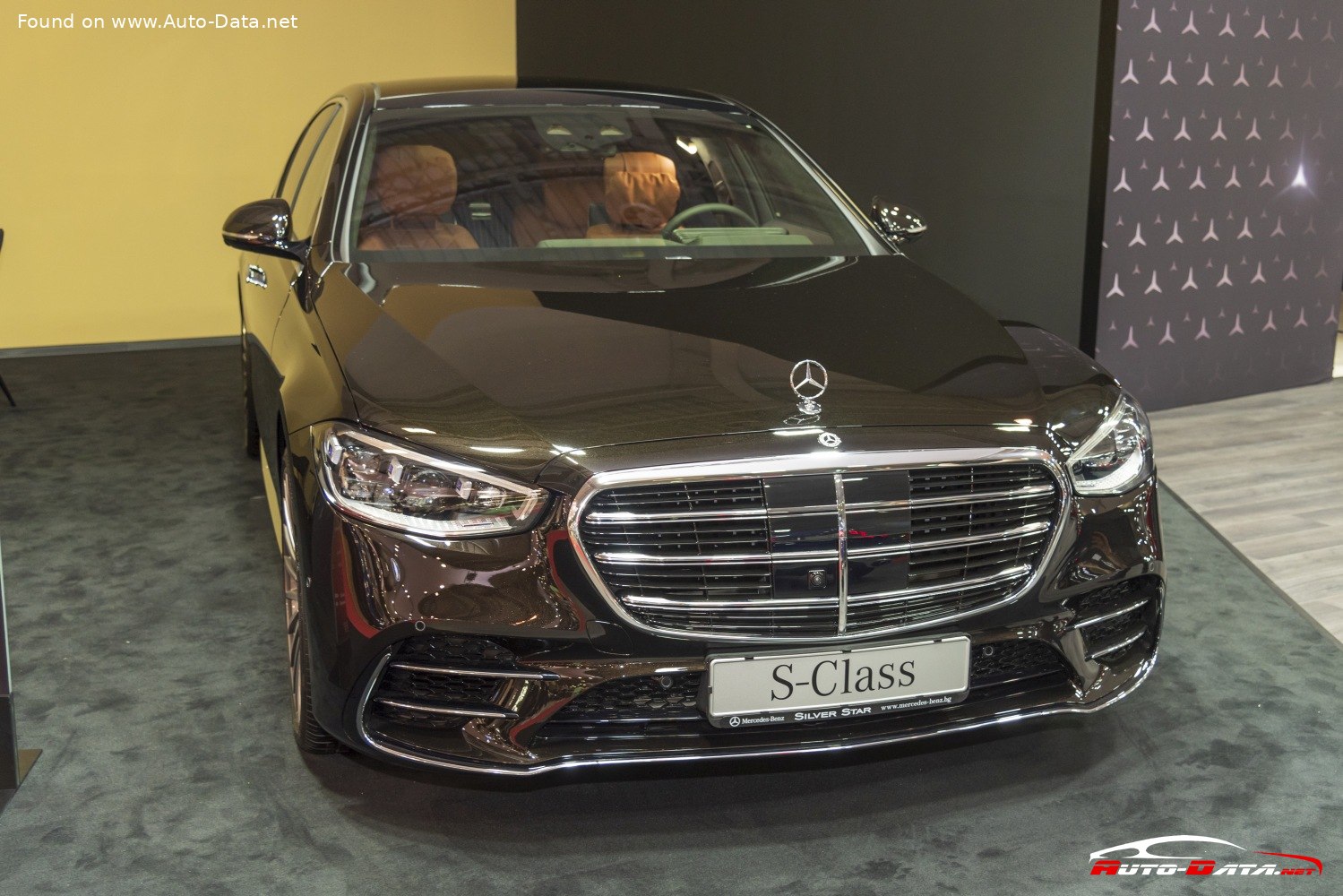

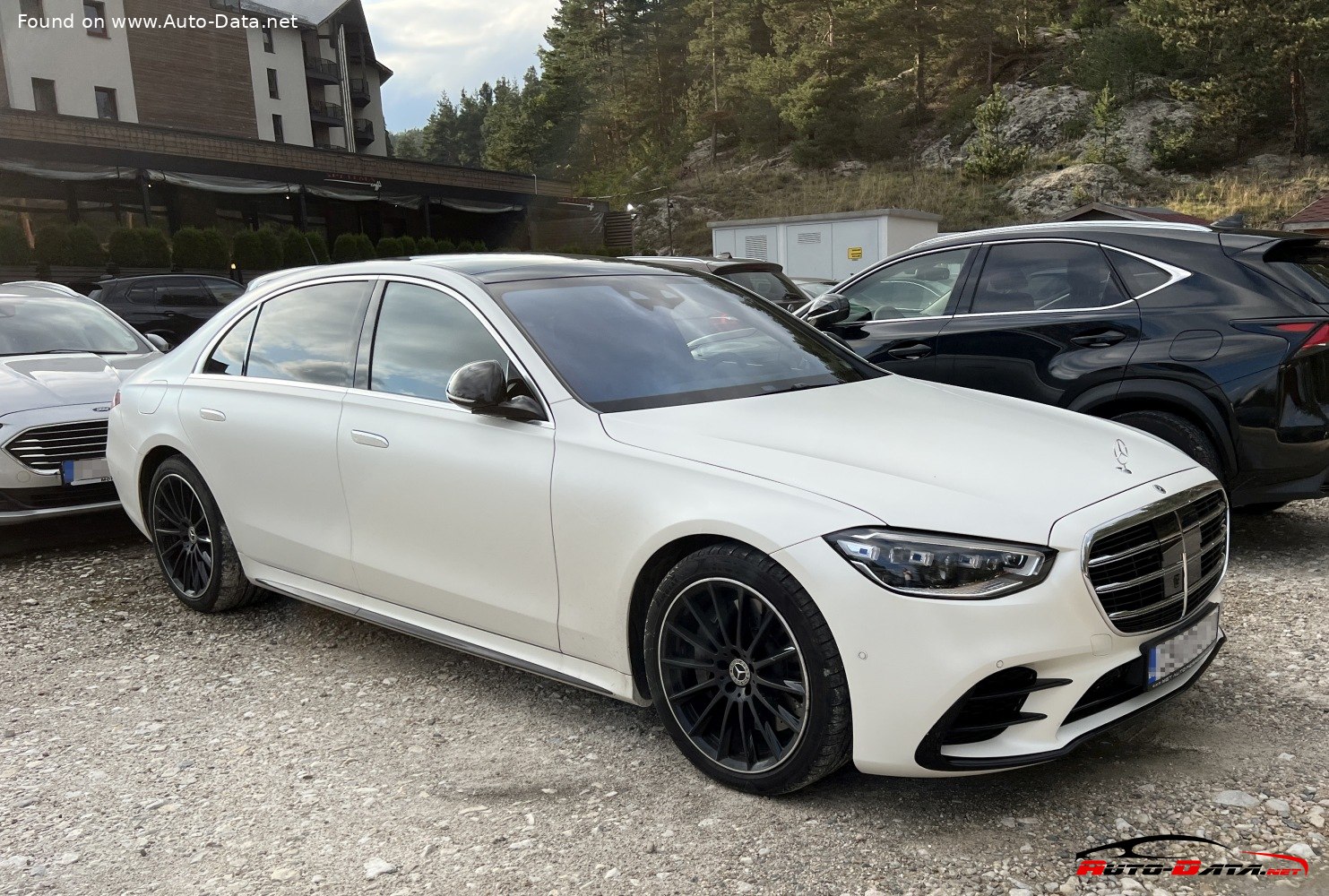

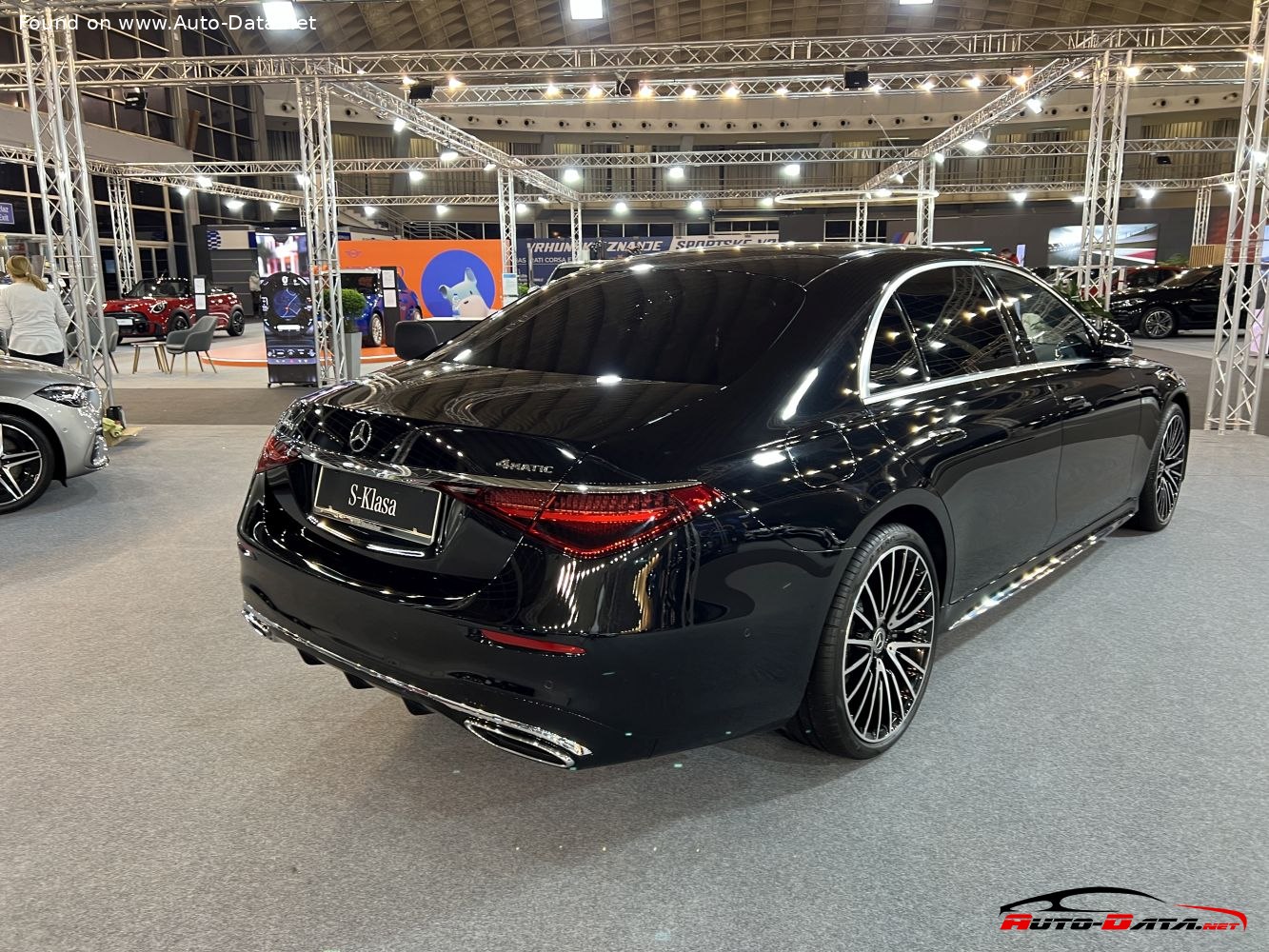

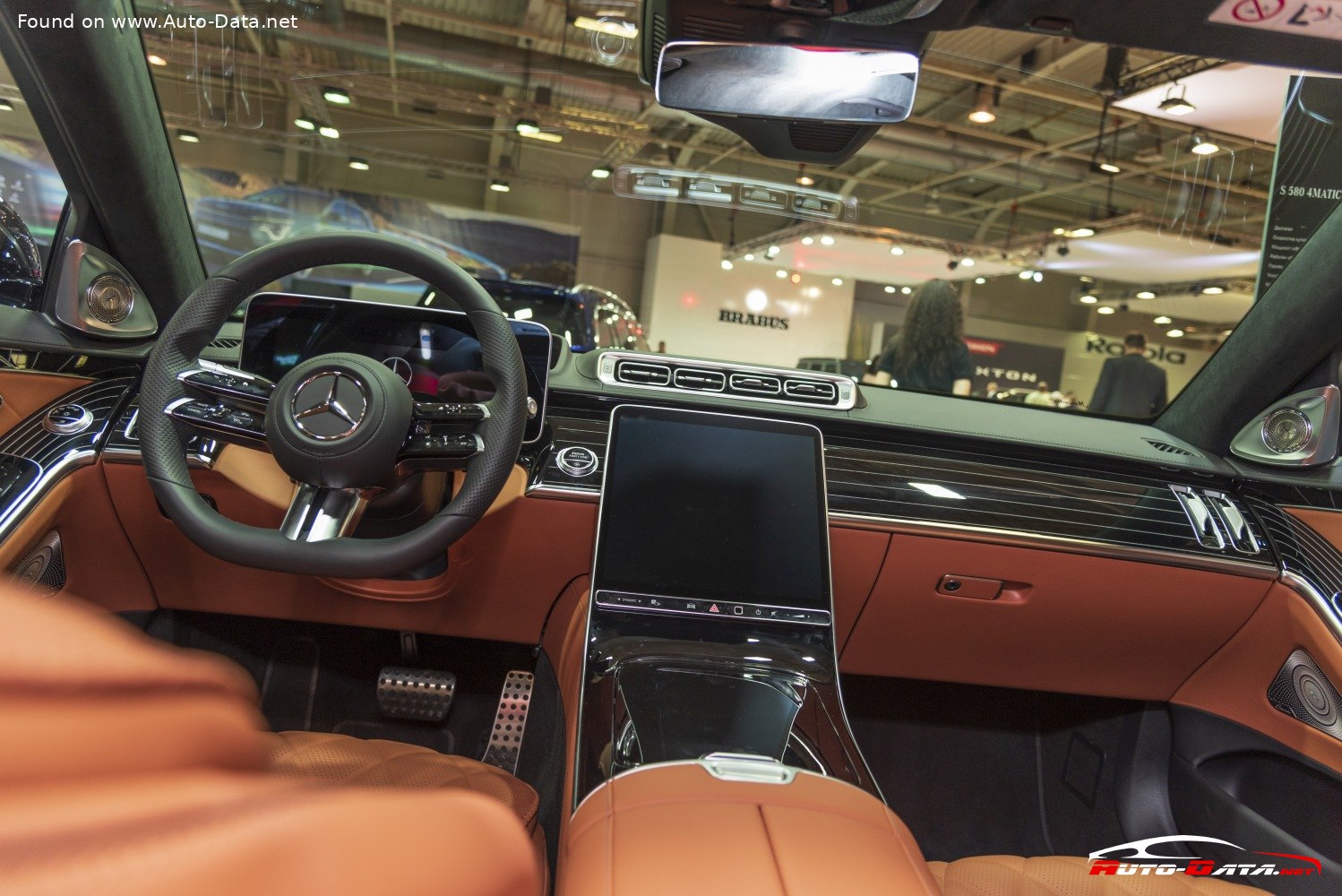

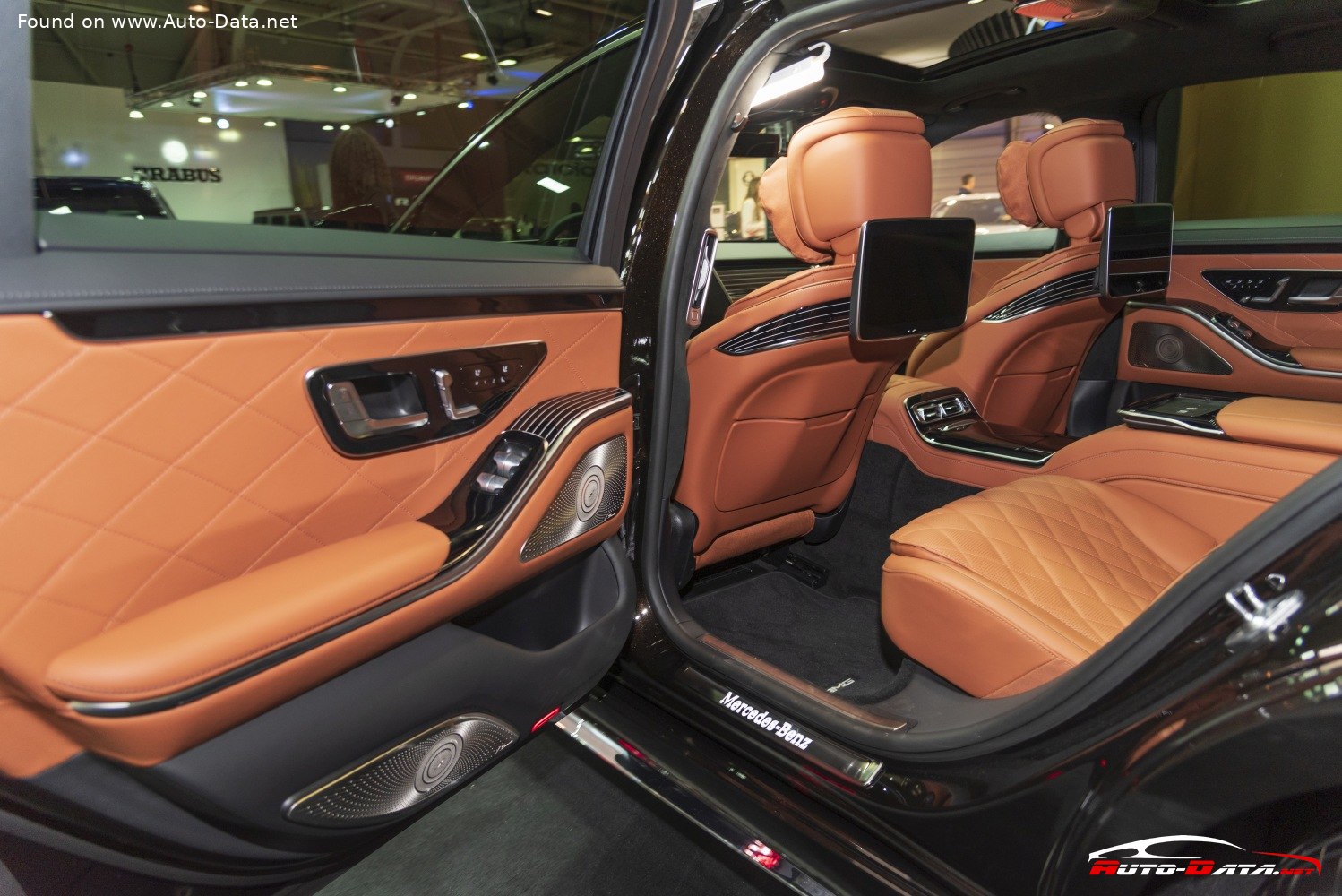

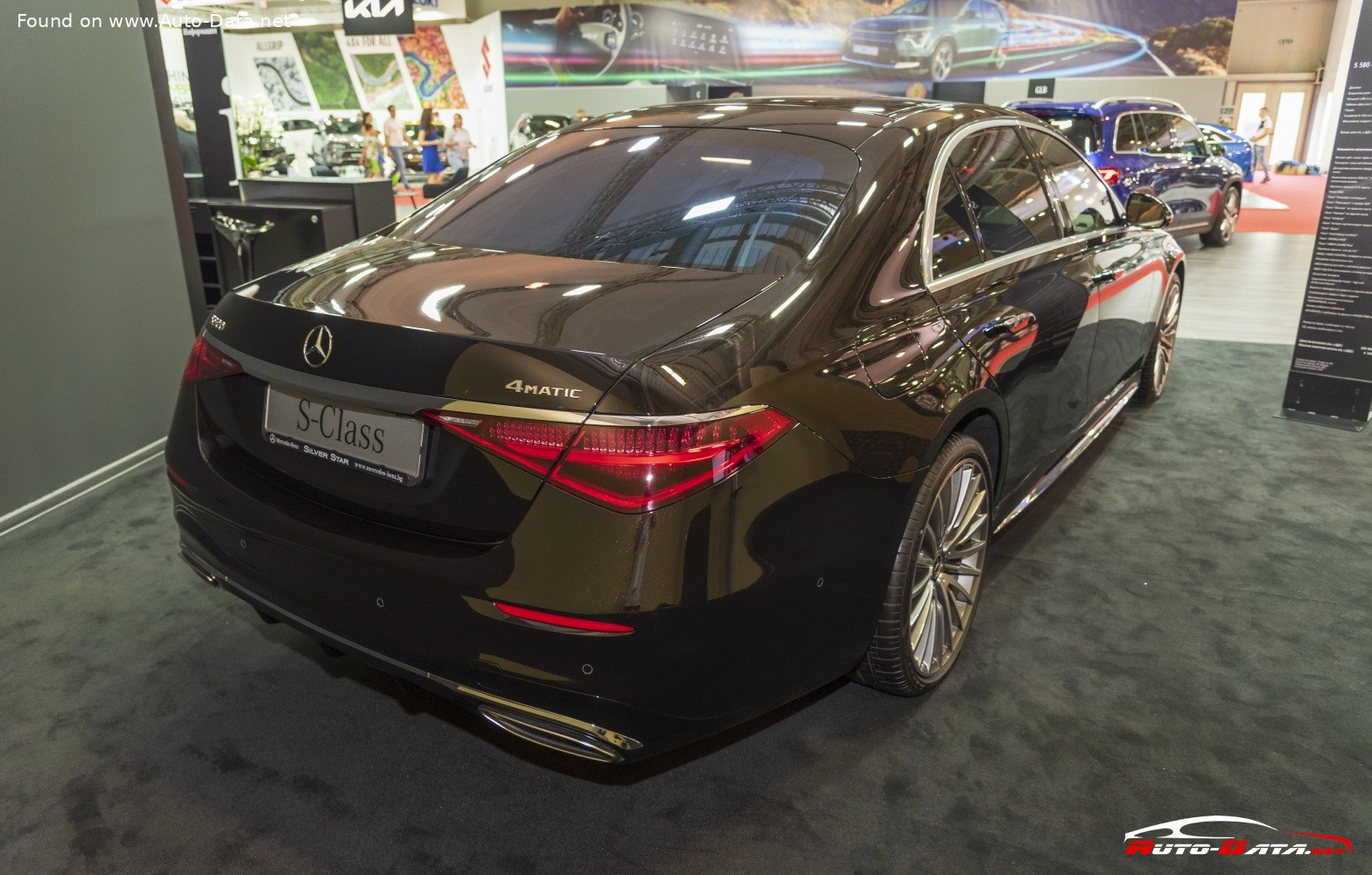

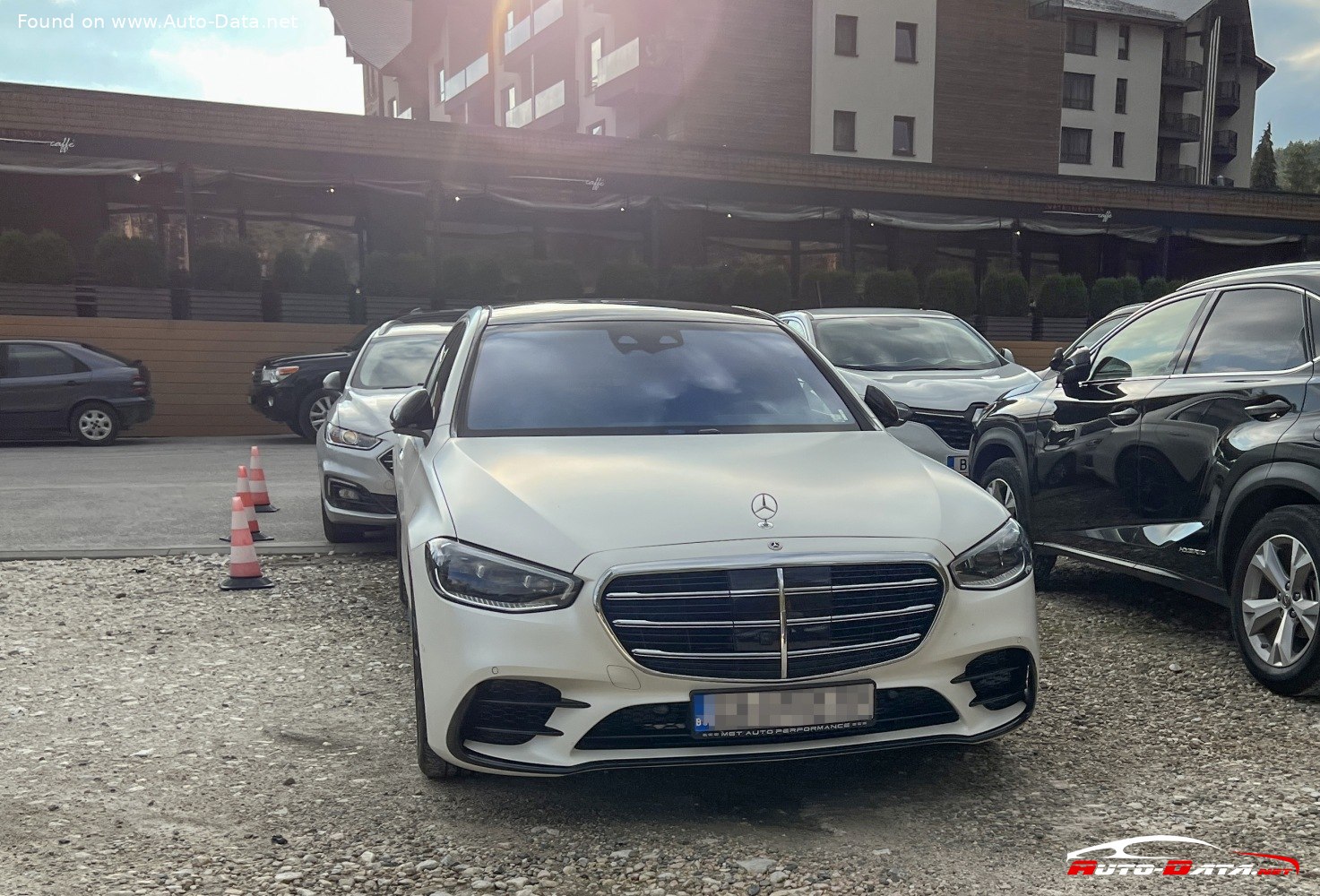

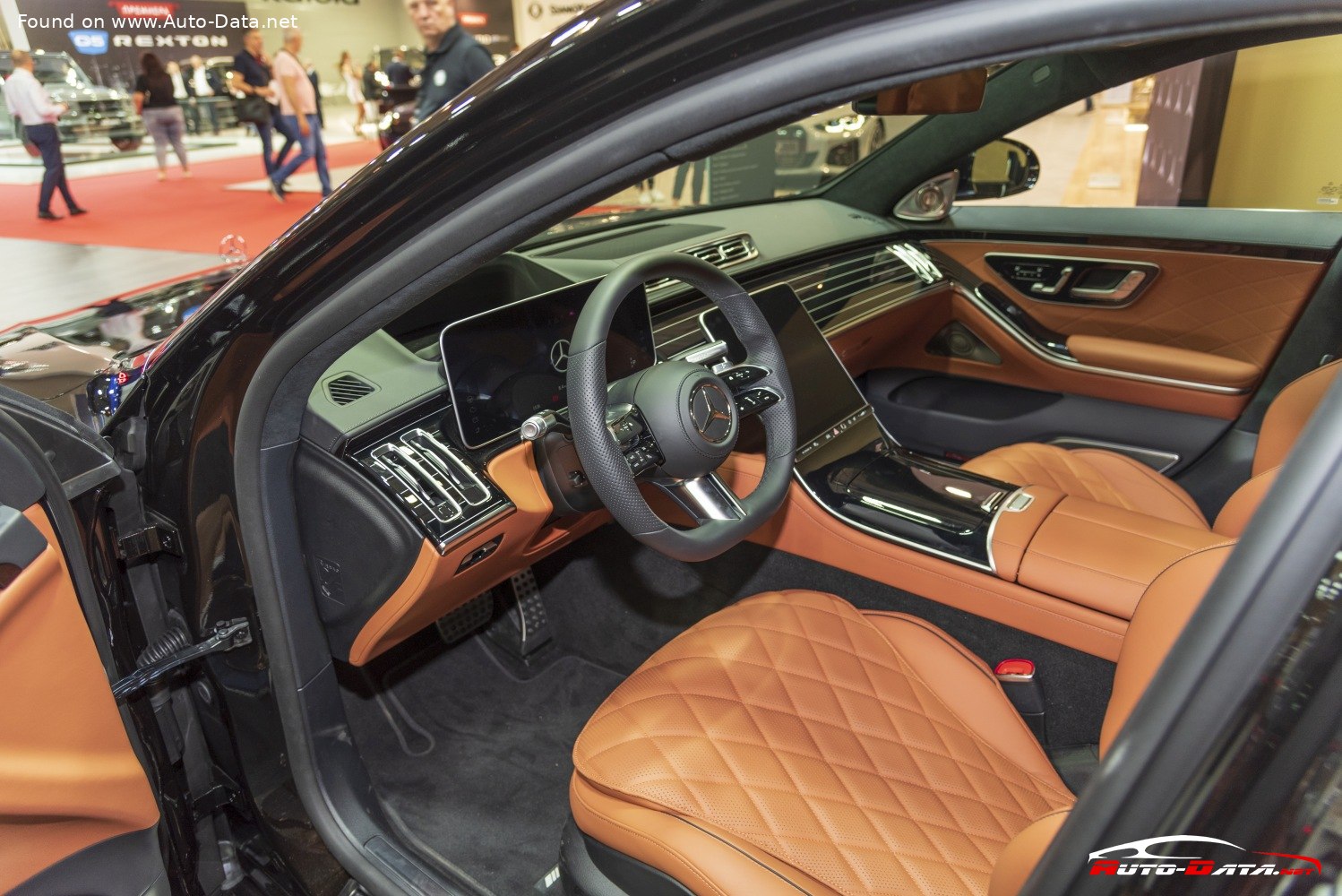

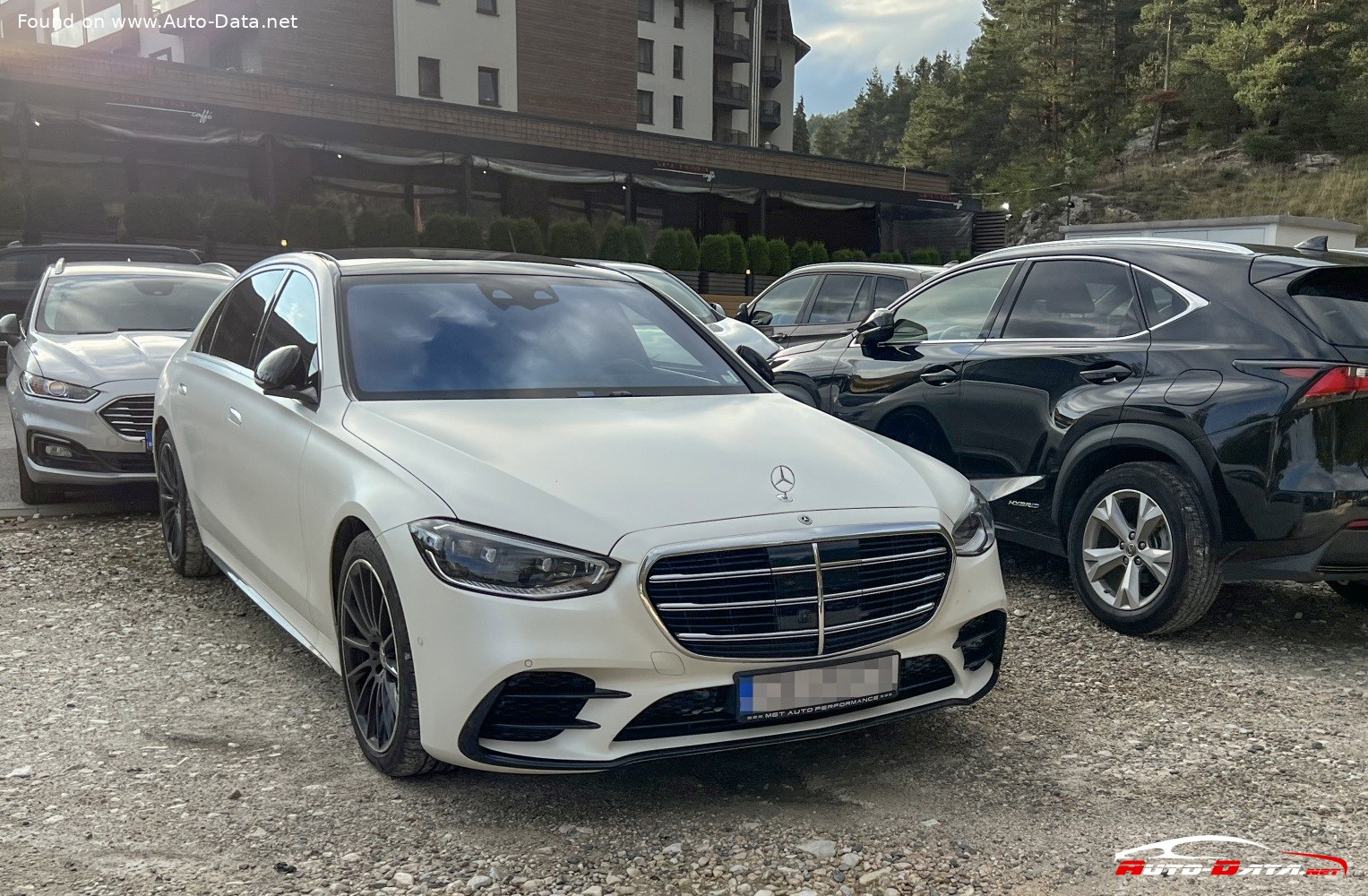

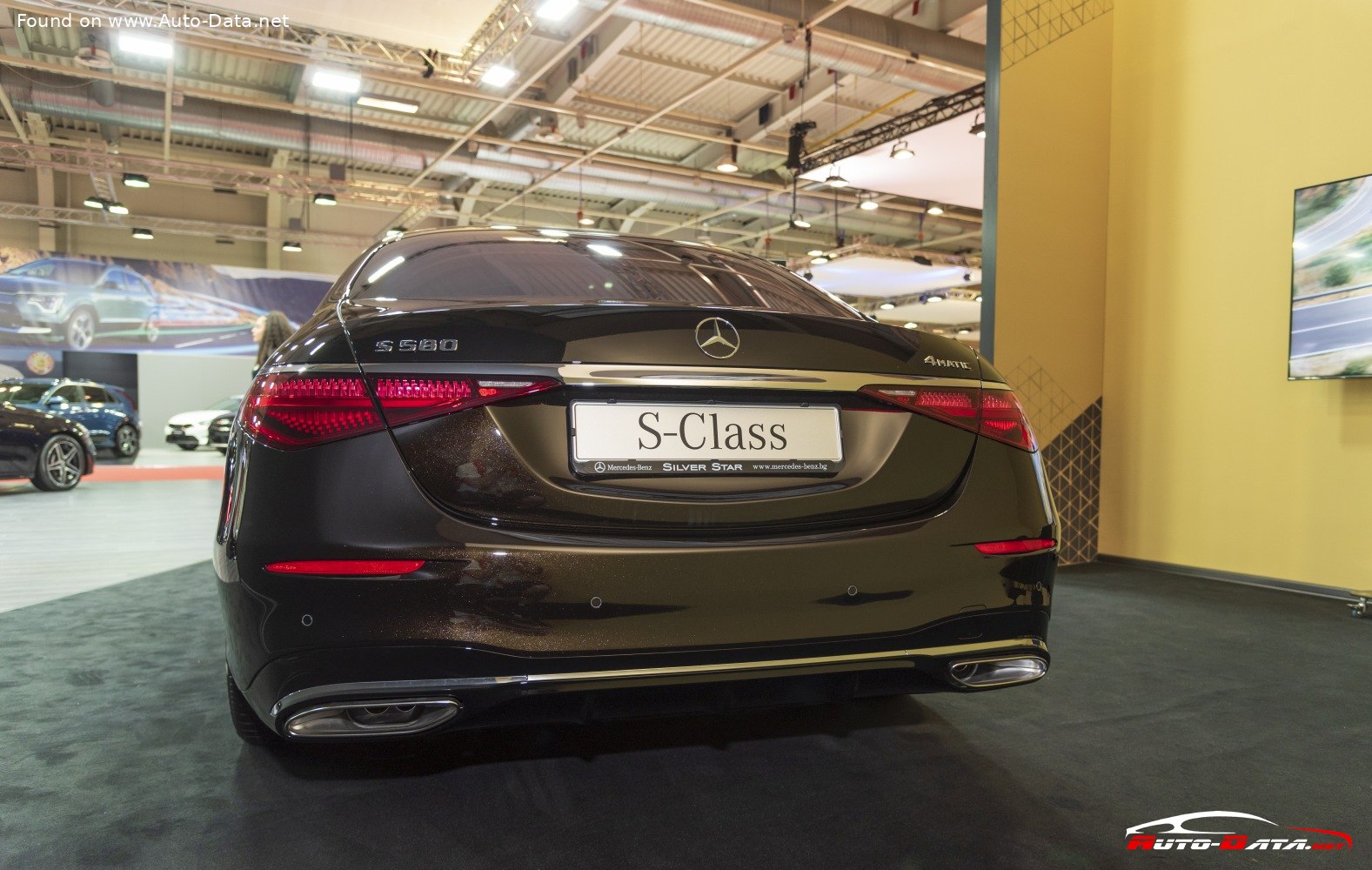

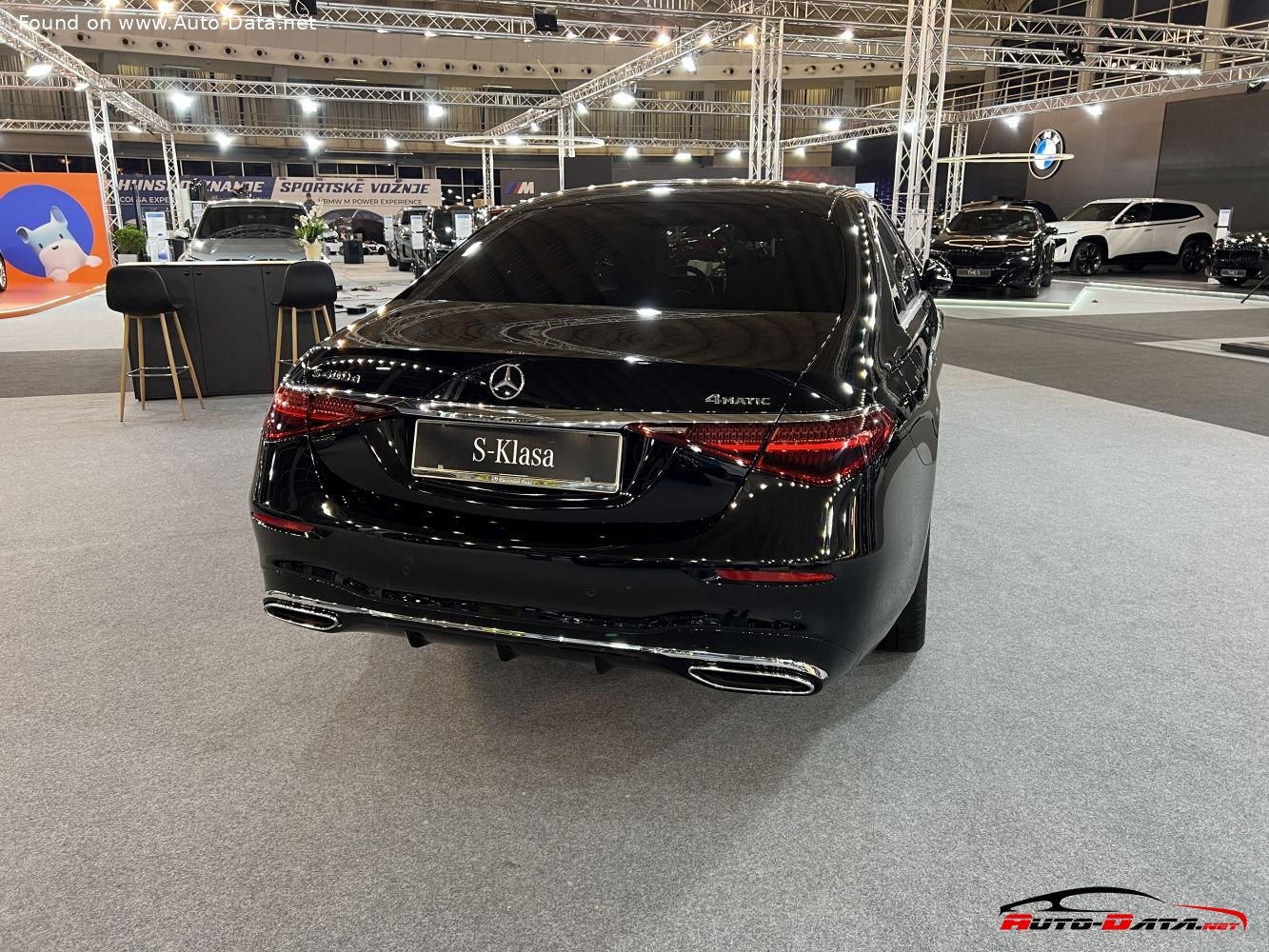

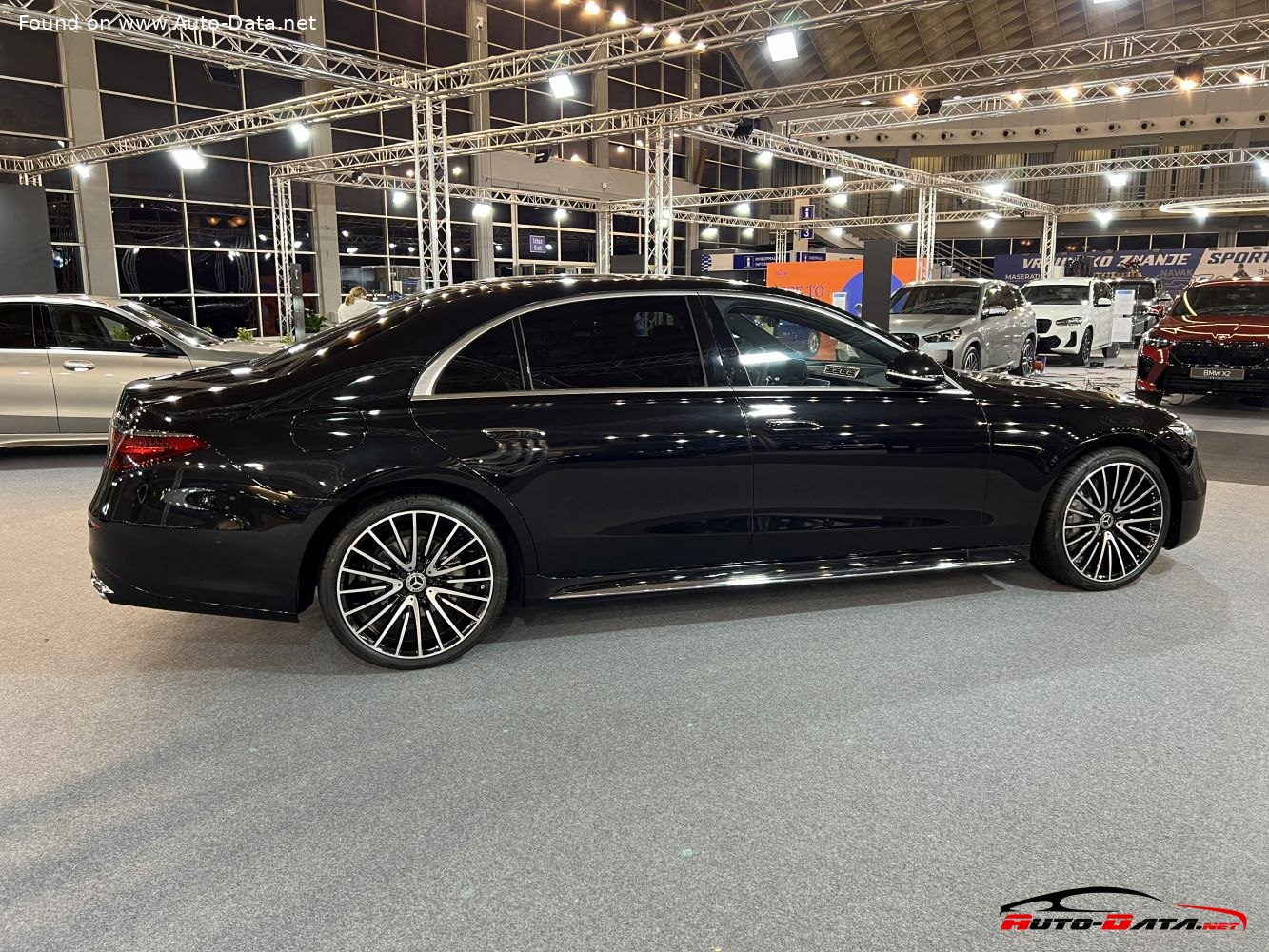

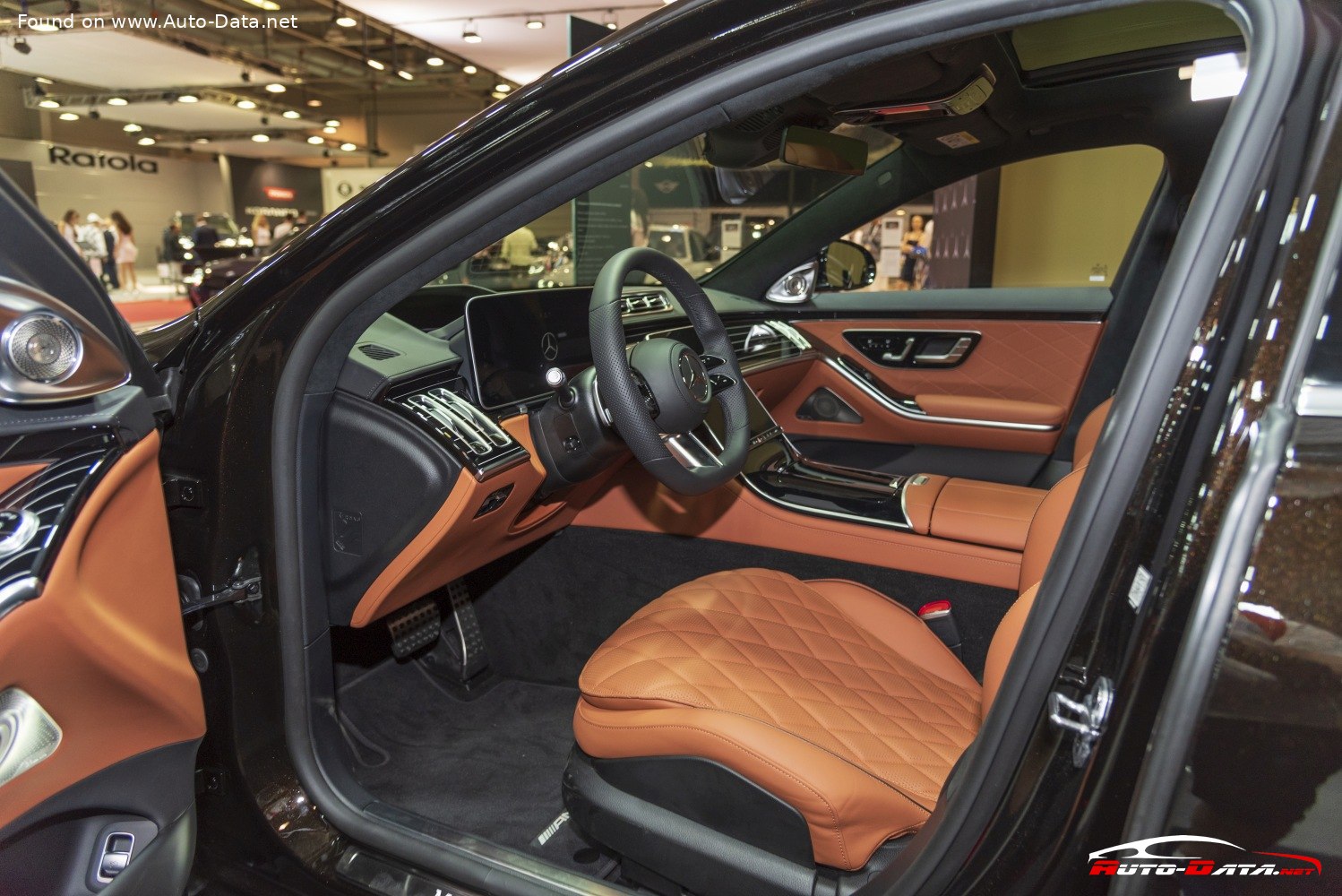

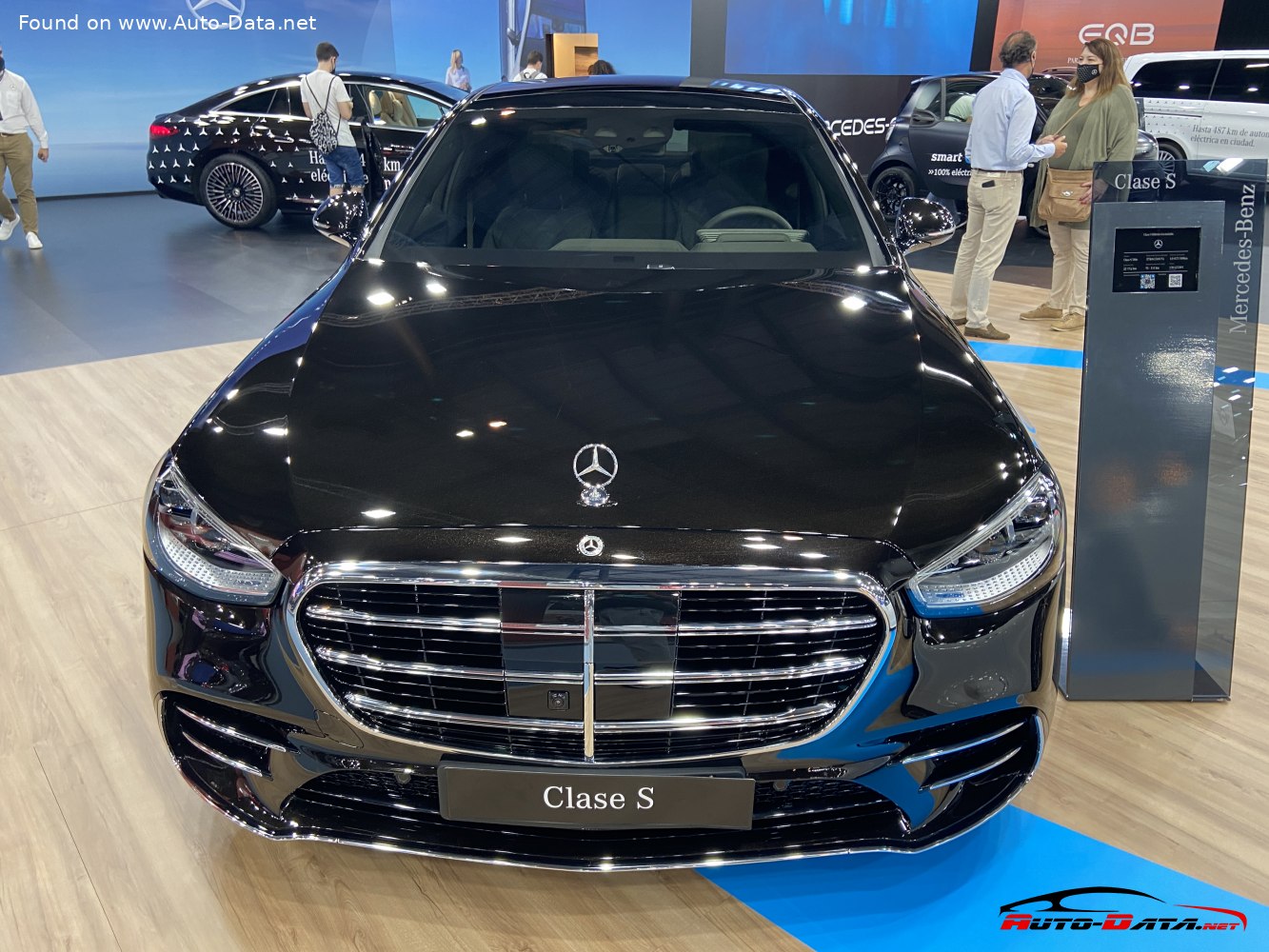

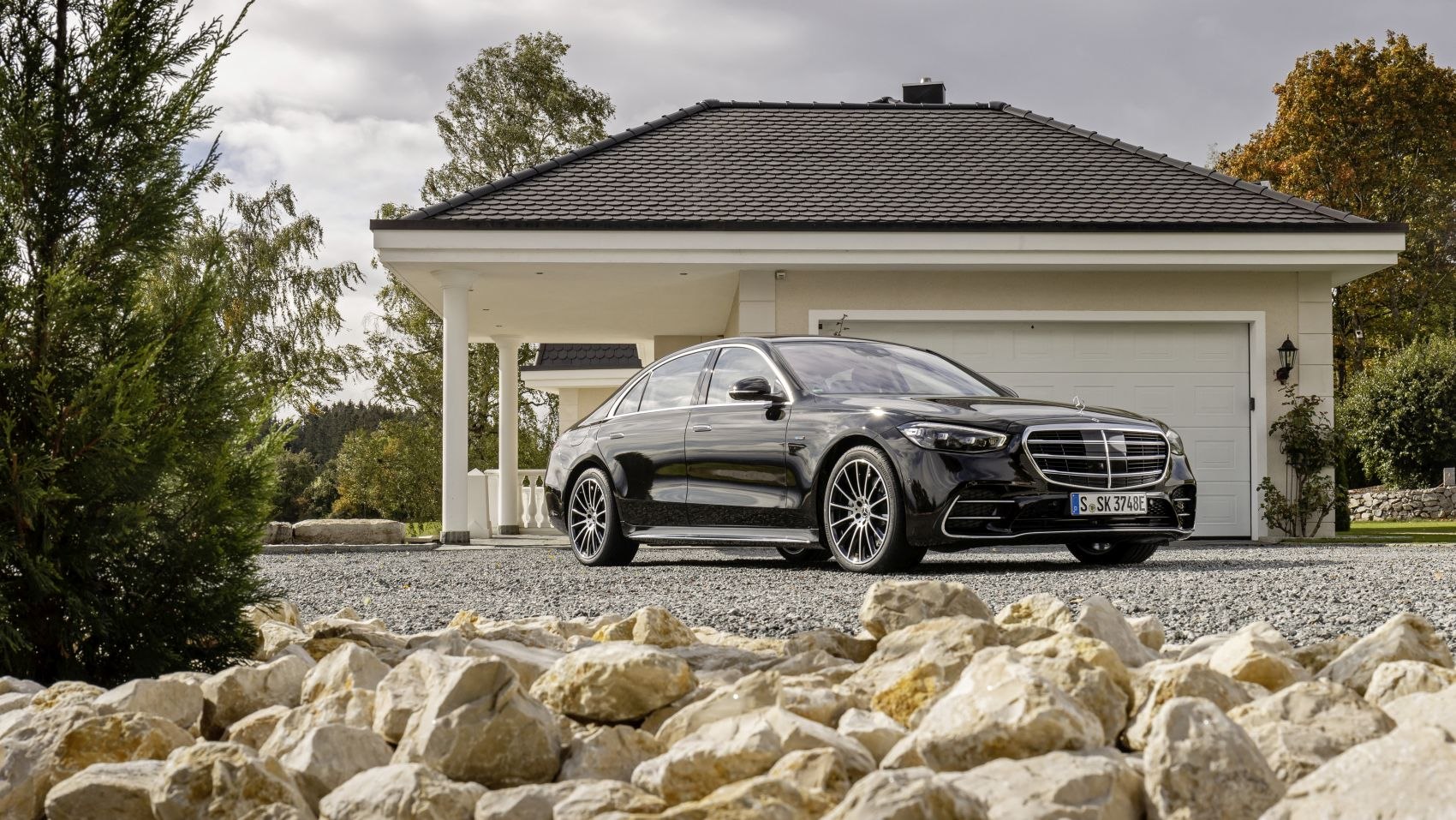

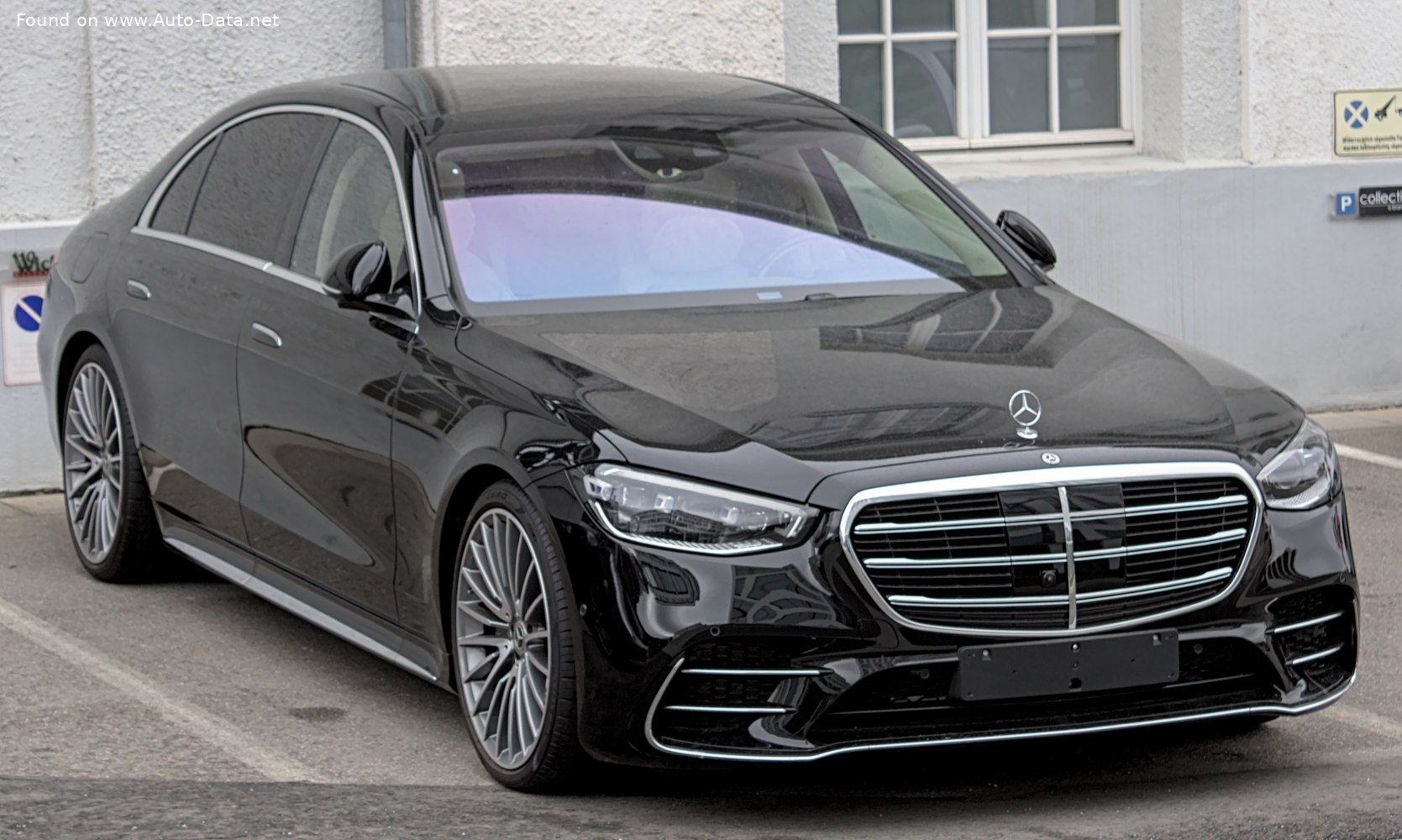

Mercedes-Benz S-class W223 2023 Gallery
Mercedes-Benz S-class W223 2023 Technical Specifications
General
Body type
Sedan
Brand
Mercedes-Benz
Doors
4
Generation
S-class (W223)
Model
S-class
Modification (Engine)
S 350d (313 Hp) EQ Boost 4MATIC 9G-TRONIC
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start of production
May, 2023
Performance
Acceleration 0 - 100 km/h
5.5 sec
Acceleration 0 - 60 mph
5.2 sec
Acceleration 0 - 62 mph
5.5 sec
CO2 emissions (WLTP)
160-186 g/km
Combined fuel consumption (WLTP)
6.1-7.1 l/100 km
Emission standard
Euro 6e
Fuel Type
Diesel
Maximum speed
250 km/h, Electronically limited
Electric
Battery voltage
48 V
Electric motor Torque number 1
250 Nm
Electric motor location number 1
Between the combustion engine and the transmission
Electric motor power number 1
23 Hp
Gross battery capacity
0.9 kWh
Internal Engine
Compression ratio
15.5
Coolant
12 l
Engine Model/Code
OM 656.830
Engine aspiration
BiTurbo, Intercooler
Engine configuration
Inline
Engine displacement
2989 cm
Engine layout
Front, Longitudinal
Engine oil capacity
9 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
6
Number of valves per cylinder
4
Power
313 Hp @ 3600-4800 rpm.
Power per litre
104.7 Hp/l
Torque
650 Nm @ 1200-3200 rpm.
Valvetrain
DOHC
Dimensions
Approach angle
14.7°
Departure angle
15.9°
Front overhang
877 mm
Front track
1655 mm
Height
1503 mm
Length
5179 mm
Minimum turning circle (turning diameter)
10.7 m
Ramp-over (brakeover) angle
10.8°
Rear (Back) track
1651 mm
Rear overhang
1196 mm
Ride height (ground clearance)
130 mm
Wheelbase
3106 mm
Width
1954 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs
Front suspension
Independent multi-link suspension, Air suspension
Number of gears and type of gearbox
9 gears, automatic transmission G-TRONIC
Power steering
Electric Steering
Rear brakes
Ventilated discs
Rear suspension
Independent multi-link suspension, Air suspension
Steering type
Steering rack and pinion
Tires size
Front wheel tires: 235/55 R18; 255/45 R19; 255/40 R20; 255/35 R21Rear wheel tires: 235/55 R18; 255/45 R19; 285/40 R19; 255/40 R20; 285/35 R20; 285/30 R21
Wheel rims size
Front wheel rims: 8J x 19; 8.5J x 19; 9J x 20; 9J x 21Rear wheel rims: 8J x 19; 8.5J x 19; 10J x 19; 9J x 20; 10J x 20; 10J x 21
Space
AdBlue tank
25 l
Fuel tank capacity
65 l
Kerb Weight
2050 kg
Max load
770 kg
Max. roof load
100 kg
Max. weight
2820 kg
Permitted towbar download
85 kg
