Ford B-MAX 2012
1.6 TDCi (95 Hp)
Generation B-MAX
Body Type Hatchback
Seats 5
2015
End Year
174 km/h
Maximum Speed
5
Doors
Ford B-MAX 2012 Key Specs
Acceleration 0 - 100 Km/h
13.9 sec
Acceleration 0 - 62 Mph
13.9 sec
Body Type
Hatchback
Doors
5
Drive Wheel
Front wheel drive
End Of Production
2015
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
3.8 l
Engine Systems
Particulate filter
Fuel Type
Diesel
Fuel Tank Capacity
47 l
Generation
B-MAX
Kerb Weight
1235 kg
Maximum Speed
174 km/h
Modification (Engine)
1.6 TDCi (95 Hp)
Number Of Cylinders
4
Power
95 Hp @ 3800 rpm.
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
2012
Wheel Rims Size
6J x 15; 6.5J x 16; 7J x 17

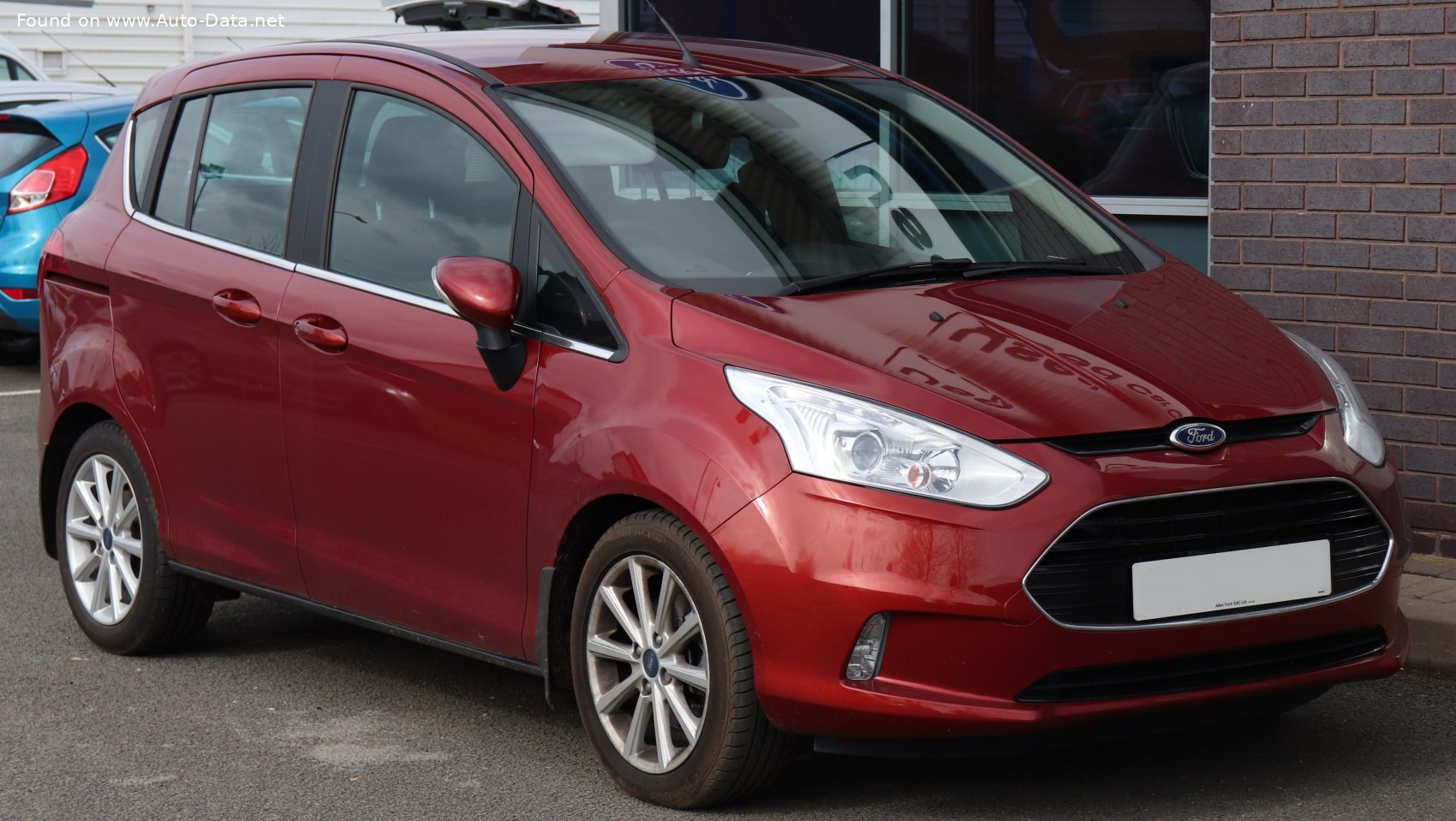

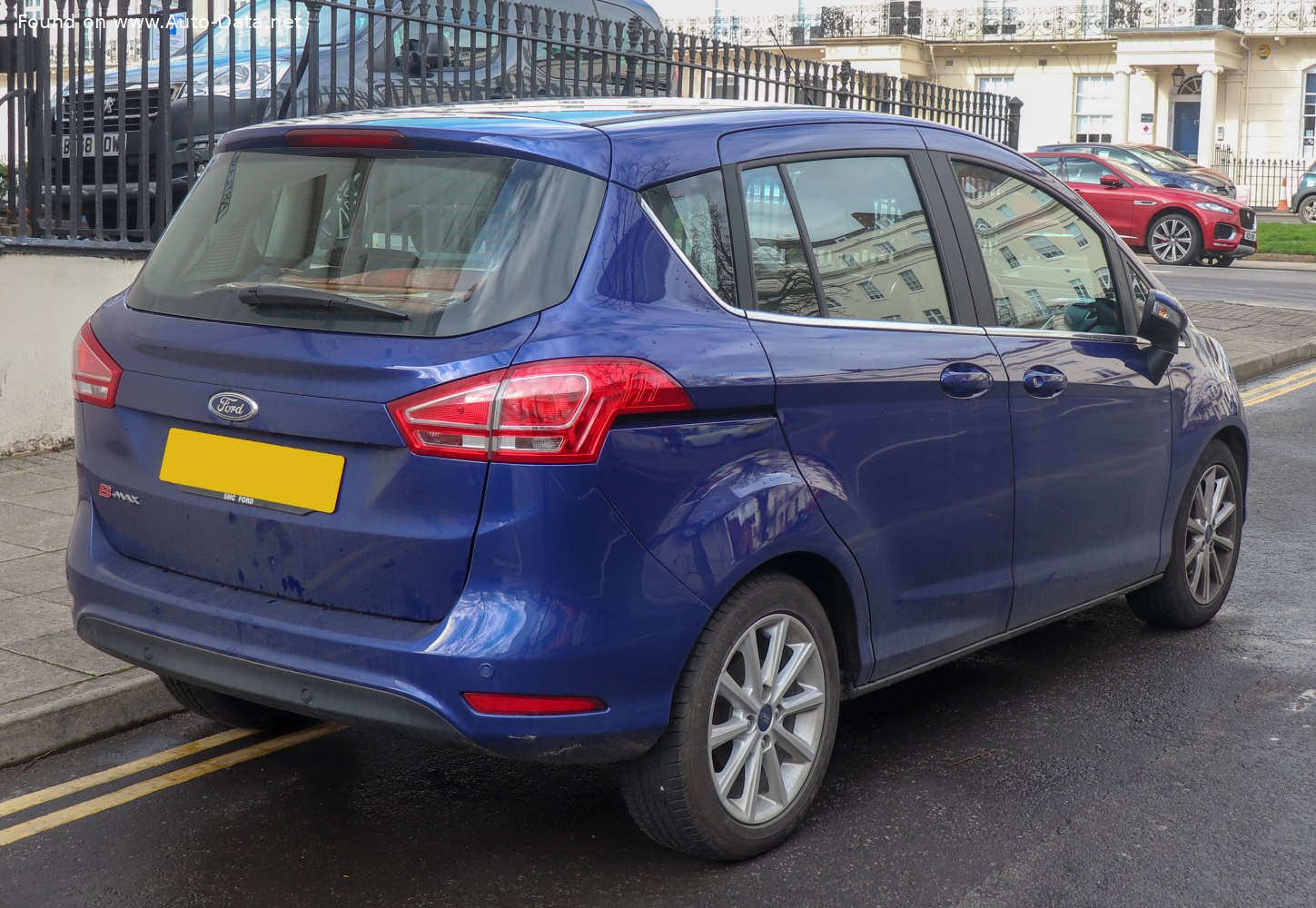

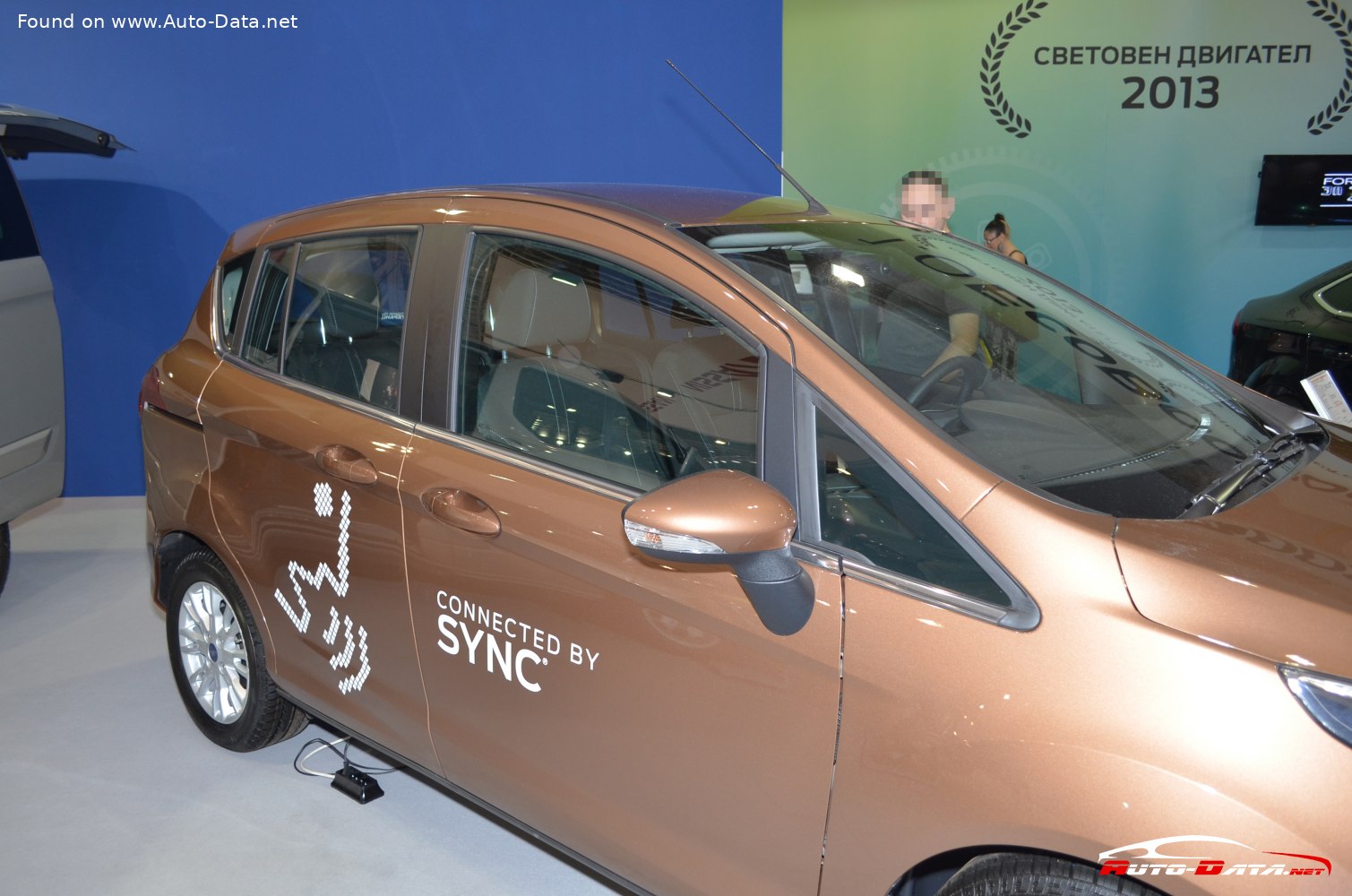

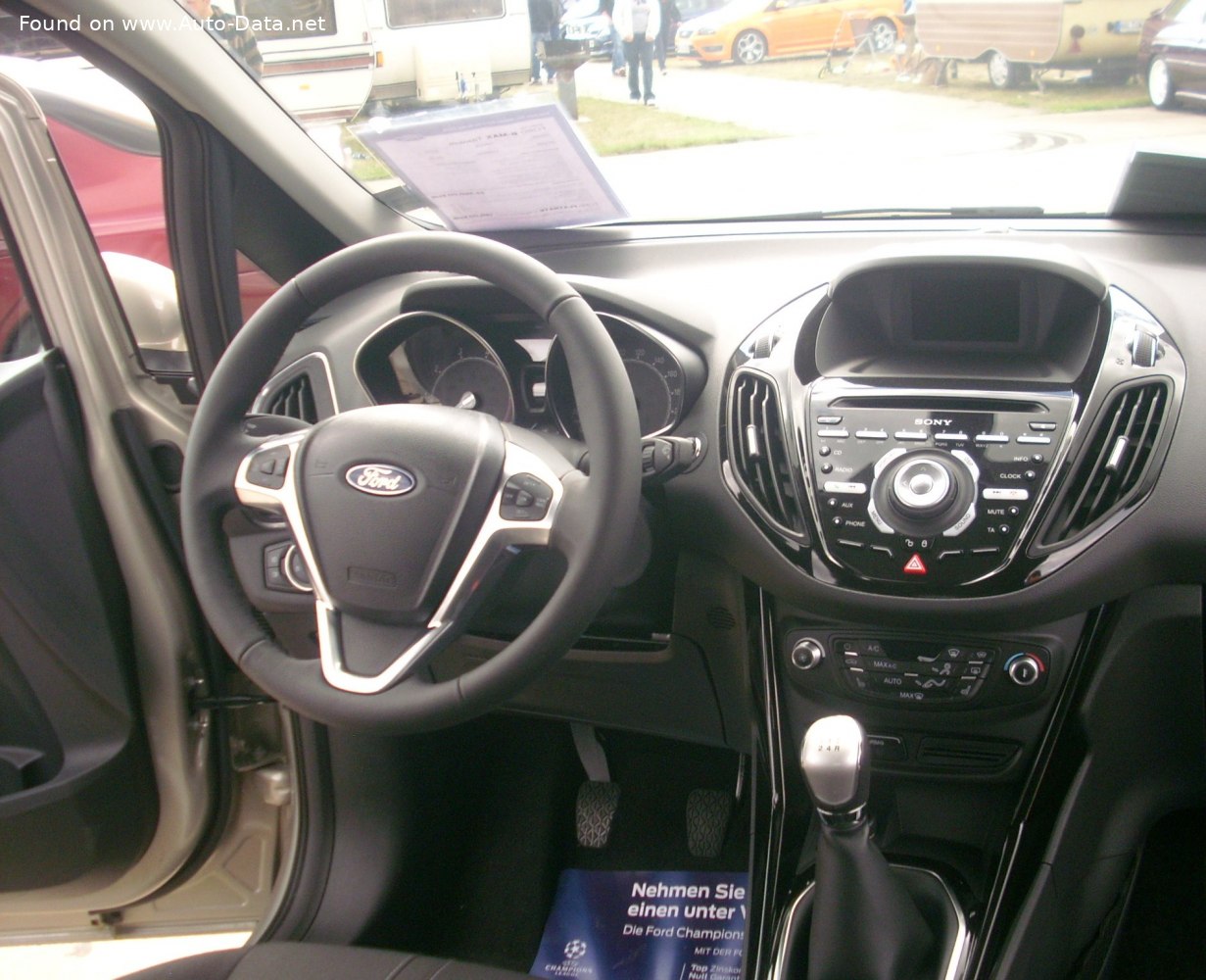

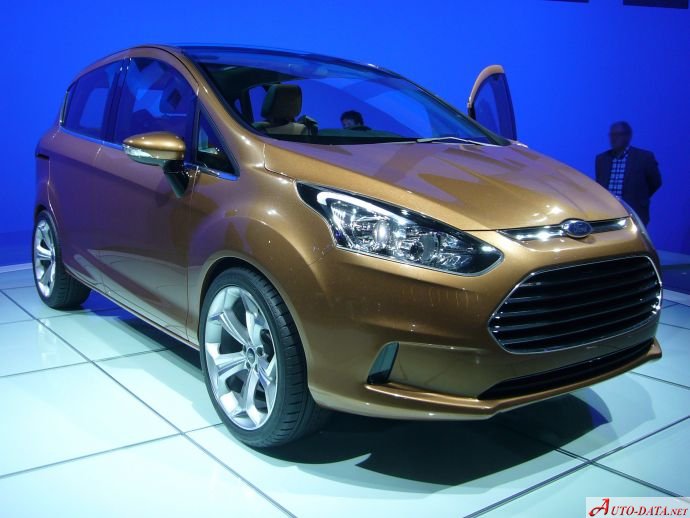

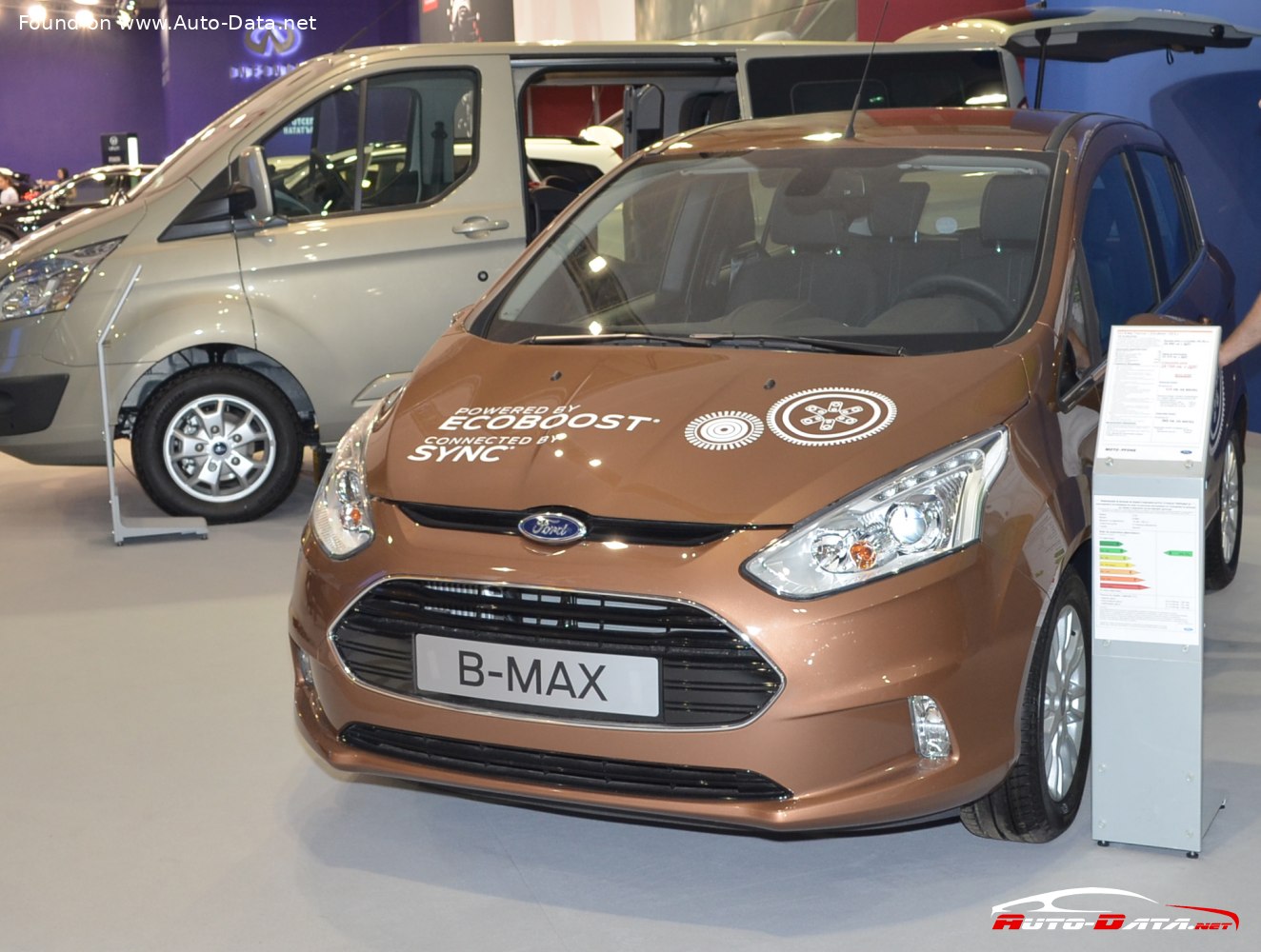

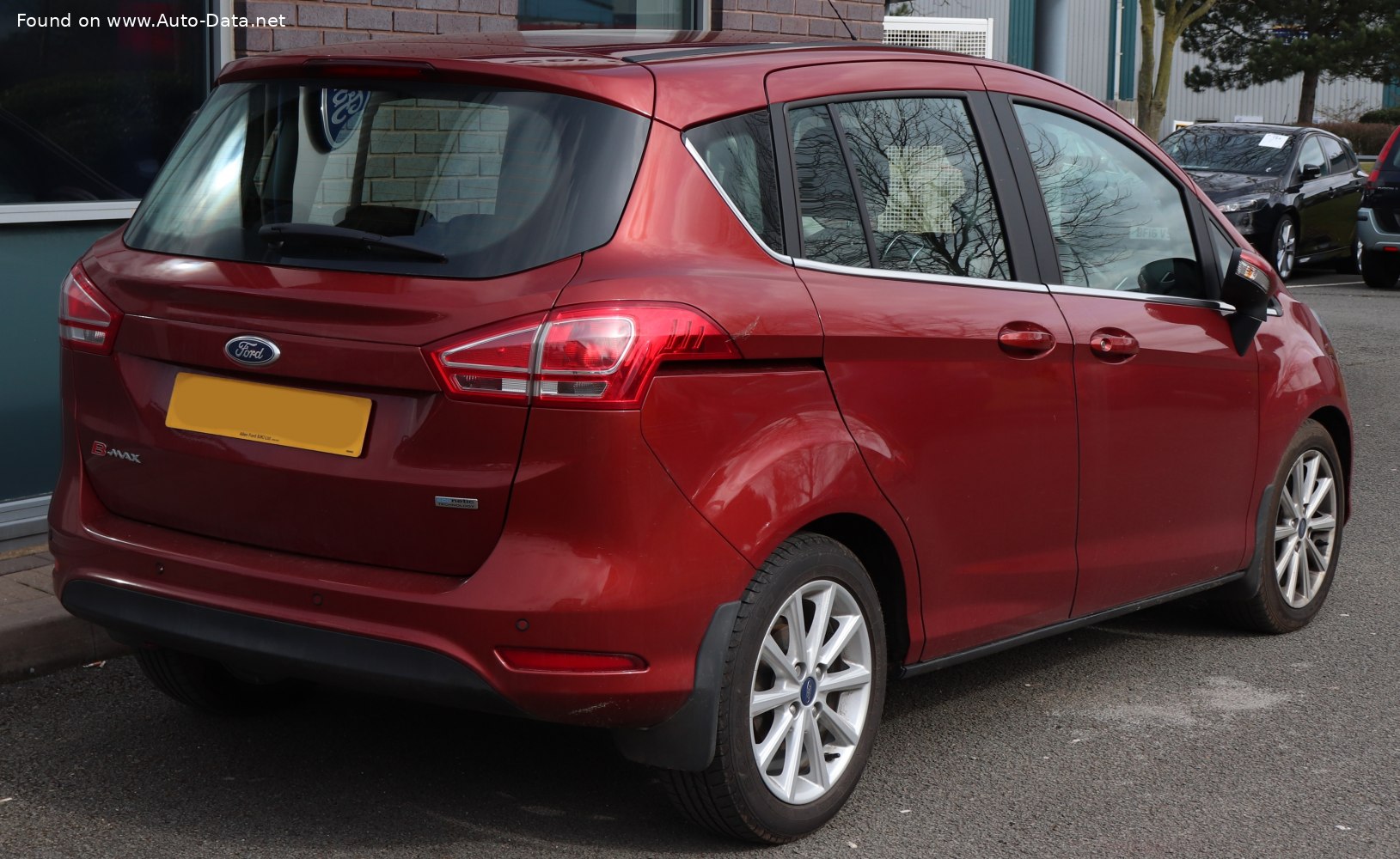

Ford B-MAX 2012 Gallery
Ford B-MAX 2012 Technical Specifications
General
Body type
Hatchback
Brand
Ford
Doors
5
End of production
2015
Generation
B-MAX
Model
B-MAX
Modification (Engine)
1.6 TDCi (95 Hp)
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
2012
Performance
Acceleration 0 - 100 km/h
13.9 sec
Acceleration 0 - 60 mph
13.2 sec
Acceleration 0 - 62 mph
13.9 sec
CO2 emissions (NEDC)
104 g/km
Emission standard
Euro 5
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC)
4 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
3.6 l/100 km
Fuel consumption (economy) - urban (NEDC)
4.7 l/100 km
Maximum speed
174 km/h
Dimensions
Front track
1487-1492 mm
Height
1604 mm
Length
4077 mm
Minimum turning circle (turning diameter)
10.45 m
Rear (Back) track
1477-1482 mm
Wheelbase
2489 mm
Width
1751 mm
Engine
Compression ratio
18
Coolant
6 l
Cylinder Bore
75 mm
Engine Model/Code
T3JB
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1560 cm
Engine layout
Front, Transverse
Engine oil capacity
3.8 l
Engine oil specification
Log in to see.
Engine systems
Particulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
2
Power
95 Hp @ 3800 rpm.
Torque
215 Nm @ 1750-2550 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
5 gears, manual transmission
Power steering
Electric Steering
Rear brakes
Drum
Rear suspension
Coil spring, Torsion
Steering type
Steering rack and pinion
Tires size
195/60 R15; 195/55 R16; 205/45 R17
Wheel rims size
6J x 15; 6.5J x 16; 7J x 17
Space
Fuel tank capacity
47 l
Kerb Weight
1235 kg
Max load
545 kg
Max. weight
1780 kg
