Audi A5 Sportback F5 2020
40 TDI (204 Hp) Mild Hybrid S tronic
Hybrid Car
Body Type Fastback
Seats 5
3800-4200 rpm.
Power HP RPM
210 km/h
Maximum Speed
5
Doors
Audi A5 Sportback F5 2020 Key Specs
Acceleration 0 - 100 Km/h
7.4 sec
Acceleration 0 - 62 Mph
7.4 sec
Battery Voltage
12 V
Body Type
Fastback
Doors
5
Drive Wheel
Front wheel drive
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
5.5 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
40 l
Generation
A5 Sportback (F5, 2019)
Kerb Weight
1530 kg
Maximum Speed
210 km/h, Electronically limited
Modification (Engine)
40 TDI (204 Hp) Mild Hybrid S tronic
Number Of Cylinders
4
Power
204 Hp @ 3800-4200 rpm.
Power Steering
Electric Steering
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start Of Production
August, 2020
Wheel Rims Size
7.5J x 17; 8.5J x 18; 8.5J x 19; 9J x 20

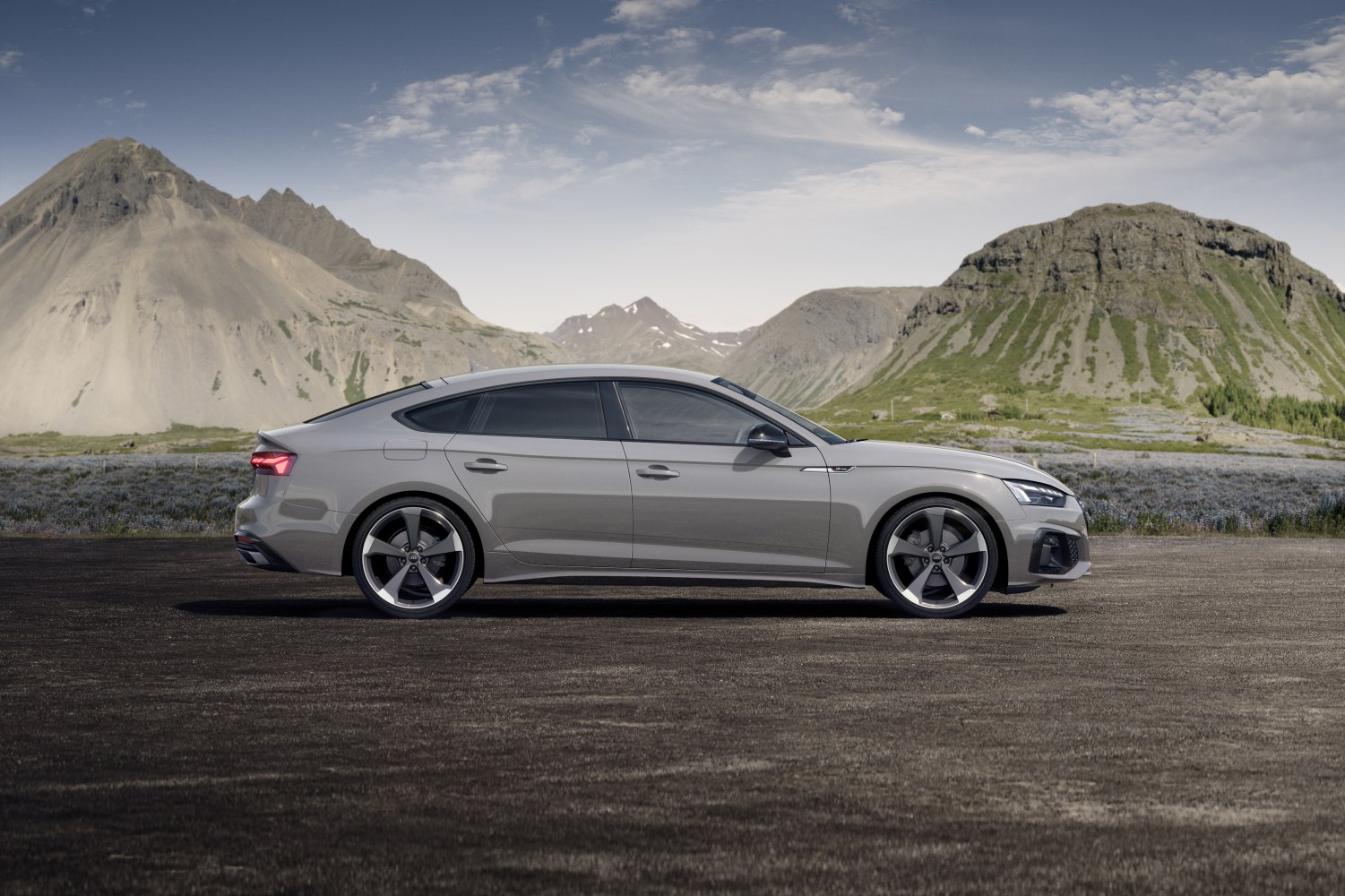

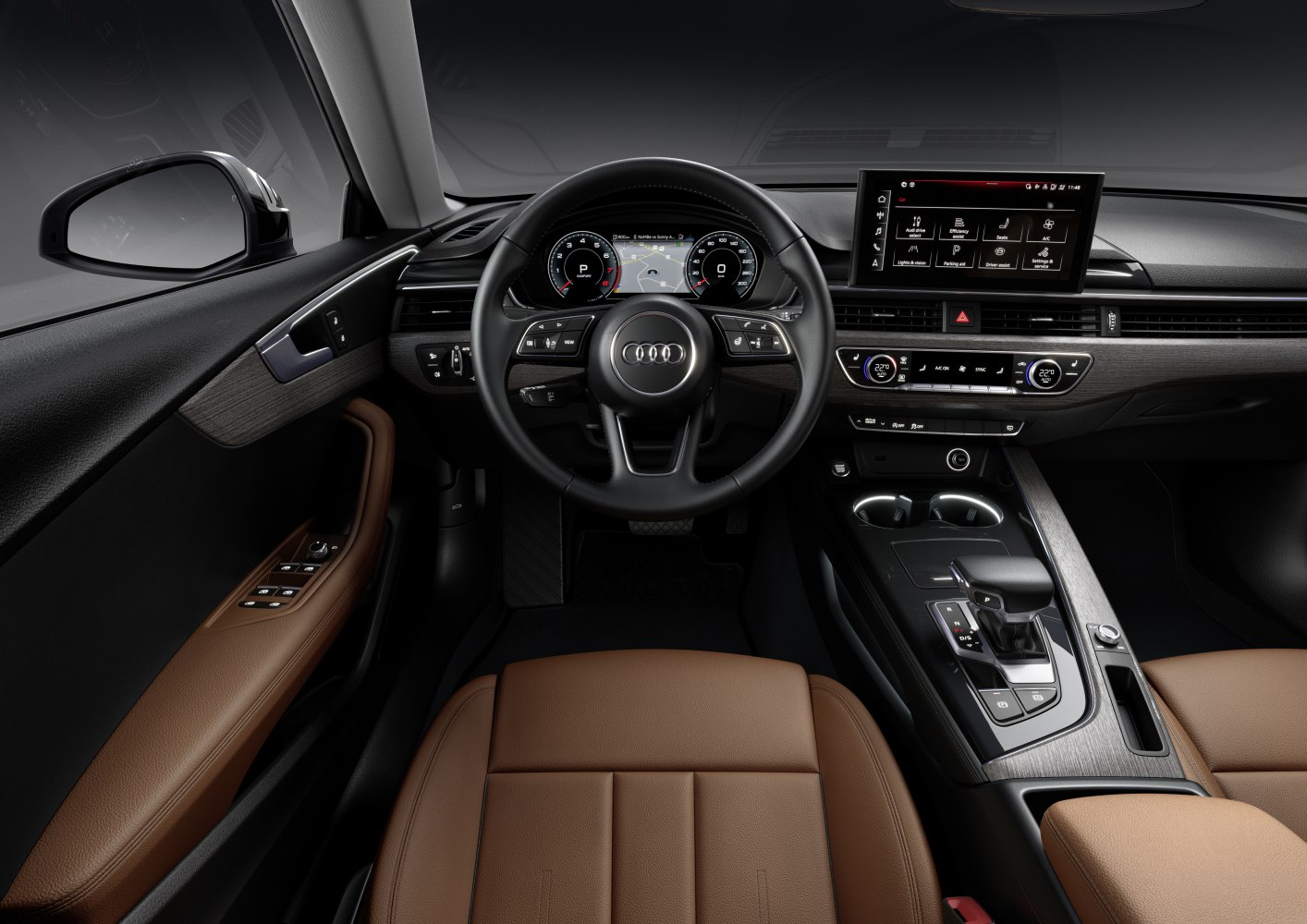

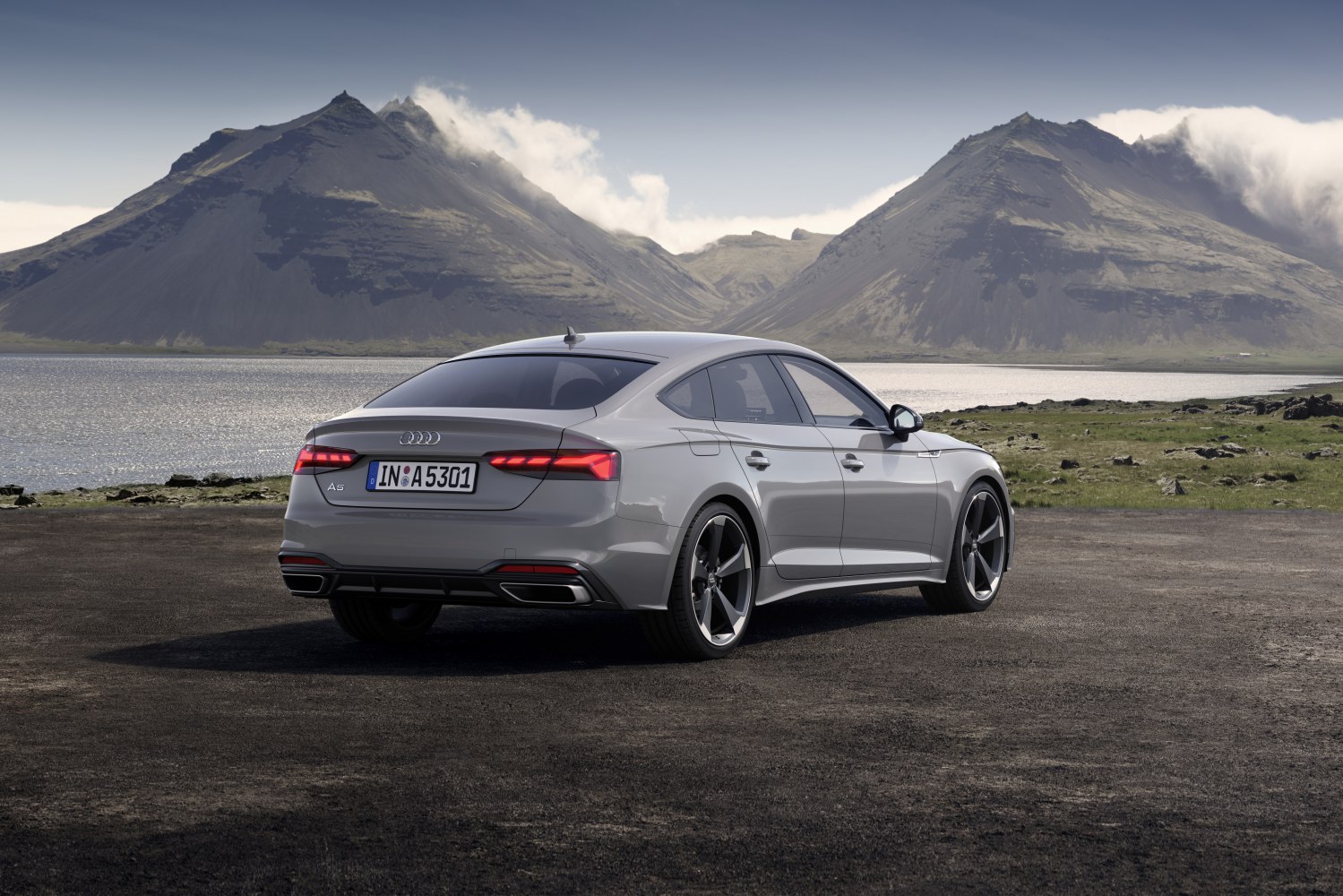

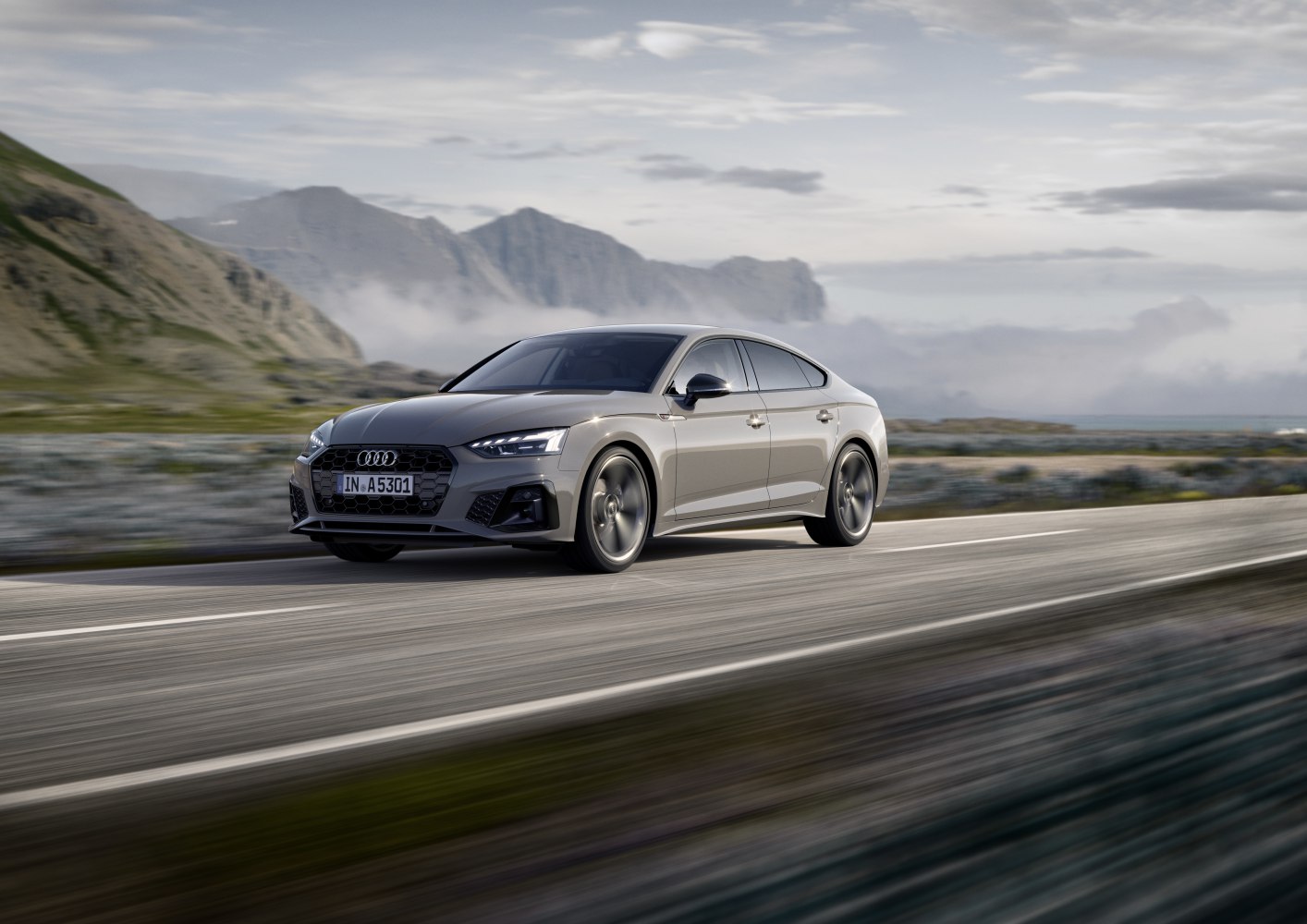

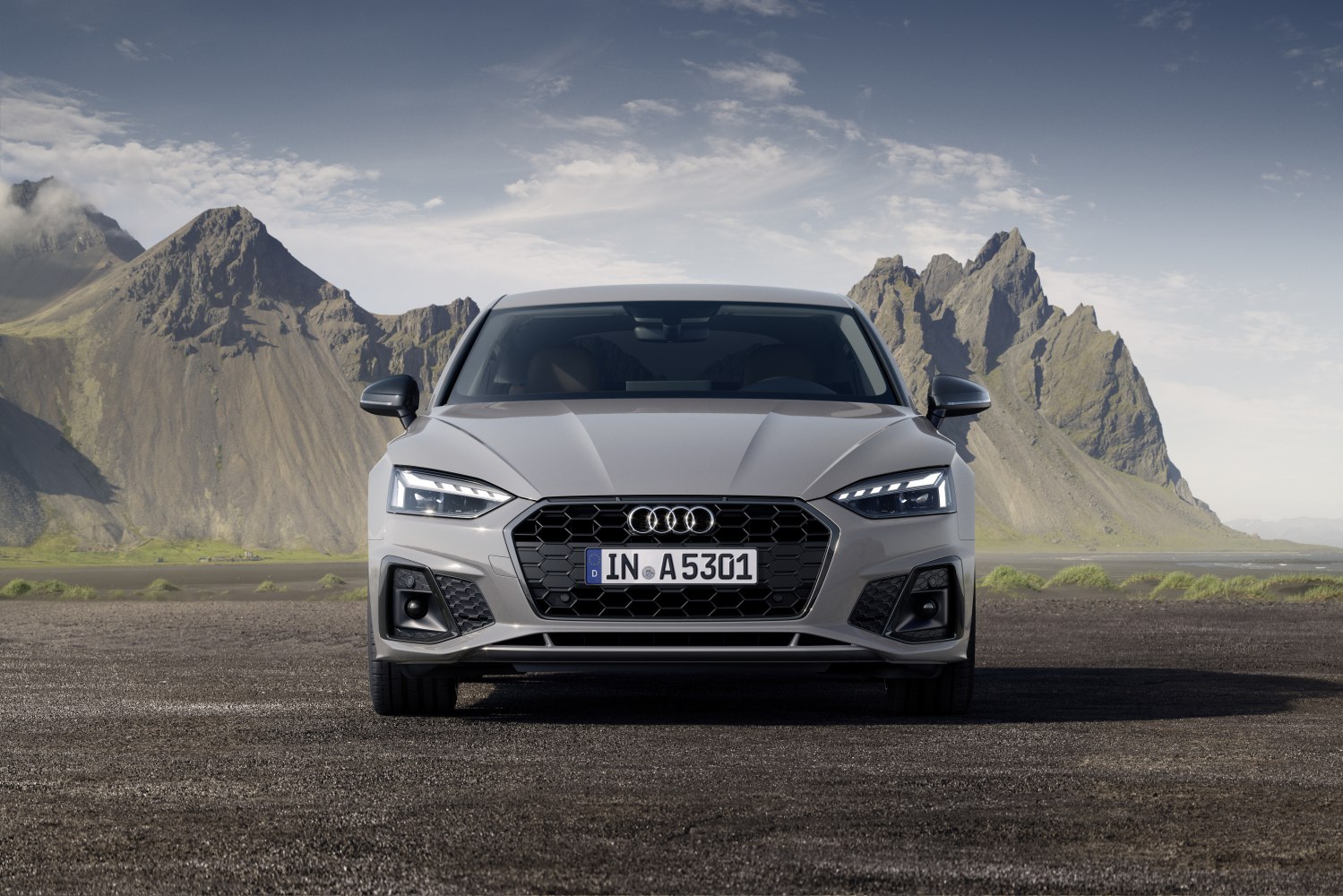

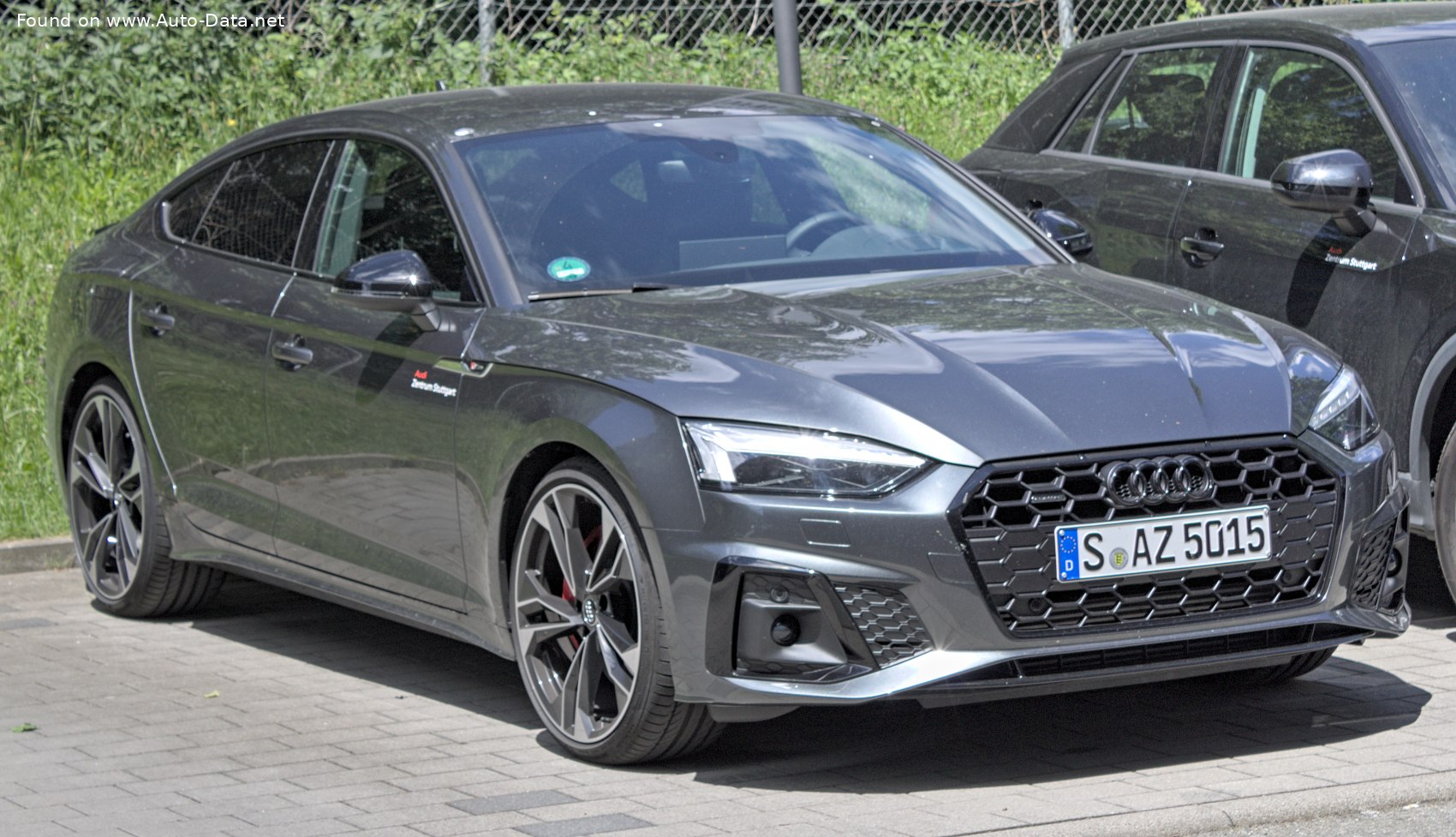

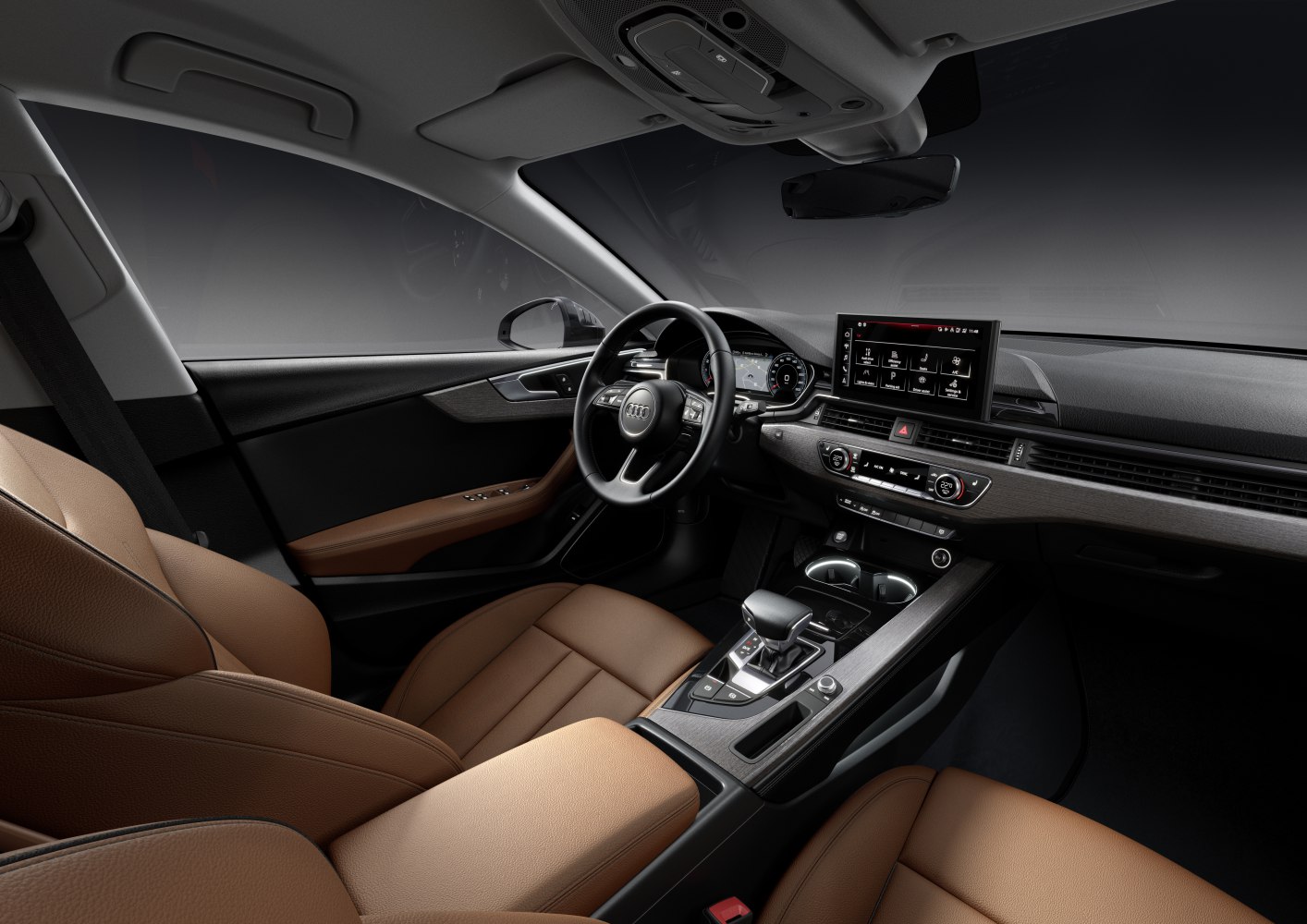

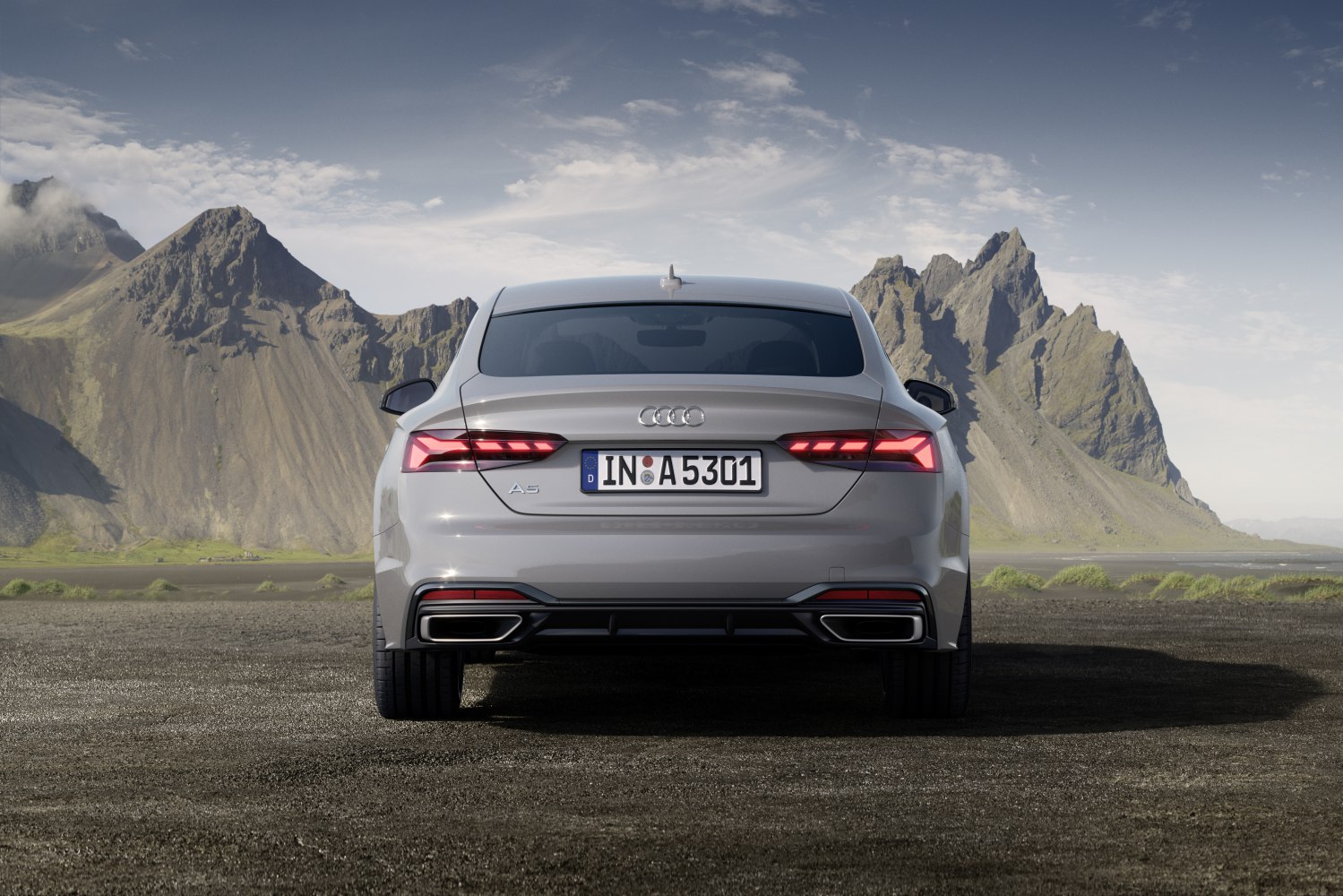

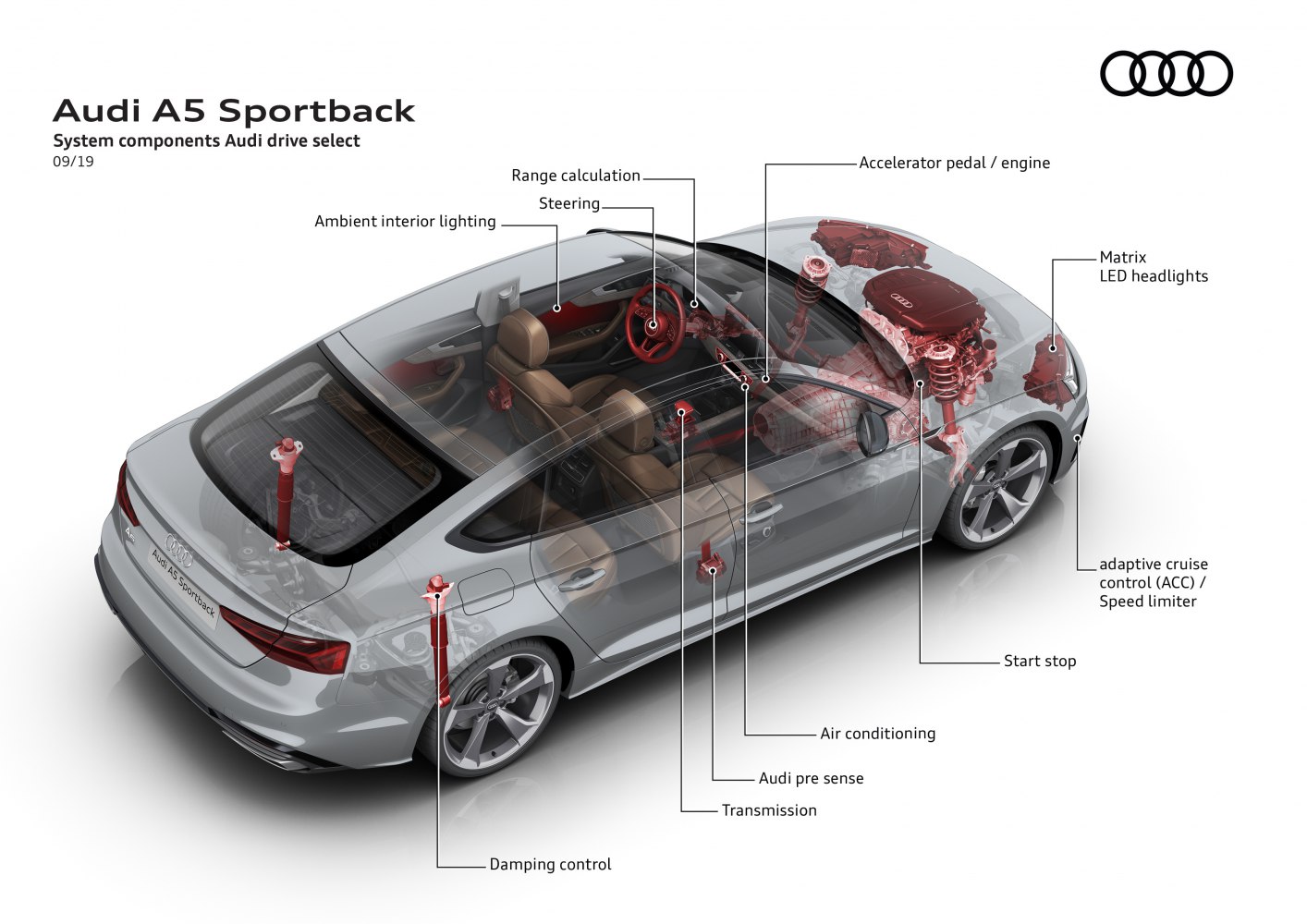

Audi A5 Sportback F5 2020 Gallery
Audi A5 Sportback F5 2020 Technical Specifications
General
Body type
Fastback
Brand
Audi
Doors
5
Generation
A5 Sportback (F5, 2019)
Model
A5
Modification (Engine)
40 TDI (204 Hp) Mild Hybrid S tronic
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start of production
August, 2020
Performance
Acceleration 0 - 100 km/h
7.4 sec
Acceleration 0 - 60 mph
7 sec
Acceleration 0 - 62 mph
7.4 sec
CO2 emissions (NEDC, WLTP equivalent)
118-127 g/km
CO2 emissions (WLTP)
130-152 g/km
Combined fuel consumption (WLTP)
5-5.8 l/100 km
Emission standard
Euro 6d-ISC-FCM
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC, WLTP equivalent)
4.5-4.8 l/100 km
Fuel consumption (economy) - extra urban (NEDC, WLTP equivalent)
4-4.4 l/100 km
Fuel consumption (economy) - urban (NEDC, WLTP equivalent)
5.3-5.5 l/100 km
Maximum speed
210 km/h, Electronically limited

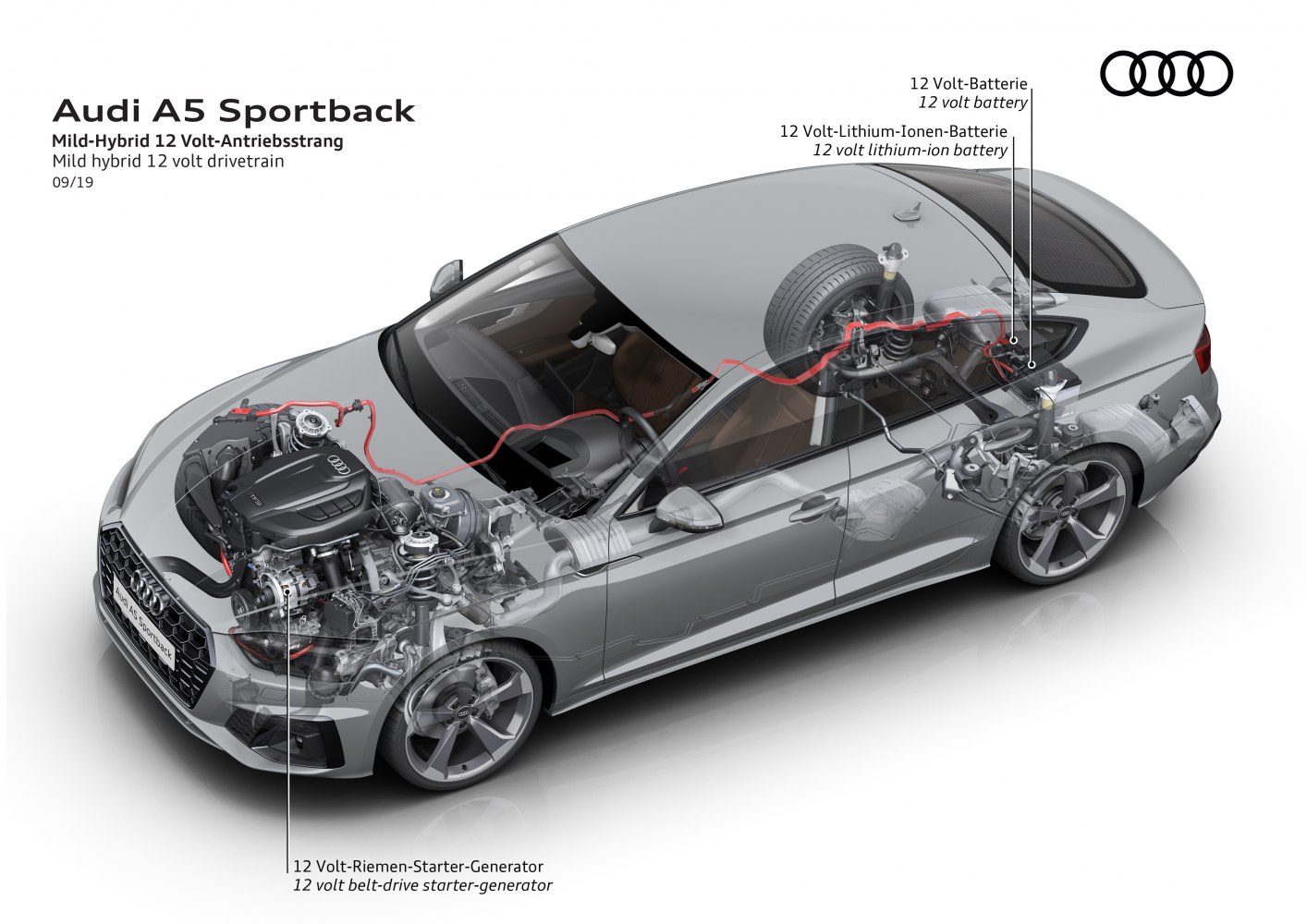

Electric
Battery location
Under the trunk
Battery voltage
12 V
Electric motor location number 1
Front, Longitudinal
Internal Engine
Compression ratio
15.5
Coolant
11.9 l
Cylinder Bore
81 mm
Engine Model/Code
EA288 evo / DTPA
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1968 cm
Engine layout
Front, Longitudinal
Engine oil capacity
5.5 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
95.5 mm
Power
204 Hp @ 3800-4200 rpm.
Power per litre
103.7 Hp/l
Torque
400 Nm @ 1750-3250 rpm.
Valvetrain
DOHC
Dimensions
Approach angle
12.2°
Departure angle
12.7°
Drag coefficient (Cd)
0.26-0.27
Front overhang
898 mm
Front track
1587 mm
Height
1398 mm
Length
4757 mm
Minimum turning circle (turning diameter)
11.7 m
Rear (Back) track
1568 mm
Rear overhang
1035 mm
Wheelbase
2824 mm
Width
1843 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 318 mm

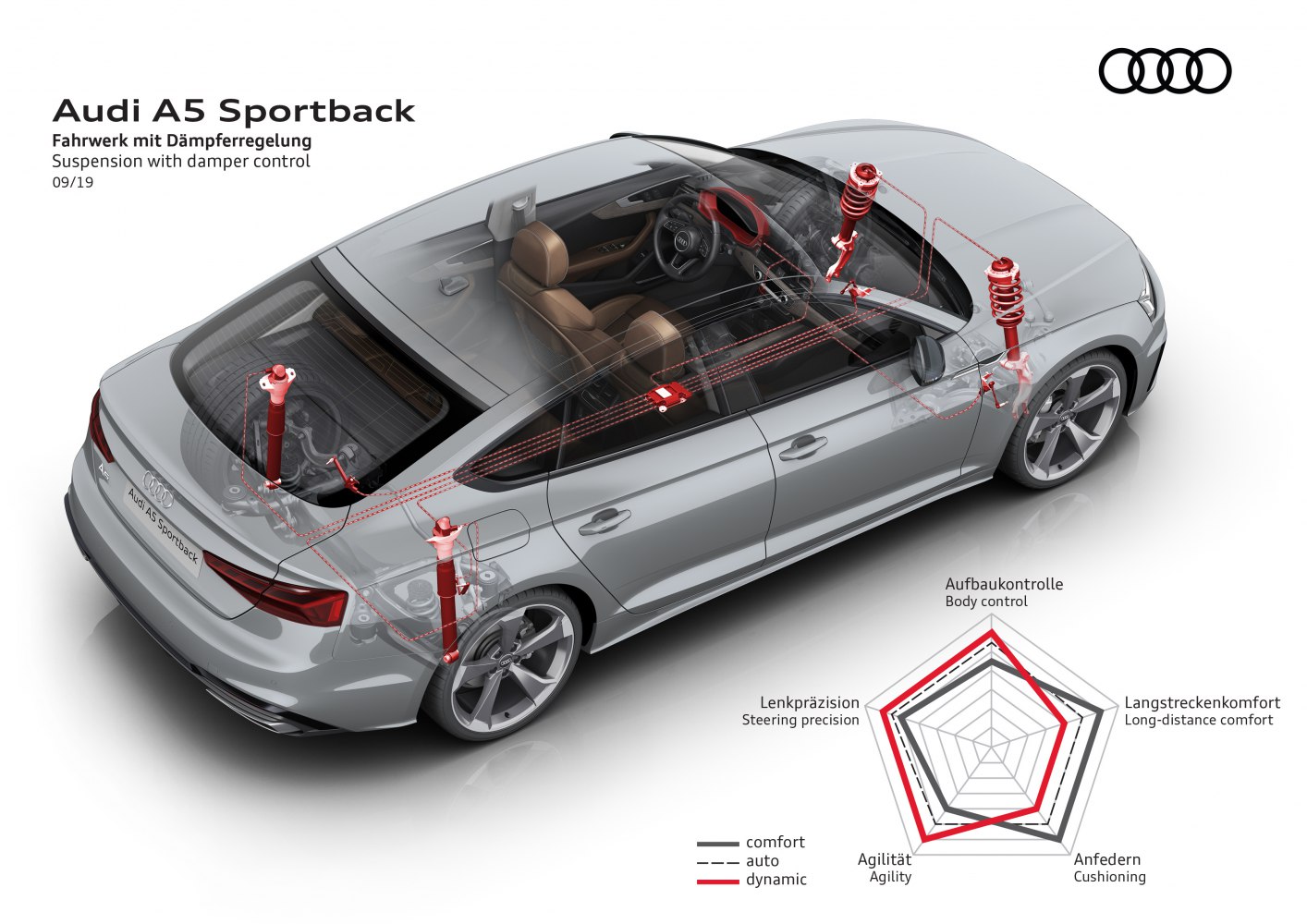

Front suspension
Coil spring, Independent multi-link suspension, Transverse stabilizer
Number of gears and type of gearbox
7 gears, automatic transmission S tronic
Power steering
Electric Steering
Rear brakes
Disc, 300 mm
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
225/50 R17; 245/40 R18; 255/35 R19; 265/30 R20
Wheel rims size
7.5J x 17; 8.5J x 18; 8.5J x 19; 9J x 20
Space
AdBlue tank
12 l
Fuel tank capacity
40 l
Kerb Weight
1530 kg
Max load
595 kg
Max. roof load
90 kg
Max. weight
2125 kg
Permitted towbar download
80 kg
