Audi A5 Avant B10 2024
2.0 TDI (204 Hp) Mild Hybrid S tronic
Hybrid Car
Body Type Station wagon (estate)
Seats 5
3800-4200 rpm.
Power HP RPM
240 km/h
Maximum Speed
5
Doors
Audi A5 Avant B10 2024 Key Specs
Acceleration 0 - 100 Km/h
7.7 sec
Acceleration 0 - 62 Mph
7.7 sec
Battery Voltage
48 V
Body Type
Station wagon (estate)
Doors
5
Drive Wheel
Front wheel drive
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
5.5 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
60 l
Generation
A5 Avant (B10)
Kerb Weight
1835 kg
Maximum Speed
240 km/h
Modification (Engine)
2.0 TDI (204 Hp) Mild Hybrid S tronic
Number Of Cylinders
4
Power
204 Hp @ 3800-4200 rpm.
Power Steering
Electric Steering
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start Of Production
July, 2024
Wheel Rims Size
7J x 17

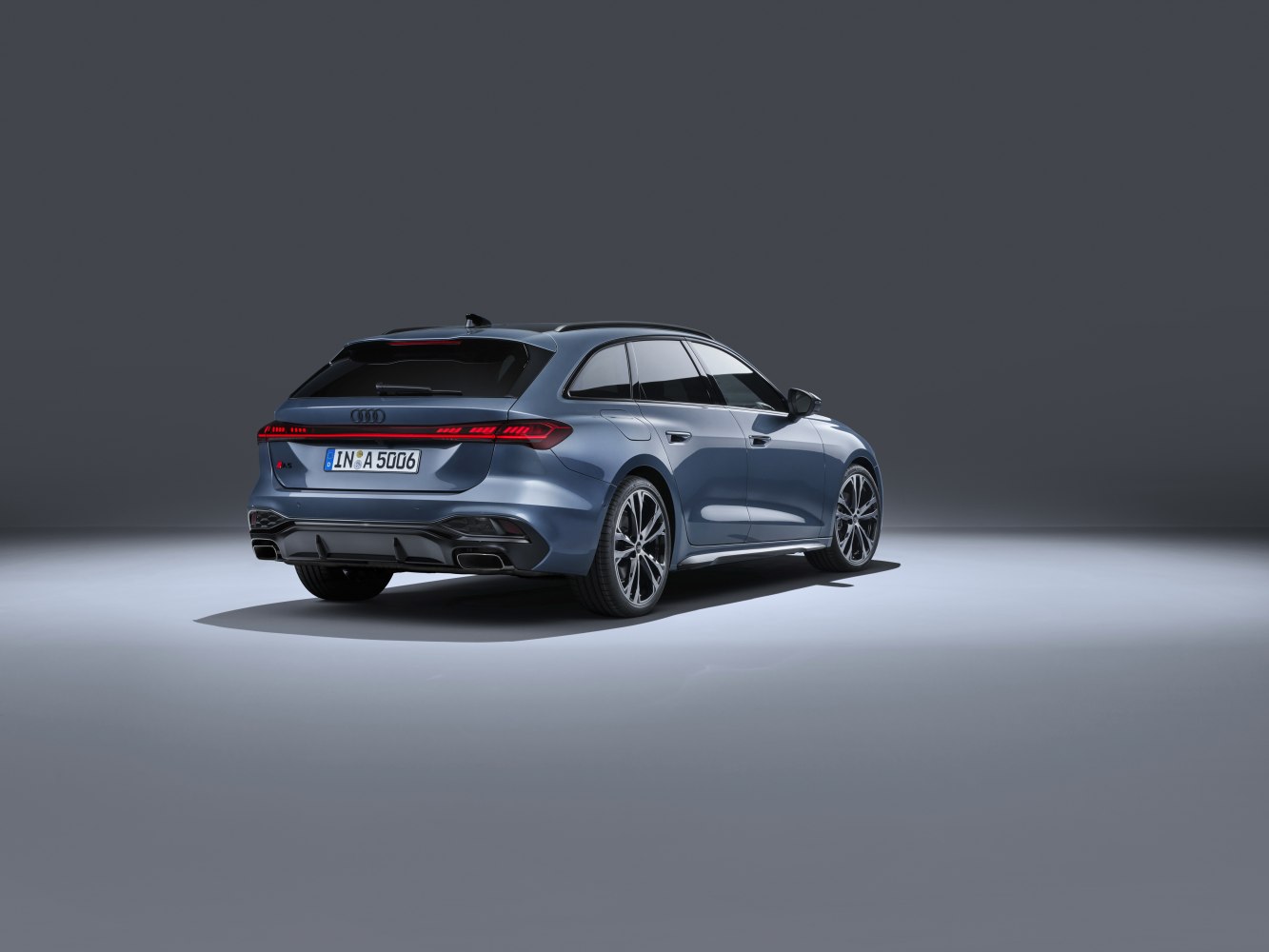

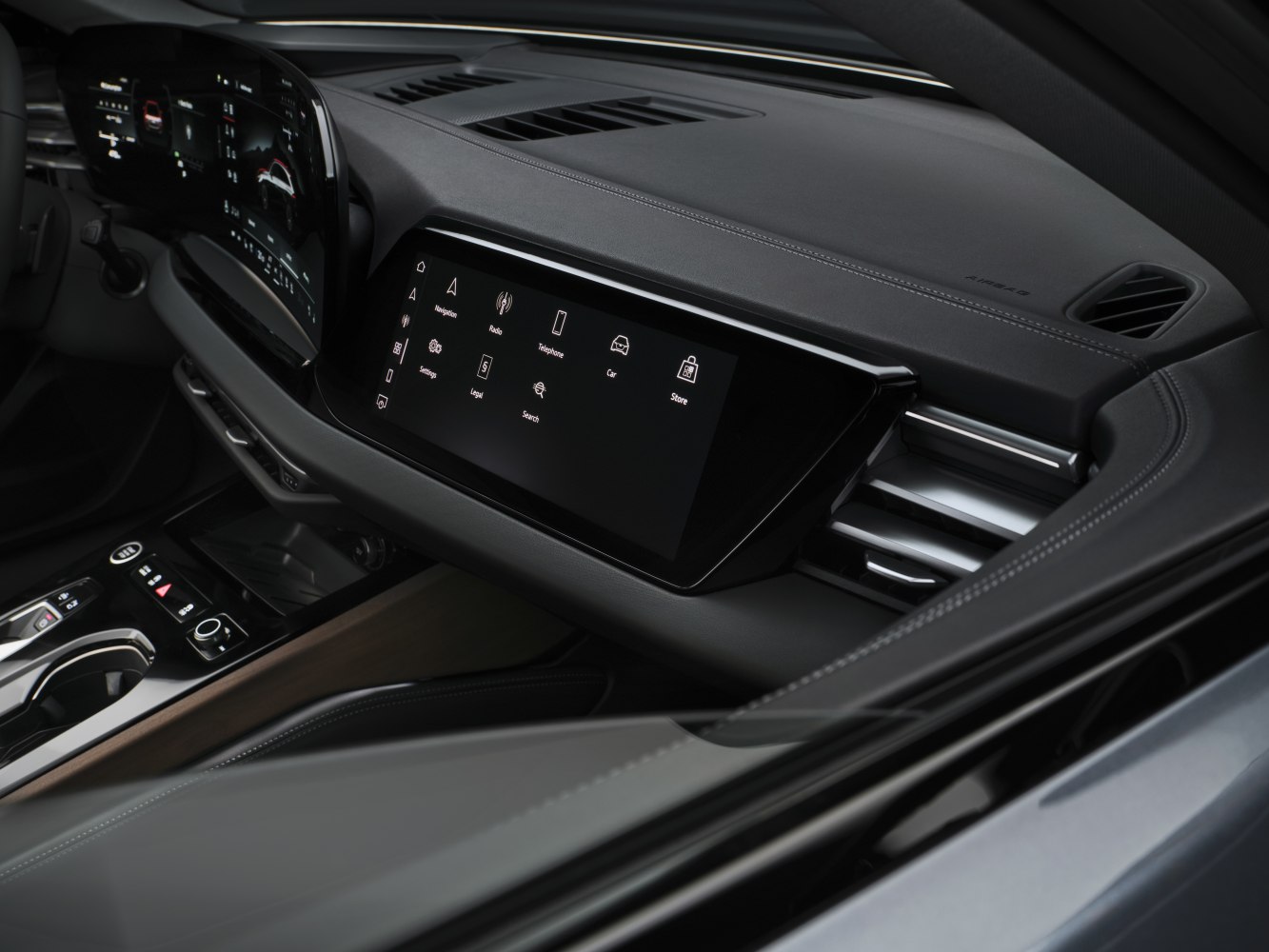

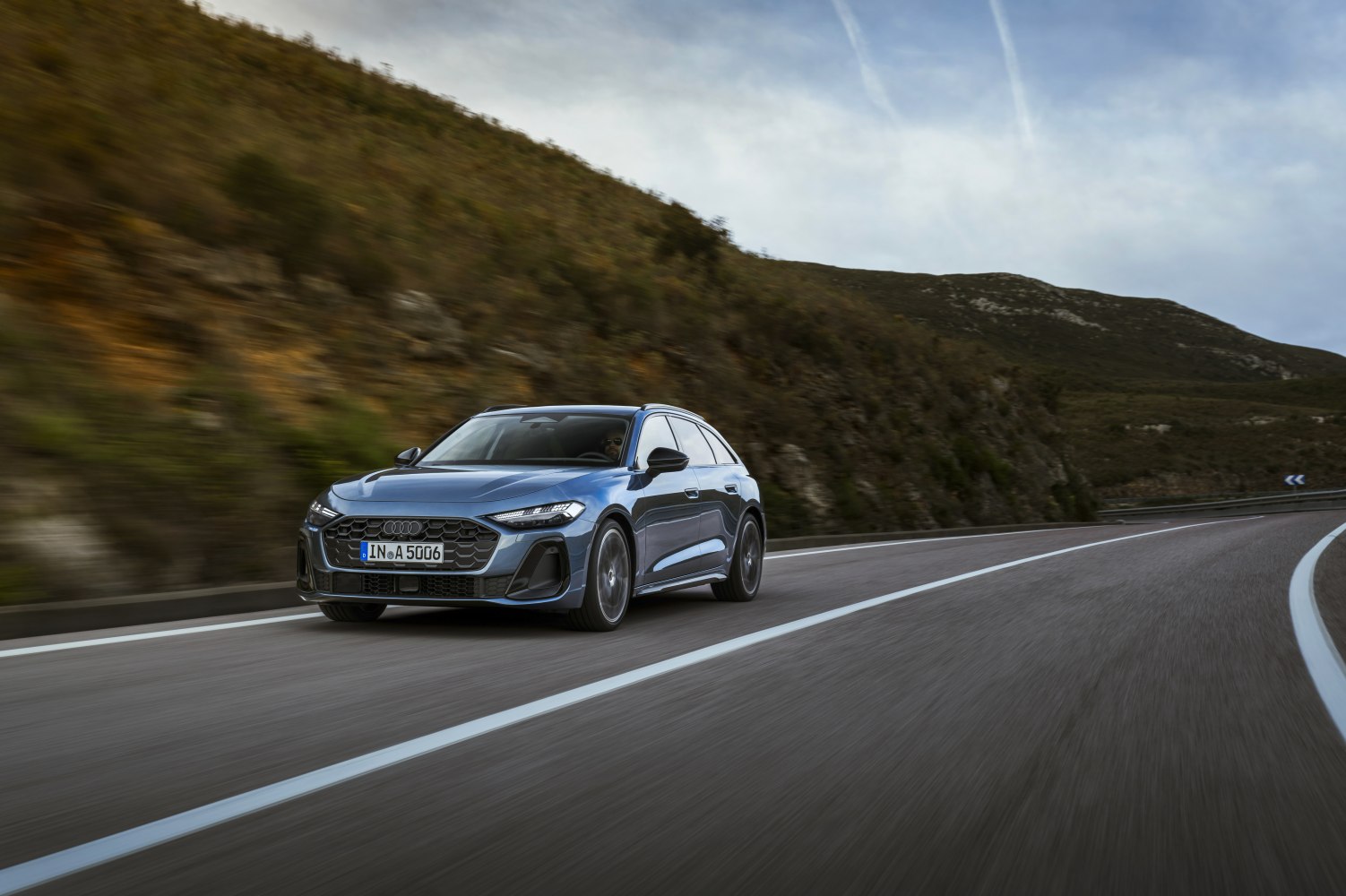

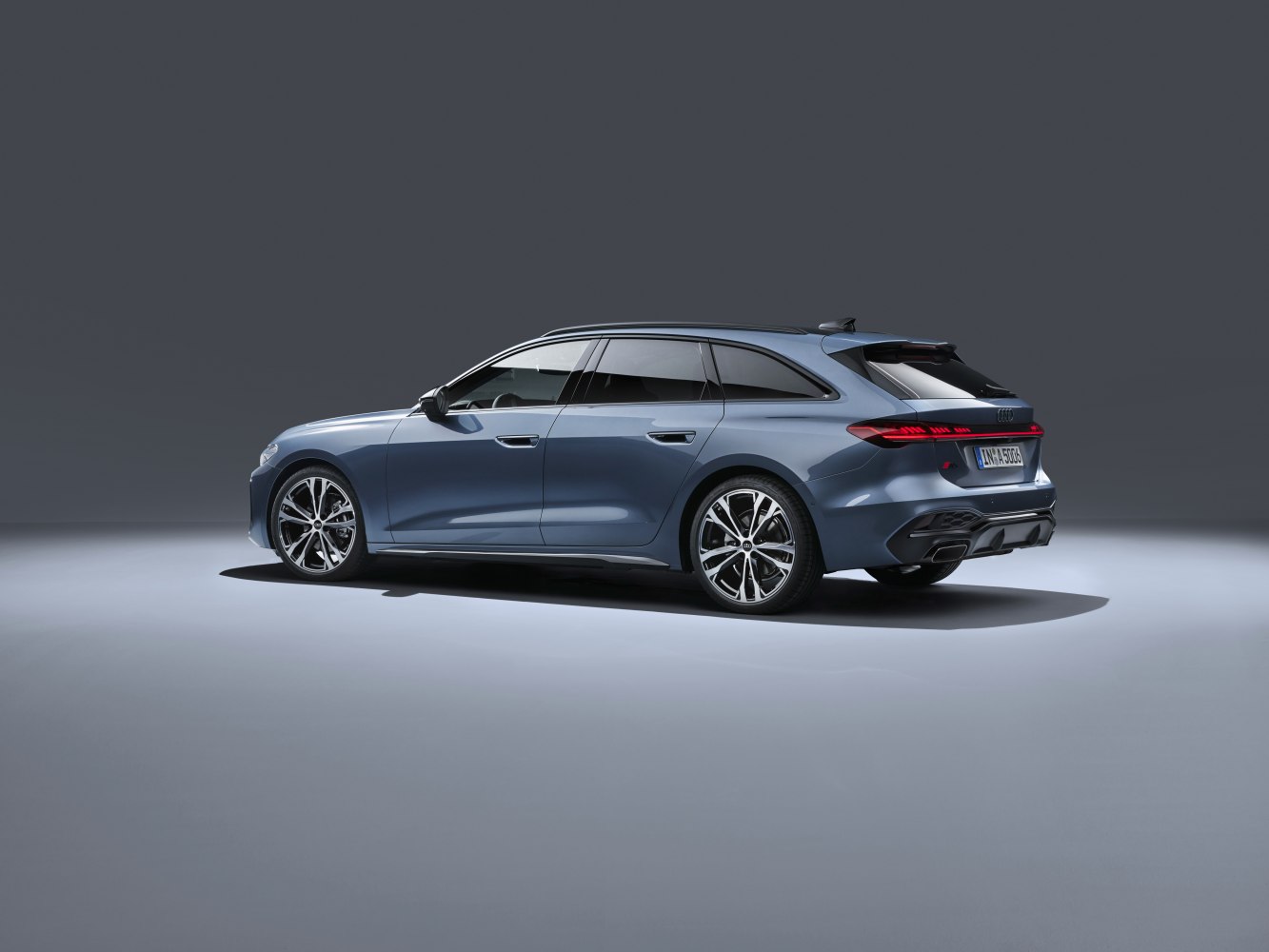

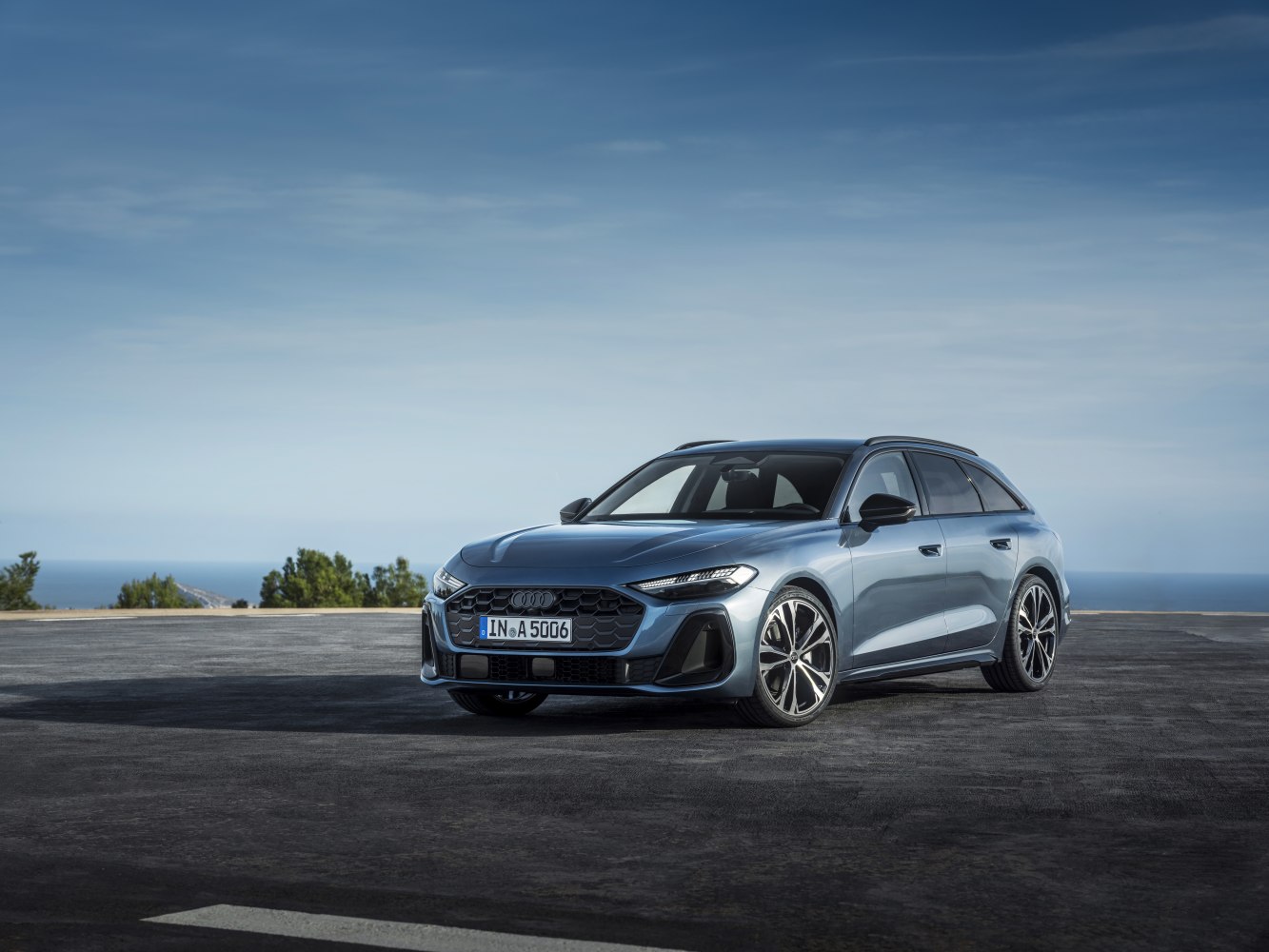

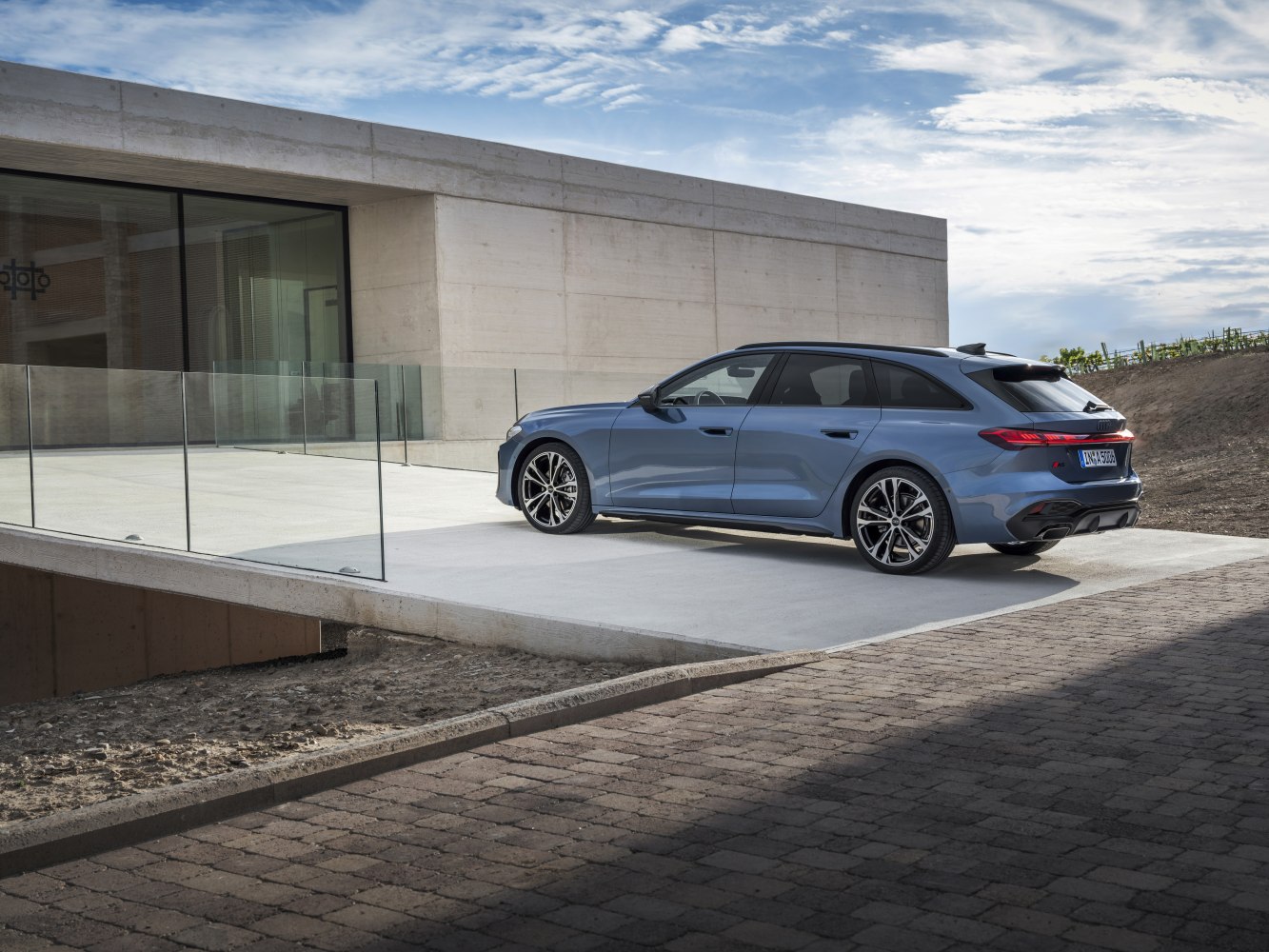

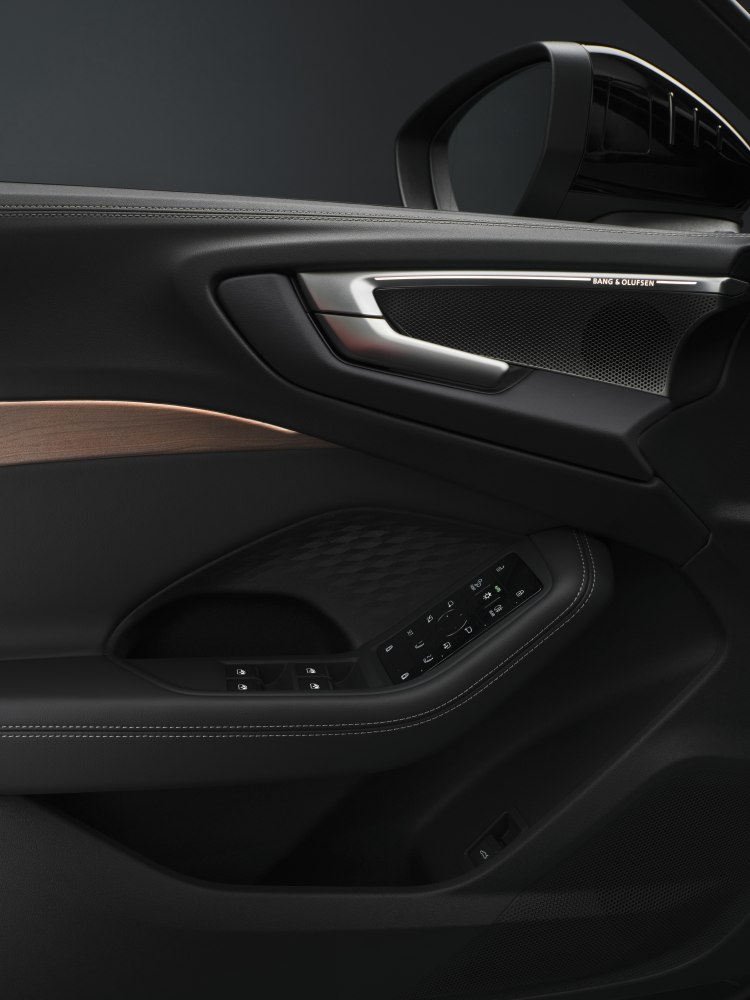

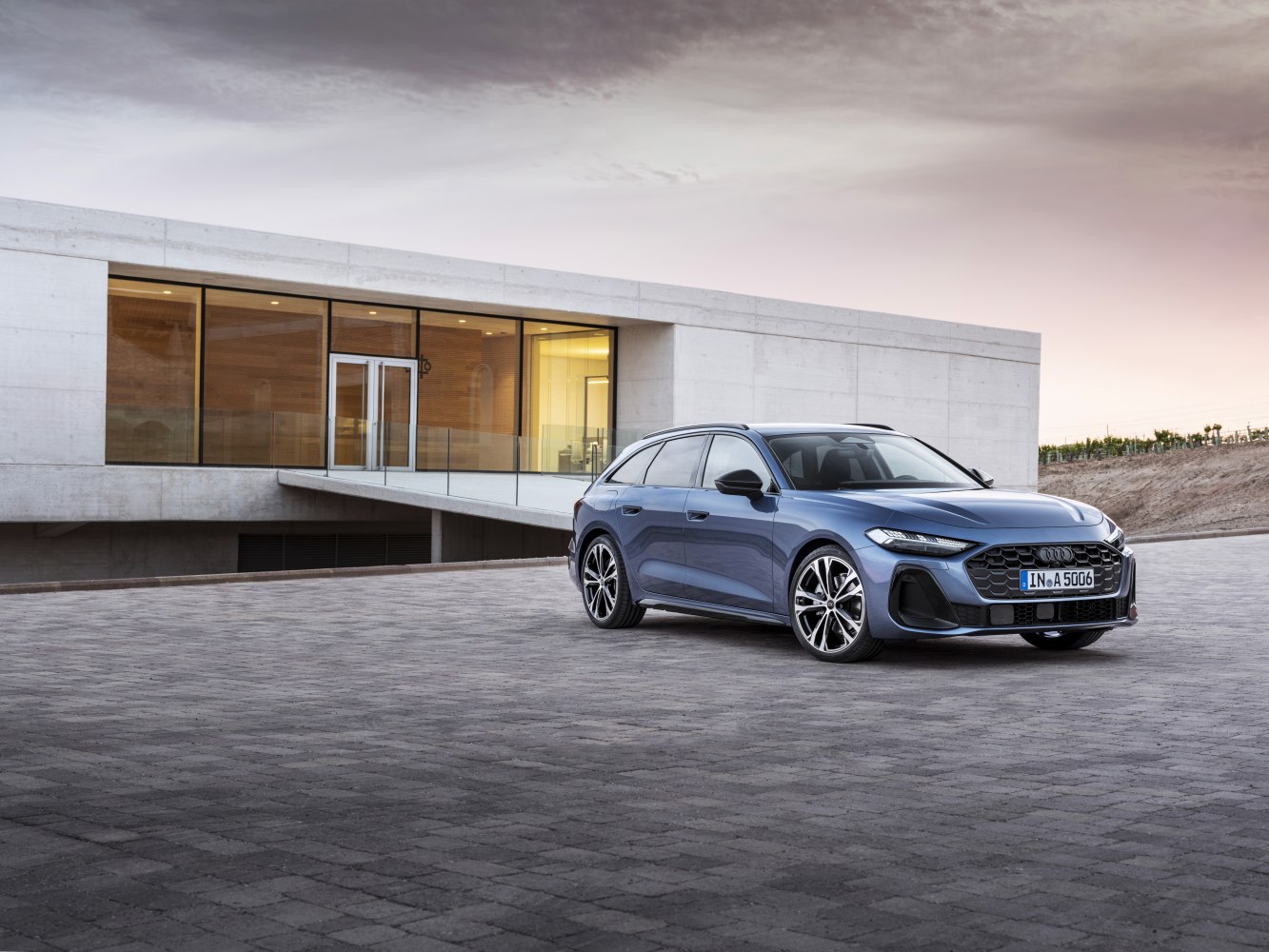

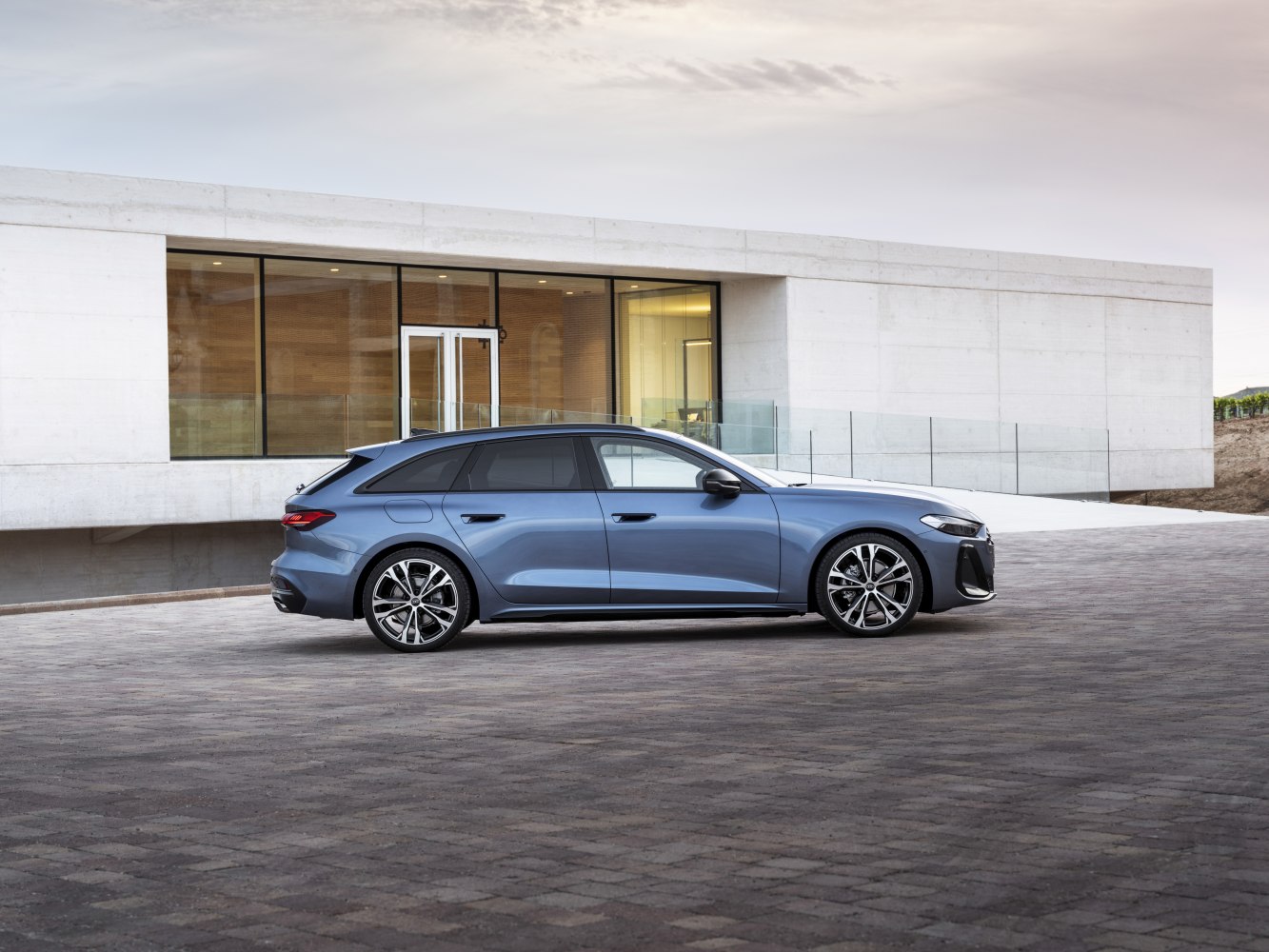

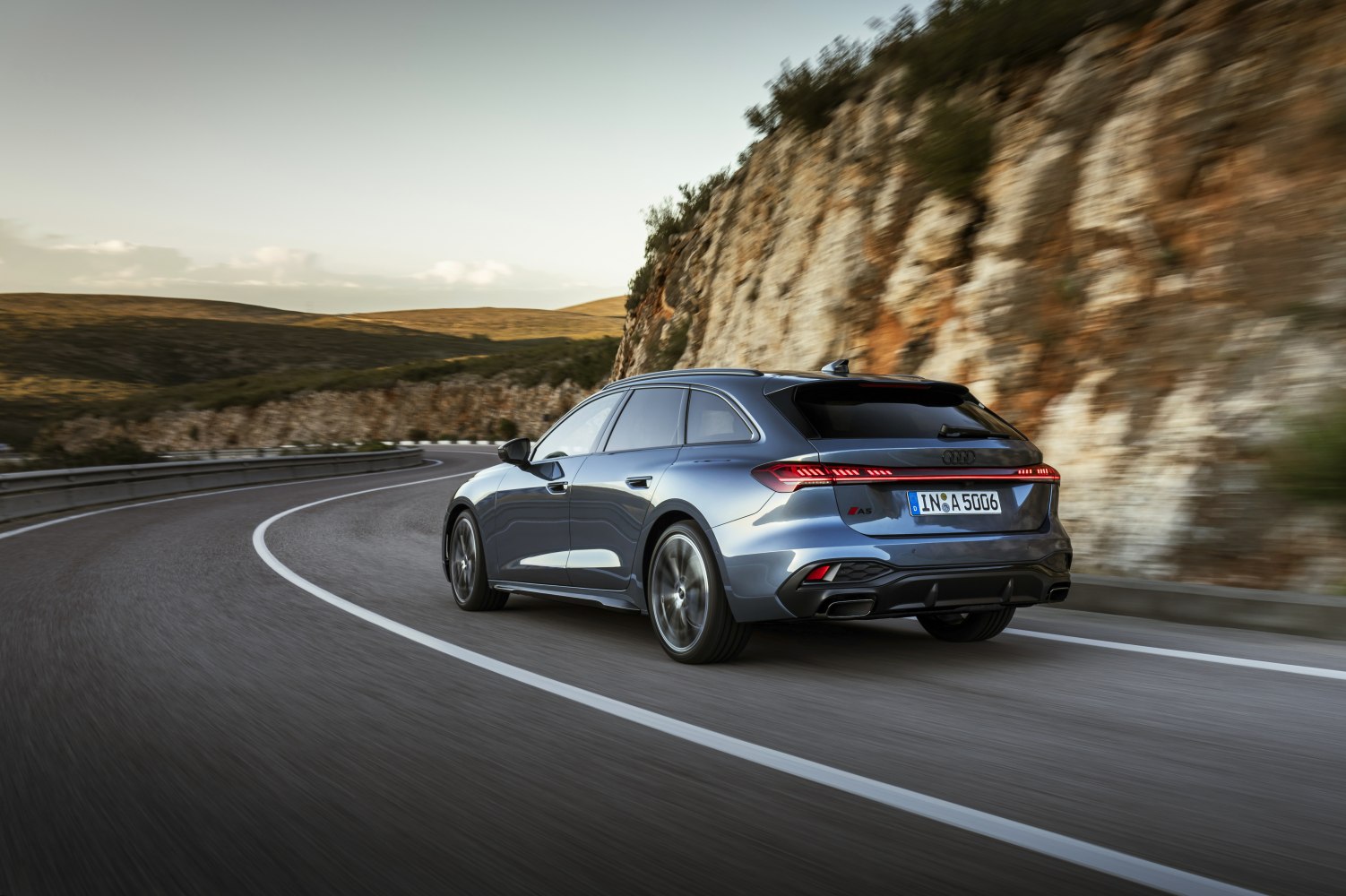

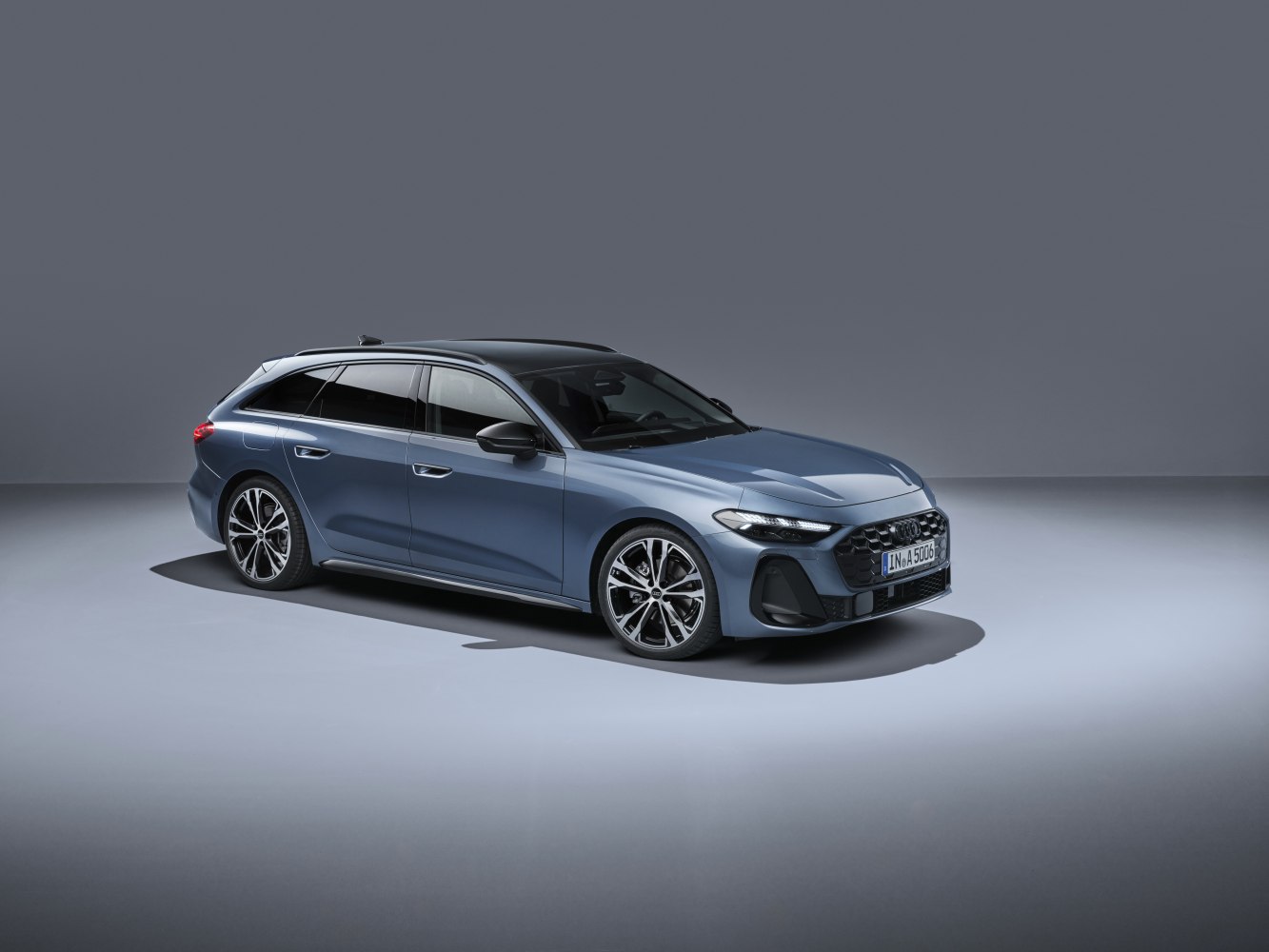

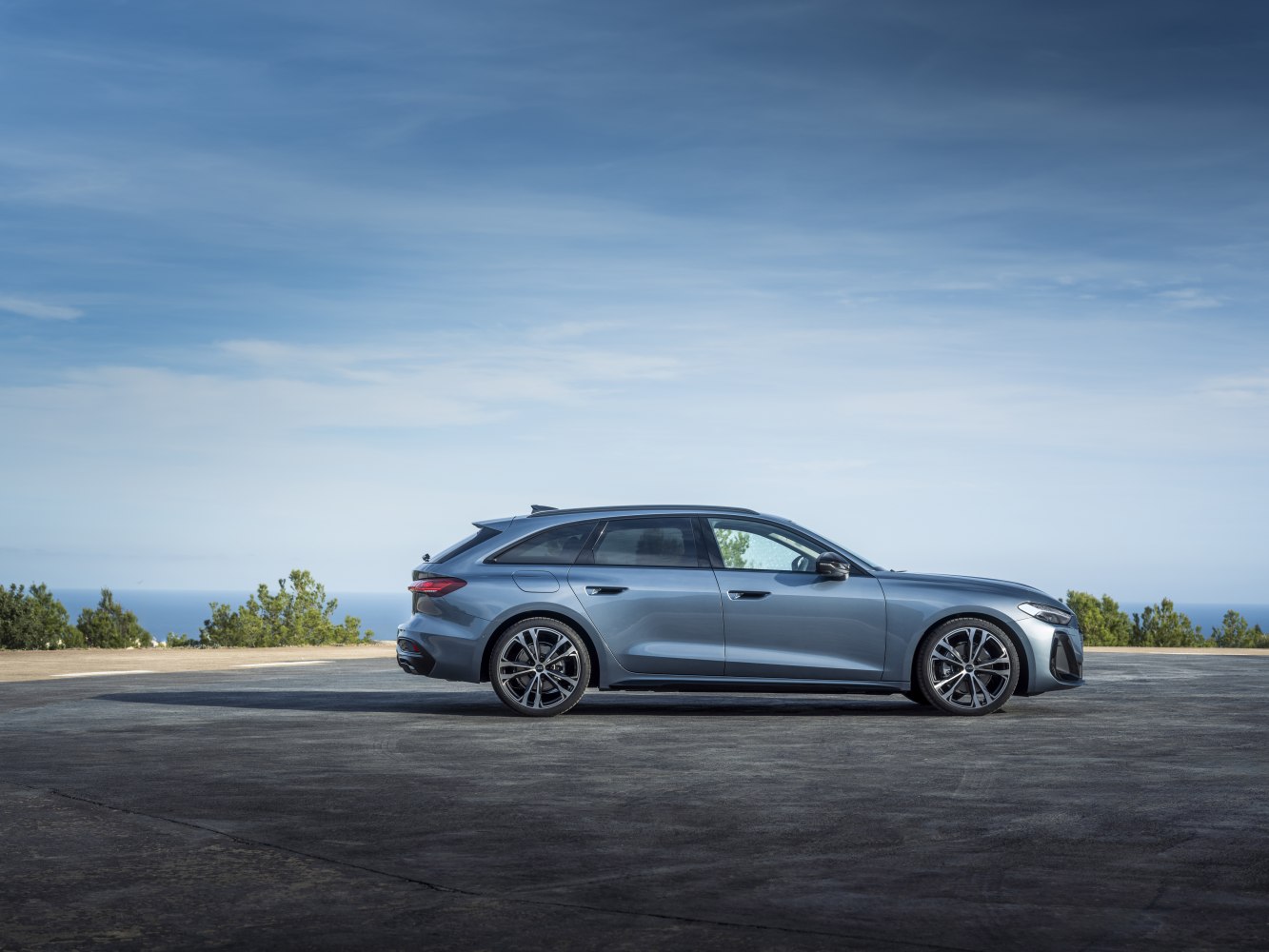

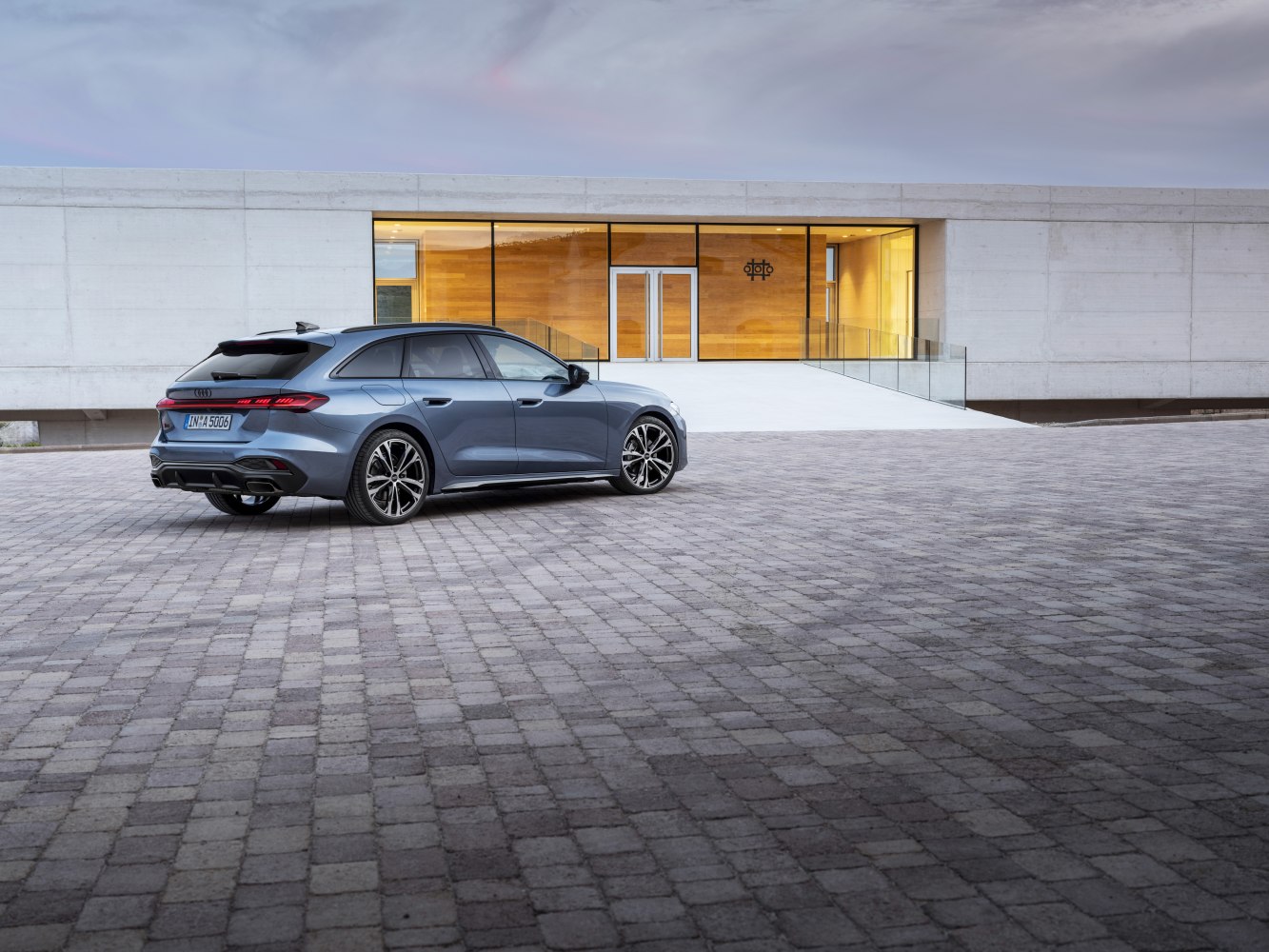

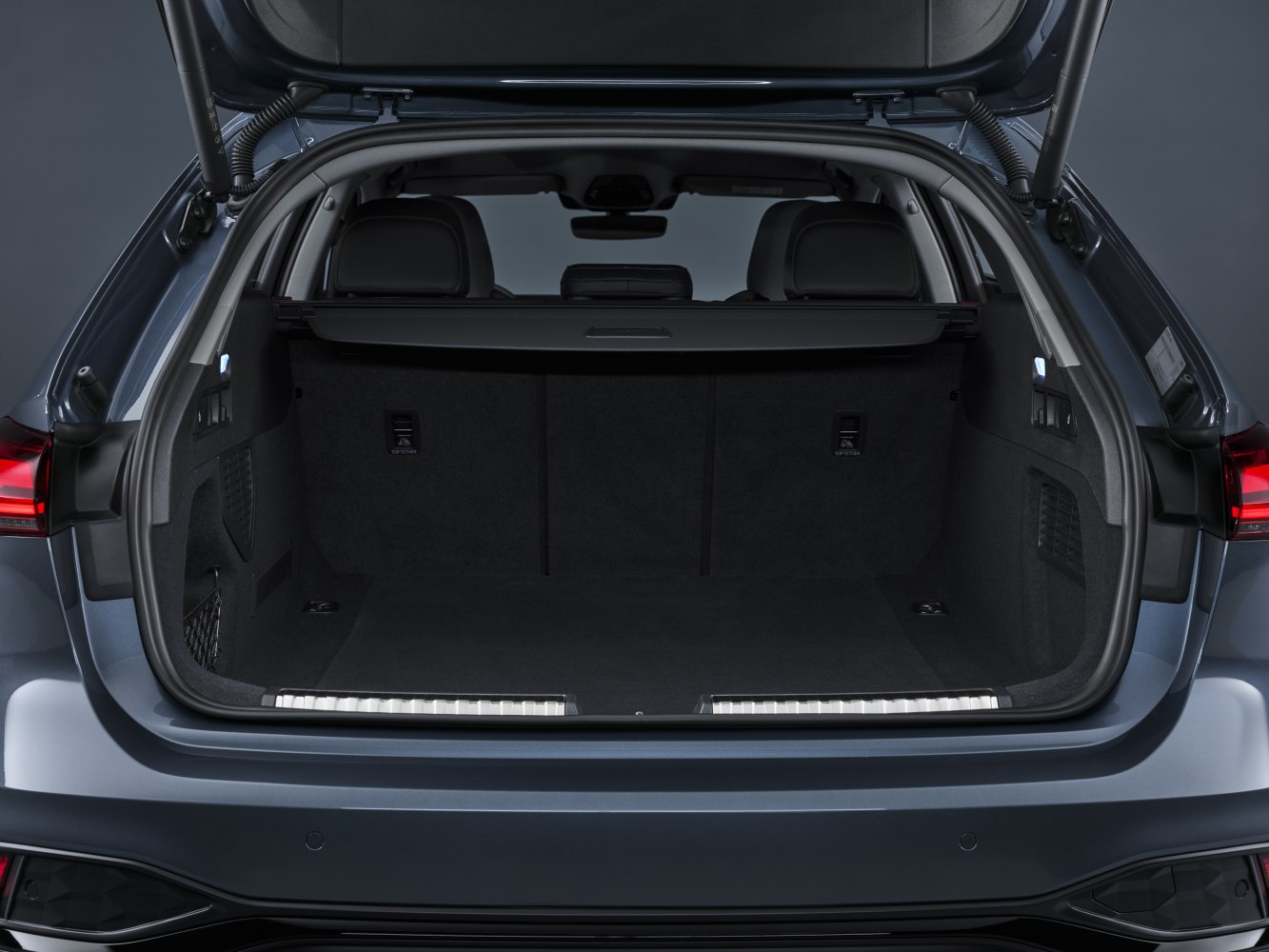

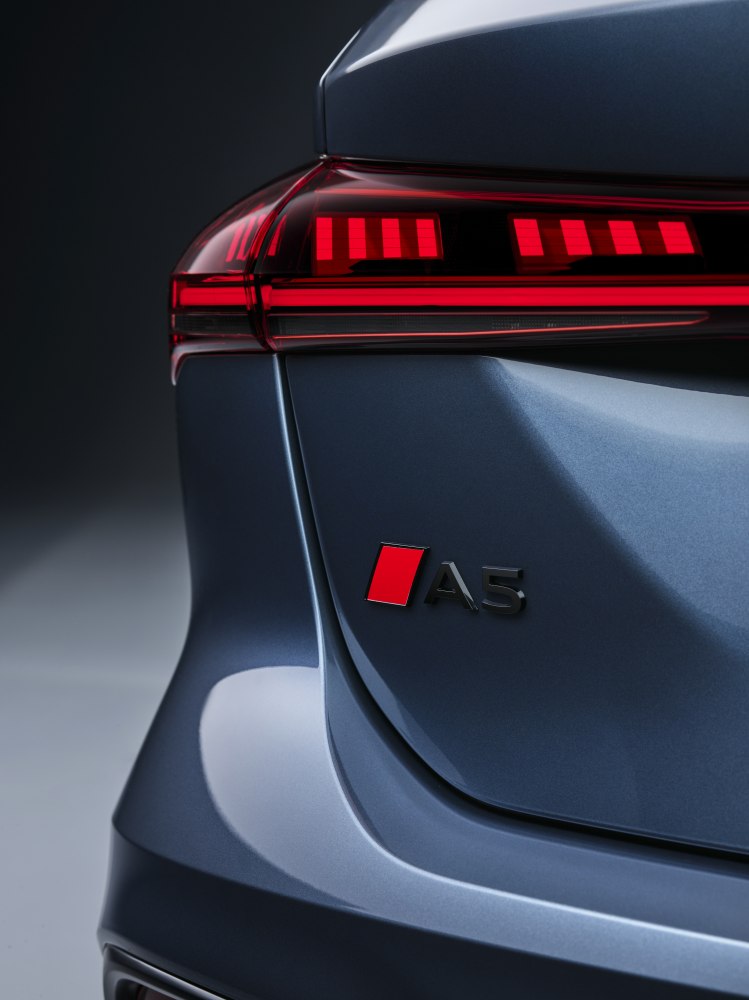

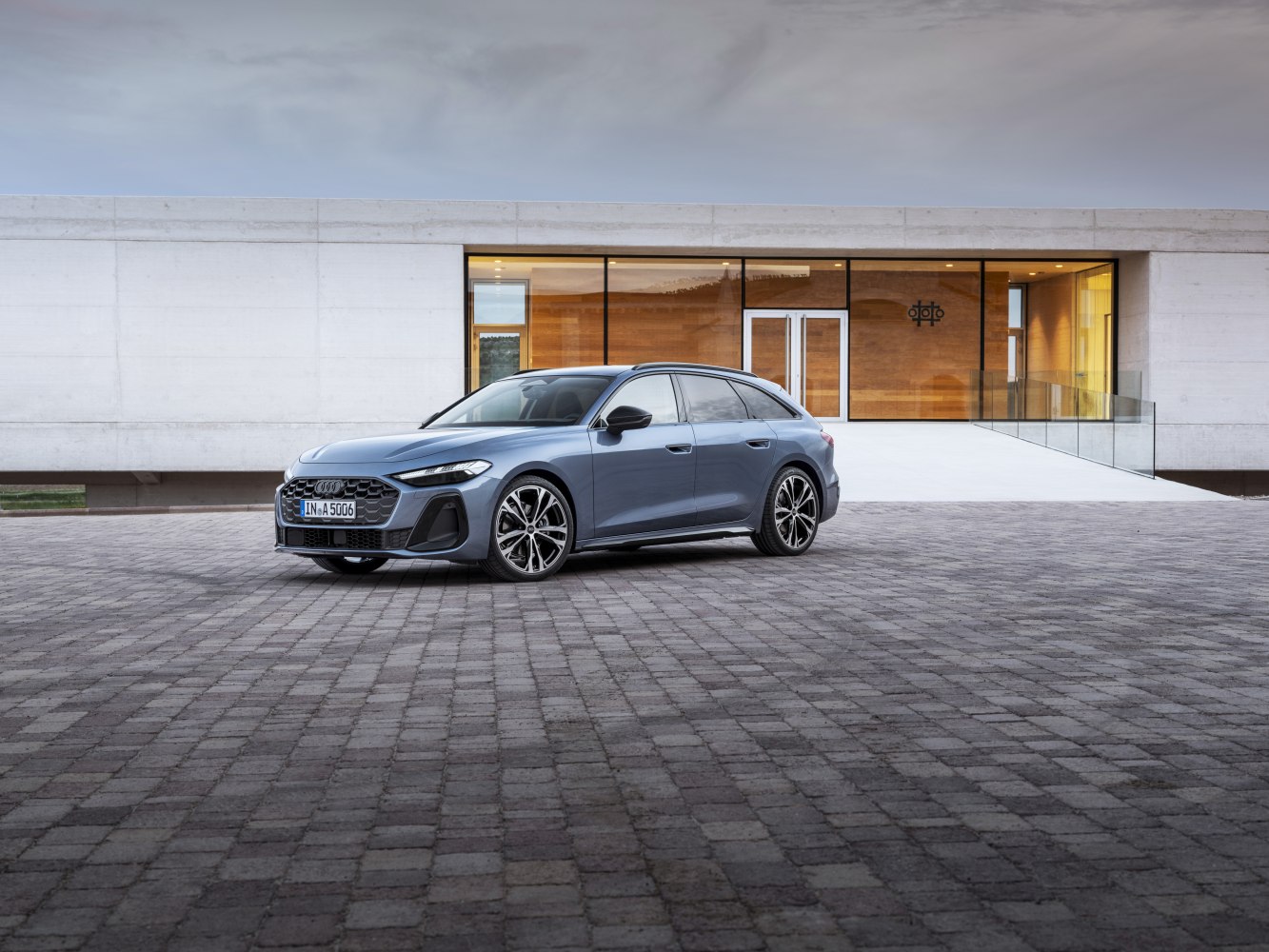

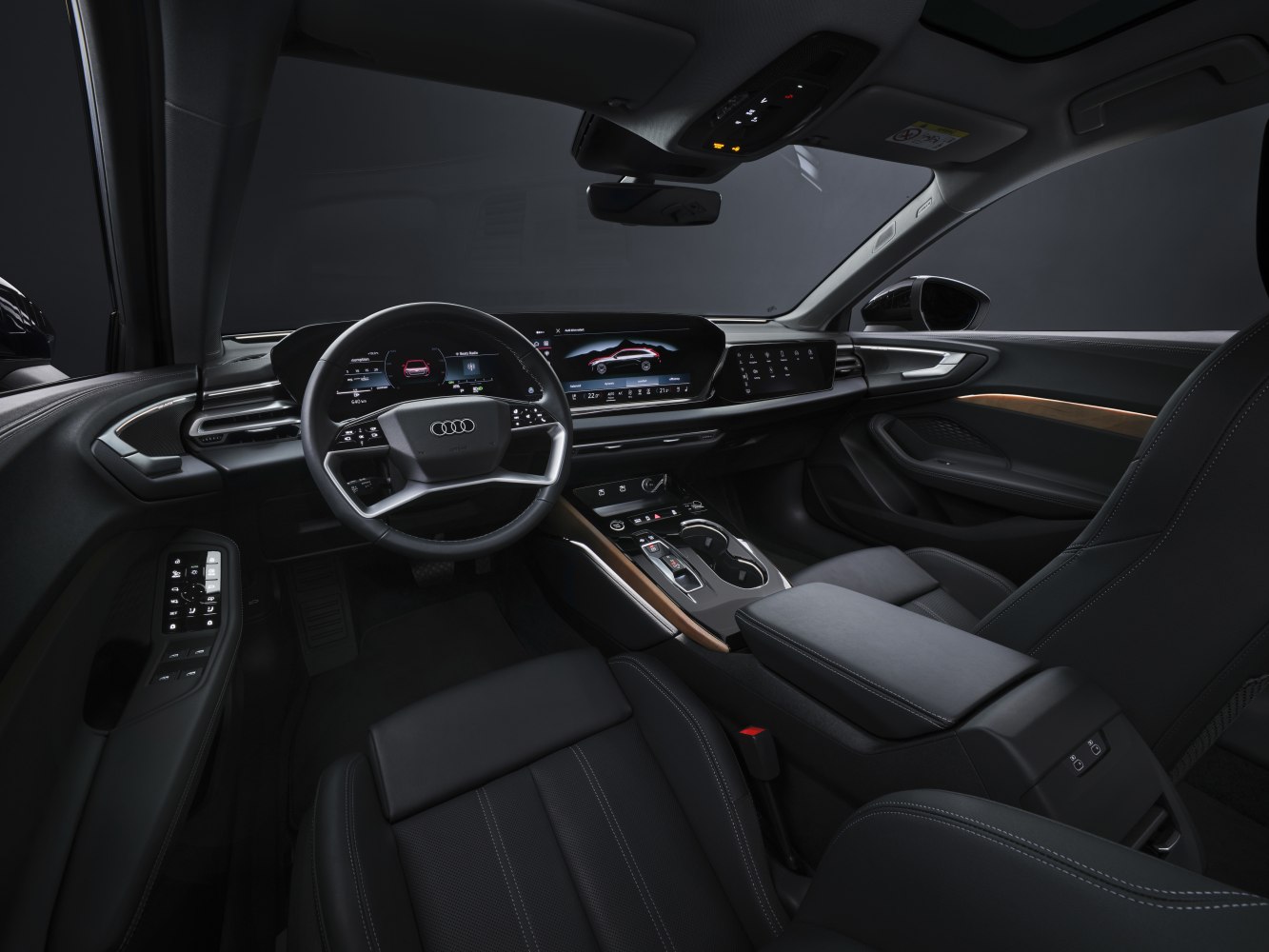

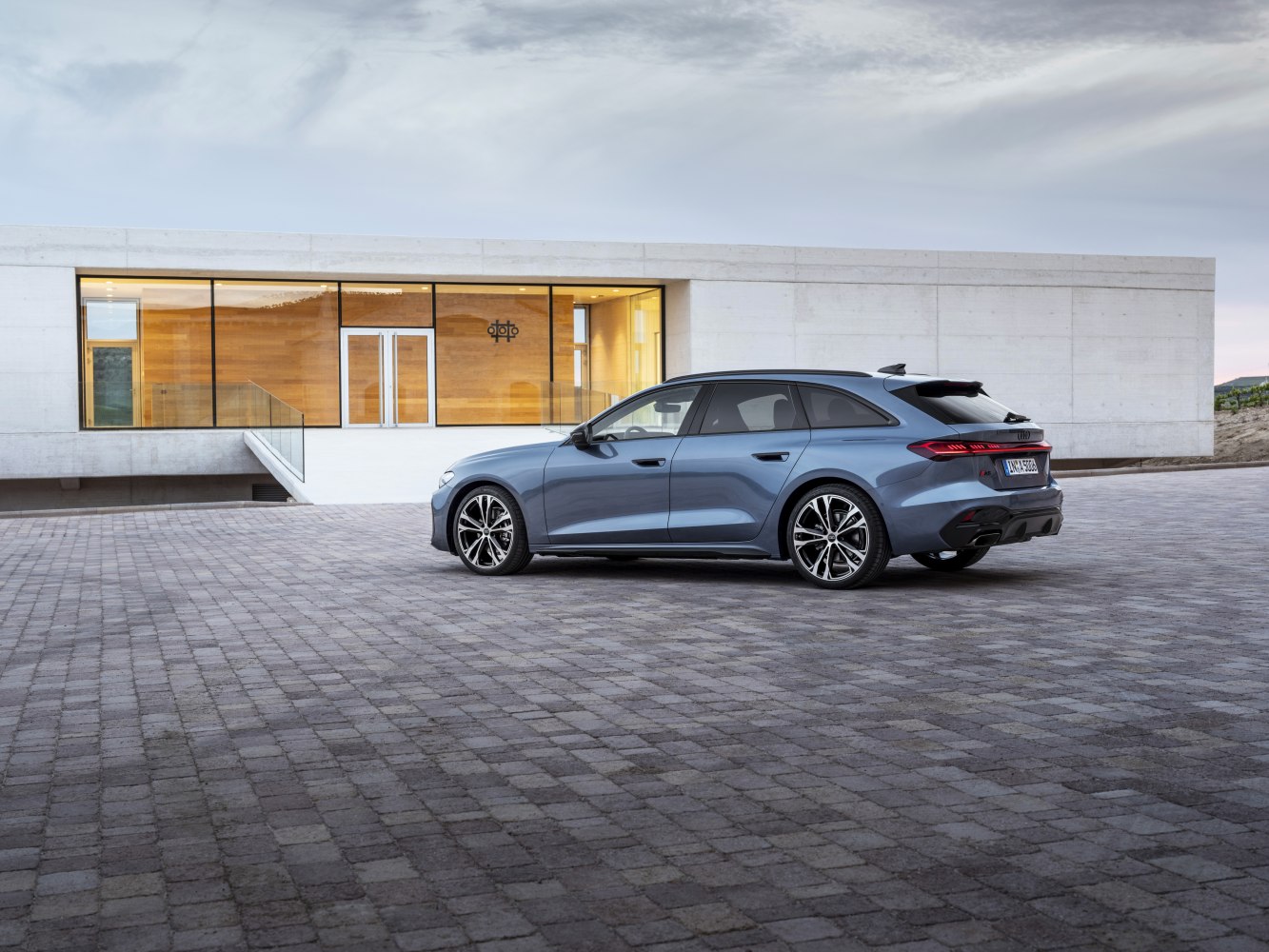

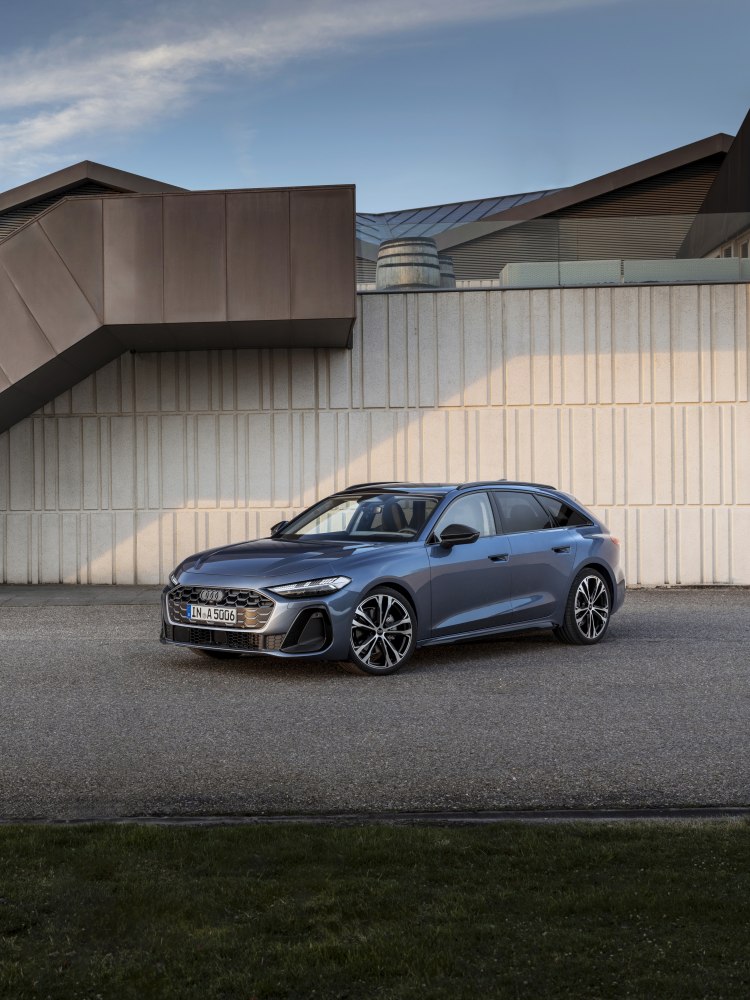

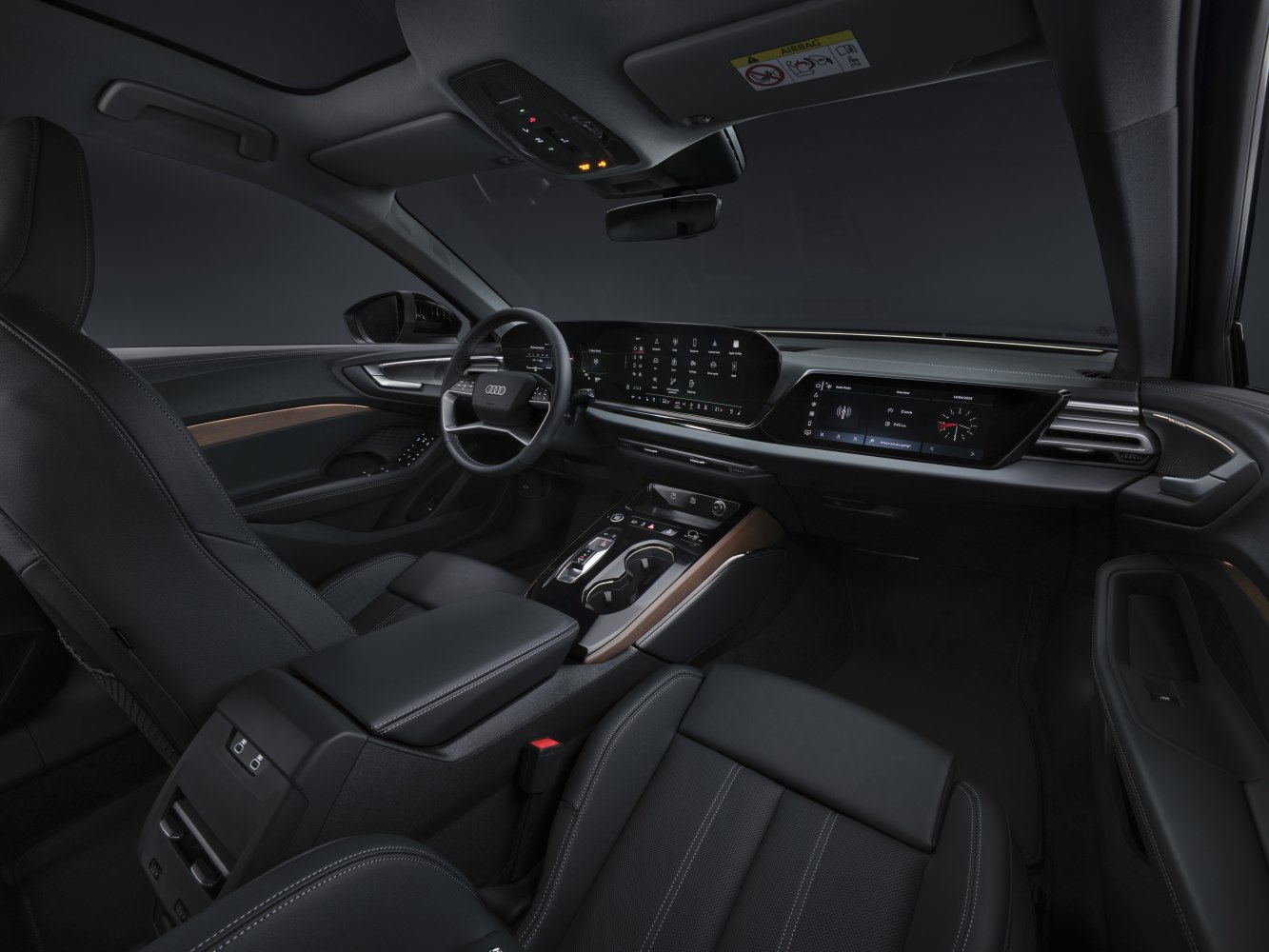

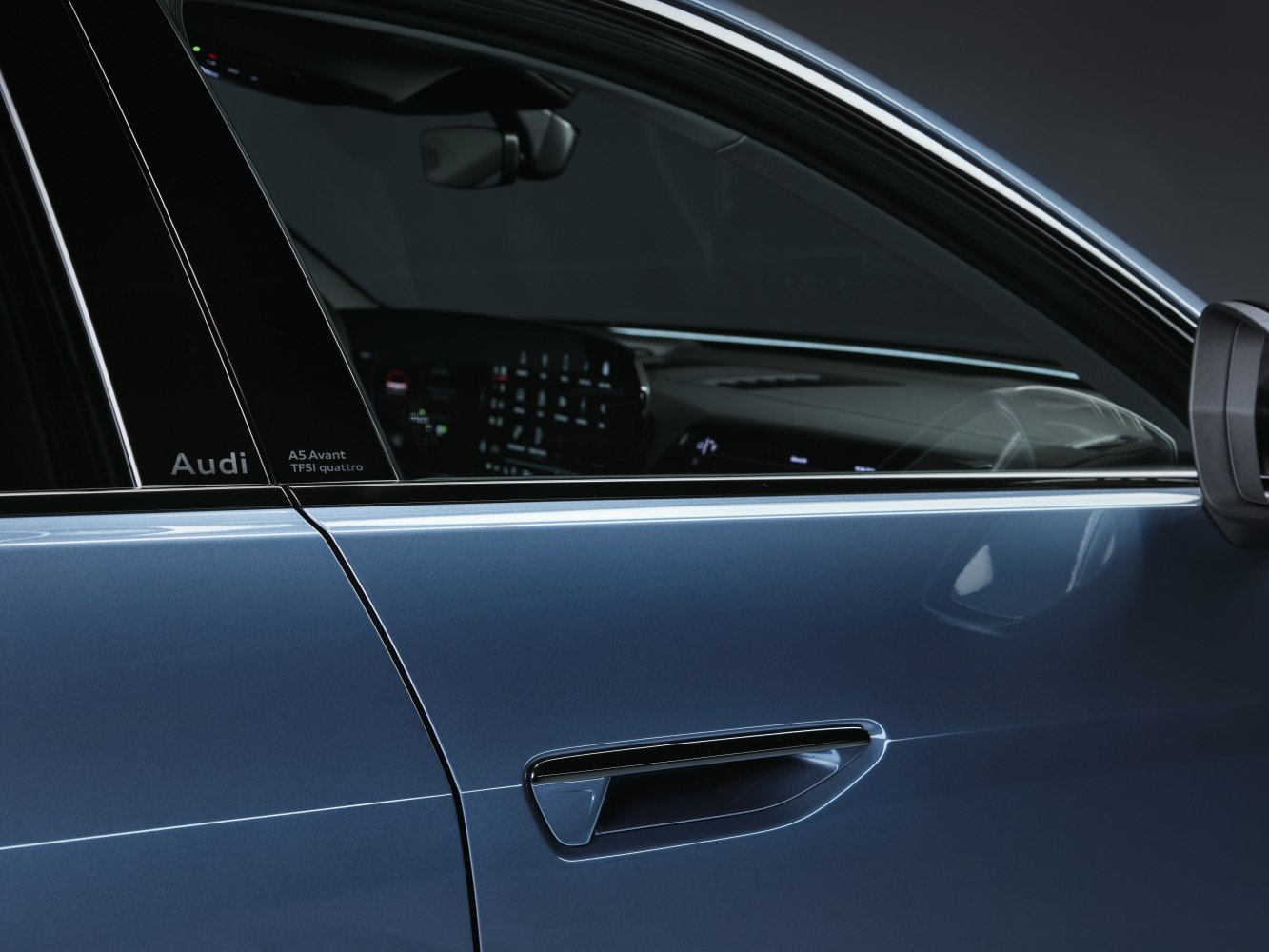

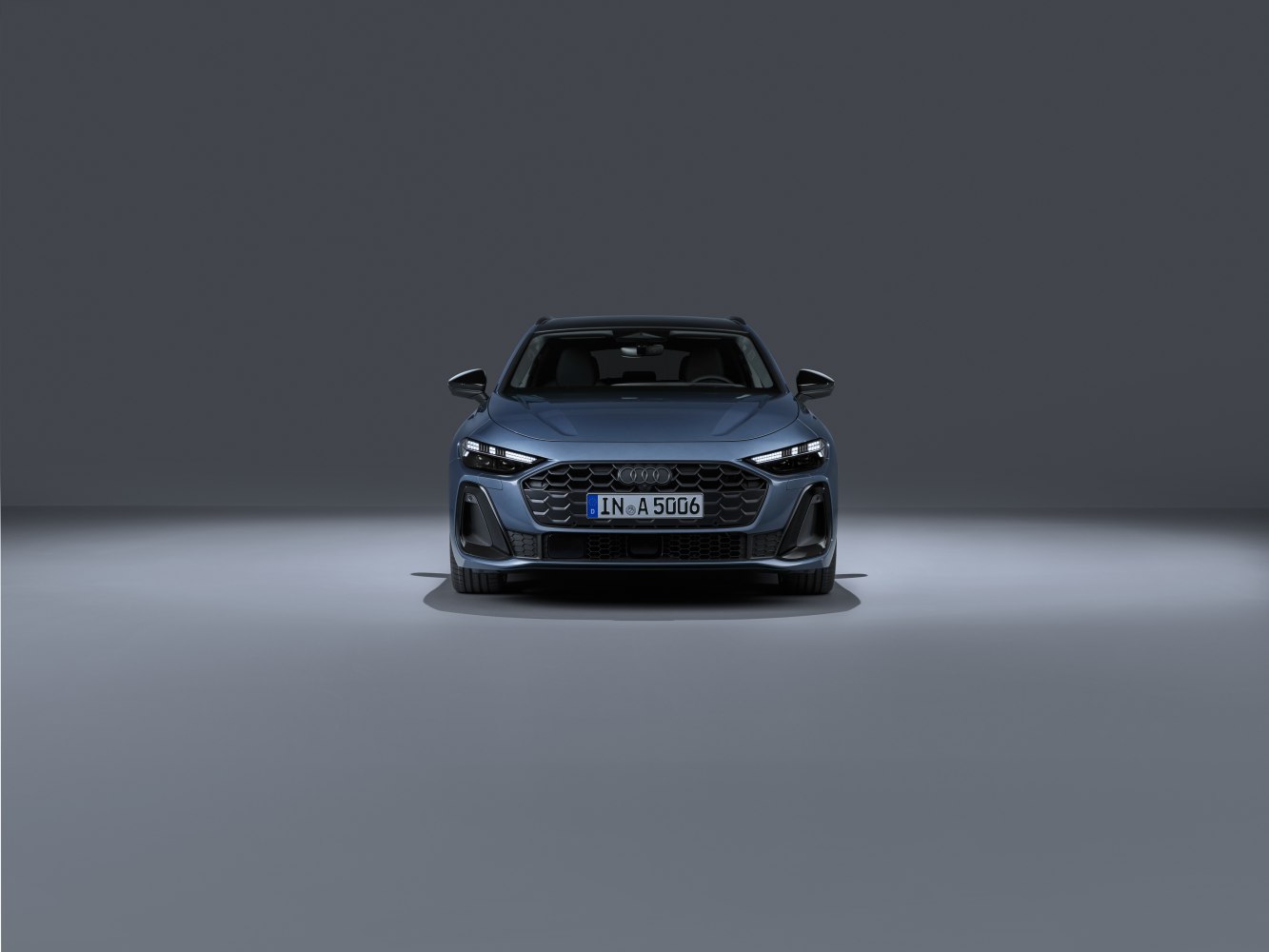

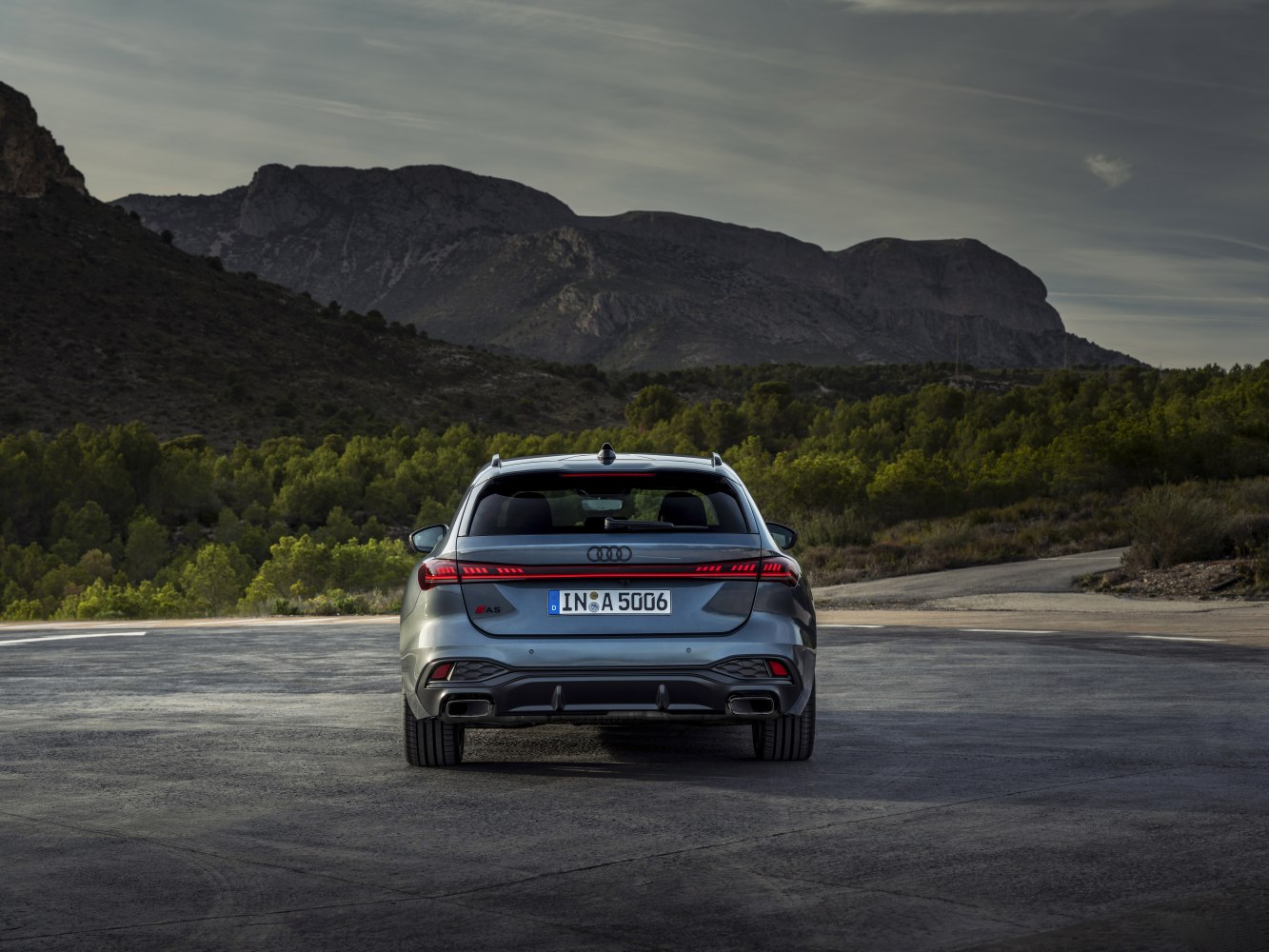

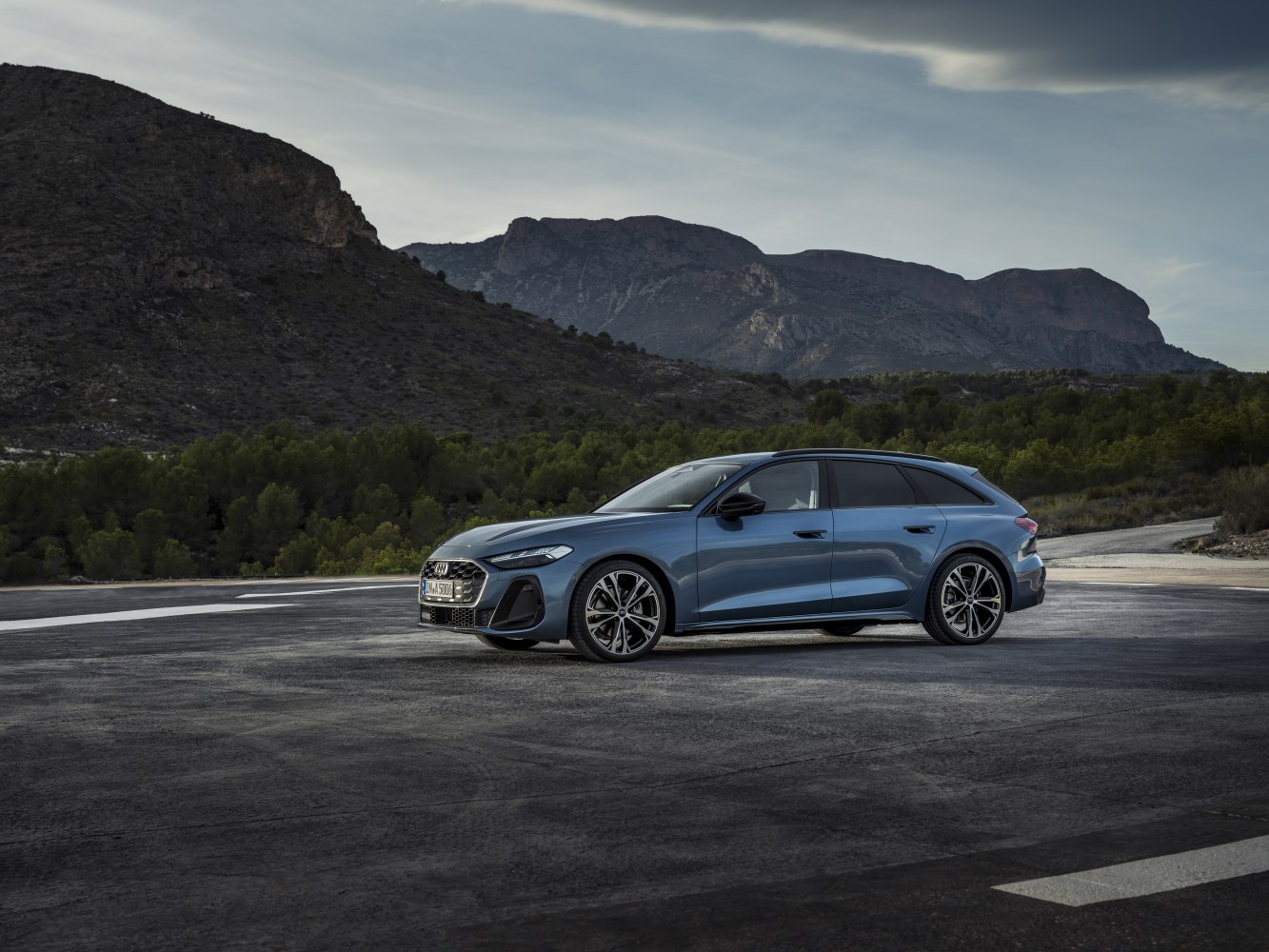

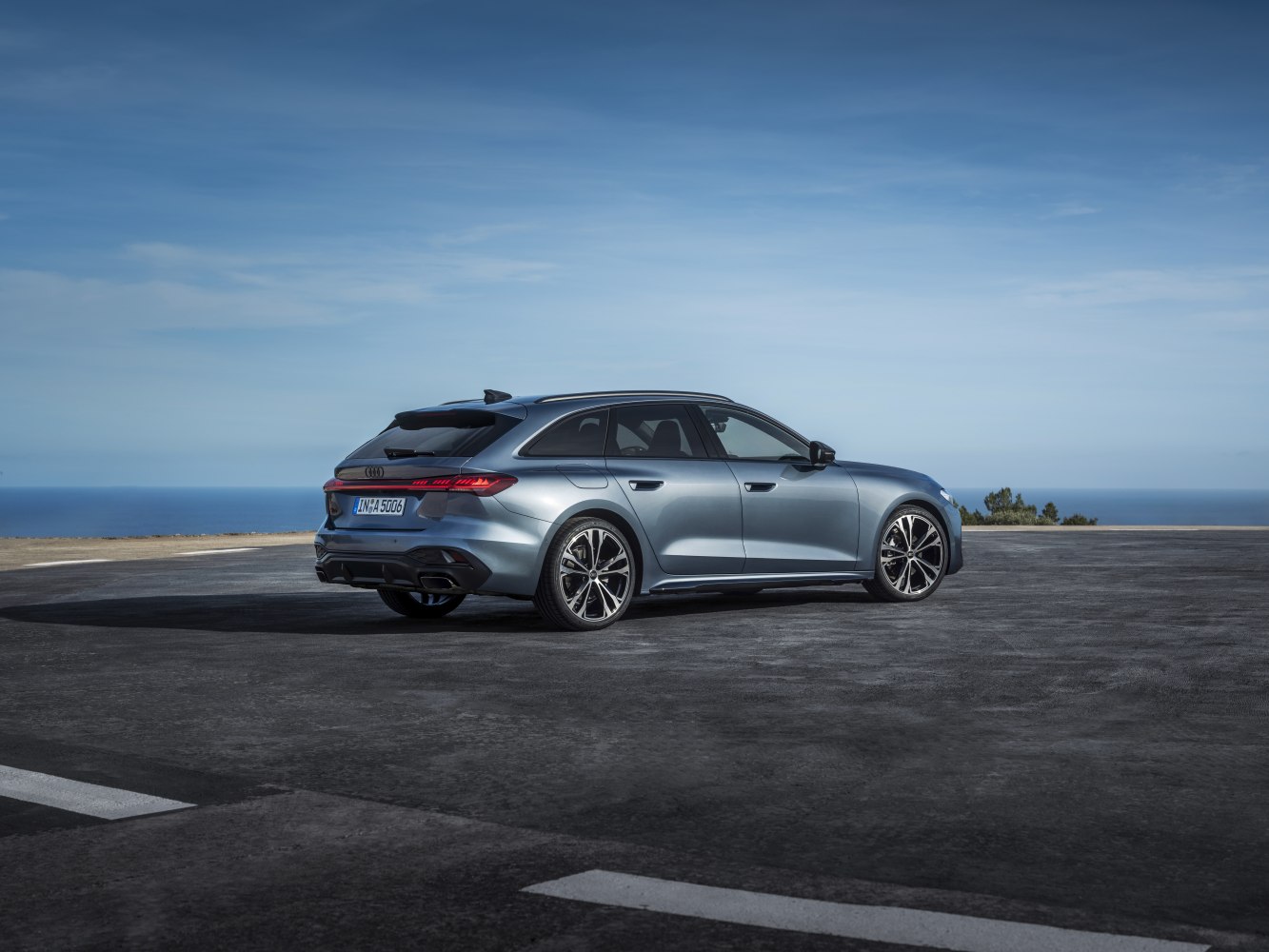

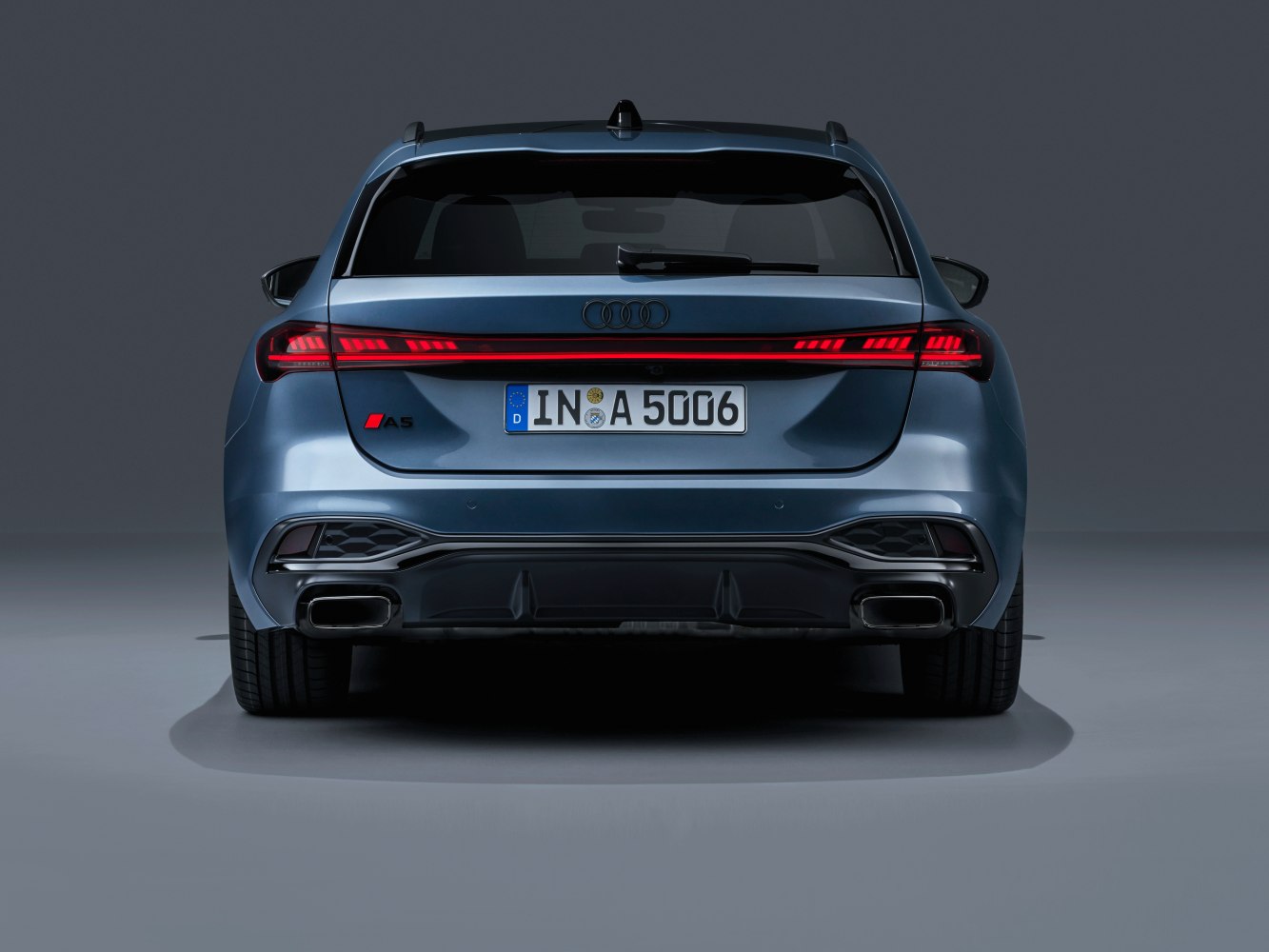

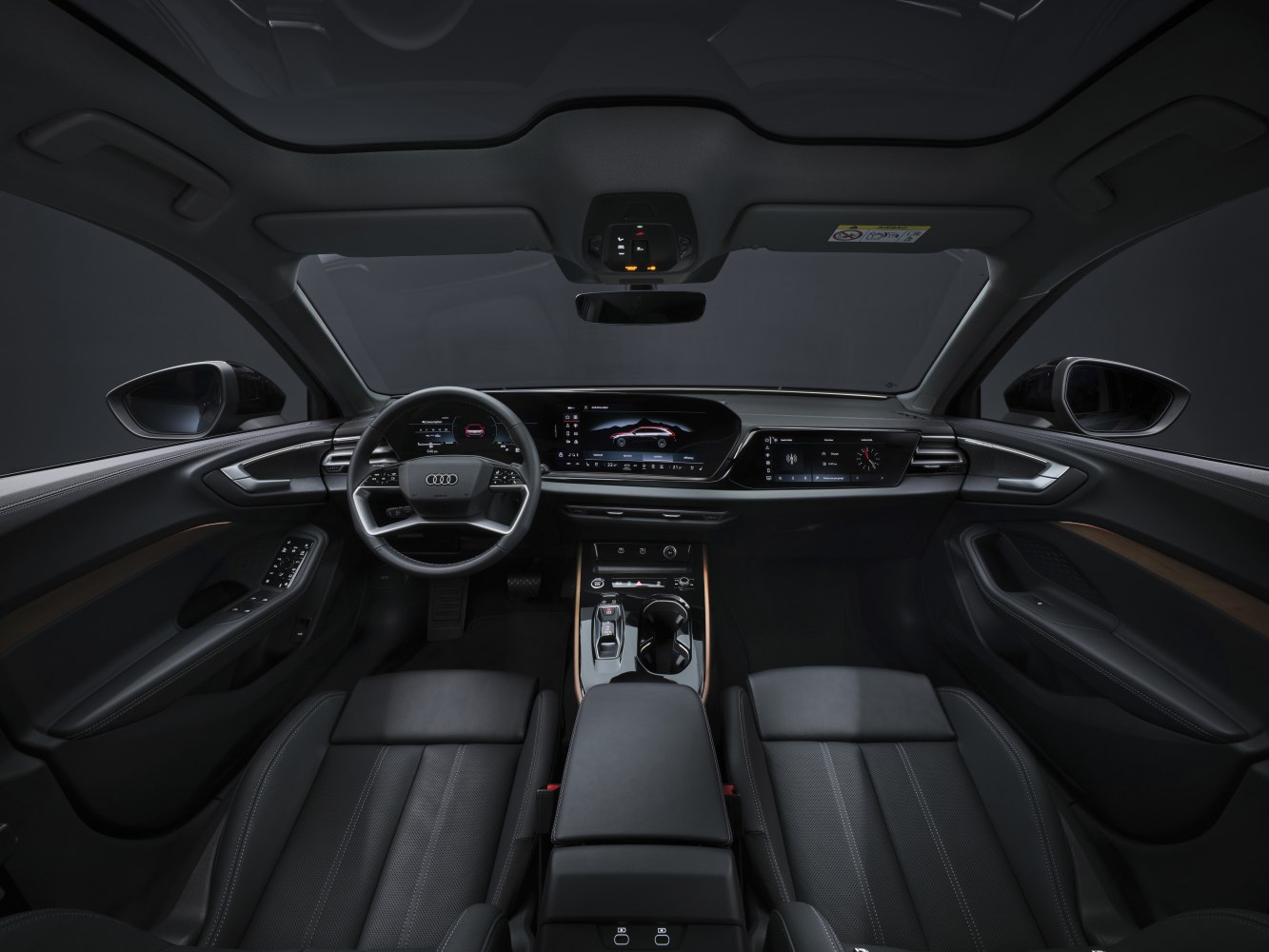

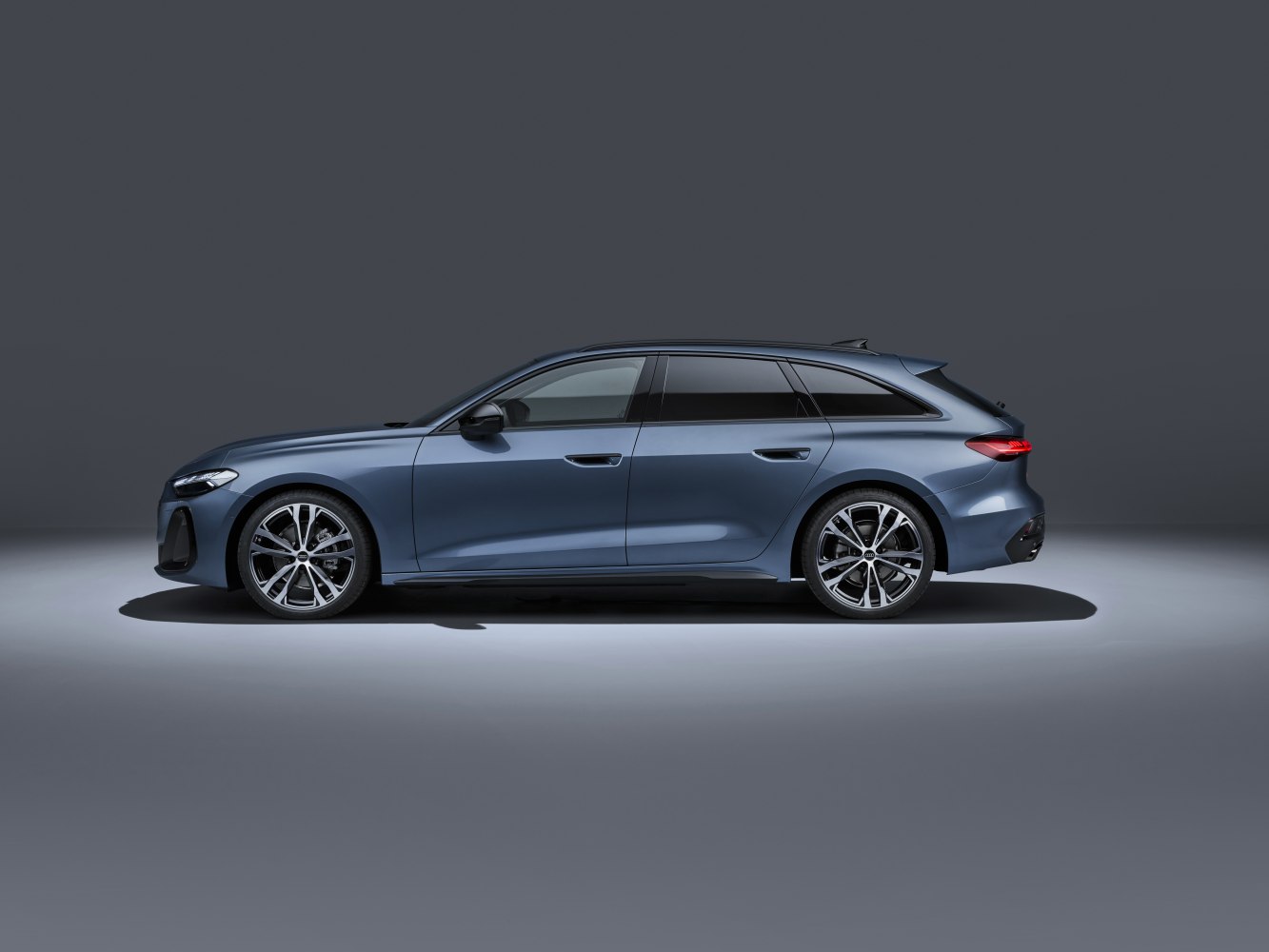

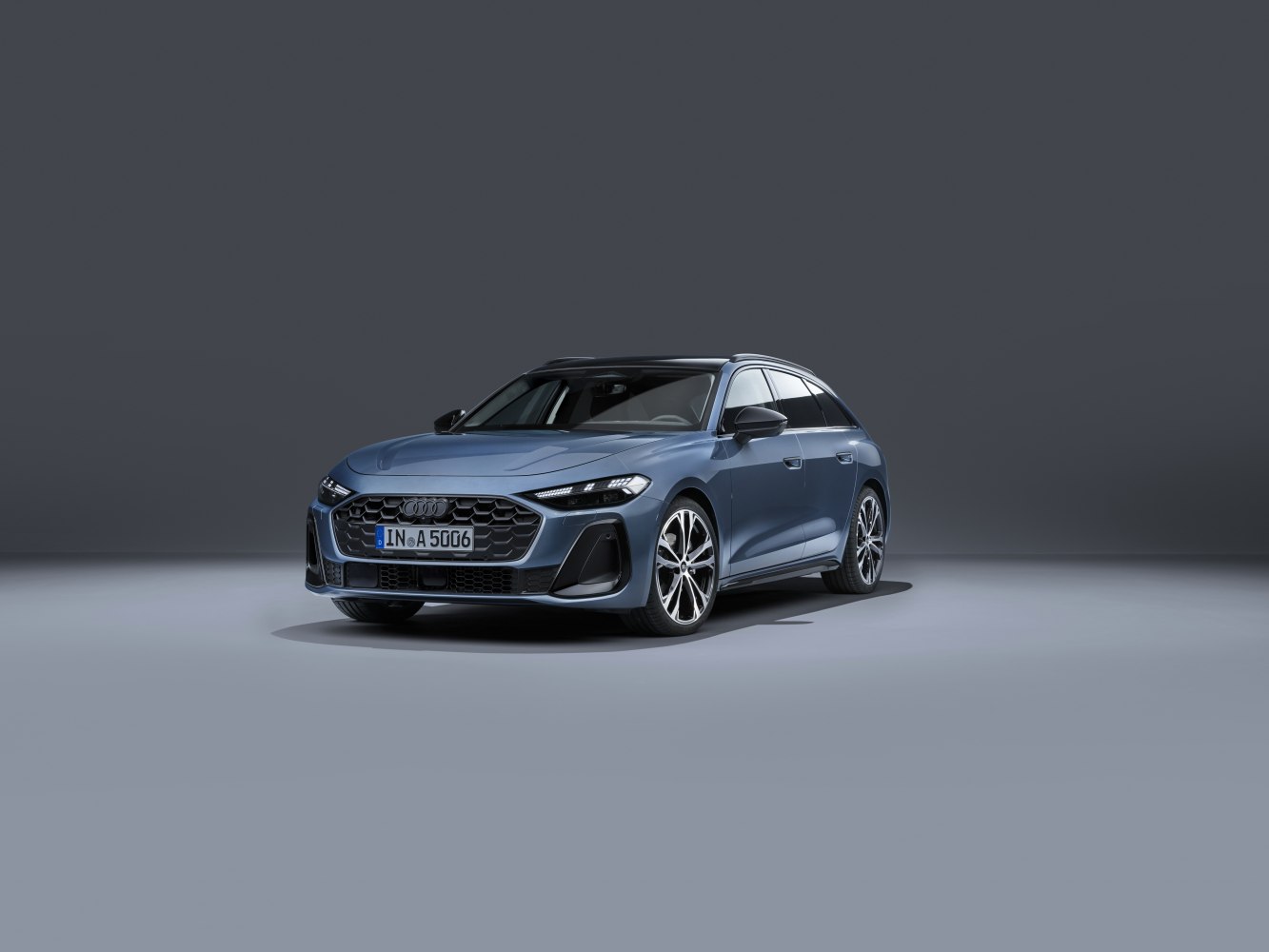

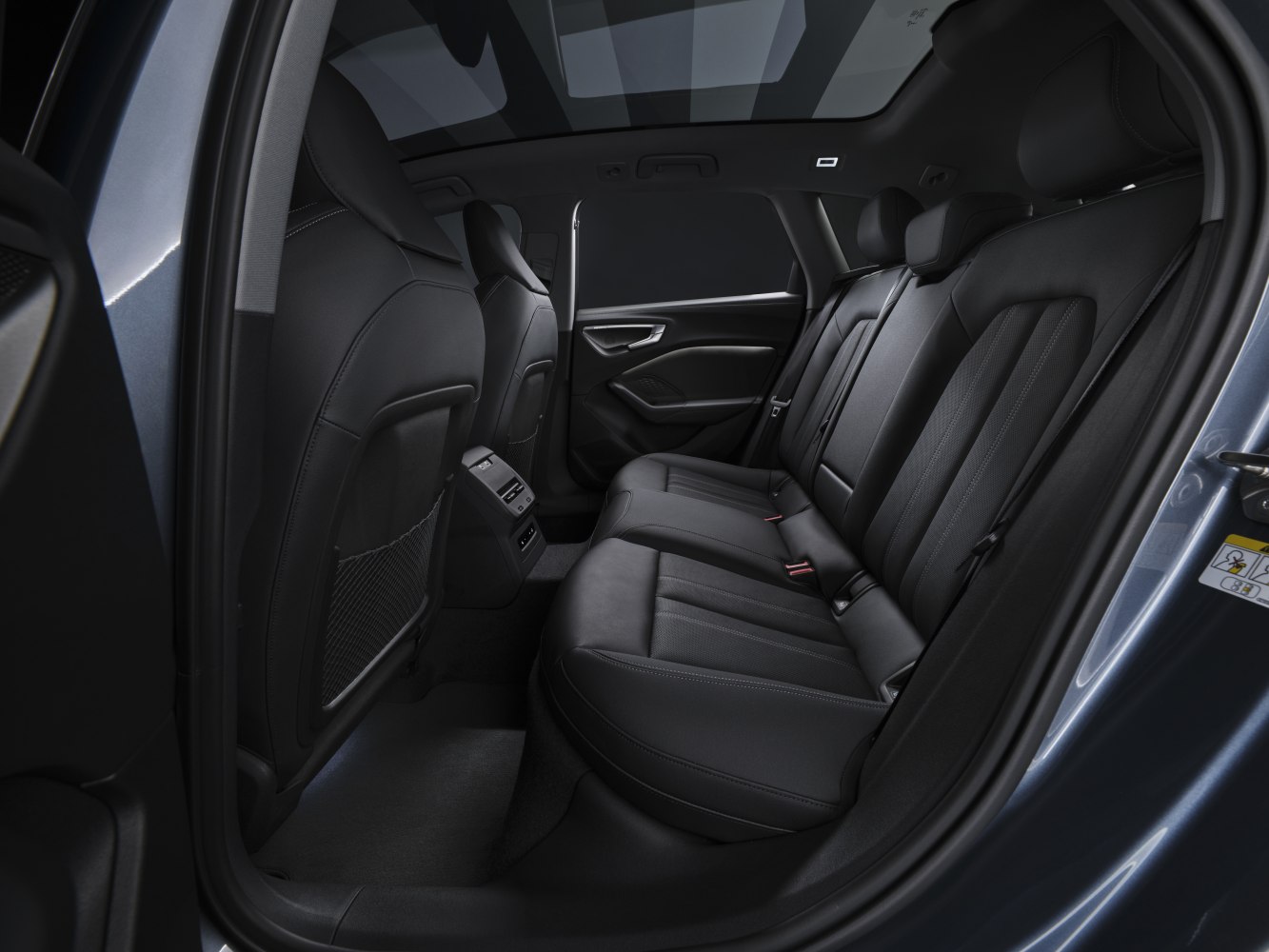

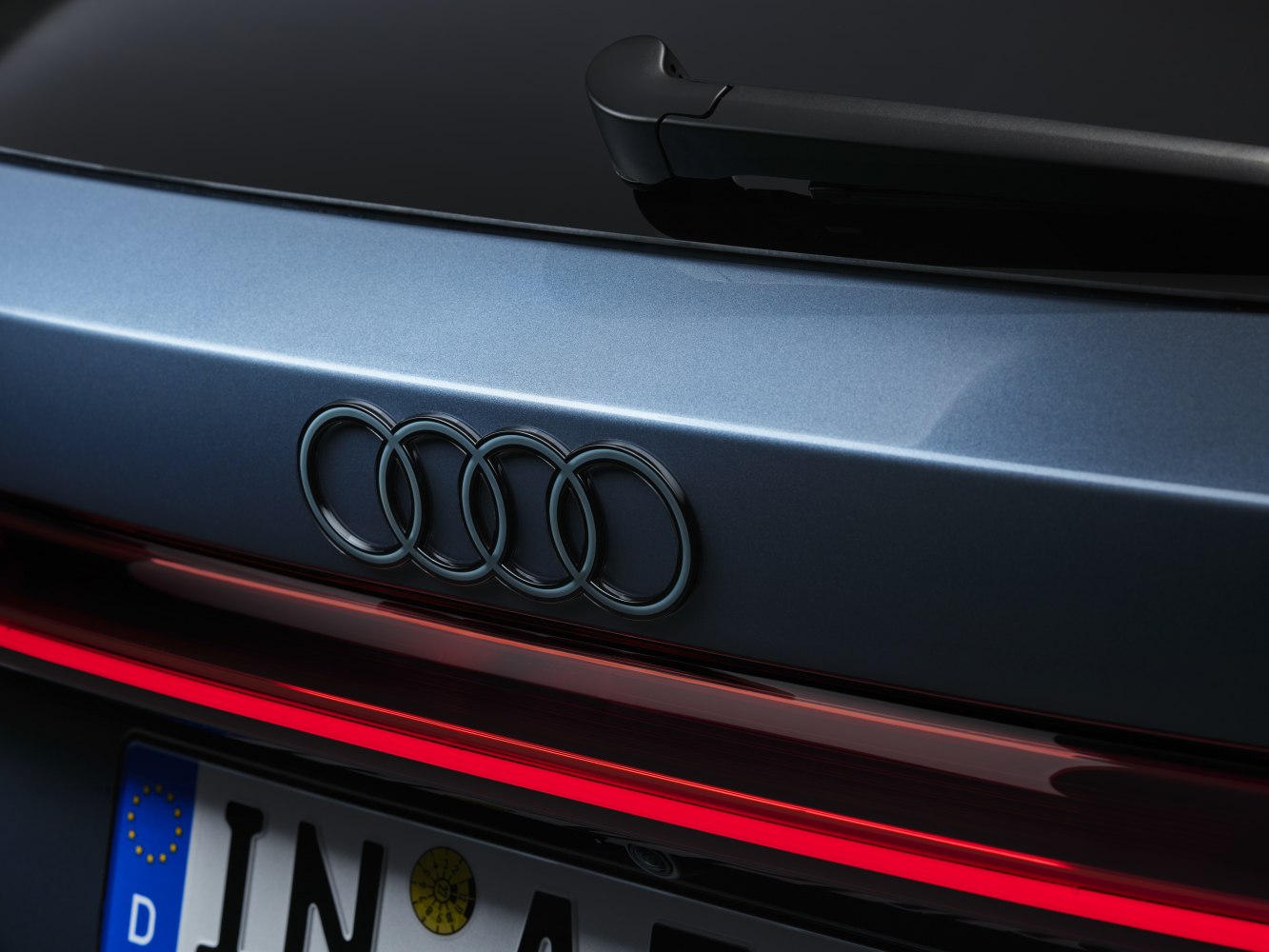

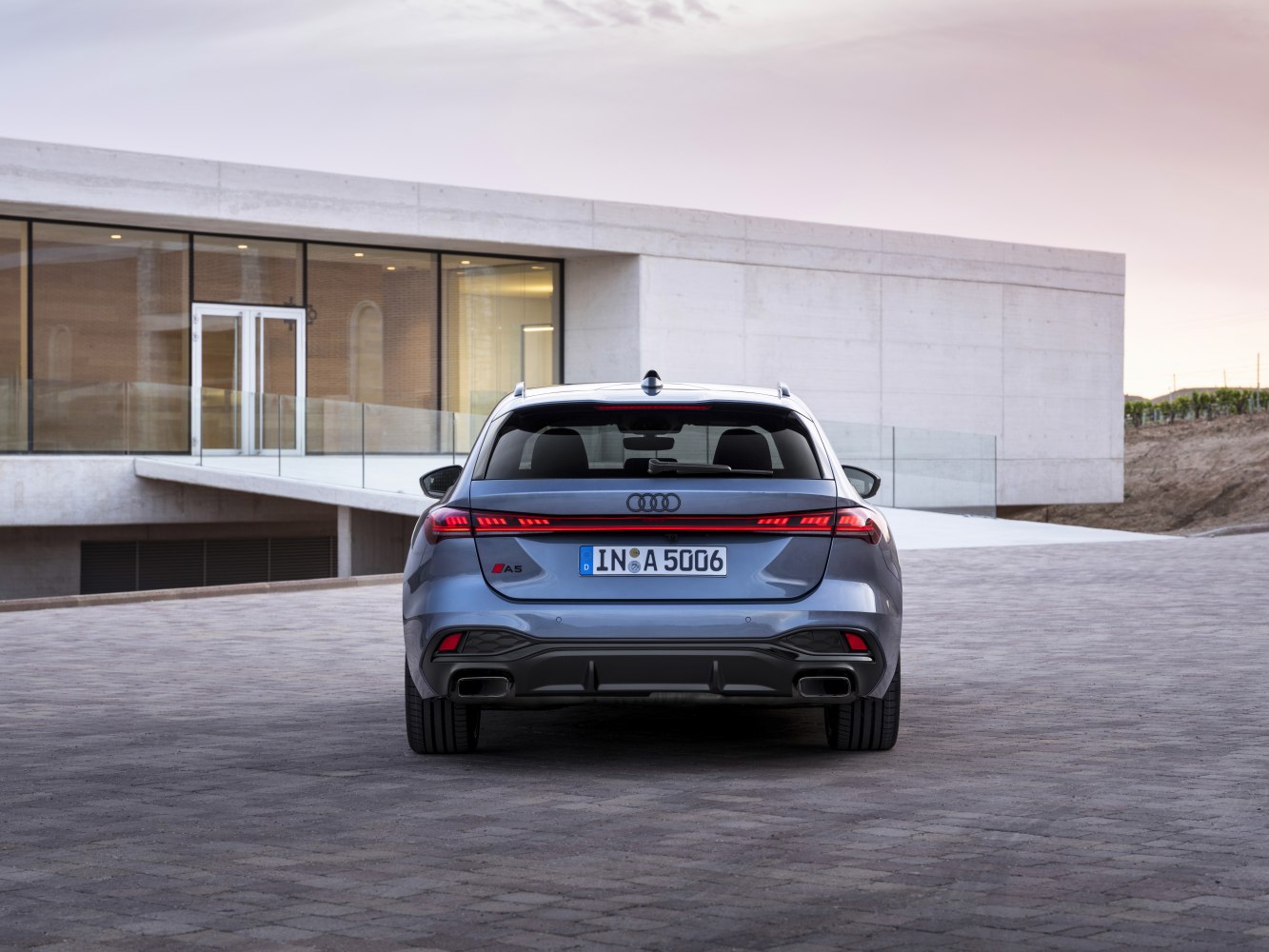

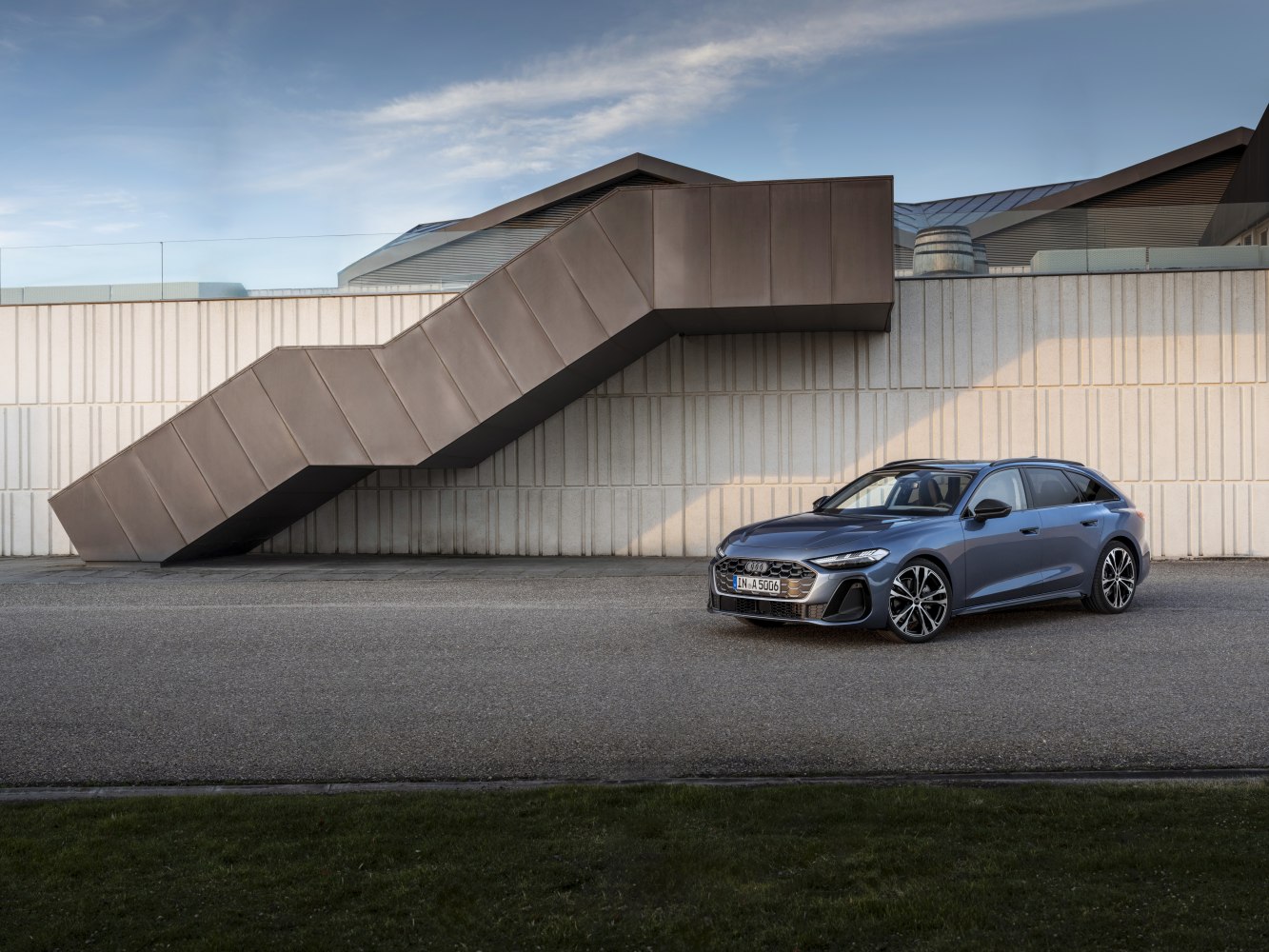

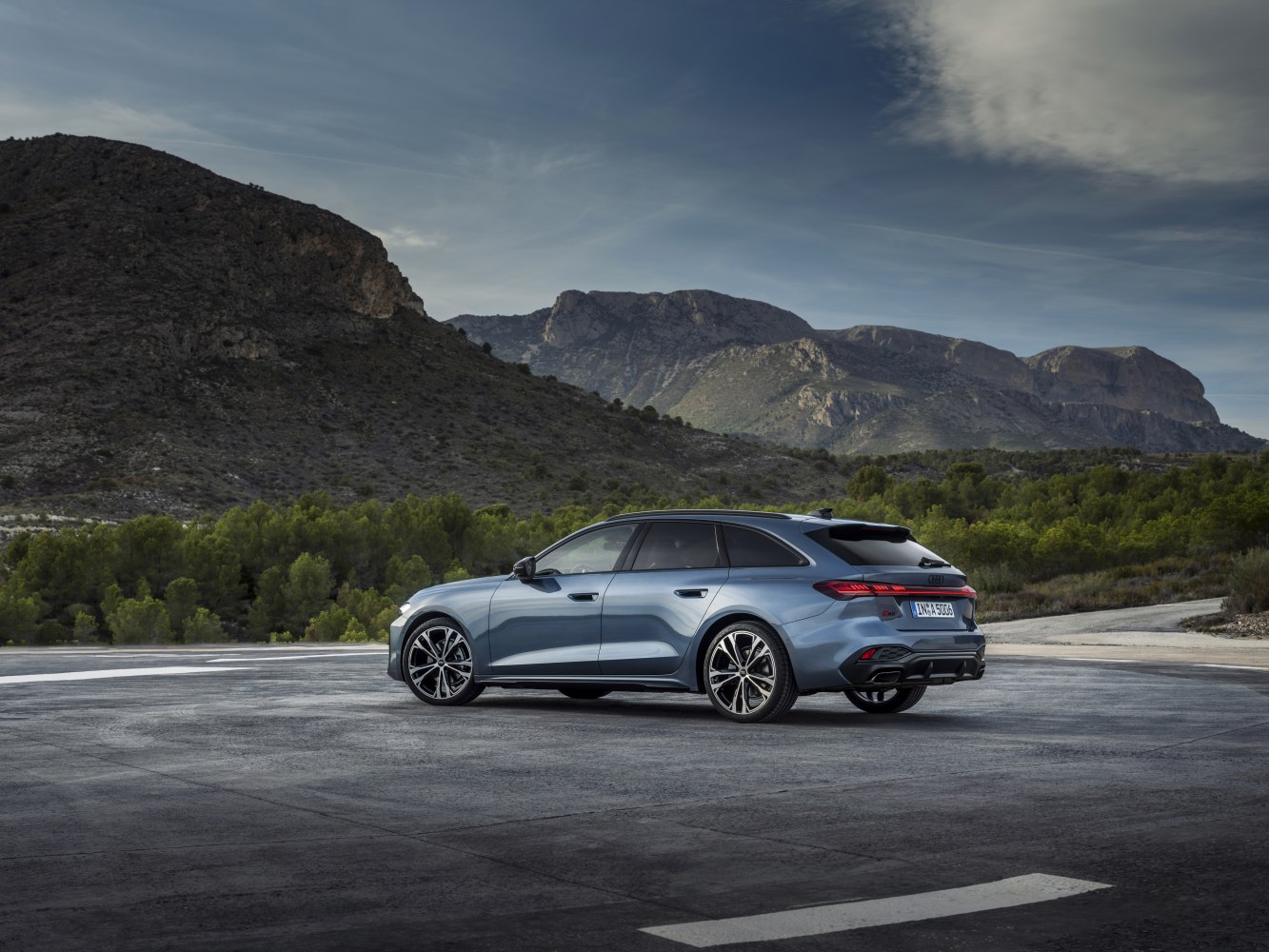

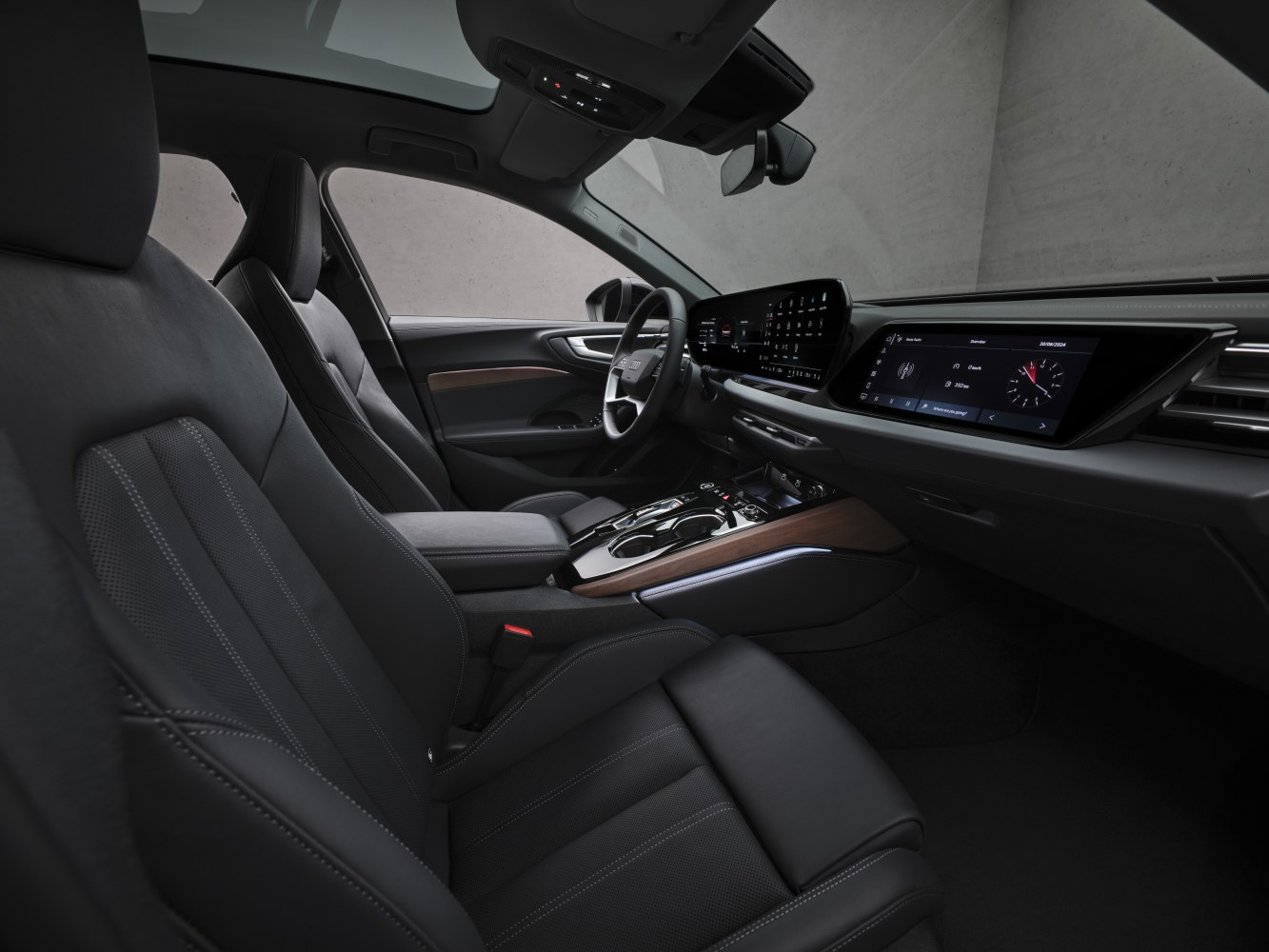

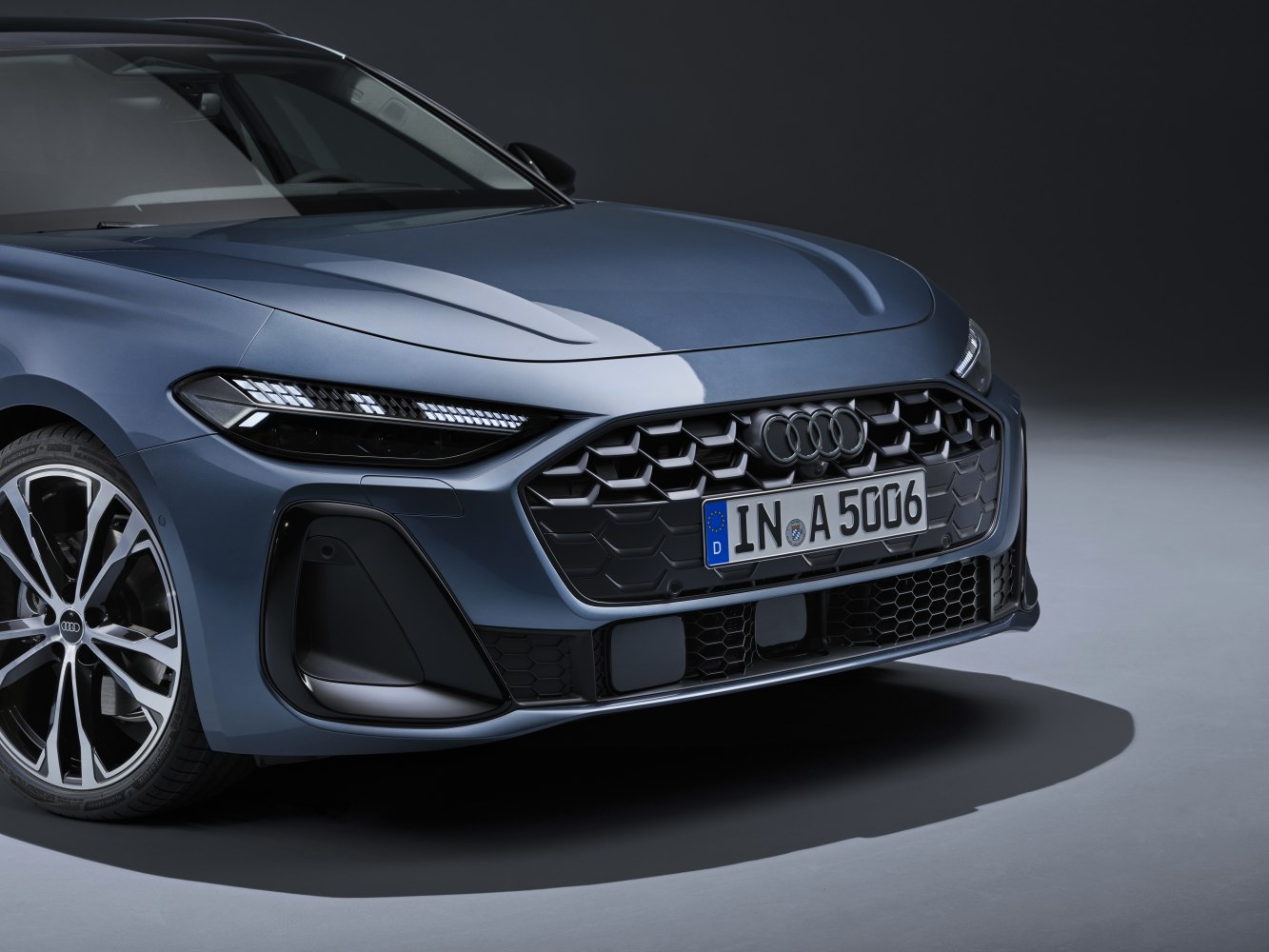

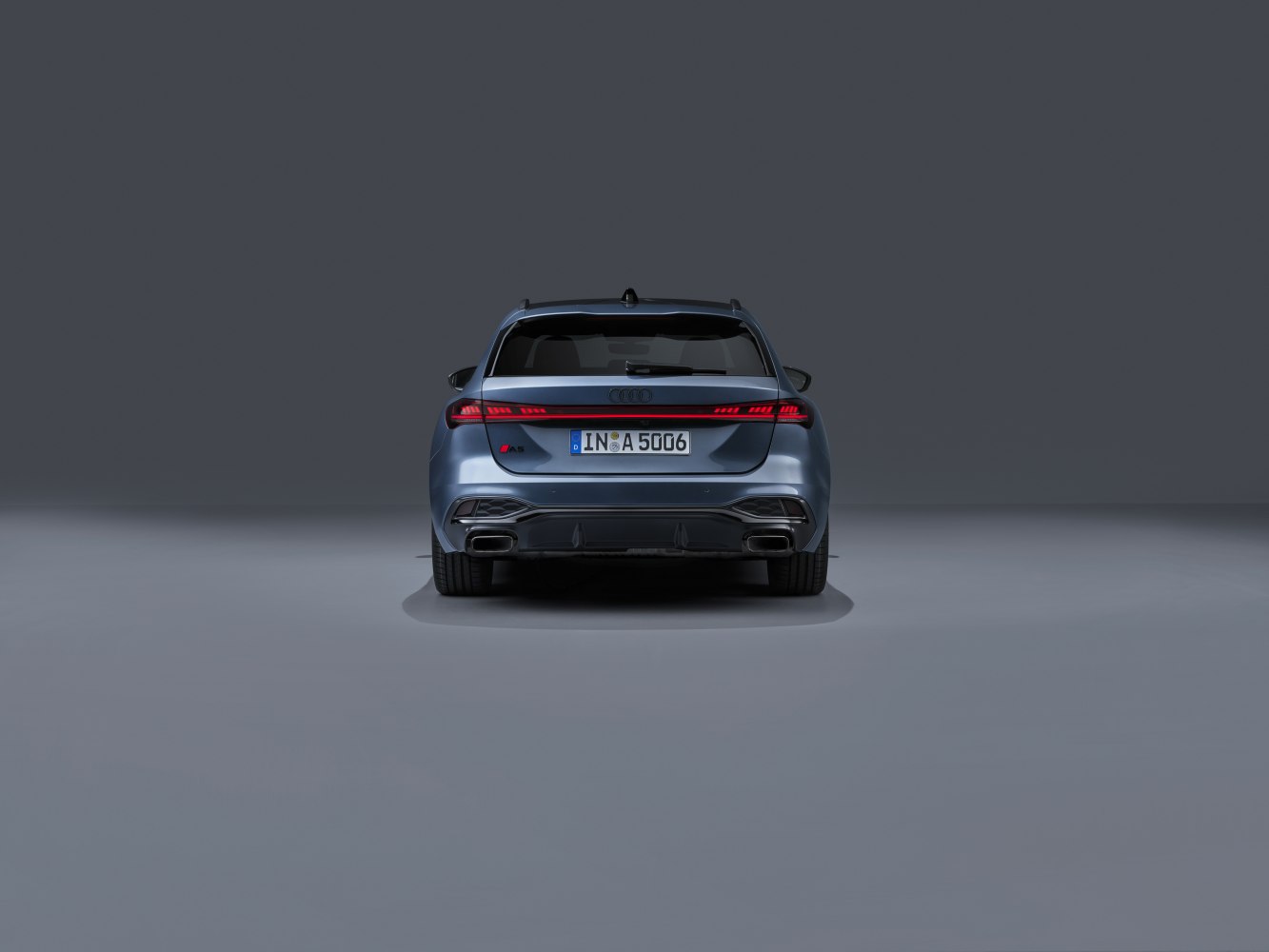

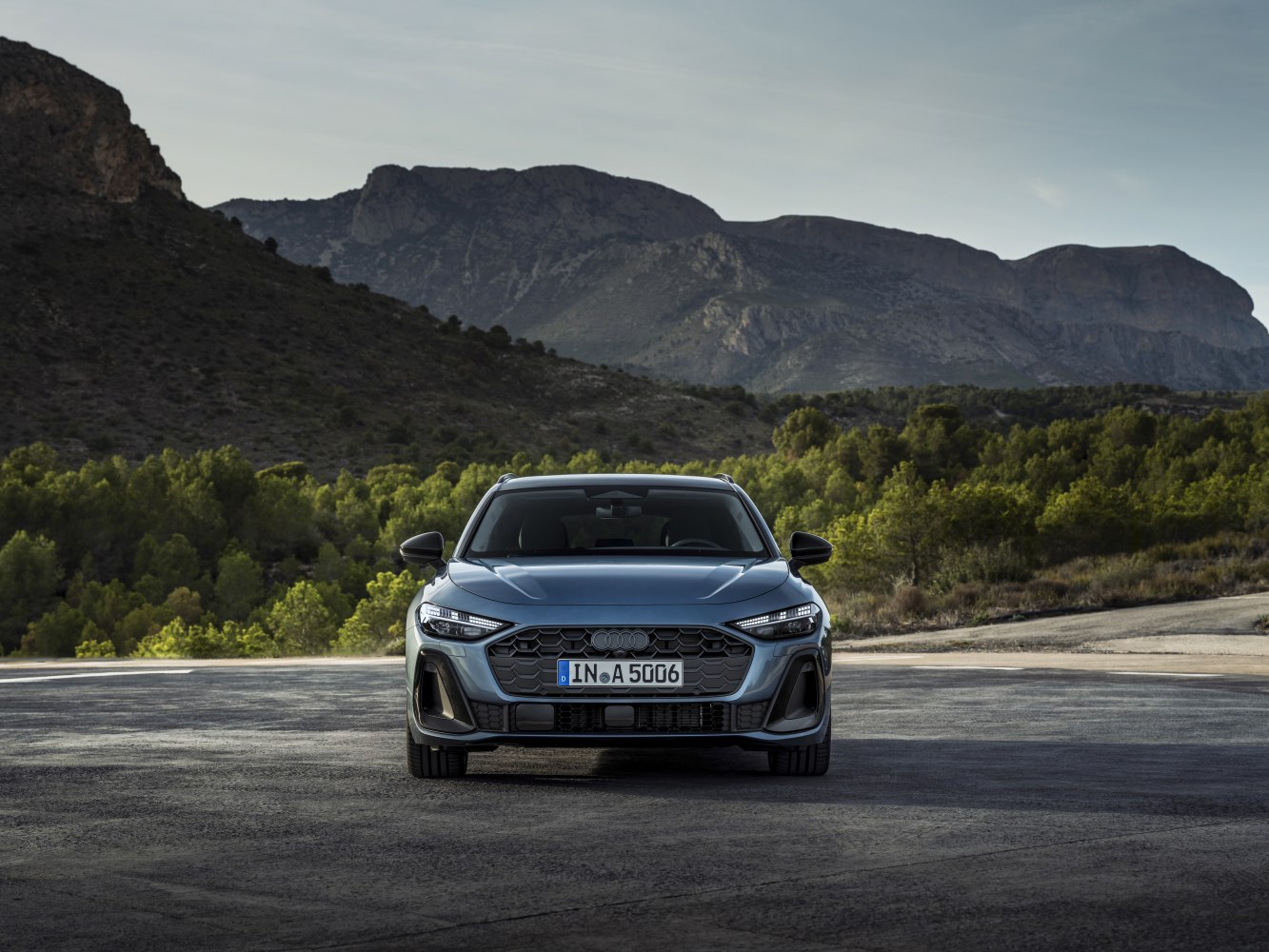

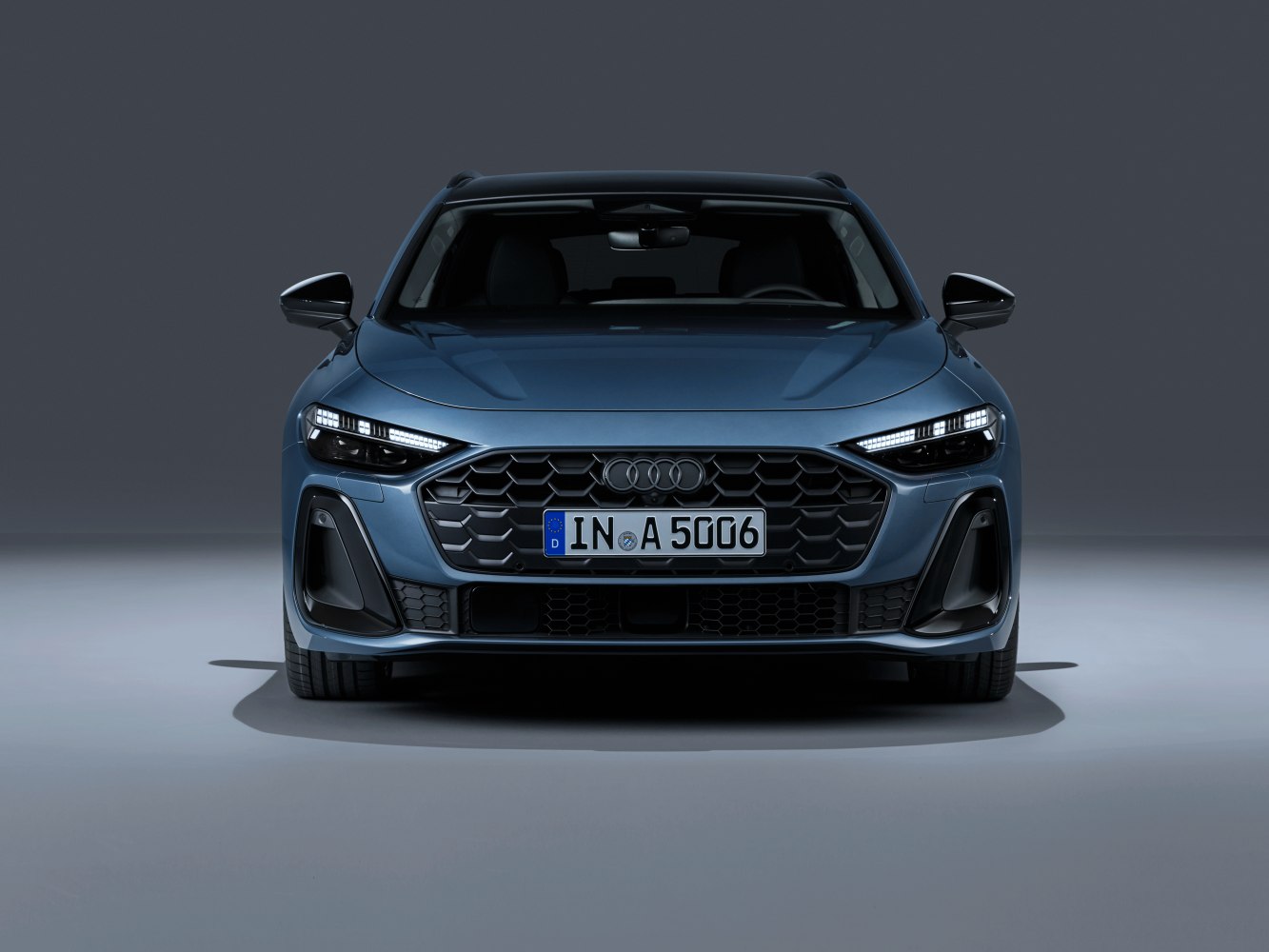

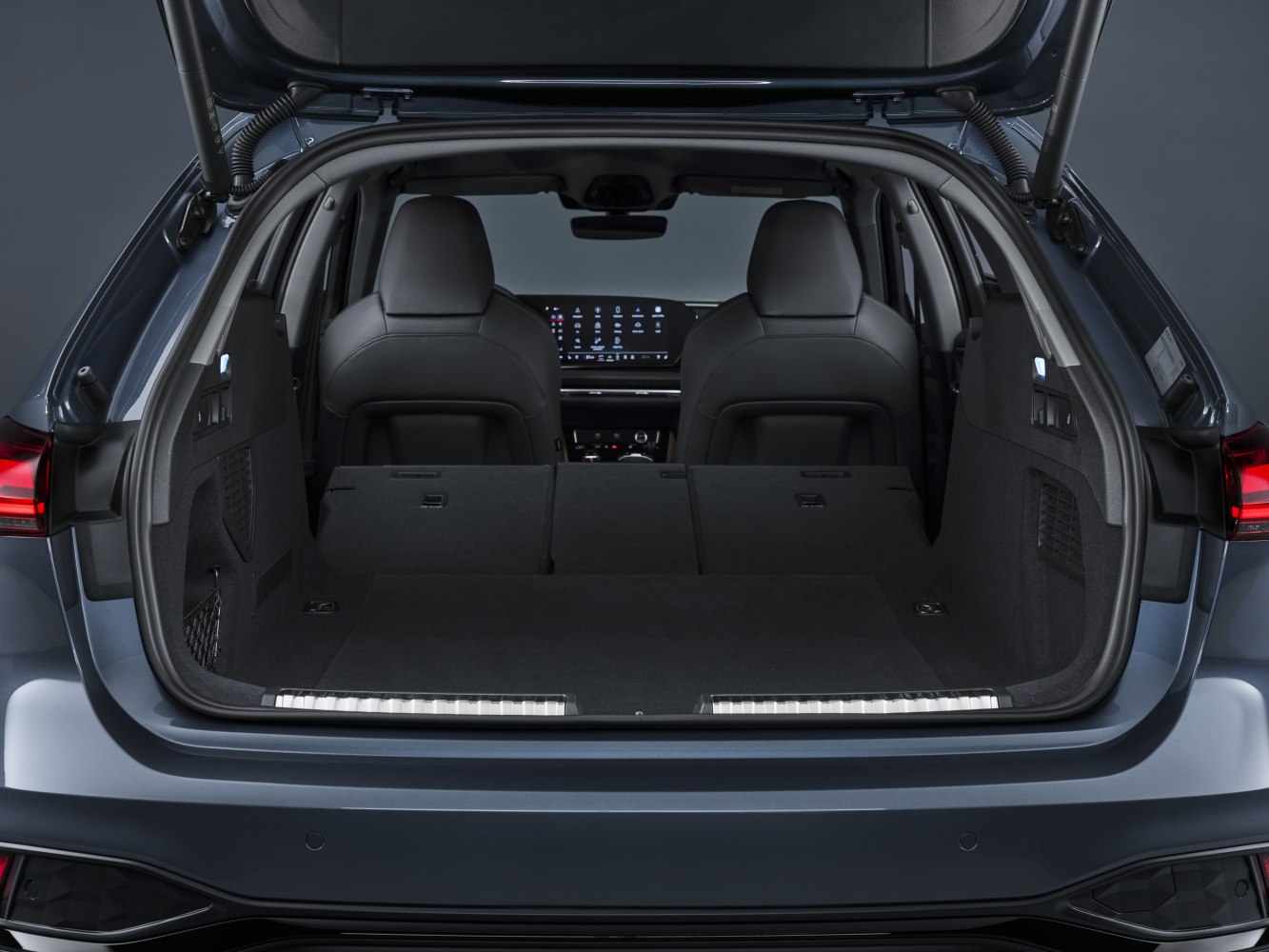

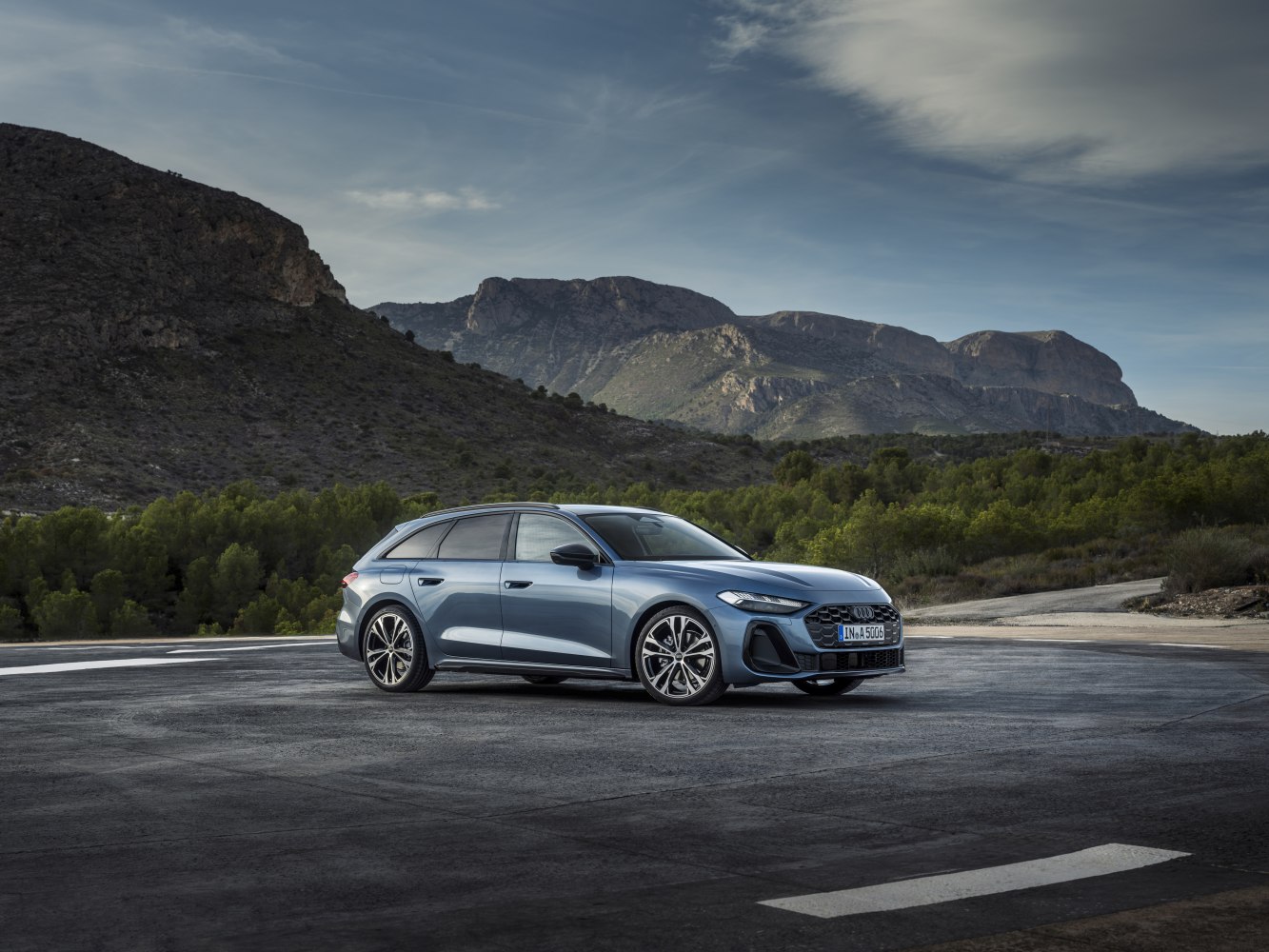

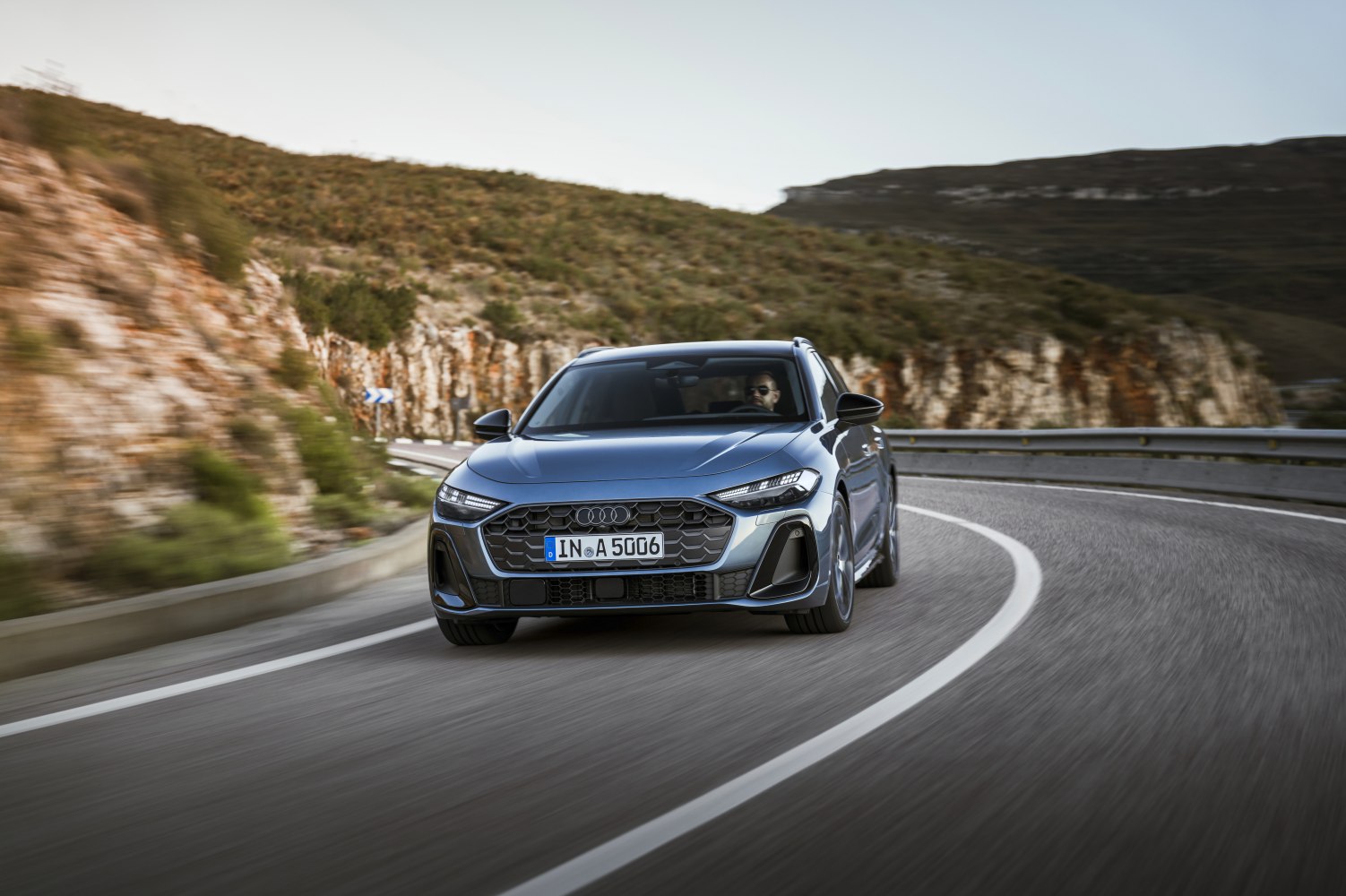

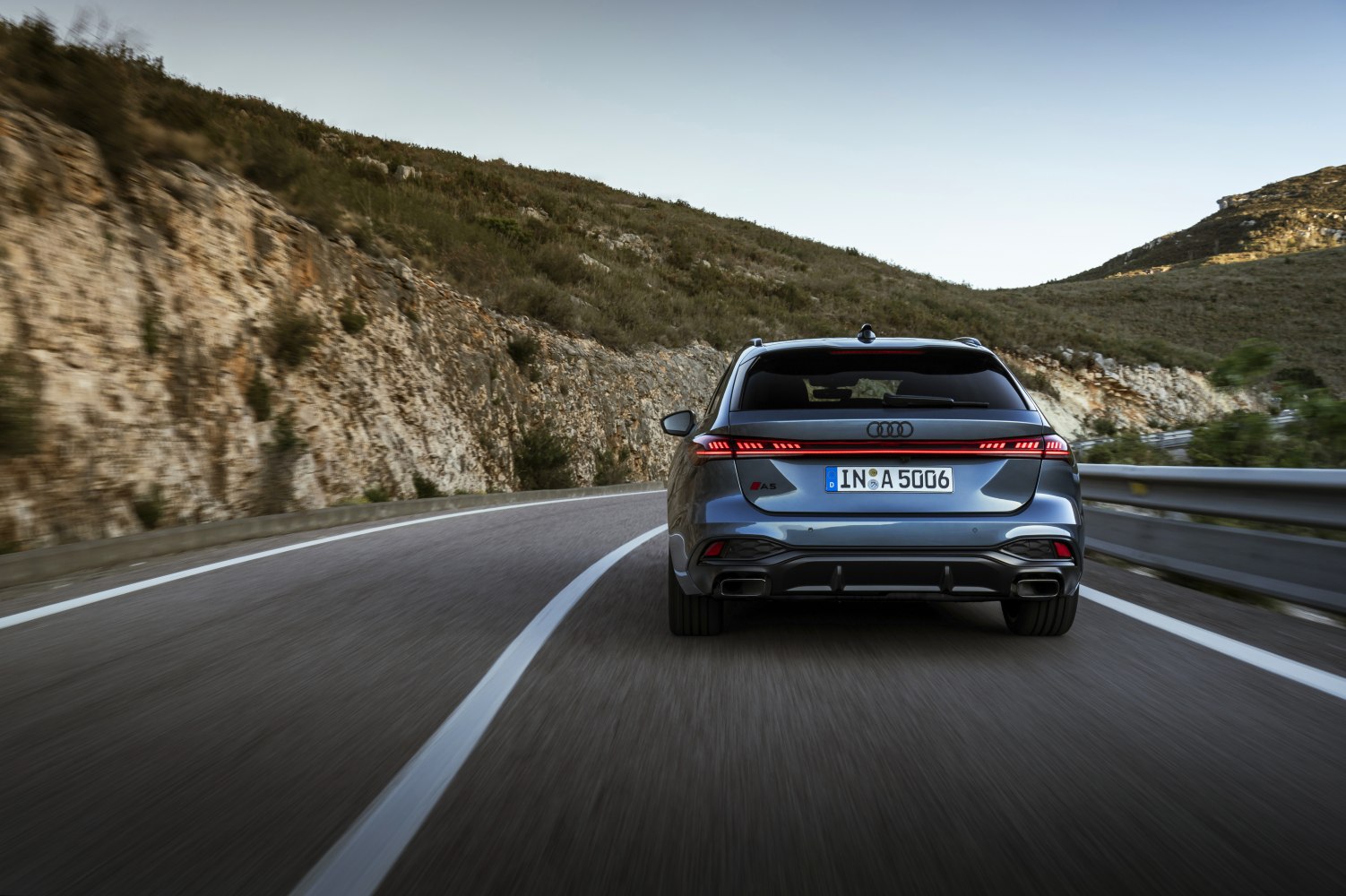

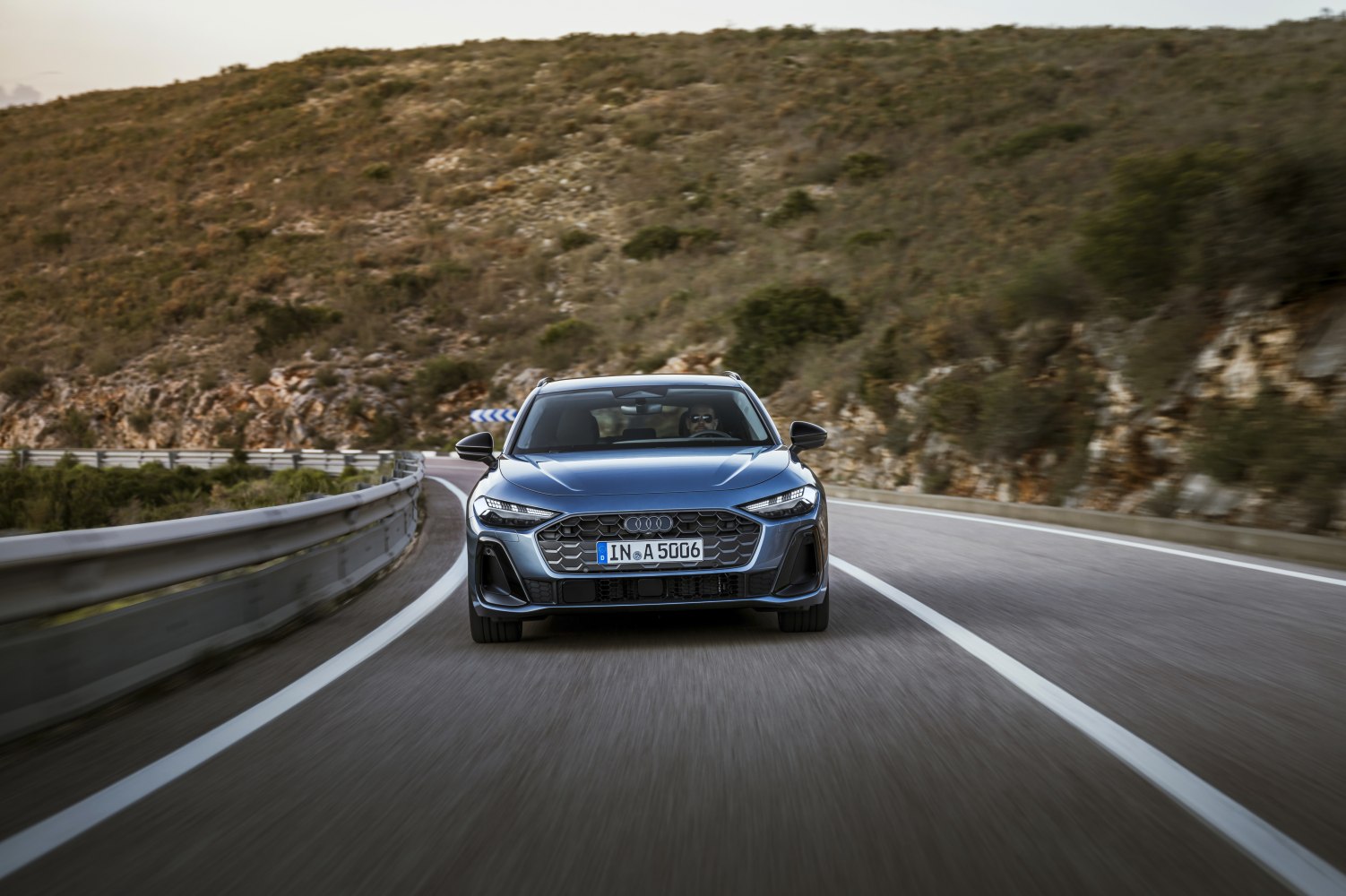

Audi A5 Avant B10 2024 Gallery
Audi A5 Avant B10 2024 Technical Specifications
General
Body type
Station wagon (estate)
Brand
Audi
Doors
5
Generation
A5 Avant (B10)
Model
A5
Modification (Engine)
2.0 TDI (204 Hp) Mild Hybrid S tronic
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start of production
July, 2024
Performance
Acceleration 0 - 100 km/h
7.7 sec
Acceleration 0 - 60 mph
7.3 sec
Acceleration 0 - 62 mph
7.7 sec
CO2 emissions (WLTP)
127-145 g/km
Combined fuel consumption (WLTP)
4.8-5.5 l/100 km
Emission standard
Euro 6e
Fuel Type
Diesel
Maximum speed
240 km/h
Electric
Battery location
Under the trunk
Battery voltage
48 V
Electric motor Torque number 1
230 Nm
Electric motor location number 1
Middle, Longitudinal
Electric motor power number 1
24 Hp
Recuperation output
25 kW
Internal Engine
Compression ratio
15.5:1
Coolant
18.7 l
Cylinder Bore
81 mm
Engine Model/Code
EA288 evo
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1968 cm
Engine layout
Front, Longitudinal
Engine oil capacity
5.5 l
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
95.5 mm
Power
204 Hp @ 3800-4200 rpm.
Power per litre
103.7 Hp/l
Torque
400 Nm @ 1750-3250 rpm.
Valvetrain
DOHC
Dimensions
Approach angle
14.1°
Departure angle
18.5°
Drag coefficient (Cd)
0.28
Front overhang
908 mm
Front track
1624 mm
Height
1460 mm
Length
4829 mm
Minimum turning circle (turning diameter)
12.1 m
Rear (Back) track
1611 mm
Rear overhang
1029 mm
Wheelbase
2892 mm
Width
1860 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 323 mm
Front suspension
Coil spring, Independent multi-link suspension, Transverse stabilizer
Number of gears and type of gearbox
7 gears, automatic transmission S tronic
Power steering
Electric Steering
Rear brakes
Disc, 300 mm
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
205/60 R17
Wheel rims size
7J x 17
Space
AdBlue tank
20 l
Fuel tank capacity
60 l
Kerb Weight
1835 kg
Max load
595 kg
Max. roof load
90 kg
Max. weight
2430 kg
Permitted towbar download
80 kg
