Ford Tourneo Custom 2 L2 2023
2.0 EcoBlue (150 Hp)
Generation Tourneo Custom 2 L2
Body Type Van
Seats 8
4
Doors
Ford Tourneo Custom 2 L2 2023 Key Specs
Body Type
Van
Doors
4-5
Drive Wheel
Front wheel drive
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
9.6 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
55 l
Generation
Tourneo Custom II L2
Kerb Weight
2165-2235 kg
Modification (Engine)
2.0 EcoBlue (150 Hp)
Number Of Cylinders
4
Power
150 Hp
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
8-9
Start Of Production
July, 2023
Wheel Rims Size
6.5J x 17

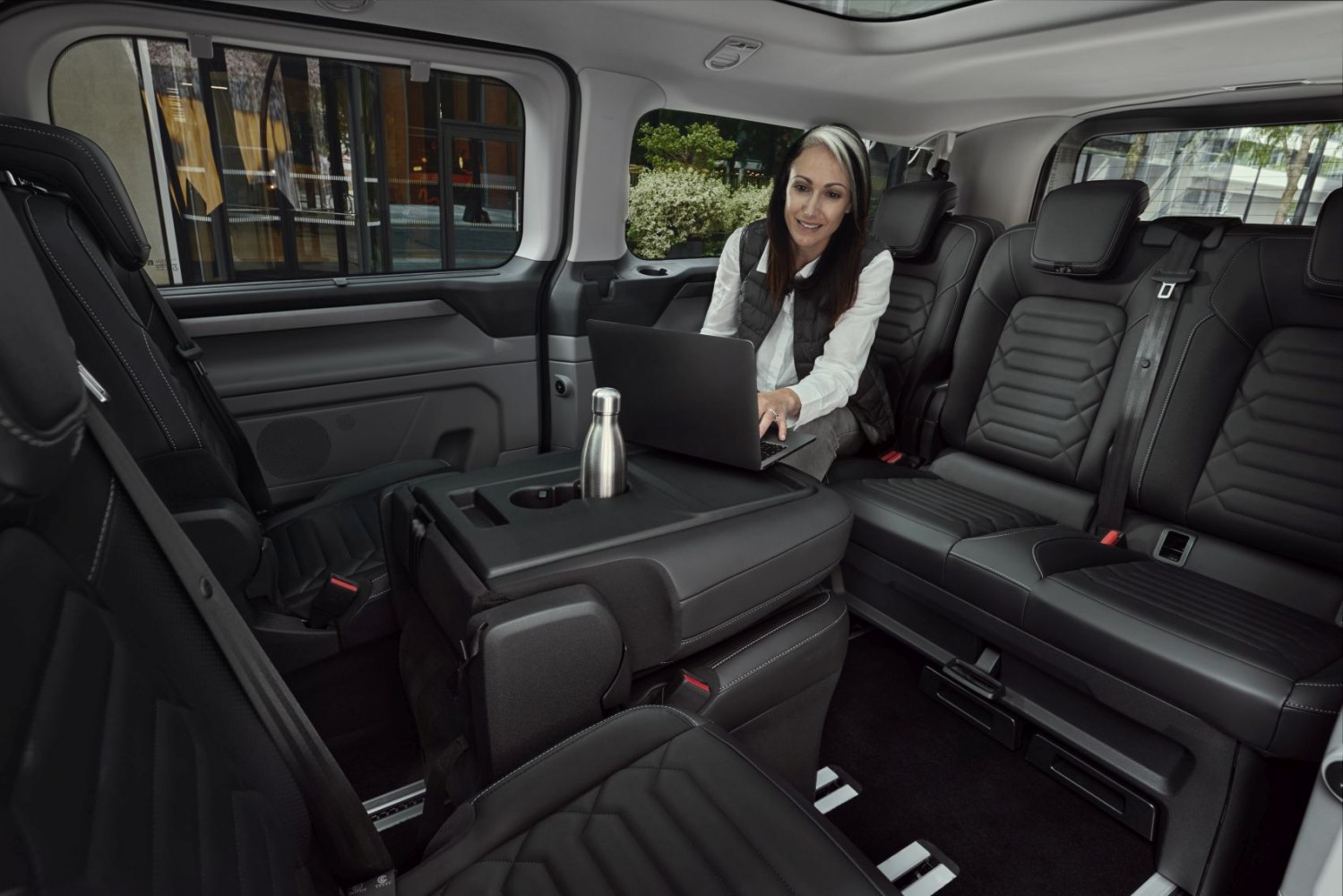

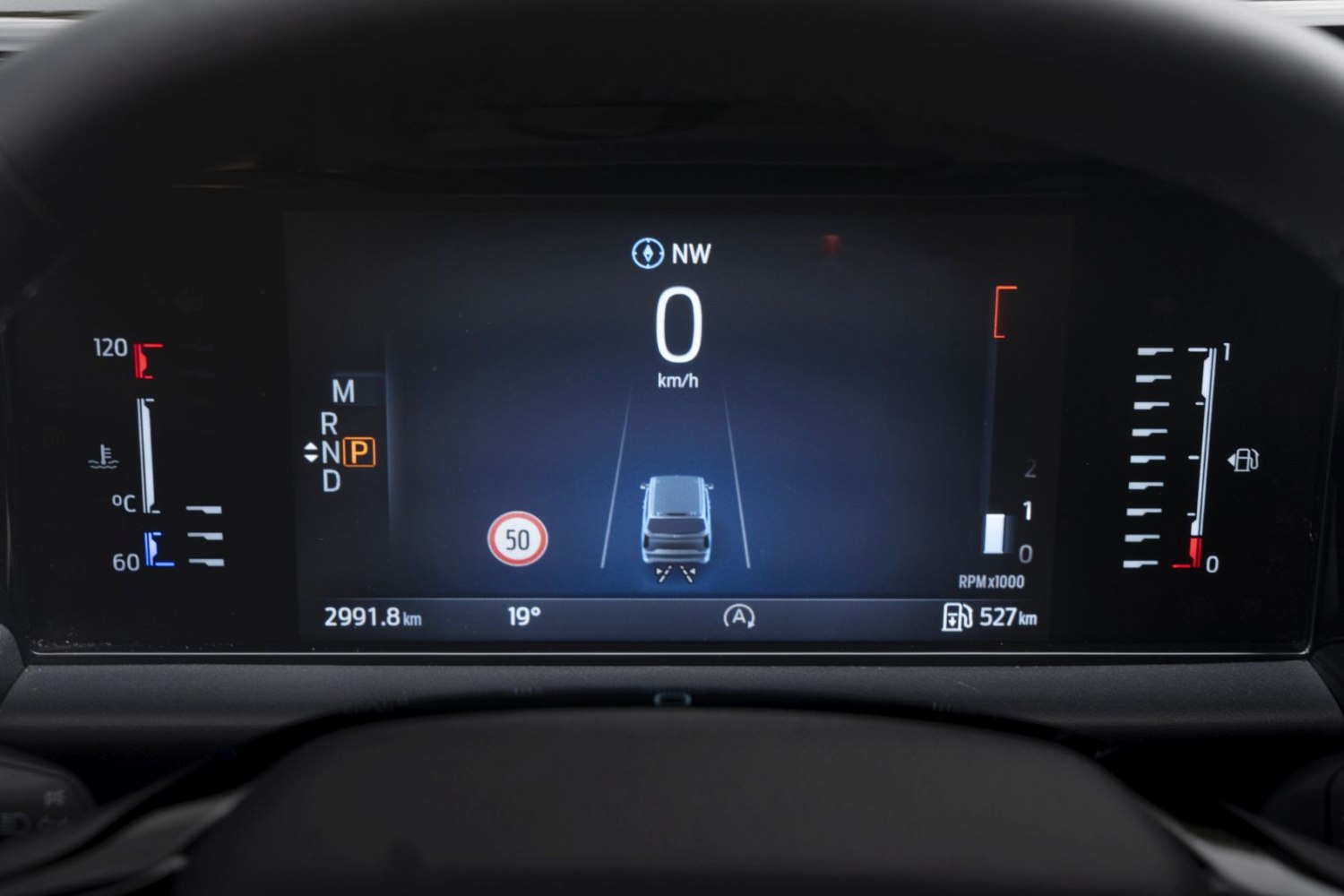

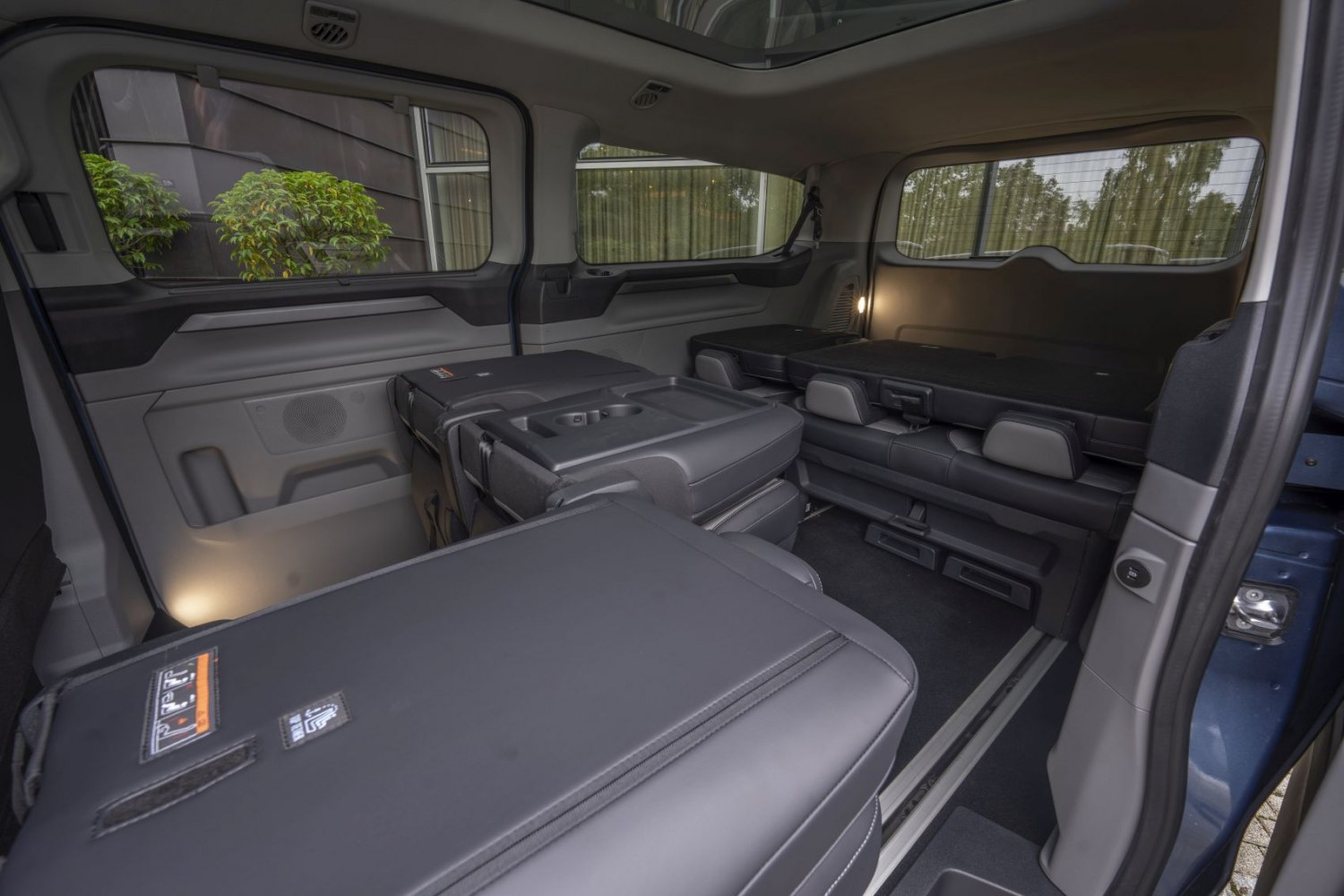

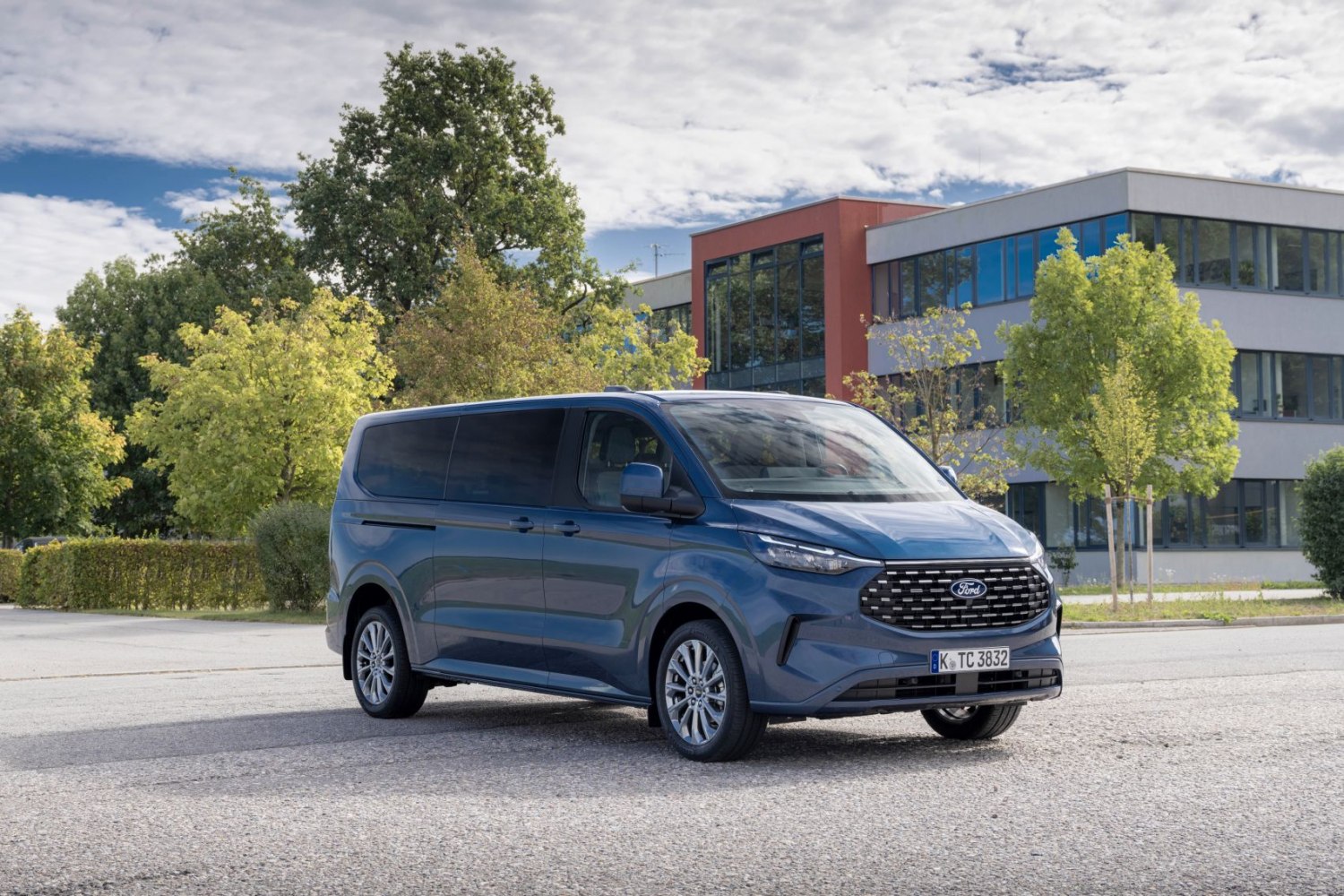

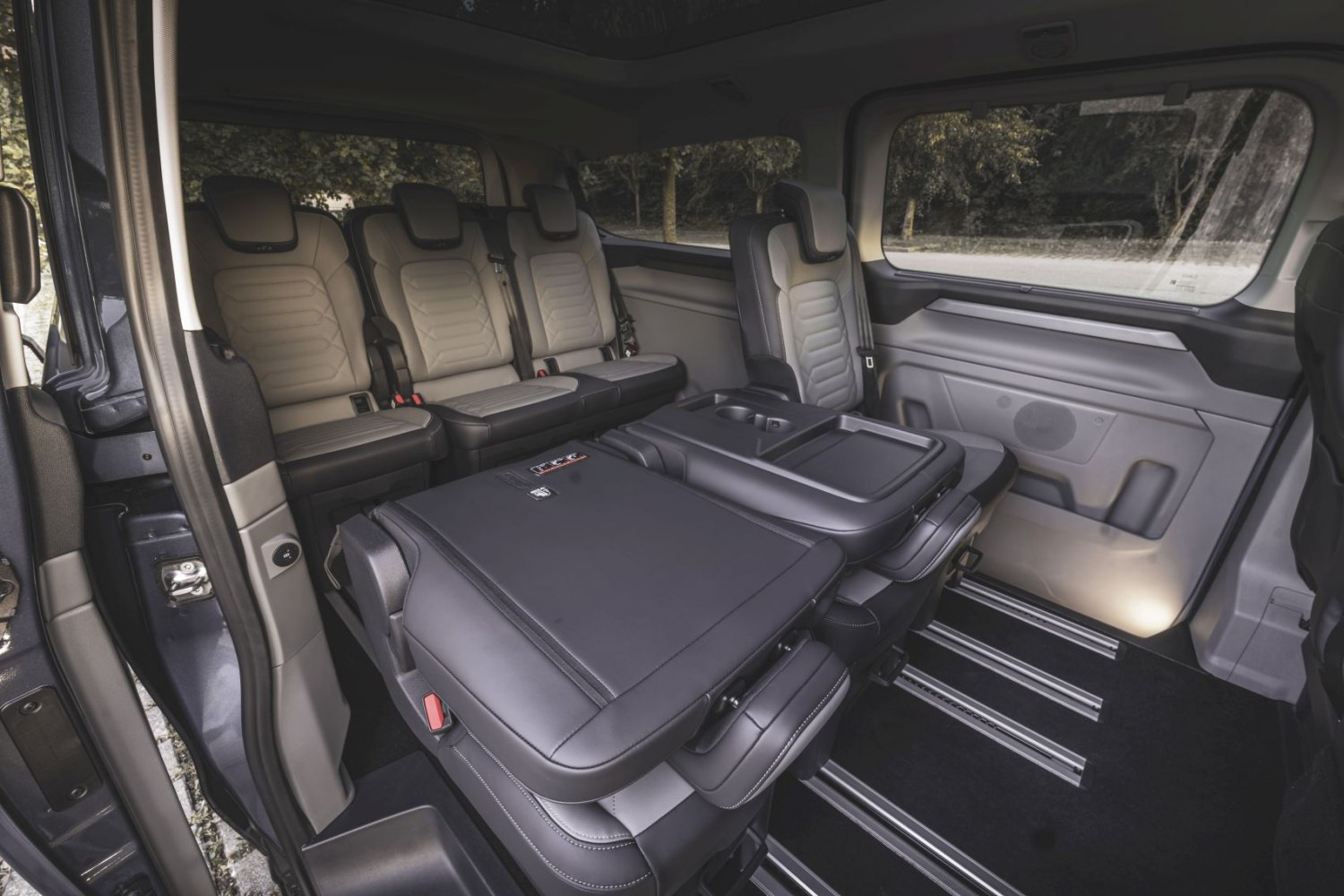

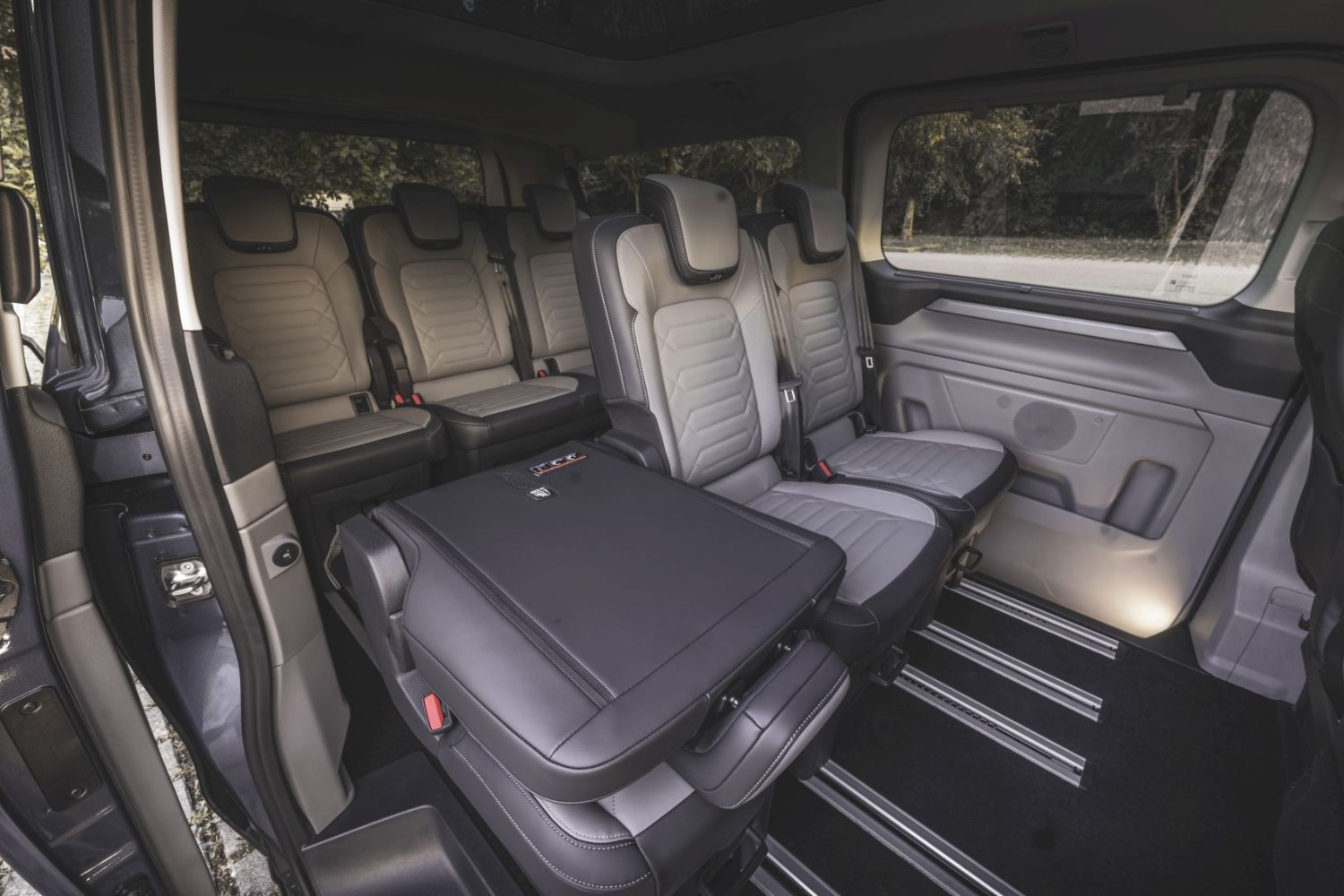

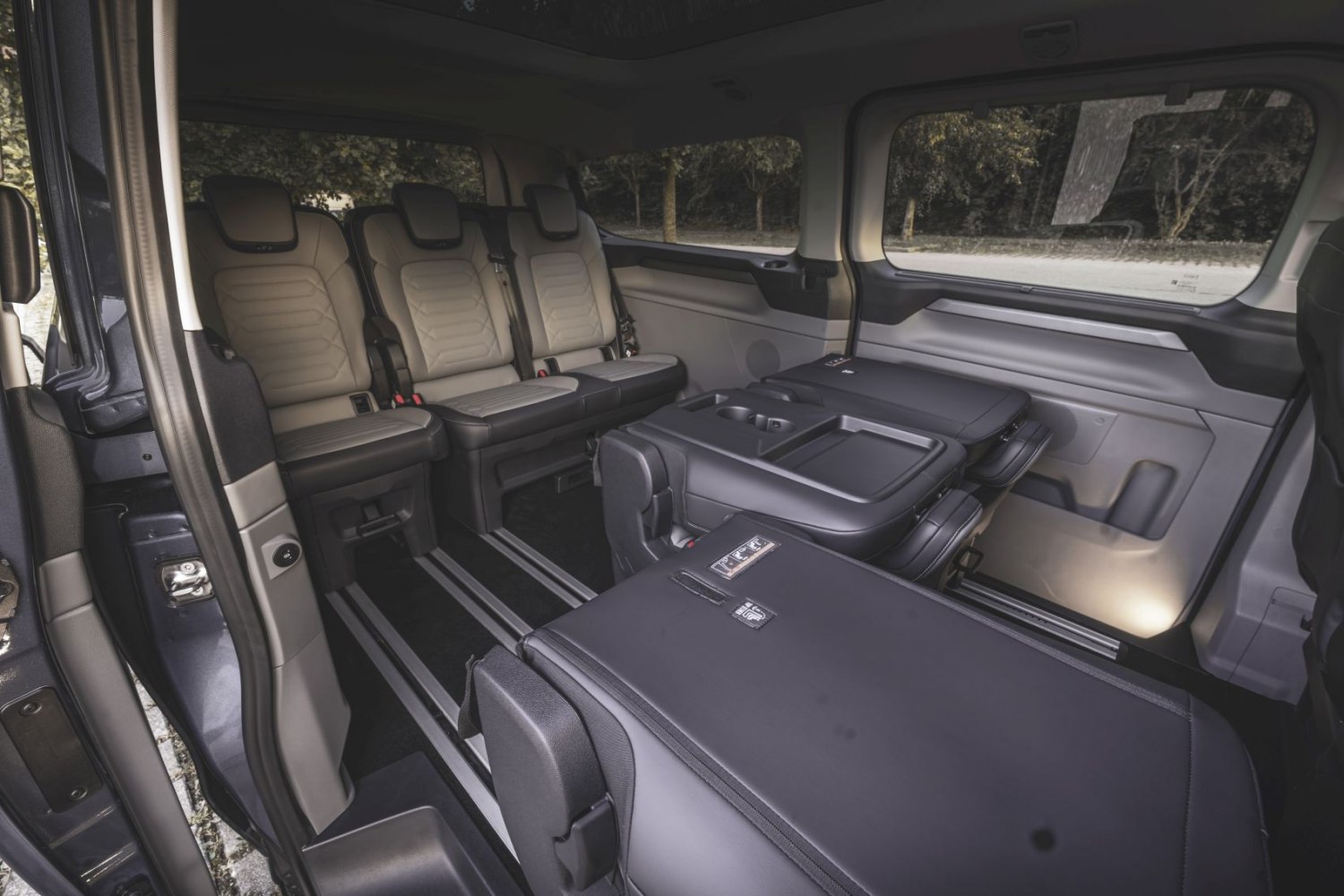

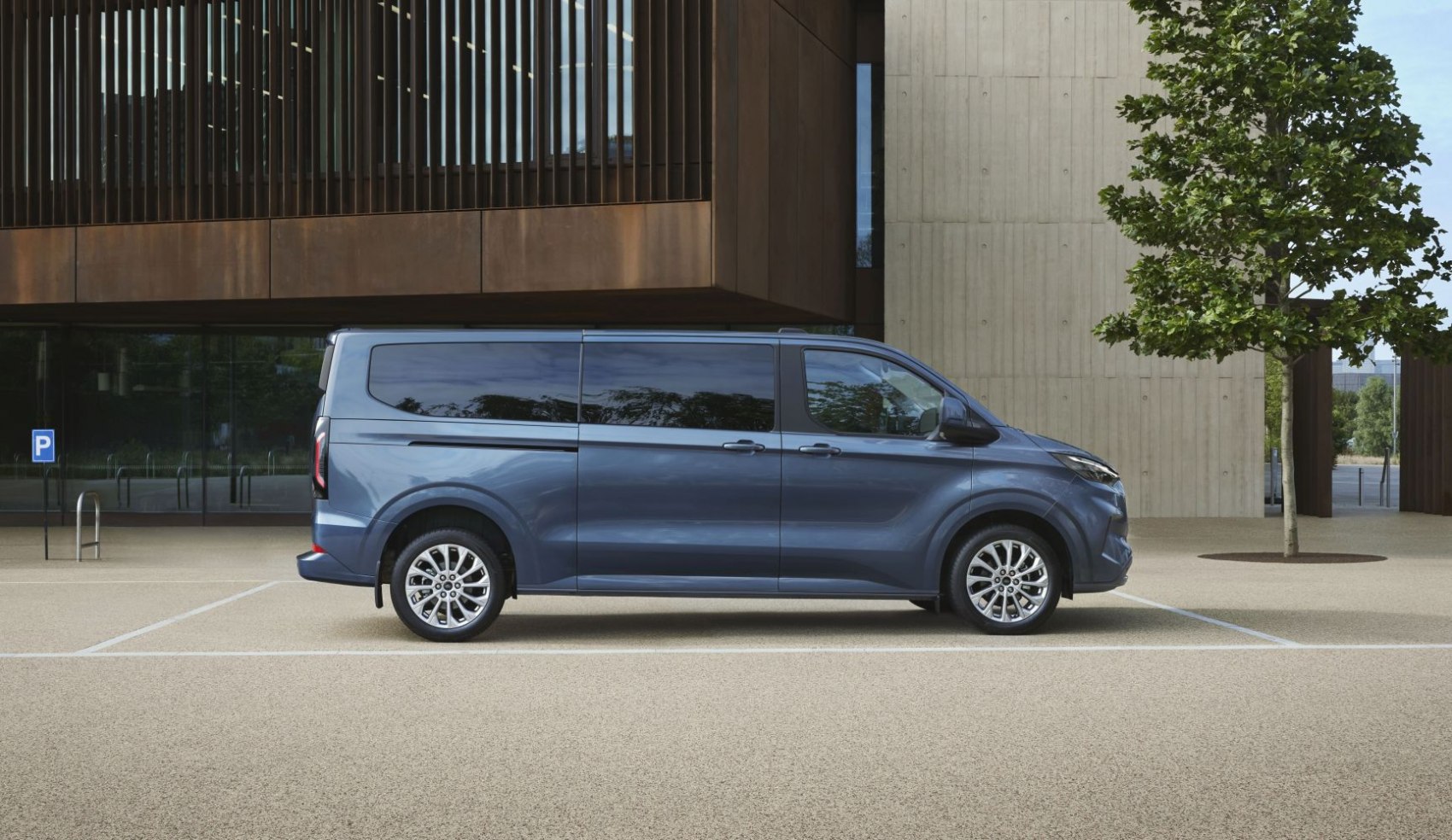

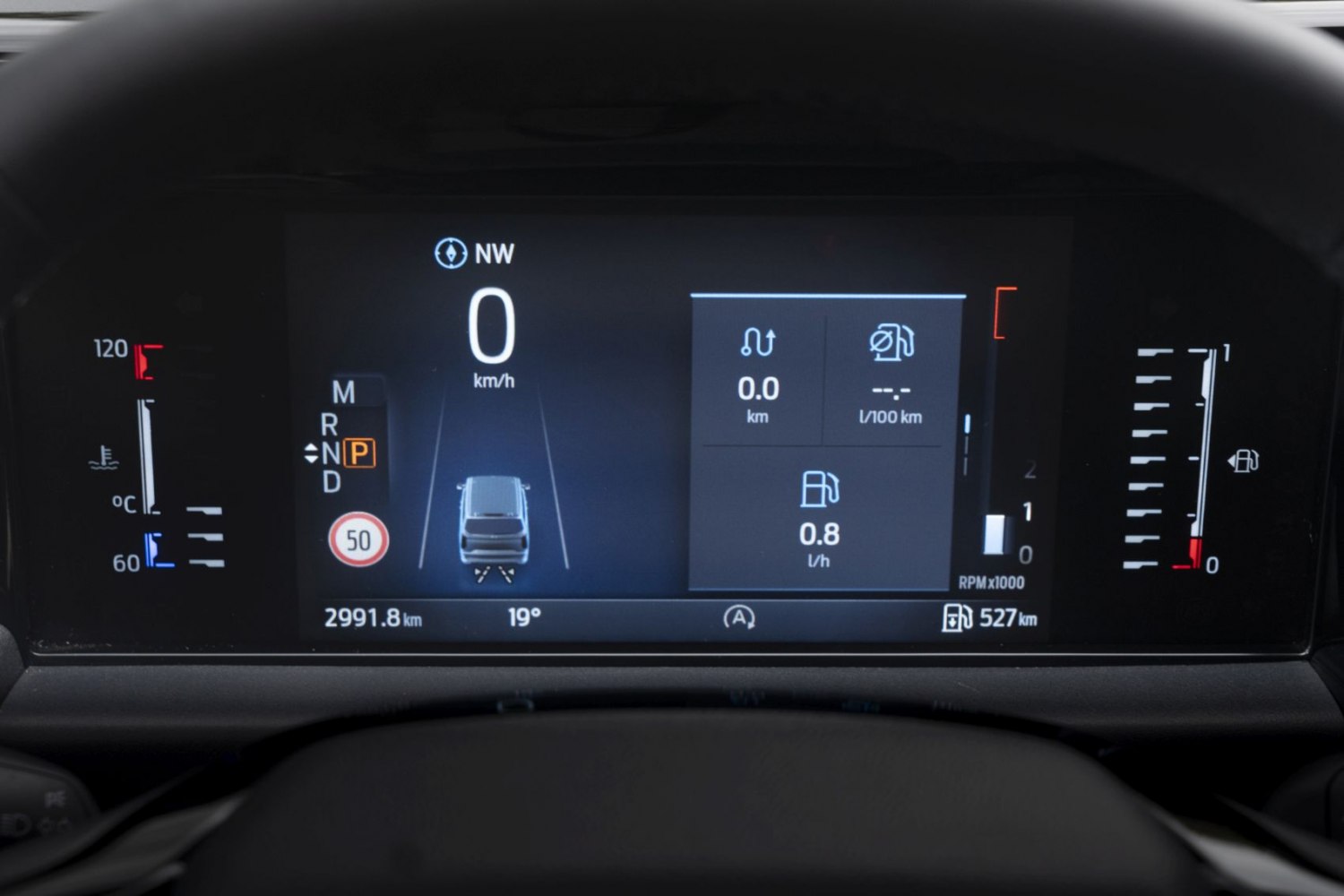

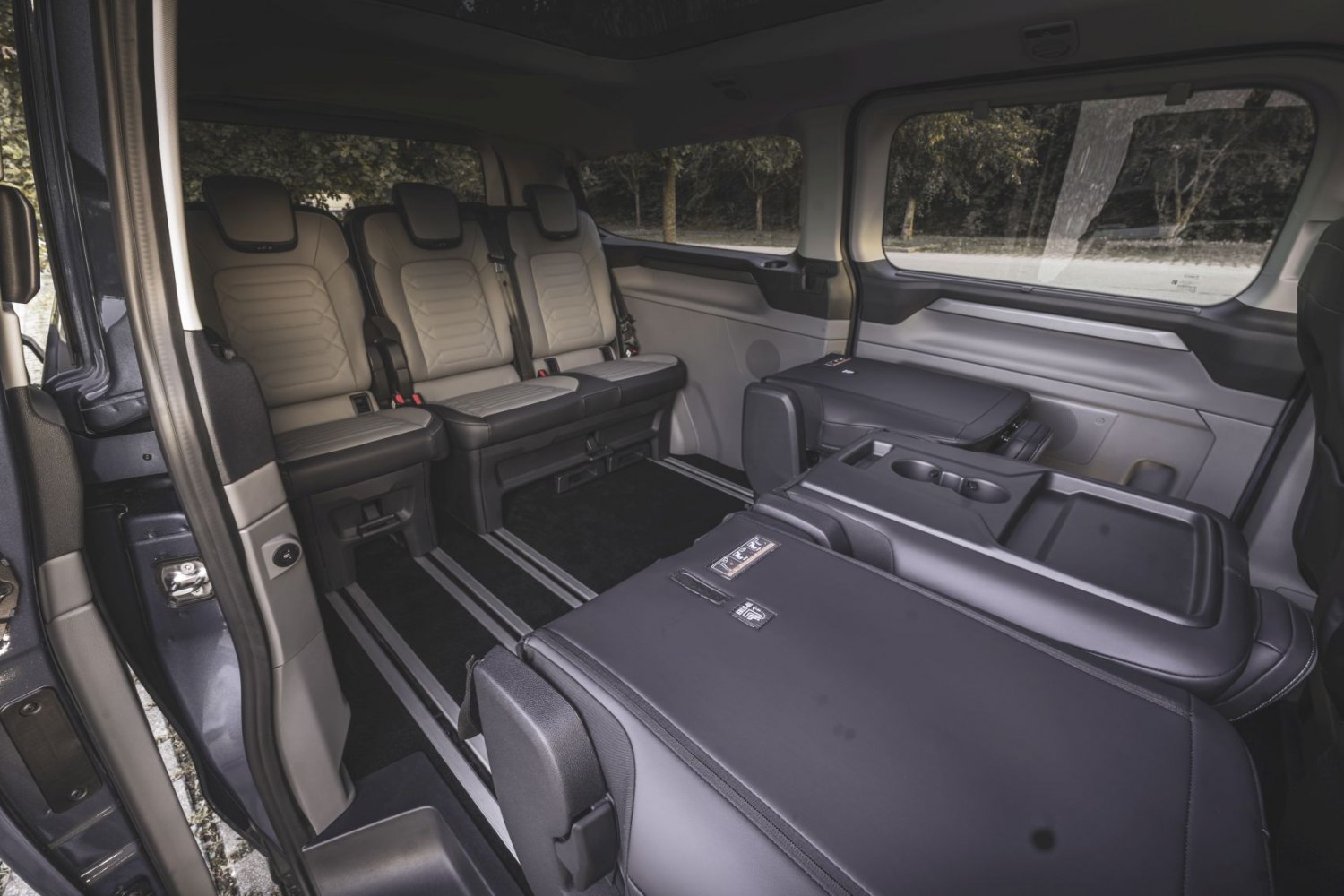

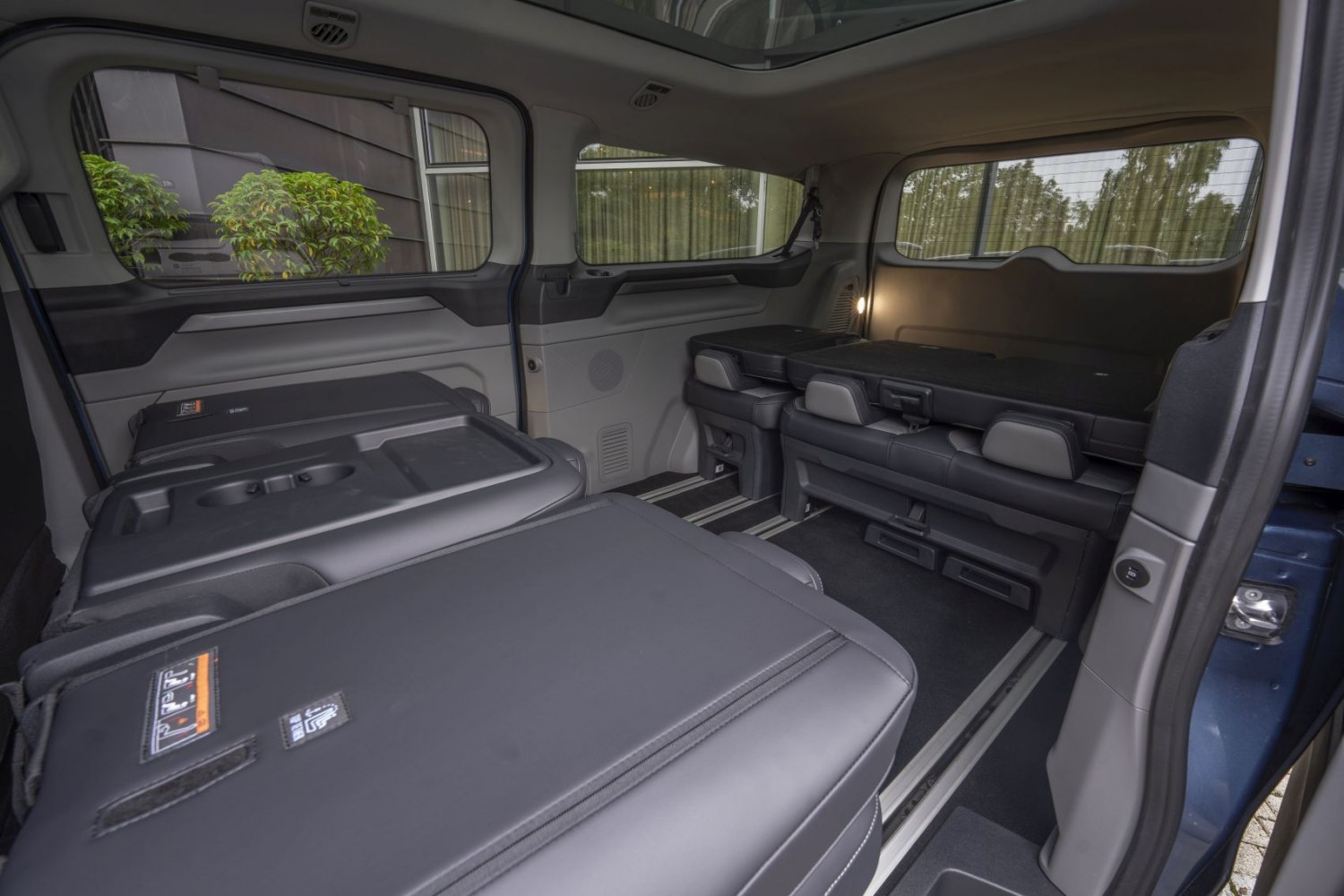

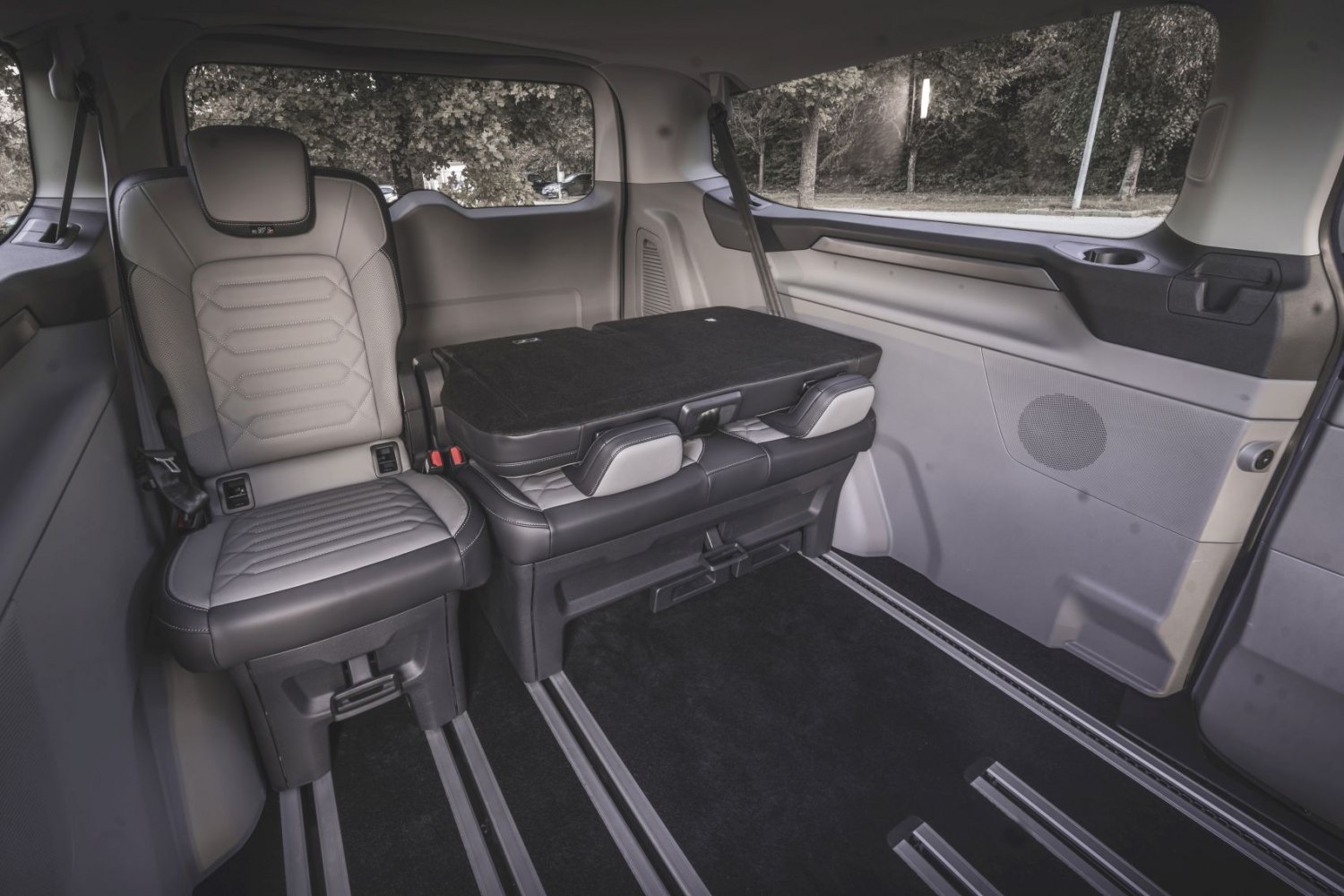

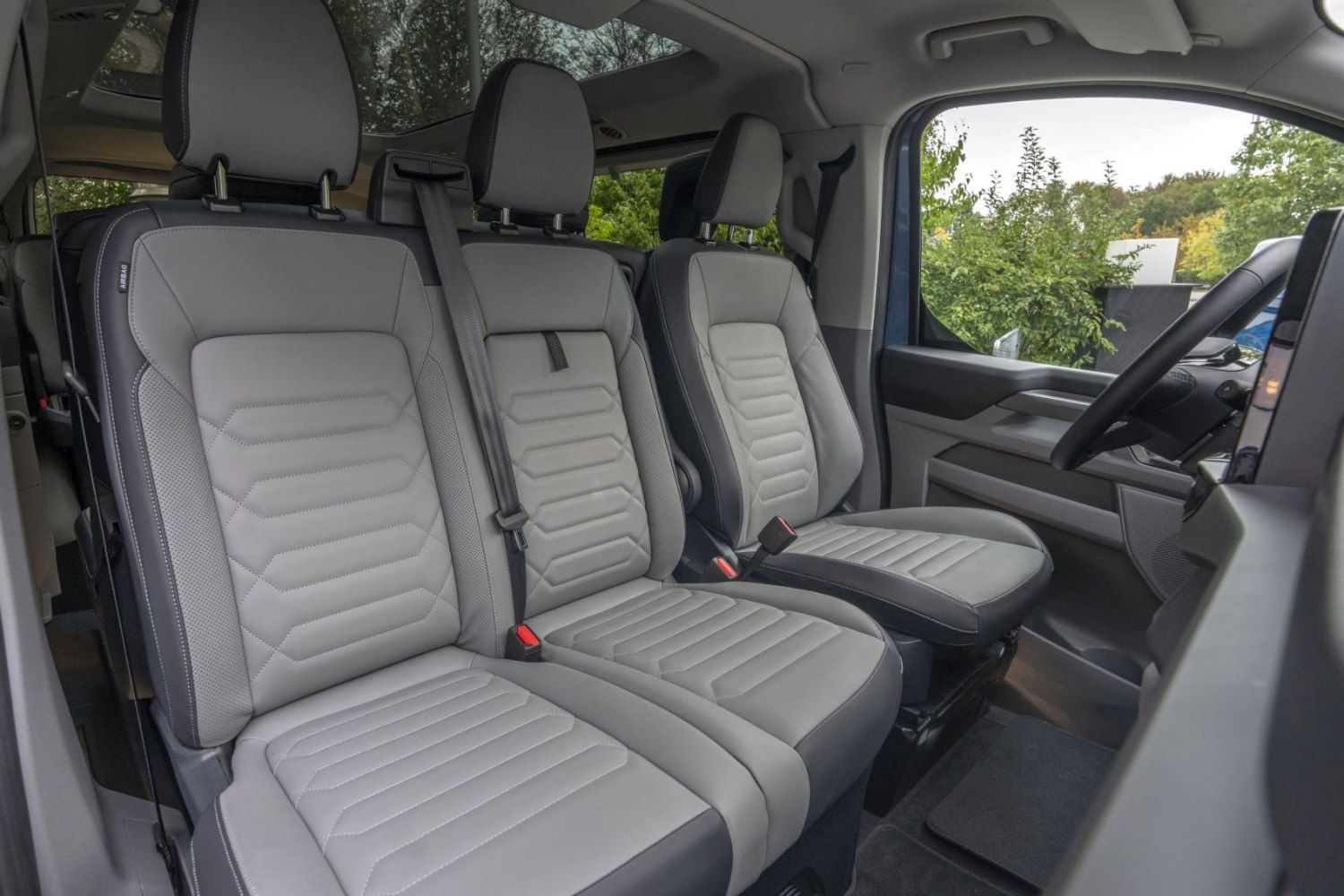

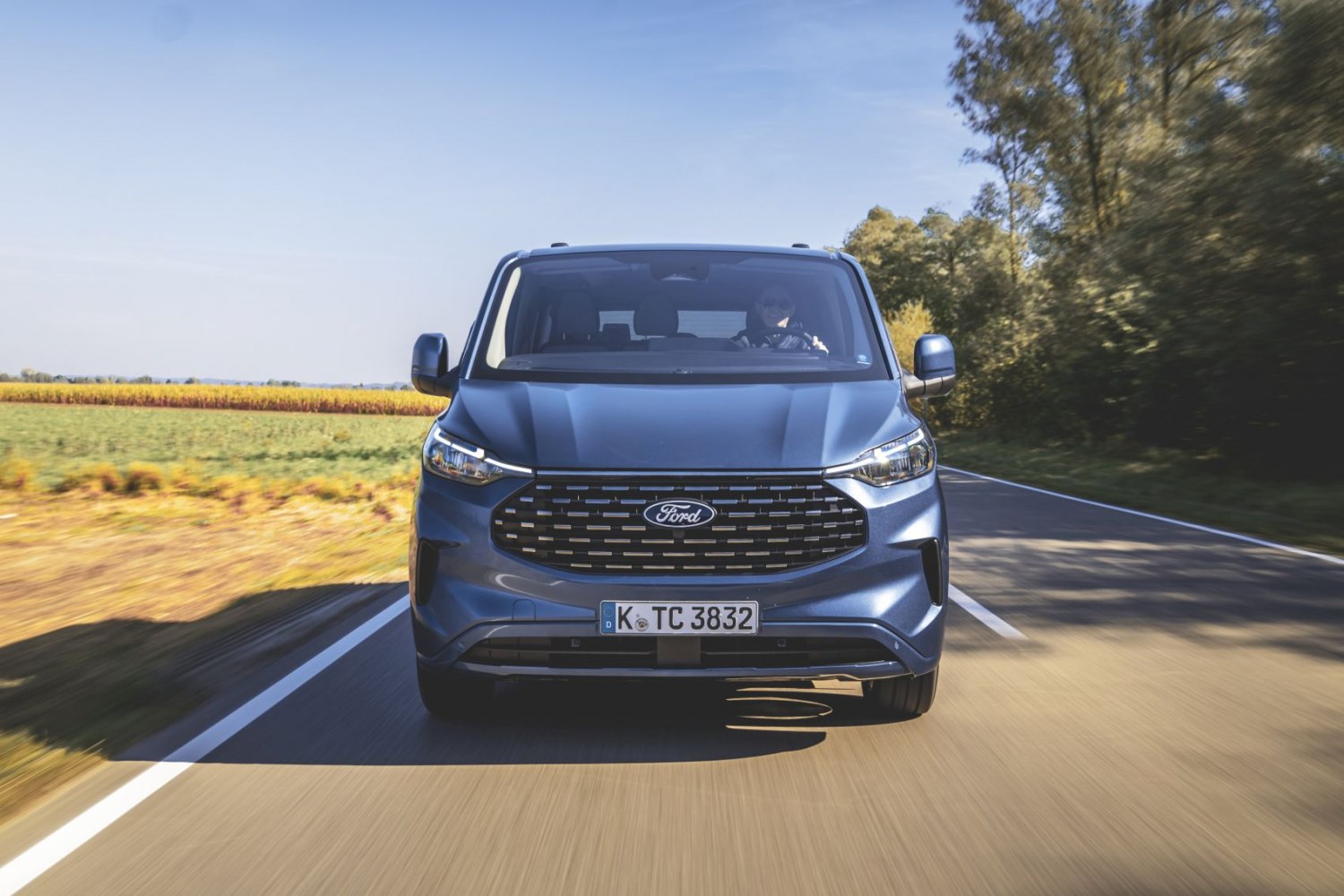

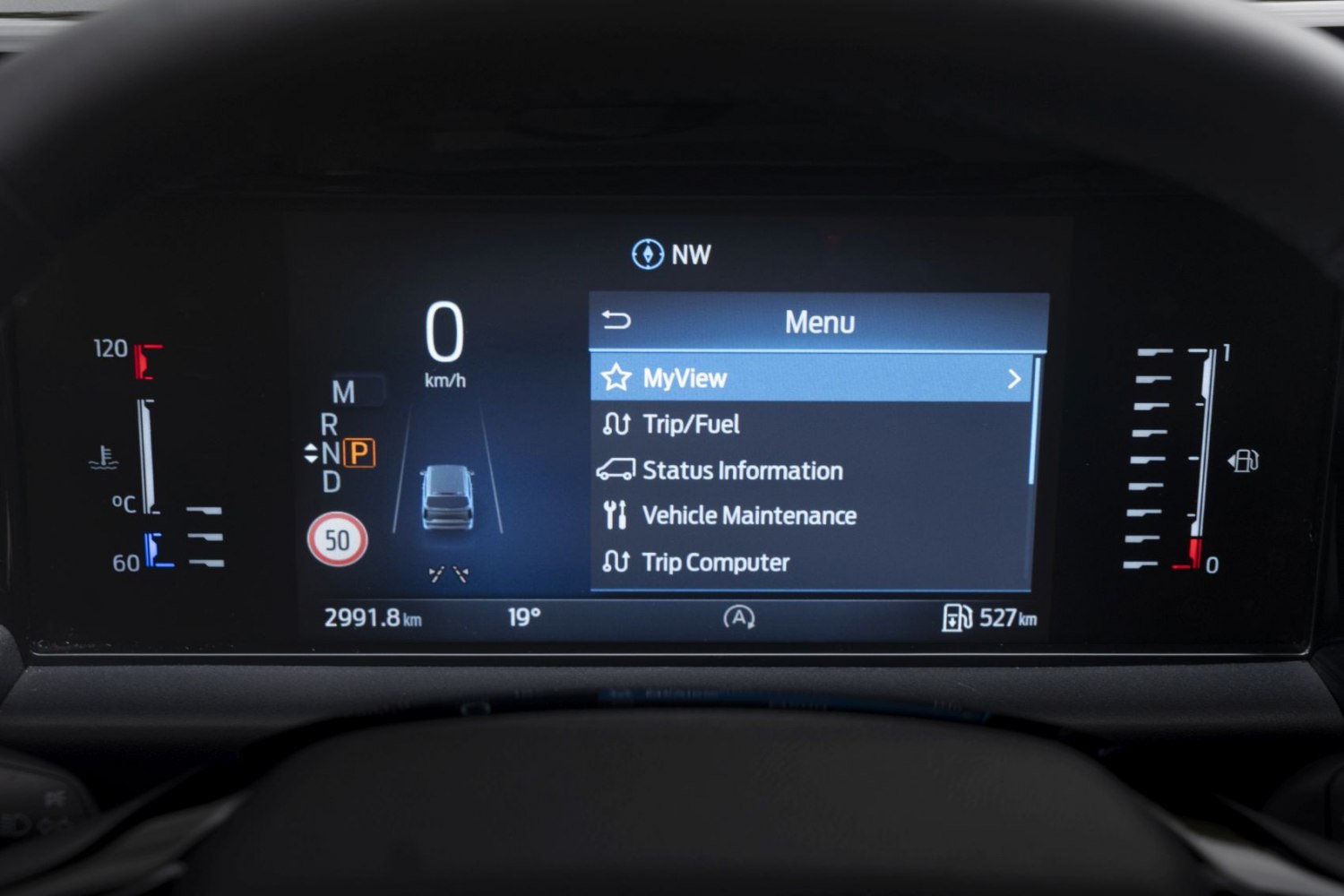

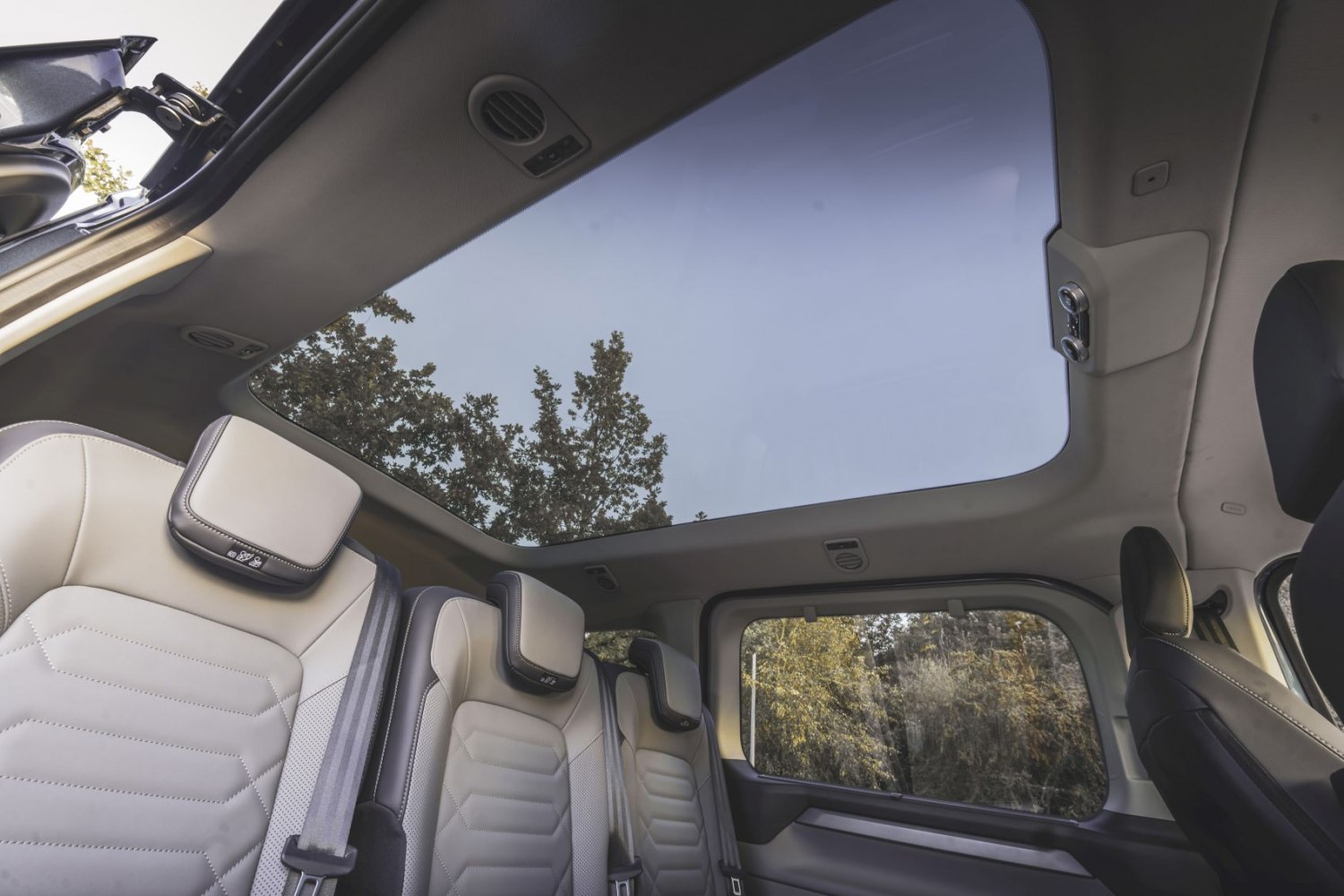

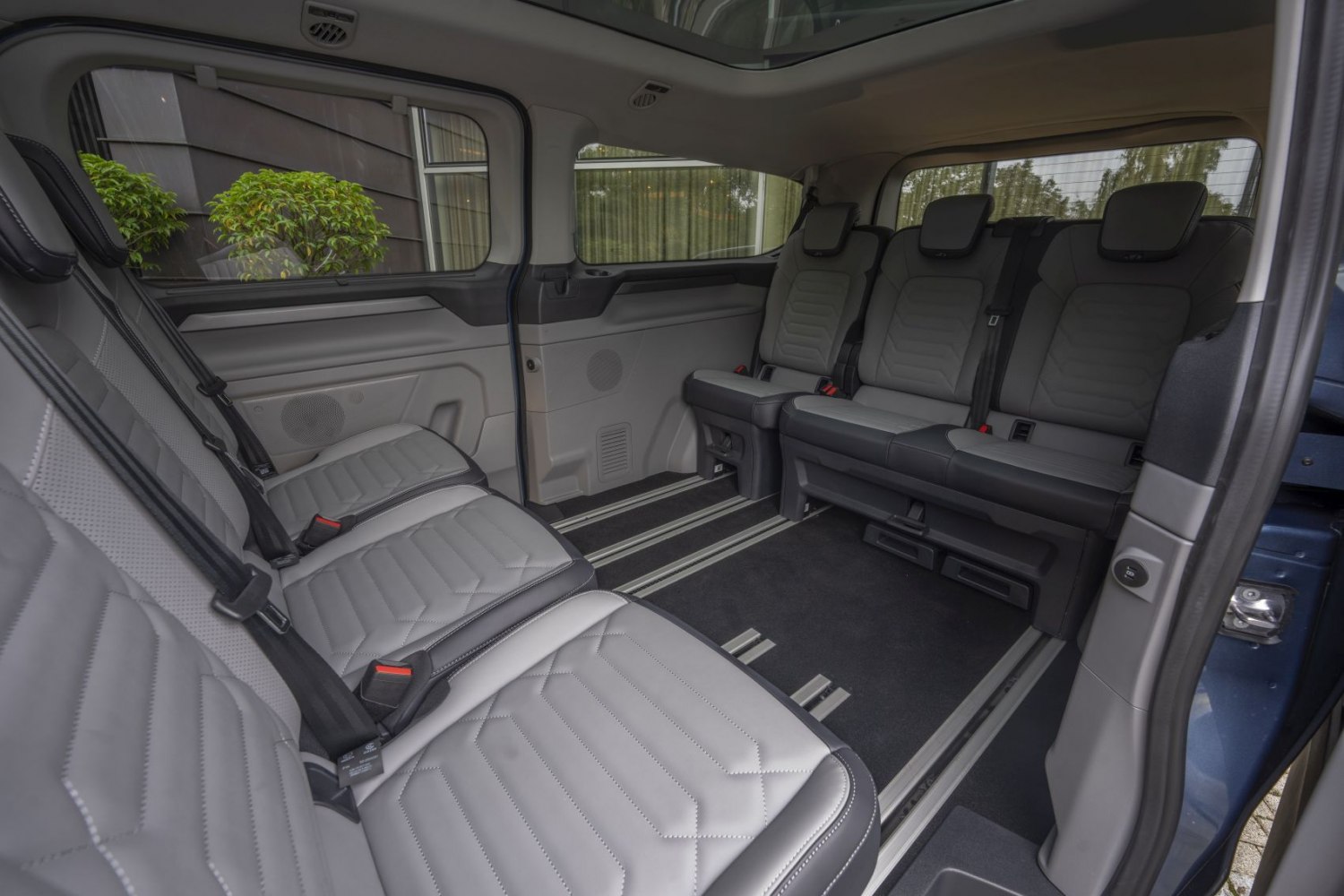

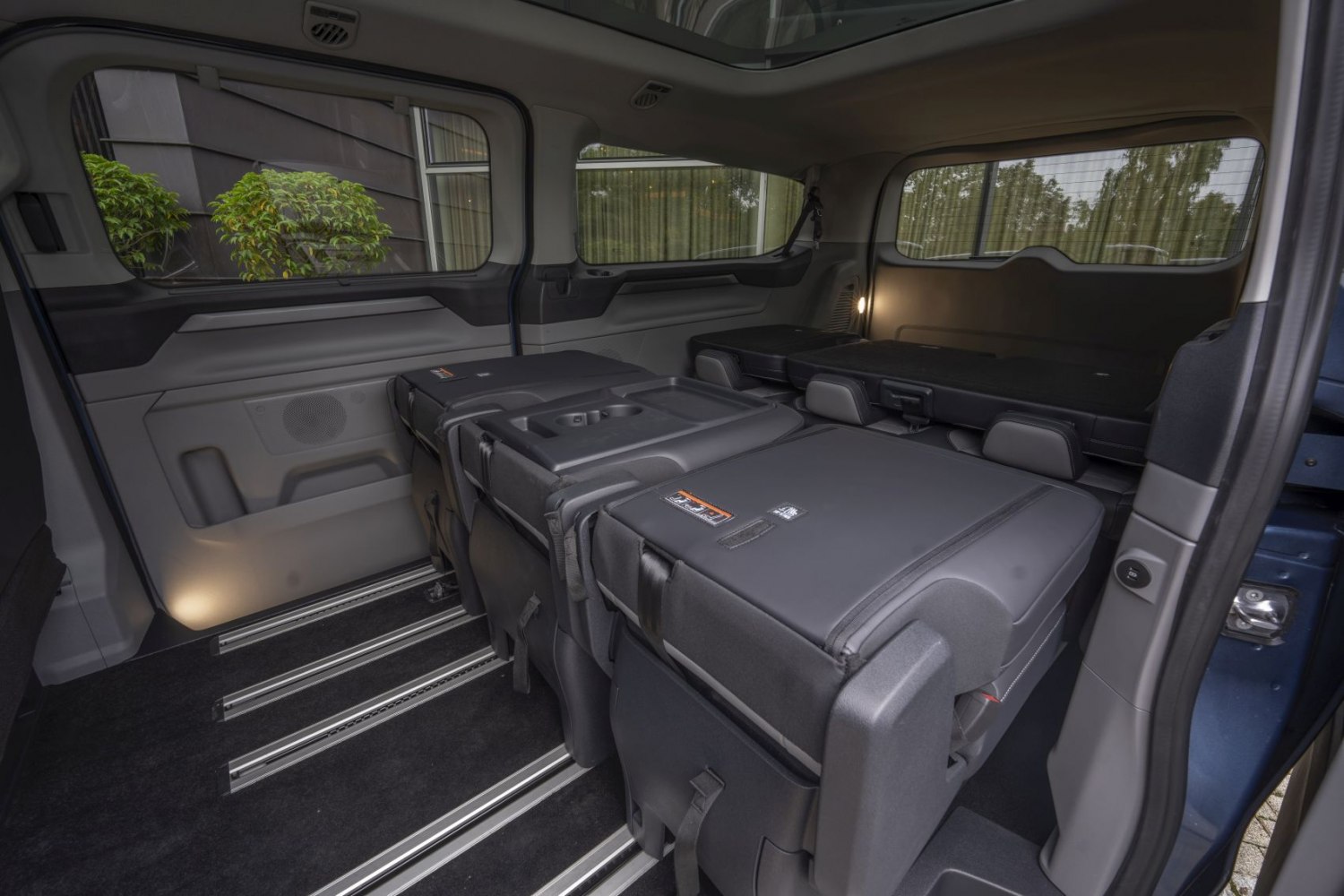

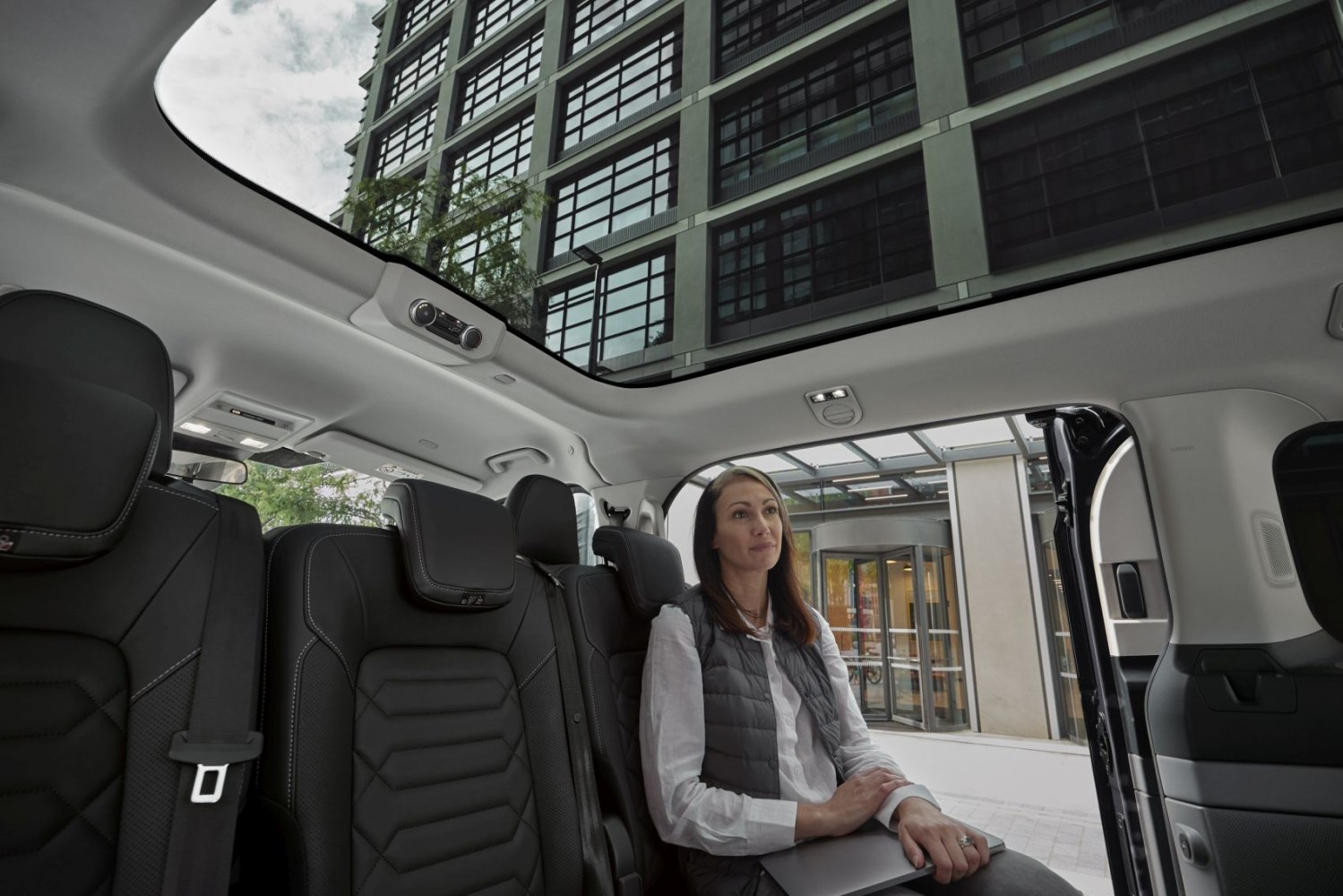

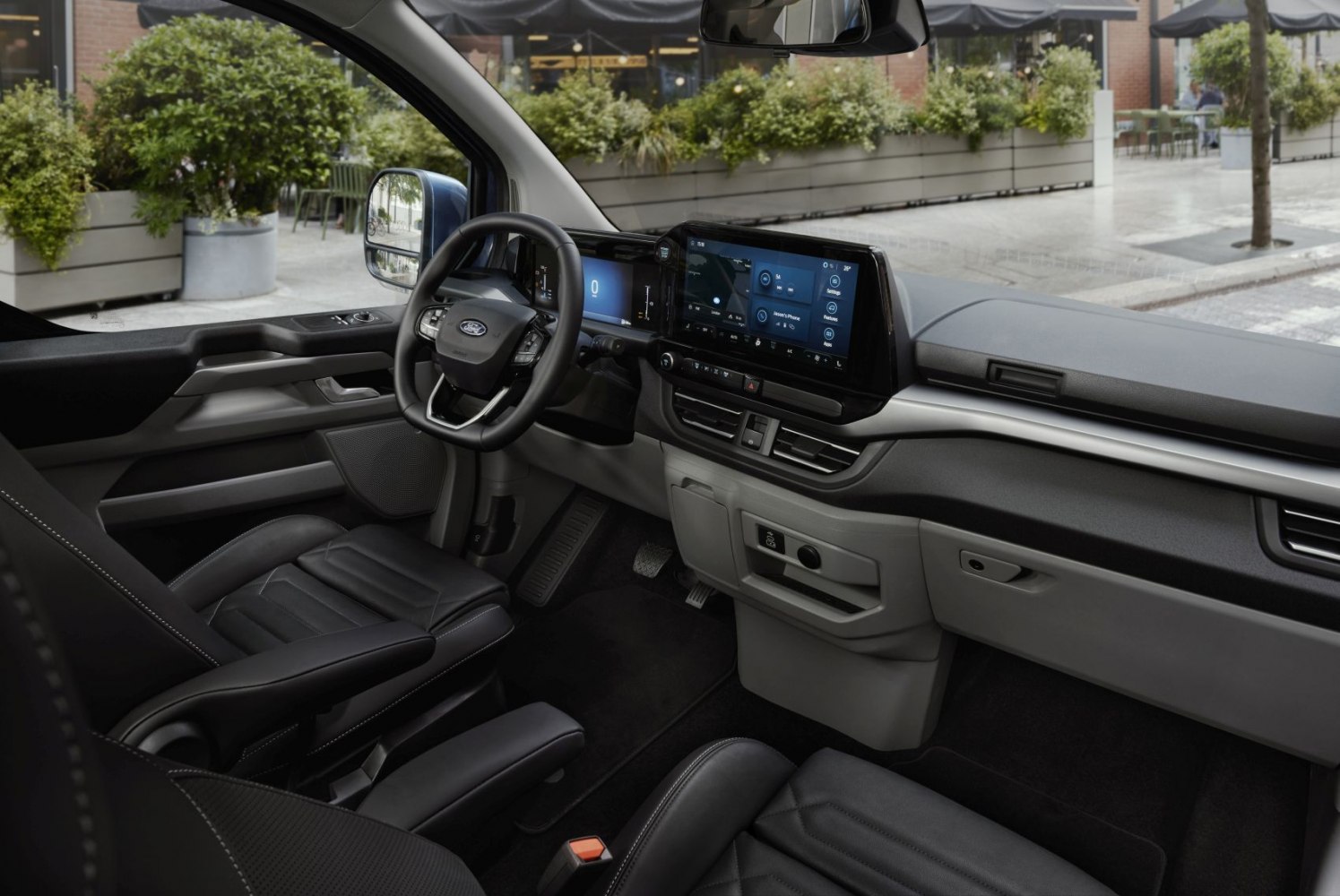

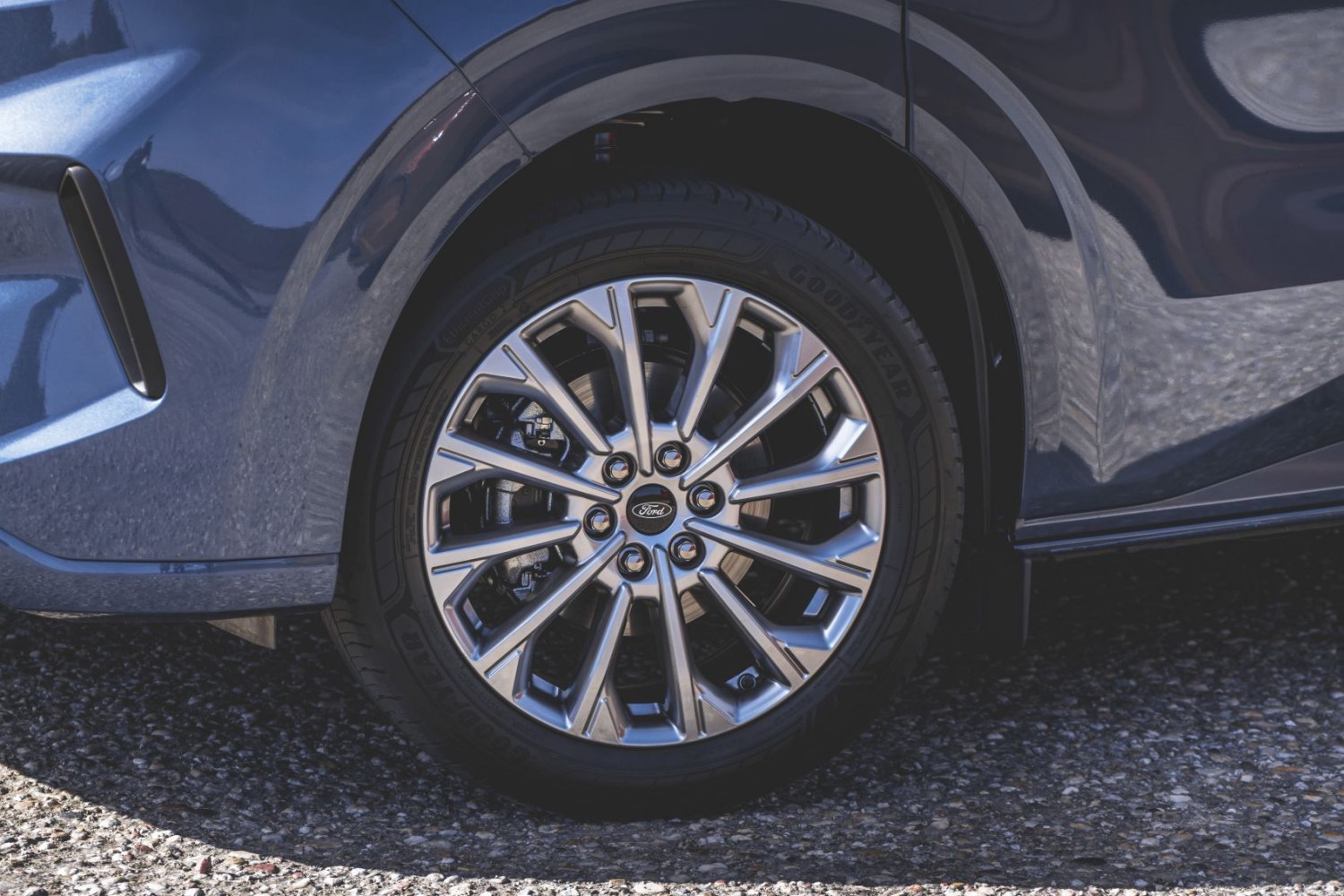

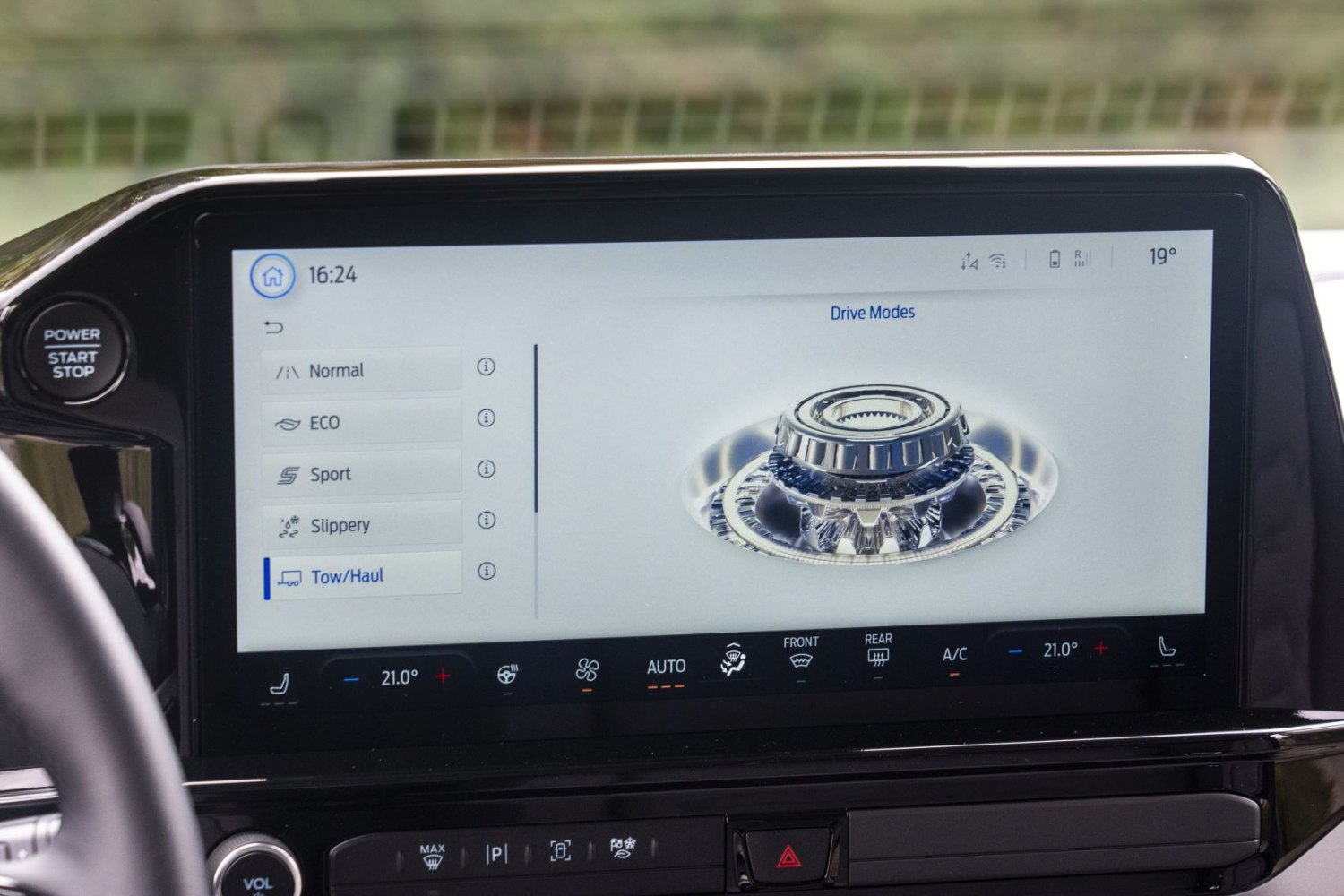

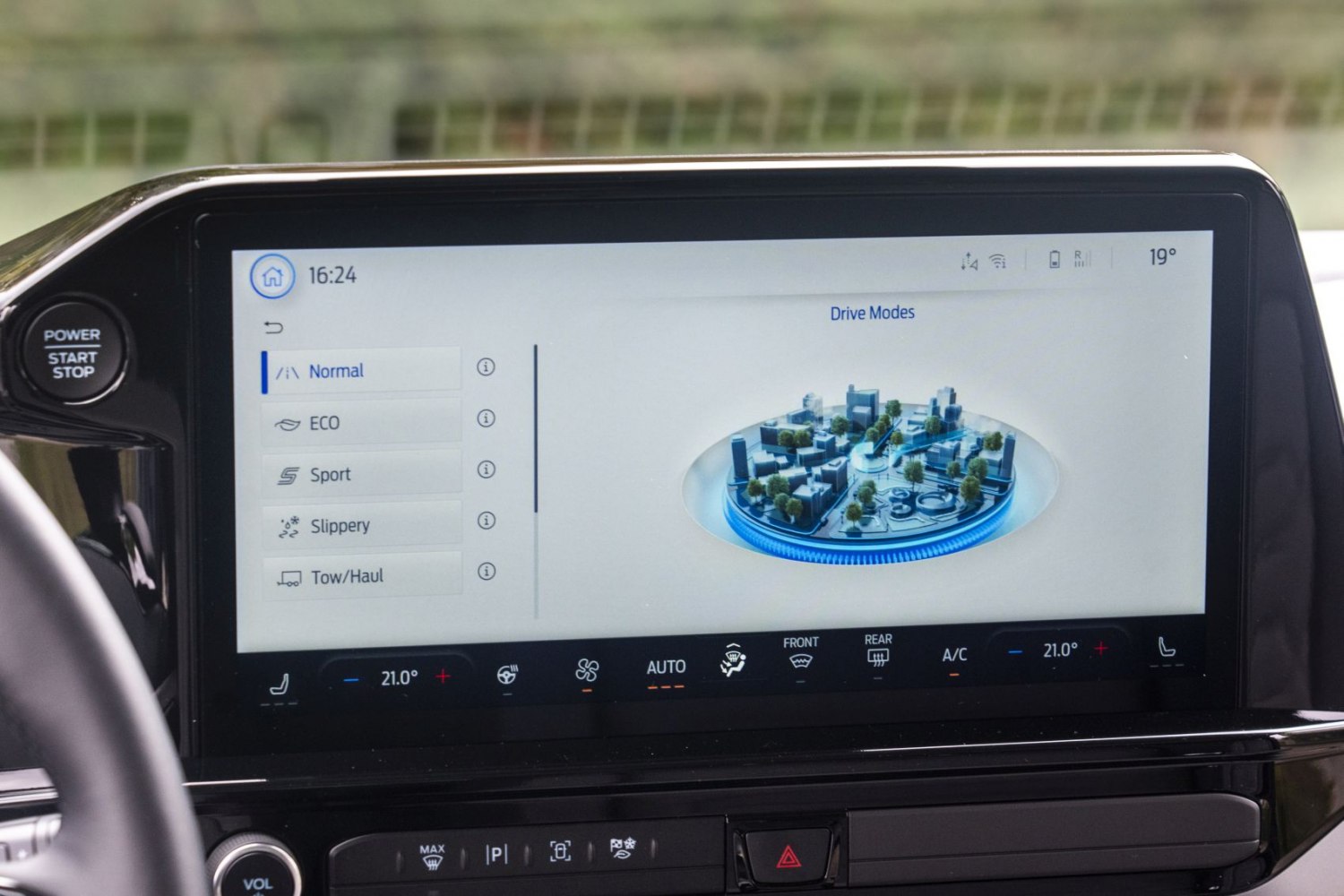

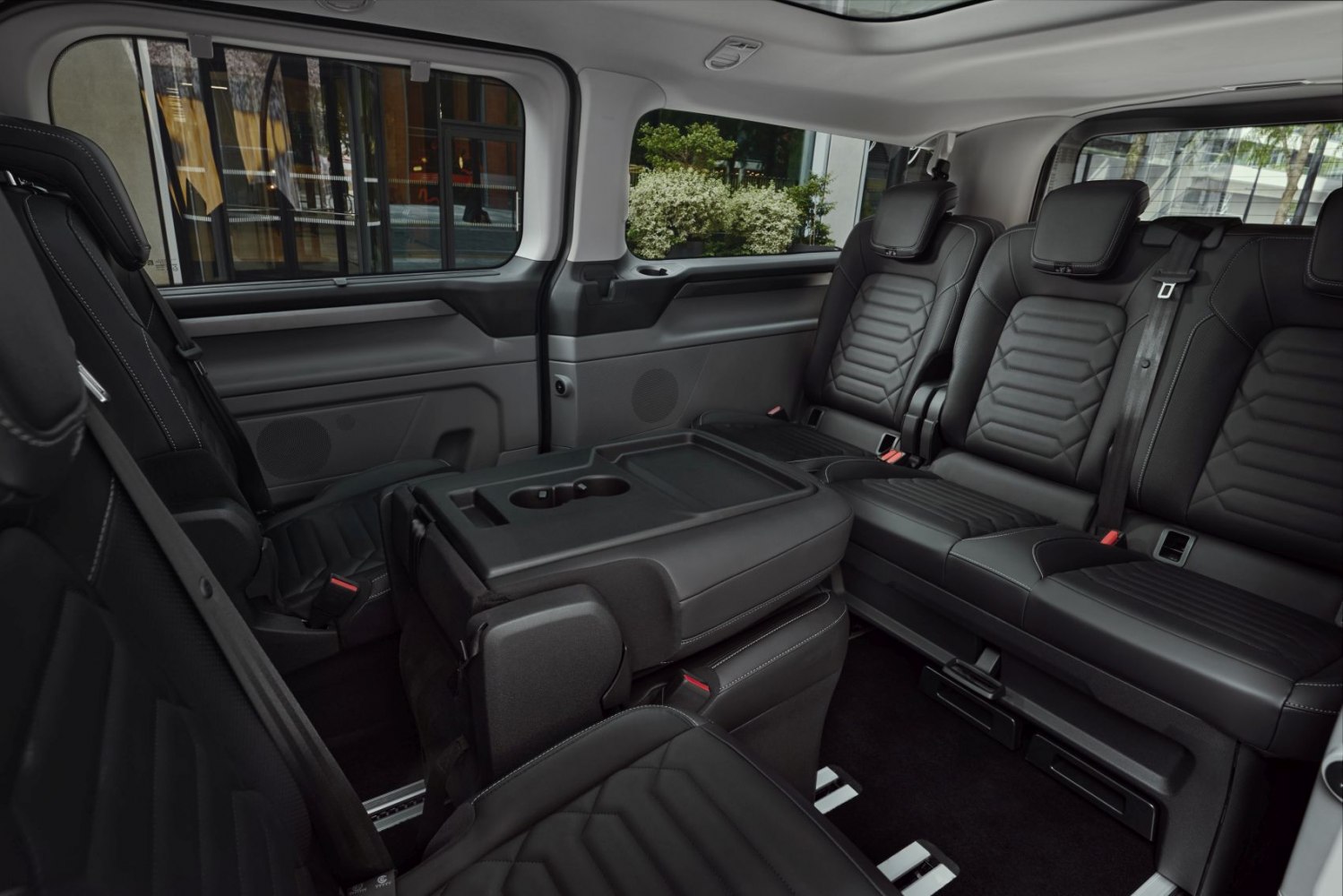

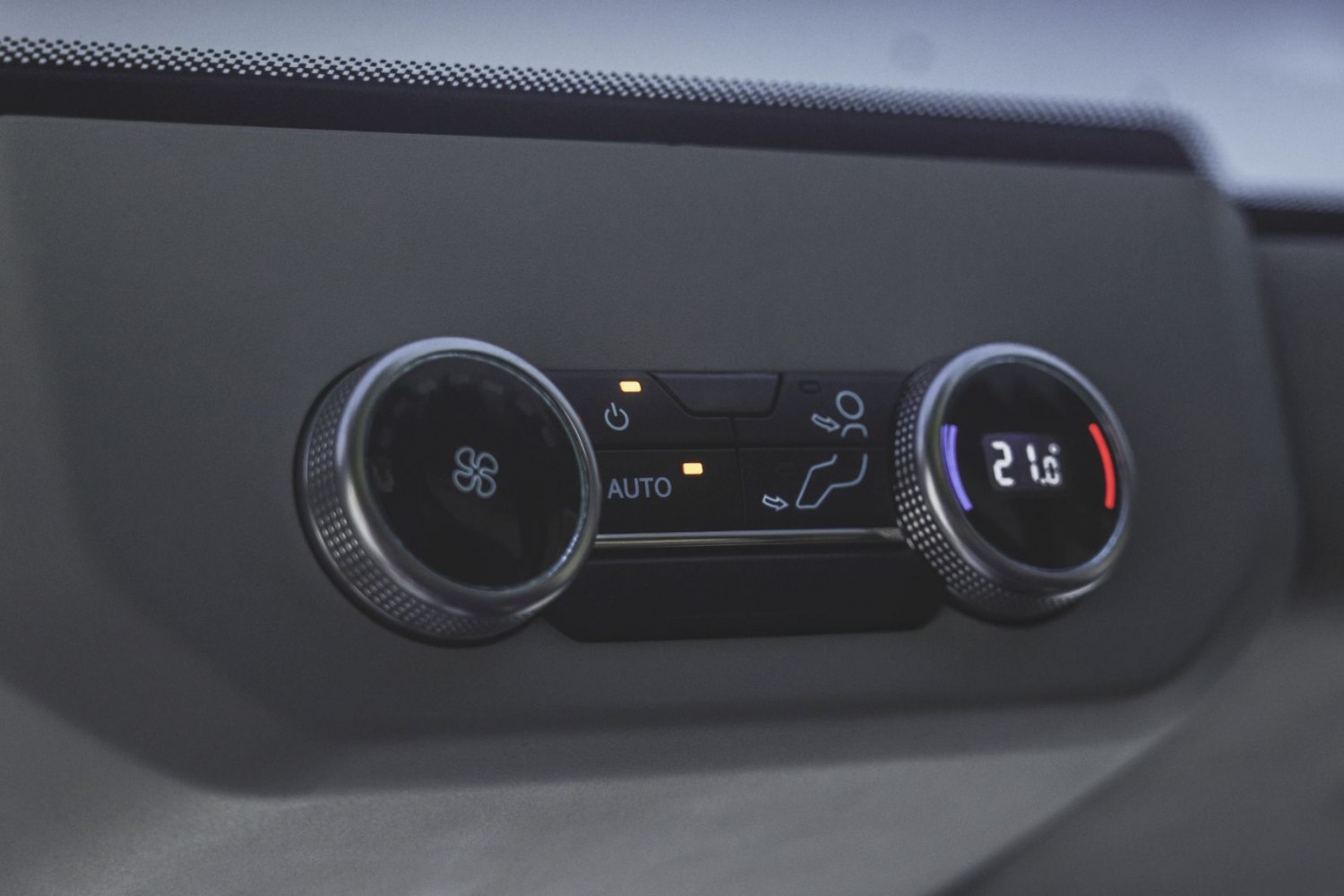

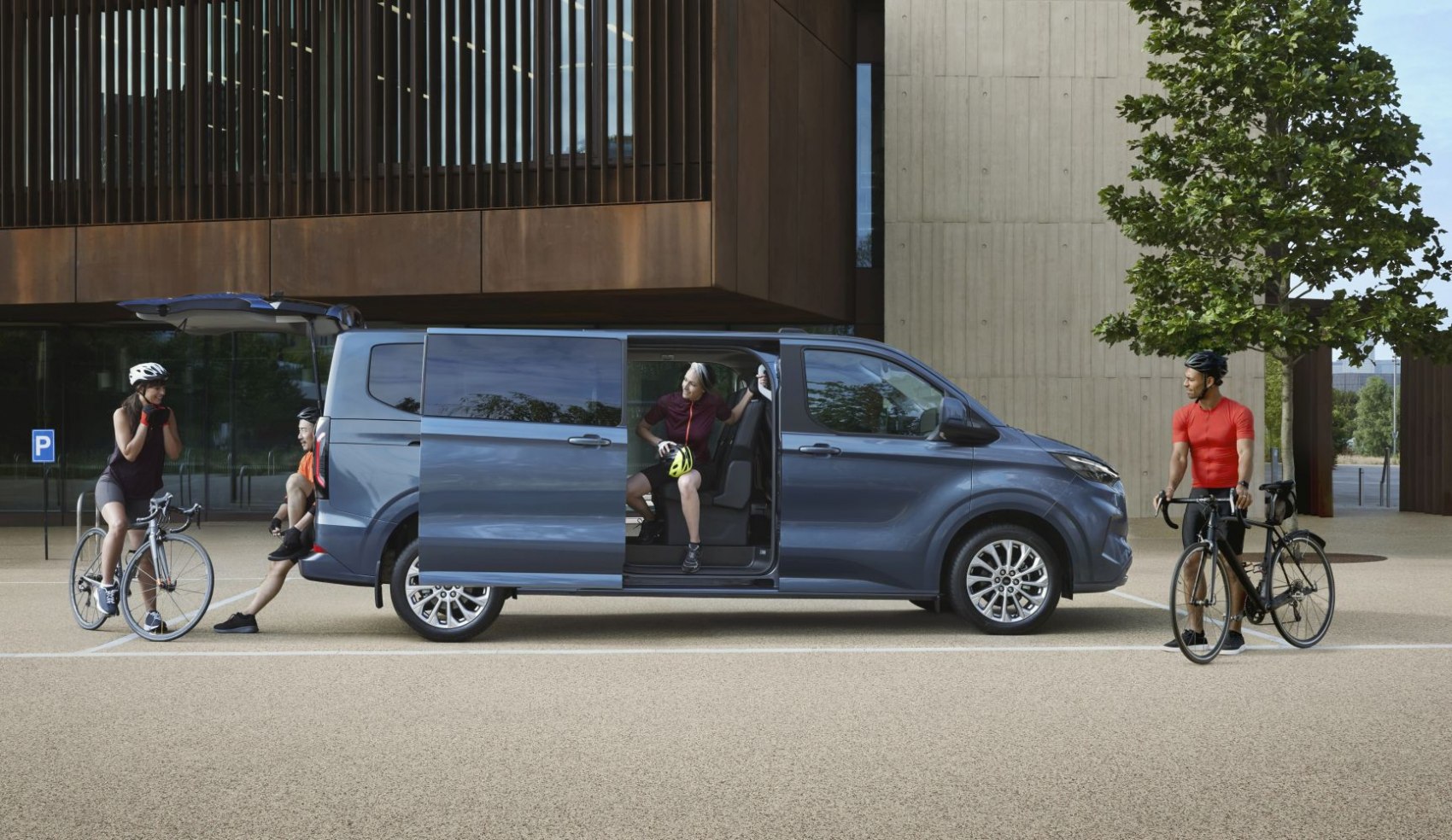

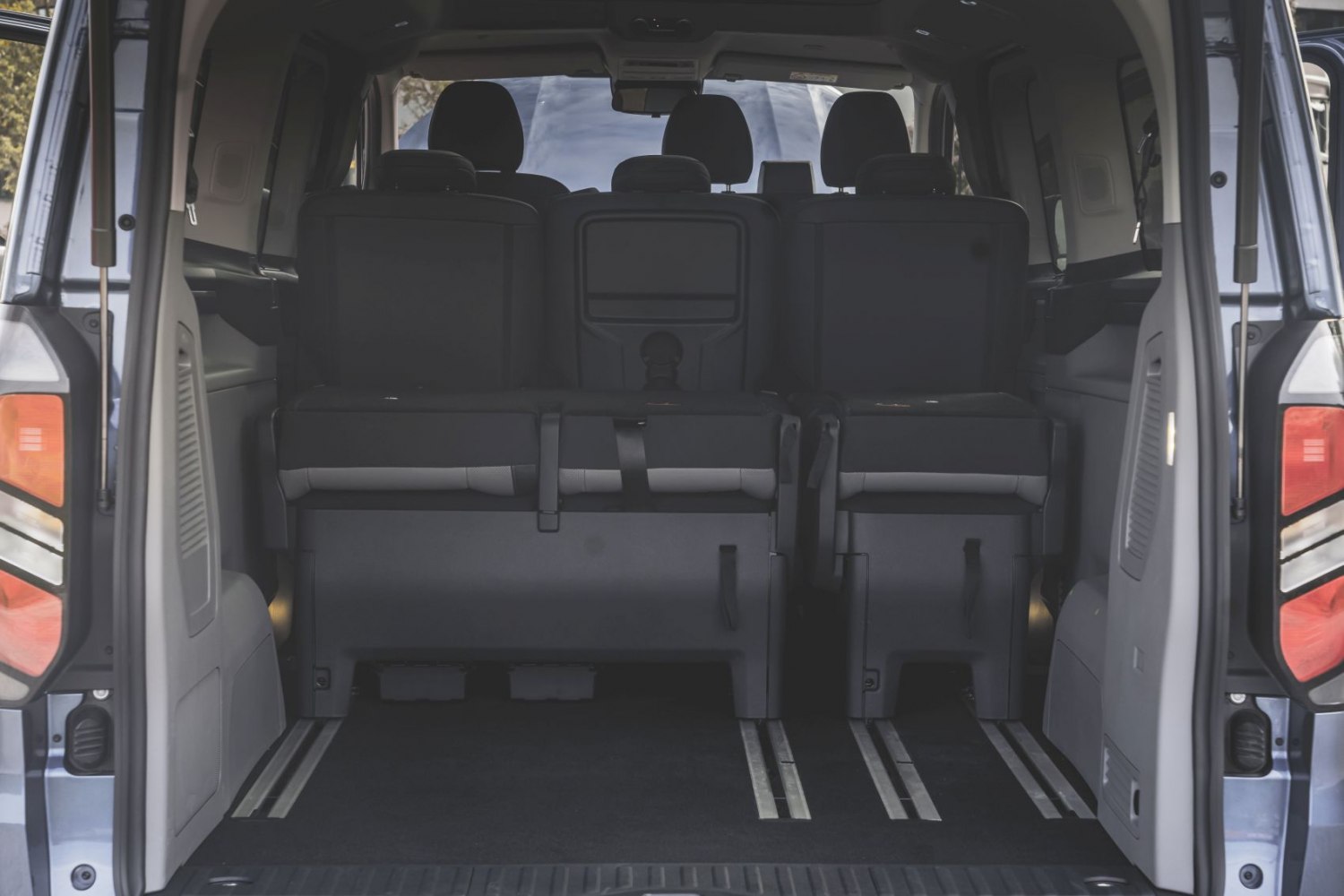

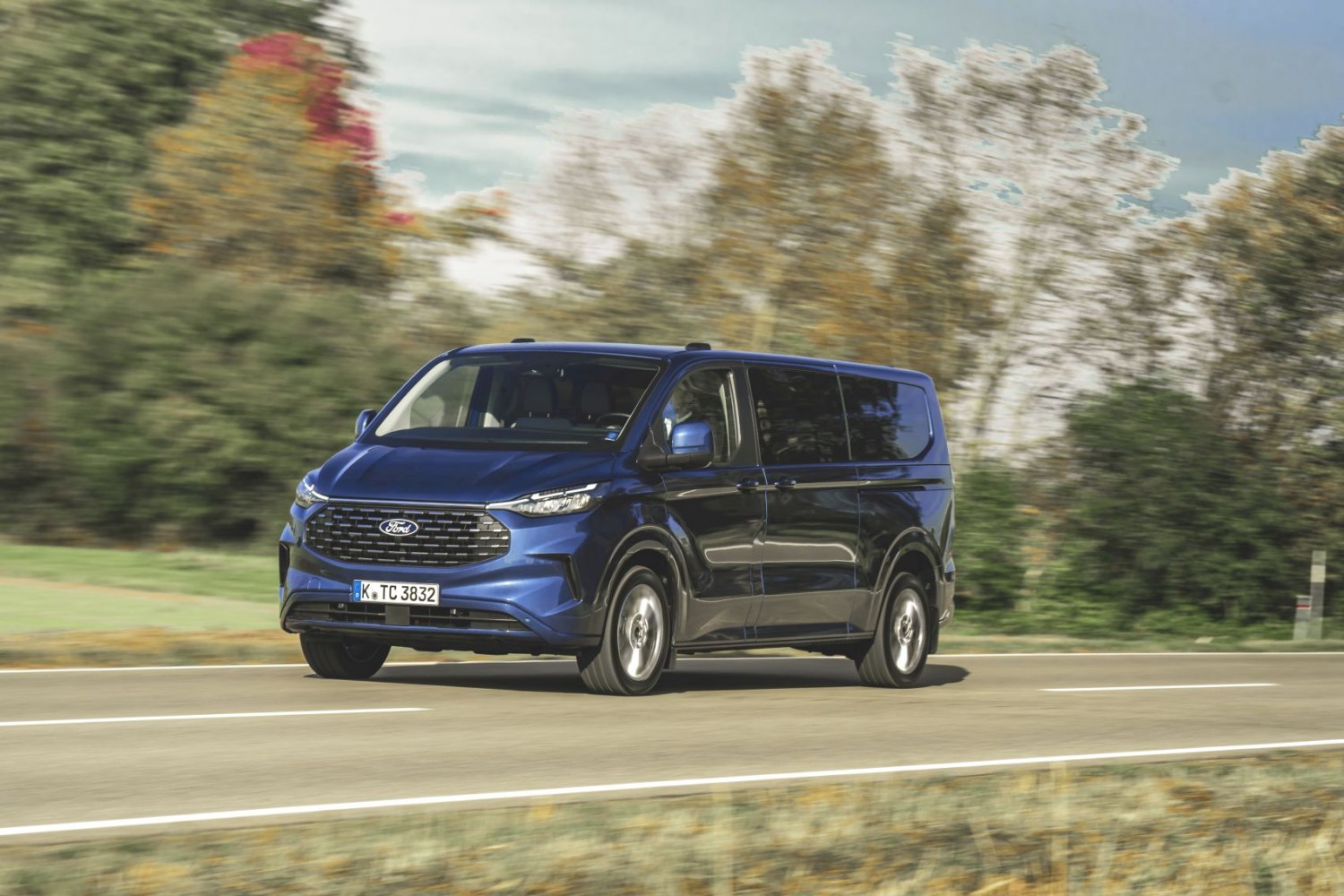

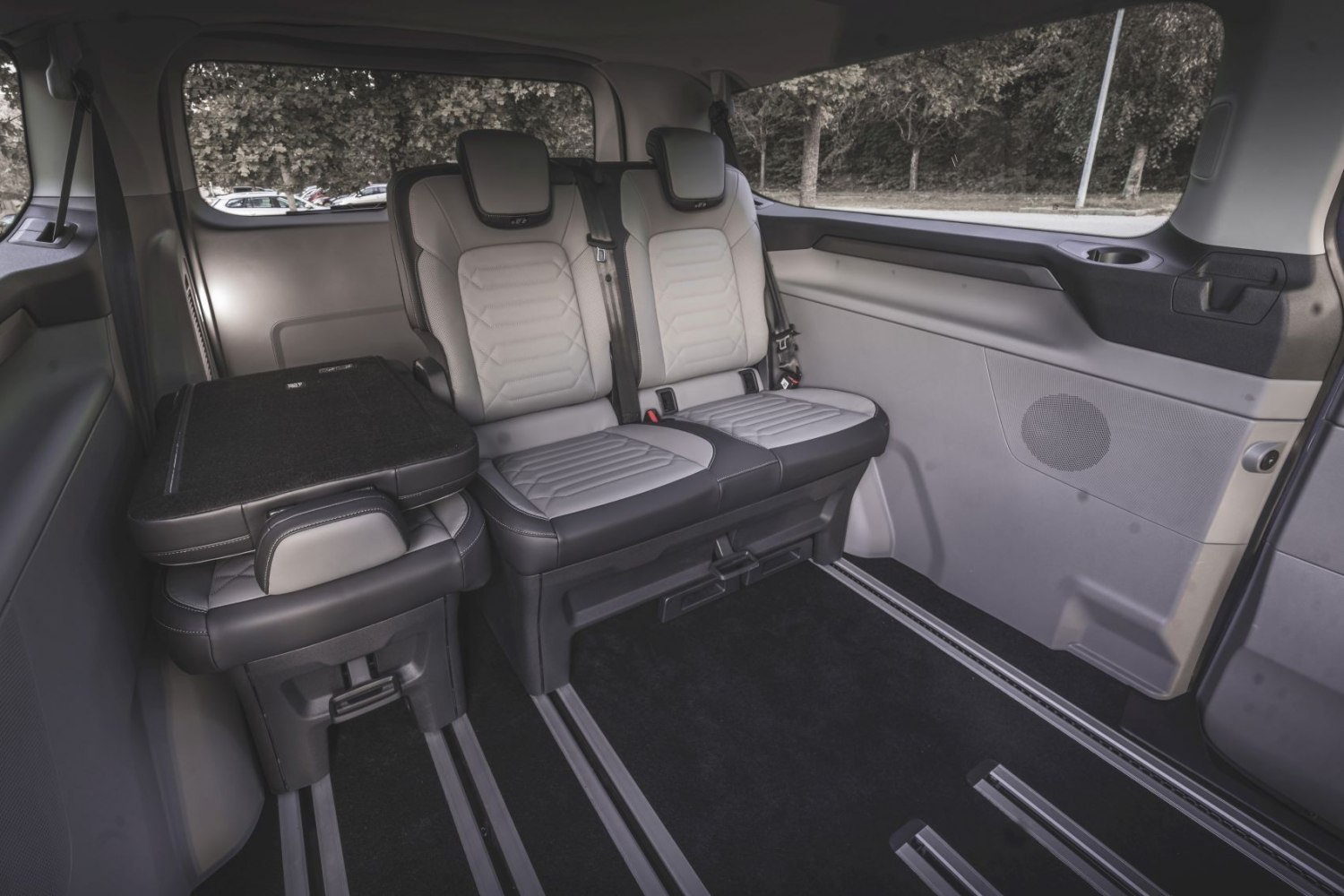

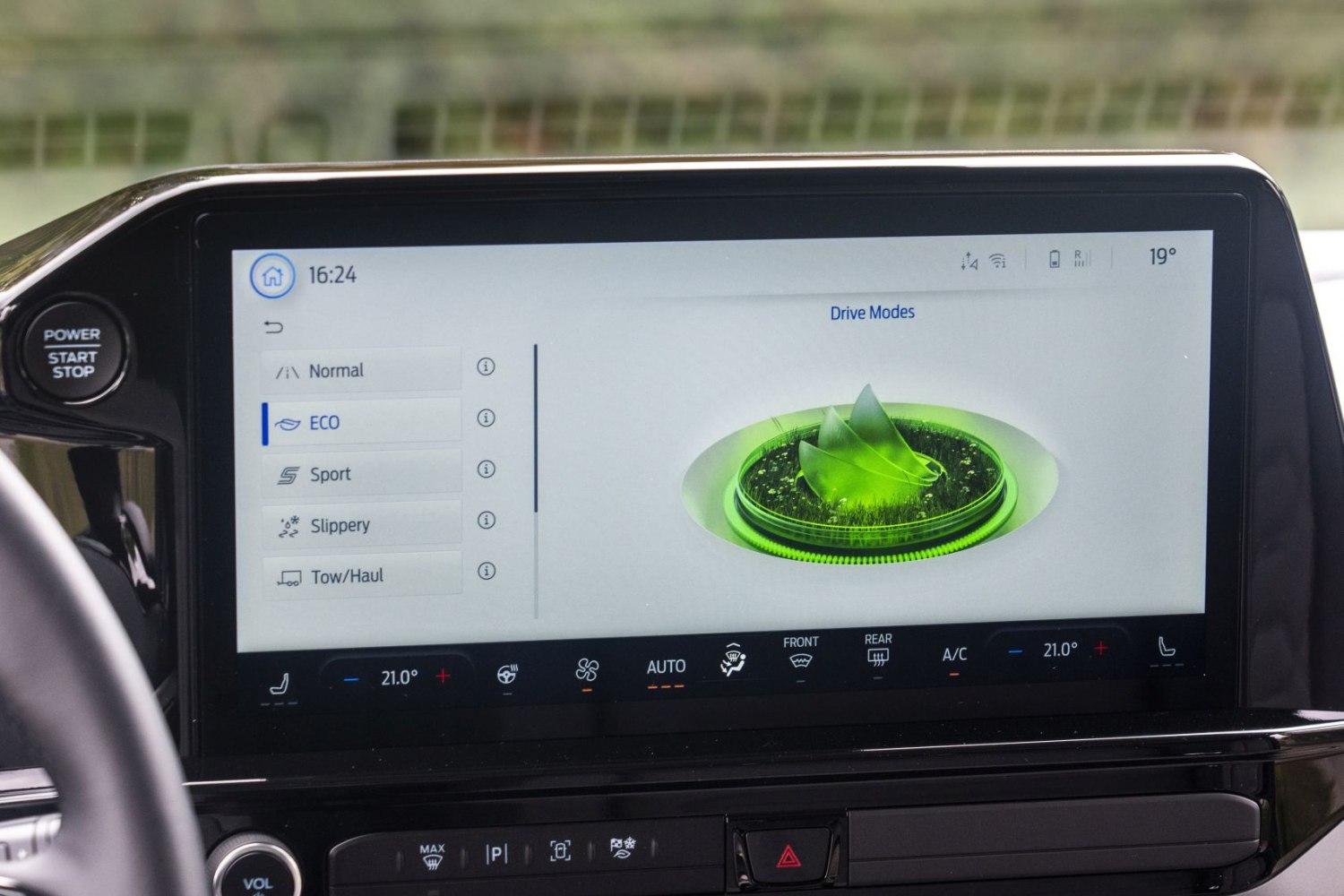

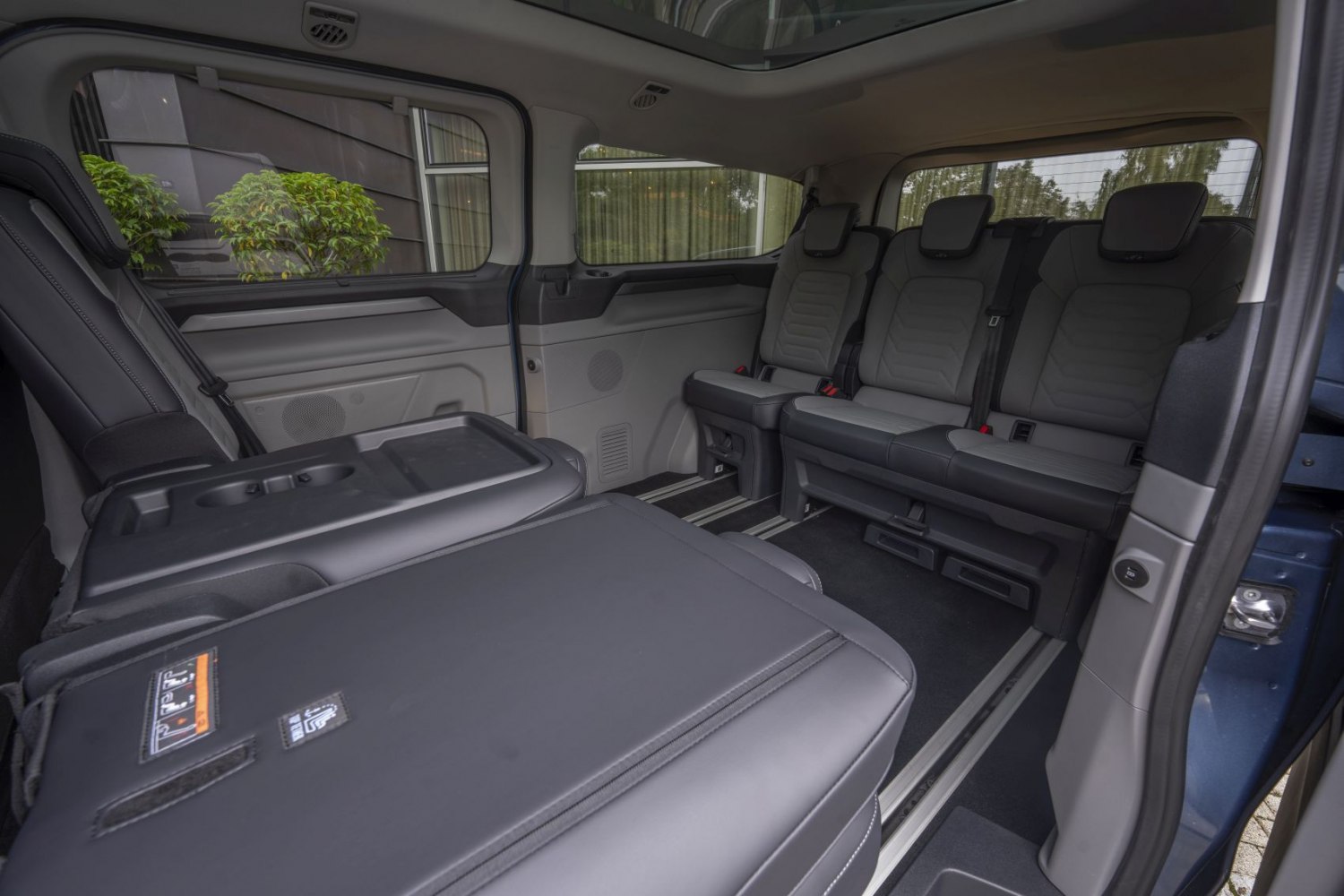

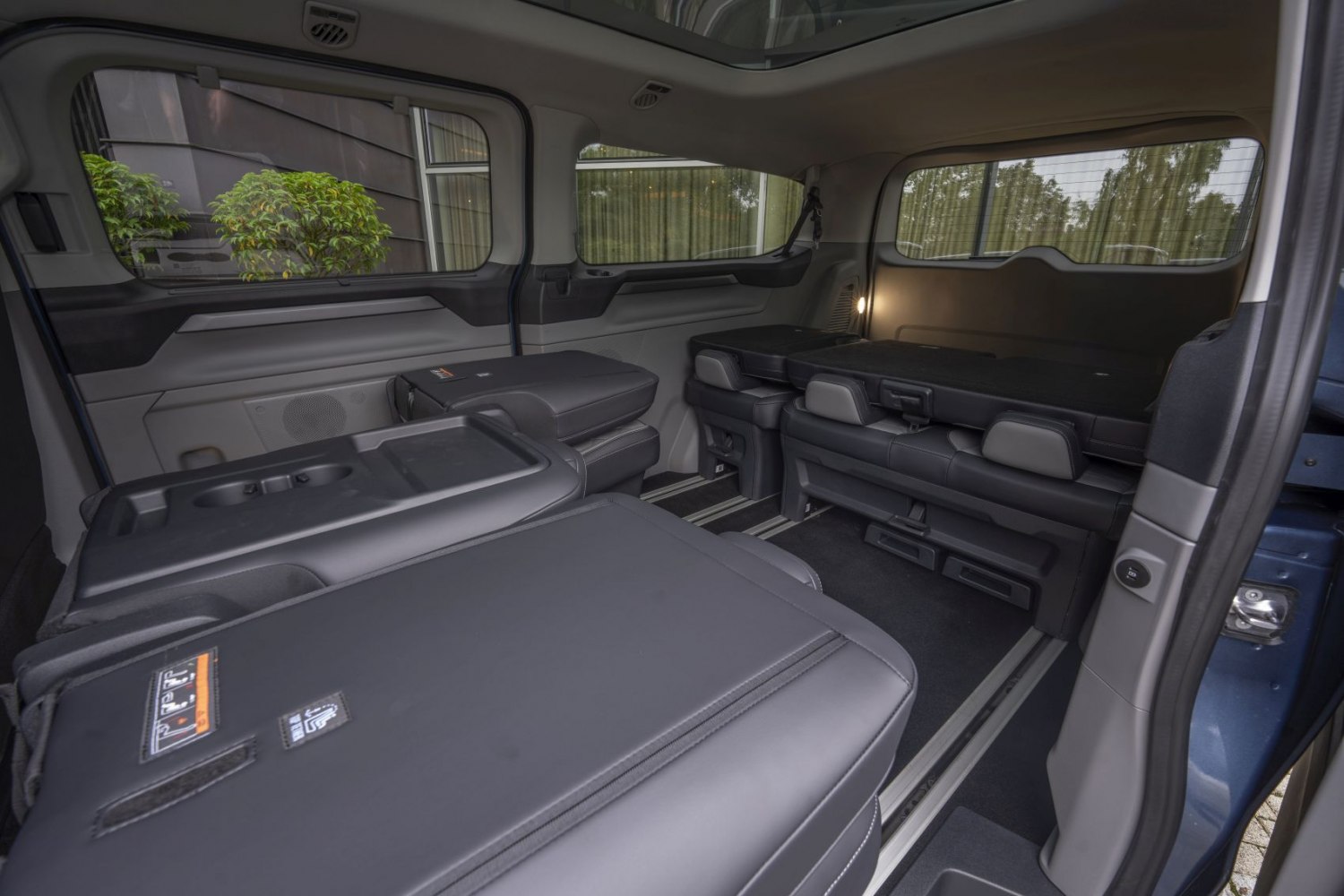

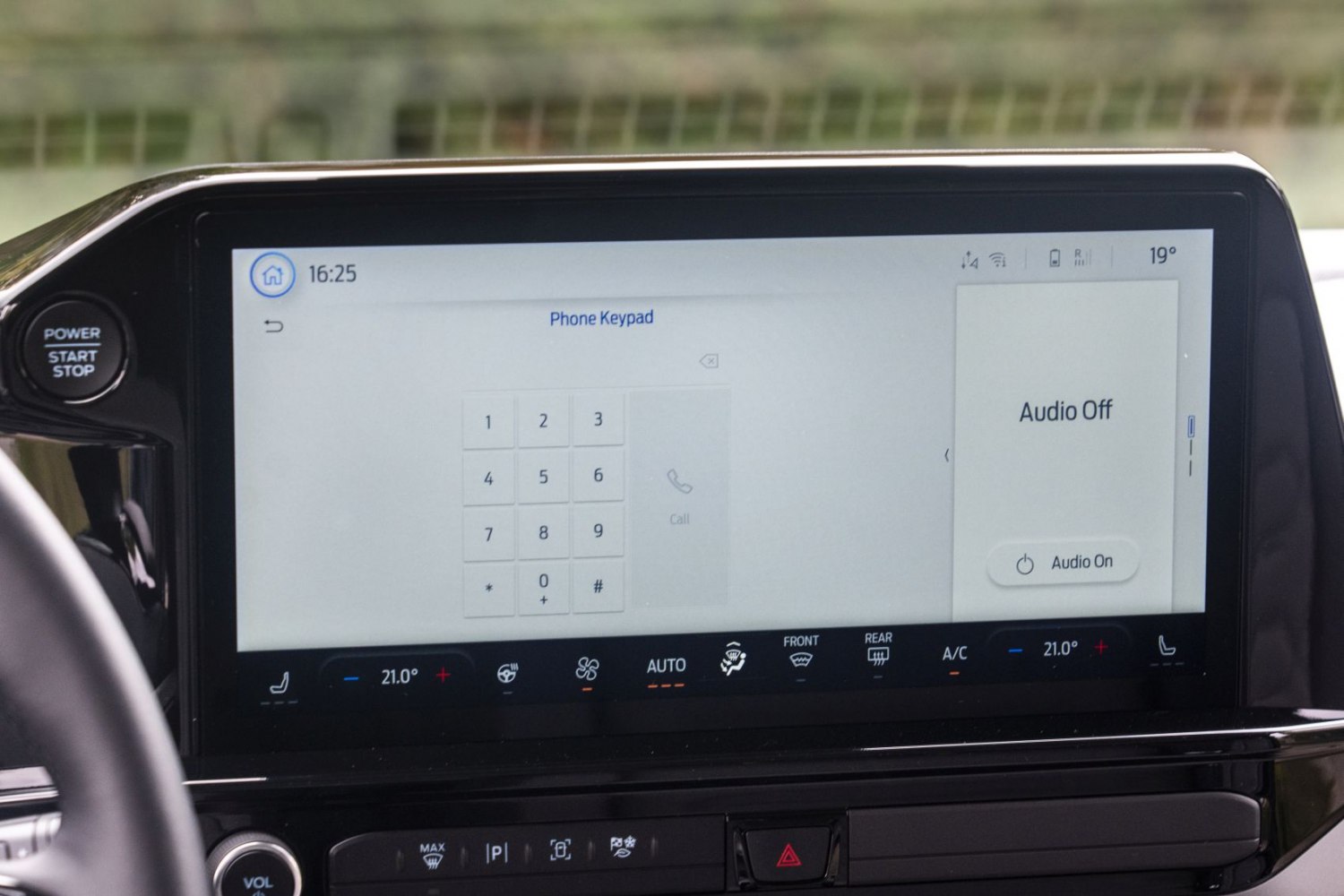

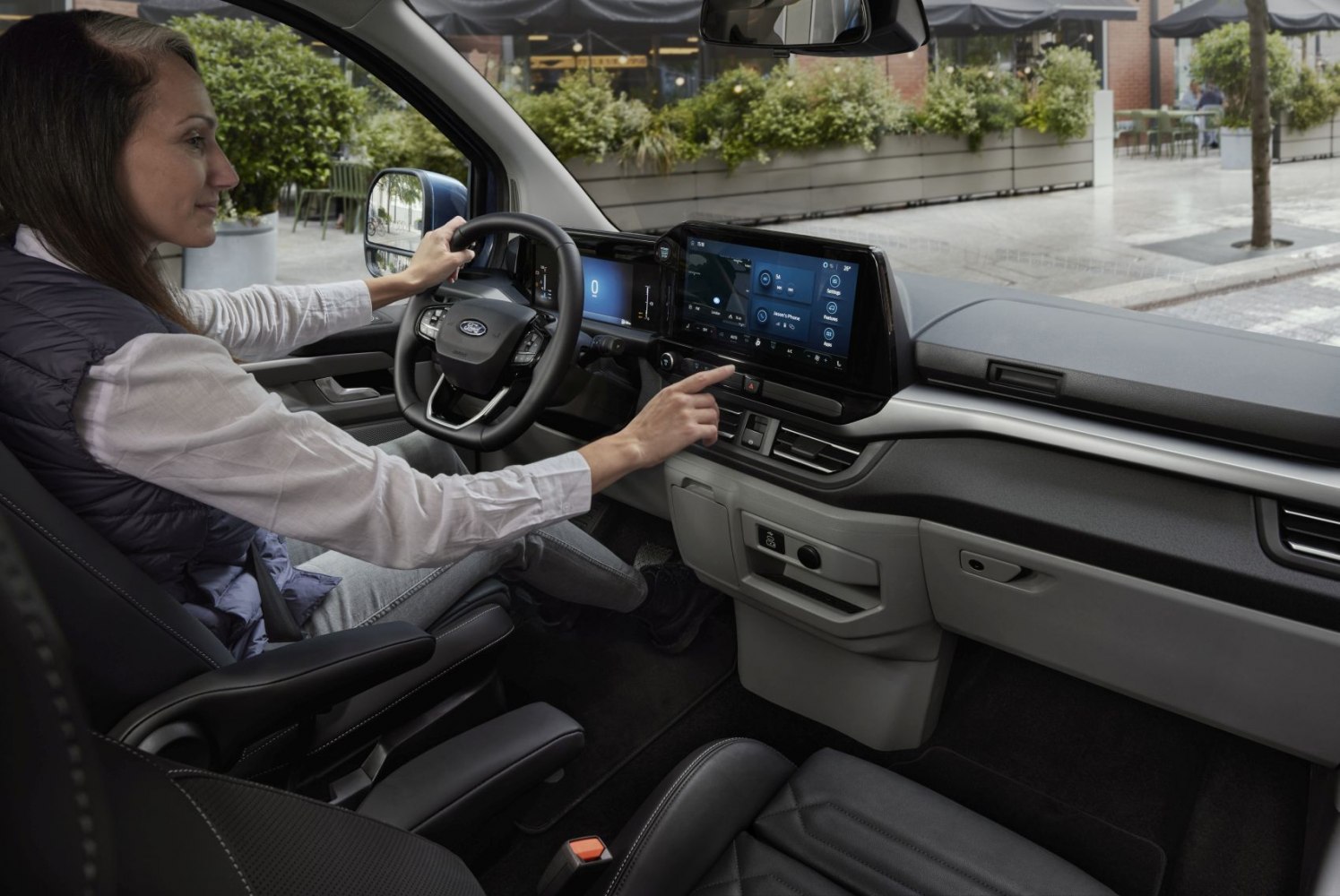

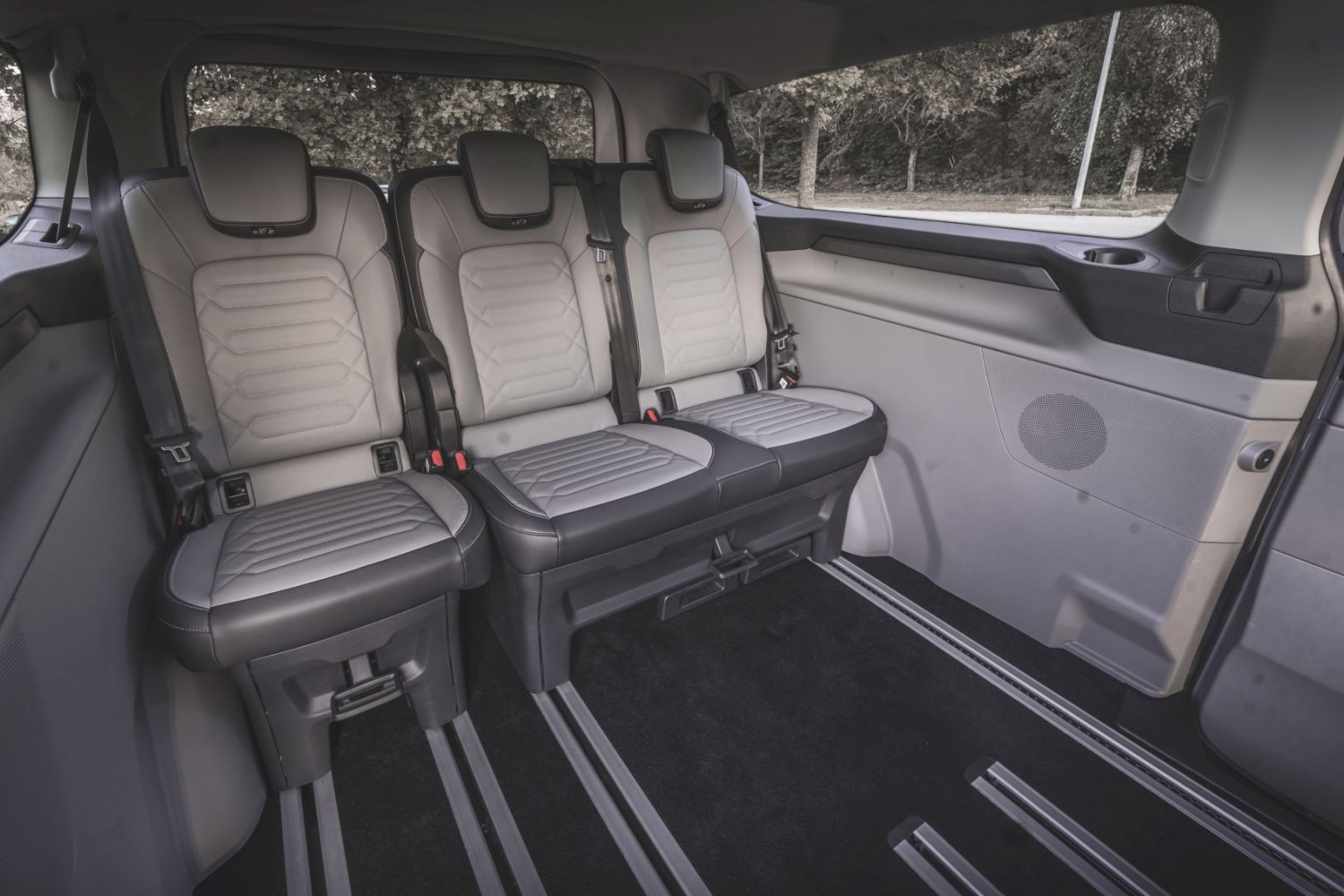

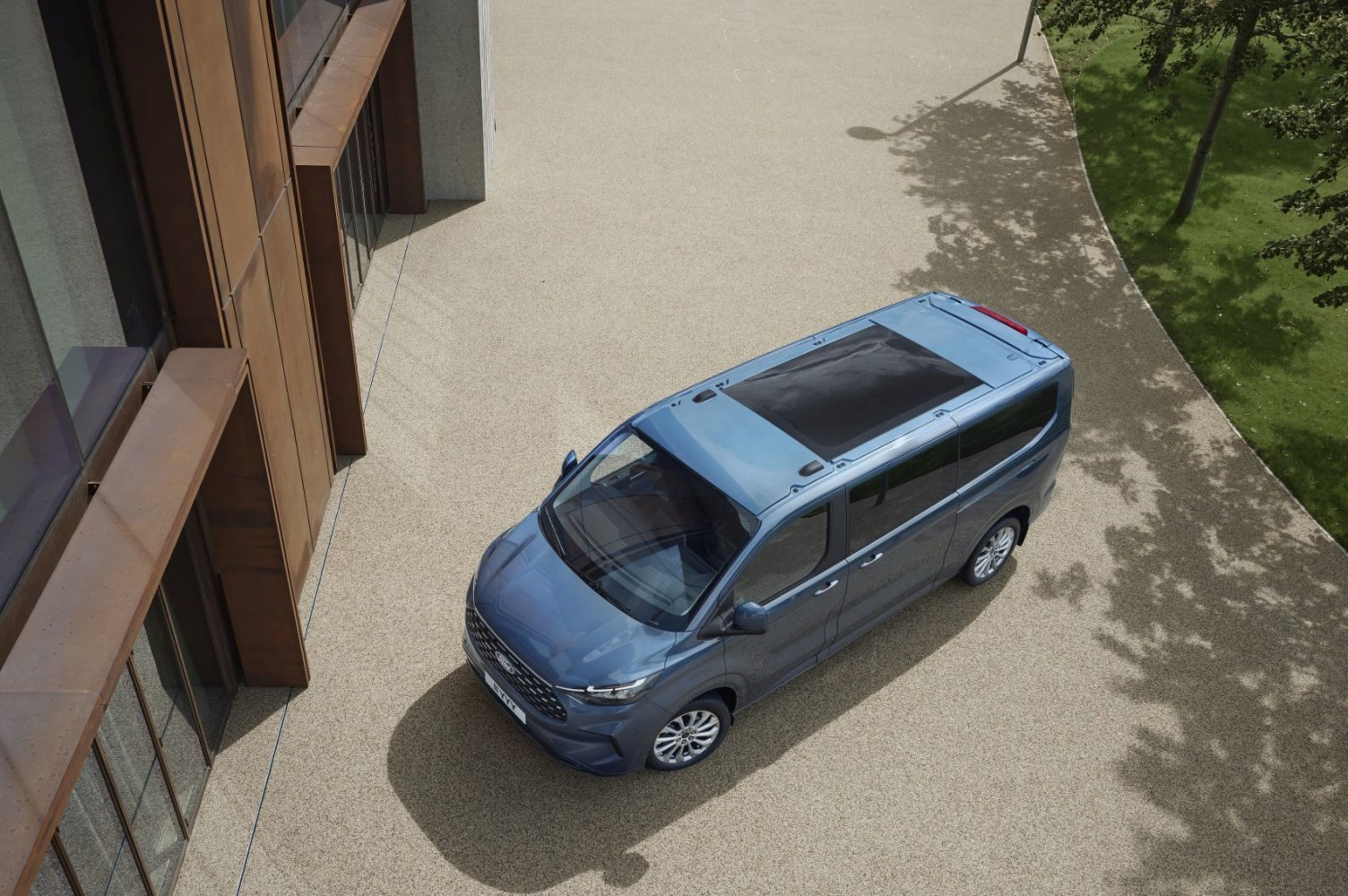

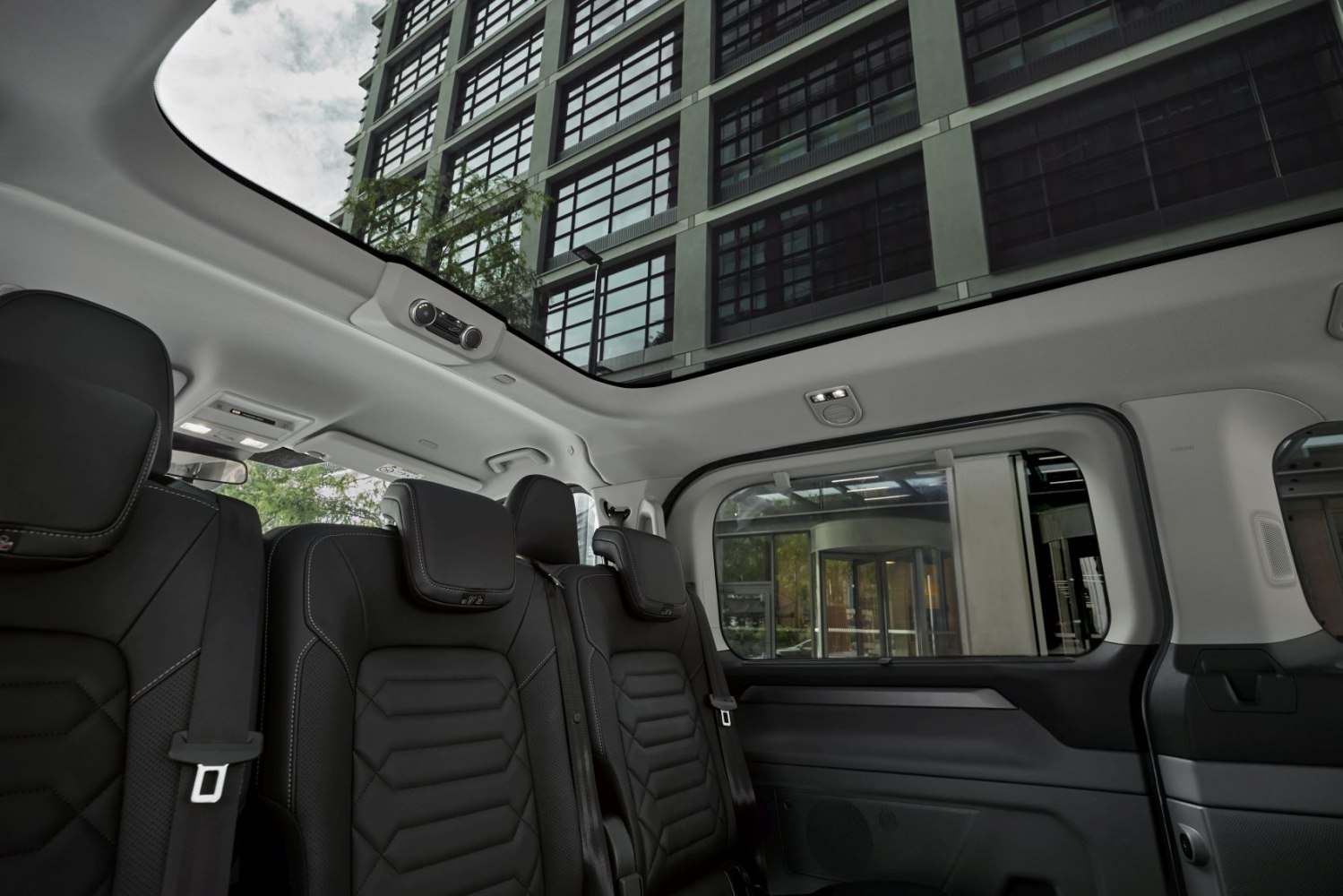

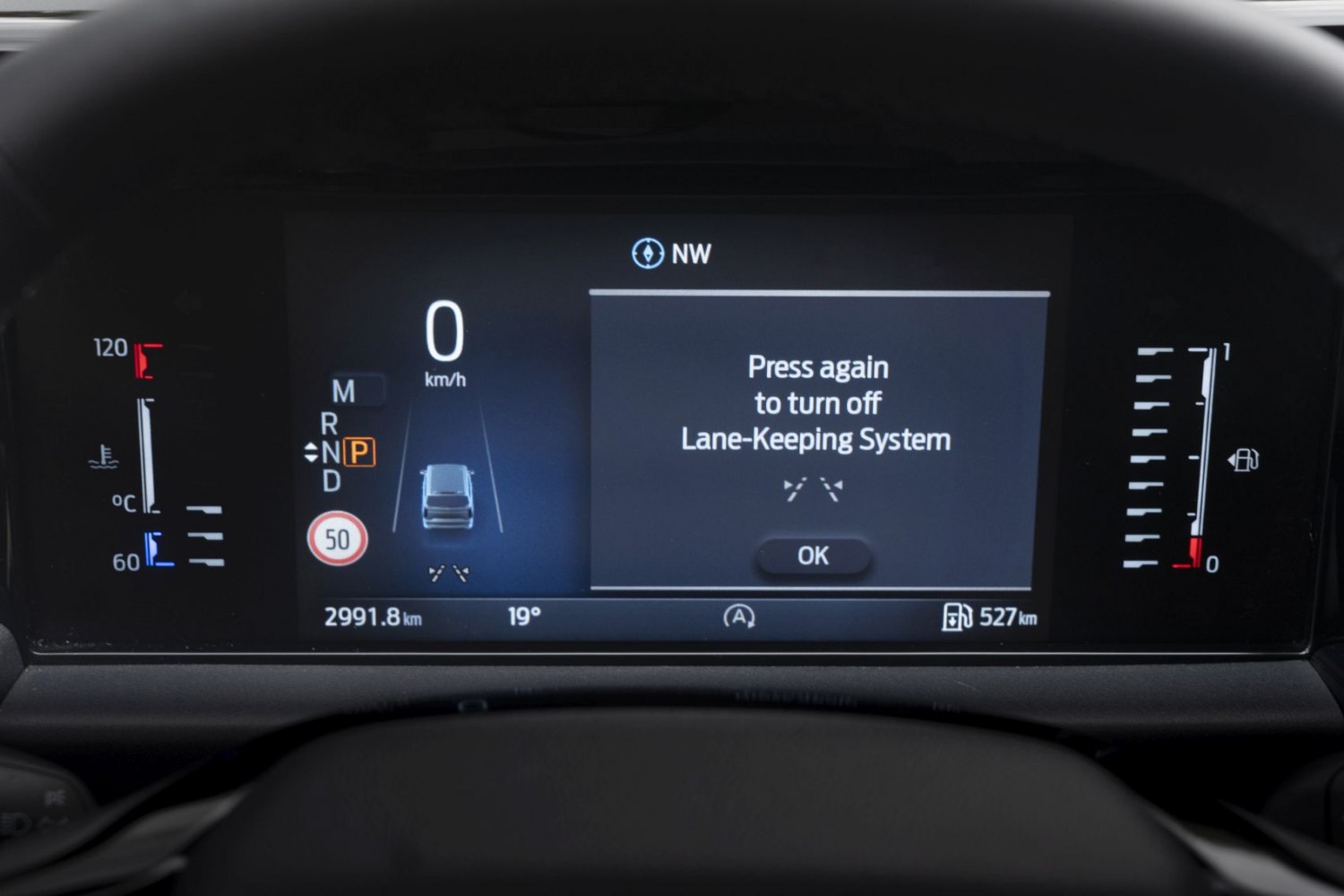

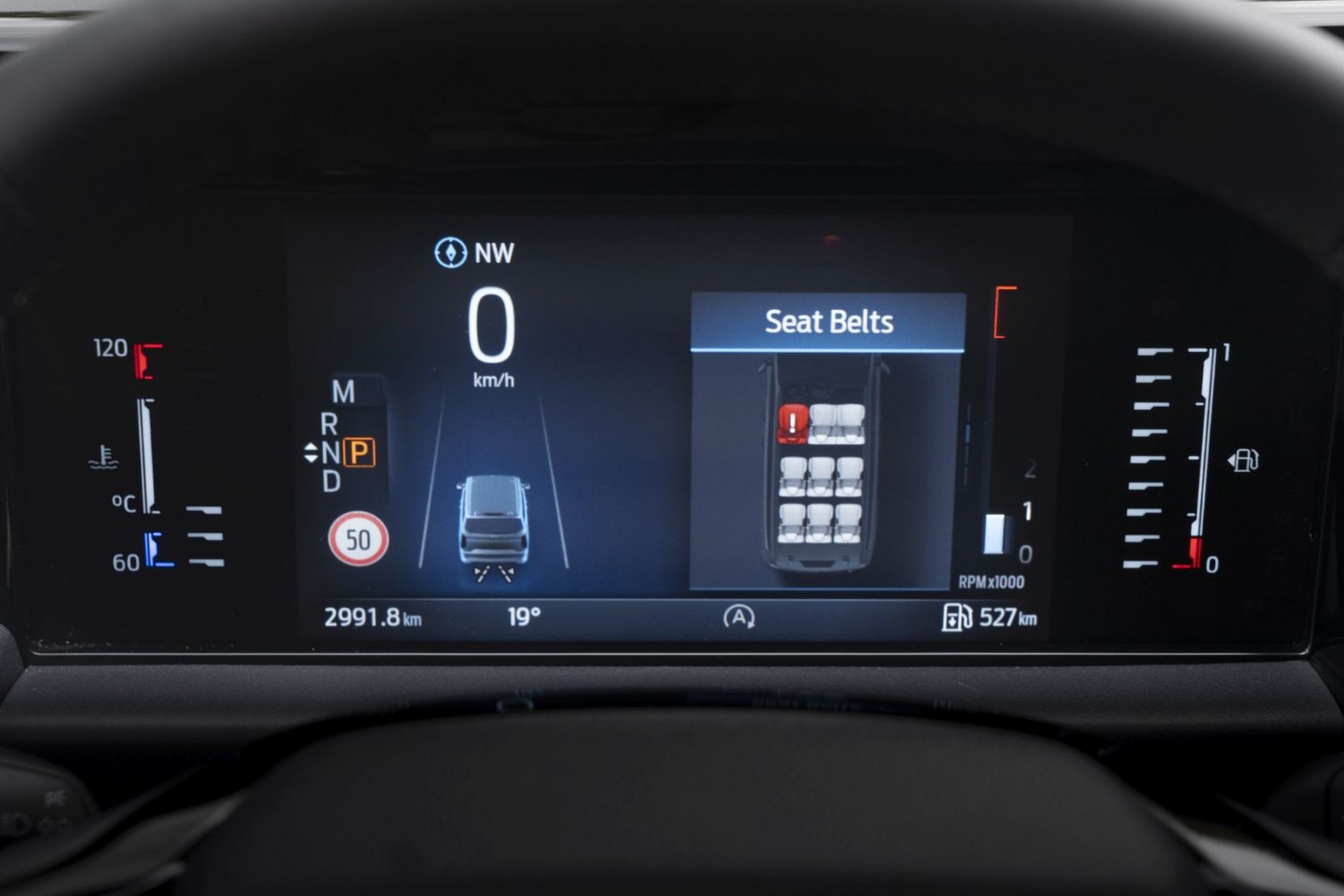

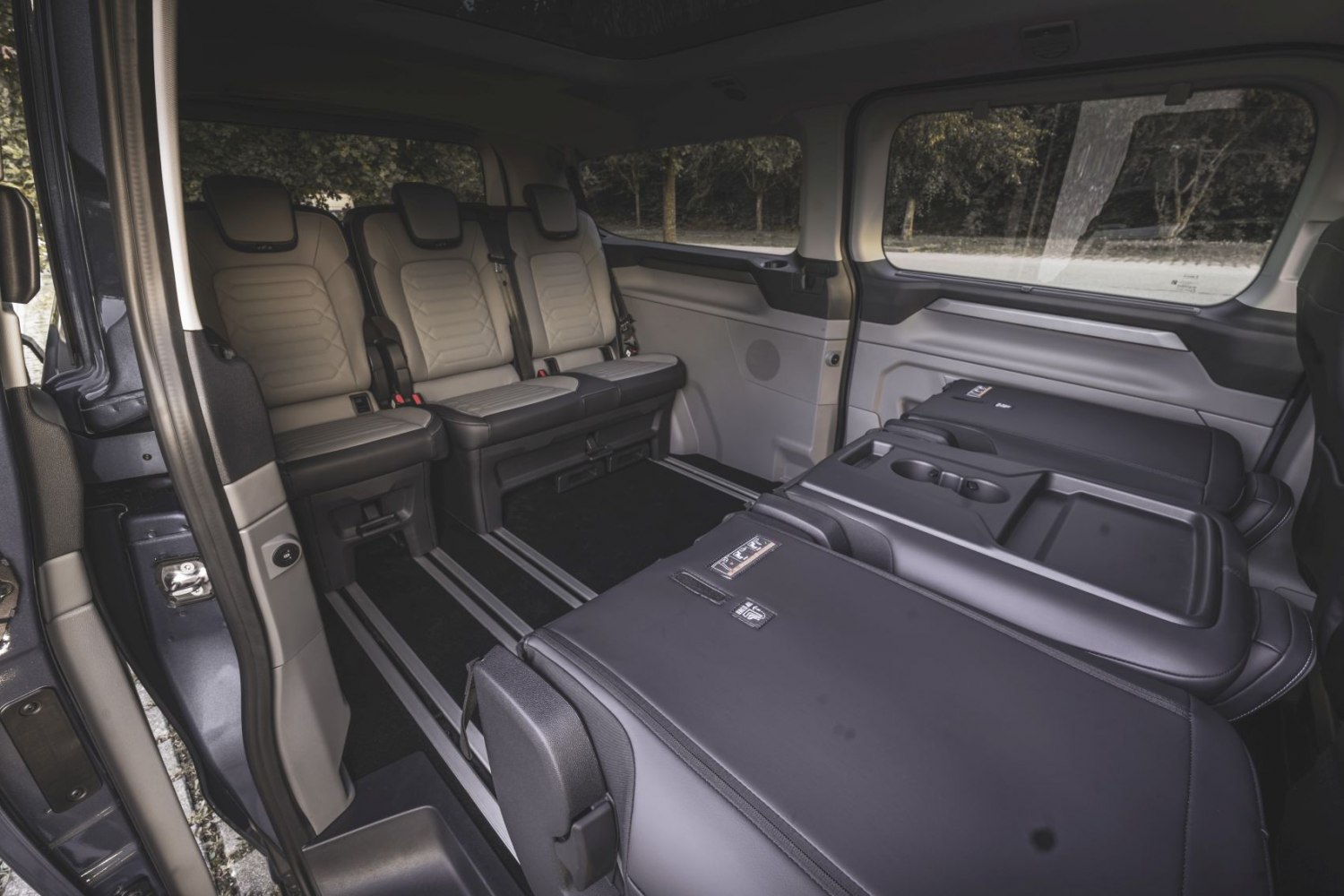

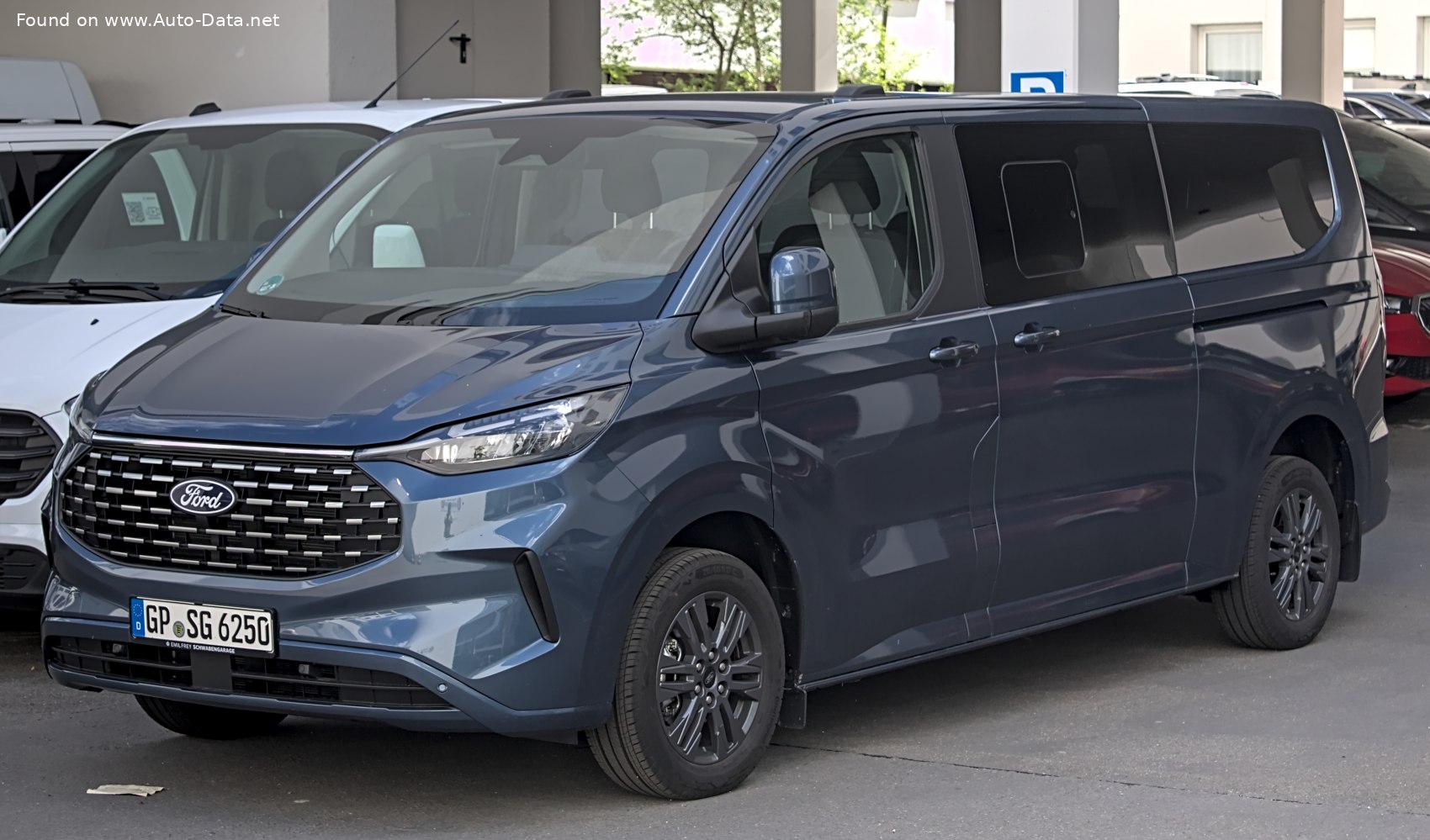

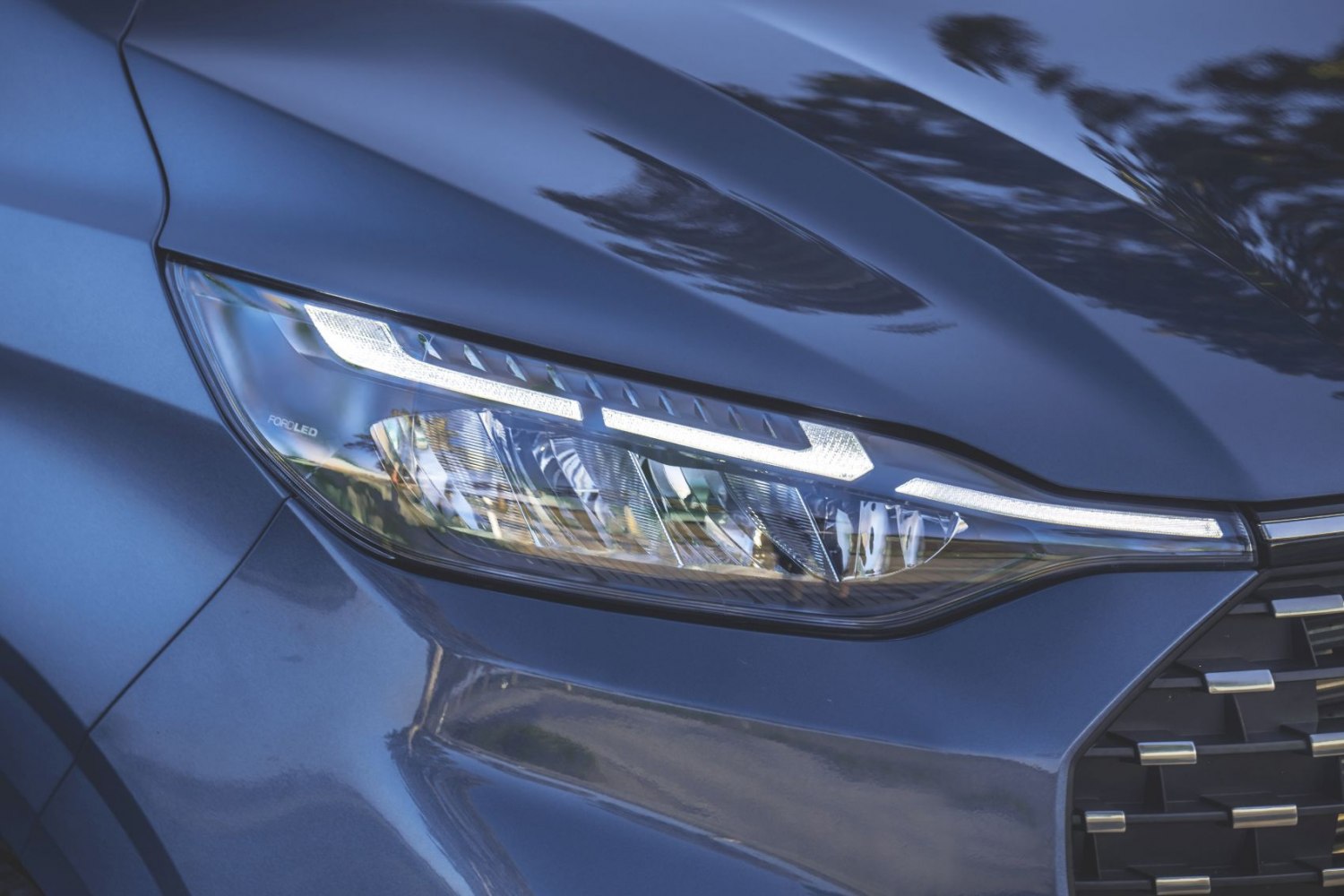

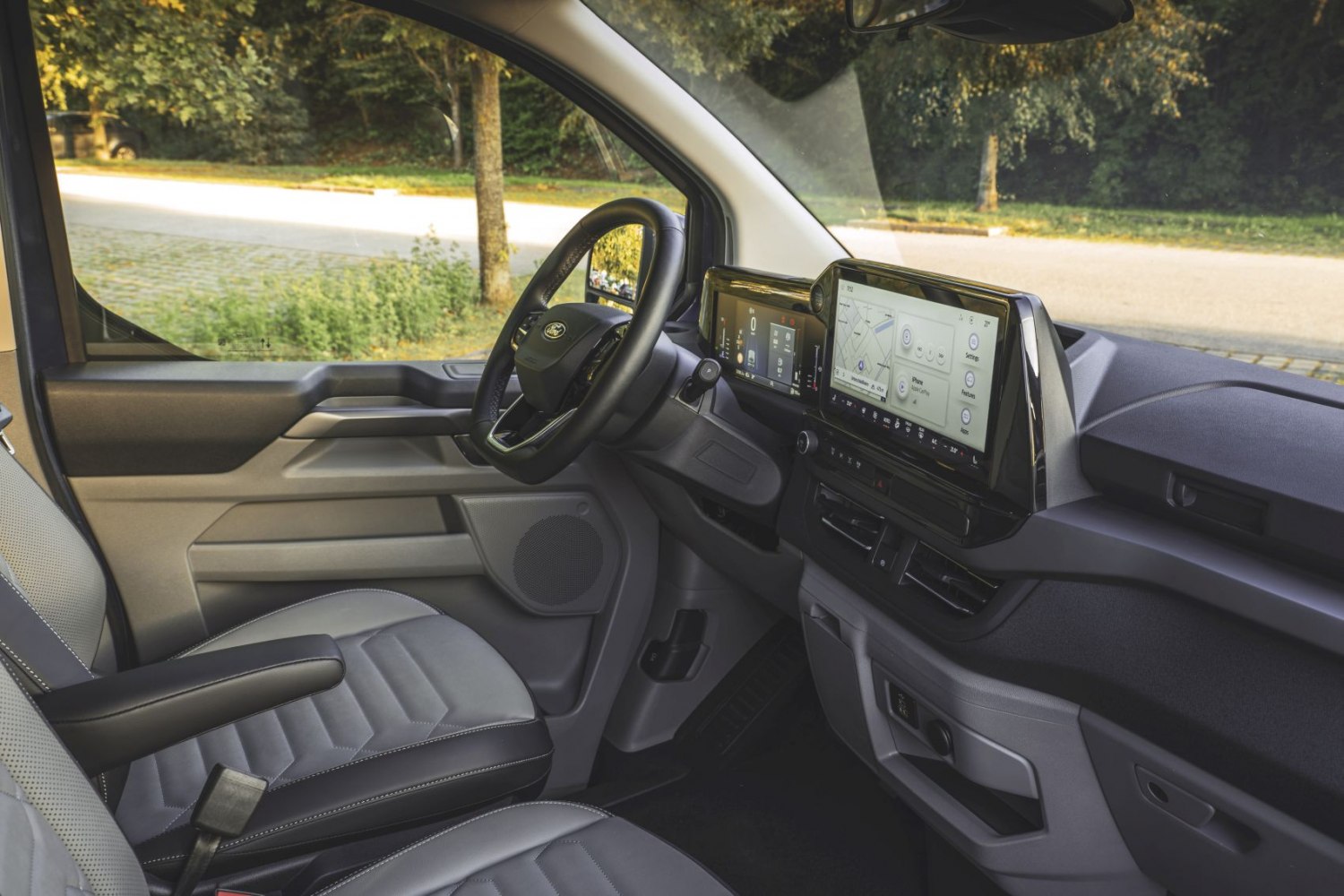

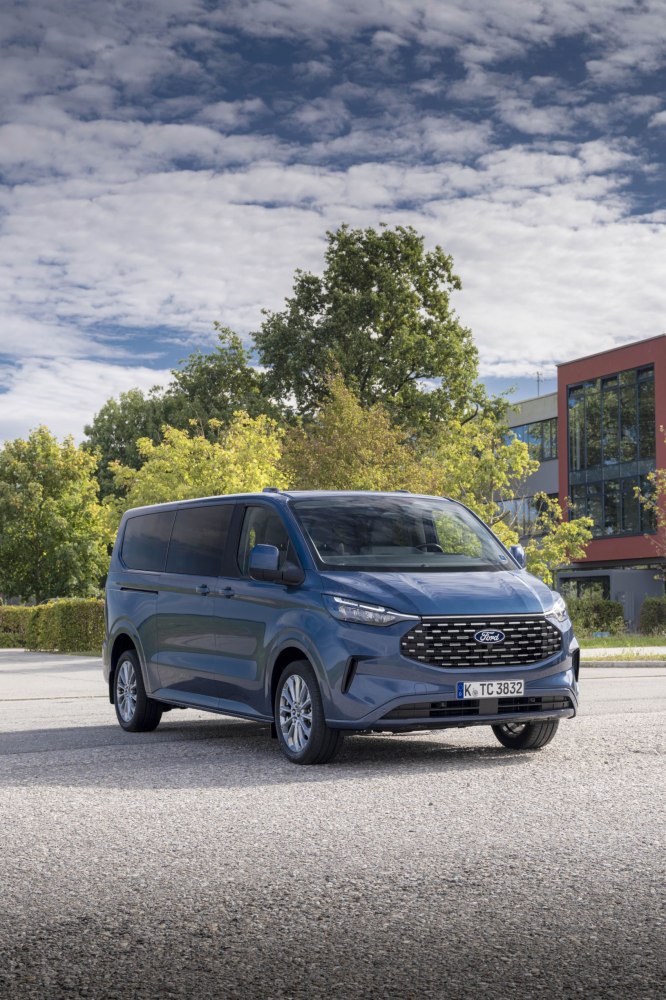

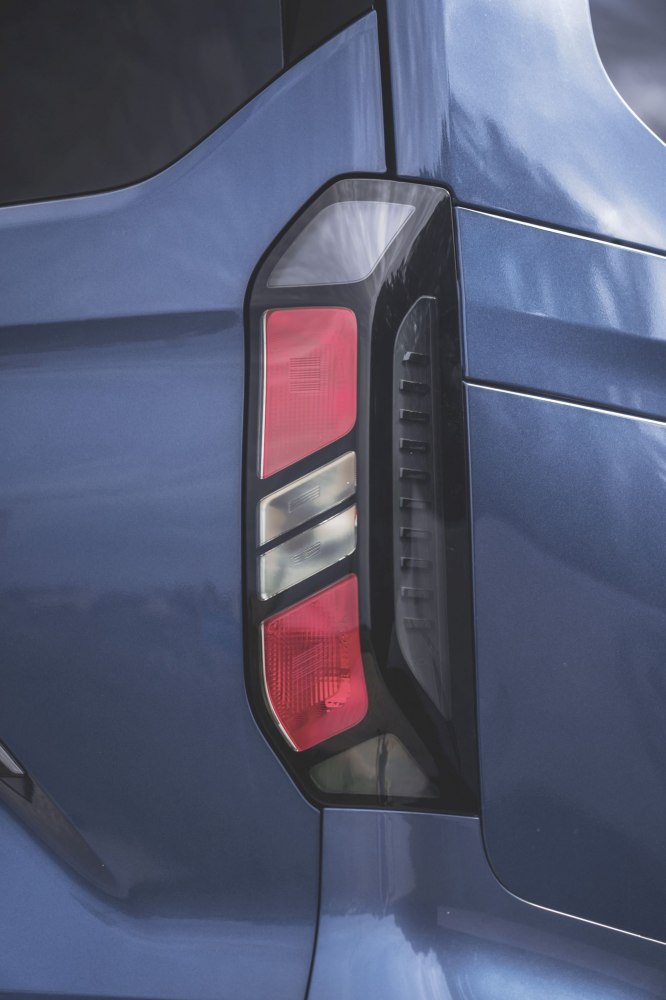

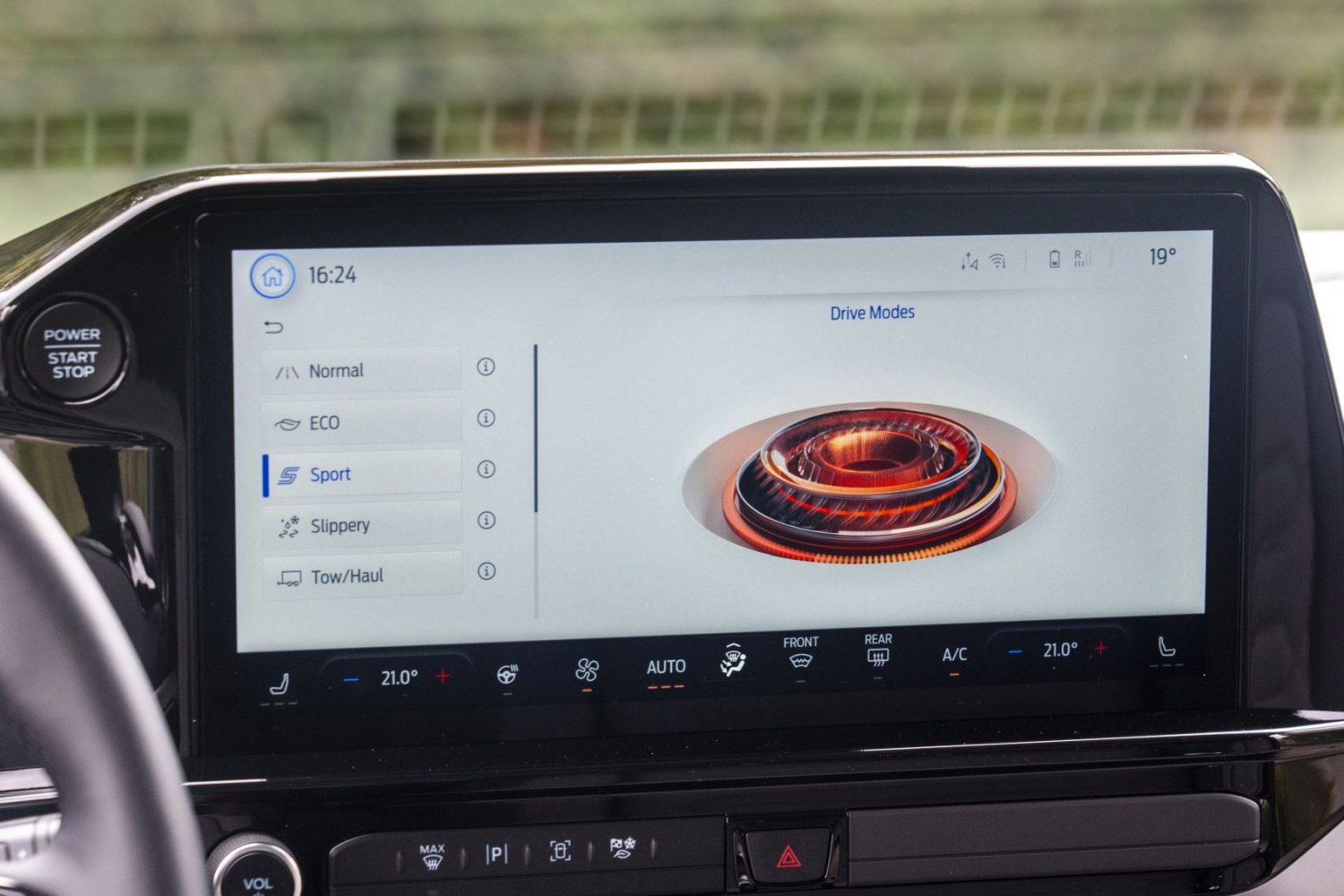

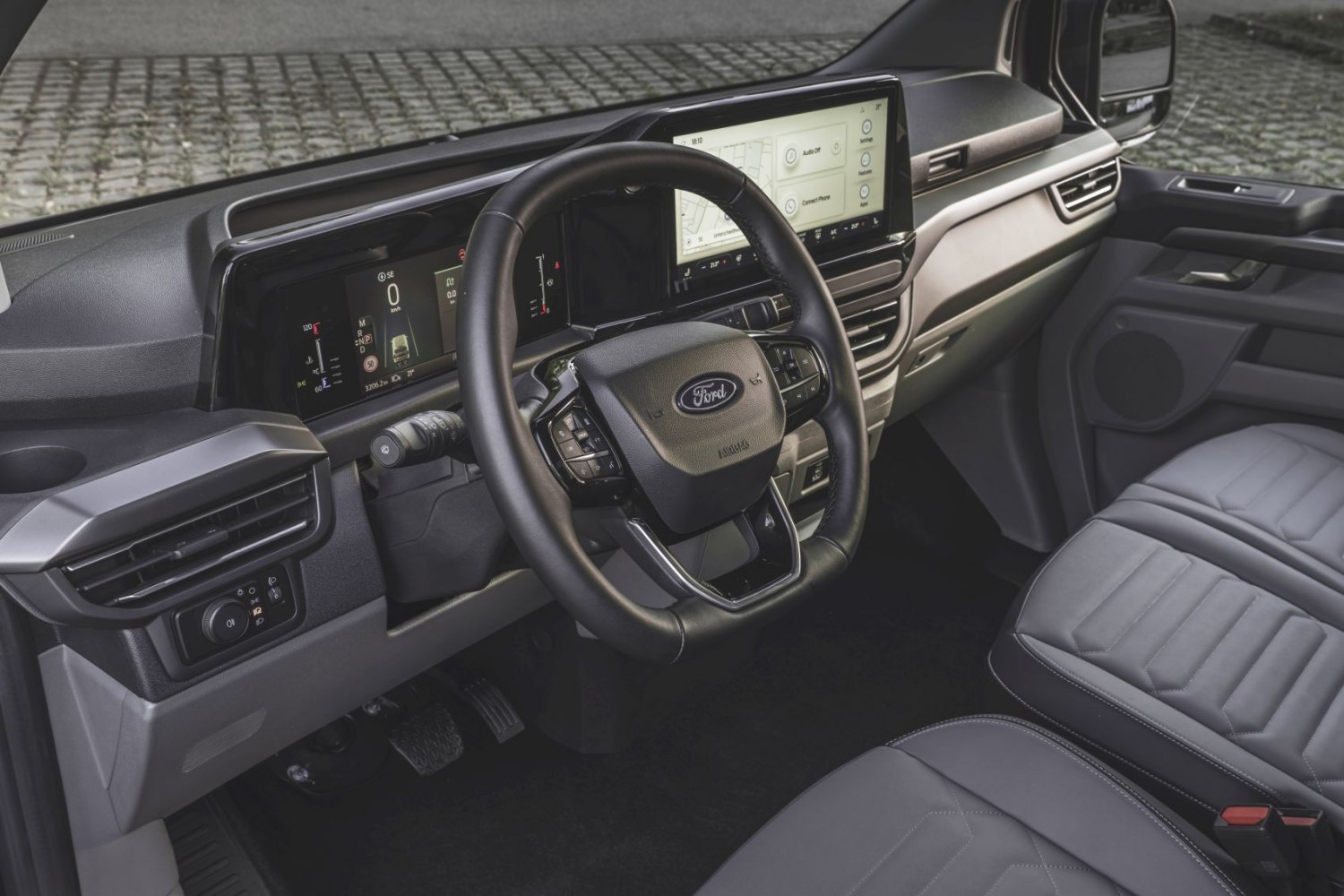

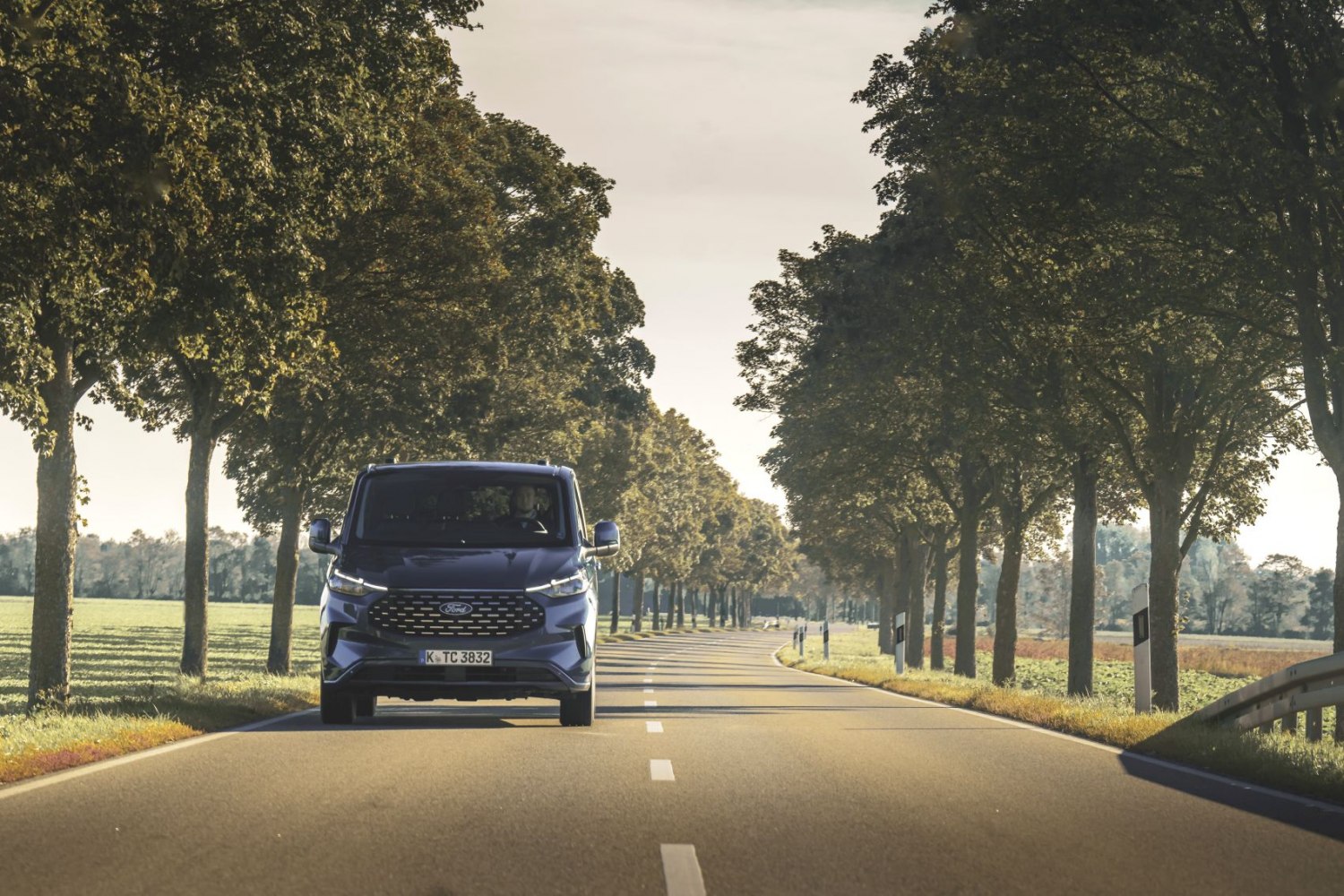

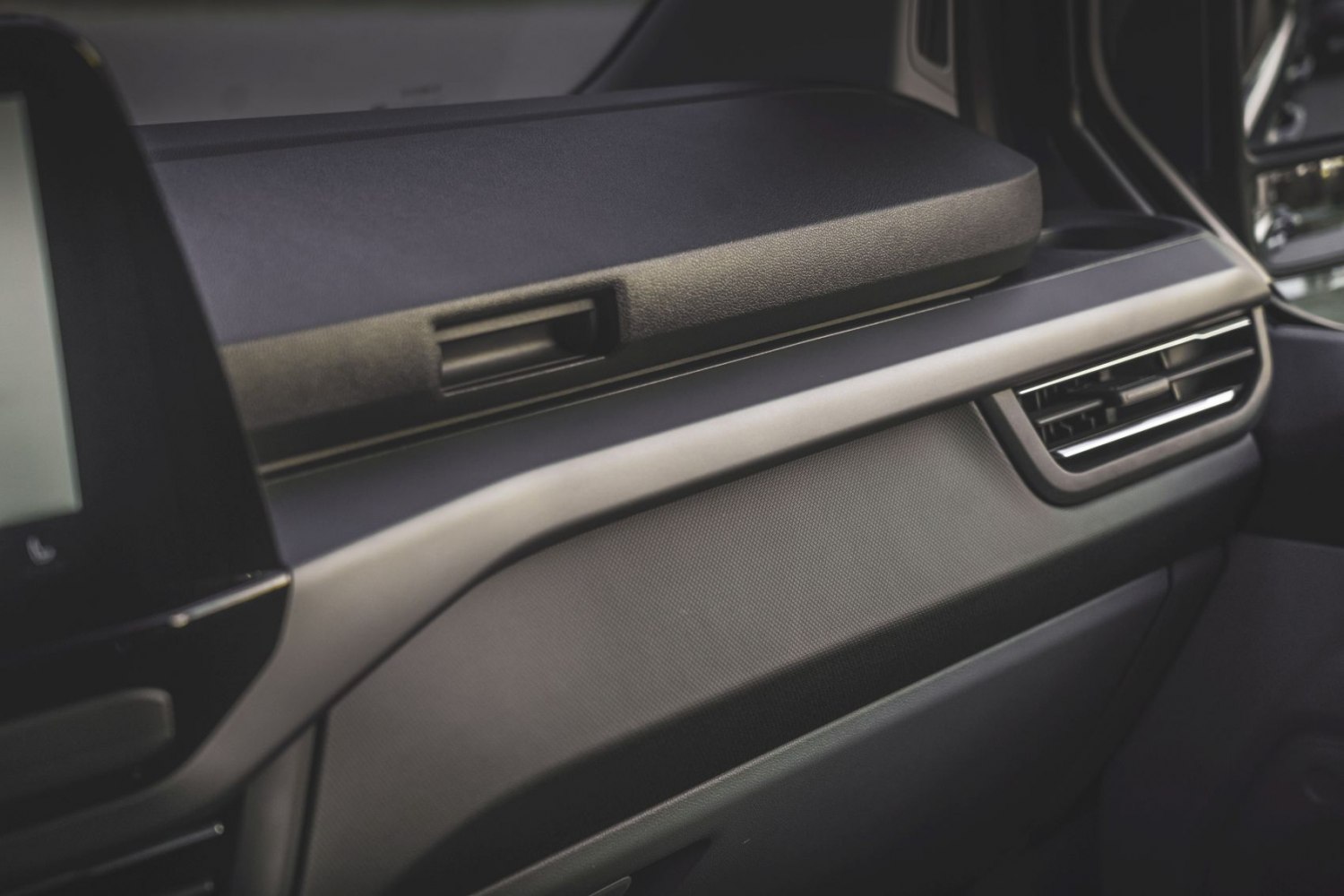

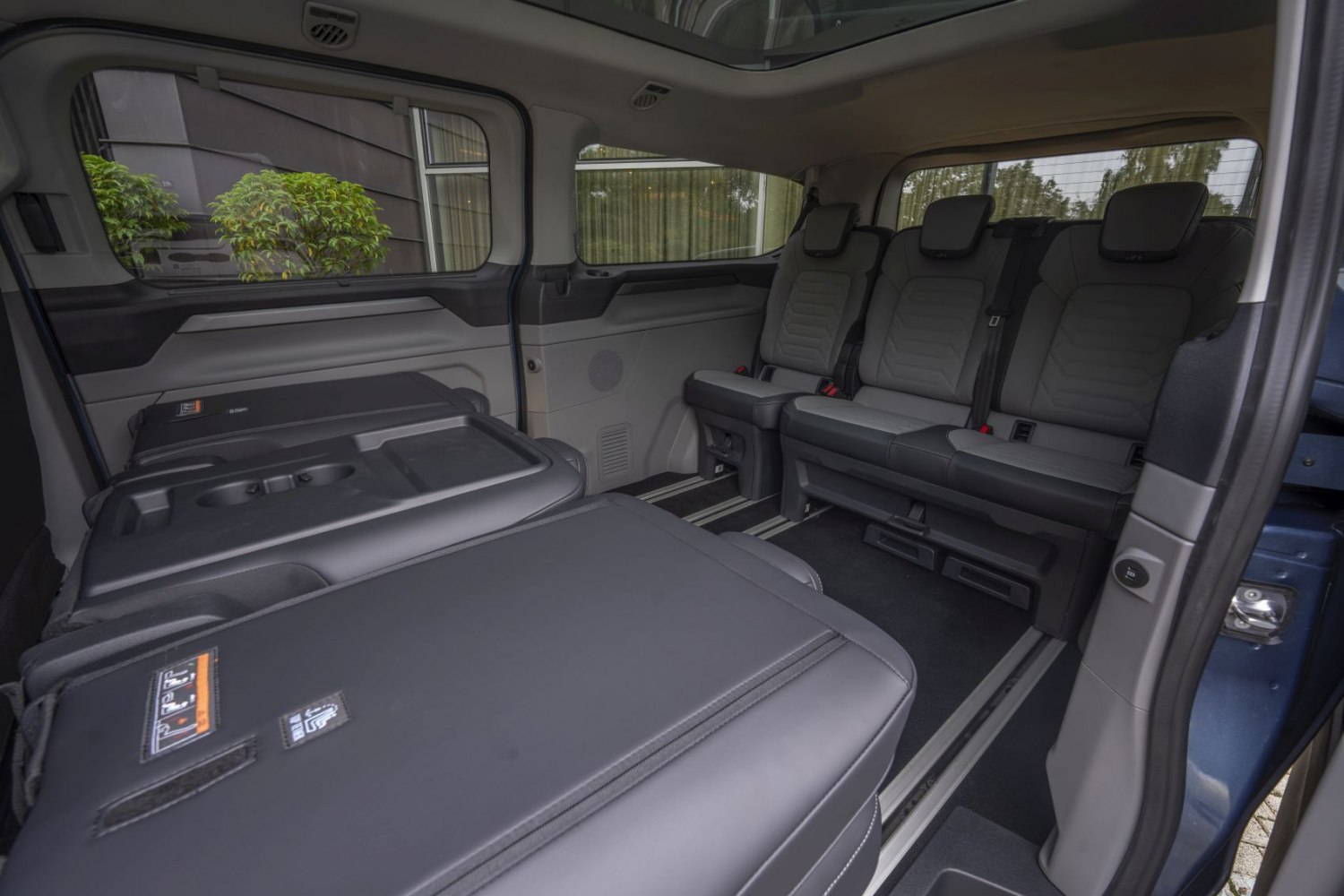

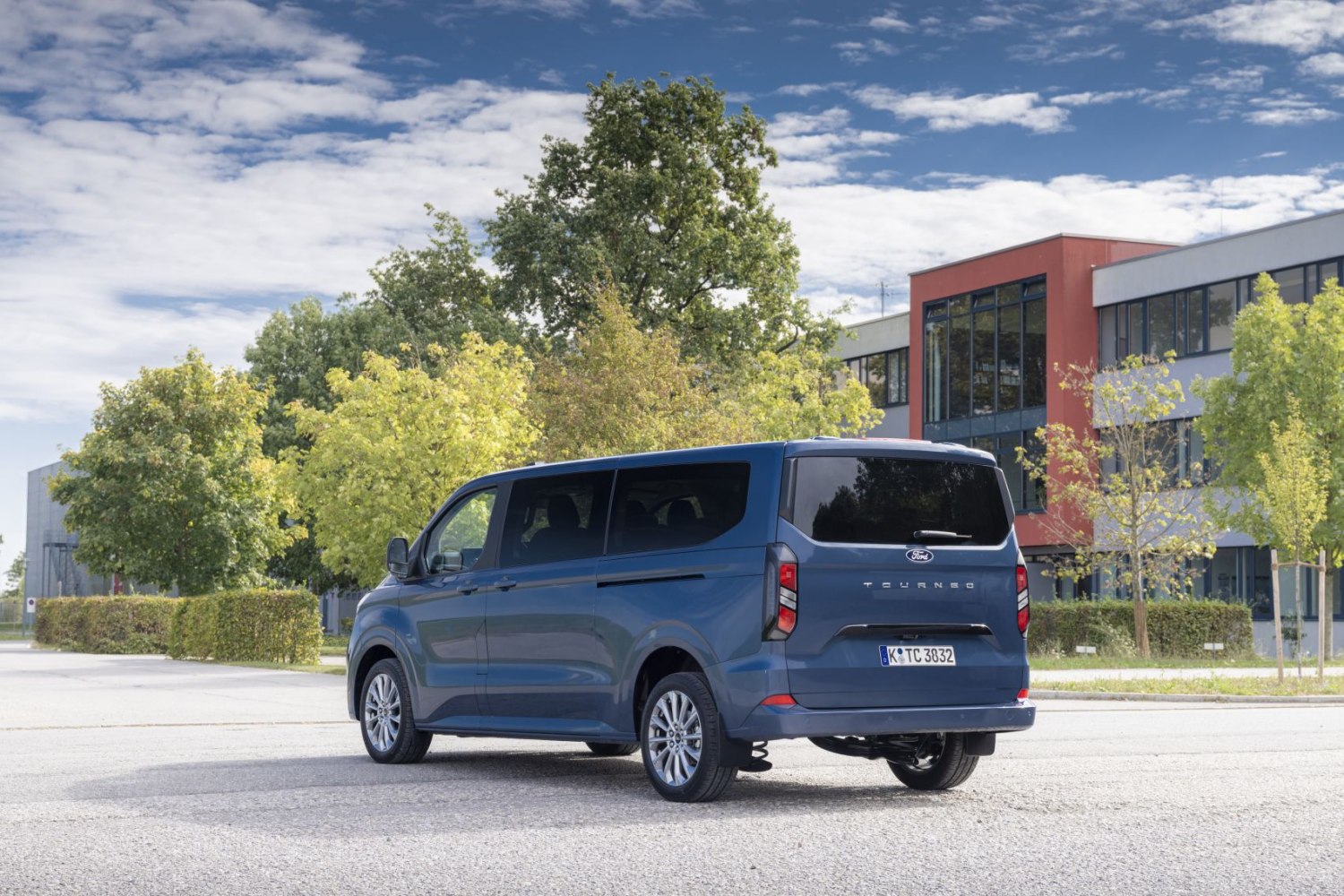

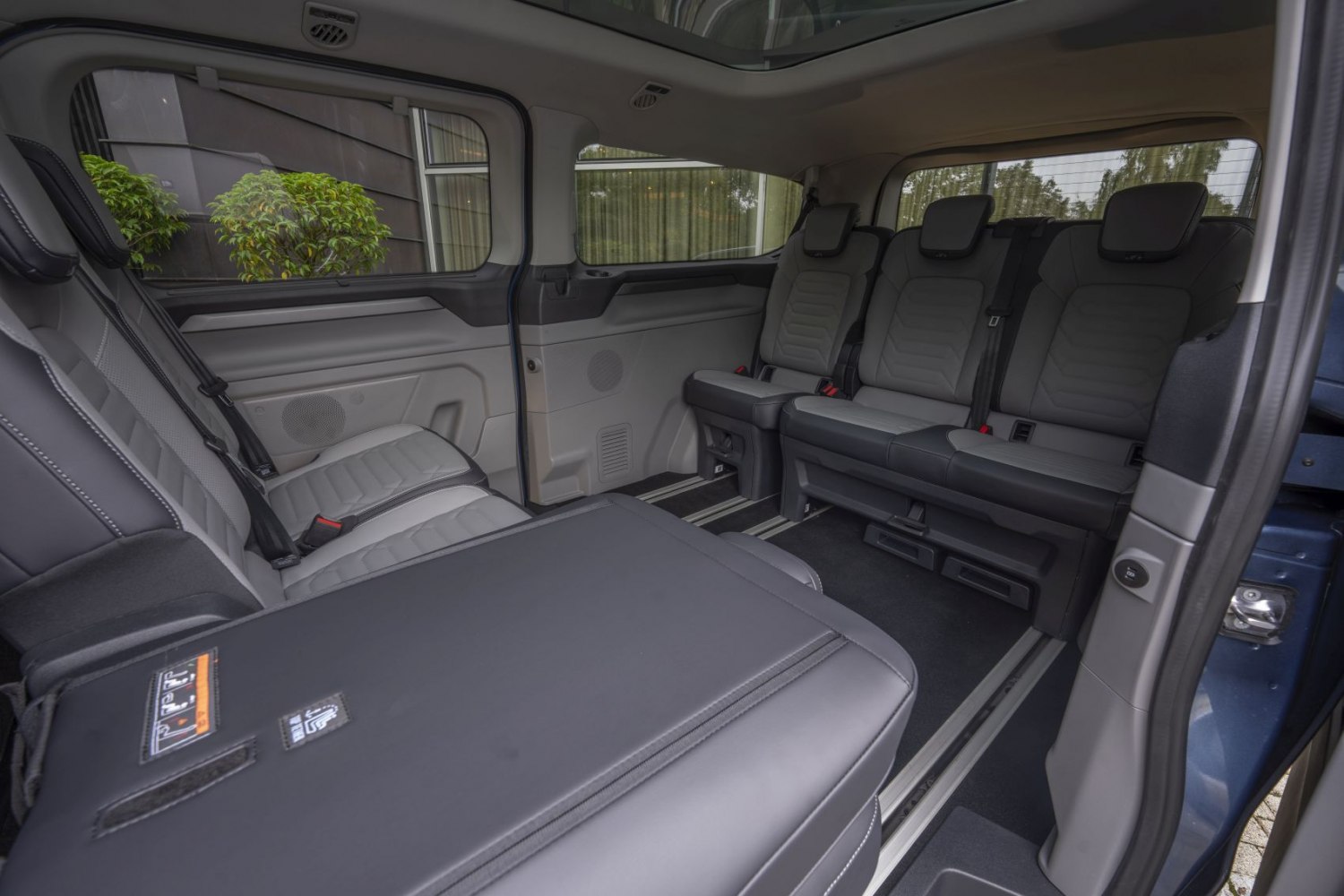

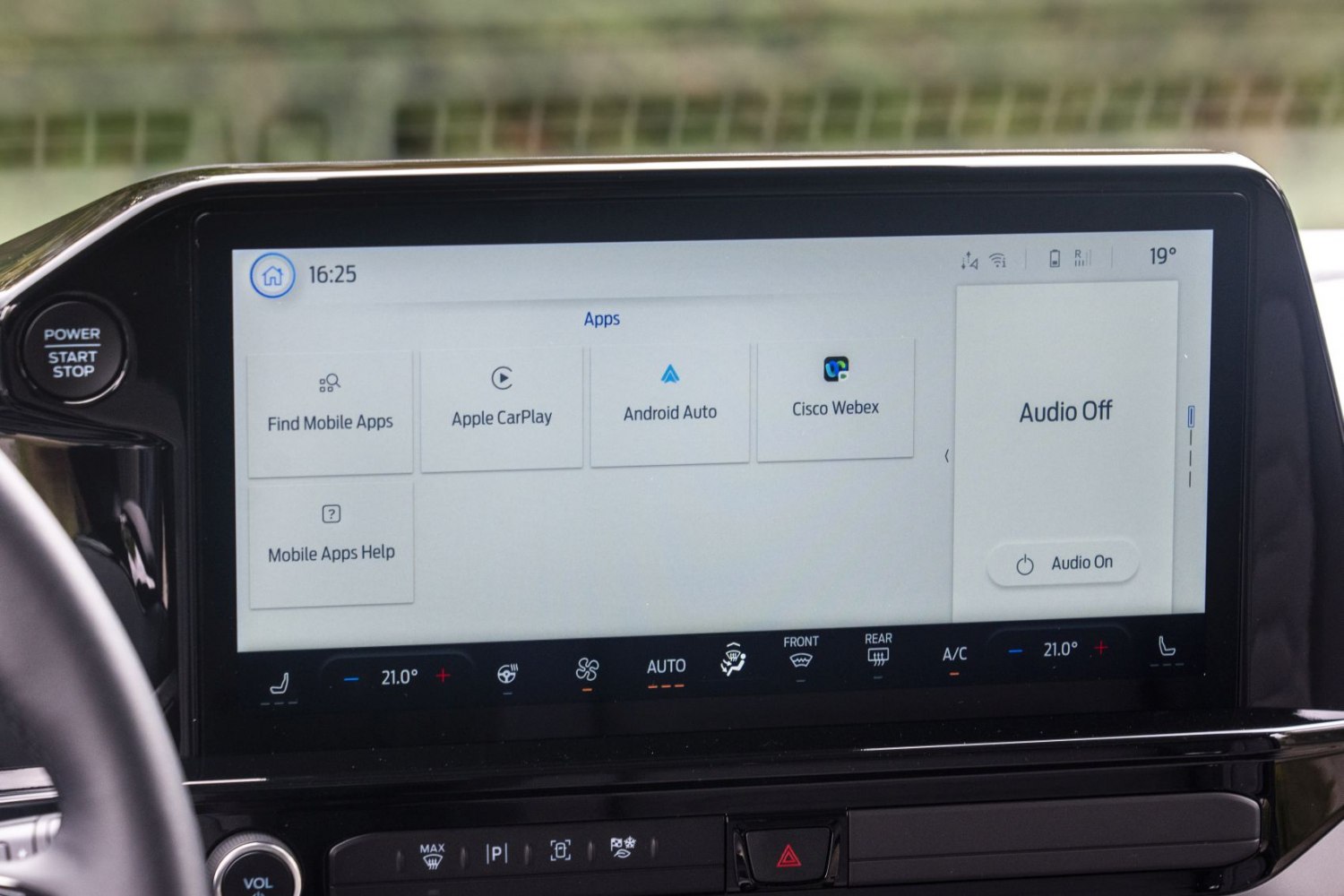

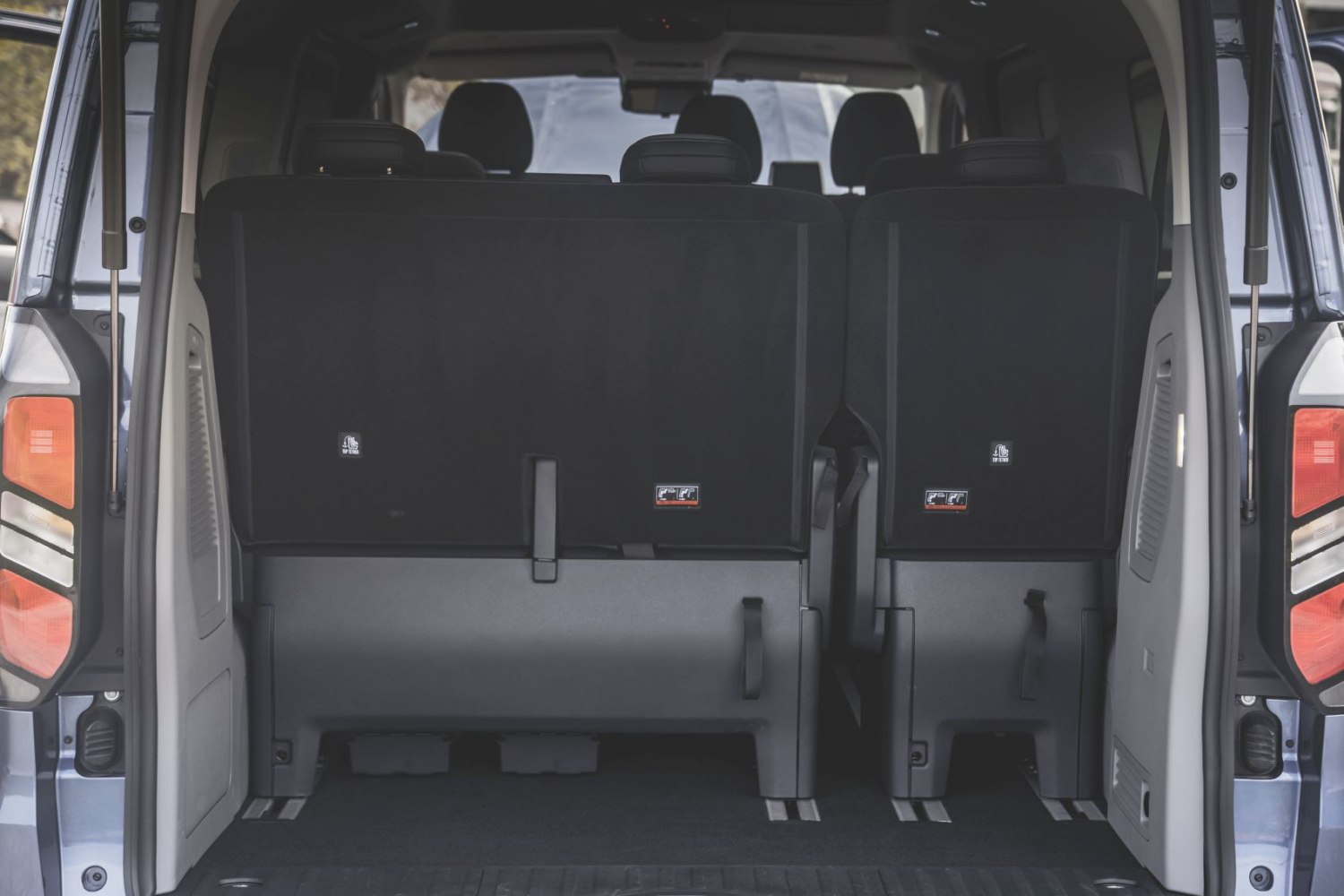

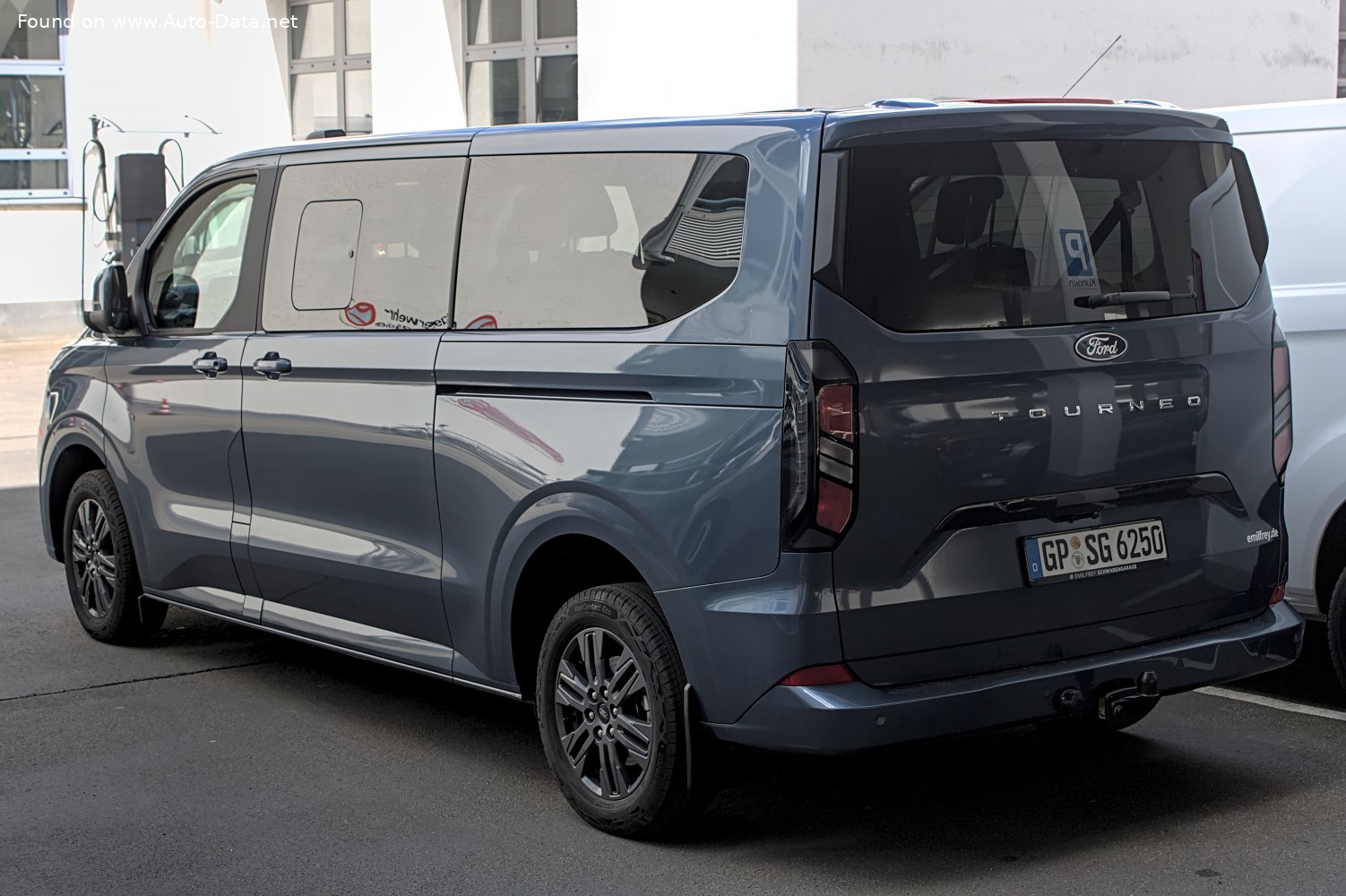

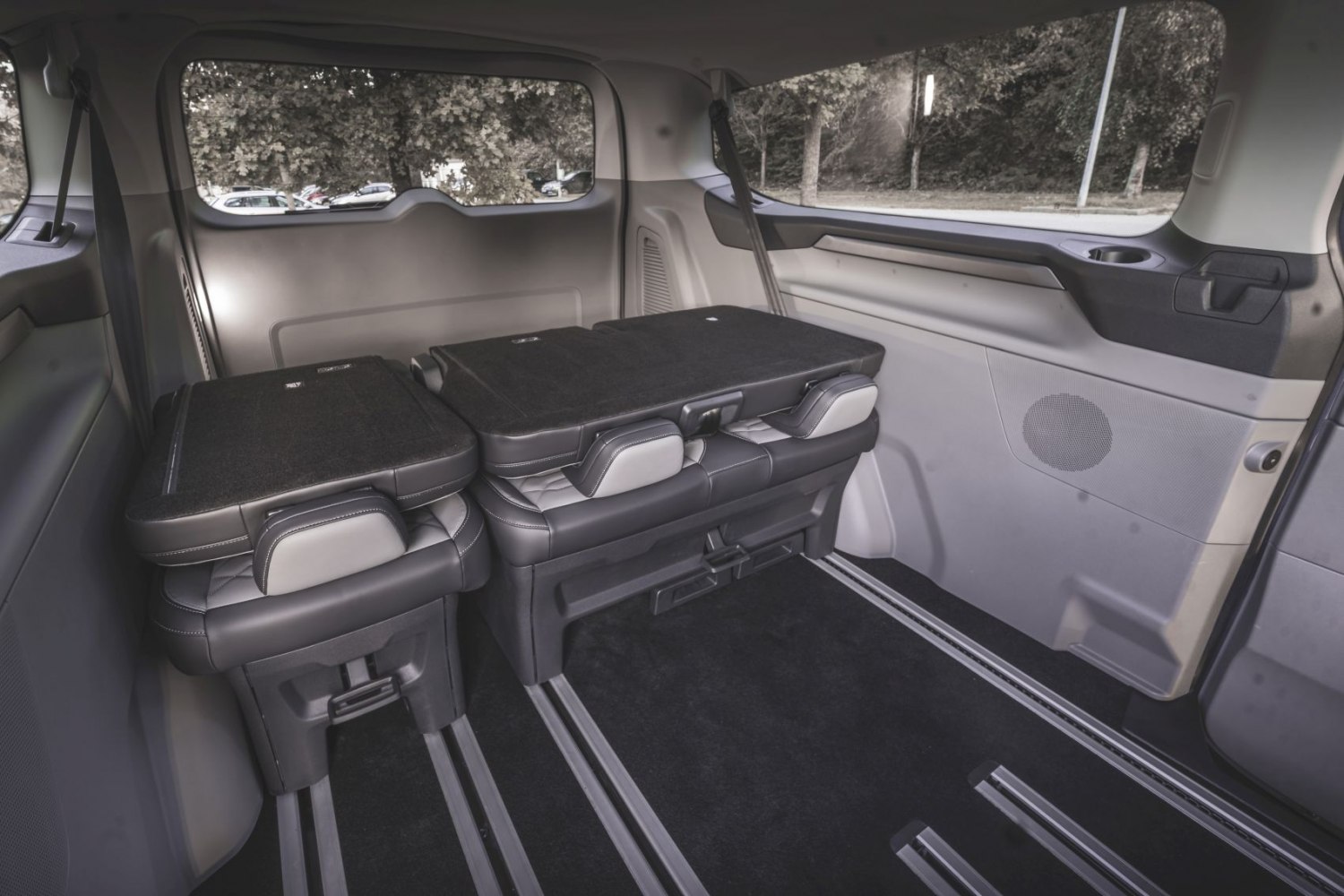

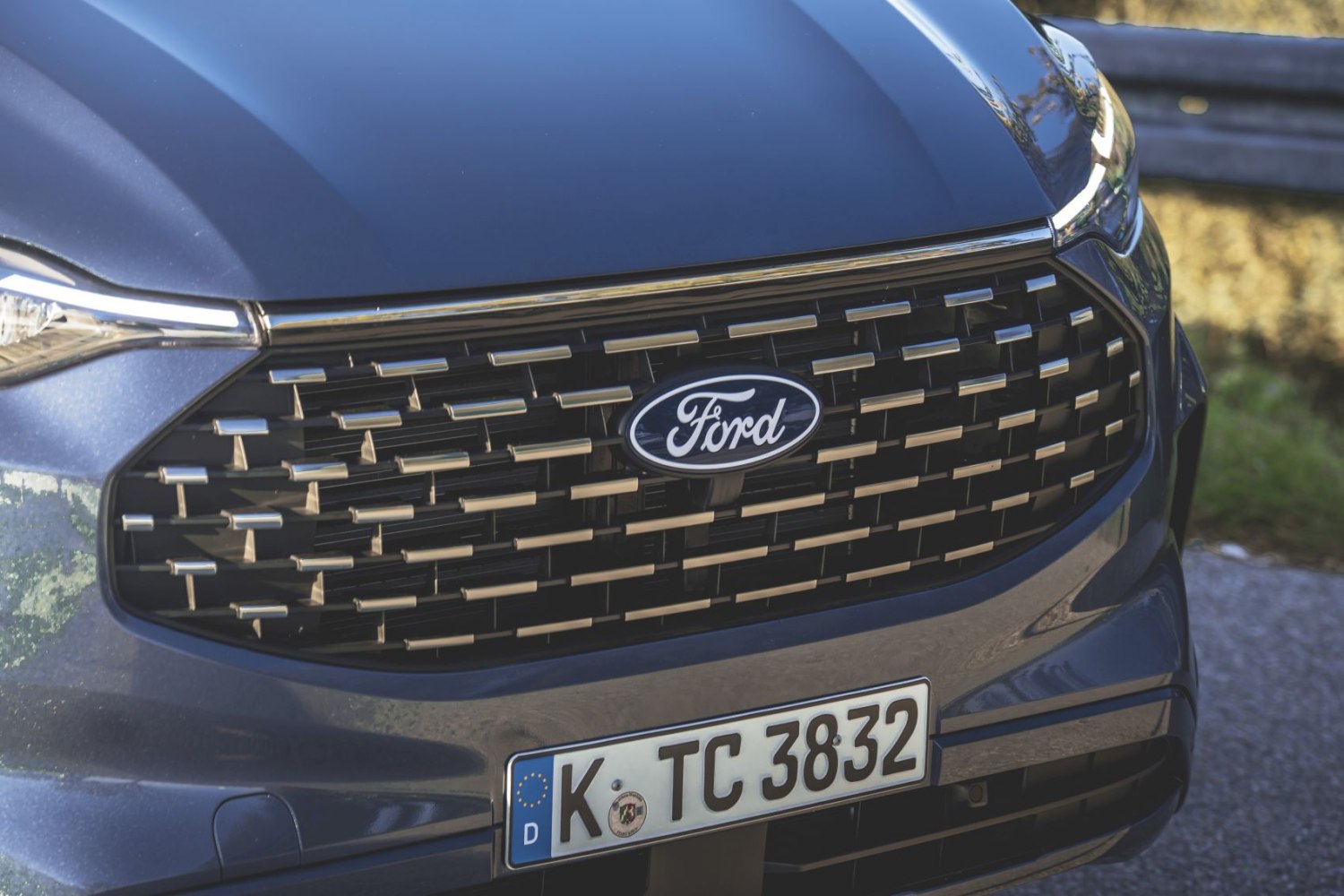

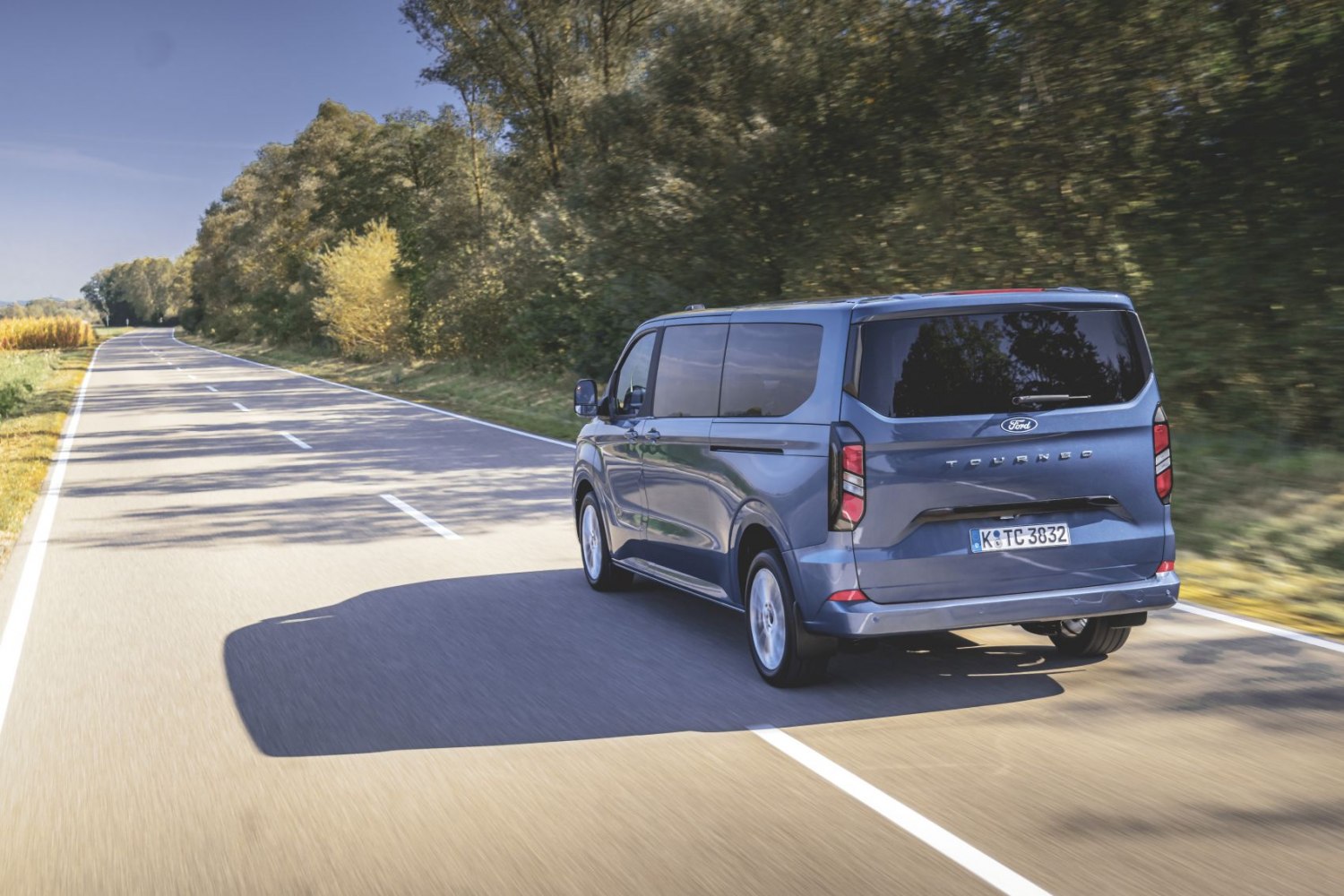

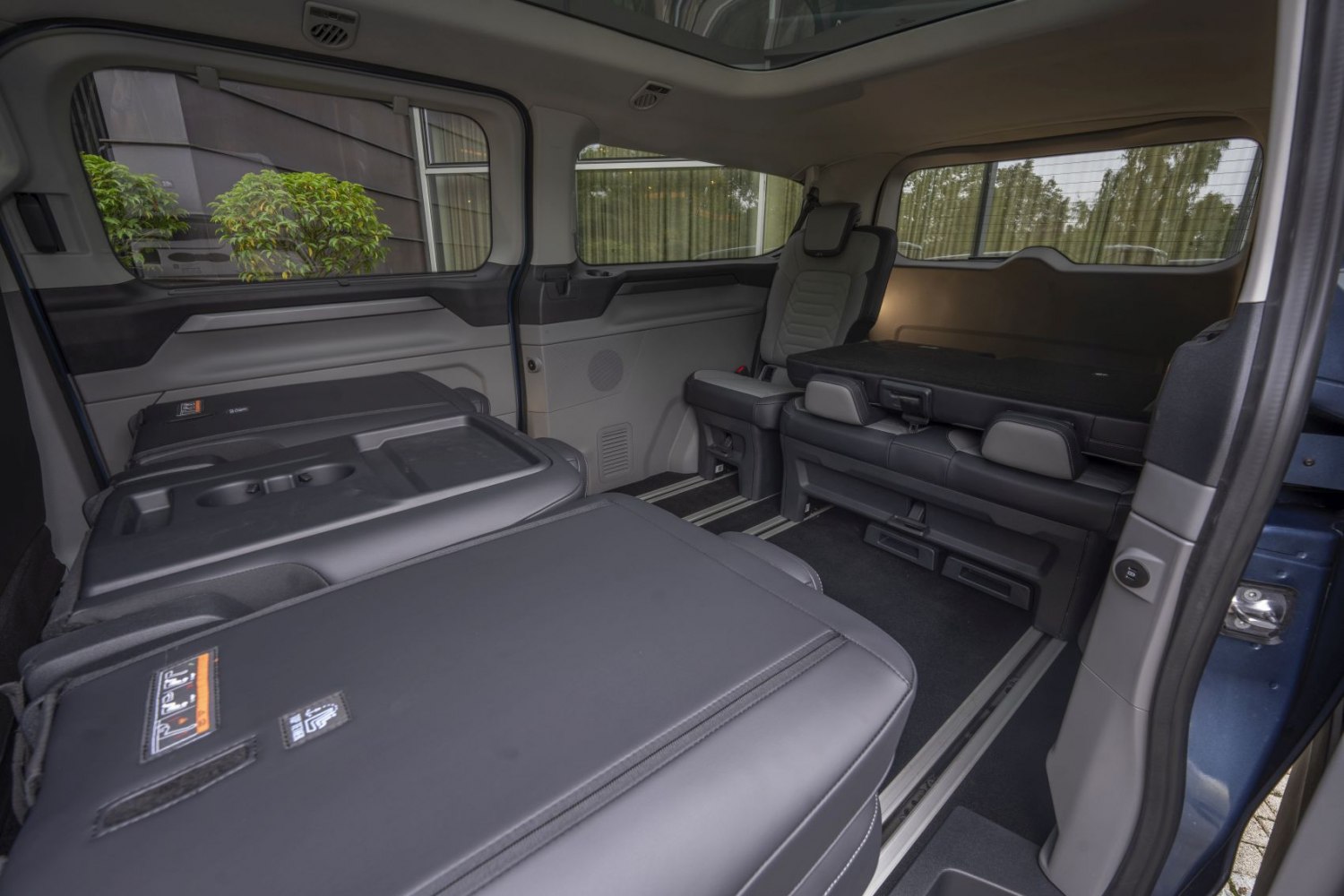

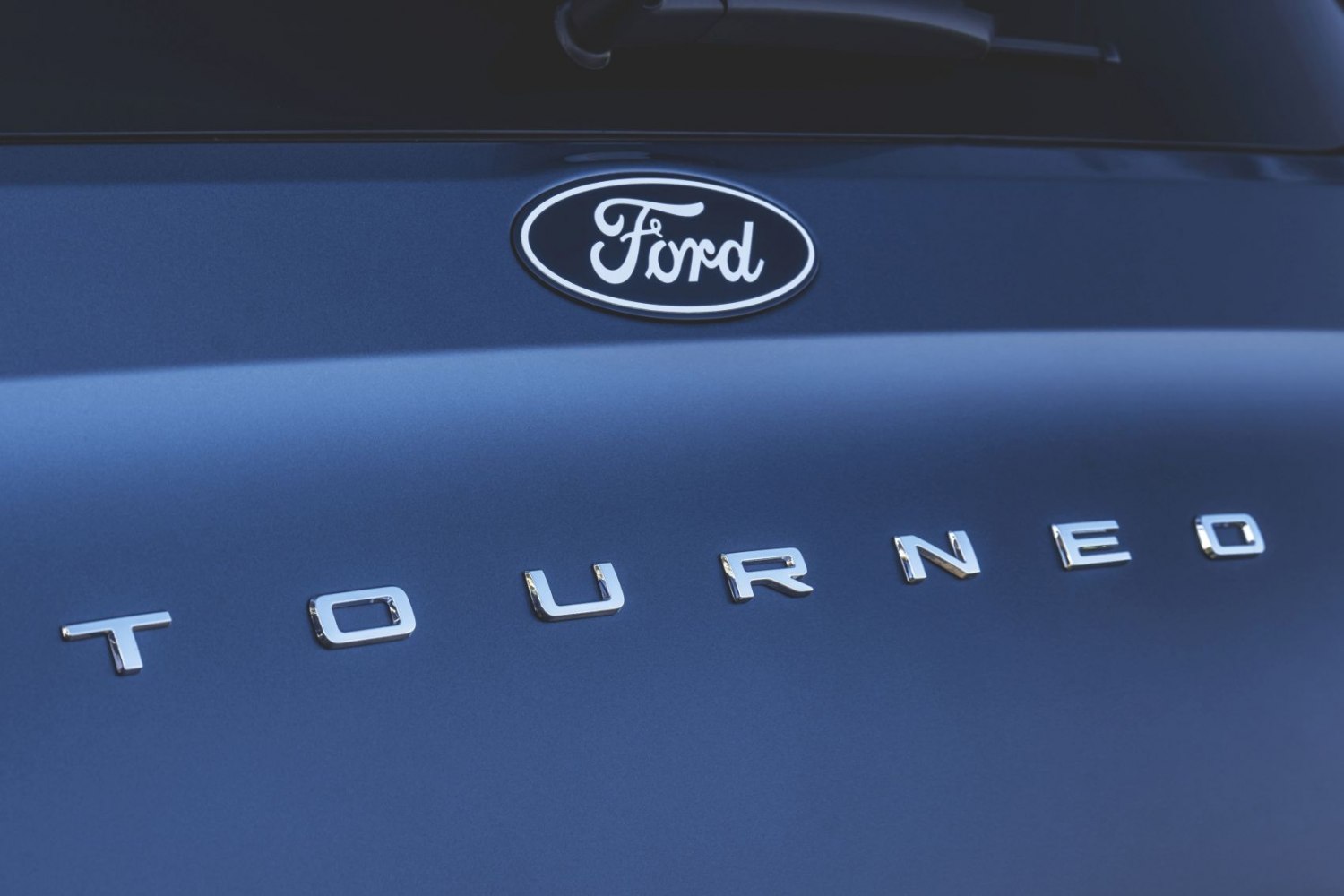

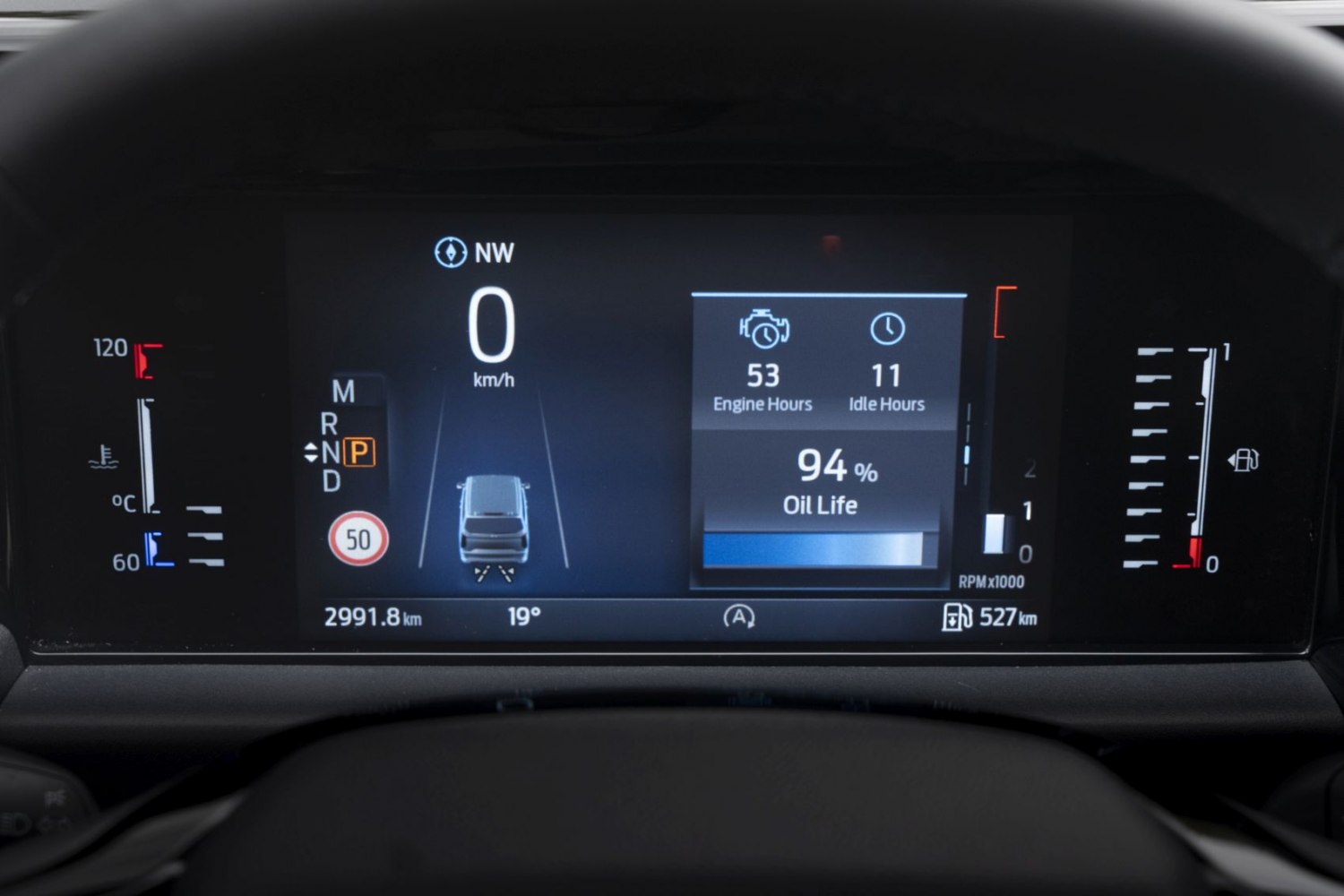

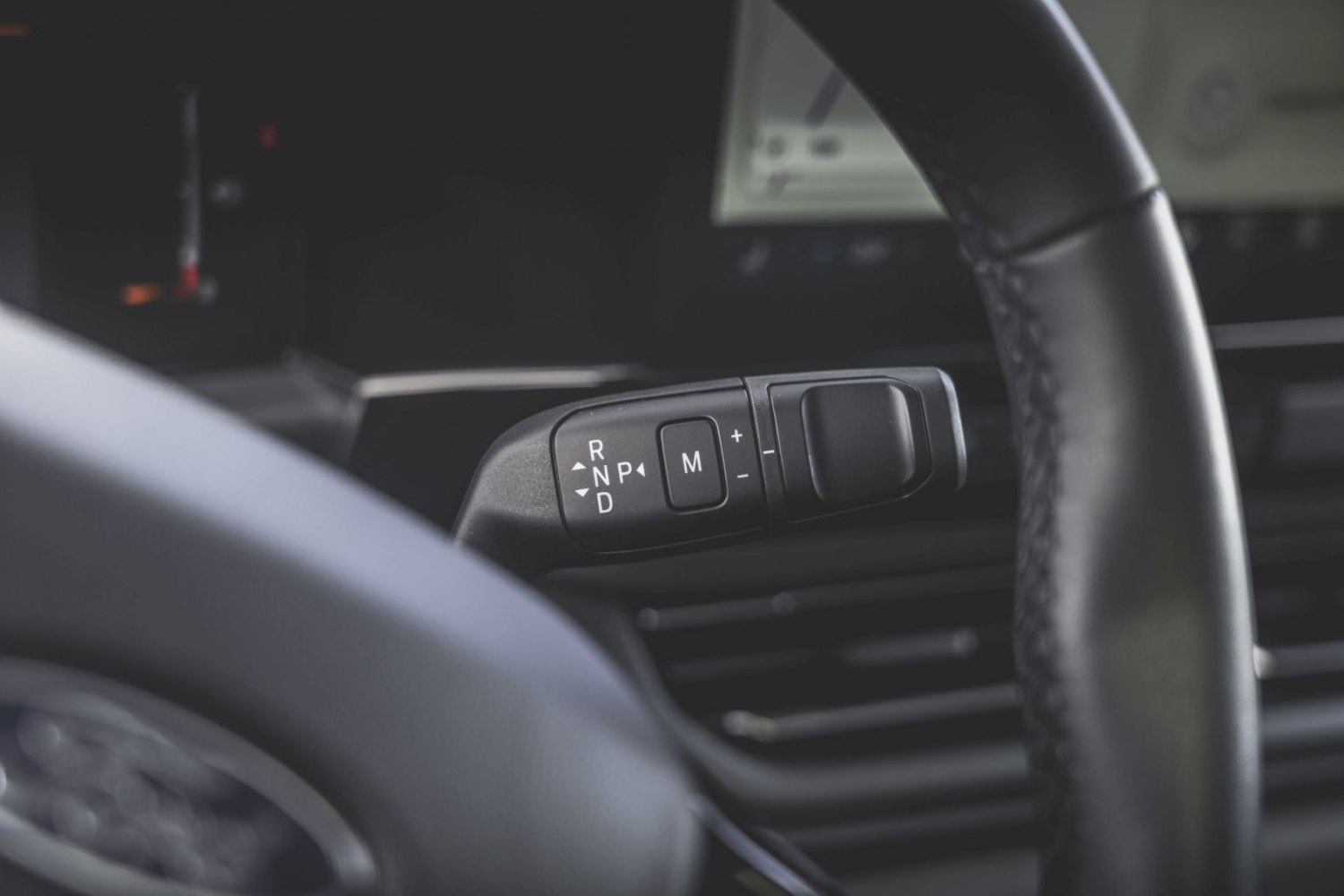

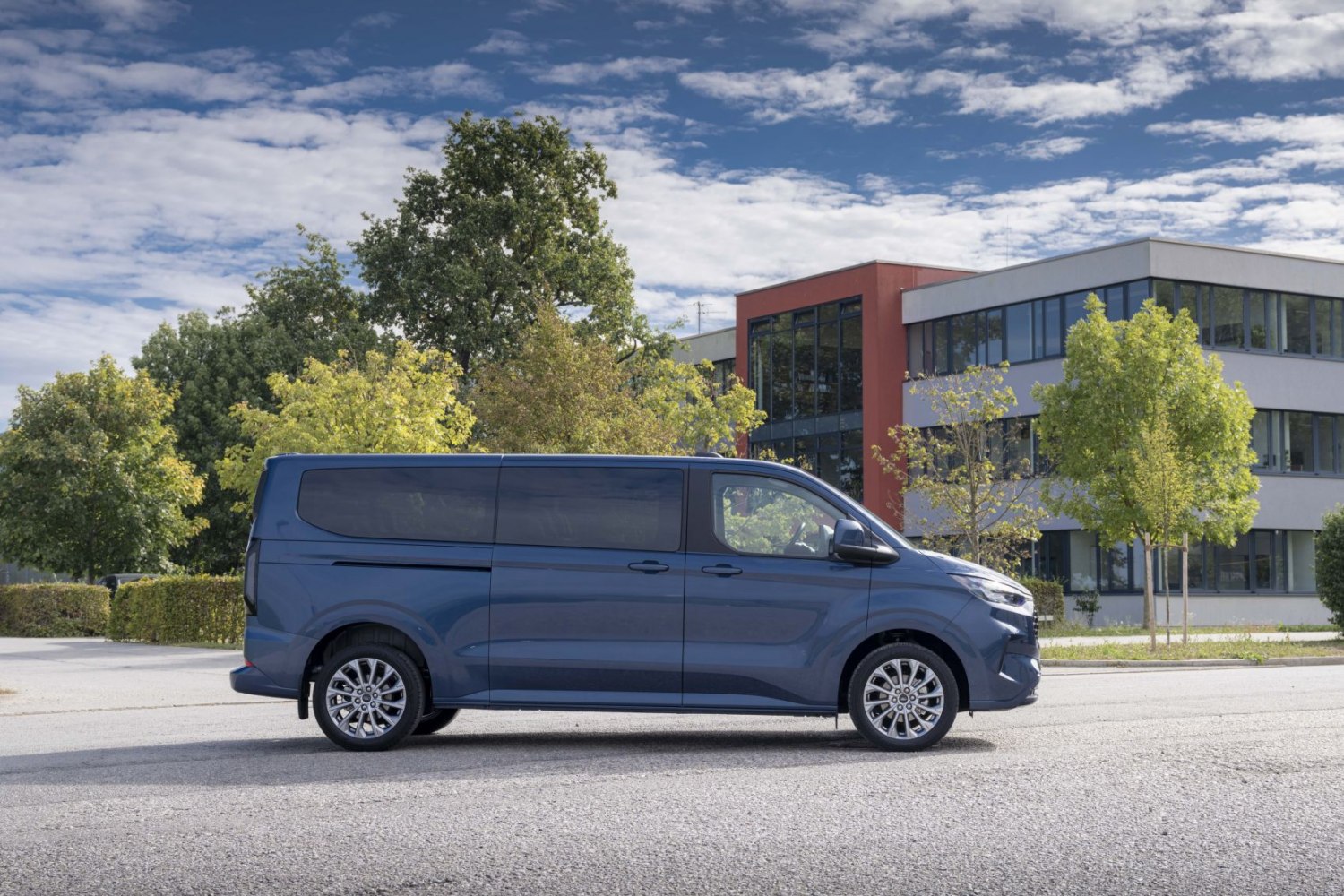

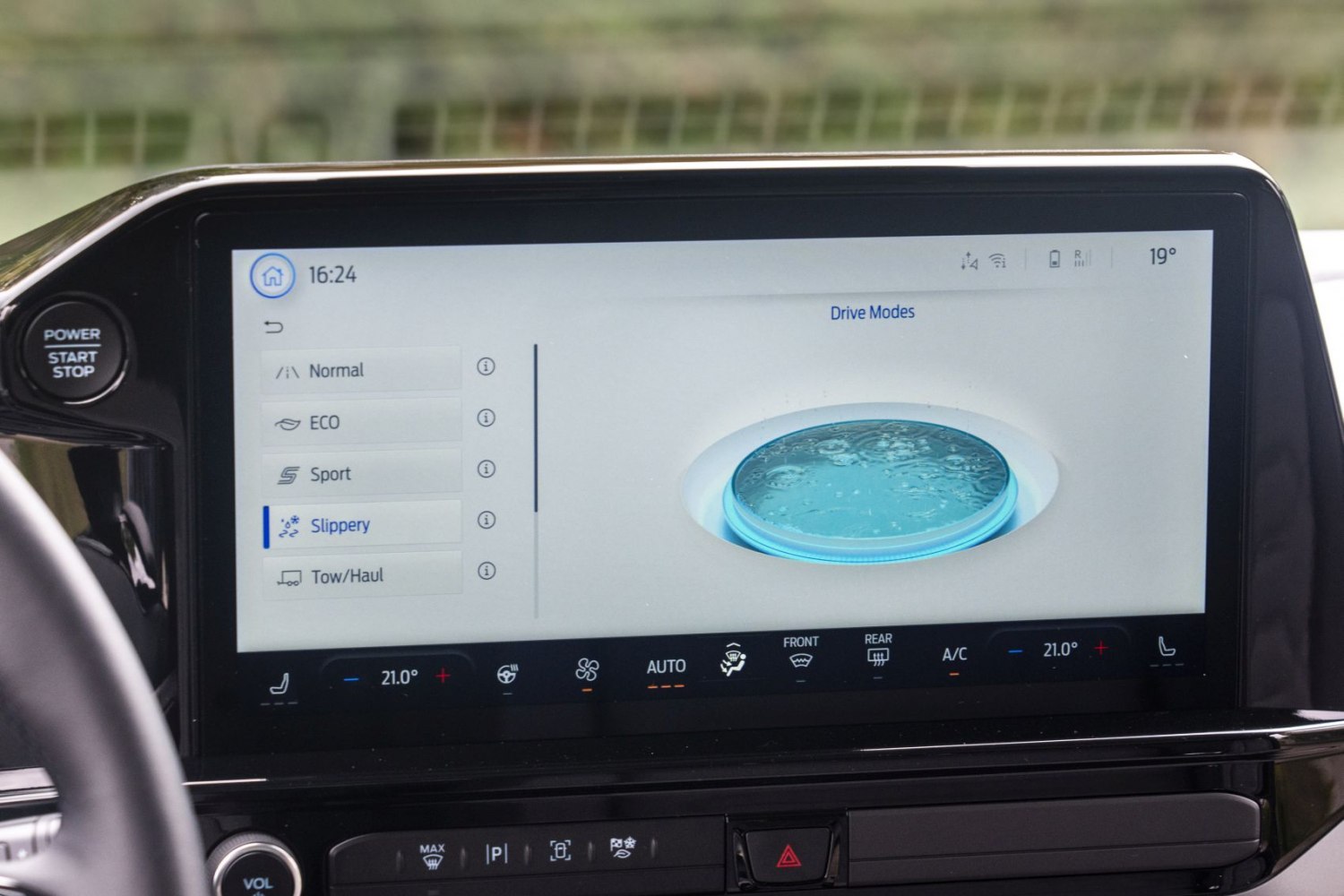

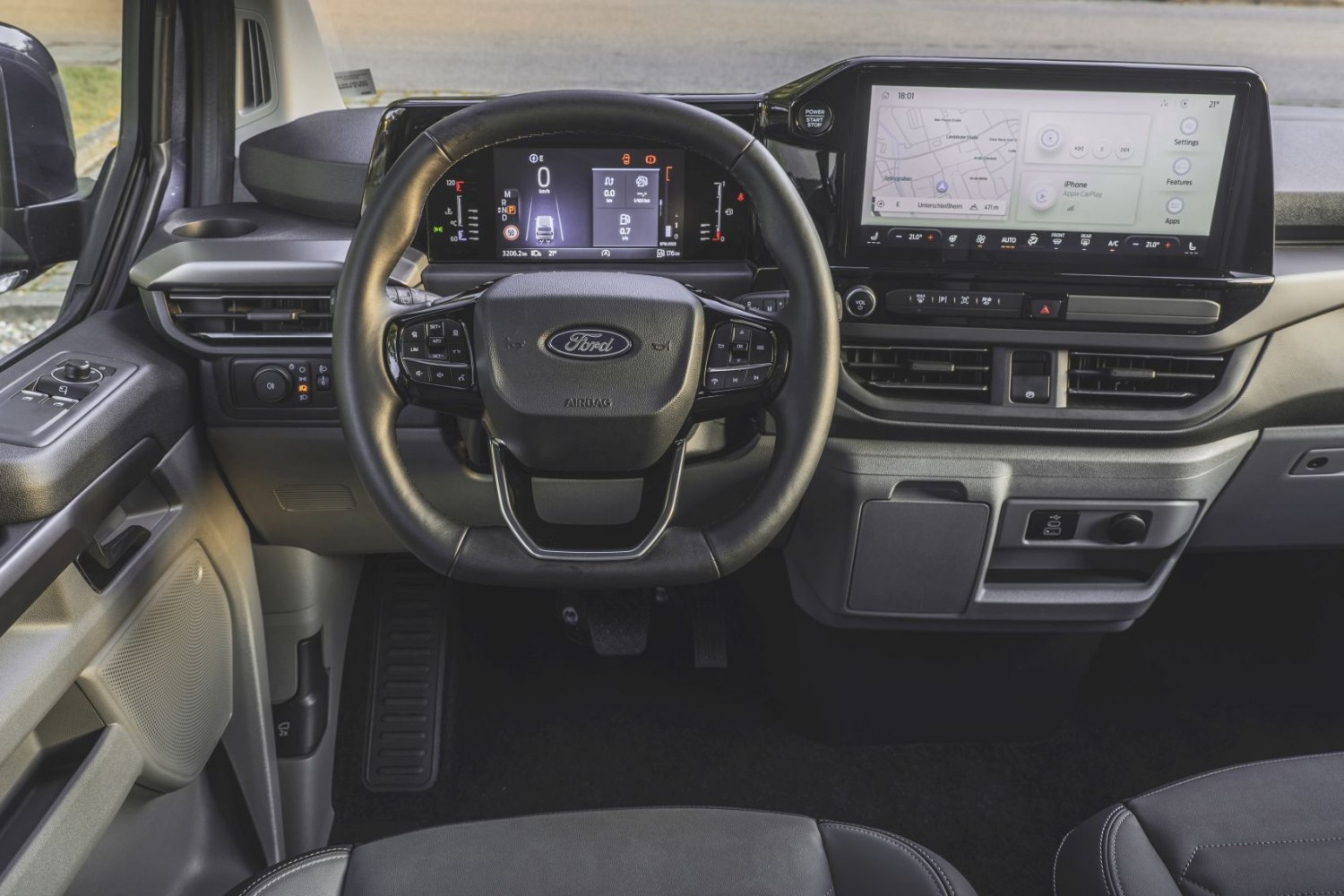

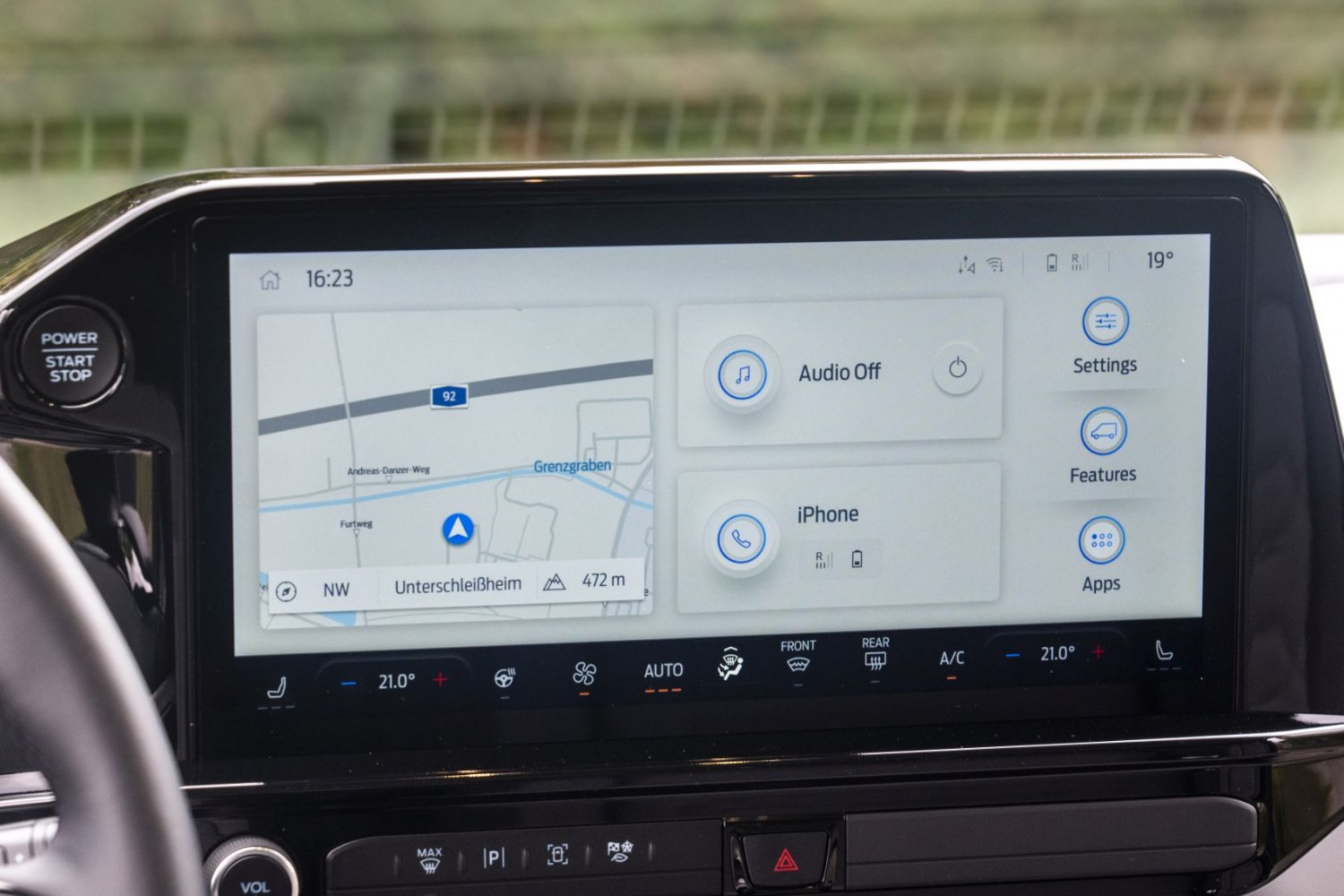

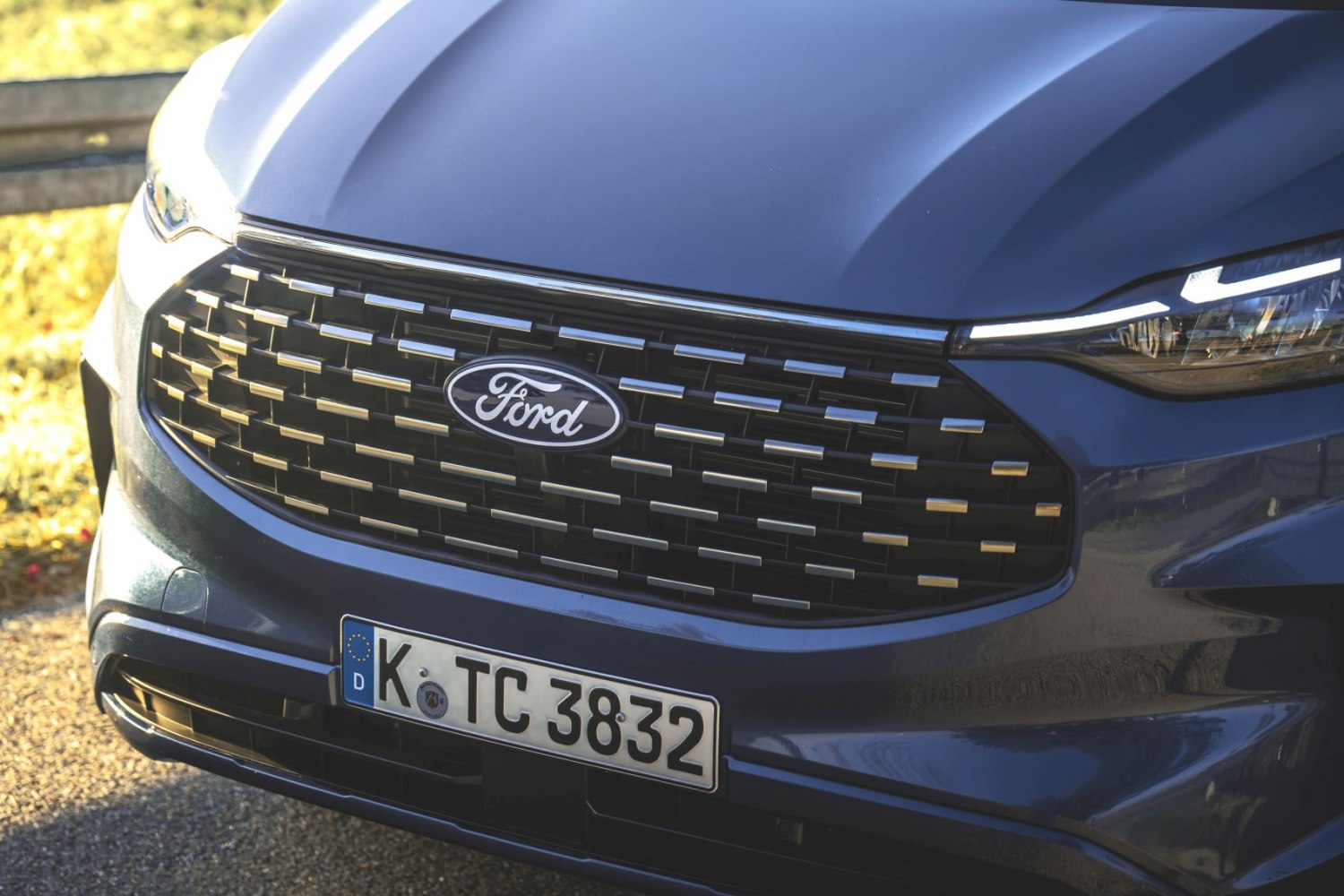

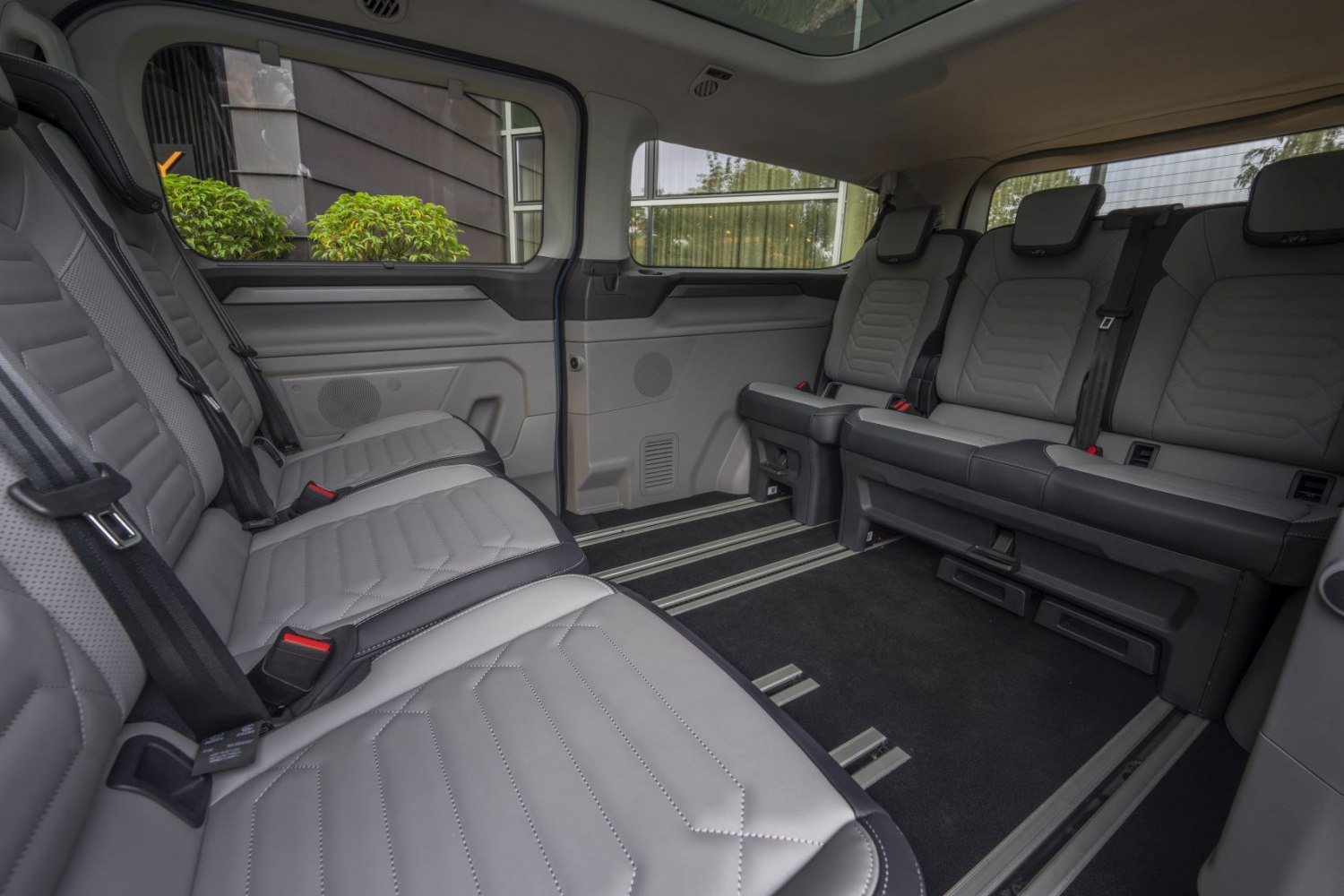

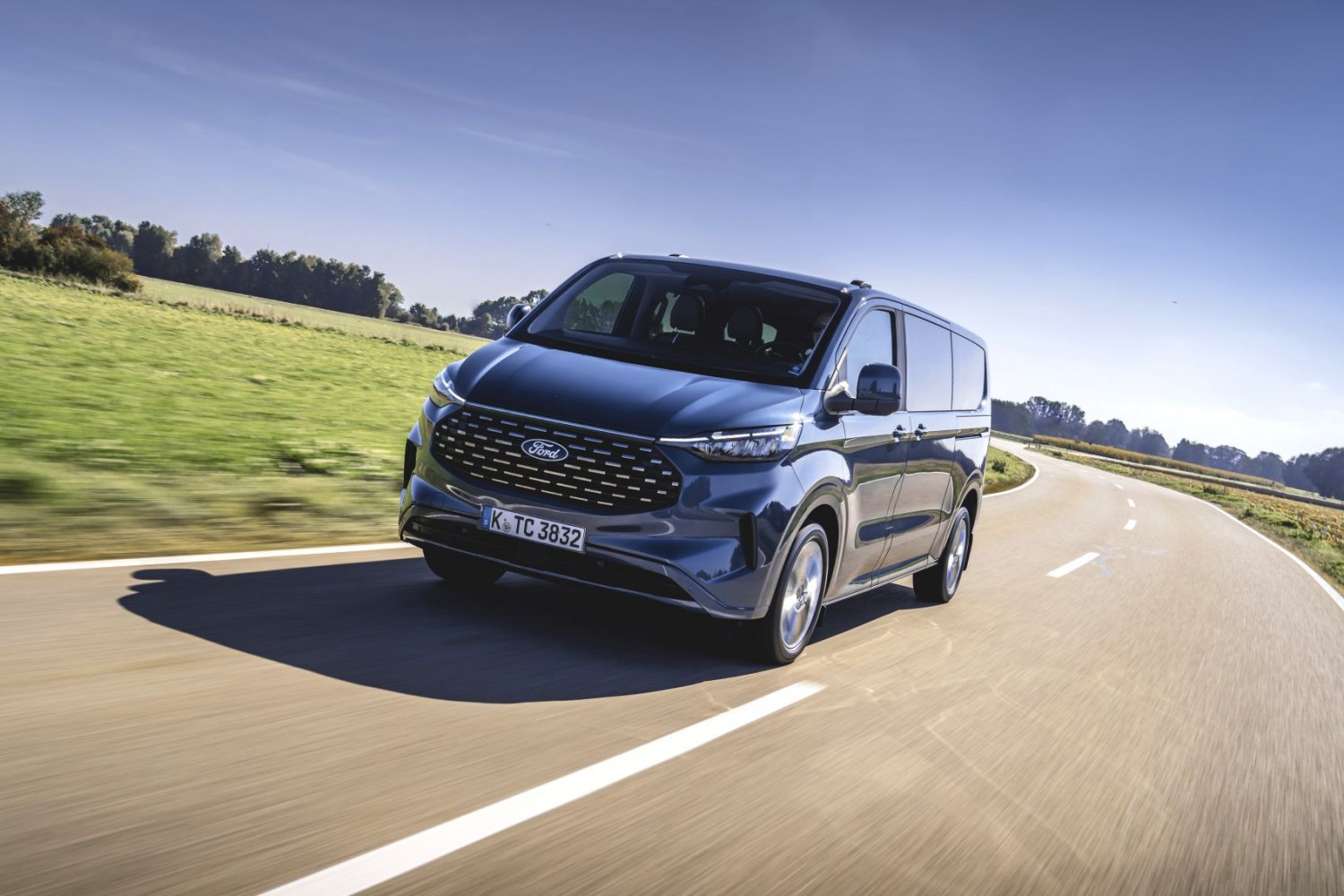

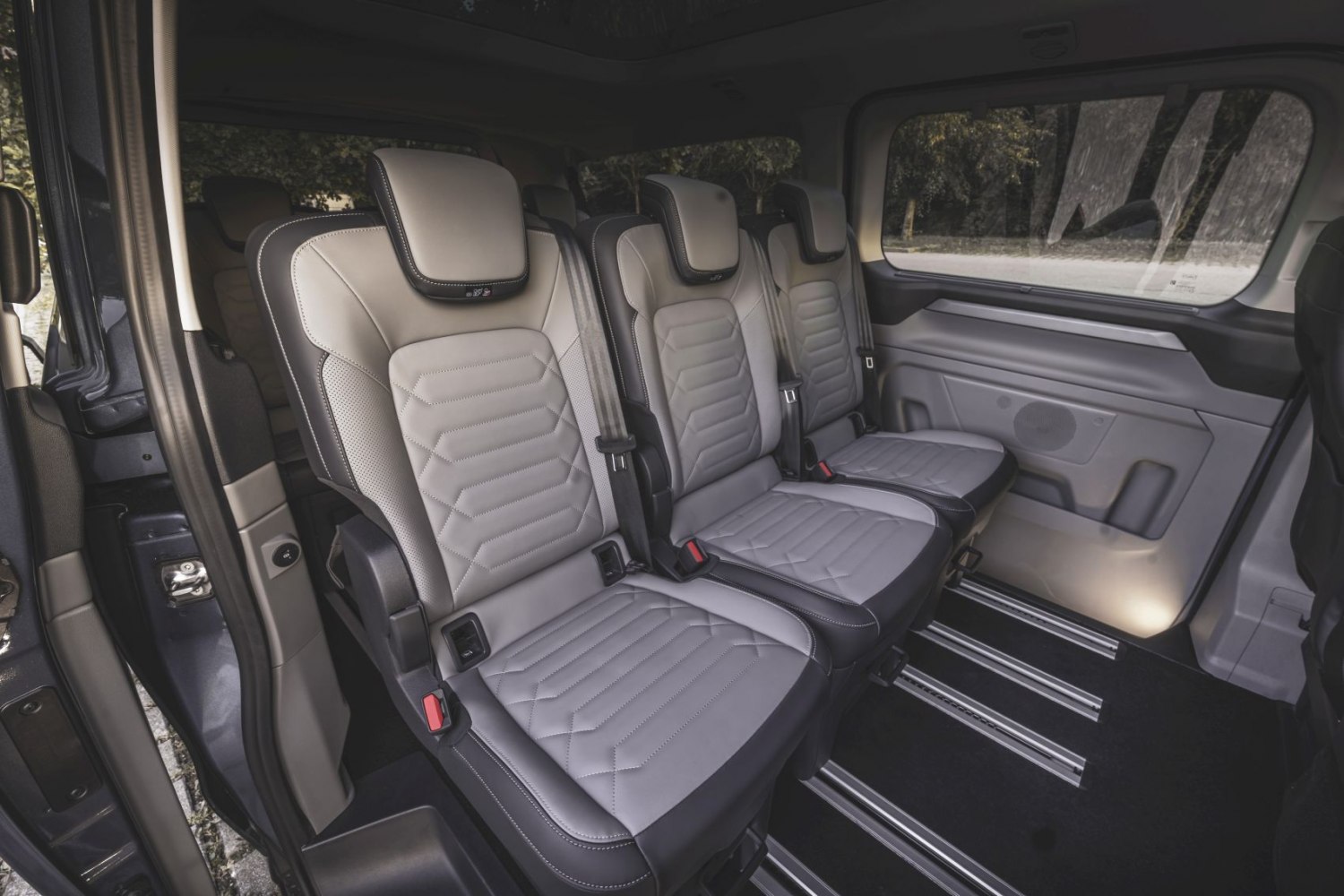

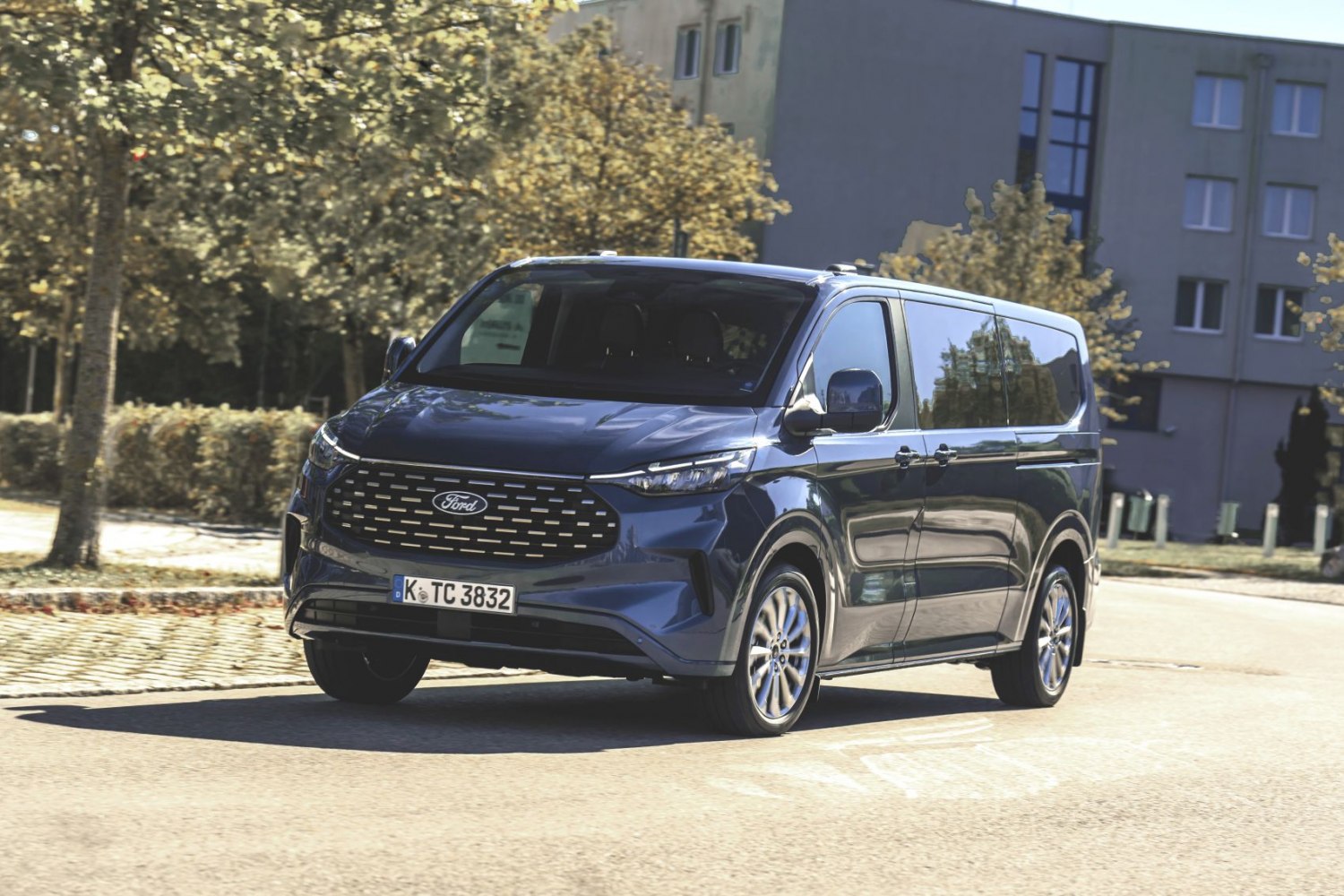

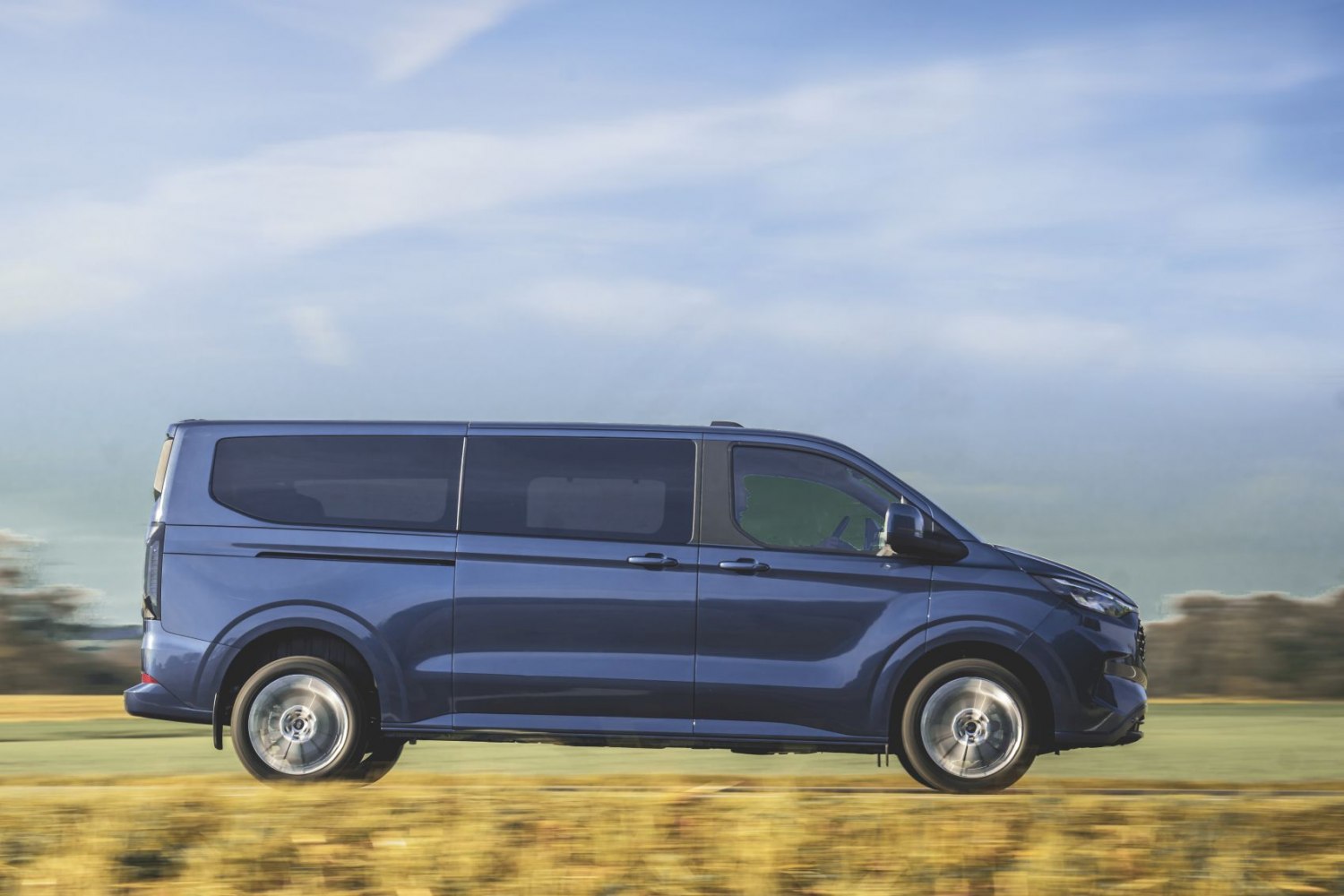

Ford Tourneo Custom 2 L2 2023 Gallery
Ford Tourneo Custom 2 L2 2023 Technical Specifications
General
Body type
Van
Brand
Ford
Doors
4-5
Generation
Tourneo Custom II L2
Model
Tourneo Custom
Modification (Engine)
2.0 EcoBlue (150 Hp)
Powertrain Architecture
Internal Combustion engine
Seats
8-9
Start of production
July, 2023
Performance
CO2 emissions (WLTP)
193-208 g/km
Combined fuel consumption (WLTP)
7.4-8 l/100 km
Emission standard
Euro 6.2
Fuel Type
Diesel
Dimensions
Approach angle
17.2°
Departure angle
16.4°
Front overhang
958 mm
Front track
1730 mm
Height
1963-2031 mm
Length
5450 mm
Minimum turning circle (turning diameter)
12.8 m
Rear (Back) track
1721 mm
Rear overhang
992 mm
Ride height (ground clearance)
140 mm
Wheelbase
3500 mm
Width
2032 mm
Engine
Compression ratio
16.5:1
Coolant
12.3 l
Cylinder Bore
84.01 mm
Engine Model/Code
BKFB
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1996 cm
Engine layout
Front, Transverse
Engine oil capacity
9.6 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
4
Power
150 Hp
Torque
360 Nm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 308 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
6 gears, manual transmission
Power steering
Electric Steering
Rear brakes
Ventilated discs, 304 mm
Rear suspension
Independent coil spring, Trailing arm
Steering type
Steering rack and pinion
Tires size
215/60 R17
Wheel rims size
6.5J x 17
Space
AdBlue tank
20 l
Fuel tank capacity
55 l
Kerb Weight
2165-2235 kg
Max load
990-1060 kg
Max. weight
3225 kg
