Ford Tourneo Custom 2 L2 2024
2.5 Duratec (233 Hp) Plug-in Hybrid CVT
Hybrid Car
Body Type Van
Battery Capacity 16.5 KW
40-51 km
Electric Range
4
Doors
Ford Tourneo Custom 2 L2 2024 Key Specs
All-electric Range (WLTP)
40-51 km
Average Energy Consumption (WLTP)
19.9-26.2 kWh/100 km
Body Type
Van
Doors
4-5
Drive Wheel
Front wheel drive
Engine Aspiration
Naturally aspirated engine
Fuel Type
Petrol / electricity
Fuel Tank Capacity
63 l
Generation
Tourneo Custom II L2
Gross Battery Capacity
16.5 kWh
Modification (Engine)
2.5 Duratec (233 Hp) Plug-in Hybrid CVT
Number Of Cylinders
4
Power
118 Hp
Power Steering
Electric Steering
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
8-9
Start Of Production
March, 2024
System Power
233 Hp
Wheel Rims Size
6.5J x 16; 6.5J x 17; 7.5J x 19

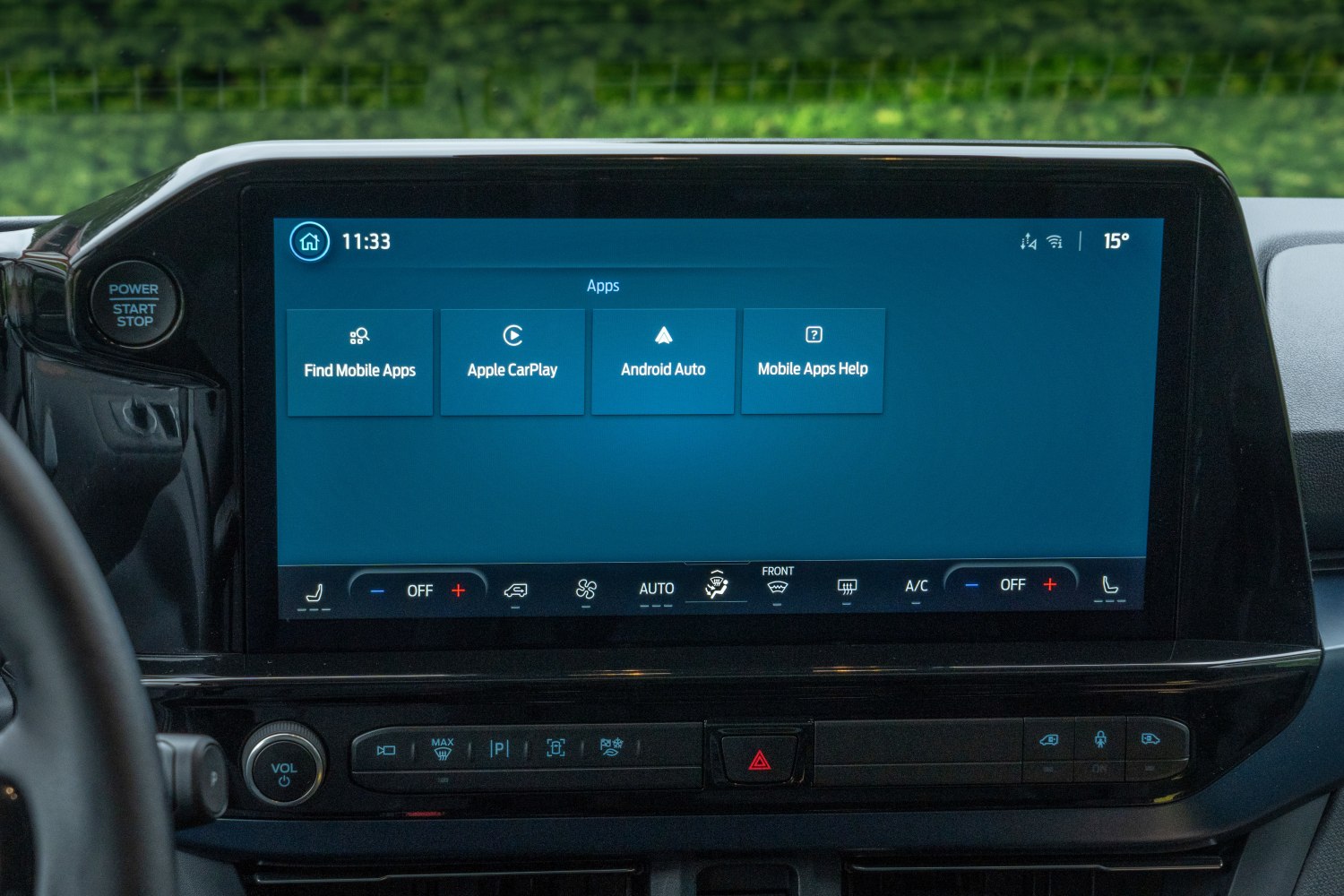

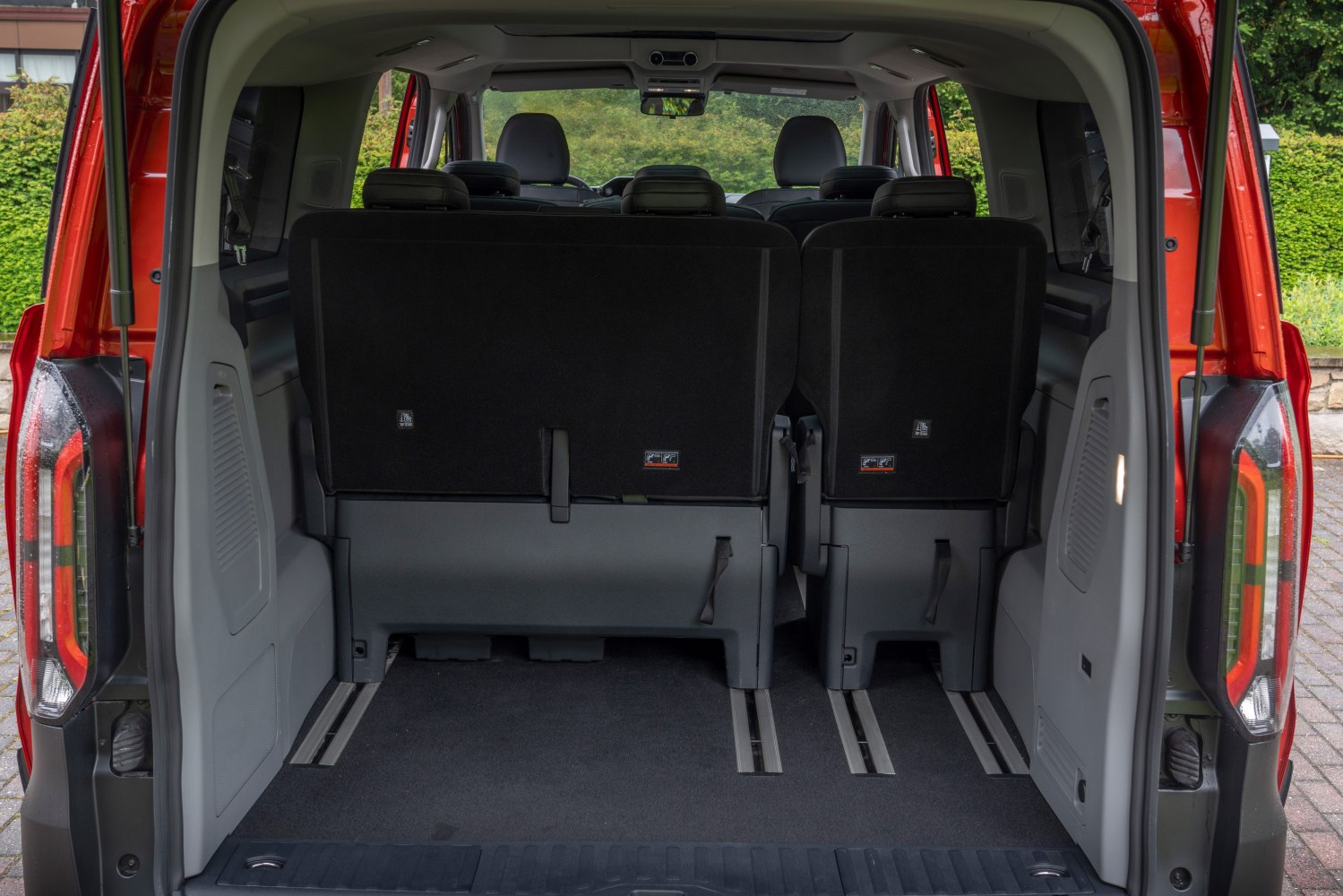

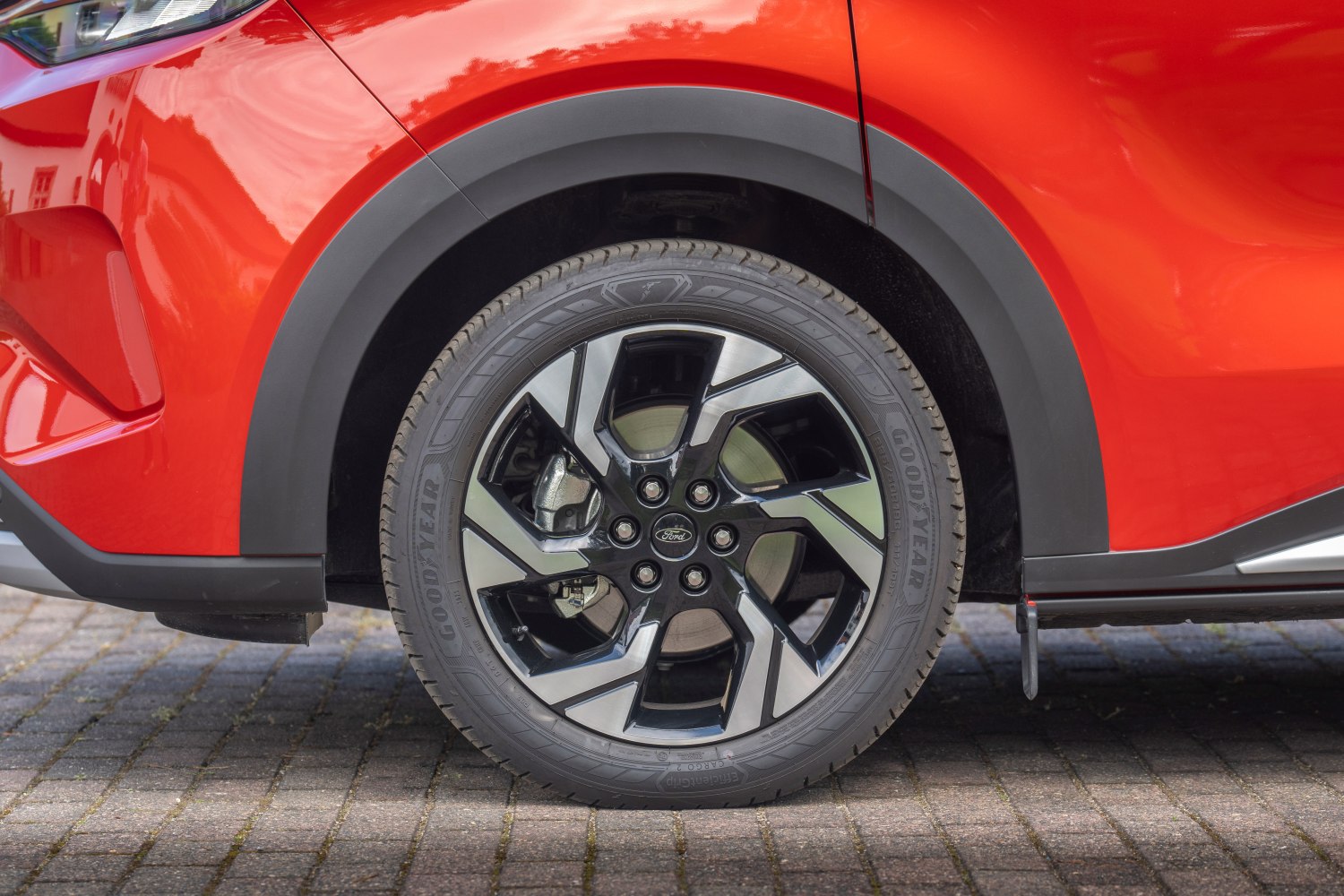

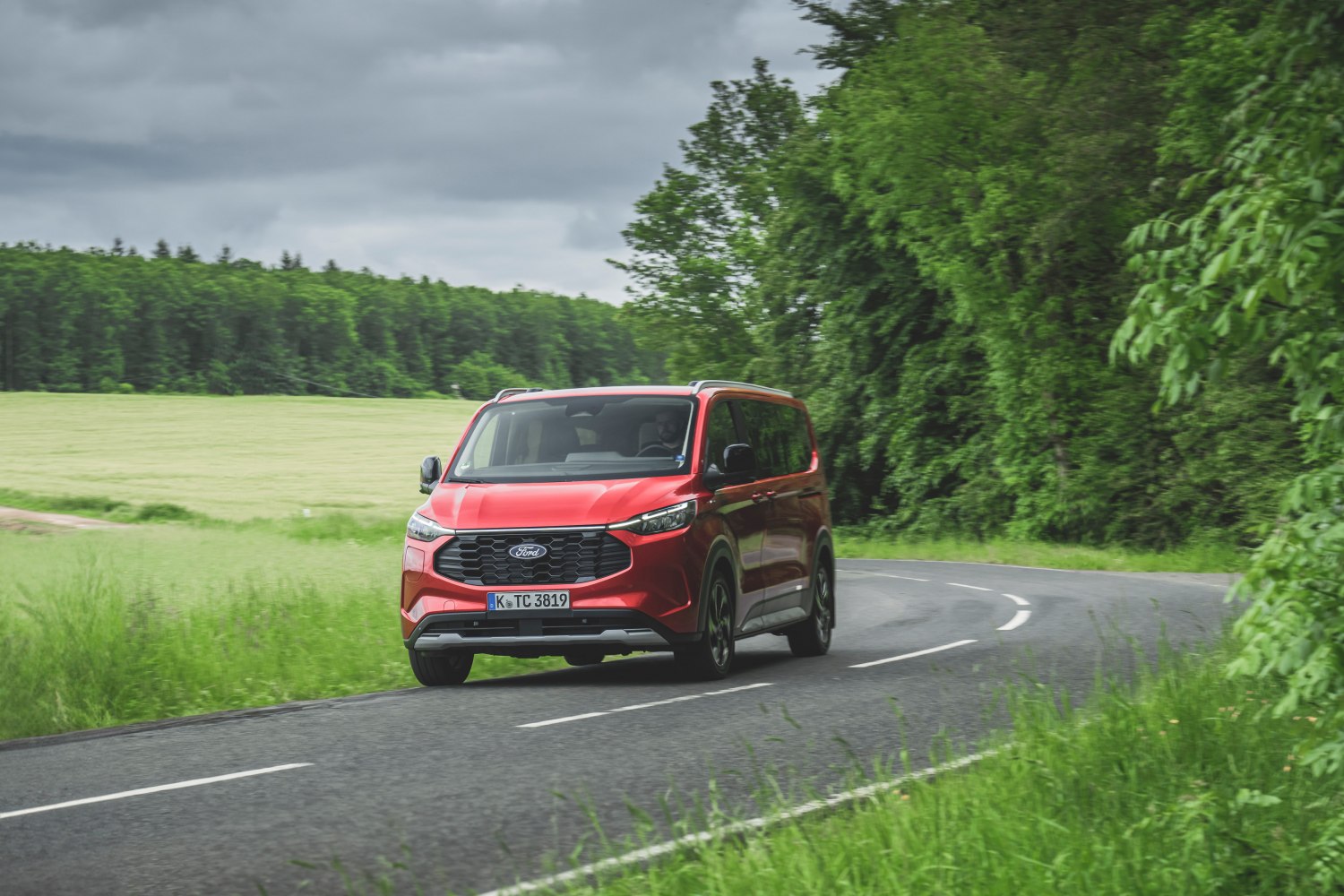

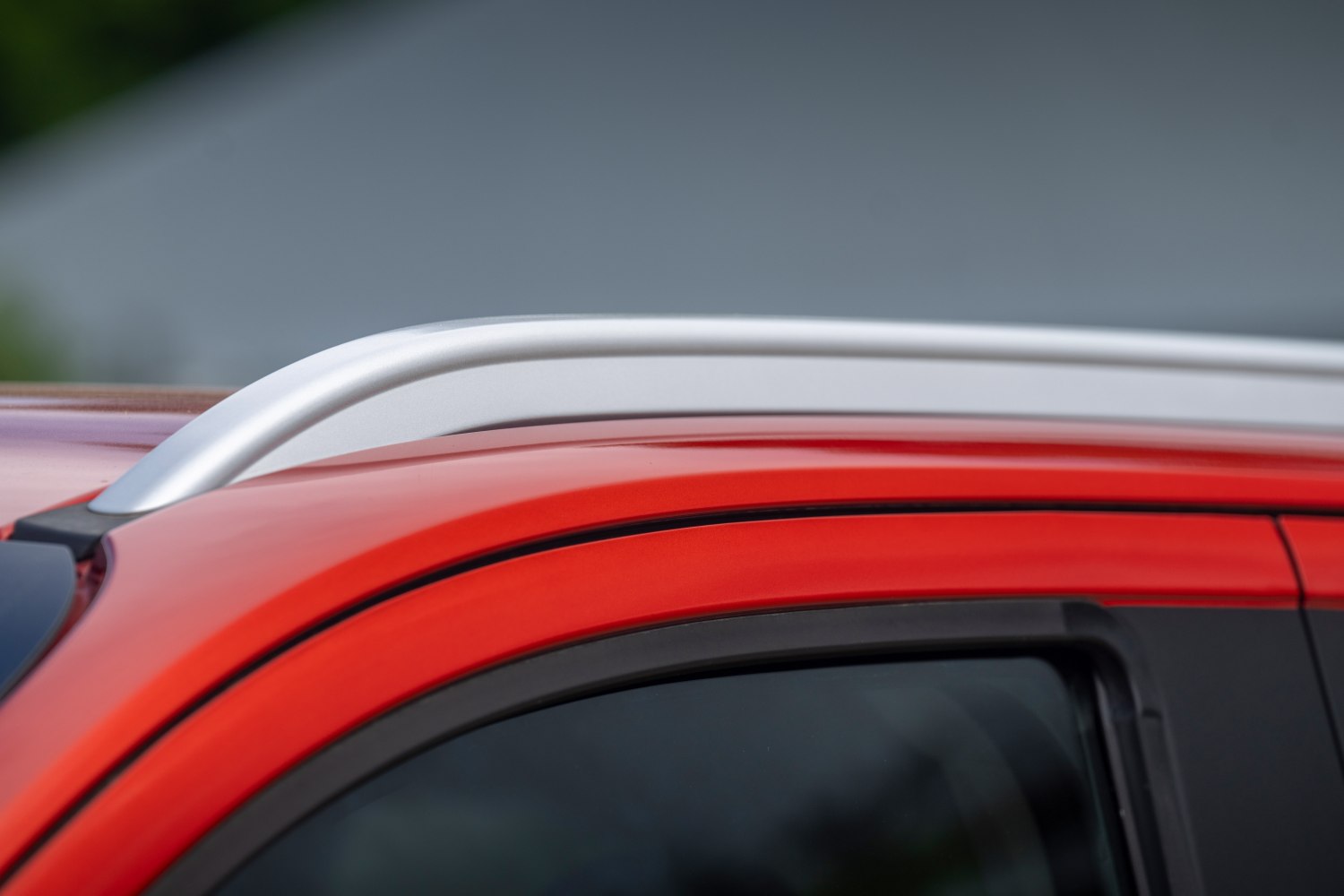

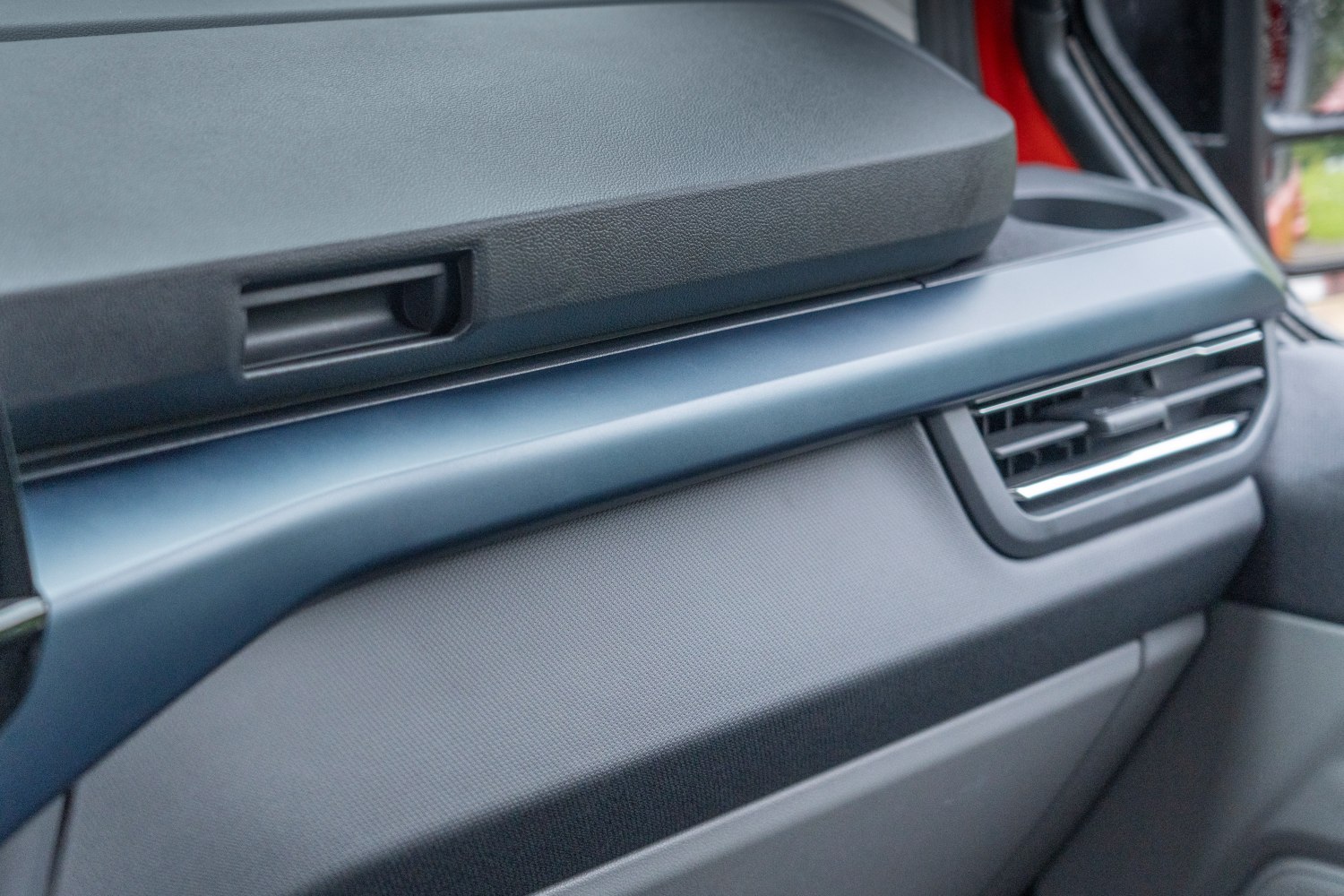

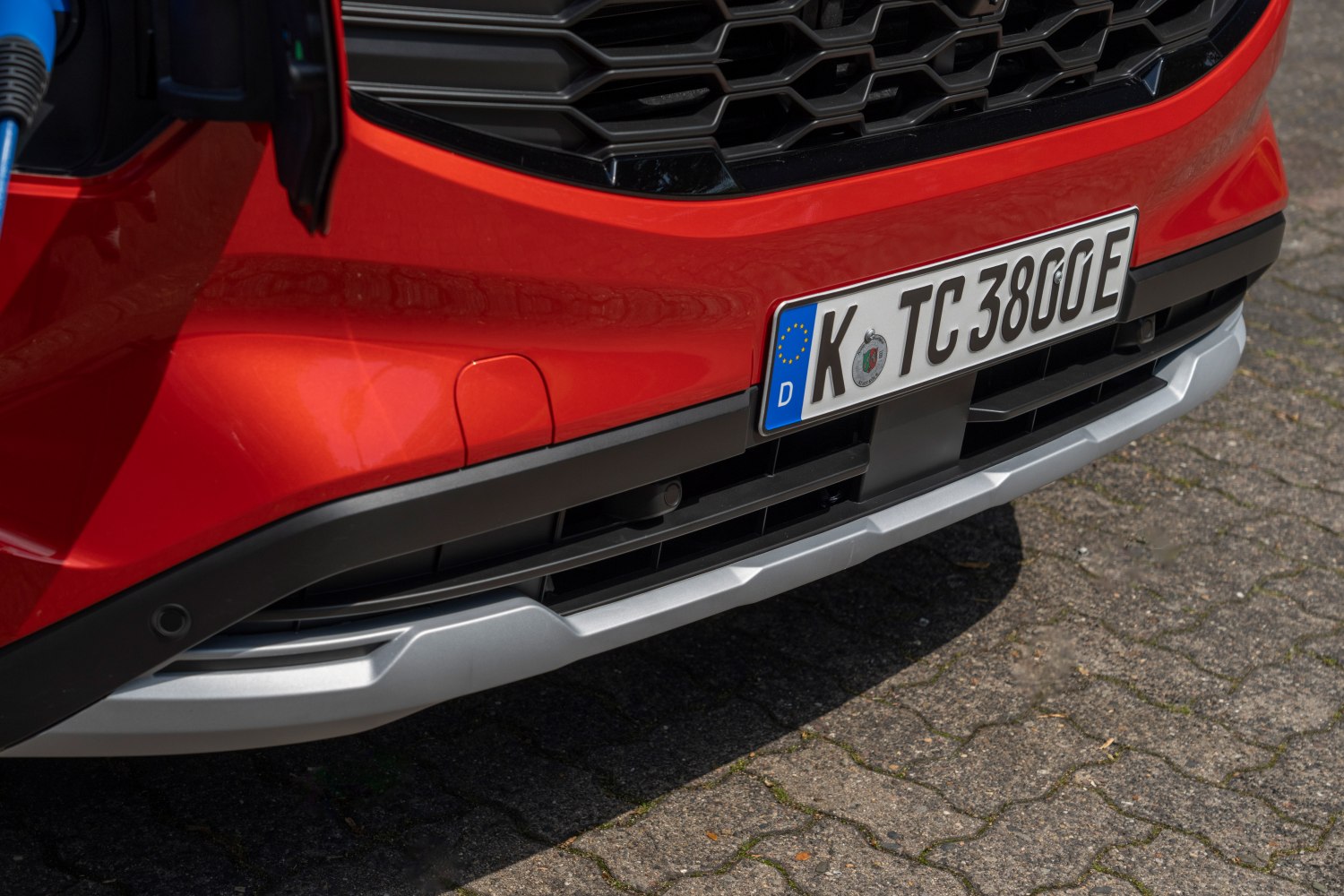

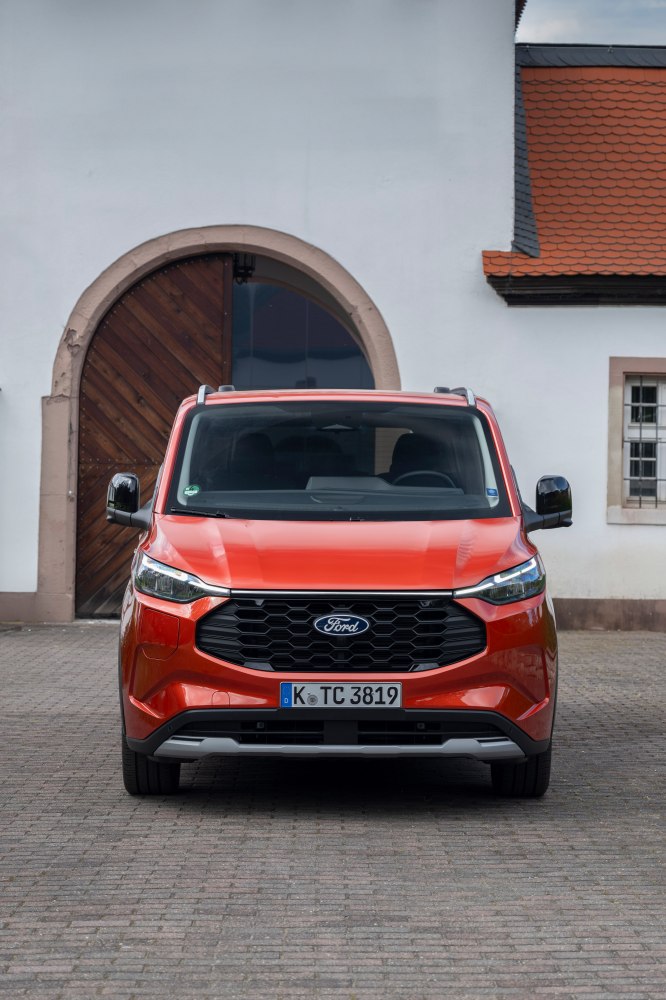

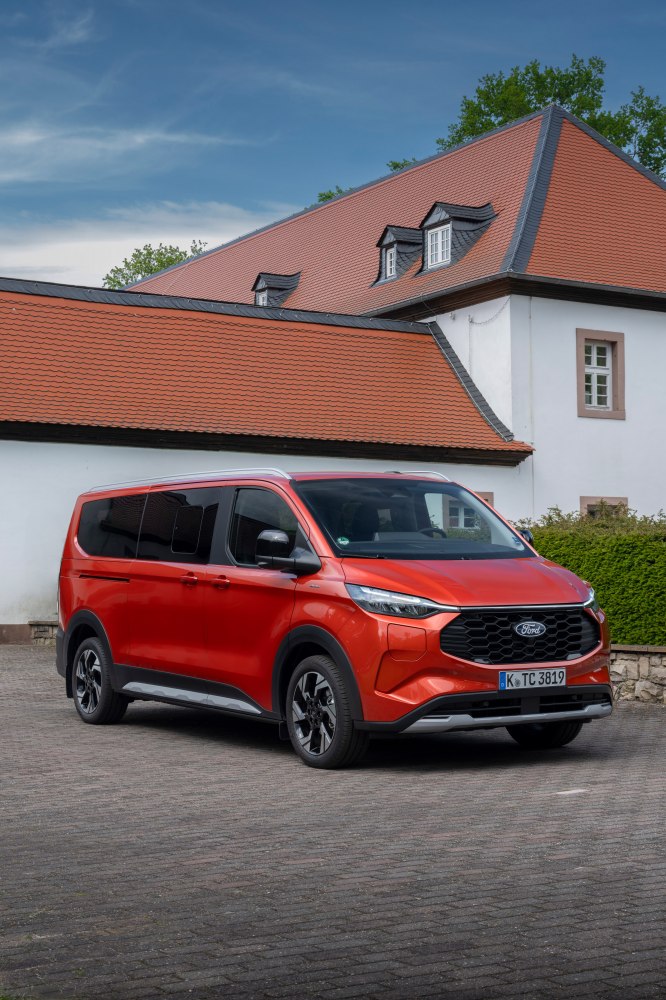

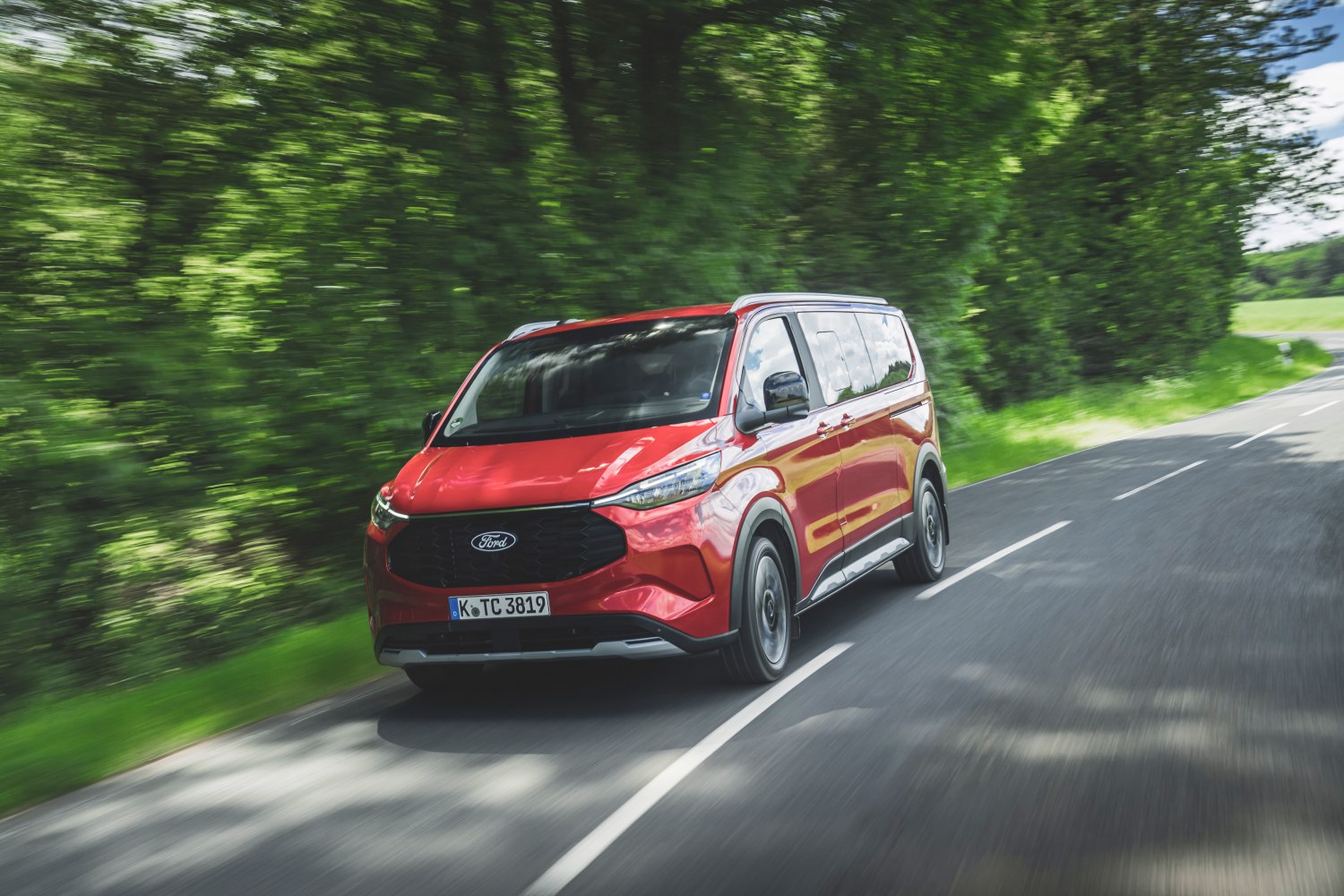

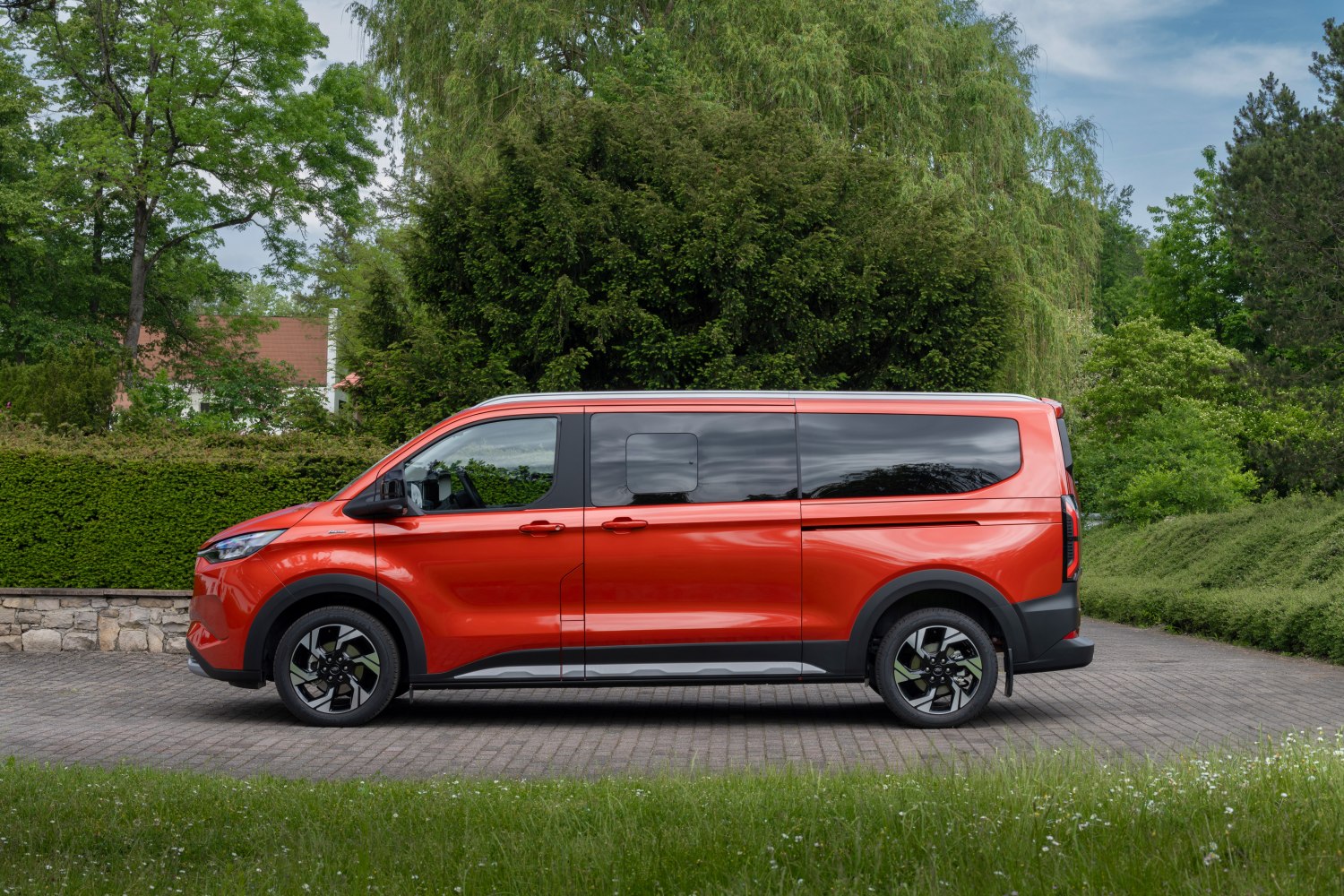

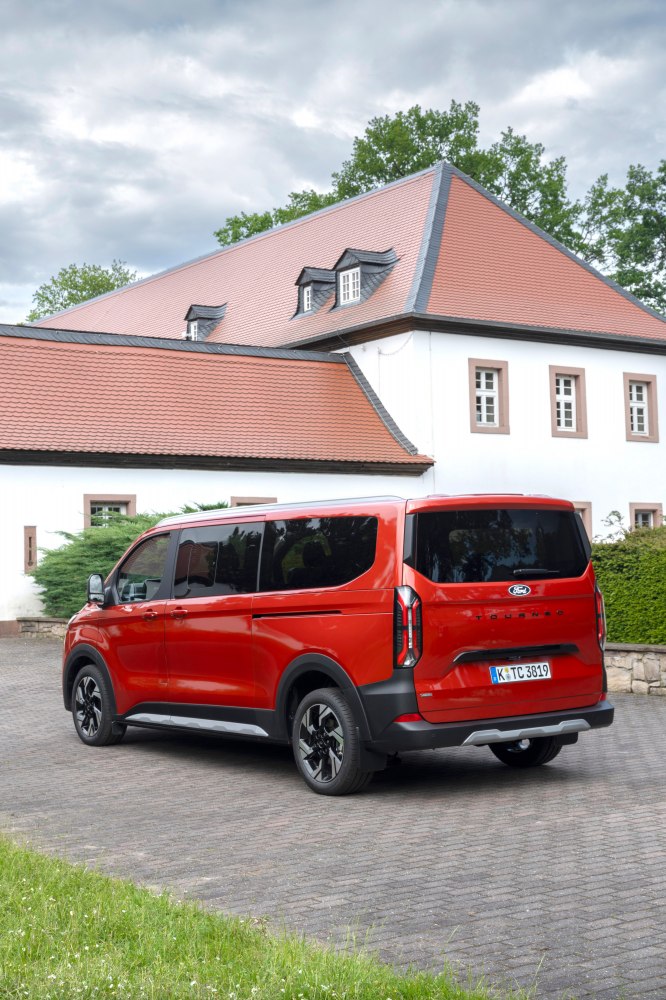

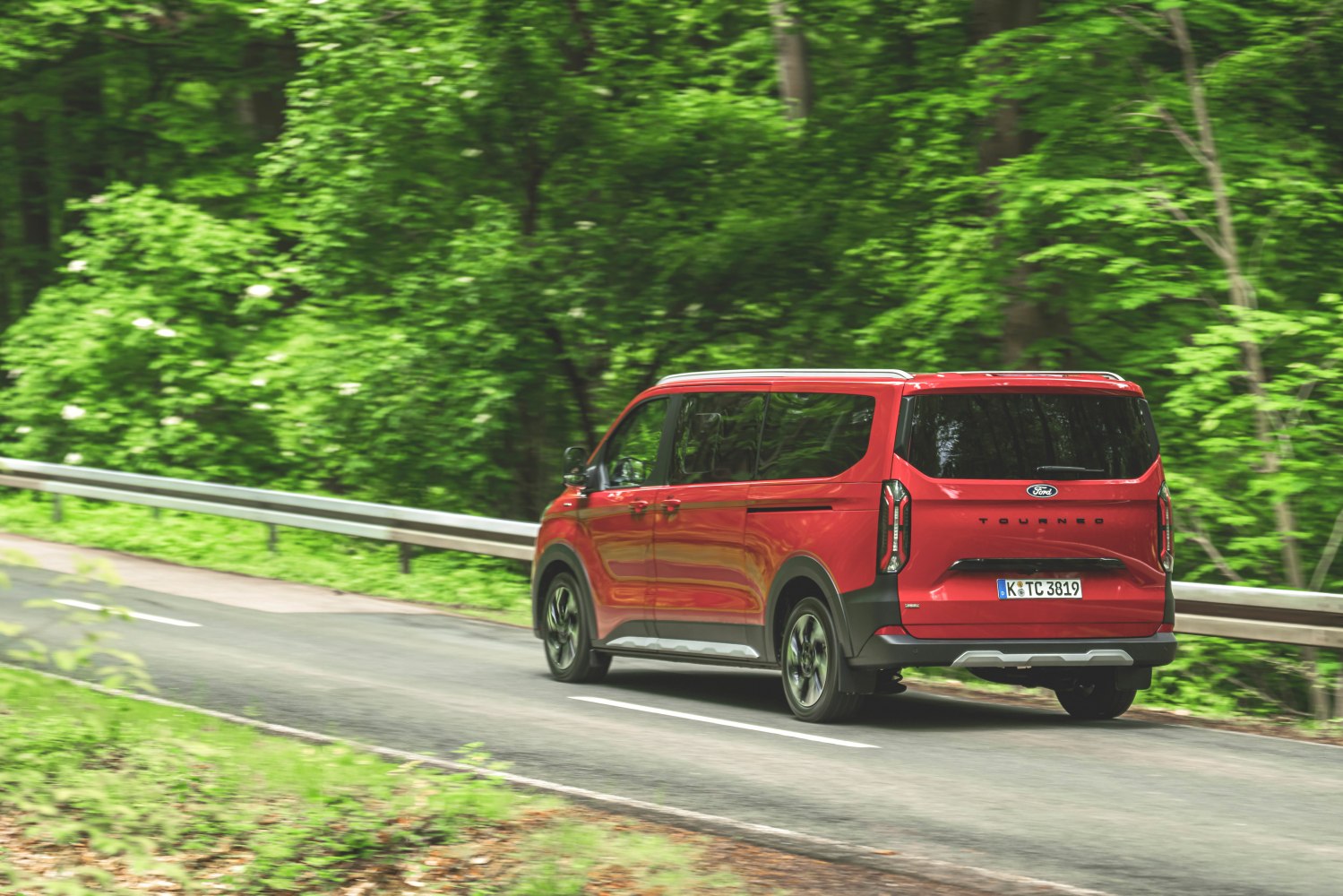

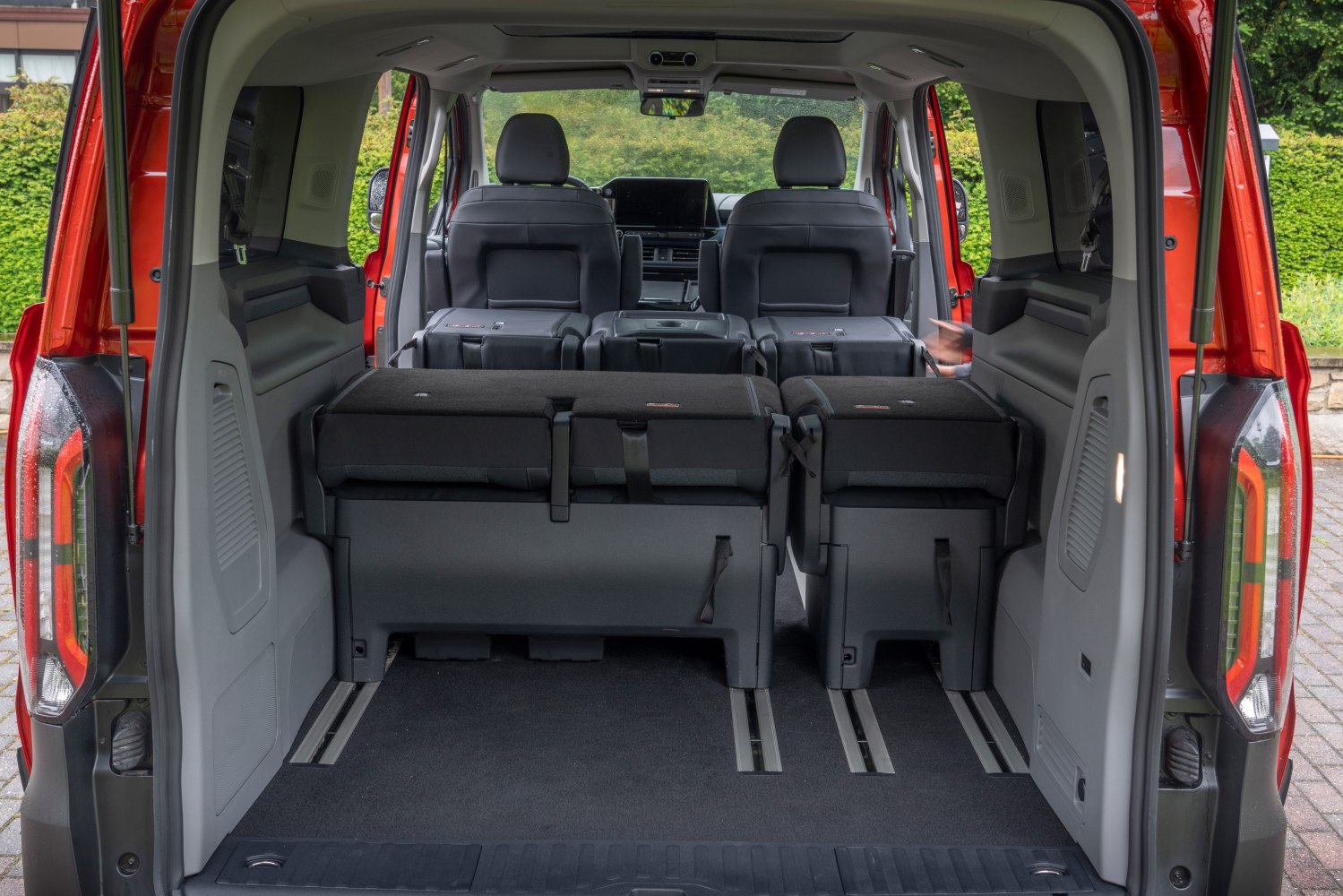

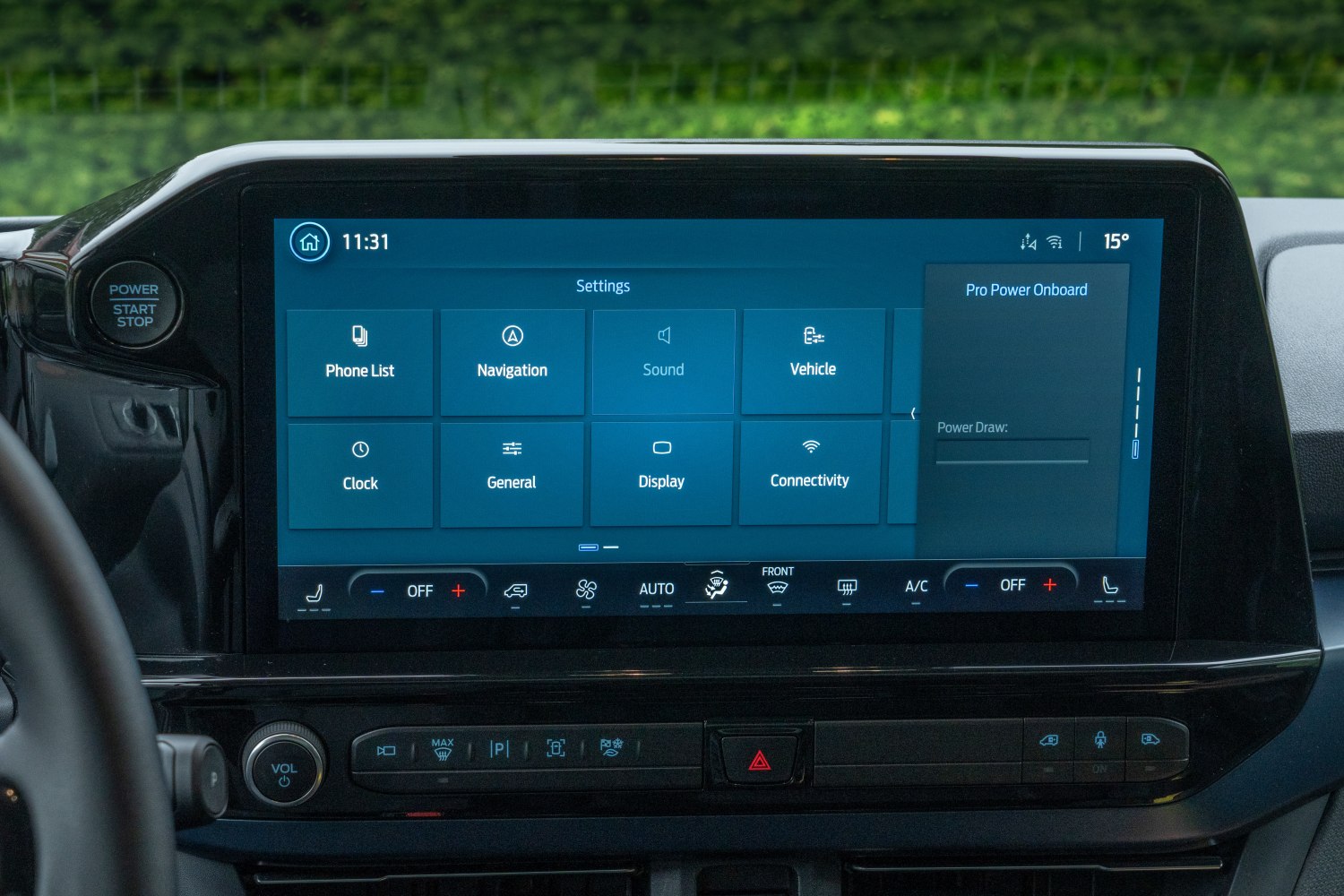

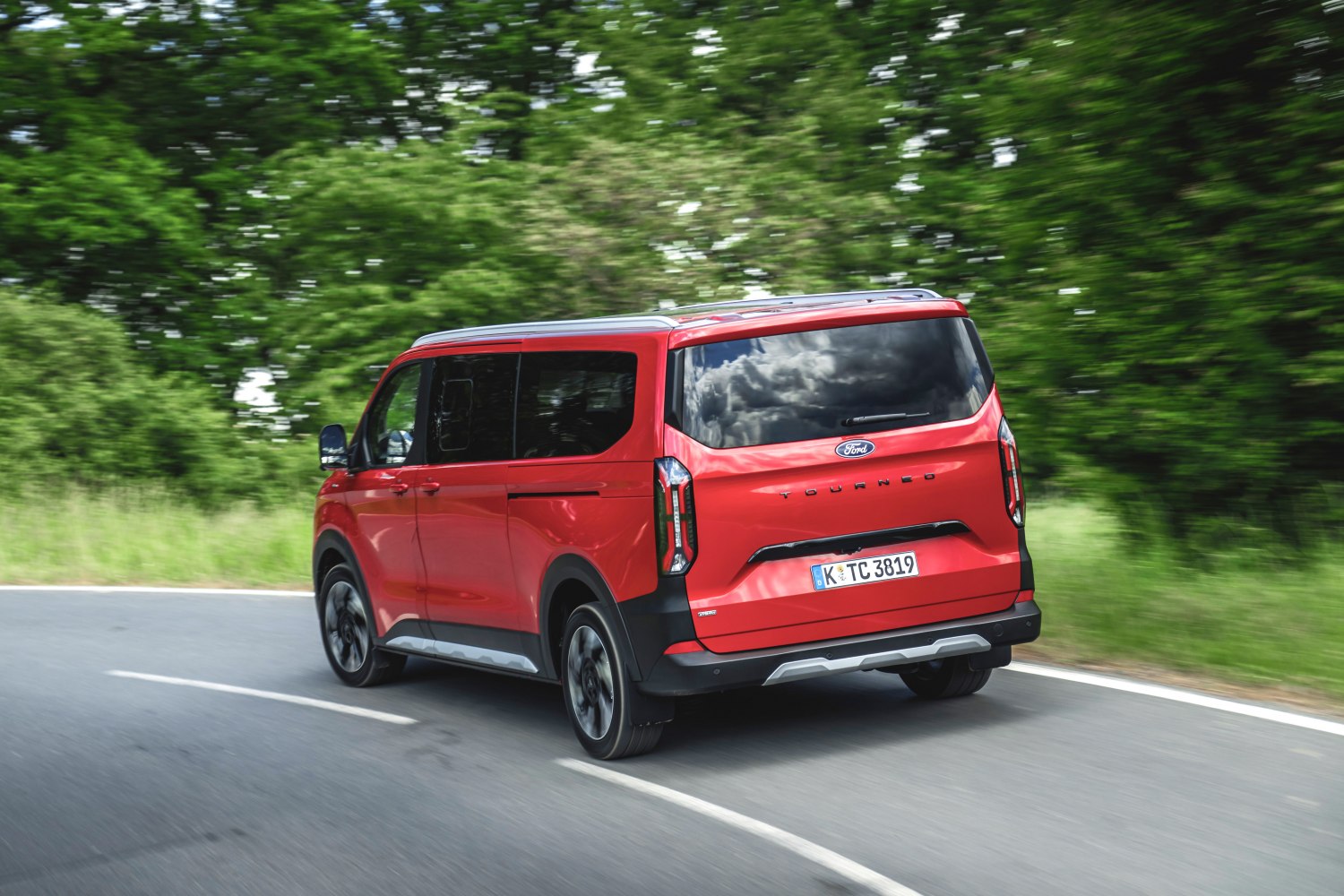

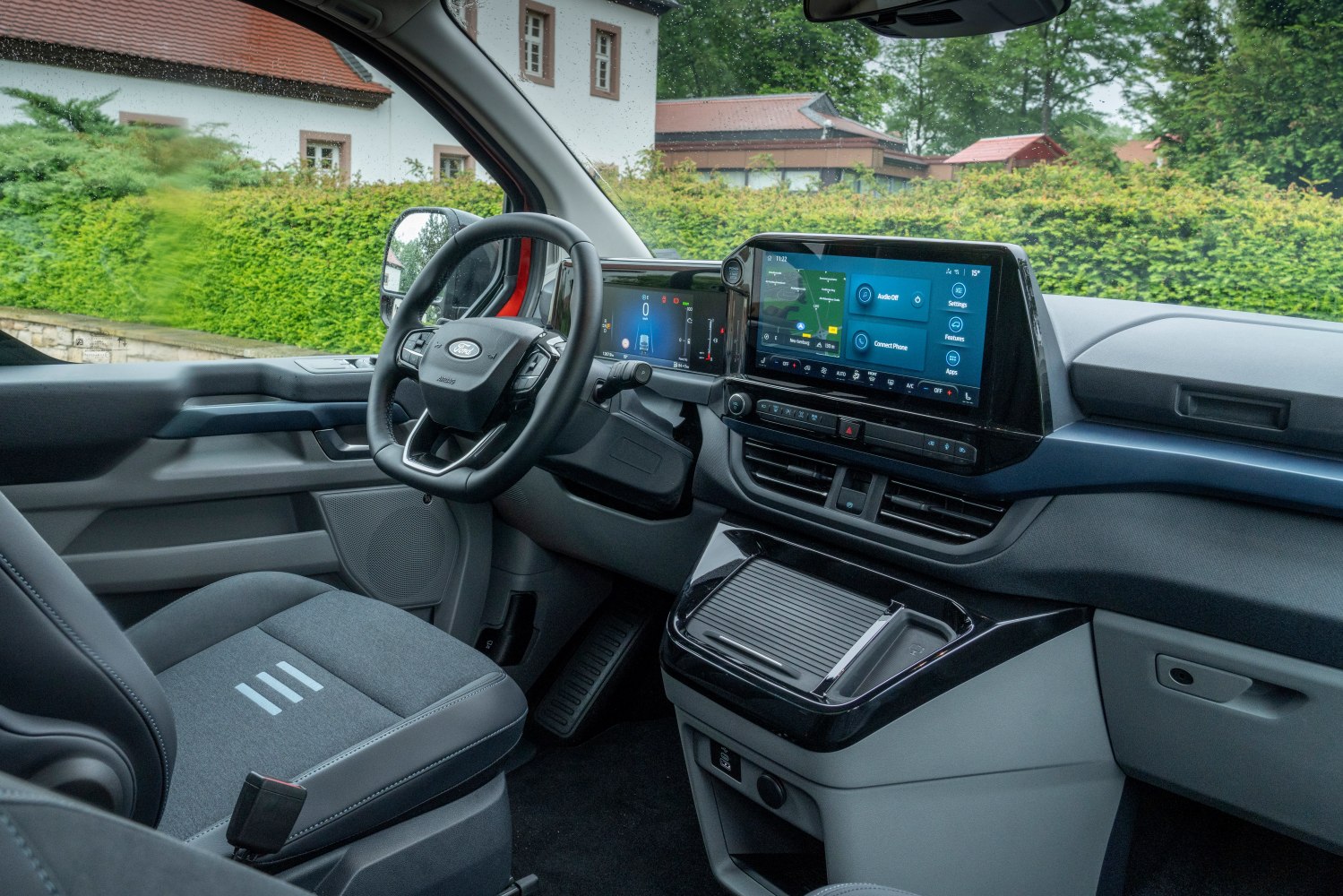

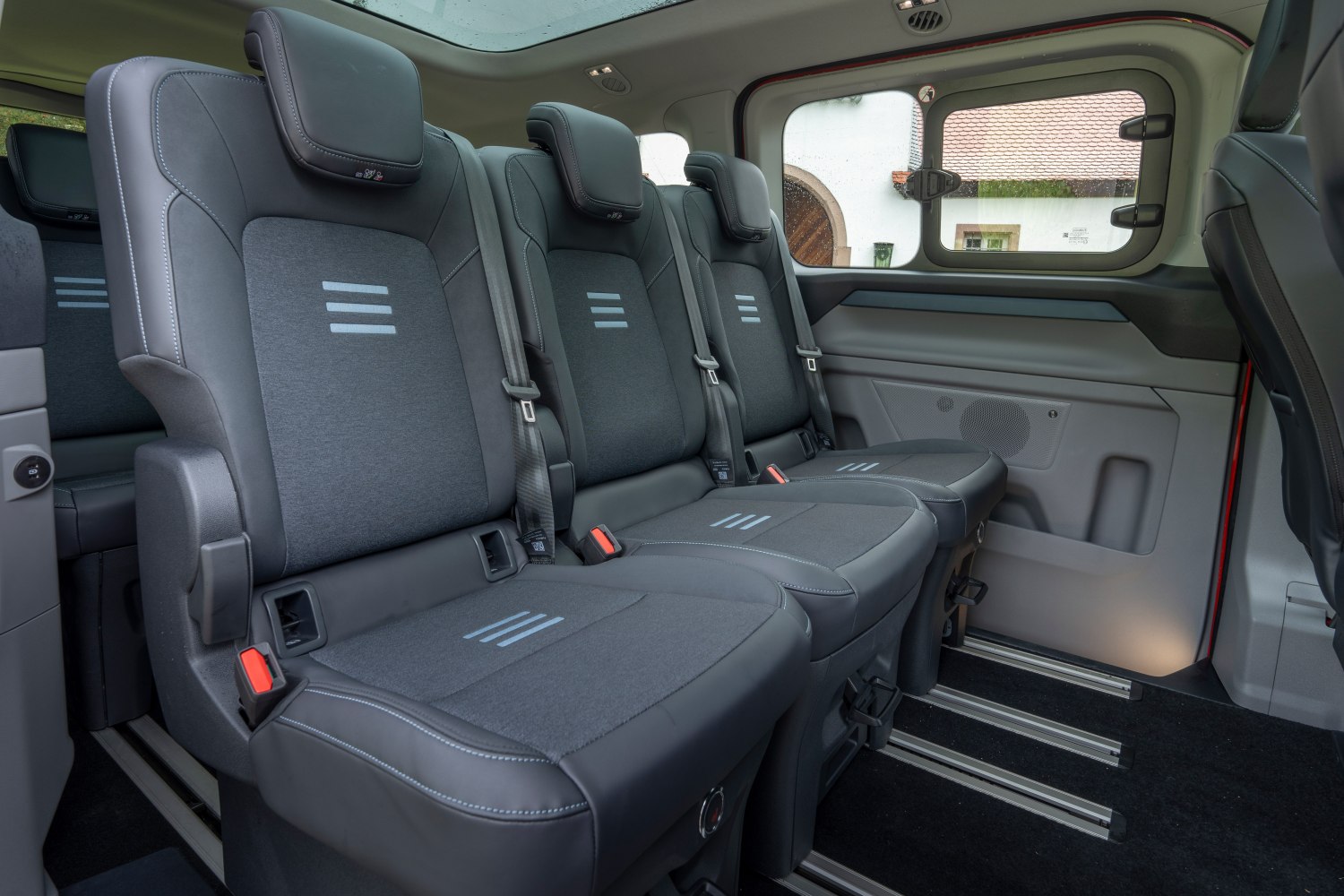

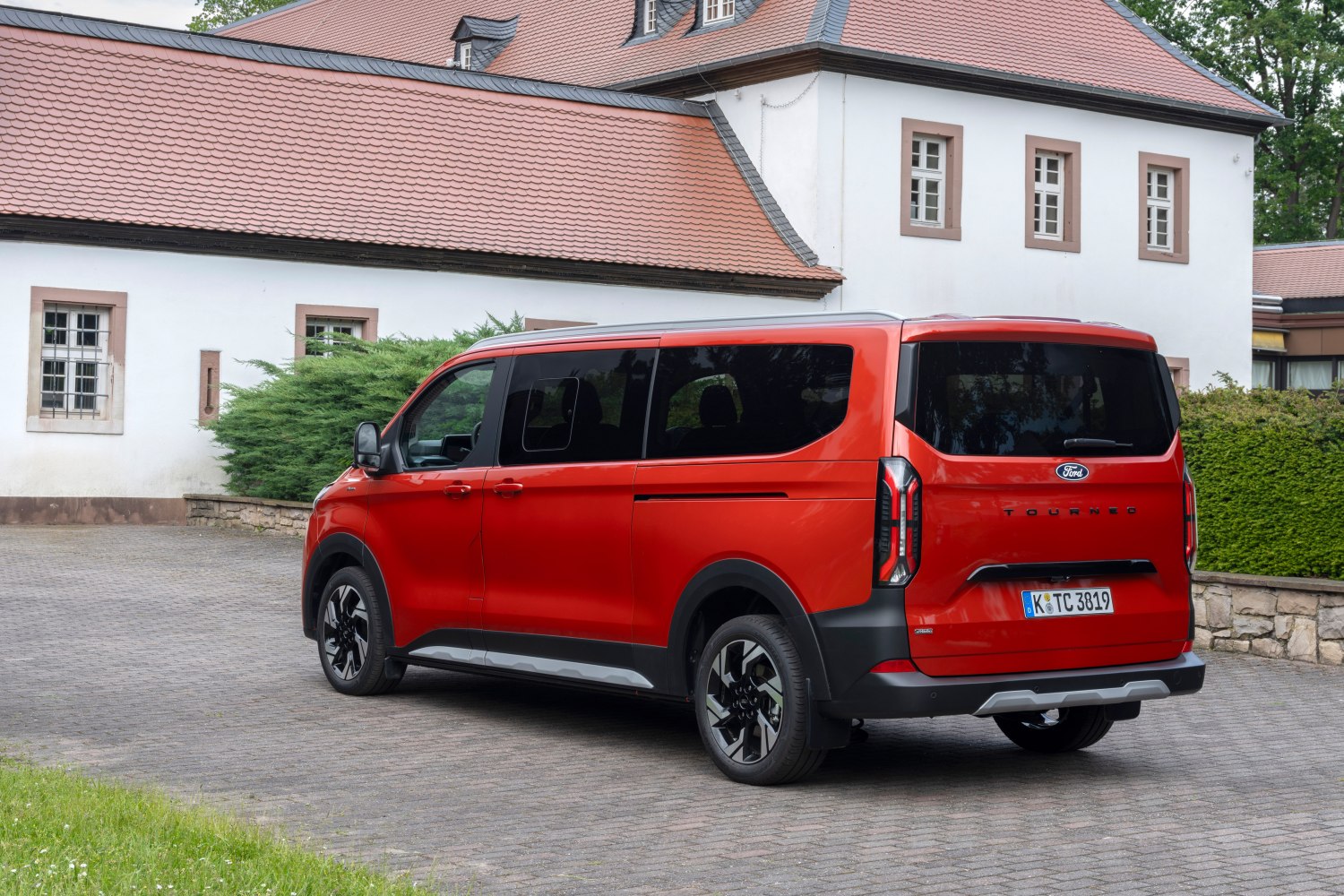

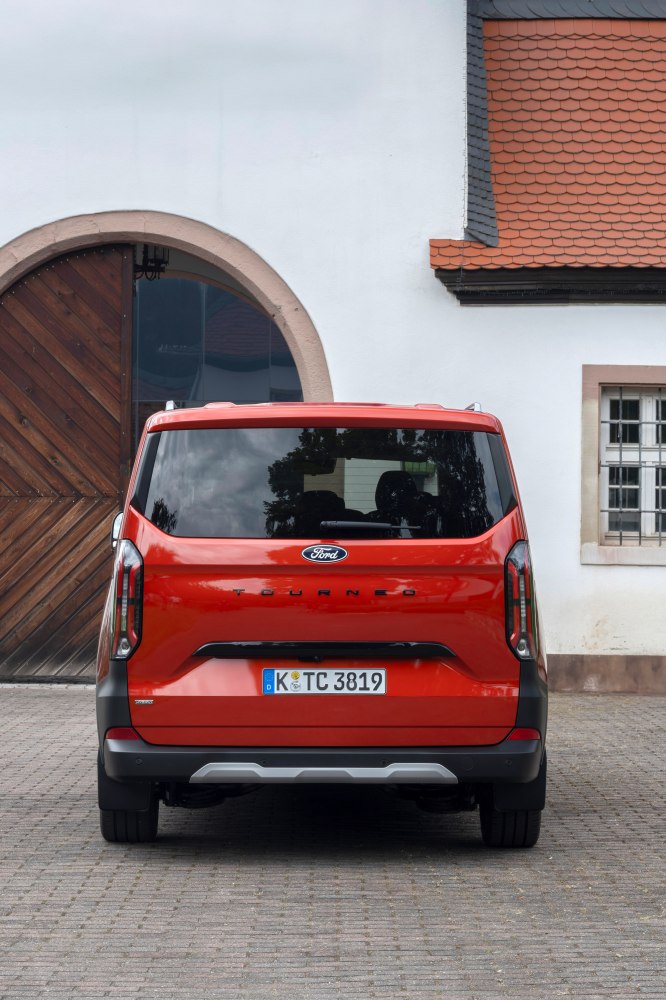

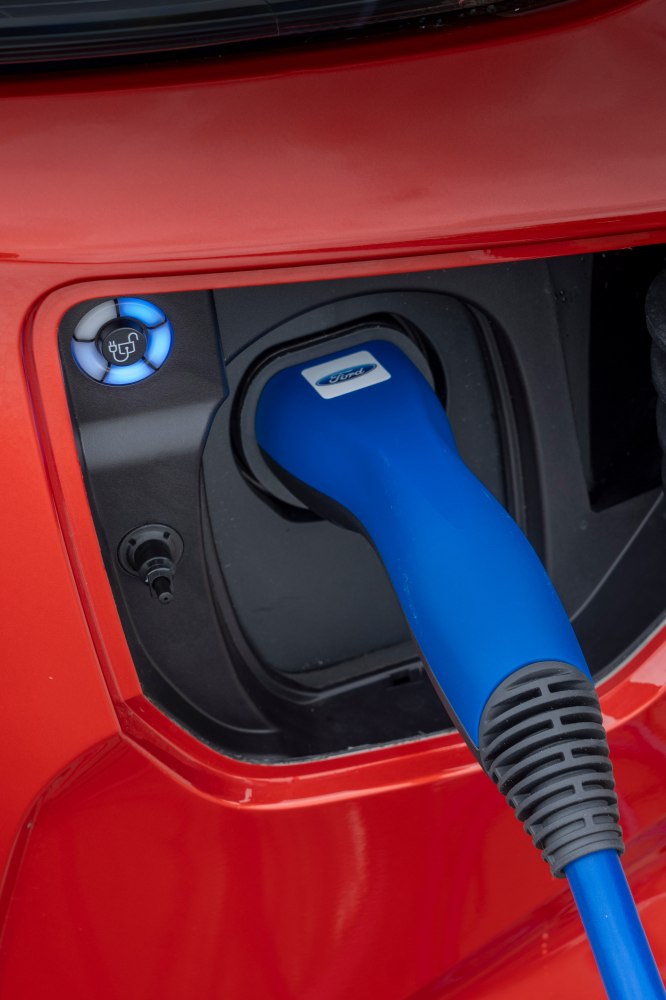

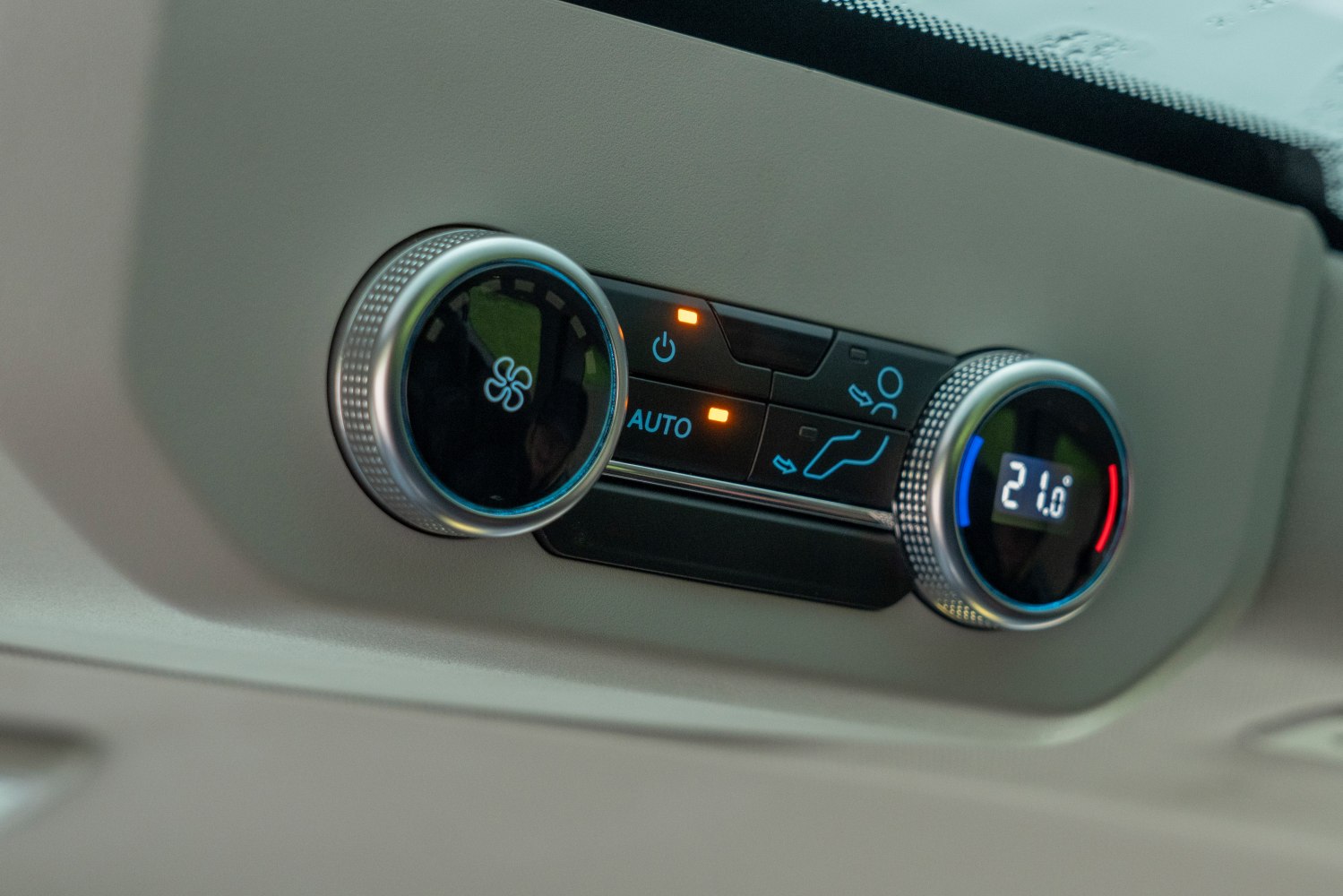

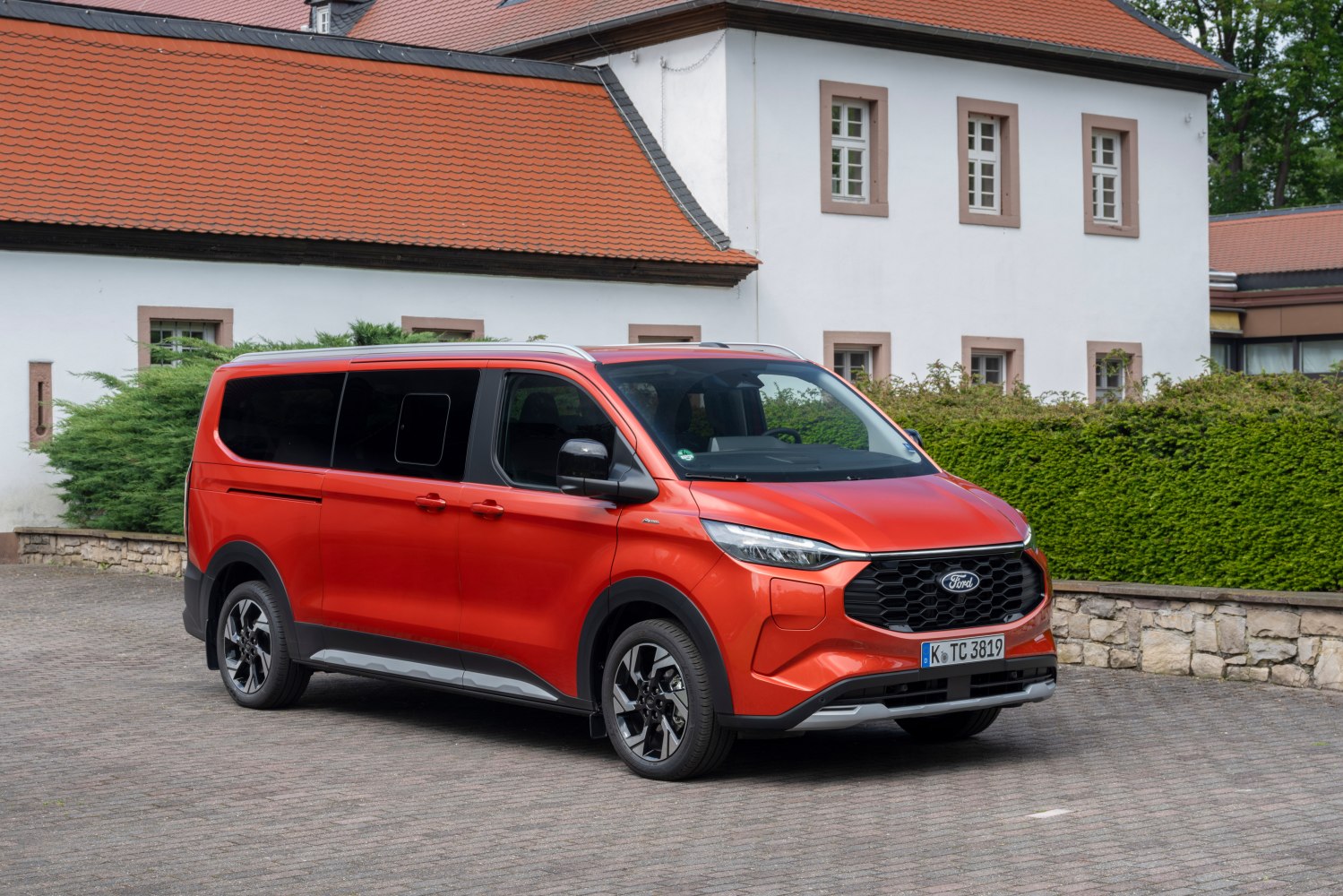

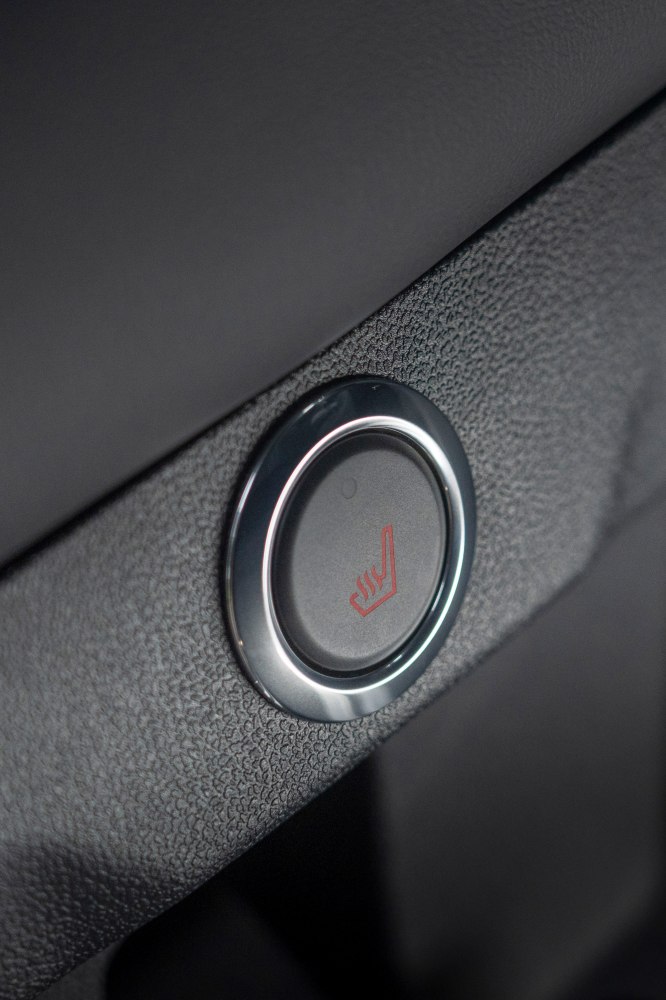

Ford Tourneo Custom 2 L2 2024 Gallery
Ford Tourneo Custom 2 L2 2024 Technical Specifications
General
Body type
Van
Brand
Ford
Doors
4-5
Generation
Tourneo Custom II L2
Model
Tourneo Custom
Modification (Engine)
2.5 Duratec (233 Hp) Plug-in Hybrid CVT
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
8-9
Start of production
March, 2024
Performance
CO2 emissions (WLTP)
40-65 g/km
Combined fuel consumption (WLTP)
1.8-2.9 l/100 km
Emission standard
Euro 6.2
Fuel Type
Petrol / electricity
Electric
All-electric range (WLTP)
40-51 km
Average Energy consumption (WLTP)
19.9-26.2 kWh/100 km
Battery location
Below the floor
Charging ports number 0
Log in to see.
Electric motor Torque number 1
320 Nm
Electric motor location number 1
Integrated into the transmission
Electric motor power number 1
152 Hp
Electric motor type number 1
Synchronous
Gross battery capacity
16.5 kWh
Net (usable) battery capacity
11.8 kWh
System power
233 Hp
Internal Engine
Compression ratio
13:1
Cylinder Bore
89 mm
Engine Model/Code
BGFA
Engine aspiration
Naturally aspirated engine
Engine configuration
Inline
Engine displacement
2488 cm
Engine layout
Front, Transverse
Fuel injection system
Multi-port manifold injection
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
100 mm
Power
118 Hp
Power per litre
47.4 Hp/l
Torque
205 Nm
Valvetrain
DOHC, VCT
Dimensions
Approach angle
17.2°
Departure angle
16.4°
Front overhang
958 mm
Front track
1730 mm
Height
1963-2031 mm
Length
5450 mm
Minimum turning circle (turning diameter)
12.8-13.6 m
Rear (Back) track
1721 mm
Rear overhang
992 mm
Ride height (ground clearance)
140 mm
Wheelbase
3500 mm
Width
2032 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 308 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
automatic transmission CVT
Power steering
Electric Steering
Rear brakes
Ventilated discs, 304 mm
Rear suspension
Independent coil spring, Trailing arm
Steering type
Steering rack and pinion
Tires size
215/65 R16; 215/60 R17; 235/50 R19

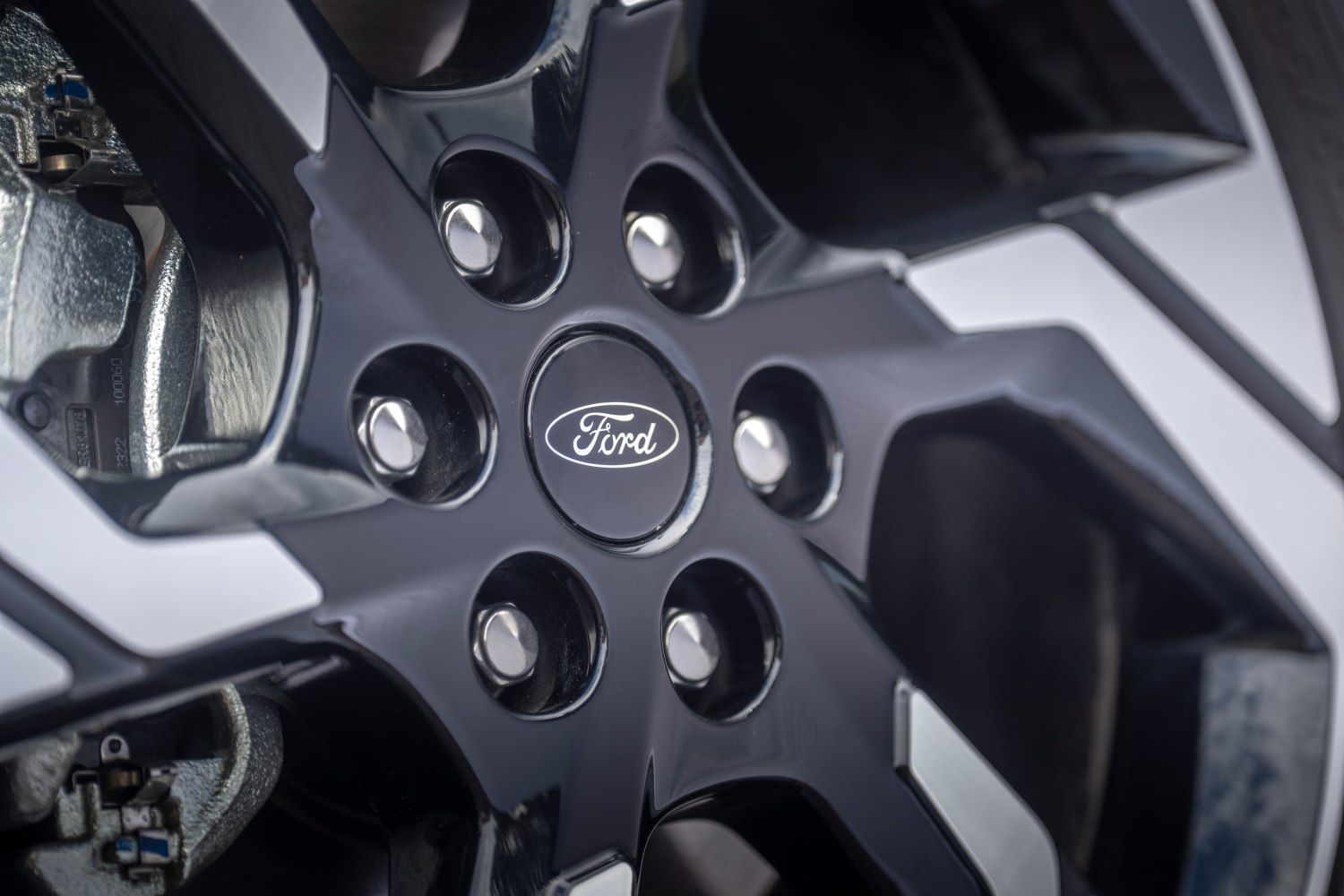

Wheel rims size
6.5J x 16; 6.5J x 17; 7.5J x 19
Space
Fuel tank capacity
63 l
