Volvo V90 Cross Country 2020
2.0 B5 Diesel (235 Hp) Mild Hybrid AWD Geartronic
Hybrid Car
Body Type Station wagon (estate), Crossover
Seats 5
2022
End Year
180 km/h
Maximum Speed
5
Doors
Volvo V90 Cross Country 2020 Key Specs
Acceleration 0 - 100 Km/h
7.5 sec
Acceleration 0 - 62 Mph
7.5 sec
Battery Voltage
48 V
Body Type
Station wagon (estate), Crossover
Doors
5
Drive Wheel
All wheel drive (4x4)
End Of Production
2022
Engine Aspiration
Twin-Turbo, Intercooler
Engine Oil Capacity
5.6 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
71 l
Generation
V90 Cross Country (2020)
Kerb Weight
1907 kg
Maximum Speed
180 km/h, Electronically limited
Modification (Engine)
2.0 B5 Diesel (235 Hp) Mild Hybrid AWD Geartronic
Number Of Cylinders
4
Power
235 Hp @ 4000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start Of Production
June, 2020
Wheel Rims Size
7.5J x 19; 8J x 20; 8J x 21

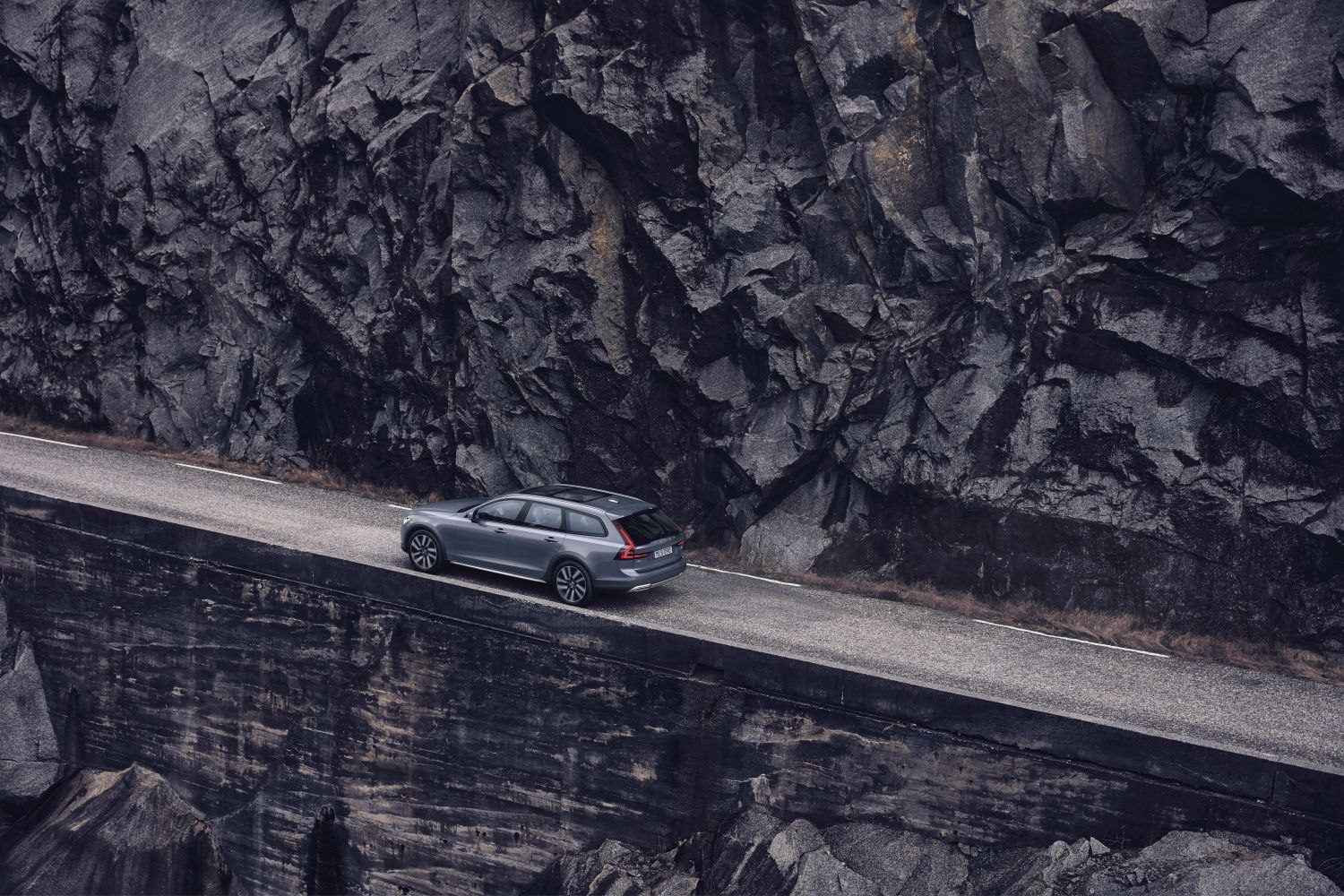

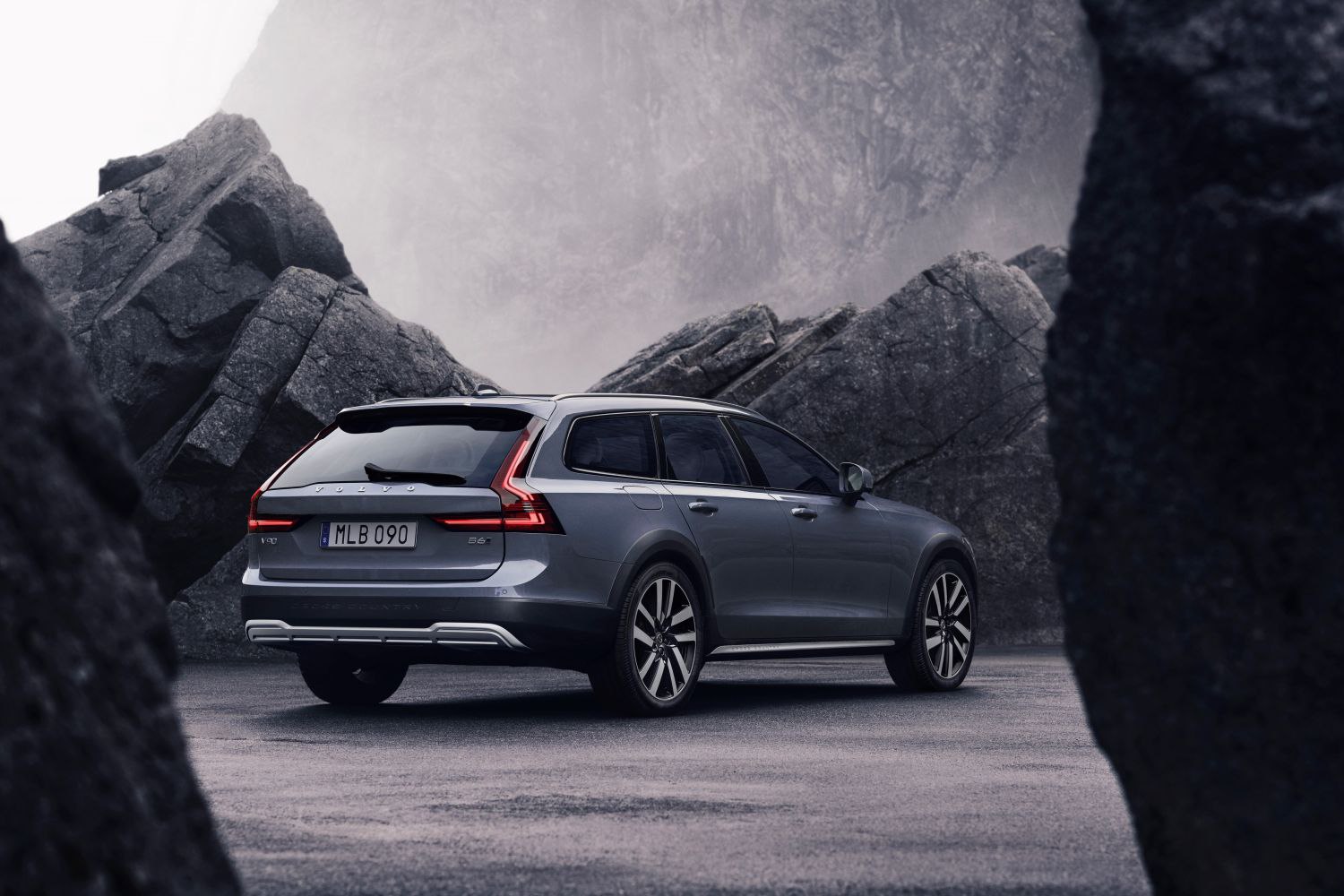

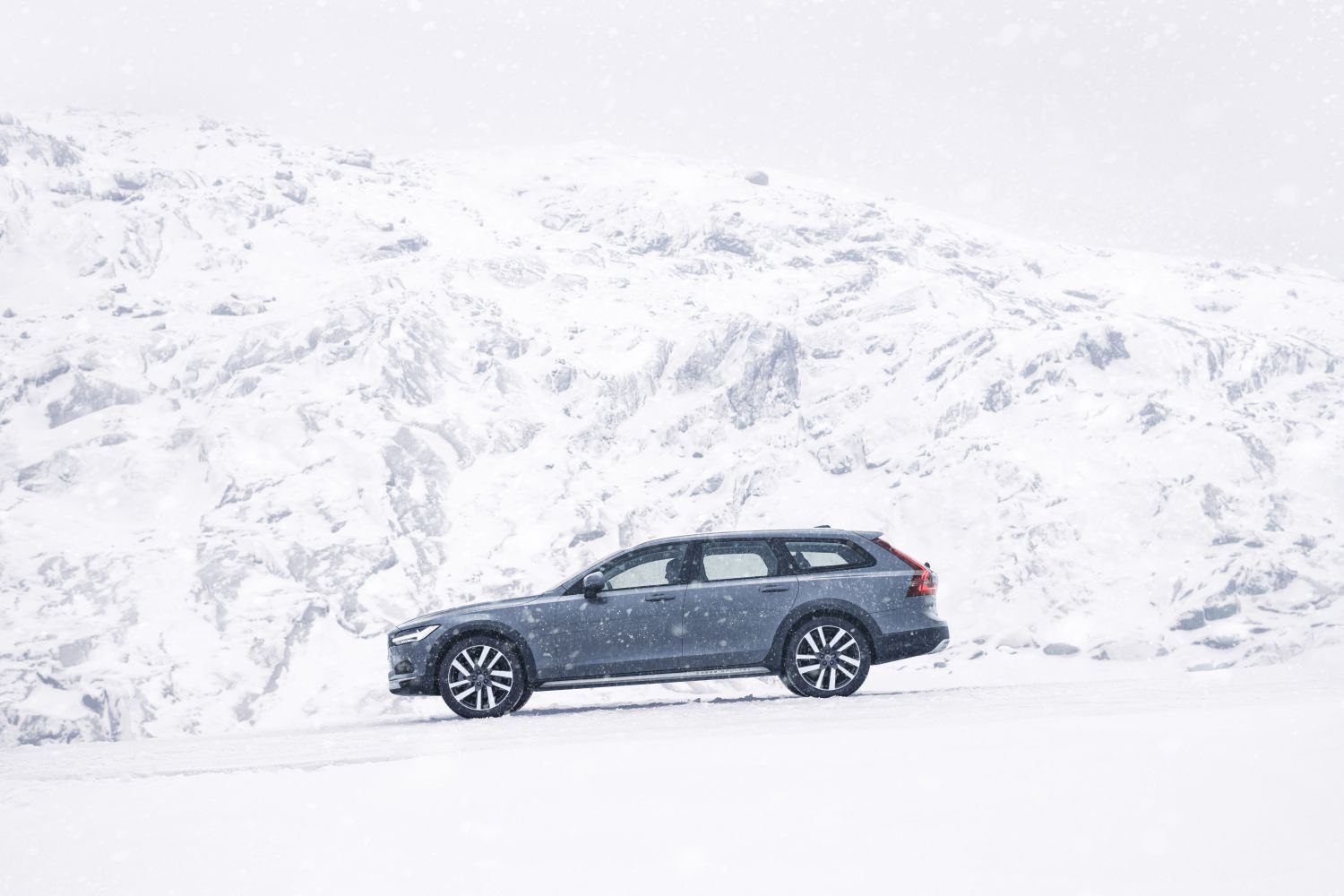

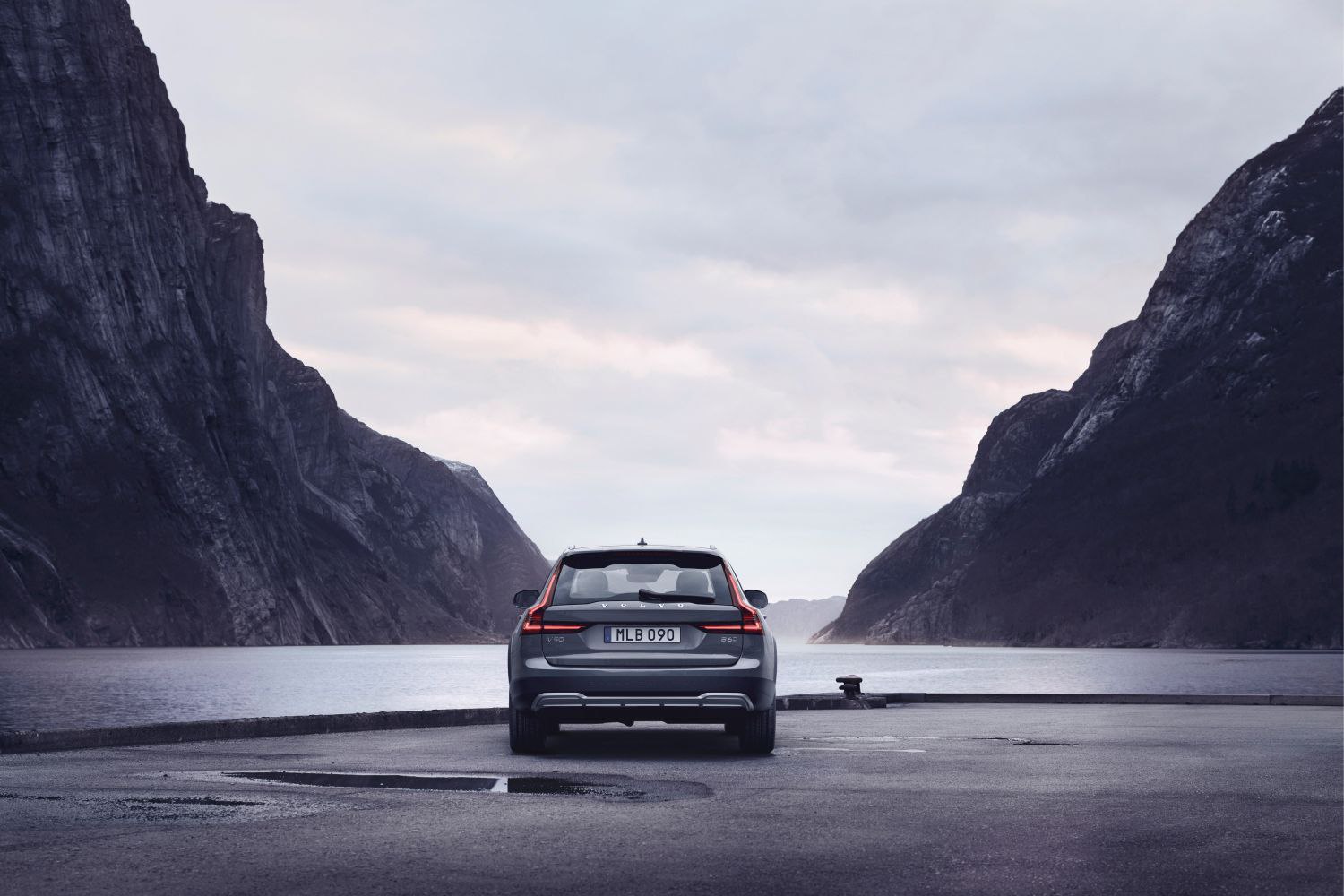

Volvo V90 Cross Country 2020 Gallery
Volvo V90 Cross Country 2020 Technical Specifications
General
Body type
Station wagon (estate), Crossover
Brand
Volvo
Doors
5
End of production
2022
Generation
V90 Cross Country (2020)
Model
V90
Modification (Engine)
2.0 B5 Diesel (235 Hp) Mild Hybrid AWD Geartronic
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start of production
June, 2020
Performance
100 km/h - 0
35 m
Acceleration 0 - 100 km/h
7.5 sec
Acceleration 0 - 60 mph
7.1 sec
Acceleration 0 - 62 mph
7.5 sec
CO2 emissions (NEDC, WLTP equivalent)
140-144 g/km
CO2 emissions (WLTP)
162-179 g/km
Combined fuel consumption (WLTP)
6.2-6.8 l/100 km
Emission standard
Euro 6d
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC, WLTP equivalent)
5.3-5.5 l/100 km
Fuel consumption (economy) - extra urban (NEDC, WLTP equivalent)
4.8-4.9 l/100 km
Fuel consumption (economy) - urban (NEDC, WLTP equivalent)
6.2-6.5 l/100 km
Maximum speed
180 km/h, Electronically limited
Electric
Battery voltage
48 V
Electric motor Torque number 1
40 Nm
Electric motor power number 1
14 Hp
Internal Engine
Compression ratio
15.8:1
Cylinder Bore
82 mm
Engine Model/Code
D420T2
Engine aspiration
Twin-Turbo, Intercooler
Engine configuration
Inline
Engine displacement
1969 cm
Engine layout
Front, Transverse
Engine oil capacity
5.6 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Maximum engine speed
5000 rpm.
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
93.2 mm
Power
235 Hp @ 4000 rpm.
Power per litre
119.3 Hp/l
Torque
480 Nm @ 1750-2250 rpm.
Valvetrain
DOHC
Dimensions
Approach angle
18.9°
Departure angle
20.8°
Drag coefficient (Cd)
0.35-0.37
Front overhang
893 mm
Front track
1652-1655 mm
Height
1537 mm
Length
4959 mm
Minimum turning circle (turning diameter)
12 m
Ramp-over (brakeover) angle
17.7°
Rear (Back) track
1643-1645 mm
Rear overhang
1125 mm
Ride height (ground clearance)
201 mm
Wading depth
300 mm
Wheelbase
2941 mm
Width
1879 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs, 345x30 mm
Front suspension
Coil spring, Double wishbone, Transverse stabilizer
Number of gears and type of gearbox
8 gears, automatic transmission Geartronic
Power steering
Electric Steering
Rear brakes
Ventilated discs, 320x20 mm
Rear suspension
Transverse stabilizer, Leaf spring, Air Suspension - Optional
Steering type
Steering rack and pinion
Tires size
235/50 R19; 245/45 R20; 245/40 R21
Wheel rims size
7.5J x 19; 8J x 20; 8J x 21
Space
AdBlue tank
11.5 l
Fuel tank capacity
71 l
Kerb Weight
1907 kg
Max load
603 kg
Max. roof load
100 kg
Max. weight
2510 kg
Permitted towbar download
100 kg
