Volvo S90 2020
2.0 B5 Diesel (235 Hp) Mild Hybrid AWD Geartronic
Hybrid Car
Body Type Sedan
Seats 5
2024
End Year
180 km/h
Maximum Speed
4
Doors
Volvo S90 2020 Key Specs
Acceleration 0 - 100 Km/h
7 sec
Acceleration 0 - 62 Mph
7 sec
Battery Voltage
48 V
Body Type
Sedan
Doors
4
Drive Wheel
All wheel drive (4x4)
End Of Production
2024
Engine Aspiration
Twin-Turbo, Intercooler
Engine Oil Capacity
5.6 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
60 l
Generation
S90 (2020)
Kerb Weight
1843 kg
Maximum Speed
180 km/h, Electronically limited
Modification (Engine)
2.0 B5 Diesel (235 Hp) Mild Hybrid AWD Geartronic
Number Of Cylinders
4
Power
235 Hp @ 4000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start Of Production
June, 2020
Wheel Rims Size
8J x 18; 8.5J x 19; 8.5J x 20; 8.5J x 21

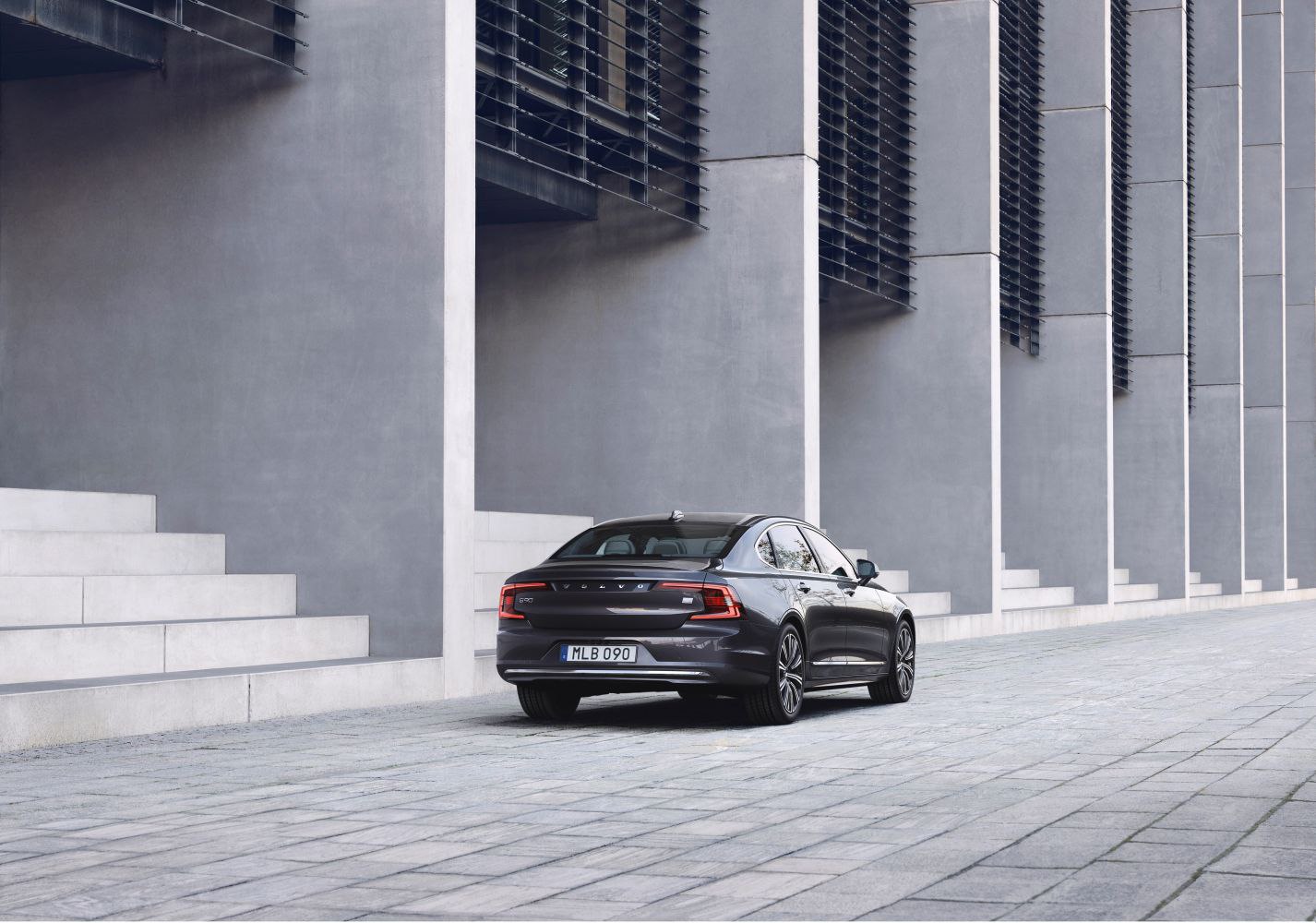

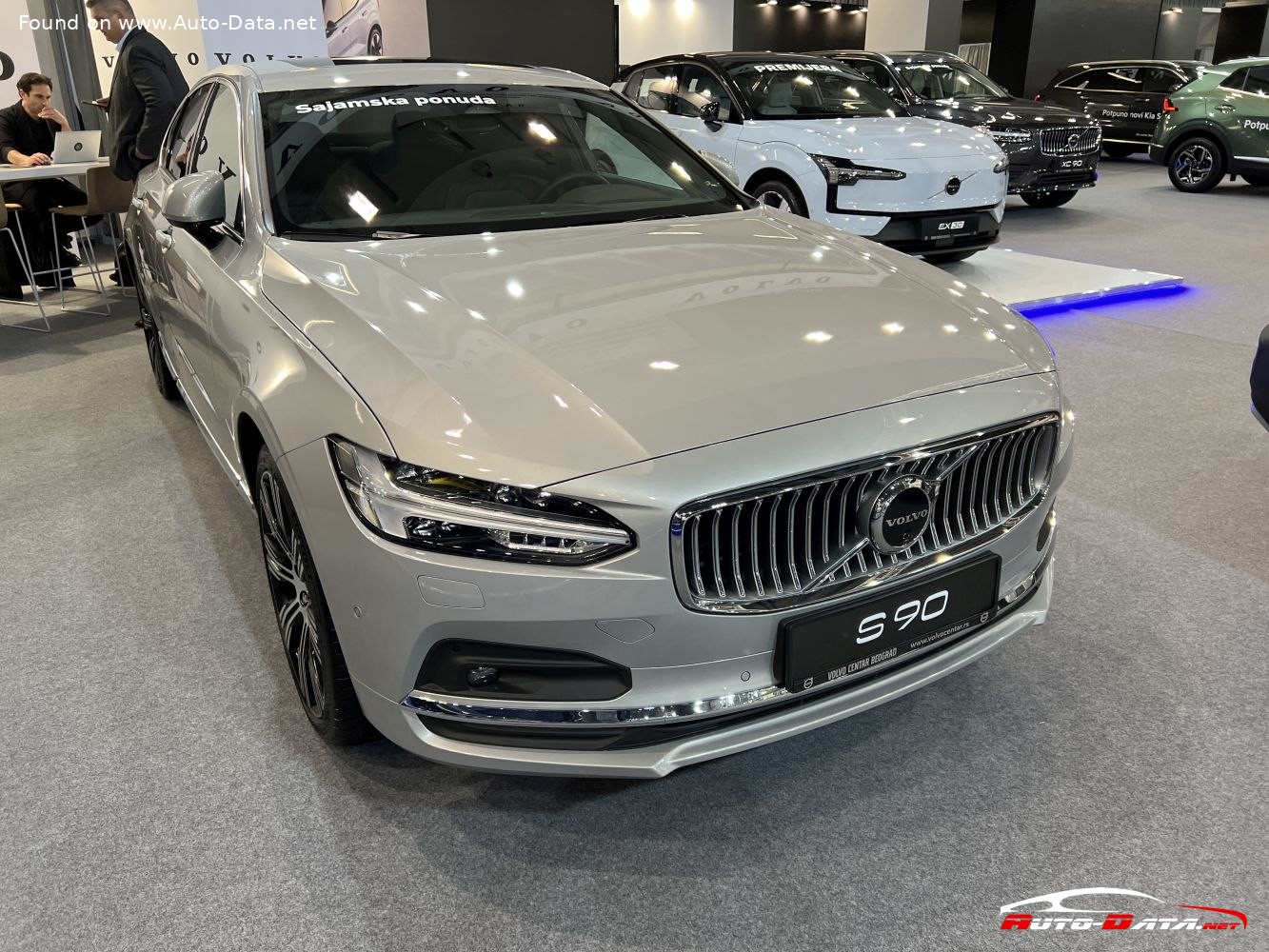

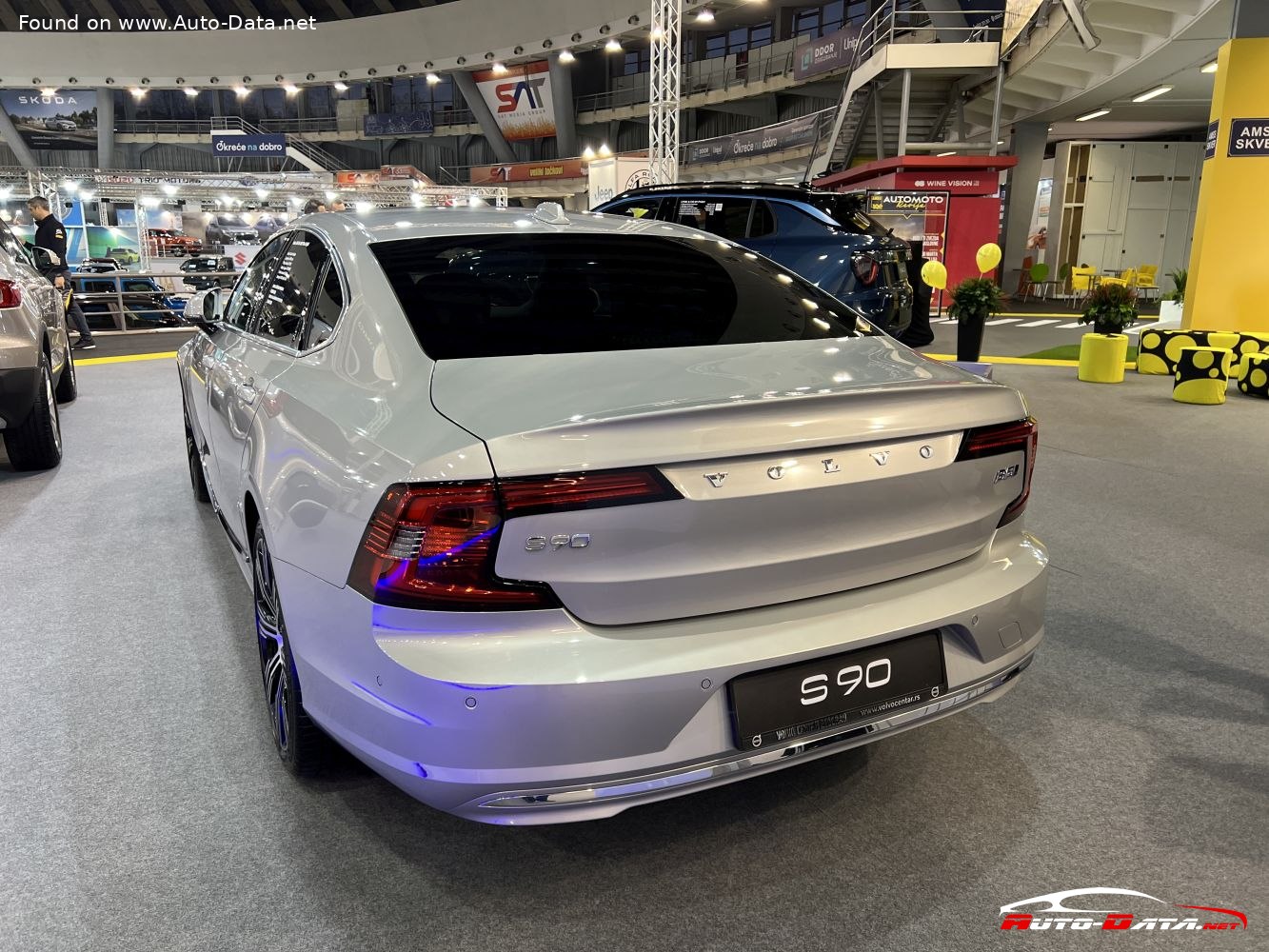

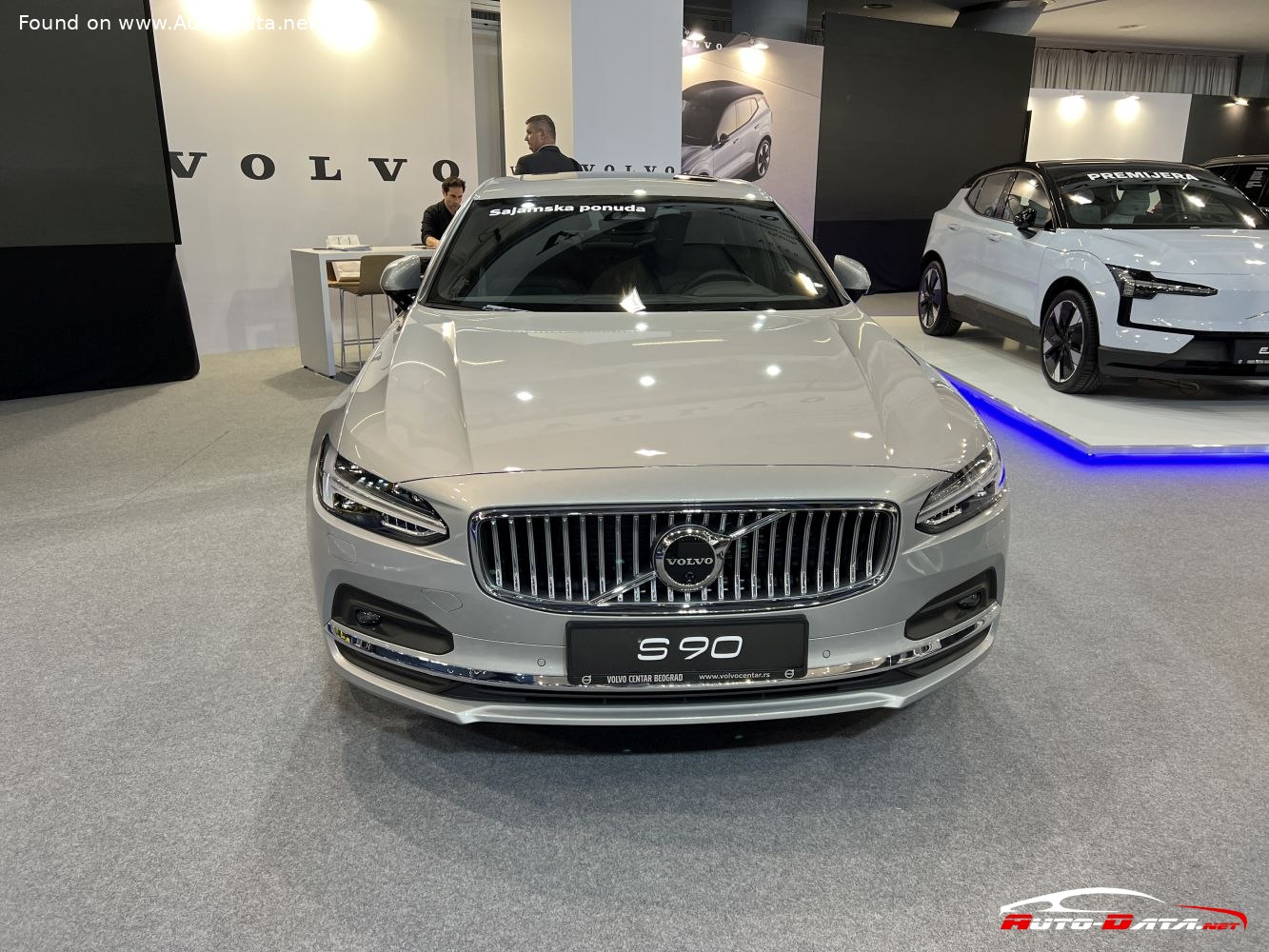

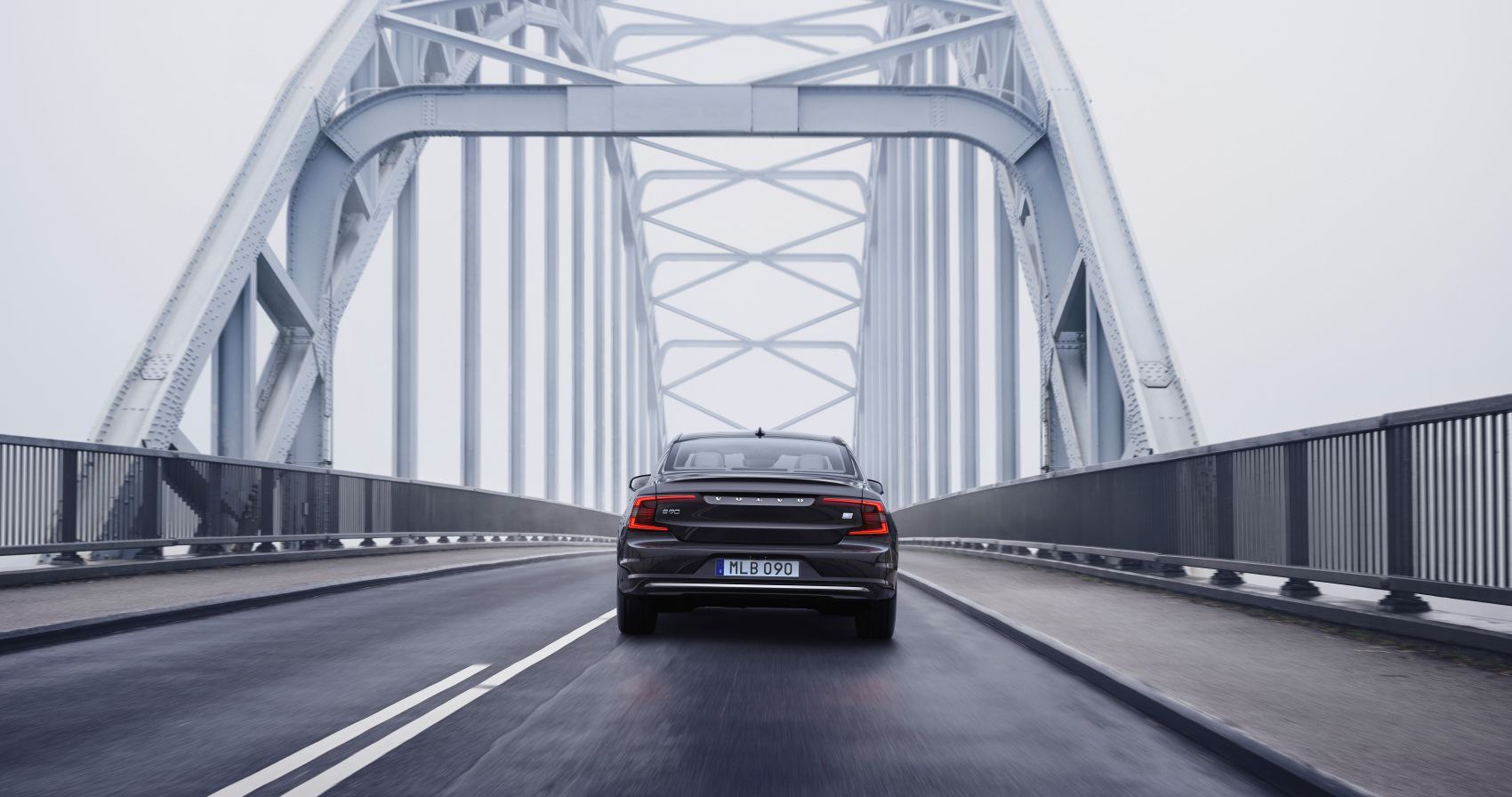

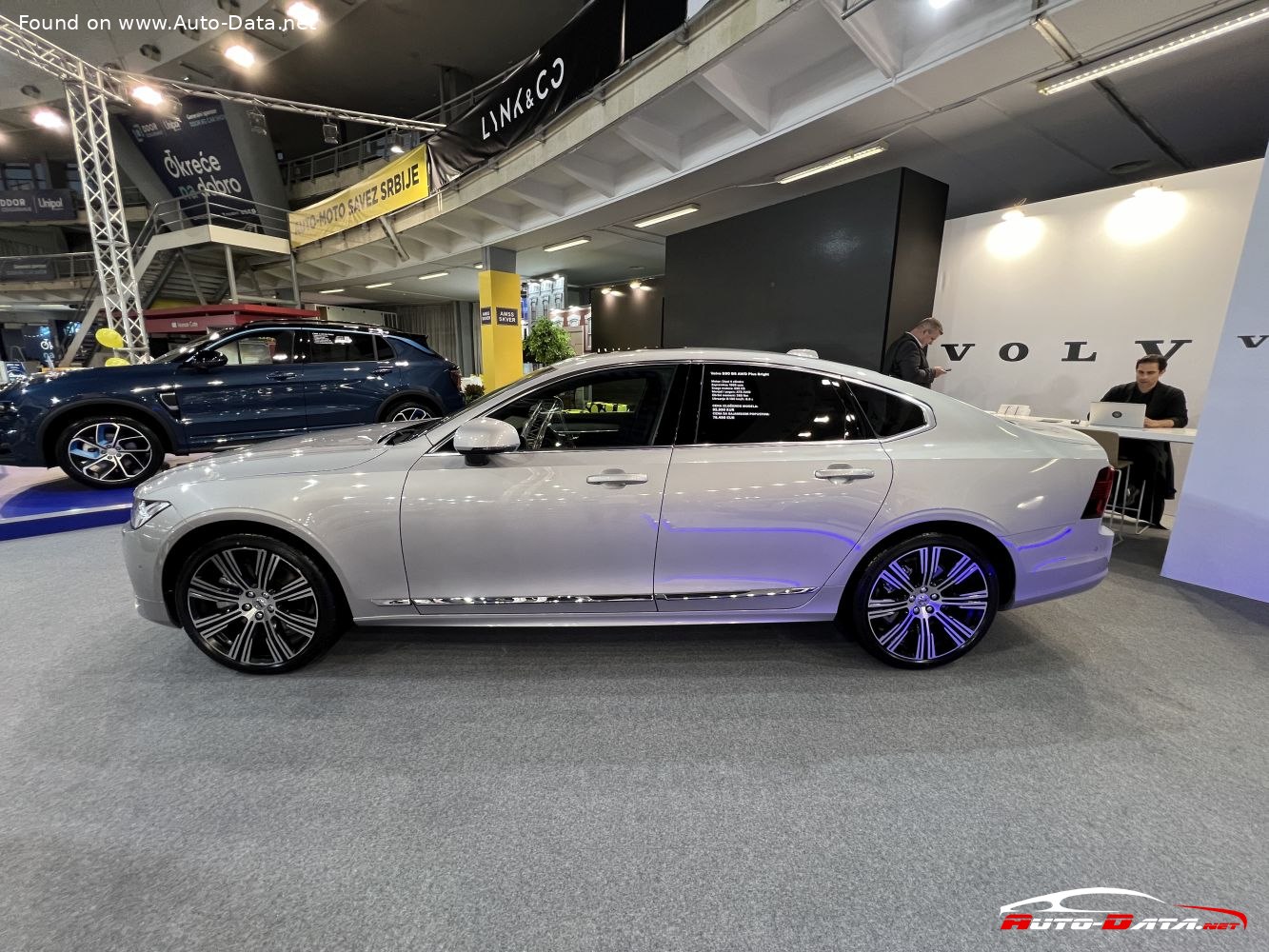

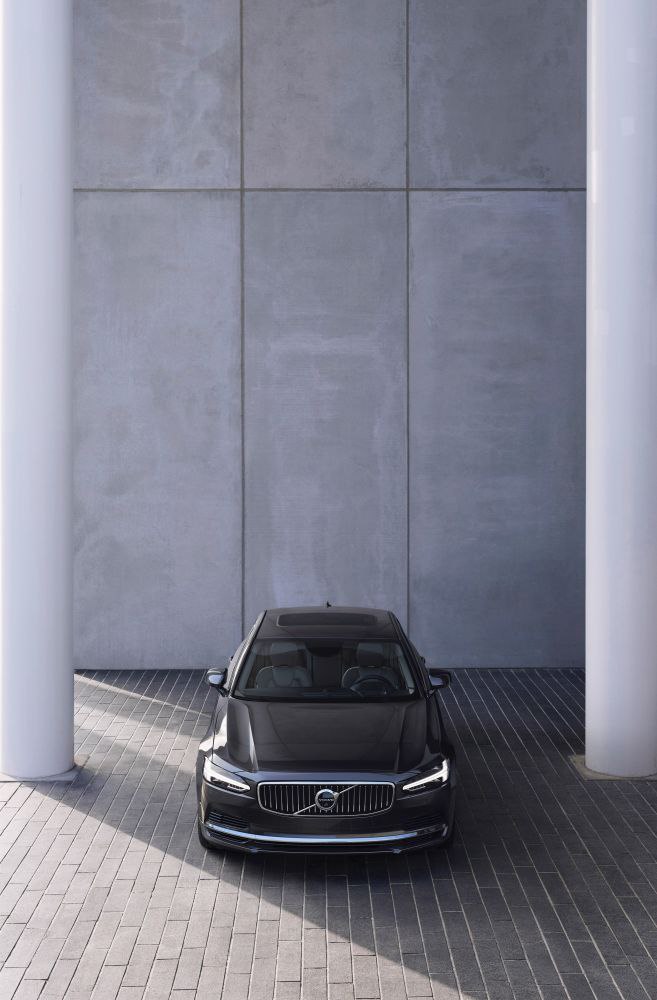

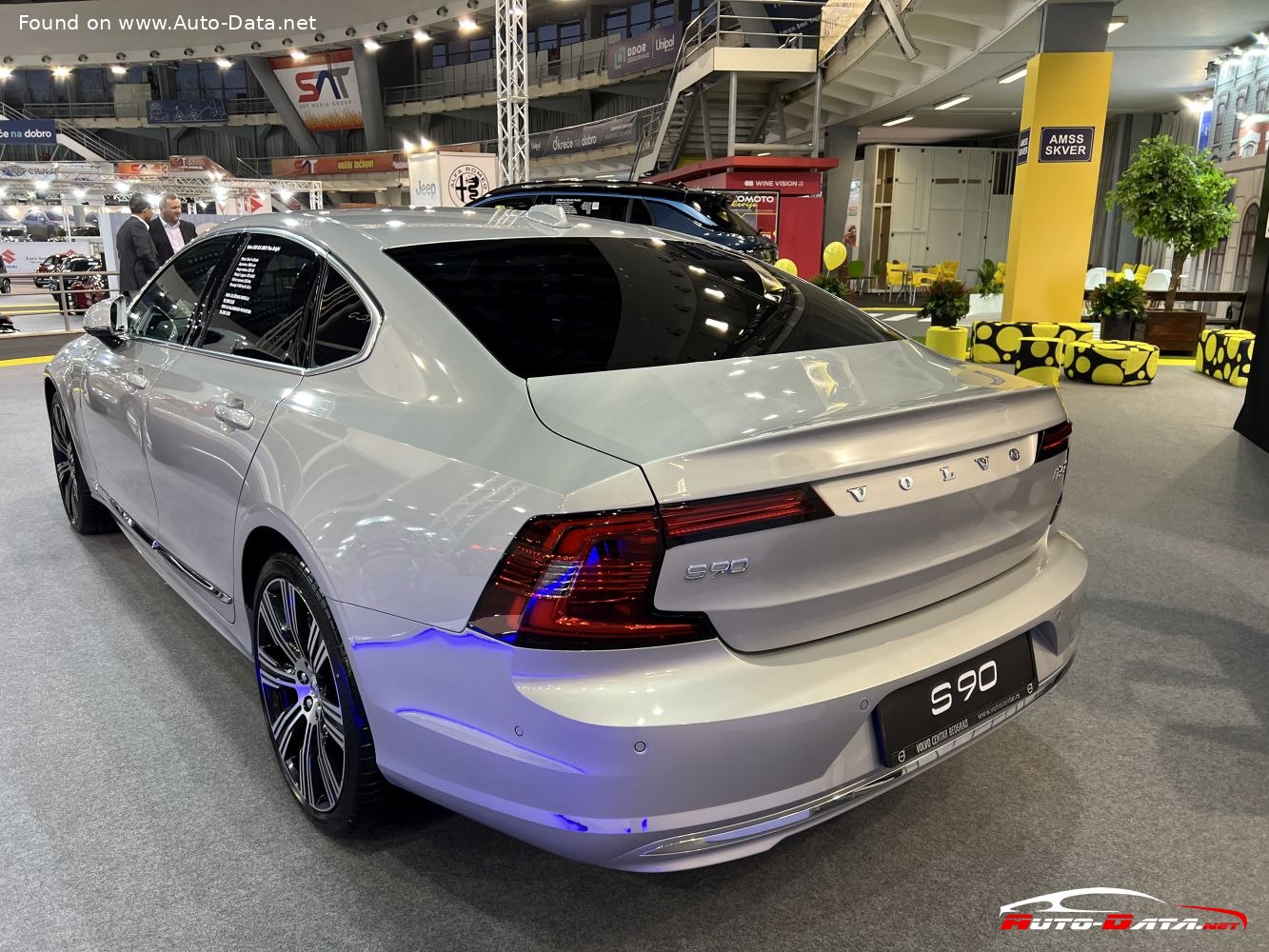

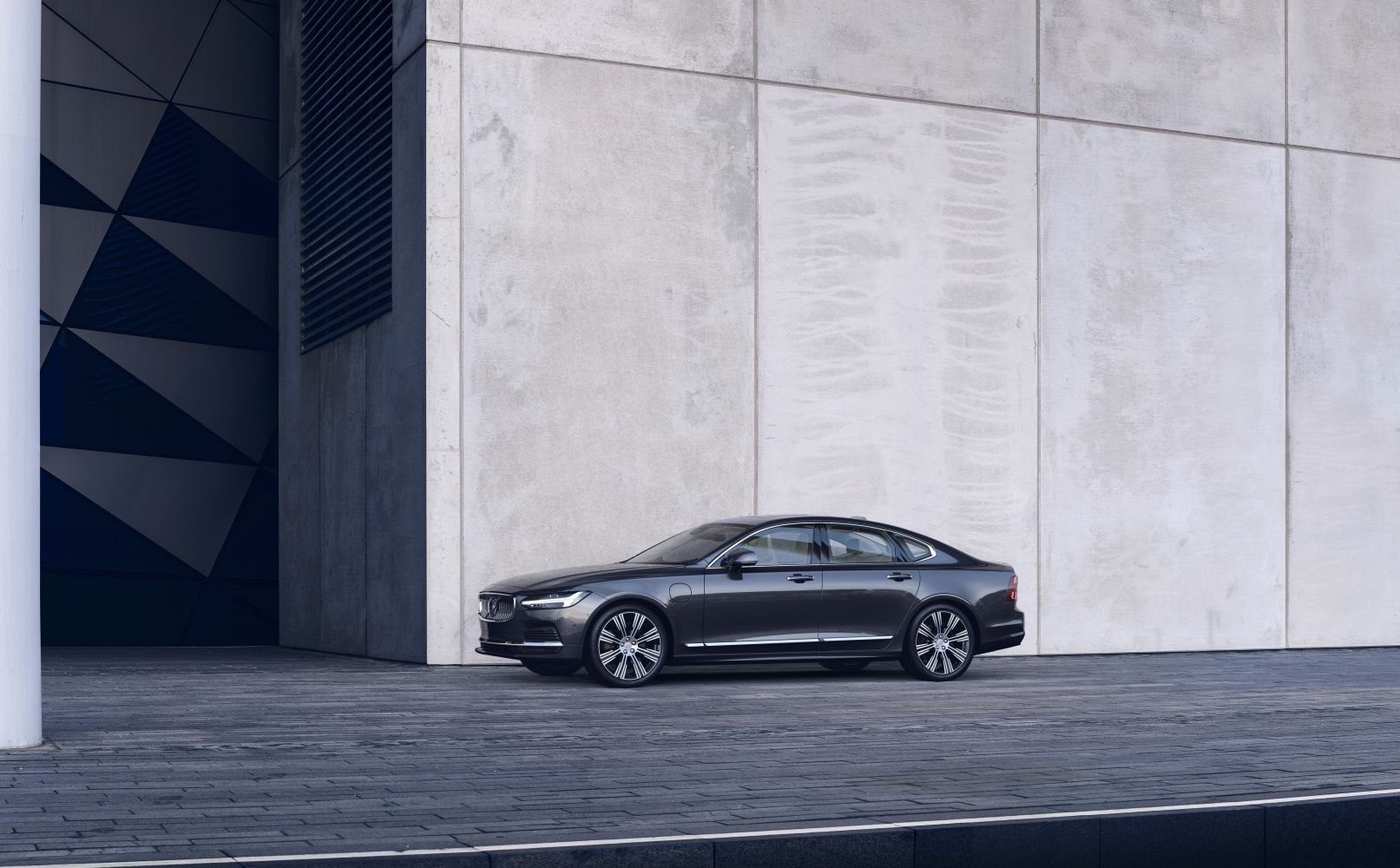

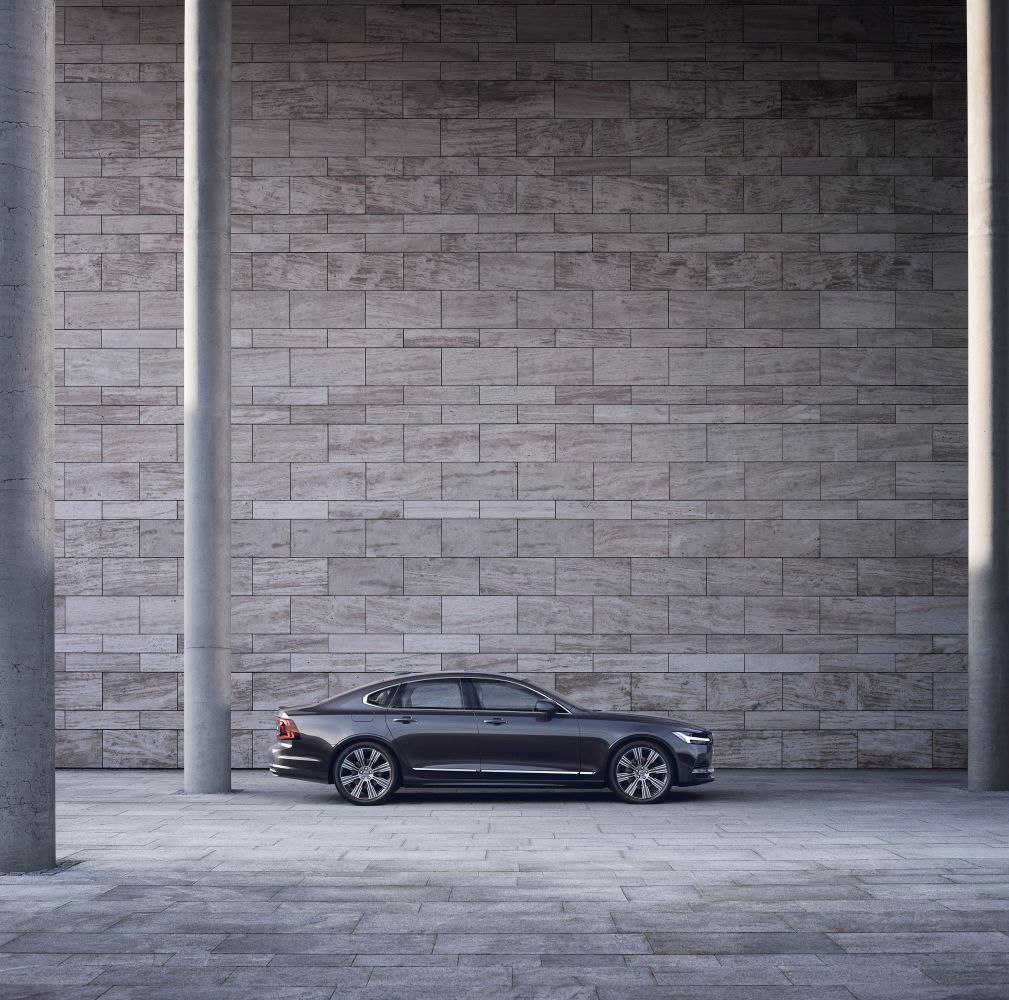

Volvo S90 2020 Gallery
Volvo S90 2020 Technical Specifications
General
Body type
Sedan
Brand
Volvo
Doors
4
End of production
2024
Generation
S90 (2020)
Model
S90
Modification (Engine)
2.0 B5 Diesel (235 Hp) Mild Hybrid AWD Geartronic
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start of production
June, 2020
Performance
100 km/h - 0
35 m
Acceleration 0 - 100 km/h
7 sec
Acceleration 0 - 60 mph
6.7 sec
Acceleration 0 - 62 mph
7 sec
CO2 emissions (NEDC, WLTP equivalent)
128-132 g/km
CO2 emissions (WLTP)
148-174 g/km
Combined fuel consumption (WLTP)
5.7-6.6 l/100 km
Emission standard
Euro 6d
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC, WLTP equivalent)
4.9-5 l/100 km
Fuel consumption (economy) - extra urban (NEDC, WLTP equivalent)
4.3-4.4 l/100 km
Fuel consumption (economy) - urban (NEDC, WLTP equivalent)
5.8-6 l/100 km
Maximum speed
180 km/h, Electronically limited
Electric
Battery voltage
48 V
Electric motor Torque number 1
40 Nm
Electric motor power number 1
14 Hp
Internal Engine
Compression ratio
15.8:1
Cylinder Bore
82 mm
Engine Model/Code
D420T2
Engine aspiration
Twin-Turbo, Intercooler
Engine configuration
Inline
Engine displacement
1969 cm
Engine layout
Front, Transverse
Engine oil capacity
5.6 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Maximum engine speed
5000 rpm.
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
93.2 mm
Power
235 Hp @ 4000 rpm.
Power per litre
119.3 Hp/l
Torque
480 Nm @ 1750-2250 rpm.
Valvetrain
DOHC
Dimensions
Drag coefficient (Cd)
0.26-0.29
Front overhang
879 mm
Front track
1617-1628 mm
Height
1440 mm
Length
4969 mm
Minimum turning circle (turning diameter)
11.8-12.2 m
Rear (Back) track
1618-1629 mm
Rear overhang
1149 mm
Ride height (ground clearance)
153 mm
Wading depth
250 mm
Wheelbase
2941 mm
Width
1879 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs, 345x30 mm
Front suspension
Coil spring, Double wishbone, Transverse stabilizer
Number of gears and type of gearbox
8 gears, automatic transmission Geartronic
Power steering
Electric Steering
Rear brakes
Ventilated discs, 320x20 mm
Rear suspension
Transverse stabilizer, Leaf spring
Steering type
Steering rack and pinion
Tires size
245/45 R18; 255/40 R19; 255/35 R20; 245/35 R21
Wheel rims size
8J x 18; 8.5J x 19; 8.5J x 20; 8.5J x 21
Space
AdBlue tank
11.5 l
Fuel tank capacity
60 l
Kerb Weight
1843 kg
Max load
577 kg
Max. roof load
100 kg
Max. weight
2420 kg
Permitted towbar download
100 kg
