Kia Sportage 5 2024
1.6 CRDi (136 Hp) Mild Hybrid
Hybrid Car
Body Type SUV
Seats 5
4000 rpm.
Power HP RPM
180 km/h
Maximum Speed
5
Doors
Kia Sportage 5 2024 Key Specs
Acceleration 0 - 100 Km/h
11.4 sec
Acceleration 0 - 62 Mph
11.4 sec
Battery Voltage
48 V
Body Type
SUV
Doors
5
Drive Wheel
Front wheel drive
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
4.4 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
54 l
Generation
Sportage V
Kerb Weight
1523-1654 kg
Maximum Speed
180 km/h
Modification (Engine)
1.6 CRDi (136 Hp) Mild Hybrid
Number Of Cylinders
4
Power
136 Hp @ 4000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start Of Production
May, 2024
Wheel Rims Size
7.0J x 17 ET43.5; 7.5J x 18 ET51; 7.5J x 19 ET51

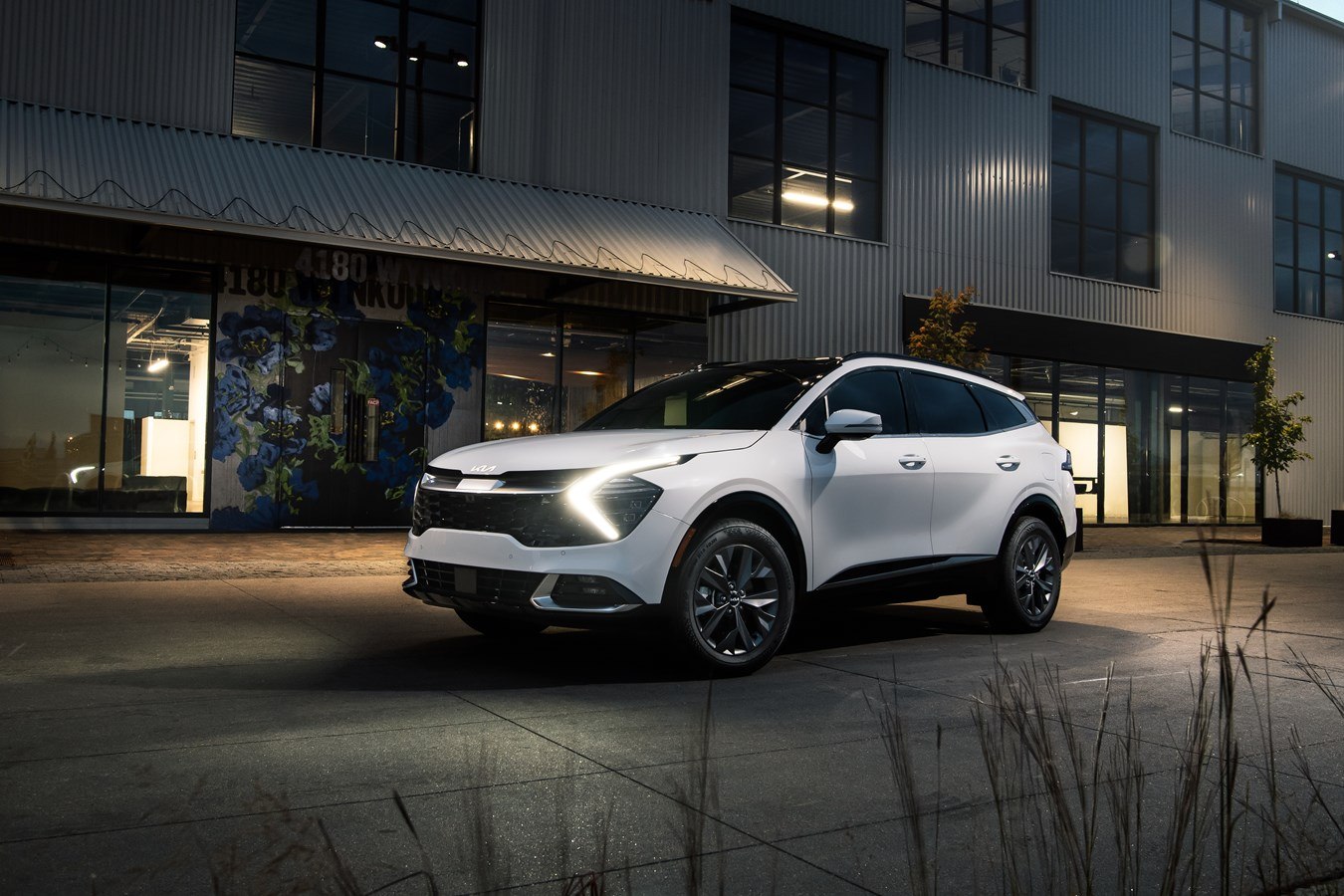

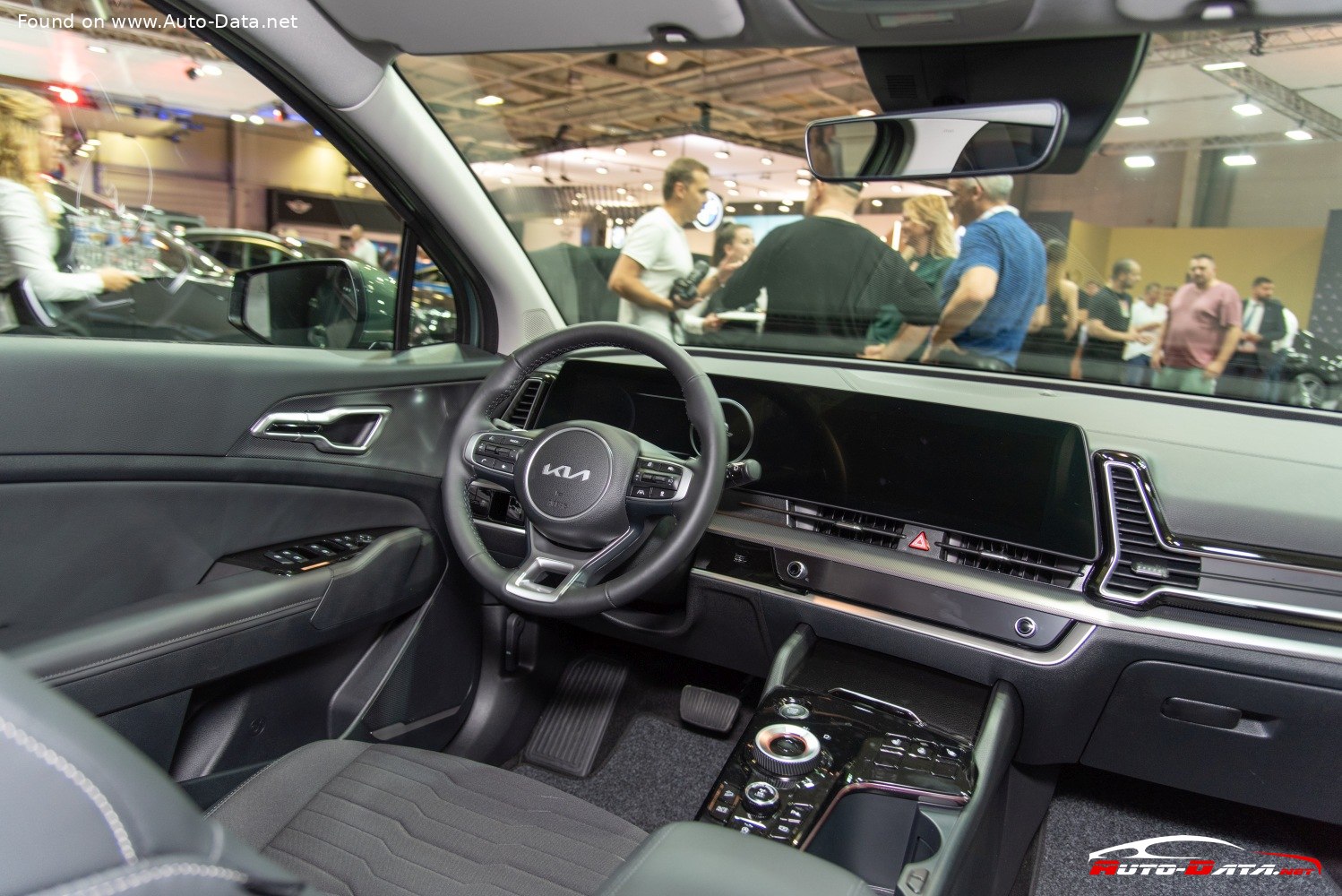

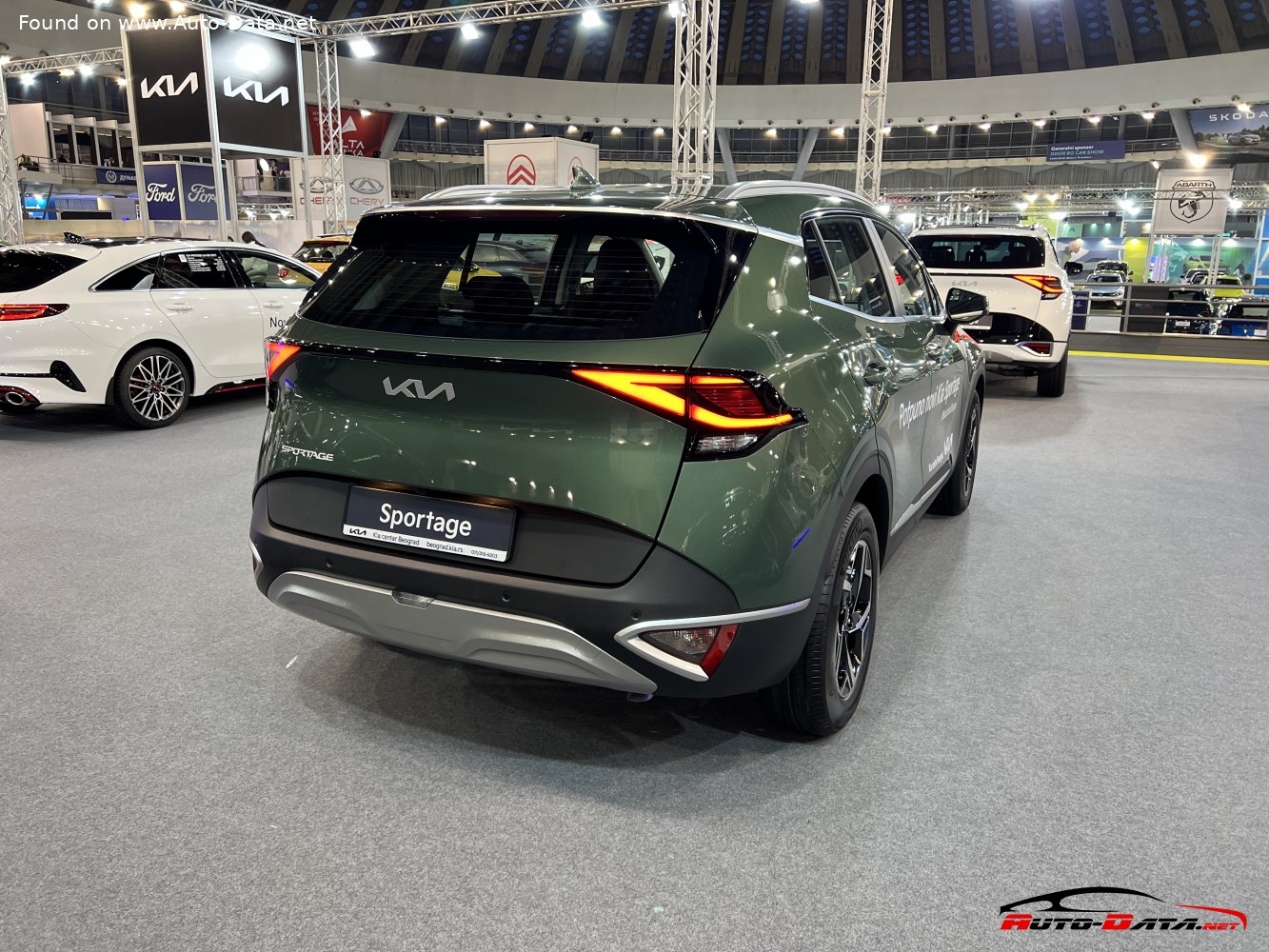

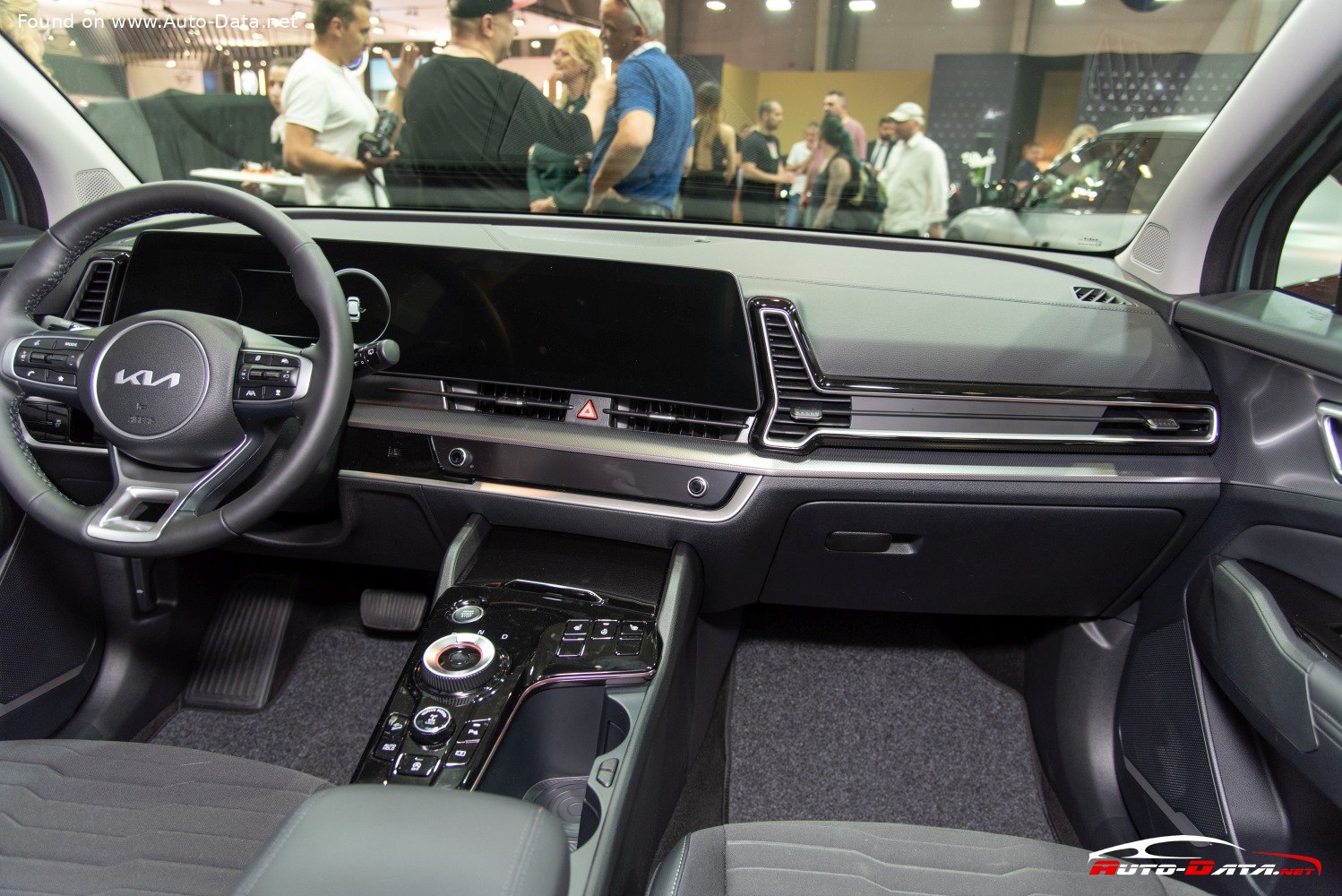

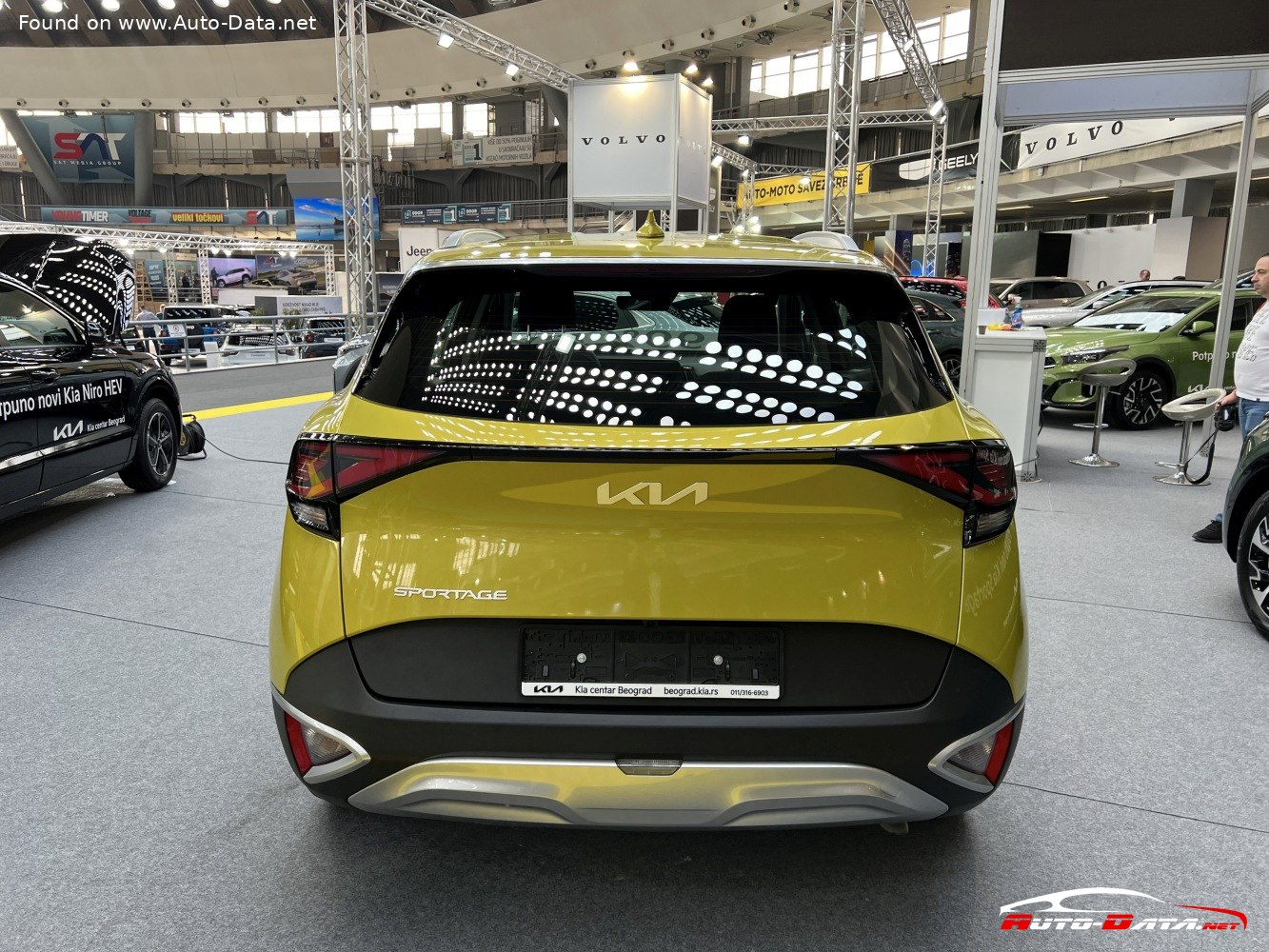

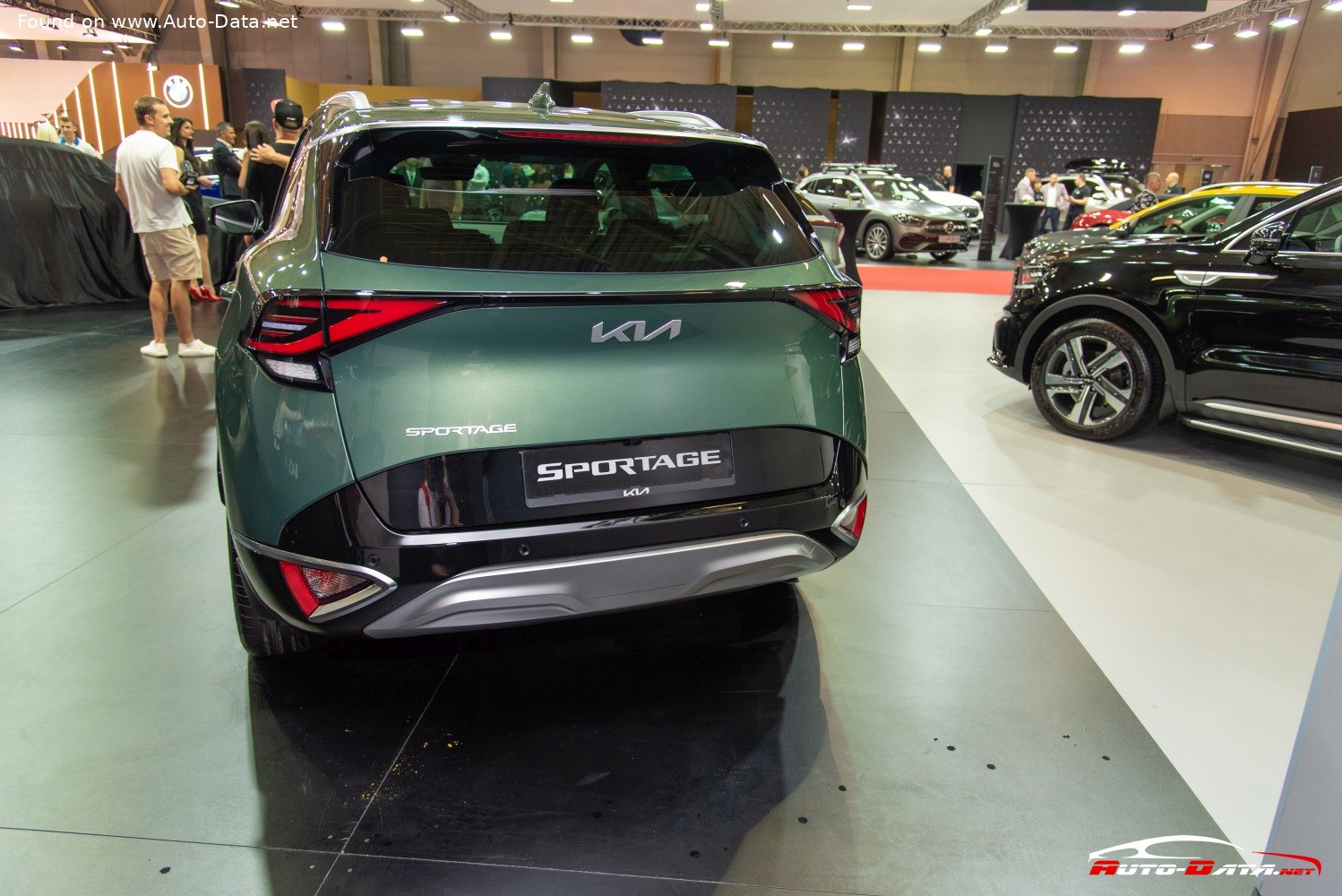

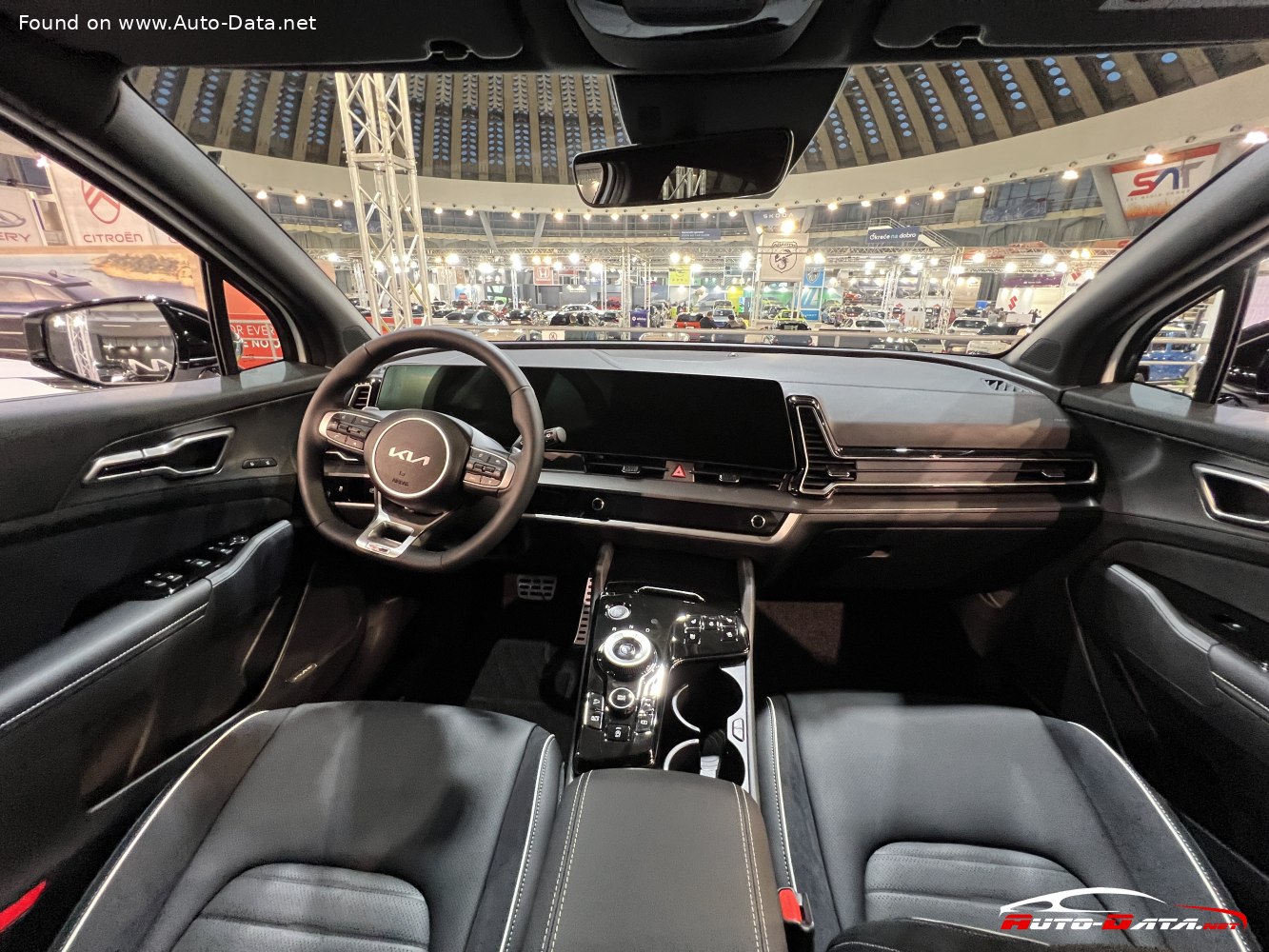

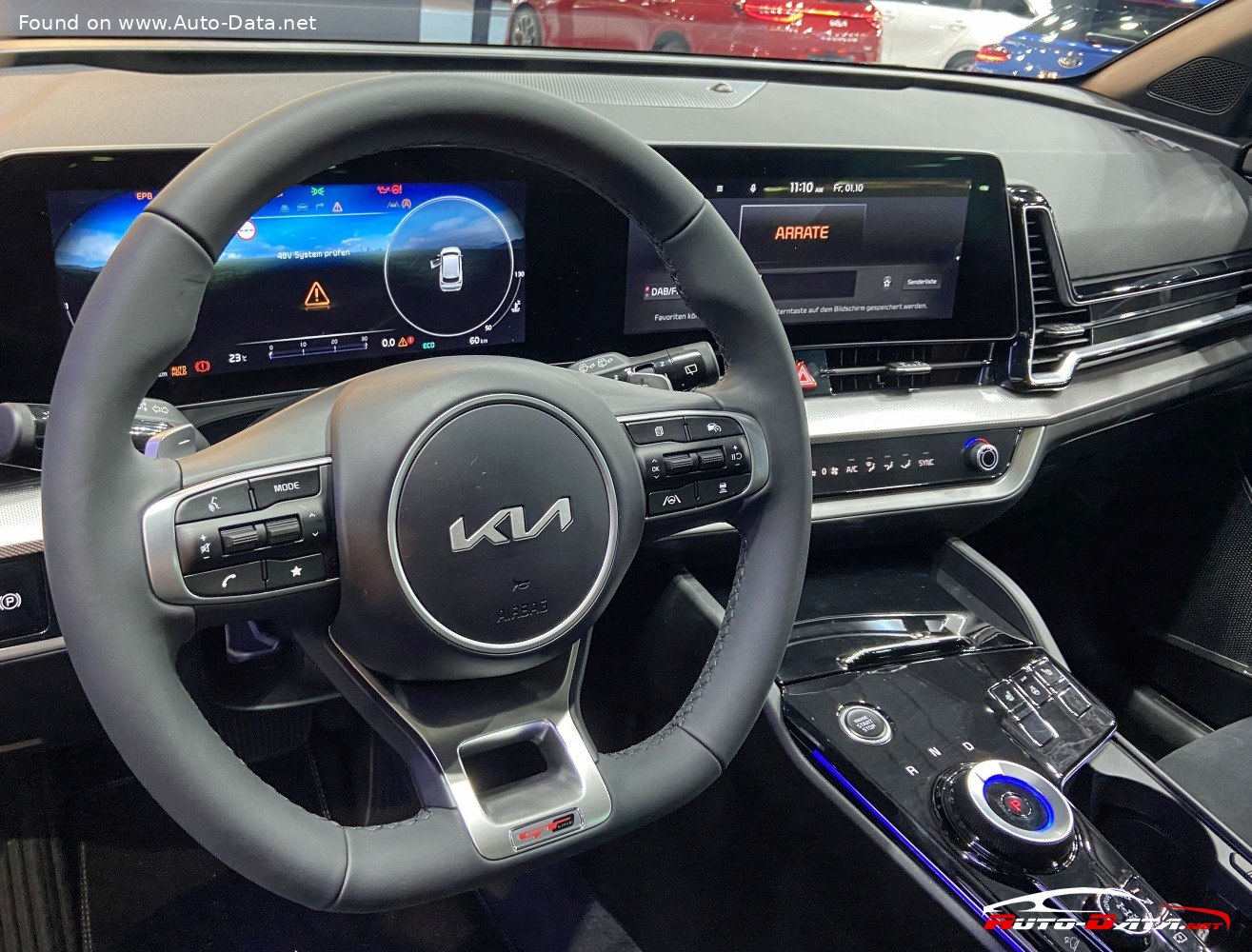

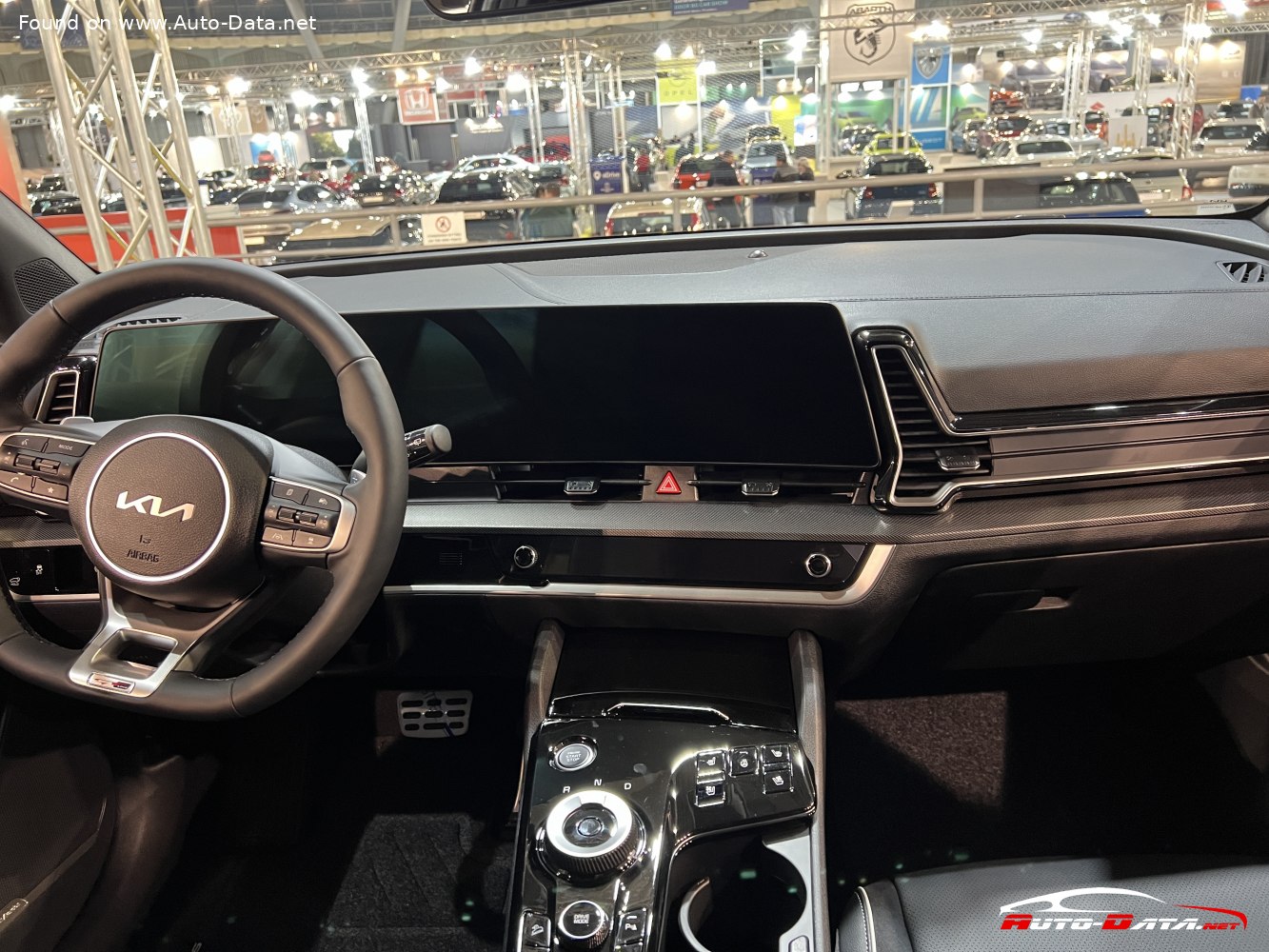

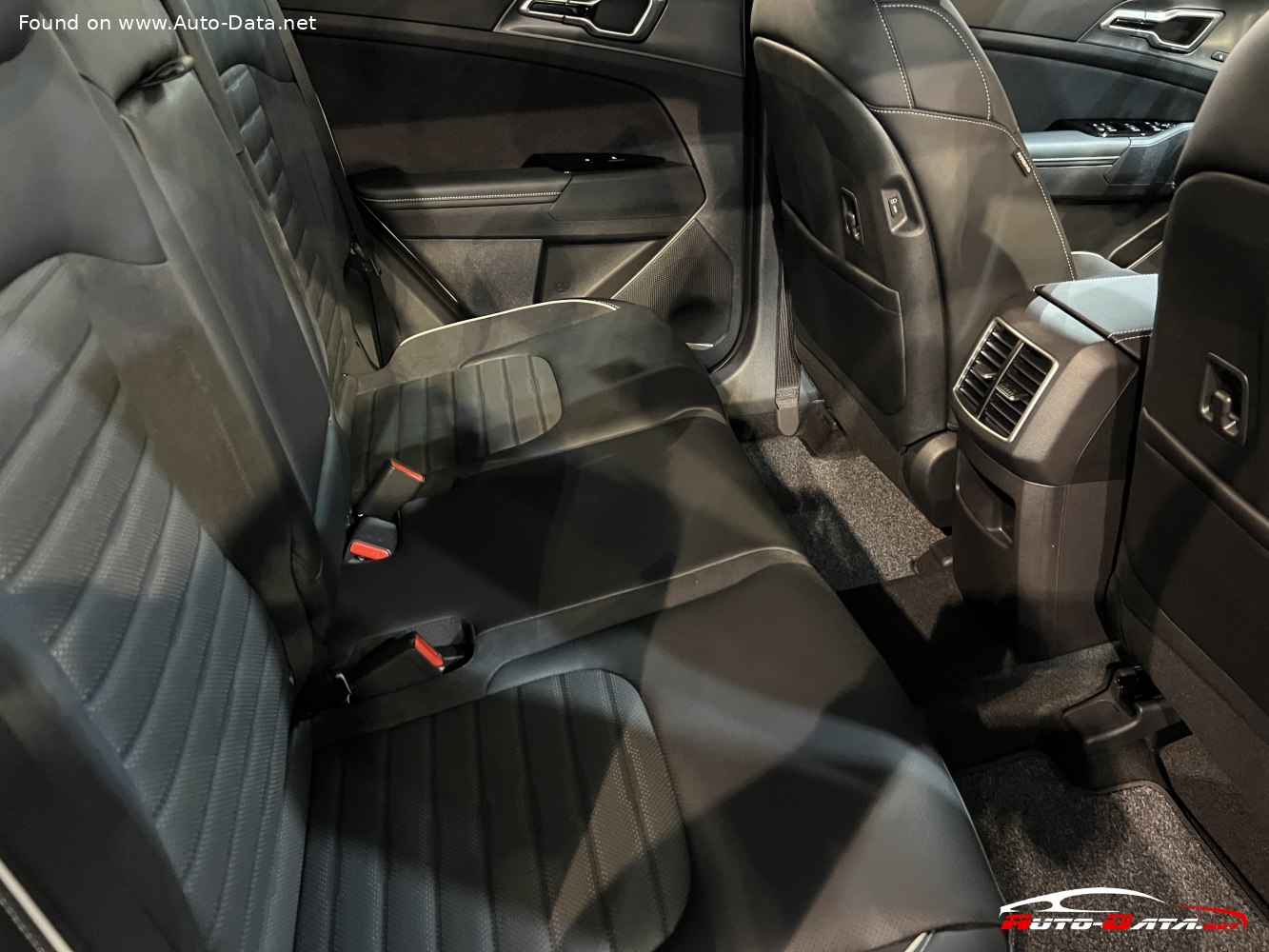

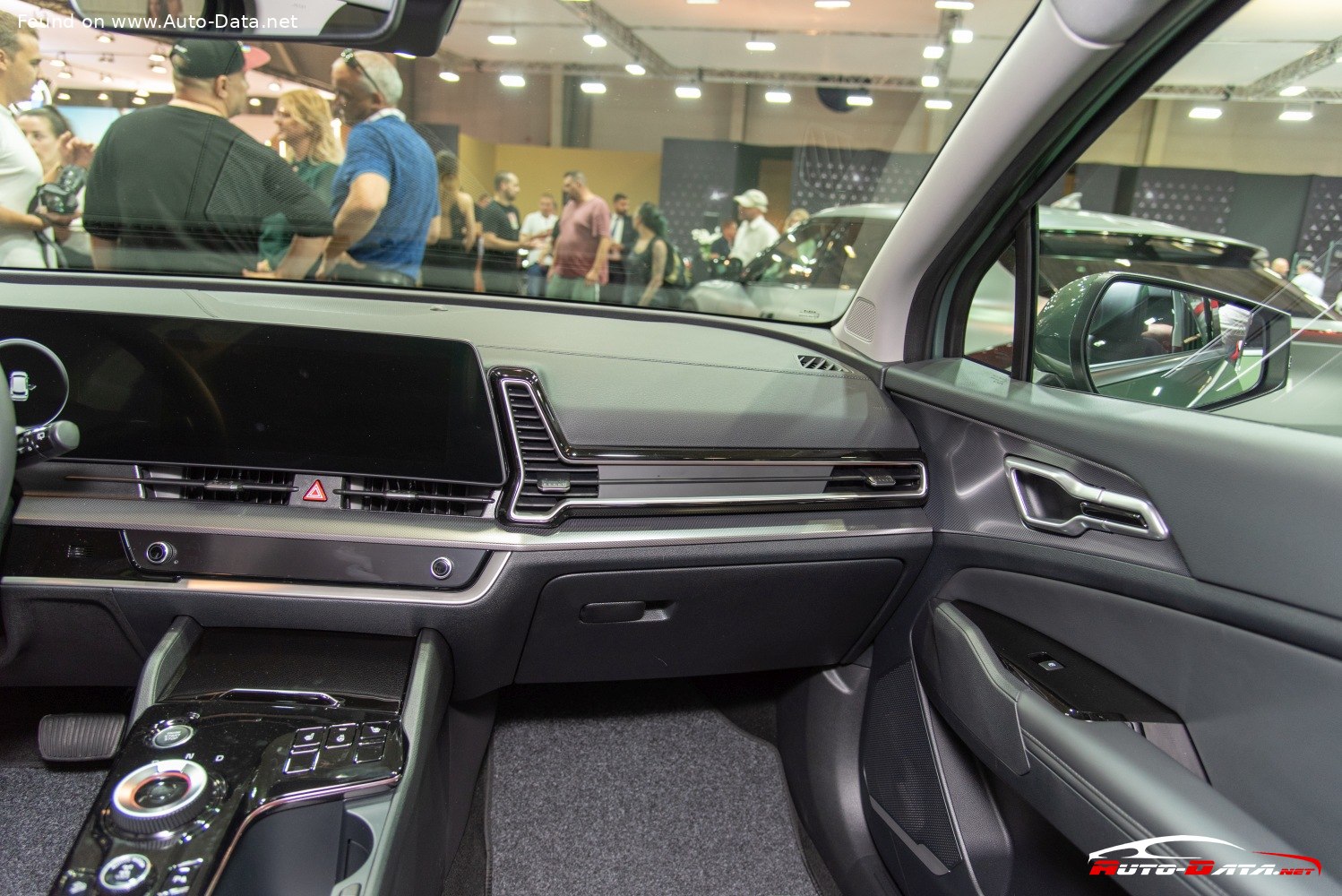

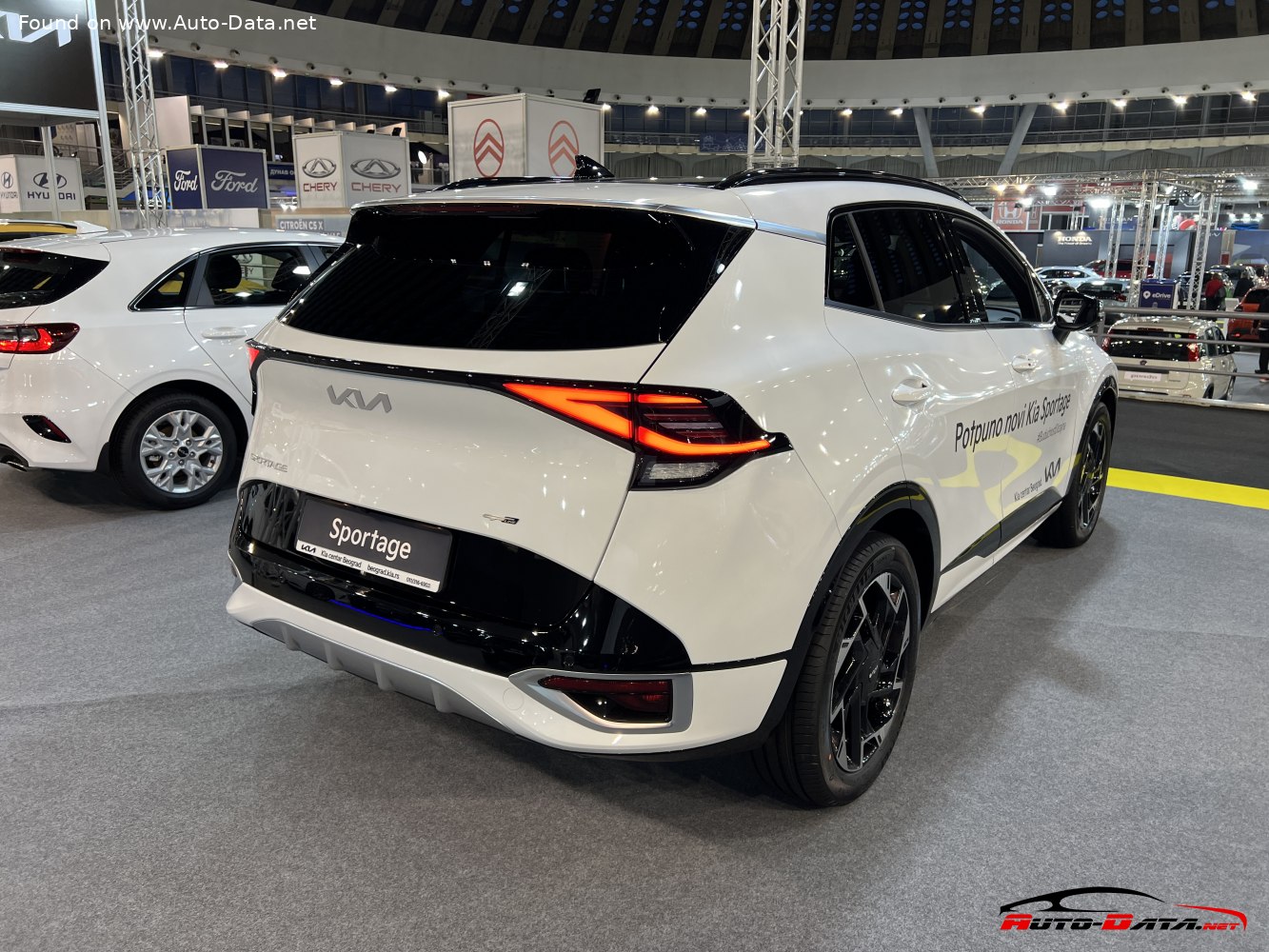

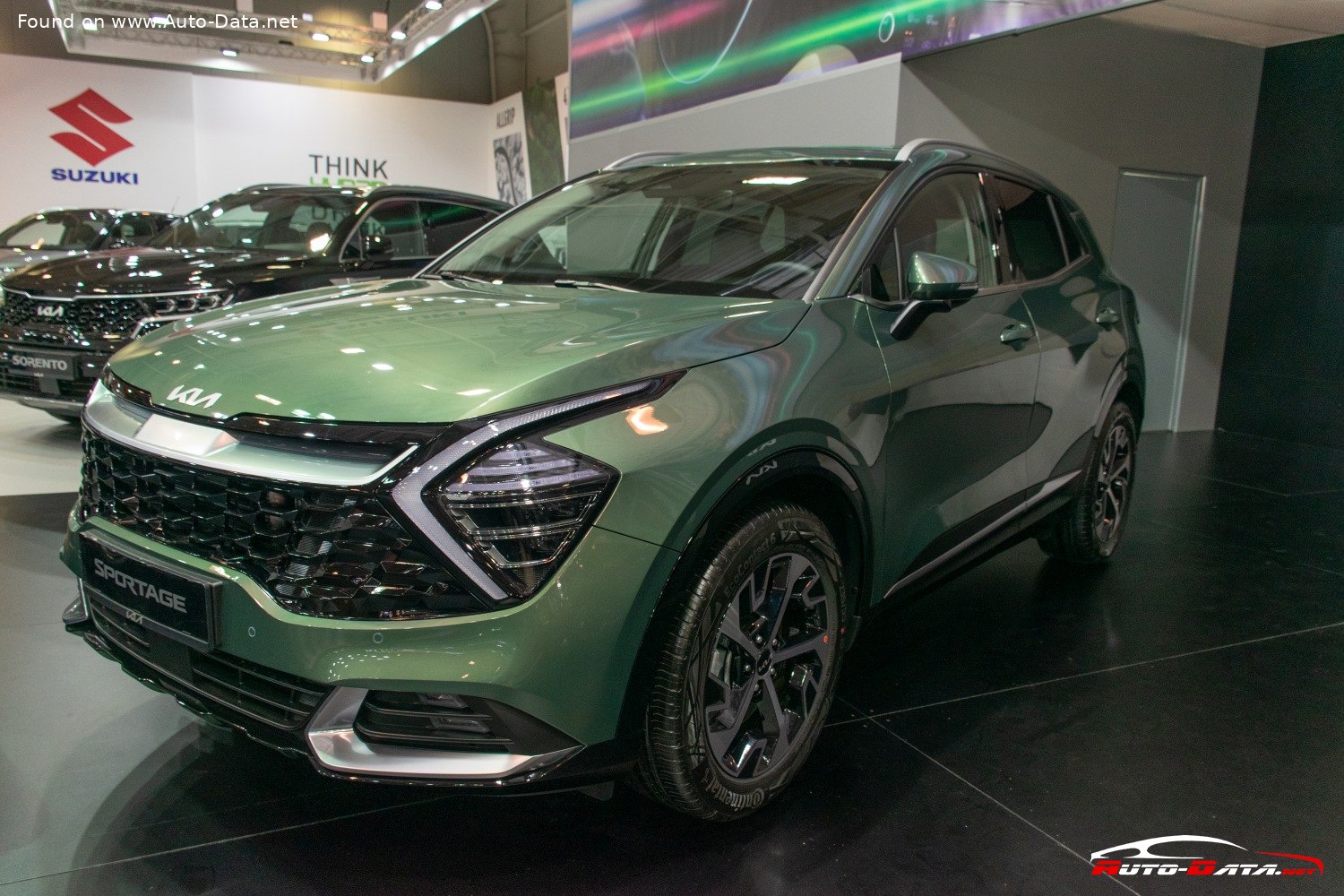

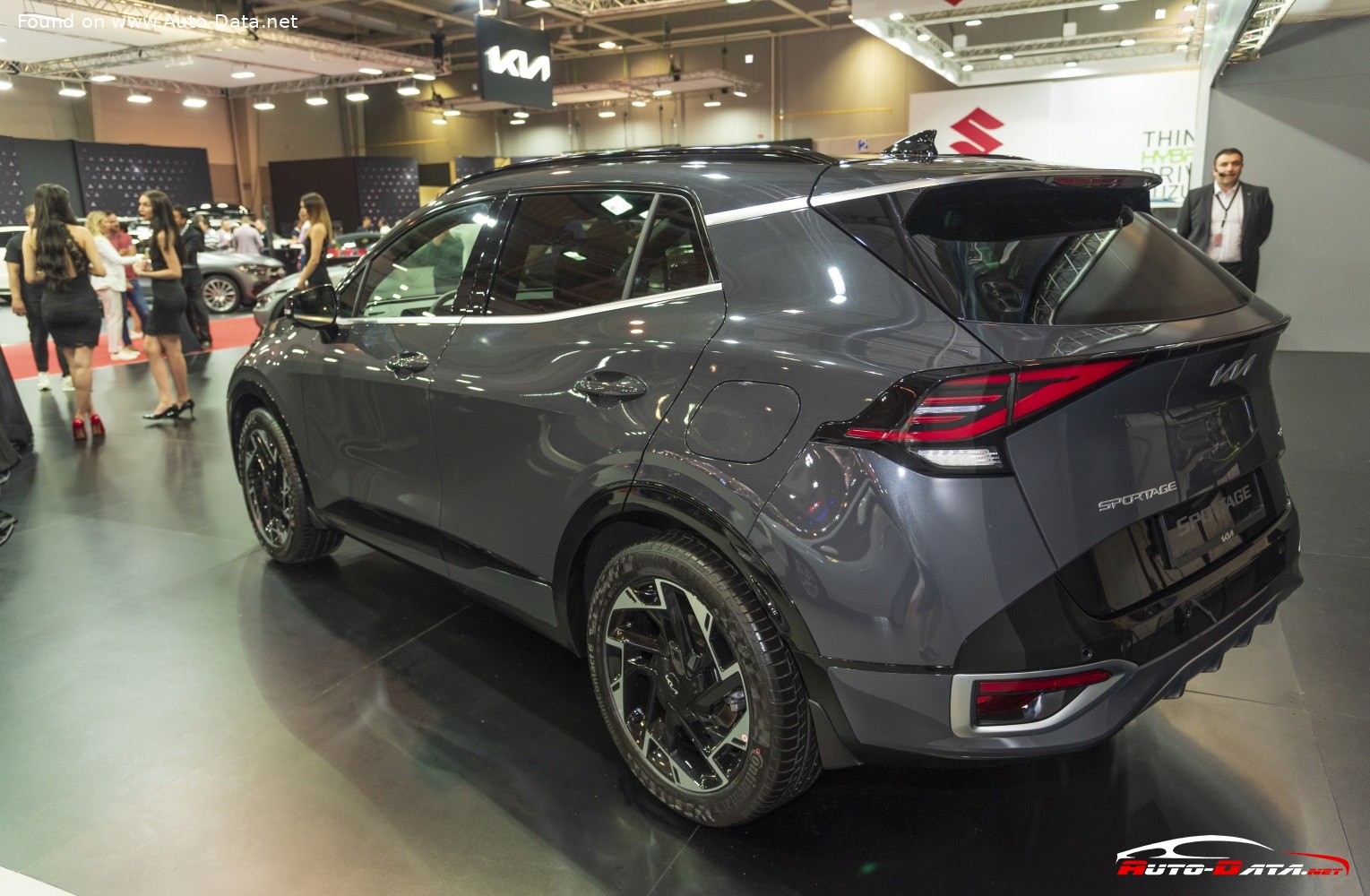

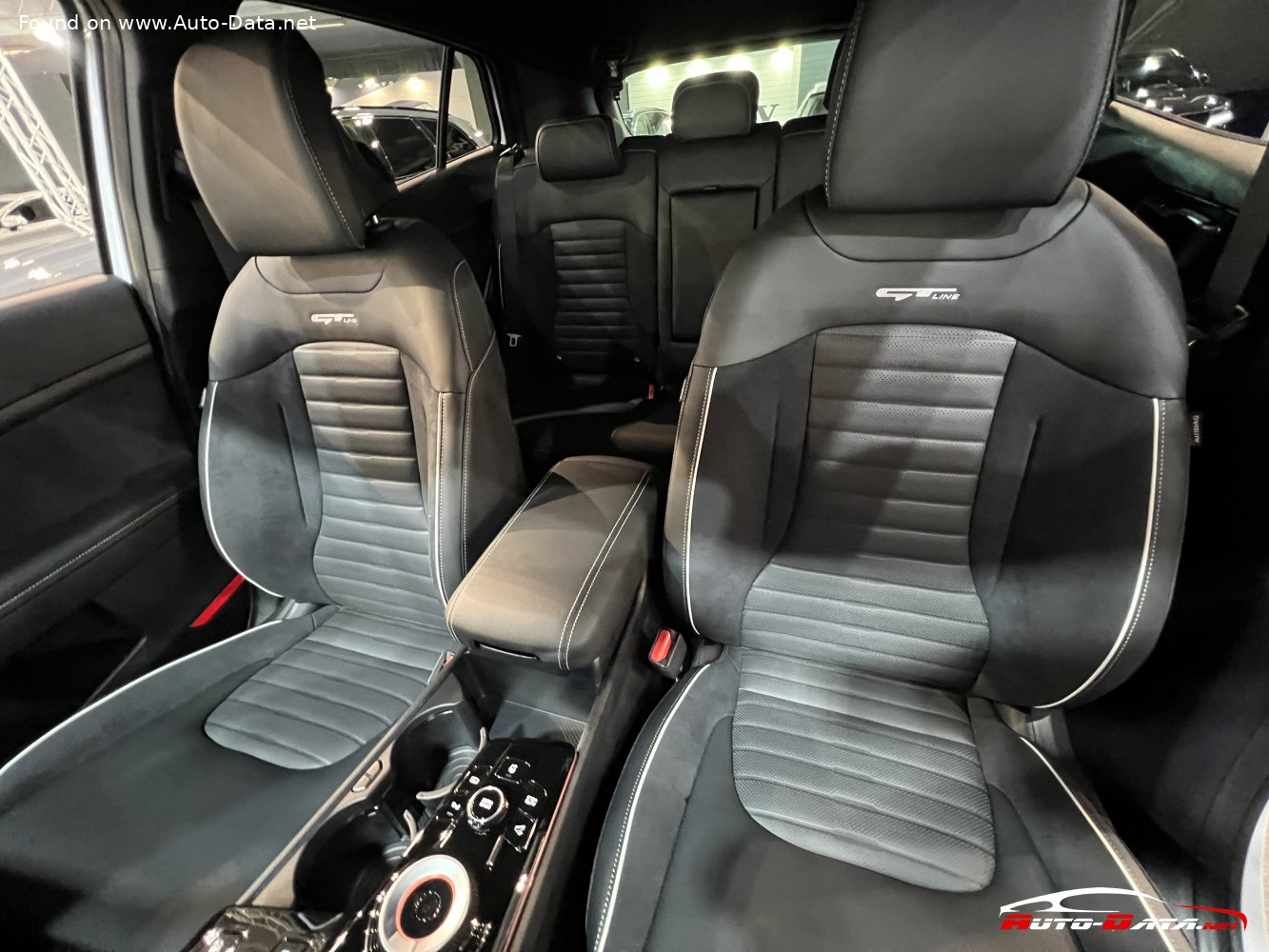

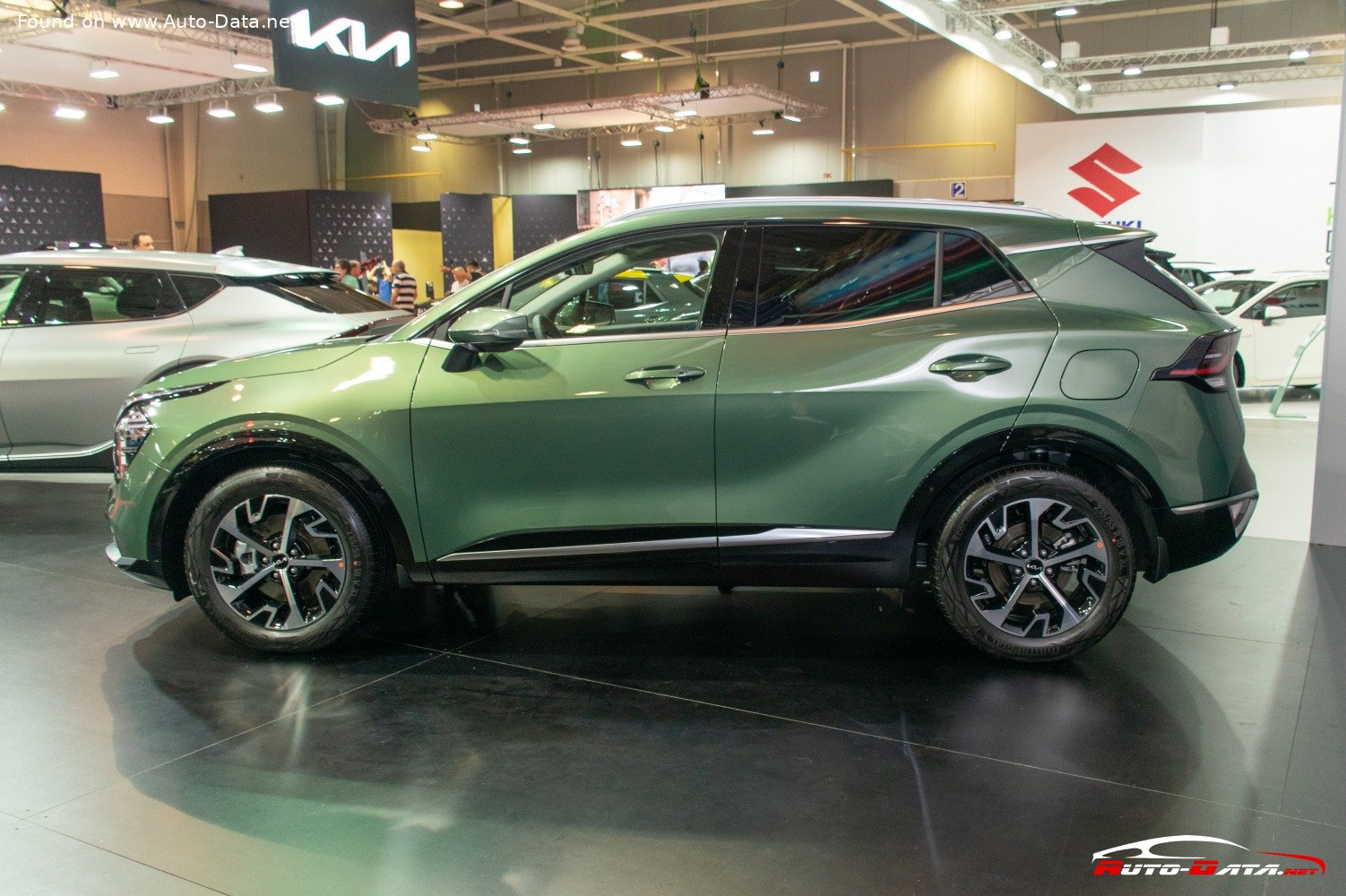

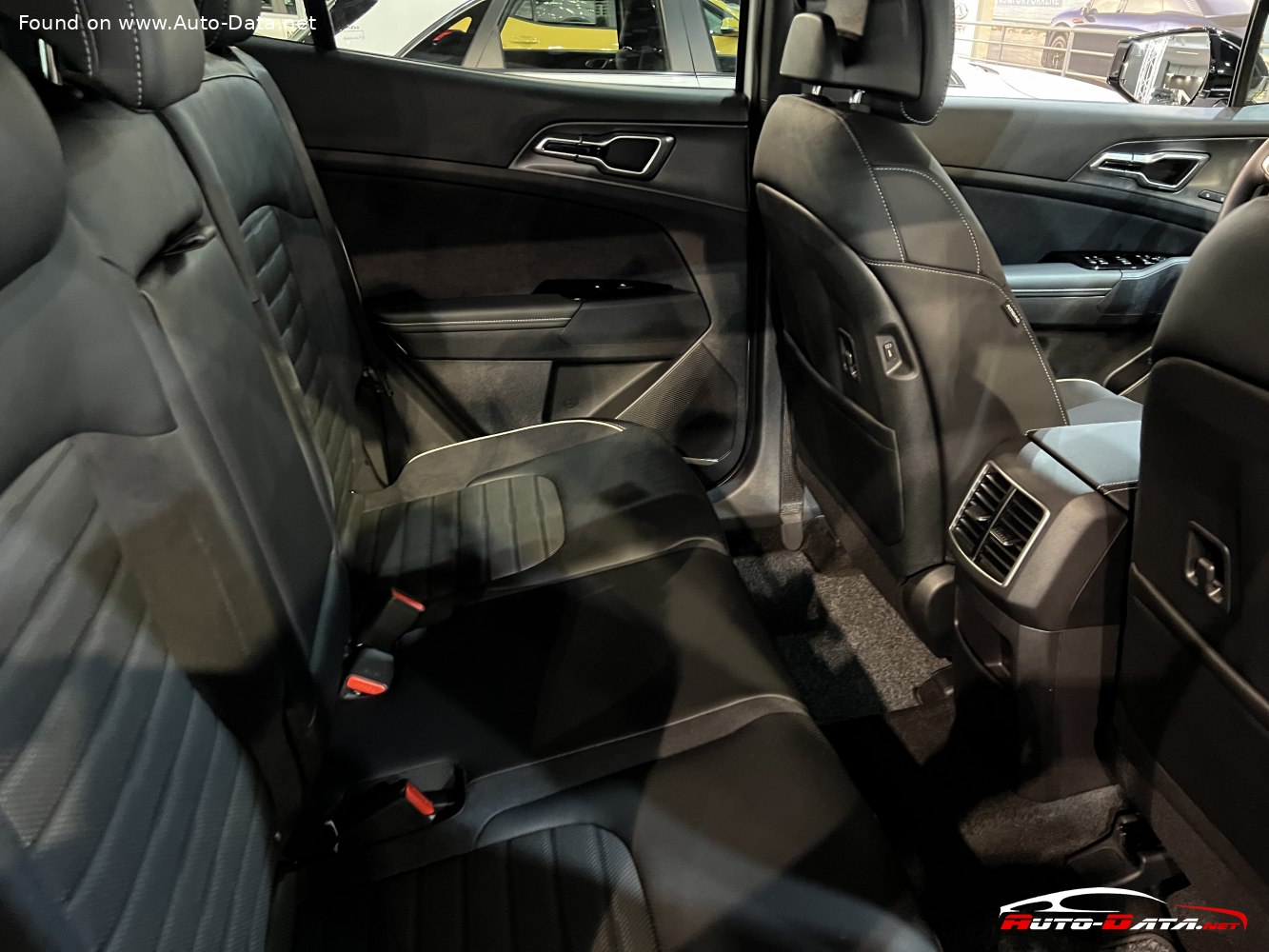

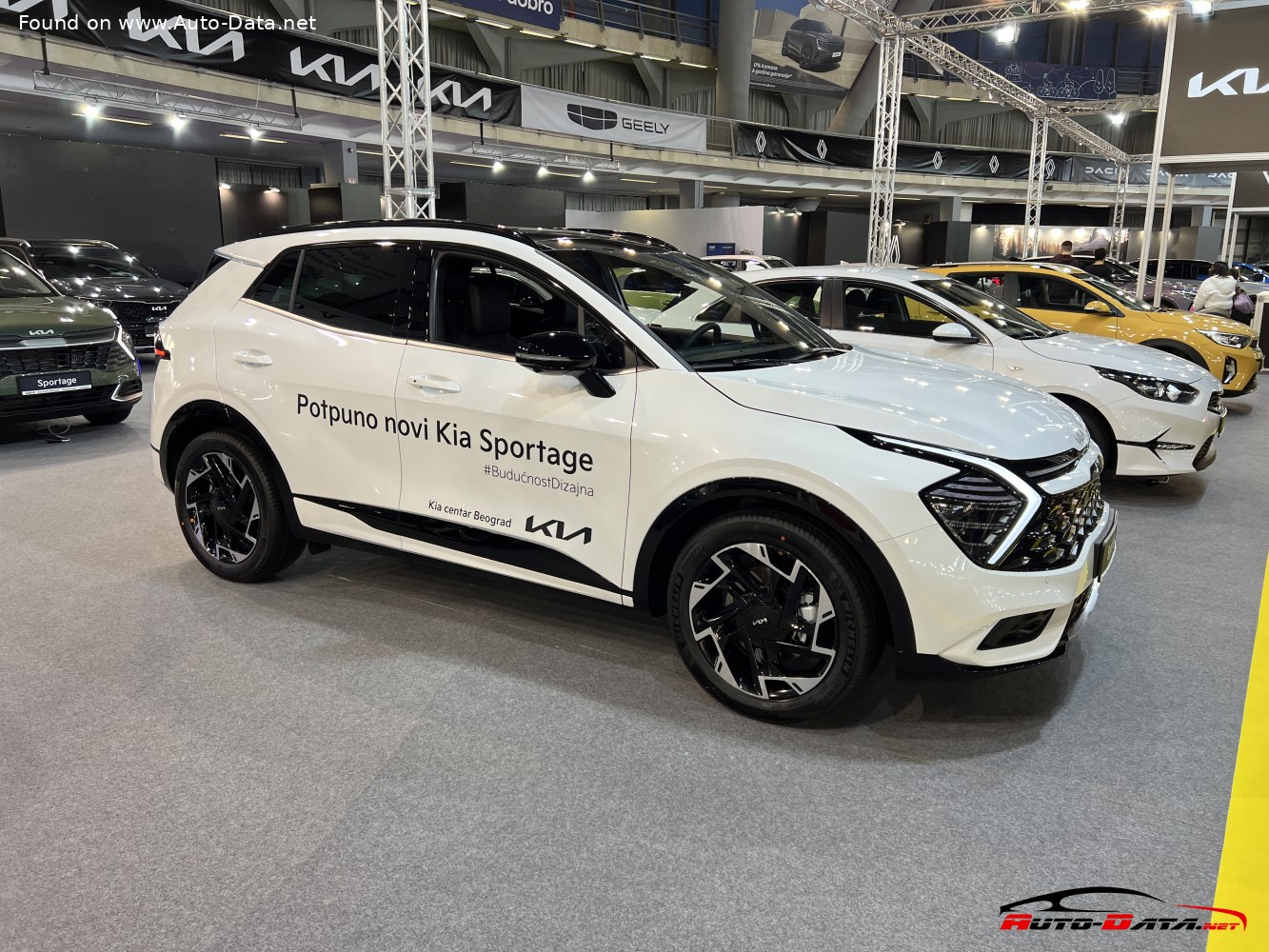

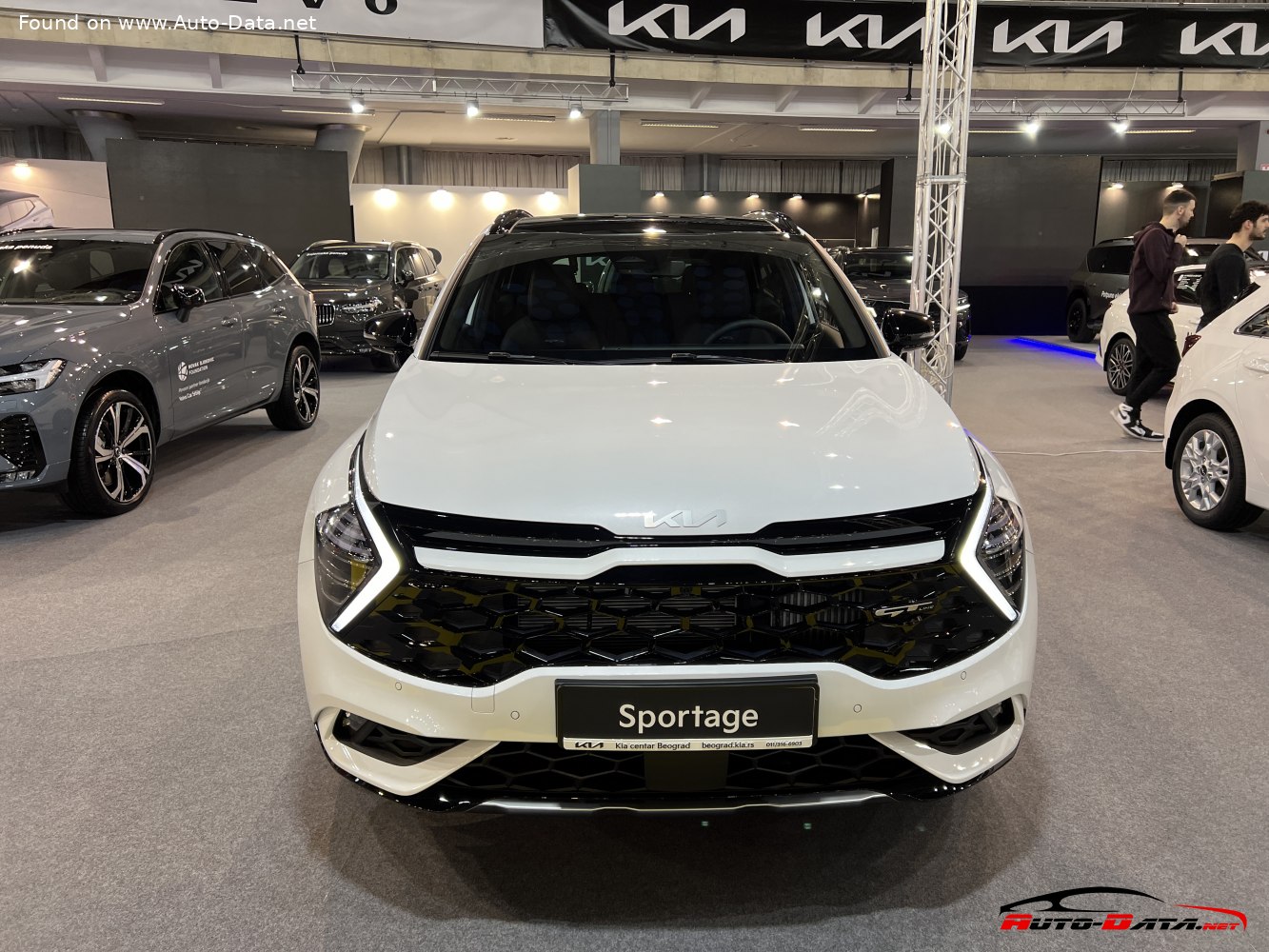

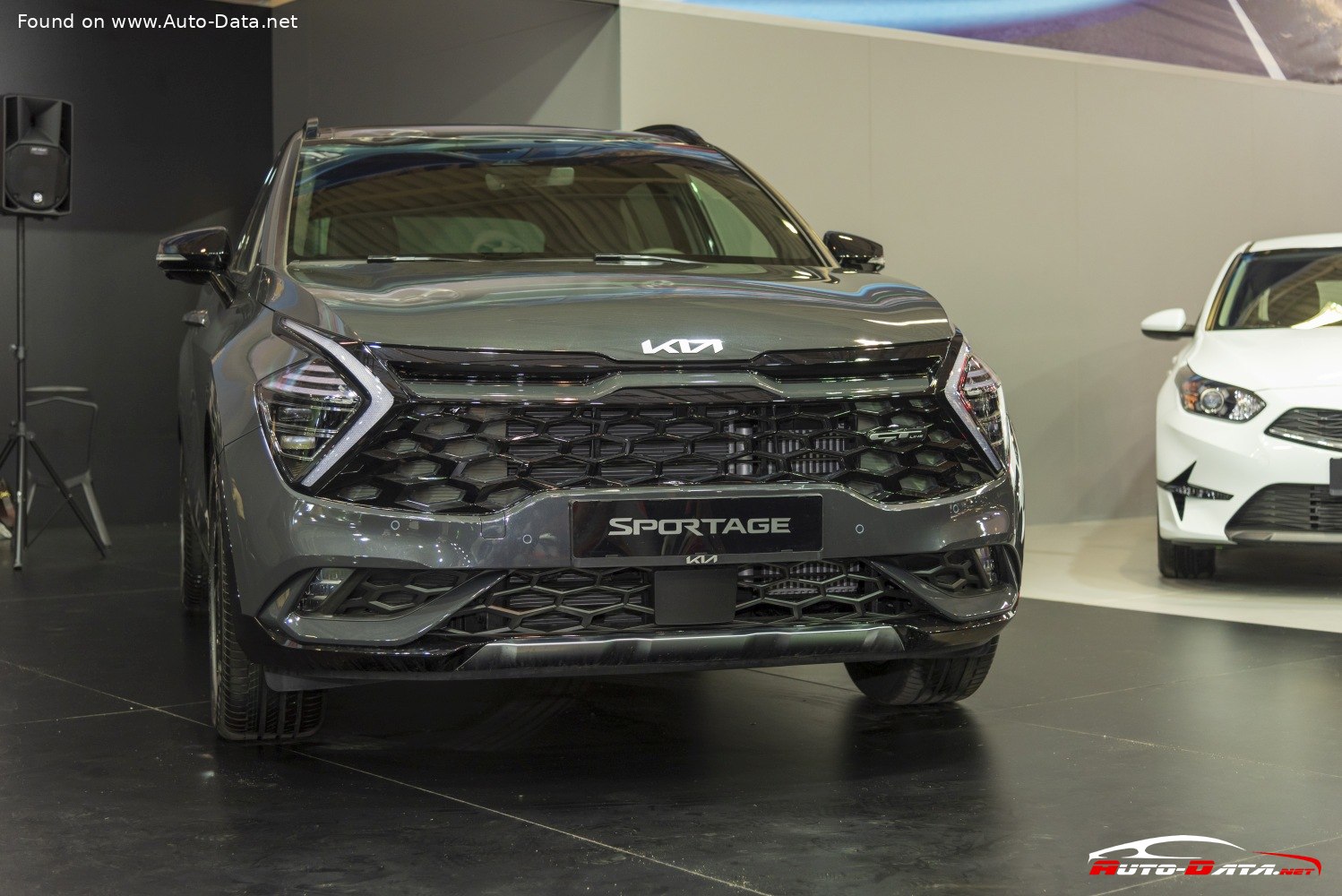

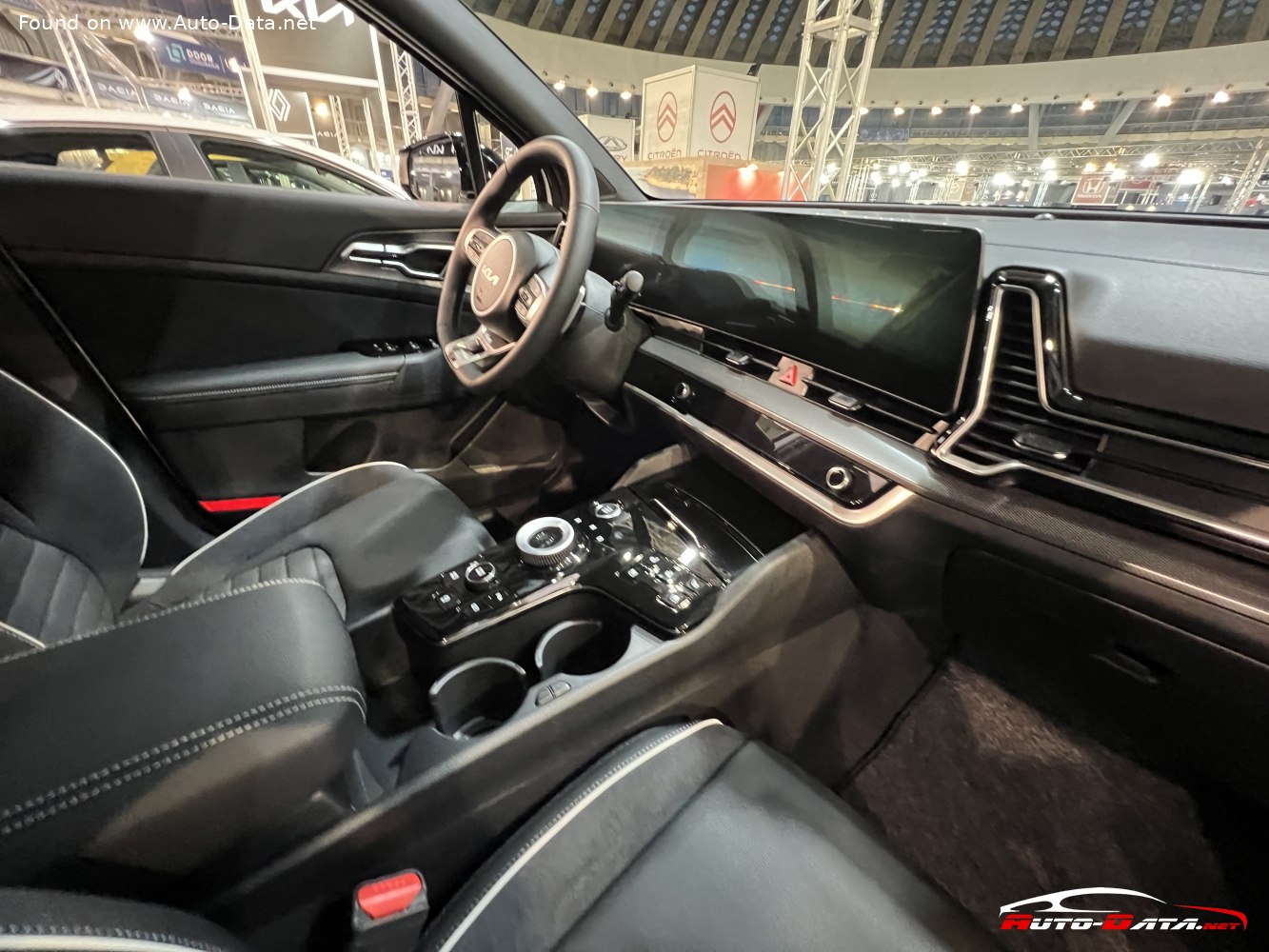

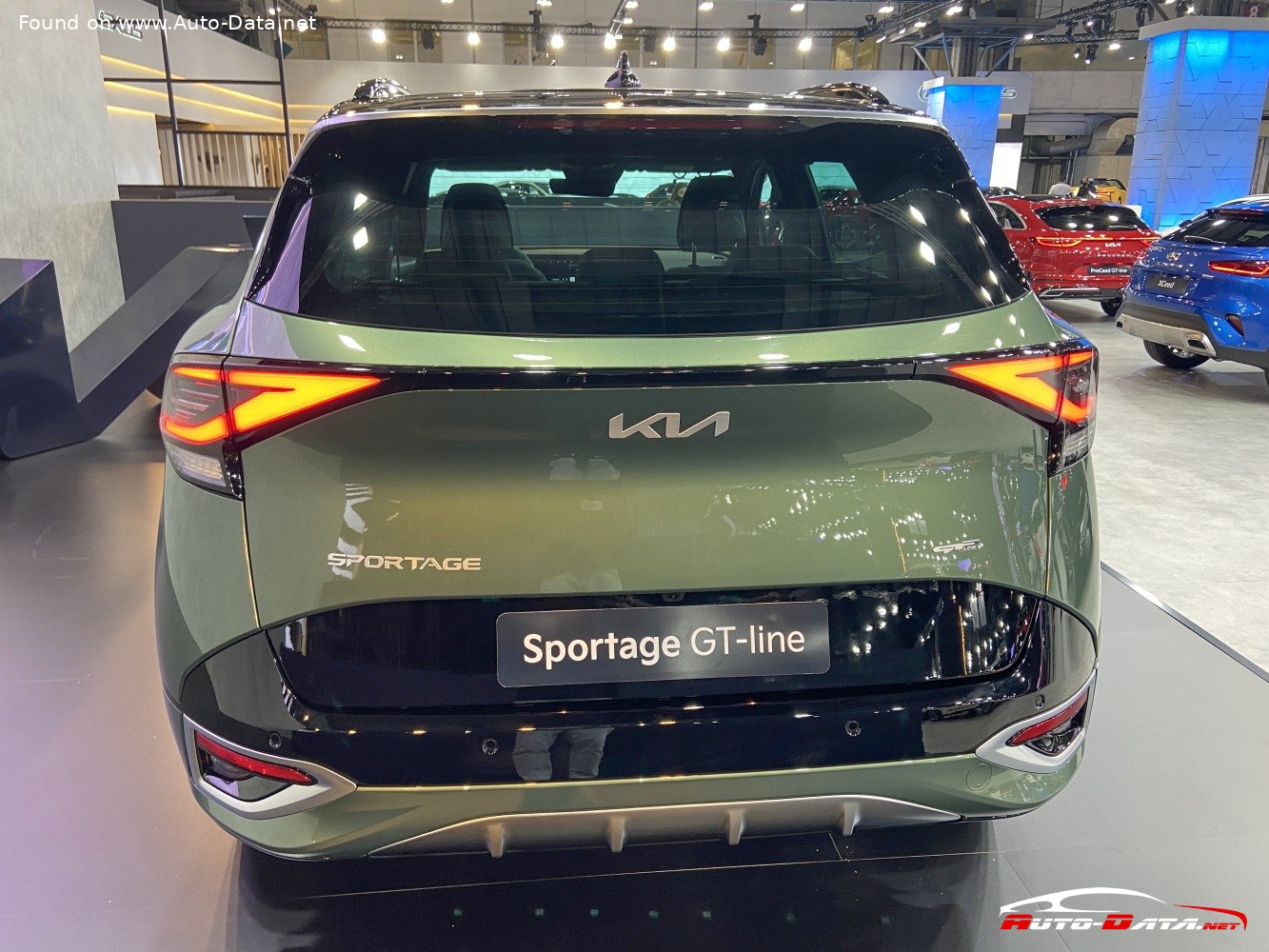

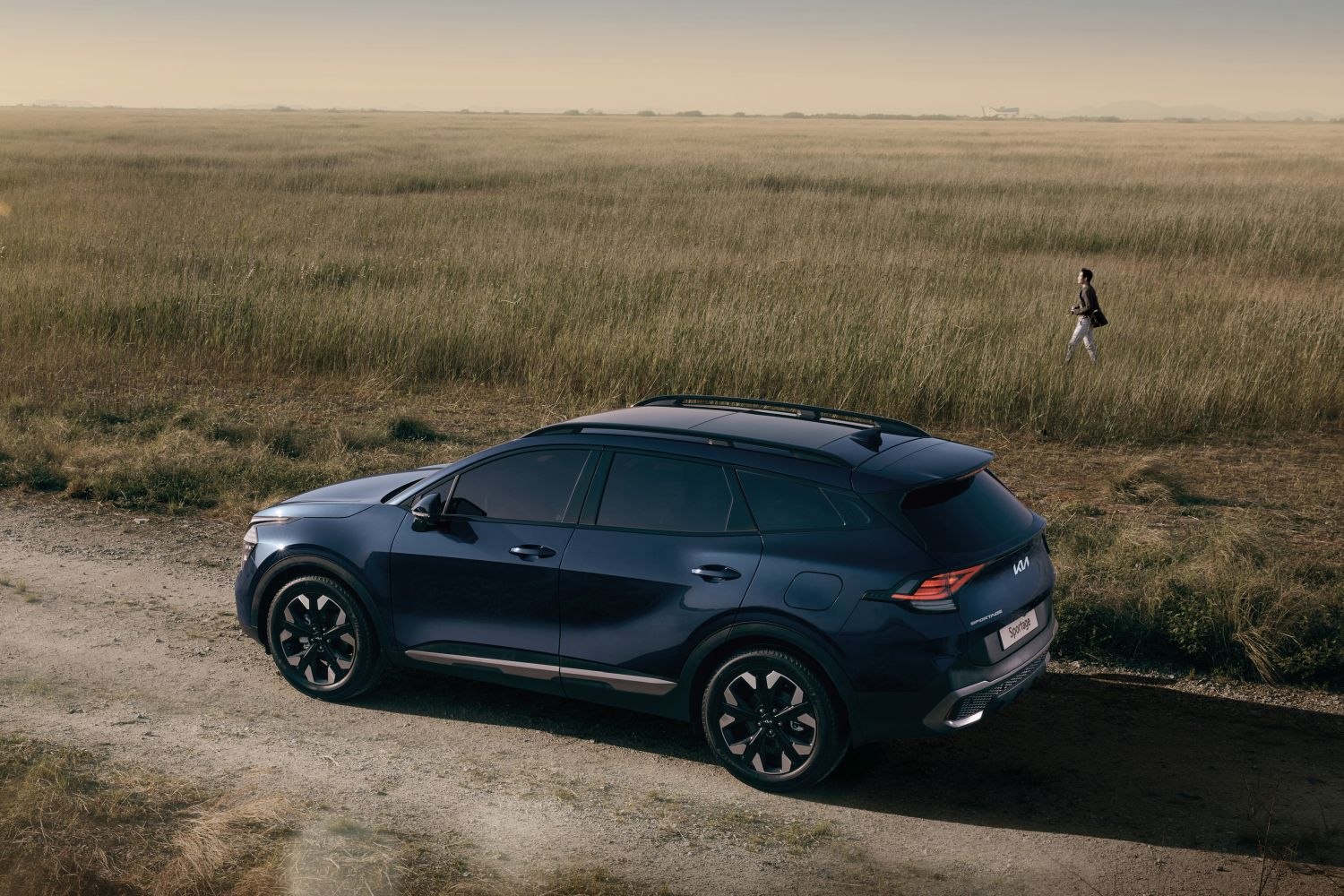

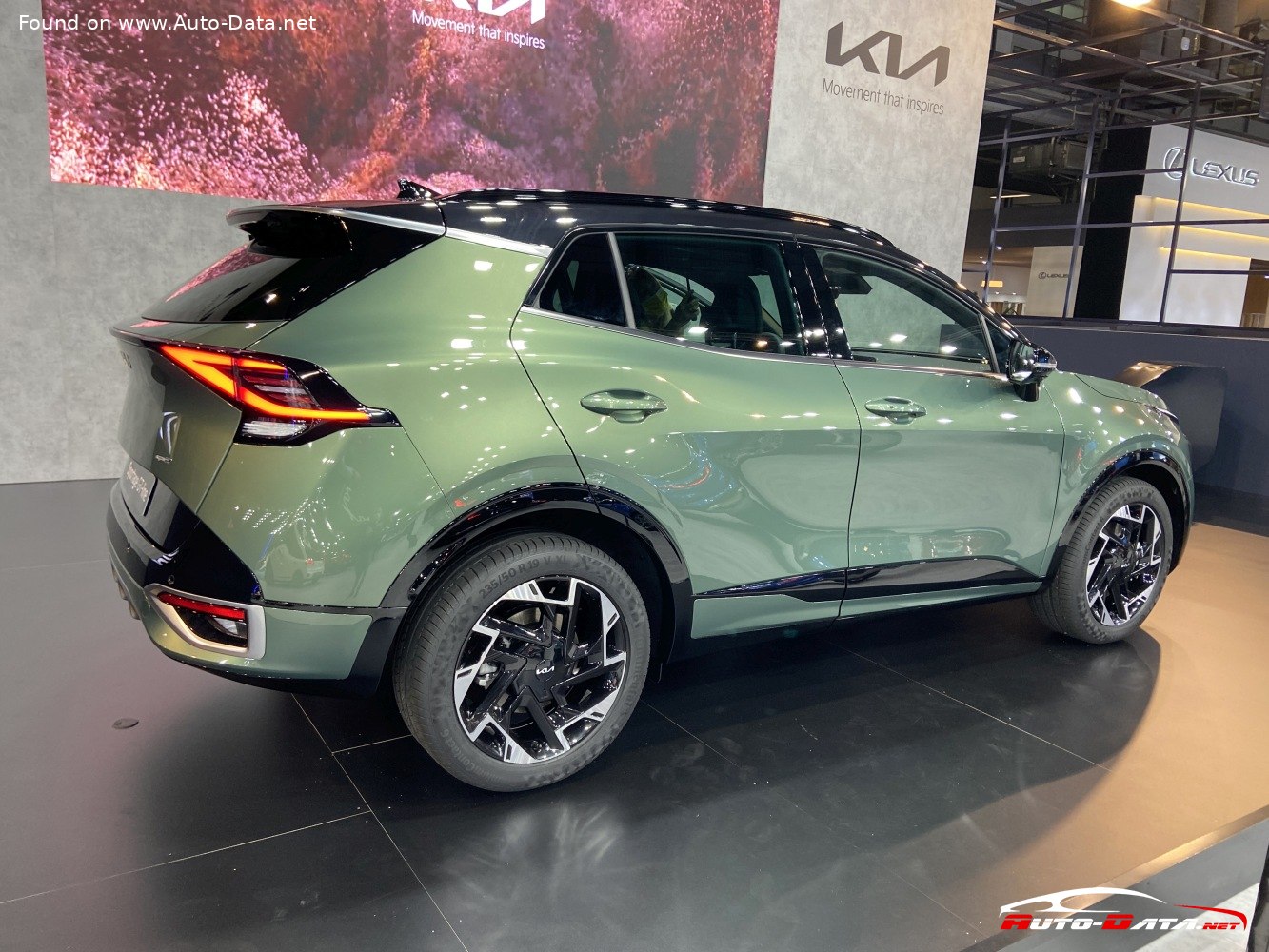

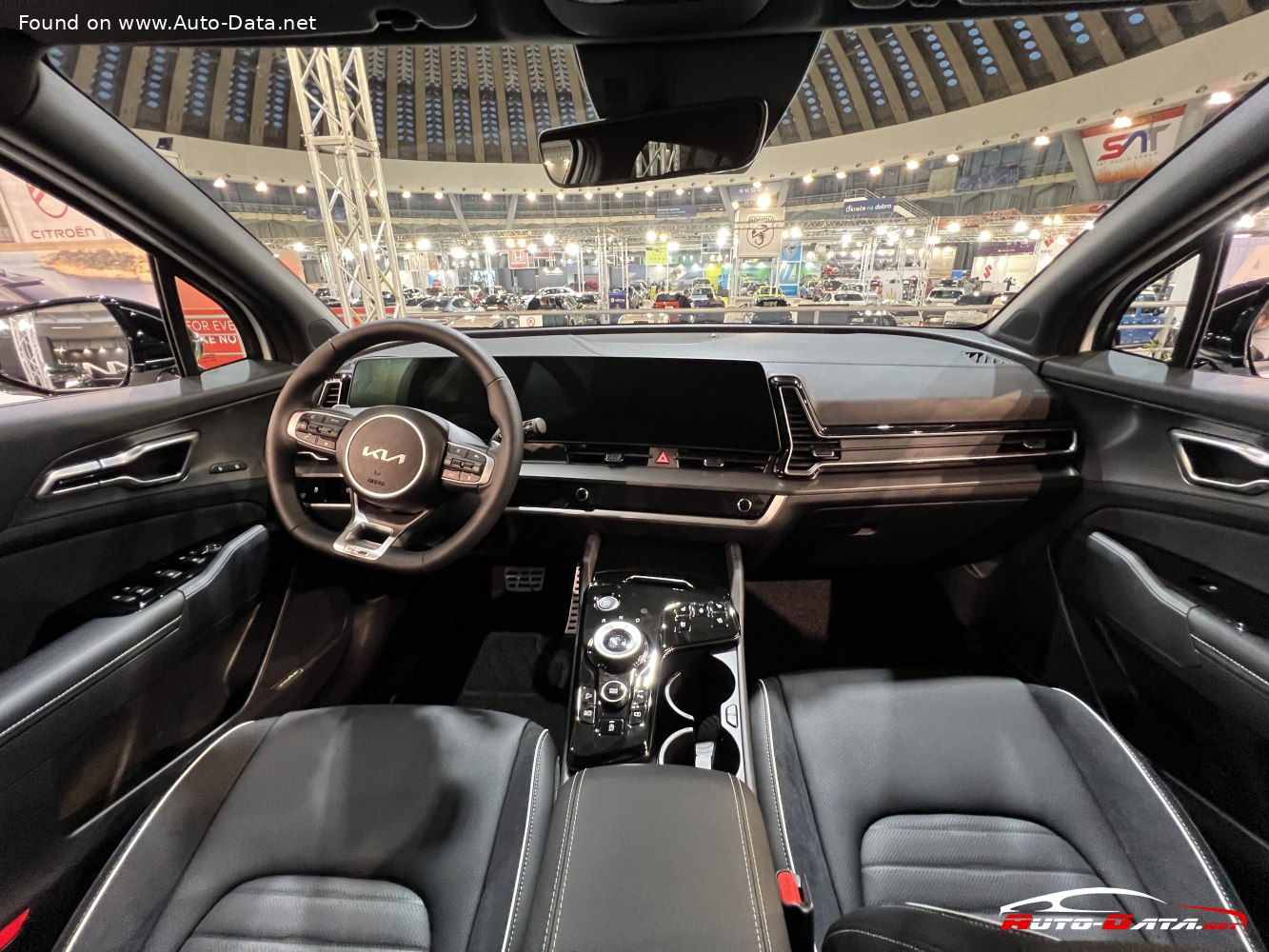

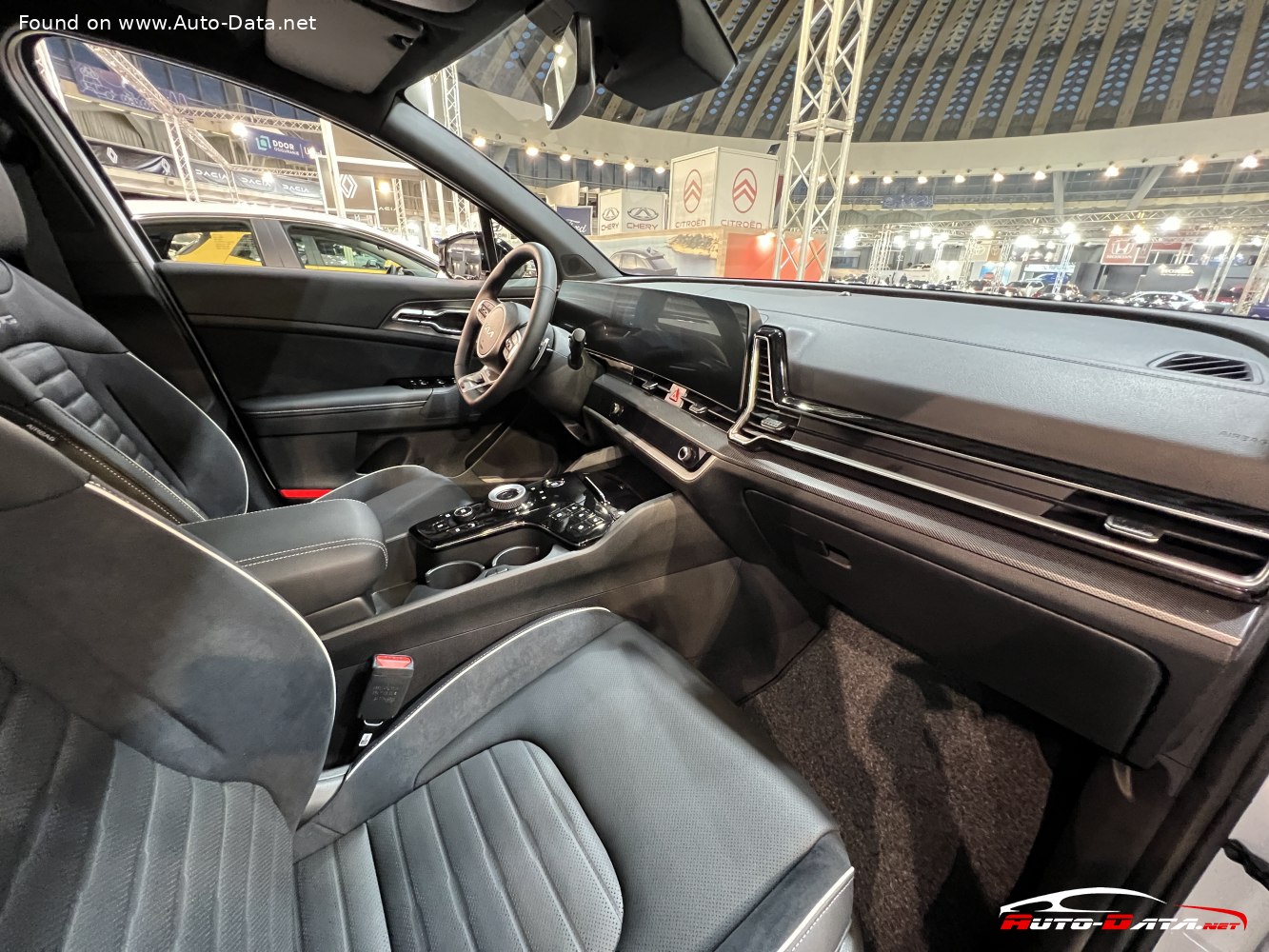

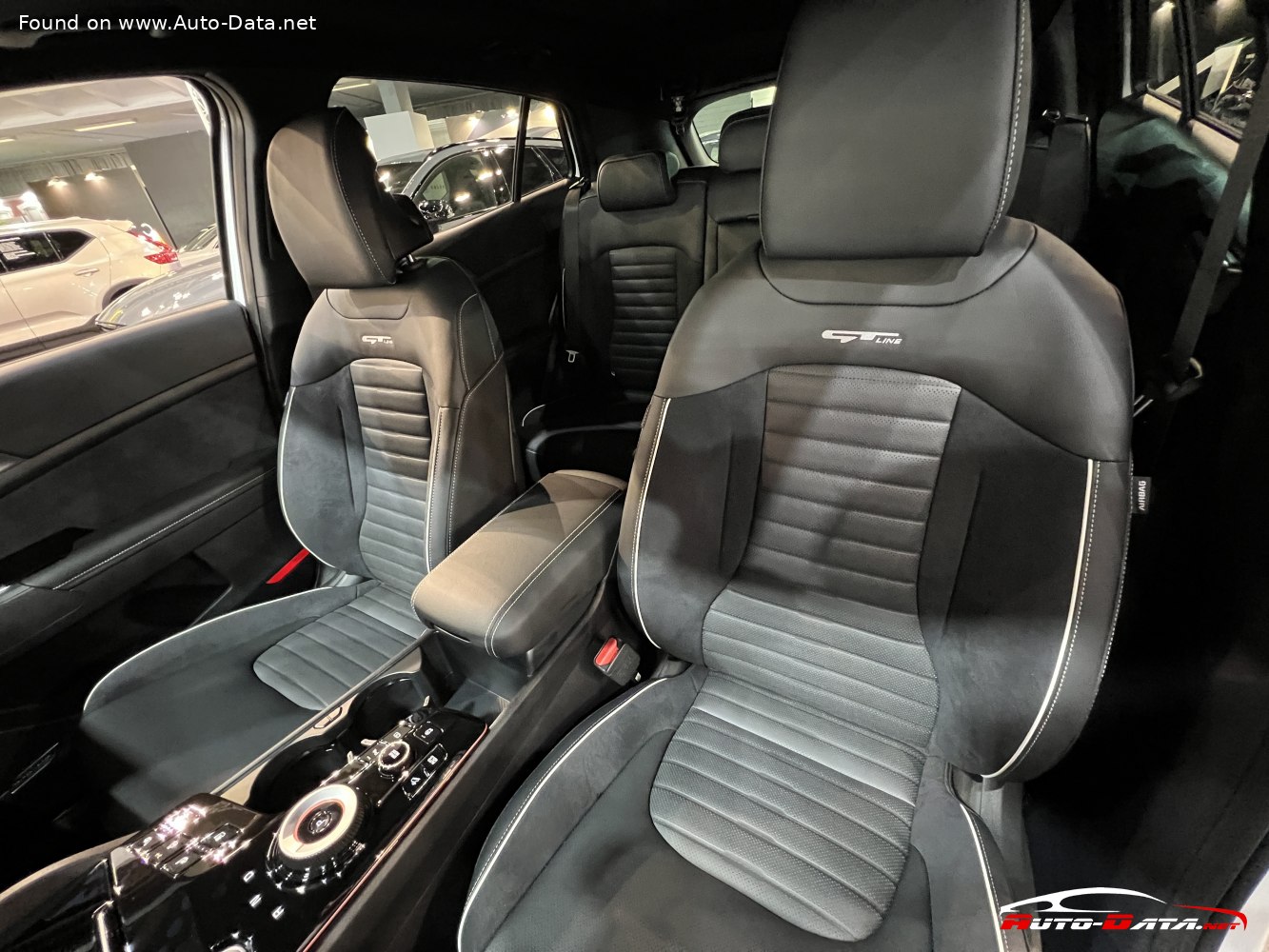

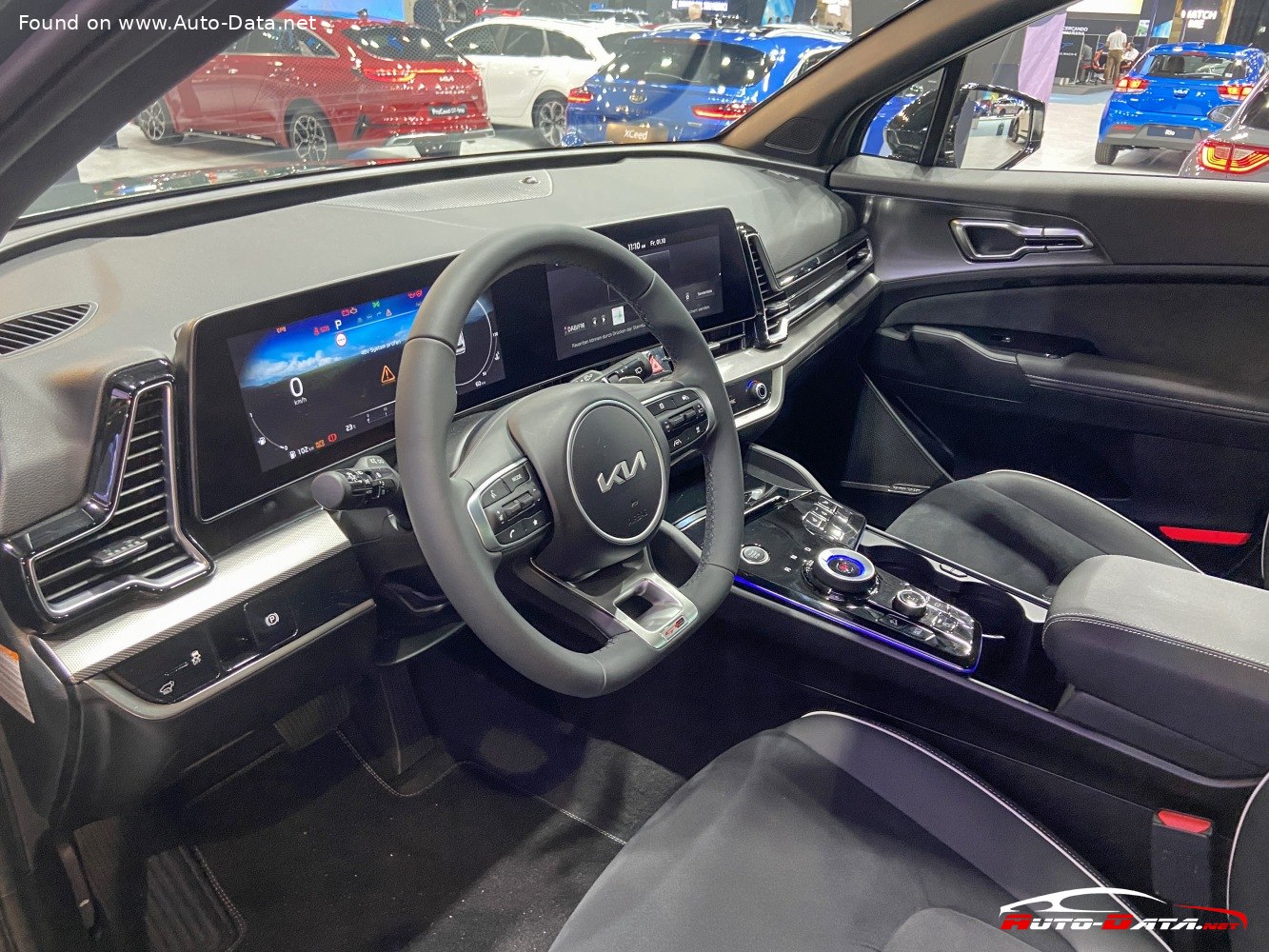

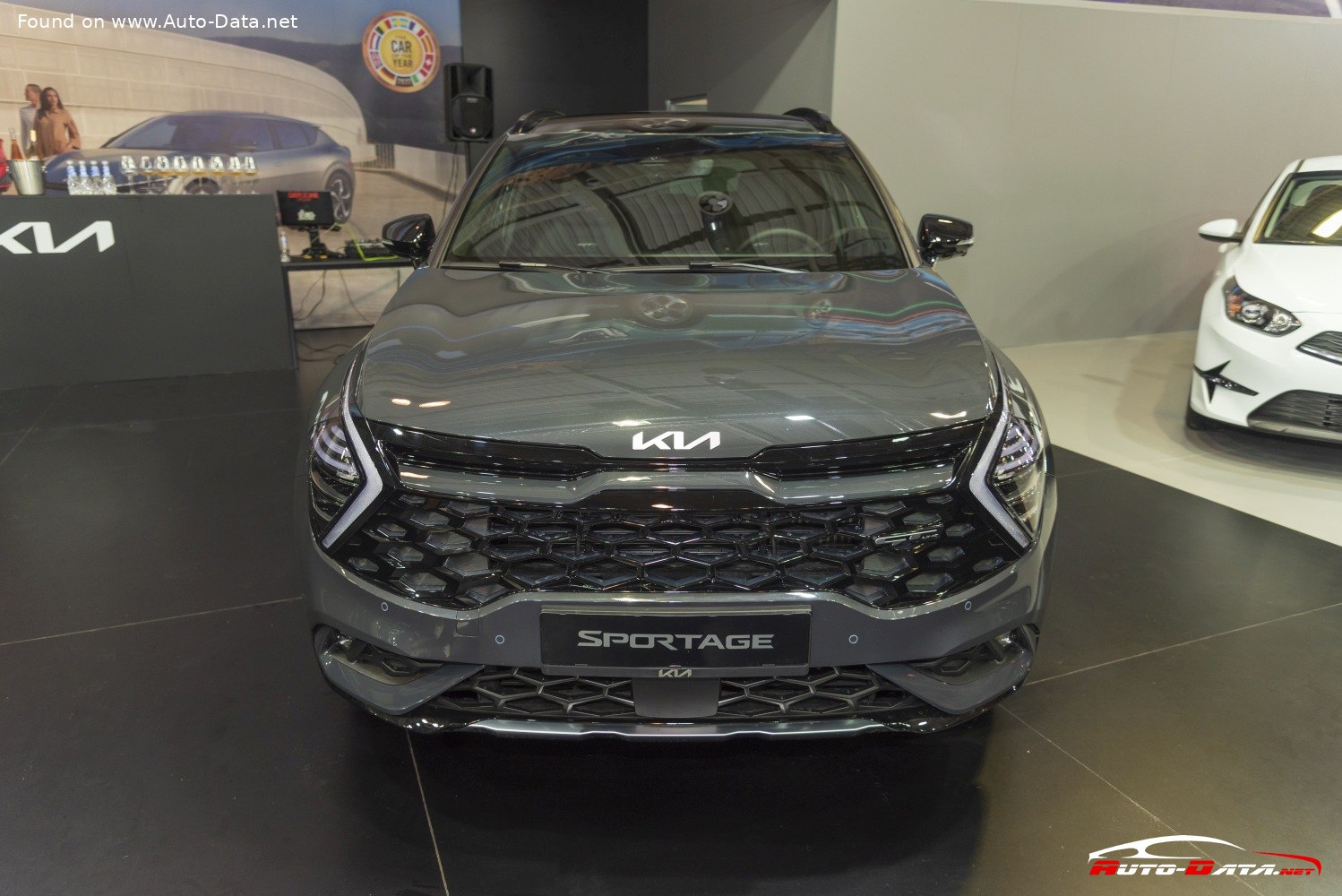

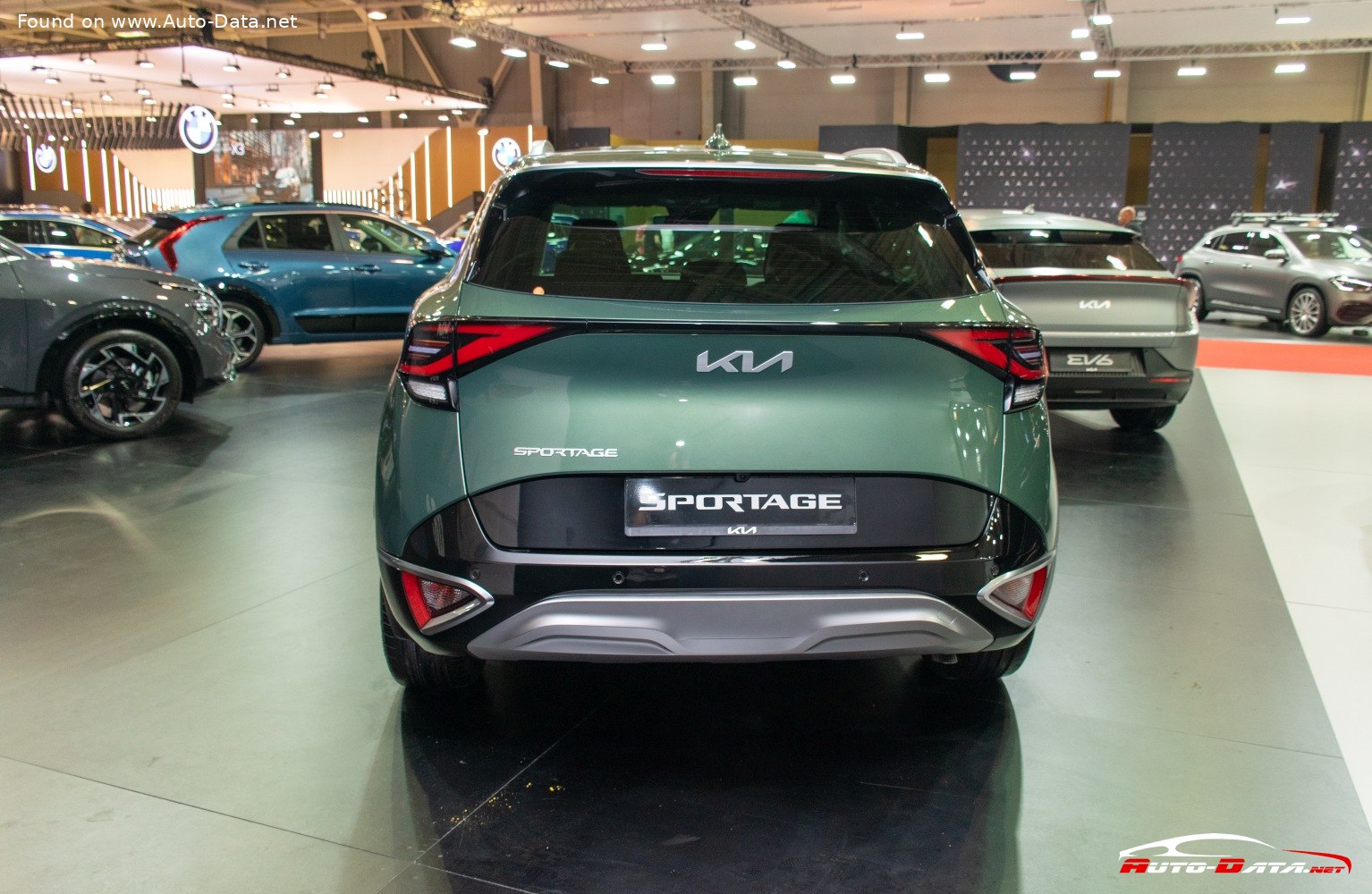

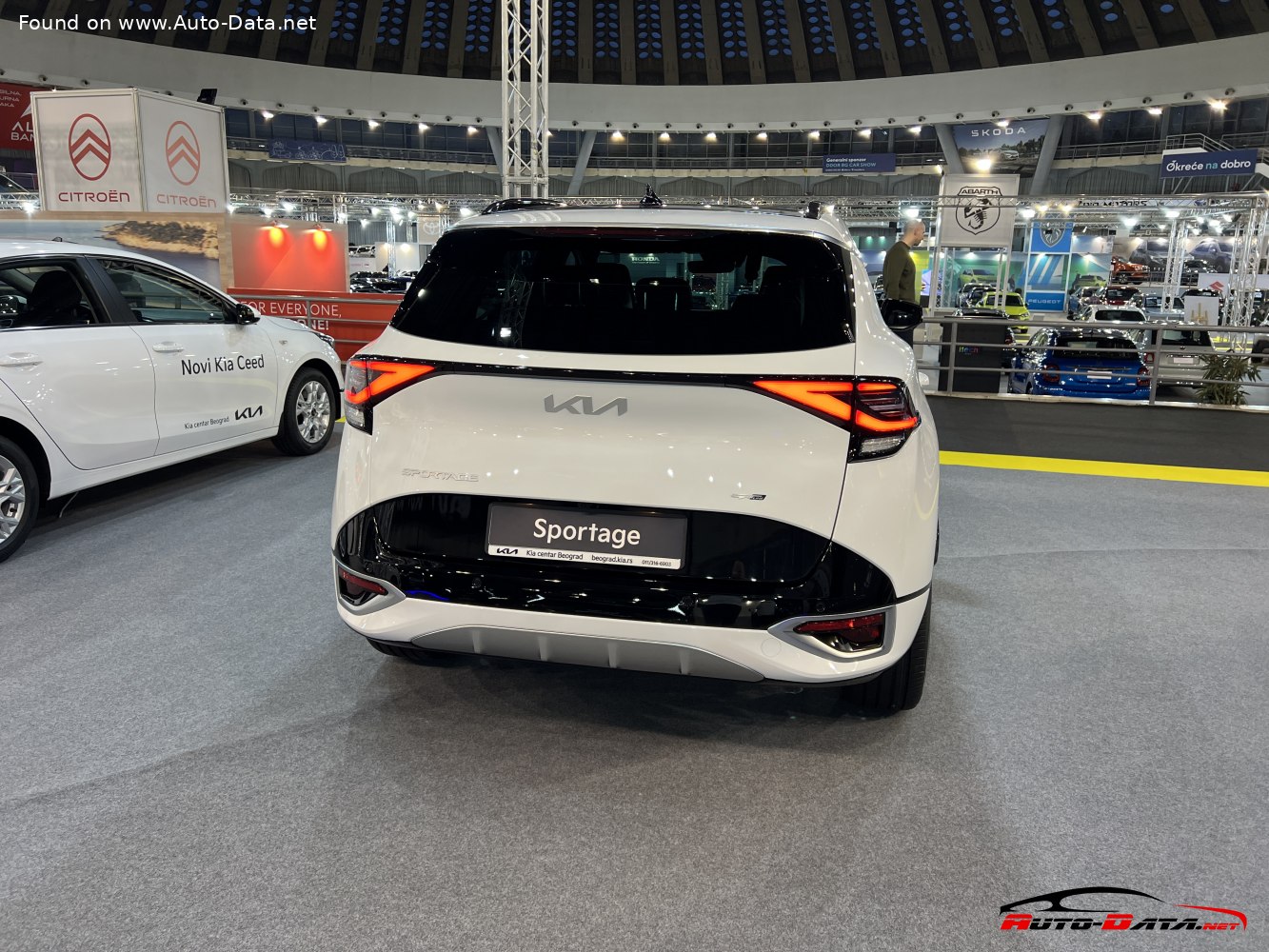

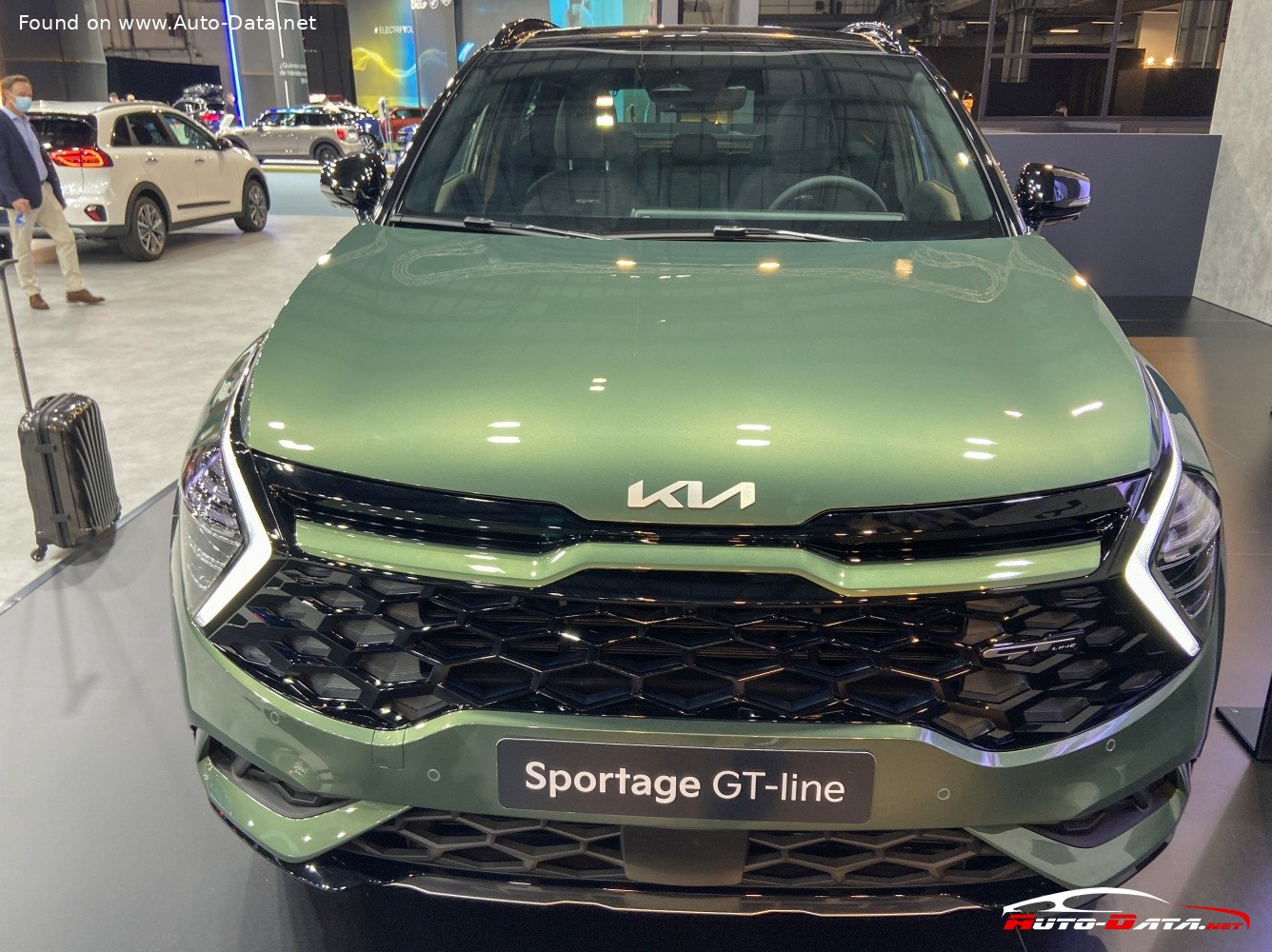

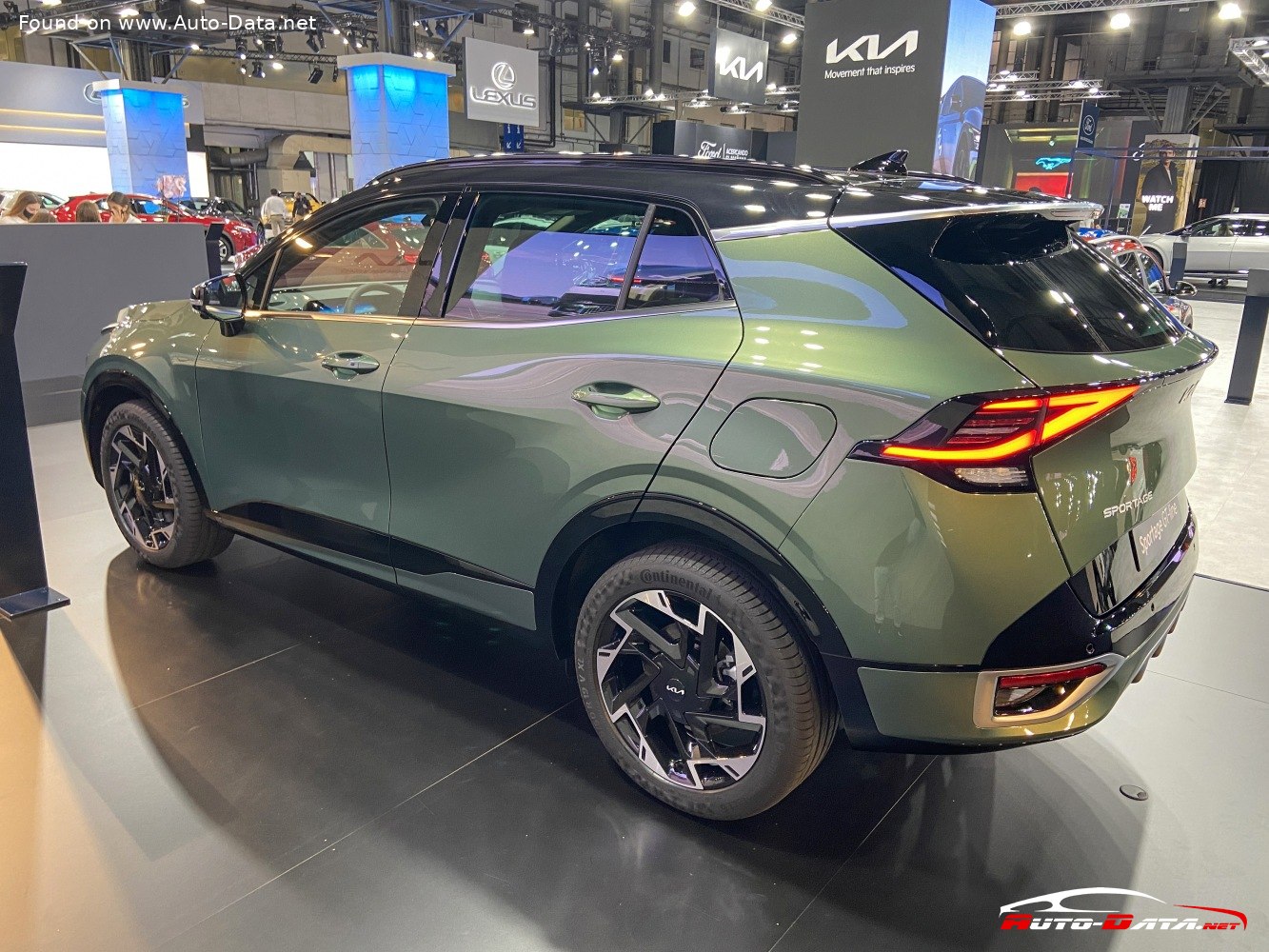

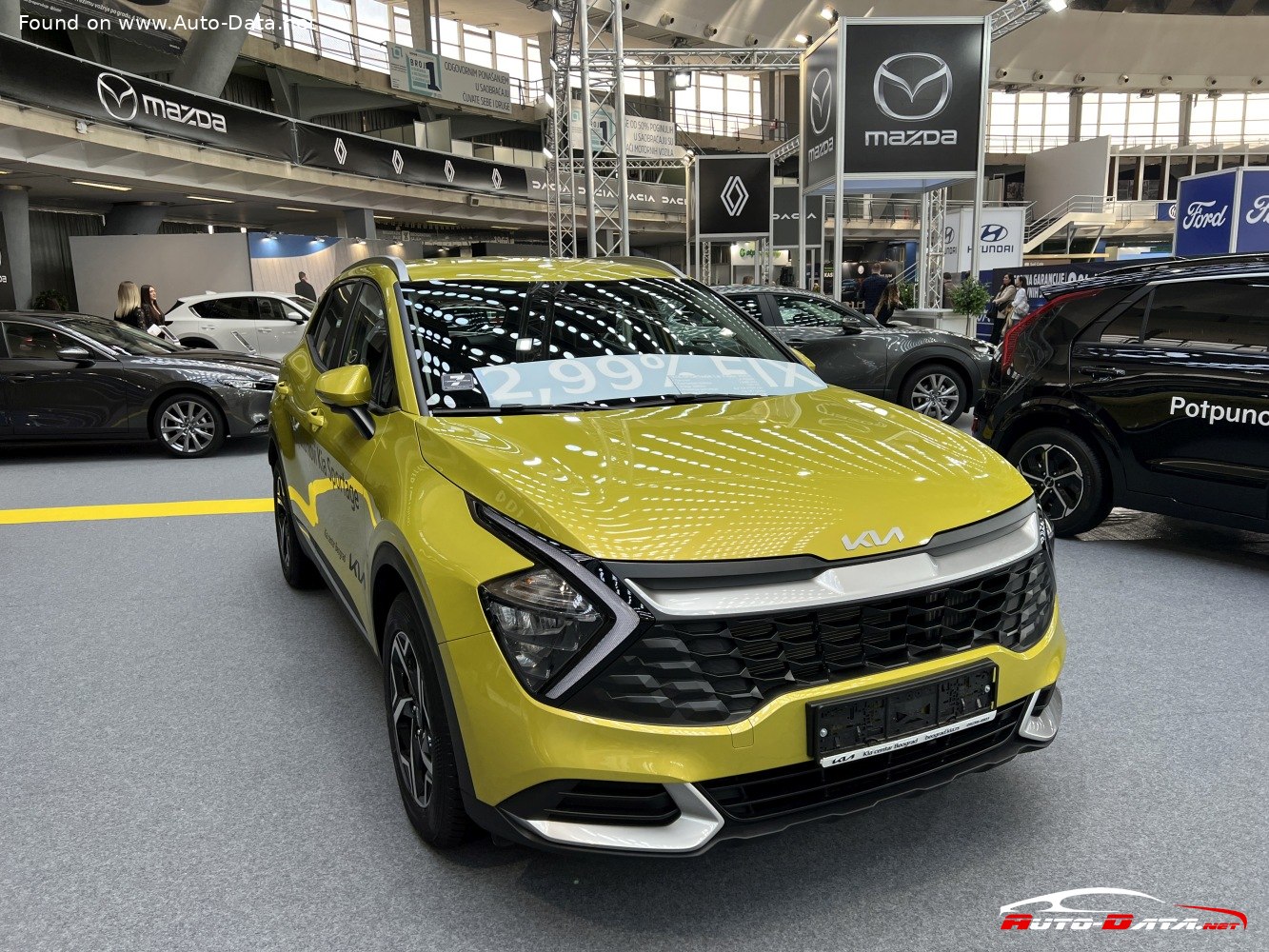

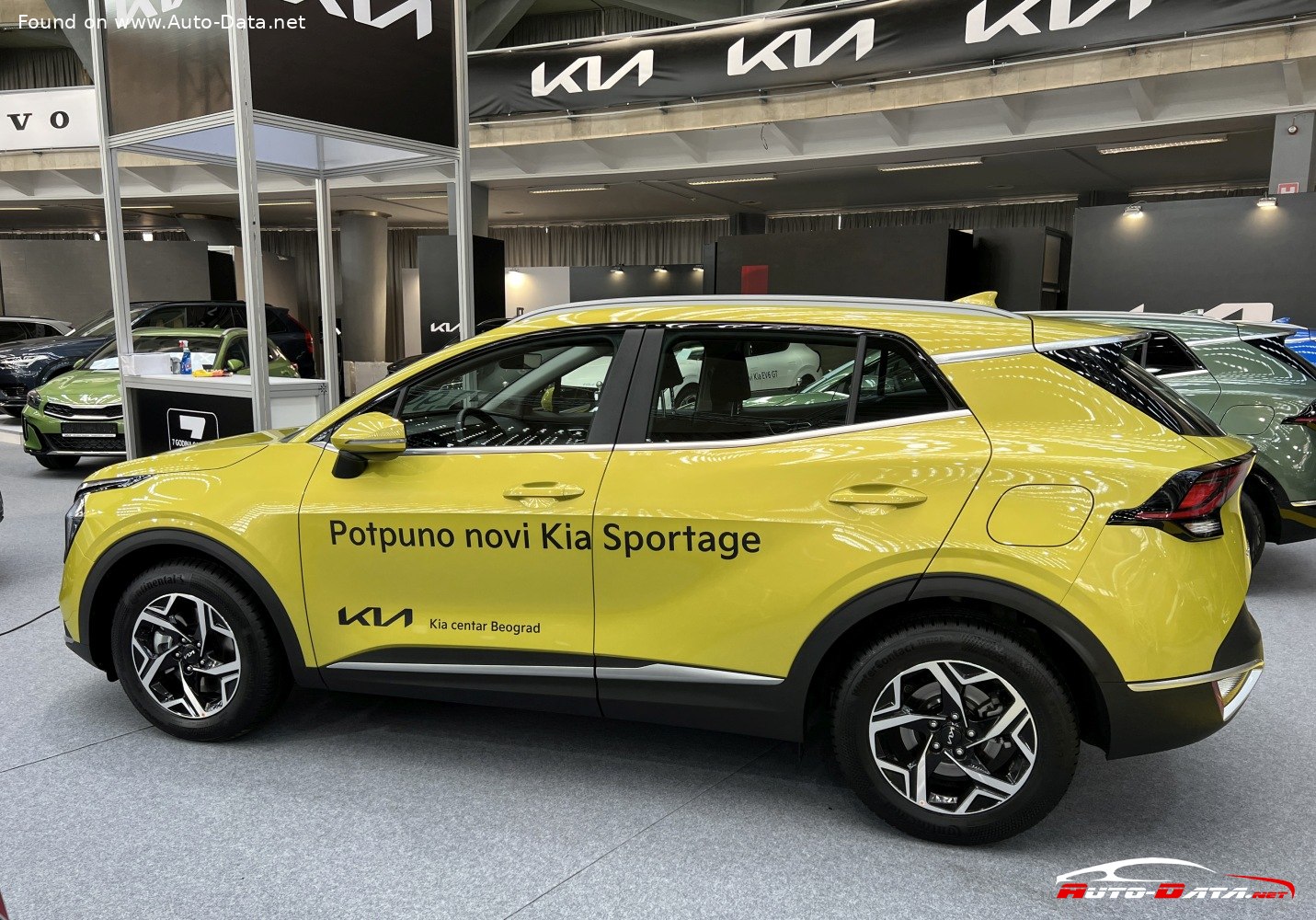

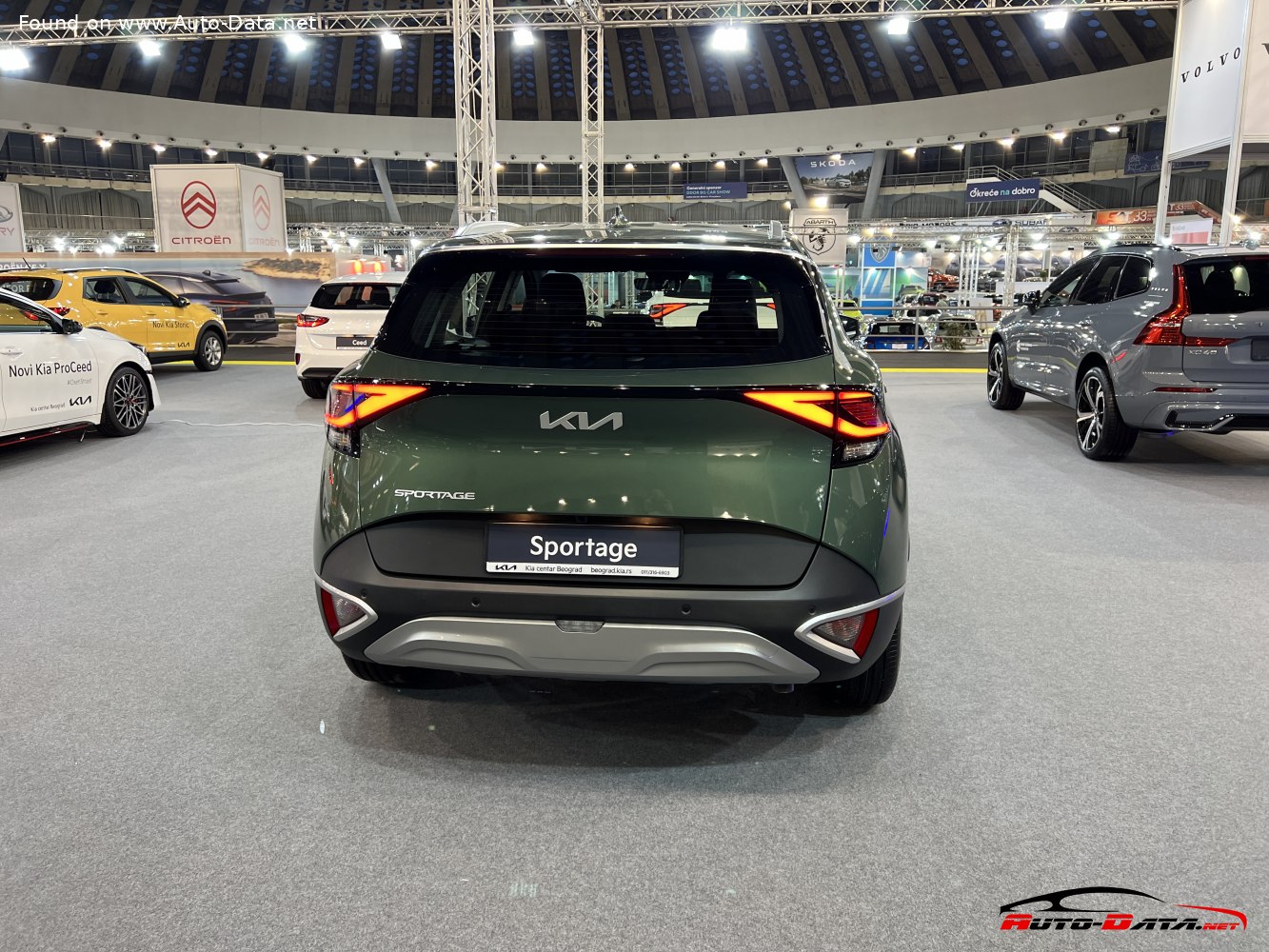

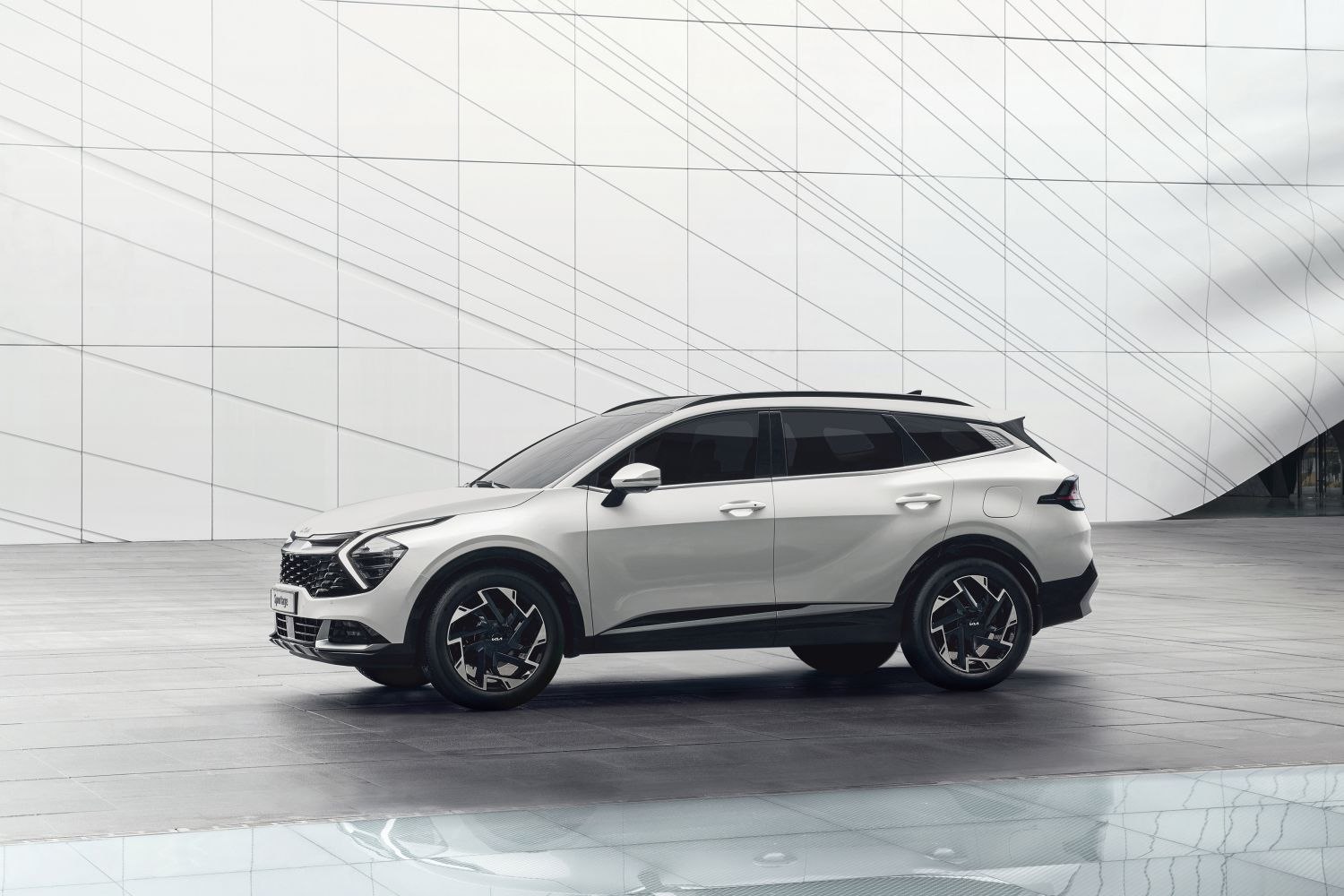

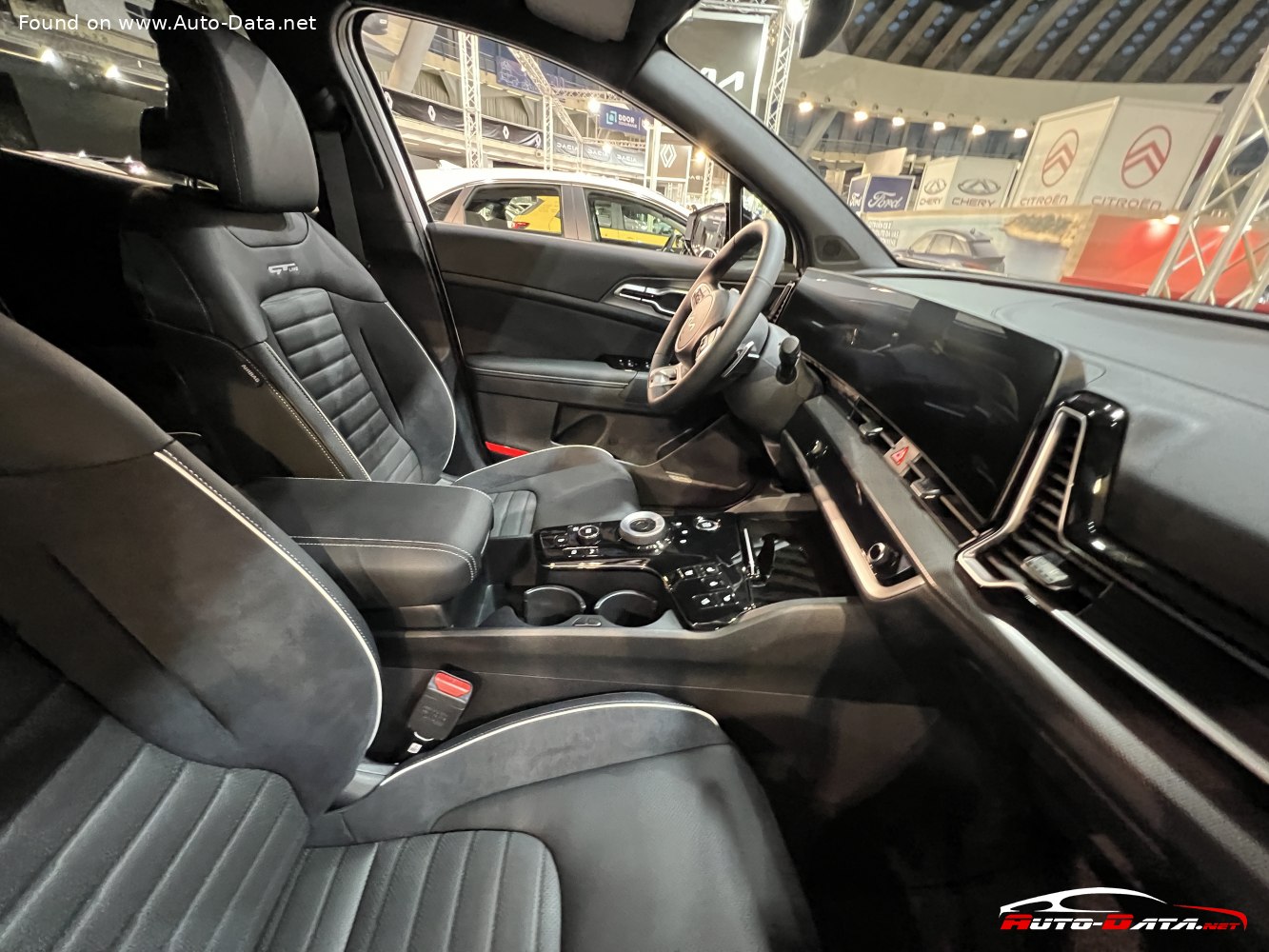

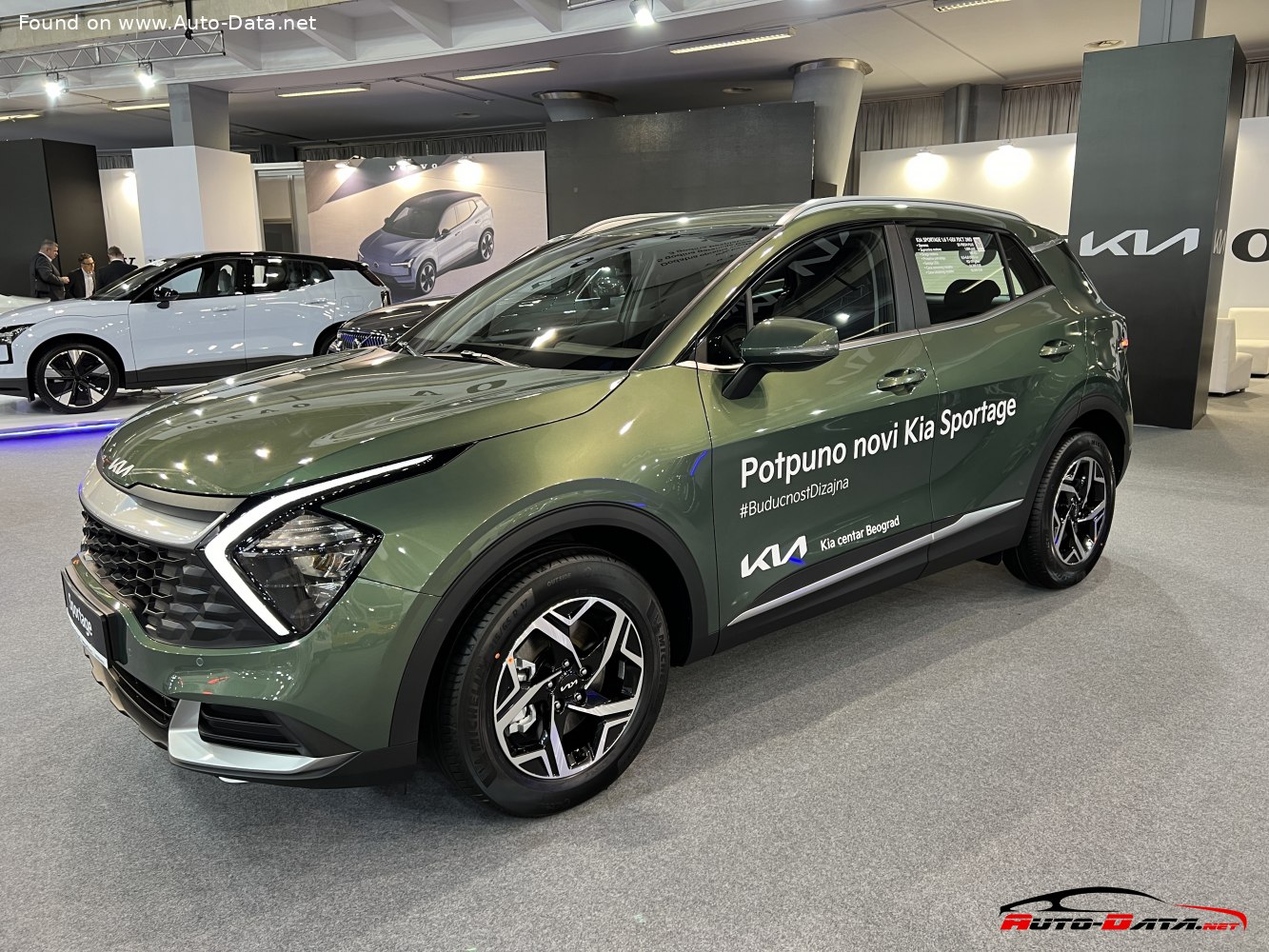

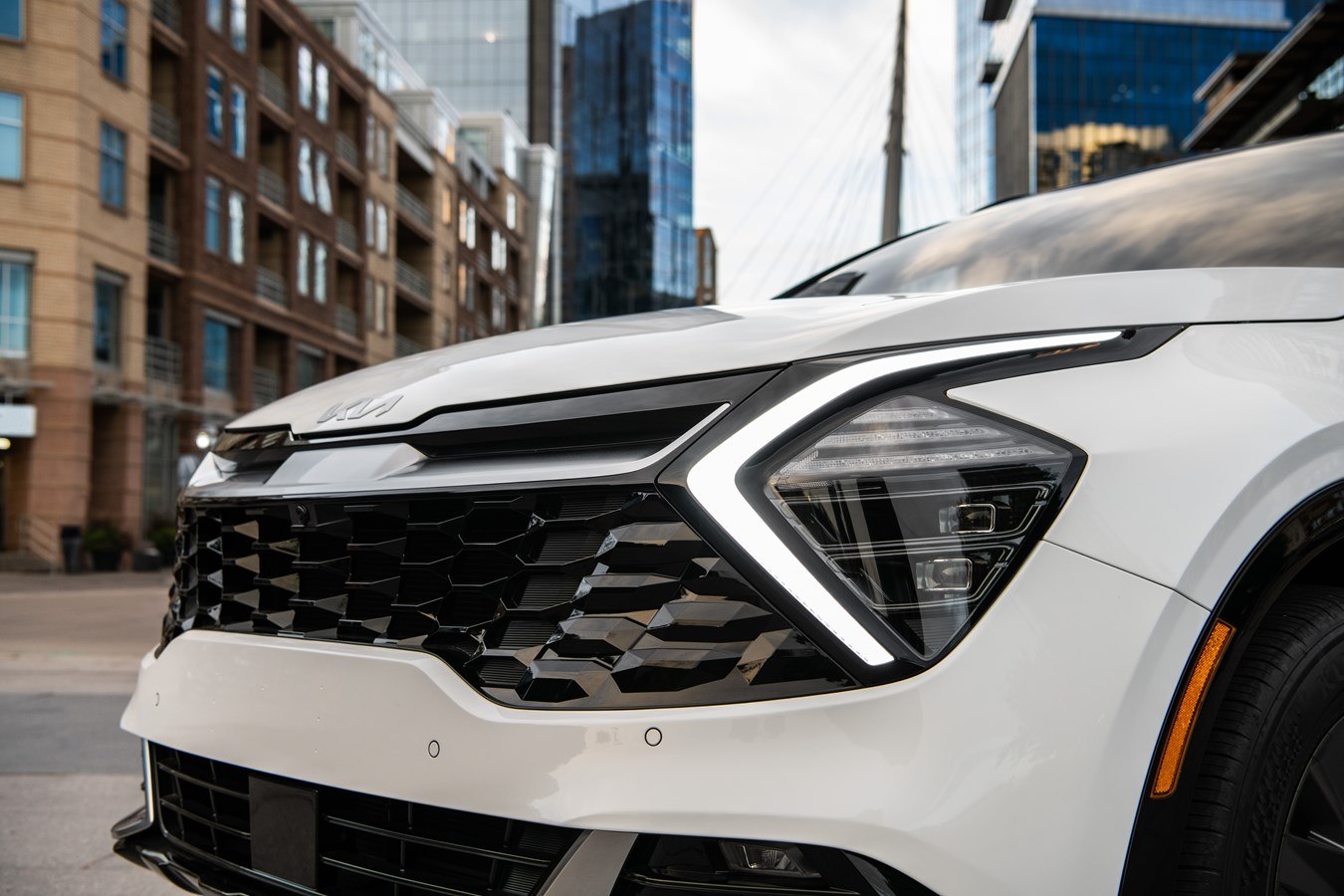

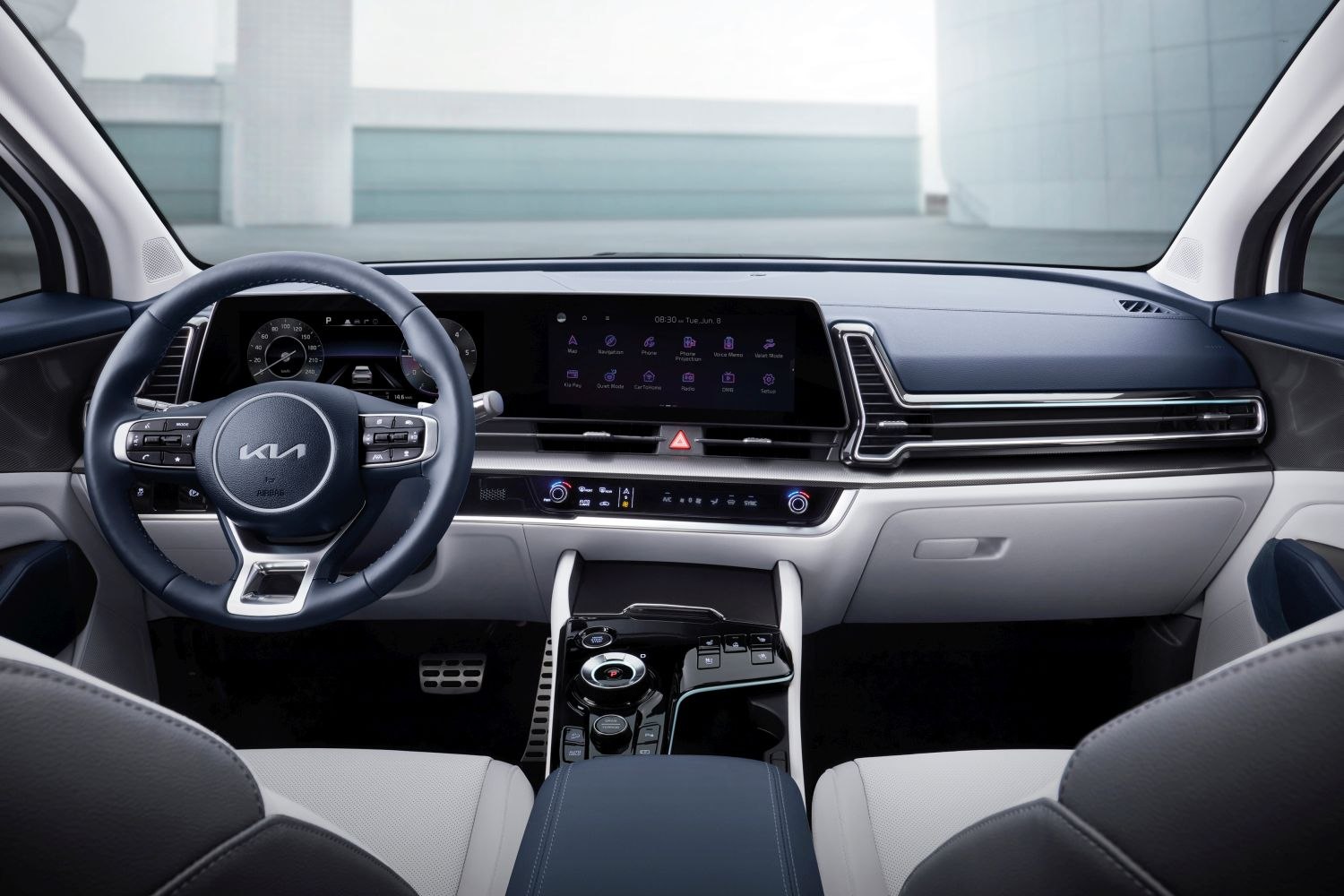

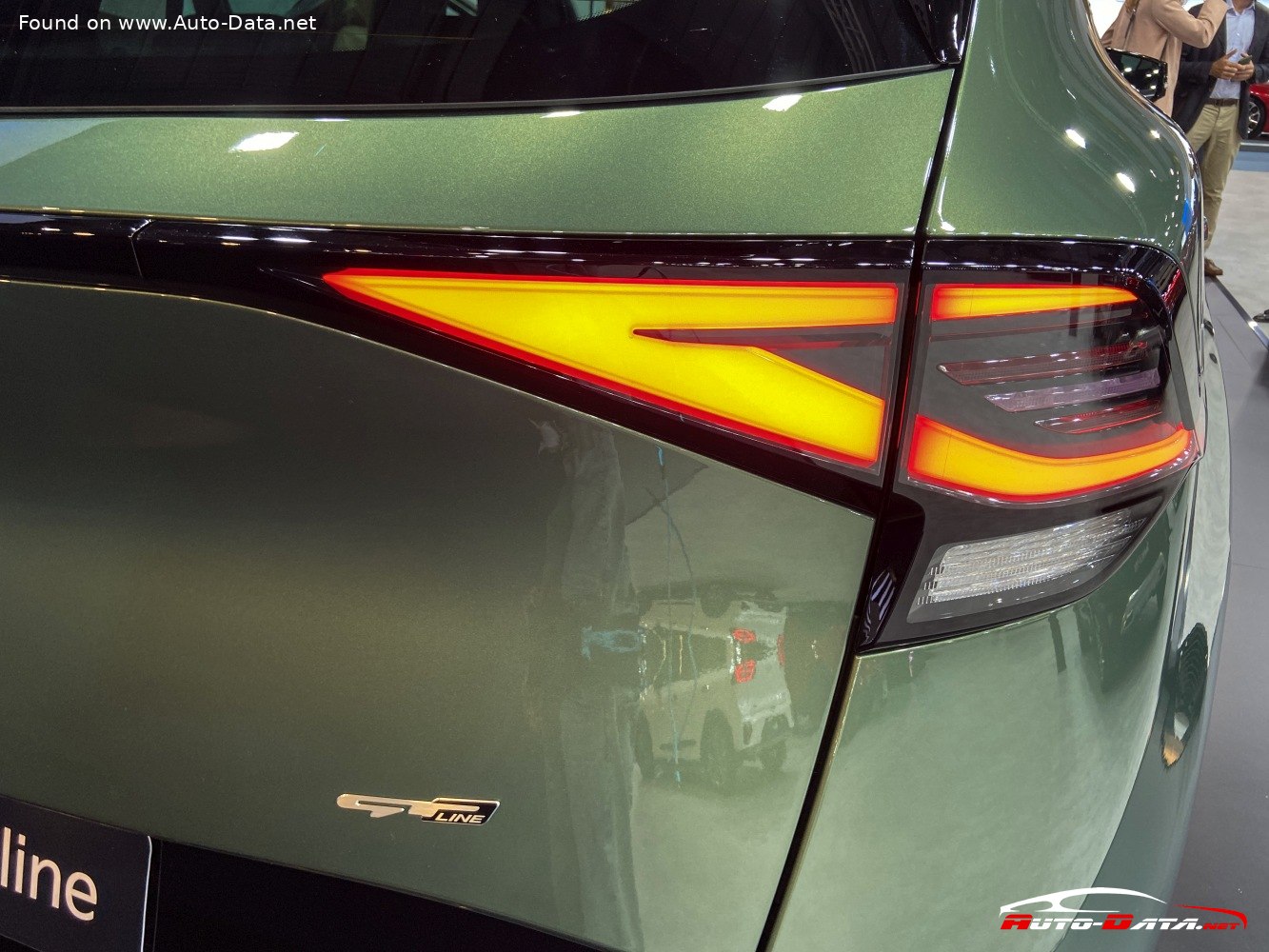

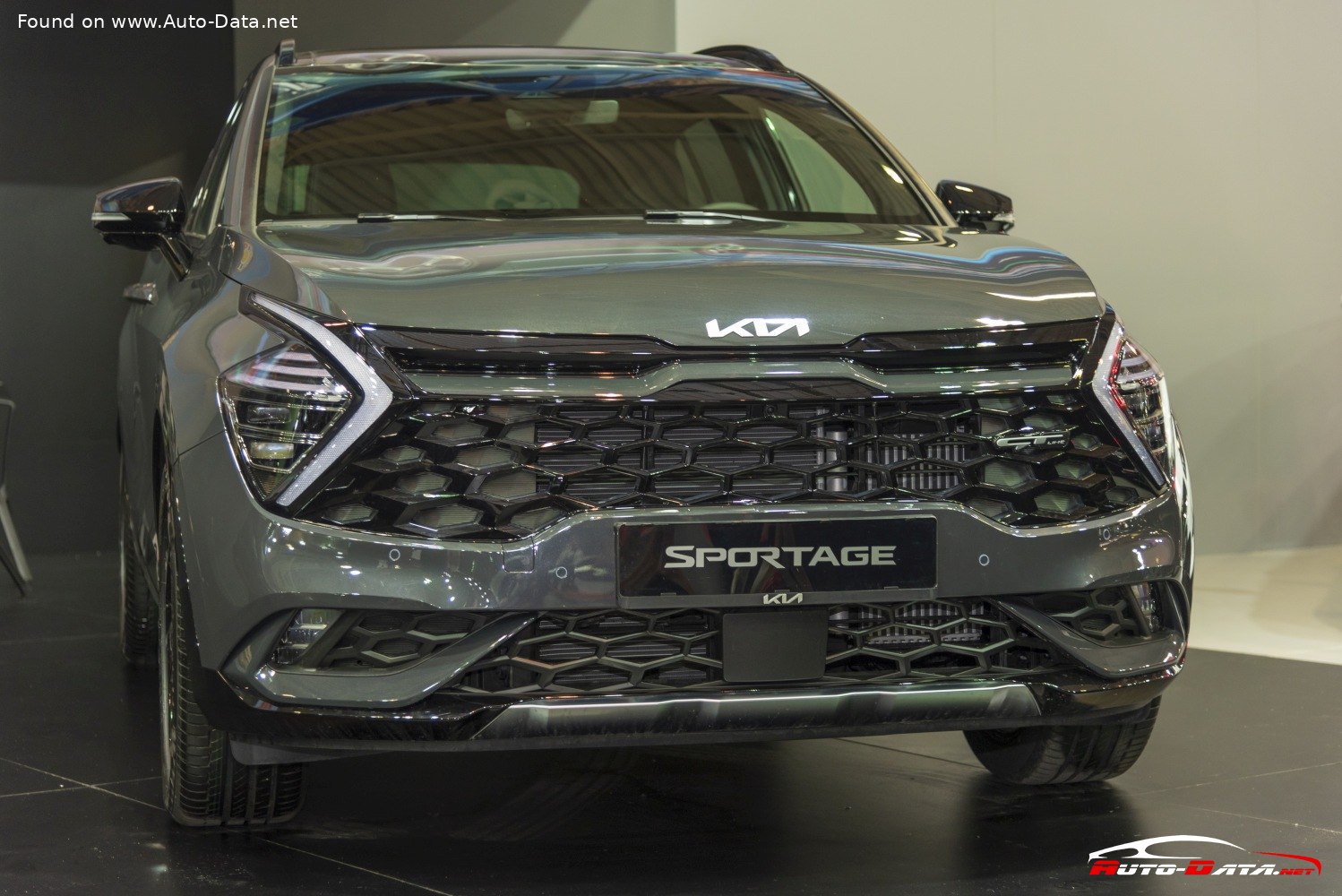

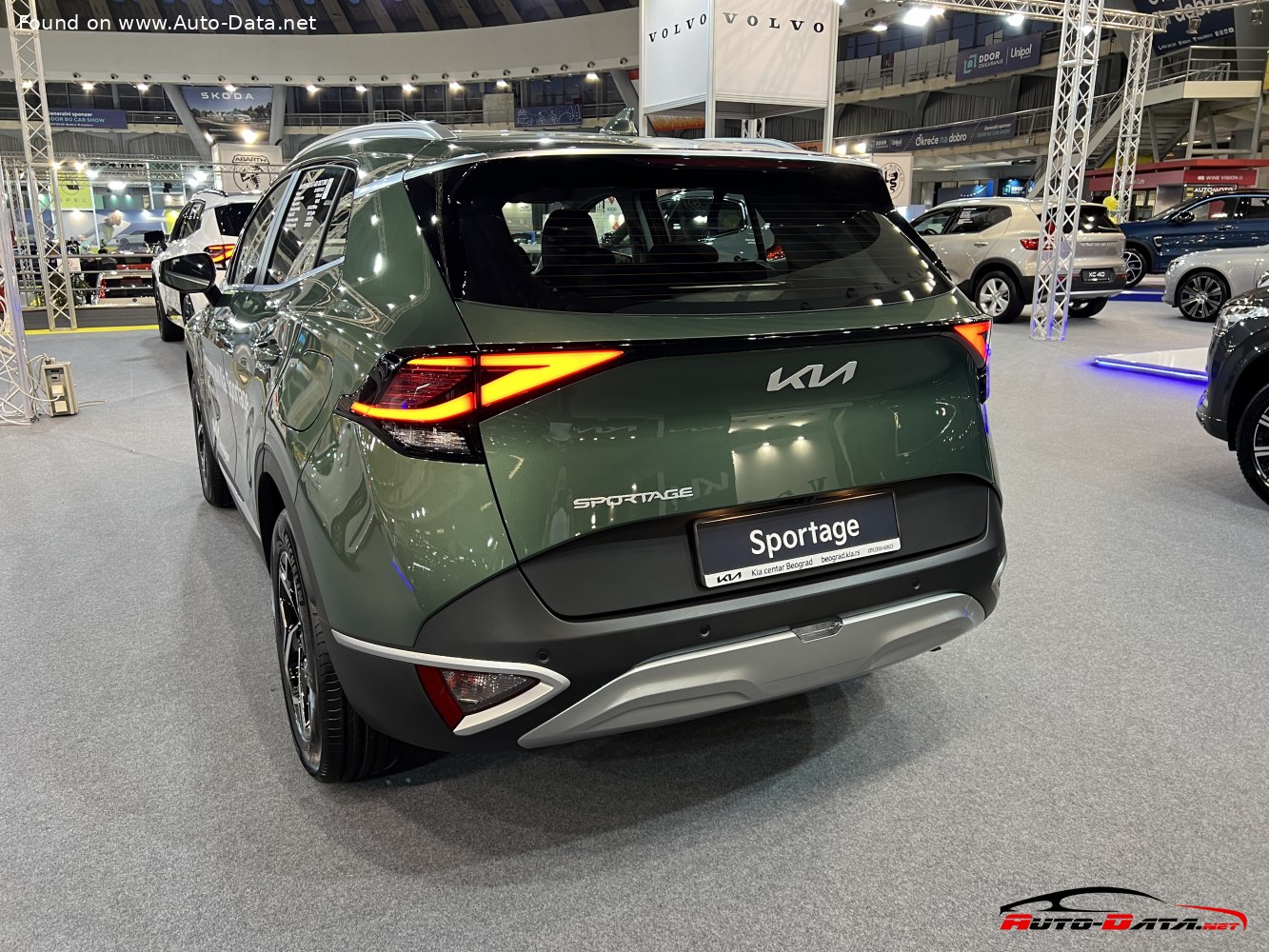

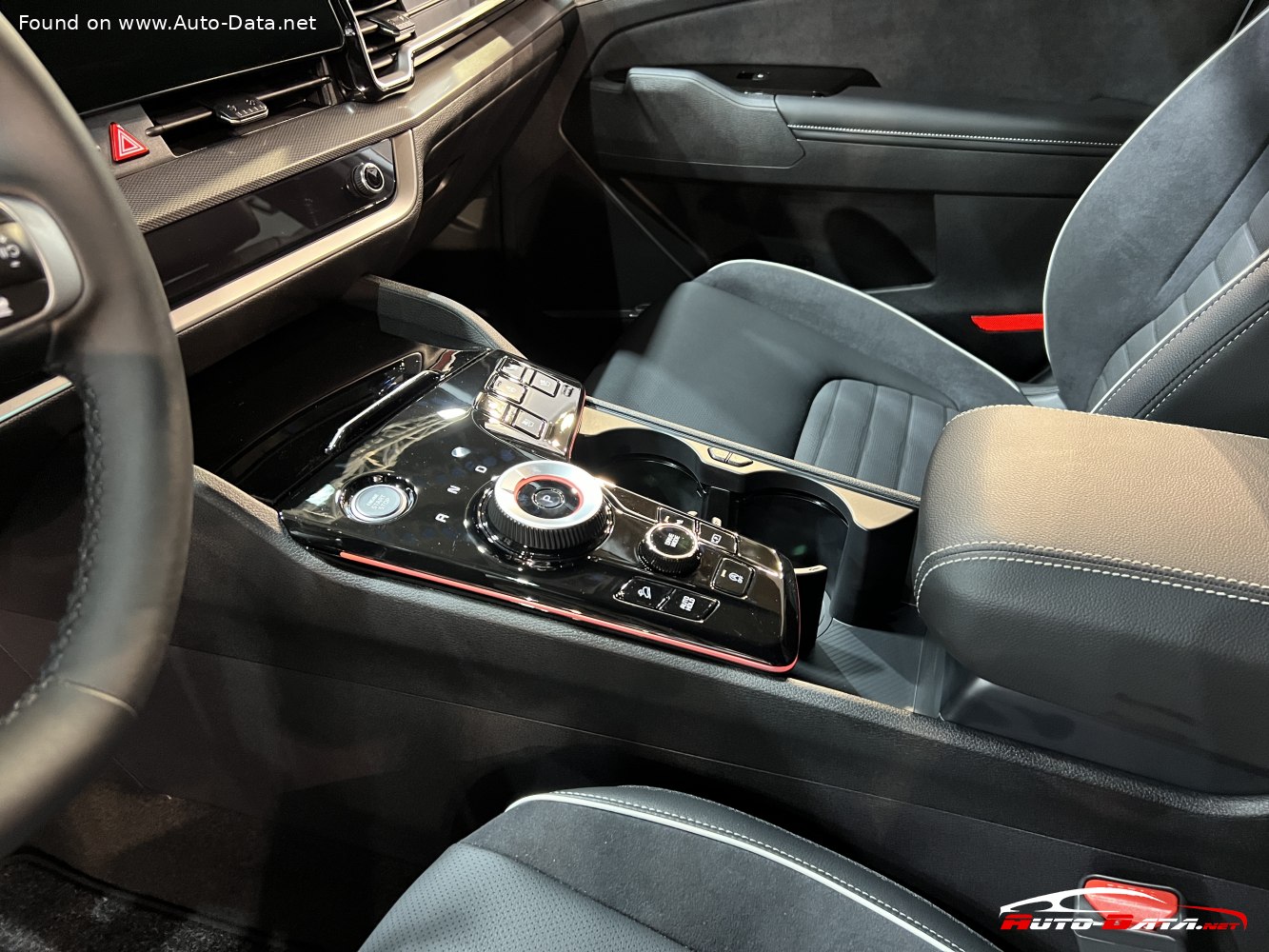

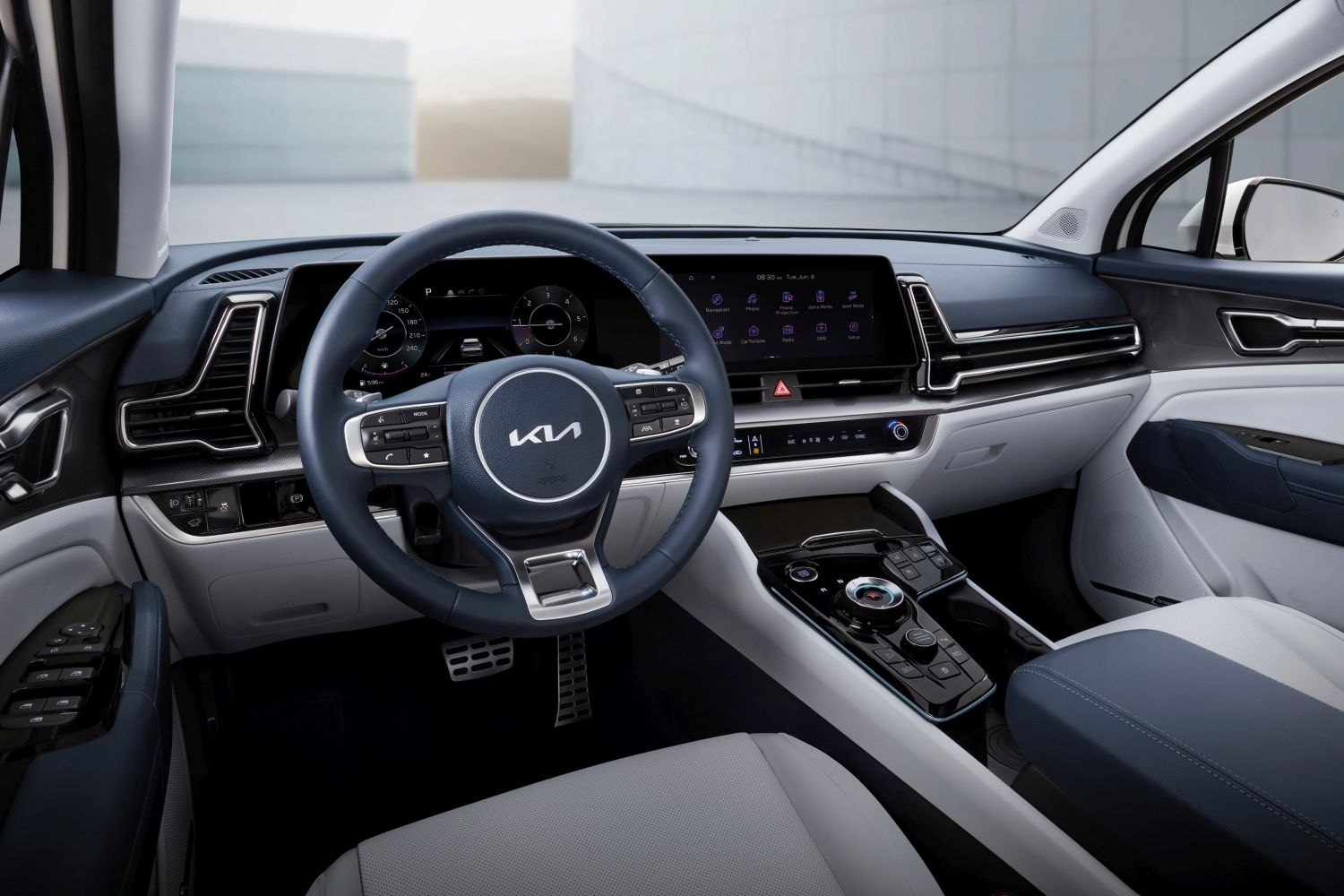

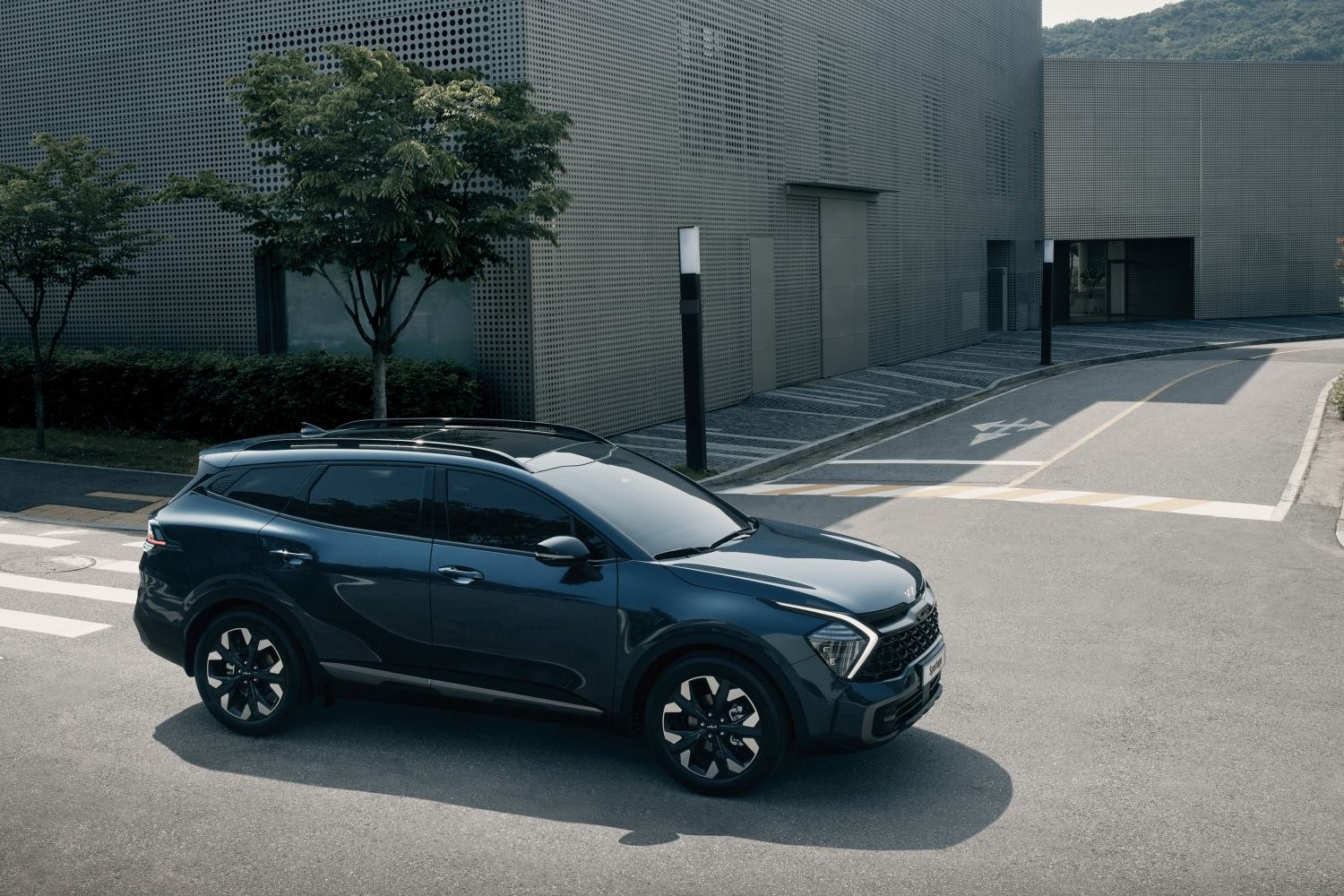

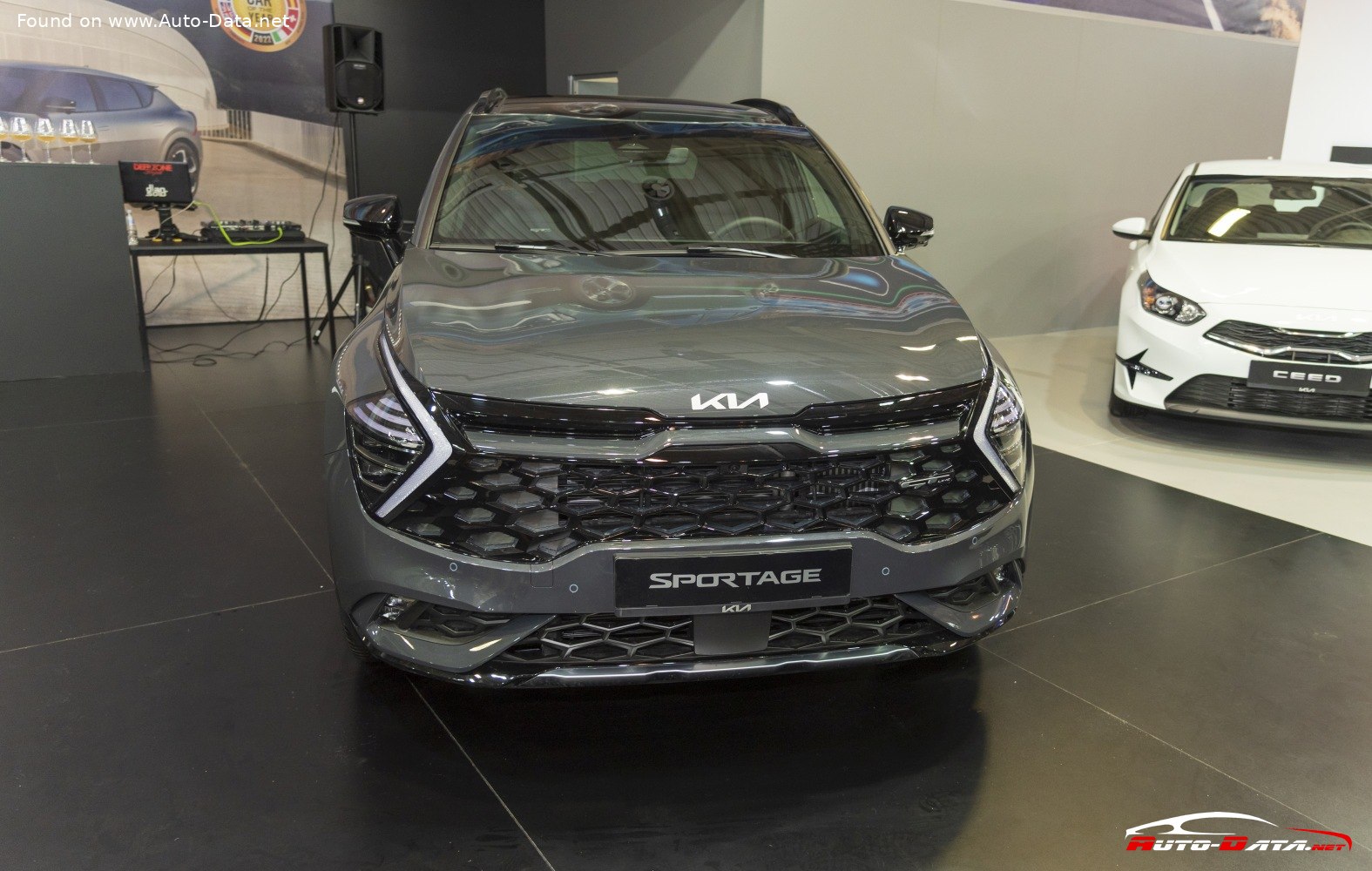

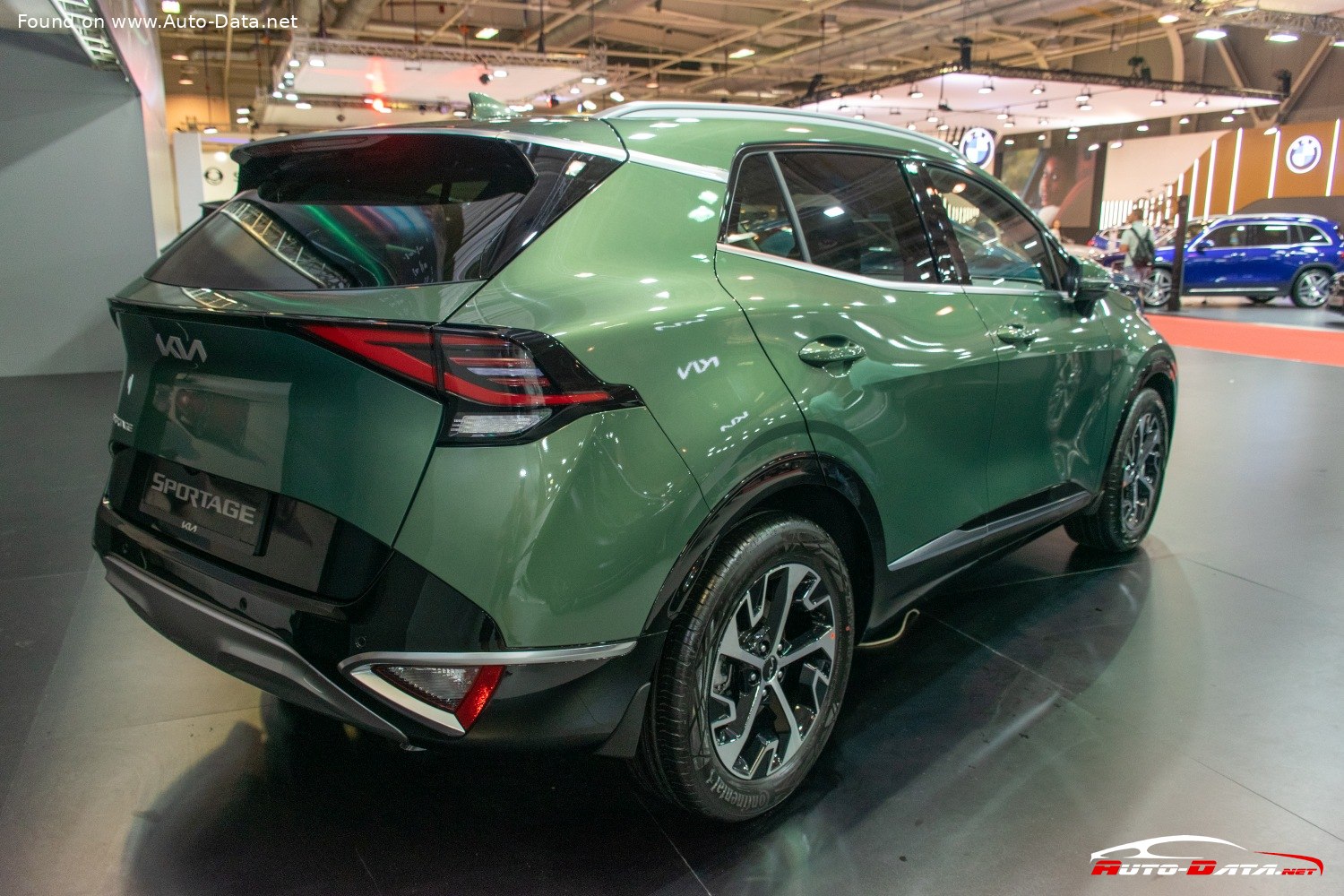

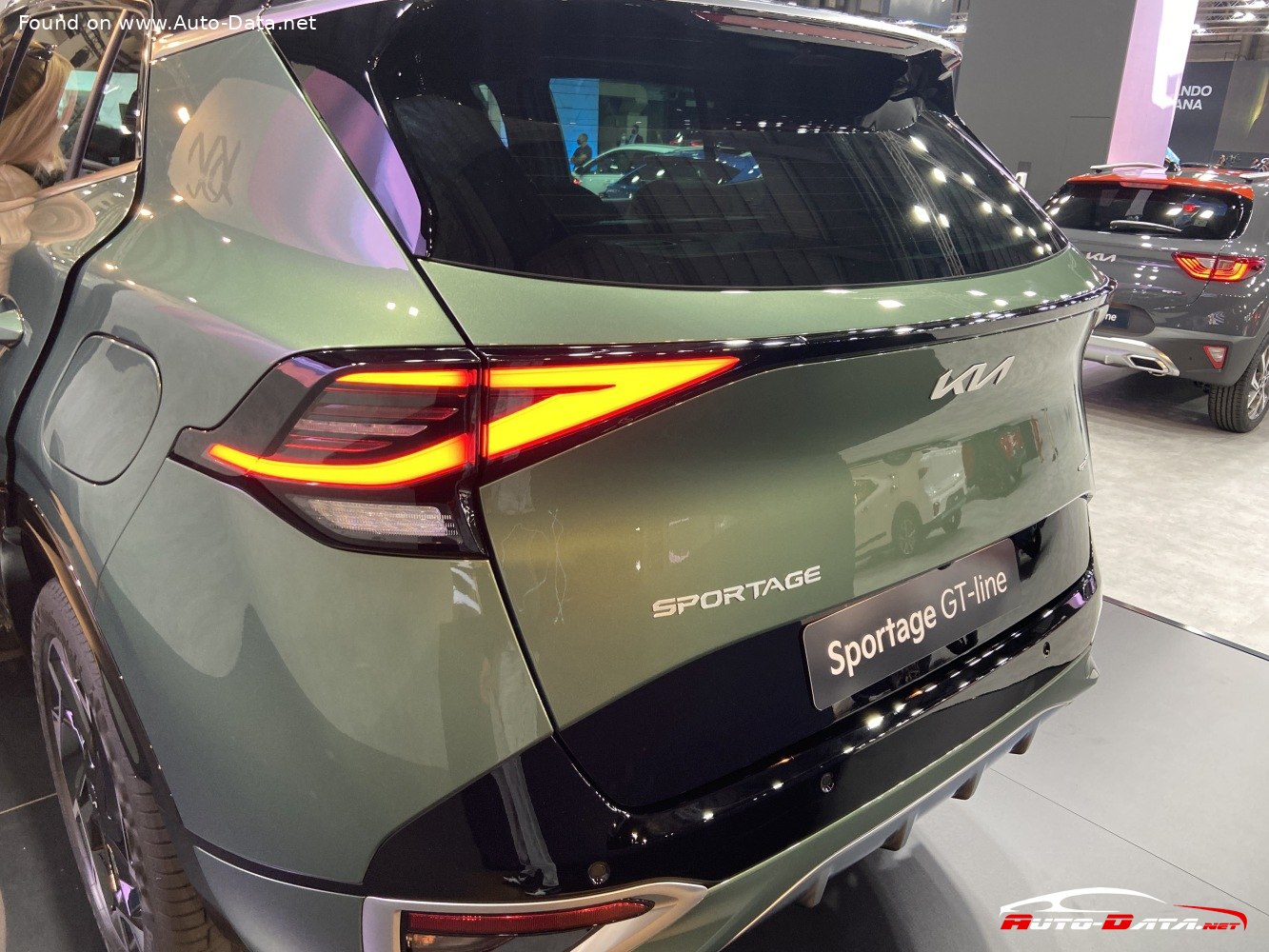

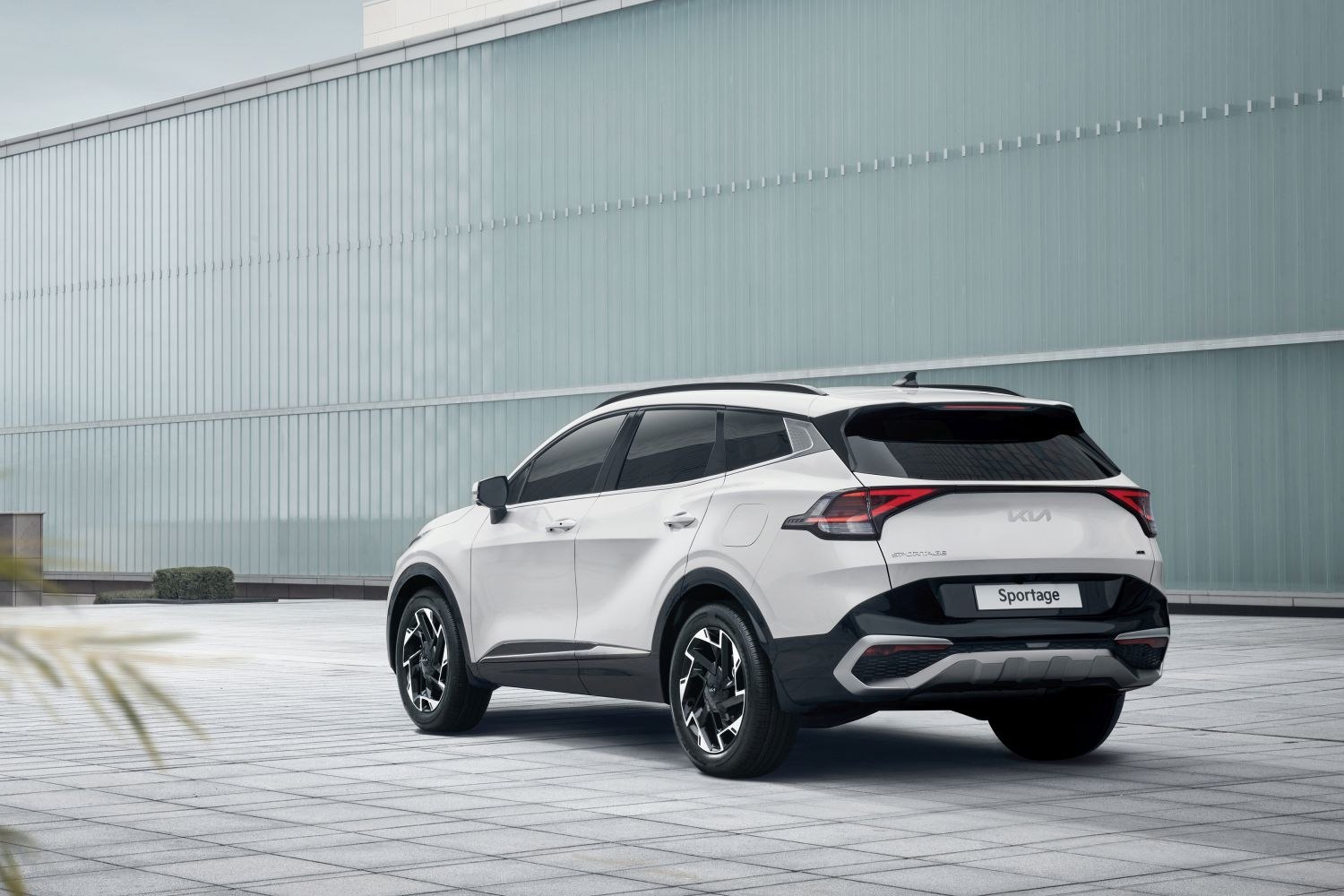

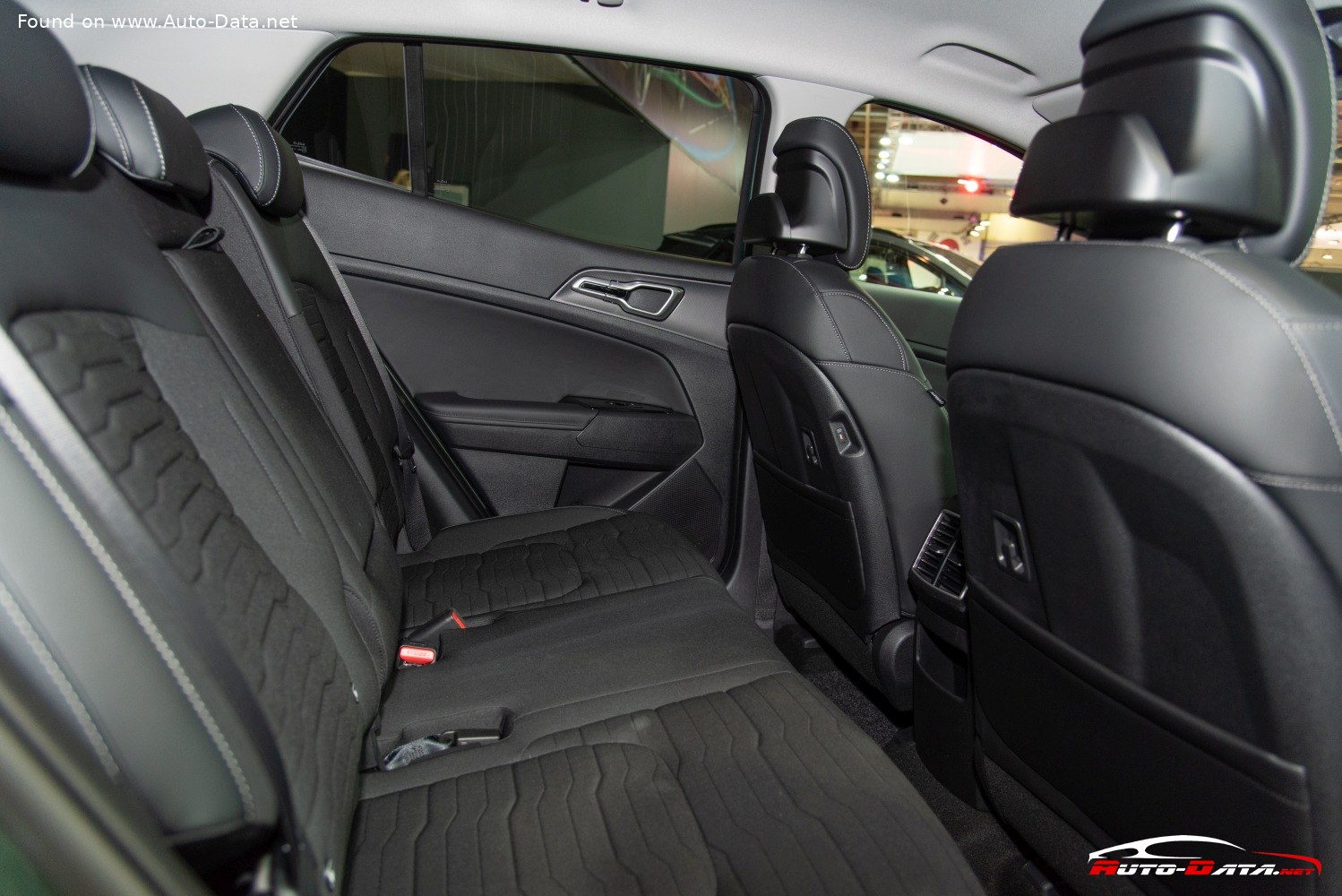

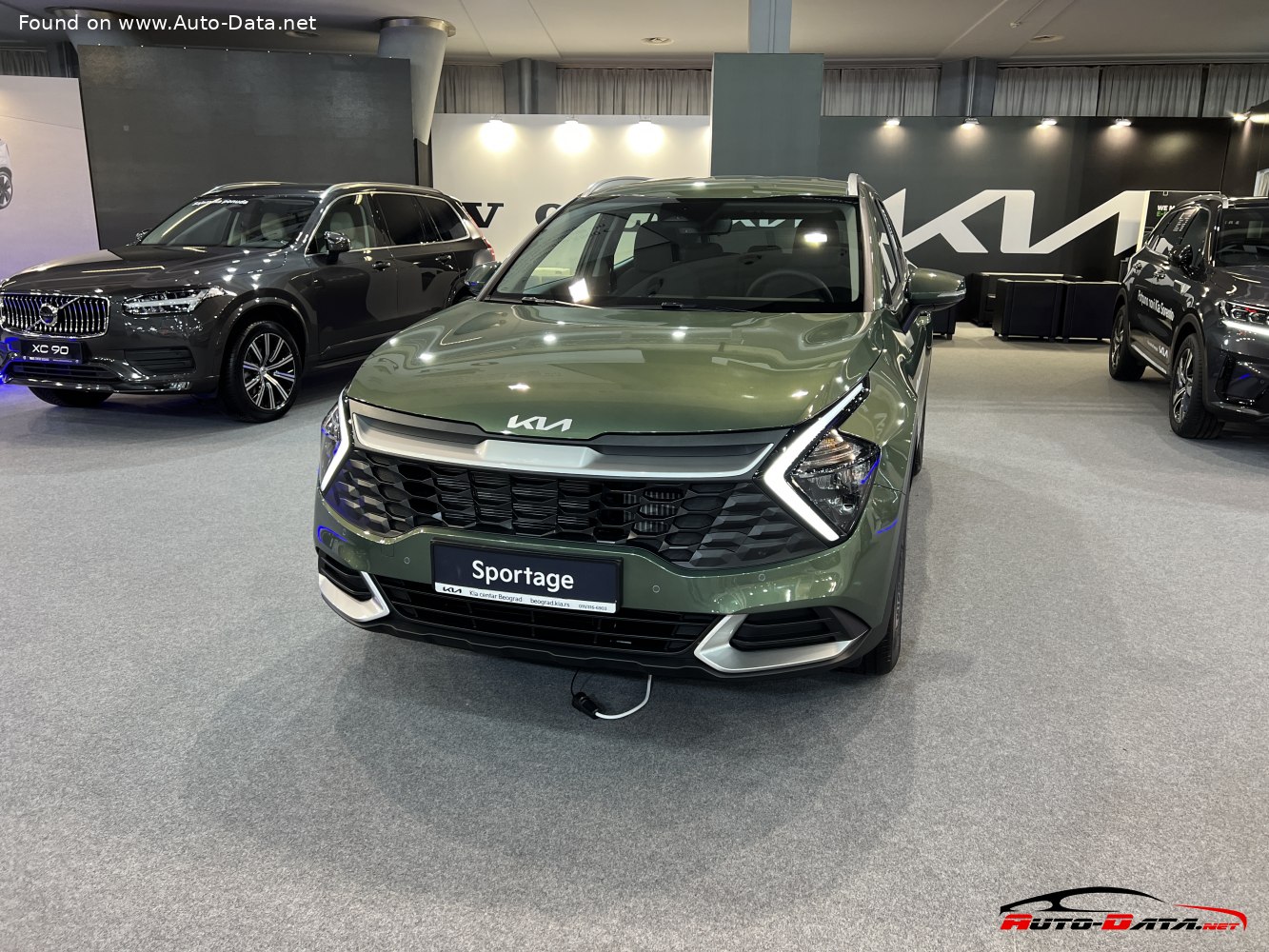

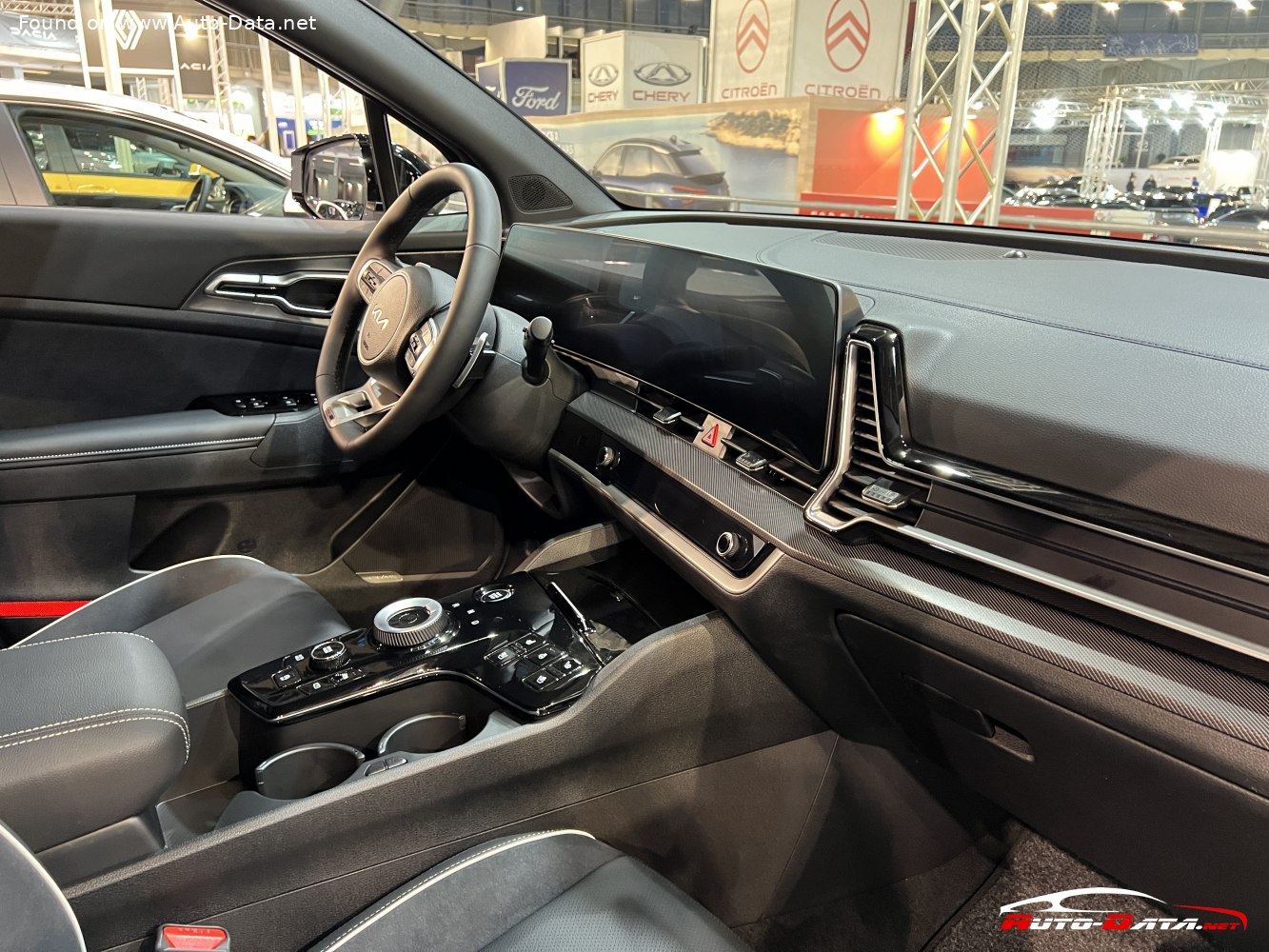

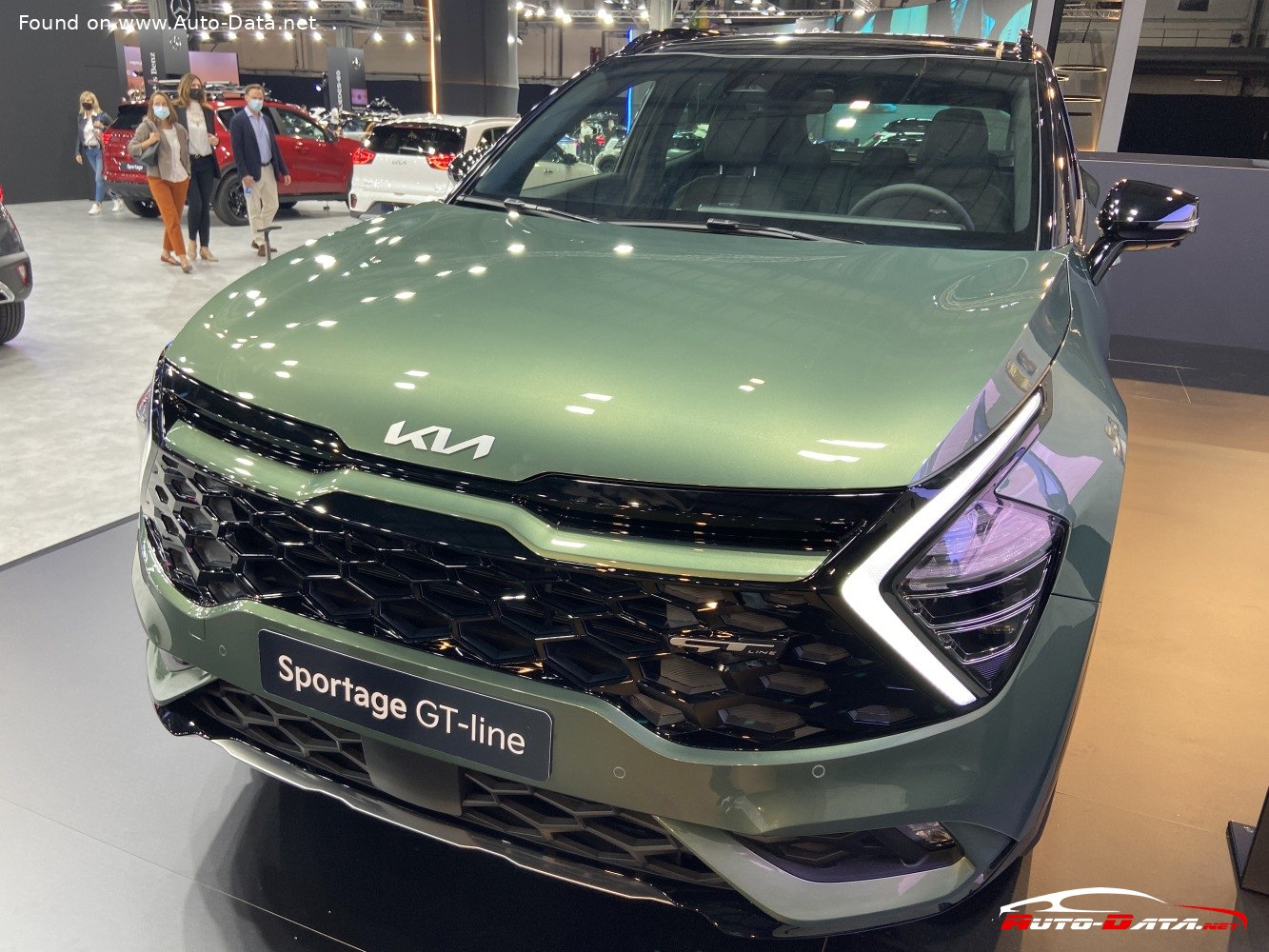

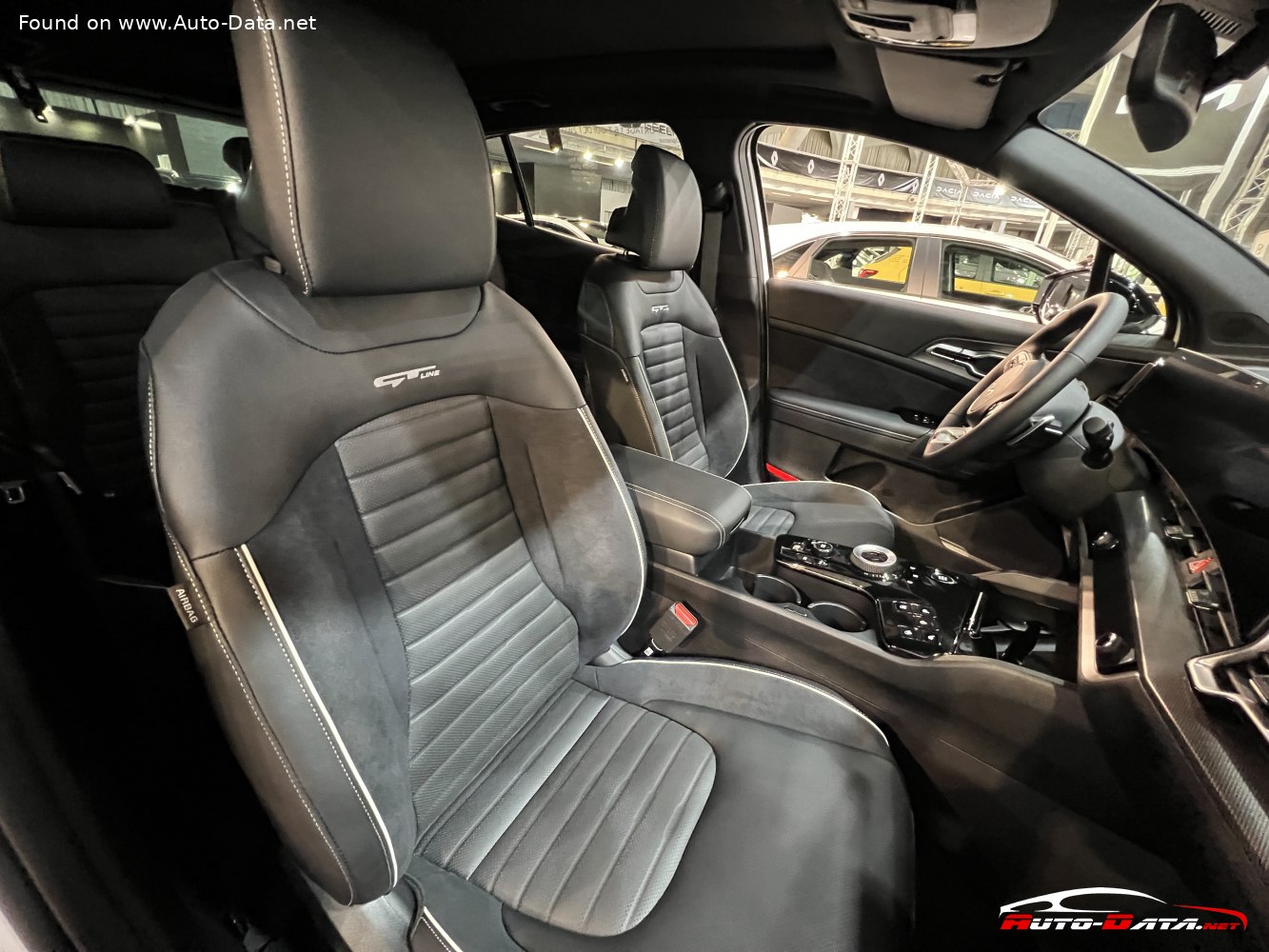

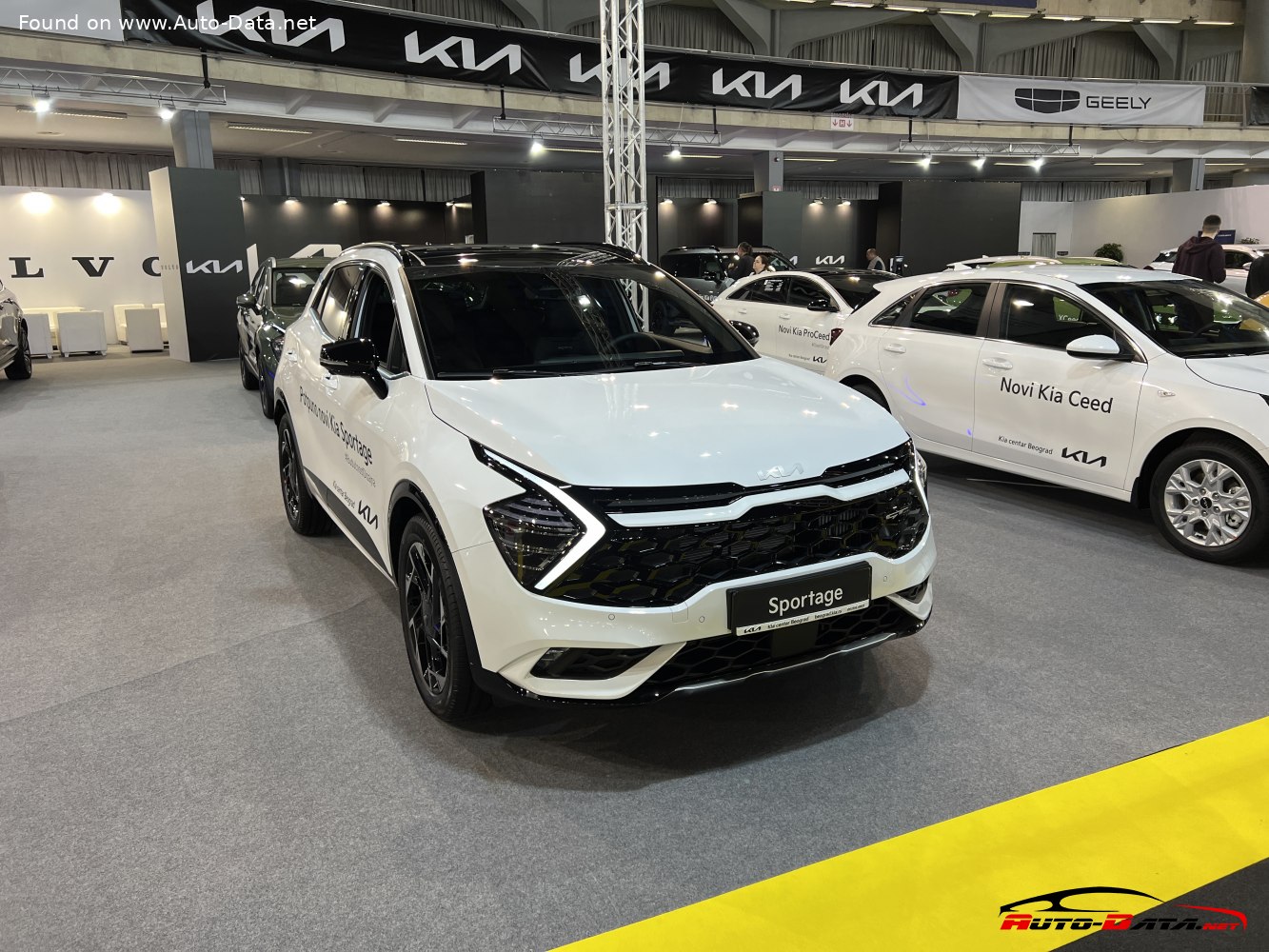

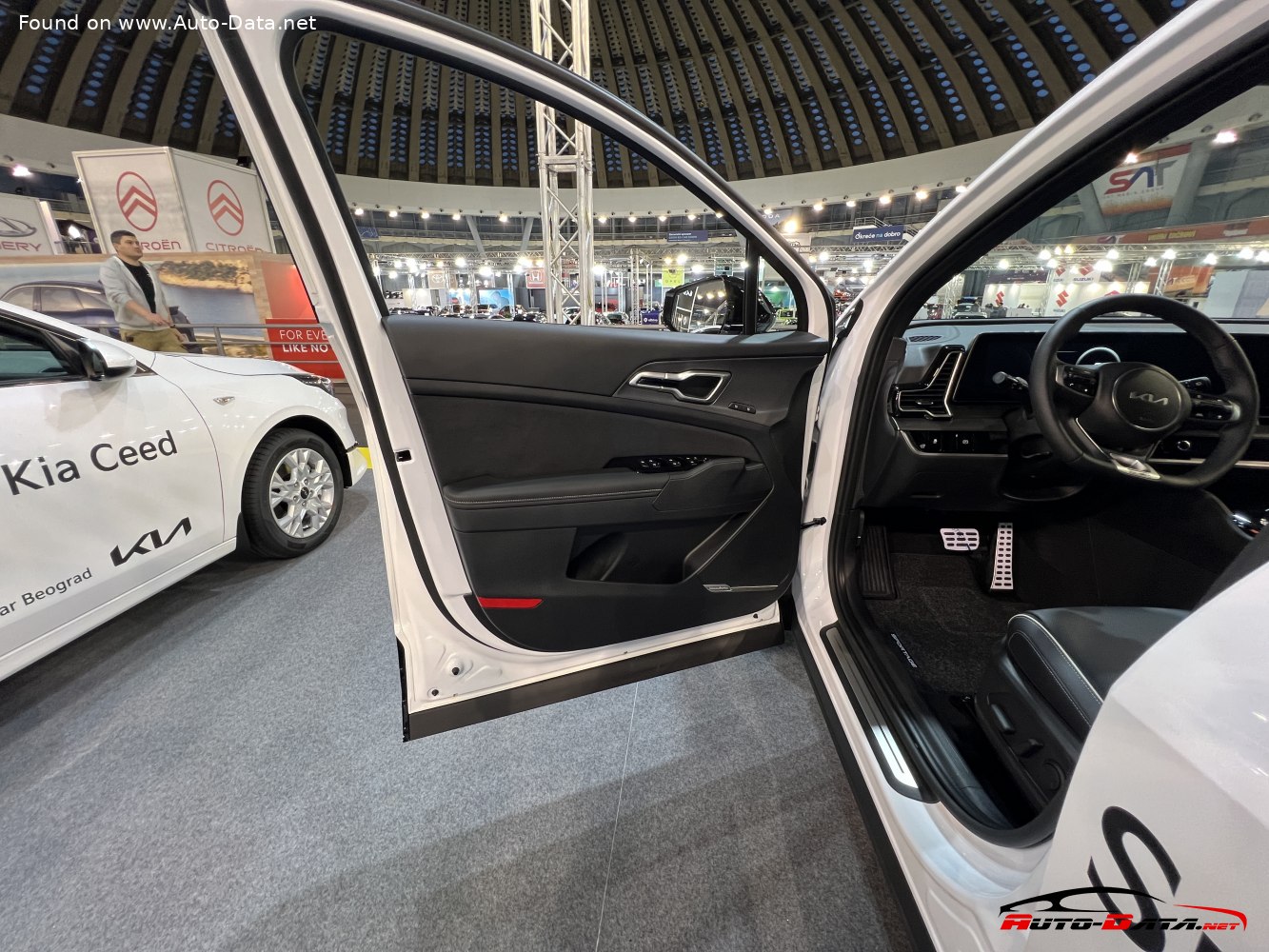

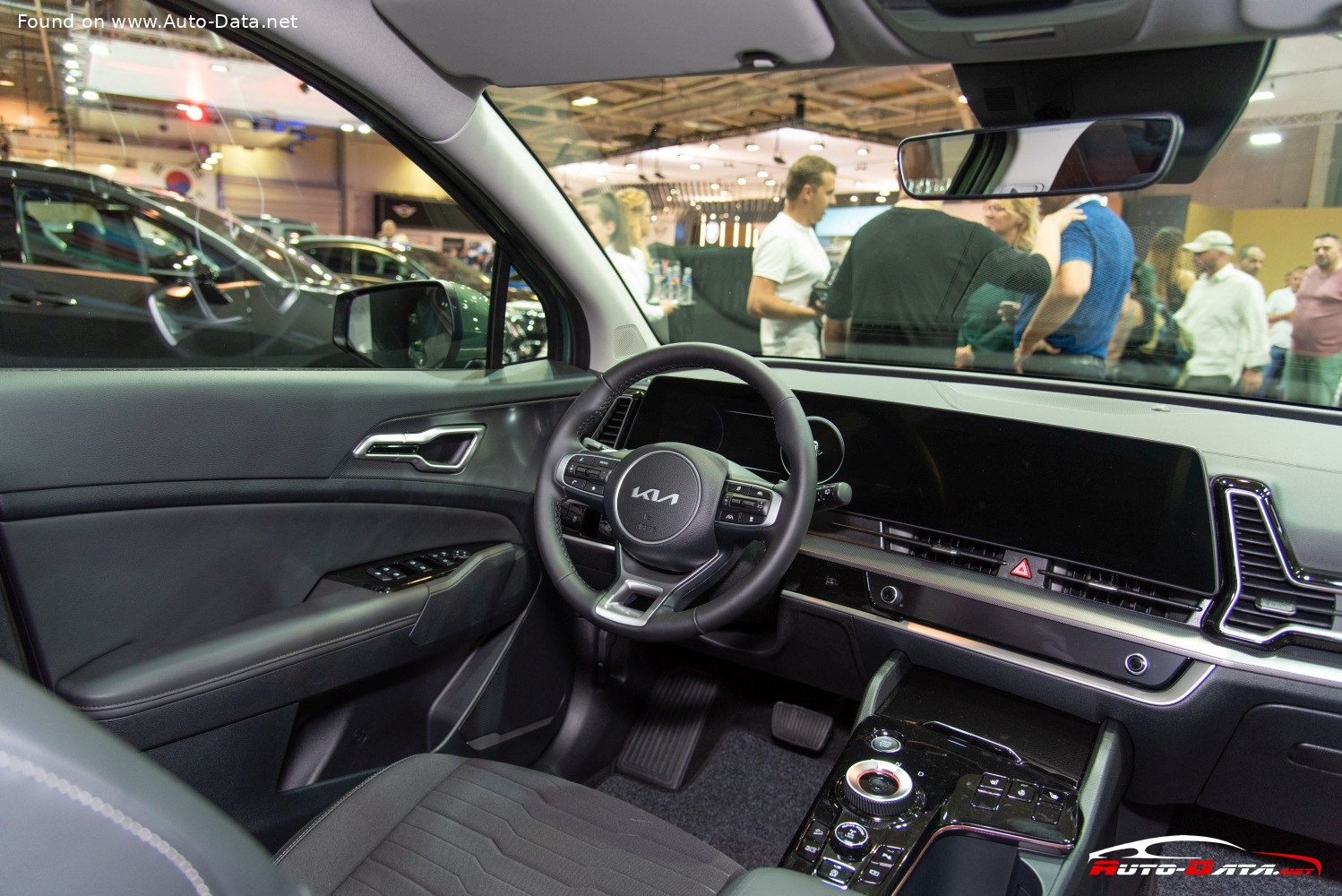

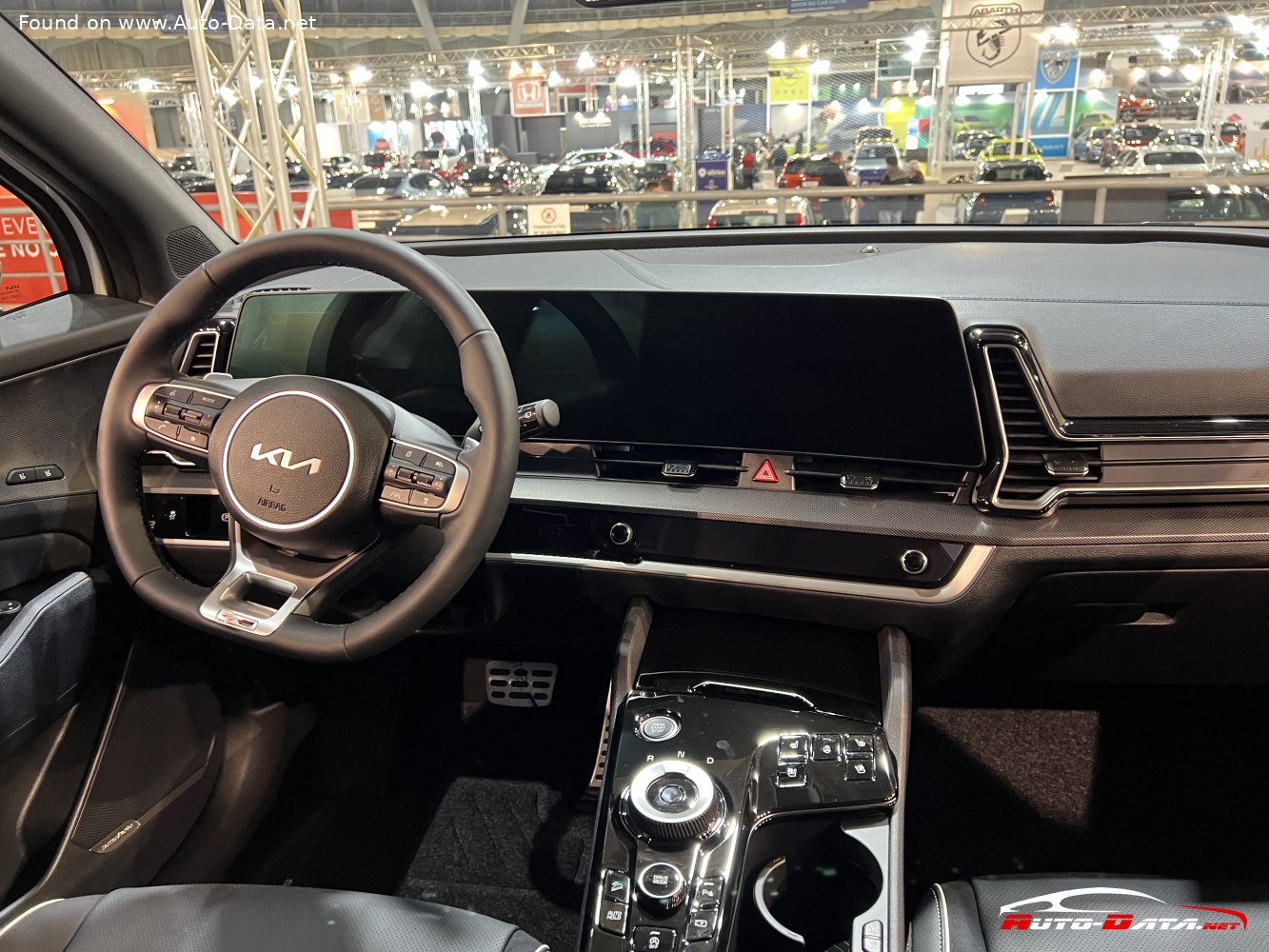

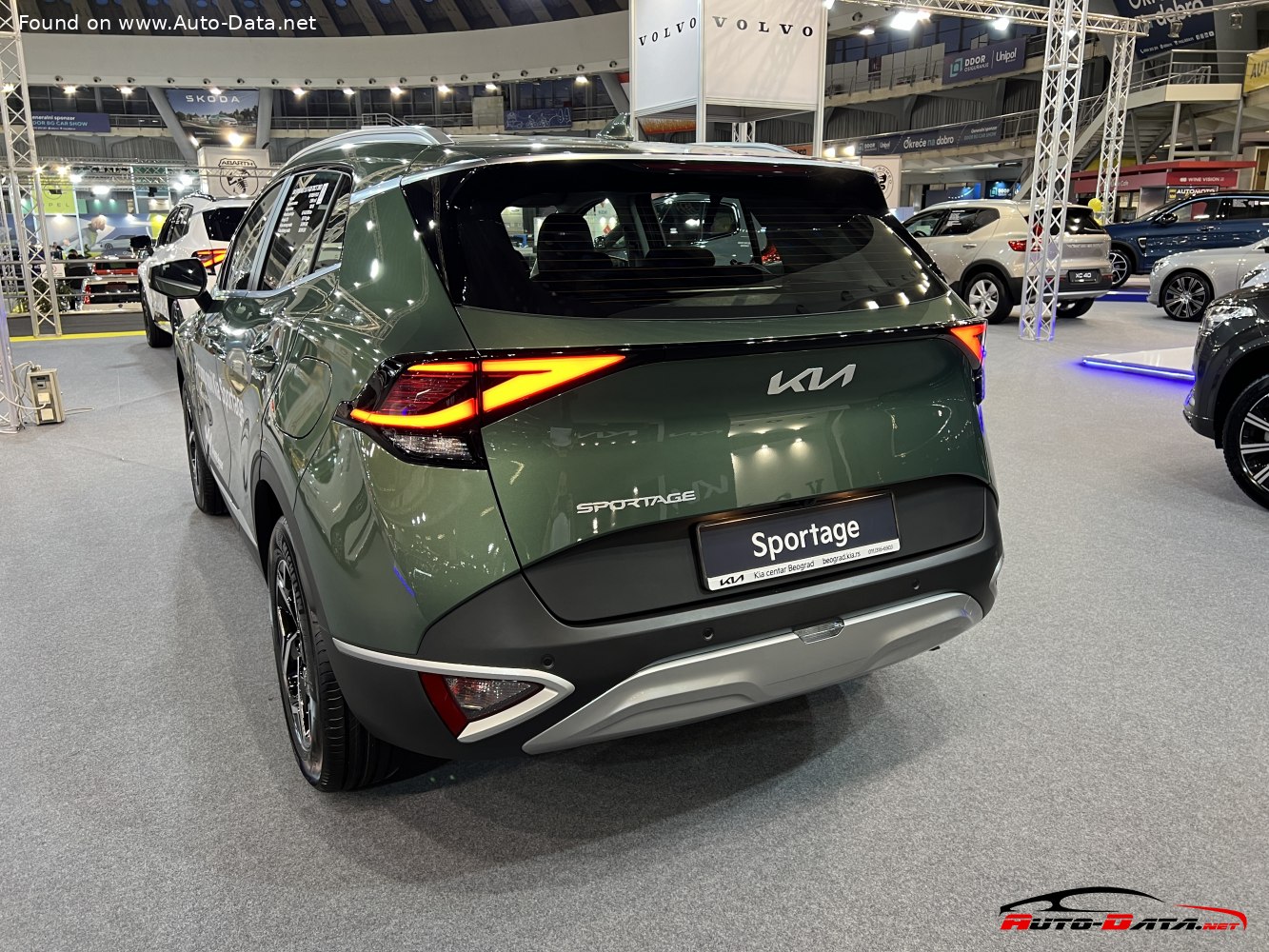

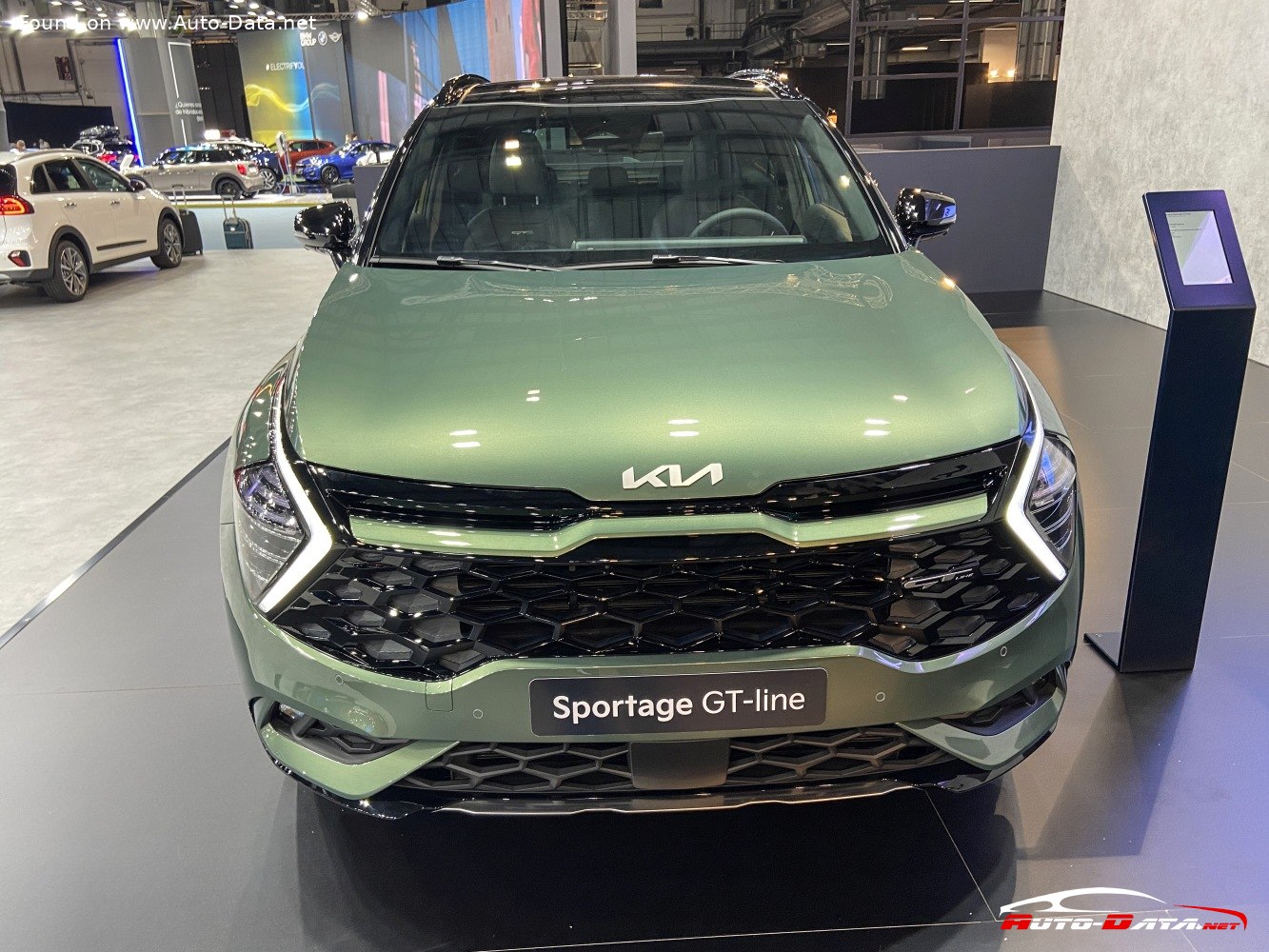

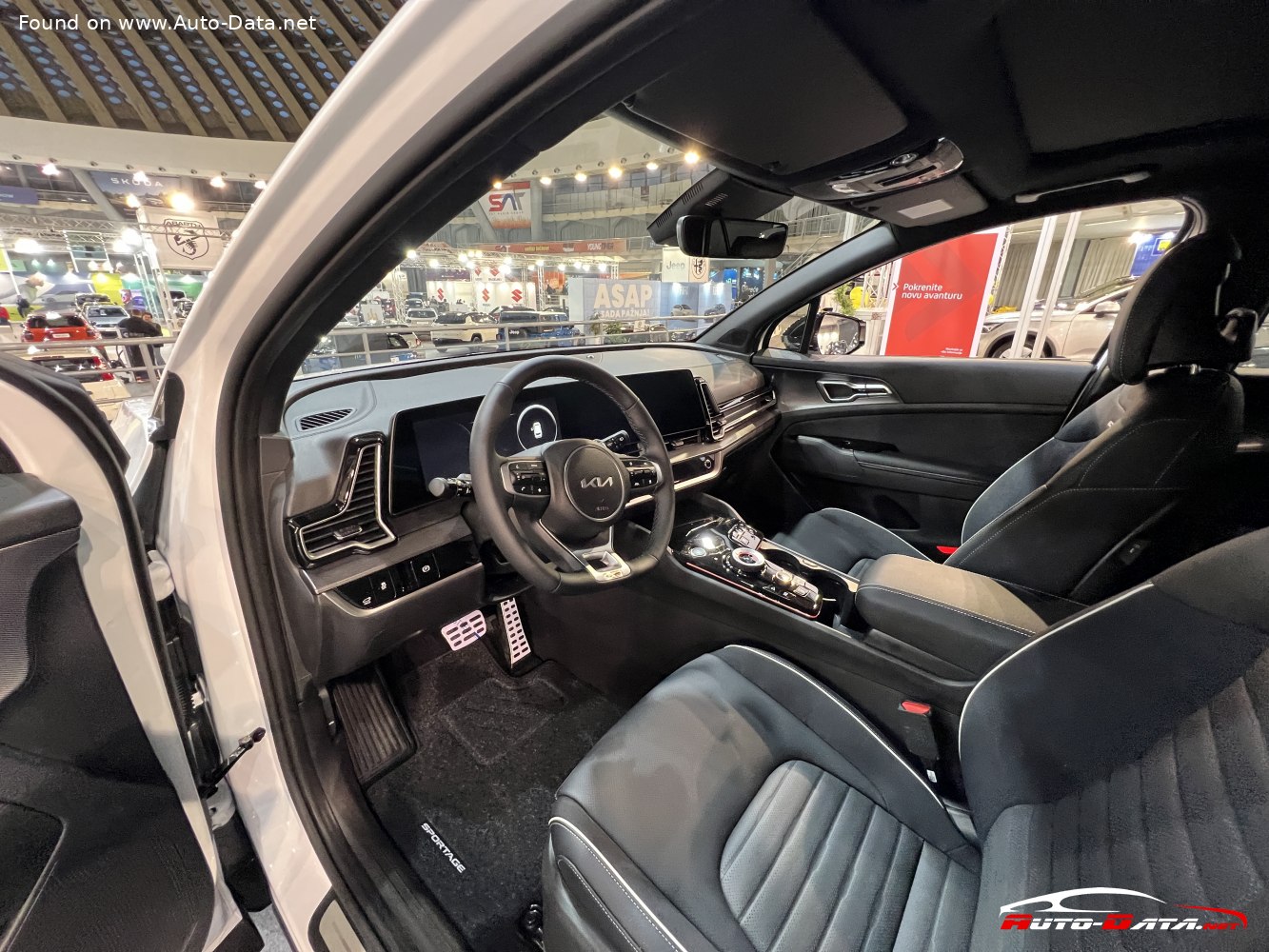

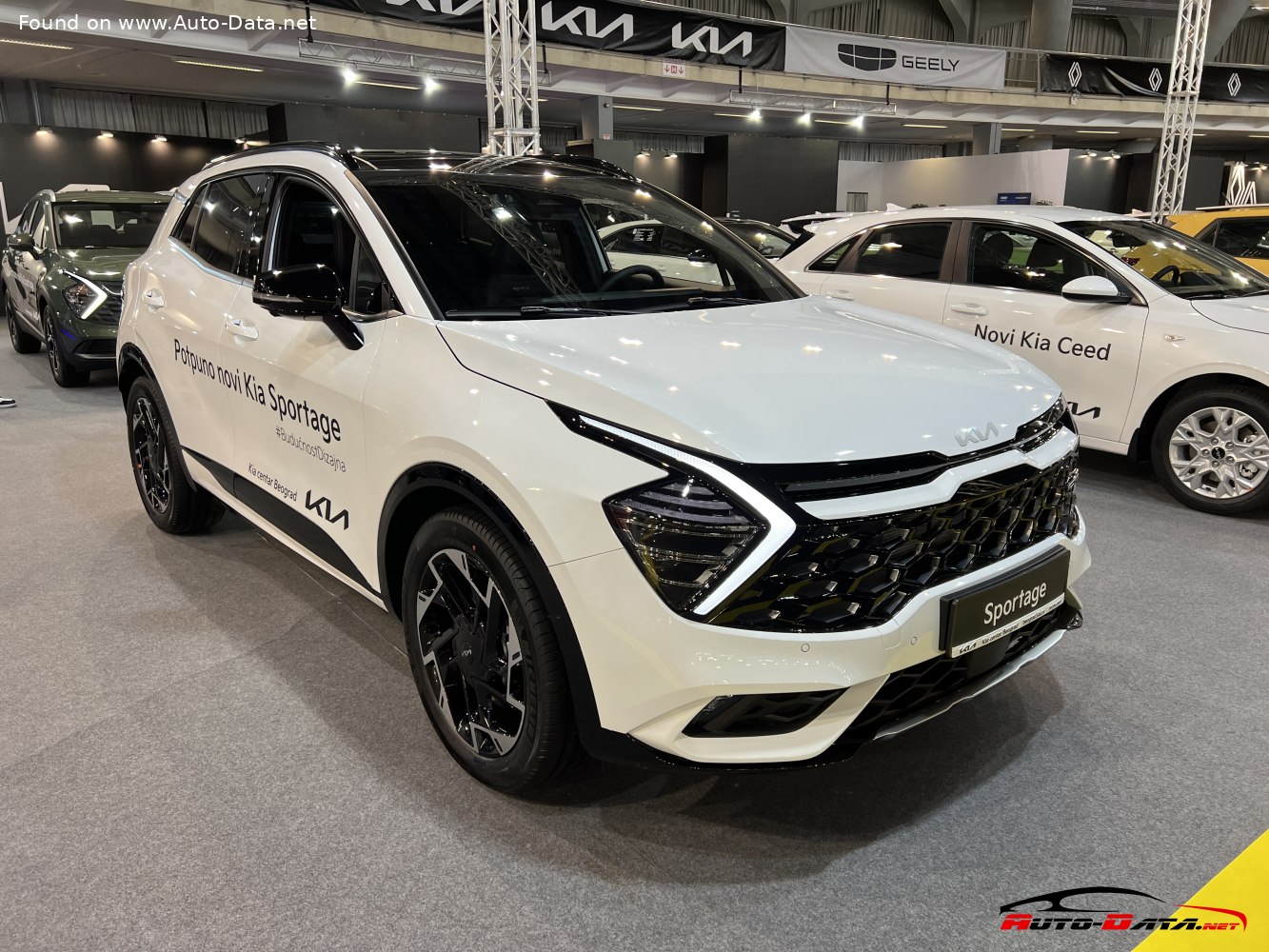

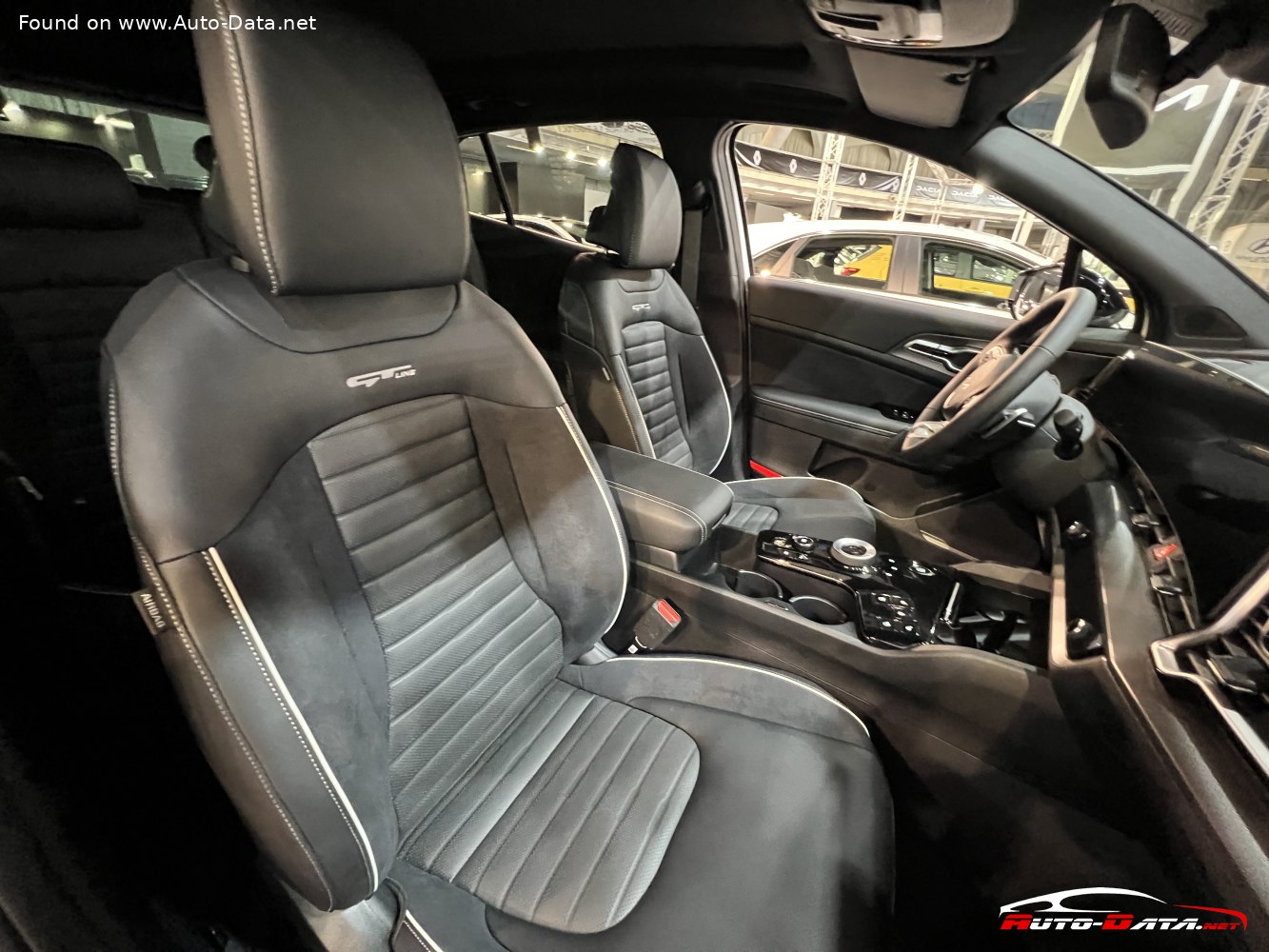

Kia Sportage 5 2024 Gallery
Kia Sportage 5 2024 Technical Specifications
General
Body type
SUV
Brand
Kia
Doors
5
Generation
Sportage V
Model
Sportage
Modification (Engine)
1.6 CRDi (136 Hp) Mild Hybrid
Powertrain Architecture
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Seats
5
Start of production
May, 2024
Performance
Acceleration 0 - 100 km/h
11.4 sec
Acceleration 0 - 60 mph
10.8 sec
Acceleration 0 - 62 mph
11.4 sec
CO2 emissions (WLTP)
132 g/km
Combined fuel consumption (WLTP)
5.0 l/100 km
Emission standard
Euro 6e
Fuel Type
Diesel
Maximum speed
180 km/h
Electric
Battery voltage
48 V
Internal Engine
Compression ratio
15.9:1
Coolant
7.3 l
Cylinder Bore
77 mm
Engine Model/Code
D4FE
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1598 cm
Engine layout
Front, Transverse
Engine oil capacity
4.4 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
4
Piston Stroke
85.8 mm
Power
136 Hp @ 4000 rpm.
Power per litre
85.1 Hp/l
Torque
280 Nm @ 1500-2750 rpm.
Dimensions
Approach angle
17°
Departure angle
26.4°
Front overhang
905 mm
Front track
1615-1630 mm
Height
1650 mm
Length
4515 mm
Minimum turning circle (turning diameter)
10.92 m
Ramp-over (brakeover) angle
16.7°
Rear (Back) track
1622-1637 mm
Rear overhang
930 mm
Ride height (ground clearance)
170 mm
Wheelbase
2680 mm
Width
1865 mm
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Ventilated discs, 320 mm
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
6 gears, manual transmission
Power steering
Electric Steering
Rear brakes
Disc, 300 mm
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
215/65 R17 103V; 235/55 R18 104V; 235/50 R19 103V
Wheel rims size
7.0J x 17 ET43.5; 7.5J x 18 ET51; 7.5J x 19 ET51
Space
Fuel tank capacity
54 l
Kerb Weight
1523-1654 kg
Max load
491-622 kg
Max. roof load
100 kg
Max. weight
2145 kg
Permitted towbar download
100 kg
