Ford Transit Connect 1 2006 Panel Van L1H1
1.8 TDCi (110 Hp)
Generation Transit Connect 1 2006 Panel Van L1H1
Body Type Minivan
Seats 2
2009
End Year
3
Doors
Ford Transit Connect 1 2006 Panel Van L1H1 Key Specs
Body Type
Minivan
Doors
3-5
Drive Wheel
Front wheel drive
End Of Production
2009
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
5.6 l
Fuel Type
Diesel
Fuel Tank Capacity
60 l
Generation
Transit Connect I (2006) Panel Van L1H1
Kerb Weight
1402-1476 kg
Modification (Engine)
1.8 TDCi (110 Hp)
Number Of Cylinders
4
Power
110 Hp @ 3500 rpm.
Power Steering
Hydraulic Steering
Powertrain Architecture
Internal Combustion engine
Seats
2
Start Of Production
2006
Wheel Rims Size
6J x 15

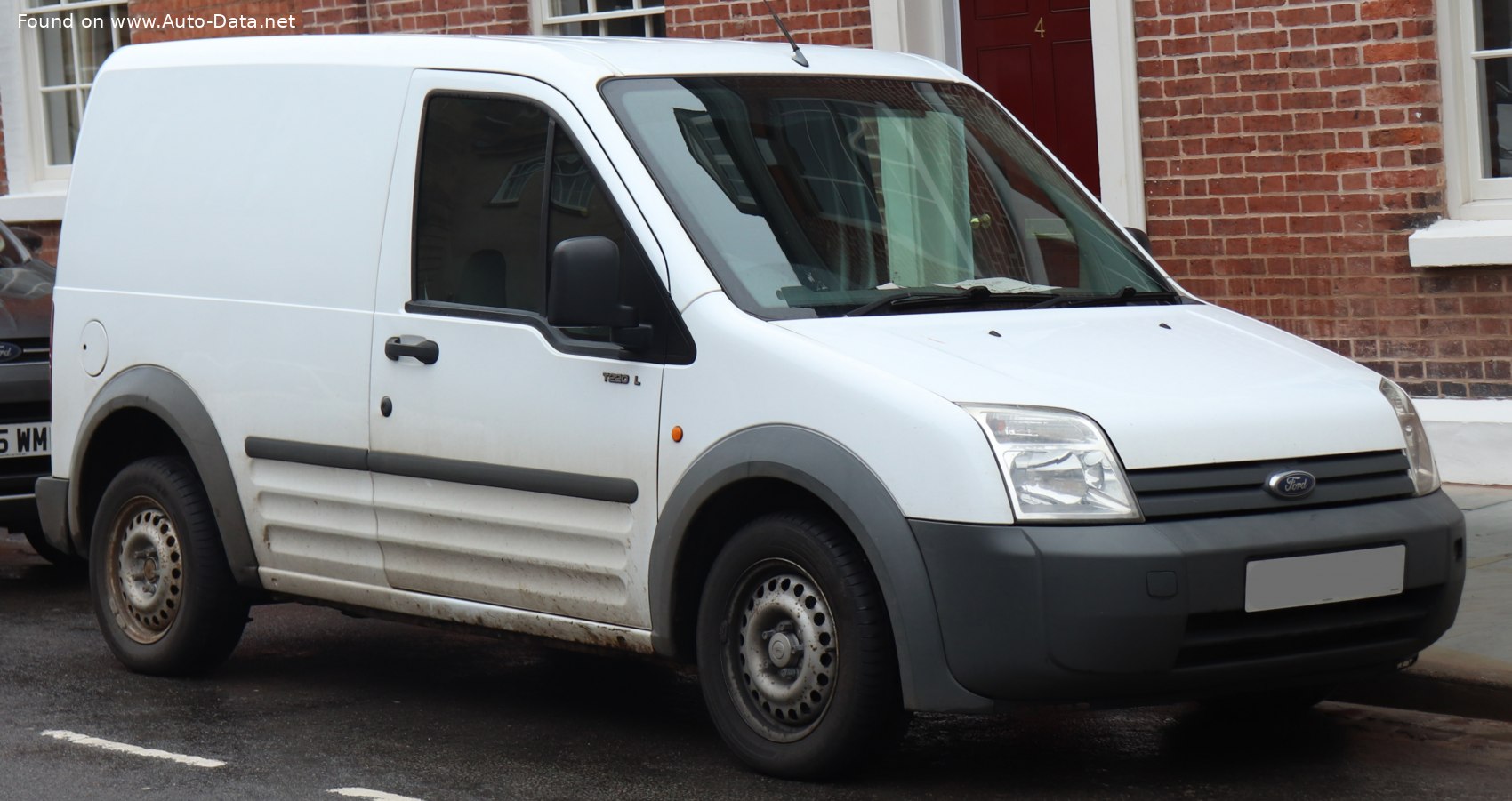

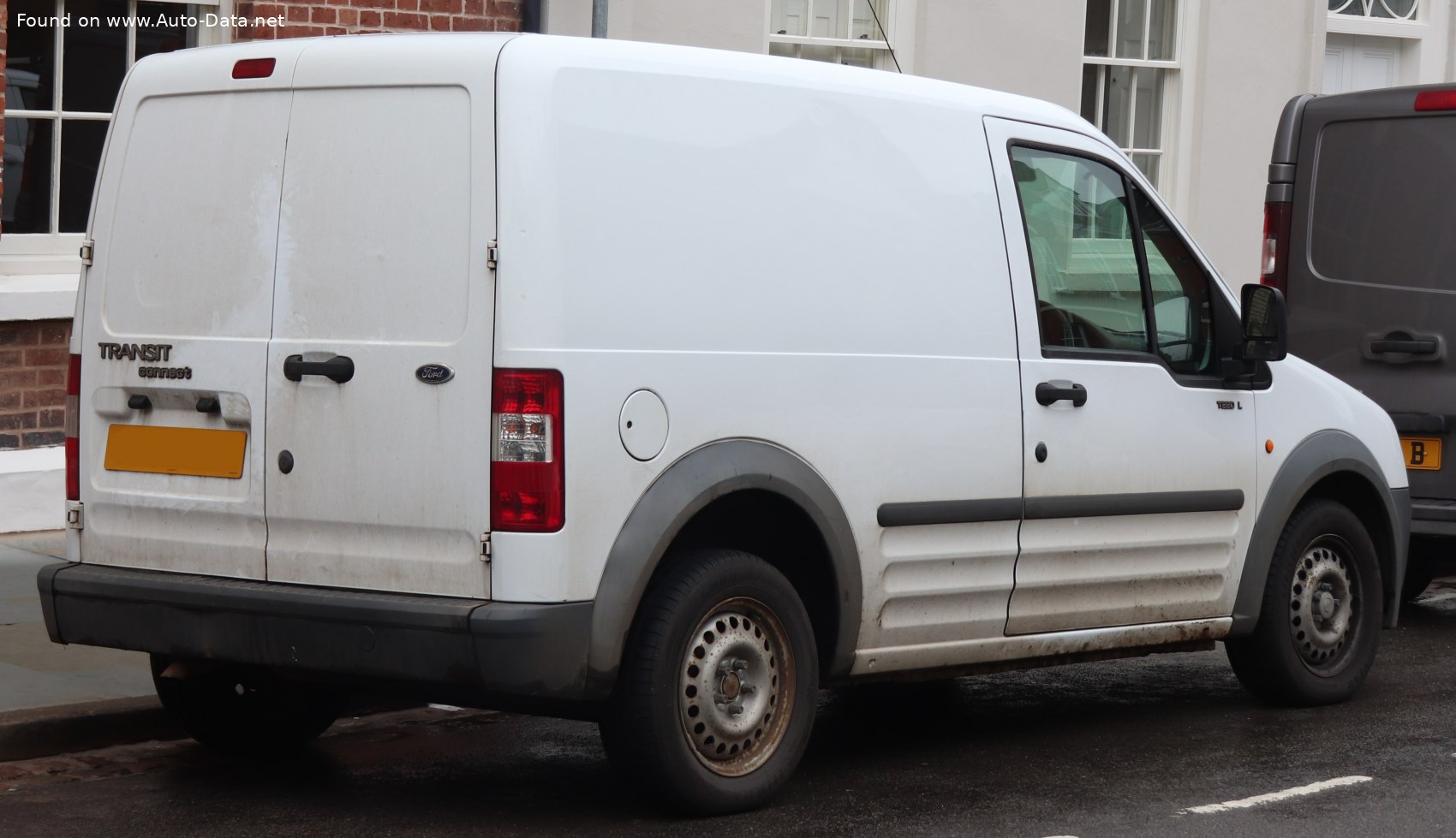

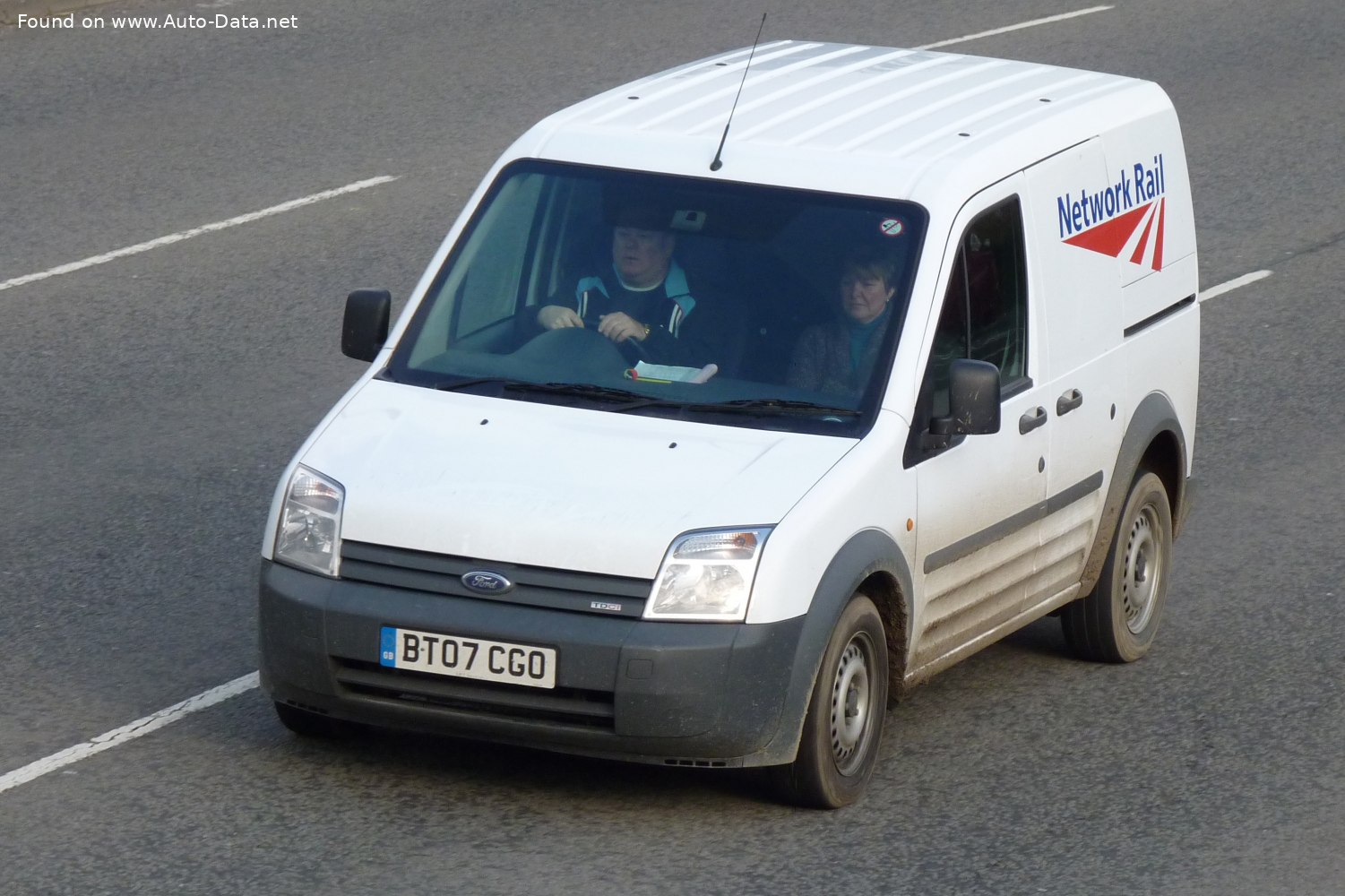

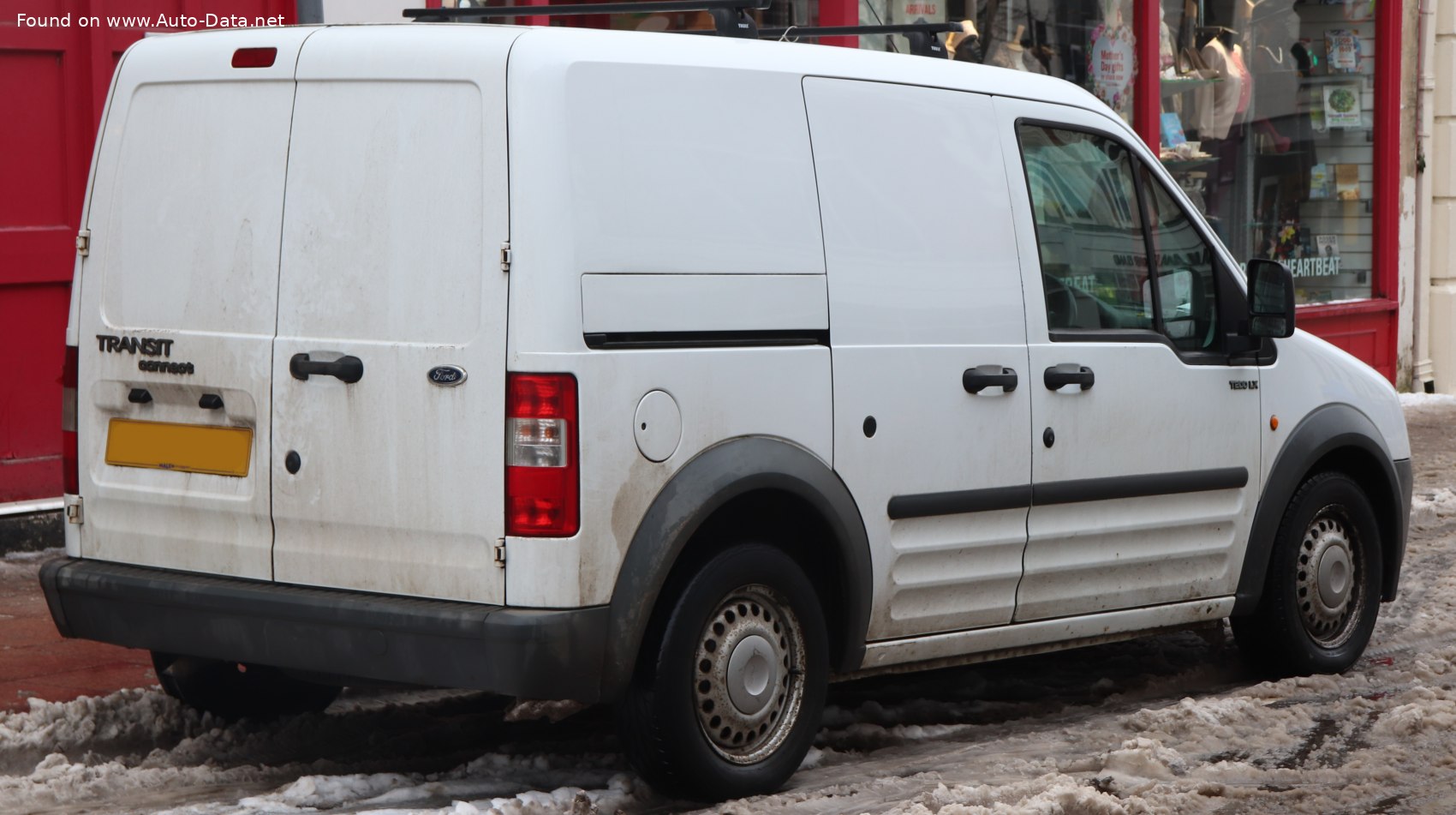

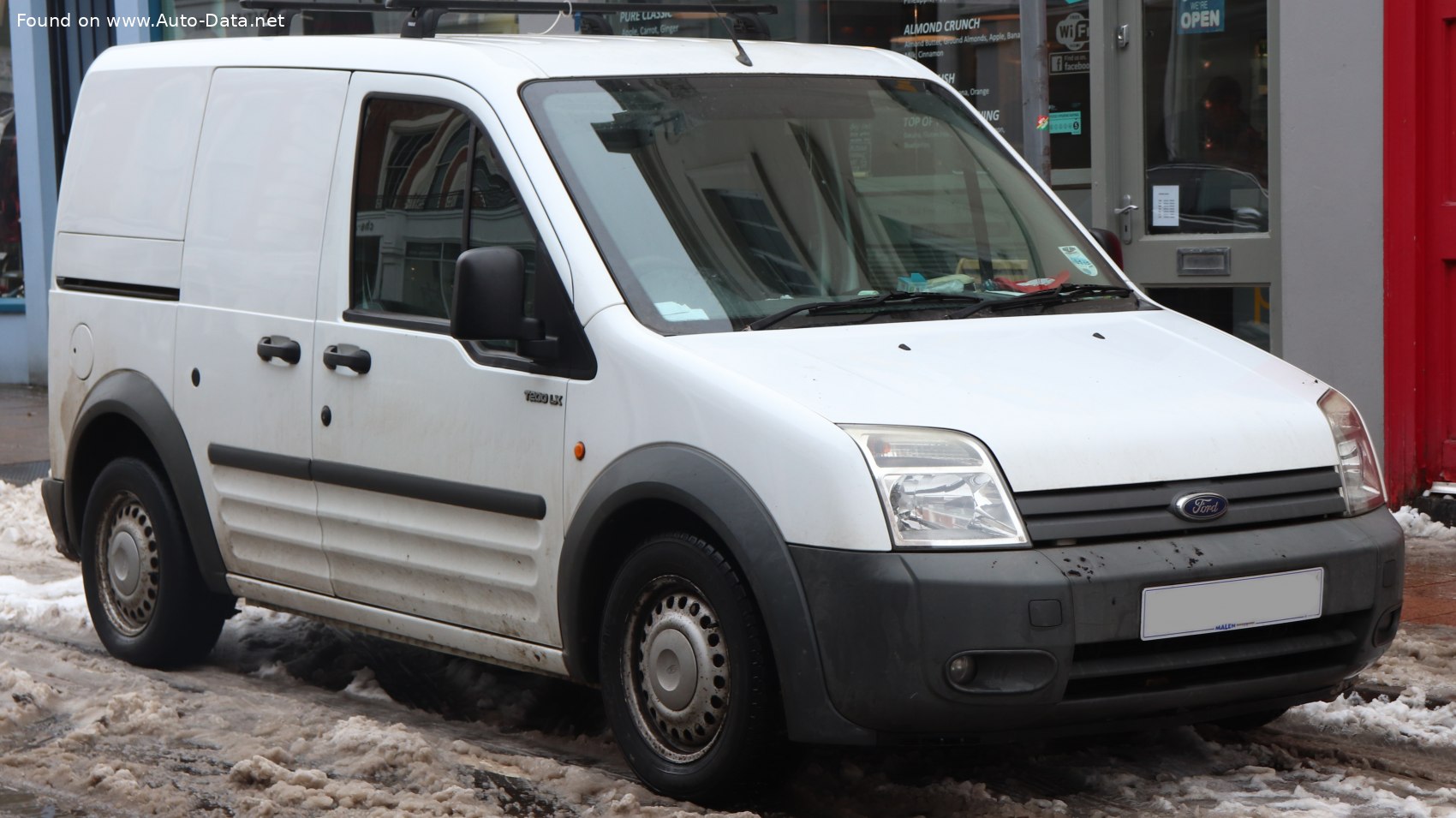

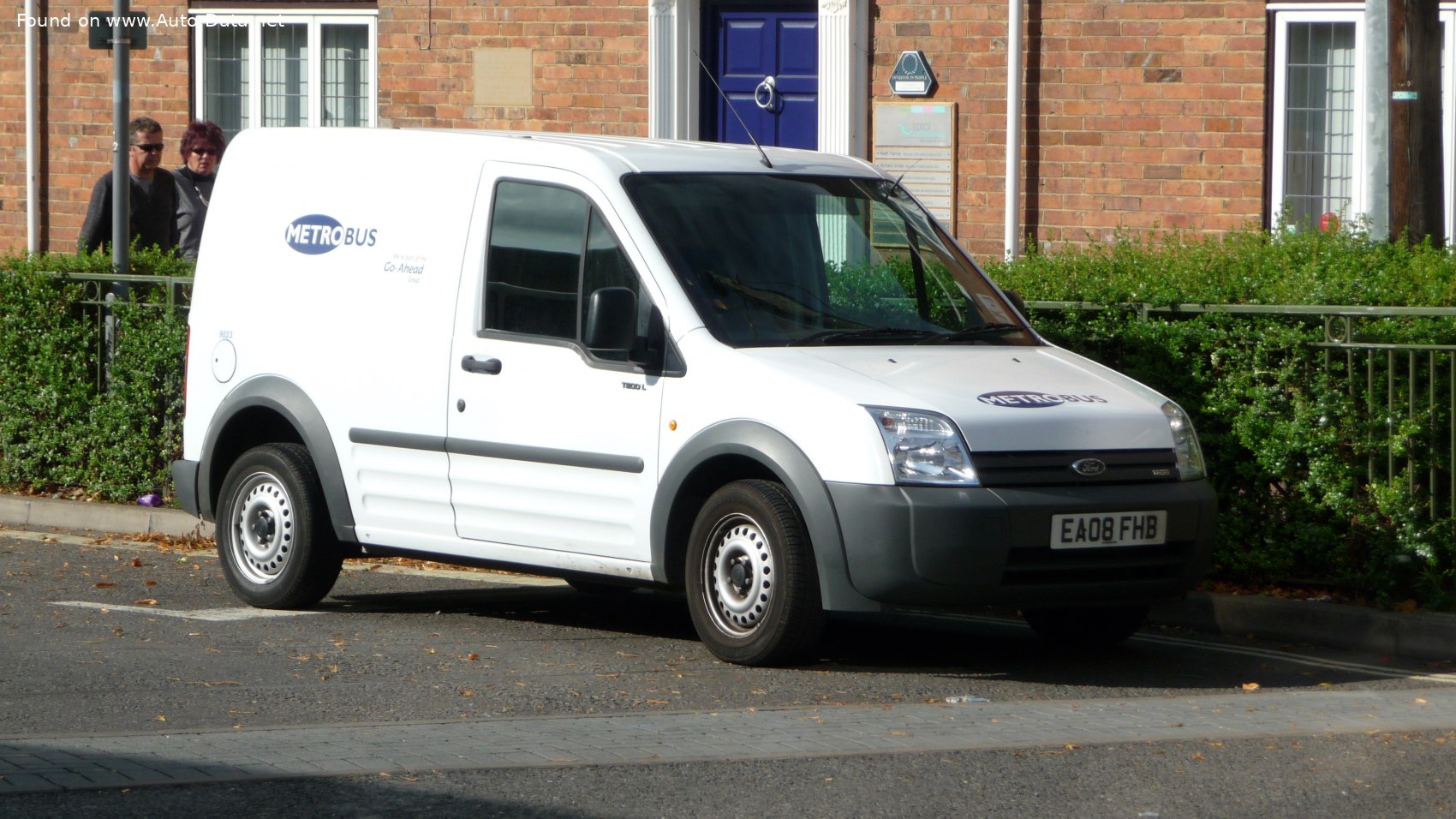

Ford Transit Connect 1 2006 Panel Van L1H1 Gallery
Ford Transit Connect 1 2006 Panel Van L1H1 Technical Specifications
General
Body type
Minivan
Brand
Ford
Doors
3-5
End of production
2009
Generation
Transit Connect I (2006) Panel Van L1H1
Model
Transit Connect
Modification (Engine)
1.8 TDCi (110 Hp)
Powertrain Architecture
Internal Combustion engine
Seats
2
Start of production
2006
Performance
Emission standard
Euro 4
Fuel Type
Diesel
Dimensions
Front overhang
894 mm
Front track
1505 mm
Height
1814 mm
Length
4308 mm
Minimum turning circle (turning diameter)
11 m
Rear (Back) track
1552 mm
Rear overhang
749 mm
Ride height (ground clearance)
166 mm
Wheelbase
2664 mm
Width
1795 mm
Engine
Compression ratio
17.1:1
Coolant
7 l
Cylinder Bore
82.5 mm
Engine Model/Code
Duratorq / RWPA, RWPB, RWPC, RWPD
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
1753 cm
Engine layout
Front, Transverse
Engine oil capacity
5.6 l
Engine oil specification
Log in to see.
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
2
Power
110 Hp @ 3500 rpm.
Torque
280 Nm @ 1500-3200 rpm.
Drivetrain
Drive wheel
Front wheel drive
Front brakes
Disc
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
5 gears, manual transmission
Power steering
Hydraulic Steering
Rear brakes
Drum
Rear suspension
Transverse stabilizer, Leaf spring
Steering type
Steering rack and pinion
Tires size
195/65 R15
Wheel rims size
6J x 15
Space
Fuel tank capacity
60 l
Kerb Weight
1402-1476 kg
Max load
638-764 kg
Max. roof load
100 kg
Max. weight
2040-2240 kg
