Mercedes-Benz CLA Coupe C117 2018
CLA 220d (170 Hp) 4MATIC 7G-DCT
Generation CLA Coupe C117 2016
Body Type Coupe
Seats 5
2019
End Year
230 km/h
Maximum Speed
4
Doors
Mercedes-Benz CLA Coupe C117 2018 Key Specs
Acceleration 0 - 100 Km/h
7.7 sec
Acceleration 0 - 62 Mph
7.7 sec
Body Type
Coupe
Doors
4
Drive Wheel
All wheel drive (4x4)
End Of Production
February, 2019
Engine Aspiration
Turbocharger, Intercooler
Engine Oil Capacity
6.5 l
Engine Systems
Start & Stop SystemParticulate filter
Fuel Type
Diesel
Fuel Tank Capacity
56 l
Generation
CLA Coupe (C117, 2016)
Kerb Weight
1505-1510 kg
Maximum Speed
230 km/h
Modification (Engine)
CLA 220d (170 Hp) 4MATIC 7G-DCT
Number Of Cylinders
4
Power
170 Hp @ 3400-4000 rpm.
Power Steering
Electric Steering
Powertrain Architecture
Internal Combustion engine
Seats
5
Start Of Production
June, 2018
Wheel Rims Size
6.5J x 16; 7.5J x 17; 7.5J x 18

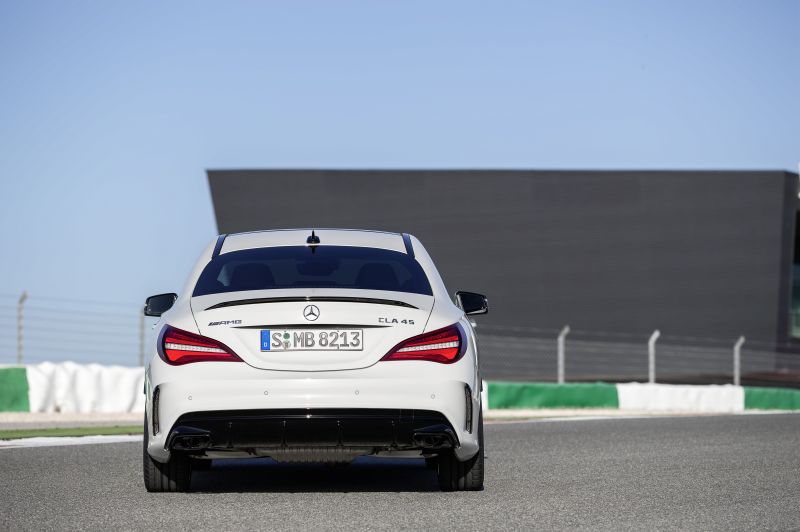

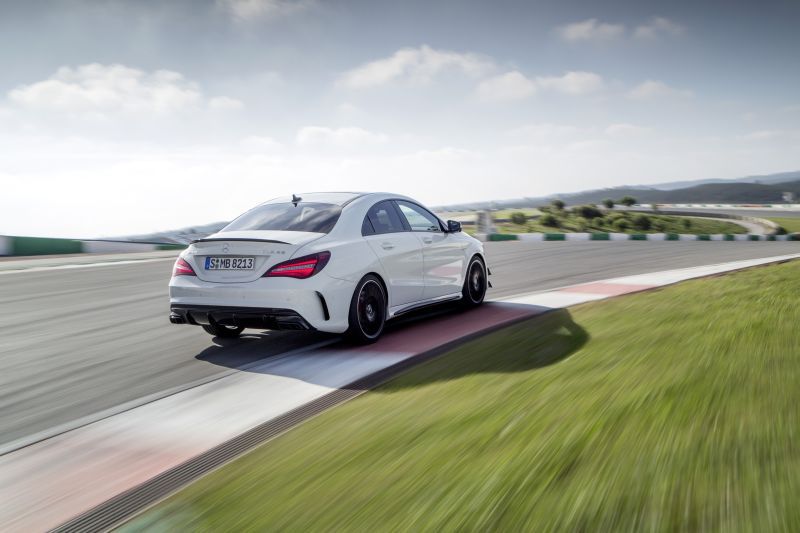

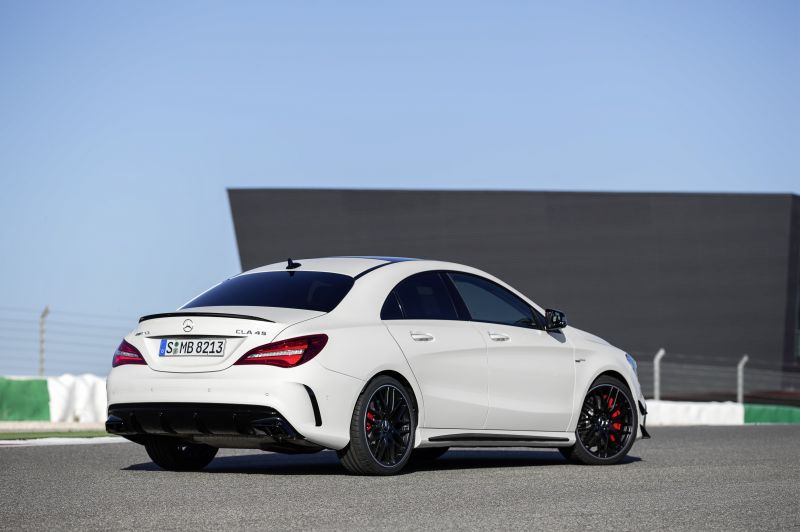

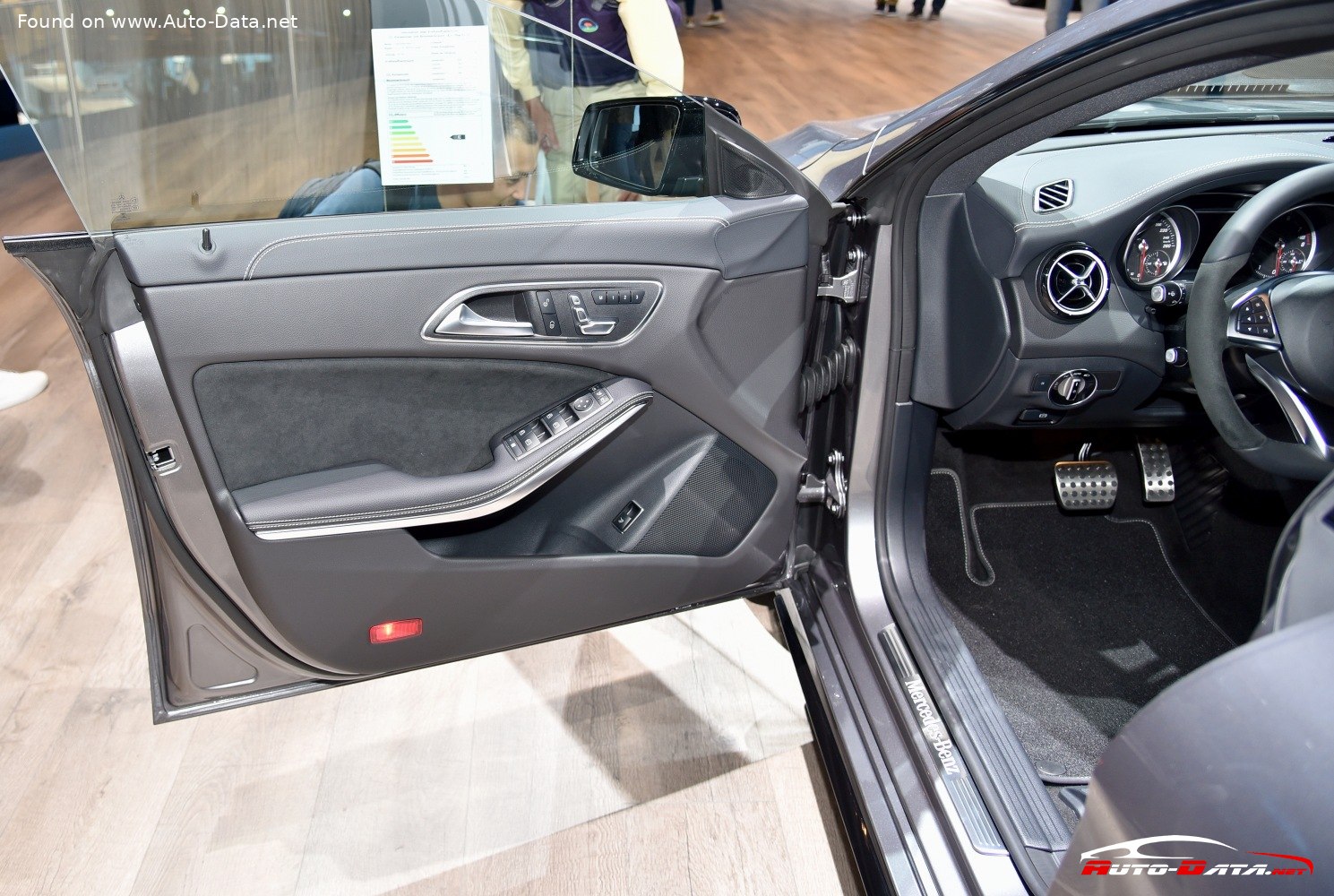

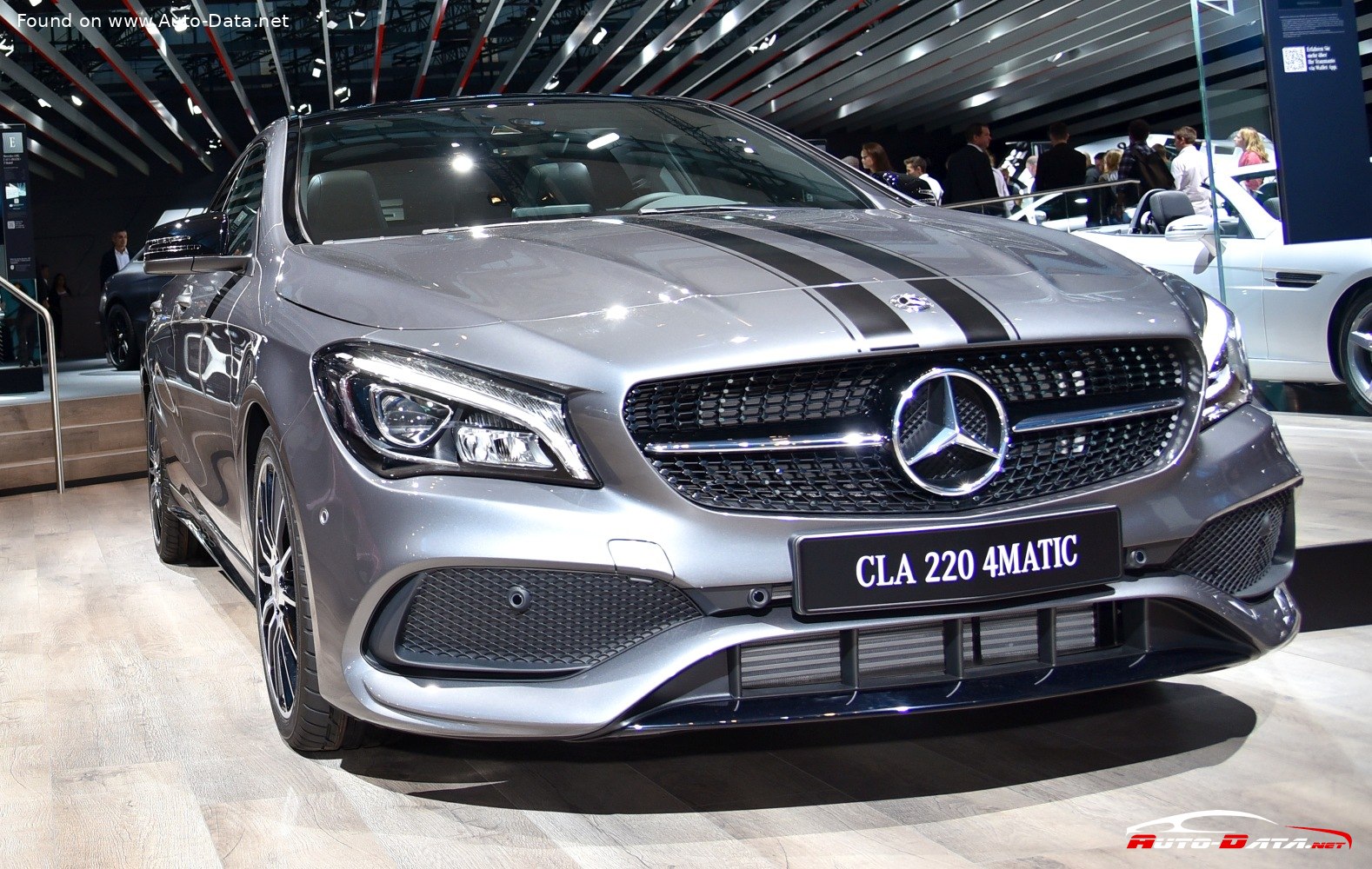

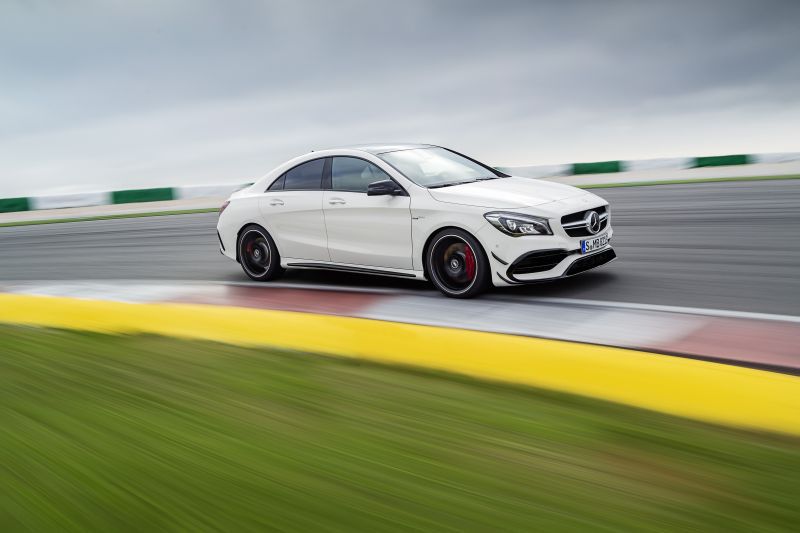

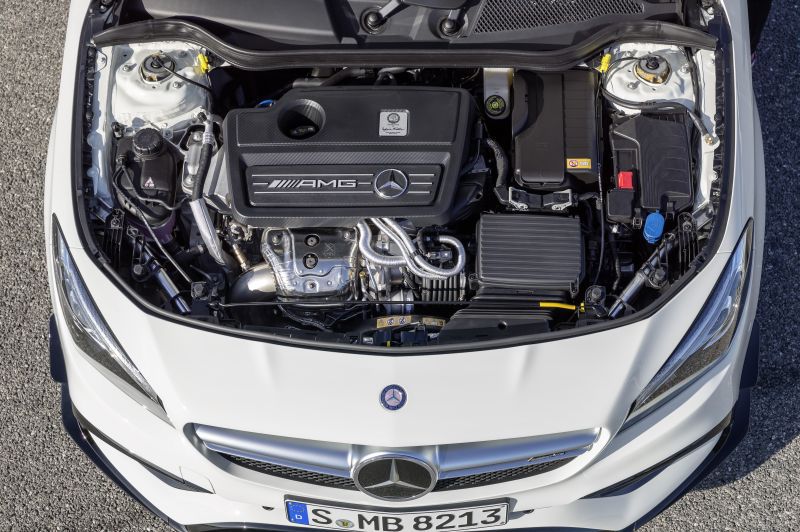

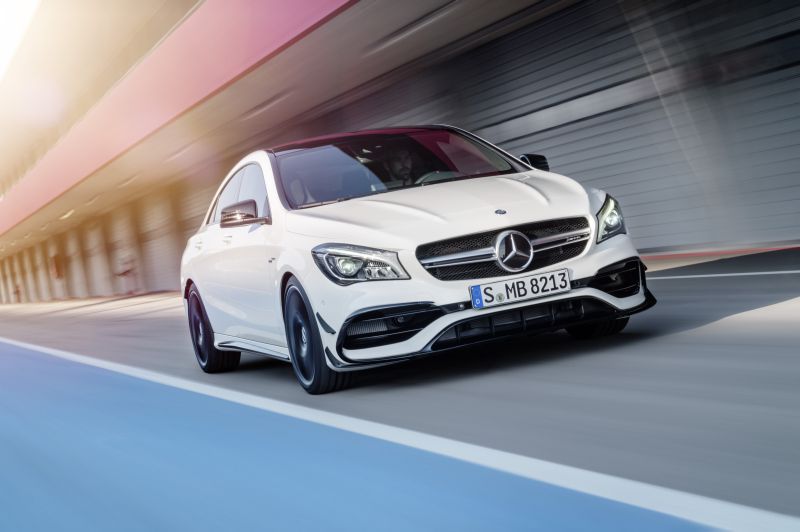

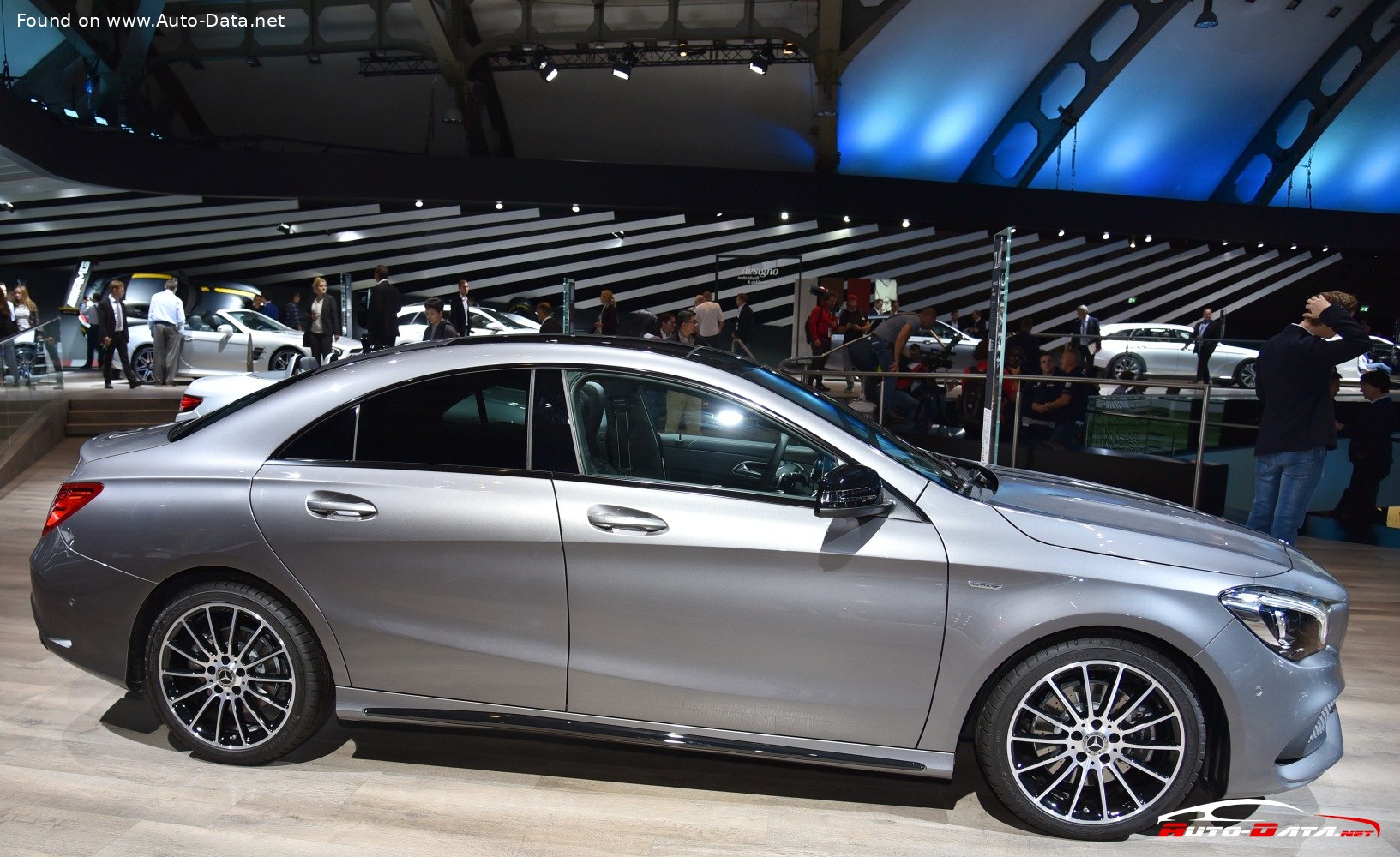

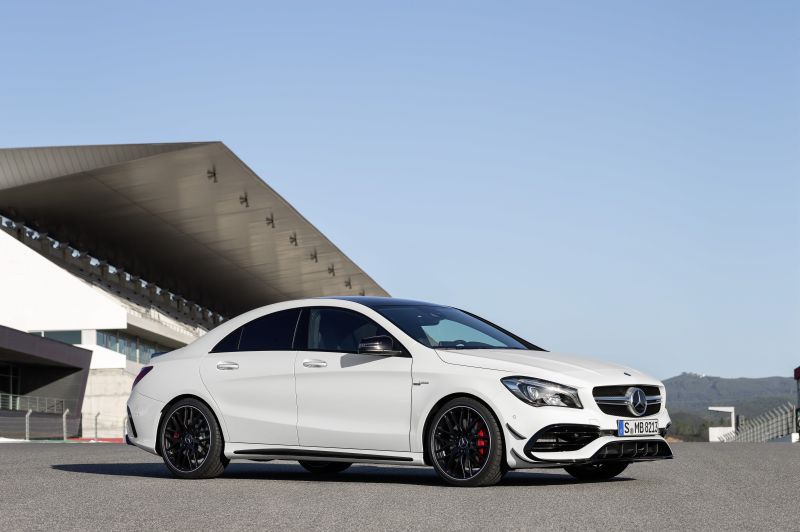

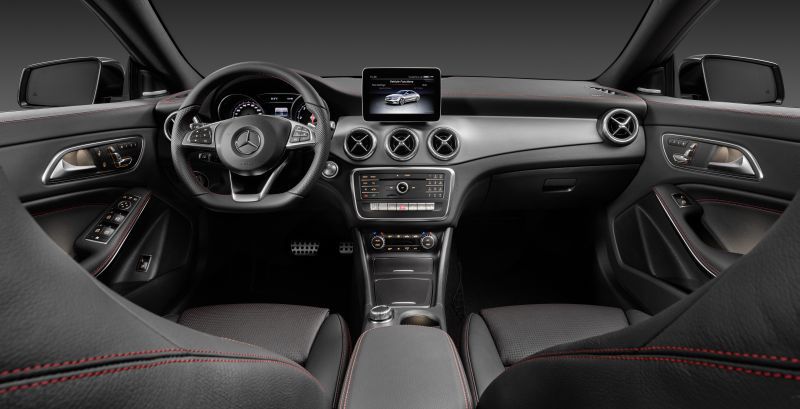

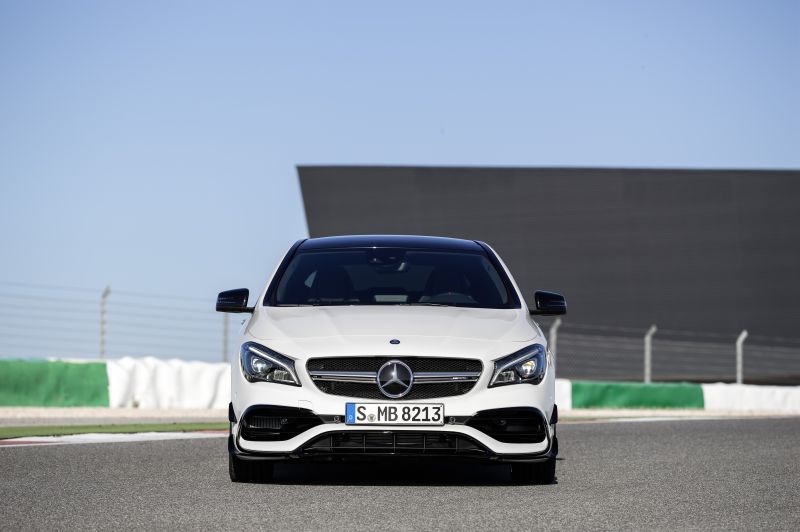

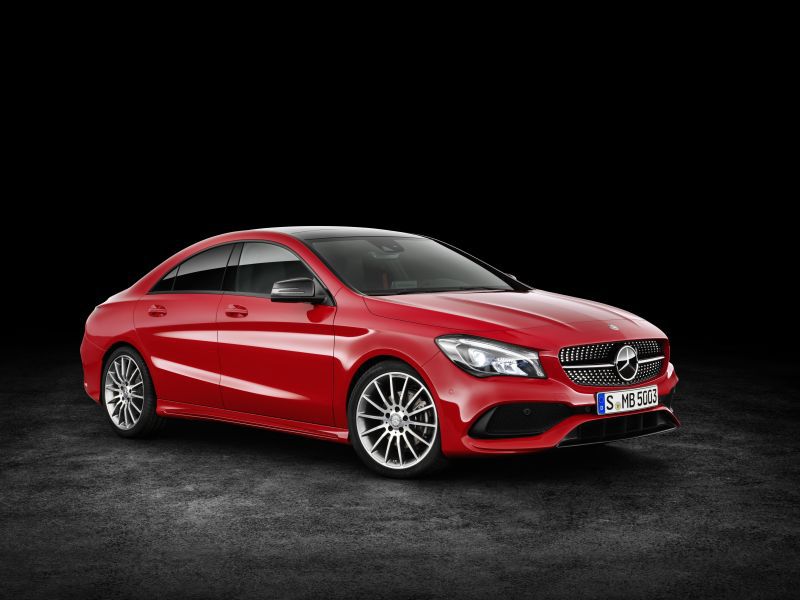

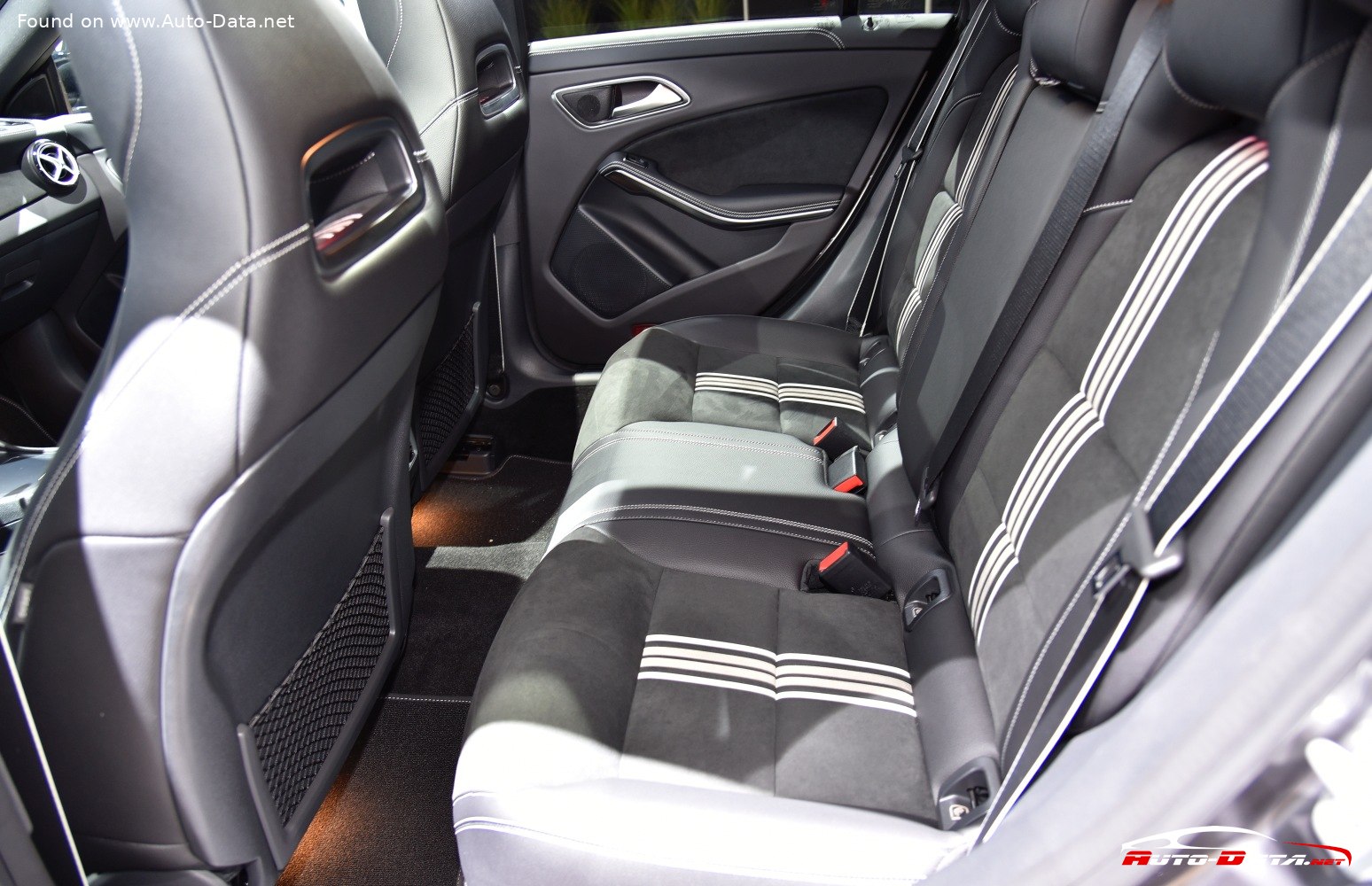

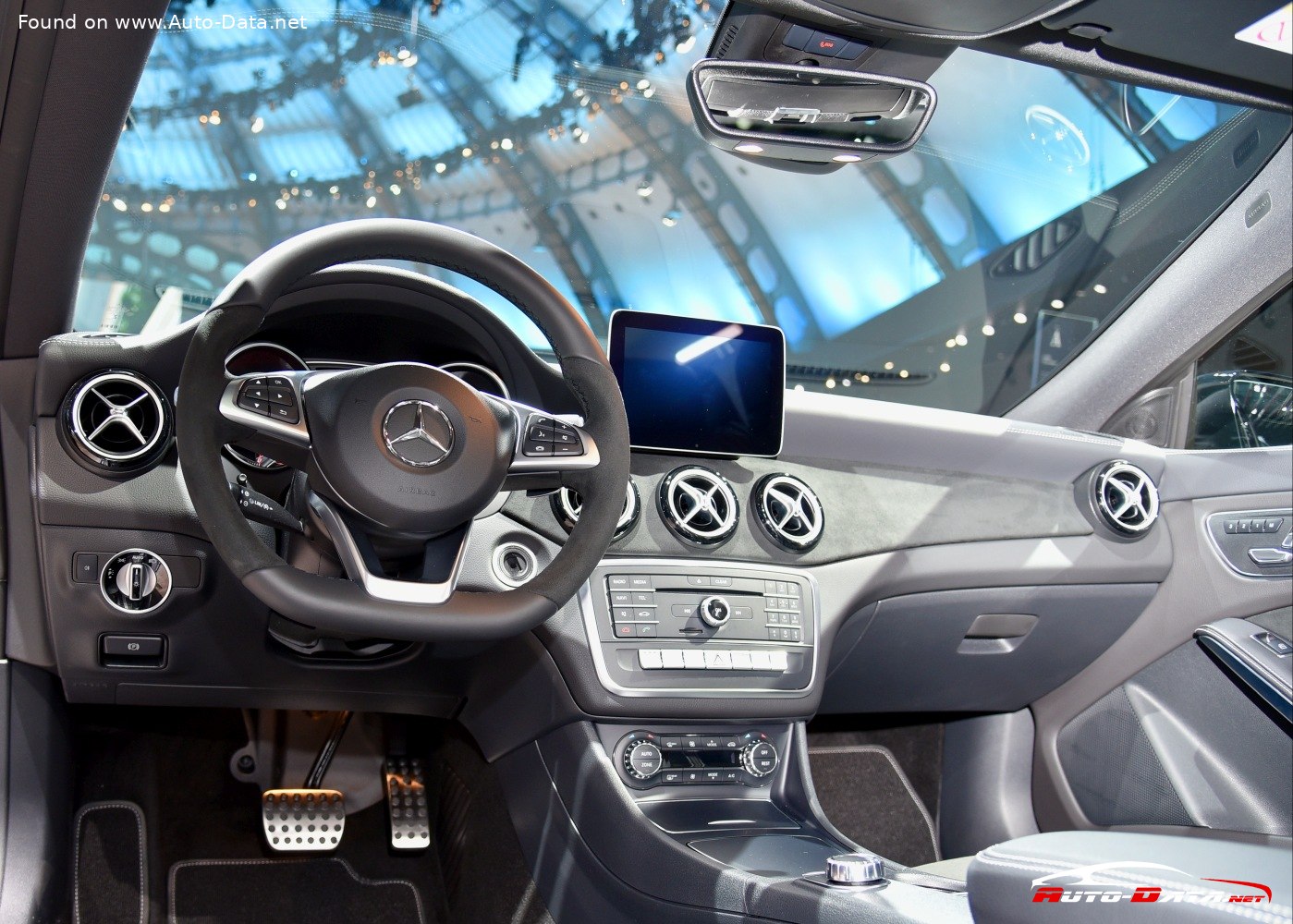

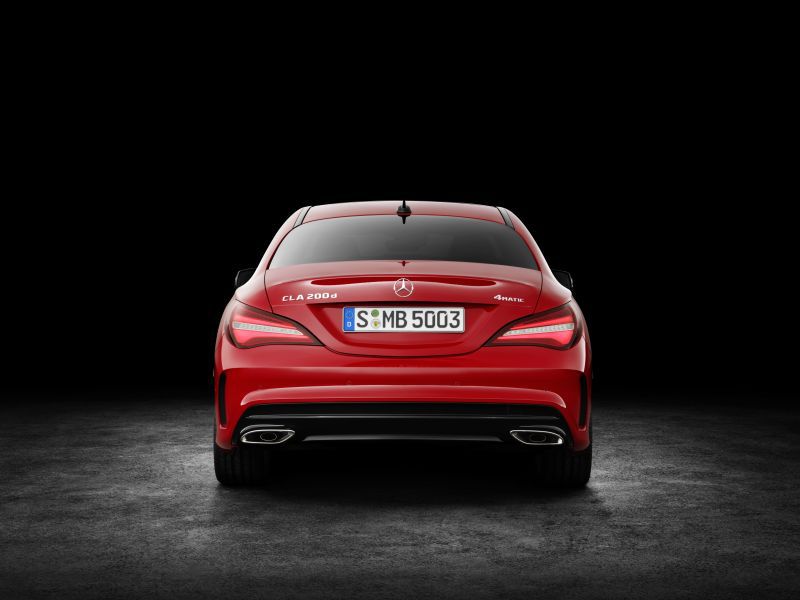

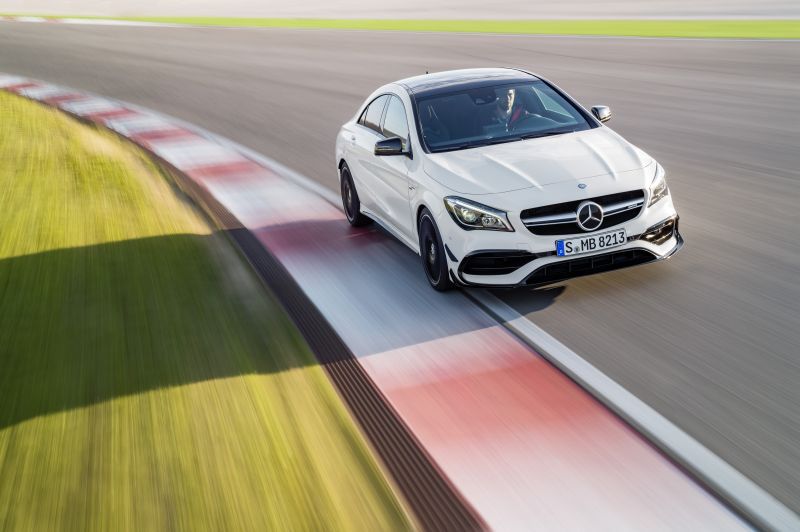

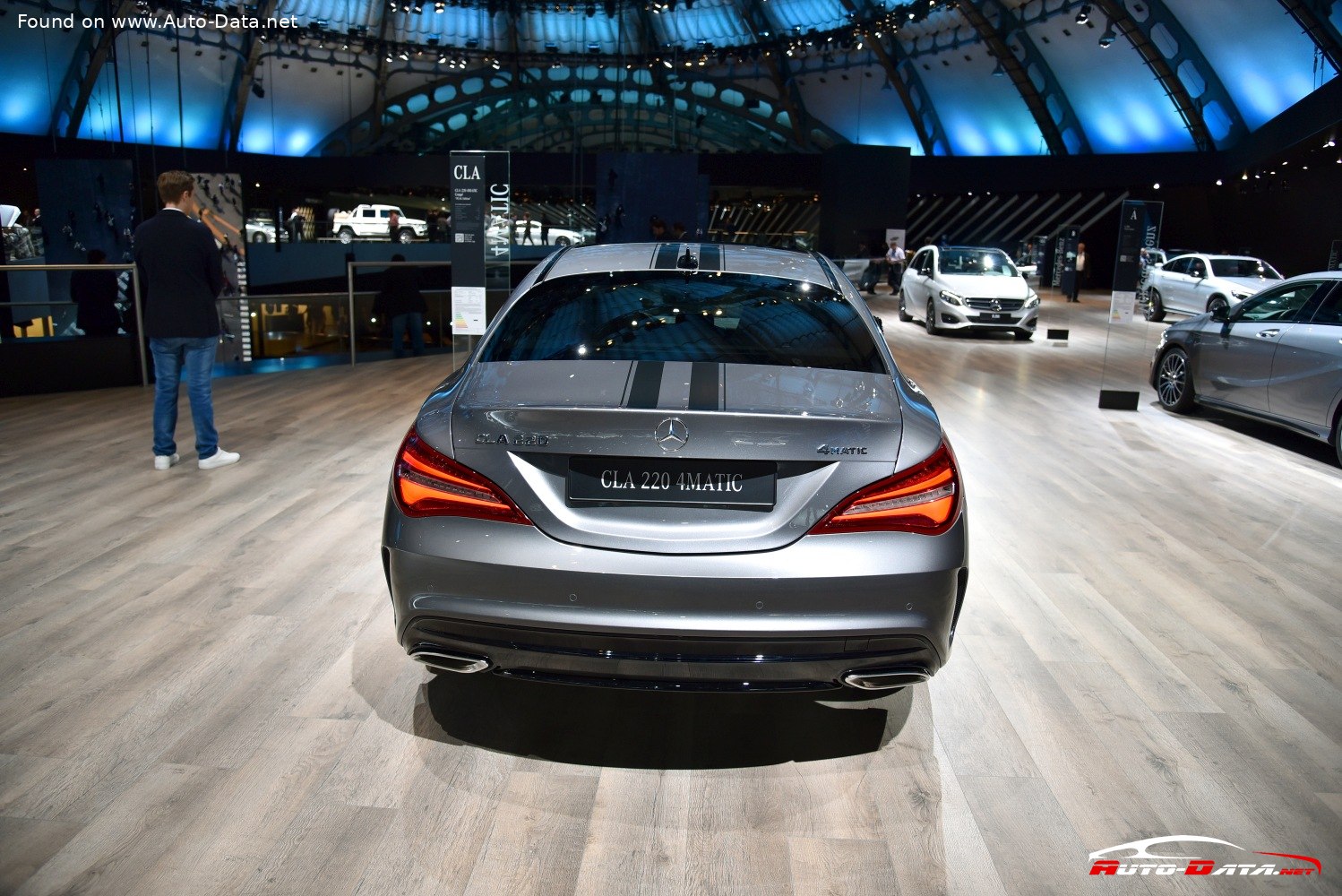

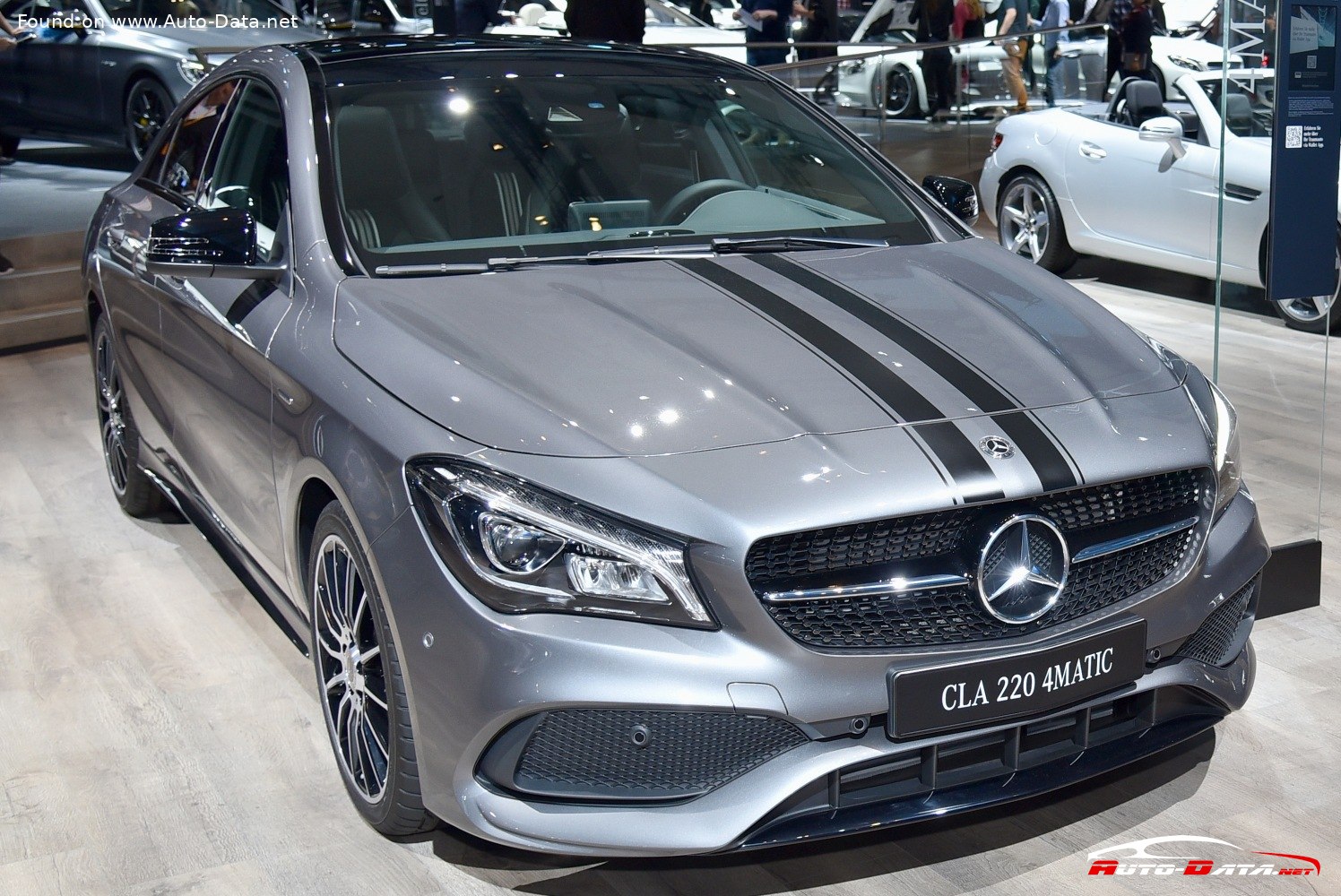

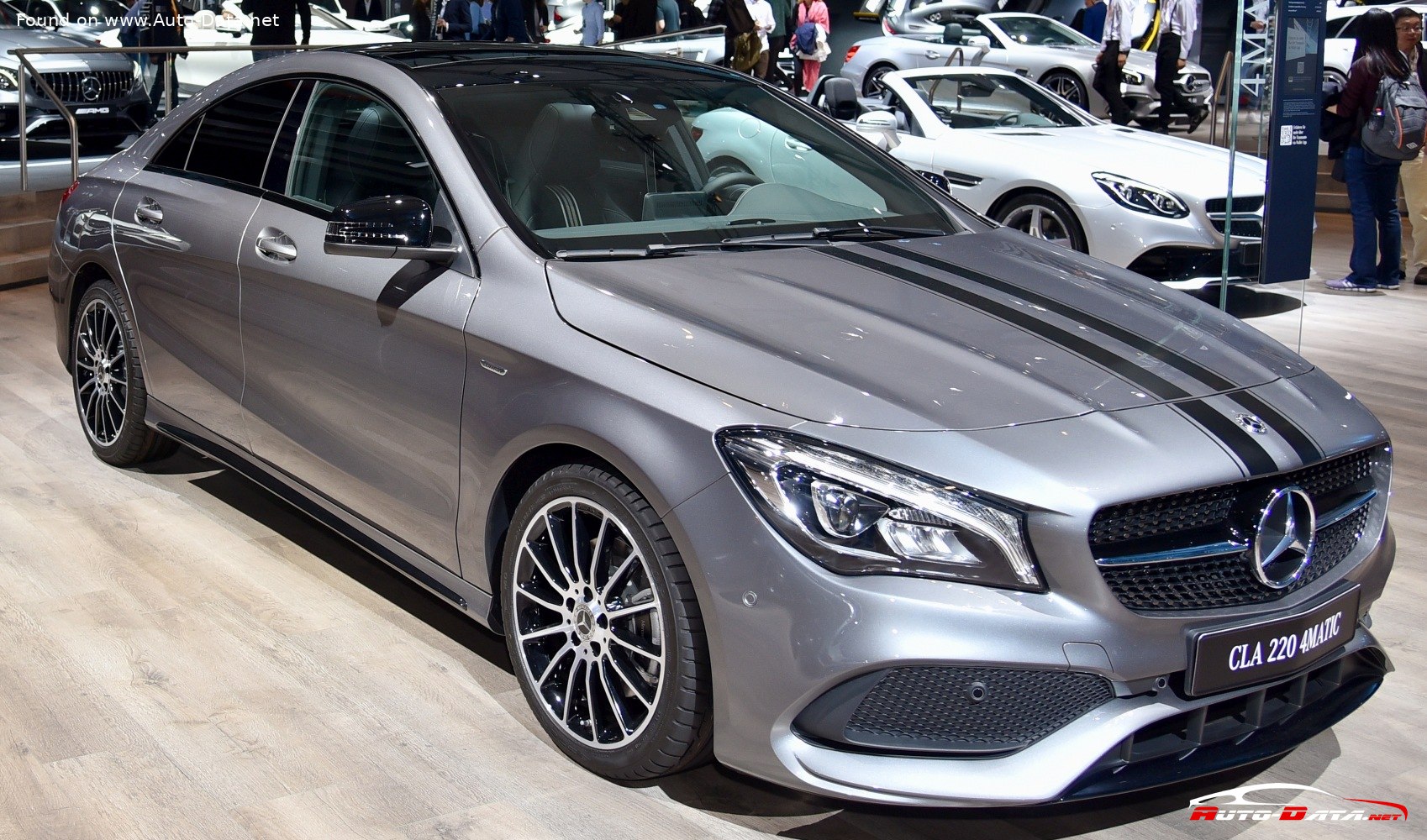

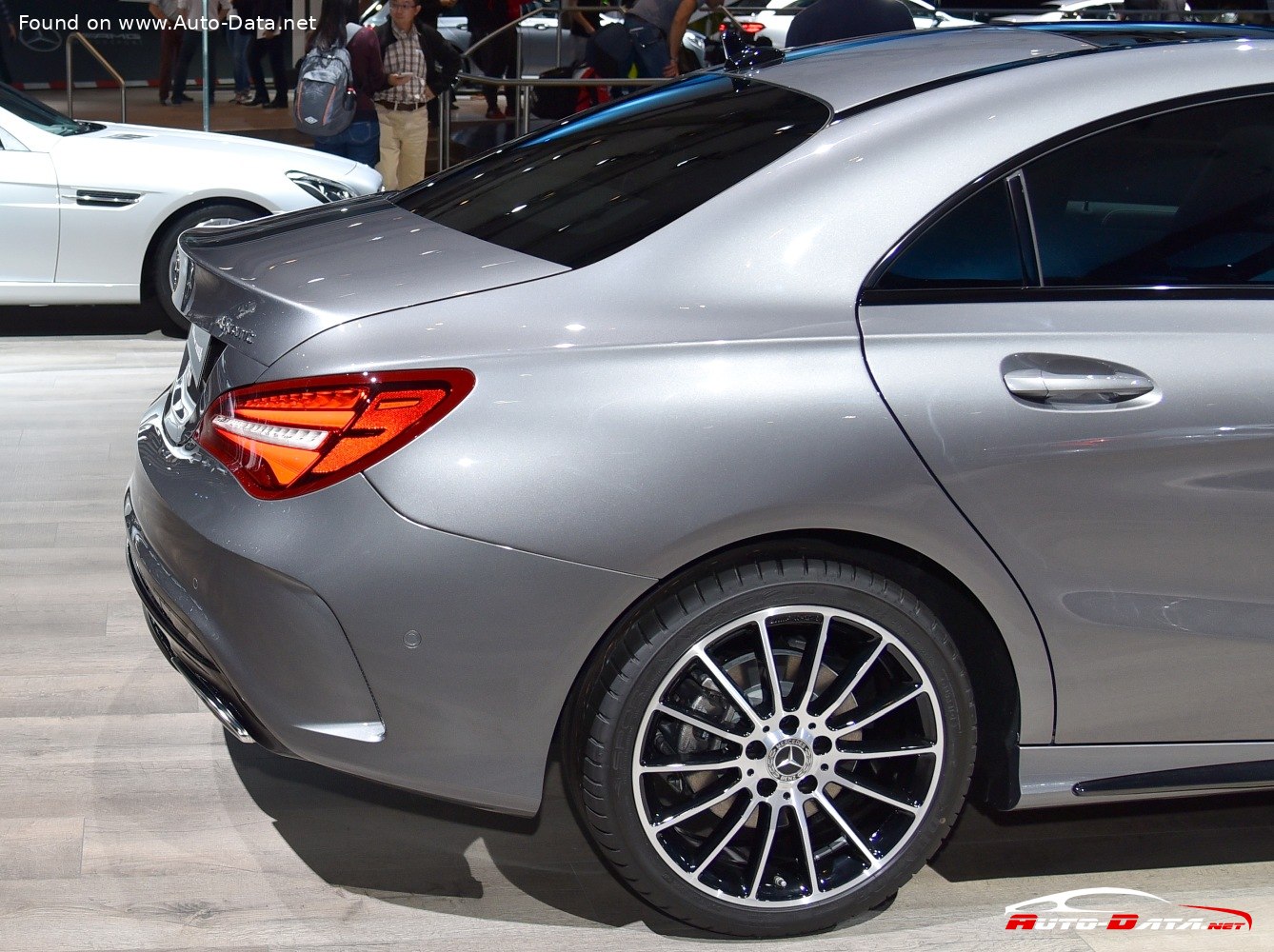

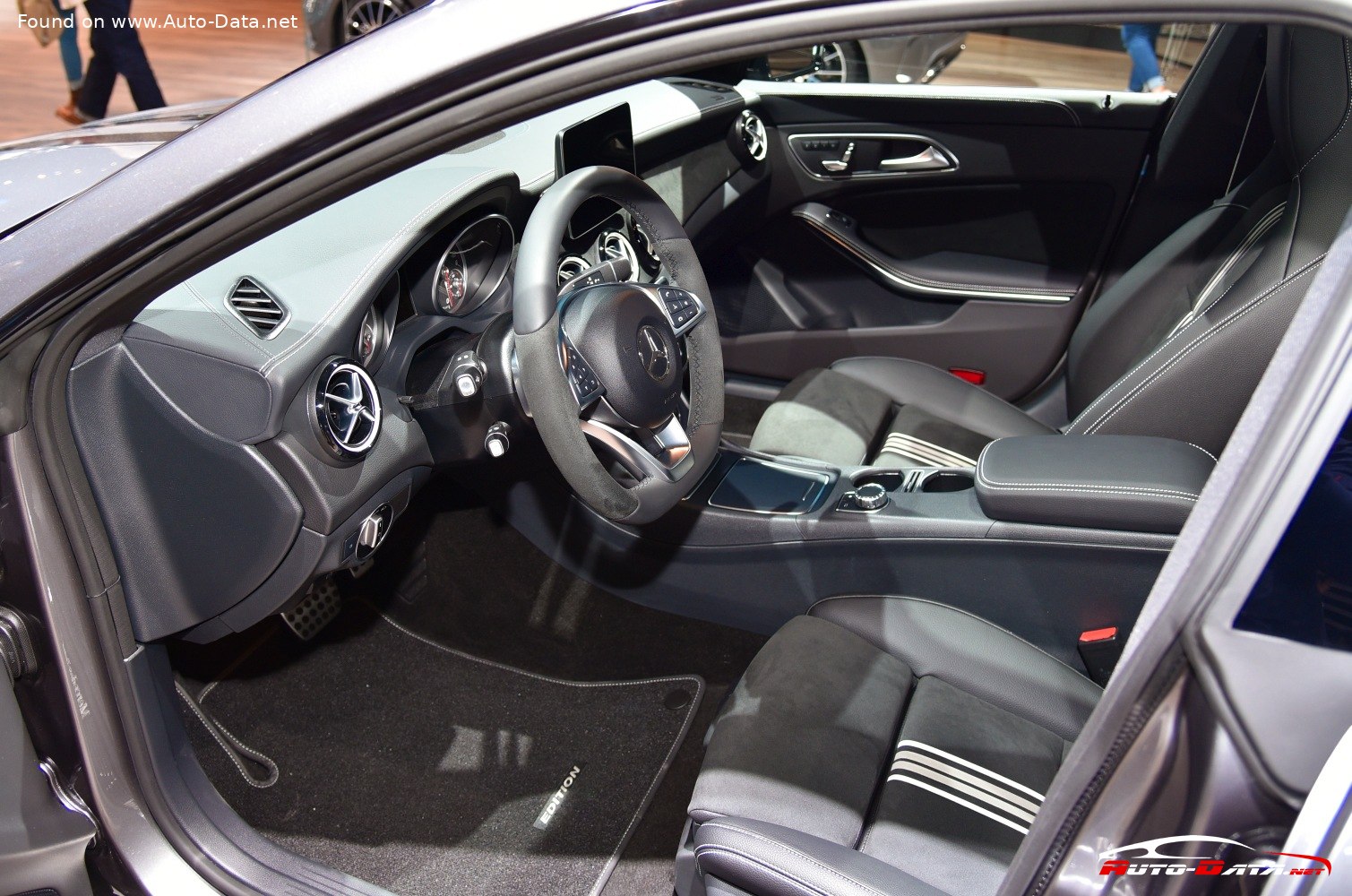

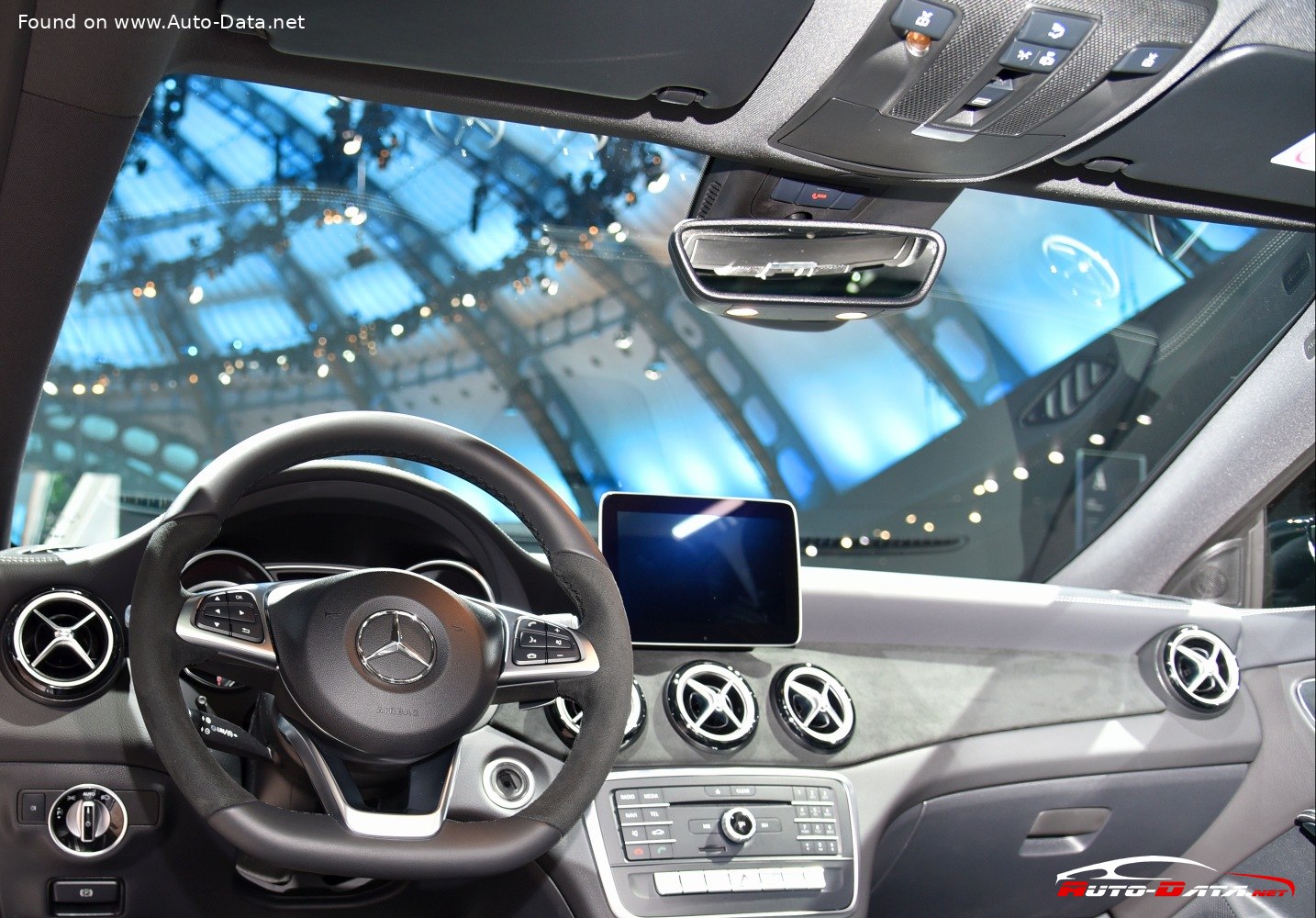

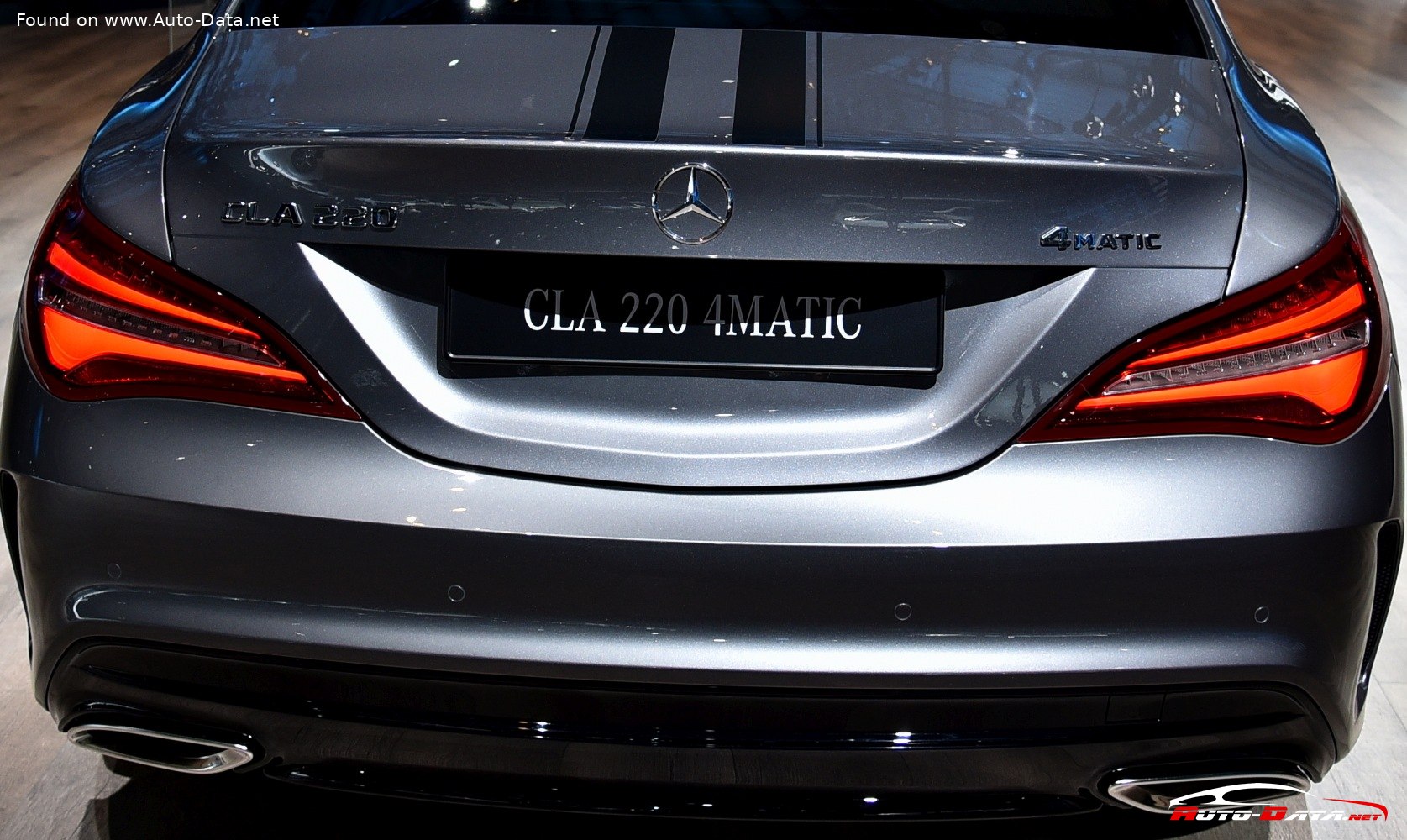

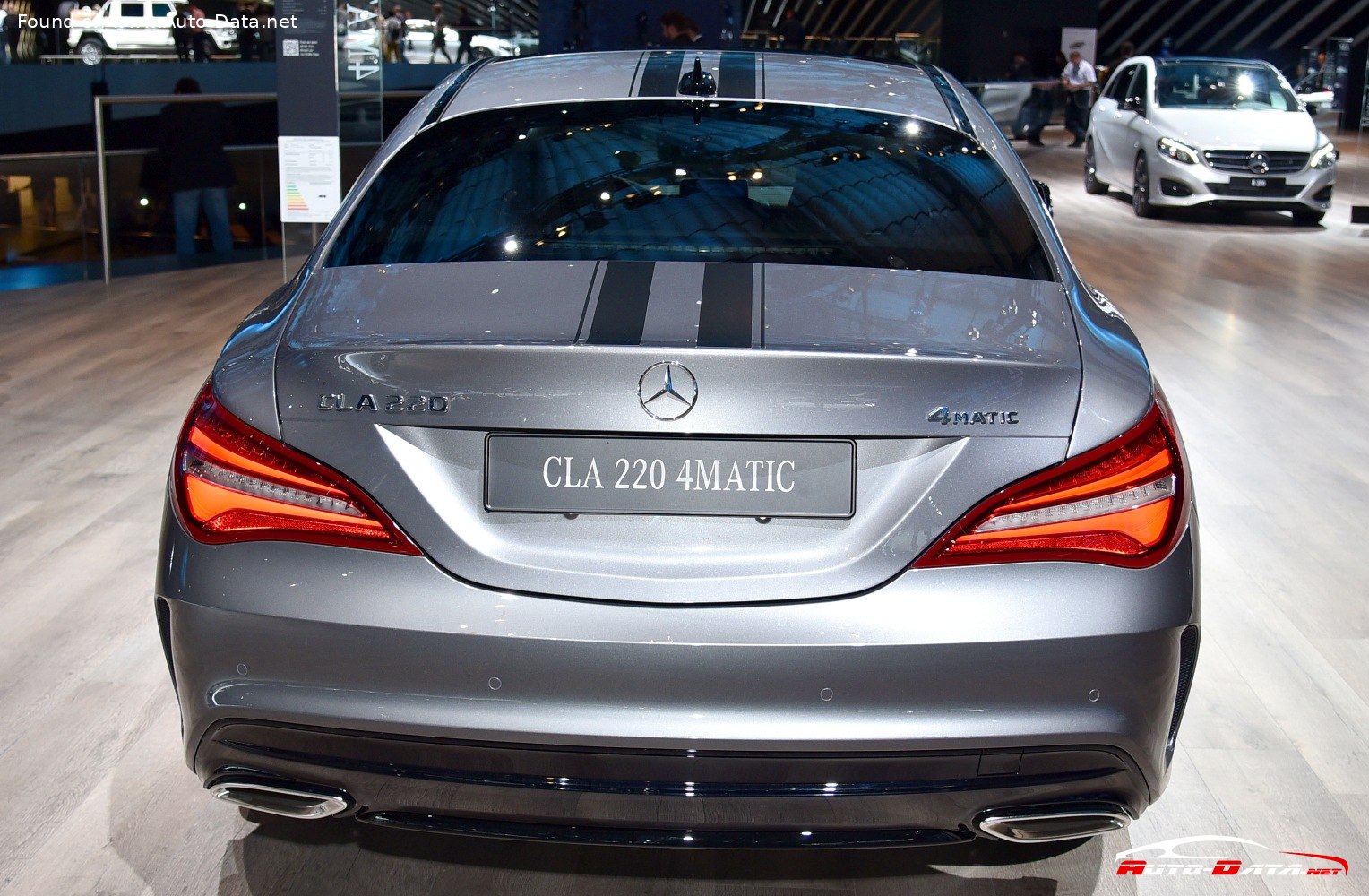

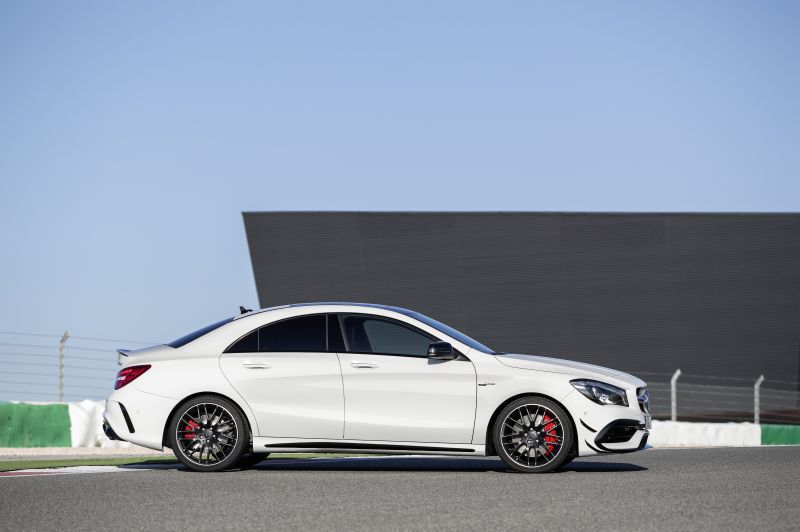

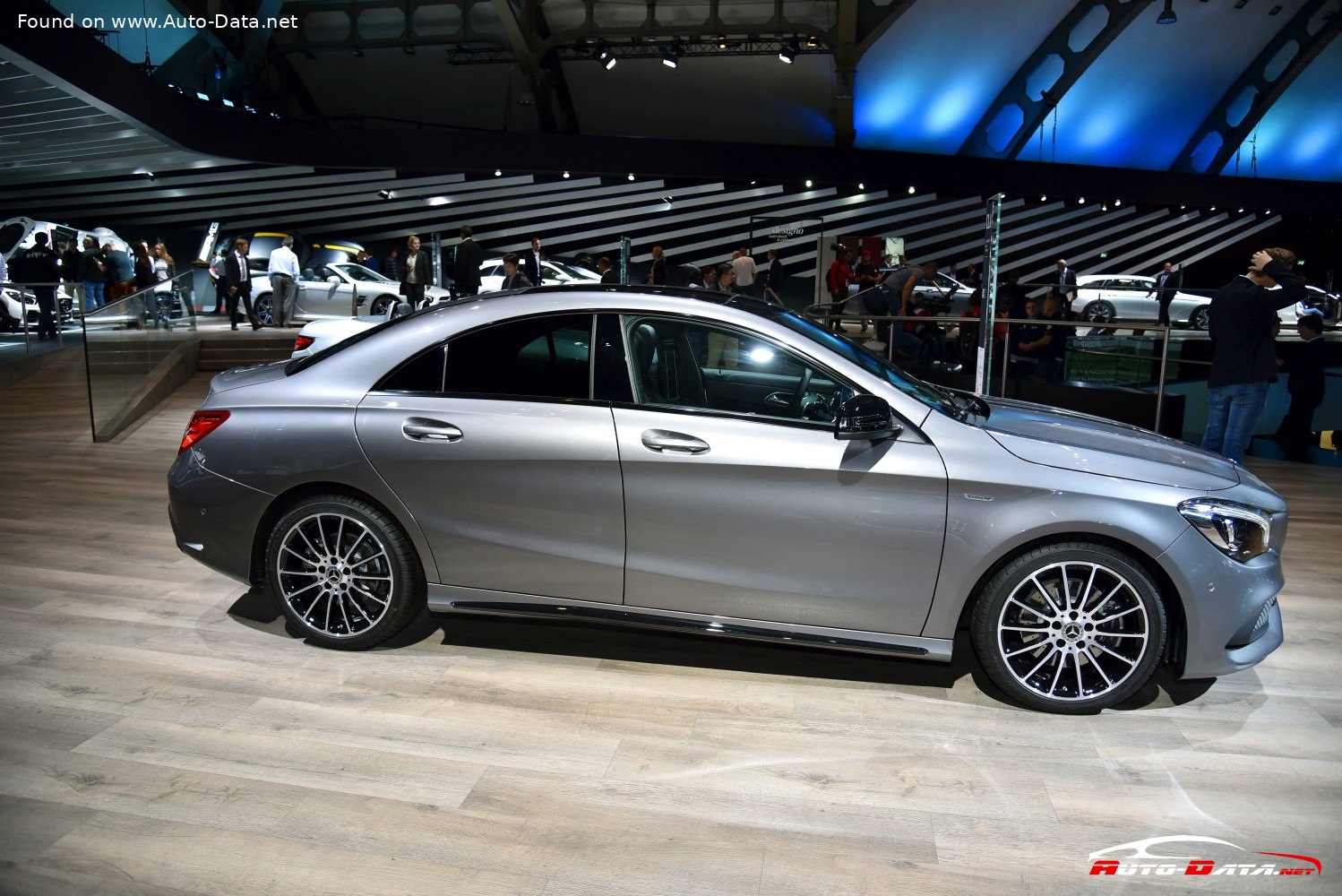

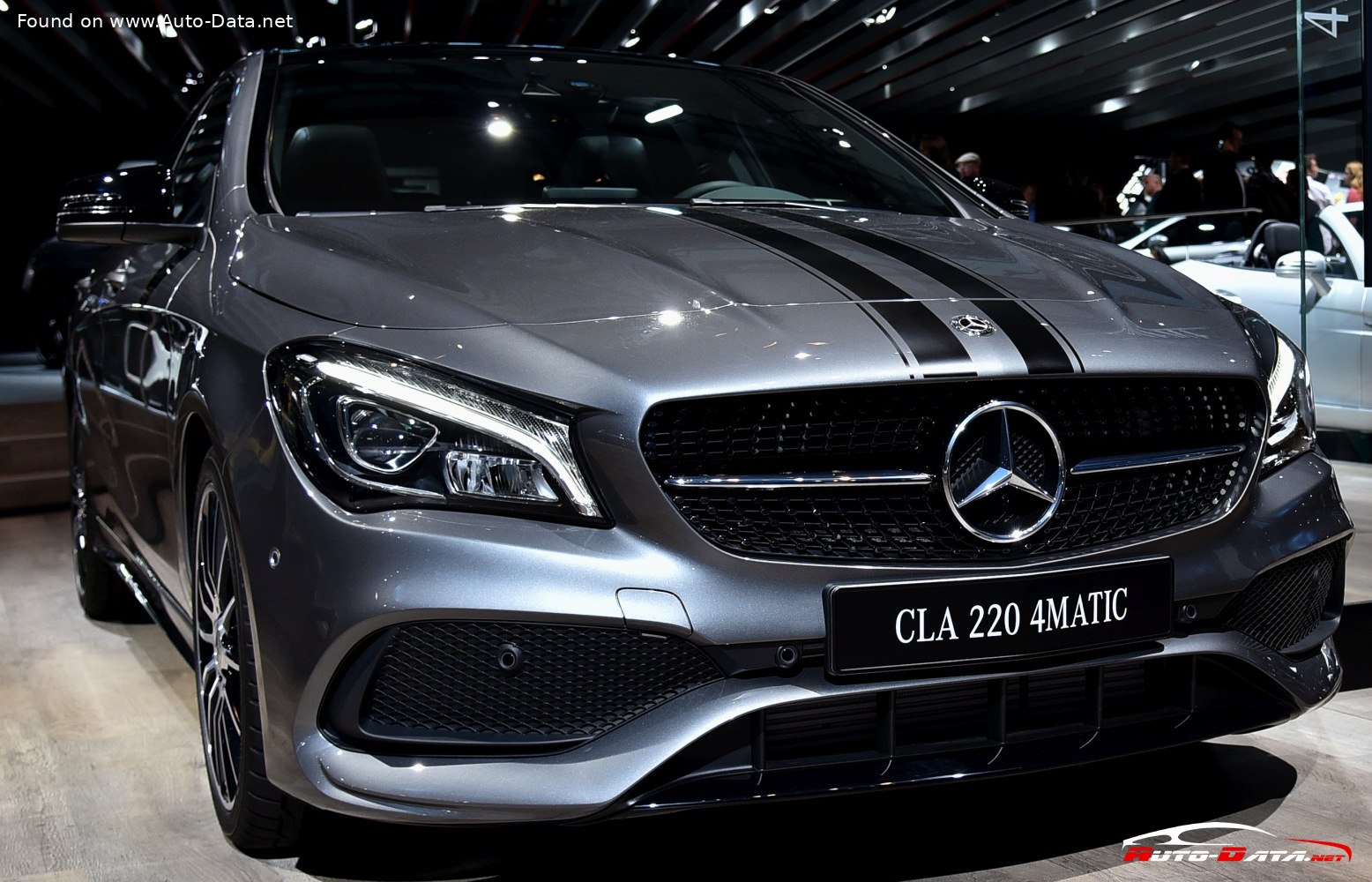

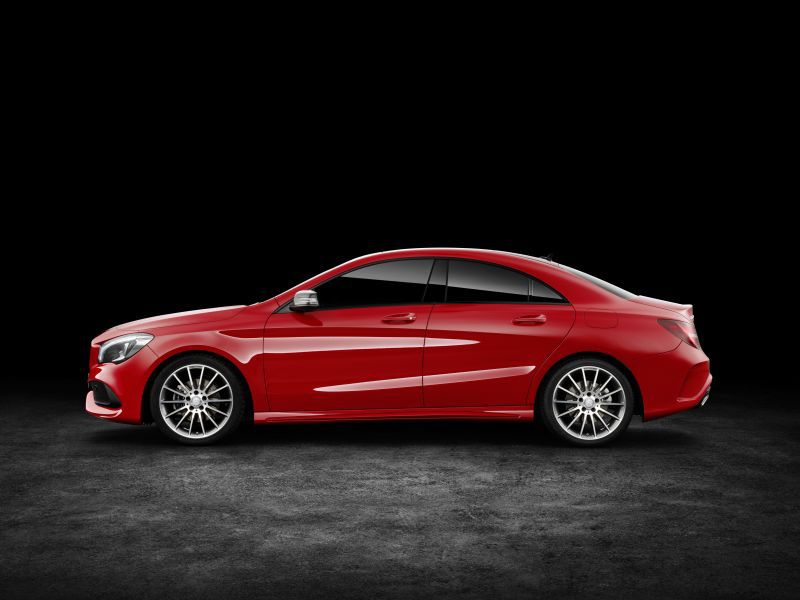

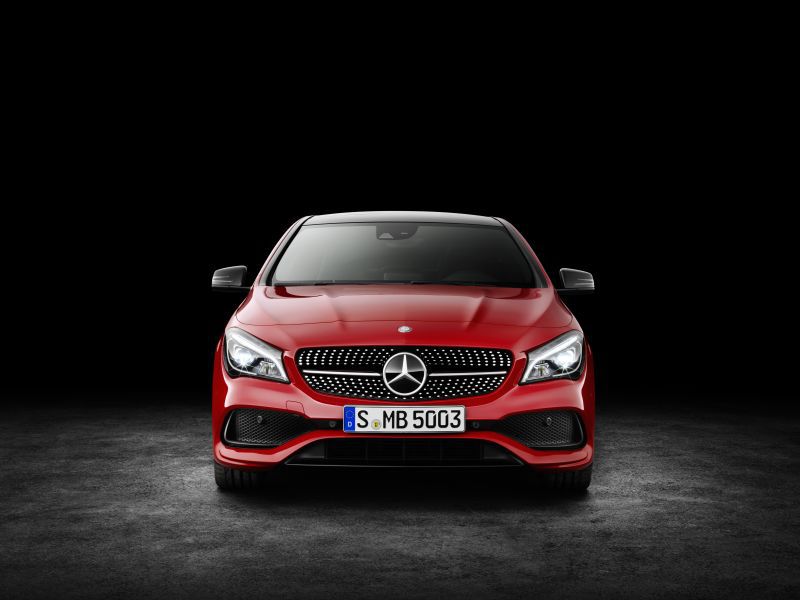

Mercedes-Benz CLA Coupe C117 2018 Gallery
Mercedes-Benz CLA Coupe C117 2018 Technical Specifications
General
Body type
Coupe
Brand
Mercedes-Benz
Doors
4
End of production
February, 2019
Generation
CLA Coupe (C117, 2016)
Model
CLA
Modification (Engine)
CLA 220d (170 Hp) 4MATIC 7G-DCT
Powertrain Architecture
Internal Combustion engine
Seats
5
Start of production
June, 2018
Performance
Acceleration 0 - 100 km/h
7.7 sec
Acceleration 0 - 60 mph
7.3 sec
Acceleration 0 - 62 mph
7.7 sec
CO2 emissions (NEDC)
142-148 g/km
Emission standard
Euro 6c
Fuel Type
Diesel
Fuel consumption (economy) - combined (NEDC)
5.4-5.6 l/100 km
Fuel consumption (economy) - extra urban (NEDC)
4.9-5.1 l/100 km
Fuel consumption (economy) - urban (NEDC)
6.3-6.6 l/100 km
Maximum speed
230 km/h
Dimensions
Approach angle
13.7°
Departure angle
14.4°
Front overhang
925 mm
Front track
1549 mm
Height
1432 mm
Length
4640 mm
Minimum turning circle (turning diameter)
11 m
Ramp-over (brakeover) angle
9.5°
Rear (Back) track
1547 mm
Rear overhang
1016 mm
Wheelbase
2699 mm
Width
1777 mm
Engine
Compression ratio
16.2:1
Coolant
9.6 l
Cylinder Bore
83 mm
Engine Model/Code
OM 651.930
Engine aspiration
Turbocharger, Intercooler
Engine configuration
Inline
Engine displacement
2143 cm
Engine layout
Front, Transverse
Engine oil capacity
6.5 l
Engine oil specification
Log in to see.
Engine systems
Start & Stop SystemParticulate filter
Fuel injection system
Diesel Commonrail
Number of cylinders
4
Number of valves per cylinder
4
Power
170 Hp @ 3400-4000 rpm.
Torque
350 Nm @ 1400-3400 rpm.
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs
Front suspension
Independent, type McPherson with coil spring and anti-roll bar
Number of gears and type of gearbox
7 gears, automatic transmission G-DCT
Power steering
Electric Steering
Rear brakes
Disc
Rear suspension
Independent multi-link spring suspension with stabilizer
Steering type
Steering rack and pinion
Tires size
205/55 R16; 225/45 R17; 225/40 R18
Wheel rims size
6.5J x 16; 7.5J x 17; 7.5J x 18
Space
Fuel tank capacity
56 l
Kerb Weight
1505-1510 kg
Max load
555 kg
Max. roof load
100 kg
Max. weight
2060-2065 kg
Permitted towbar download
75 kg
