RAM Crew Cab DT 2024 2025
Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4
Hybrid Car
Body Type Pick-up
Battery Capacity 91.8 KW
5800 rpm.
Power HP RPM
183 km/h
Maximum Speed
4
Doors
RAM Crew Cab DT 2024 2025 Key Specs
Battery Voltage
400 V
Body Type
Pick-up
Doors
4
Drive Wheel
All wheel drive (4x4)
Engine Aspiration
Naturally aspirated engine
Engine Oil Capacity
4.73 l
Fuel Type
Petrol / electricity
Fuel Tank Capacity
102 l
Generation
1500 Crew Cab (DT, 2024)
Gross Battery Capacity
91.8 kWh
Kerb Weight
3405 kg
Maximum Speed
183 km/h, Electronically limited
Modification (Engine)
Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4
Number Of Cylinders
6
Power
271 Hp @ 5800 rpm.
Power Steering
Electric Steering
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
5-6
Start Of Production
2025
System Power
647 Hp
System Torque
827 Nm
Wheel Rims Size
20; 22

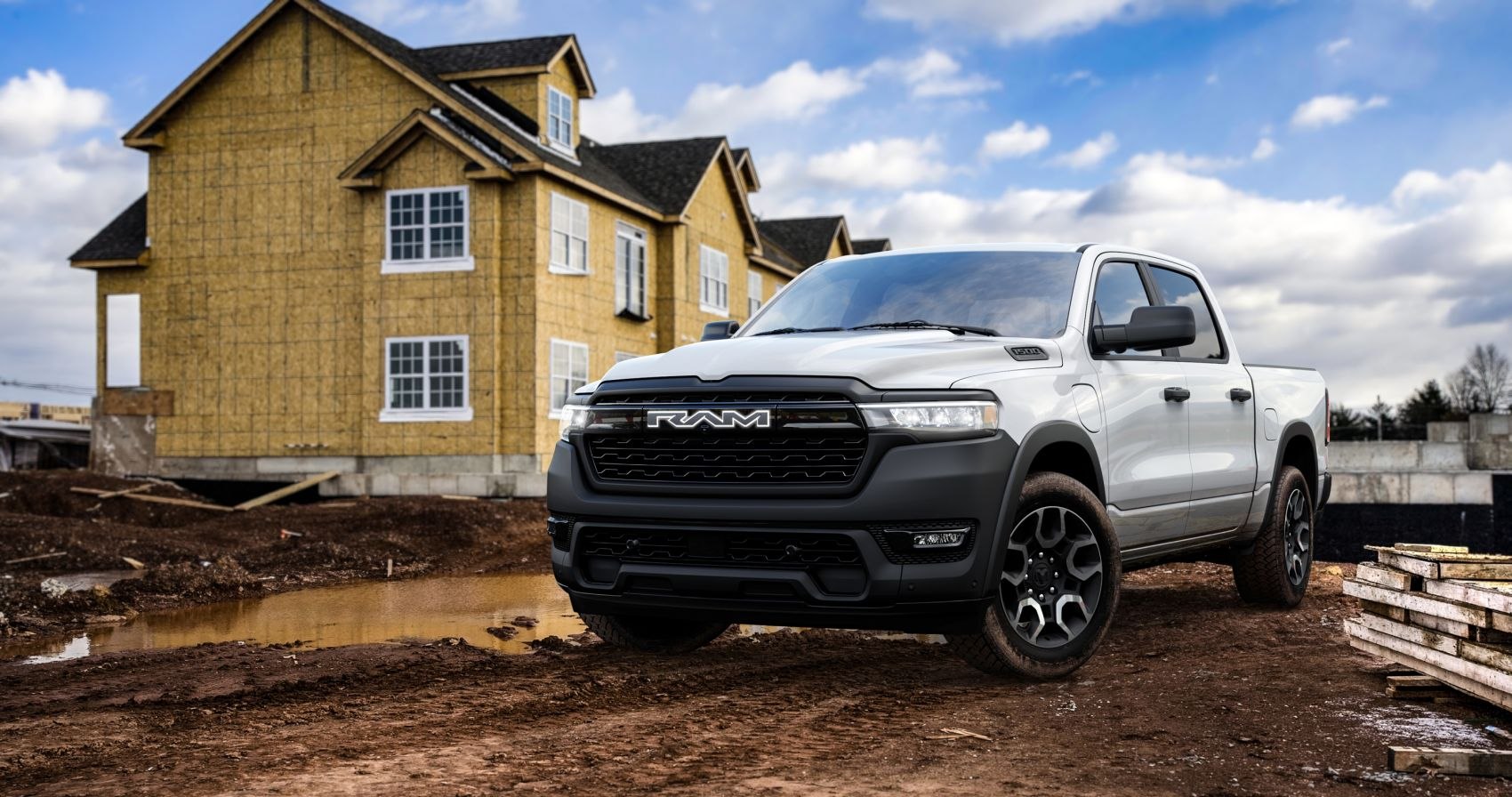

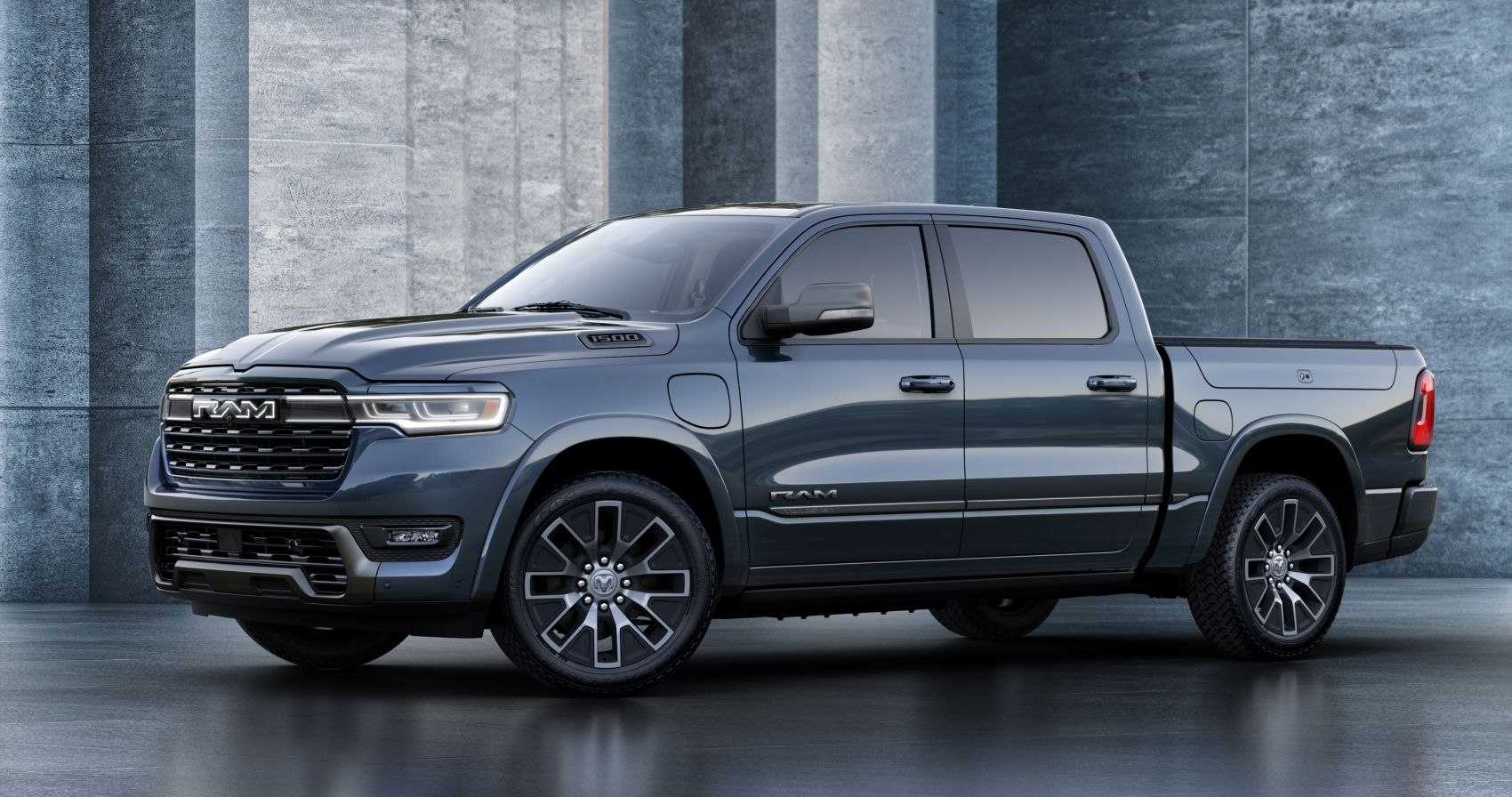

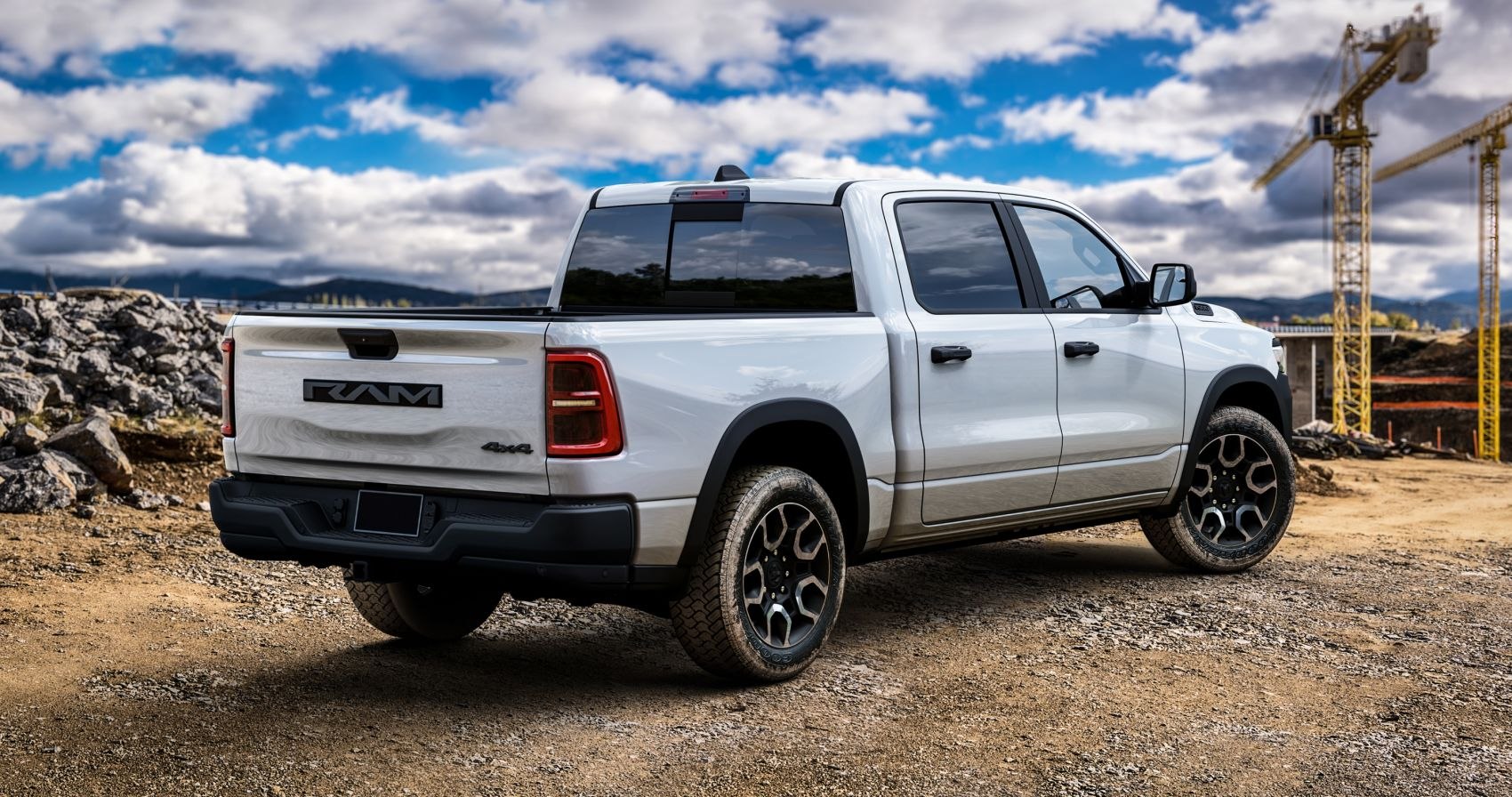

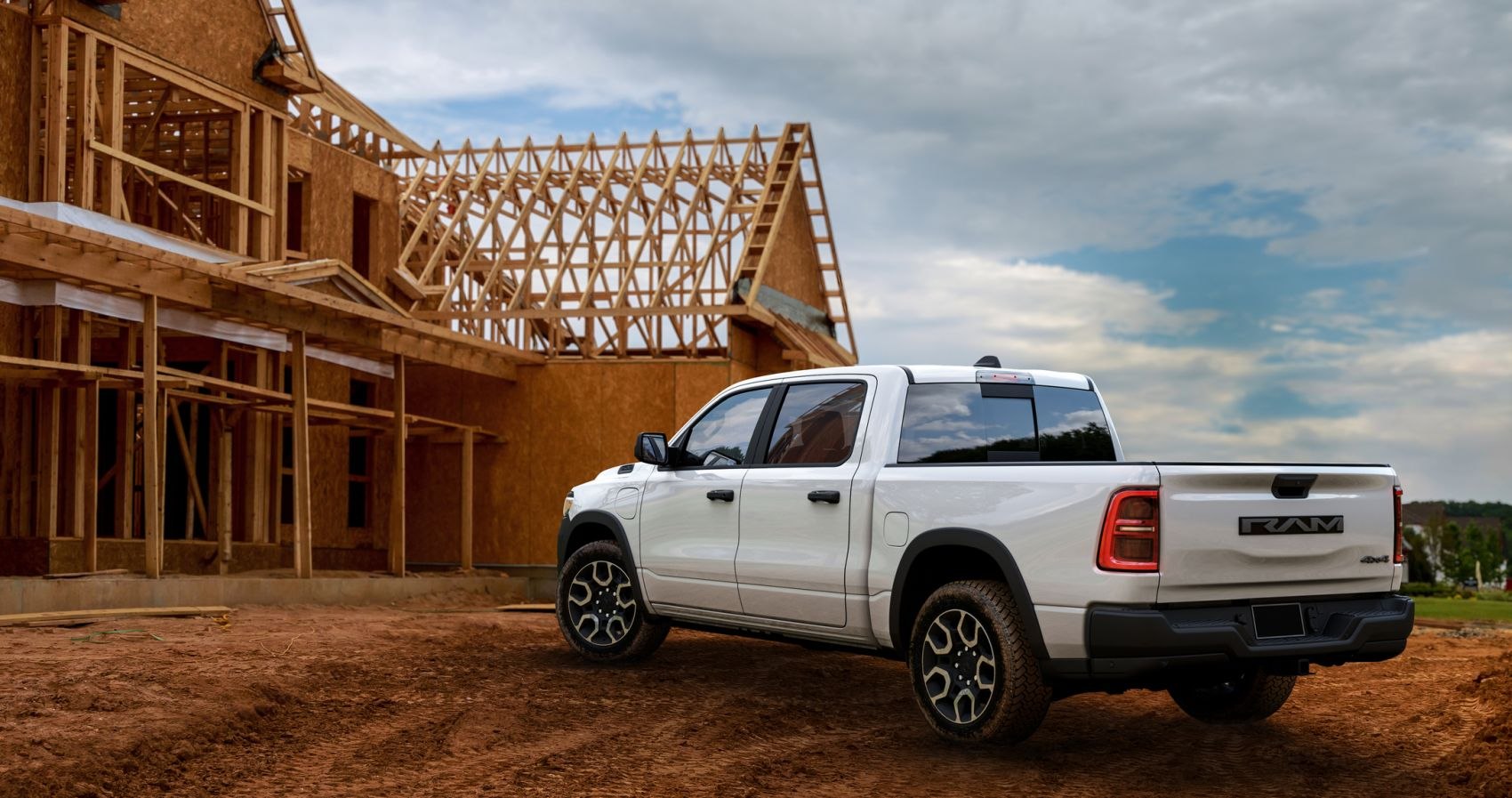

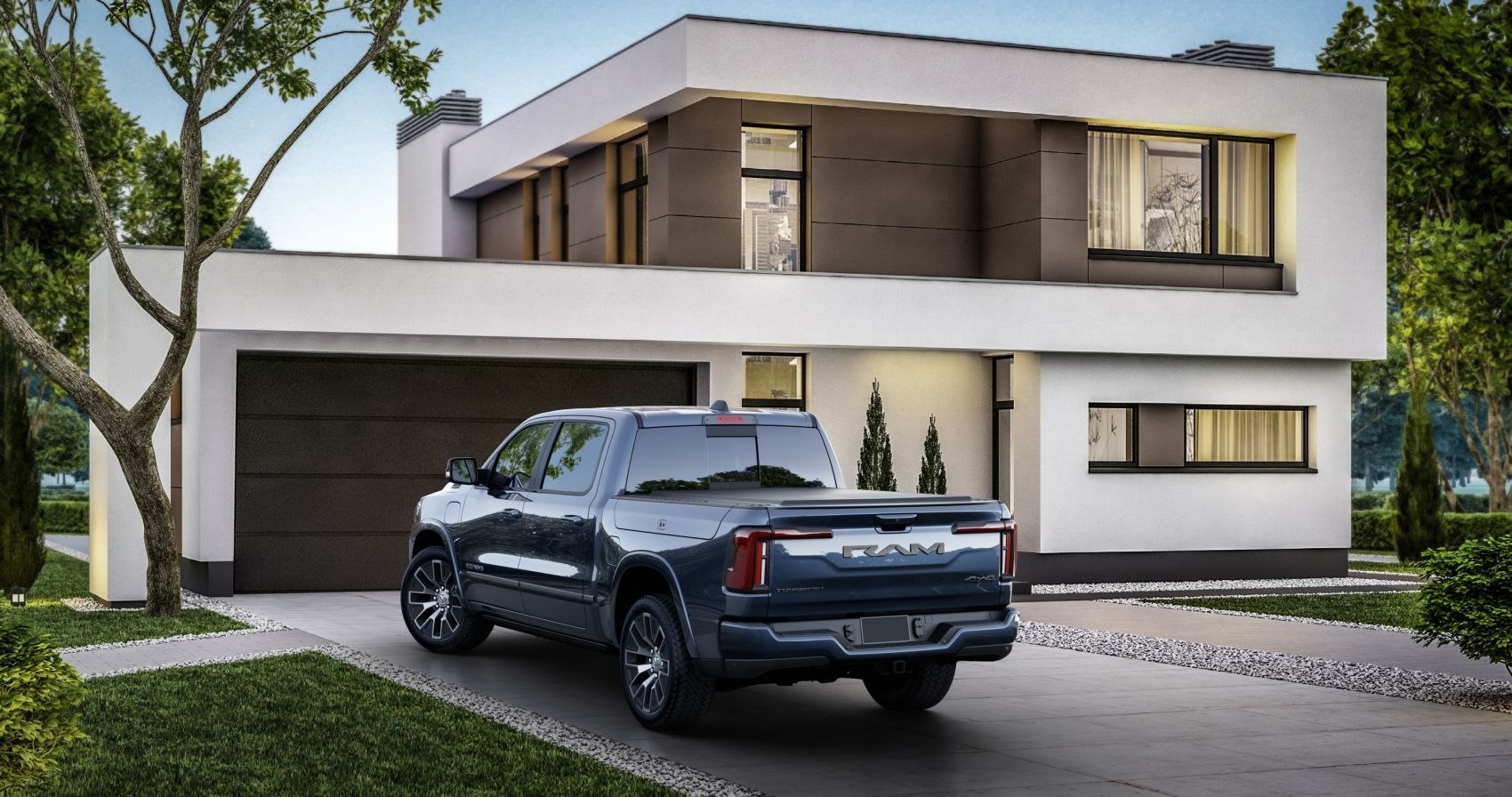

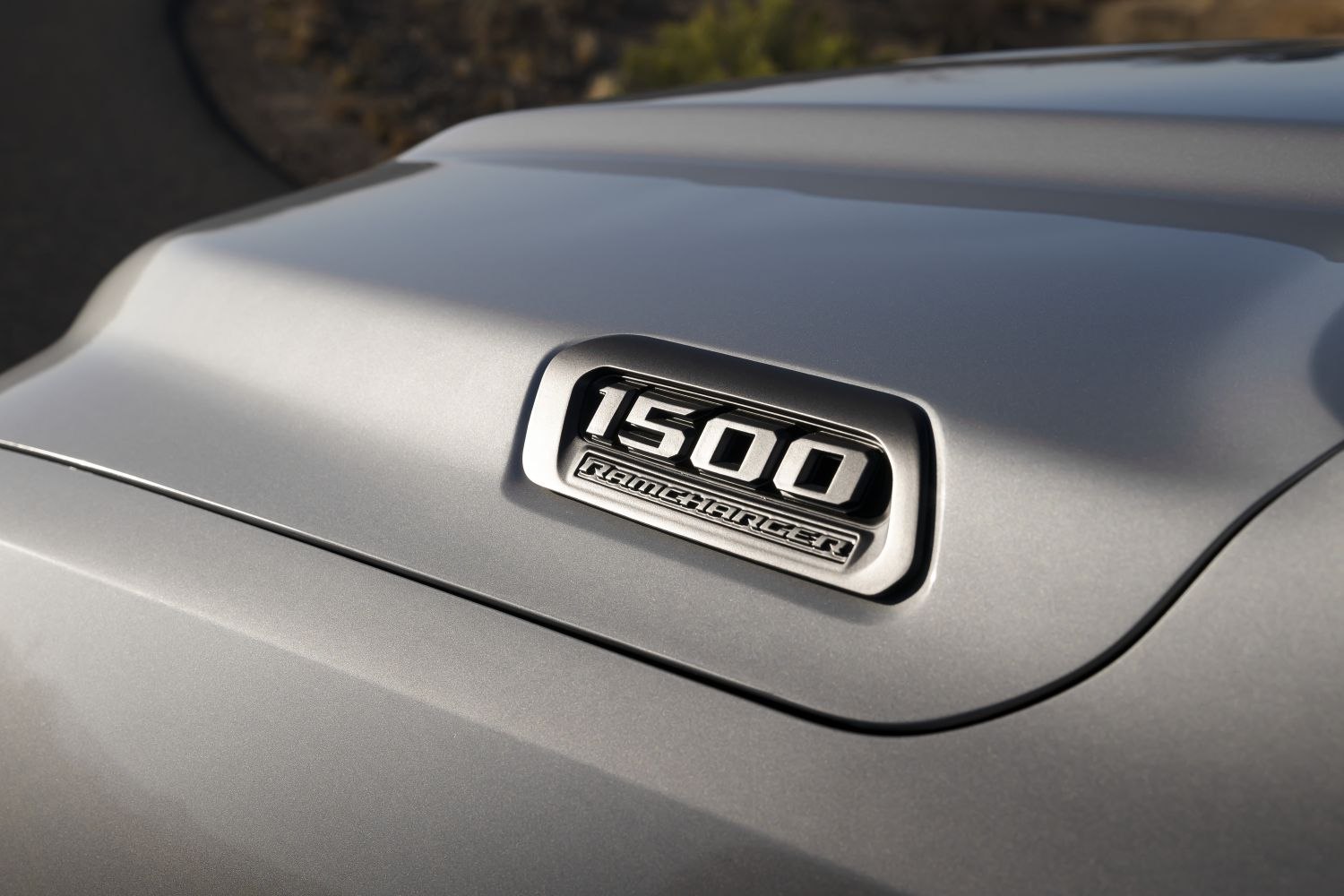

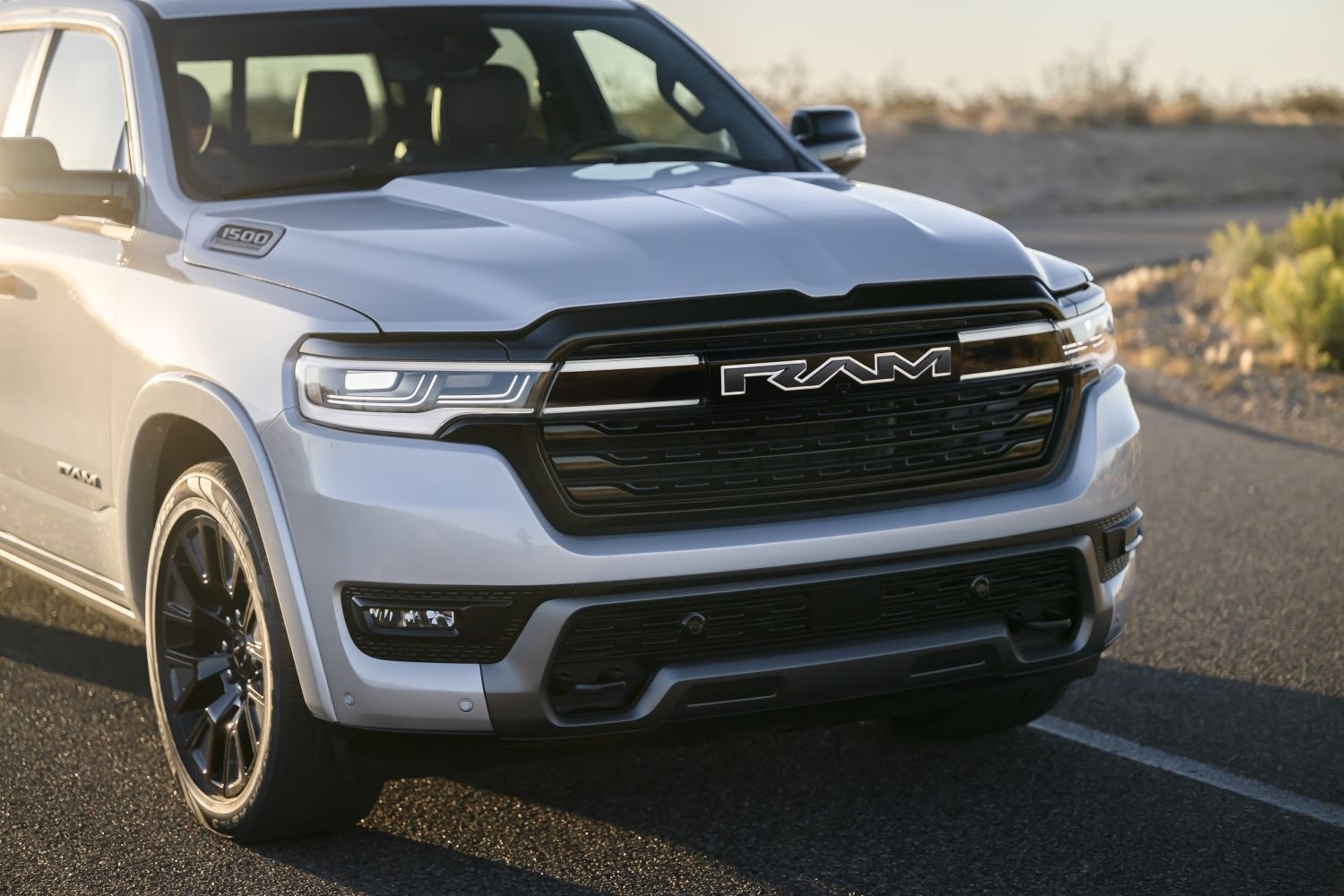

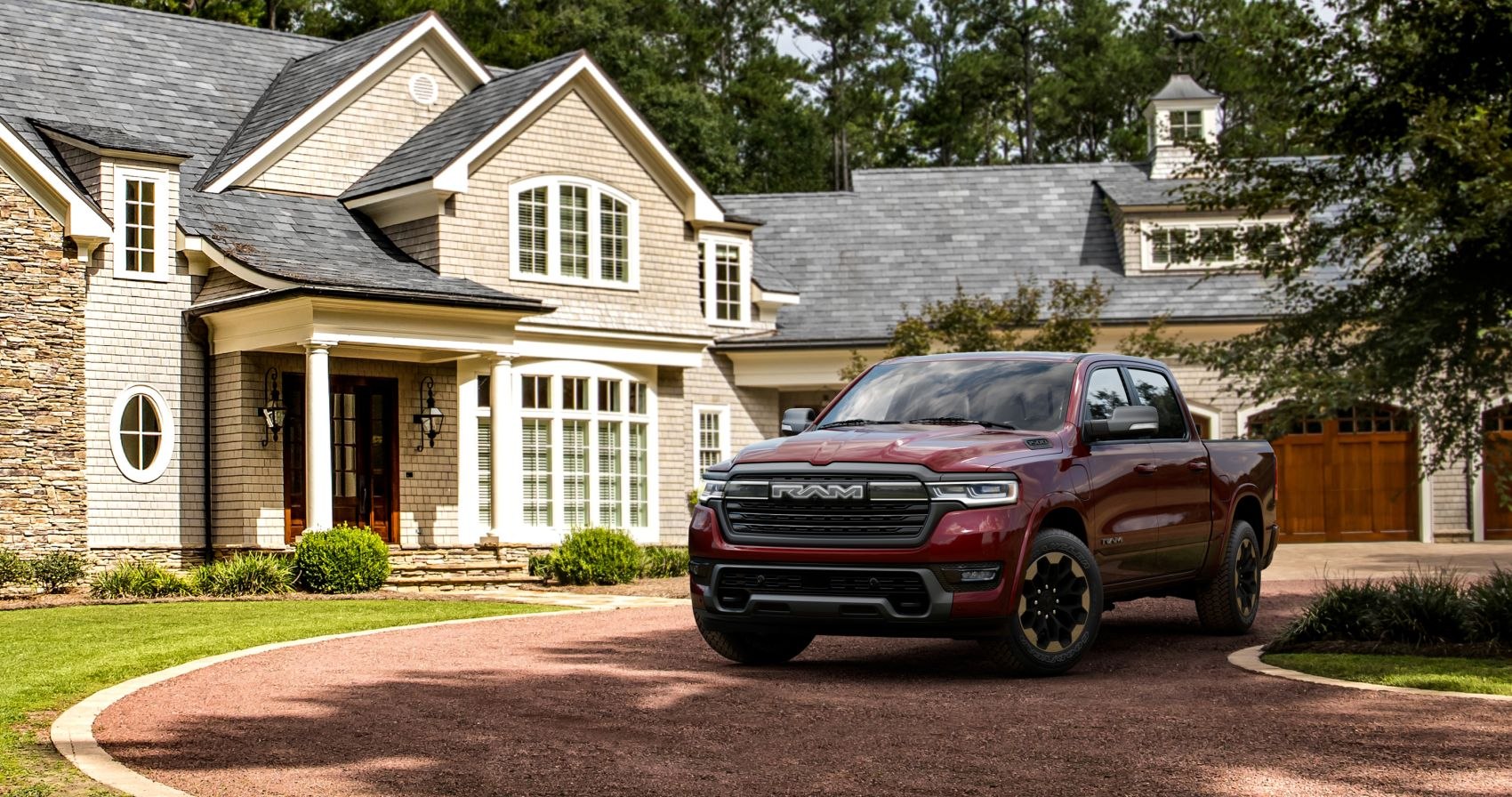

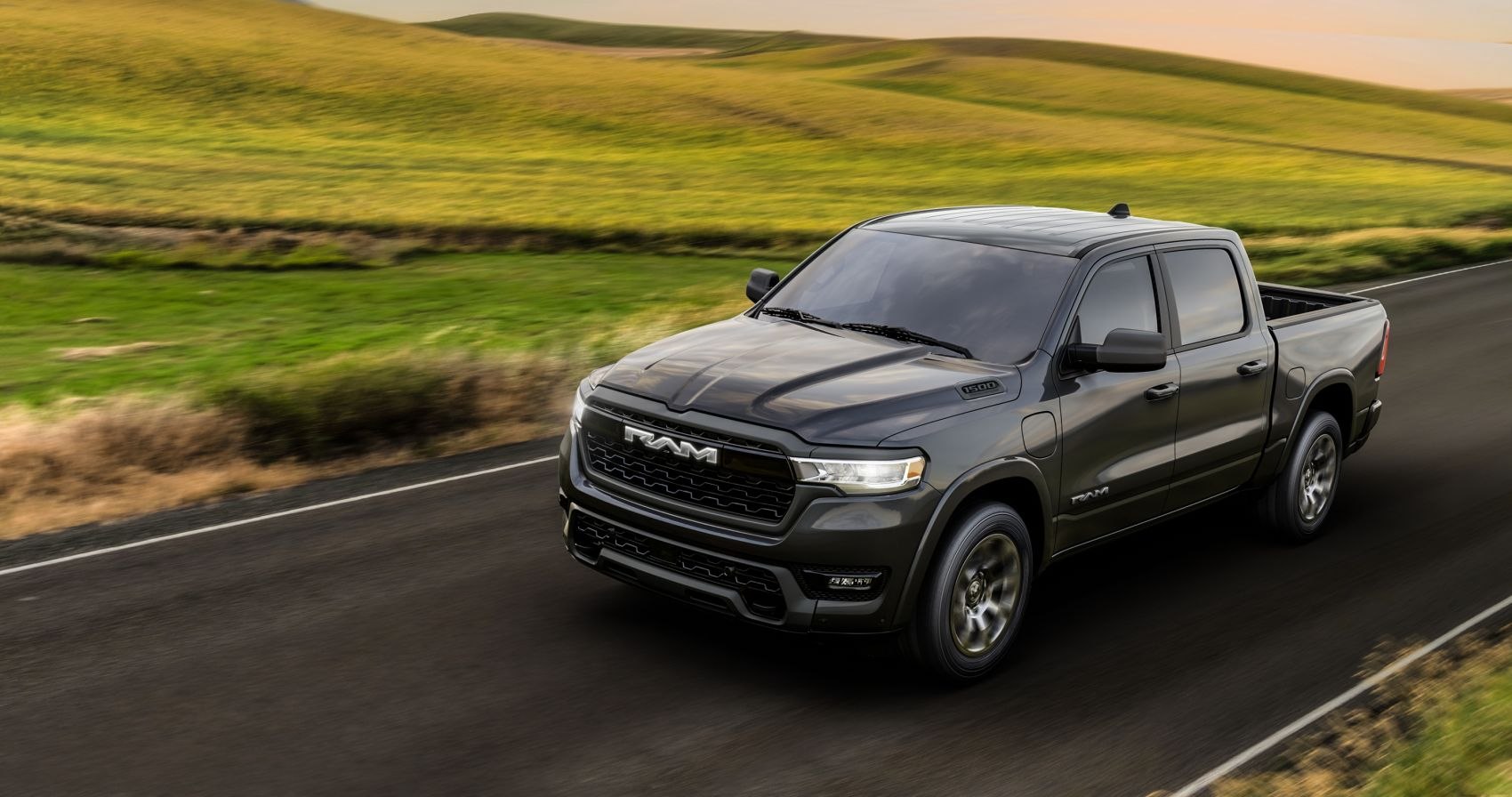

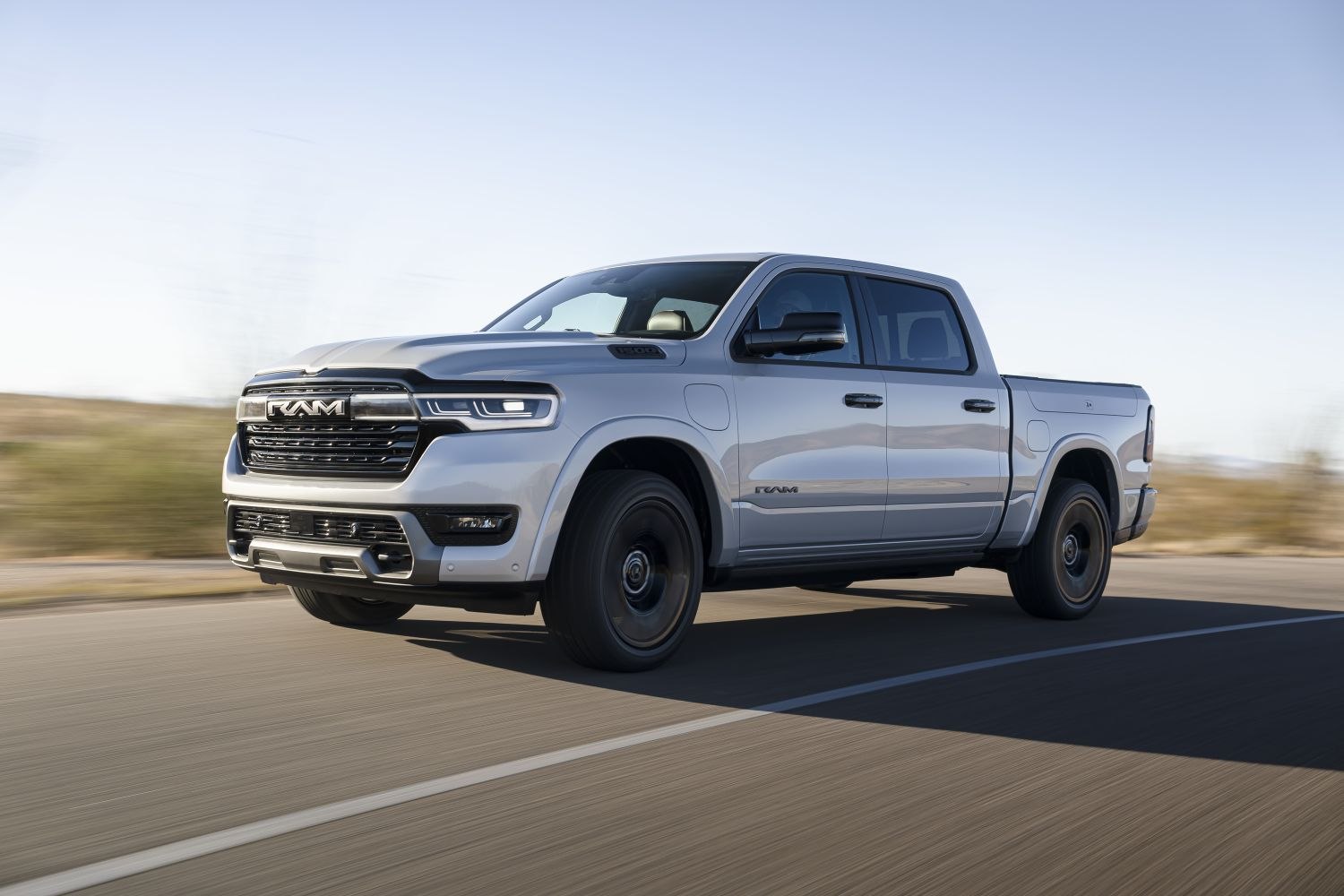

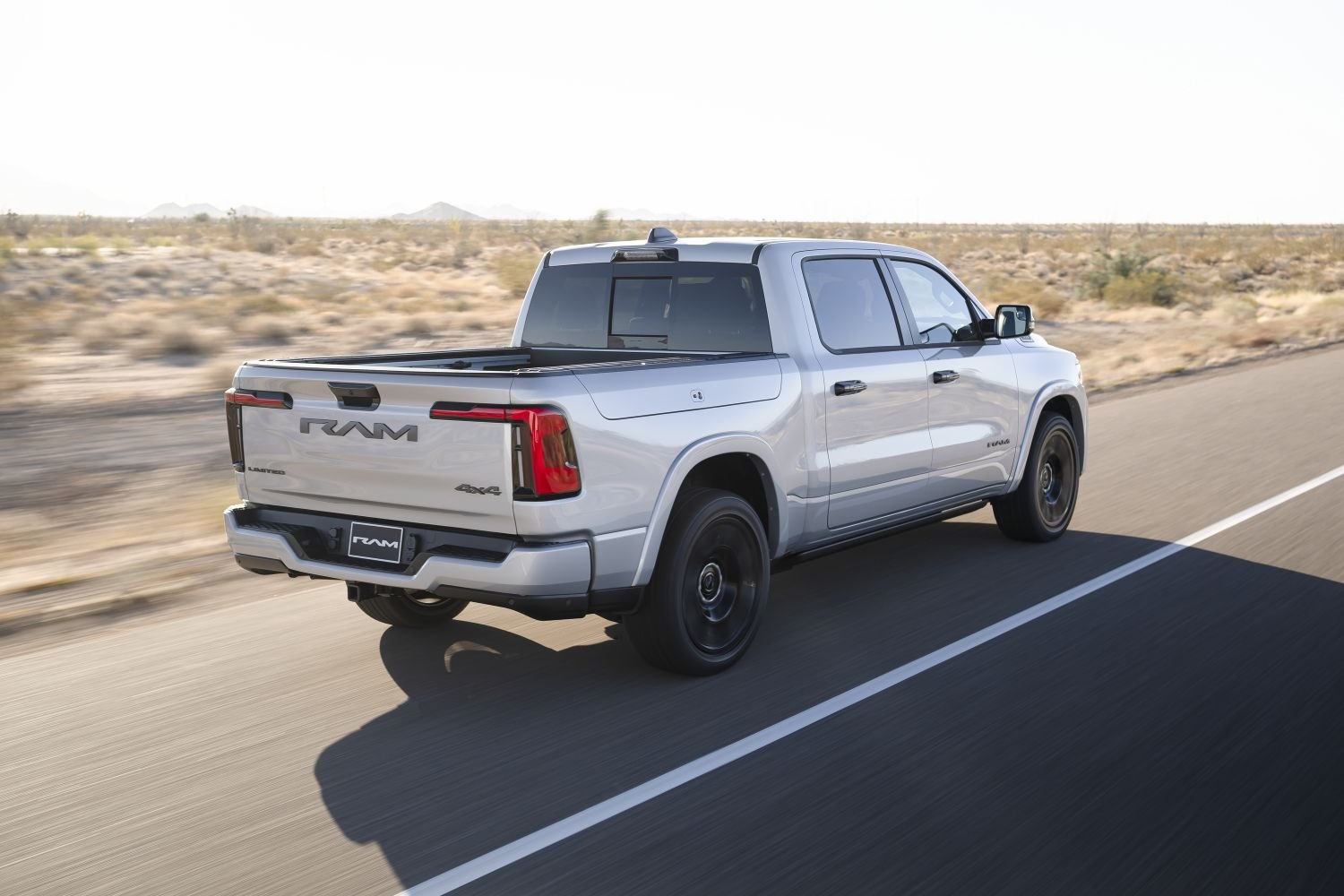

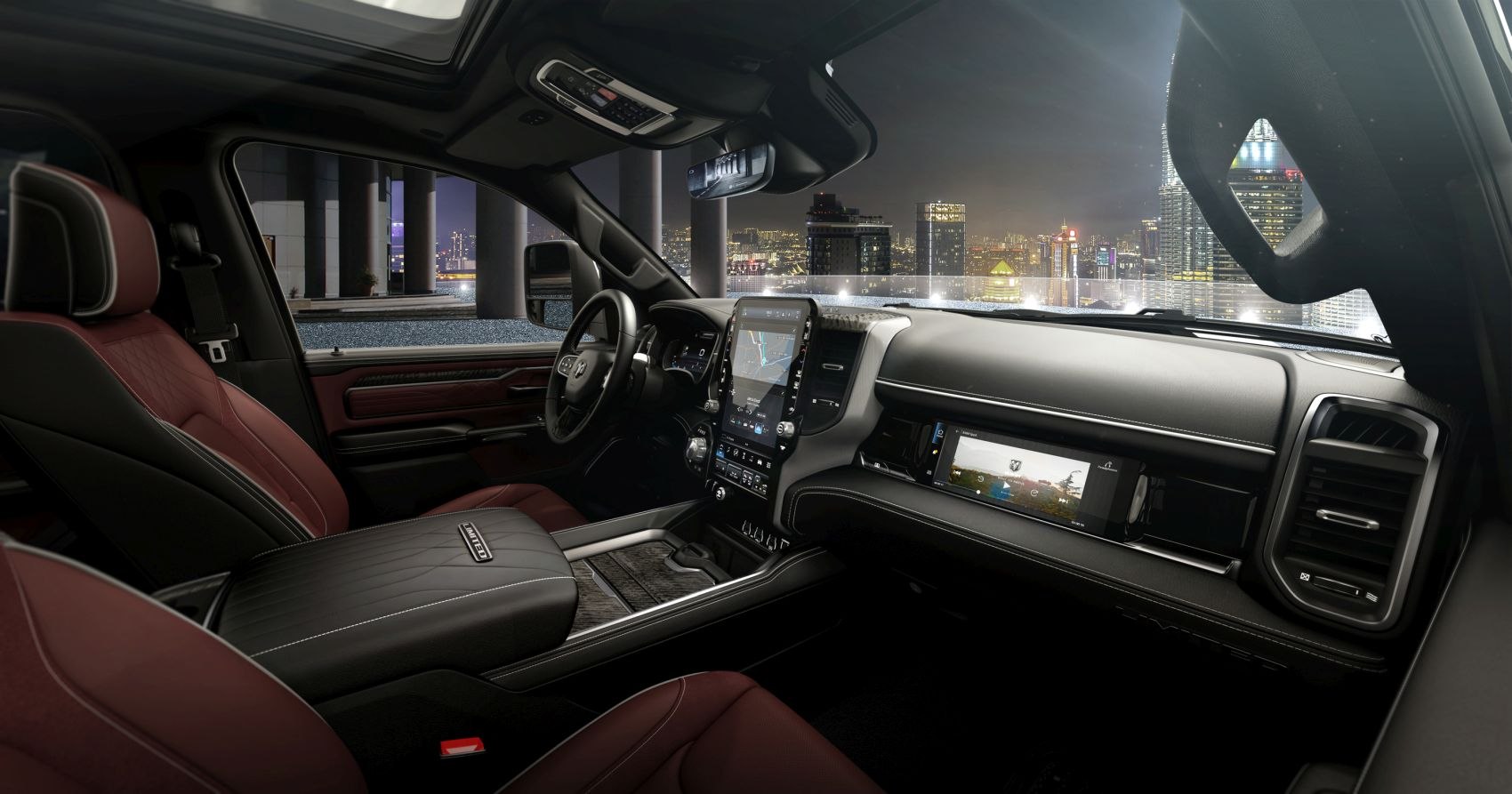

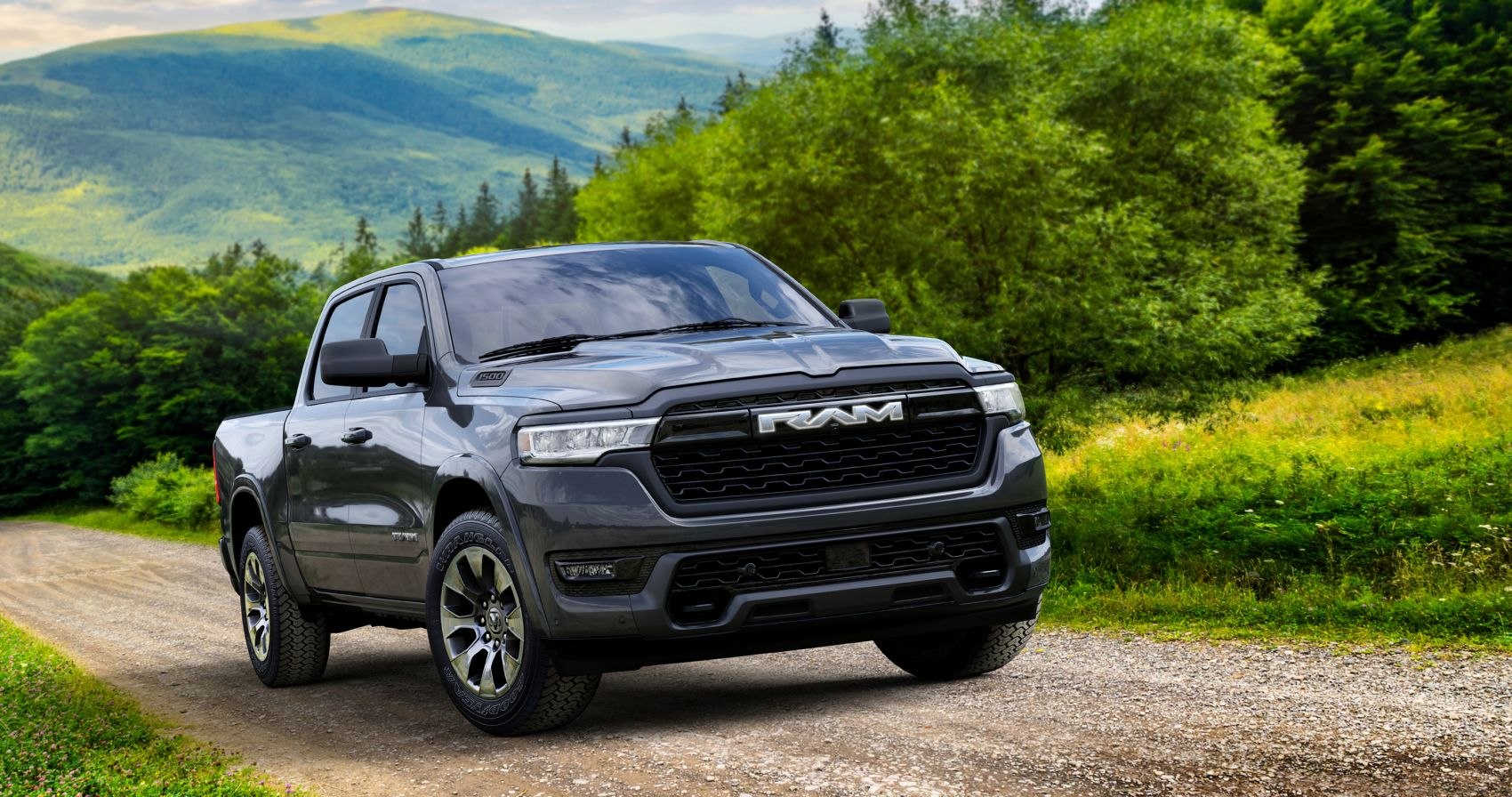

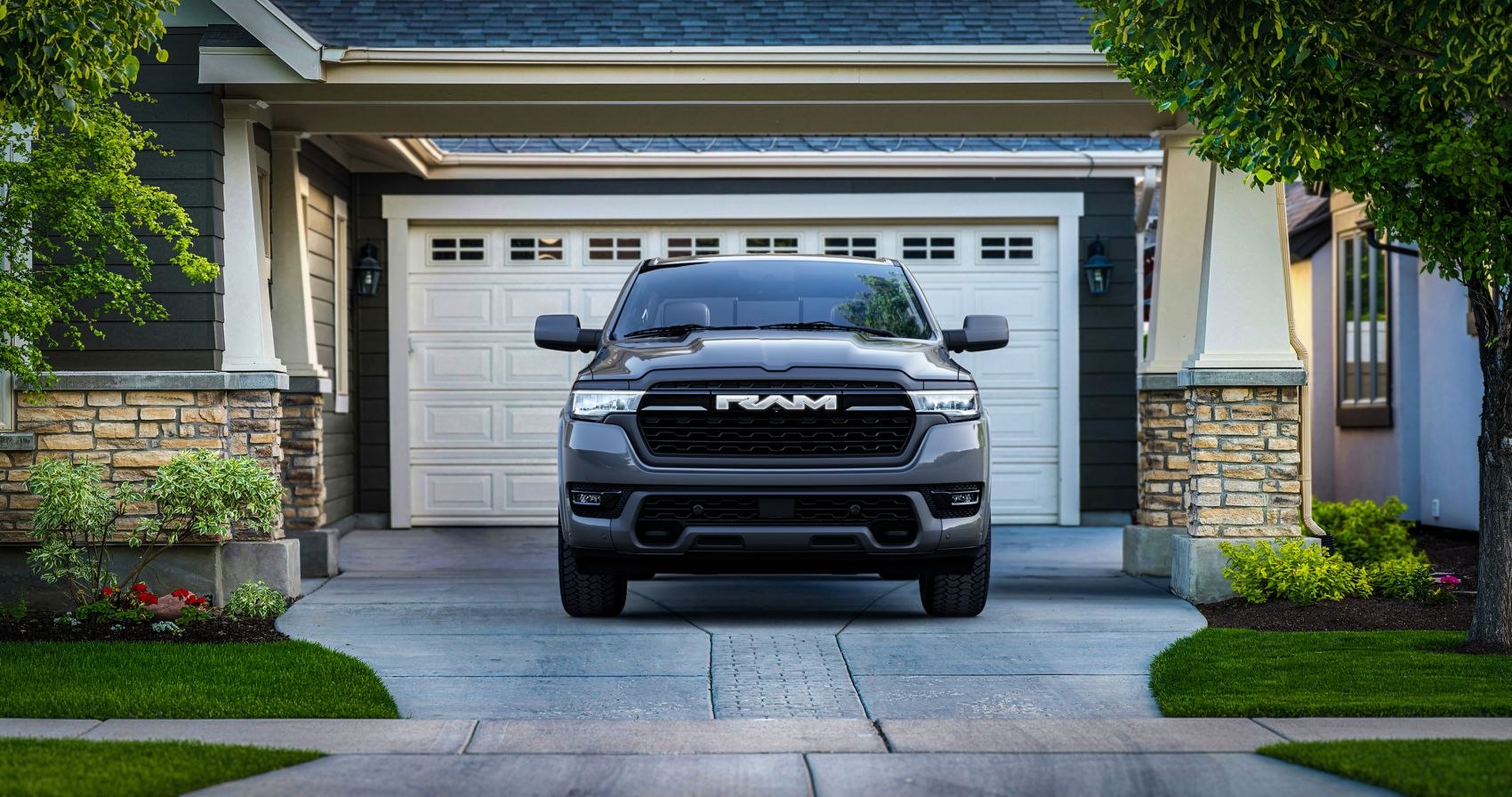

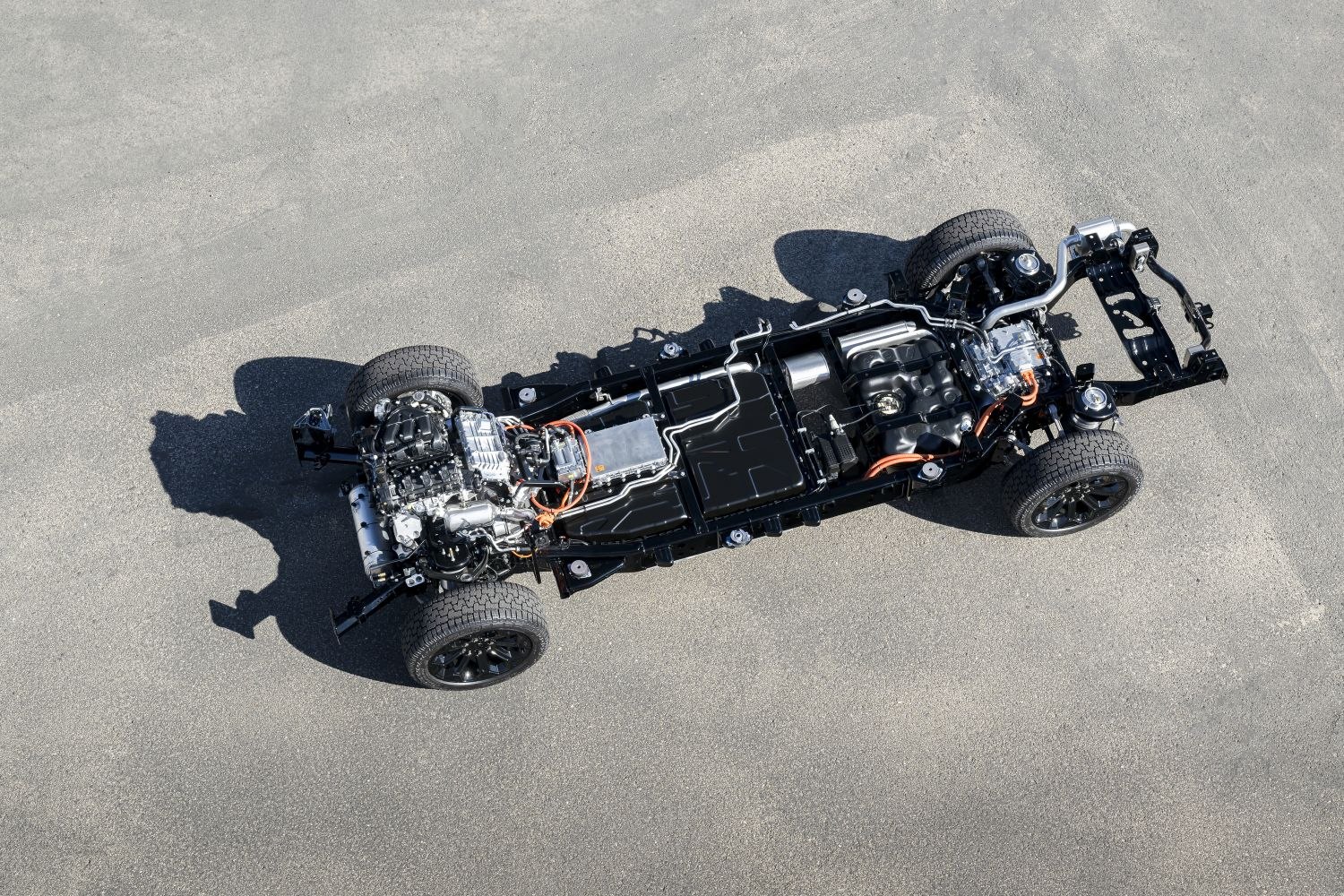

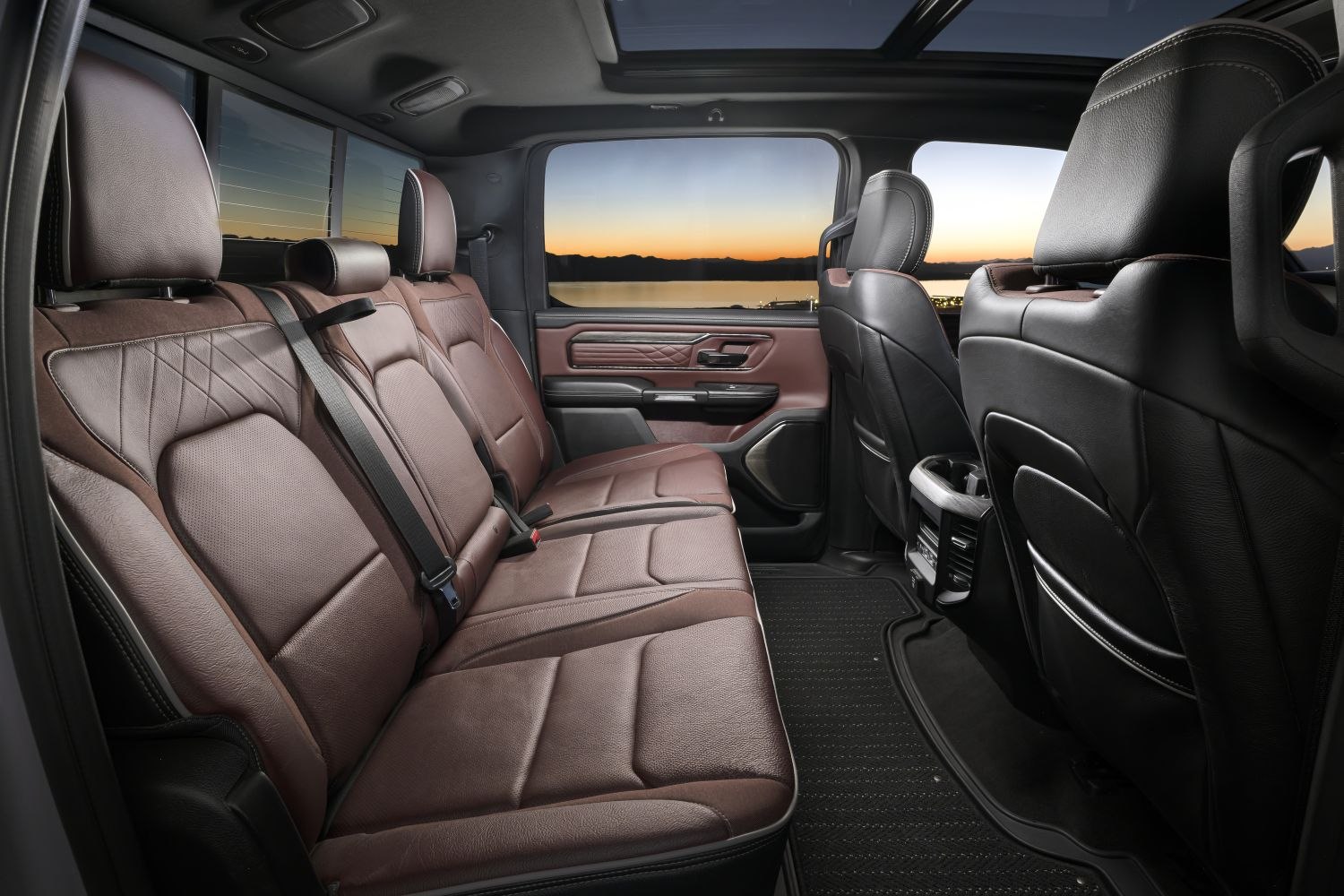

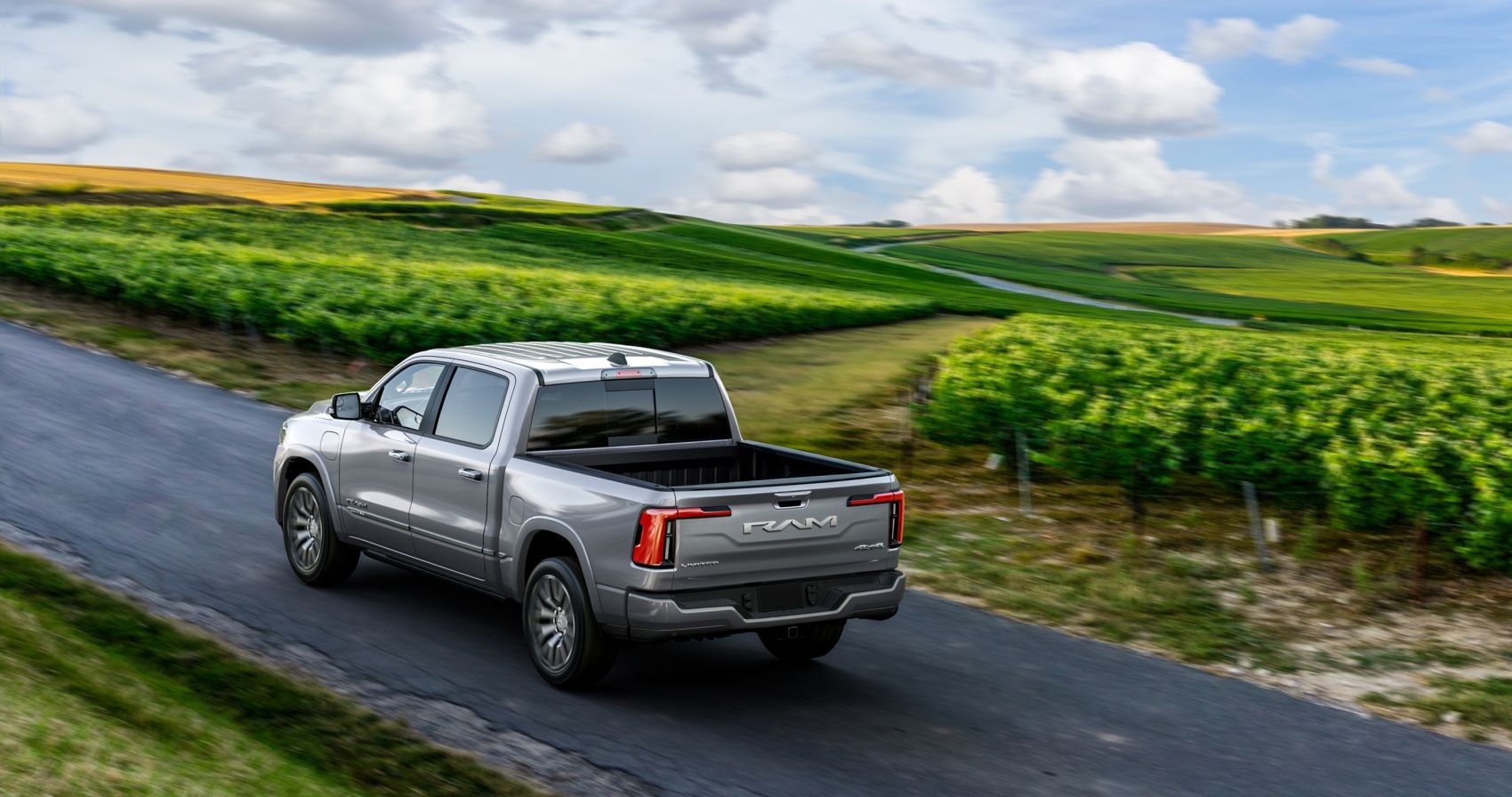

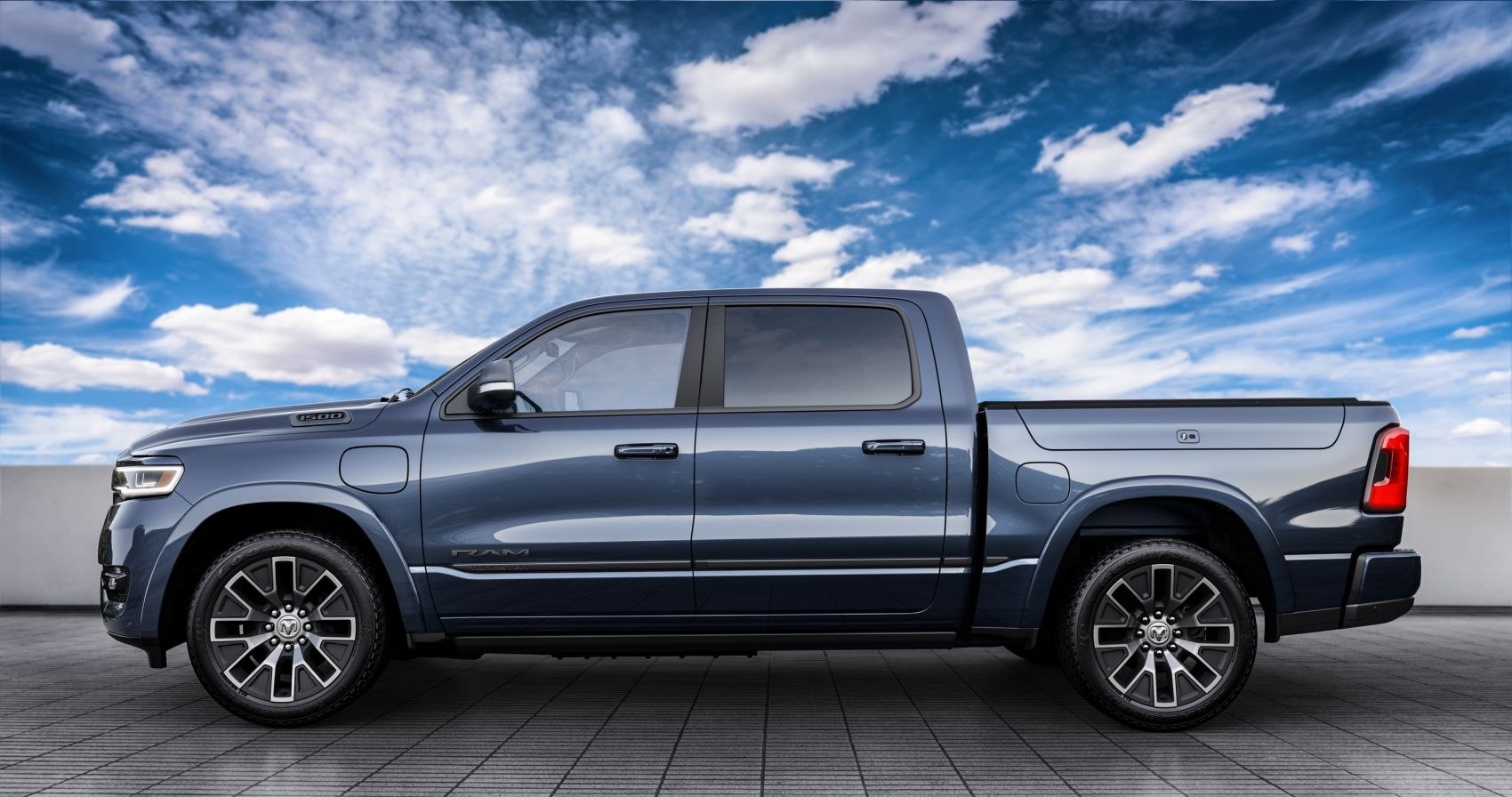

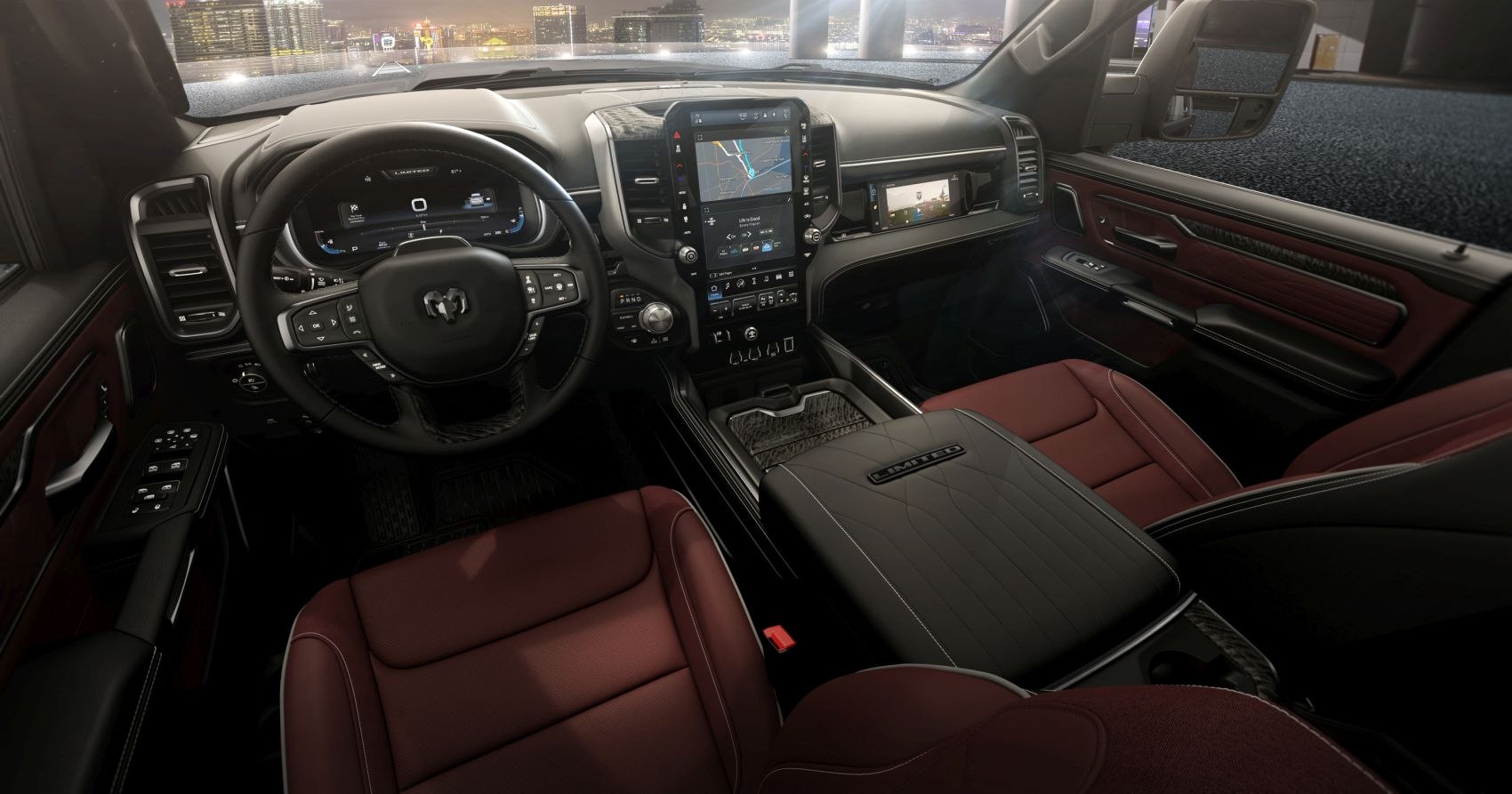

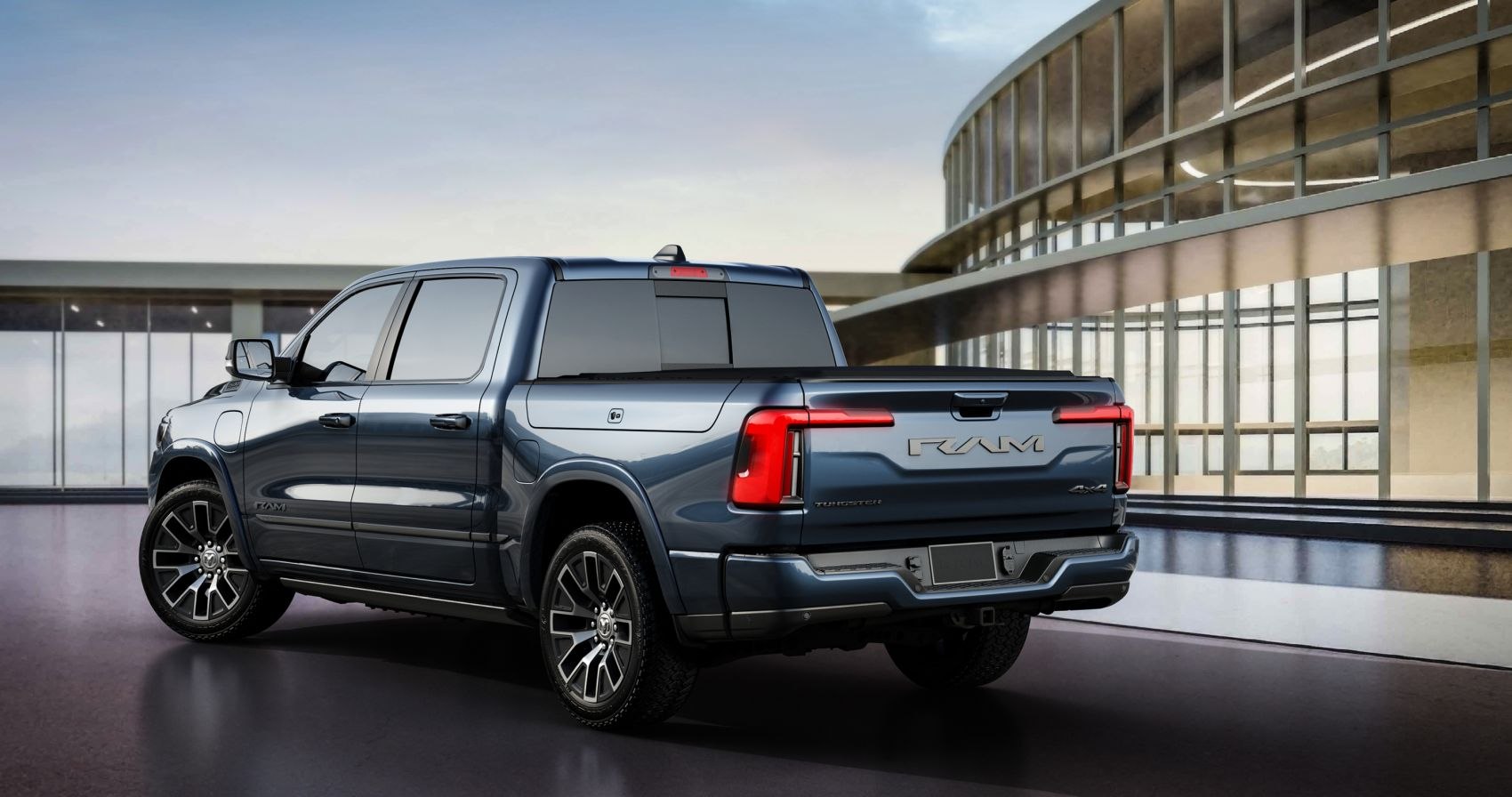

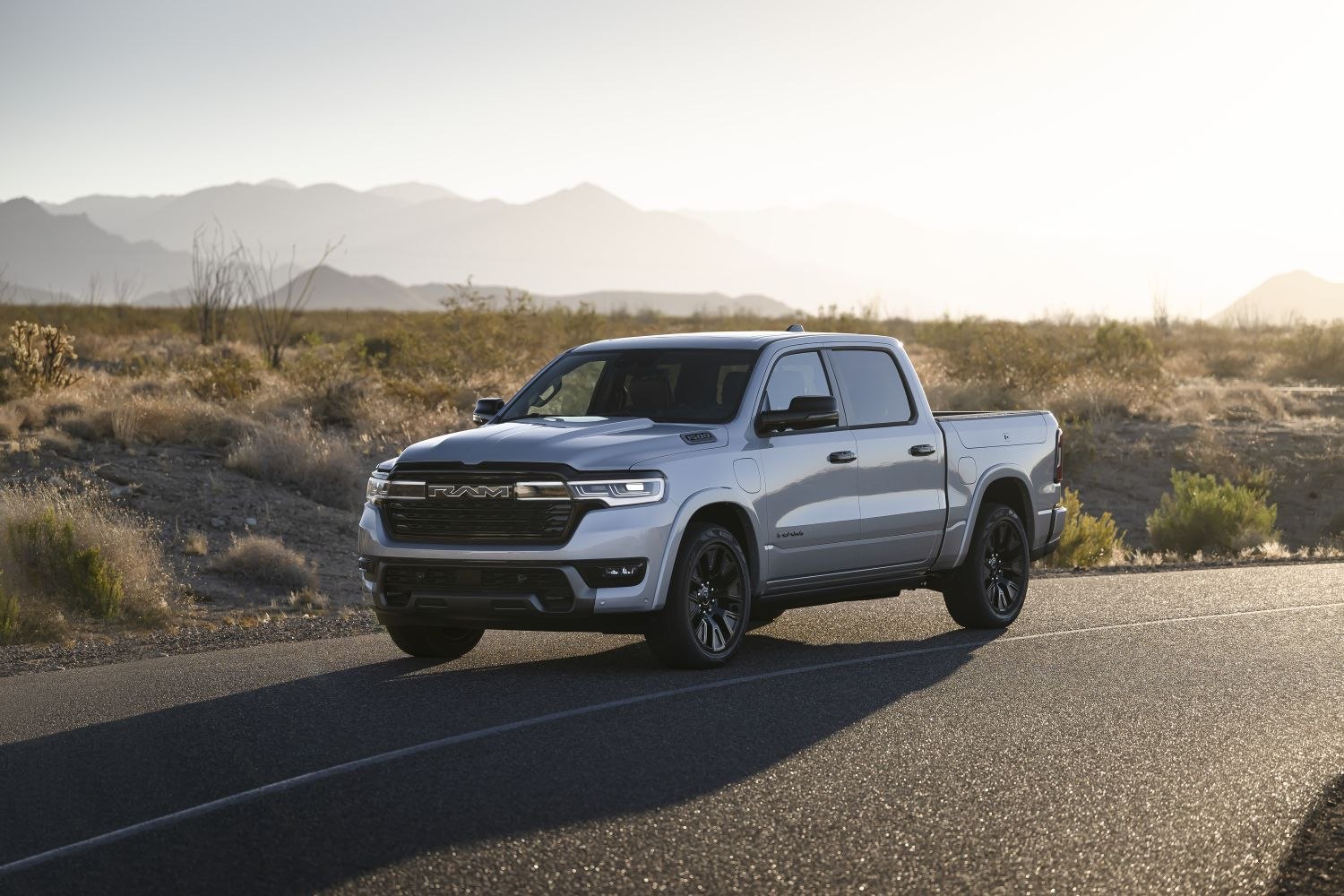

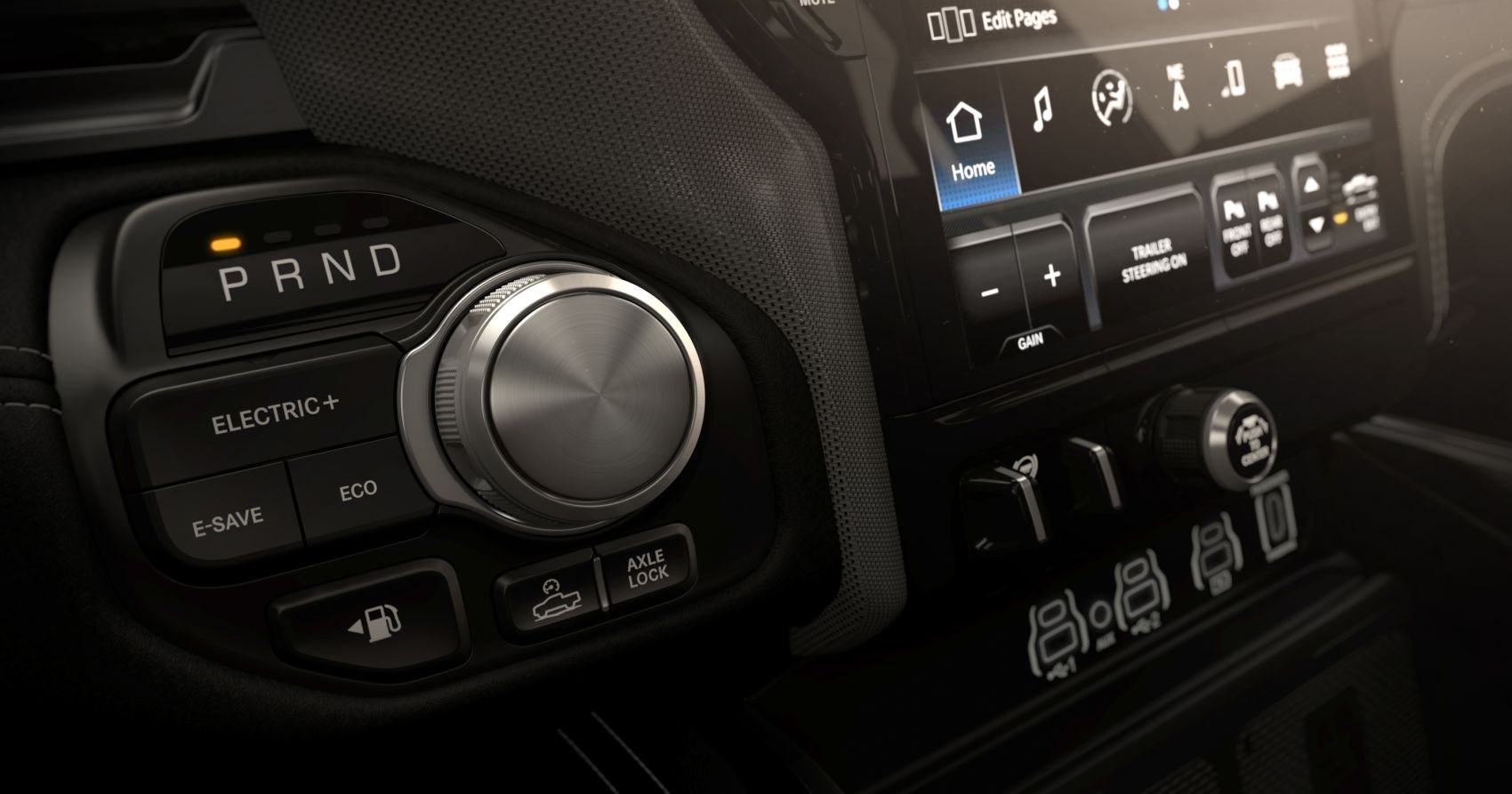

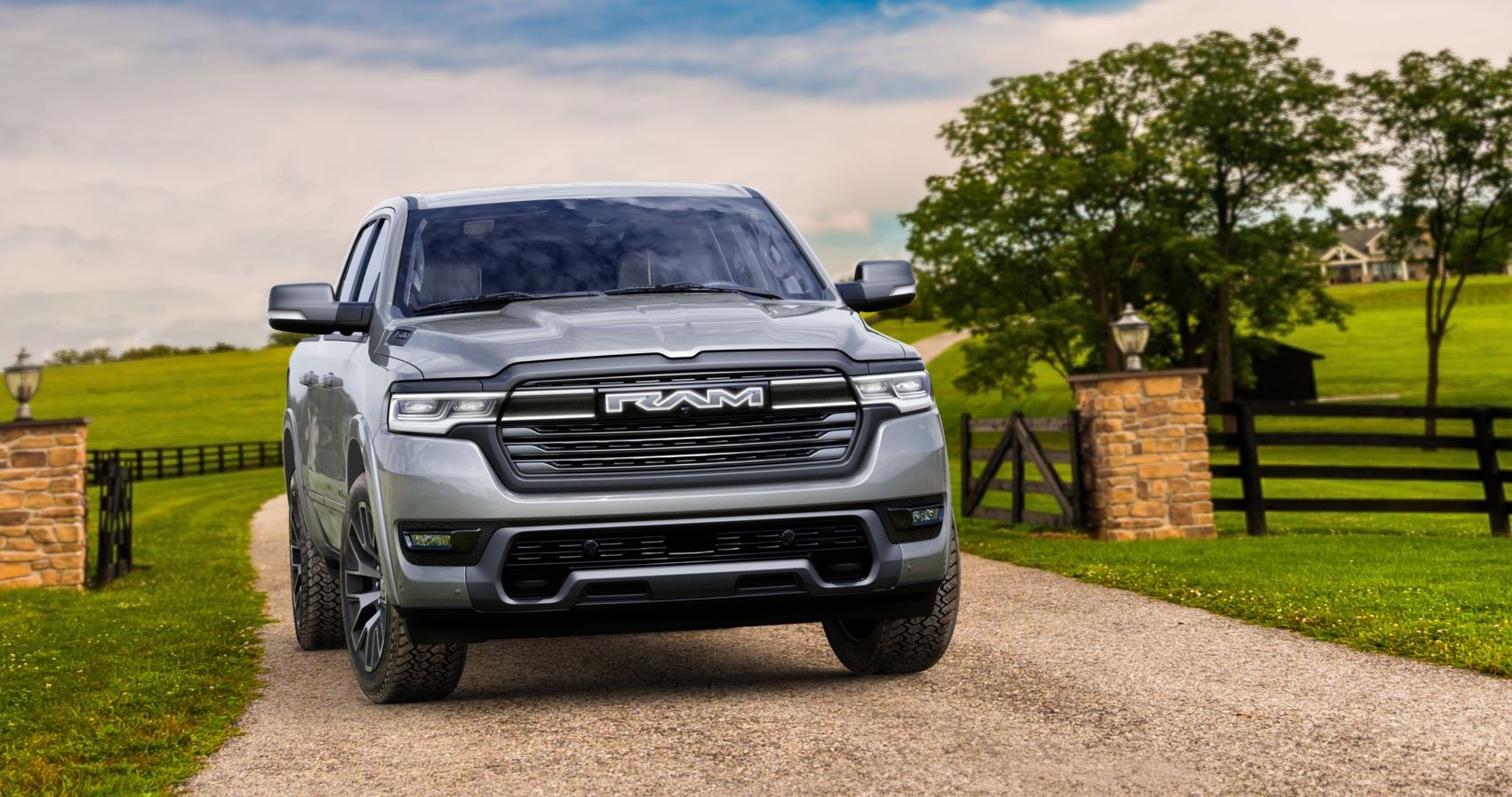

RAM Crew Cab DT 2024 2025 Gallery
RAM Crew Cab DT 2024 2025 Technical Specifications
General
Body type
Pick-up
Brand
RAM
Doors
4
Generation
1500 Crew Cab (DT, 2024)
Model
1500
Modification (Engine)
Ramcharger 3.6 V6 91.8 kWh (647 Hp) Range Extender 4x4
Powertrain Architecture
PHEV (Plug-in Hybrid Electric Vehicle)
Seats
5-6
Start of production
2025
Performance
Acceleration 0 - 60 mph
4.5 sec
Fuel Type
Petrol / electricity
Fuel consumption (economy) - combined (EPA)
11.8 l/100 km
Maximum speed
183 km/h, Electronically limited
Electric
All-electric range (EPA)
233 km
Average Energy consumption (EPA)
35 kWh/100 km
Battery location
Below the floor
Battery voltage
400 V
Battery weight
550 kg
Charging ports number 0
Log in to see.
Electric motor Torque number 1
420 Nm
Electric motor Torque number 2
420 Nm
Electric motor location number 1
Front axle, Transverse
Electric motor location number 2
Rear axle, Transverse
Electric motor power number 1
340 Hp
Electric motor power number 2
337 Hp
Electric motor type number 1
Synchronous
Electric motor type number 2
Synchronous
Gross battery capacity
91.8 kWh
Net (usable) battery capacity
69.7 kWh
System power
647 Hp
System torque
827 Nm
Internal Engine
Compression ratio
11.3:1
Coolant
13.25 l
Cylinder Bore
96 mm
Engine Model/Code
Pentastar
Engine aspiration
Naturally aspirated engine
Engine configuration
V-engine
Engine displacement
3604 cm
Engine layout
Front, Longitudinal
Engine oil capacity
4.73 l
Fuel injection system
Multi-port manifold injection
Maximum engine speed
5800 rpm.
Number of cylinders
6
Number of valves per cylinder
4
Piston Stroke
83 mm
Power
271 Hp @ 5800 rpm.
Power per litre
75.2 Hp/l
Torque
311 Nm @ 4100 rpm.
Valvetrain
DOHC, VVT
Dimensions
Approach angle
19.9°
Departure angle
19.8°
Drag coefficient (Cd)
0.352
Front track
1740 mm
Height
1963-1968 mm
Length
5903 mm
Minimum turning circle (turning diameter)
15.1 m
Rear (Back) track
1727 mm
Ride height (ground clearance)
216-228 mm
Wheelbase
3672 mm
Width
2062 mm
Drivetrain
Drive wheel
All wheel drive (4x4)
Front brakes
Ventilated discs, 359.9x39.1 mm
Front suspension
Double wishbone, Air suspension
Number of gears and type of gearbox
1 gears, automatic transmission
Power steering
Electric Steering
Rear brakes
Ventilated discs, 357.9x34 mm
Rear suspension
Independent multi-link suspension, Air suspension
Steering type
Steering rack and pinion
Tires size
275/60 R20; 275/50 R22
Wheel rims size
20; 22
Space
Fuel tank capacity
102 l
Kerb Weight
3405 kg
Max load
1191 kg
Max. weight
4596 kg
